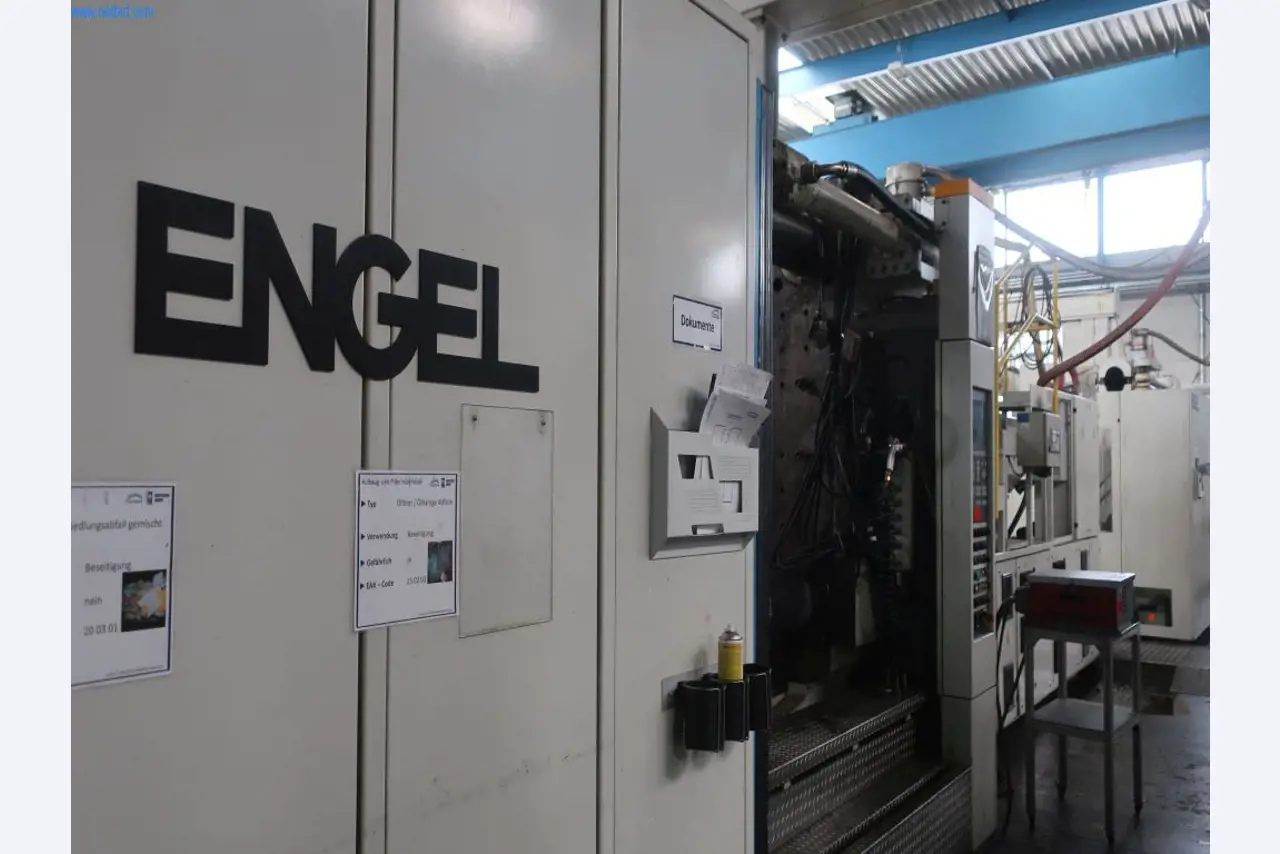

Fabrikant

Engel

Type

Duo 7050/1000

Bouwjaar

2002

Locatie

38228 Salzgitter, John-F.-Kennedy-Str. 50/ Produktionsgebäude/ Halle 2/ Spritzguss

Beschrijving

The acceptance of the bid is done with the consent of the owner.

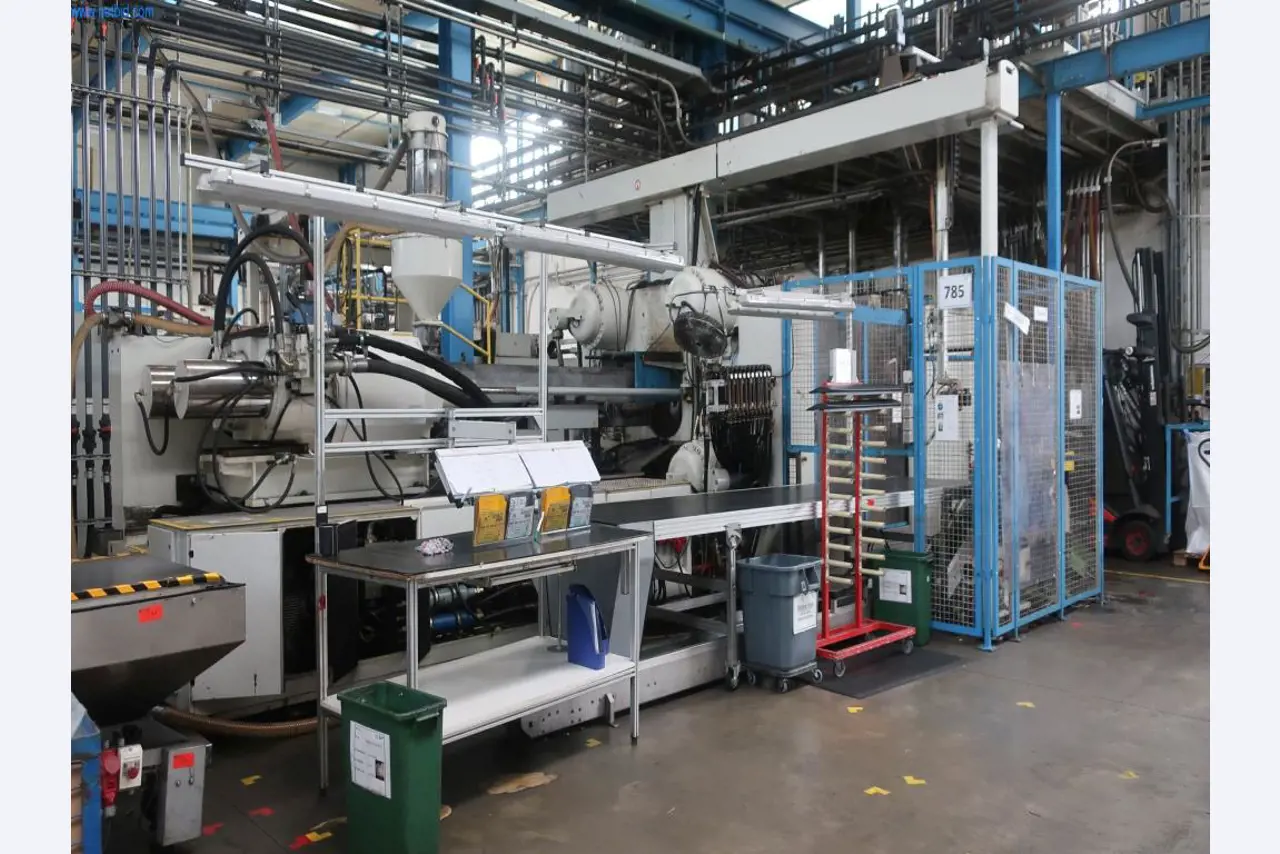

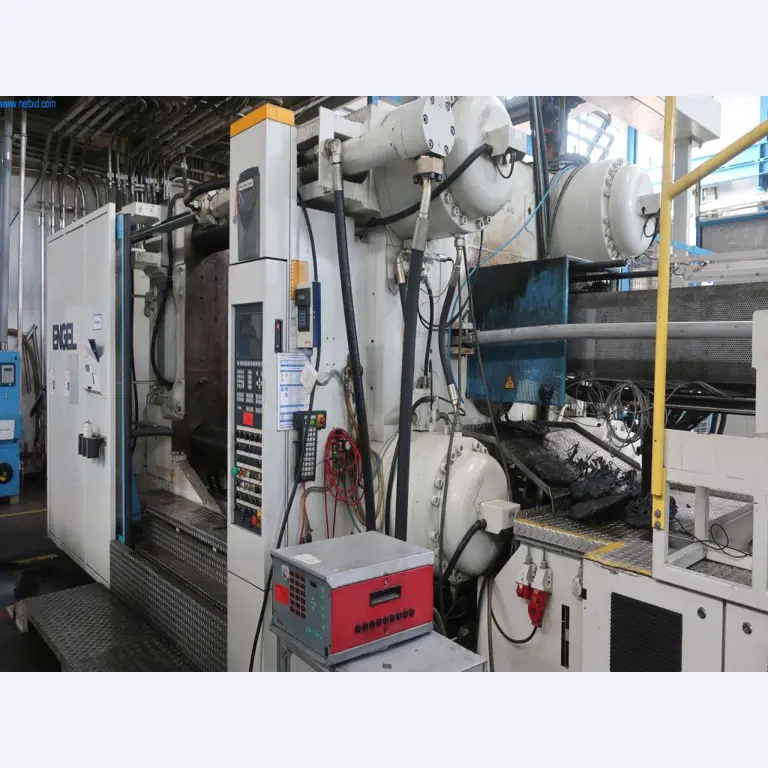

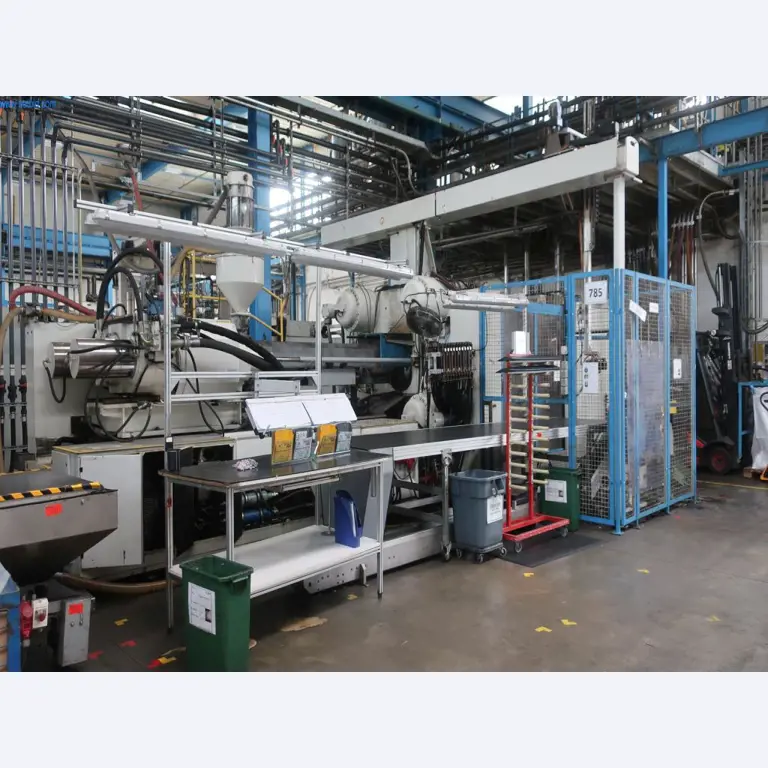

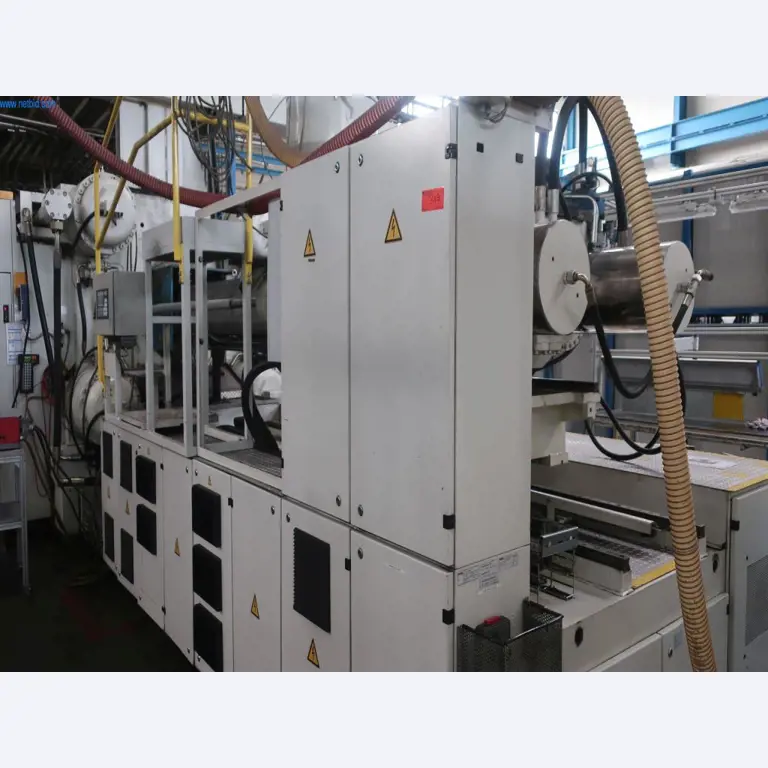

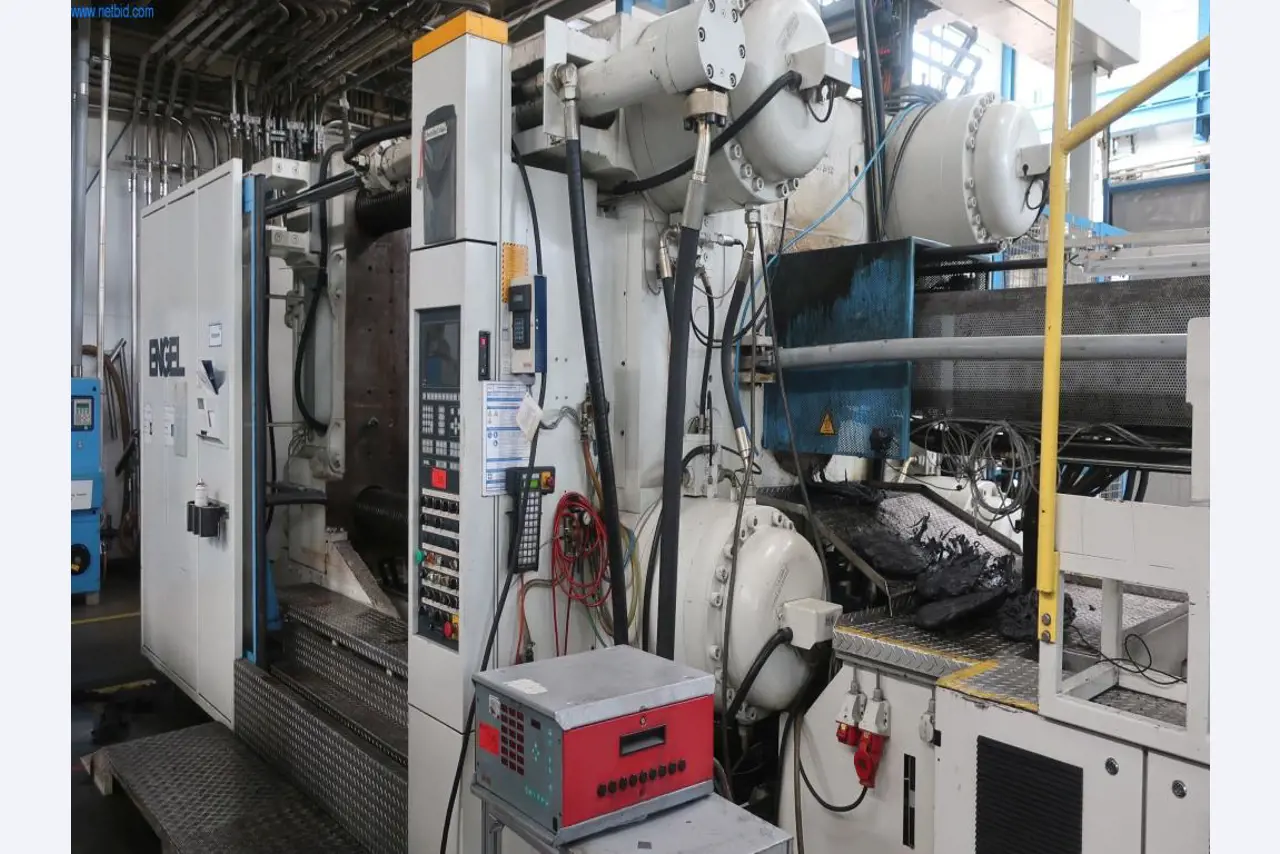

SN 46387, clamping force 10,000 kN, tie bar spacing horizontal/vertical 1,400/1,150 mm, clamping platen horizontal/vertical 2,000/1,830 mm, mold installation height max./min. 1,200/400 mm, mold opening distance 1,800 mm, total mold weight max. 18,000 kg, centering DS/AS 250/250 mm, crosshead thread M24, injection pressure 16,500 N/cm², injection volume 4,160 cm³, screw Ø 120 mm, cascade 12-fold, core pulls FAP/BAP 0/2, heating circuits Na/PSG 16/60, connected load 340 kW, machine weight 65,000 kg, max. Operating hours 04.798, linear demoulding robot, make Engel, type ERC A4/XXX, year 2002, SN 11245, protective housing, integr. mould cooling system, make Oni, type Rhytemper

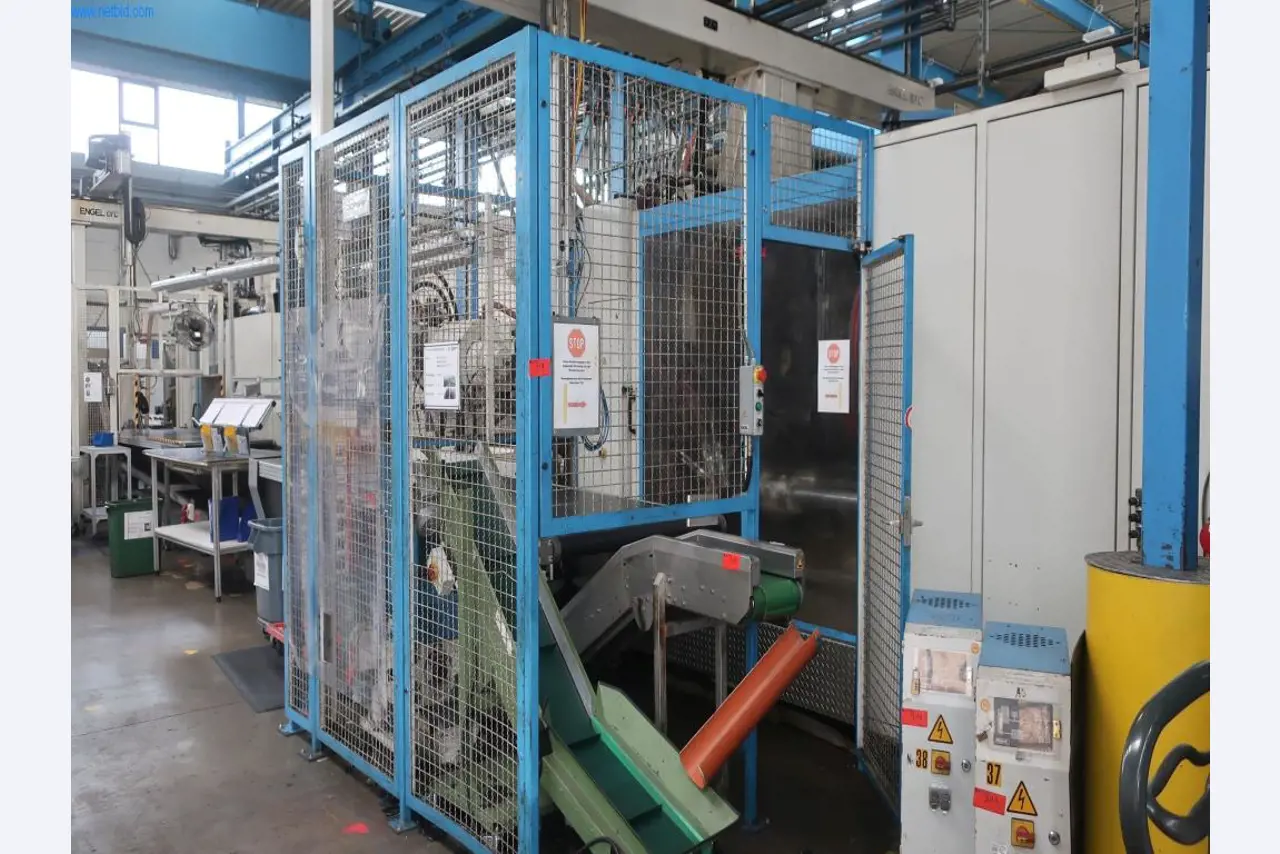

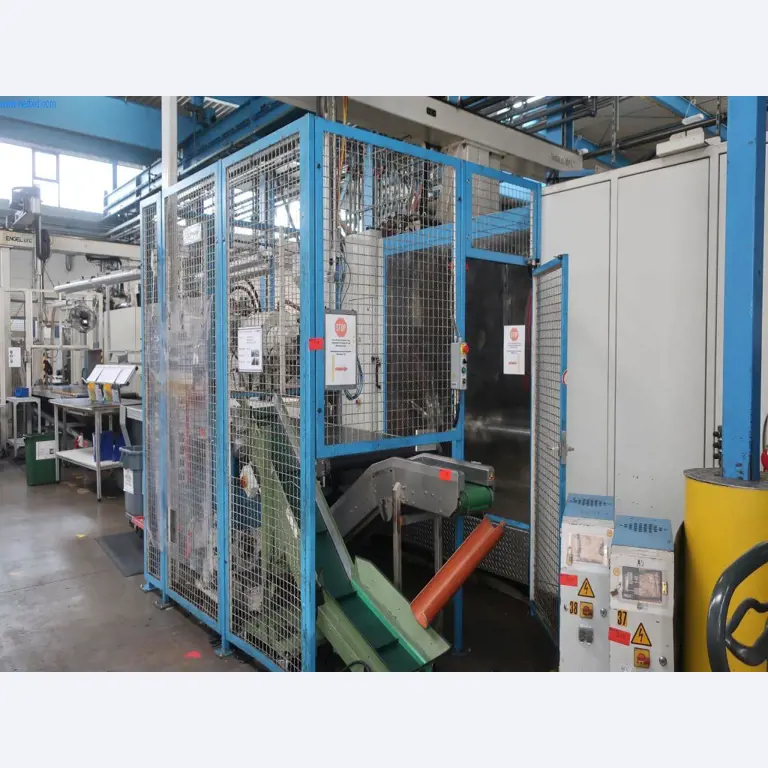

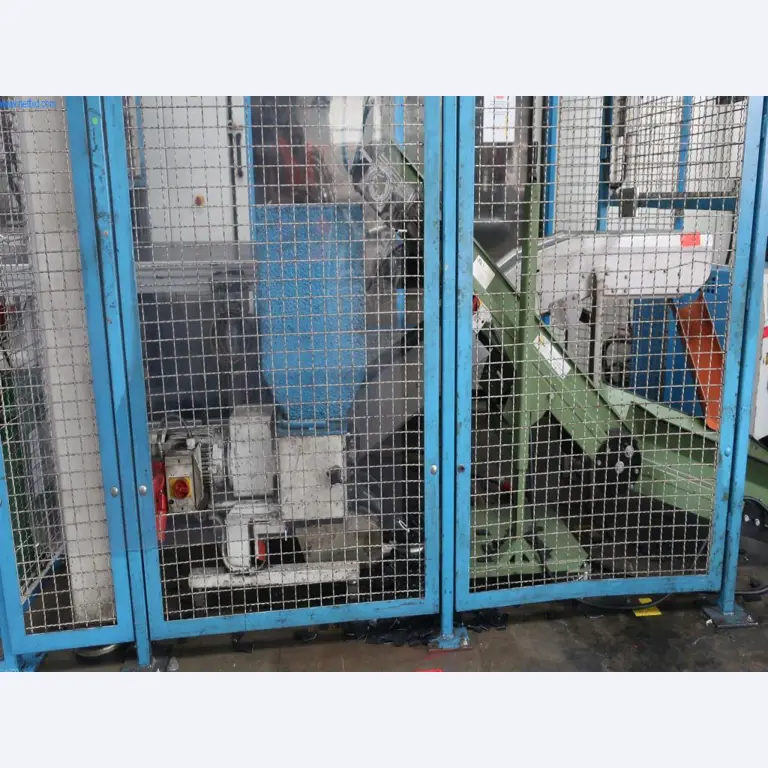

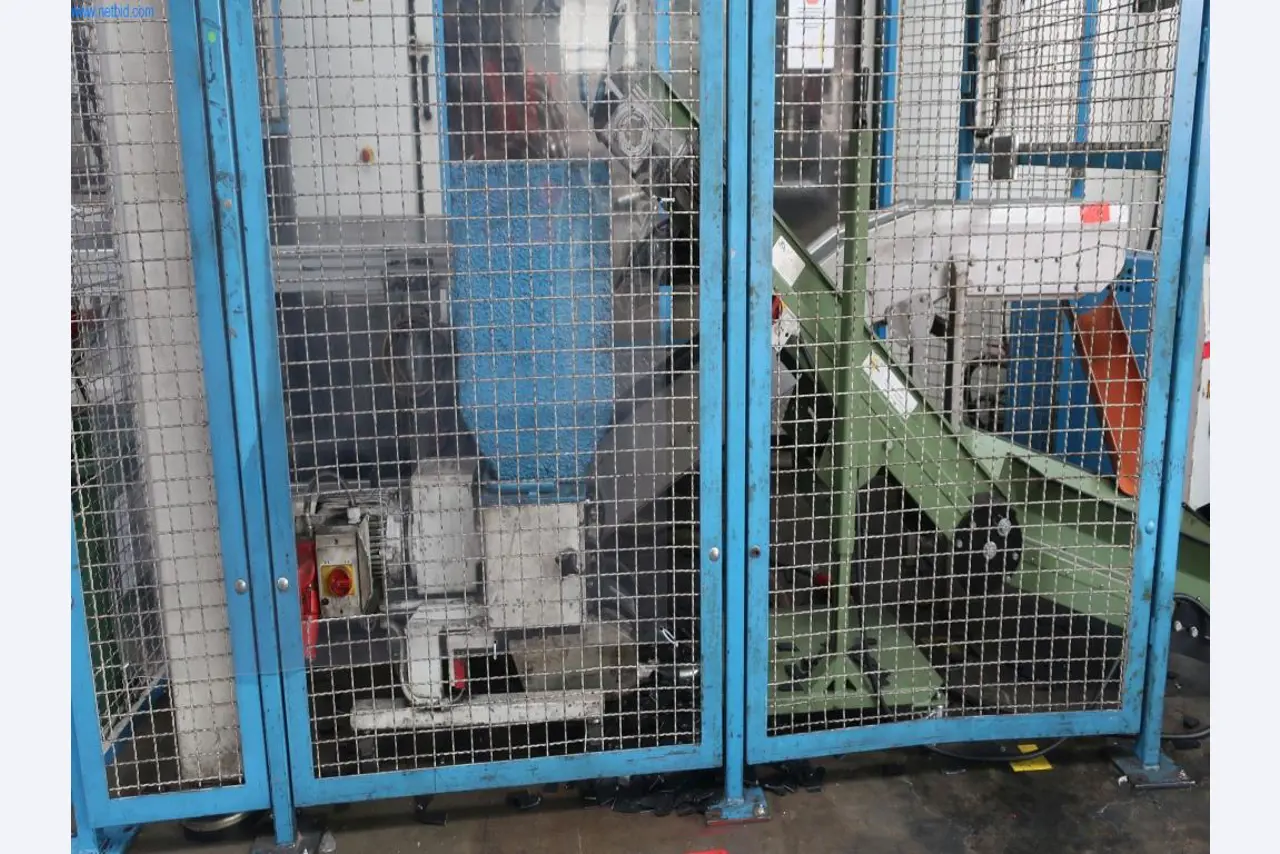

Accessories: belt conveyor, W 1,000 mm, L 5,000 mm, elevated, mobile, Z-conveyor, W 250 mm, L 7,000 mm, cleated belt conveyor, make Interroll, belt width 300 mm, total length approx. 2.000 mm, cranked, underframe, mobile, granulate mill, make Romatec, without type plate, hot runner control unit, make PSG, type RSL 98/16, year 1996, SN 406, 16 channels, temperature control unit (37), make. Remak, type TRW 95 EWR 27,0 MRS, year 2006, SN 805745/01, nominal temperature 95°C, connected load 29,5 kW, temperature control unit (38), make Remak, type TRW 95 EWR 27,0 MRS, year 2005, SN 22971 805122/02, nominal temperature 95°C, connected load 29,5 kW, hot runner control unit, make PSG, type HR18, SN 250603098, 18 channels, connected load 42 kW

Startbedrag

EUR 34.400

In opdracht van:

Angermann Machinery & Equipment GmbH & Co. KG

Thomas Schlieker, Tel. (+49) 040 355059-121, Email: schlieker@netbid.com
