- Produkt
- Stork
- Tip
- SX6600-5600
- Letnik izdelave
- 1998
- Lokacija
- 38228 Salzgitter, John-F.-Kennedy-Str. 50/ Produktionsgebäude/ Halle 1/ Spritzguss
- Opis
- The acceptance of the bid is done with the consent of the owner.

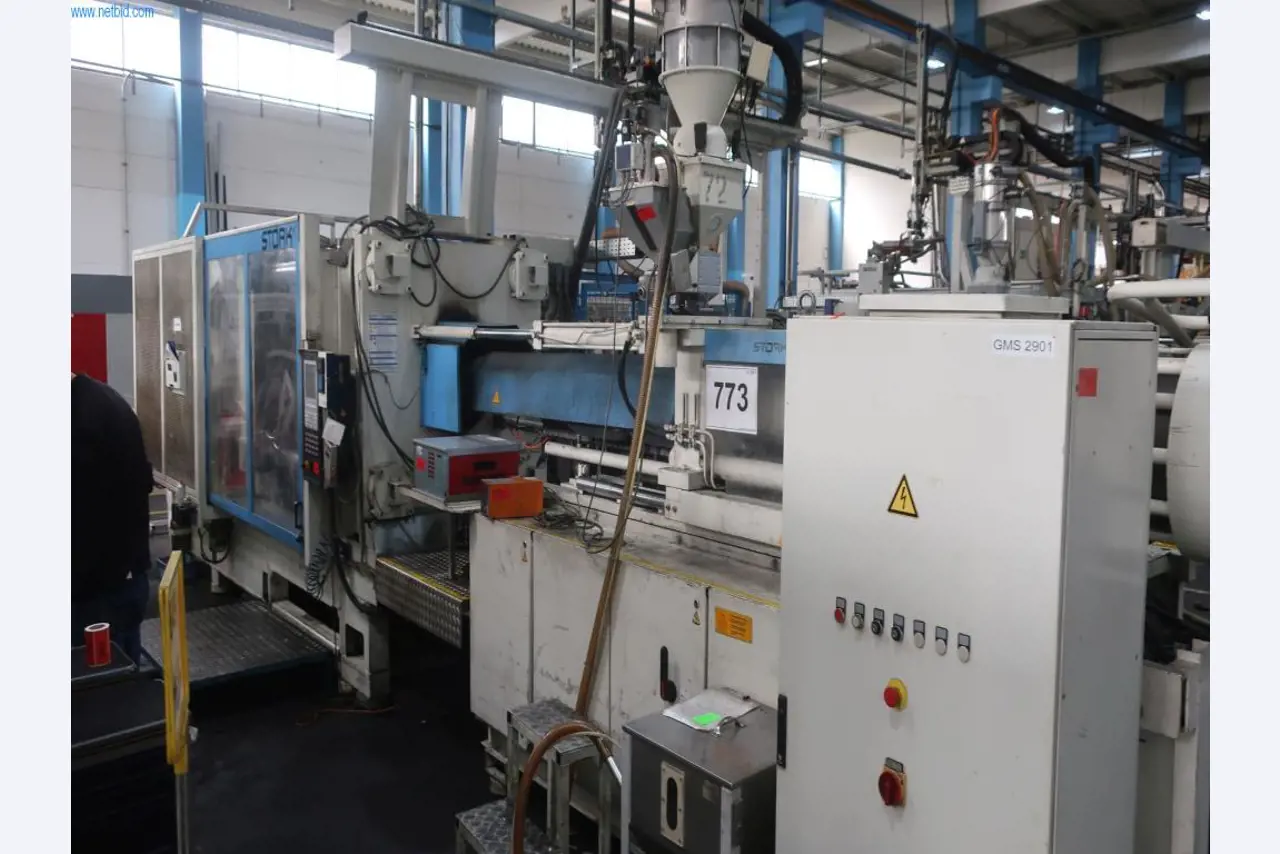

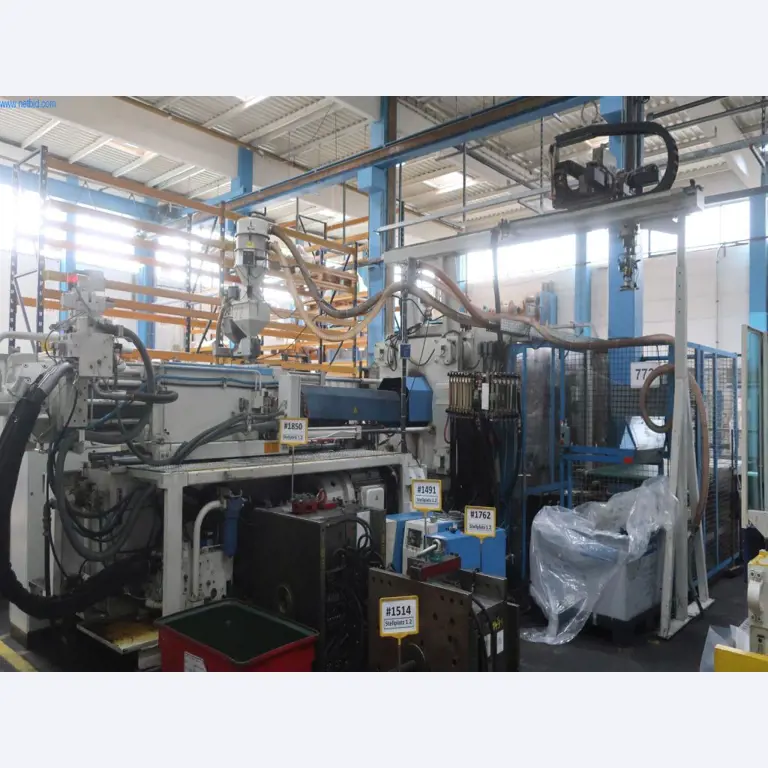

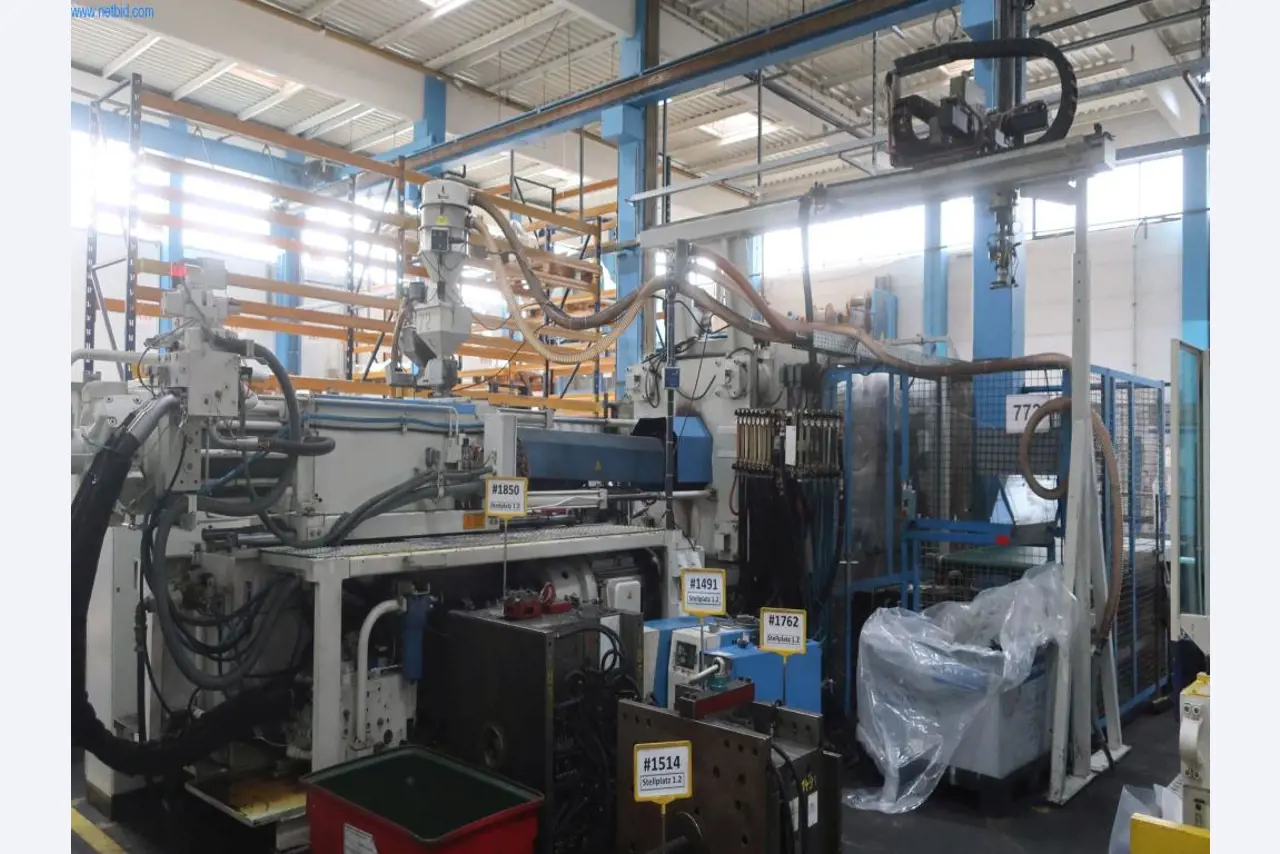

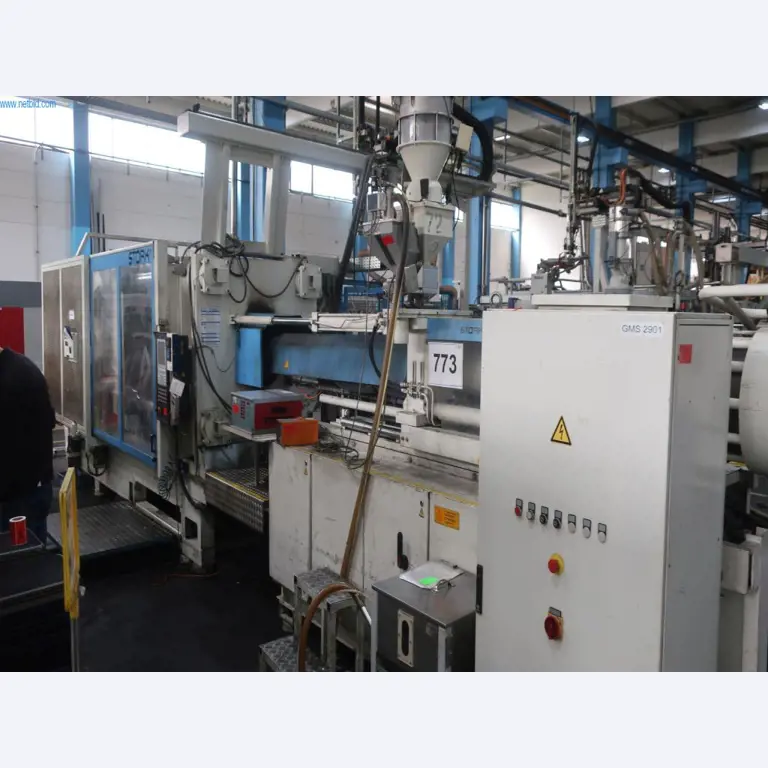

SN 66504, clamping force 6,600 kN, tie bar spacing horizontal/vertical 900/900 mm, clamping platen, horizontal/vertical 1,350/1,440 mm, mold installation height max./min. 900/300 mm, mold opening stroke 940 mm, mold weight max. 8,600 kg, centering DS/AS 200/200 mm, crosshead thread M24, injection pressure 21.000 N/m², injection volume 2.494 cm³, screw-Ø 84 mm, cascade 4-fold, 2 core pulls FAP, core pull BAP, heating circuits Ma/PSG 8/0, connected load 330 kW, machine weight 34.300 kg, linear demolding robot, make Stork (without type plate), control, make Stork, type CDS500
Accessories: belt conveyor, belt width approx. 1,000 mm, L 3,000 mm, elevated, mobile, test table, protective housing, hot runner control unit, make PSG, type HR12, SN 330805375, 12-channel, connected load 22 kW, ink metering unit, make Motan, consisting of: Control unit, type Multicolor S2, SN 07 508 75/03 0016, dosing pot, temperature control unit (5), make Regloplas, temperature control unit (10), make Regloplas, type 150KL/9/TS22/2K/RT45, temperature max. 90°C, connected load 101 kW, temperature control unit (42), make Remak, type T10 EMR 22,5, year 1997, SN 900654/02, temperature control unit (31), make. Remak, type TRW 95 EMR 27,0MRS, year 2003, SN 804265/04, connected power 29,5 kW, tempering unit (46), Remak, type TRW 95 EMR 27,0MRS, year 2003, SN 804265/02, connected power 29,5 kW, granulate mill, make. Shini, type SG-2042NCH-CE, year 2019, SN 2GL00002097, power 400 W, dim. 70 x 70 x 140 cm, weight 288 kg
Accessories: paint dosing unit, make Motan, consisting of: Control unit, type Volu MC, SN 13 535 044/10 EU2989, conveyor bowl, cleated belt conveyor, make Interoll Axmann, belt width approx. 400 mm, L approx. 4,000 mm, cranked, elevated, mobile, temperature control unit (0), make Regloplas, type 150KL/9/TP20/1K/RT22, SN 140964, nominal temperature 90°C, connected load 9.5 kW - Ponudbe od:
- EUR 11.000
- Verwertungsauftrag:
- Angermann Machinery & Equipment GmbH & Co. KG
Format ponudb
Trading PremiumTrenutna ponudba:
-
- Izklicna cena:
- EUR 11.000
- Najnižja cena:
- EUR 14.700
- Konec :
- 31.5.2022
13:00 - Preostali čas :
- 7 Dni
- Število ponudb:
- 0 Ponudbe
- Stanje :
- Aktivno
- Št. ponudba:
- X16329-20
- Kupčeve premije
- 18,00%
Injection molding machine - Surcharge under reserve
Št. ponudba: X16329-20
prijava
Za uporabo te funkcije se morate prijaviti.
Priporočaj dalje
Dogovoriti termin za ogled
* Ponudba in limit se razumeta plus provizija in DDV.
Ne obstaja No dostava. Prosimo, razmislite o dodatnih stroških, kot so demontaža, prevoz, zavarovanje, itd.
* Ponudbe od 5000 € zahtevajo potrditev (to velja tudi za druge dražbe).
-
Podrobnosti Injection molding machine - Surcharge under reserve
-
Kontaktna oseba
Thomas Schlieker, Tel. (+49) 040 355059-121, Email: schlieker@netbid.com
-
Ponudbe (0 Ponudbe )
Datum Čas Ponudba Ponudniki Veljavno do
