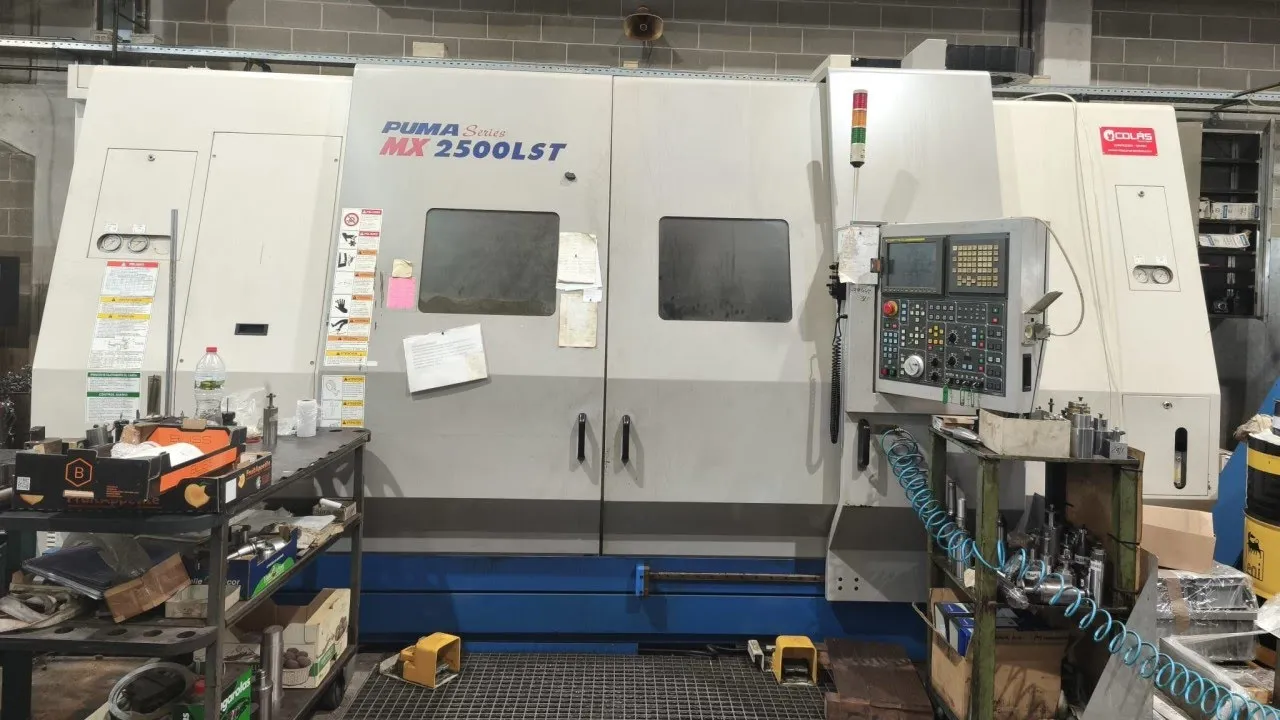

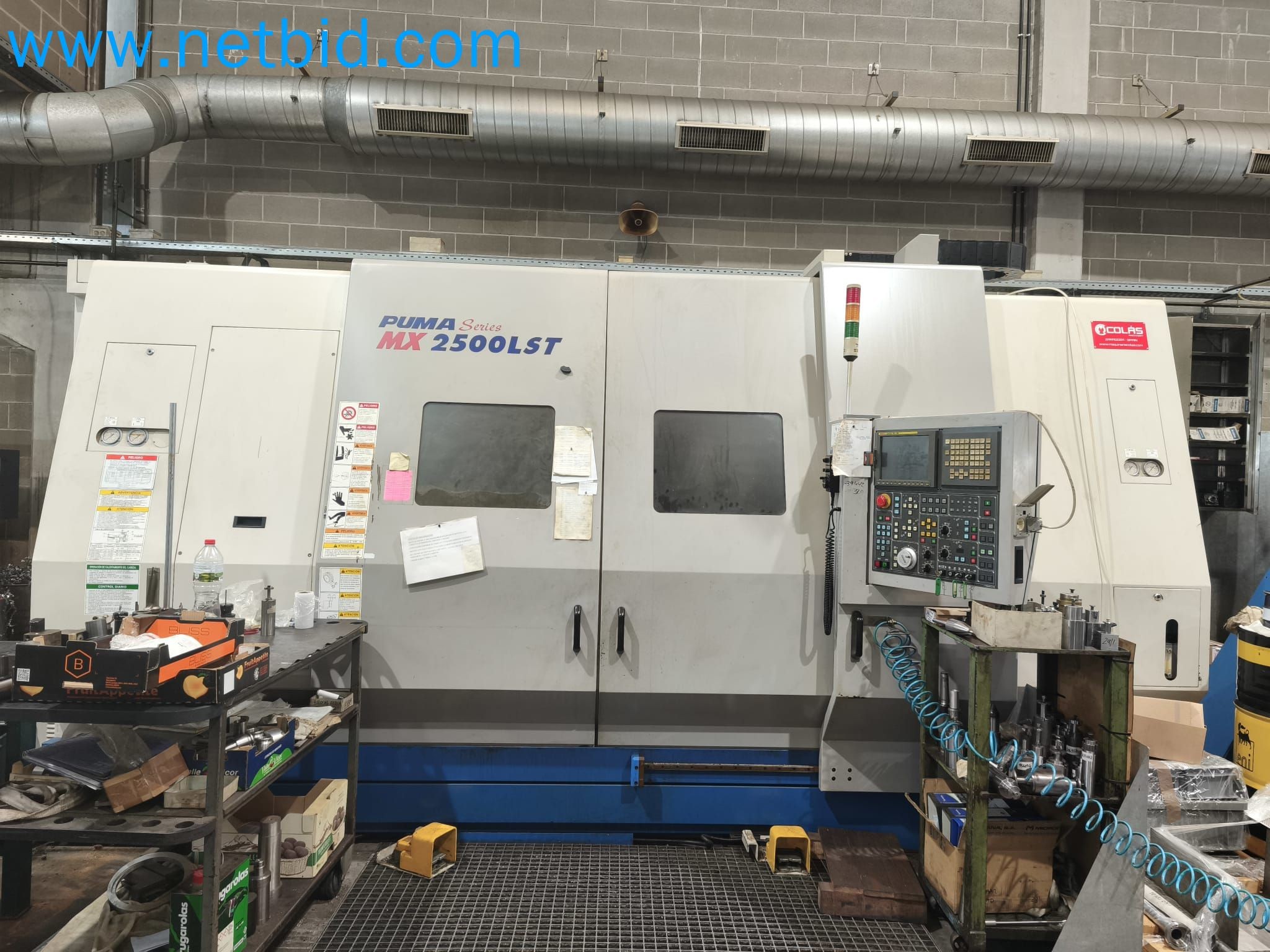

Multi-Axis Turning Center DOOSAN PUMA MX 2500 LSTTrading#19062-1

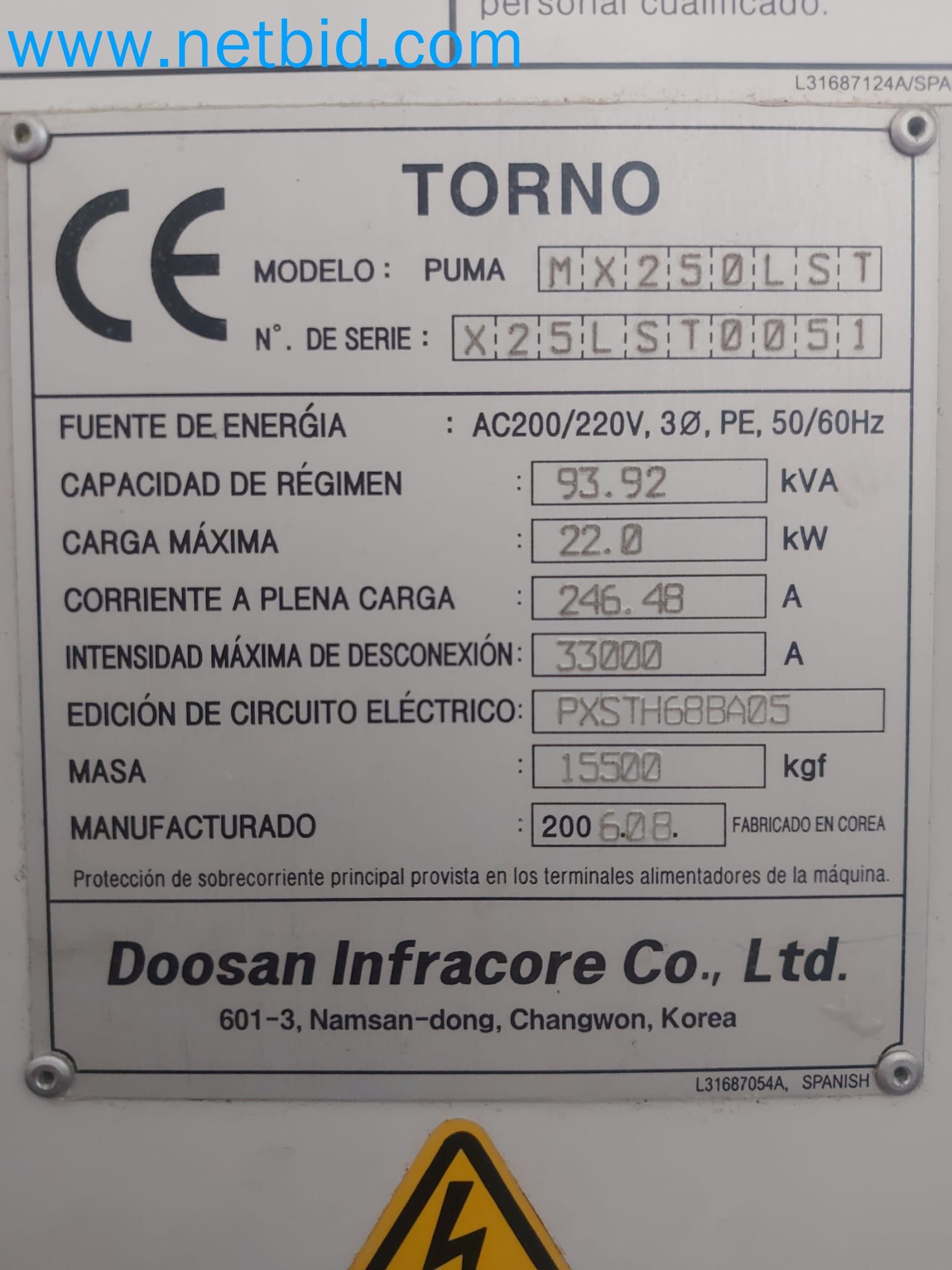

SN X25LST0051

9 Work Axes
Capabilities:
· Turning length: 1,520 mm
· Swing diameter: ø 540 mm
· Swing over bed: ø 750 mm
· Swing over cross slide: 600 mm
· Bar capacity: 76 mm

Milling head:
· X-axis travel: 555 mm
· Y-axis travel: 160 (±80) mm
· Z-axis travel: 1,595 mm
· A-axis travel: 1,565 mm
· B-axis rotation: 240º (±120º)
Tool system: Capto C6
Tool magazine capacity: 40
Spindle speed: 10,000 rpm
Rapid feed rates (X/Z/Y/A axes): 24/24/16/24 m/min

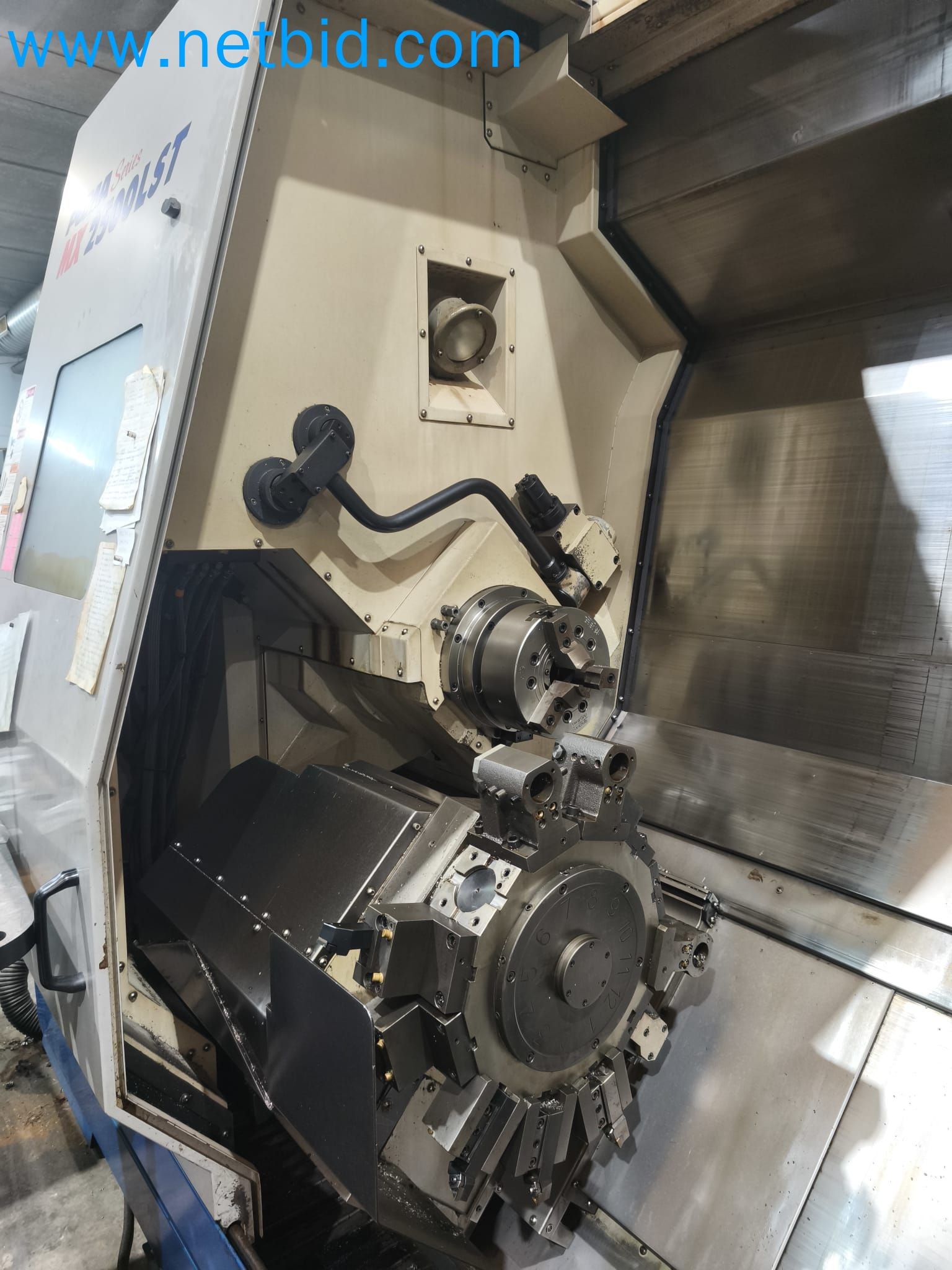

Lower turret:
· X-axis travel: 185 mm
· Z-axis travel: 1,640 mm
· Number of tool positions: 12 pcs
Motorized turret Turret rotation speed: 4,000 rpm
Main spindle (left):
Spindle speed: 3,500 rpm

Sub-spindle (right):
Spindle speed: 3,500 rpm

Main spindle power: 26 kW
Sub-spindle power: 26 kW
Milling head power: 15 kW

CNC controller: Fanuc 18 iT-B

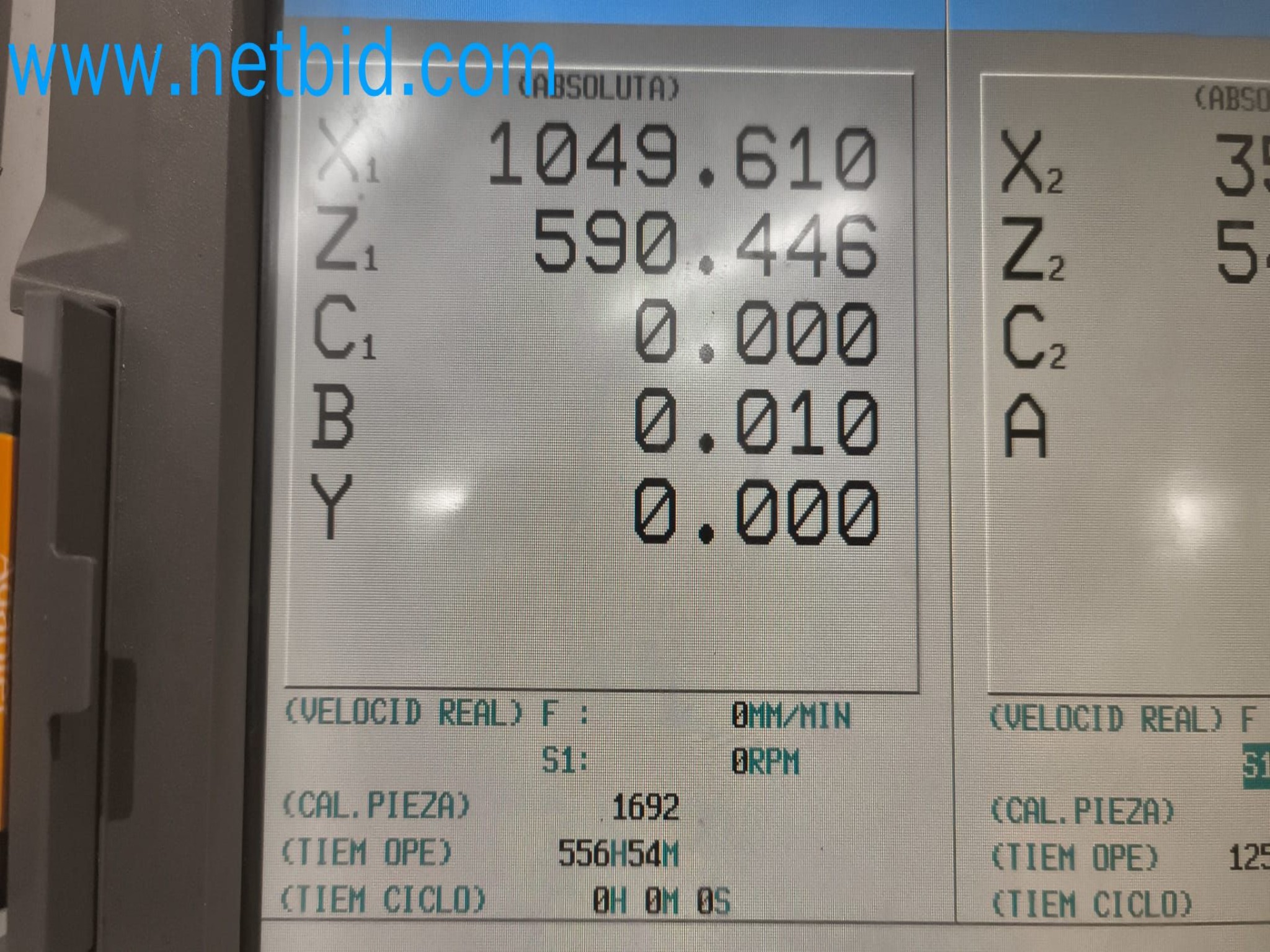

Main spindle working hours (per counter): 556 h

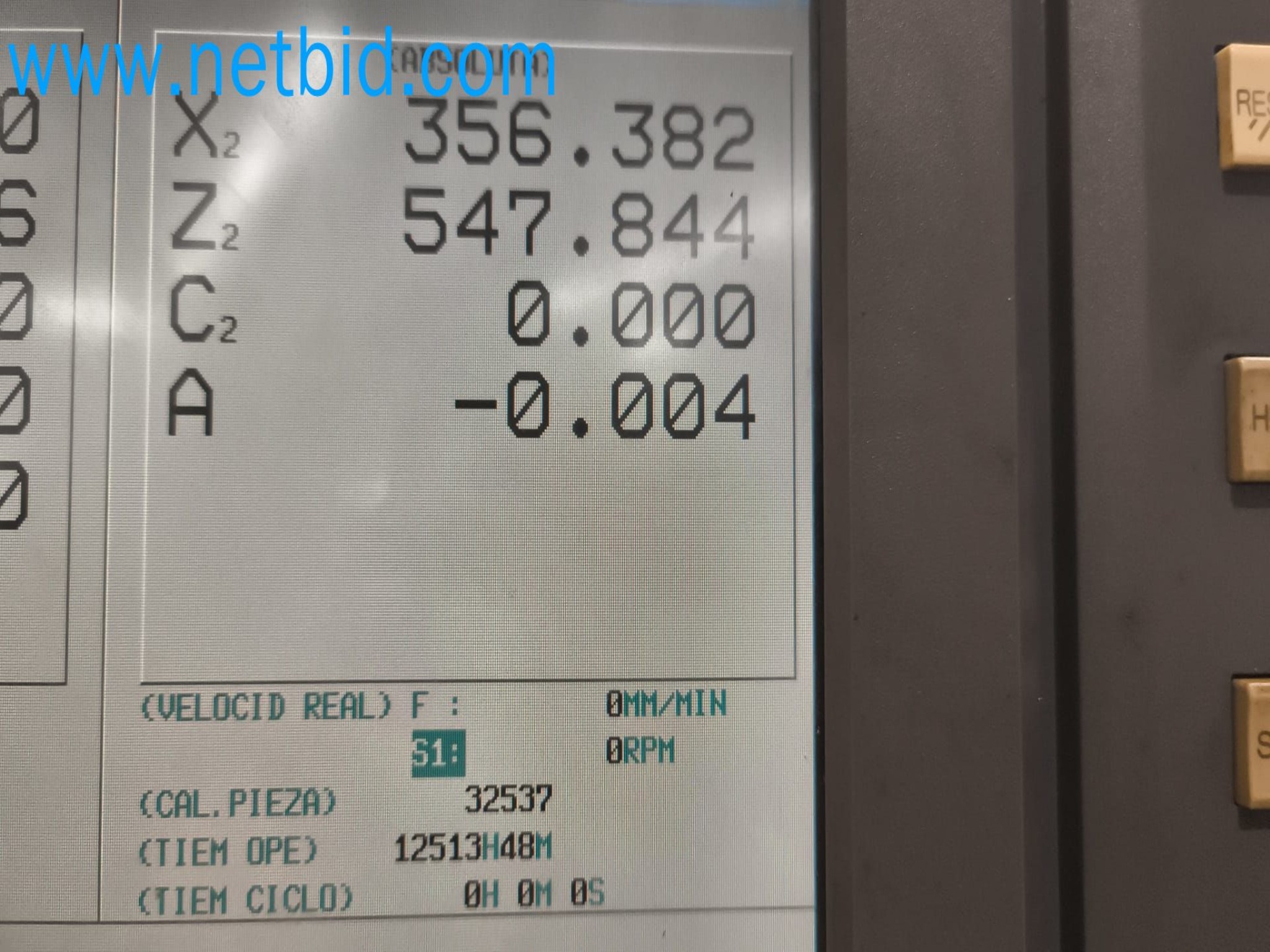

Sub-spindle working hours (per counter): 12,513 h

Approximate dimensions: 5,550 x 2,560 x 2,645 mm

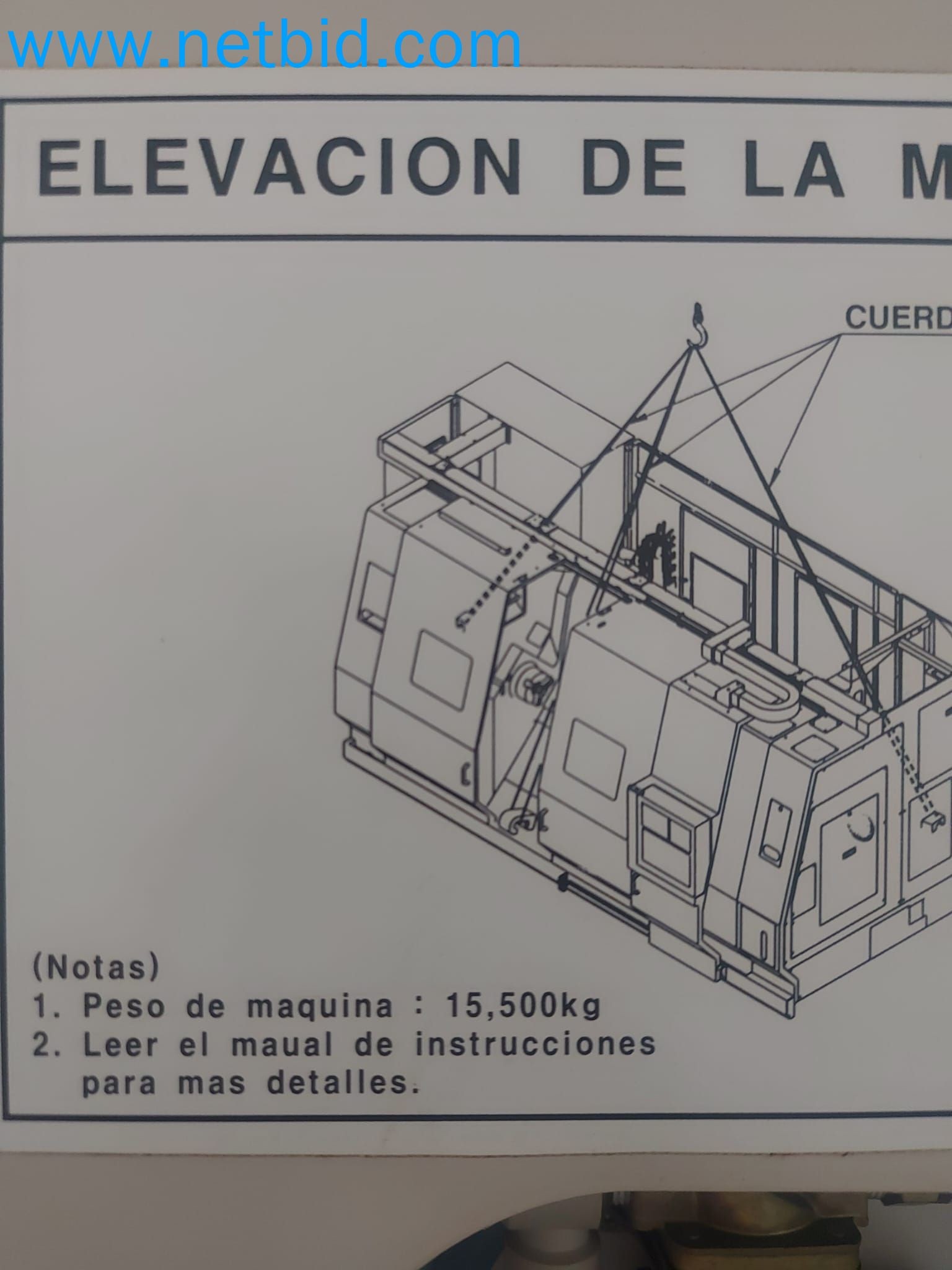

Weight: 15,500 kg
