Cylindrical Grinding Machine CincinnatiAUCTION#19114-OM010 (A19113-90)

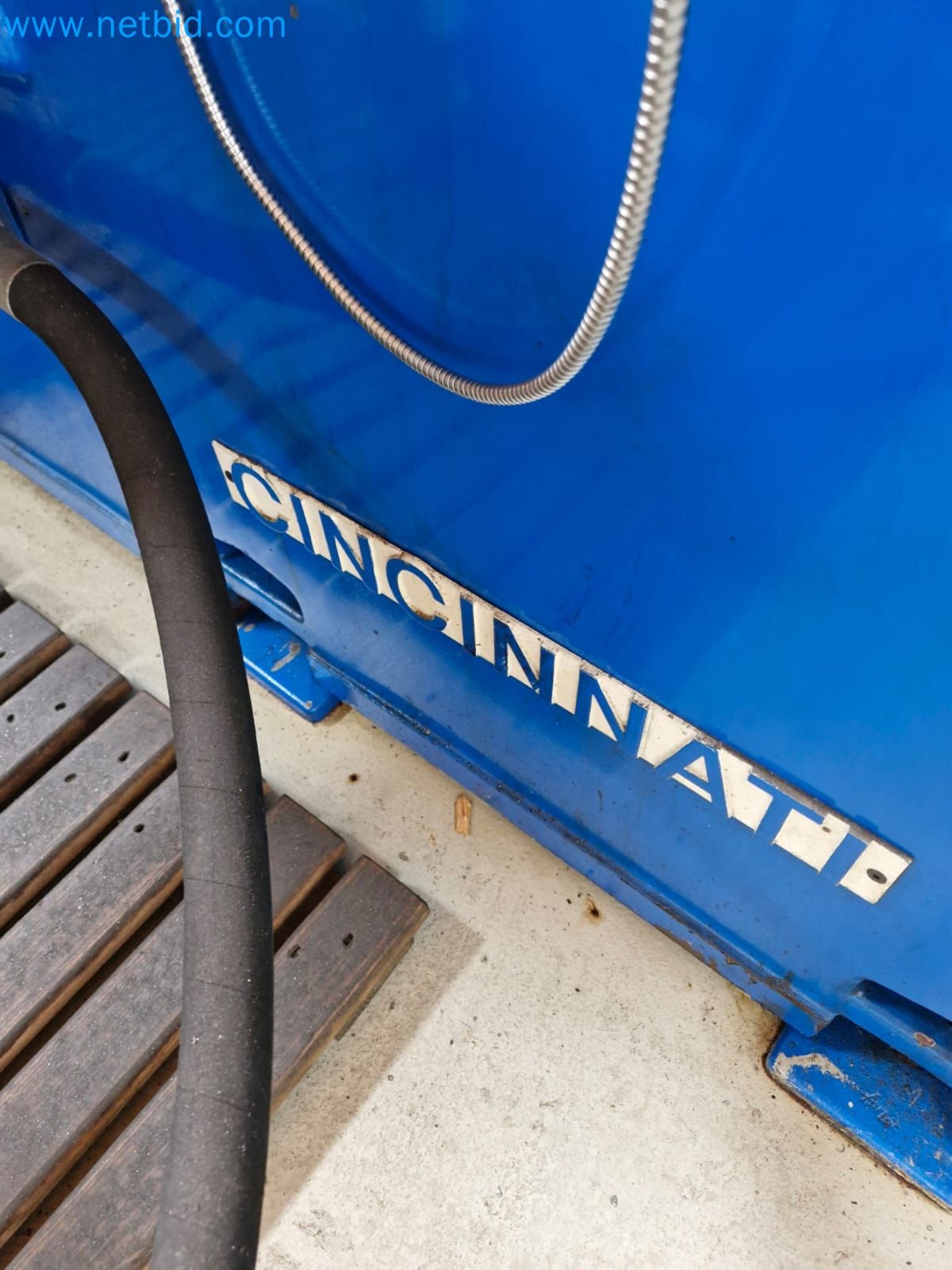

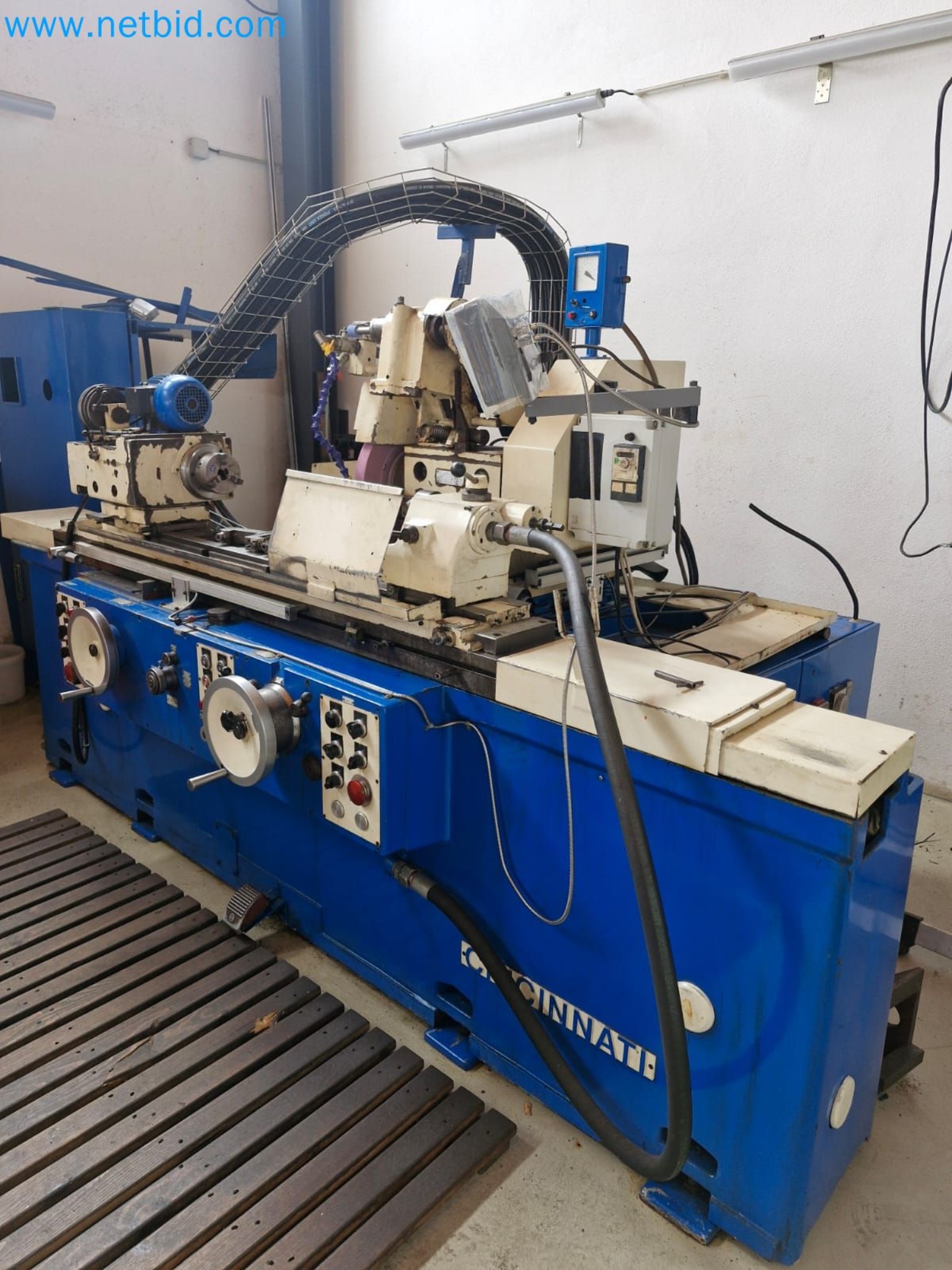

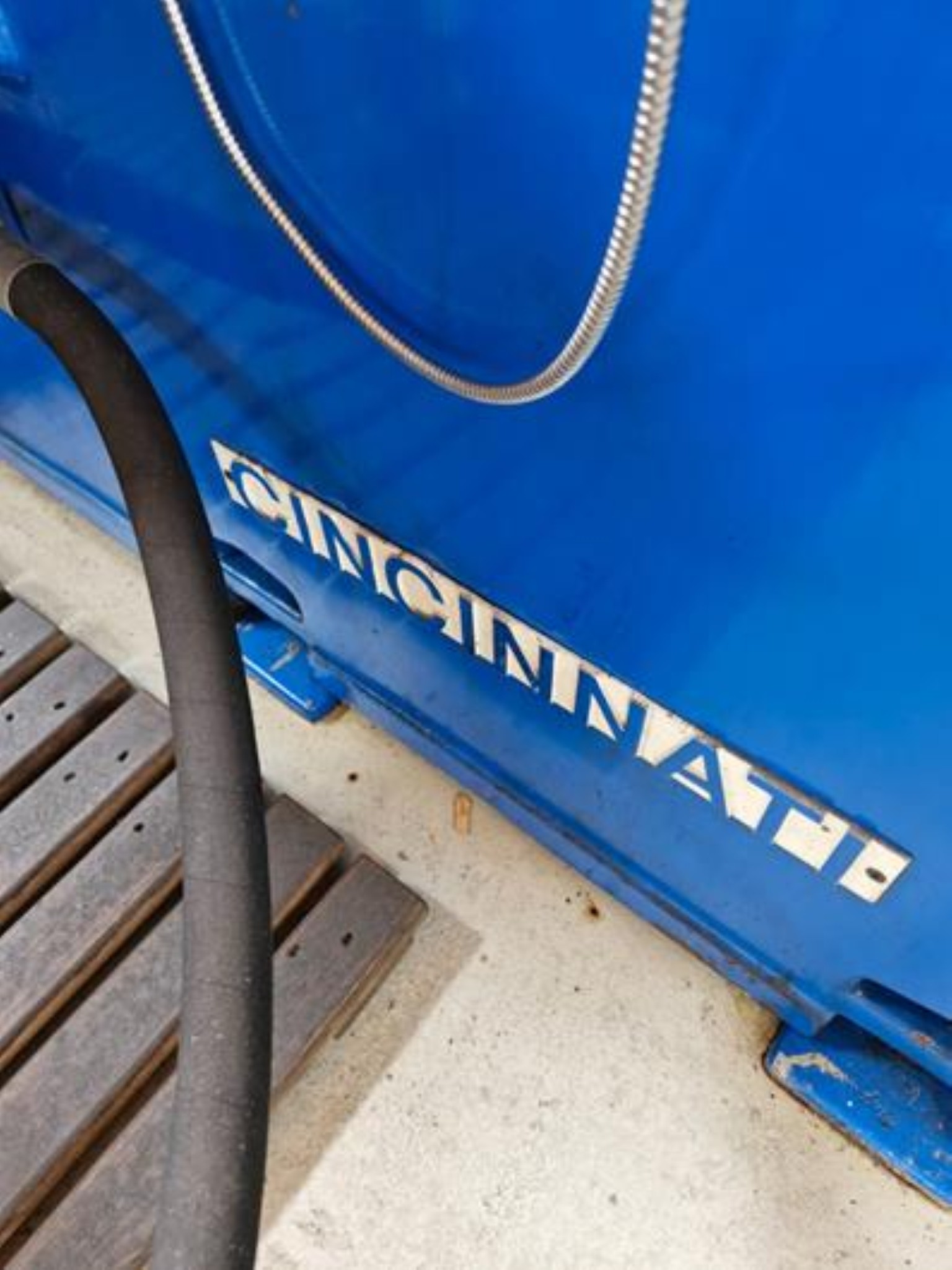

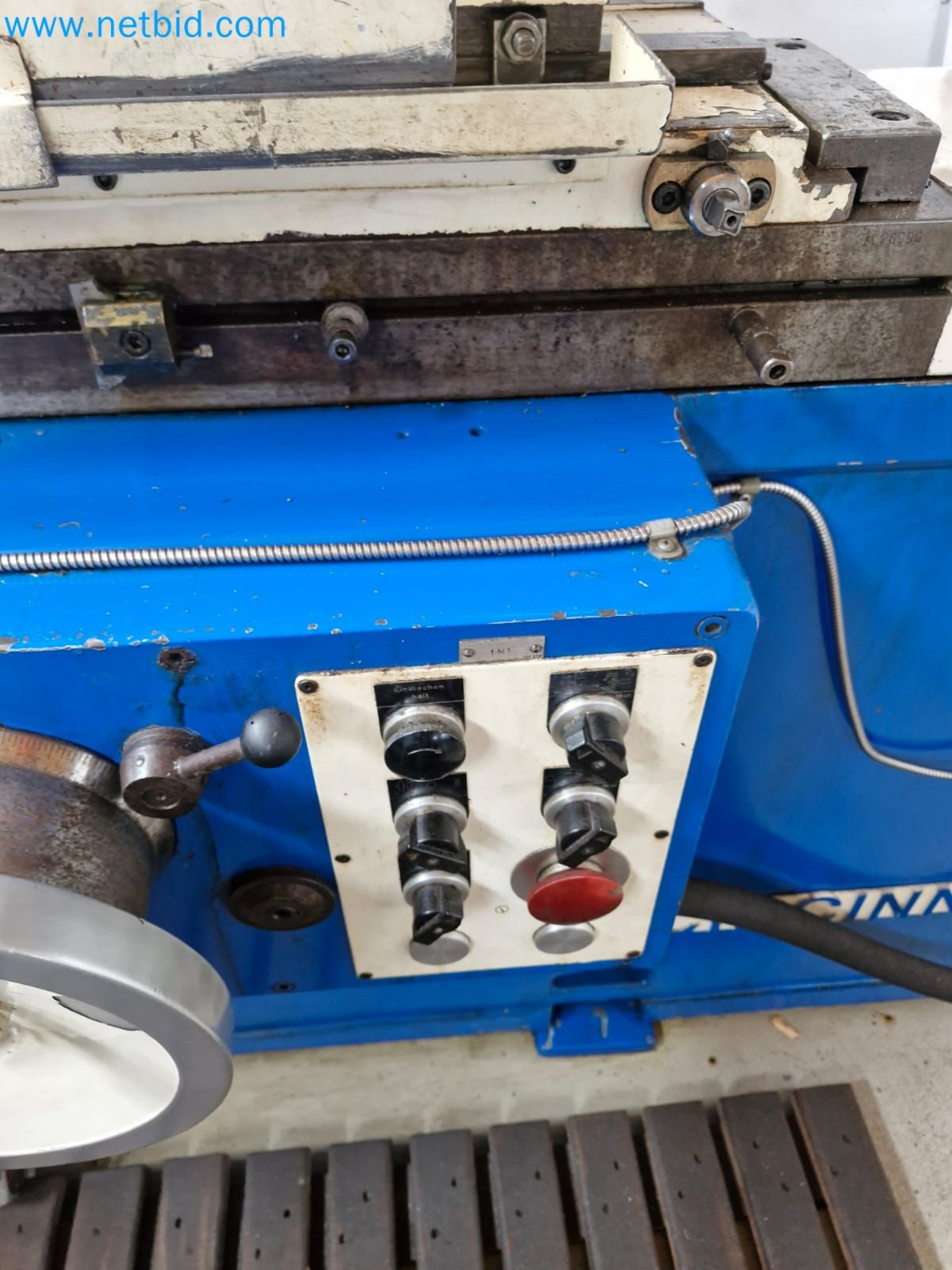

Cincinnati Cylindrical Grinding Machine

Types of Rectification:
– External Grinding: Performs grinding of the external surfaces of parts, such as shafts, rollers and cylinders.
– Internal Grinding: Allows the grinding of internal holes with high precision, using smaller grinding wheels.
– Universal Grinding: Universal type, allowing both external and internal grinding with appropriate adjustments.

Grinding Head:
– Equipped with a grinding wheel head that can be adjusted to different angles, allowing different types of grinding to be carried out.
– The abrasive wheel is used to remove material from the surface of the part in a controlled manner, ensuring compliance with the exact specified dimensions.

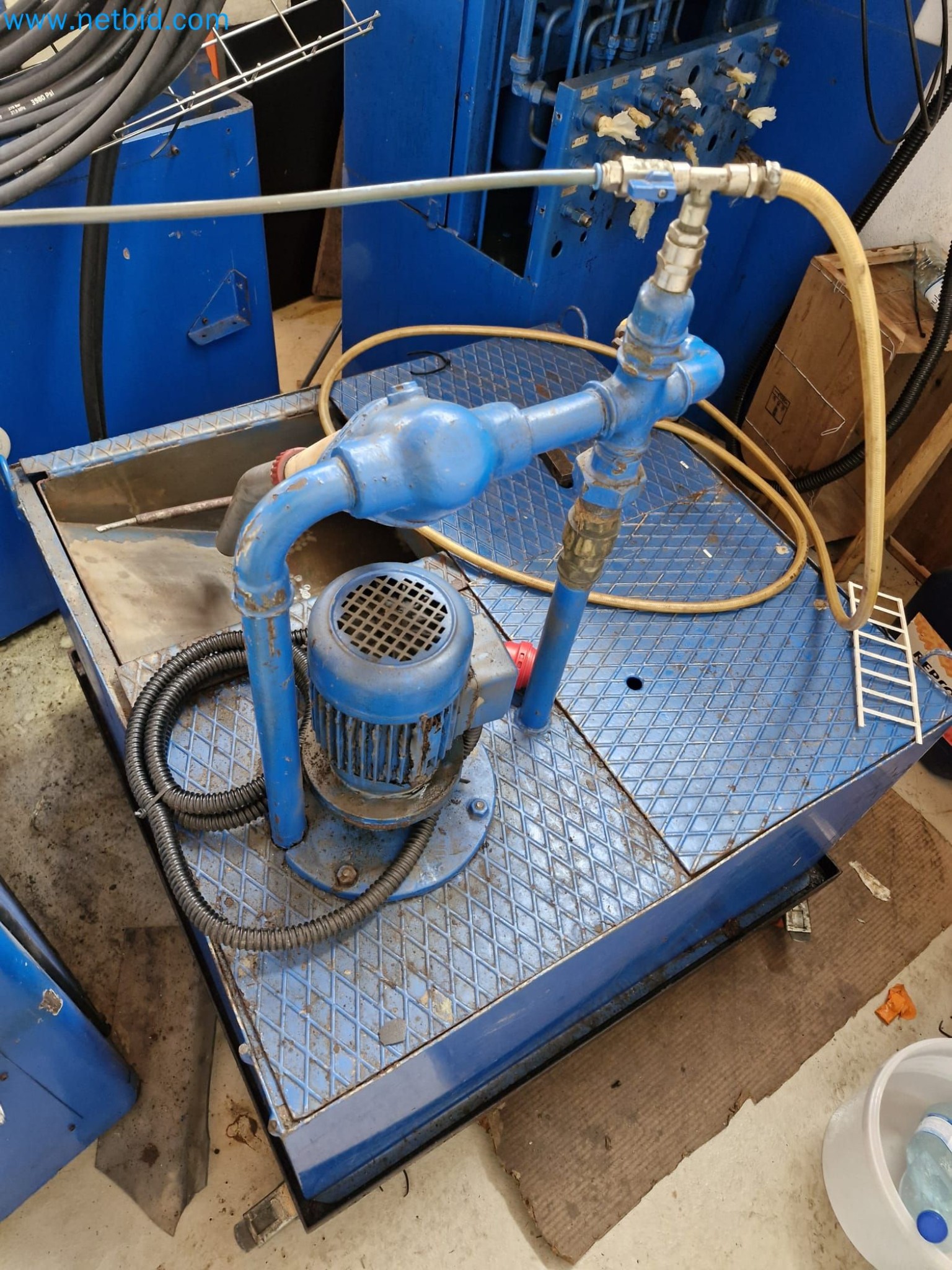

Cooling System:
– The Cincinnati grinding machine includes a coolant cooling system to prevent the workpiece and grinding wheel from overheating during the grinding process. This also helps improve the surface finish and extends the life of the grinding wheel.

Precise and Automated Movements:
– The table can move longitudinally with precise control, while the grinding head can be adjusted to perform radial or angular movements as needed.
– Includes automatic controls or CNC (Computer Numerical Control), offering greater flexibility and precision in operations.

Typical Specifications:
– Bushing diameter 120 mm
– 1000 mm between points
– With 20 mm arbor hole

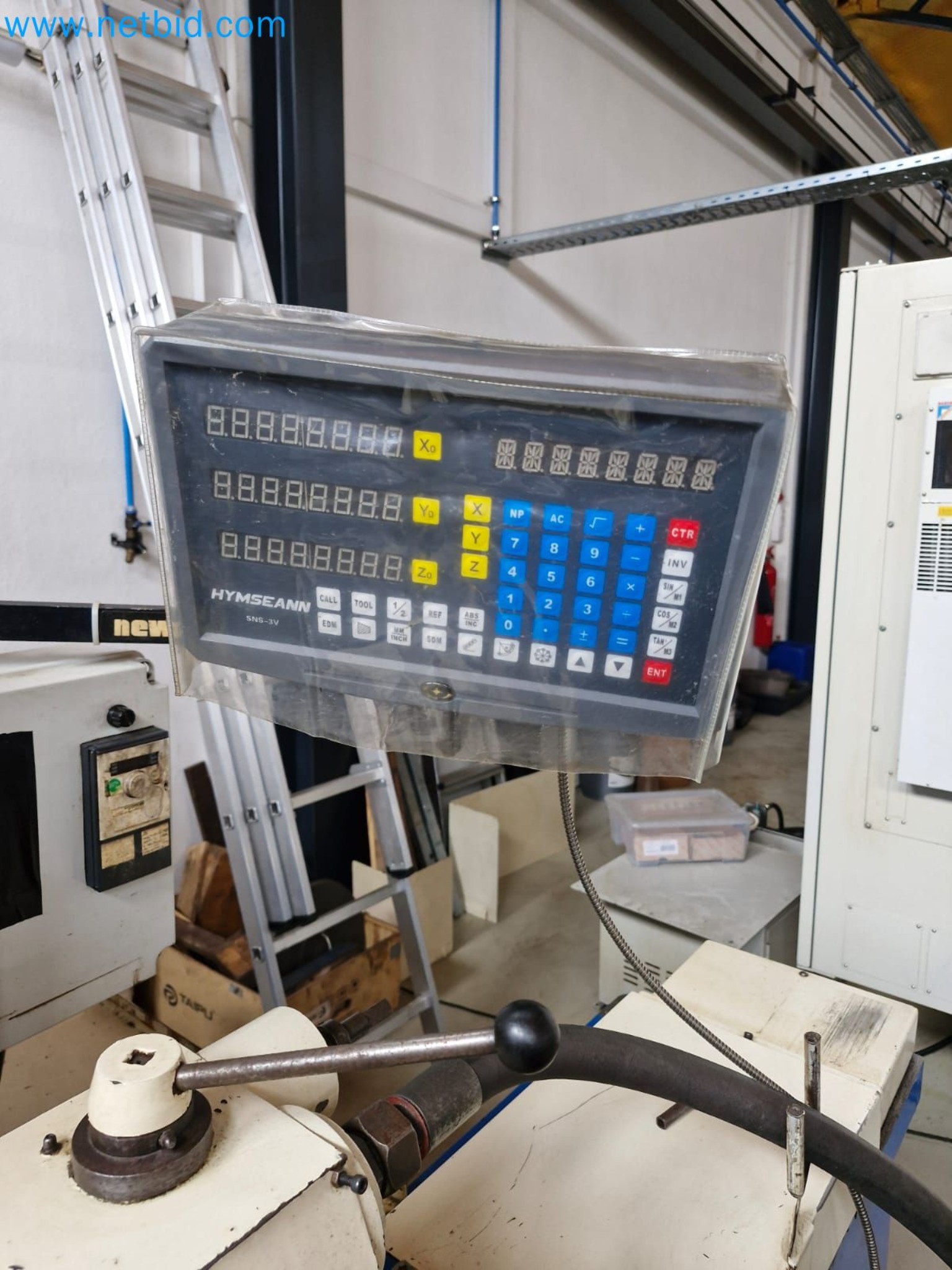

Contains display

Applications:
– Automotive Industry: Machining of precision components such as engine shafts, crankshafts and pistons.
– Tool Manufacturing: Production and maintenance of cylindrical cutting tools and high precision parts.
– Aerospace Industry: Grinding of critical parts that require tight tolerances and high reliability.
– Precision Engineering: Manufacture of components such as bearings, cylinders and machine shafts.

Approximate dimensions: 320 x 291 x 195 mm
Weight: 3800 kg

Additional mandatory dismantling & loading on truck cost of: 300€
