Details
Product Type

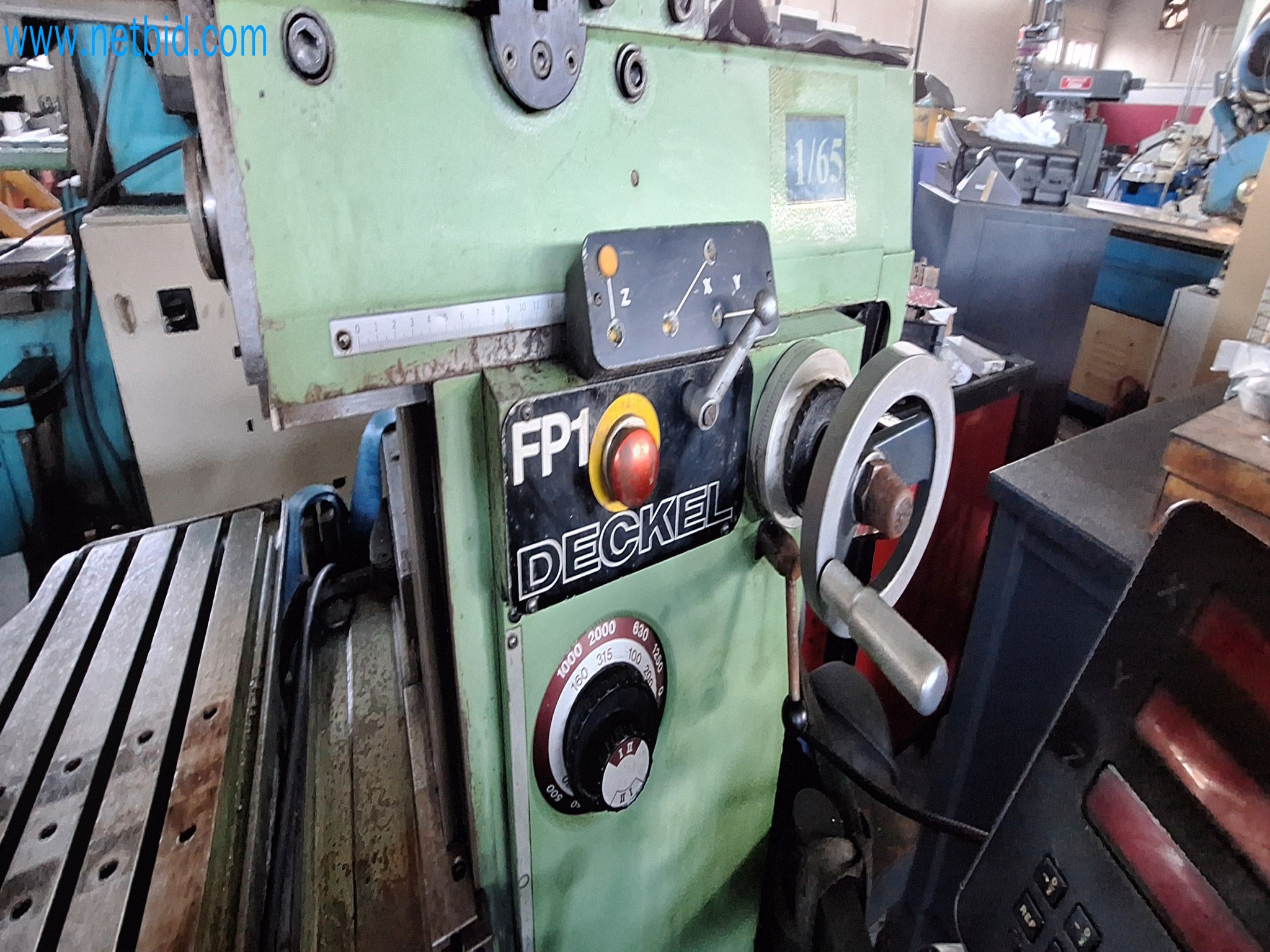

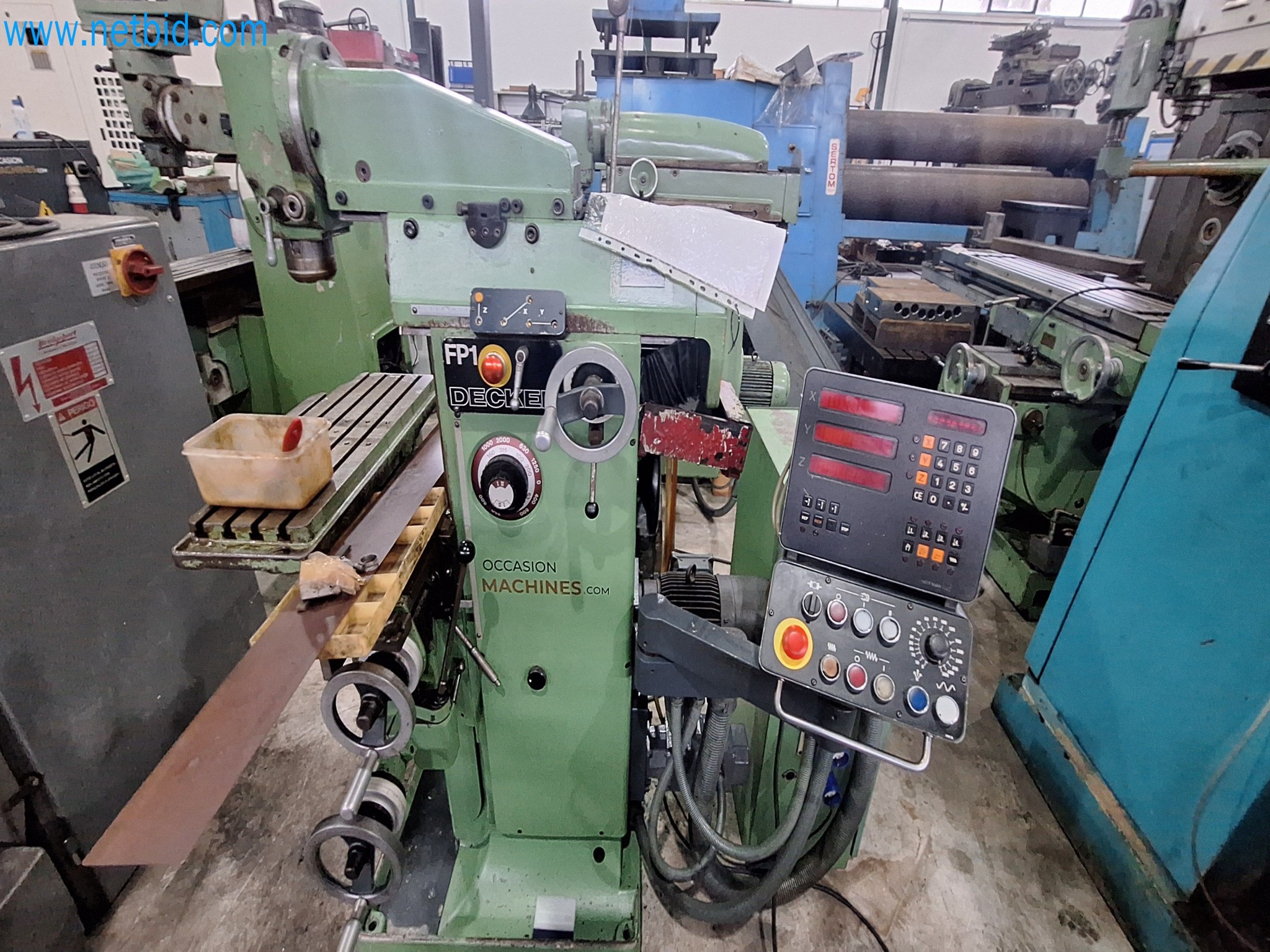

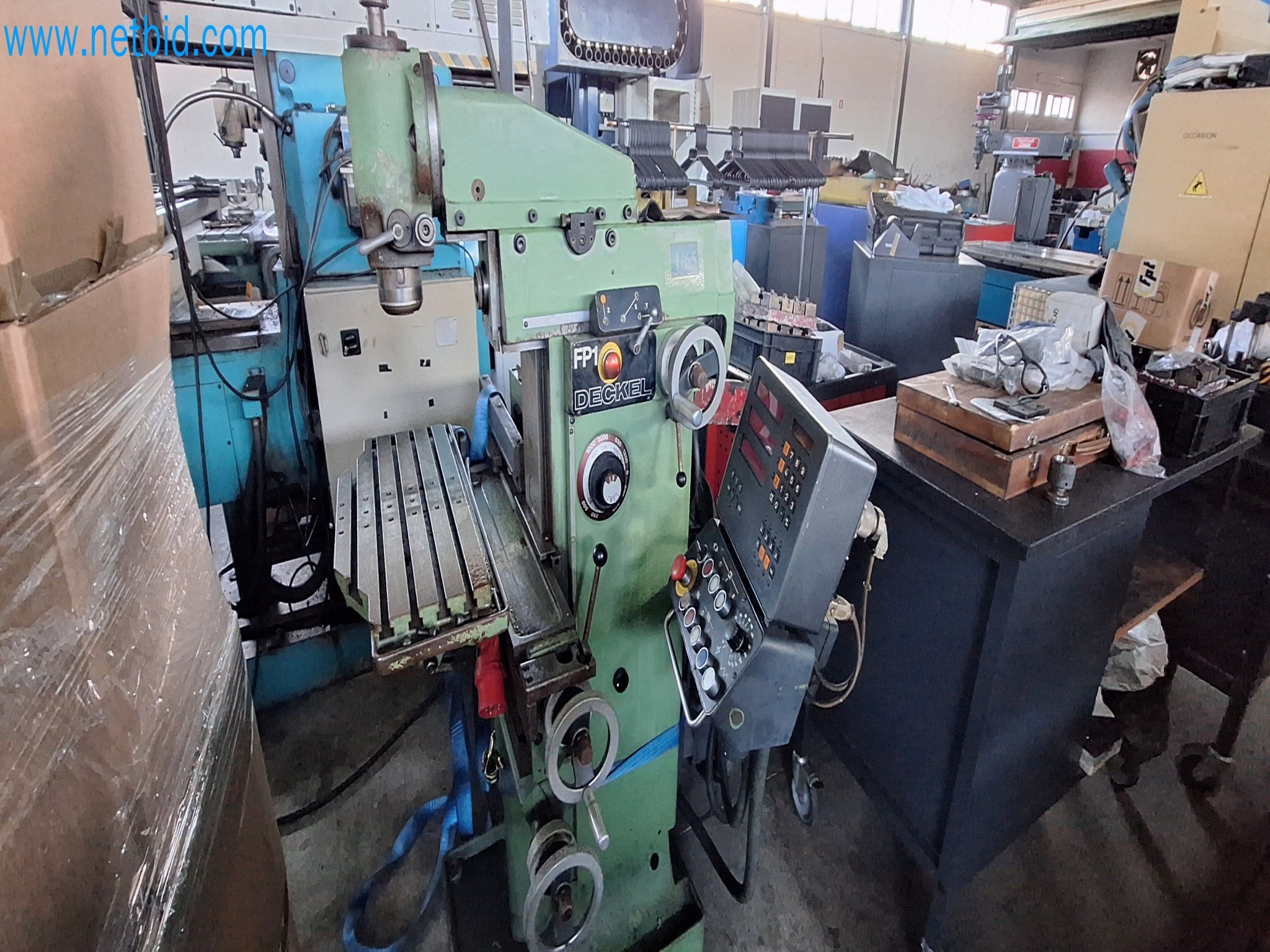

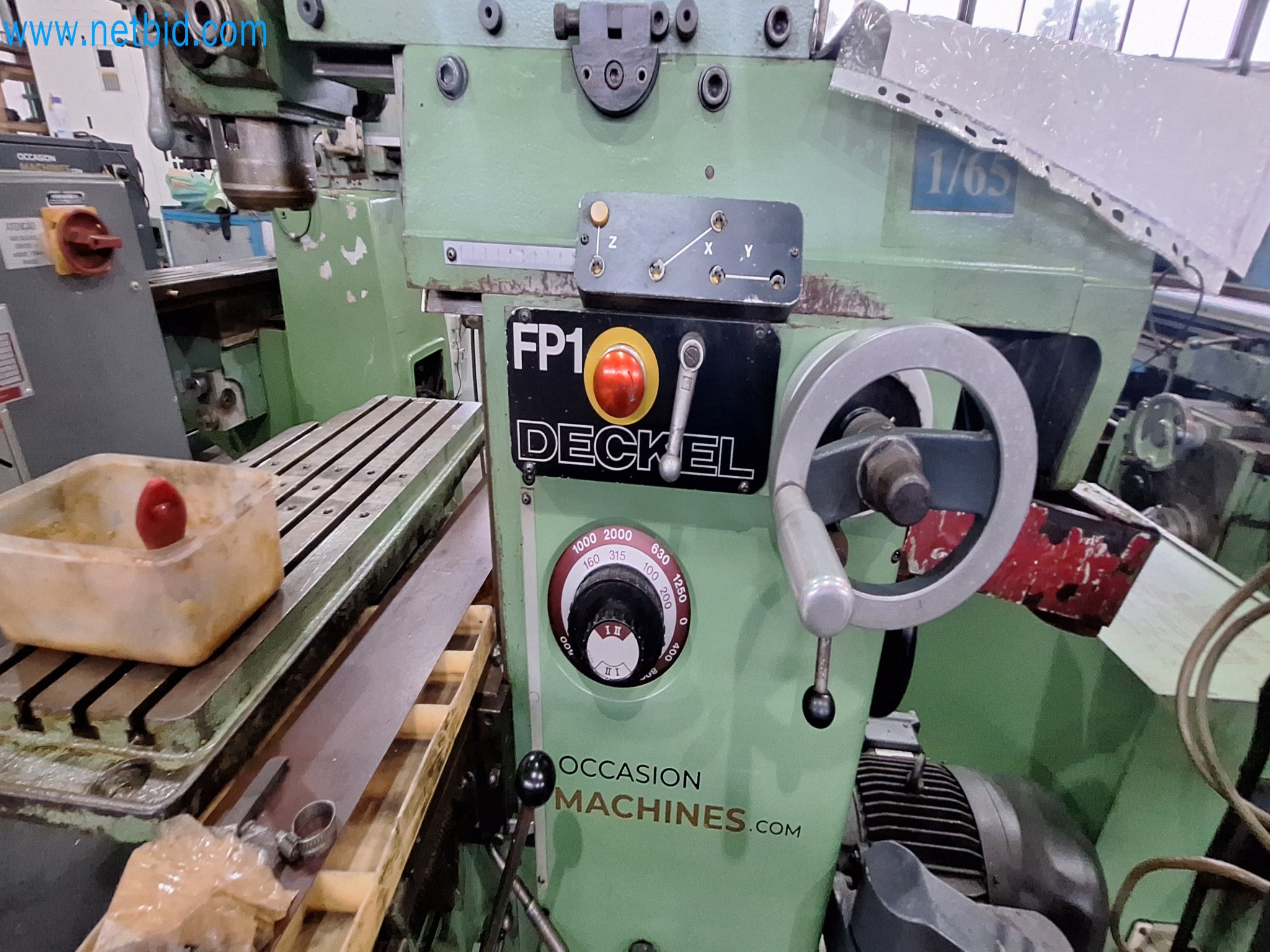

Deckel
Type
FP1G
Construction Year
1964
Description
Longitudinal travel: 300 mm Cross travel: 150 mm
Vertical travel: 340 mm
Distance between vertical spindle and table: 380 mm
Distance between horizontal spindle and table: 400 mm
Horizontal spindle taper in spindle: 40 ISO
Horizontal spindle speeds no: 16
Horizontal spindle from - up to: 40-2000 U/min.
Vertical milling spindle taper in spindle: 40 ISO
Vertical milling spindle vertical quill travel:60 mm
Vertical milling spindle speeds no: 16
Vertical milling spindle from - up to: 40-2000 U/min.
Feeds longitudinal number: 16
Feeds from - up to: 10-500 mm/min.
Feeds vertical no: 16

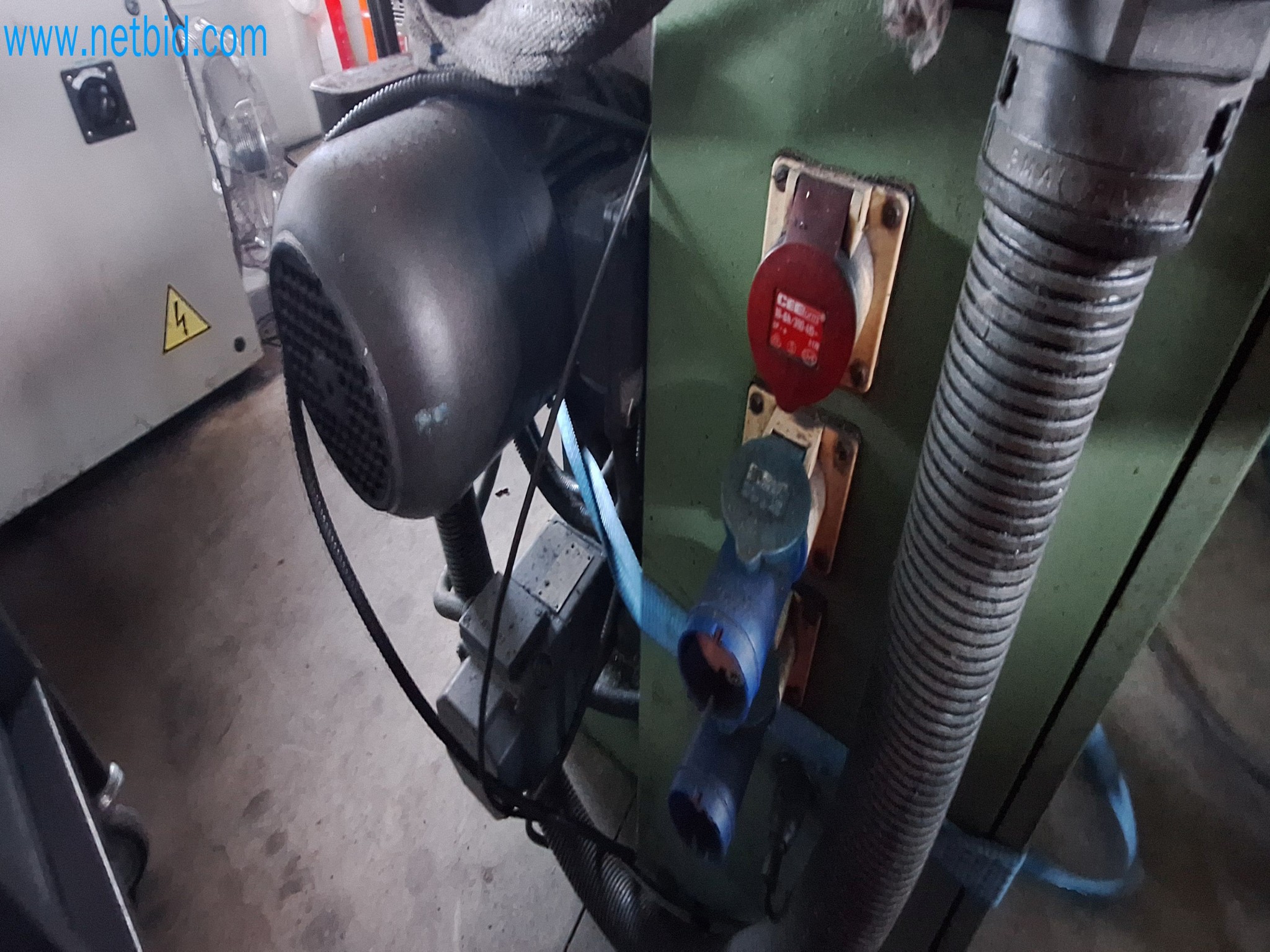

Motor 380 volt, power: 1,1/1,3 KW

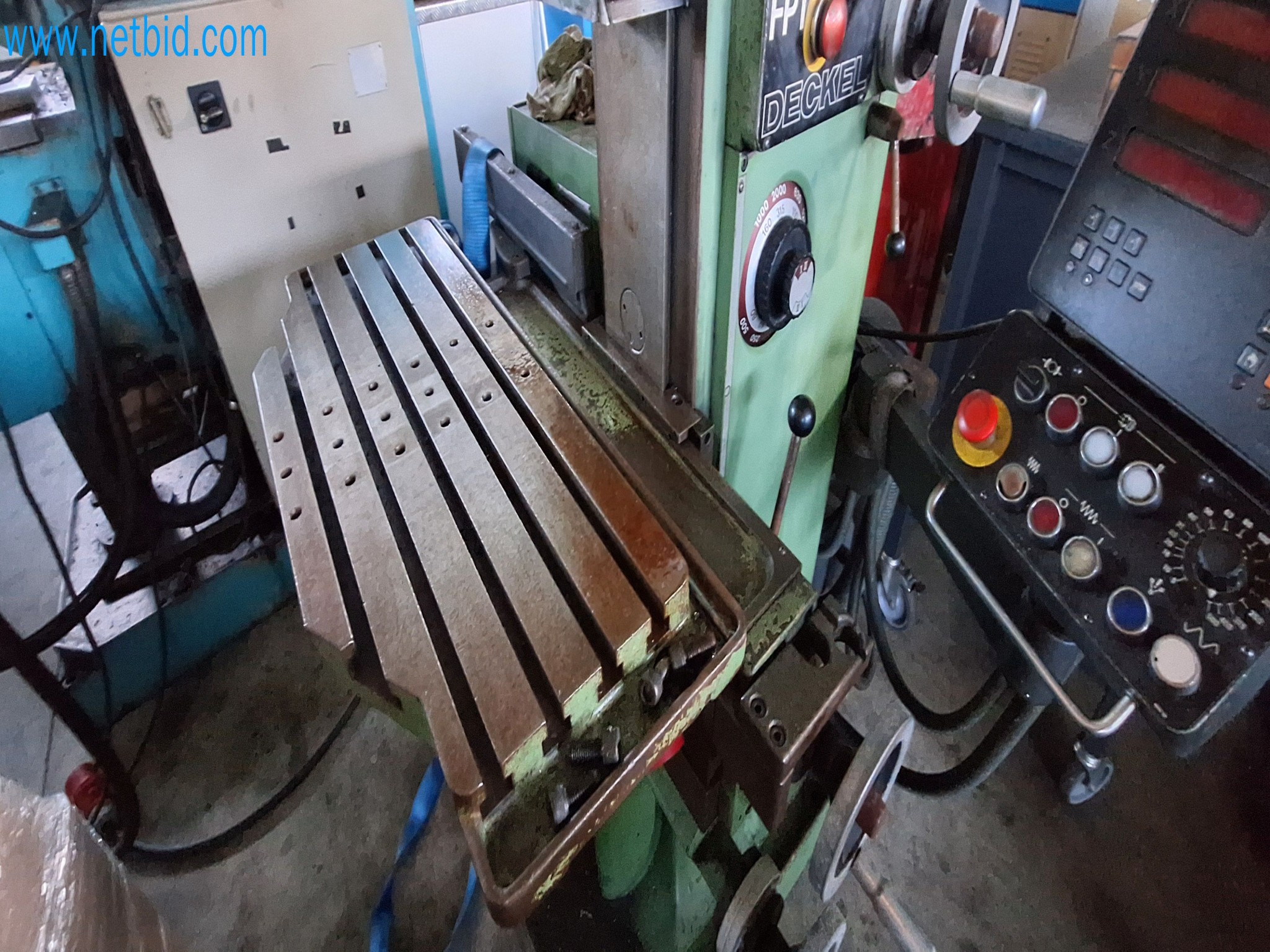

Universal milling table width x depth: 600 x 260 mm
Vice width of jaw: 100 mm
Universal milling table manufacture: GRESSEL
Collets: ISO40
Drill chuck no: 1x
Milling arbors no: 8x
Universal milling table number: 12x
Serial number: 55011
Approximate dimensions: 120 x 115 x 185 mm
Weight: 700 kg
Additional mandatory dismantling & loading on truck cost of: 350€
Vertical travel: 340 mm
Distance between vertical spindle and table: 380 mm
Distance between horizontal spindle and table: 400 mm
Horizontal spindle taper in spindle: 40 ISO
Horizontal spindle speeds no: 16
Horizontal spindle from - up to: 40-2000 U/min.
Vertical milling spindle taper in spindle: 40 ISO
Vertical milling spindle vertical quill travel:60 mm
Vertical milling spindle speeds no: 16
Vertical milling spindle from - up to: 40-2000 U/min.
Feeds longitudinal number: 16
Feeds from - up to: 10-500 mm/min.
Feeds vertical no: 16
Motor 380 volt, power: 1,1/1,3 KW
Universal milling table width x depth: 600 x 260 mm
Vice width of jaw: 100 mm
Universal milling table manufacture: GRESSEL
Collets: ISO40
Drill chuck no: 1x
Milling arbors no: 8x
Universal milling table number: 12x
Serial number: 55011
Approximate dimensions: 120 x 115 x 185 mm
Weight: 700 kg
Additional mandatory dismantling & loading on truck cost of: 350€
