Part of the Auction Complete Workshops Liquidation - High-Quality Machinery for Metal Processing

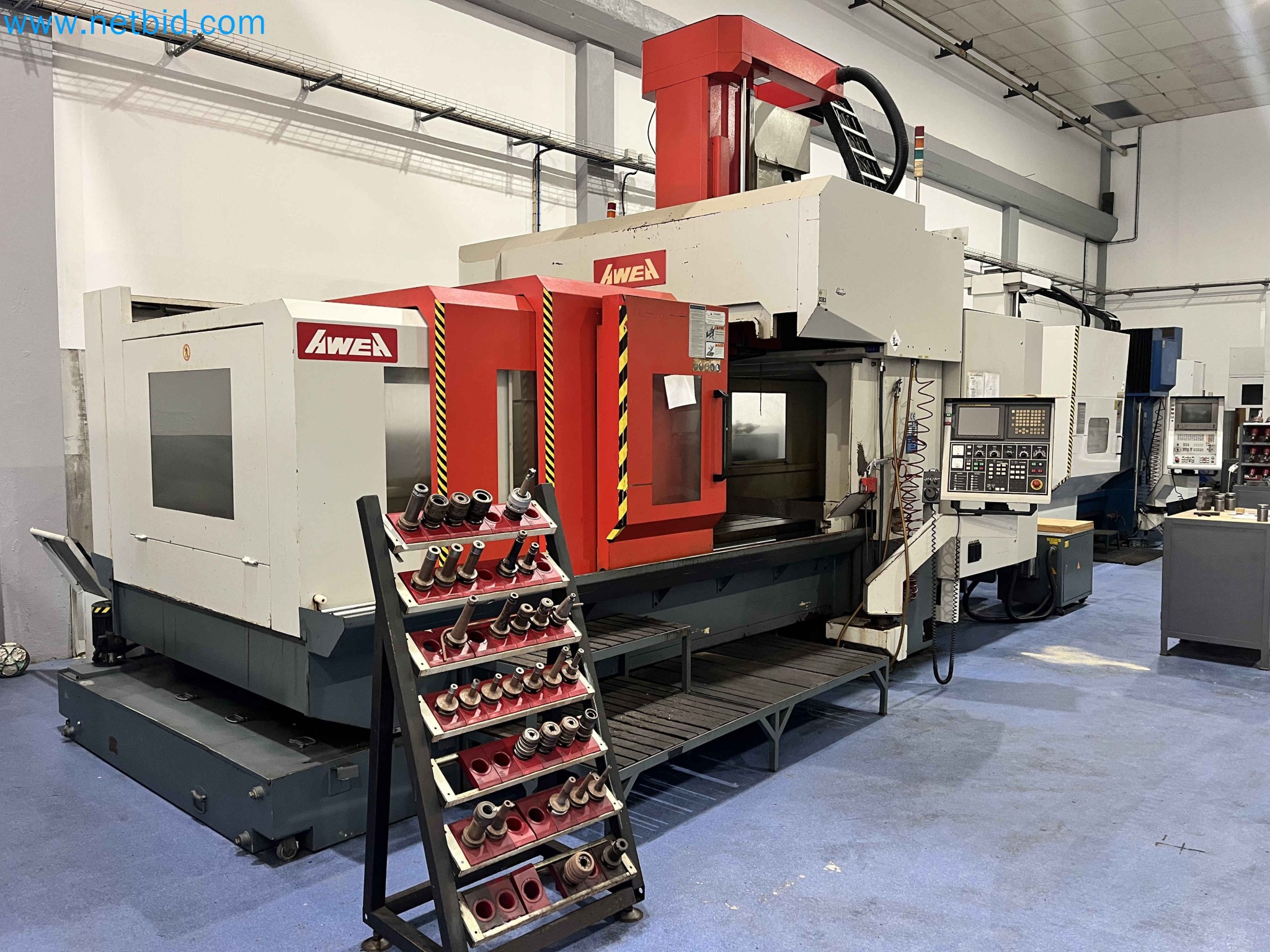

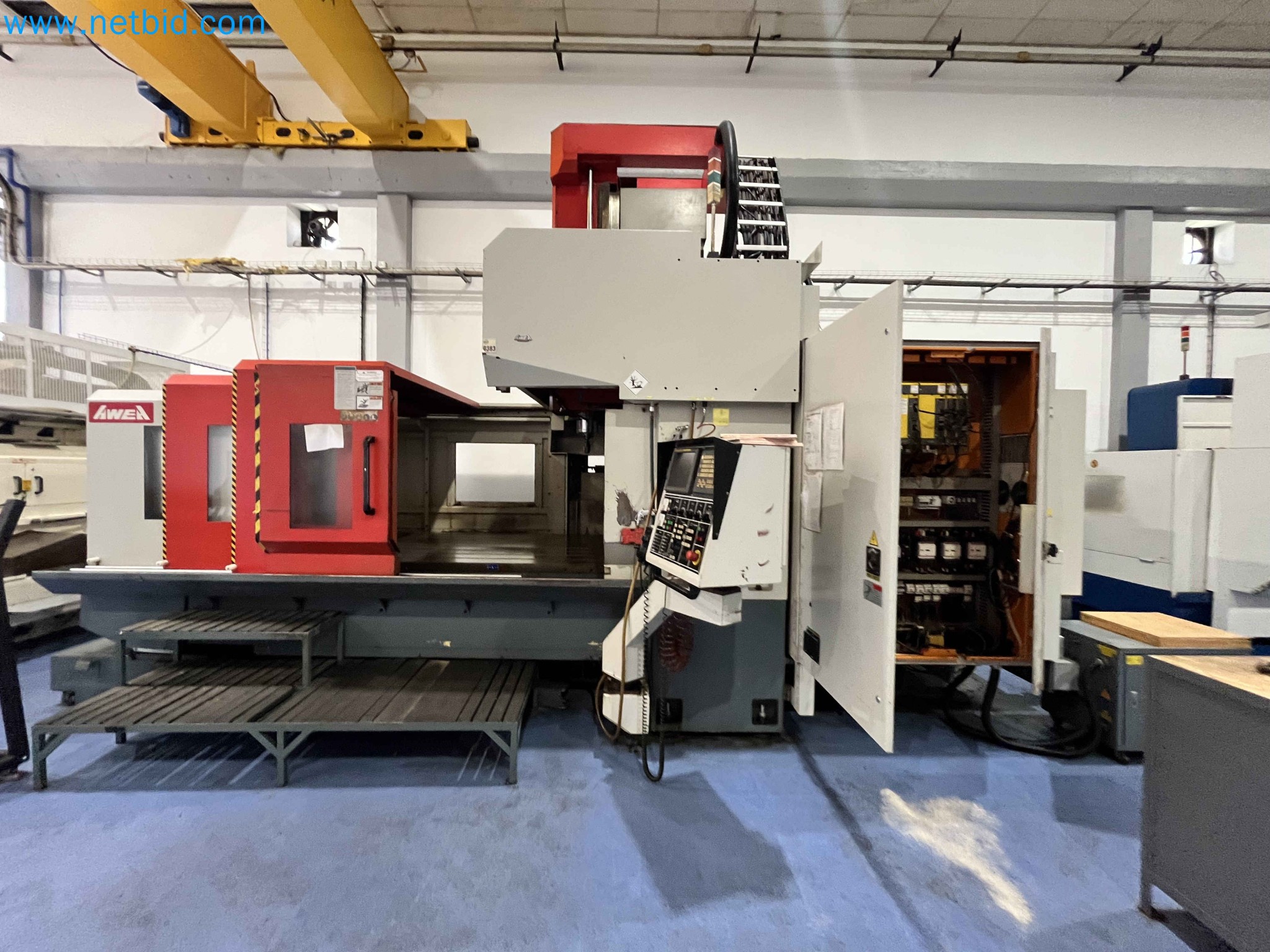

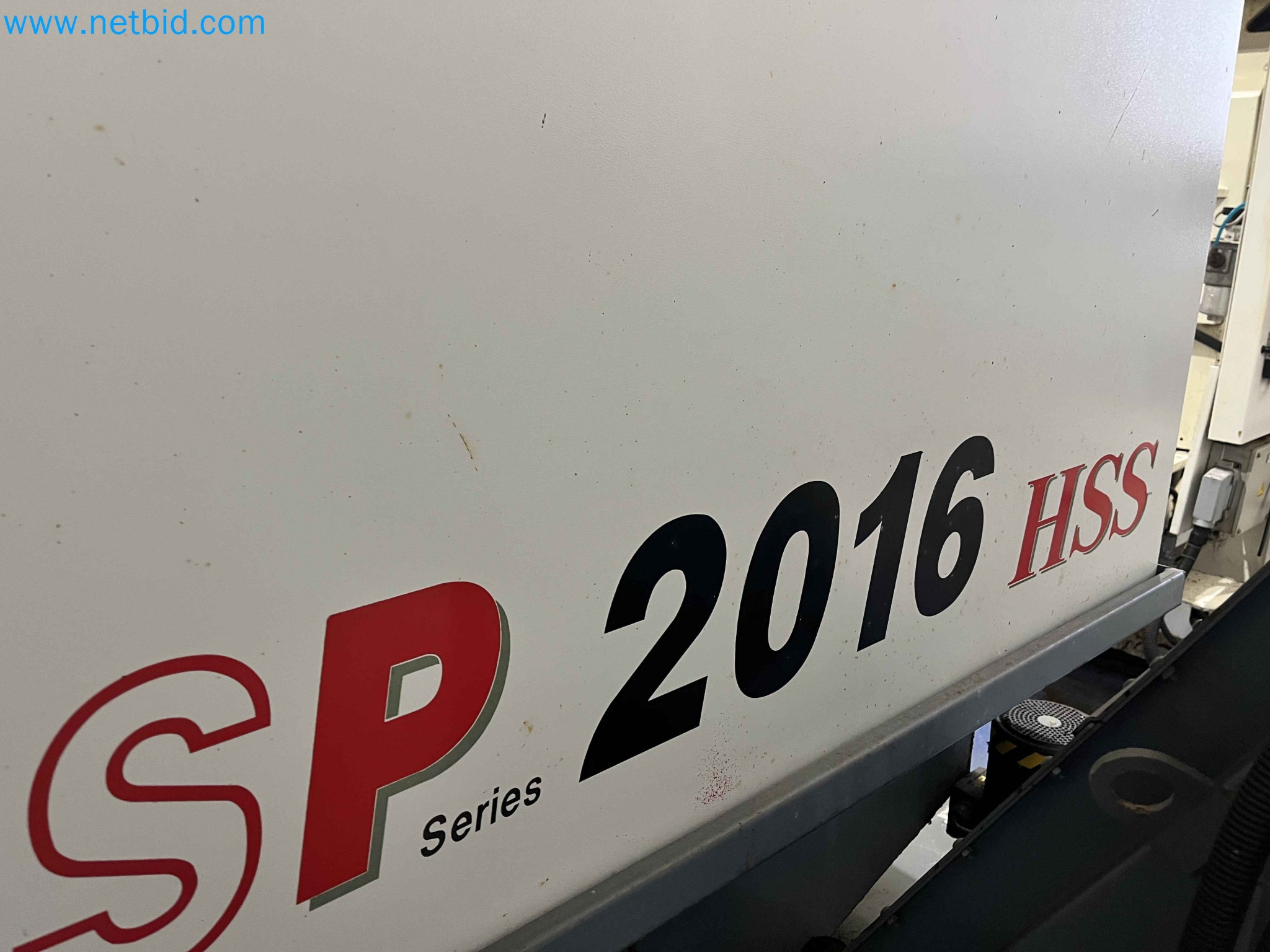

VERTICAL MACHINING CENTER AWEA SP2016HSSAUCTION#A19114-31
Details
Product Type
AWEA
Type
SP2016HSS
Construction Year
2004
Description

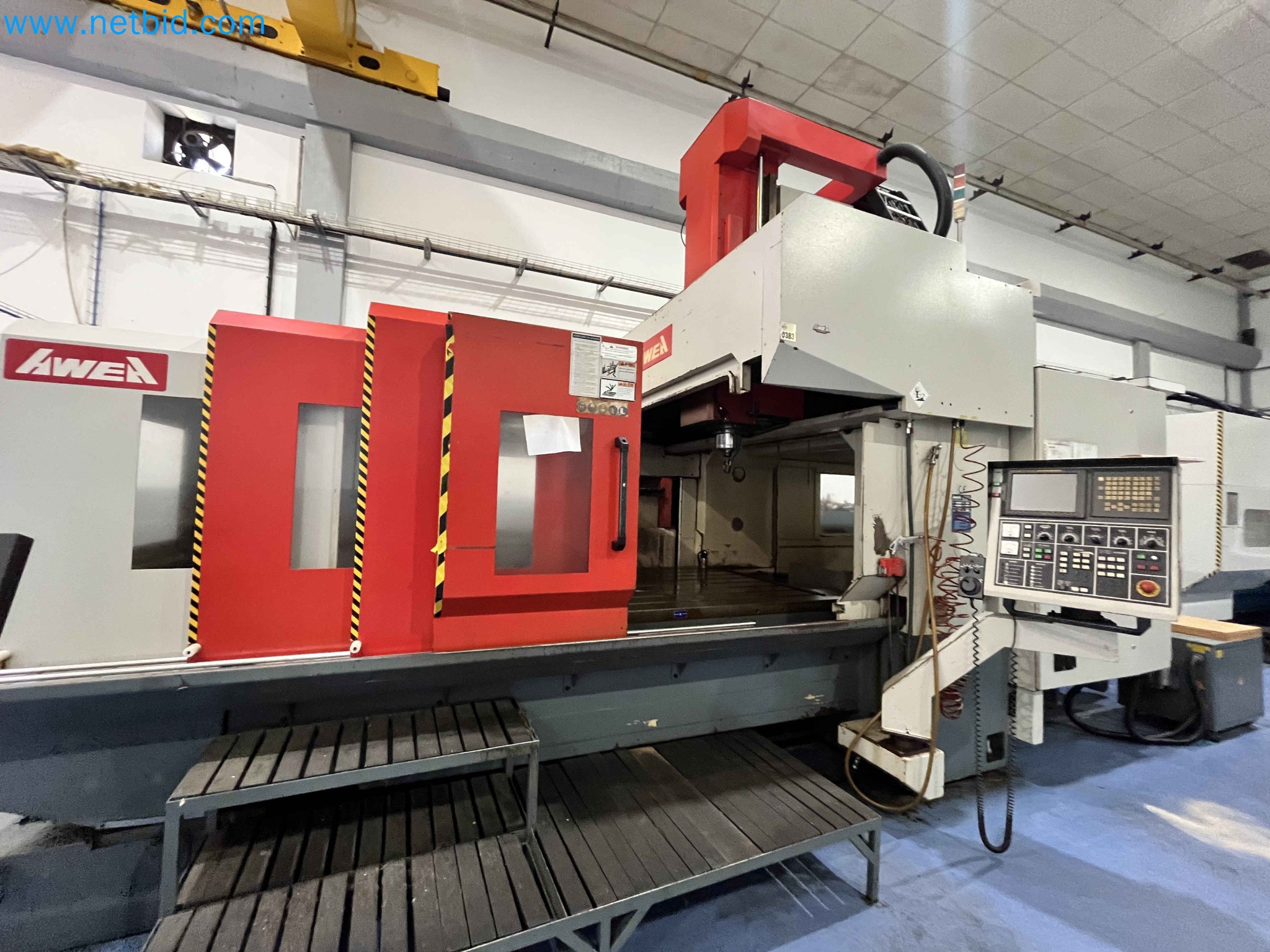

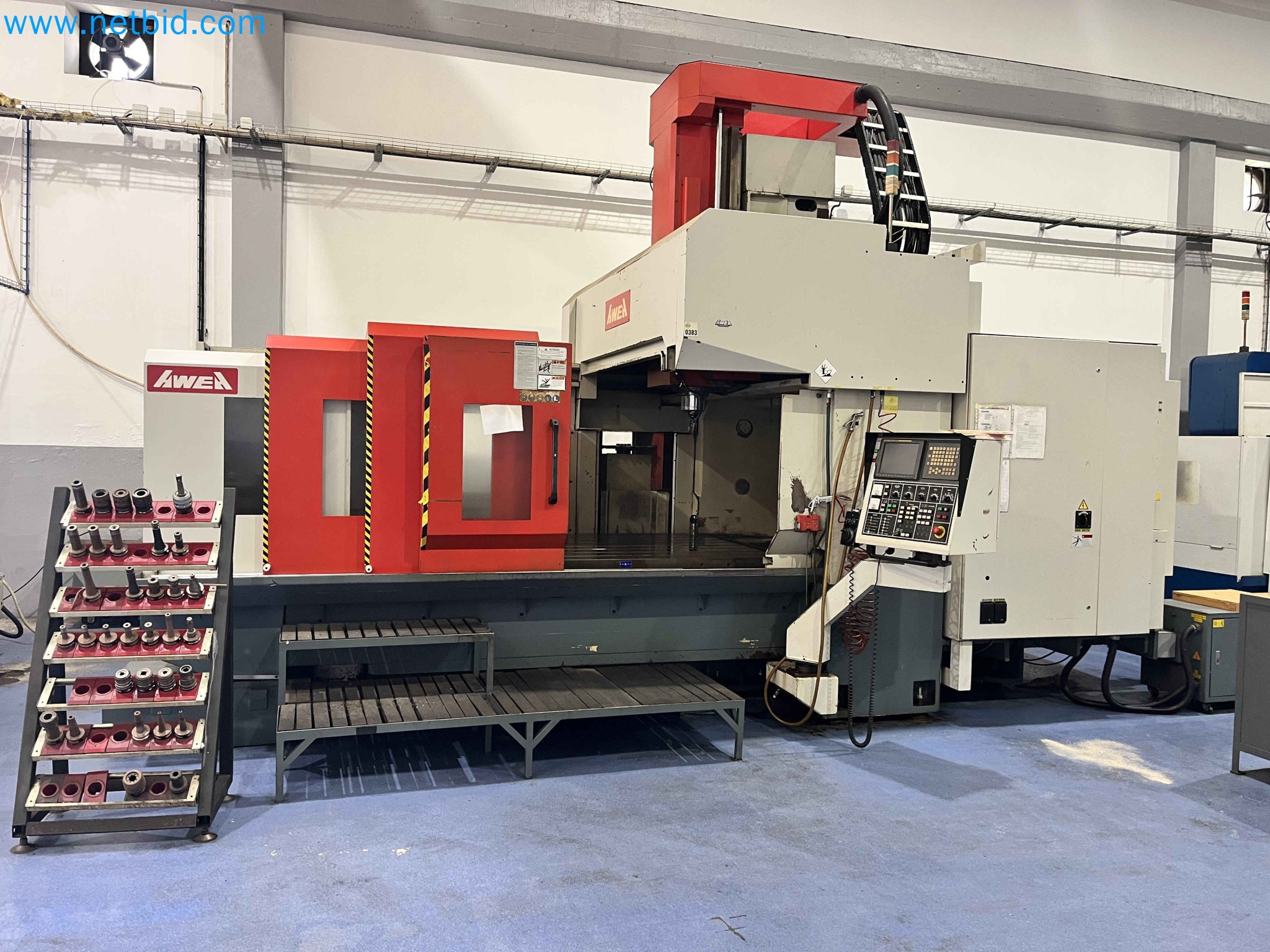

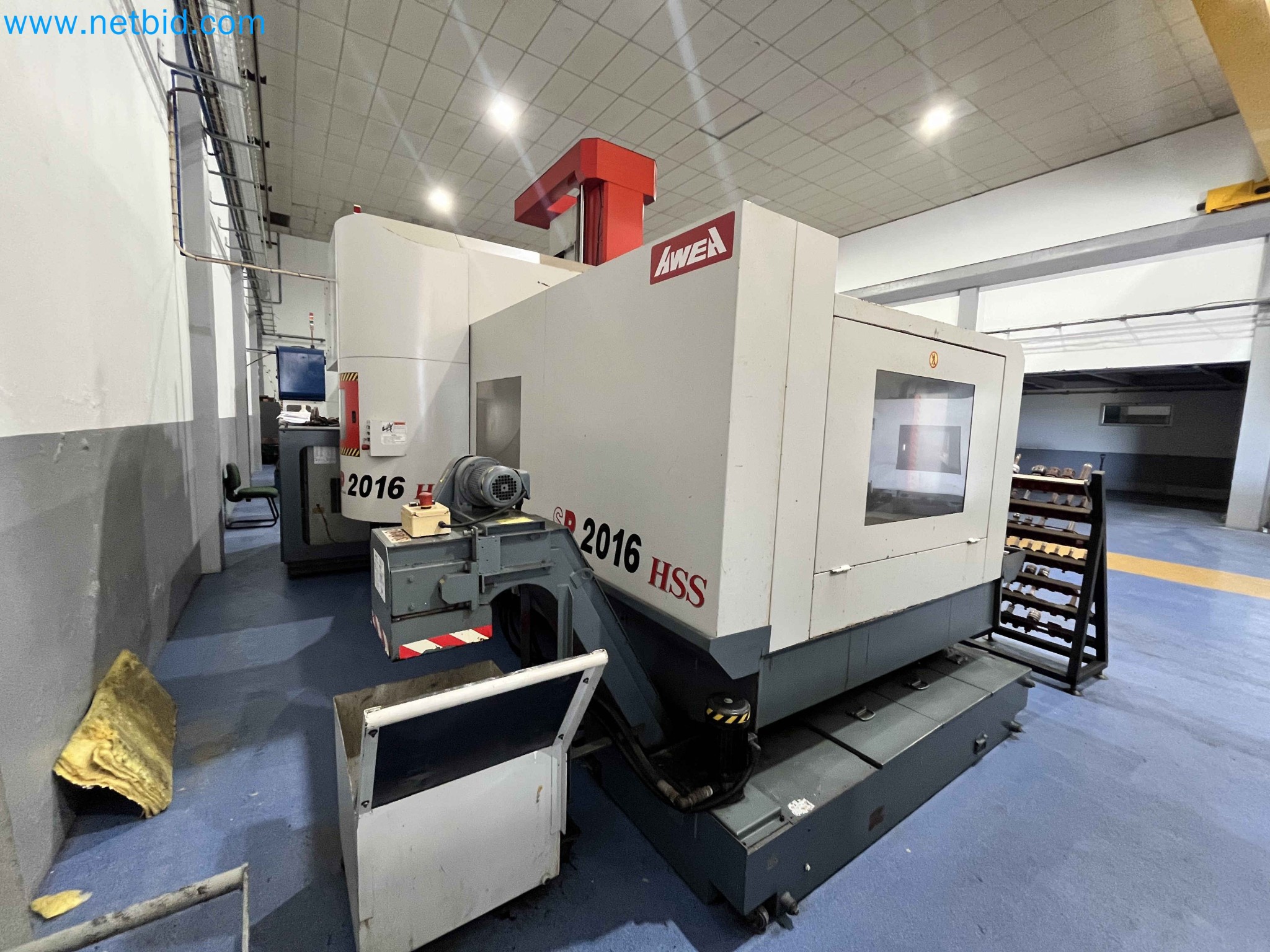

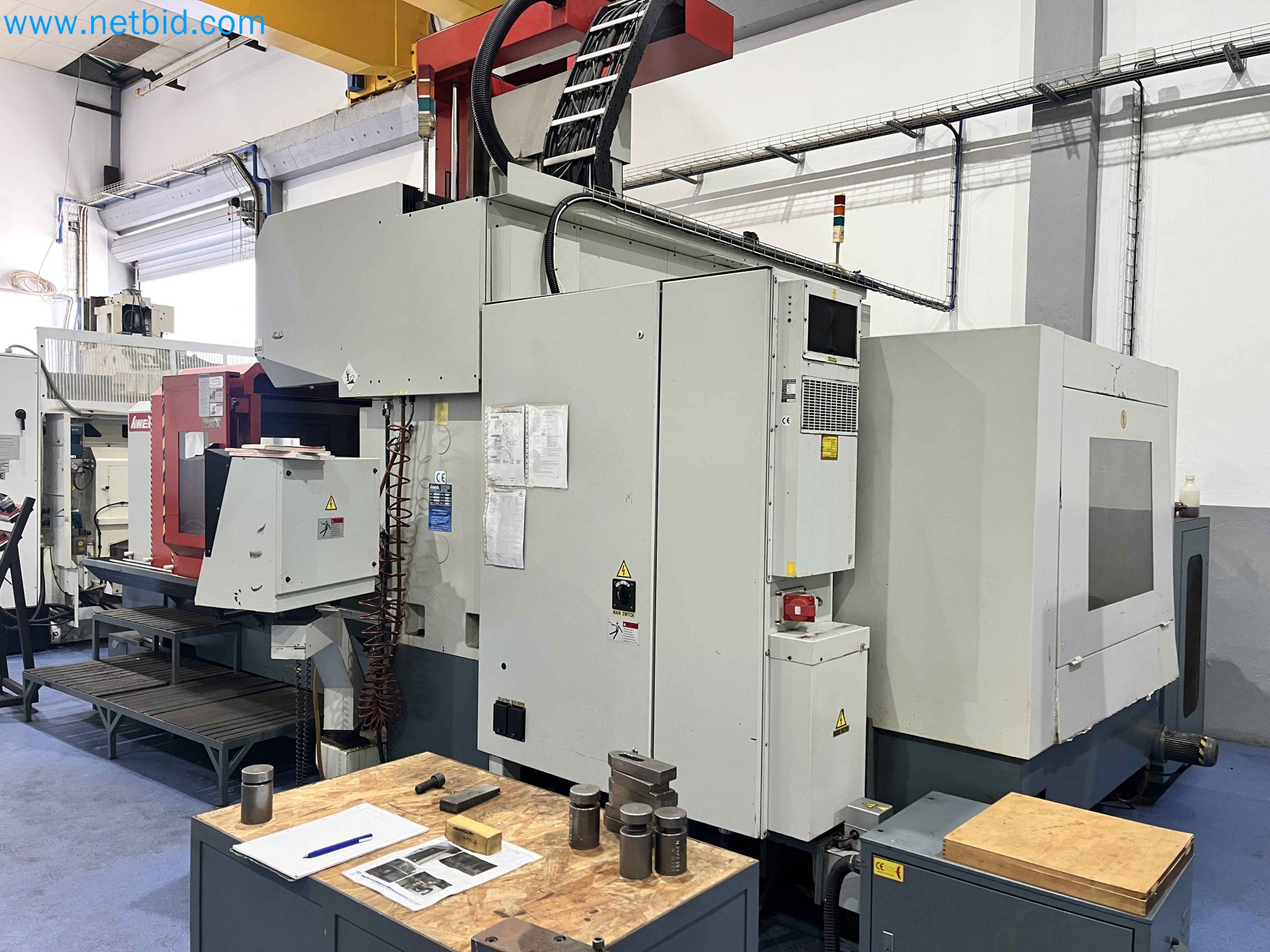

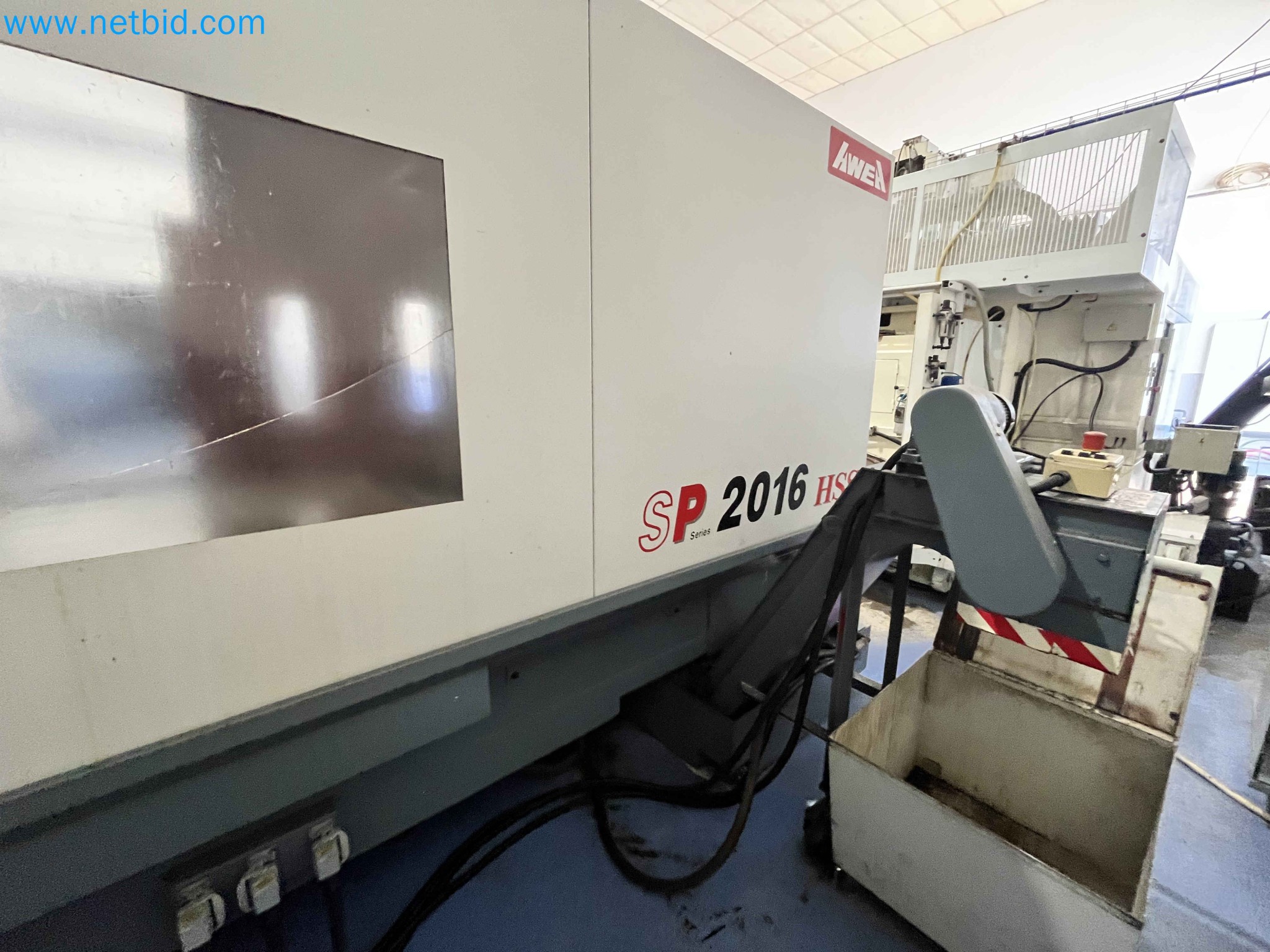

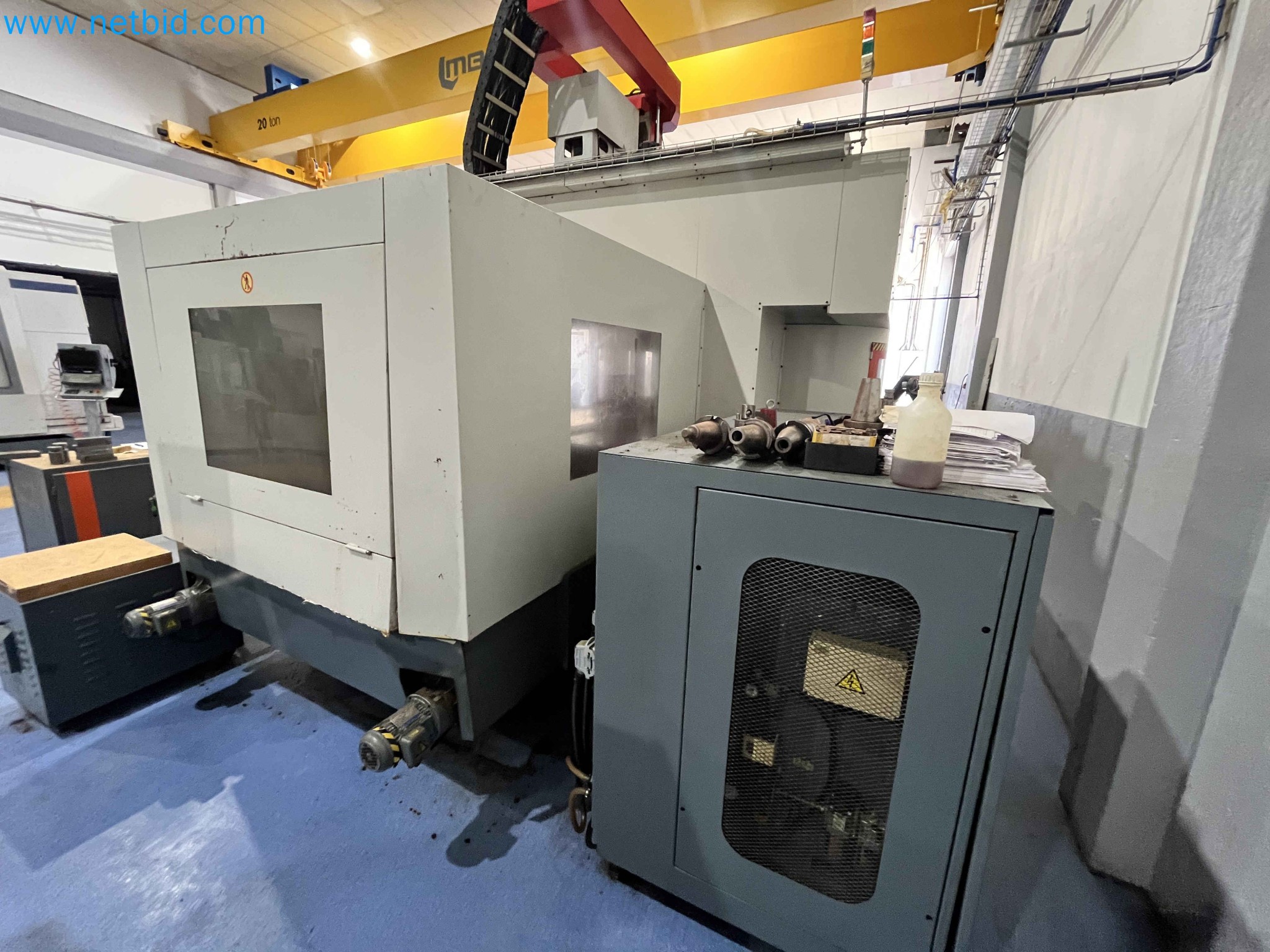

High-speed vertical machining center from AWEA, model SP2016HSS.
Engineered for precision and productivity, this model offers a robust structural design, high spindle speed, and smooth CNC performance. Ideal for die and mold applications, precision parts, and high-accuracy machining tasks.
Technical specifications (approx.):

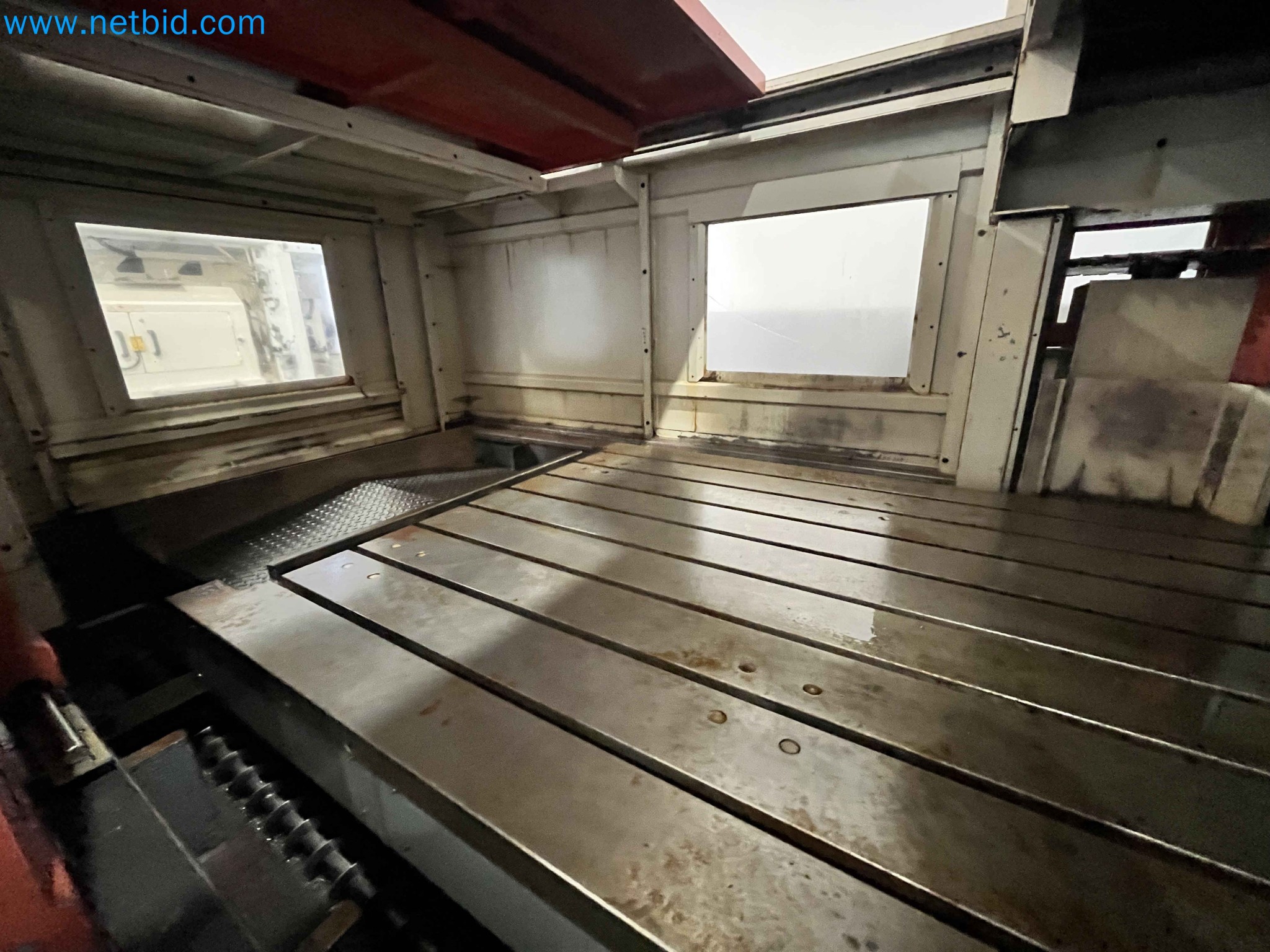

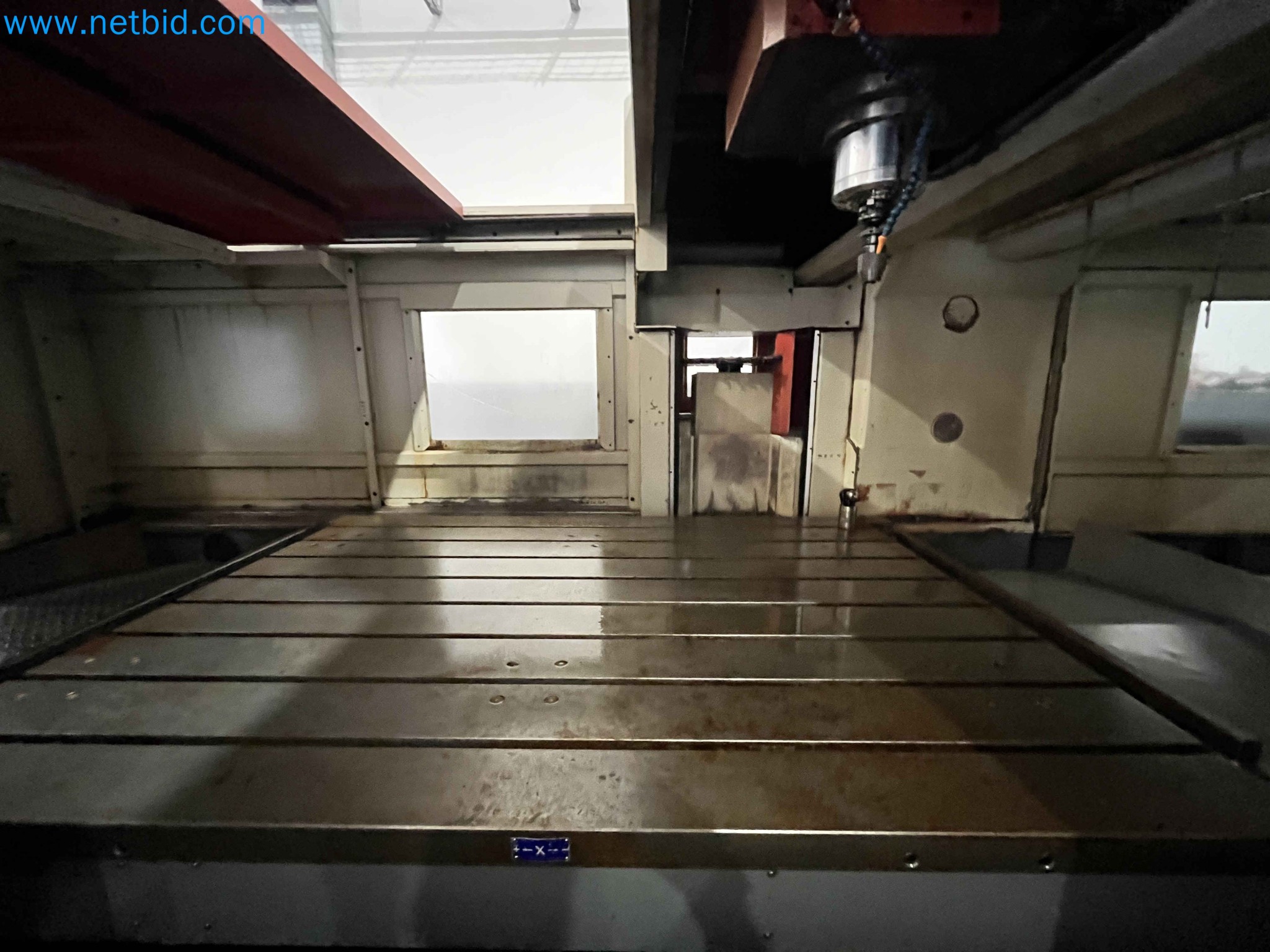

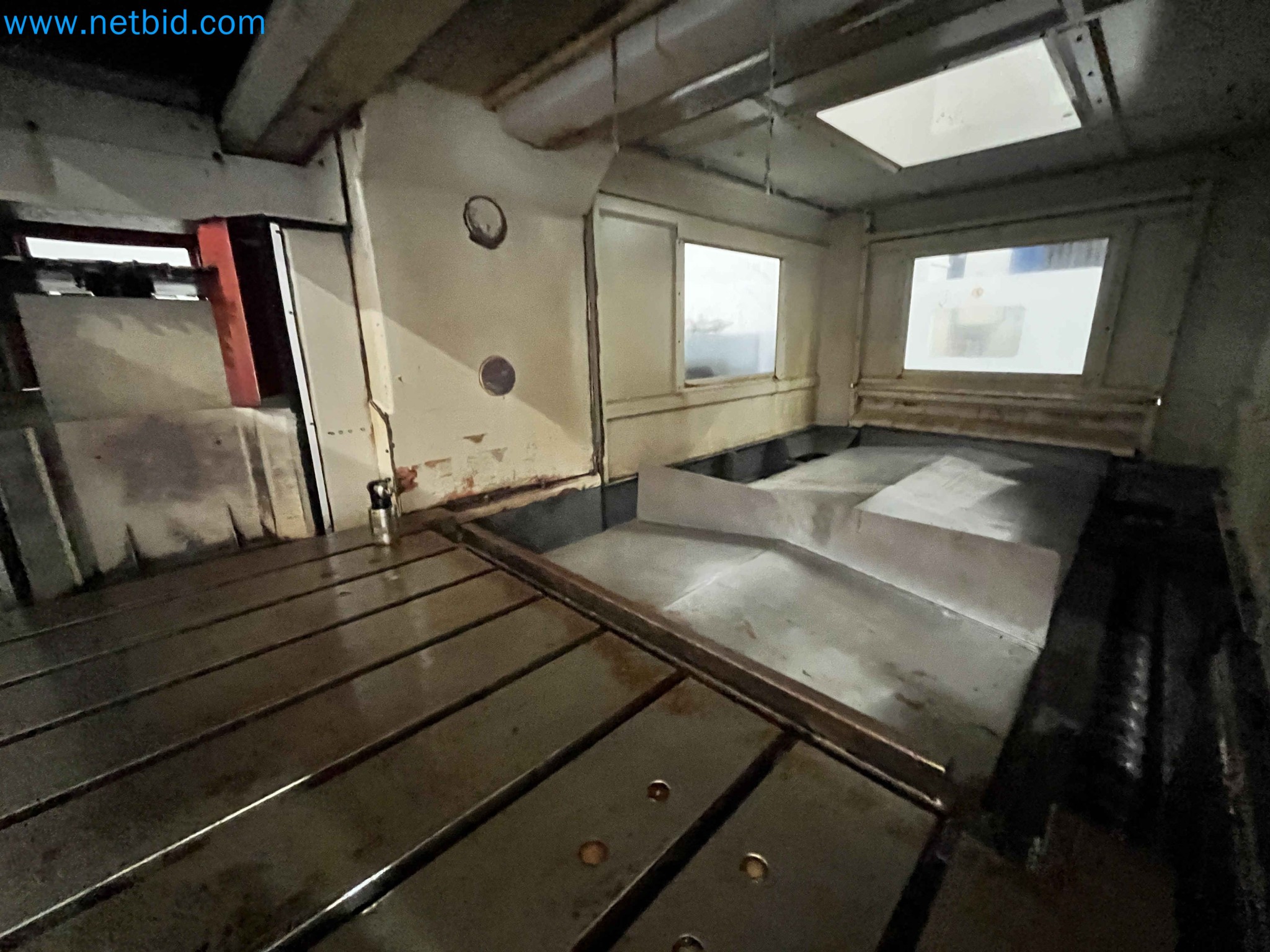

Table size: 2310 × 1500 mm
Table capacity: 8000 kg Dist. between columns: 1700 mm
X-axis travel: 2100 mm
Y-axis travel: 1600 mm
Z-axis travel: 760 mm
FEED RATE X / Y axes rapids: 20,000 mm/min. Z-axis rapids: 15,000 mm/min. Cutting feedrate: 10 ~ 15,000 mm/min.

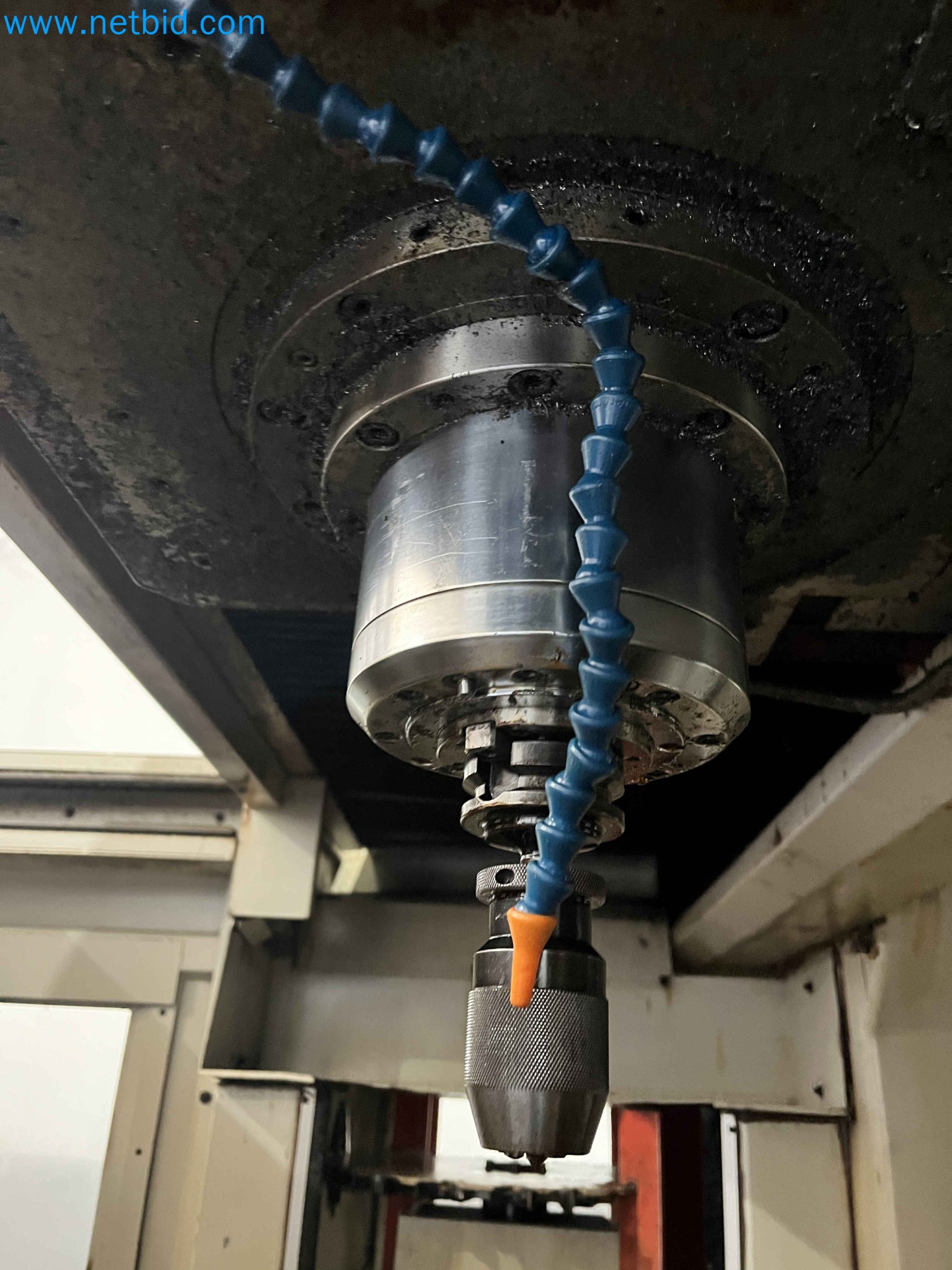

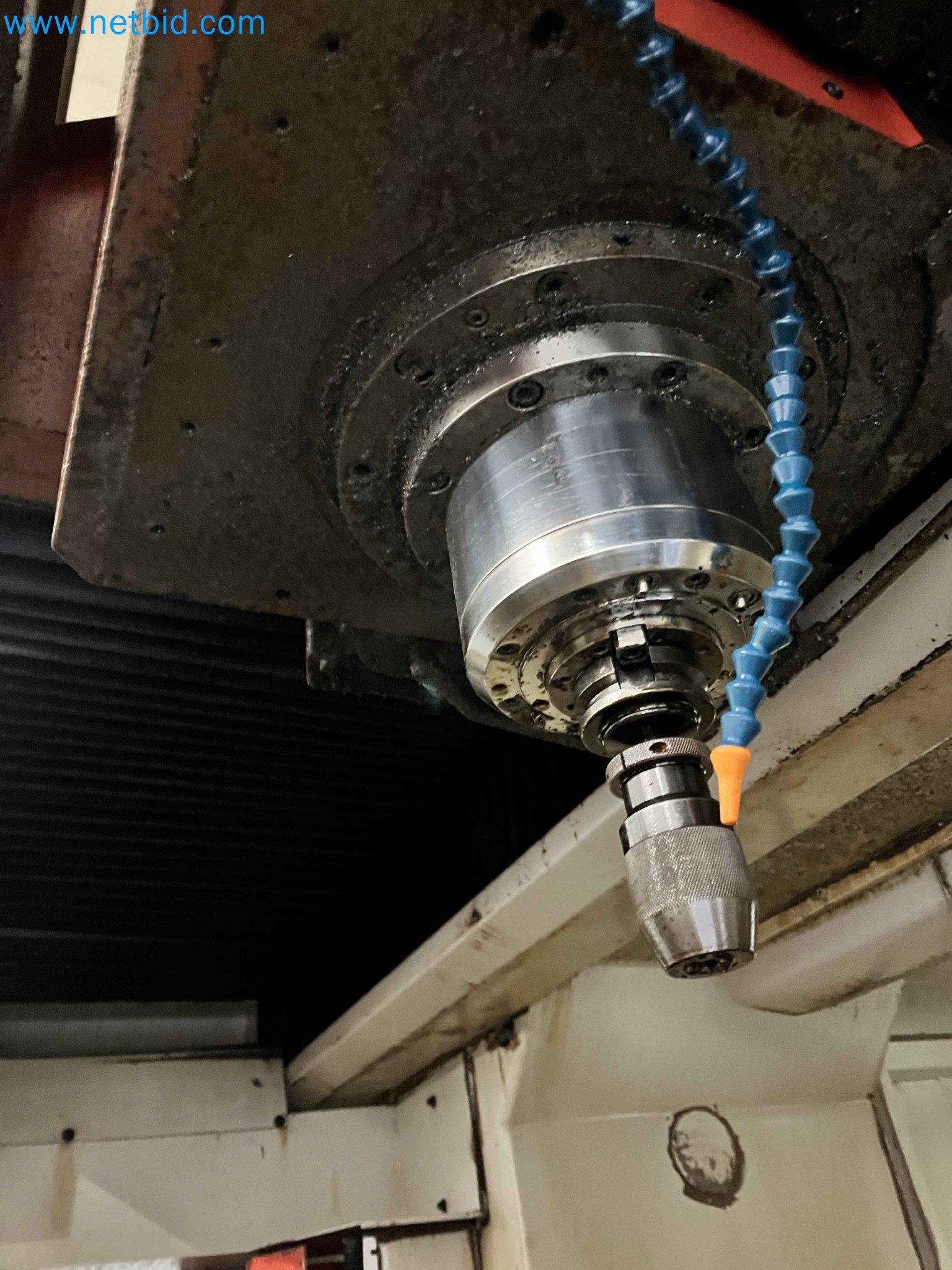

Spindle taper: BT40
Spindle speed: up to 12,000 rpm
Spindle motor power: 18.5 kW
Rapid traverse (X/Y/Z): 24 / 24 / 20 m/min
Dist. from spindle nose to table top: 160 ~ 920 mm ( 6.3" ~ 36.2" )

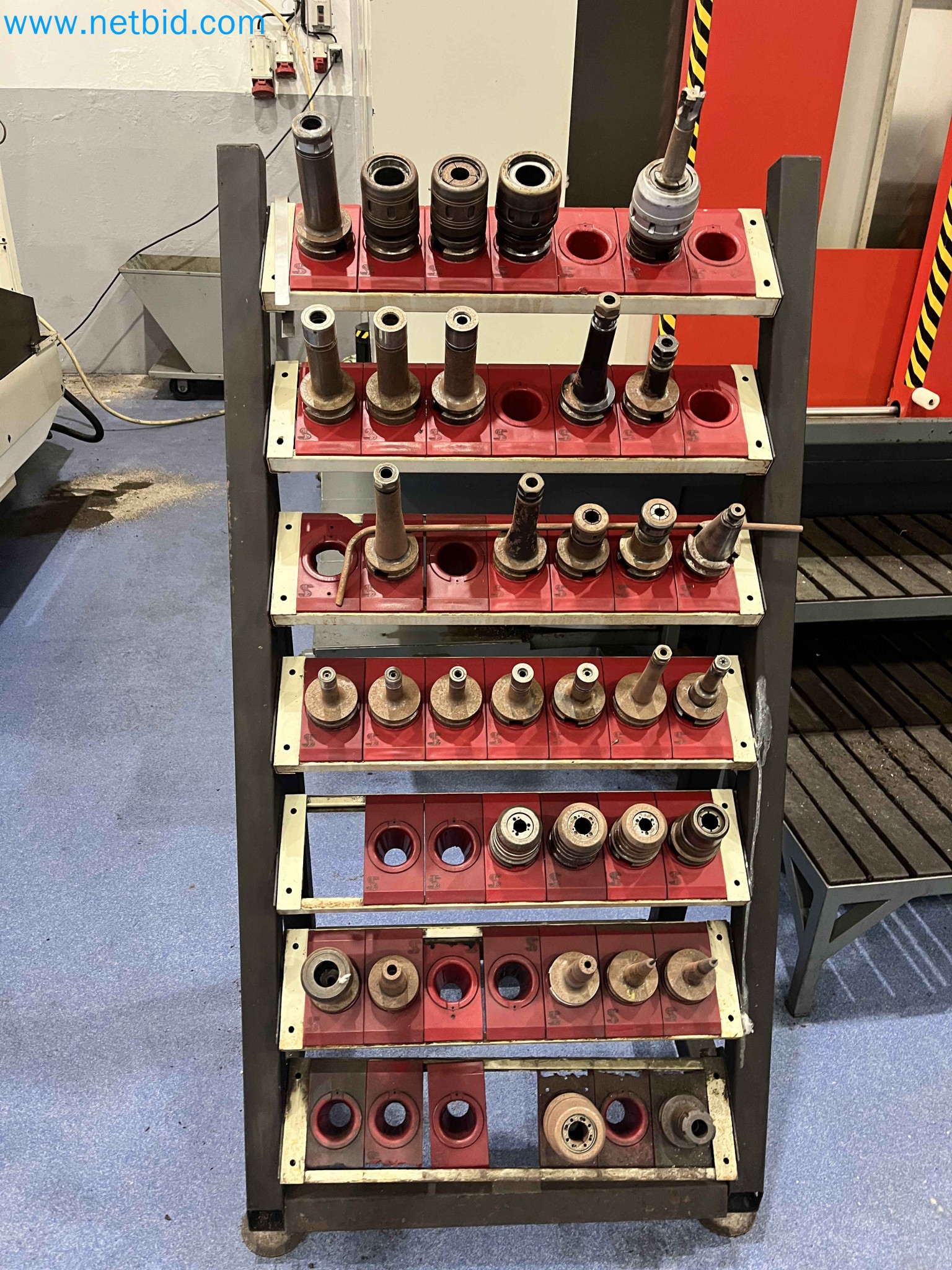

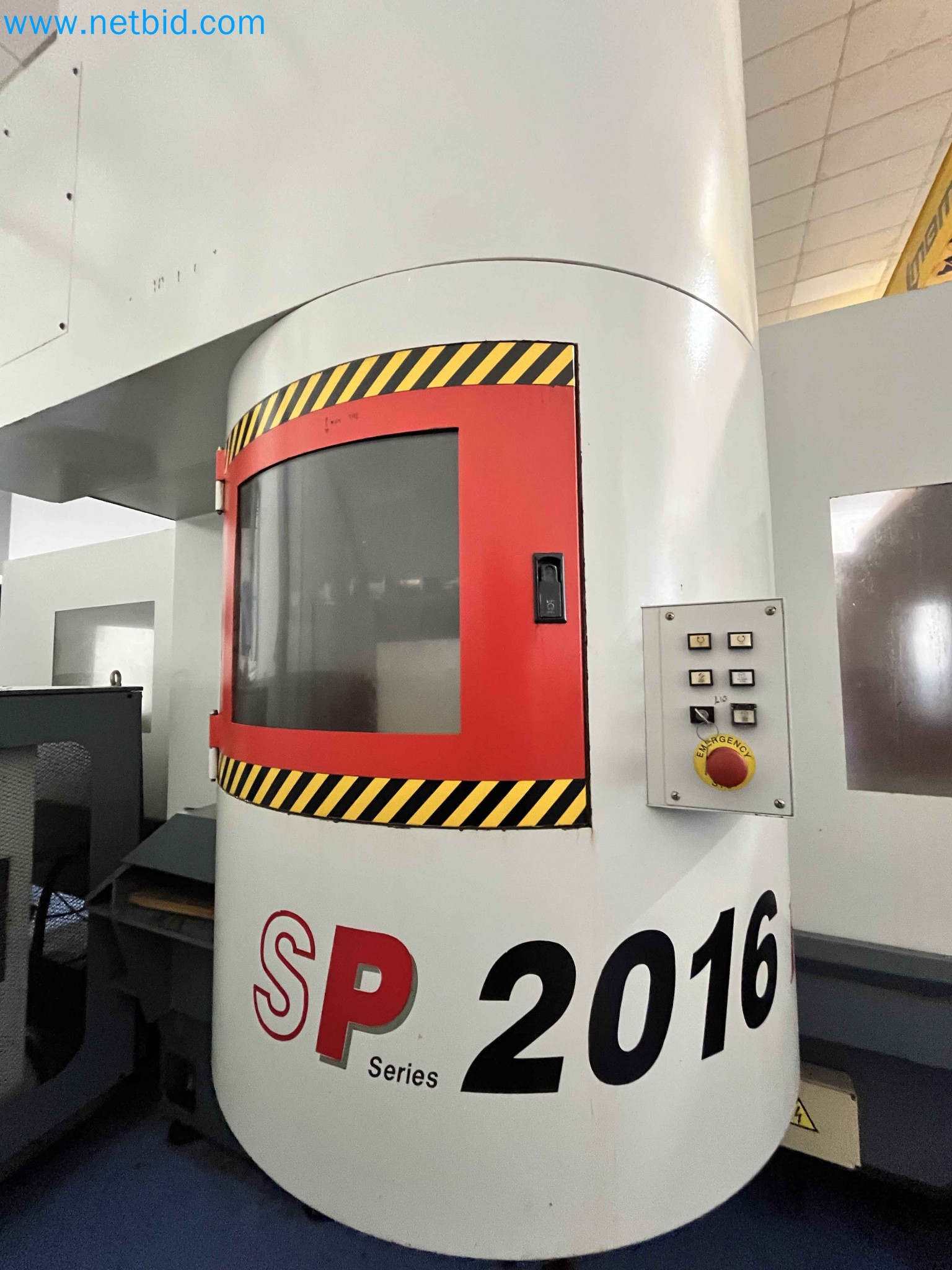

TOOL MAGAZINE Automatic tool changer (ATC): 32 tools
Max. tool DIA. / adjacent empty: 102 / 127 mm Max. tool length: 300 mm ( 11.8" ): Max. tool weight: 7 kg Tool changing time ( tool to tool ): 12 sec.

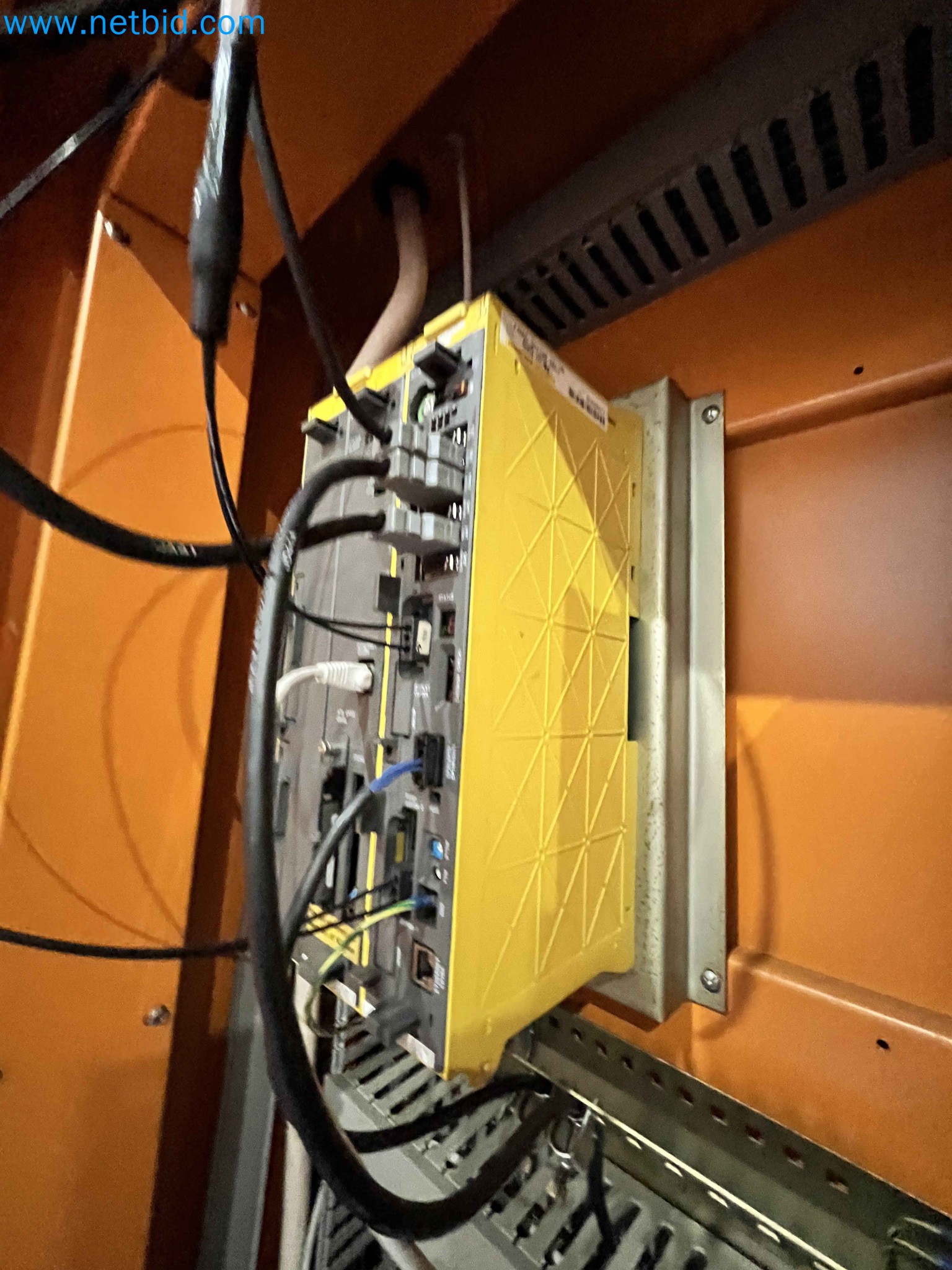

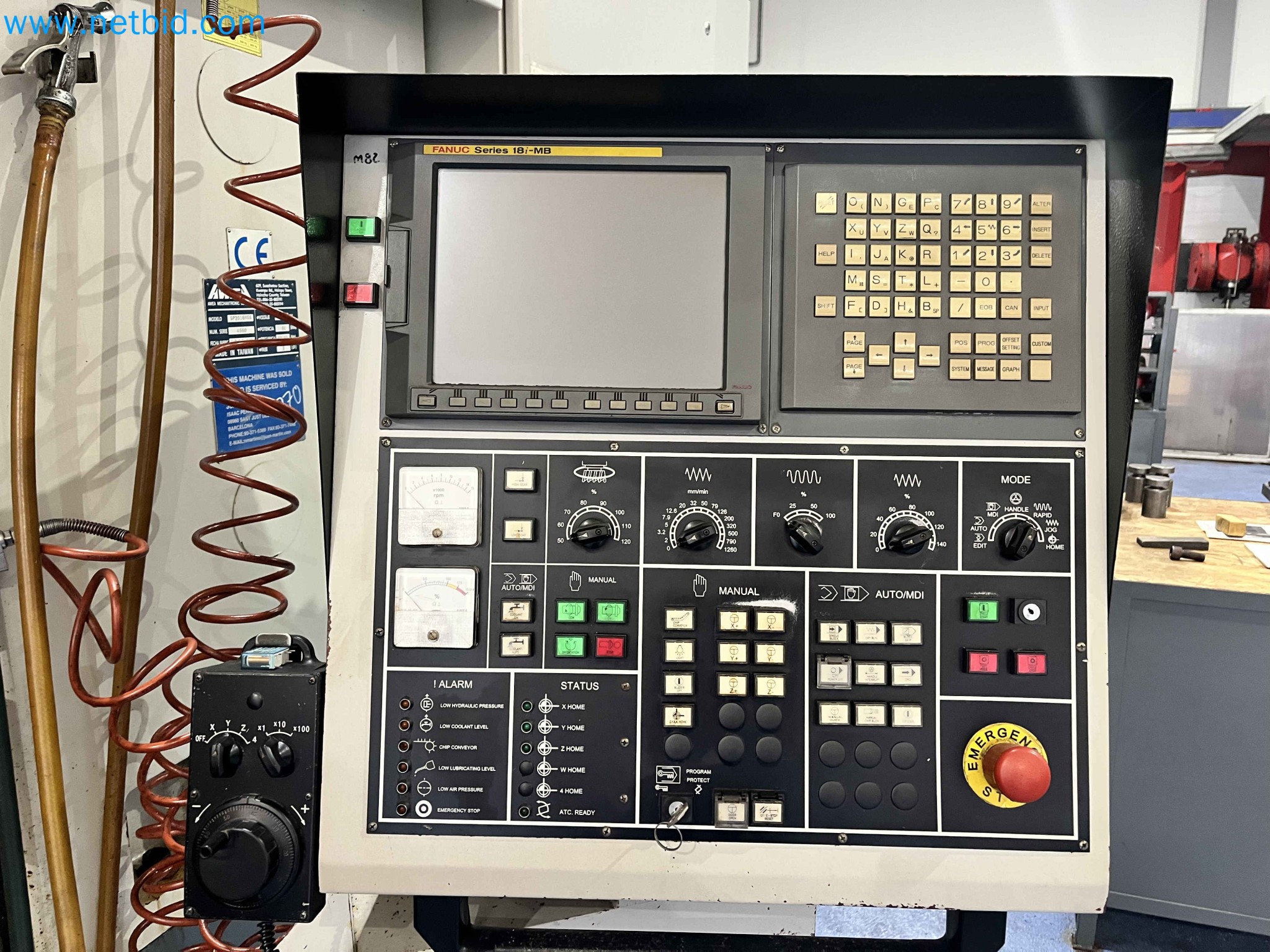

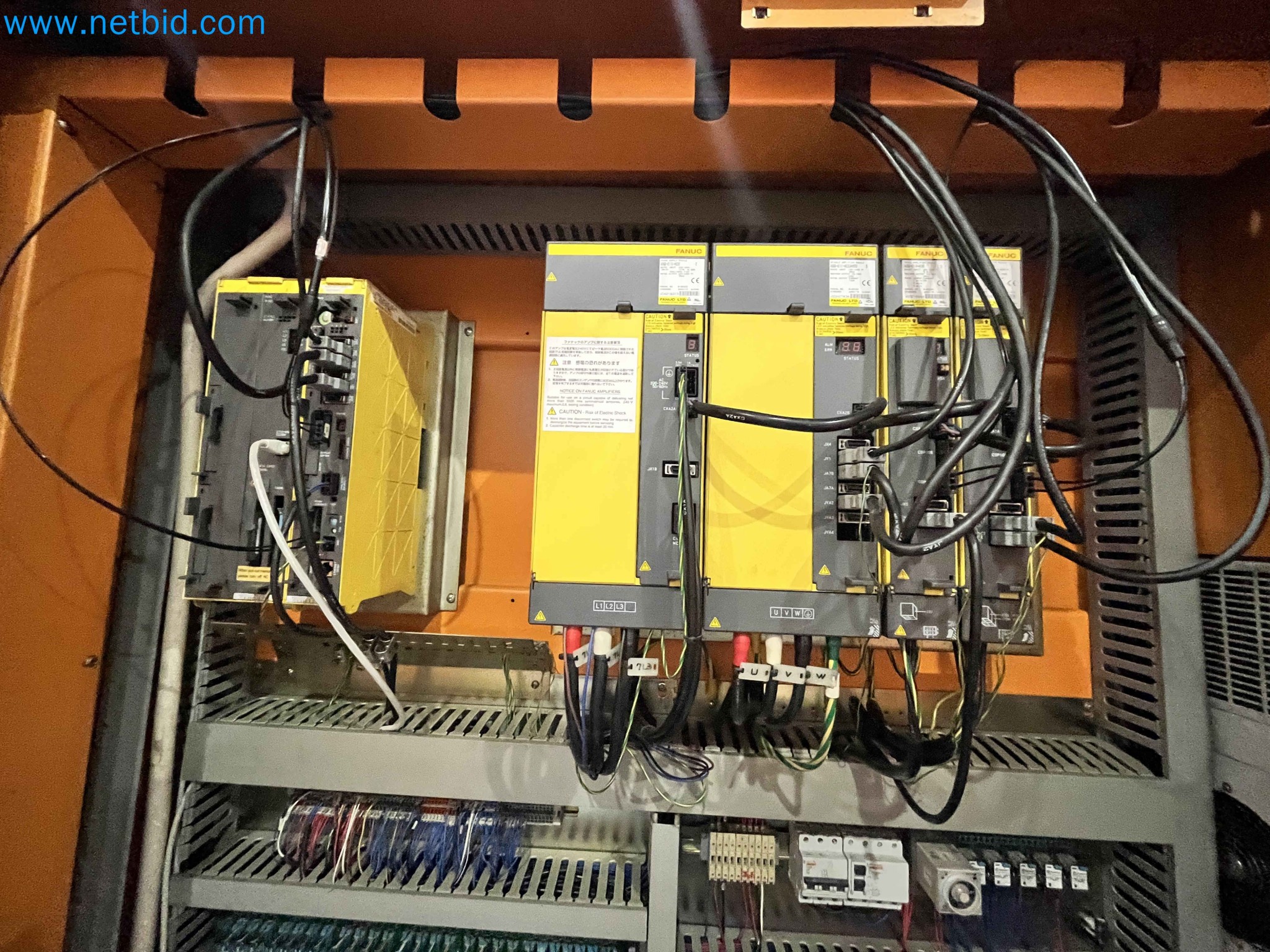

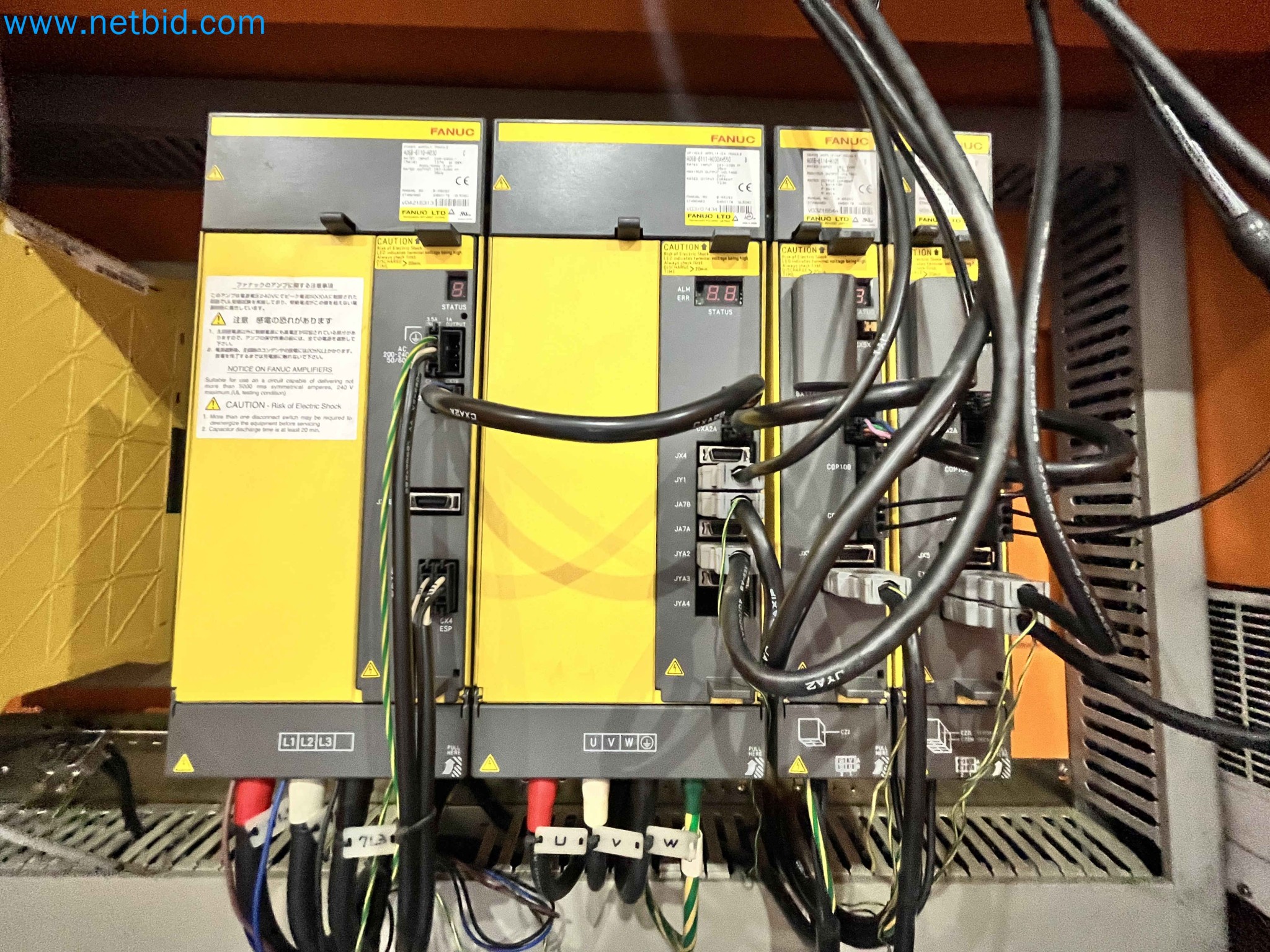

CNC control: Fanuc Series 18i-MB

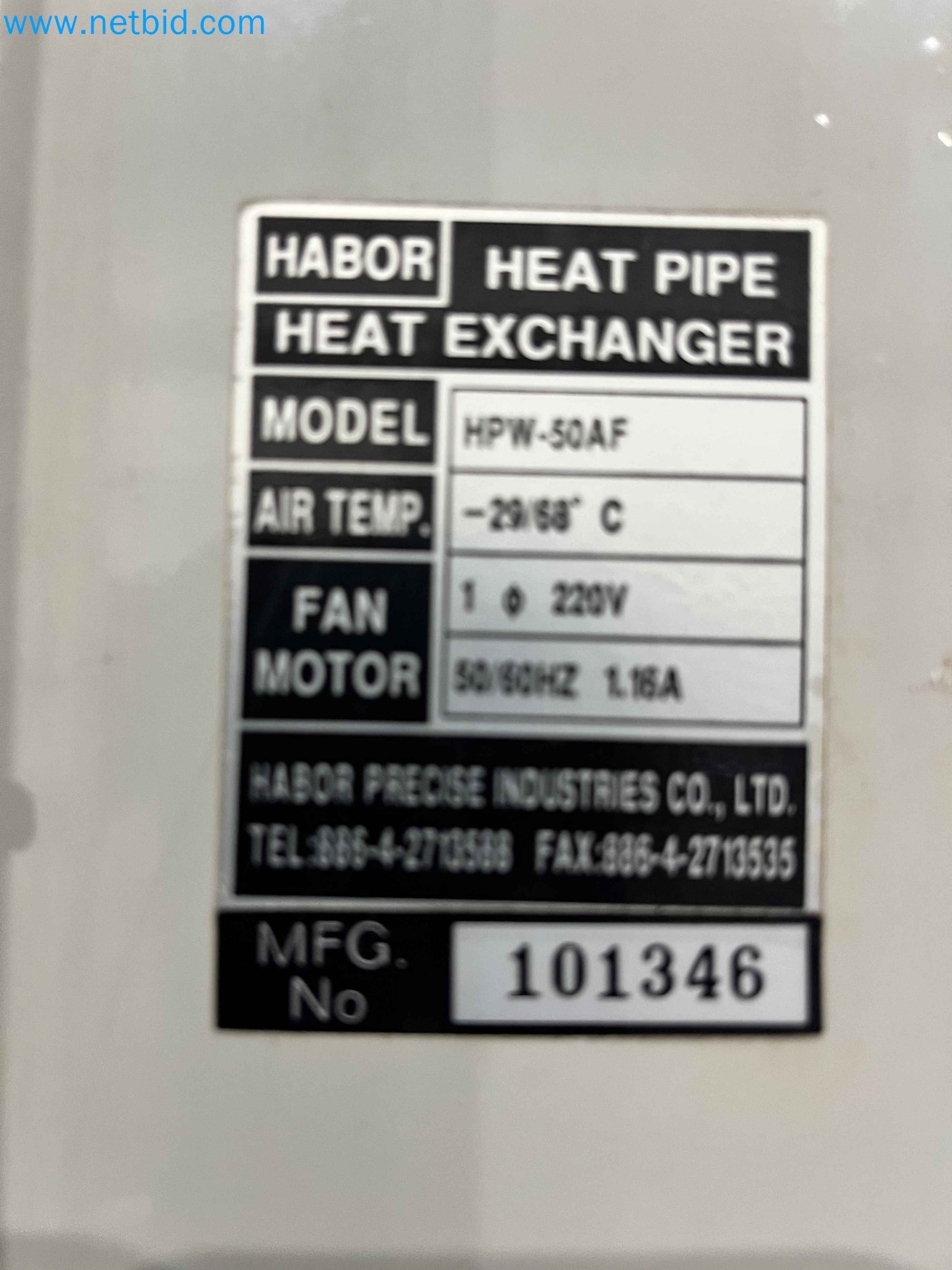

Coolant and lubrication systems included
" Power: 40 kva
Weight: 19000 kg
Approximate dimensions: 6690 x 4160 x 3890 mm
Additional mandatory dismantling & loading on truck cost of: 1200€
Engineered for precision and productivity, this model offers a robust structural design, high spindle speed, and smooth CNC performance. Ideal for die and mold applications, precision parts, and high-accuracy machining tasks.
Technical specifications (approx.):
Table size: 2310 × 1500 mm
Table capacity: 8000 kg Dist. between columns: 1700 mm
X-axis travel: 2100 mm
Y-axis travel: 1600 mm
Z-axis travel: 760 mm
FEED RATE X / Y axes rapids: 20,000 mm/min. Z-axis rapids: 15,000 mm/min. Cutting feedrate: 10 ~ 15,000 mm/min.
Spindle taper: BT40
Spindle speed: up to 12,000 rpm
Spindle motor power: 18.5 kW
Rapid traverse (X/Y/Z): 24 / 24 / 20 m/min
Dist. from spindle nose to table top: 160 ~ 920 mm ( 6.3" ~ 36.2" )
TOOL MAGAZINE Automatic tool changer (ATC): 32 tools
Max. tool DIA. / adjacent empty: 102 / 127 mm Max. tool length: 300 mm ( 11.8" ): Max. tool weight: 7 kg Tool changing time ( tool to tool ): 12 sec.
CNC control: Fanuc Series 18i-MB
Coolant and lubrication systems included
" Power: 40 kva
Weight: 19000 kg
Approximate dimensions: 6690 x 4160 x 3890 mm
Additional mandatory dismantling & loading on truck cost of: 1200€
Location
- 2405-000 Maceira
Dates
Inspection
Visits are only possible after prior registration at carrico@netbid.com.
Pickup
05. Jan 2026 - 30. Jan 2026
Collection is only possible after prior registration at carrico@netbid.com.
Auction Terms
Special conditions:
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
