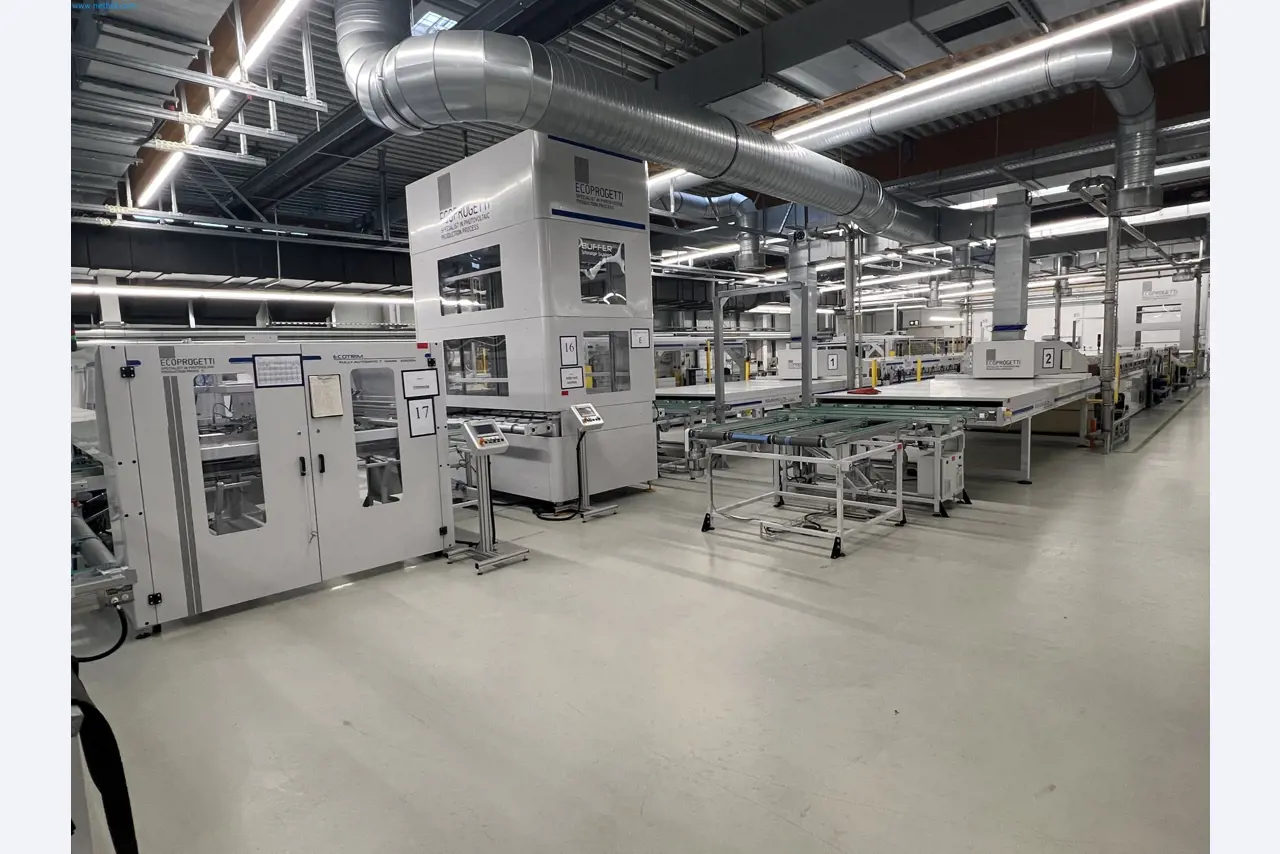

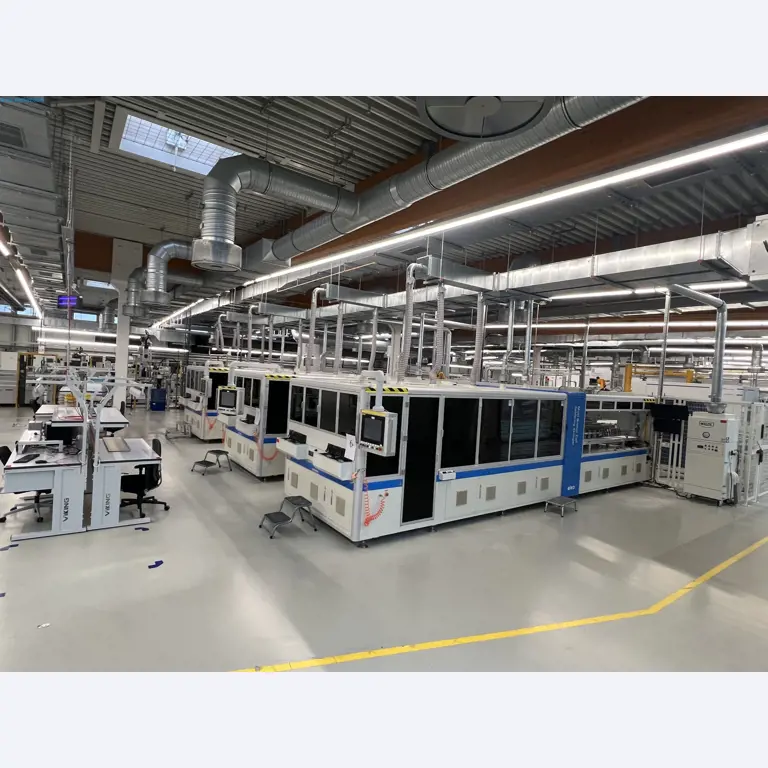

Solar panel production lineLIVE#19057-1

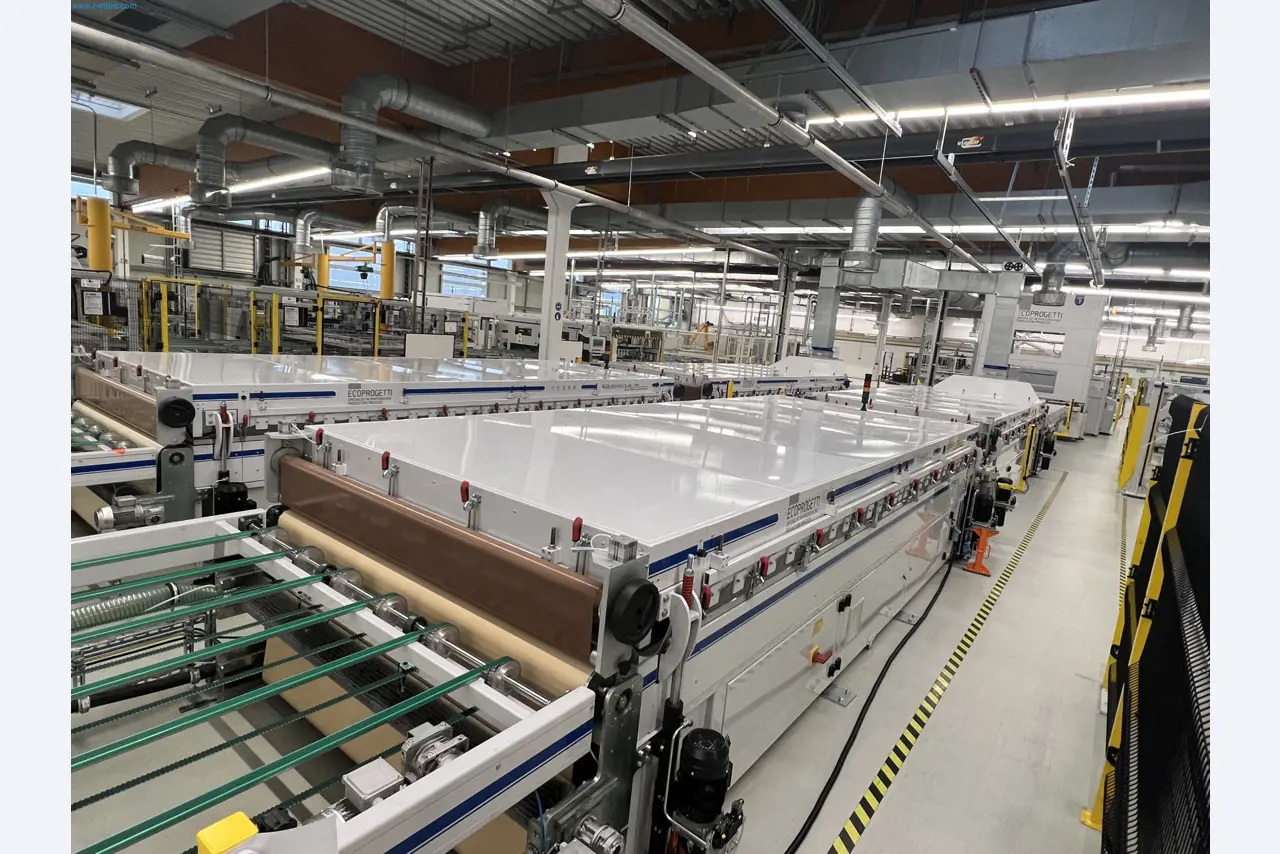

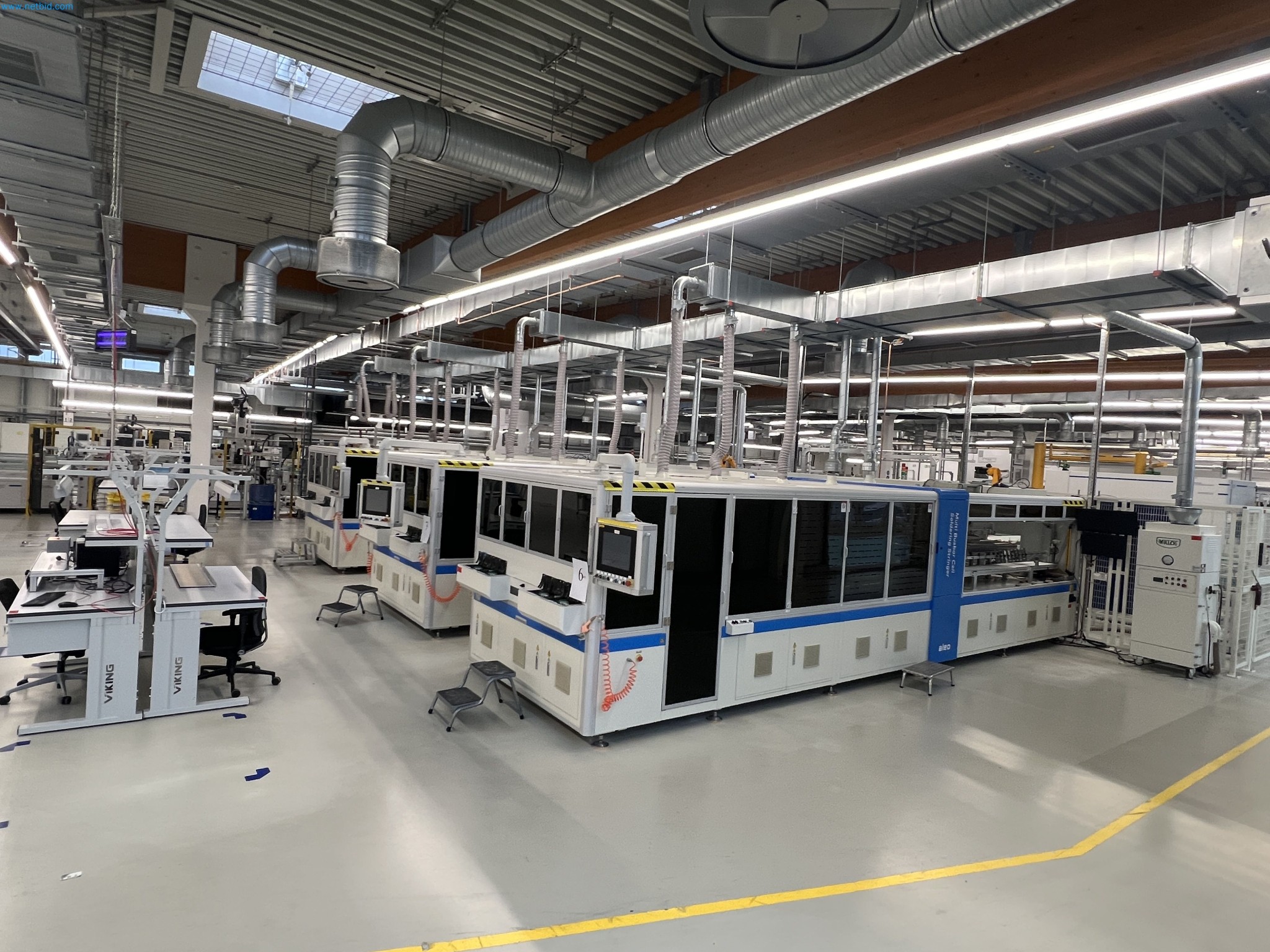

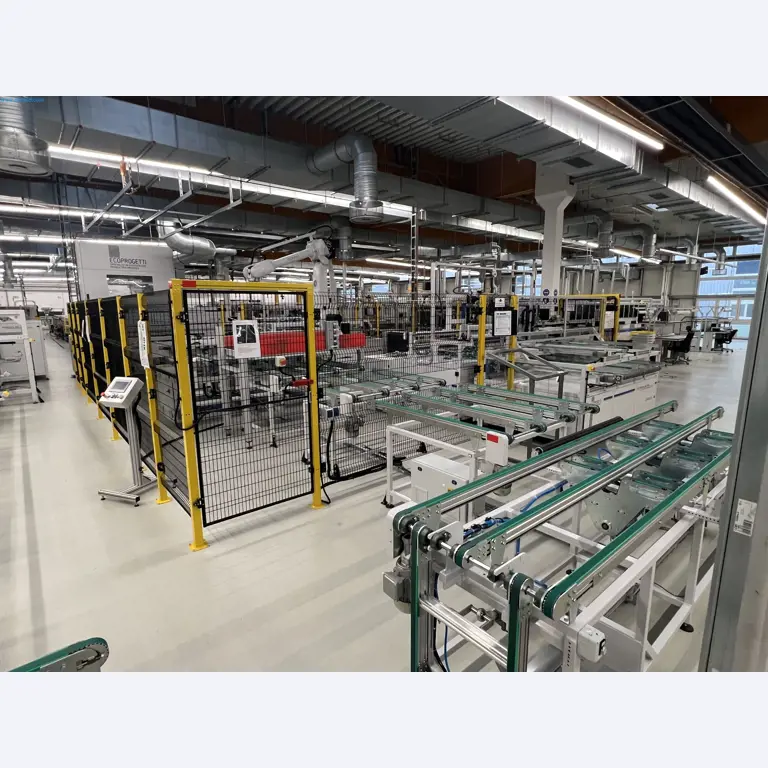

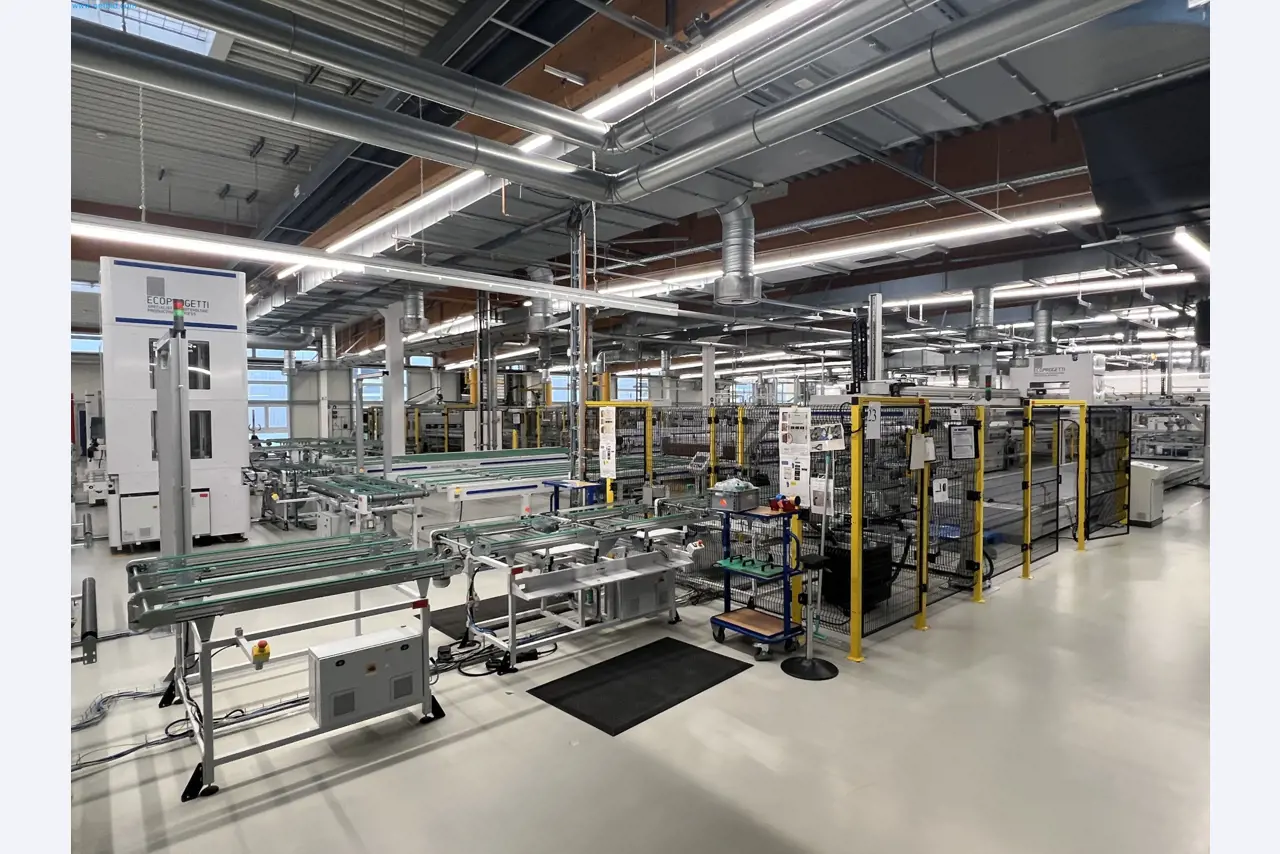

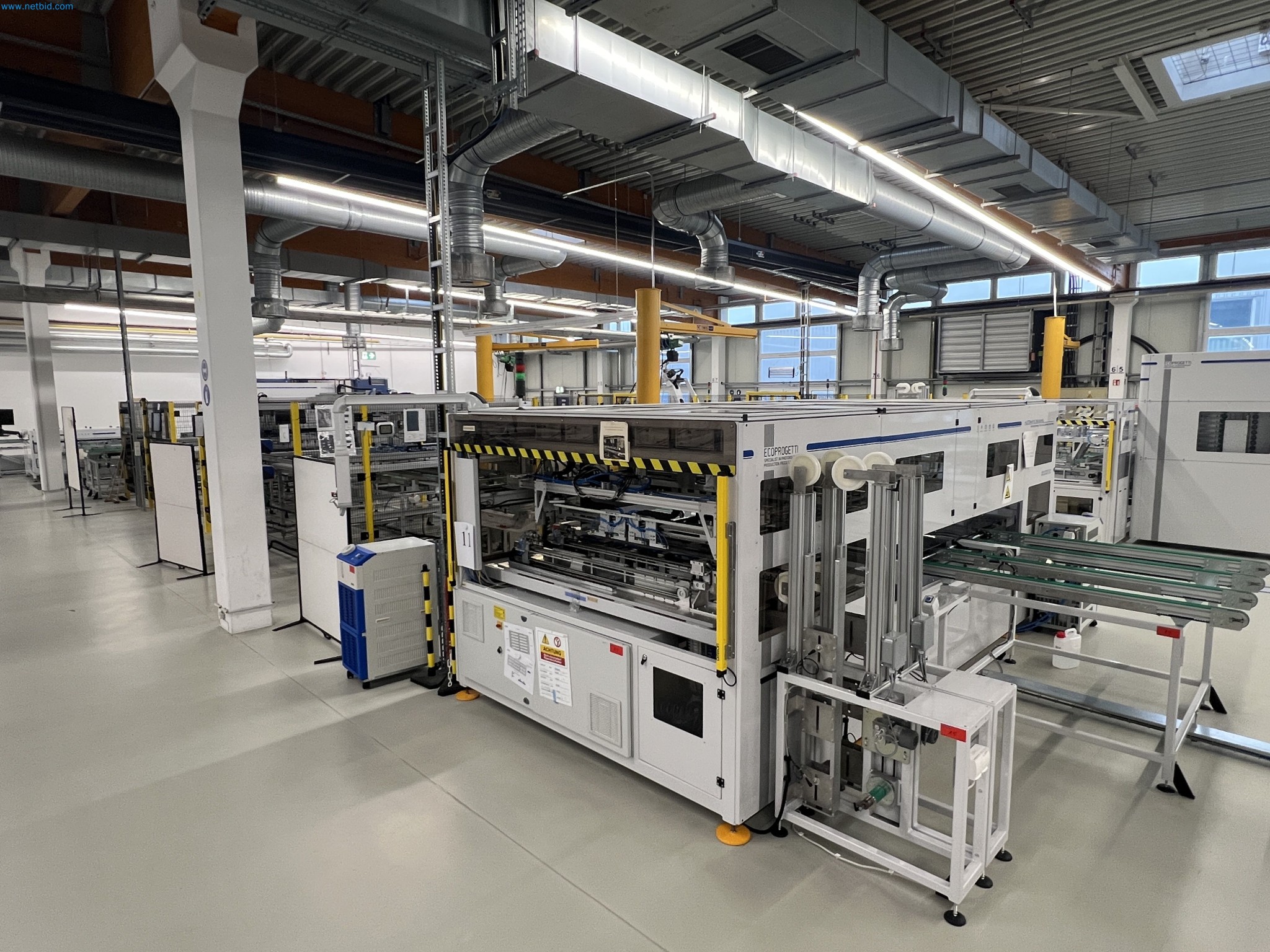

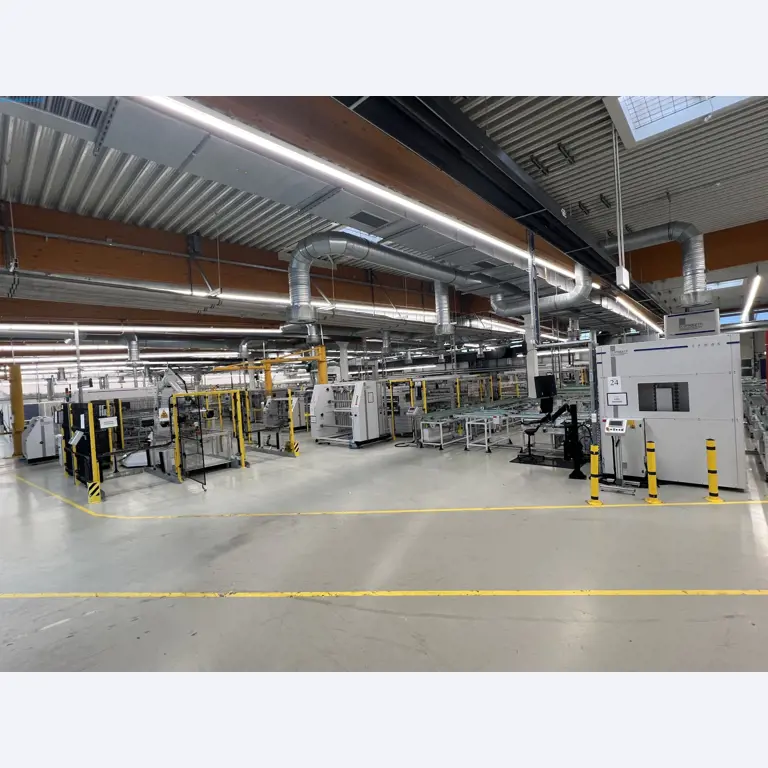

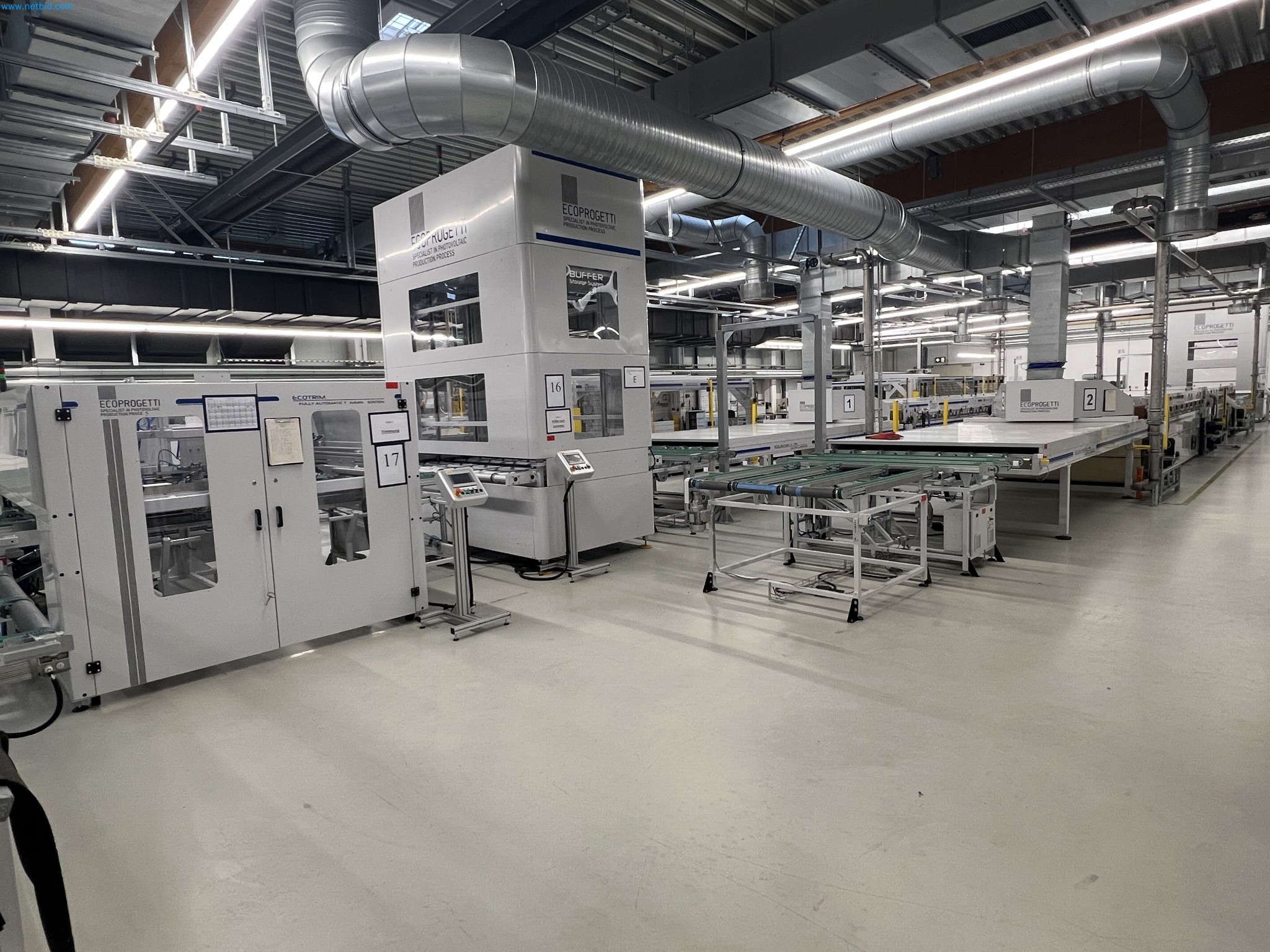

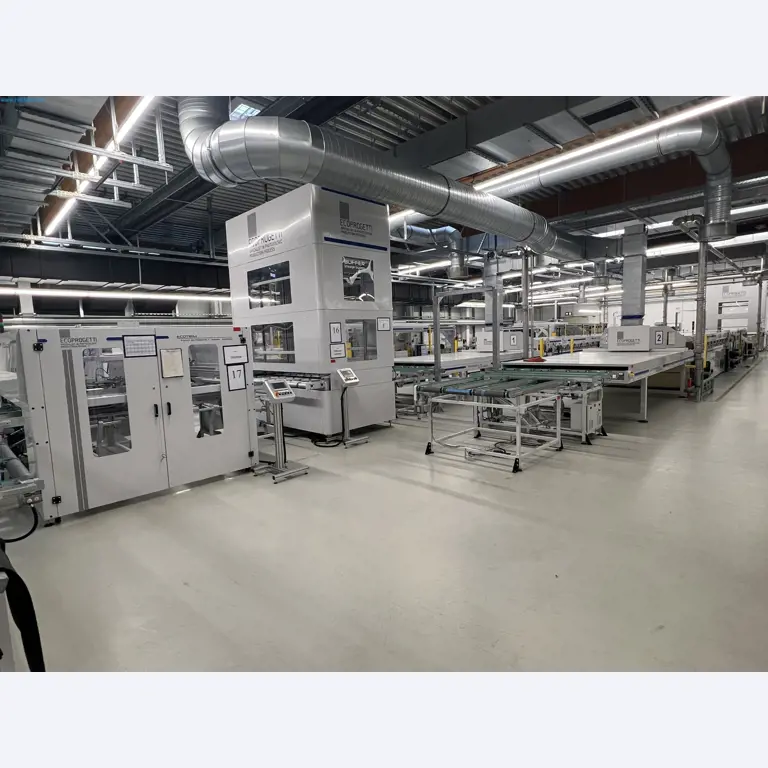

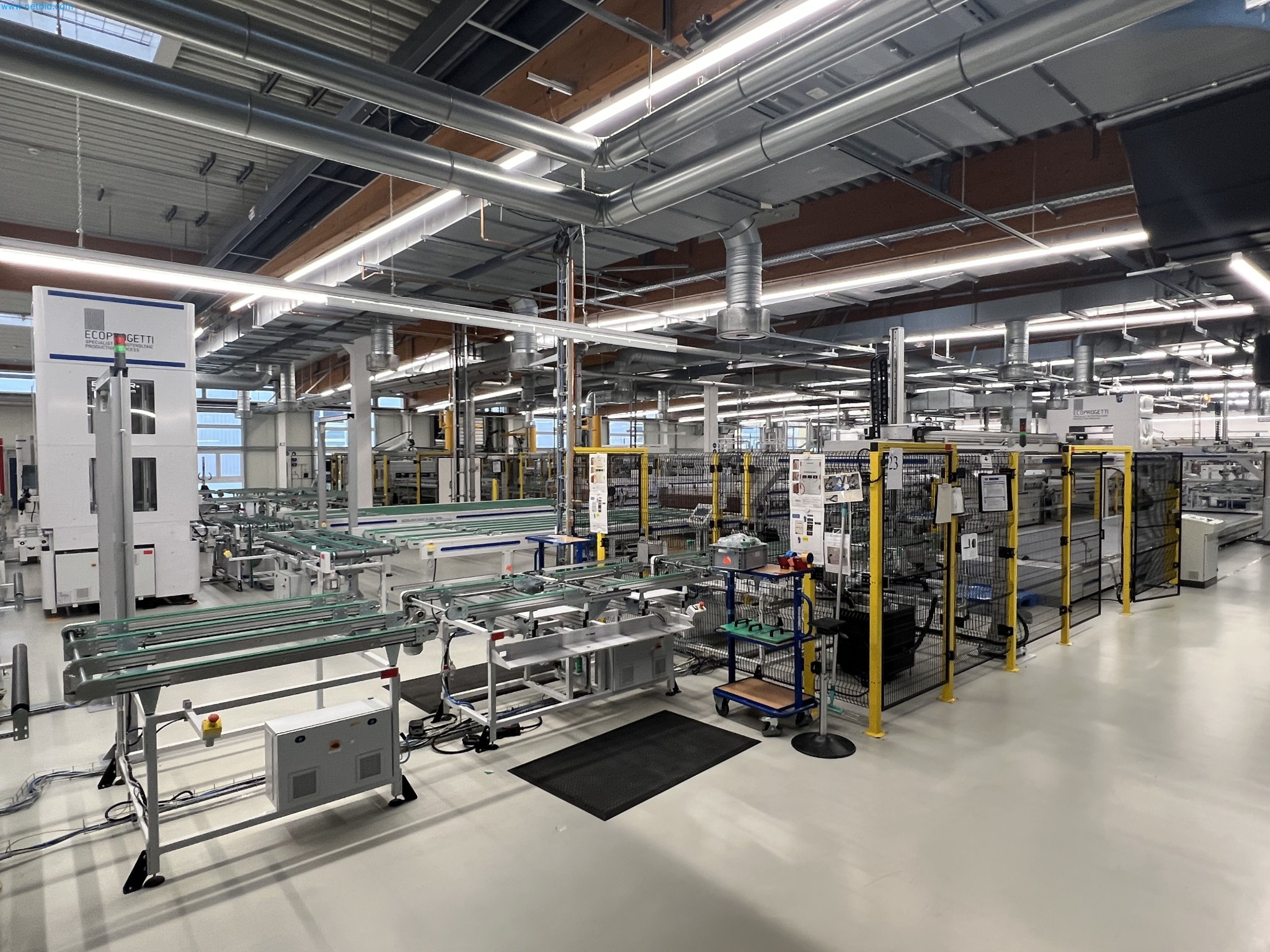

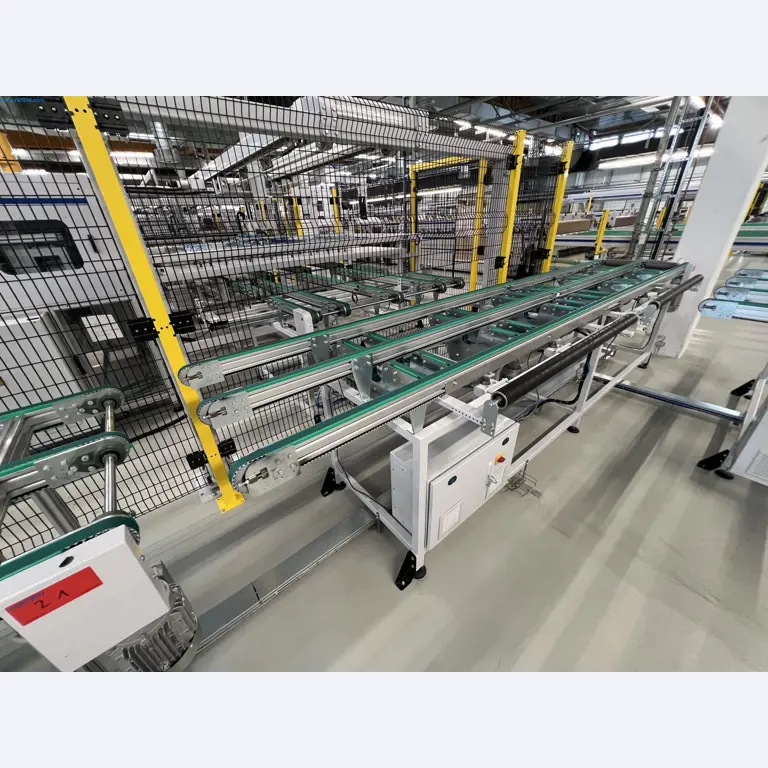

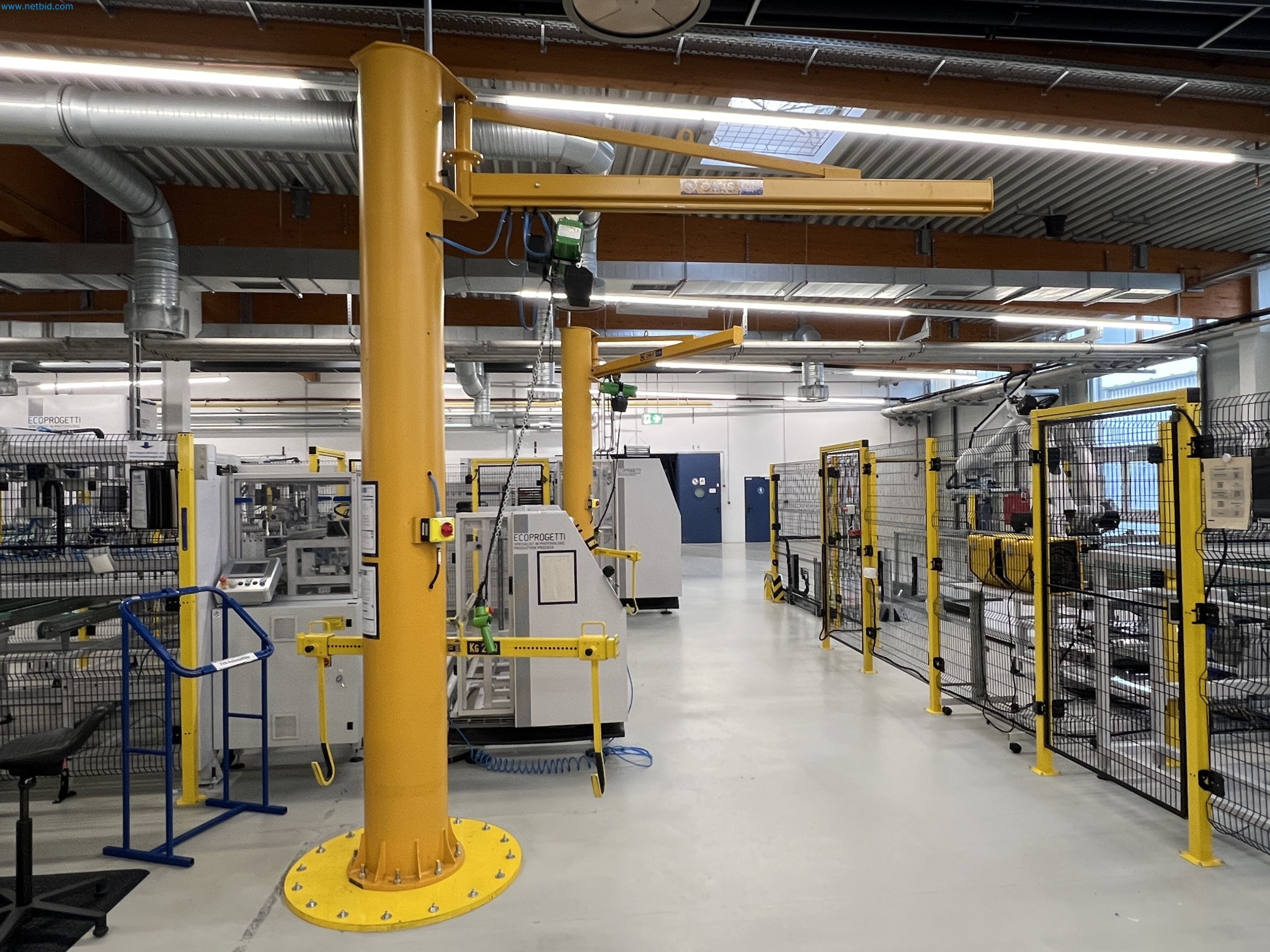

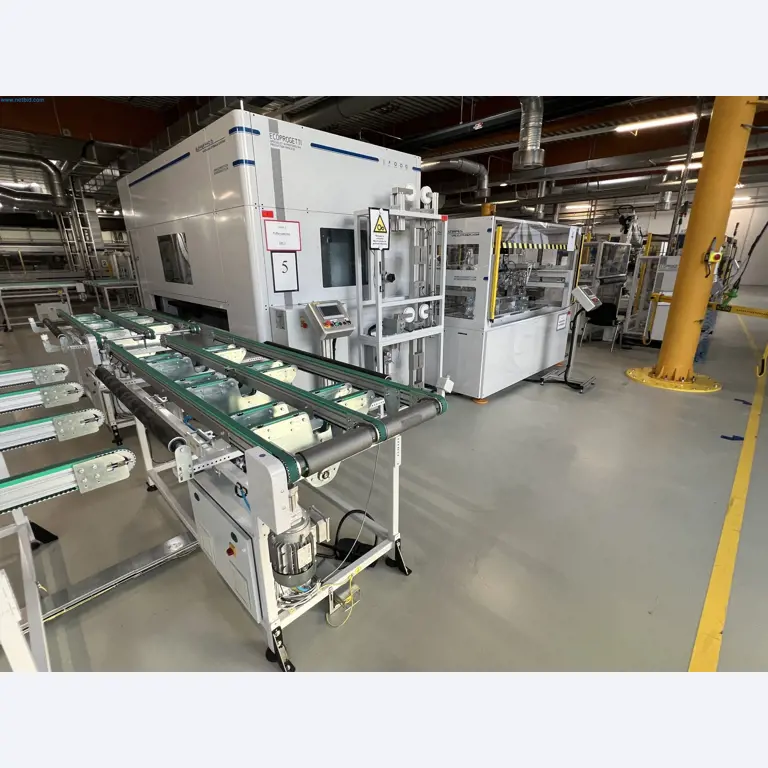

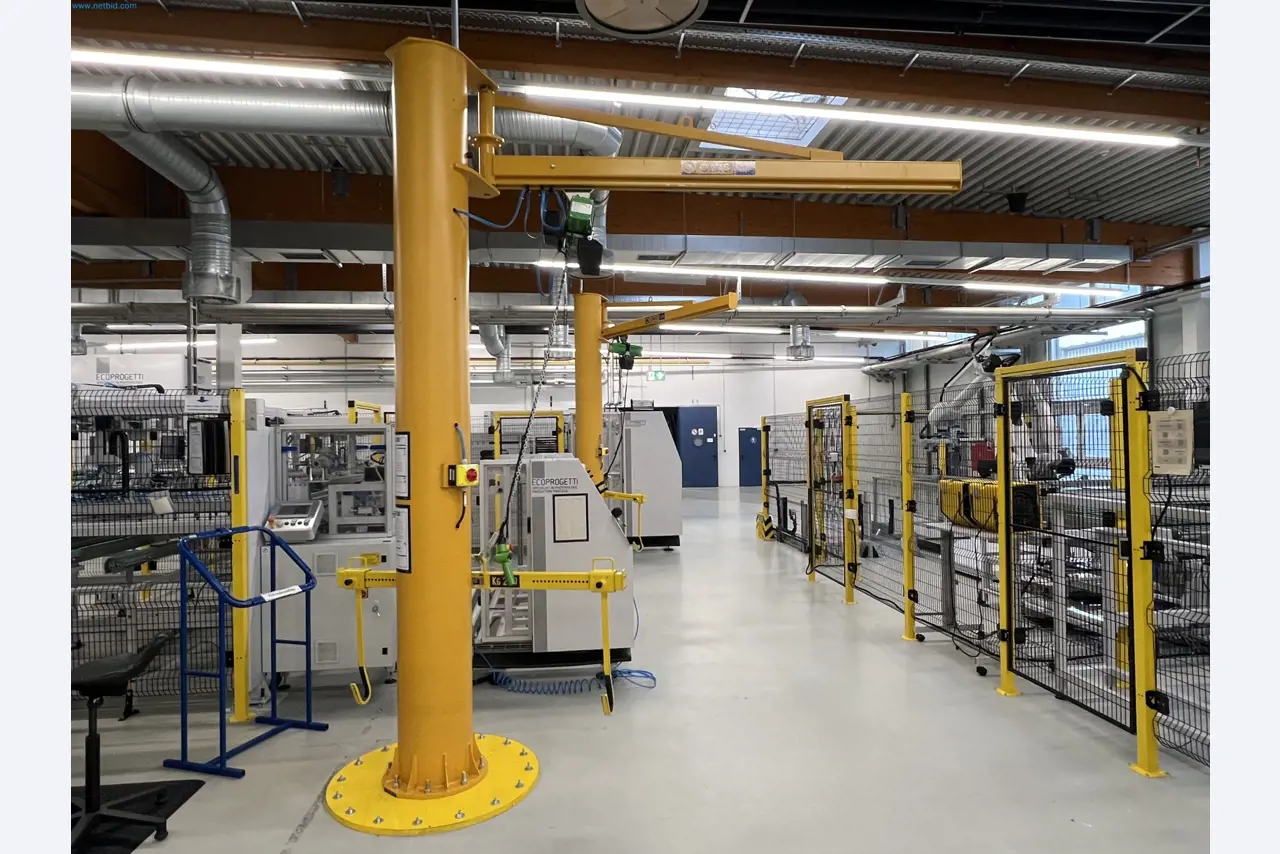

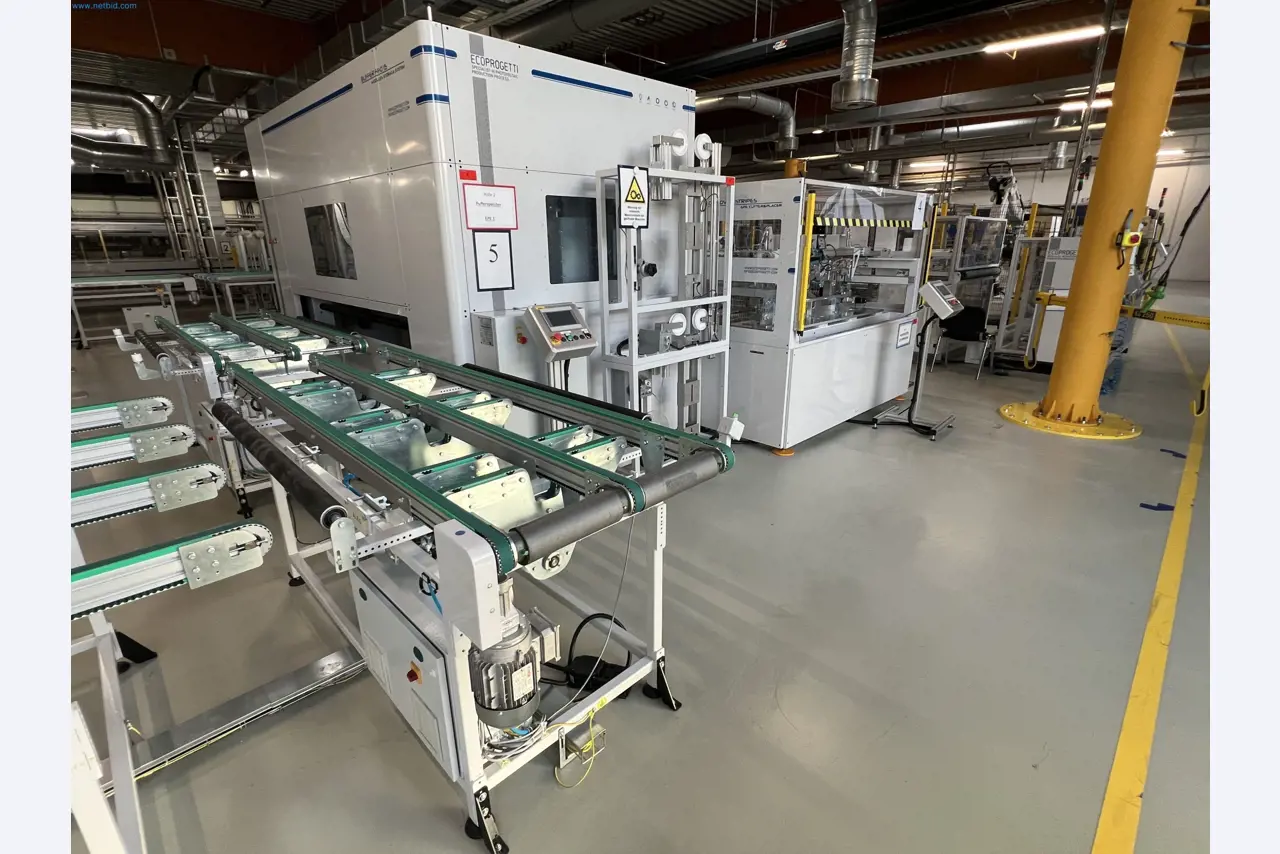

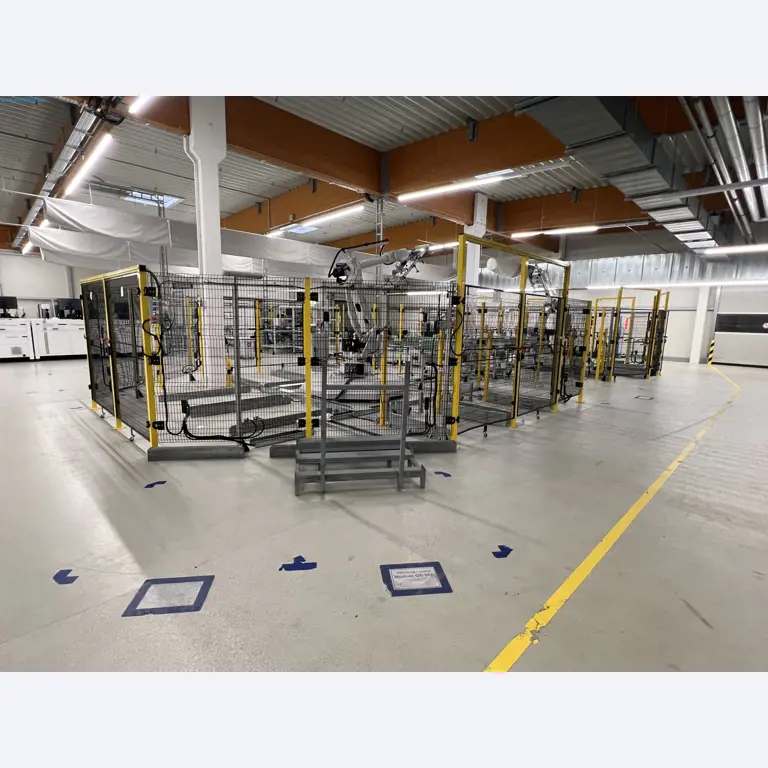

consisting of items 2 - 62, see PDF, The production line is designed for an annual capacity of 150 MW. It processes PERC and TOPCon cells (M10 format, 10BB) and other cell formats and BB geometries can be processed by partially replacing the equipment. The line is designed for the production of 150 MW/a. PERC and TOPCon cells (M10 format, 10BB) have been processed on the line. Other cell formats and BB geometries could be processed by partially replacing the equipment. The specified cycle time is 50 s/module, with a maximum output of up to 55 modules per hour. The output can therefore be up to 25 kWp (for modules with a nominal output of 450Wp). The area required for the current layout is approx. 2,700 m². The minimum module size is 800 (width) x 1400 (length) mm², the maximum module size is 1150 (width) x 2050 (length) mm². Both framed and frameless modules were produced. The line is configured for the production of glass-foil modules. This line can only process backsheets (e.g. PET-based). After a conceptually possible line extension, glass could also be used as a backsheet material. PERC and TOPCon technology cells have been processed on the line.
