Details
Product Type
EMCO
Type
Turn E45
Construction Year
2019
Description
Machine consisting of:

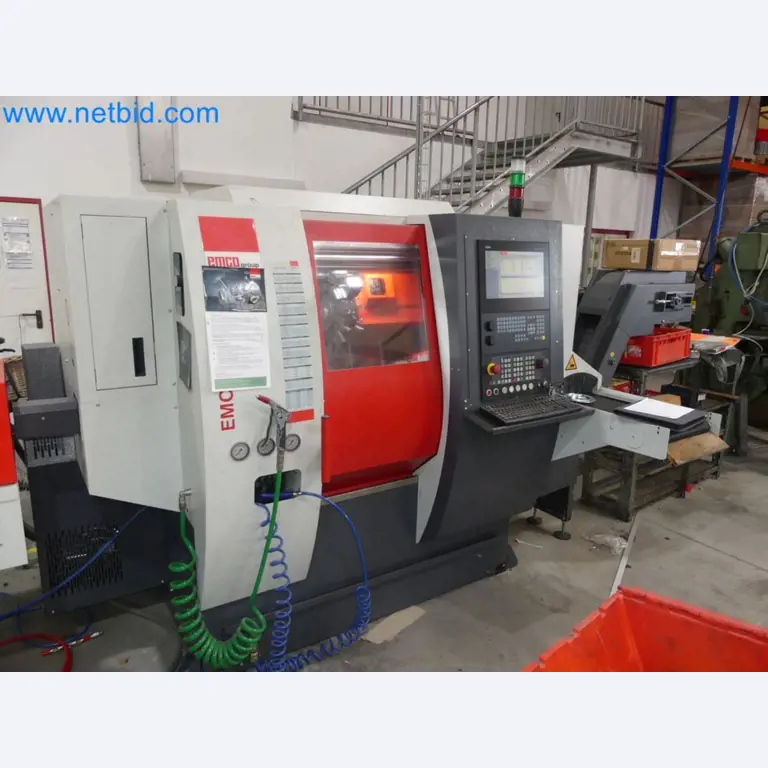

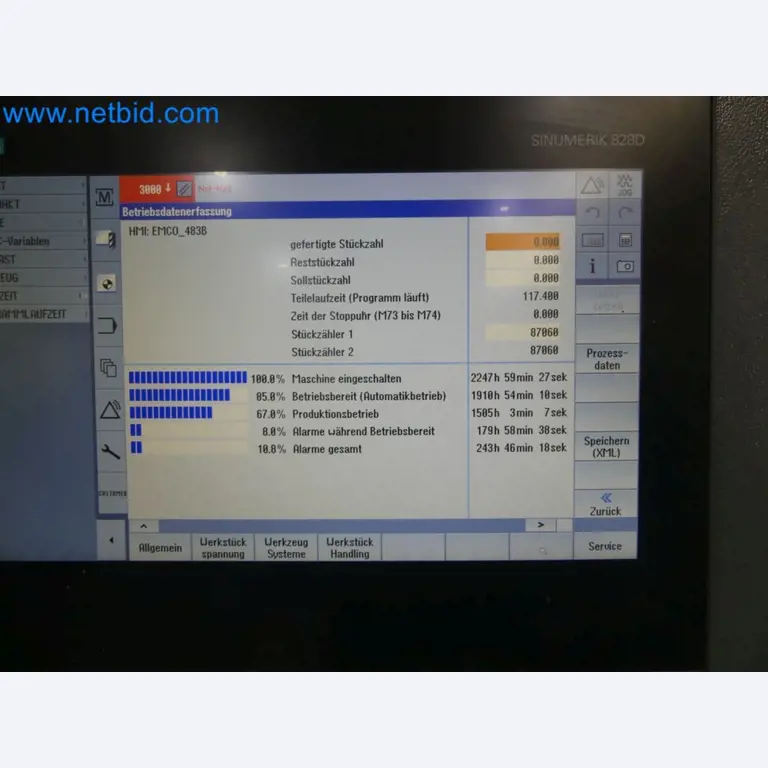

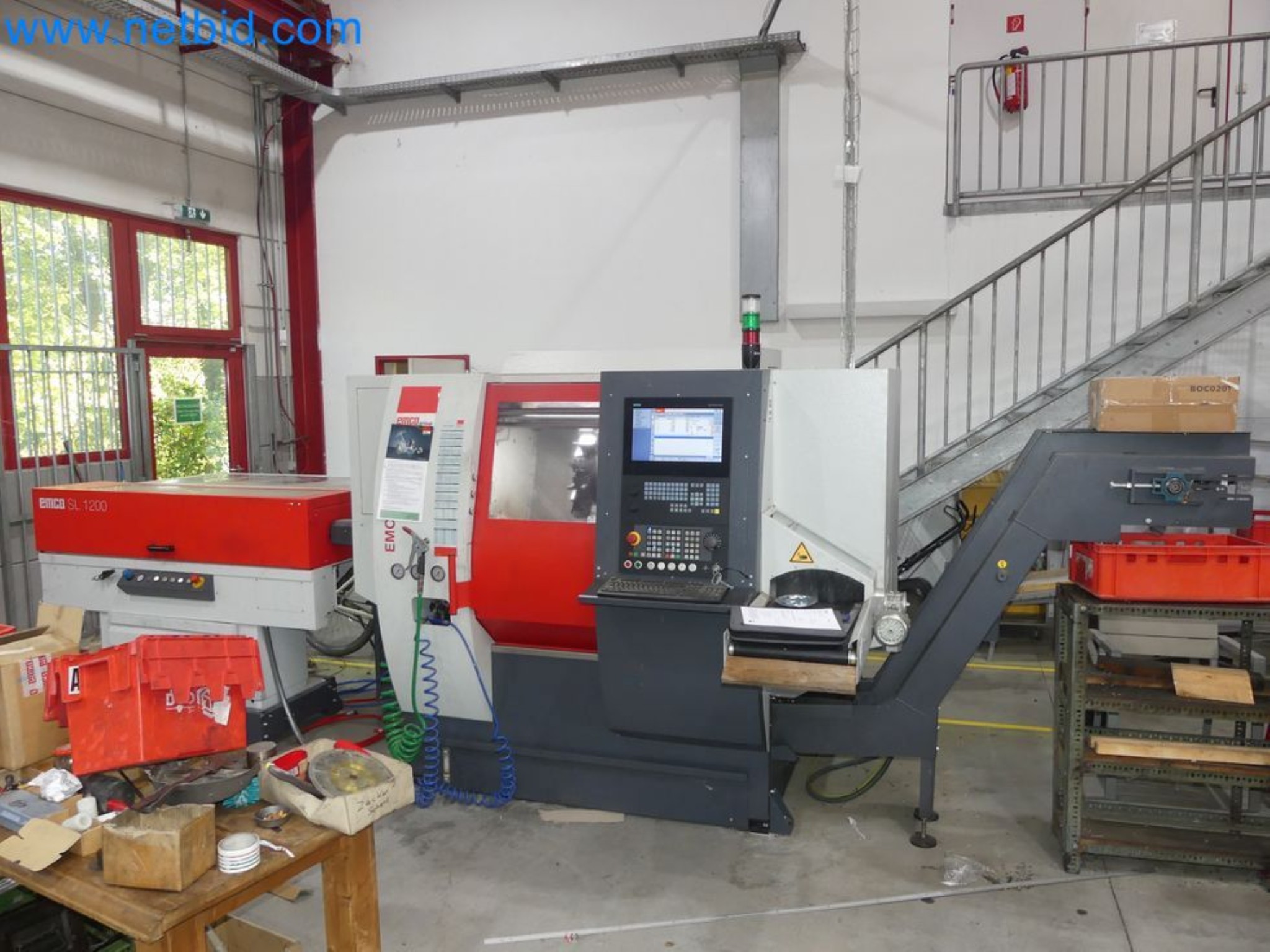

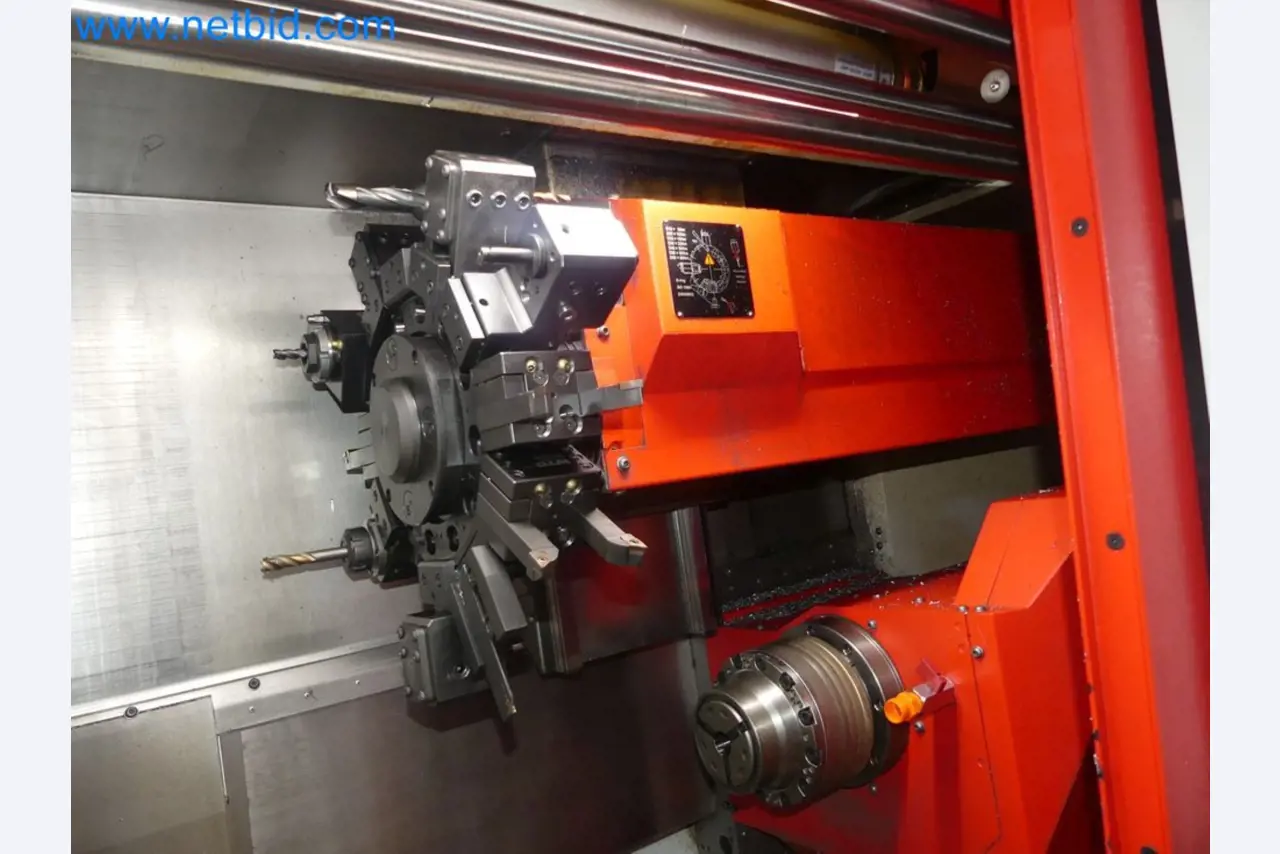

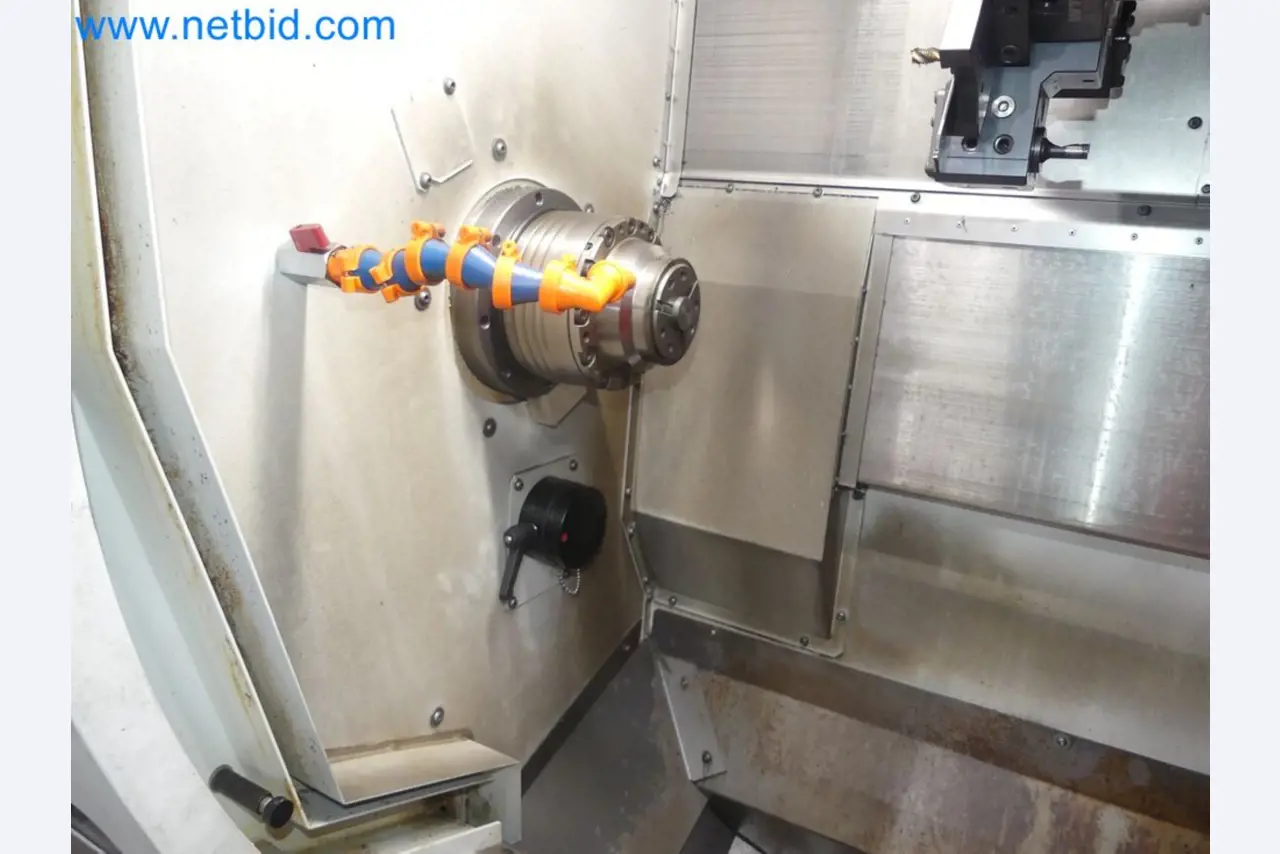

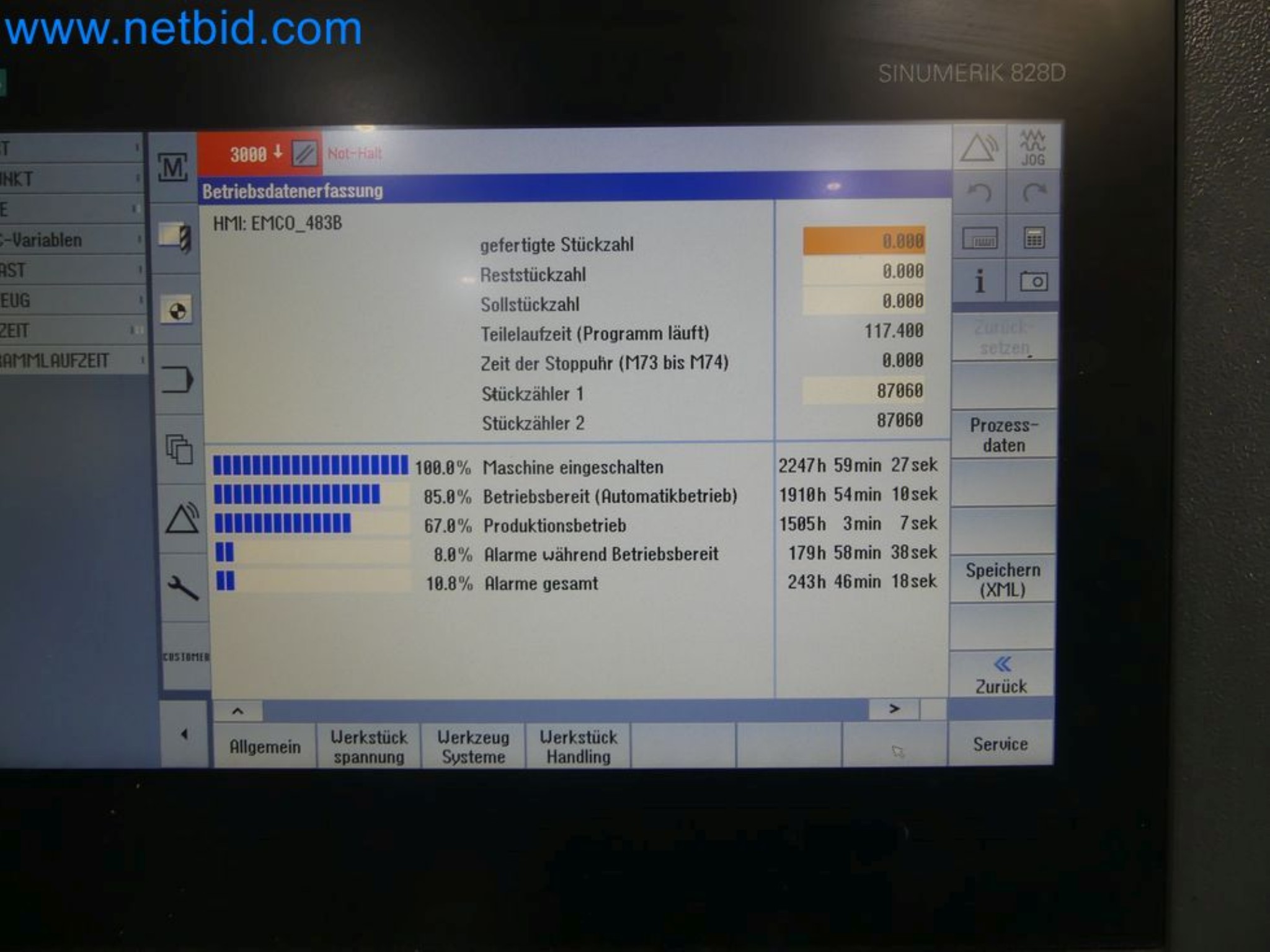

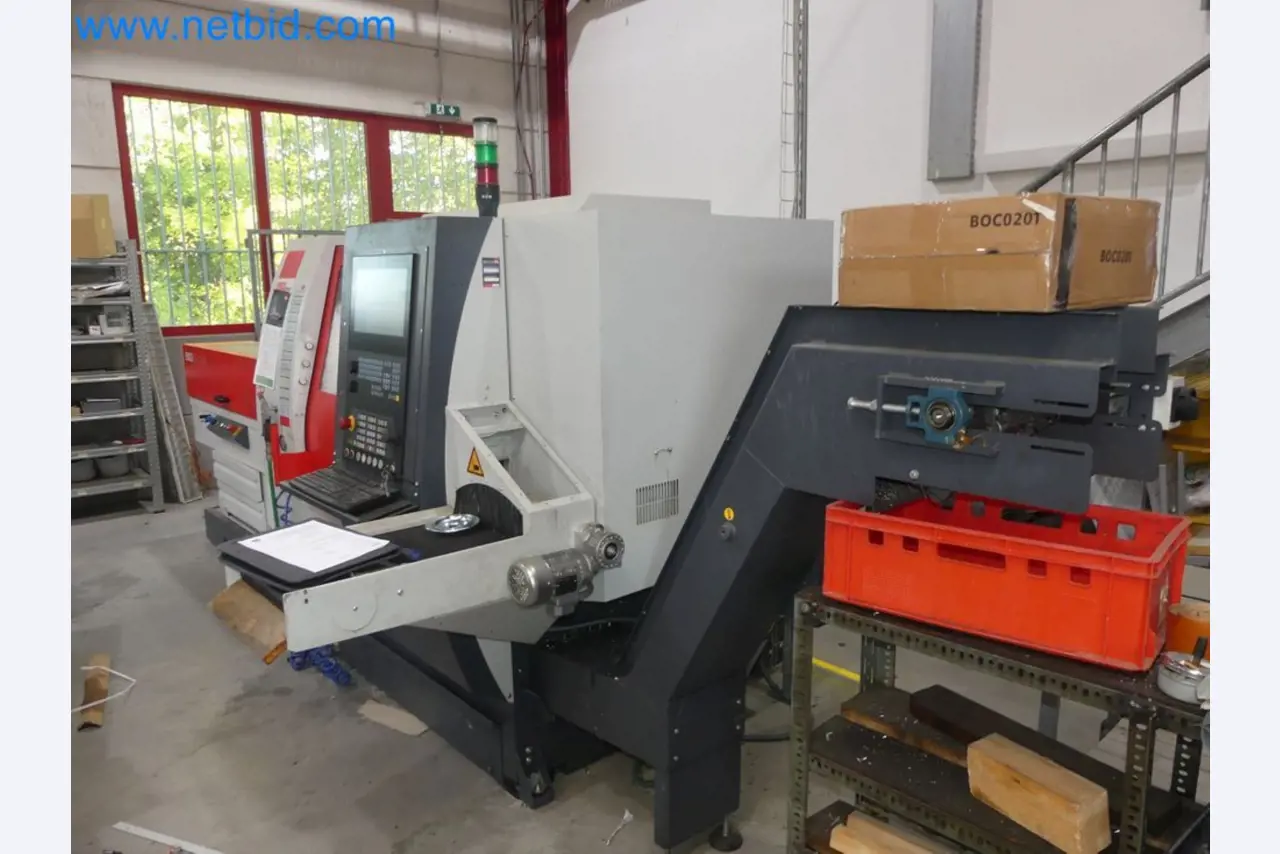

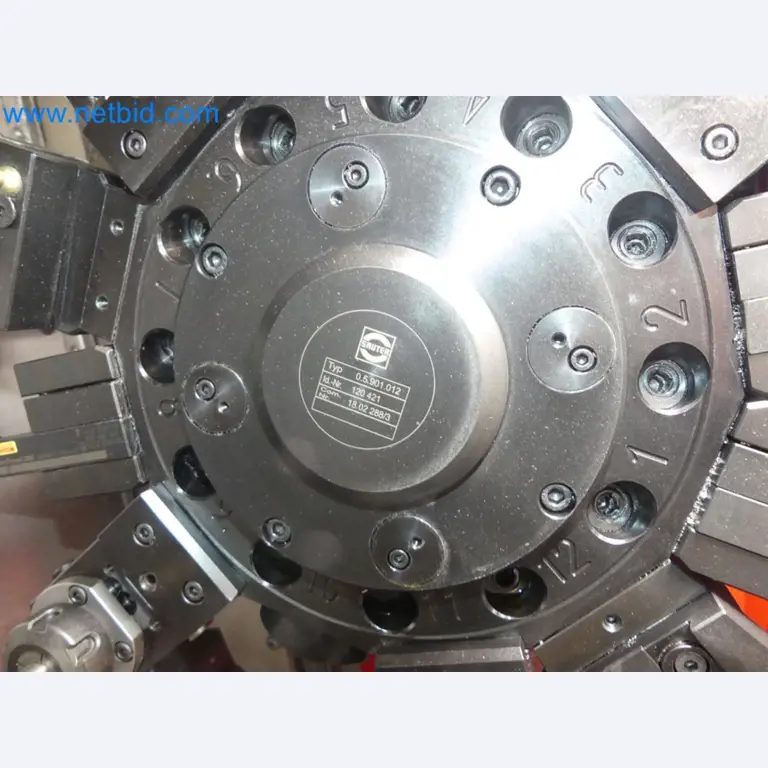

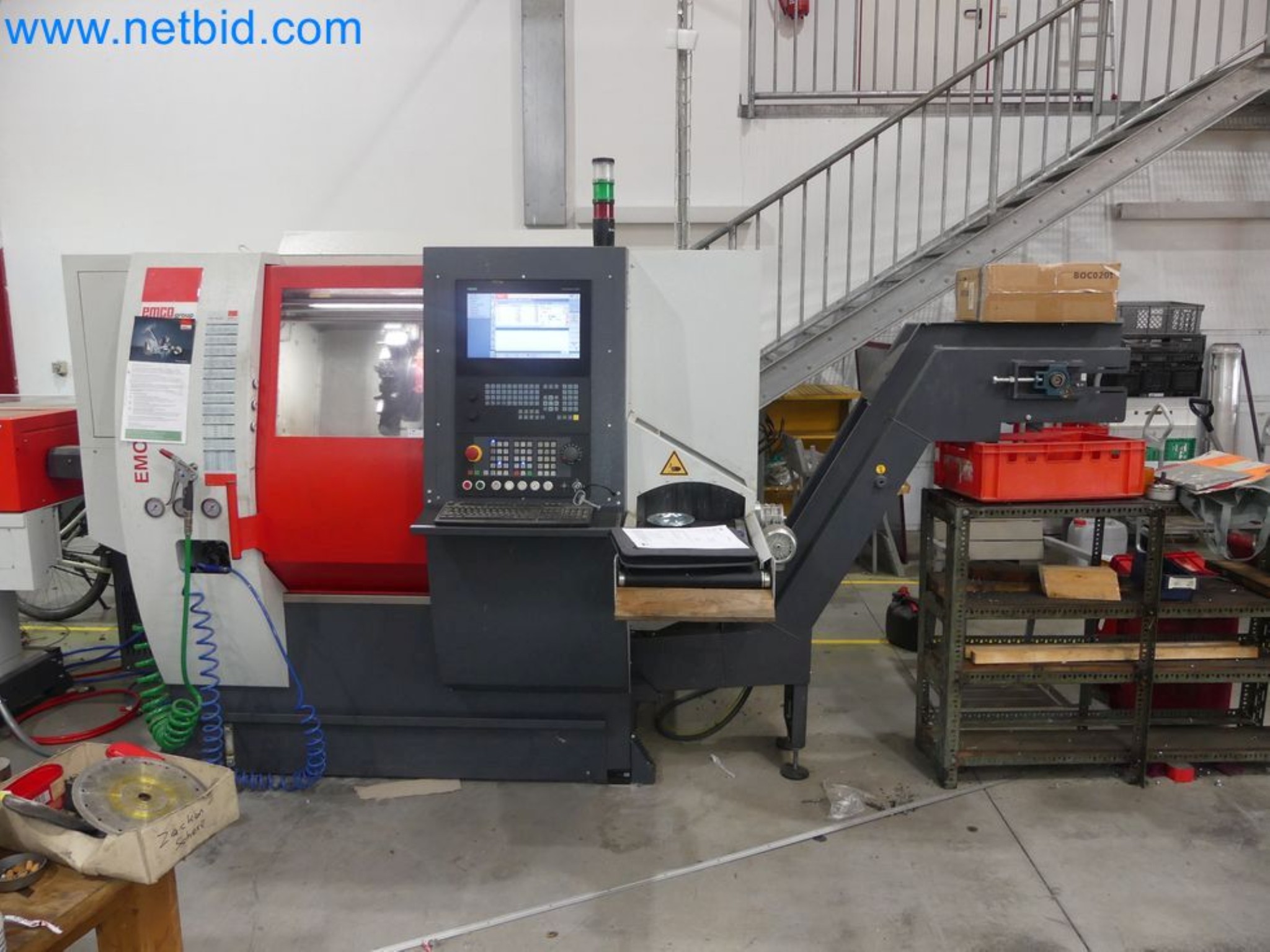

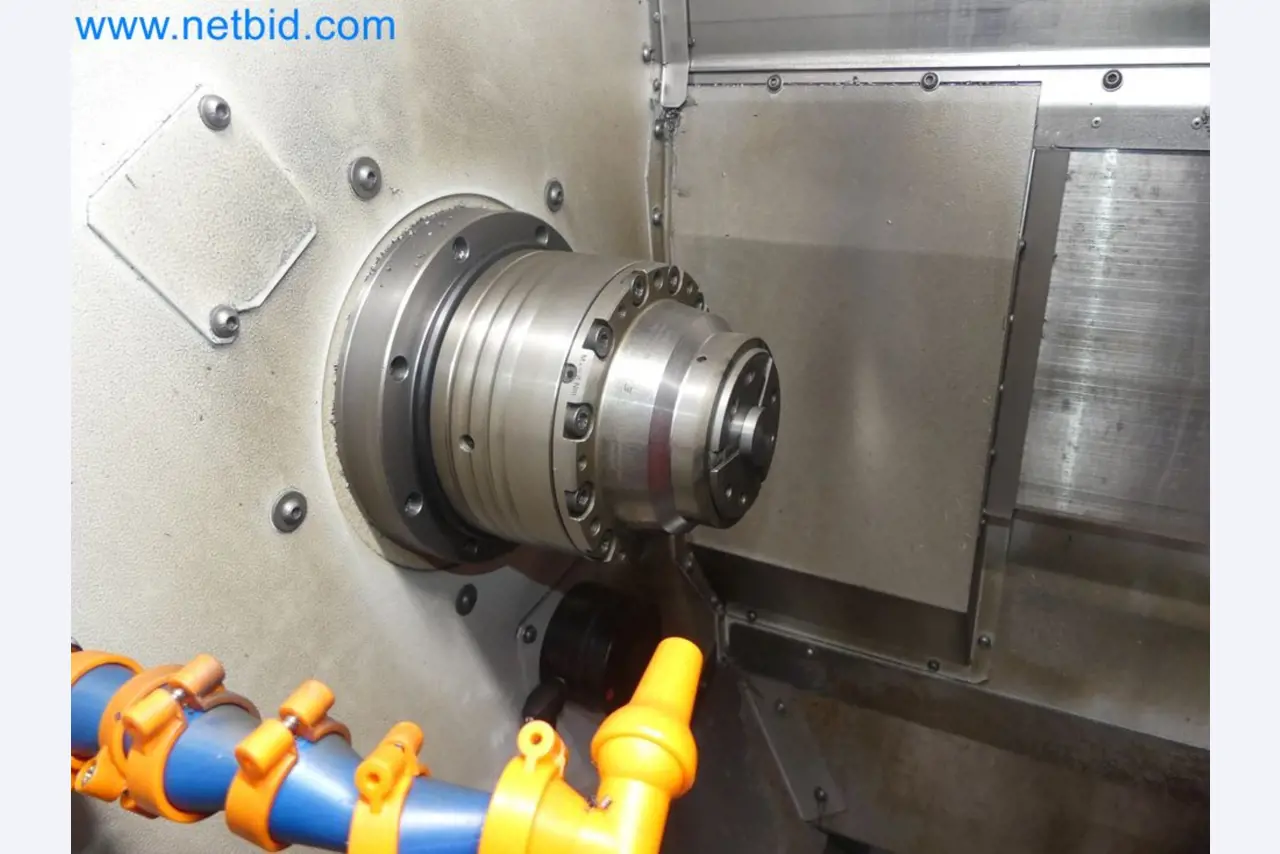

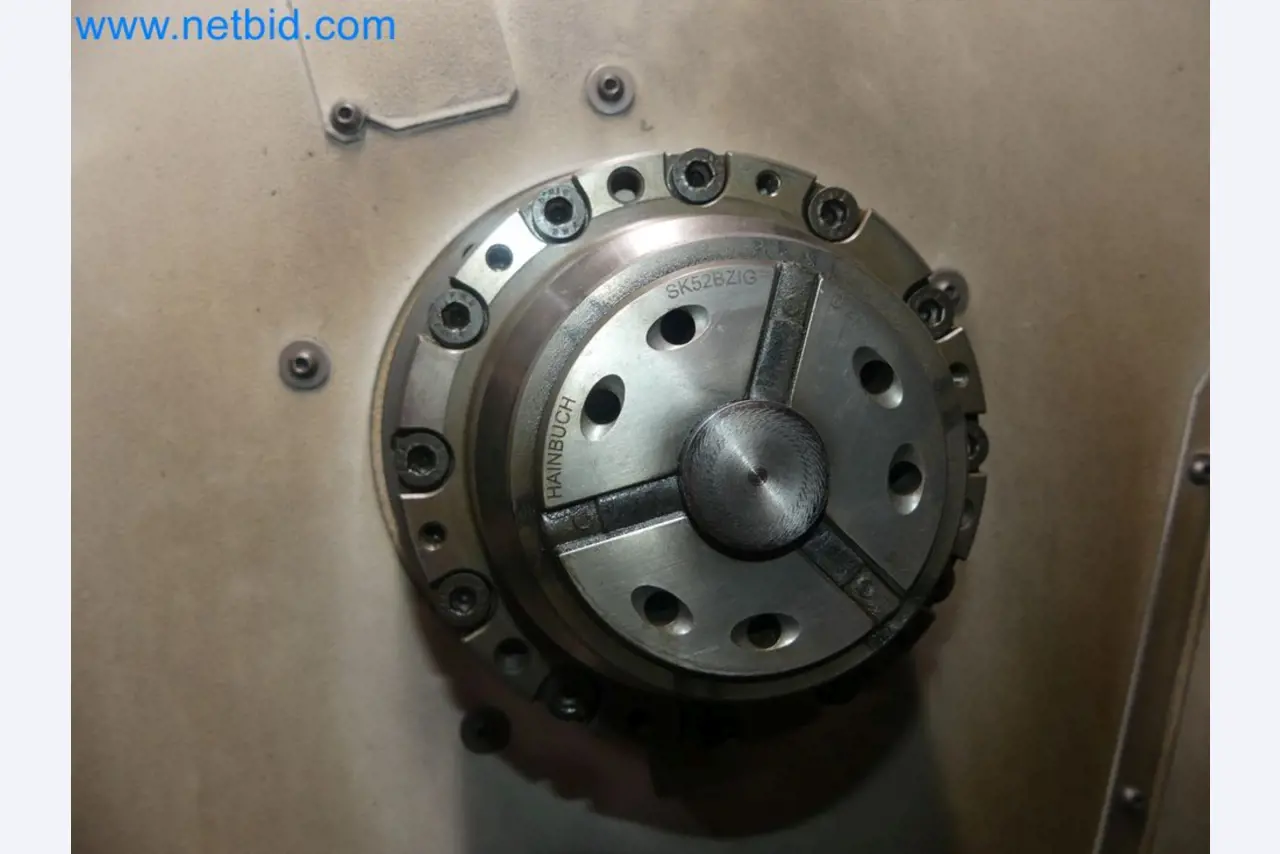

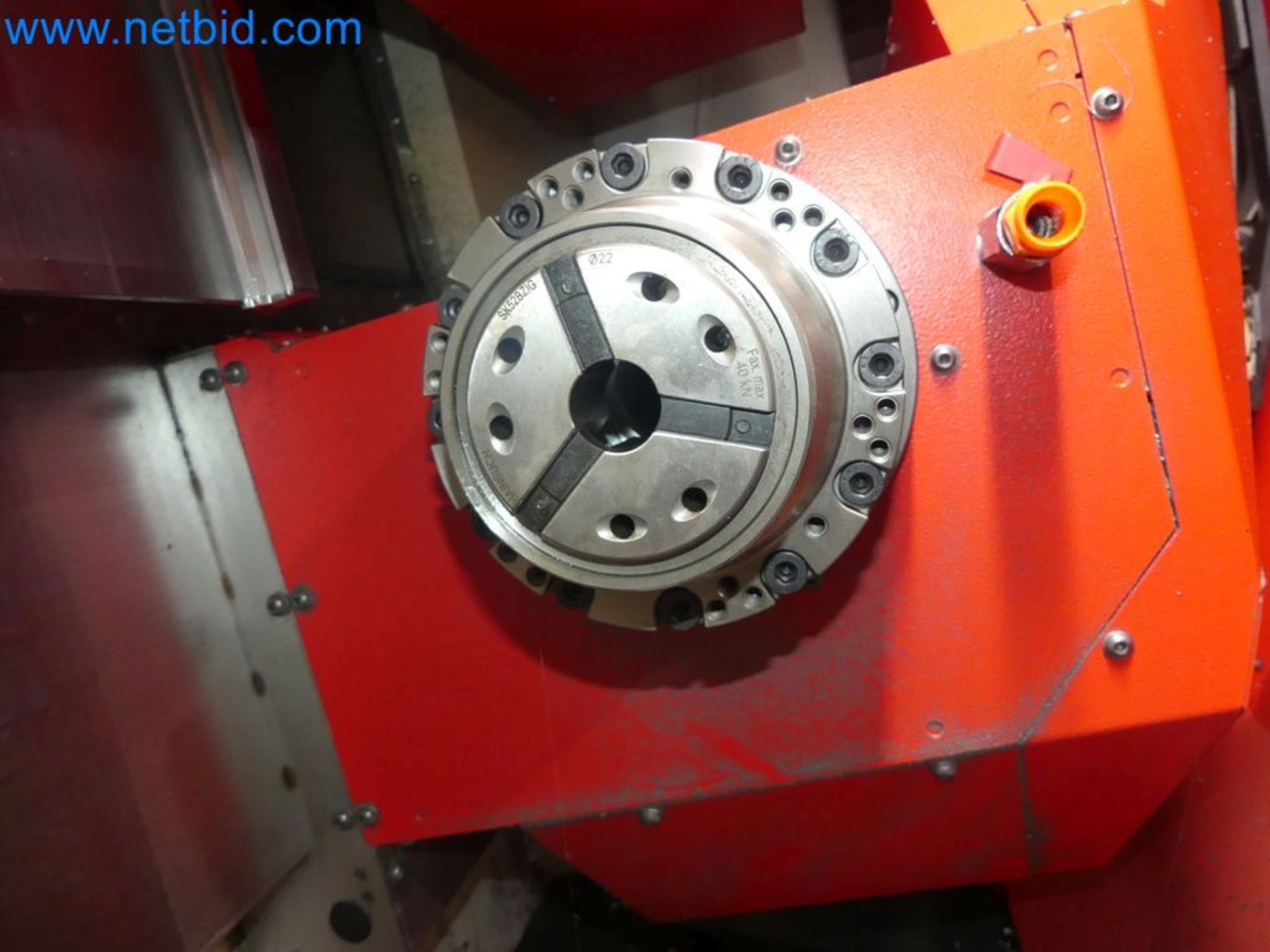

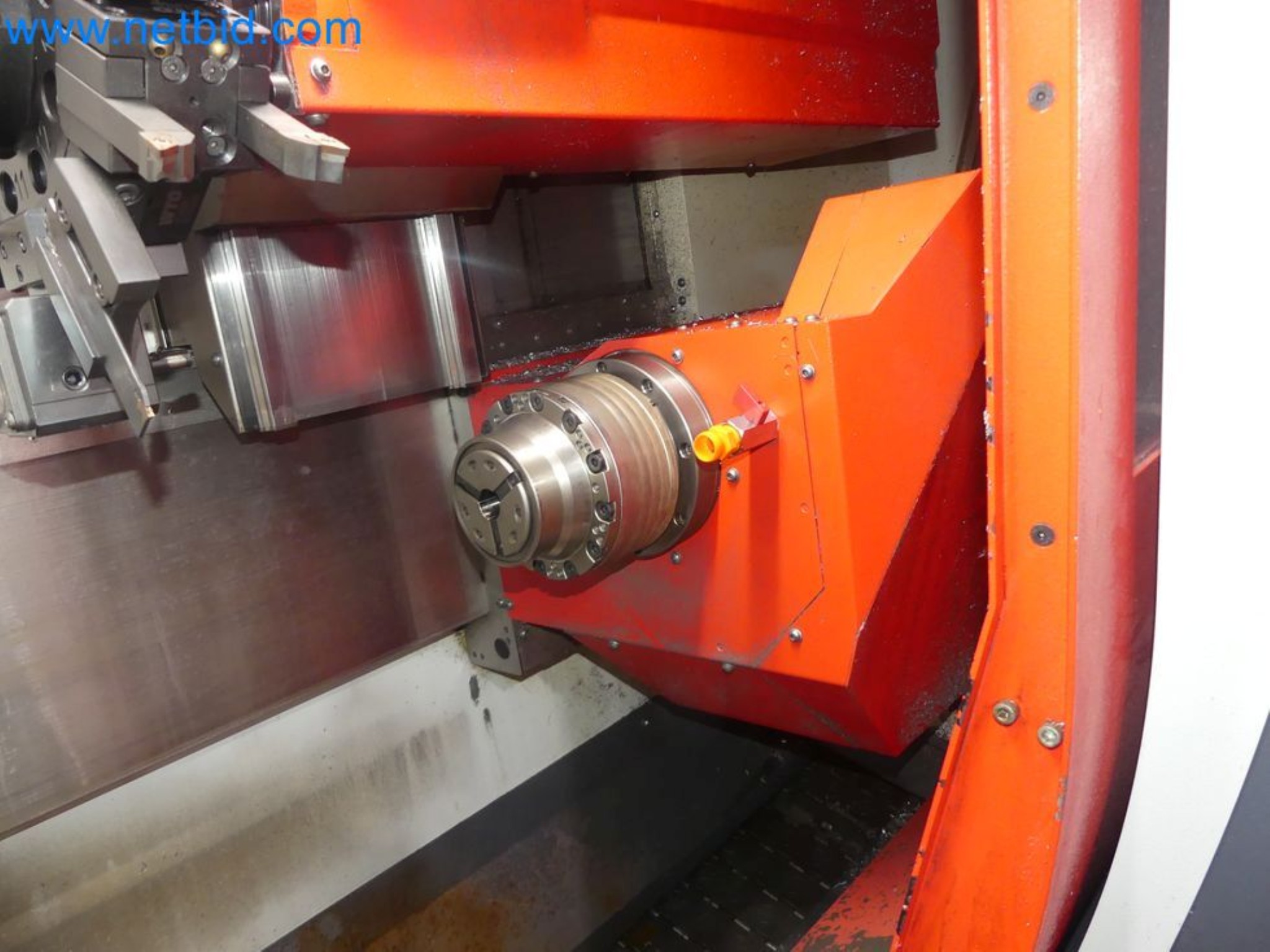

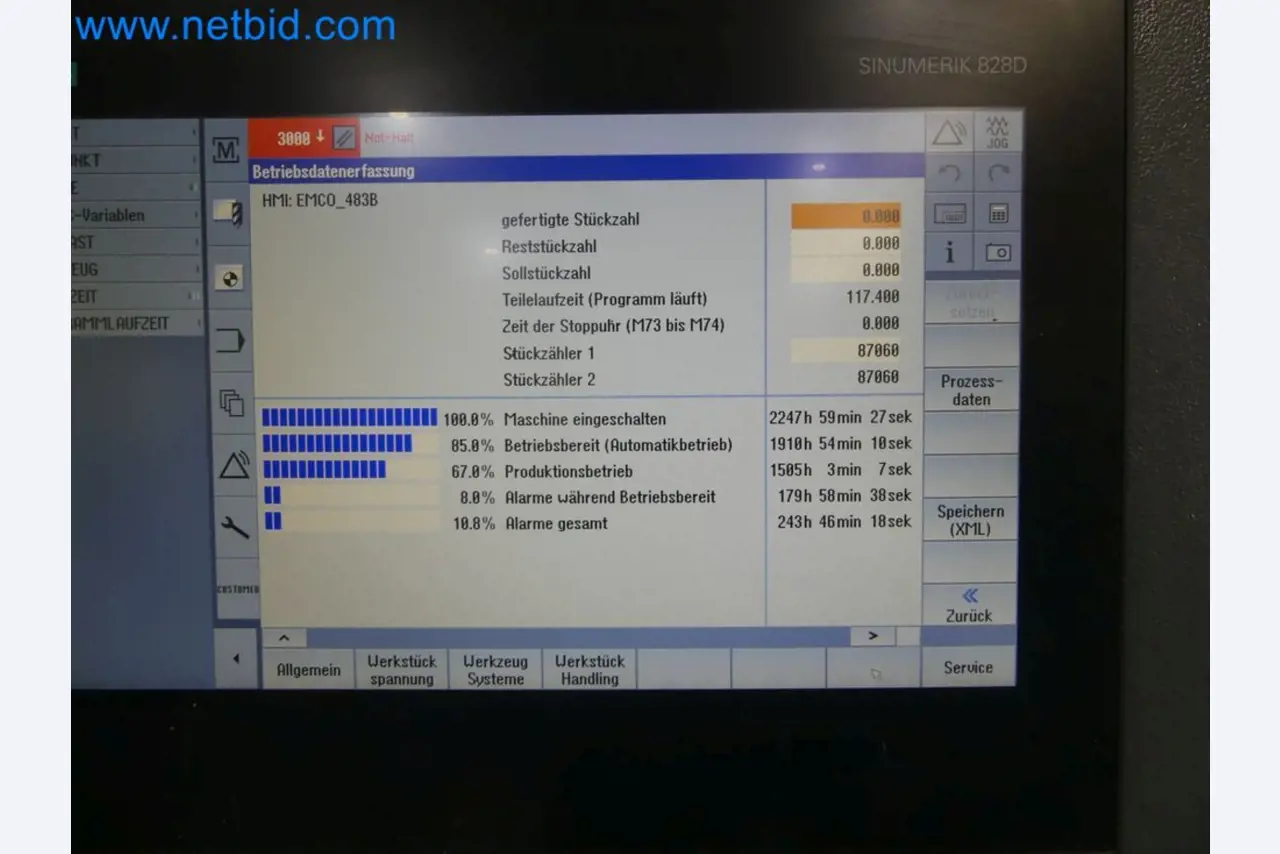

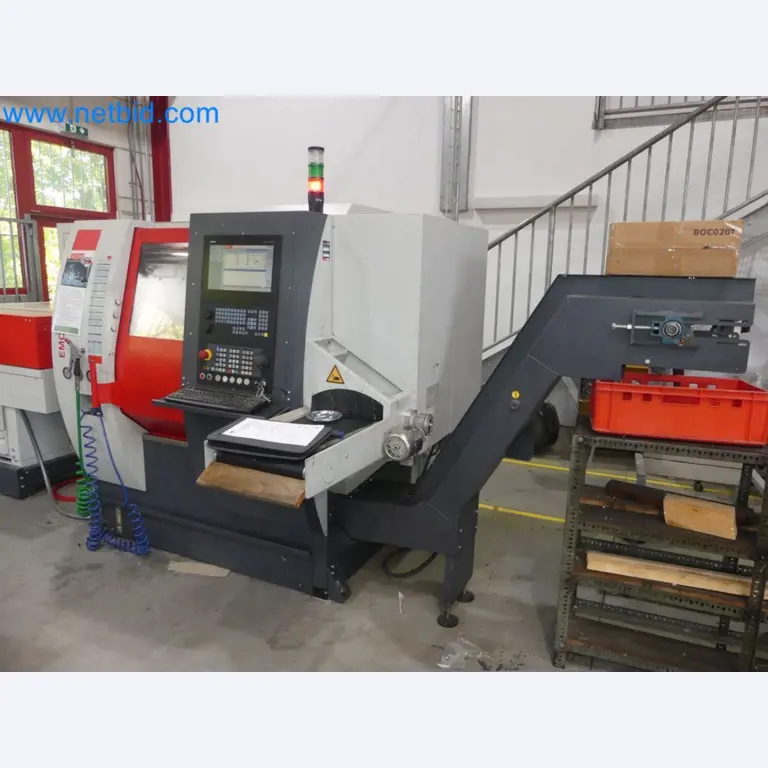

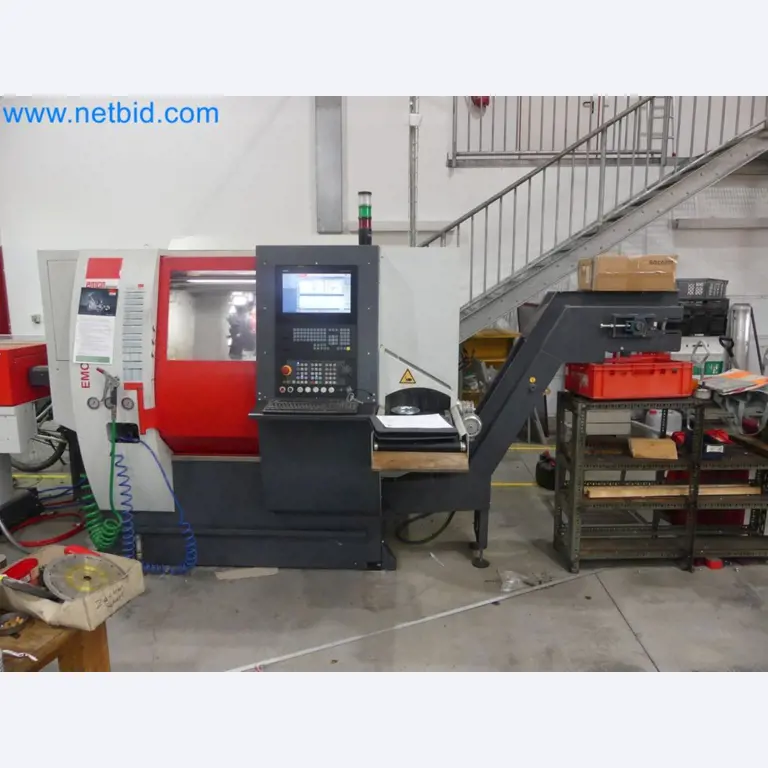

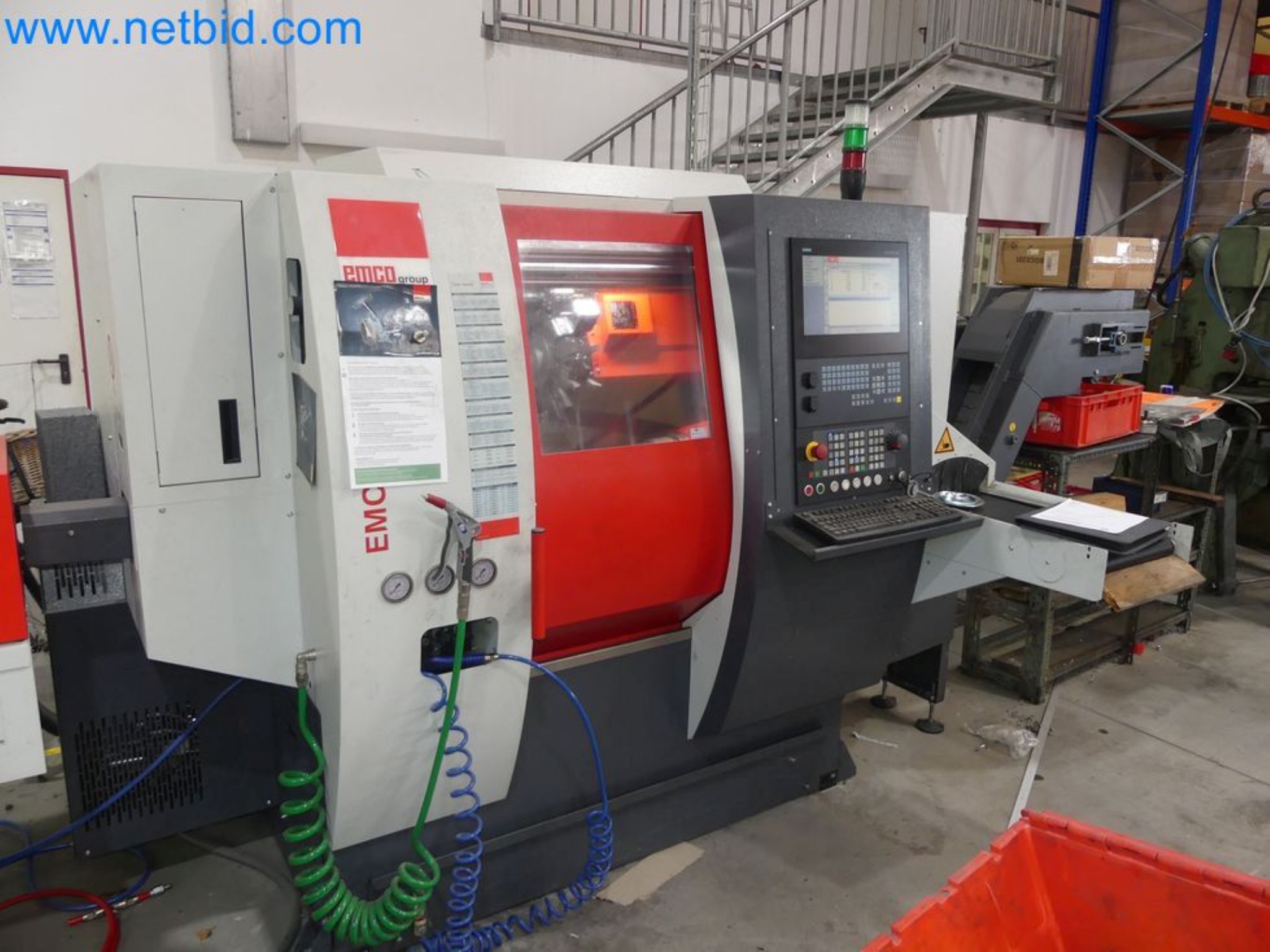

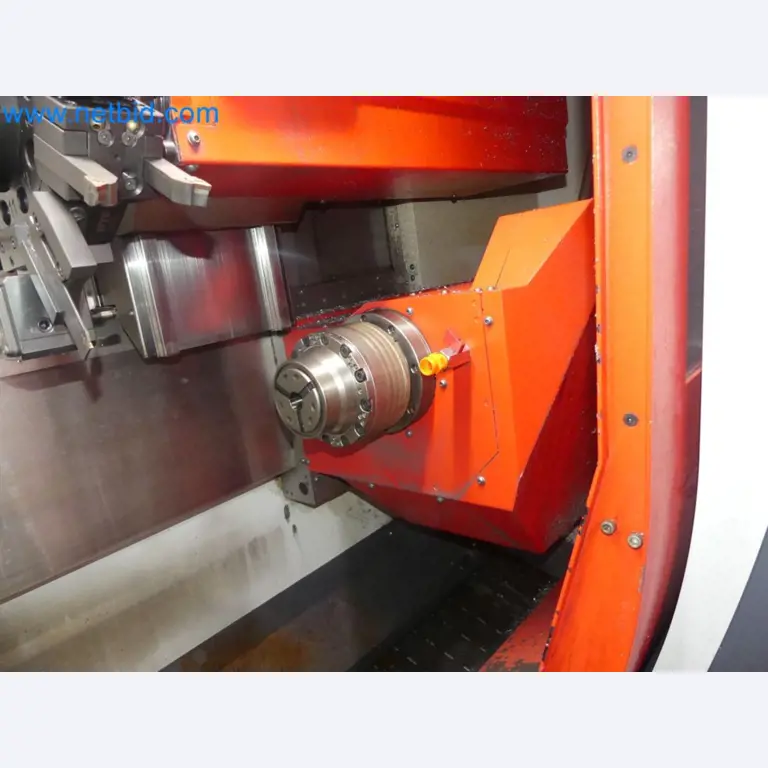

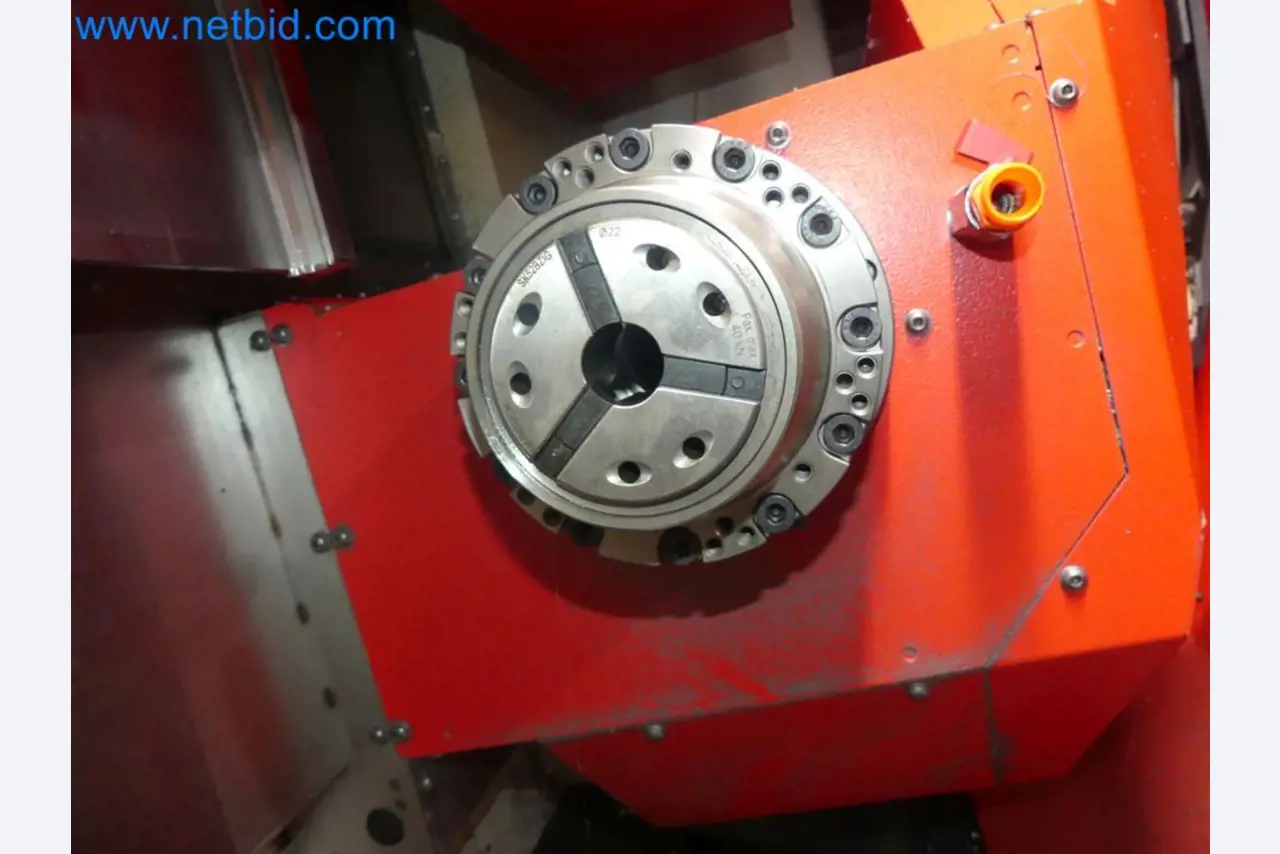

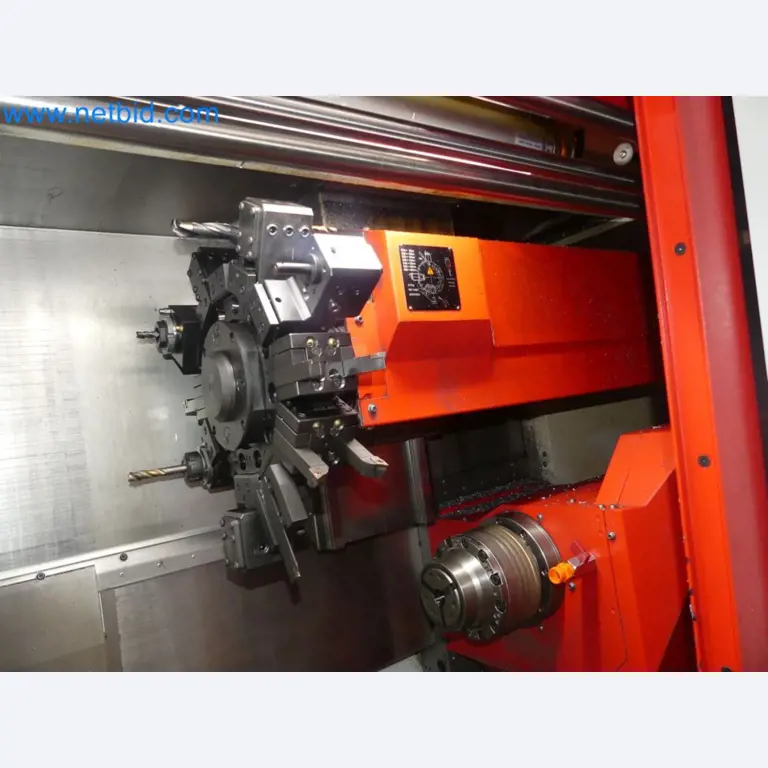

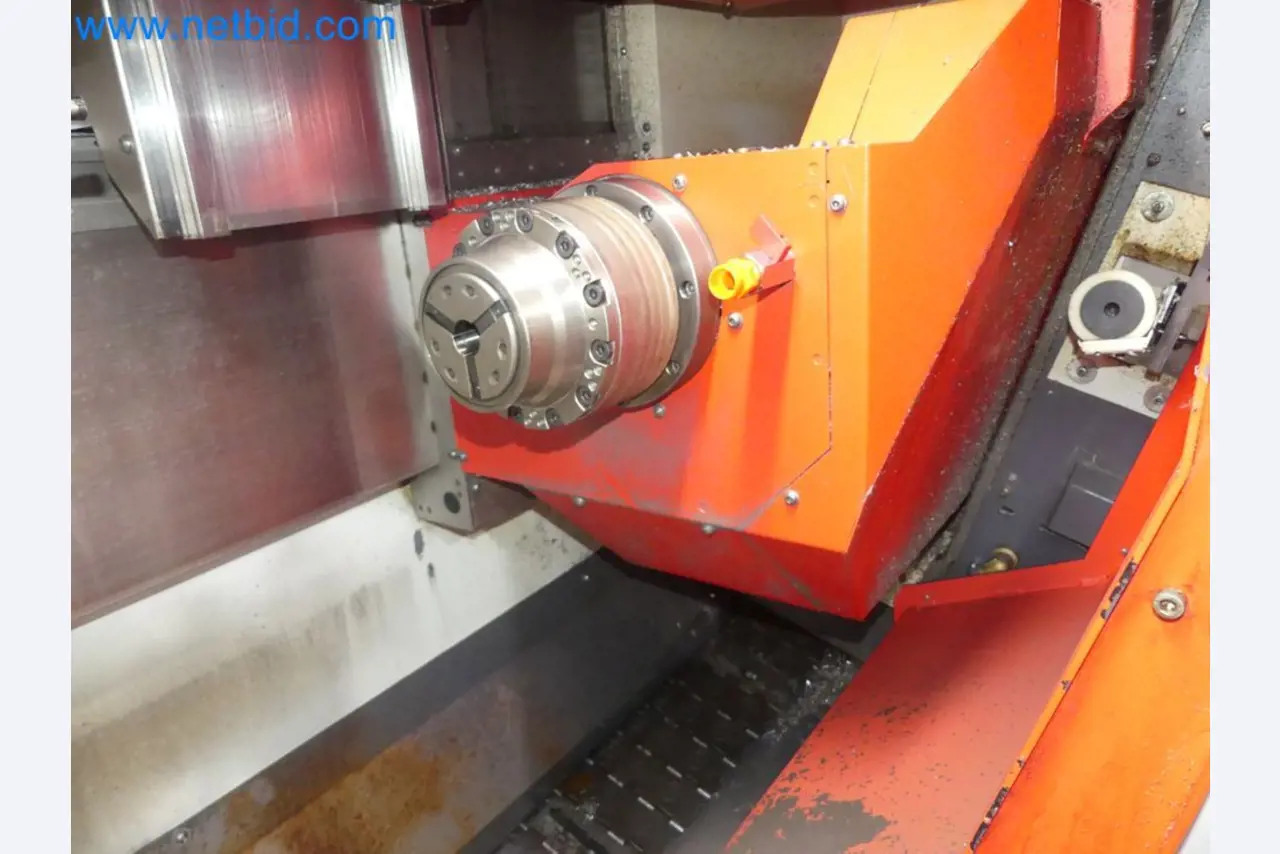

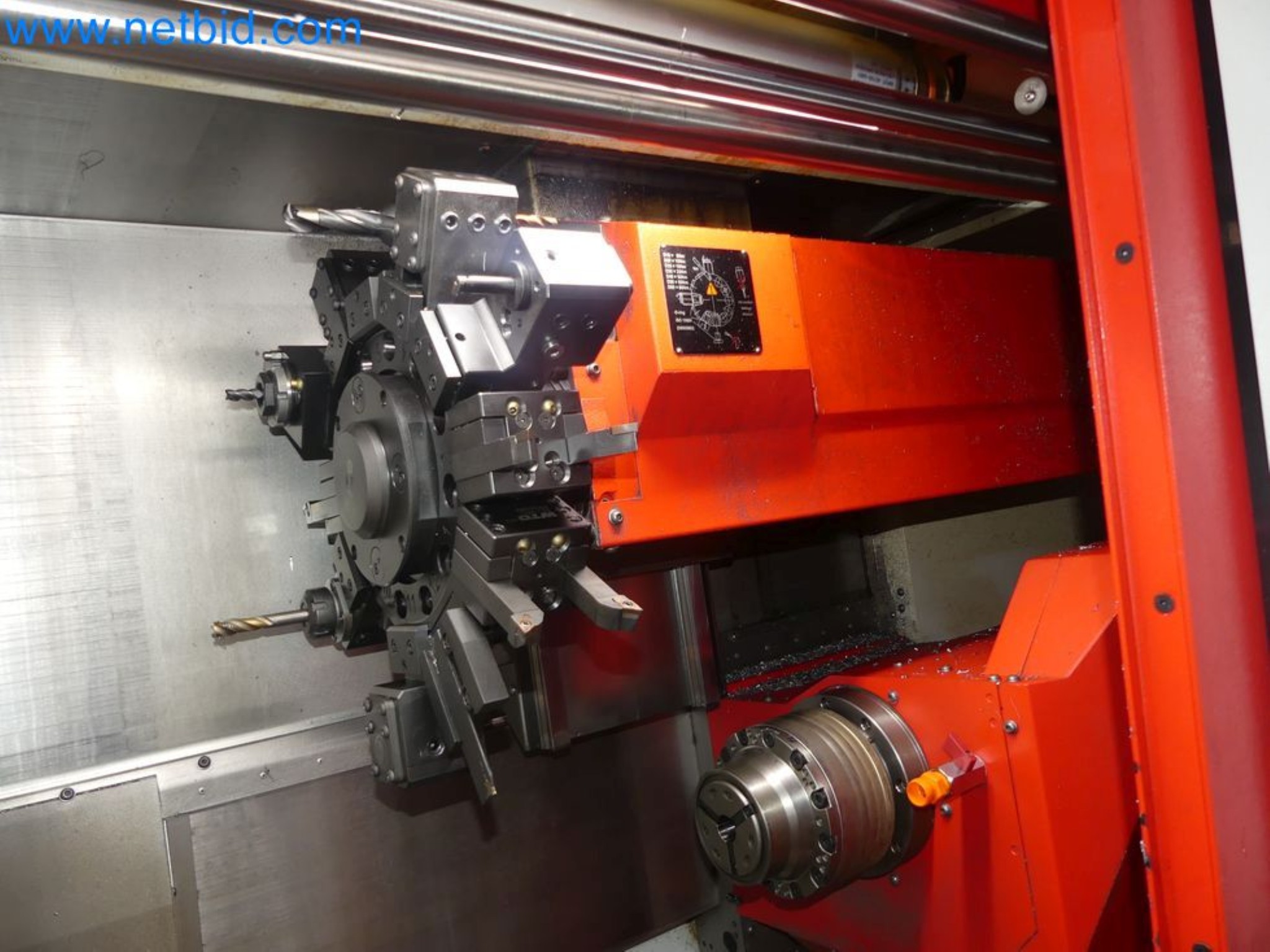

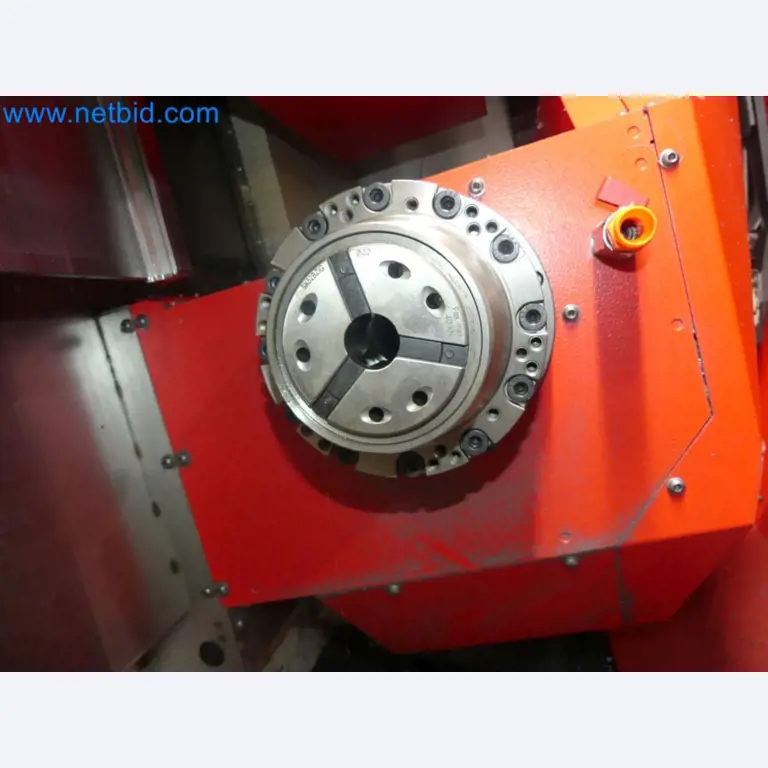

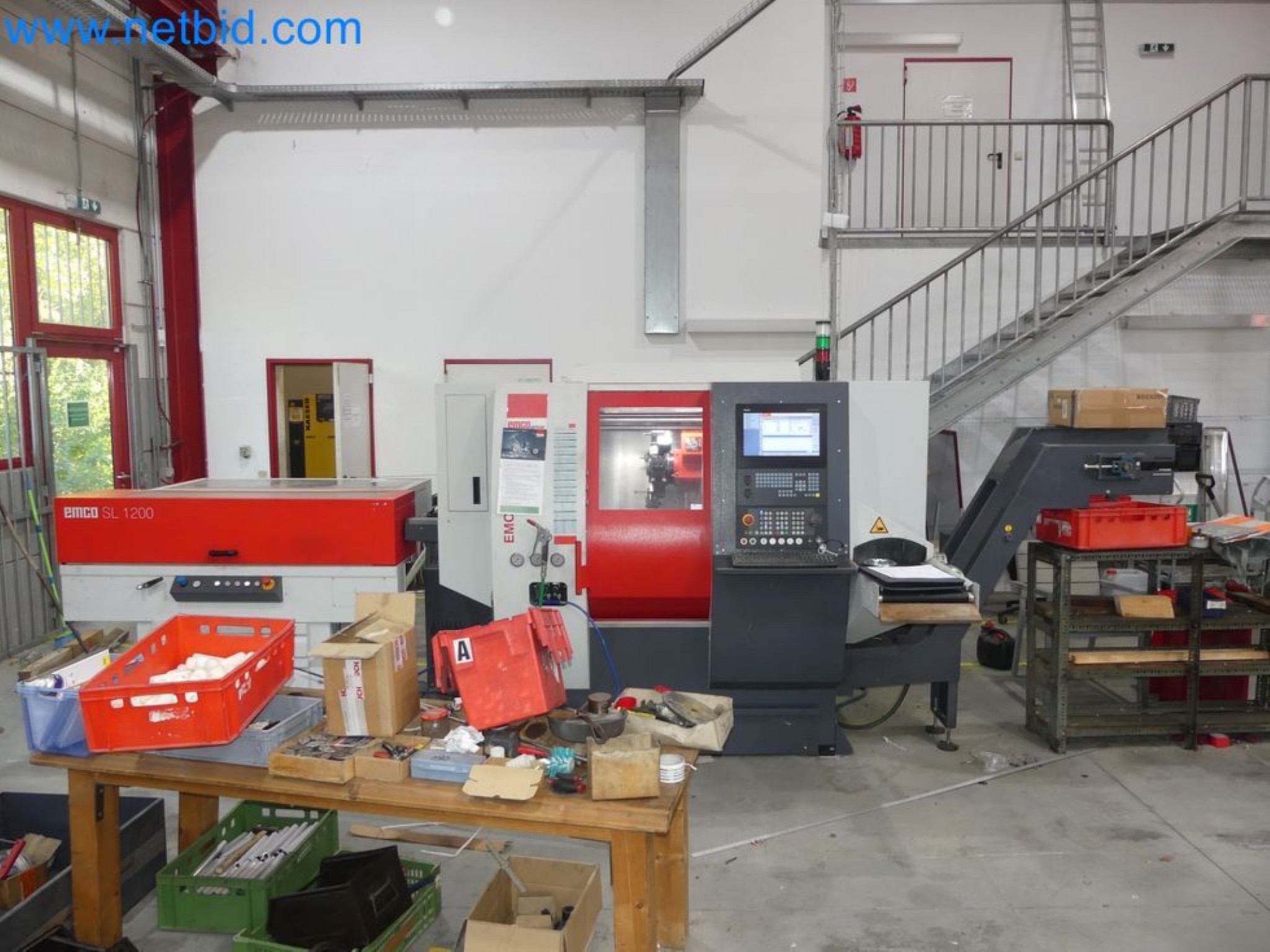

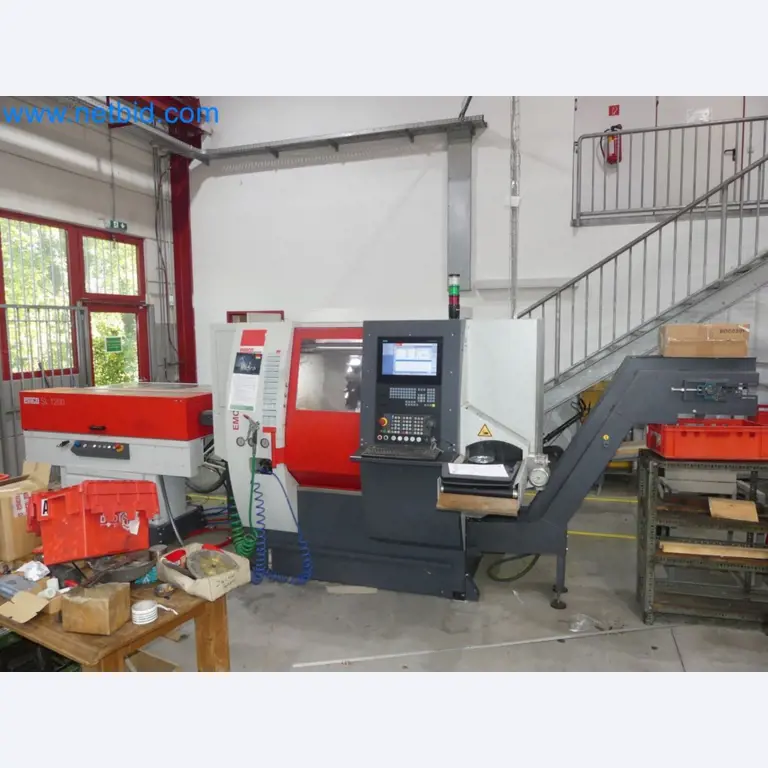

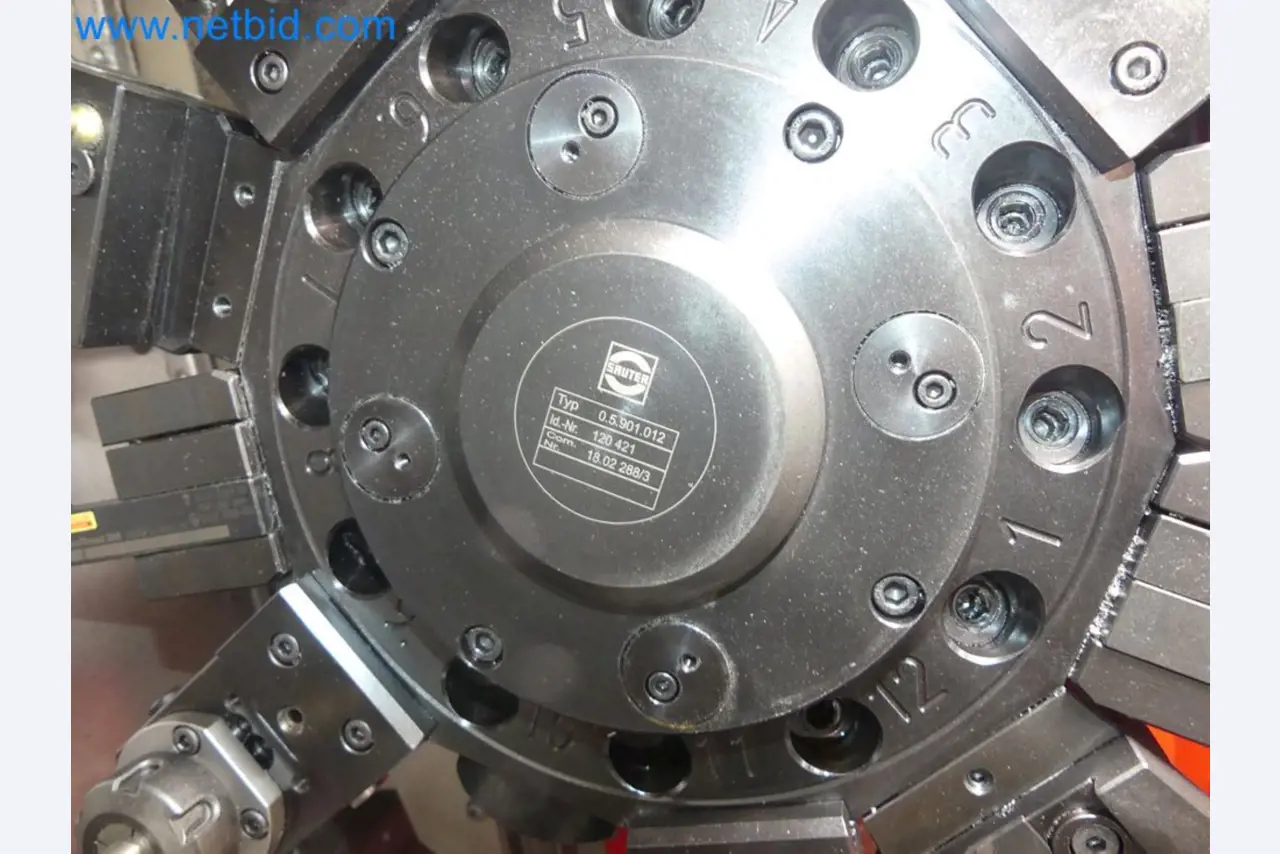

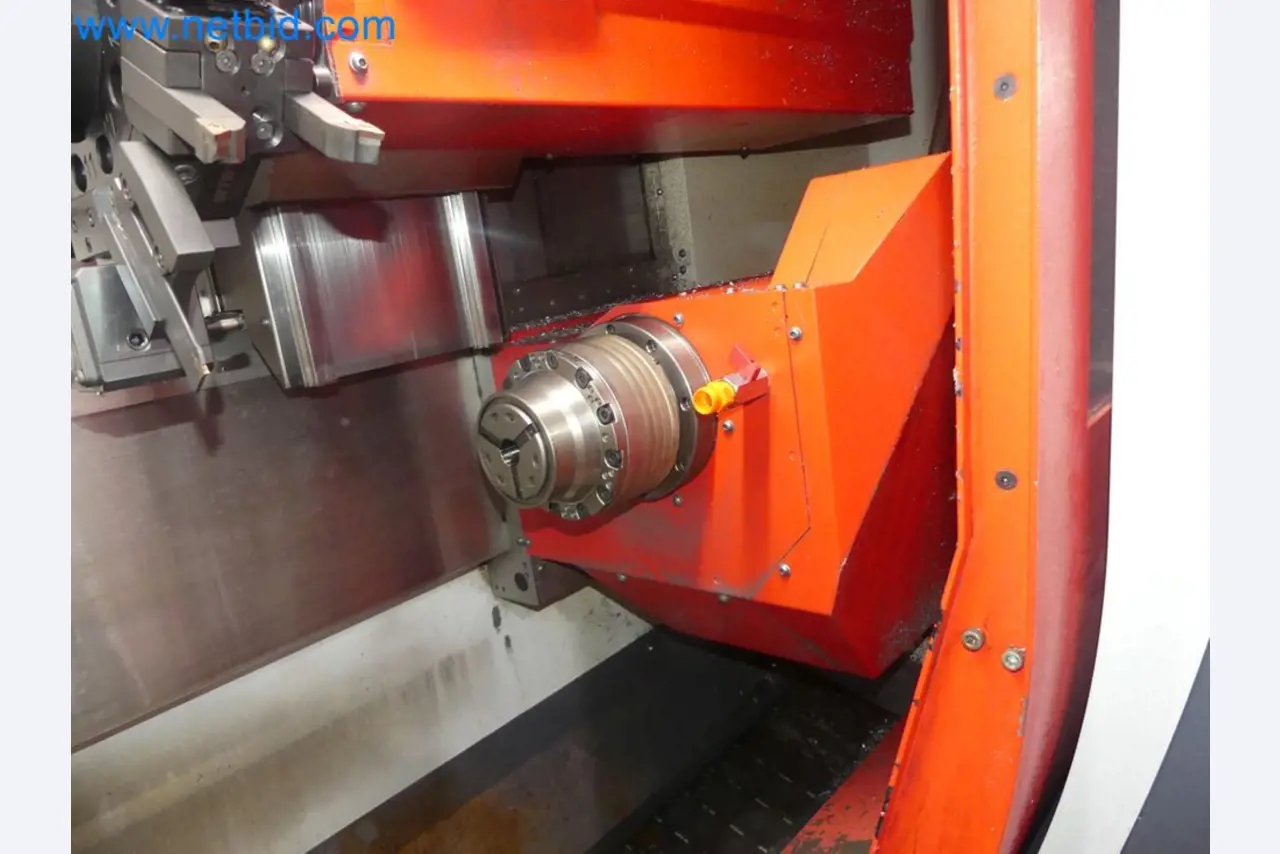

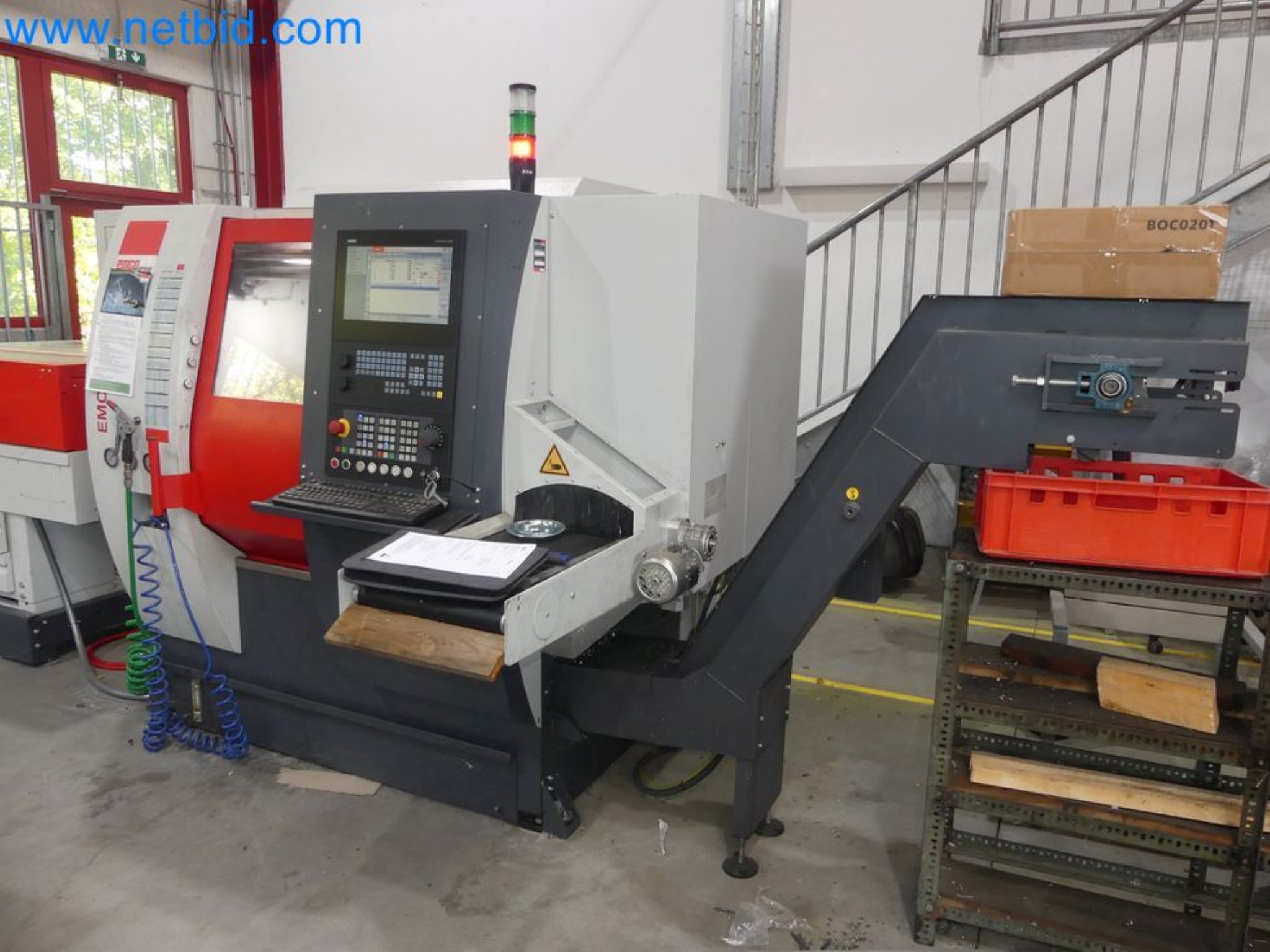

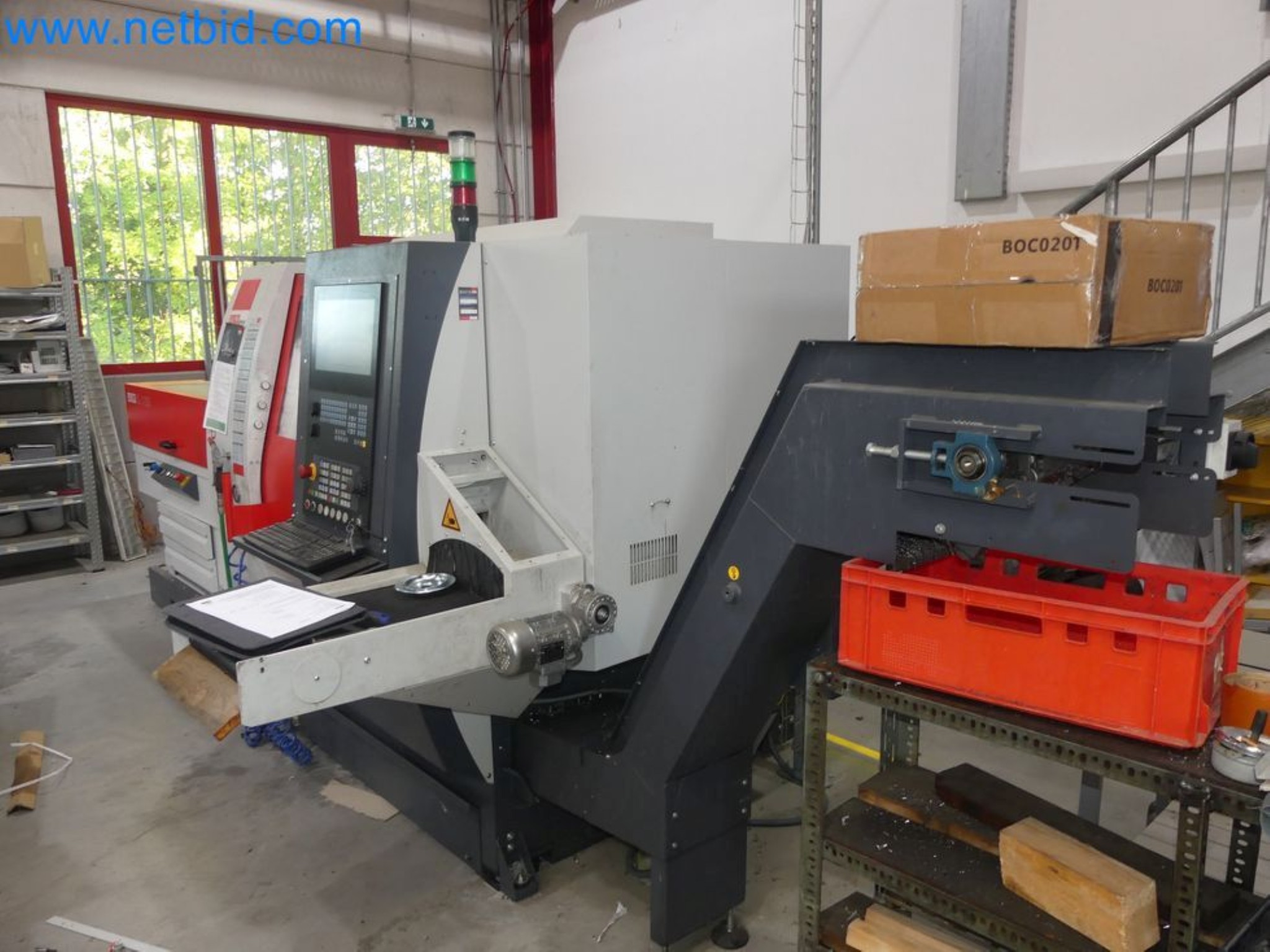

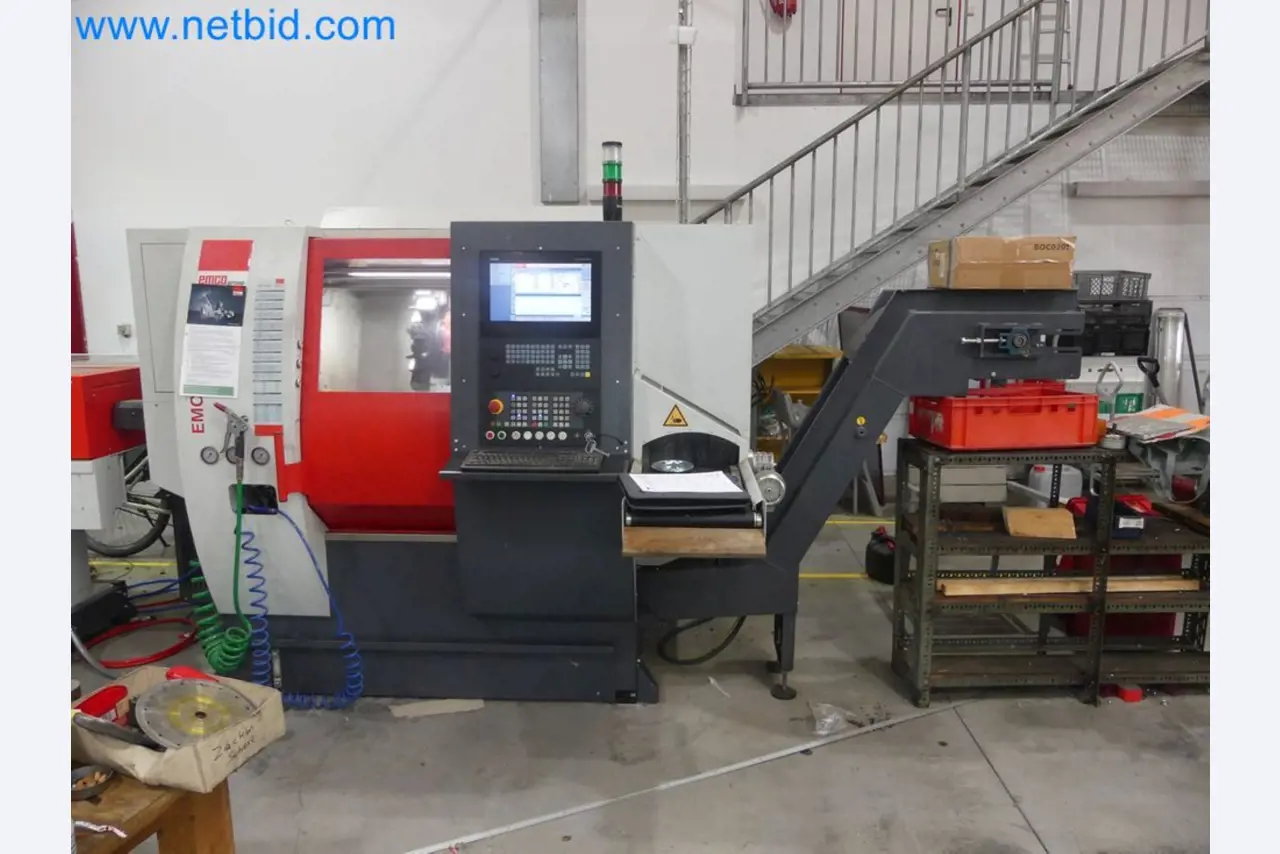

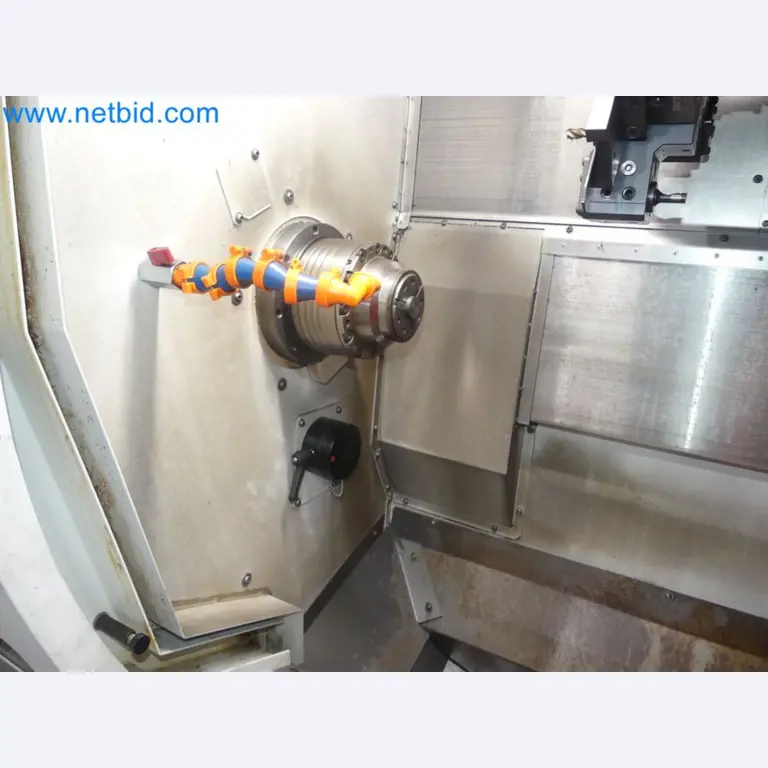

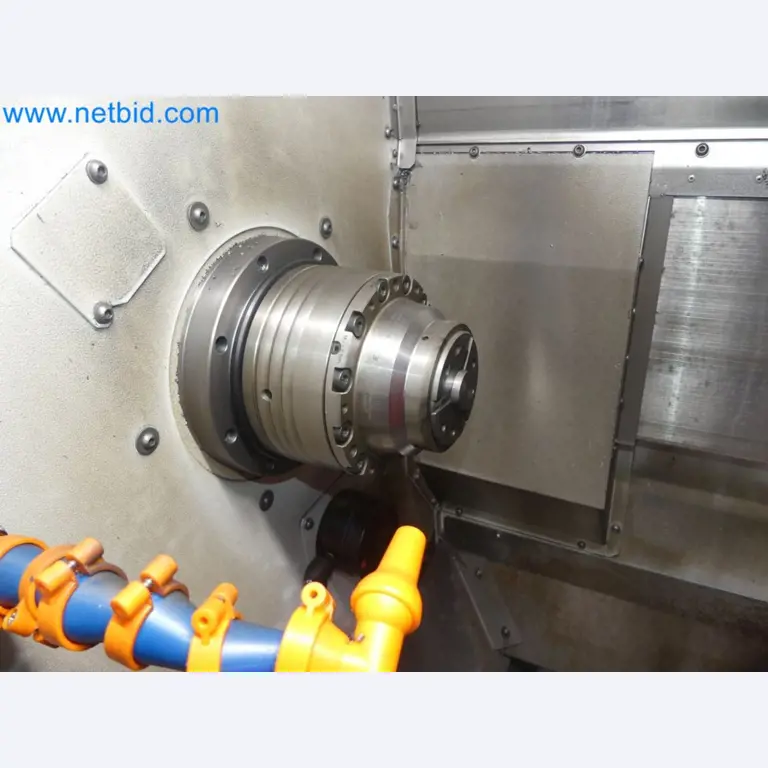

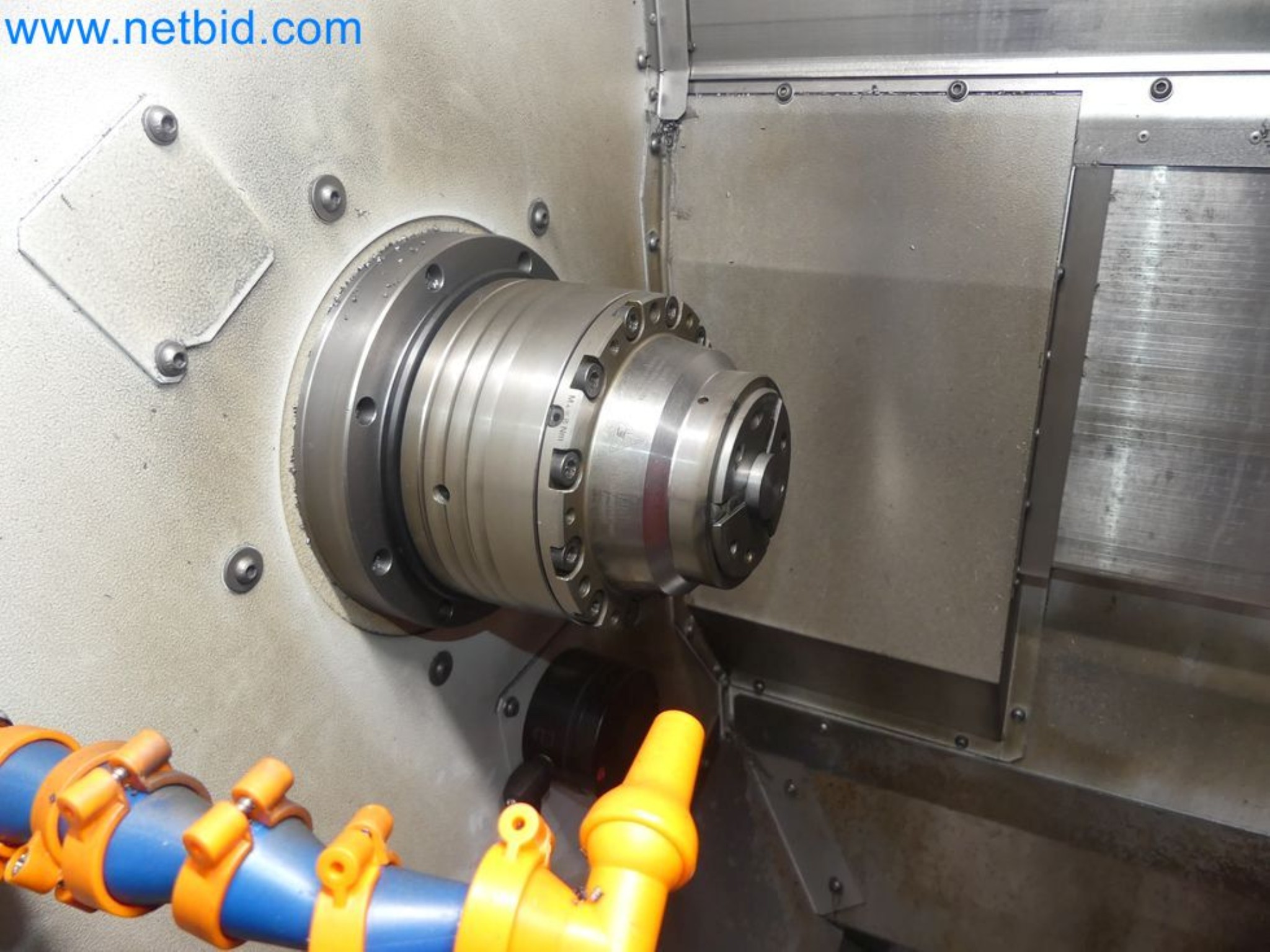

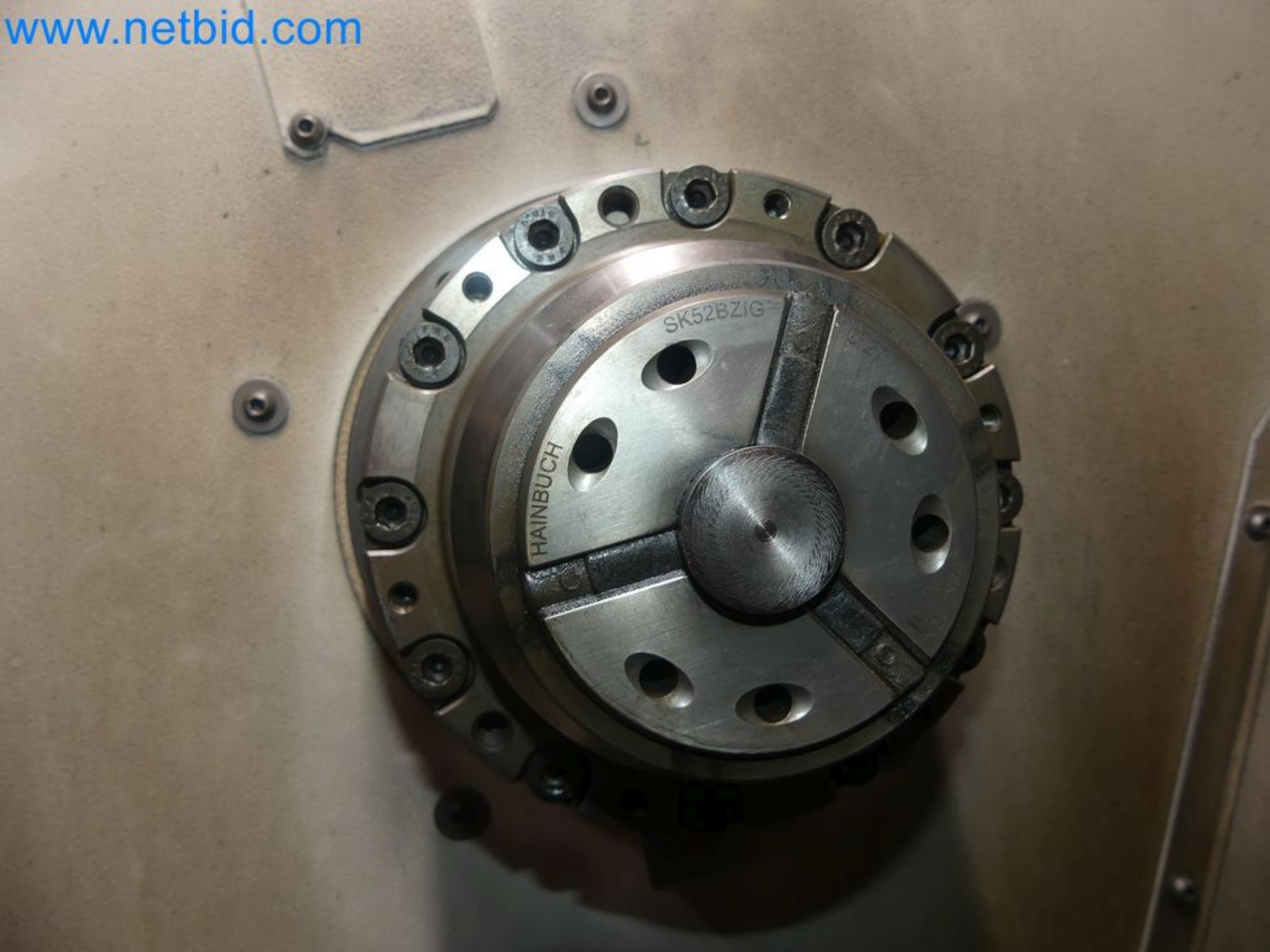

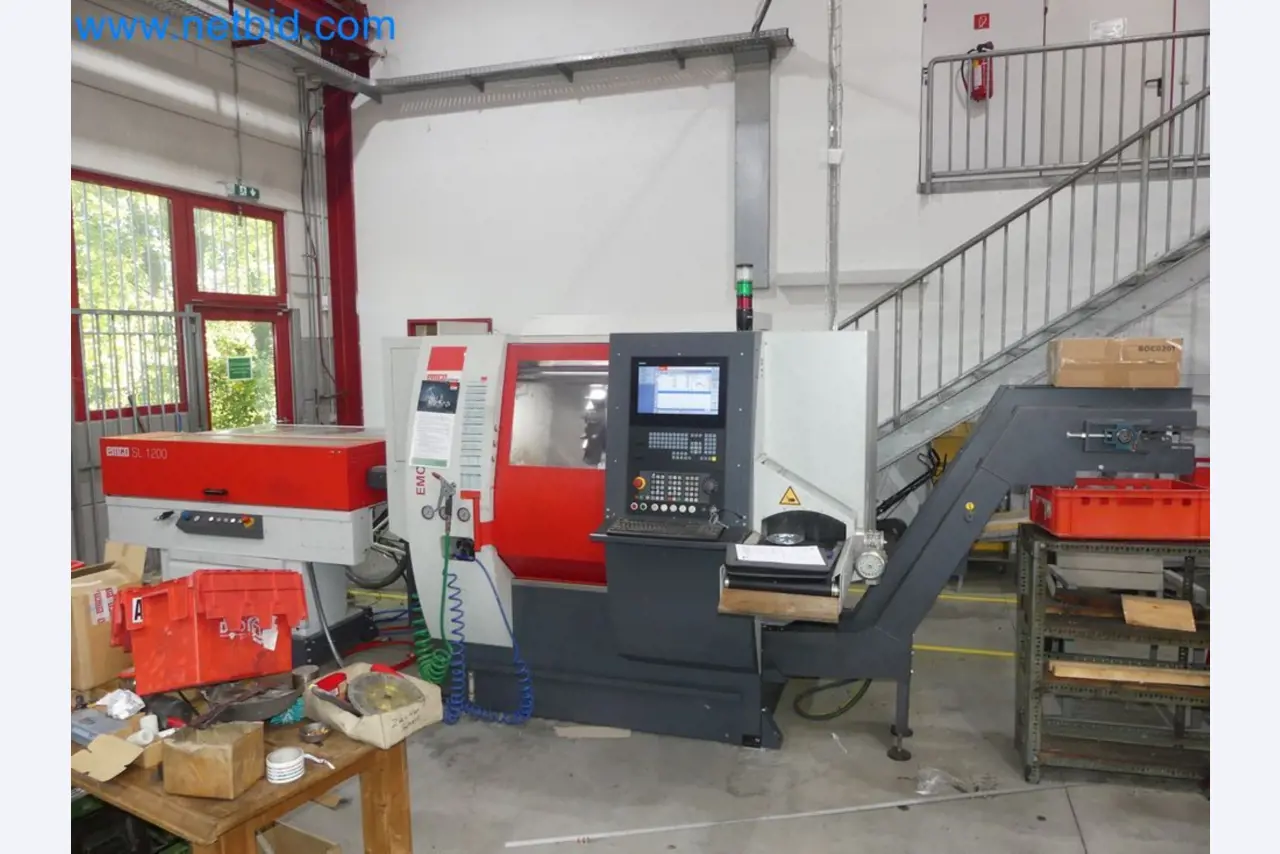

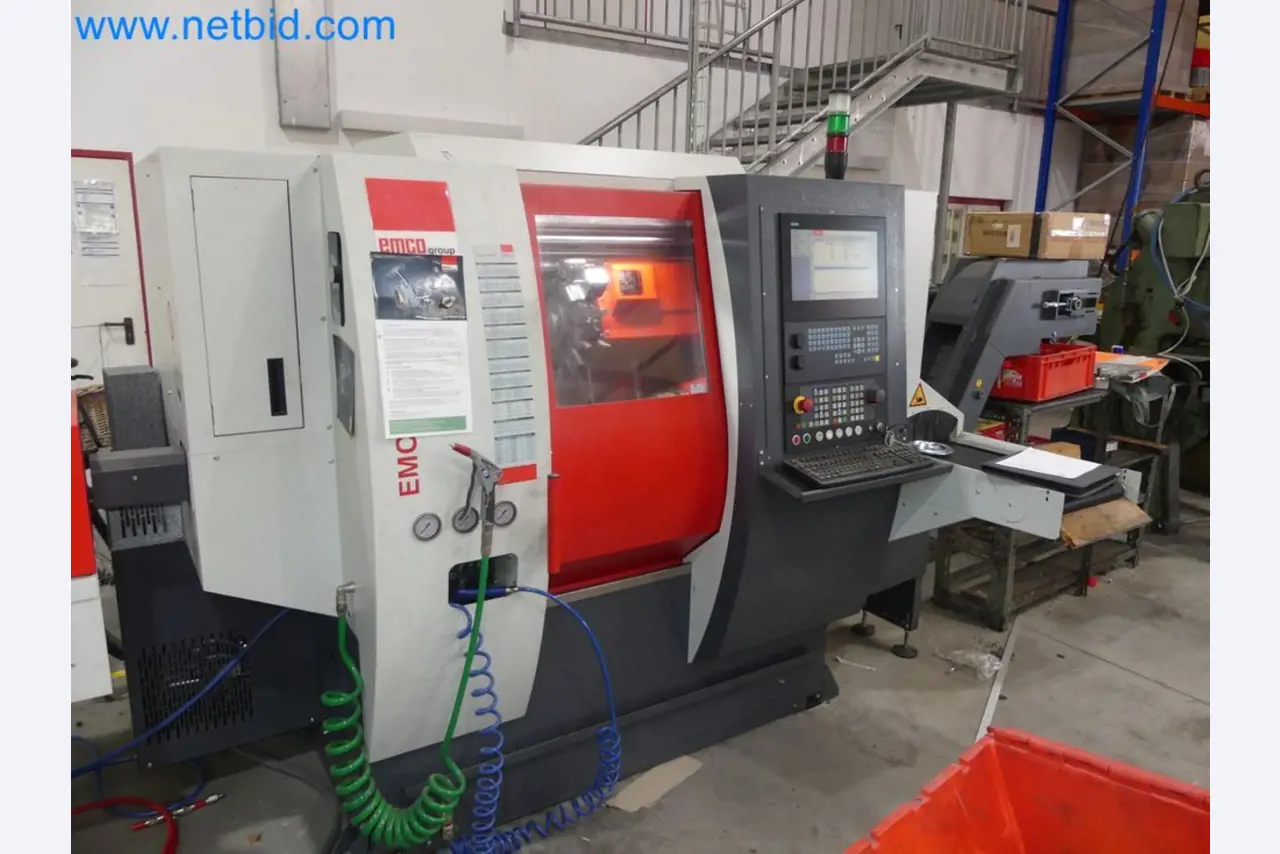

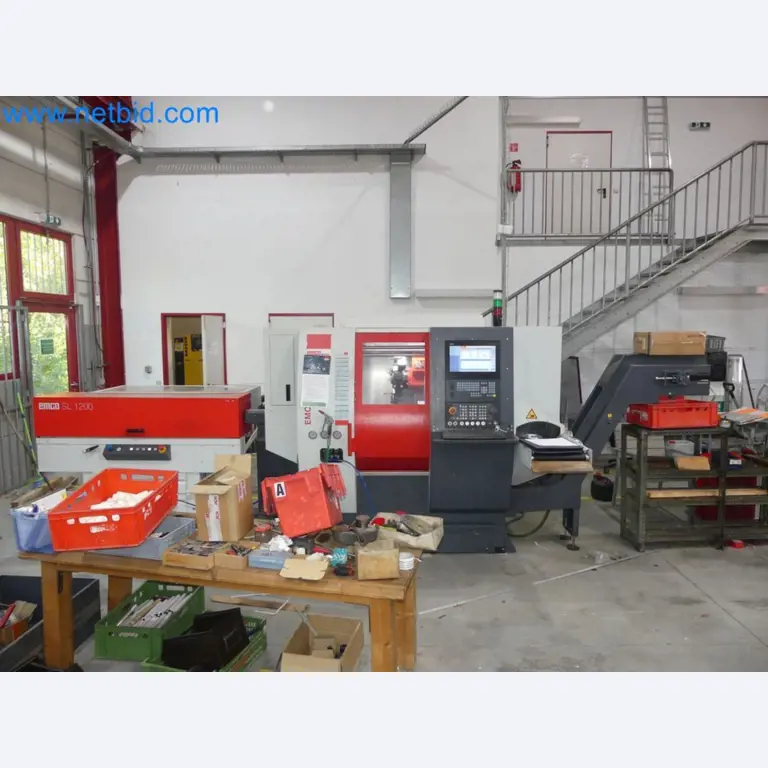

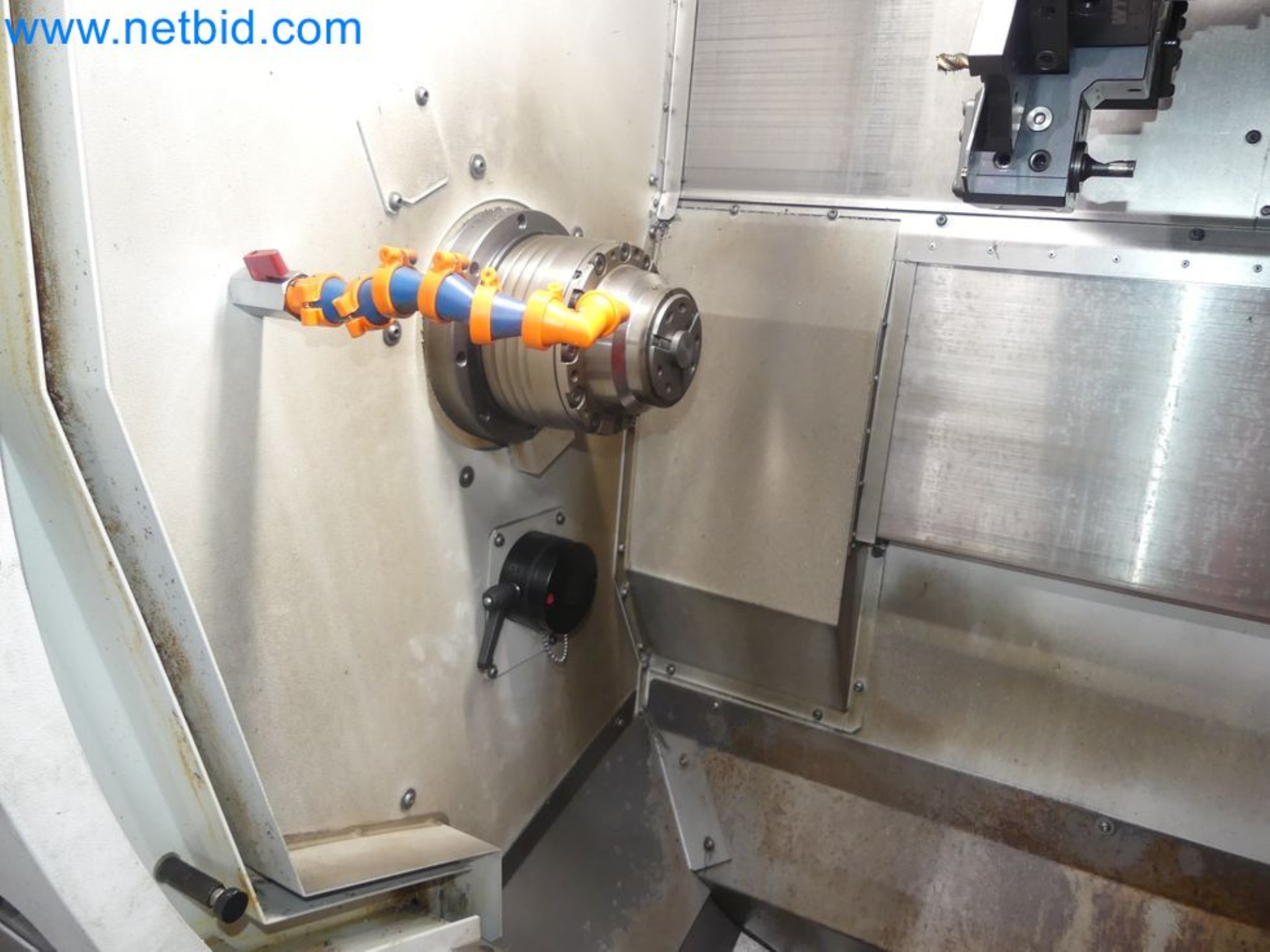

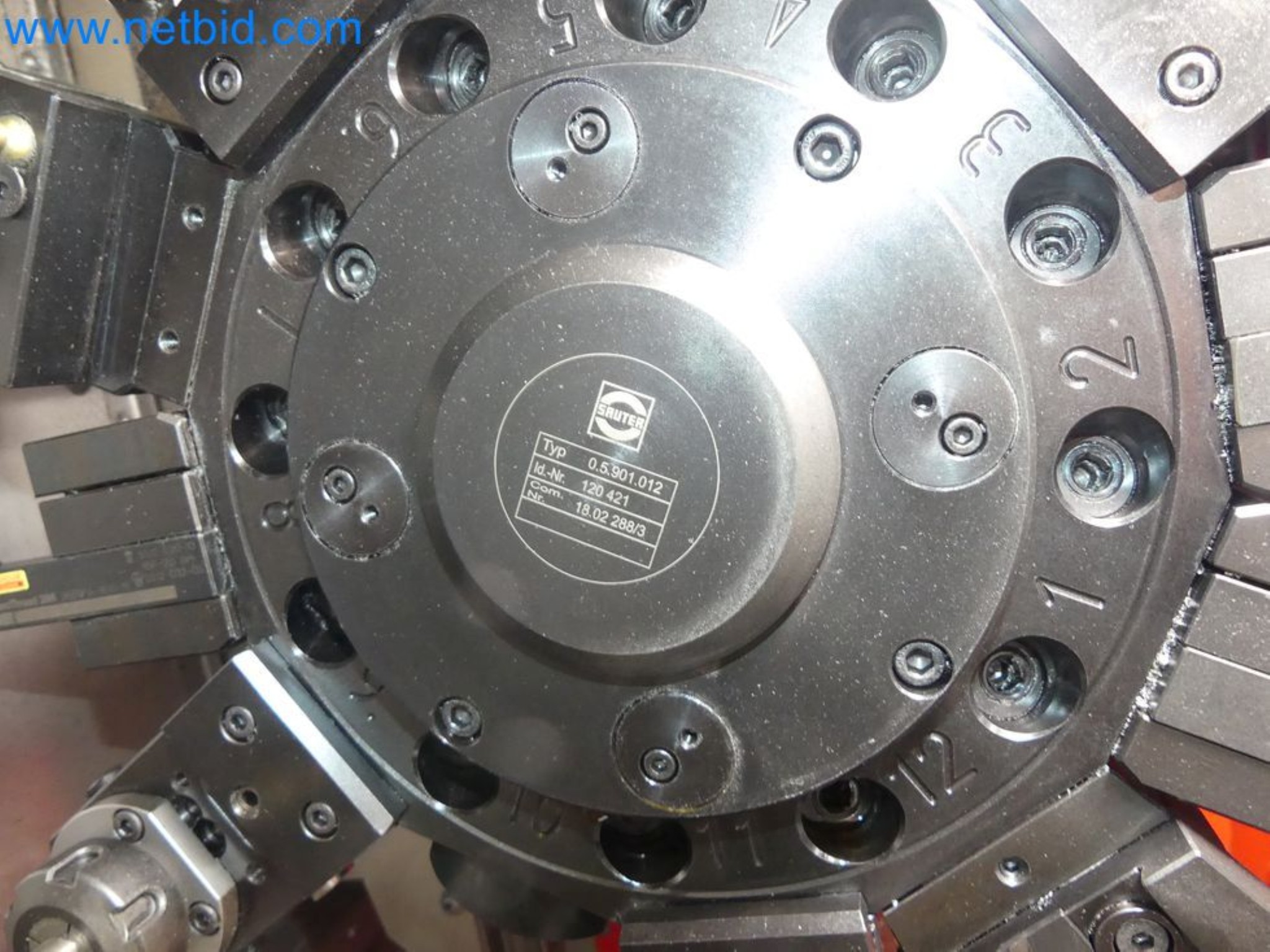

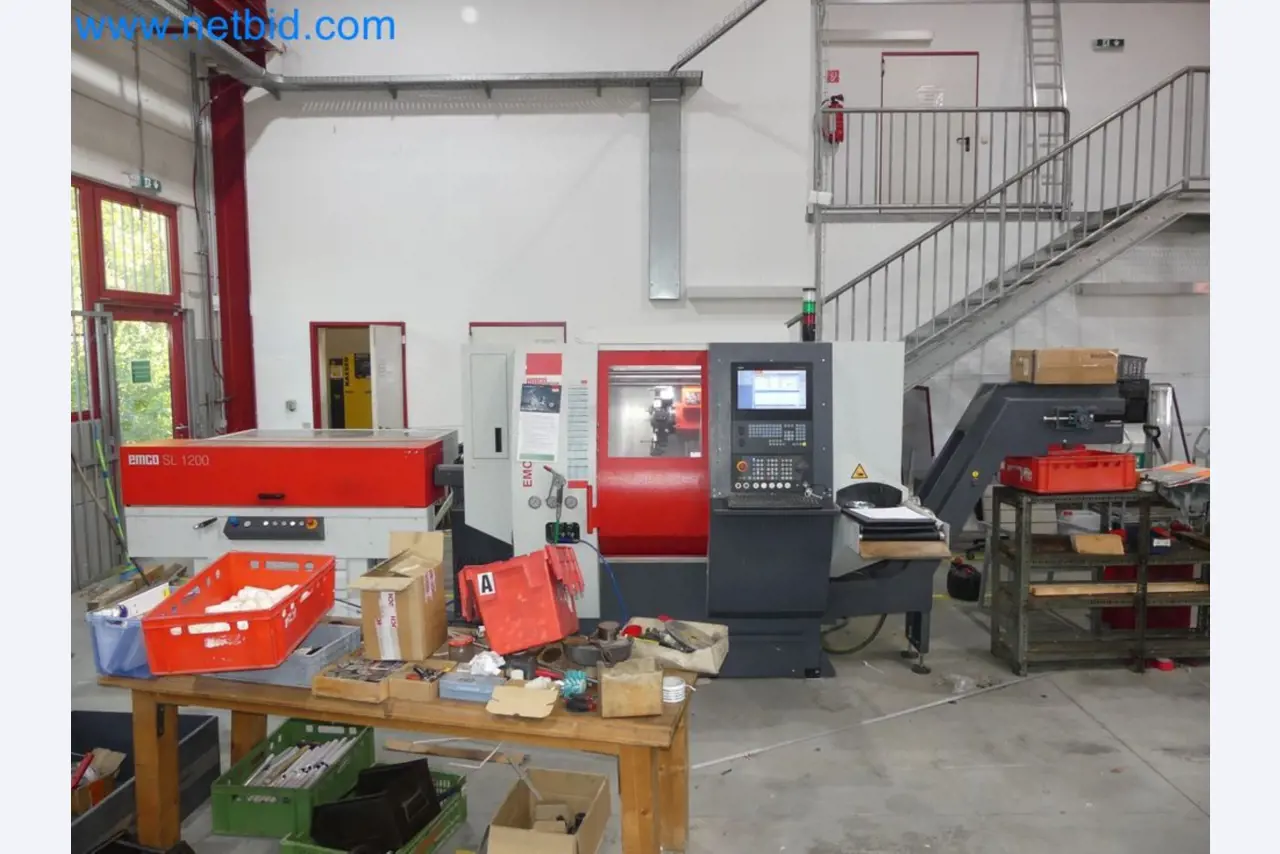

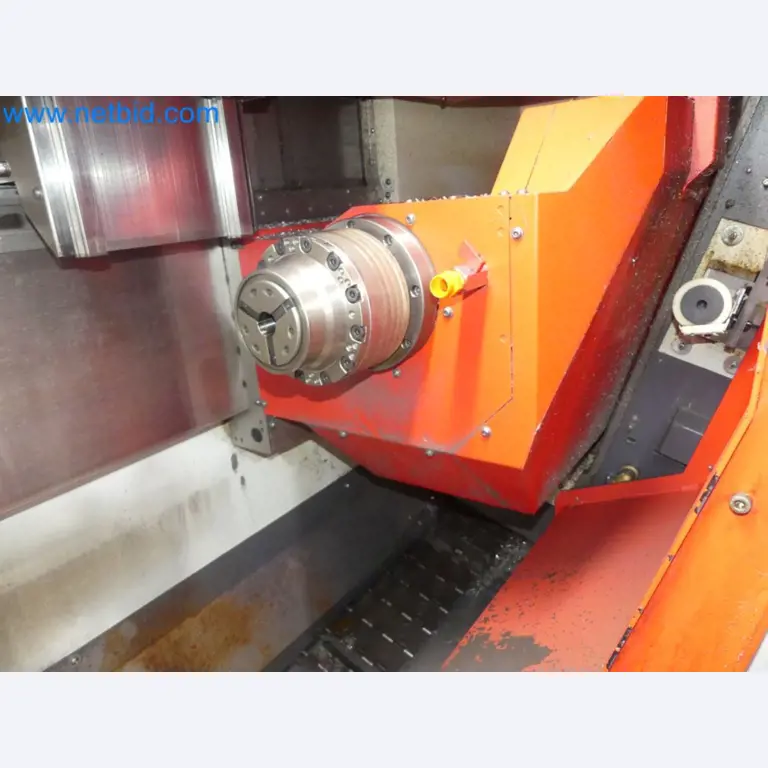

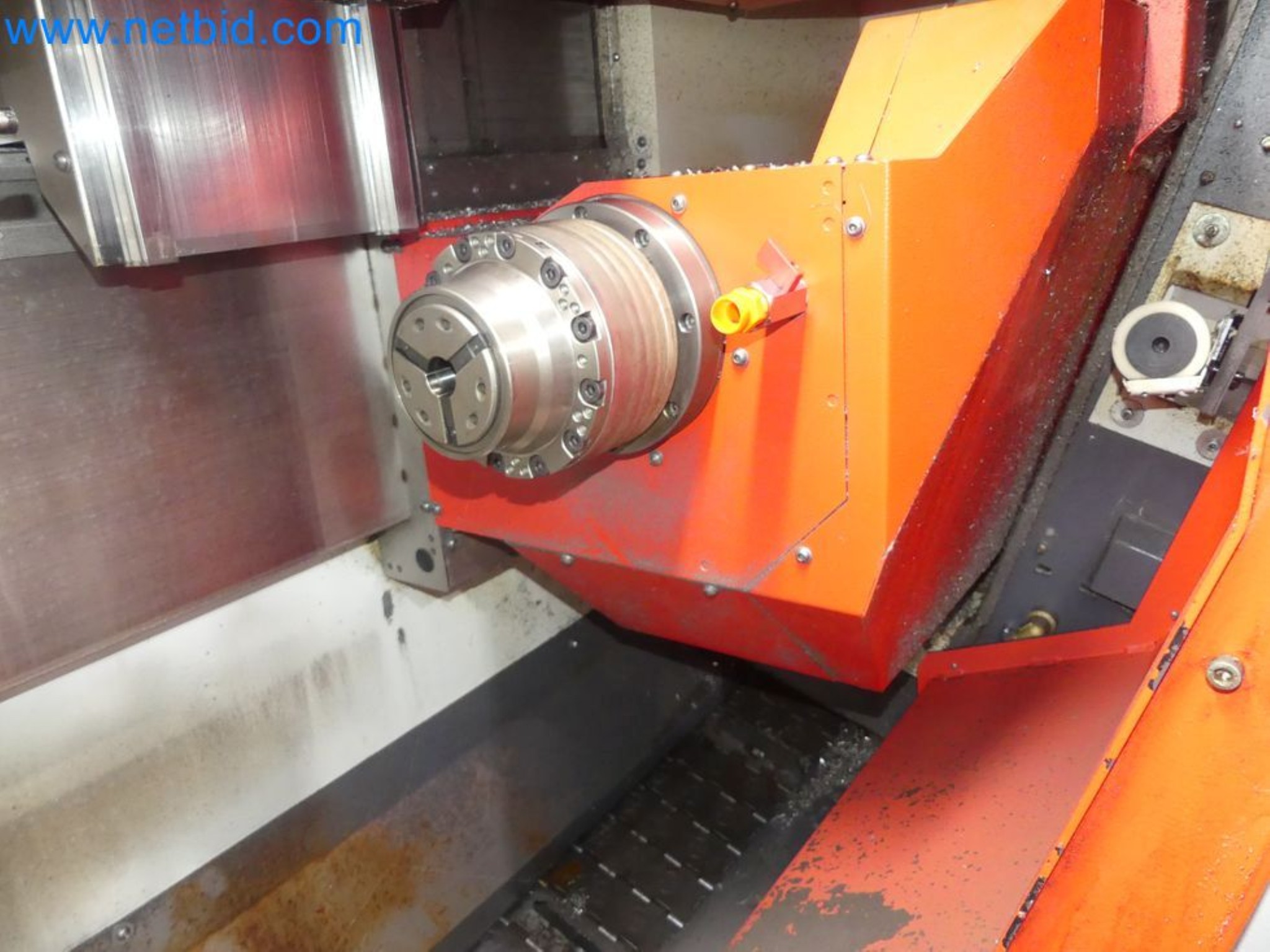

- 3-axis CNC machine; version: SMY, with counter spindle and driven tools, with Y- and C-axis, serial number: S4E193801; SIEMENS Sinumerik 828D control; Main spindle with bar passage, max. diameter 45 mm, speed range: 0-6,300 rpm, spindle power: 13 kW; main spindle HAINBUCH SPANNTOP mini Axzub 52, max. speed: 7,000 rpm, with mounted 3-jaw chuck HAINBUCH SK52 BZIG, diameter: 27 mm; Counter spindle, drive power 10 kW, speed range: 0-6,300 rpm; counter spindle HAINBUCH SPANNTOP mini AXFIX52 with 3-jaw chuck HAINBUCH SK52 BZIG, diameter: 22 mm; 12-position tool changer VDI25, SAUTER 0.5.901.012, with various tools on it, tool turret designed for driven tool holders, max. drive power 4 kW; Travel: X-axis: 160 mm, Y-axis: +40/-30 mm, Z-axis: 510 mm, center distance: 670 mm, orbital diameter over bed: 430 mm; operating hours read off: Machine switched on: 2,248 h 22 min, ready for operation: 1,910 h 54 min, Production mode: 1,505 h 3 min;

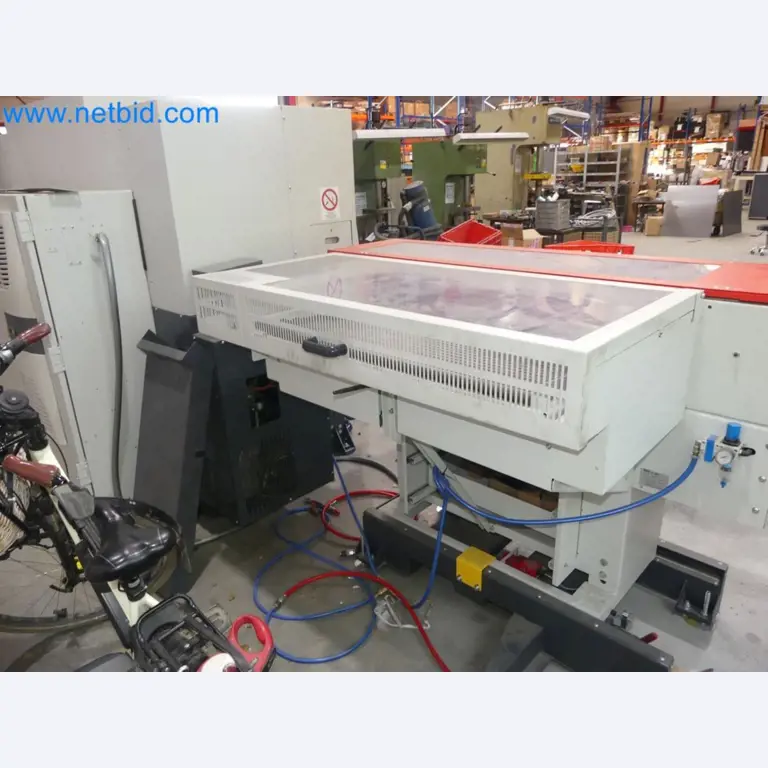

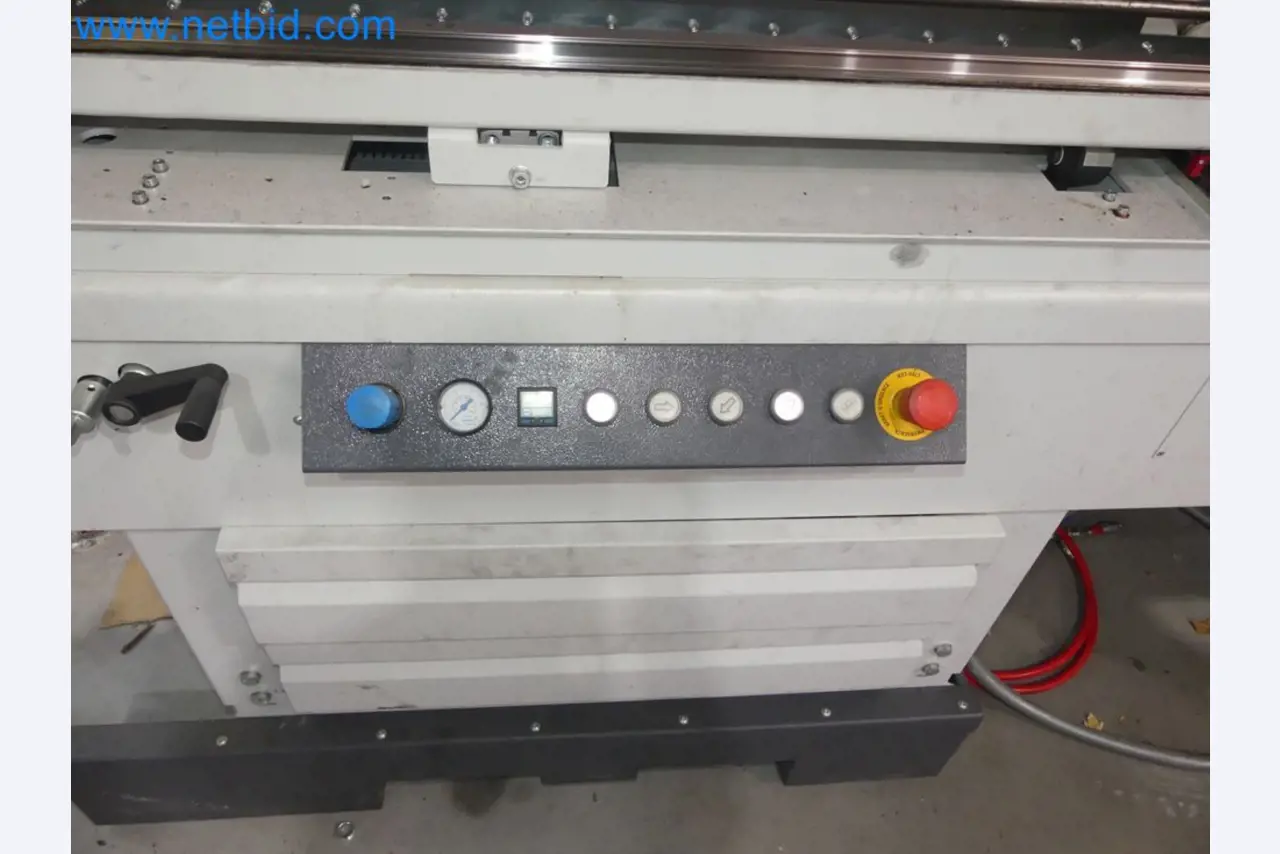

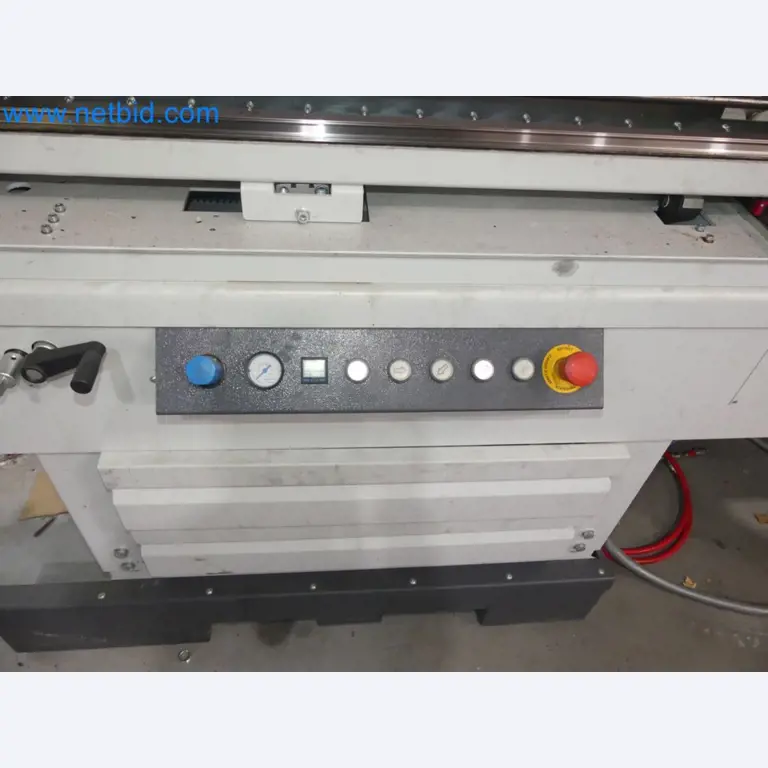

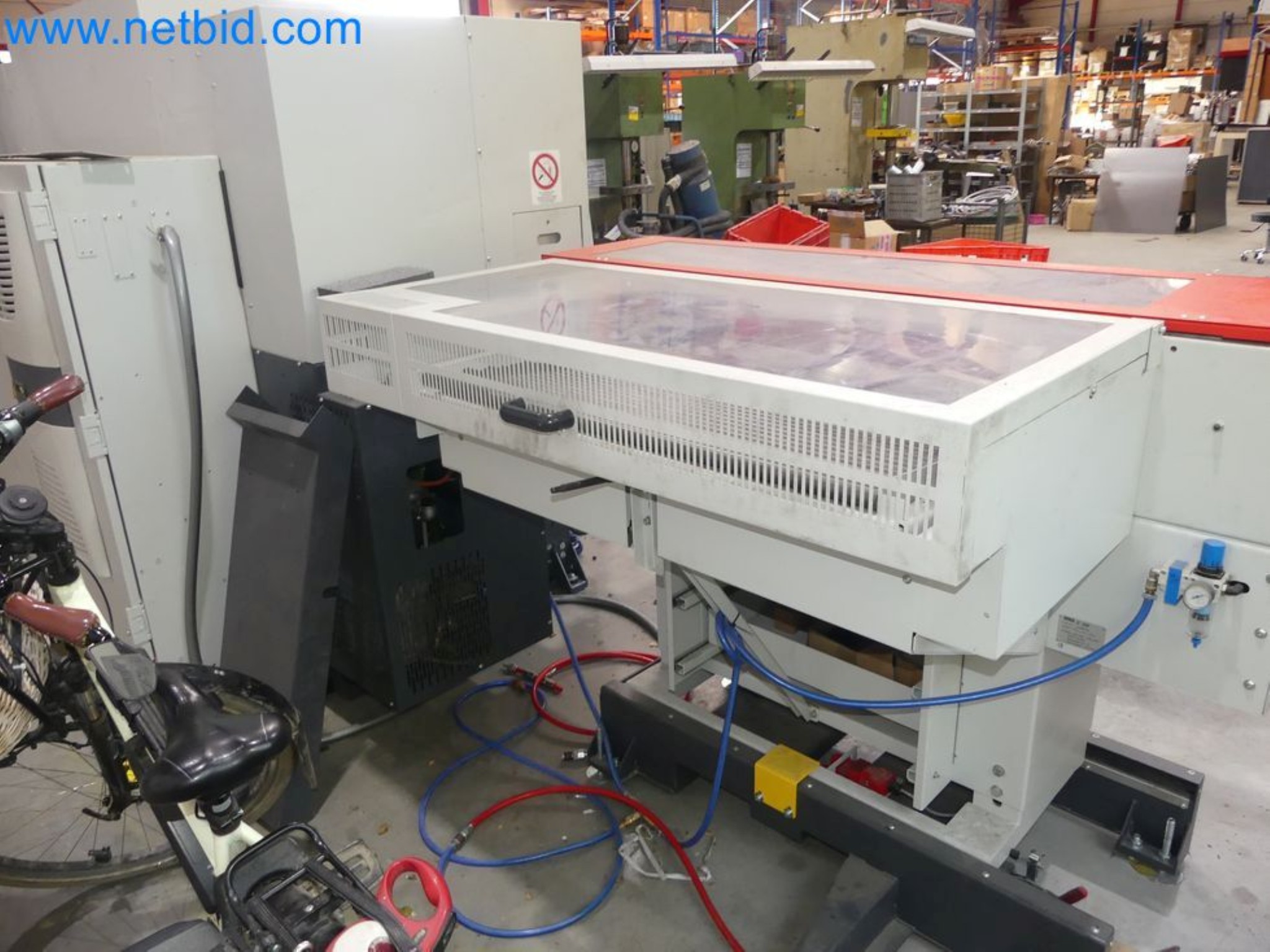

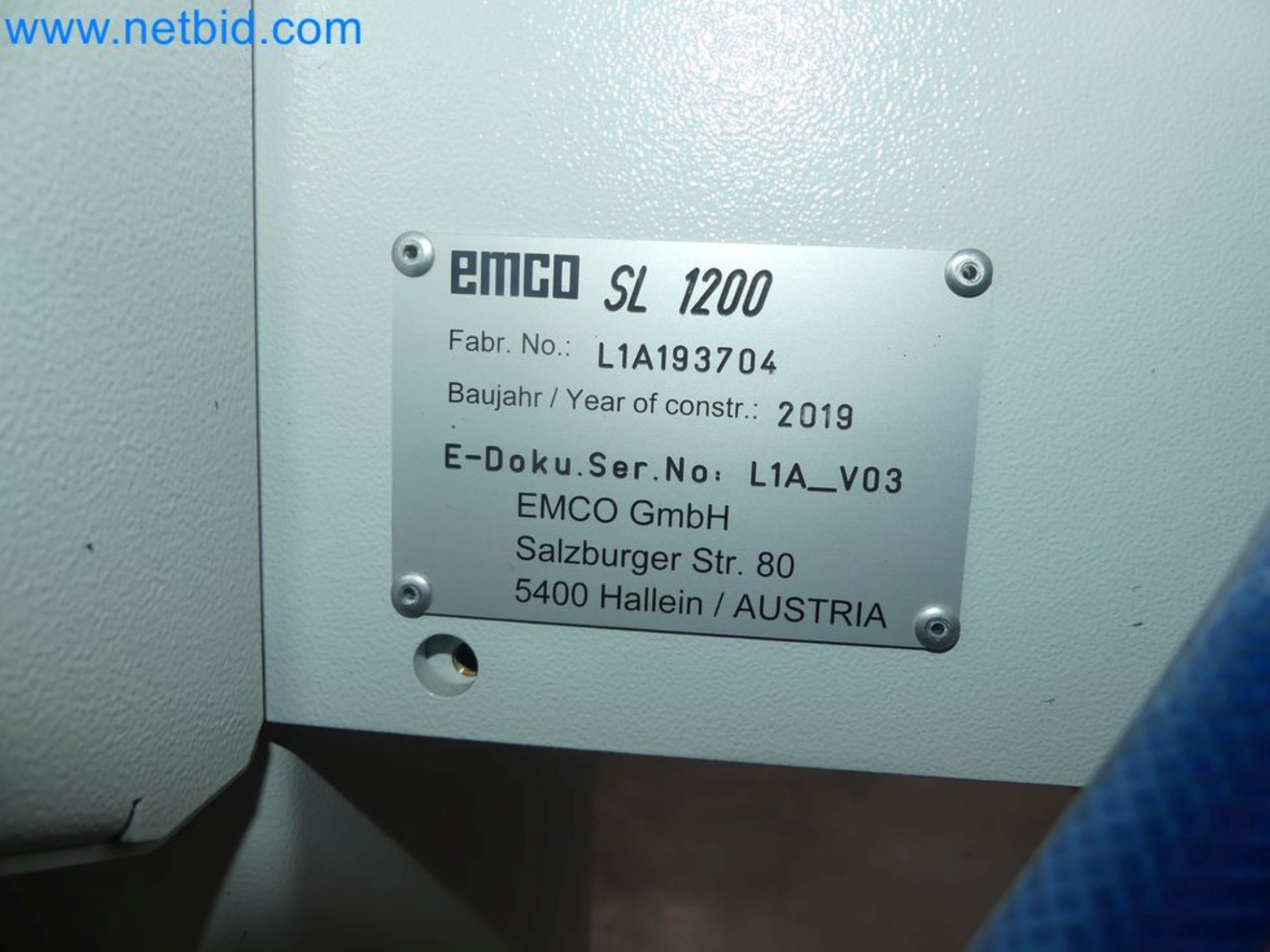

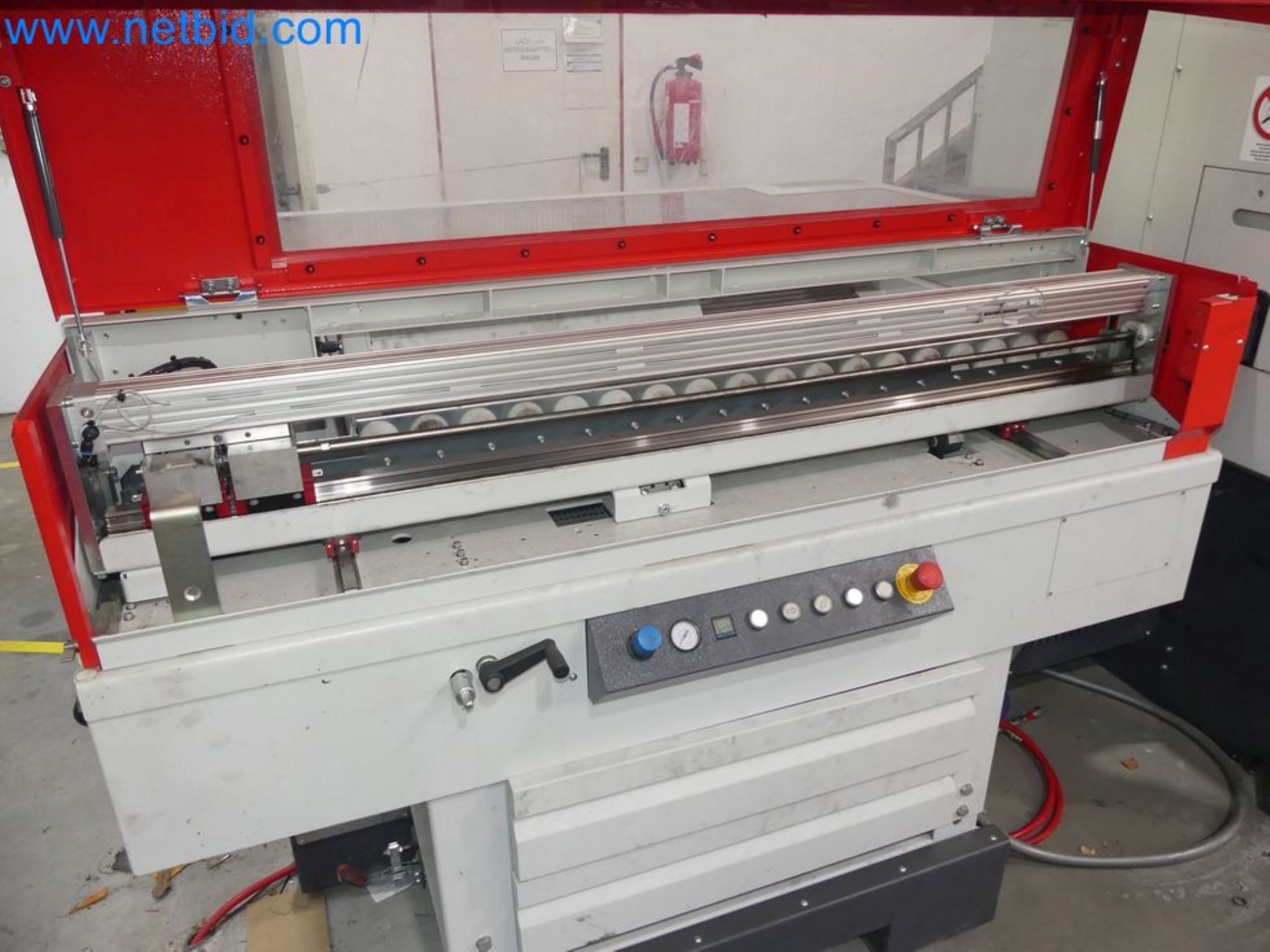

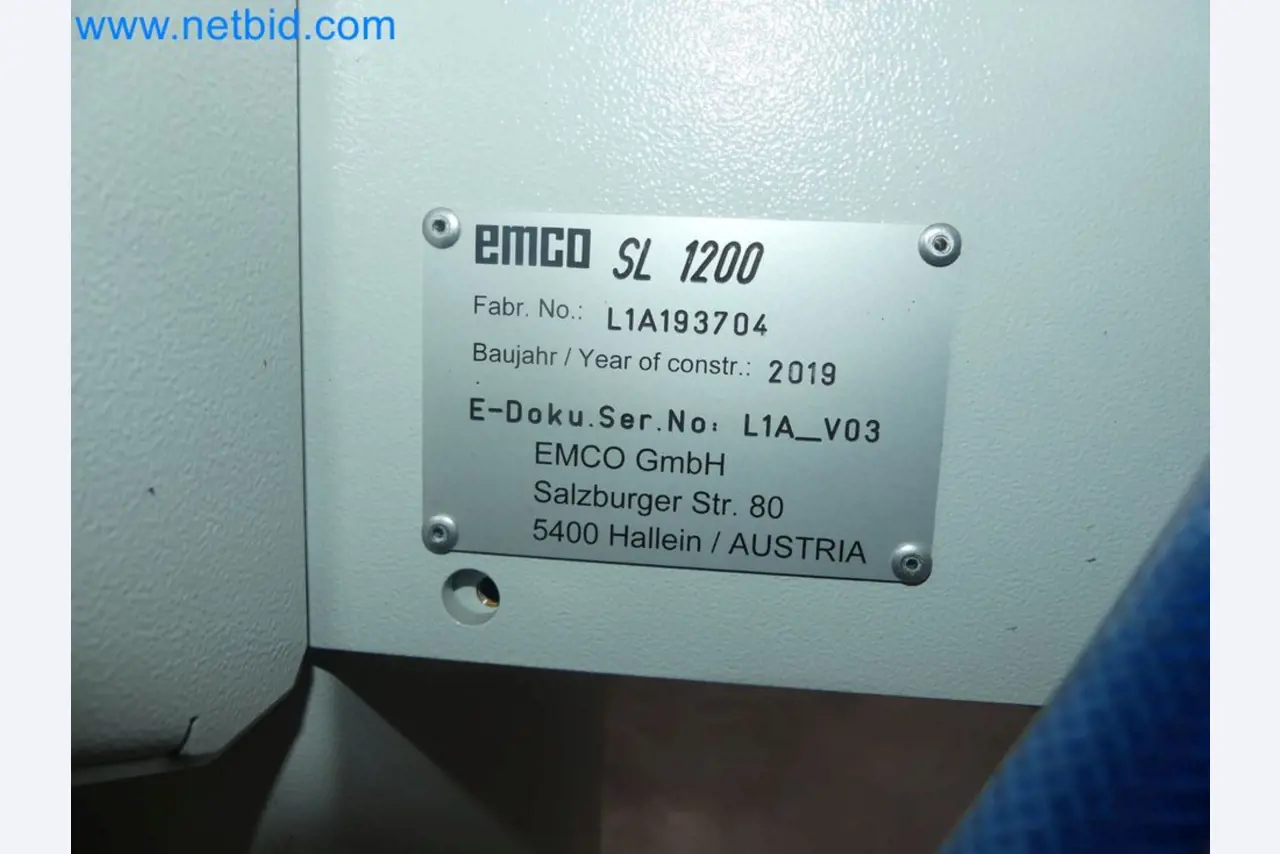

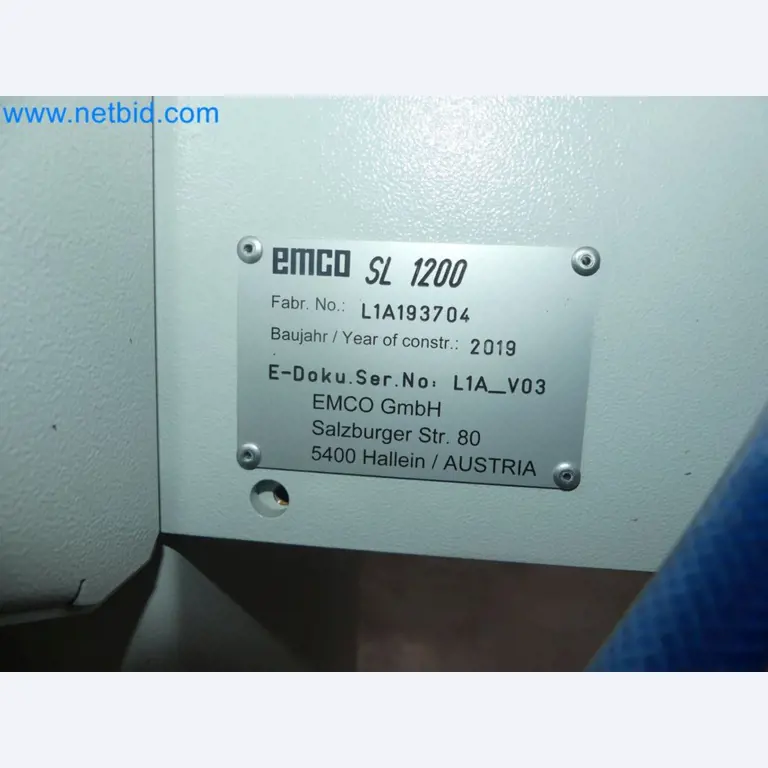

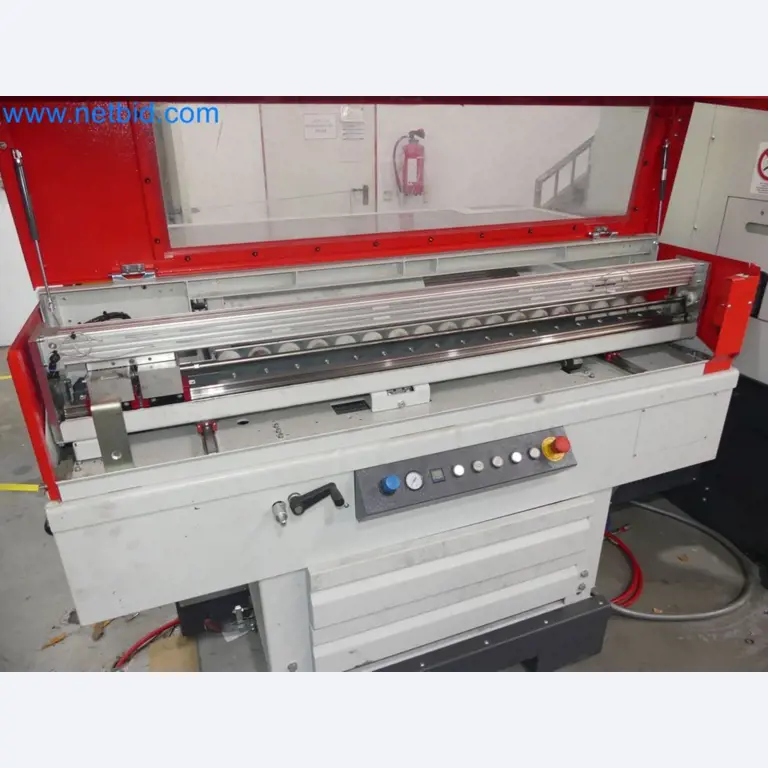

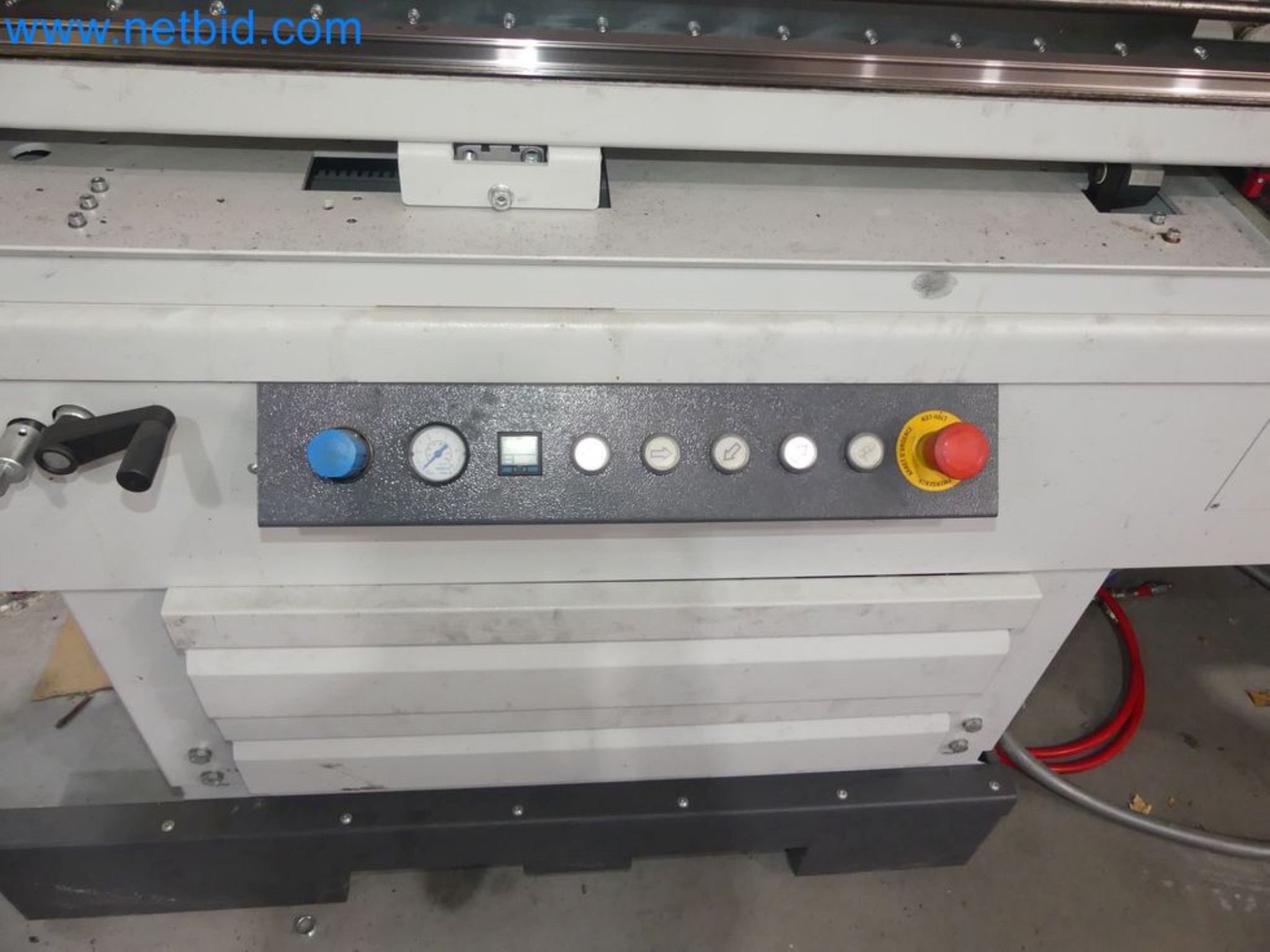

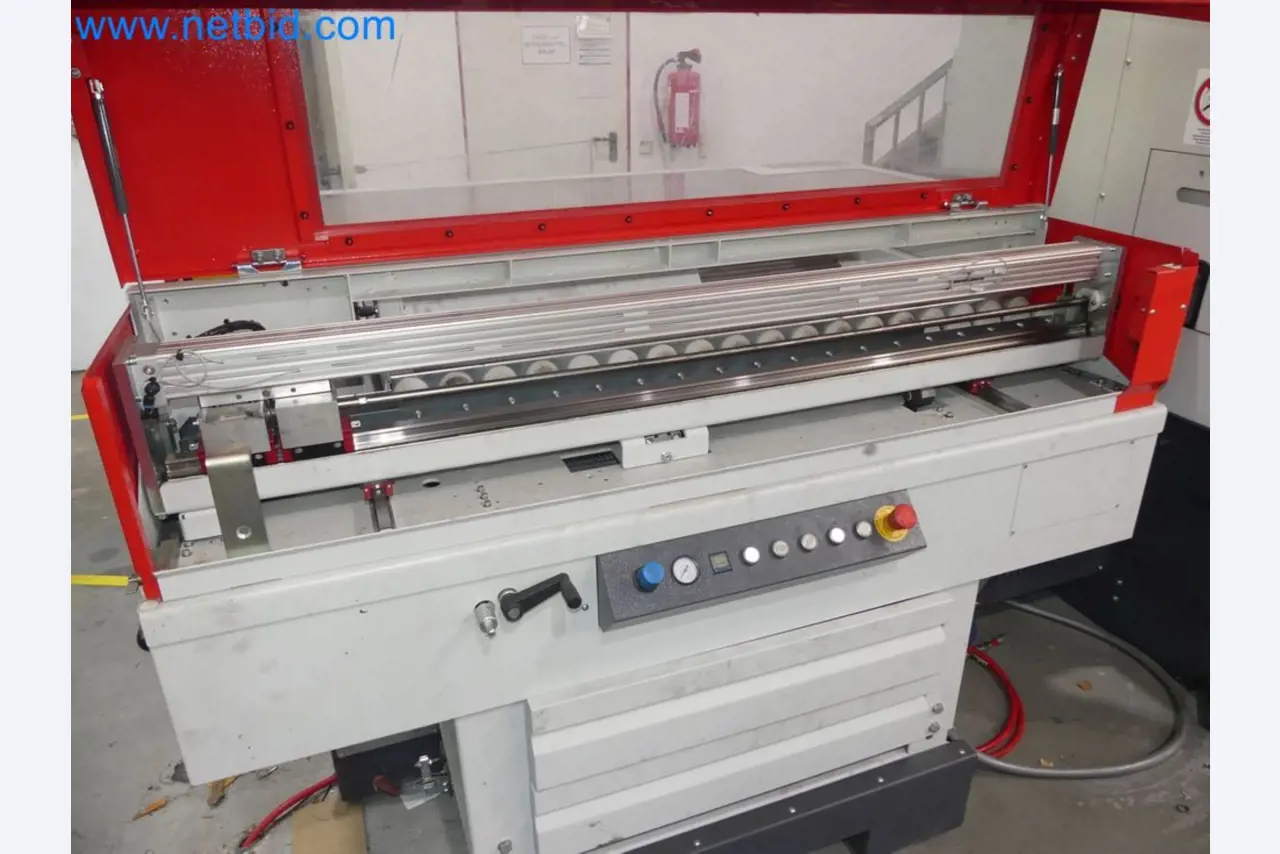

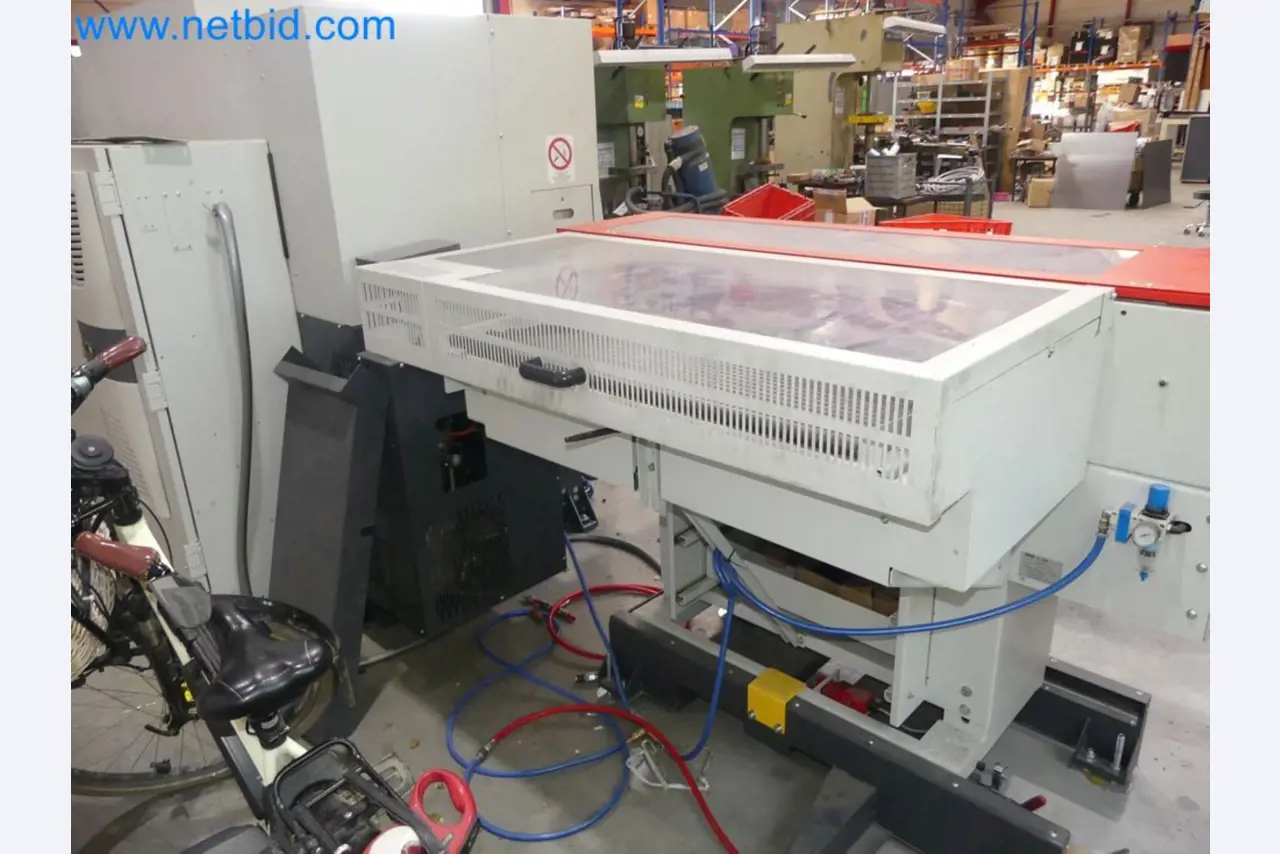

associated short bar loader EMCO SL 1.200, year: 2019, serial number: L1A193704;

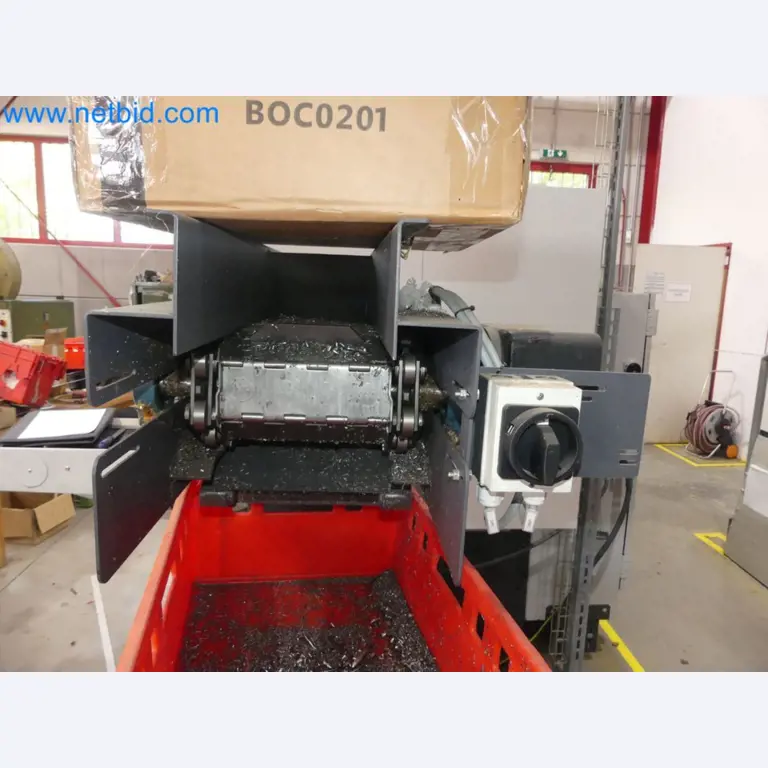

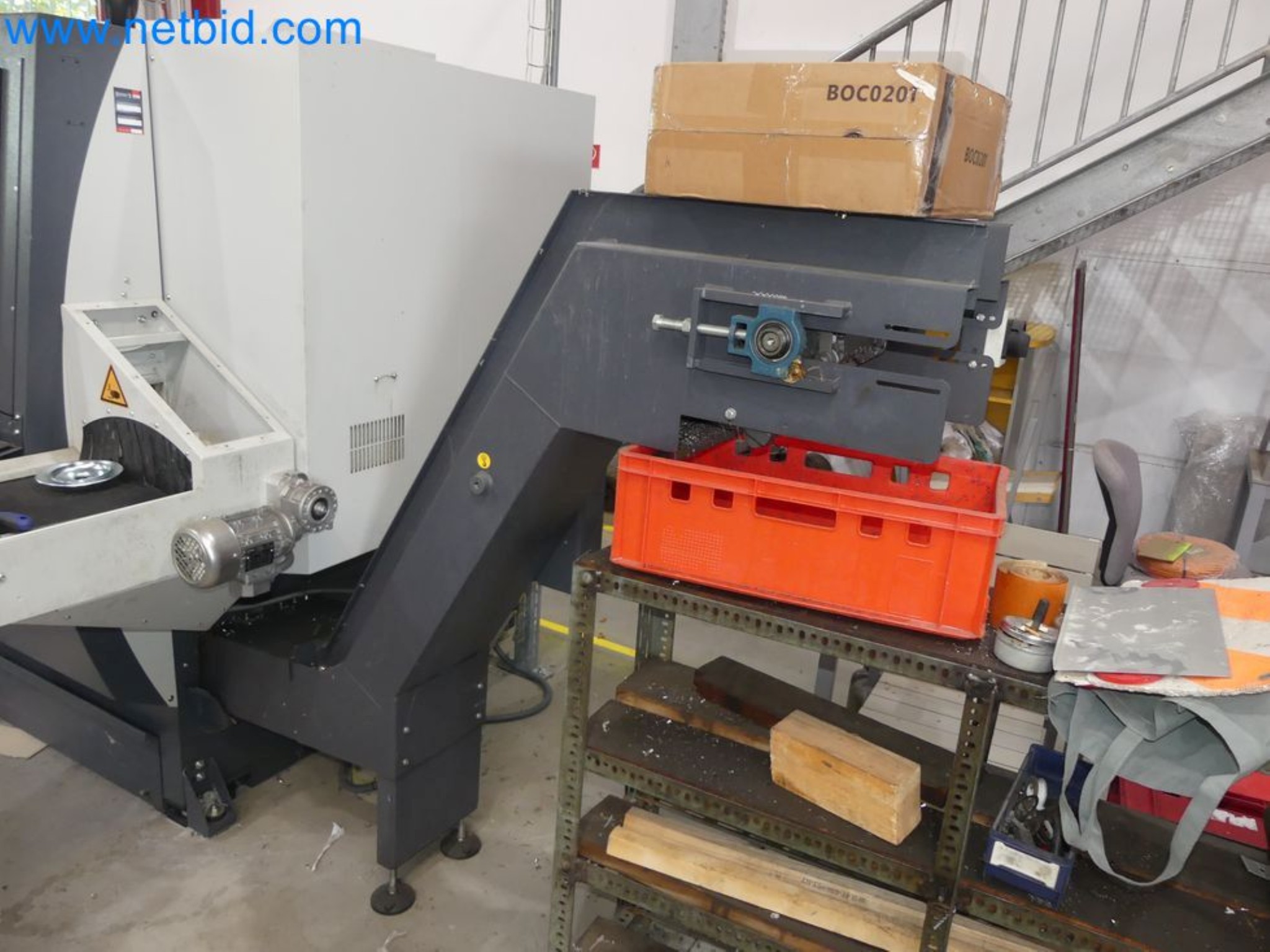

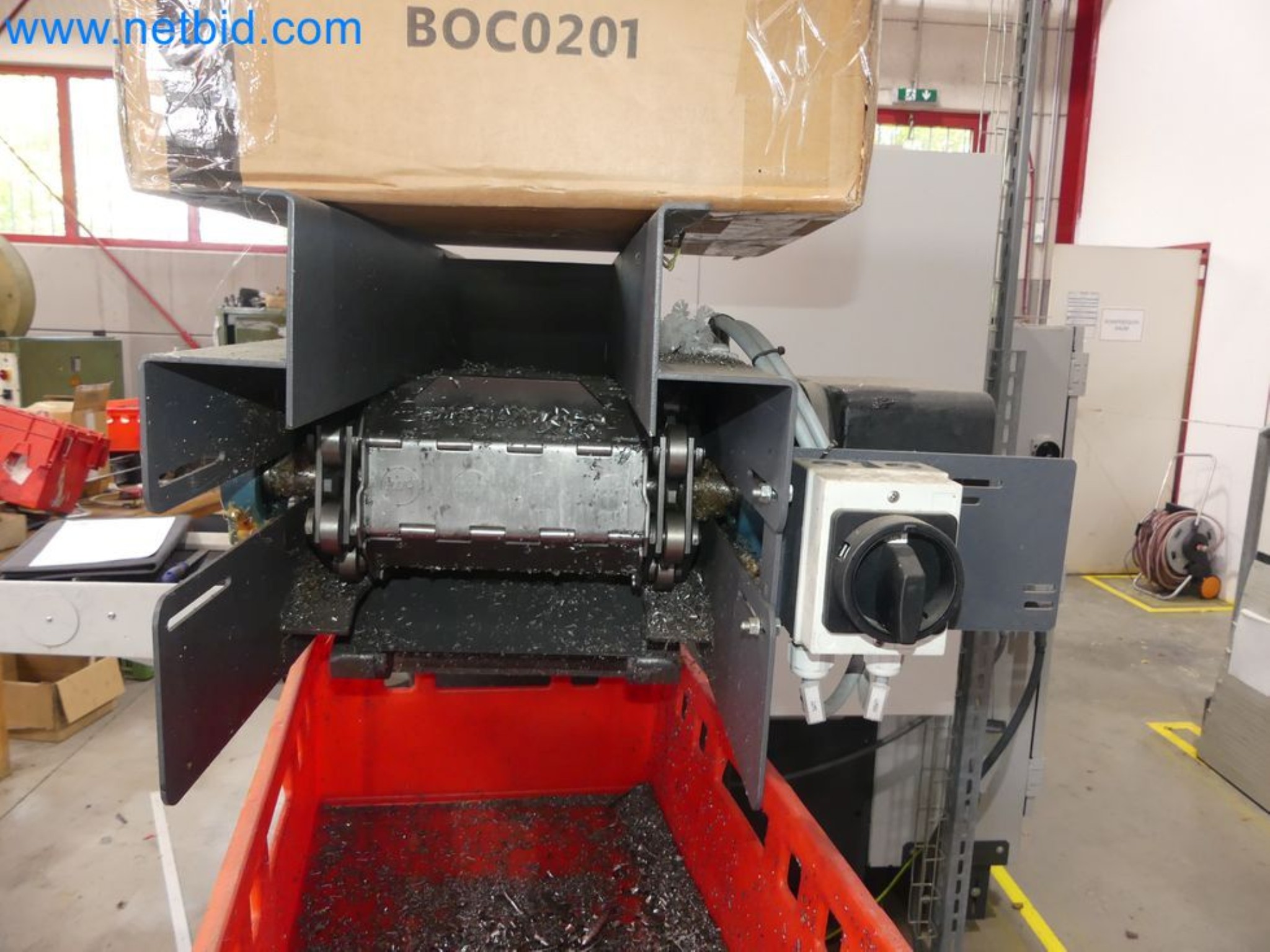

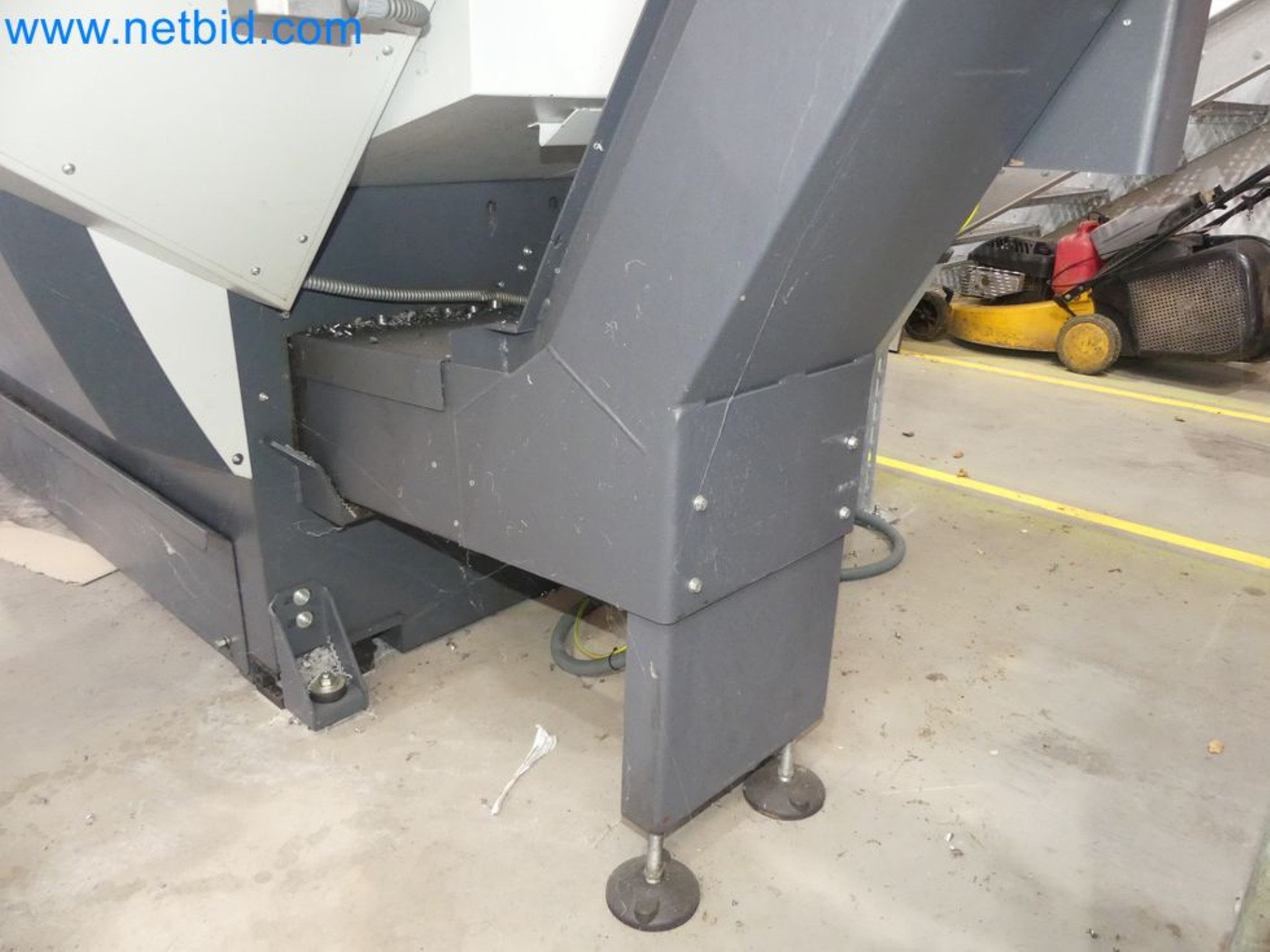

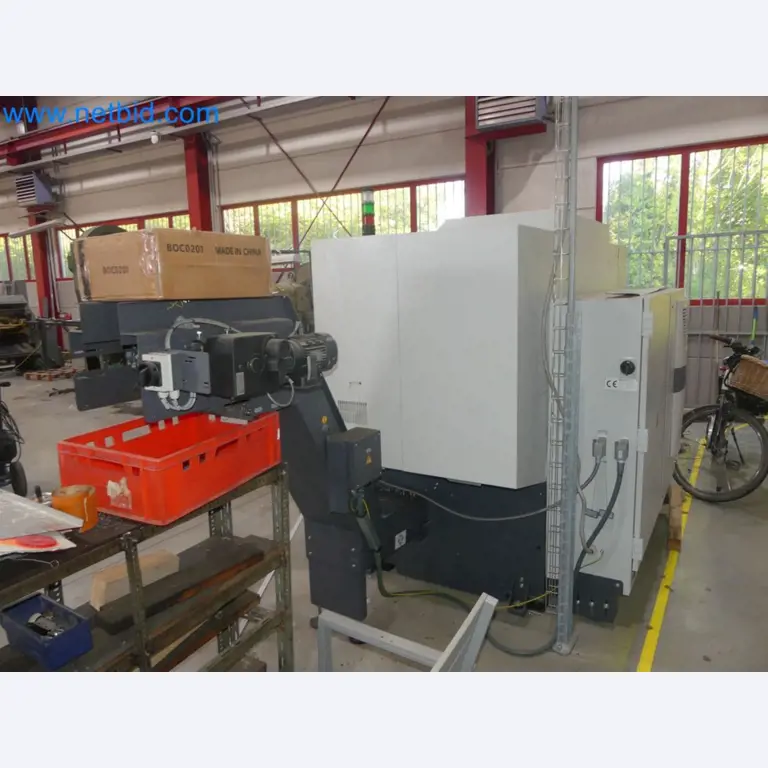

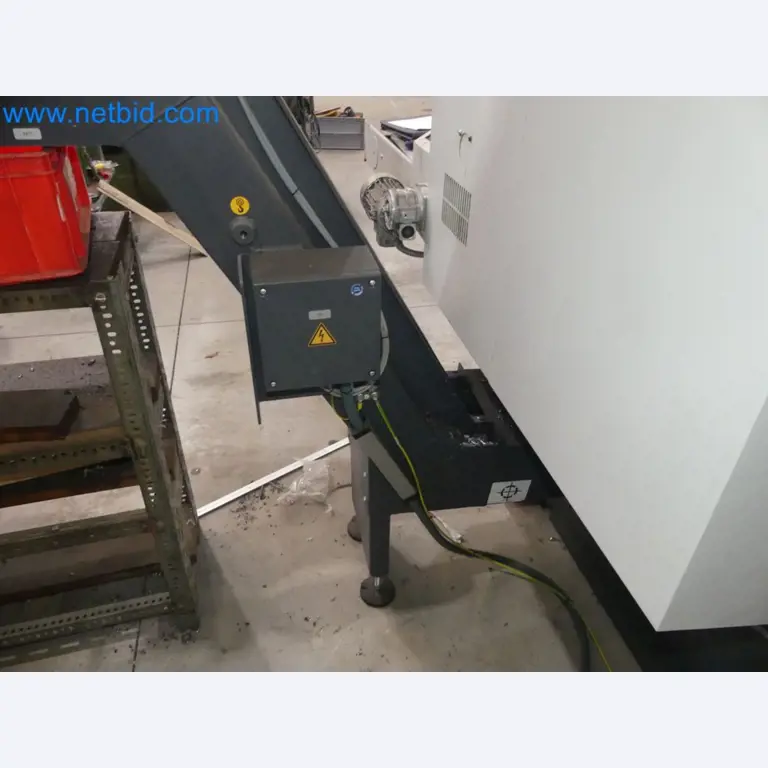

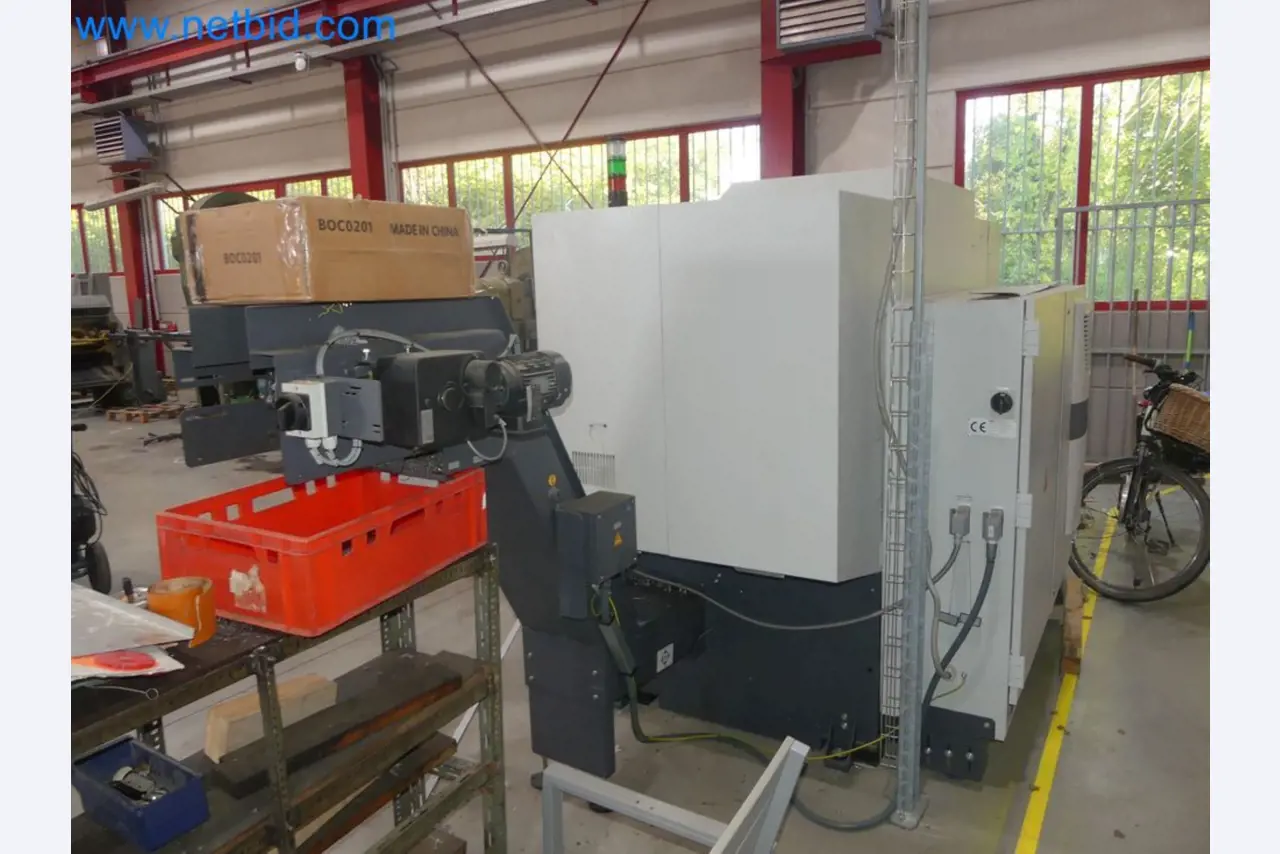

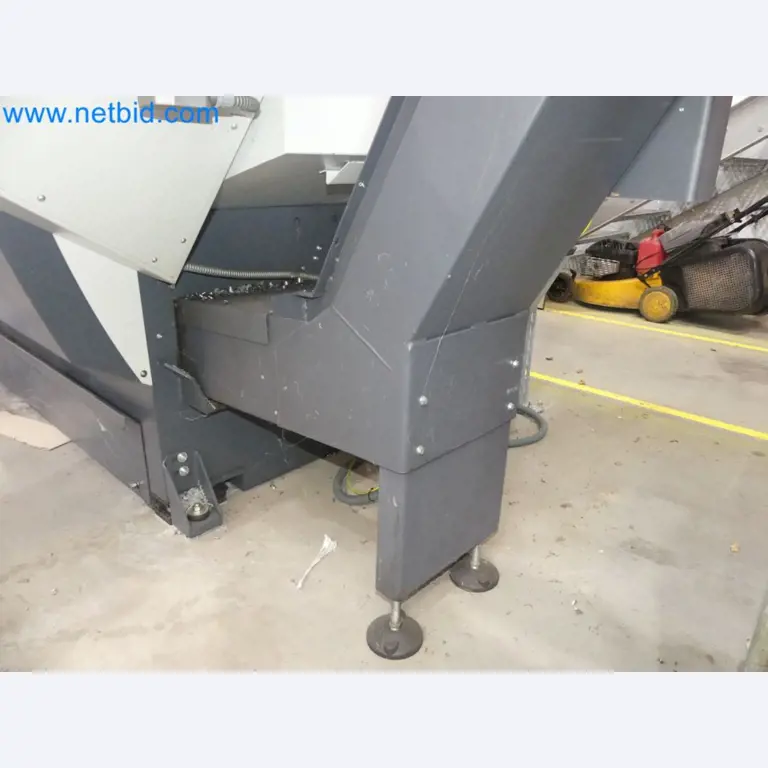

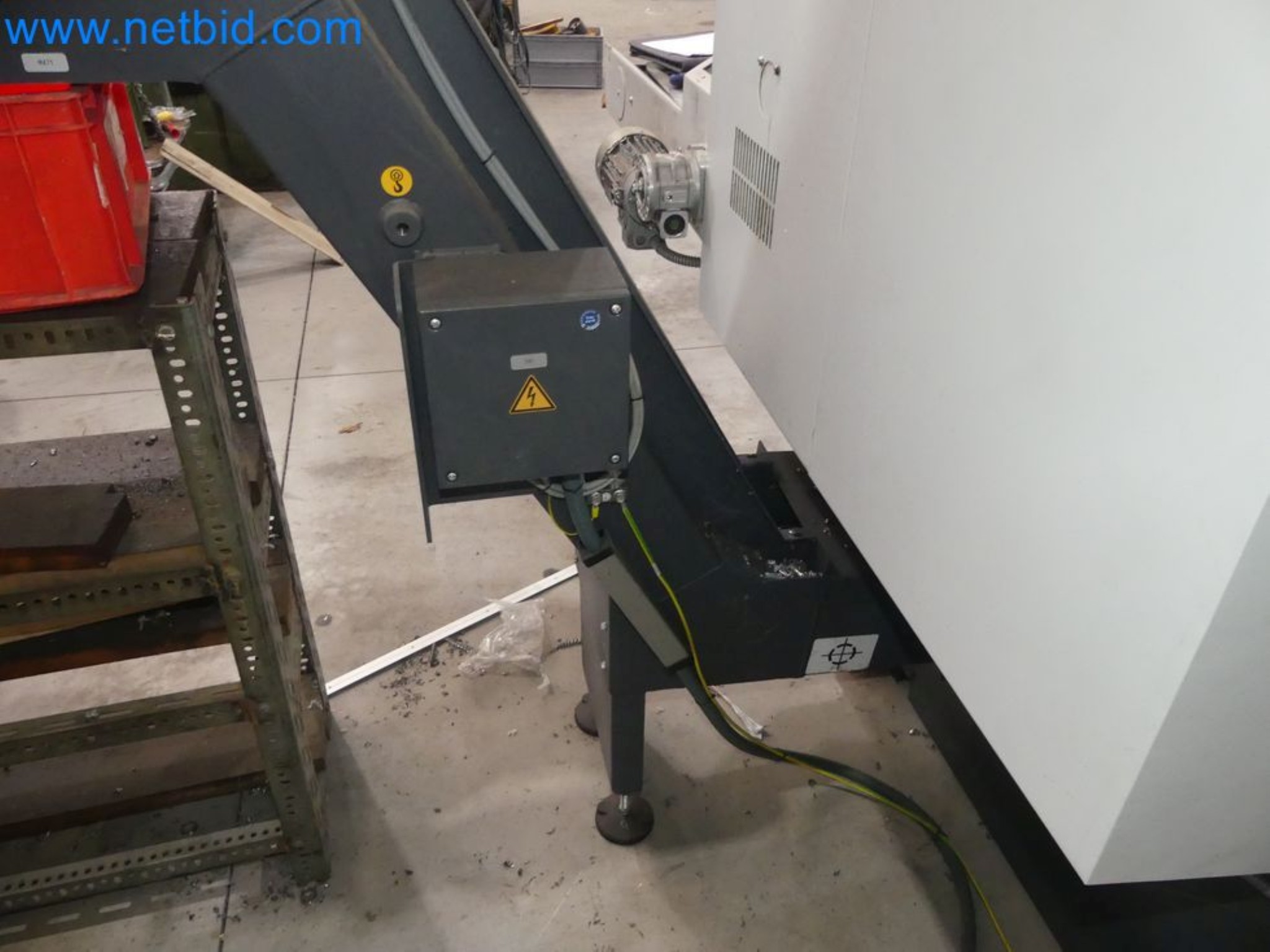

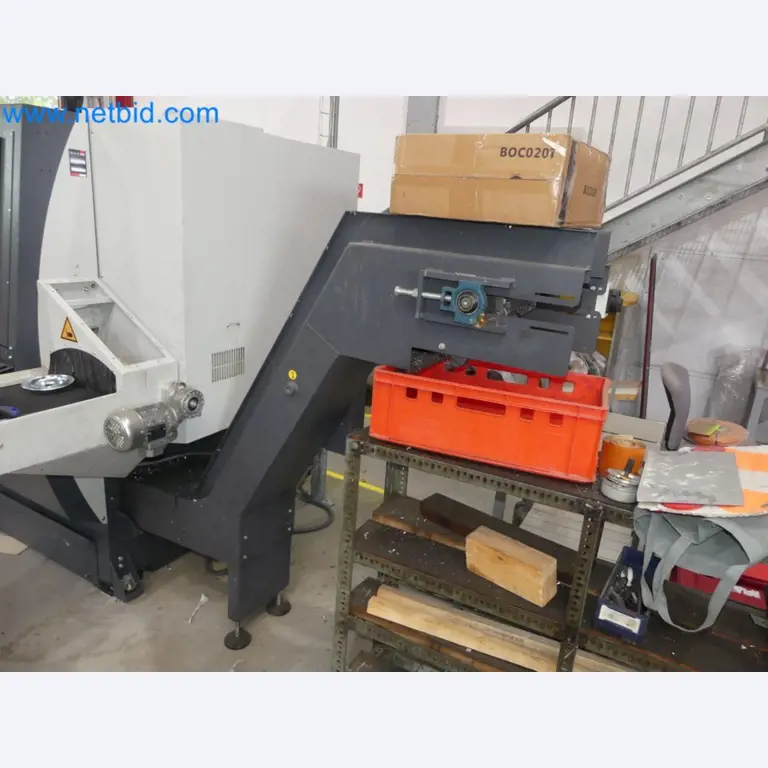

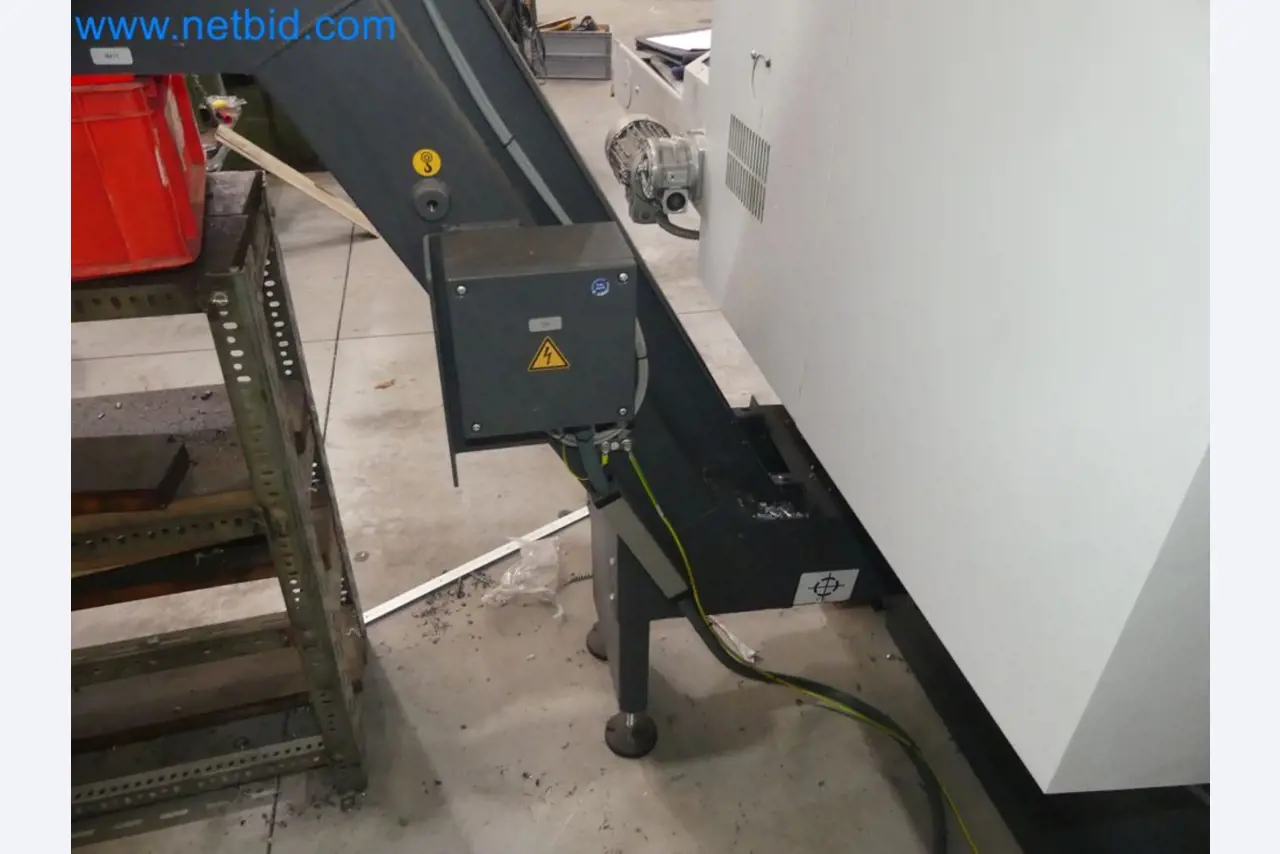

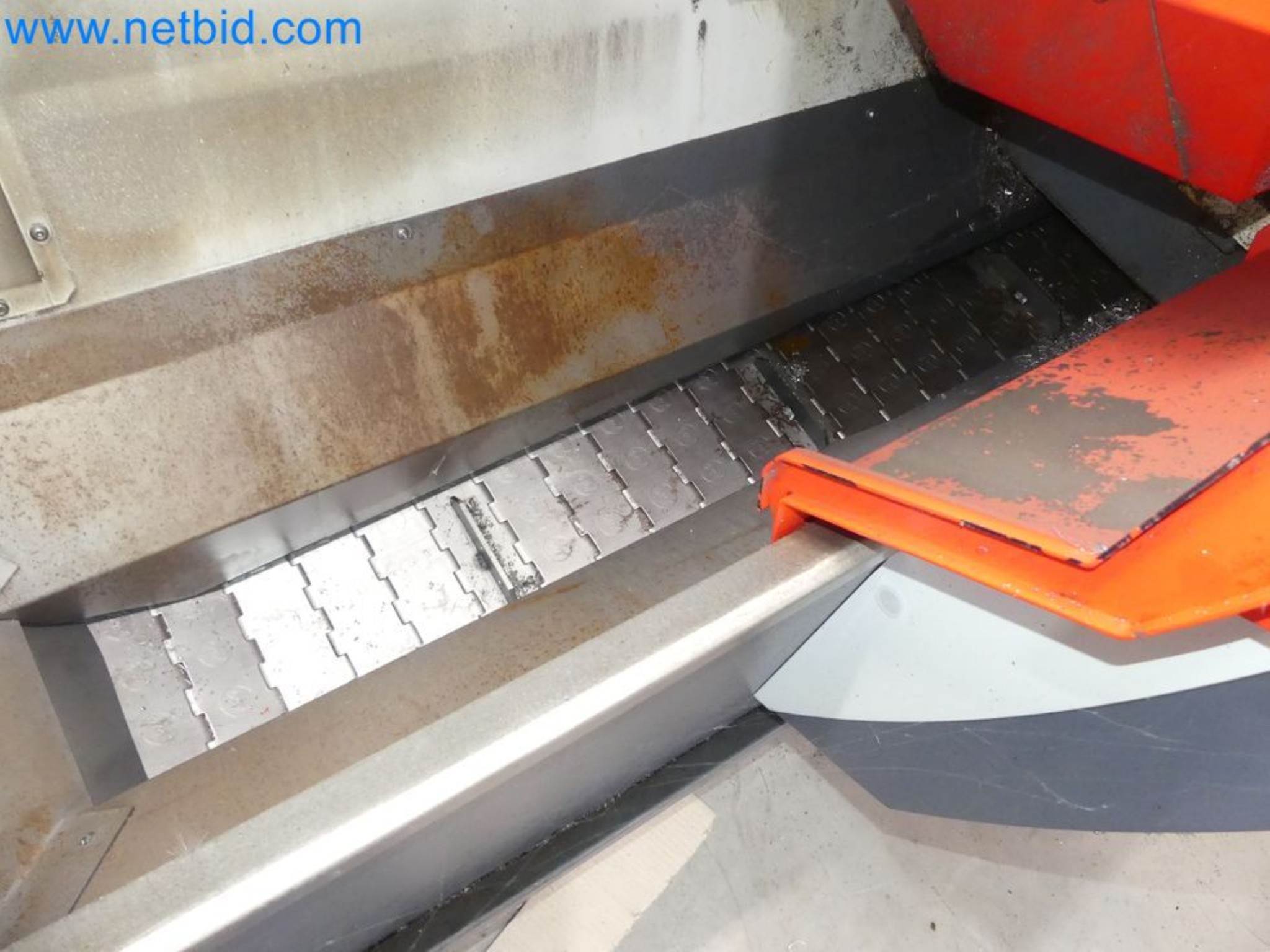

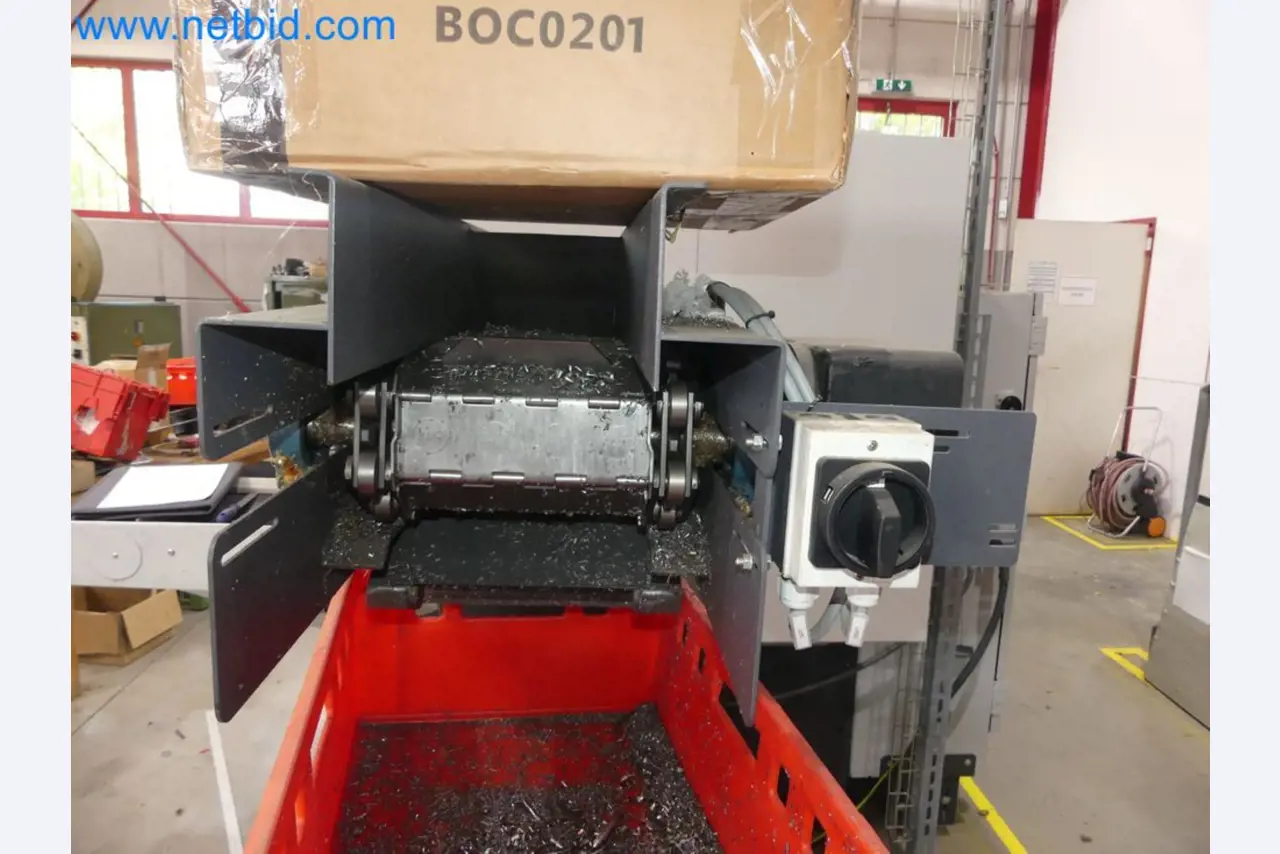

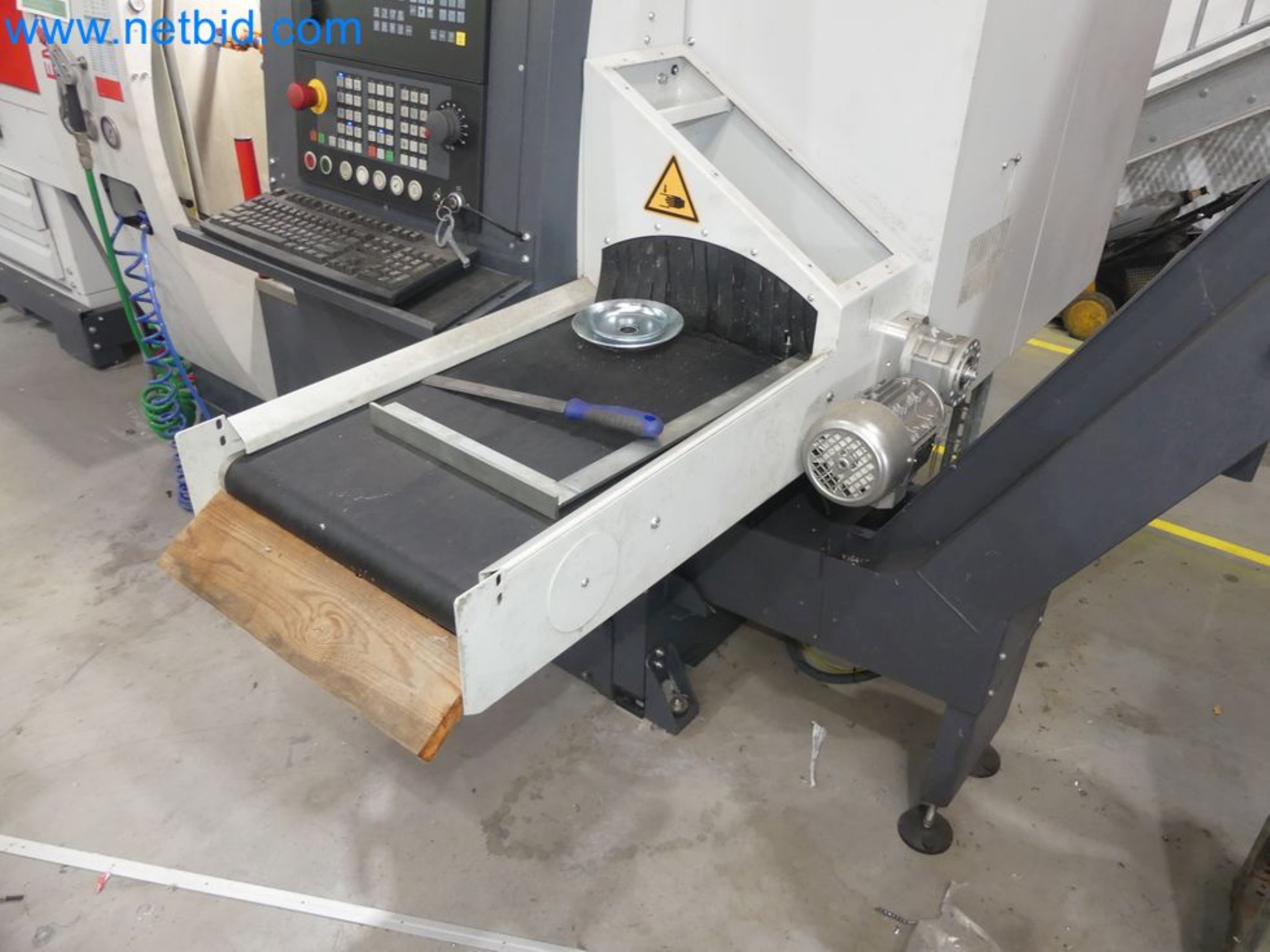

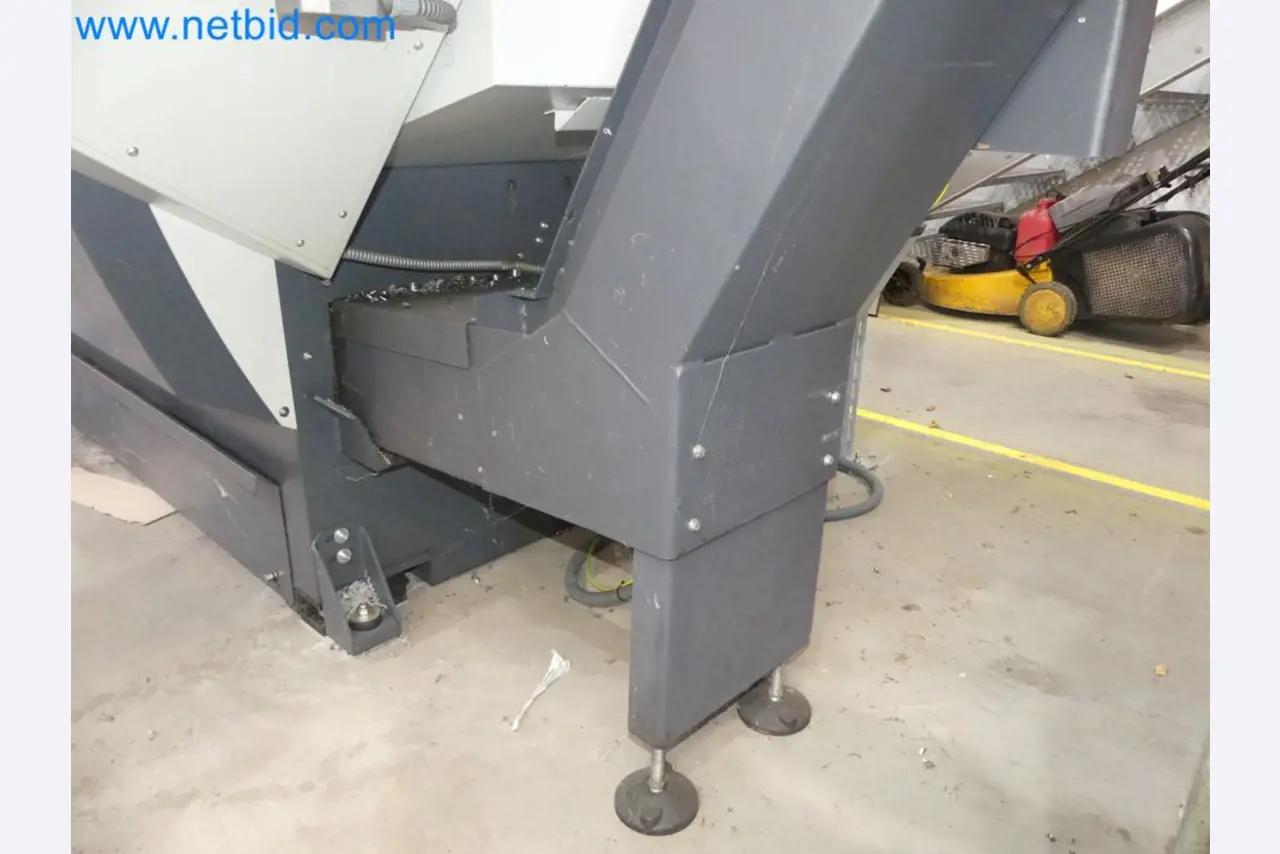

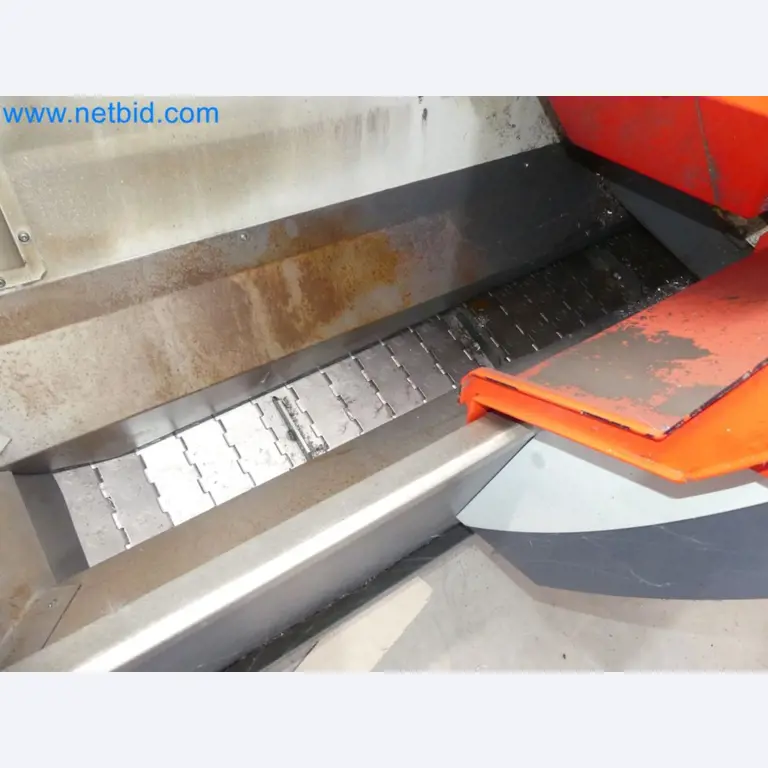

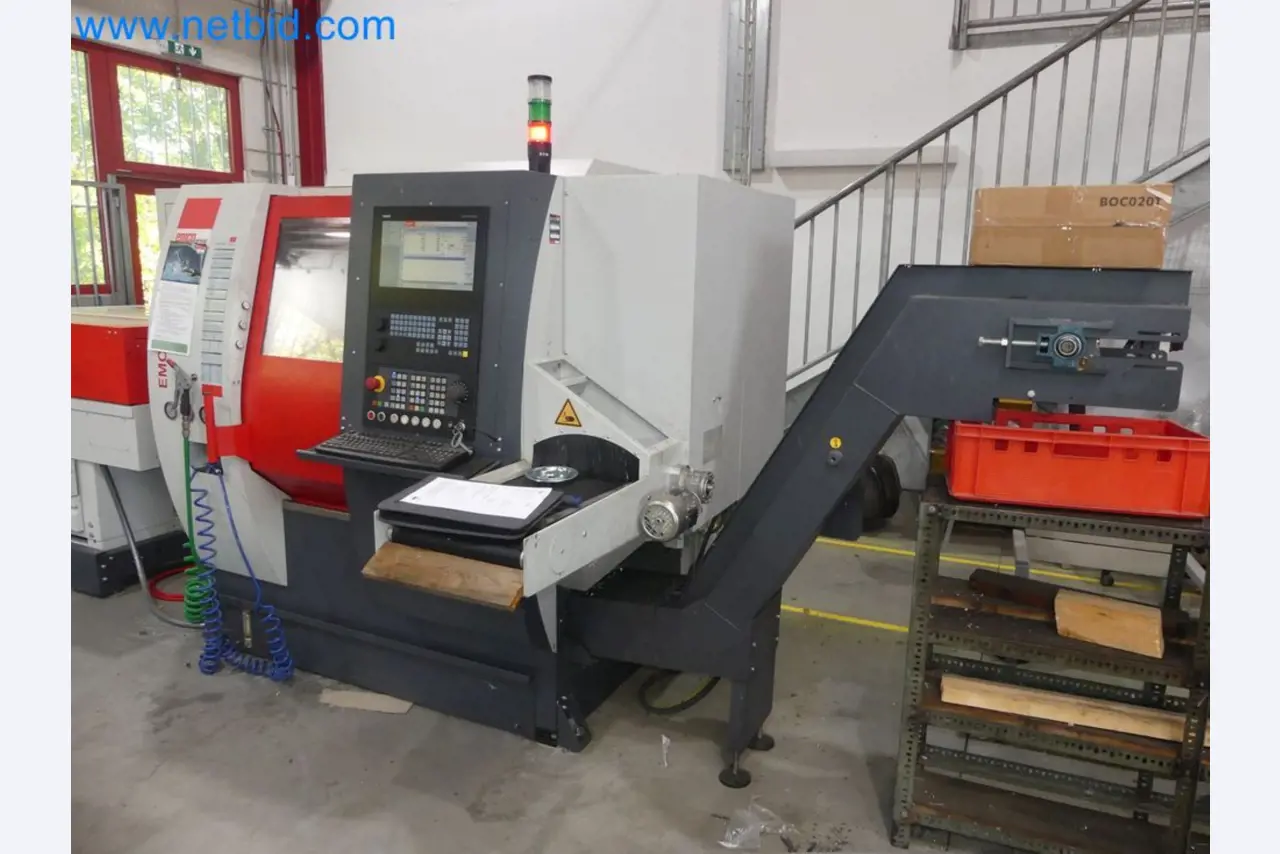

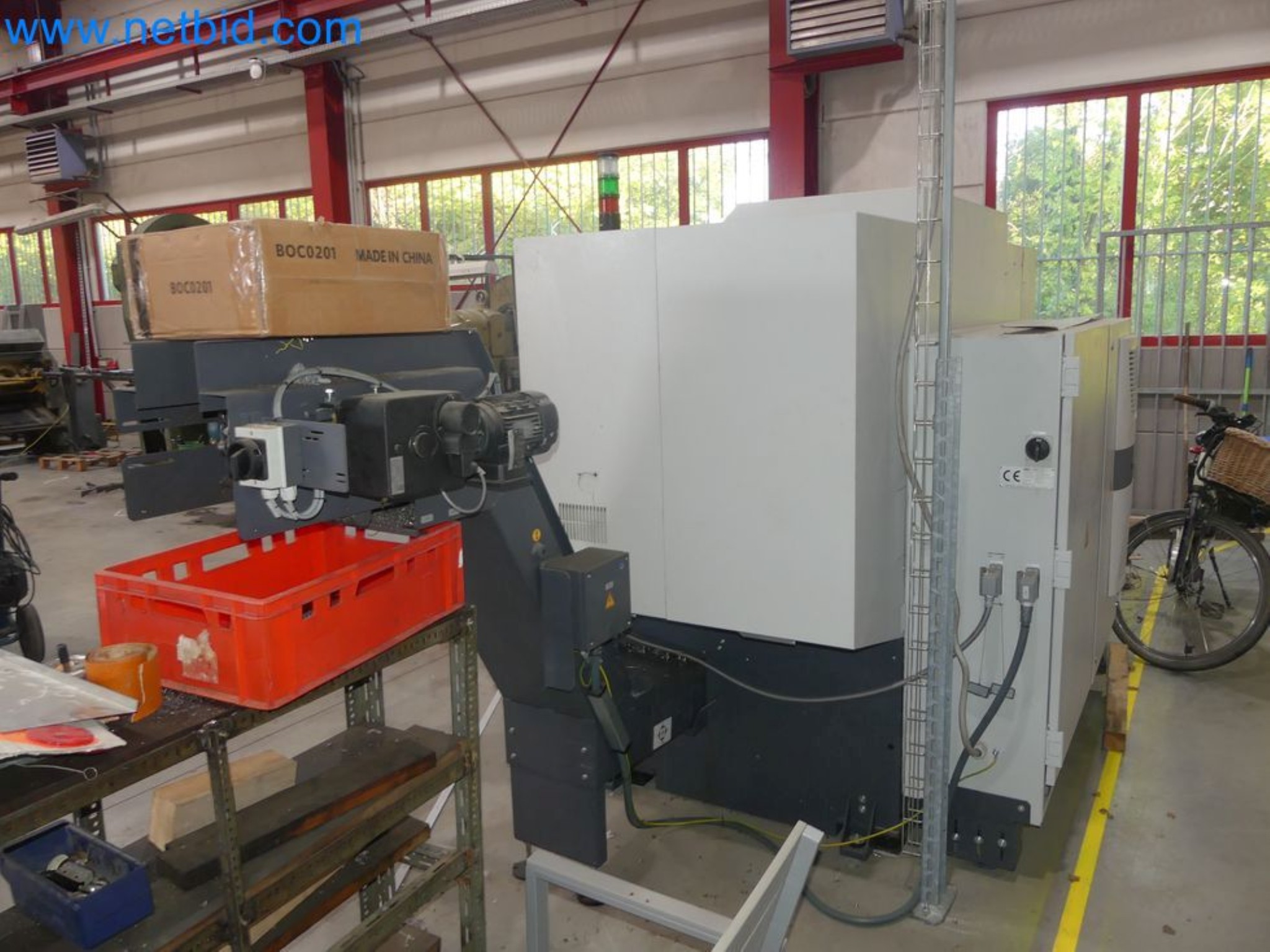

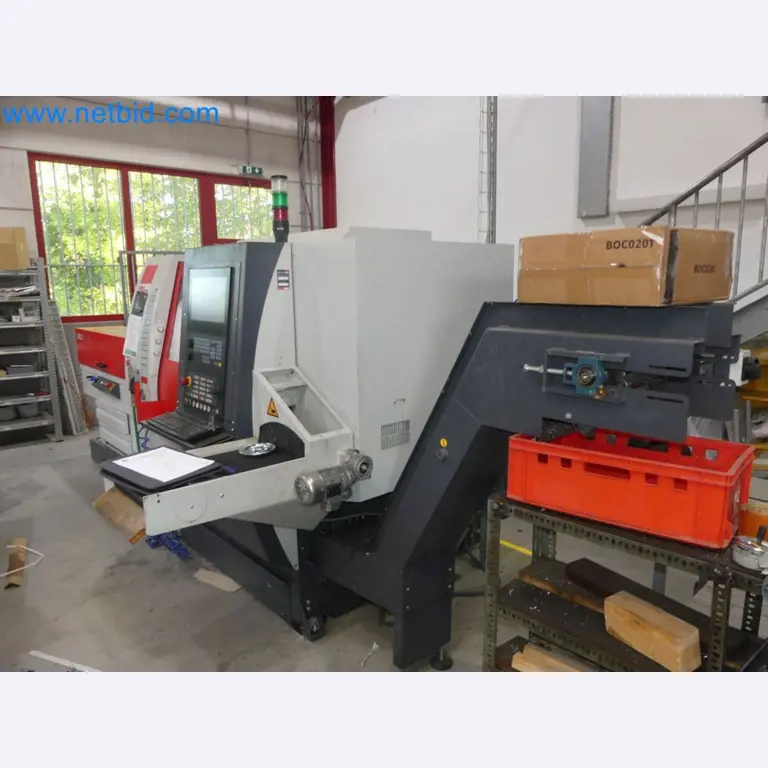

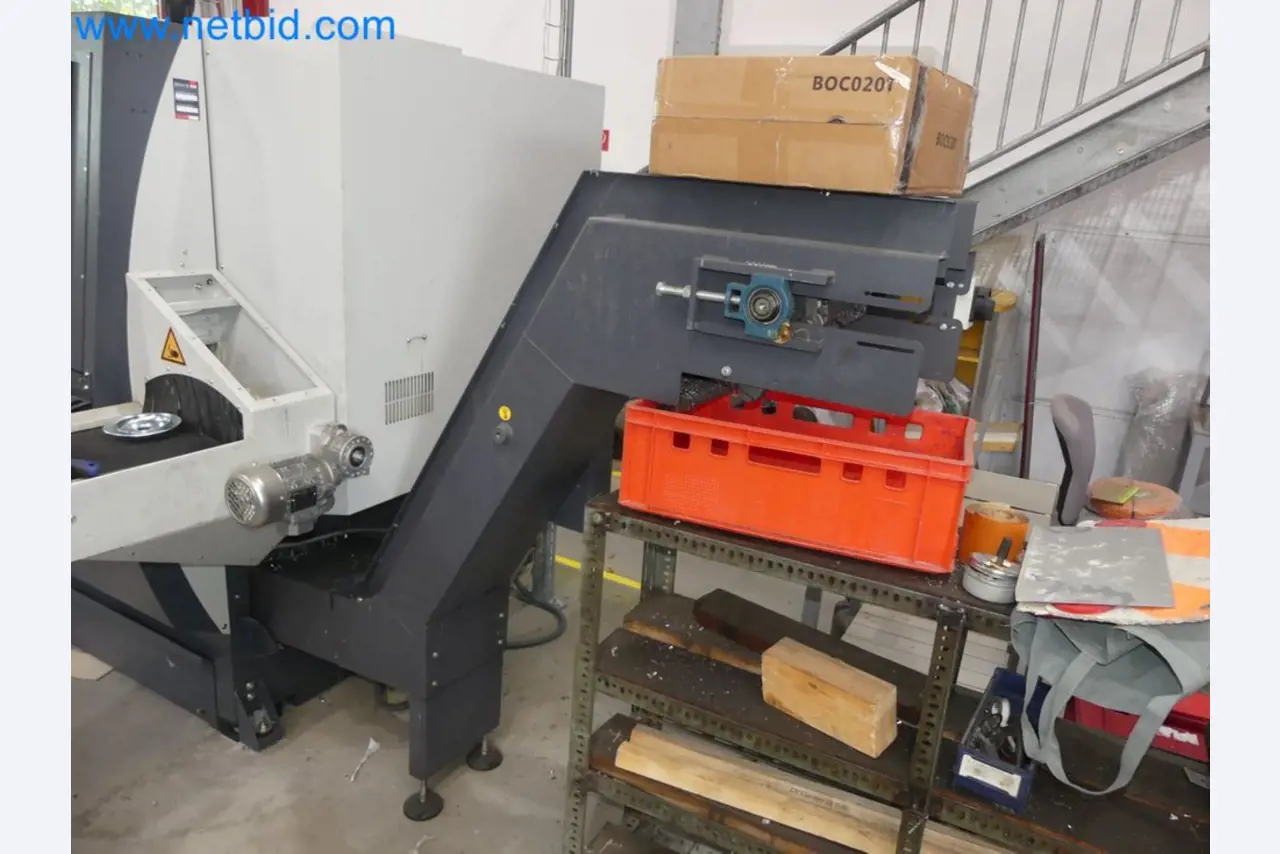

chip conveyor located on the right-hand side with ejection height approx. 120 cm, designed as a hinged belt conveyor, belt width approx. 20 cm;

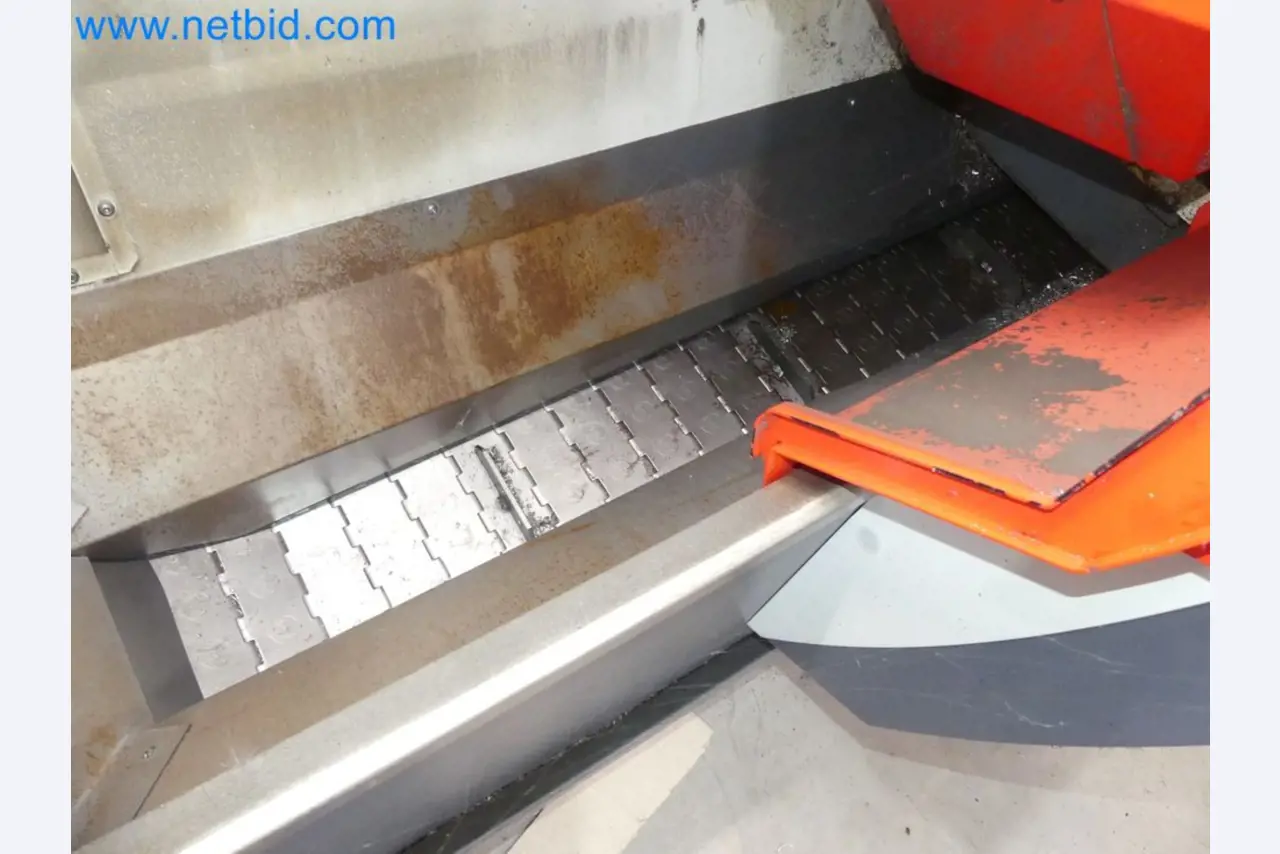

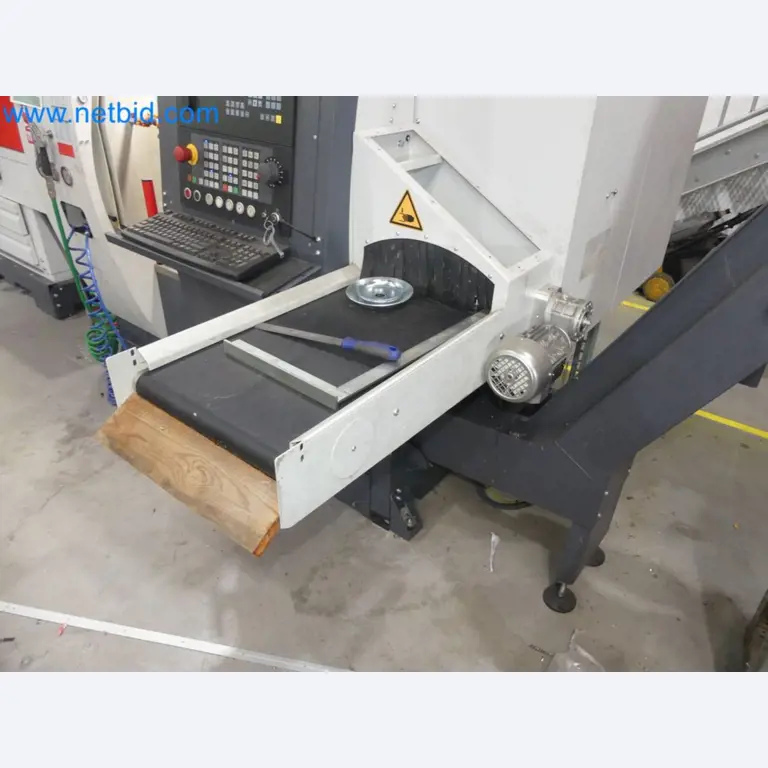

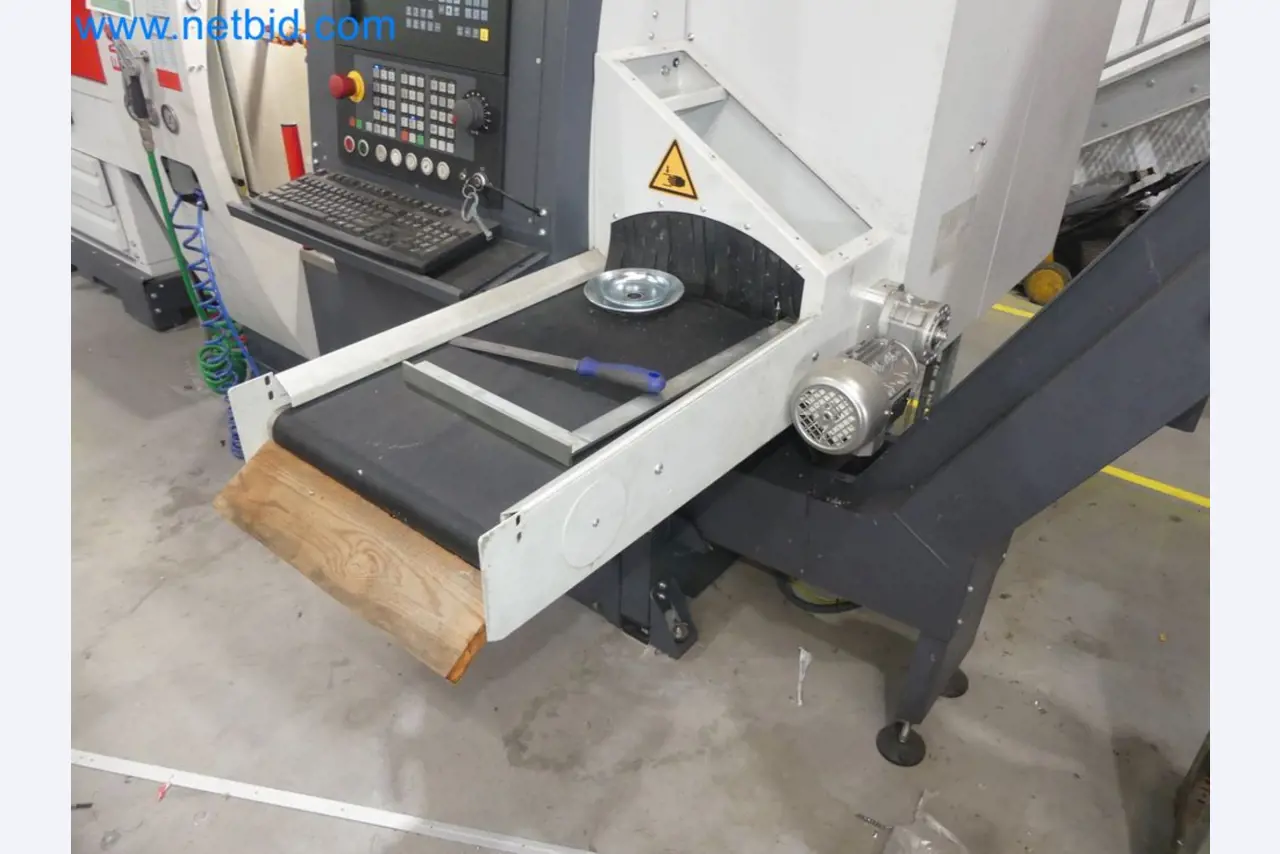

Finished part dust conveyor in the machine with parts collection device

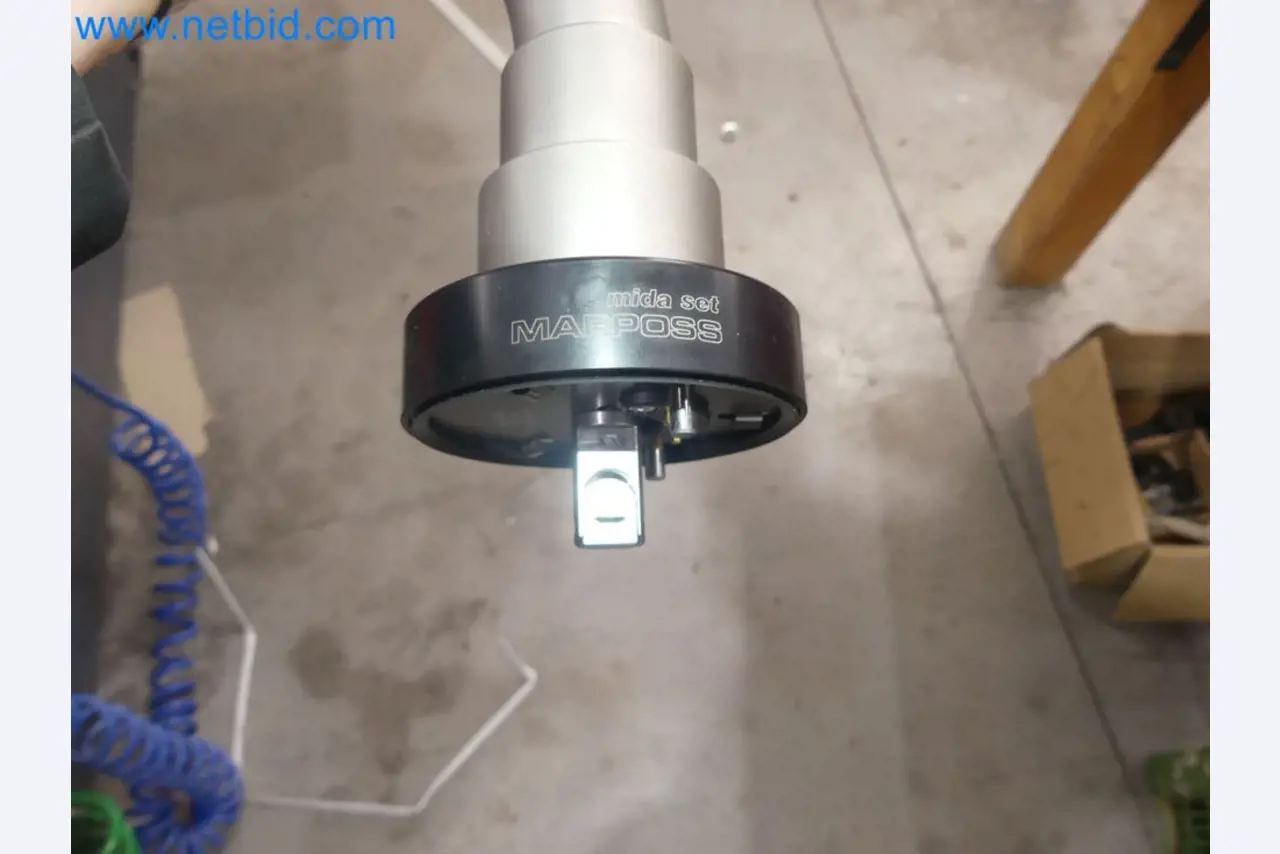

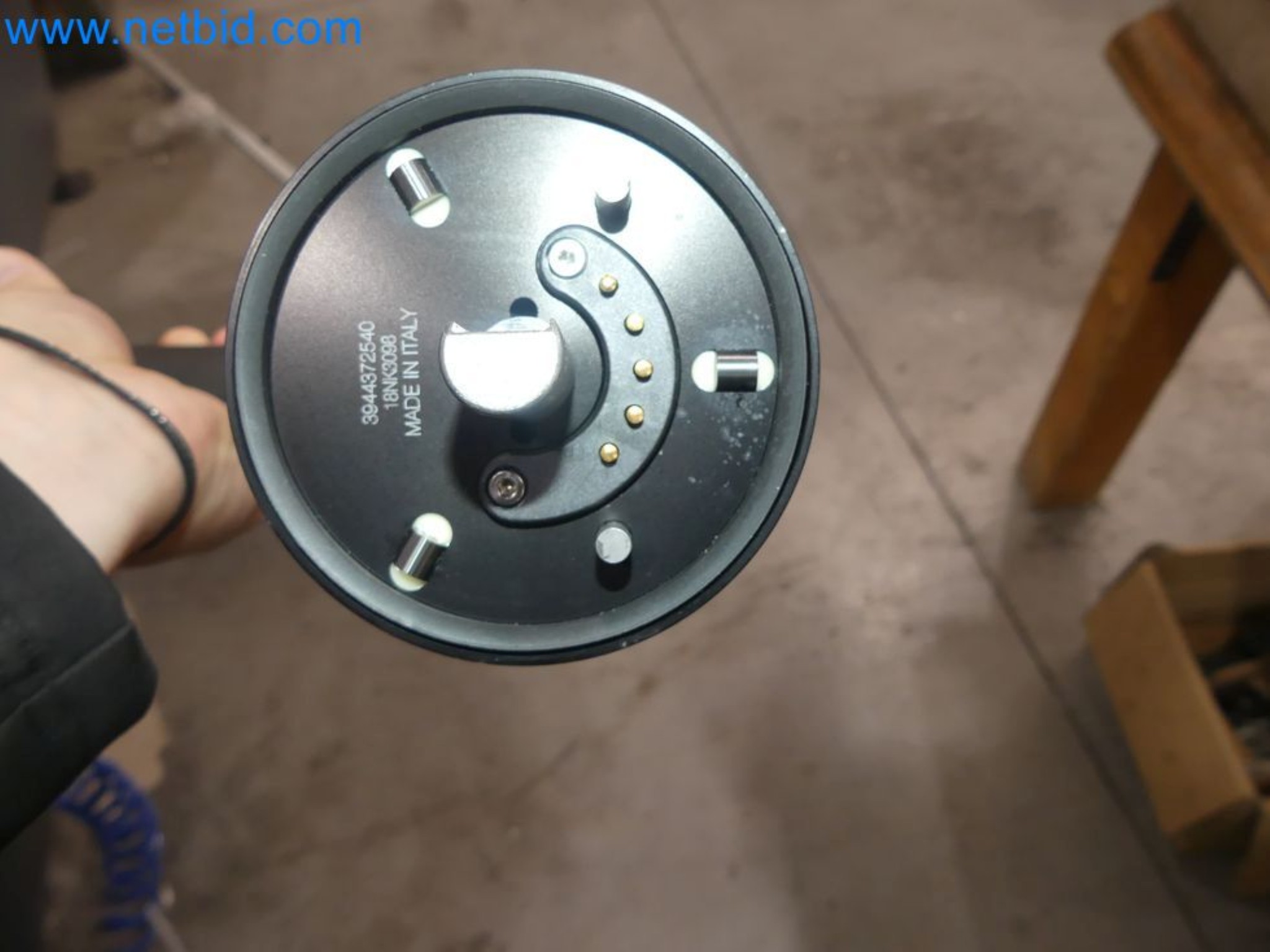

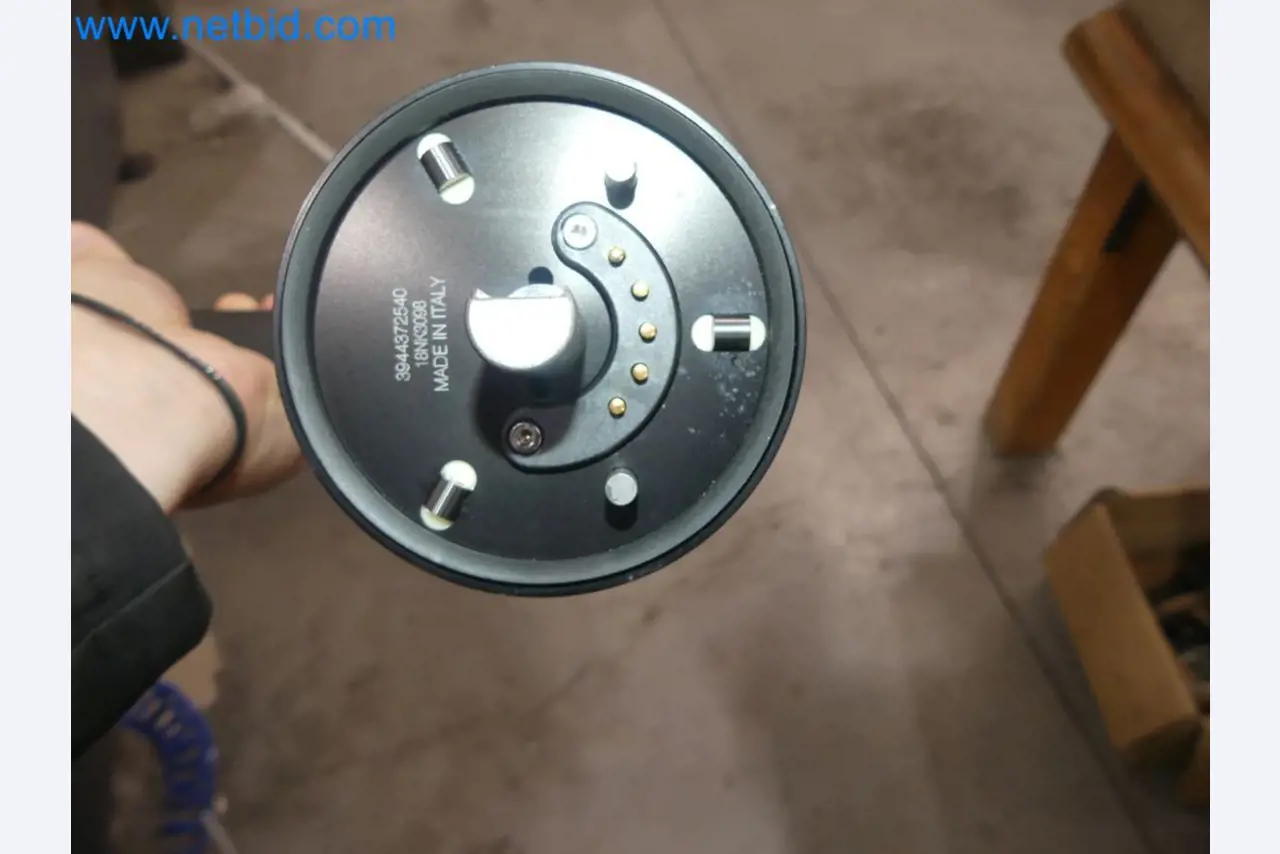

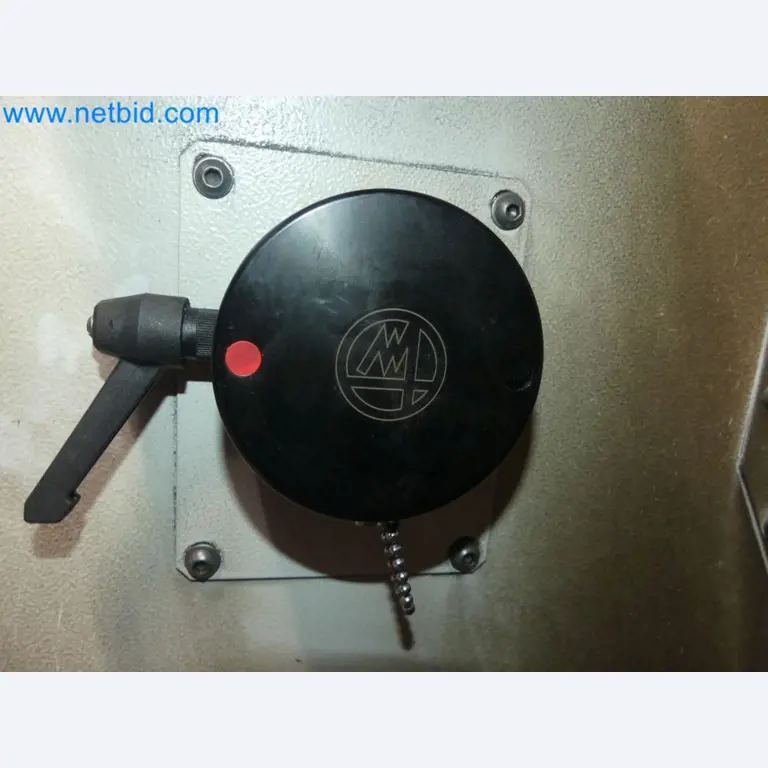

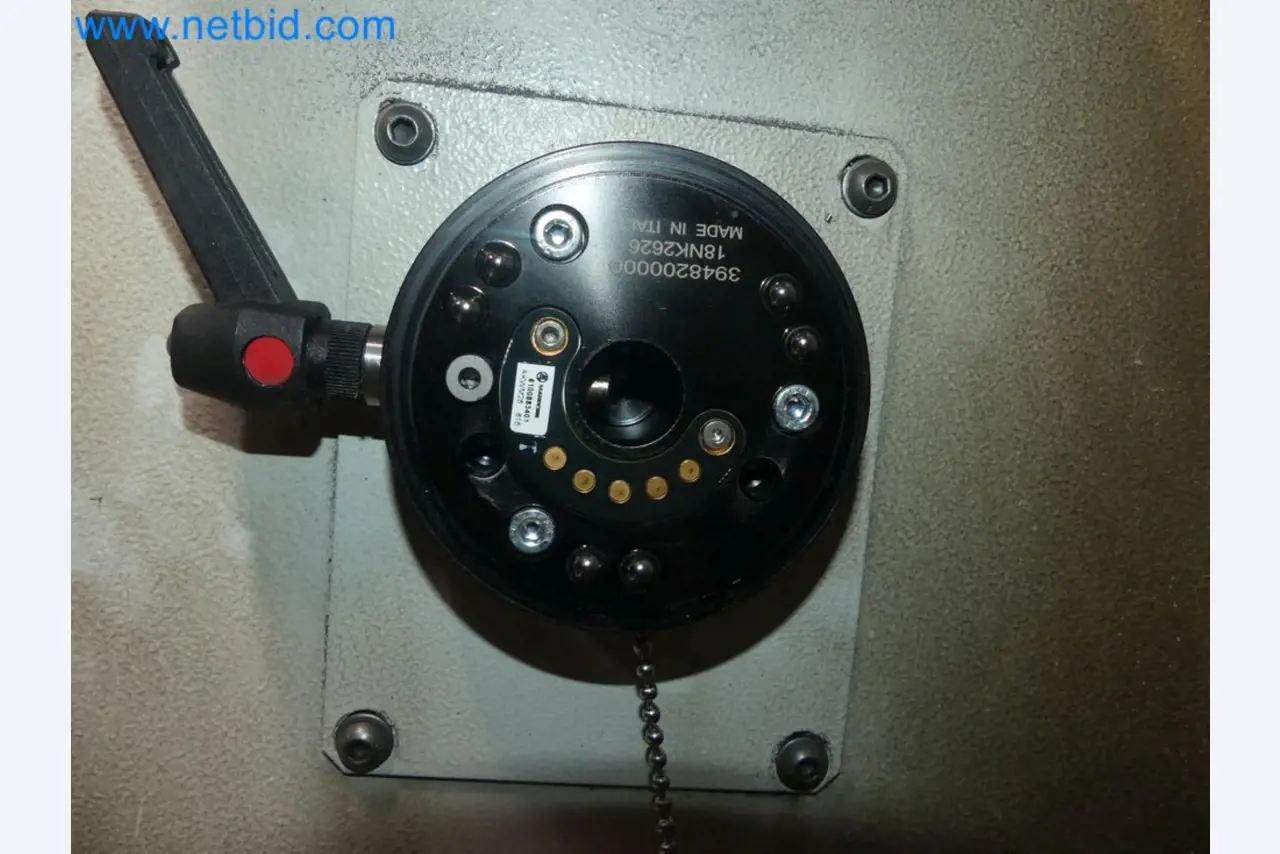

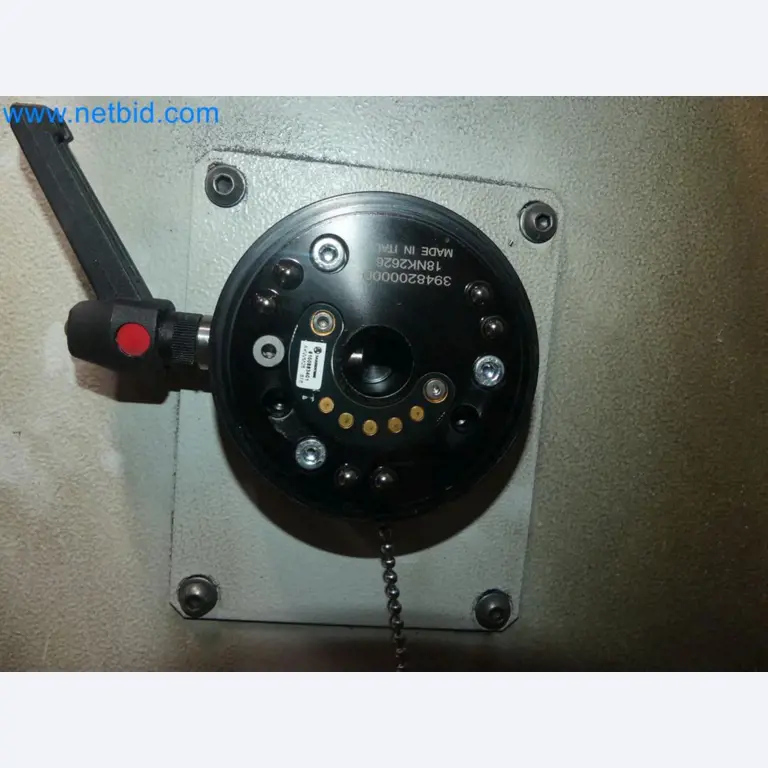

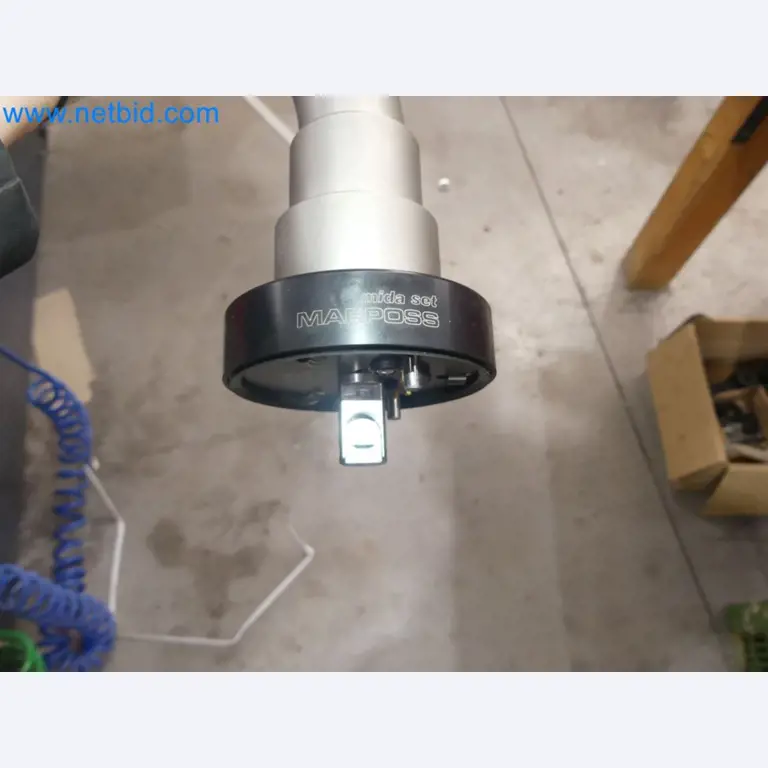

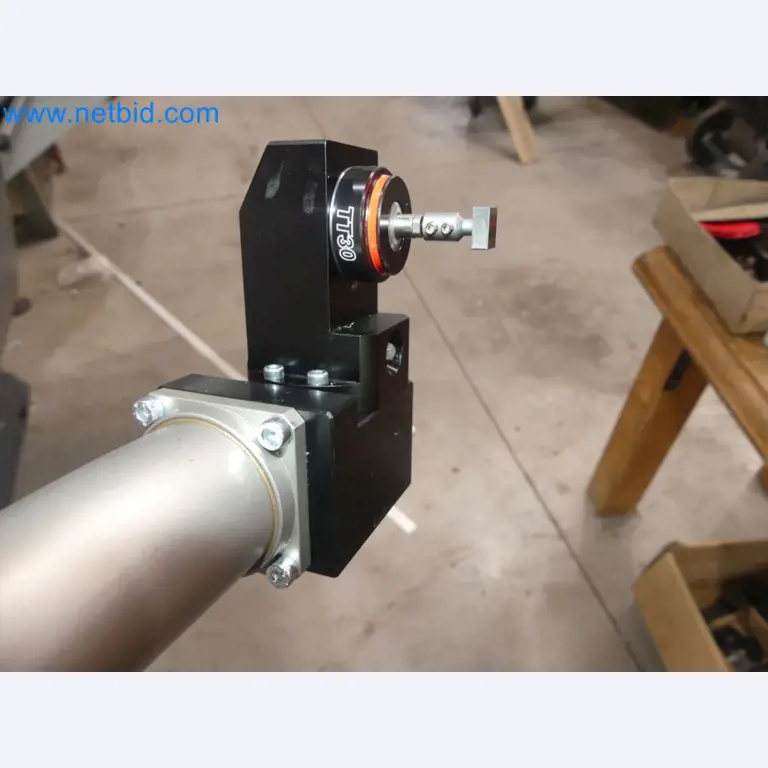

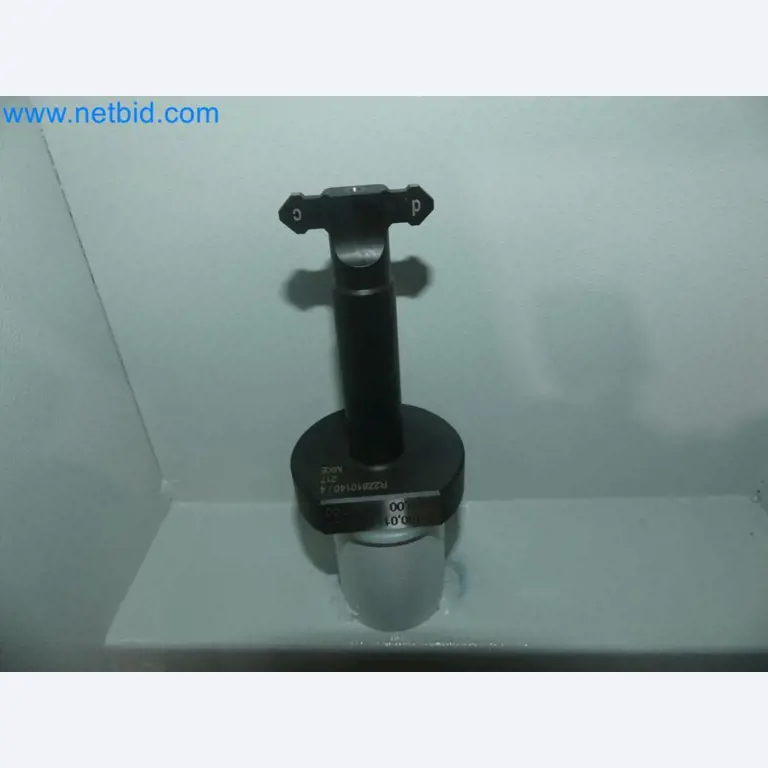

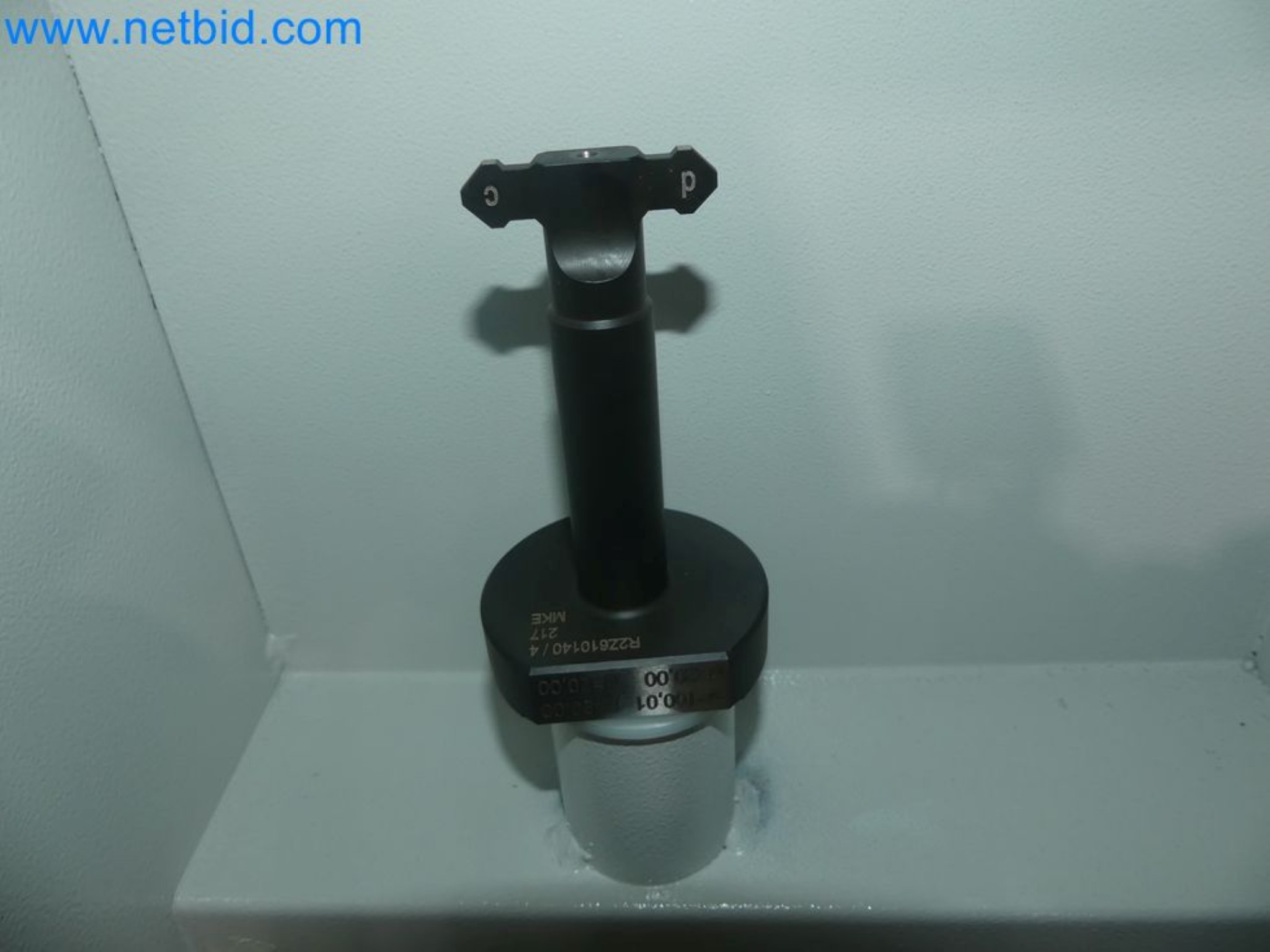

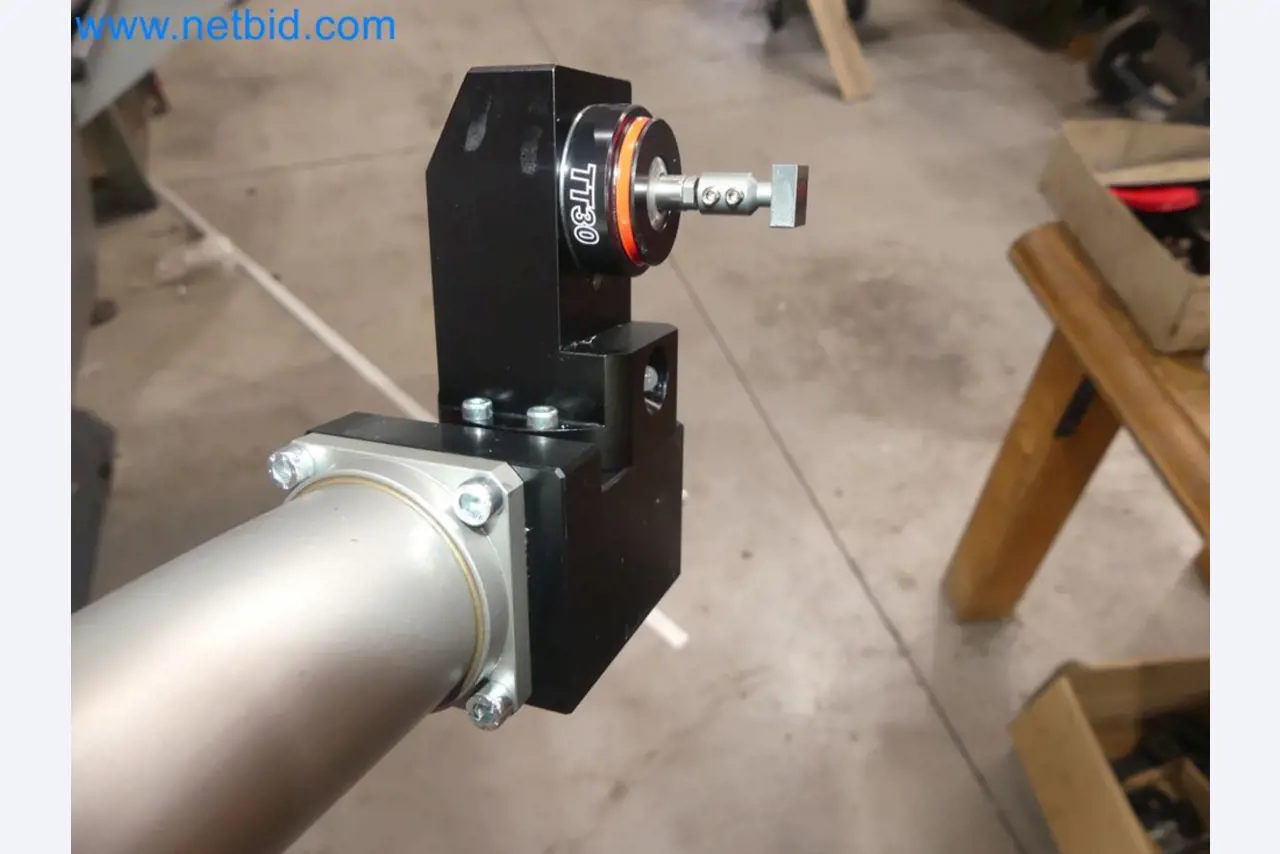

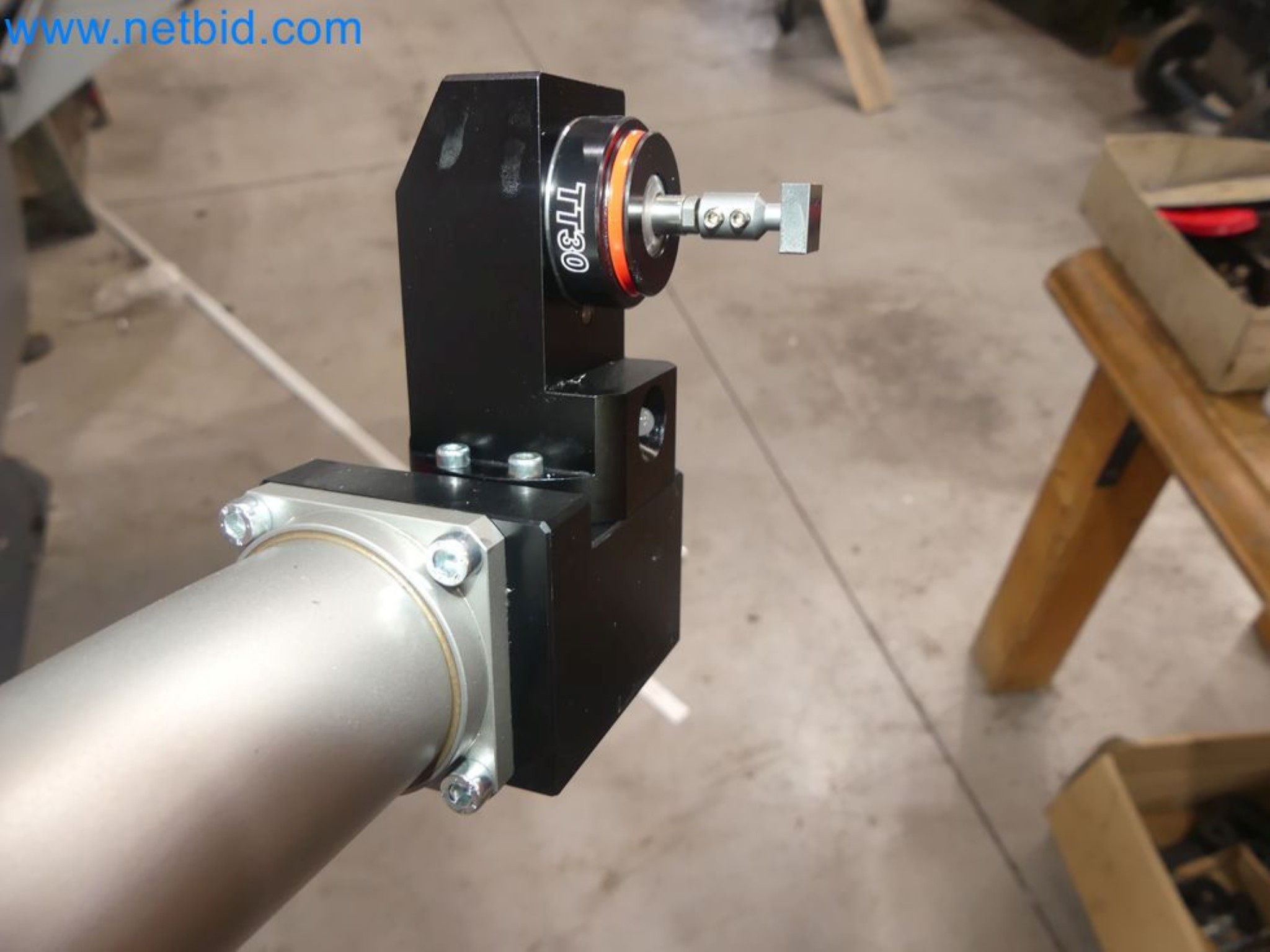

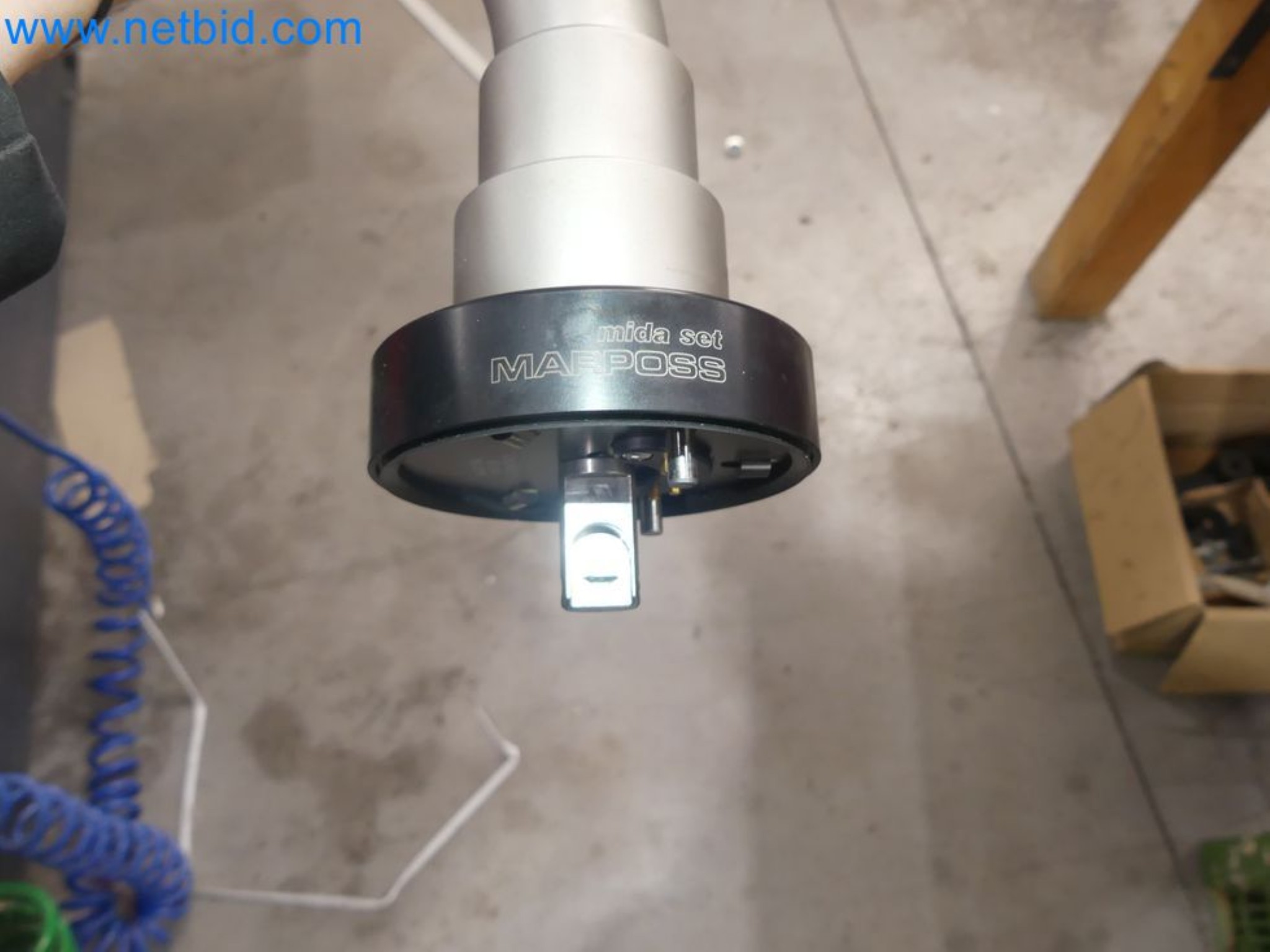

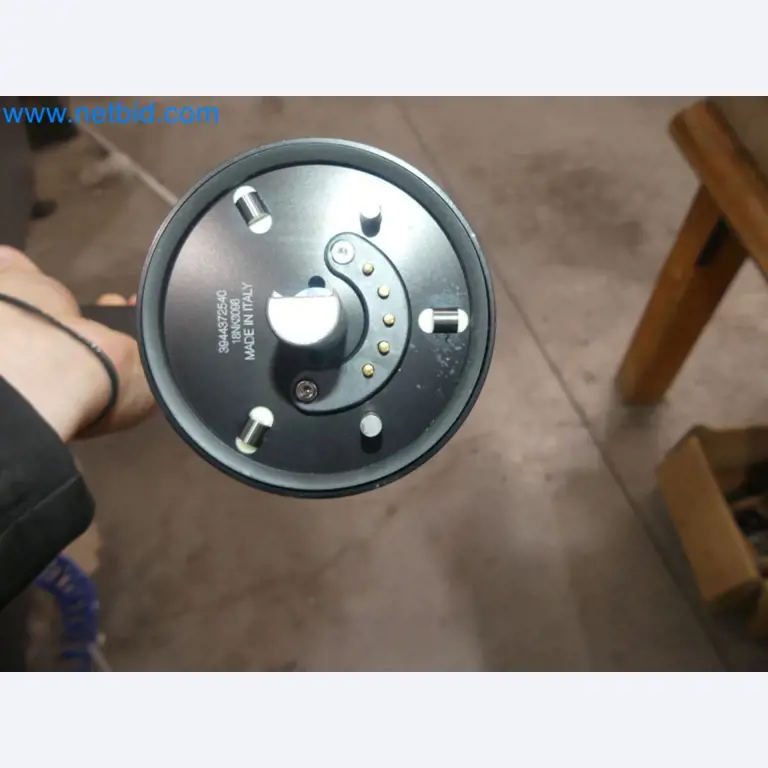

MIDA SET MARPOSS TT30 measuring probe with measuring tip/adjusting tip

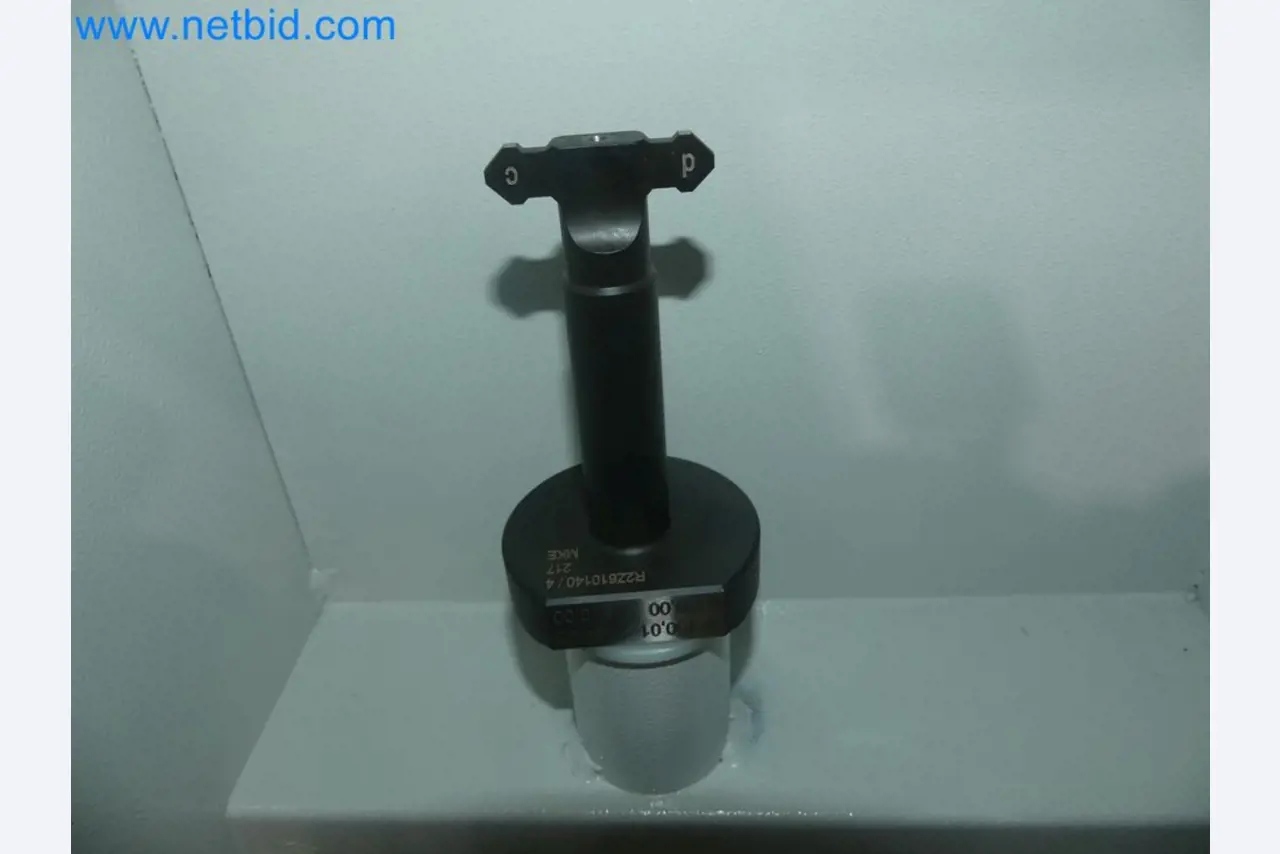

MKER2Z610140/4 217

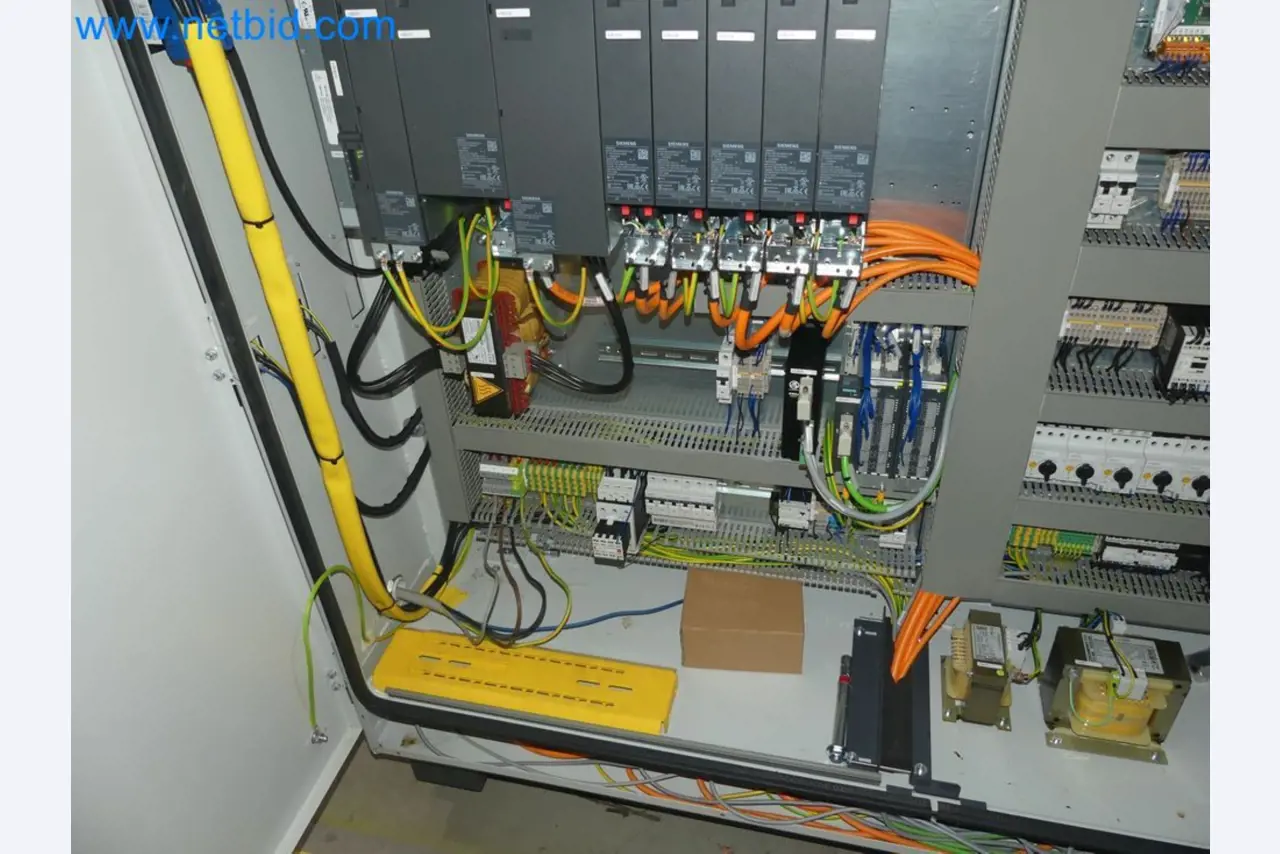

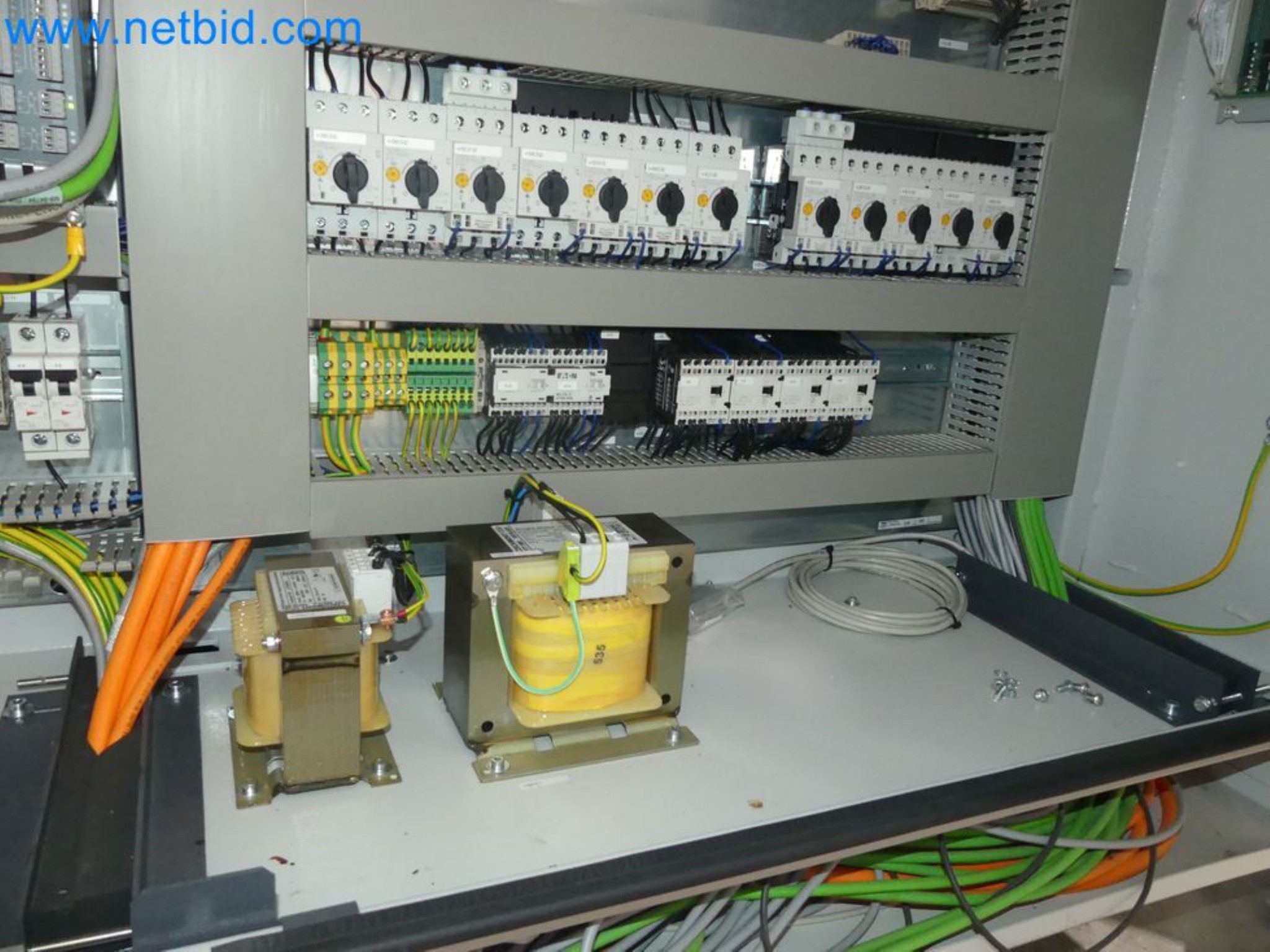

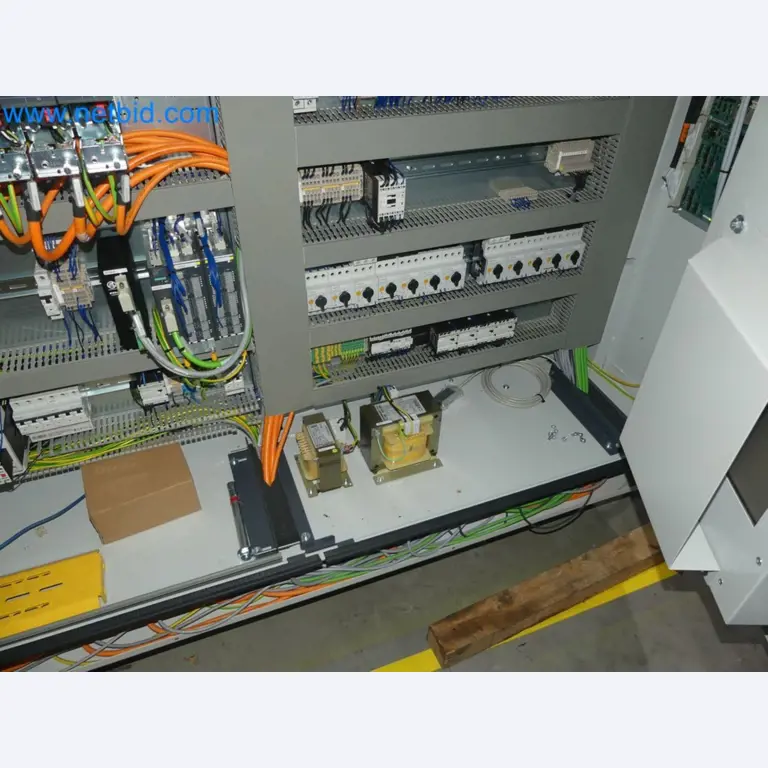

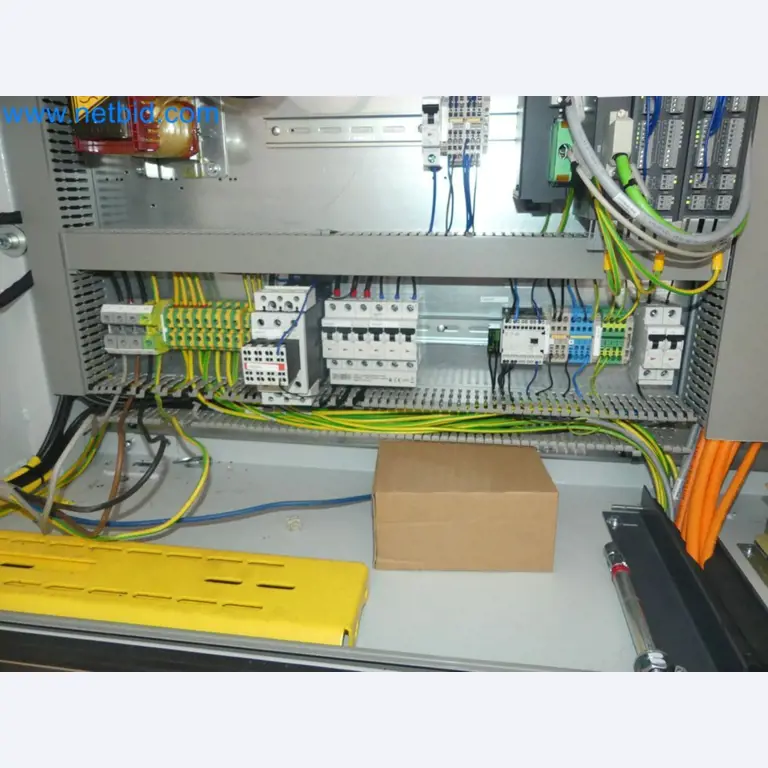

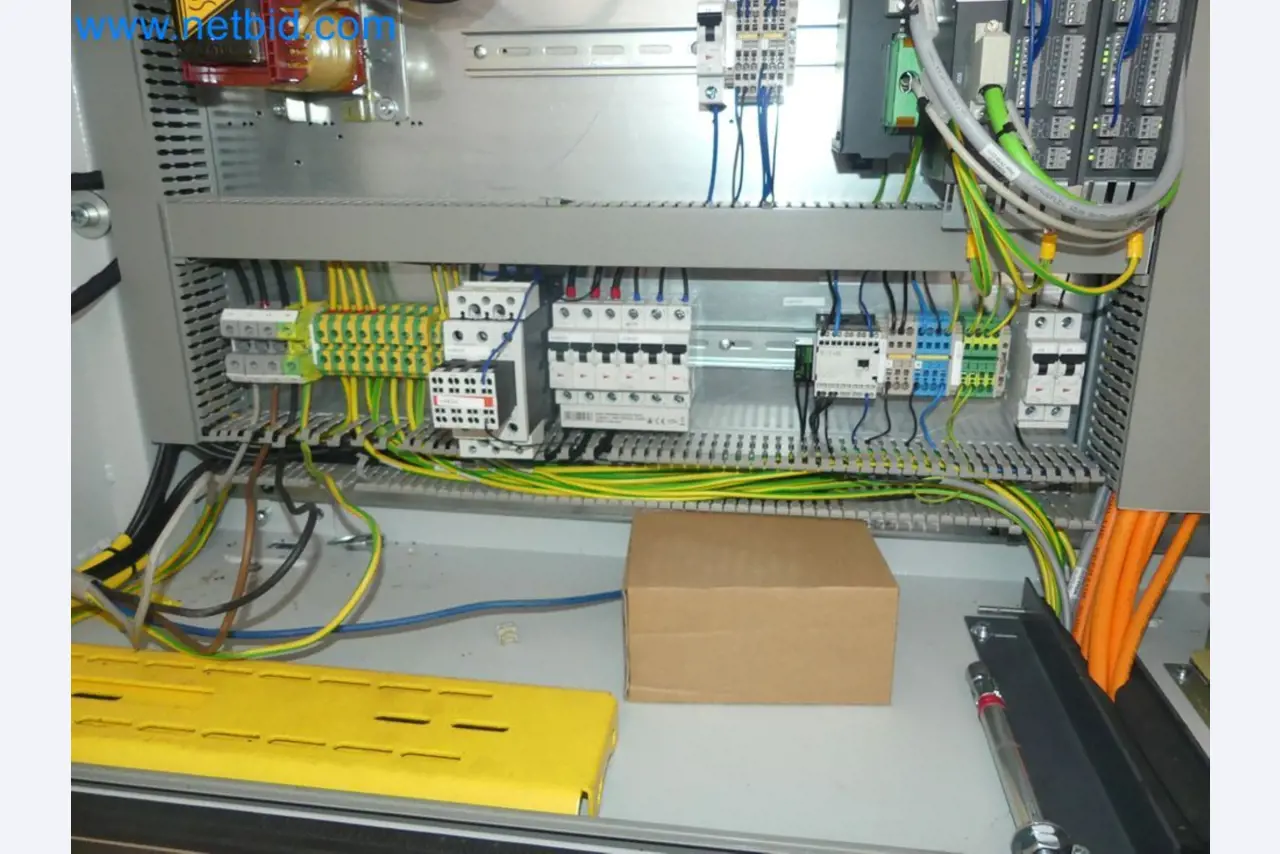

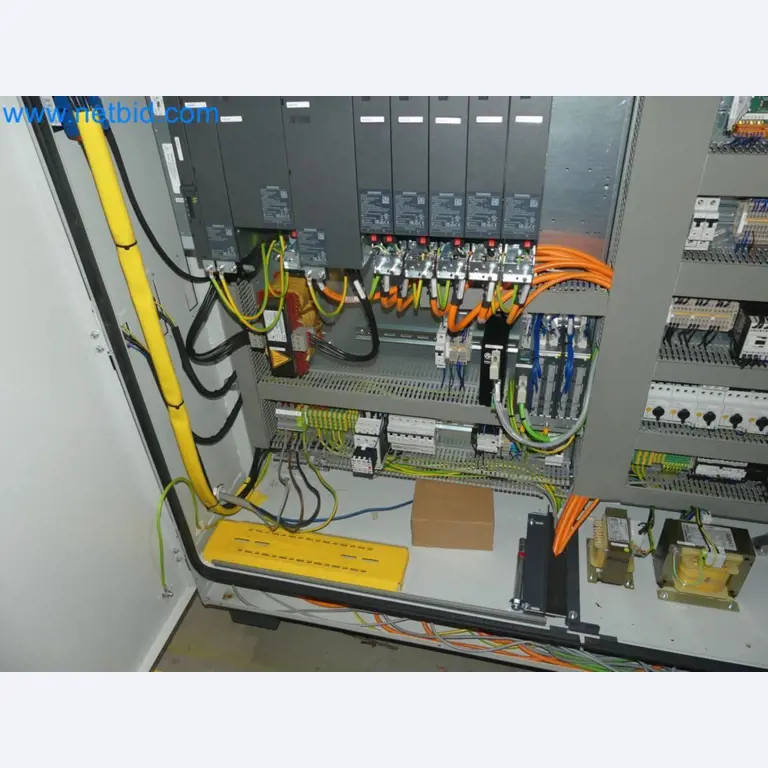

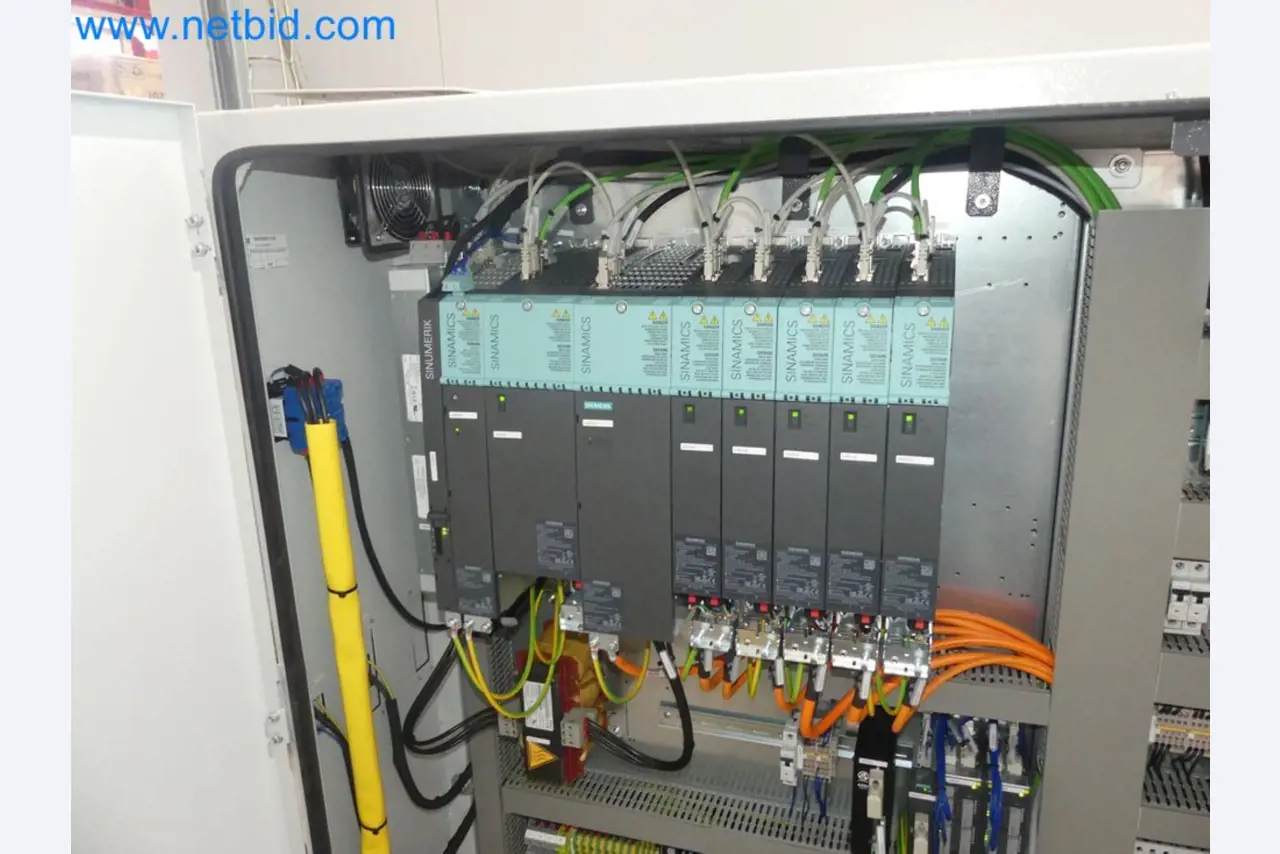

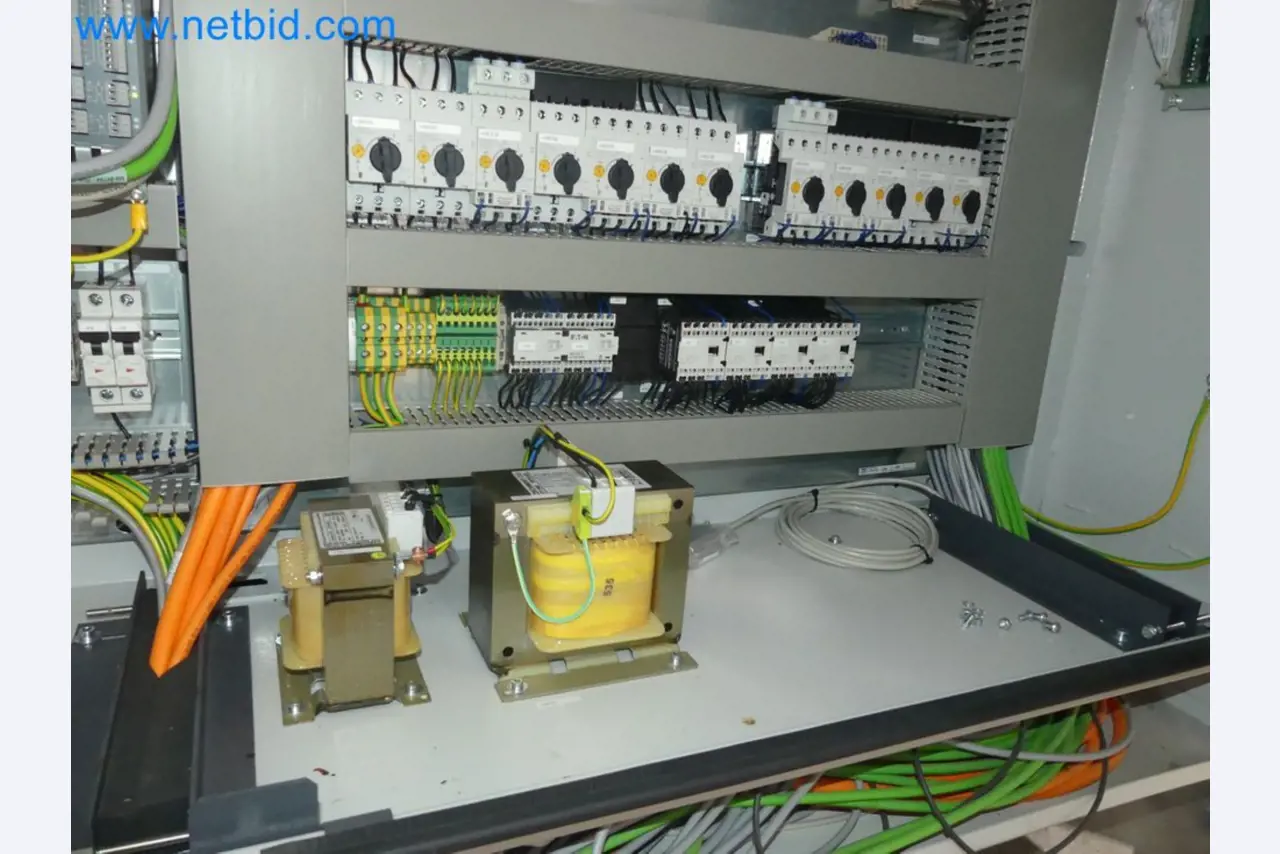

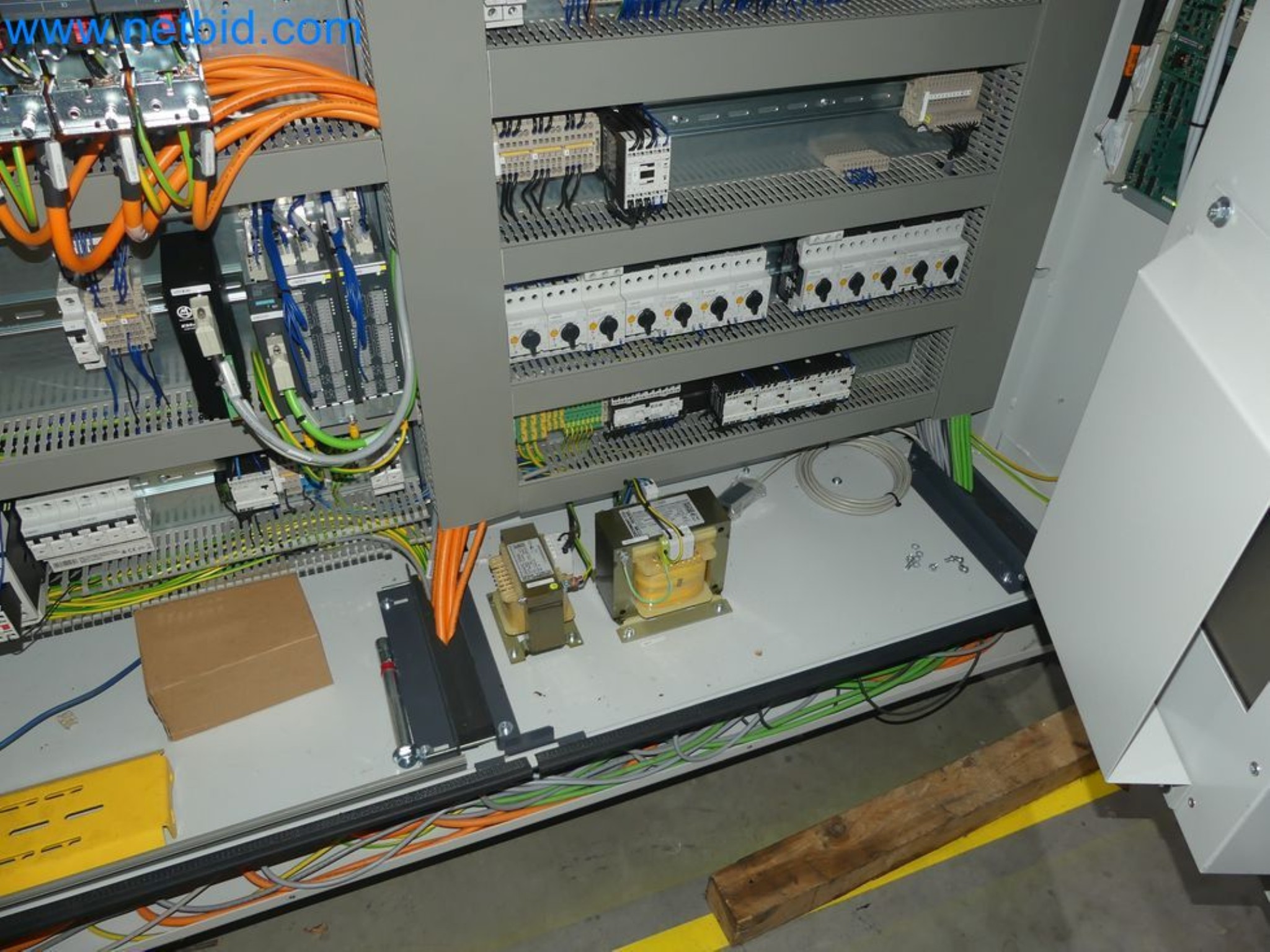

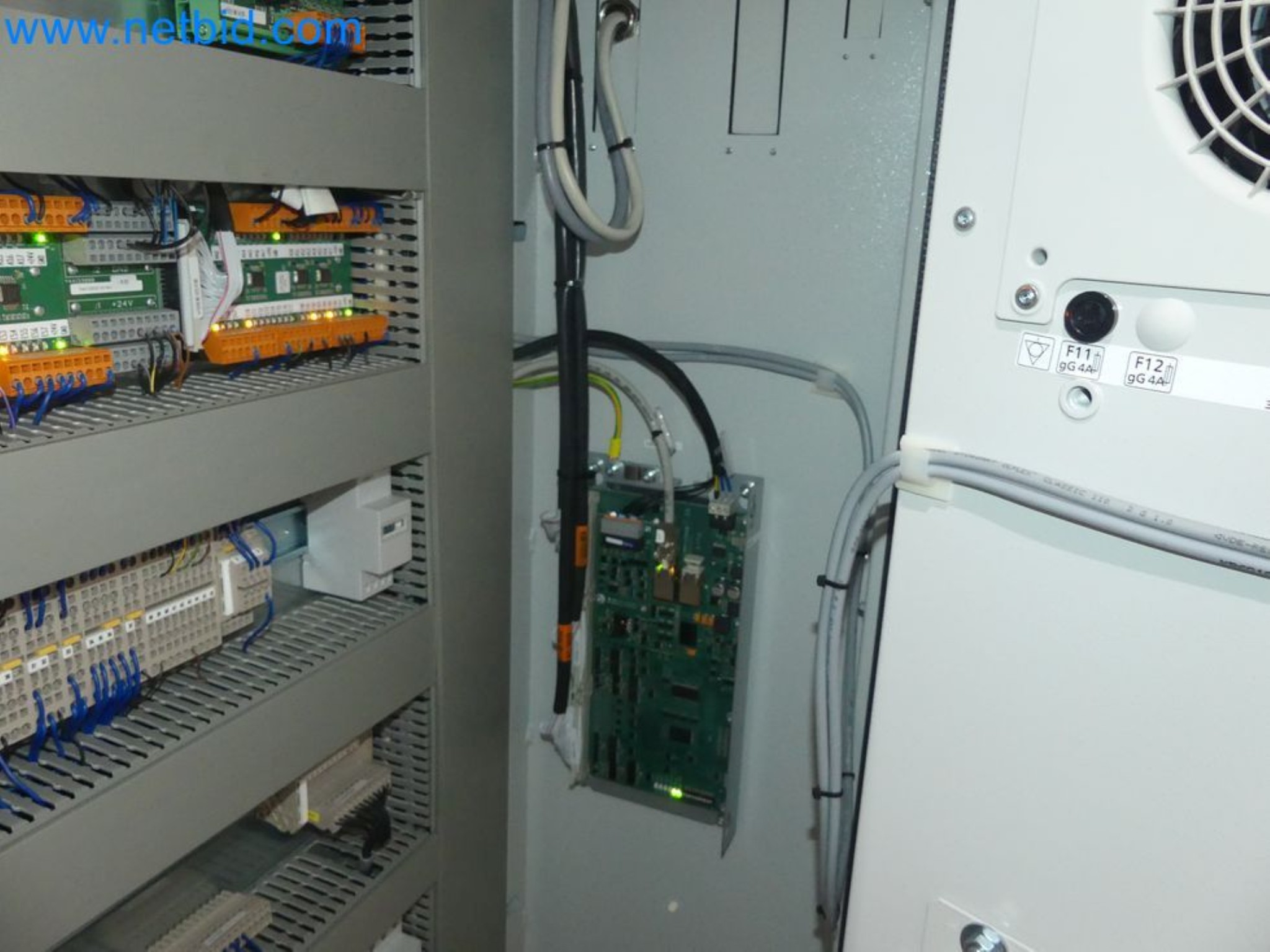

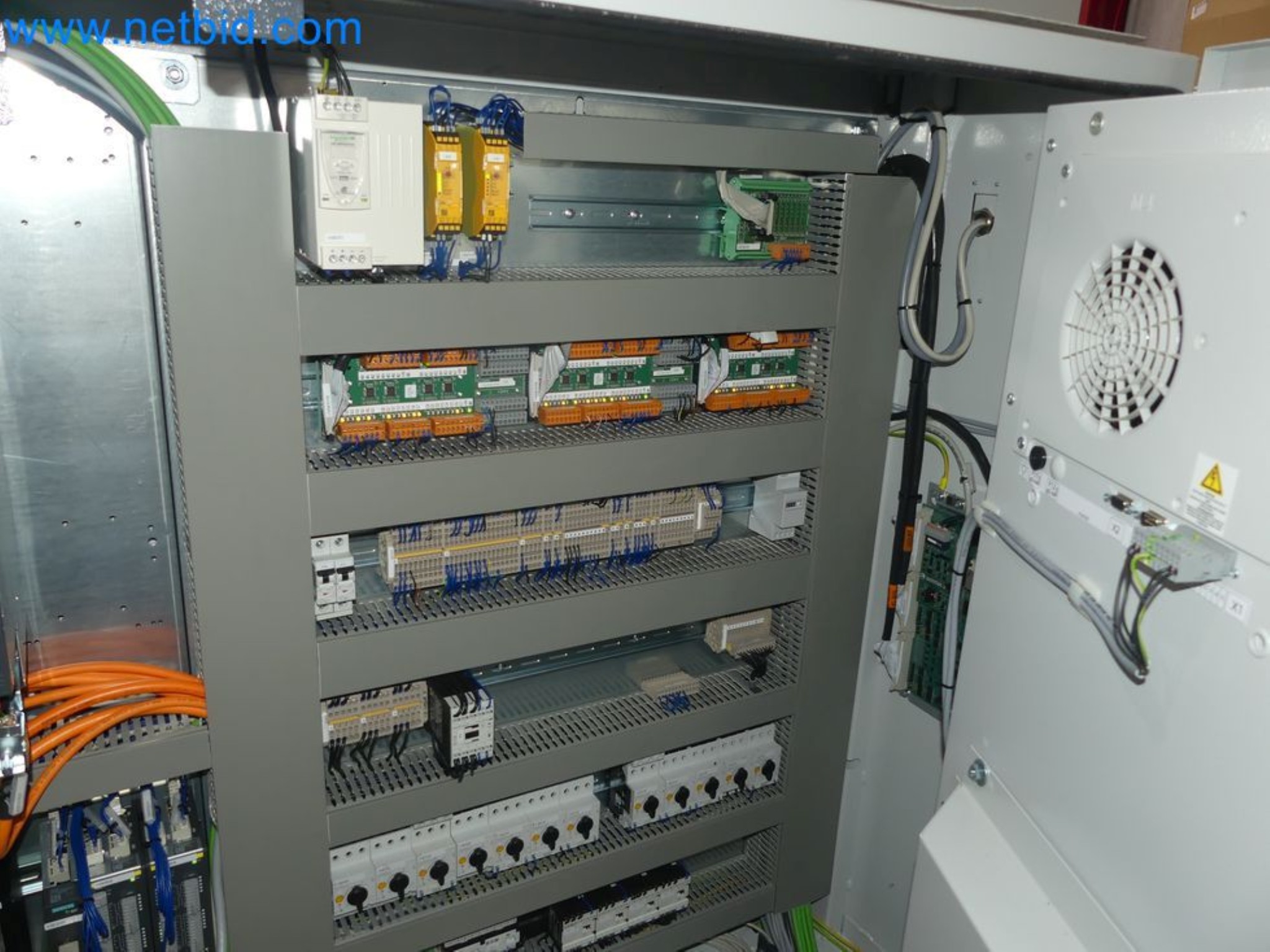

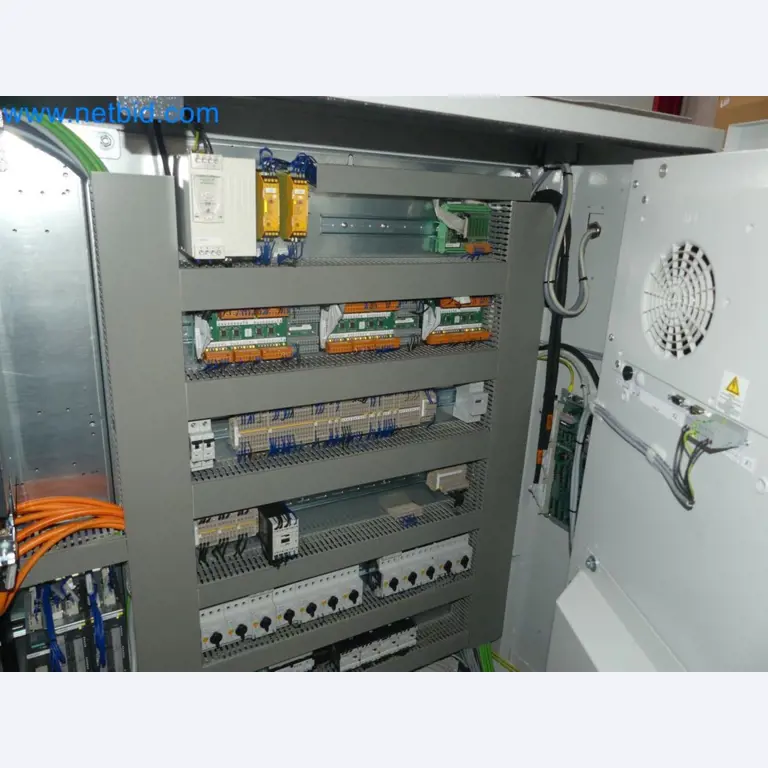

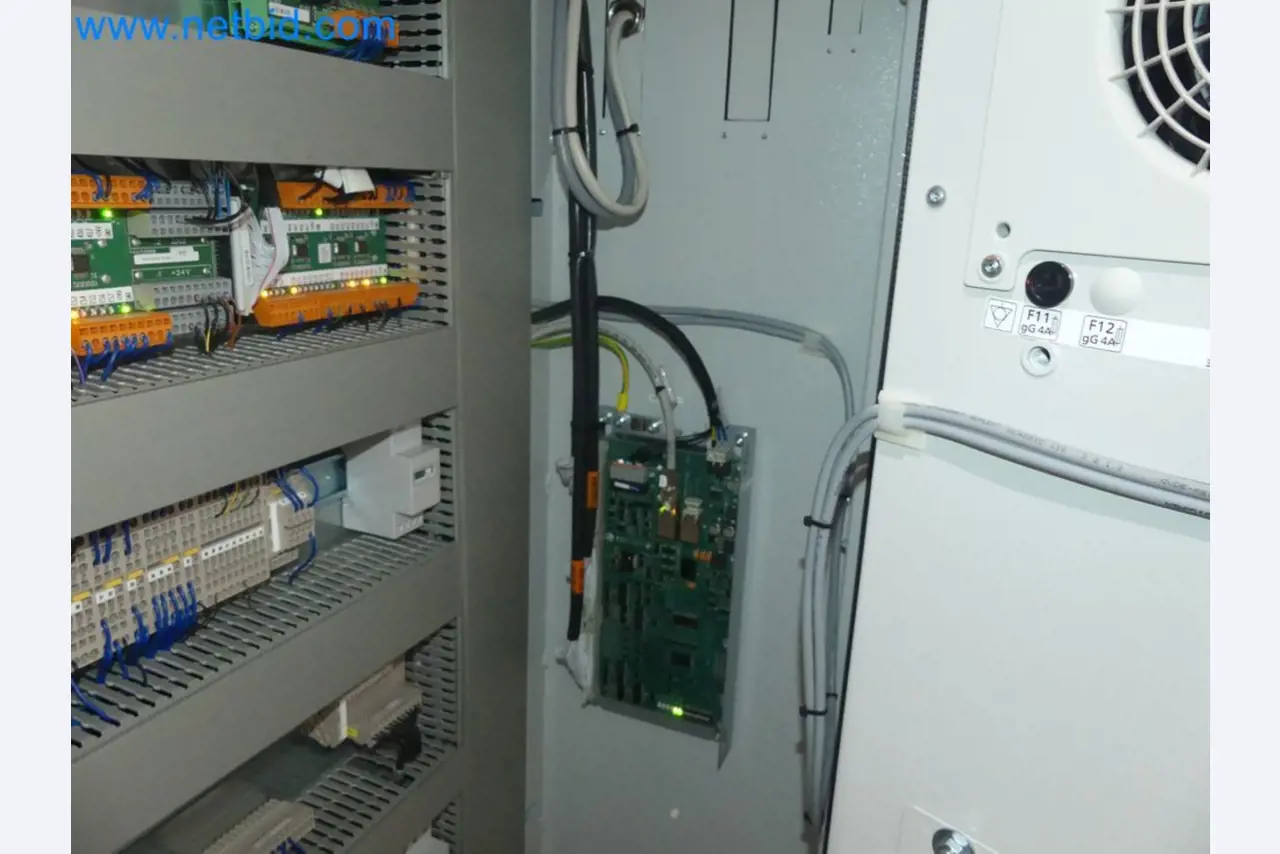

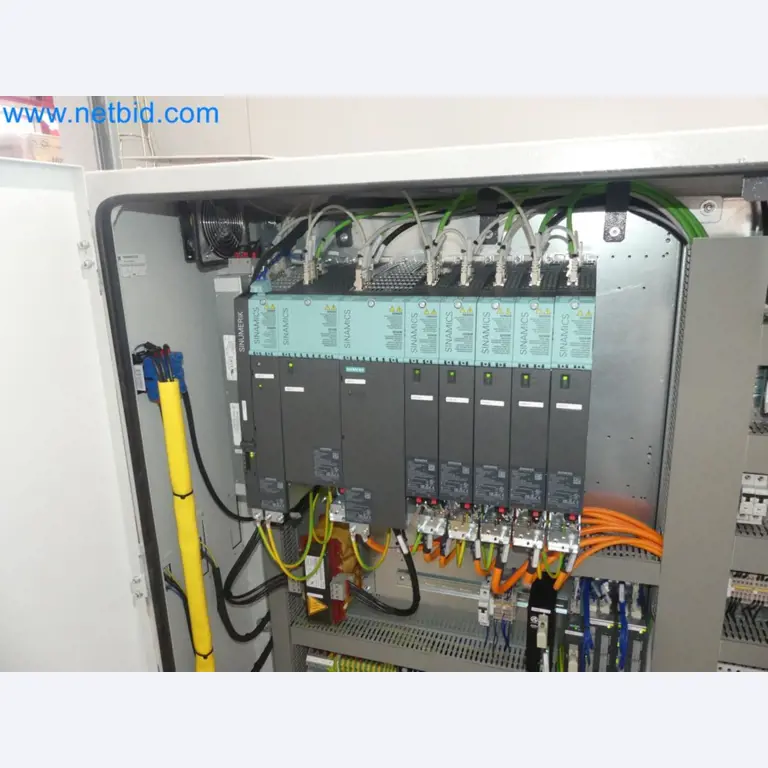

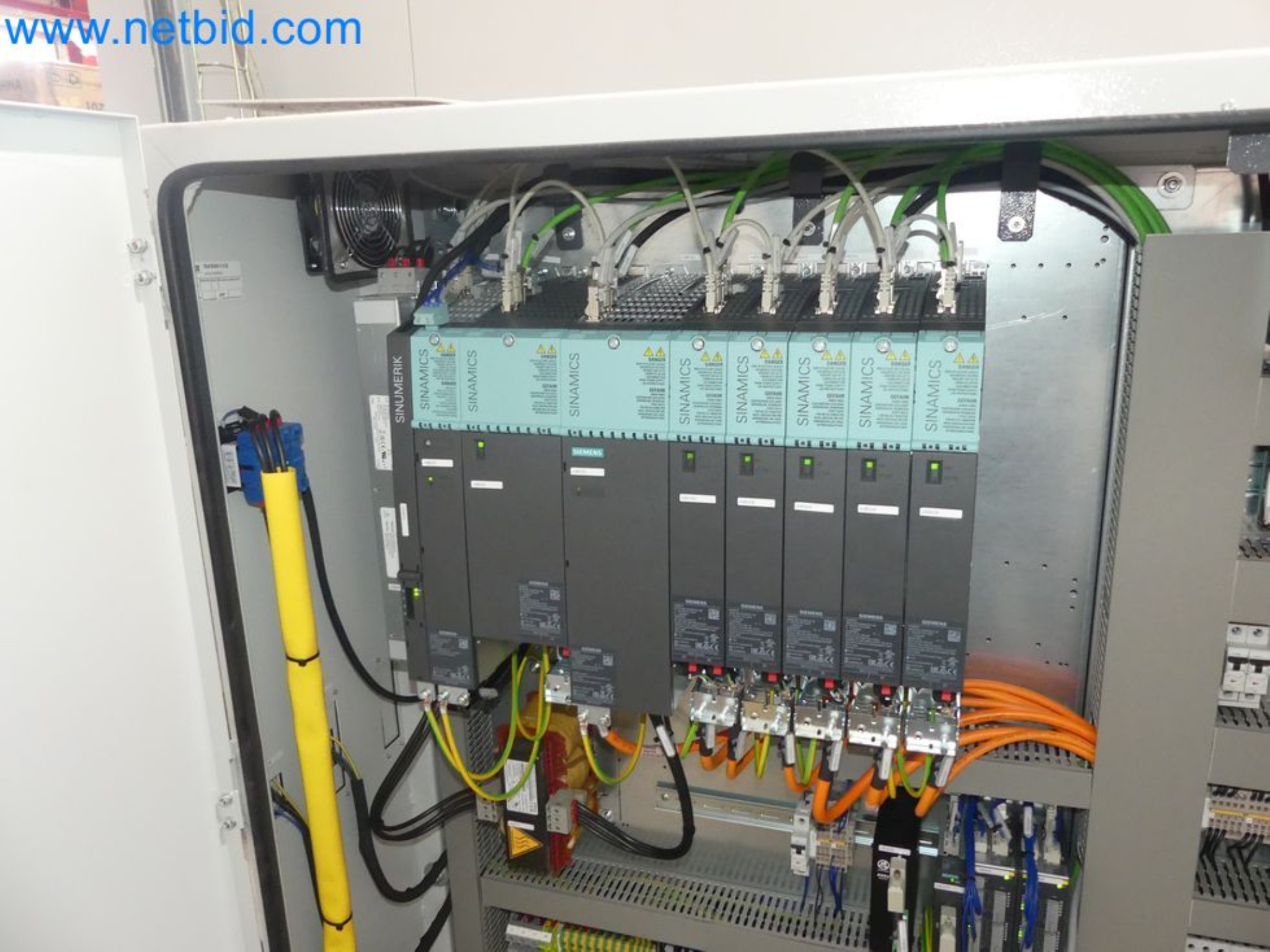

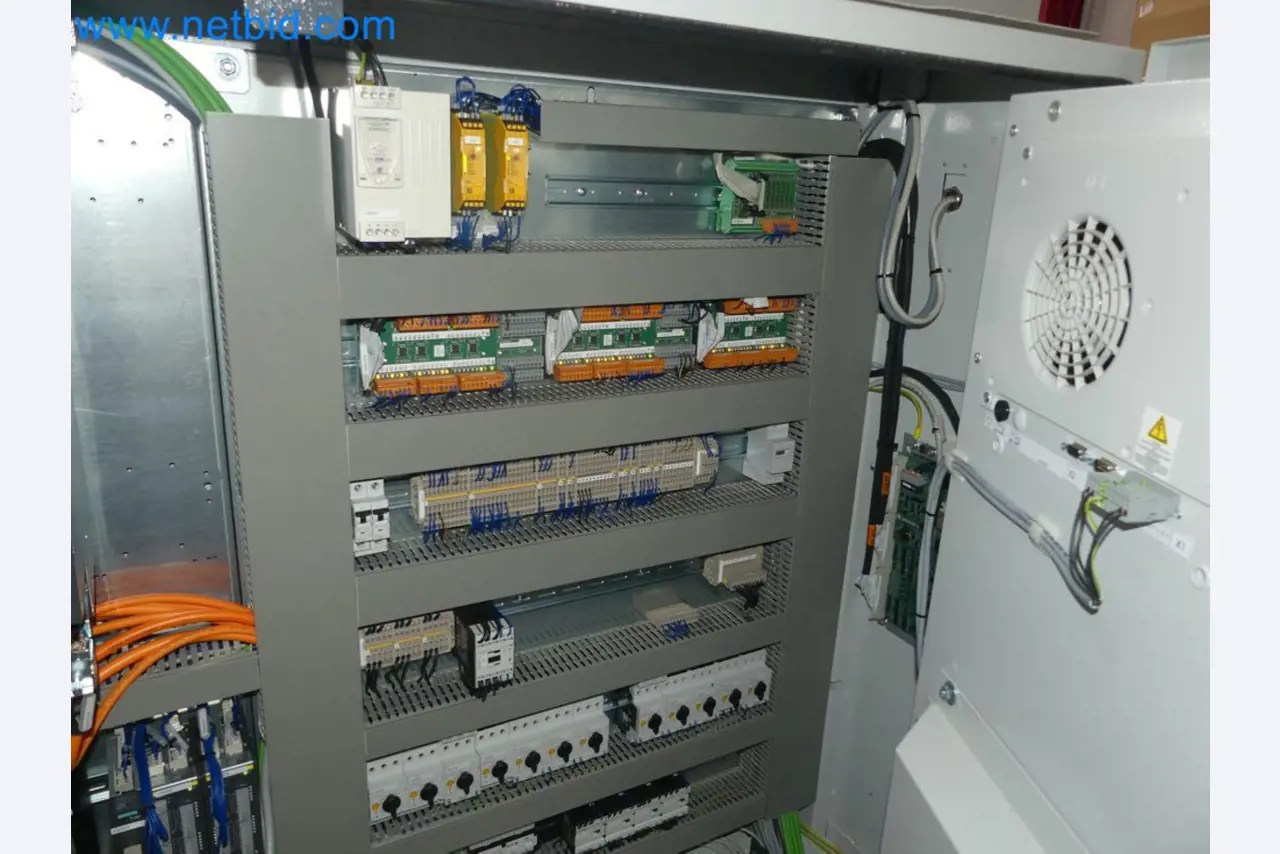

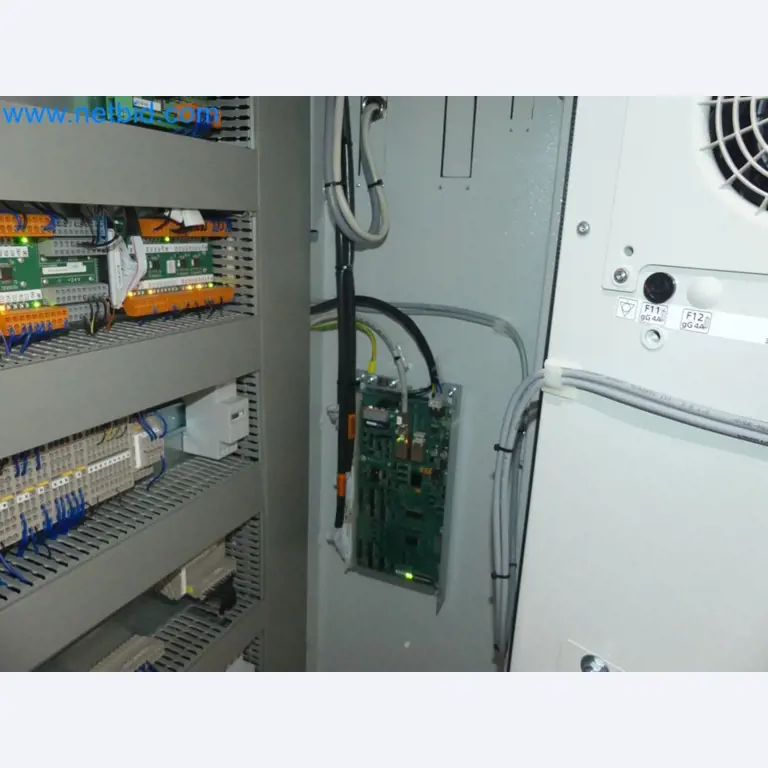

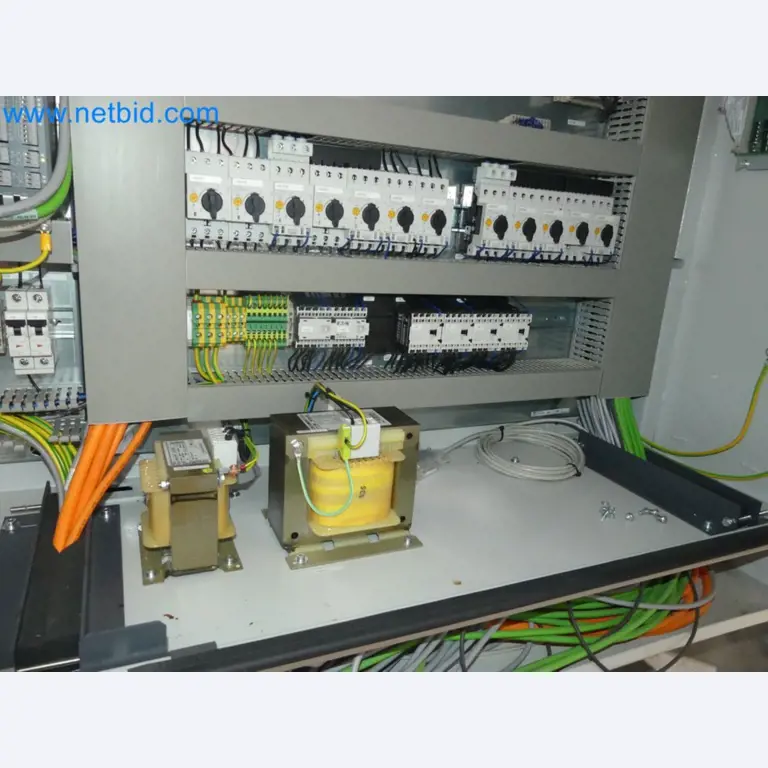

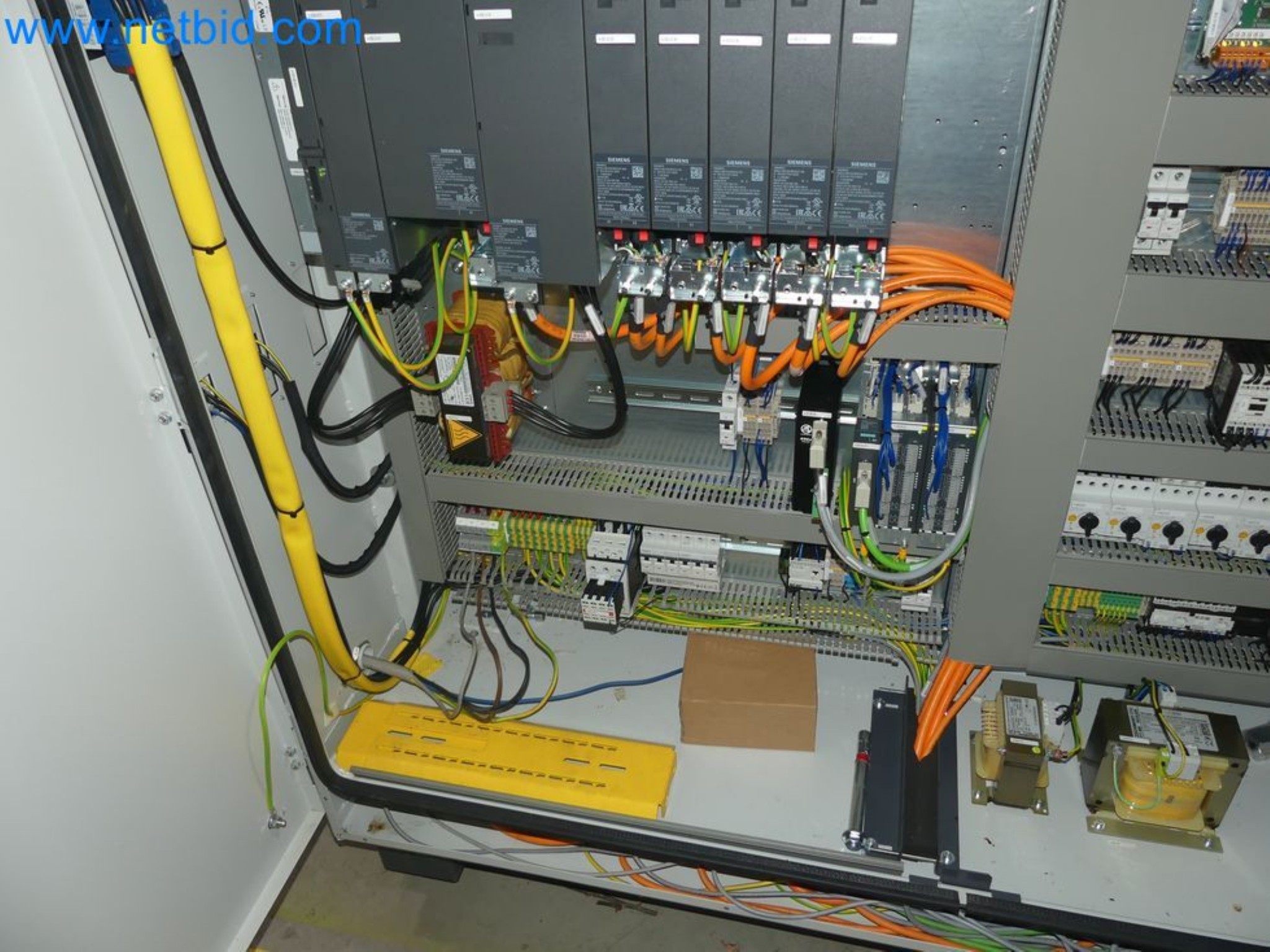

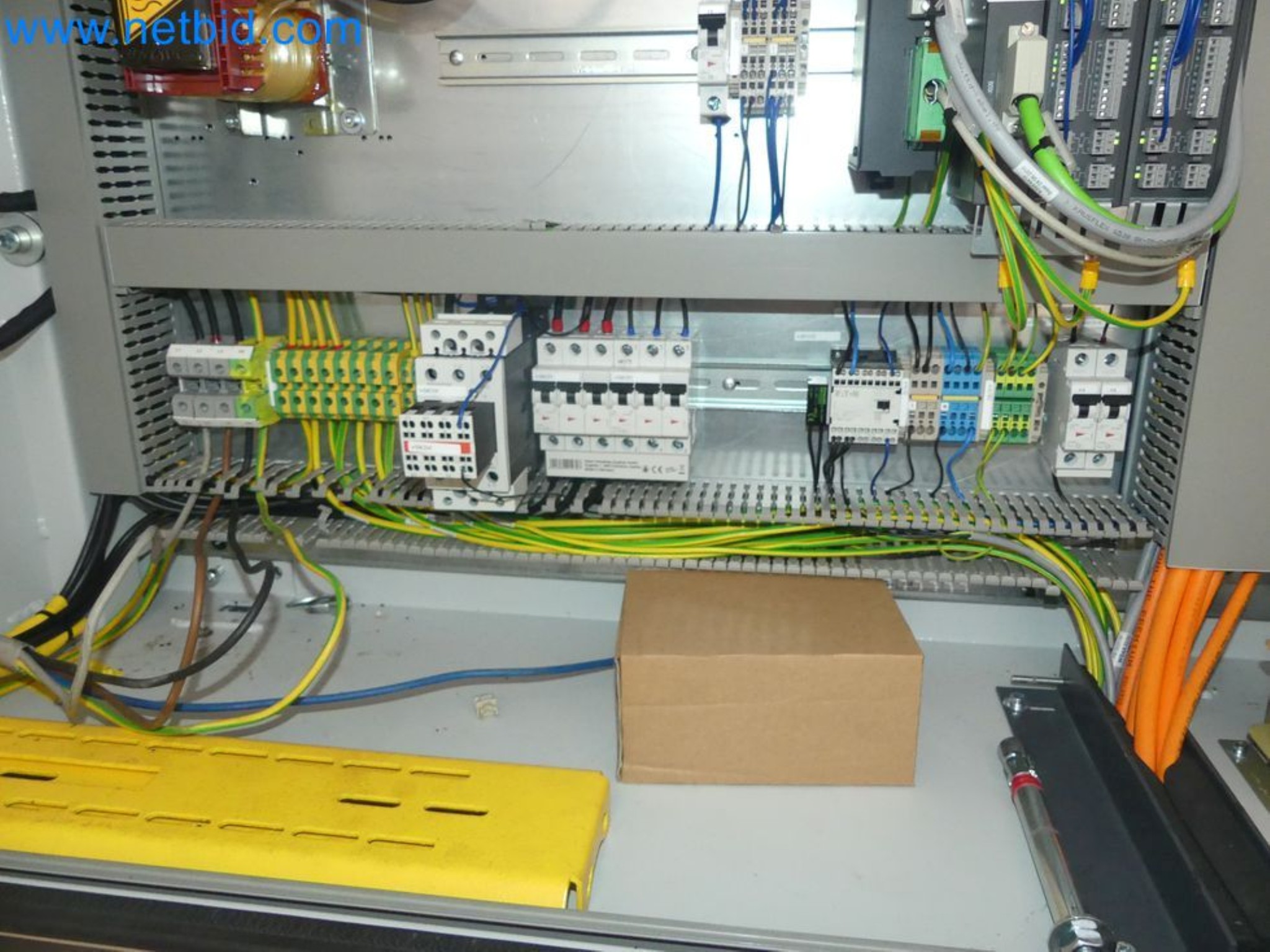

Note: according to information, the machine was moved to the current location about a year ago and was set up and adjusted by EMCO; according to information, there was animal damage/mice infestation at the old location, in which the complete control electronics/cabling was replaced.
- 3-axis CNC machine; version: SMY, with counter spindle and driven tools, with Y- and C-axis, serial number: S4E193801; SIEMENS Sinumerik 828D control; Main spindle with bar passage, max. diameter 45 mm, speed range: 0-6,300 rpm, spindle power: 13 kW; main spindle HAINBUCH SPANNTOP mini Axzub 52, max. speed: 7,000 rpm, with mounted 3-jaw chuck HAINBUCH SK52 BZIG, diameter: 27 mm; Counter spindle, drive power 10 kW, speed range: 0-6,300 rpm; counter spindle HAINBUCH SPANNTOP mini AXFIX52 with 3-jaw chuck HAINBUCH SK52 BZIG, diameter: 22 mm; 12-position tool changer VDI25, SAUTER 0.5.901.012, with various tools on it, tool turret designed for driven tool holders, max. drive power 4 kW; Travel: X-axis: 160 mm, Y-axis: +40/-30 mm, Z-axis: 510 mm, center distance: 670 mm, orbital diameter over bed: 430 mm; operating hours read off: Machine switched on: 2,248 h 22 min, ready for operation: 1,910 h 54 min, Production mode: 1,505 h 3 min;
associated short bar loader EMCO SL 1.200, year: 2019, serial number: L1A193704;
chip conveyor located on the right-hand side with ejection height approx. 120 cm, designed as a hinged belt conveyor, belt width approx. 20 cm;
Finished part dust conveyor in the machine with parts collection device
MIDA SET MARPOSS TT30 measuring probe with measuring tip/adjusting tip
MKER2Z610140/4 217
Note: according to information, the machine was moved to the current location about a year ago and was set up and adjusted by EMCO; according to information, there was animal damage/mice infestation at the old location, in which the complete control electronics/cabling was replaced.
Location
- AT - 3425 Langenlebarn
