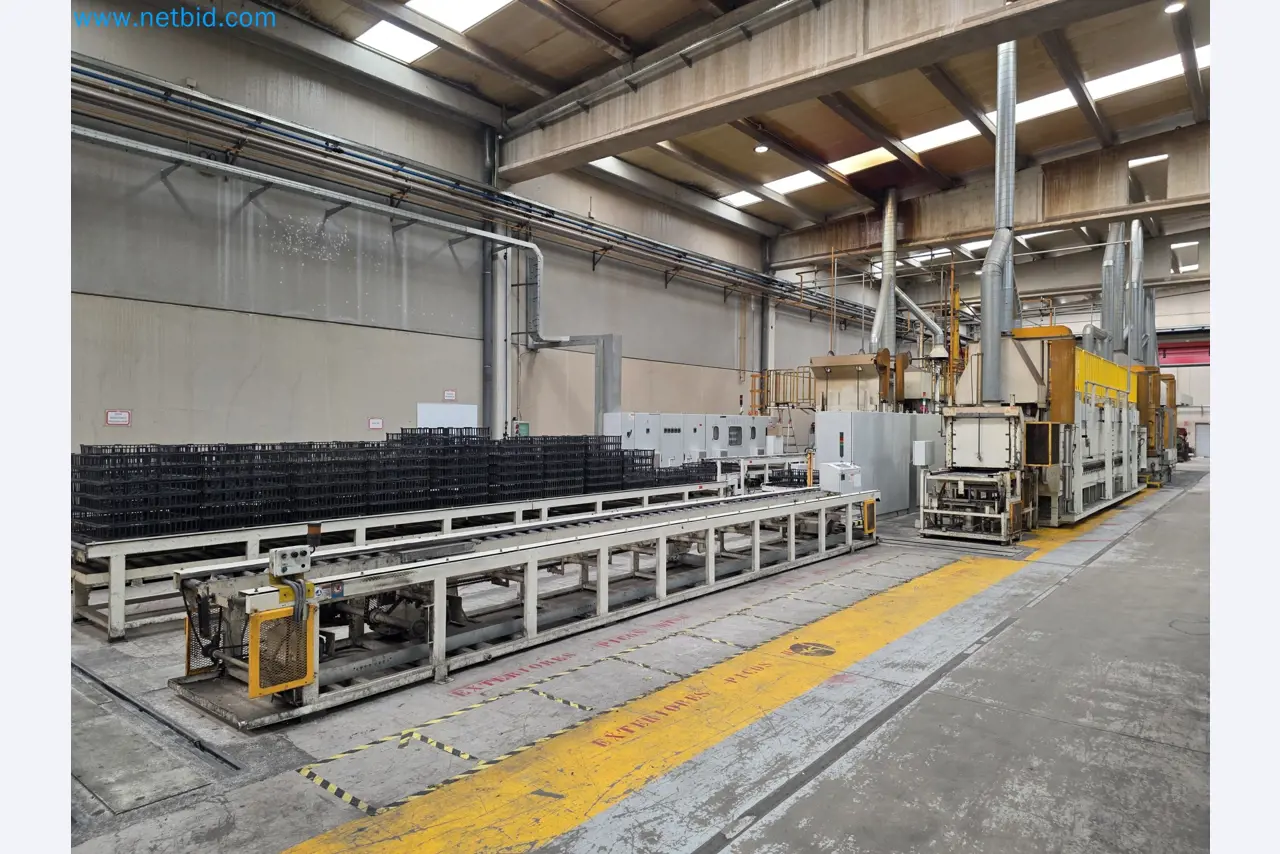

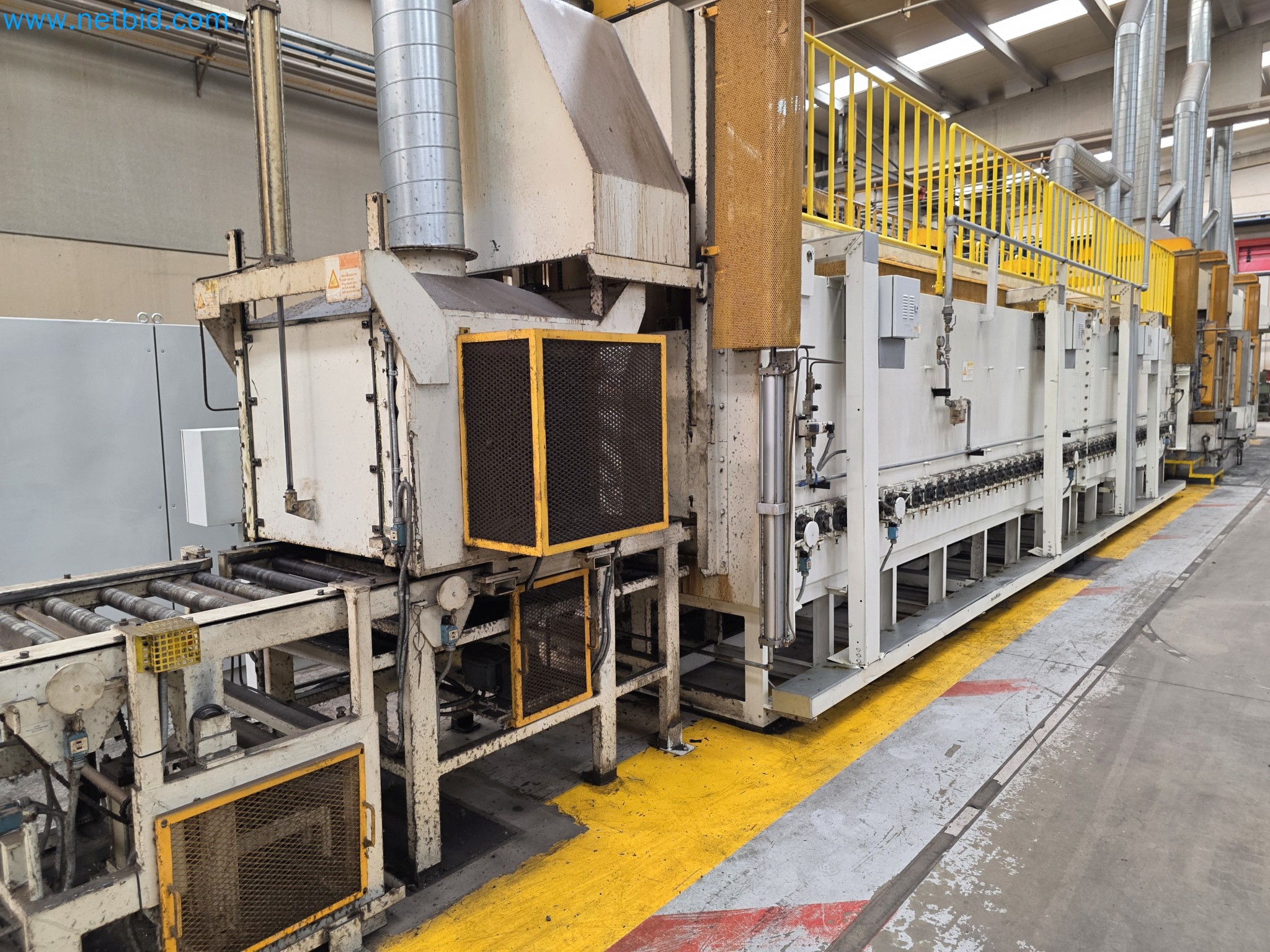

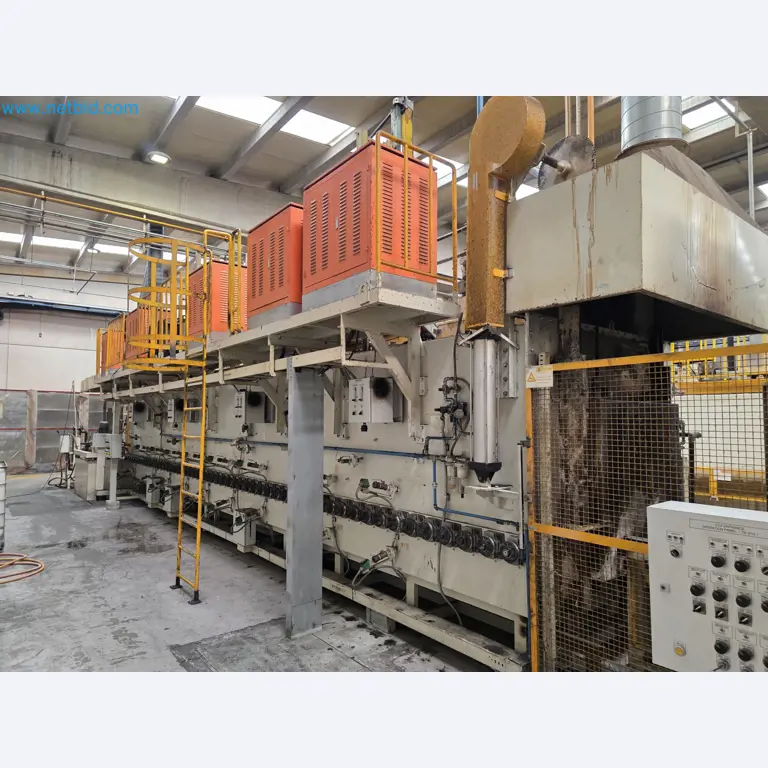

Continuous Roller Hearth Type Furnace DONGWOO DFA21EAUCTION#18820-NF07 (A19282-51)

Share with

null-1
null-2
null-3
null-4
null-5
null-6
null-7
null-8
null-9
null-10
null-11
null-12
null-13
null-14
null-15
null-16
null-17
null-18
null-19
null-20
null-21
null-22
null-23
null-24
null-25
null-26
null-27
null-28
null-29
null-30
null-31
null-32
null-33
null-34
null-35
null-36
null-37
null-38
null-39
null-40
null-41
null-42
null-43
null-44
null-45
null-46
null-47
null-48
null-49
null-50
null-51
null-52
null-53
null-54
null-55
null-56
null-57
null-58
null-59
null-60
null-61
null-62
null-63
null-64
null-65
null-66
null-67
null-68
null-69
null-70
null-71
null-72
null-73
null-74
null-75
null-76
null-77
null-78
null-79
null-80
null-81
null-82
null-83
null-84
null-85
null-86
null-87
null-88
null-89
null-90
null-91
null-92
null-93
null-94
null-95
null-96
null-97
null-98
thumbnail-null-1
thumbnail-null-2
thumbnail-null-3
thumbnail-null-4
thumbnail-null-5
thumbnail-null-6
thumbnail-null-7
thumbnail-null-8
thumbnail-null-9
thumbnail-null-10
thumbnail-null-11
thumbnail-null-12
thumbnail-null-13
thumbnail-null-14
thumbnail-null-15
thumbnail-null-16
thumbnail-null-17
thumbnail-null-18
thumbnail-null-19
thumbnail-null-20
thumbnail-null-21
thumbnail-null-22
thumbnail-null-23
thumbnail-null-24
thumbnail-null-25
thumbnail-null-26
thumbnail-null-27
thumbnail-null-28
thumbnail-null-29
thumbnail-null-30
thumbnail-null-31
thumbnail-null-32
thumbnail-null-33
thumbnail-null-34
thumbnail-null-35
thumbnail-null-36
thumbnail-null-37
thumbnail-null-38
thumbnail-null-39
thumbnail-null-40
thumbnail-null-41
thumbnail-null-42
thumbnail-null-43
thumbnail-null-44
thumbnail-null-45
thumbnail-null-46
thumbnail-null-47
thumbnail-null-48
thumbnail-null-49
thumbnail-null-50
thumbnail-null-51
thumbnail-null-52
thumbnail-null-53
thumbnail-null-54
thumbnail-null-55
thumbnail-null-56
thumbnail-null-57
thumbnail-null-58
thumbnail-null-59
thumbnail-null-60
thumbnail-null-61
thumbnail-null-62
thumbnail-null-63
thumbnail-null-64
thumbnail-null-65
thumbnail-null-66
thumbnail-null-67
thumbnail-null-68
thumbnail-null-69
thumbnail-null-70
thumbnail-null-71
thumbnail-null-72
thumbnail-null-73
thumbnail-null-74
thumbnail-null-75
thumbnail-null-76
thumbnail-null-77
thumbnail-null-78
thumbnail-null-79
thumbnail-null-80
thumbnail-null-81
thumbnail-null-82
thumbnail-null-83
thumbnail-null-84
thumbnail-null-85
thumbnail-null-86
thumbnail-null-87
thumbnail-null-88
thumbnail-null-89
thumbnail-null-90
thumbnail-null-91
thumbnail-null-92
thumbnail-null-93
thumbnail-null-94
thumbnail-null-95
thumbnail-null-96
thumbnail-null-97
thumbnail-null-98

Details

Product Type

DONGWOO

Type

DFA21E

Construction Year

2017

Description

T077; Composition:

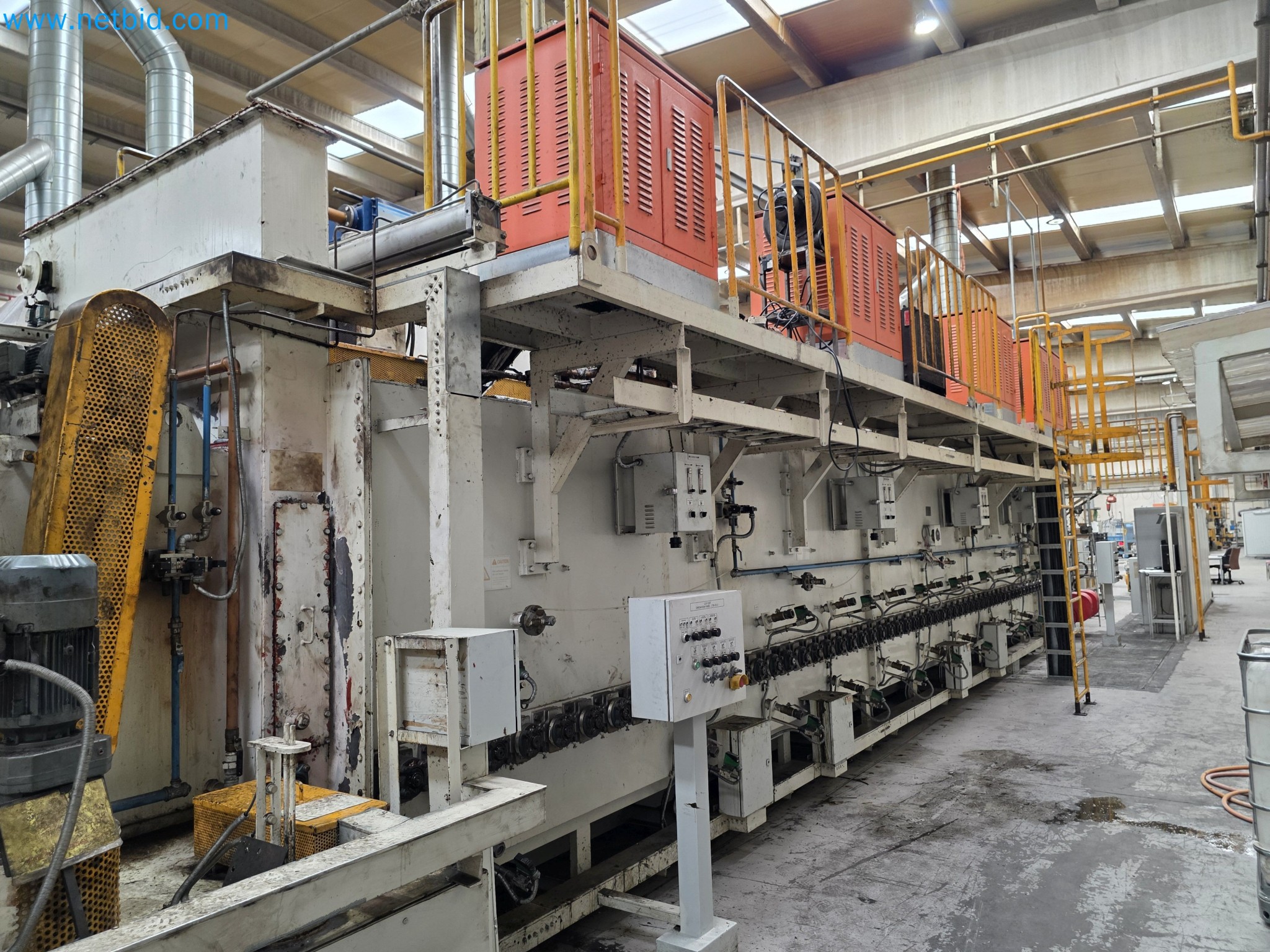

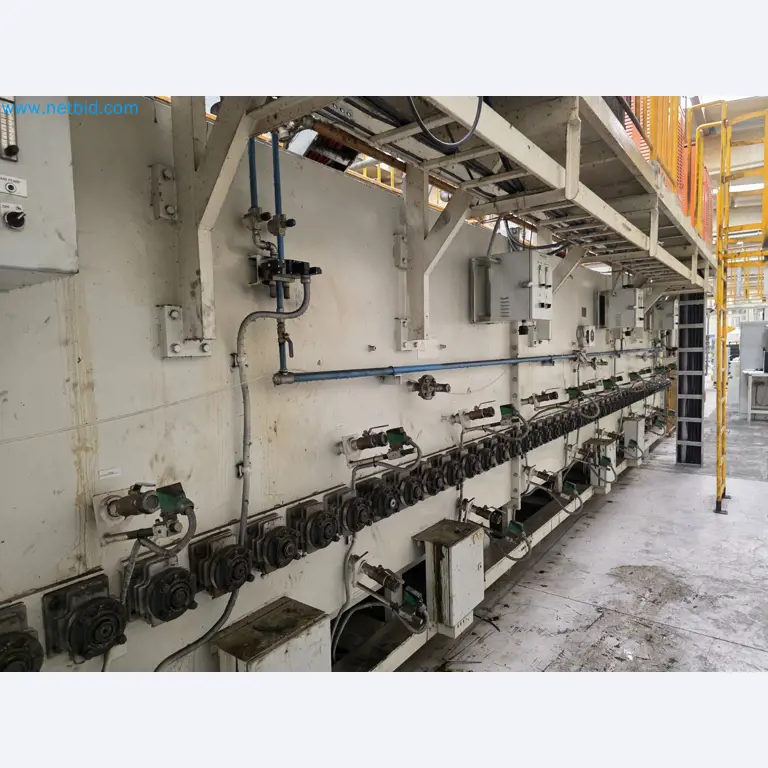

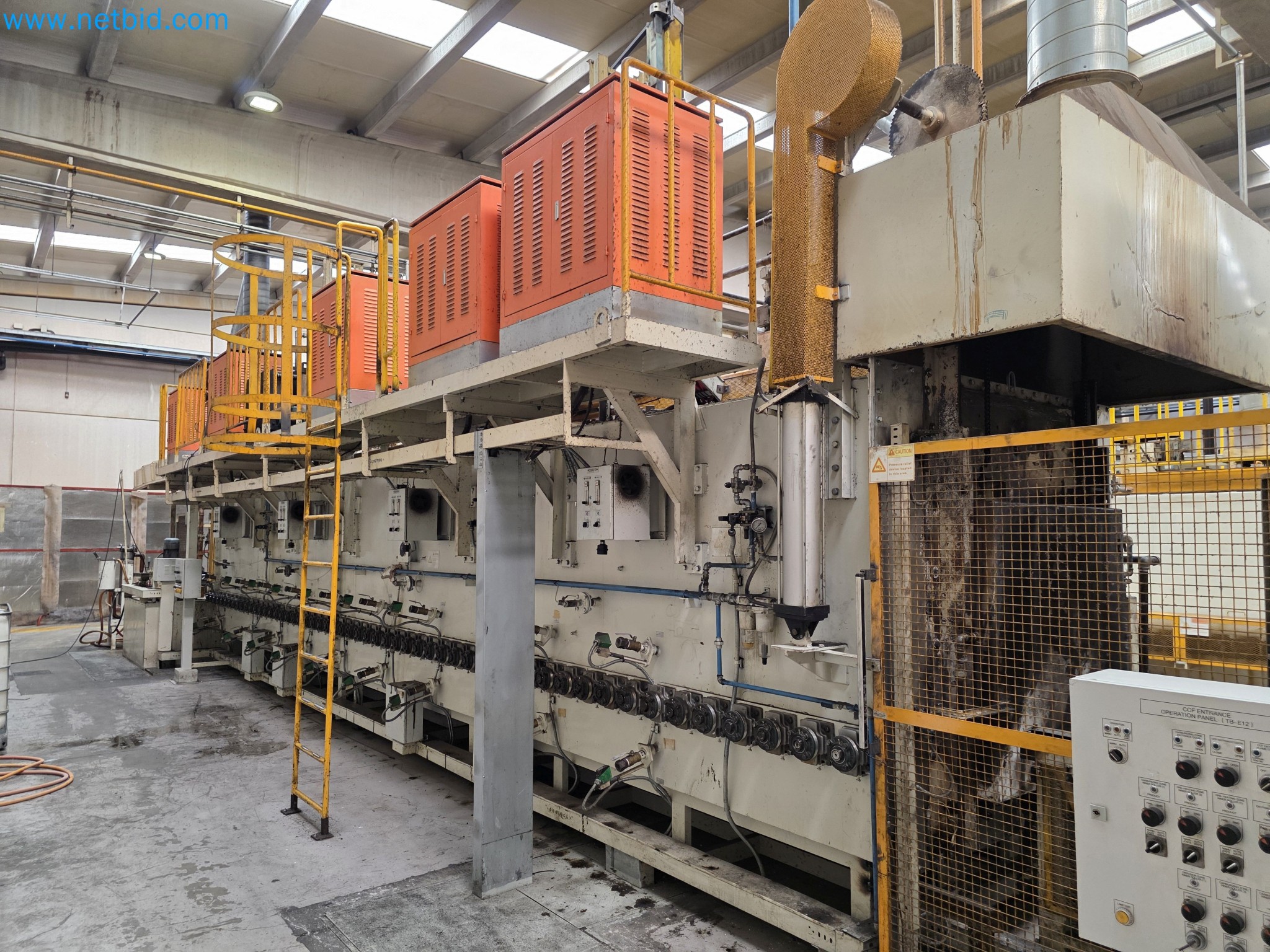

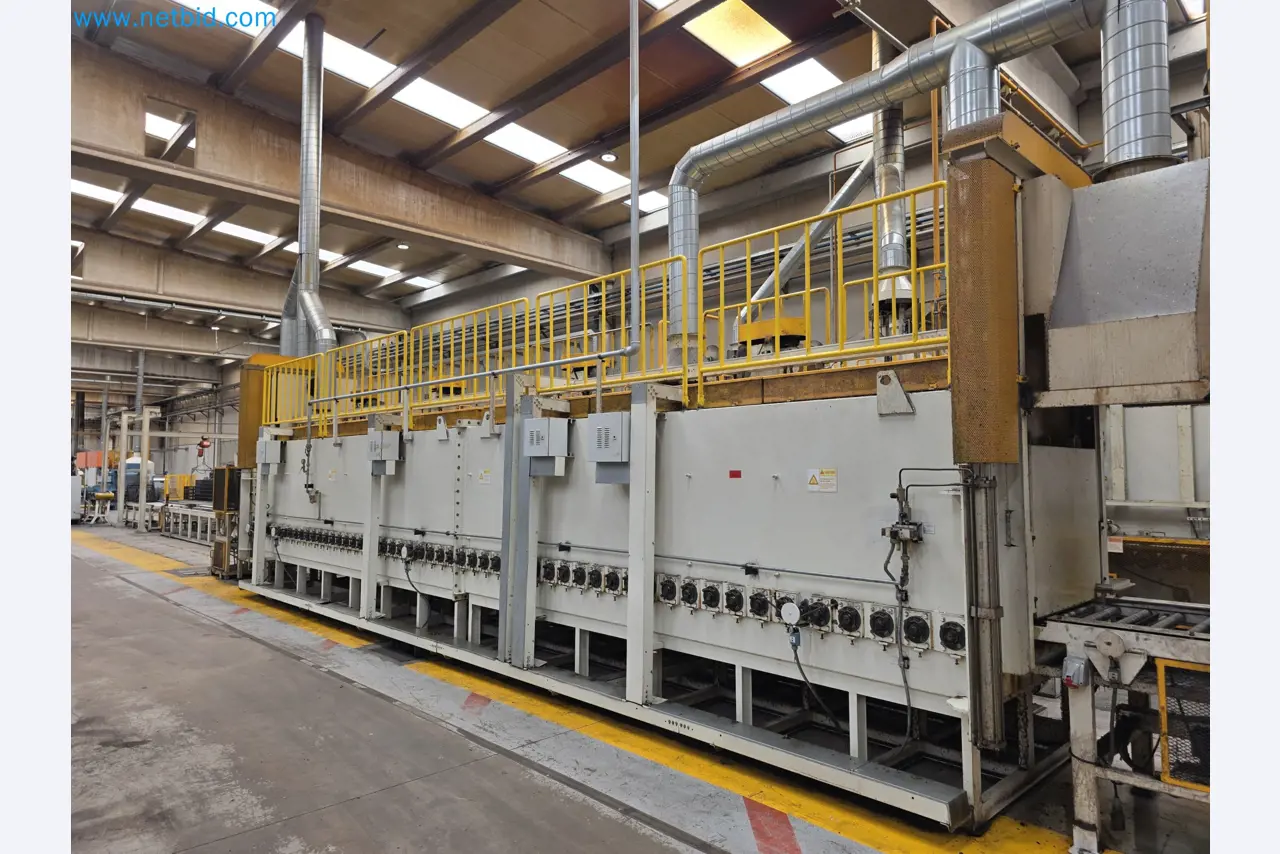

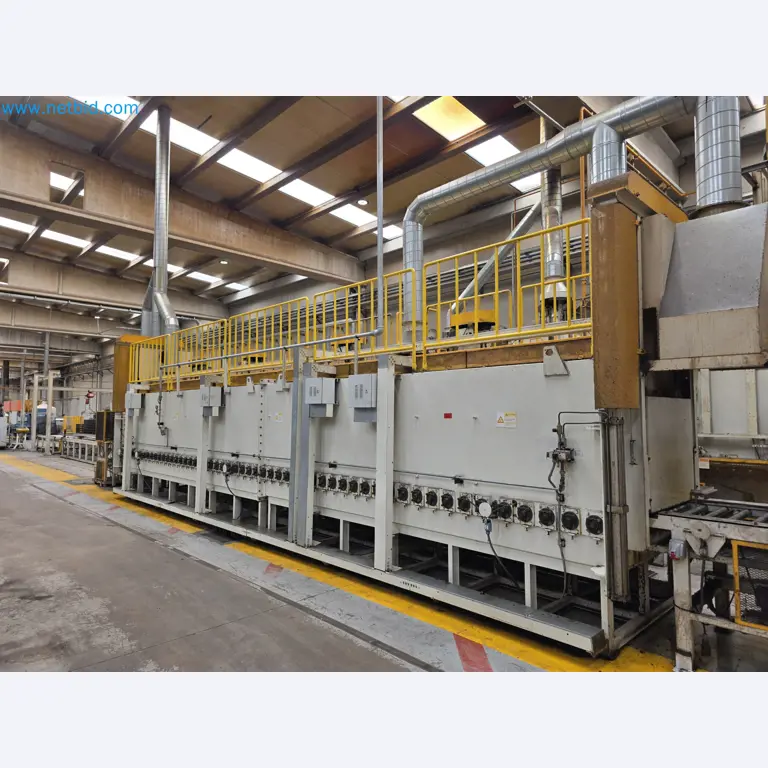

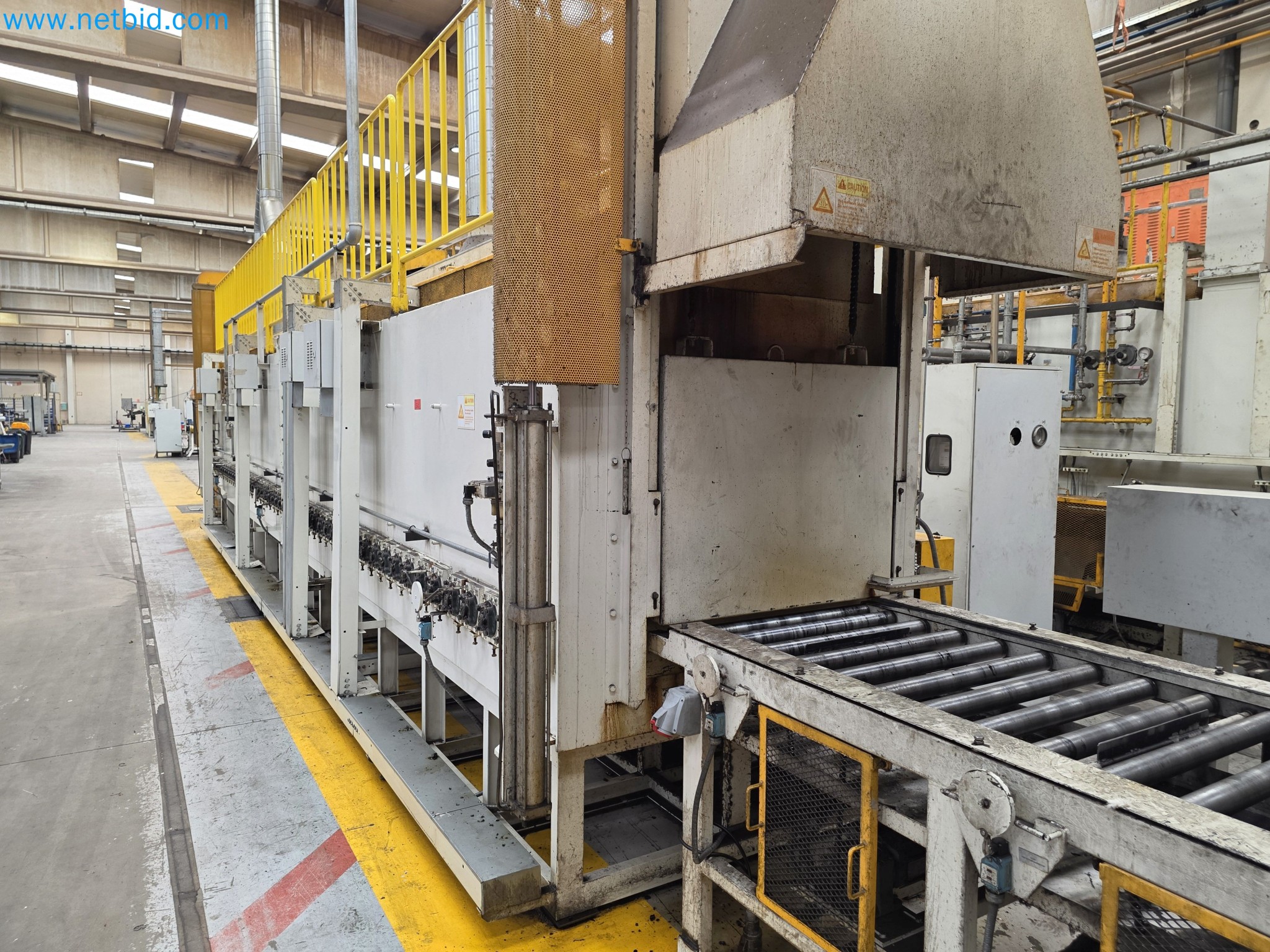

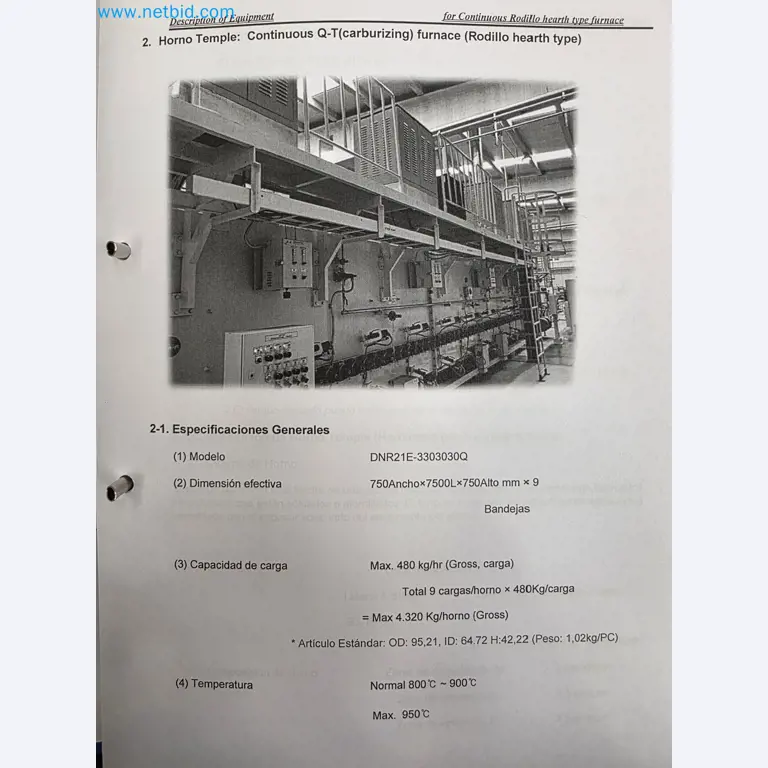

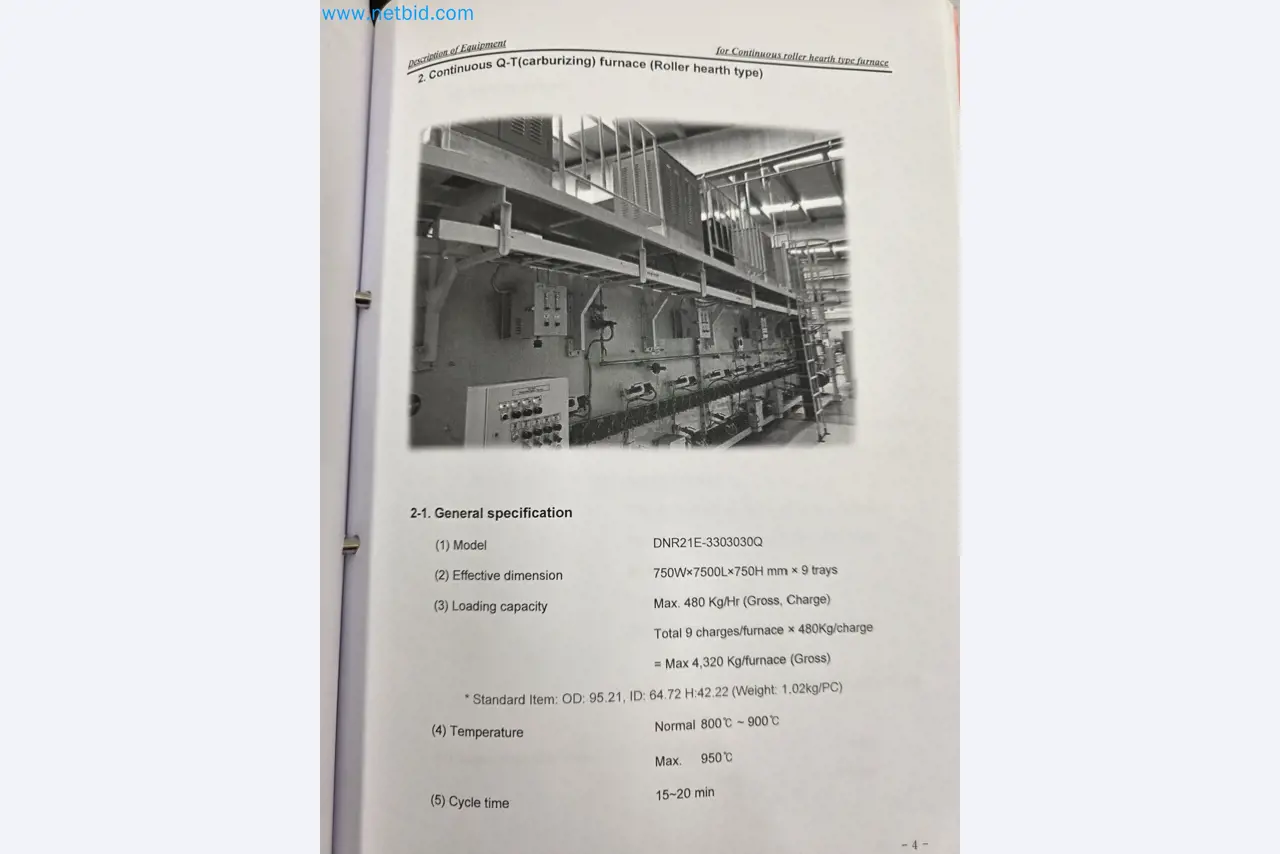

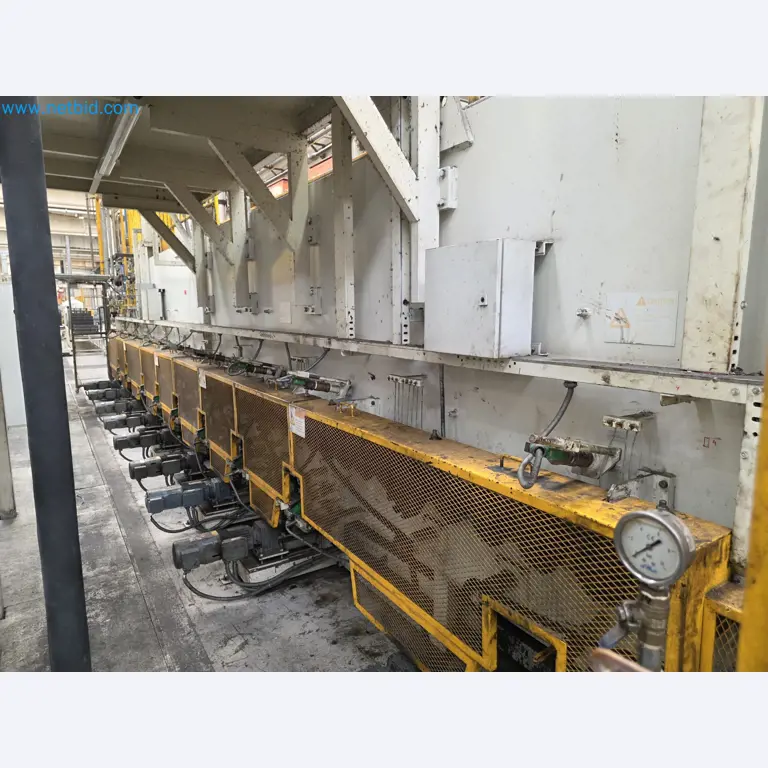

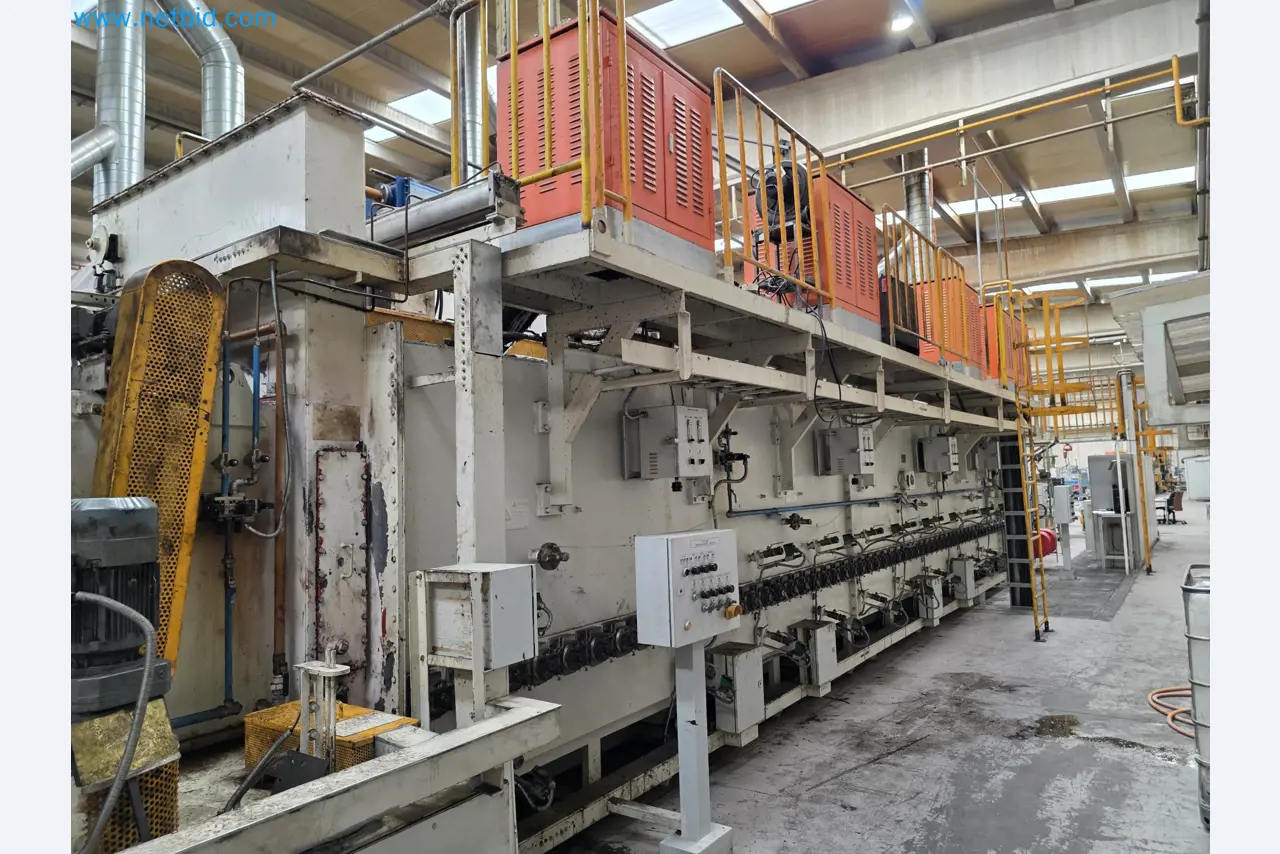

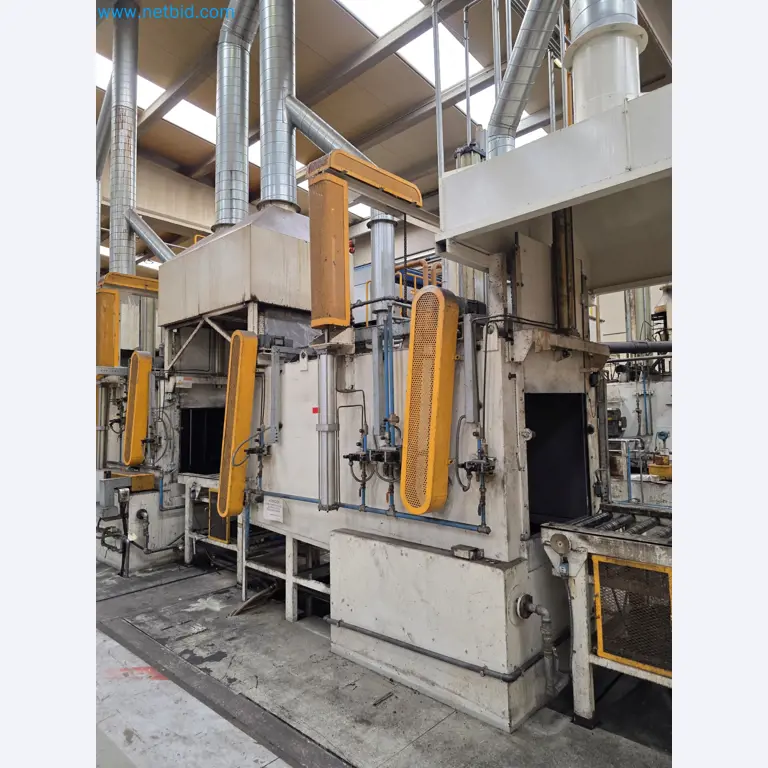

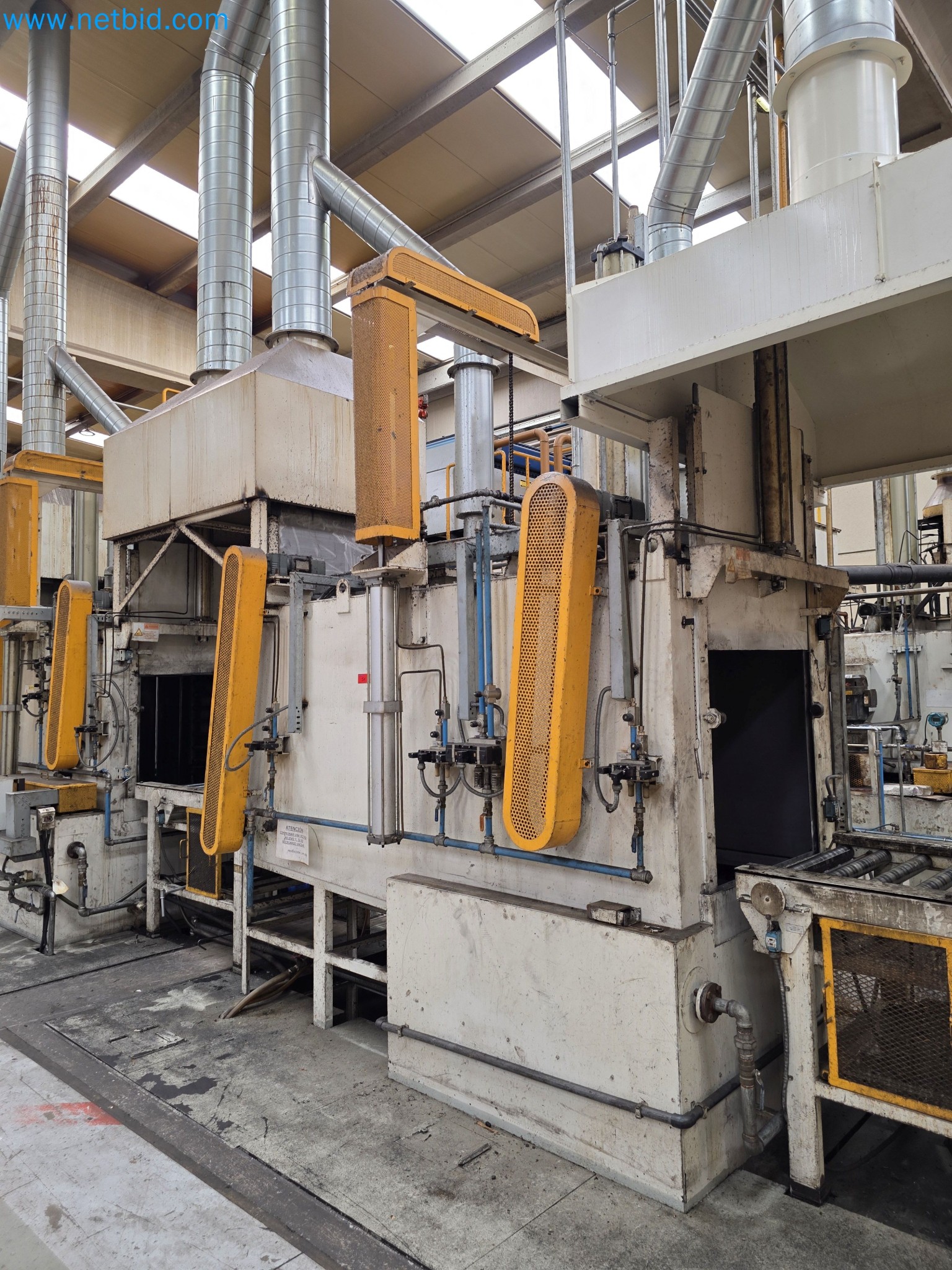

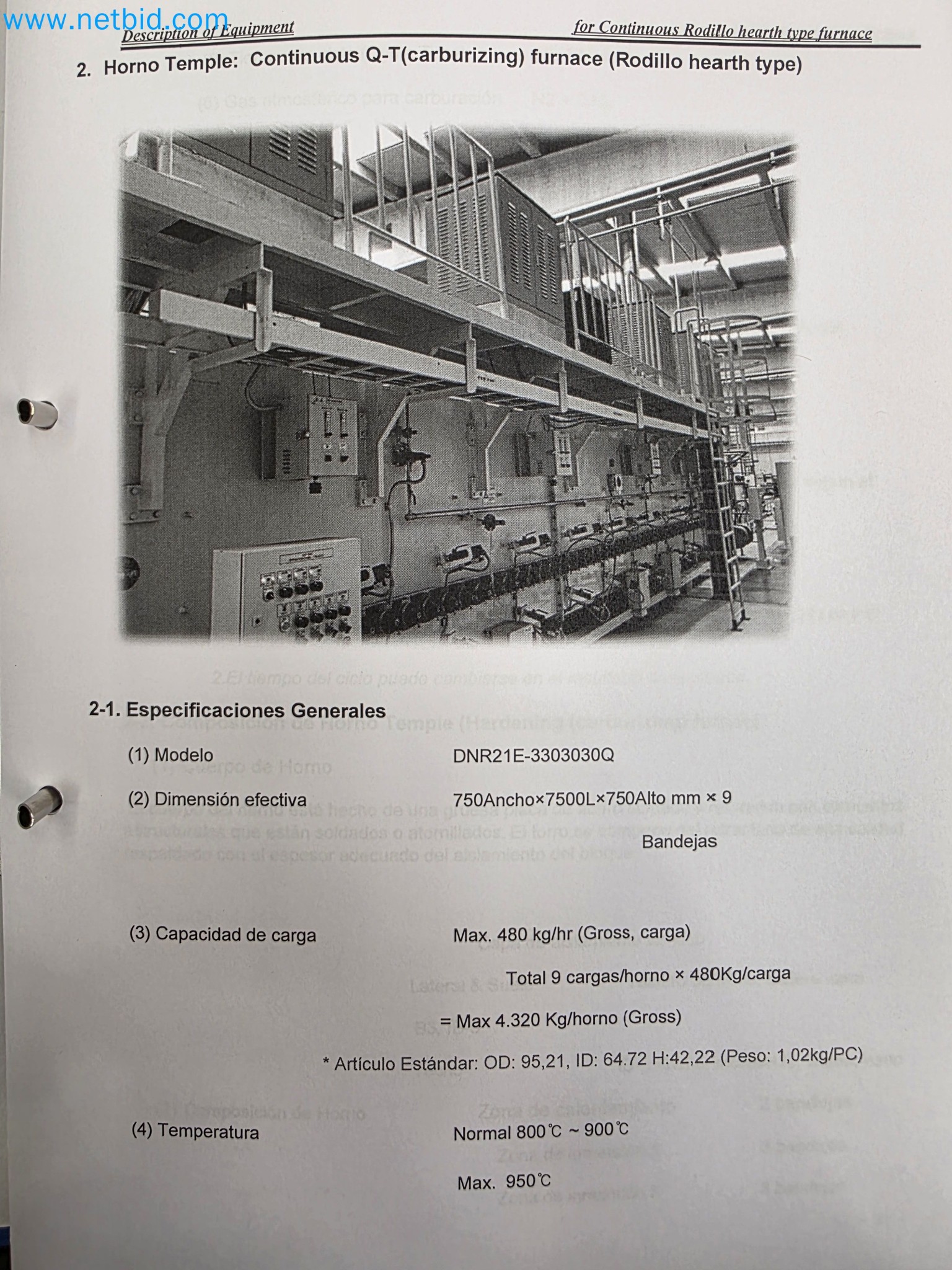

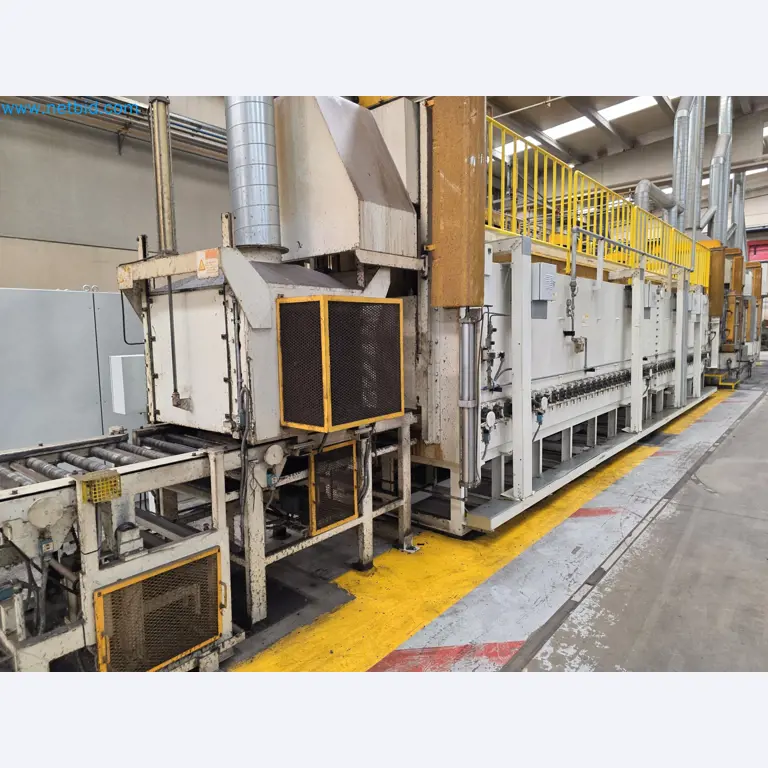

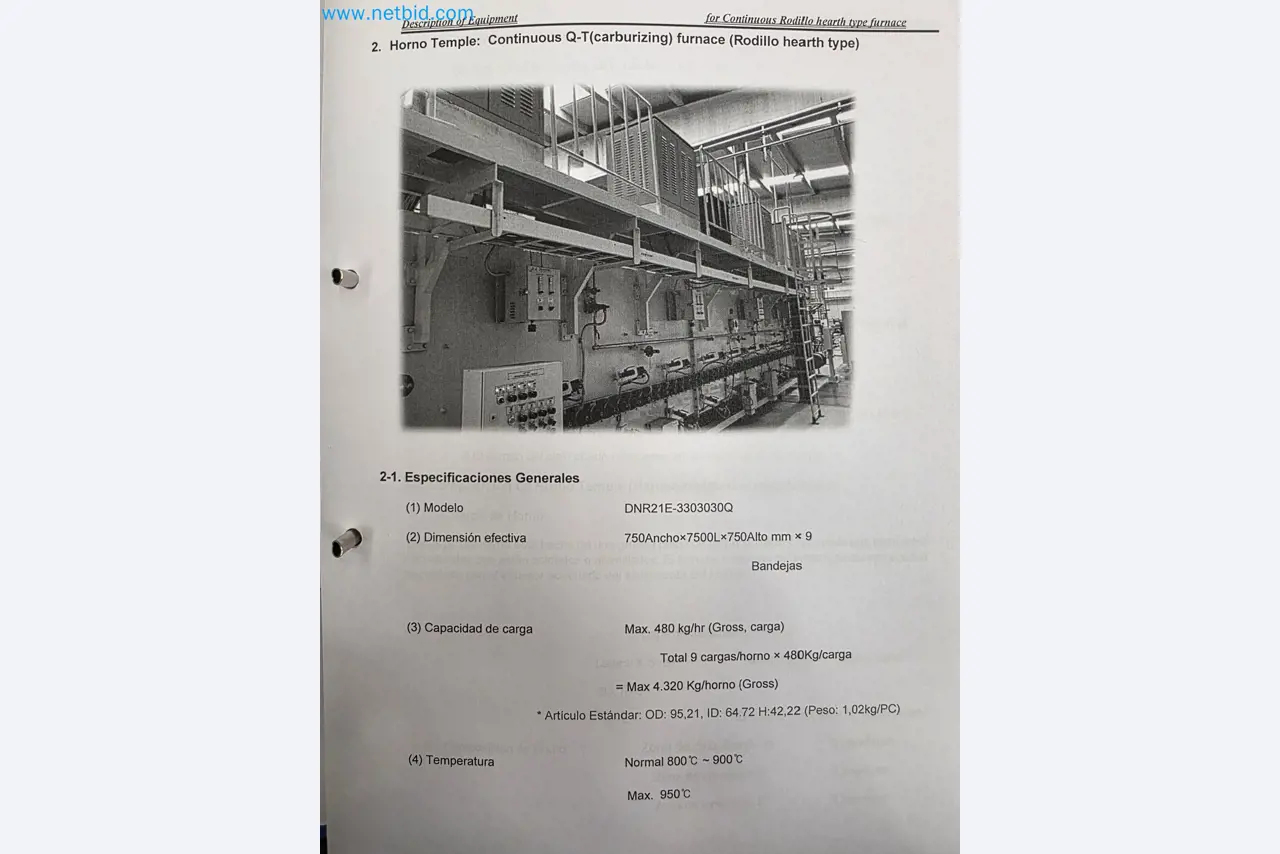

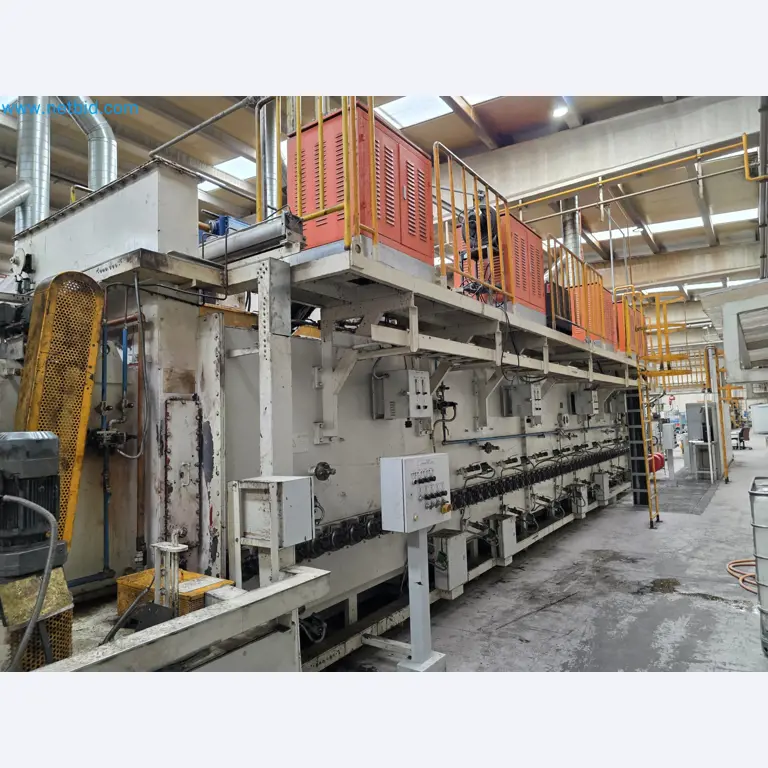

· 1.- Continuous Q-T furnace:
Effective dimensions: 7500 x 750 x 750 mm (9 trays)
Loading capacity: 480 kg/h
Maximum capacity: 4320 kg/furnace (9 trays x 480 kg)
Temperature:
· Normal: 800º - 900º C
· Maximum: 950º C
Cycle time: 15-20 min

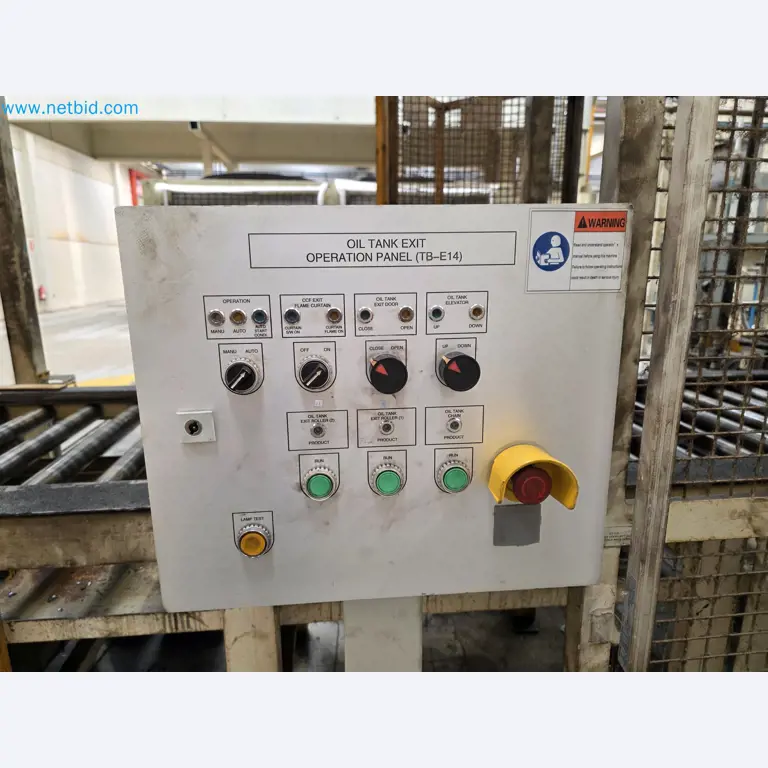

· 2.- Oil quenching tank:
Heating method: Electric heating
Effective dimensions: 750 x 750 x 750 mm x 1 tray
Heating capacity: 72 kW
Amount of quenching oil: about 11.000 L (at 130ºC)

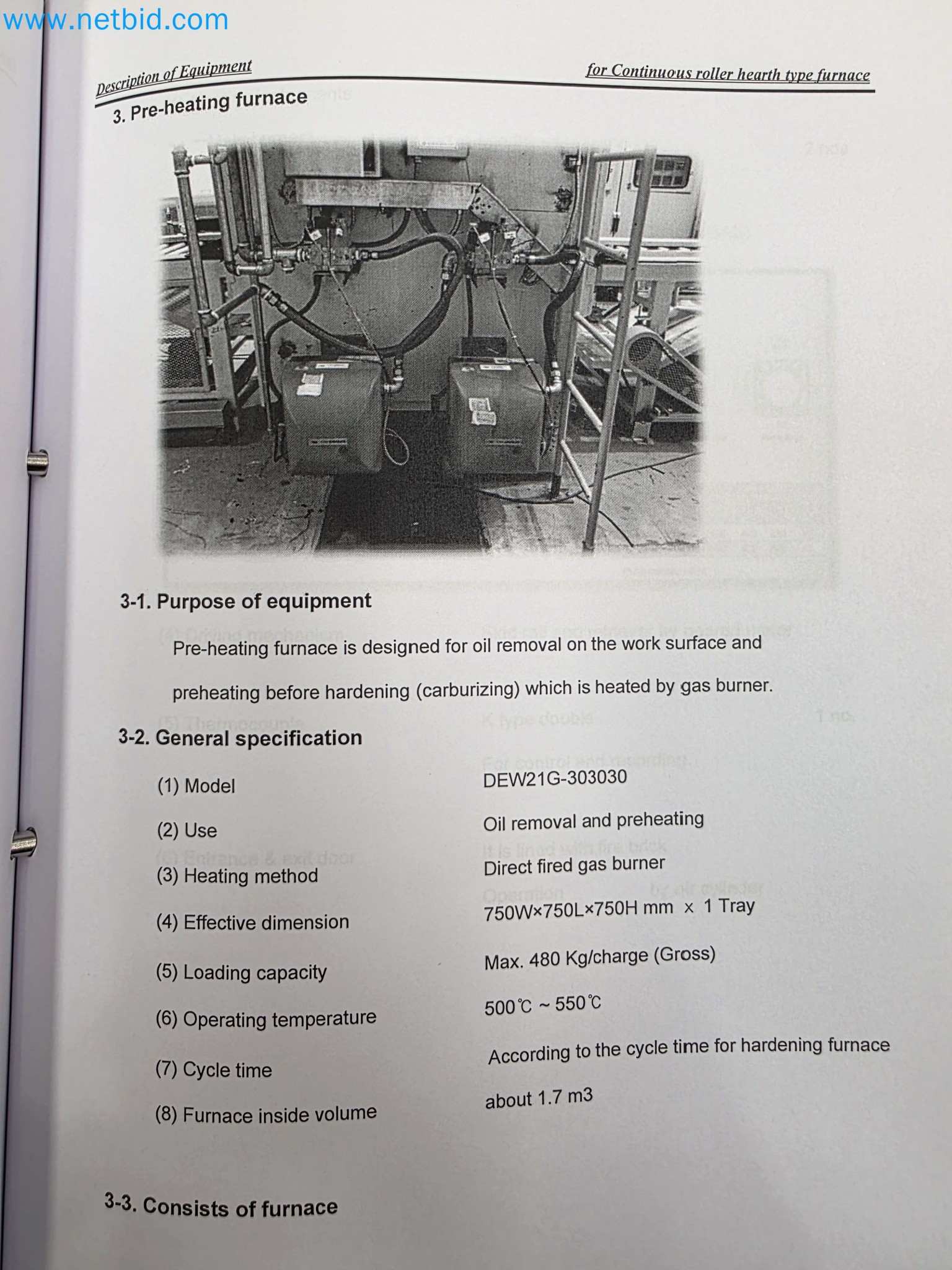

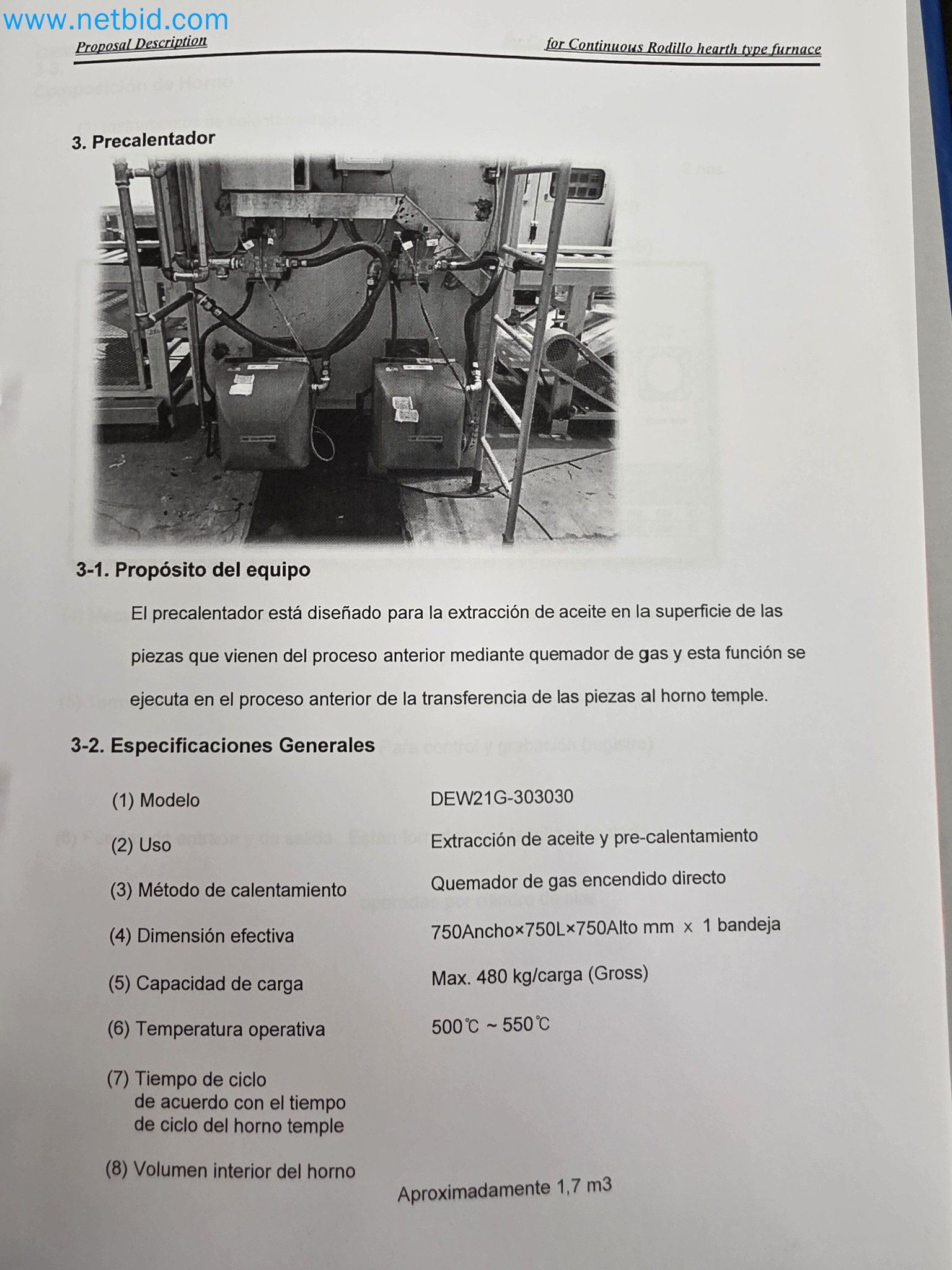

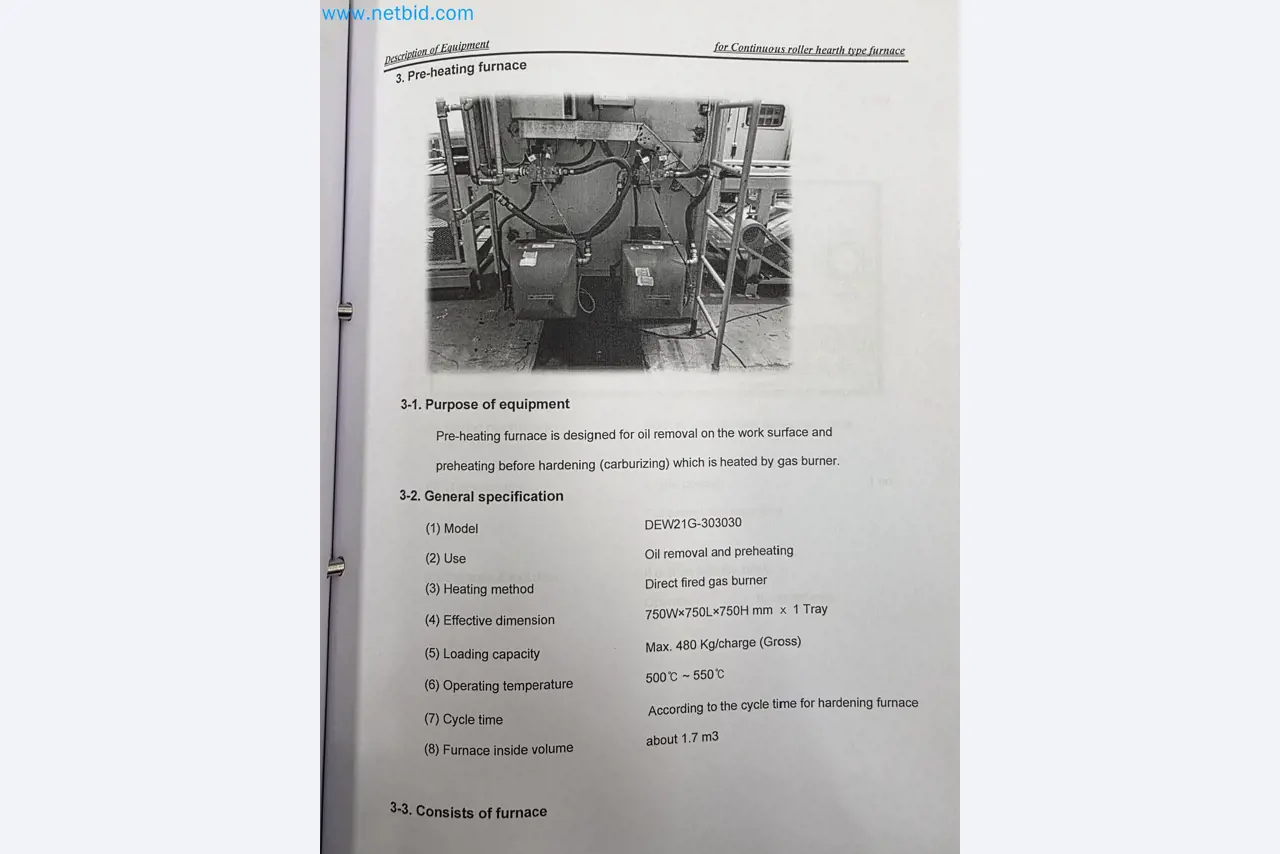

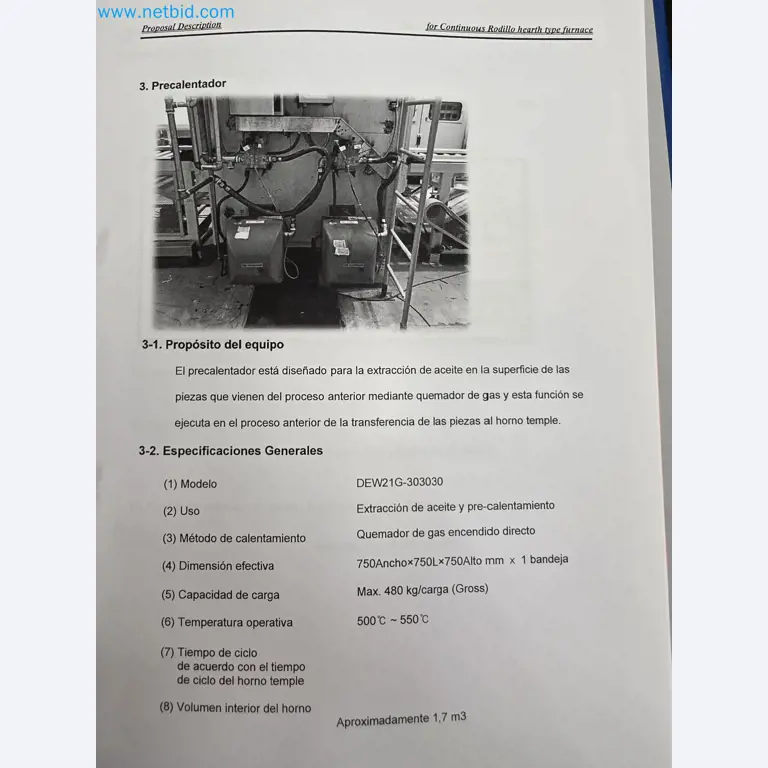

· 3.- Pre-heating furnace:
Heating method: direct fired gas burner
Effective dimensions: 750 x 750 x 750 mm x 1 tray
Loading capcity: 480 kg/h
Operating temperature: 500º - 550º C
Furnace inside volume: 1.7 m3 approx.

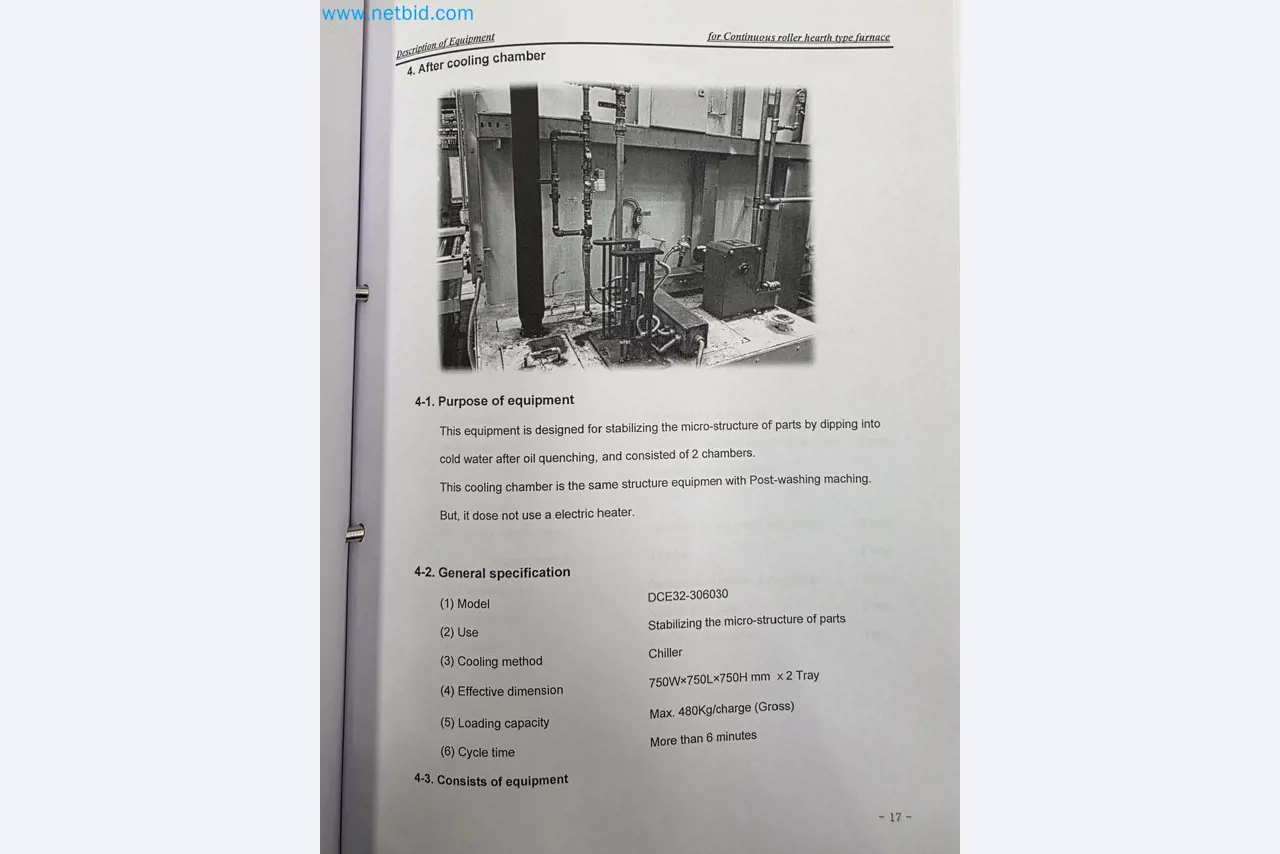

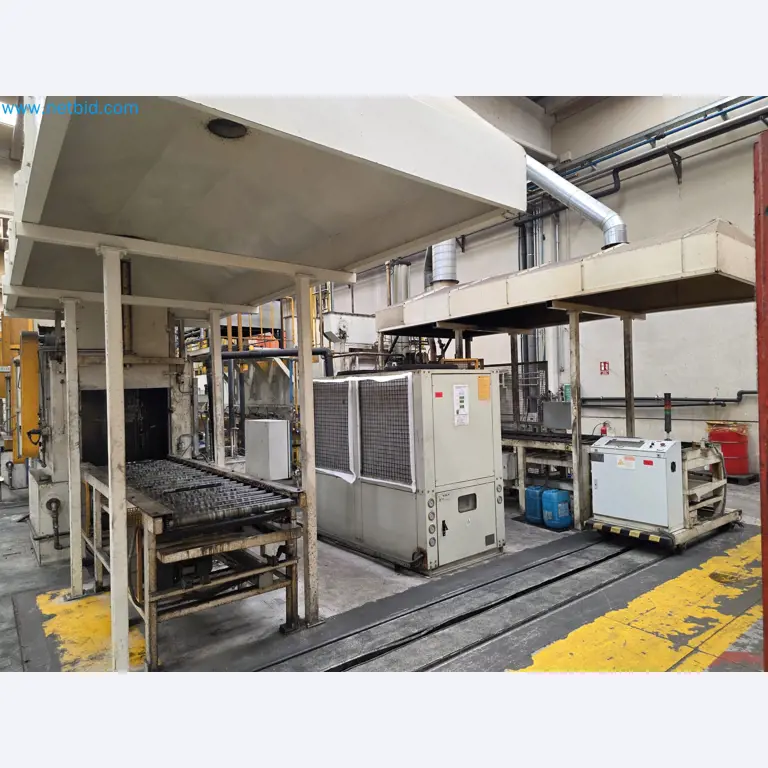

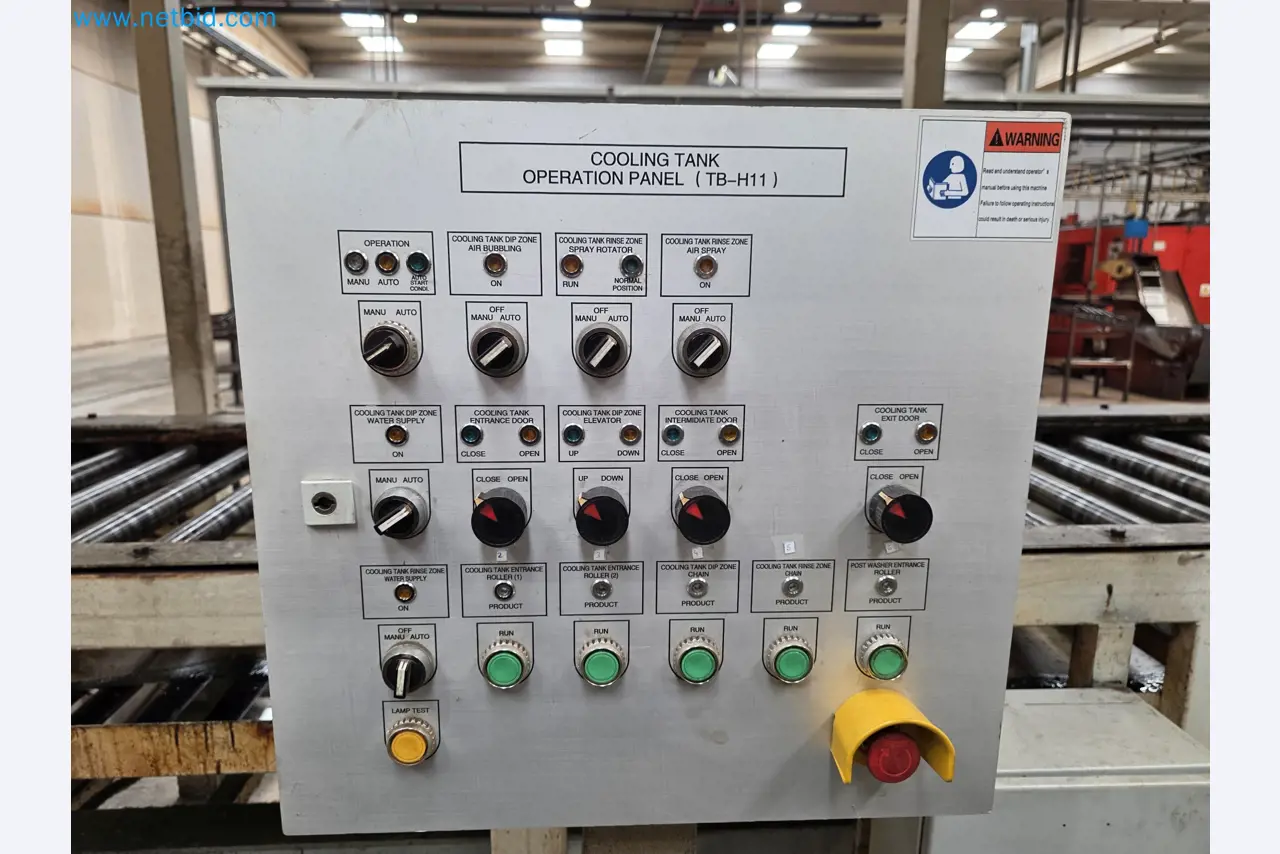

· 4.- After cooling chamber:
Cooling method: Chiller
Effective dimensions: 750 x 750 x 750 mm x 2 trays
Loading capcity: 480 kg/charge
Cycle time: more than 6 minutes

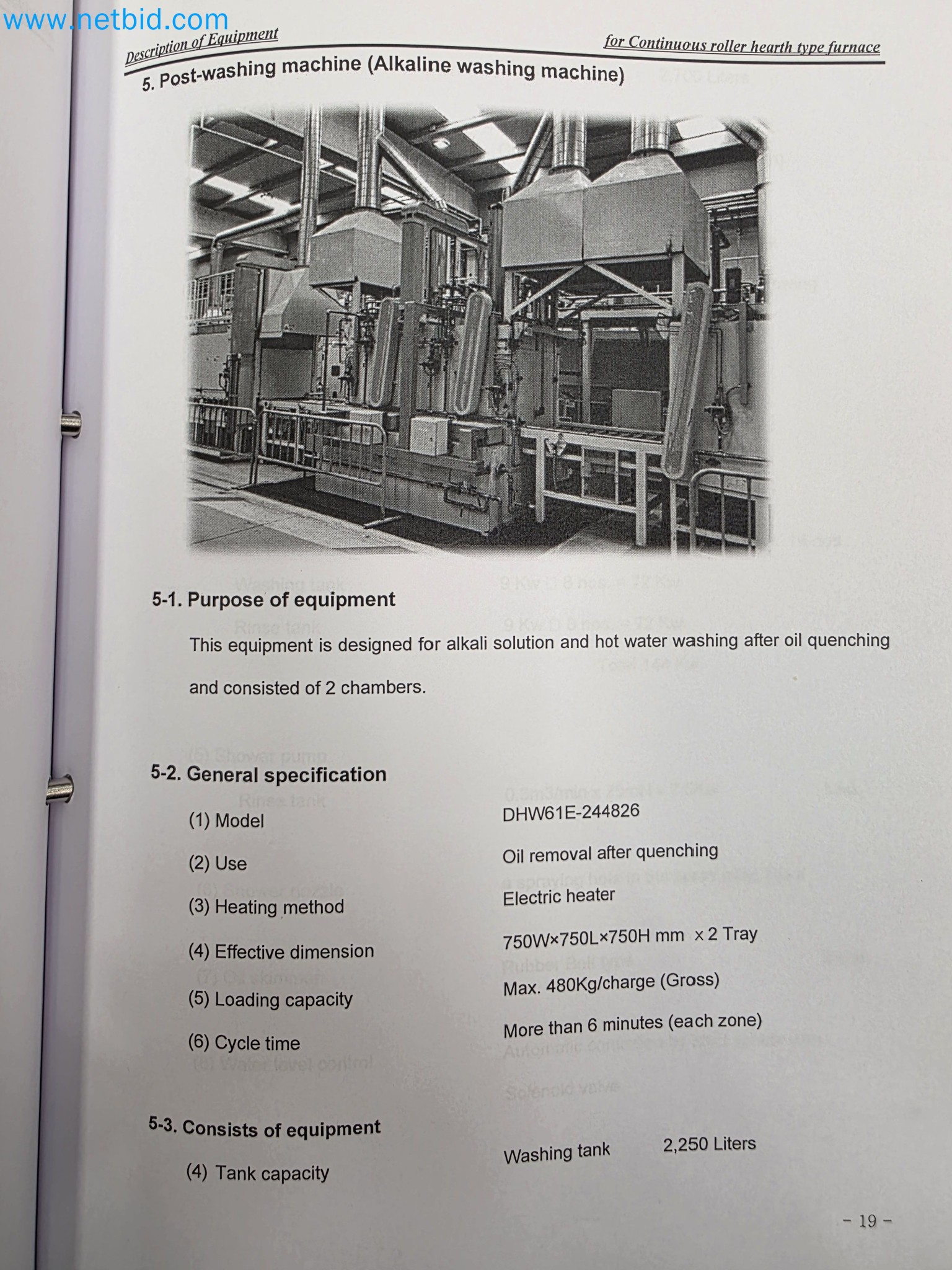

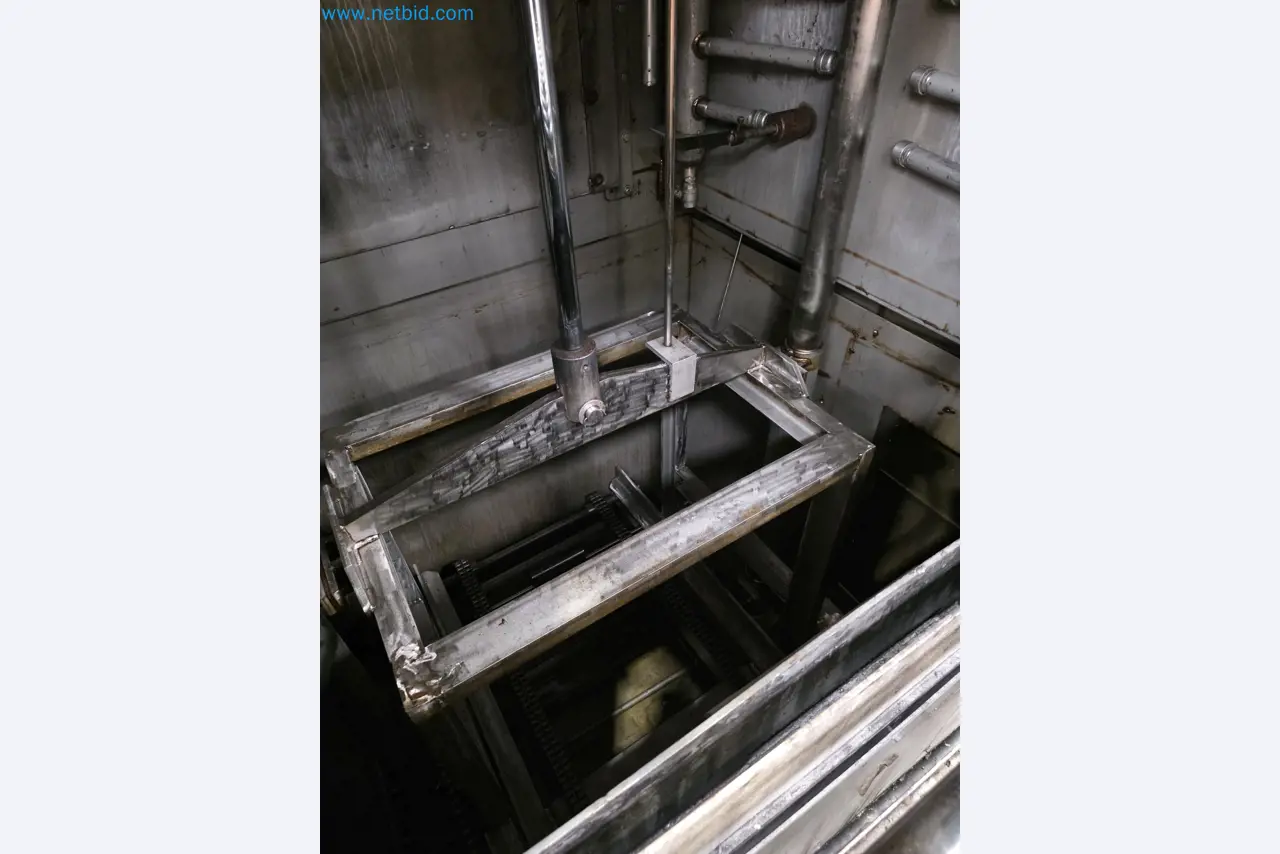

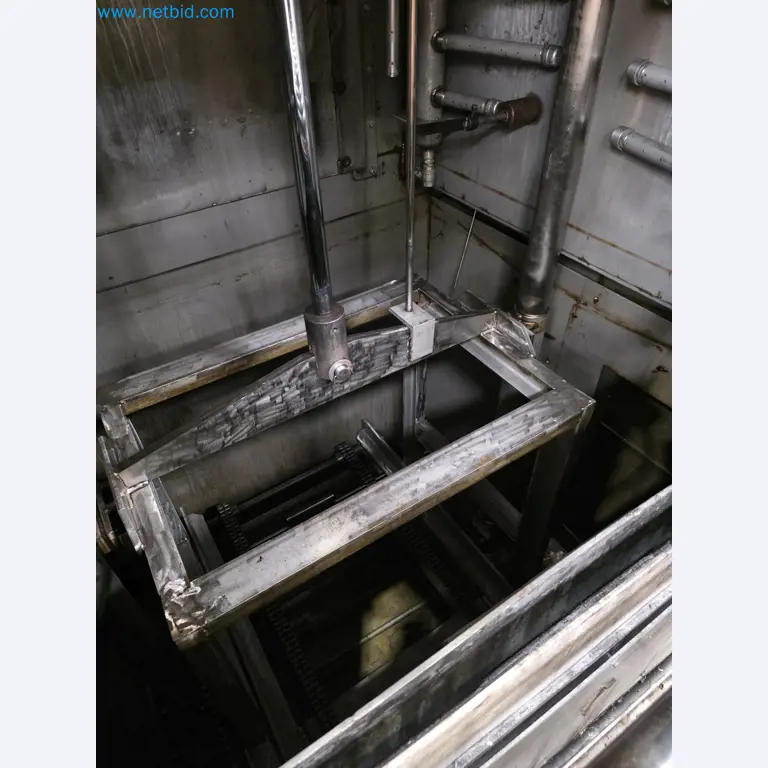

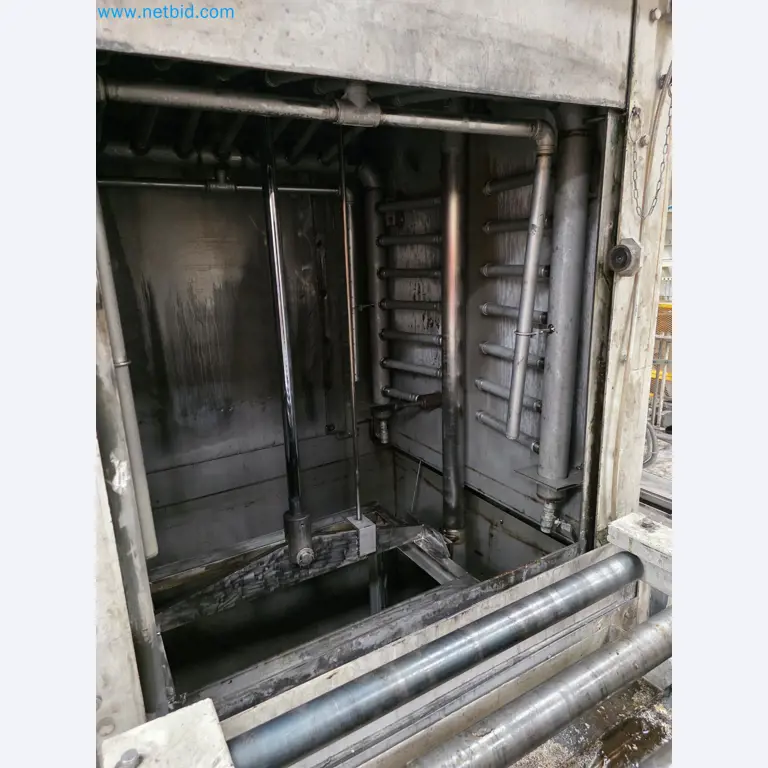

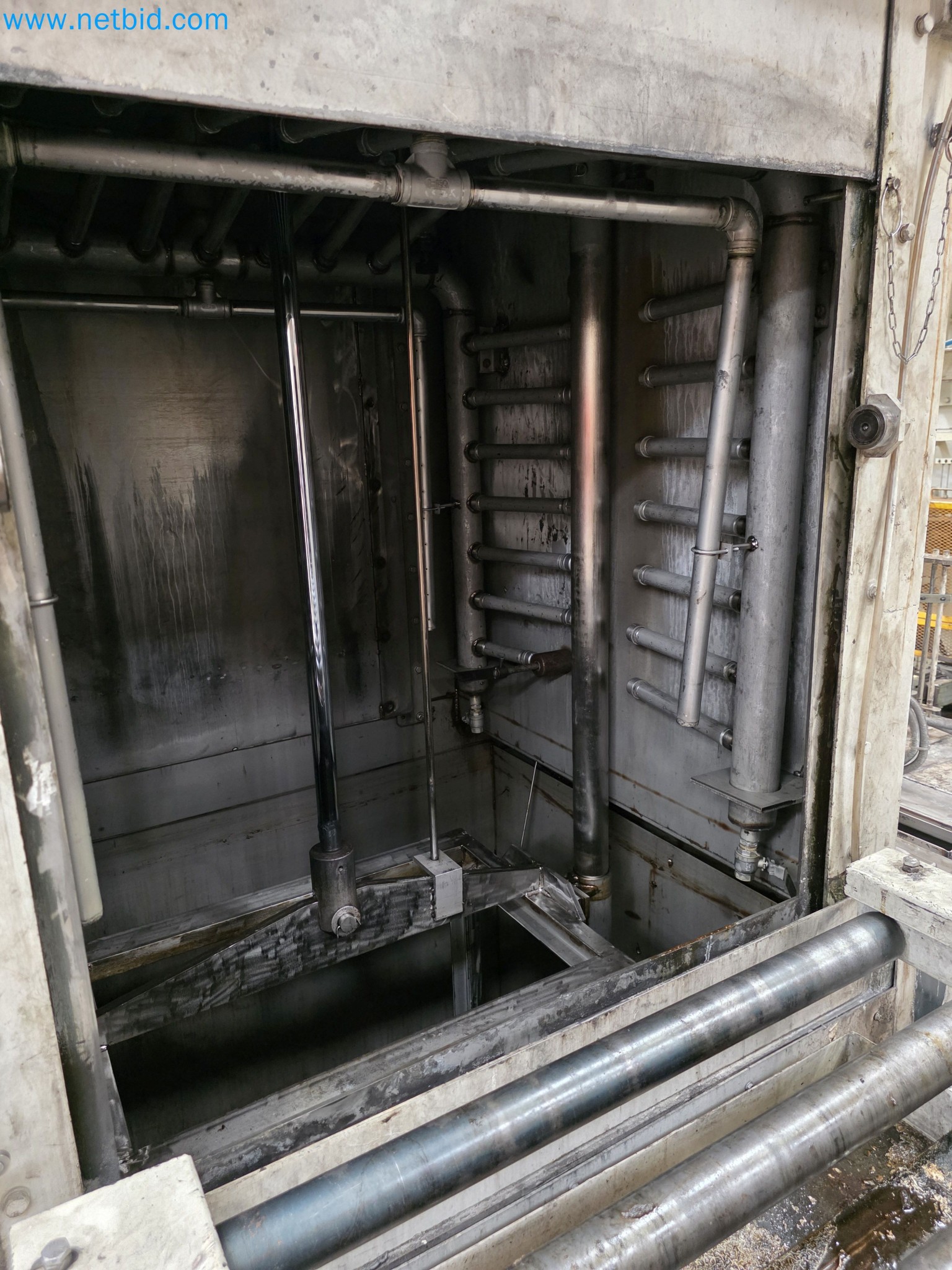

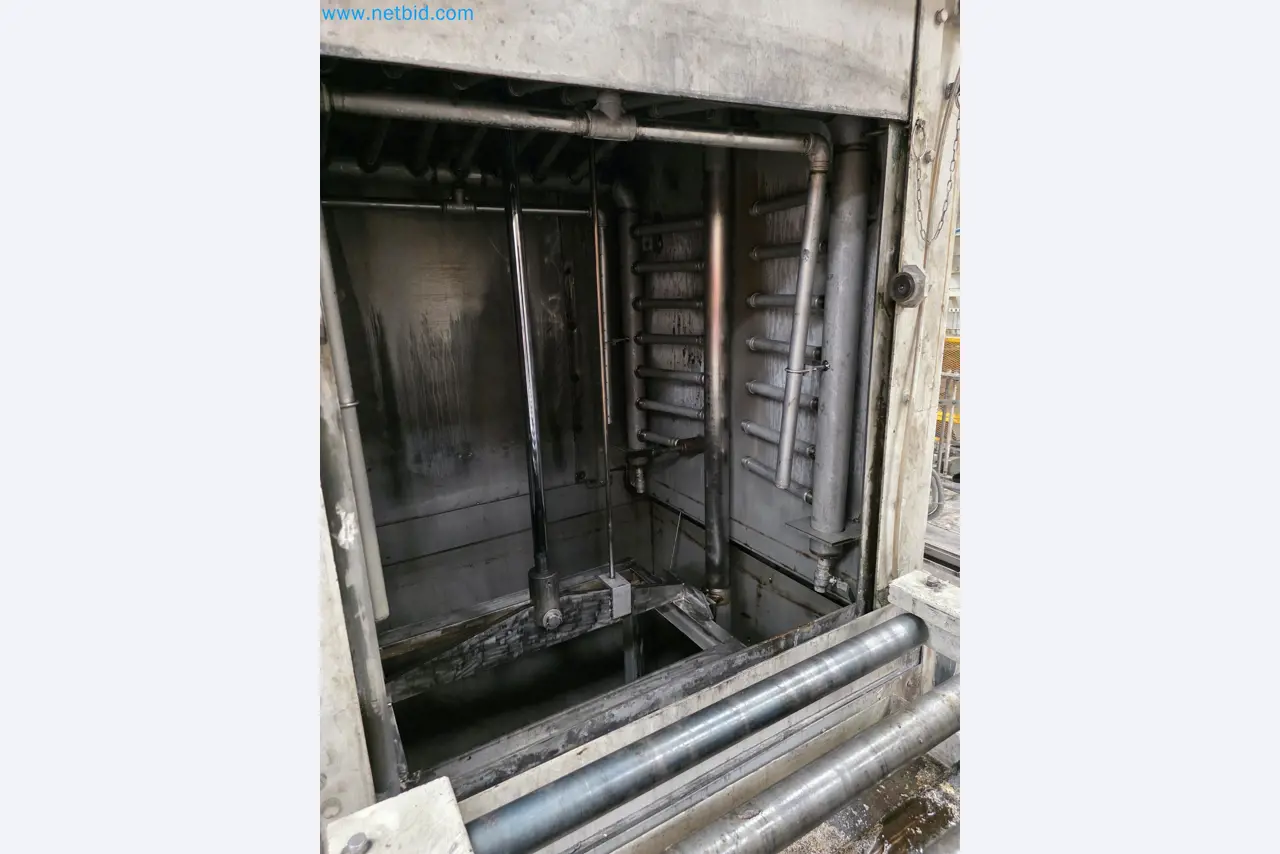

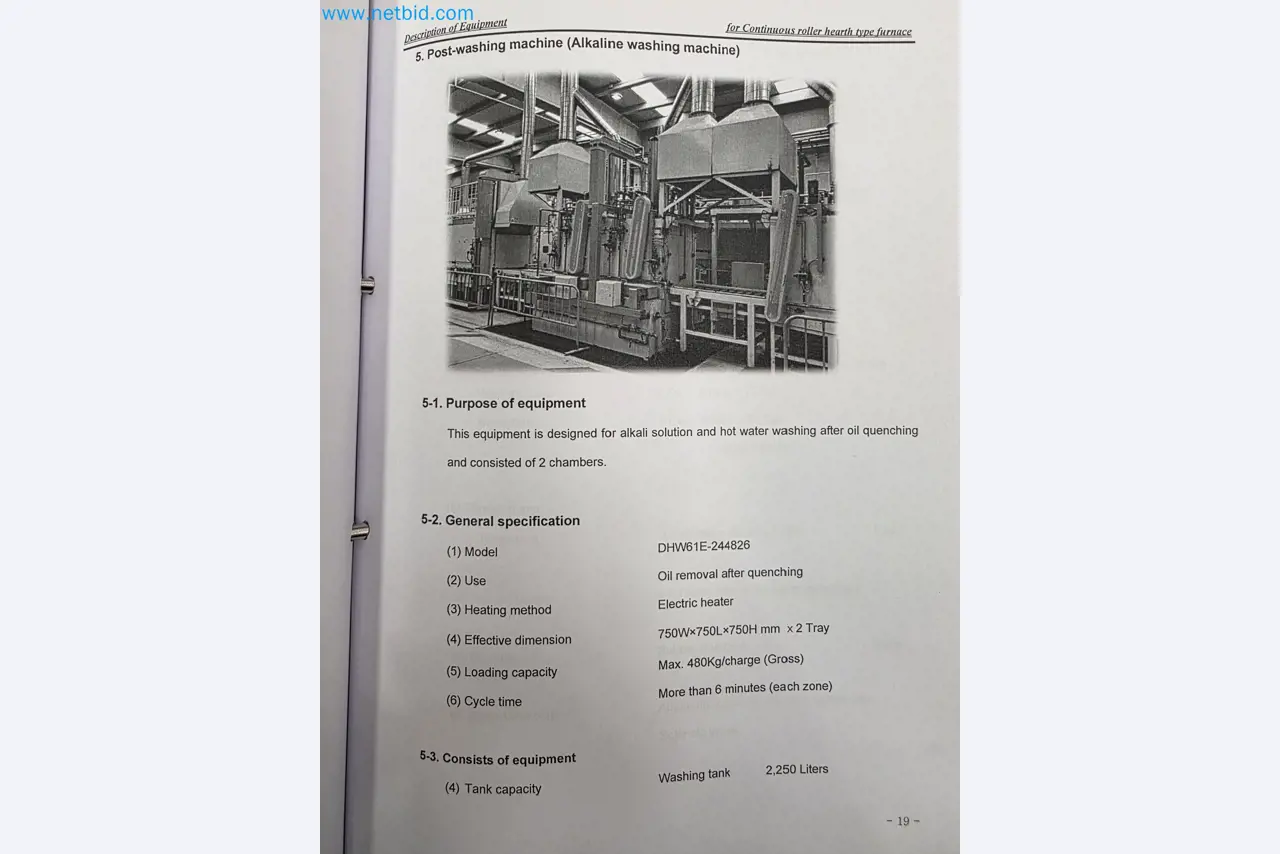

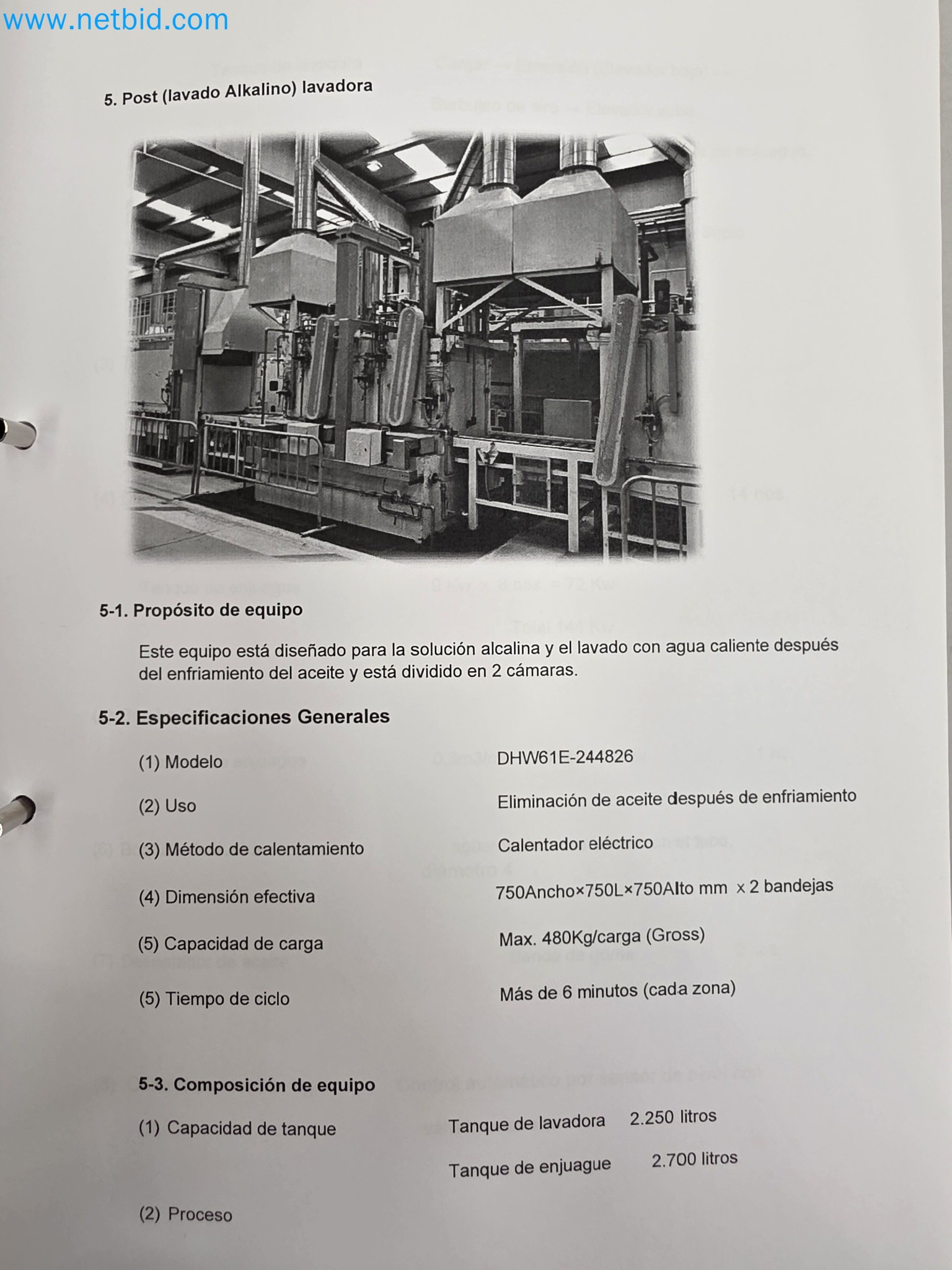

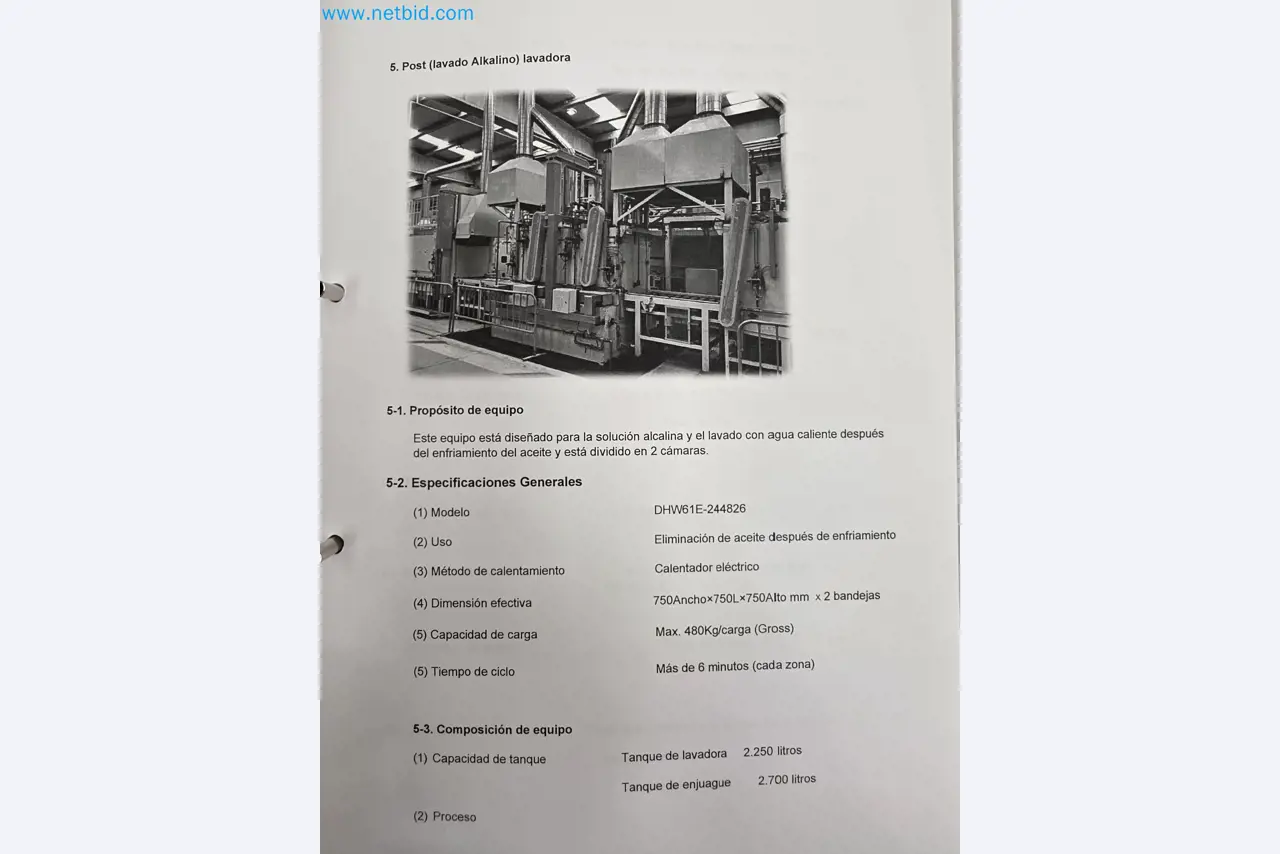

· 5.- Post-washing machine
Heating method: electric heater
Effective dimensions: 750 x 750 x 750 mm x 2 trays
Loading capcity: 480 kg/charge
Cycle time: more than 6 minutes (each zone)
Tank capacity: 2250 L

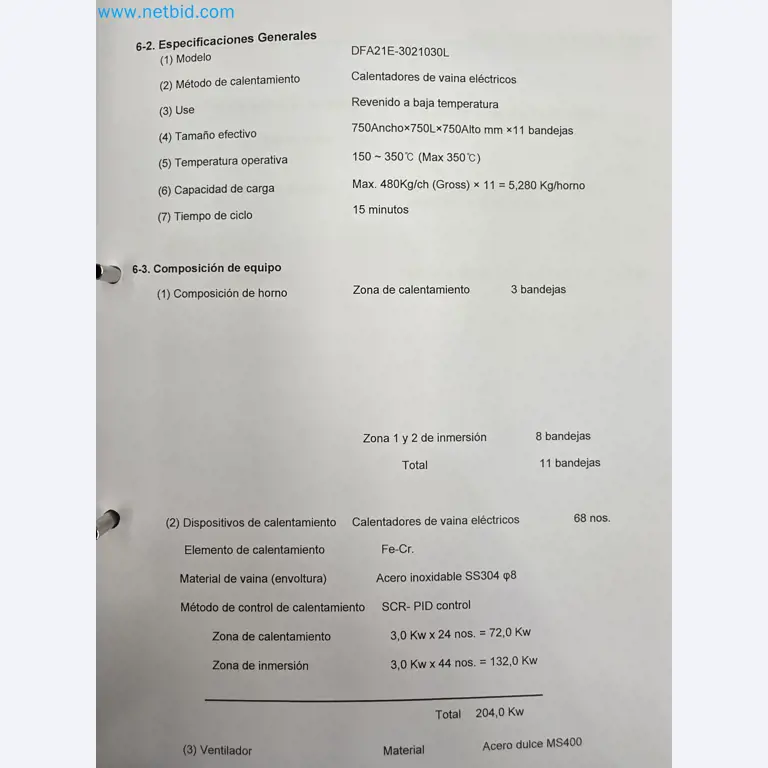

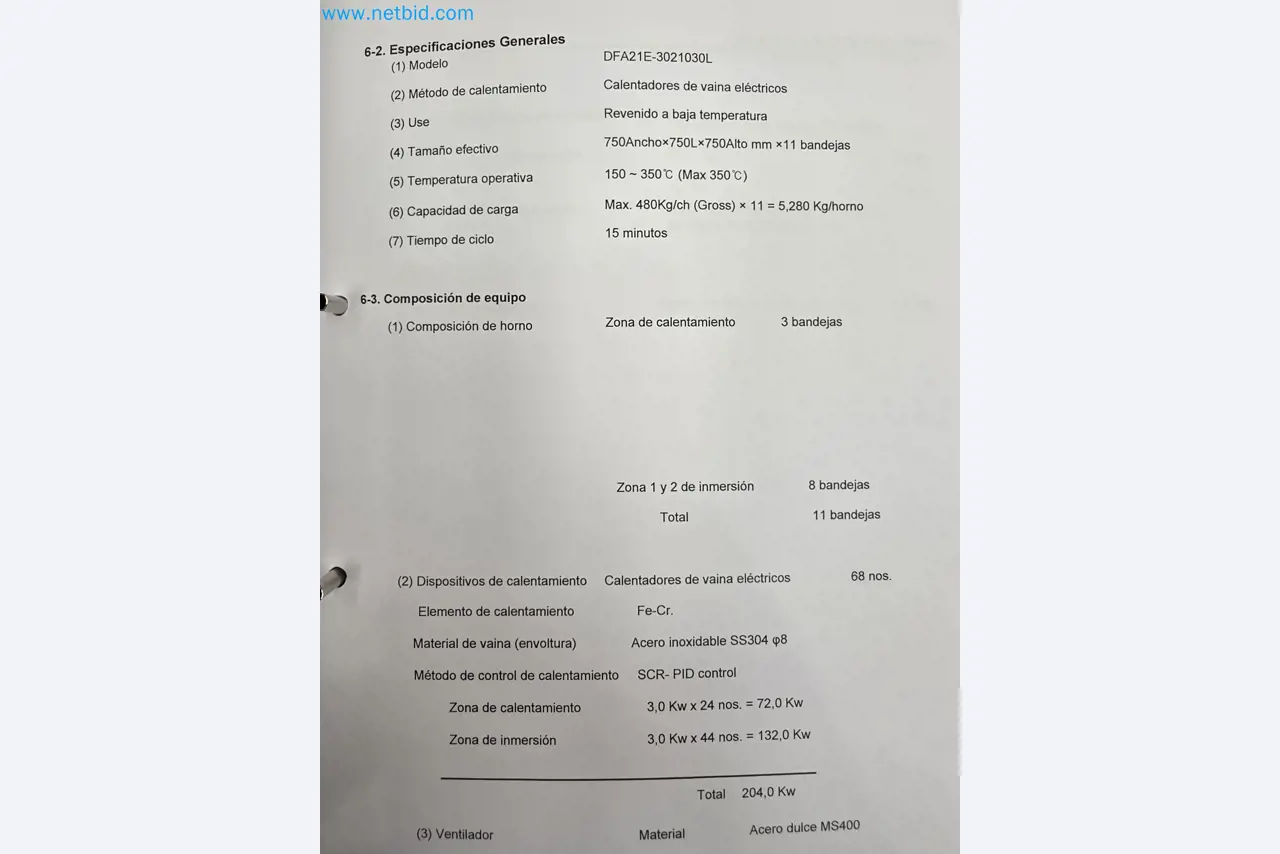

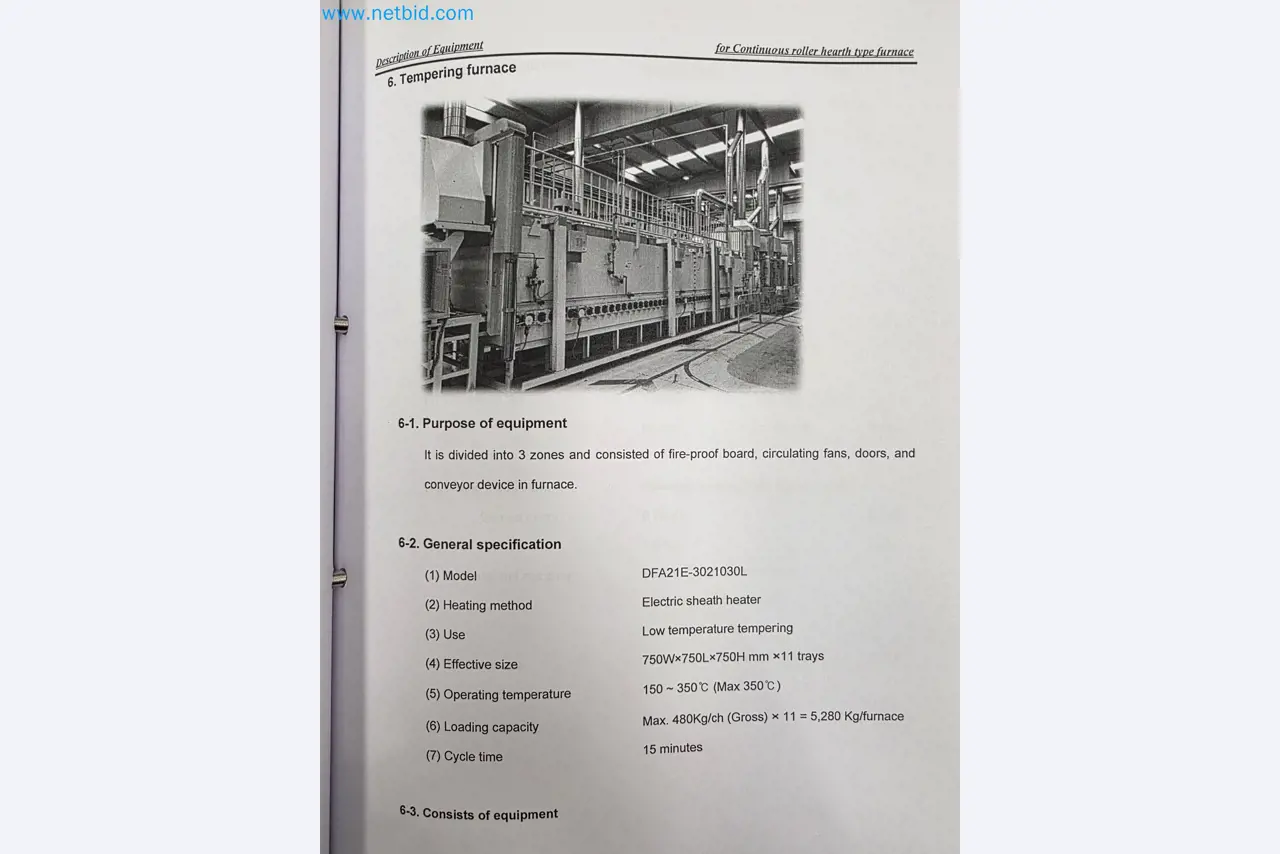

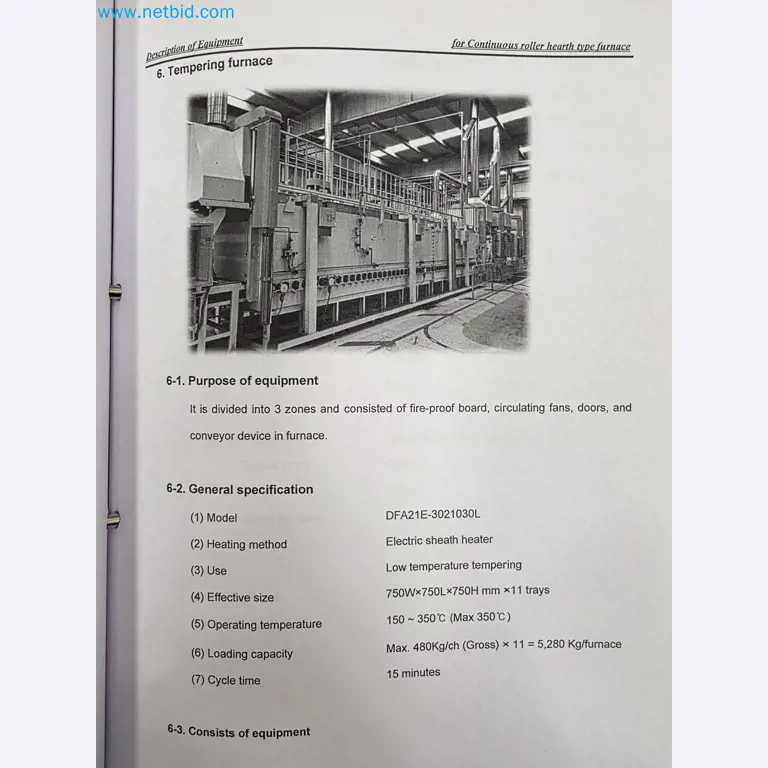

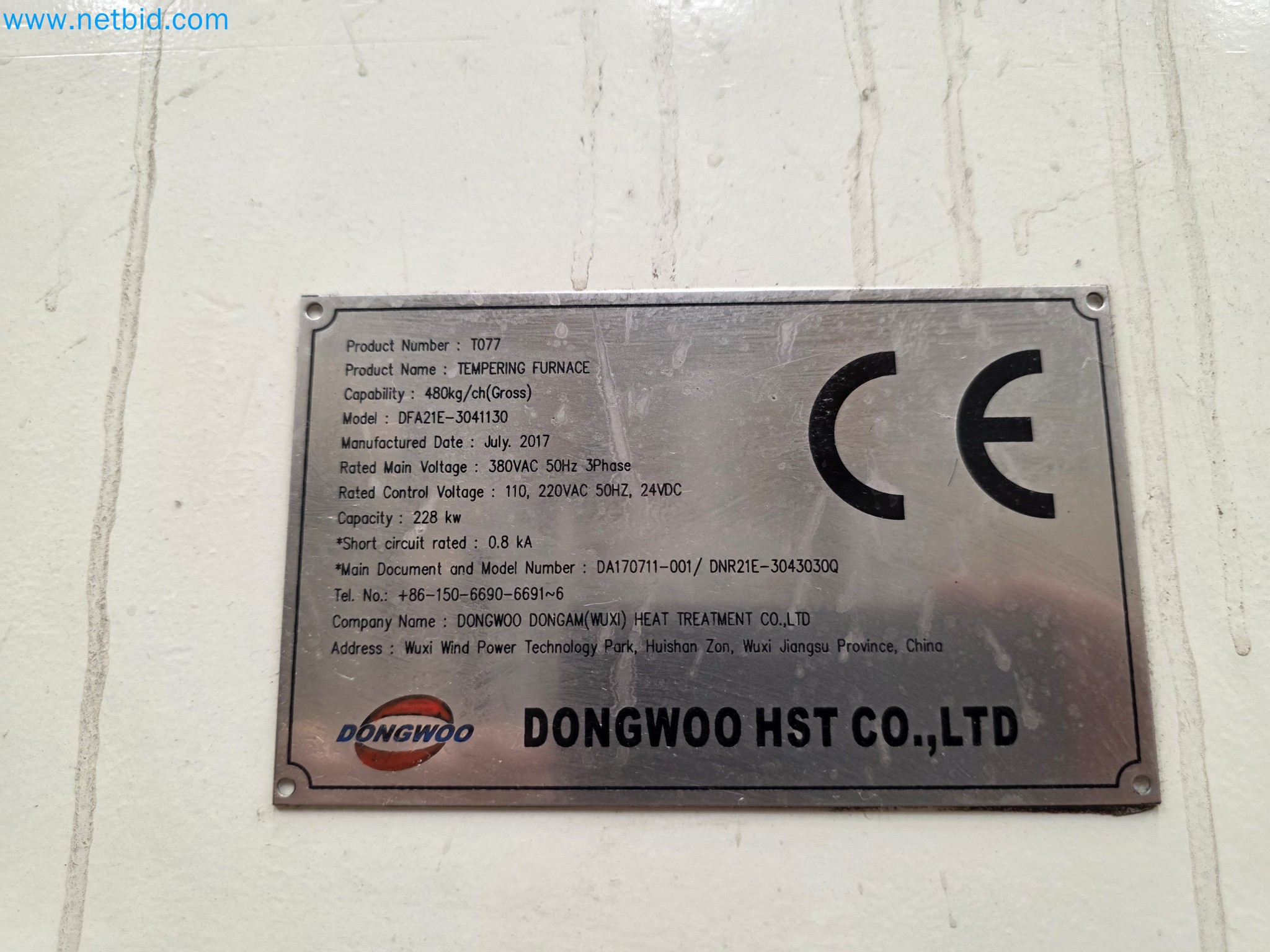

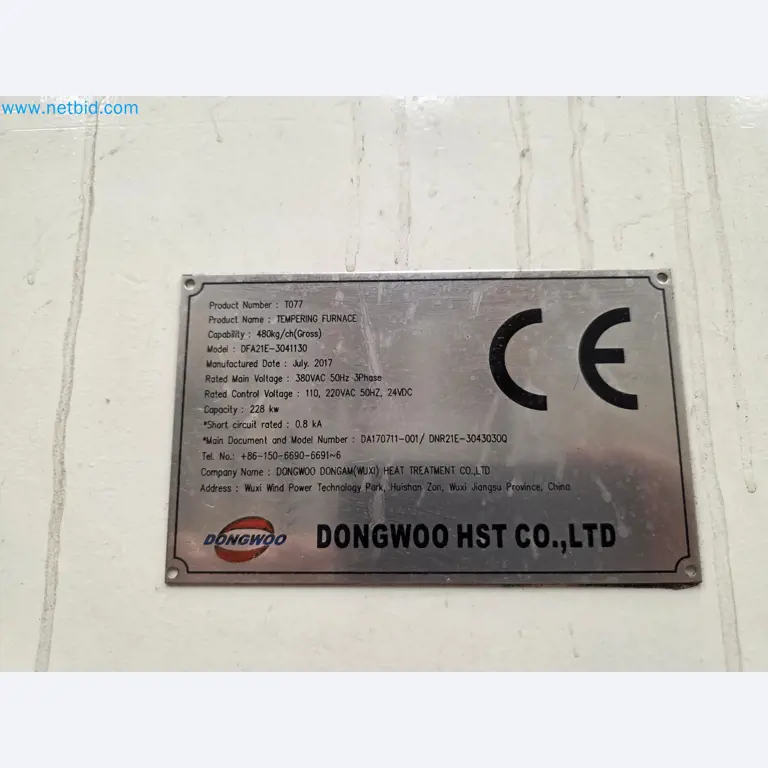

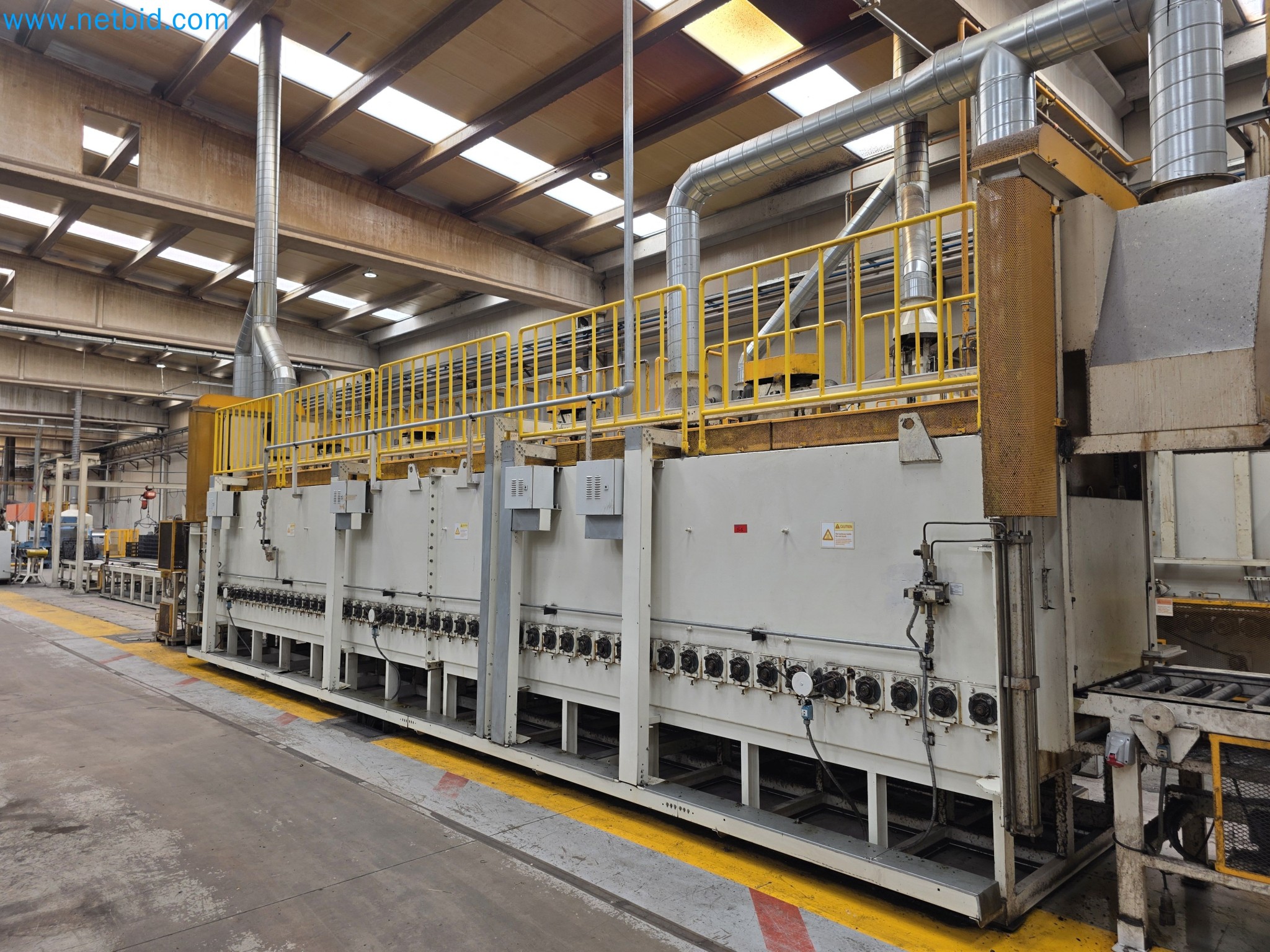

· 6.- Tempering Furnace:
Heating method: electric sheath tempering
Effective dimensions: 750 x 750 x 750 mm x 11 trays
Loading capcity: 480 kg/ch (5280 kg/furnace)
Operating temperature: 150º - 350º C
Cycle time: 15 minutes

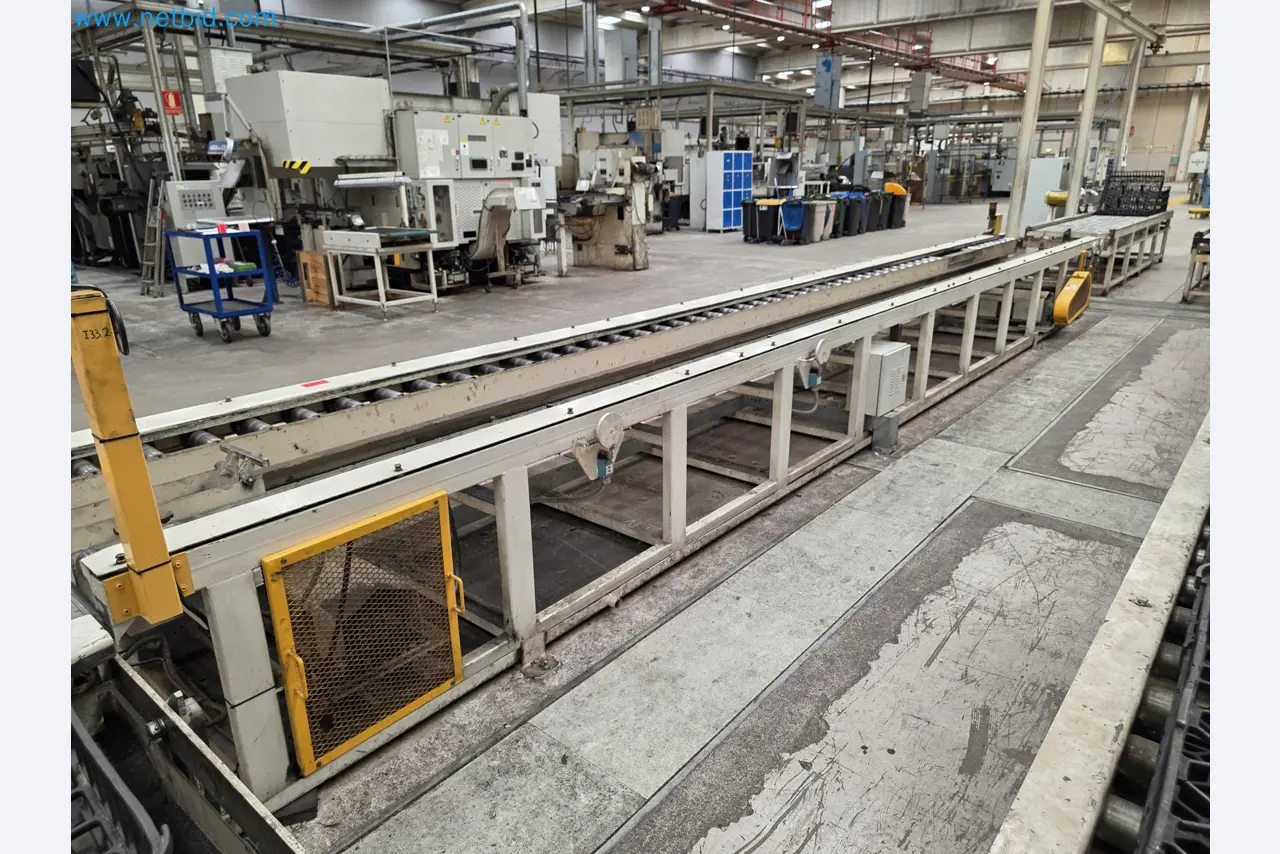

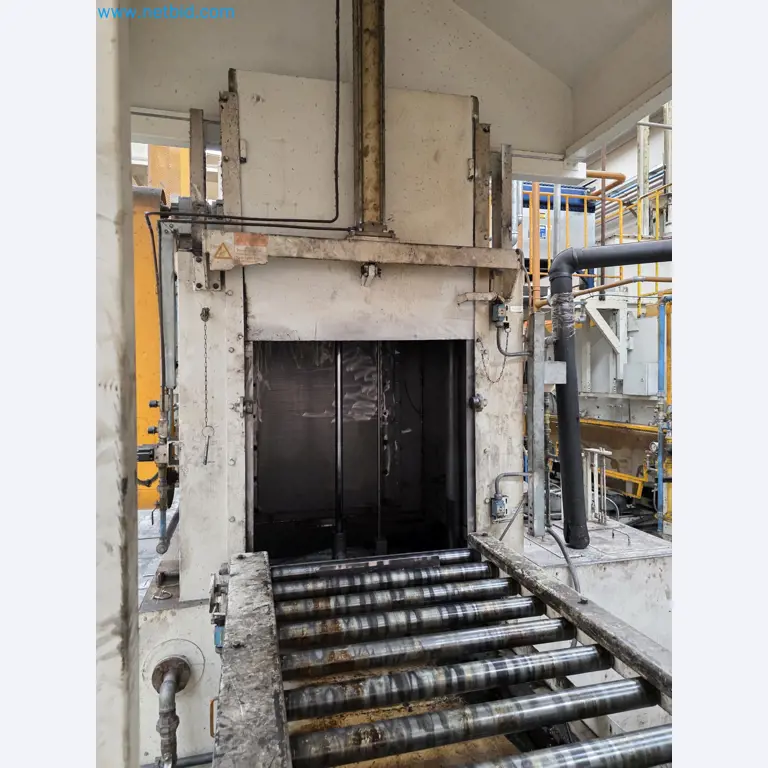

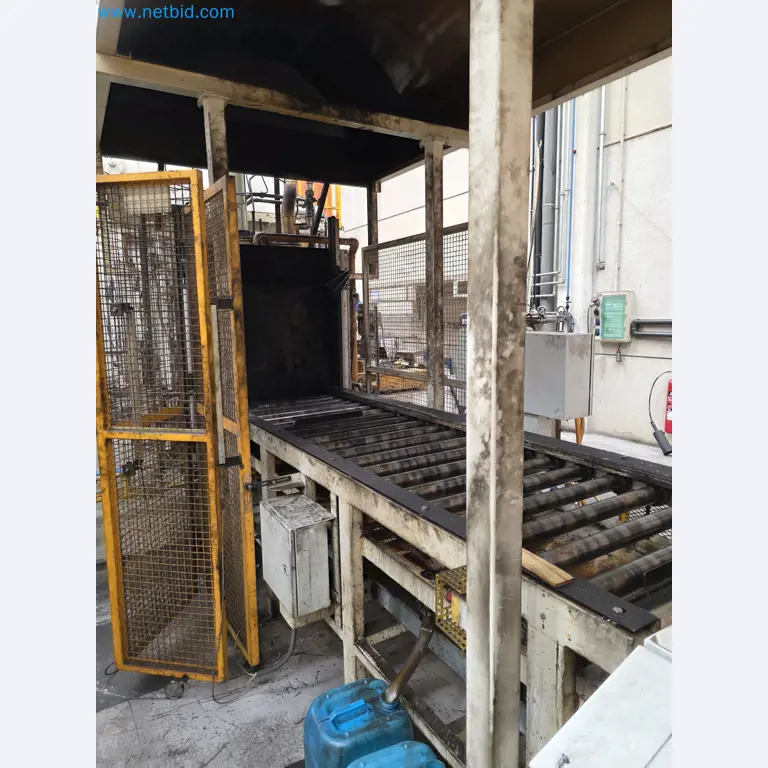

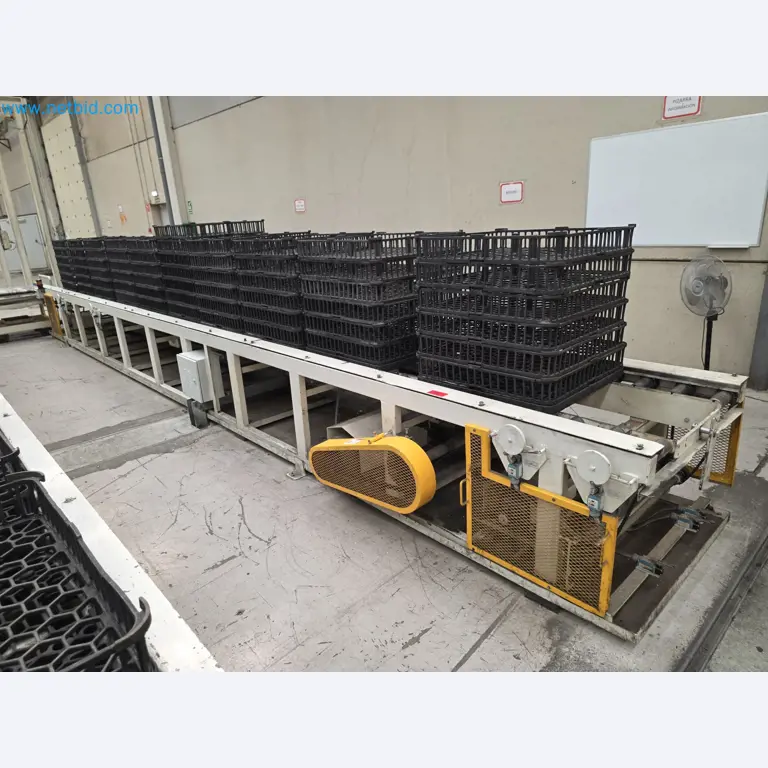

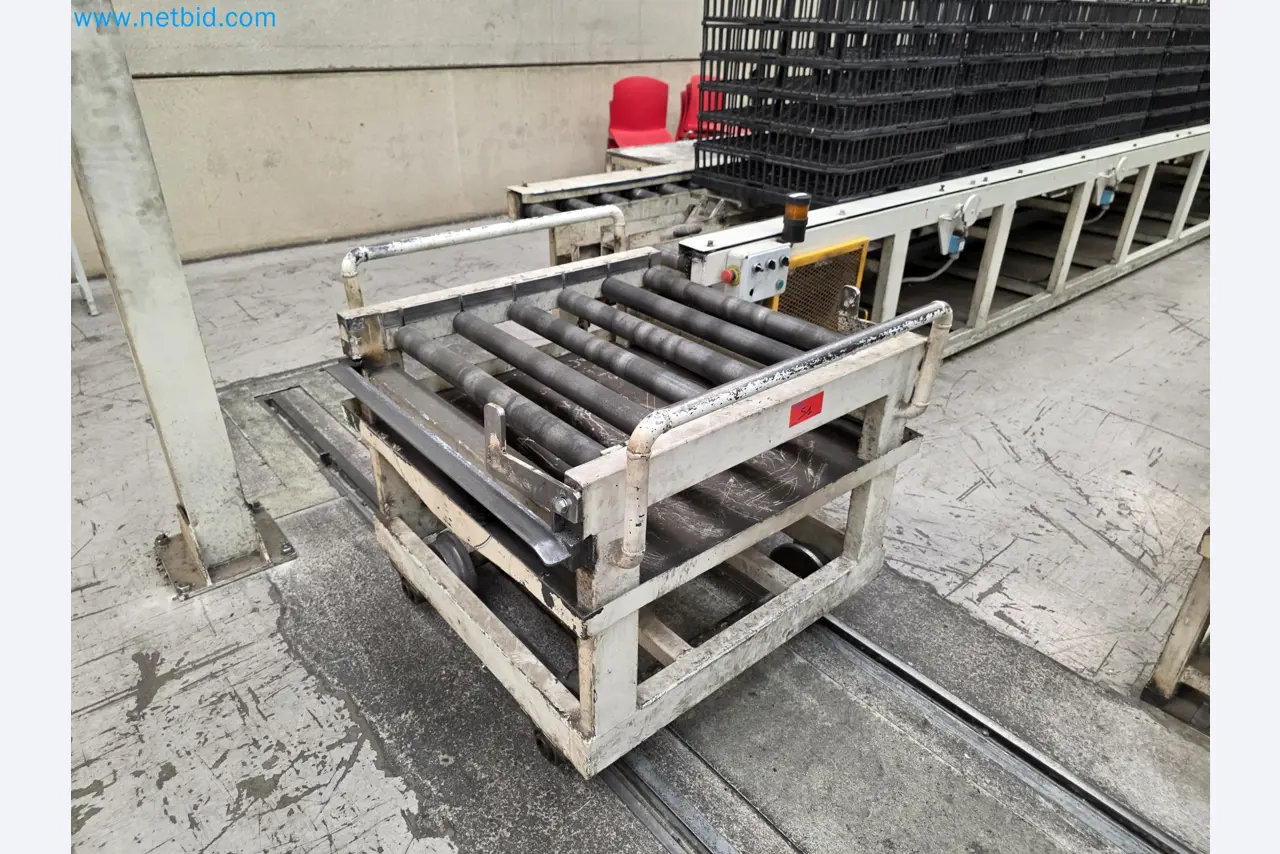

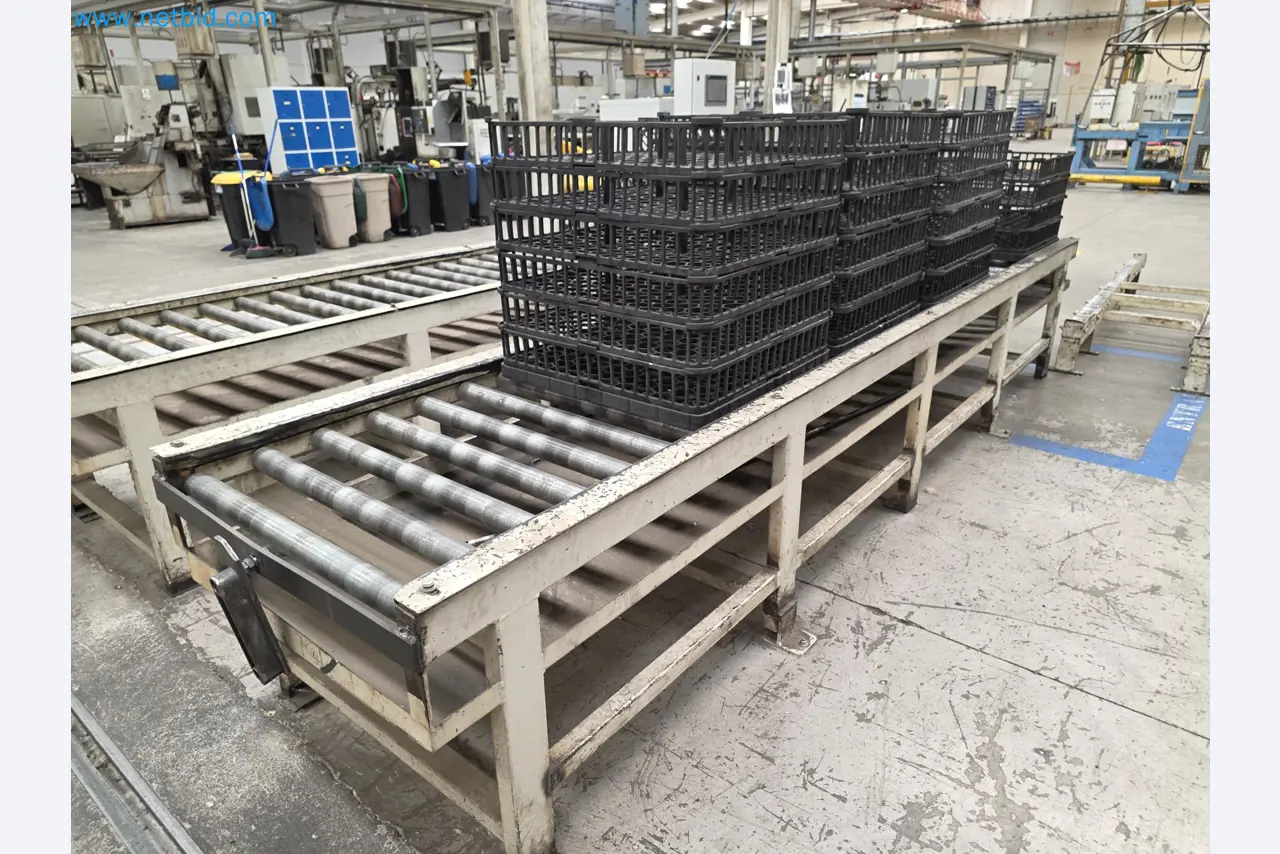

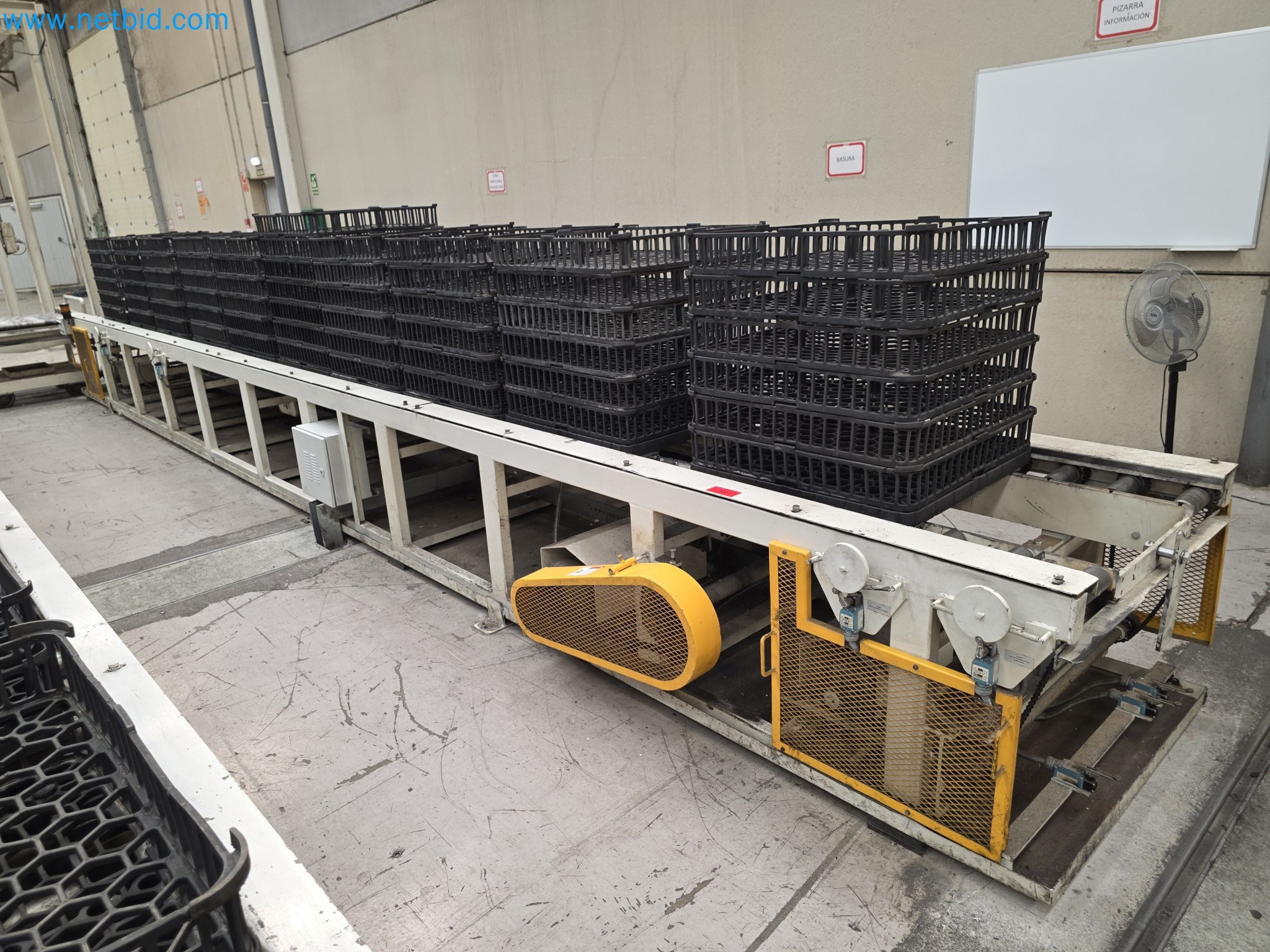

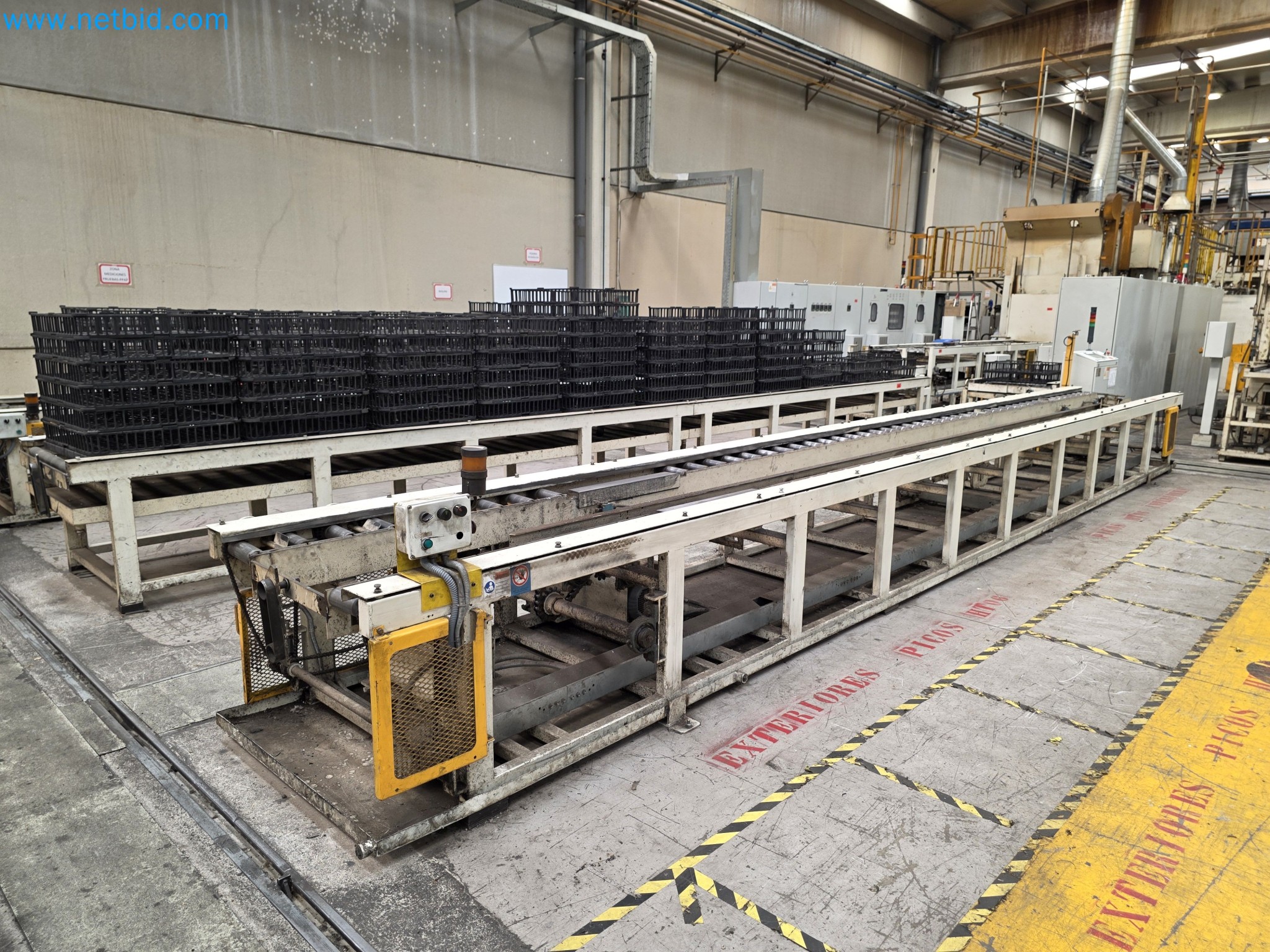

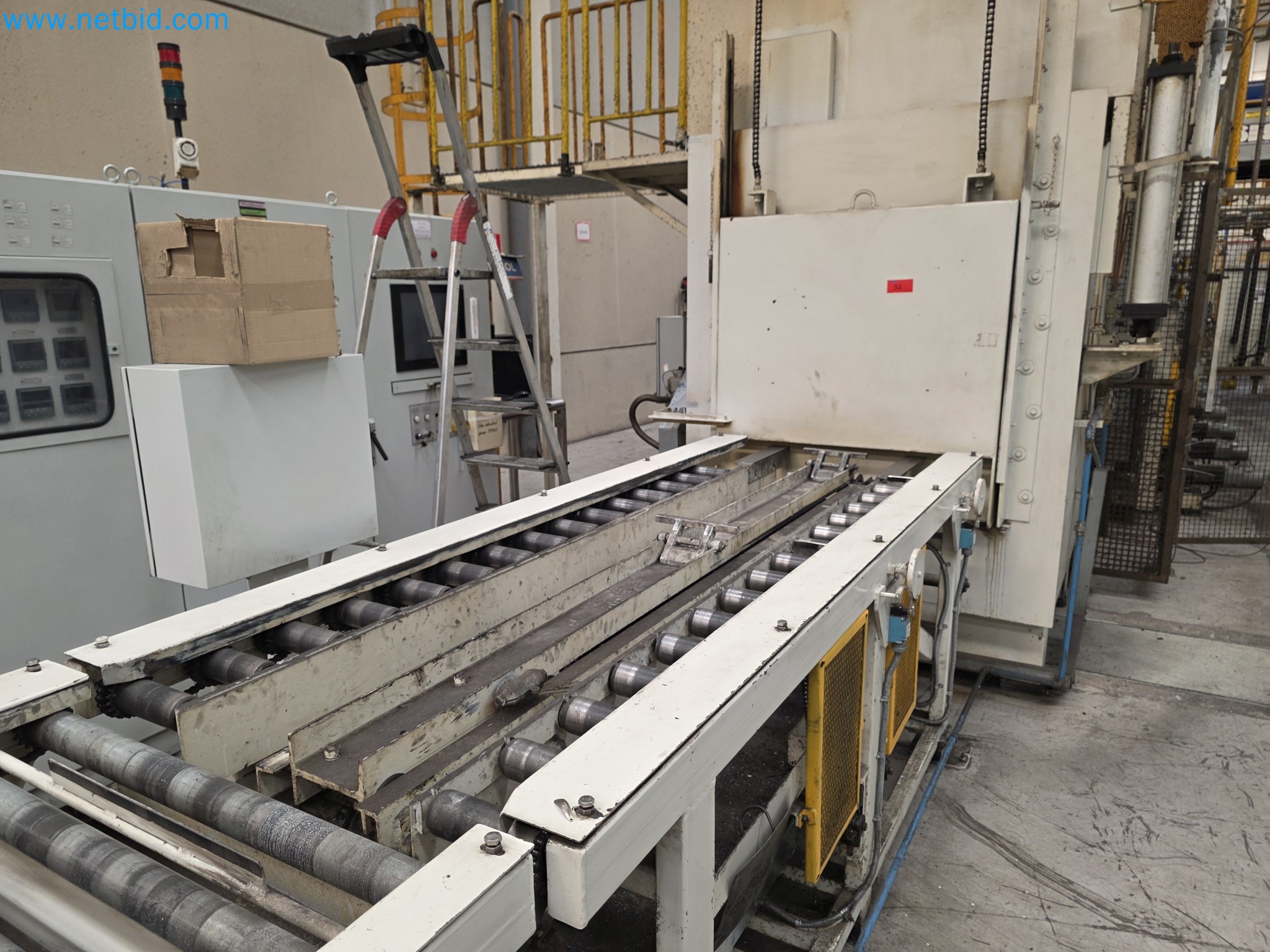

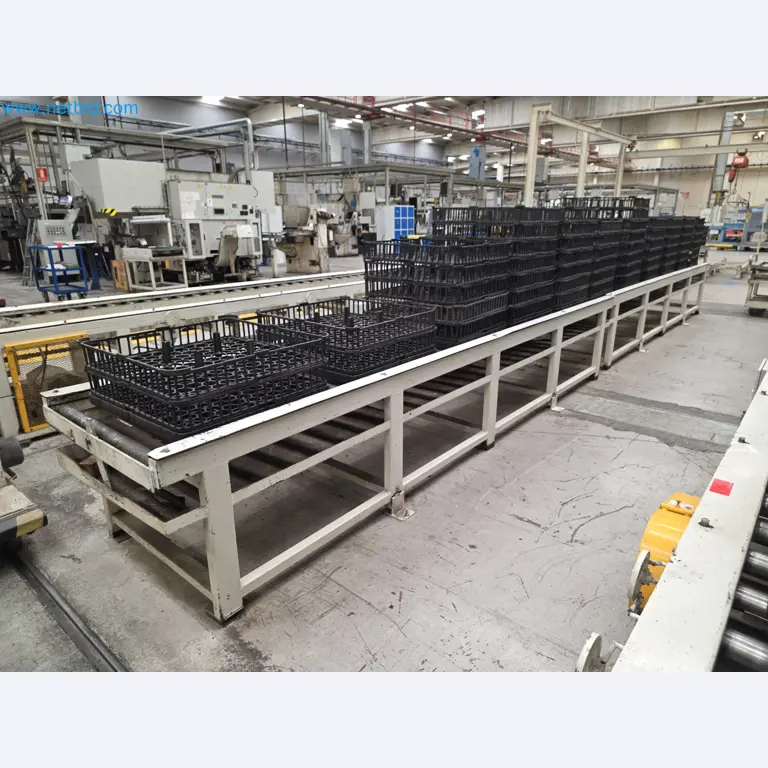

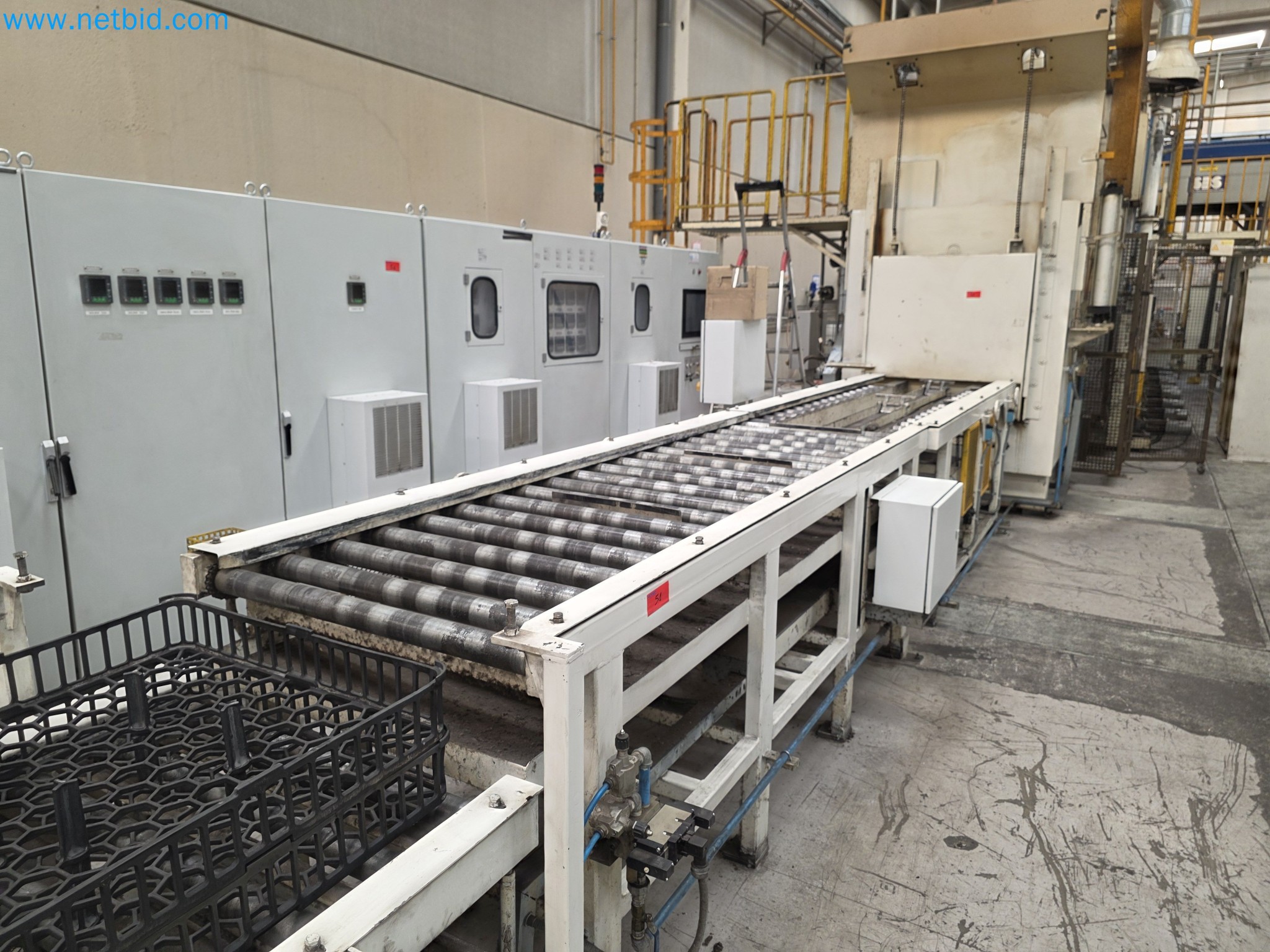

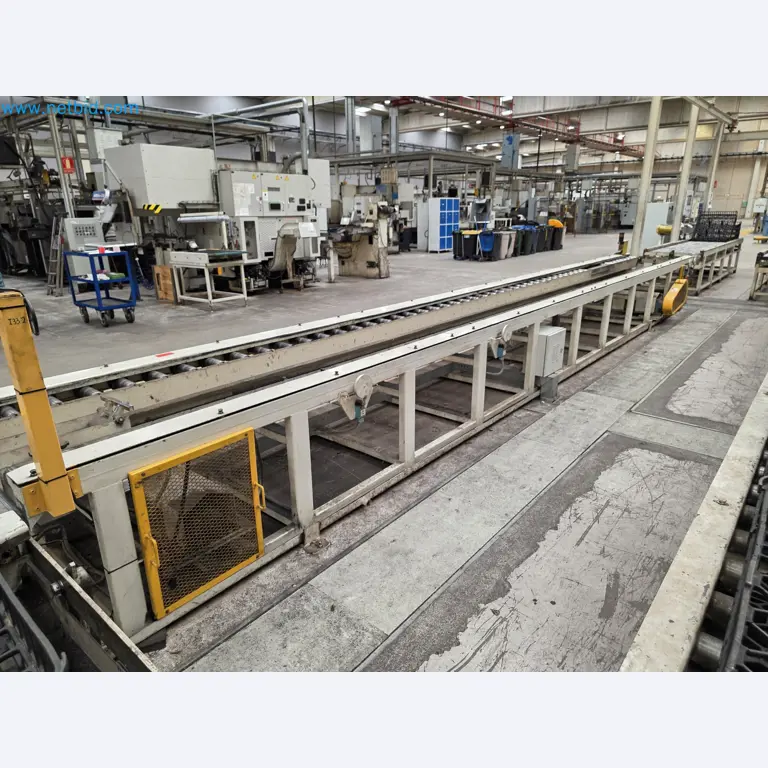

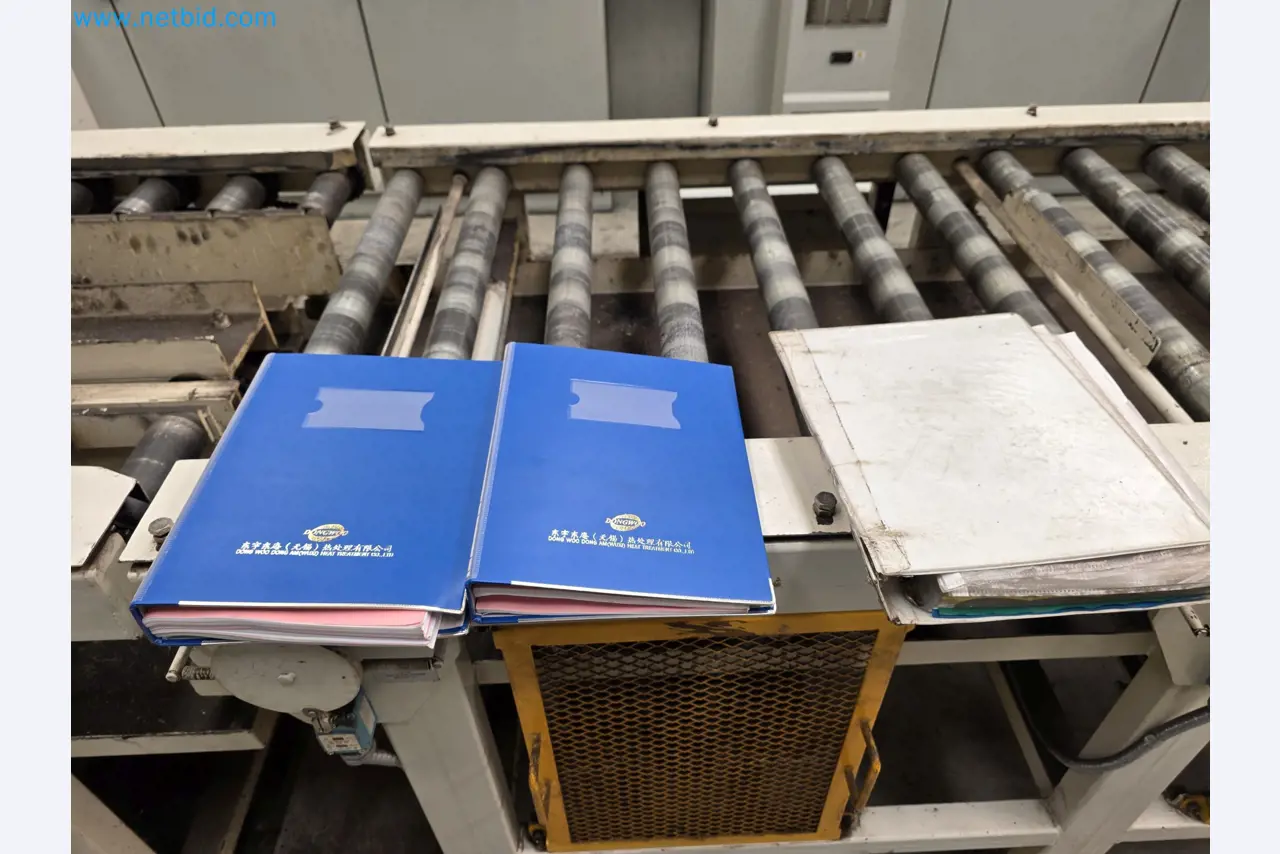

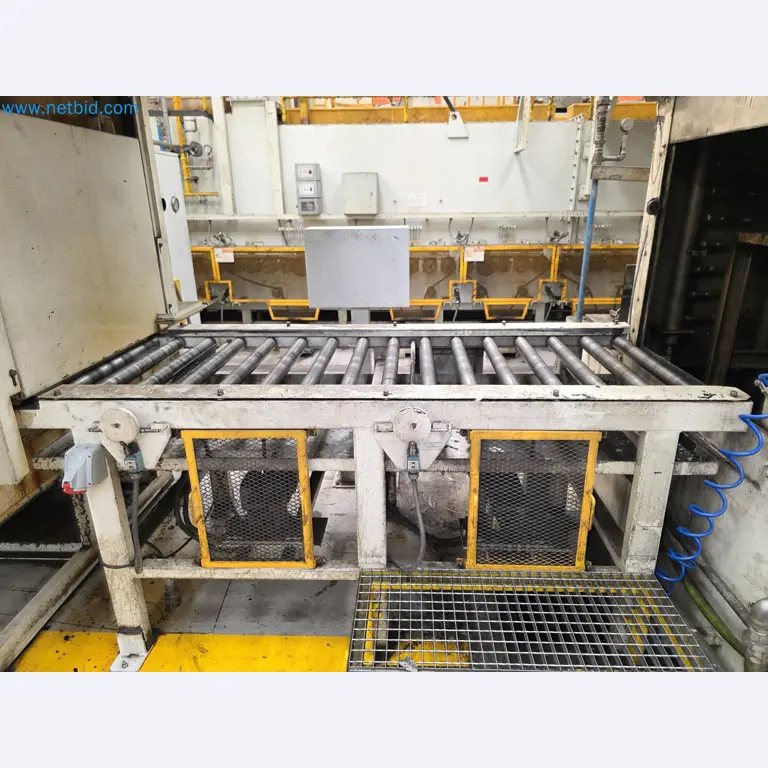

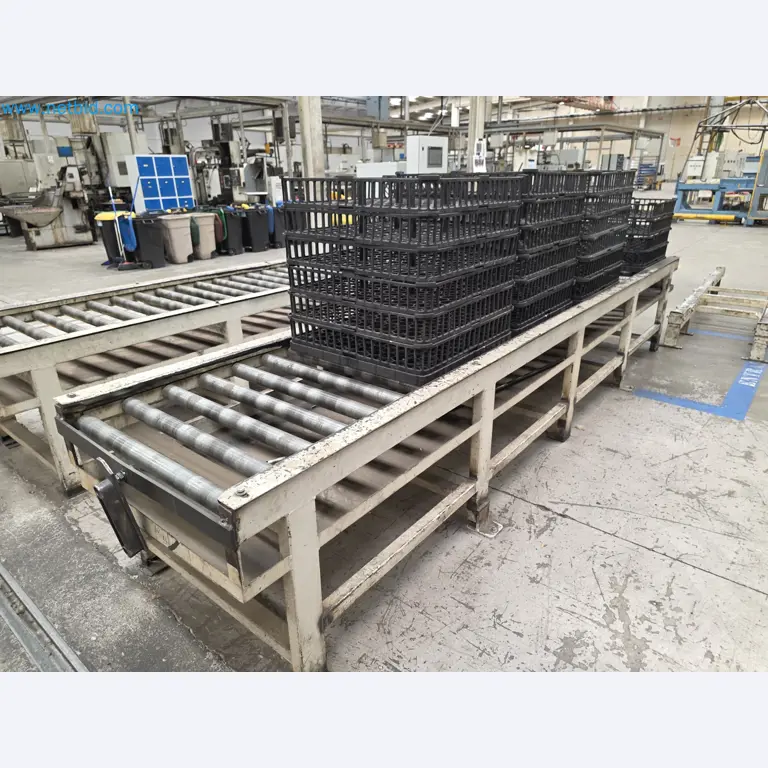

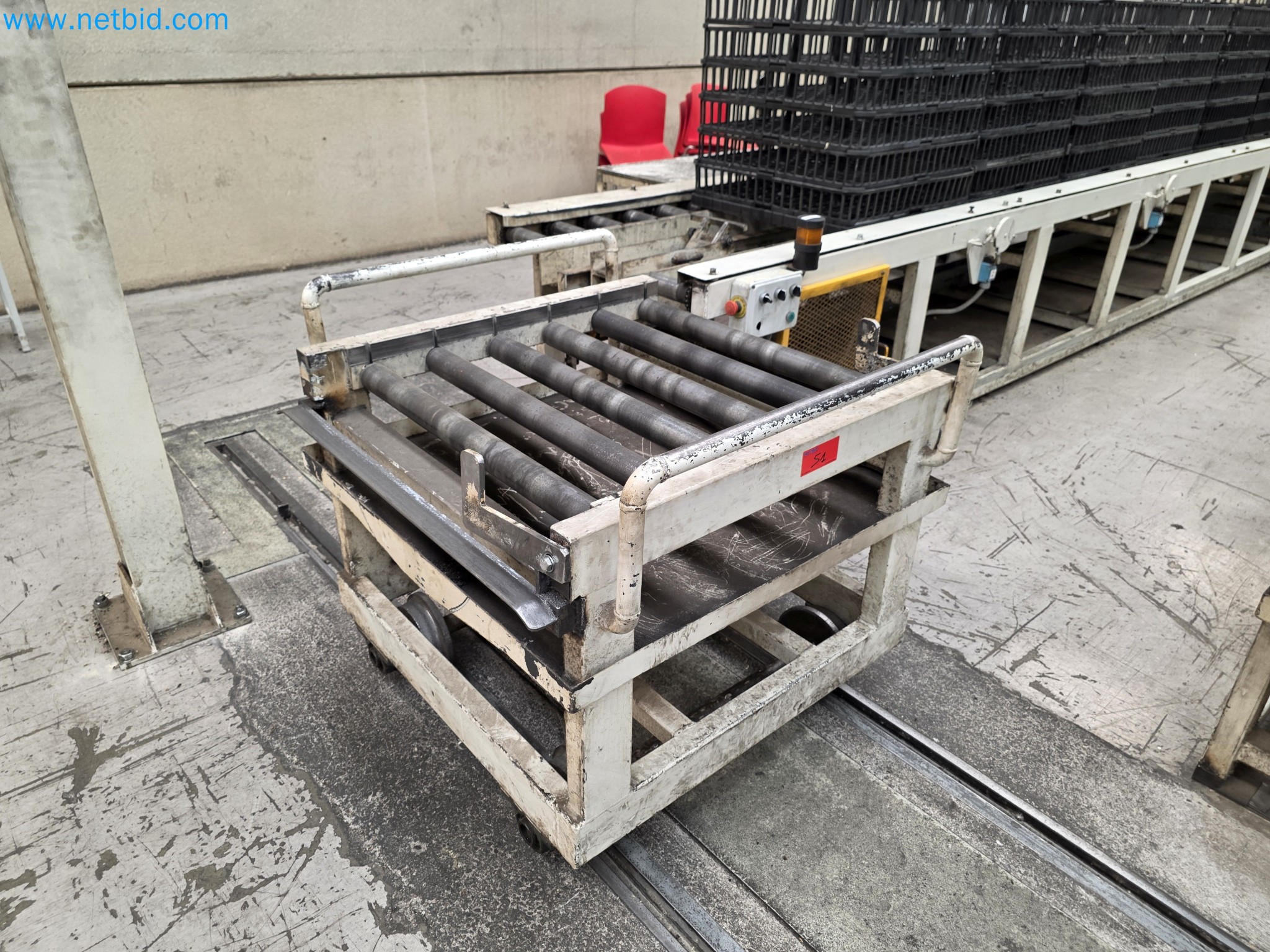

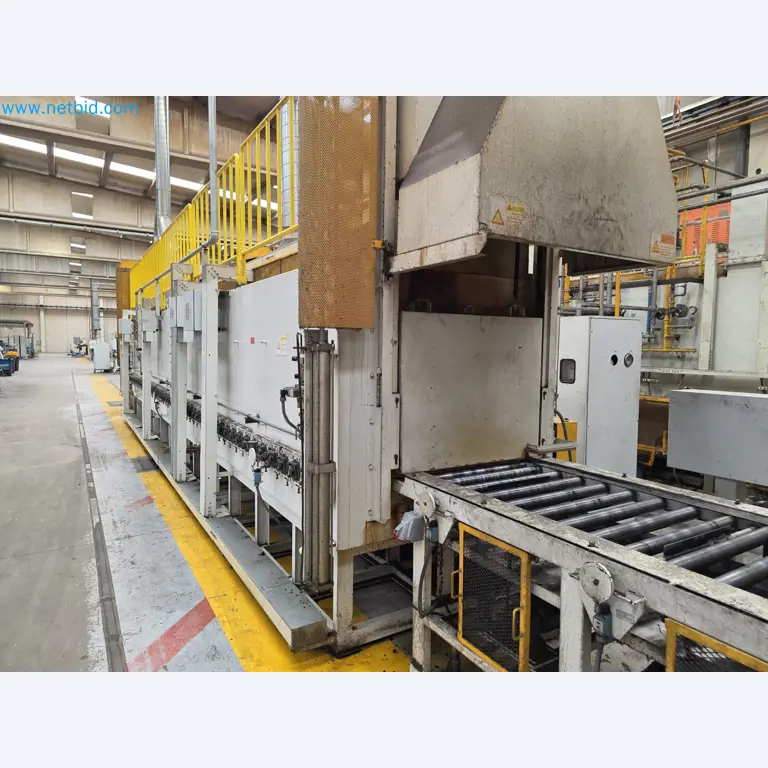

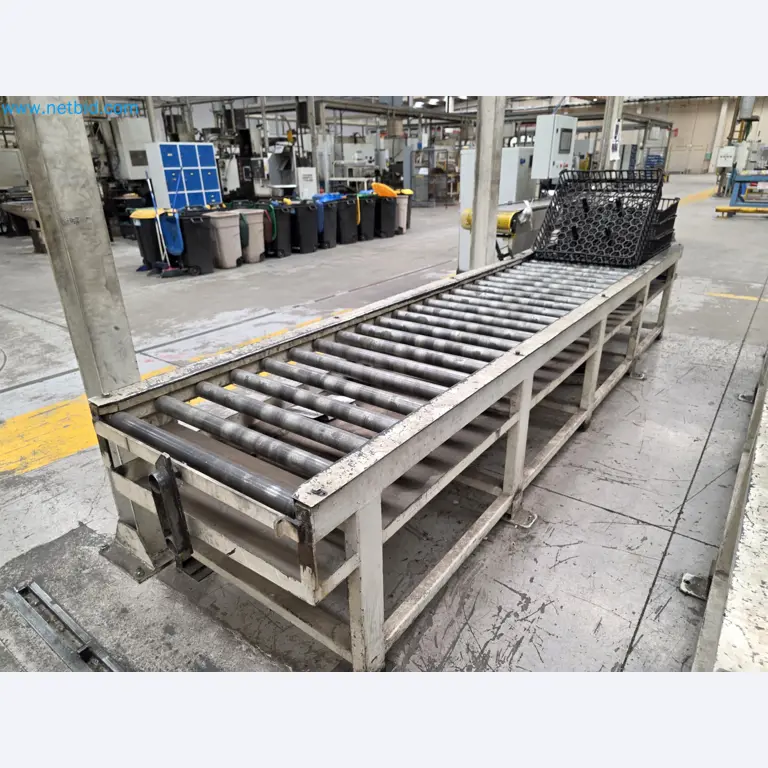

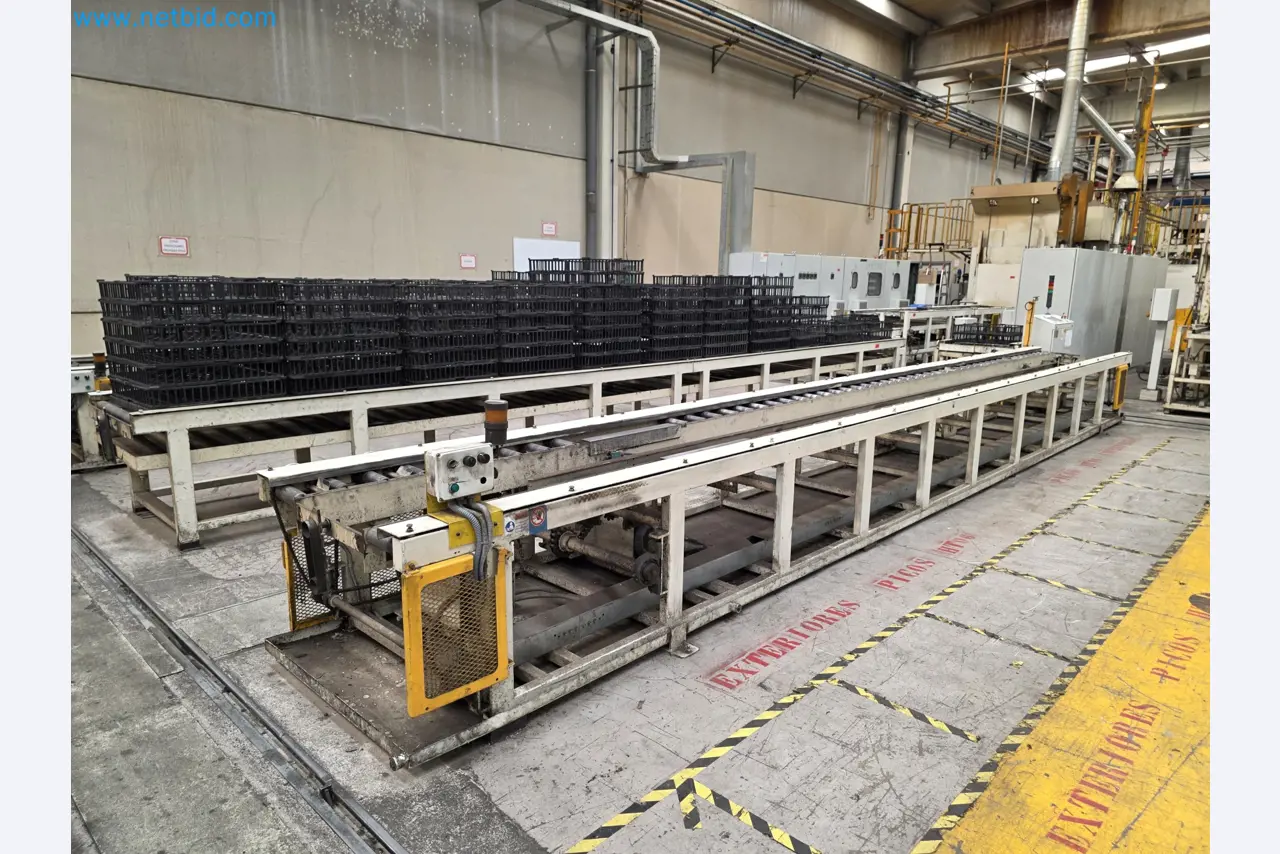

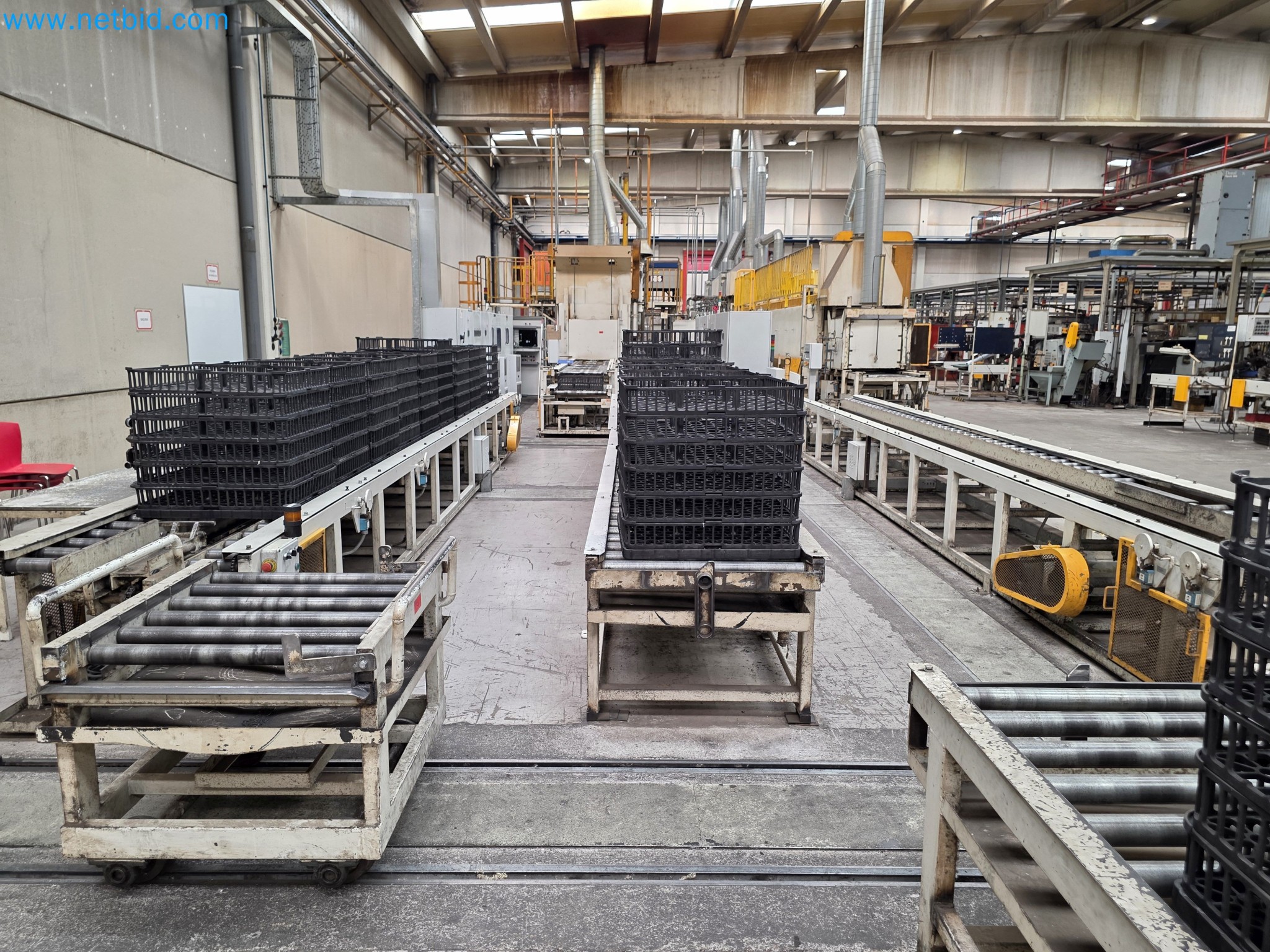

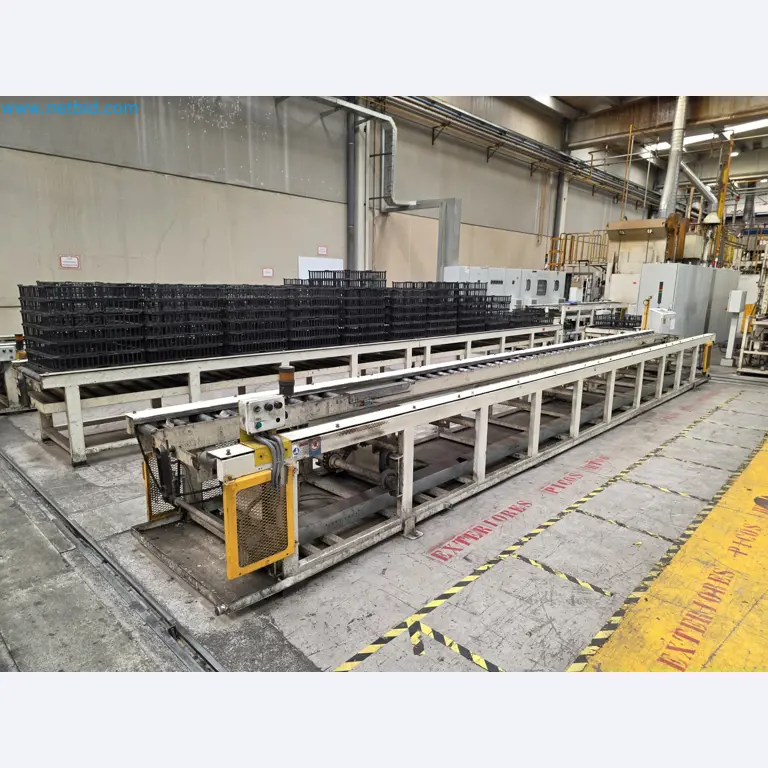

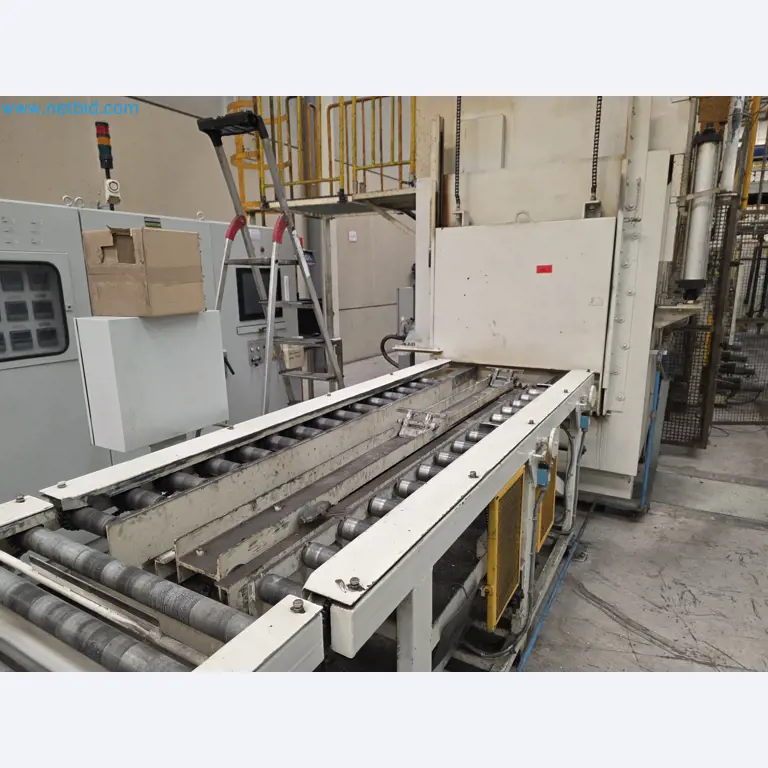

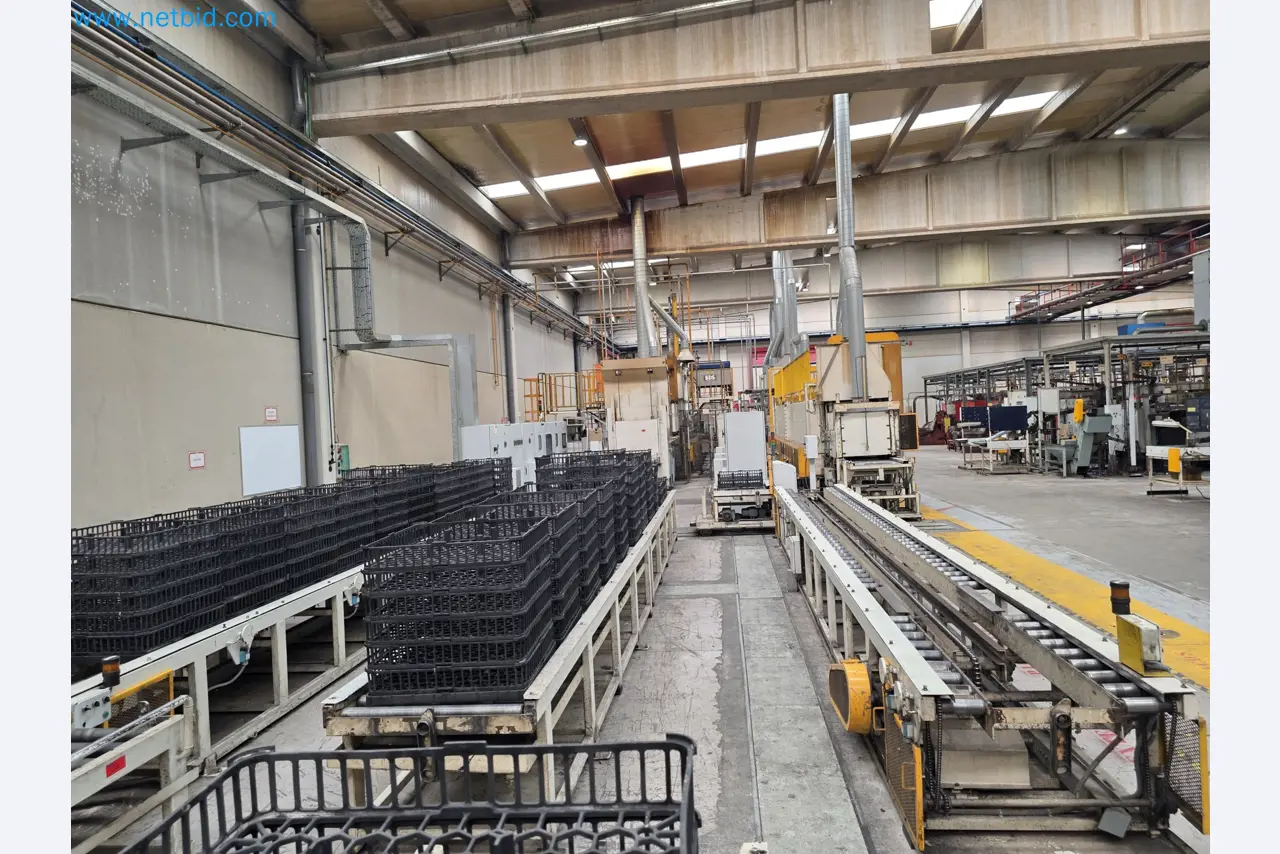

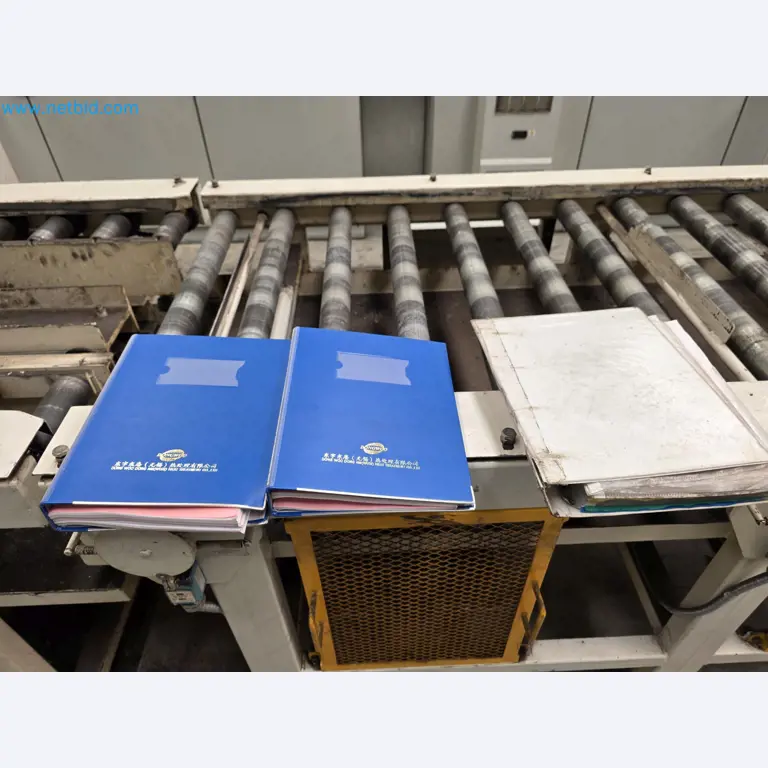

Roller conveyors included:
· 3 roller conveyors of 9060 x 1000 x 800 mm
· 2 roller conveyors of 4500 x 1000 x 800 mm
Trays not included!!

Dimensions: 44000 x 10000 x 6000 mm
