Washing machine KLÖPPER 2600TRADING#A19335-127

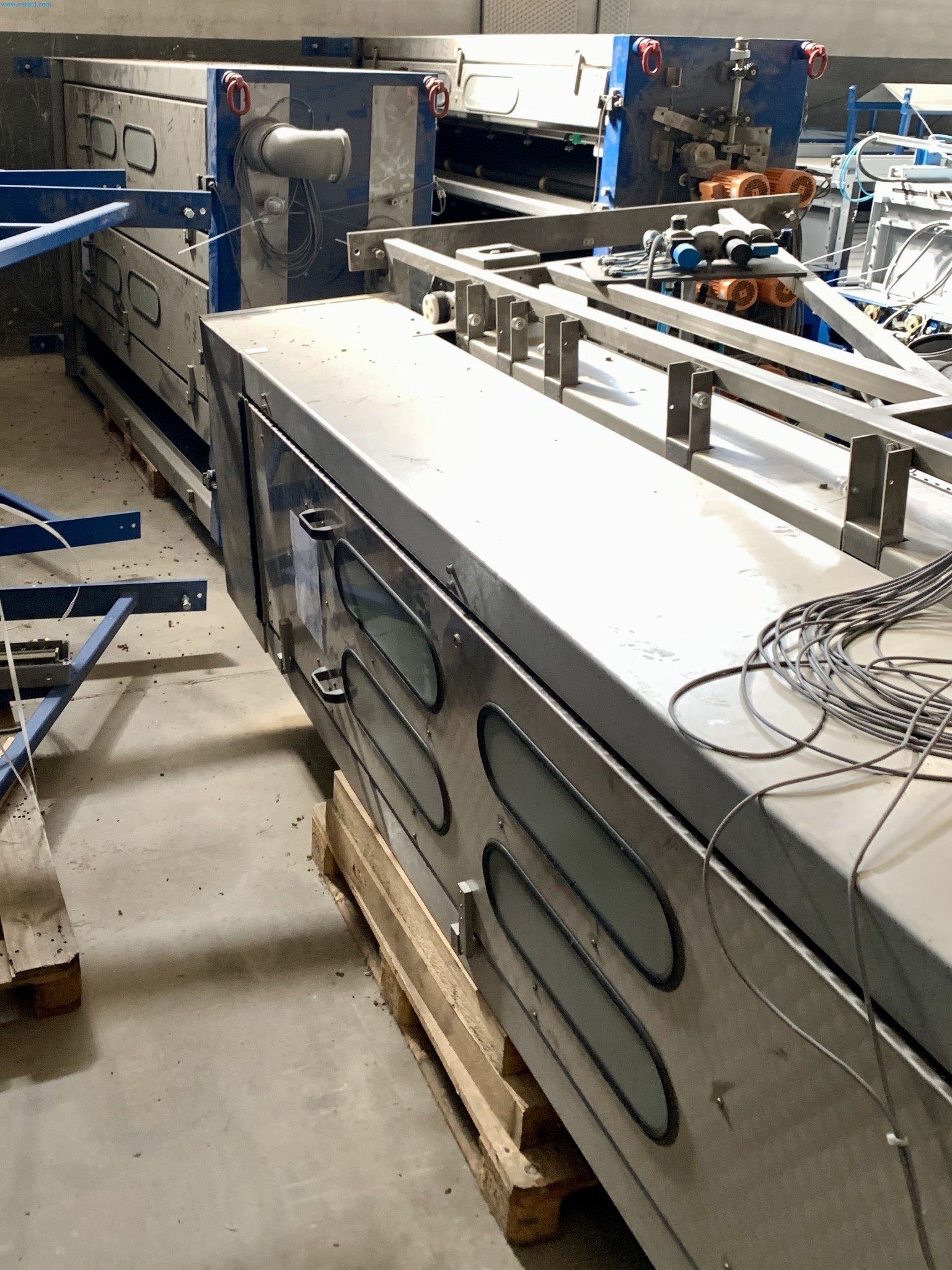

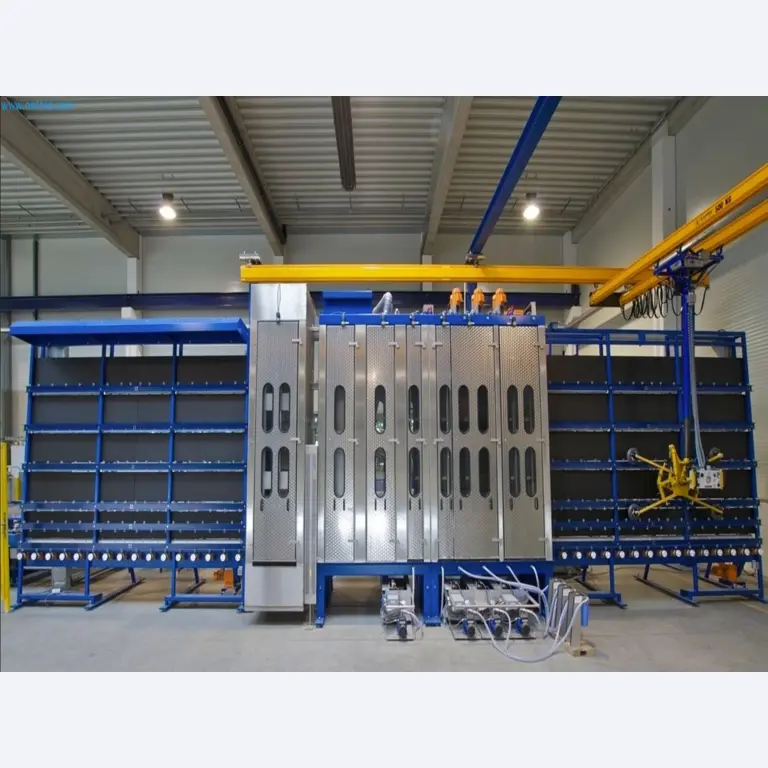

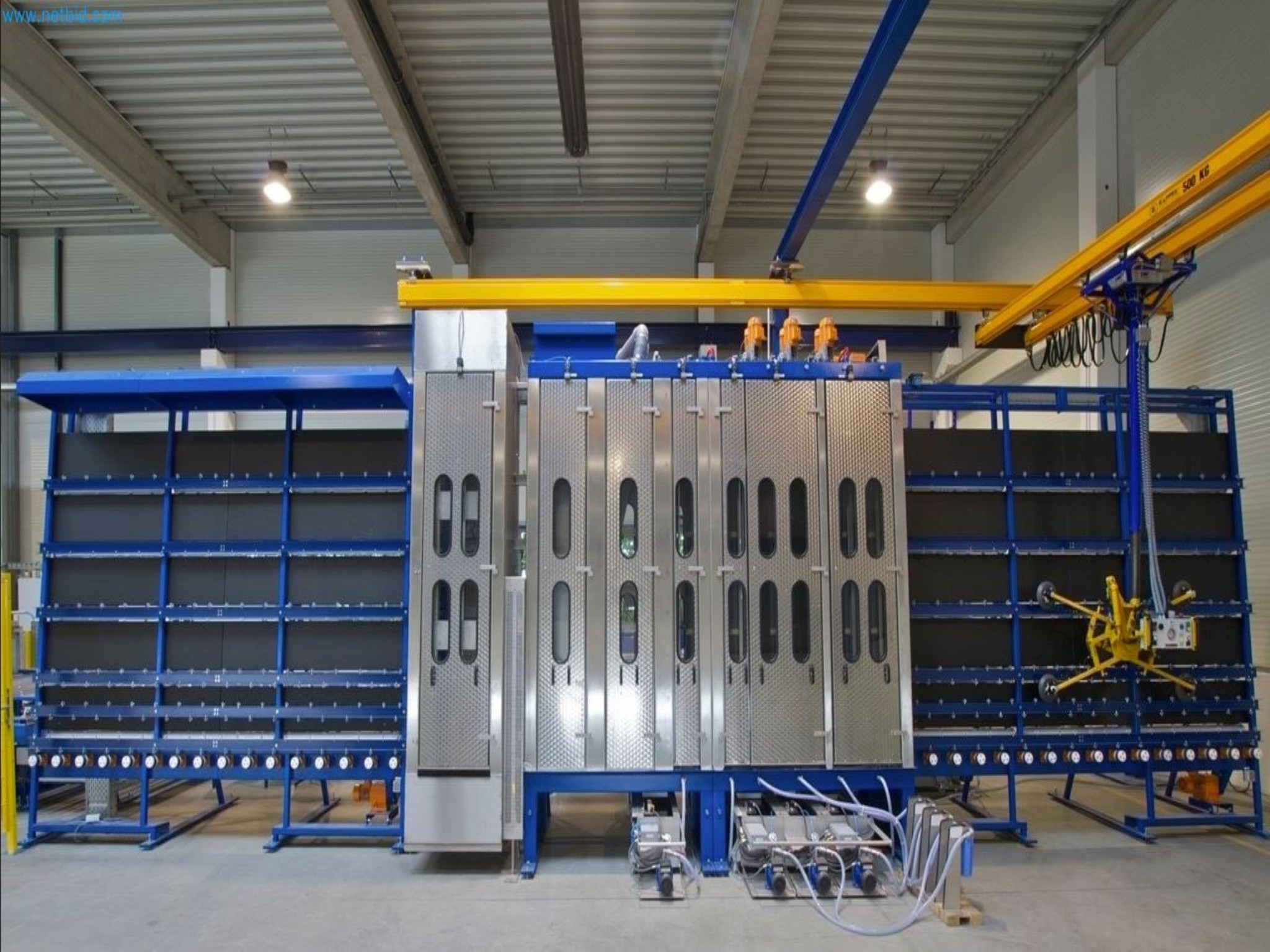

Klopper vertical washer with SIlan station of 2600 mm; 6 brushes as new condition

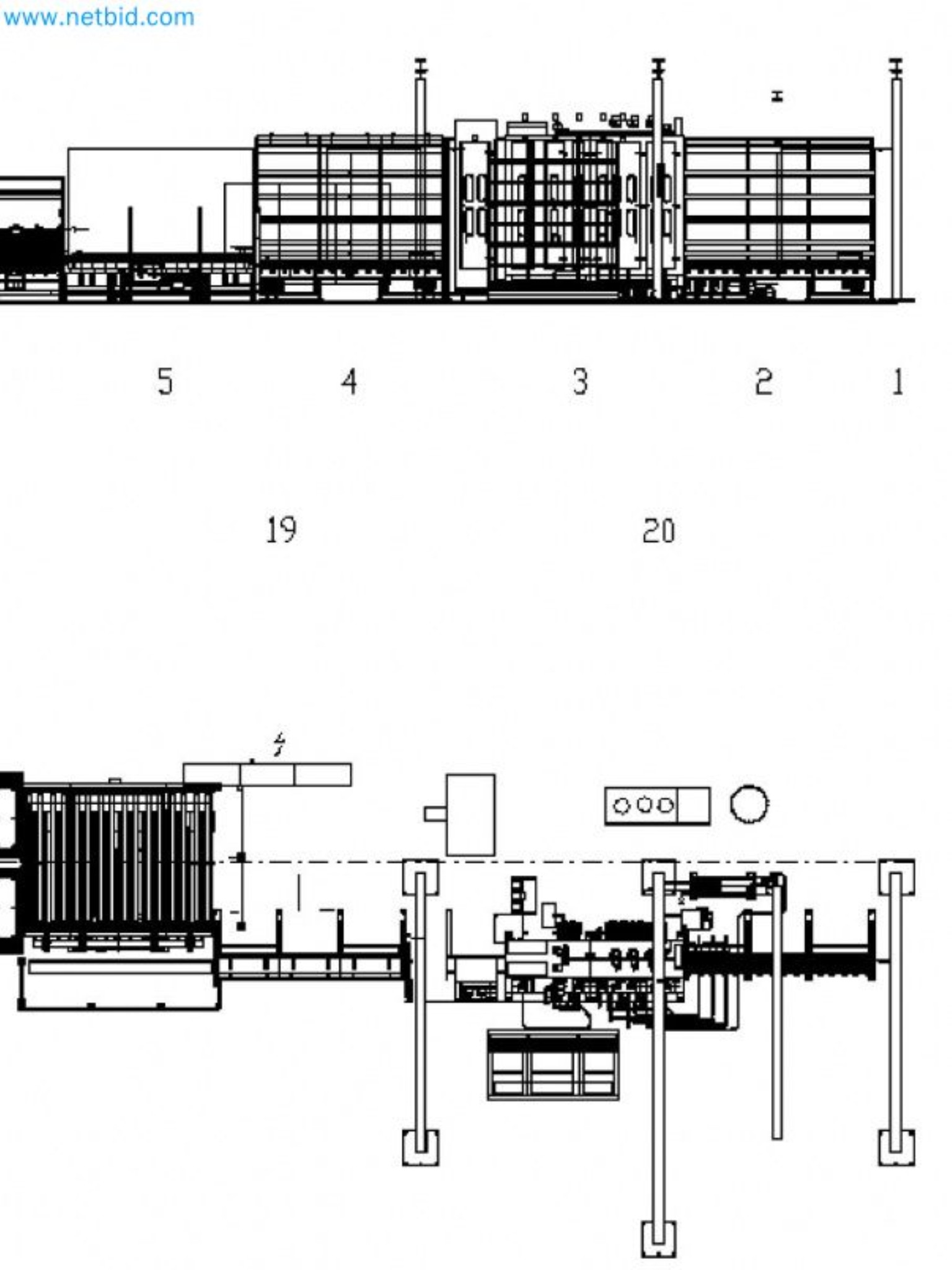

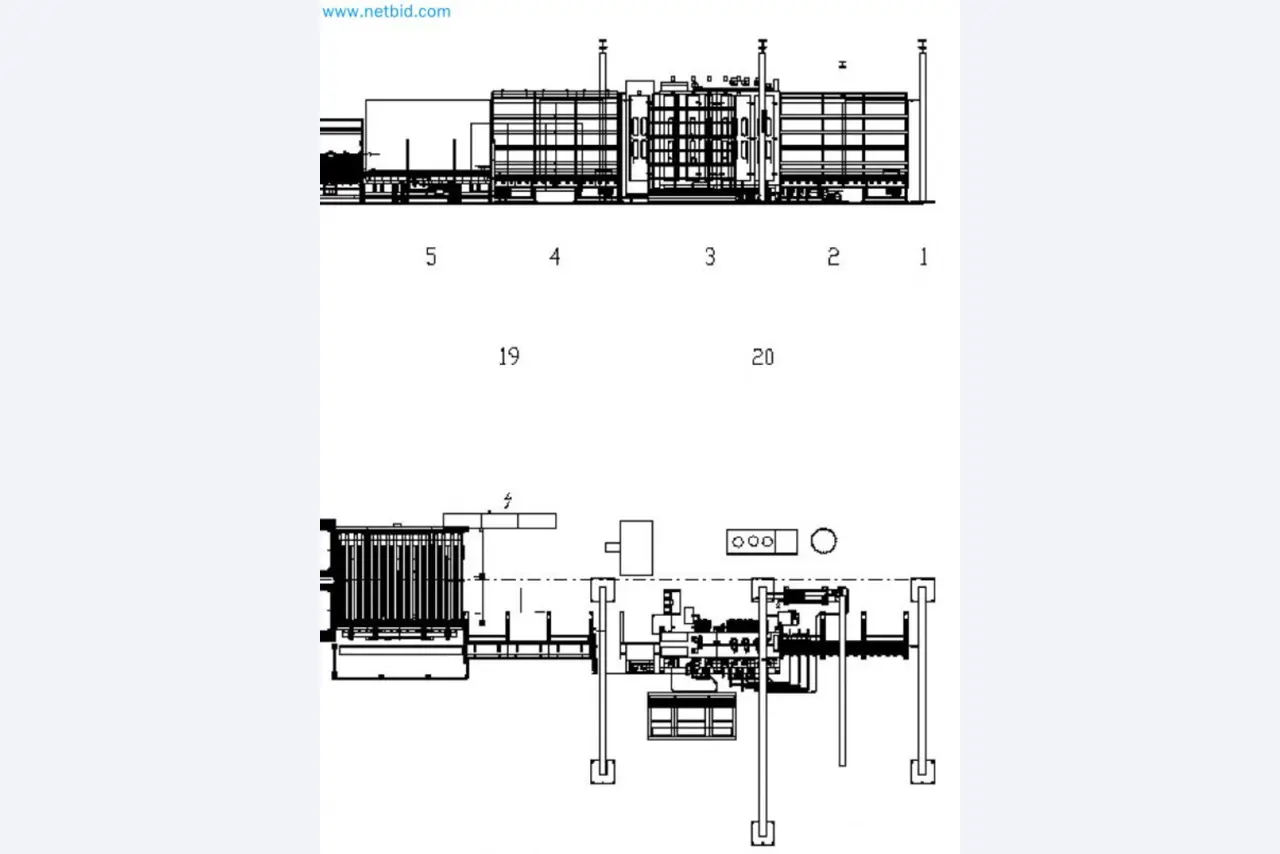

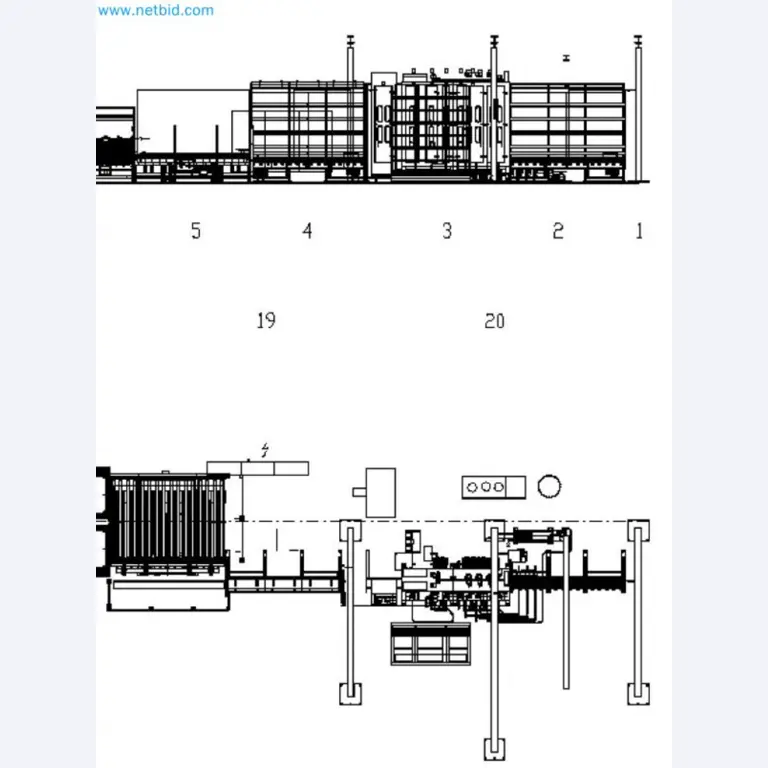

Composition:

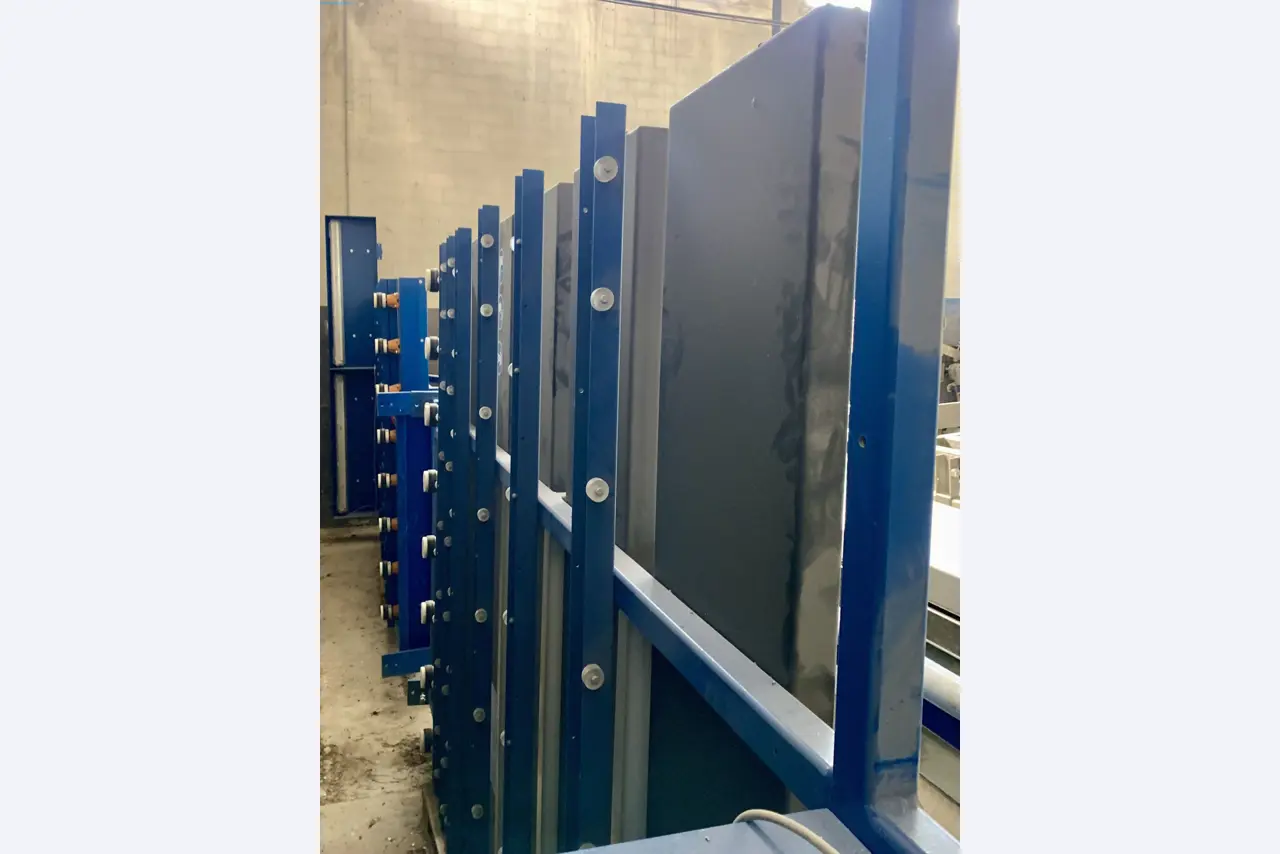

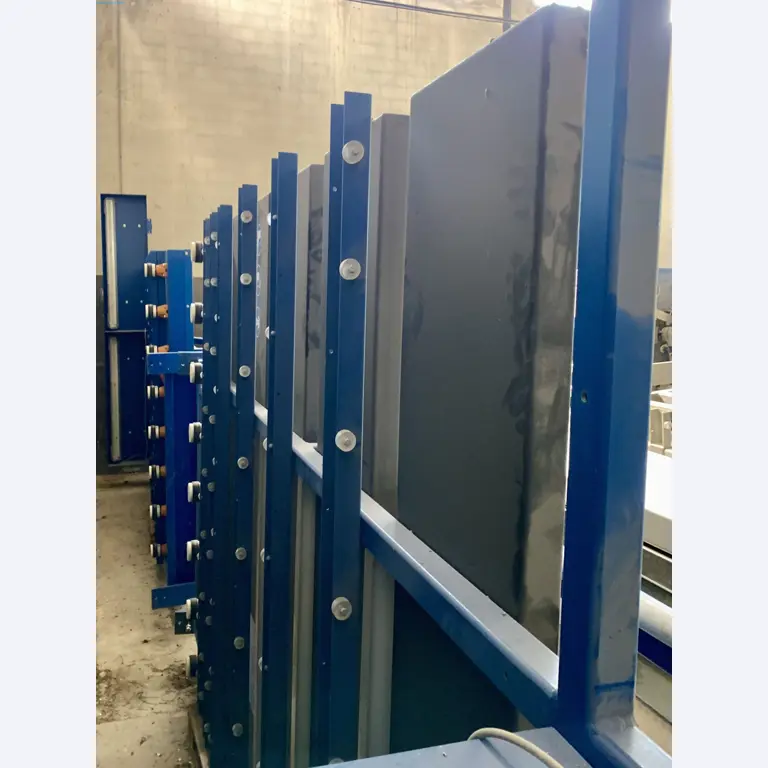

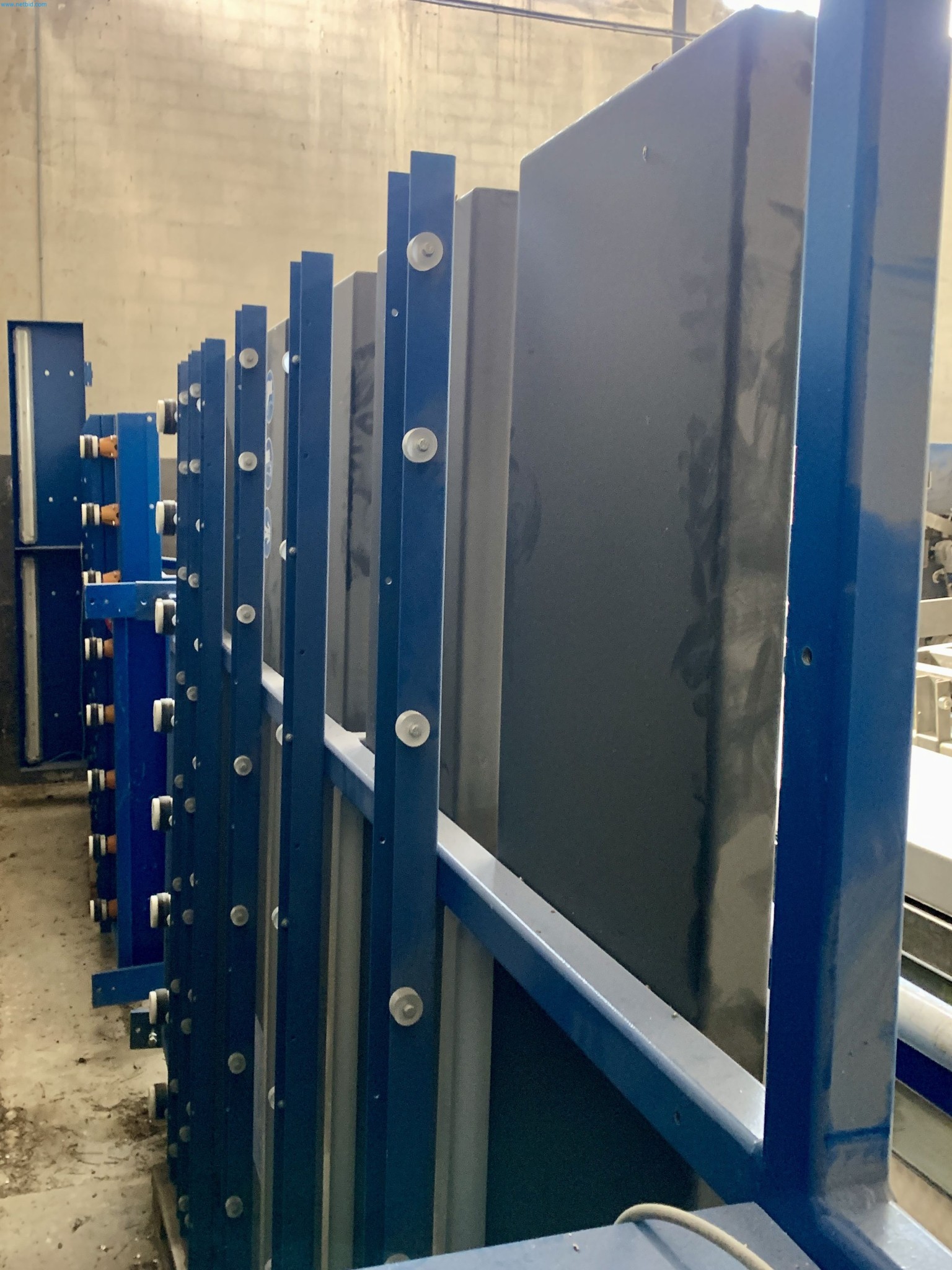

· Pos.1 Vertical Inlet Transport WM
The vertical transport serves as inlet transport in front of the washing machine.

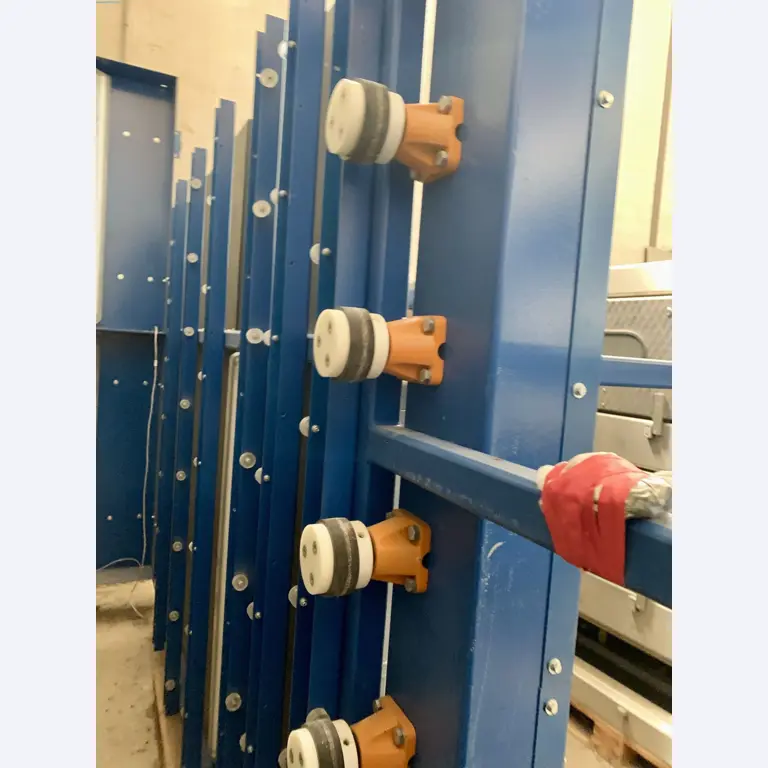

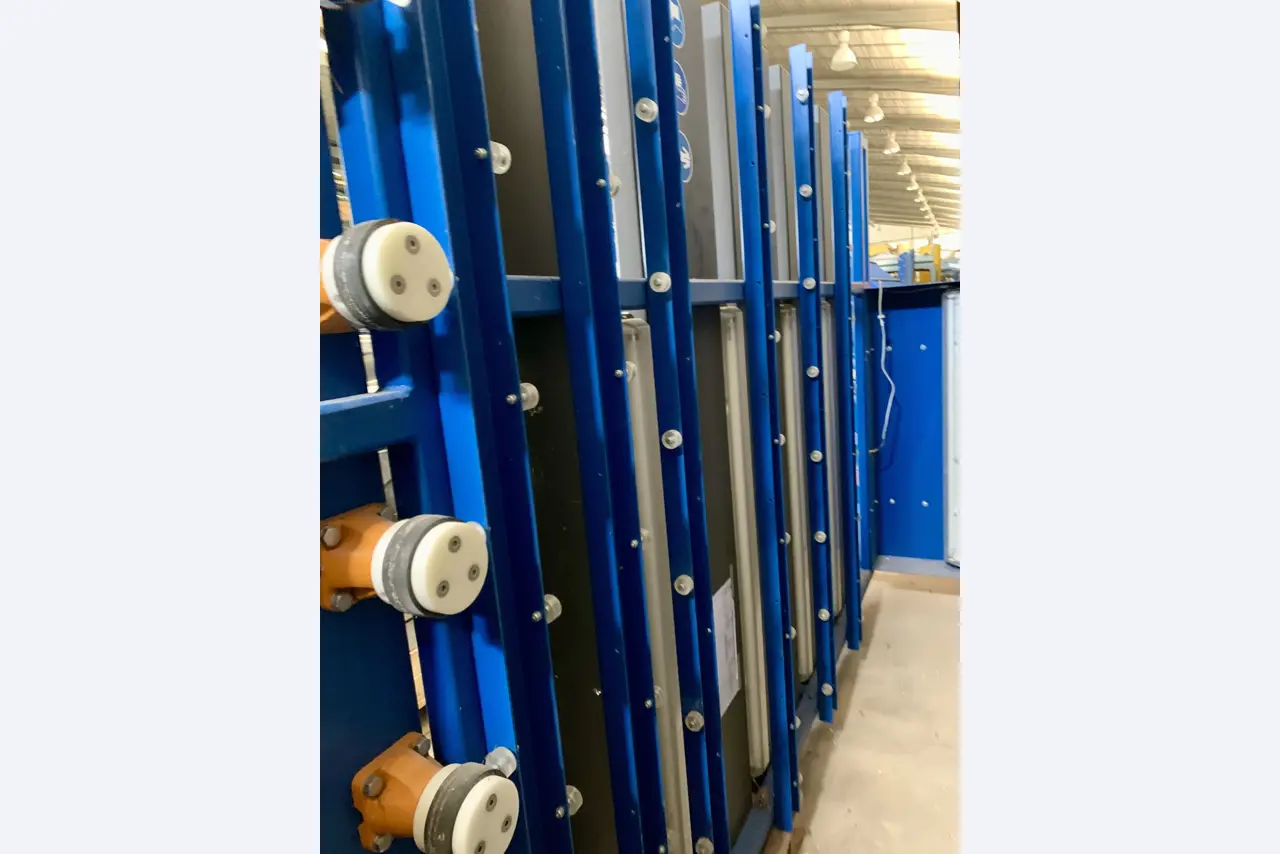

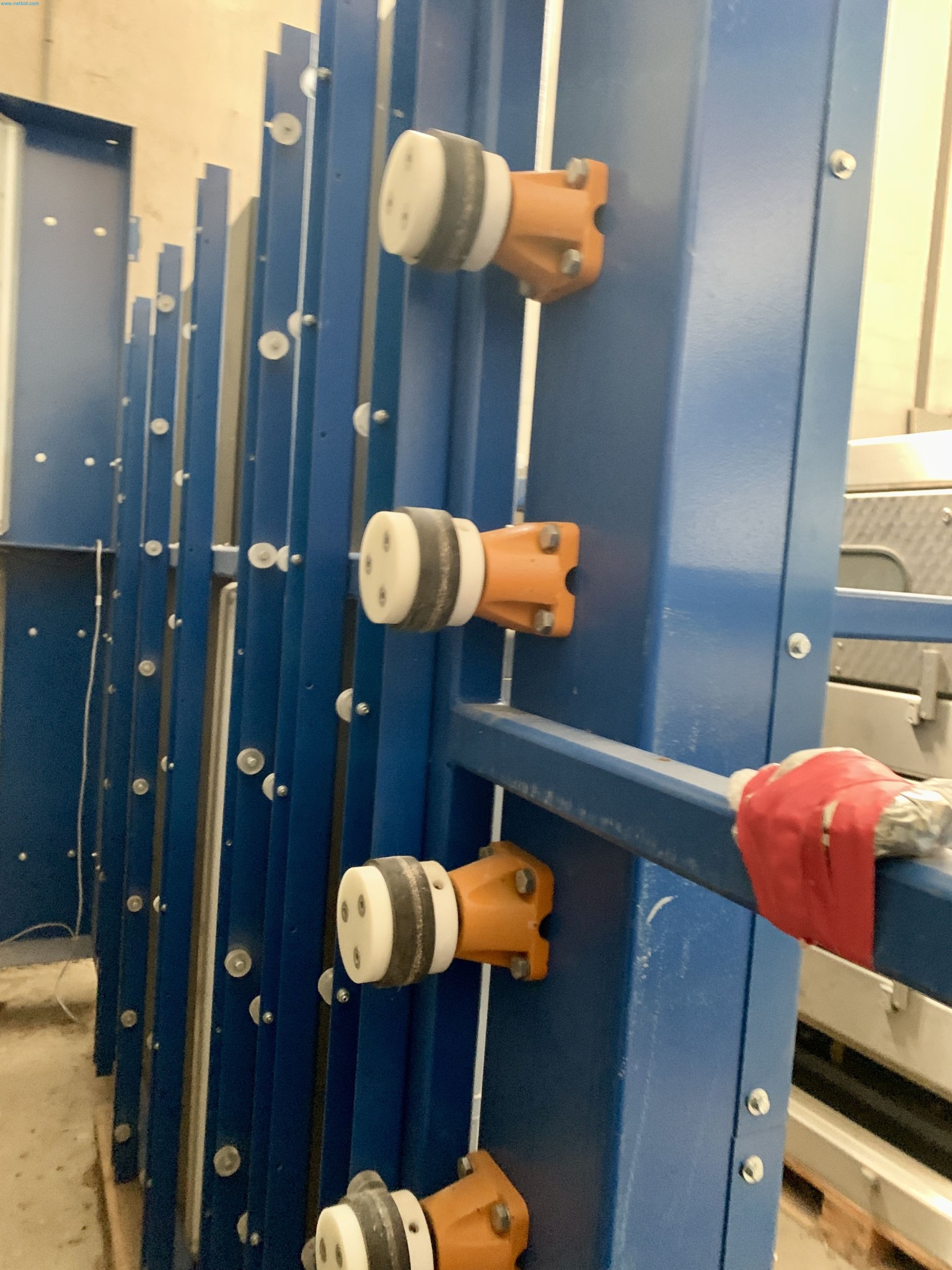

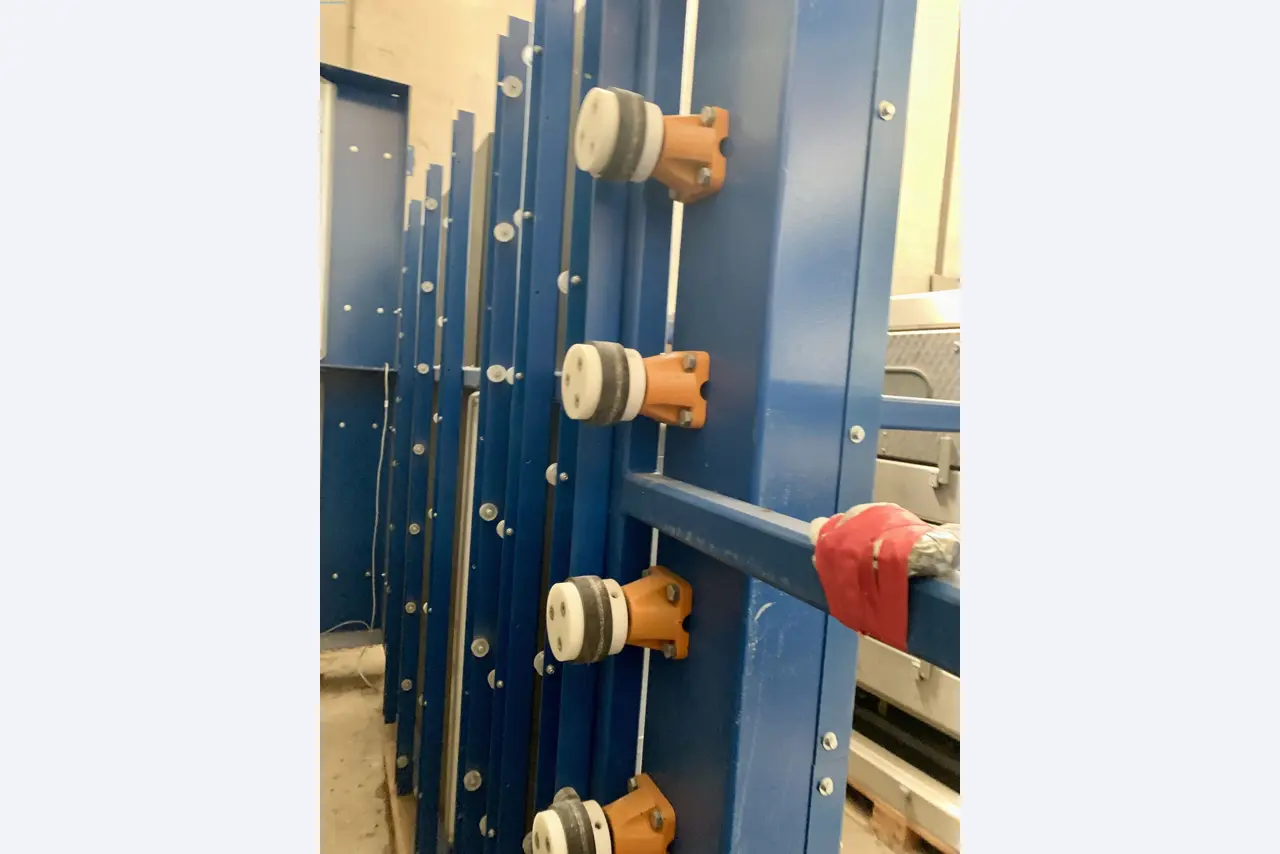

In vertical position, the glass sheets are placed on Vulkollan transport rollers.

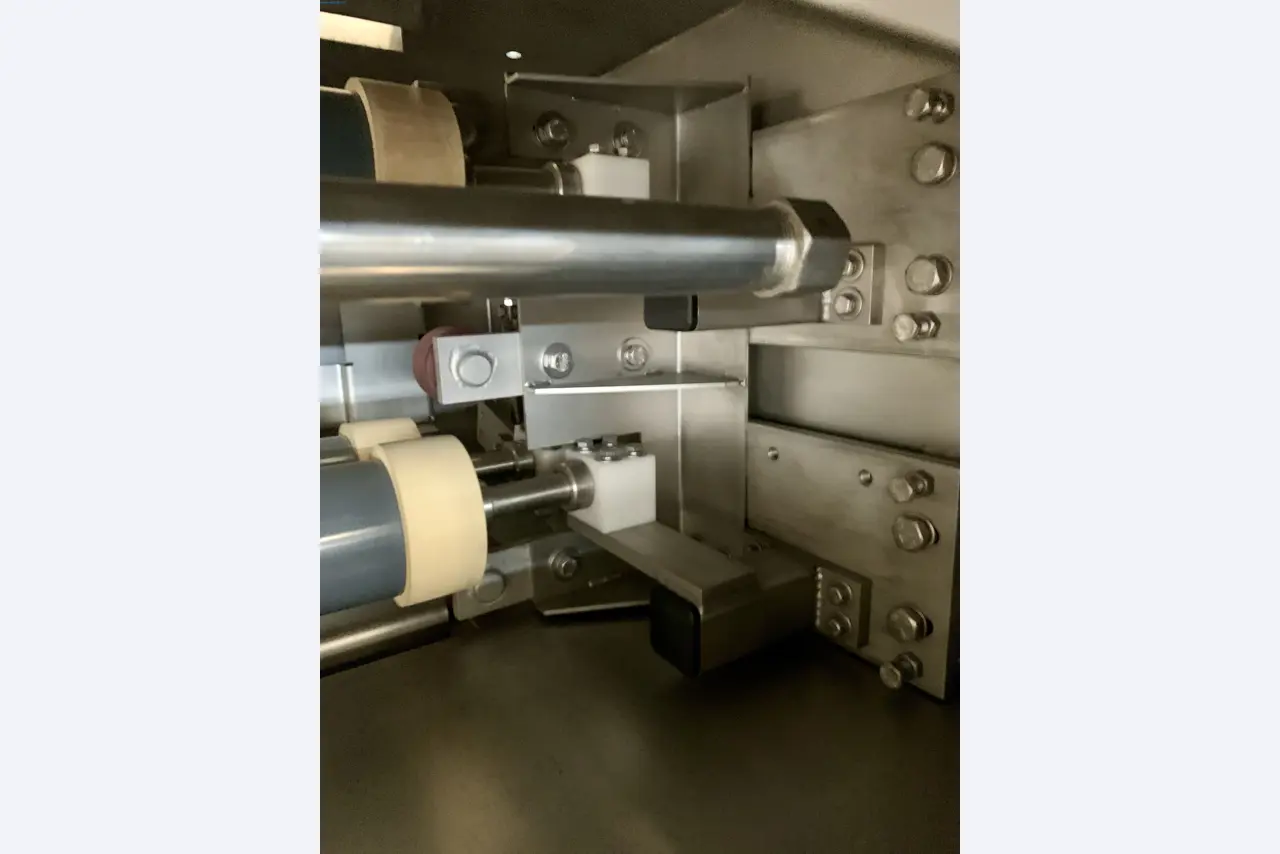

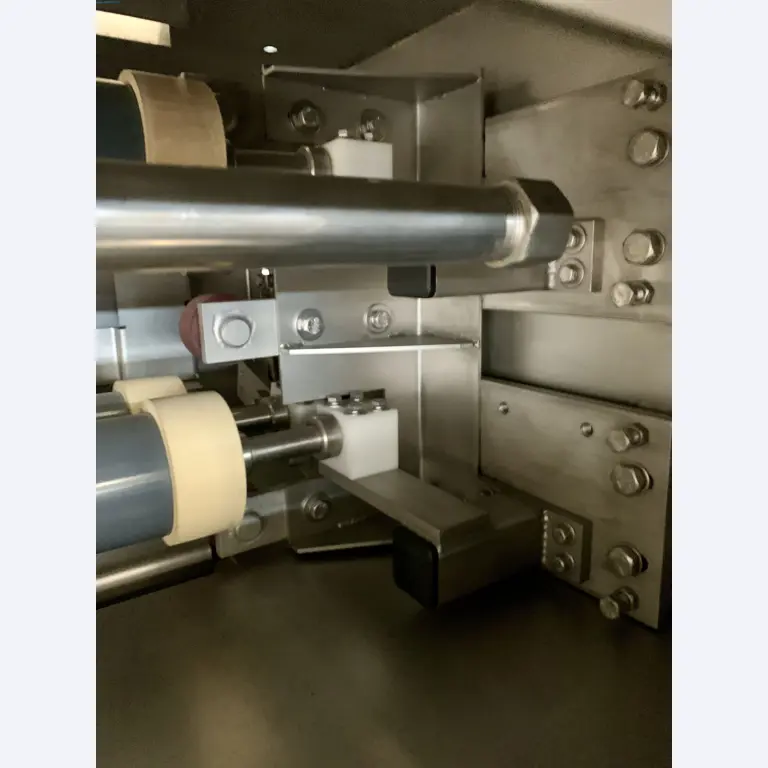

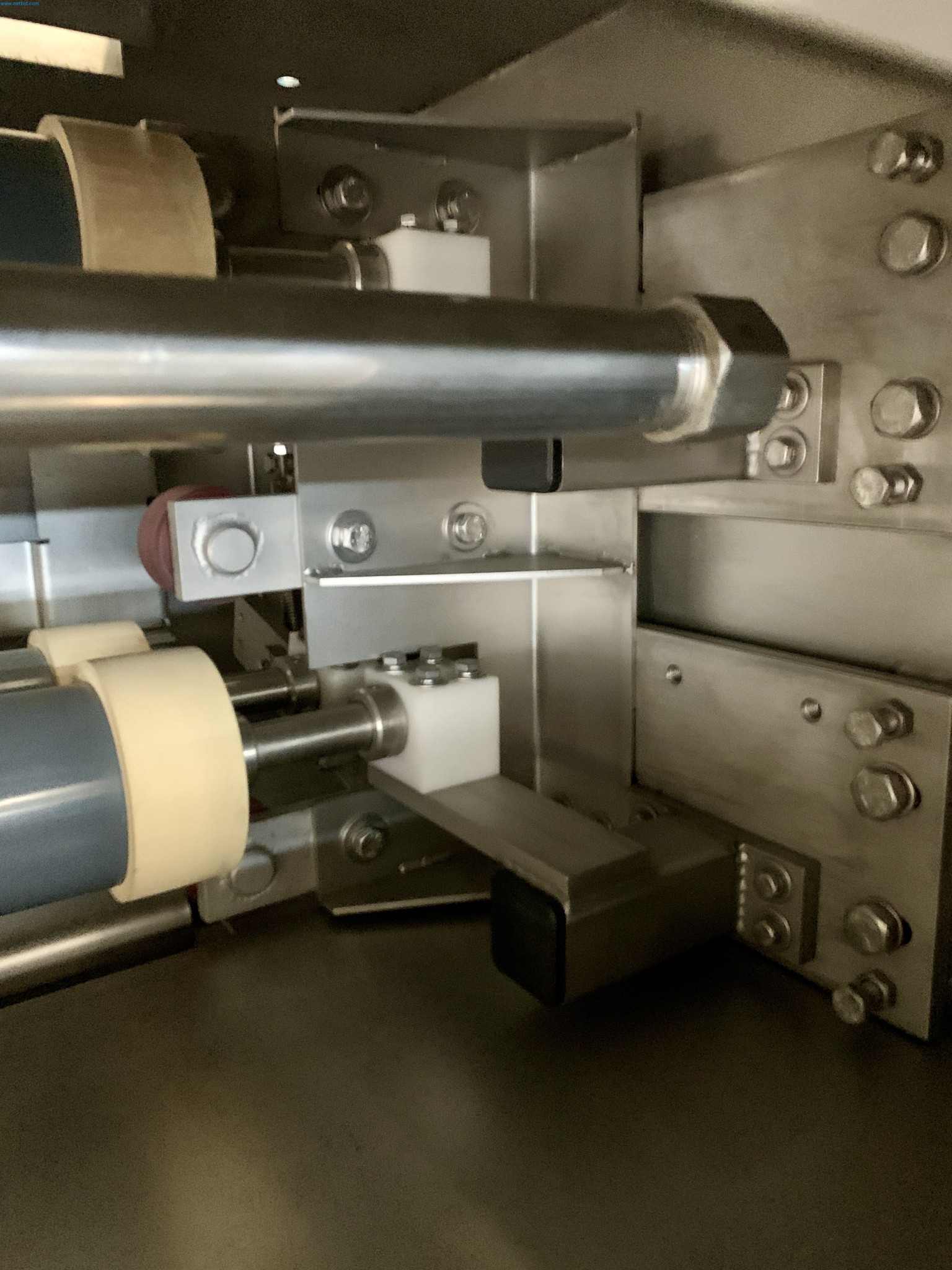

In vertical position transport rollers with Perbunan rings are driven via screw wheels. The transport rollers are arranged in drag bearings placed on a solid welded frame.
Small glass sheets are placed manually on the transport frame. After placing the glass sheet, the transport is activated by push button.

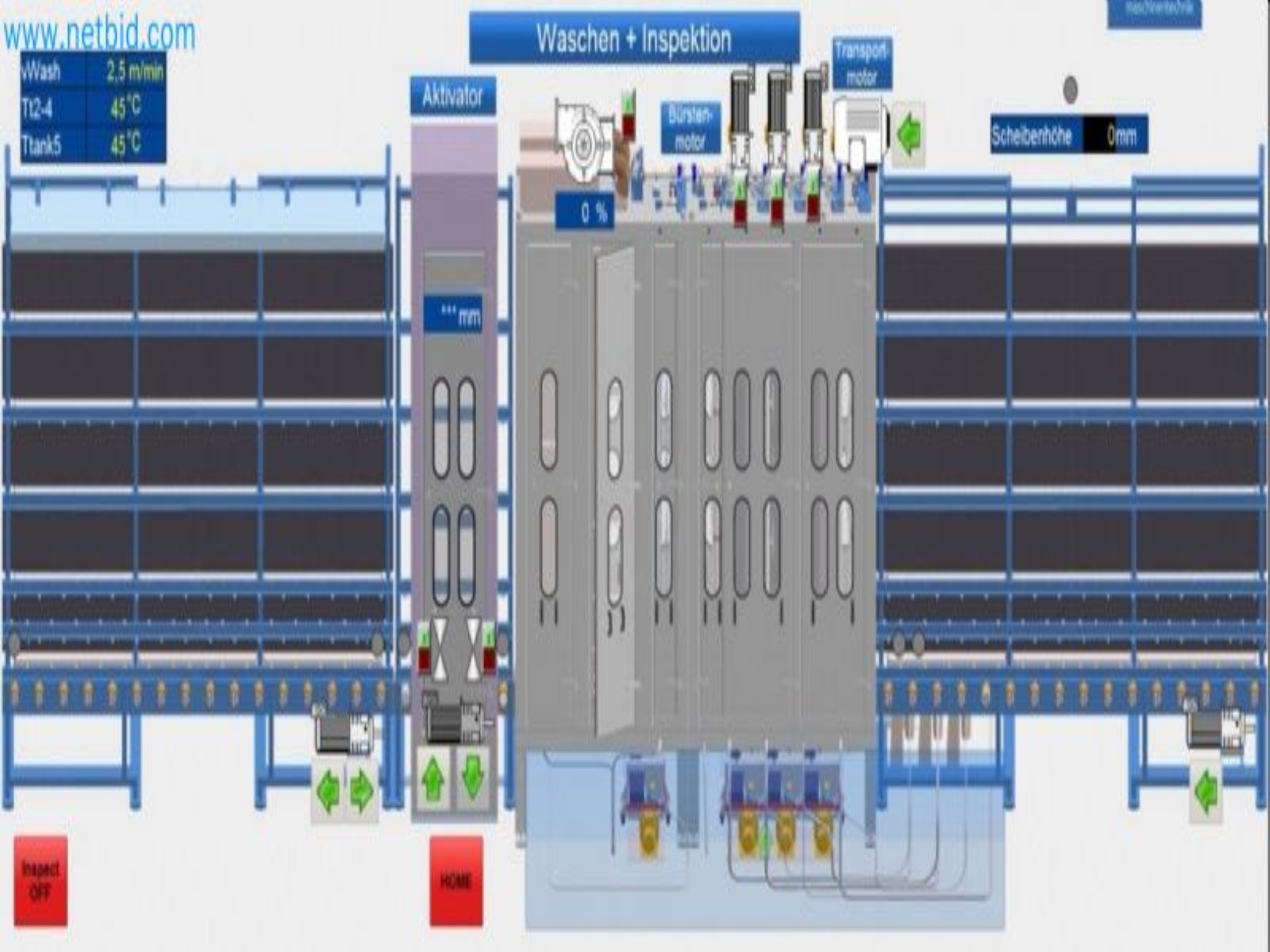

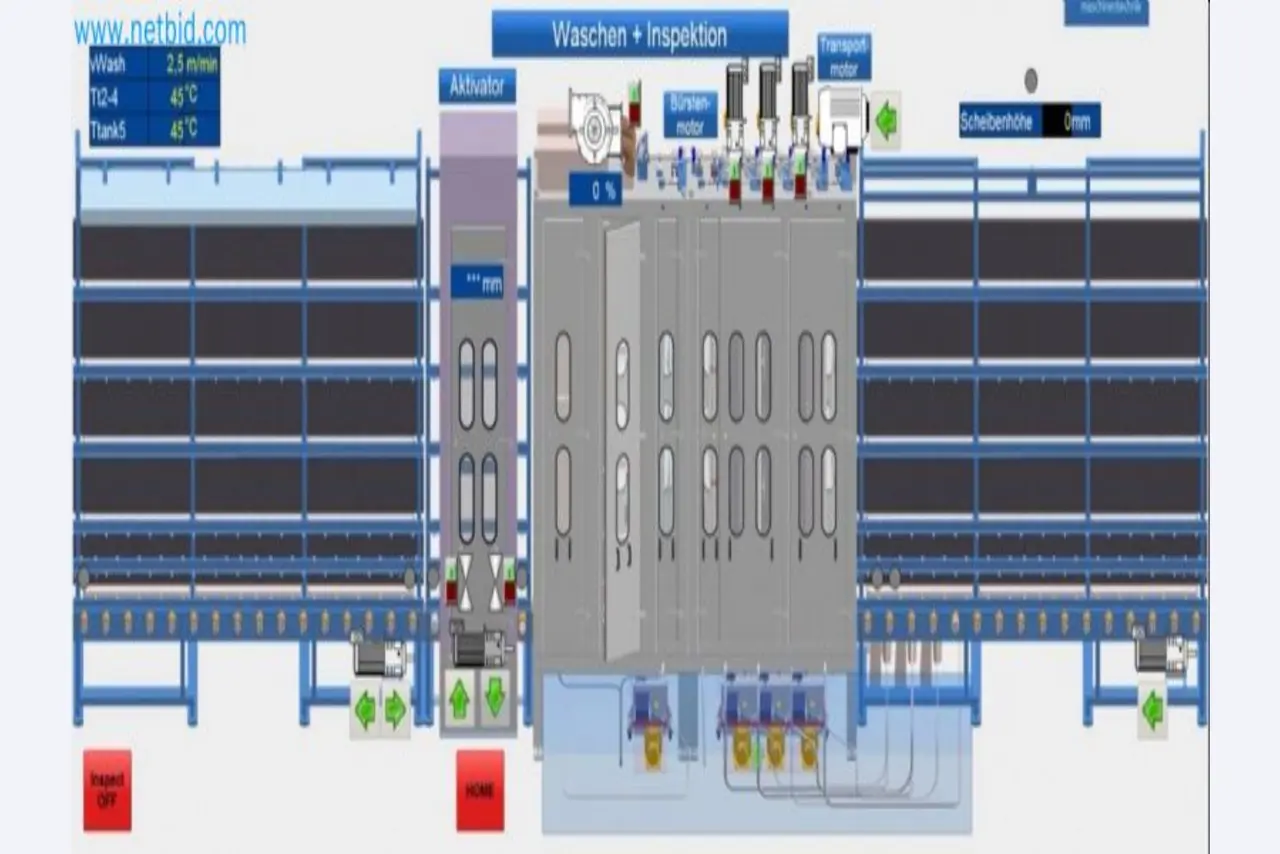

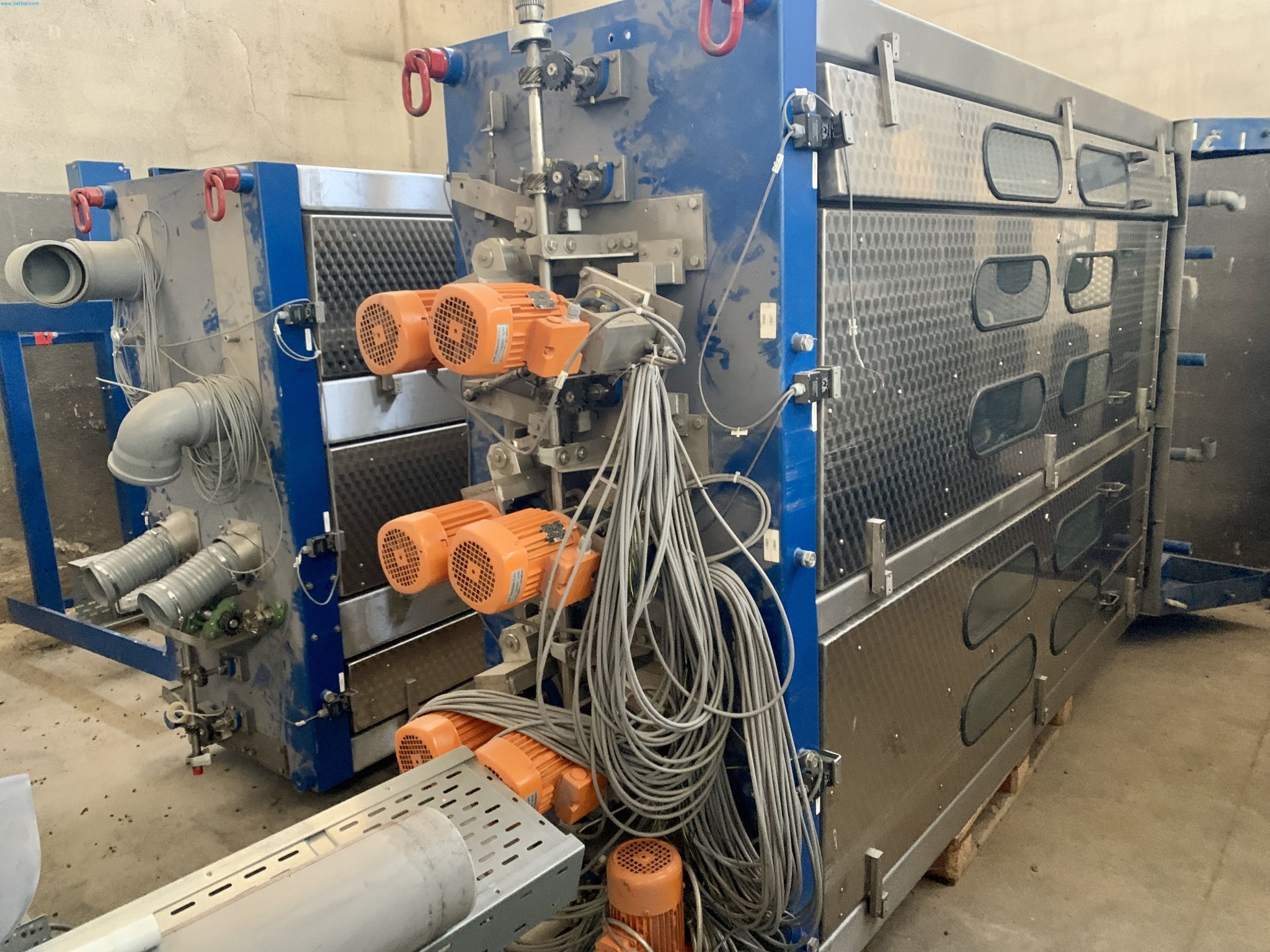

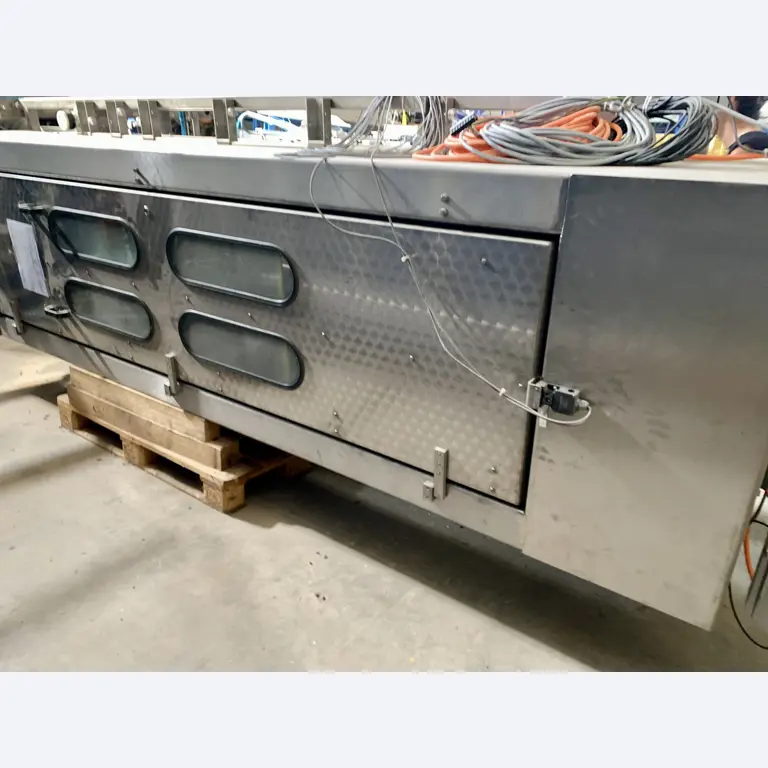

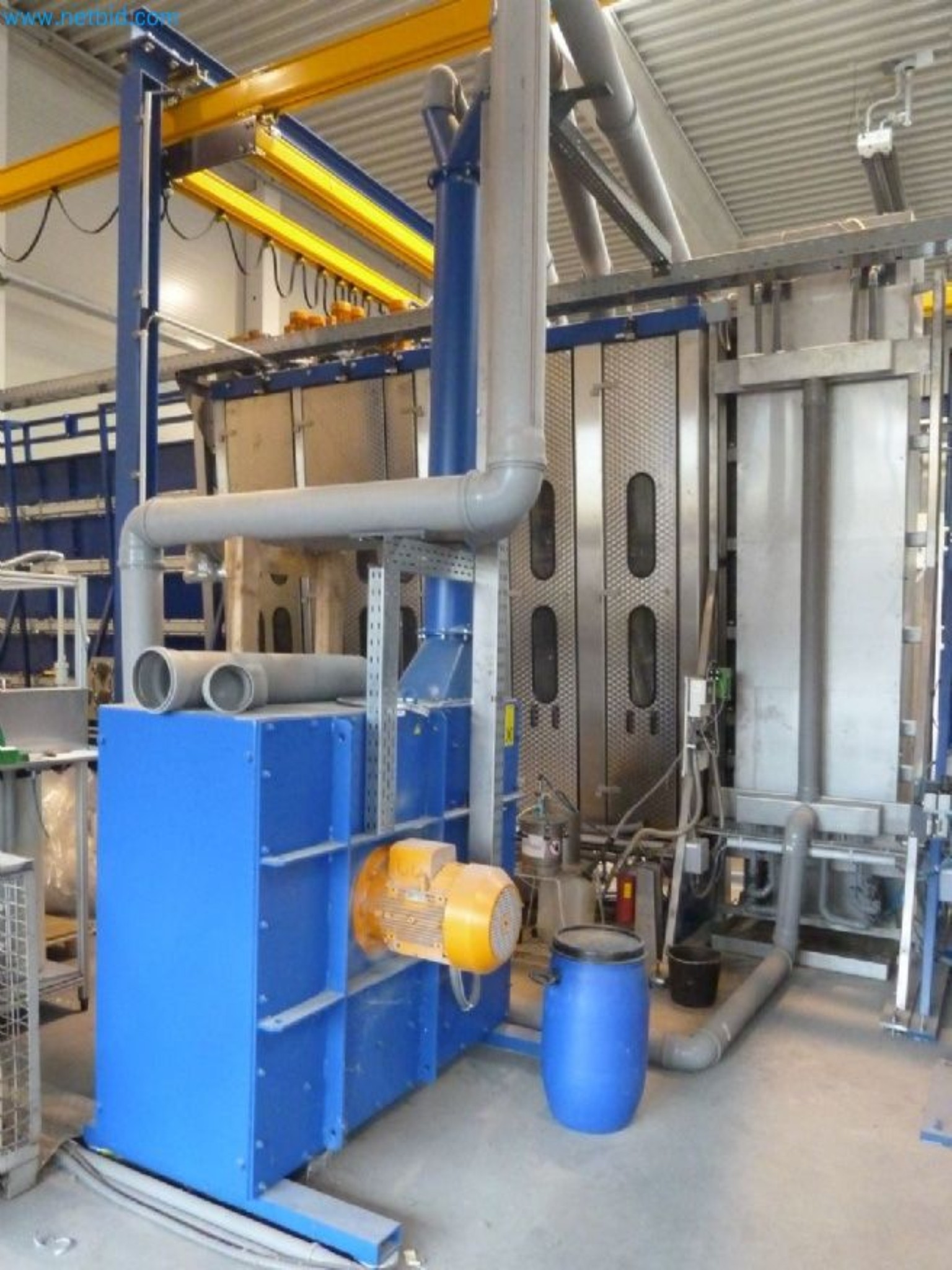

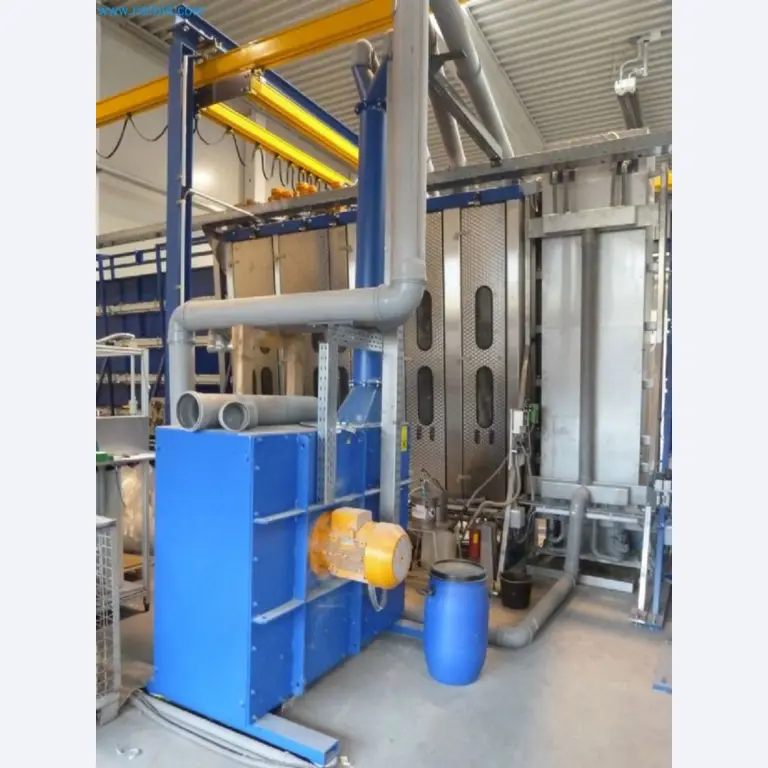

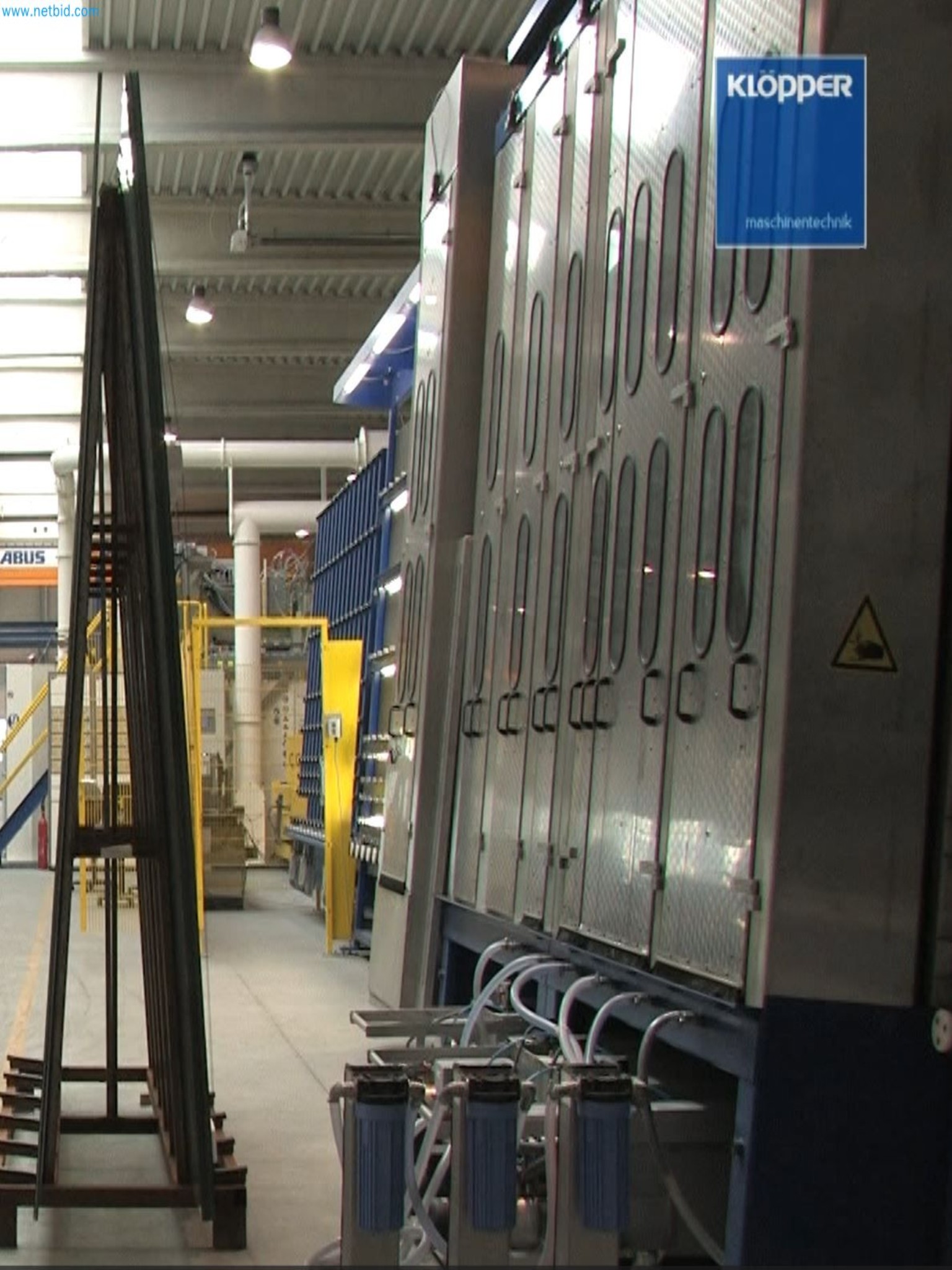

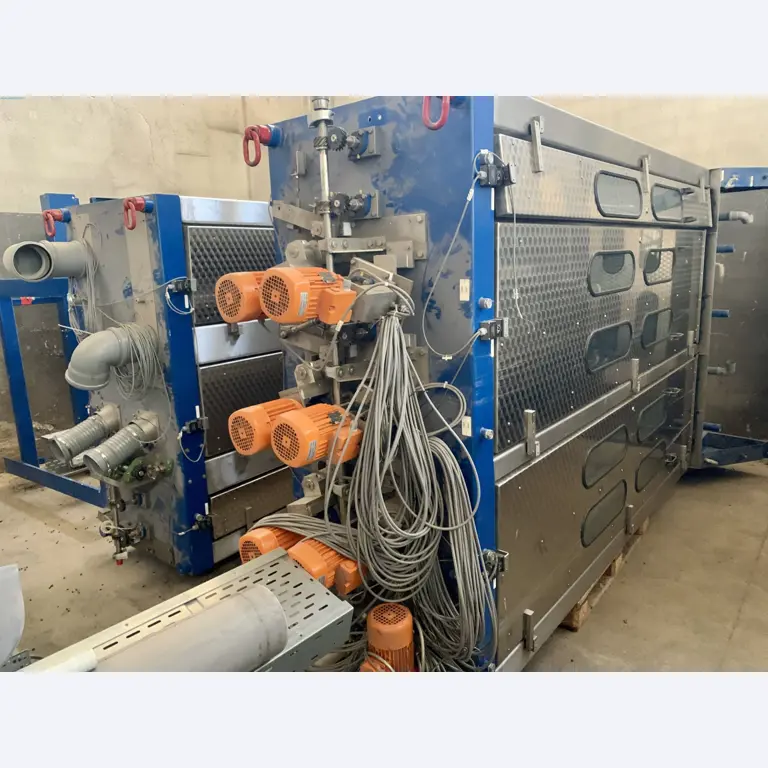

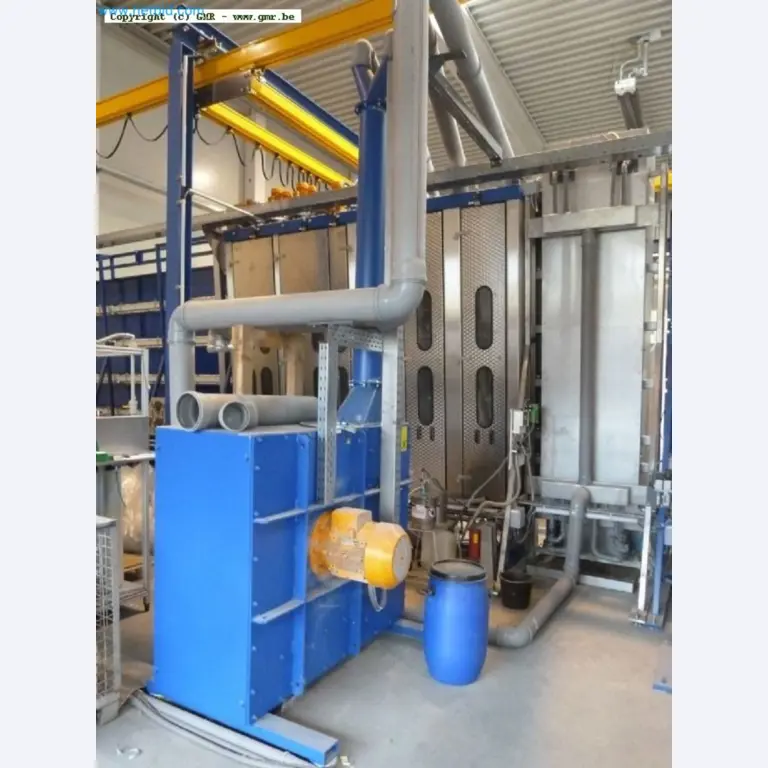

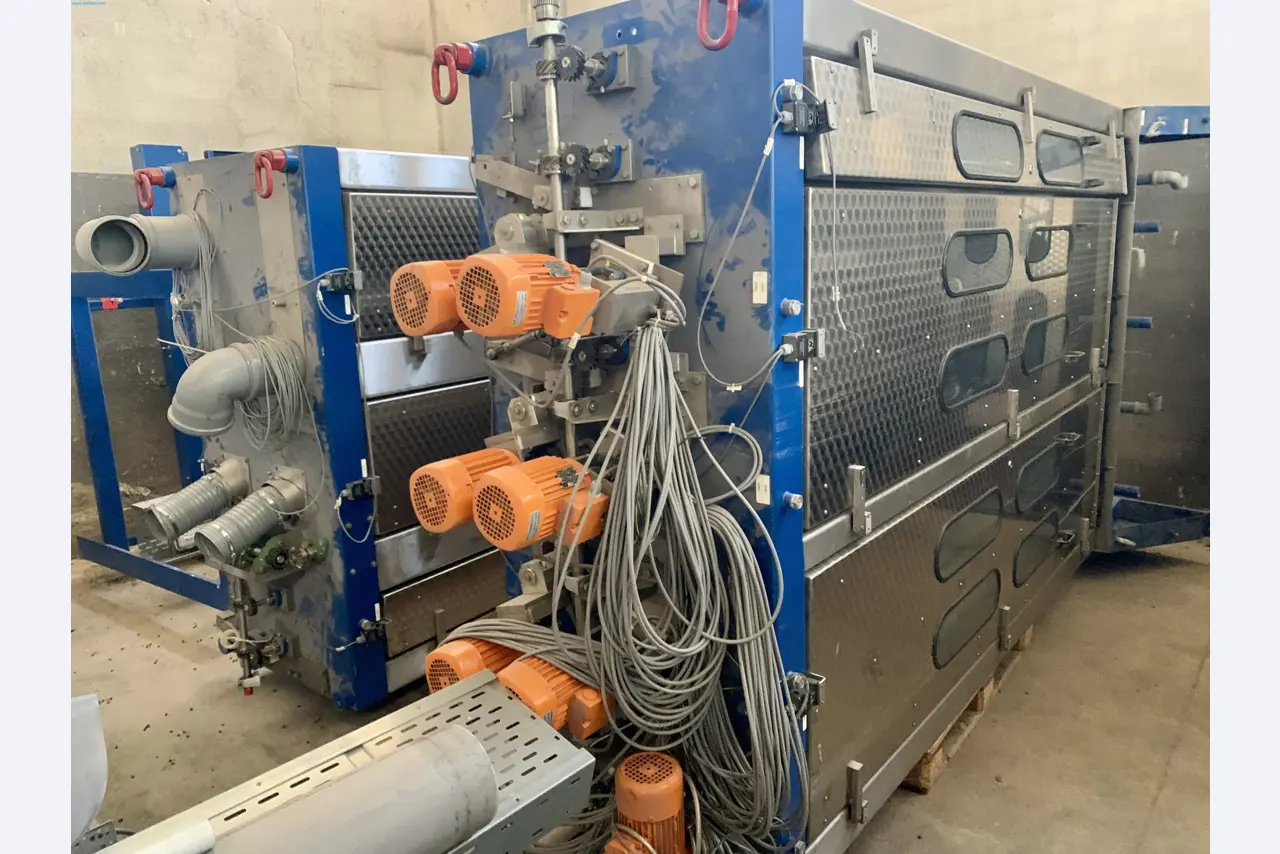

· Pos. 2 Vertical Washing Machine with Drying

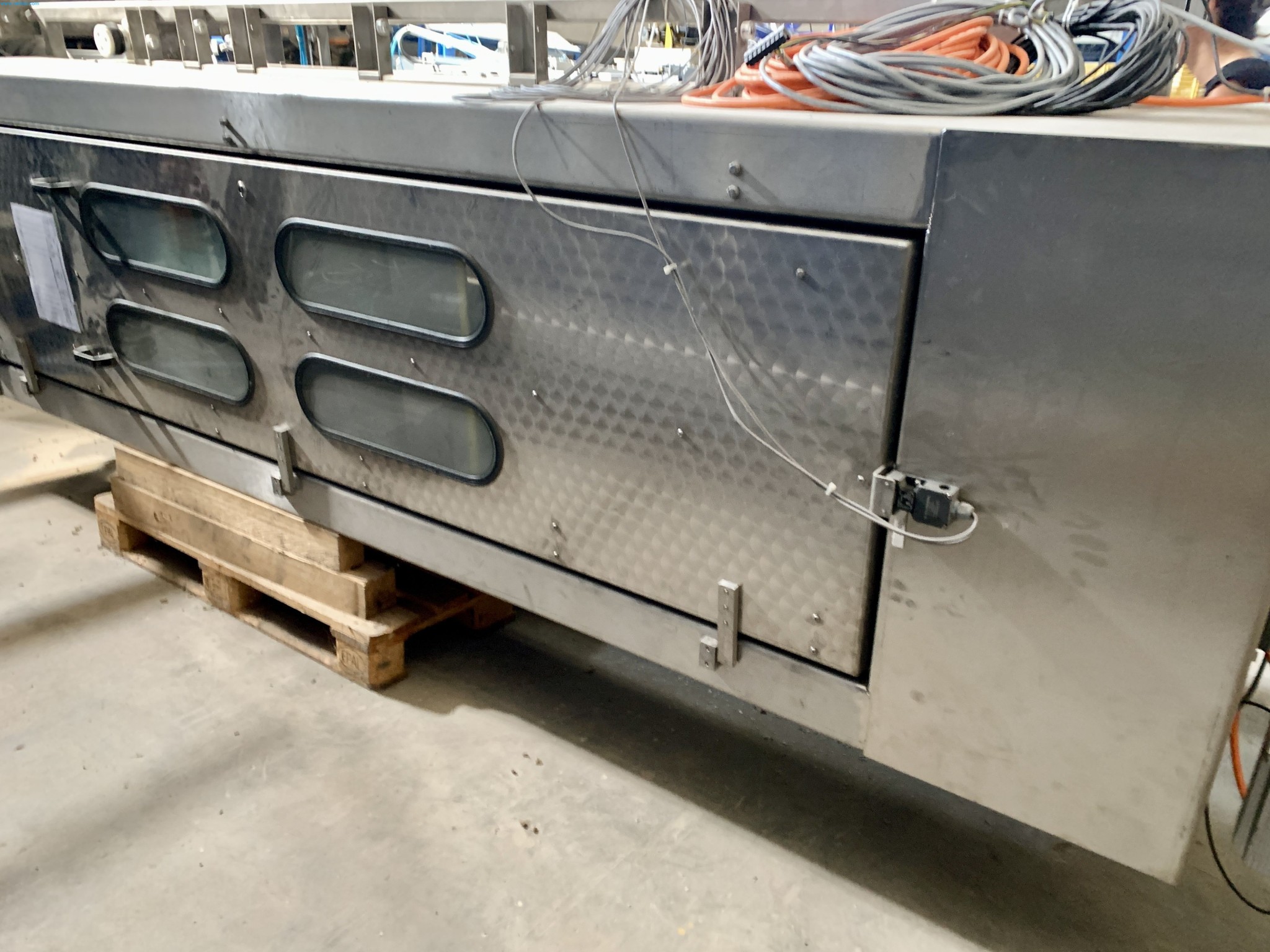

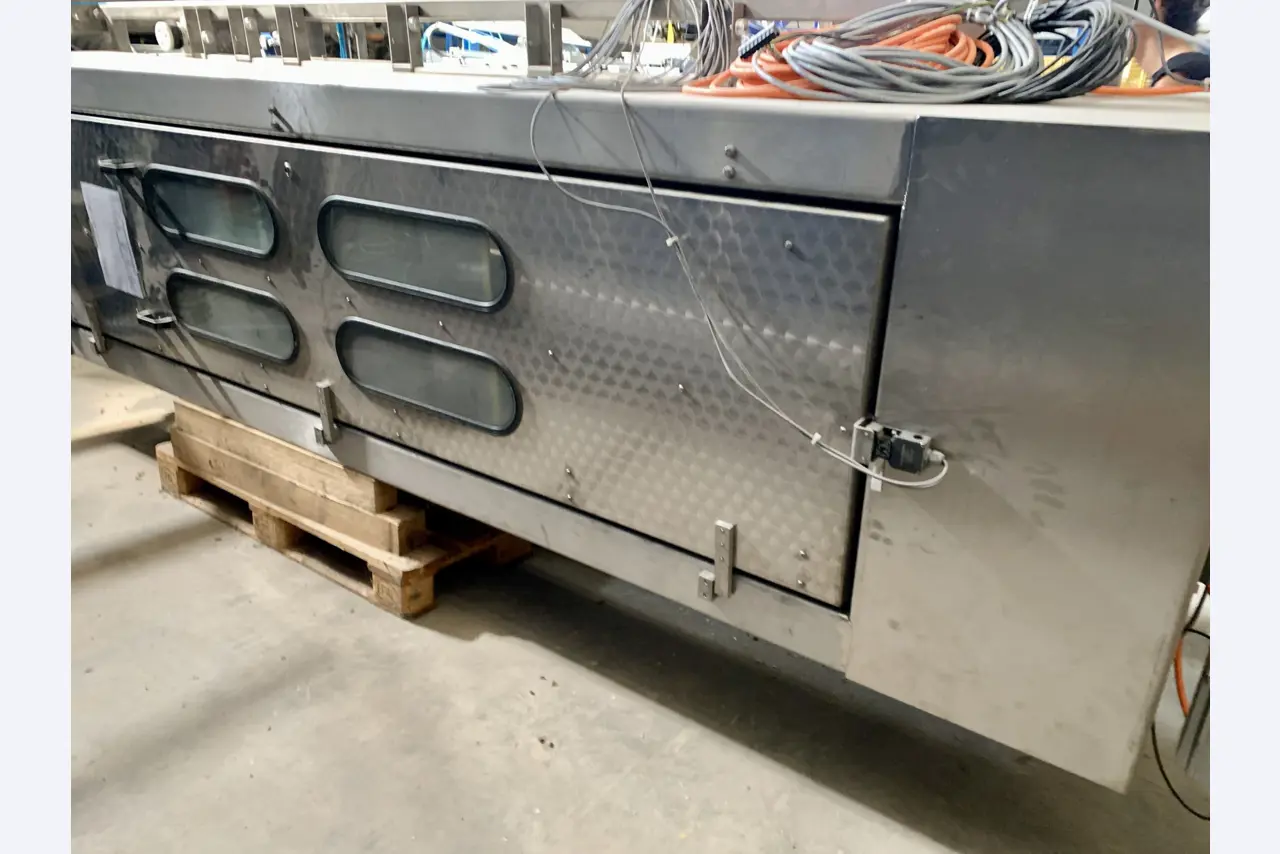

The washing machine body, washing chambers, recirculation vats and the drying nozzles are made entirely of stainless steel.
The rubber rings of the transport rollers are resistant to cutting oil.
Flat jet spraying nozzles in the pre-rinsing section are fed with city water. Coarse dirt particles removed are directly led into the drain. This reduces contamination of the DI-water circuit for the washing machine.

The washing machine is equipped with energy and water saving cascade system.
Pre-rinsing section with
Flat jet spraying nozzles

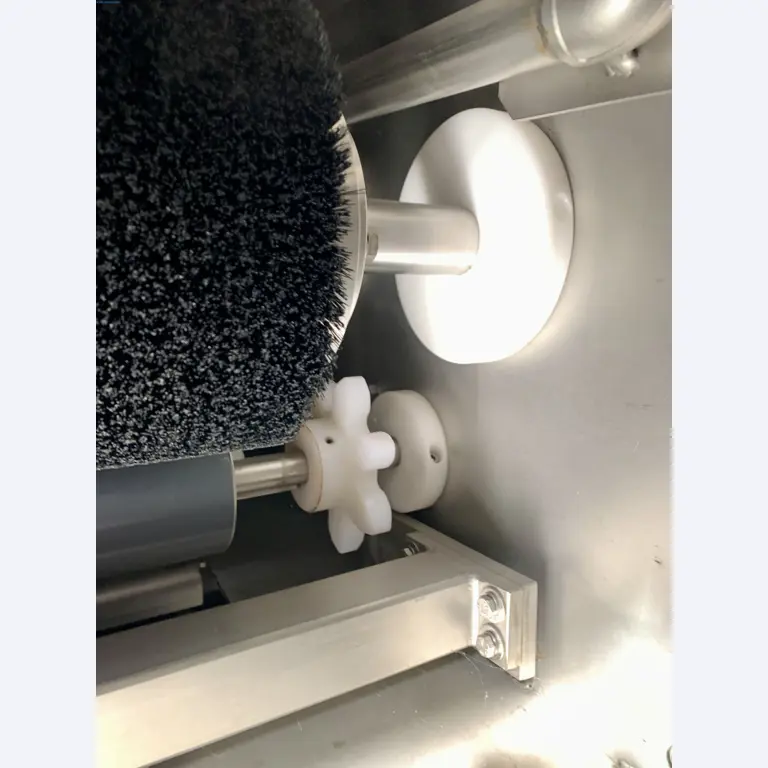

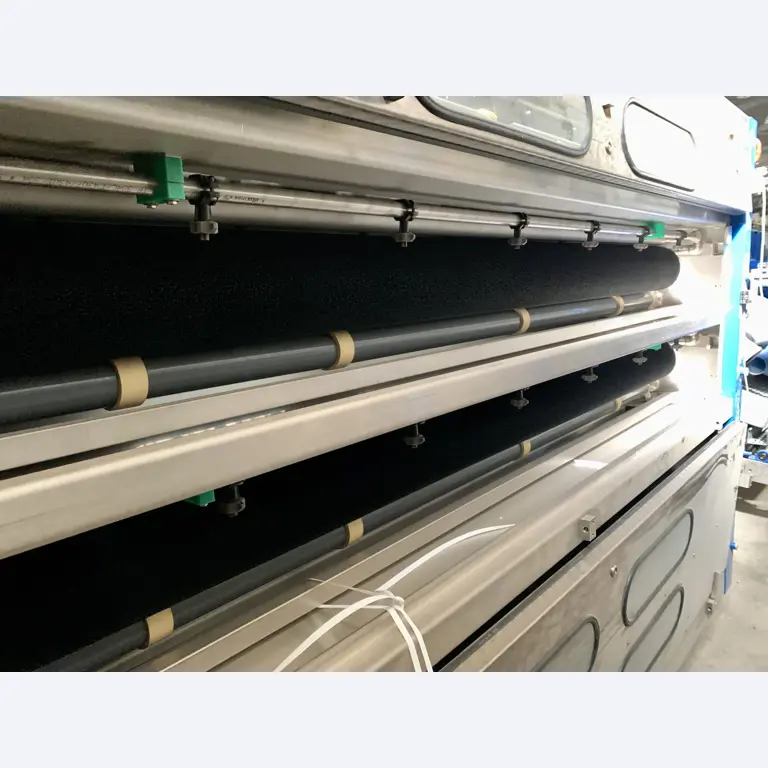

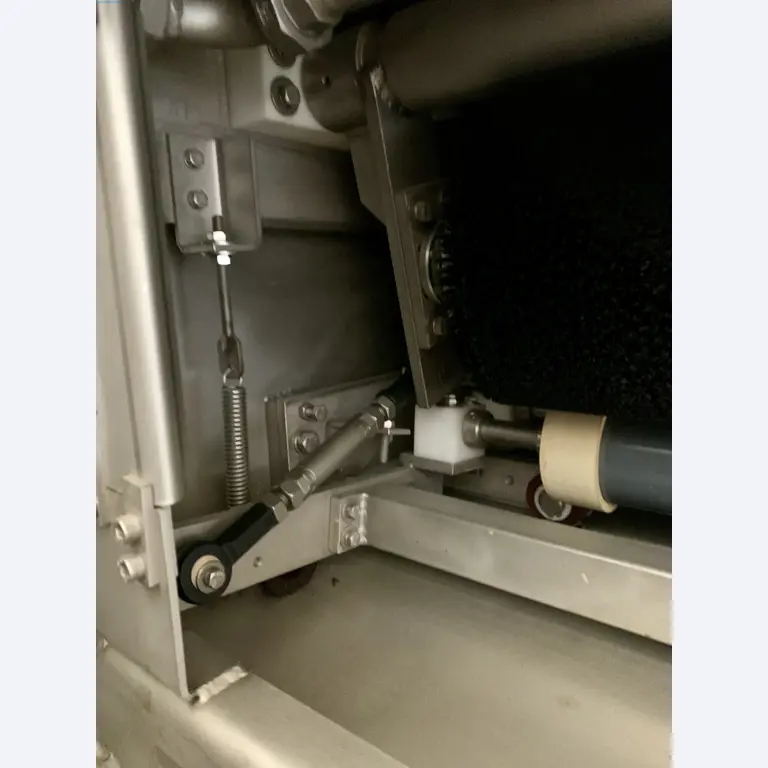

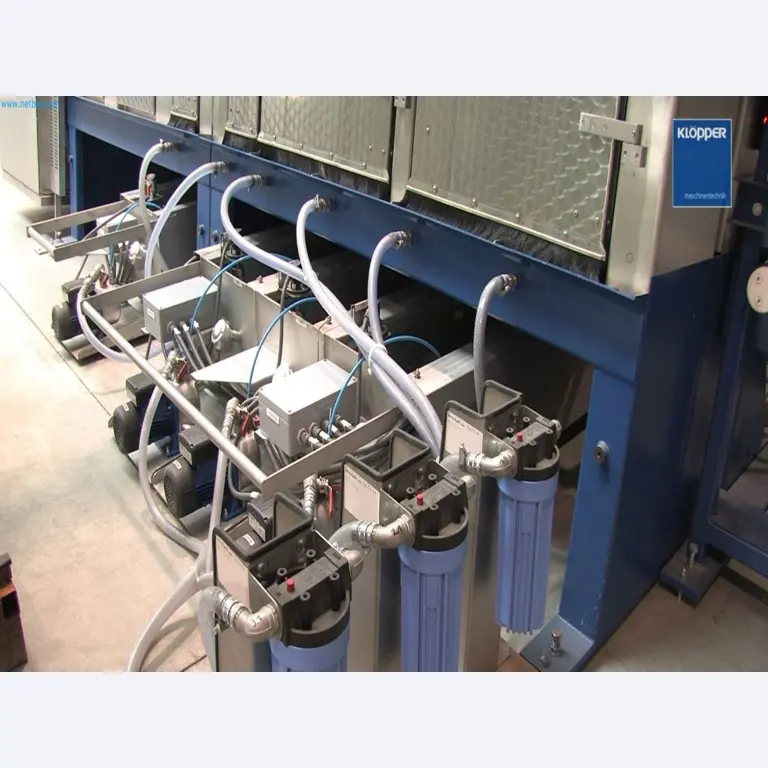

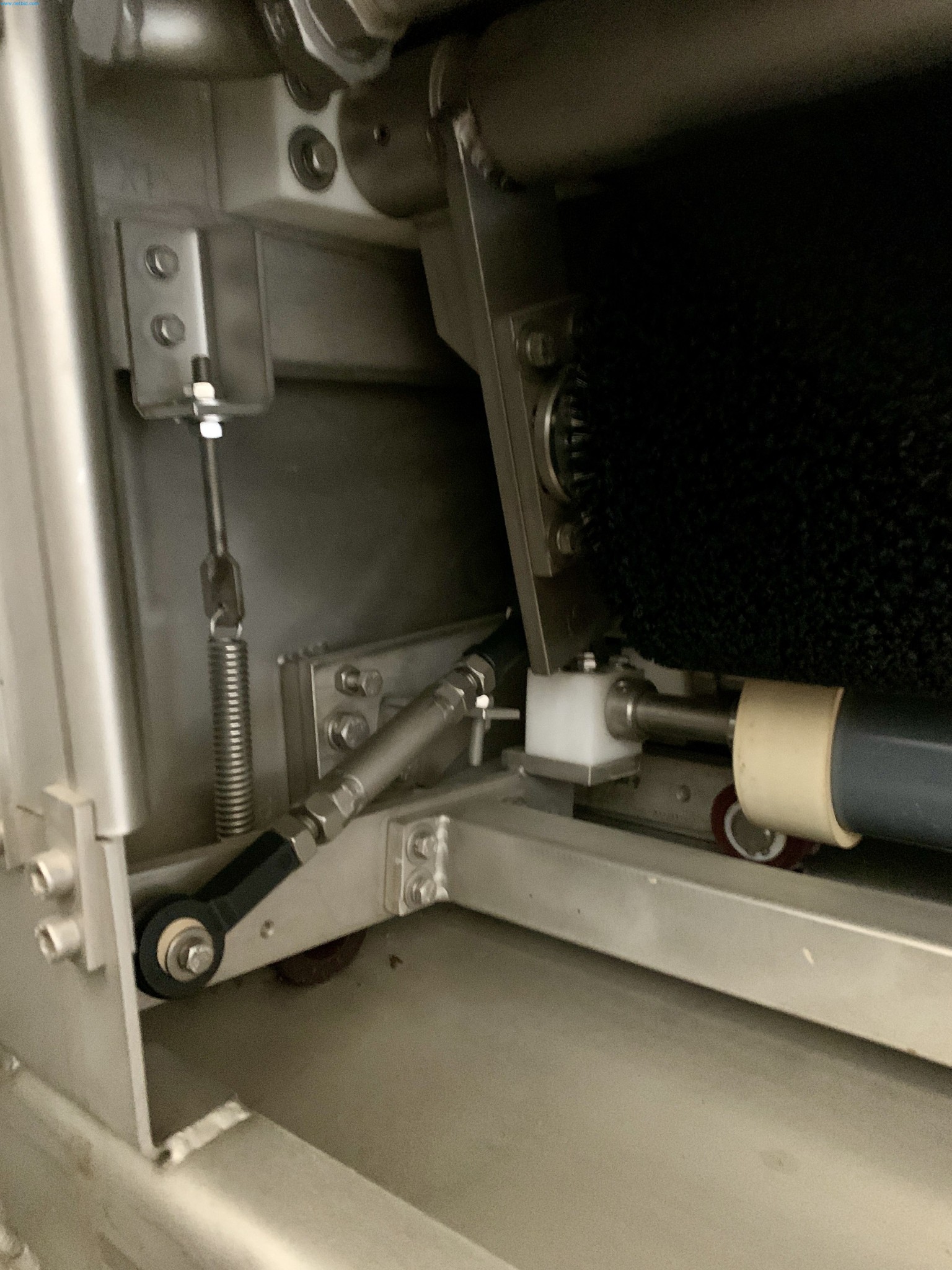

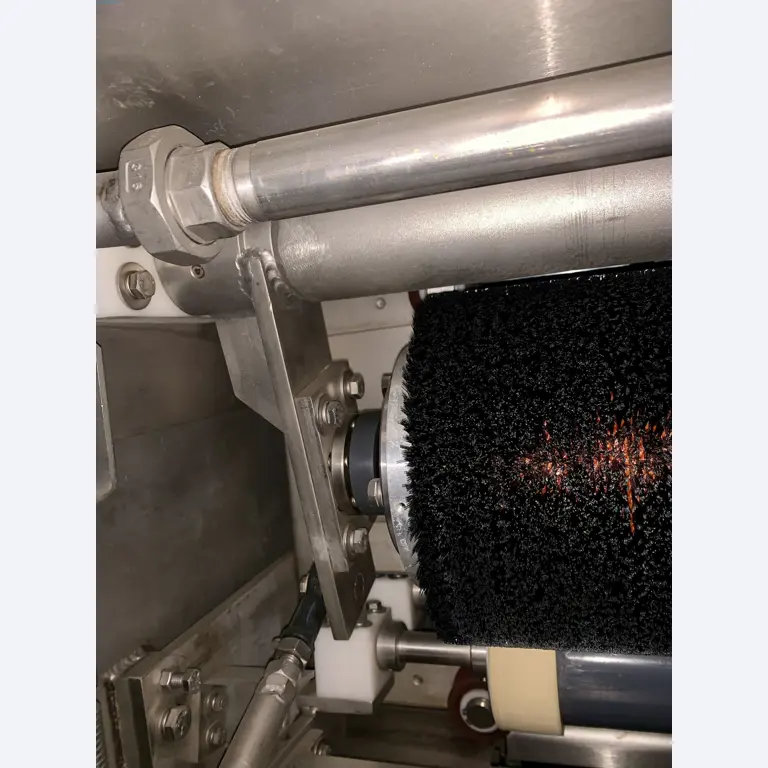

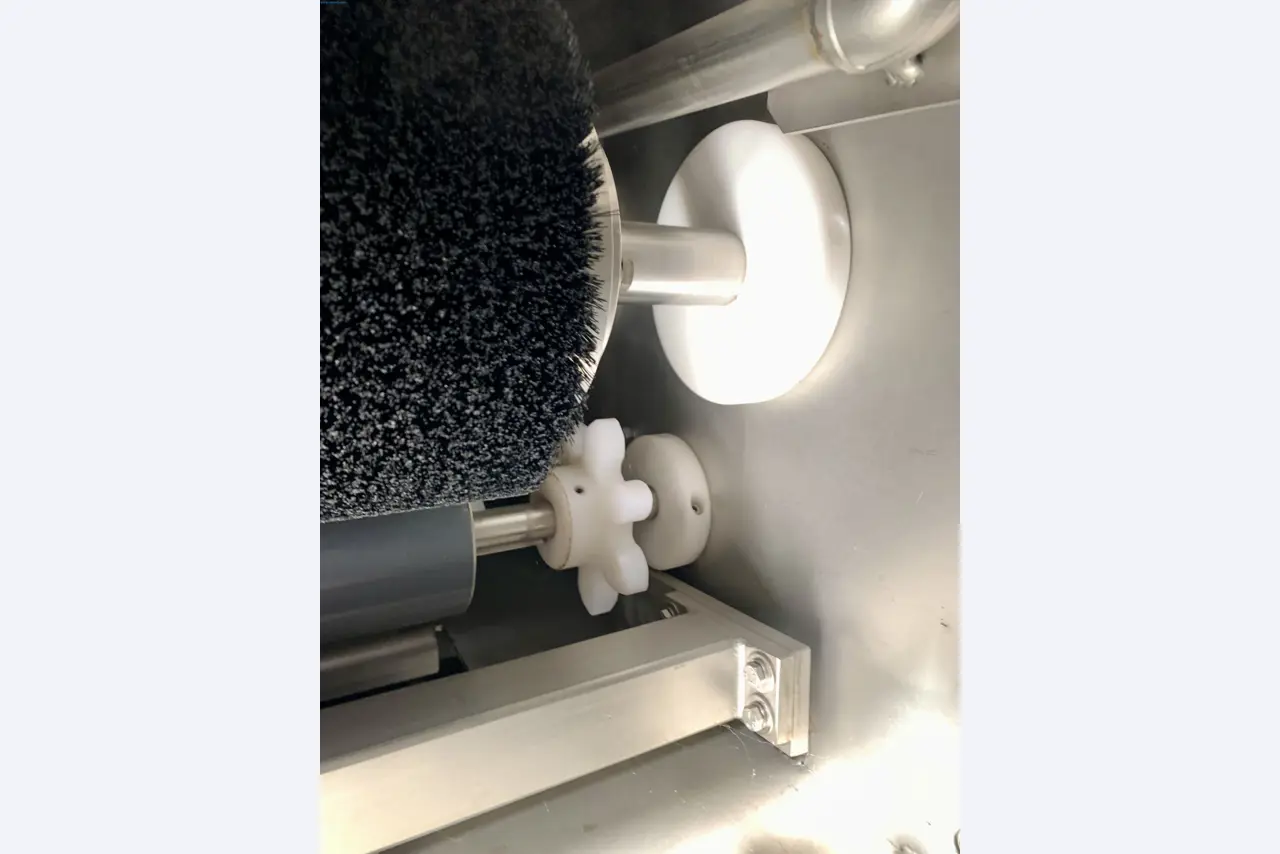

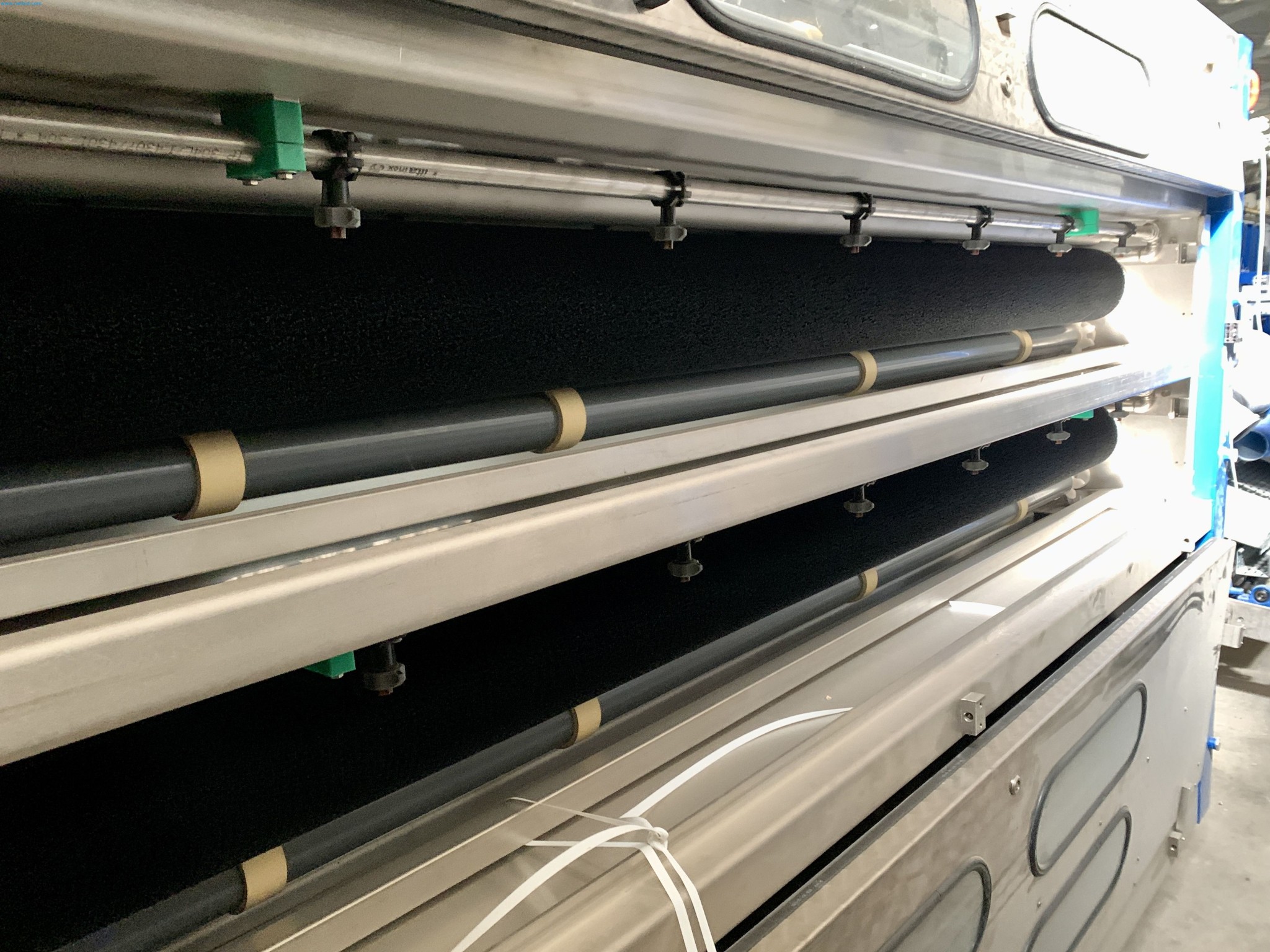

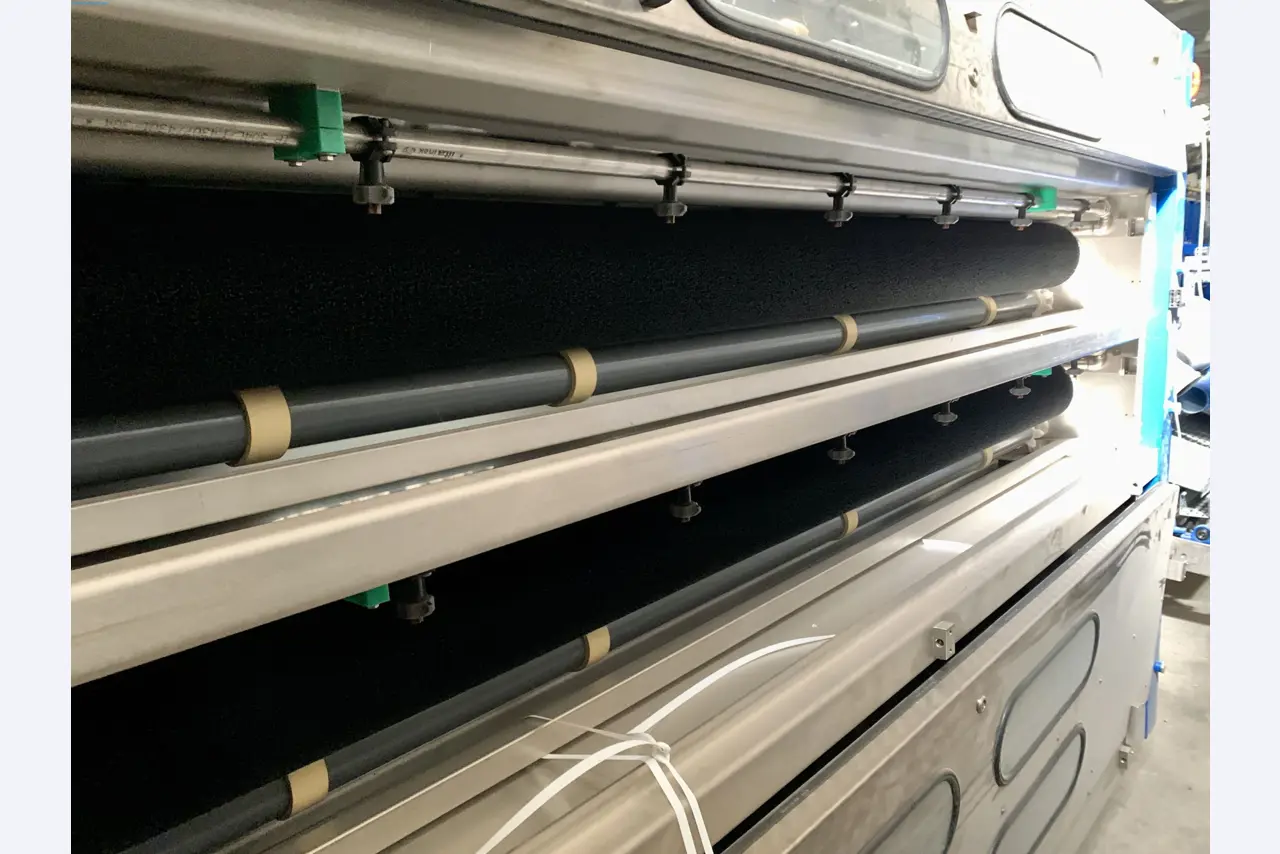

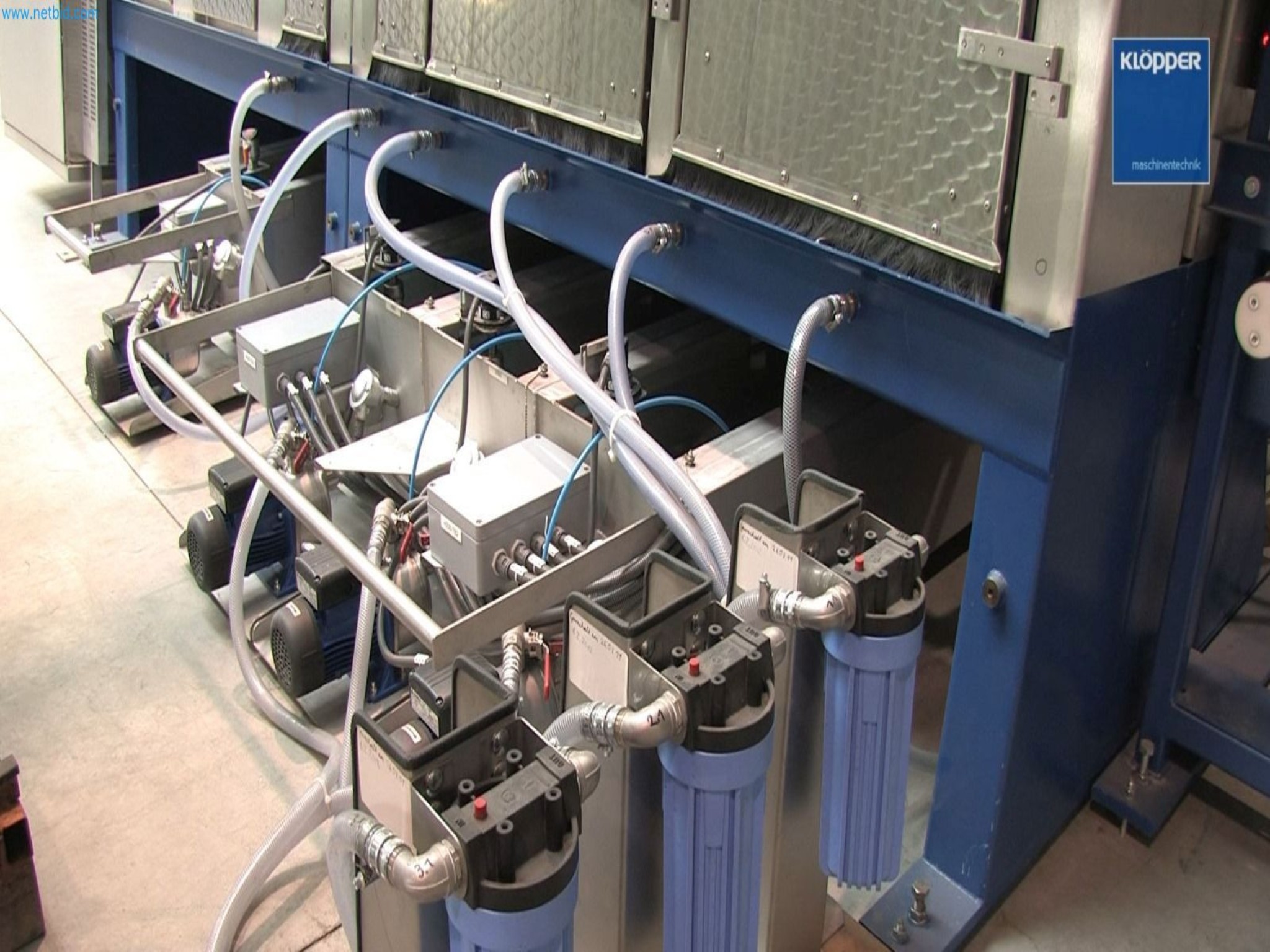

Washing section with 3 pairs of brushes, 3 vats and 3 pumps

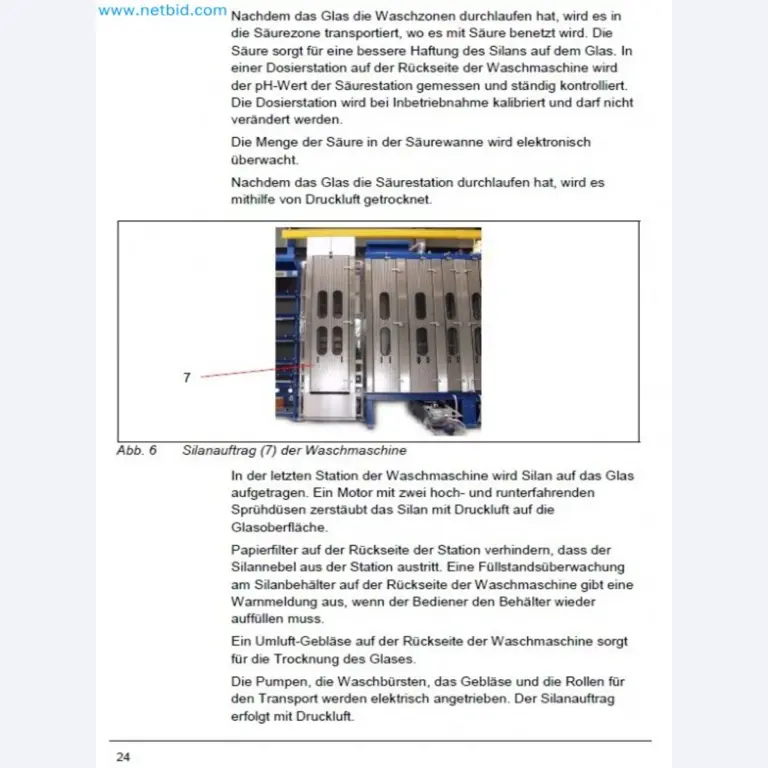

Acid section with 1 pair of brushes, 1 vat and 1 pump
Drying section with 2 pairs of drying nozzles provide dry edges.

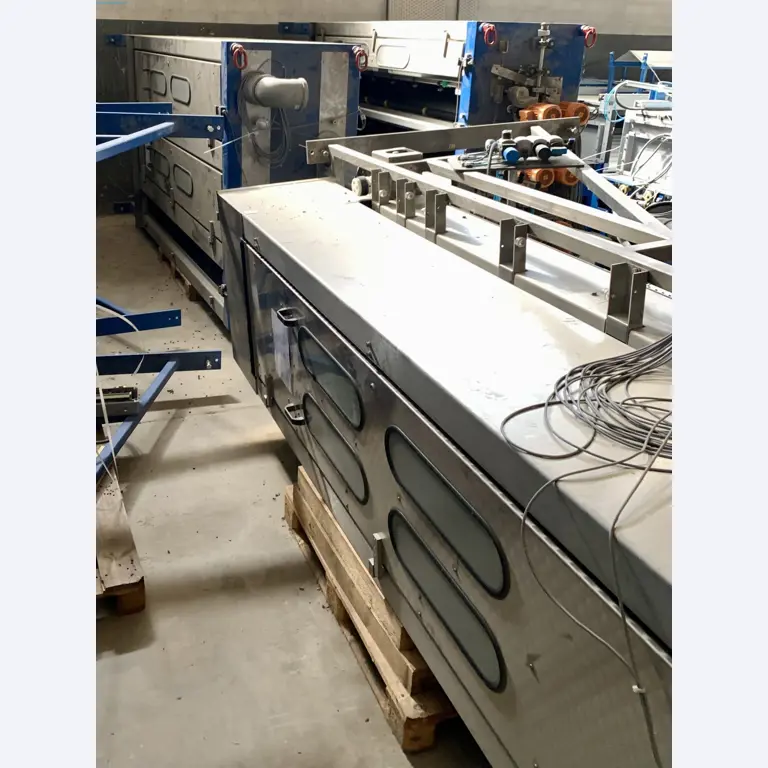

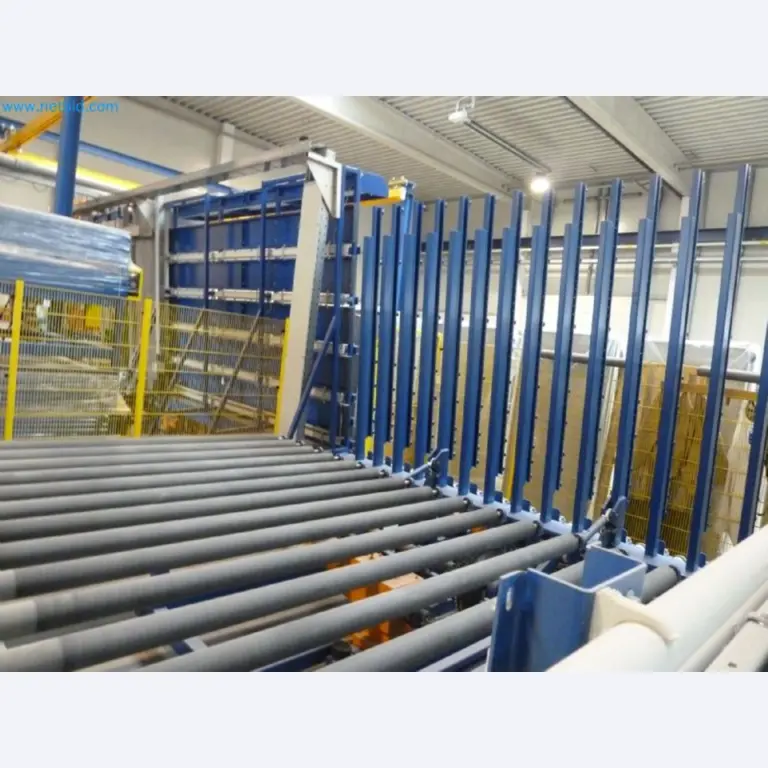

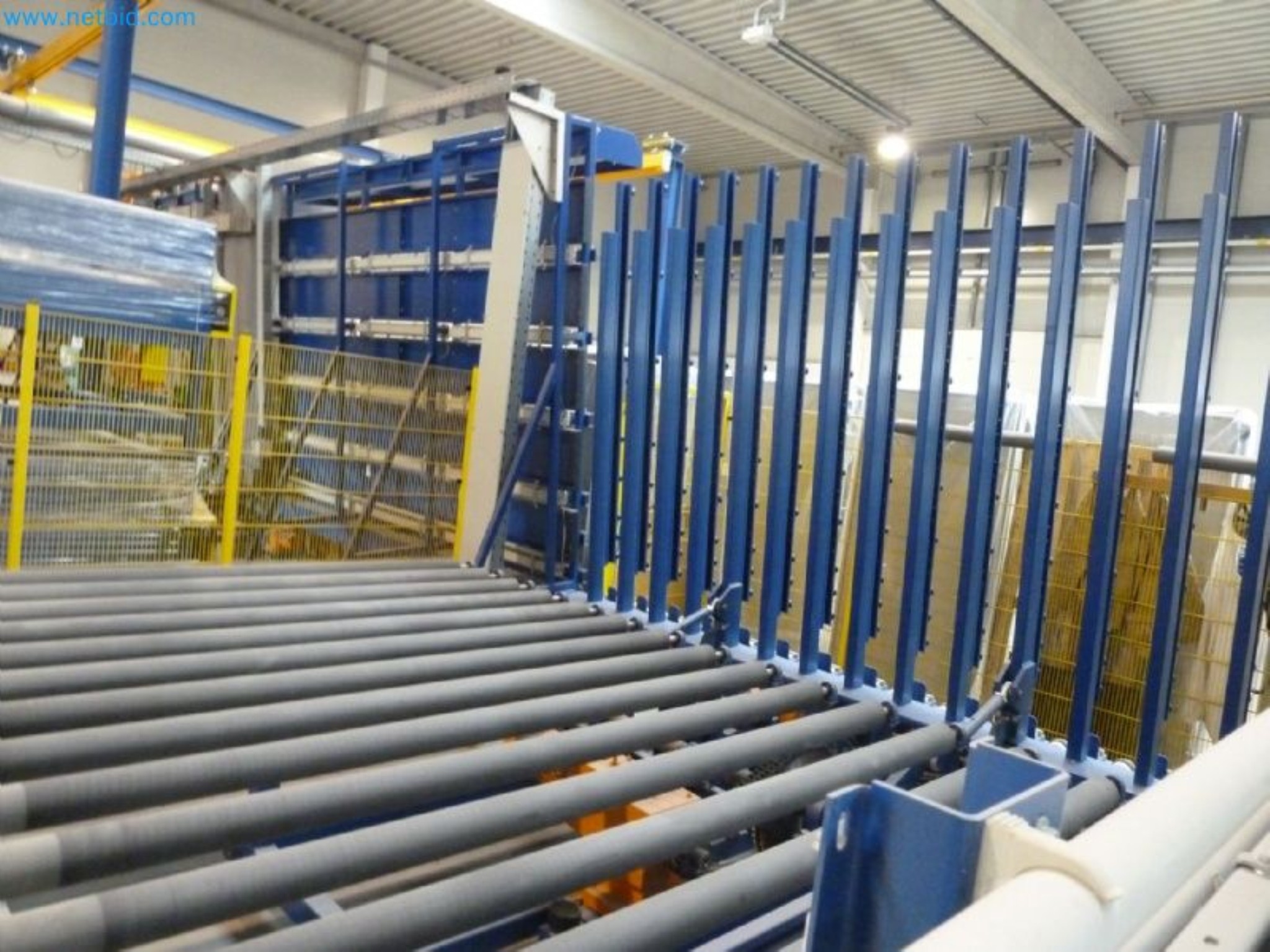

Pos.3 Vertical Inspection Transport with glass Activation Section
The transport serves as Activation Section for the glass surface and as Inspection and Storage Transport before the Tilting Table.

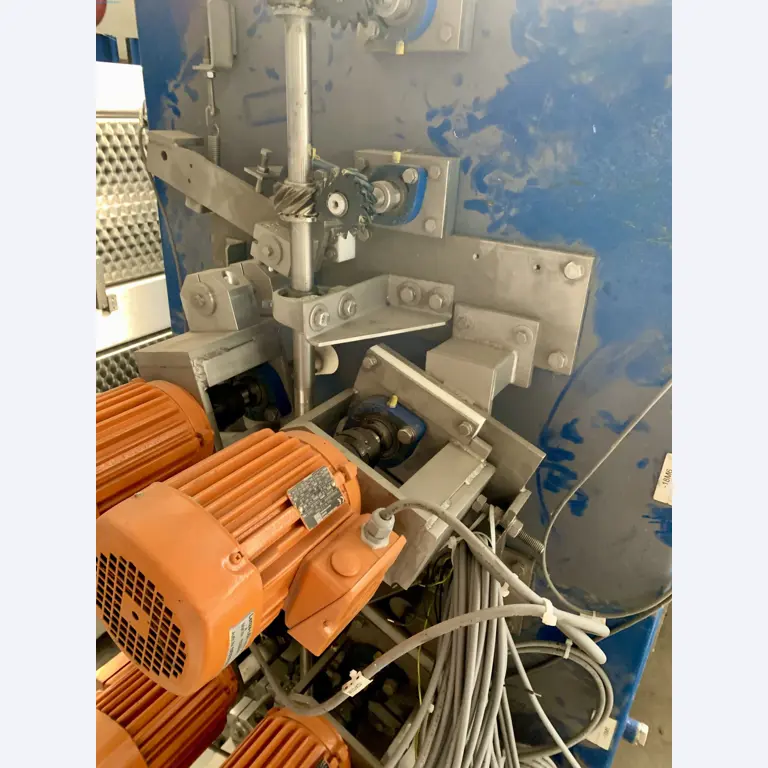

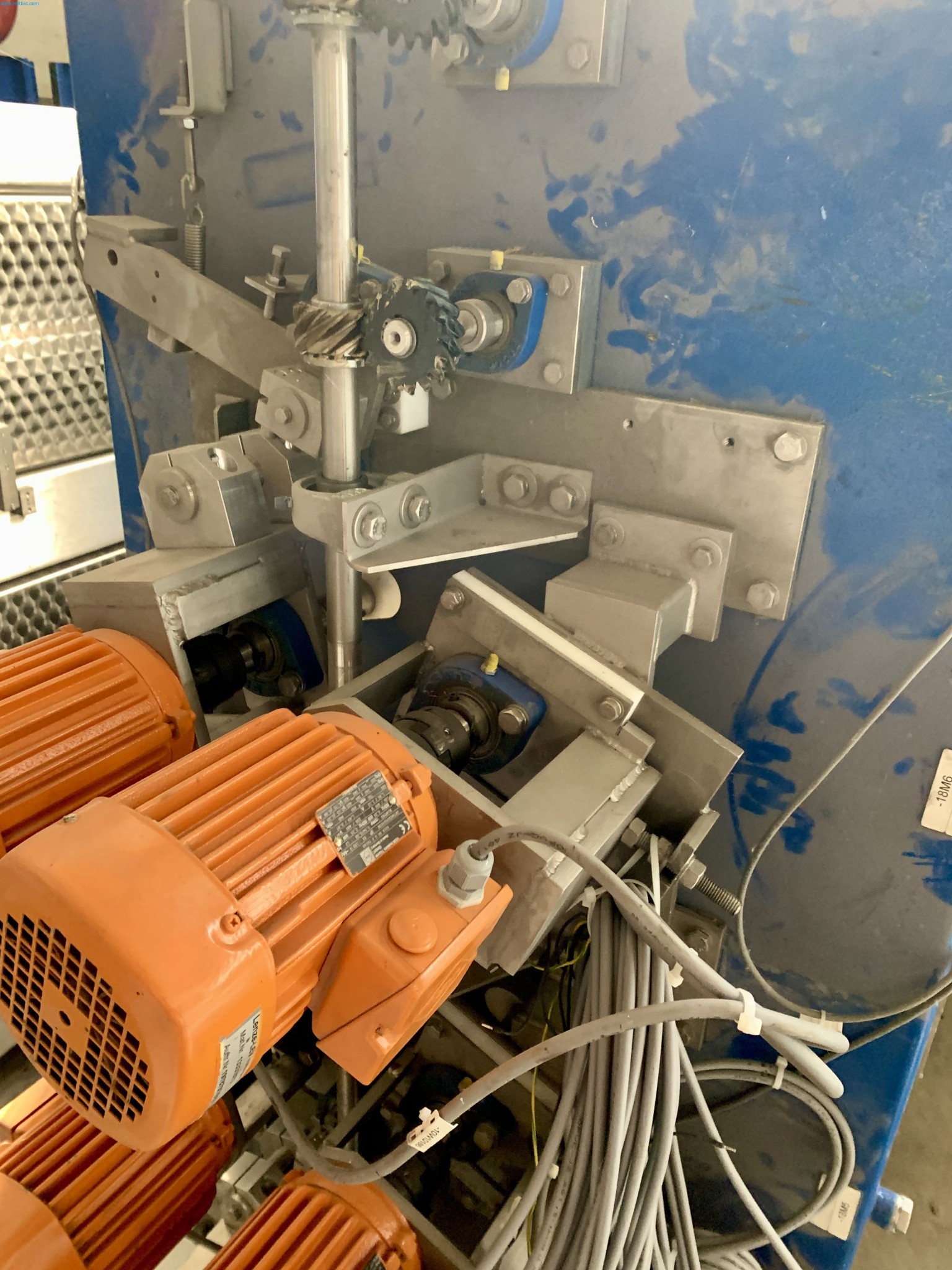

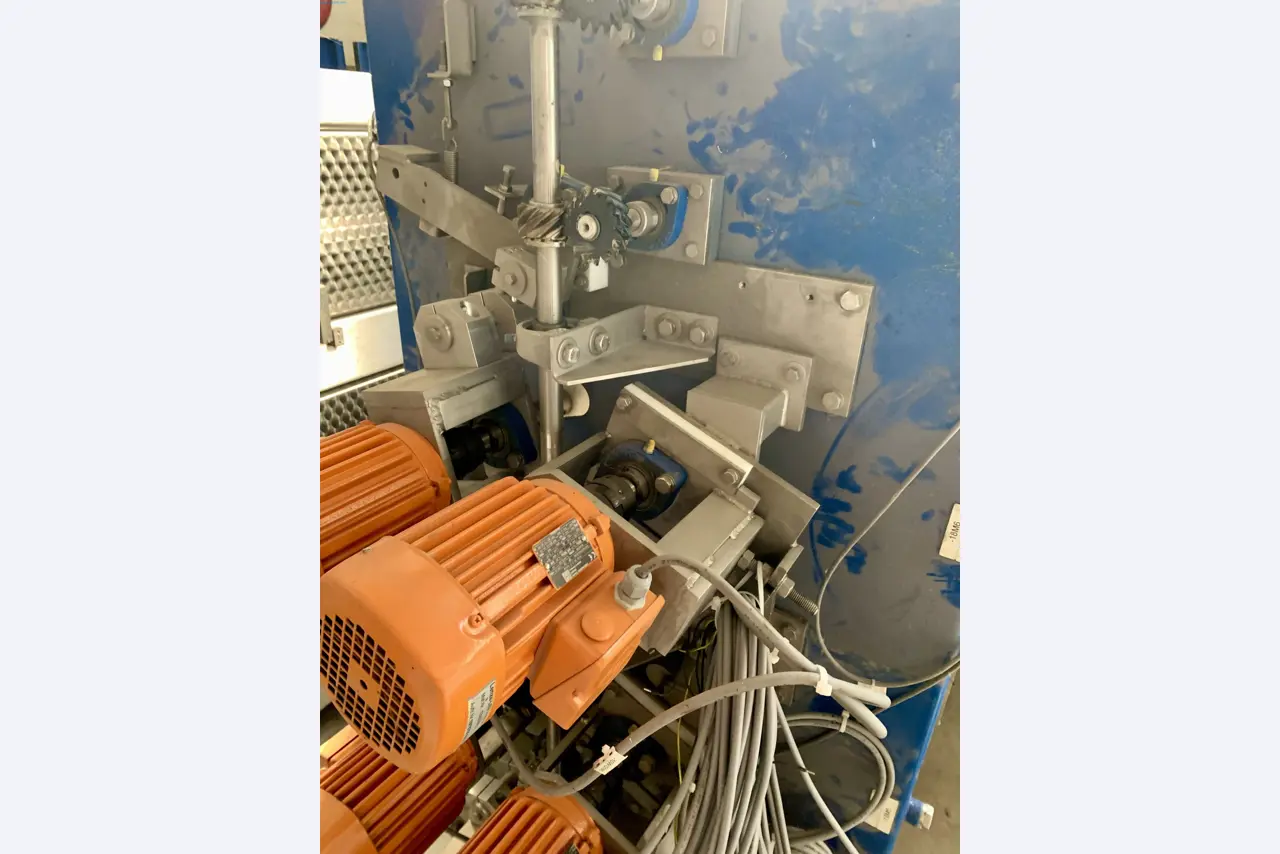

Drive by a geared motor, A.C., frequency controlled. All the rollers are arranged in drag bearings with a single drive operating pairs of spiral-toothed gear wheels.
The transport rollers are vulcanized and ground.
Additional mandatory D&L cost: 1.000€
