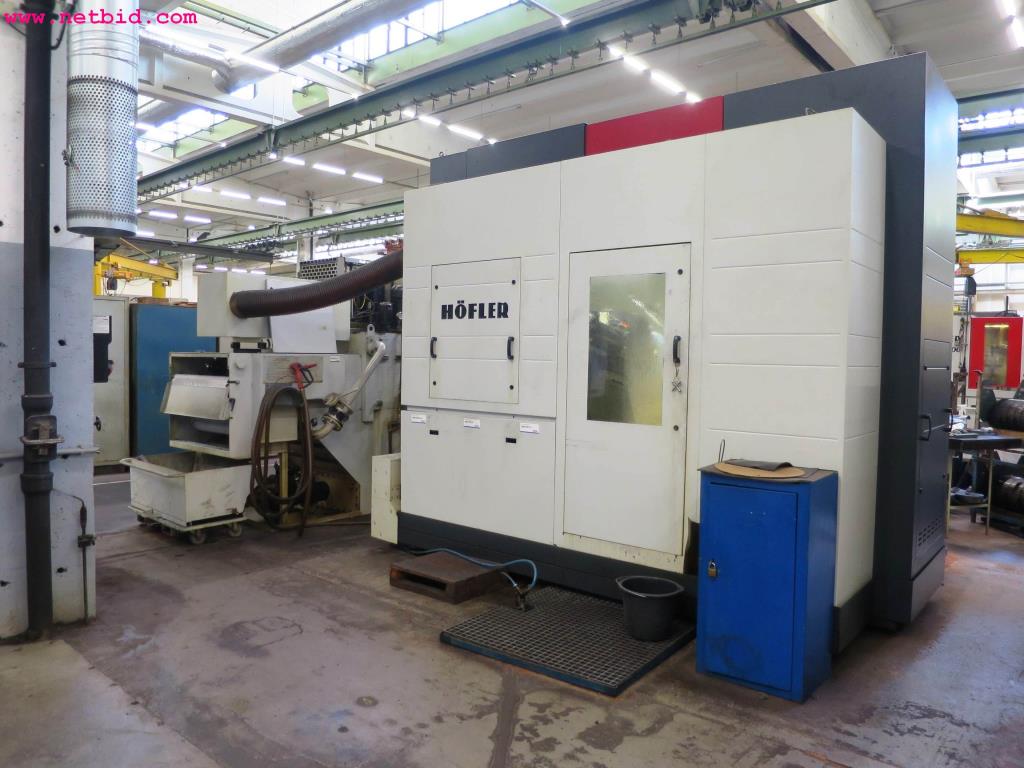

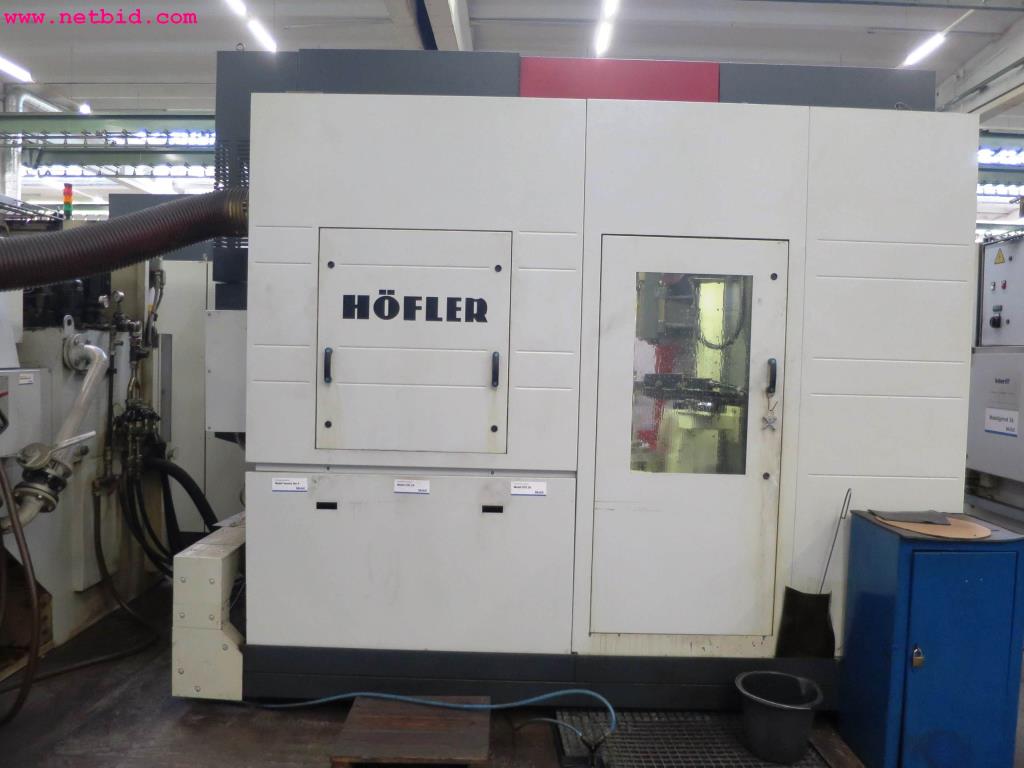

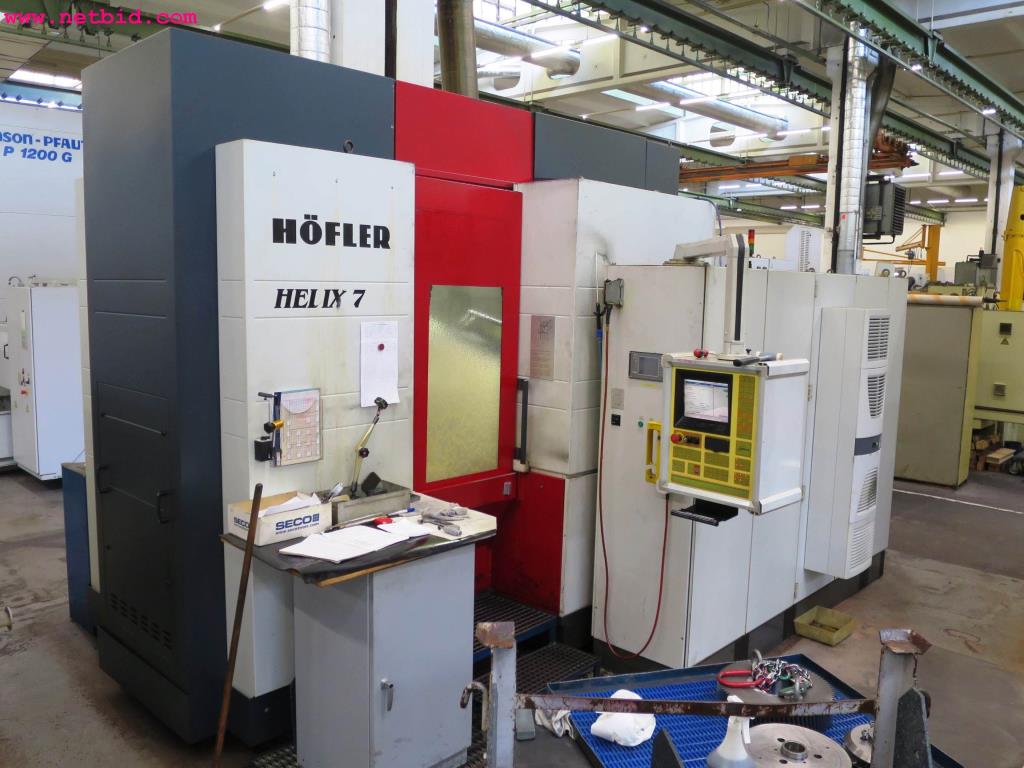

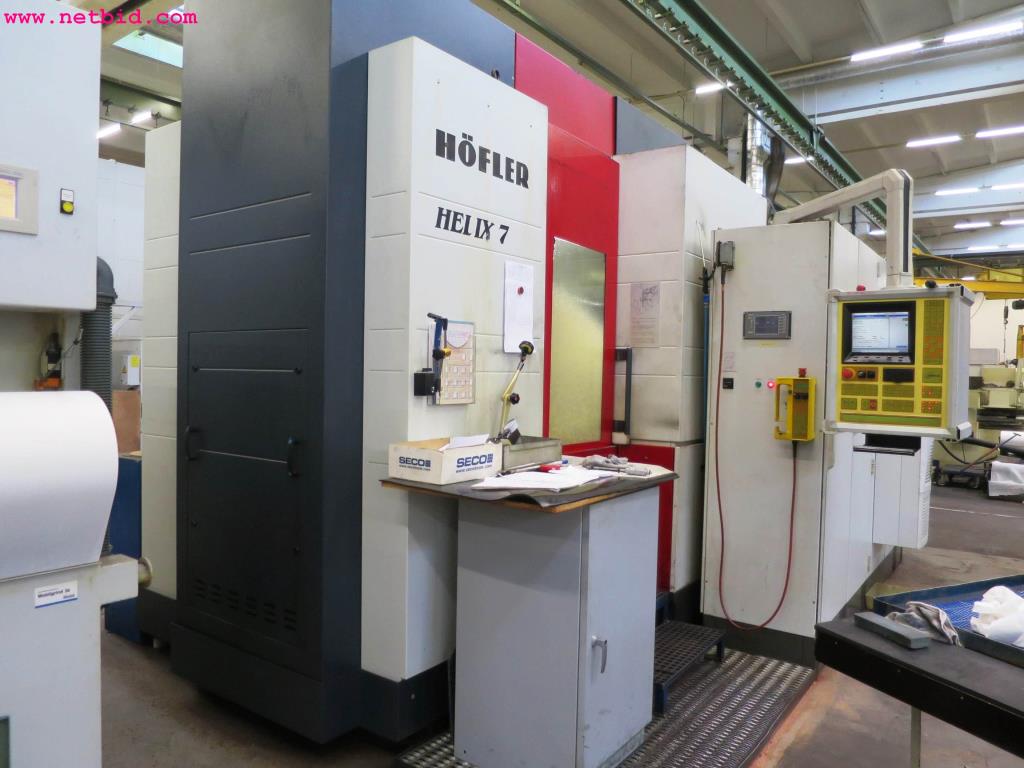

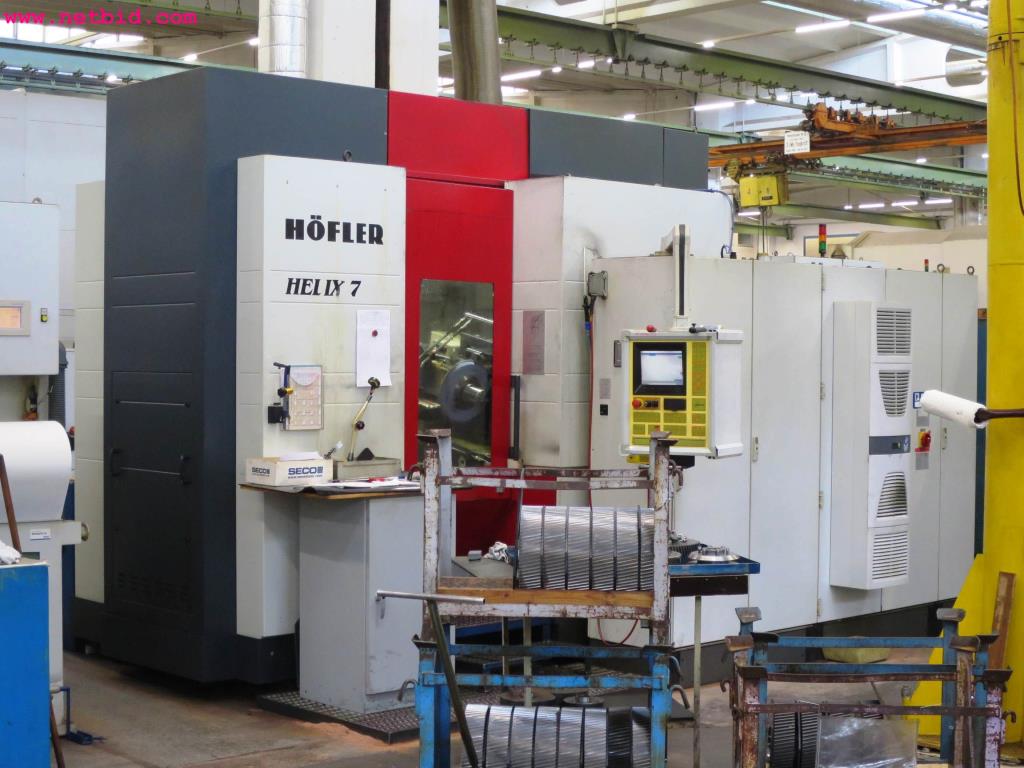

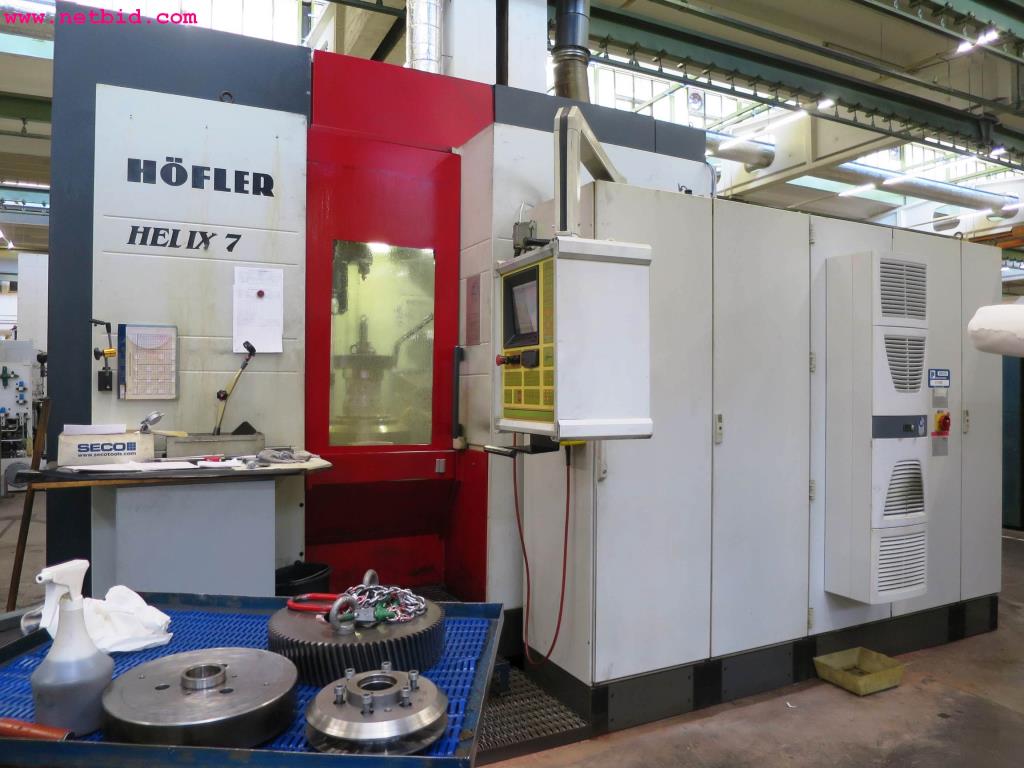

CNC tooth flank grinding machine Höfler Helix 700AUCTION#13959-9
This auction has ended.
Details
Product Type
Höfler
Type
Helix 700
Construction Year
2004
Description

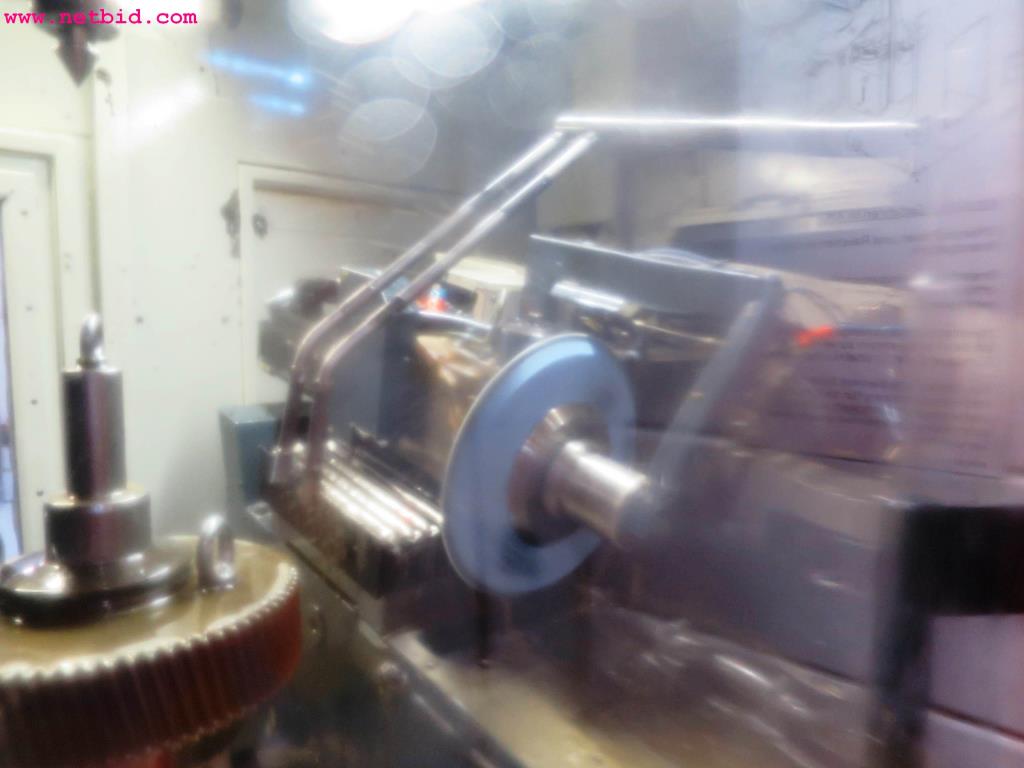

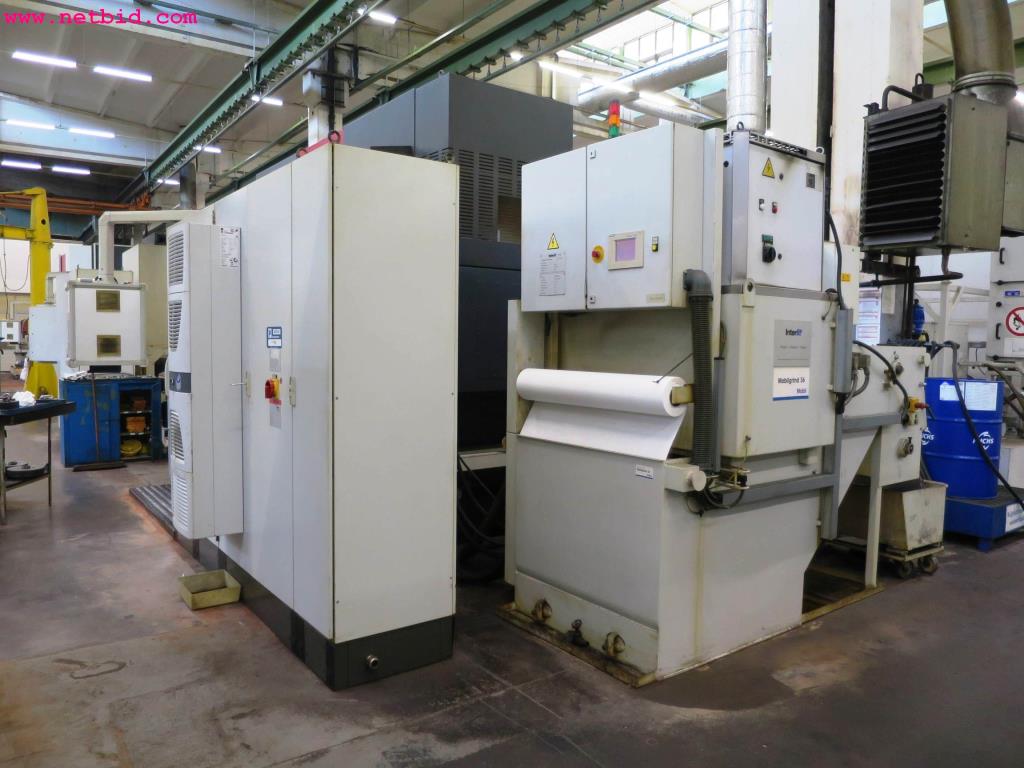

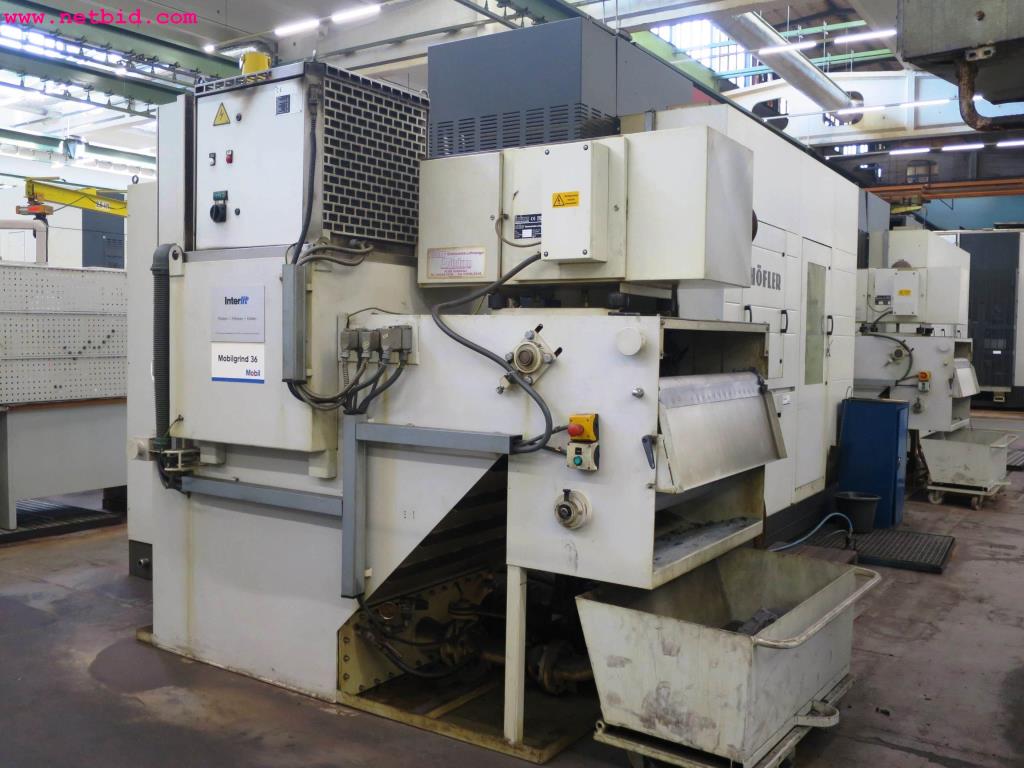

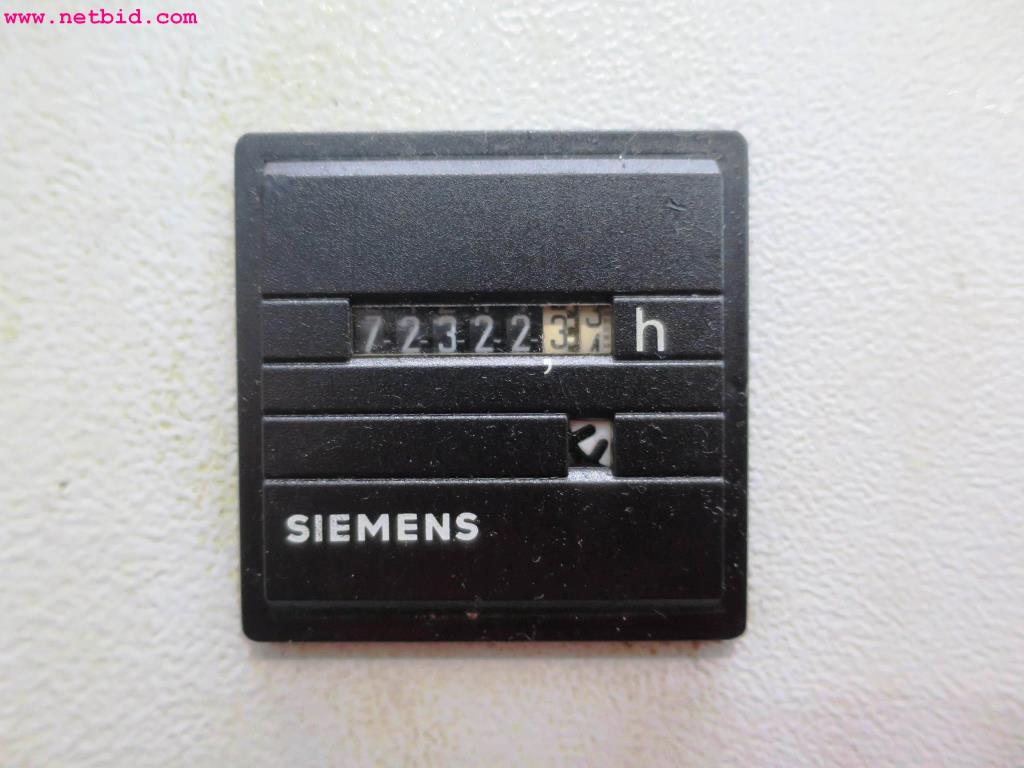

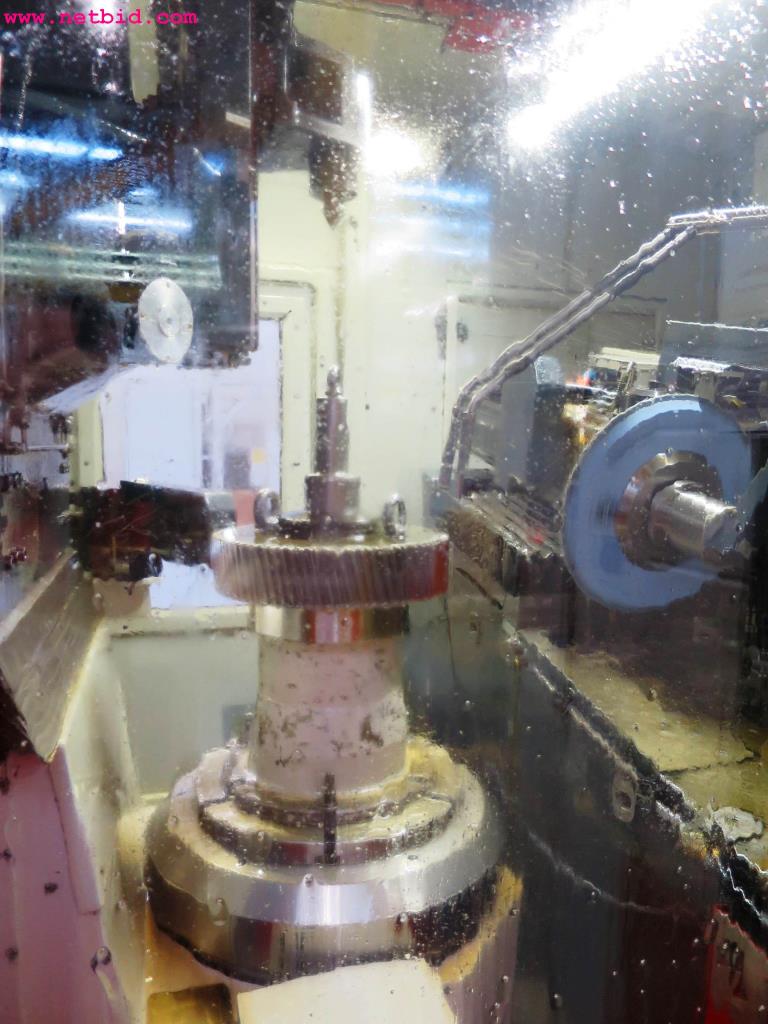

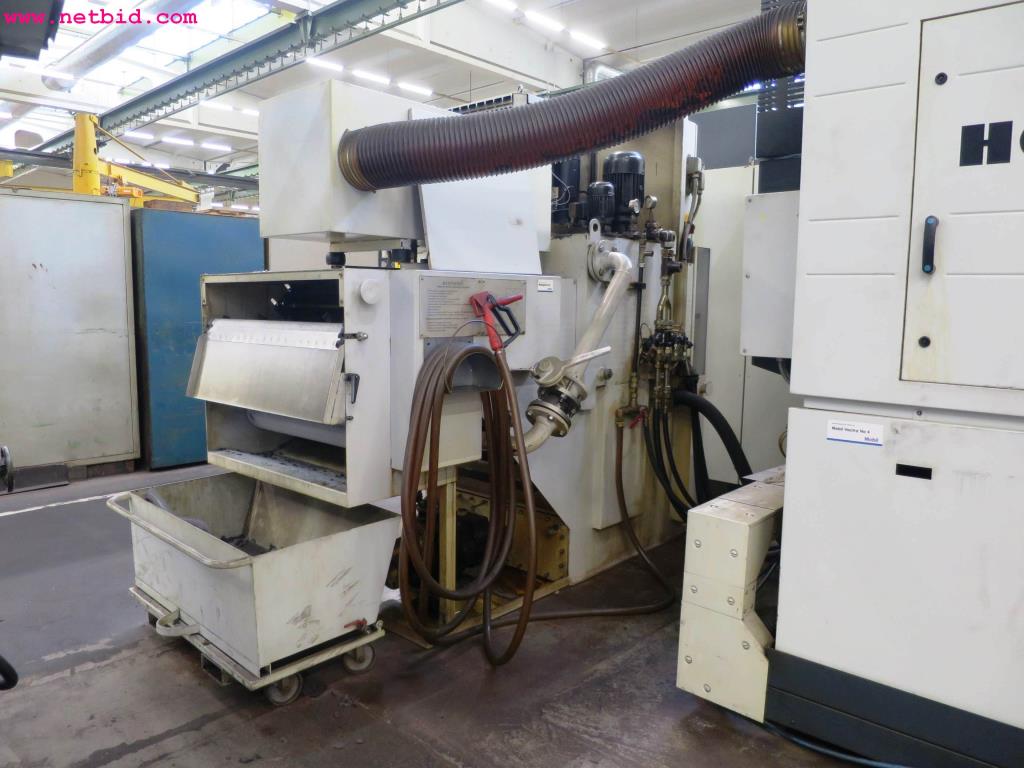

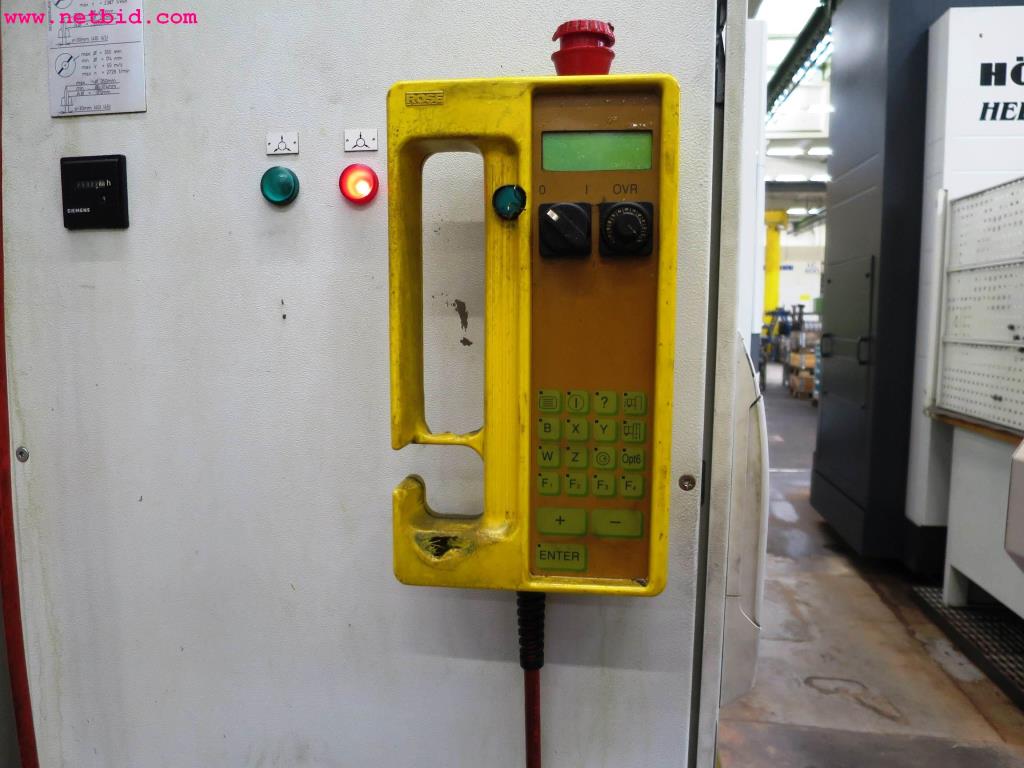

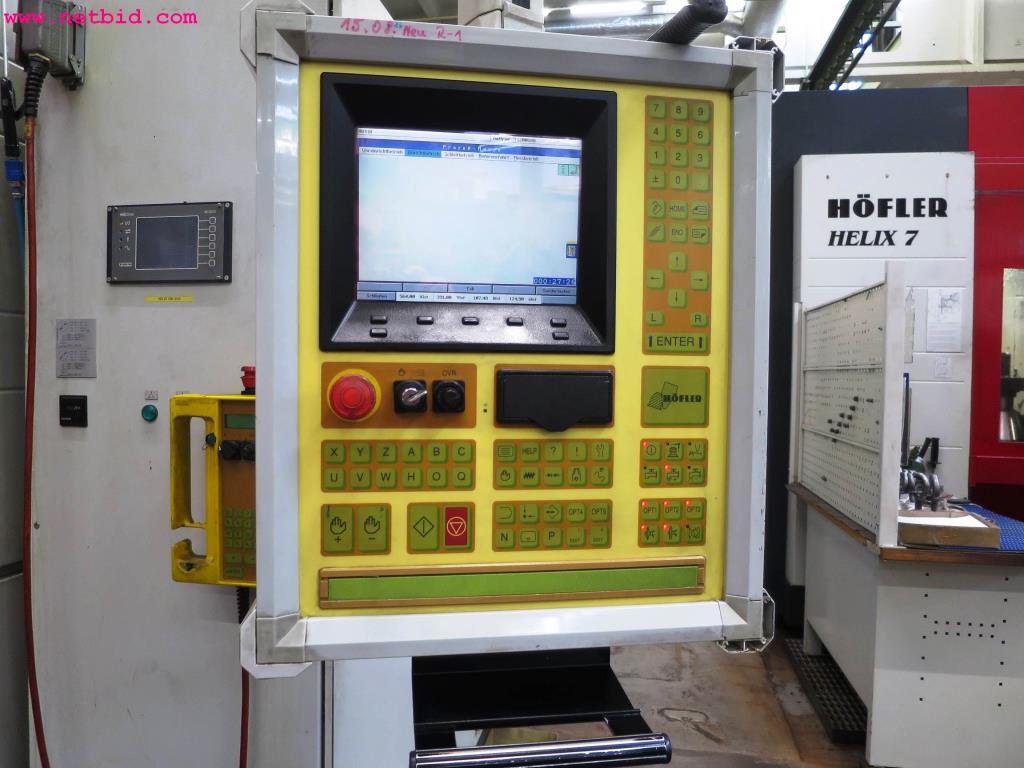

serial no. 813, machine weight 15,000 kg, connected load 30 kVA, grinding stroke - external toothing 450 mm, grinding spindle drive power 15 kW, max. bed load 500 kg, workpiece specifications - external toothing: max. tip circle Ø (da) 700 mm, min. root circle Ø (df) 50 mm, number of teeth freely selectable, max. profile height 35 mm, min. - max. modulus 1 - 15 mm, max. helix angle 45°, tool specifications - external toothing: max. external Ø of grinding wheel 400 mm, dressable, max. grinding wheel Ø at shoulder 200 mm, dressable, max. grinding wheel width (standard) 30 mm, grinding wheel width (special design) 20/35/40/45 mm, grinding spindle speed 0 - 5,400 rpm, dressing wheel Ø 160 mm, dressing speed 0 - 5,400 rpm, compact filter unit, make Interlit, type Stuf 75/1000, tank capacity 1,300 l, oil smoke extraction/filtering system, make Indusa/Elstar, control system, make Höfler, electron. hand wheel, hour meter reading: 72,322
Location
- 16928 Pritzwalk, Freyensteiner Chaussee 15
