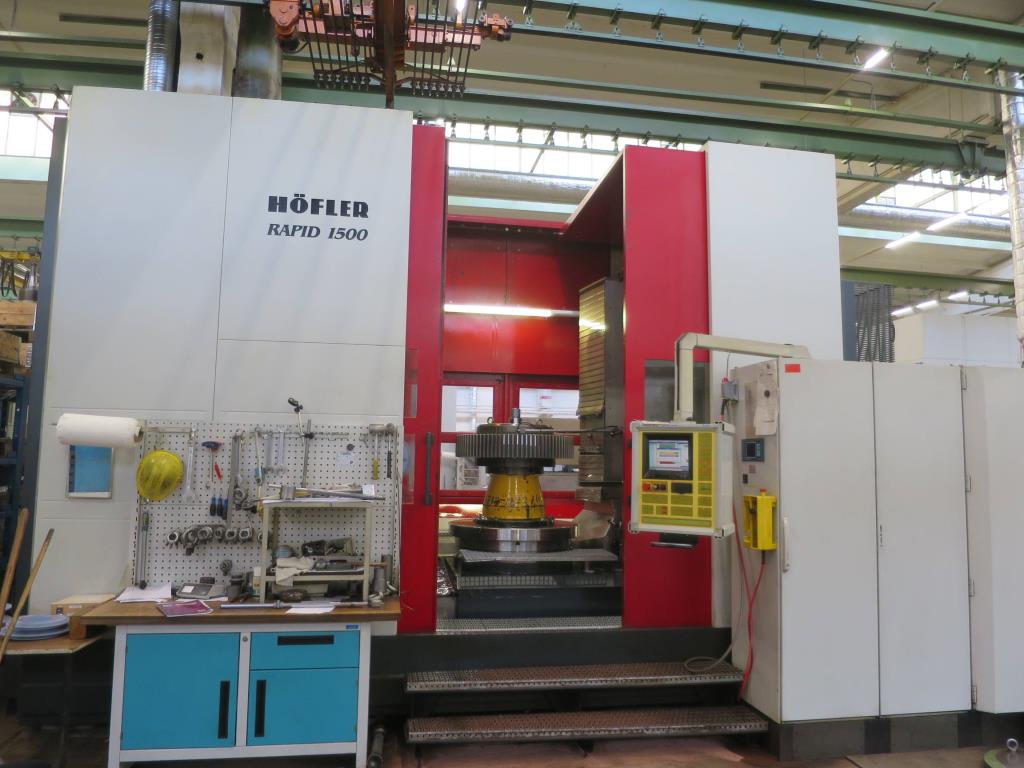

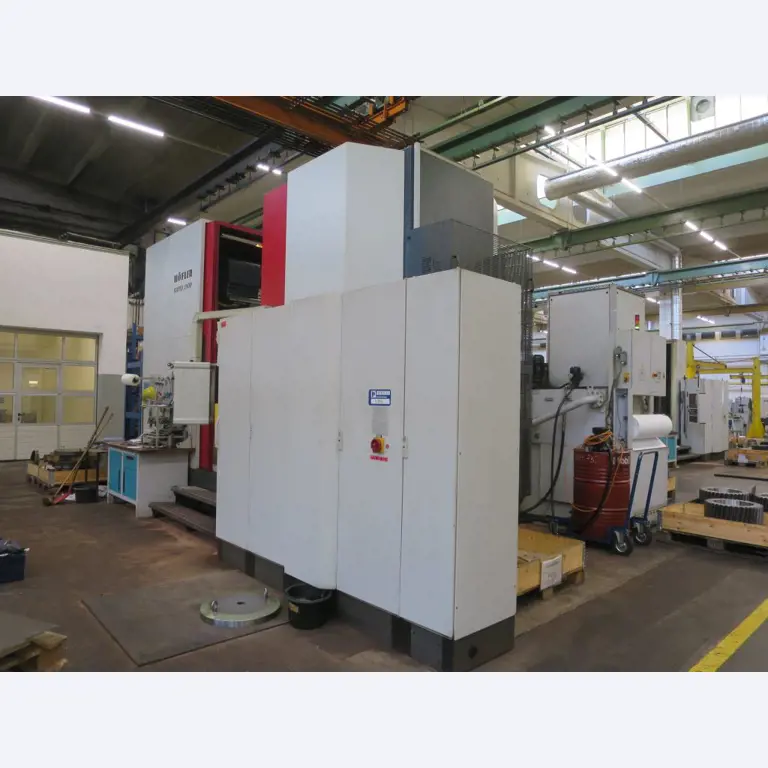

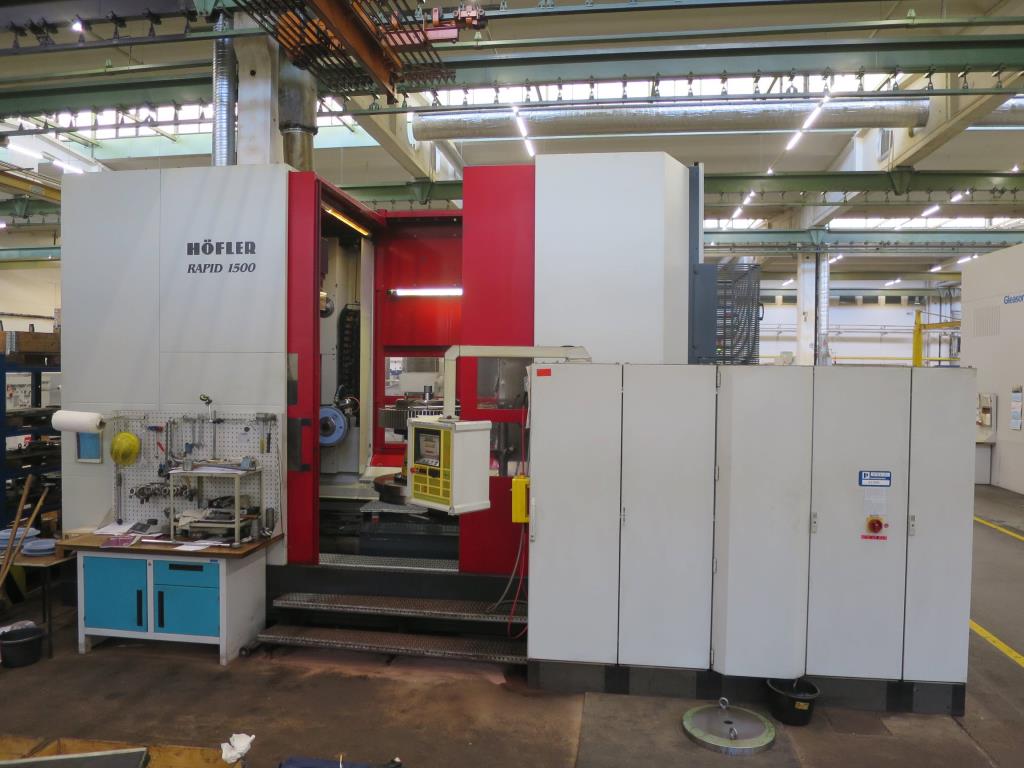

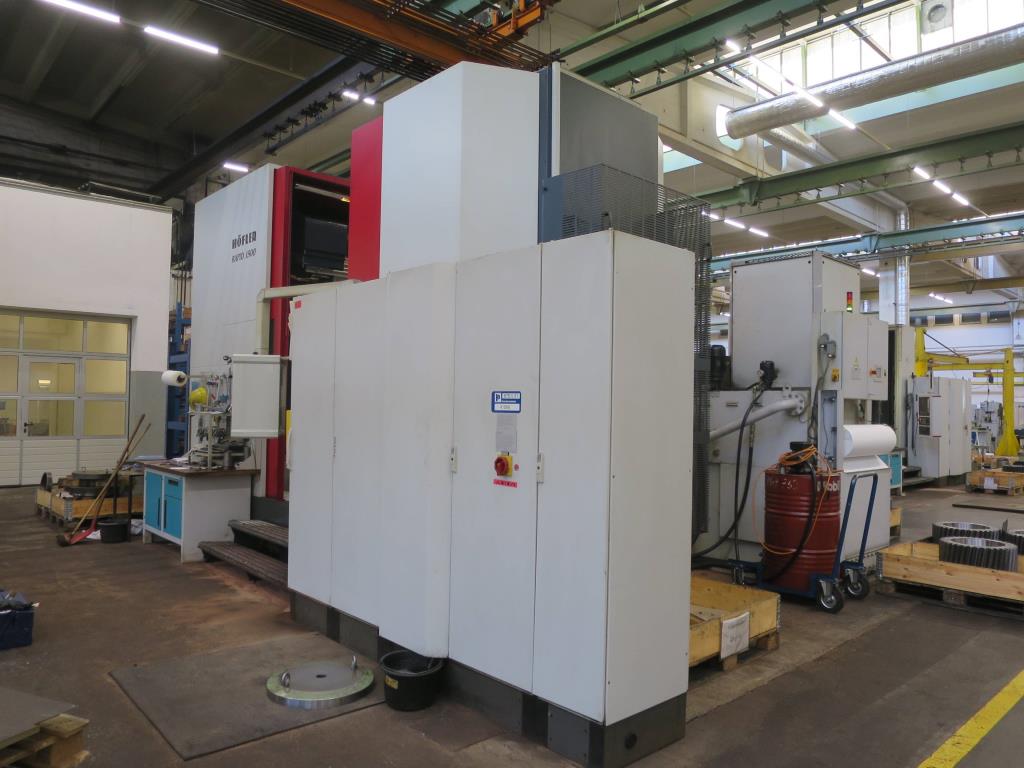

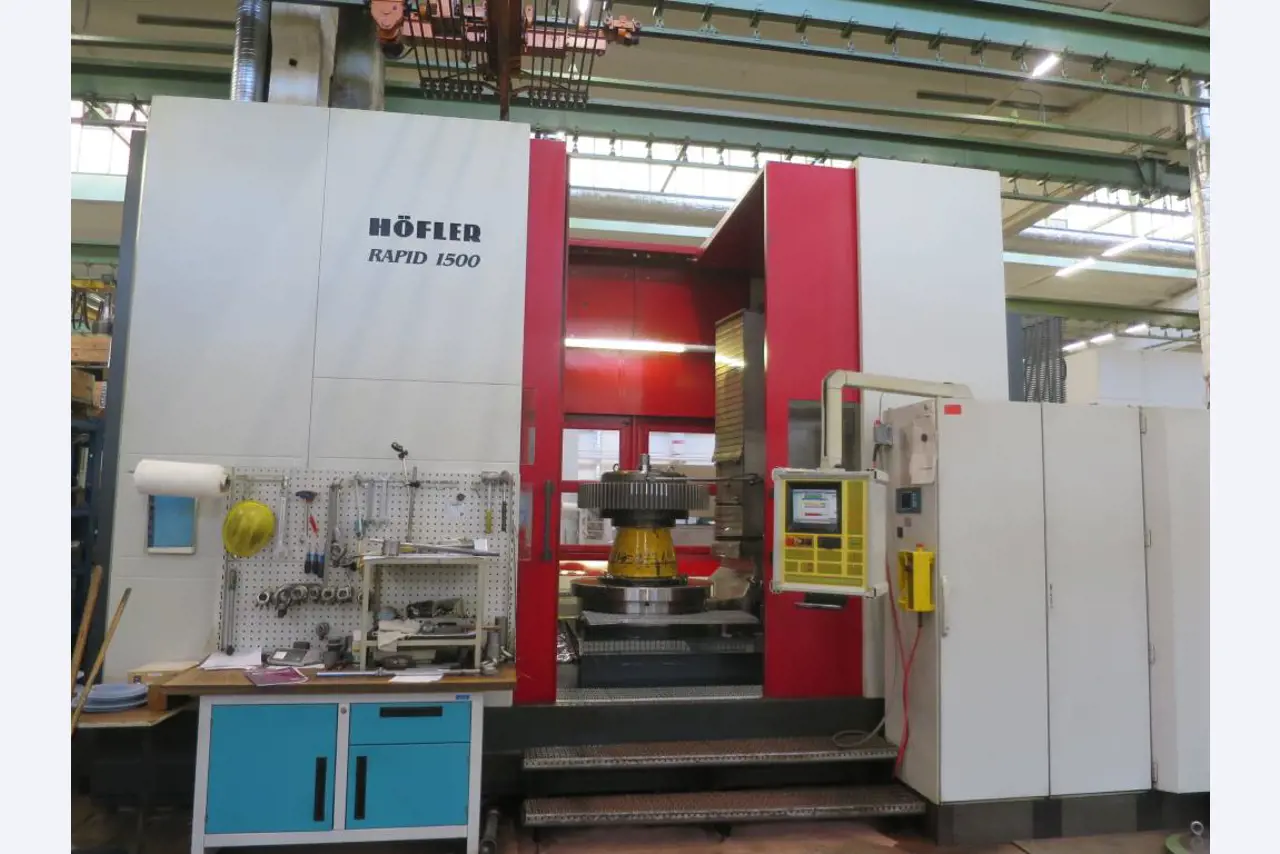

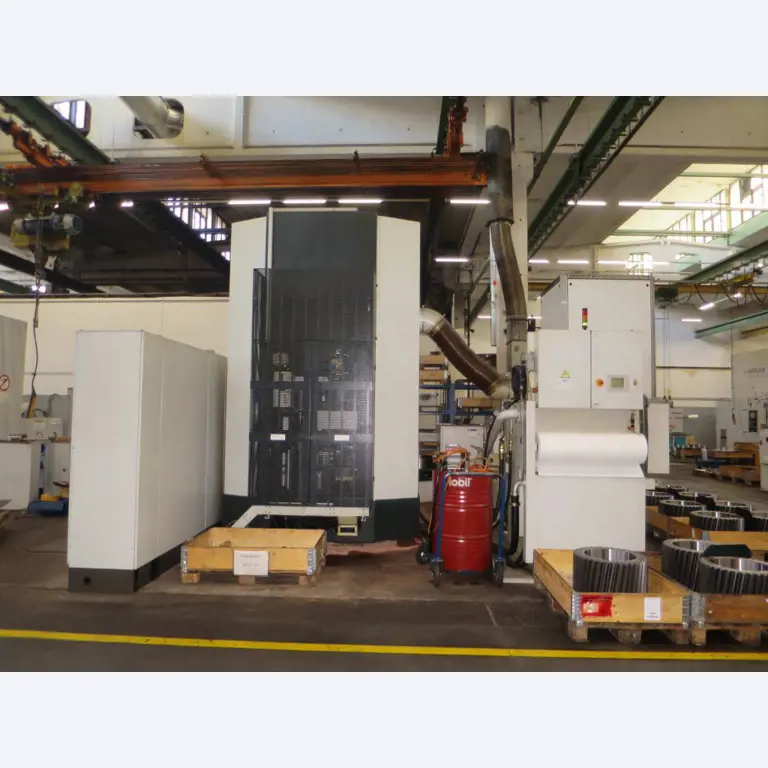

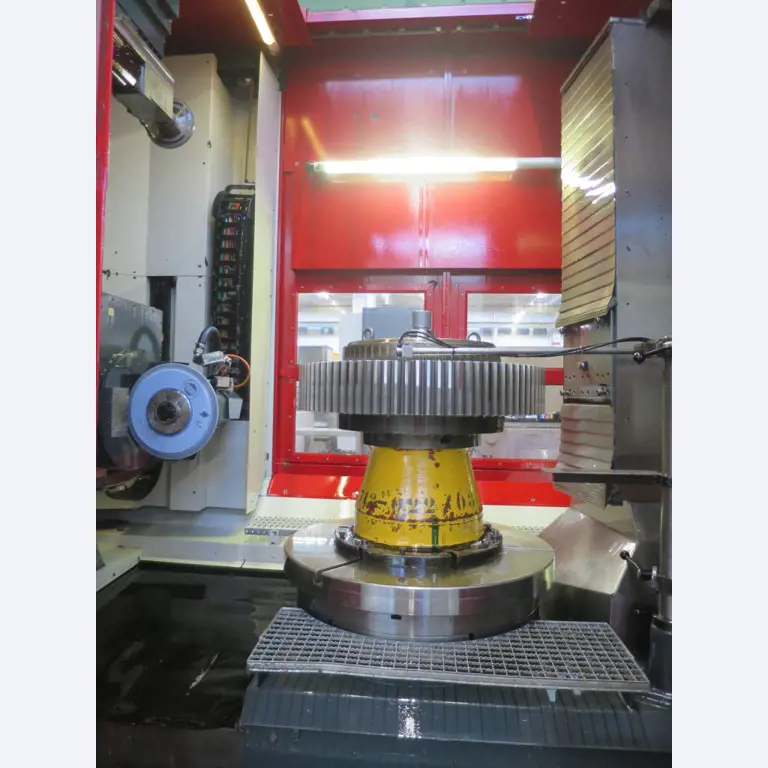

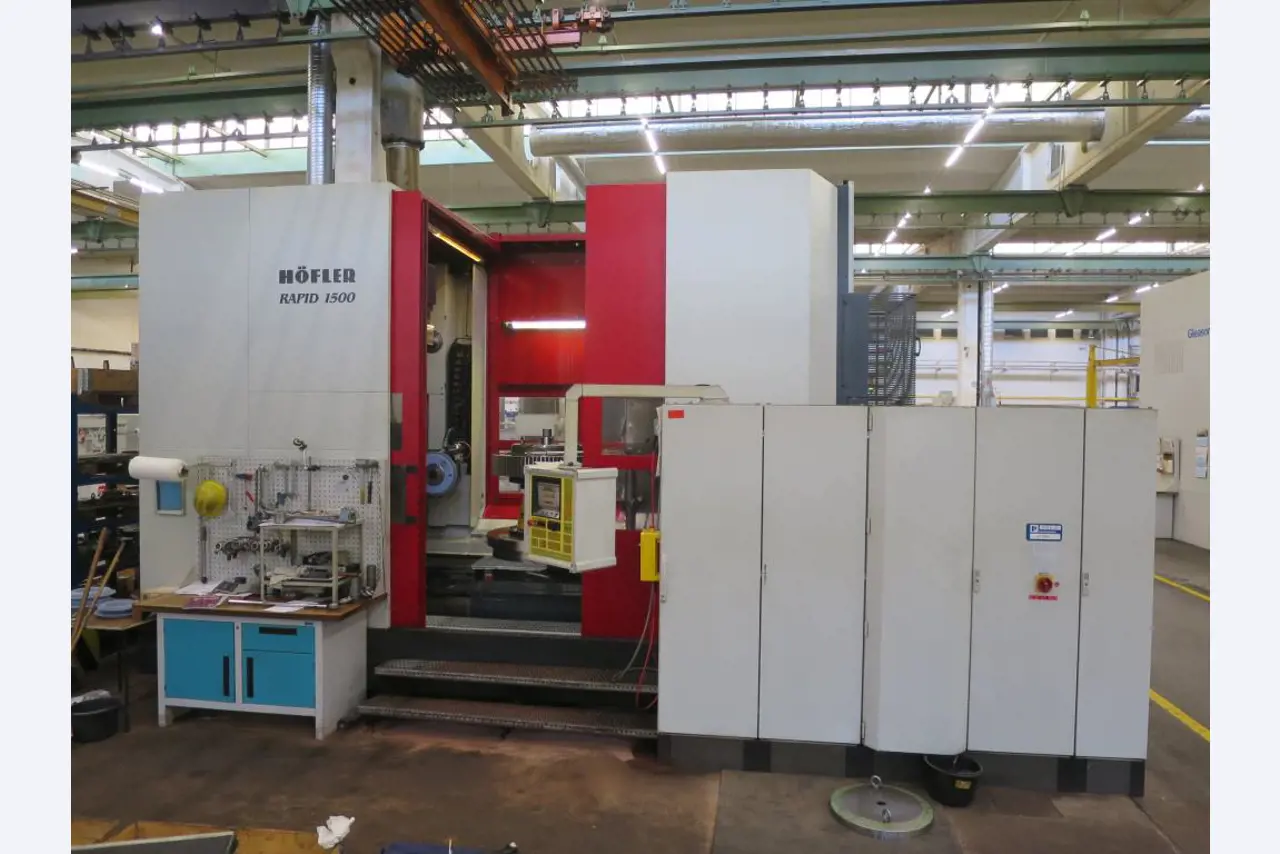

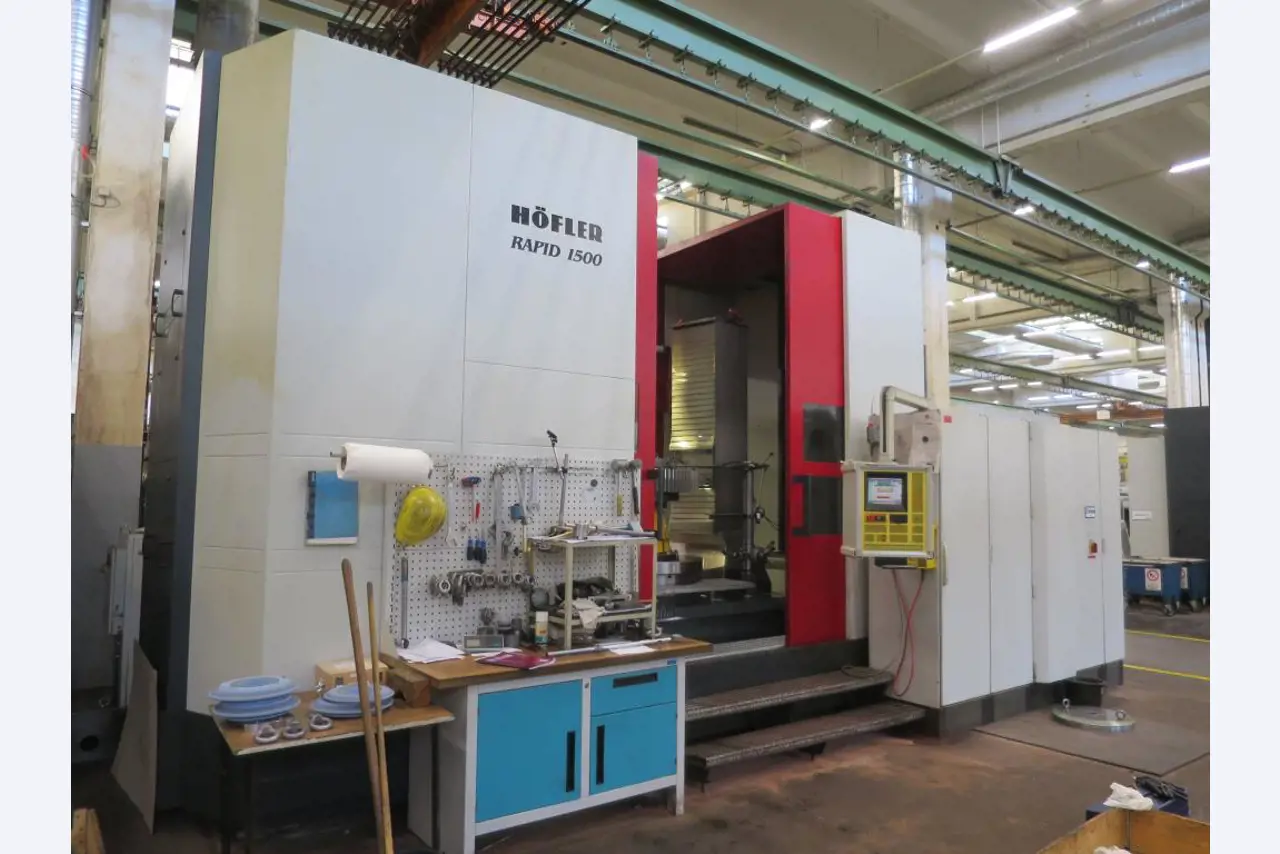

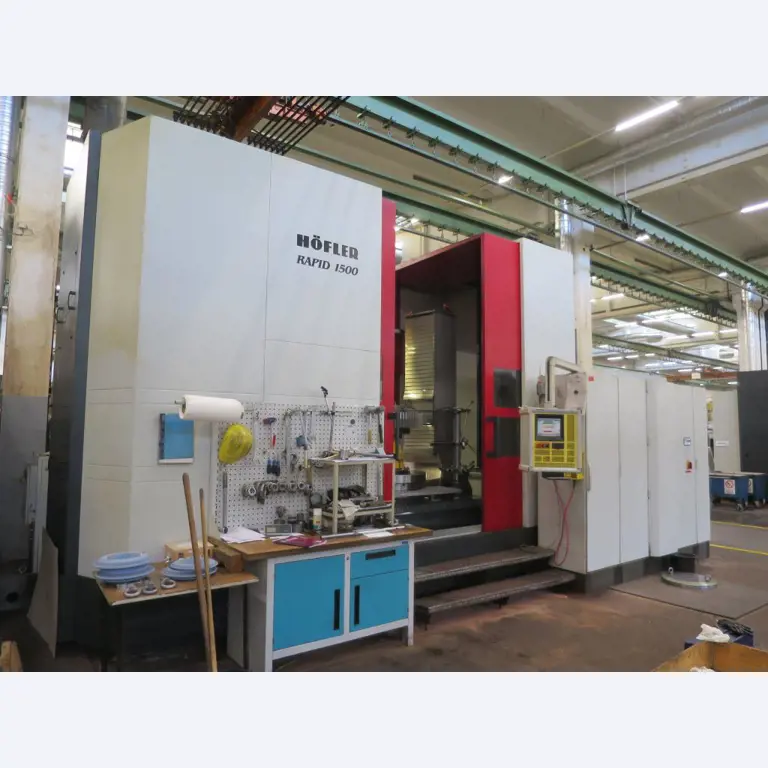

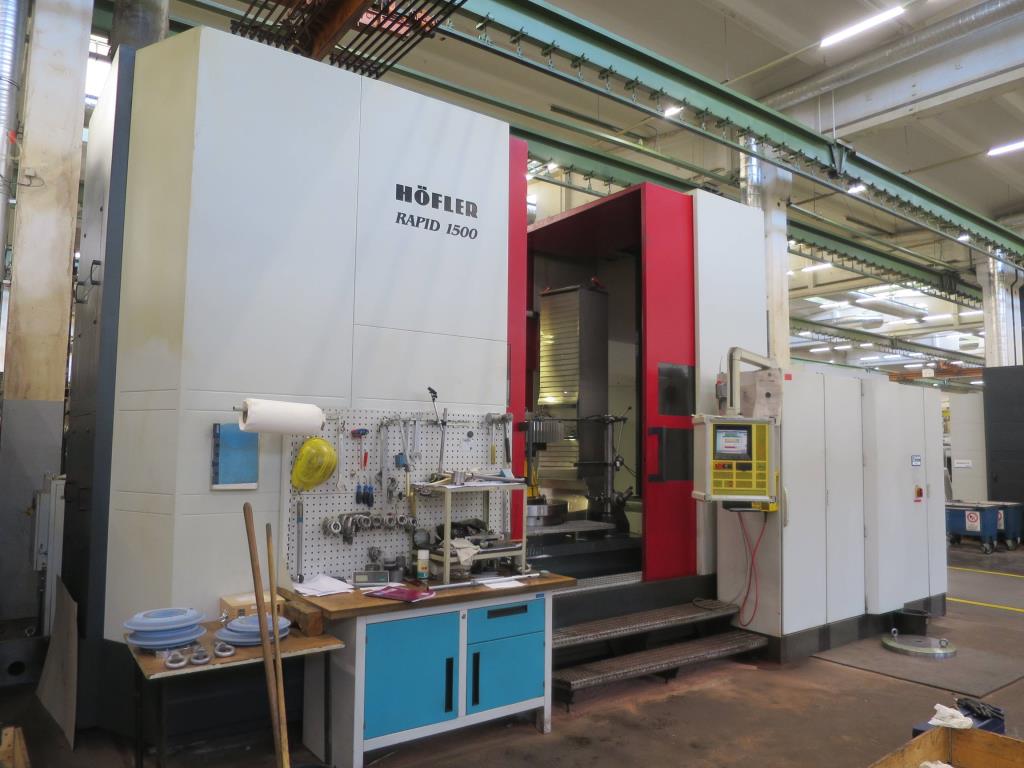

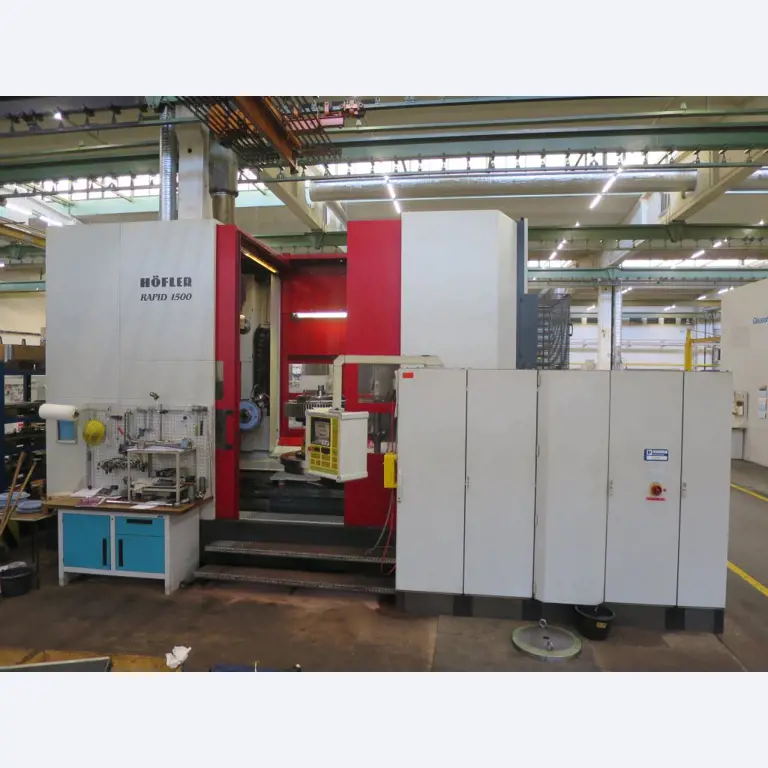

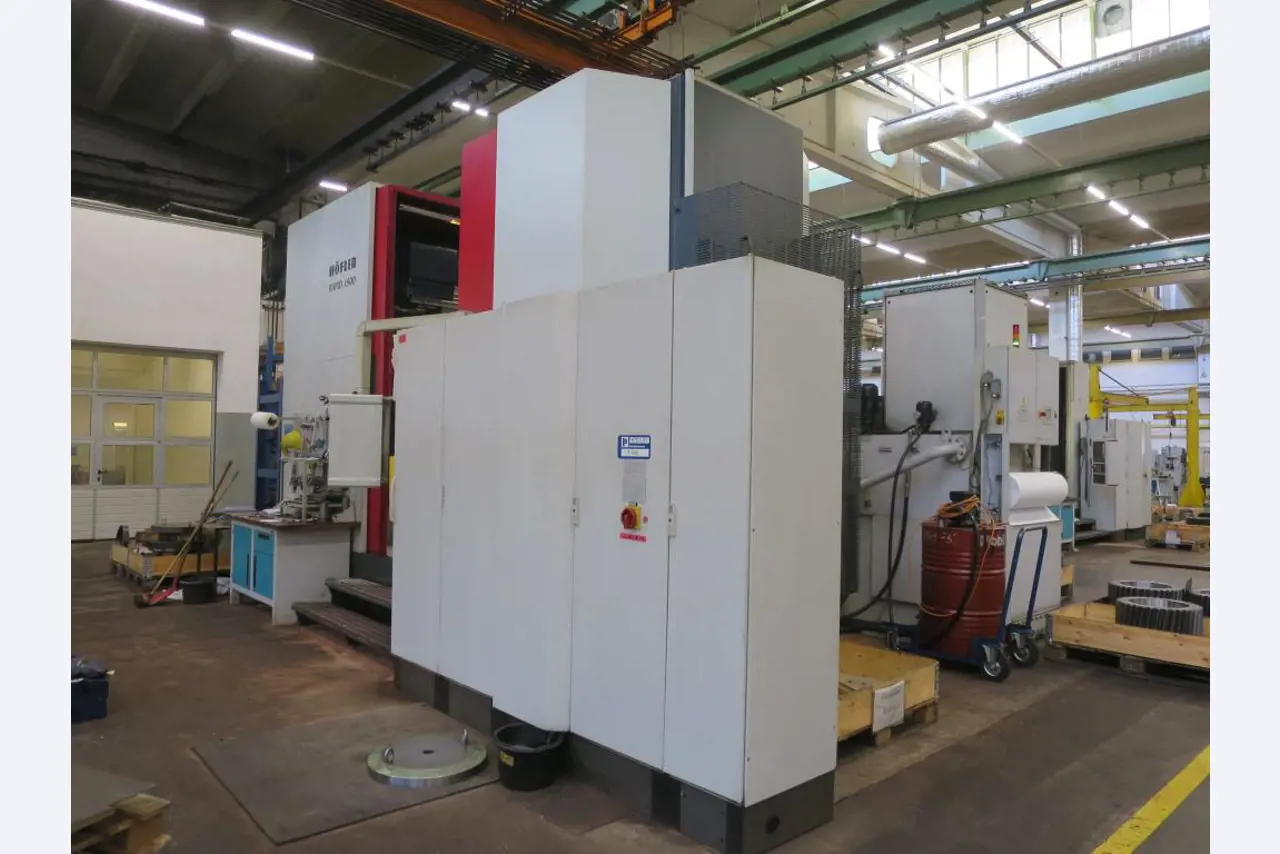

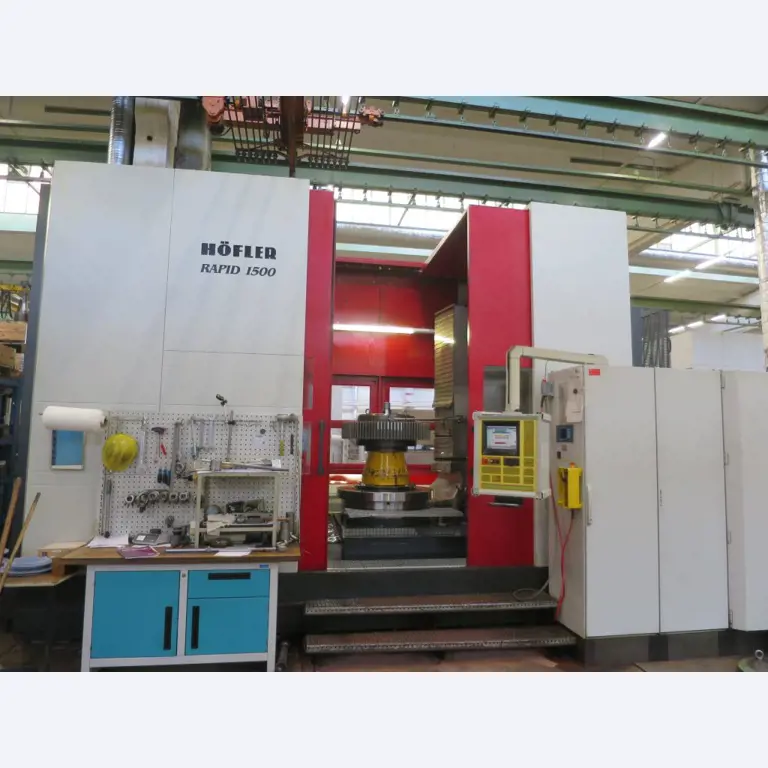

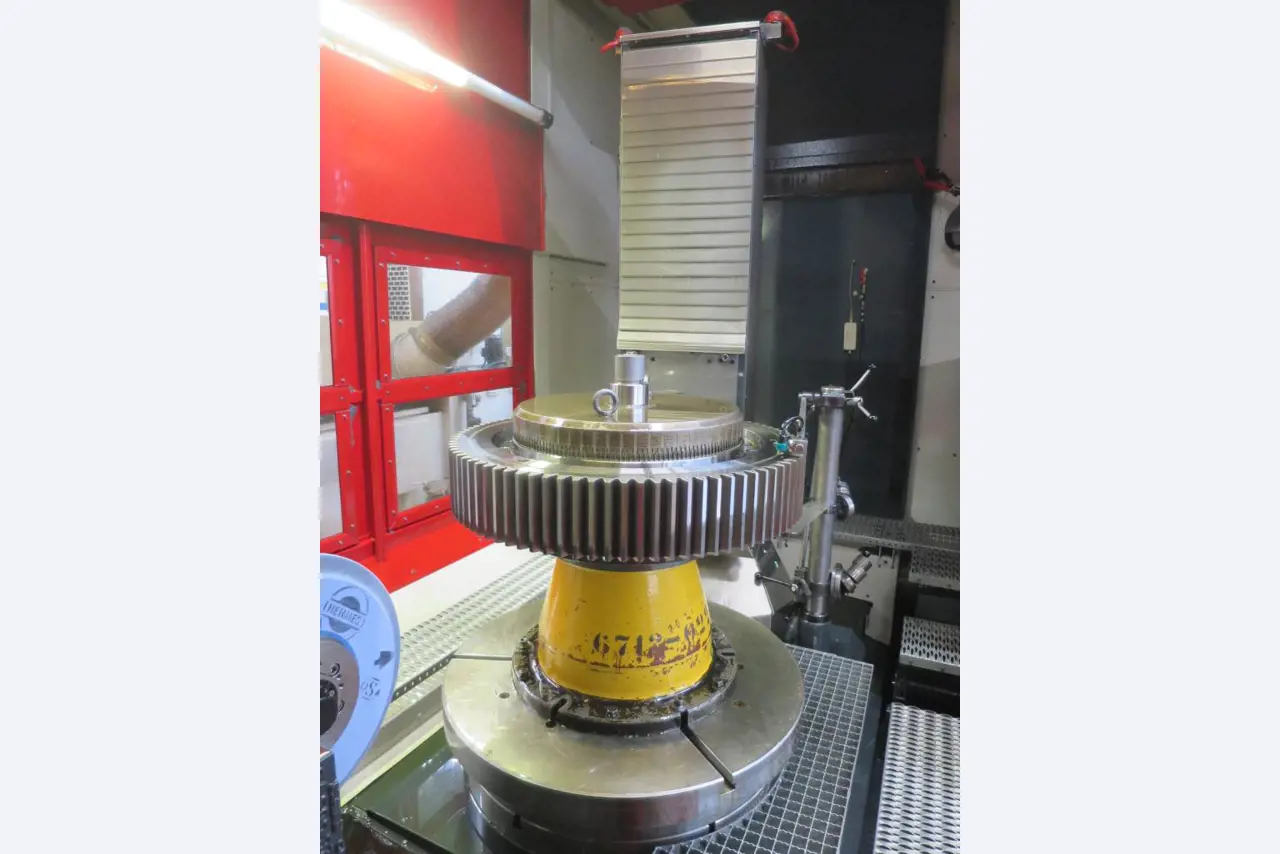

tooth flank grinding machine Höfler RAPID 1500TRADING#14182-2

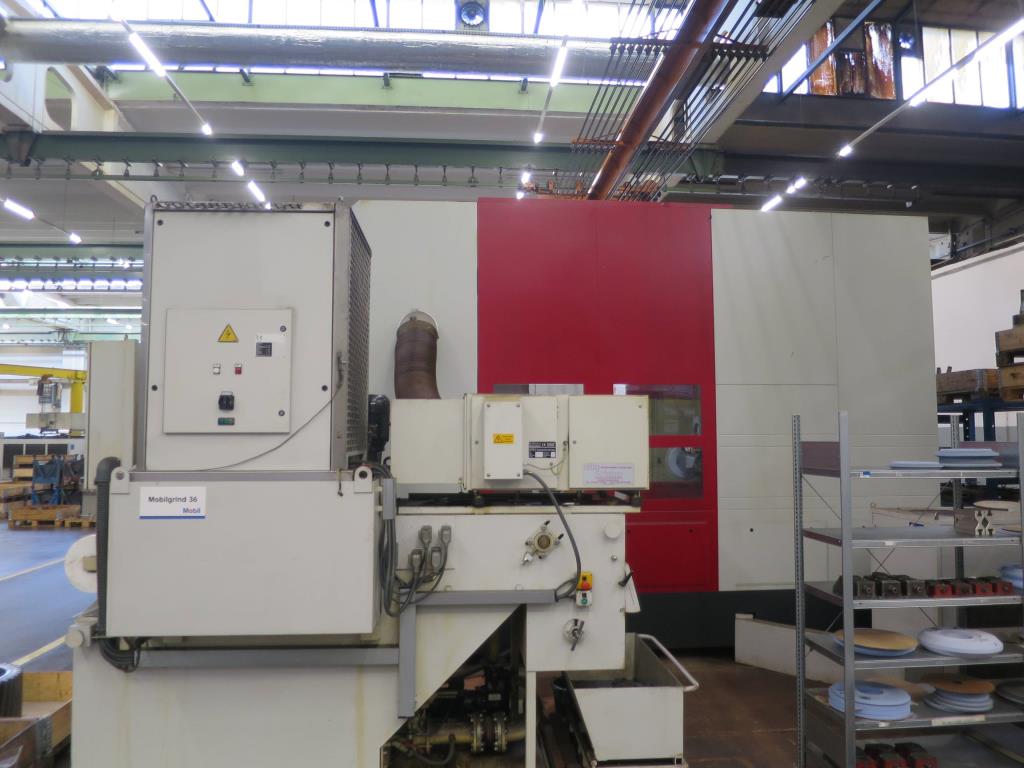

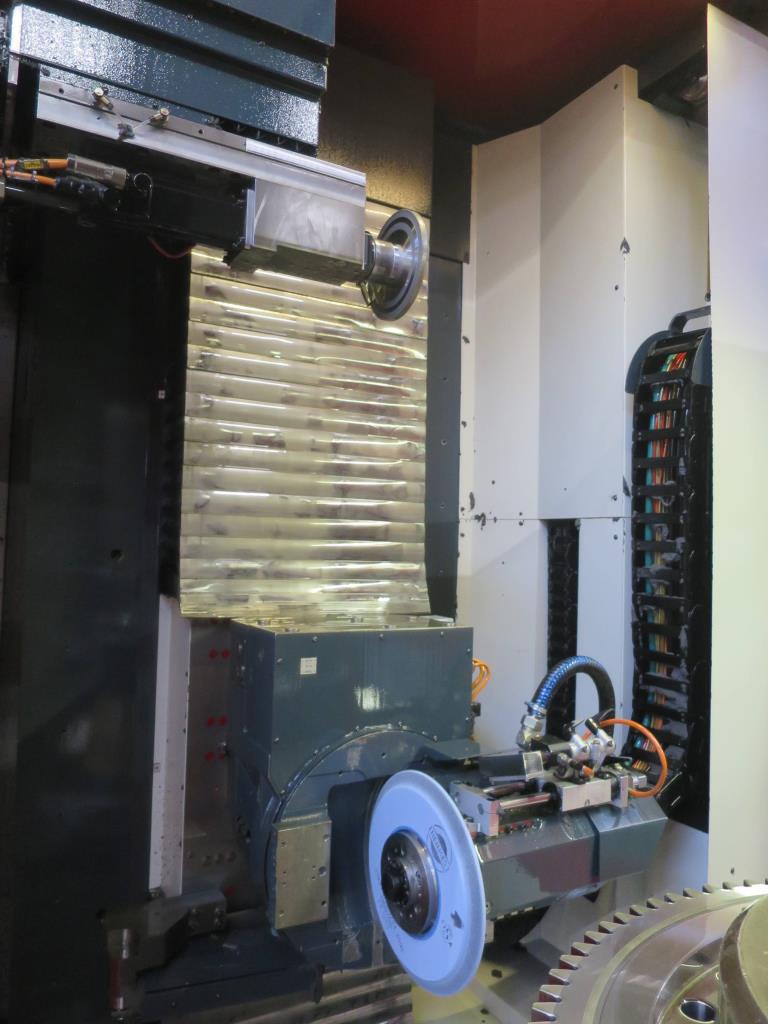

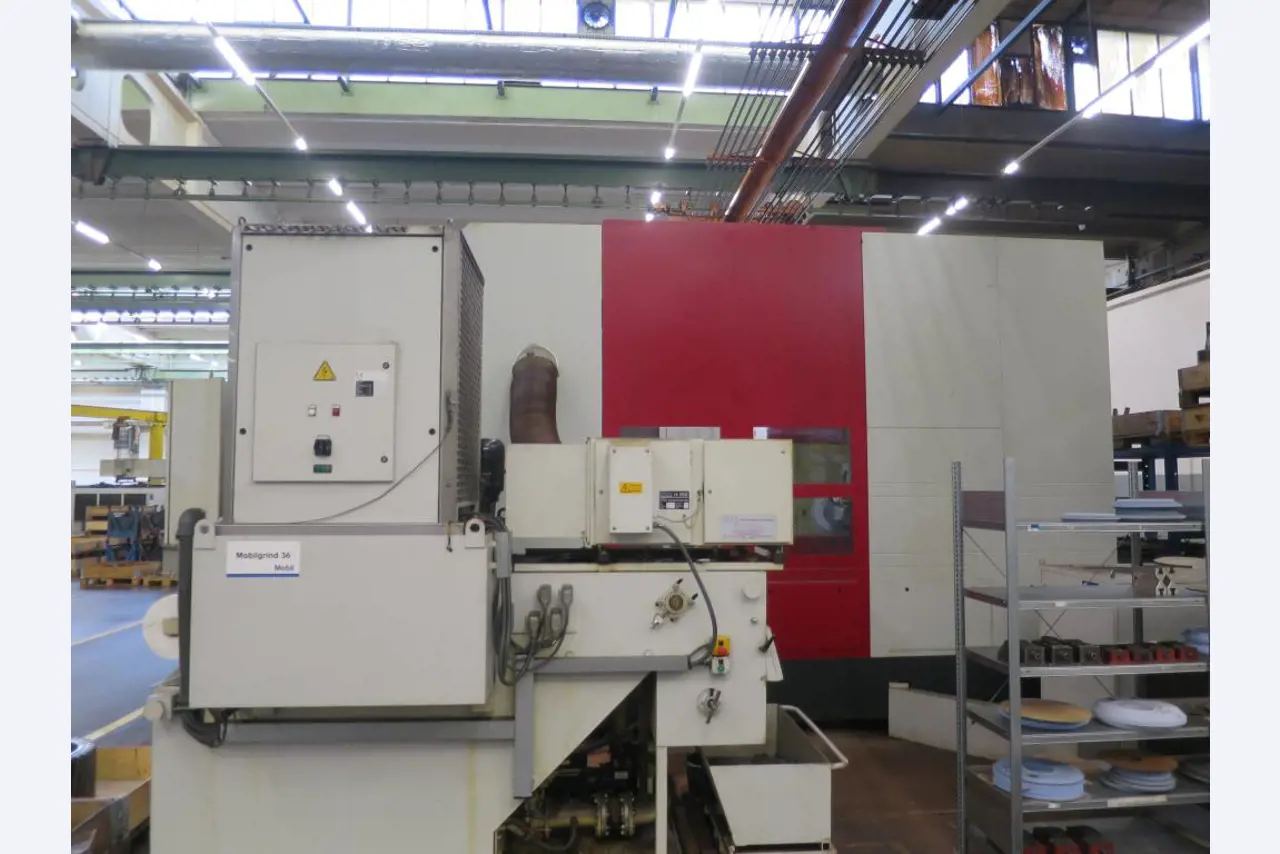

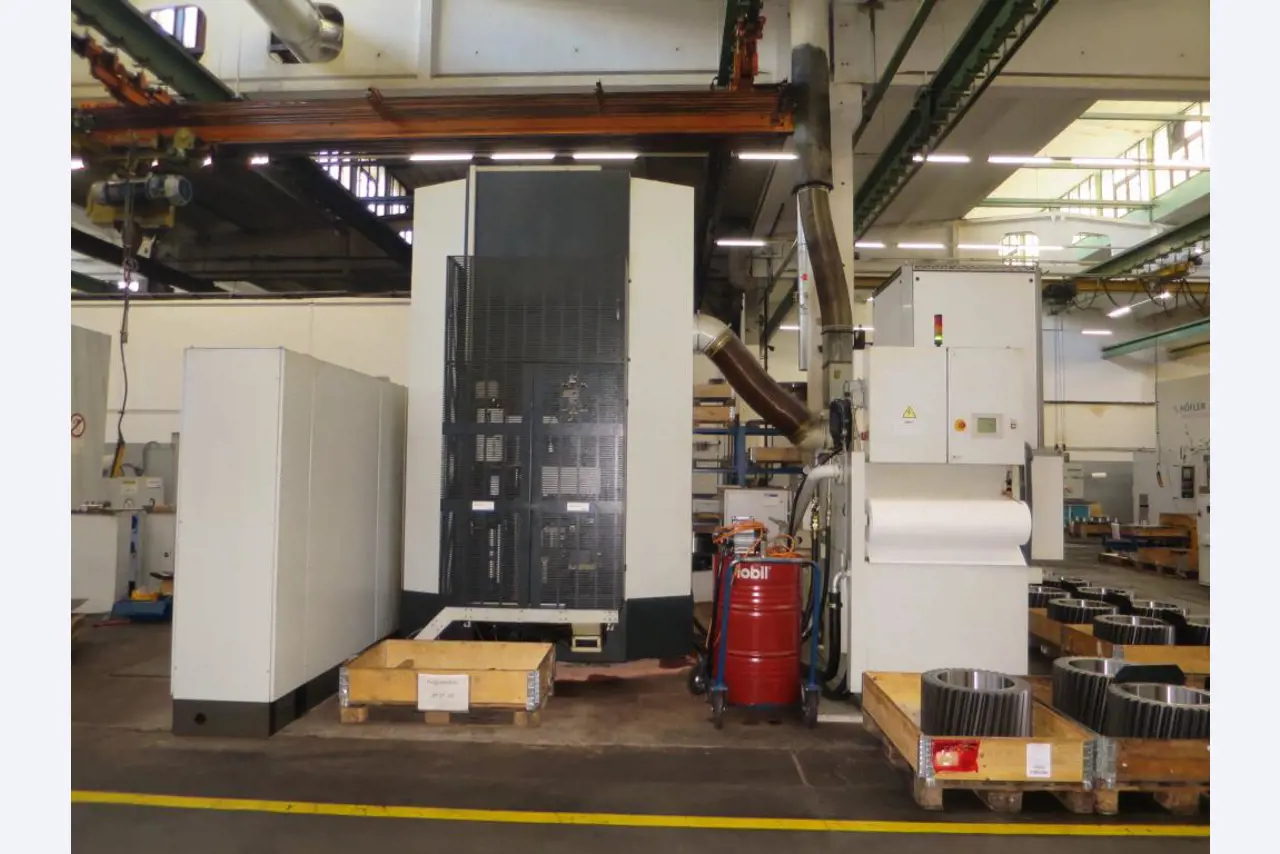

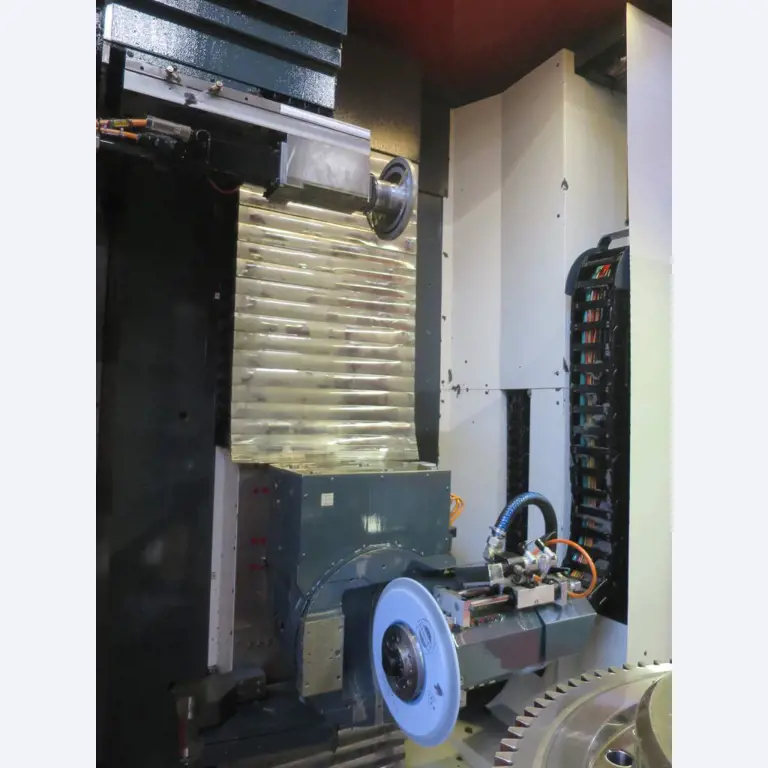

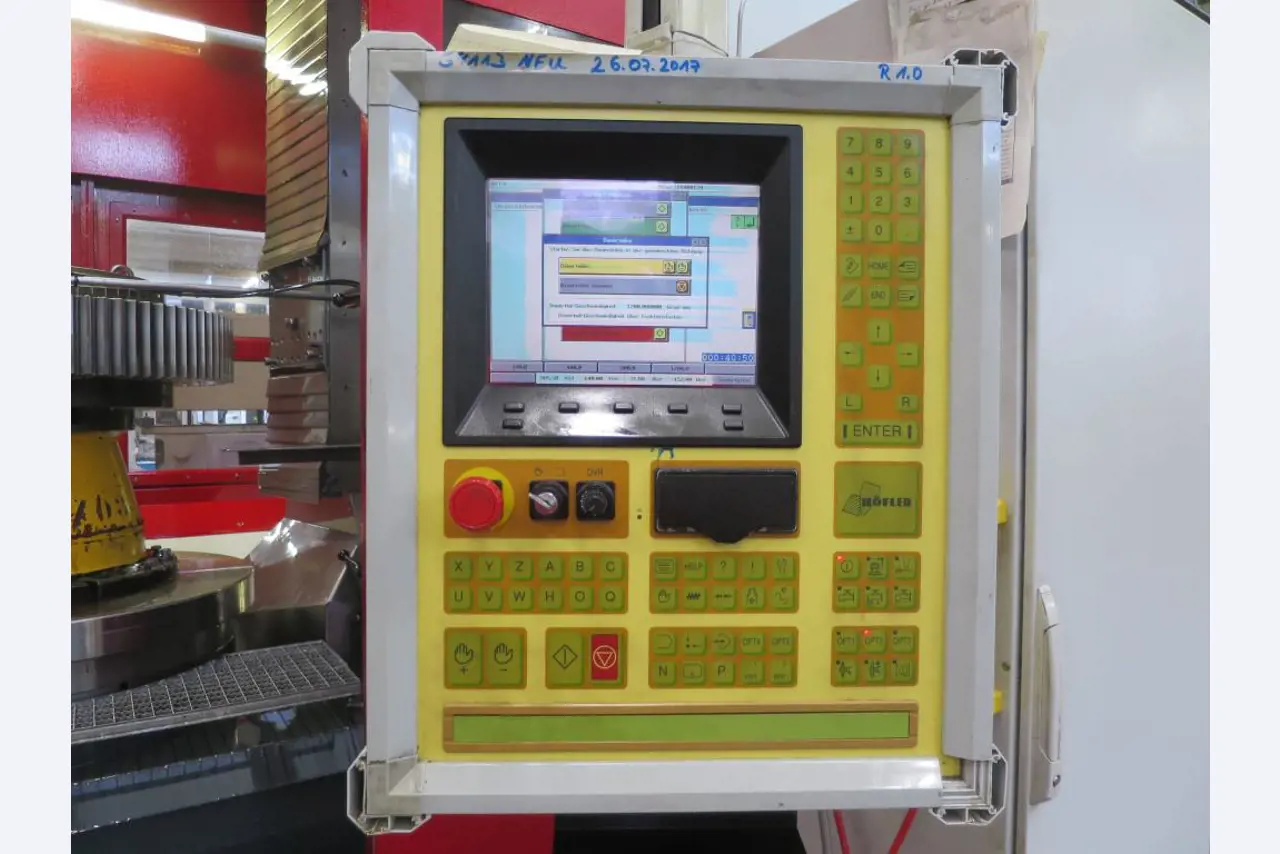

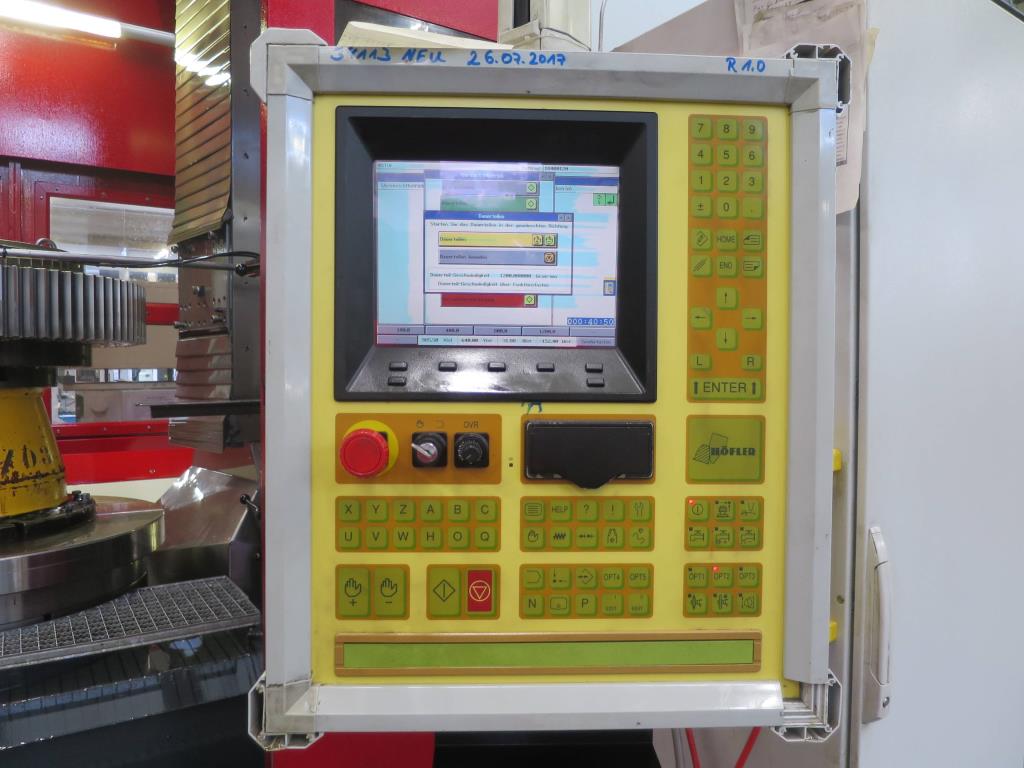

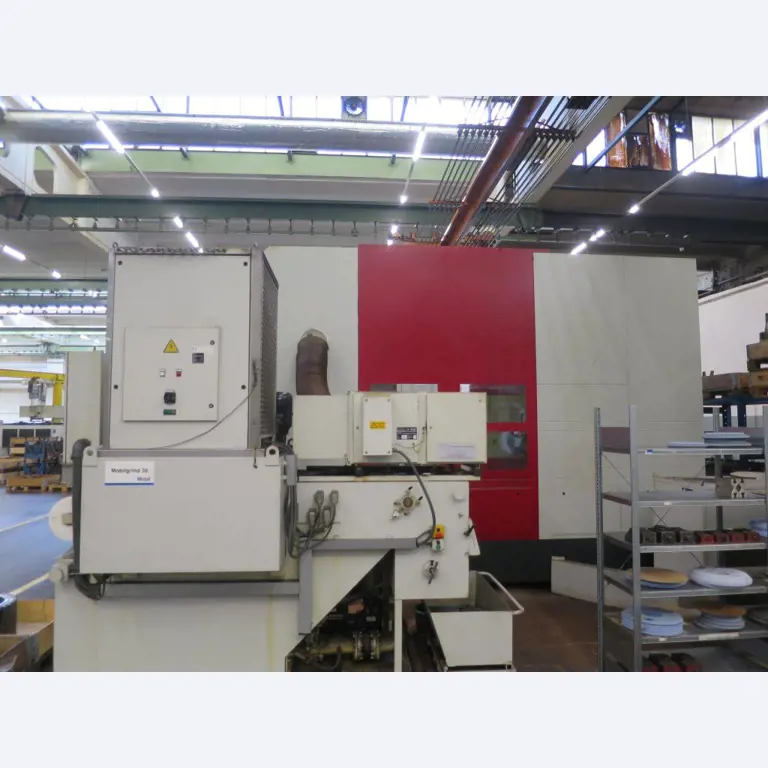

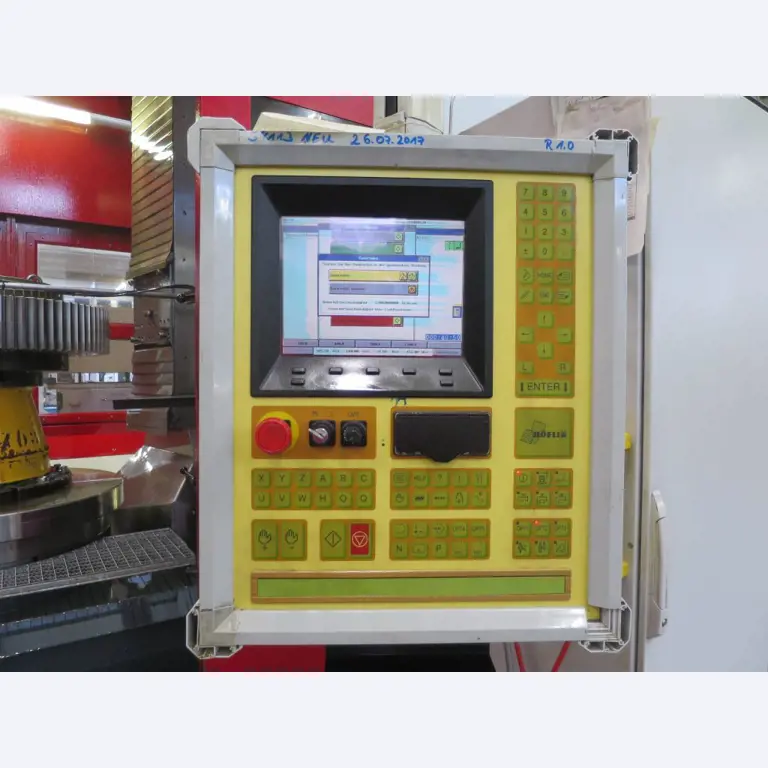

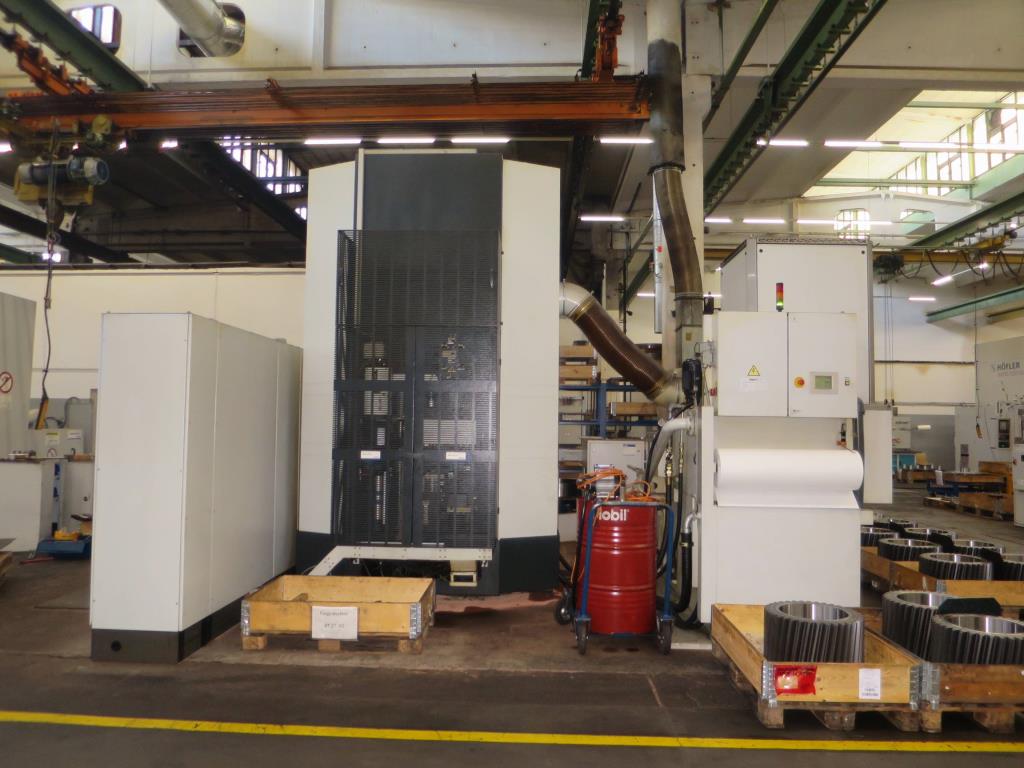

serial no. 840, machine weight 25,000 kg, connected load 56 kVA, grinding stroke - external toothing 1,000 mm, grinding spindle drive power 13.5 kW, max. bed load 6,000 kg, workpiece specifications - external toothing: max. addendum circle Ø (da) 1,500 mm, min. root circle Ø (df) 50 mm, number of teeth freely selectable, max. profile height 41 mm, min. - max. modulus 1 - 18 mm, max. extended profile height 56/60 mm, min. - max. modulus 1 - 25 mm, max. helix angle 45°, tool specifications - external toothing: max. external Ø of grinding wheel 400 mm, dressable, max. grinding wheel Ø at shoulder 200 mm, dressable, max. grinding wheel width (standard) 60 mm, grinding wheel width (special design) < 60 - 75 mm, grinding spindle speed 0 - 4,000 rpm, dressing wheel Ø (standard) 160 mm, dressing wheel Ø (extended profile height) 190/200 mm, dressing speed 0 - 5,400 rpm, oil cooler, coolant filtering system, make Interlit, type Kompakt-Filteranlage Stuf 100/1200, filter area 1 m², tank capacity 2,000 l, oil mist extraction/filtering system, make Indusa/Elstar, control system, make Höfler
