Part of the Auction Gear manufacturing machines

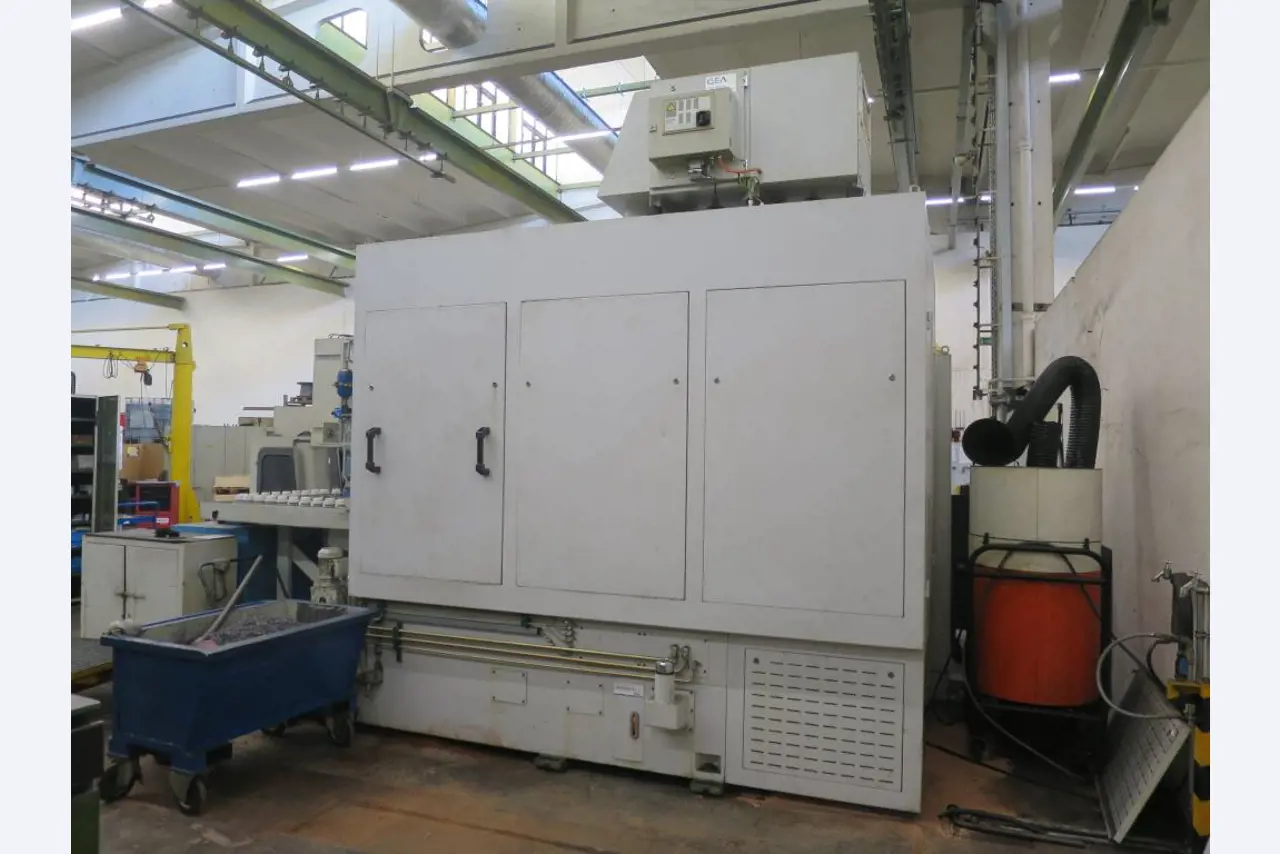

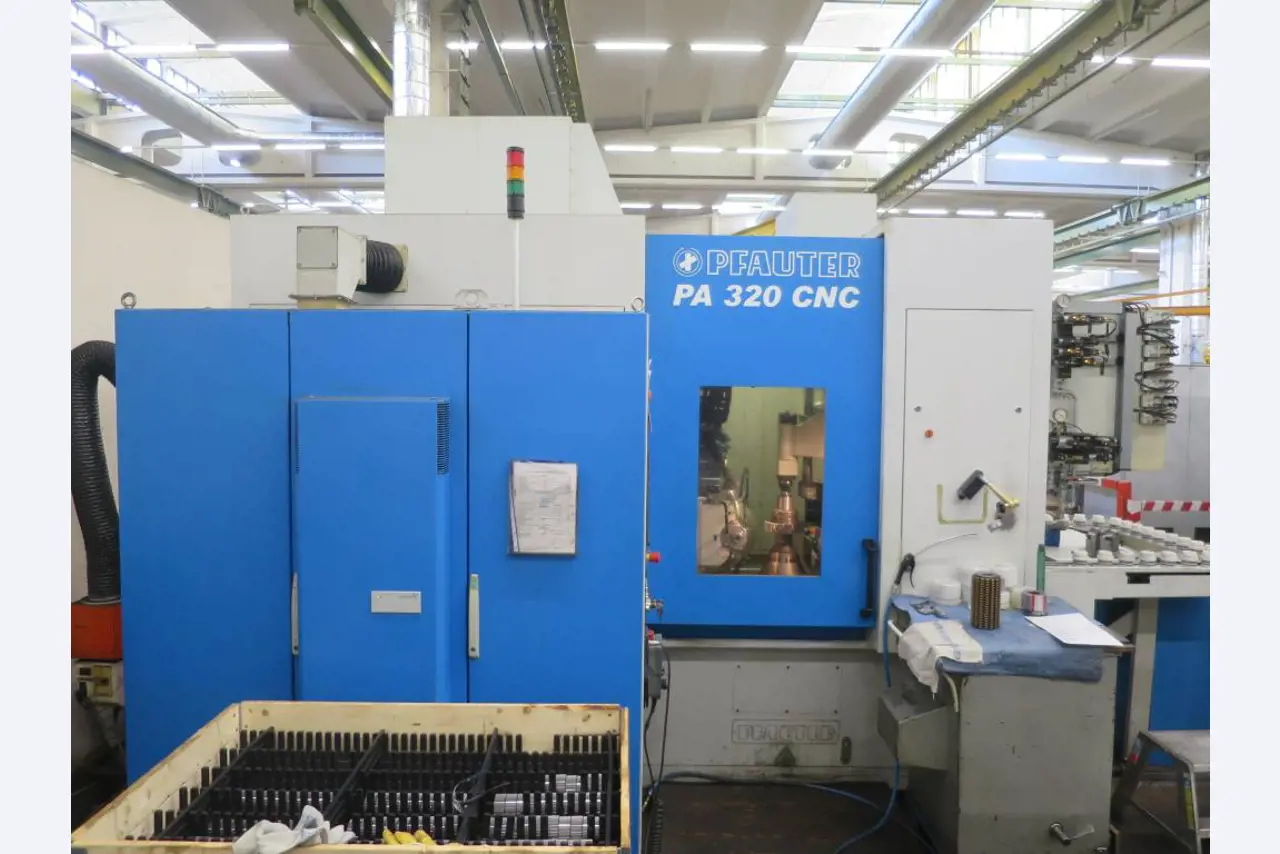

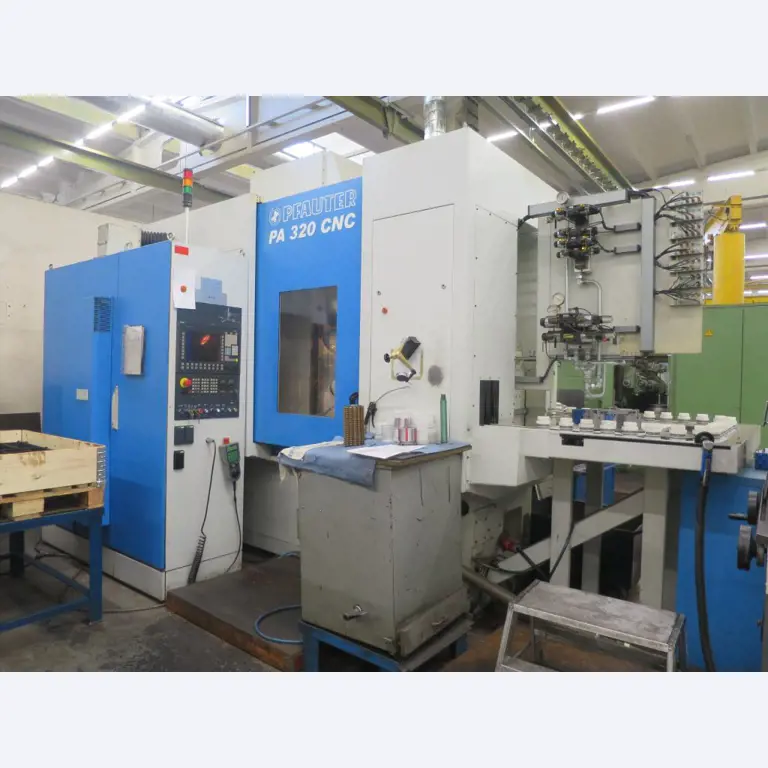

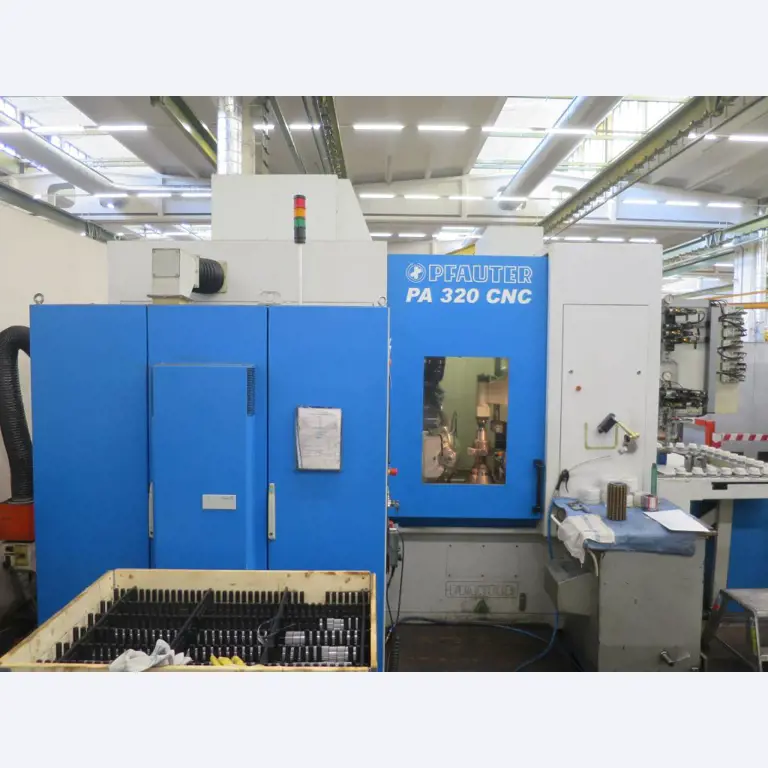

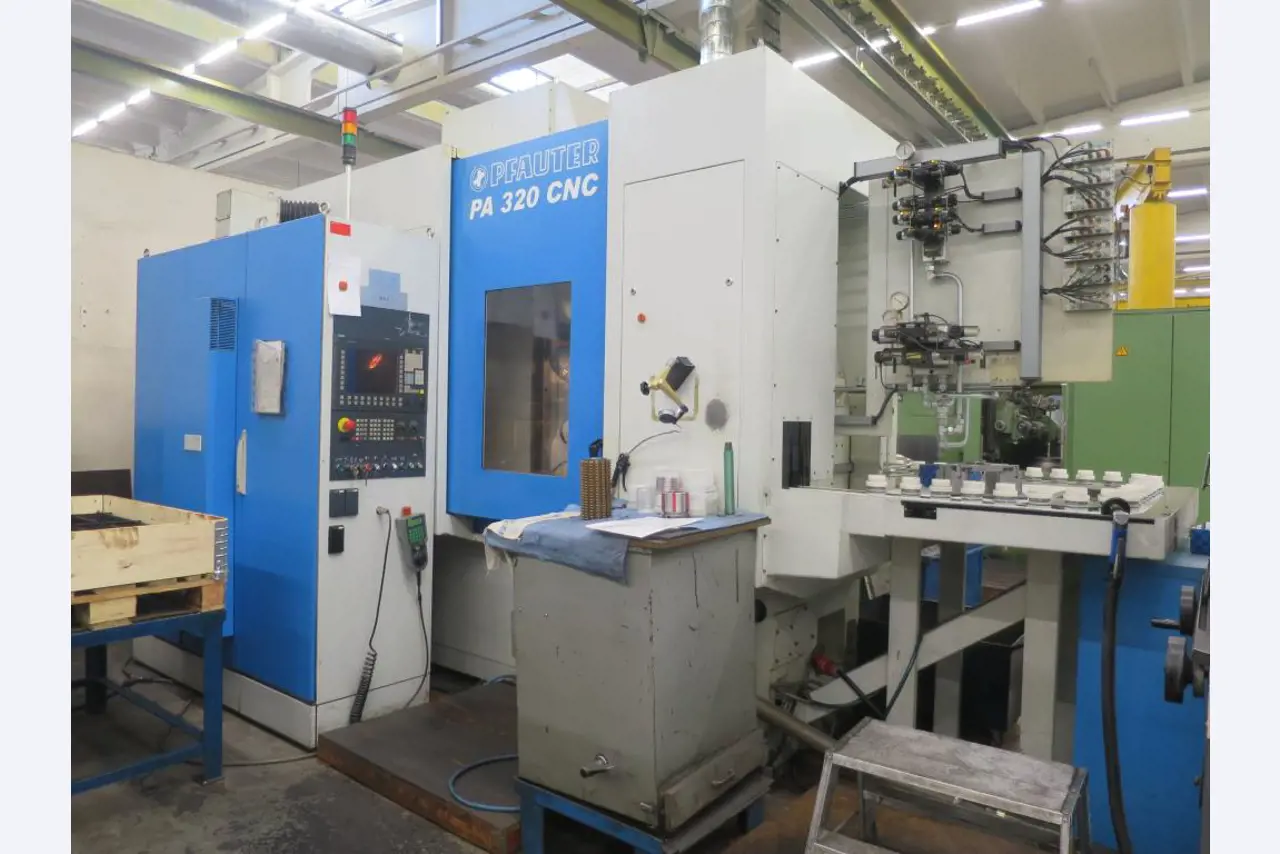

gear hobbing machine Pfauter PA320AUCTION#14182-5

Share with

This auction has ended.
  • Gear manufacturing machines-1
  • Gear manufacturing machines-2
  • Gear manufacturing machines-3
  • Gear manufacturing machines-4
  • Gear manufacturing machines-5
  • Gear manufacturing machines-6
  • Gear manufacturing machines-7
  • Gear manufacturing machines-8
  • Gear manufacturing machines-9
  • Gear manufacturing machines-10
  • Gear manufacturing machines-11
  • Gear manufacturing machines-12
  • Gear manufacturing machines-13
  • Gear manufacturing machines-14

Details

Product Type

Pfauter

Type

PA320

Description

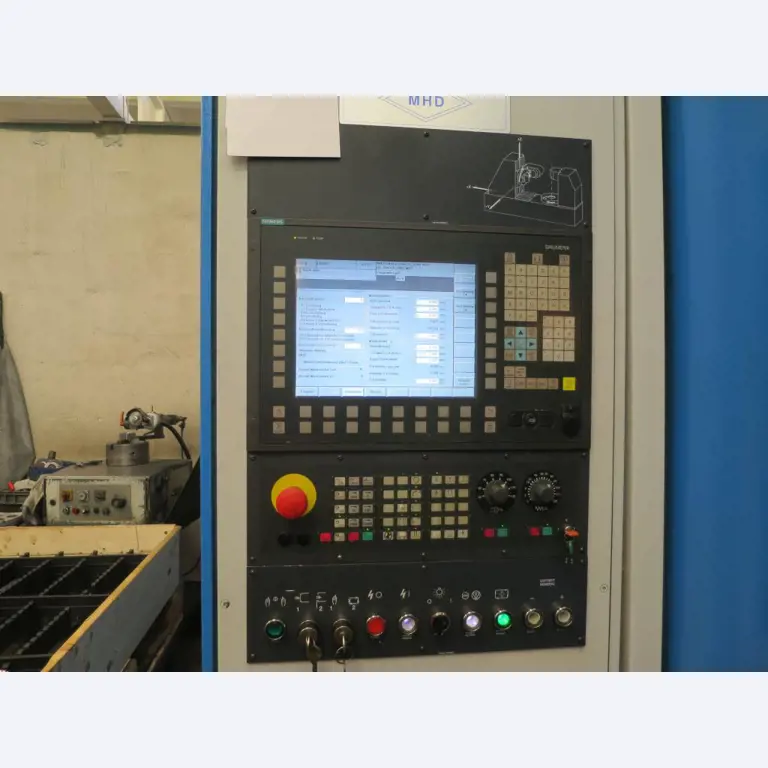

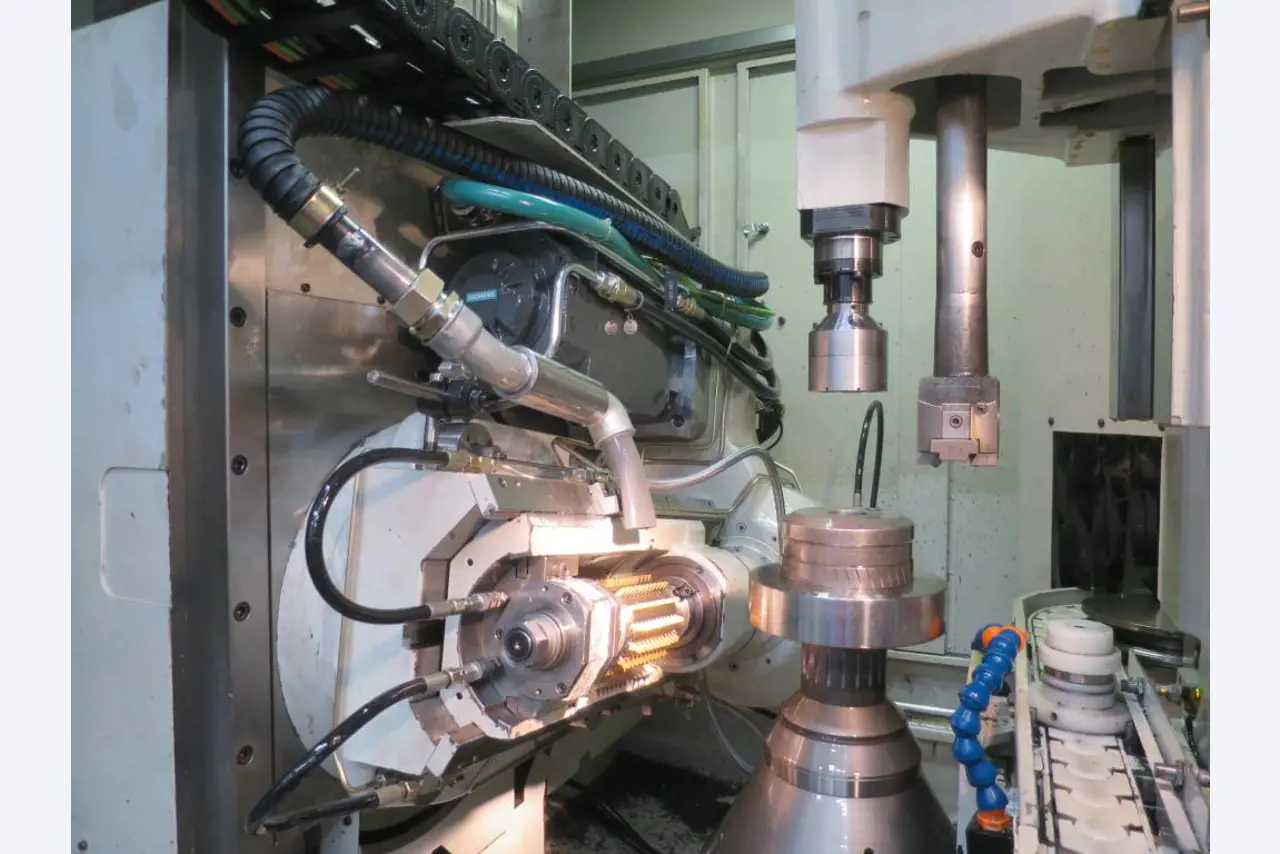

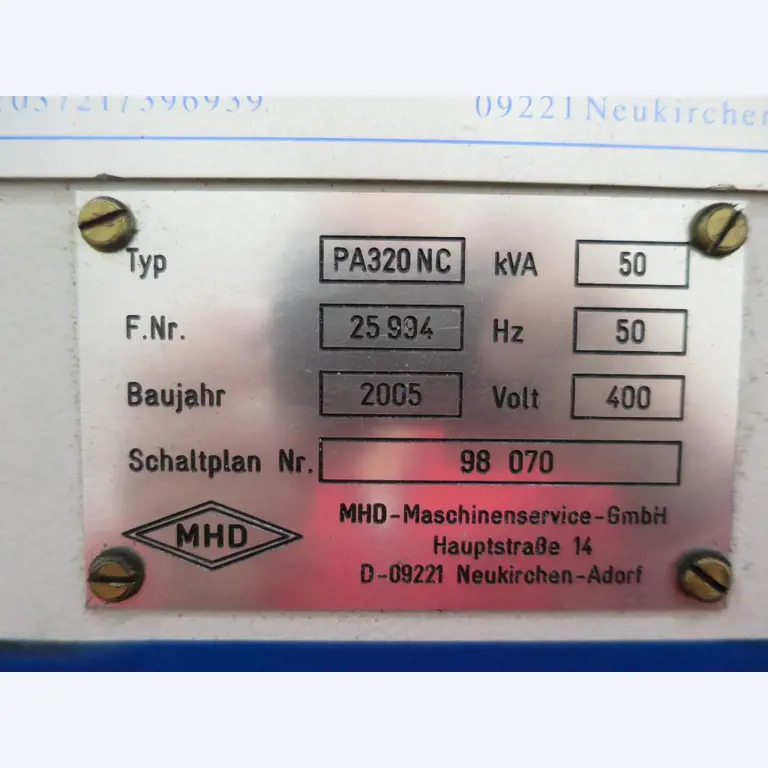

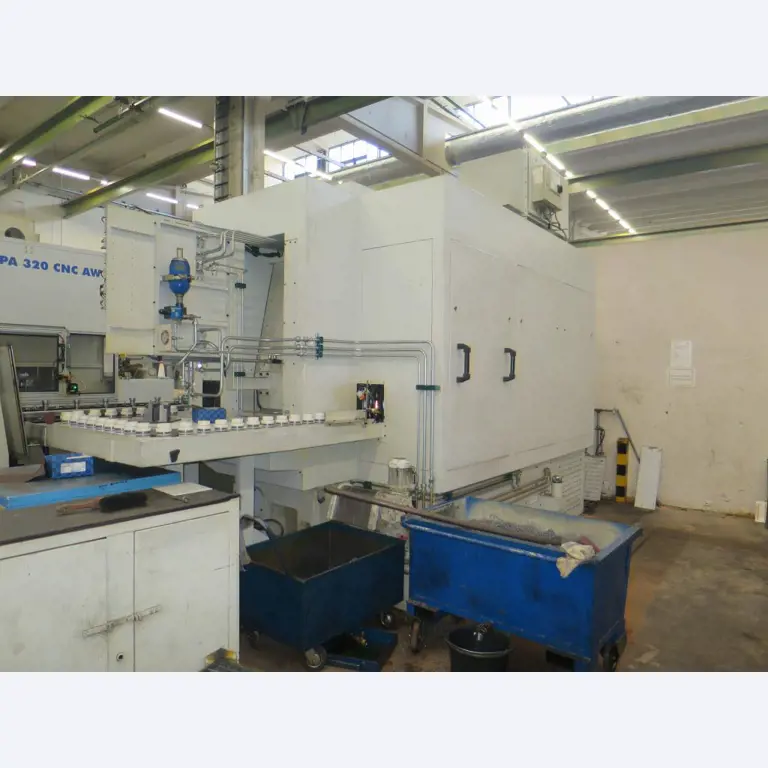

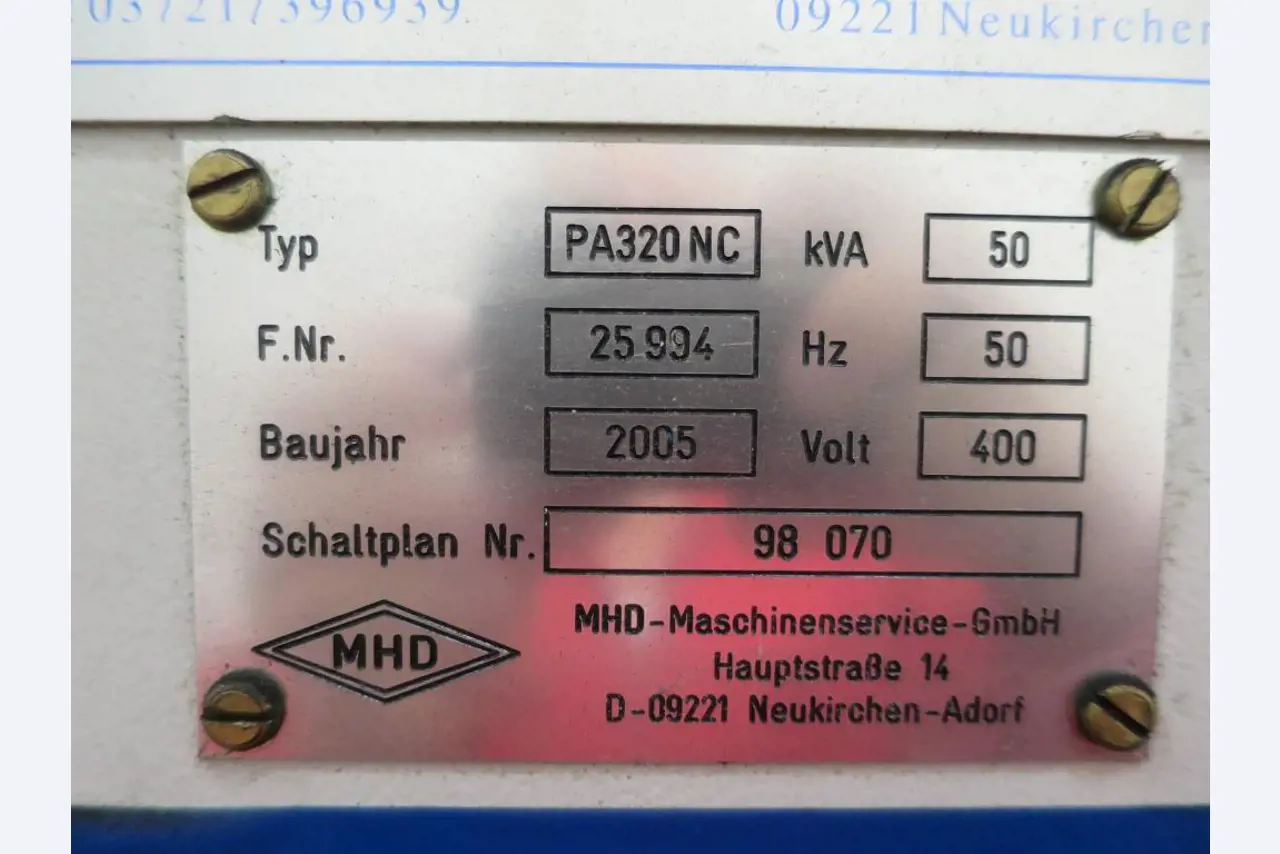

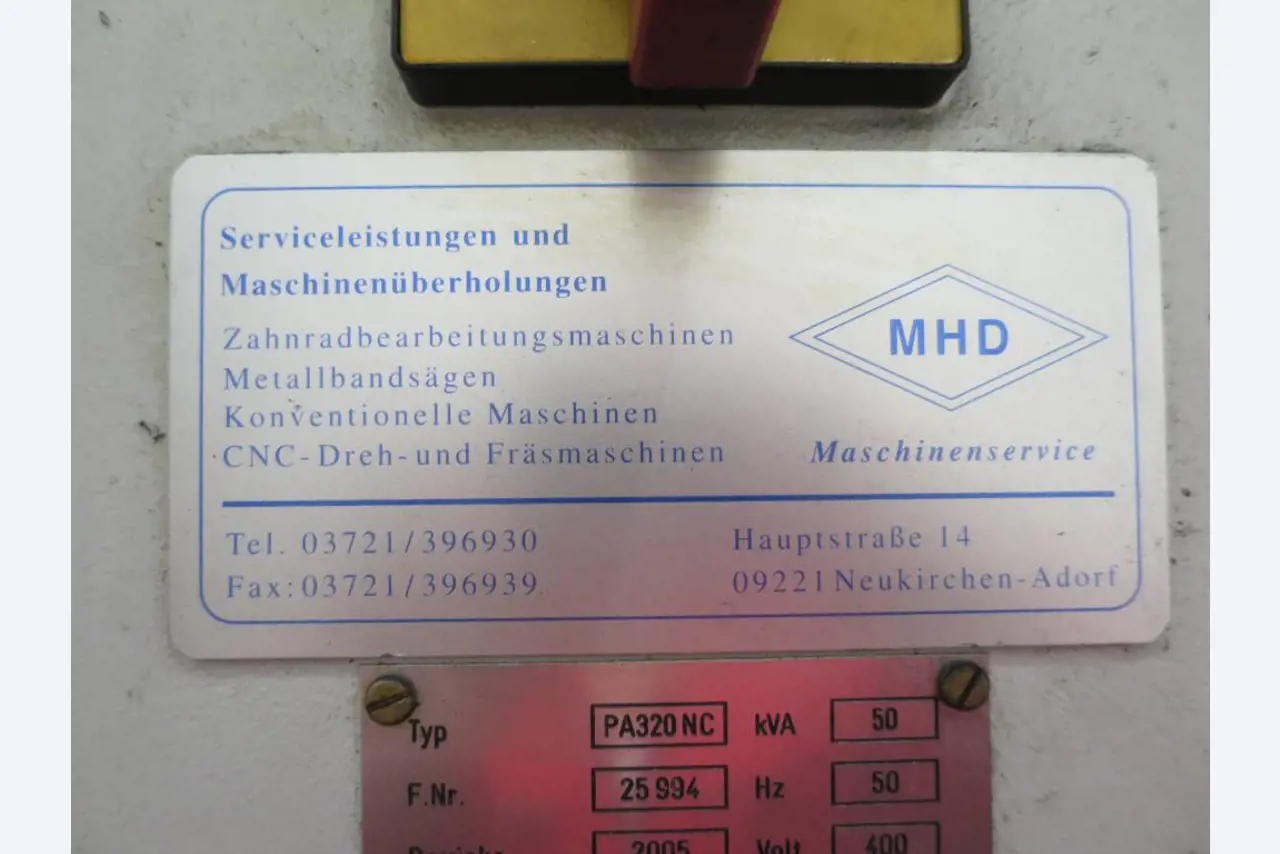

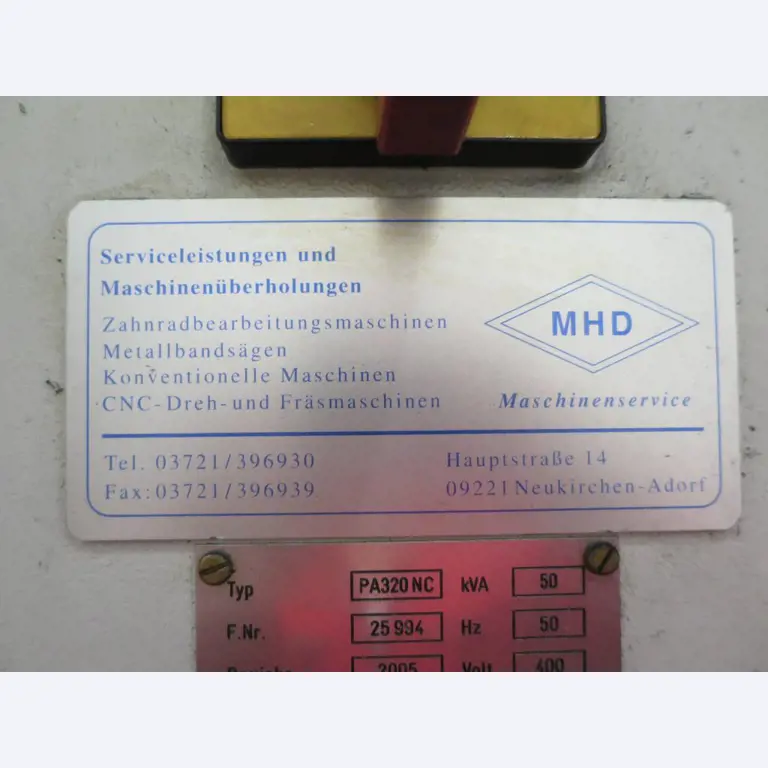

retrofit 2005 (MHD), serial no. 25994, weight 9,400 kg, connected load 50 kVA, max. workpiece Ø 350 mm, max. modulus f. hobbing cutters 8 mm, max. addendum circle Ø 163 mm, L max. 230 mm (depending on cutter arbour Ø), cutter cutter Ø 22, 27, 32, 40 mm, mounting taper MK5, radial carriage travel 225 mm, tangential carriage travel 170 mm, axial carriage travel 250 mm, max. cutter head pivoting angle +30°...-40°, workpiece spindle outside Ø 350 mm, workpiece spindle bore 150 mm, counterholder travel 550 mm, counterholder bore 150 mm, speed - tool 120-400 rpm, speed - tool spindle 1-40 rpm, rapid speed on X axis 5,000 mm/min., rapid speed on Y axis 750 mm/min., rapid speed on Z axis 1,000 mm/min., autom. workpiece feeding unit, cooling lubricant system, capacity 350 l, oil mist extraction and filtering system, make GEA, control system, make Siemens, type Sinumerik 840 D (milling head replaced in 2017)

Location

  • 16928 Pritzwalk, Freyensteiner Chaussee 15

Parts of this page have been machine translated. The German original text applies.
