Part of the Auction CNC swiss type lathe

CNC Swiss type lathe Hanwha XG38IINHLIVE#17258-1

Share with

This auction has ended.
  • CNC swiss type lathe-1
  • CNC swiss type lathe-2
  • CNC swiss type lathe-3
  • CNC swiss type lathe-4
  • CNC swiss type lathe-5
  • CNC swiss type lathe-6
  • CNC swiss type lathe-7
  • CNC swiss type lathe-8
  • CNC swiss type lathe-9

Details

Product Type

Hanwha

Type

XG38IINH

Construction Year

2018

Description

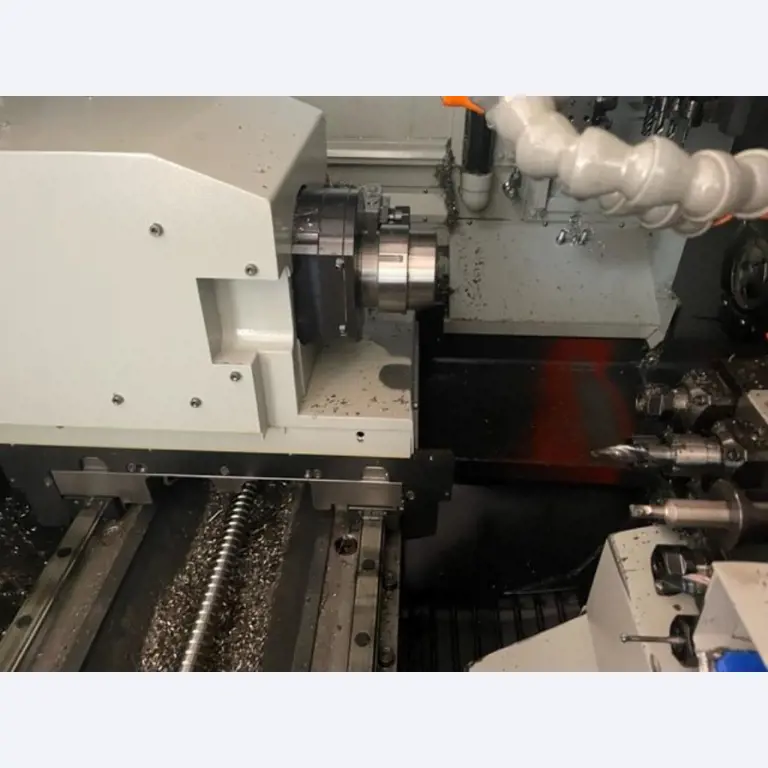

Y-2 axis, control, make Siemens, type 828D SL, main and counter spindle, each turning-Ø max. 38 mm, speed max. 6.500 rpm, power max. 23 kW, collet, type 171E E, backworking: Y2-axis, 4 driven drilling/milling spindles.type ER15 Modular, 4 fixed drilling/milling spindles, type ER16 Modular, simultaneous 4-axis control, external control panel w. handwheel, 10.4 "color monitor, LCD/MDI, chip conveyor, w. coolant pump, make FMB, type XD38II, low version. handwheel, 10,4" color monitor, LCD/MDI, chip conveyor, w. coolant pump, type XD38II, low version, bar loading magazine, make FMB, type Turbo 3-36/3.200 mm, bar-Ø 3 - 38 mm, add-on high pressure unit plus mobile high pressure unit, make SFB-301eco-100 bar, w. 8-way valve change-over and tank, the machine was sold in 2022 as a demonstration machine for 170 TEUR (net). It was produced only 14 months in one-shift operation with the machine. There is visible crash damage that should be refurbished. An inspection is possible at any time by appointment.

Location

  • 72285 Pfalzgrafenweiler

Parts of this page have been machine translated. The German original text applies.
