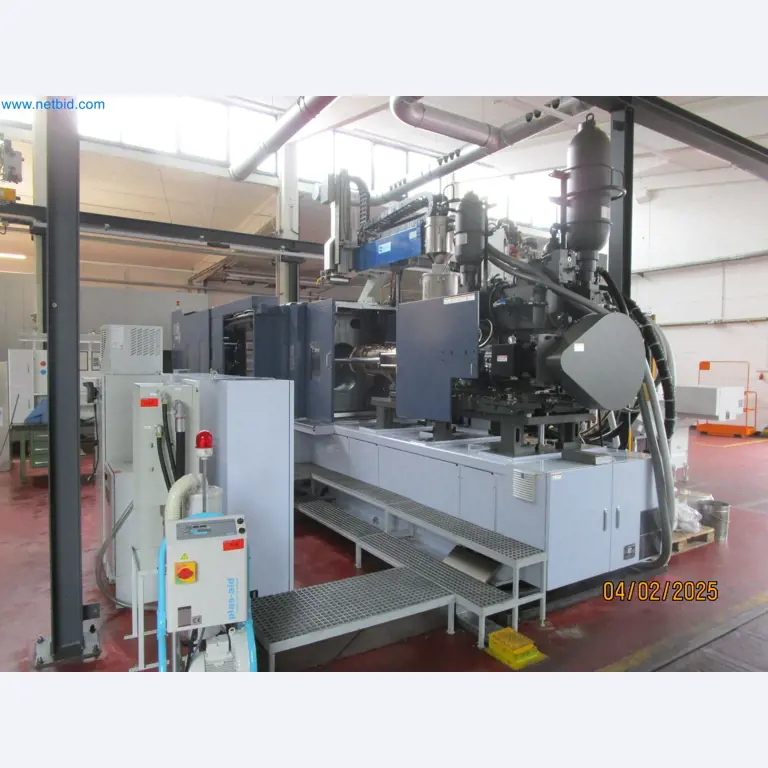

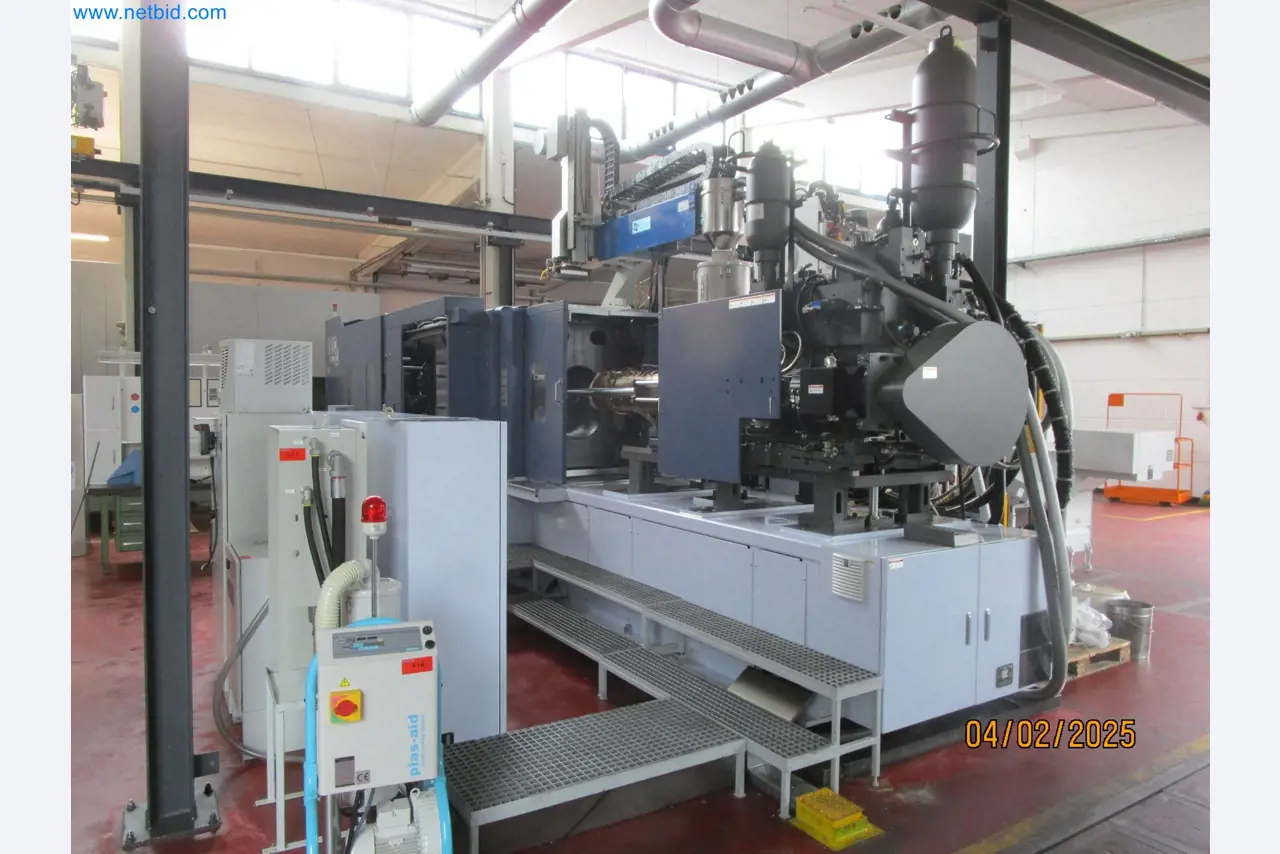

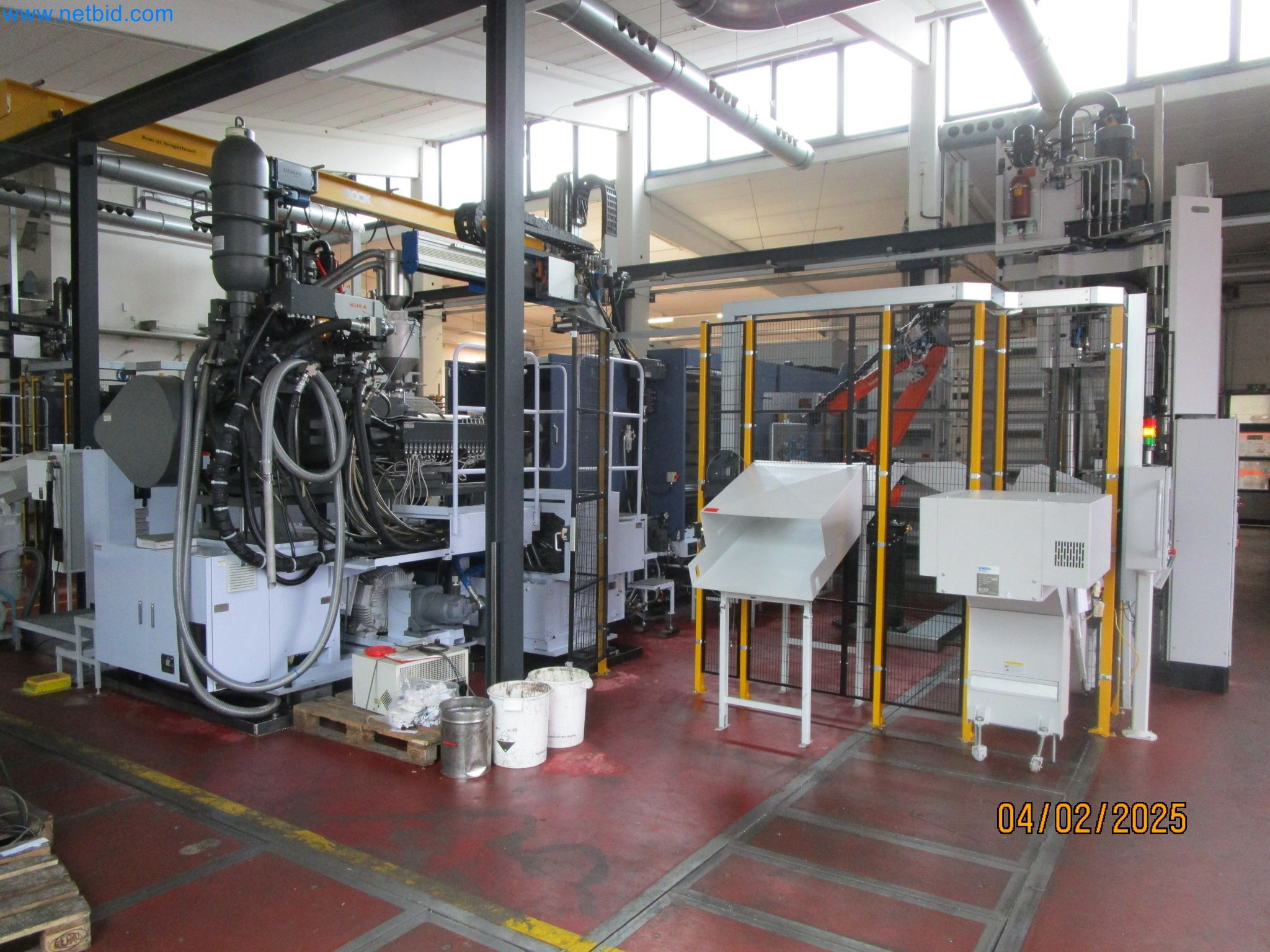

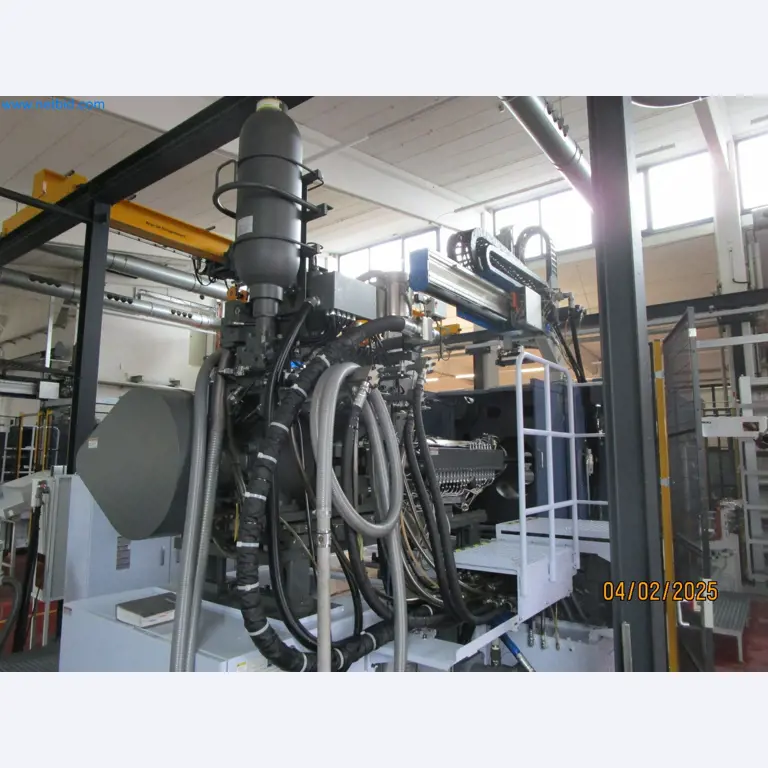

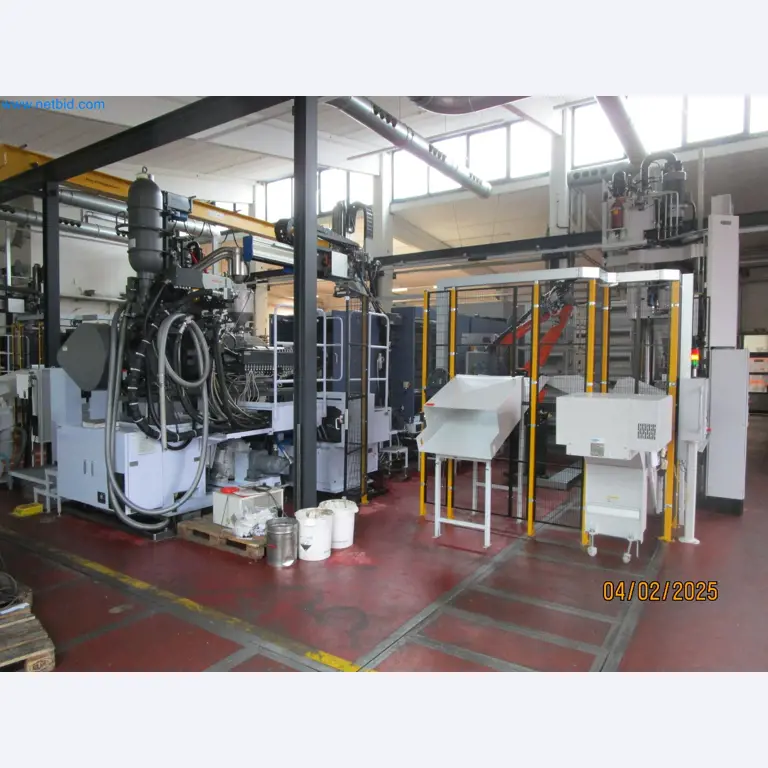

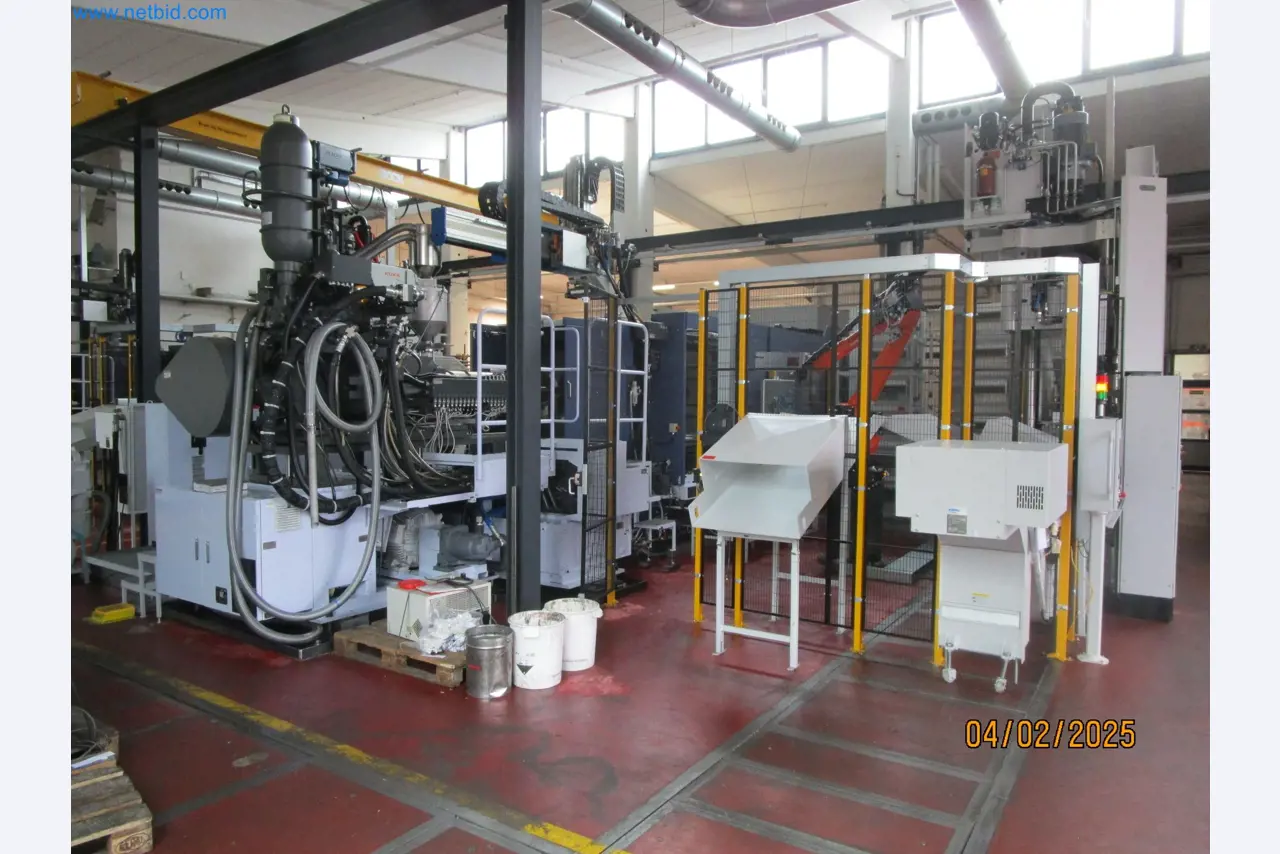

Magnesium injection molding cell (thixomoulding) JSW JLM850-MGIIeLIVE#18322-413

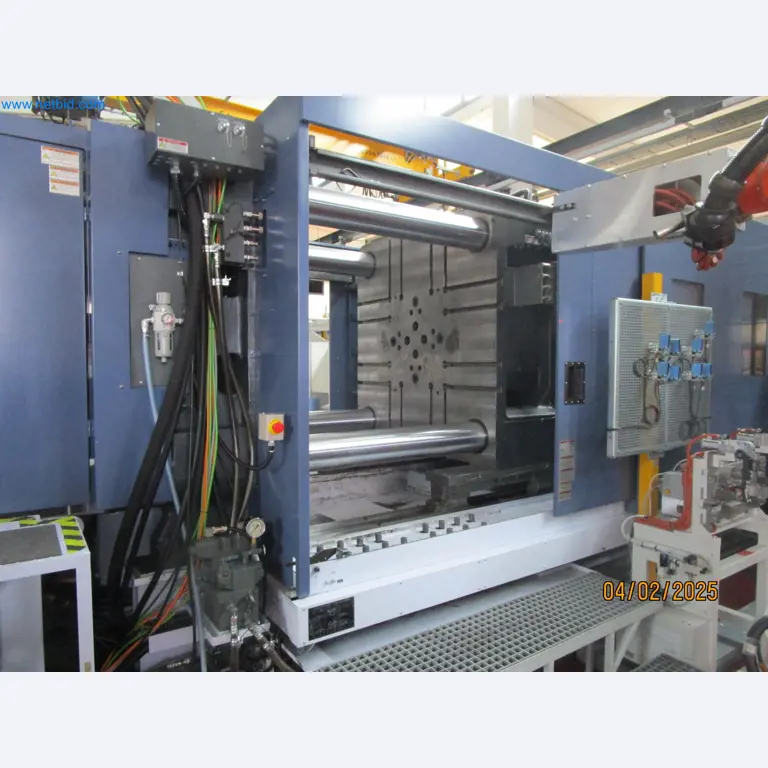

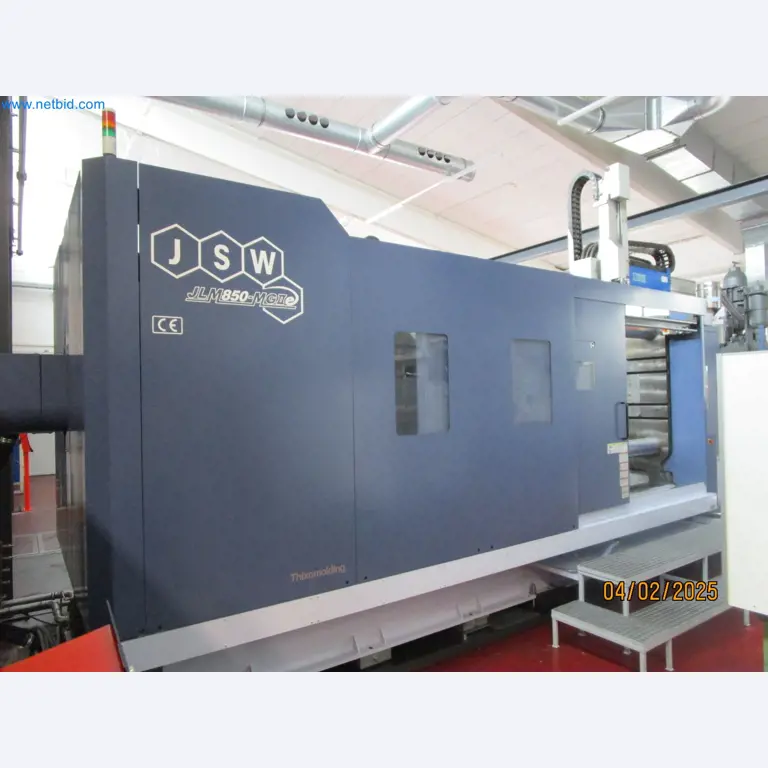

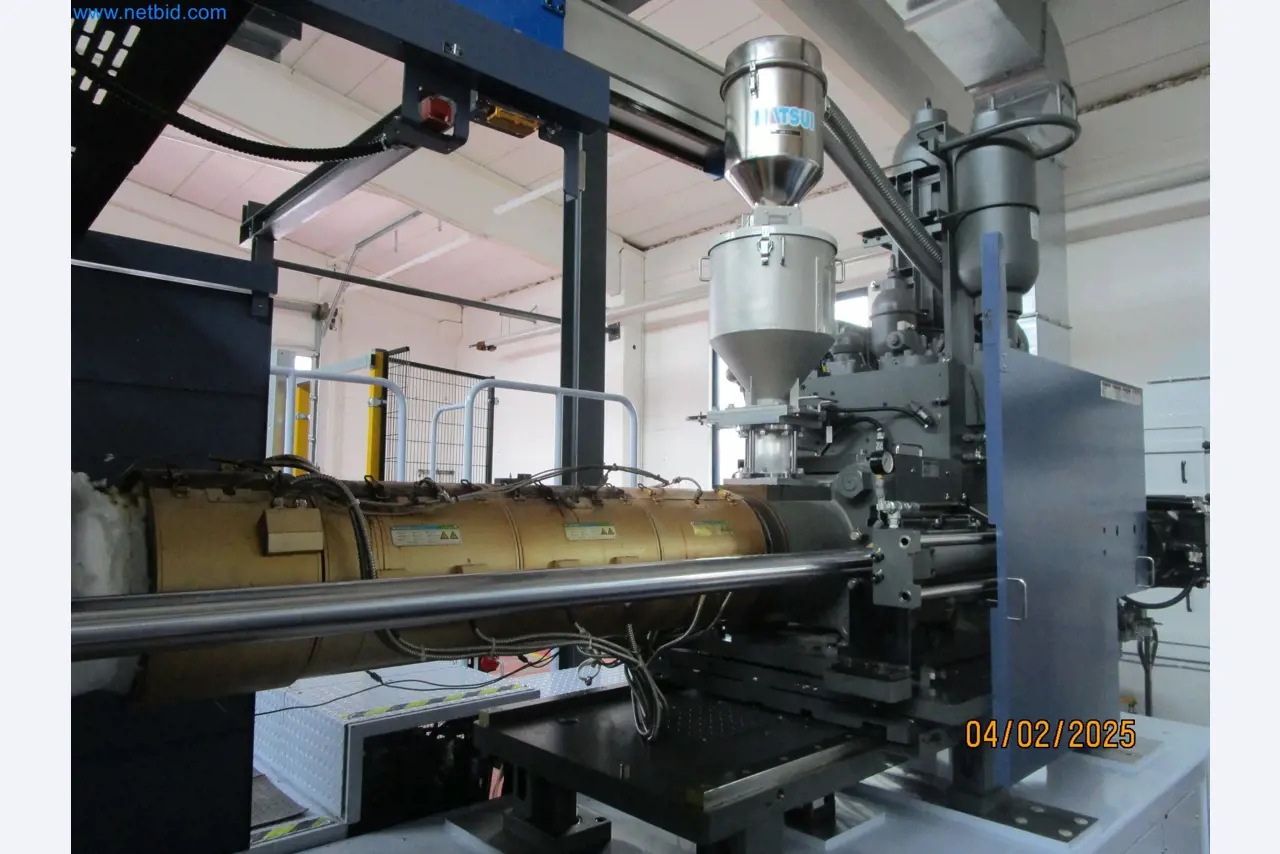

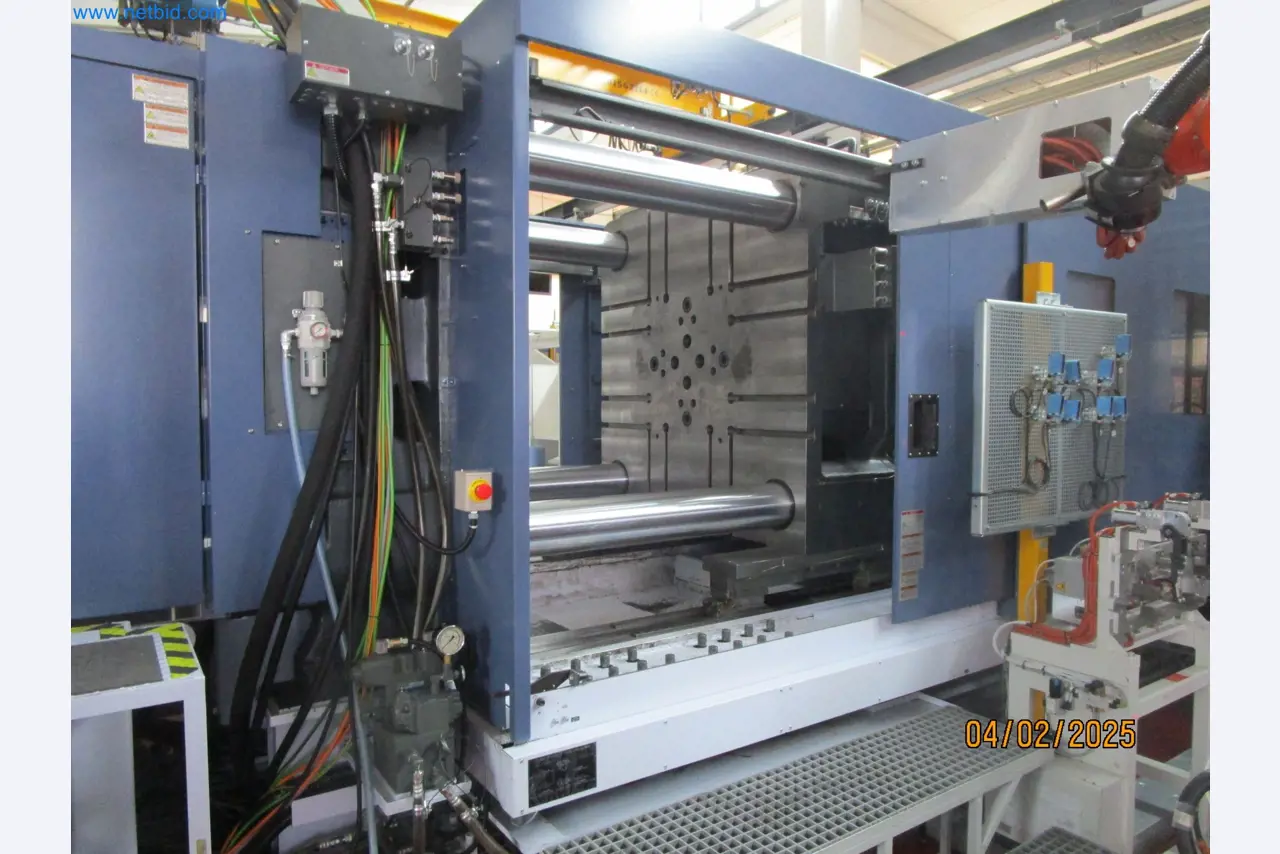

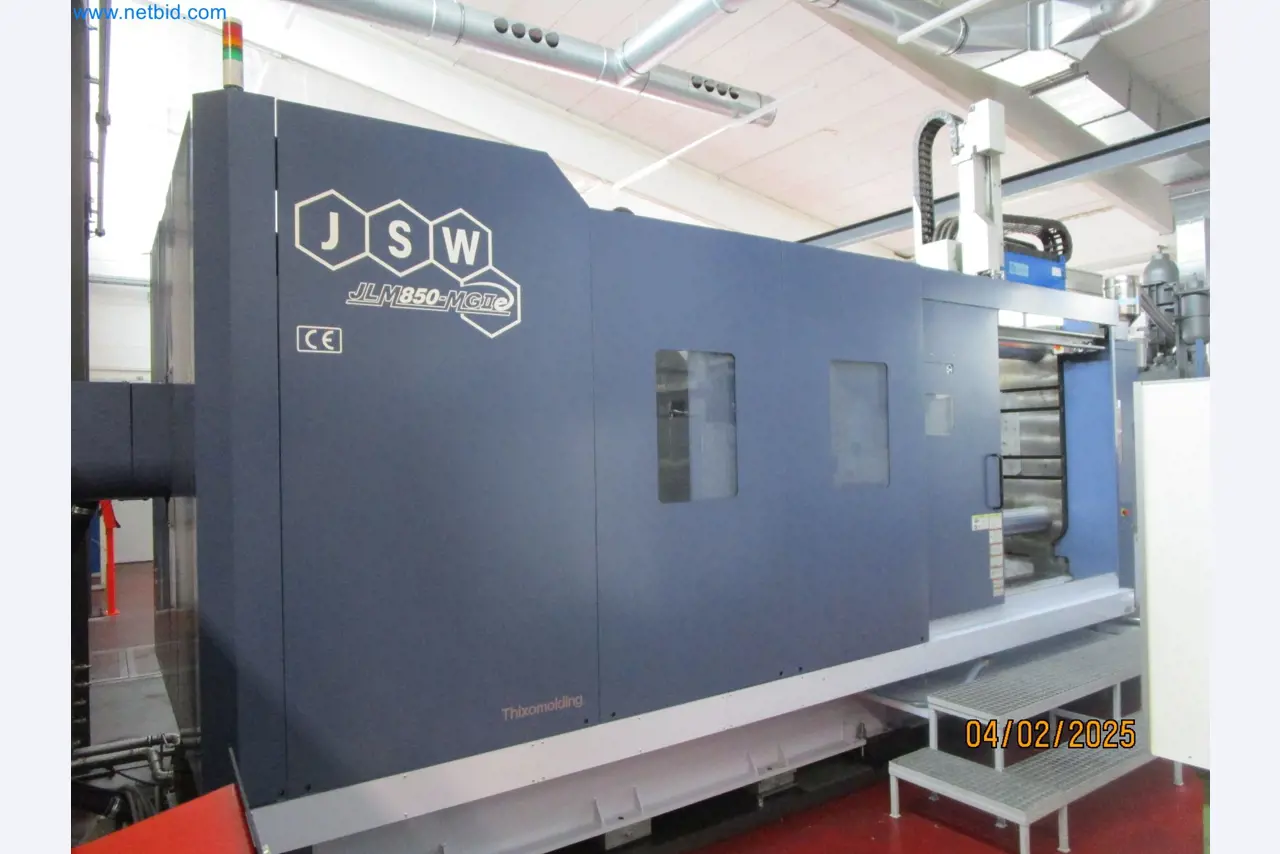

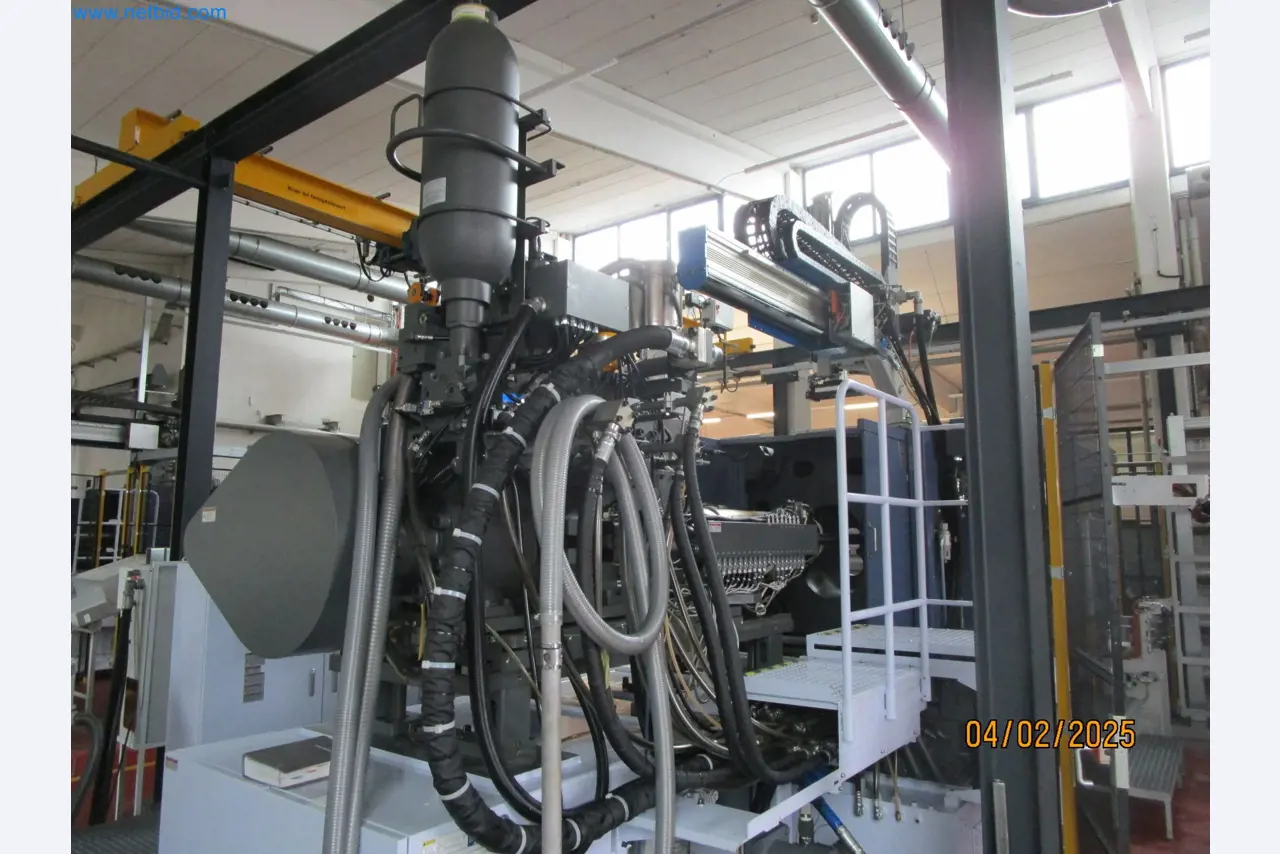

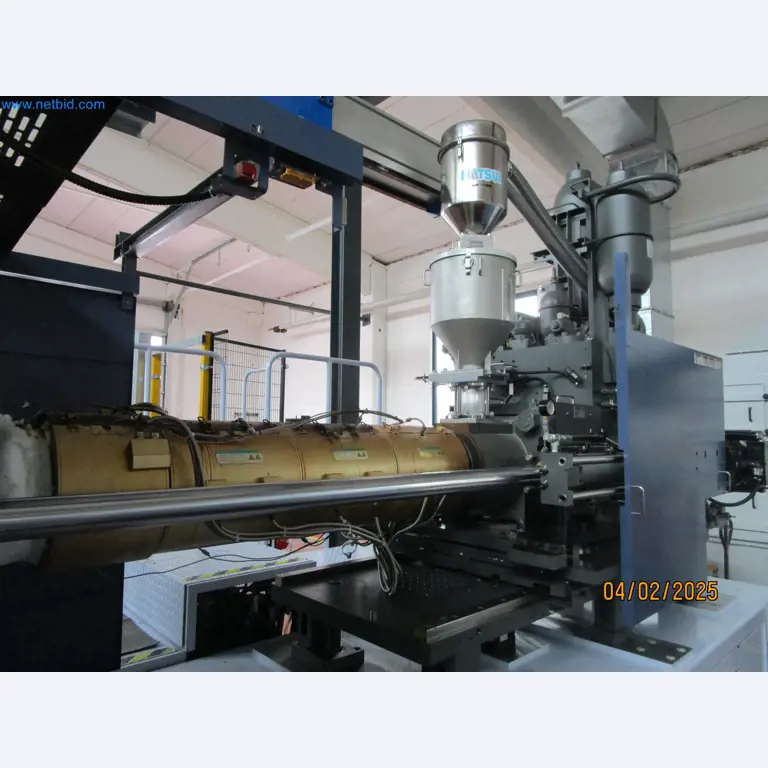

SN: 221840049, consisting of: Magnesium injection molding machine, JSW, type JLM850-MGIIe, year 2023, SN 221840049, specification: tare weight 50.000 kg, screw Ø 100 mm, injection pressure 67-86 MPa, injection capacity (theoretical) 1.963 cm³, shot weight (theoretical) 2.513 g, injection rate (theoretical) 35.343 cm³/sec, screw speed 0-160 rpm, nozzle Ø 17 mm x R40 mm, nozzle lift-off distance 75 mm, nozzle contact force 233 kN, position of injection unit (2 stages) 0-200 mm, clamping technology 5.Double toggle lever (folds inwards), mold closing force 8.330 kN, mold opening force 833 kN, platen distance max. 2.3000 mm, mold opening stroke 1.200 mm, mold height 500-1.000 mm, distance between tie bars (HxV) 1.060 x 100 mm, clamping platen size (HxV) 1.590 x 1.590 mm, centering ring Ø 190 mm, mold fixing method T-slot type, mold opening/closing speed of the mold: mold closing 61 m/min, mold opening 59 m/min, ejector force x ejector stroke 390 kN x 150 mm, mold height (HxV) min. 640 x 640 mm, pump power motor output 75 kW, servo motor output 22 kW, heating power 63 kW, total power 160 kW, machine size 11.300 x 2,900 x 3,800 mm, hydraulic tank capacity 800 l, cooling water consumption 8 m³/h , magnesium feed container, DMS, type MAC-2300, year 2021, SN MAC-2300-003, specification: mobile, approx. 1,600 x 1,500 x 1,900 mm, tare weight 500 kg, , feed blower, Fabr. Matsuni, type JL4-6VC-J, year 2022, SN 01-021505-03822, specification: power 2.2 kW, 6-axis industrial robot, Kuka, type KR50 R2500 F/SEL, year 2022, SN 1424240, specification: tare weight 587 kg, payload 50 kg, reach 2. Reis, type SEP13-07-65 Dialog IV, year 2023, SN , specification: dead weight 10,000 kg, nominal force 650 kN, with control cabinet and feeding device, , hinged conveyor, Knoll, type 500P-40-L, year 2022, SN 1577671/2022
