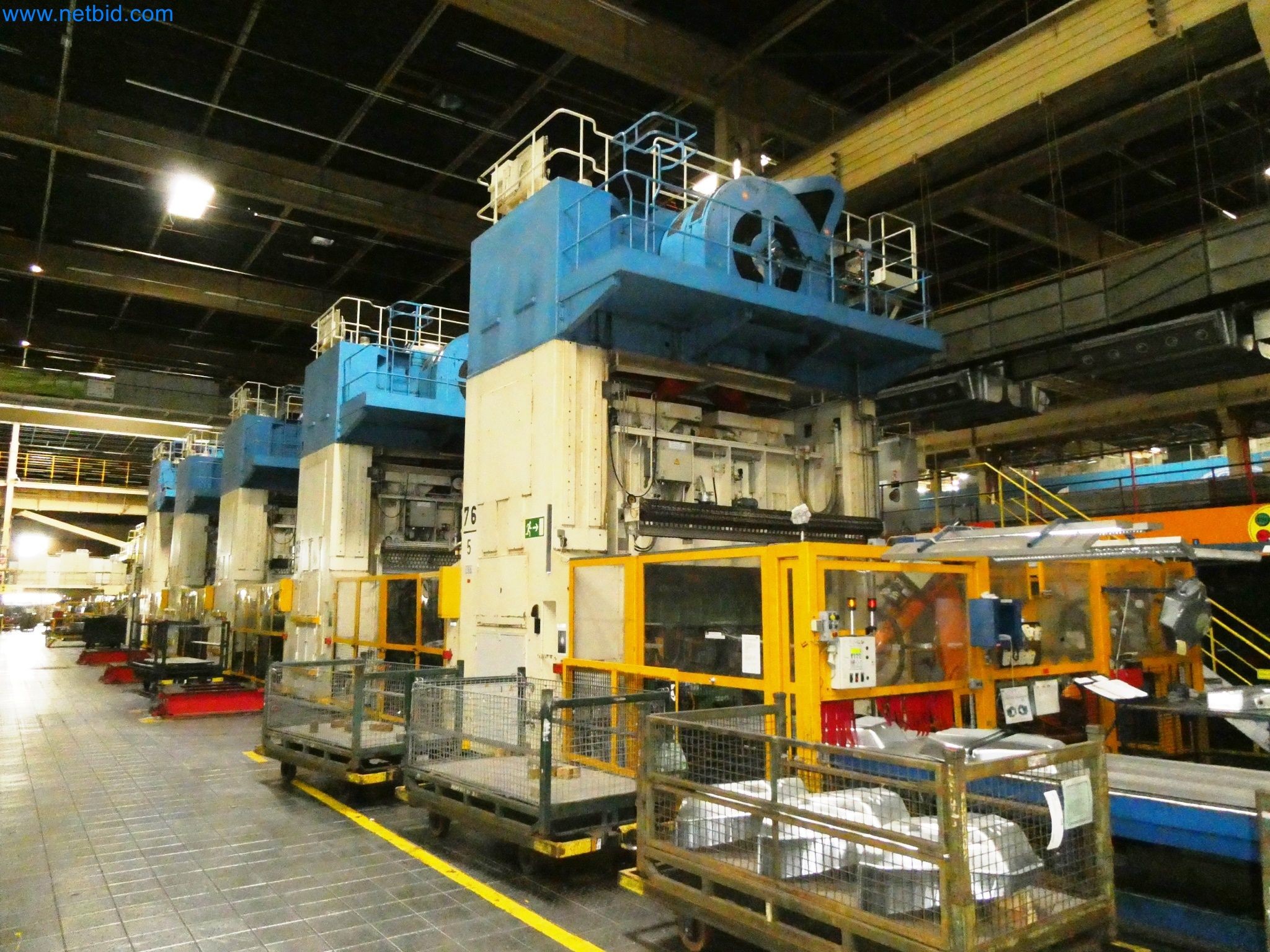

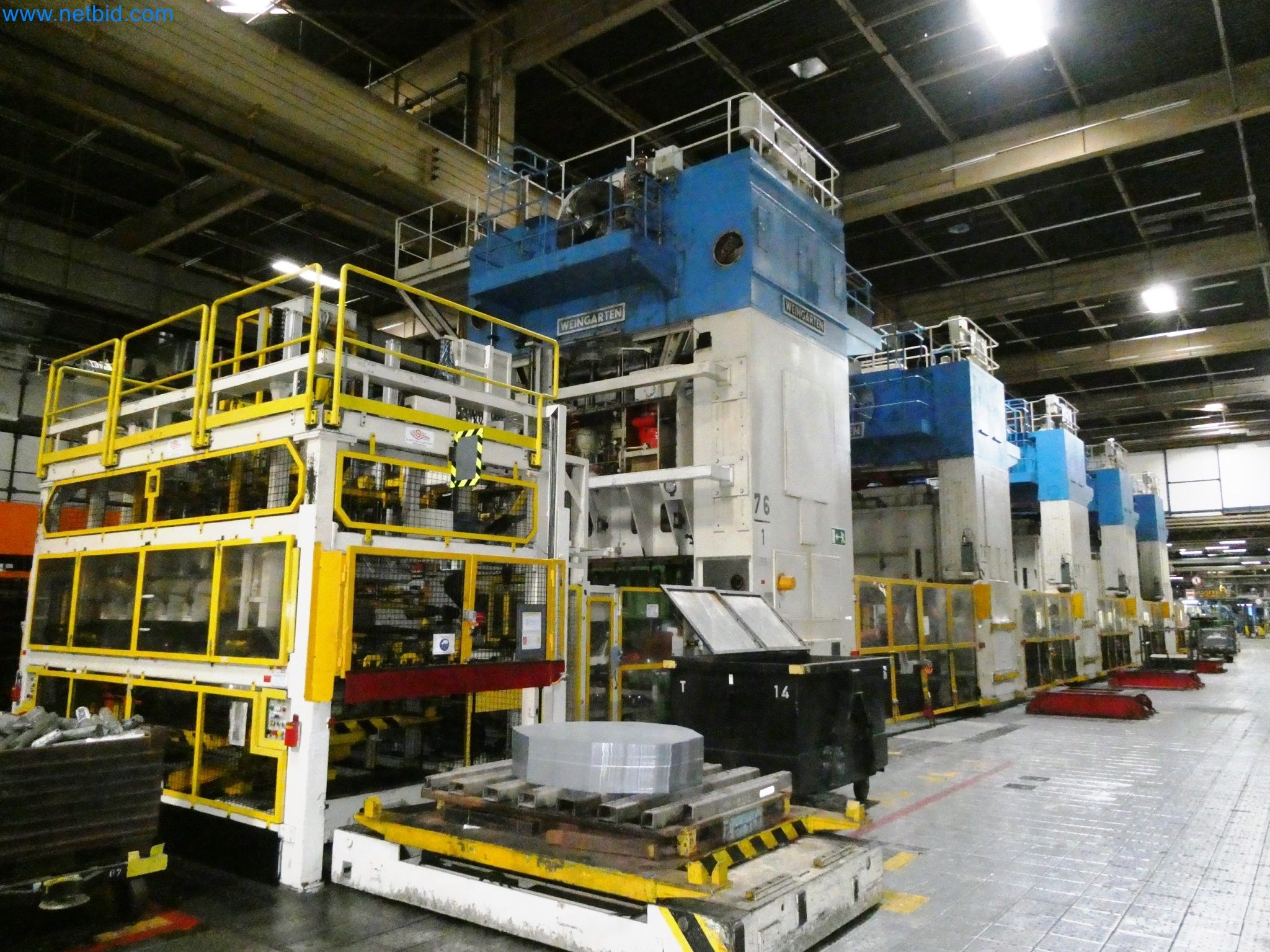

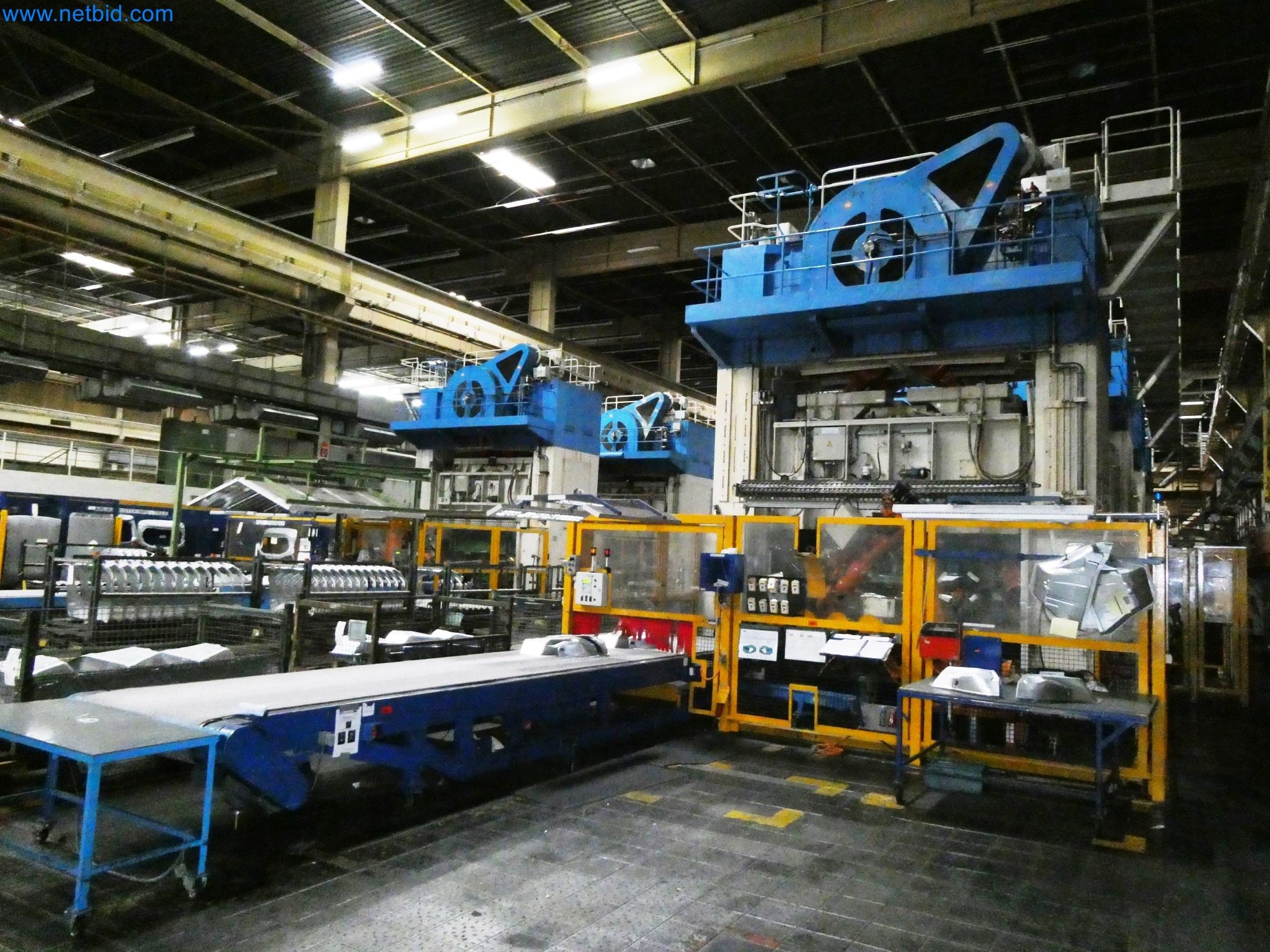

Press line (76) SchulerTrading#18844-5000

last overhaul in 1998, consisting of:

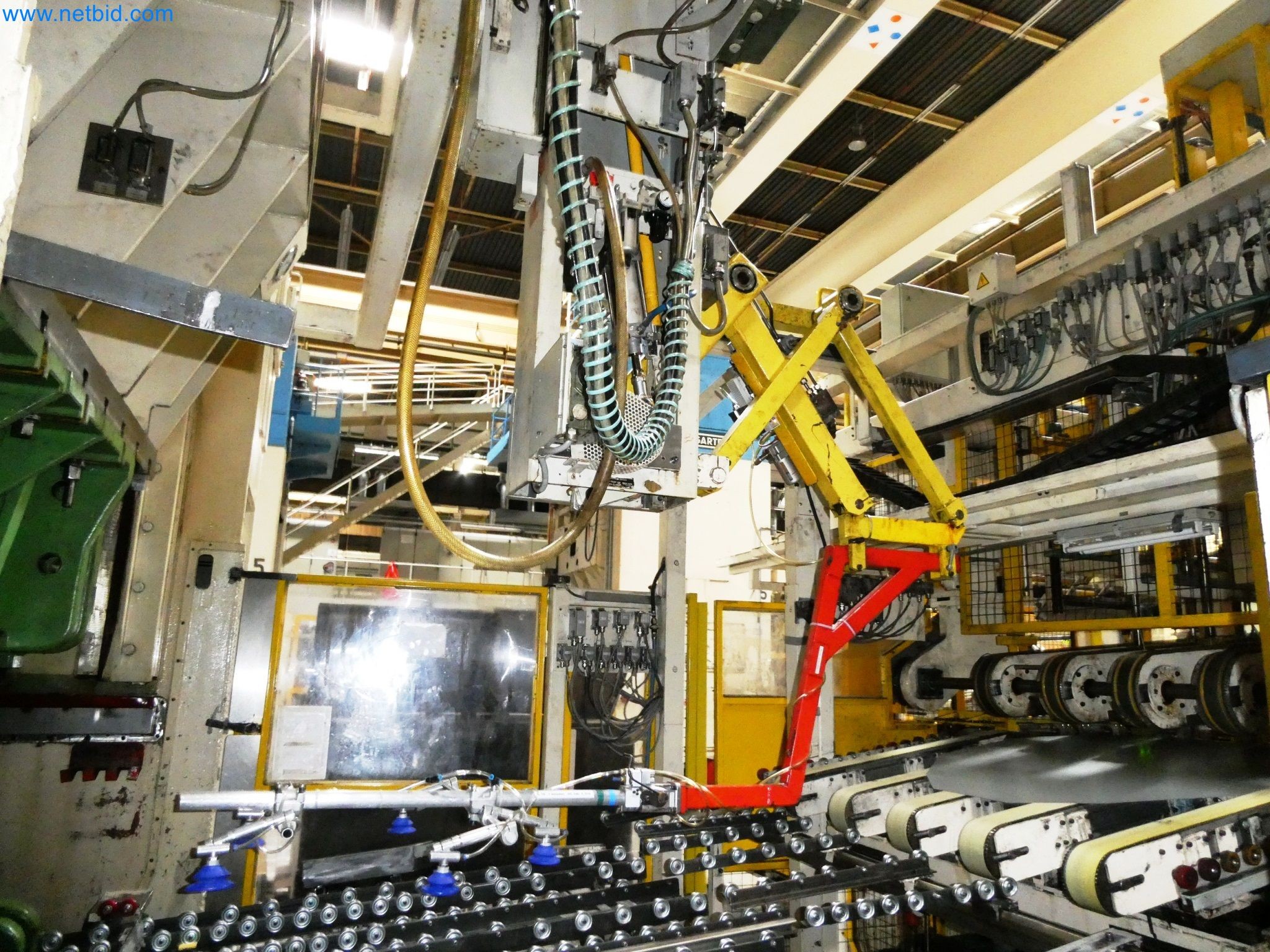

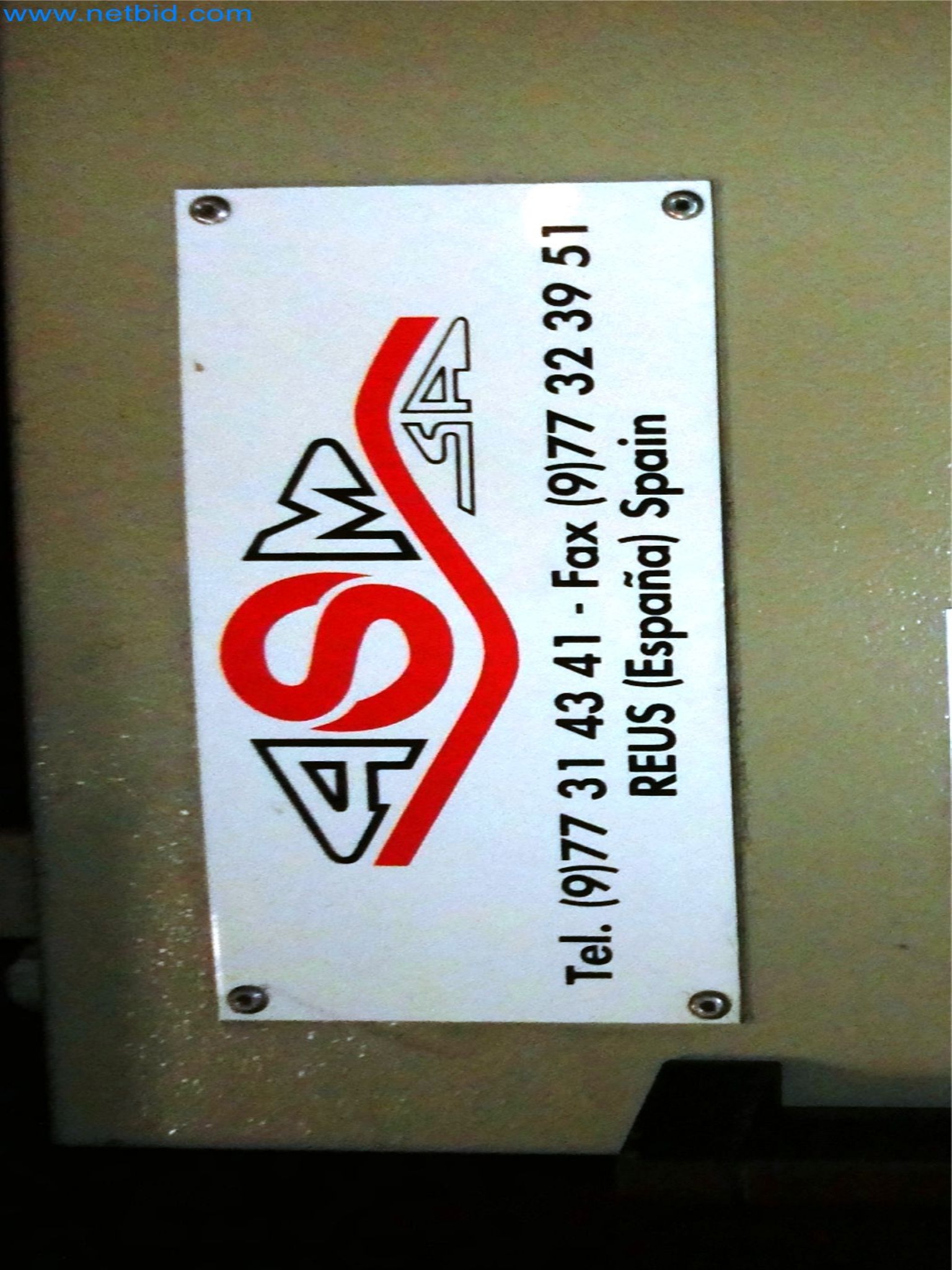

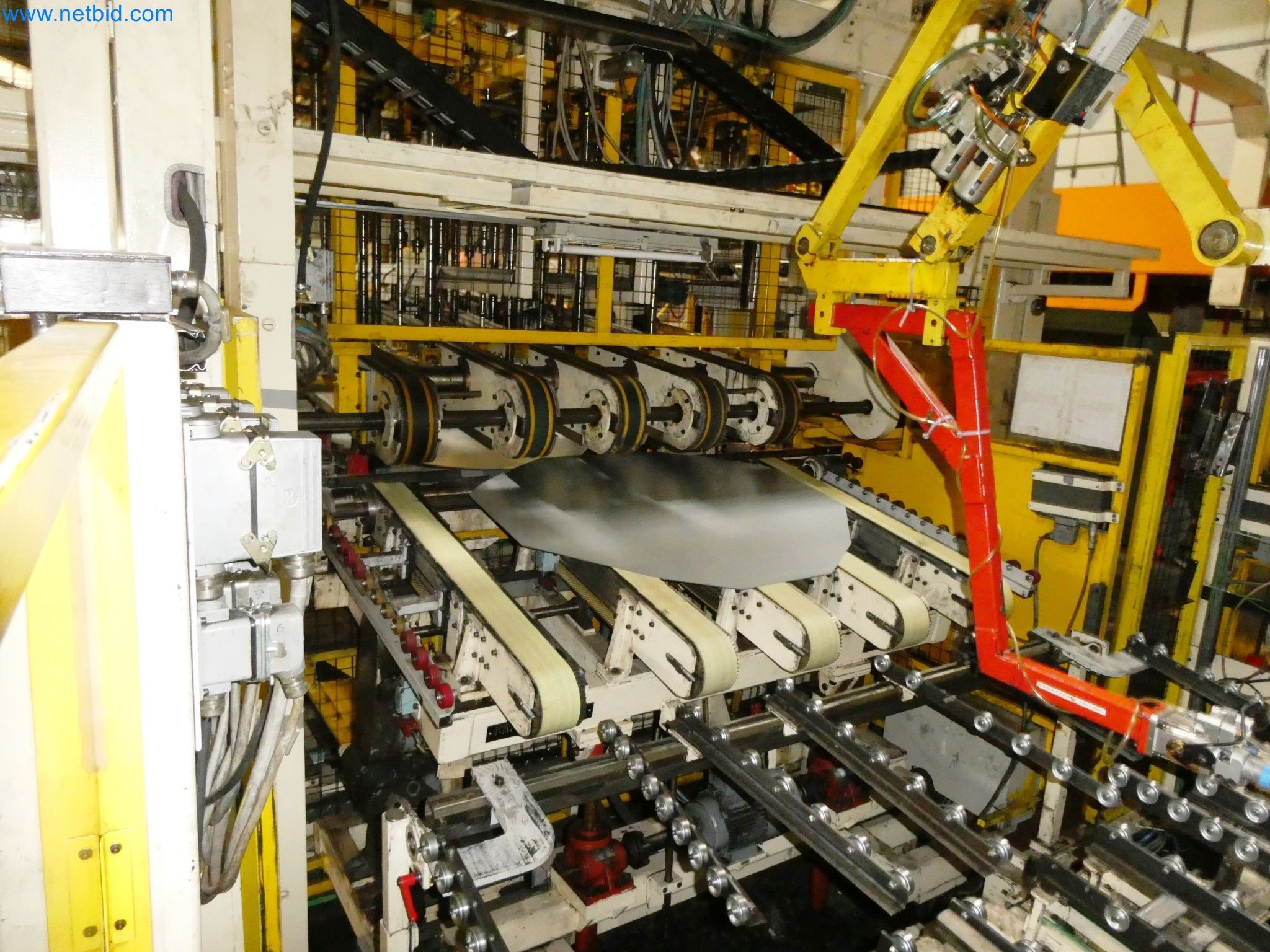

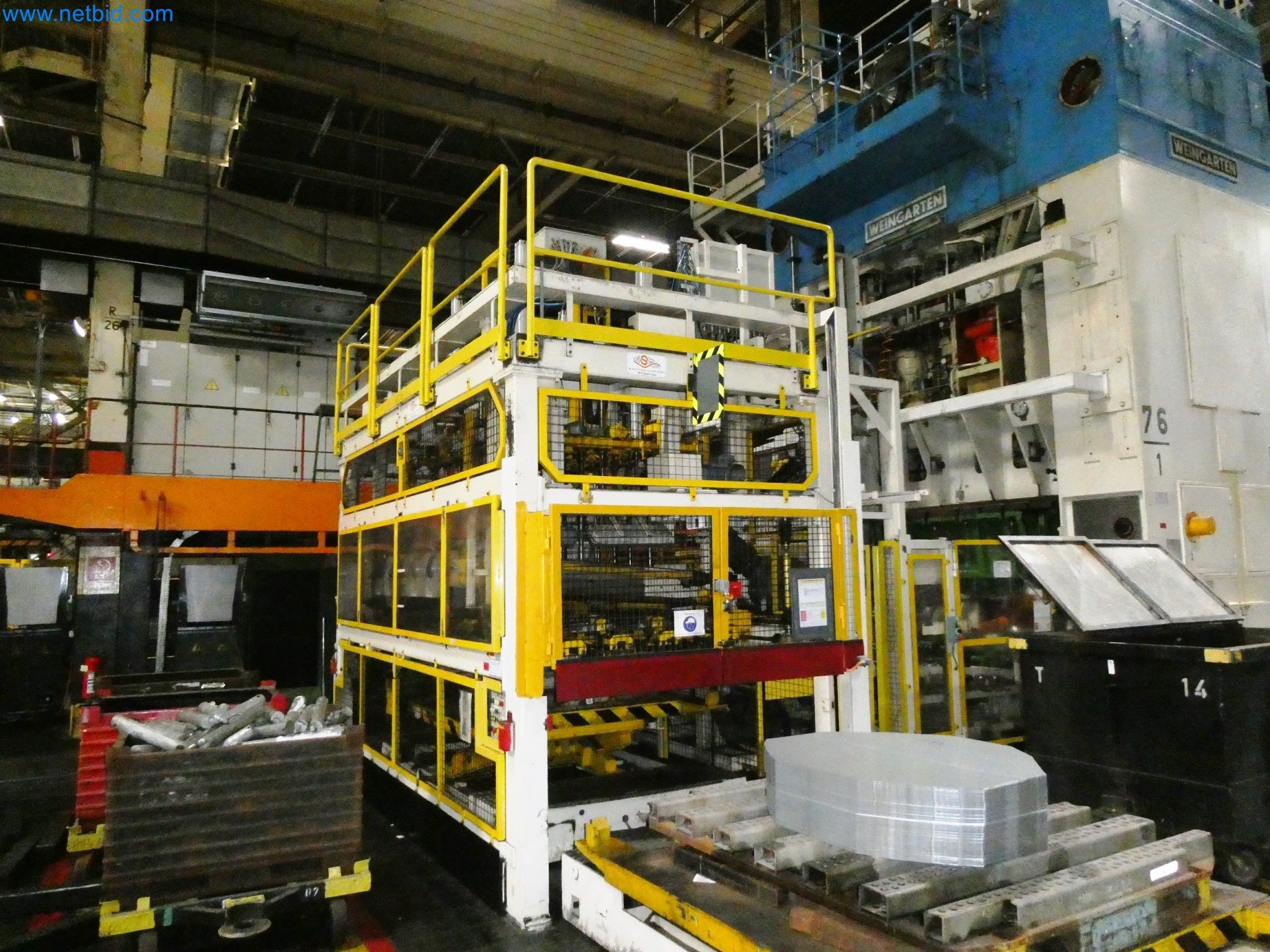

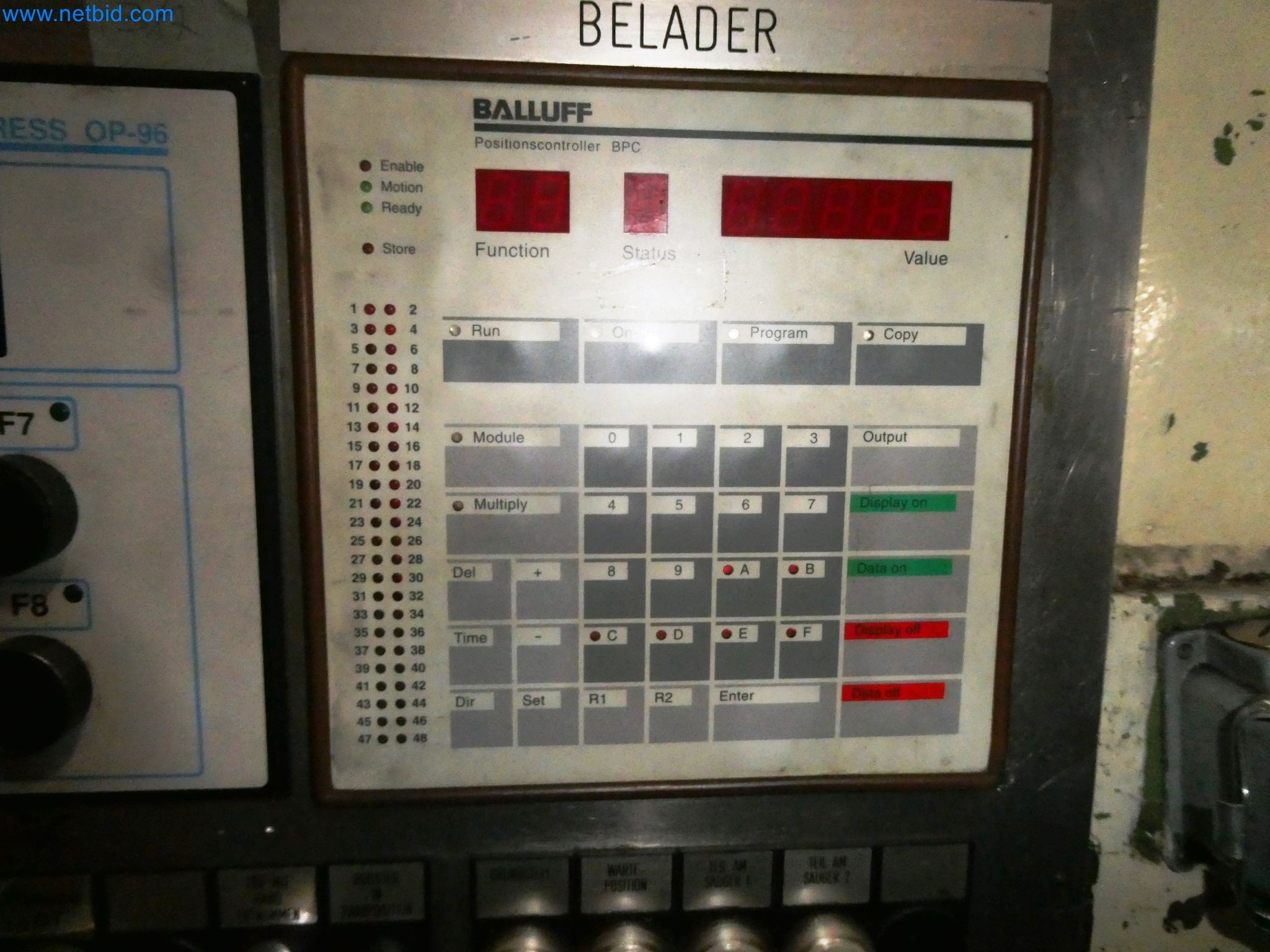

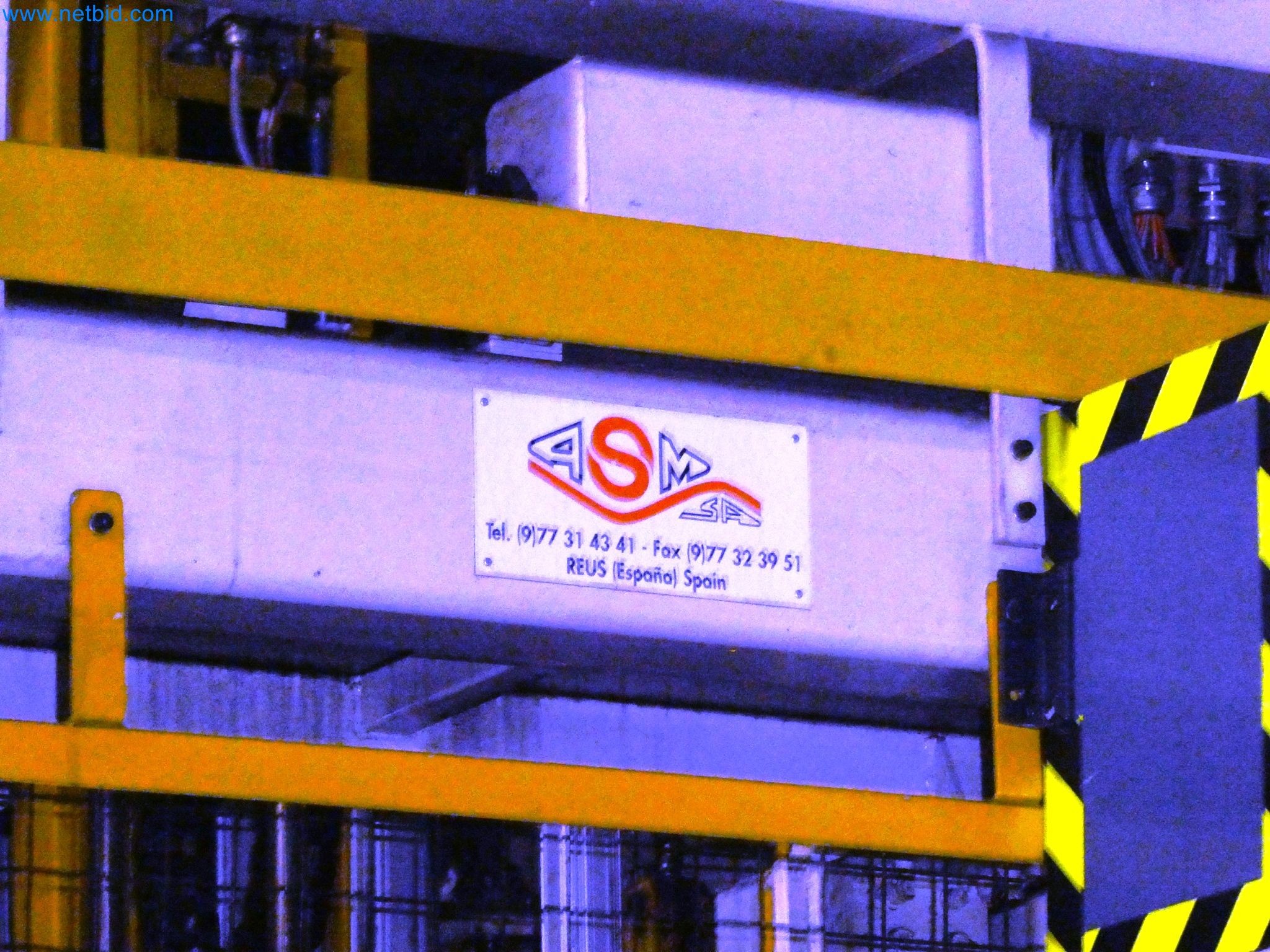

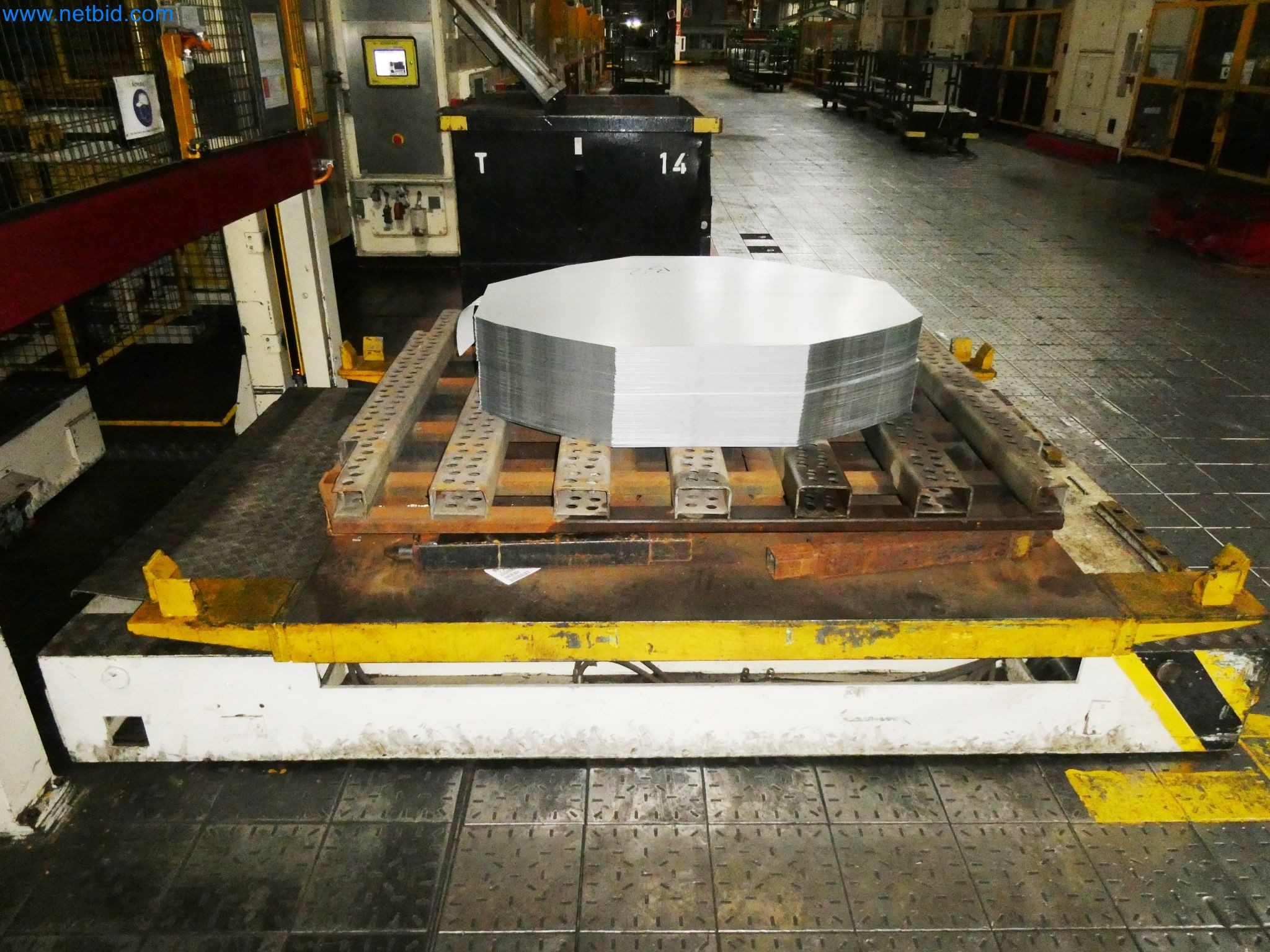

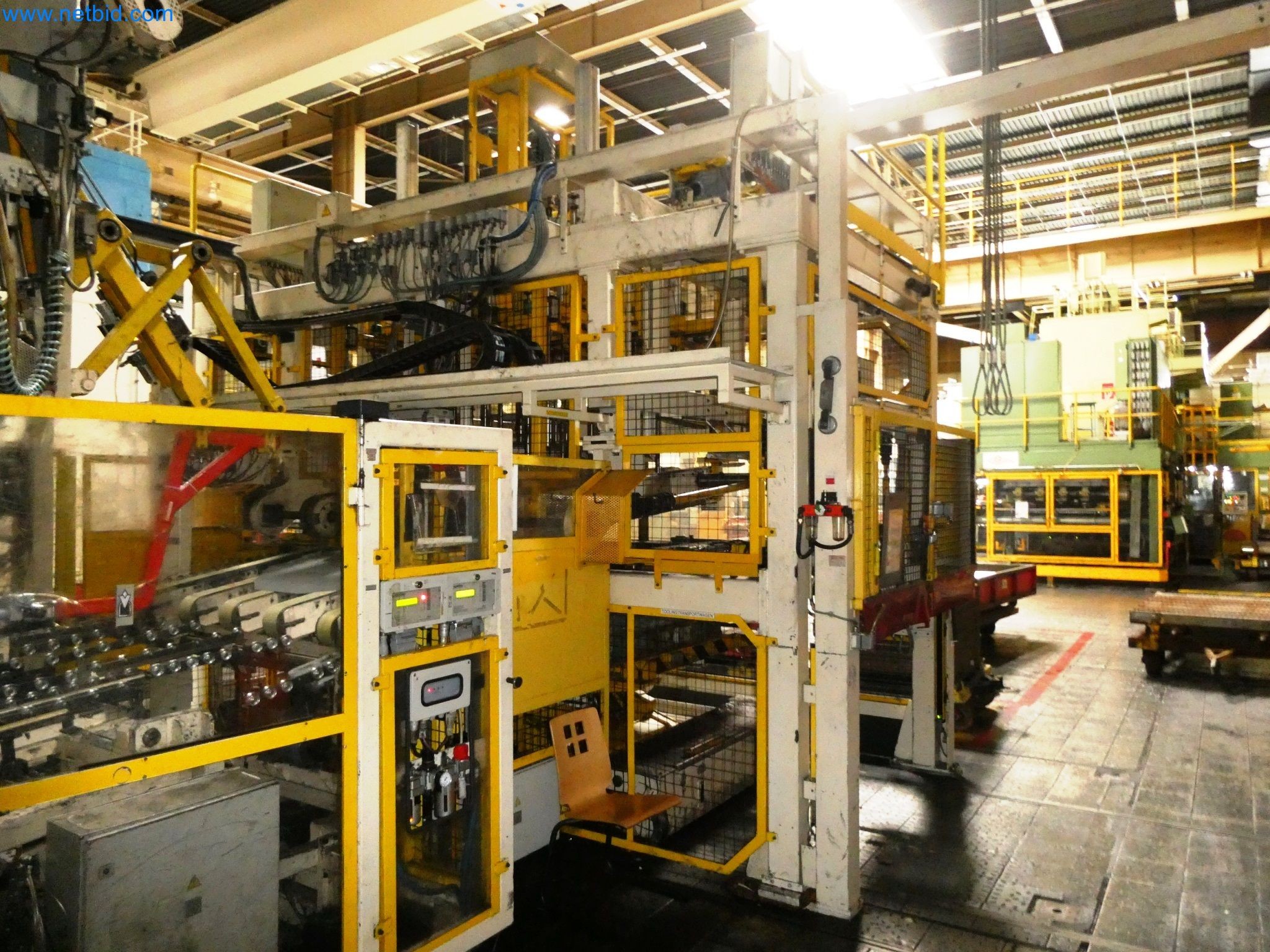

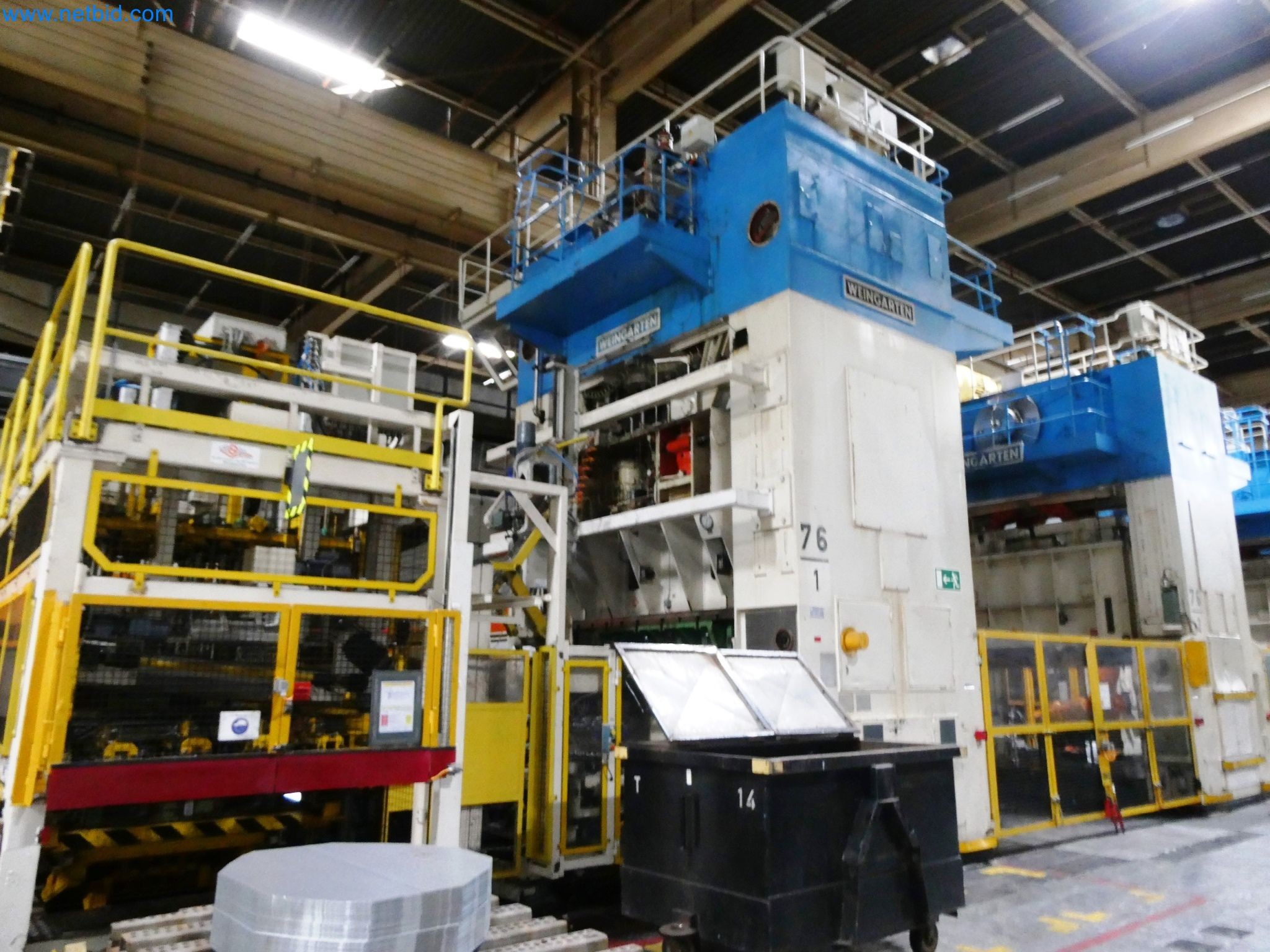

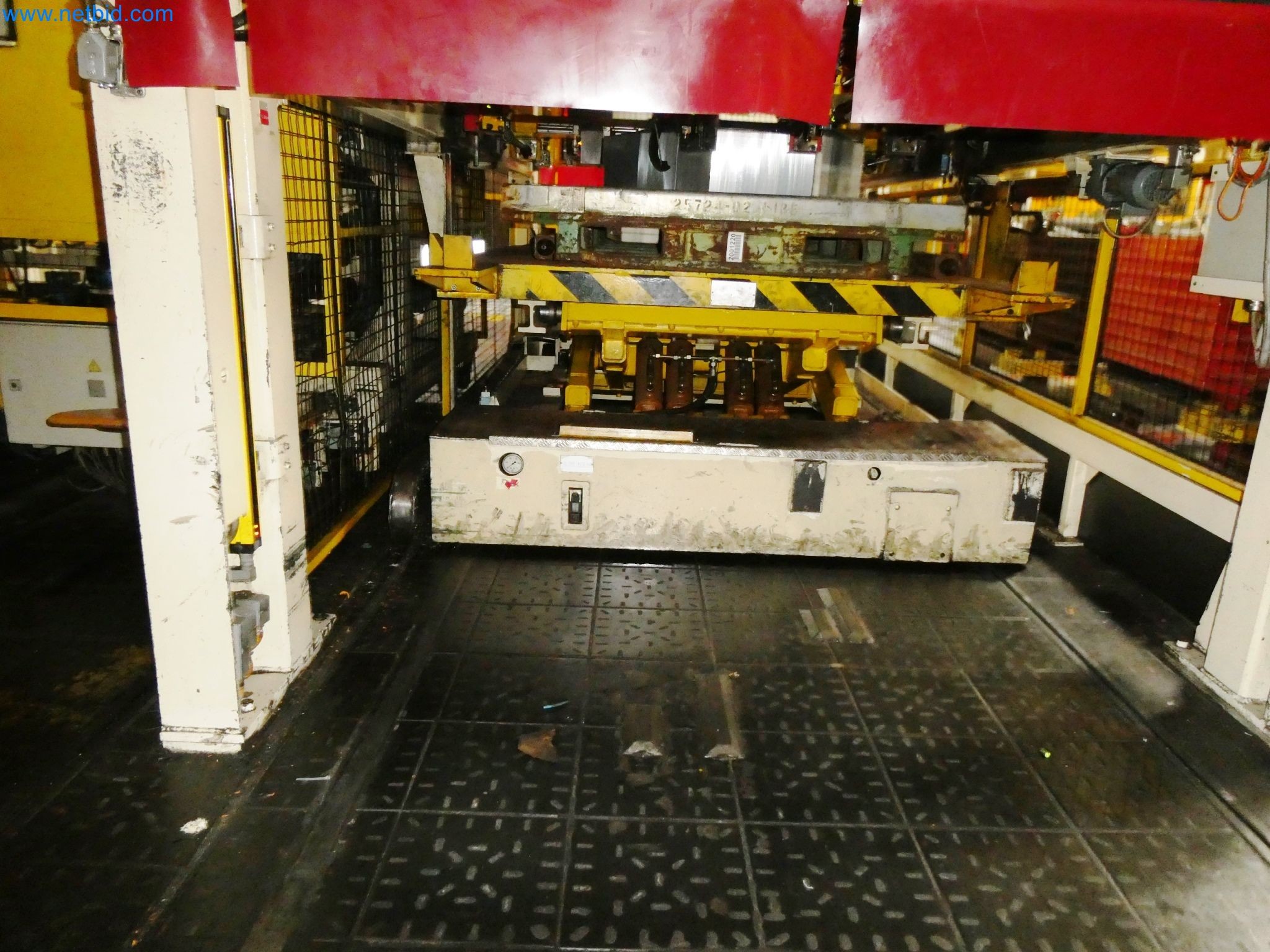

blank automation with pallet unloading station, make ASM, type ECPL-76, with pallet changing trolley, lifting table, transfer belt to gripper, machine no. 0903700; gripper system, machine no. 0600200, w. control, make Helm, type Loadgard PTM Series, position controller, make Balluff

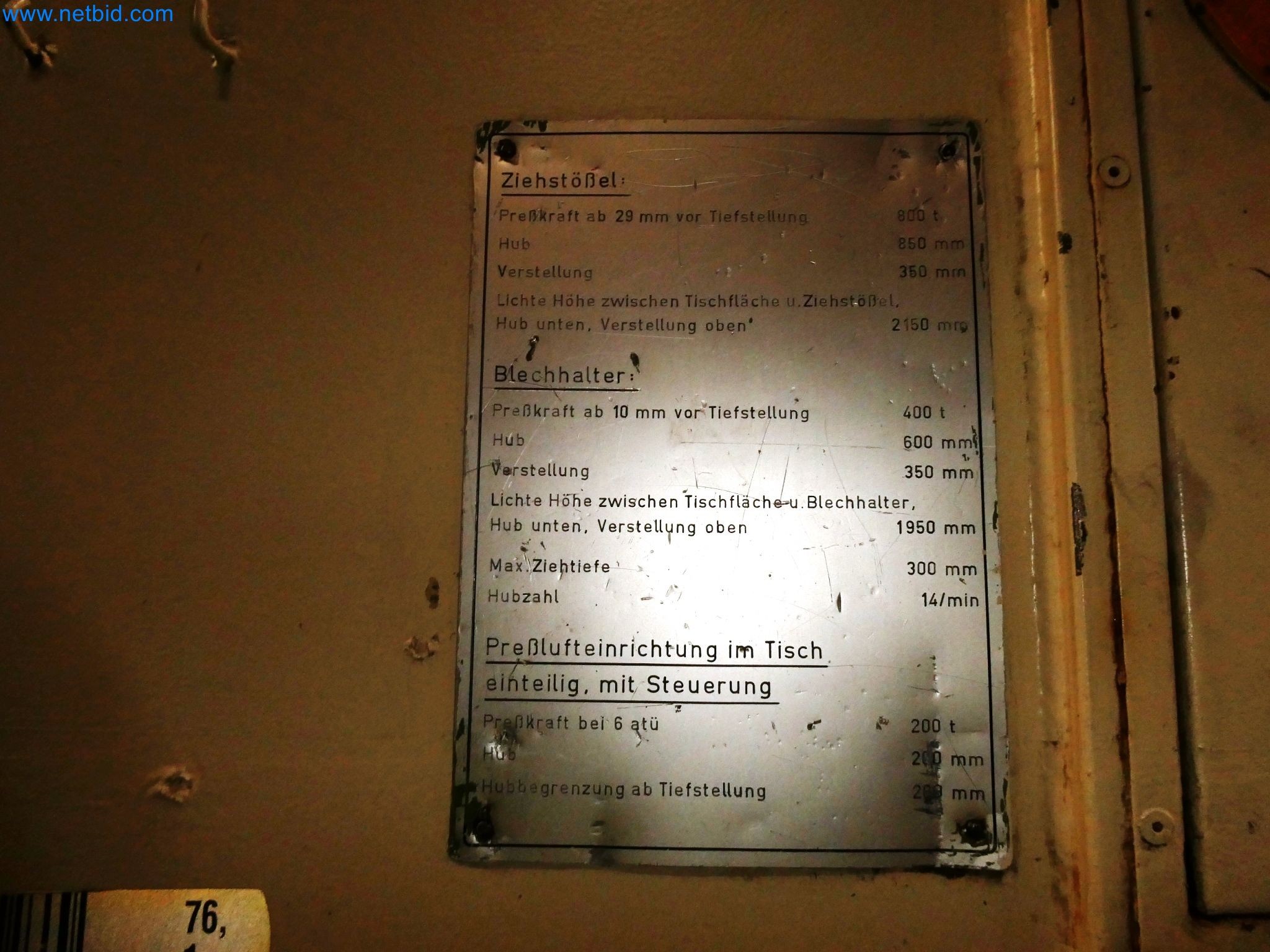

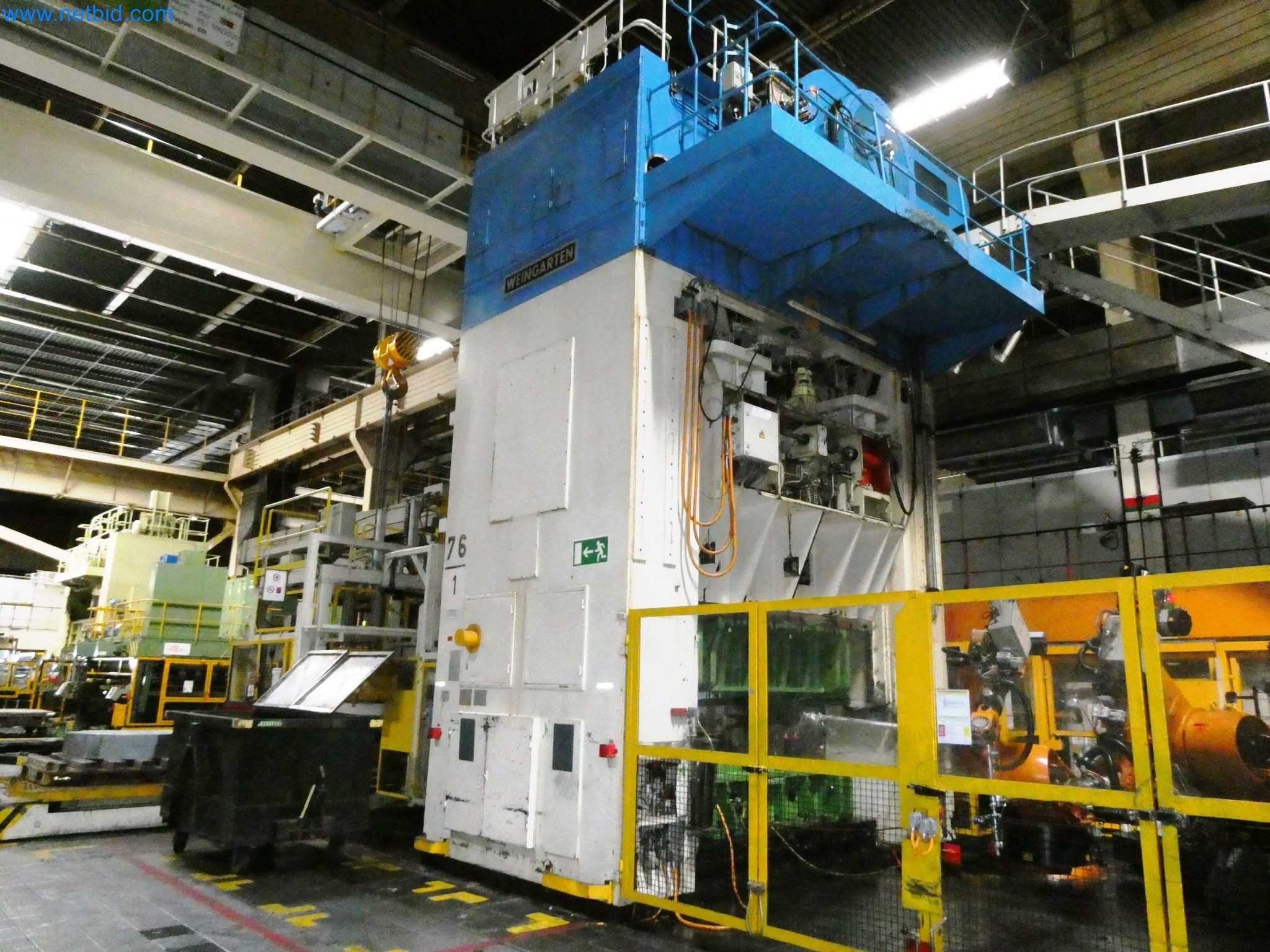

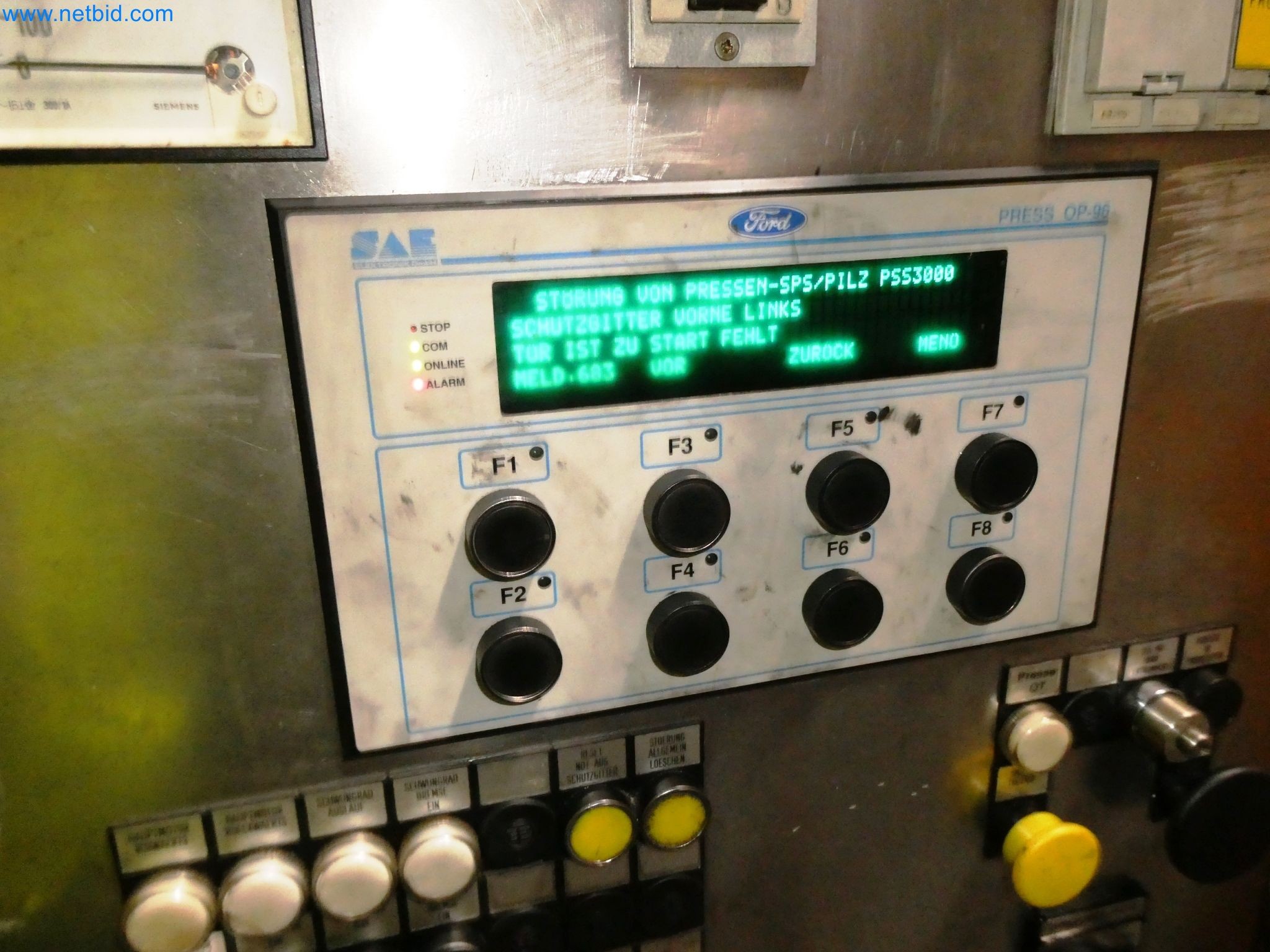

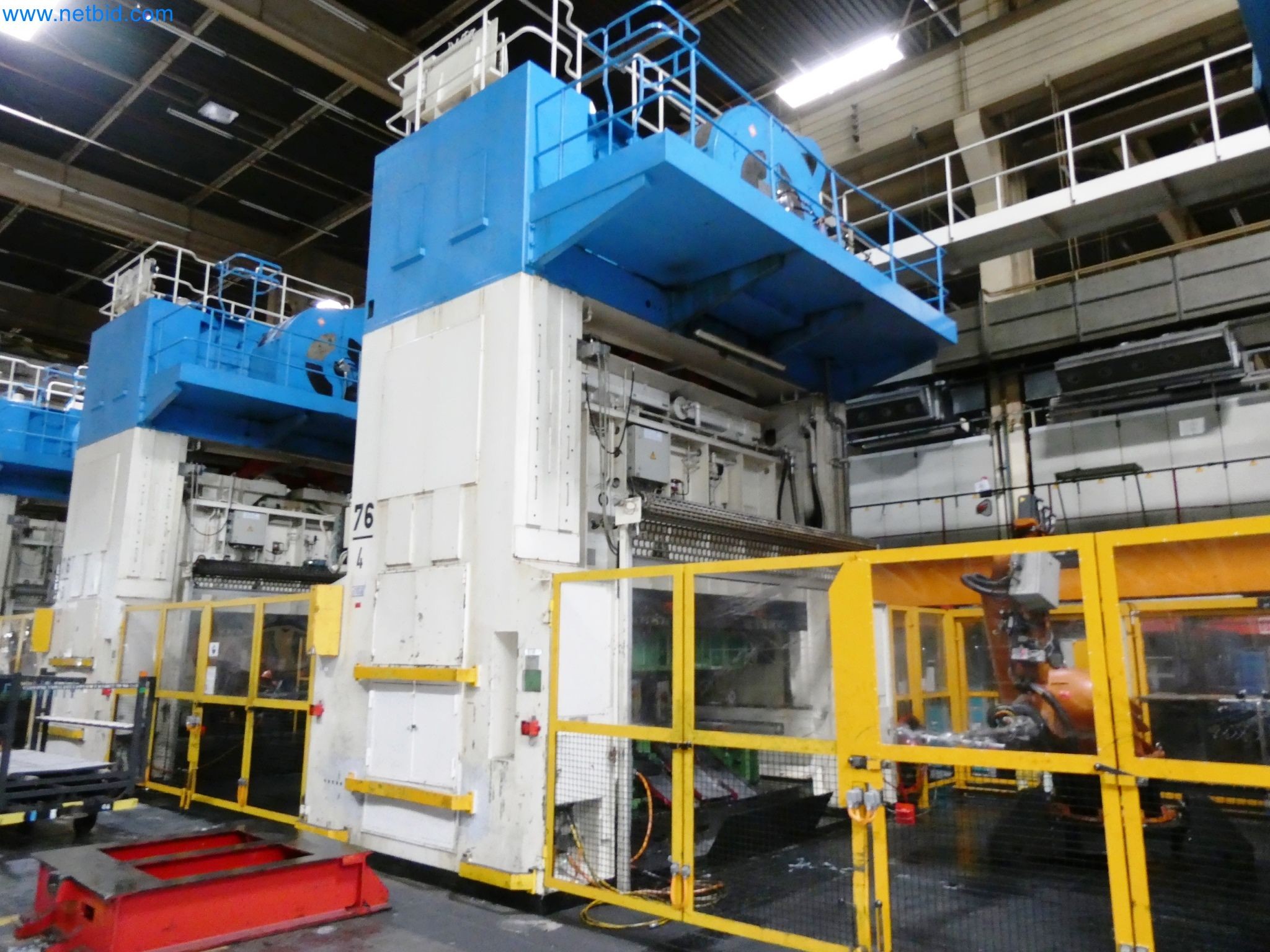

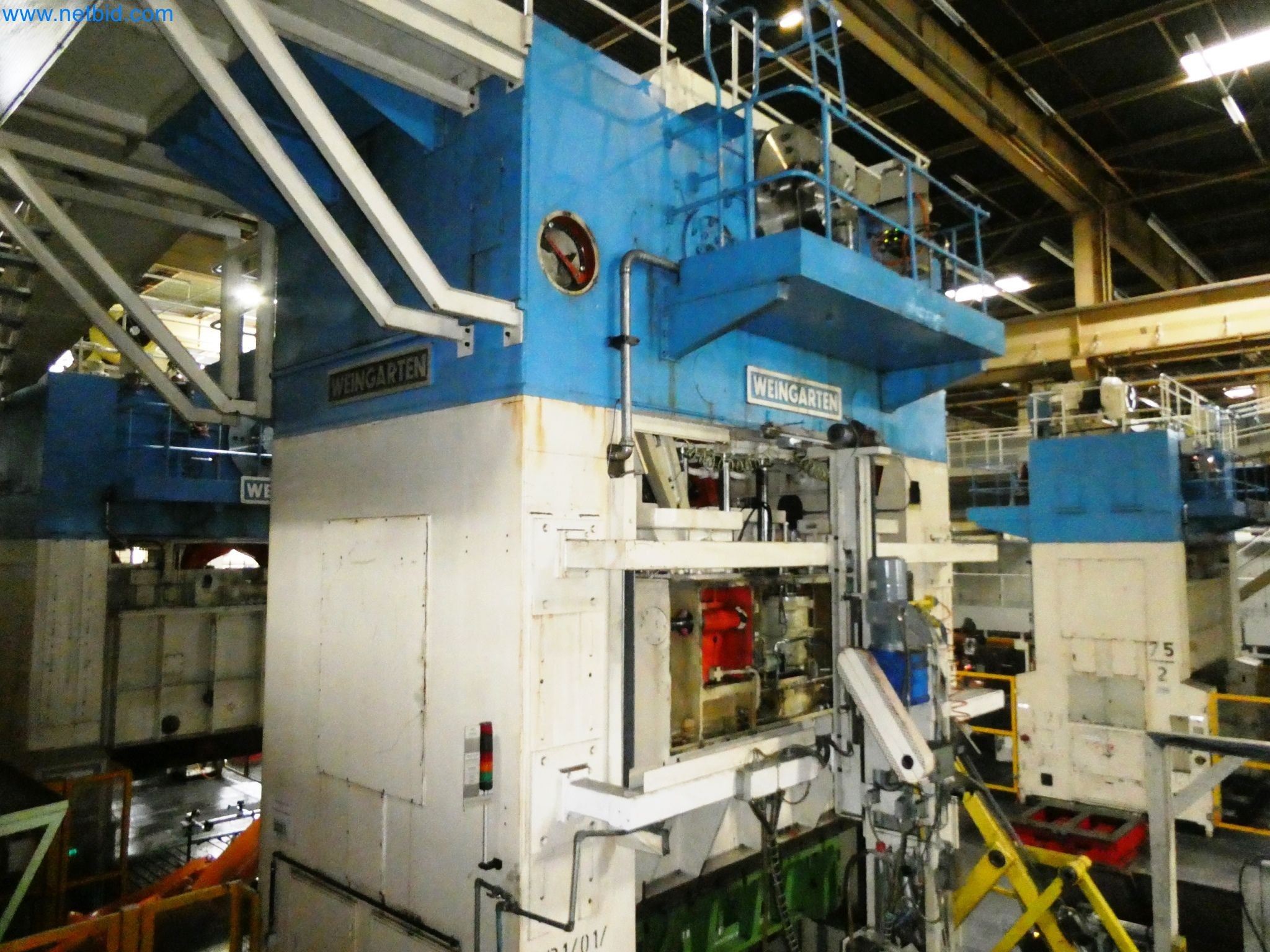

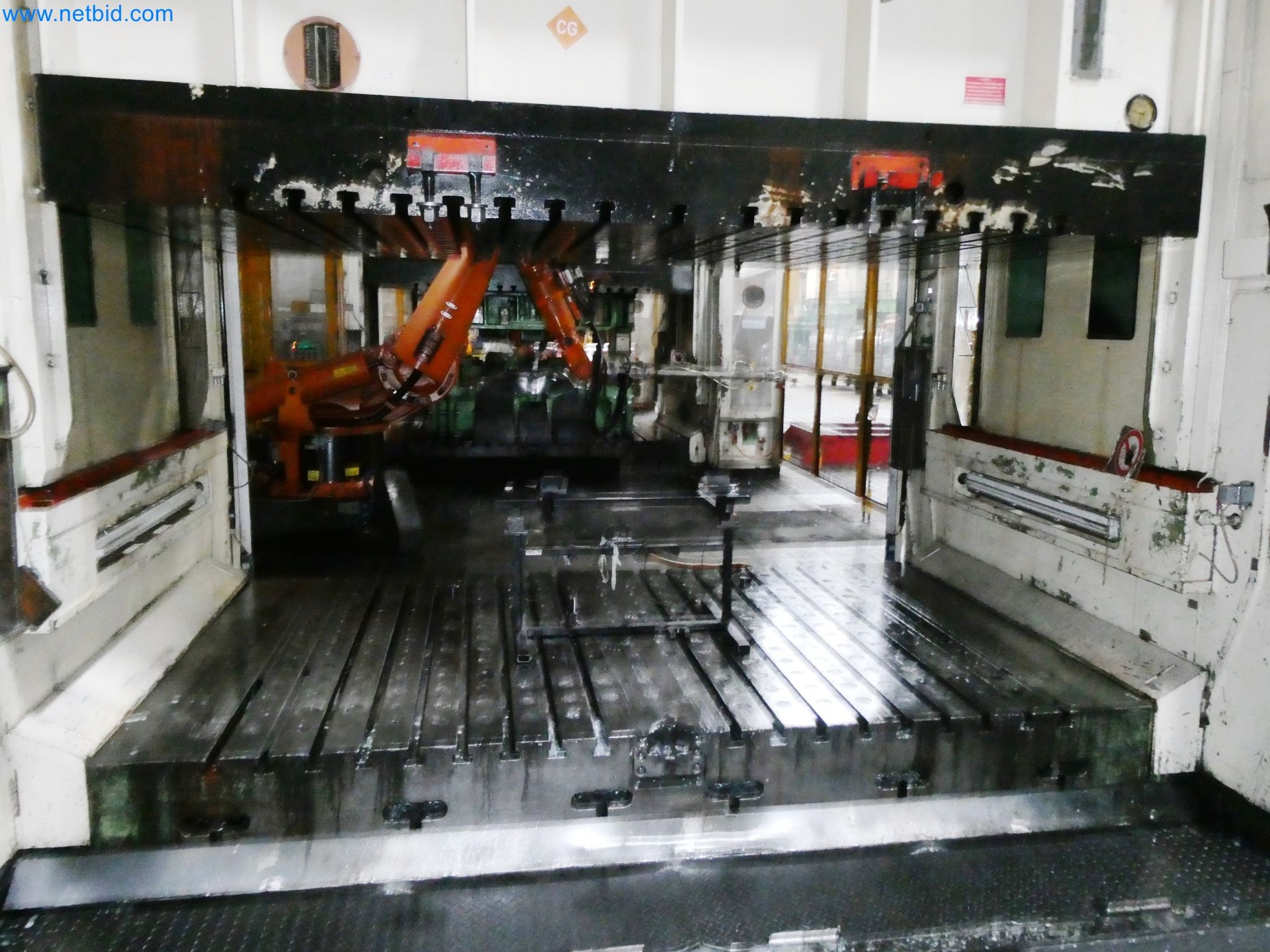

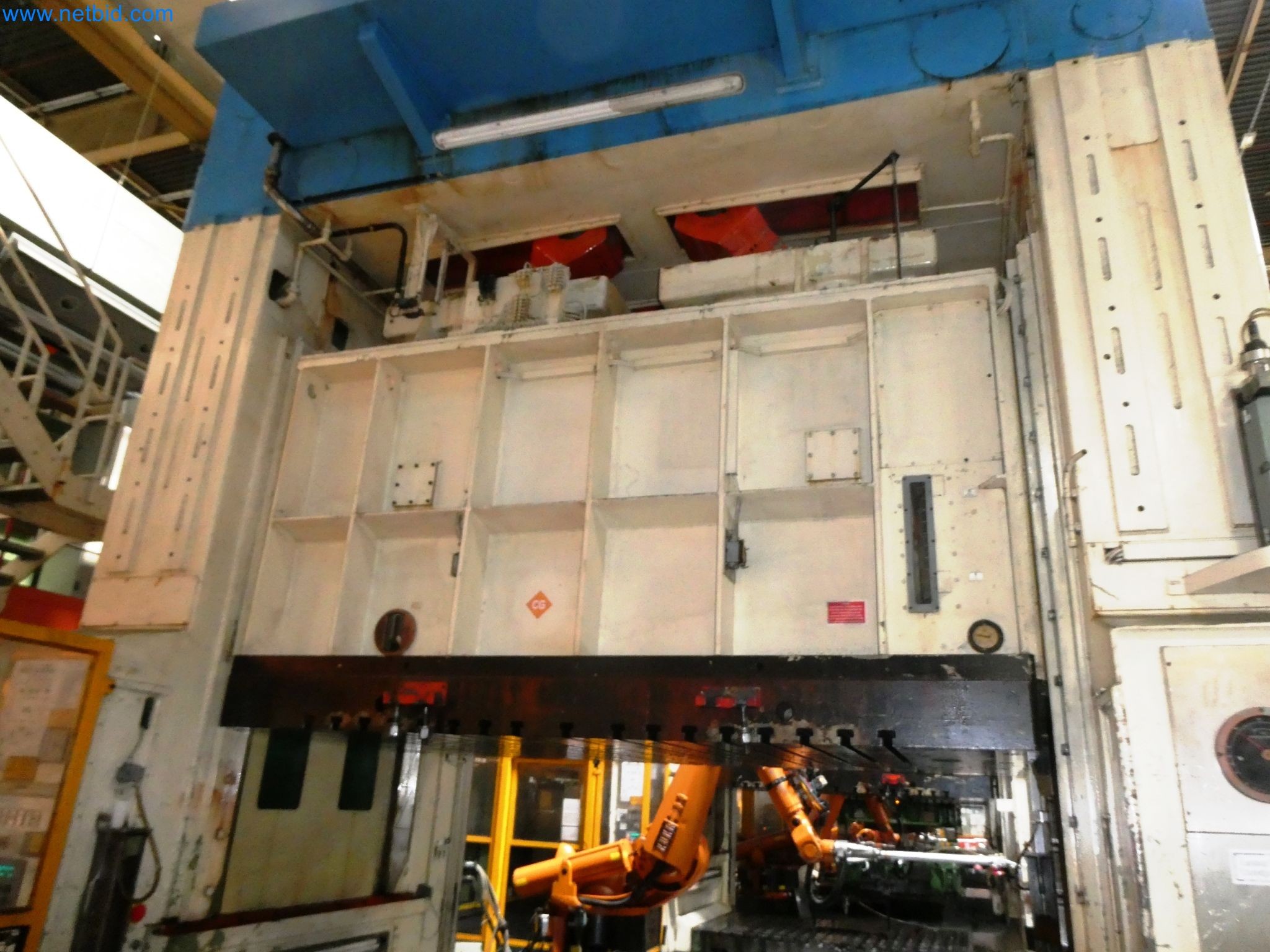

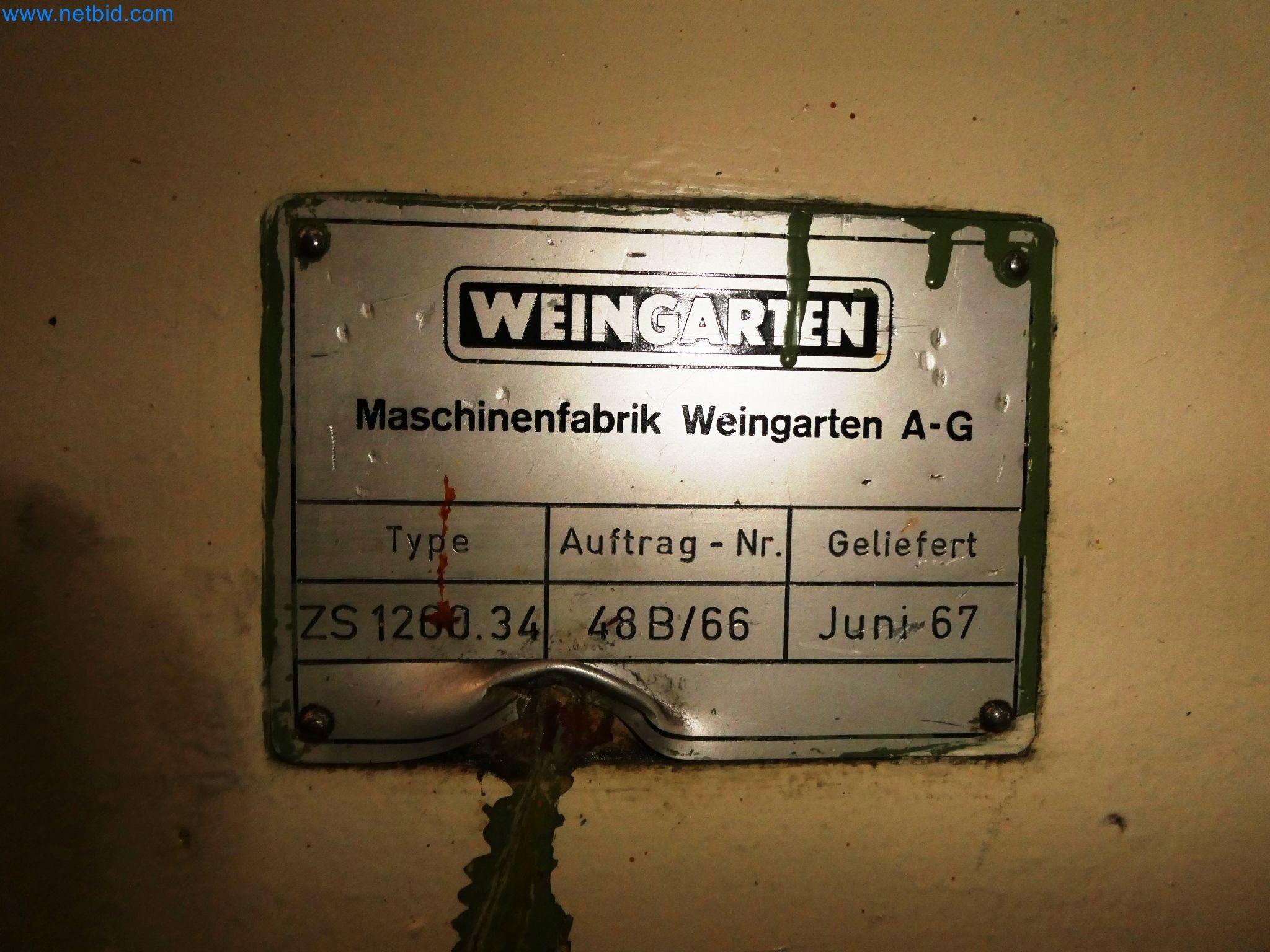

hydr. press, make Weingarten, type ZS 1260.34, year 1967, order no. 48B/66, system no. 01761.00, double action, pressing force 800 t, stroke 850 mm, stroke adjustment 350 mm, clear height between table surface and drawing ram 2,150 mm, sheet holder pressing force 400 t, stroke 600 mm, adjustment 350 mm, clear installation height 1.950 mm, drawing depth max. 300 mm, stroke rate 14/min, T-slot table, 2,220 x 3,100 mm, control, type Press OP-96 (Siemens S5)

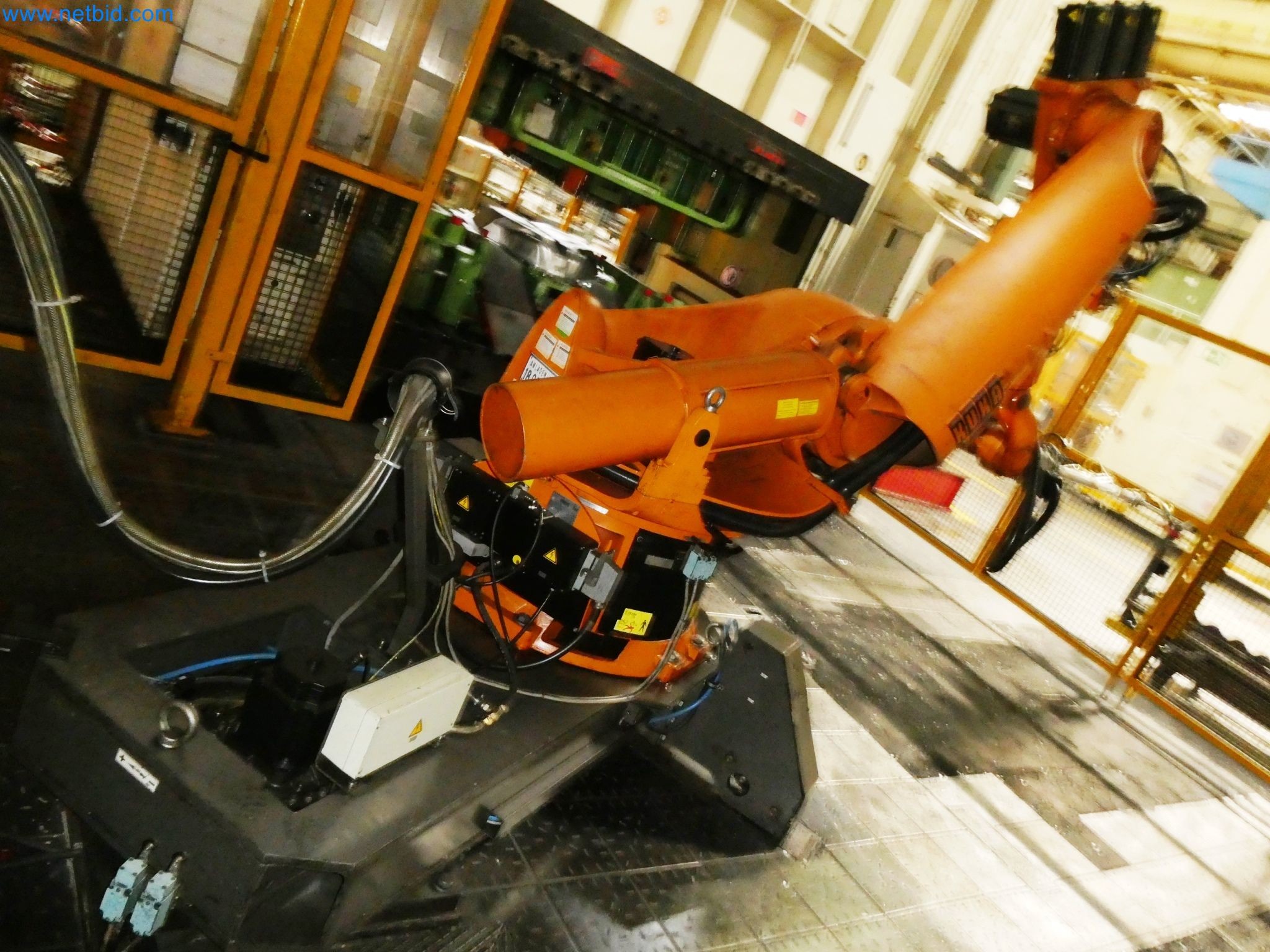

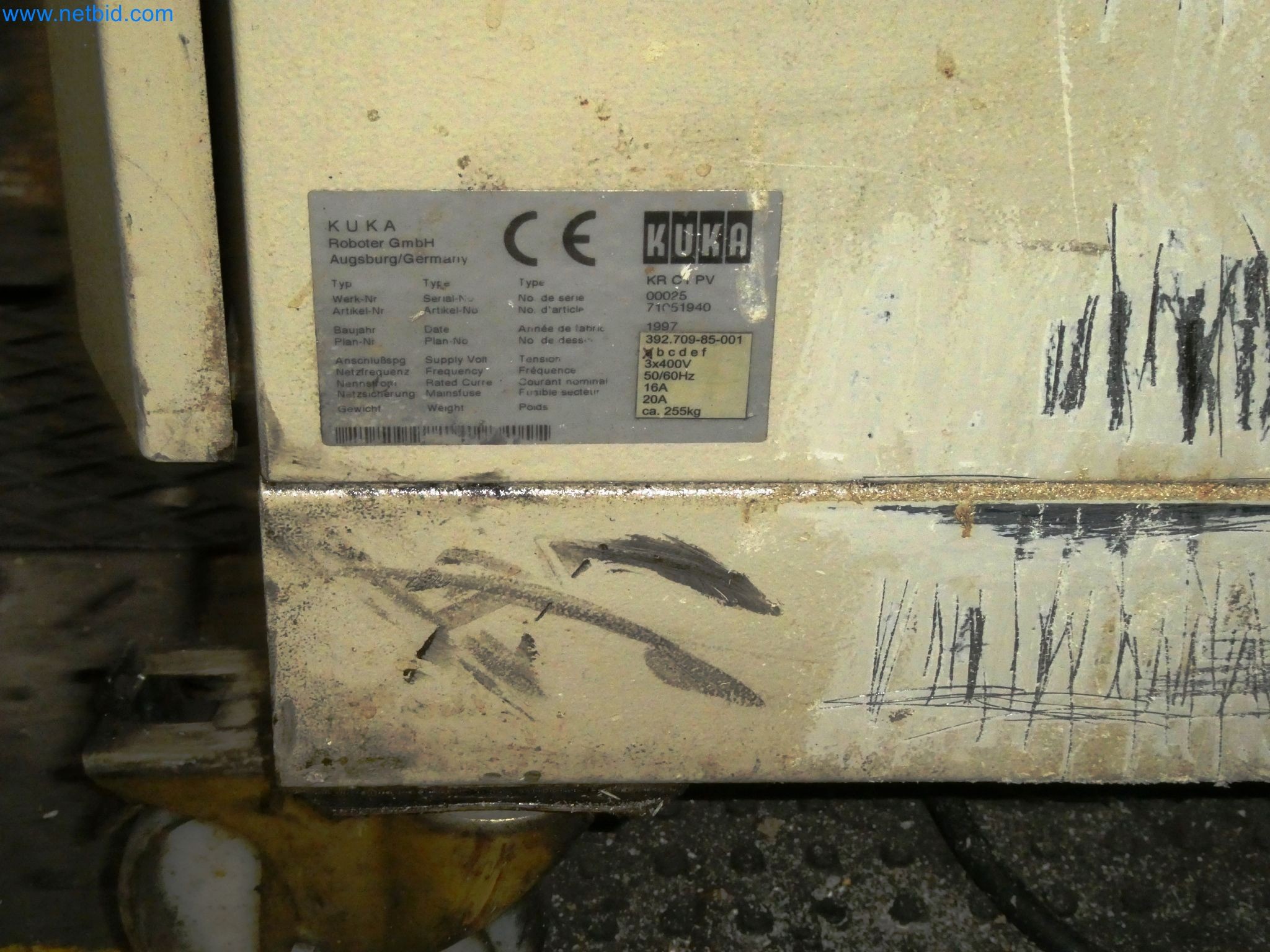

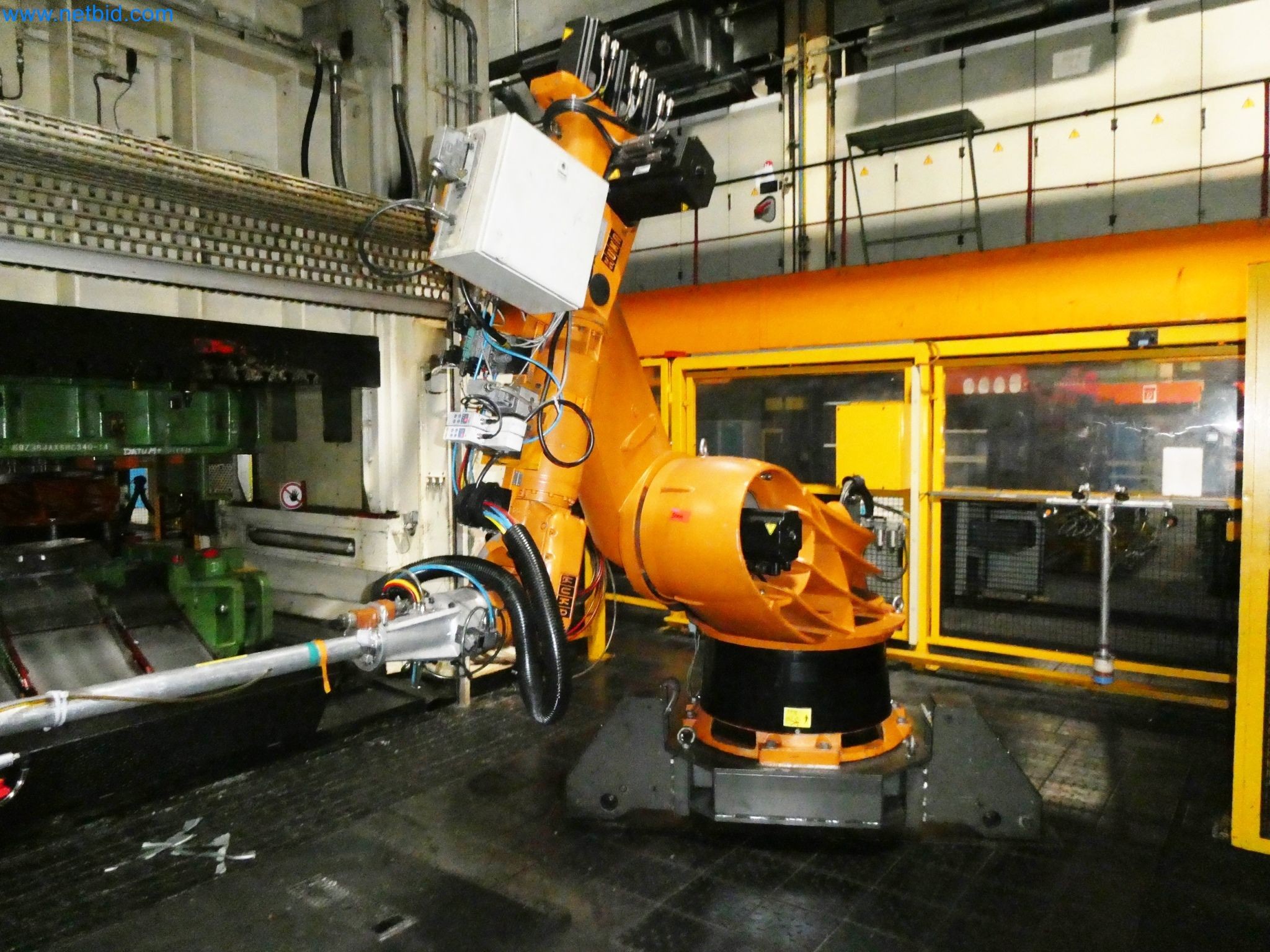

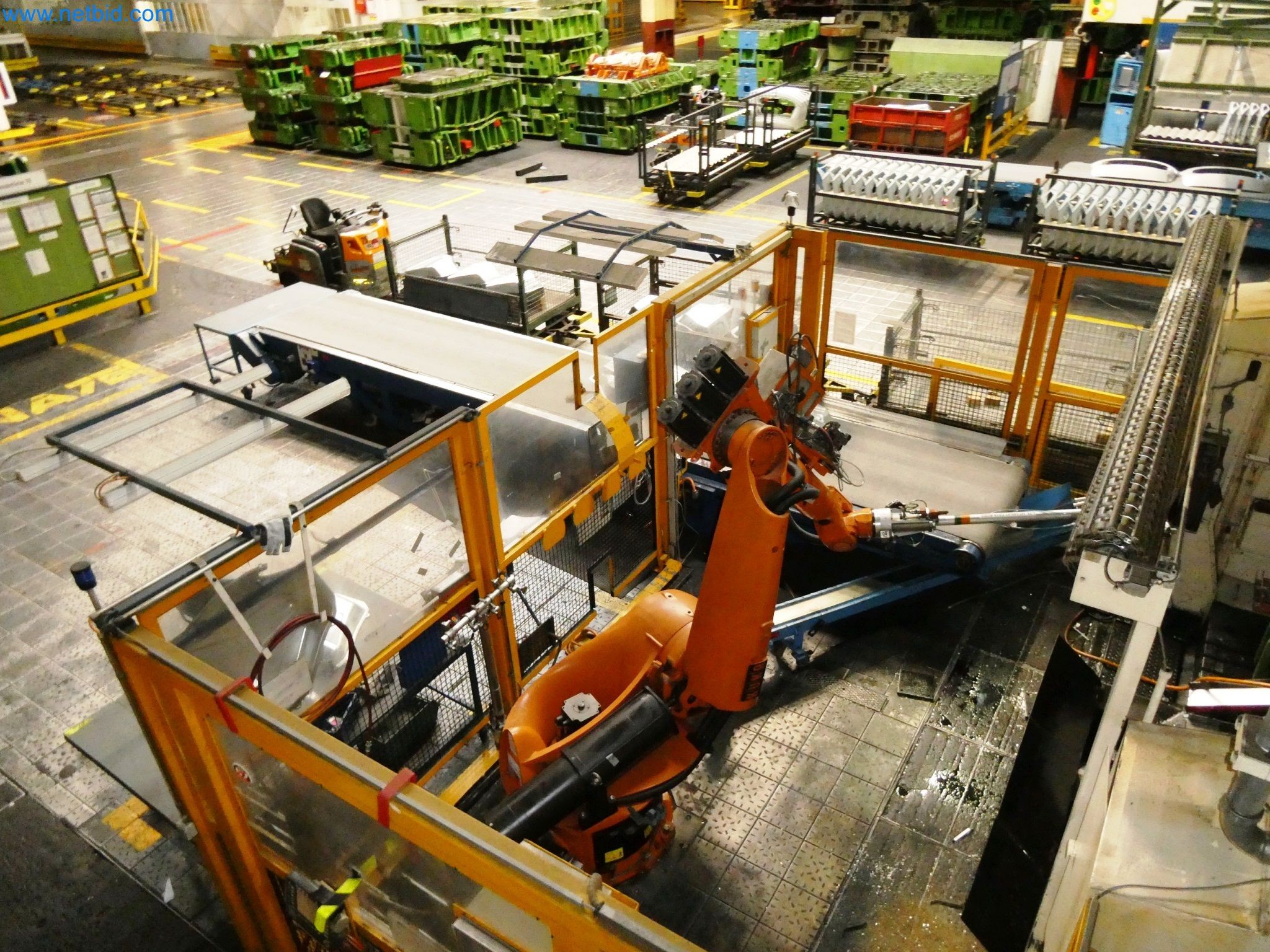

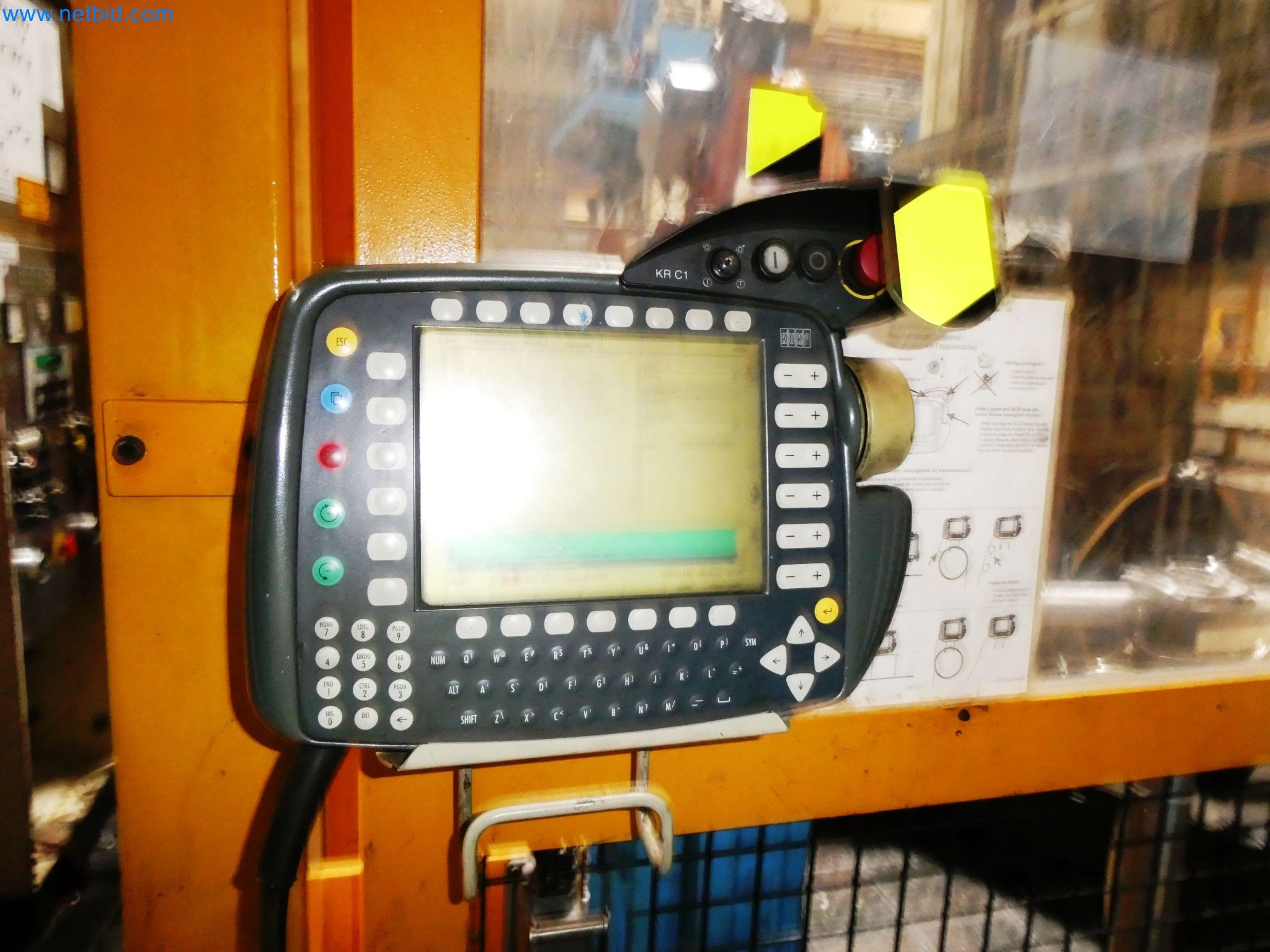

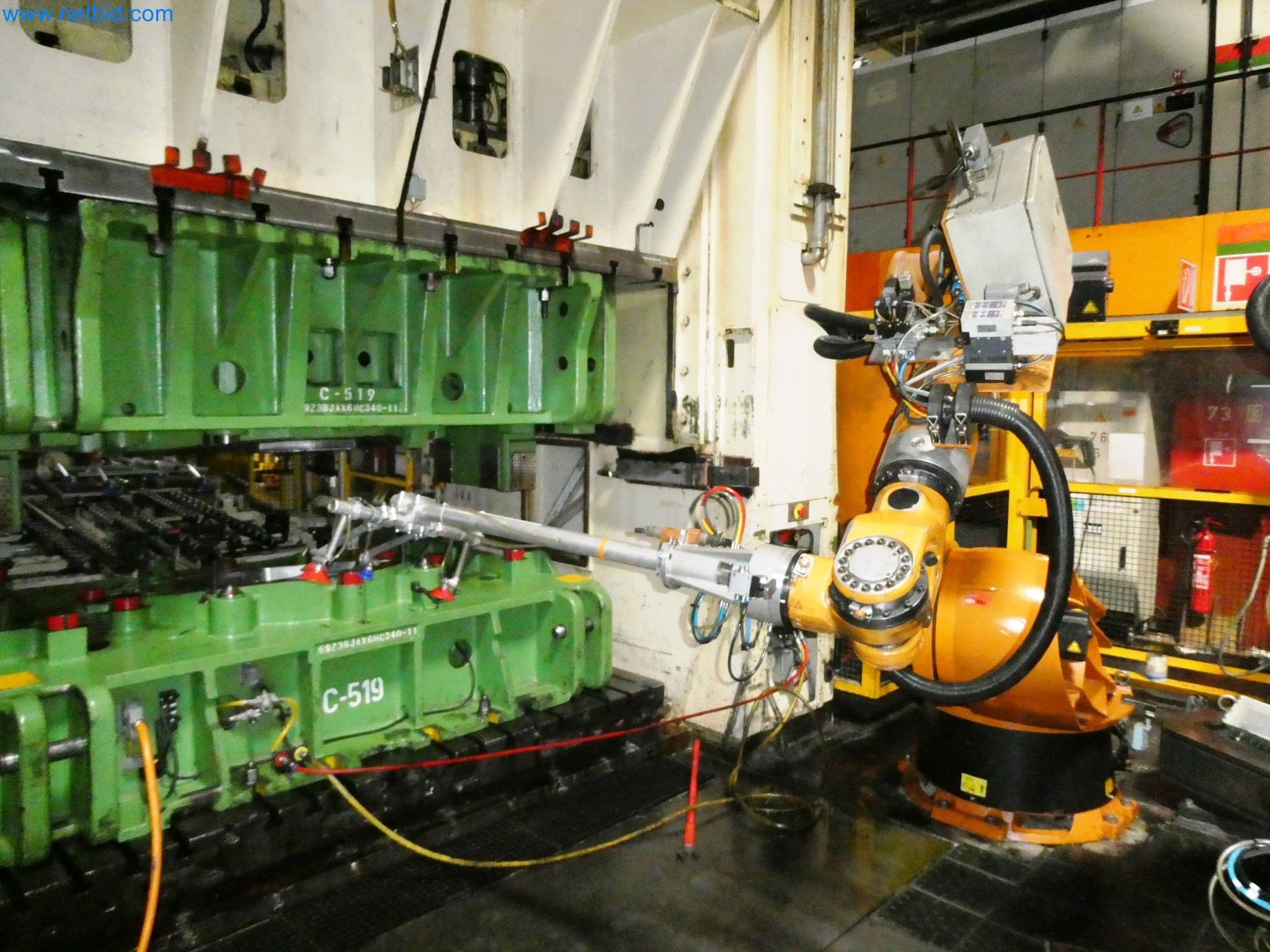

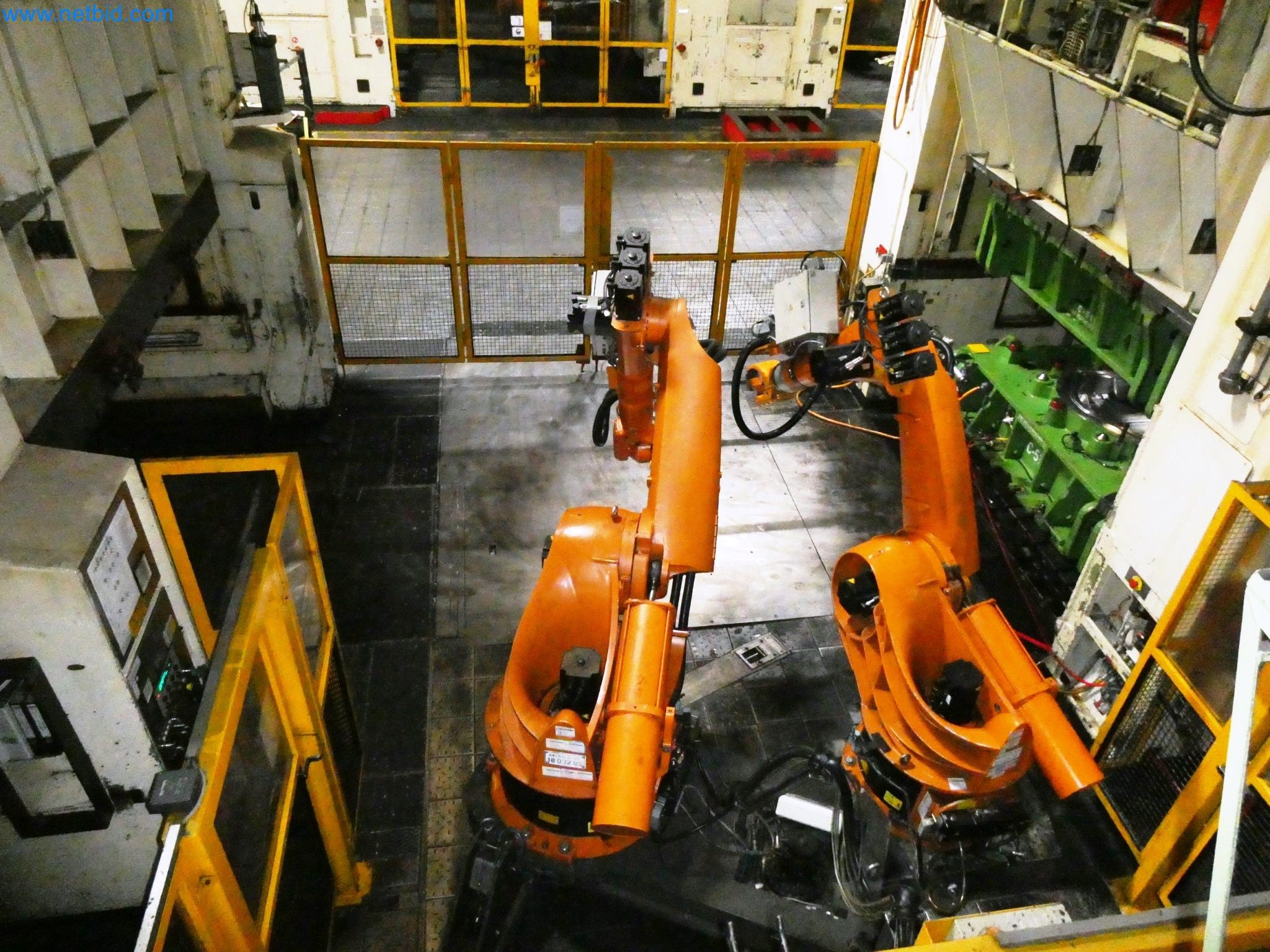

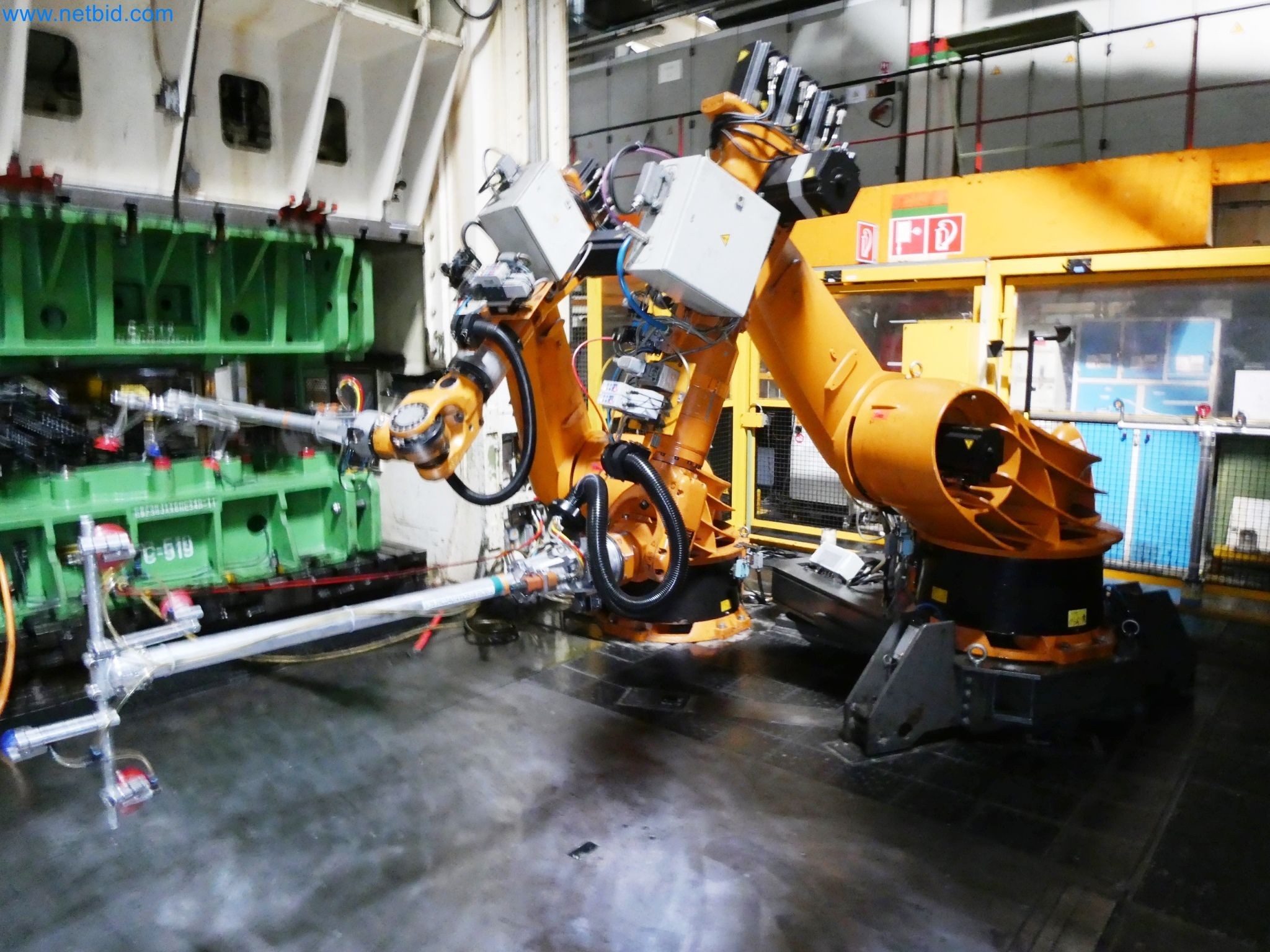

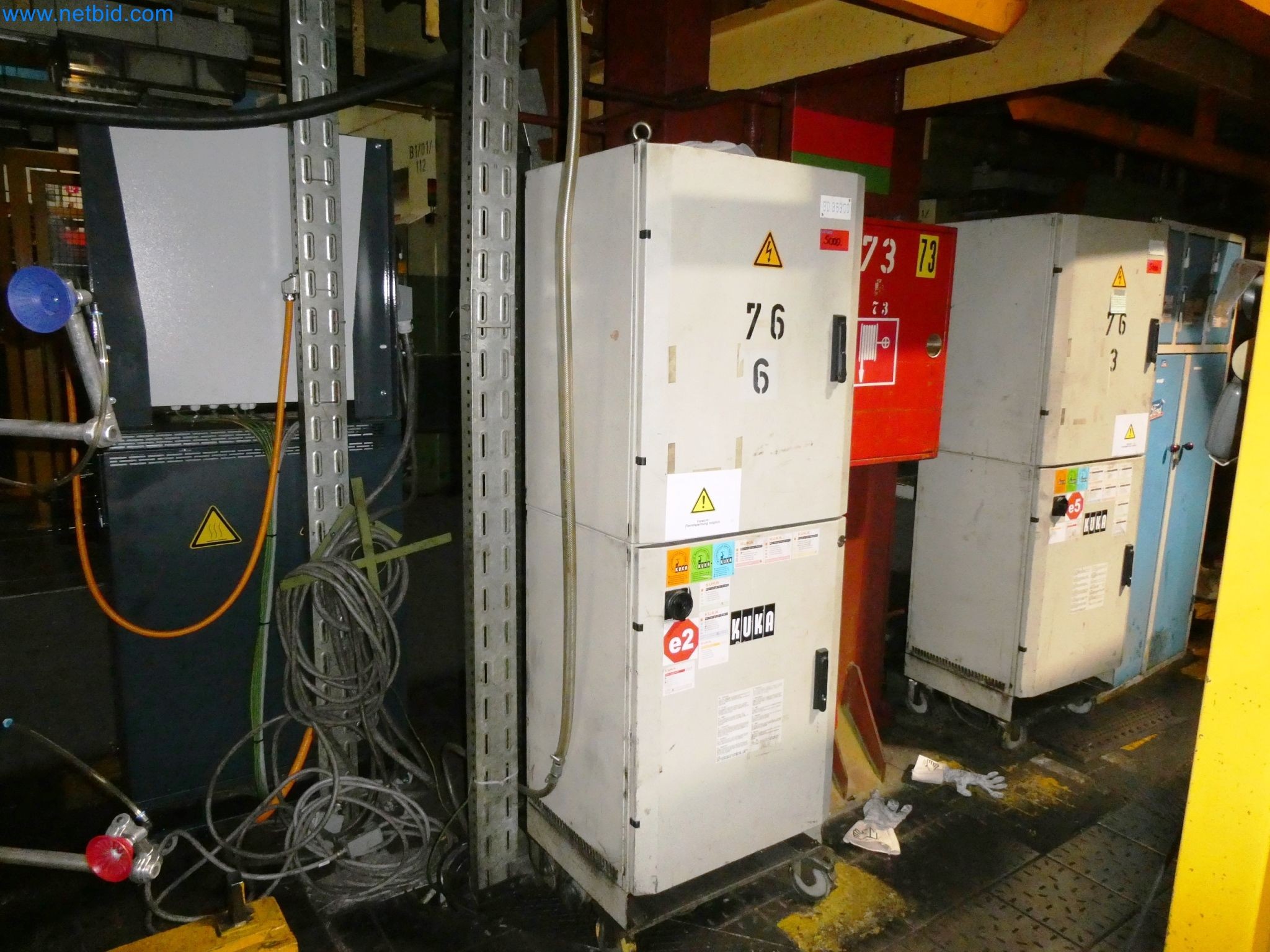

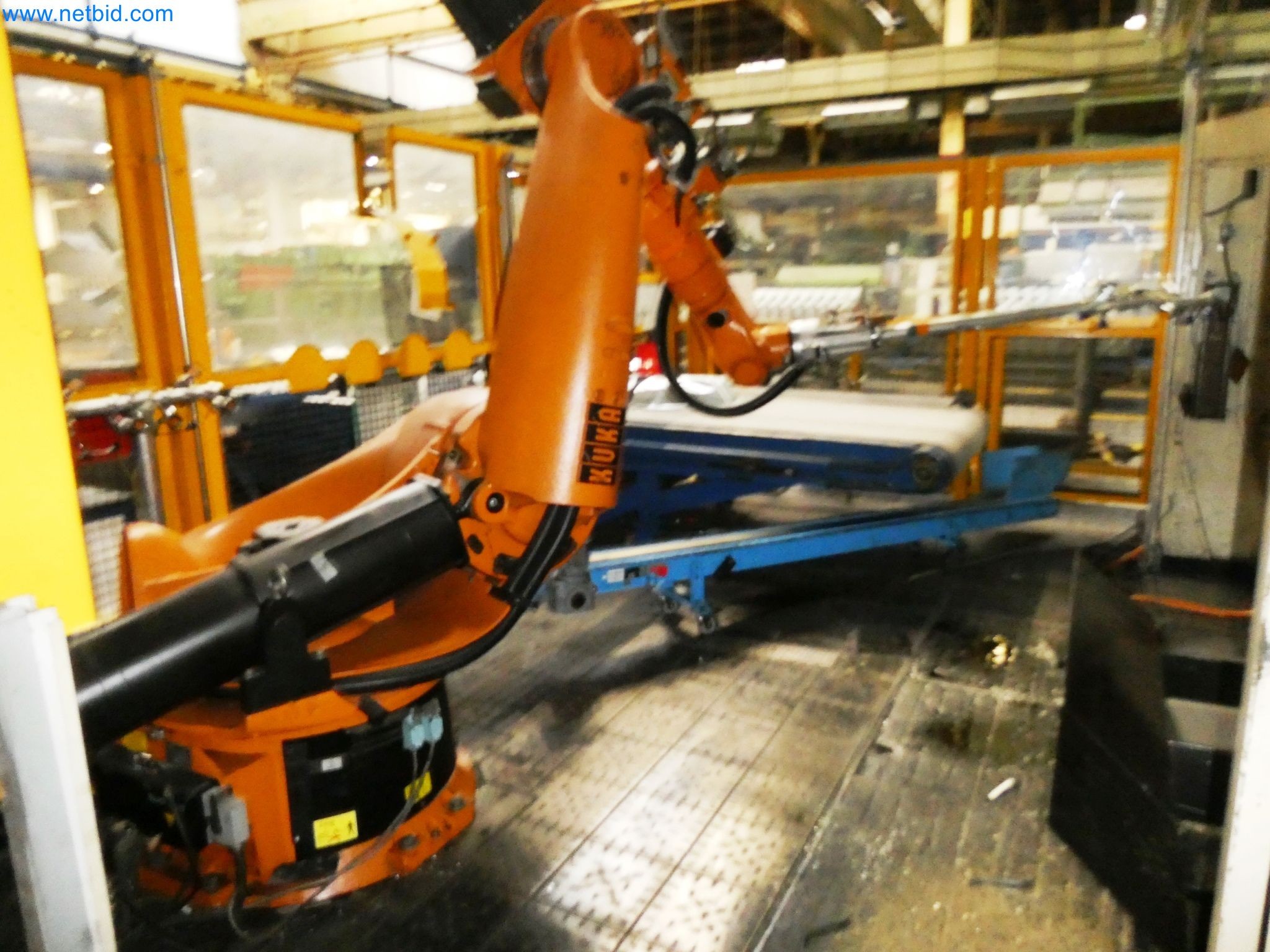

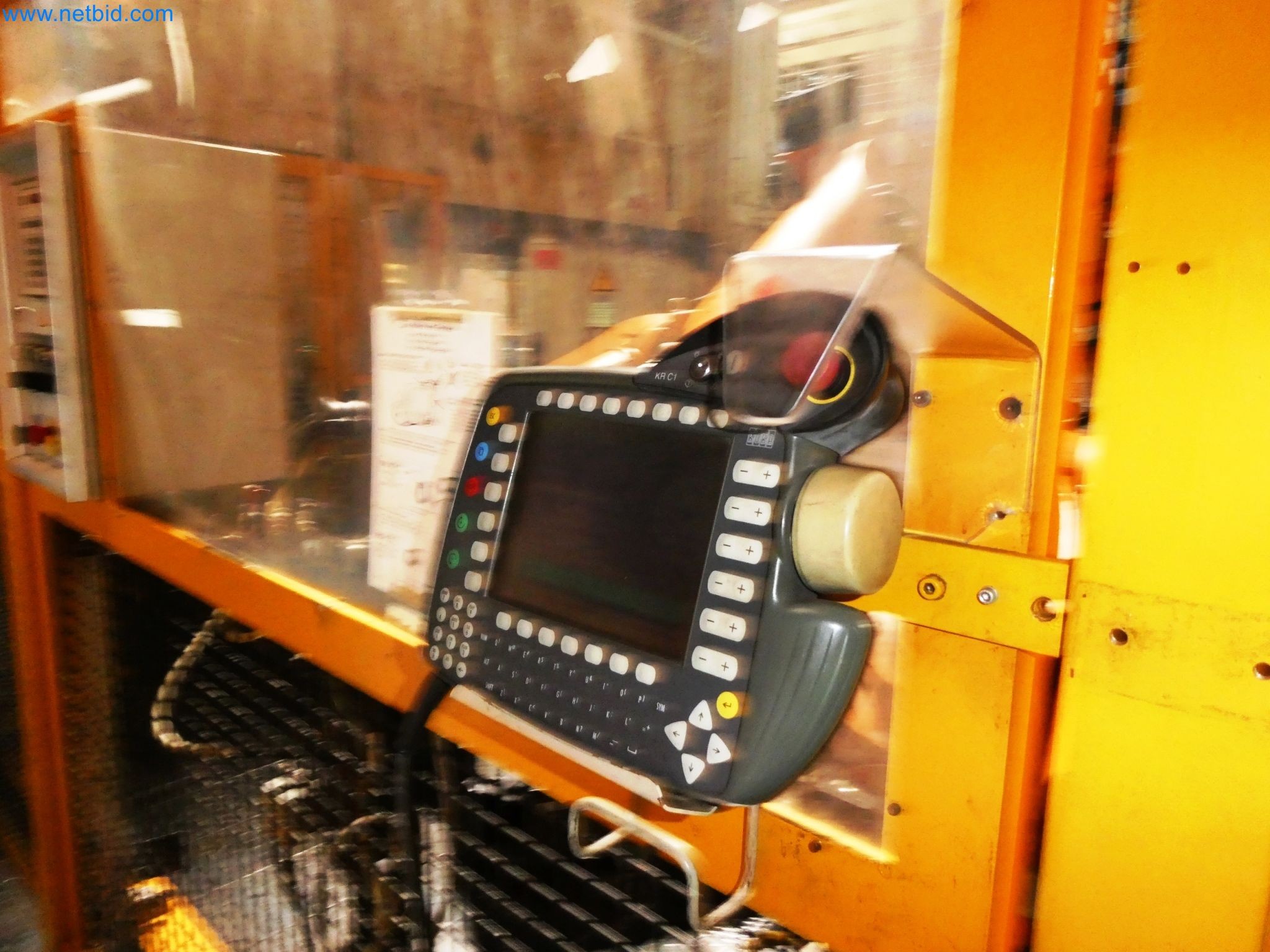

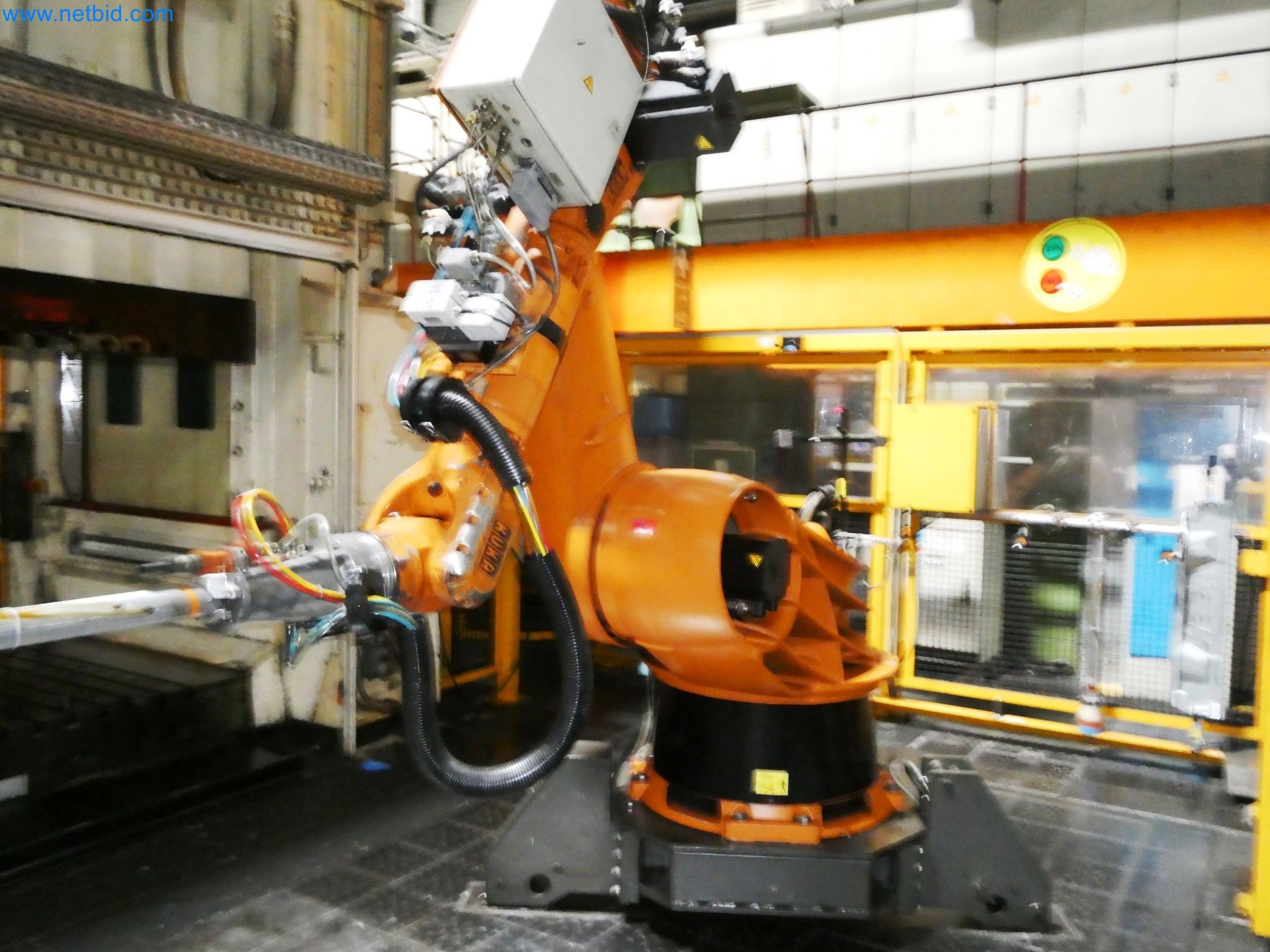

6-axis robot, Kuka, type KR60/P2 TJ, built 1997, SN 70017, system no. 1804600, control, type KRC1.04, w. control cabinet and manual control unit

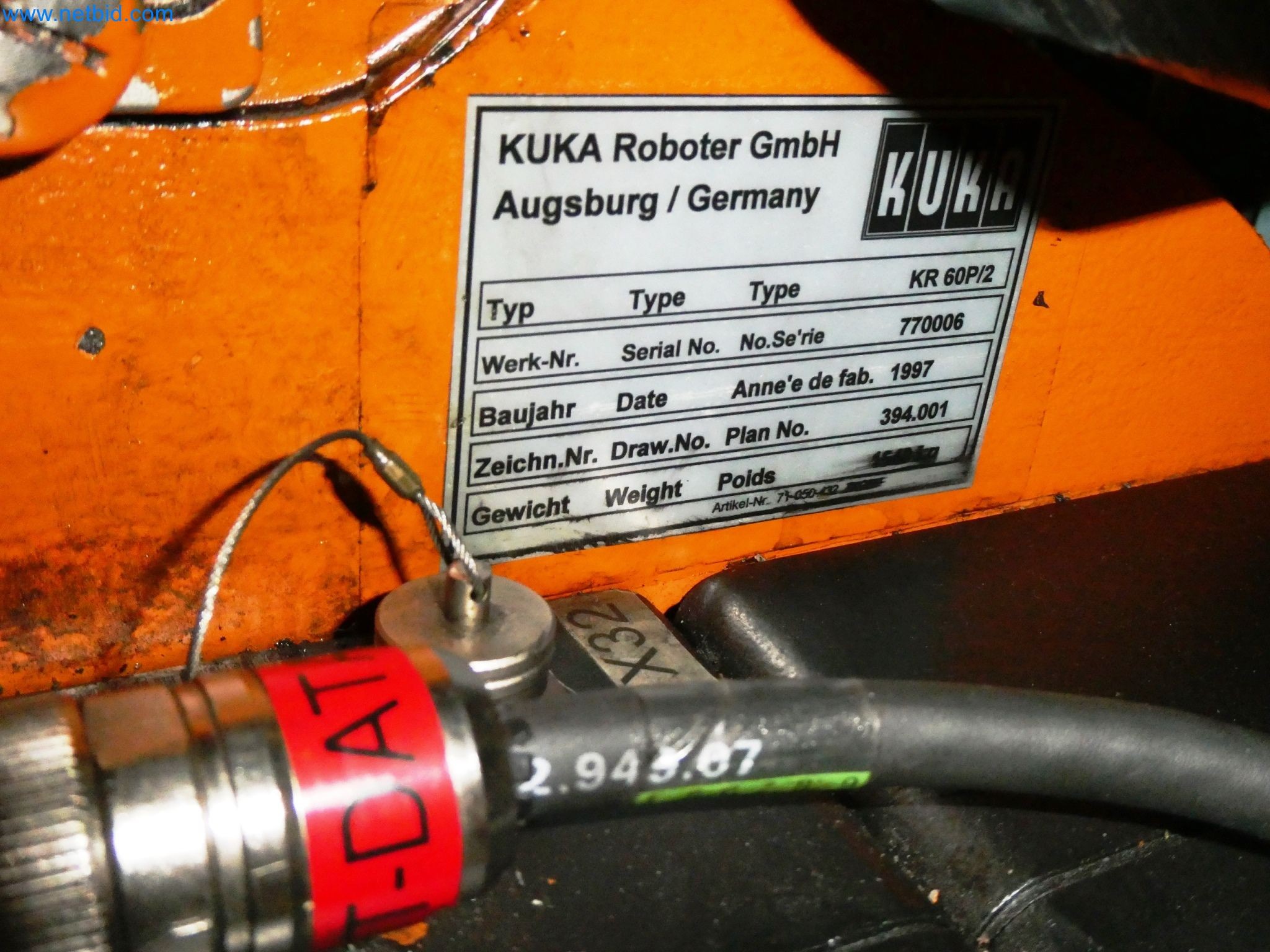

6-axis robot, Kuka, type KR 60P/2, year 1997, SN 770006, system no. 1803200, control, type KRC1.PV, w. control cabinet and manual control unit

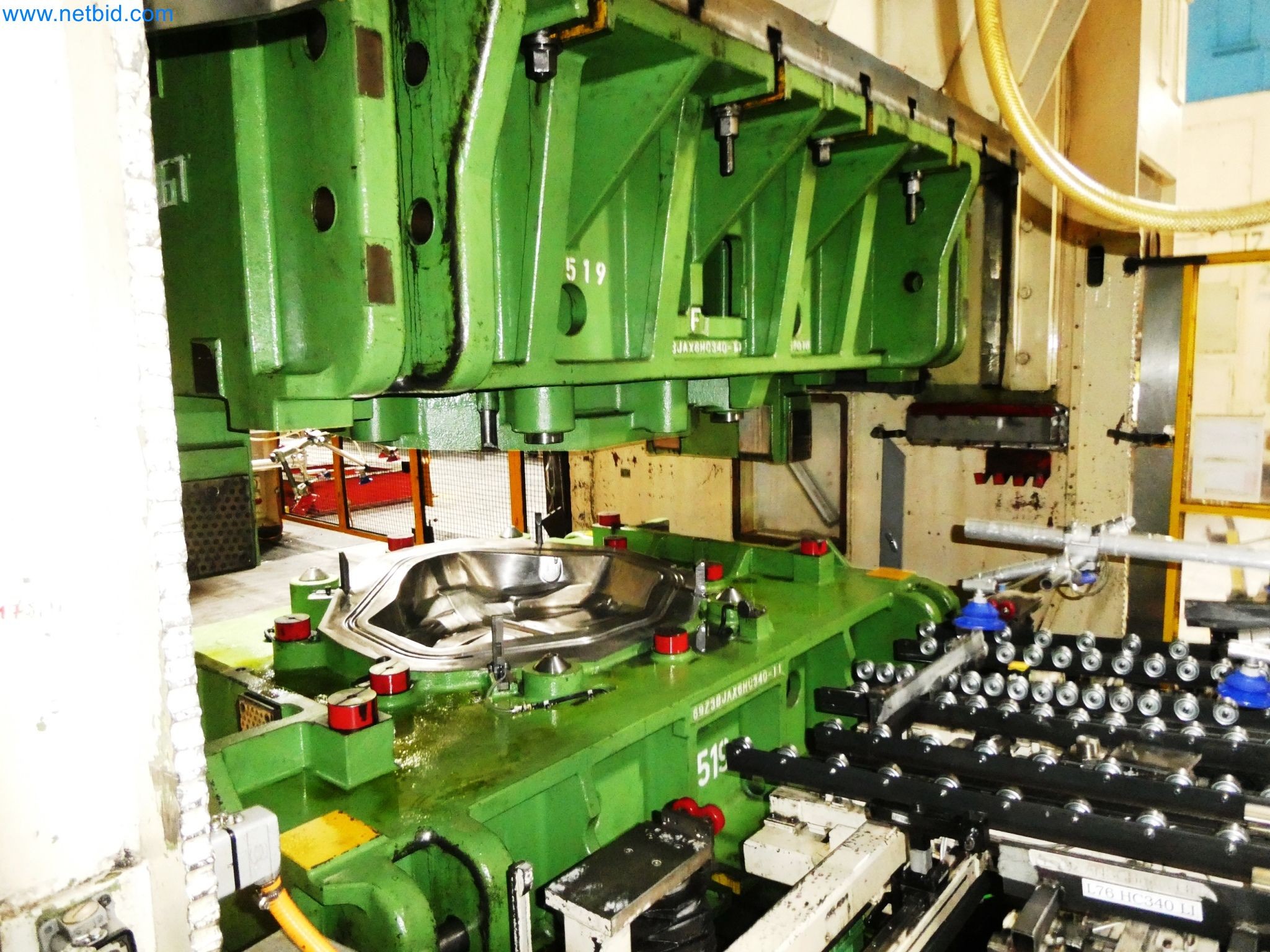

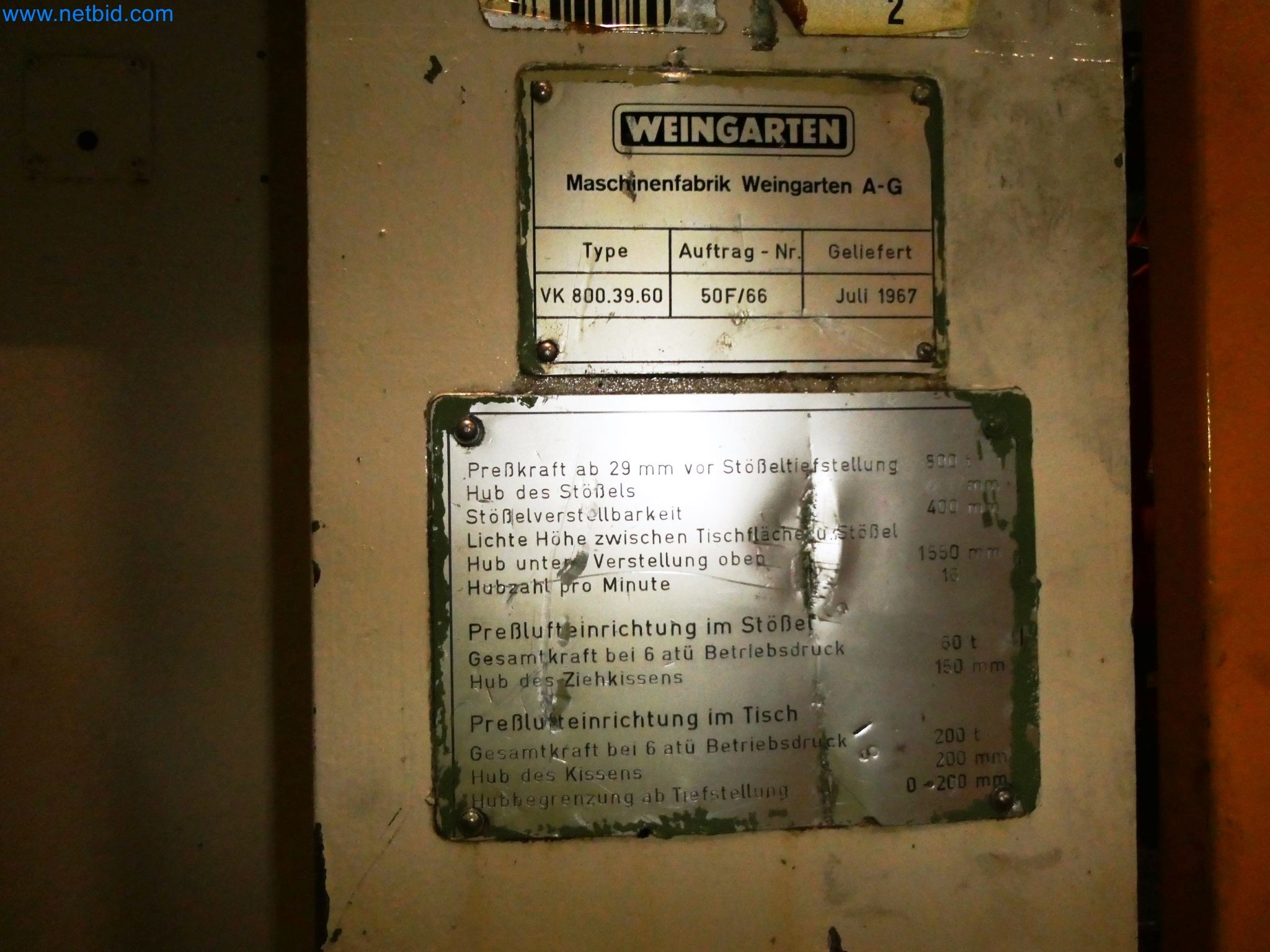

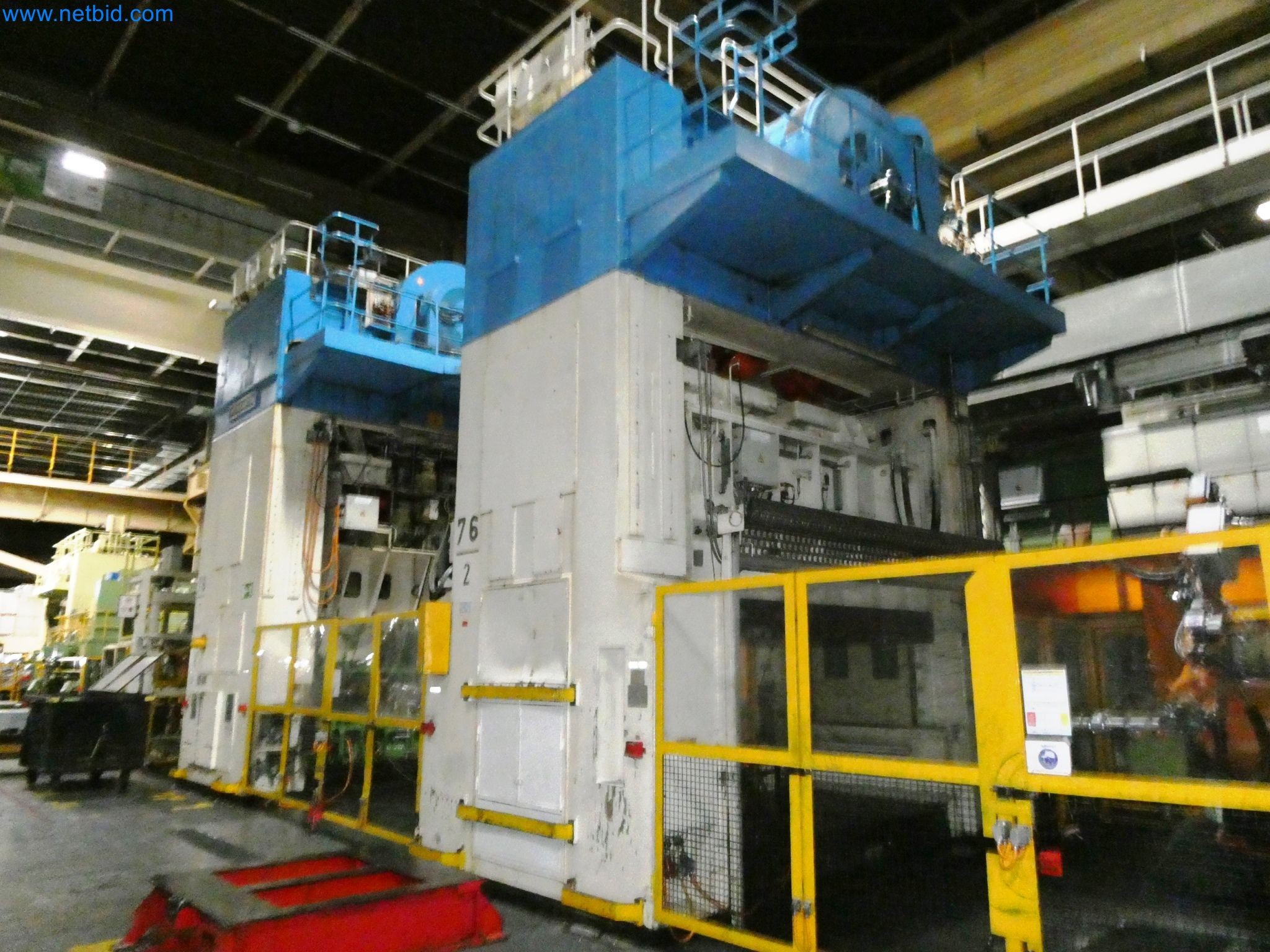

hydr. Press (76/2), manufactured by Weingarten, type VK800.39.60, machine no. 0176200, year 1967, single action, order no. 50F/66, press force 800 t, ram adjustment 400 mm, ram stroke 600 mm, clearance between table surface and ram 1,550 mm, press capacity 800 t, ram adjustment 400 mm, ram stroke 600 mm, clear height between table surface and ram ram 1,550 mm, stroke rate 16, pressure drawing boxes 60 t, stroke drawing cushion 150 mm, T-slot table, approx. 2,200 x 2,630 mm, control, type OP-96 (Siemens S5)

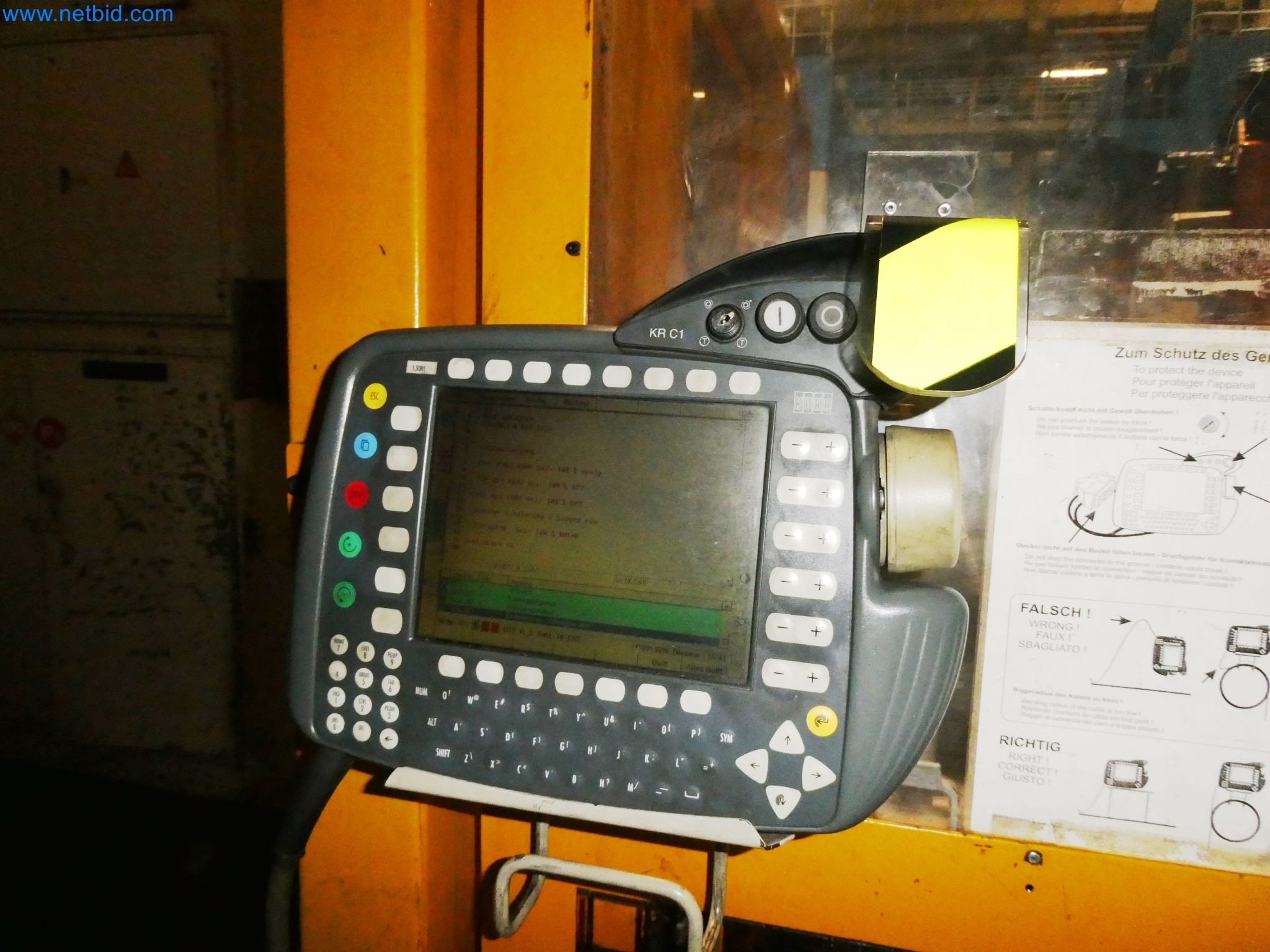

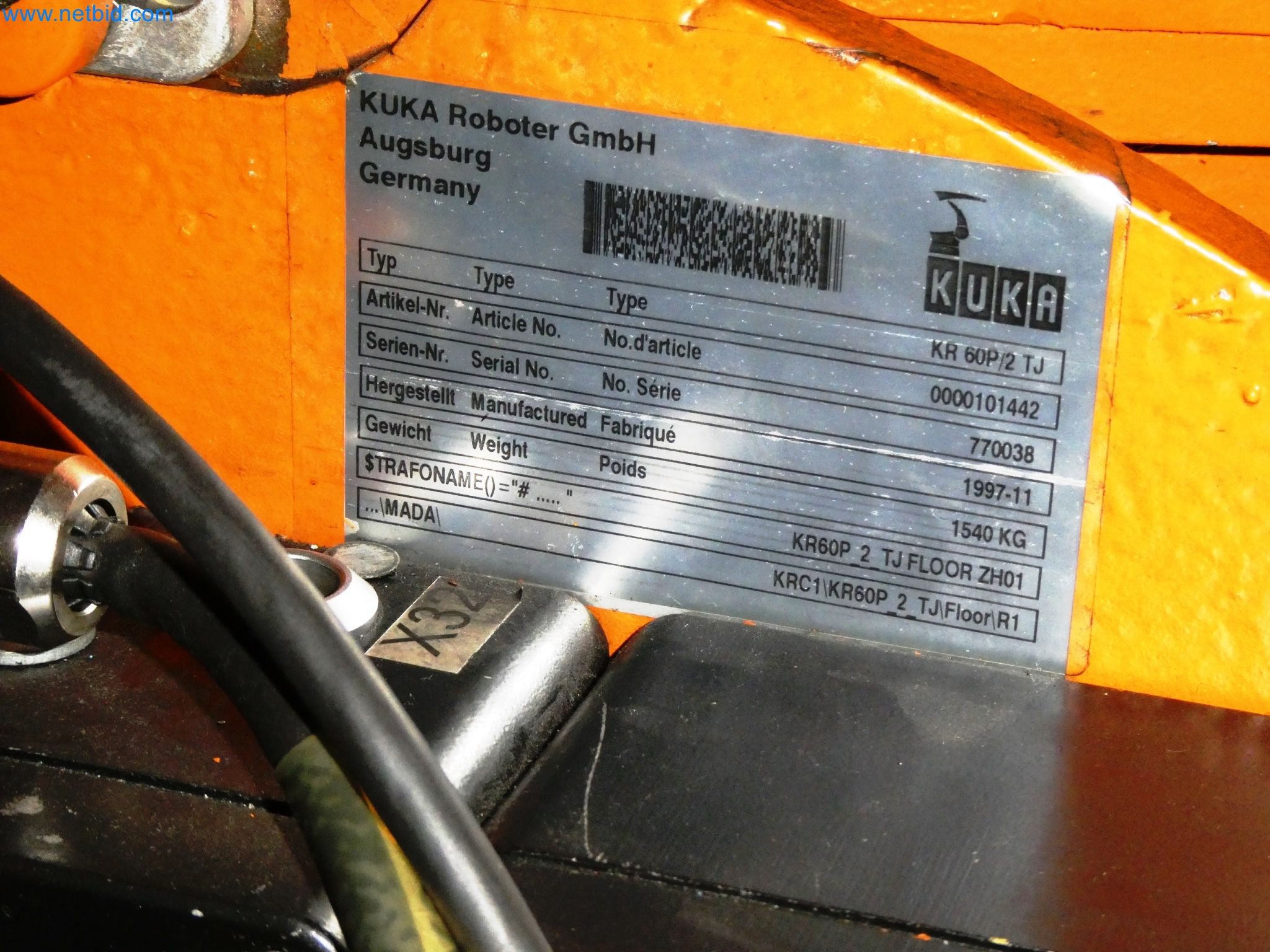

6-axis robot, Kuka, type KR 60P/2 TJ, year of manufacture 1997, SN 70038, weight 1,540 kg, system no. 1803400, with control cabinet and manual control unit, type KRC1

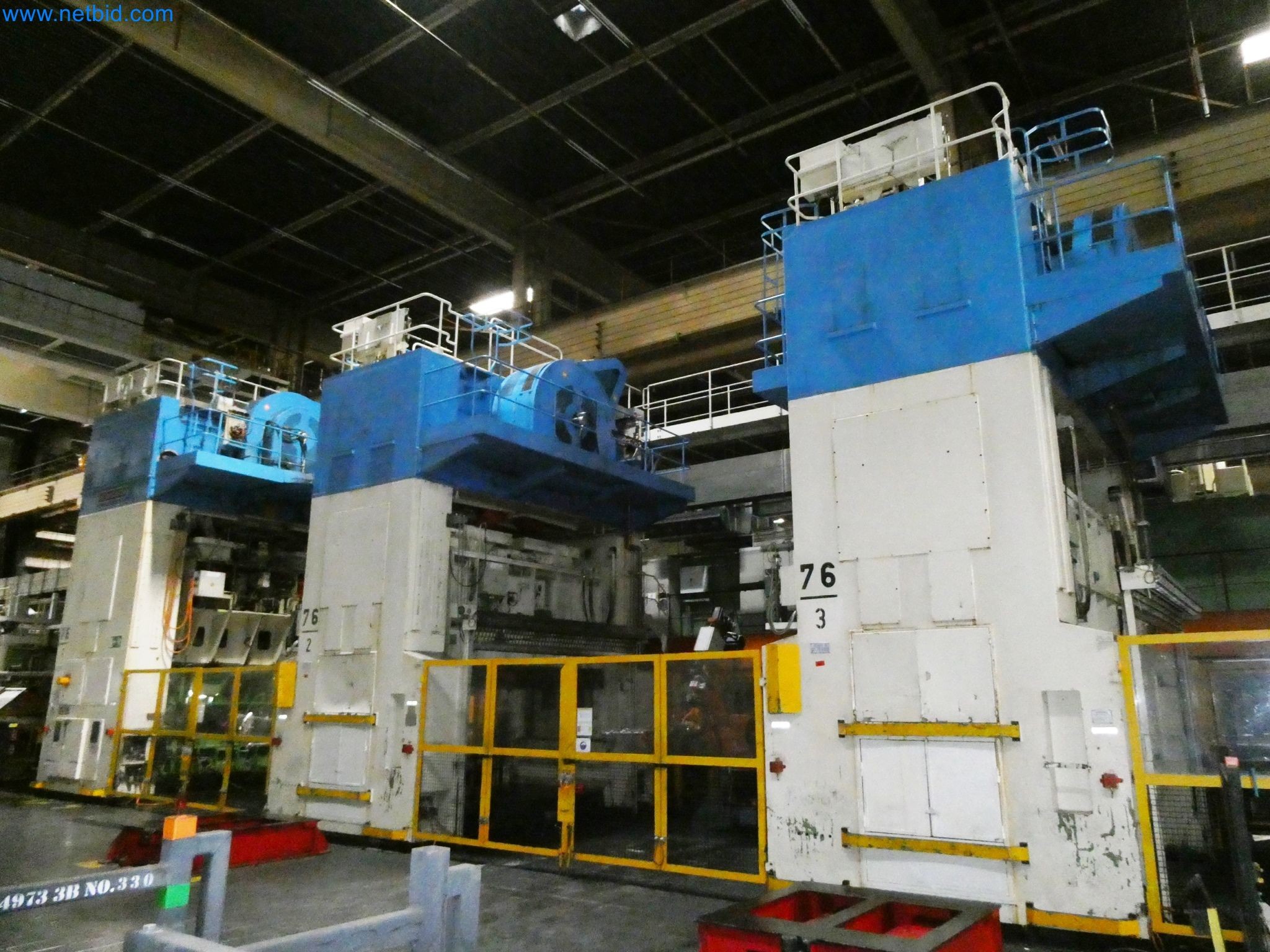

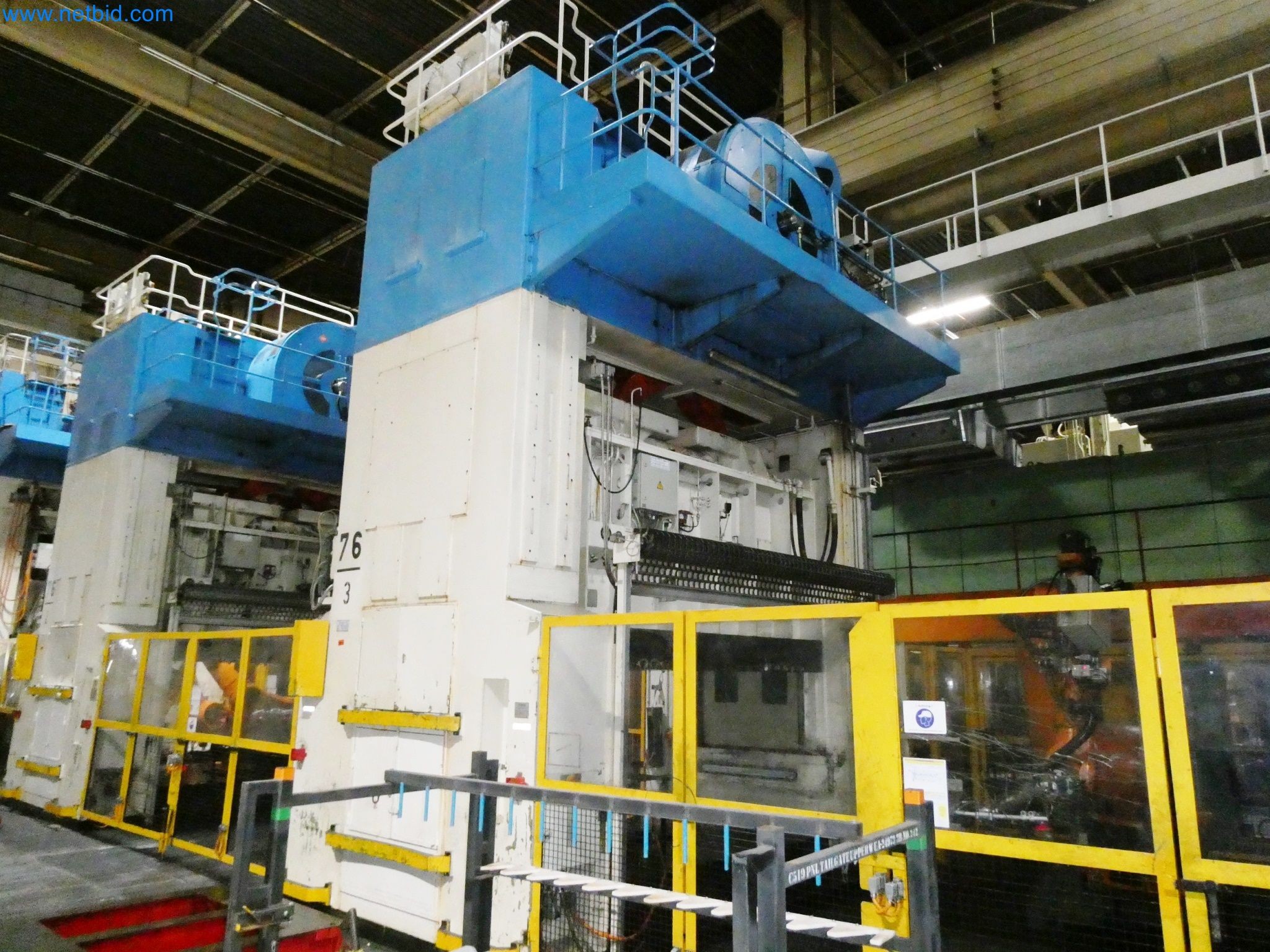

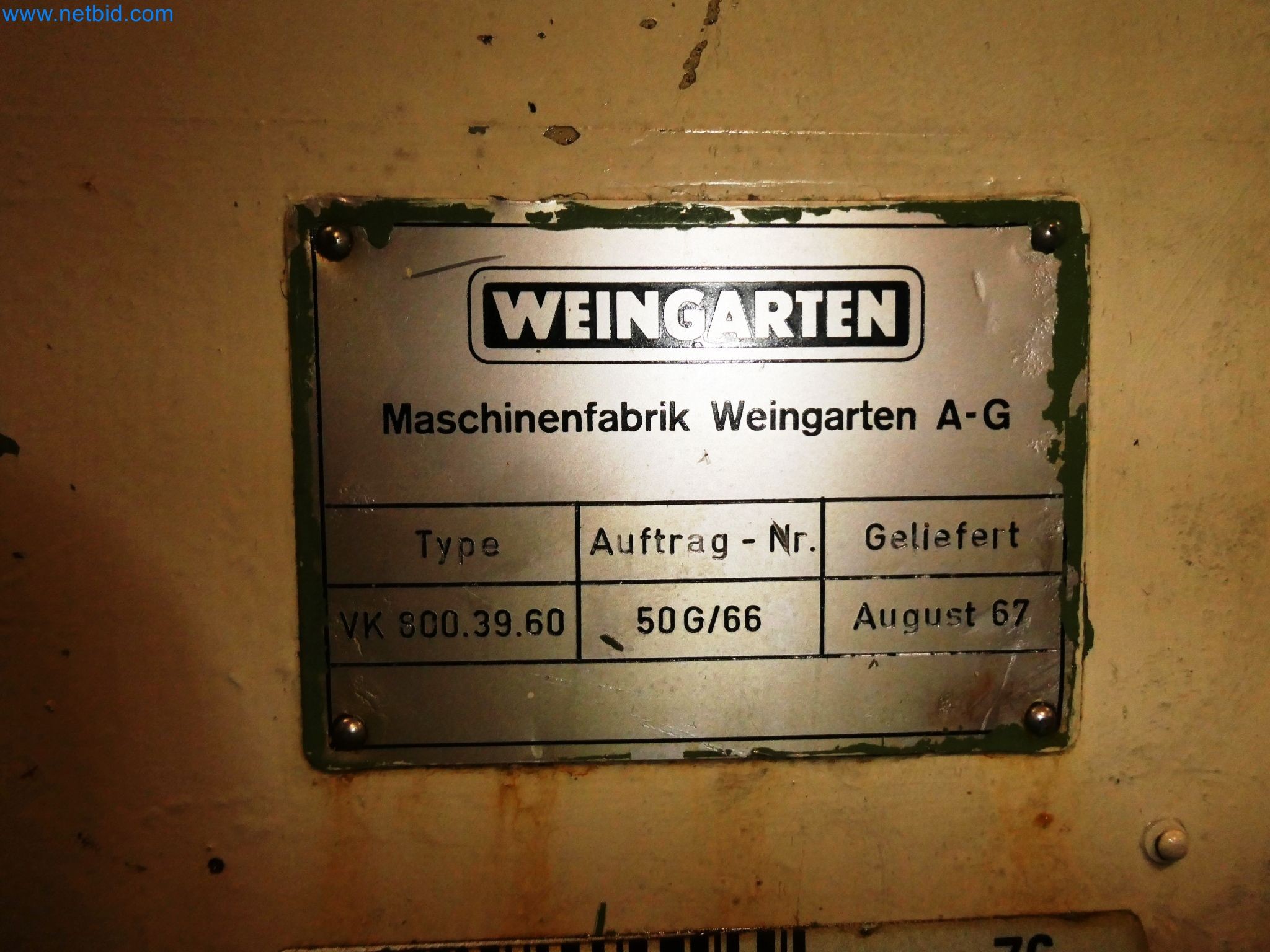

hydr. press (76/3), Weingarten, type VK 800.39.60, year 1967, order no. 50G/66, plant no. 0176300, single action, pressing force 800 t, ram adjustment 400 mm, clear height between table surface and ram 1.550 mm, number of strokes 16, force drawing cushion 60 t, stroke drawing cushion 150 mm, control system, type Press OP96 (Siemens S5), table size 2,200 x 3,500 mm,

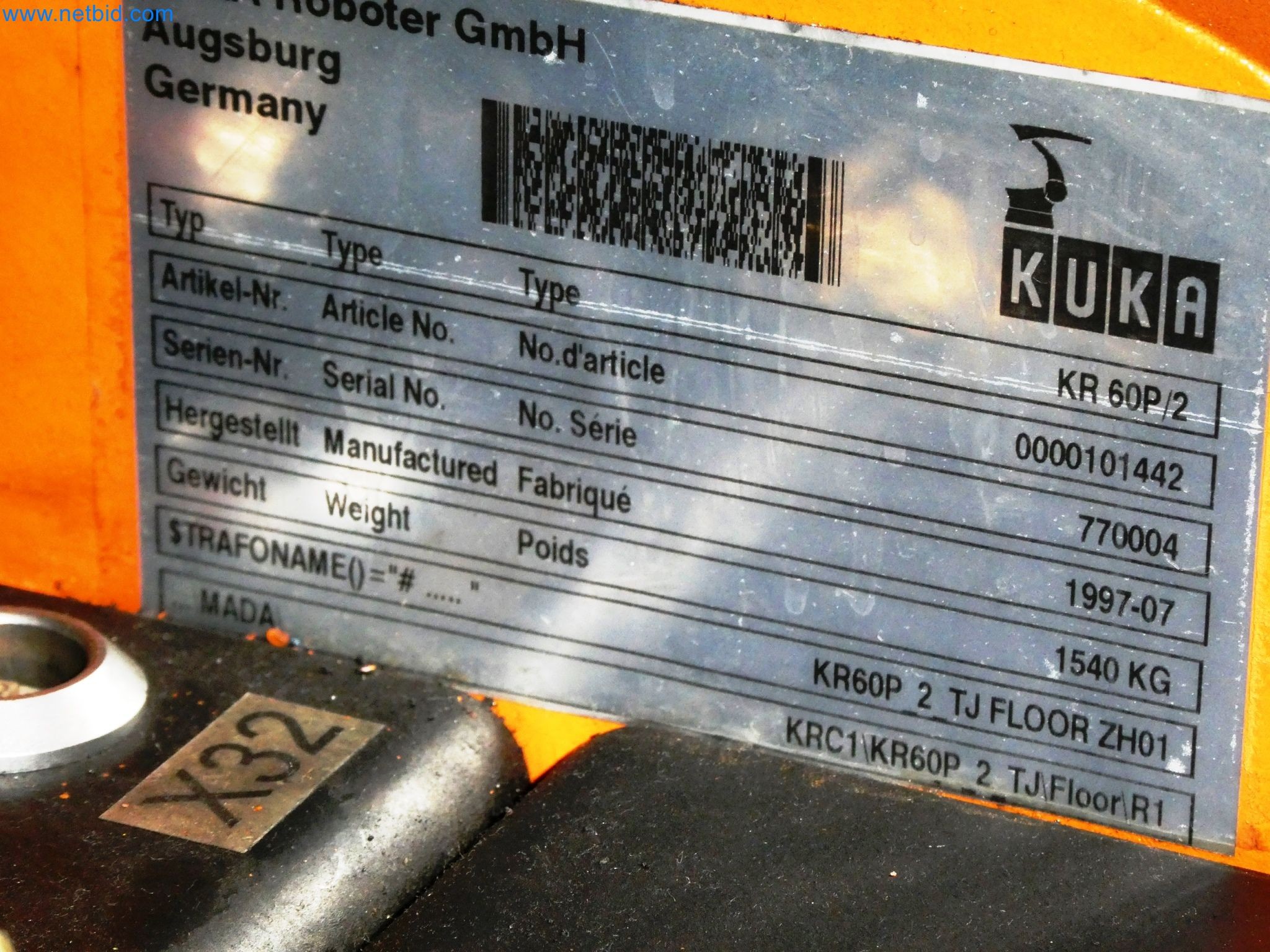

6-axis robot, Kuka, type KR 60P/2, year 1997, SN 770004, weight 1,540 kg, machine no. 1803600, w. control system, type KRC1, manual control, type KRC1, machine no. 18076300, single action, press force 800 t, ram adjustment 400 mm, clear height between table surface and ram 1. Control, type KRC1, manual control unit

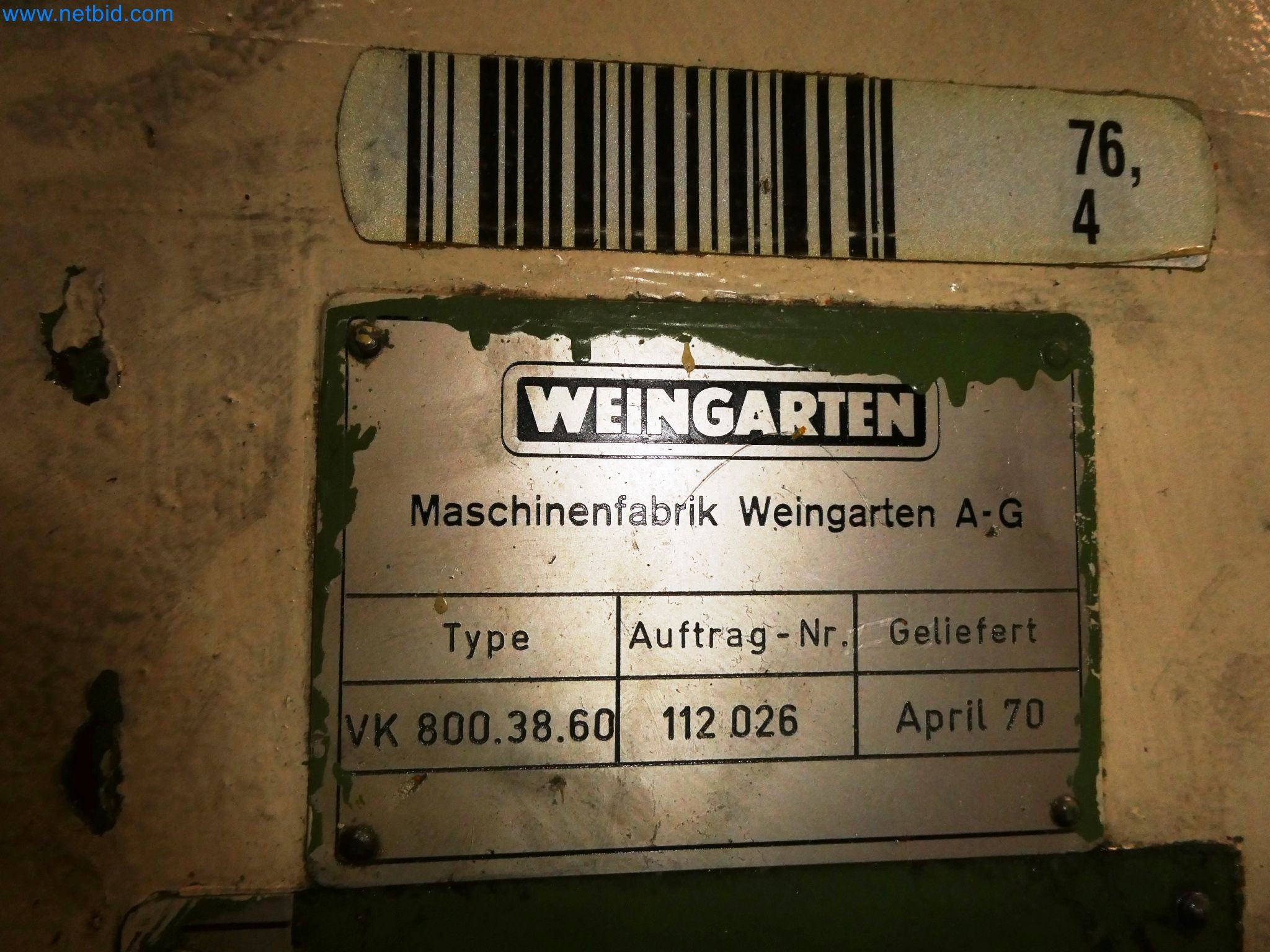

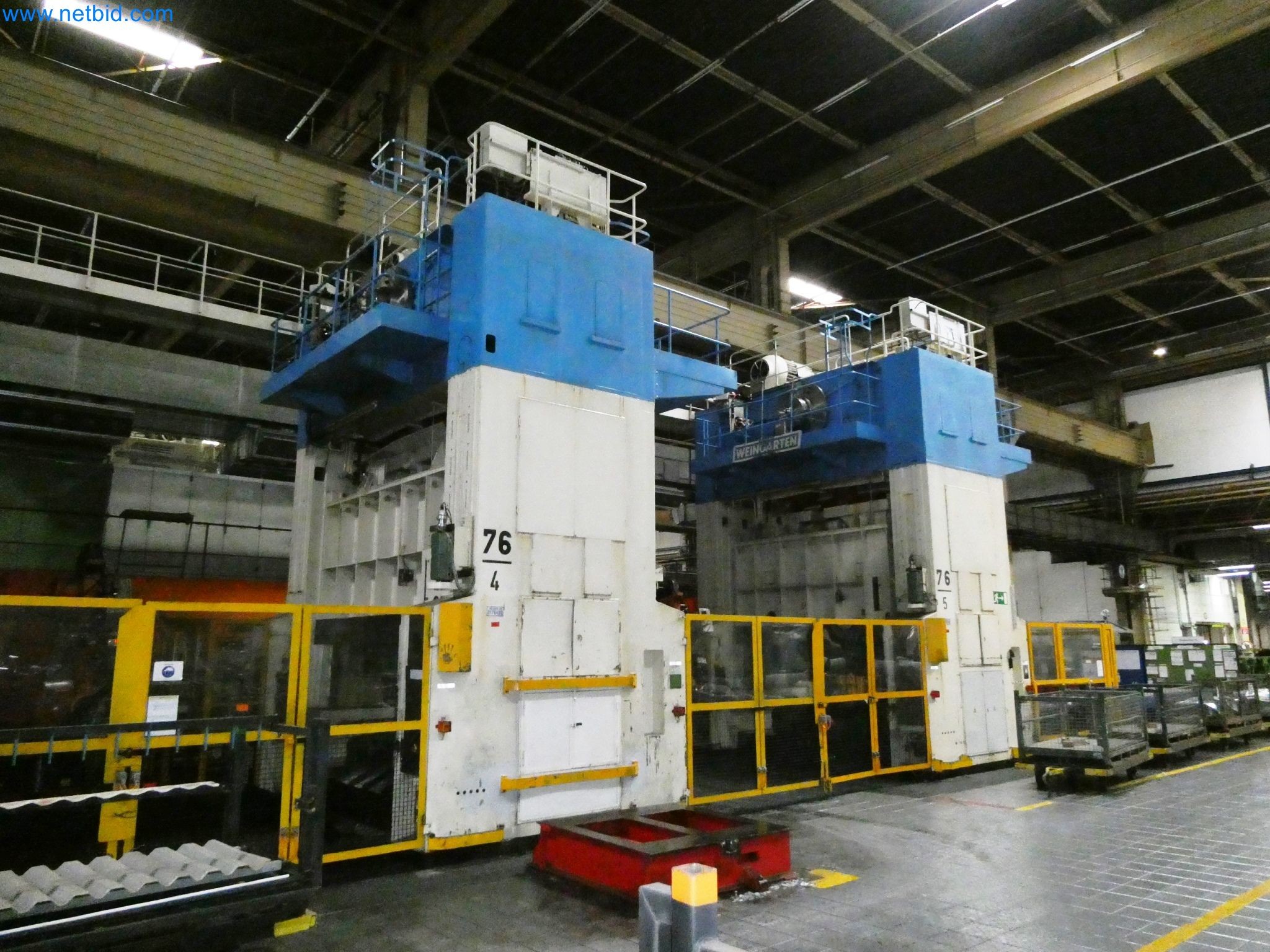

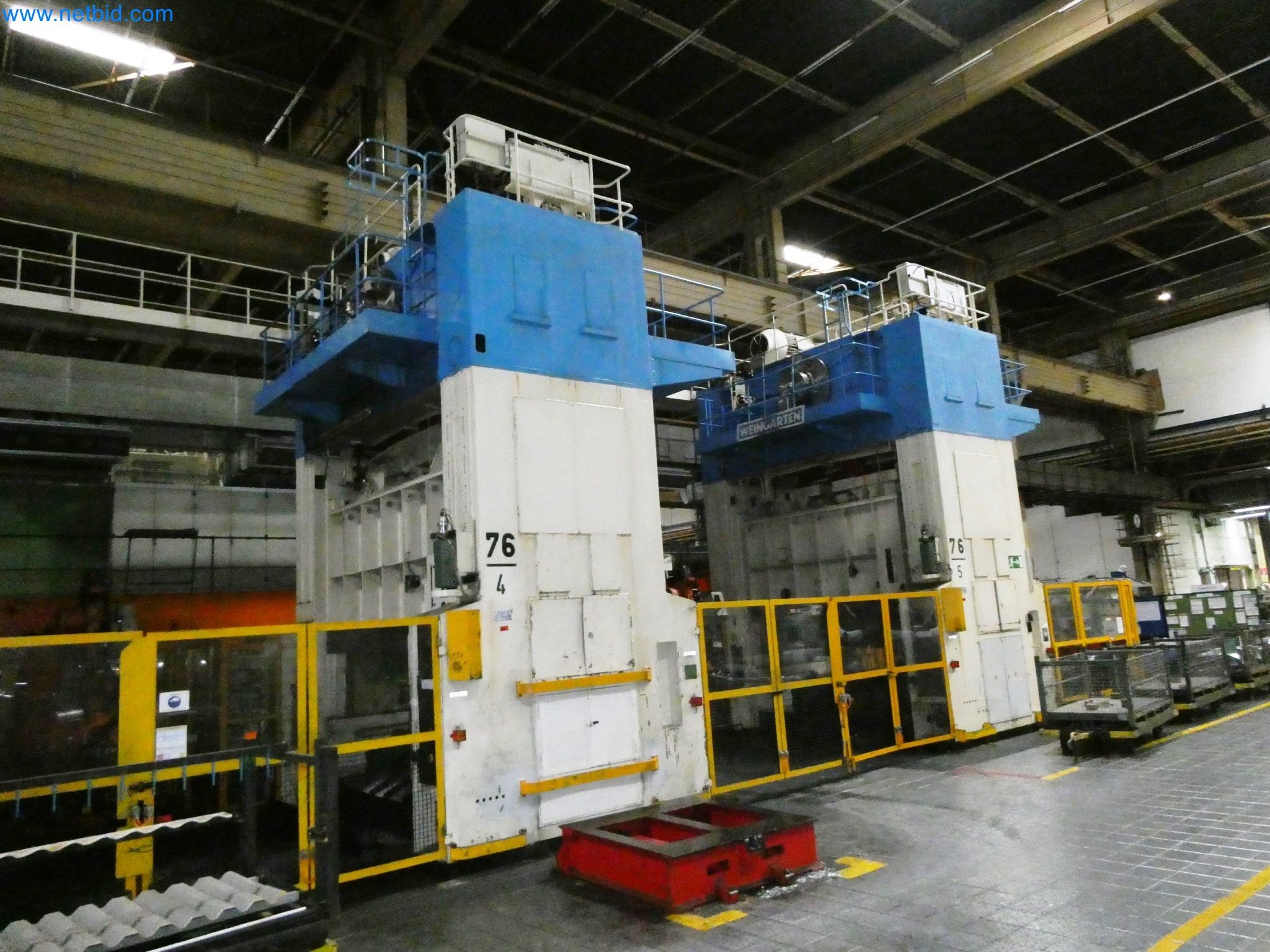

hydraulic press (76/4), Weingarten, type VK800.38.60, year 1970, order no. 112026, system no. 0176400, single action, pressing force 800 t, ram stroke 600 mm, ram adjustability 400 mm, clearance height between table surface and ram 1,550 mm. ram 1,550 mm, stroke rate 16, force drawing cushion 60 t, stroke drawing cushion 150 mm, table size 3,500 x 2,660 mm, control, type OP-96 (Siemens S5)

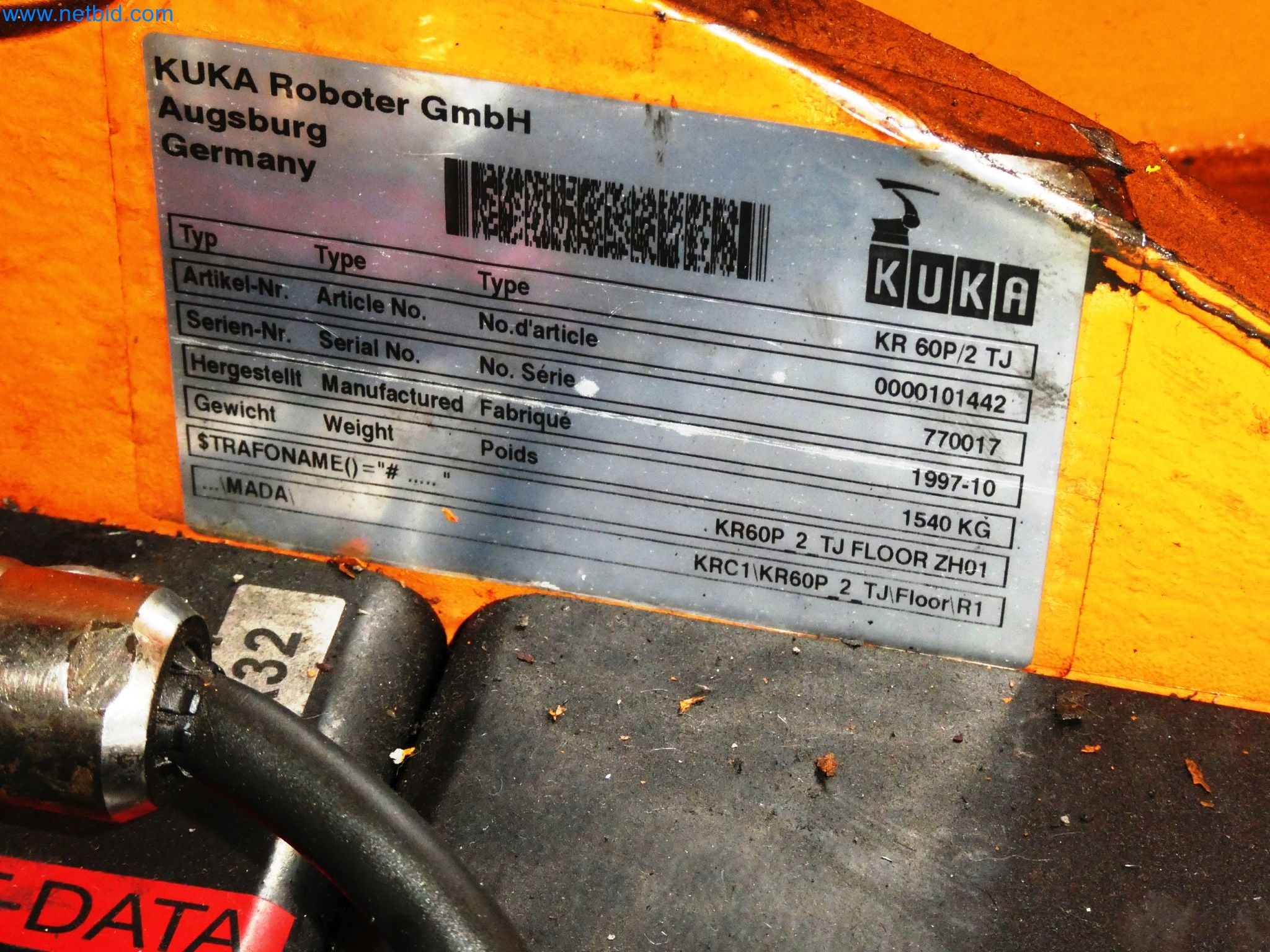

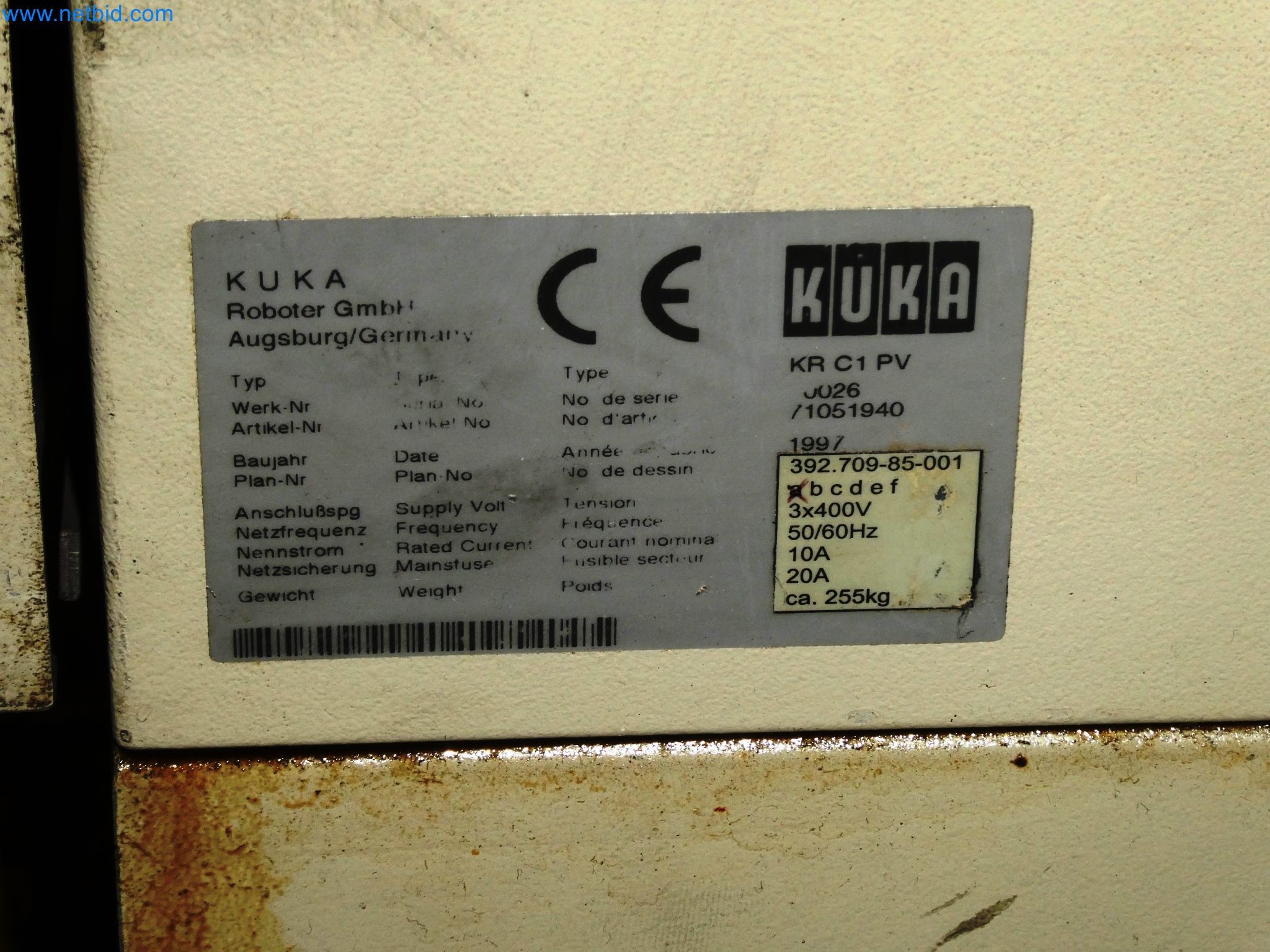

6-axis robot, fabric. Kuka, type KR 60P/2 TJ, year 1997, SN 770017, weight 1,540 kg, control, type KRC1 PV, manual control unit

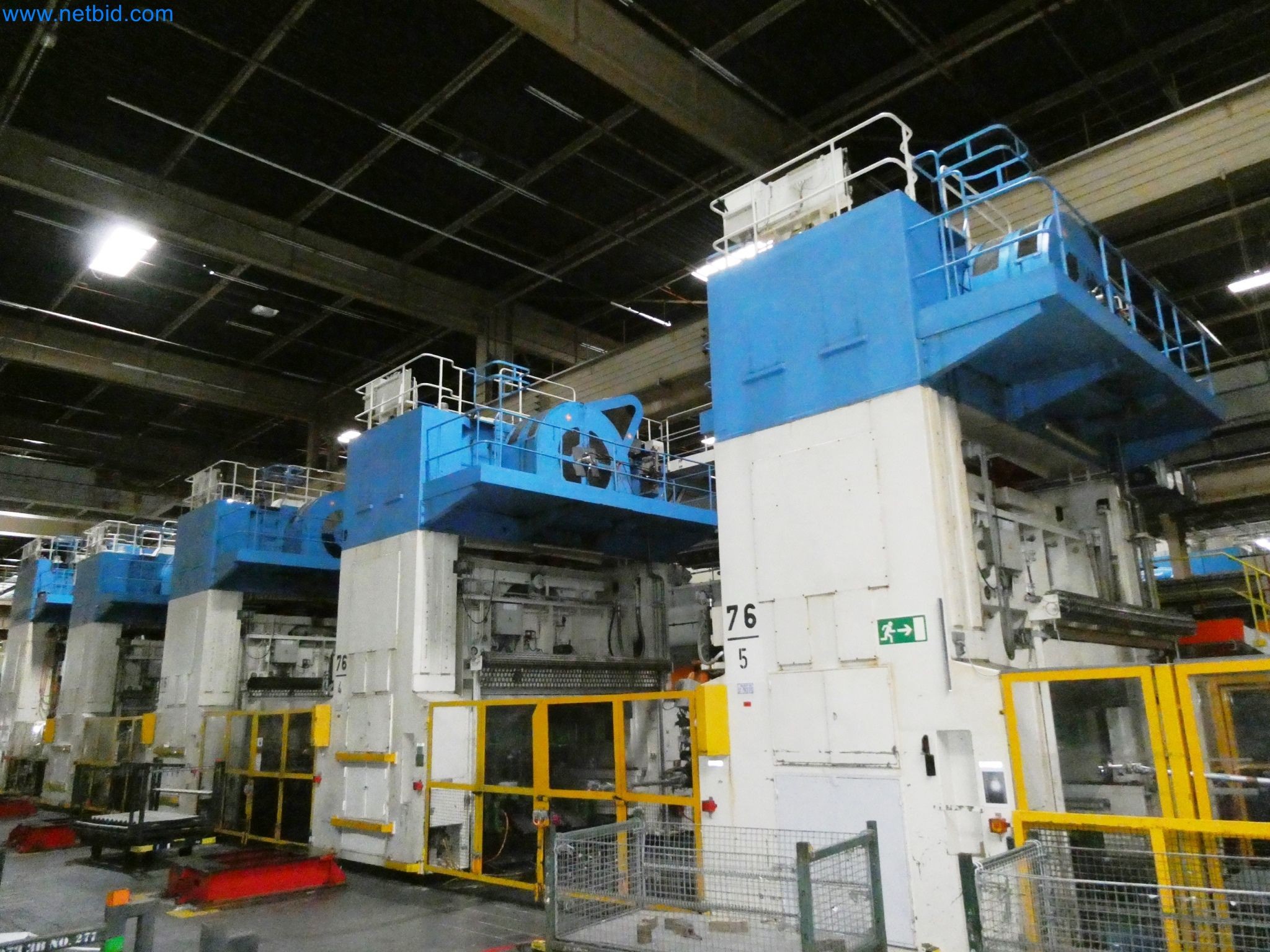

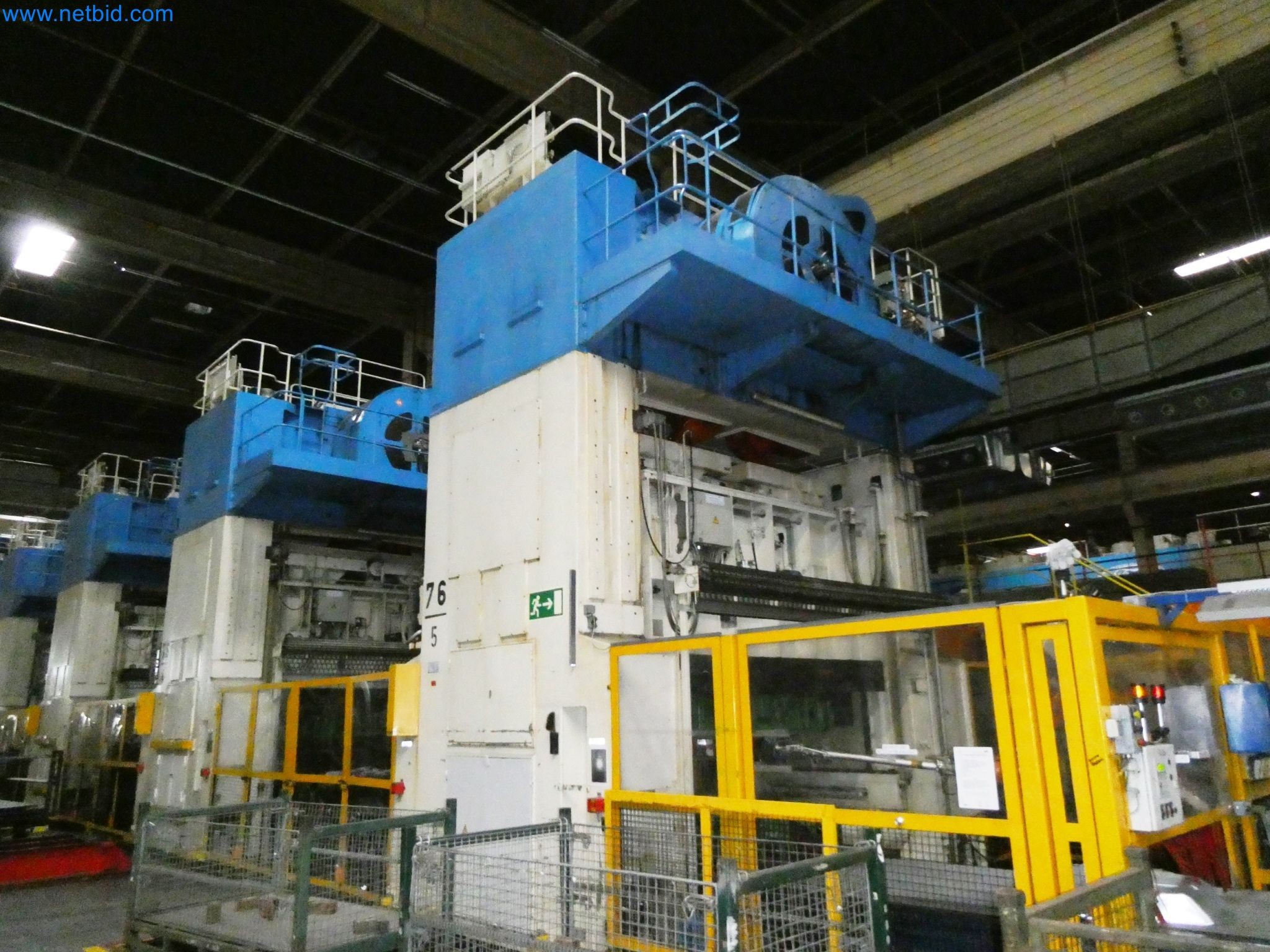

hydr. press (76/5), Weingarten, system no. 0176500, single action, T-slot table, approx. 3,500 x 2.660 mm, control, type Press-OP96 (Siemens S5)

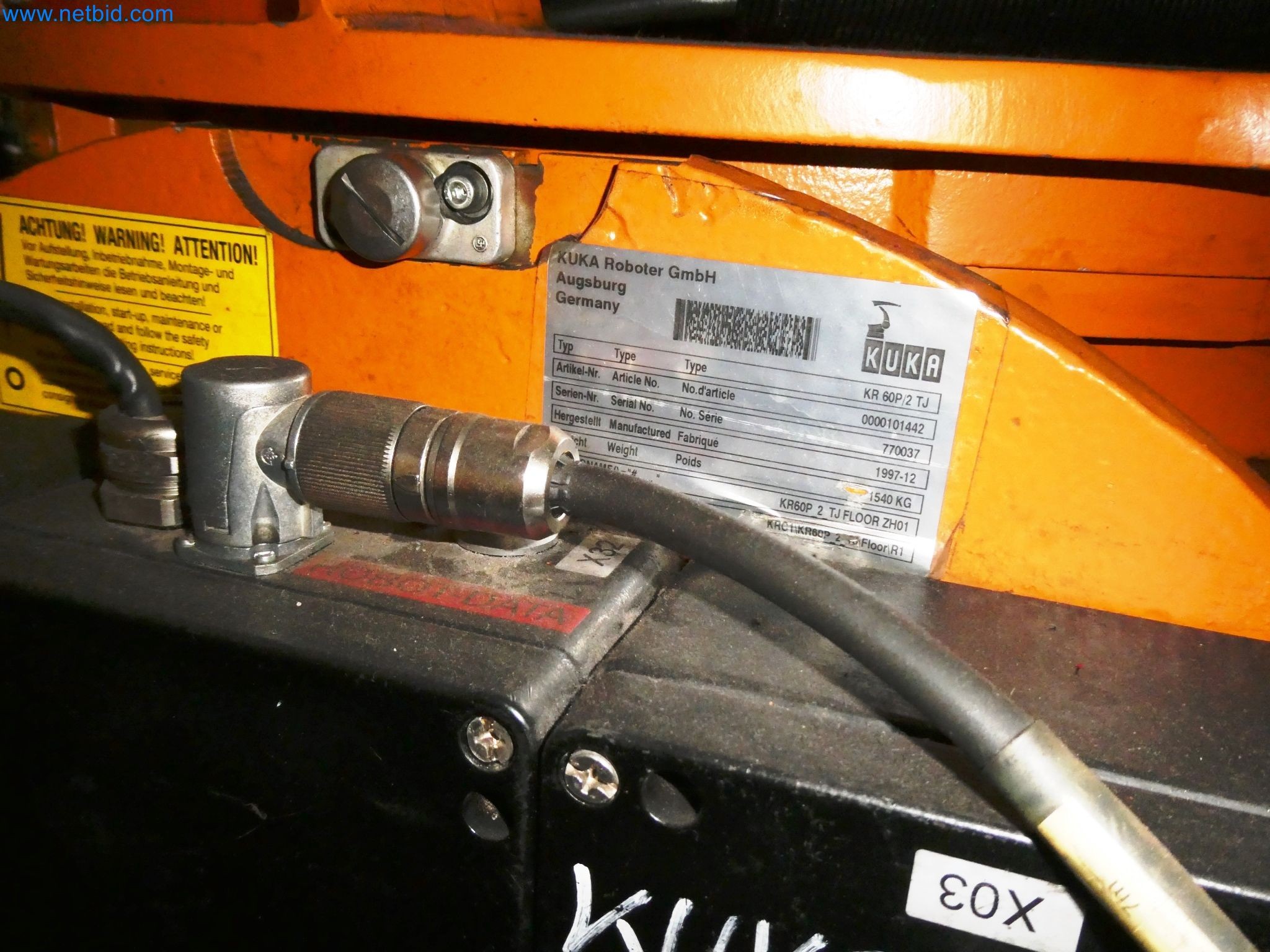

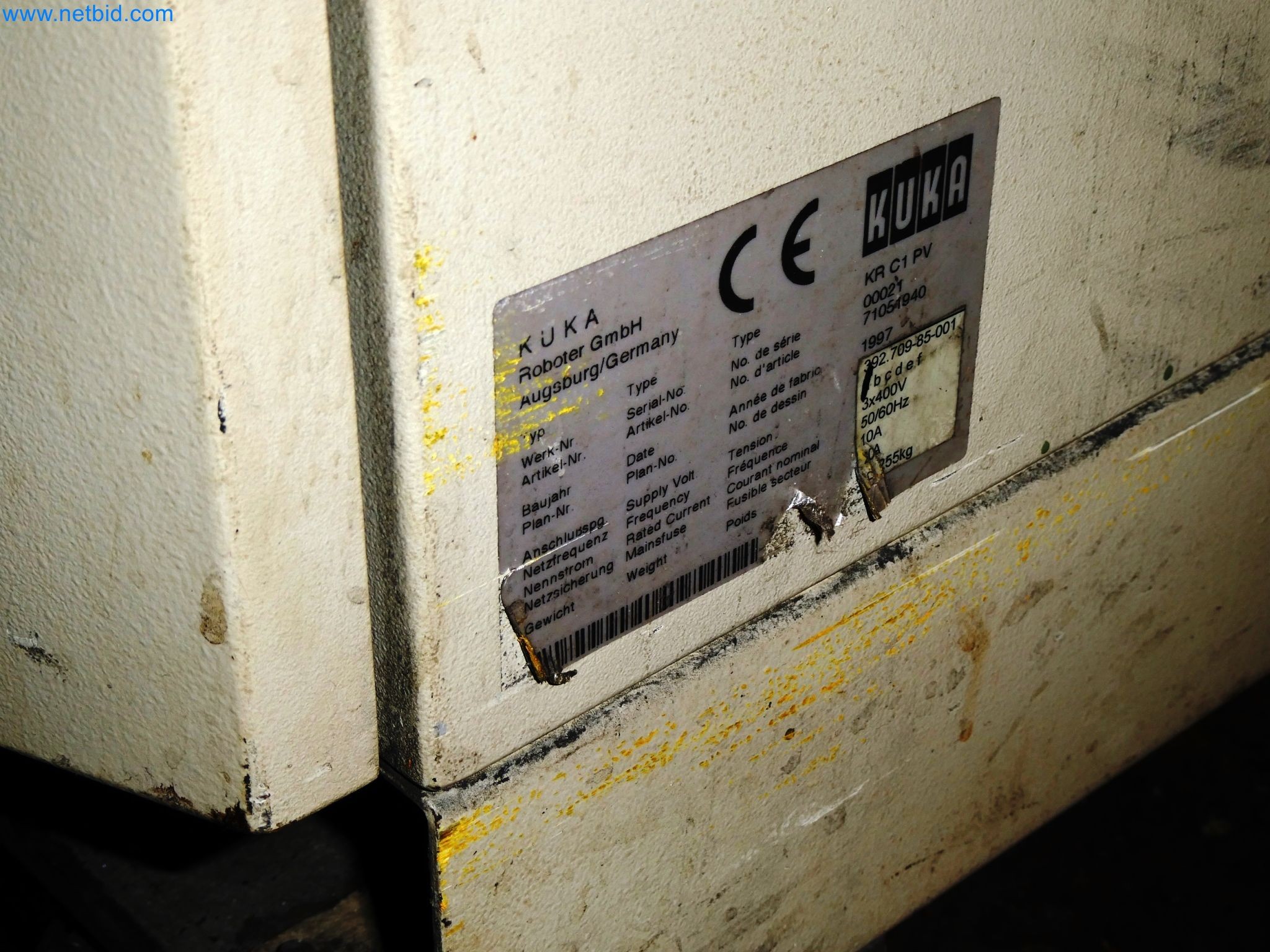

6-axis robot, Kuka, type KR 60P/2 TJ, year 1997, SN 770037, weight 1,540 kg, system no. 1802900, control, type KRC1 PV and manual control unit

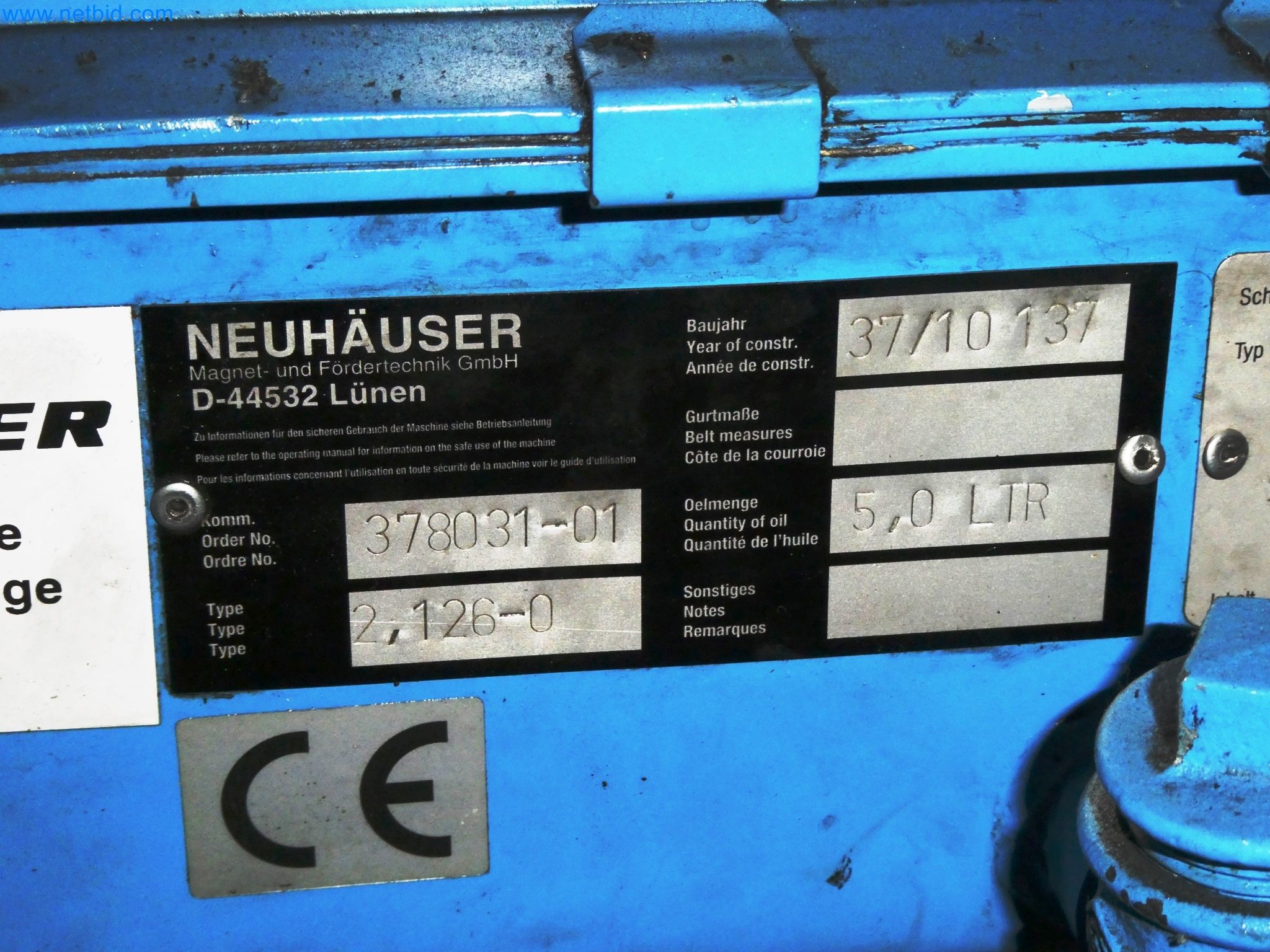

Magnetic conveyor belt, Fabr. Neuhäuser, type 2.126-0, year 2010, order no. 378031-01, L approx. 3,000 mm

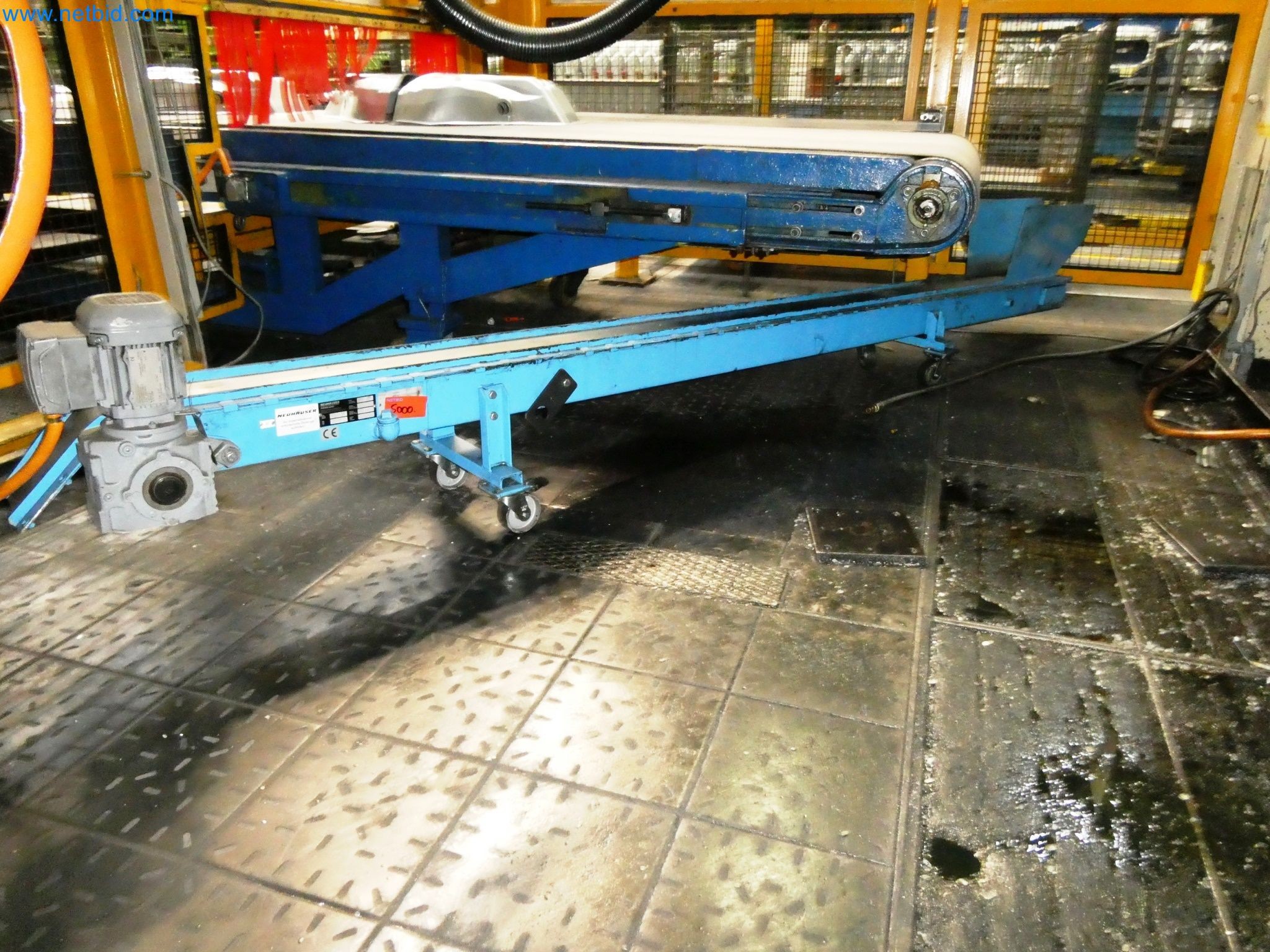

Belt conveyor, Bauer, system no. 1500400, conveyor dimensions 8,000 x 1,200 mm

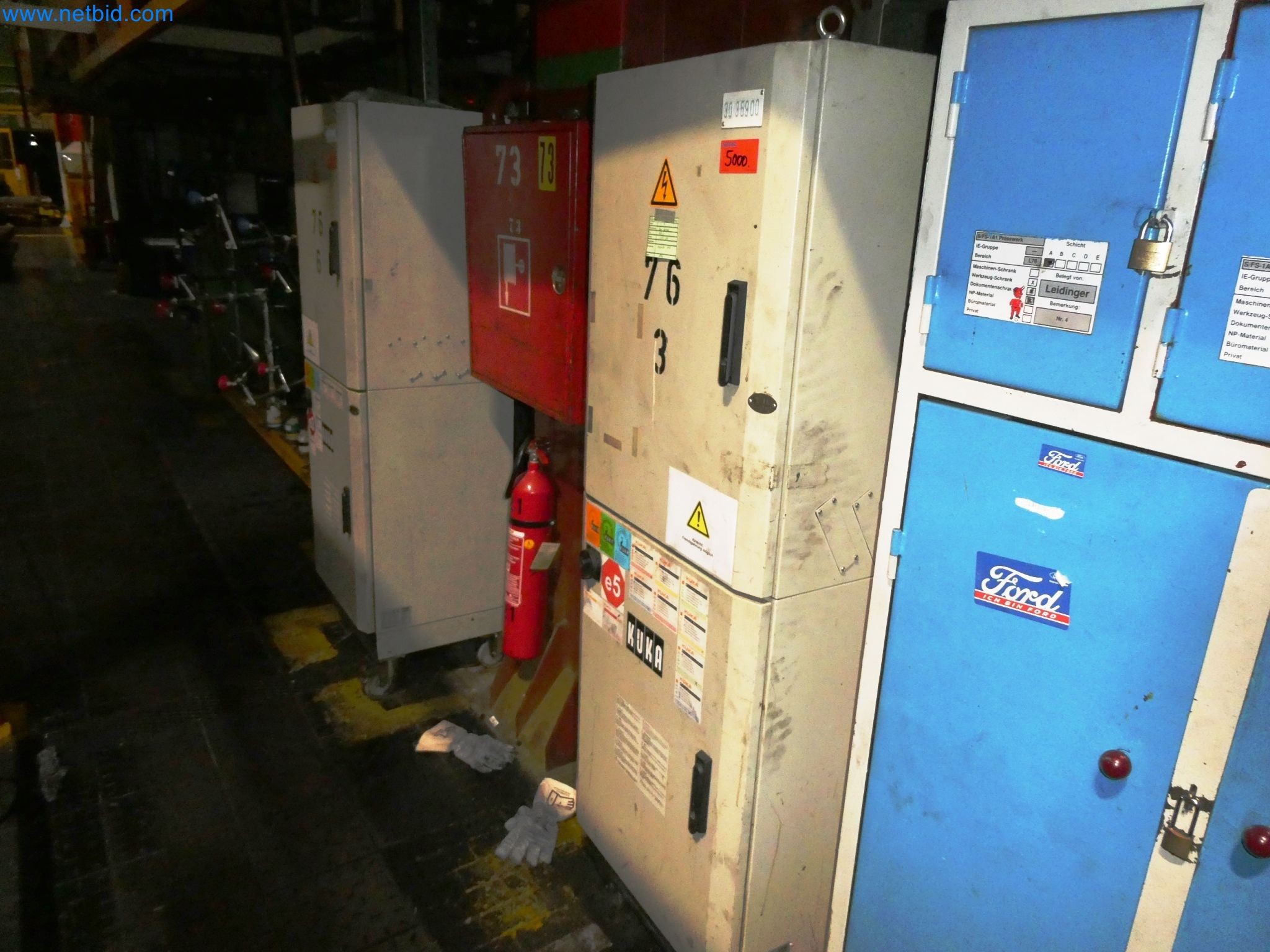

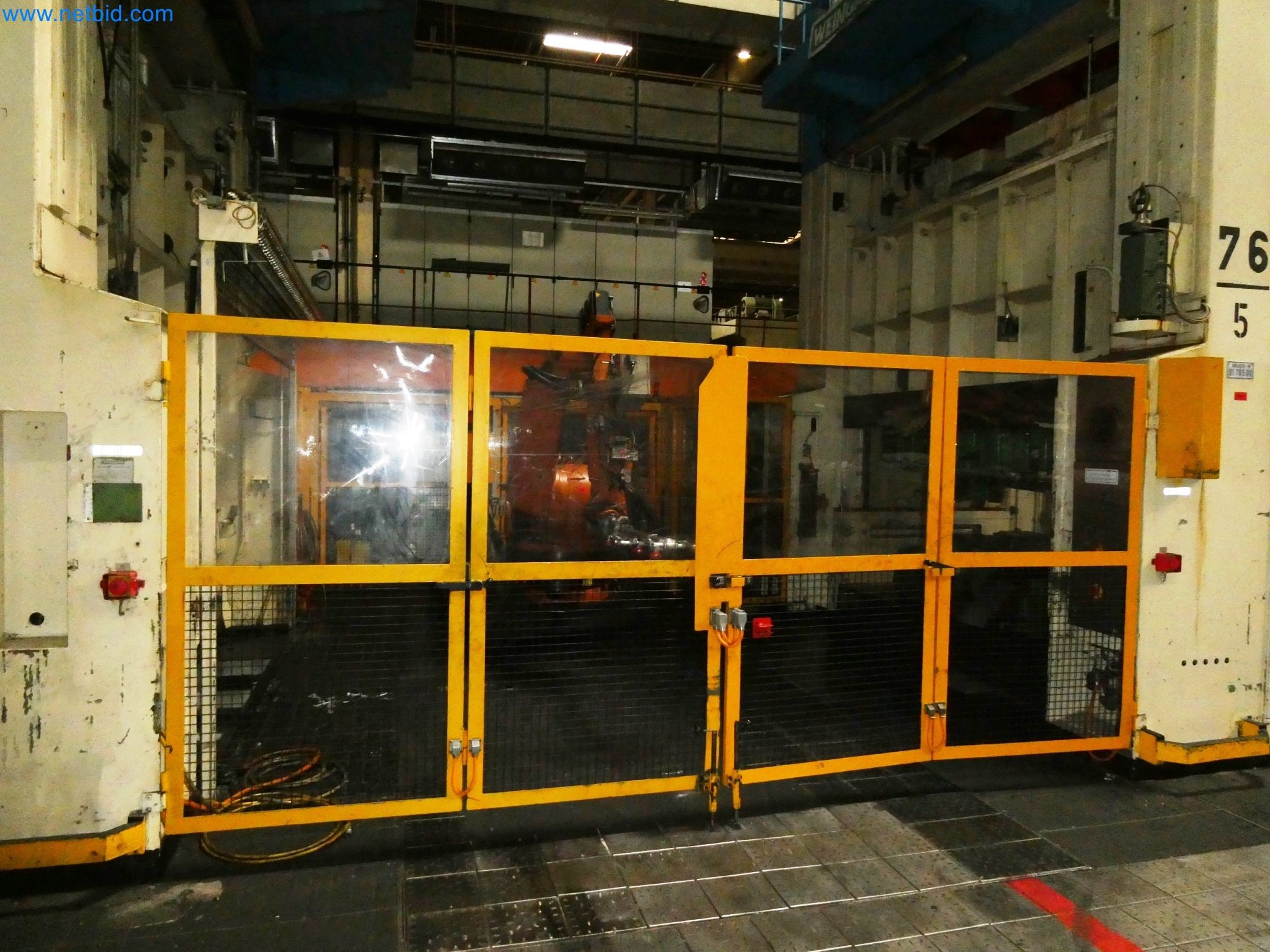

Protective fencing system around robot cells and spaces between presses, lighting spaces between the presses, lighting equipment, counting equipment, system control cabinets on gallery


Line available from December 2025

Dismantling can be offered as an option
