Part of the Auction Press lines from the automotive industry

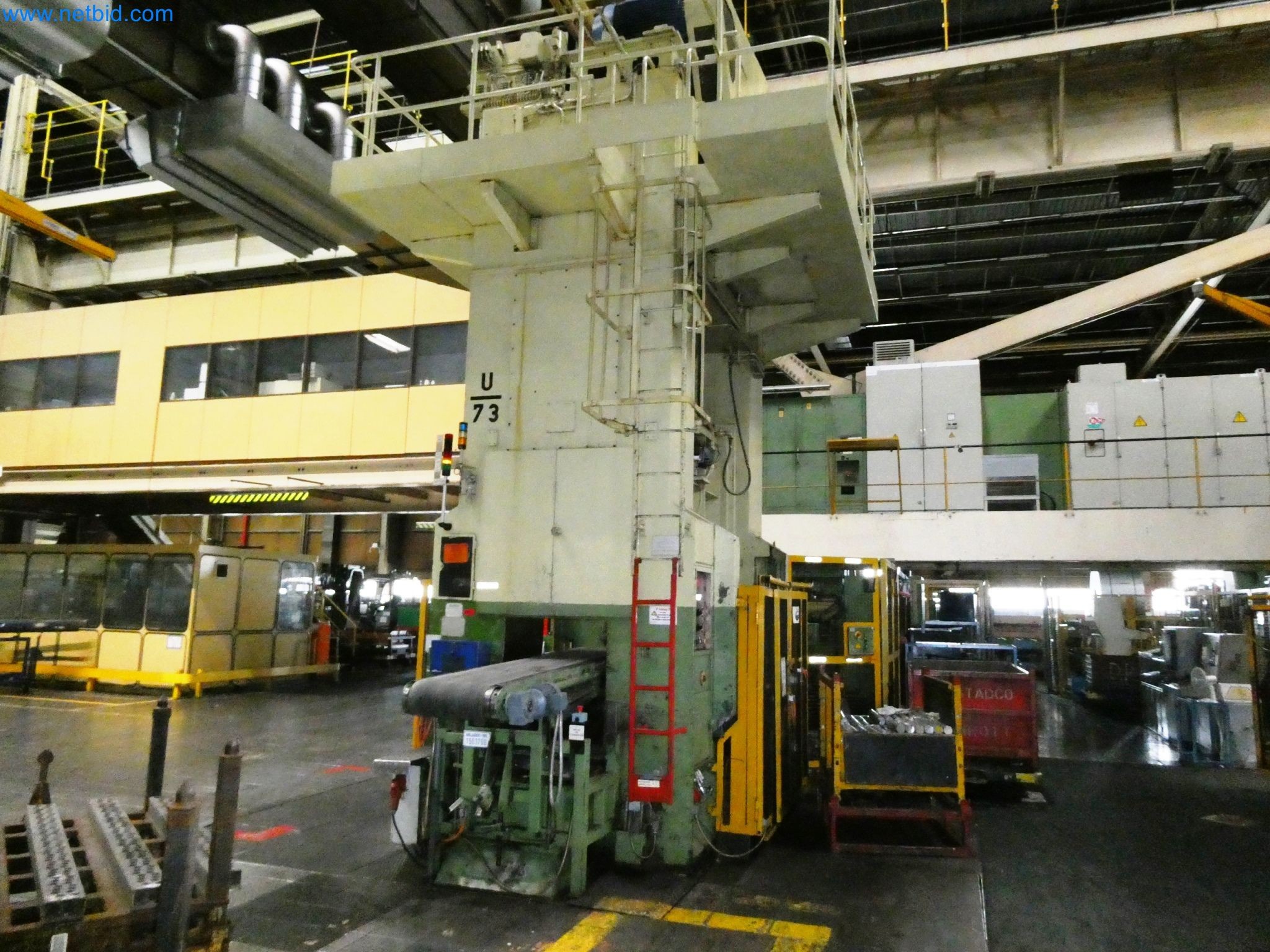

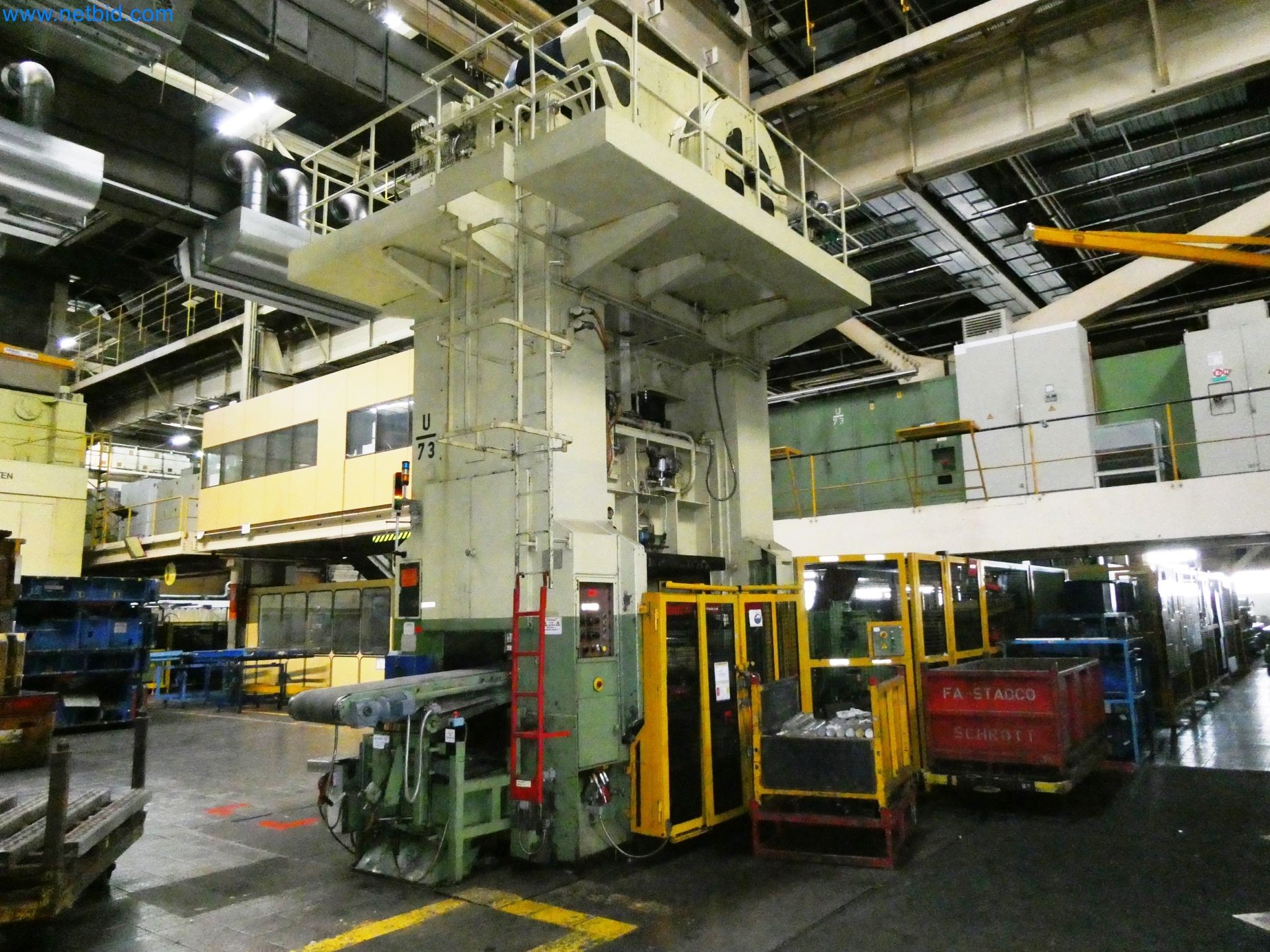

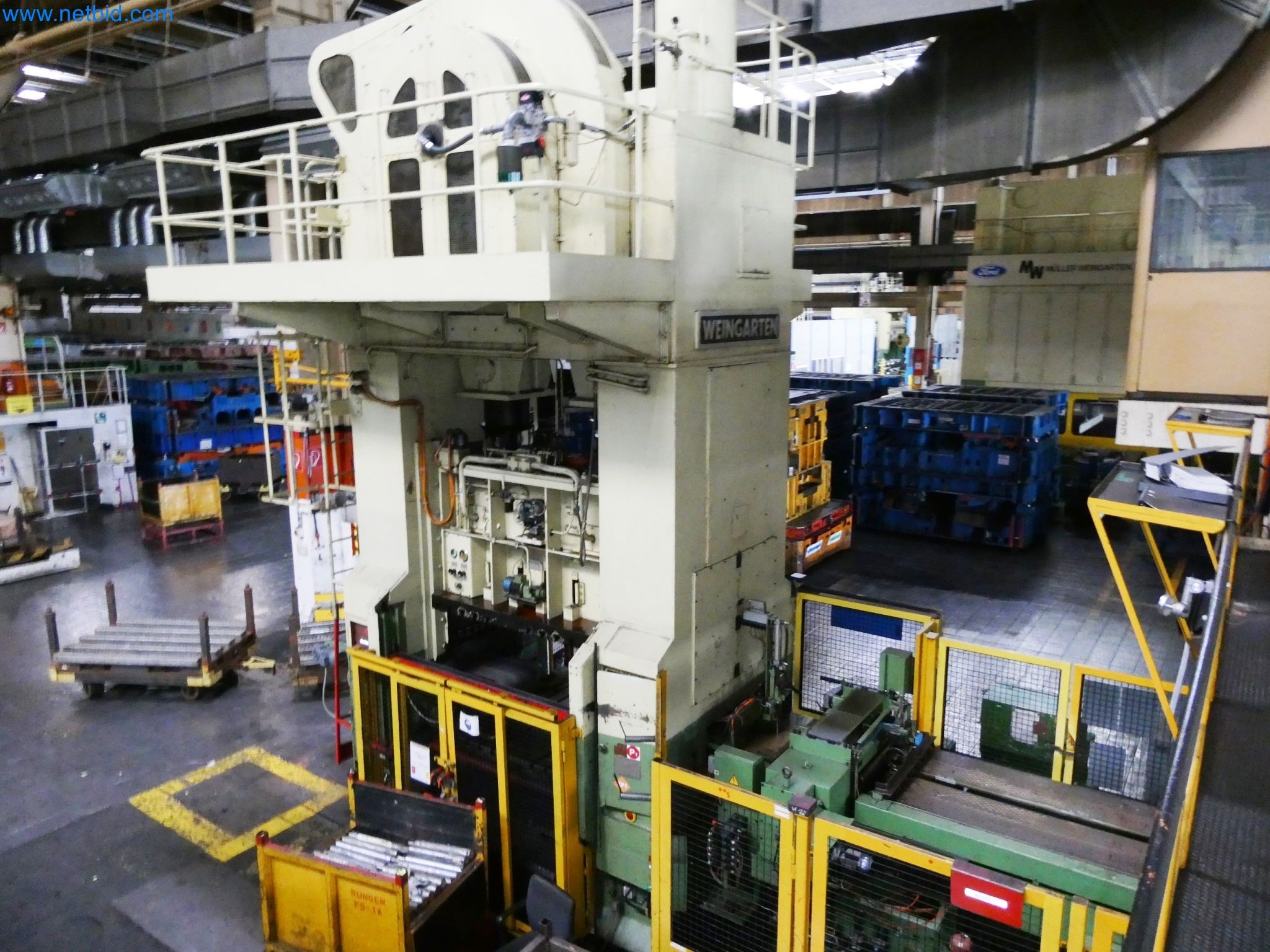

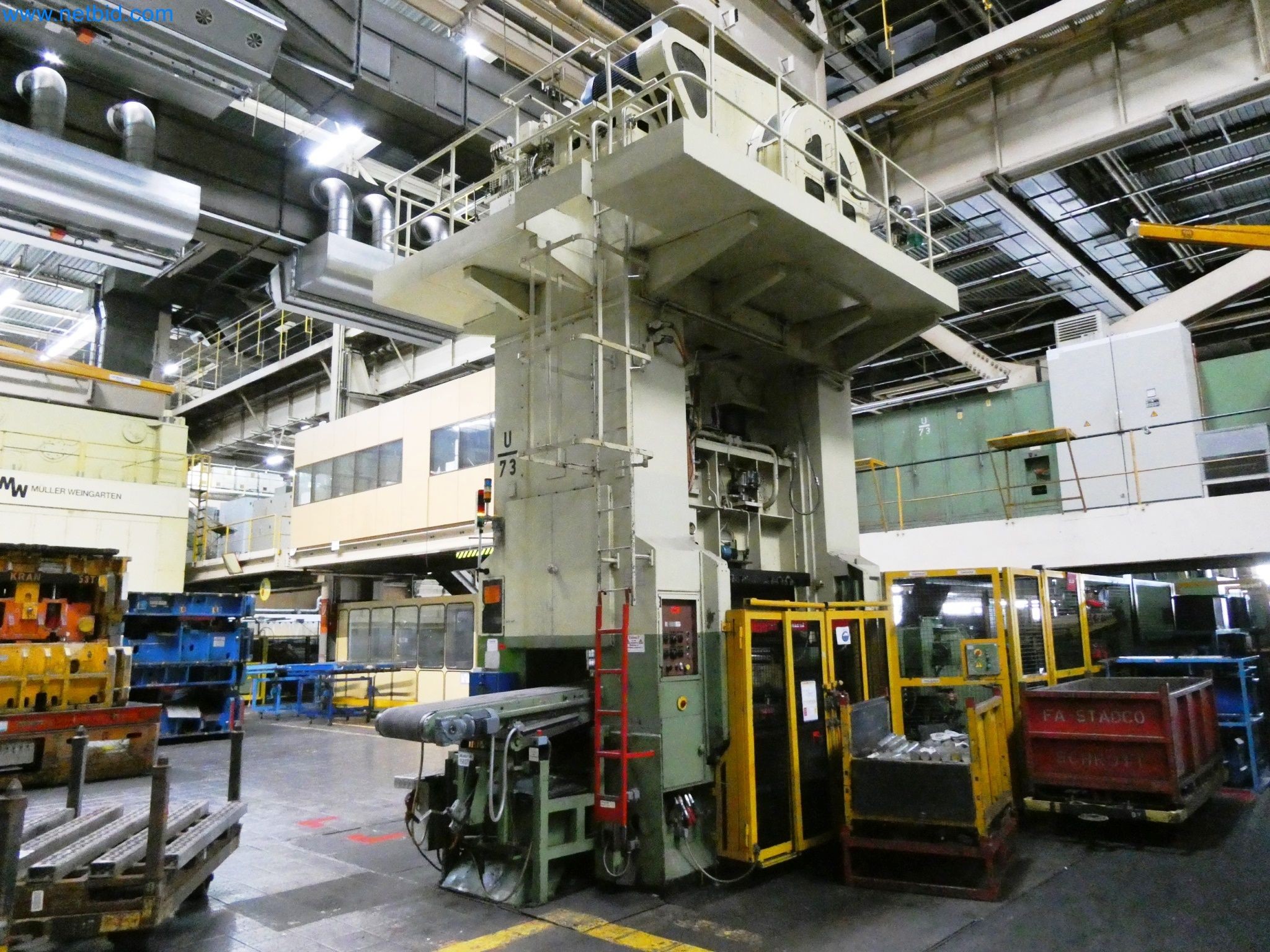

Double column press (U73) Weingarten DQ 500.21.30Trading#18844-5007
Details
Product Type
Weingarten
Type
DQ 500.21.30
Construction Year
1968
Description

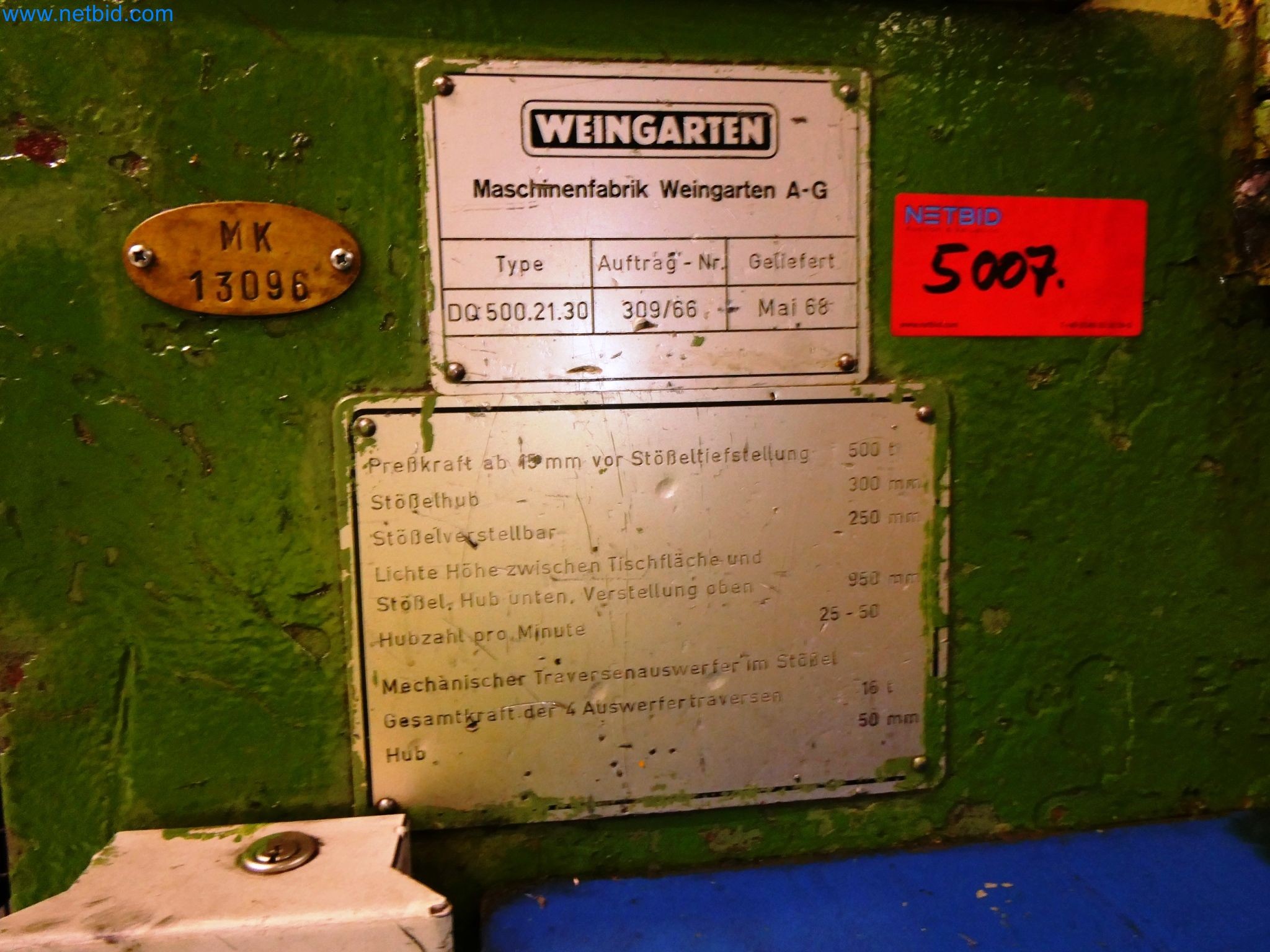

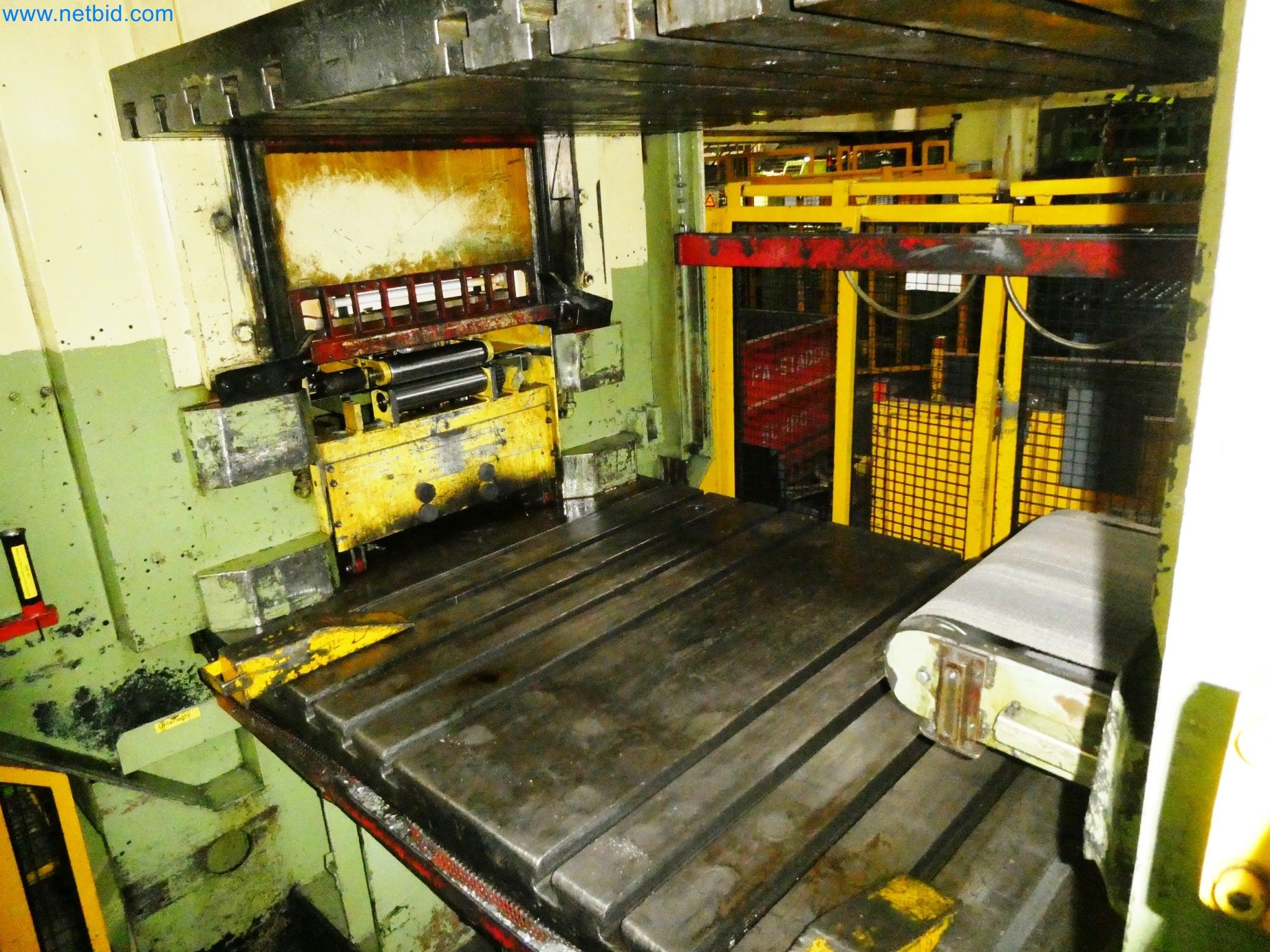

Last overhaul 2021, press force 500 t, ram stroke 300 mm, ram adjustment 250 mm, table 1,500 x 1,800 mm, clearance height between table surface and ram 950 mm, stroke rate 25-50/min, ejector crossbeam 16 t, ejector stroke 50 mm, Siemens control system, type S5, running direction from left to right, system size 01U7300

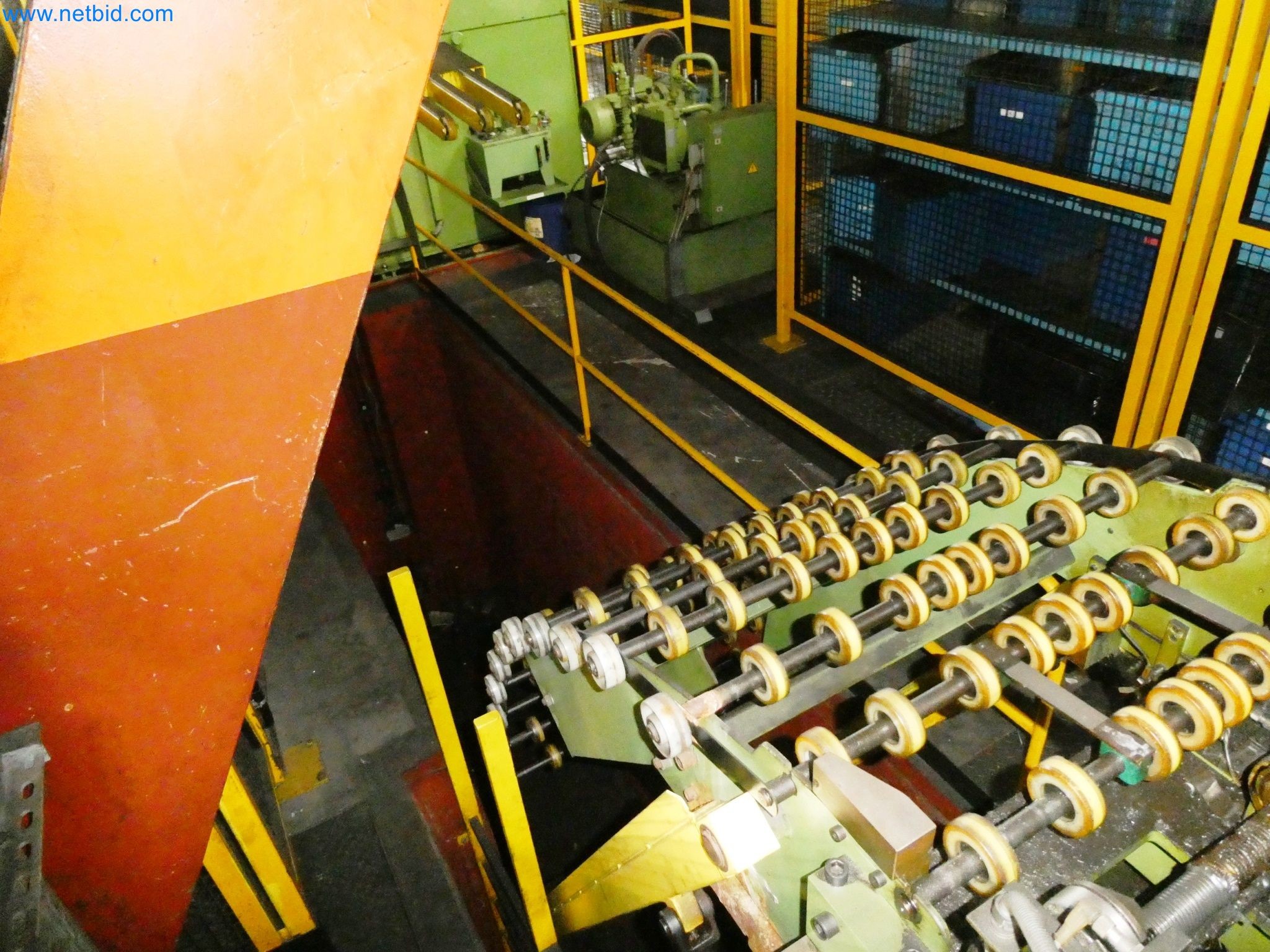

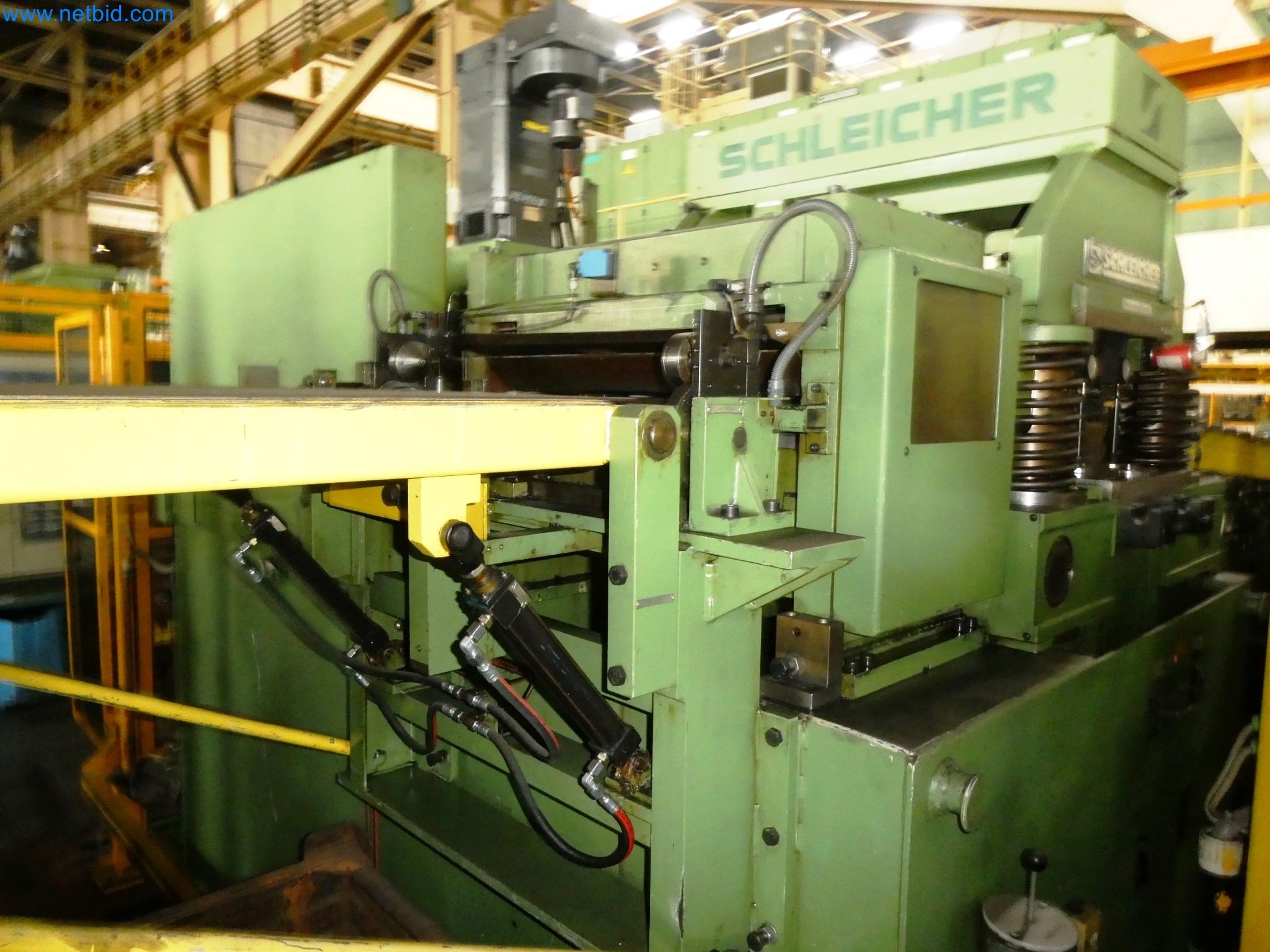

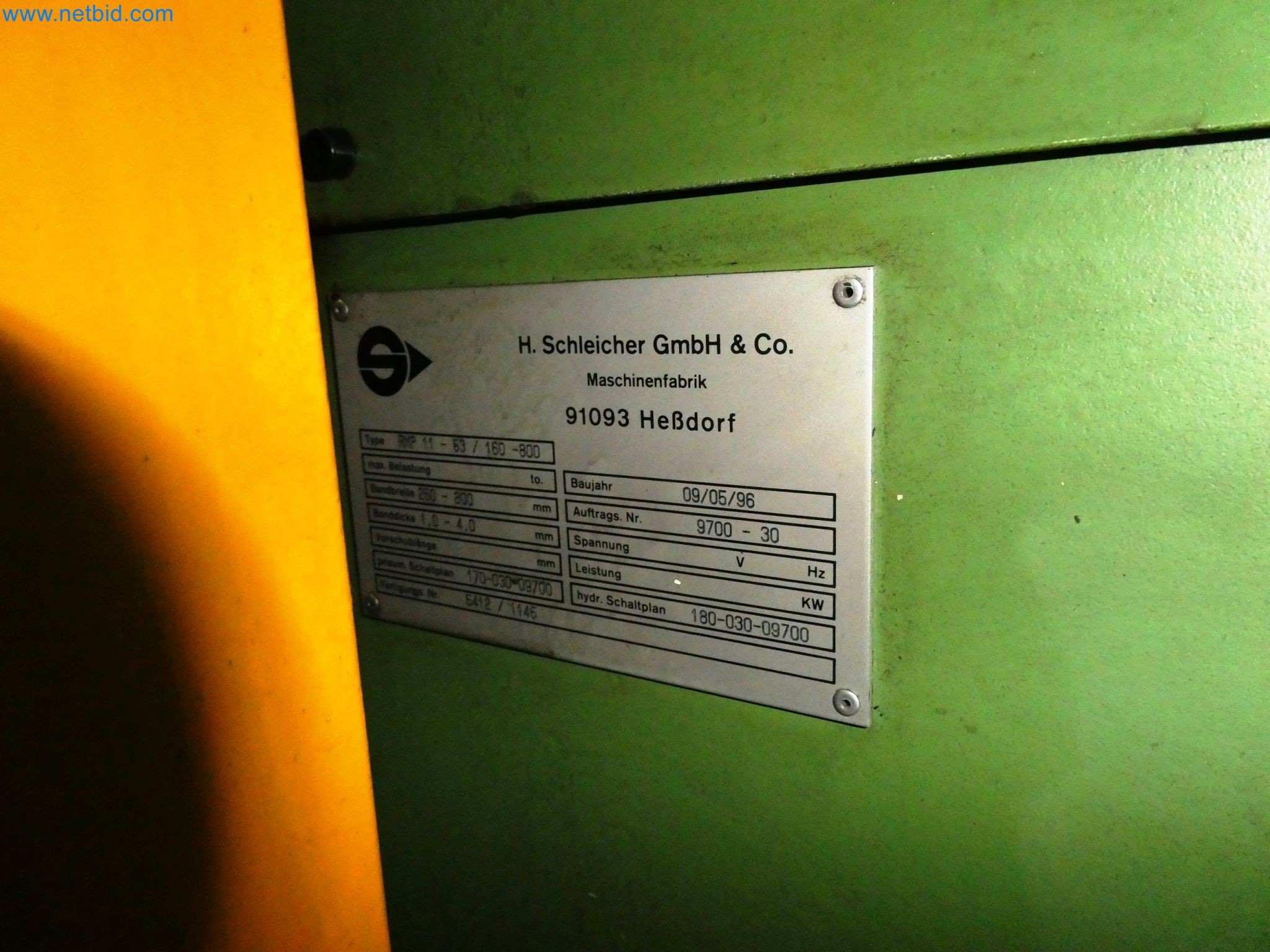

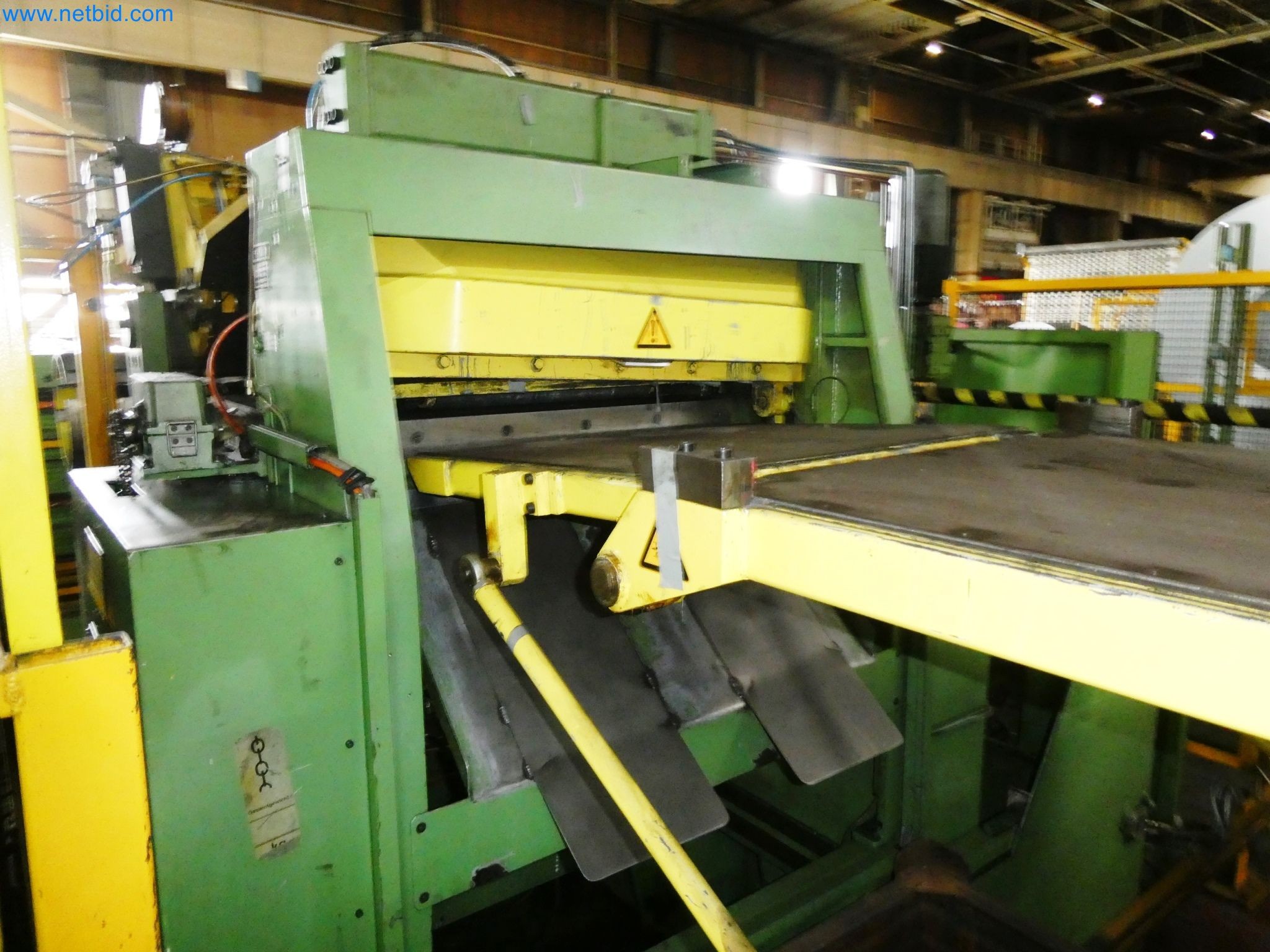

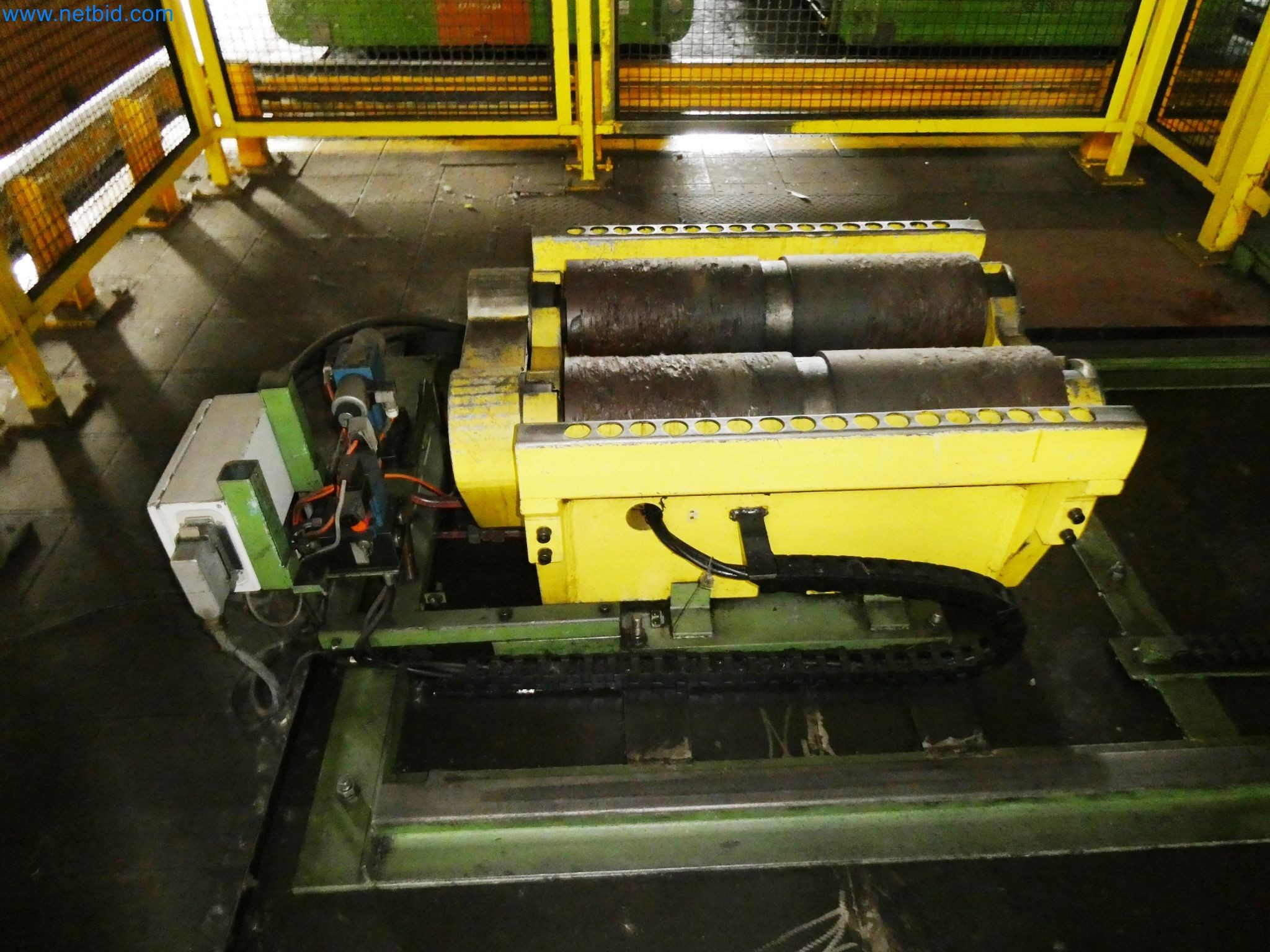

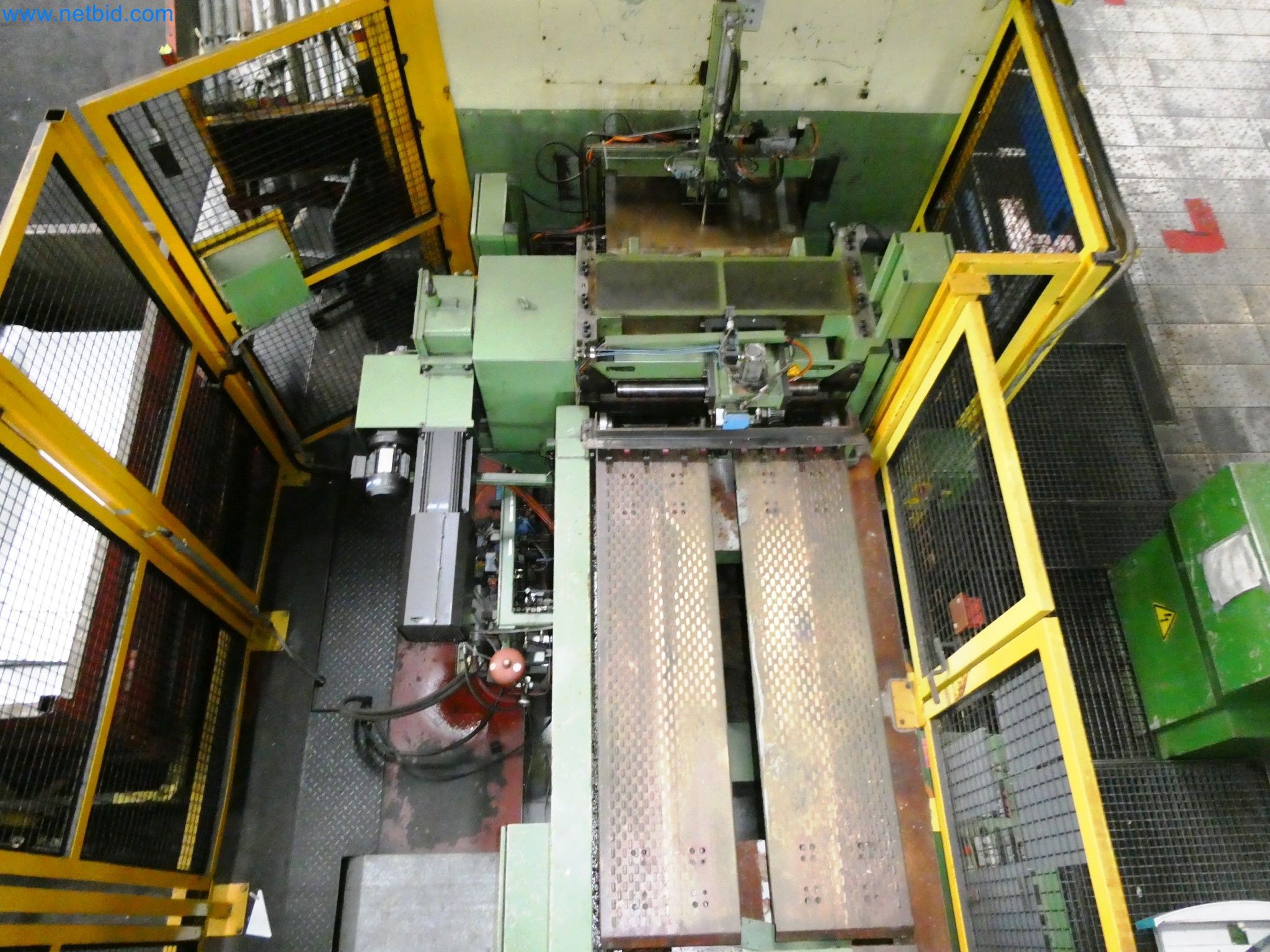

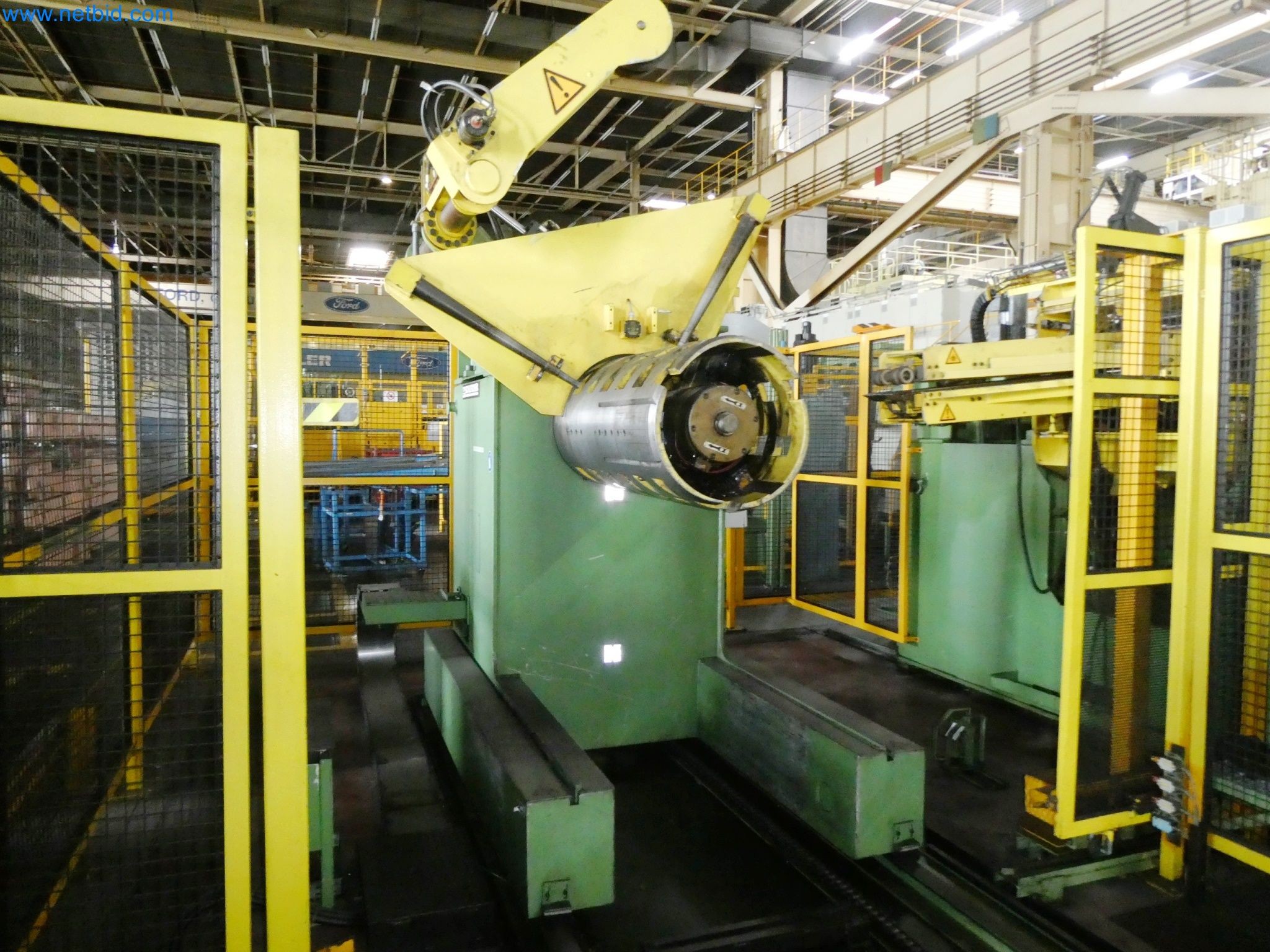

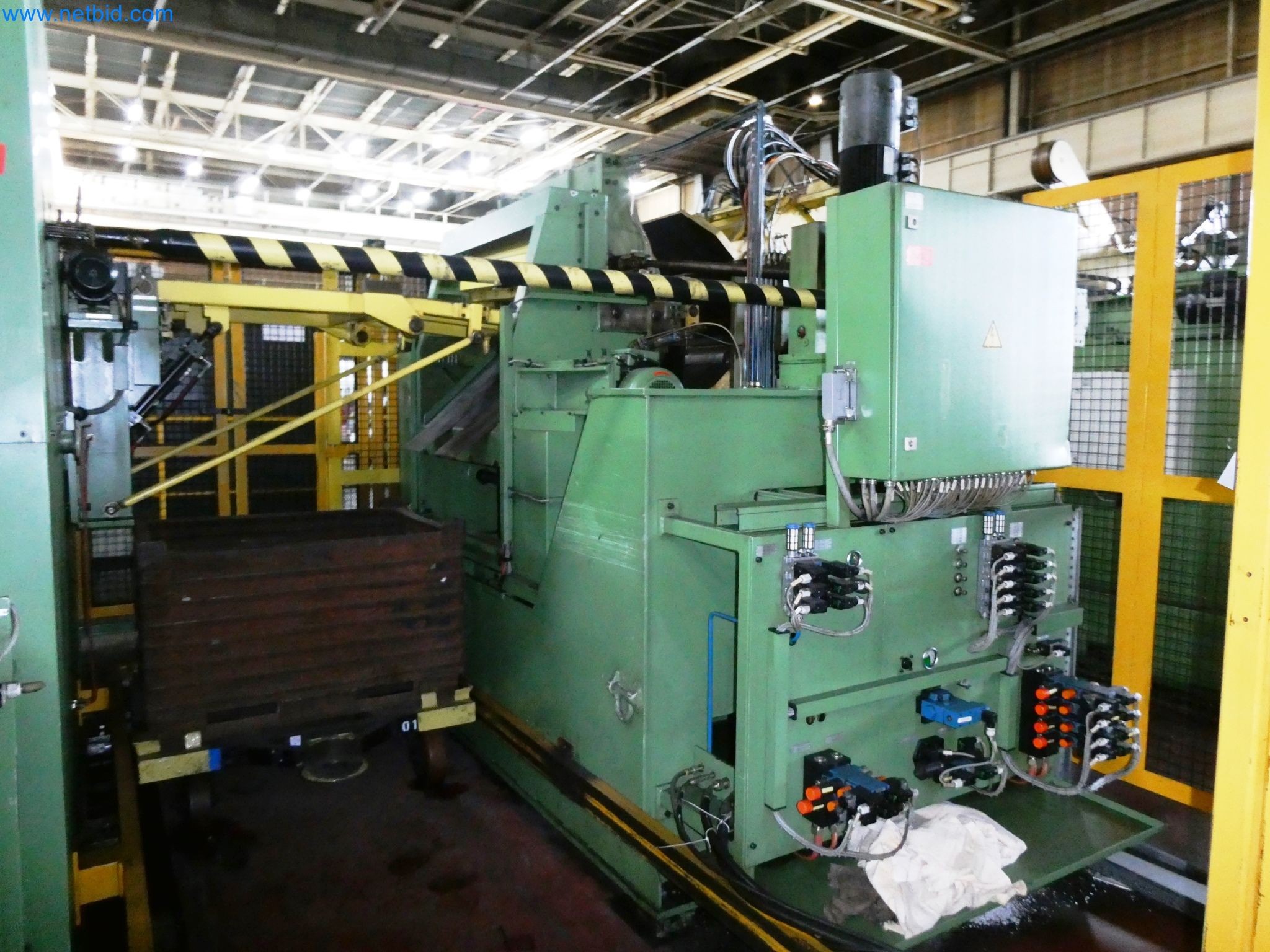

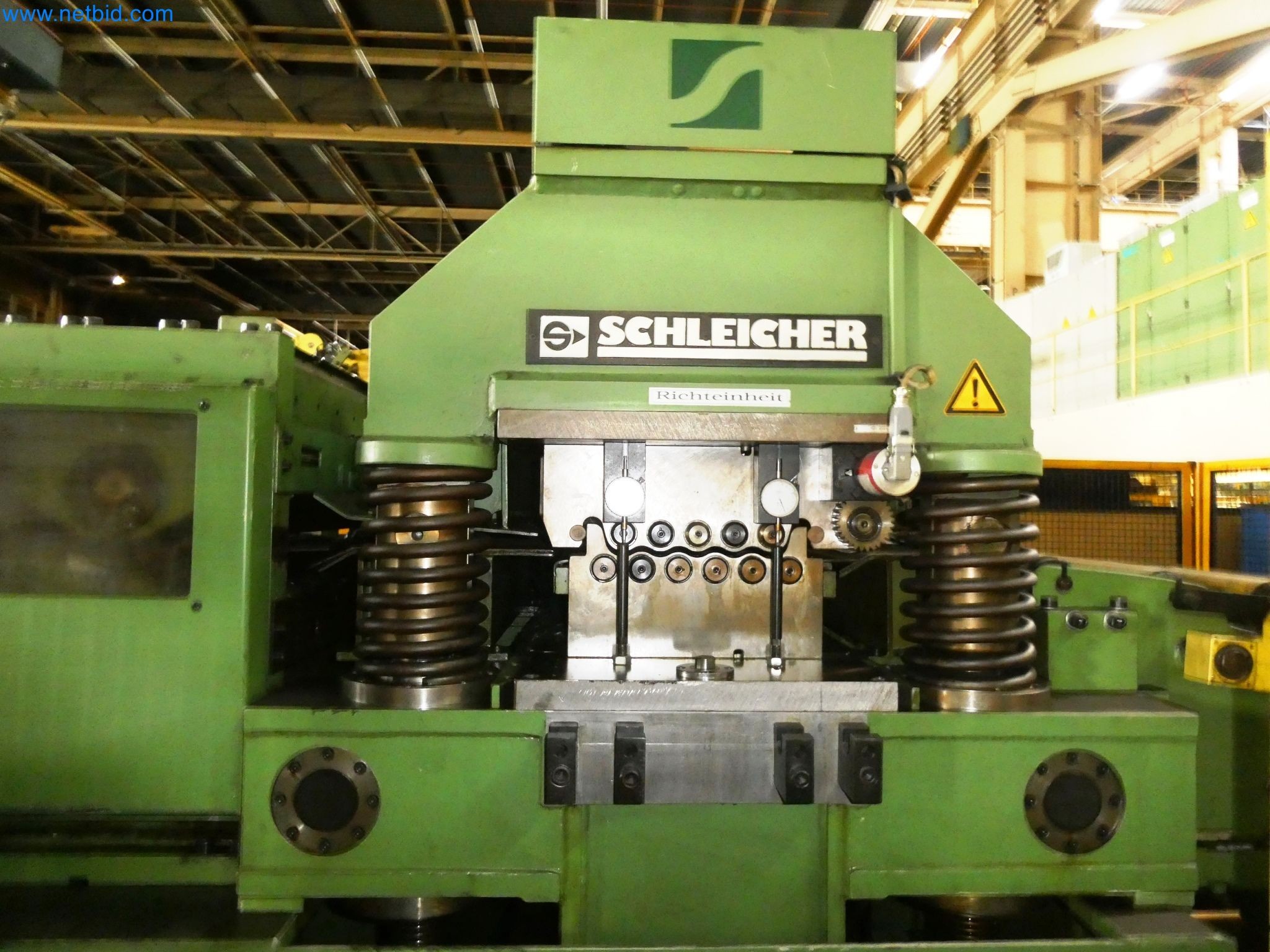

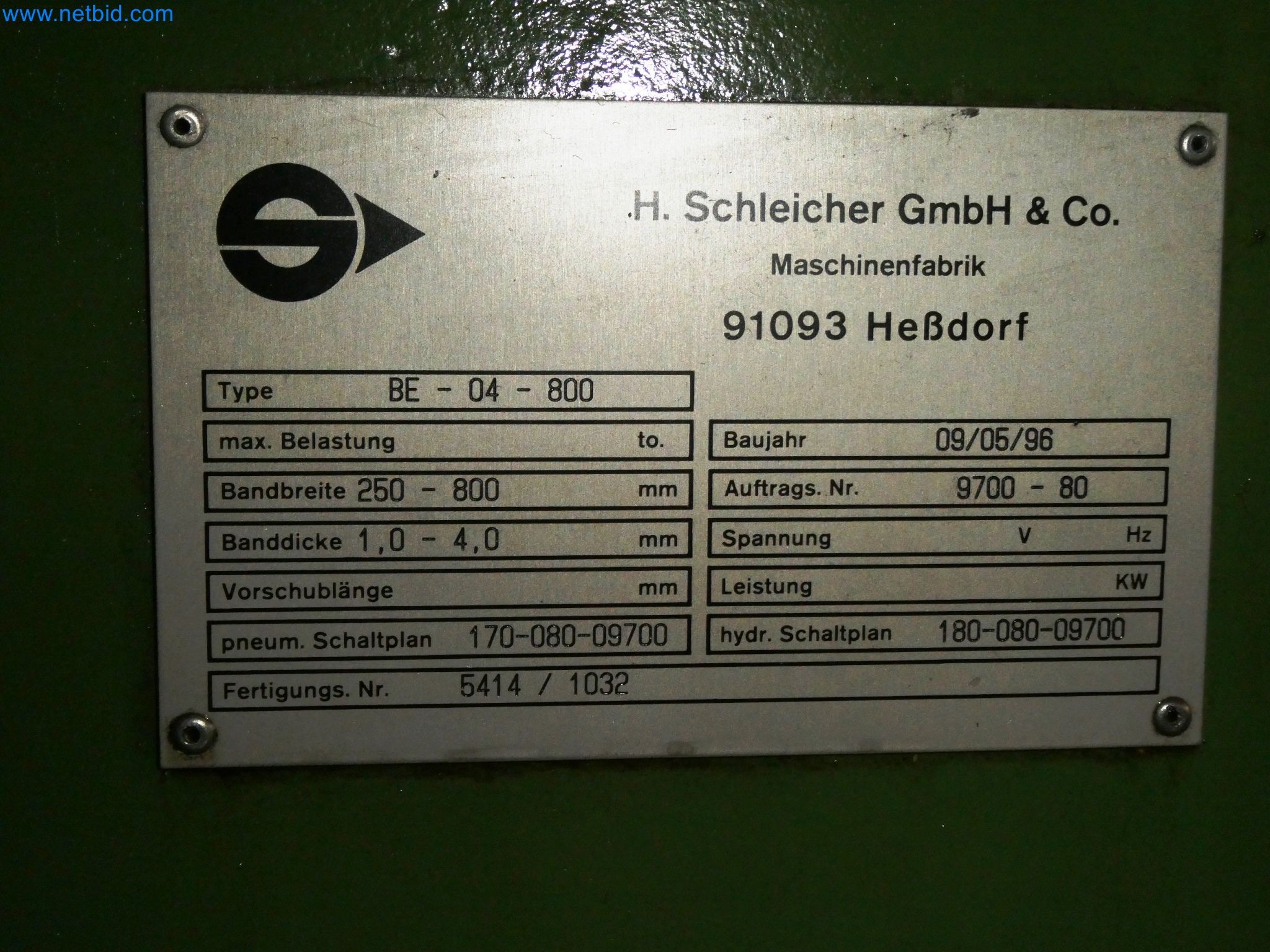

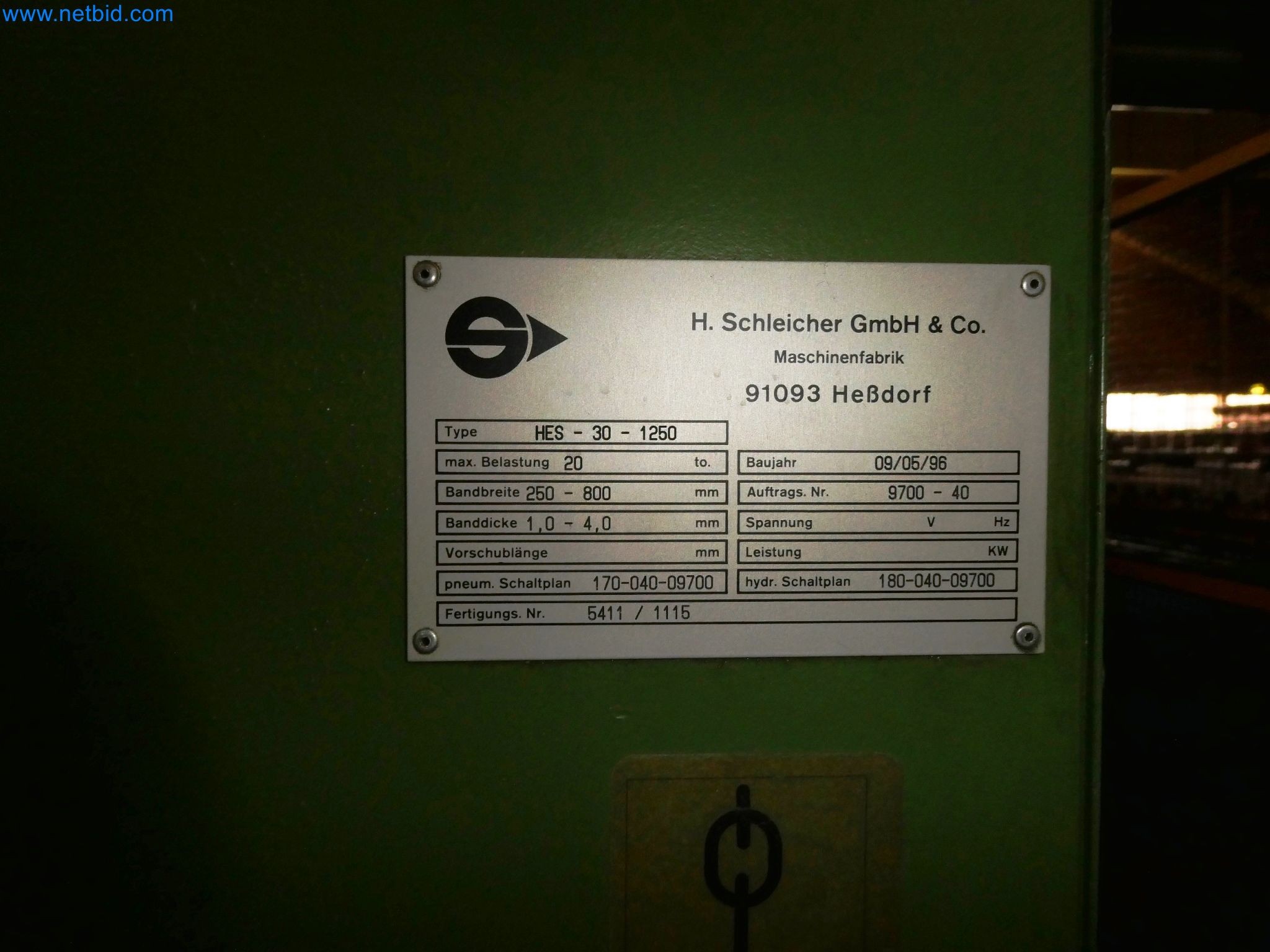

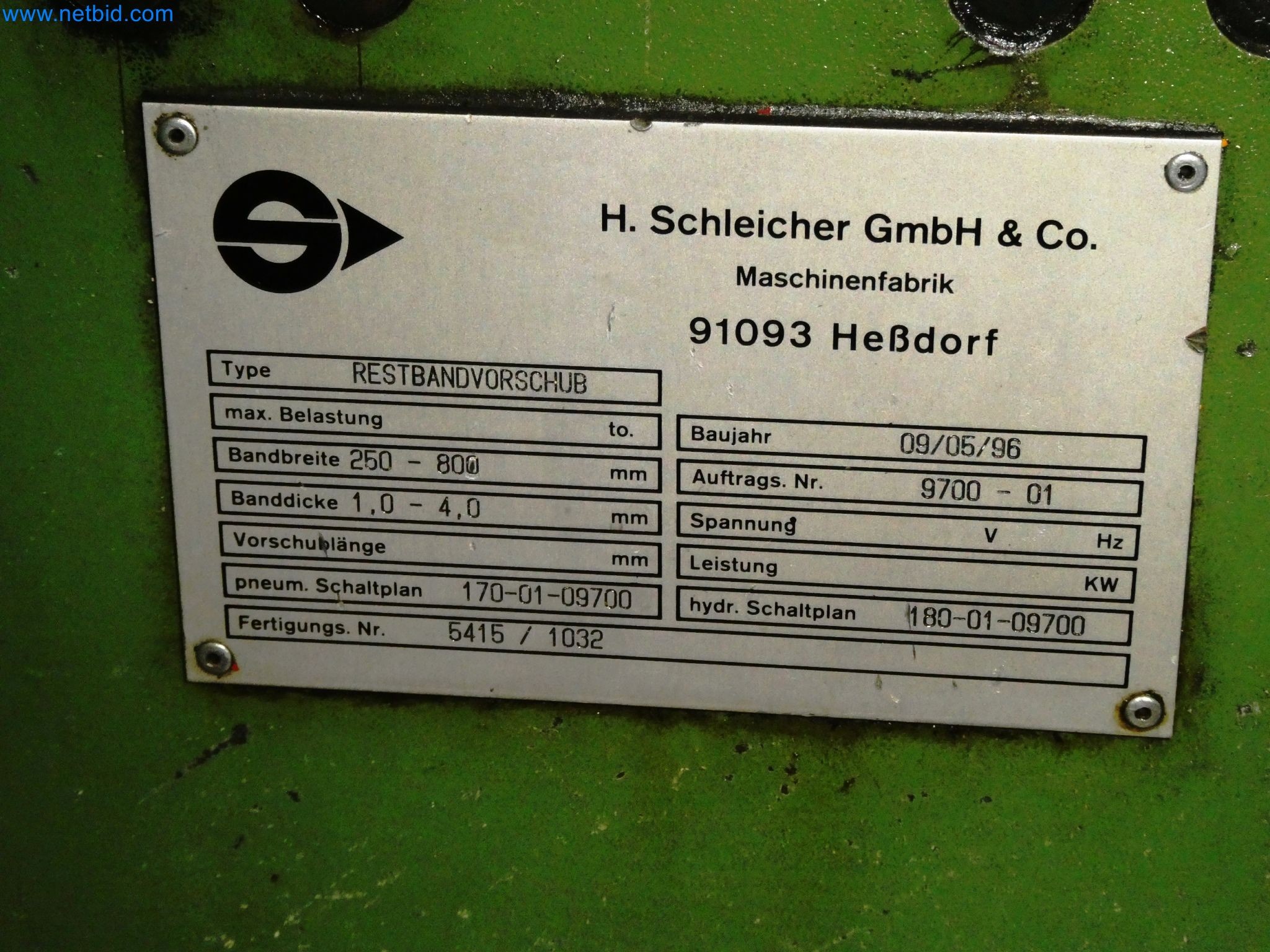

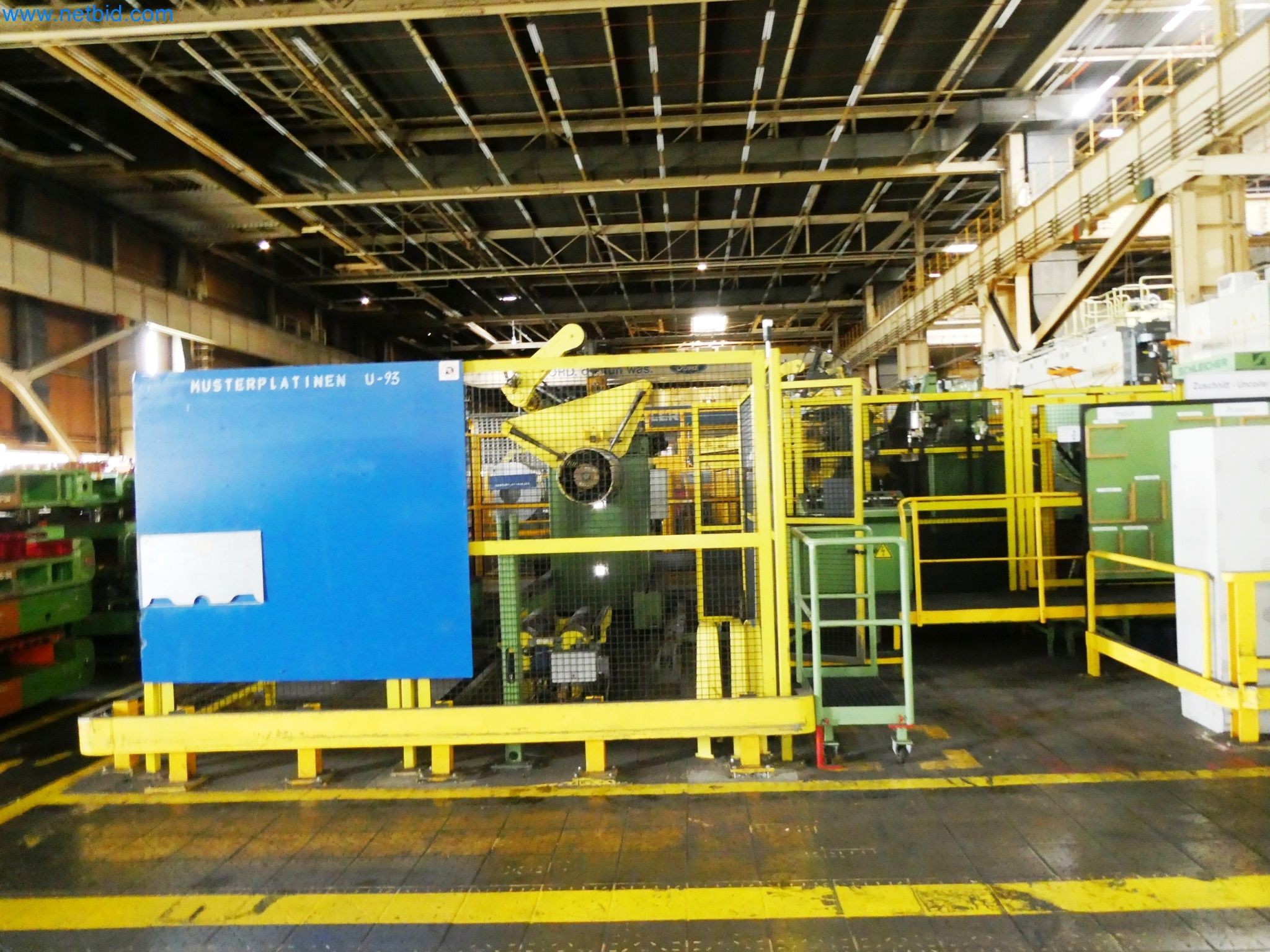

Coil line, Schleifer, year 1996, with coil decoiler, type HES-30-1250, max. load capacity 20 t, strip width 260-800 mm, strip thickness 1.0-4.0 mm, with coil changing stand, straightening machine, type BE-04-800, year 1996, strip width 250-800 mm, strip thickness 1.0-4.0 mm, straightening unit, type PMP 11-53/160-80, year 1996, strip width 250-800 mm, strip thickness 1.0-4.0 mm, strip feed, year 1996, strip width 260-800 mm, strip thickness 1.0-4.0 mm, system no. 1300700

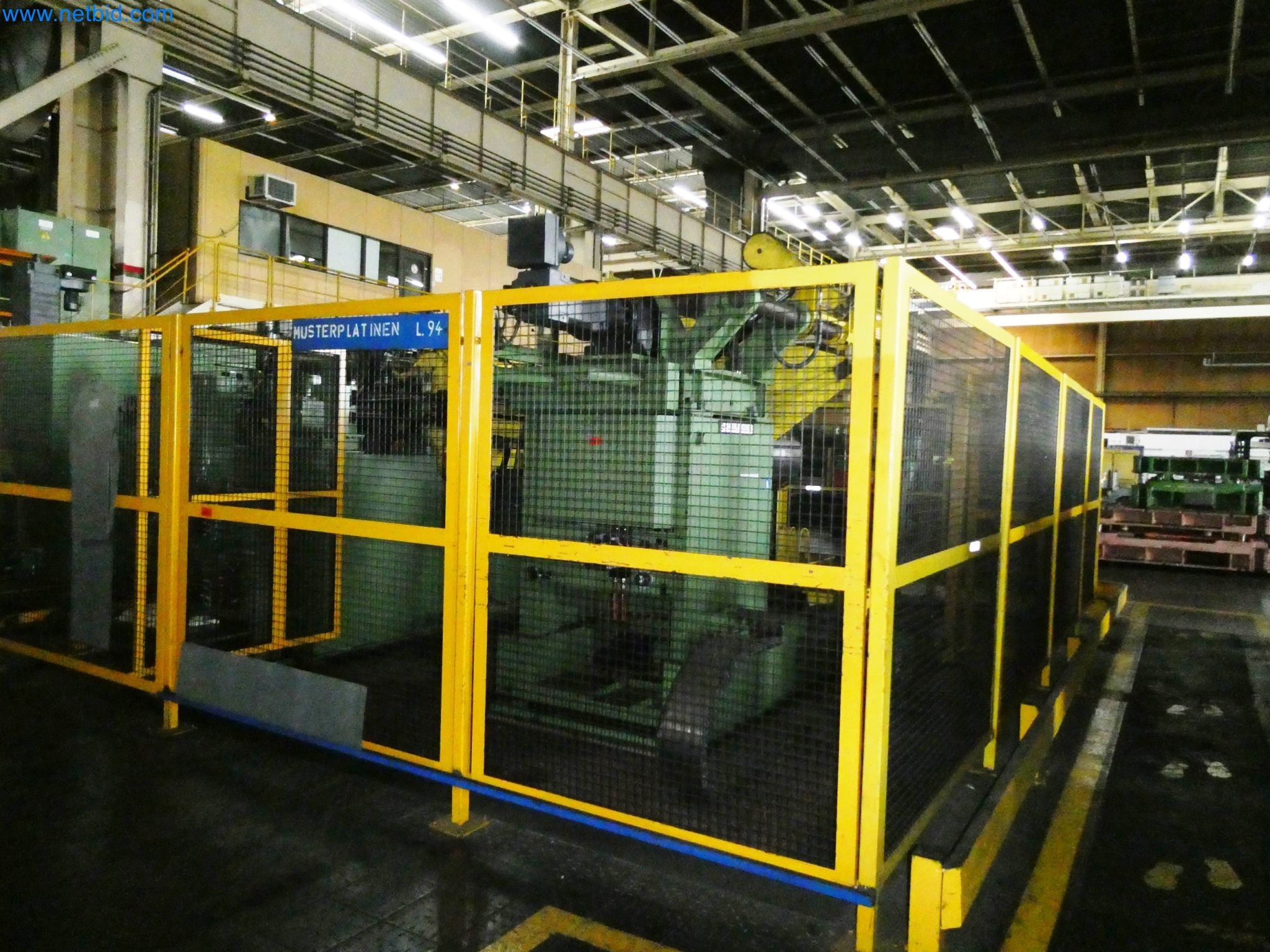

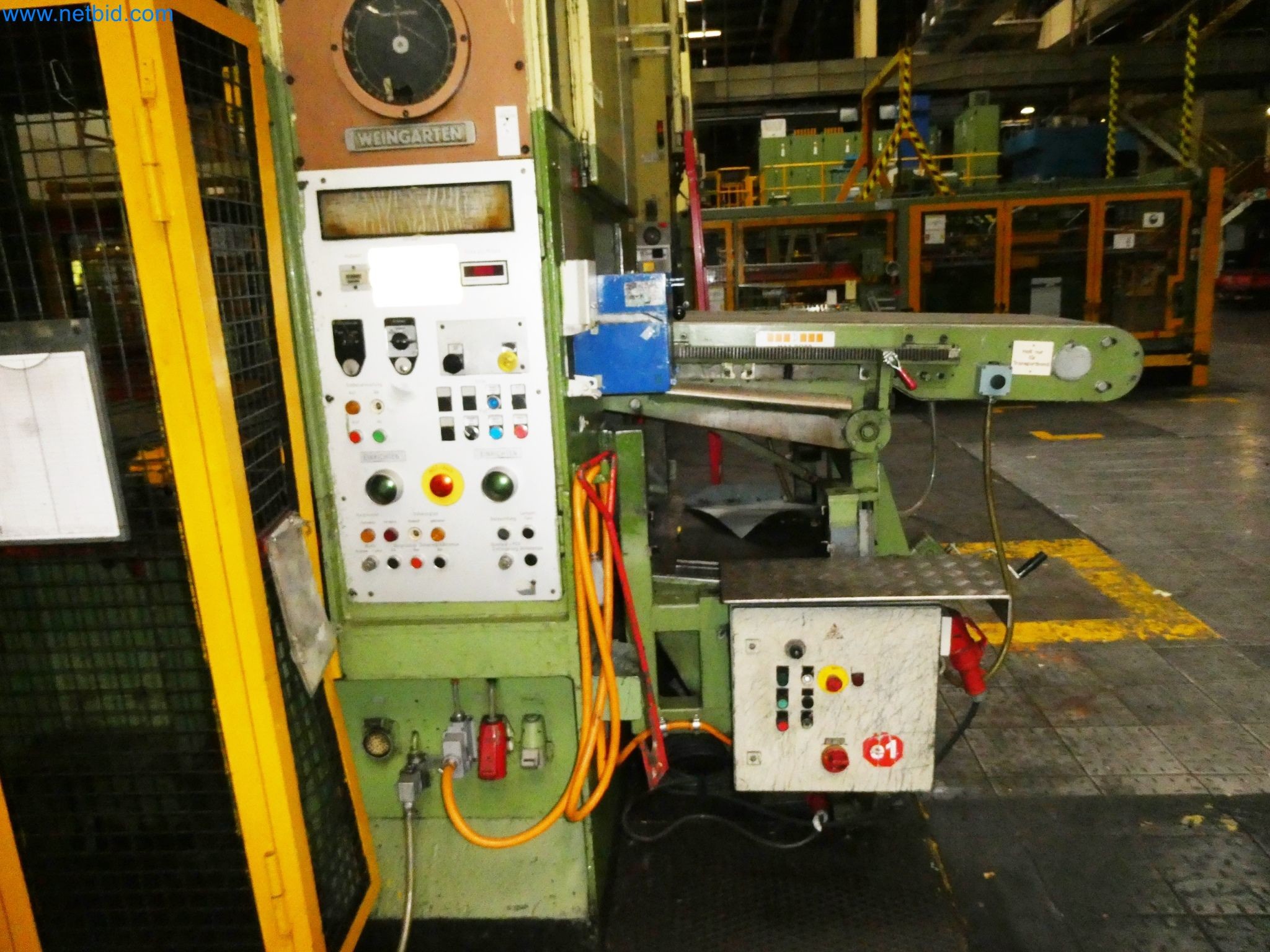

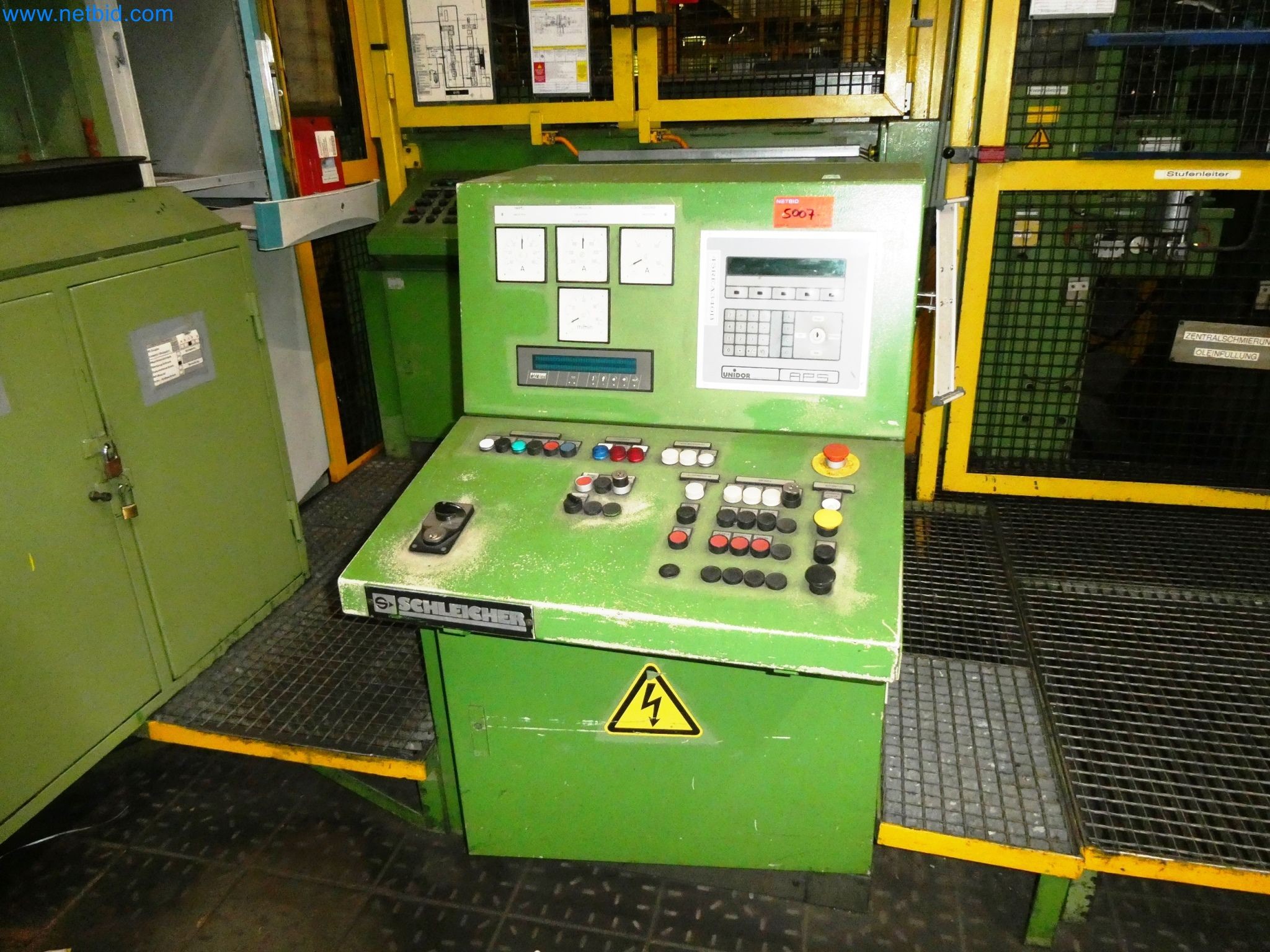

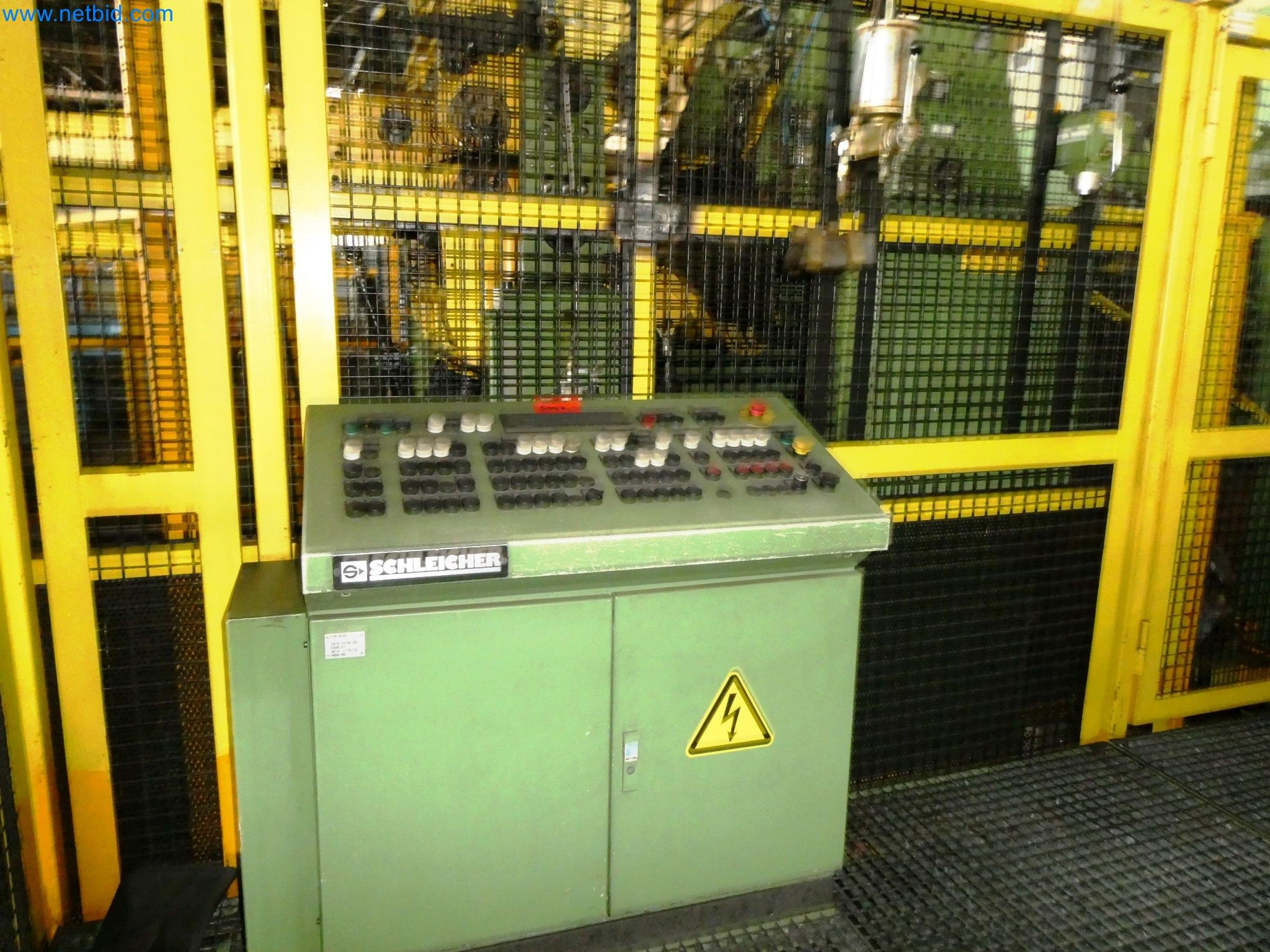

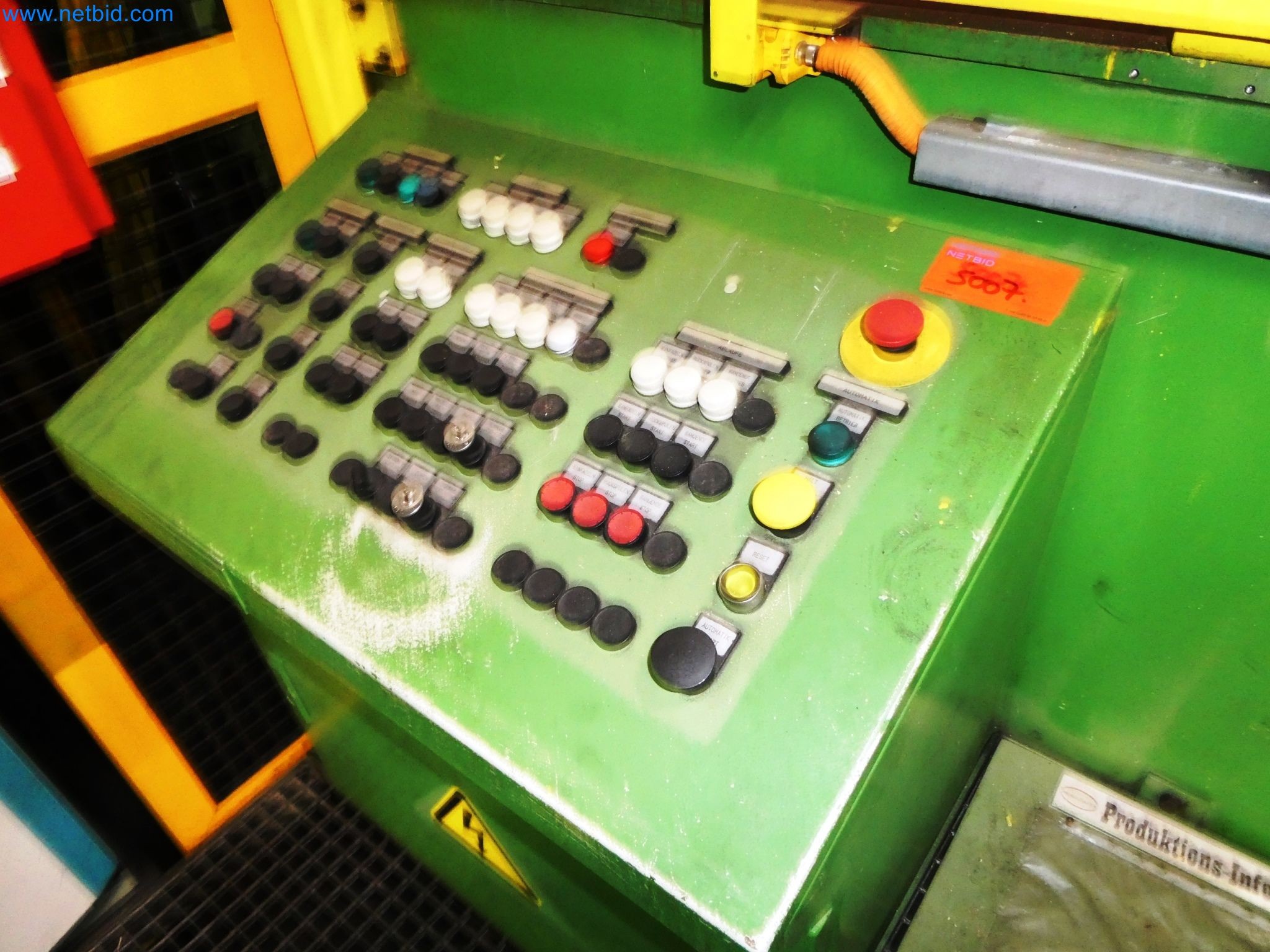

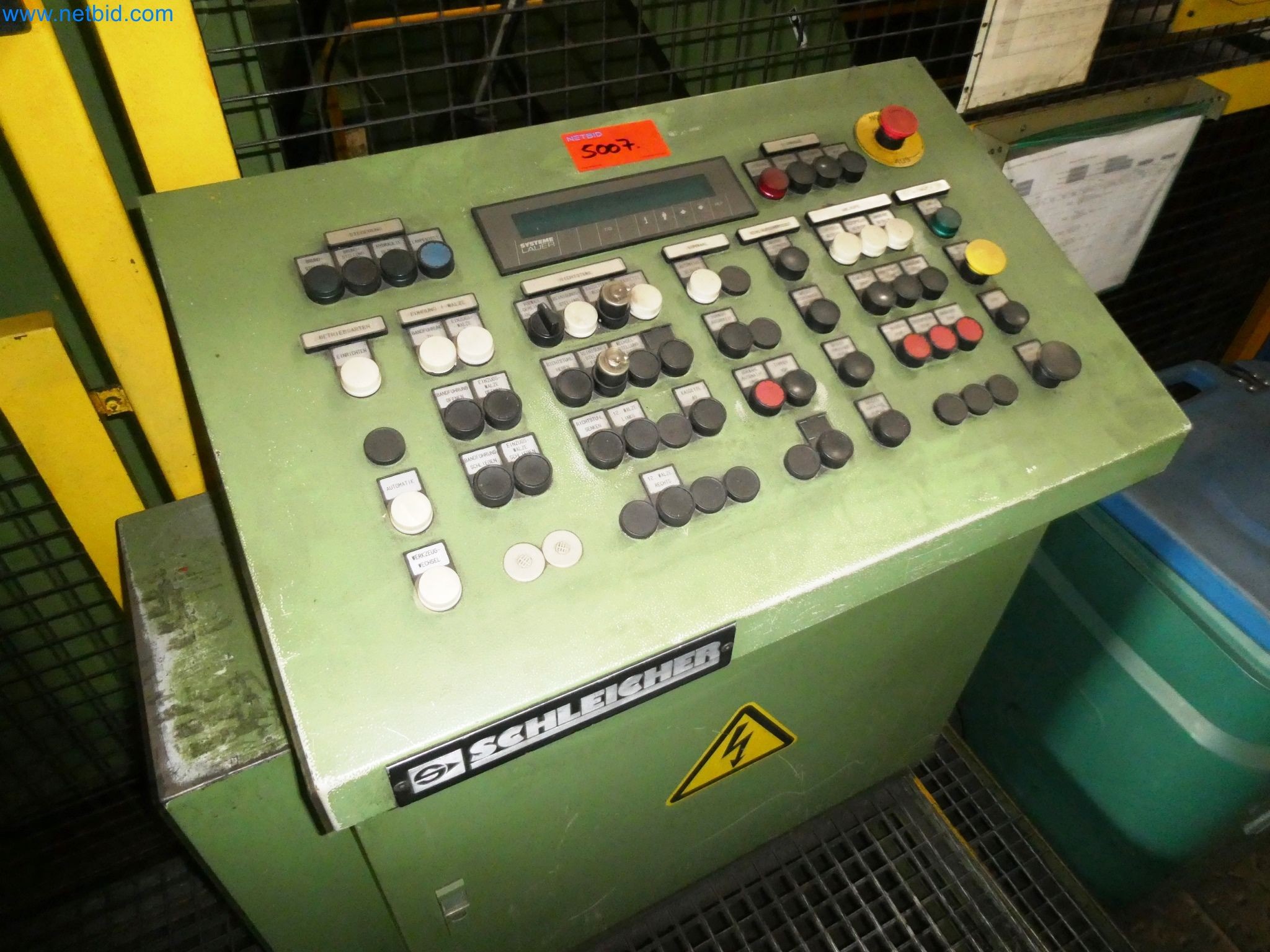

Control panels, safety fence system, Unidor tool control, outfeed conveyor belt (system no. 1503700)
Control cabinets on gallery,
System available from November 2025
Dismantling can be offered as an option
Coil line, Schleifer, year 1996, with coil decoiler, type HES-30-1250, max. load capacity 20 t, strip width 260-800 mm, strip thickness 1.0-4.0 mm, with coil changing stand, straightening machine, type BE-04-800, year 1996, strip width 250-800 mm, strip thickness 1.0-4.0 mm, straightening unit, type PMP 11-53/160-80, year 1996, strip width 250-800 mm, strip thickness 1.0-4.0 mm, strip feed, year 1996, strip width 260-800 mm, strip thickness 1.0-4.0 mm, system no. 1300700
Control panels, safety fence system, Unidor tool control, outfeed conveyor belt (system no. 1503700)
Control cabinets on gallery,
System available from November 2025
Dismantling can be offered as an option
Location
- Deutschland/ Halle B/ Stamping/ Linie U73
Dates
Inspection
Only by prior written registration and appointment at weyand@netbid.com
Please note the access requirements, which can be found in the auction conditions.
Please note the access requirements, which can be found in the auction conditions.
Pickup
By arrangement.
Auction Terms
Due to the access requirements, we need the following information from you for a viewing appointment
Complete company name, name and contact details
Which production areas are of interest
Preferred date and time
Number of participants and names
Special conditions:
Special conditions:
- Access requirements
- HSE specifications
- Different auction conditions
