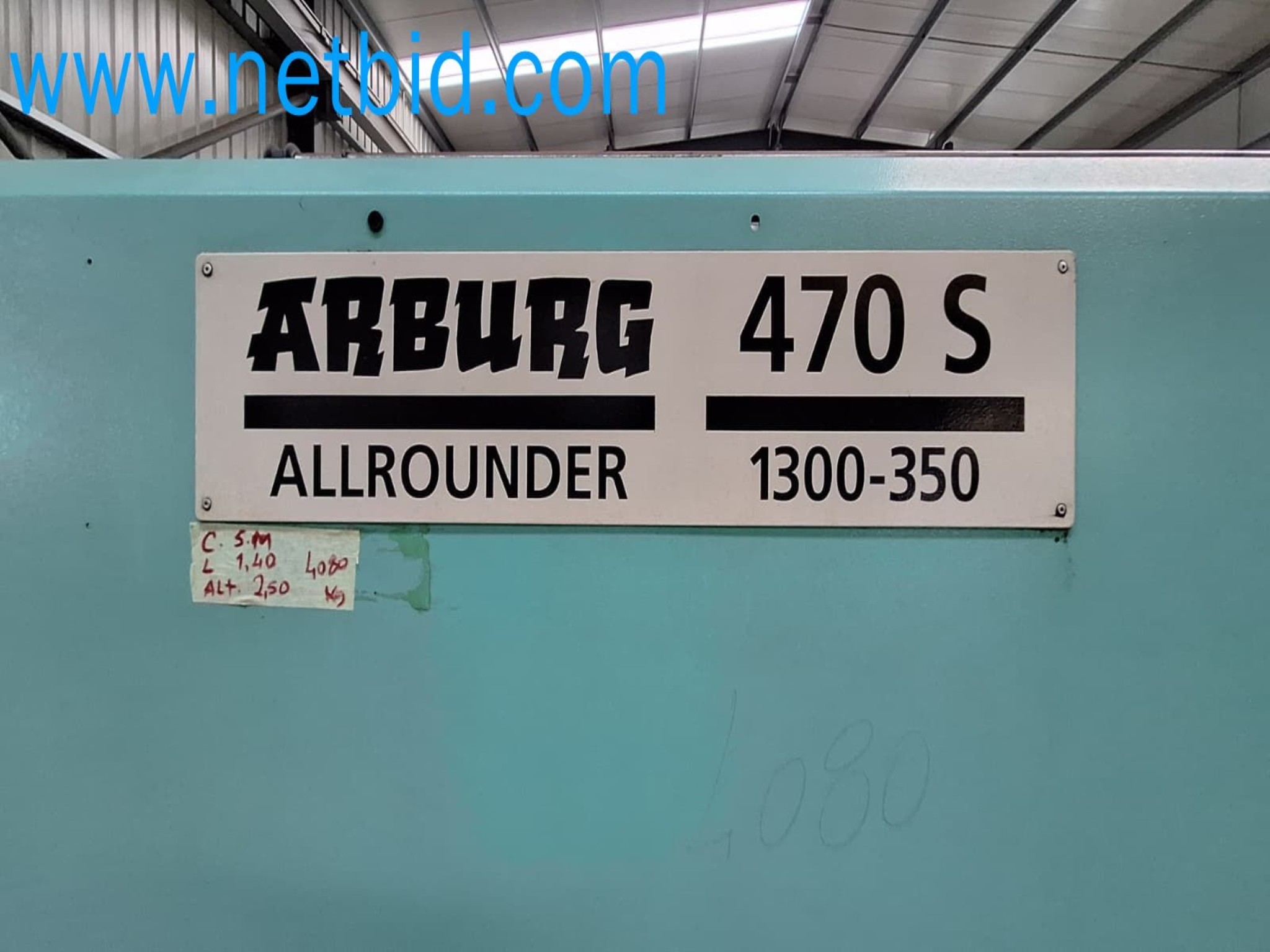

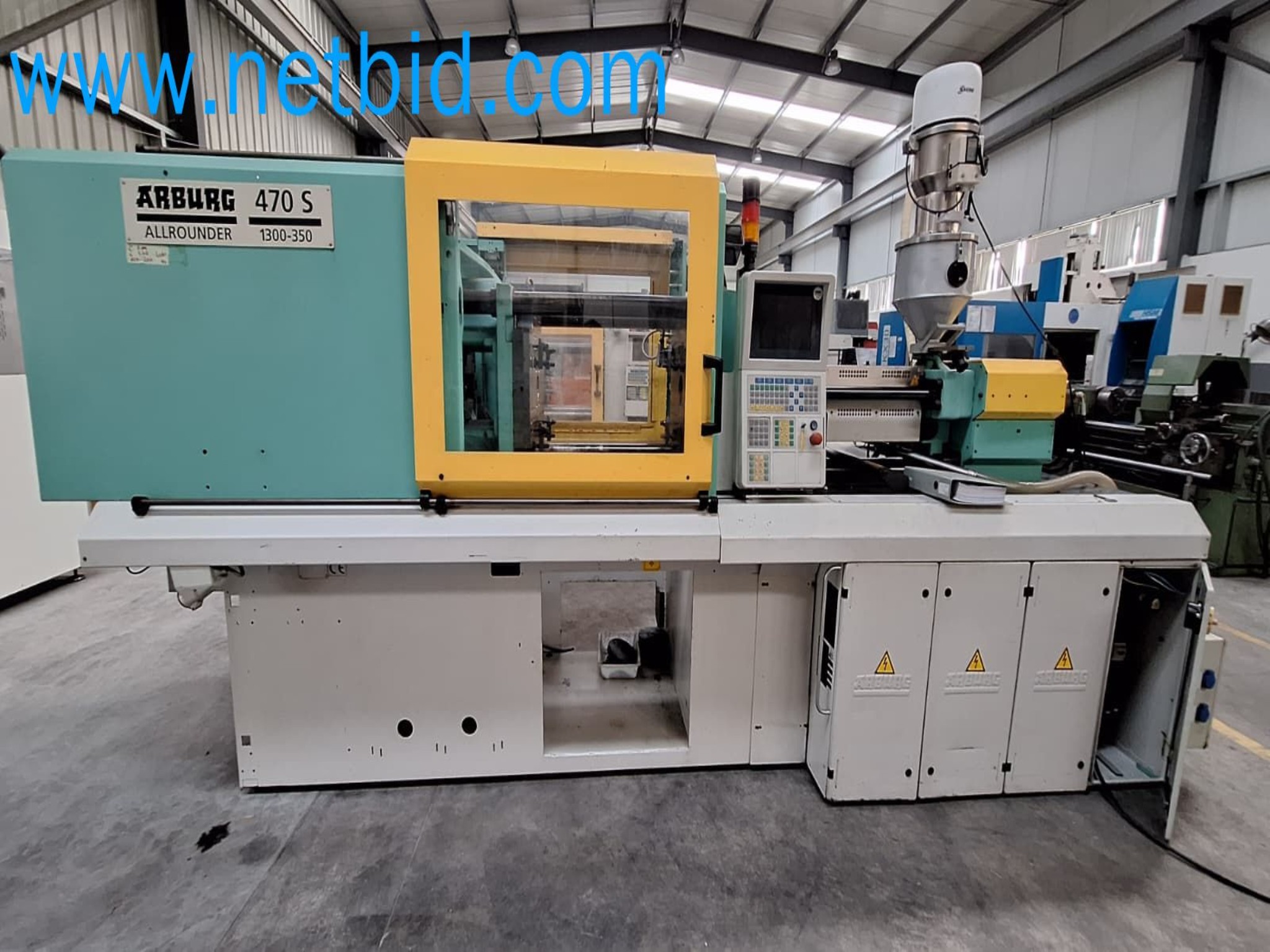

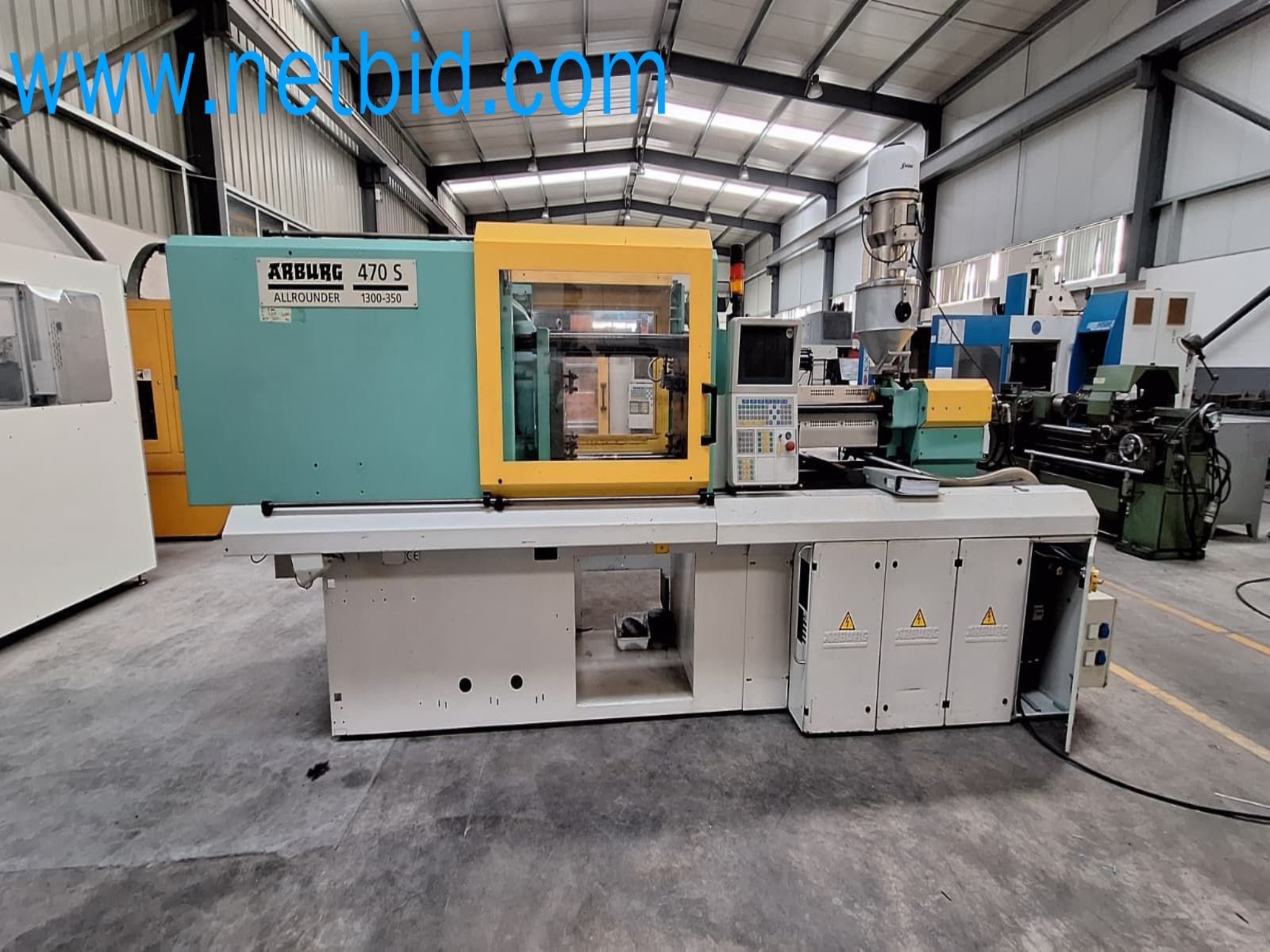

INJECTION MOULDING MACHINE ARBURG 470S - 1300-350AUCTION#A19114-54
Details
Product Type
ARBURG
Type
470S - 1300-350
Construction Year
2005
Description
Clamping force: approx. 1,300 kN (˜130 tonnes)
Screw diameter: 35 mm (approx. 4.5 ton / h material capacity depending on material)
Arburg “S” series – precision hydraulic injection moulding machine

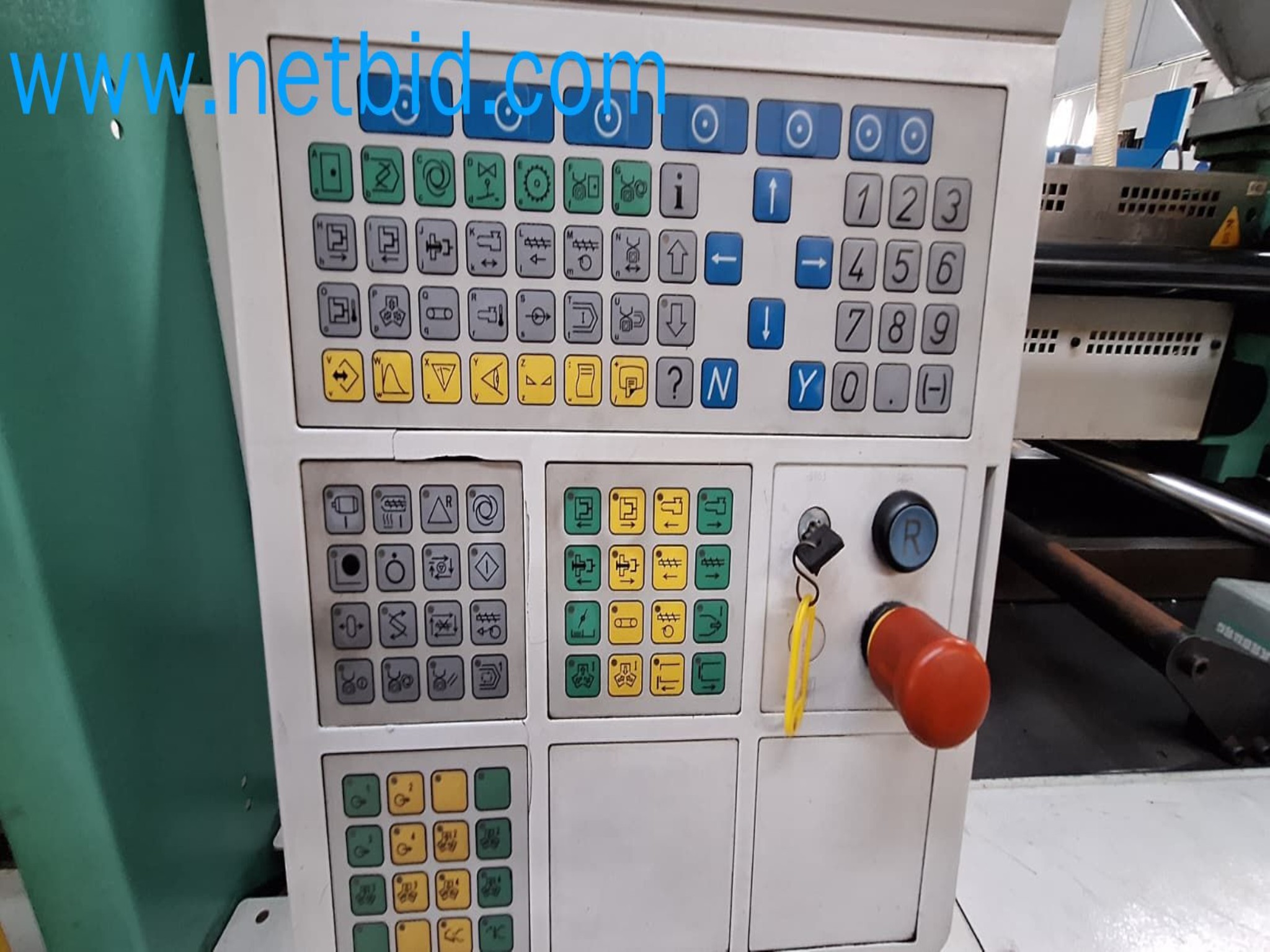

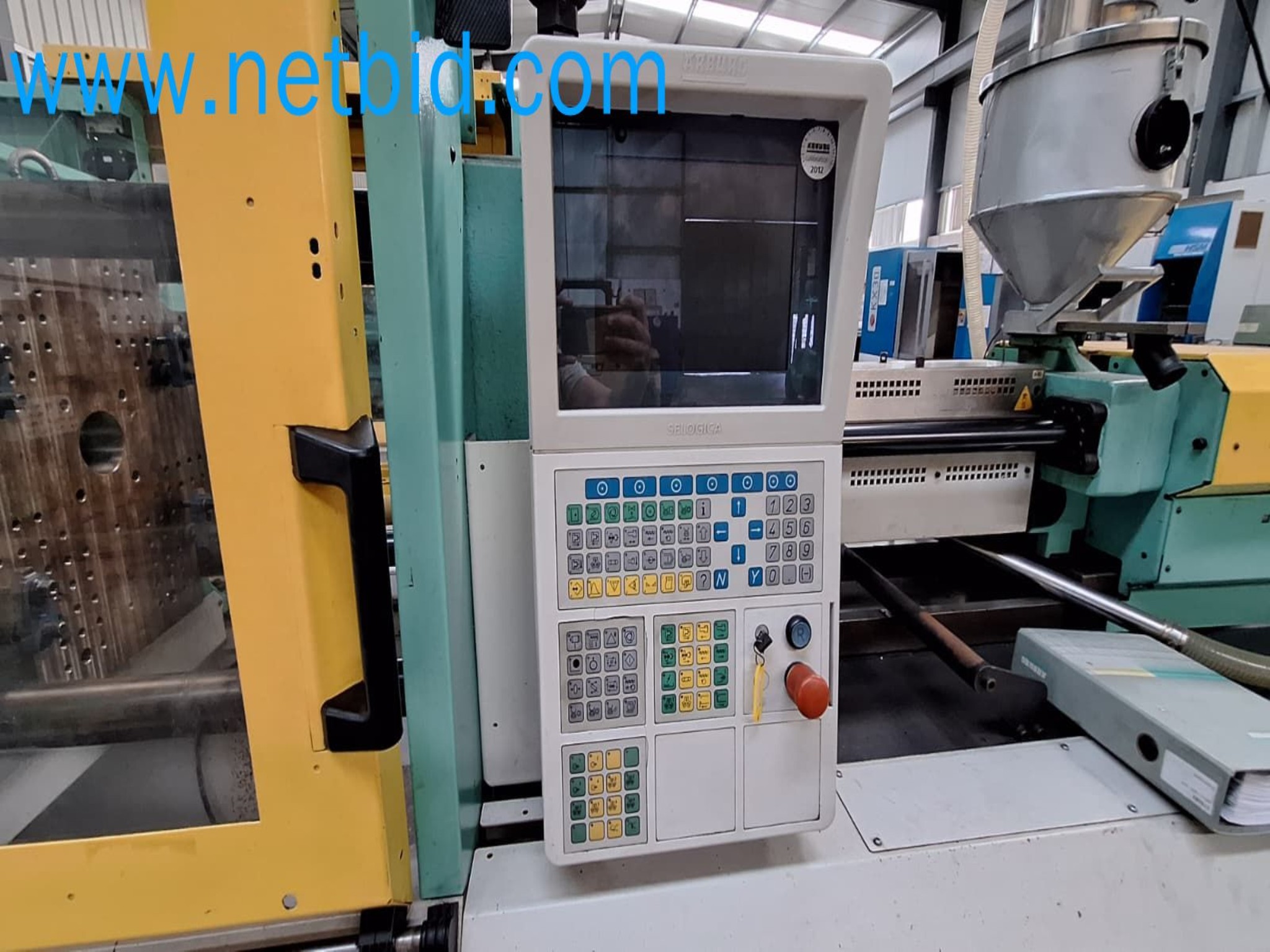

Equipped with advanced control system for consistent process performance
Suitable for processing thermoplastic materials in medium-size moulds
Reliable machine construction ensuring stability and long service life
"
Injection weight 127 g/PS

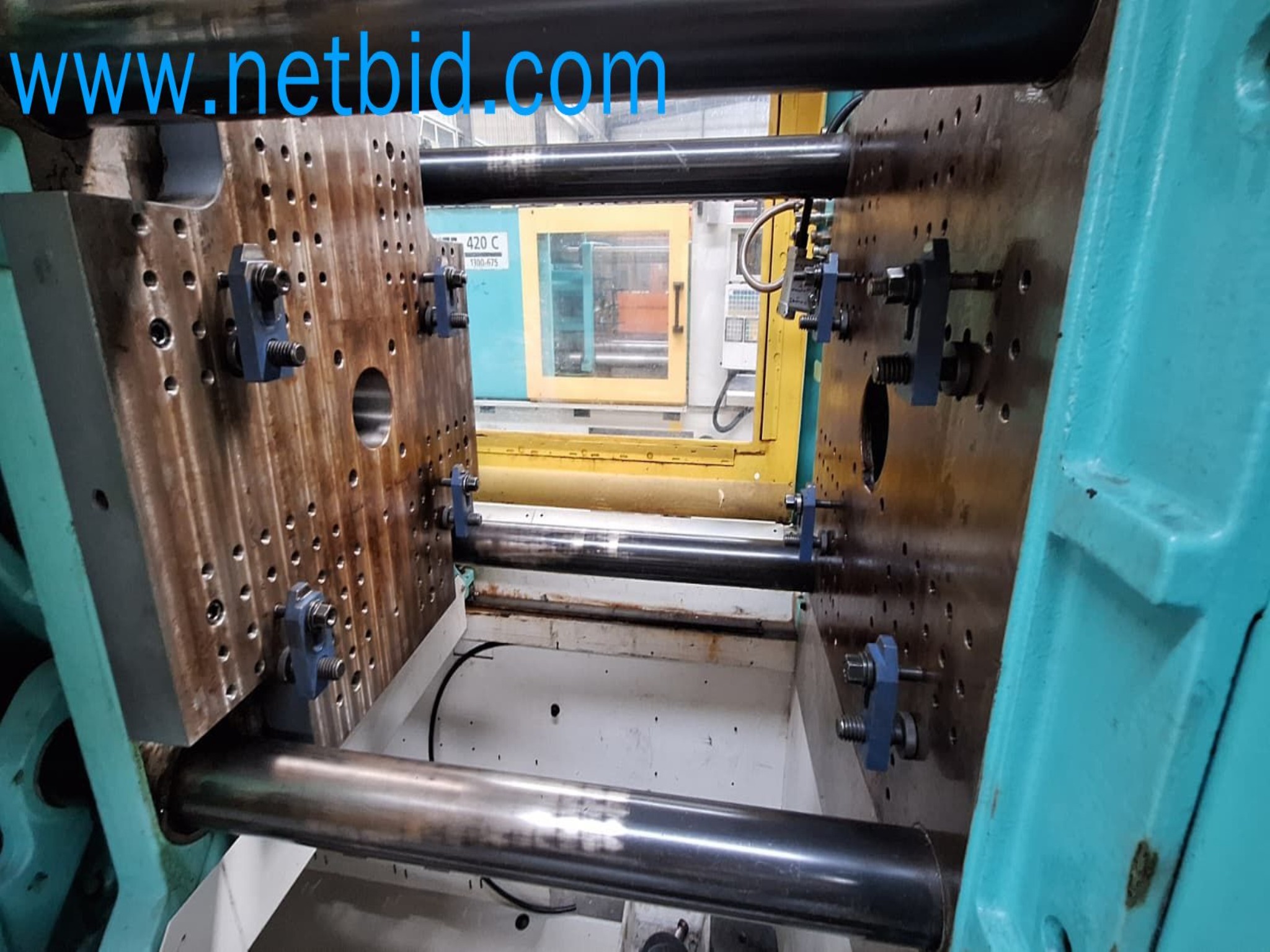

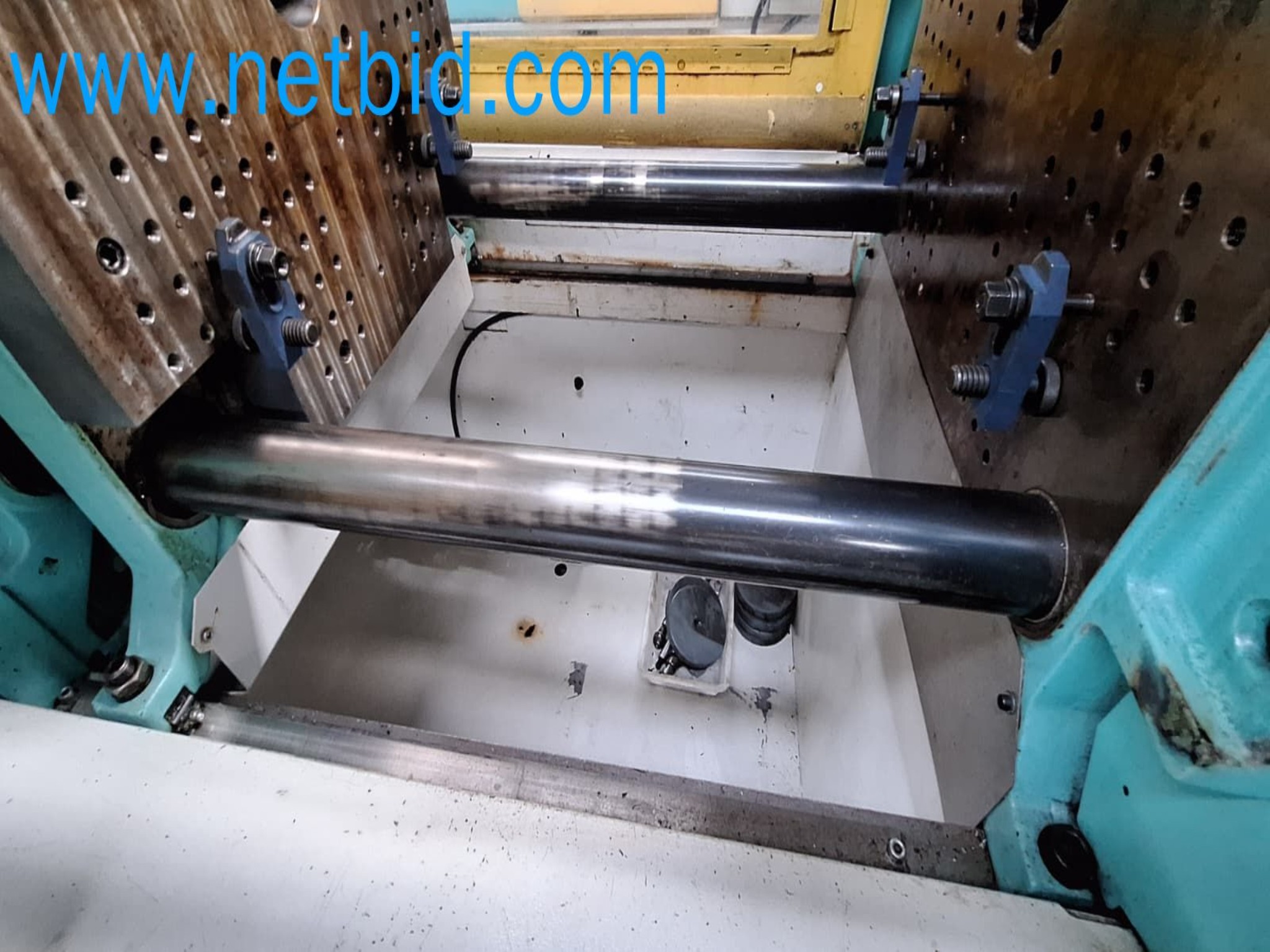

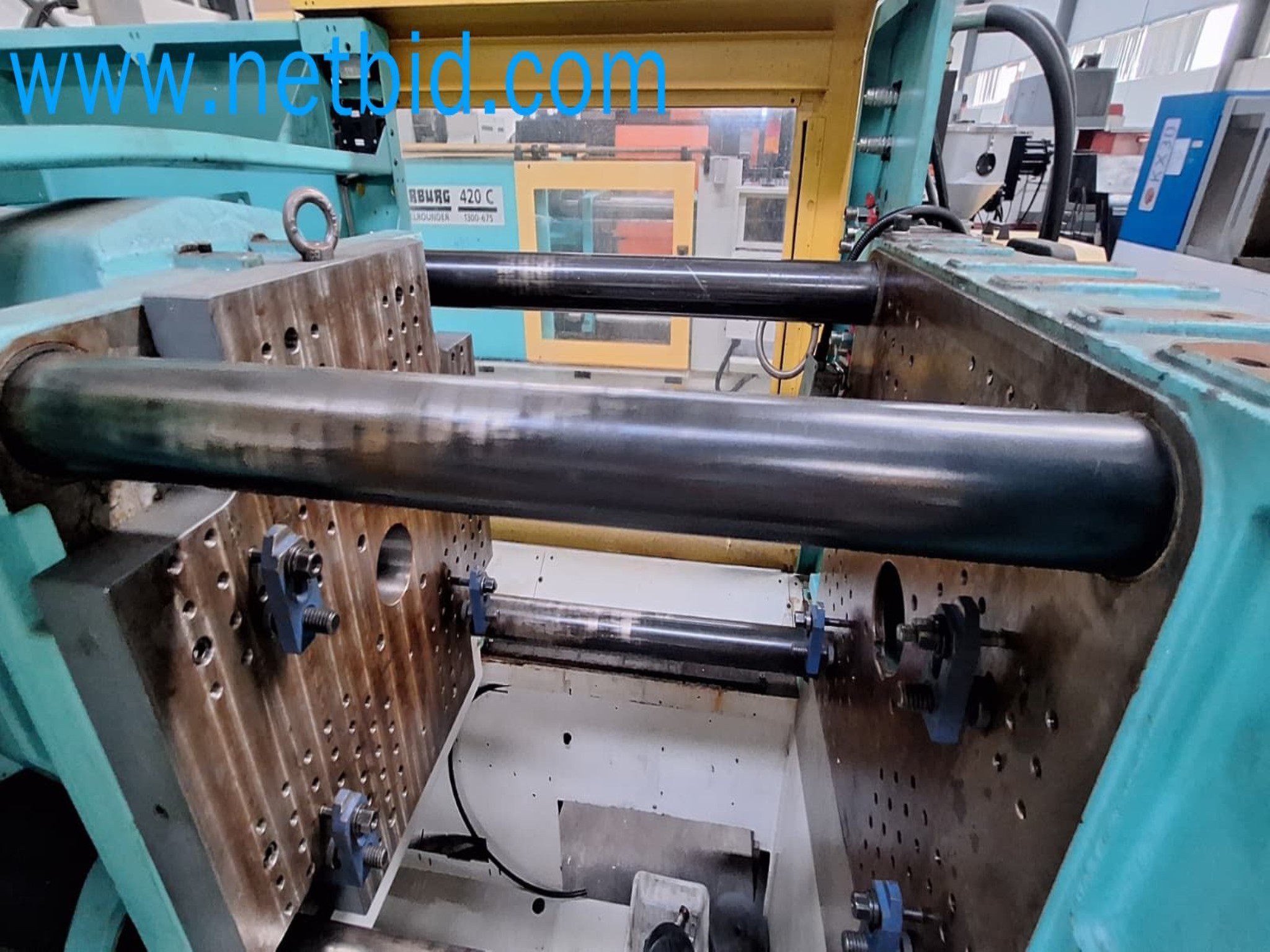

Distance between columns 470x470 mm
Effective screw length: 23 L/D
Screw stroke 145 max. mm
Calculated stroke volume 139 cm3 max.
Injection pressure 2500 bar max.
Injection flow 128 max. cm3/s
Positive/negative back pressure 350/160
Screw circumferential speed 47 max. m/min
Screw torque 560 max. Nm
Nozzle support force 55 max. kN
Nozzle lift stroke 300 max. mm
W x H 650 x 650 mm
Weight: 5500 kg
Approximate dimensions: 5500 × 1500 × 2350 mm
Additional mandatory dismantling & loading on truck cost of: 350€
Screw diameter: 35 mm (approx. 4.5 ton / h material capacity depending on material)
Arburg “S” series – precision hydraulic injection moulding machine
Equipped with advanced control system for consistent process performance
Suitable for processing thermoplastic materials in medium-size moulds
Reliable machine construction ensuring stability and long service life
"
Injection weight 127 g/PS
Distance between columns 470x470 mm
Effective screw length: 23 L/D
Screw stroke 145 max. mm
Calculated stroke volume 139 cm3 max.
Injection pressure 2500 bar max.
Injection flow 128 max. cm3/s
Positive/negative back pressure 350/160
Screw circumferential speed 47 max. m/min
Screw torque 560 max. Nm
Nozzle support force 55 max. kN
Nozzle lift stroke 300 max. mm
W x H 650 x 650 mm
Weight: 5500 kg
Approximate dimensions: 5500 × 1500 × 2350 mm
Additional mandatory dismantling & loading on truck cost of: 350€
Location
- 2405-000 Maceira
Dates
Inspection
Visits are only possible after prior registration at carrico@netbid.com.
Pickup
05. Jan 2026 - 30. Jan 2026
Collection is only possible after prior registration at carrico@netbid.com.
Auction Terms
Special conditions:
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
