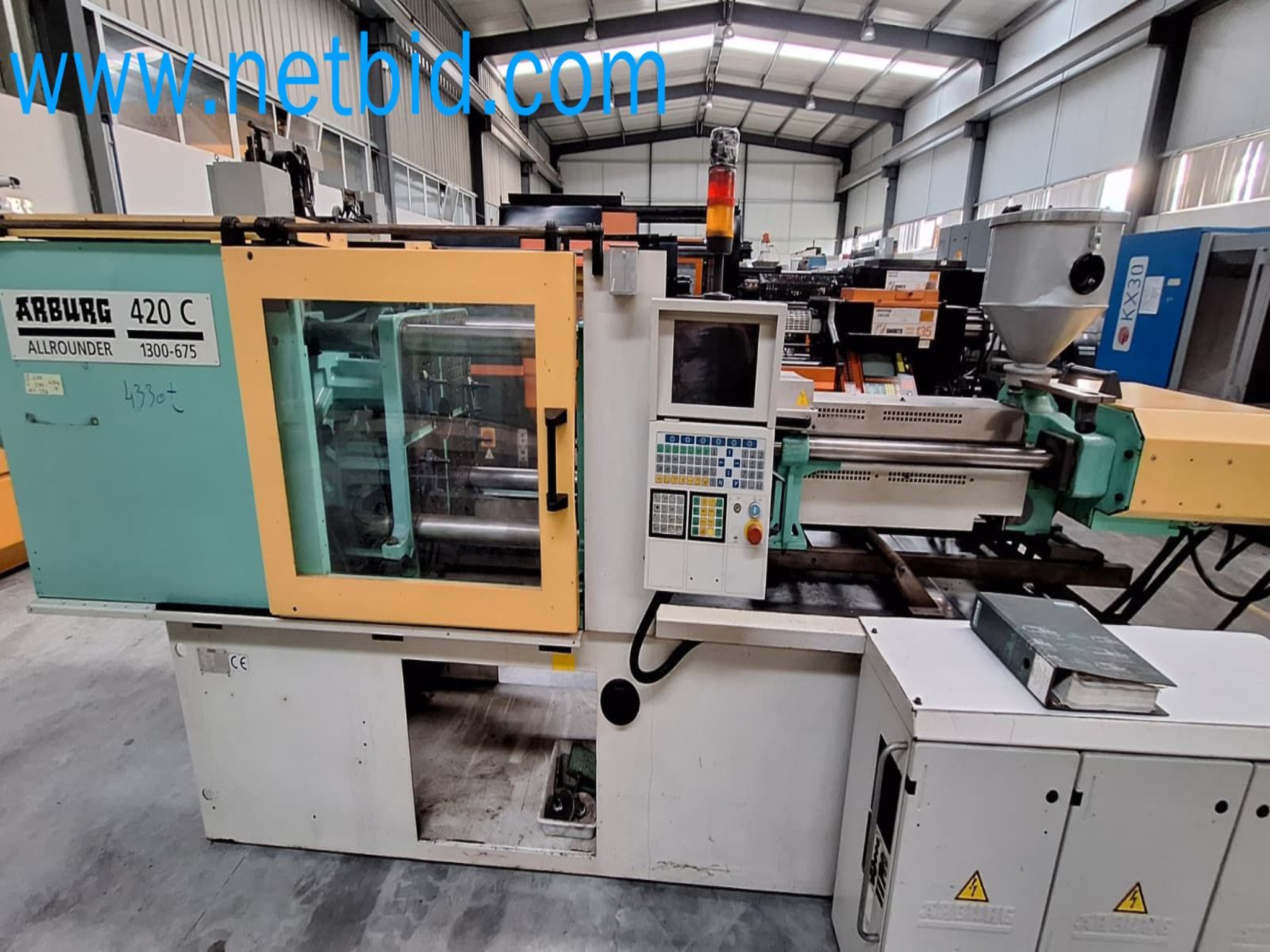

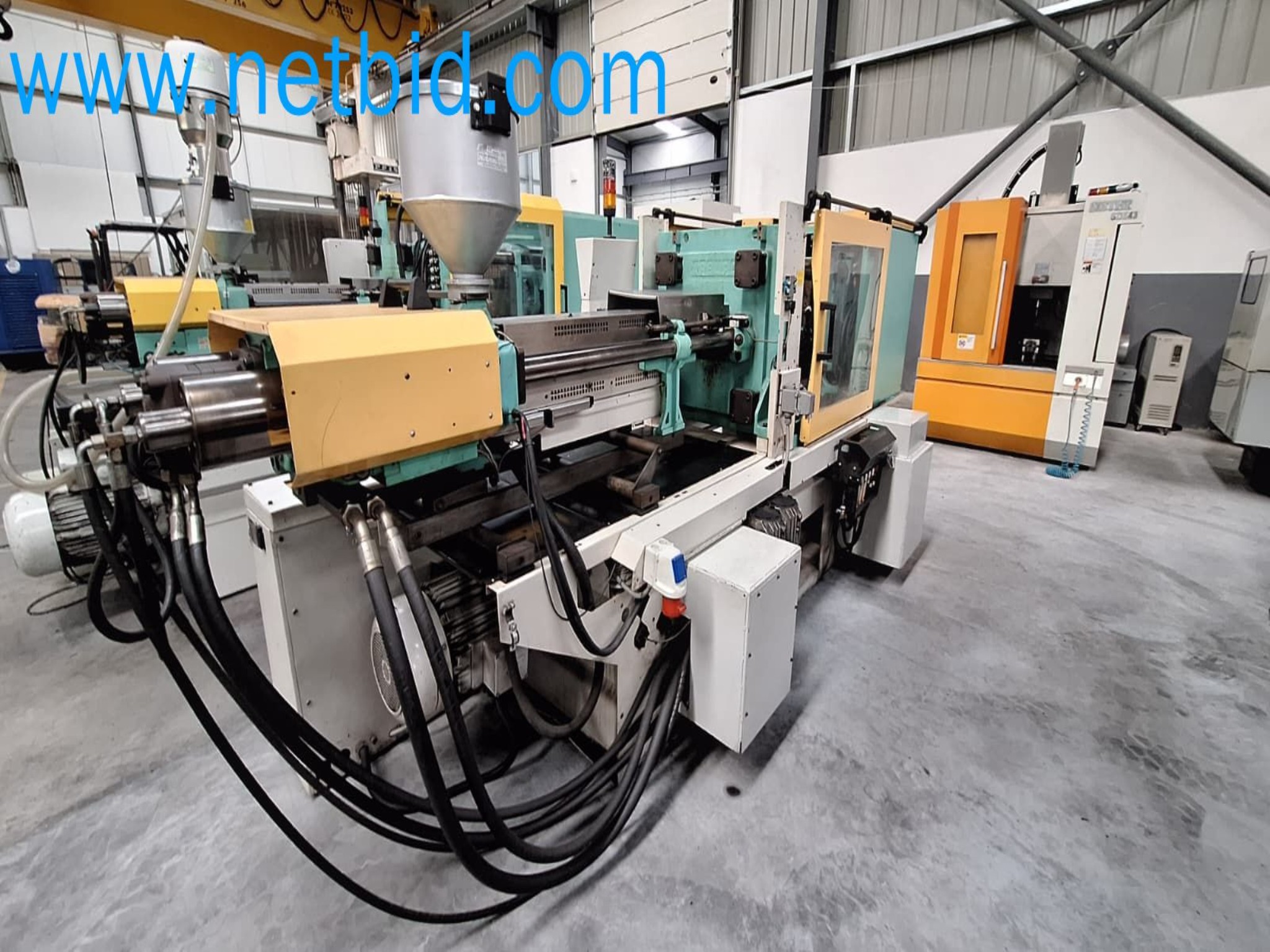

INJECTION MOULDING MACHINE ARBURG 420C – 1300-675AUCTION#A19114-55
Details
Product Type
ARBURG
Type

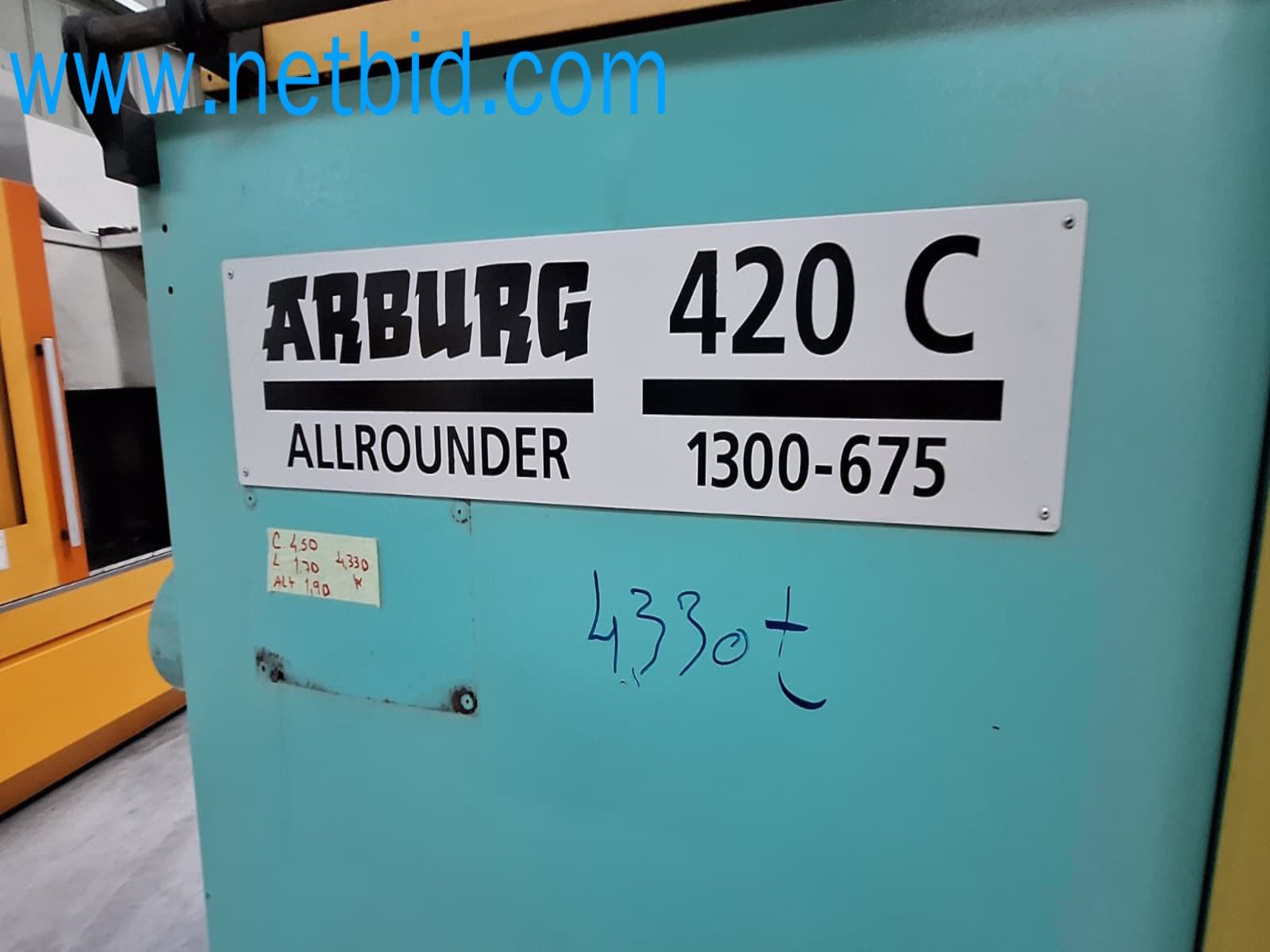

420C – 1300-675
Construction Year
1999
Description
Clamping force: approx. 1,300 kN (˜130 tonnes)
Screw diameter: 35 mm (approx. 4.5 ton / h material capacity depending on material)
Arburg “S” series – precision hydraulic injection moulding machine

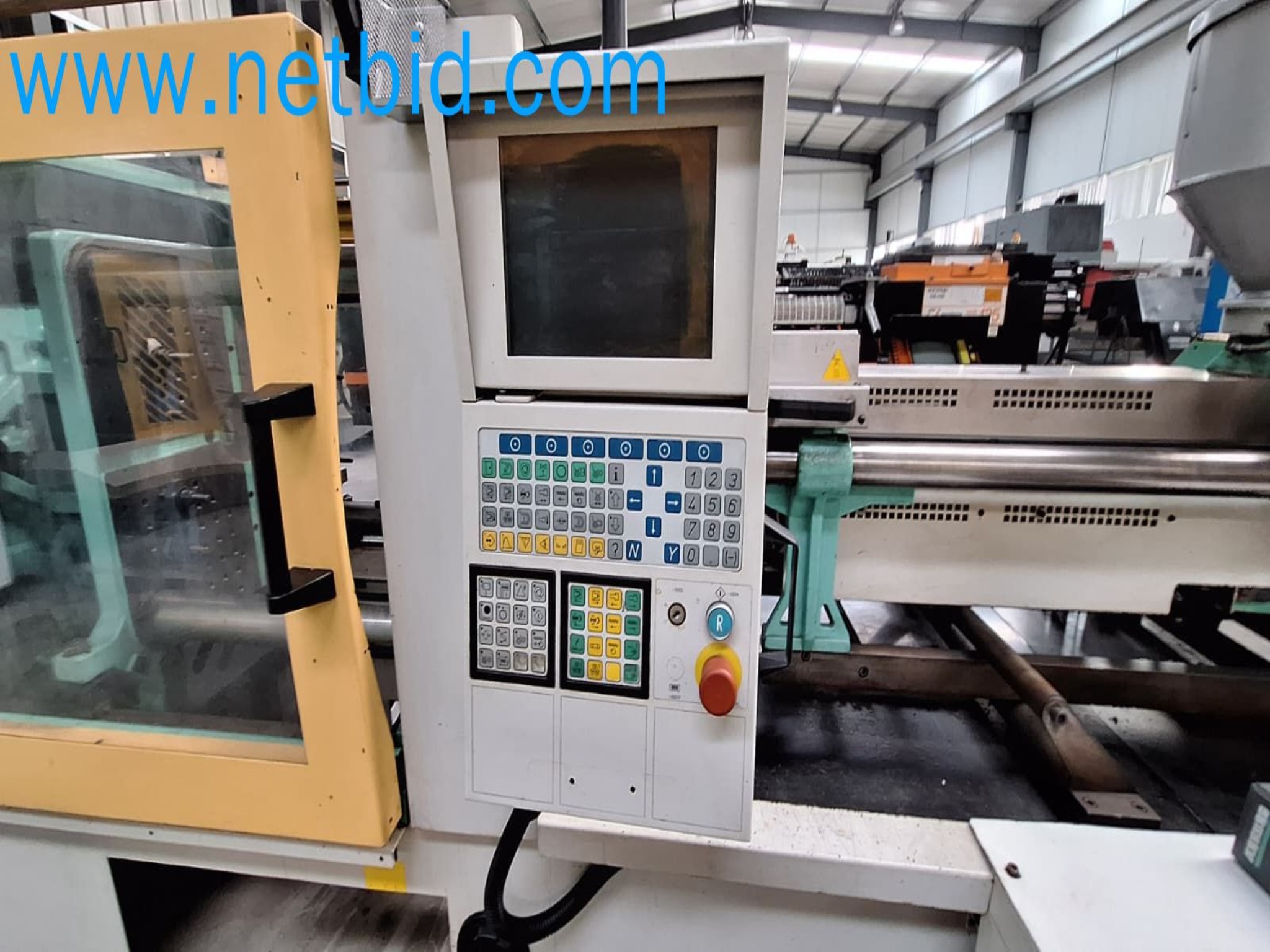

Equipped with advanced control system for consistent process performance
Suitable for processing thermoplastic materials in medium-size moulds
Reliable machine construction ensuring stability and long service life
Max mould opening stroke mm: 500
Min mould height mm: 250

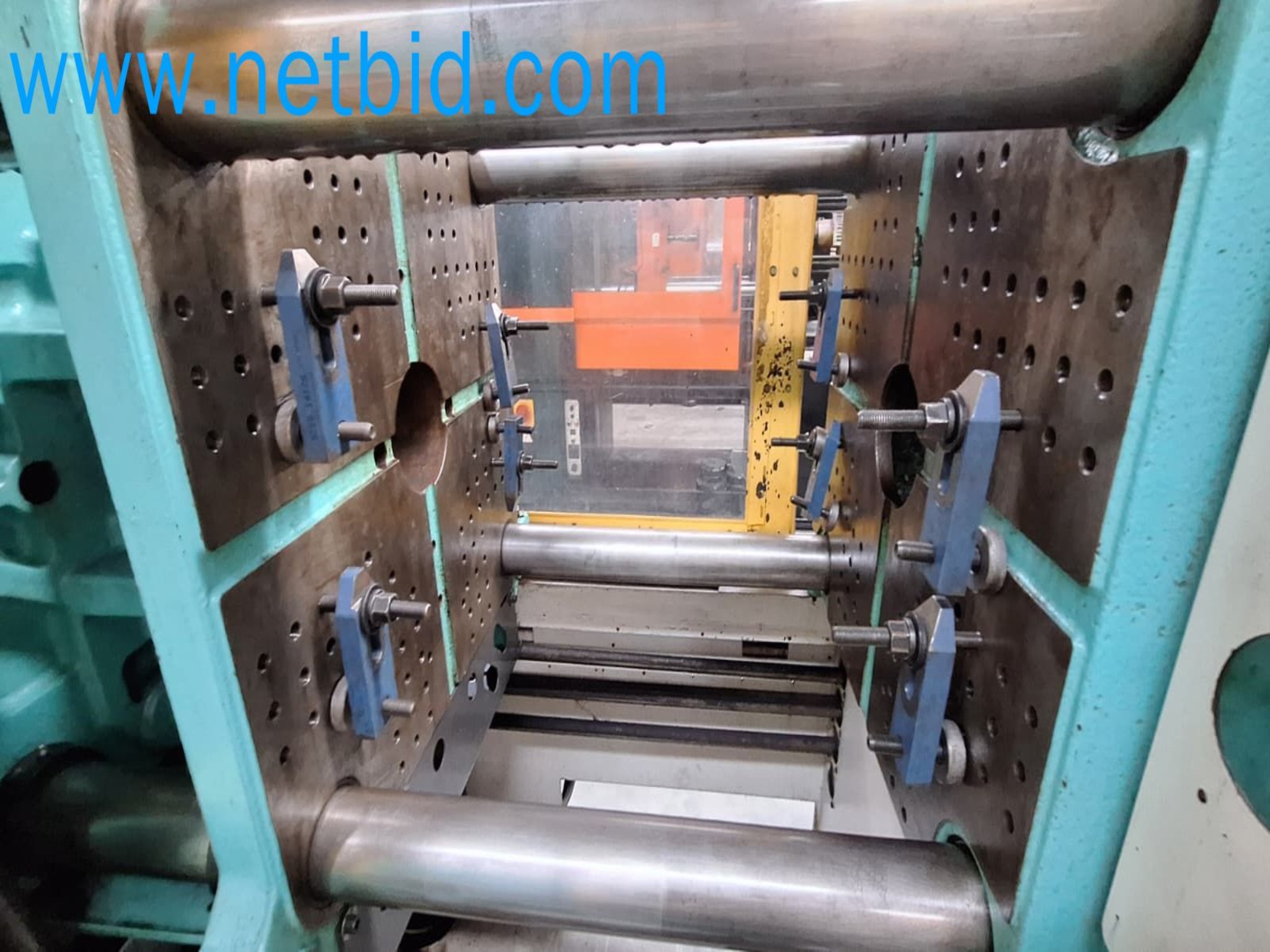

Platen dimensions mm: 605 x 605
Distance between tie bars (hxv) mm: 420 x 420
Ejector stroke mm: 175

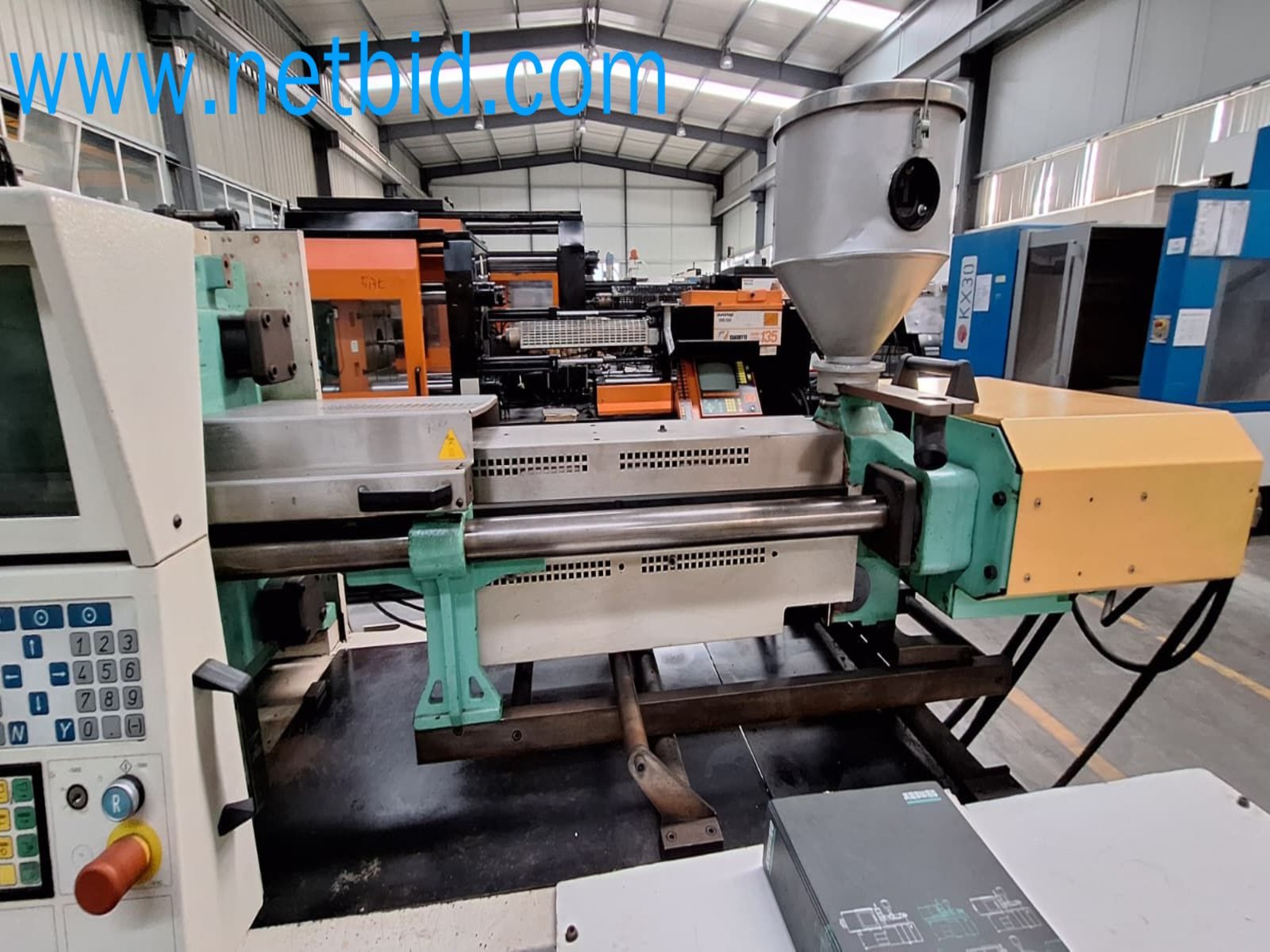

INJECTION UNIT
Screw diameter mm: 45 50 55 60
Max shot weight (PS) g: 261 322 390 464
Shot volume cm³ 286 353 427 508
Injection pressure bar: 2500 2080 1720 1440
GENERAL DATA
Pump unit kW: 30
Total connected load kW: 46.3
Oil tank capacity ltr: 240
Net weight (without oil) kg: 4330
Weight: 5500 kg
Approximate dimensions: 4800 x 1595 x 2080 mm
Additional mandatory dismantling & loading on truck cost of: 350€
Screw diameter: 35 mm (approx. 4.5 ton / h material capacity depending on material)
Arburg “S” series – precision hydraulic injection moulding machine
Equipped with advanced control system for consistent process performance
Suitable for processing thermoplastic materials in medium-size moulds
Reliable machine construction ensuring stability and long service life
Max mould opening stroke mm: 500
Min mould height mm: 250
Platen dimensions mm: 605 x 605
Distance between tie bars (hxv) mm: 420 x 420
Ejector stroke mm: 175
INJECTION UNIT
Screw diameter mm: 45 50 55 60
Max shot weight (PS) g: 261 322 390 464
Shot volume cm³ 286 353 427 508
Injection pressure bar: 2500 2080 1720 1440
GENERAL DATA
Pump unit kW: 30
Total connected load kW: 46.3
Oil tank capacity ltr: 240
Net weight (without oil) kg: 4330
Weight: 5500 kg
Approximate dimensions: 4800 x 1595 x 2080 mm
Additional mandatory dismantling & loading on truck cost of: 350€
Location
- 2405-000 Maceira
Dates
Inspection
Visits are only possible after prior registration at carrico@netbid.com.
Pickup
05. Jan 2026 - 30. Jan 2026
Collection is only possible after prior registration at carrico@netbid.com.
Auction Terms
Special conditions:
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
- The mandatory costs for the dismantling and loading are to be borne by the buyer. The cost is specified in each item's description and is subject to VAT, if applicable. NetBid ESP SLU does not receive any commission for the dismantling and loading and is not responsible for these actions of the seller.
- Collection must be finished no later than on 30.01.2026.
- Safety shoes are required for the inspection.
