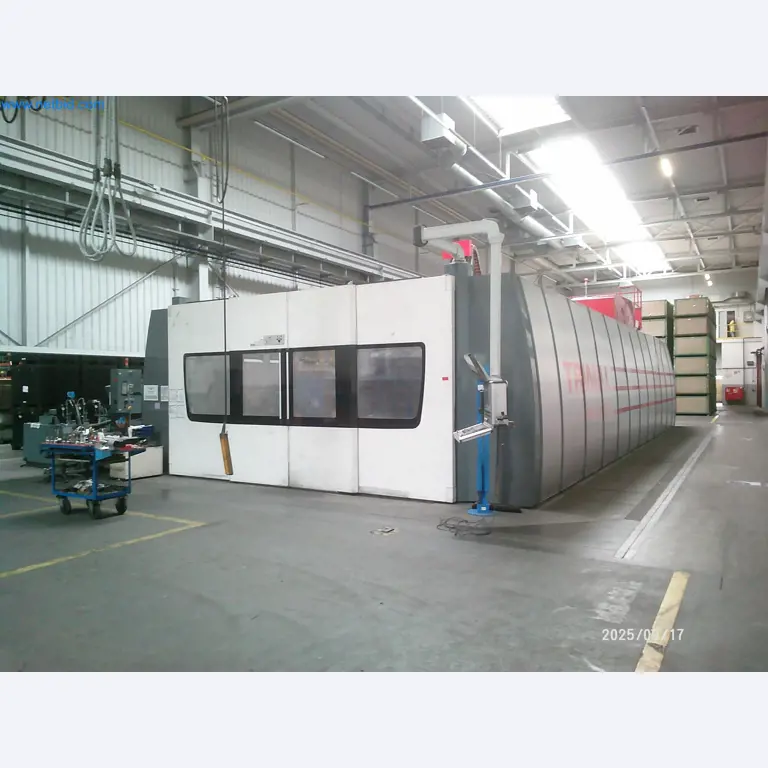

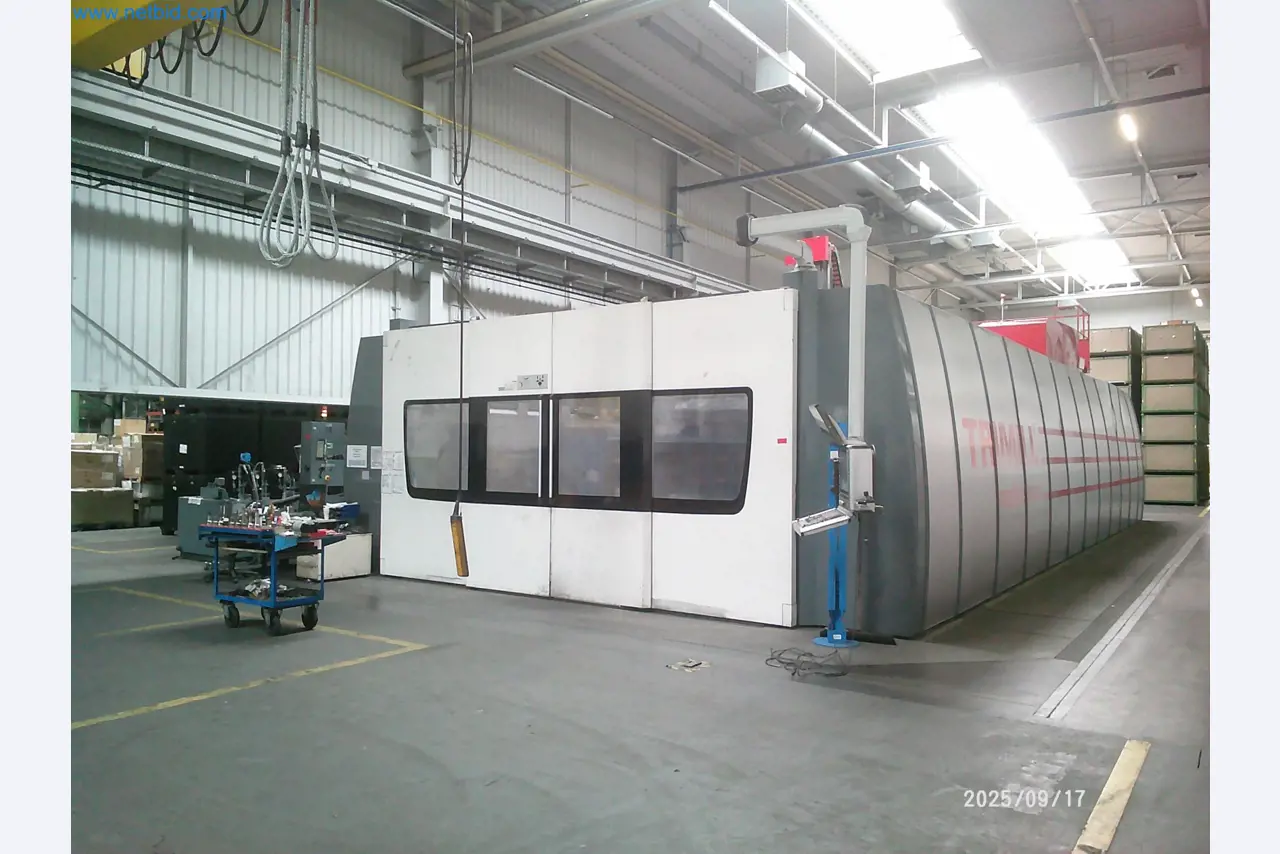

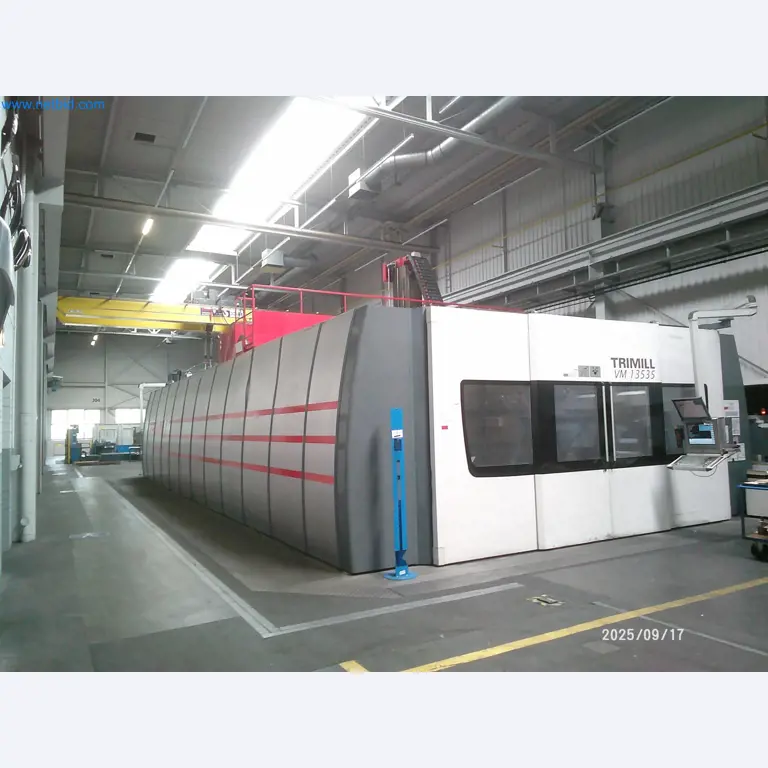

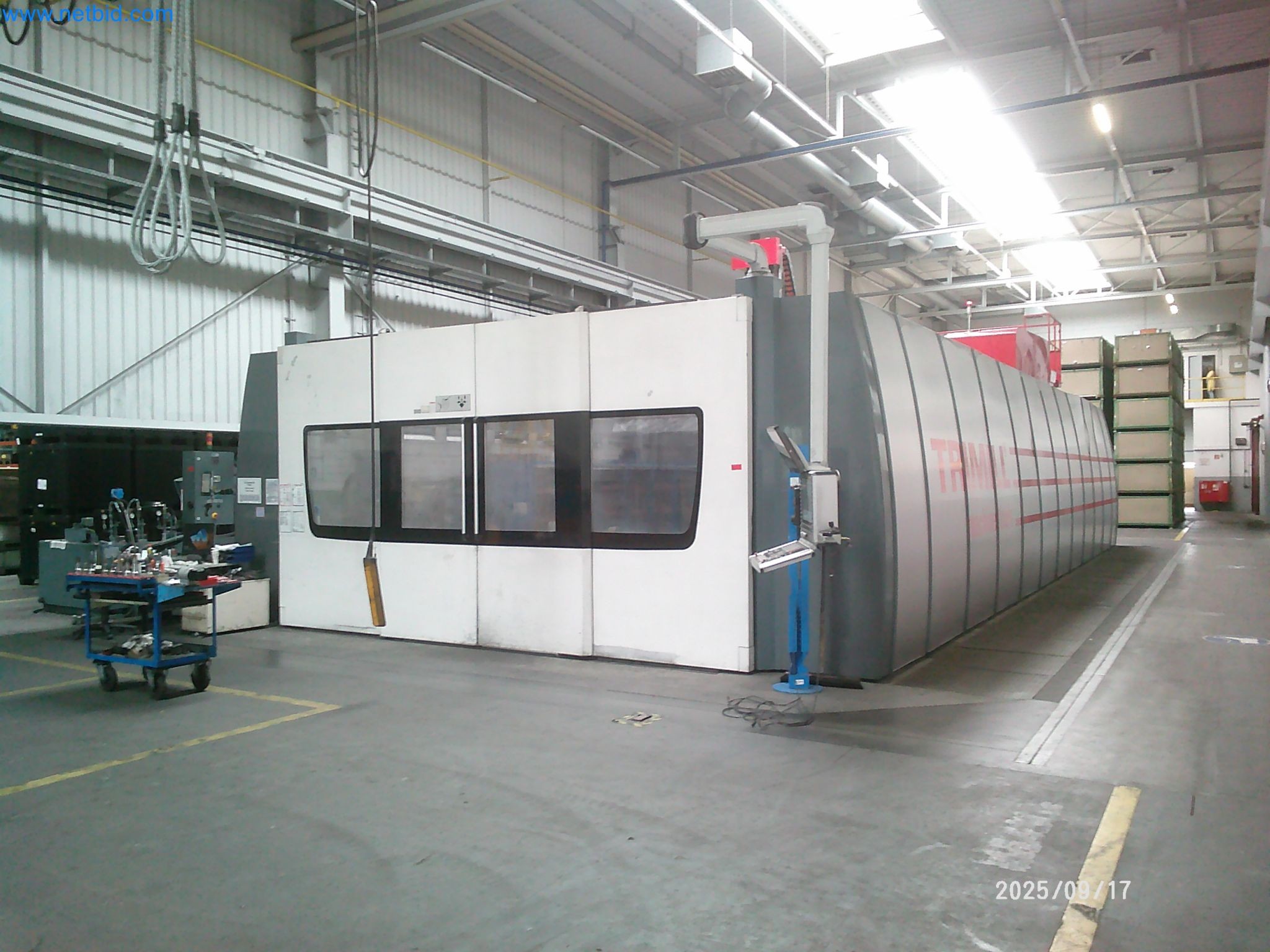

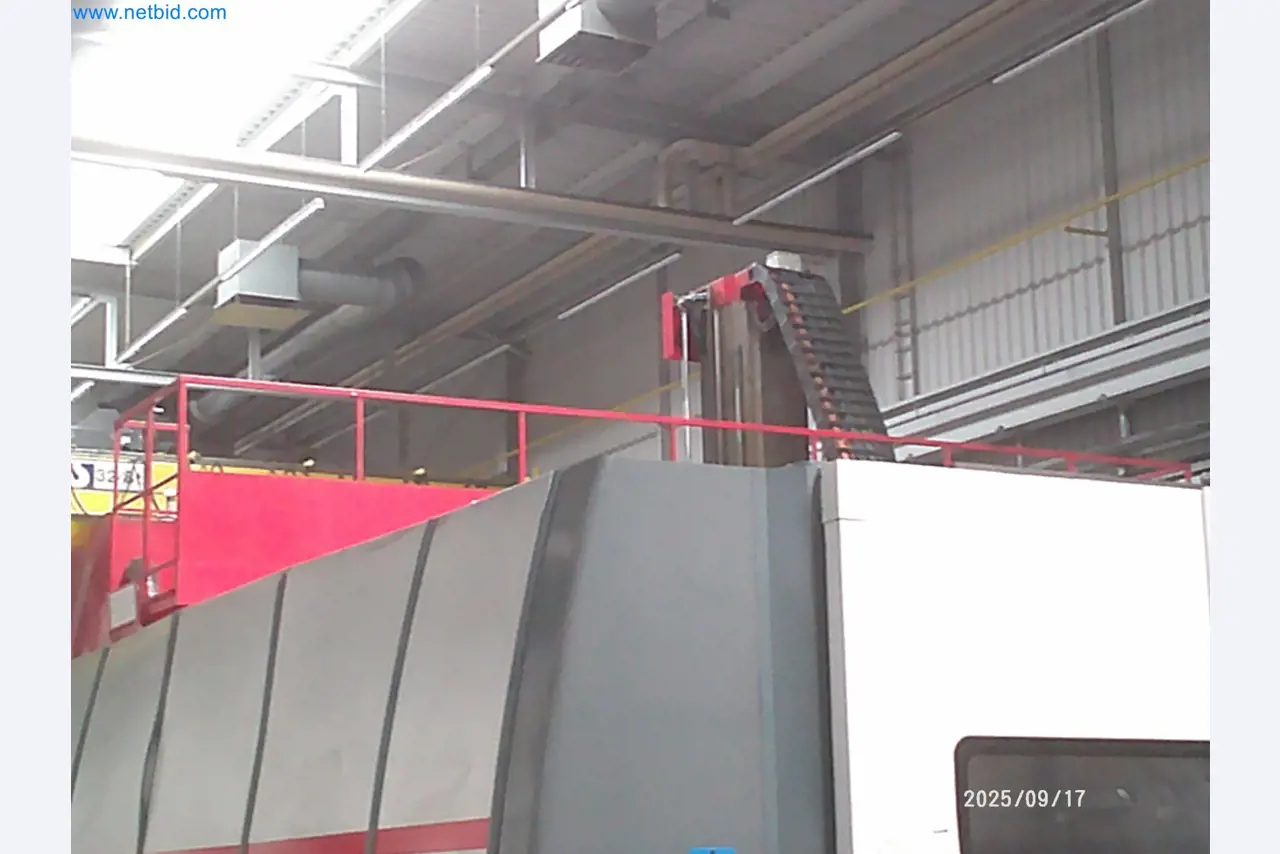

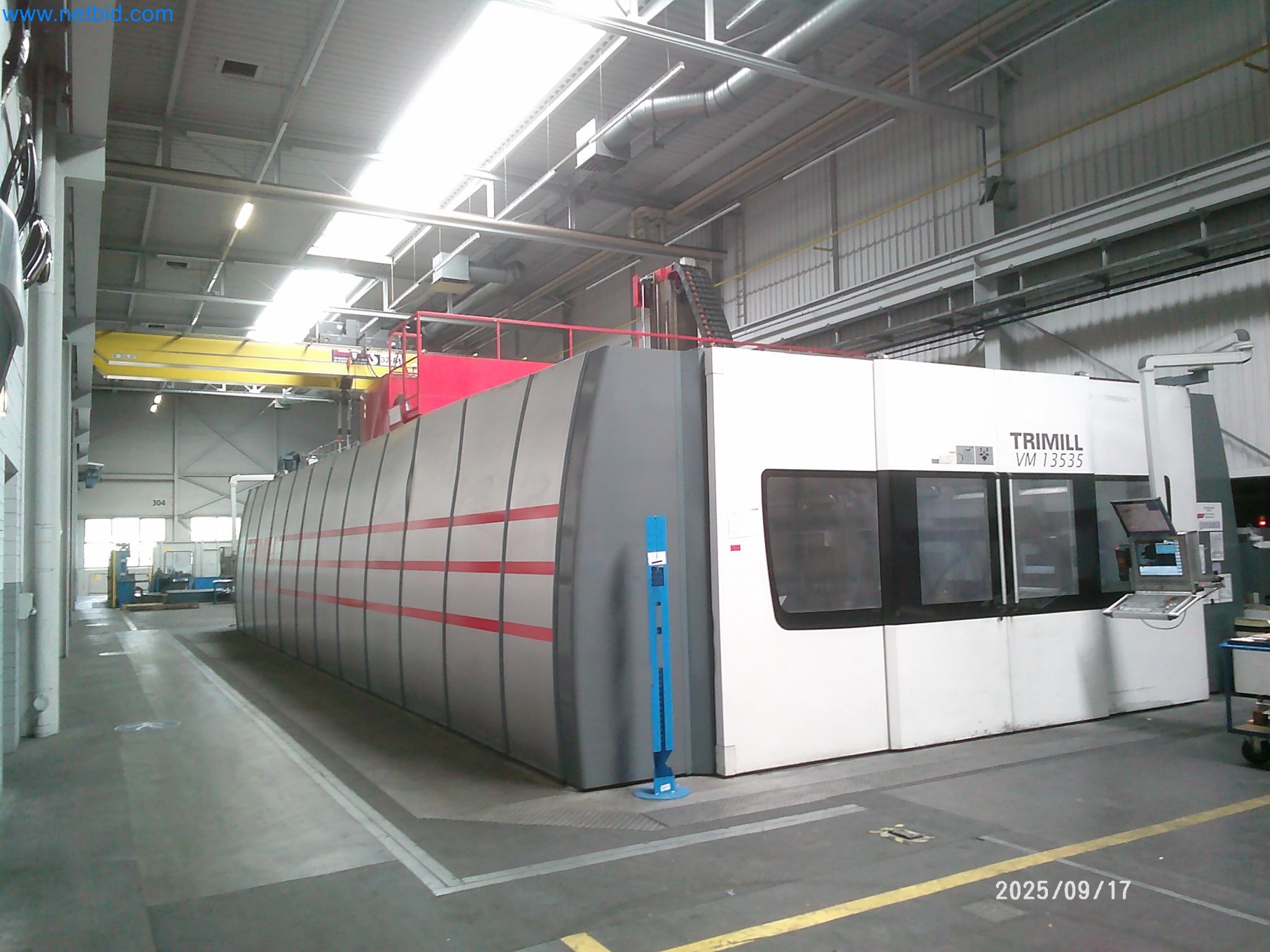

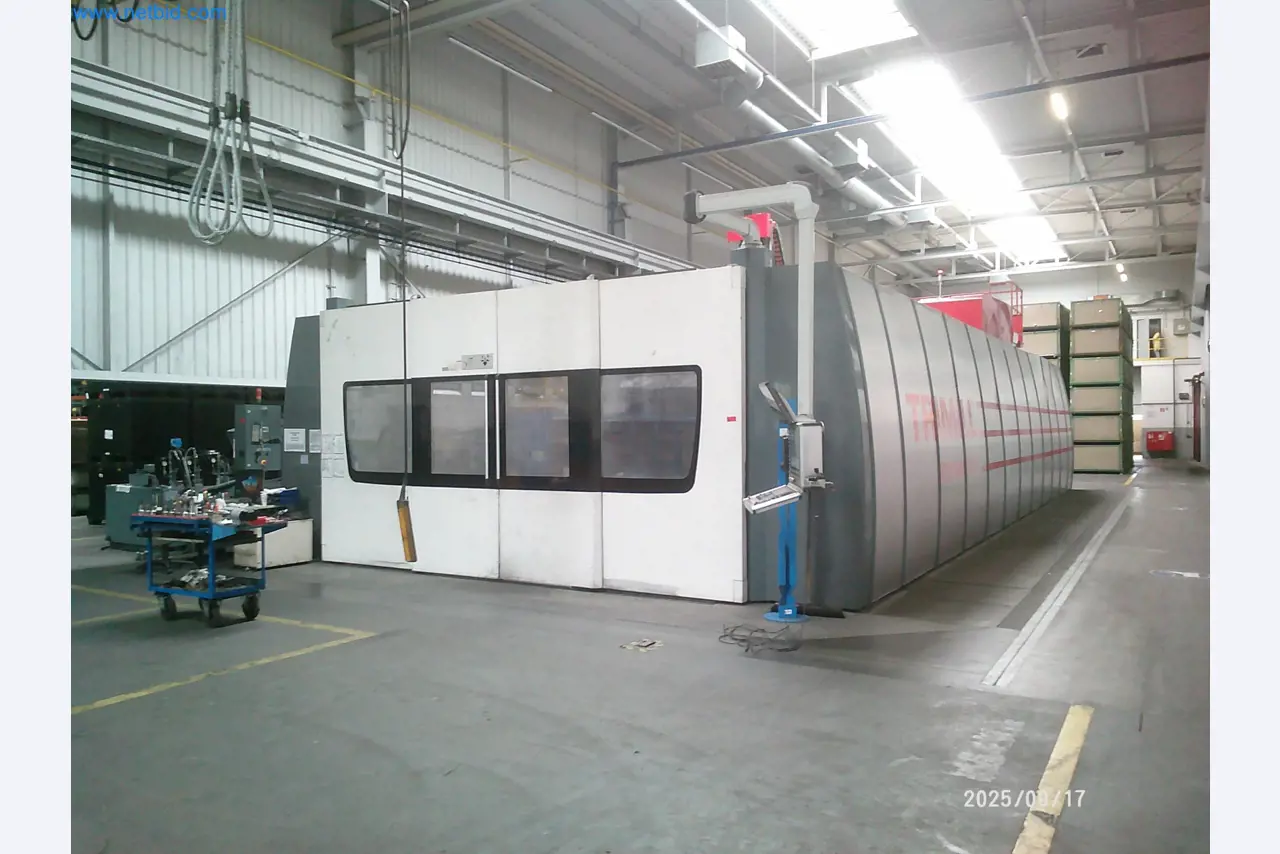

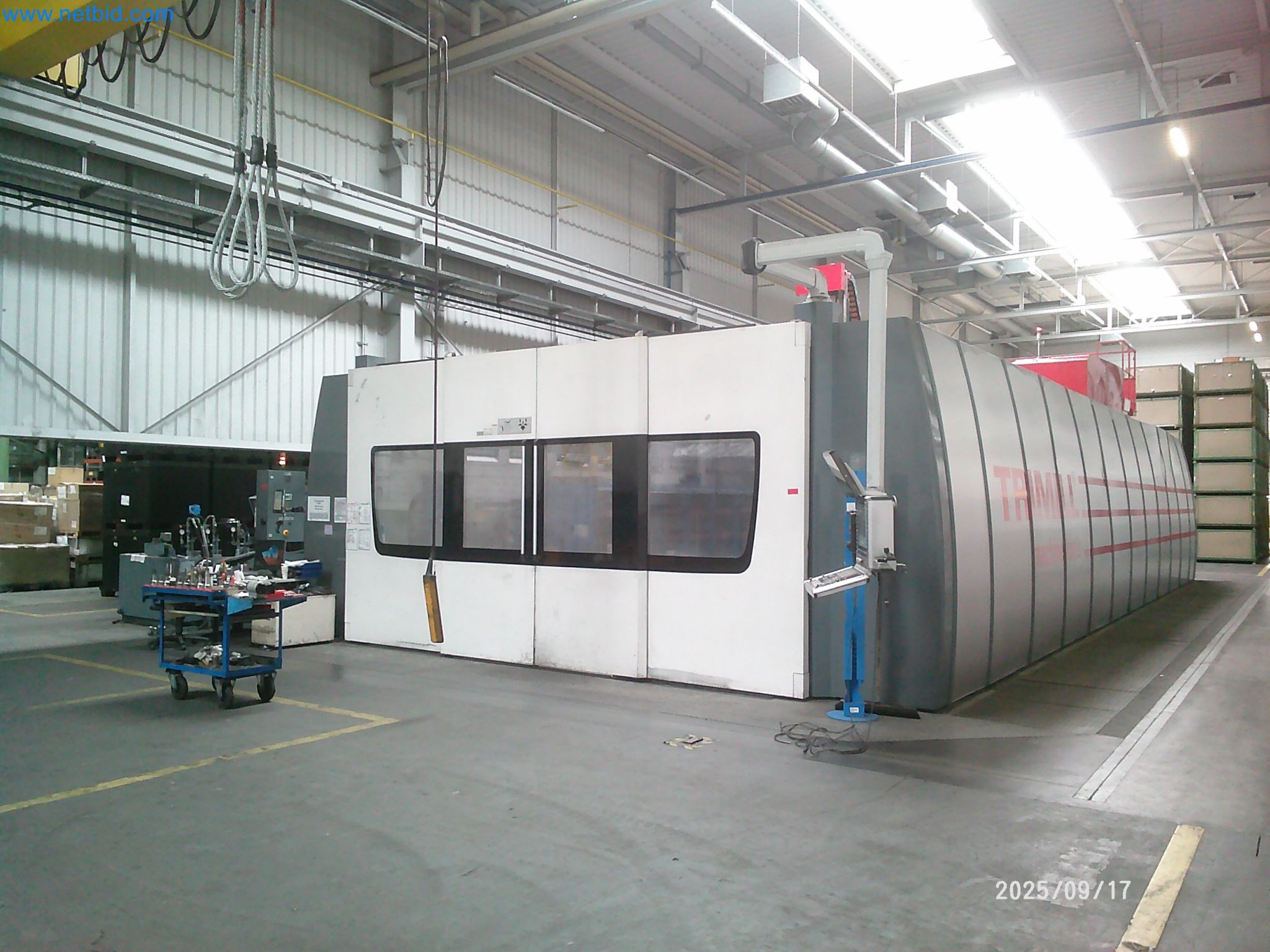

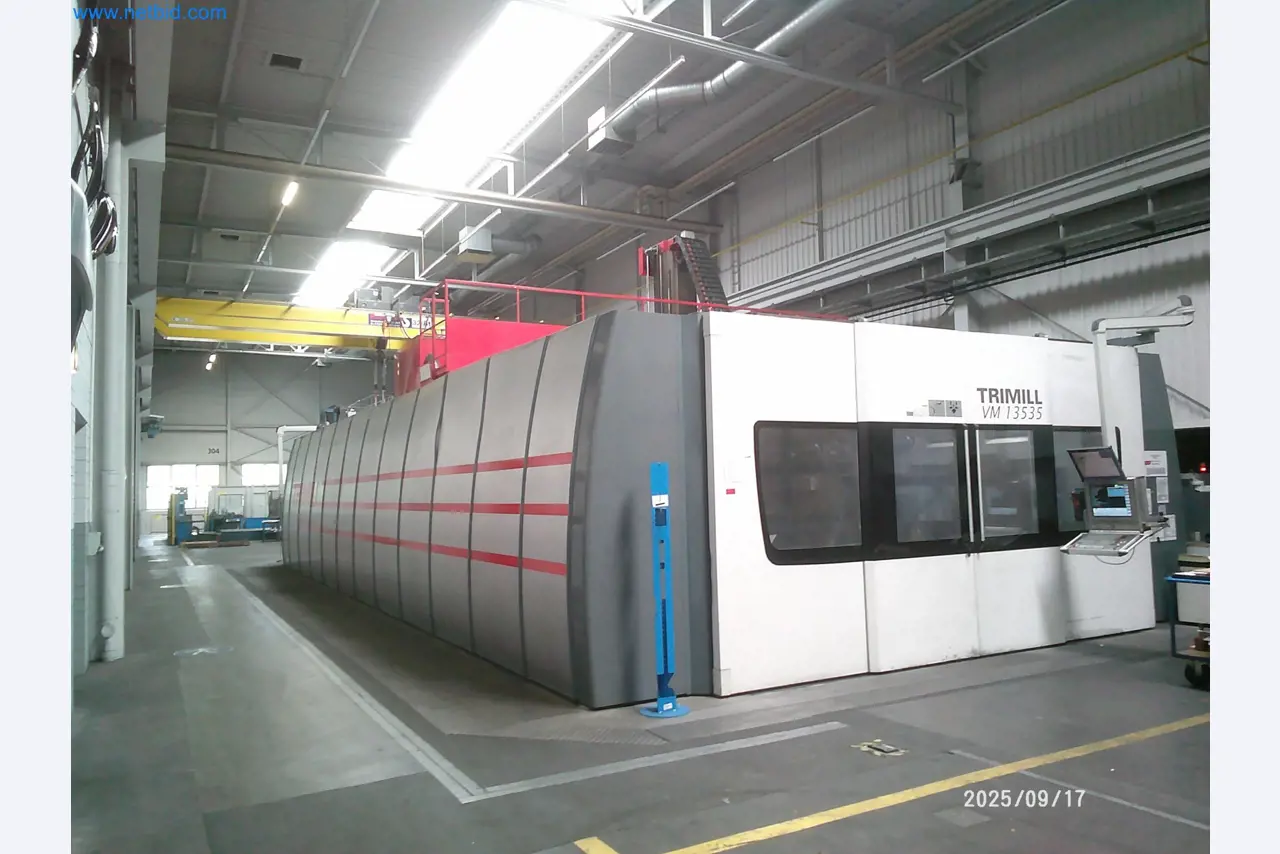

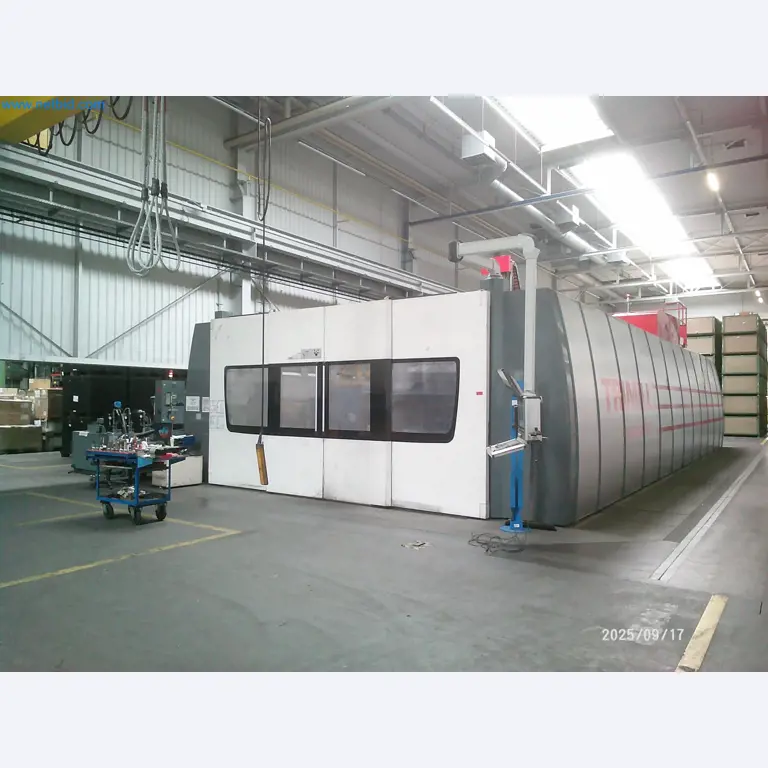

CNC portal milling center Trimill VM13535AUCTION#19138-2432
Details
Product Type
Trimill
Type
VM13535
Construction Year
2014
Description

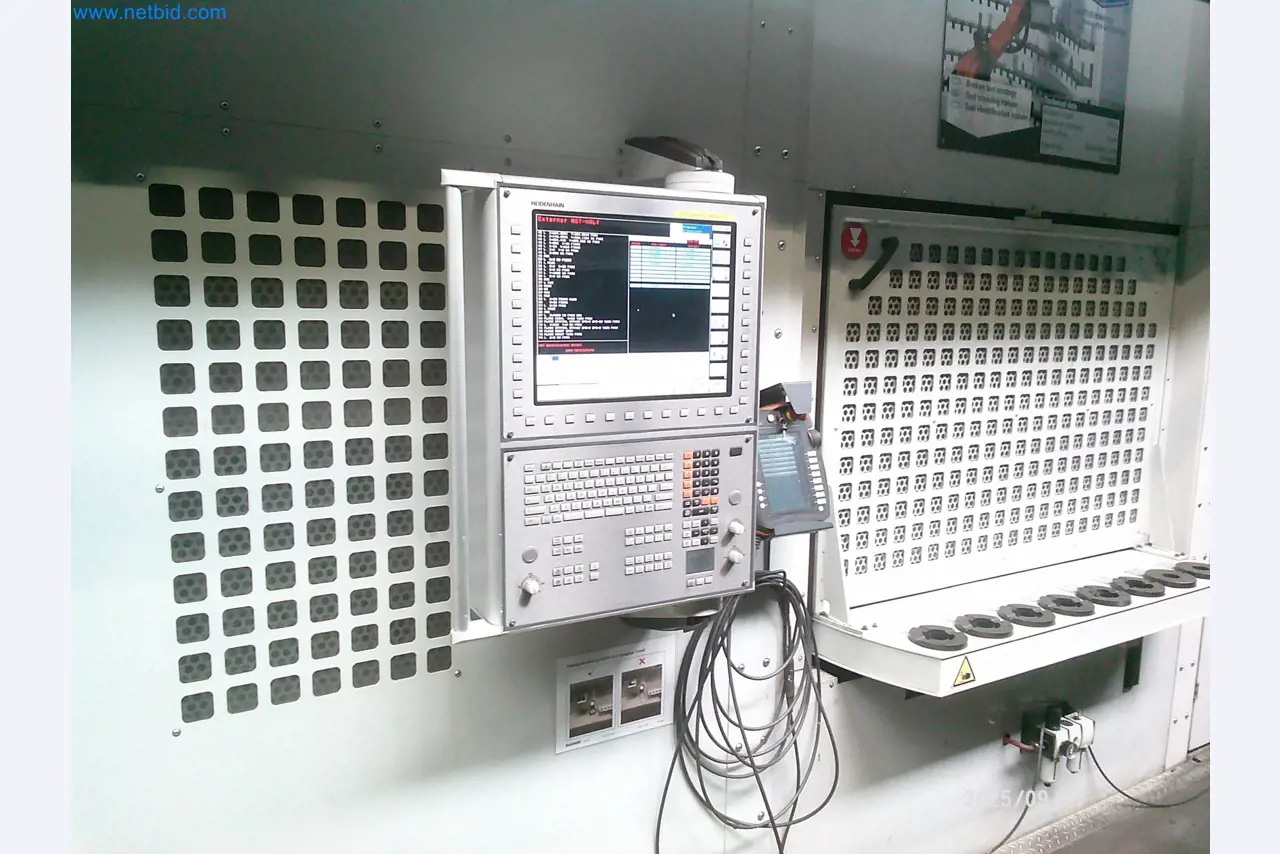

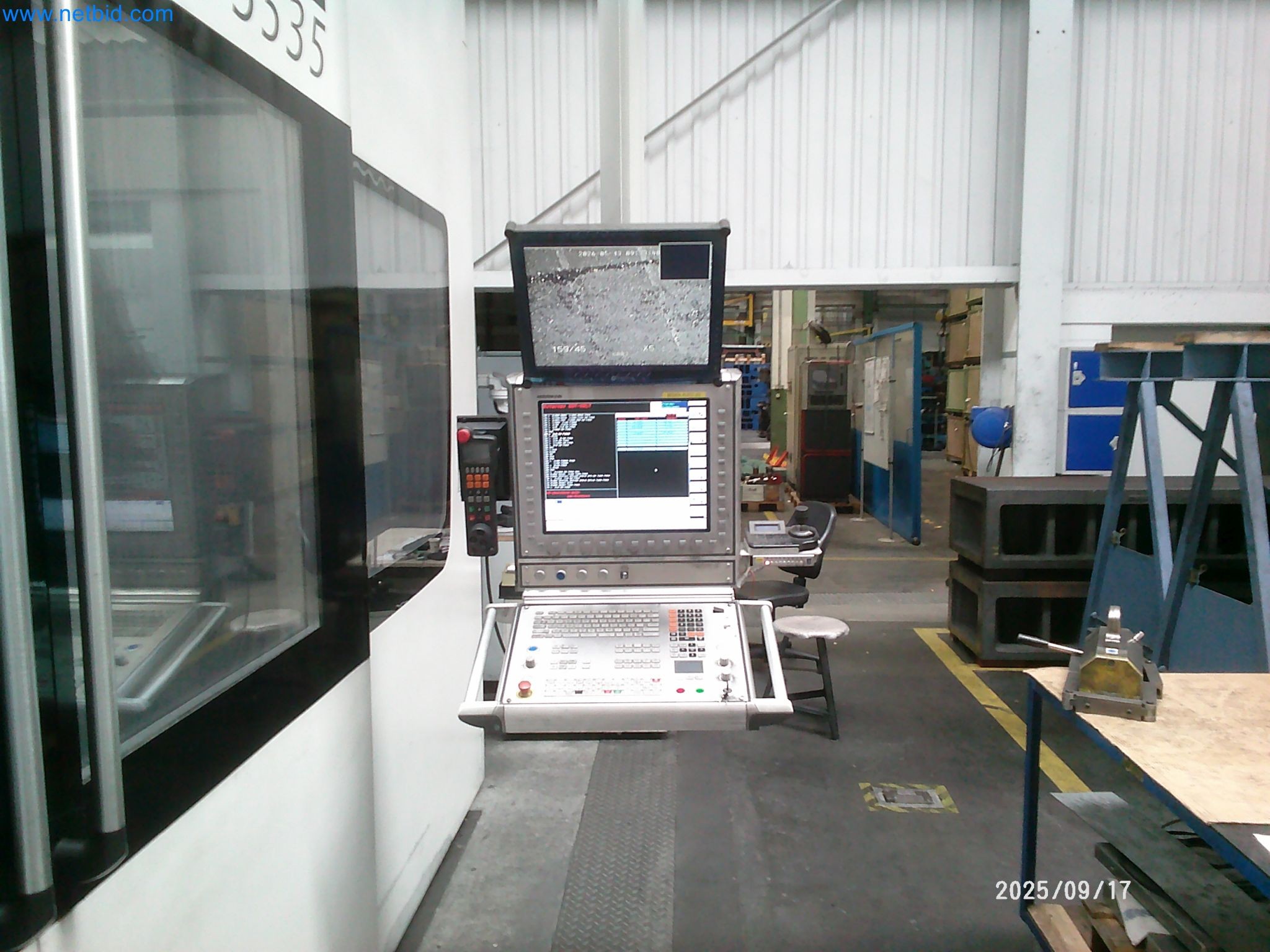

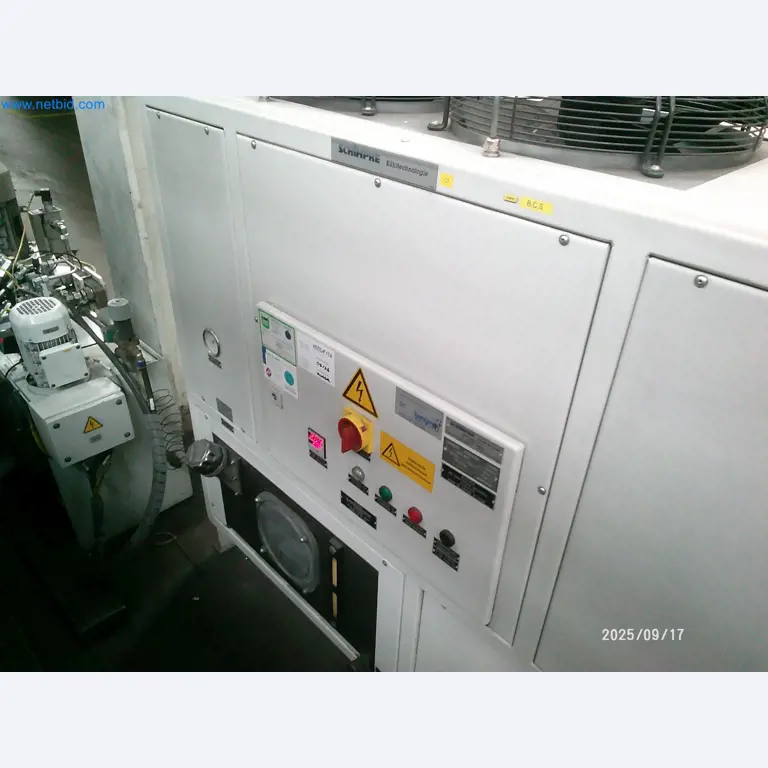

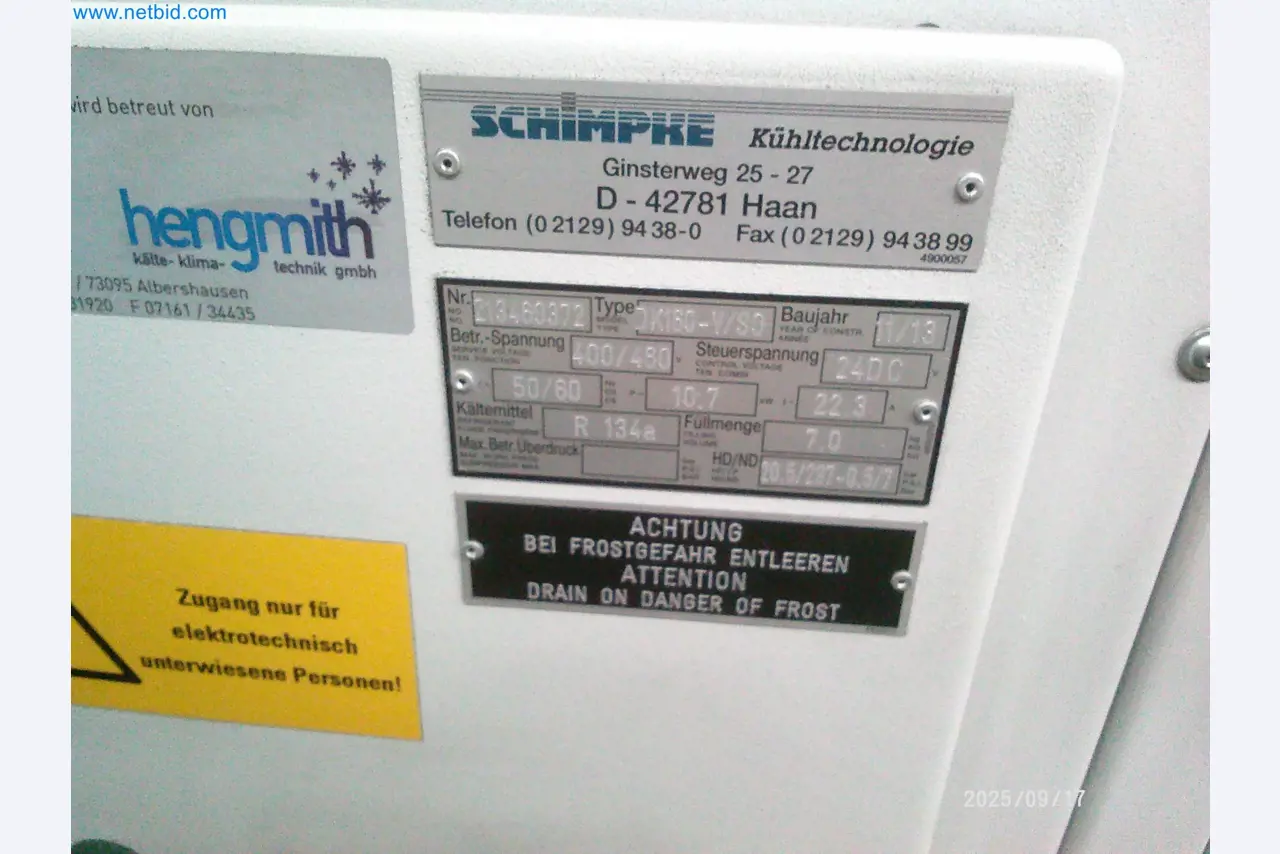

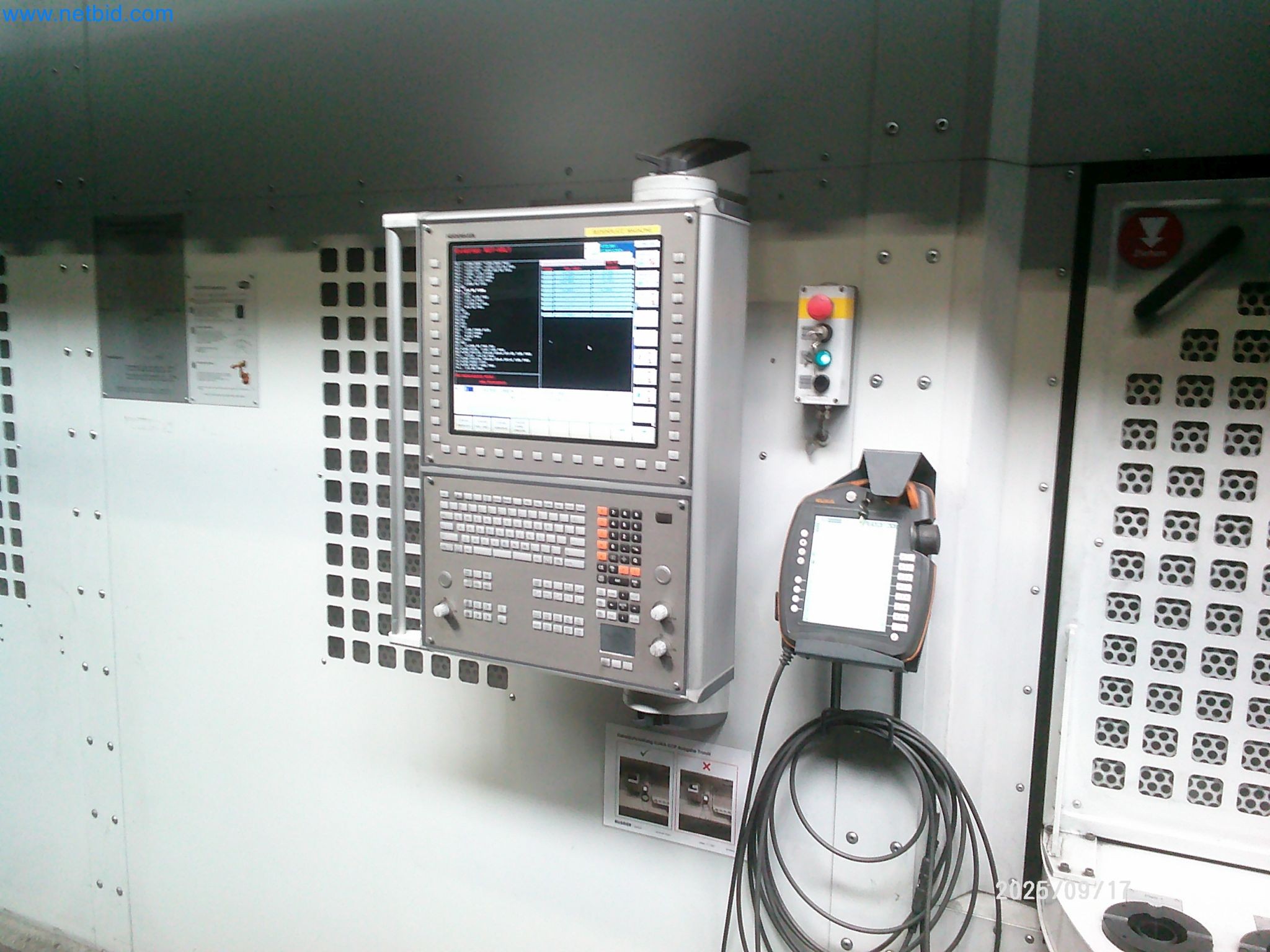

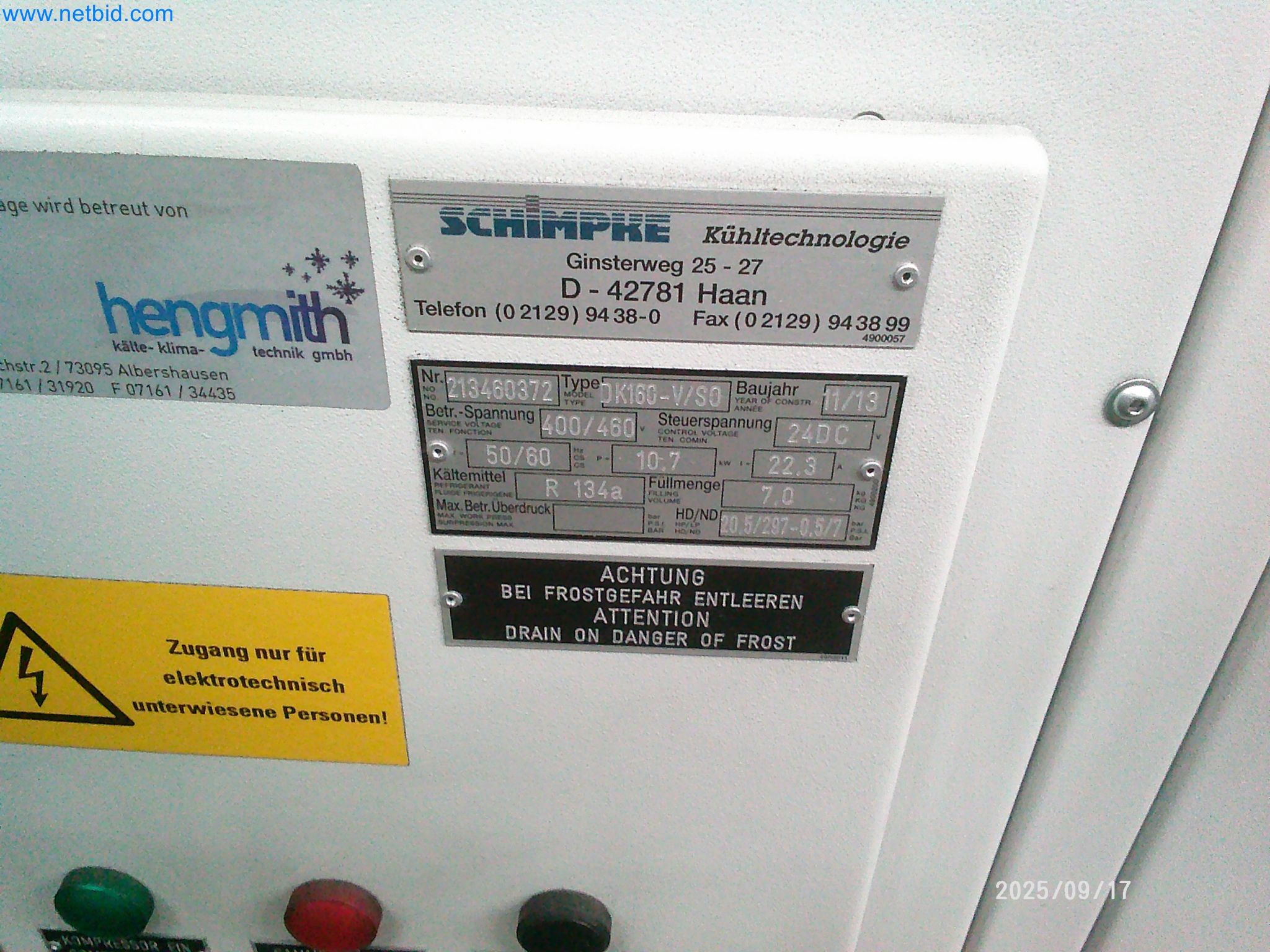

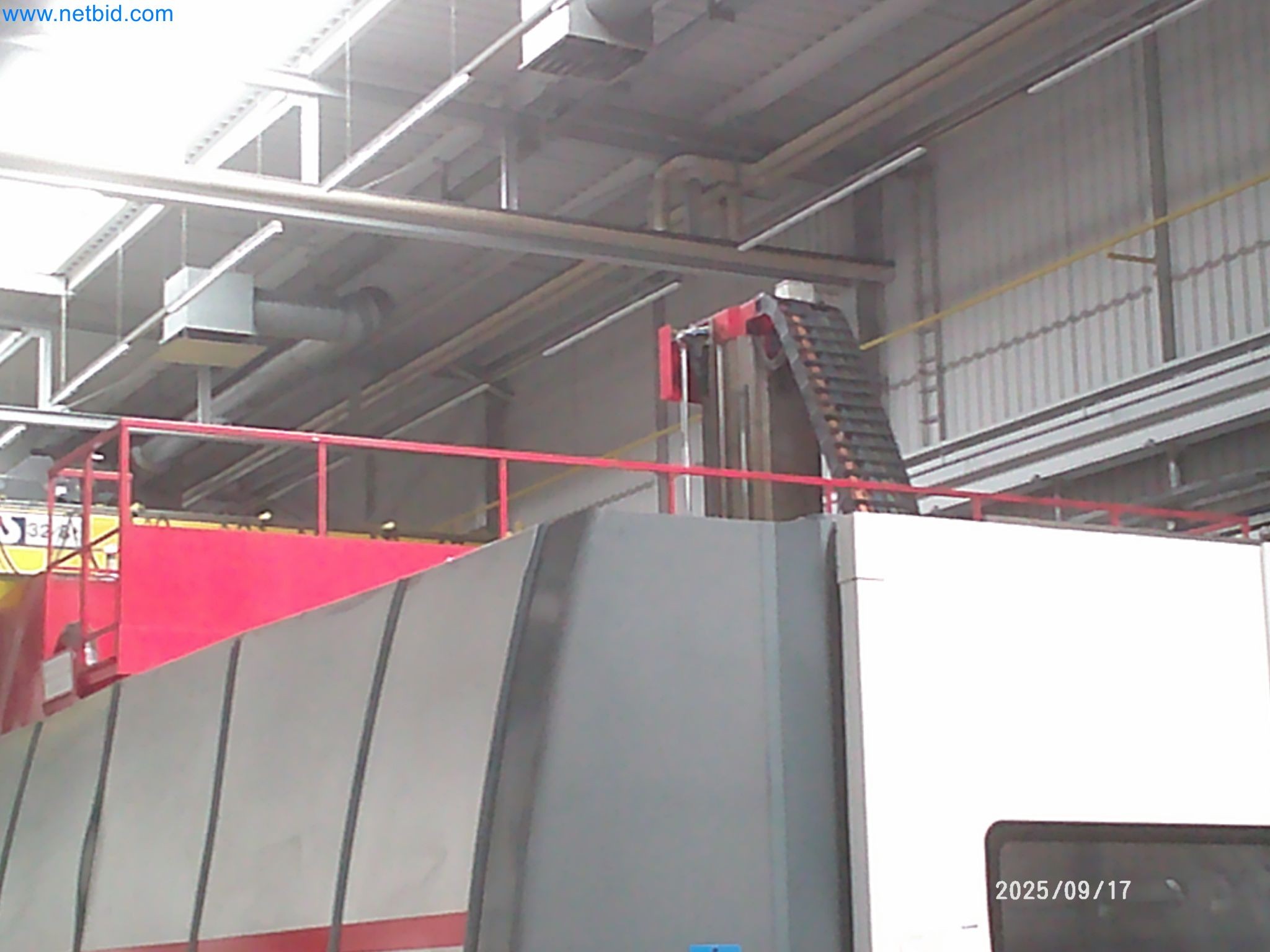

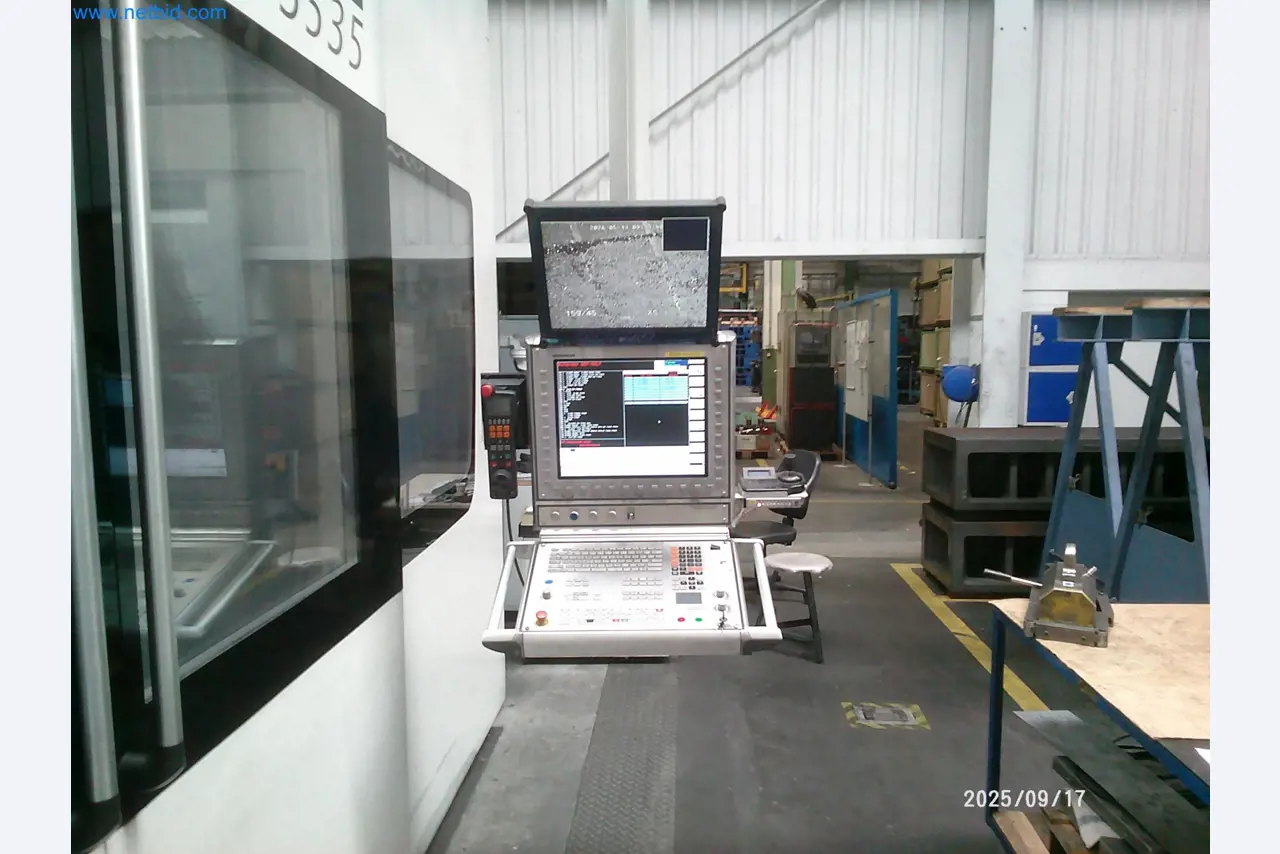

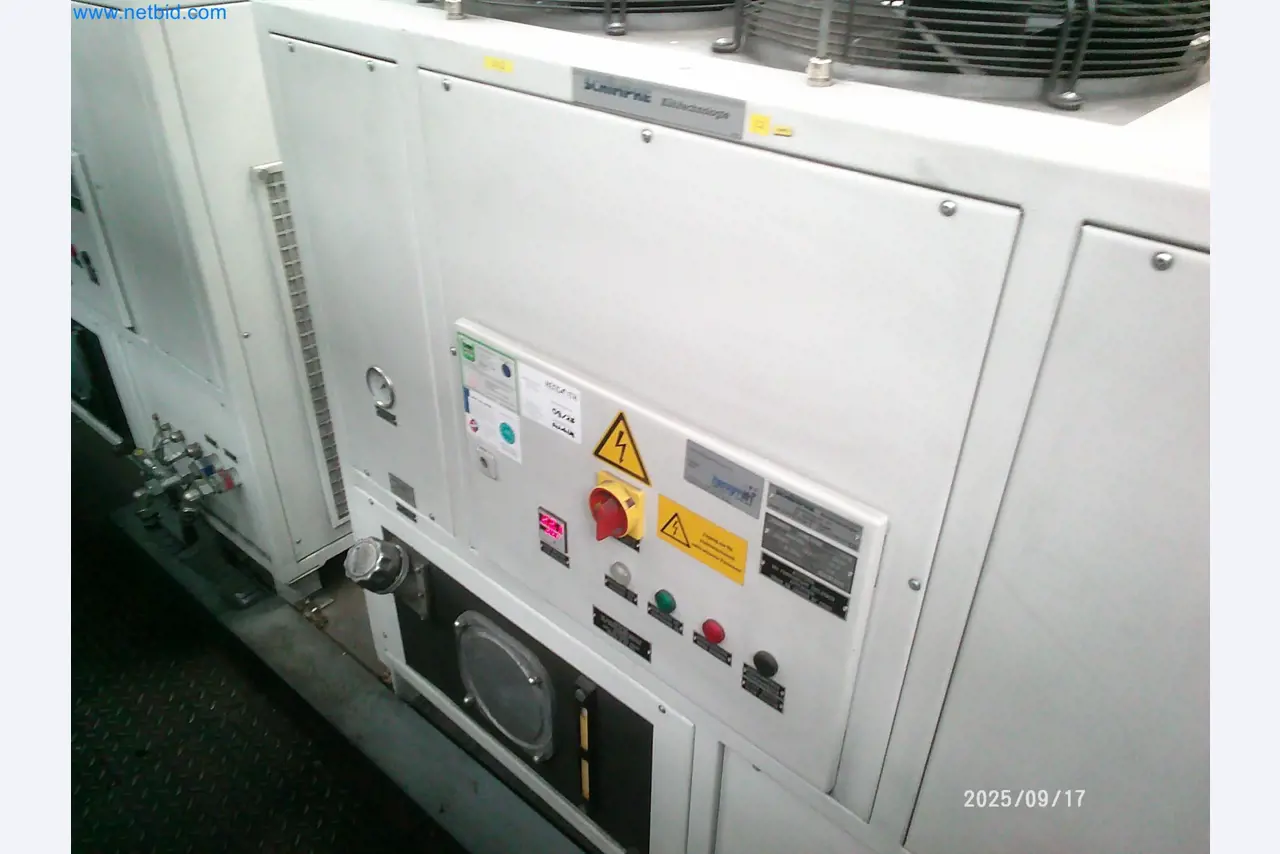

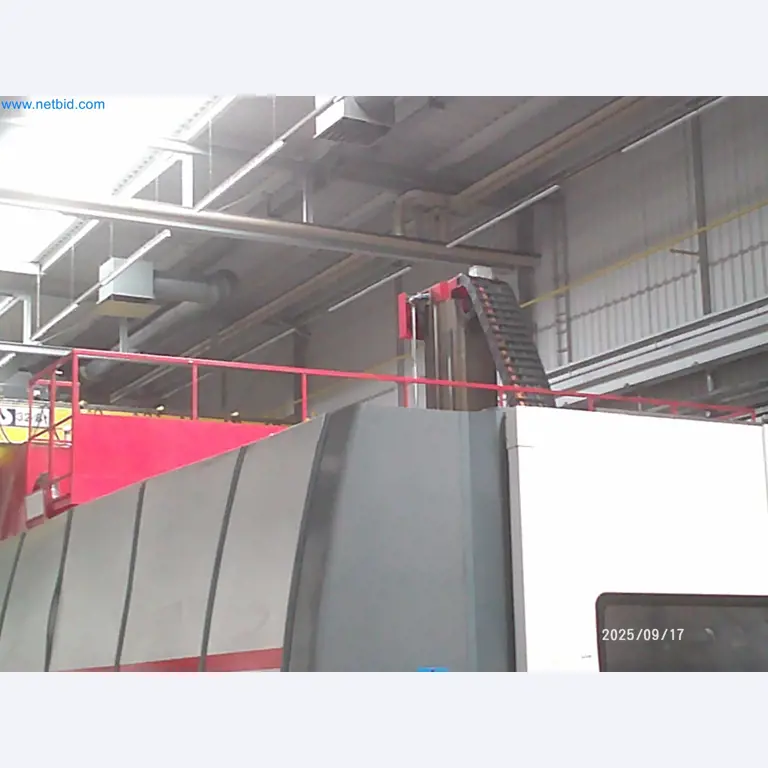

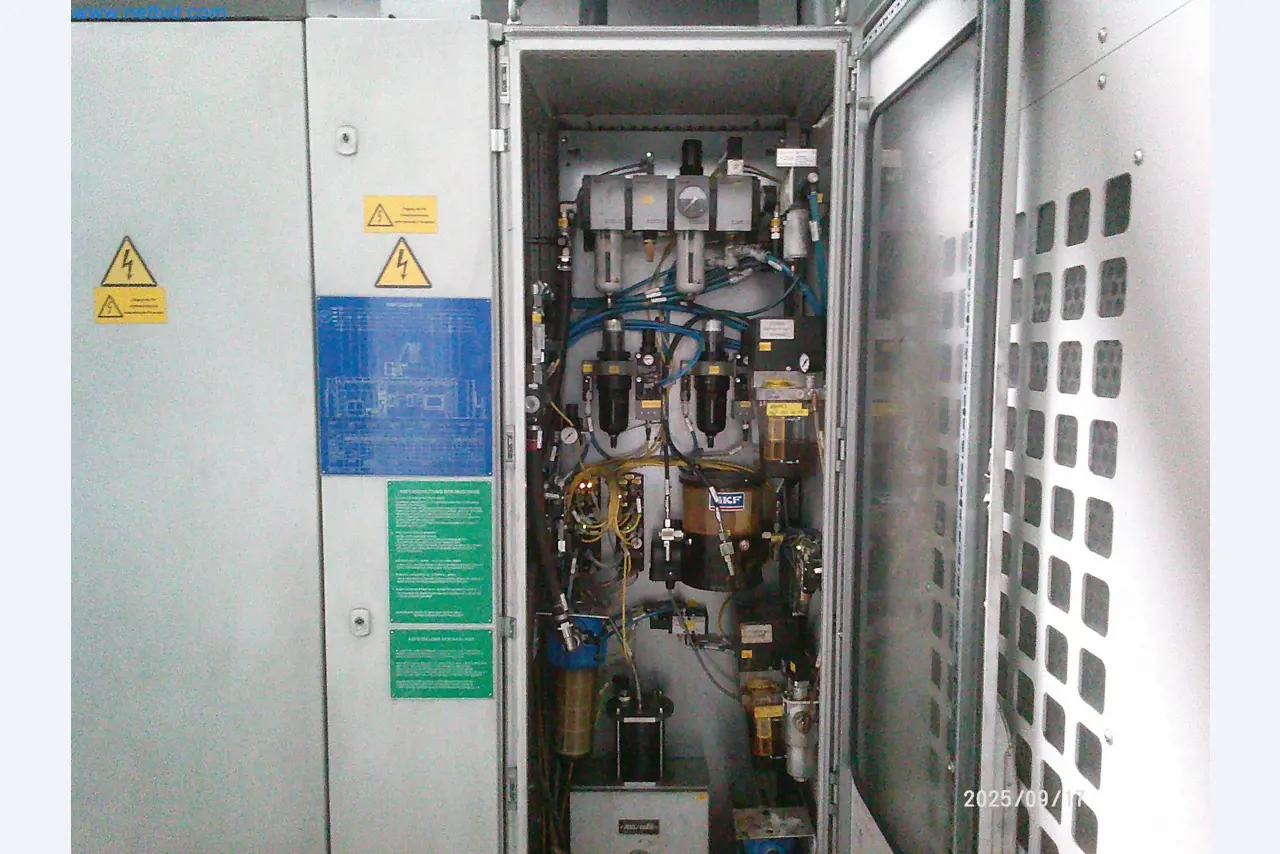

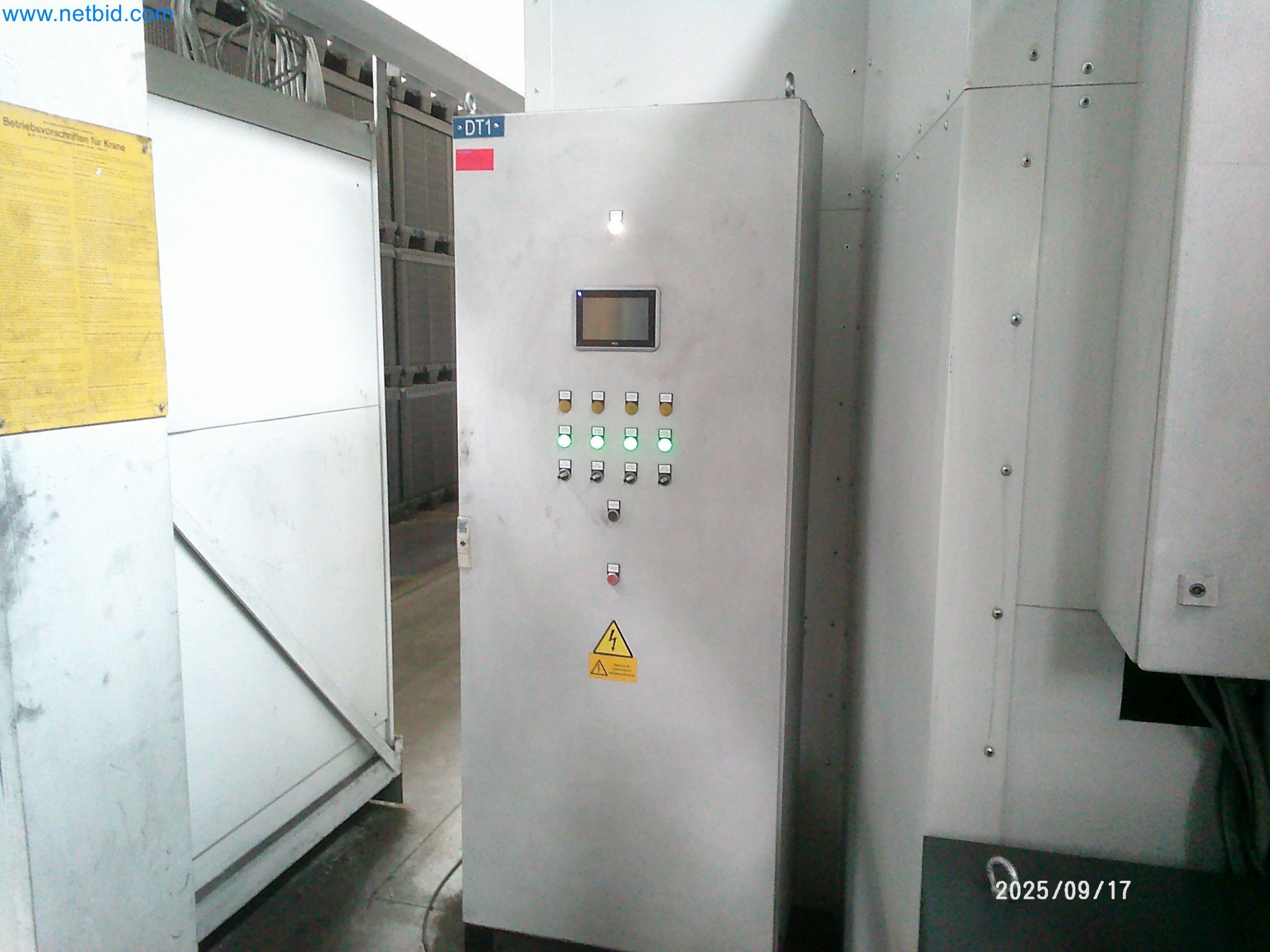

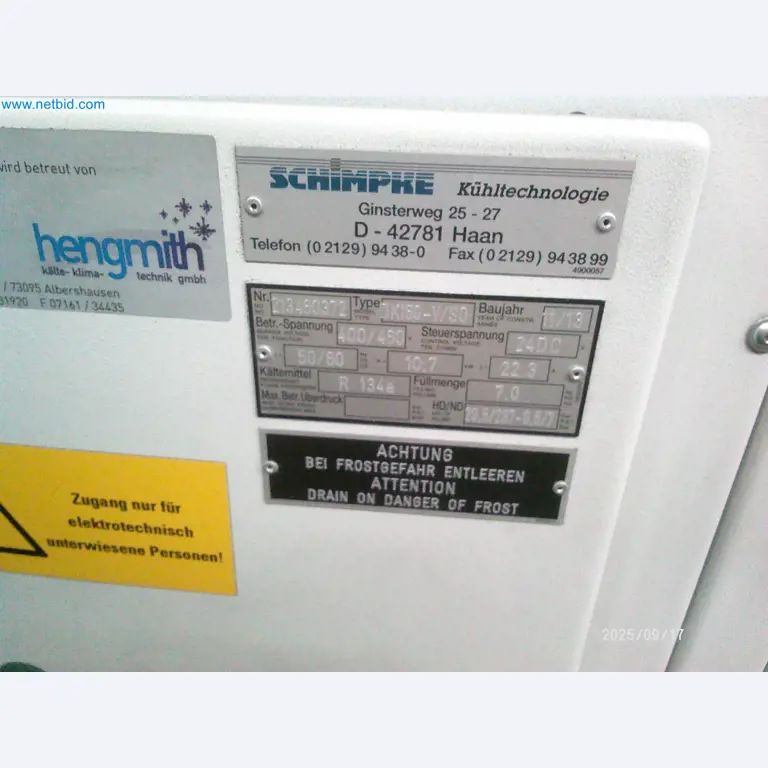

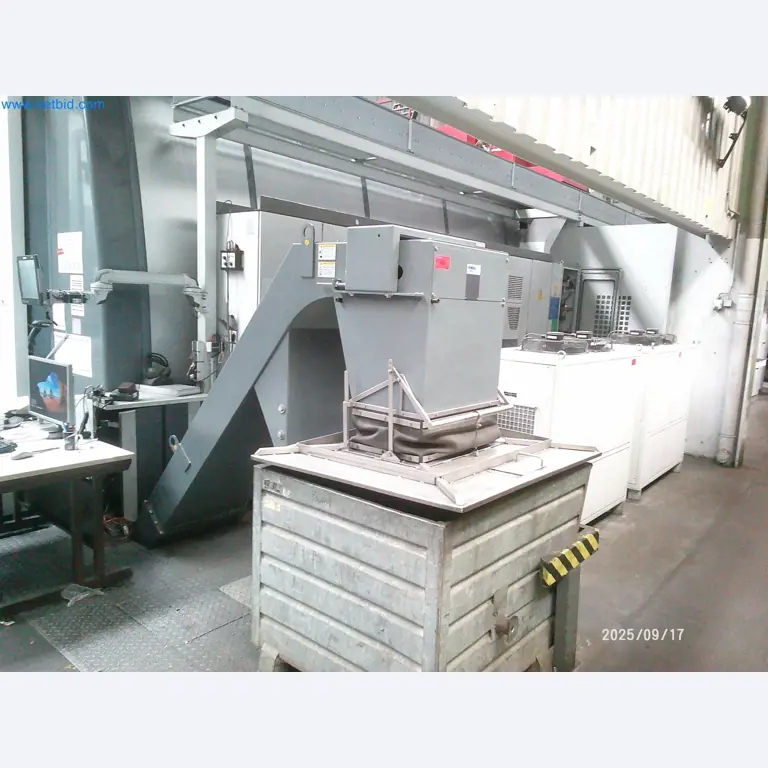

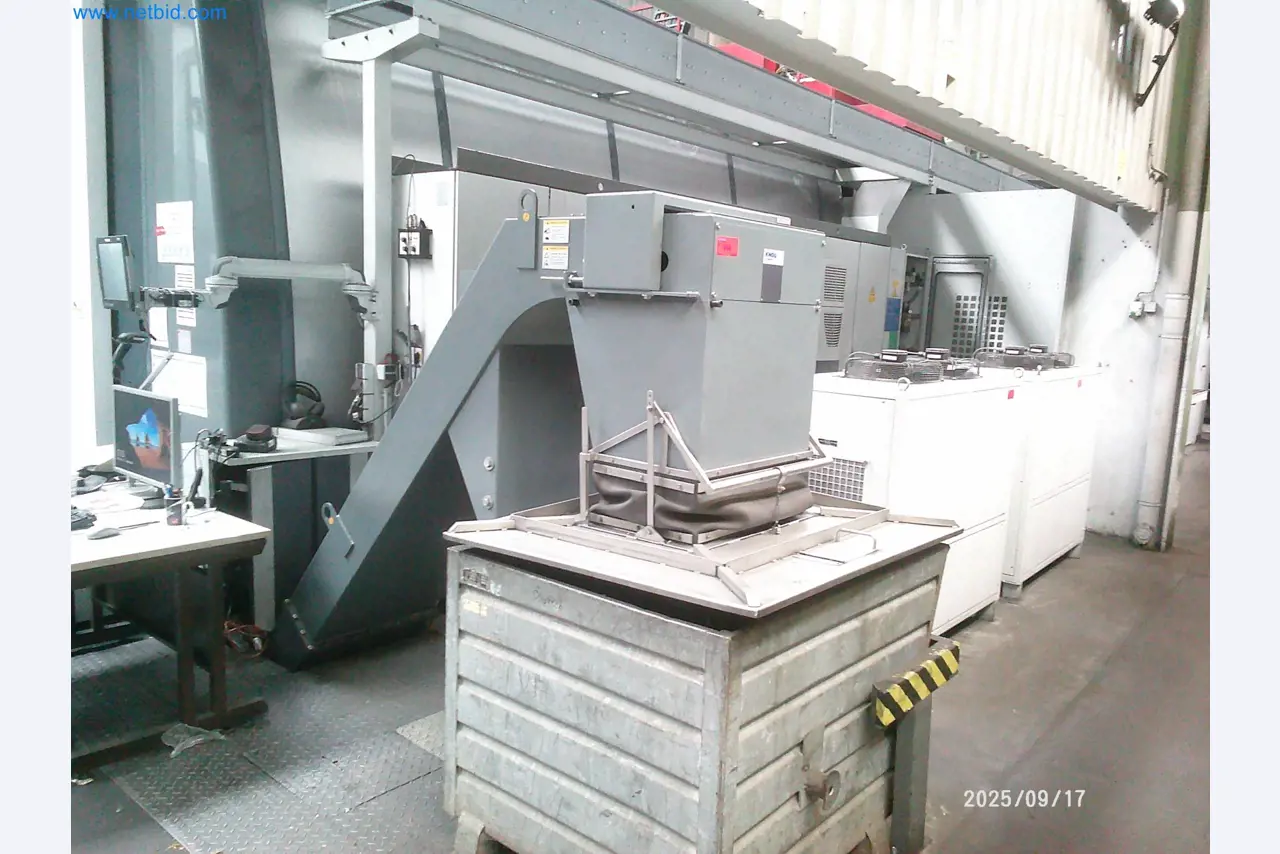

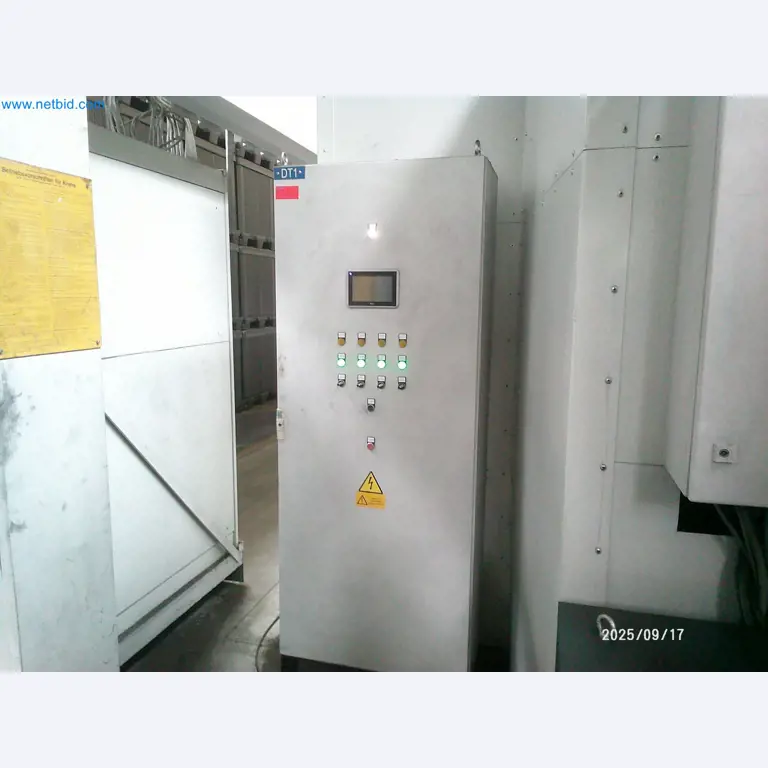

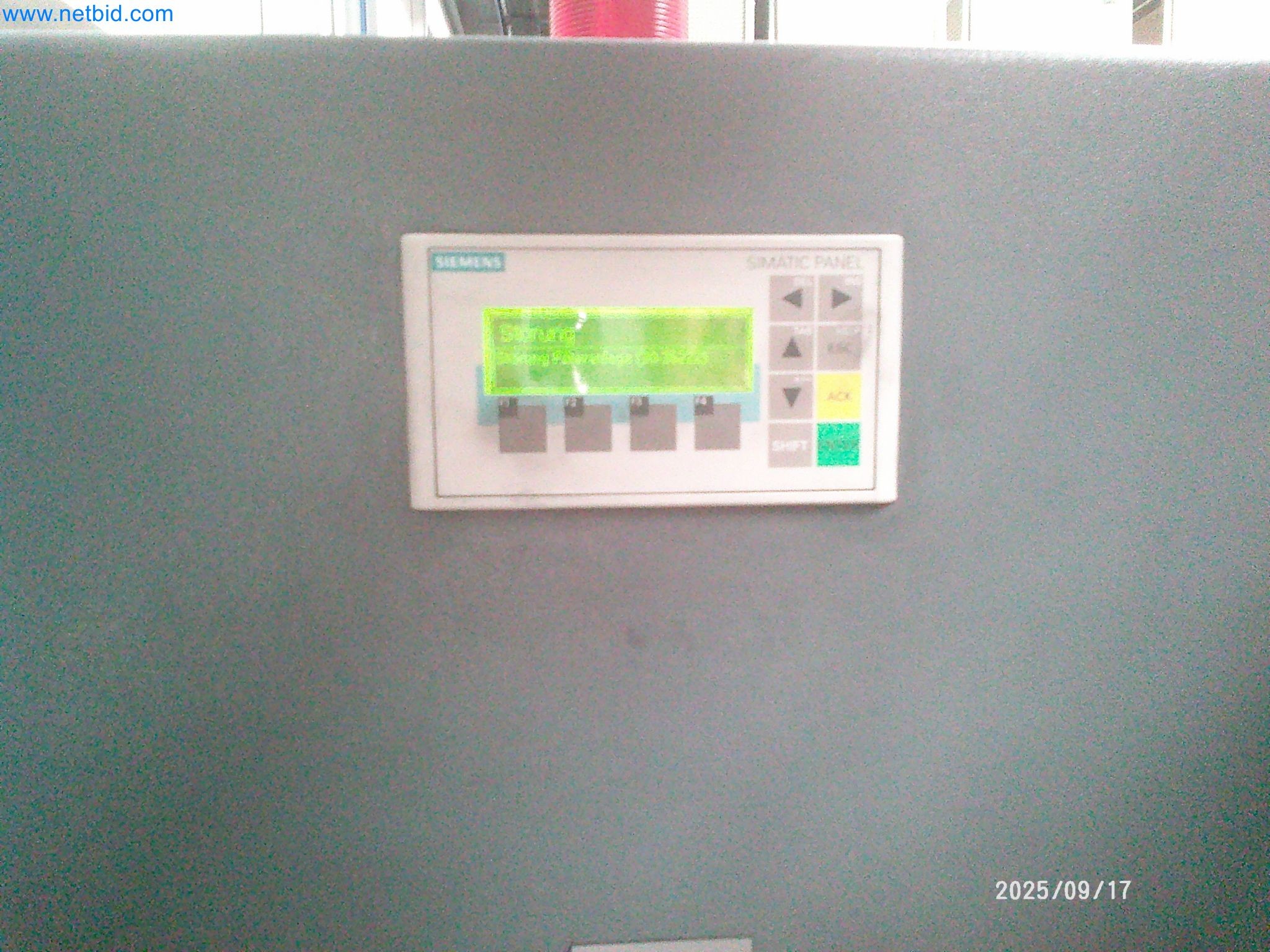

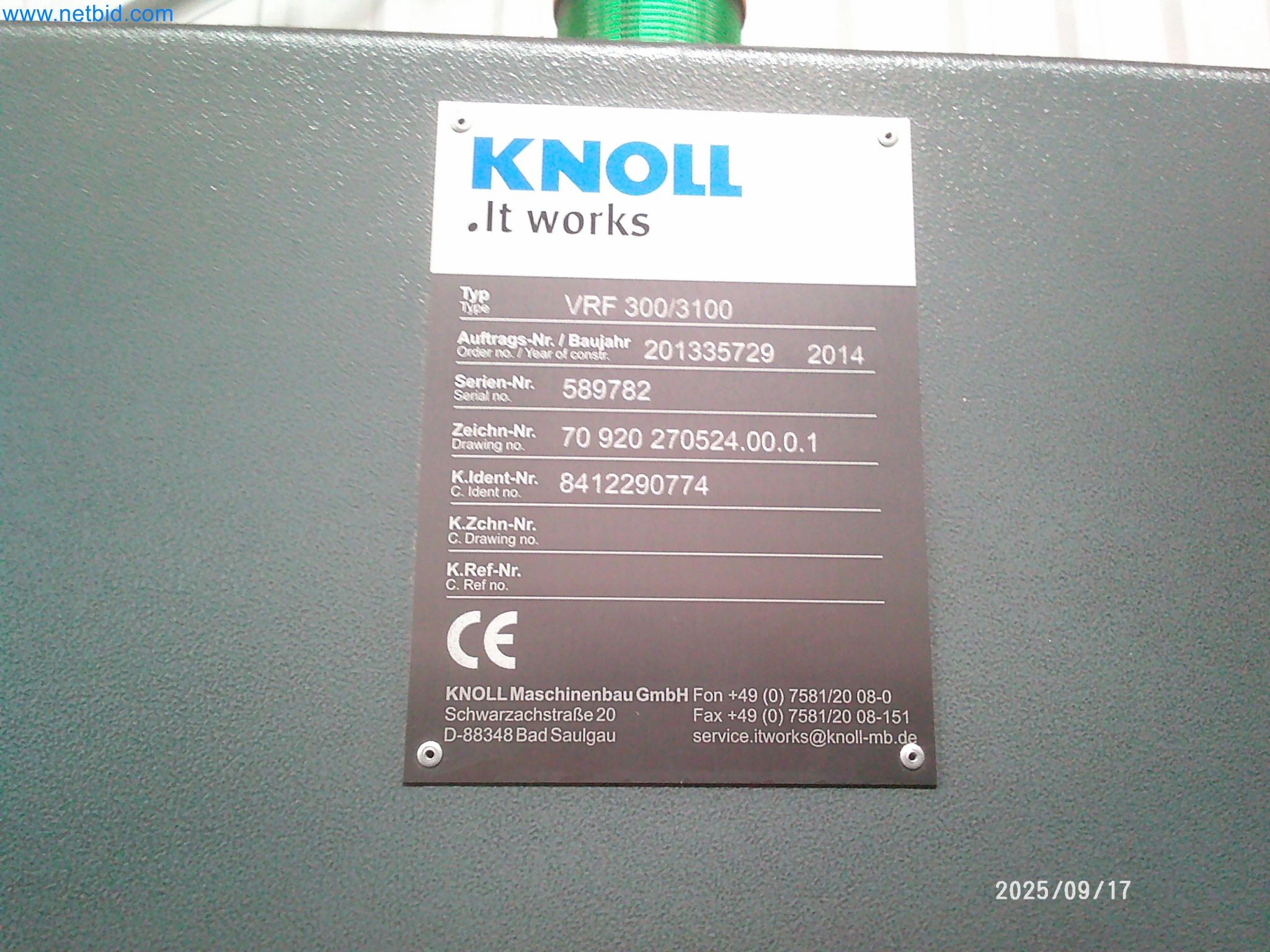

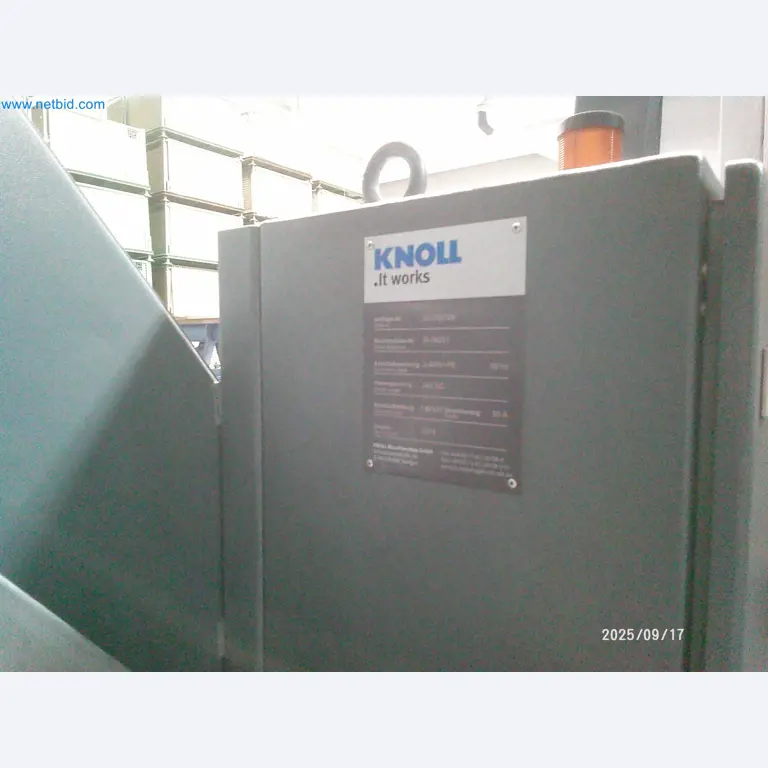

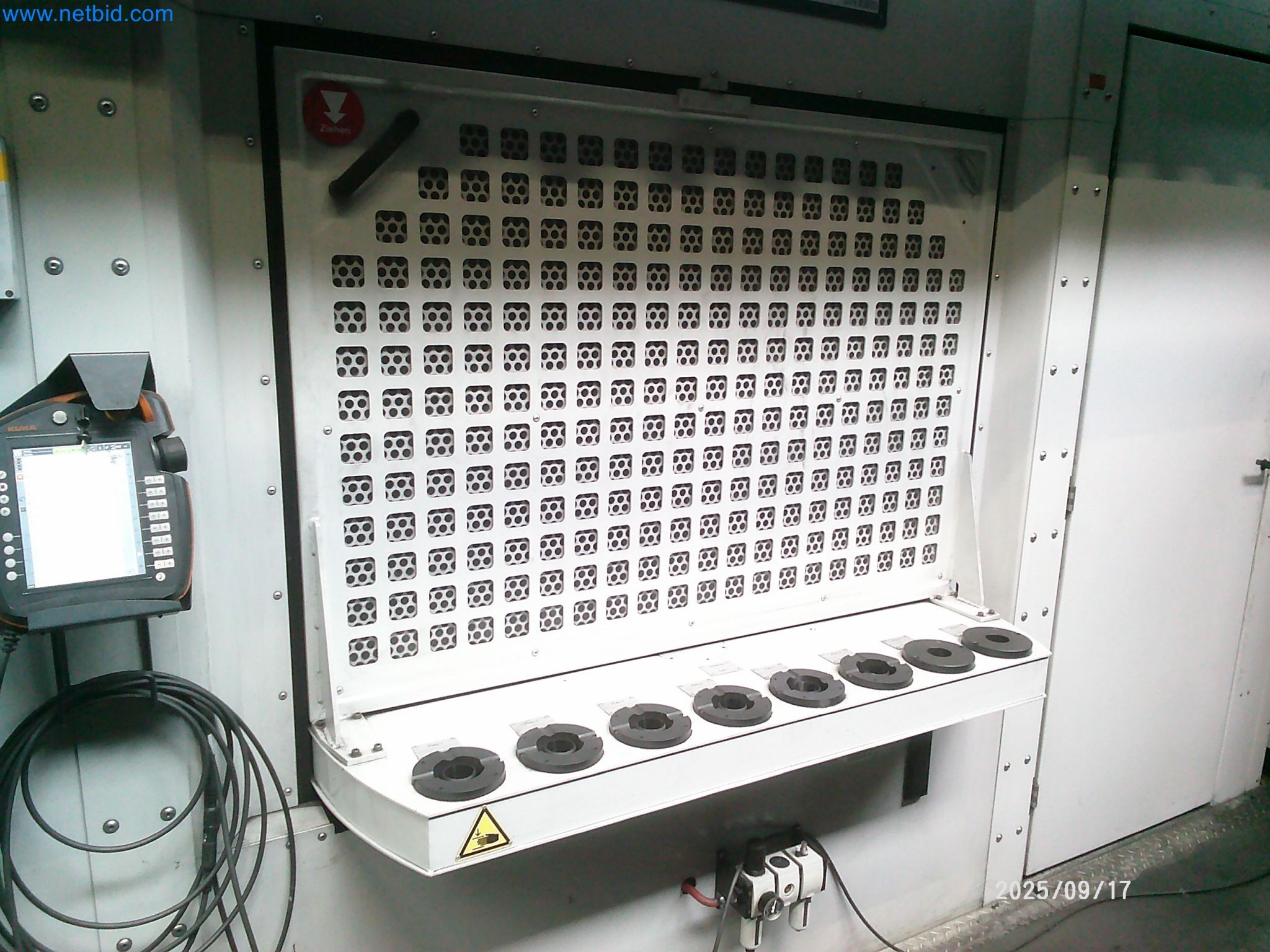

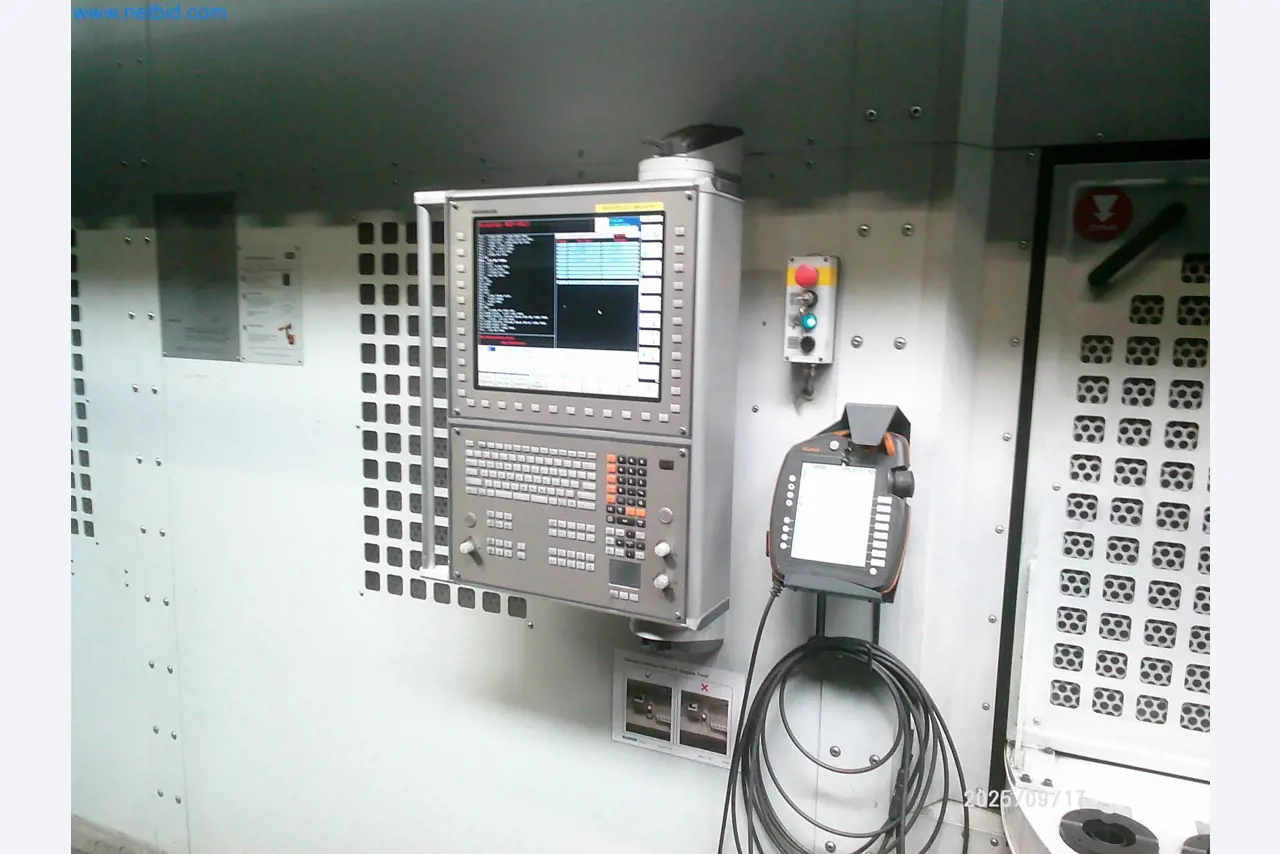

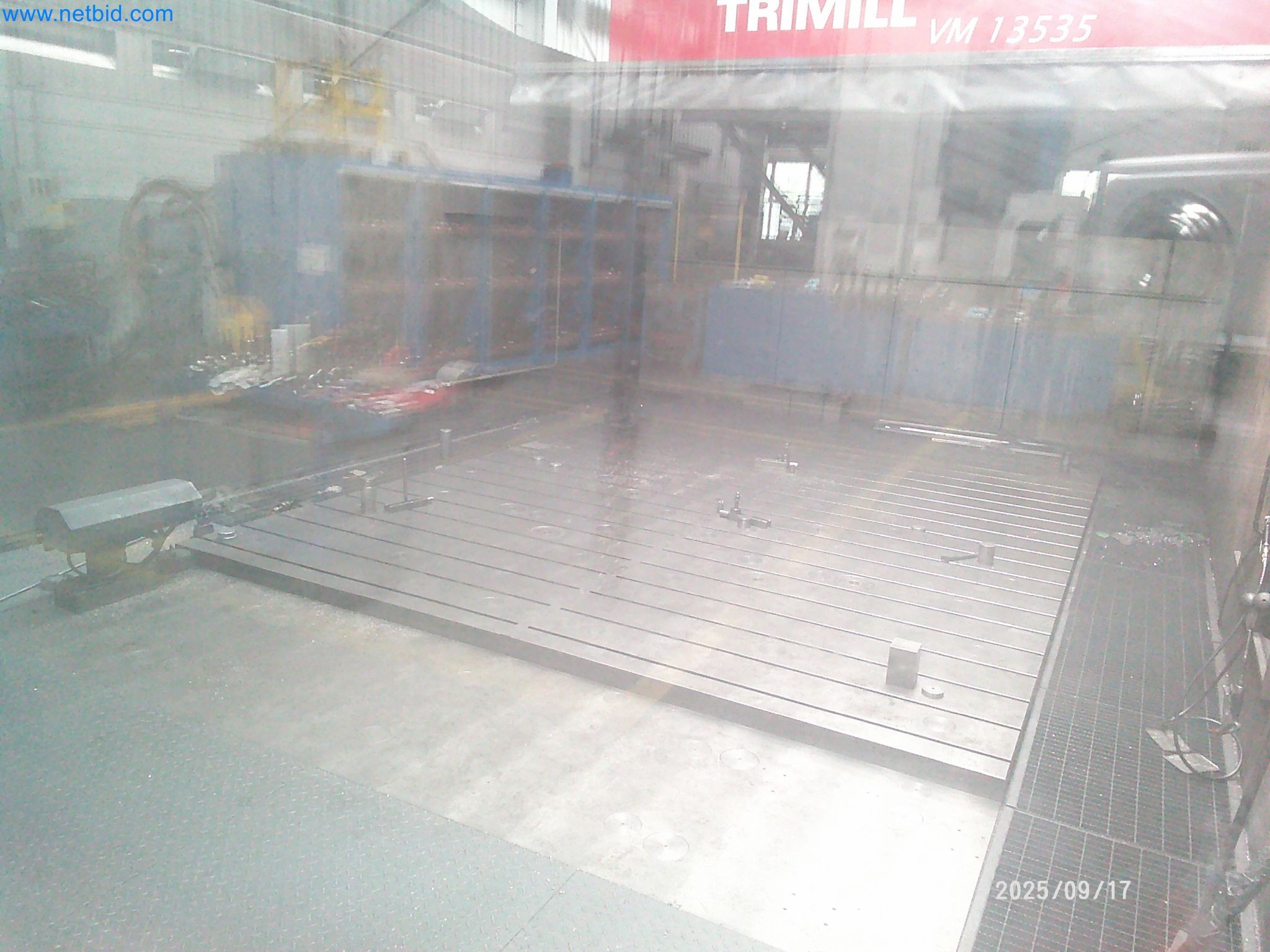

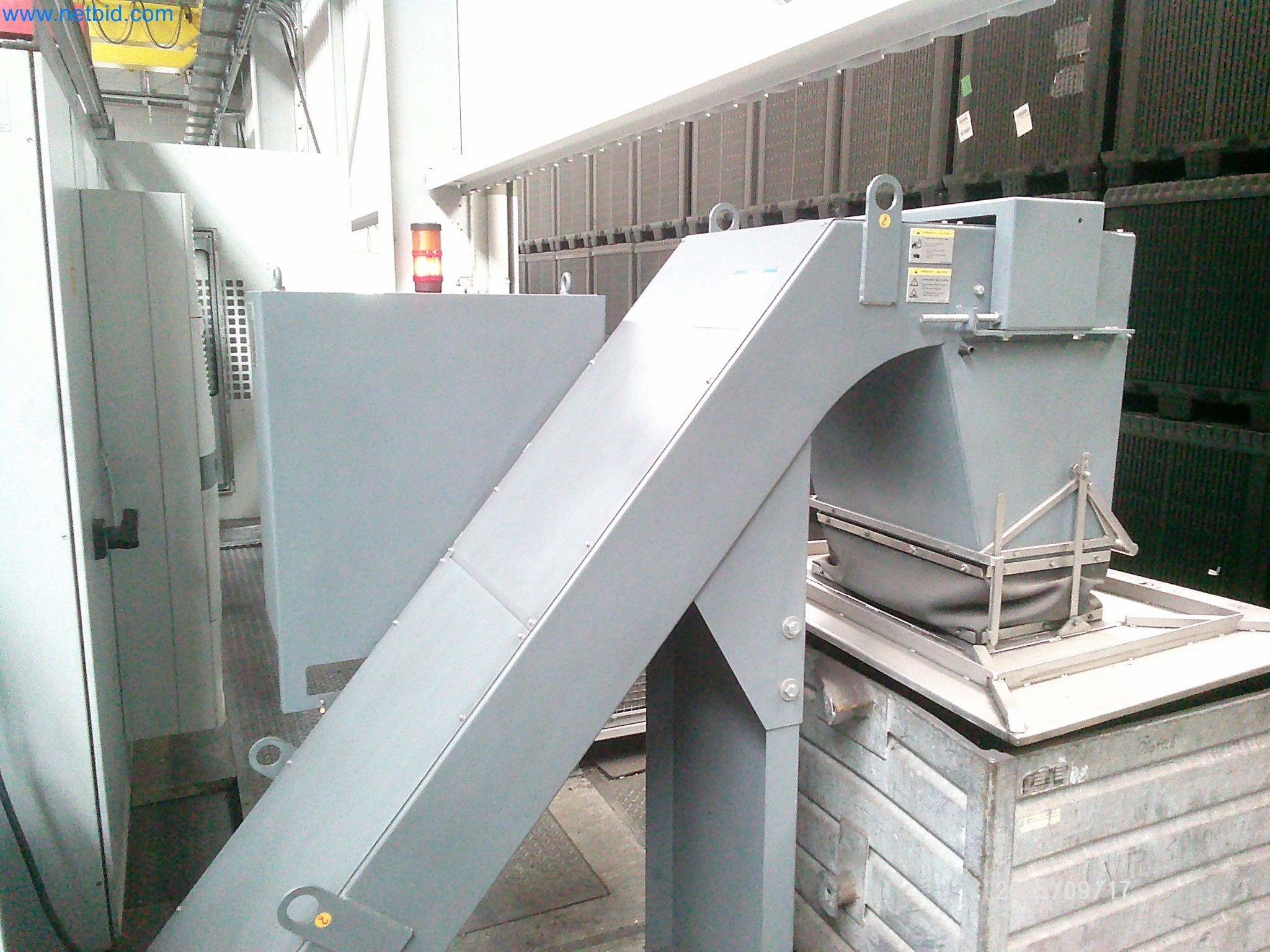

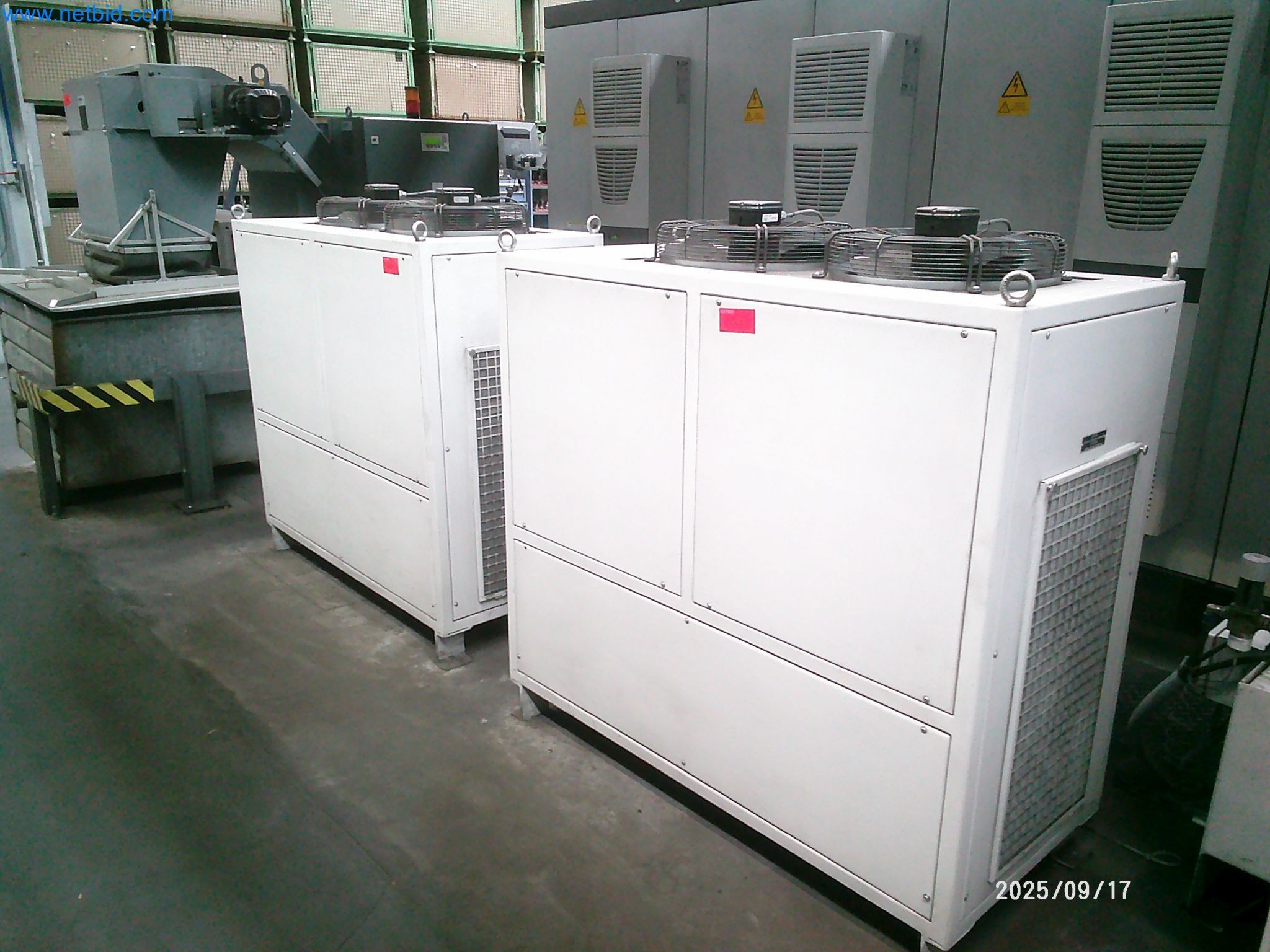

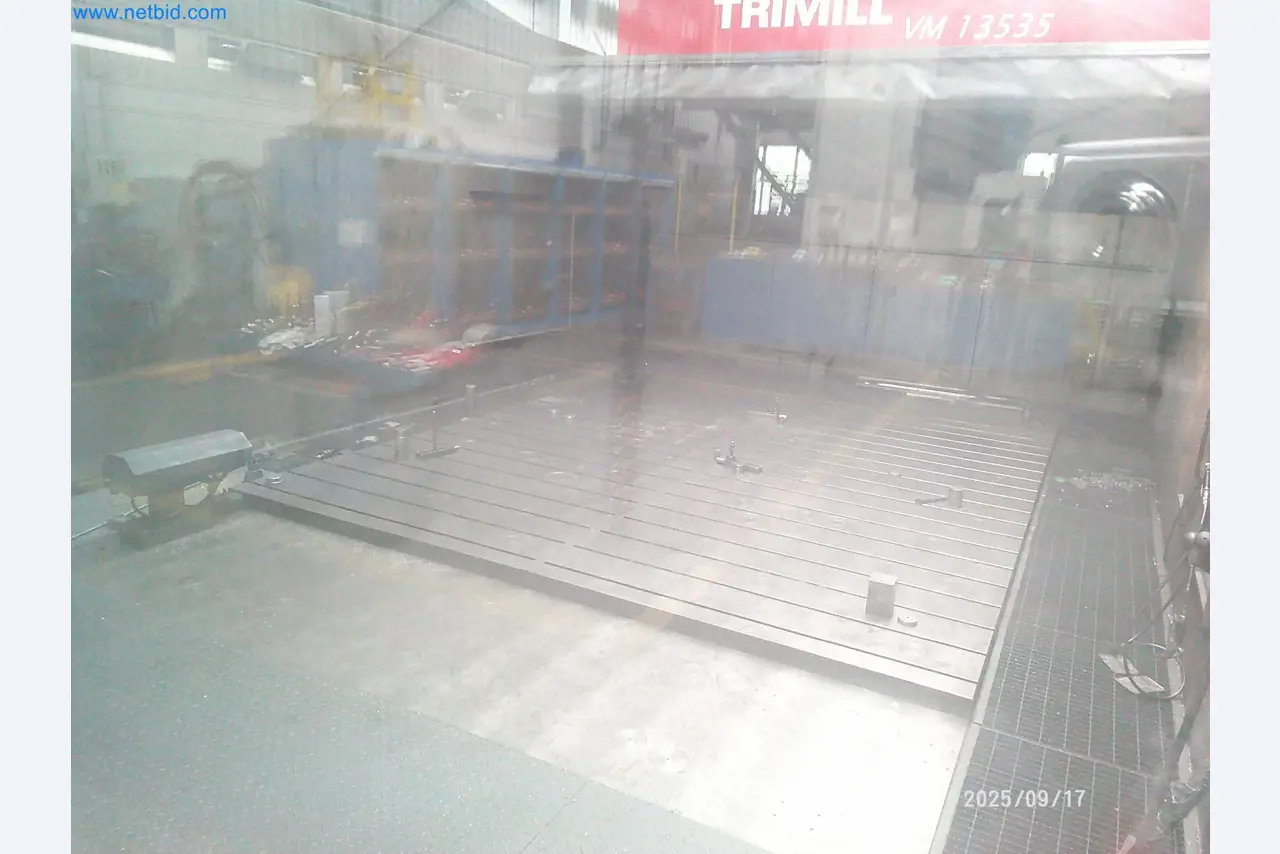

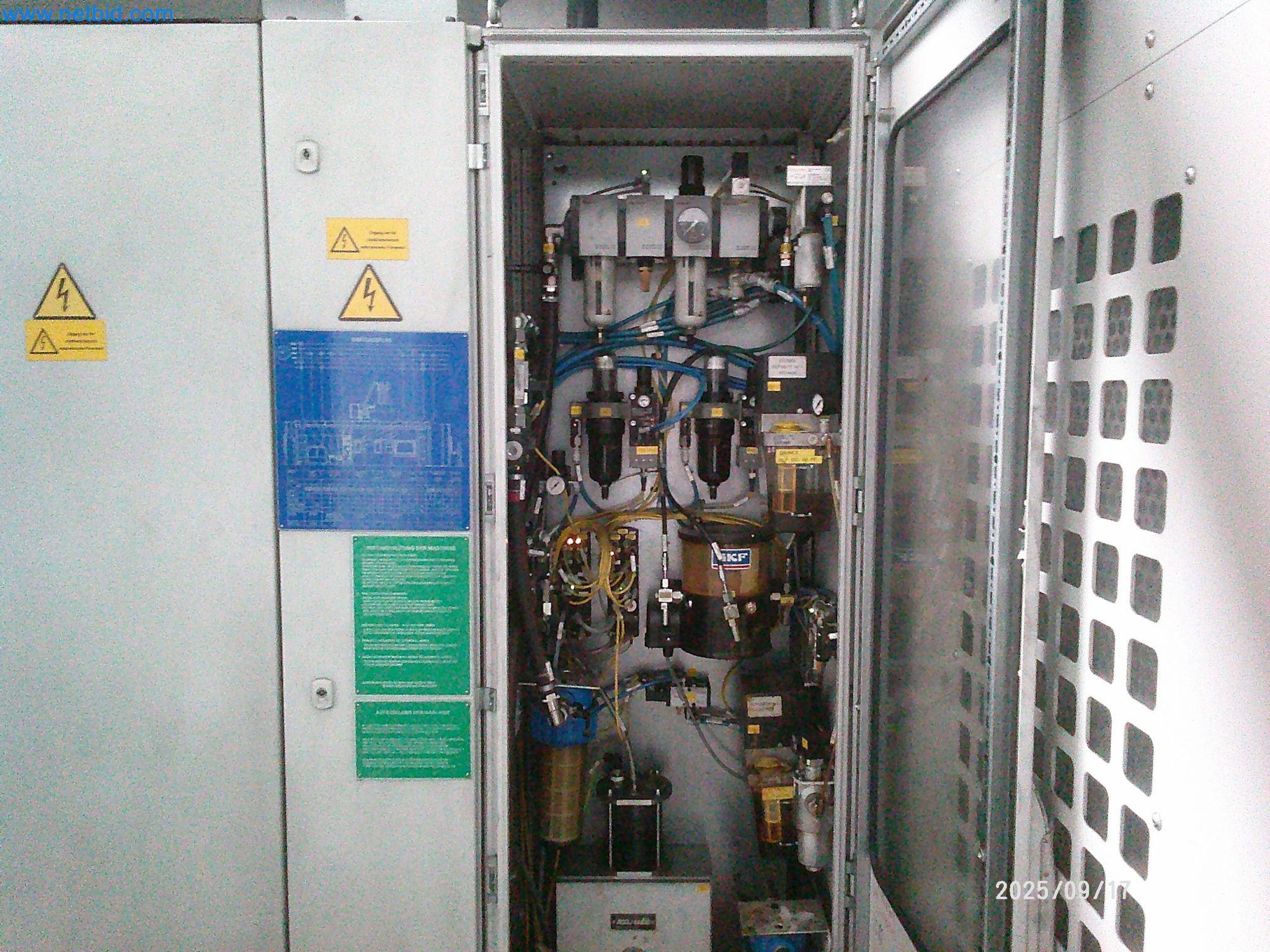

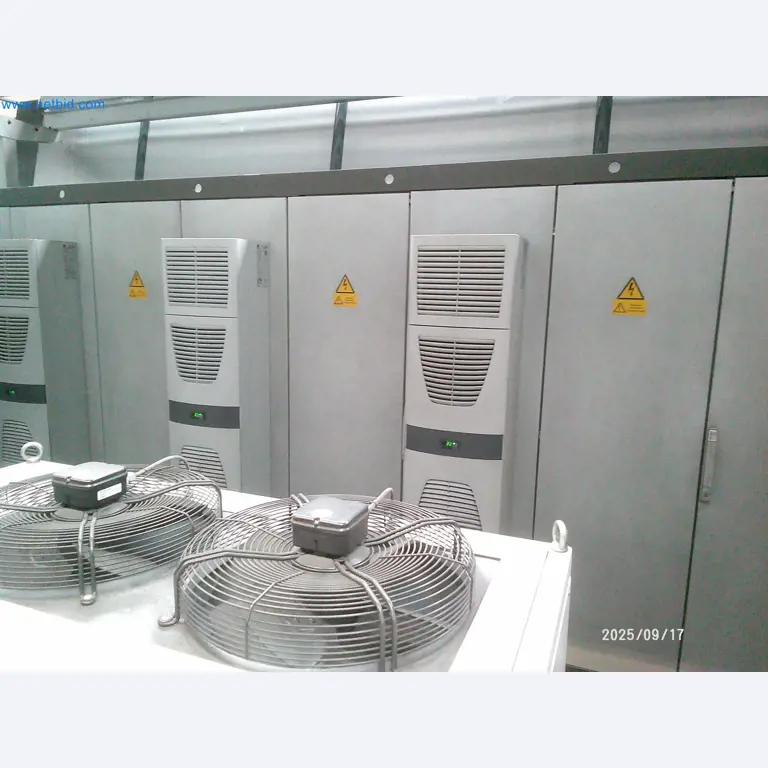

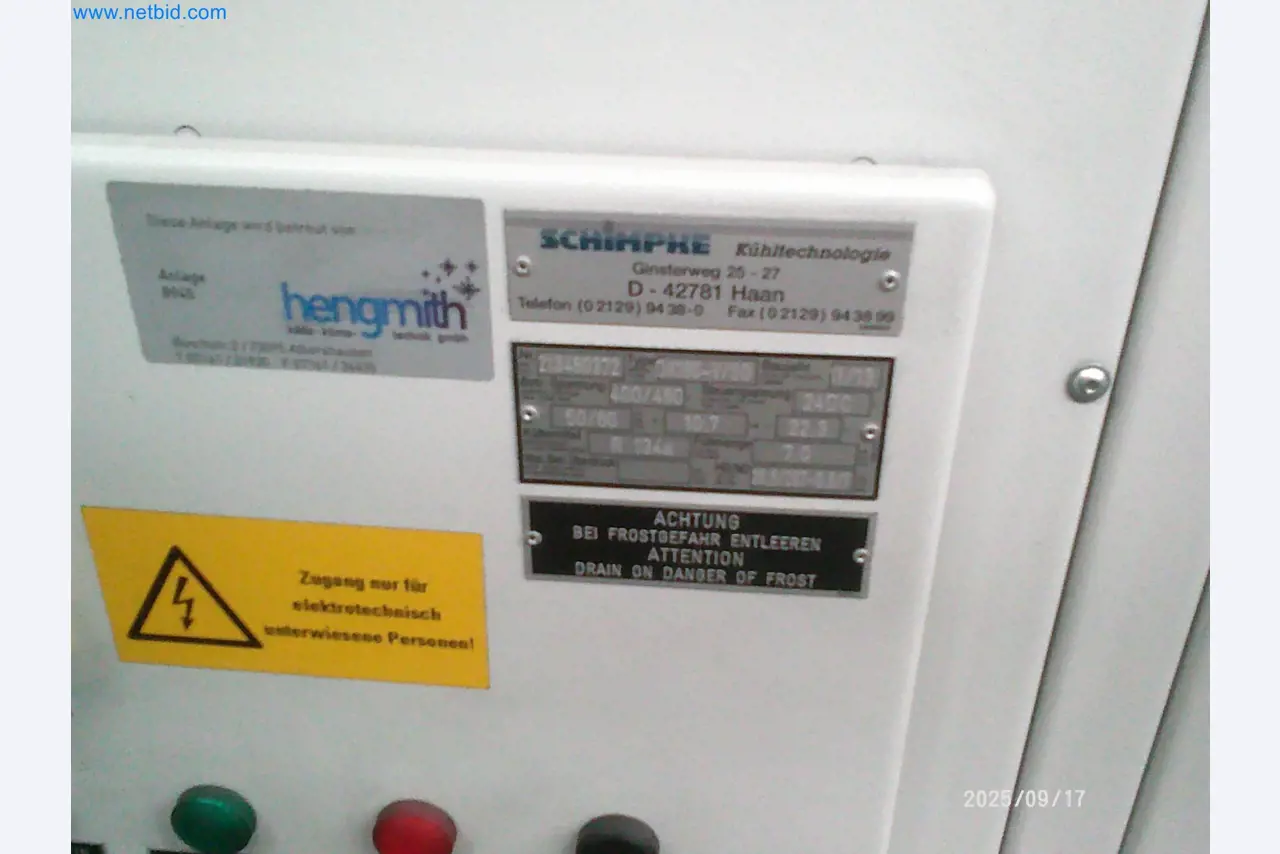

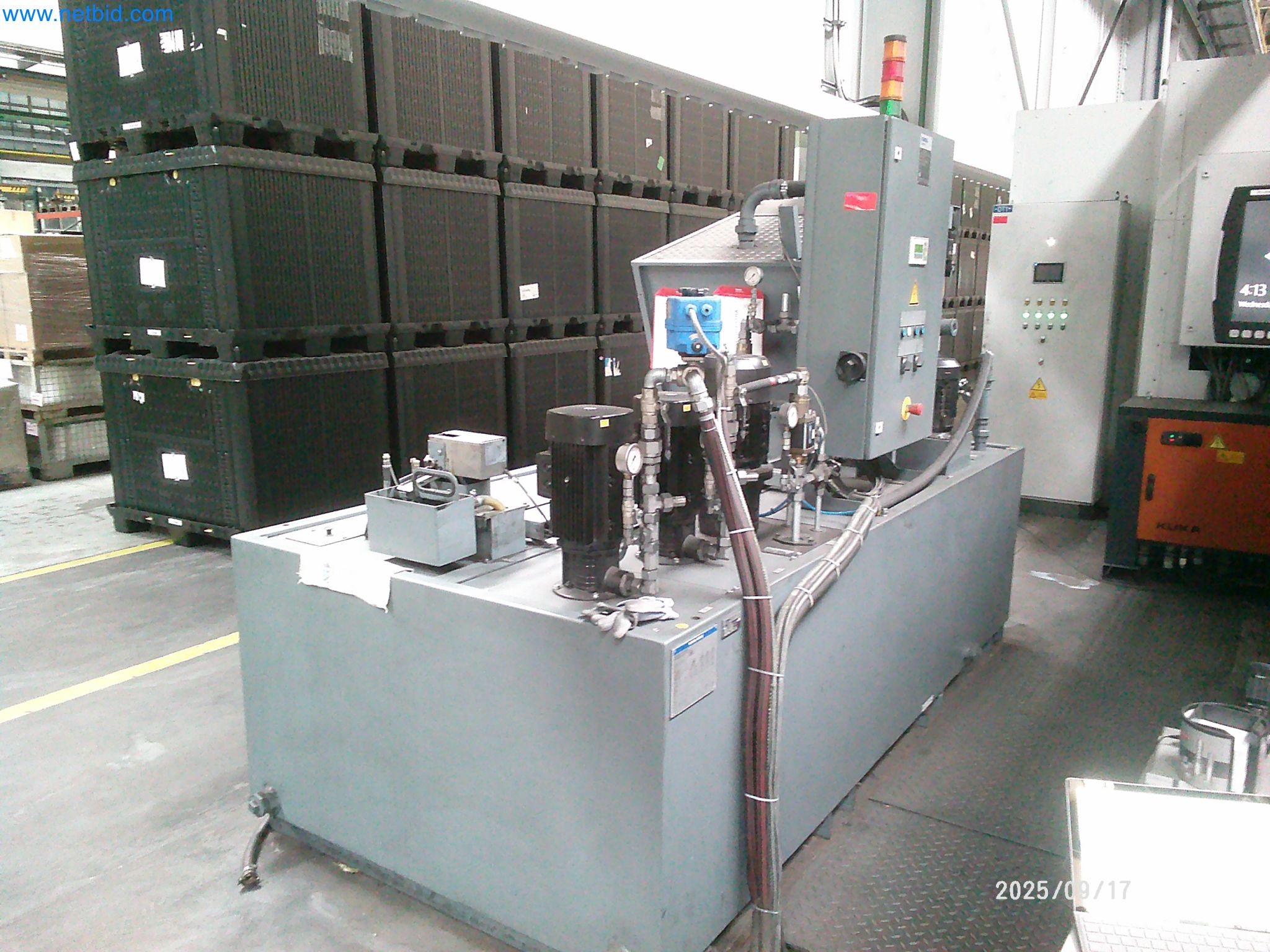

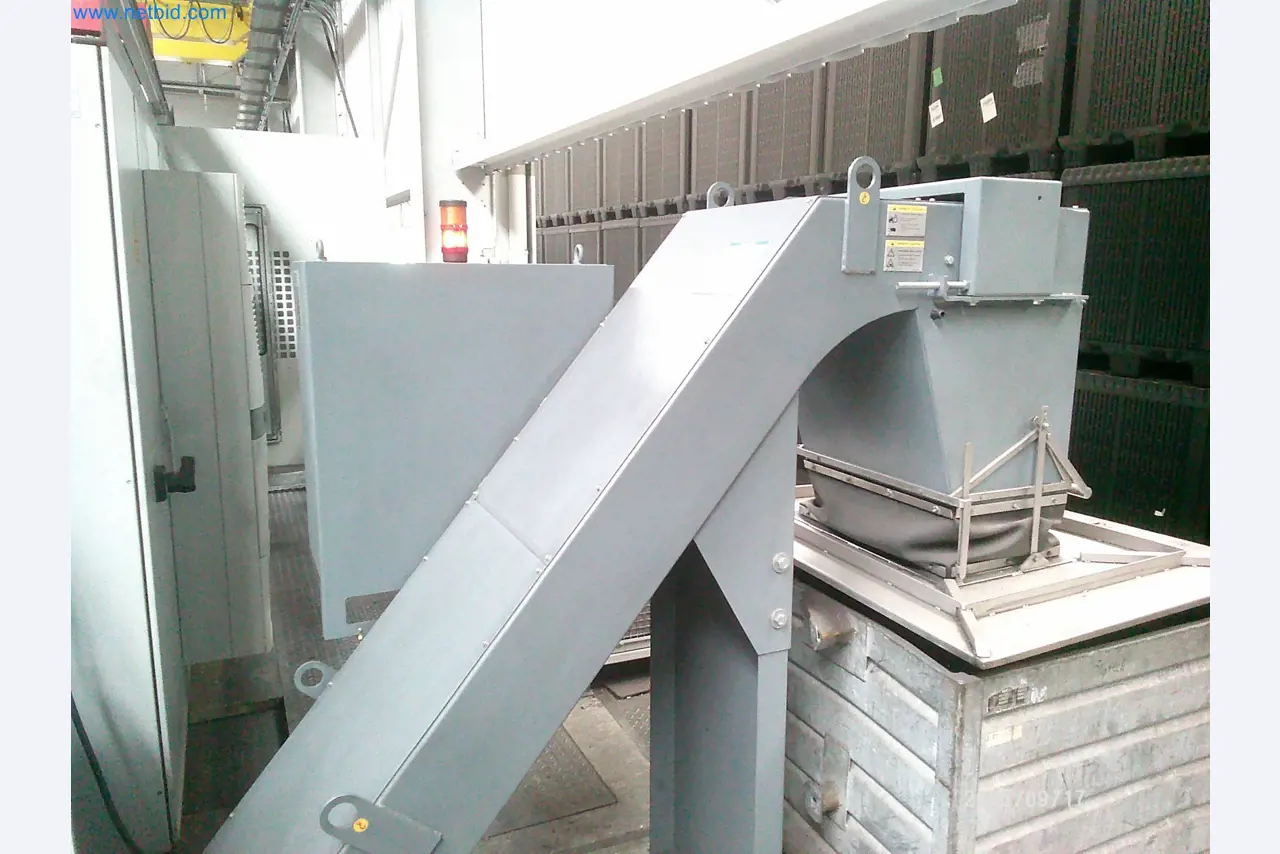

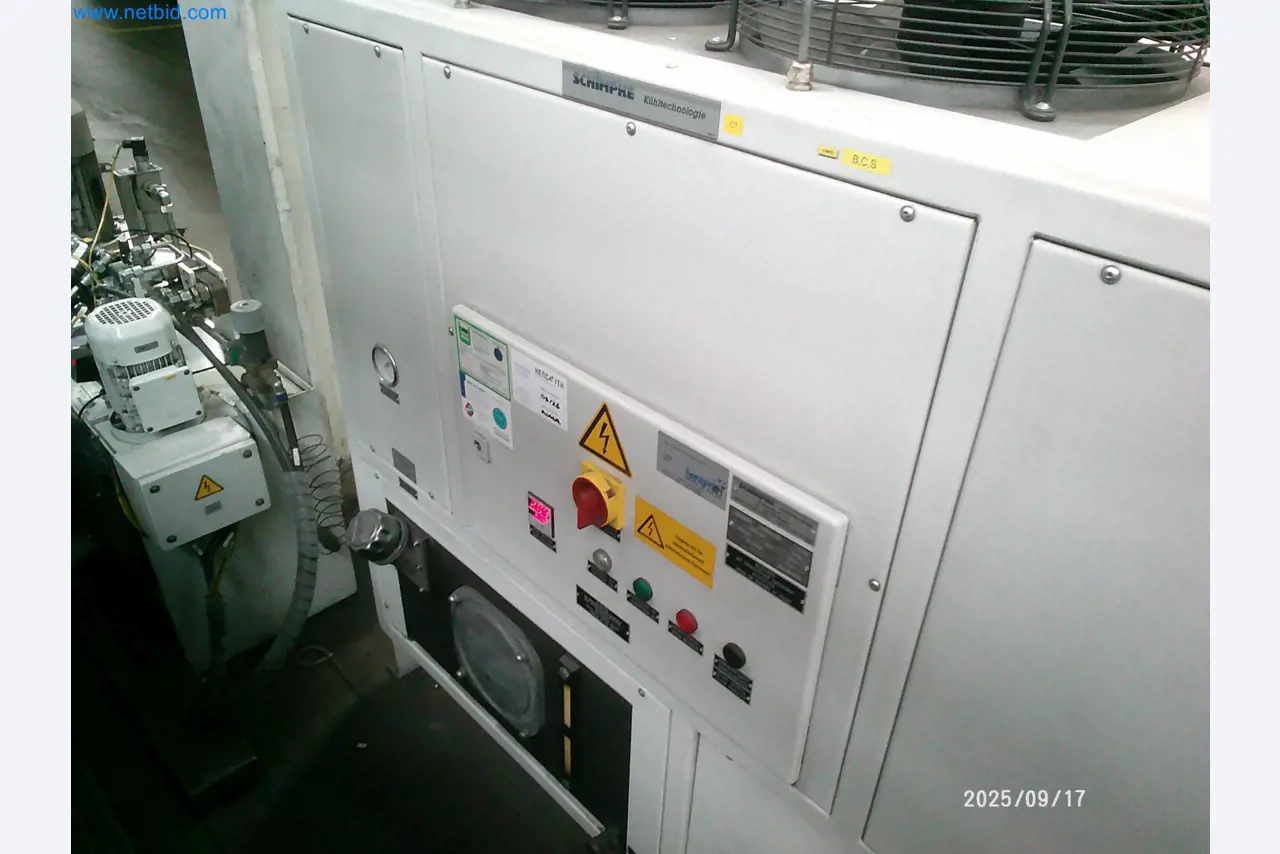

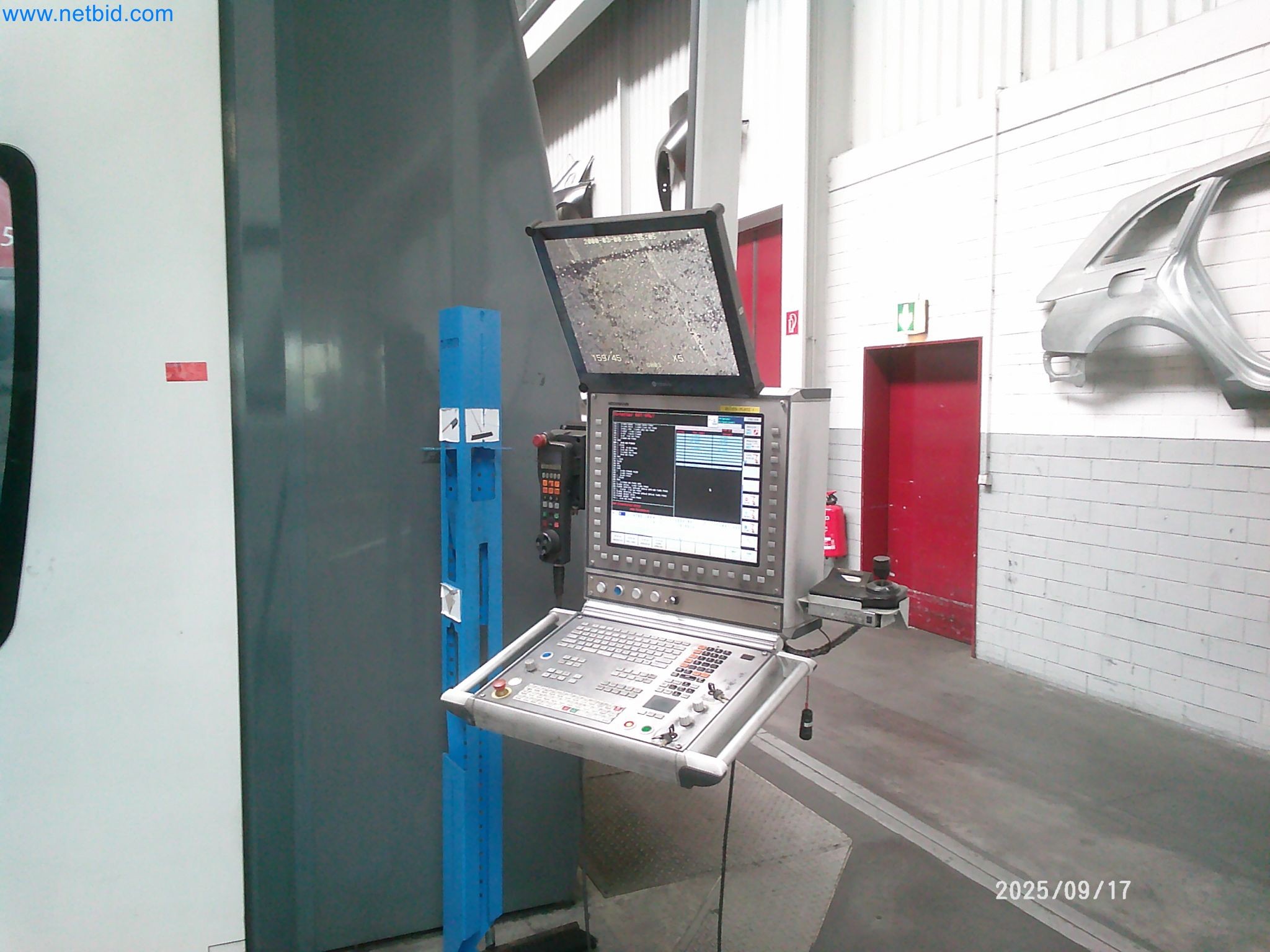

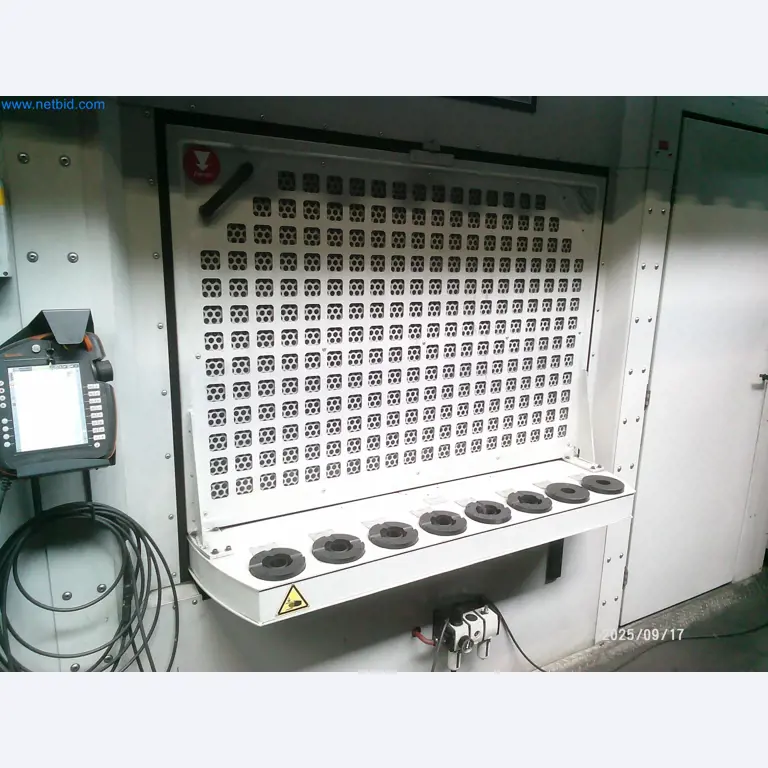

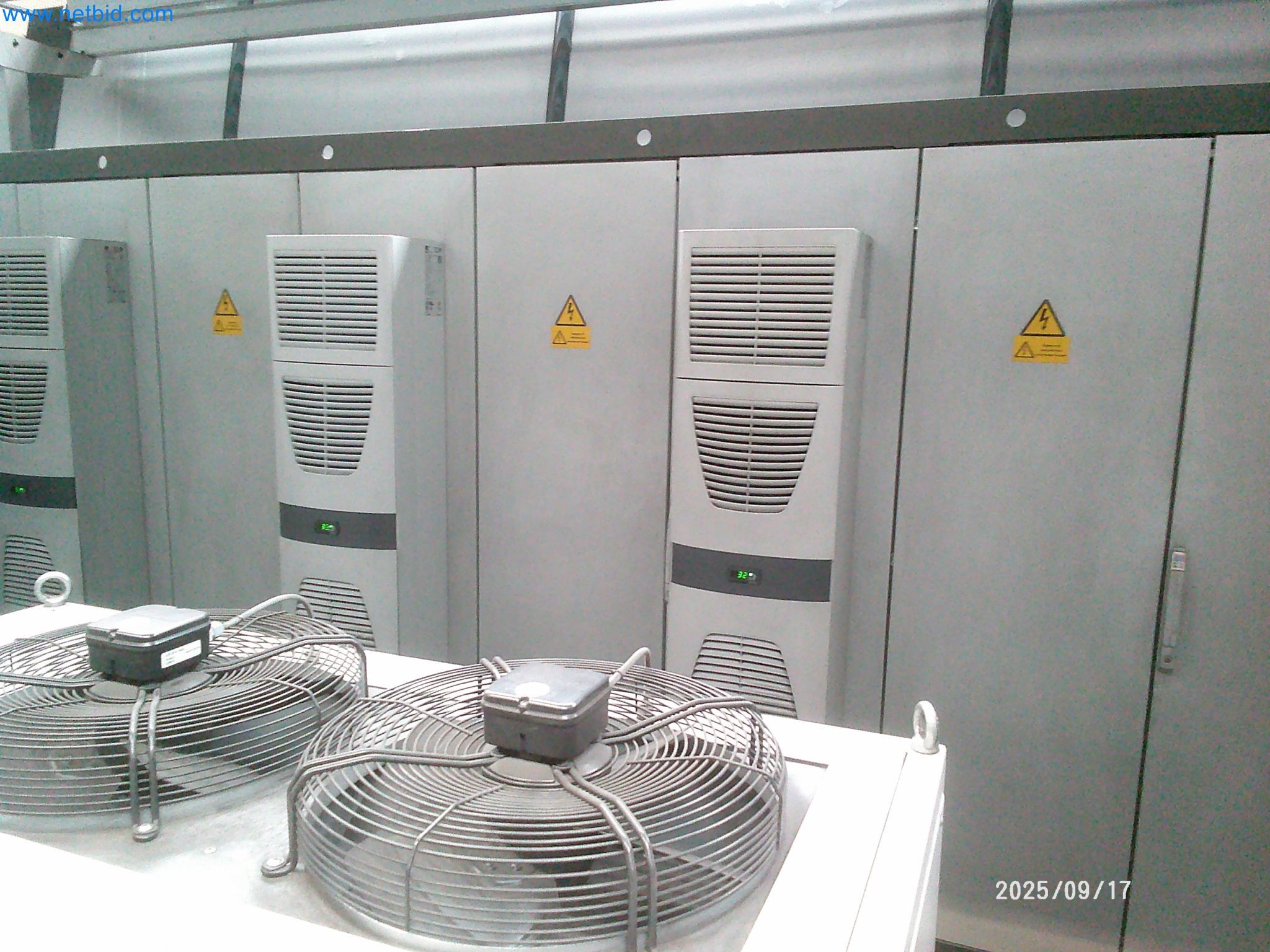

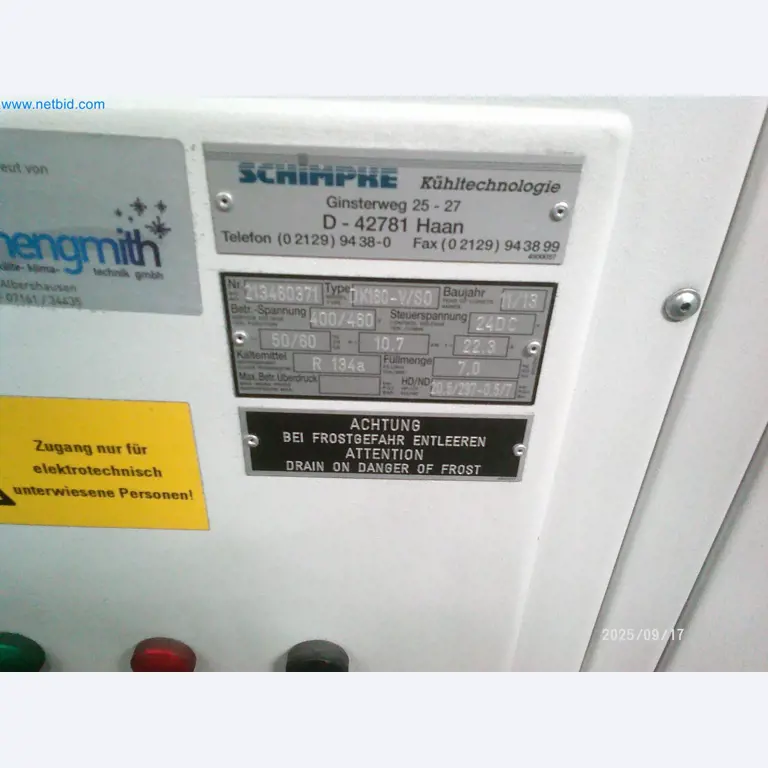

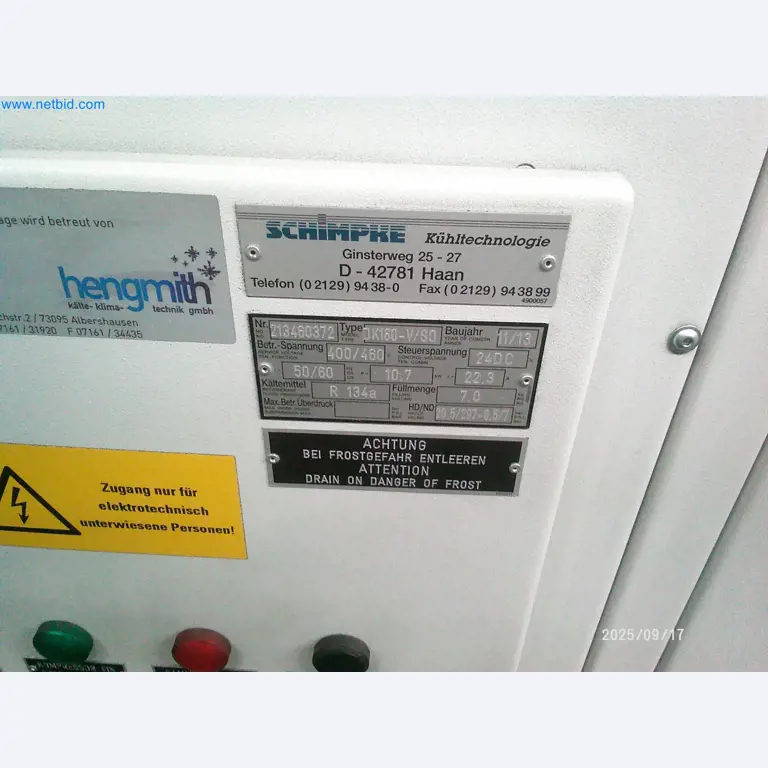

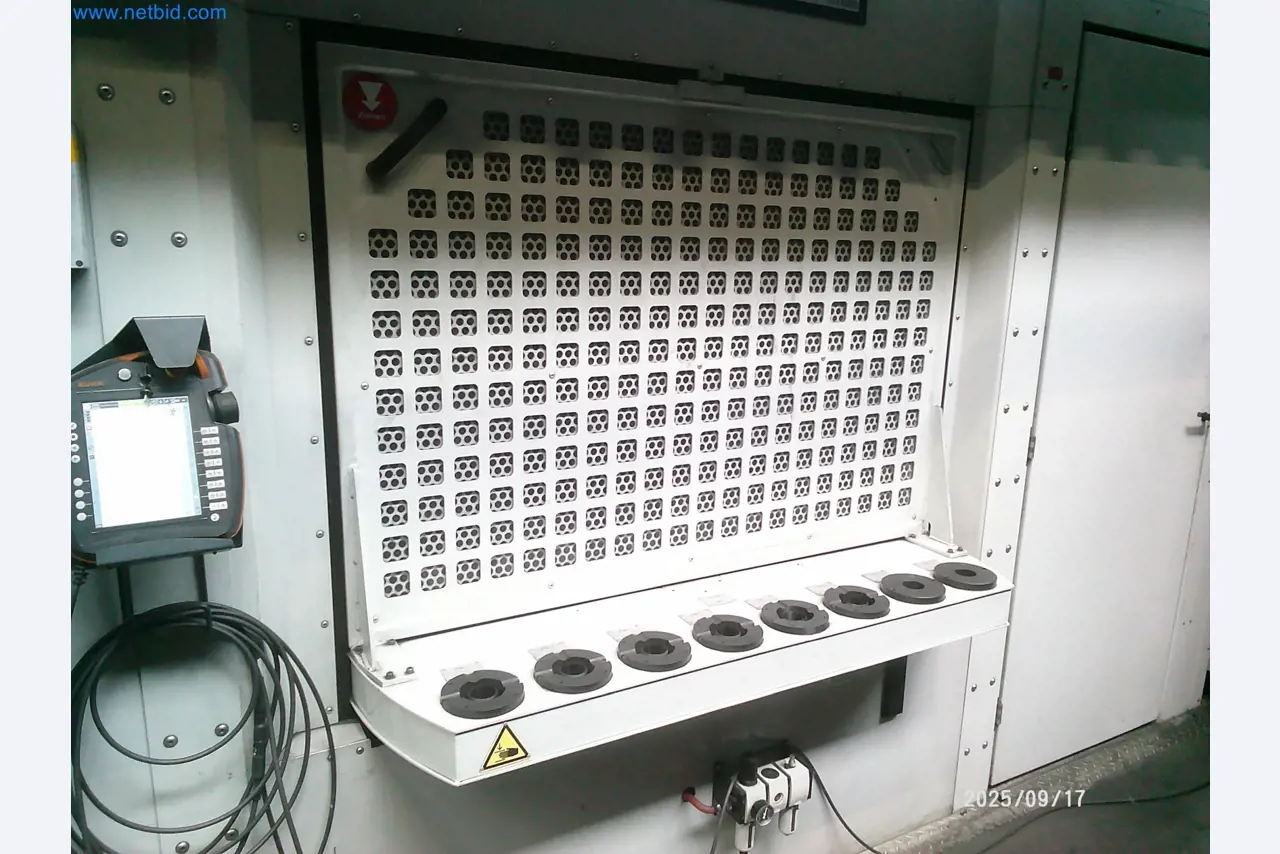

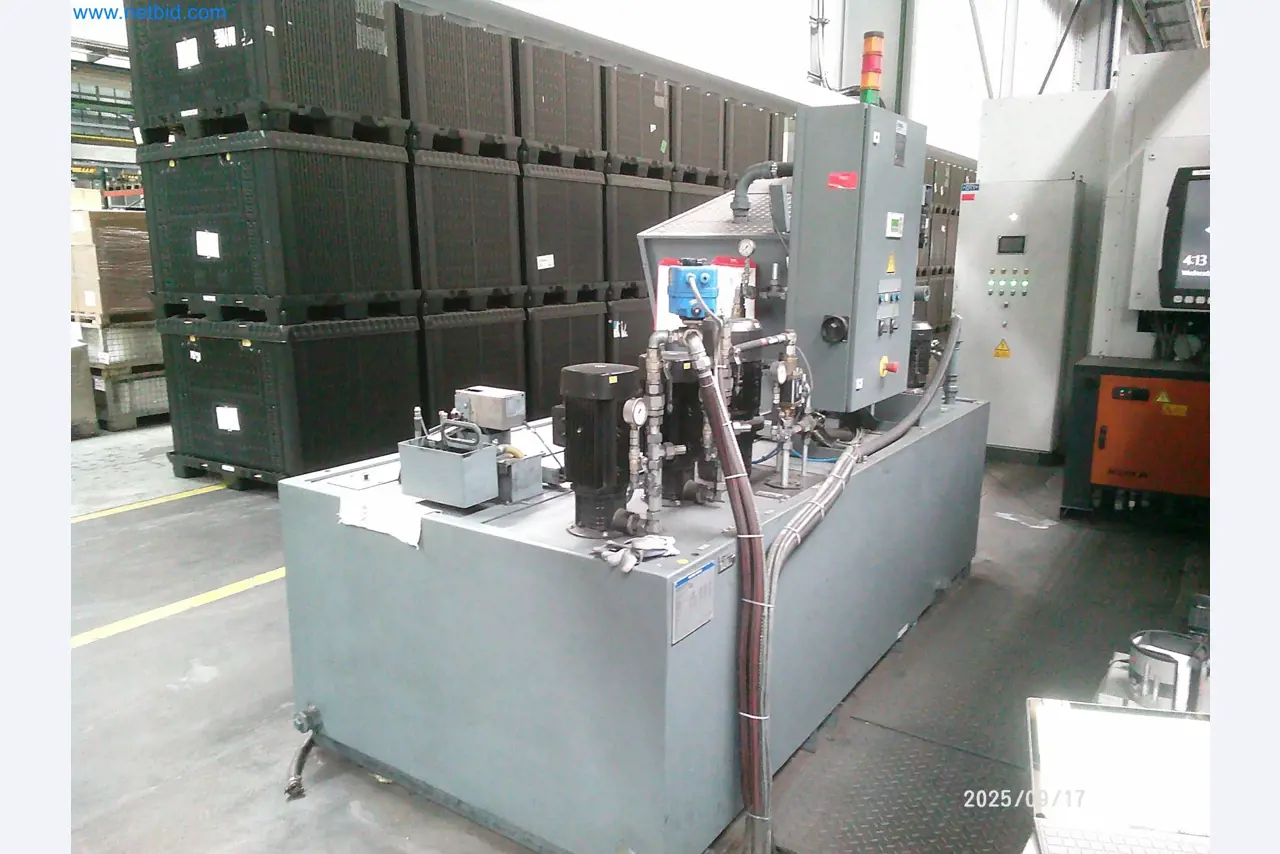

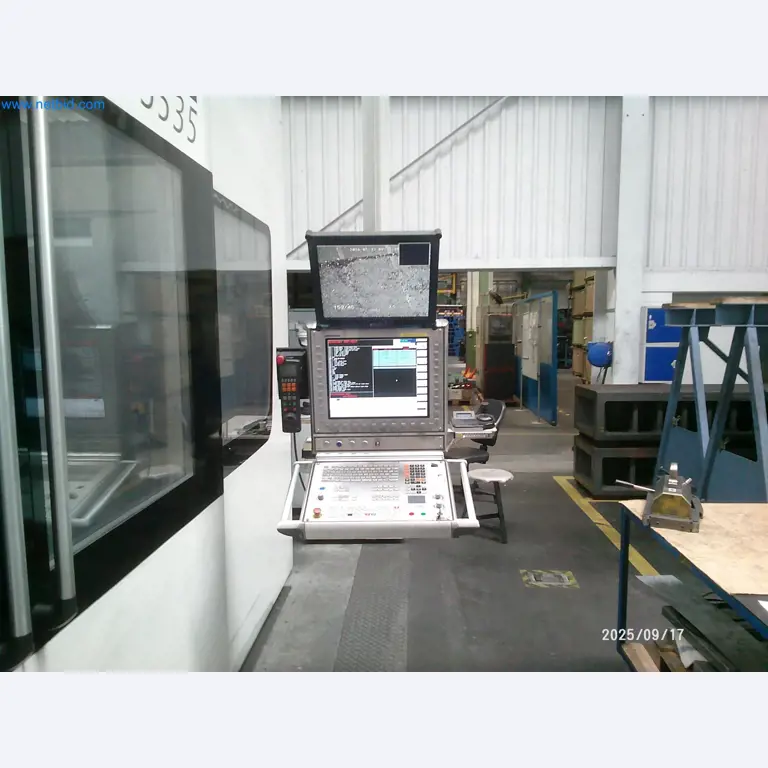

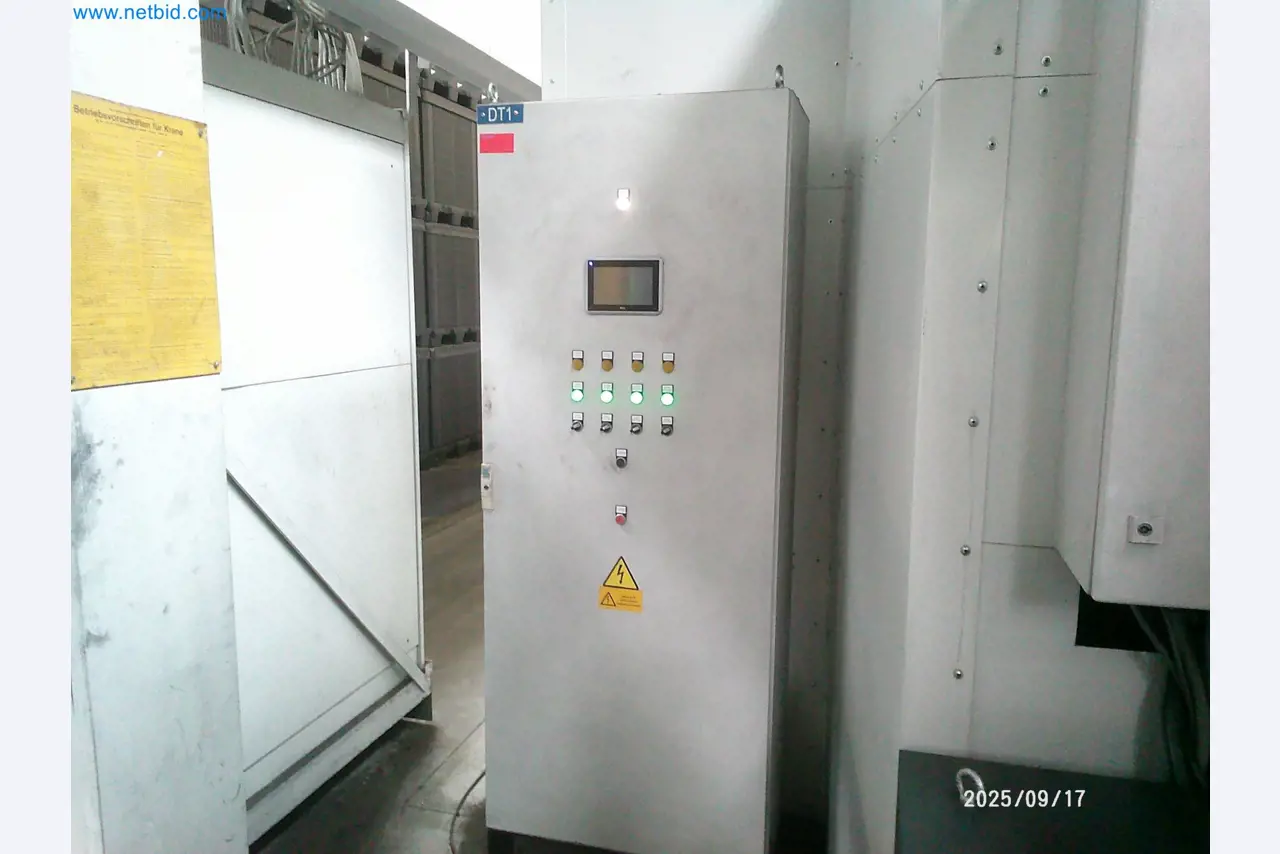

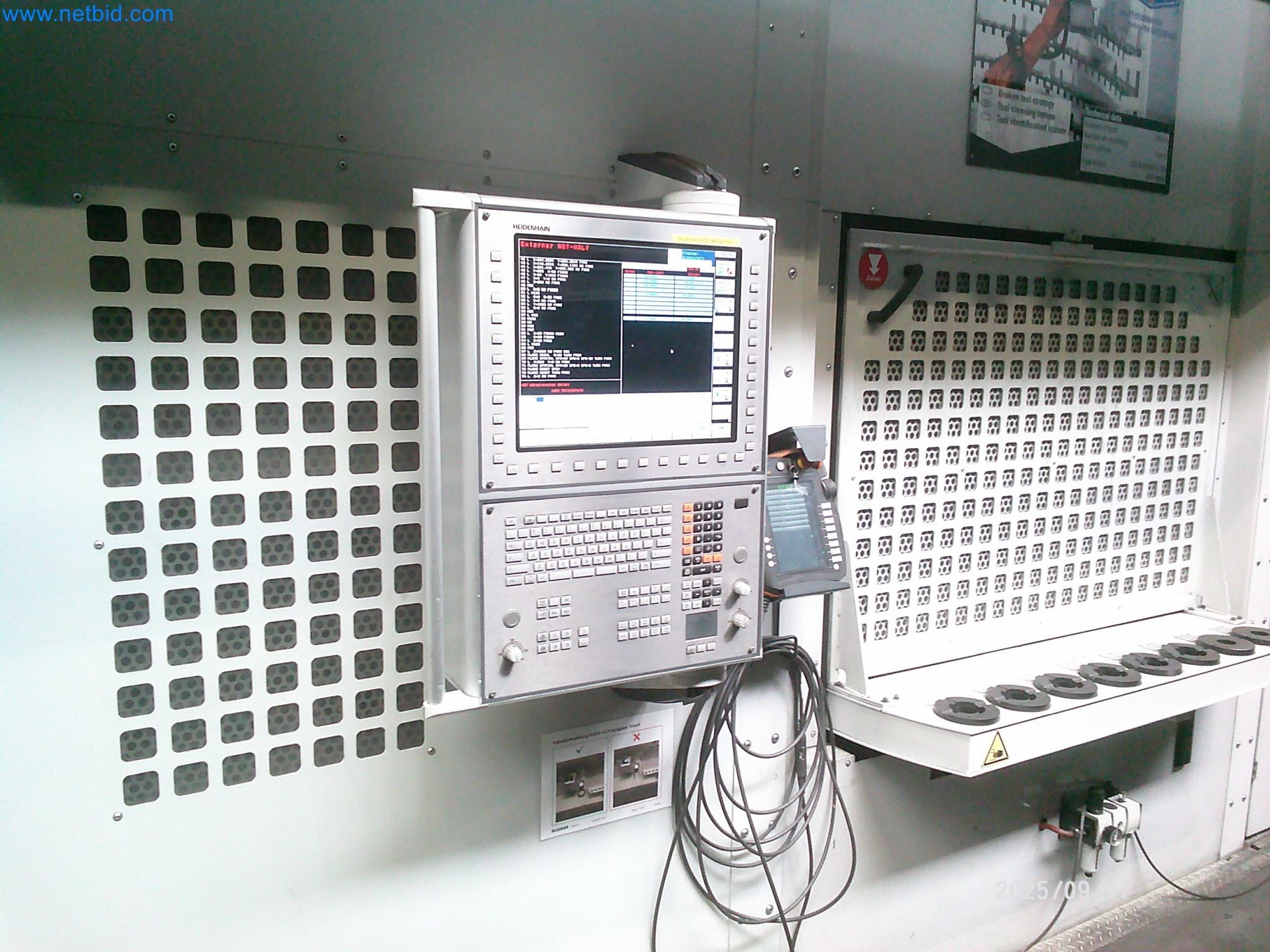

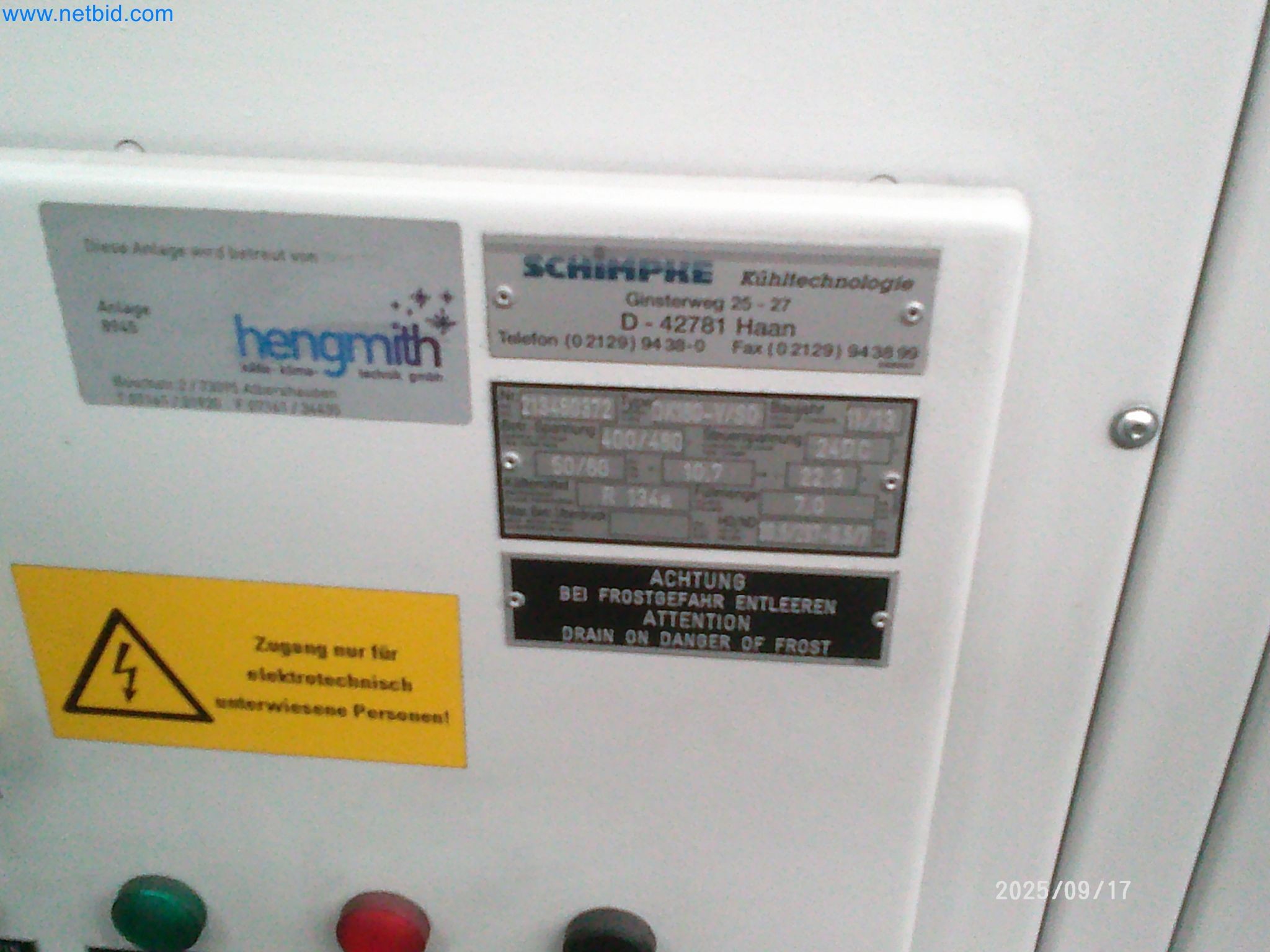

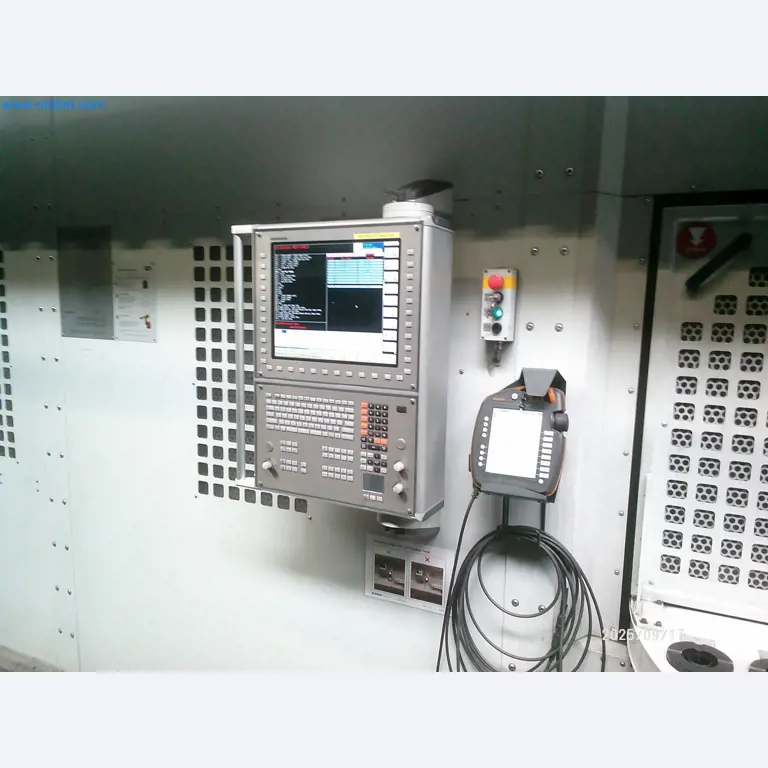

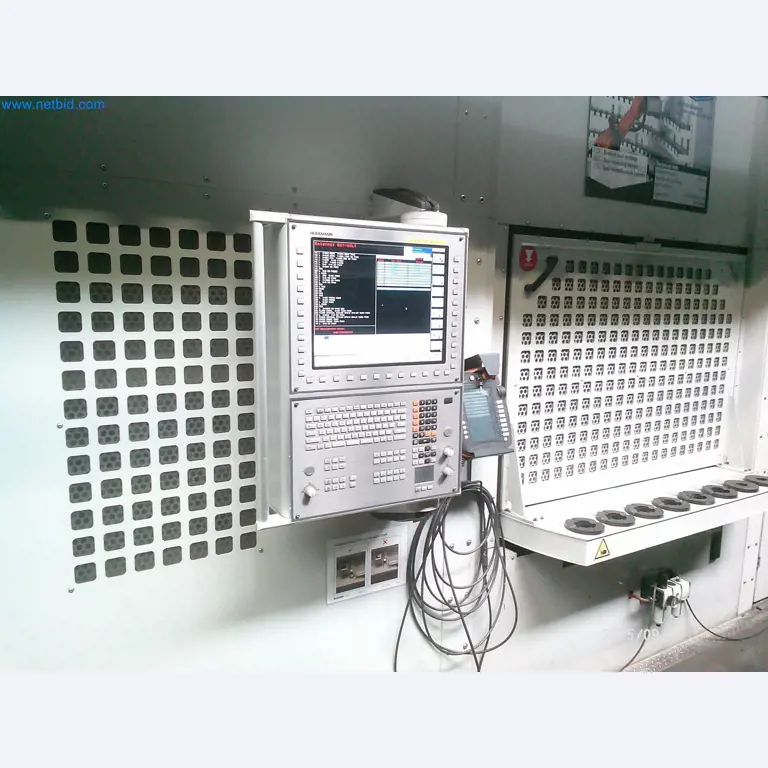

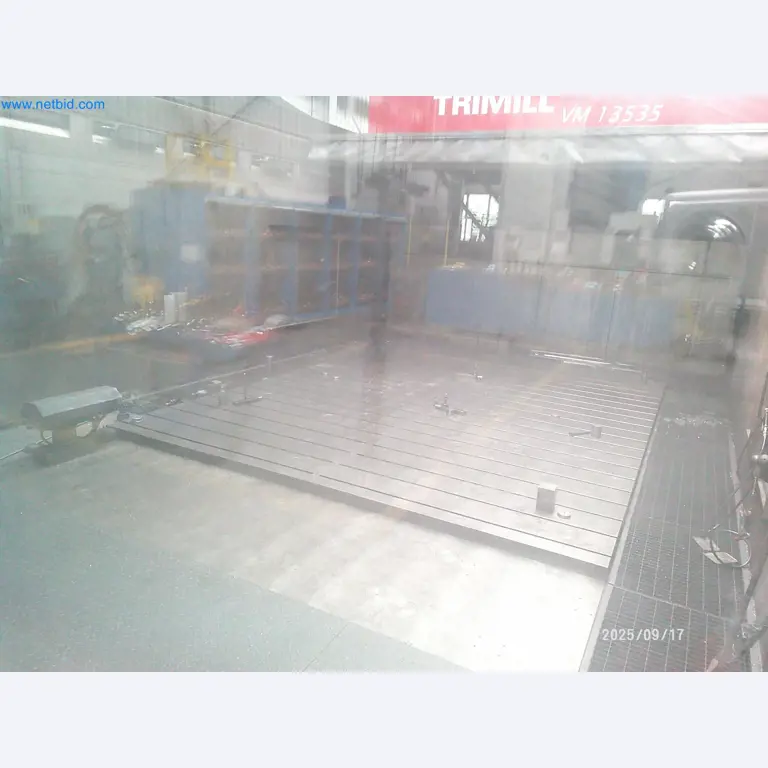

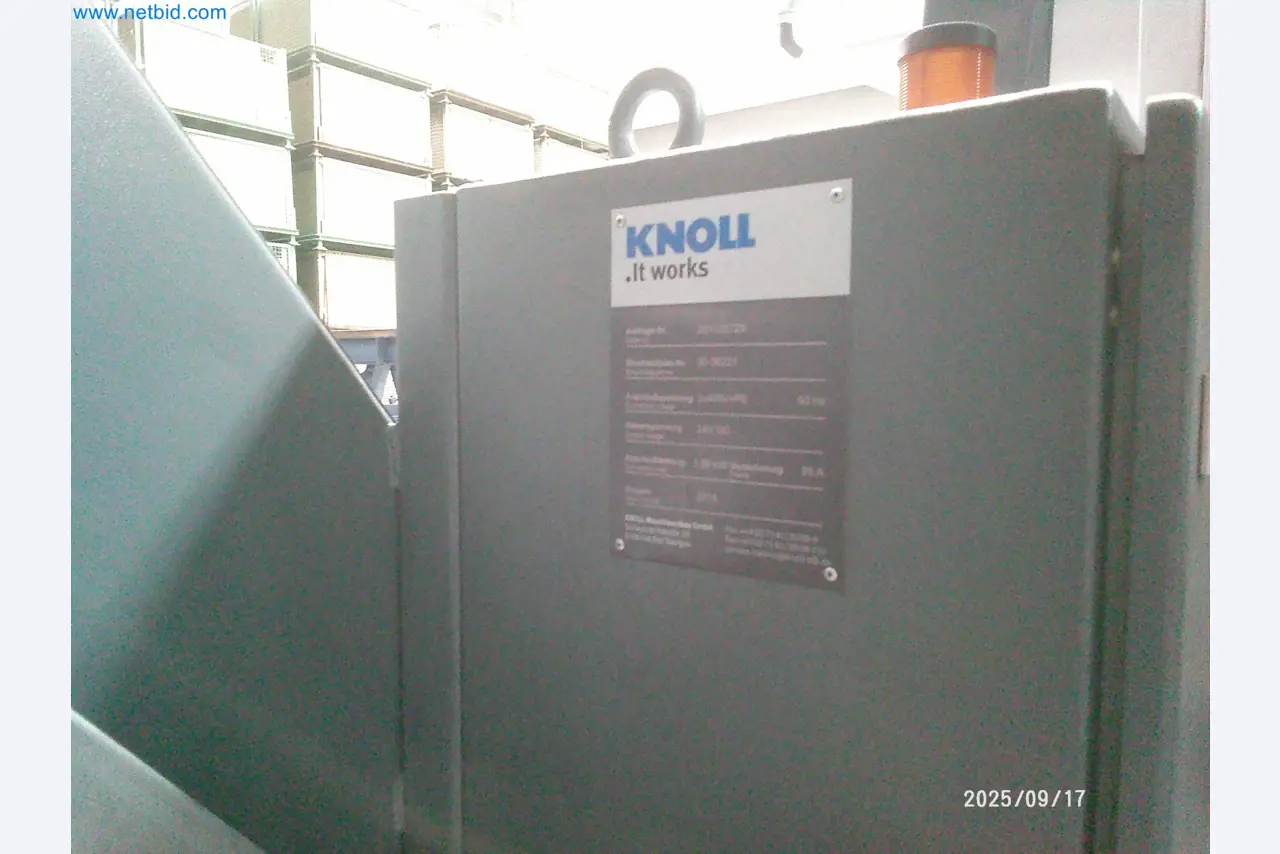

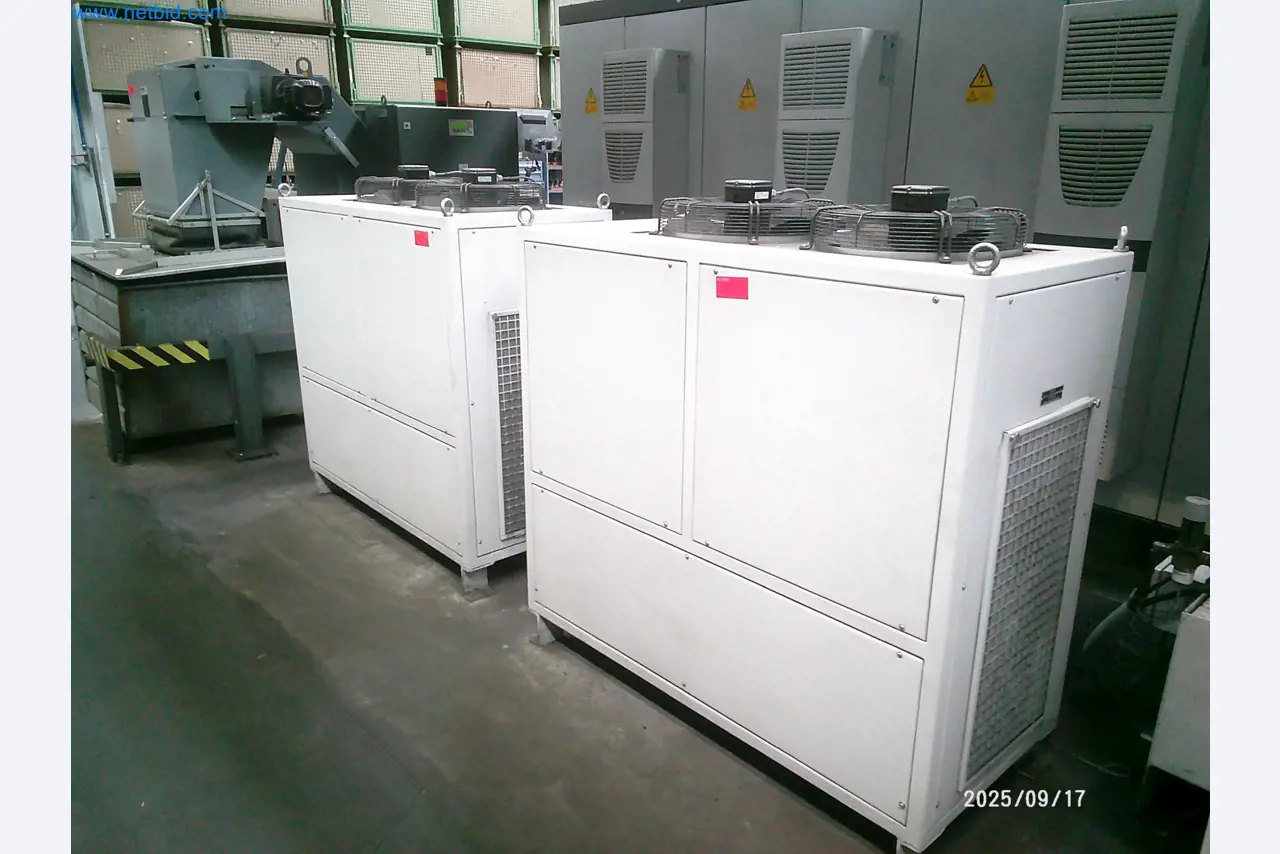

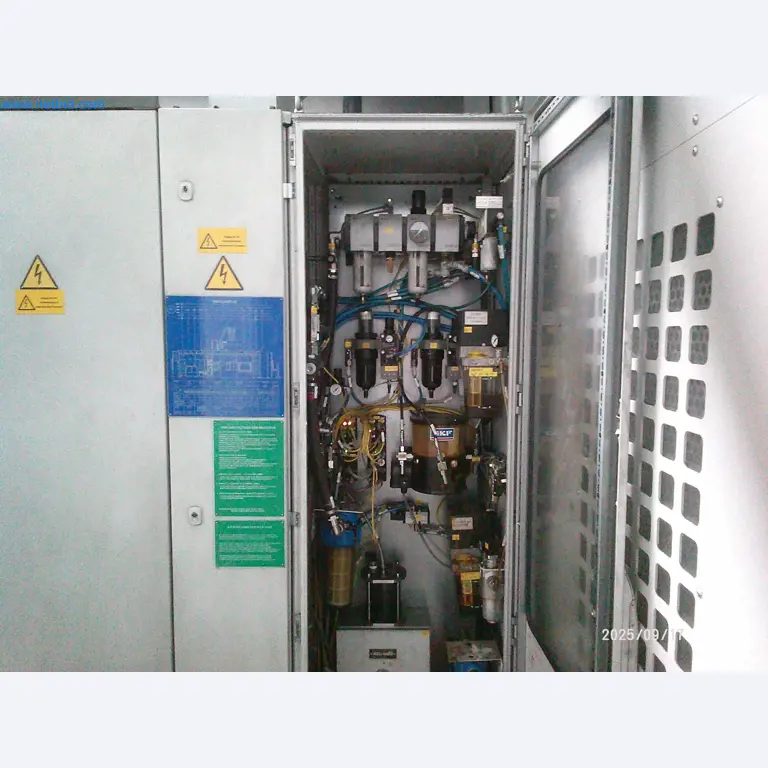

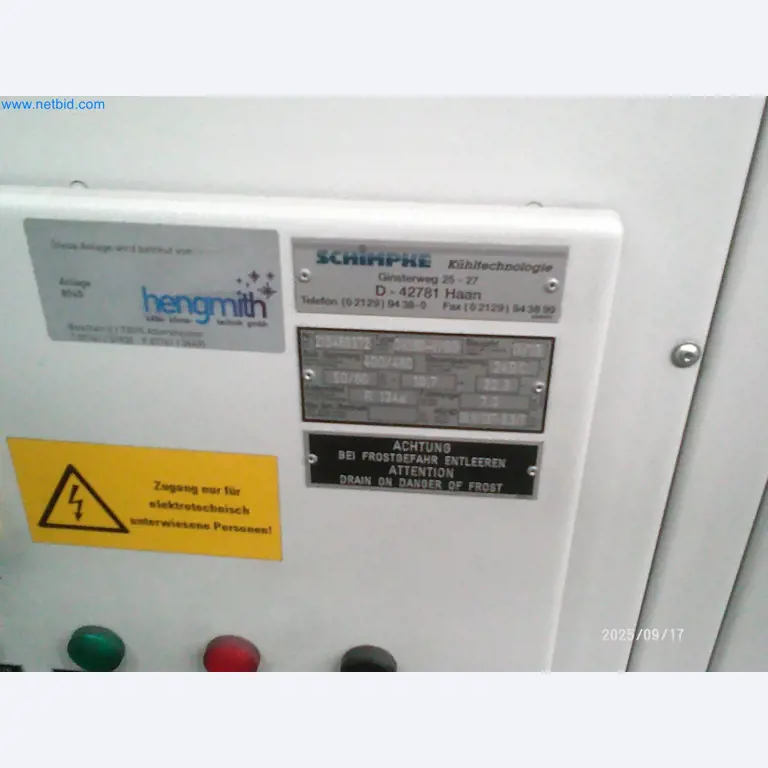

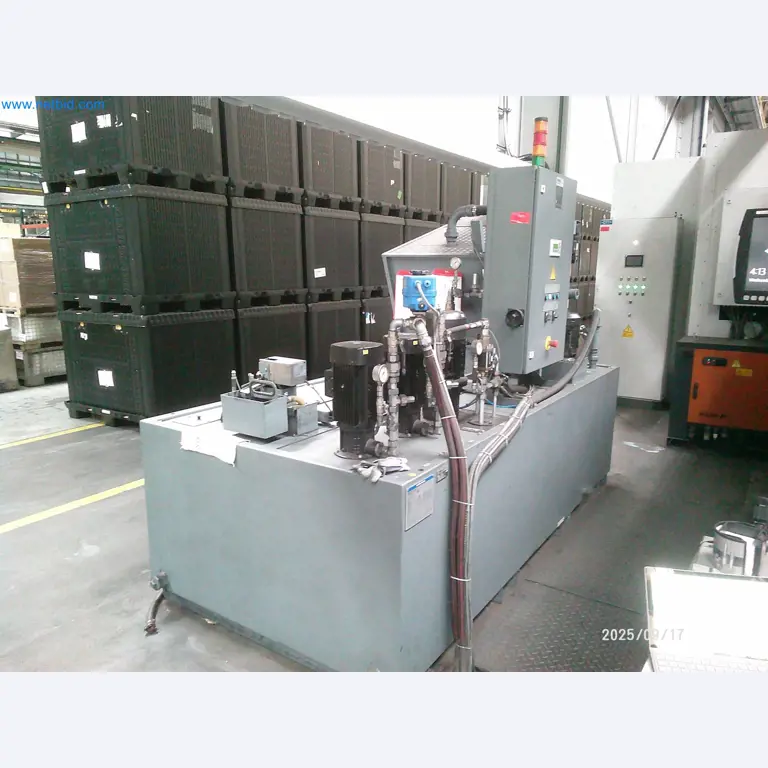

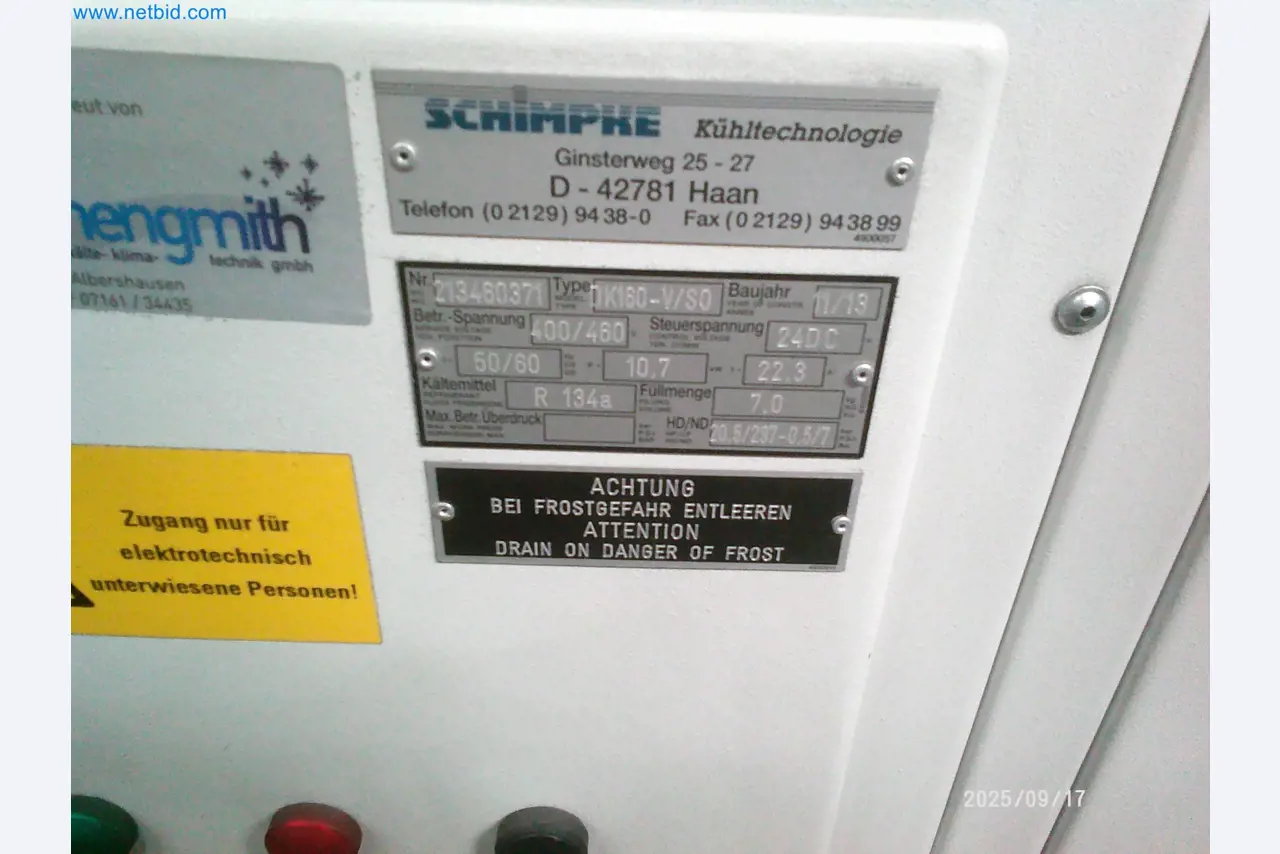

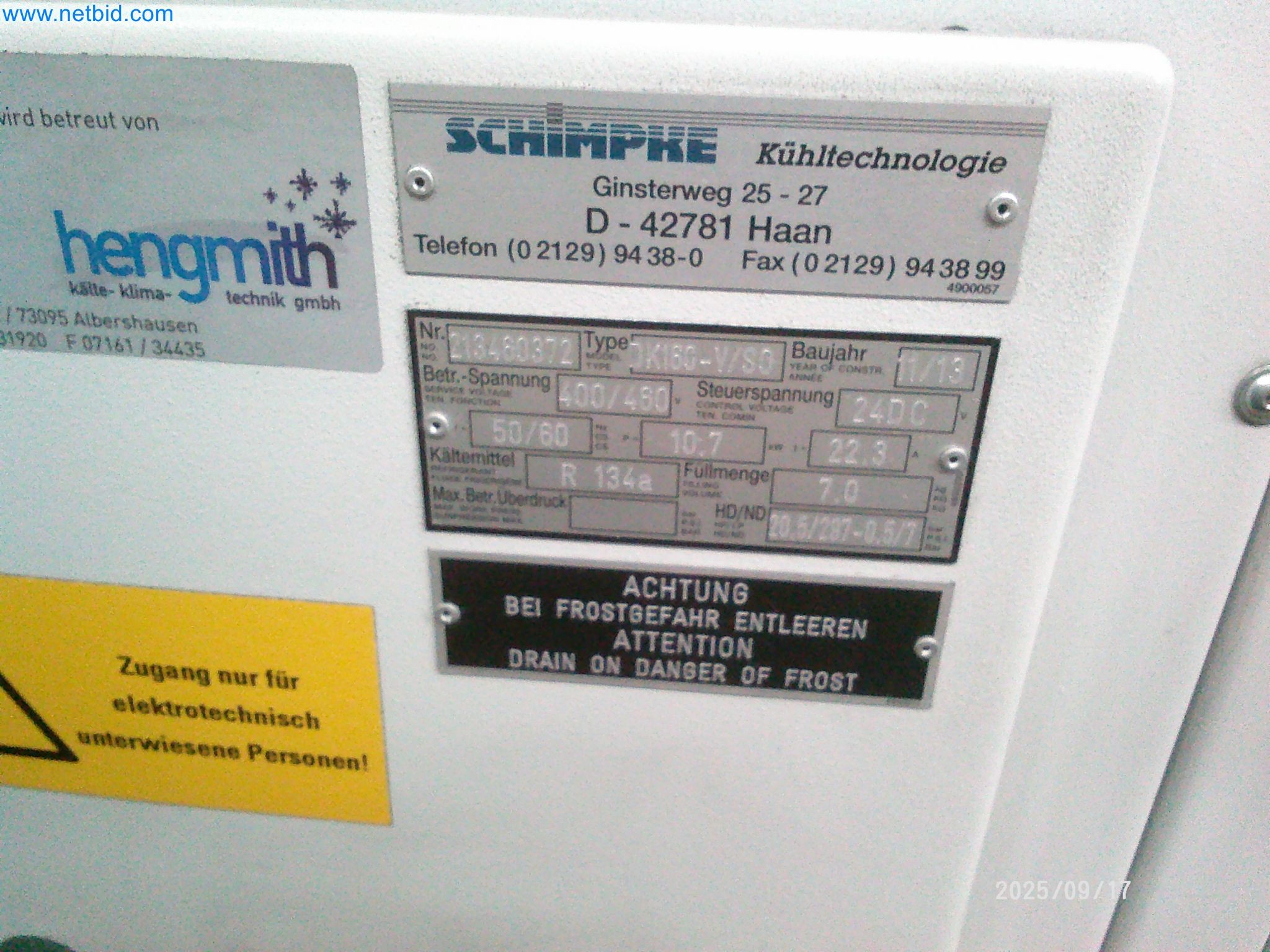

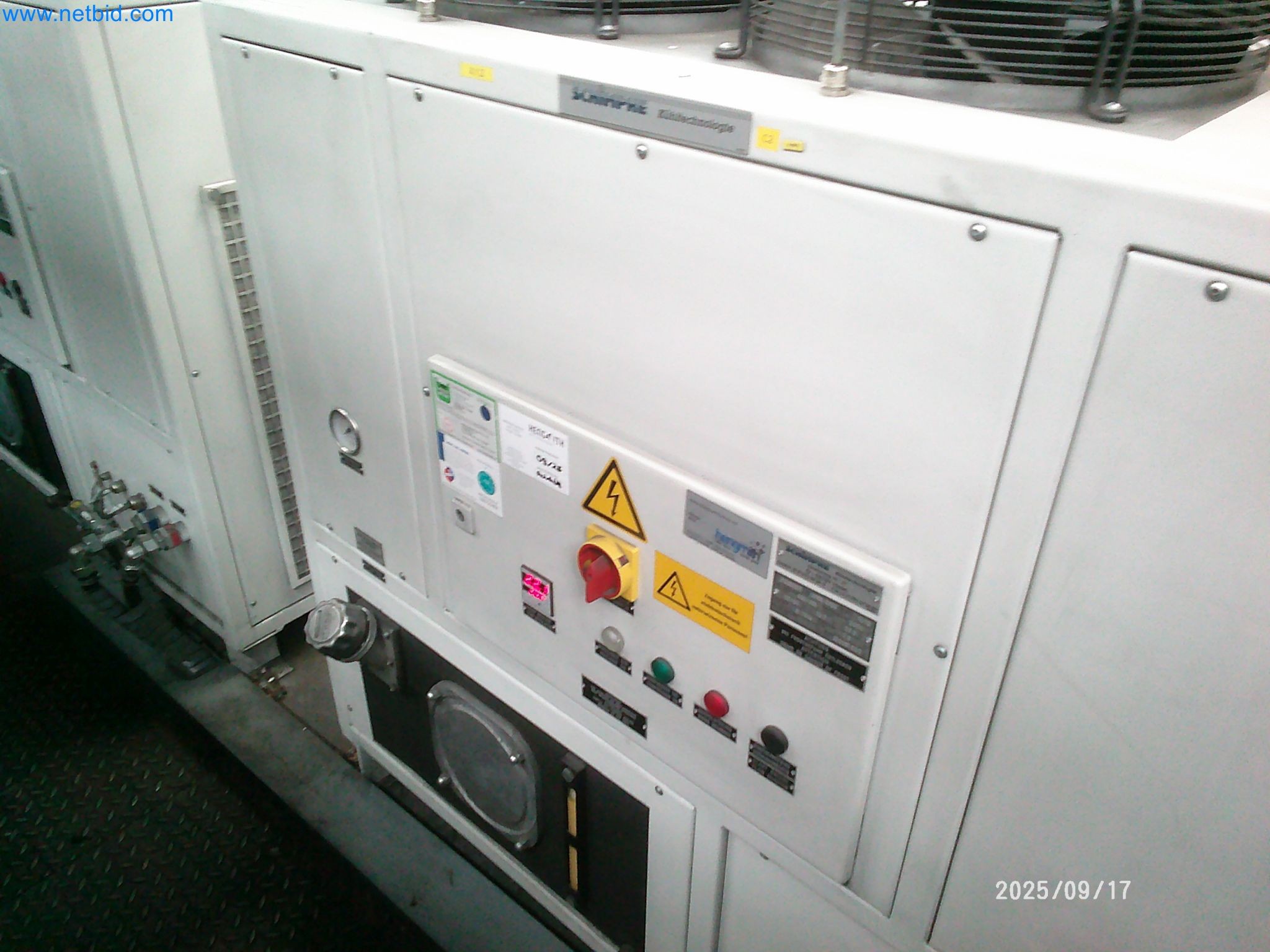

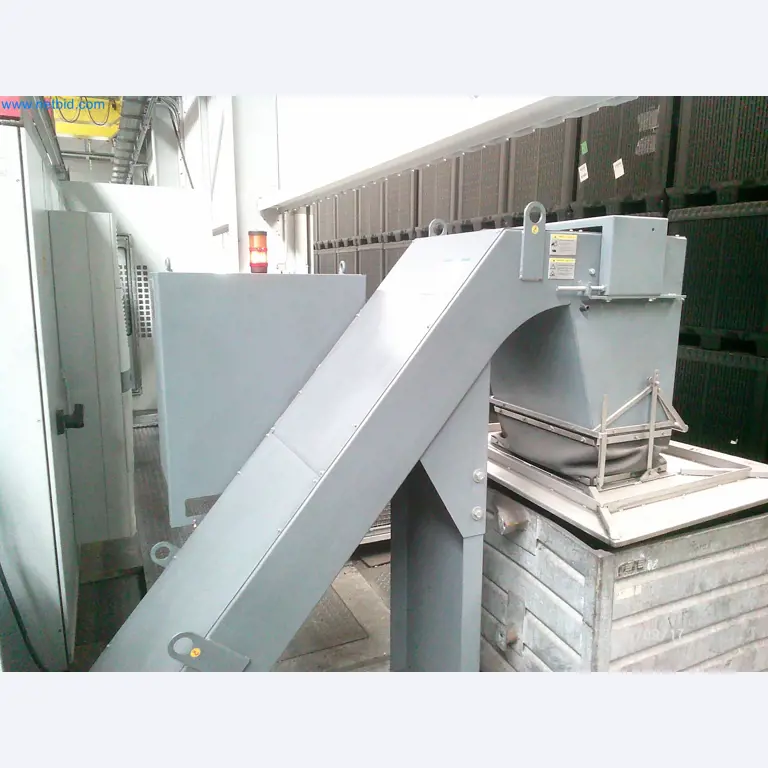

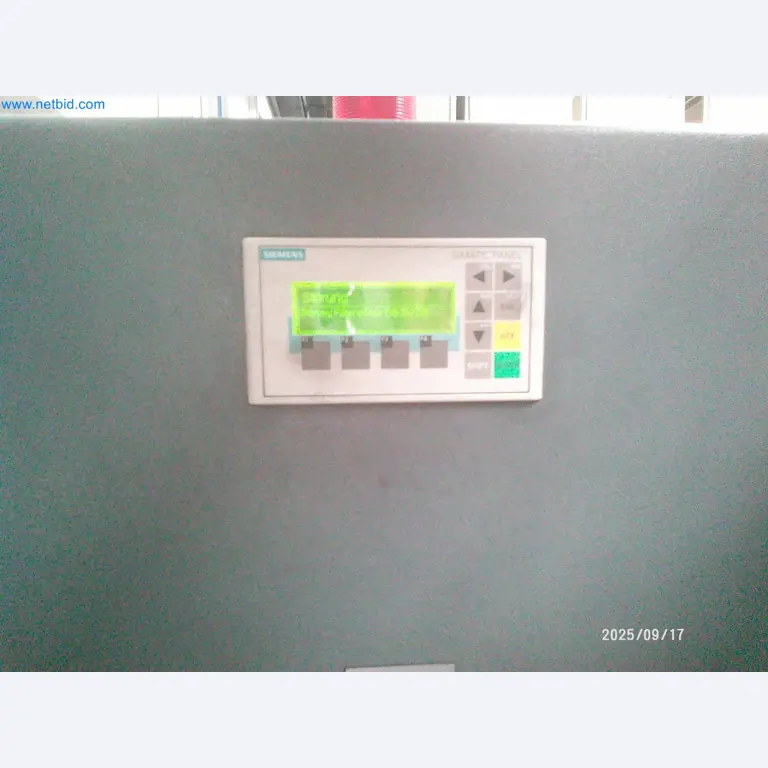

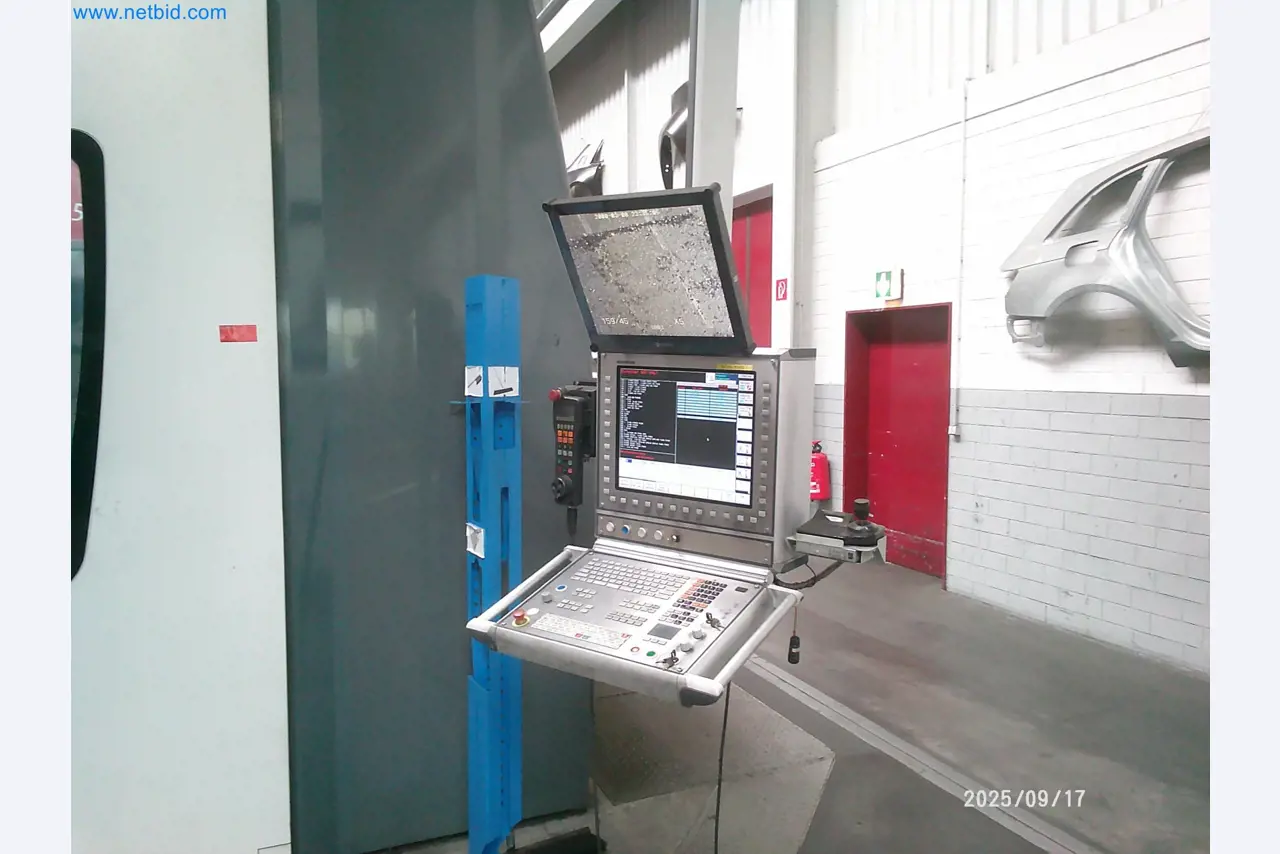

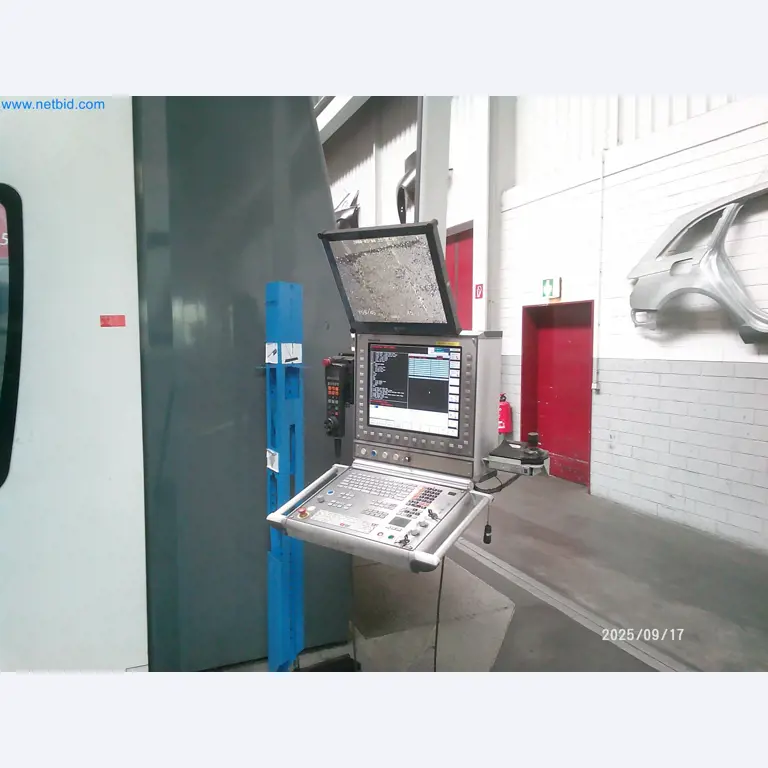

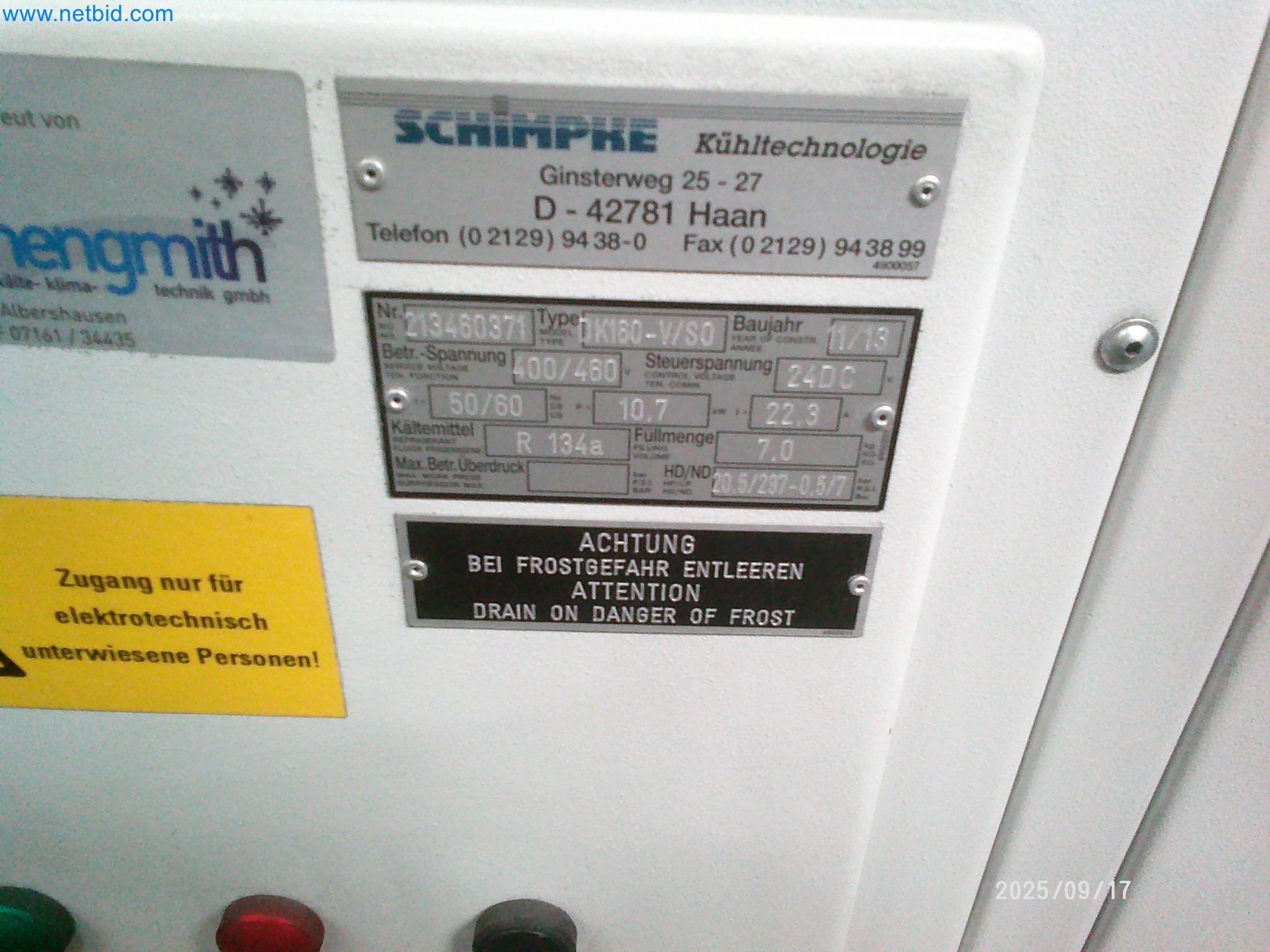

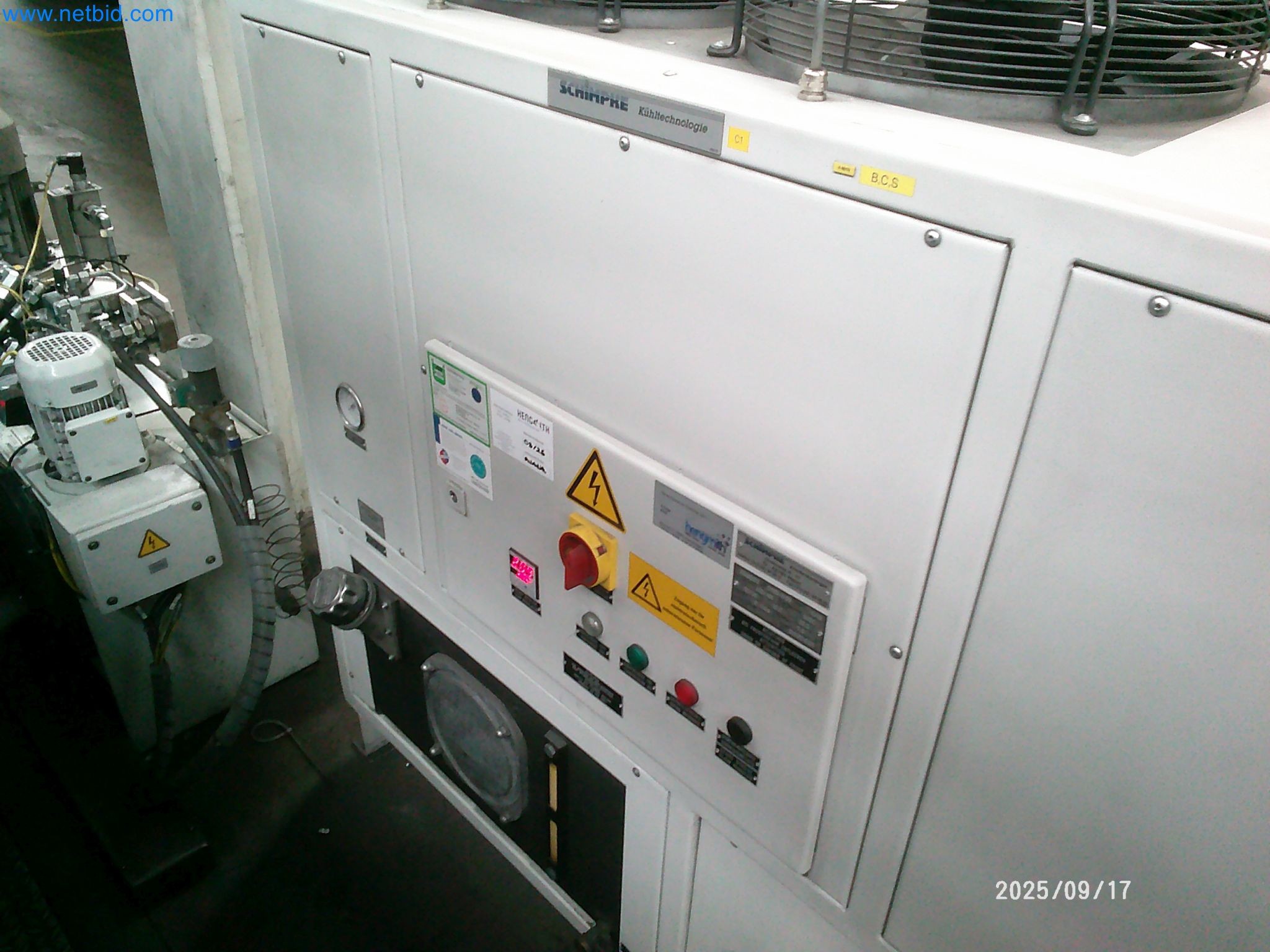

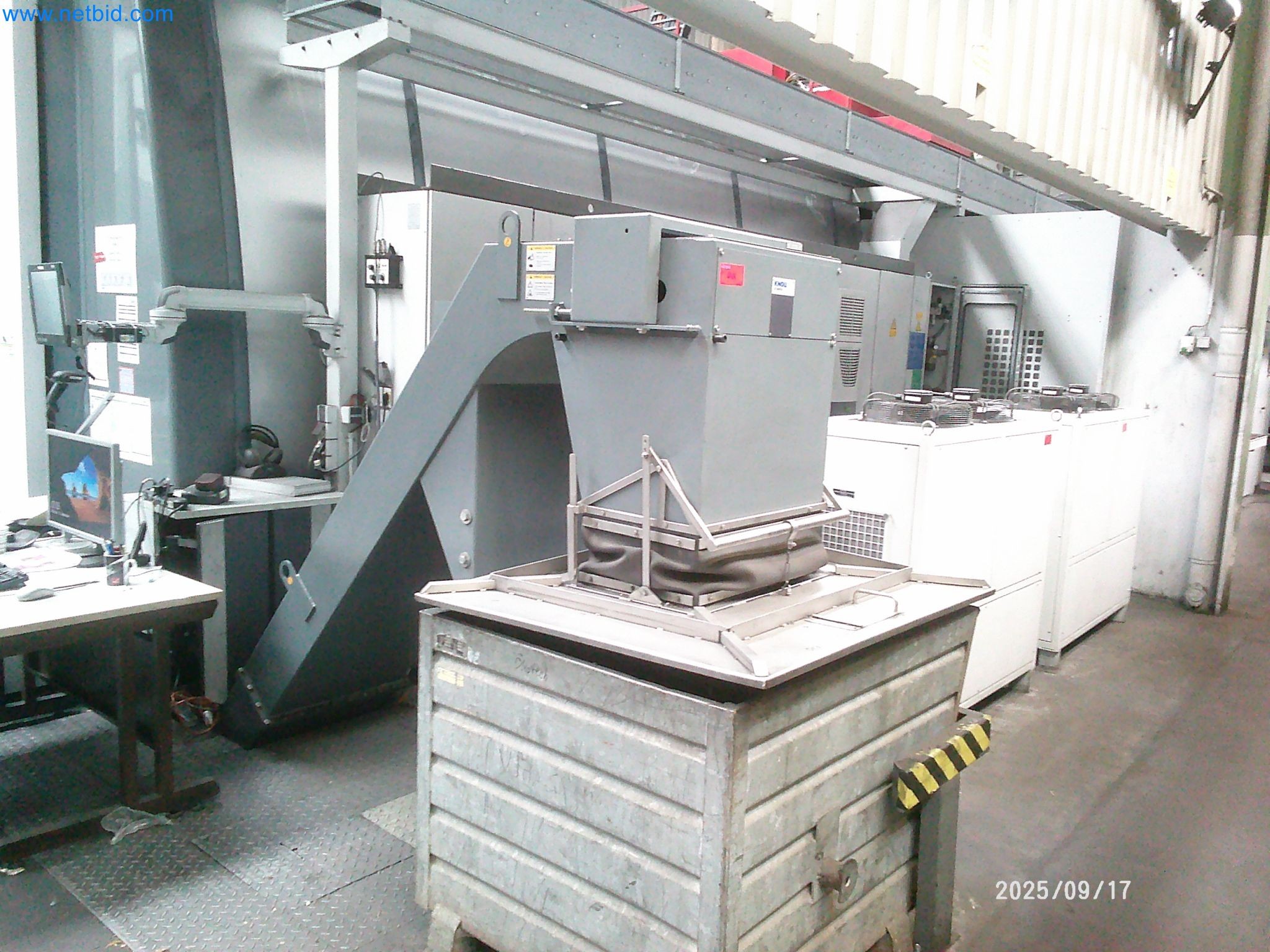

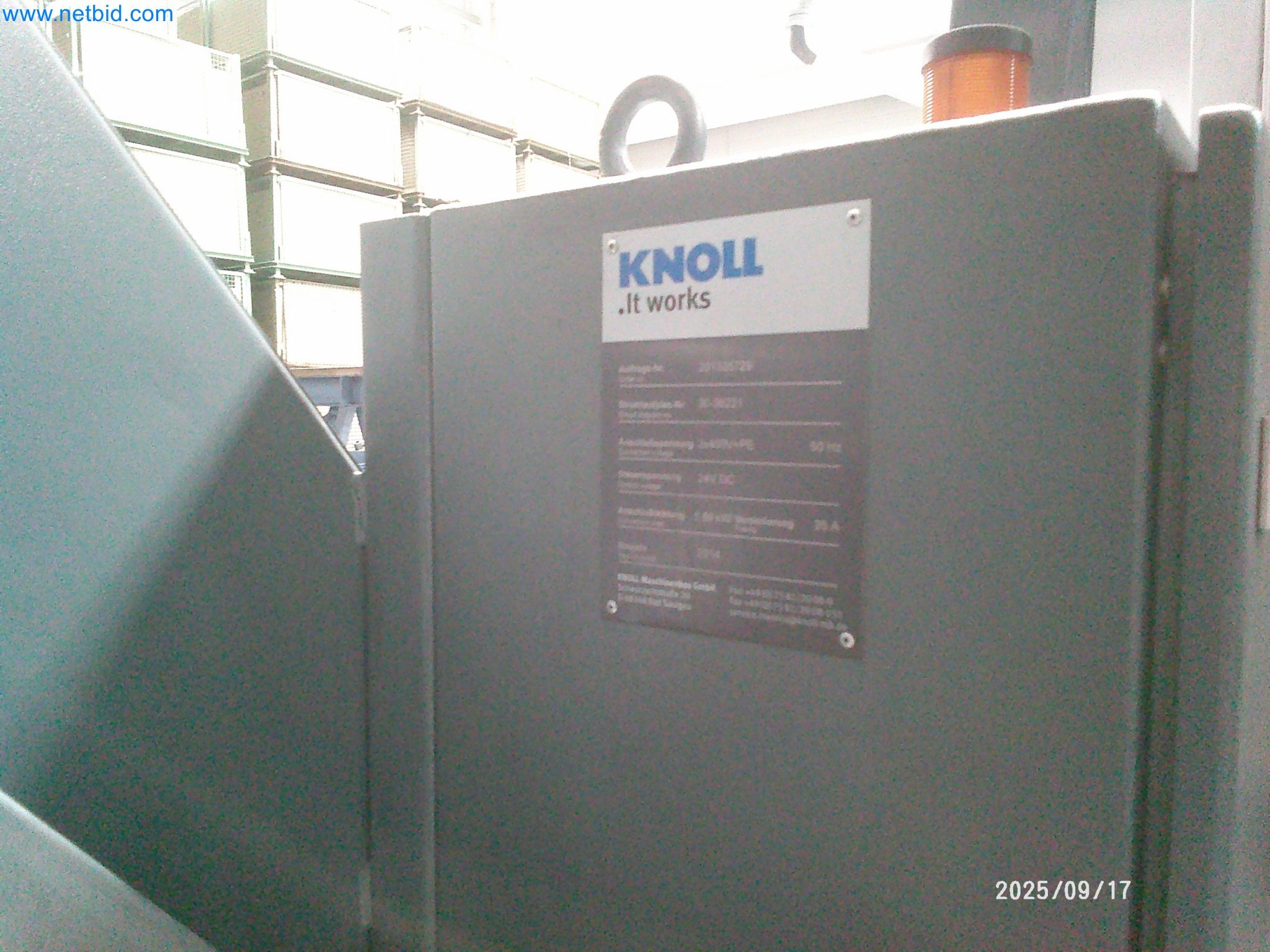

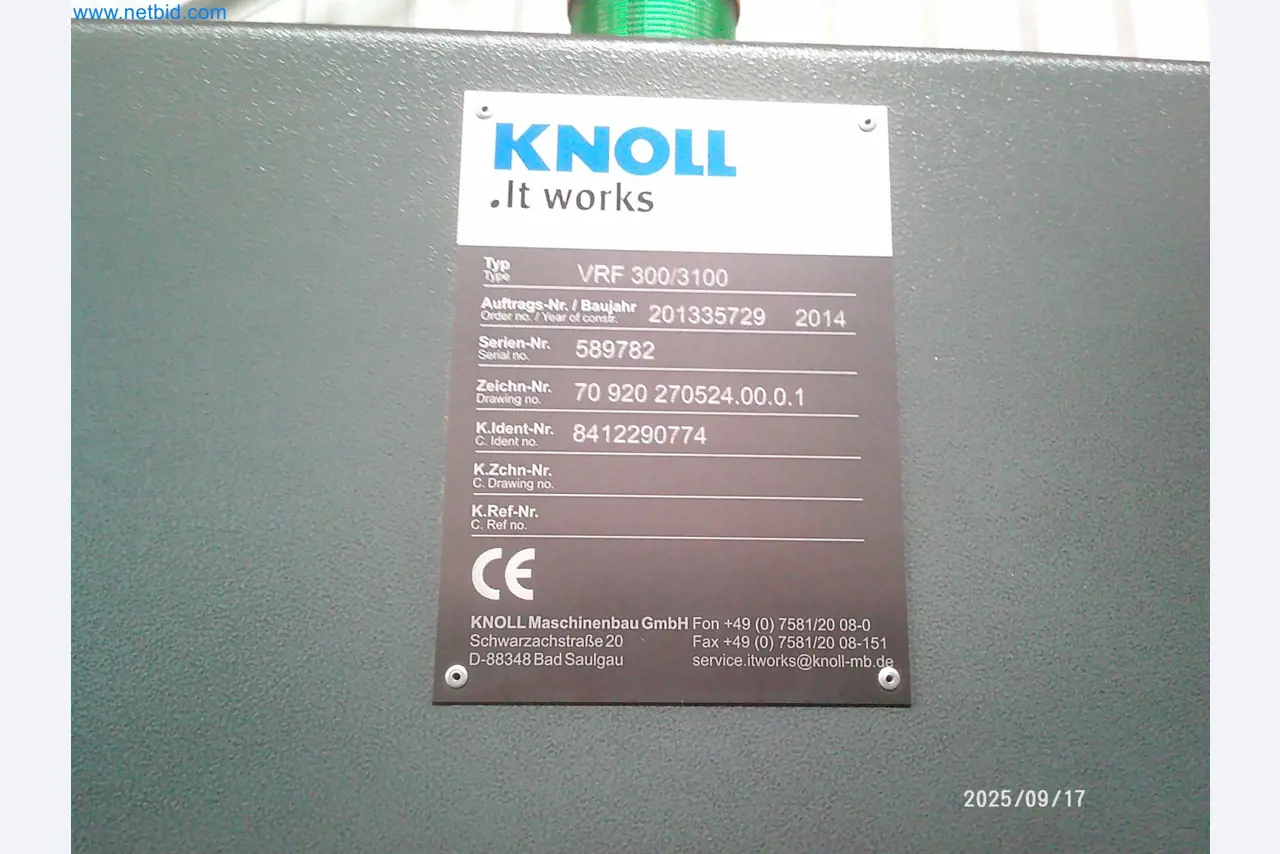

SN: 7705, Heidenhain control, type iTNC530iHSC, double loading option, 2-fold control stand, 5 axes, travel X/Y/Z 13,500 x 3,500 x 1,500 mm, C-axis 240 degrees, B-axis -20 degrees, rapid traverse X/Y/Z 40.000 mm/min, feed 40,000 mm/min, speed depending on head up to 24,000 rpm, torque max. 700 Nm, 2 clamping tables 1 x 6,385 x 3,500 mm, 1 x 5,885 x 3,500 mm, tool holder HSK63/HSK100, spindle speed 24,000 rpm, 148 tool positions, chip conveyor, made by Knoll, type 600k-3, year 2014, SN 8428390001, cooling unit, made by Schimpke, type GK160-V/SO, year 2013, SN 213460371 or 213460372, tank filter system, made by Knoll, type VRS300, year 2014, SN 8412290774, industrial robot, made by Kuka, control unit, control panel, 4 clamping blocks, control cabinet
Location
- 73066 Uhingen, Ulmer Str. 75/ Werk 3/ Halle 304
Dates
Inspection
Wed, 14 Jan 2026
10:00 - 16:00
The tour takes place every hour and only in groups. It is essential to book in advance. The last tour starts at 15:00
