400 t High-Capacity Eccentric Mechanical Press with Automatic Stamping Line Colombo Agostino 225.B.400AUCTION#19565-ST01 (19568-1)

Complete automatic stamping line composed of a high-capacity 400t eccentric mechanical press.
Integrated with FAGOR ARRASATE coil feeding system in production.

MAIN PRESS

• Type: Eccentric mechanical press
• Structure: Double upright / 4 columns (H-frame)
• Nominal force: 400 tons (4000 kN)
• Stroke: 400 mm
• Speed: 15 – 25 strokes/min
• Working frequency/speed:
  • Nominal: 15 strokes/min
  • Max.: up to 25 strokes/min

Working dimensions

• Bed: 2500 × 1300 mm
• Slide (ram): 2500 × 1300 mm
• Distance between uprights: 2500 mm
• Lateral clearance/opening:
  • Standard: 700 mm
  • Max.: up to 850 mm

Stroke/Heights and adjustments

• Top dead center (TDC): 1100 mm
• Closed die height: 700 mm
• Slide adjustment: 250 mm

Motorization and power

• Main motor: 37 kW
• Flywheel speed: ~480–490 rpm
• Power supply: 400 V / 50 Hz
• Compressed air: 5–6 bar

FEEDING LINE

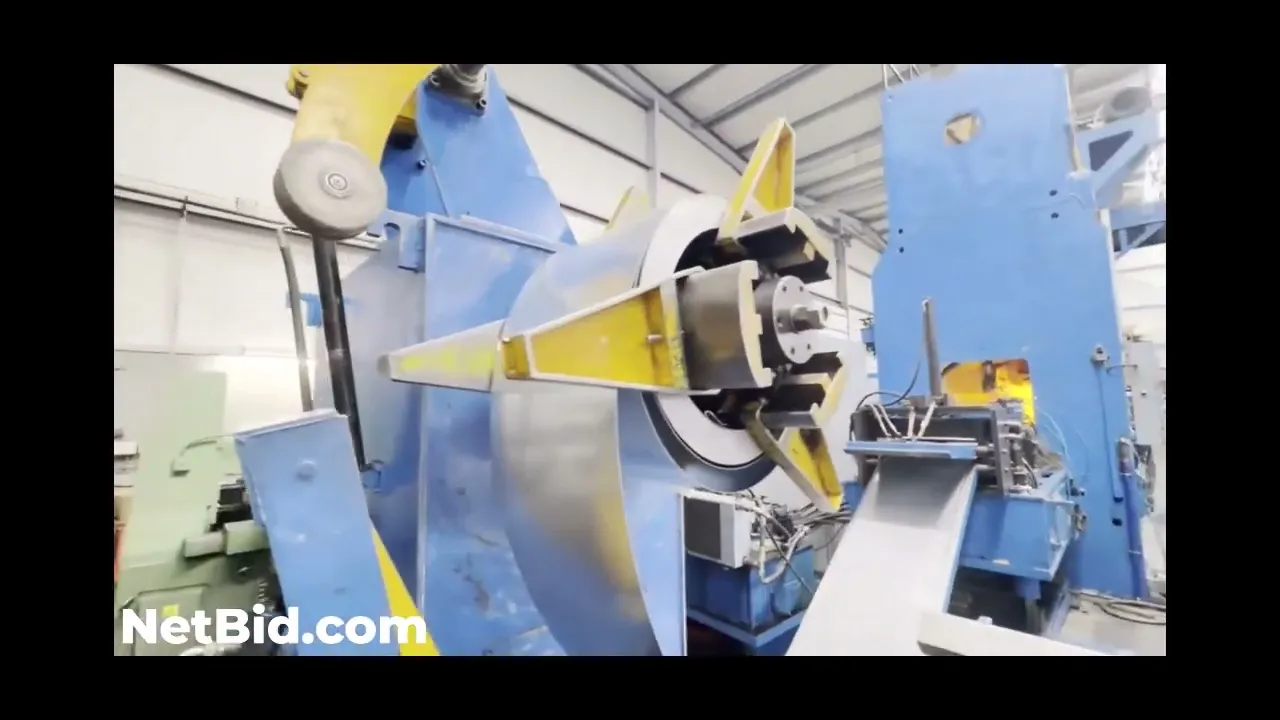

Complete coil feeding system including:

• Industrial decoiler (coil decoiler)
• Heavy-duty expanding mandrel
• Straightener and automatic feeder
• Control system with feed programming (automatic feed)
• Brand: FAGOR ARRASATE
• Automotive OEM-level equipment
• High sheet flatness accuracy
• System synchronized with the press
• Programmable (digital control)
• High feed accuracy
• Integrated line with automatic part evacuation

Structure

• Monoblock cast steel body
• Double upright with high rigidity
• Eccentric motion with upper flywheel
• Continuous operation or jog (inching)
• Internal counterweights

CONTROL AND AUTOMATION

• Hybrid control system with digital interface
• Feed and synchronization programming
• Cycle and position monitoring
• Integrated die protection
• Continuous automatic operation mode

TOOLING AND PRODUCTION CONTEXT

• Multi-station progressive die installed
• Process of:
  • cutting
  • punching
  • forming
• System prepared for mass production

DISCHARGE SYSTEM

• Double conveyor belts
• Efficient part separation
• Direct accumulation in boxes/pallets

PRODUCED PARTS

• Production of stamped metal profiles in series
• Complex geometry with high repeatability
• Excellent dimensional consistency

DOCUMENTATION INCLUDED
Includes complete technical documentation:

• Equipment manuals
• Reconditioning documentation
• Original technical drawings
• Schematics and component lists

CONDITION

• Equipment in productive operation
• Functional and integrated line
• Active production demonstrable on video

Approx. dimensions: sent by e-mail
Approximate weight: 72,000 kg
