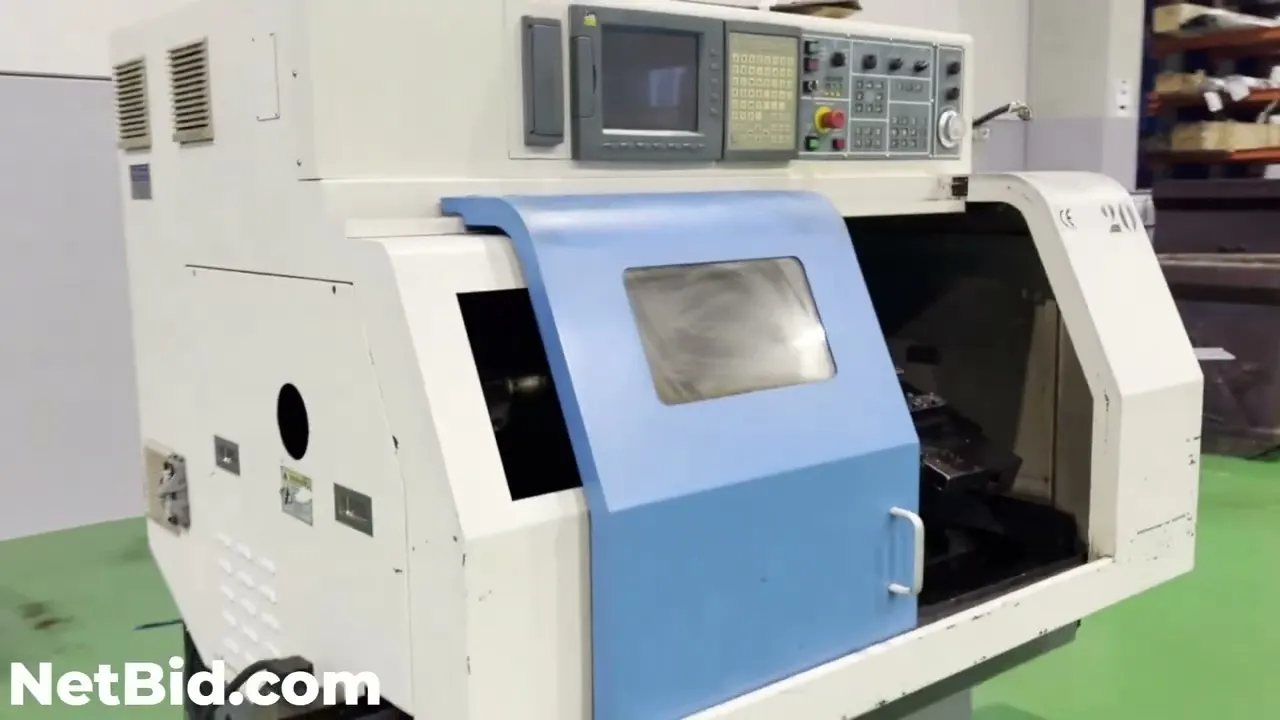

Horizontal CNC Lathe with an automatic bar feeder LNC Technology T600AUCTION#19565-SM03 (19569-3)

Interface

• Industrial LCD display
• Full alphanumeric keyboard
• Dedicated function keys:
  • POS
  • PROG
  • OFFSET
  • GRAPH
  • DIAGNOS
  • PARAM

Mechanical Configuration
Axes

• 2-axis CNC control:
  • X-axis: 120 mm
  • Z-axis: 300 mm
• Max. turning diameter: 200 mm
• Max. turning length: approx. 300 mm
• Spindle speed: 3000 rpm
• Spindle:
  • Hydraulic chuck
  • Bar capacity (through spindle)
  • Chuck size: 8”

Main motor power

• 5.5 kW

Remote I/O

• 256 inputs / 256 outputs

CNC Hardware Specifications

• Industrial PC based controller
• Display interface: VGA
• Communication:
  • Ethernet
  • RS-232 / RS-485
• Storage:
  • CF Card (=32MB)
• Memory:
  • =32MB SDRAM

Operator Interface

• Manual pulse generator (MPG)
• Spindle speed override (0–150%)
• Feed rate override
• Axis selection (X / Z)
• Full CNC control panel with dedicated buttons

CNC Software Features
Programming

• Standard G-Code / M-Code
• Macro programming function
• Background editing

Operating Modes

• EDIT
• MEM (Automatic)
• MDI
• JOG
• MPG (manual jog wheel)
• RAPID
• HOME (Zero return)

Functions

• Position (POS)
• Programming (PROG)
• Offset management
• Graphic simulation
• Diagnostics
• Parameter configuration

Electrical System

• LNC modular CNC system
• Spindle drive:
  • KEB Combivert inverter (Germany)

Included

• Operator manual (LNC T600)
• Programming manual (LNC Lathe Series)

Approx. dimensions: 1800 mm x 1300 mm x 1700 mm
Approximate weight: 3000 kg


CONFIGURATION

• Type: Automatic bar feeder – industrial grade
• Full integration with:
  • CNC lathes with bar capacity
• Closed system with top cover
• Structure approx. 3 m in length

INTERFACE

• Integrated control panel
• Buttons for:
  • forward / reverse
  • cycle / reset
  • manual positioning
• Equipment:
  • Emergency Stop
  • Key switch (manual/auto mode)
  • Analog indicator (voltage)

CAPACITY

• Bar diameter: ~5 – 42 mm
• Bar length: ~3,000 mm

FEEDING SYSTEM

• Pusher-type feeding system (mechanical pusher)
• Precision linear guide
• Sliding carriage (pusher carriage)
• Mechanical transmission system
• Adjustable supports along the length
• Continuous automatic feeding

BAR SUPPORT SYSTEM

• Multiple supports distributed along the machine
• Adjustable arms with manual locking
• Modular alignment system

PNEUMATIC SYSTEM

• Integrated air unit (FRL – filter/regulator)

ELECTRICAL & CONTROL SYSTEM
Control architecture

• PLC-based system (programmable logic)
• Original SYMCO electronics
• SYMCO-HM V2.2 control board
• Mitsubishi module (control/drive)
• AX-EPROM unit

CNC INTERFACE

• Industrial multi-pin connector (Harting type)
• Direct integration with CNC lathe

Functions

• Cycle synchronization
• Automatic feeding control
• Communication with main machine
• Configuration: Long bar feeder
• System: Pusher feeding system
• Application: Continuous production on CNC lathe

Manufacturer

• Brand: SYMCO
• Origin: Taiwan
• Model: SYMCO L42 Series
• Year: 2003

Approx. dimensions: 3200 mm x 800 mm x 1300 mm
Approximate weight: 1100 kg

Optional dismantling & loading cost provided by third party: 400 €.
Any additional cost related to lot preparation and packaging requirements for transport provided by third party is available upon request.
