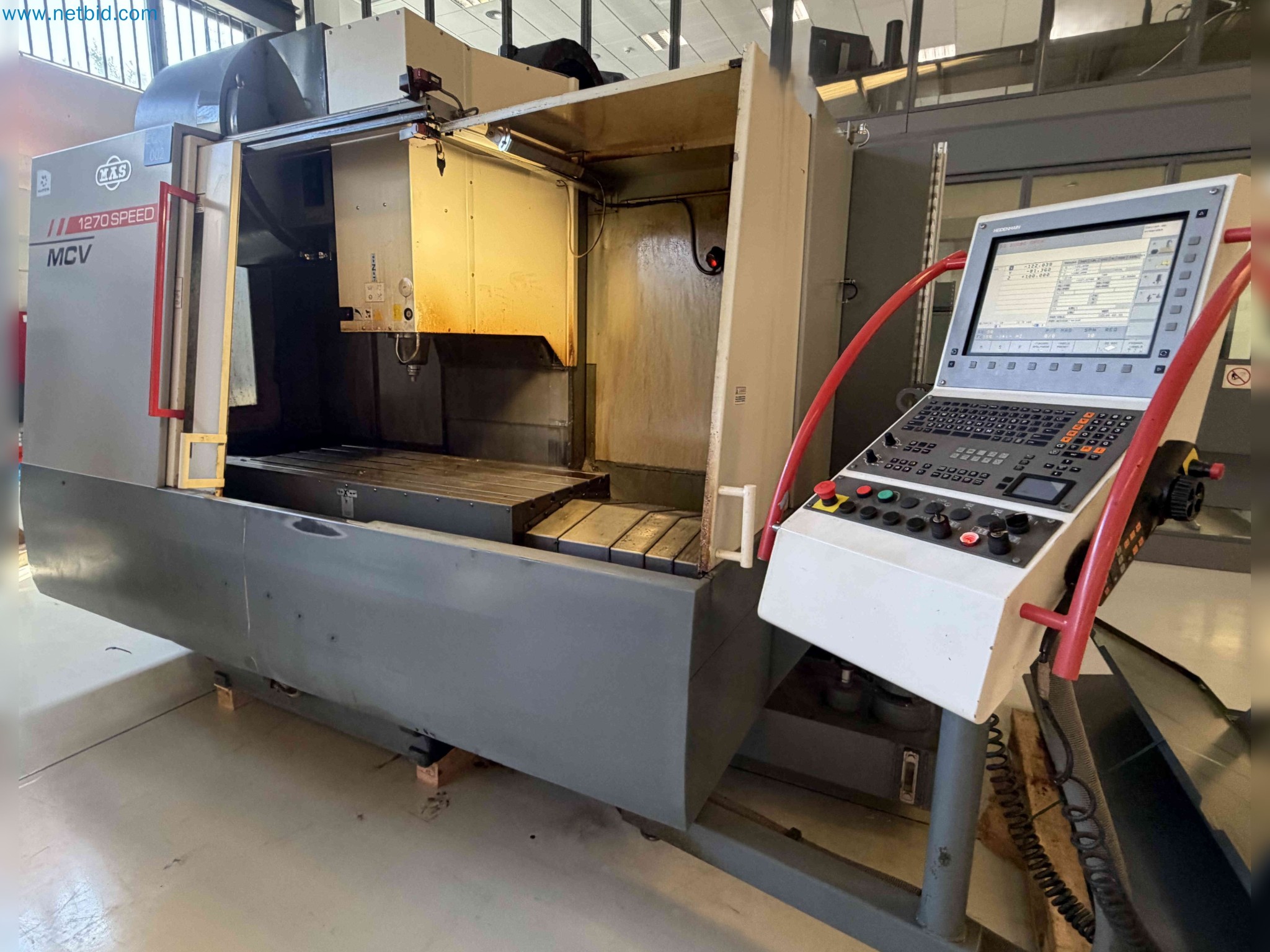

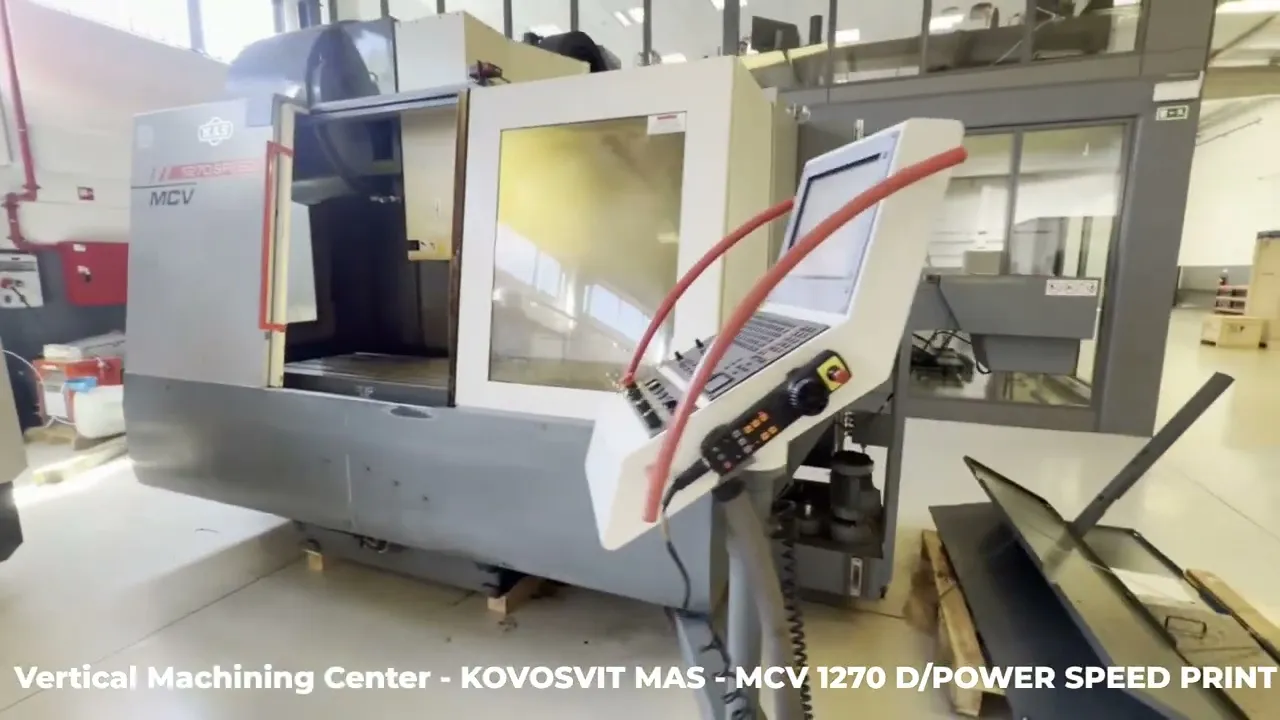

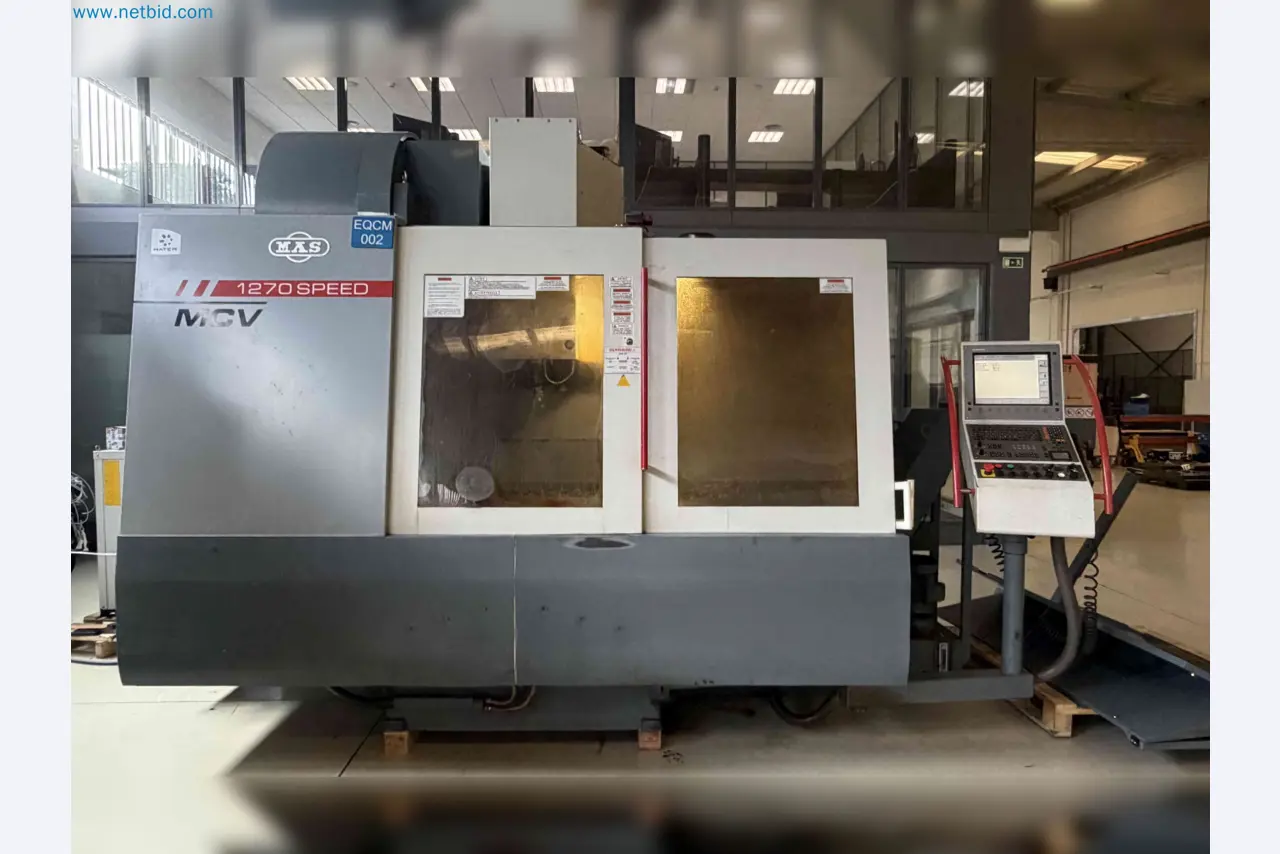

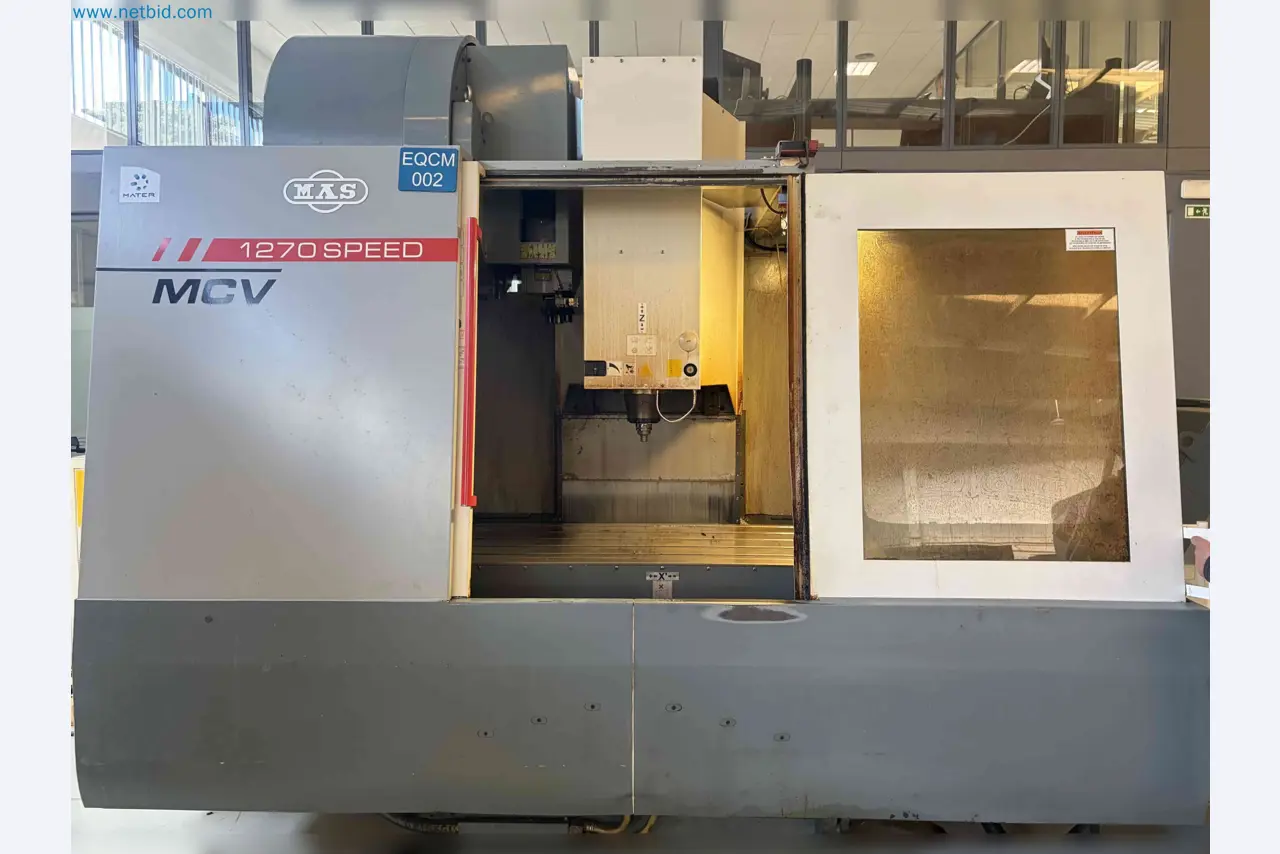

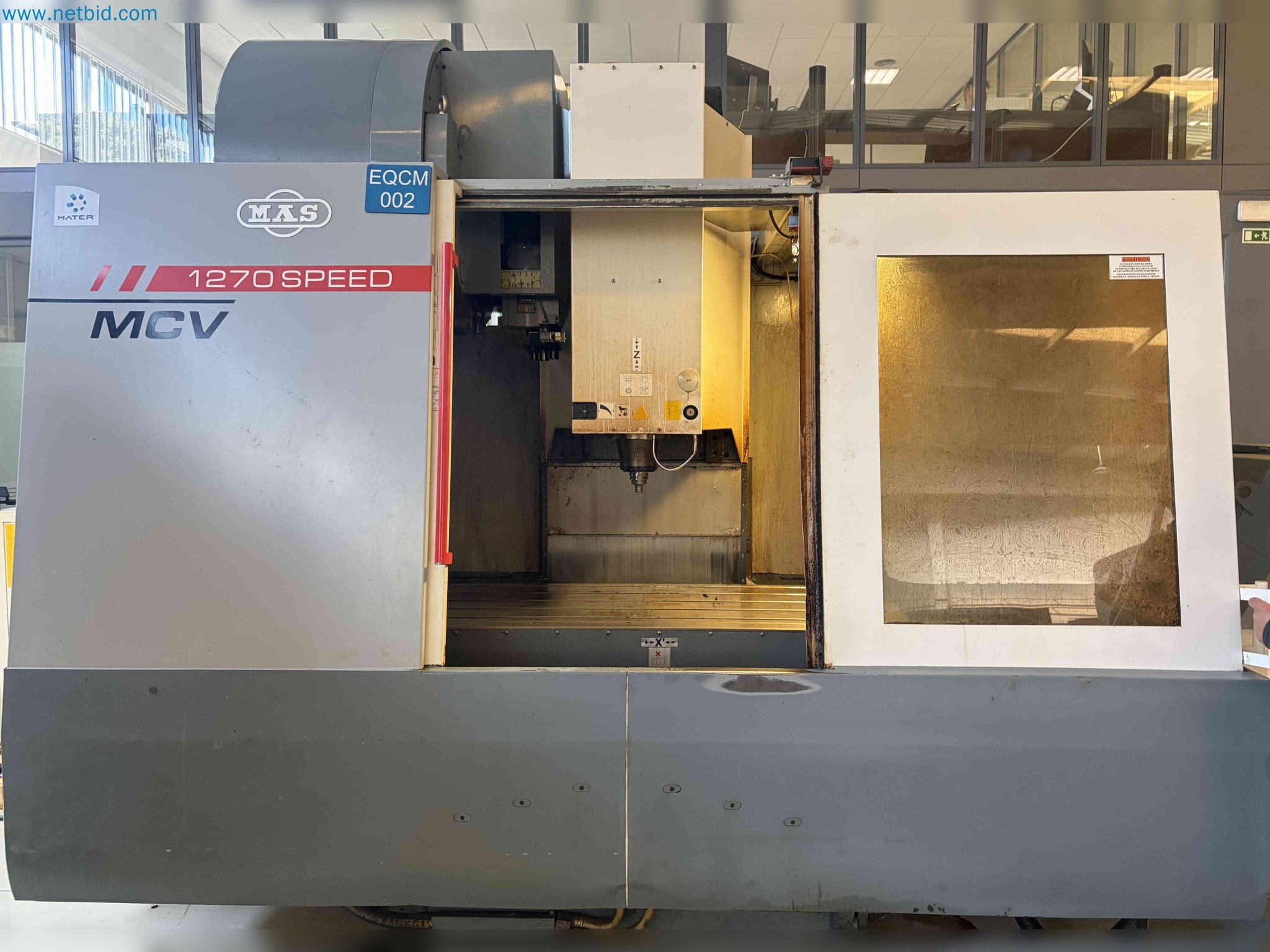

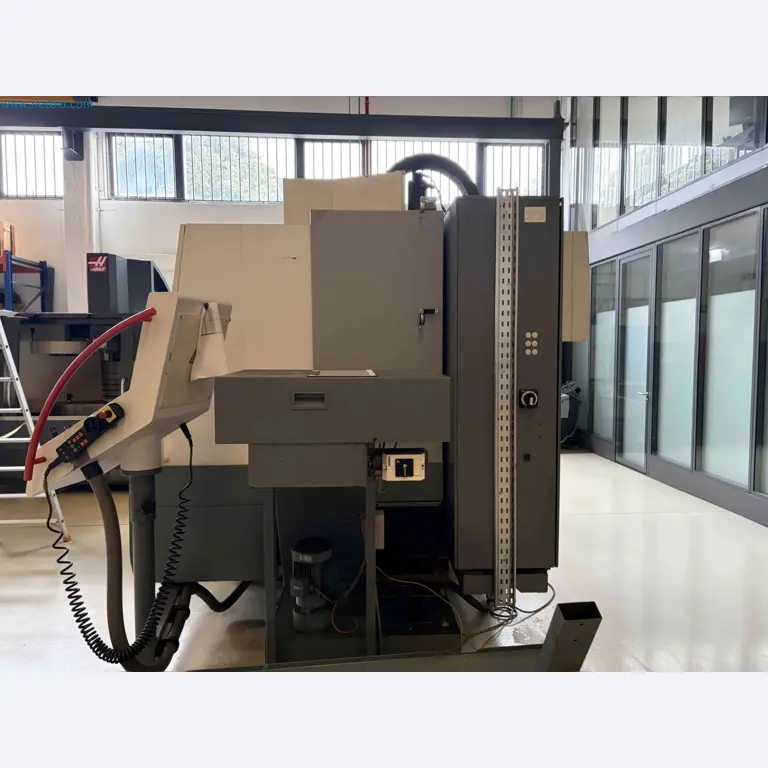

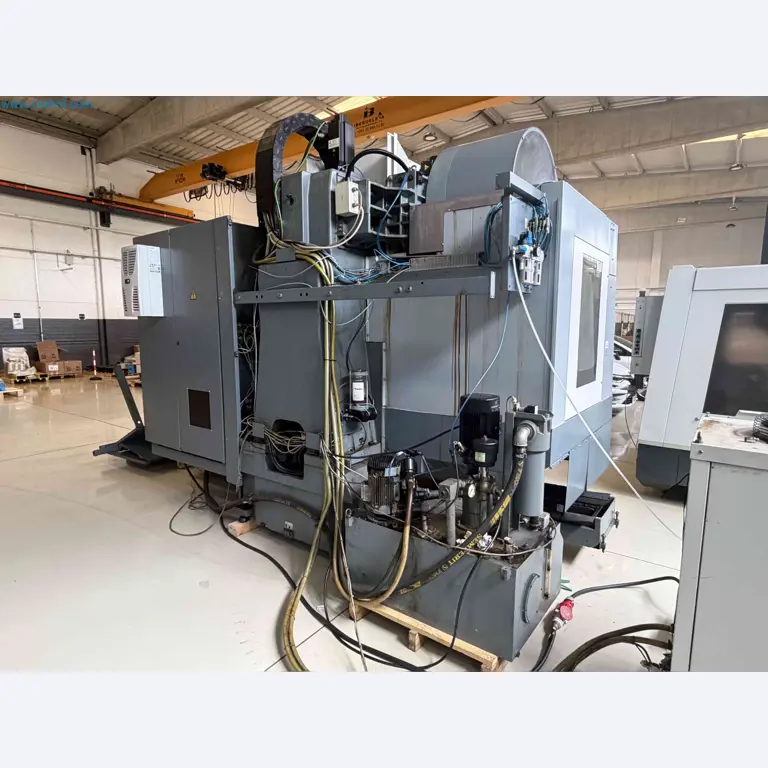

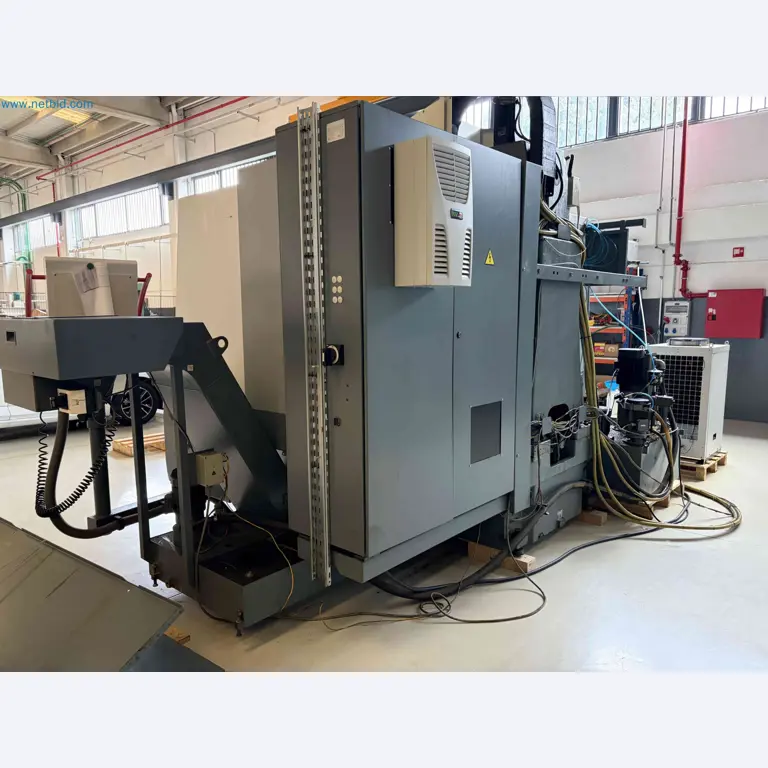

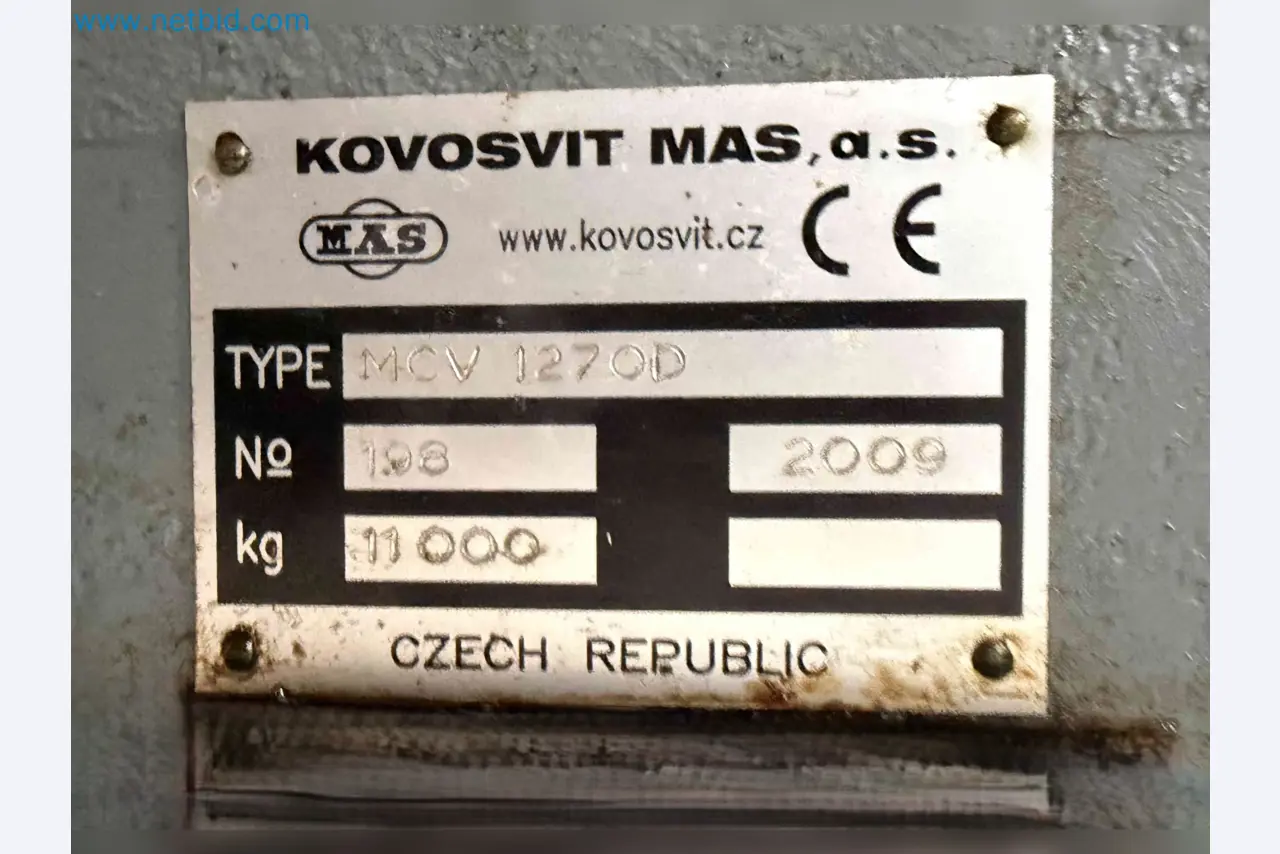

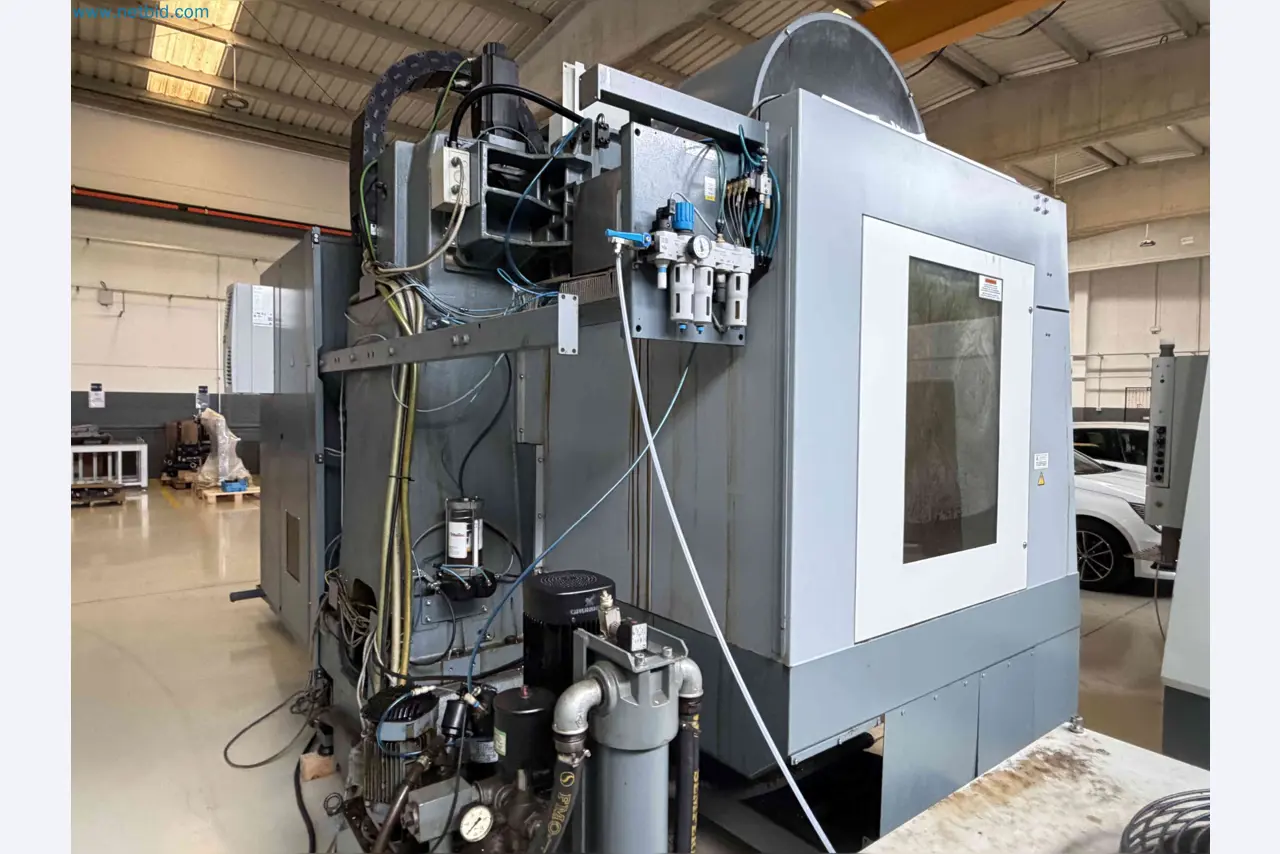

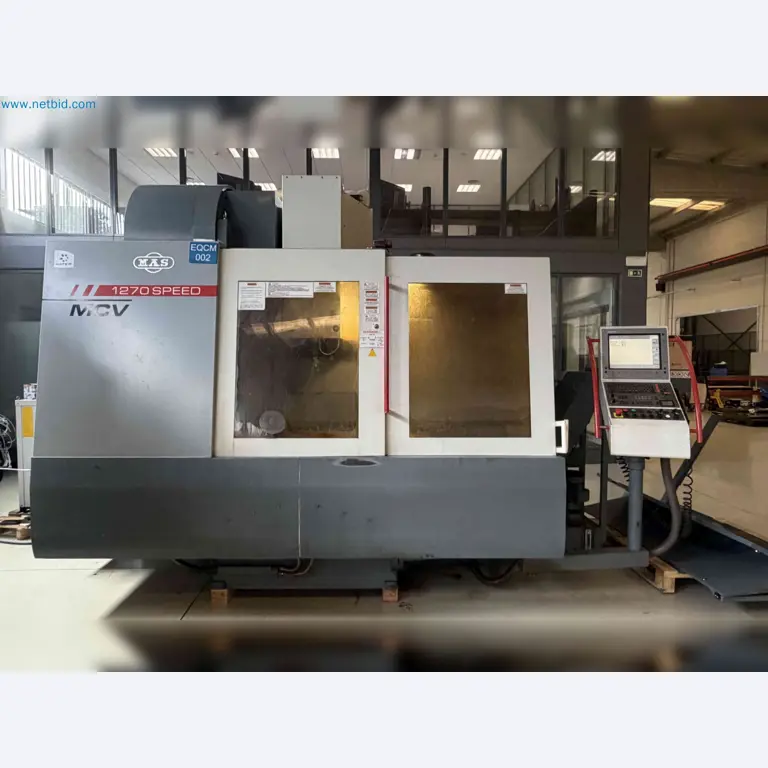

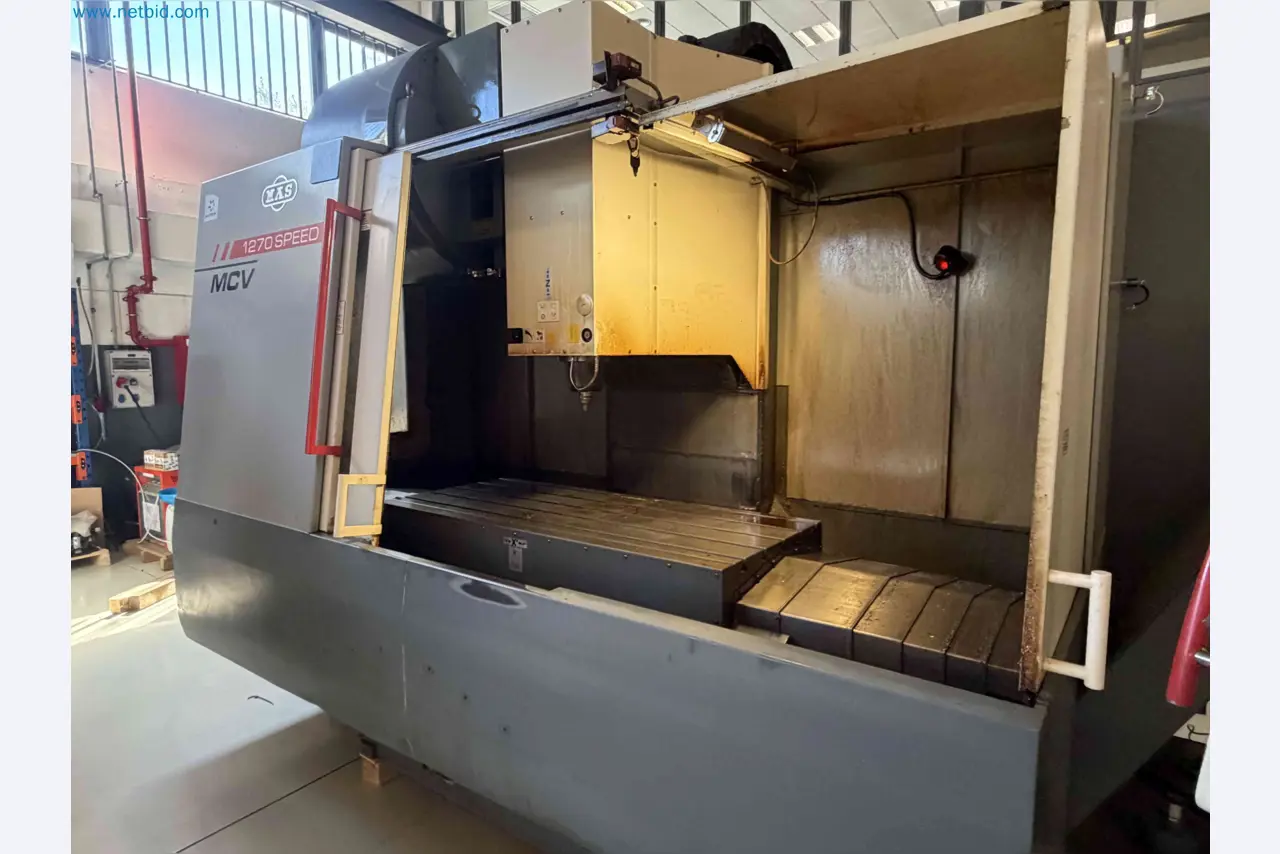

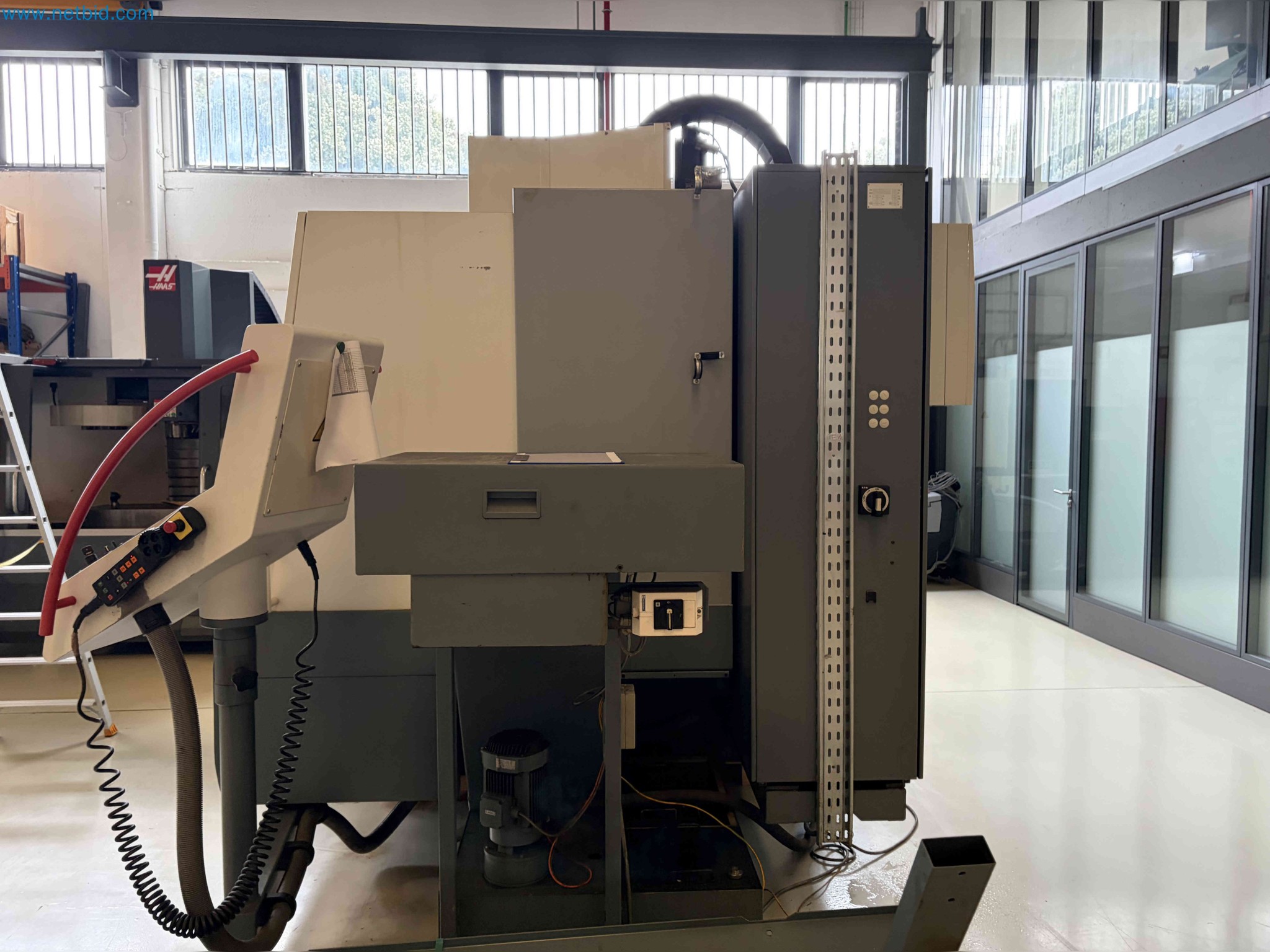

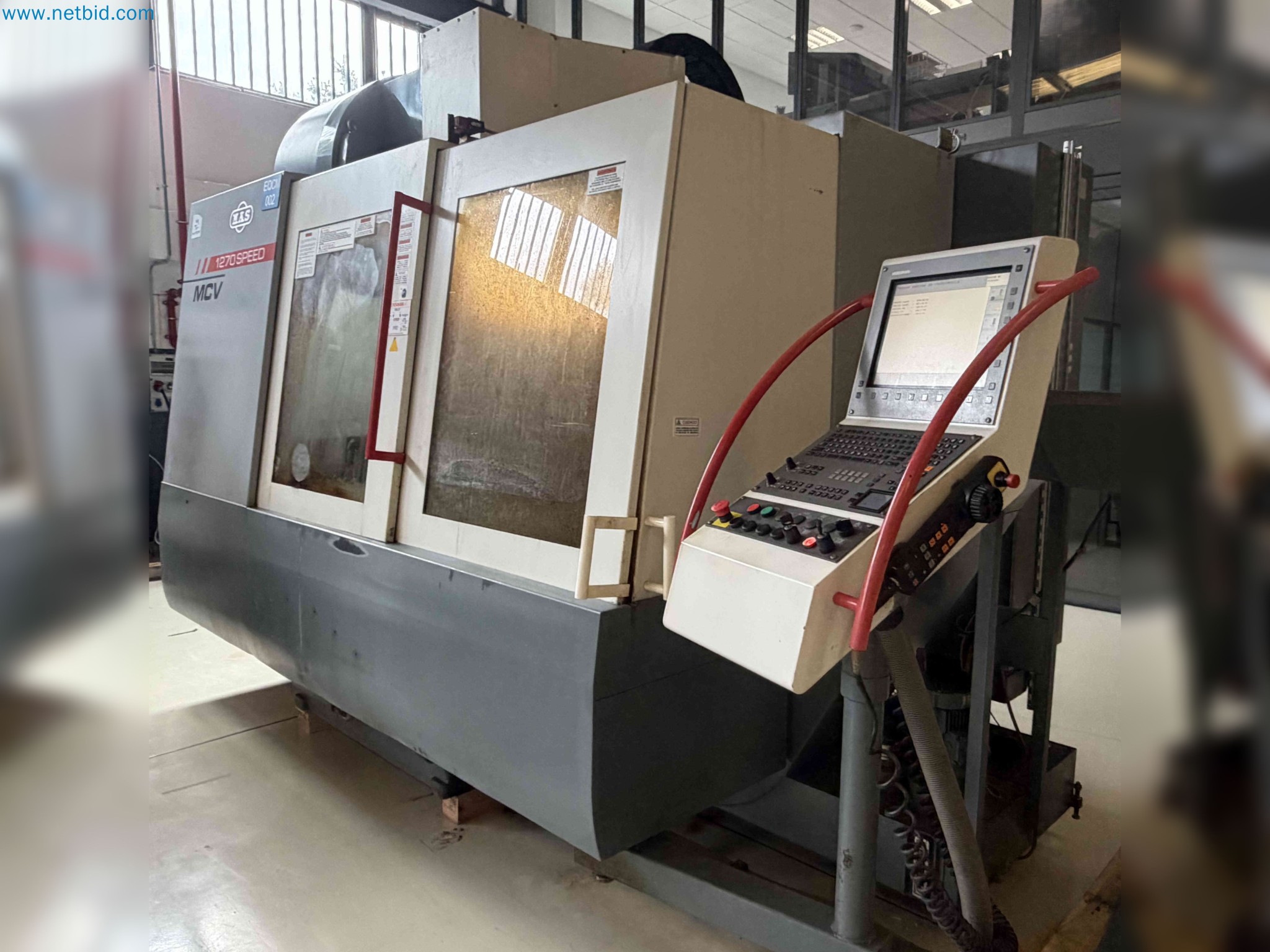

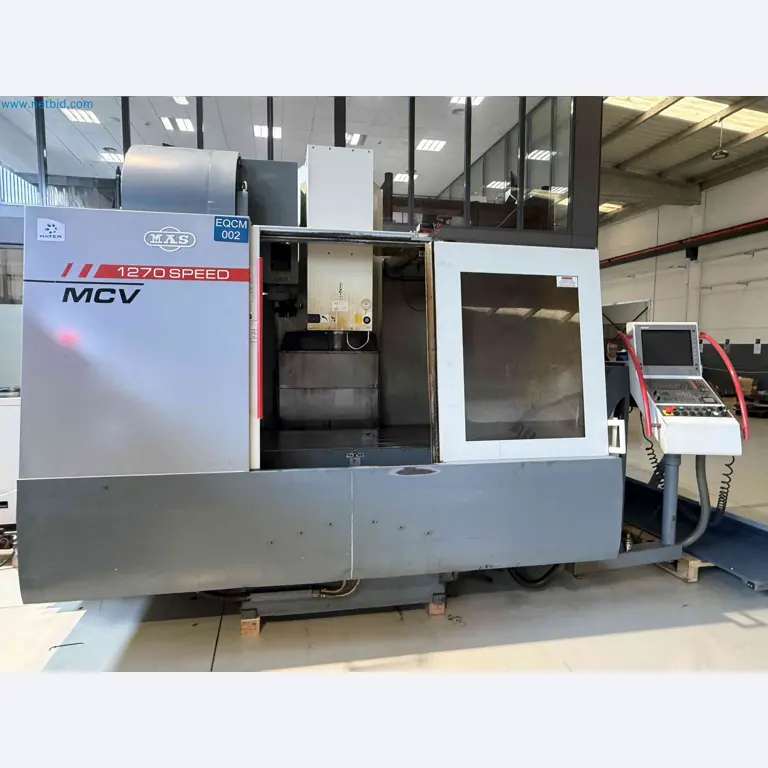

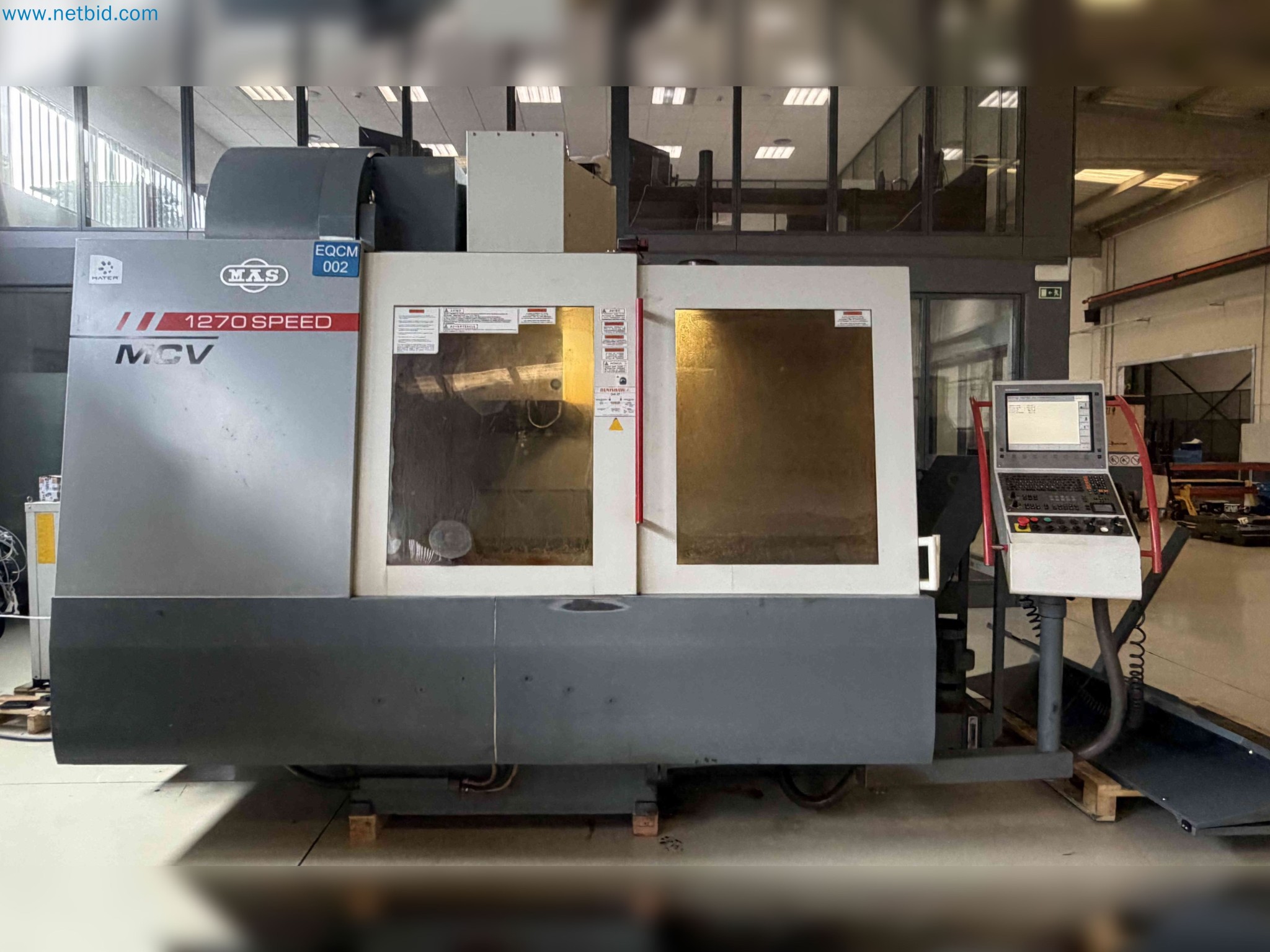

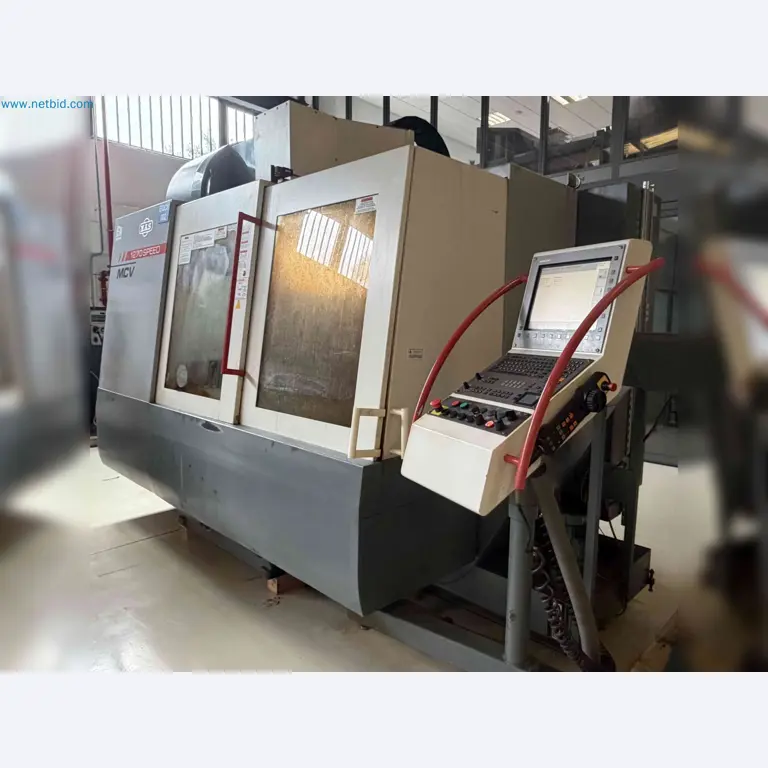

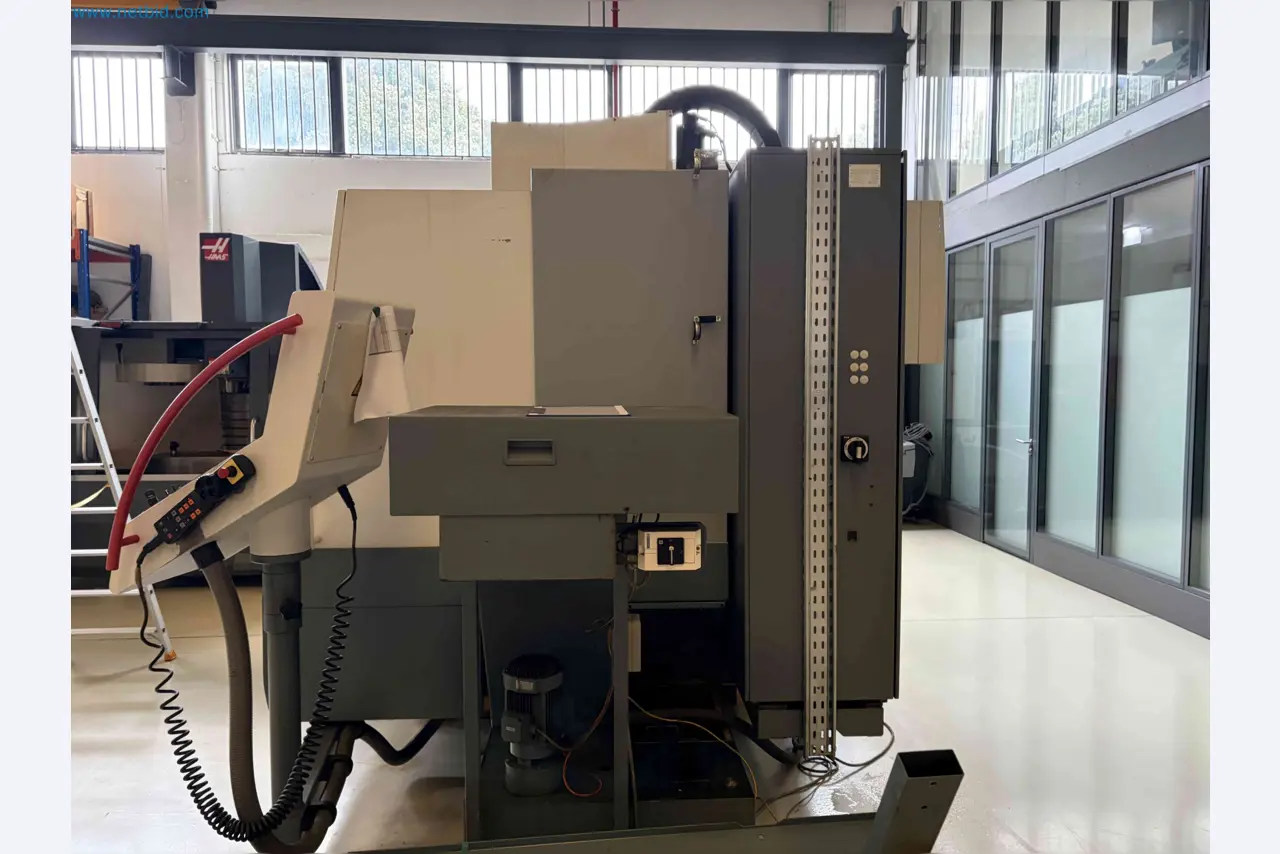

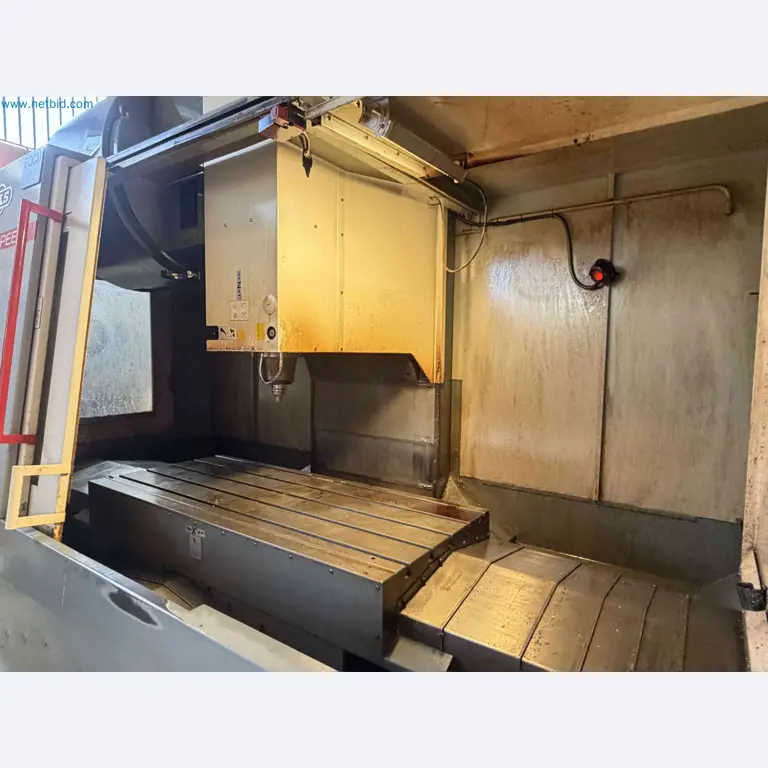

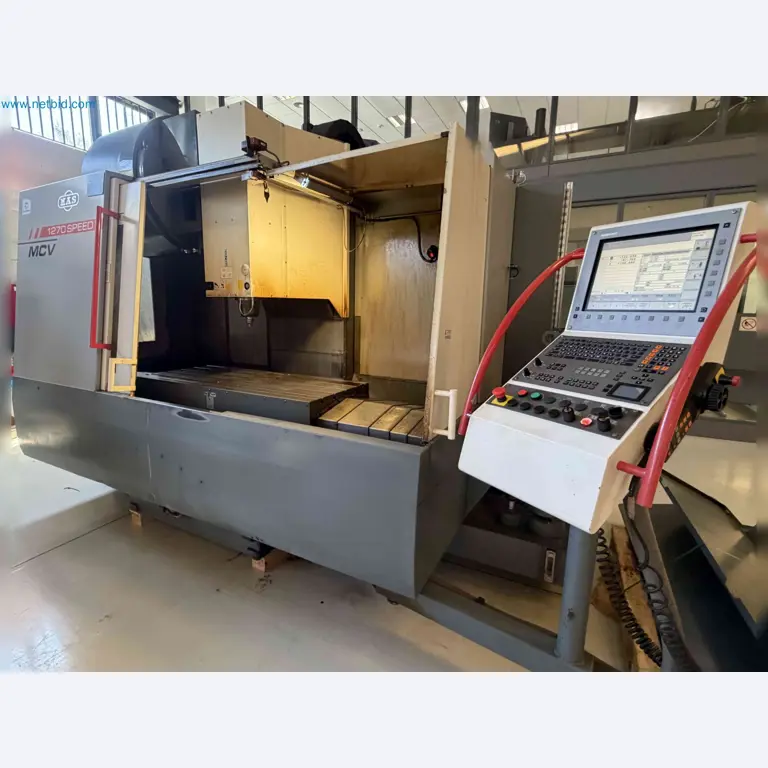

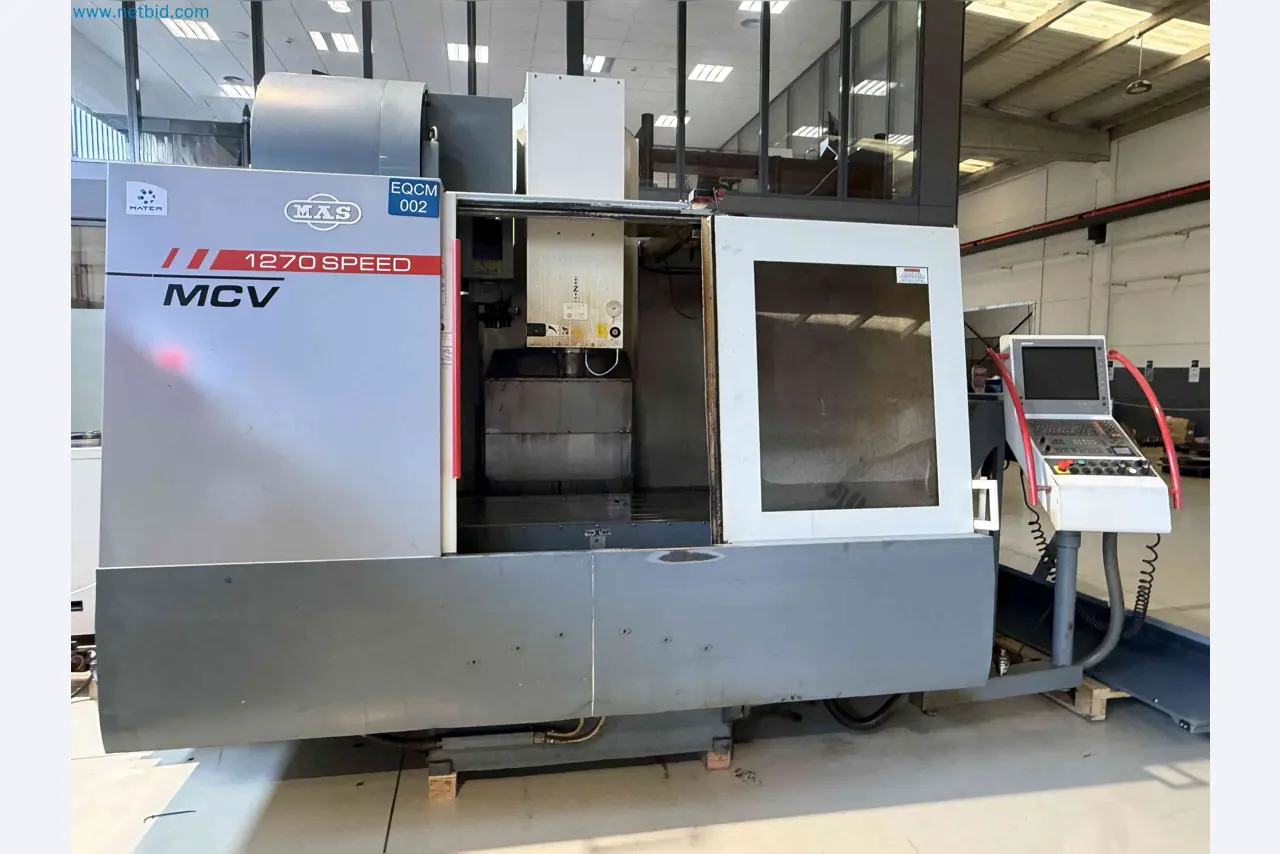

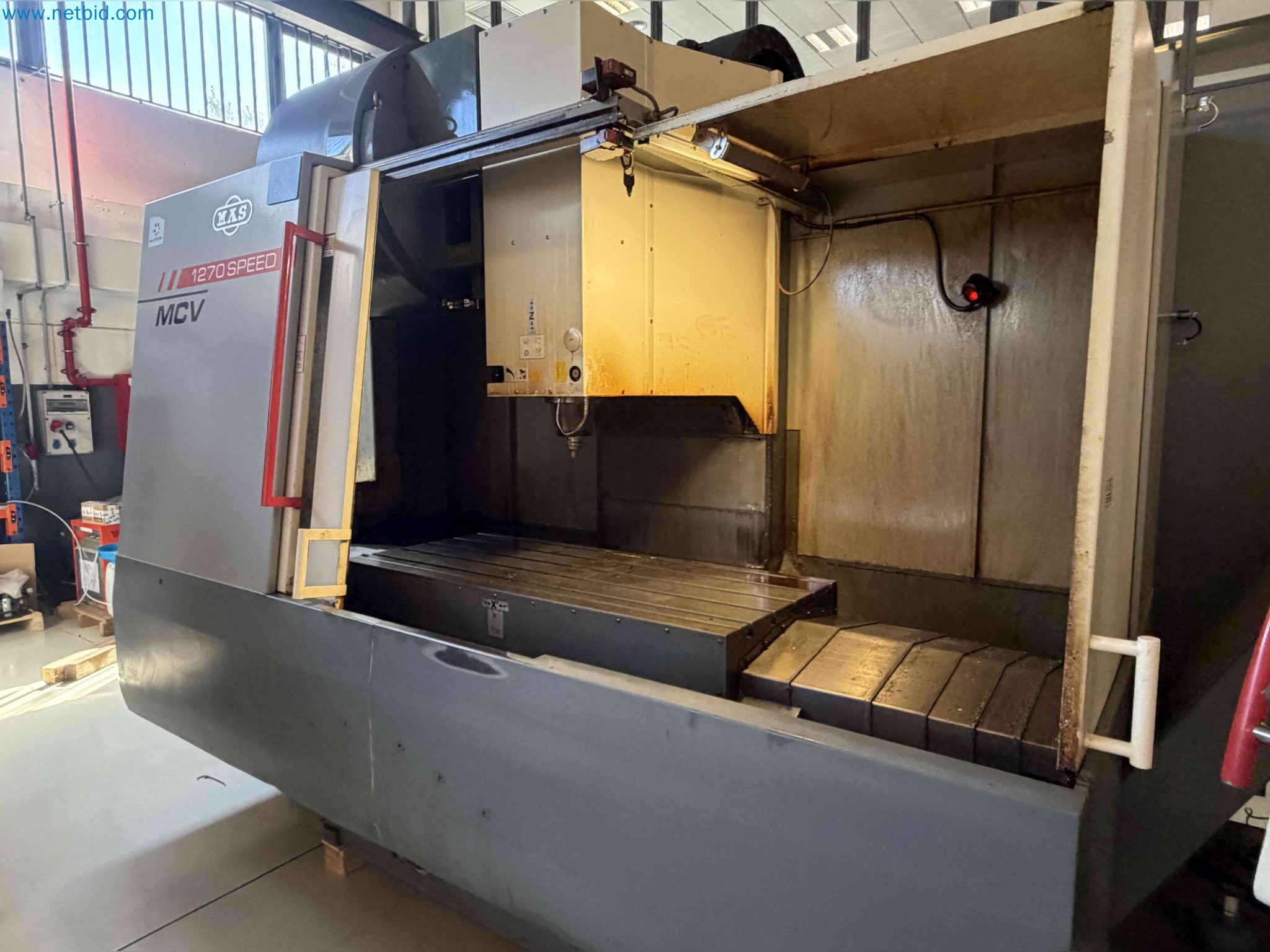

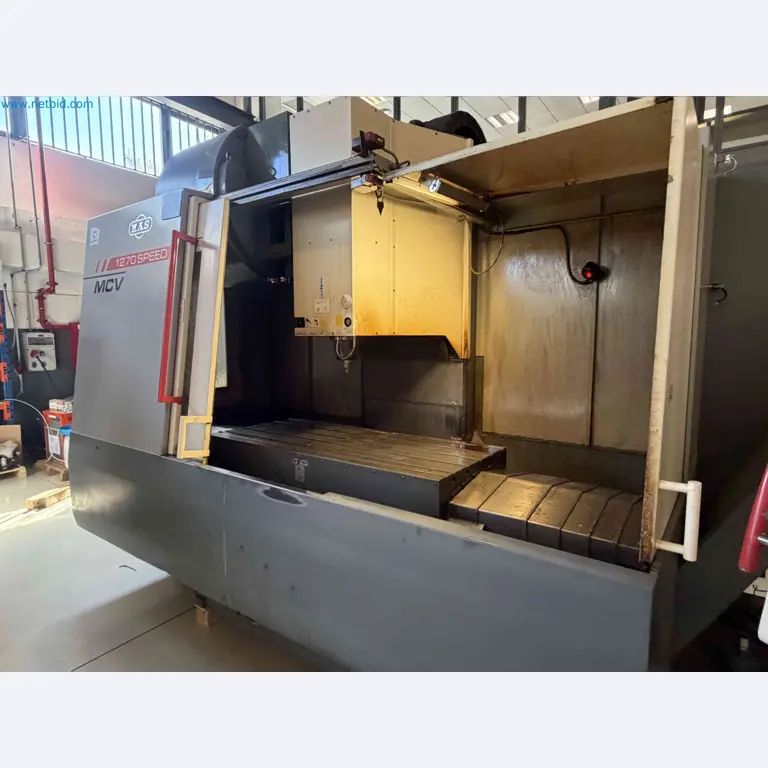

Vertical Machining Center KOVOSVIT MAS MCV 1270 D/POWER SPEED PRINTAUCTION#19565-SI01 (A19591-1)
Details
Product Type
KOVOSVIT MAS
Type
MCV 1270 D/POWER SPEED PRINT

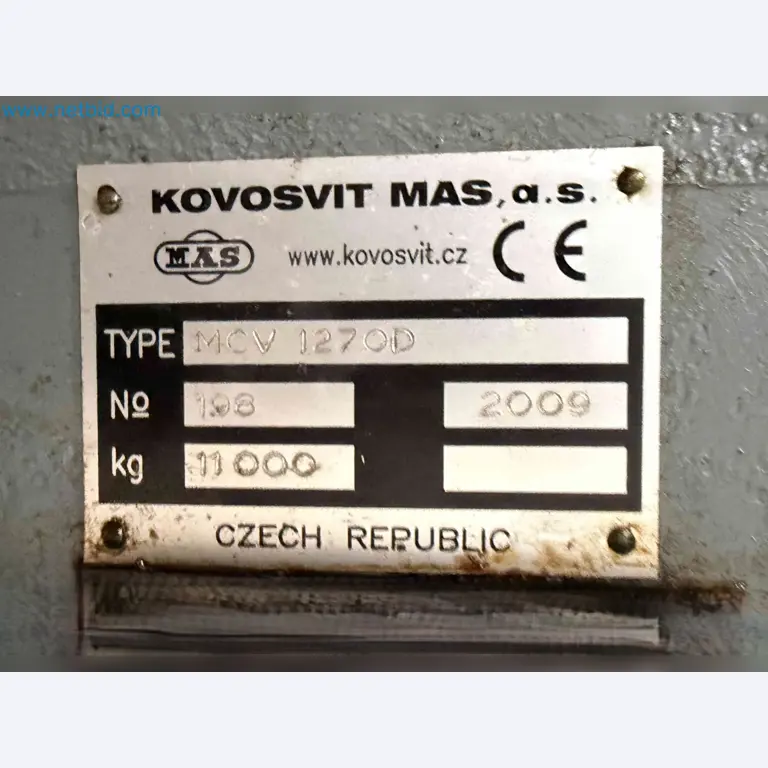

Construction Year
2009
Description
Axes
X: 1,270 mm
Y: 610 mm
Z: 720 mm

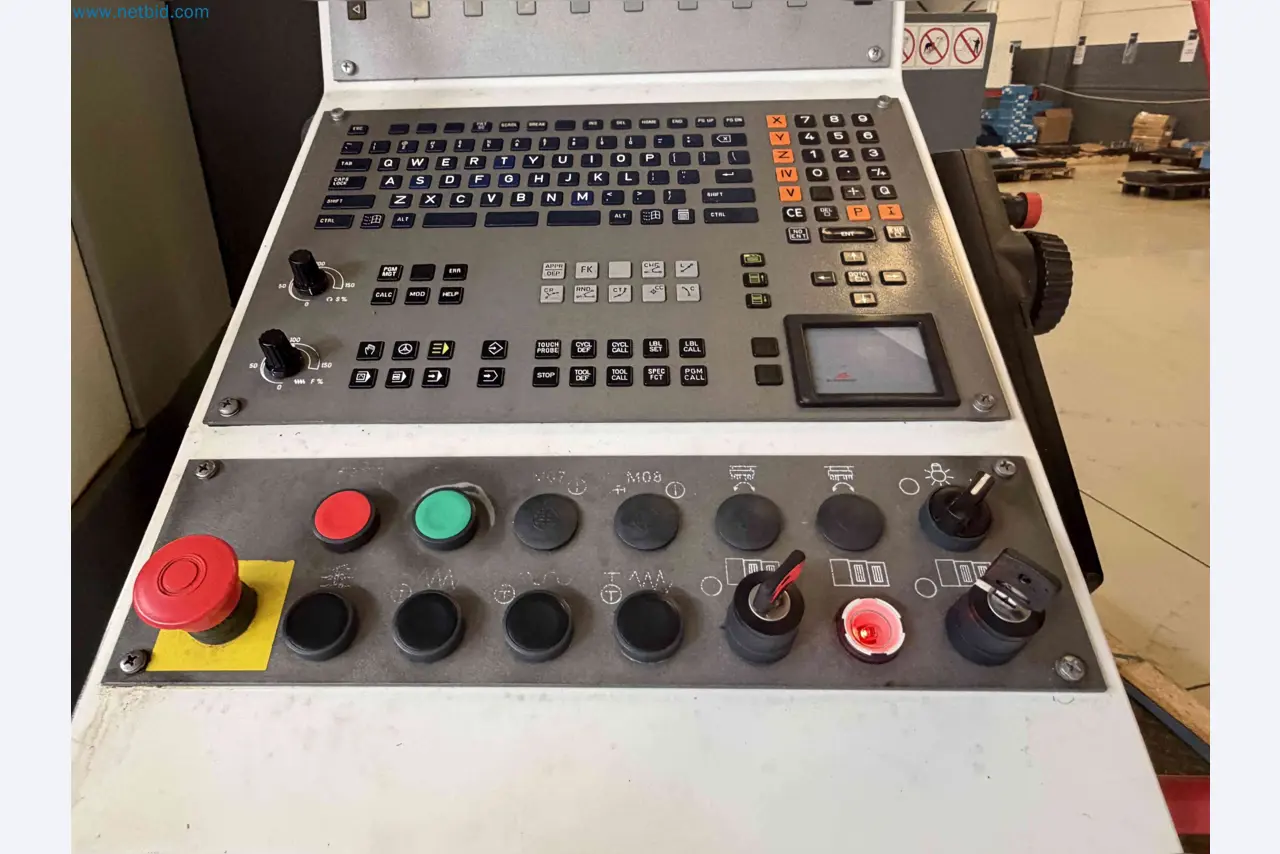

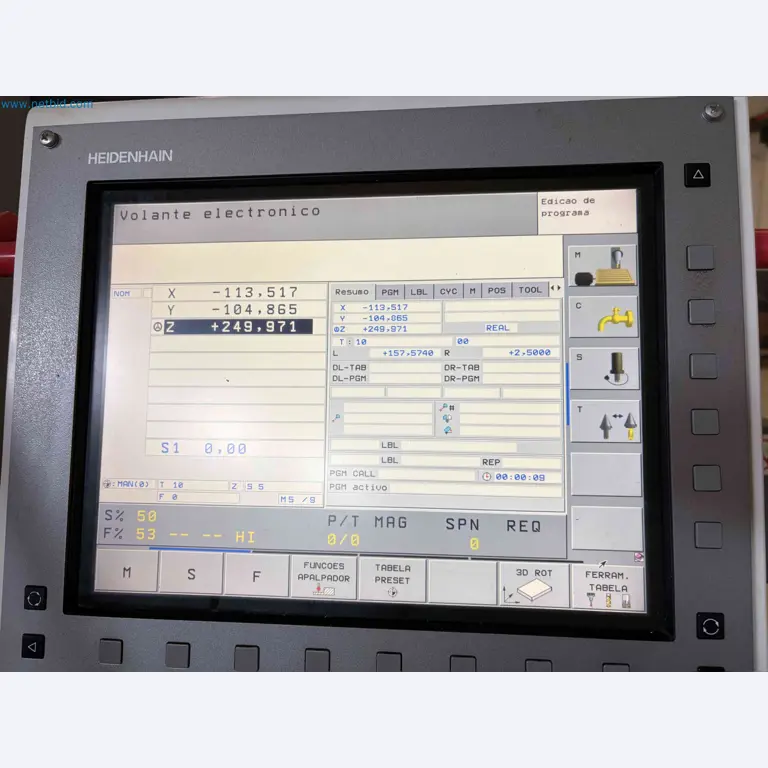

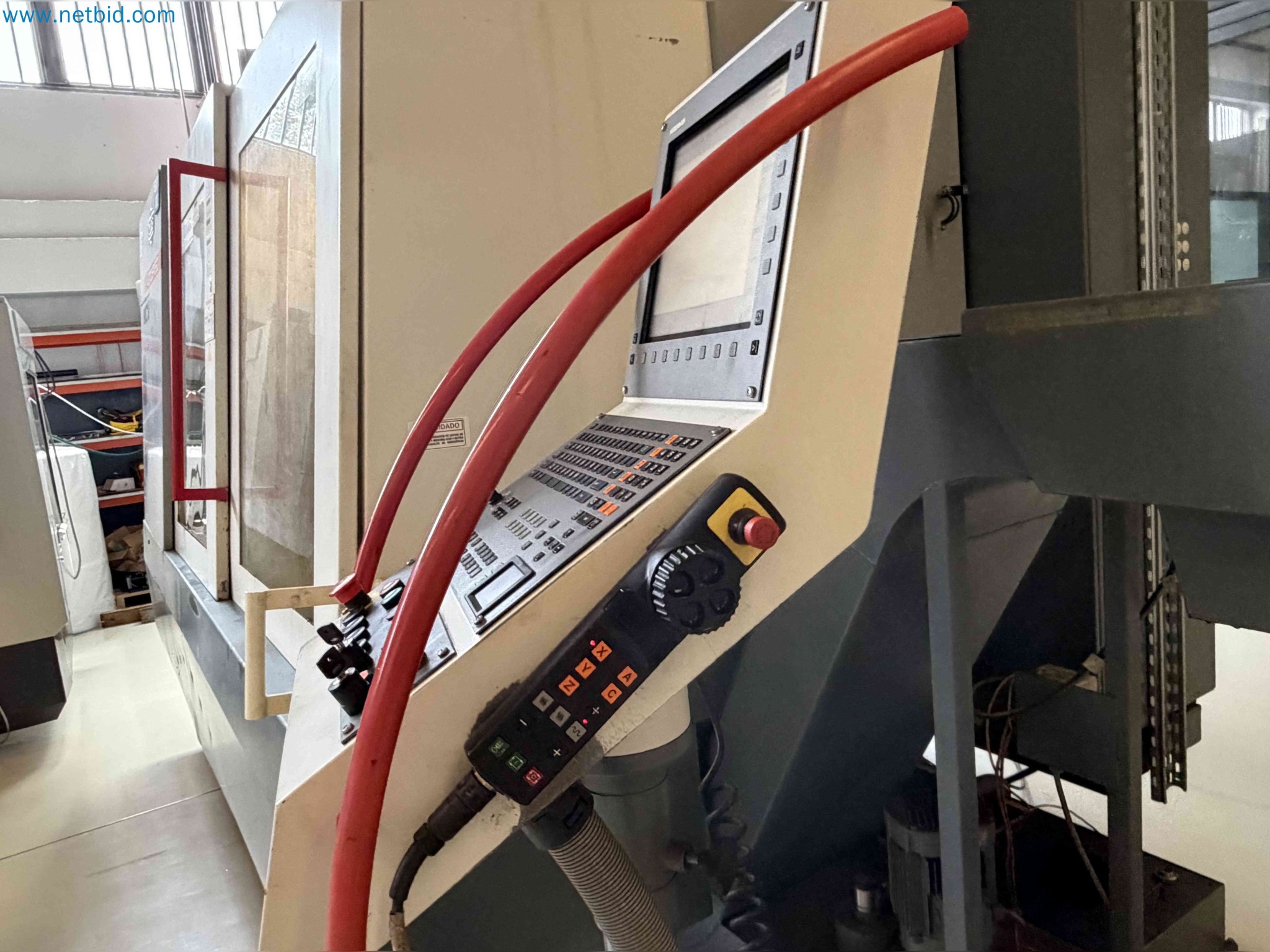

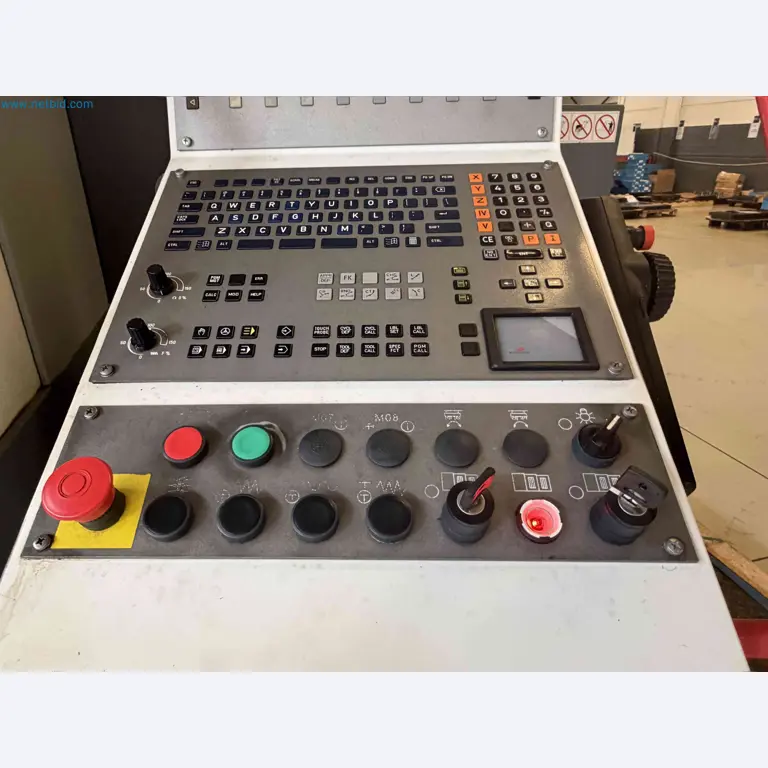

Control and CNC:

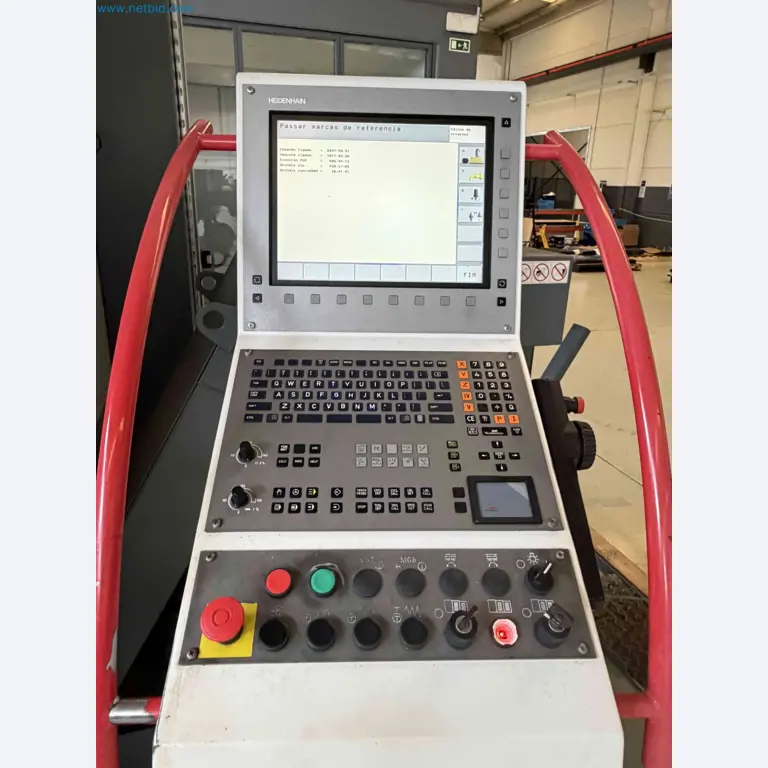

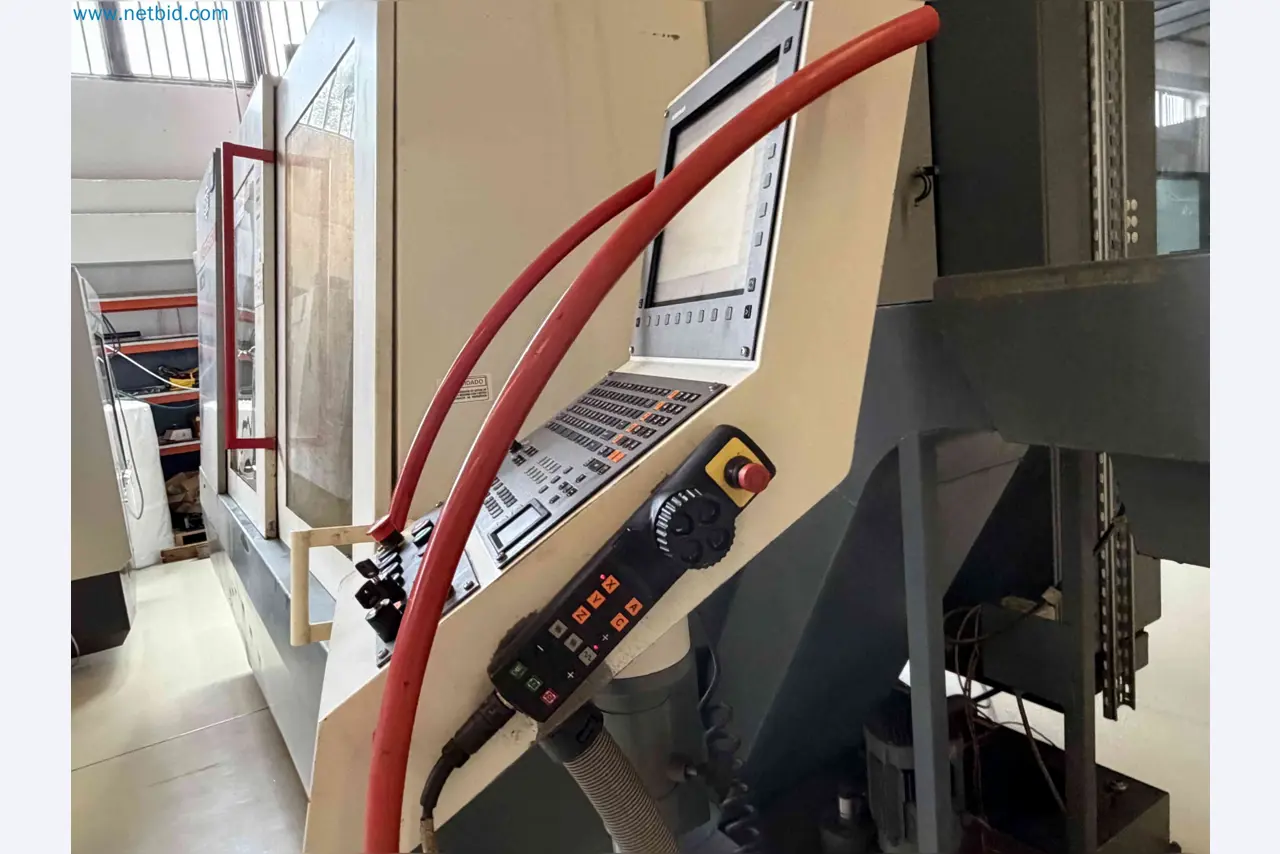

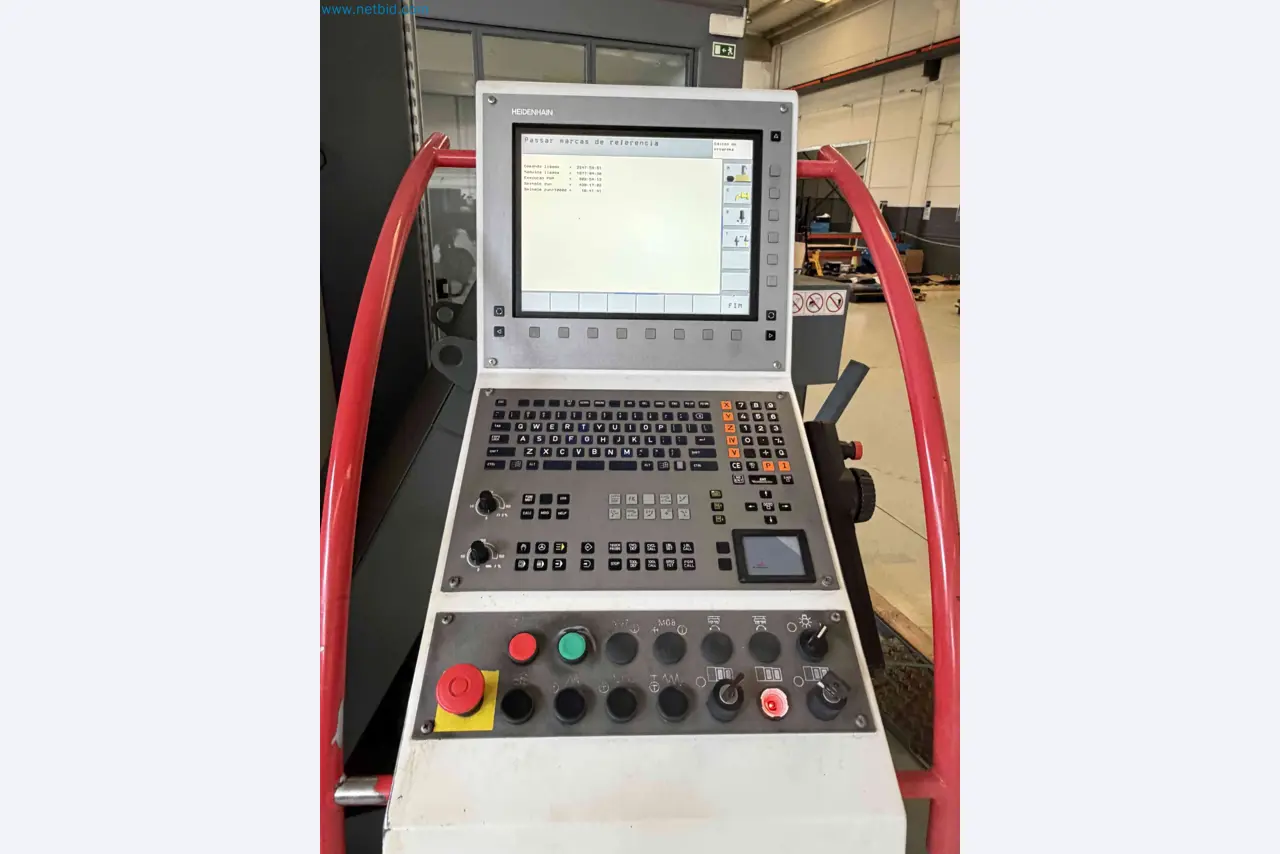

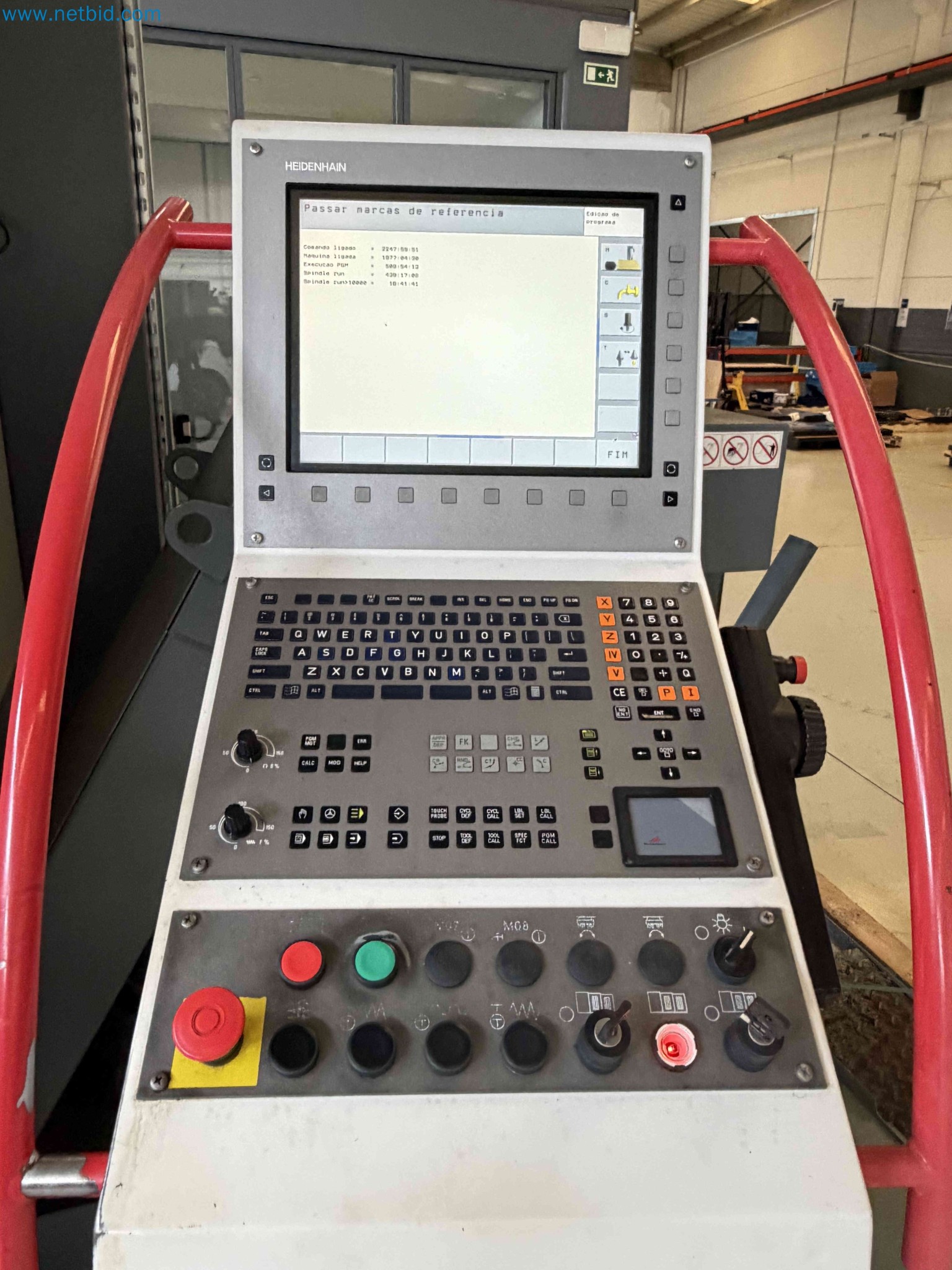

Heidenhain iTNC 530

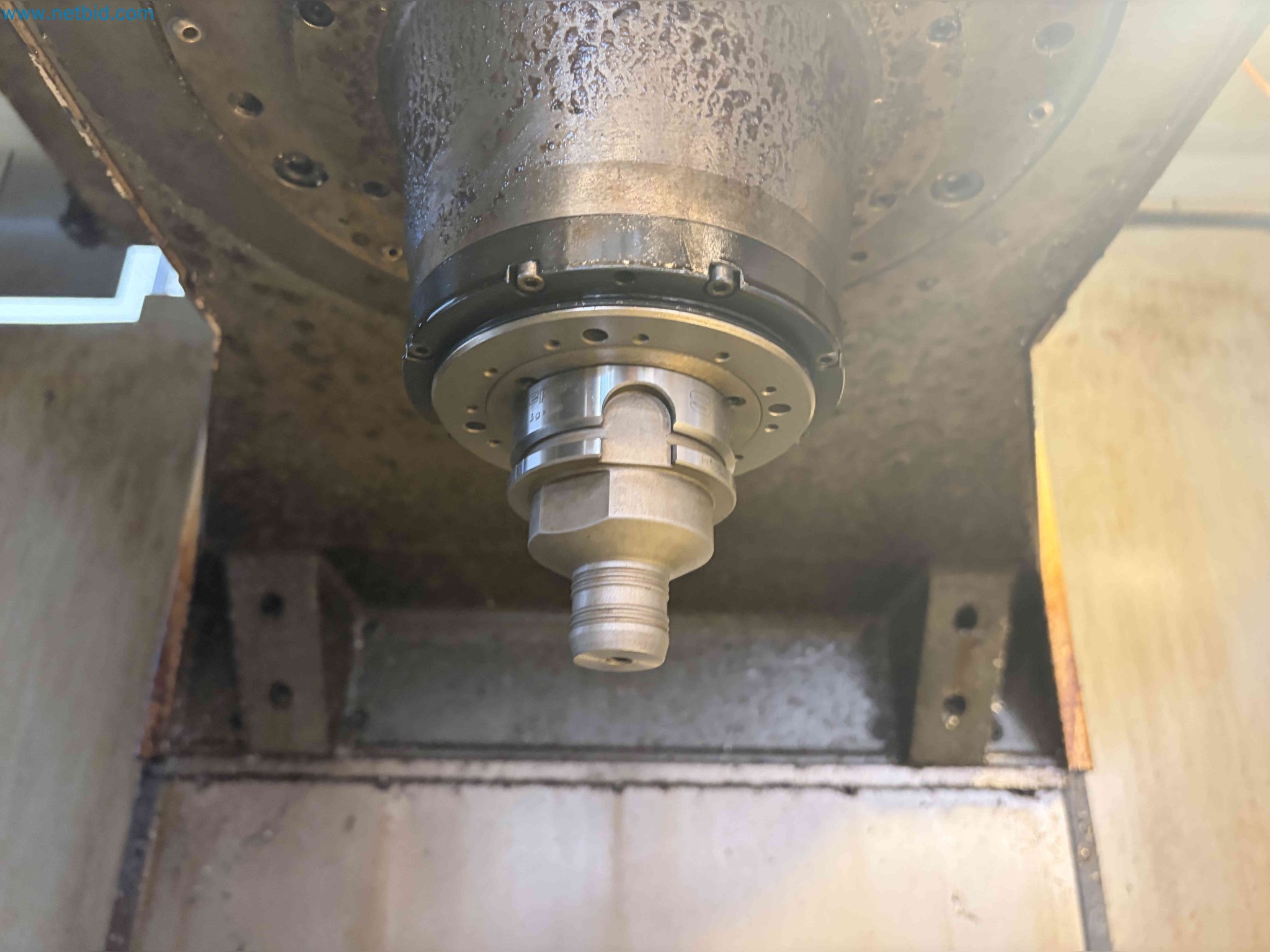

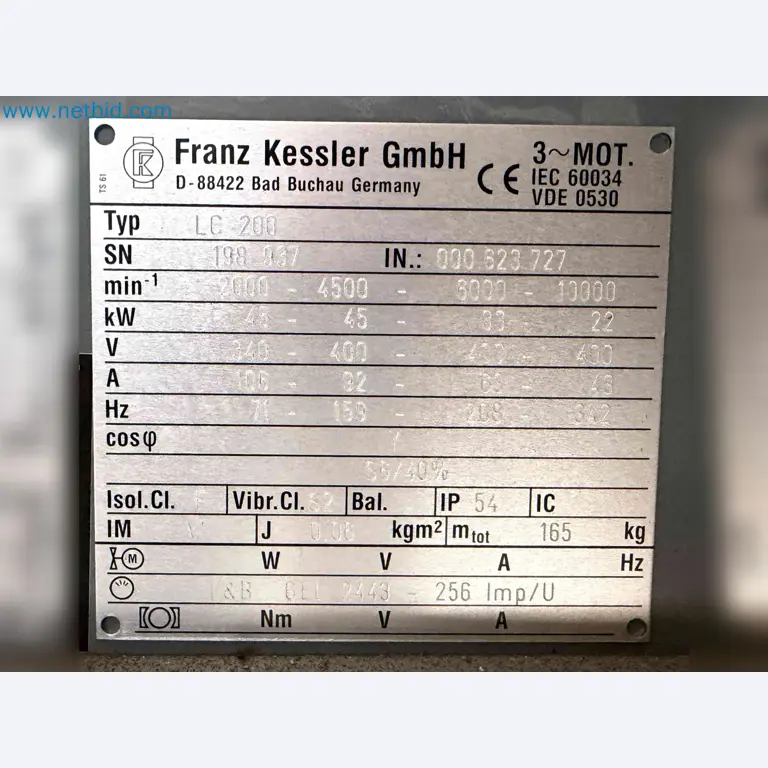

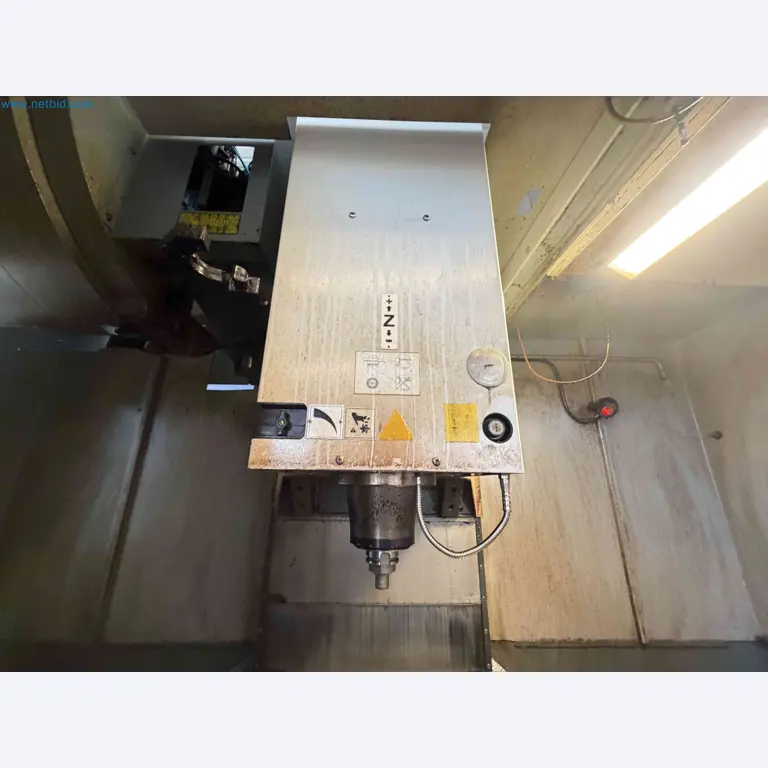

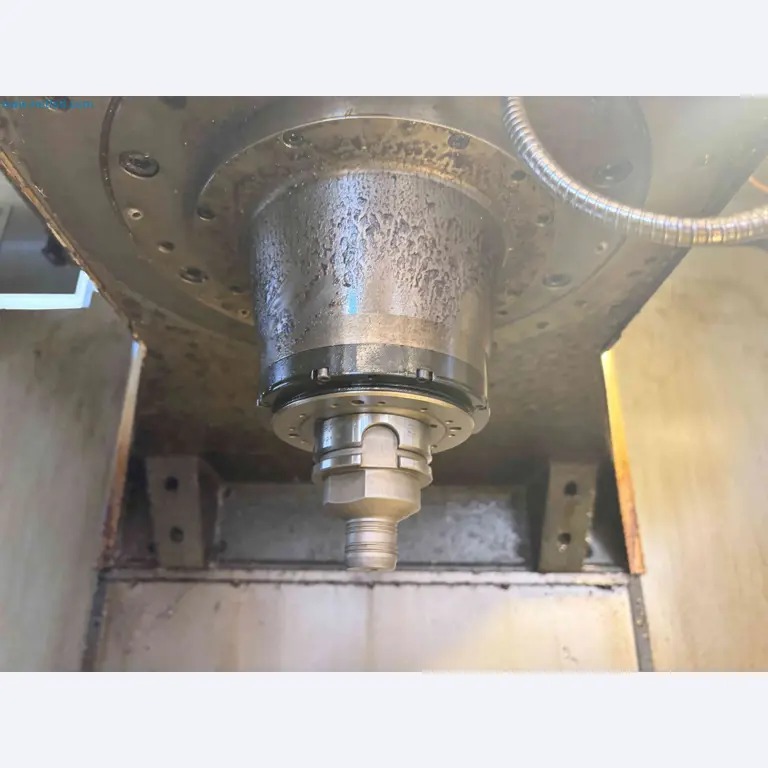

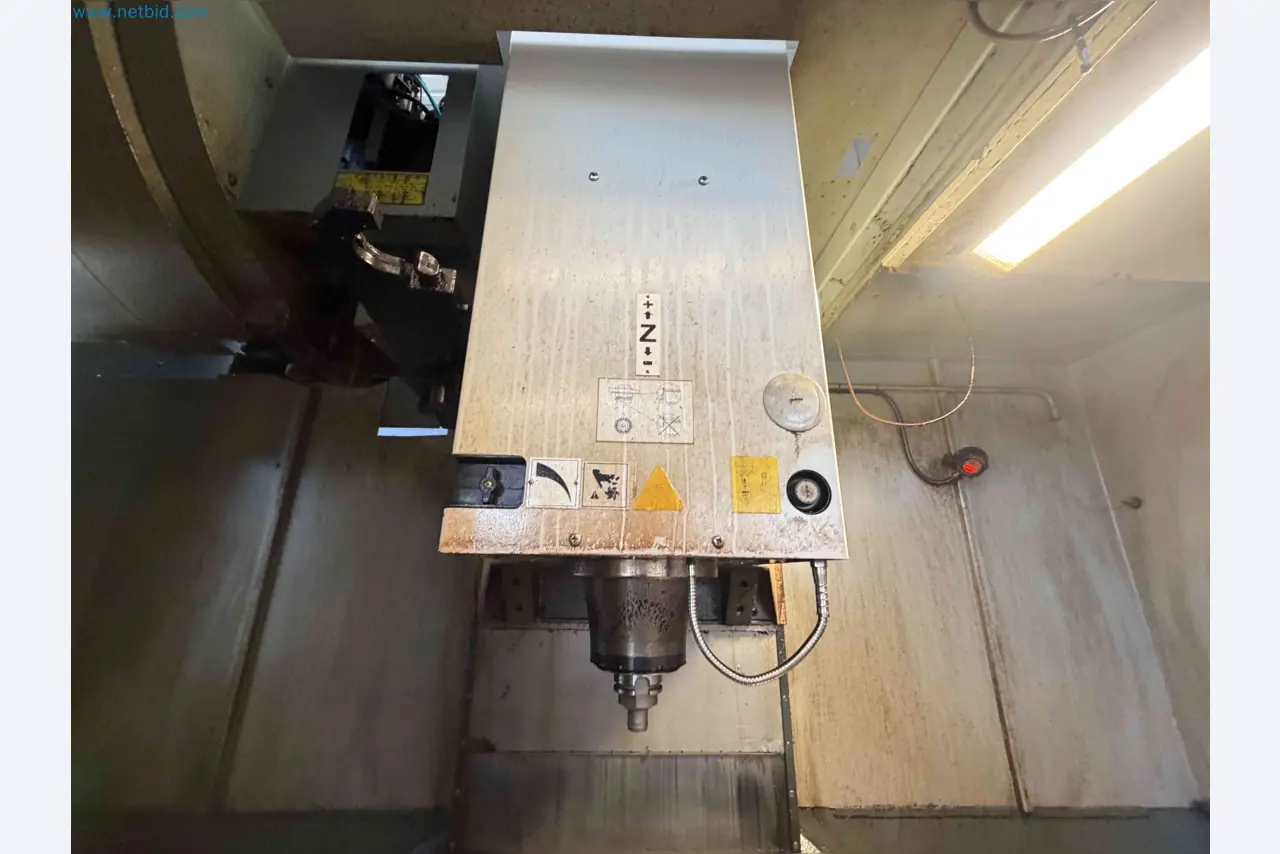

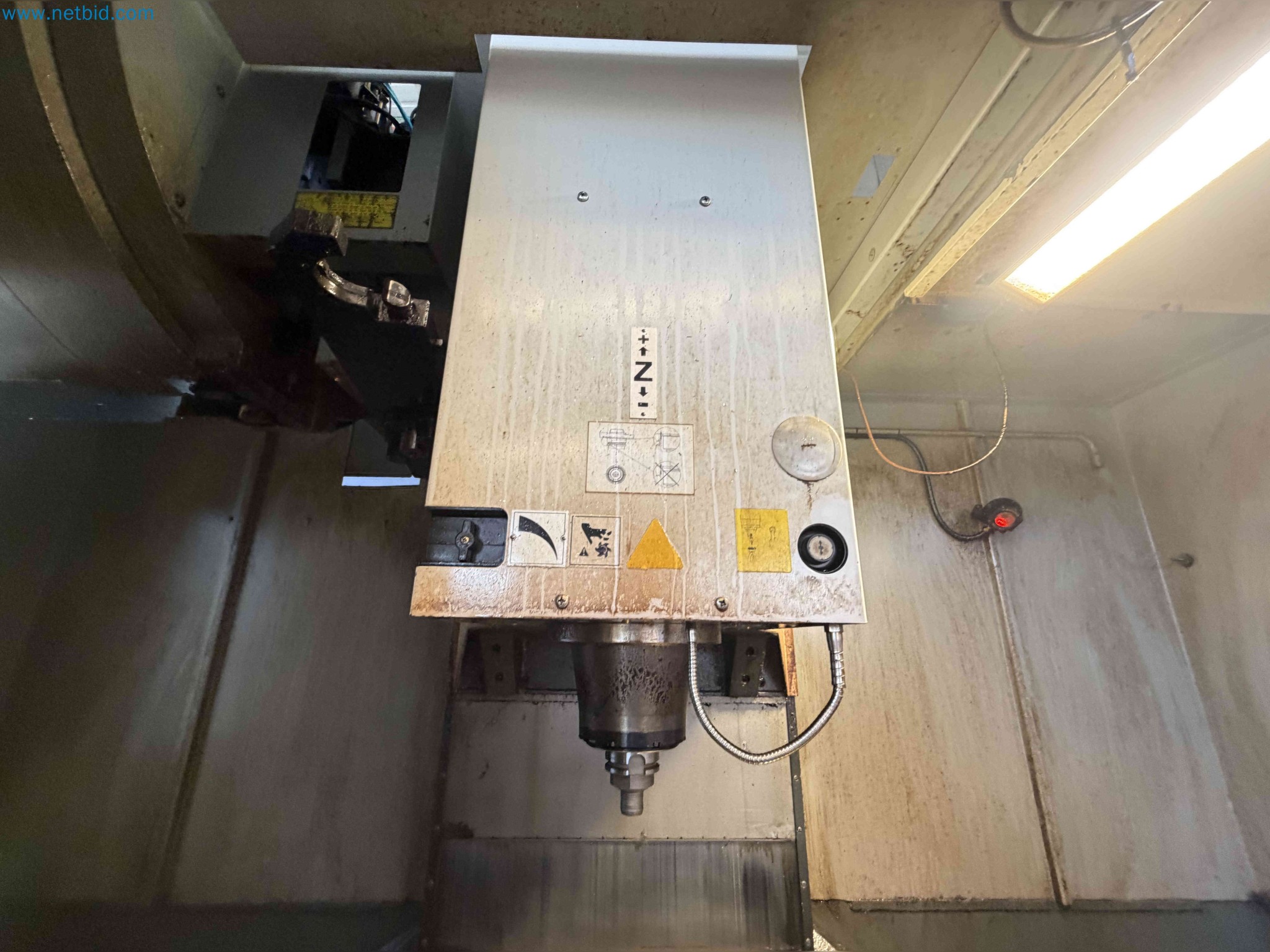

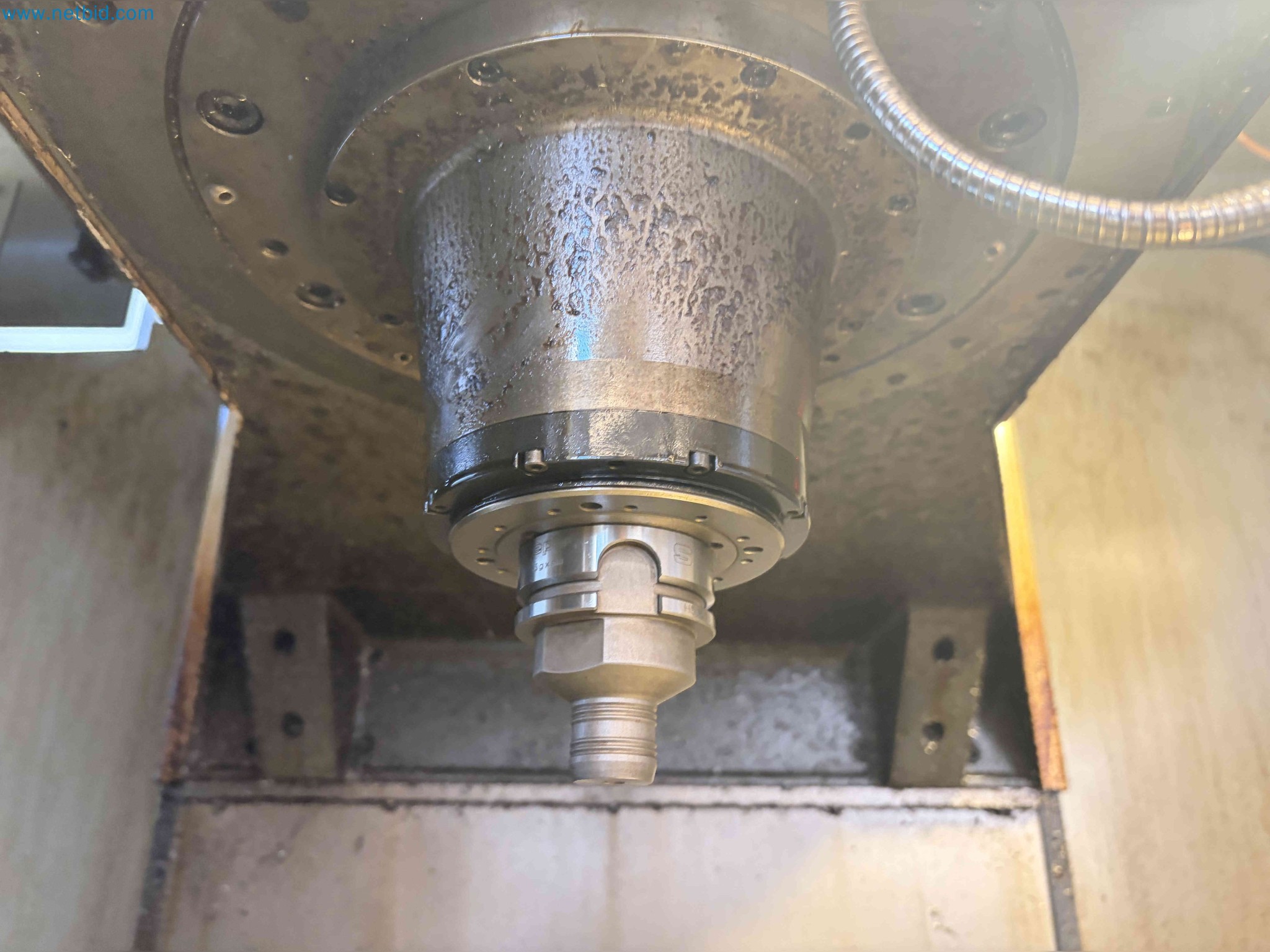

Spindle
Brand: Franz Kessler
Model: LC200
Max speed: 12,000 rpm
Power: up to 45 kW (low speed)
Interface: HSK63A

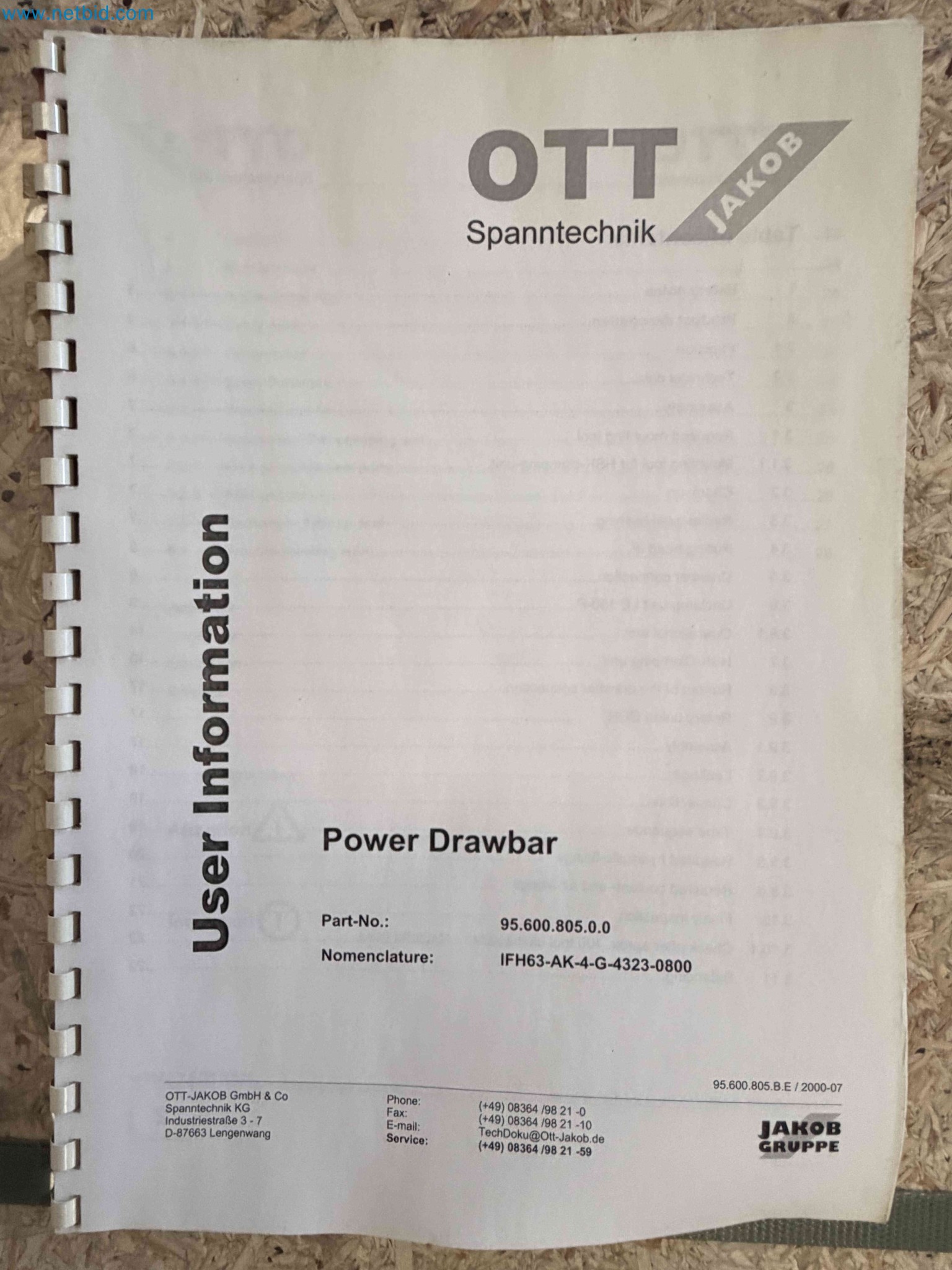

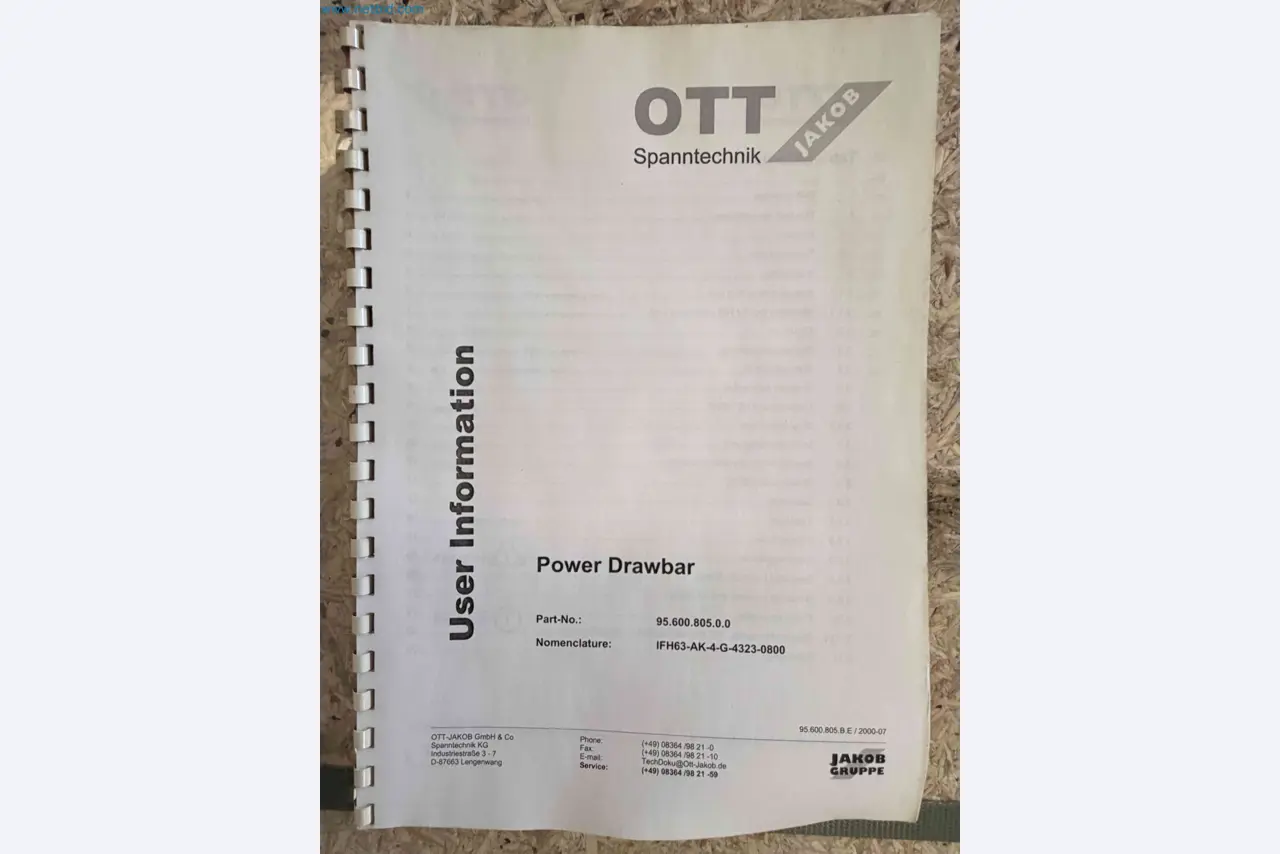

Clamping system: OTT-JAKOB

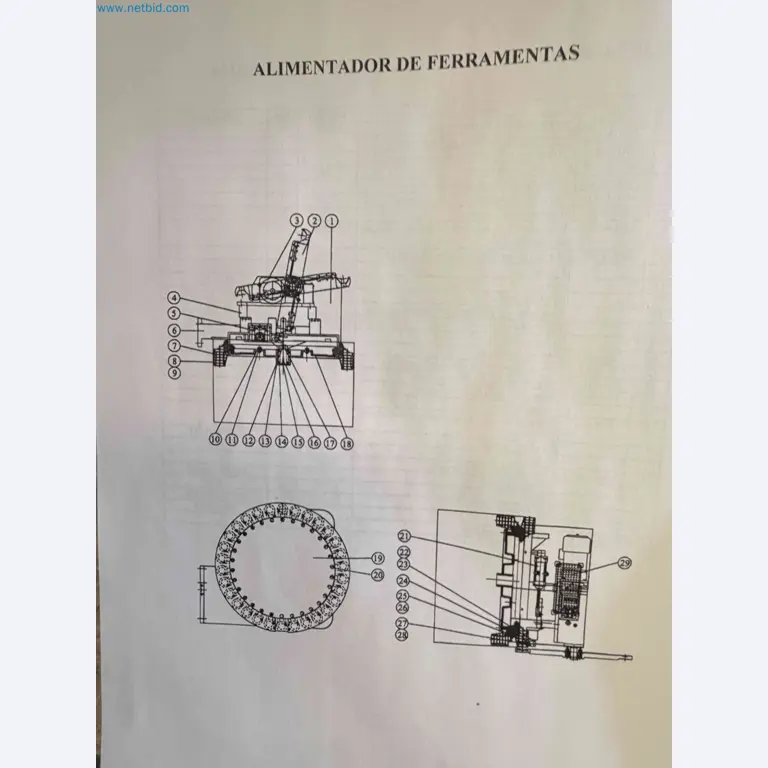

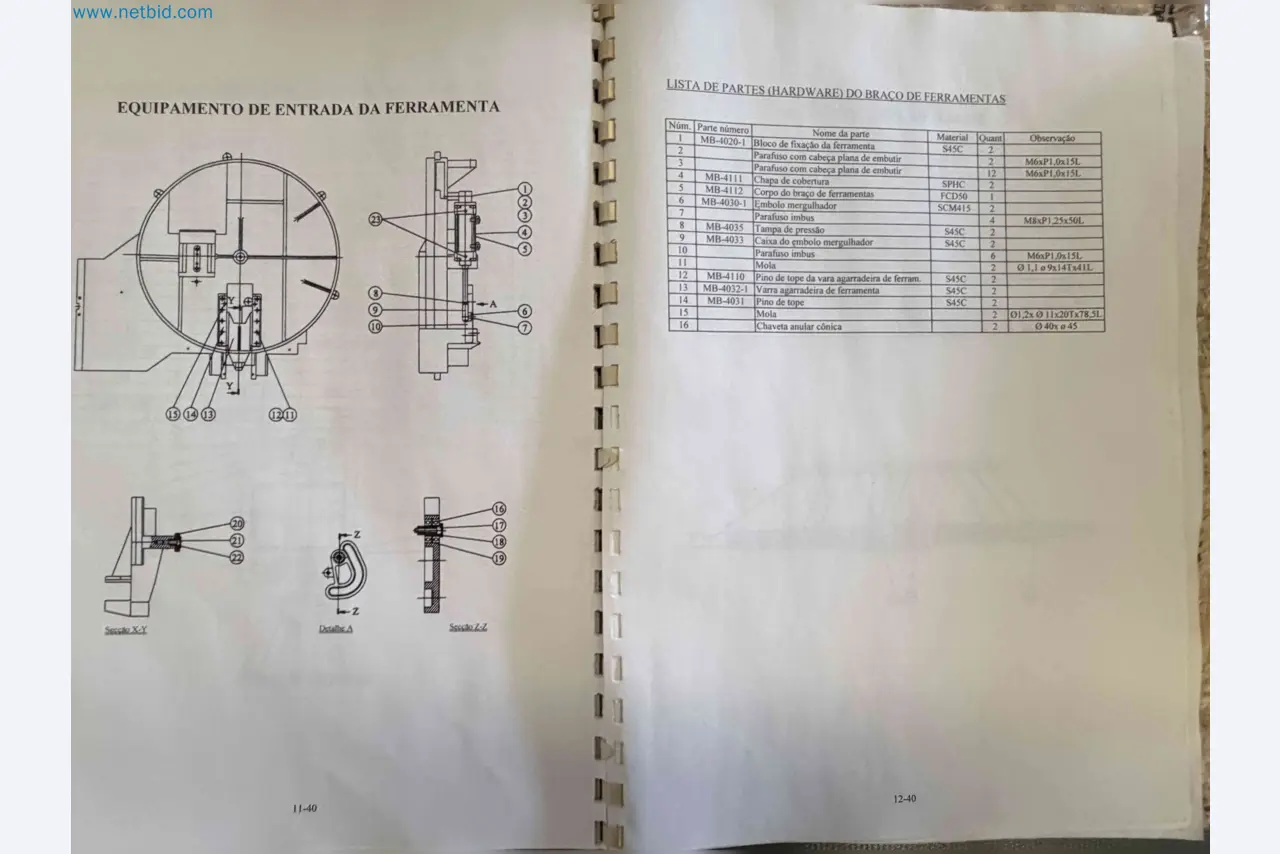

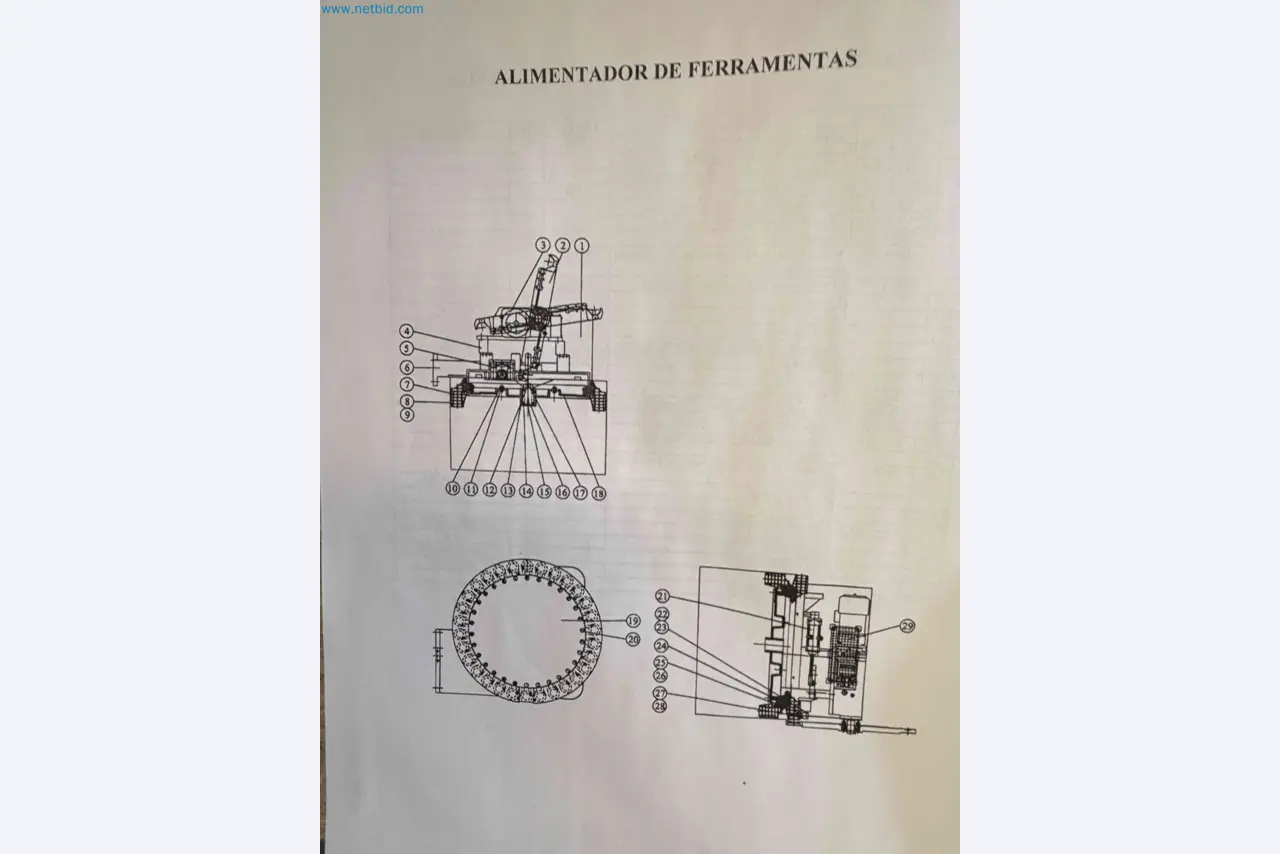

ATC – Automatic Tool Changer
Type: mechanical arm
Capacity: 30 tools
Max length: 350 mm
Max weight: 6.5 kg
Change time: ~4 seconds

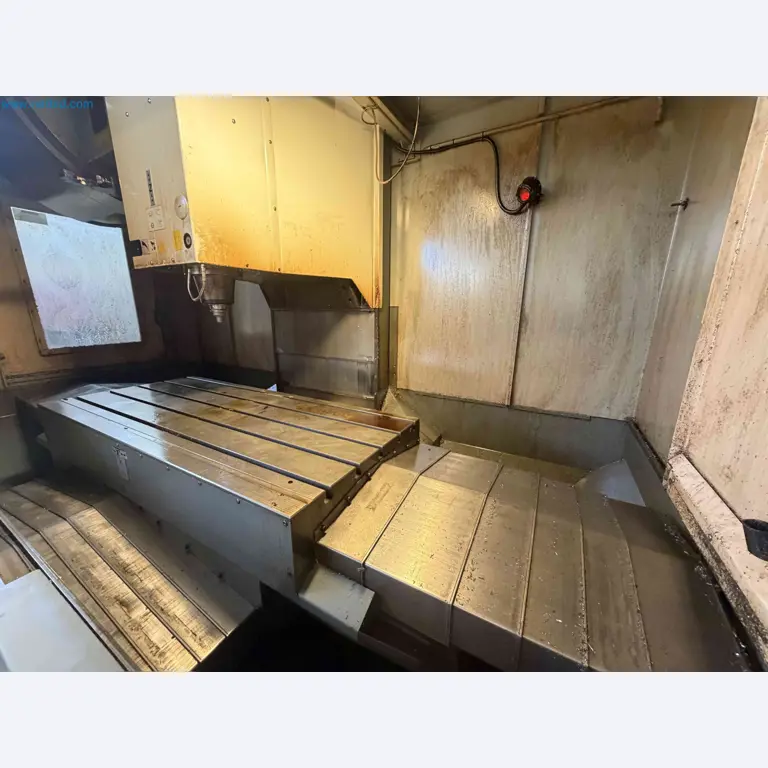

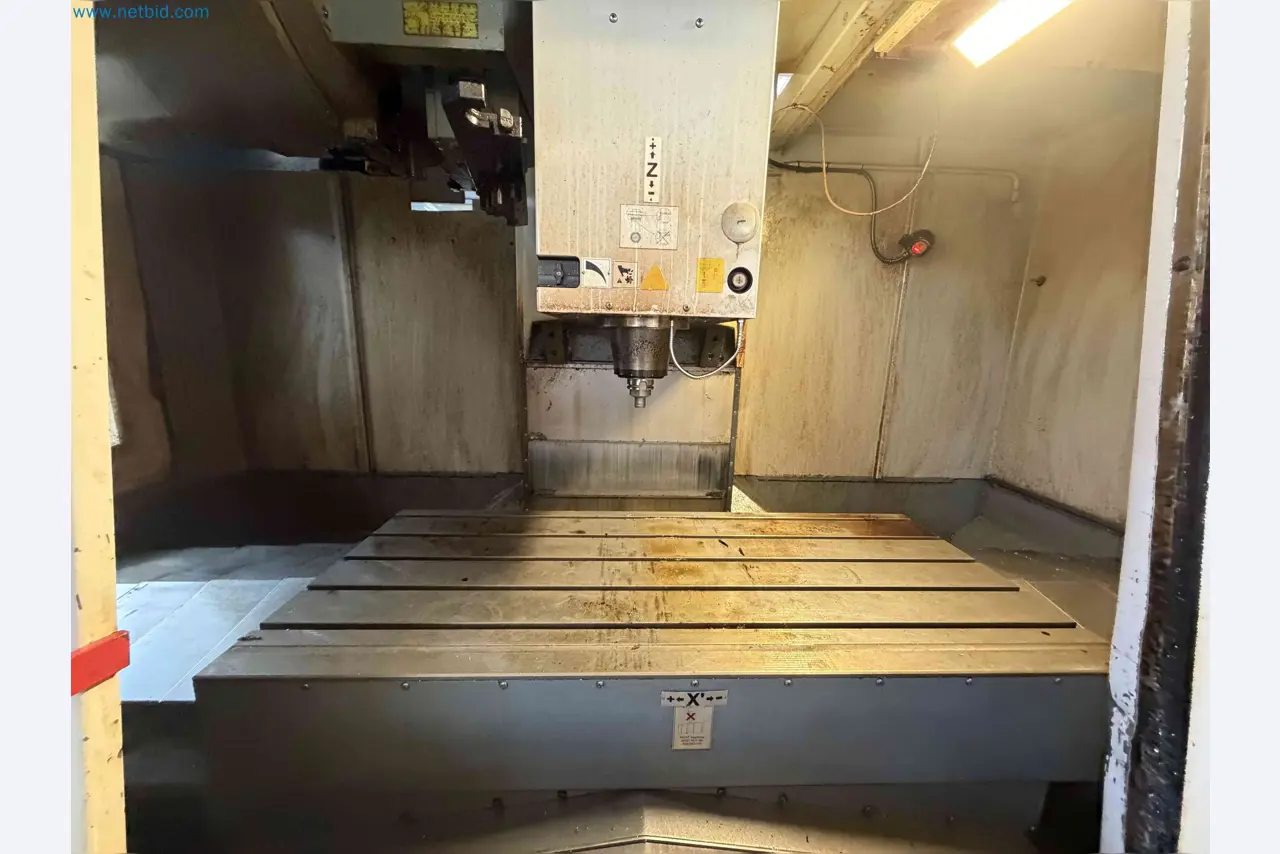

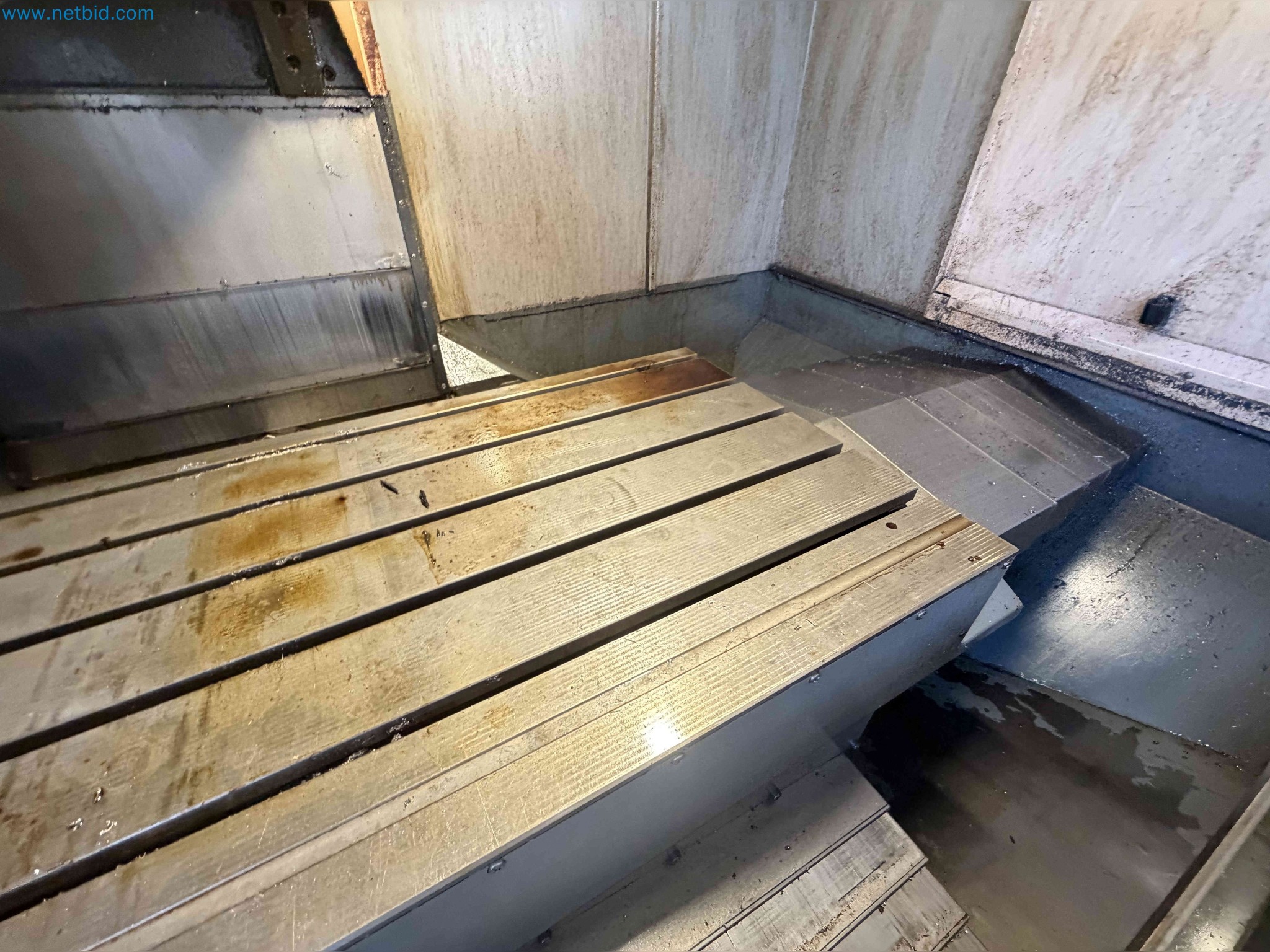

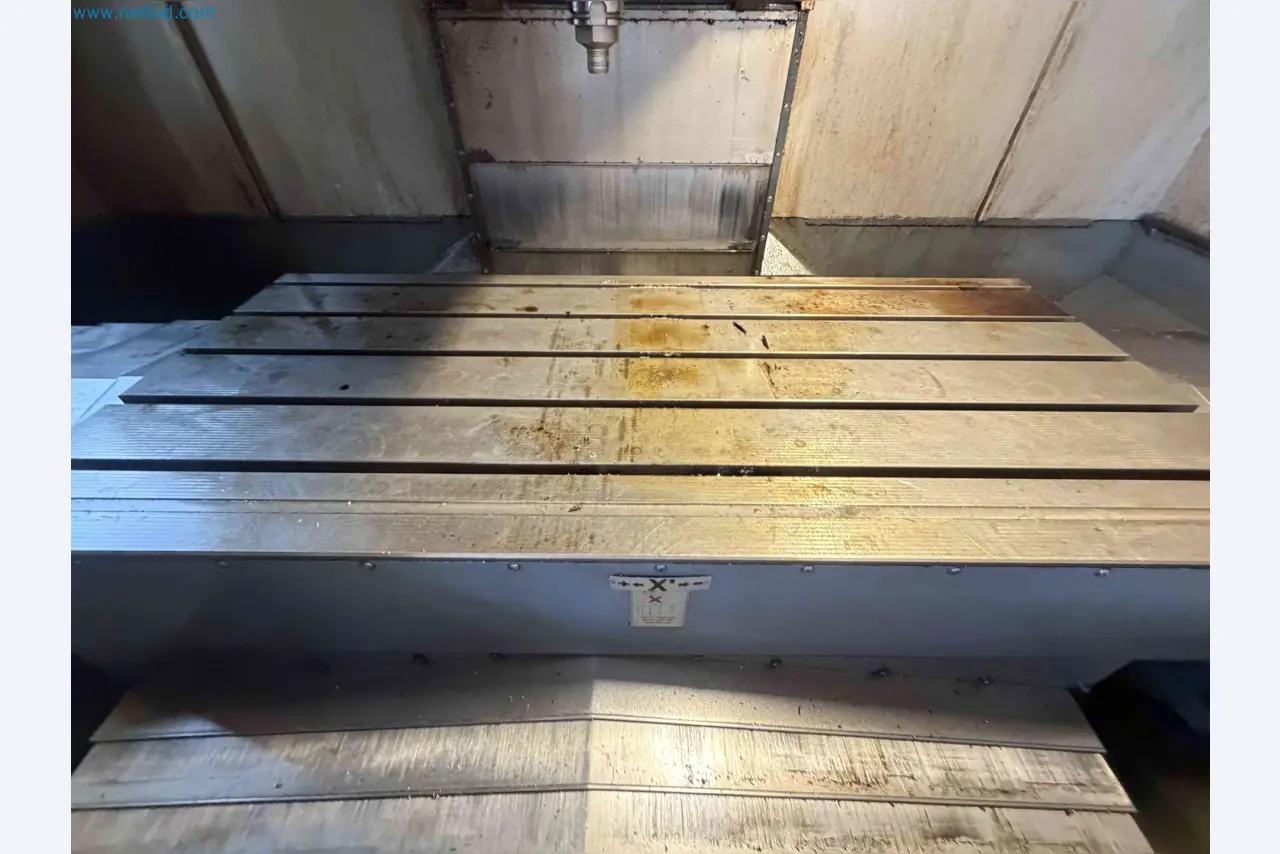

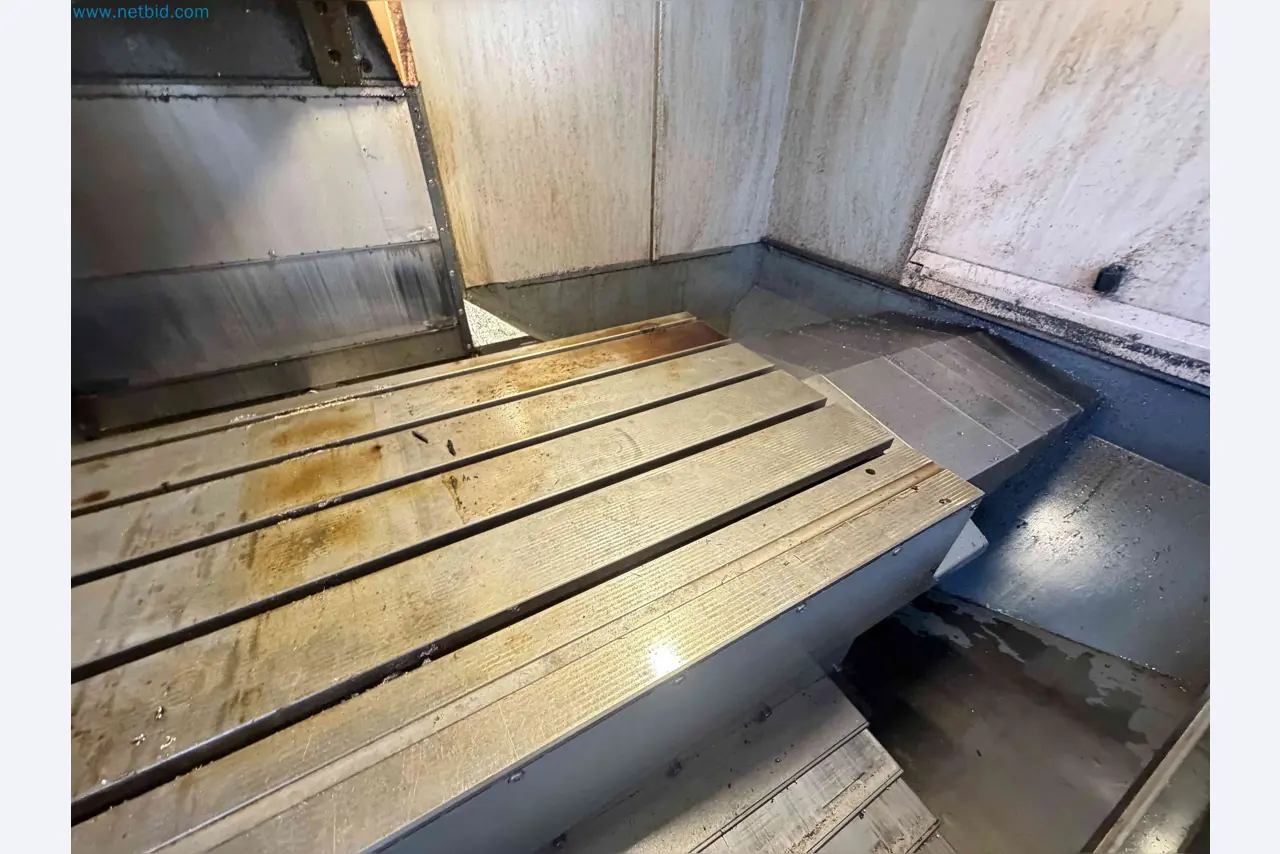

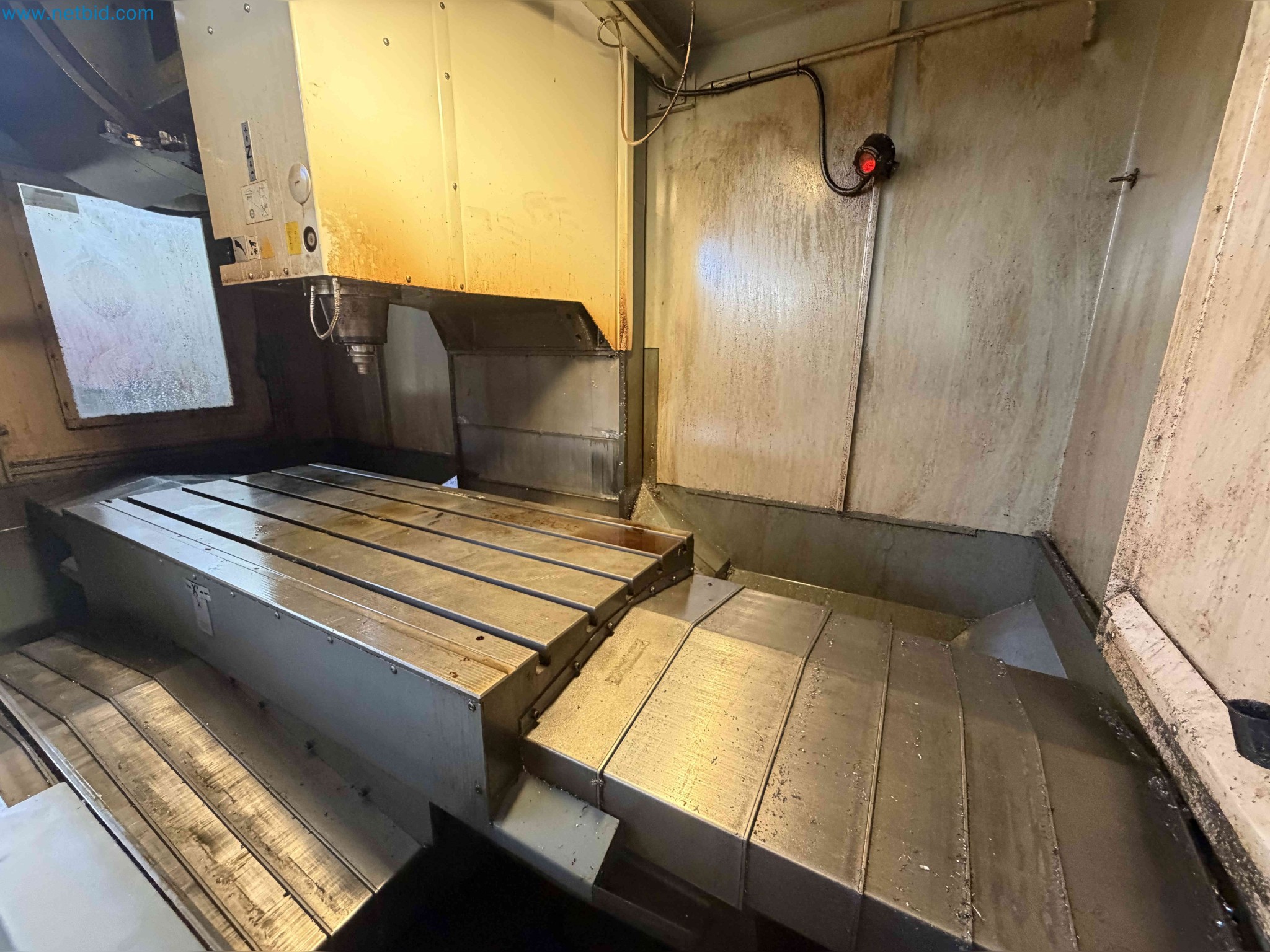

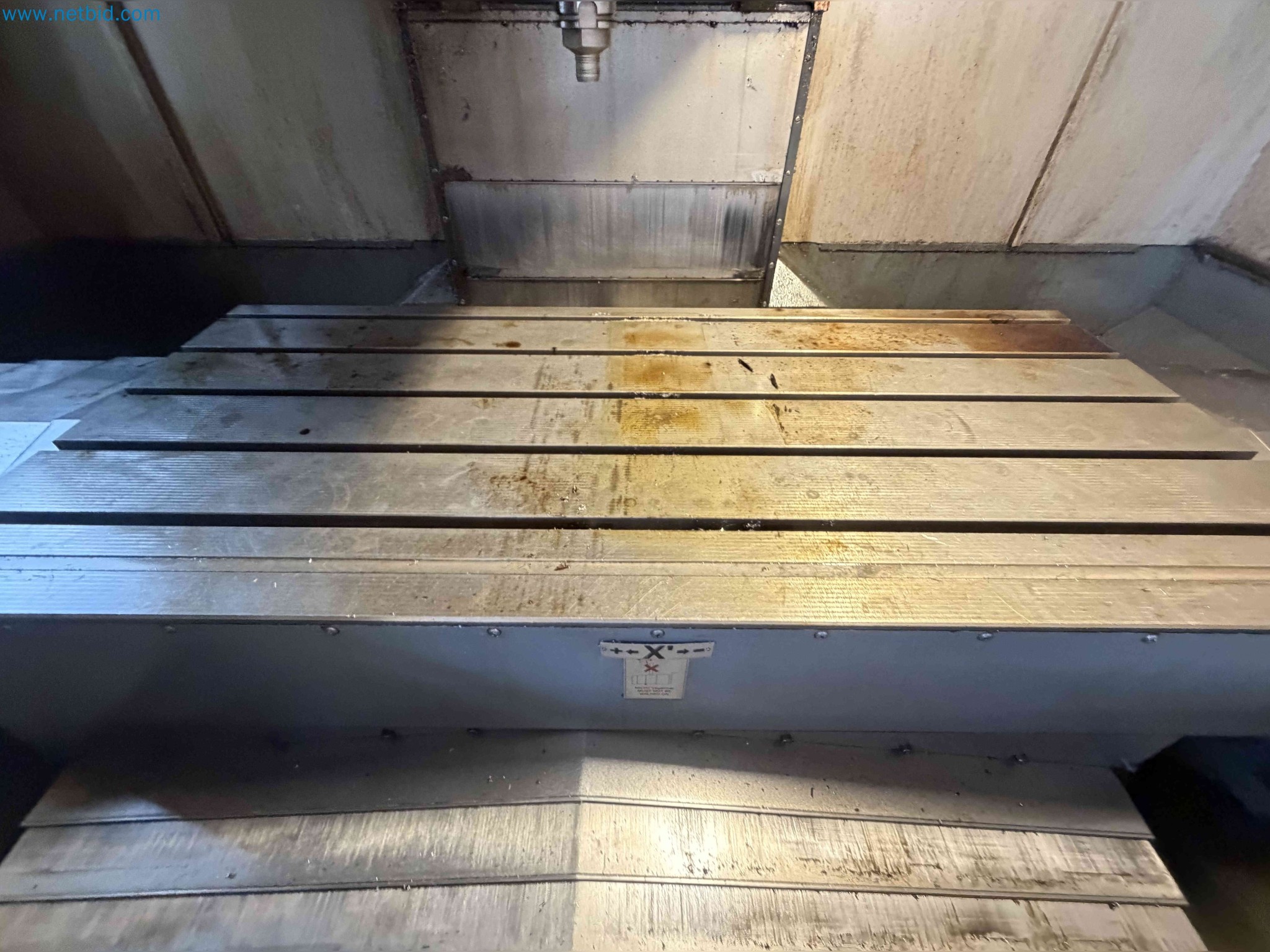

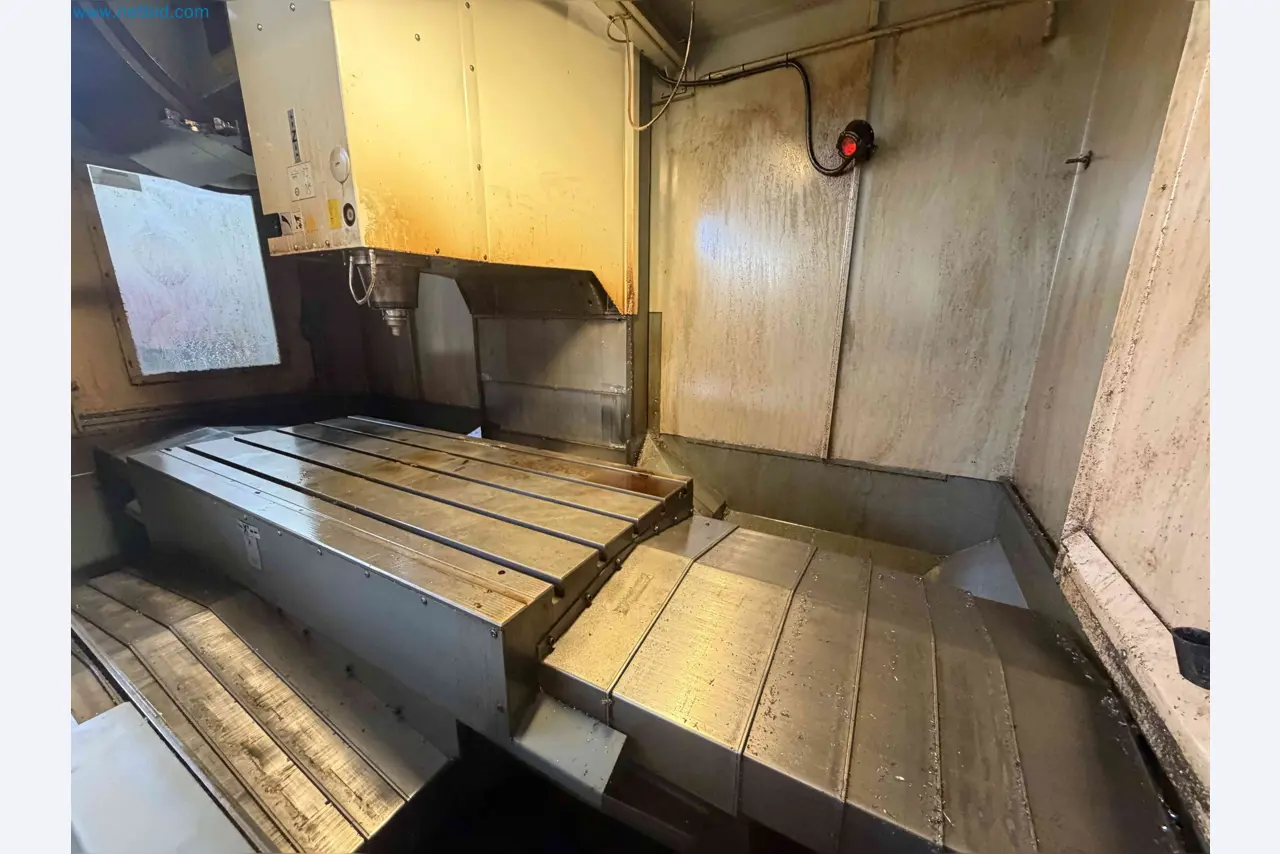

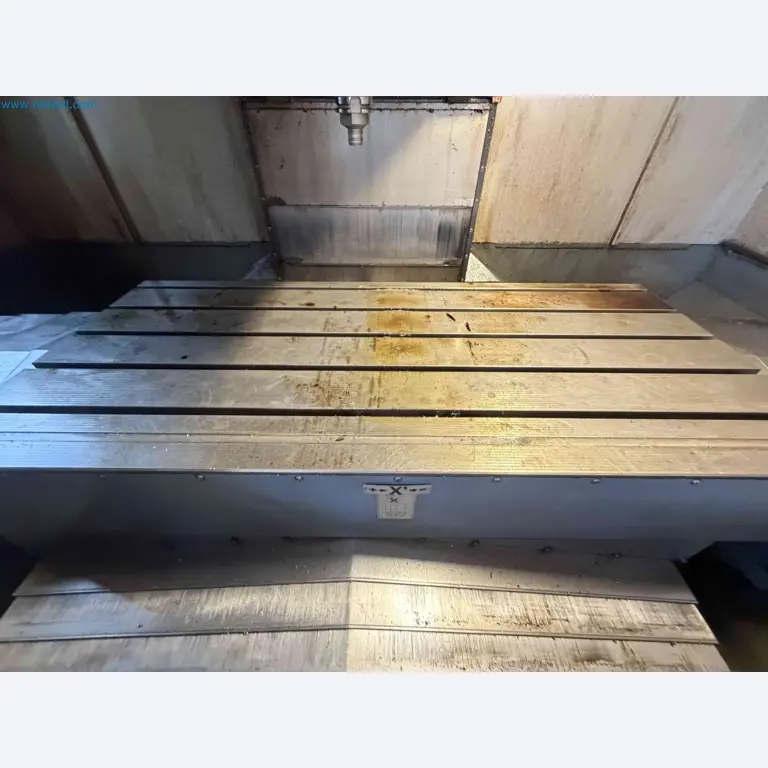

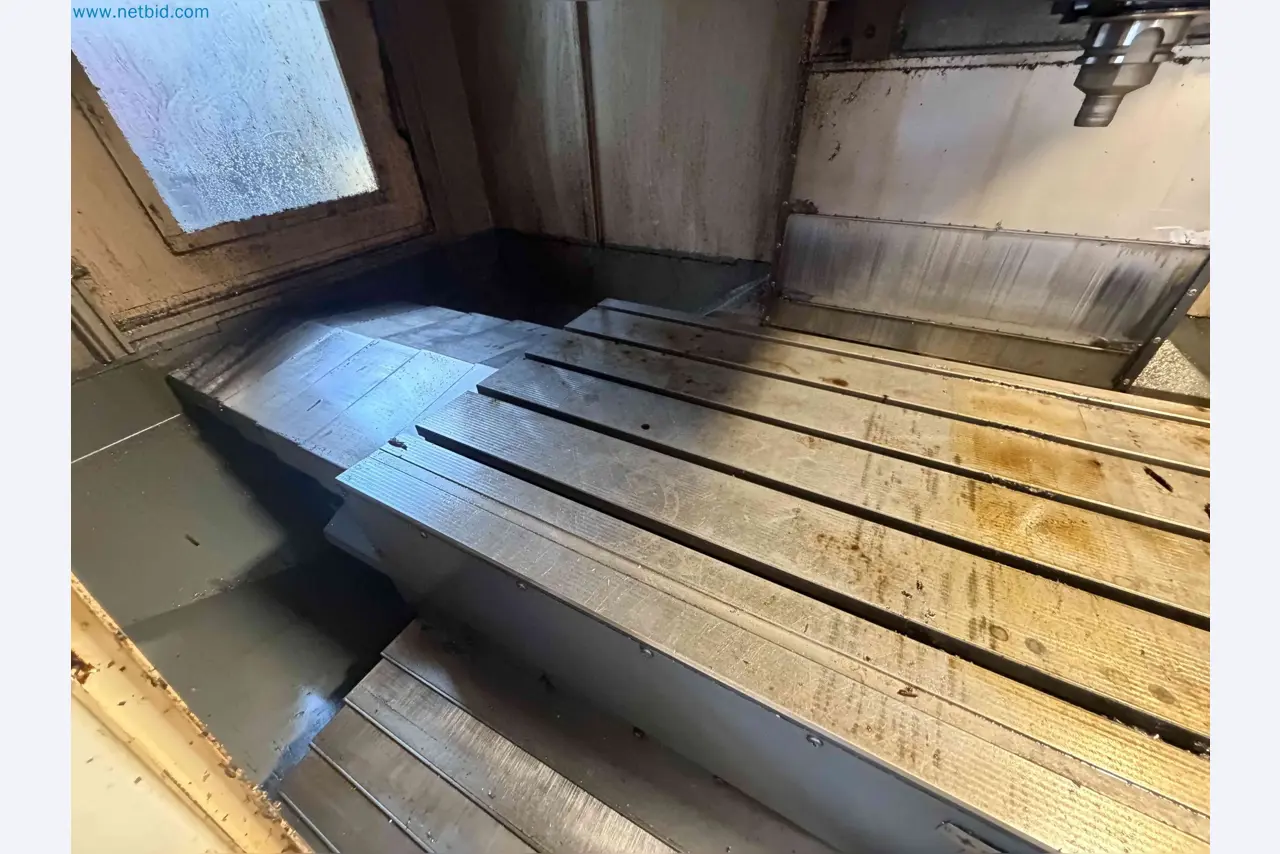

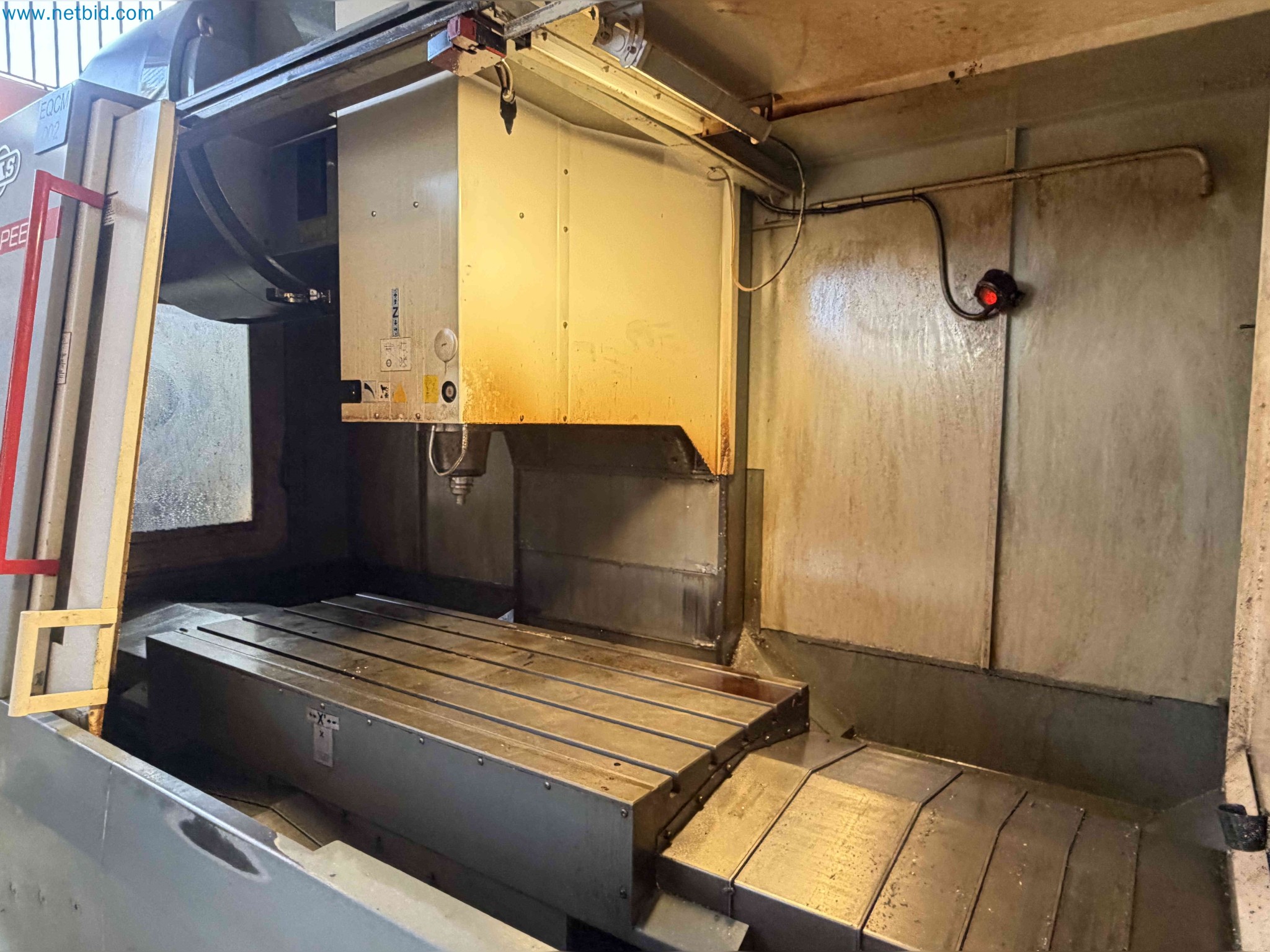

Dimensions: 1500 x 670 mm
Capacity: 1,200 kg
Slots: 5 x 18 x 125
Feeds:
Working feed: up to 15,000 mm/min
Rapid feeds: 40 m/min

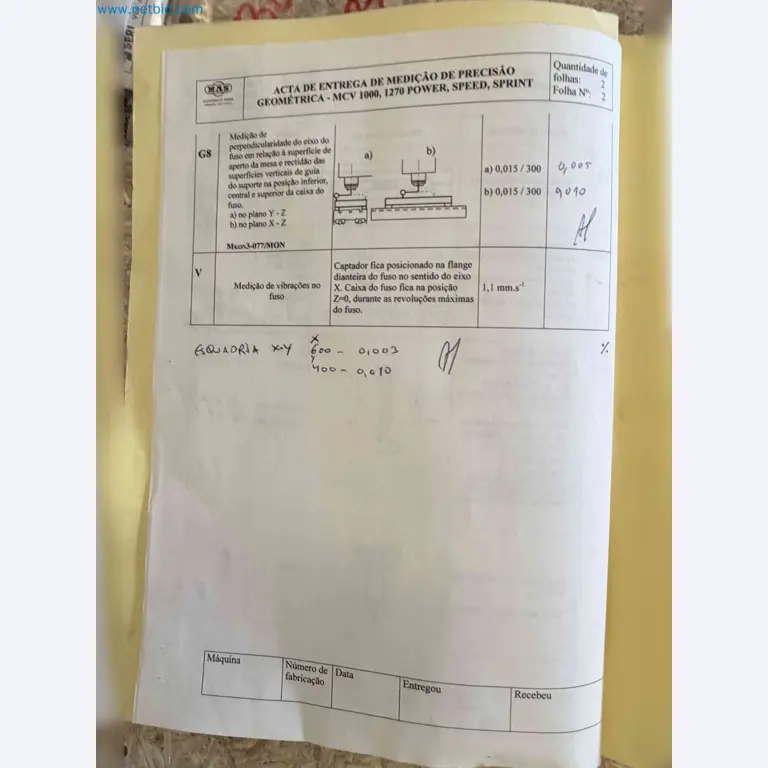

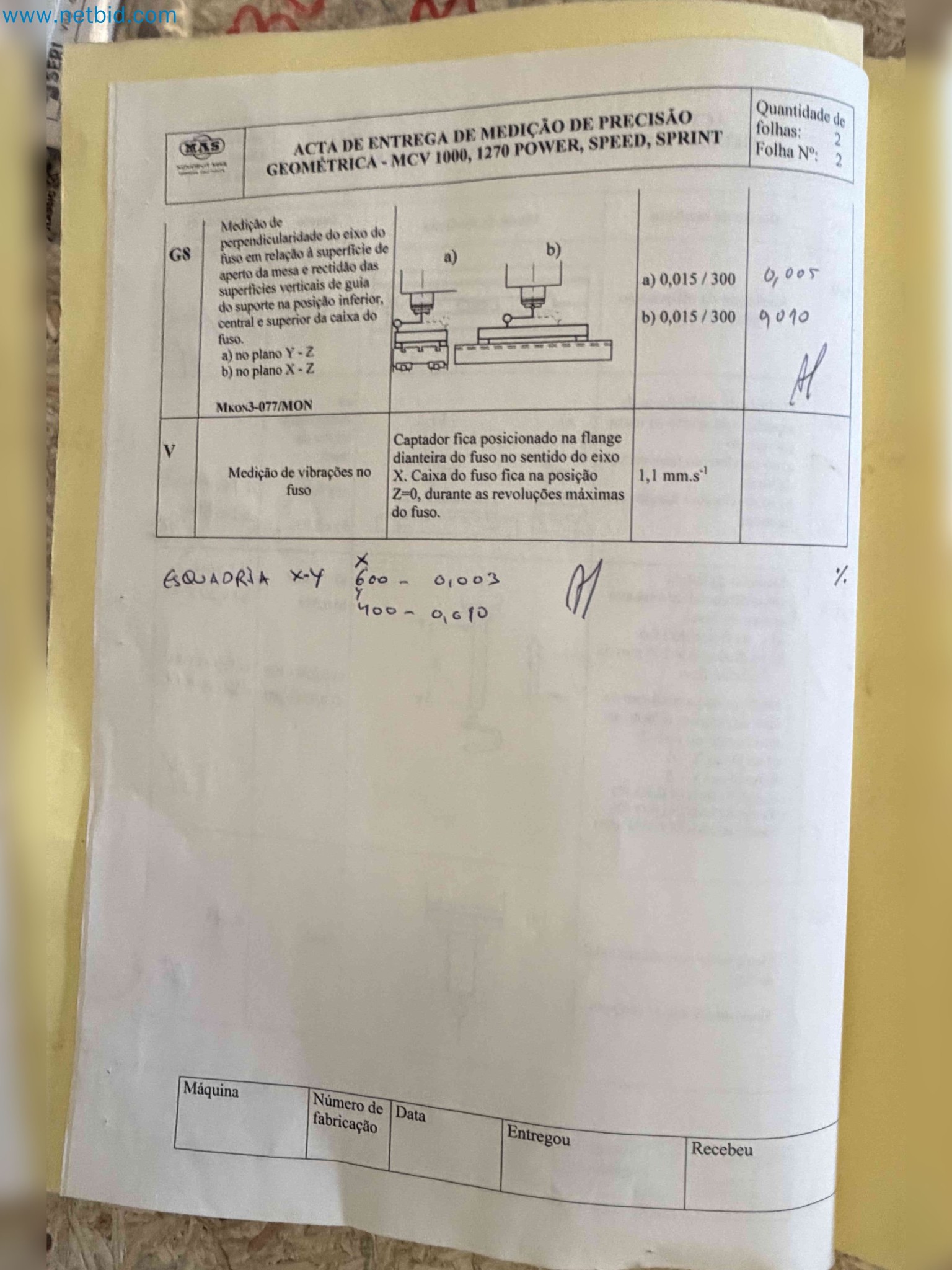

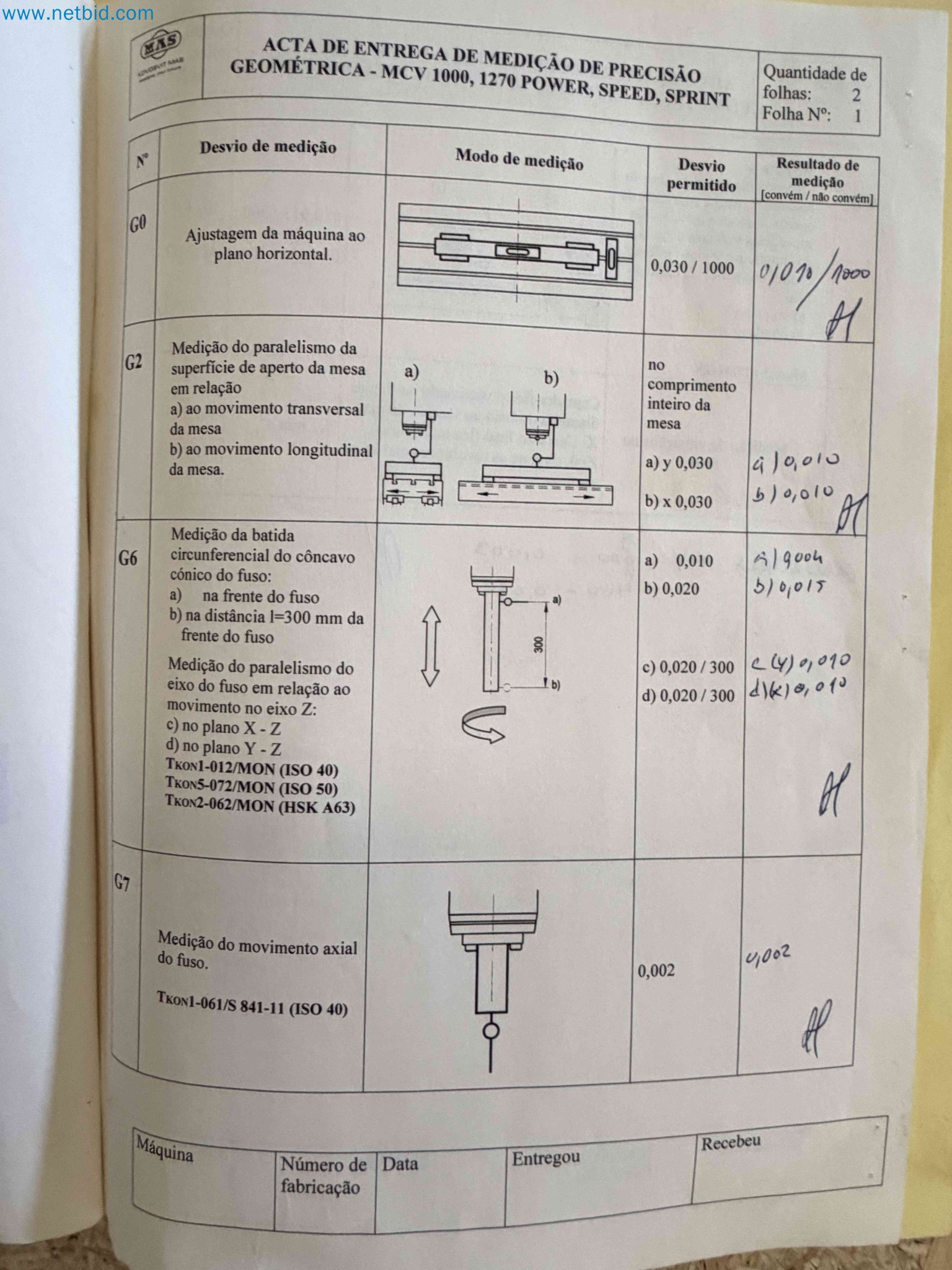

Accuracy:
Positioning: 0.01 mm
Repeatability: 0.004 mm
Included systems:

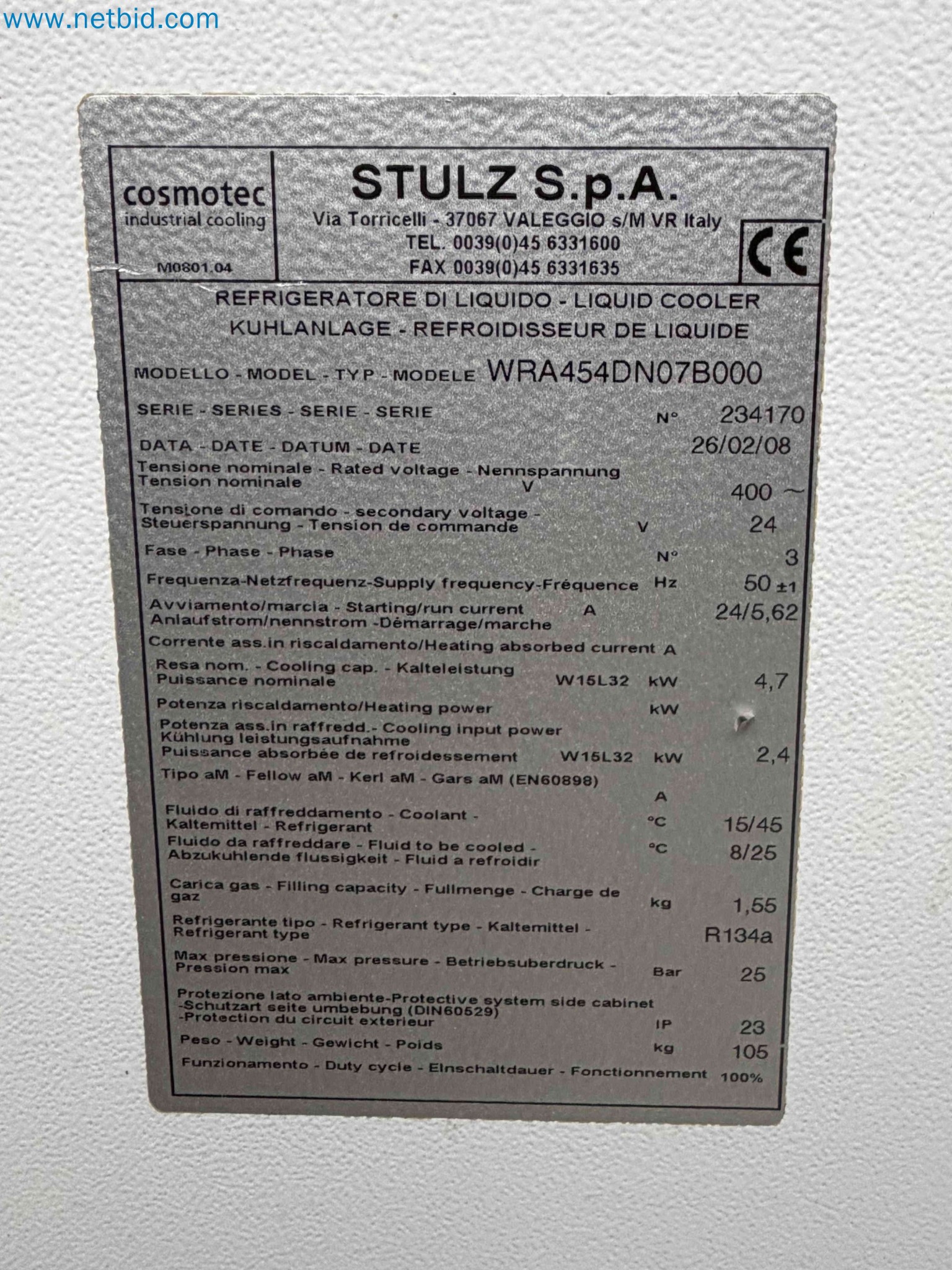

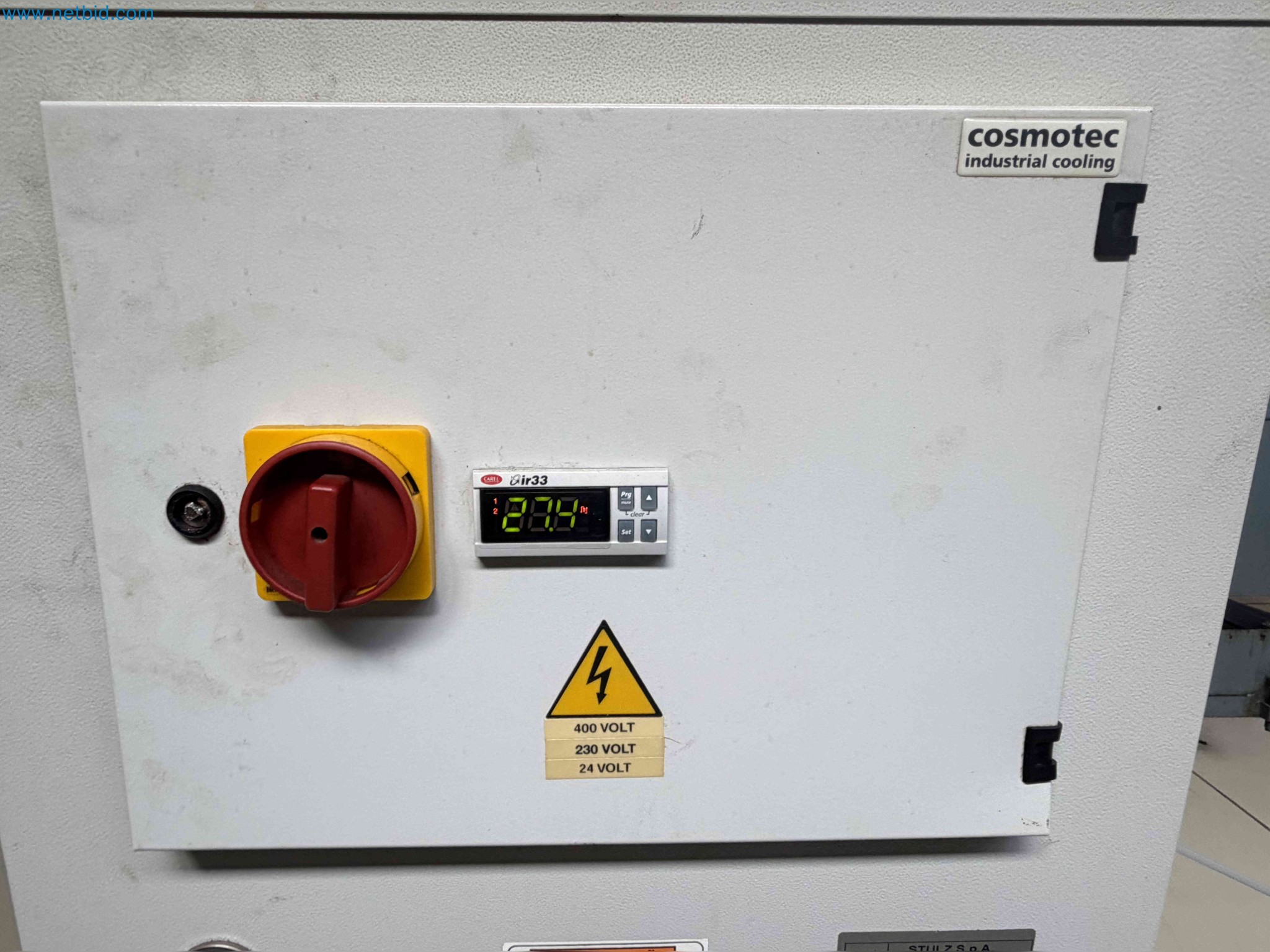

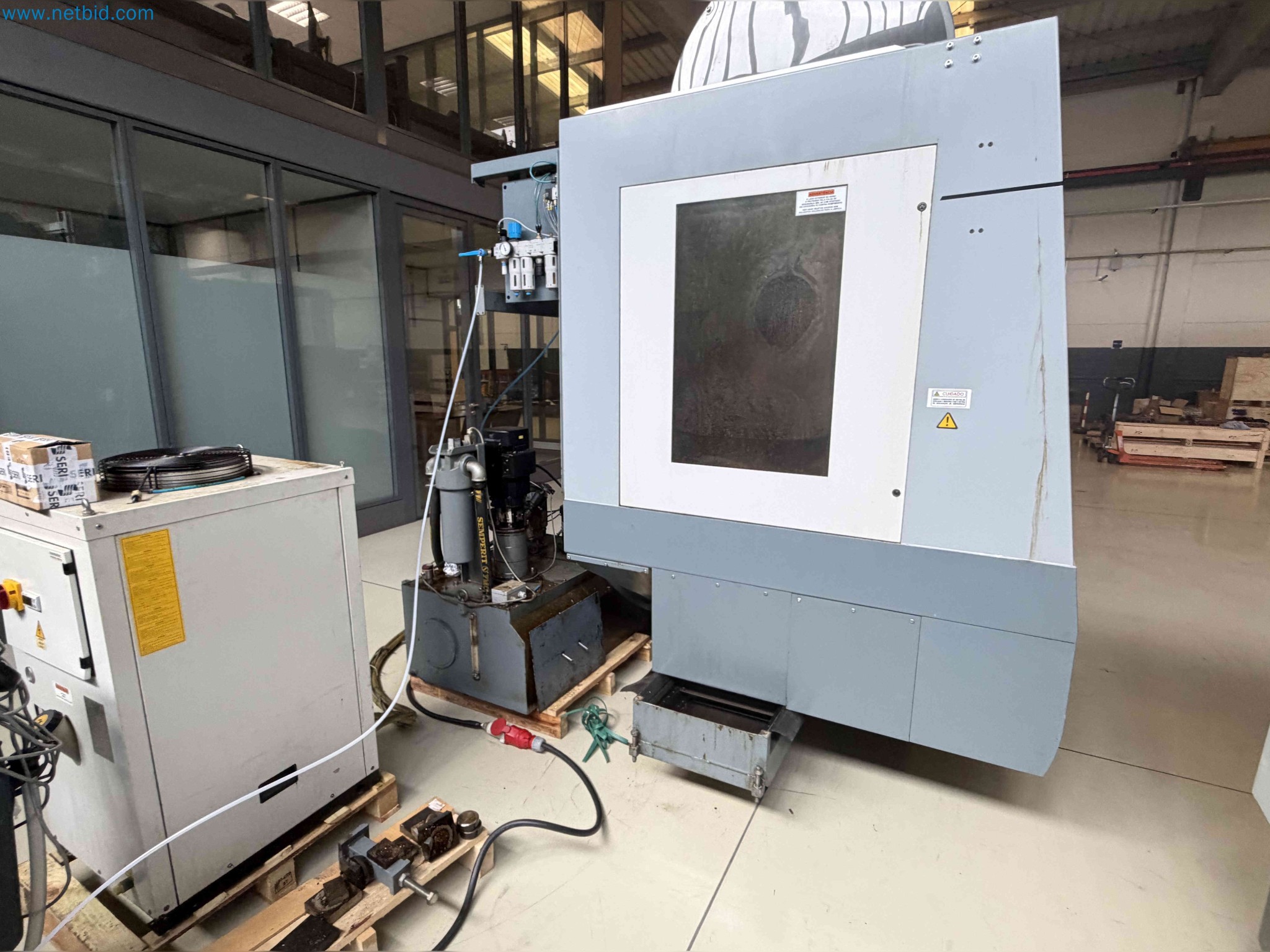

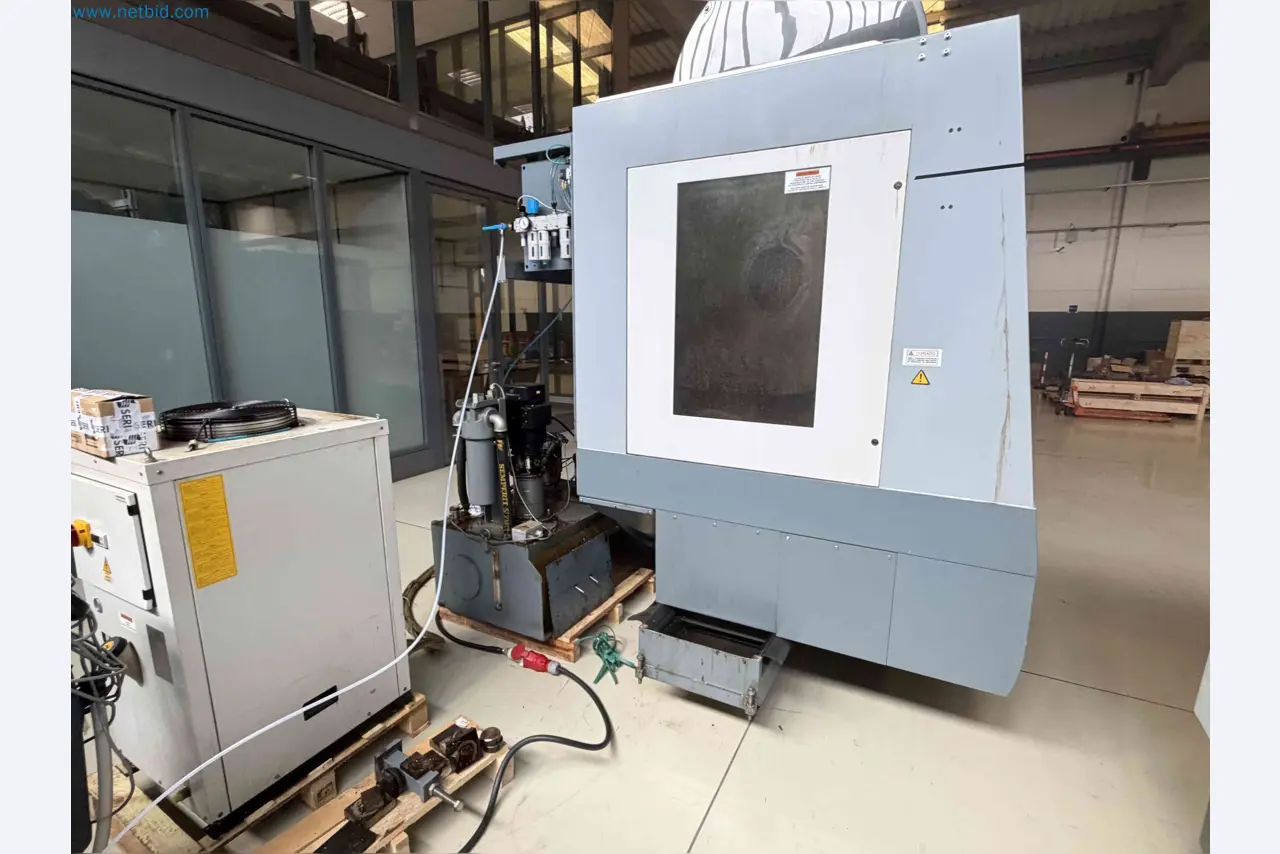

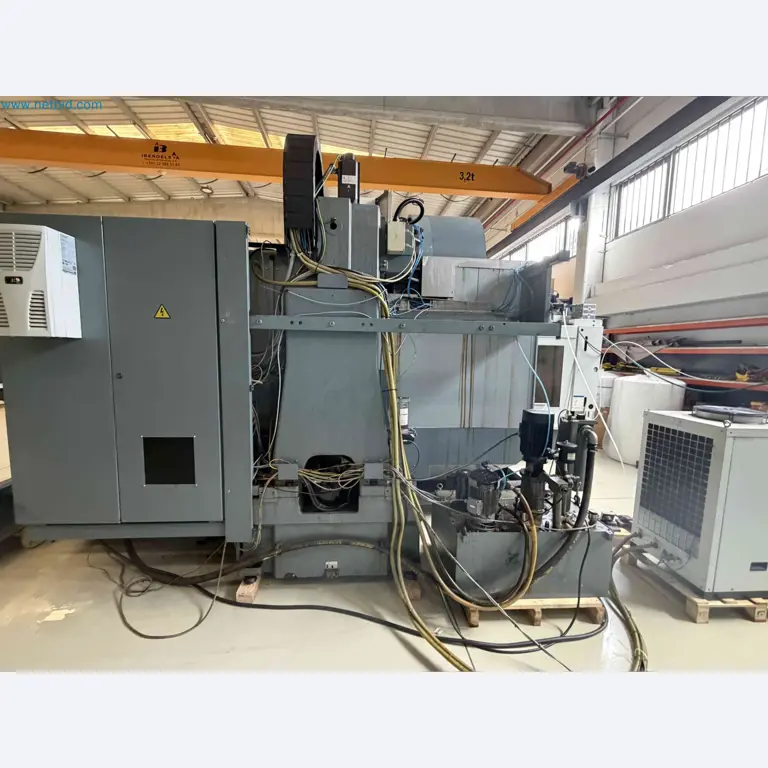

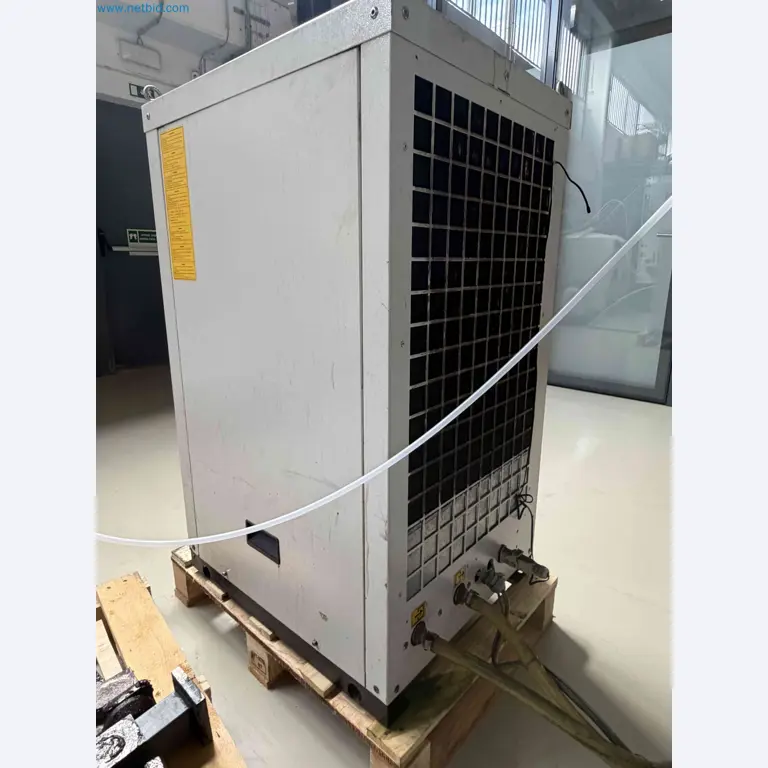

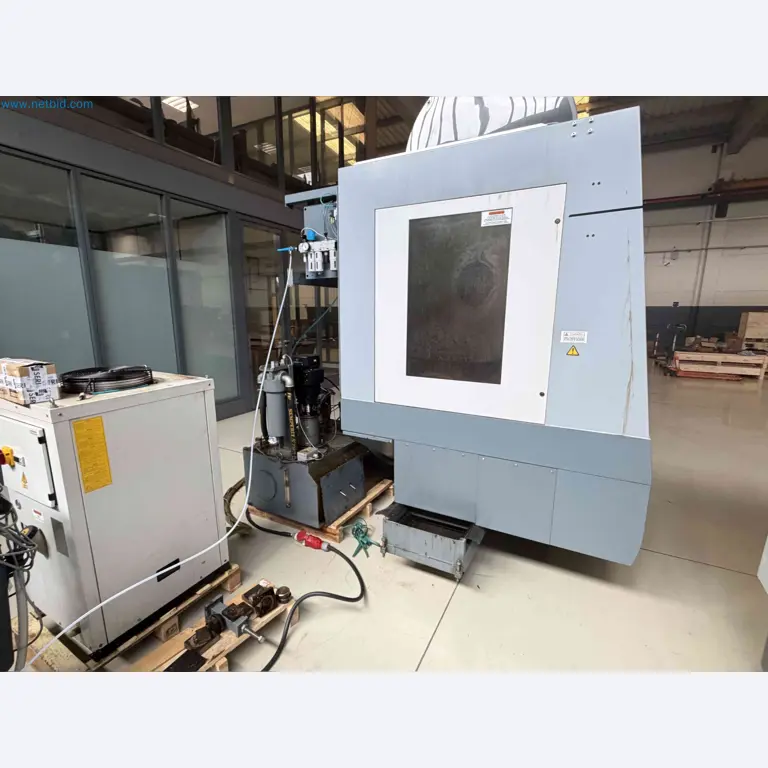

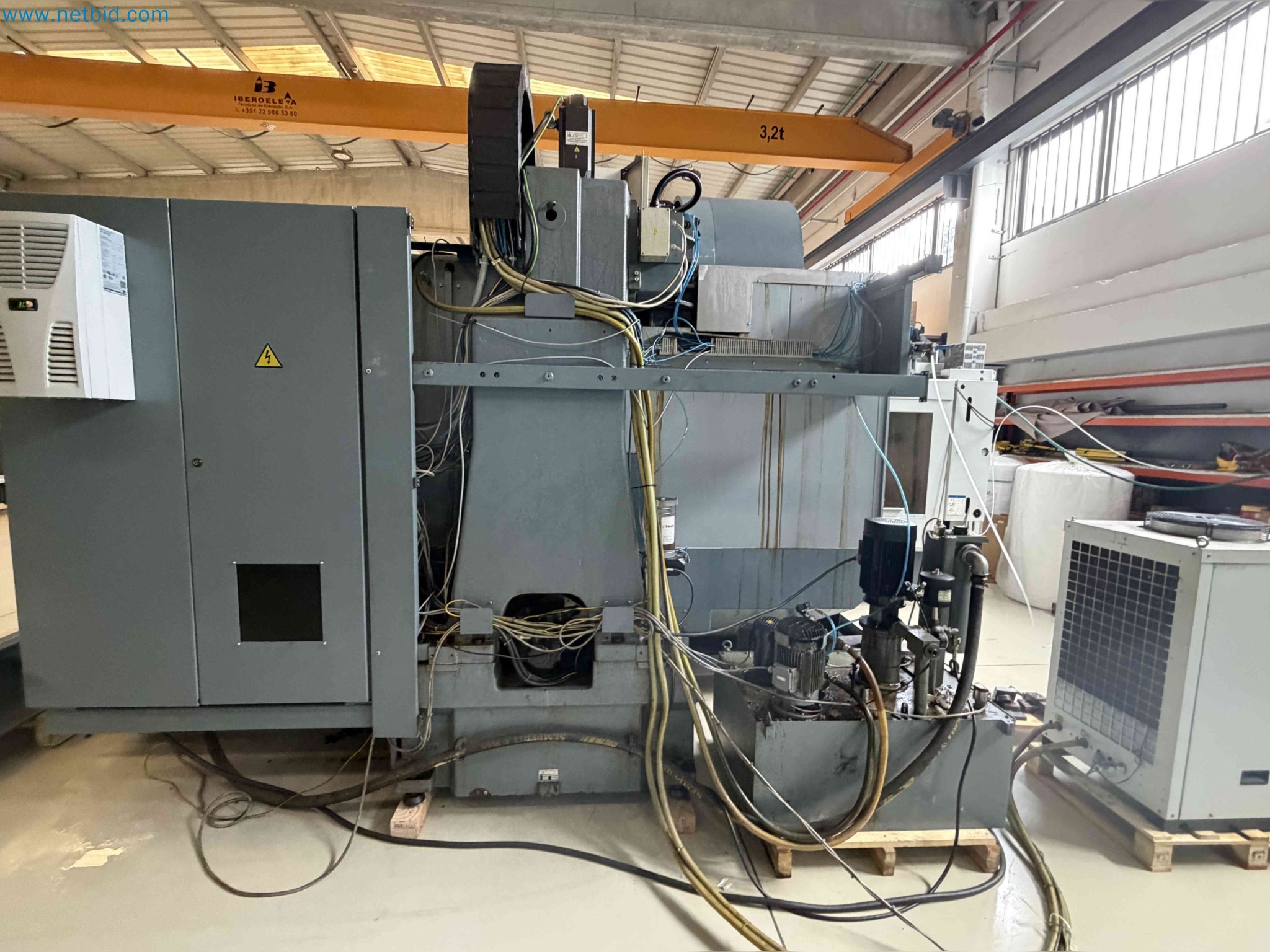

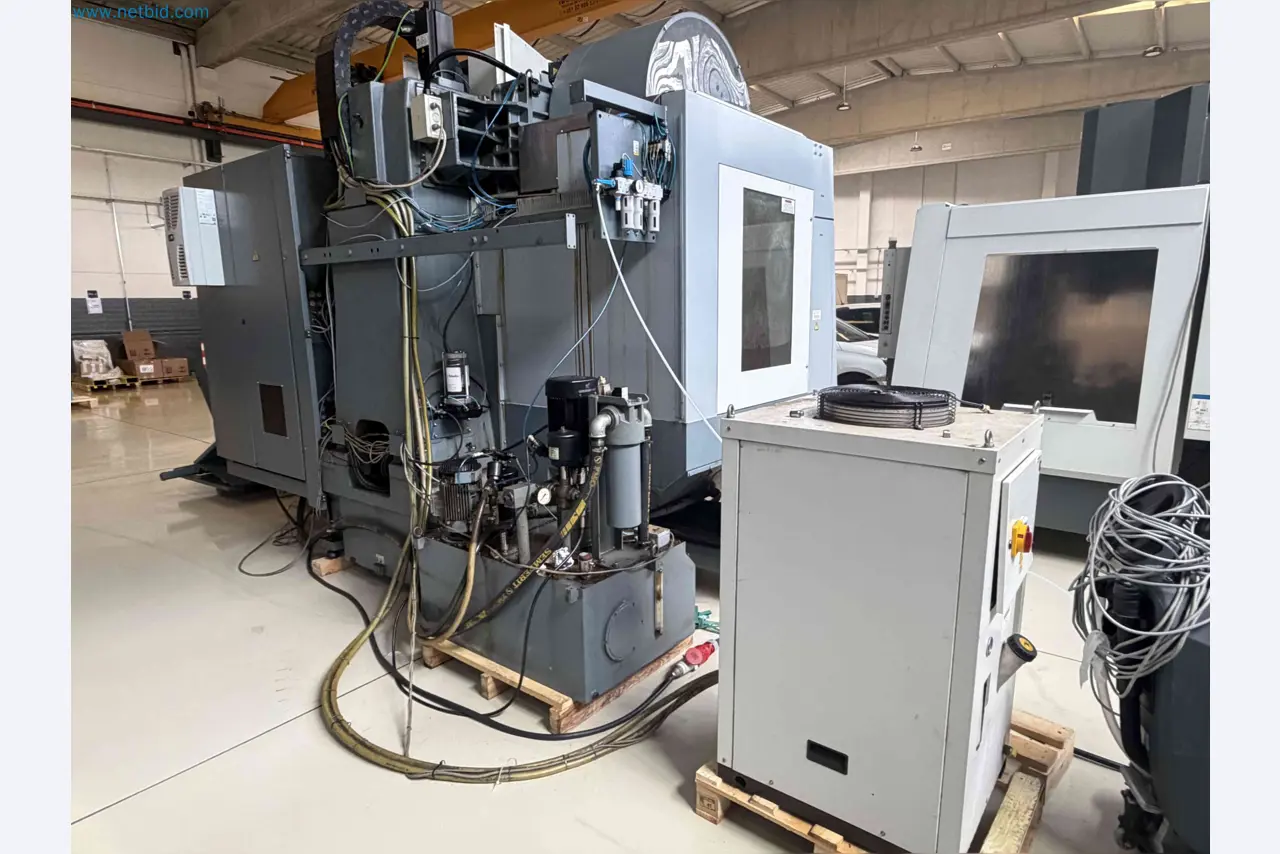

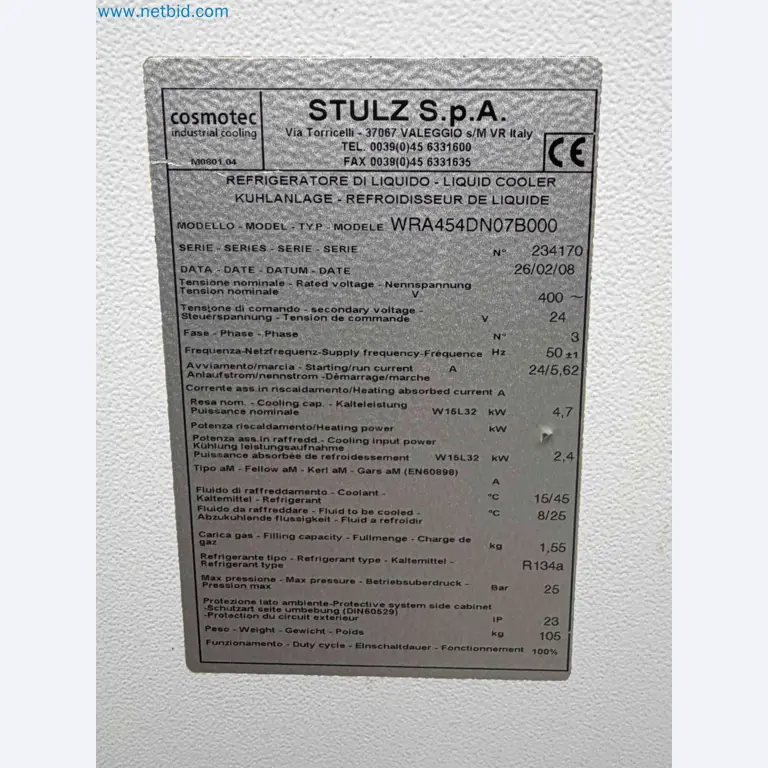

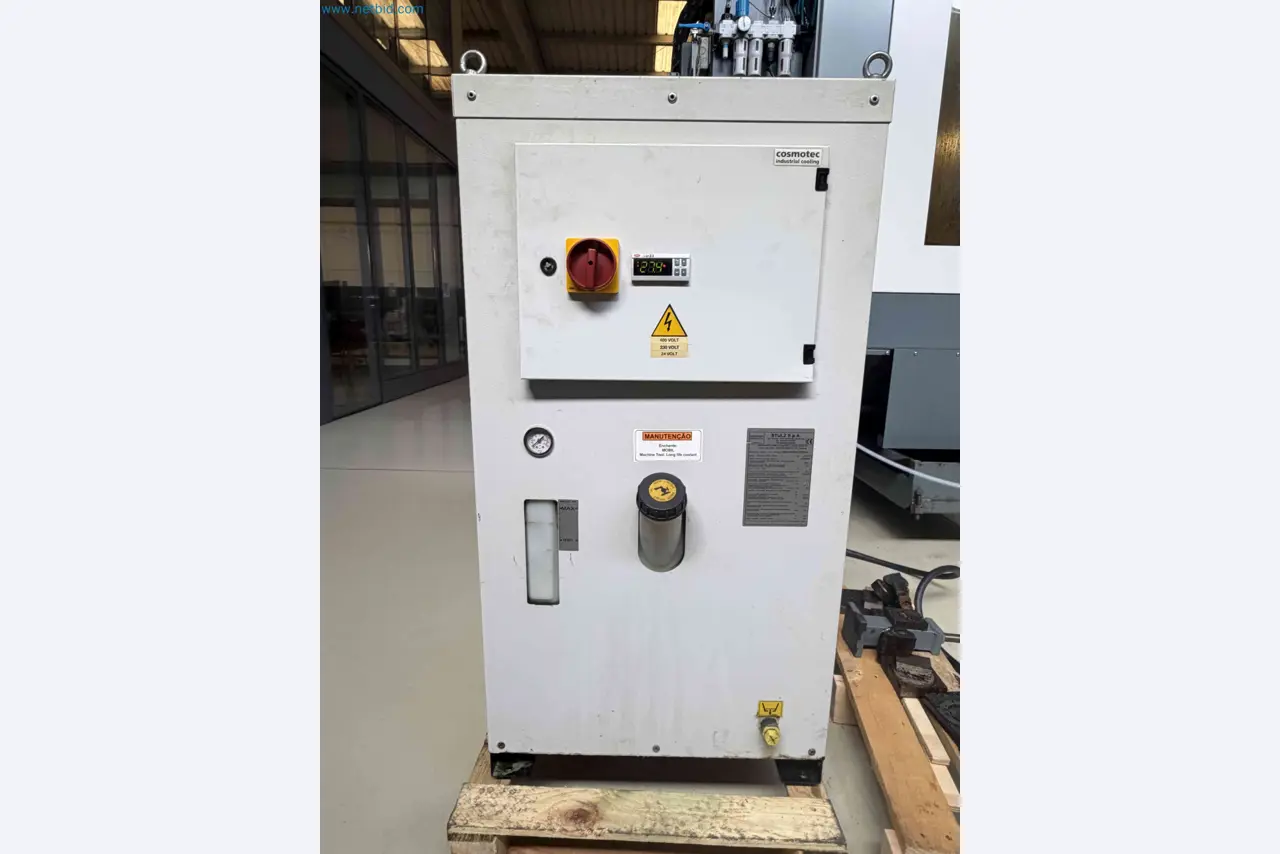

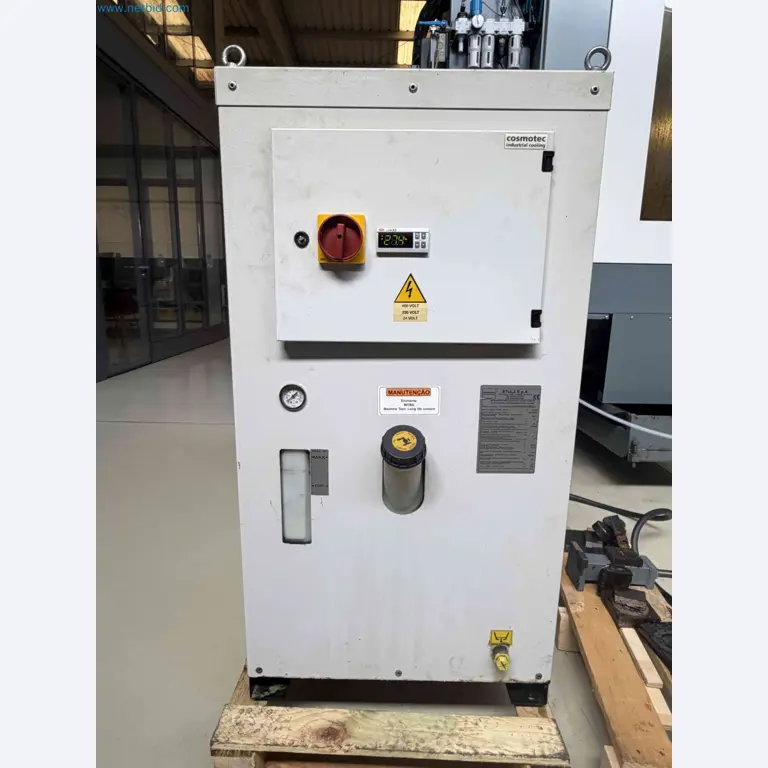

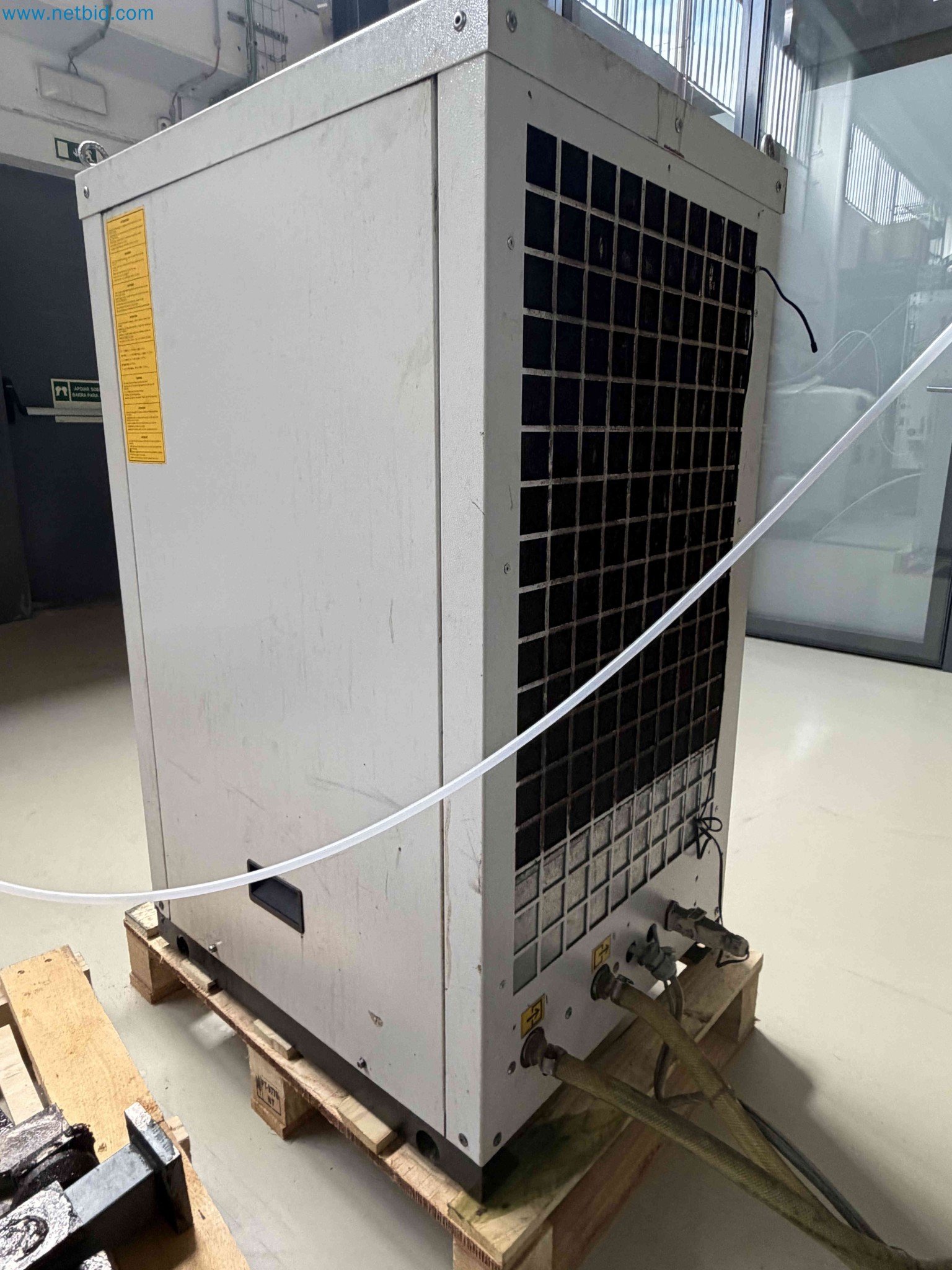

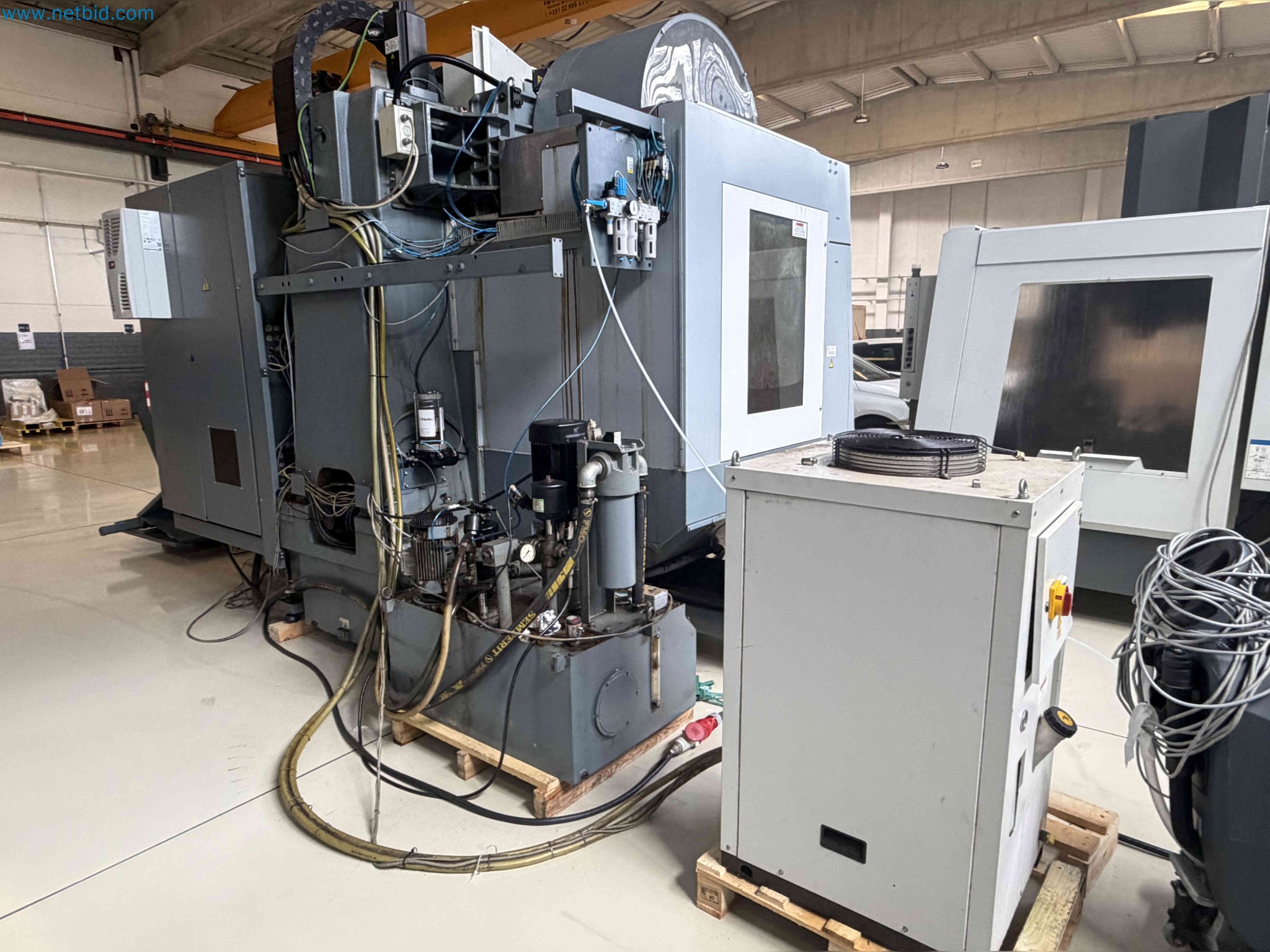

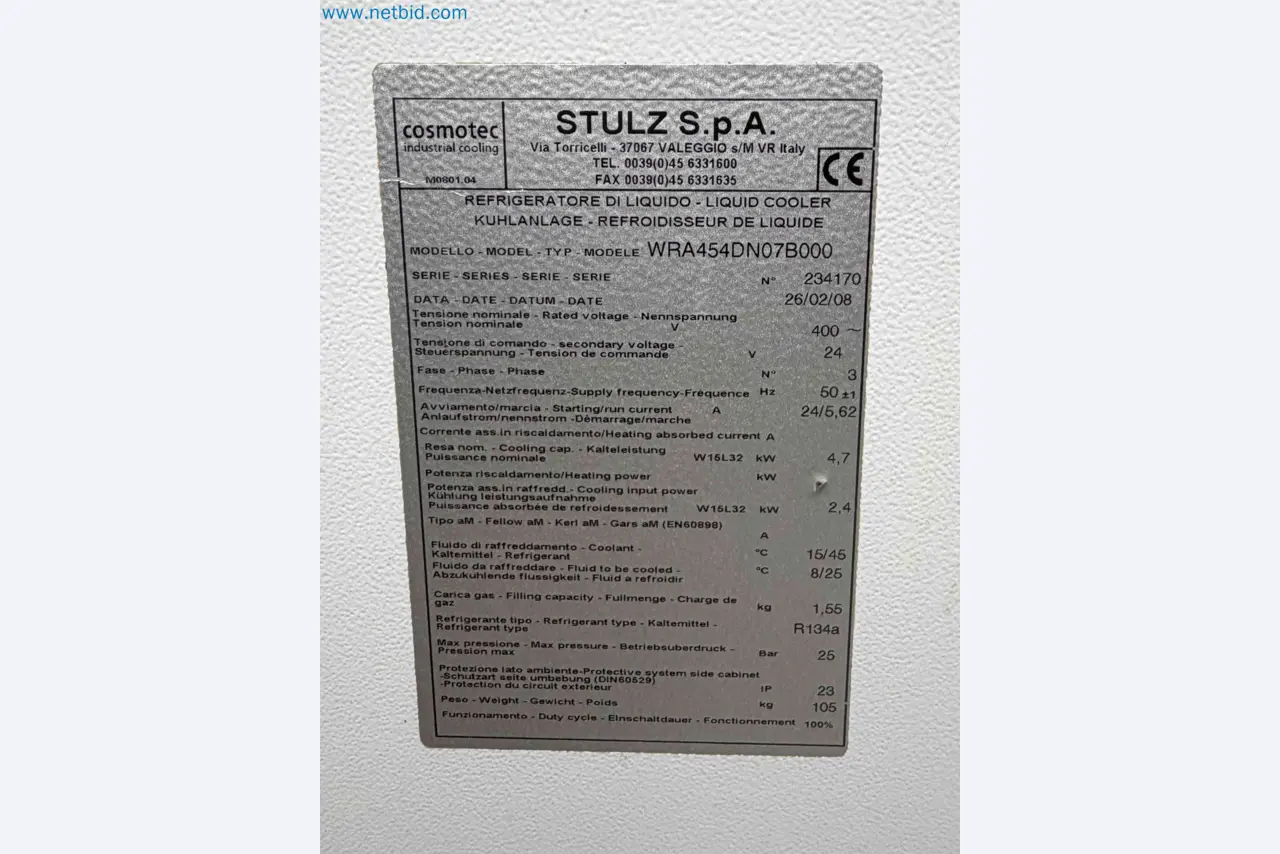

Dedicated industrial chiller (spindle cooling)

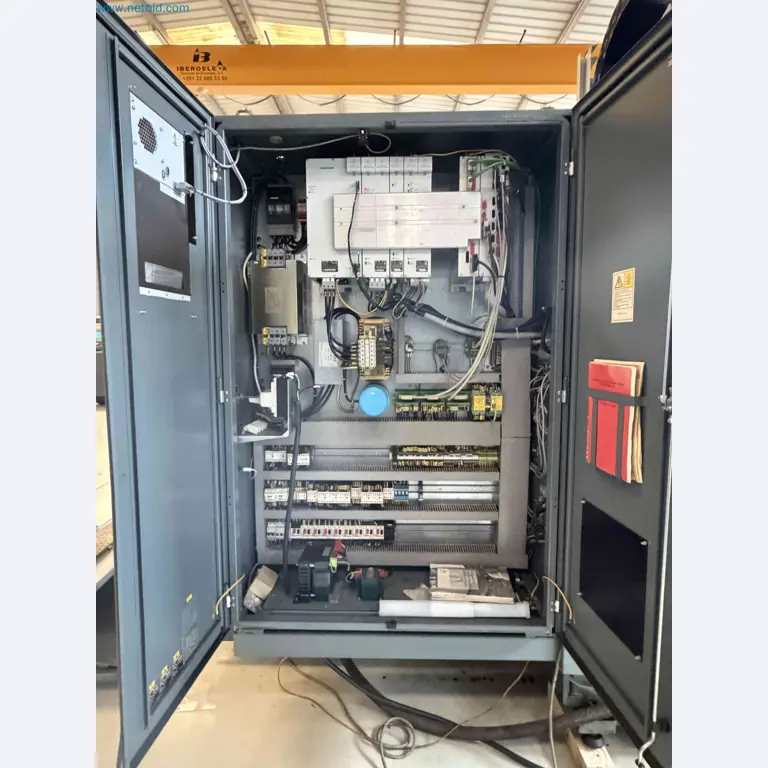

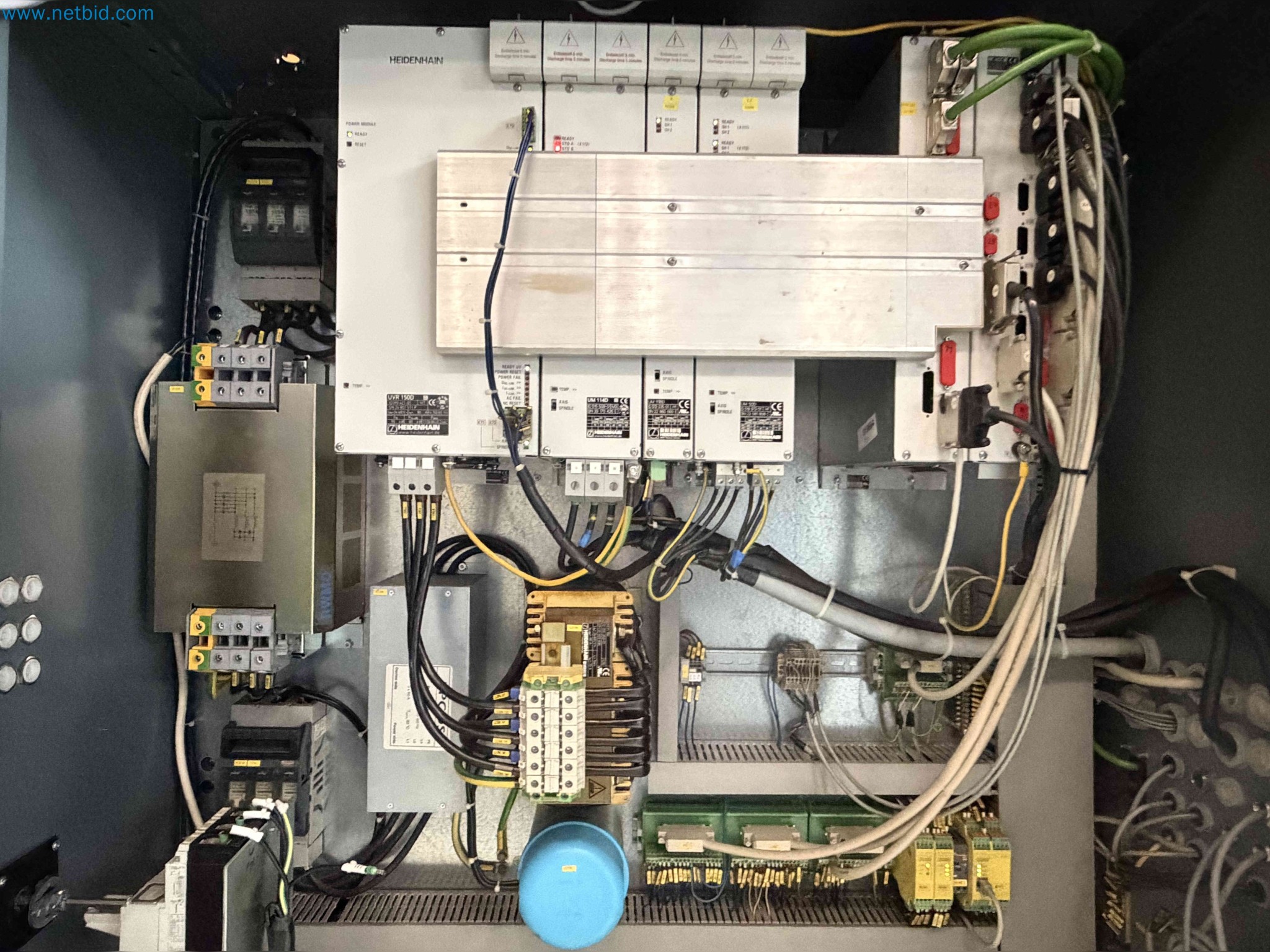

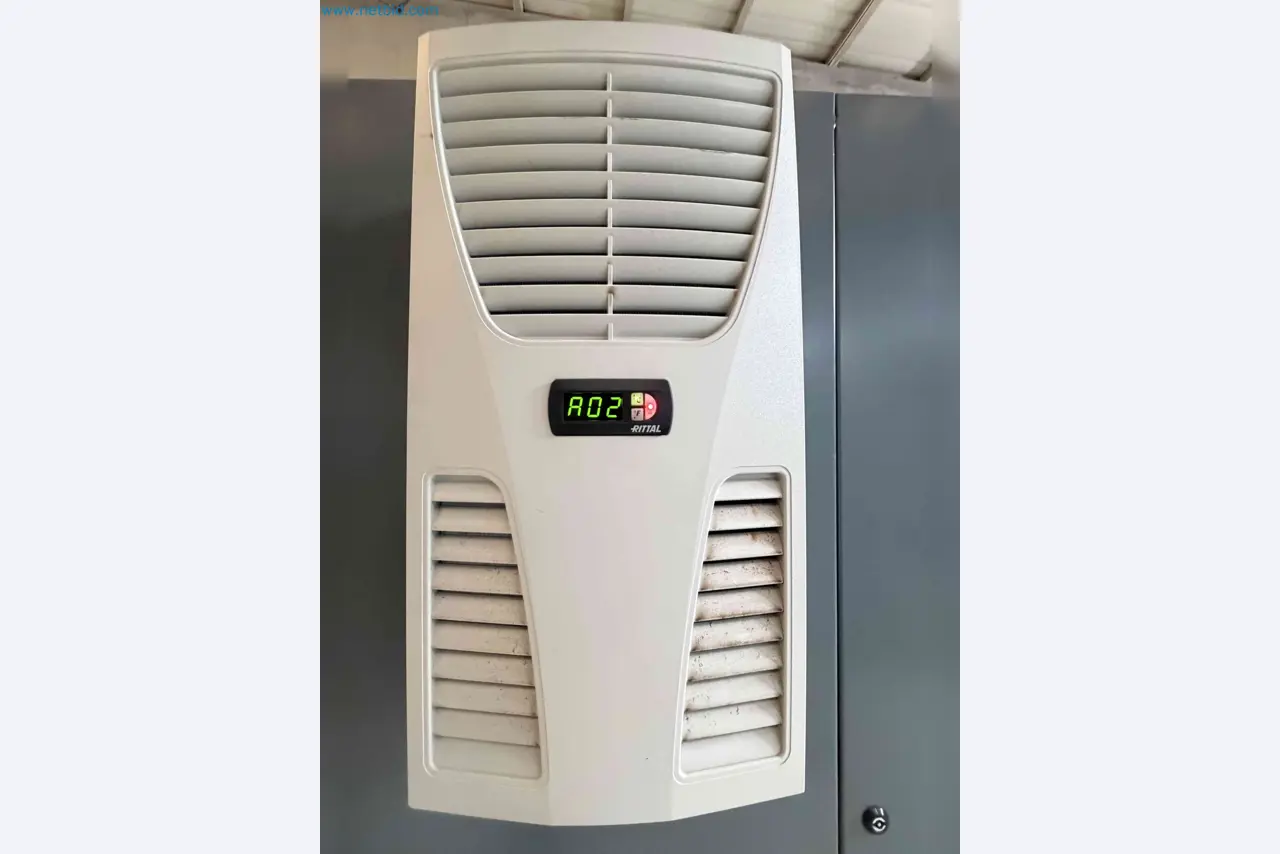

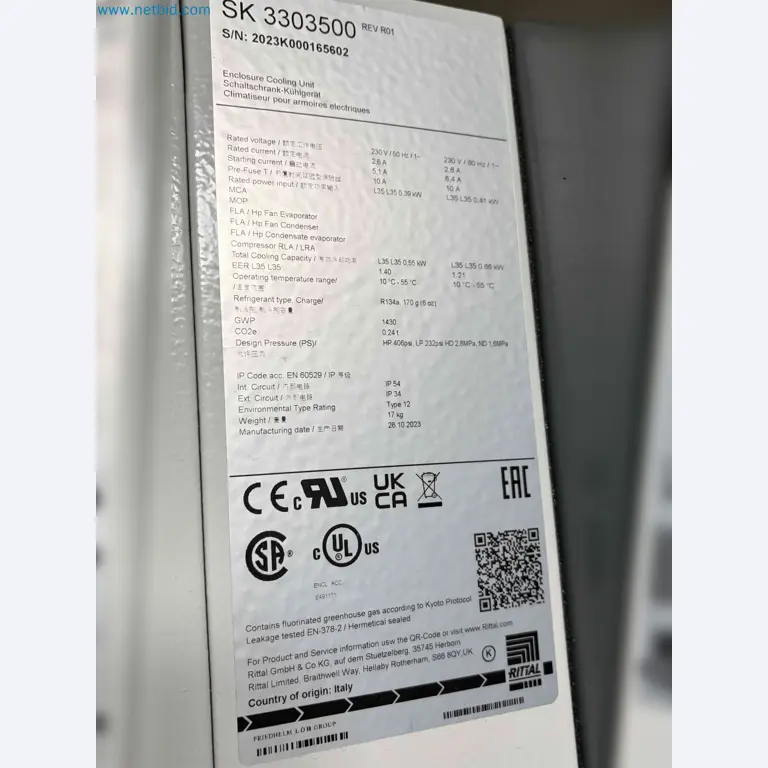

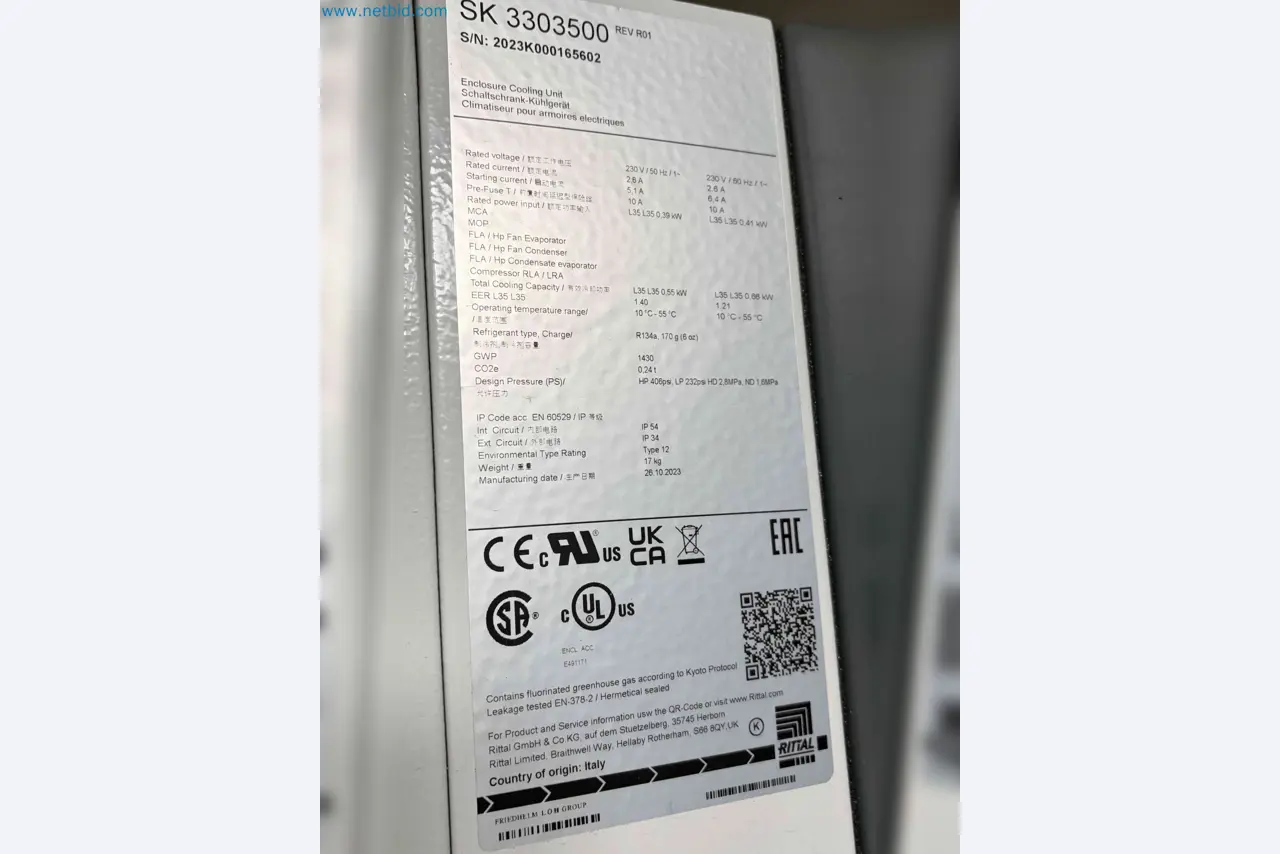

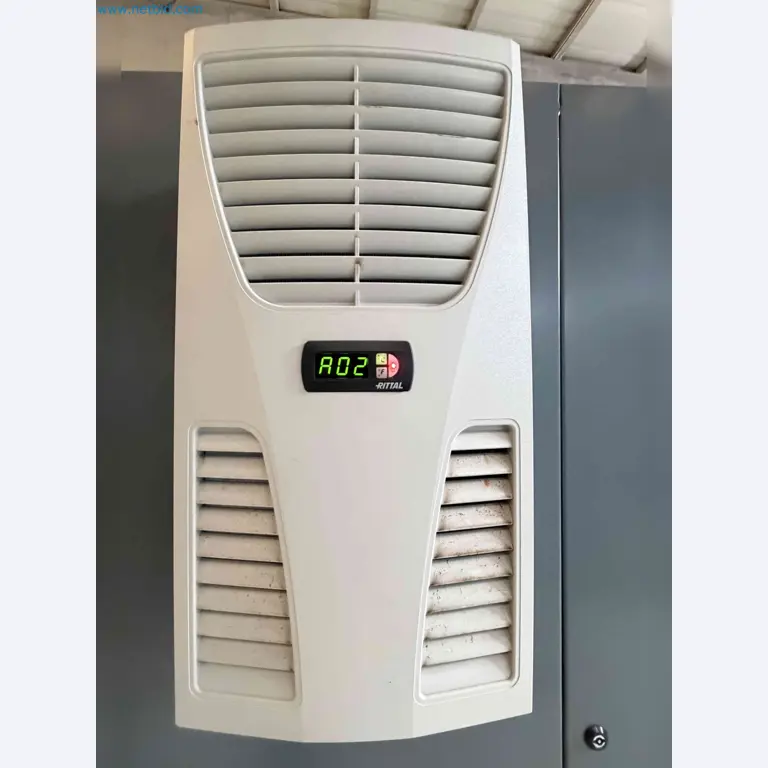

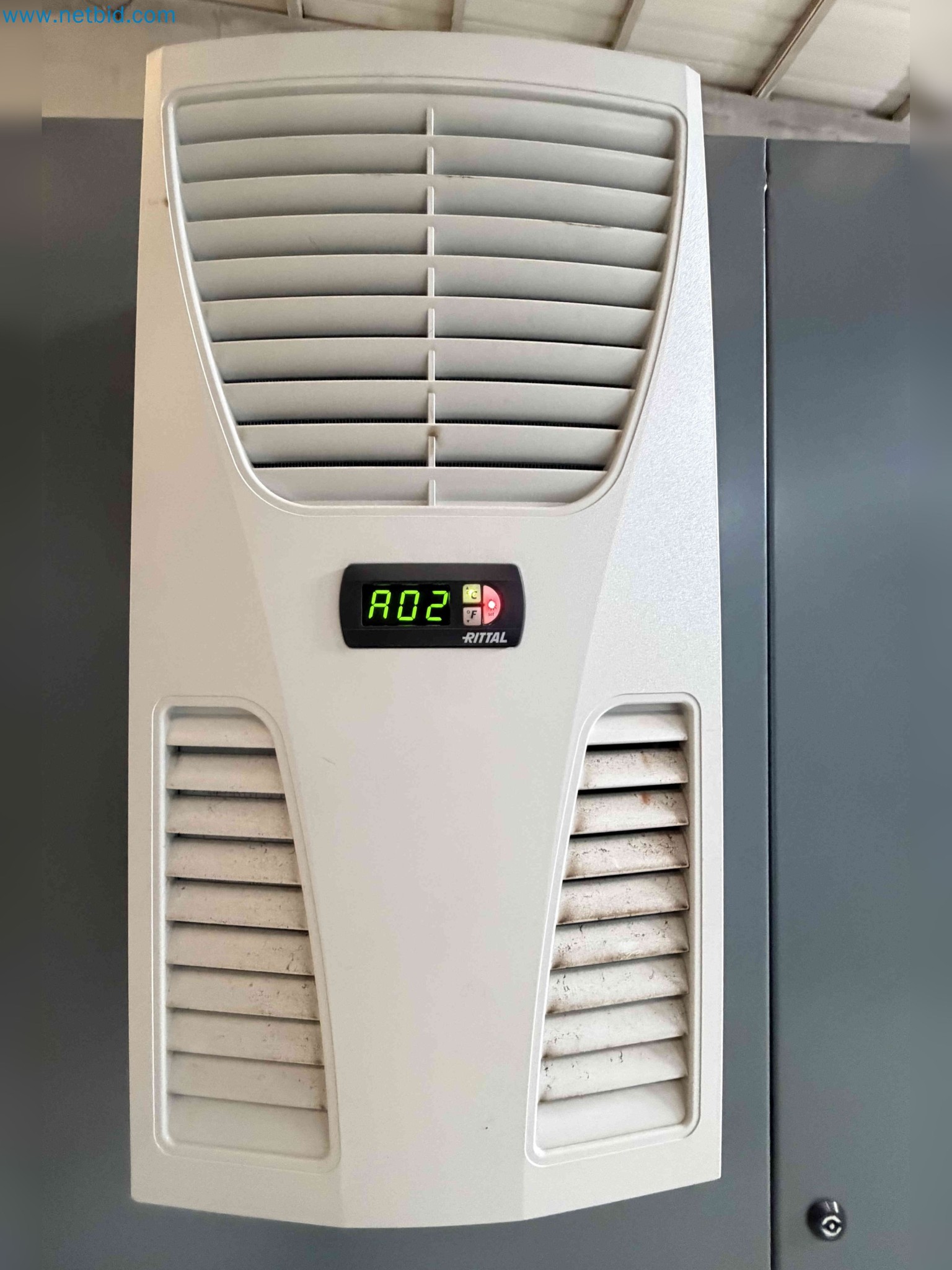

Electrical cabinet air conditioning (Rittal 2023)
Complete cooling system

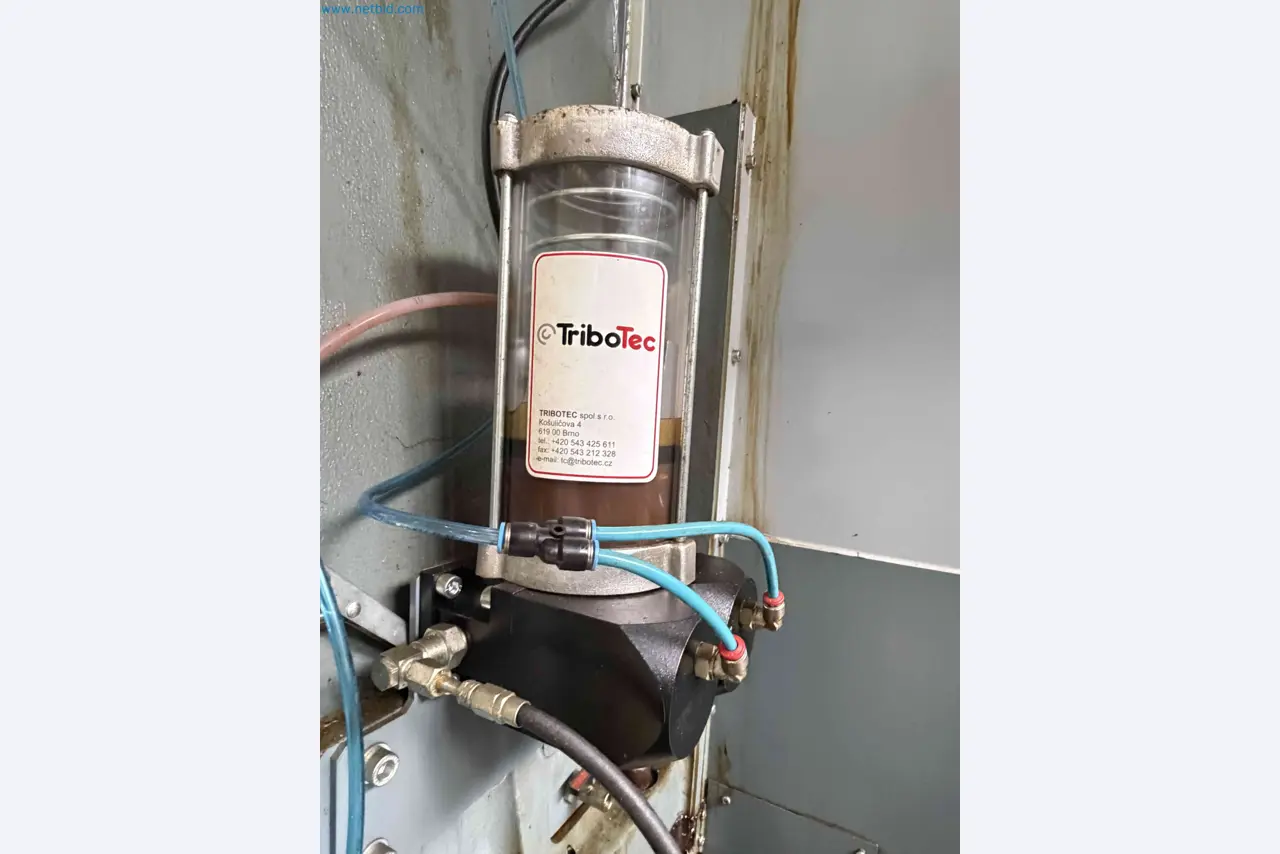

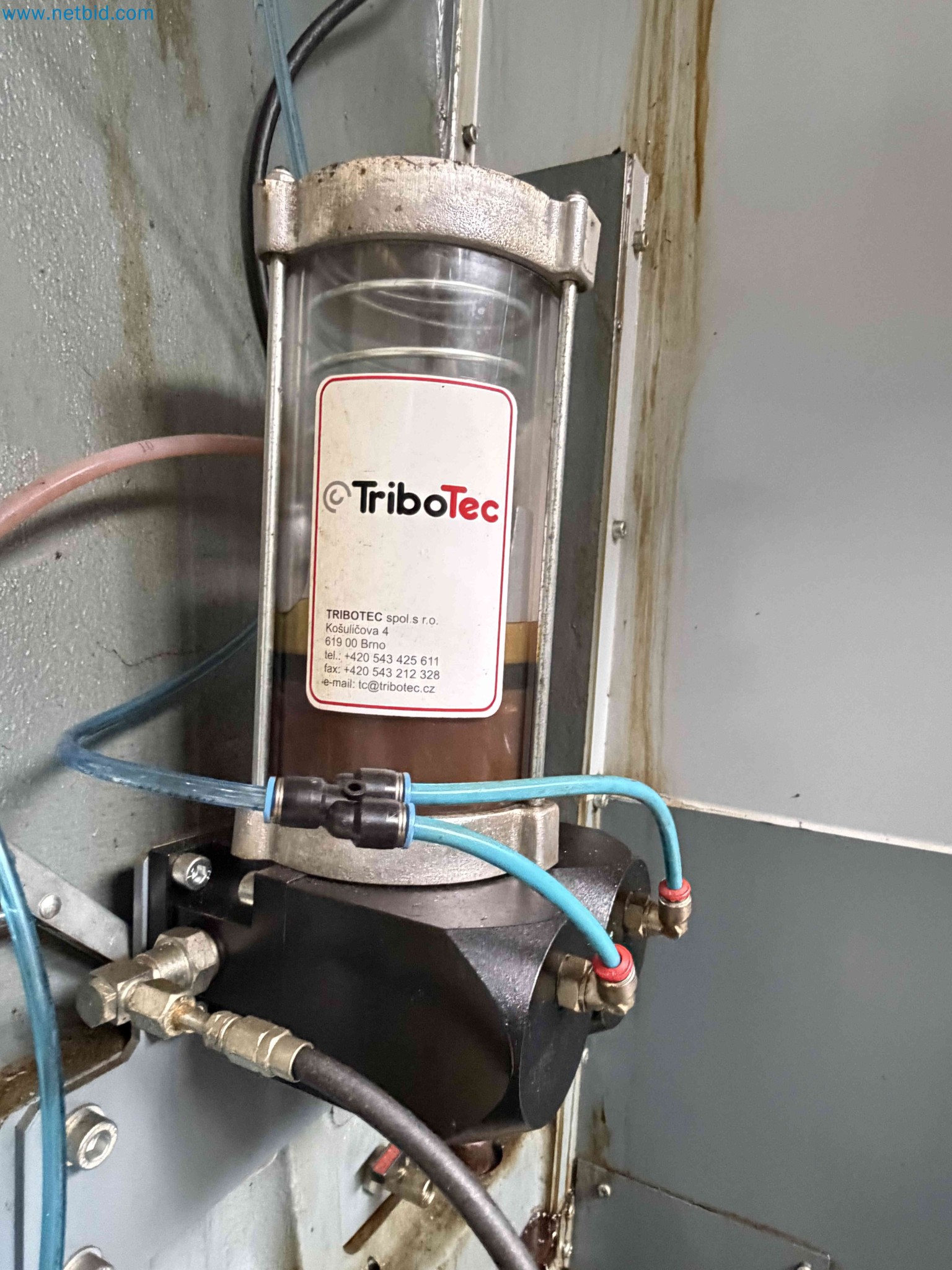

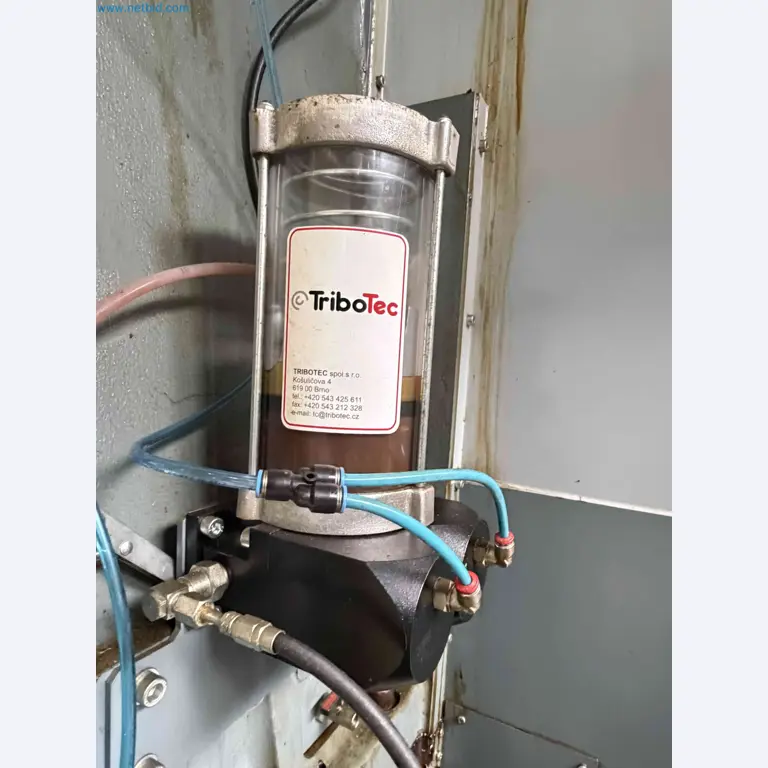

Centralized lubrication
Measurement and Automation
Renishaw probing system:
Tool measurement (TS27R)
Part measurement (OMP40)
Prepared for 4th axis
Associated rotary table
Technical Components:

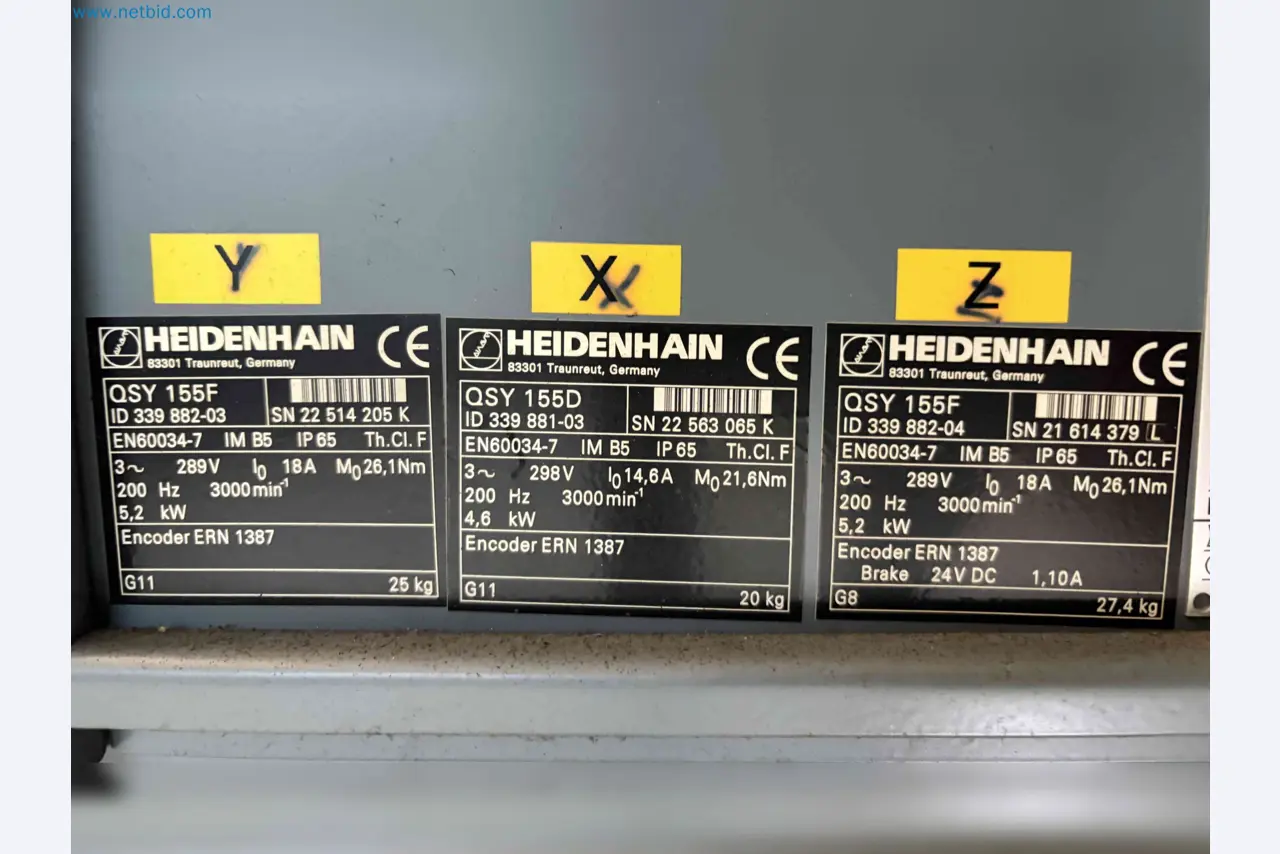

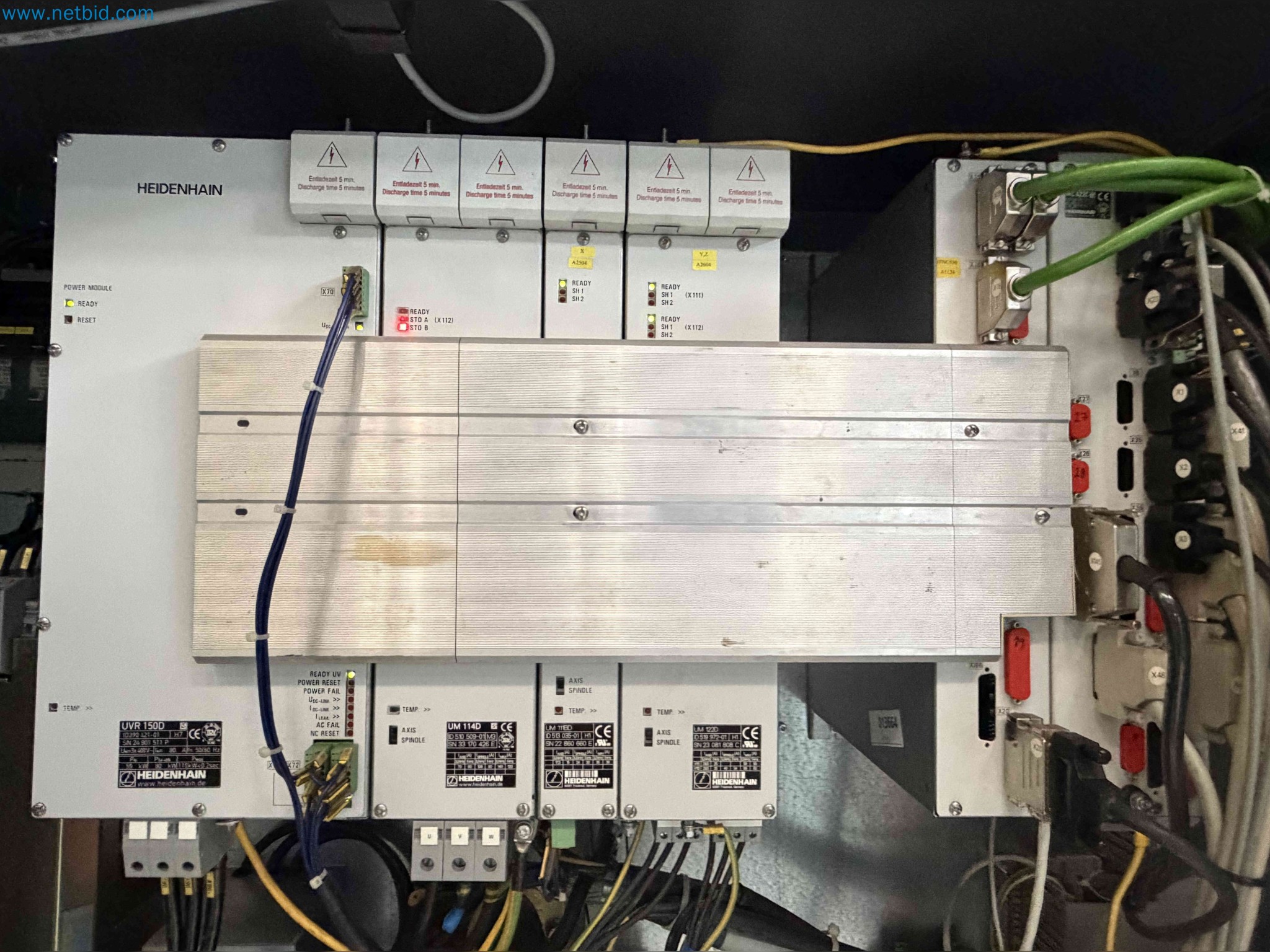

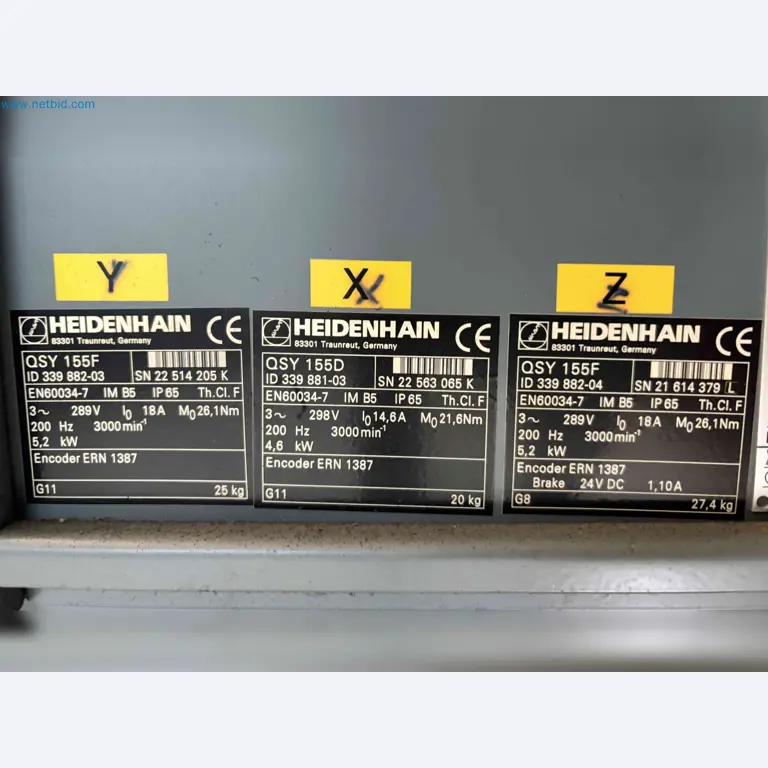

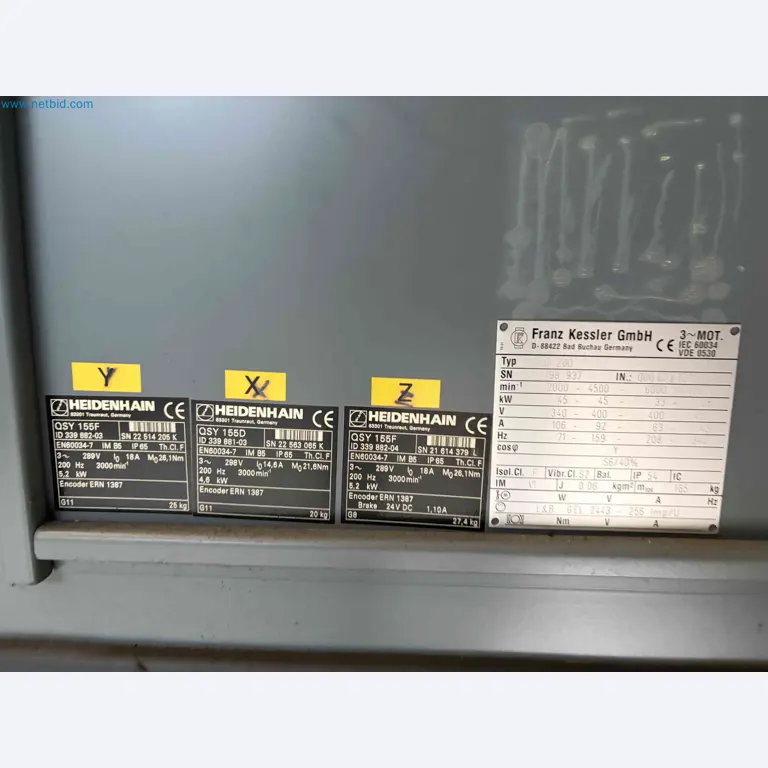

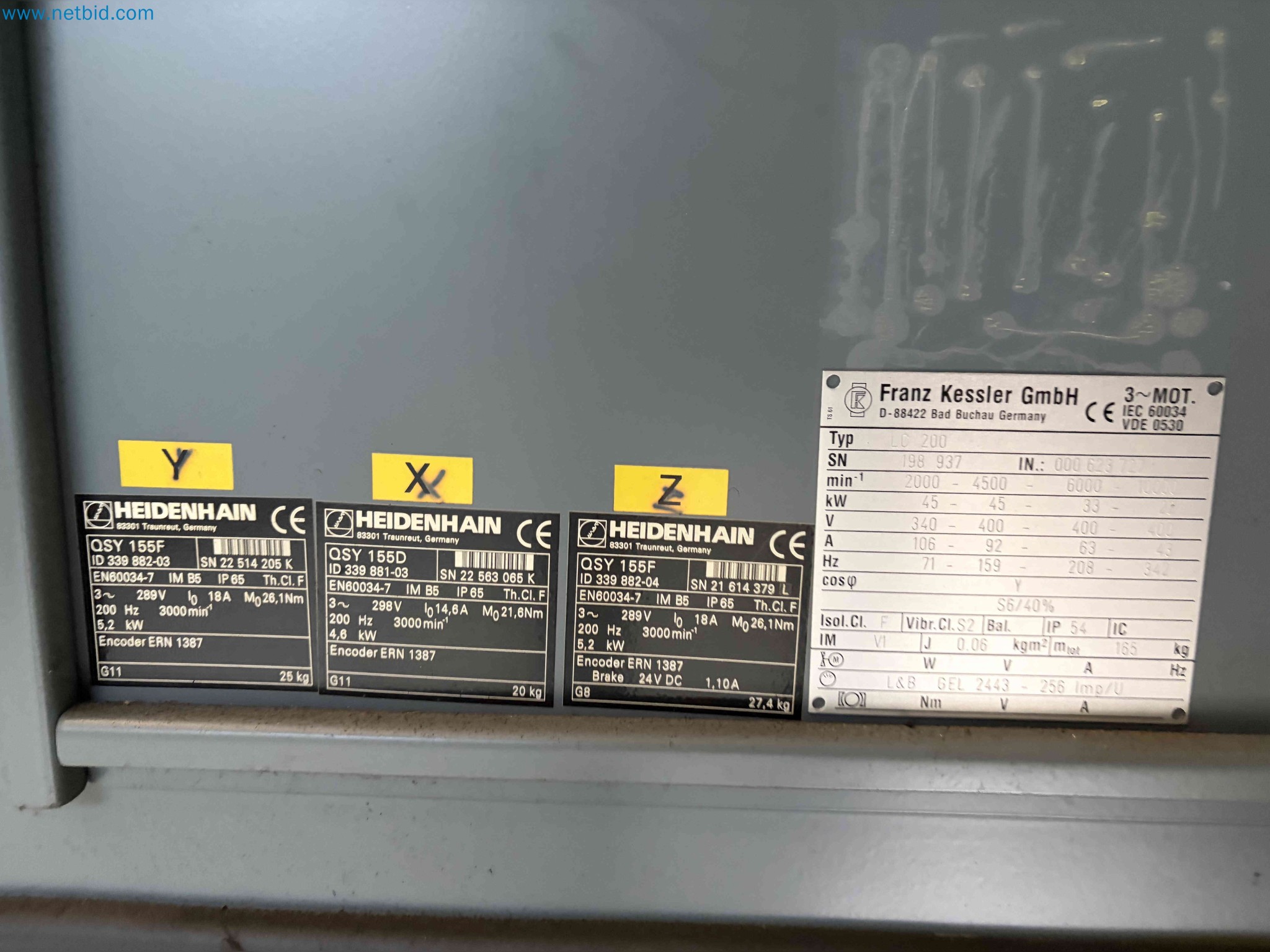

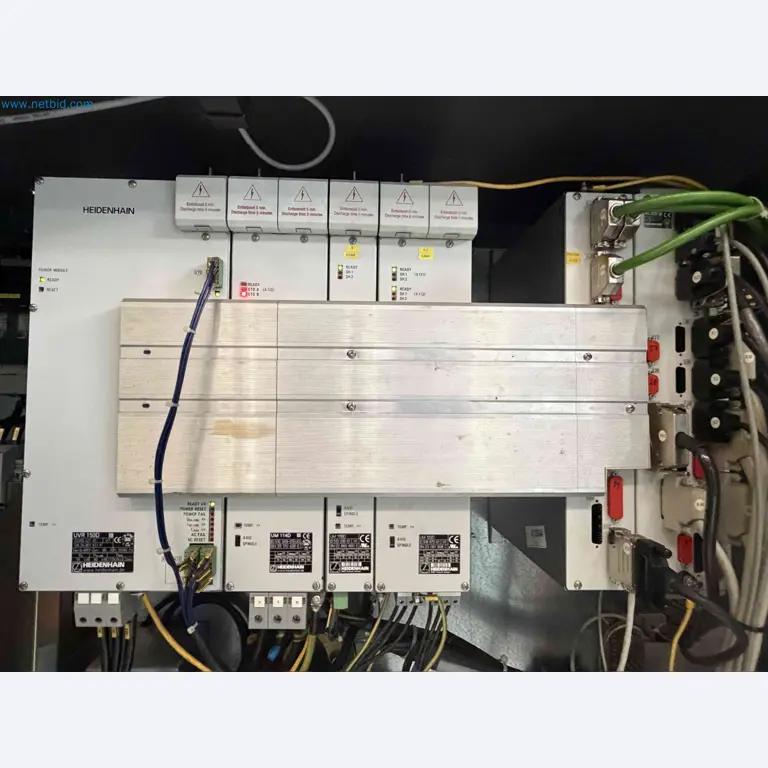

Heidenhain / Siemens servo motors
Robust ball screws
High-precision linear guides

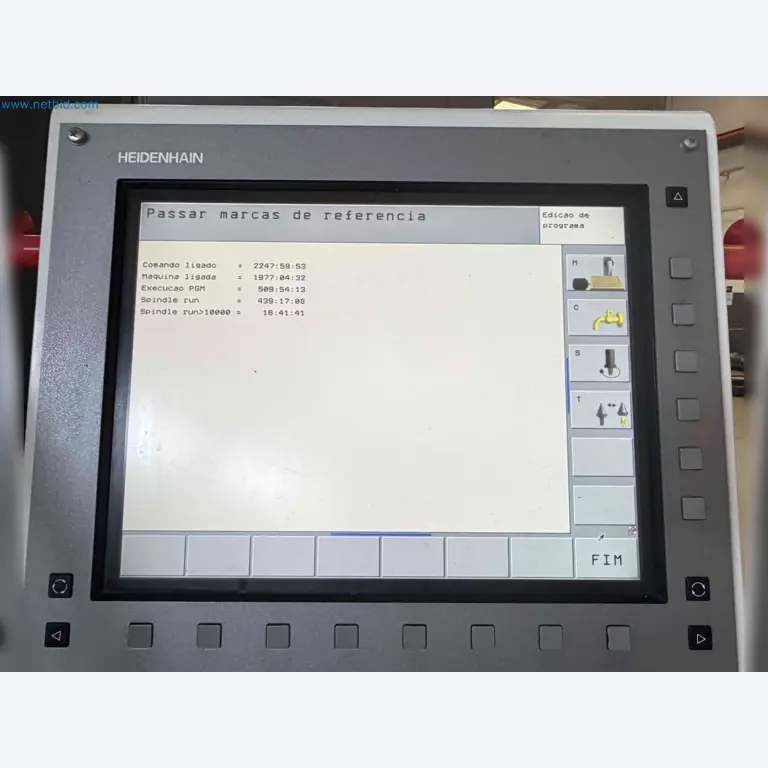

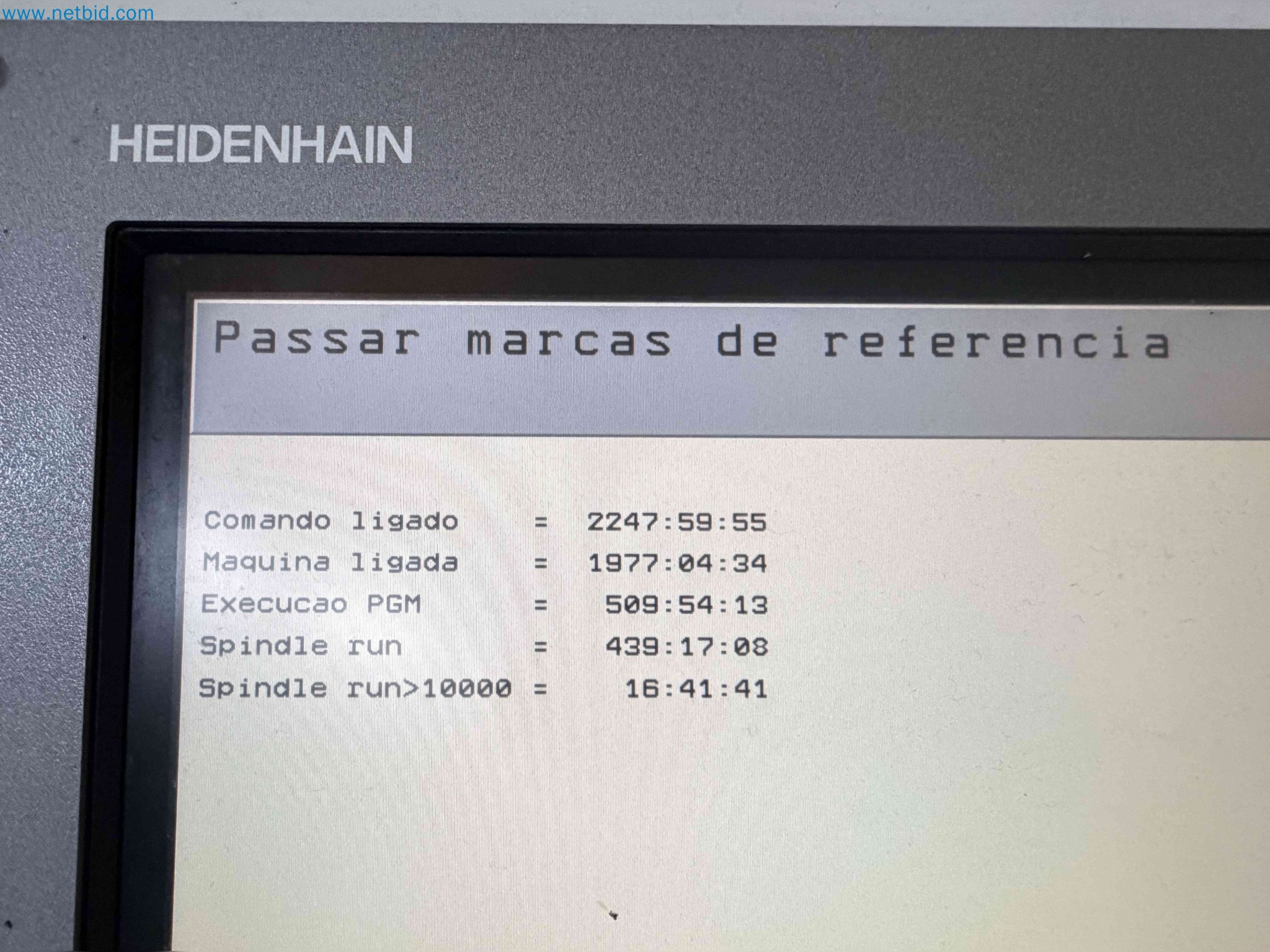

Working hours according to display: ~1,977 h
Spindle: ~439 hours

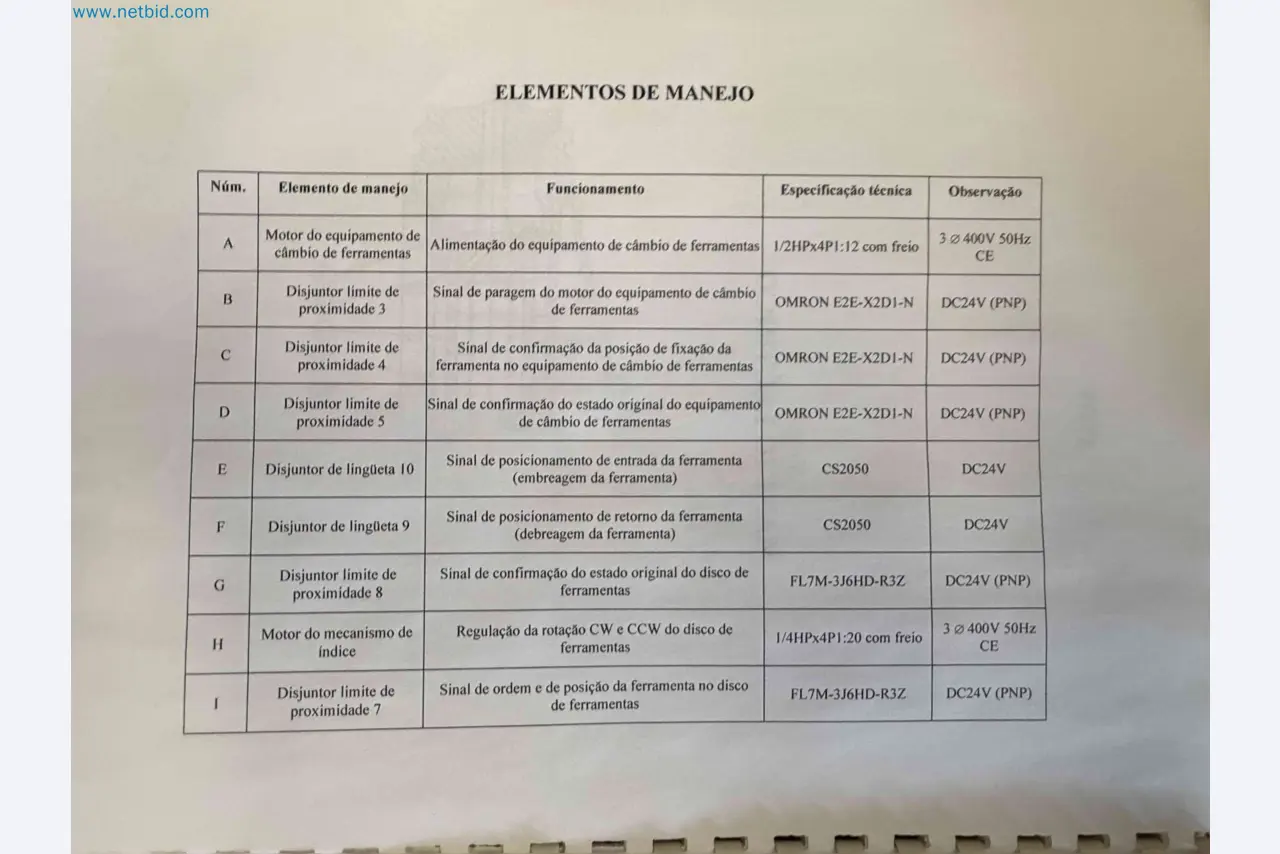

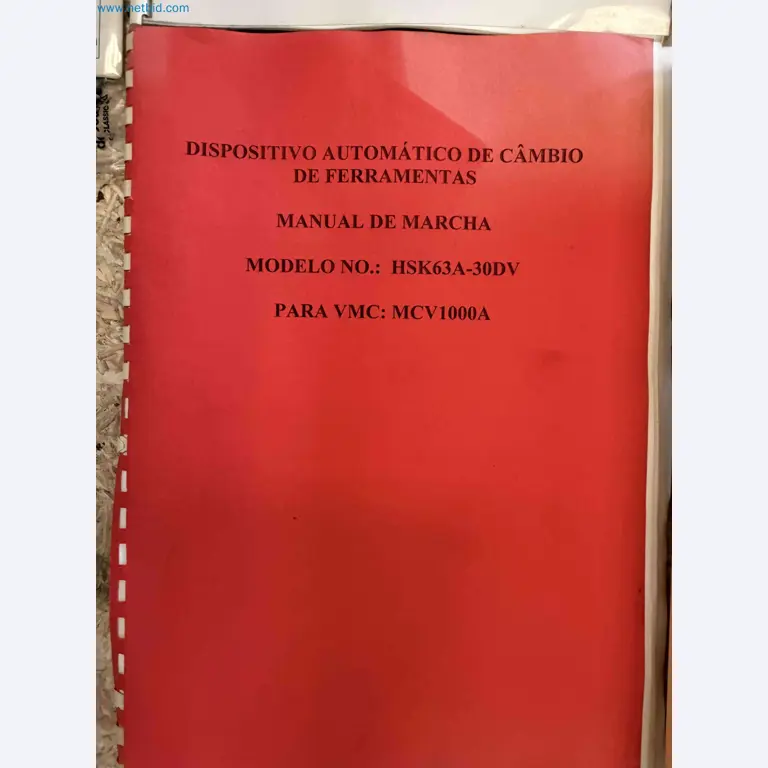

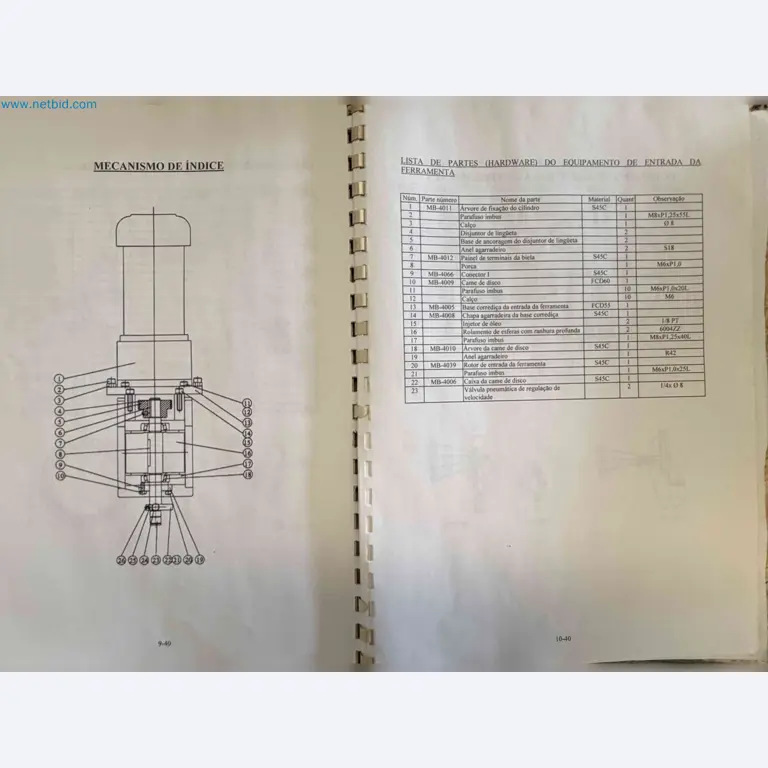

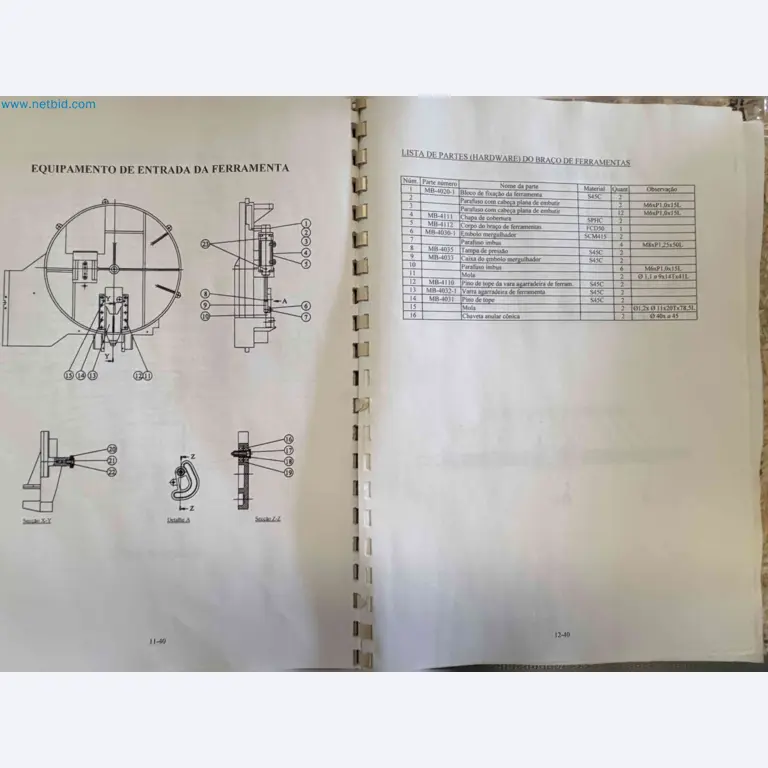

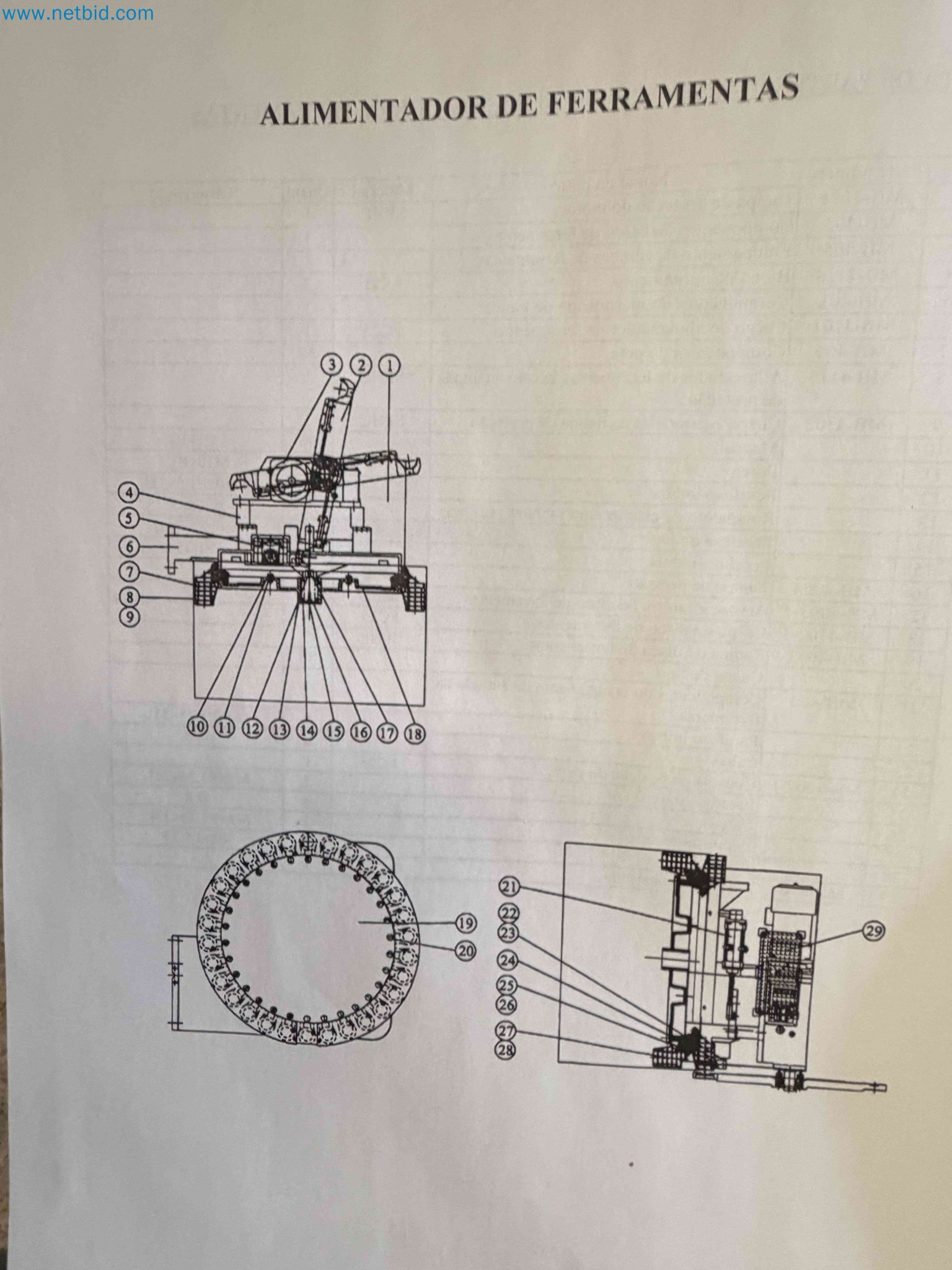

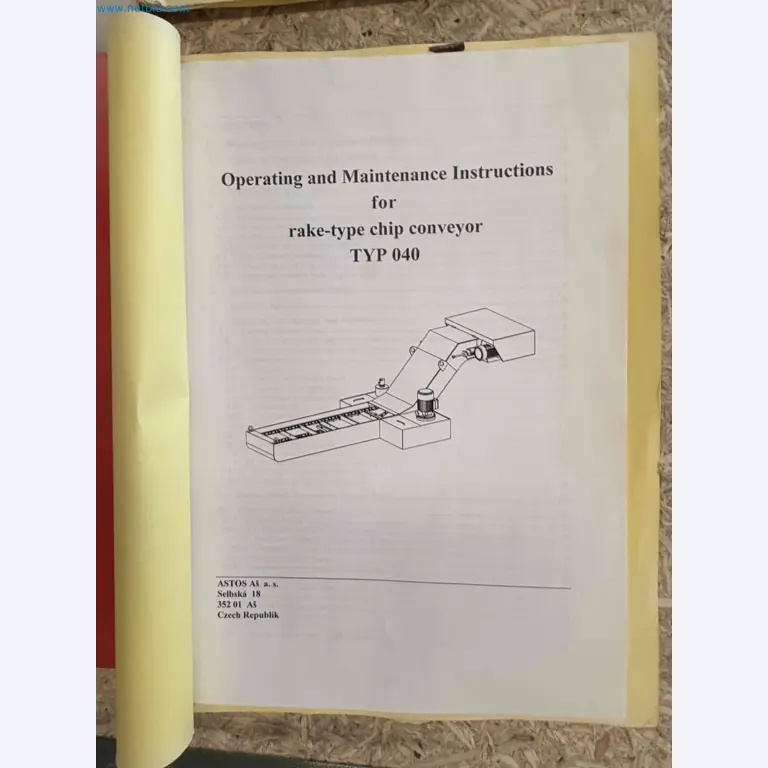

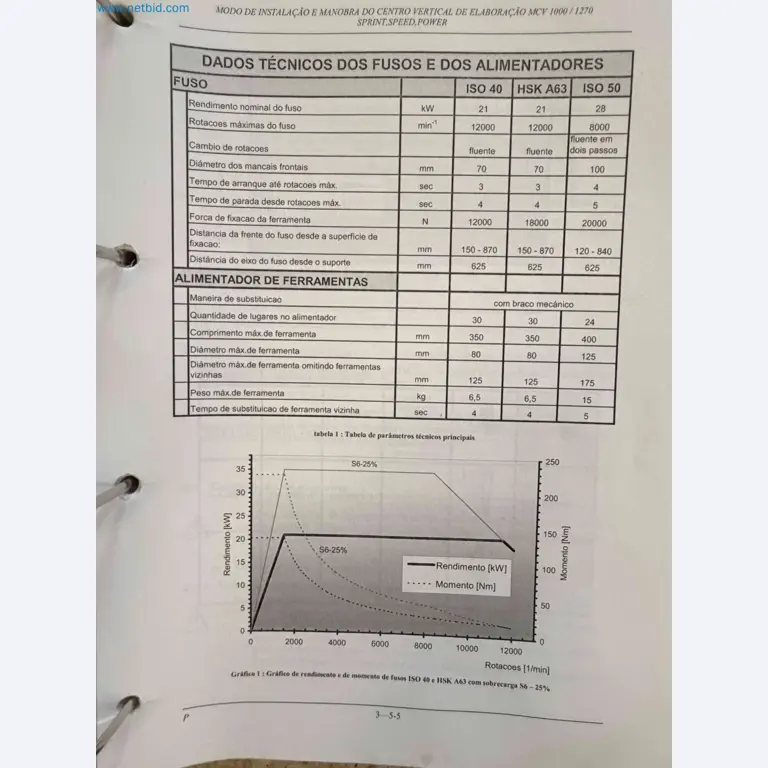

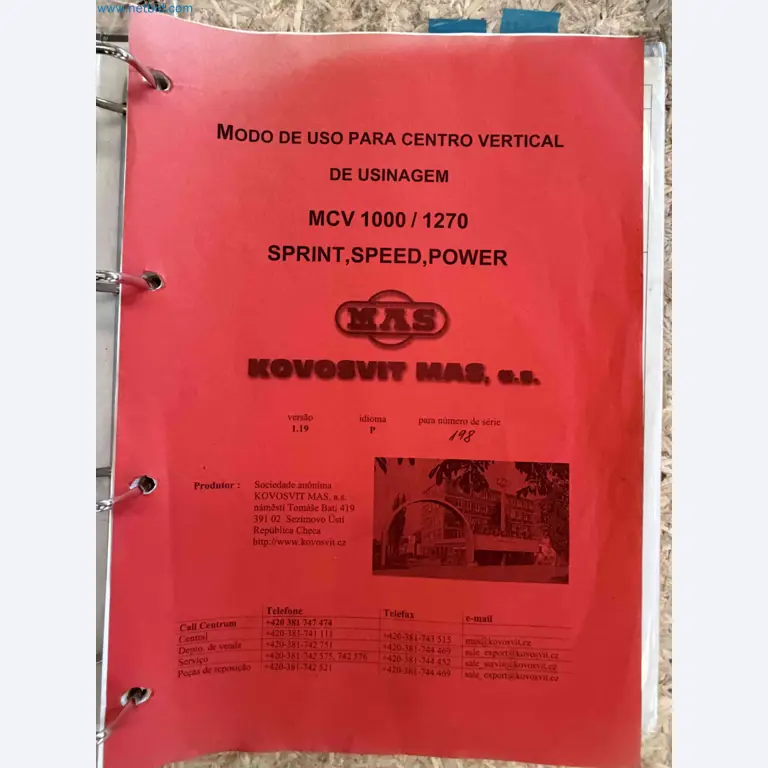

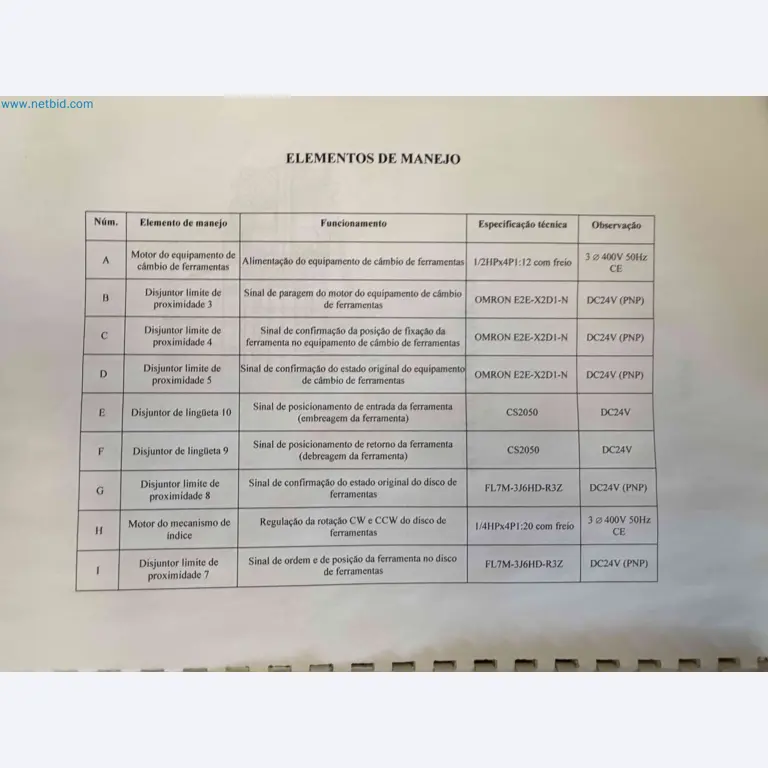

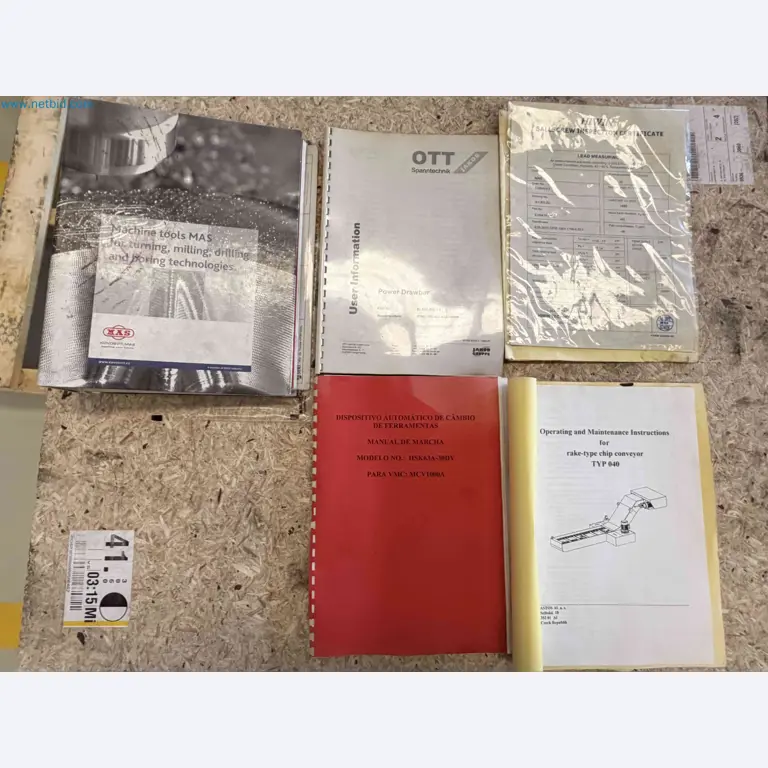

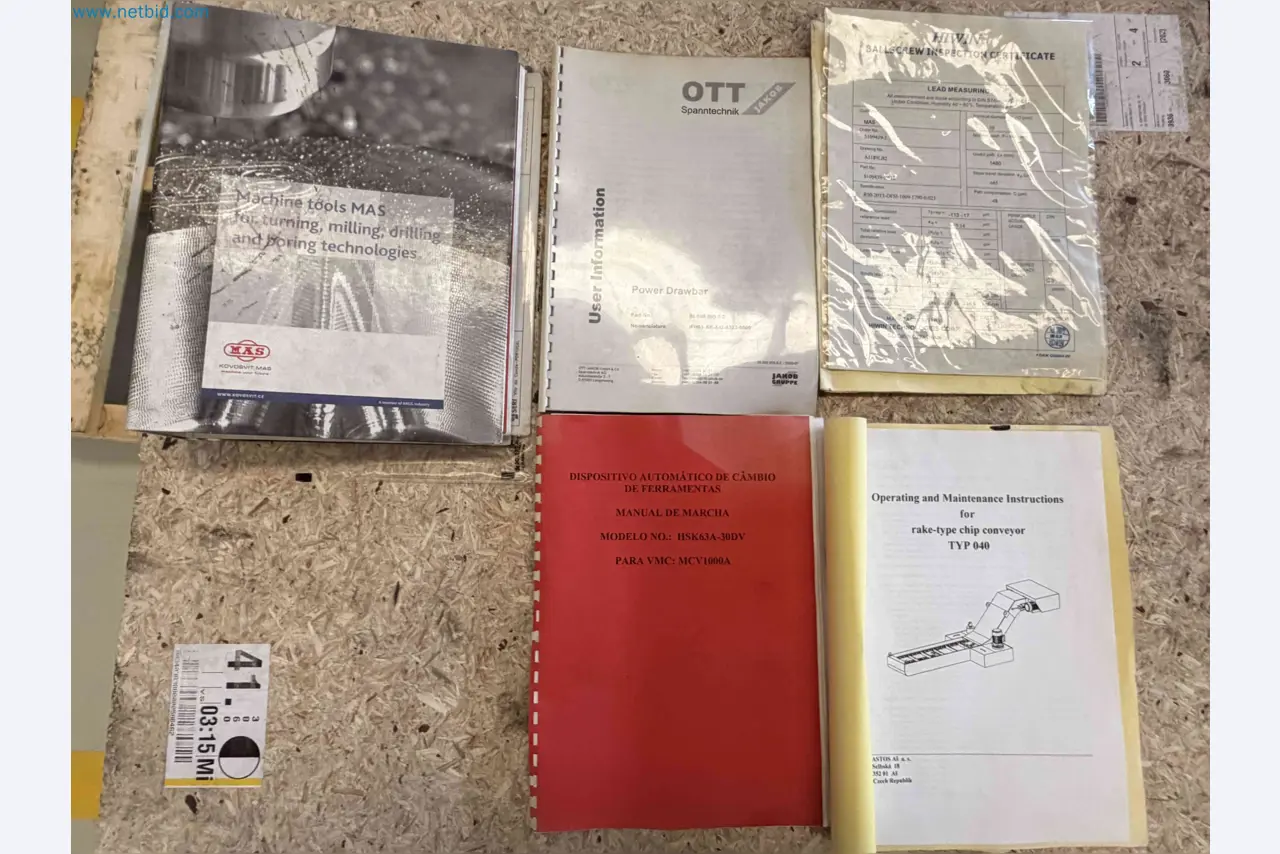

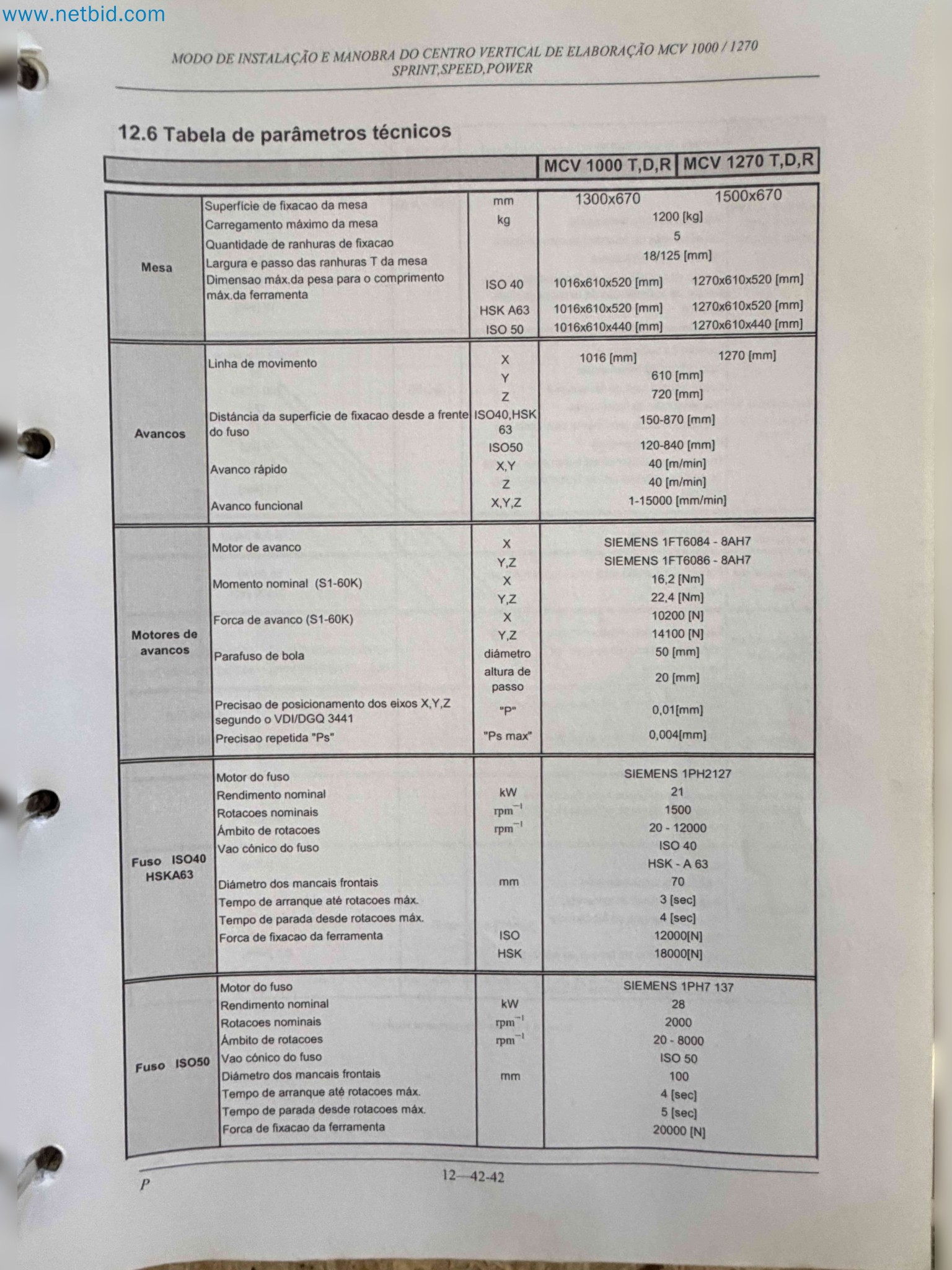

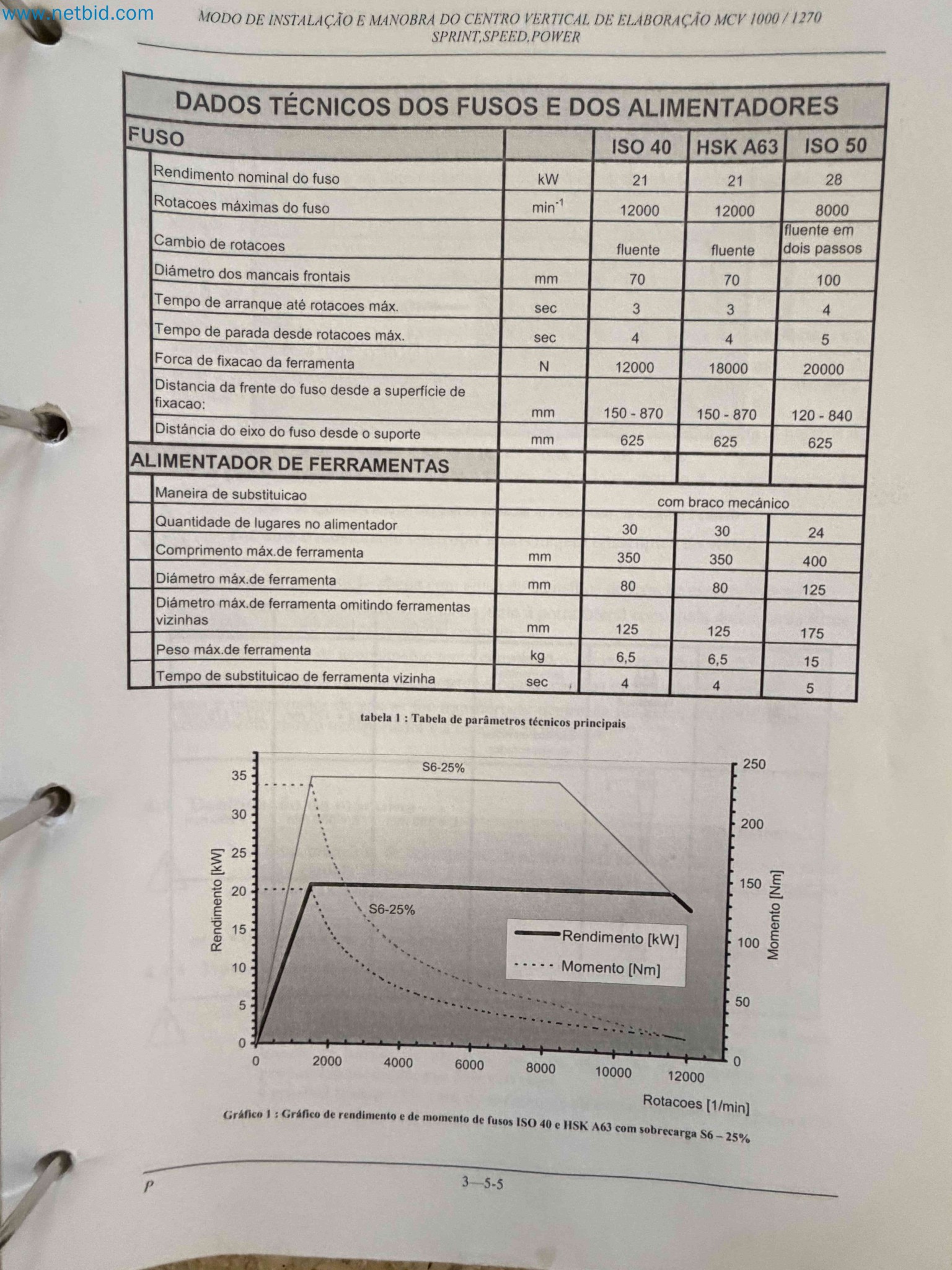

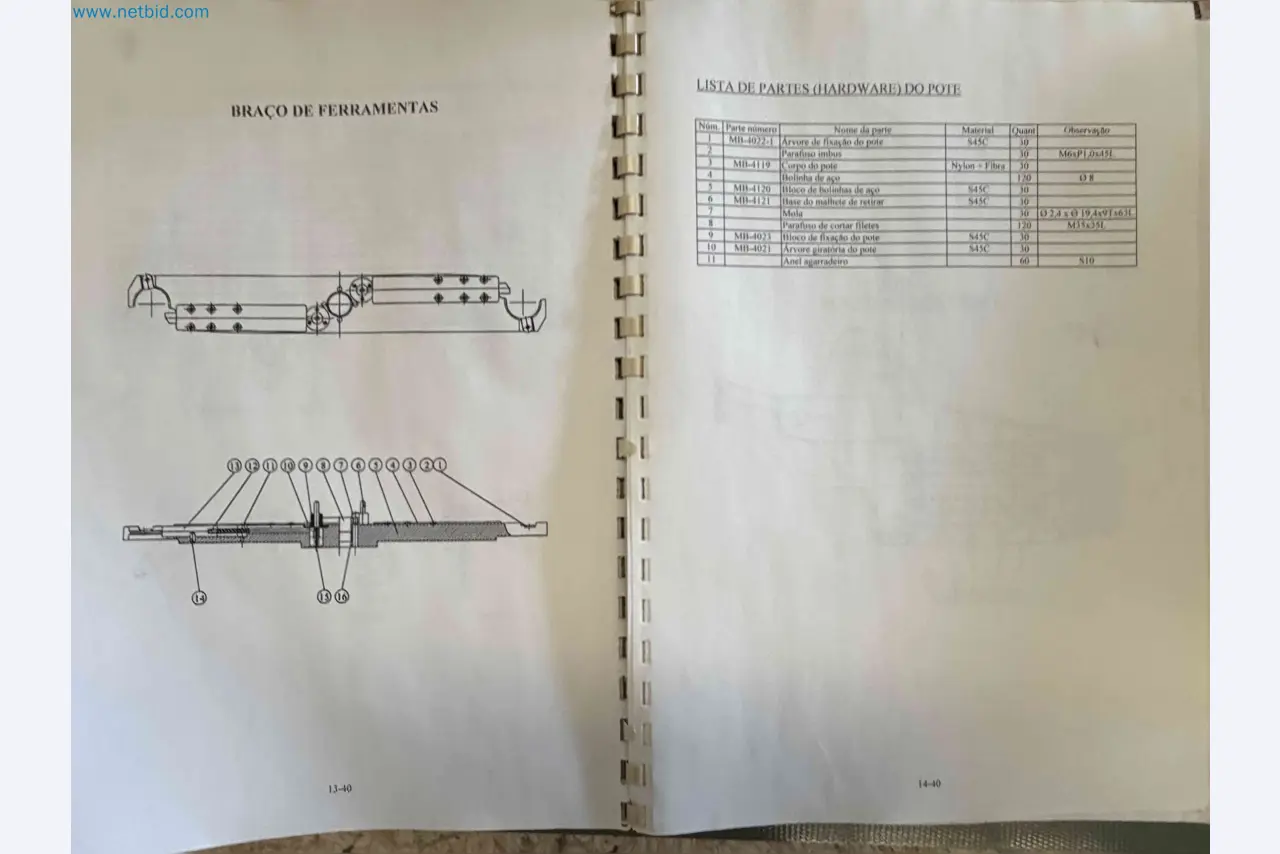

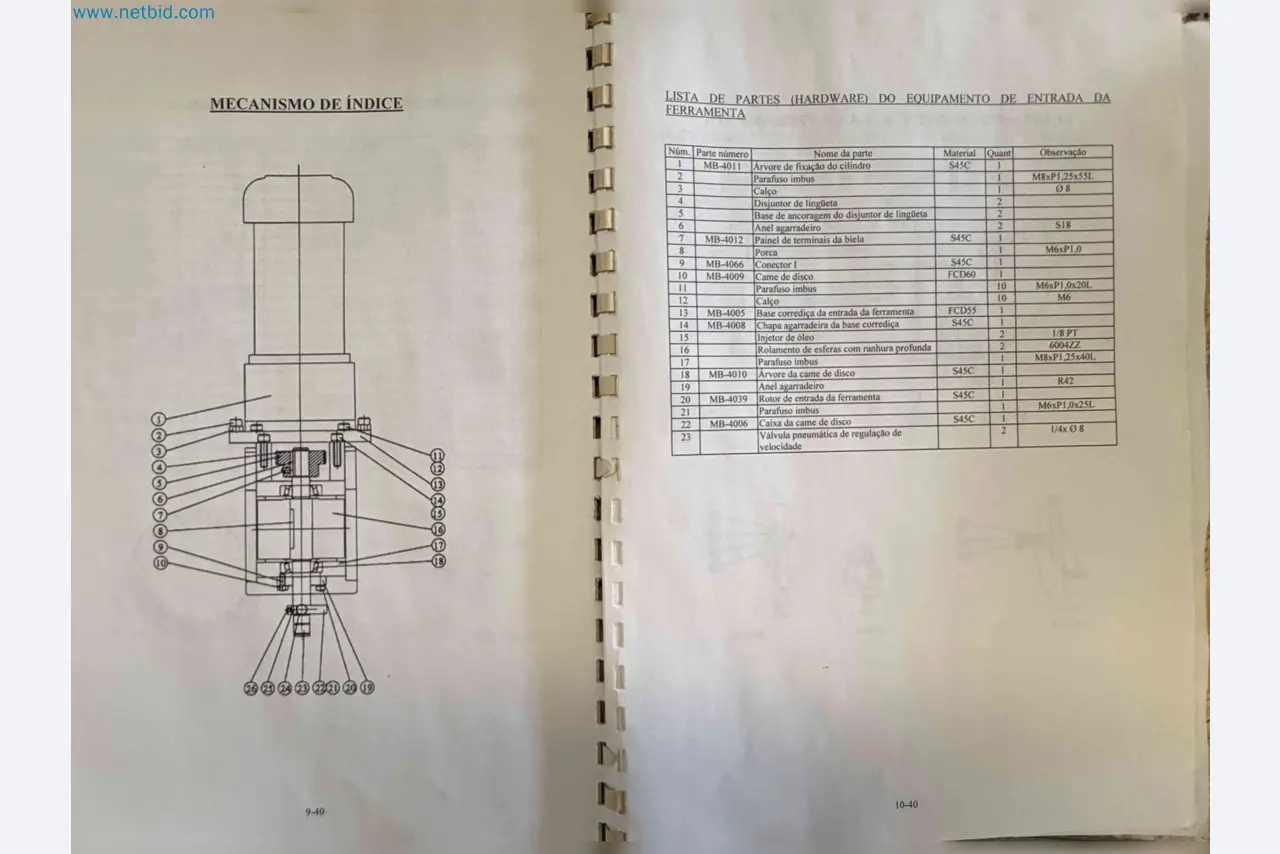

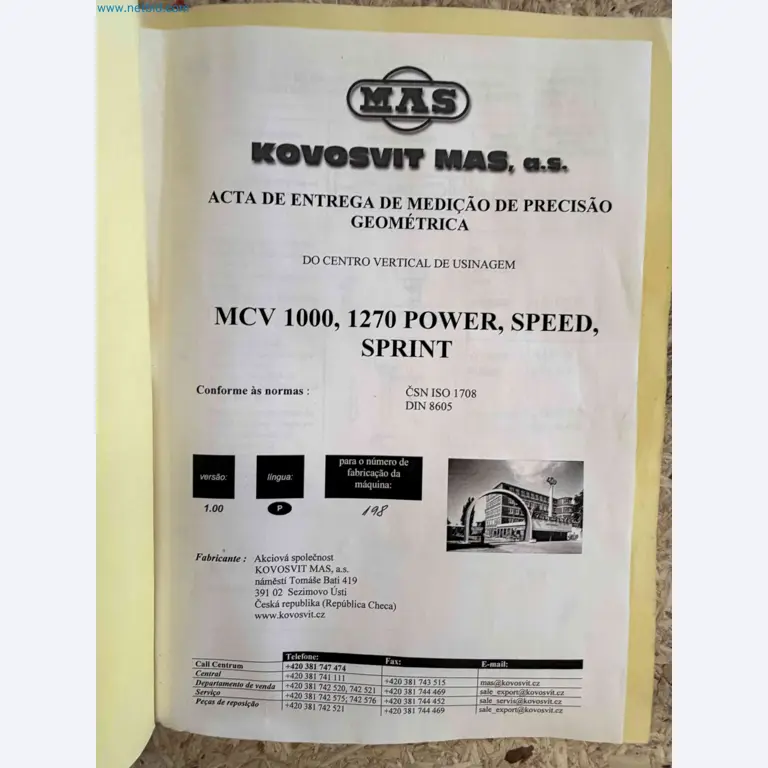

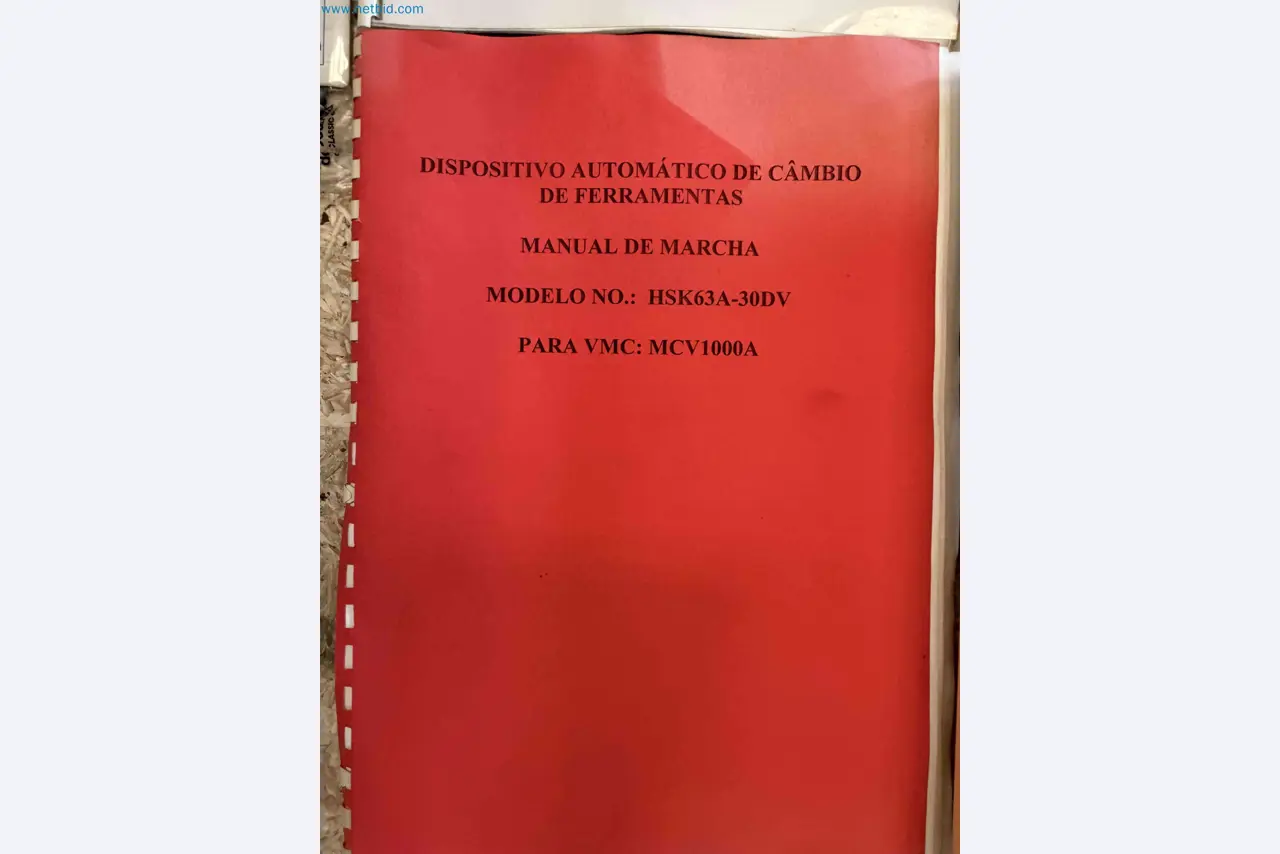

Complete operation manual (PT)

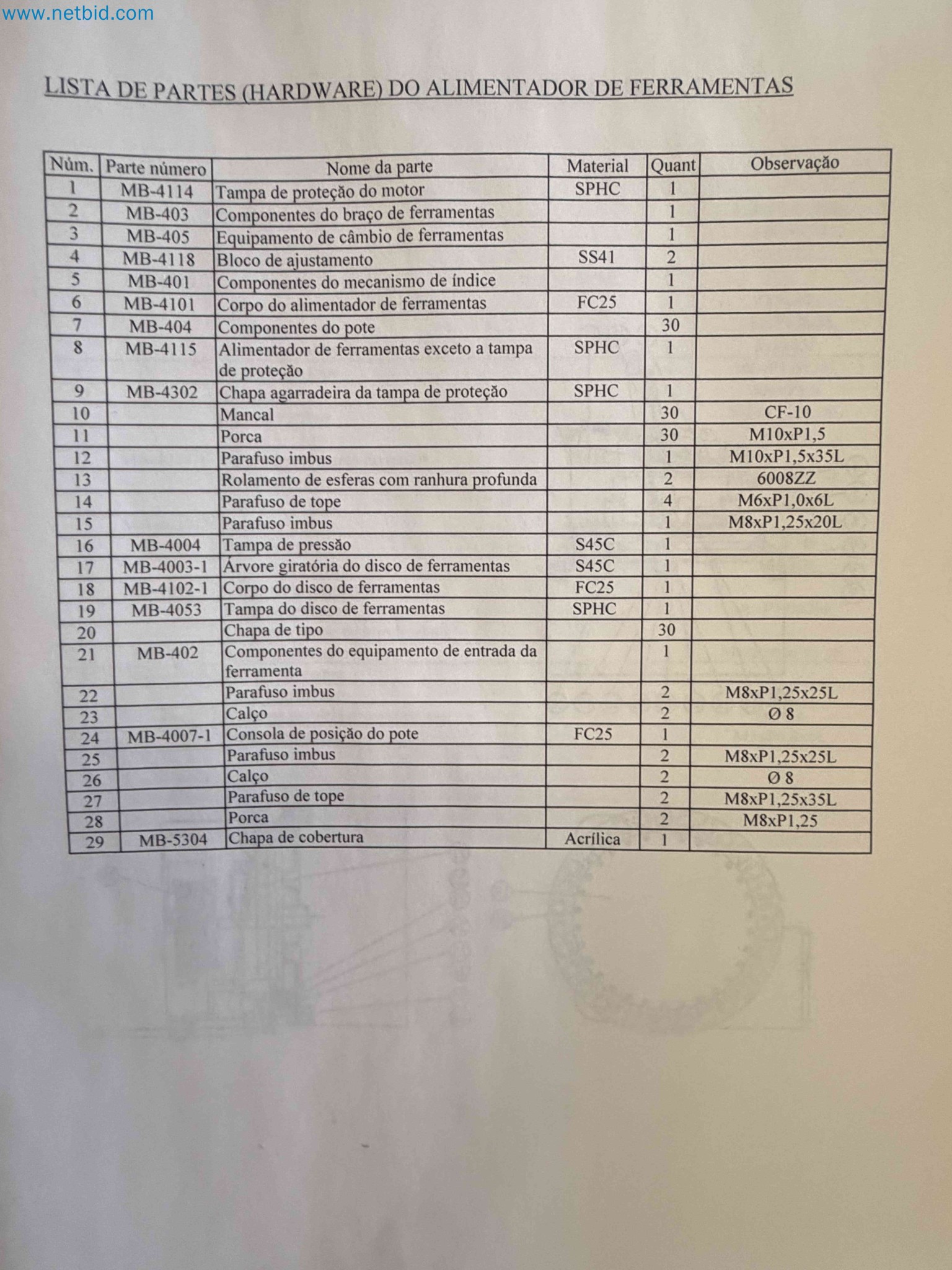

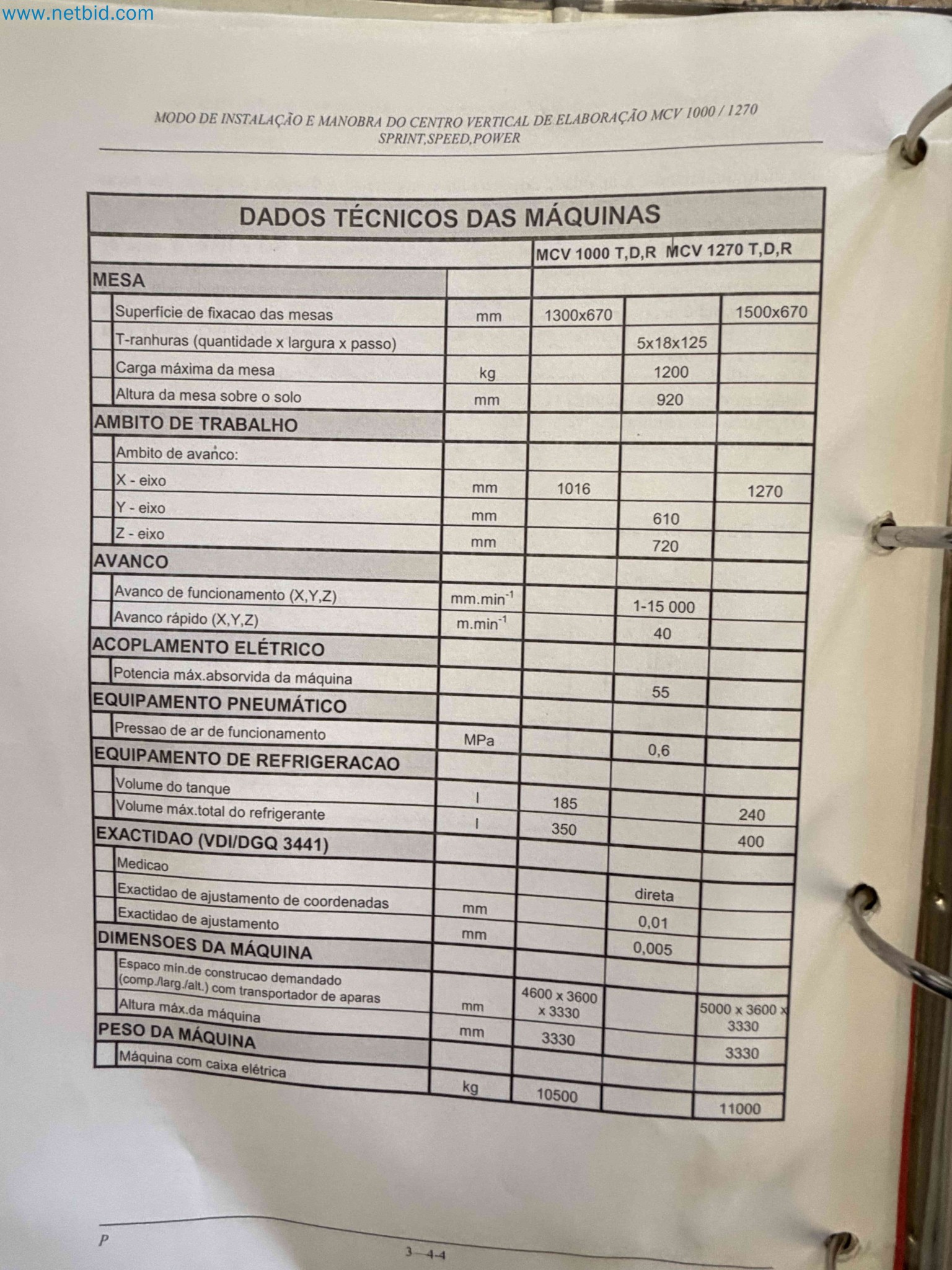

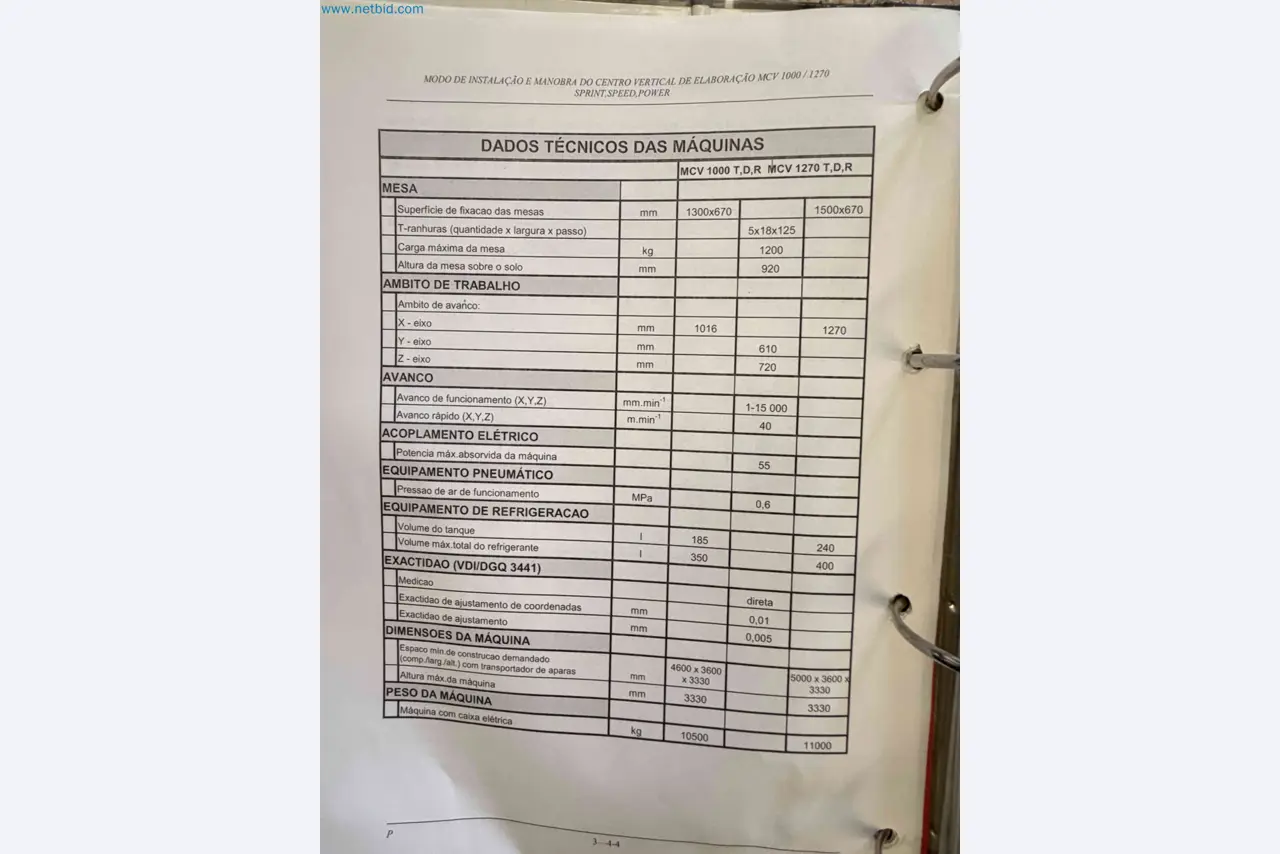

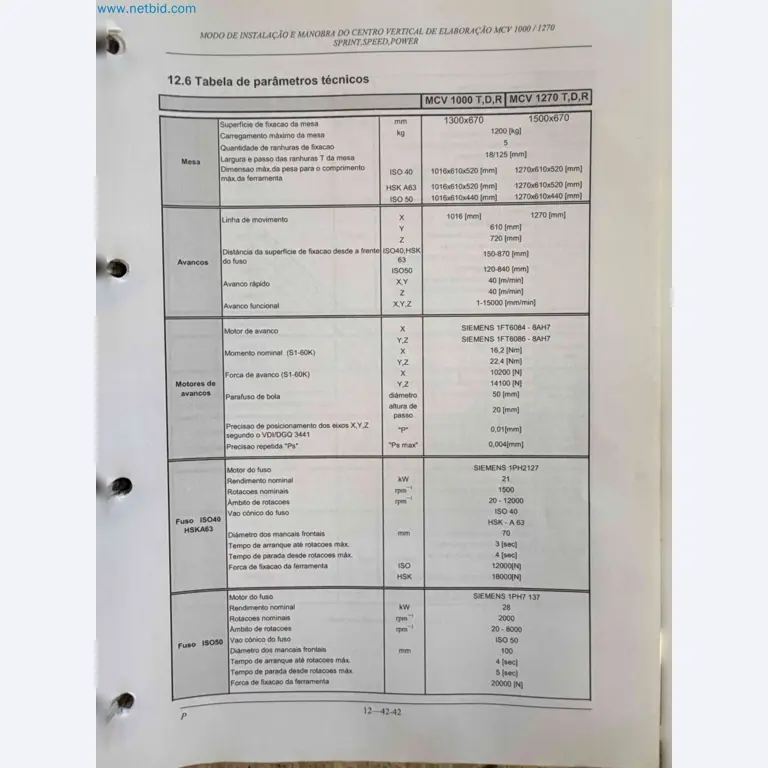

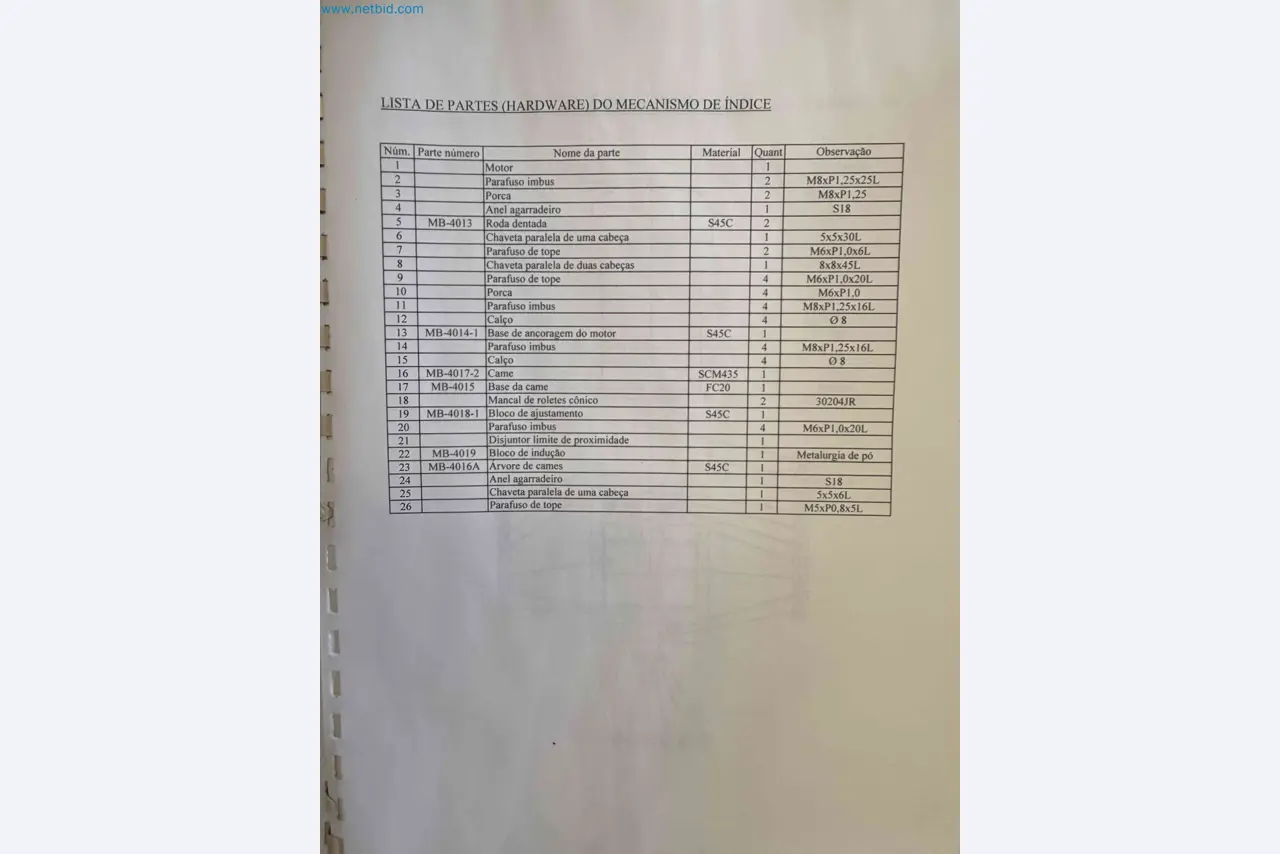

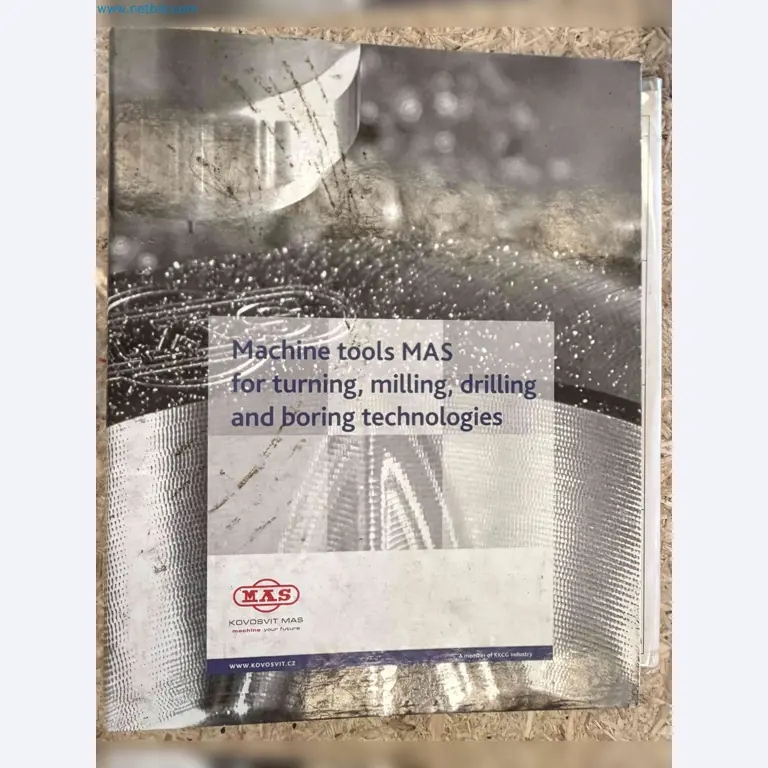

Original technical catalog

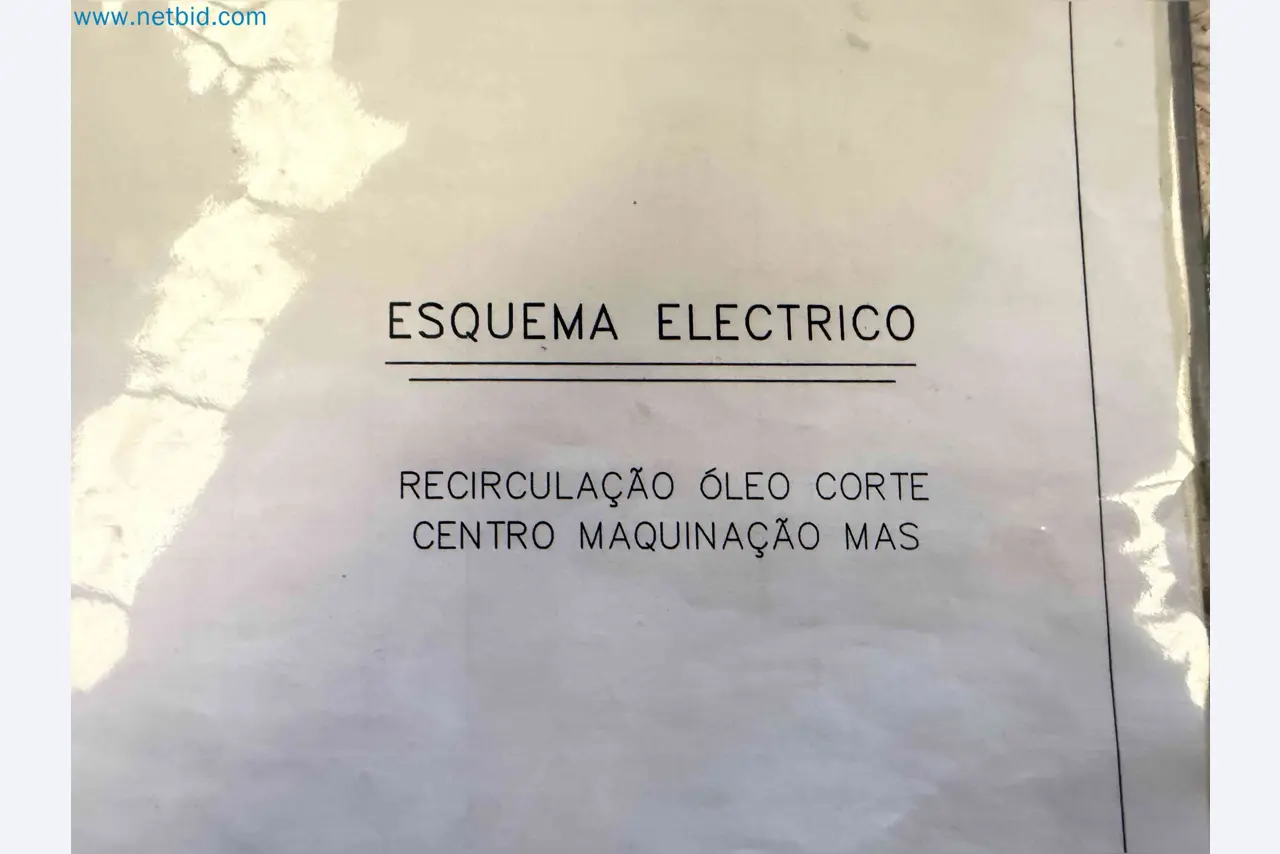

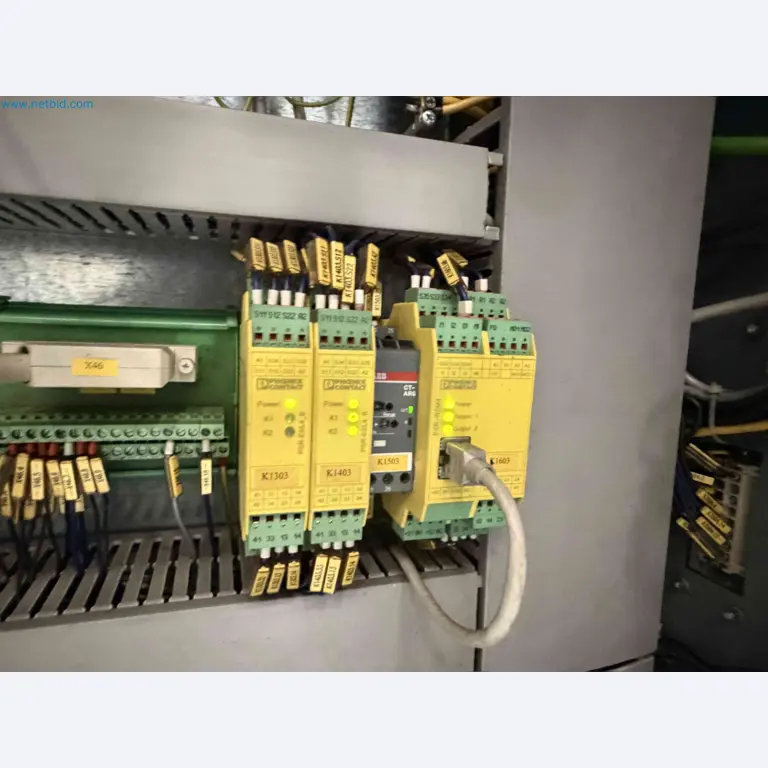

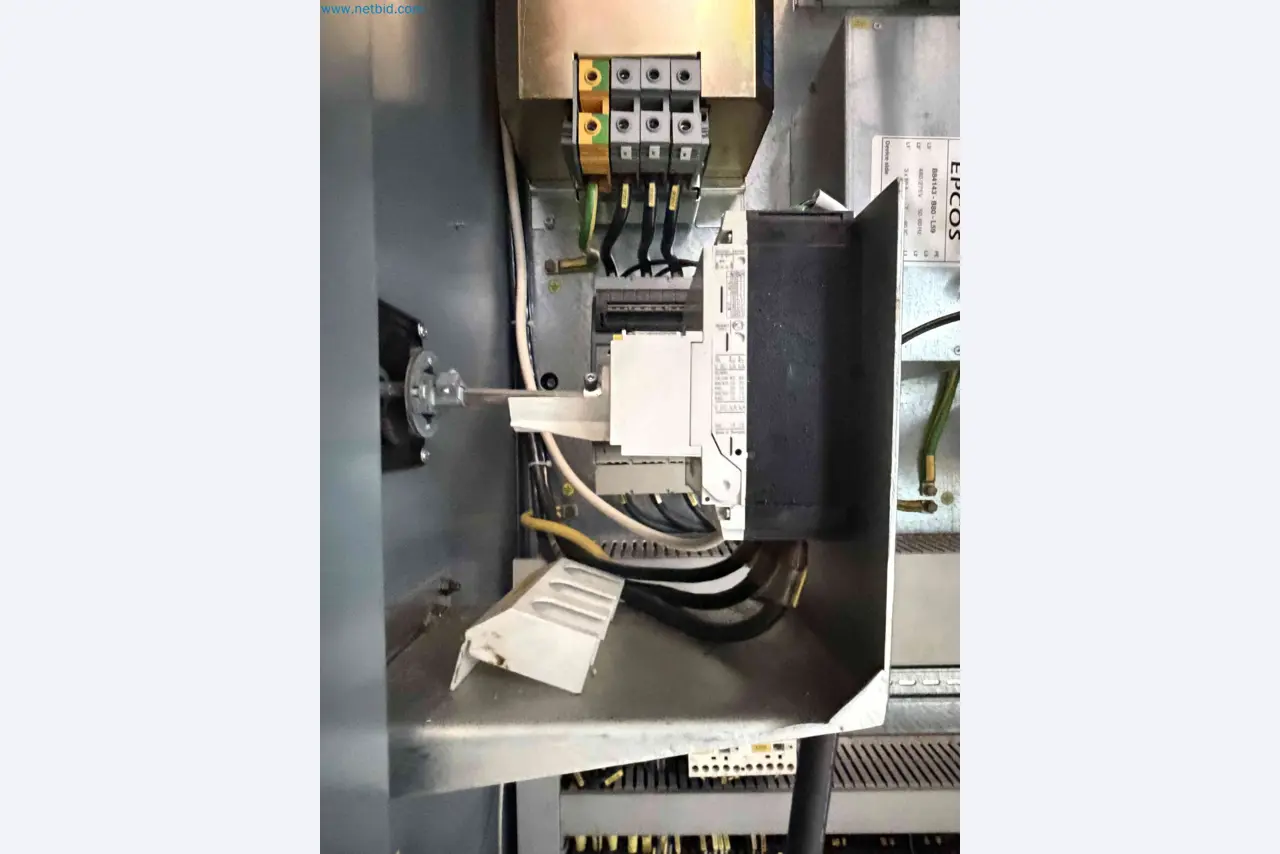

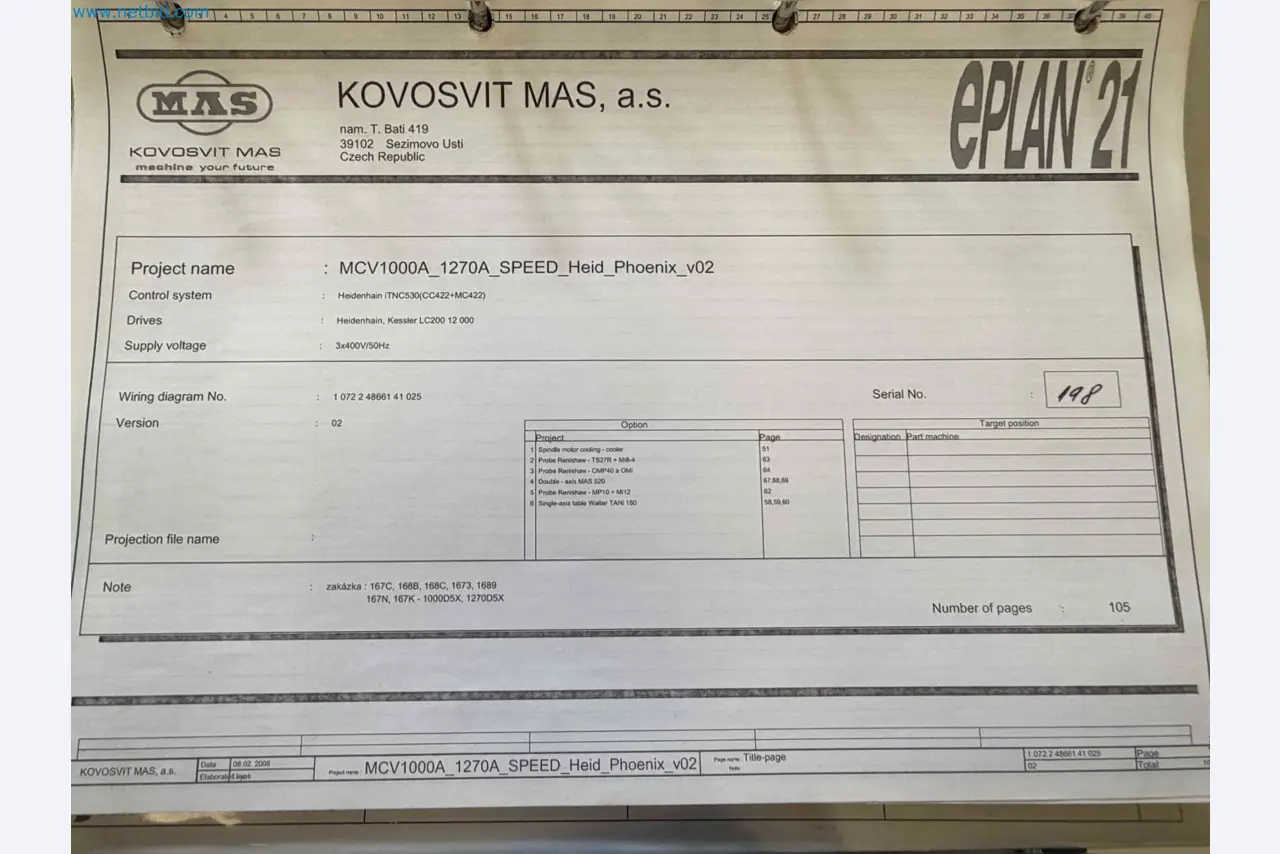

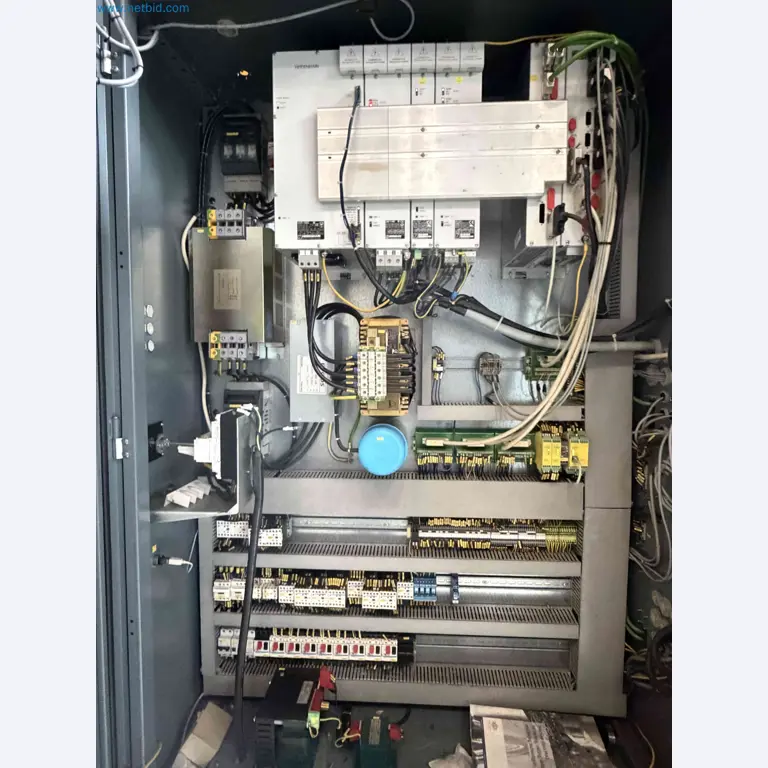

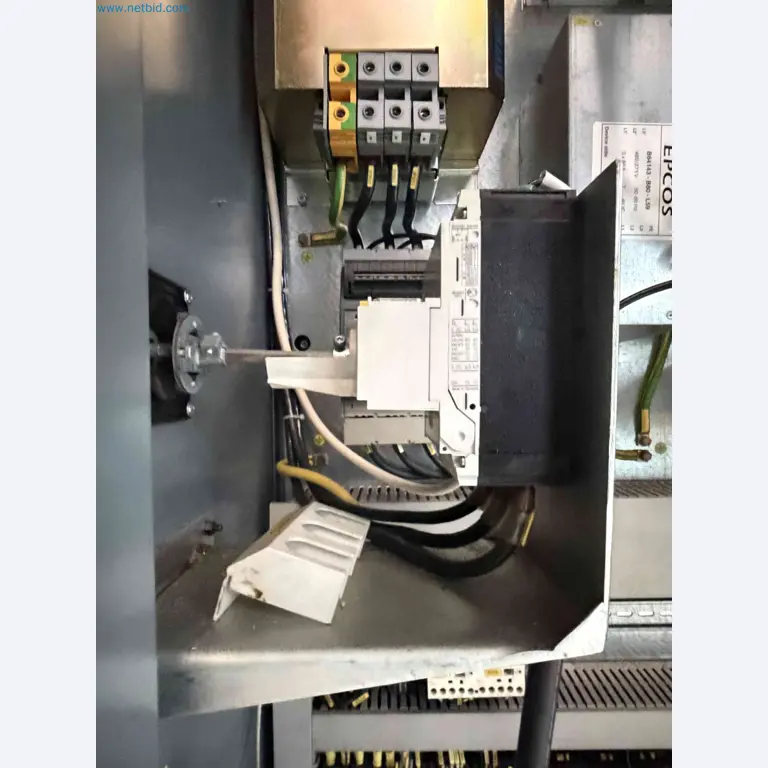

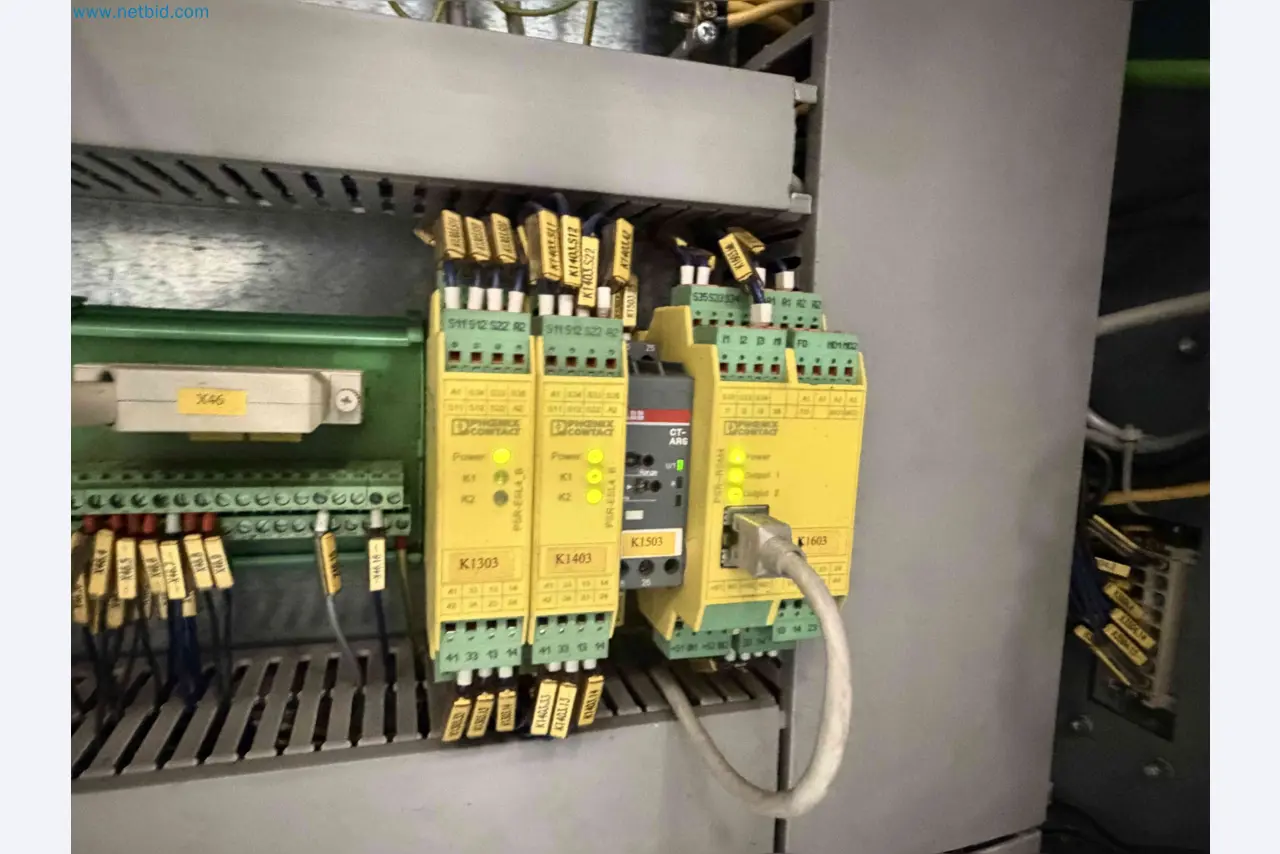

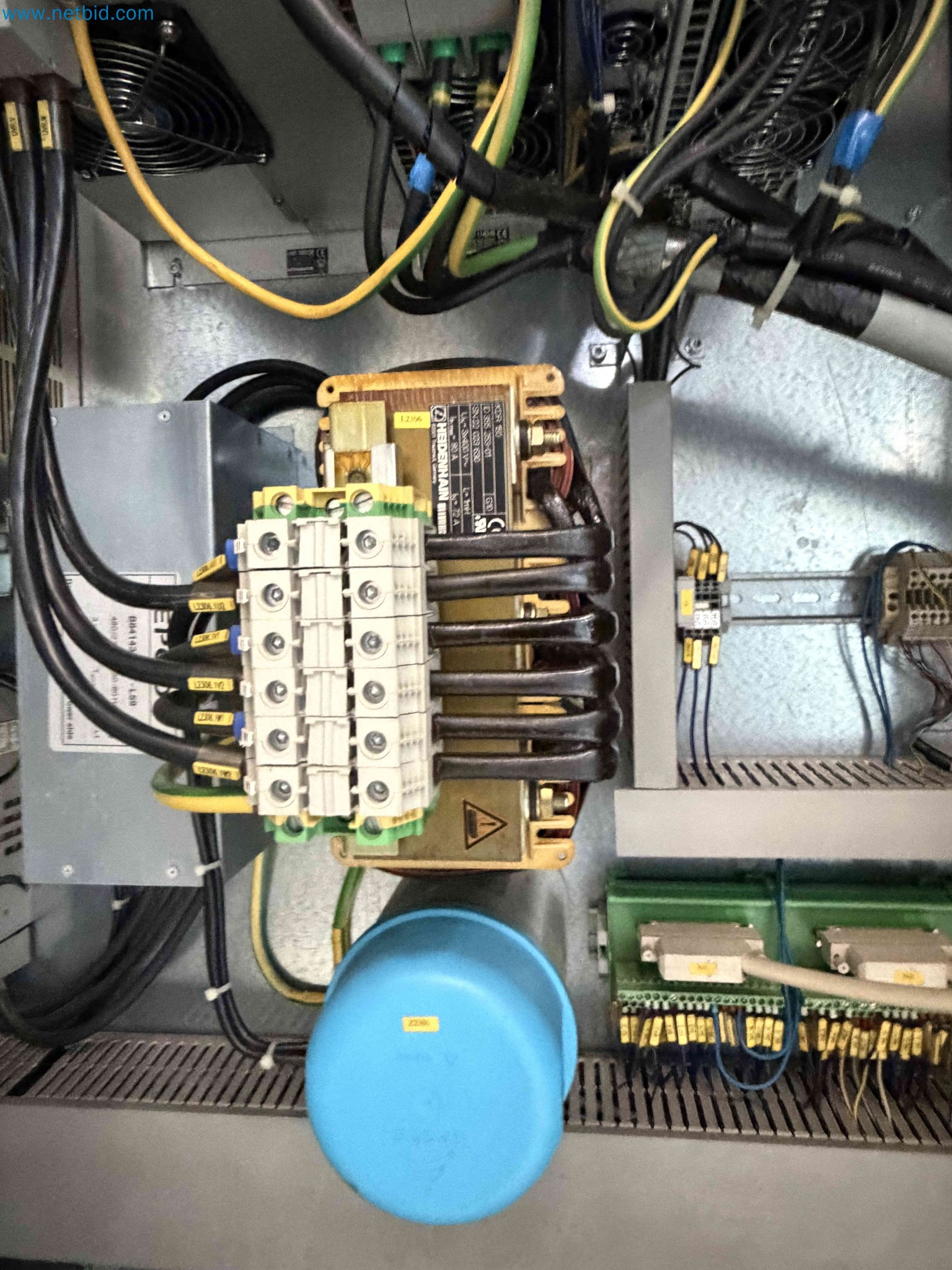

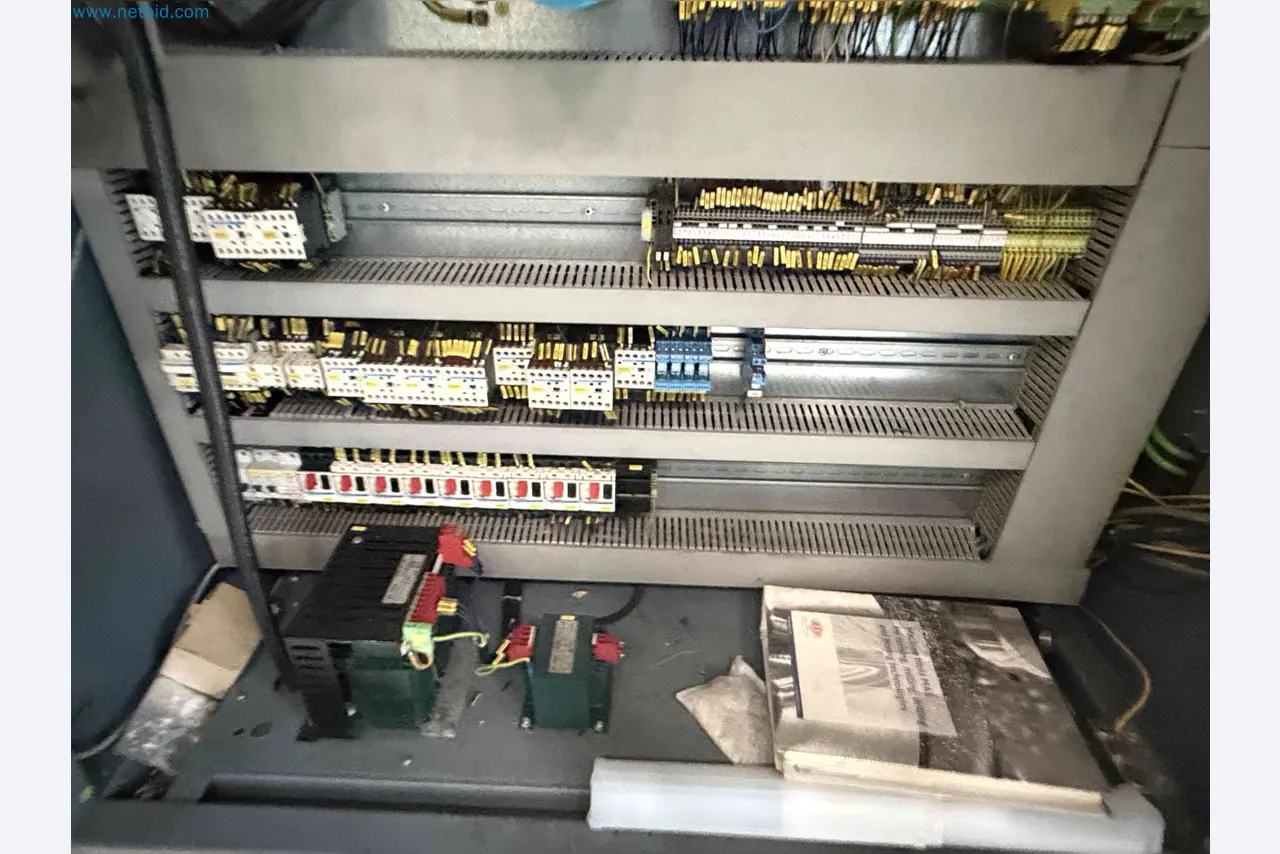

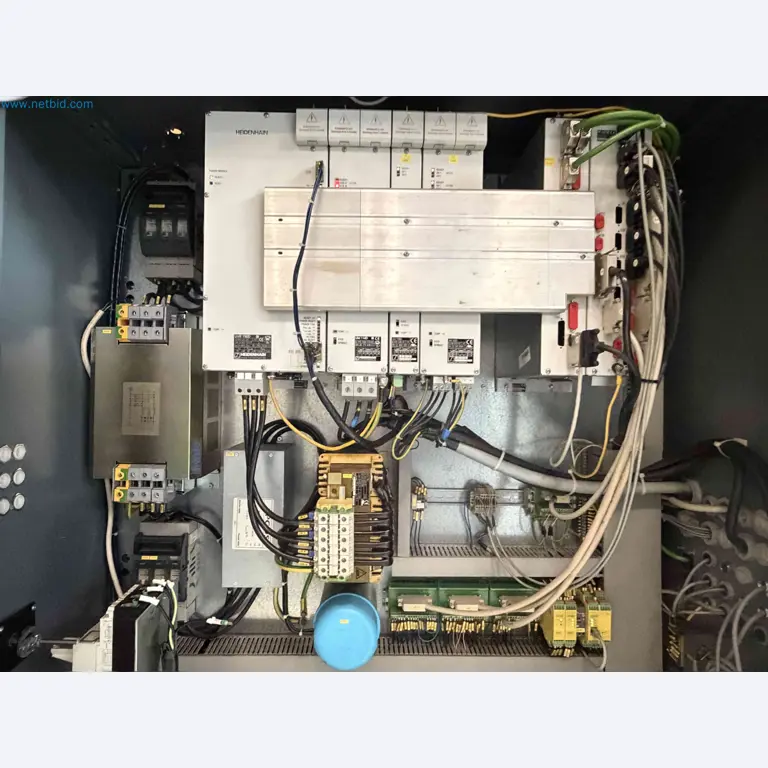

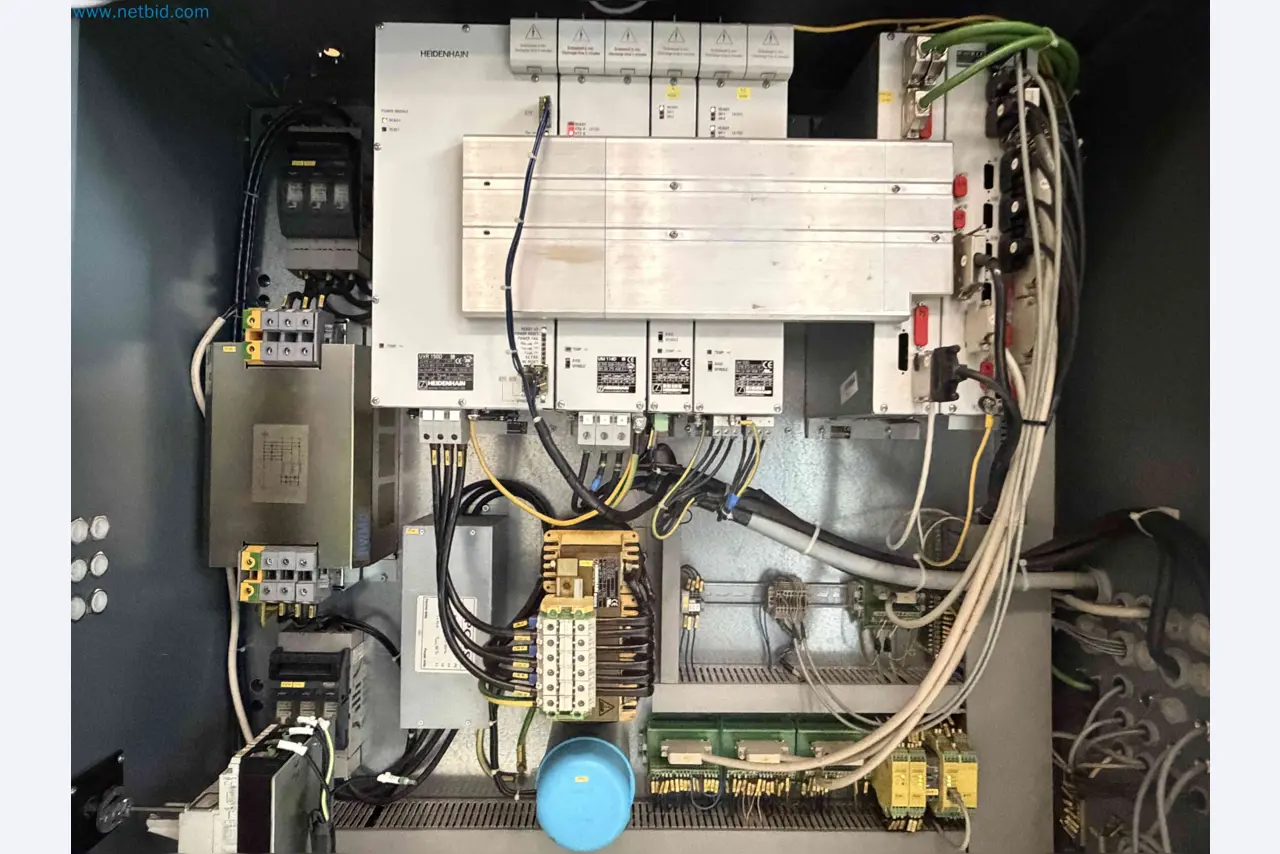

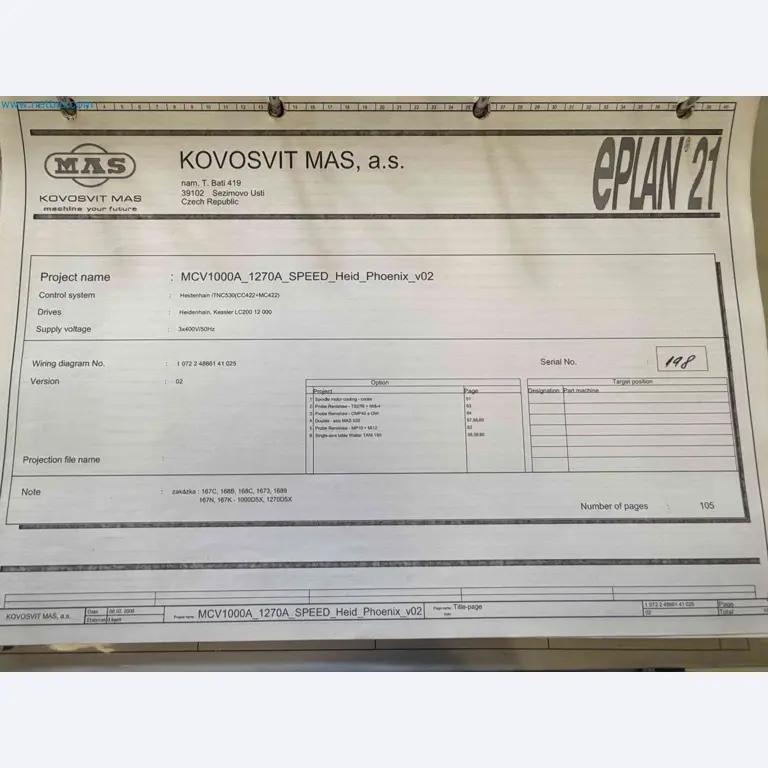

Complete electrical diagrams
Approx. dimensions: 4020 x 2170 x 2850 mm
Approximate weight: 11,000 kg
Optional disassembly and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
X: 1,270 mm
Y: 610 mm
Z: 720 mm
Control and CNC:
Heidenhain iTNC 530
Spindle
Brand: Franz Kessler
Model: LC200
Max speed: 12,000 rpm
Power: up to 45 kW (low speed)
Interface: HSK63A
Clamping system: OTT-JAKOB
ATC – Automatic Tool Changer
Type: mechanical arm
Capacity: 30 tools
Max length: 350 mm
Max weight: 6.5 kg
Change time: ~4 seconds
Dimensions: 1500 x 670 mm
Capacity: 1,200 kg
Slots: 5 x 18 x 125
Feeds:
Working feed: up to 15,000 mm/min
Rapid feeds: 40 m/min
Accuracy:
Positioning: 0.01 mm
Repeatability: 0.004 mm
Included systems:
Dedicated industrial chiller (spindle cooling)
Electrical cabinet air conditioning (Rittal 2023)
Complete cooling system
Centralized lubrication
Measurement and Automation
Renishaw probing system:
Tool measurement (TS27R)
Part measurement (OMP40)
Prepared for 4th axis
Associated rotary table
Technical Components:
Heidenhain / Siemens servo motors
Robust ball screws
High-precision linear guides
Working hours according to display: ~1,977 h
Spindle: ~439 hours

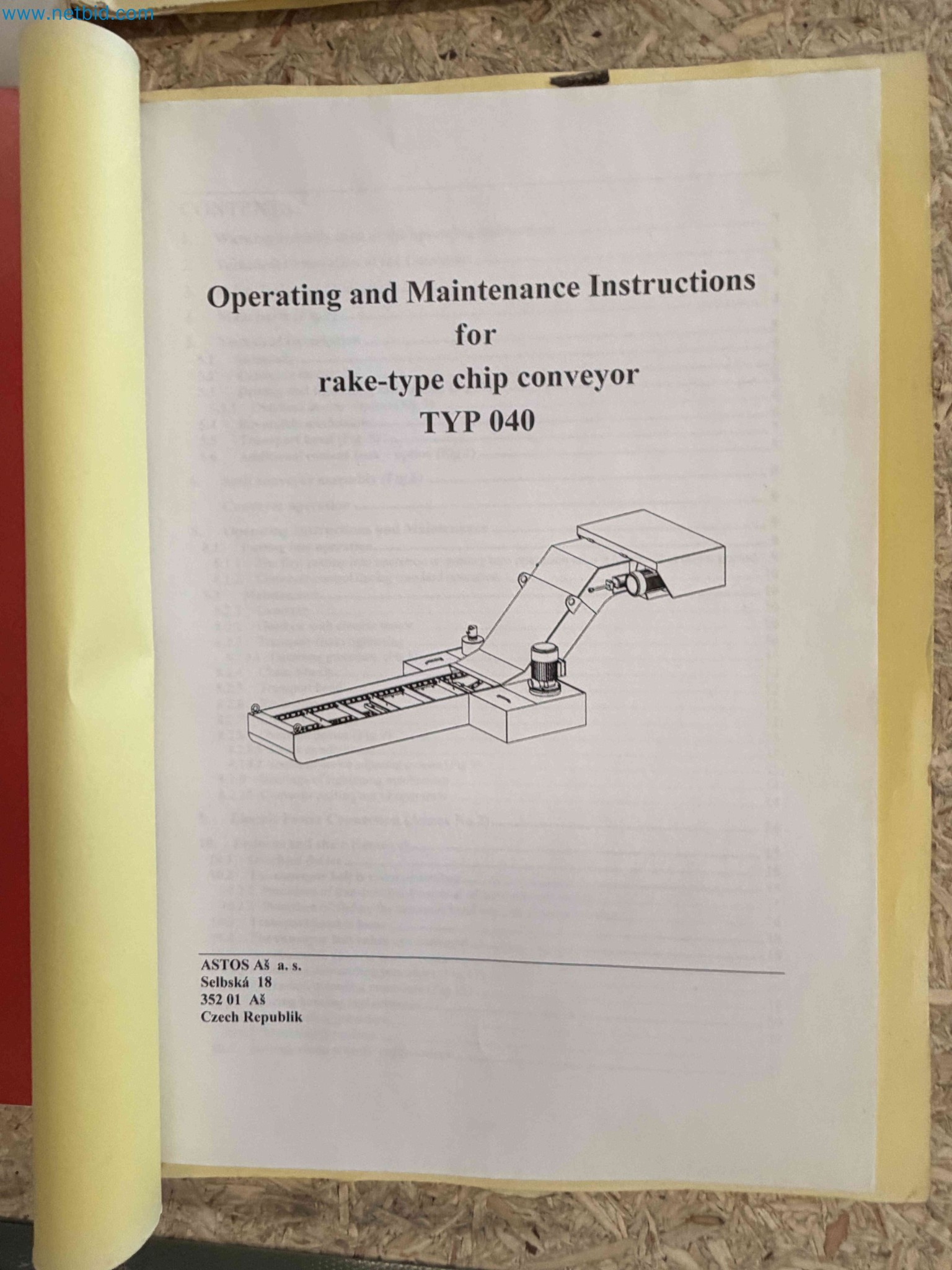

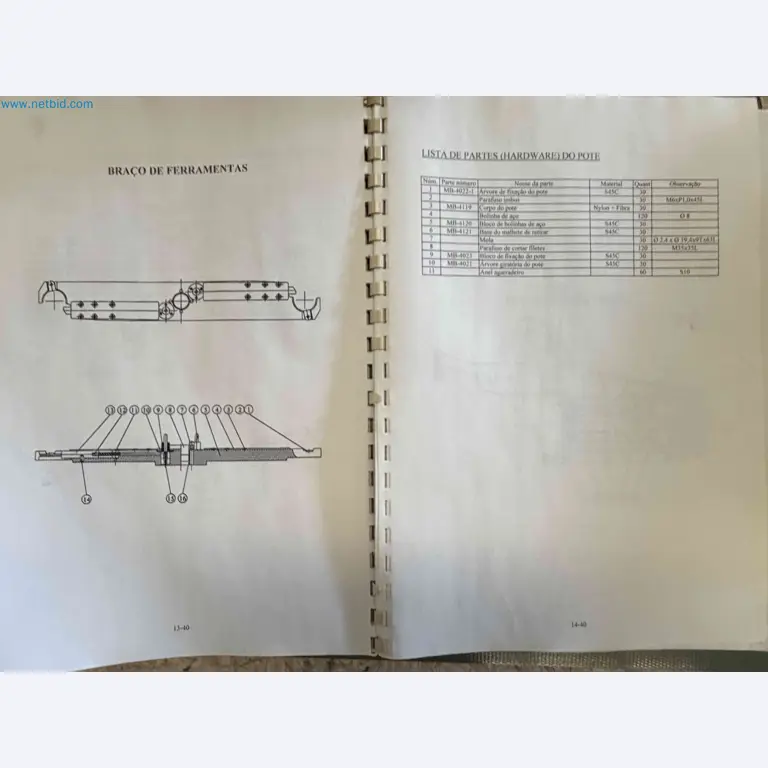

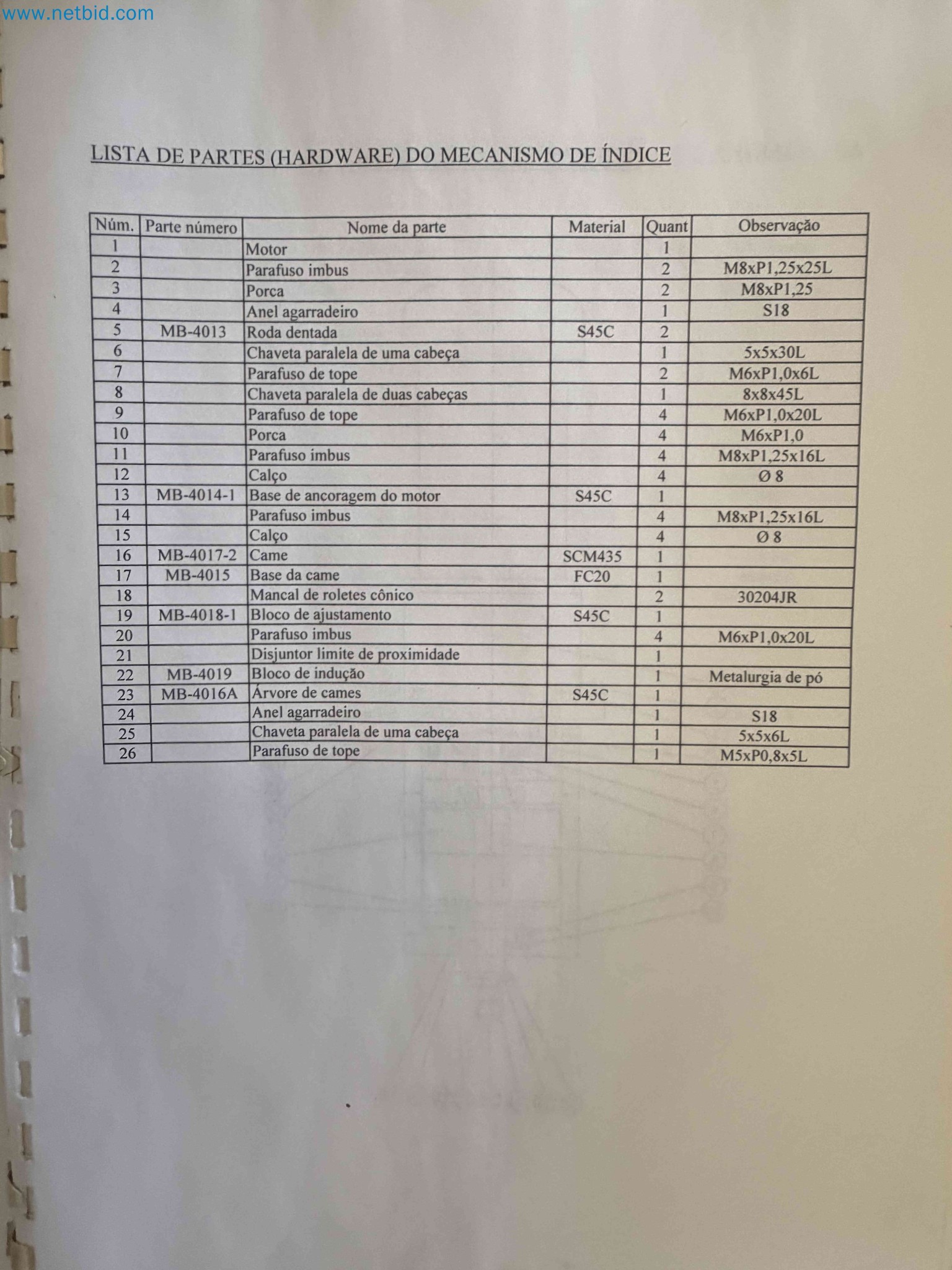

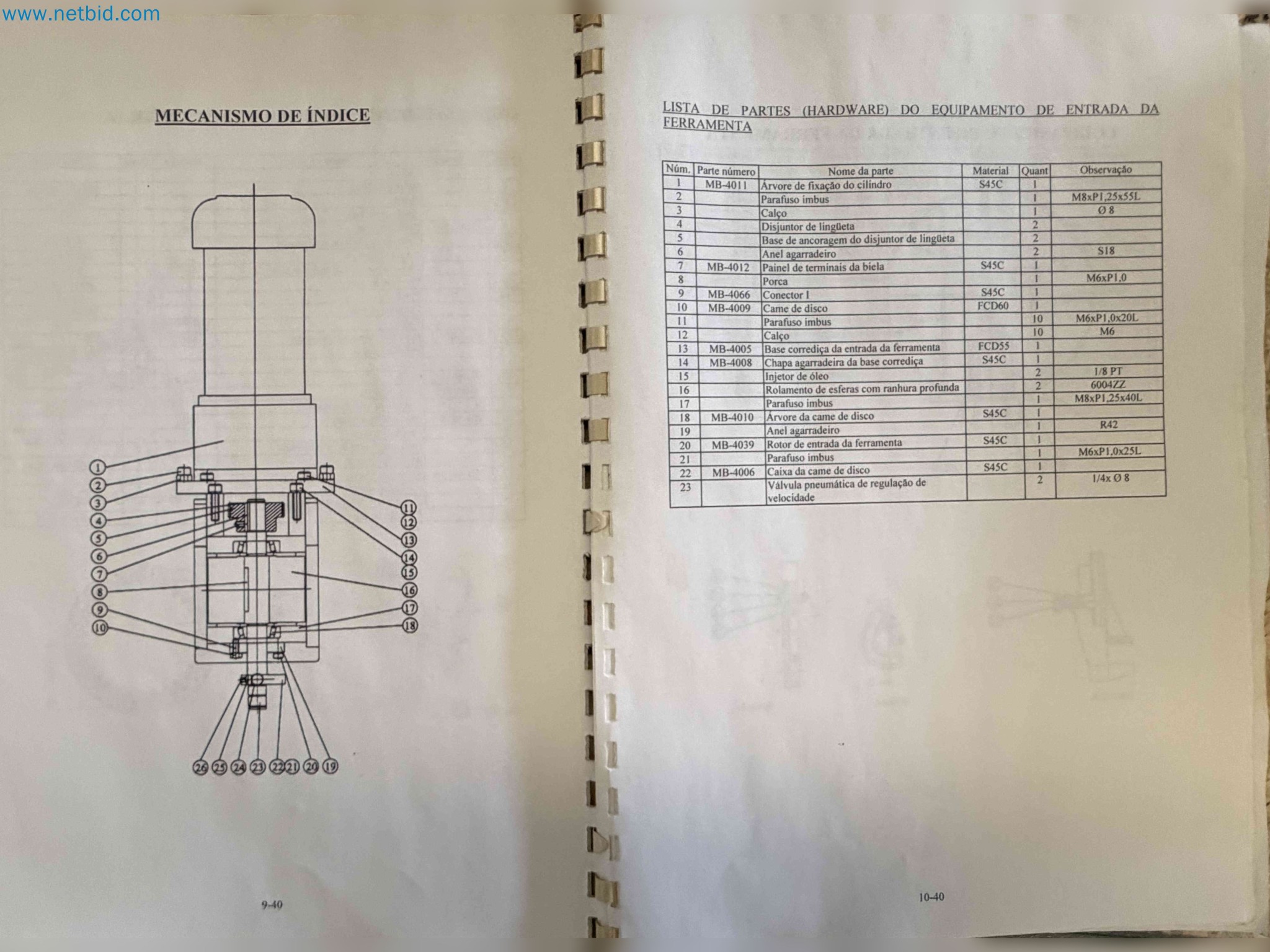

Complete operation manual (PT)
Original technical catalog
Complete electrical diagrams
Approx. dimensions: 4020 x 2170 x 2850 mm
Approximate weight: 11,000 kg
Optional disassembly and loading cost provided by third parties: €500.
Any additional costs related to lot preparation and packaging requirements for transport, provided by third parties, are available upon request.
