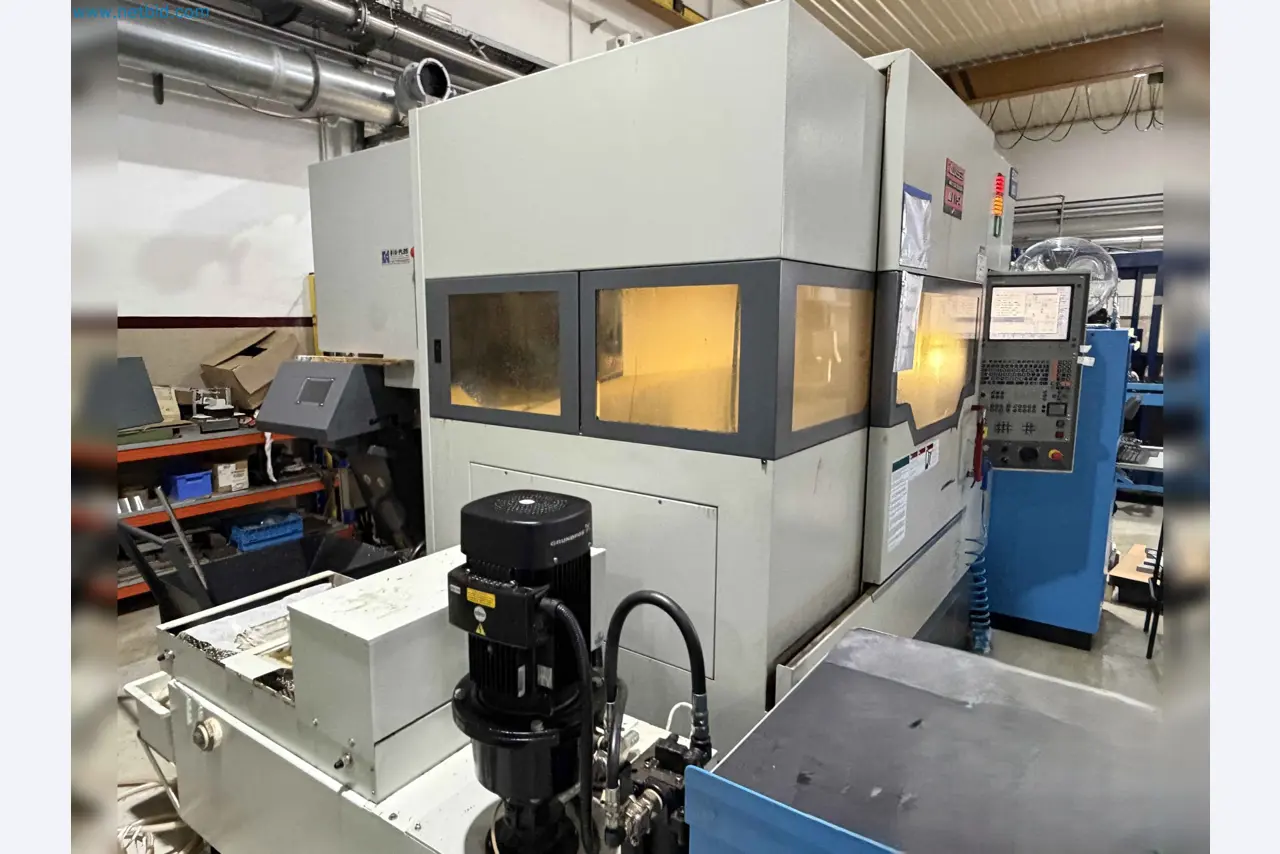

Details

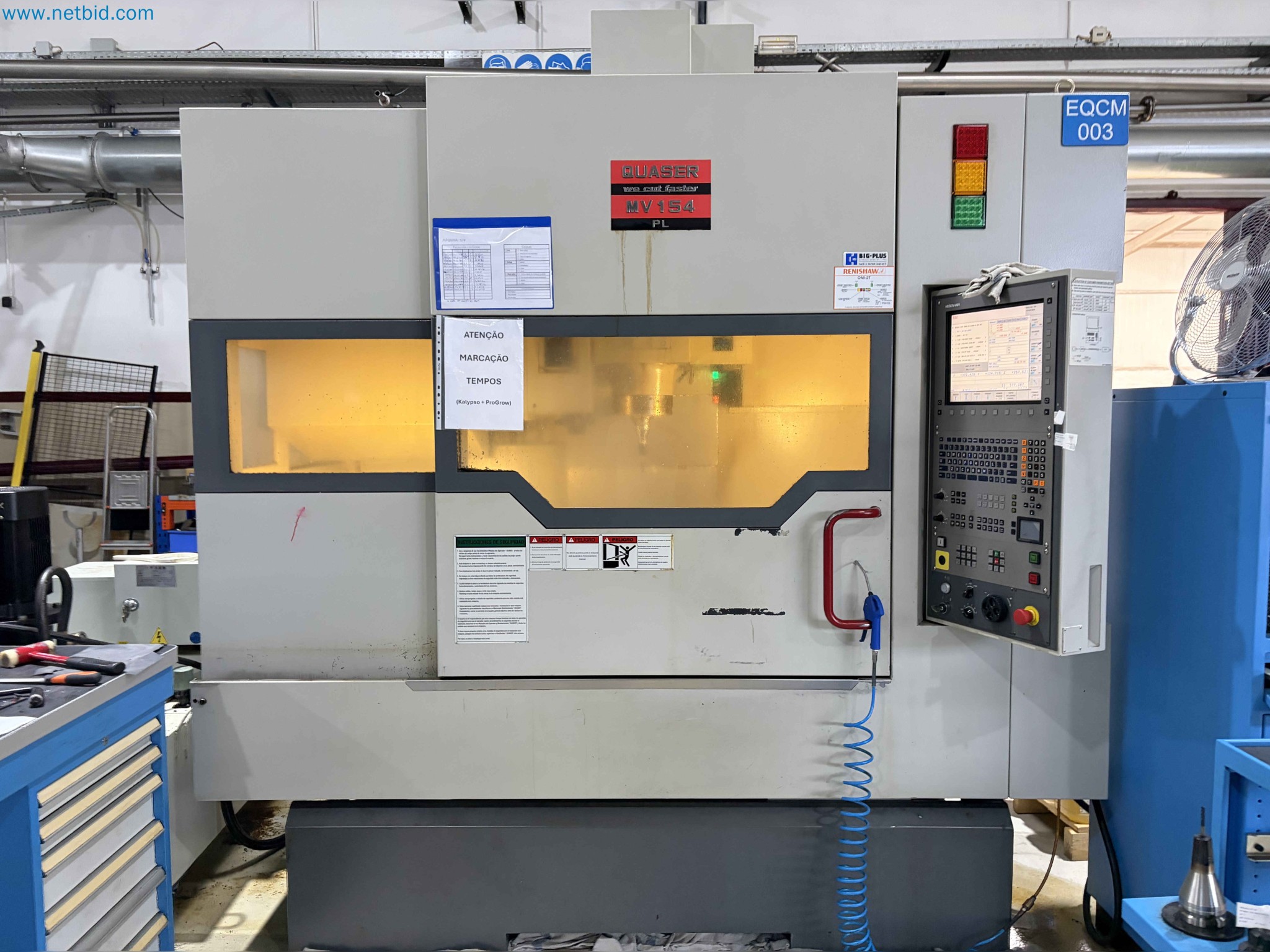

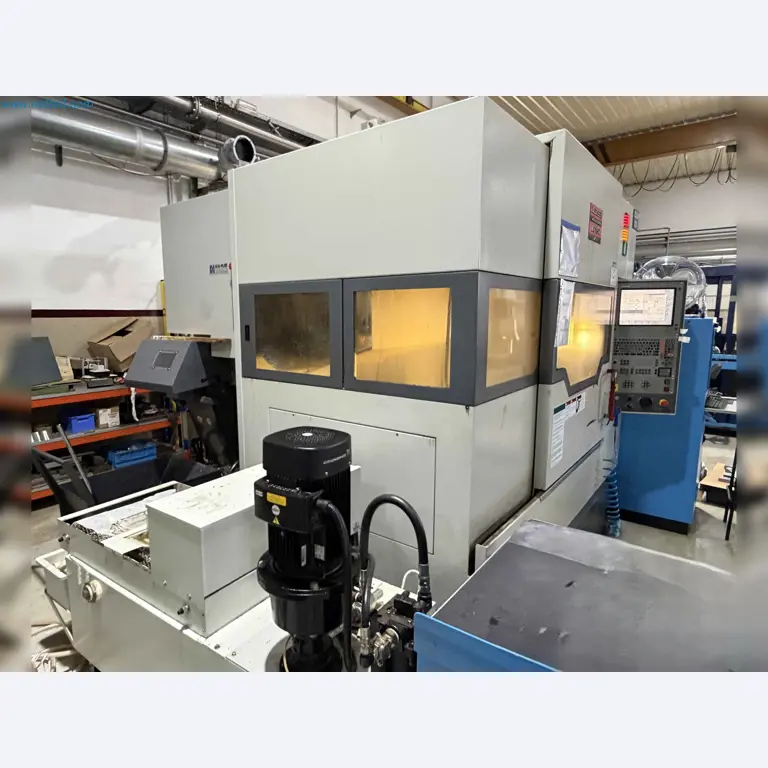

Product Type

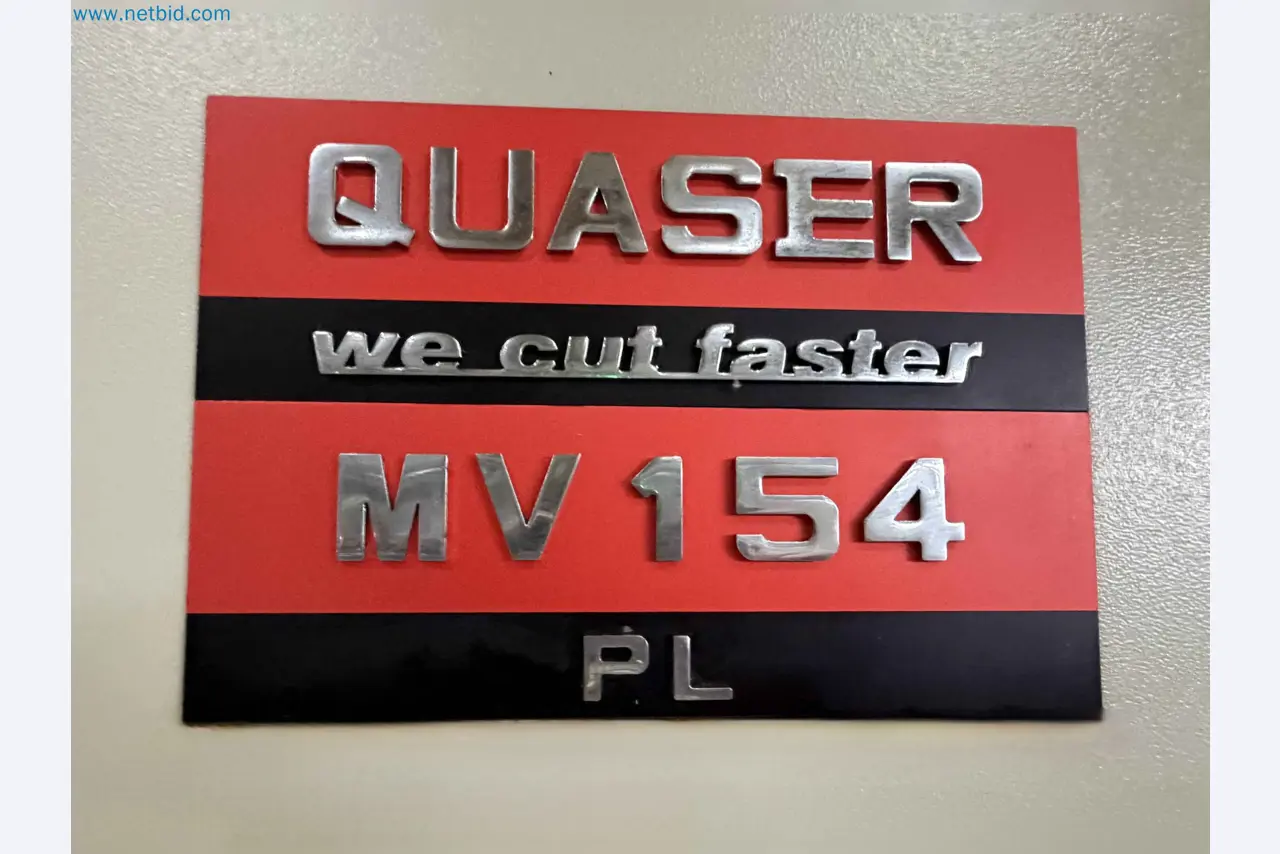

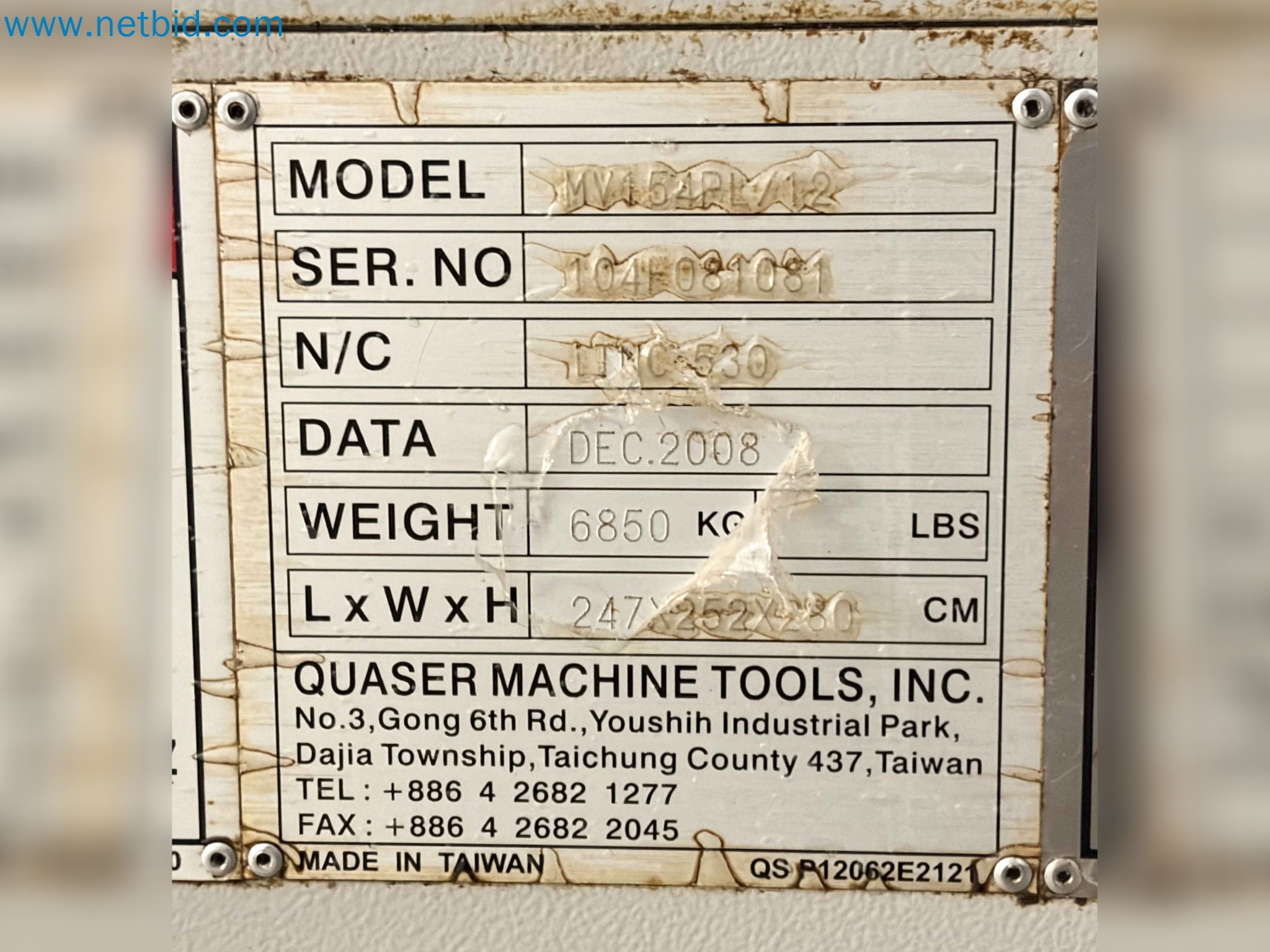

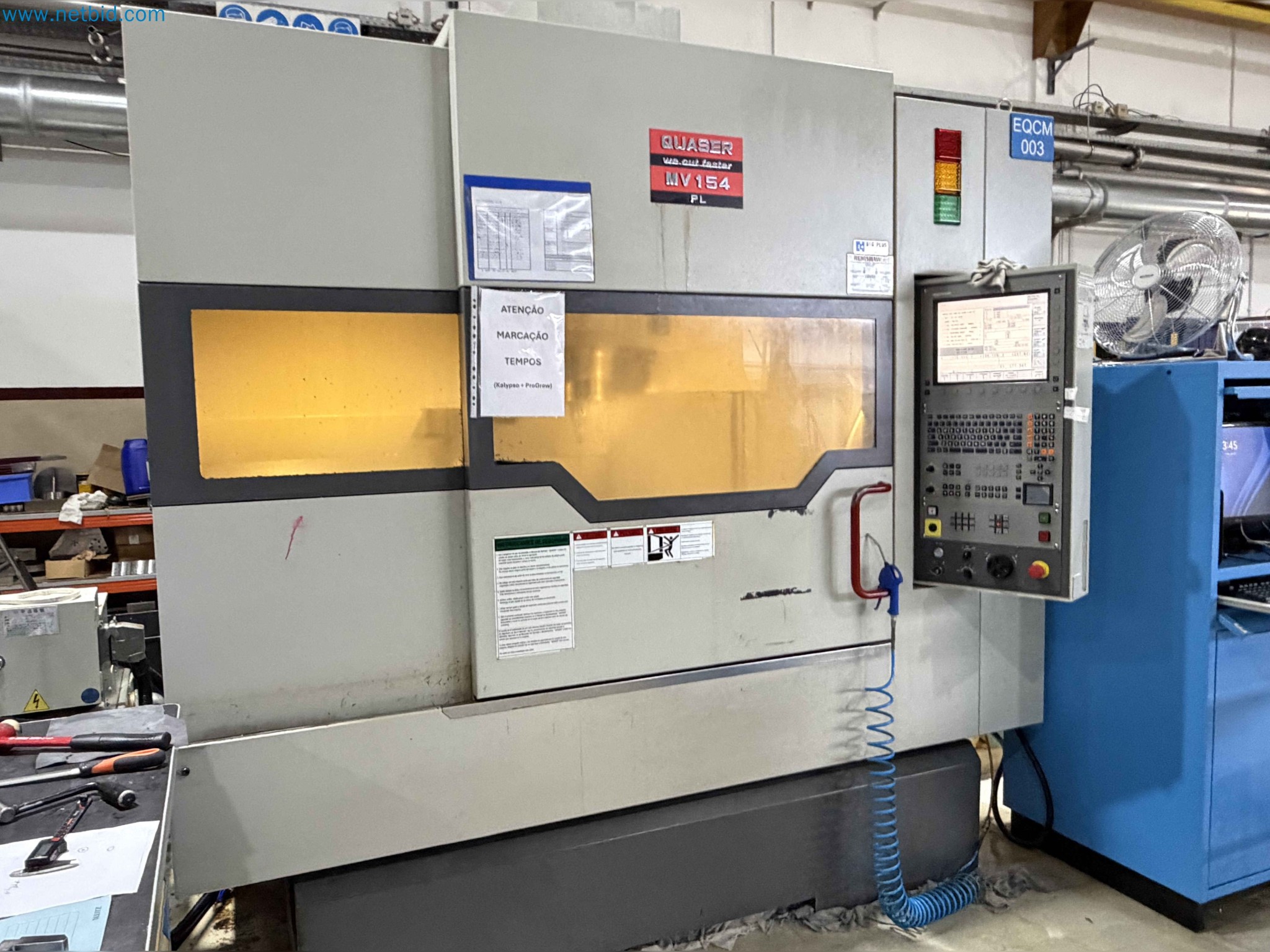

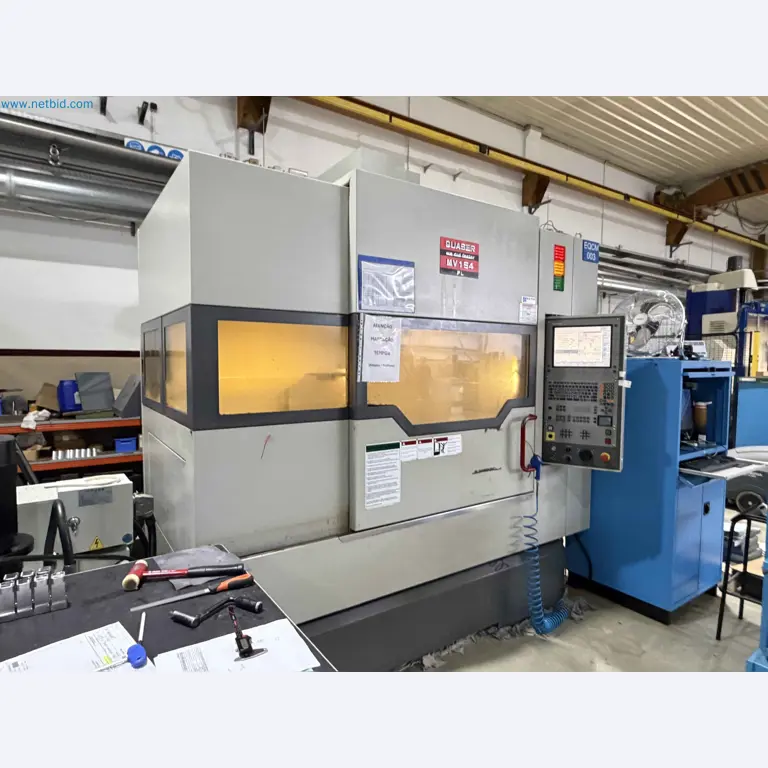

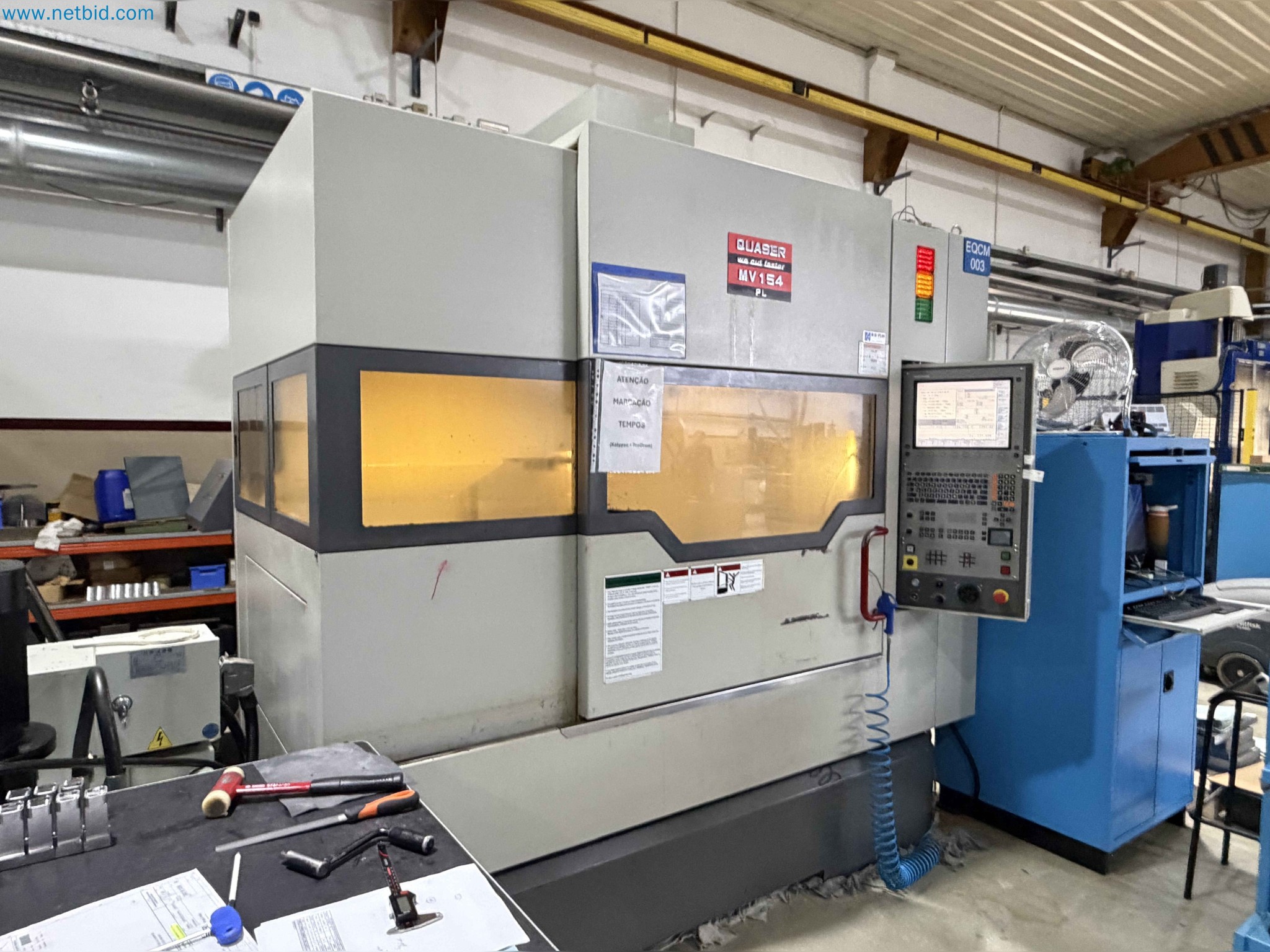

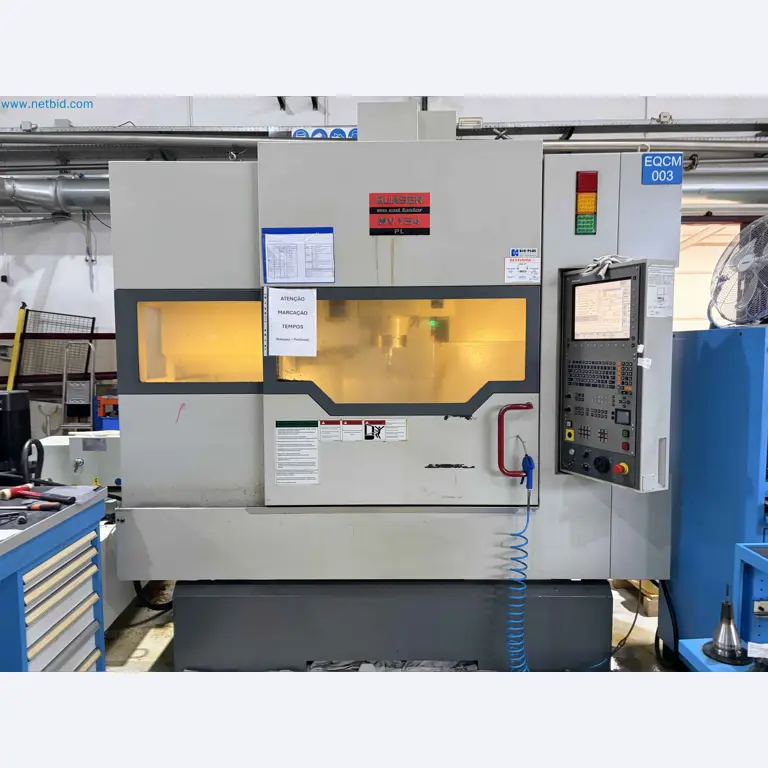

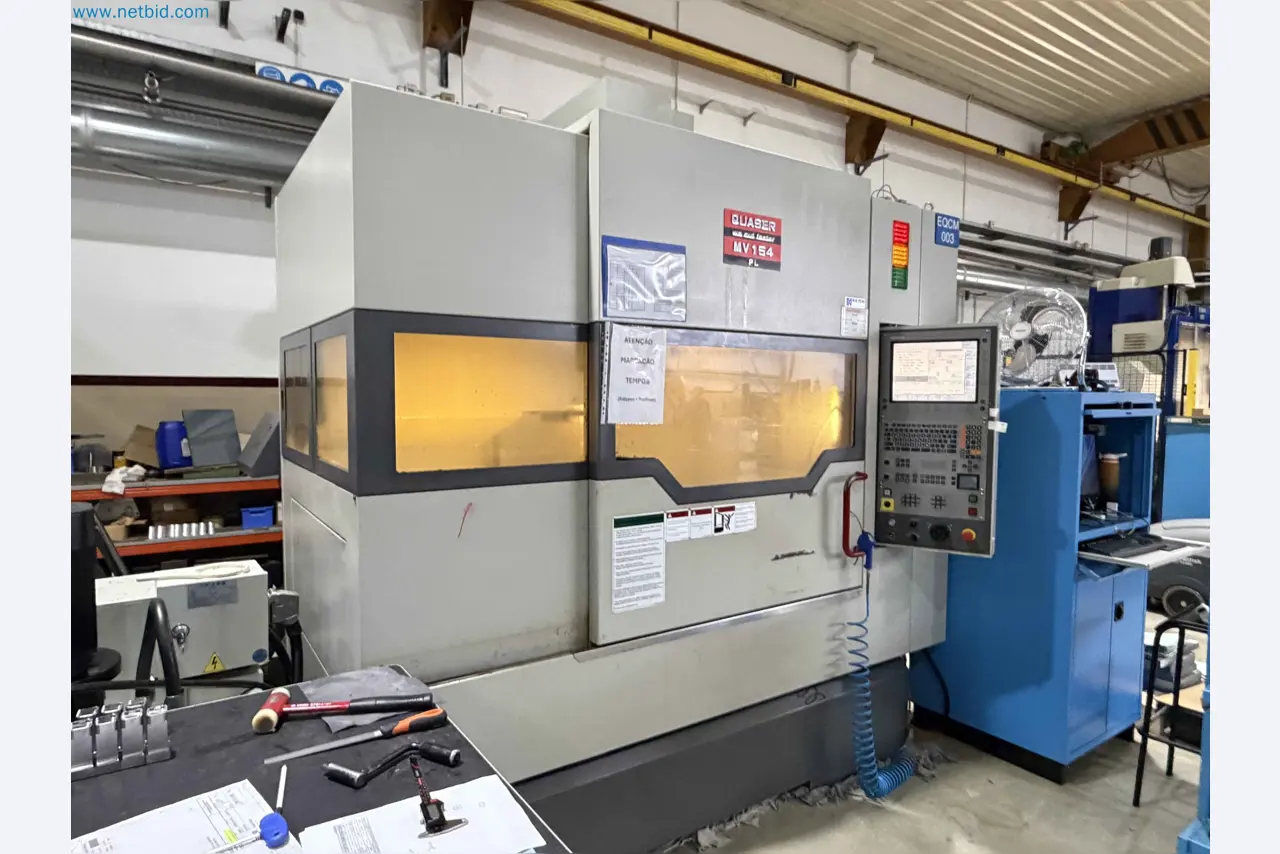

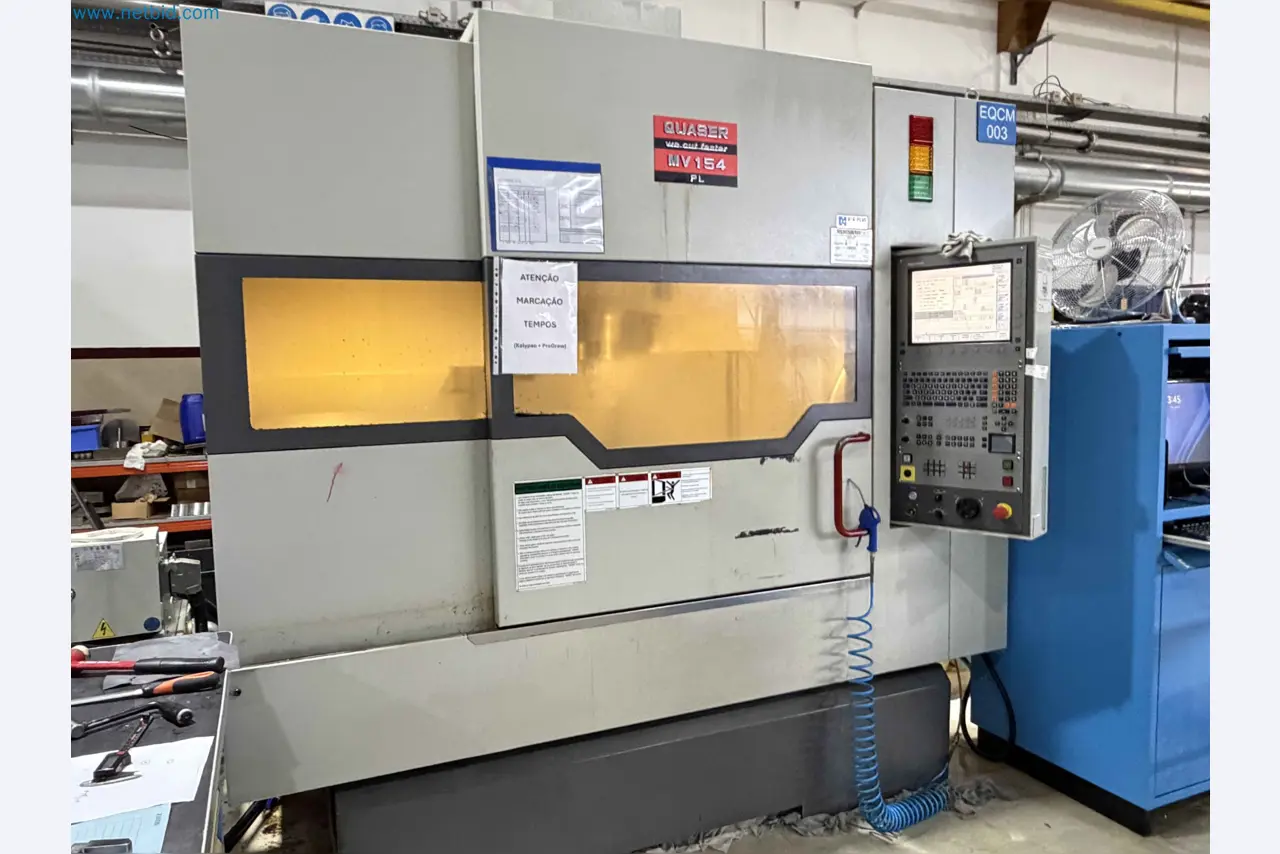

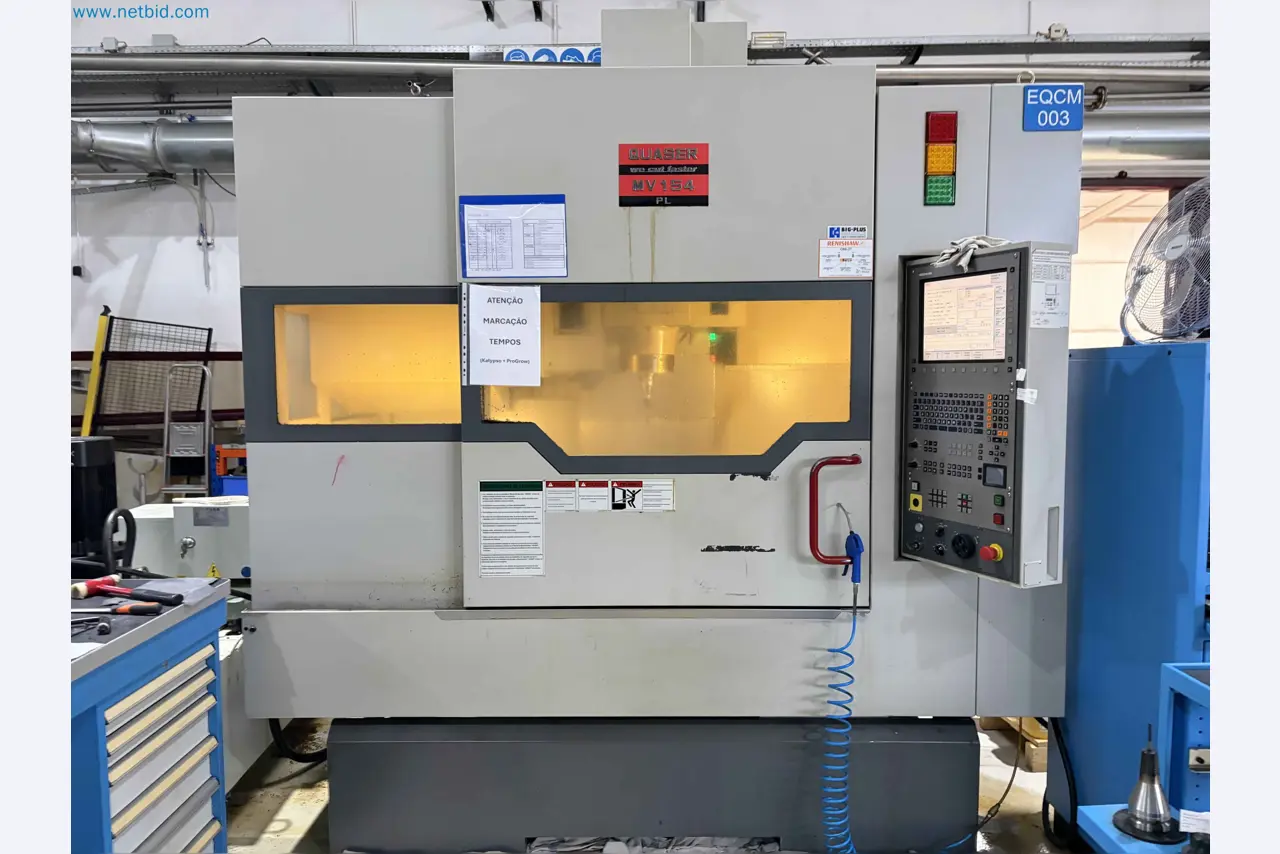

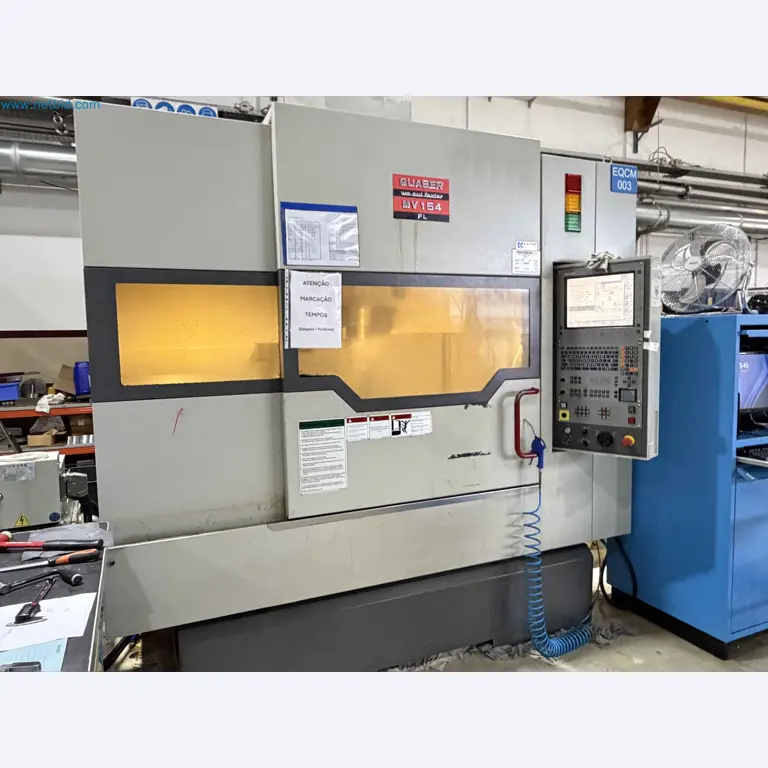

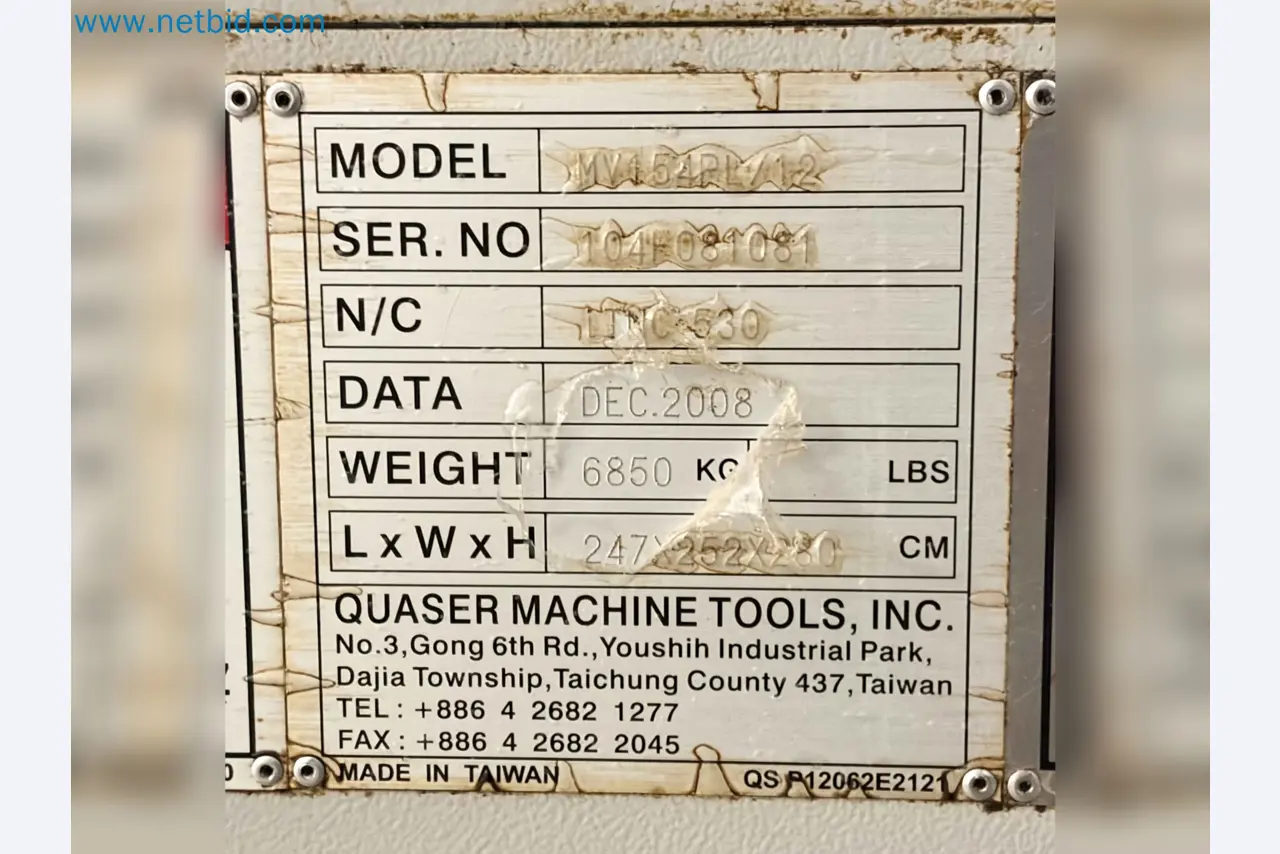

QUASER
Type
MV154 PL / 12
Construction Year
2008
Description

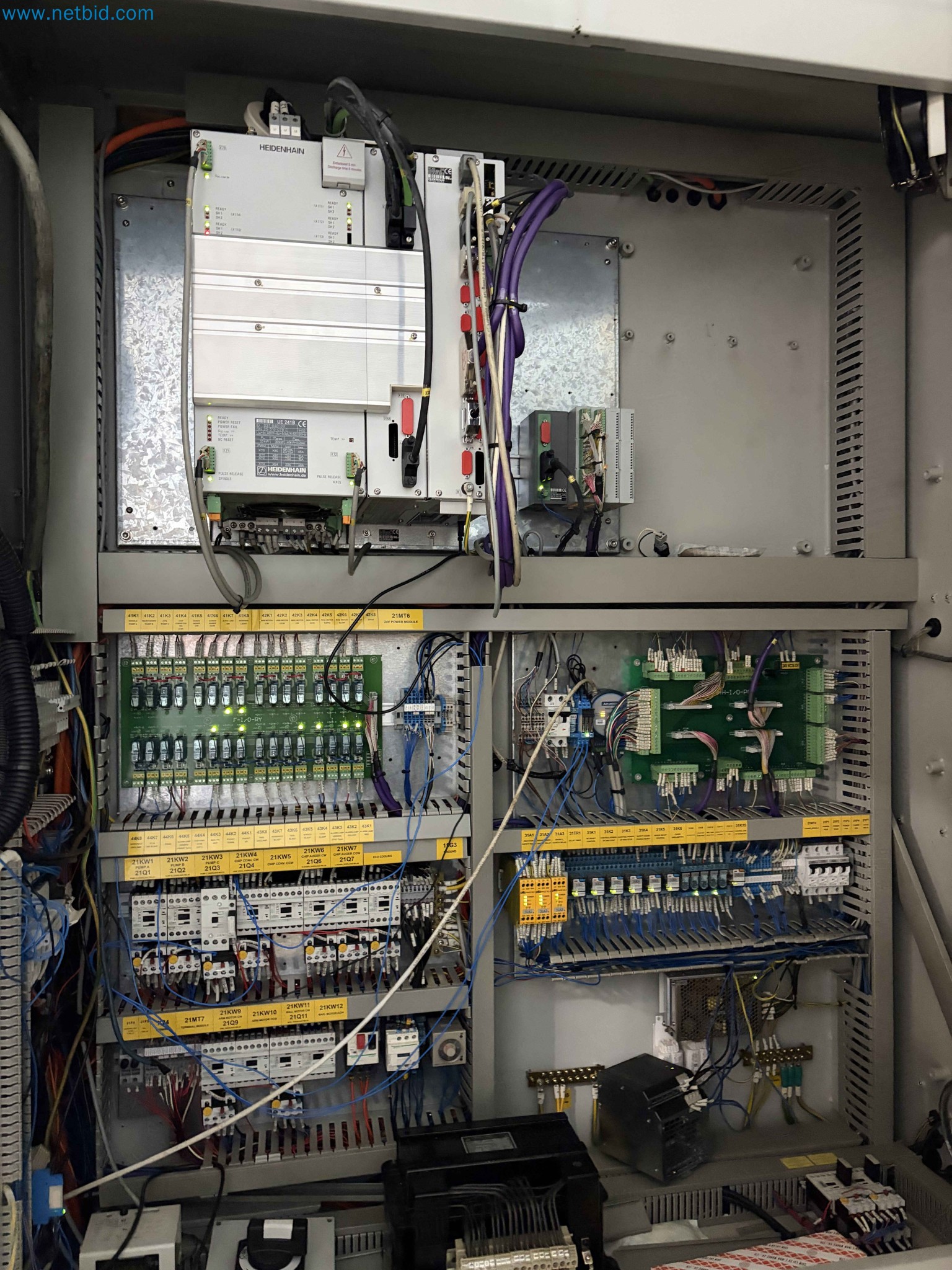

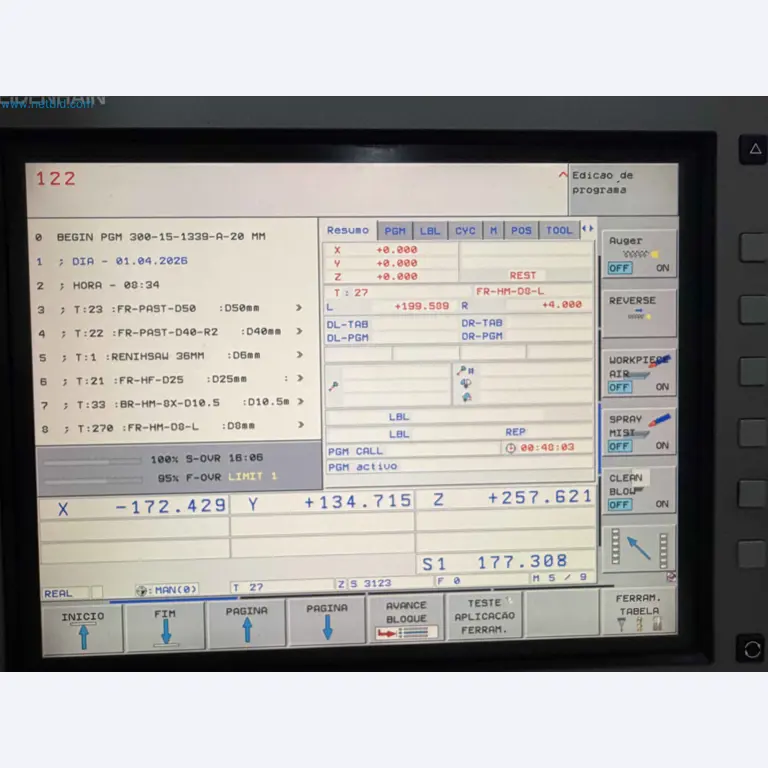

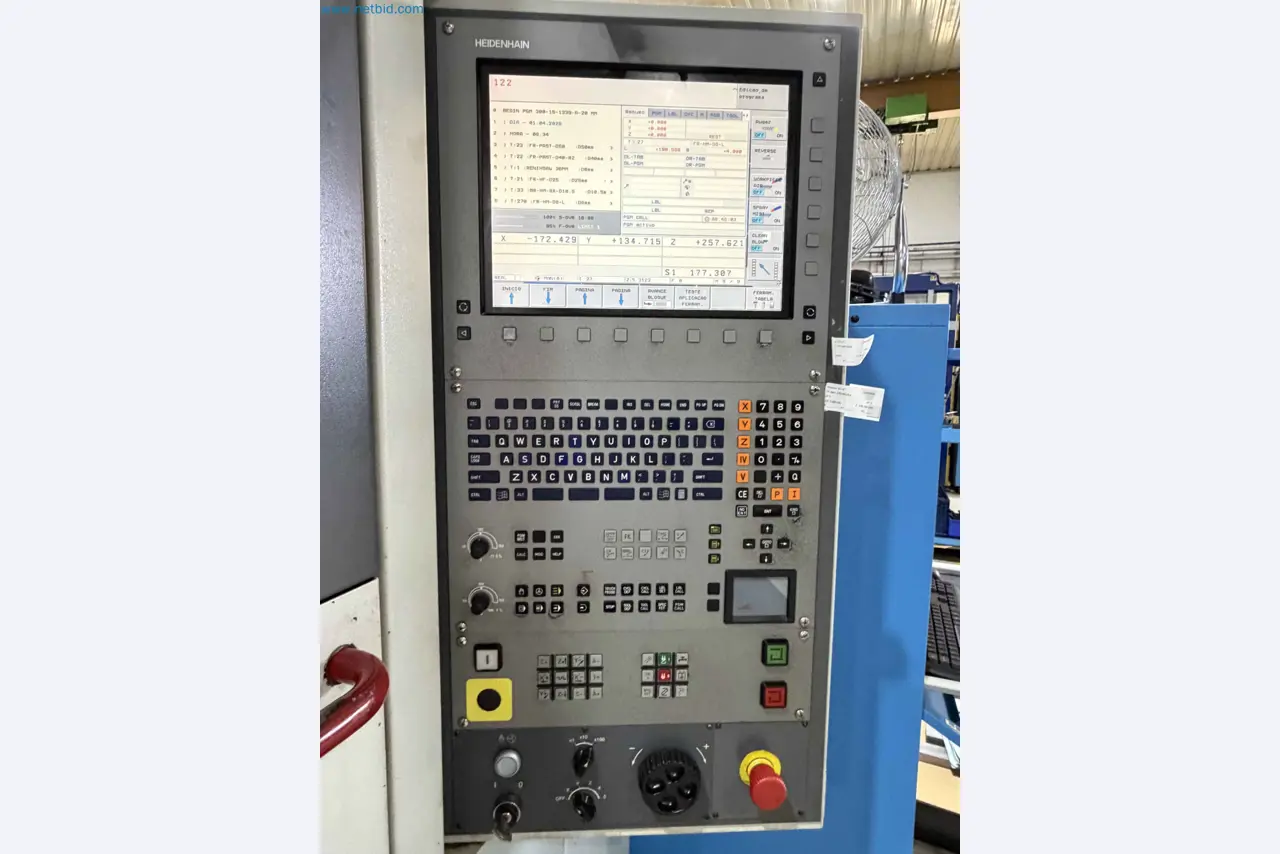

CNC and Control:

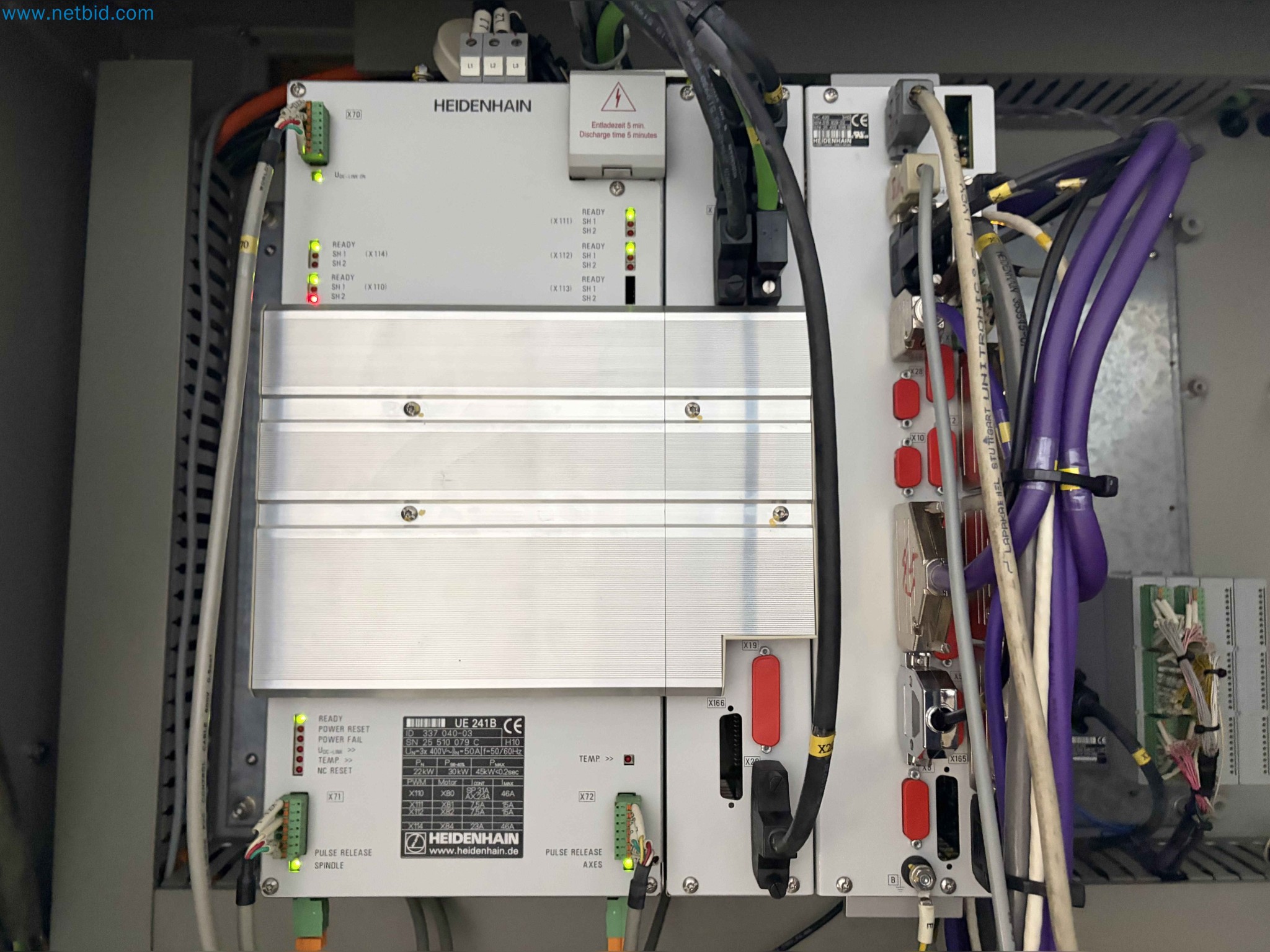

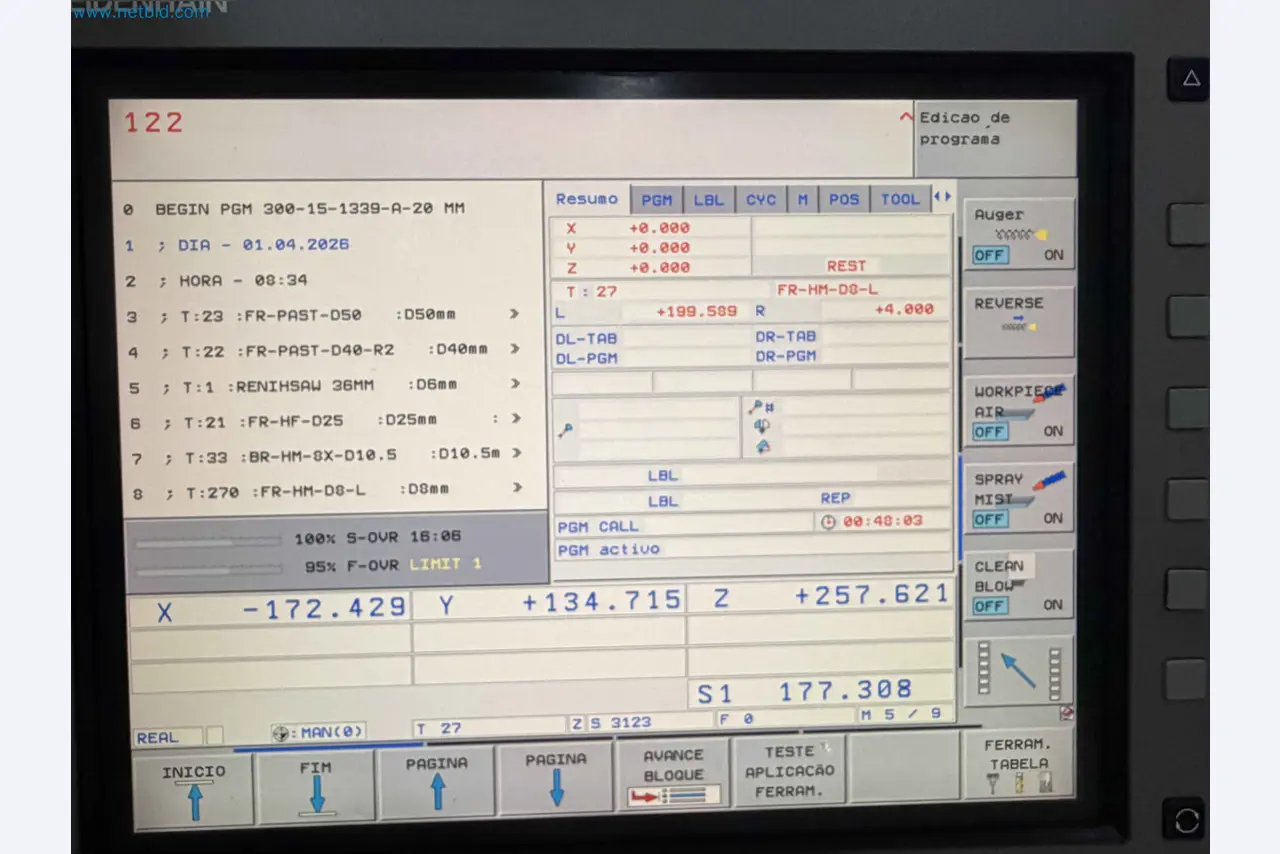

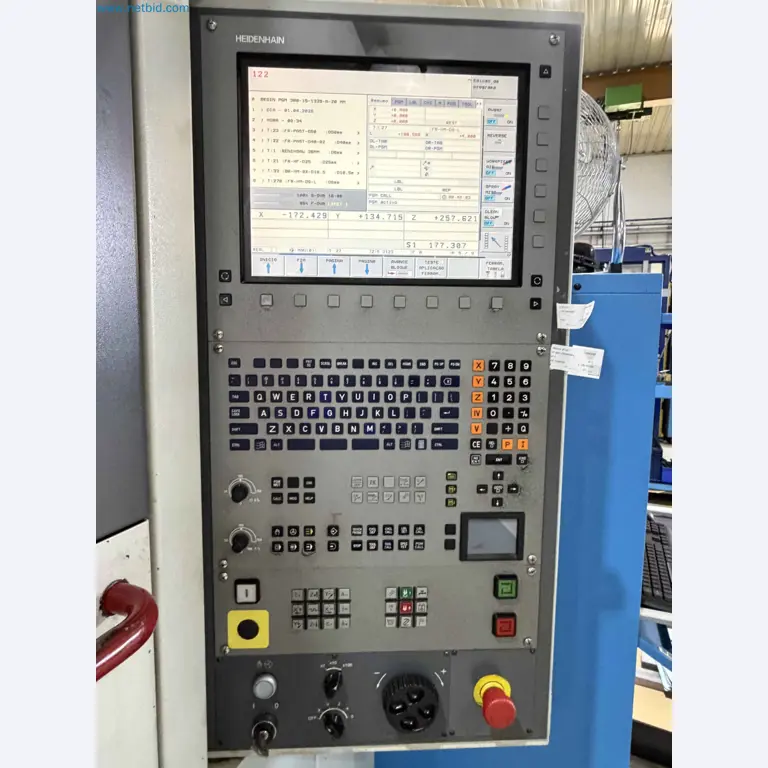

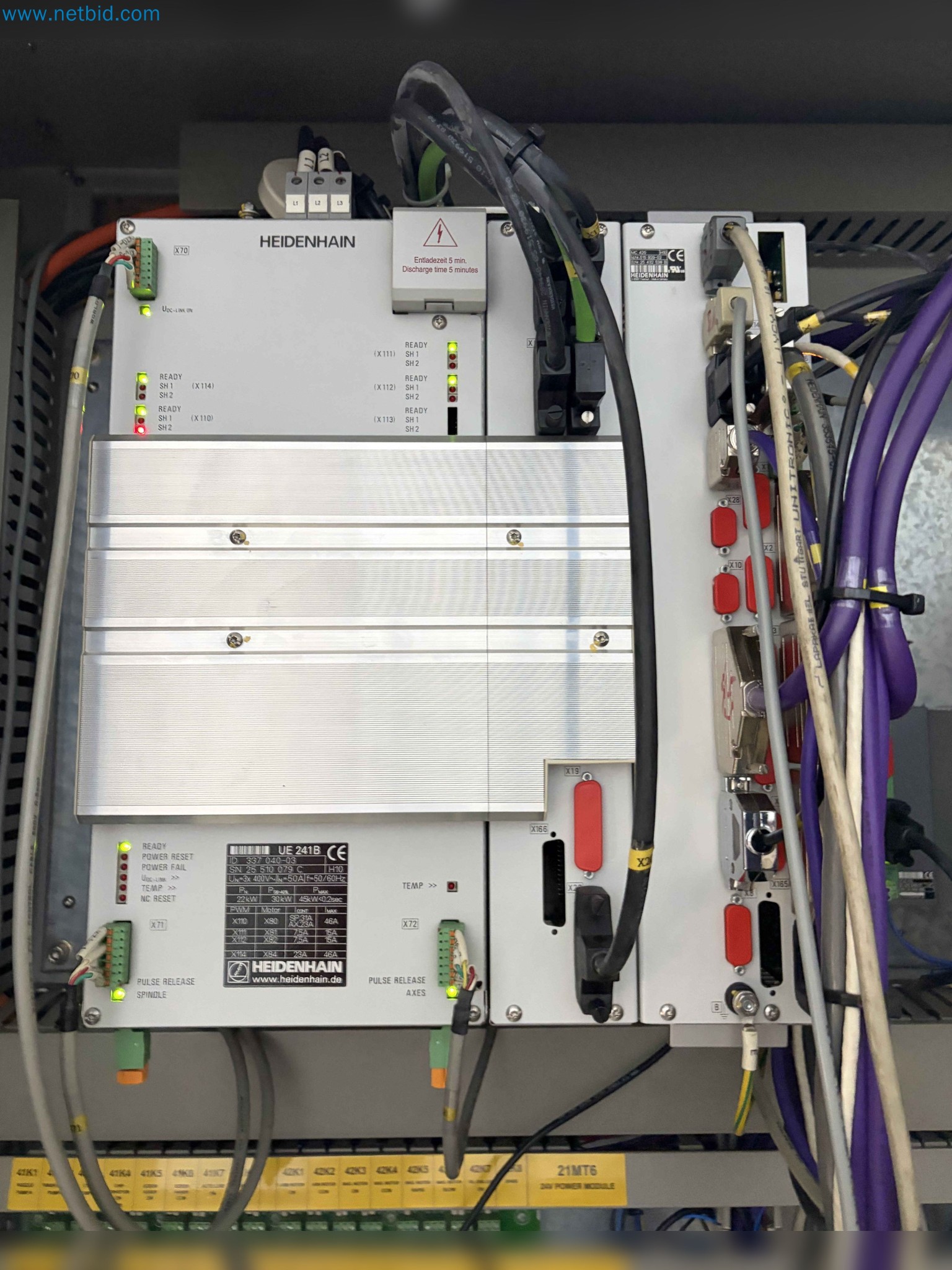

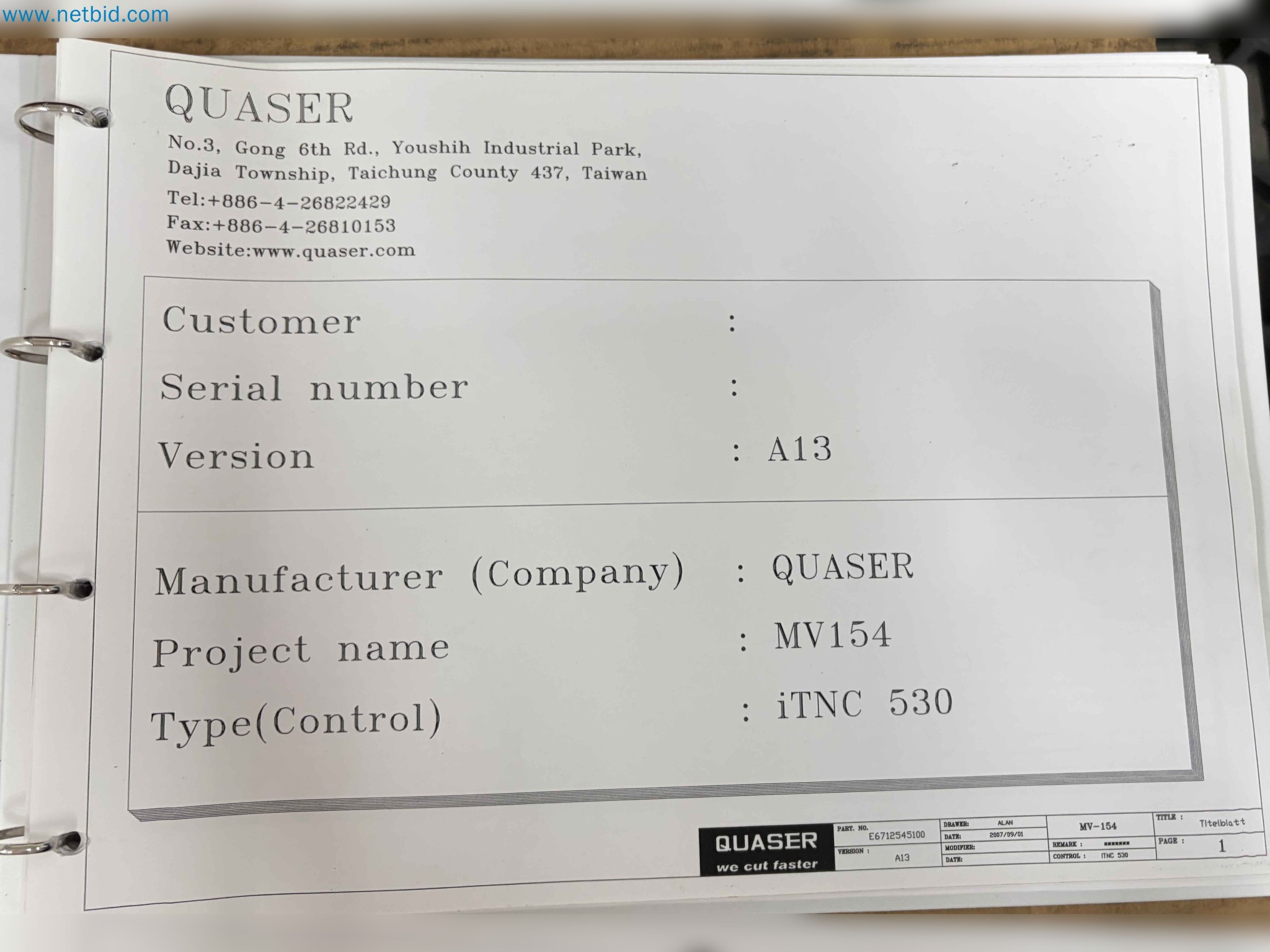

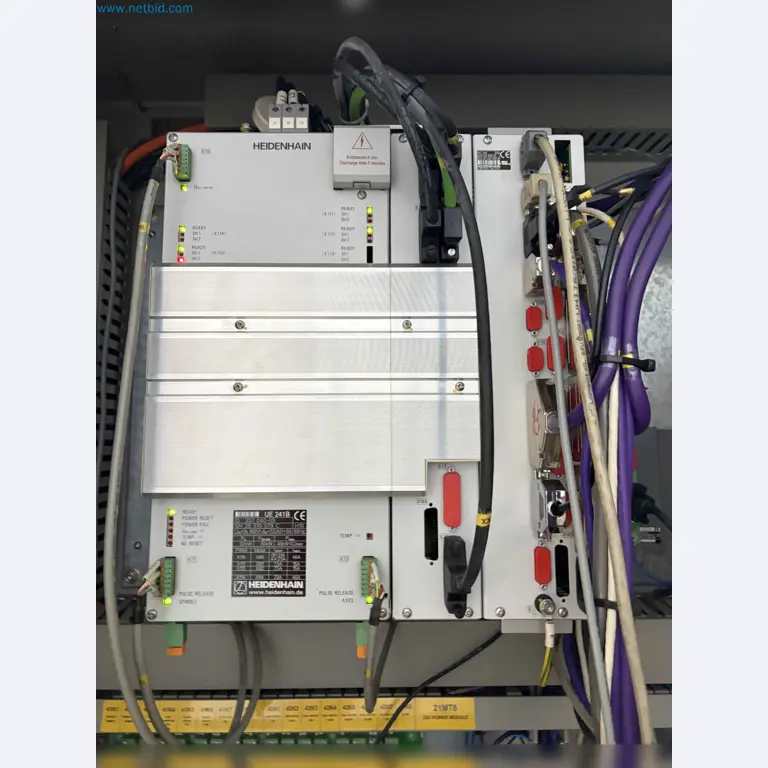

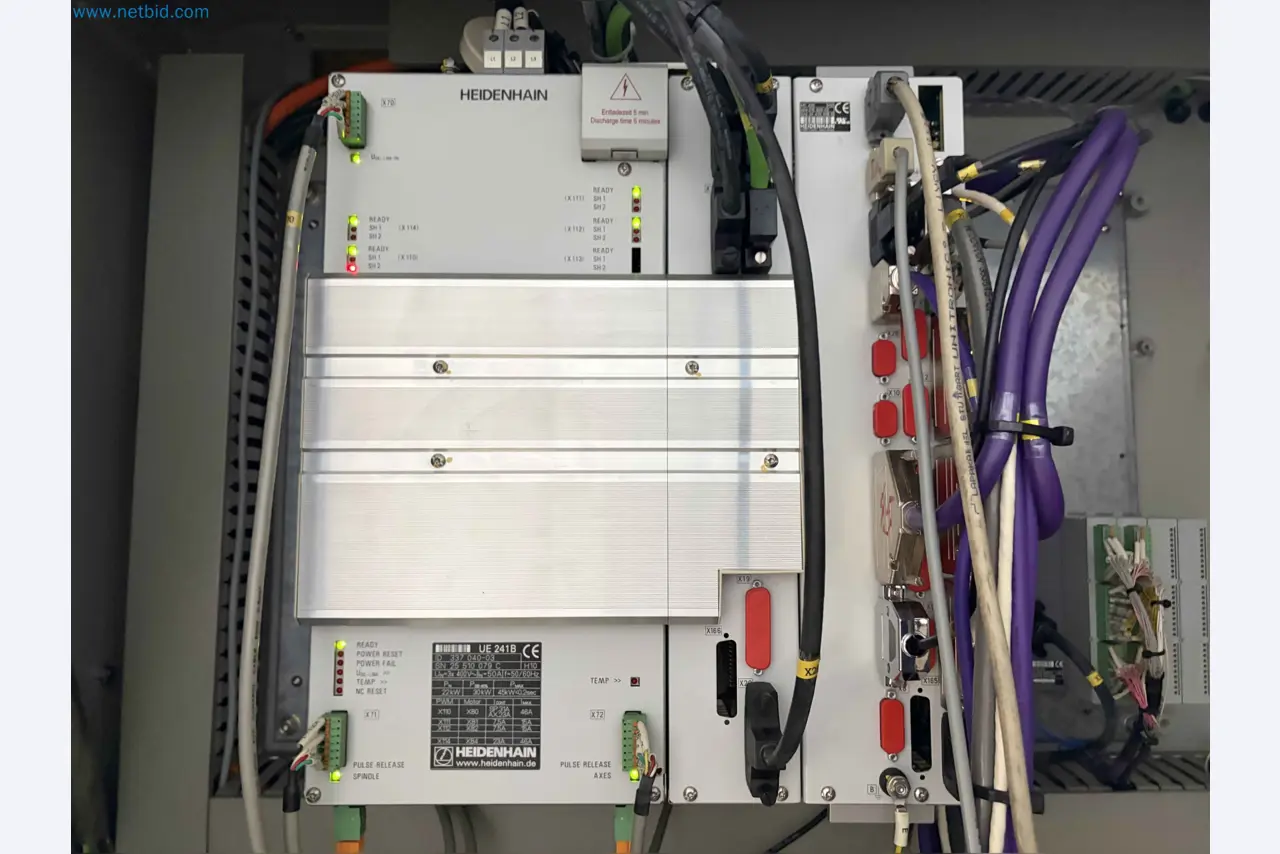

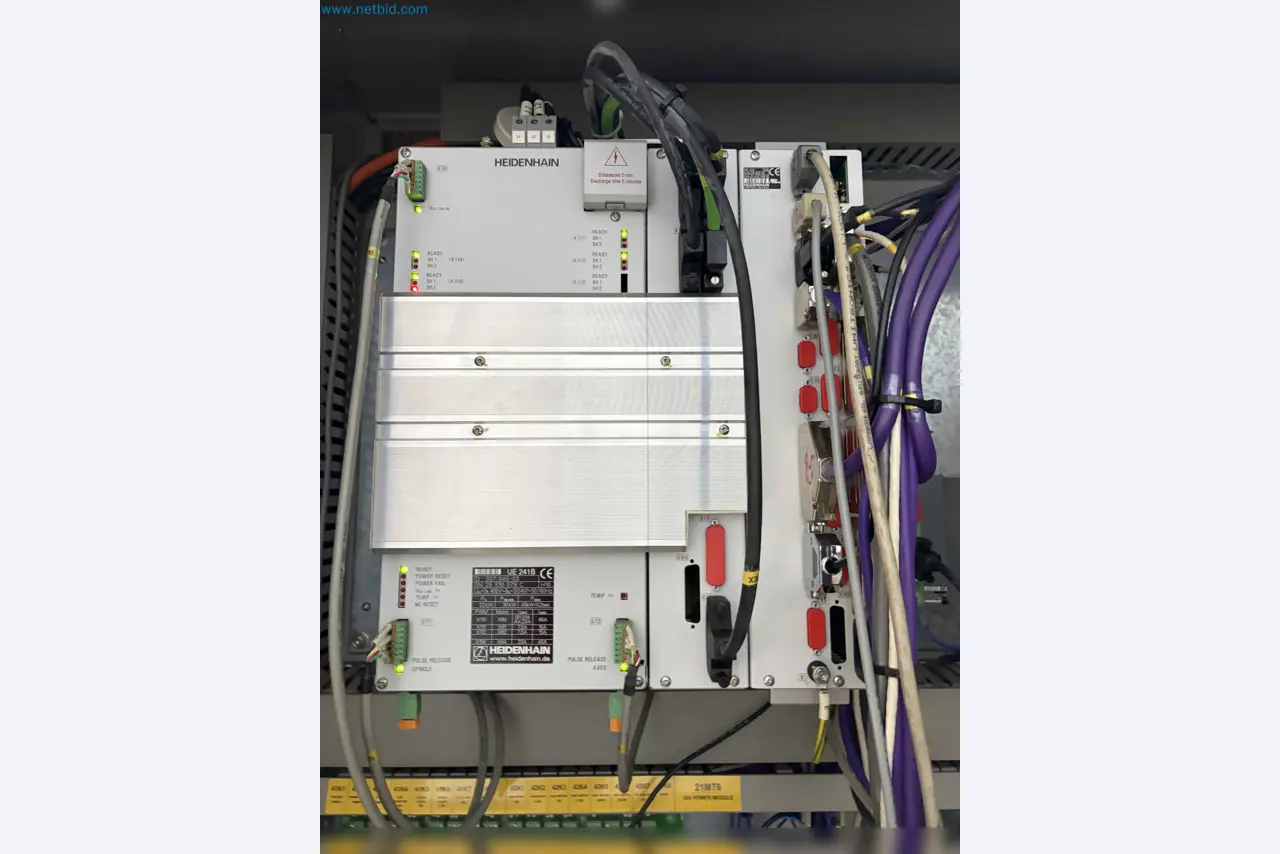

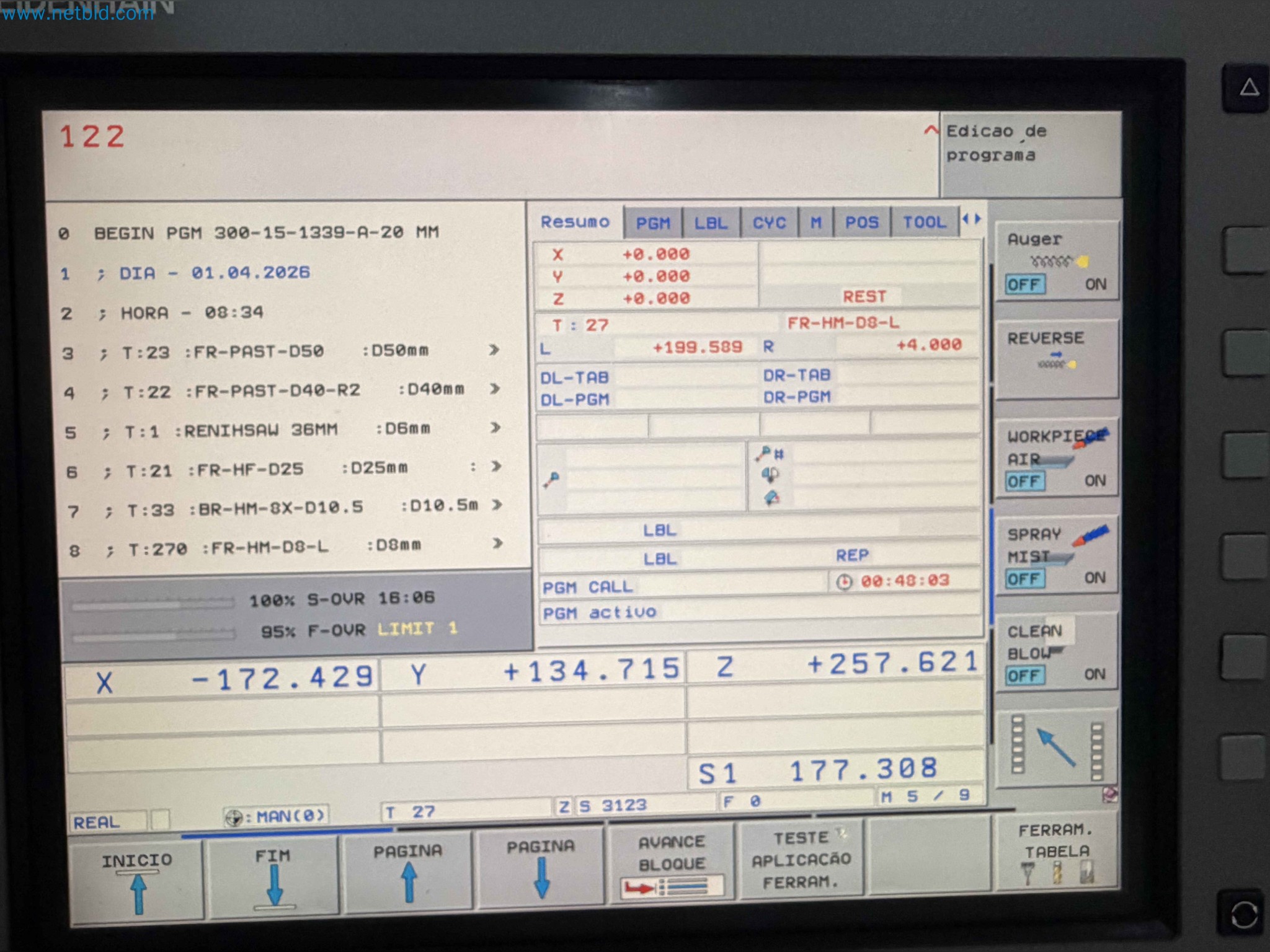

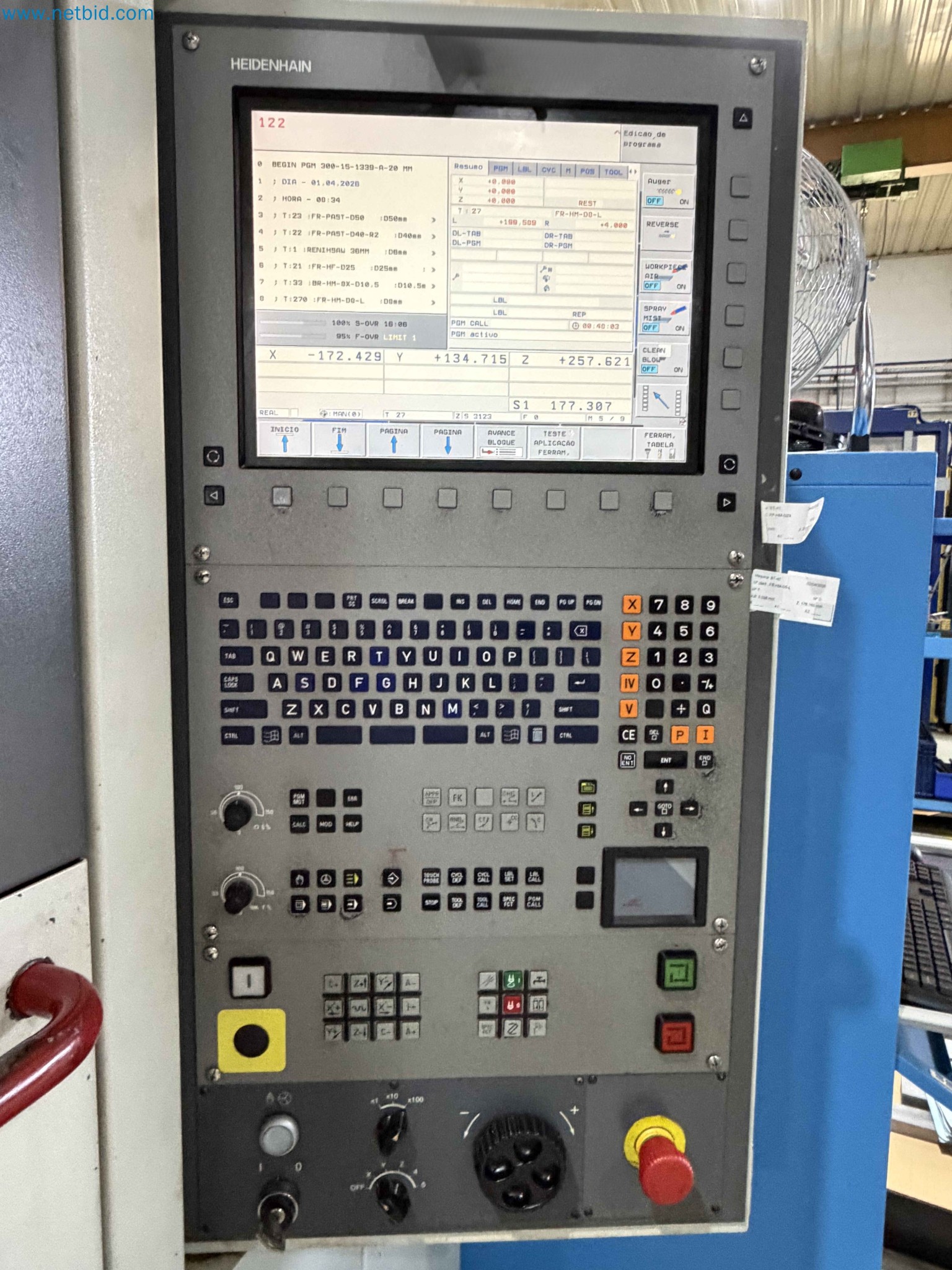

Heidenhain iTNC 530
Axes: X: 1020 mm
Y: 500 mm
Z: 500 mm
Table size: 1,200 x 500 mm
Maximum table load: 500 kg
System:

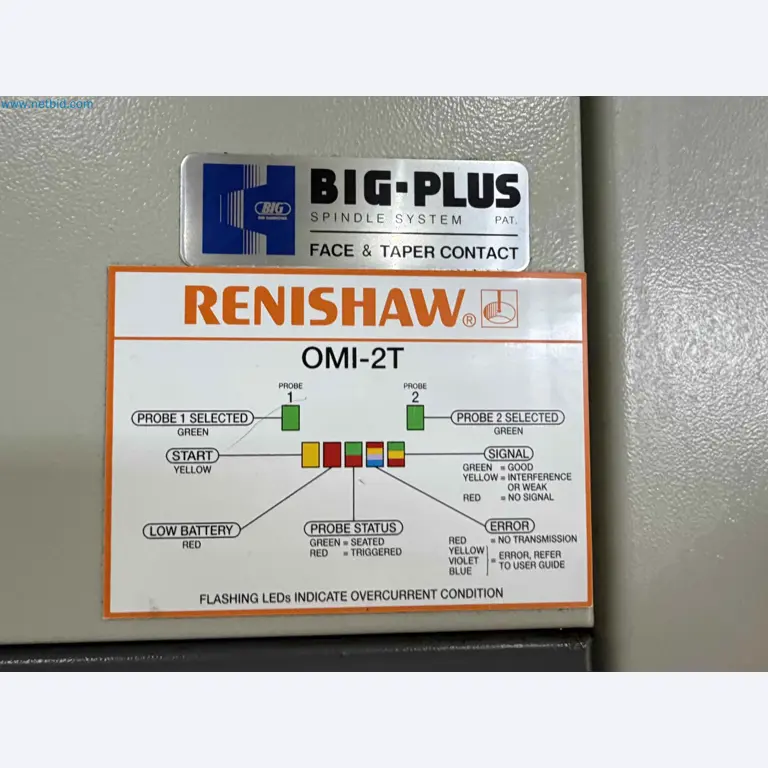

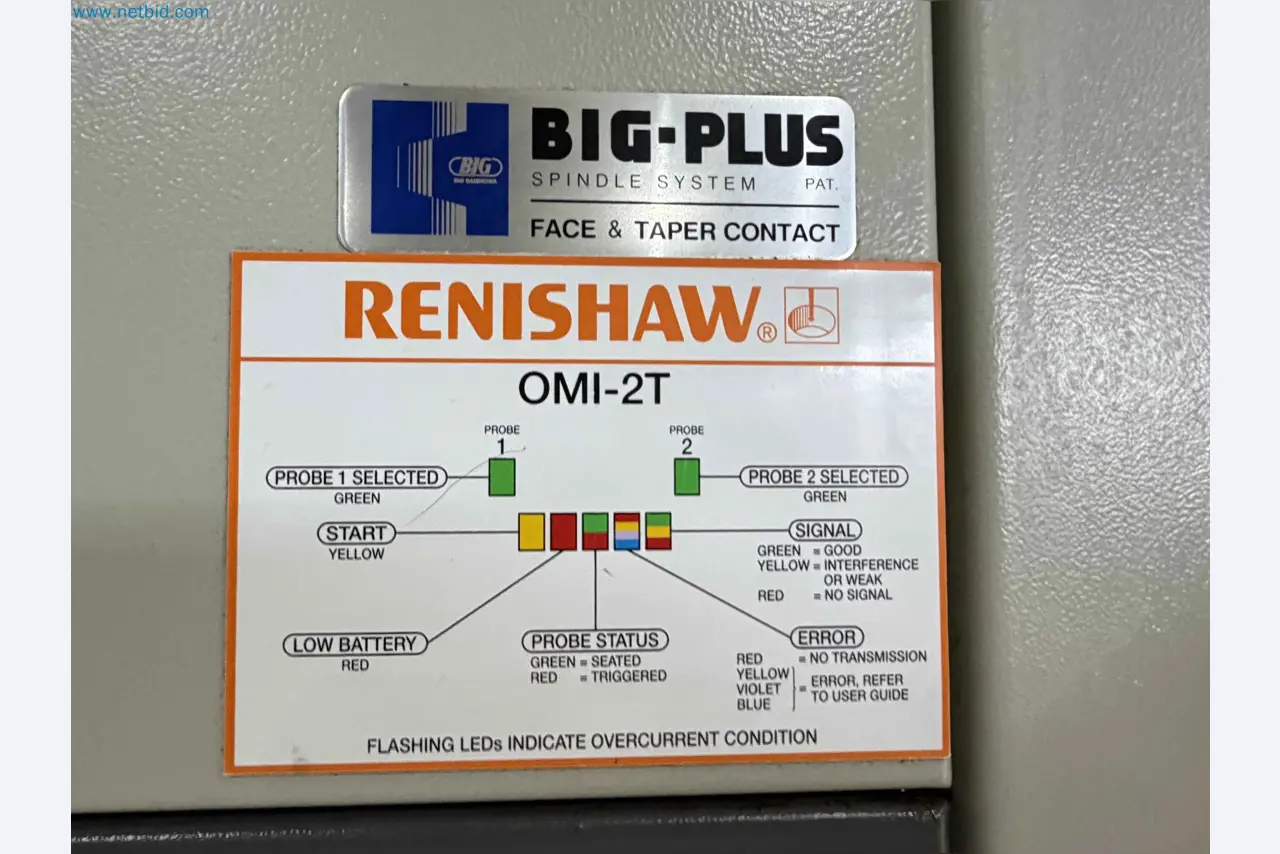

Cone and face contact
Taper: BT40 Big-Plus

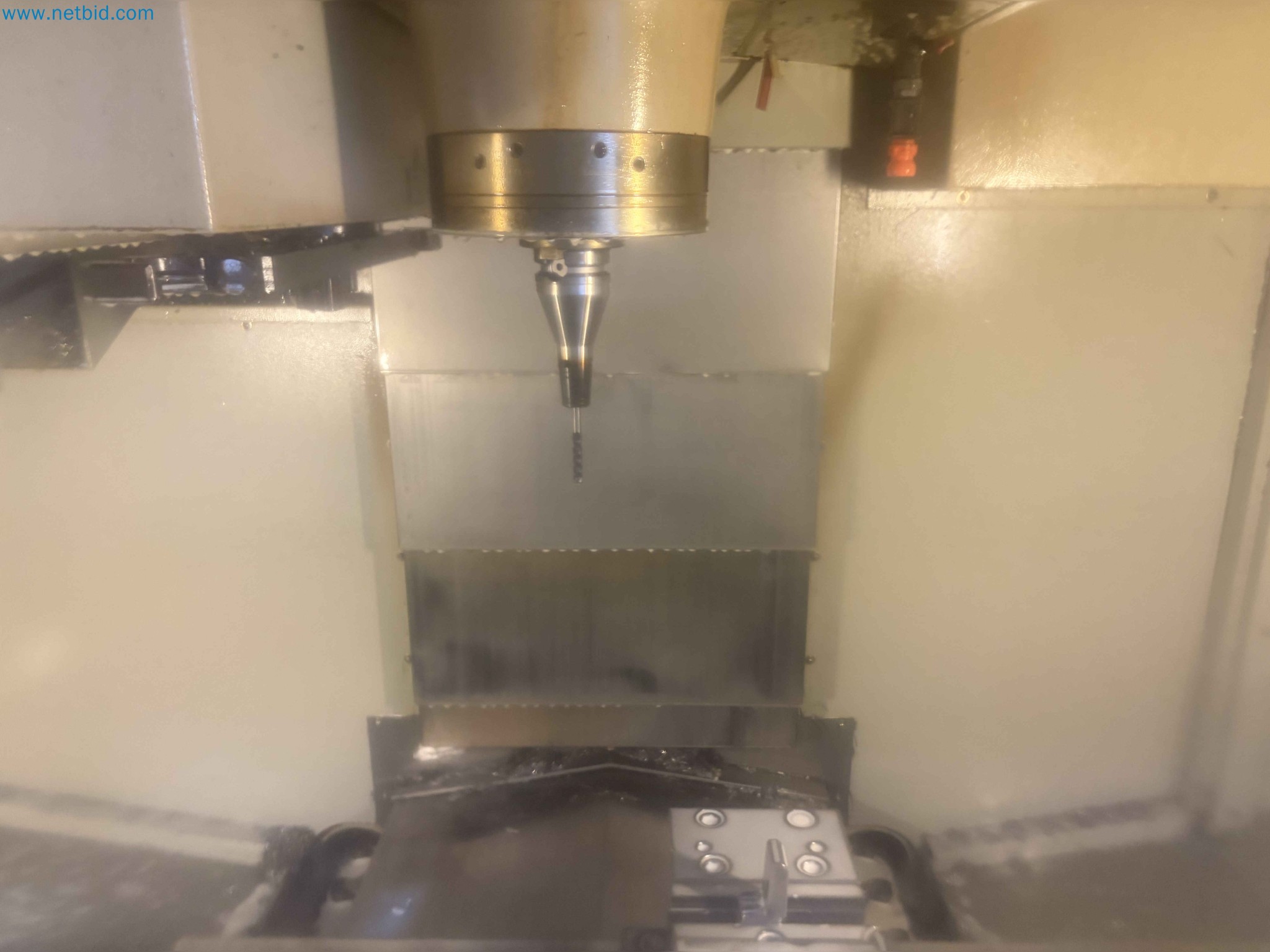

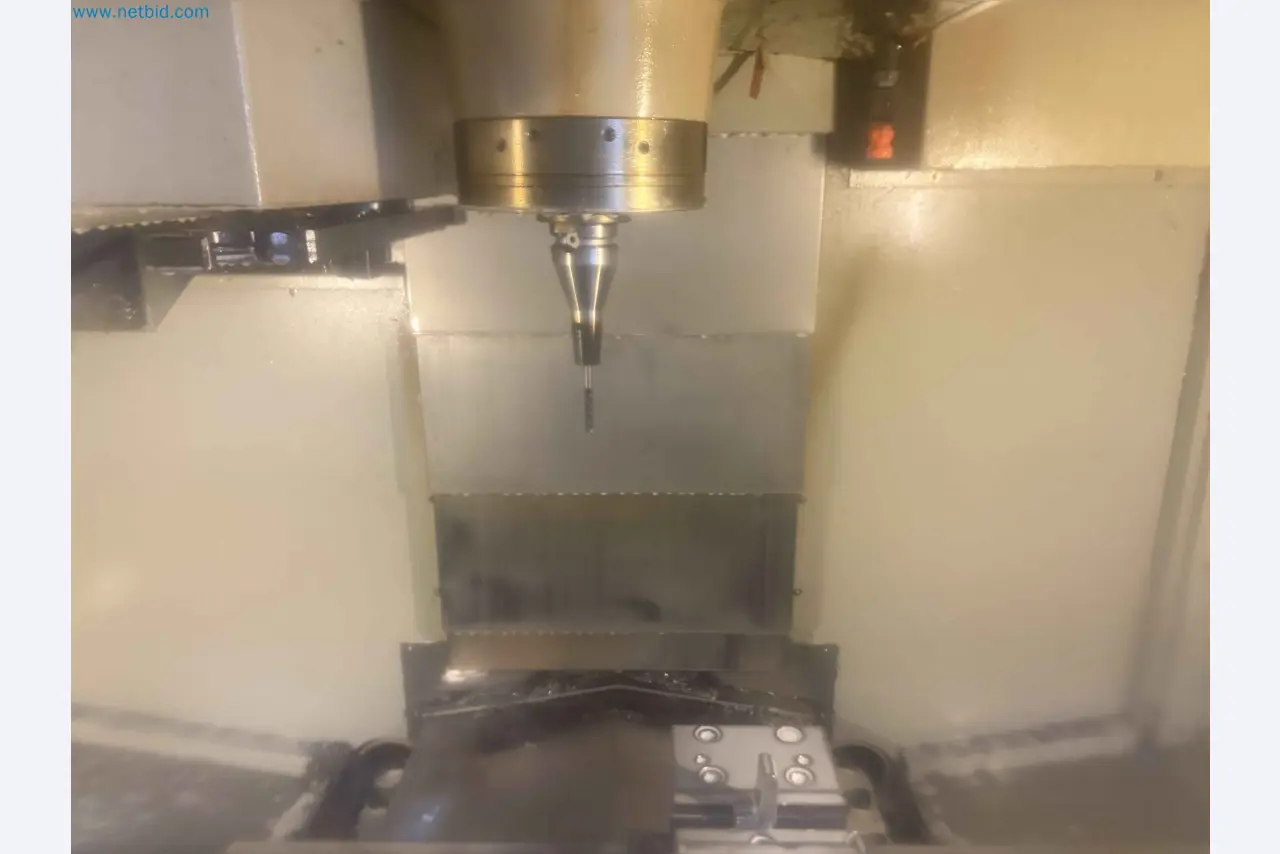

Spindle:
BIG-PLUS BT40
Spindle taper: SK40 / ISO 40
Spindle speed: 40 – 12,000 rpm
Spindle motor power: 18.5 kW
Working feed rate: 0 – 20,000 mm/min
Rapid traverse: 40 m/min

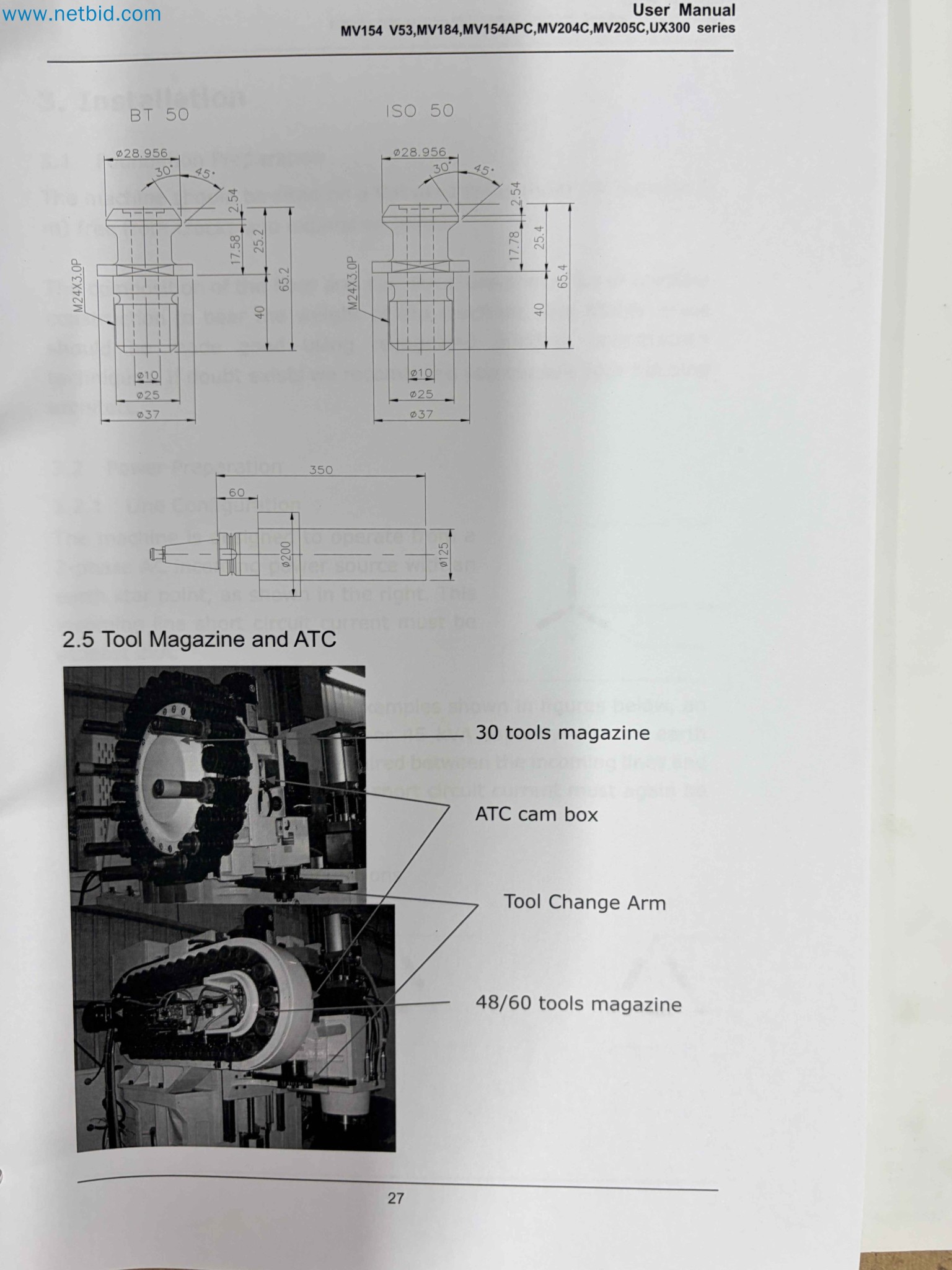

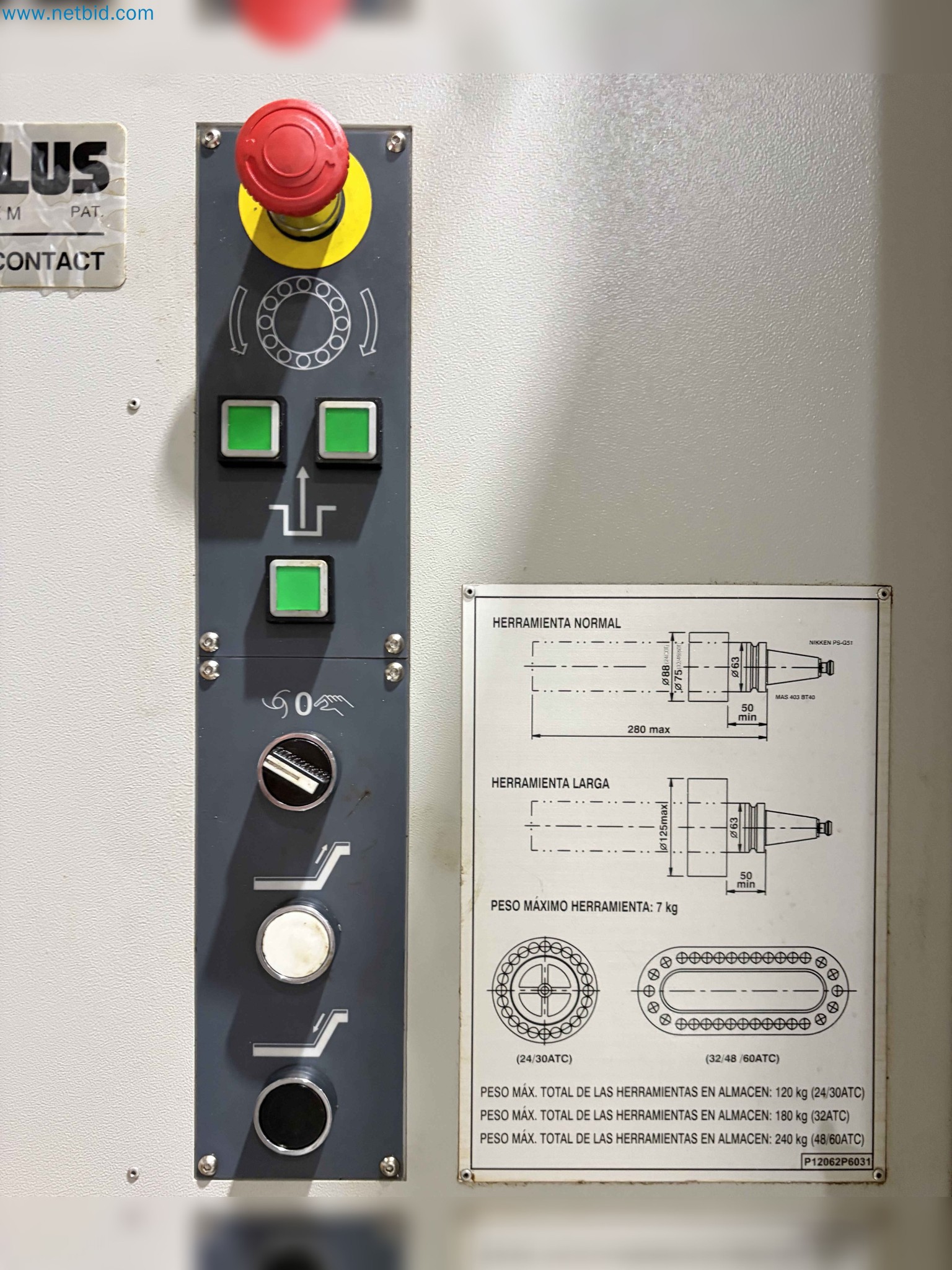

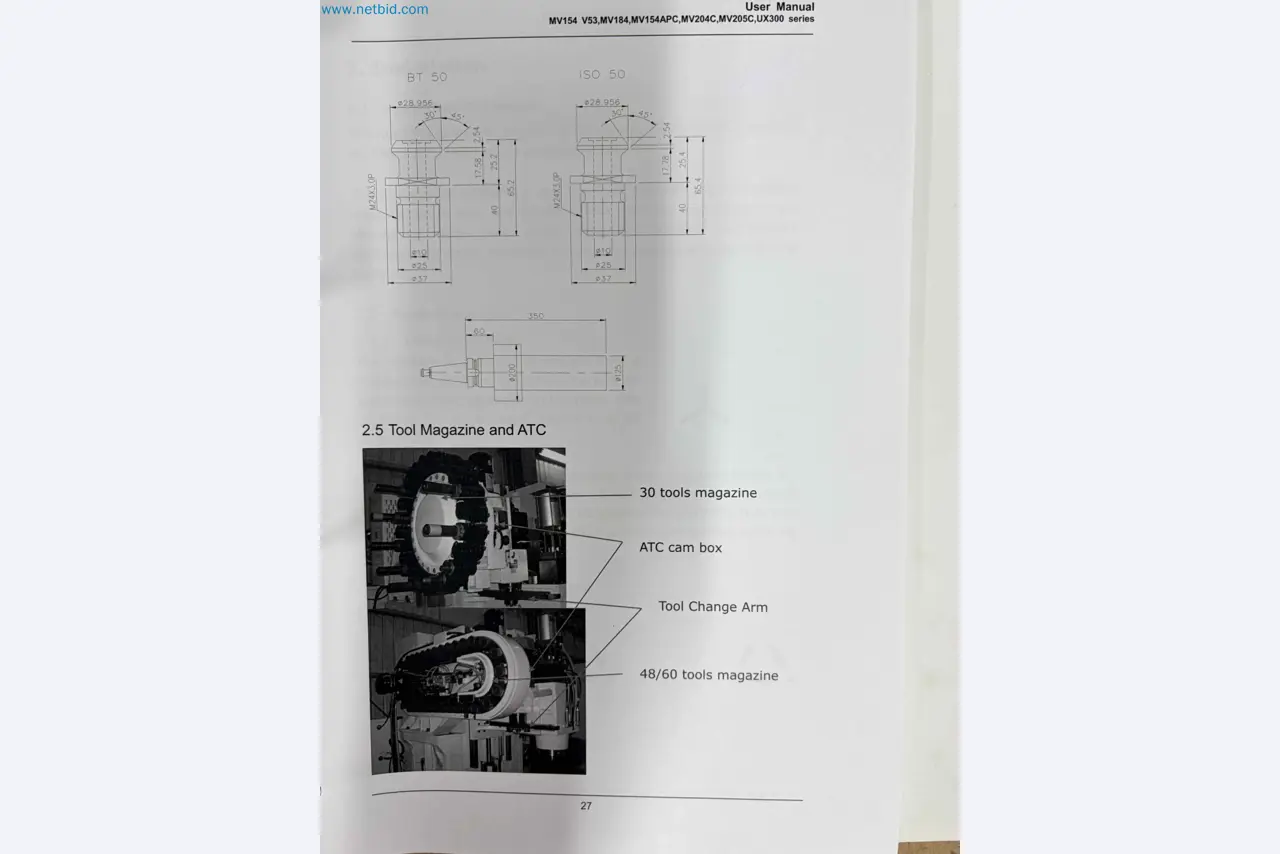

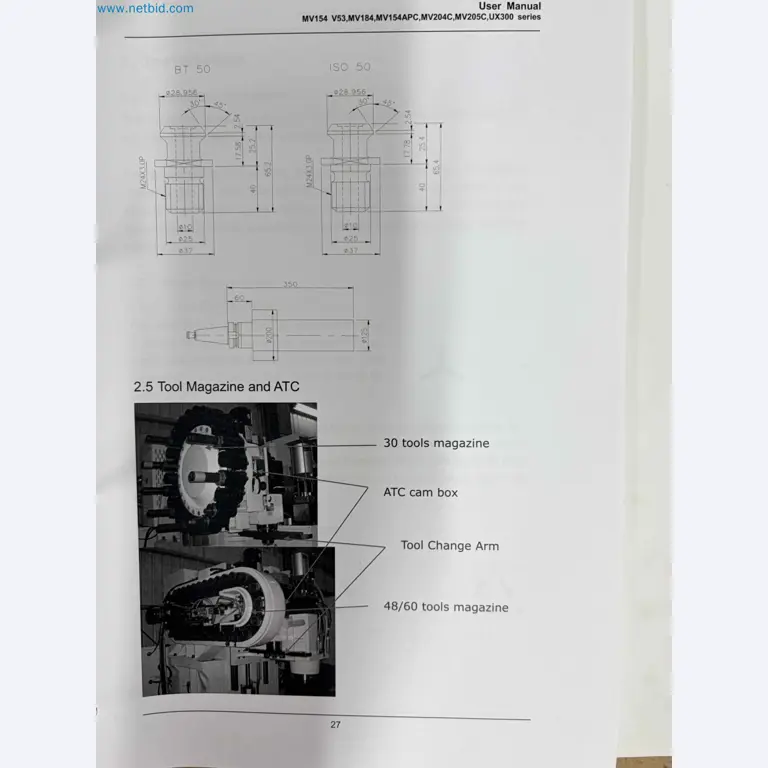

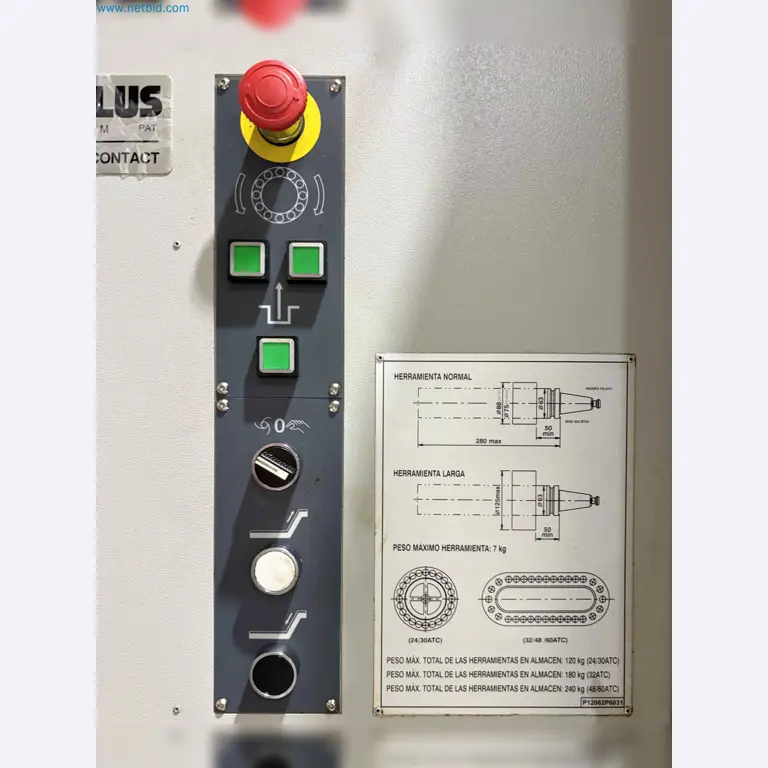

Tool magazine: 30 positions
Automatic tool changer
Through-spindle coolant (IKZ)

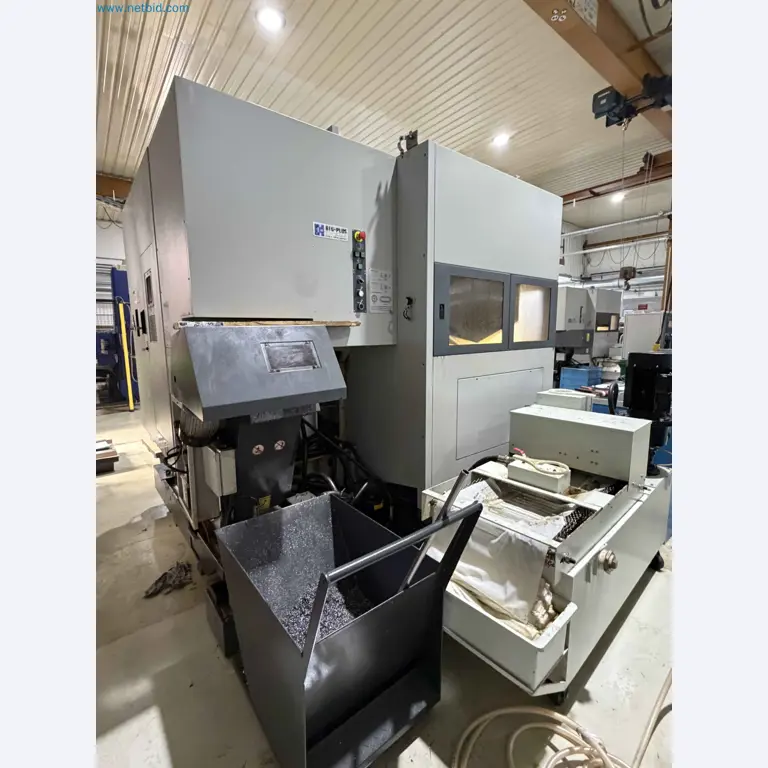

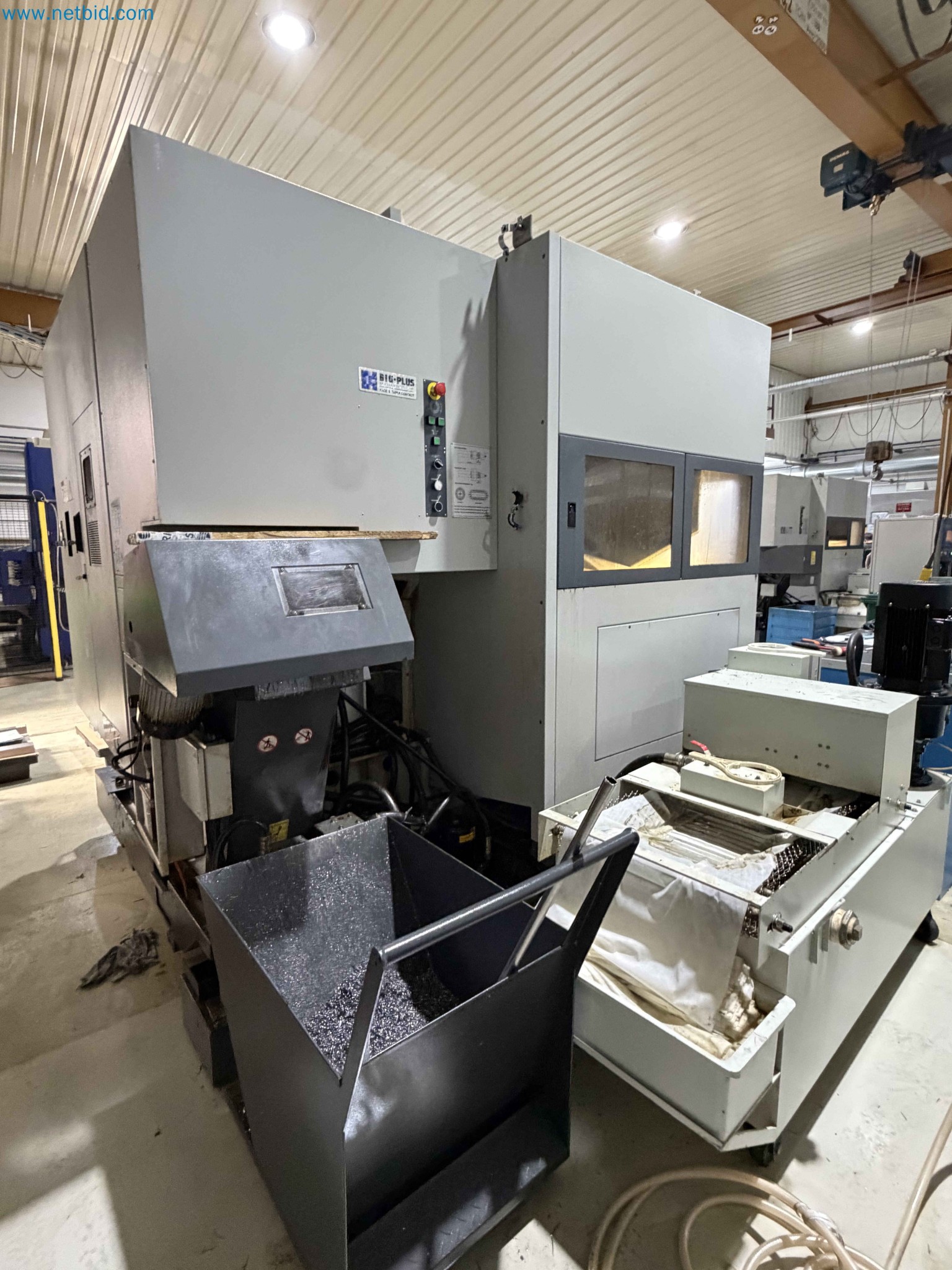

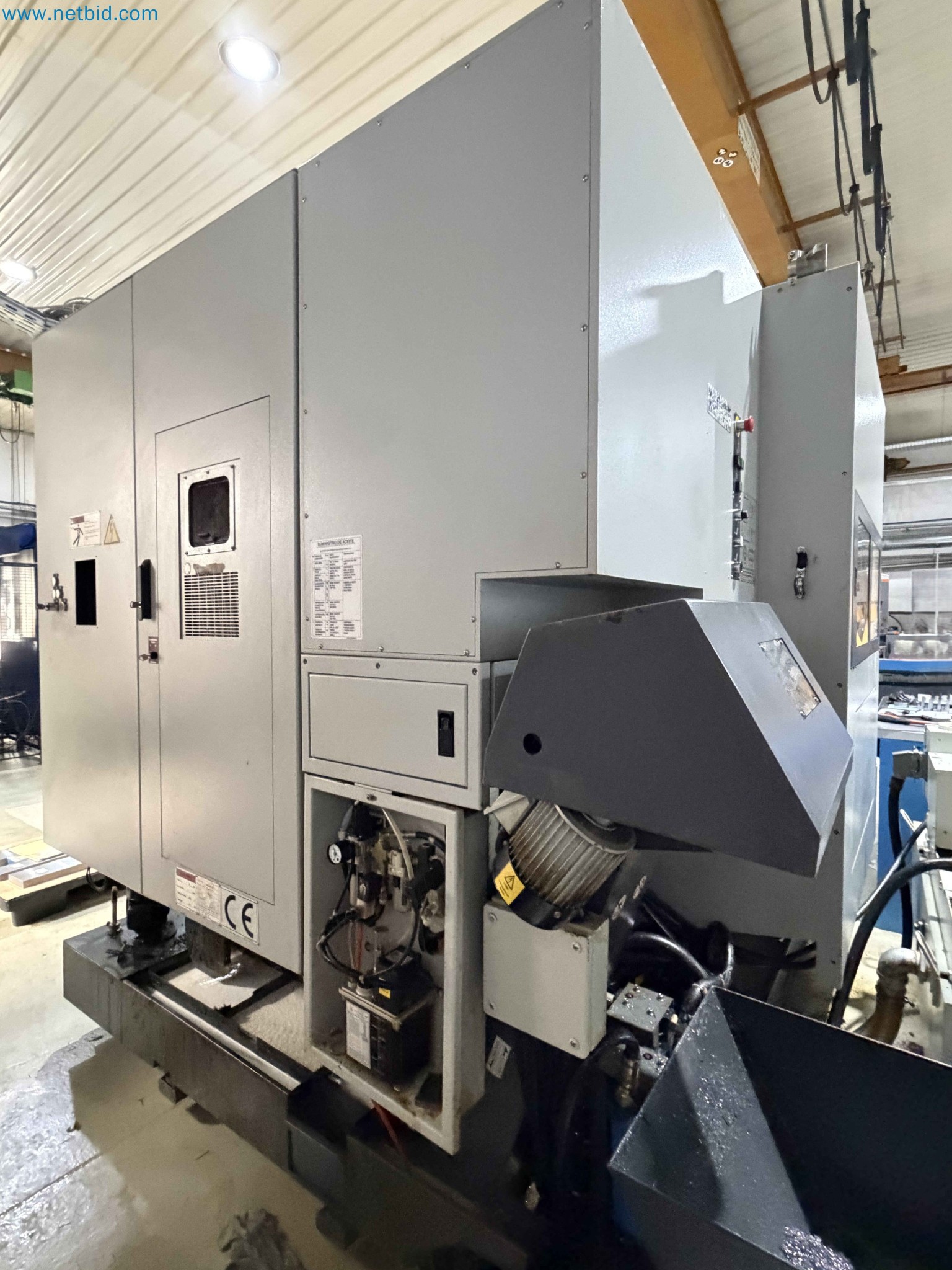

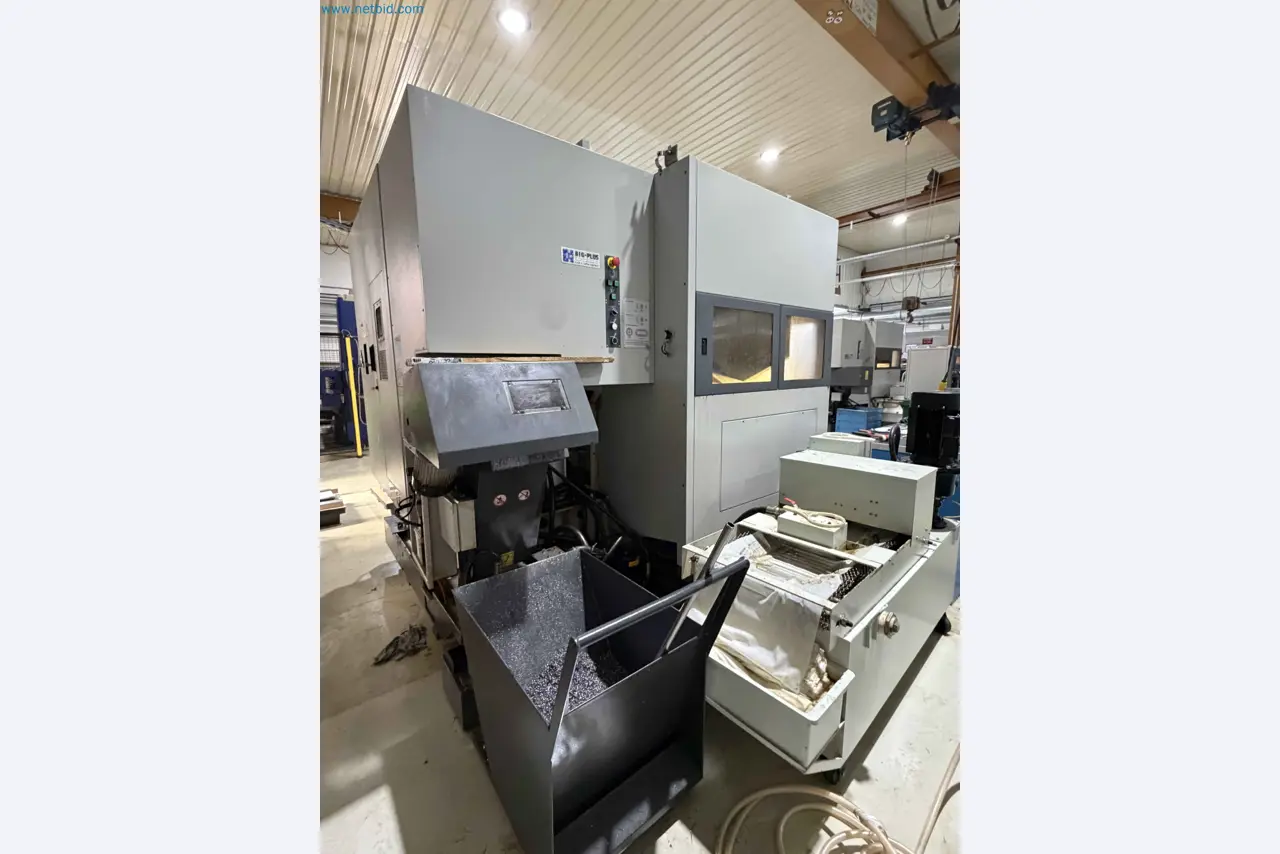

Chip conveyor
Programming:
Conversational
ISO
Interface:
Tool management
Axis monitoring
Simulation and execution

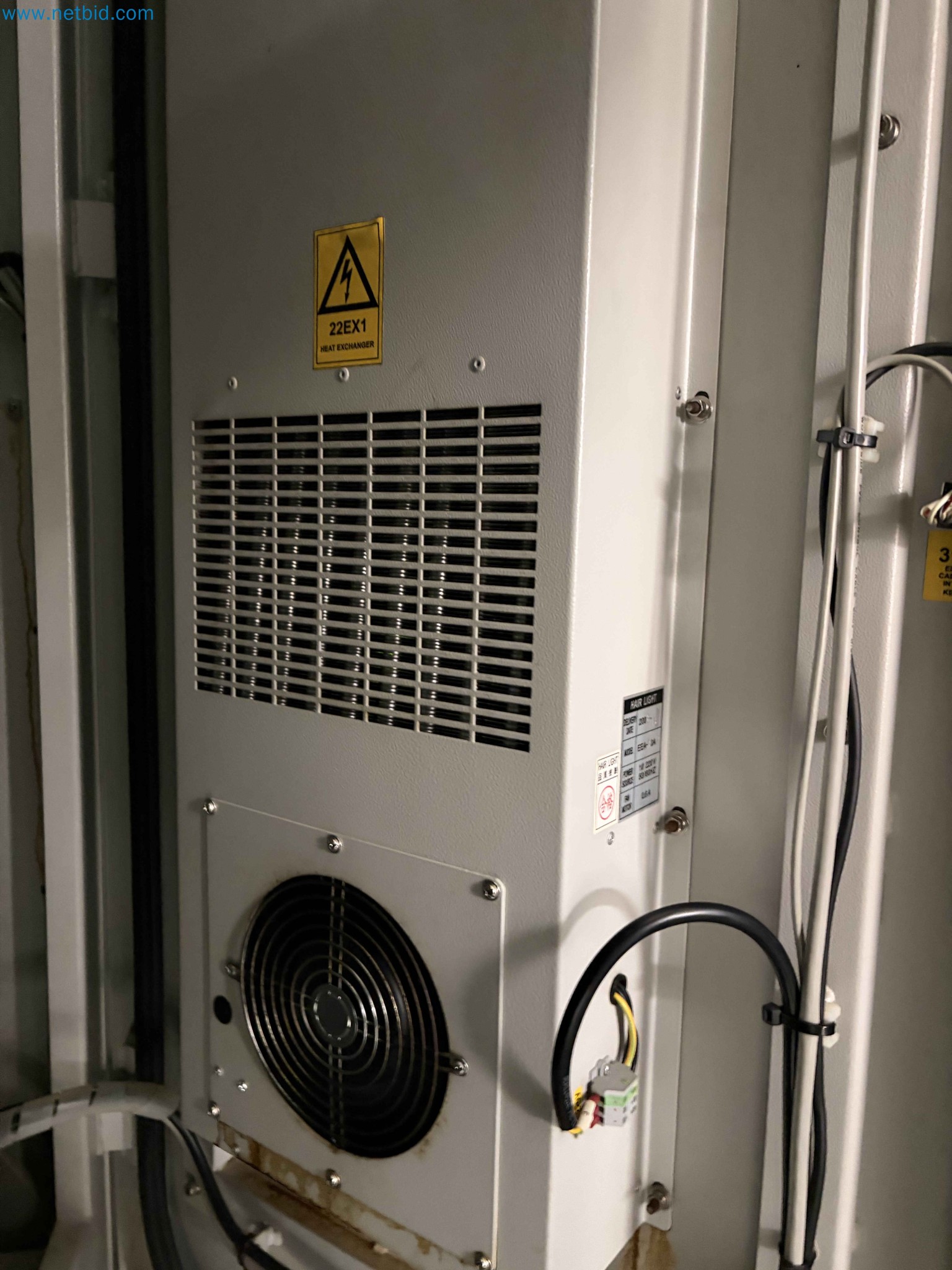

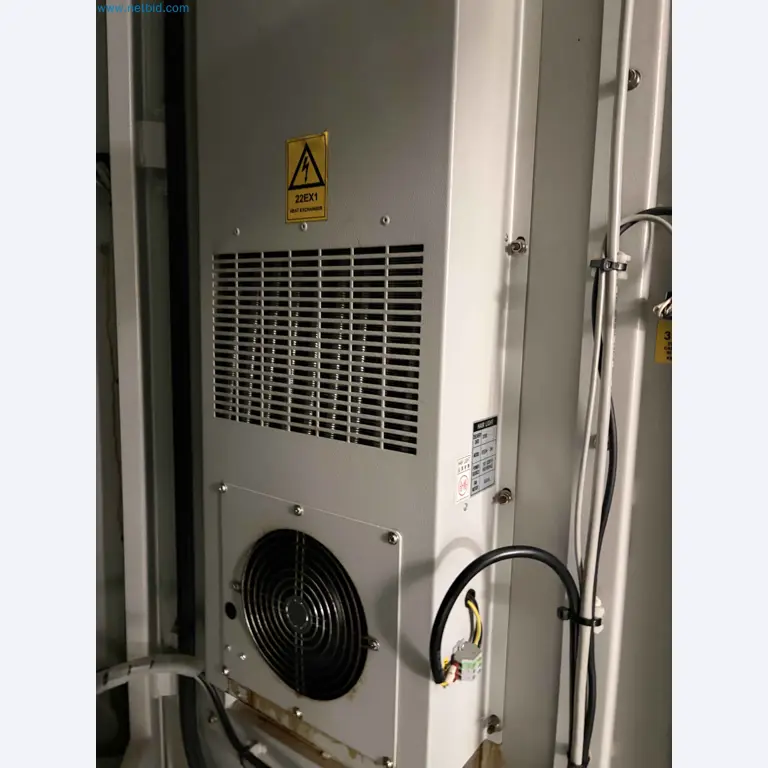

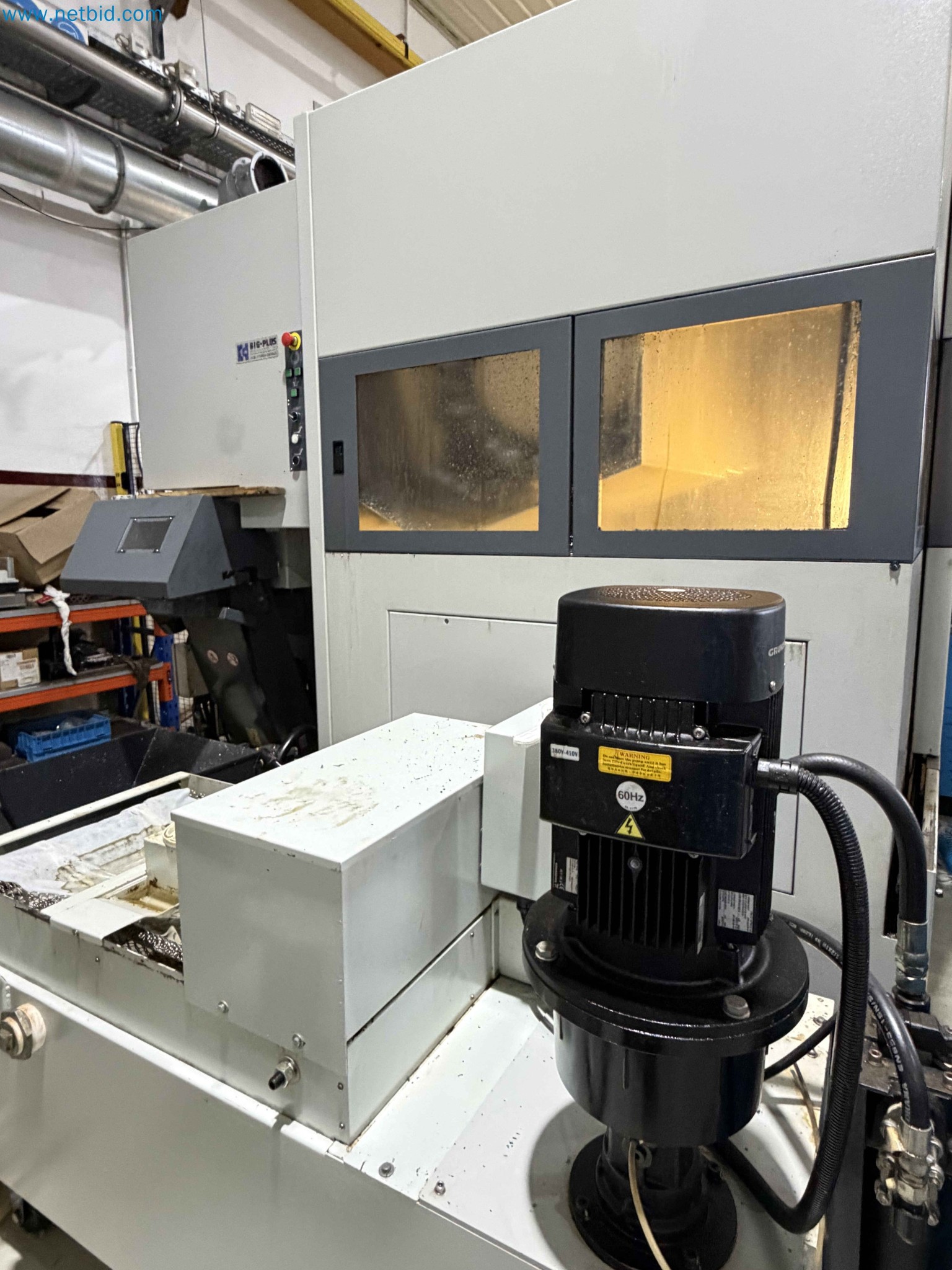

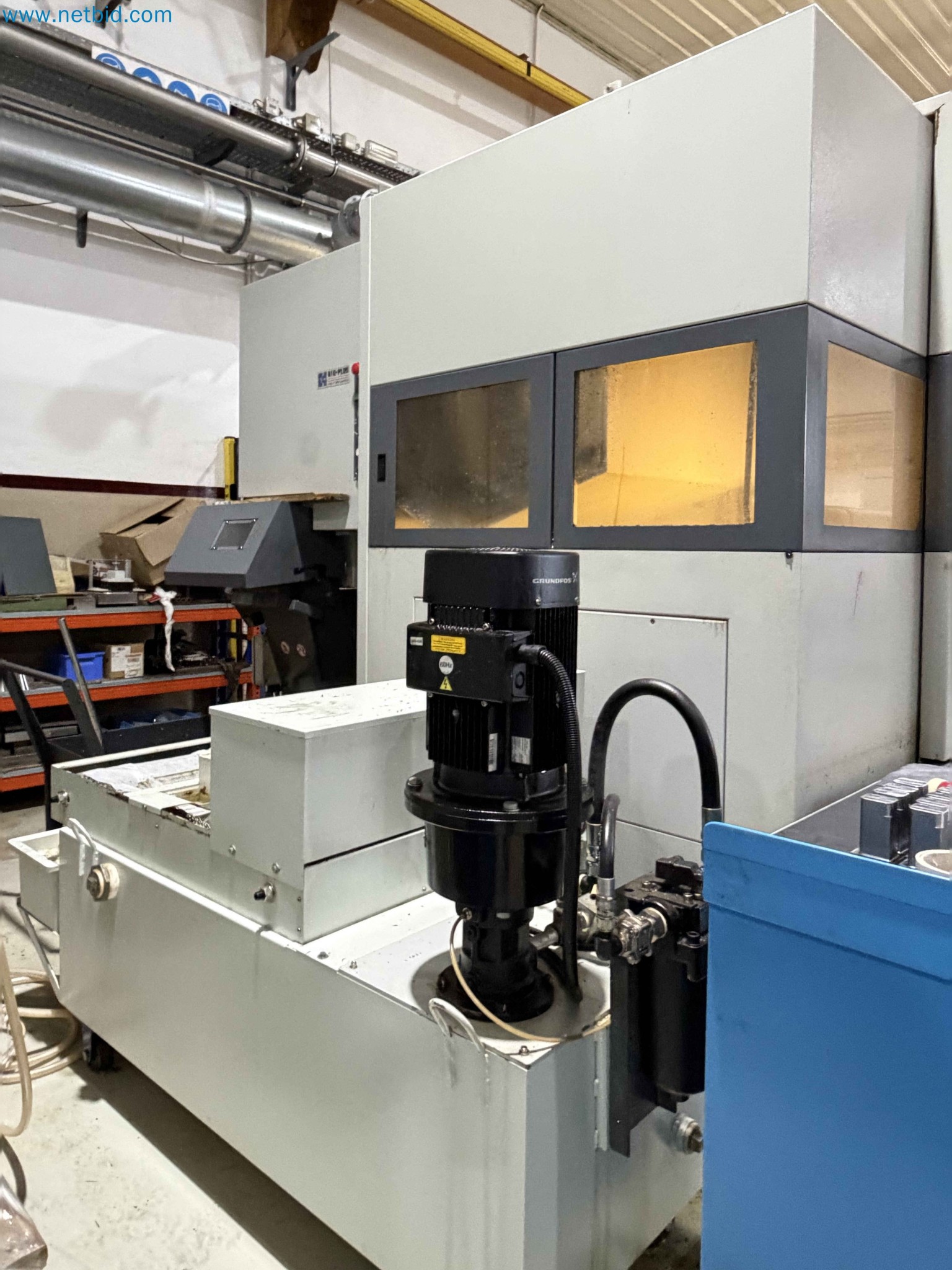

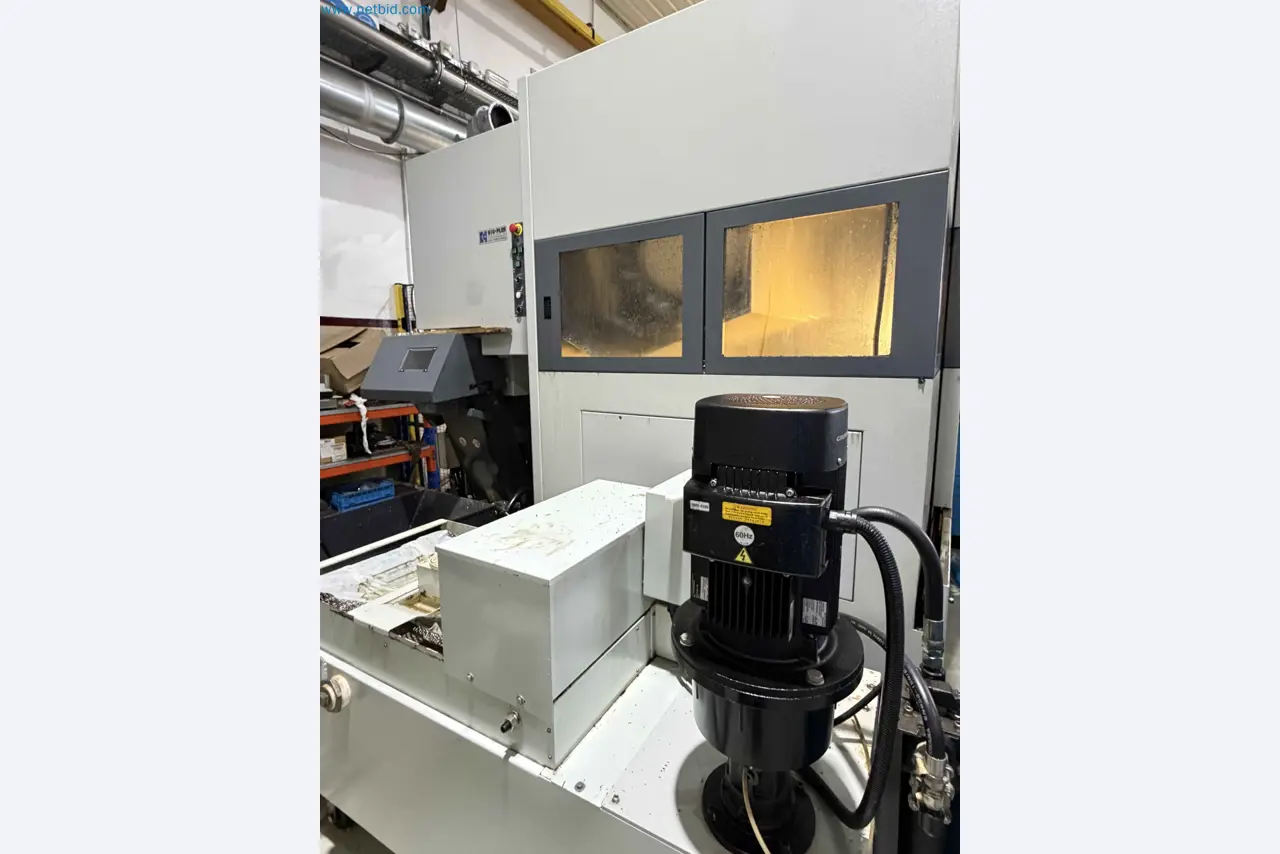

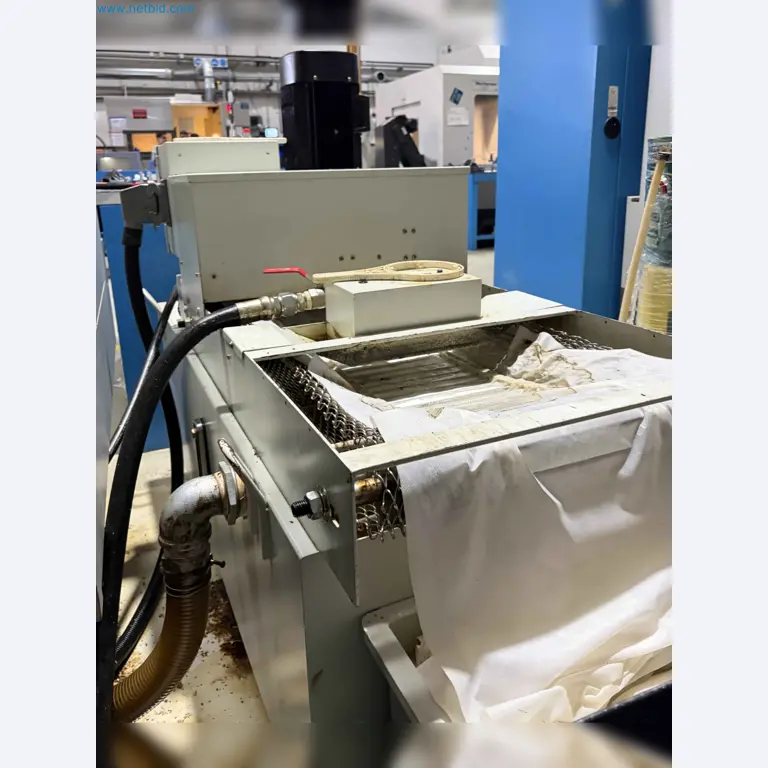

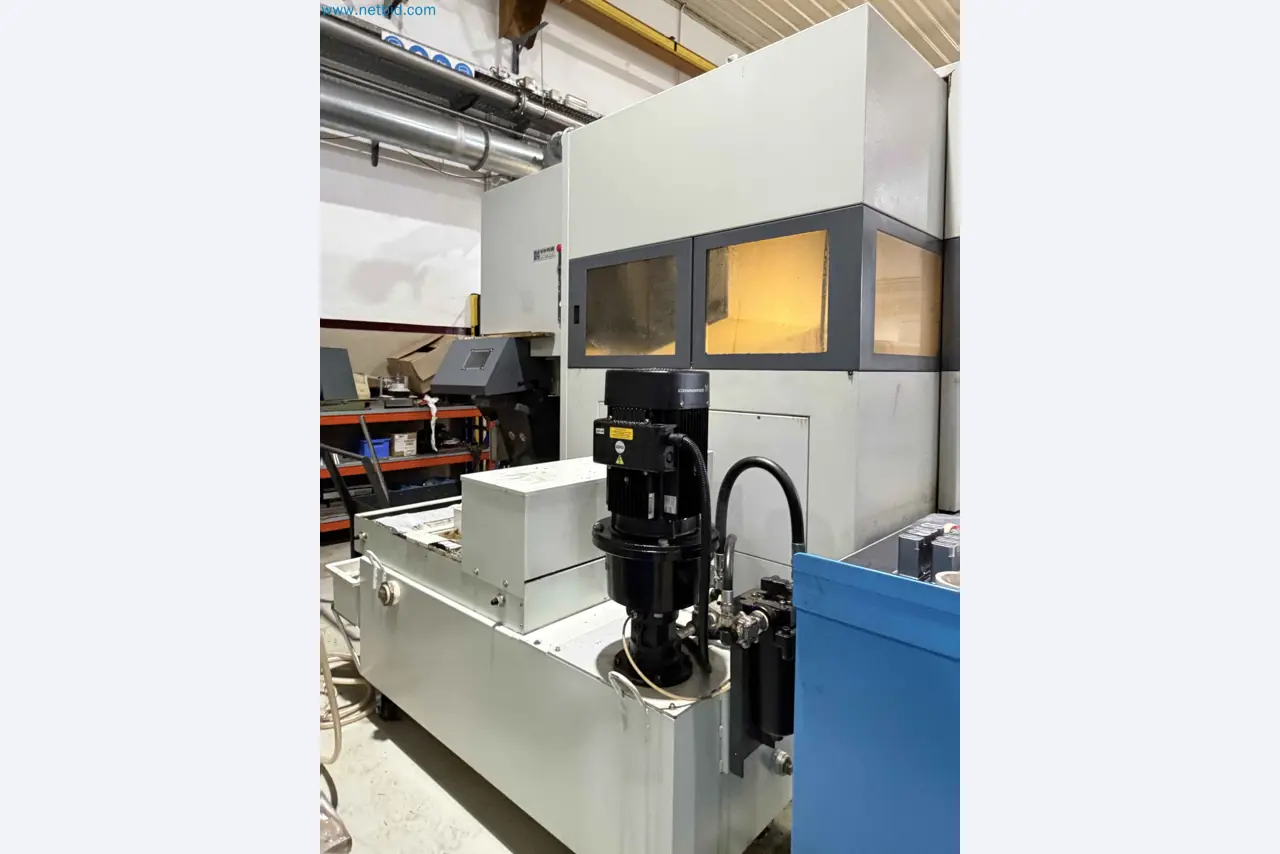

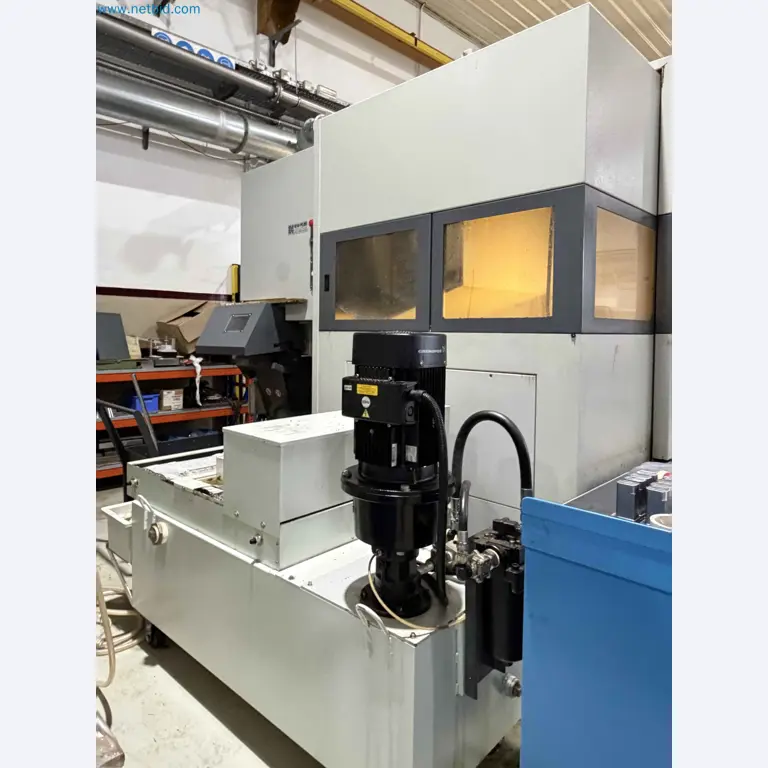

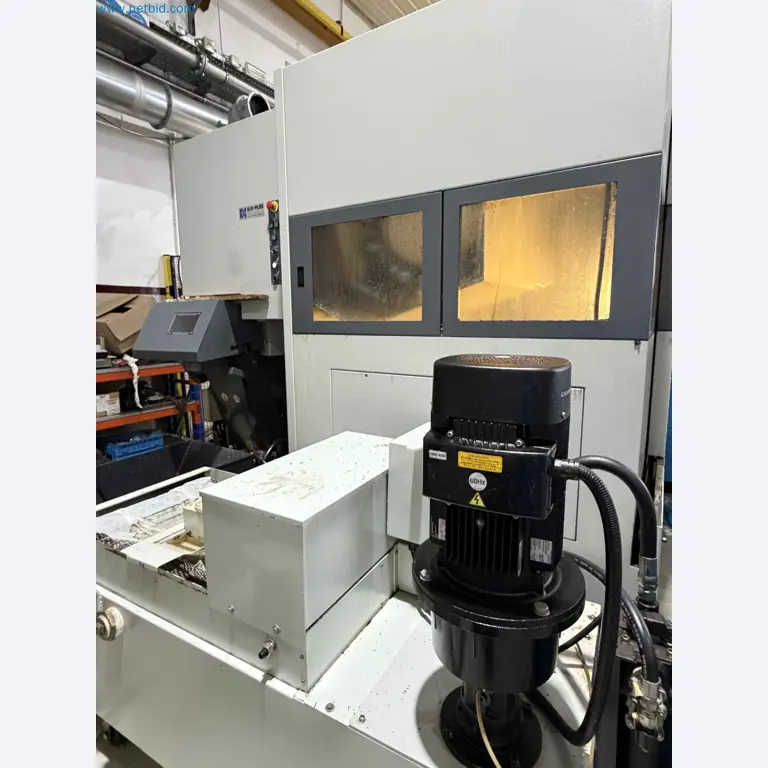

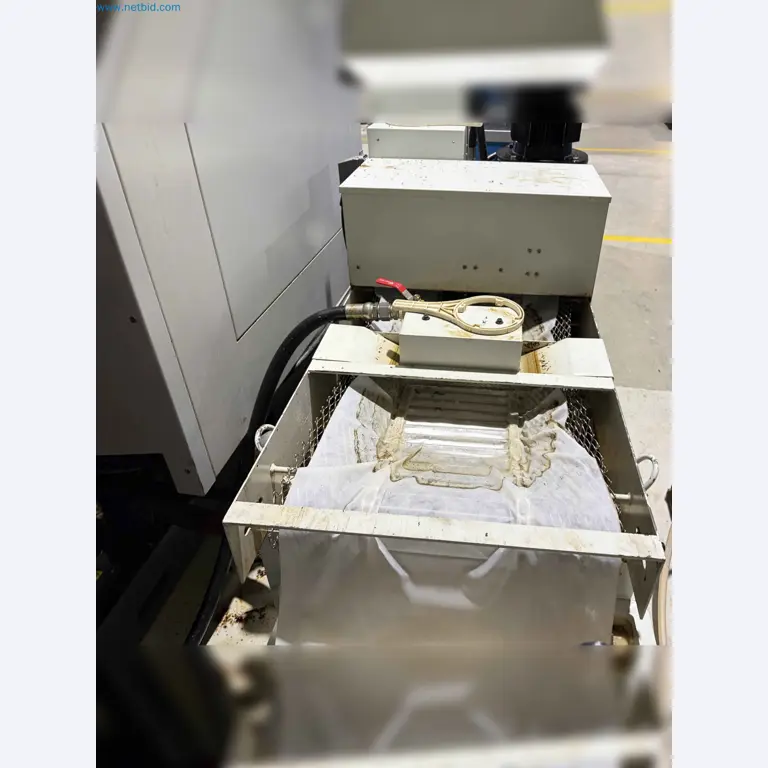

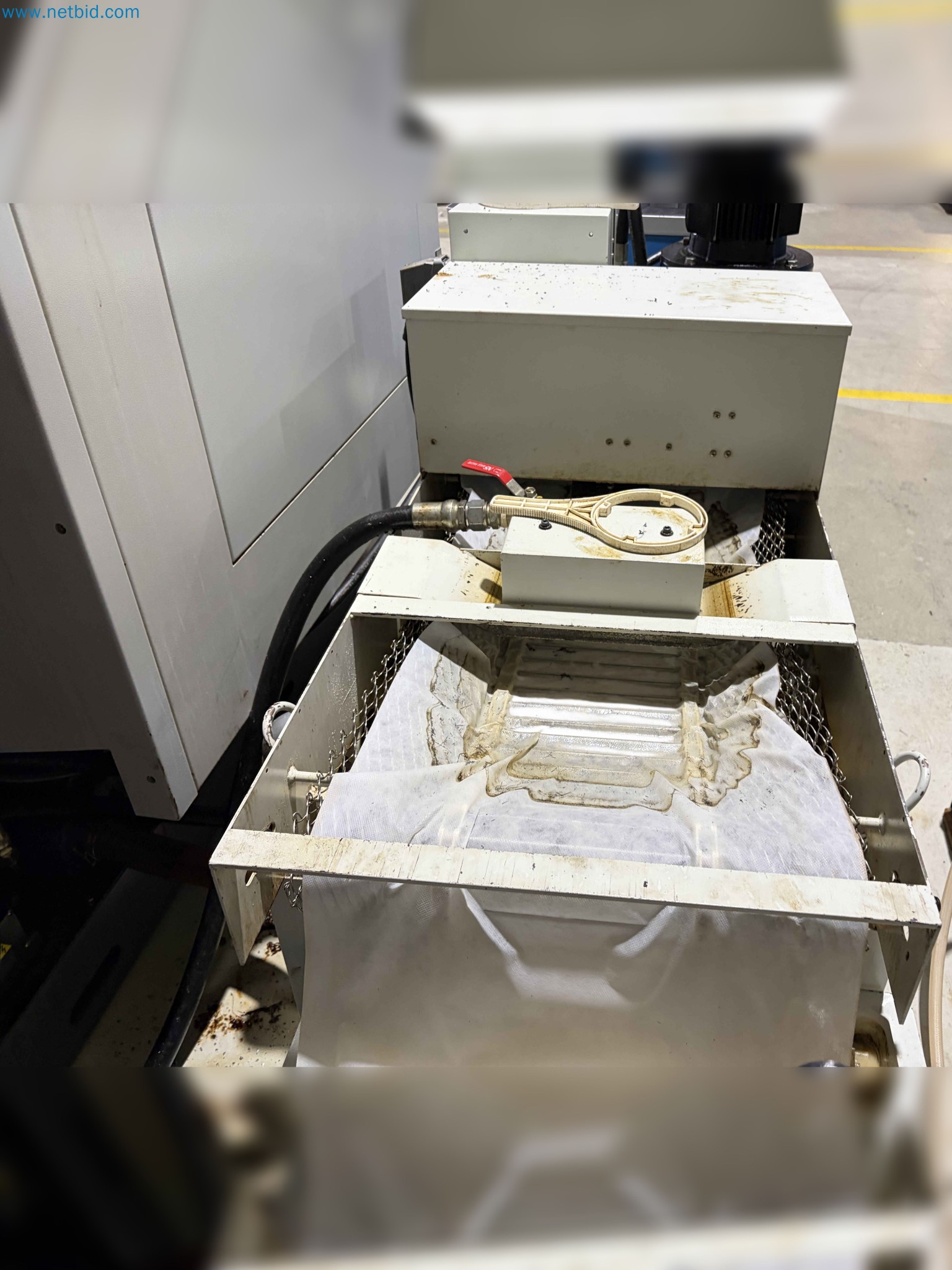

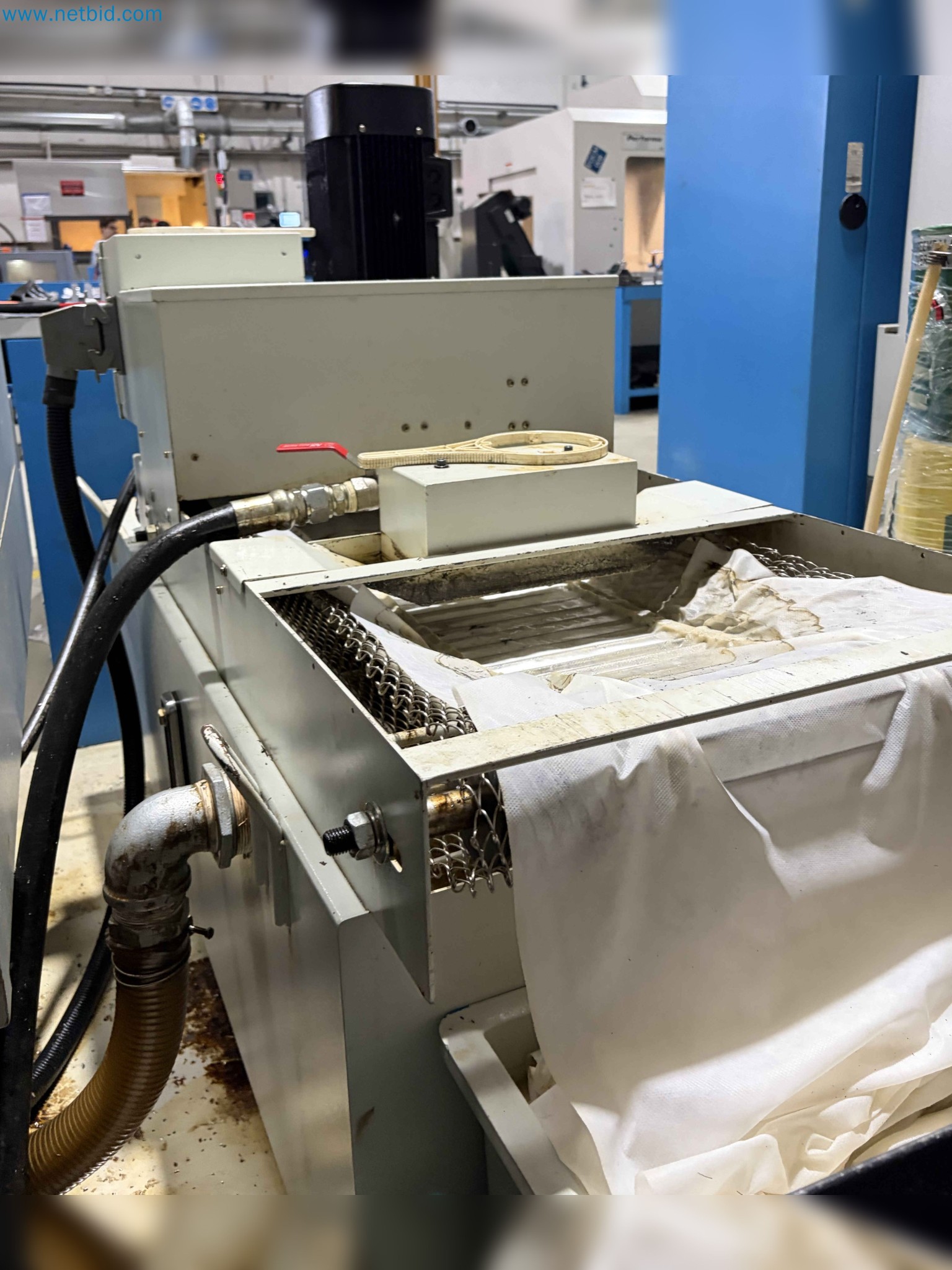

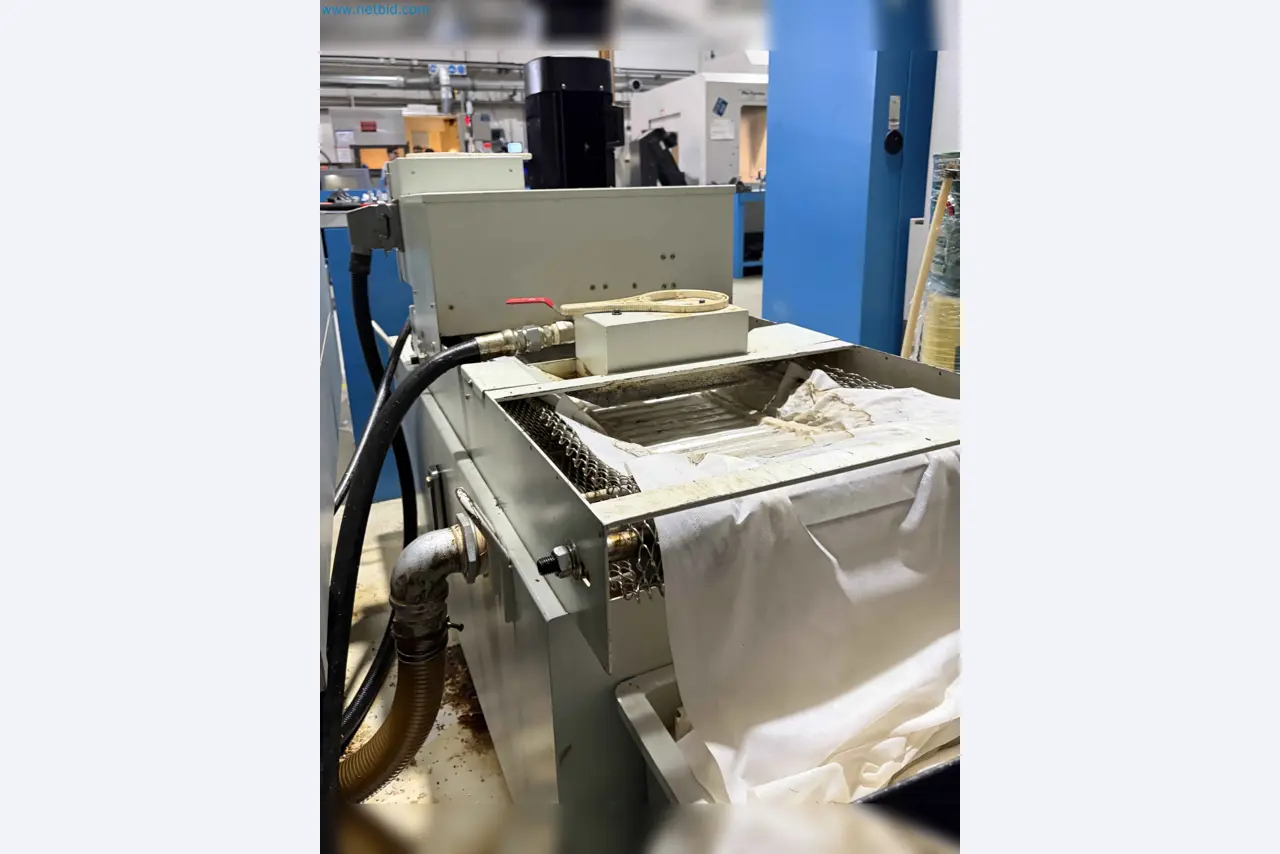

Cooling System:
External tank

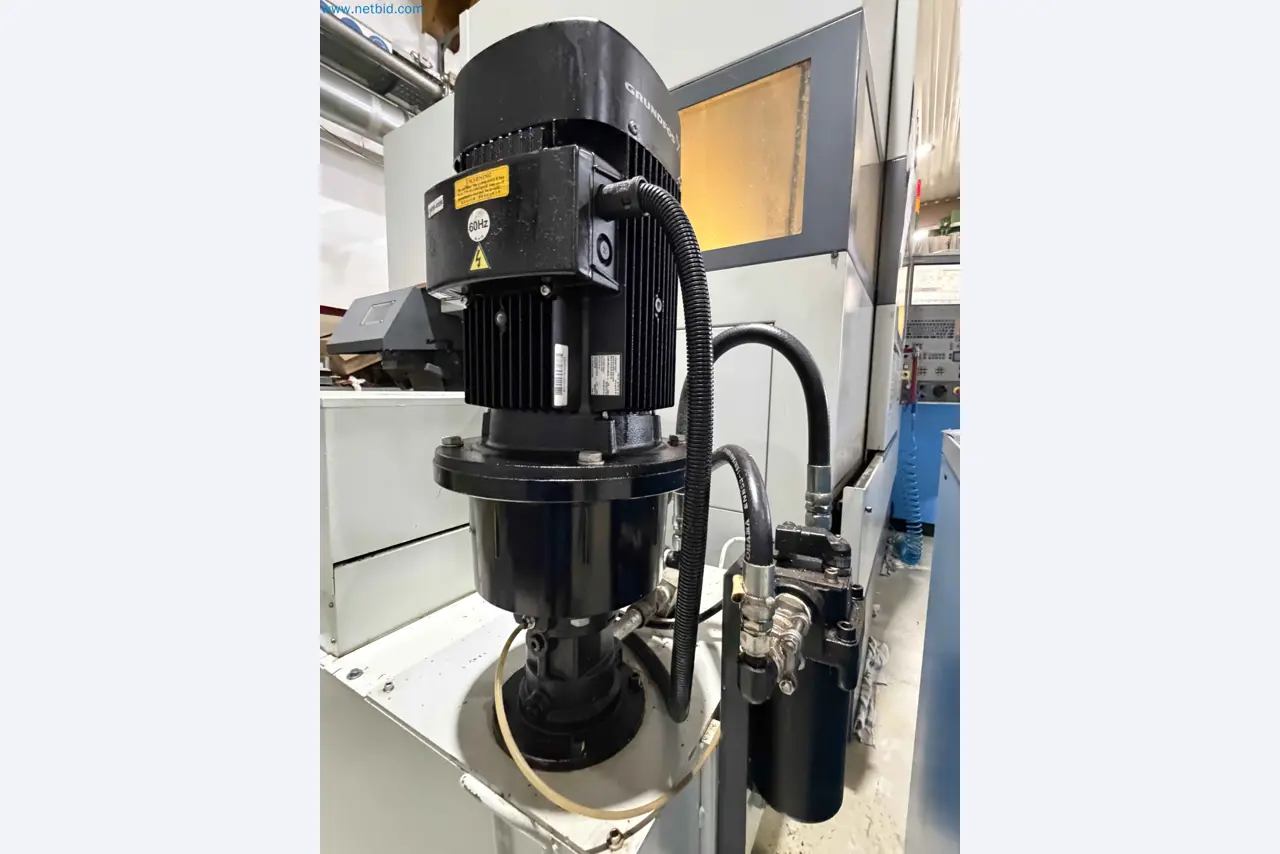

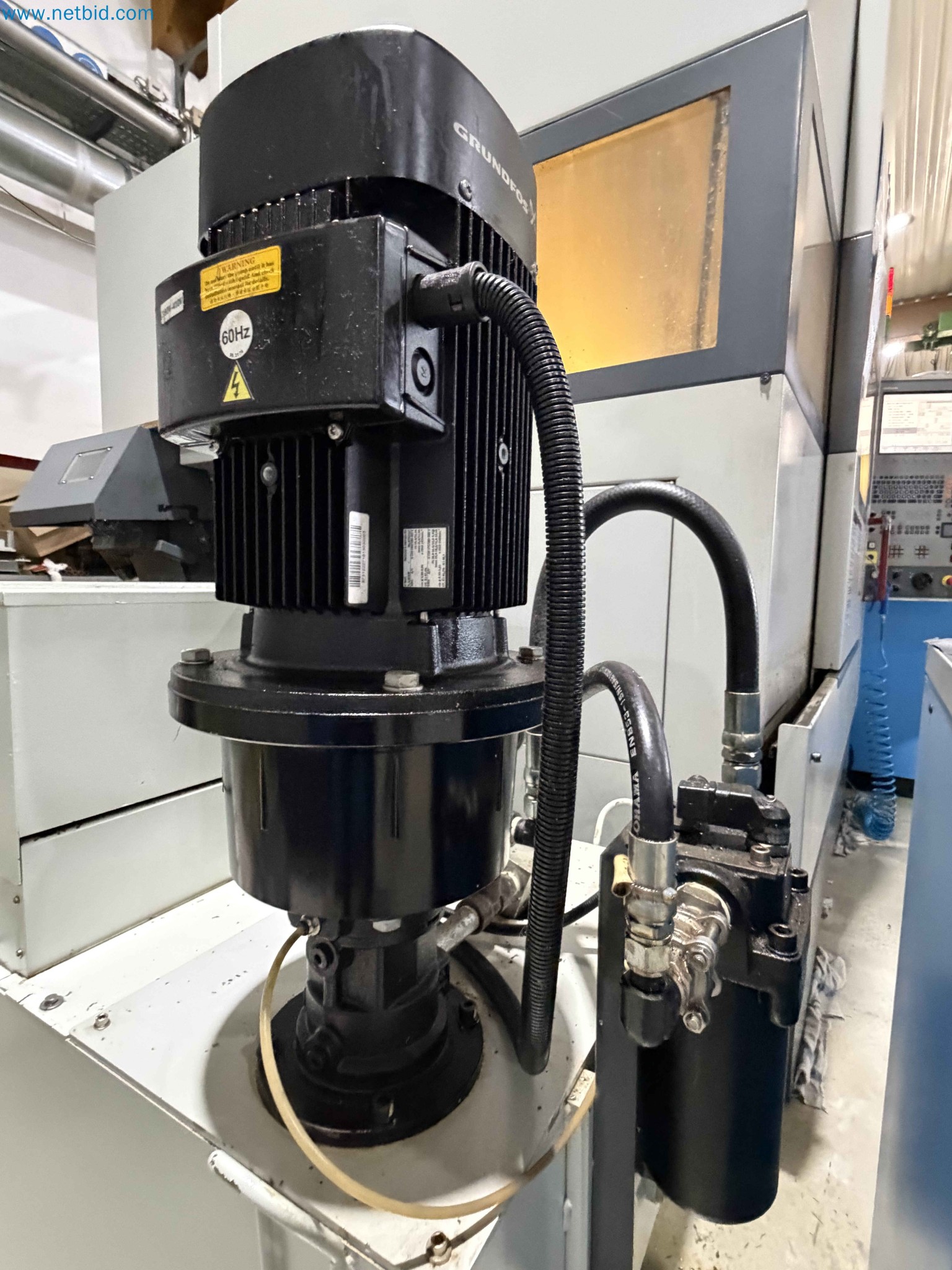

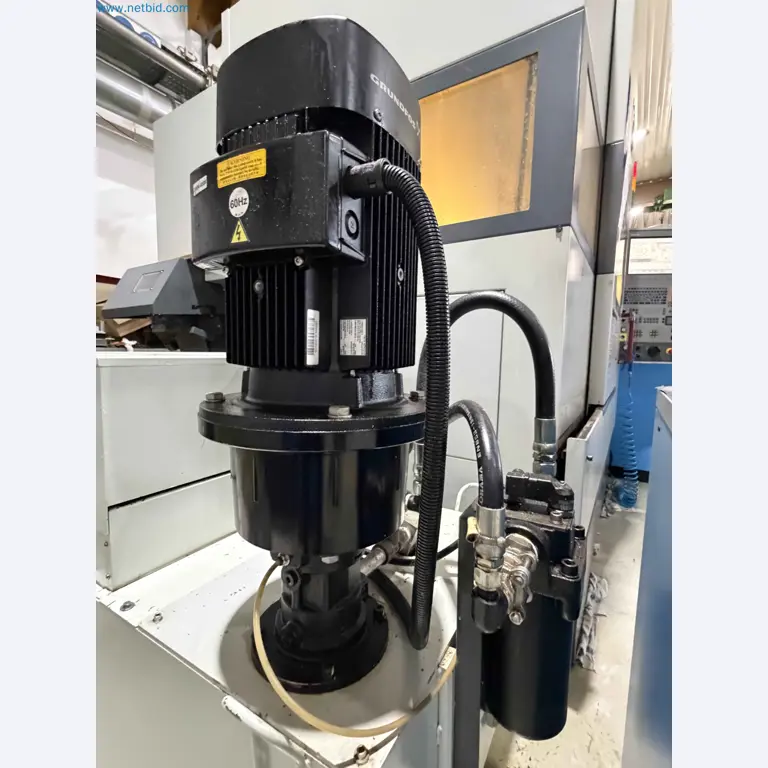

Grundfos pump
Complete circuit

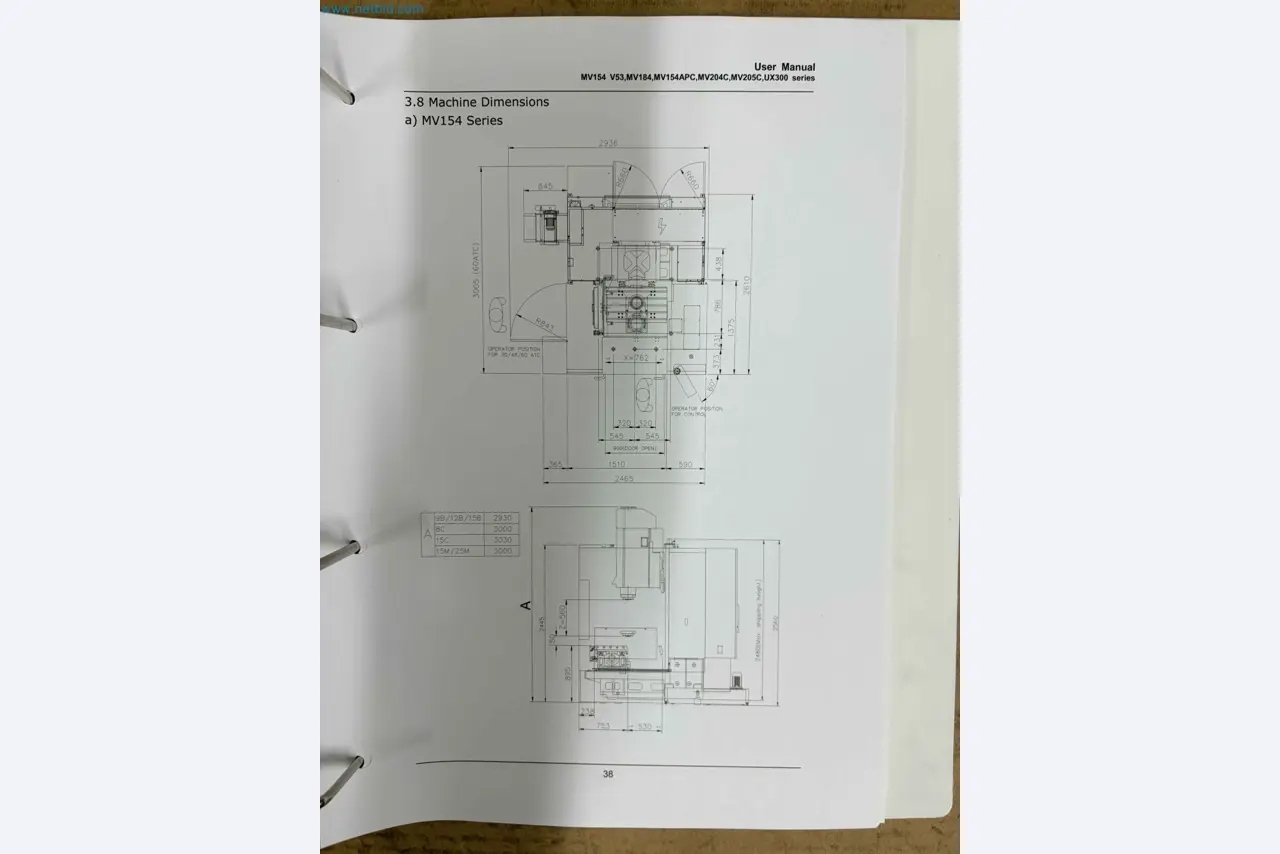

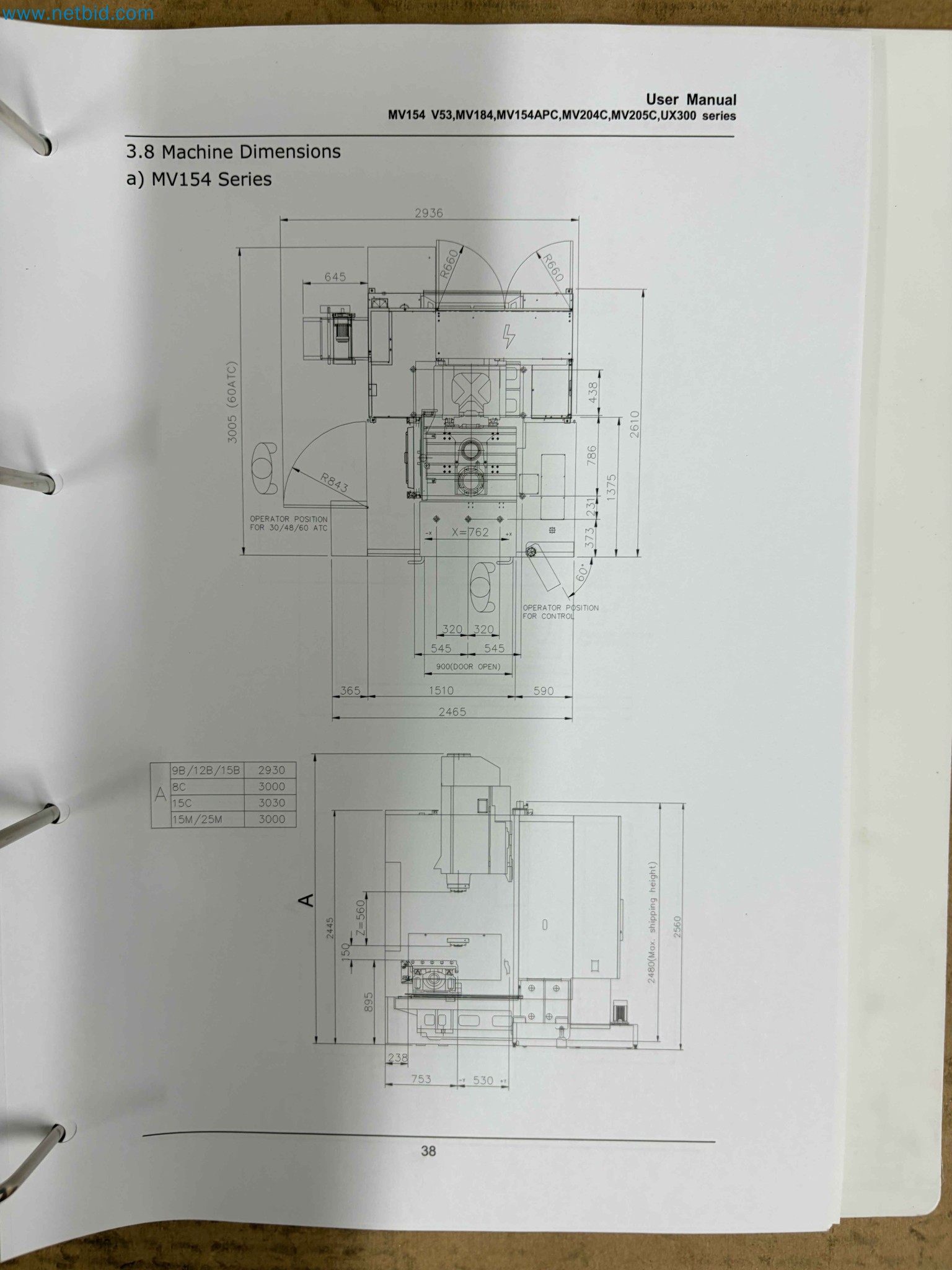

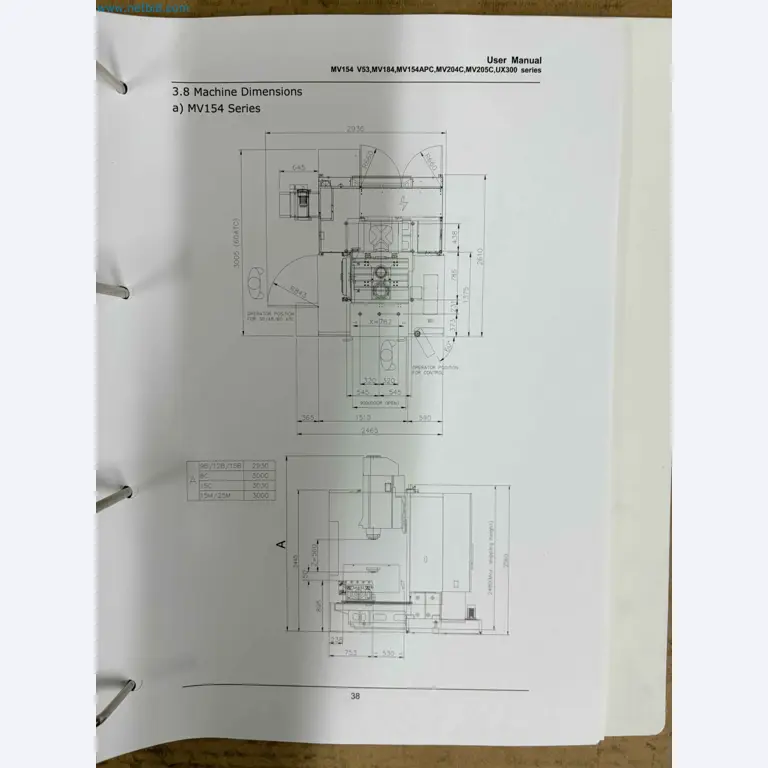

Approx. dimensions: 2470 x 2540 x 2830 mm

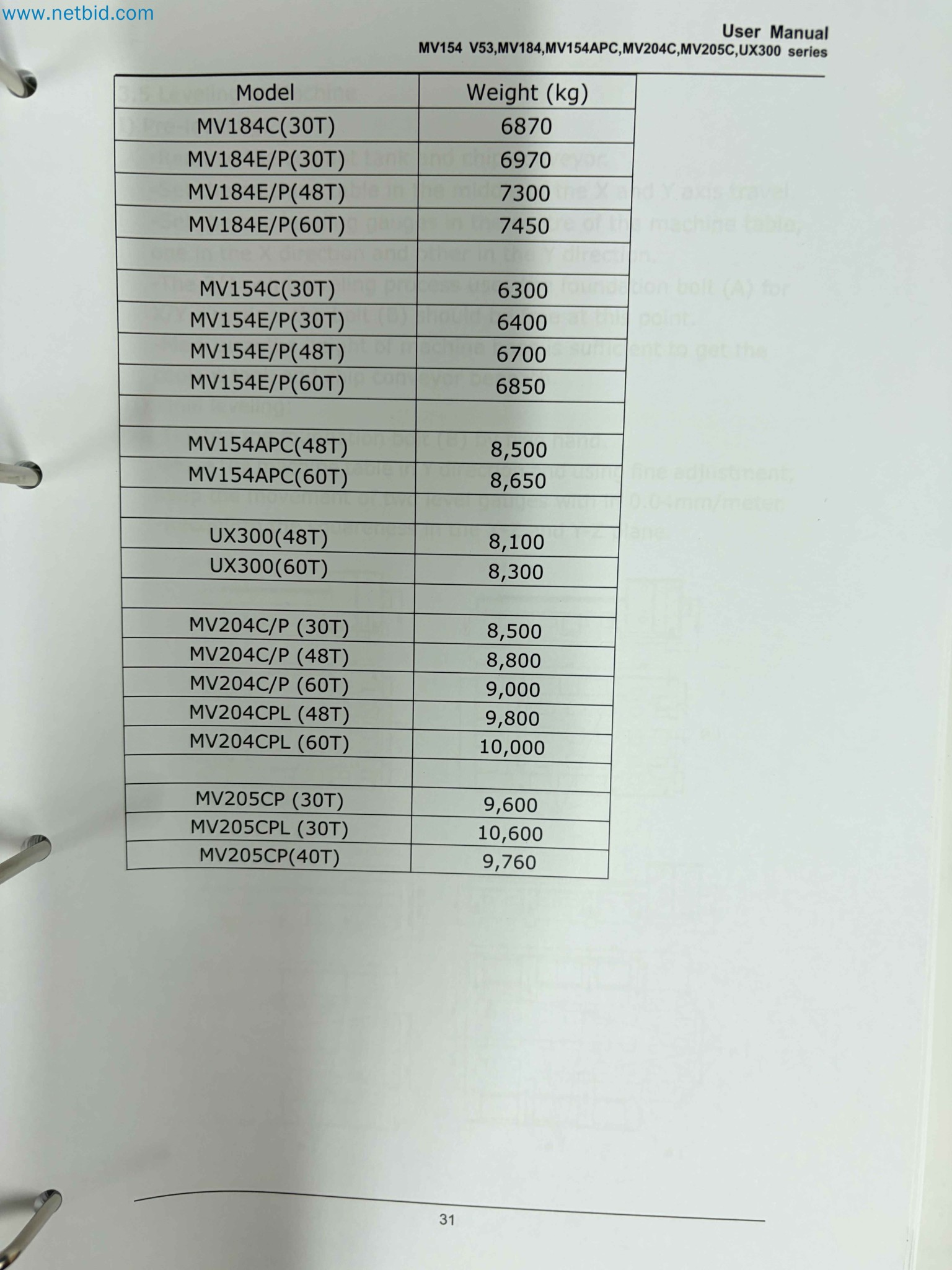

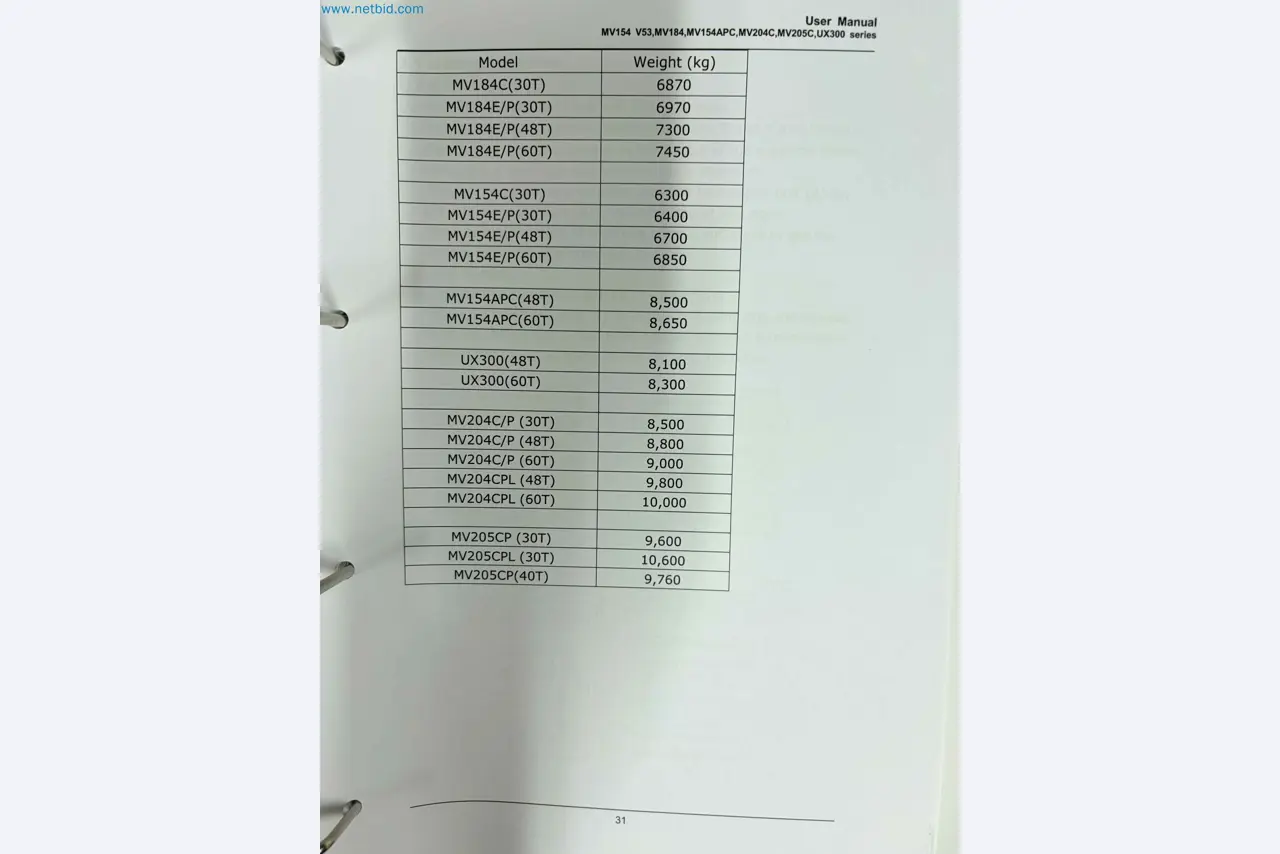

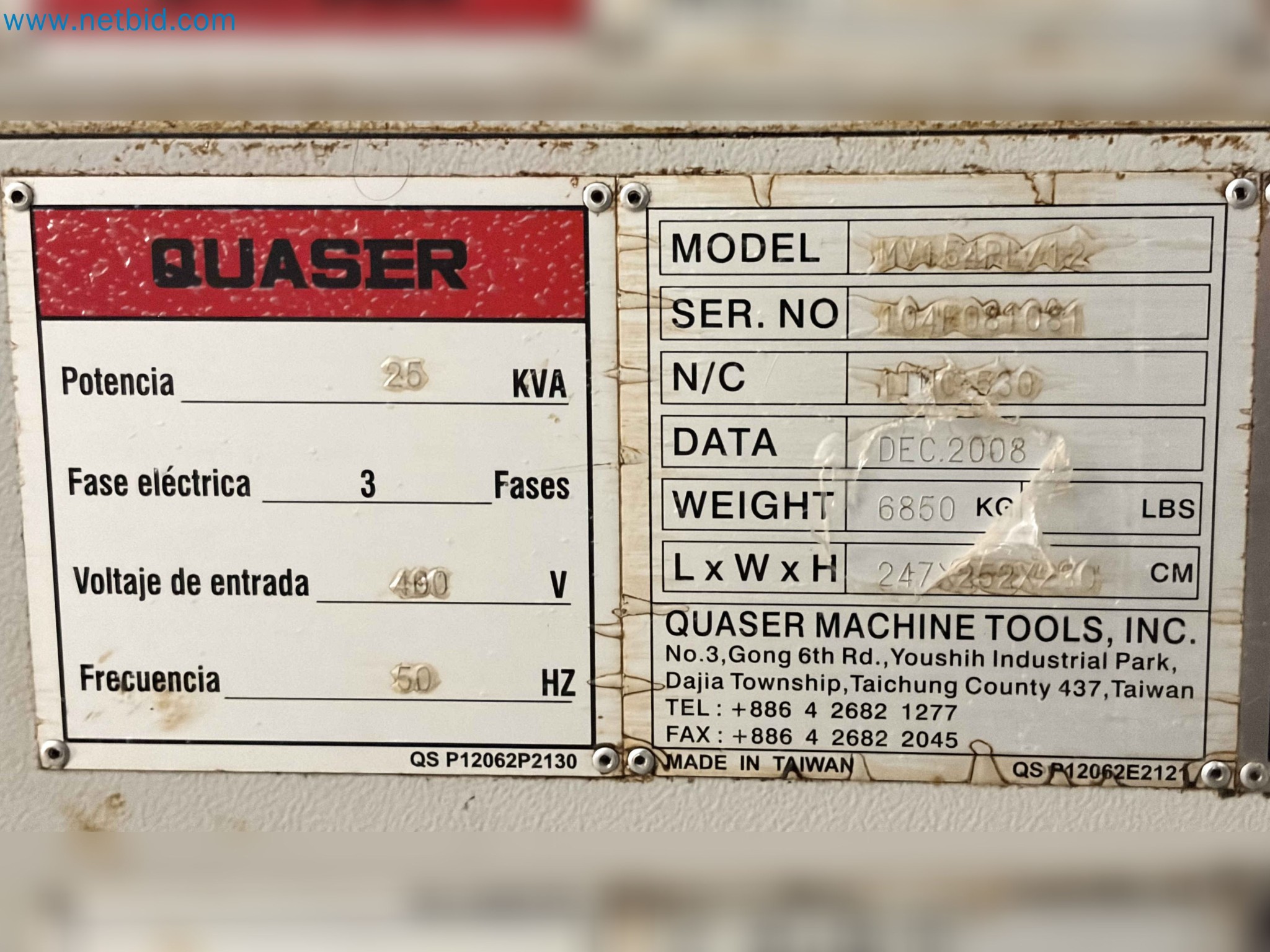

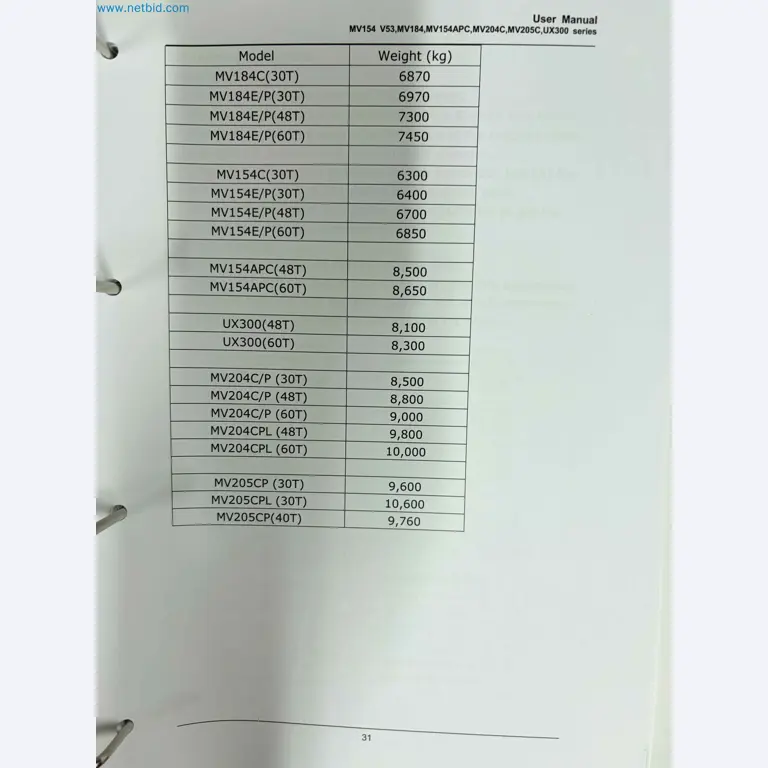

Approximate weight: 6.850 kg
Optional dismantling and loading cost provided by third parties: €600.
Any additional costs related to lot preparation and transport packaging requirements, provided by third parties, are available upon request.
Heidenhain iTNC 530
Axes: X: 1020 mm
Y: 500 mm
Z: 500 mm
Table size: 1,200 x 500 mm
Maximum table load: 500 kg
System:
Cone and face contact
Taper: BT40 Big-Plus
Spindle:
BIG-PLUS BT40
Spindle taper: SK40 / ISO 40
Spindle speed: 40 – 12,000 rpm
Spindle motor power: 18.5 kW
Working feed rate: 0 – 20,000 mm/min
Rapid traverse: 40 m/min
Tool magazine: 30 positions
Automatic tool changer
Through-spindle coolant (IKZ)
Chip conveyor
Programming:
Conversational
ISO
Interface:
Tool management
Axis monitoring
Simulation and execution
Cooling System:
External tank
Grundfos pump
Complete circuit
Approx. dimensions: 2470 x 2540 x 2830 mm
Approximate weight: 6.850 kg
Optional dismantling and loading cost provided by third parties: €600.
Any additional costs related to lot preparation and transport packaging requirements, provided by third parties, are available upon request.
