Furniture production line HOMAGLIVE#19639-4

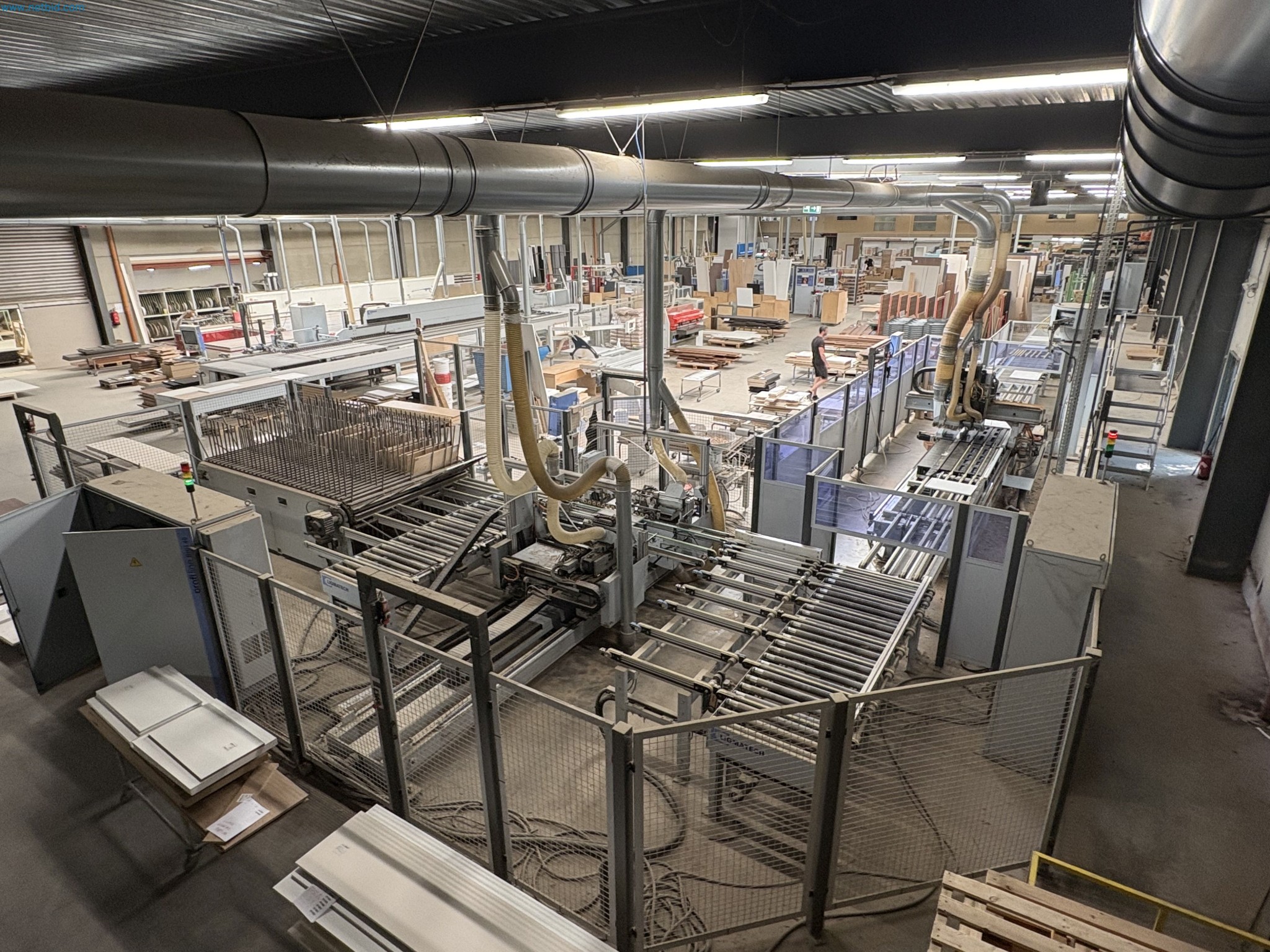

Fully automated HOMAG/WEEKE/LIGMATECH furniture production line designed for the production of cabinet components and cabinet carcasses (kitchens, wardrobes, bathroom furniture, office furniture, etc.).

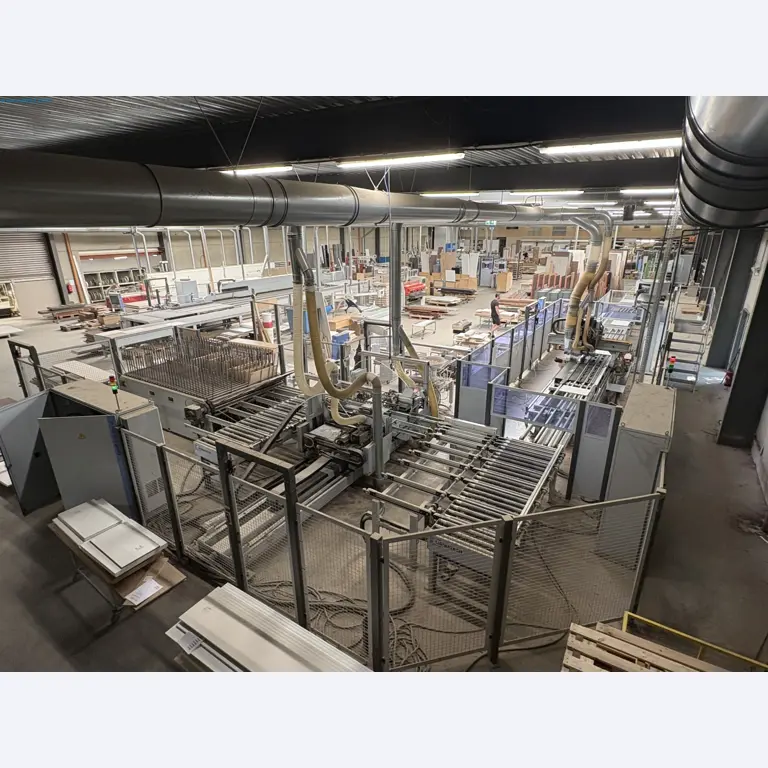

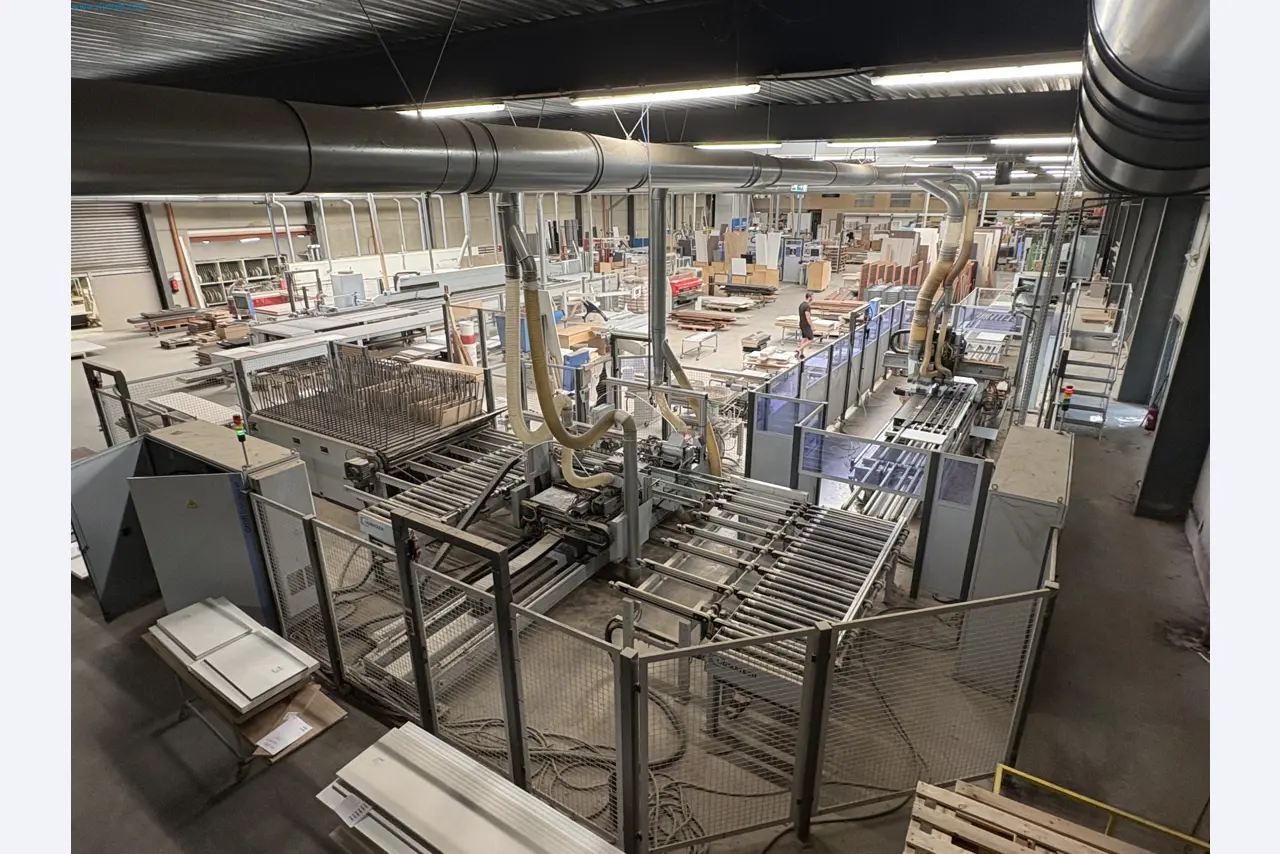

Production Line Configuration

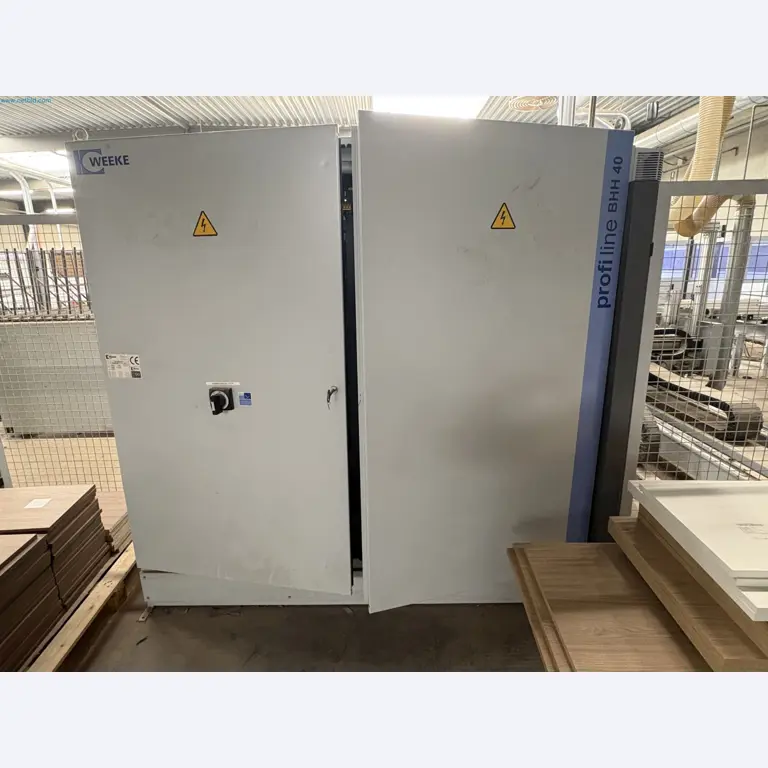

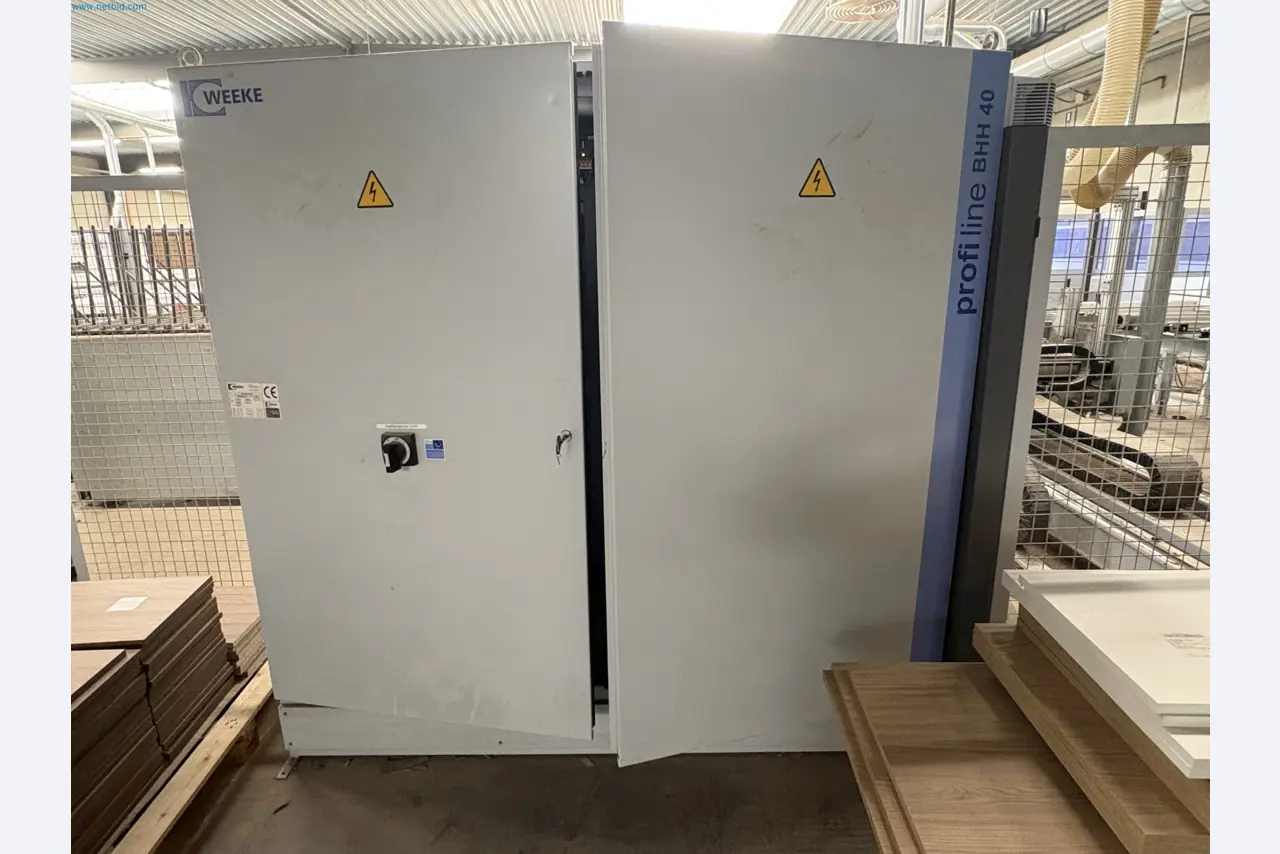

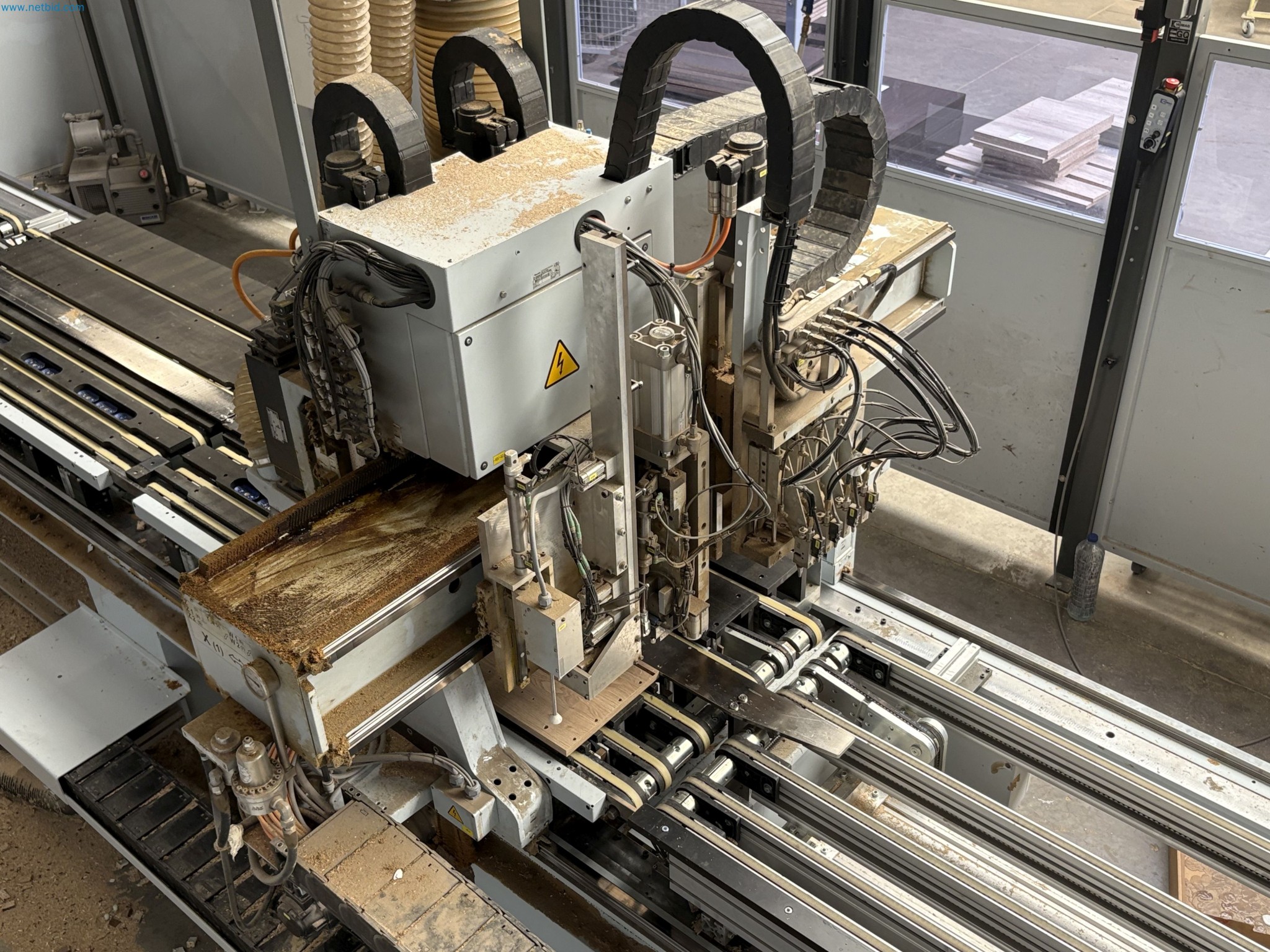

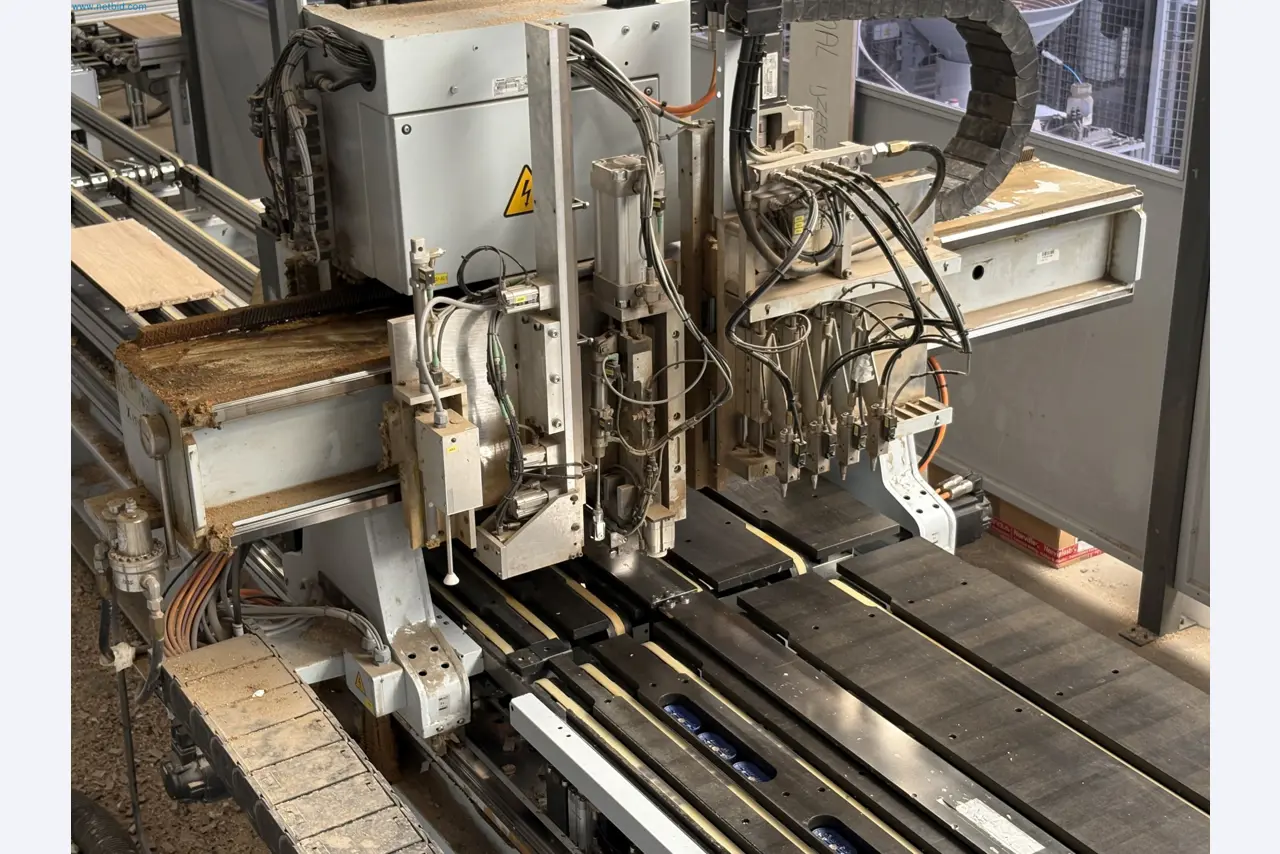

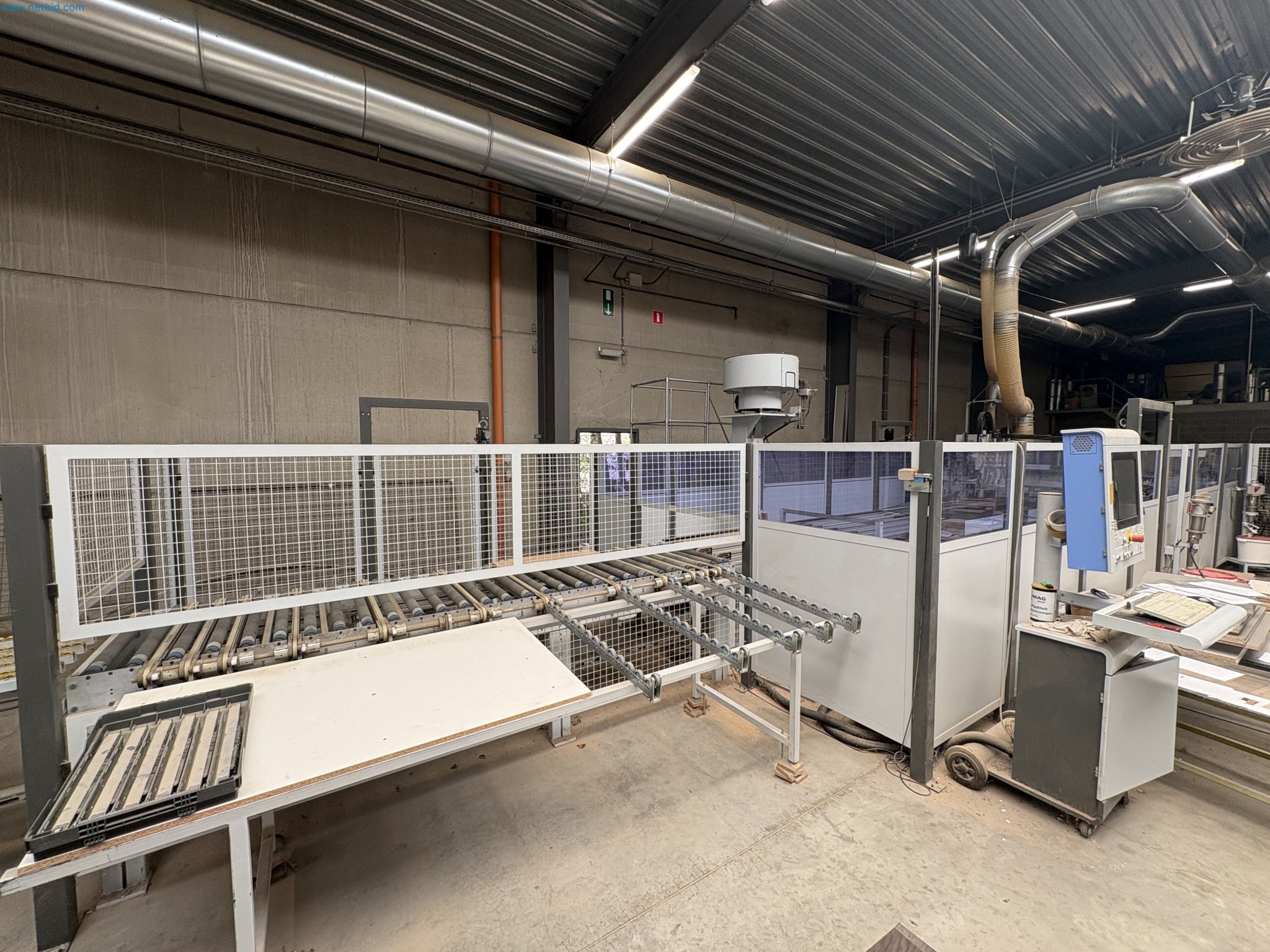

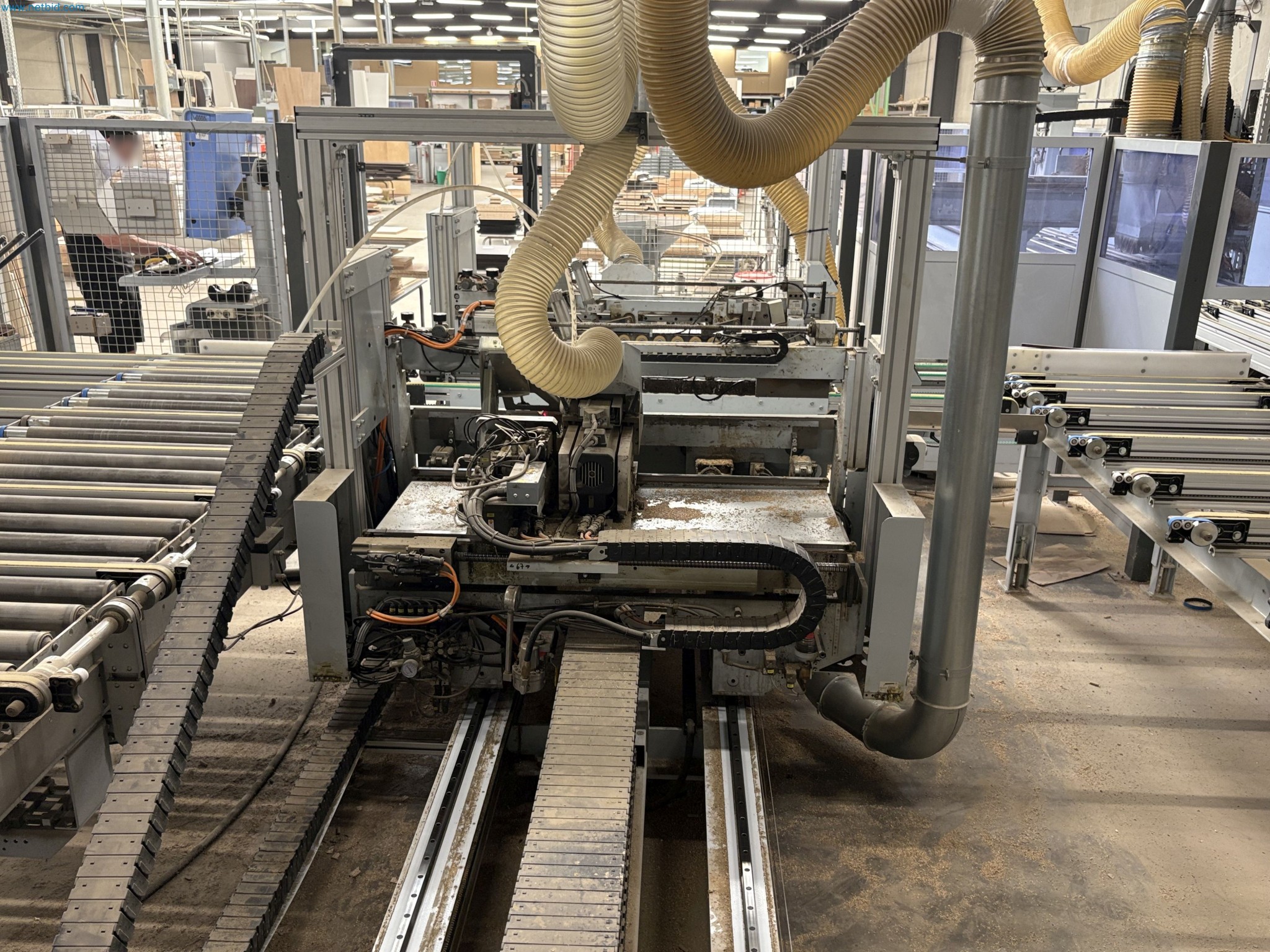

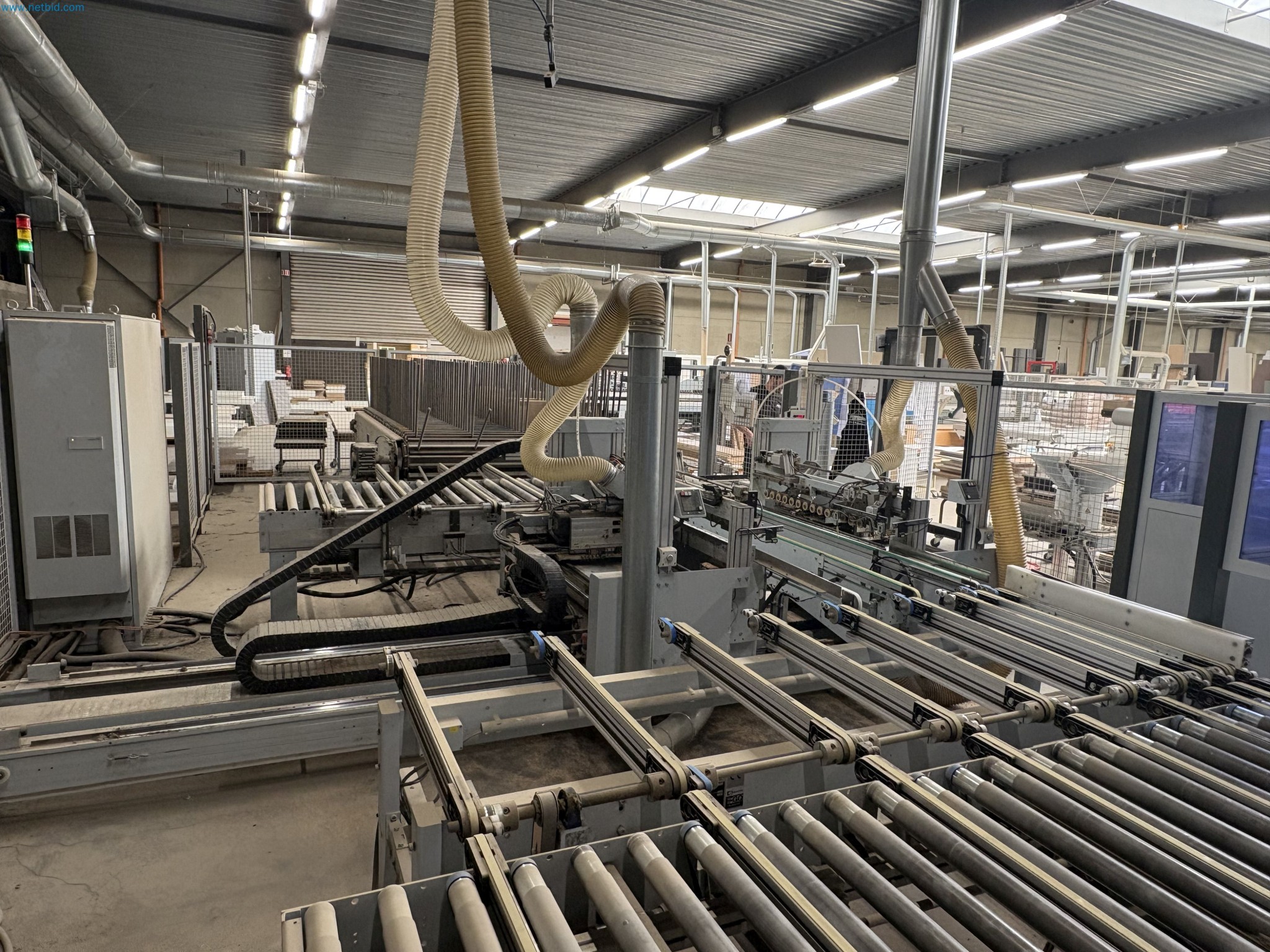

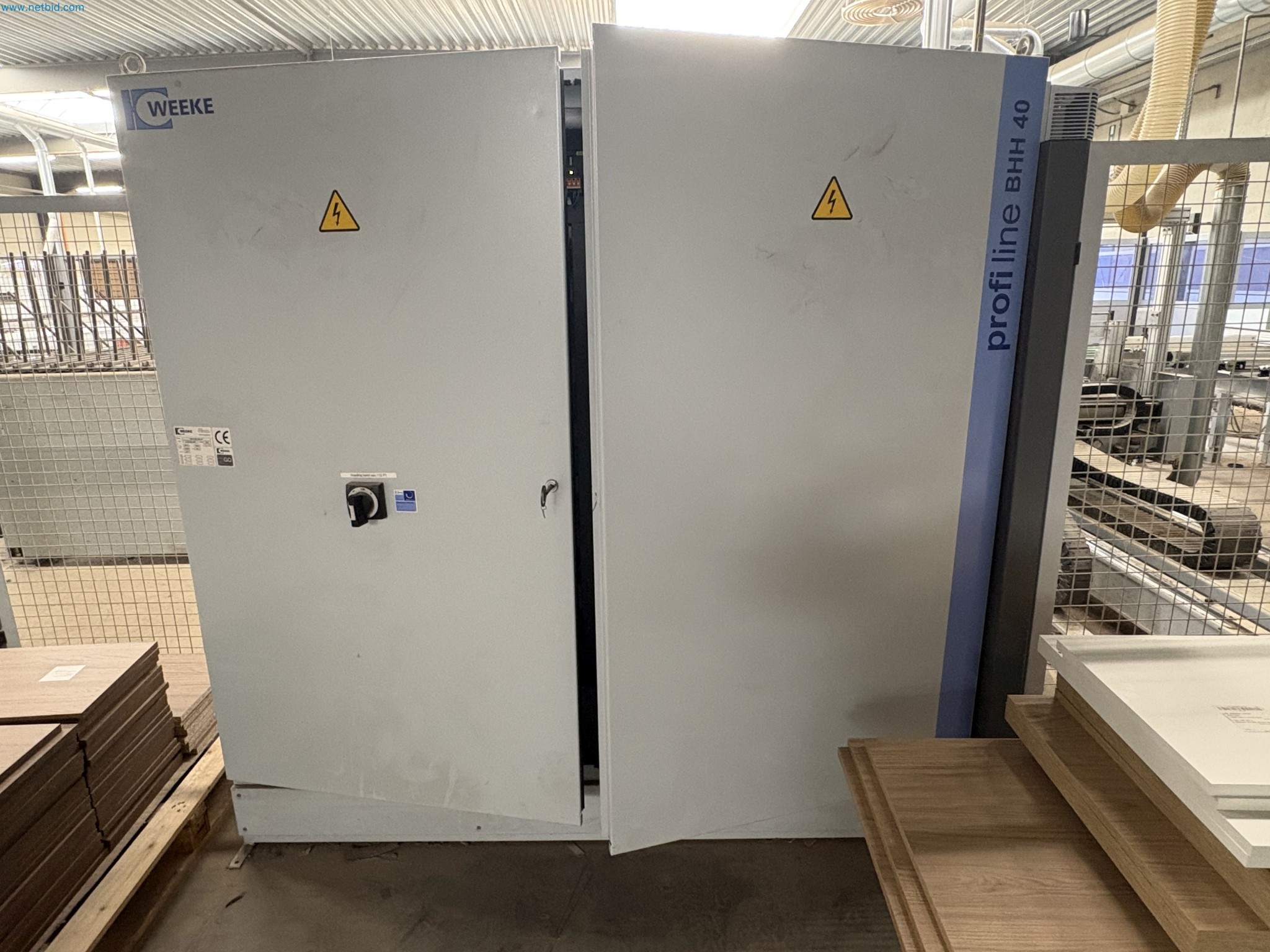

1. WEEKE PROFILINE BHH 40

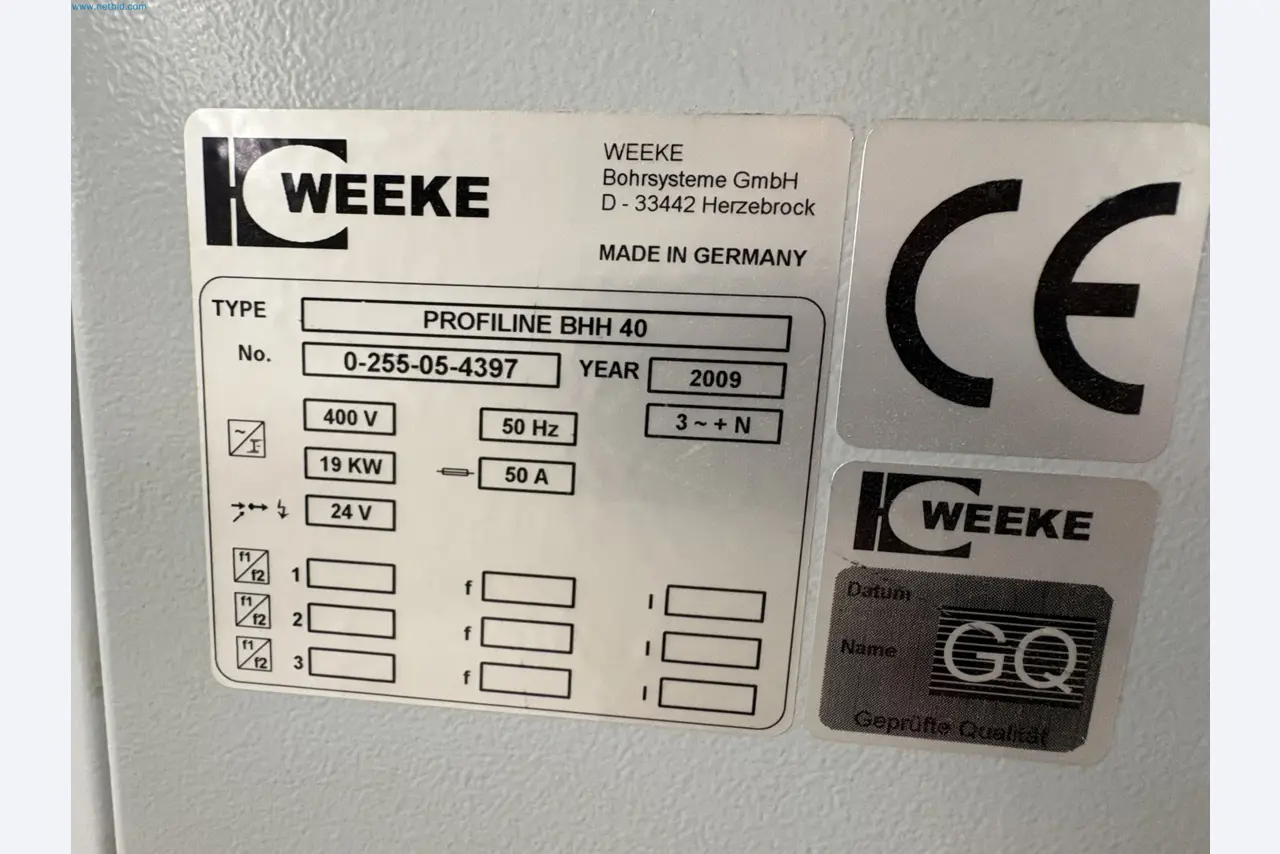

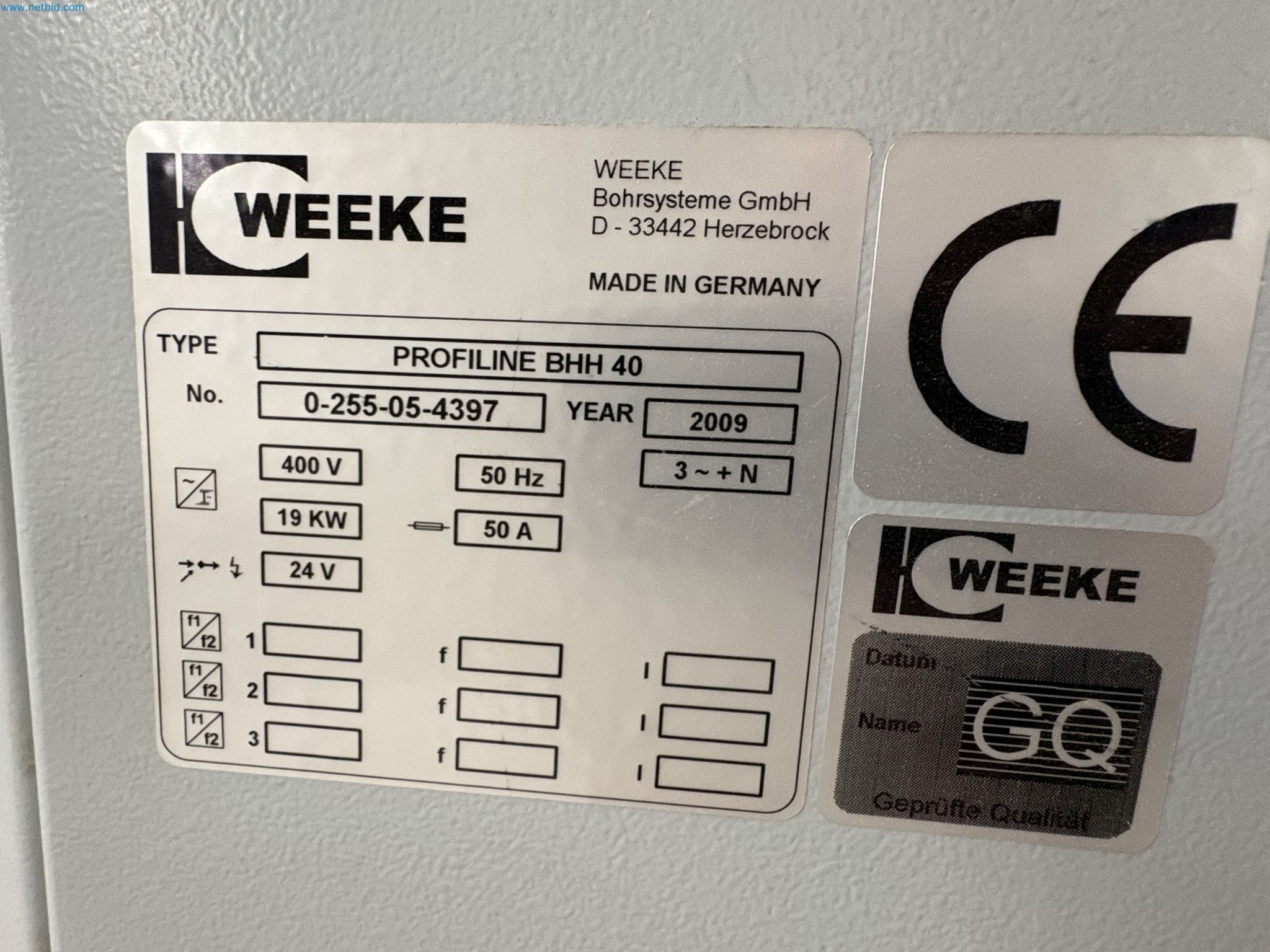

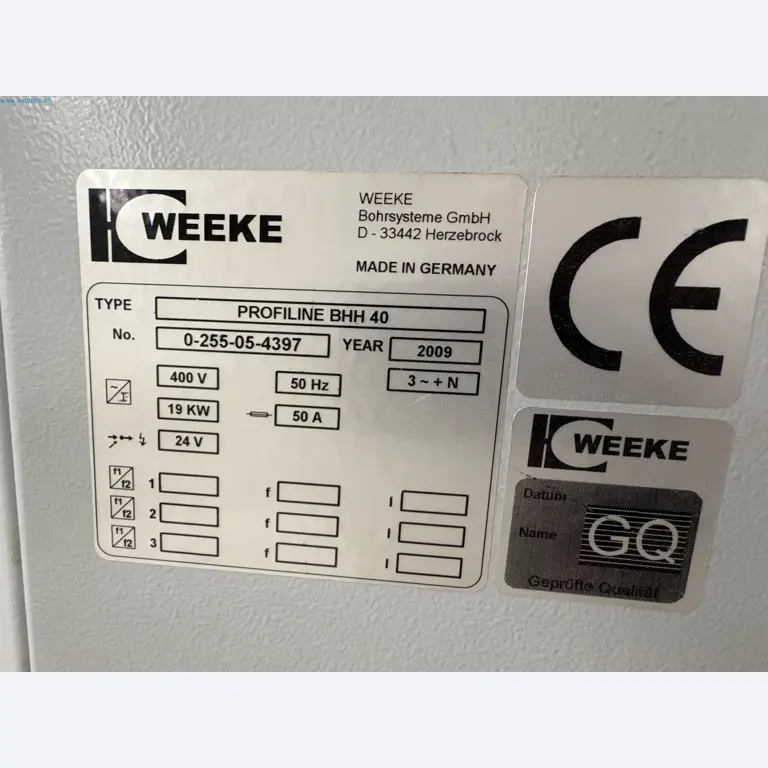

Year of manufacture: 2009
Power supply: 400 V, 50 Hz, 19 kW

Function:

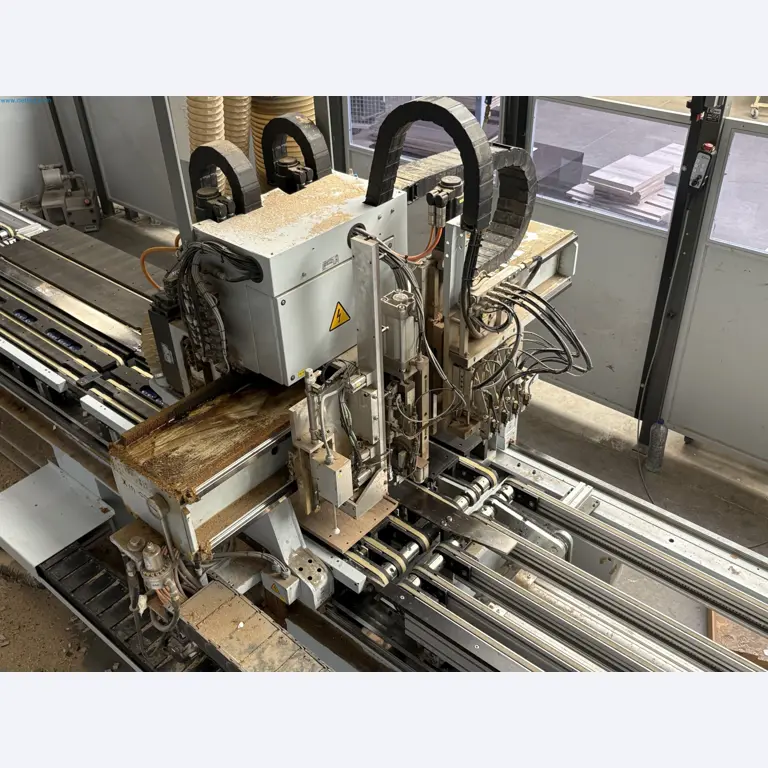

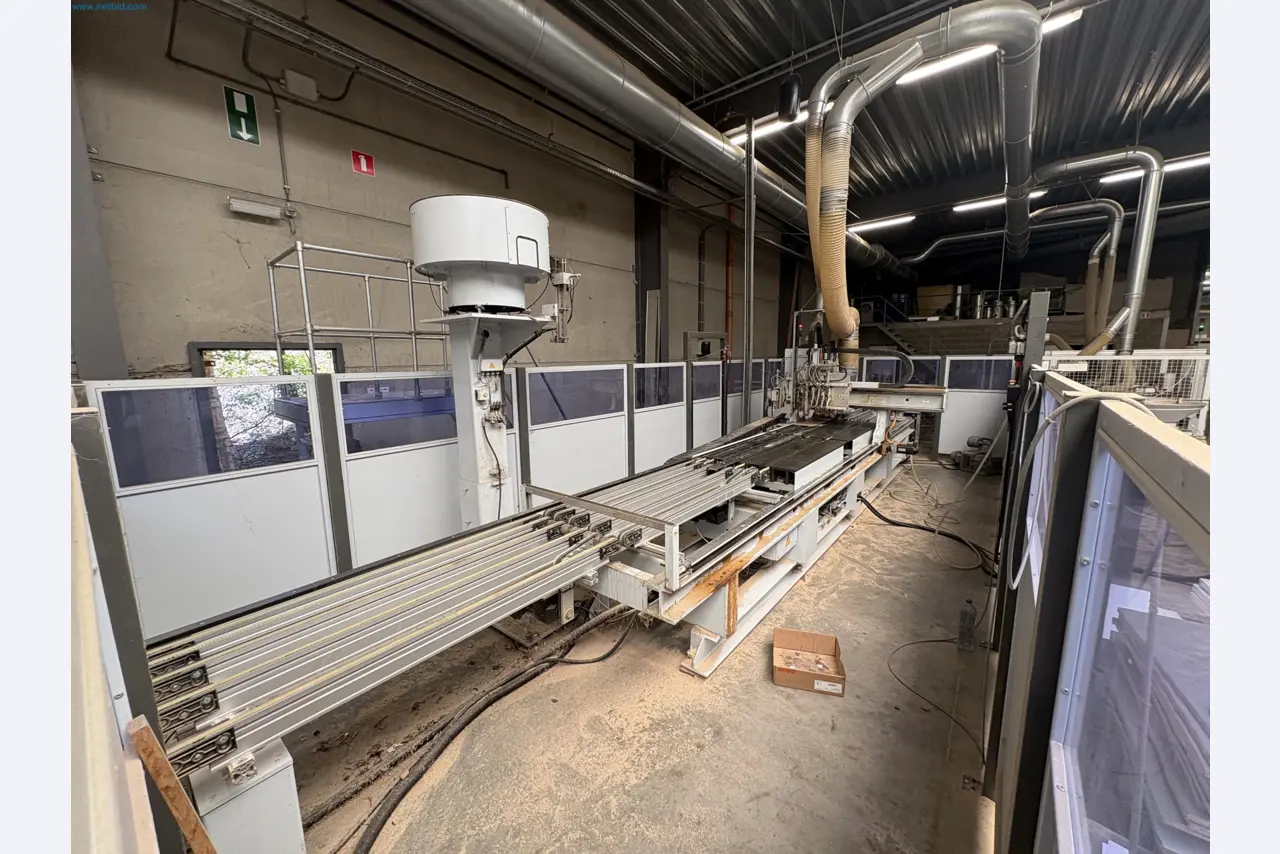

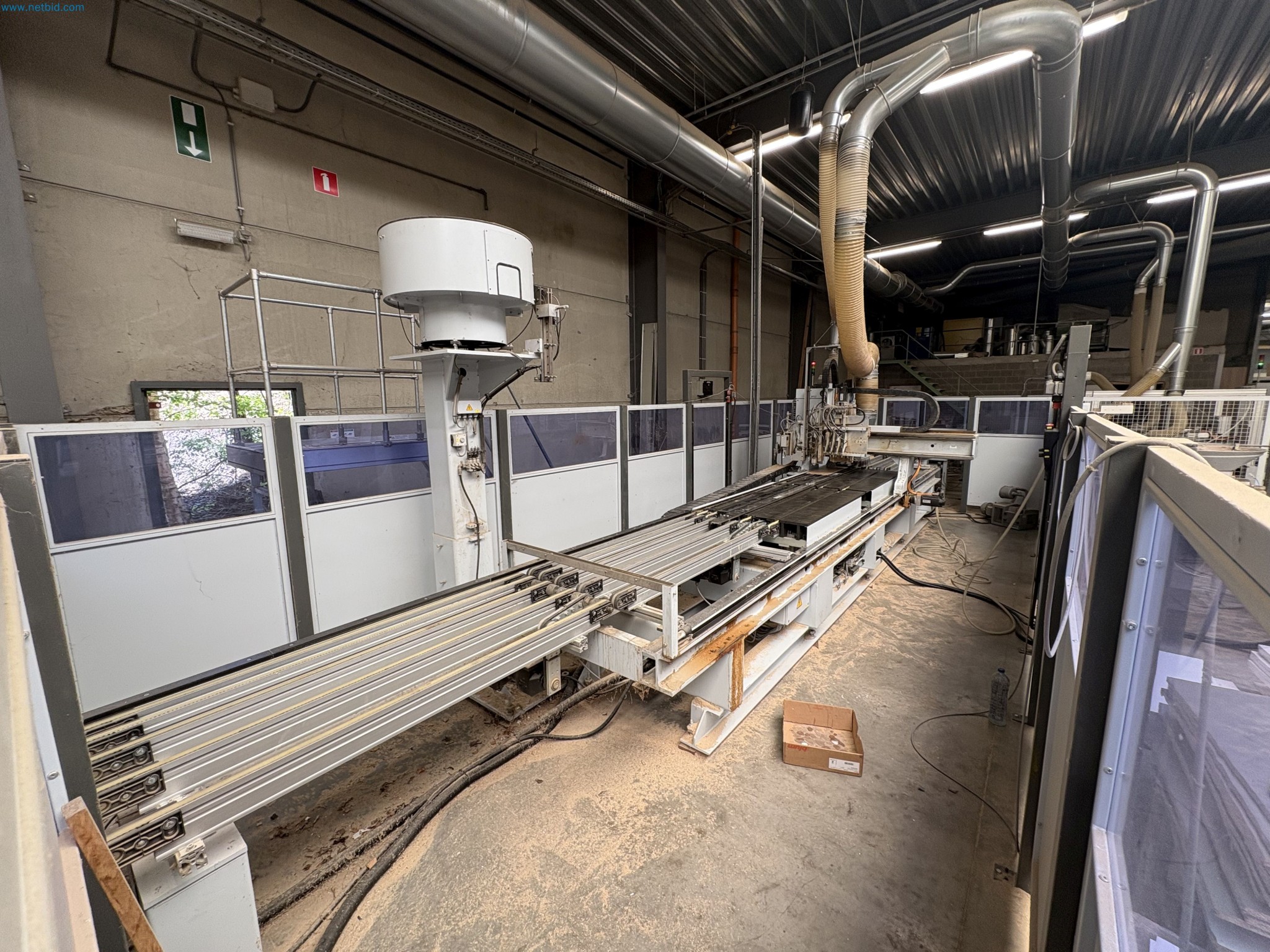

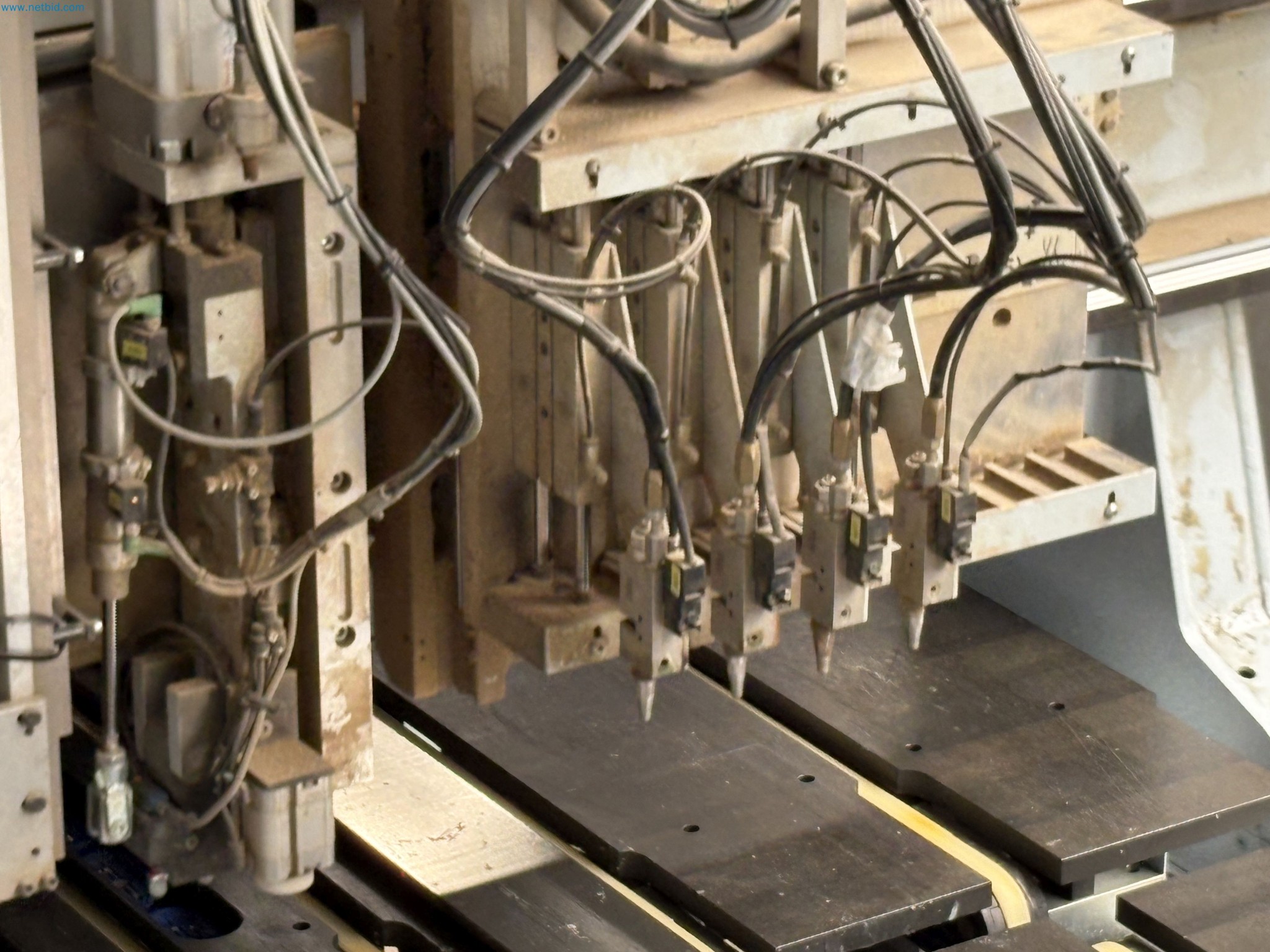

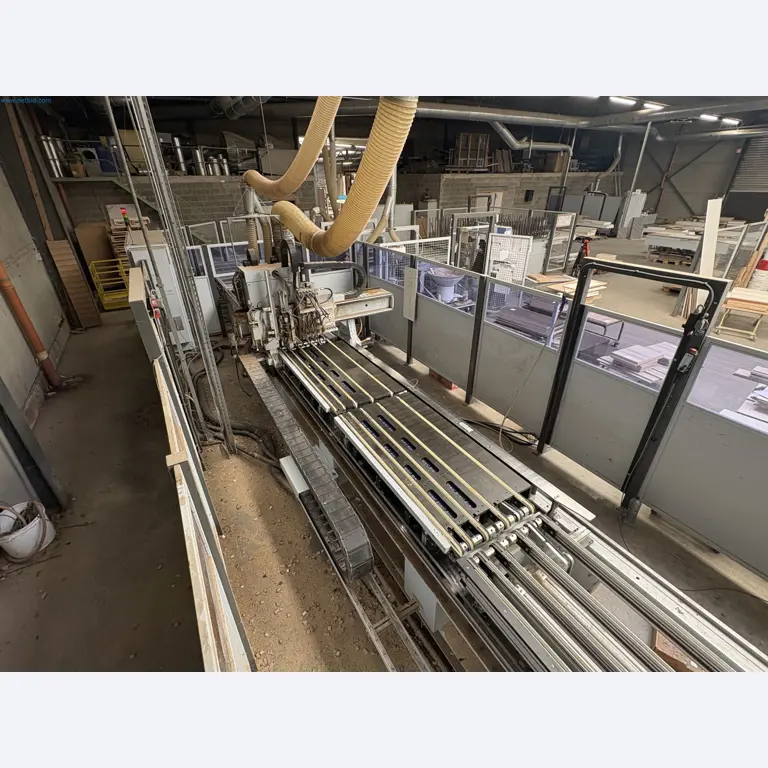

CNC through-feed drilling machine for machining the narrow edges of panels.
Drills dowel holes and fixing holes.
Within the production line, this machine processes the panel edges before they are transferred to assembly.

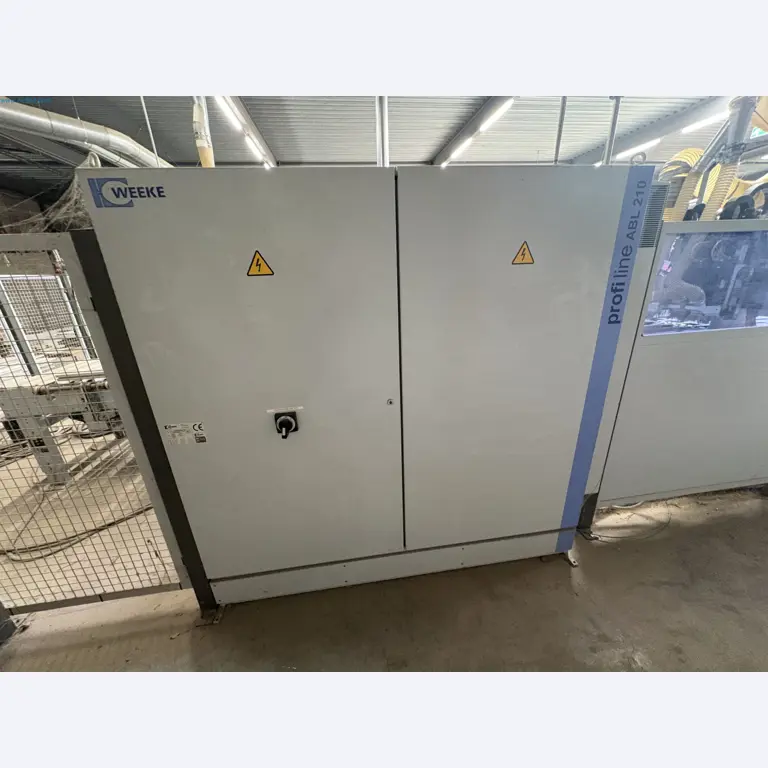

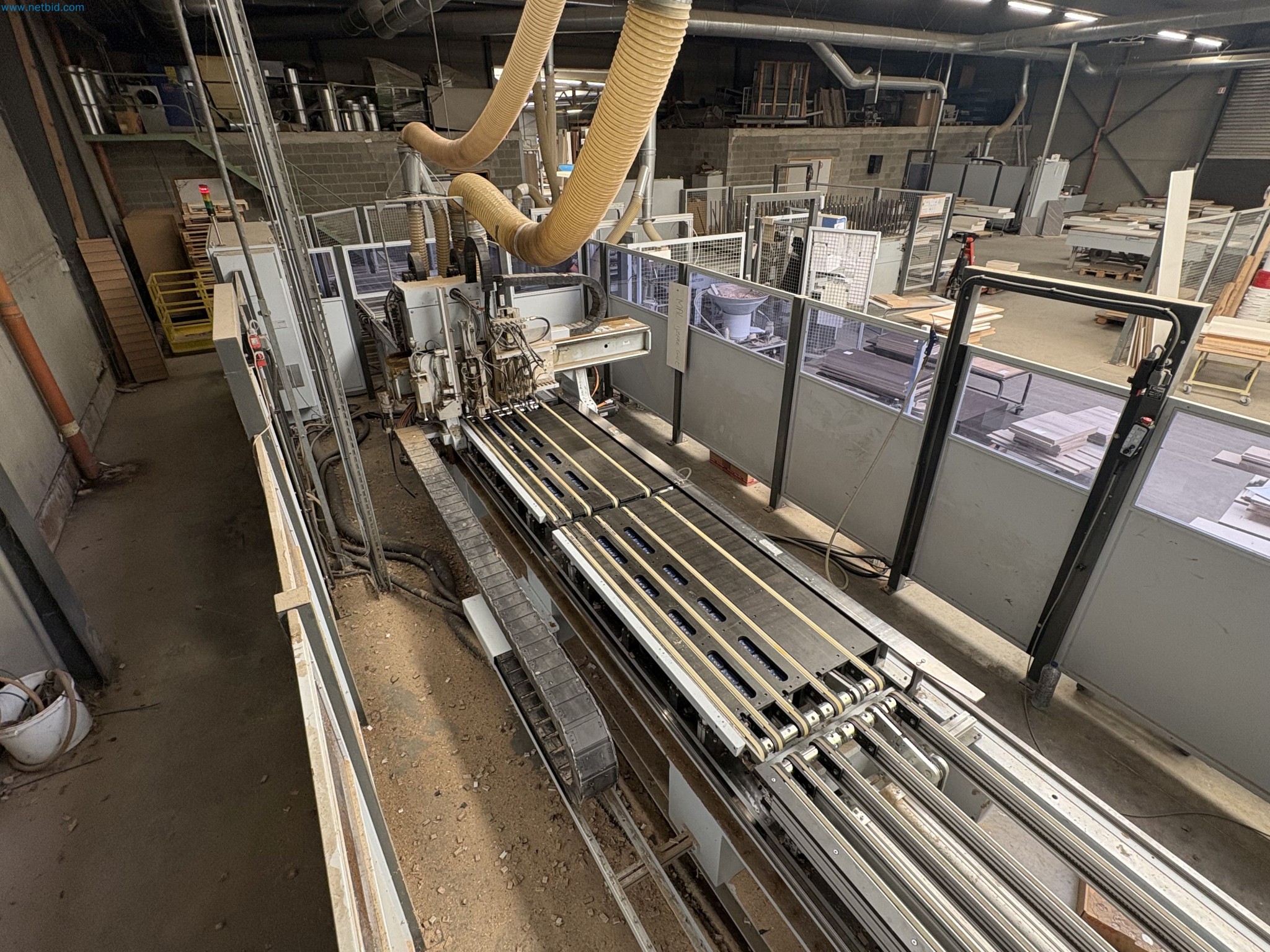

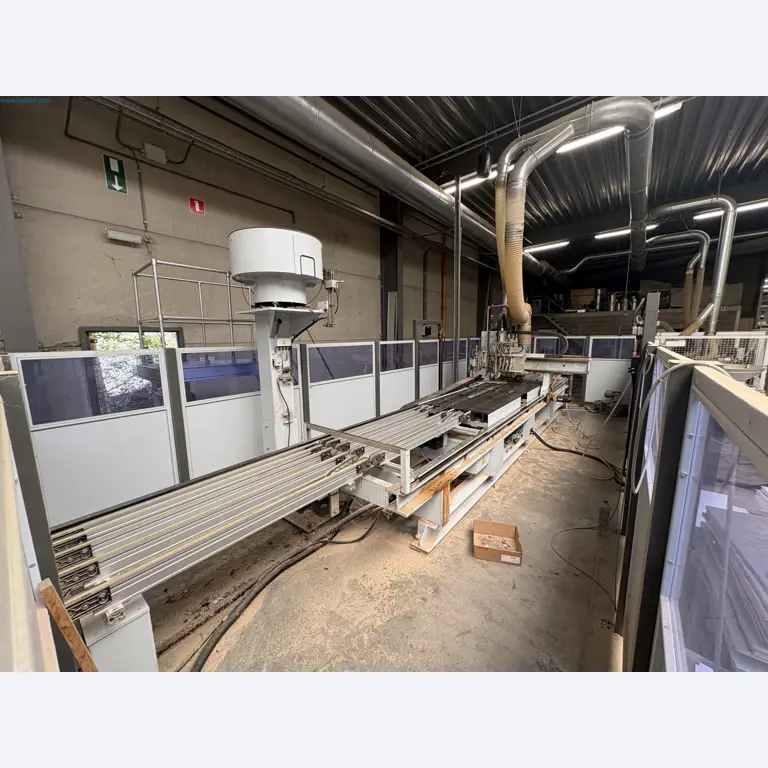

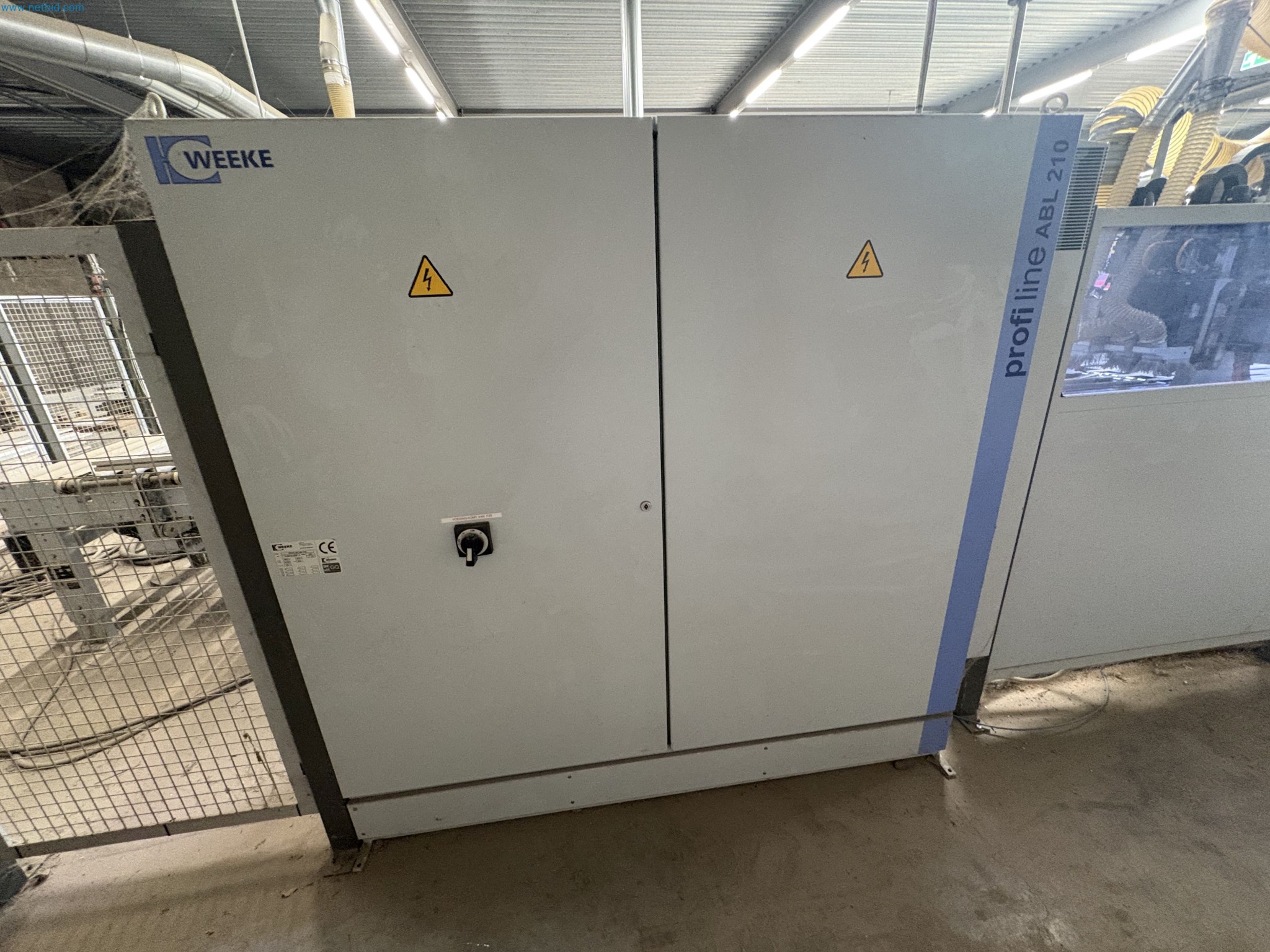

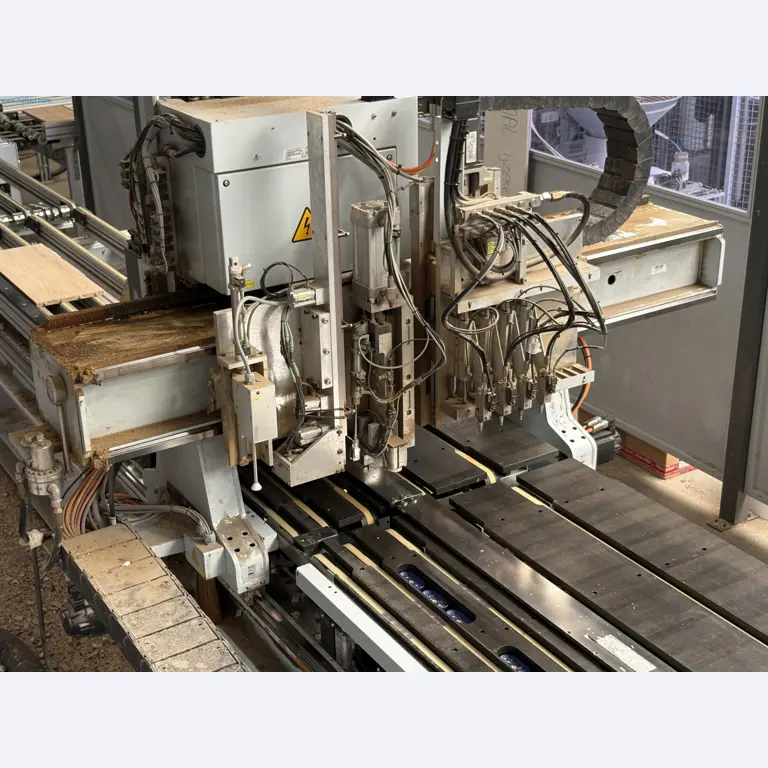

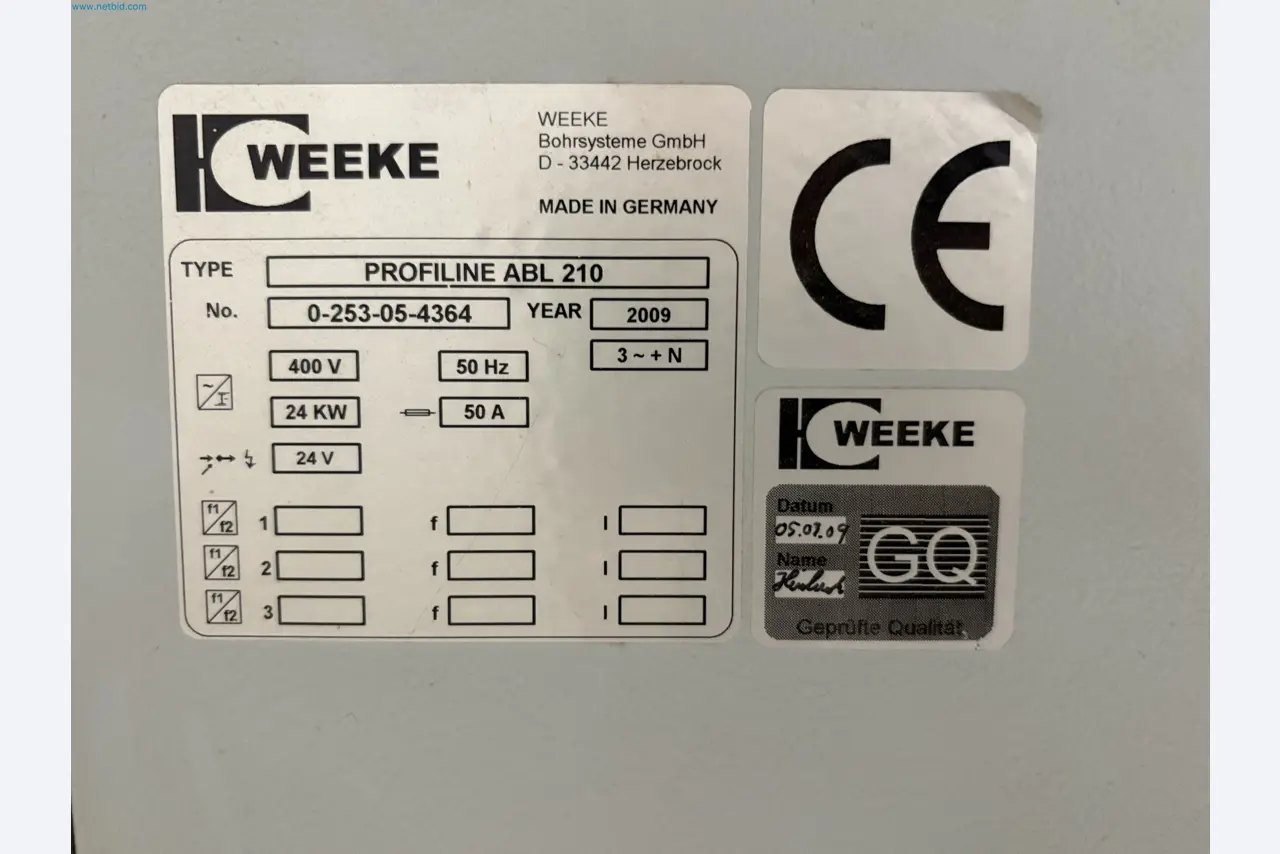

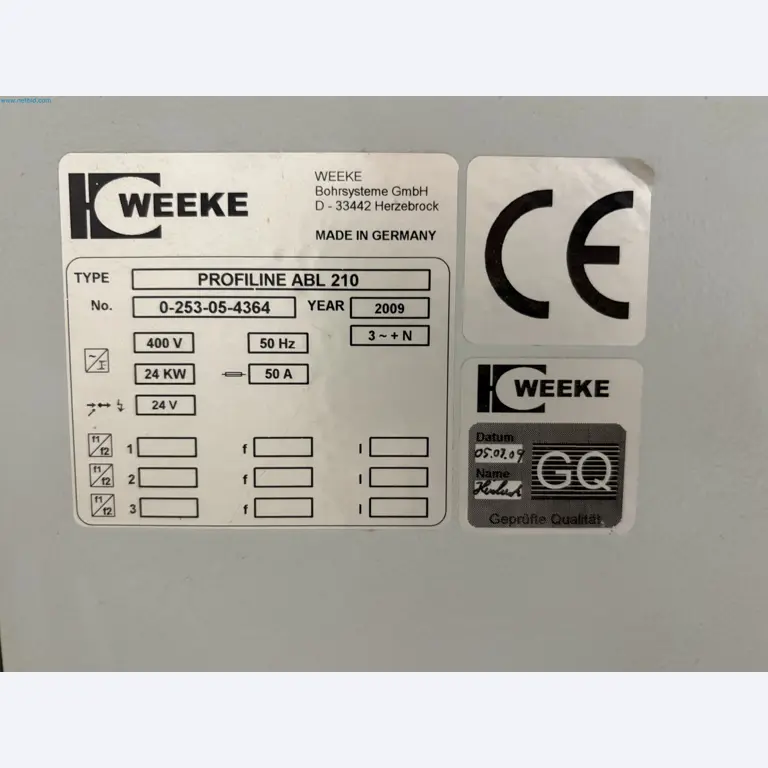

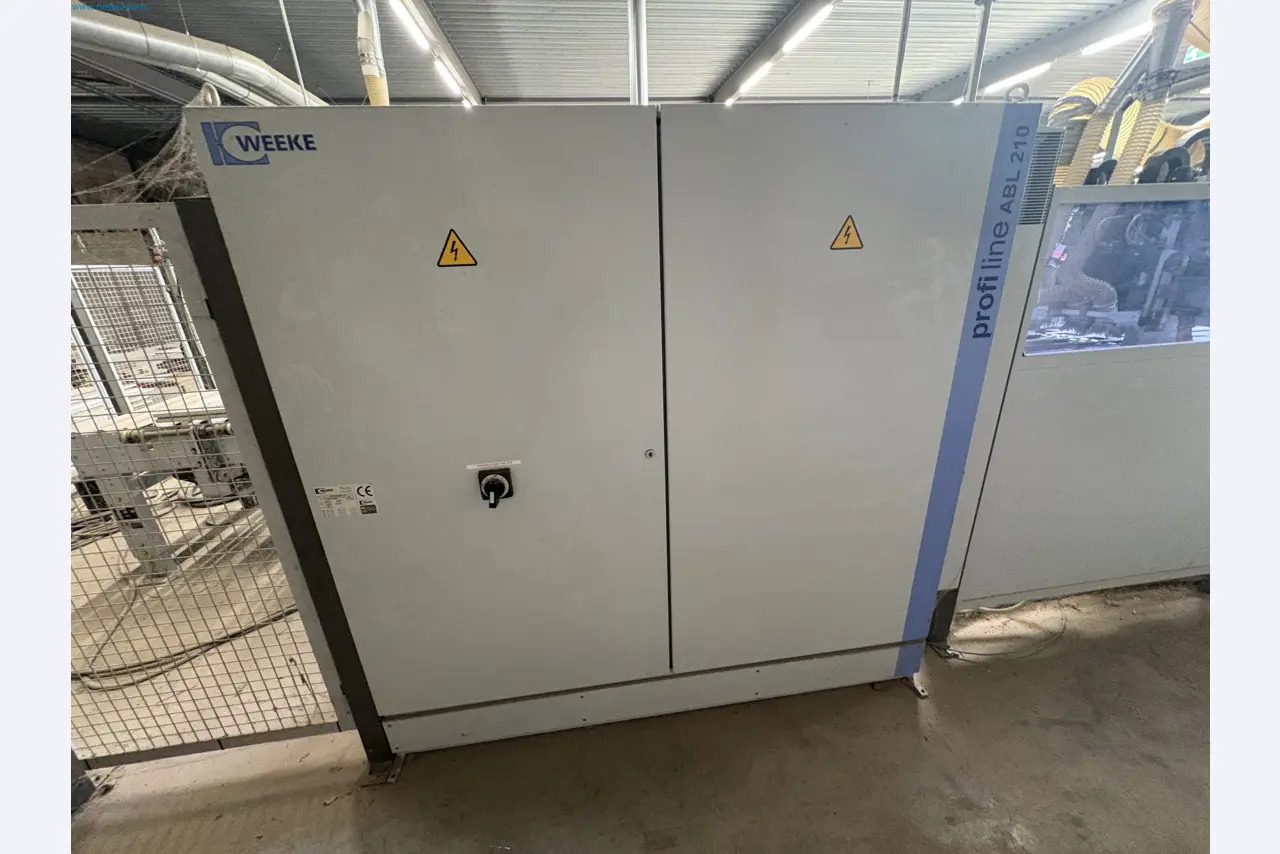

2. WEEKE PROFILINE ABL 210
Year of manufacture: 2009
Power supply: 400 V, 24 kW

Function:

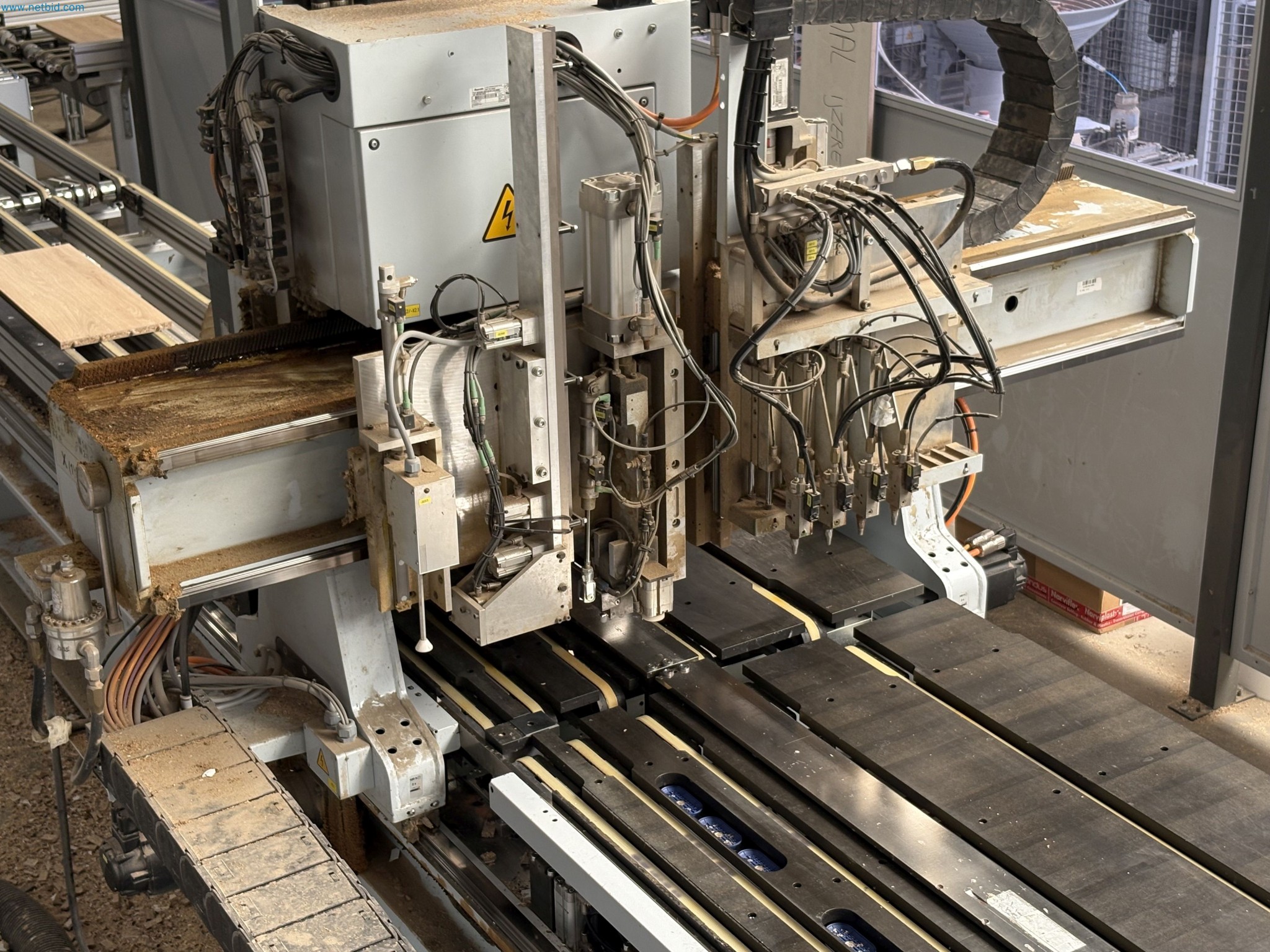

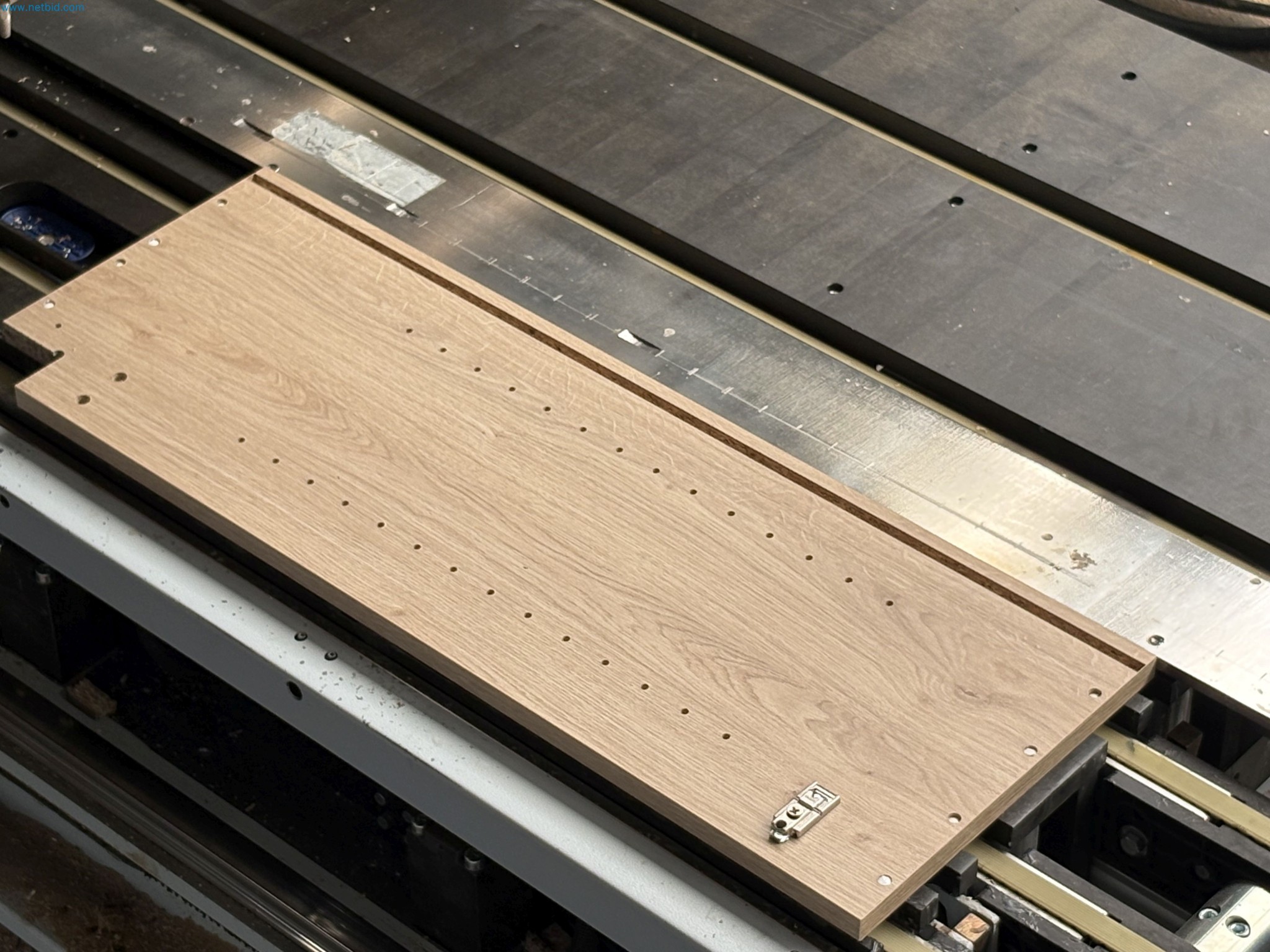

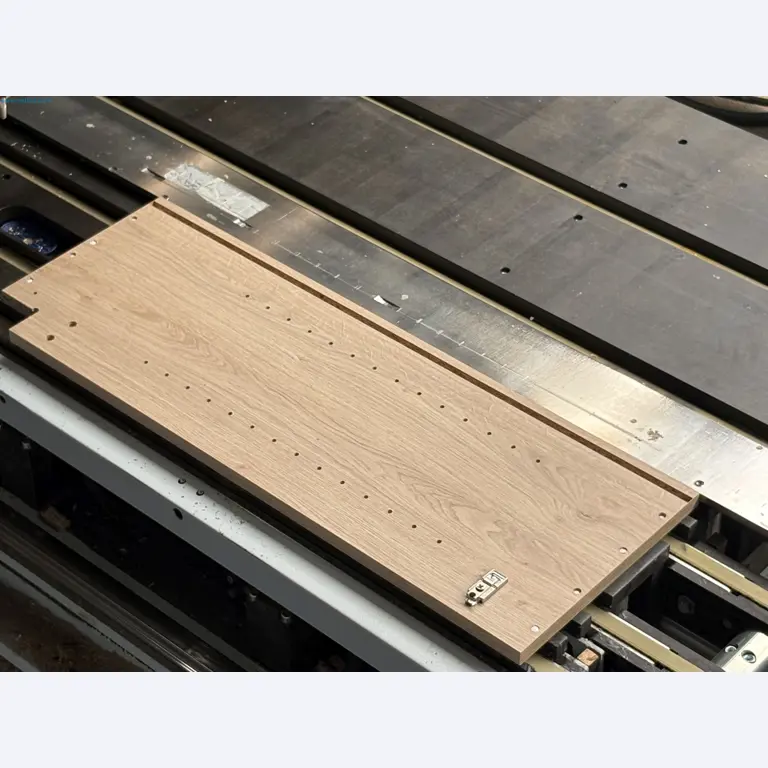

CNC machining center for furniture panels and cabinet components.
Capable of performing:
• Vertical drilling operations
• Hinge cup drilling

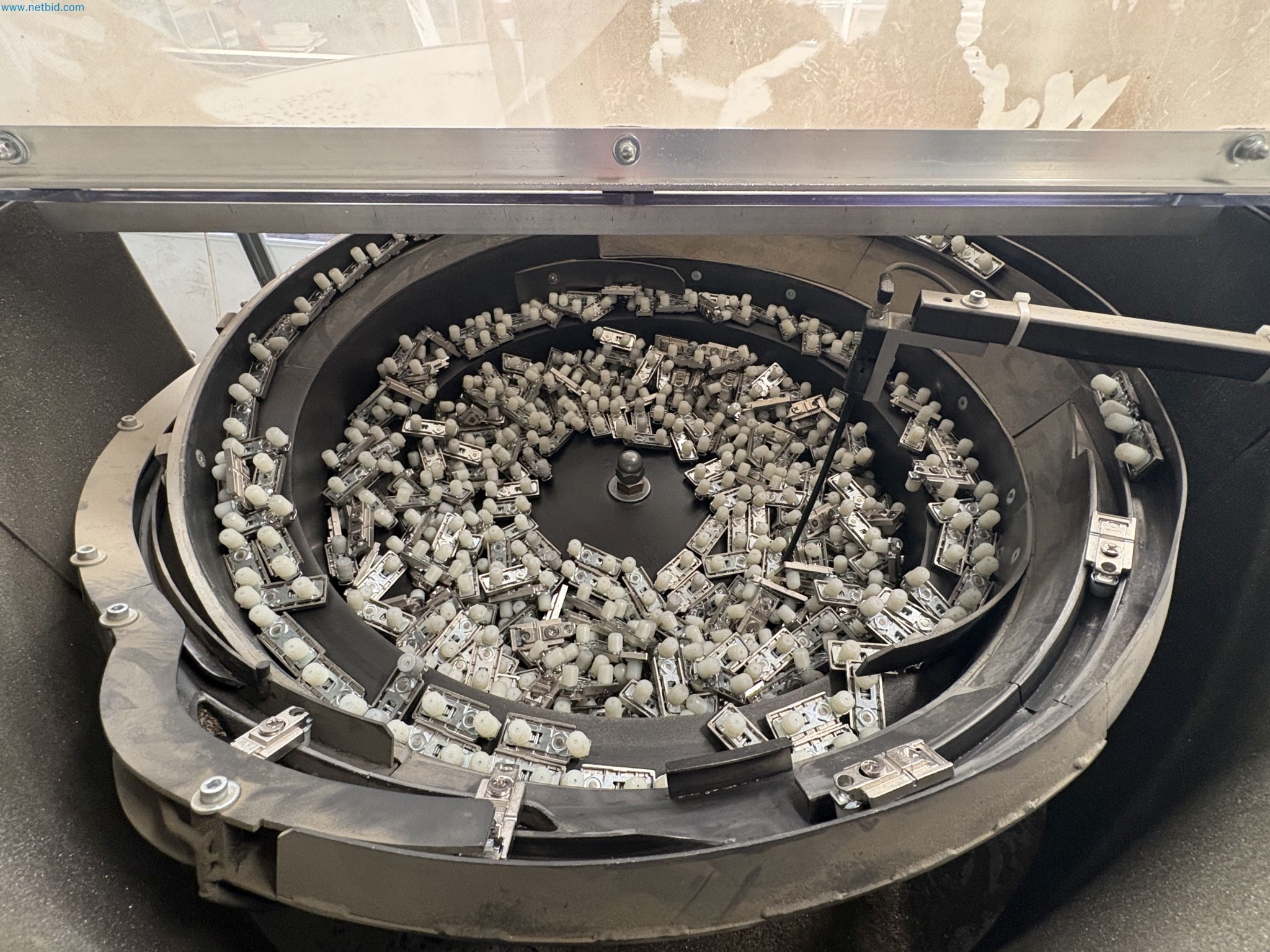

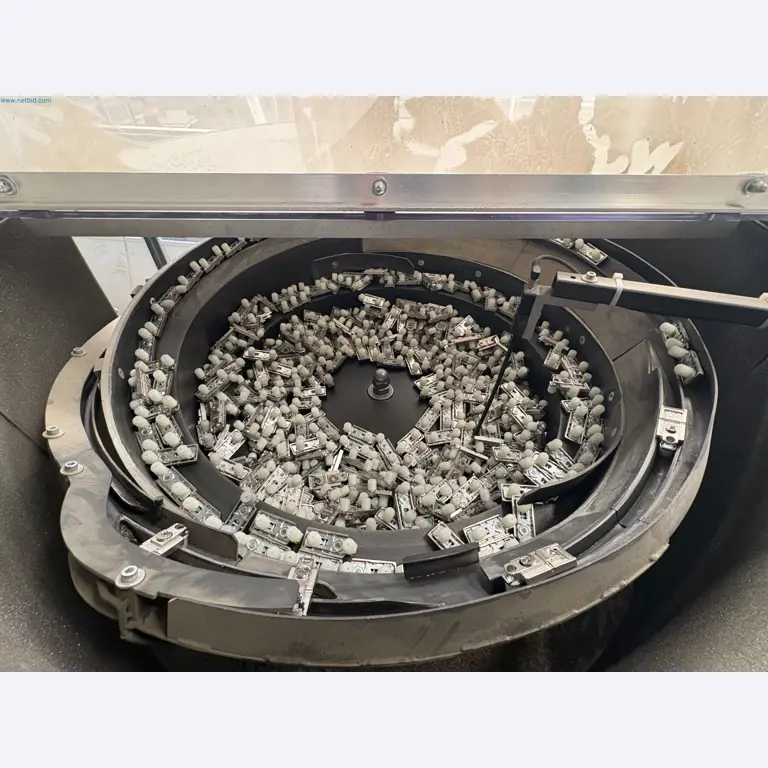

• Automatic hinge insertion
• Groove milling for drawer bottoms
• Handle recess milling

This machine performs the complete machining of furniture panels and fronts.

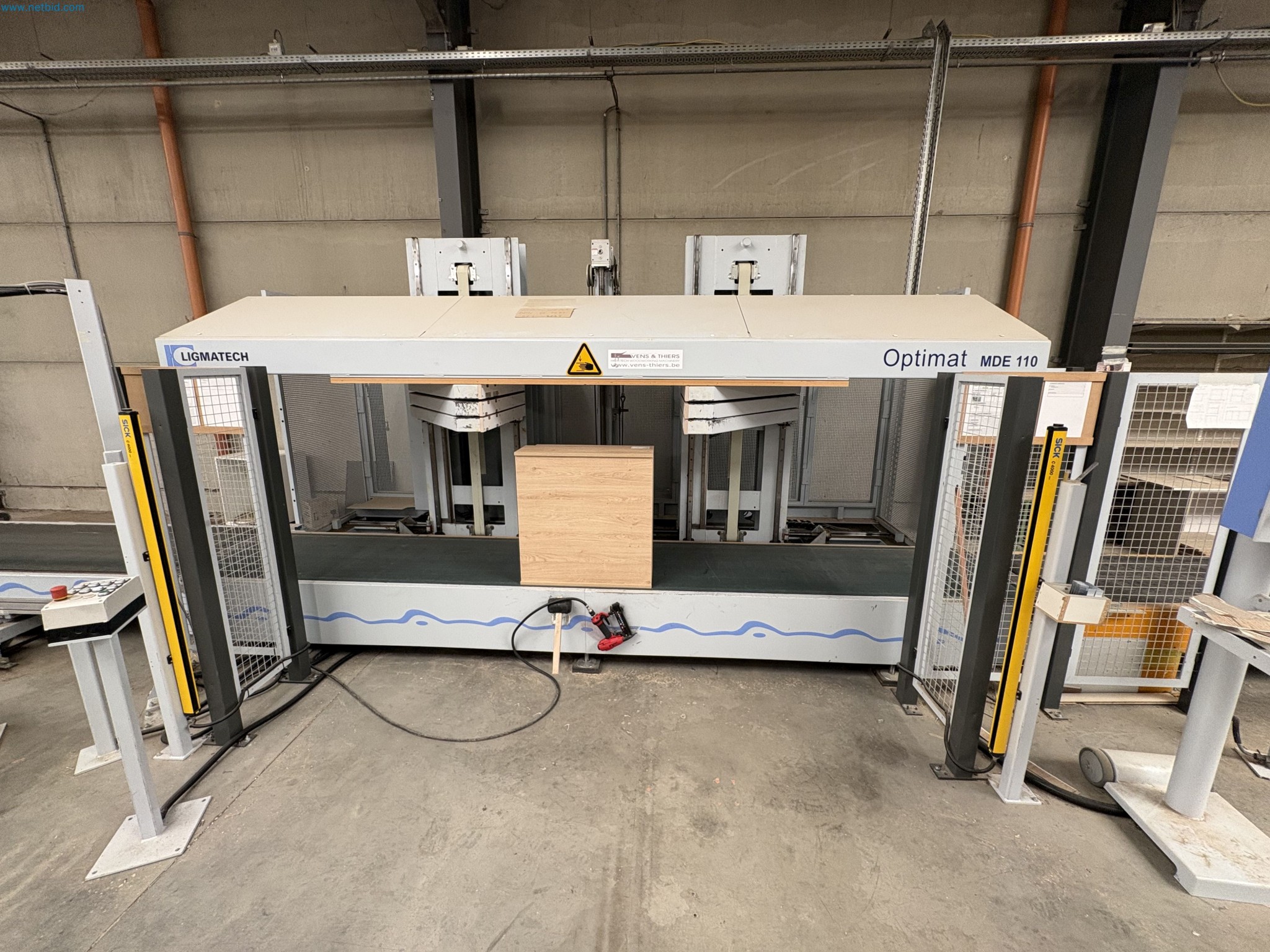

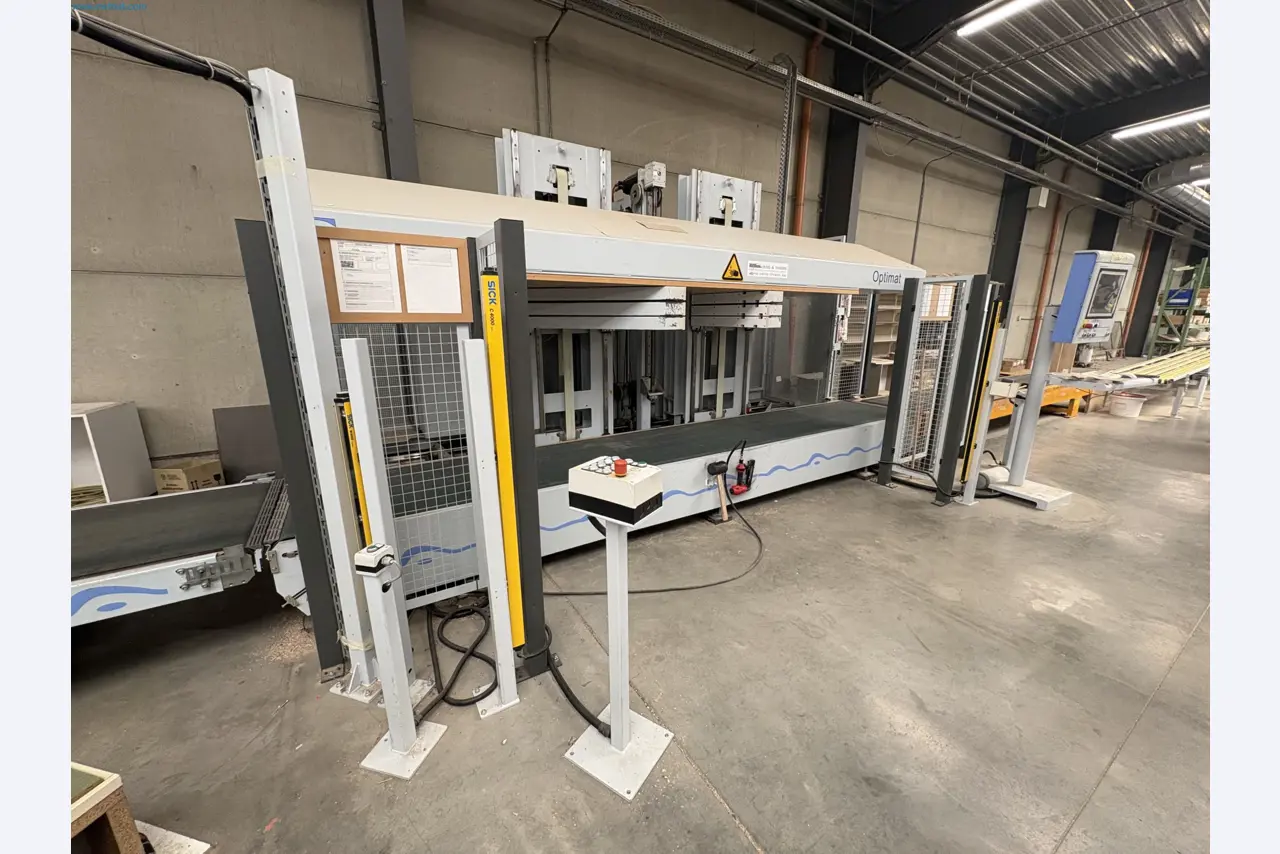

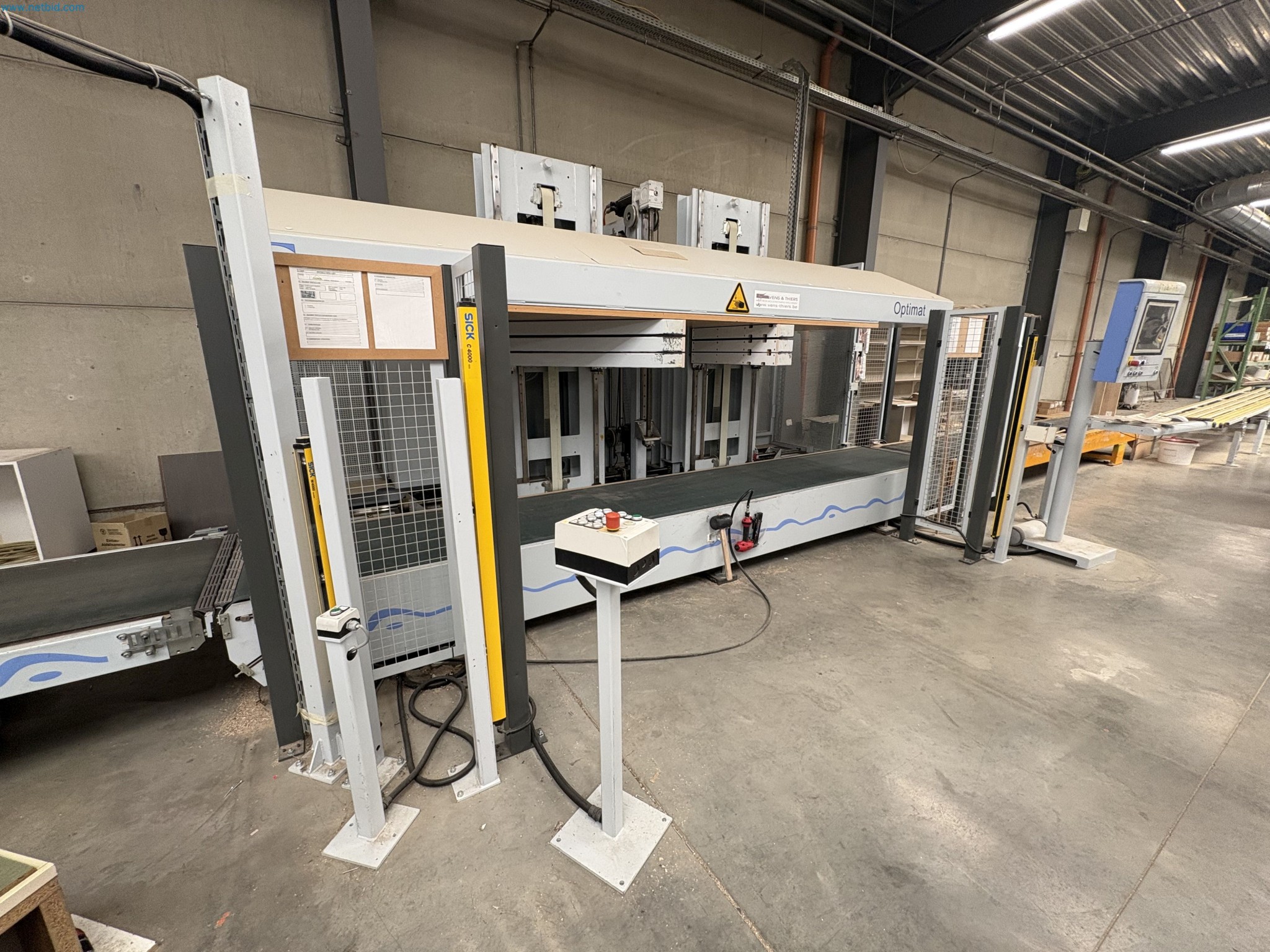

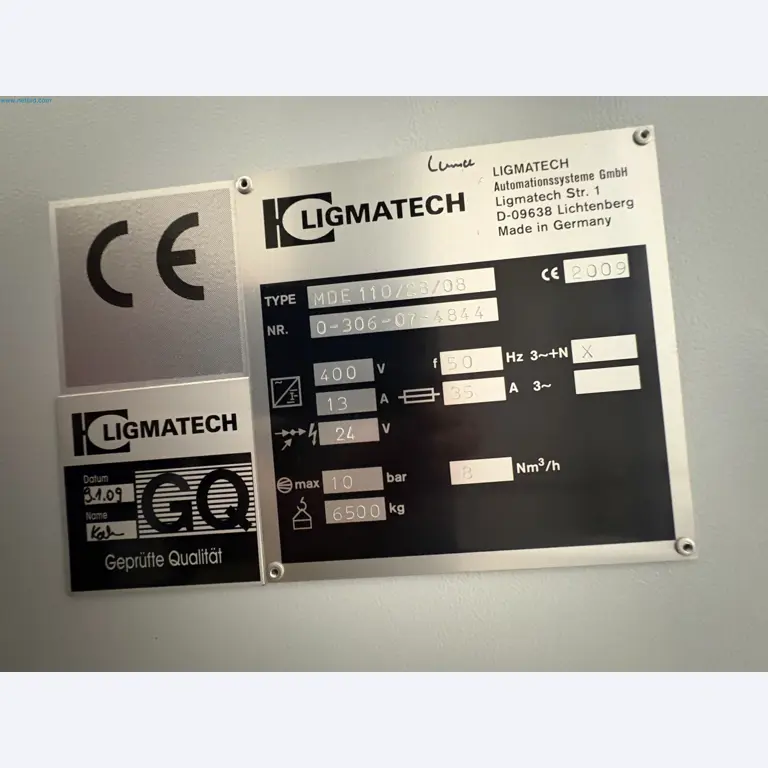

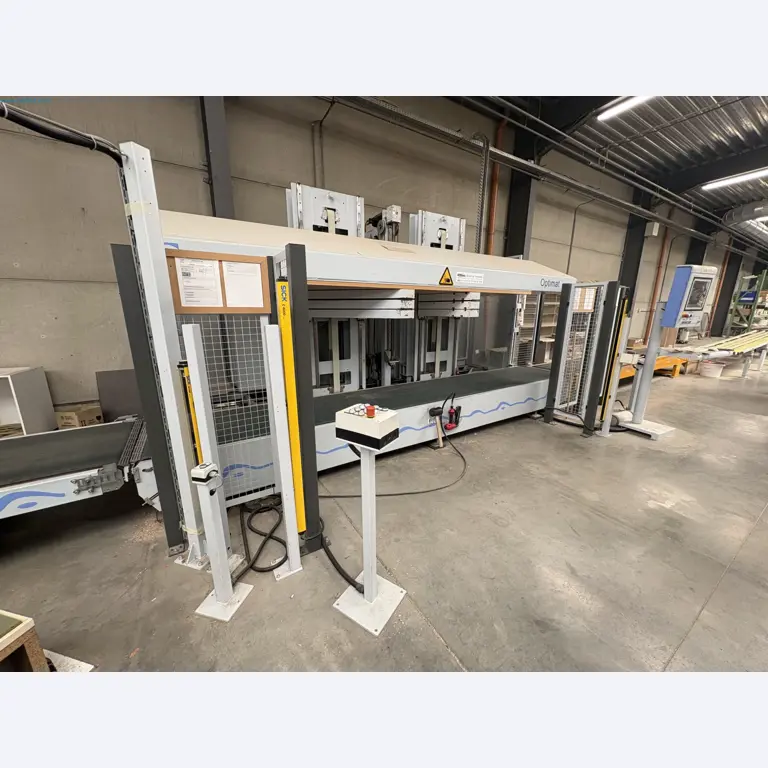

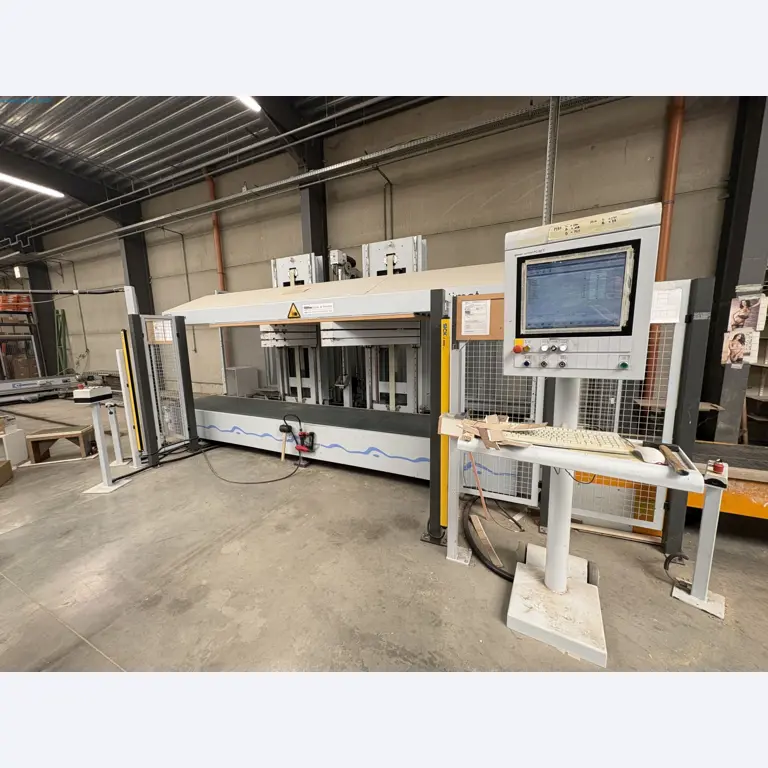

3. LIGMATECH MDE 110/28/08
Year of manufacture: 2009

Power supply:
400 V
13 A
10 bar compressed air

Function:

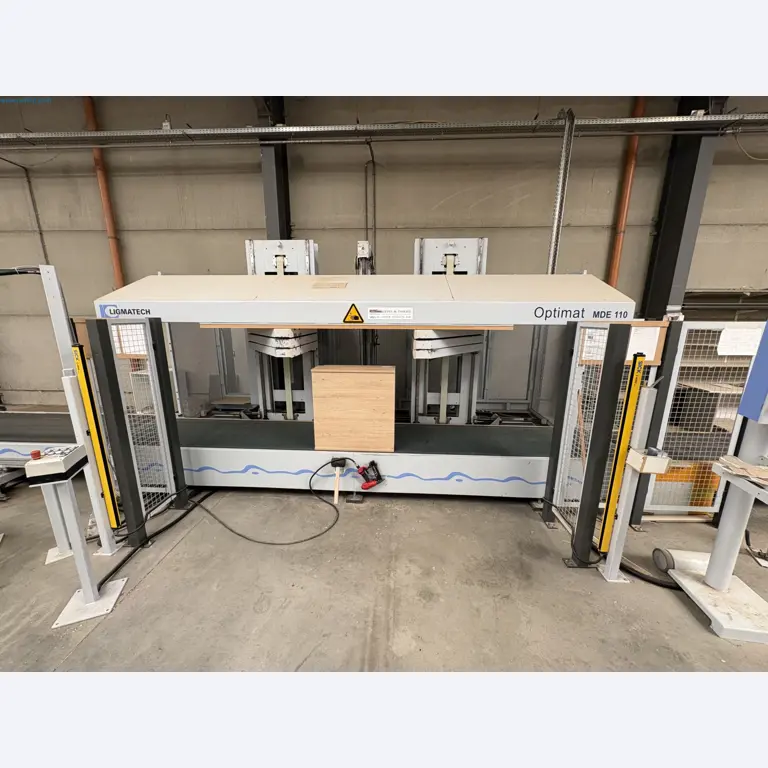

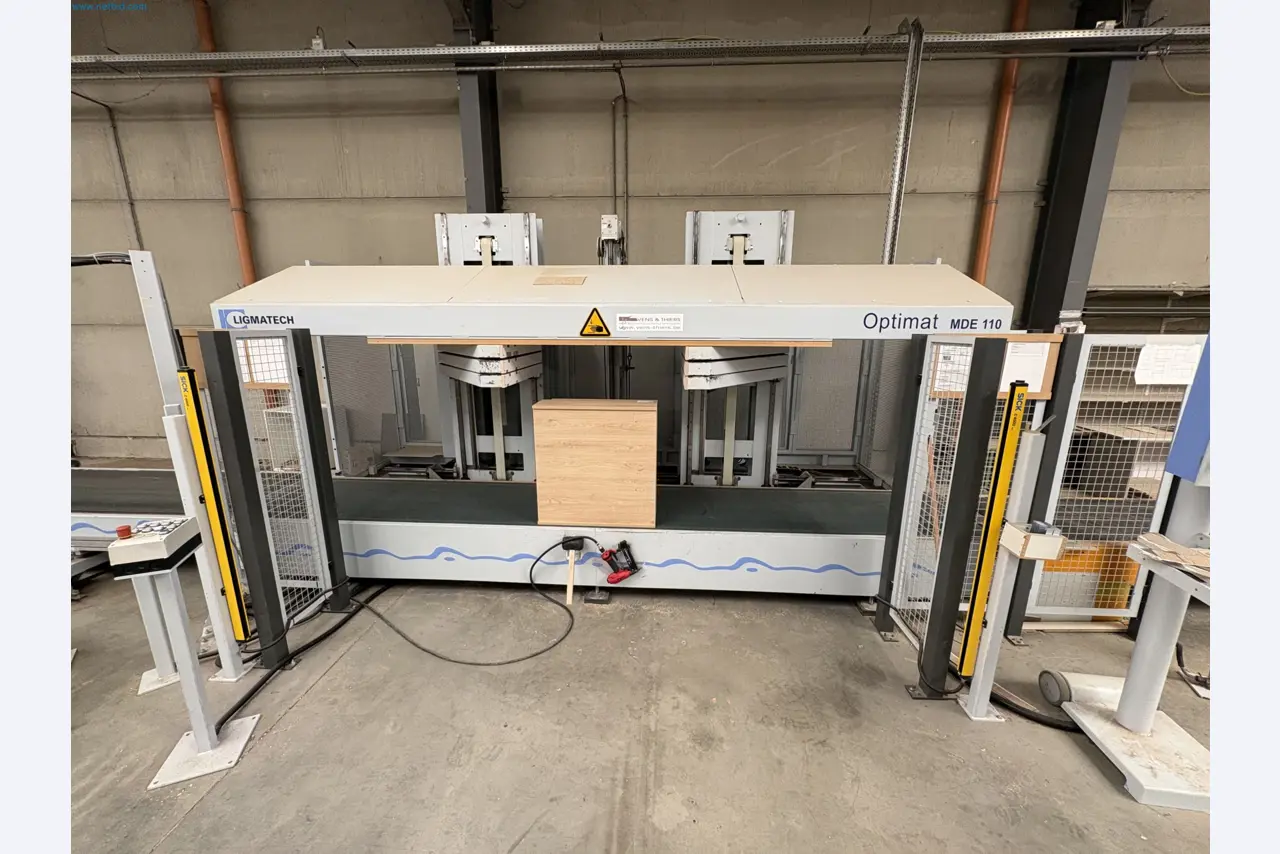

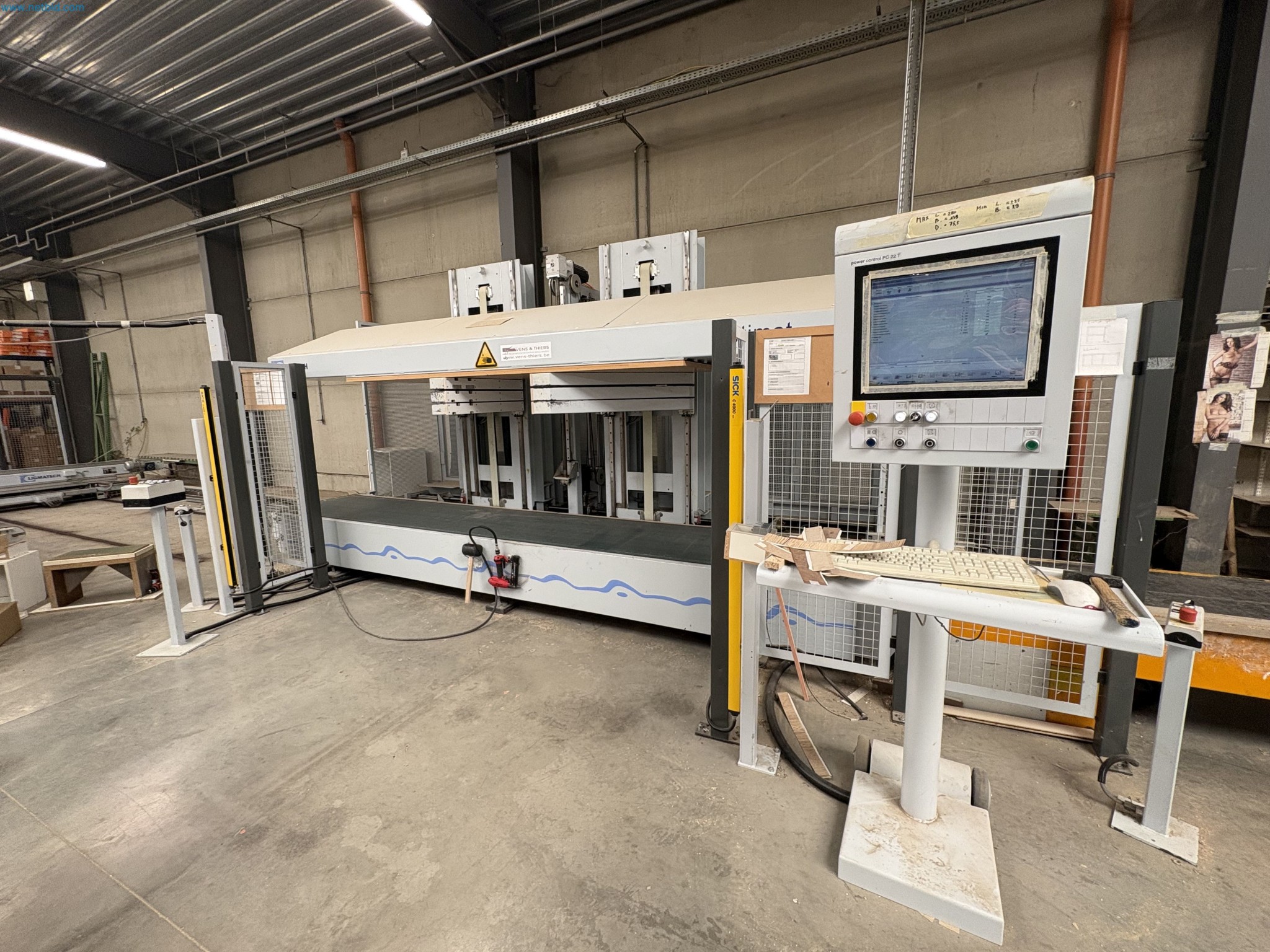

Electric cabinet case clamp.
Presses complete cabinet carcasses square while the adhesive cures.
Servo-controlled pressure system.
Designed for integration into automated production lines.

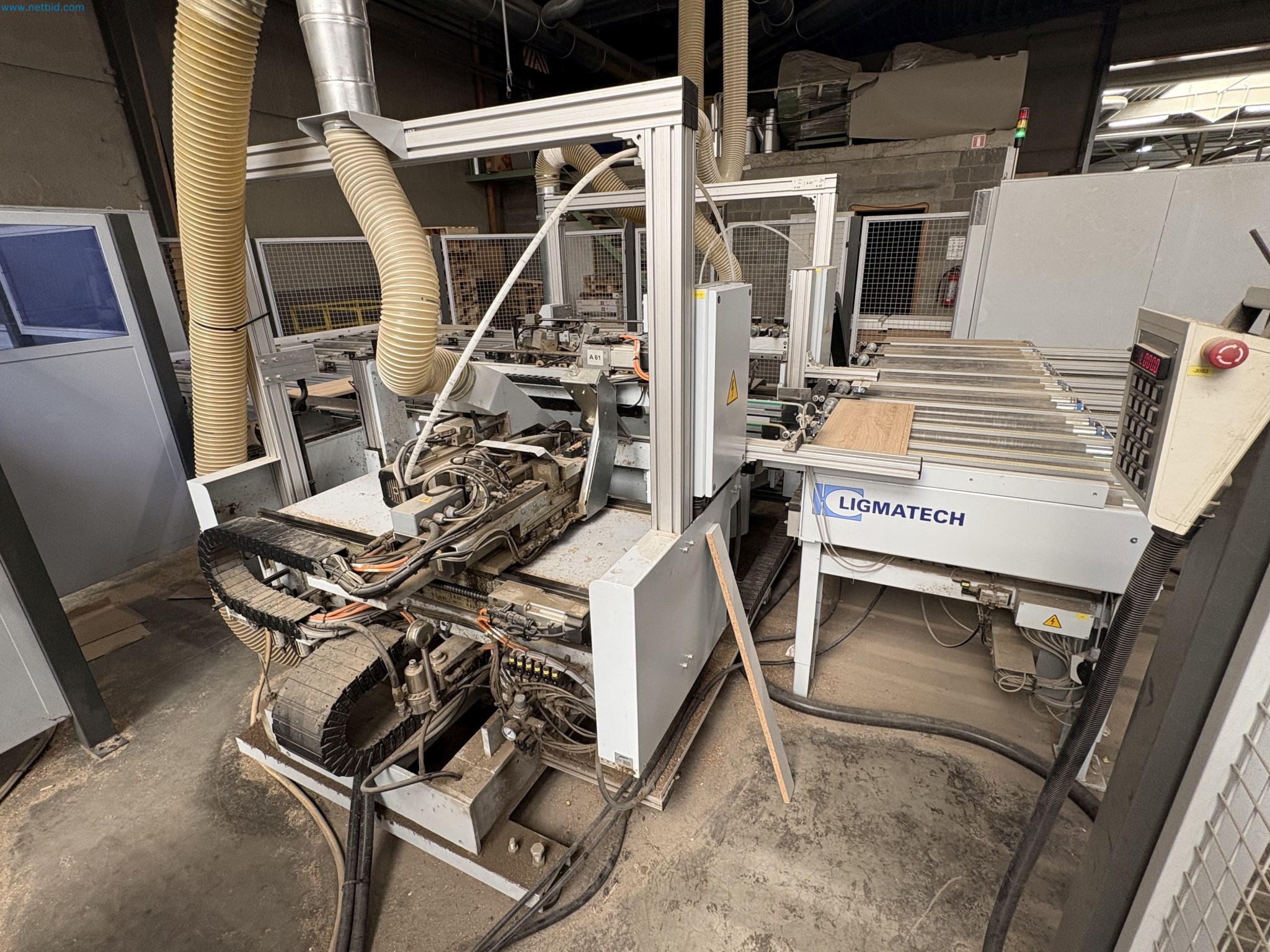

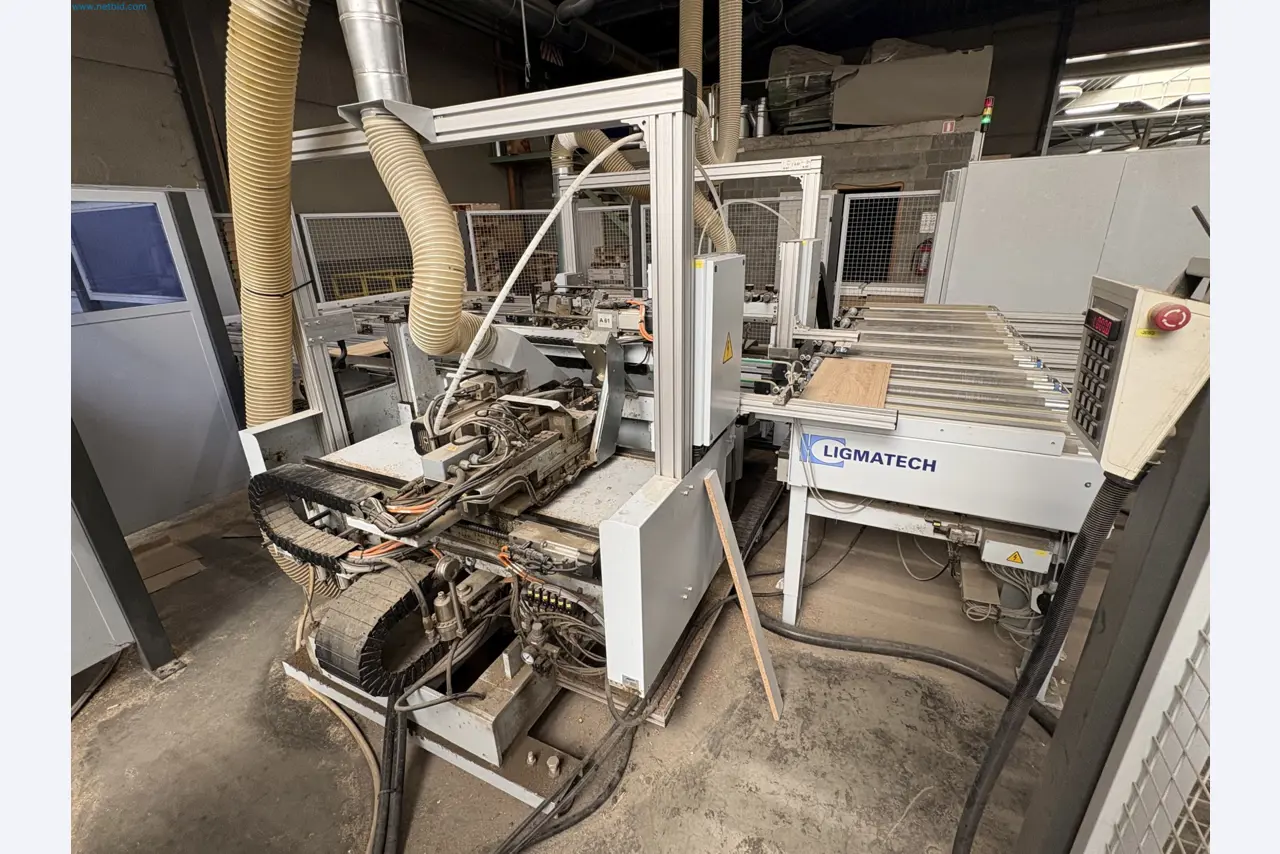

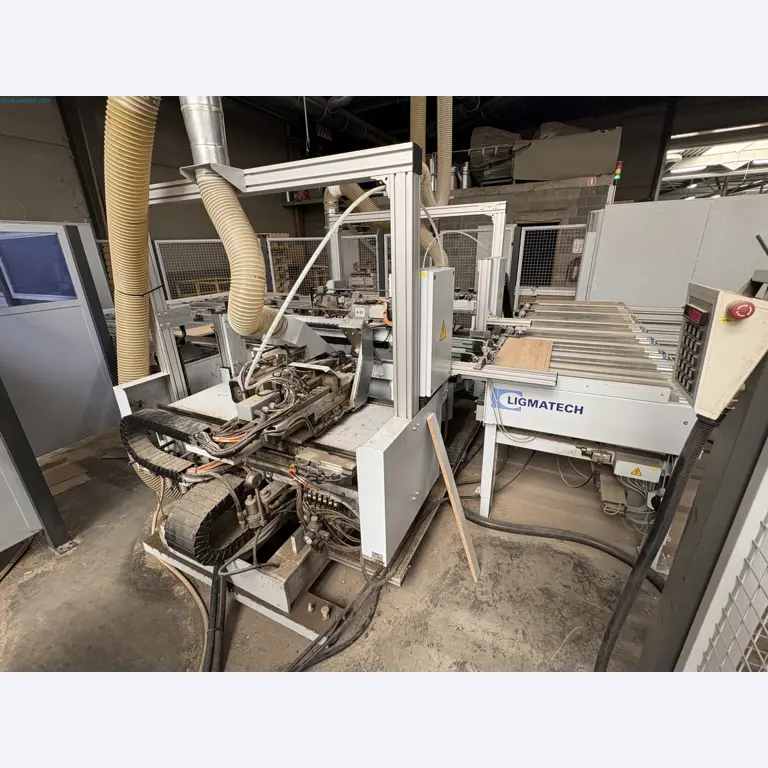

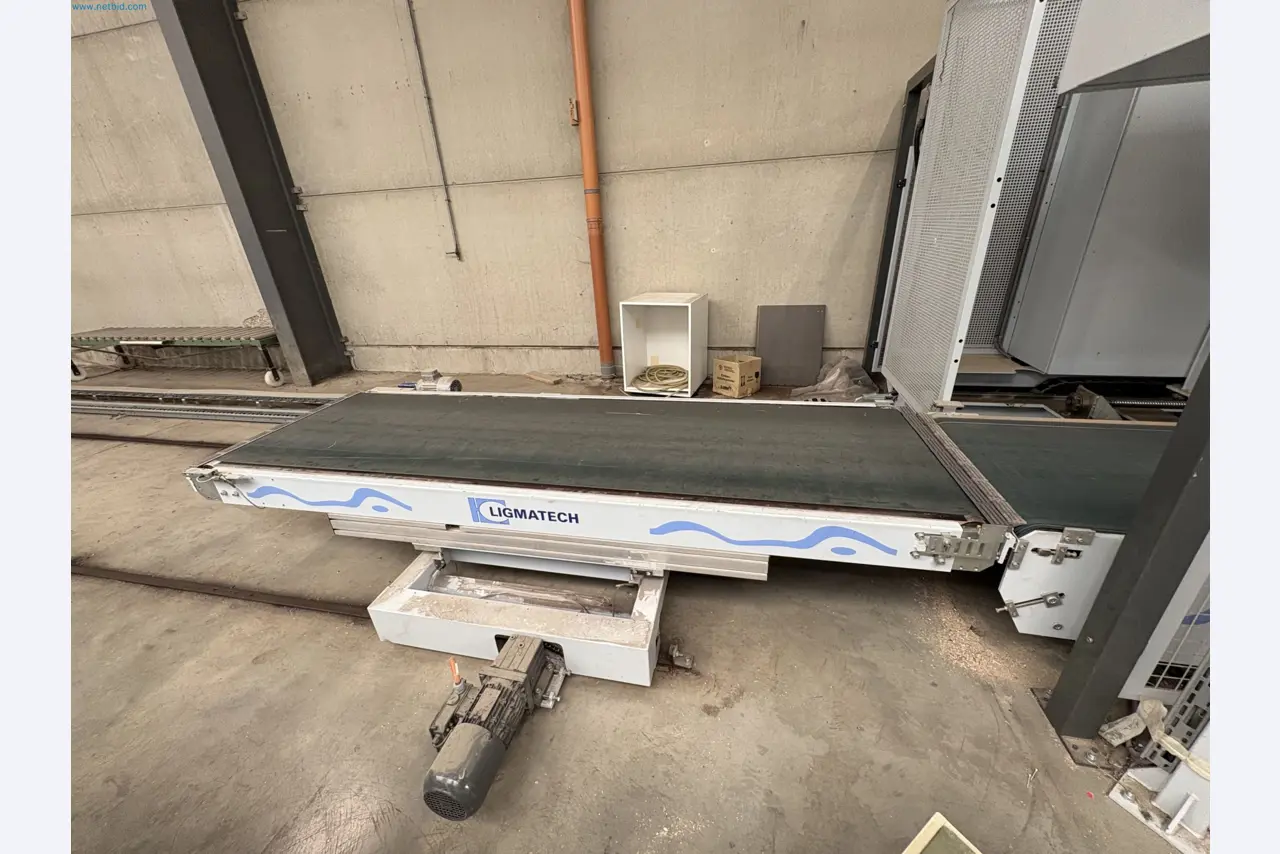

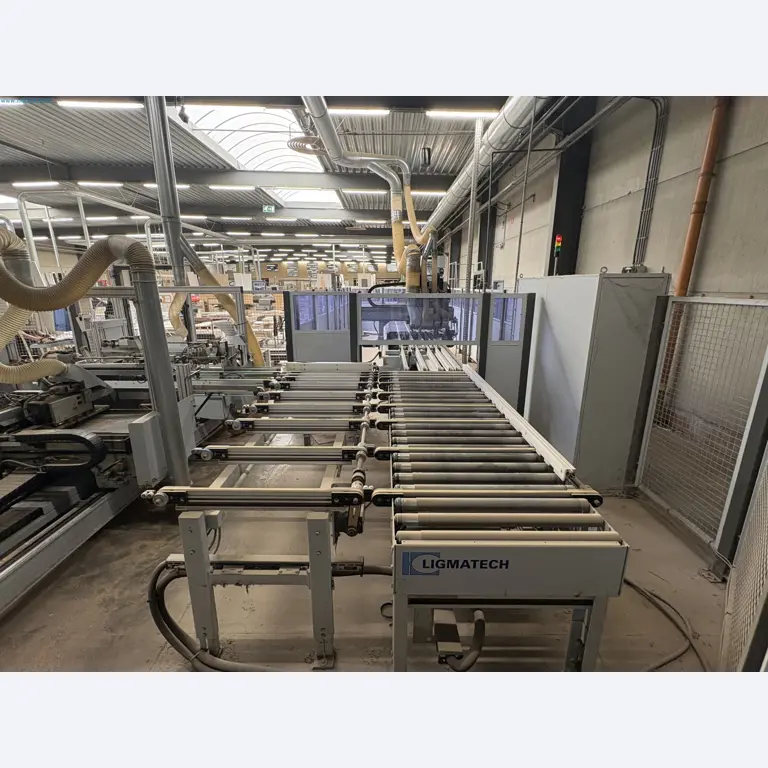

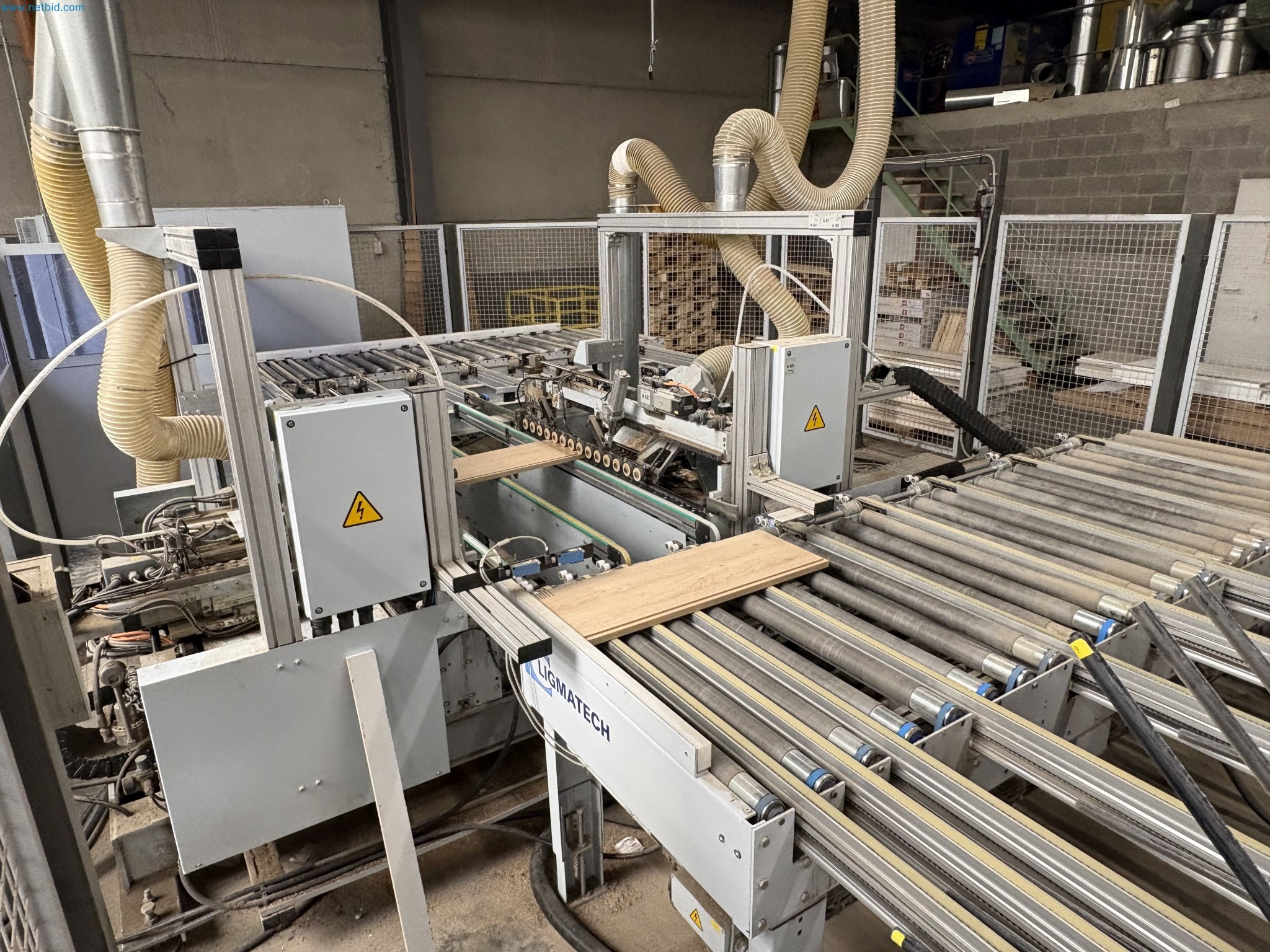

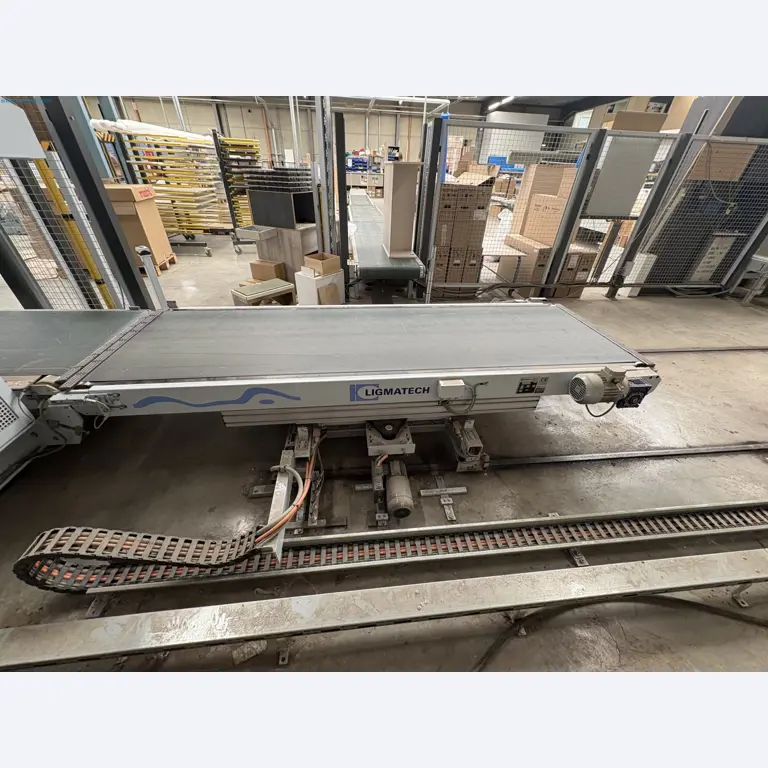

4. LIGMATECH MTQ 200/28/08
Year of manufacture: 2009

Function:

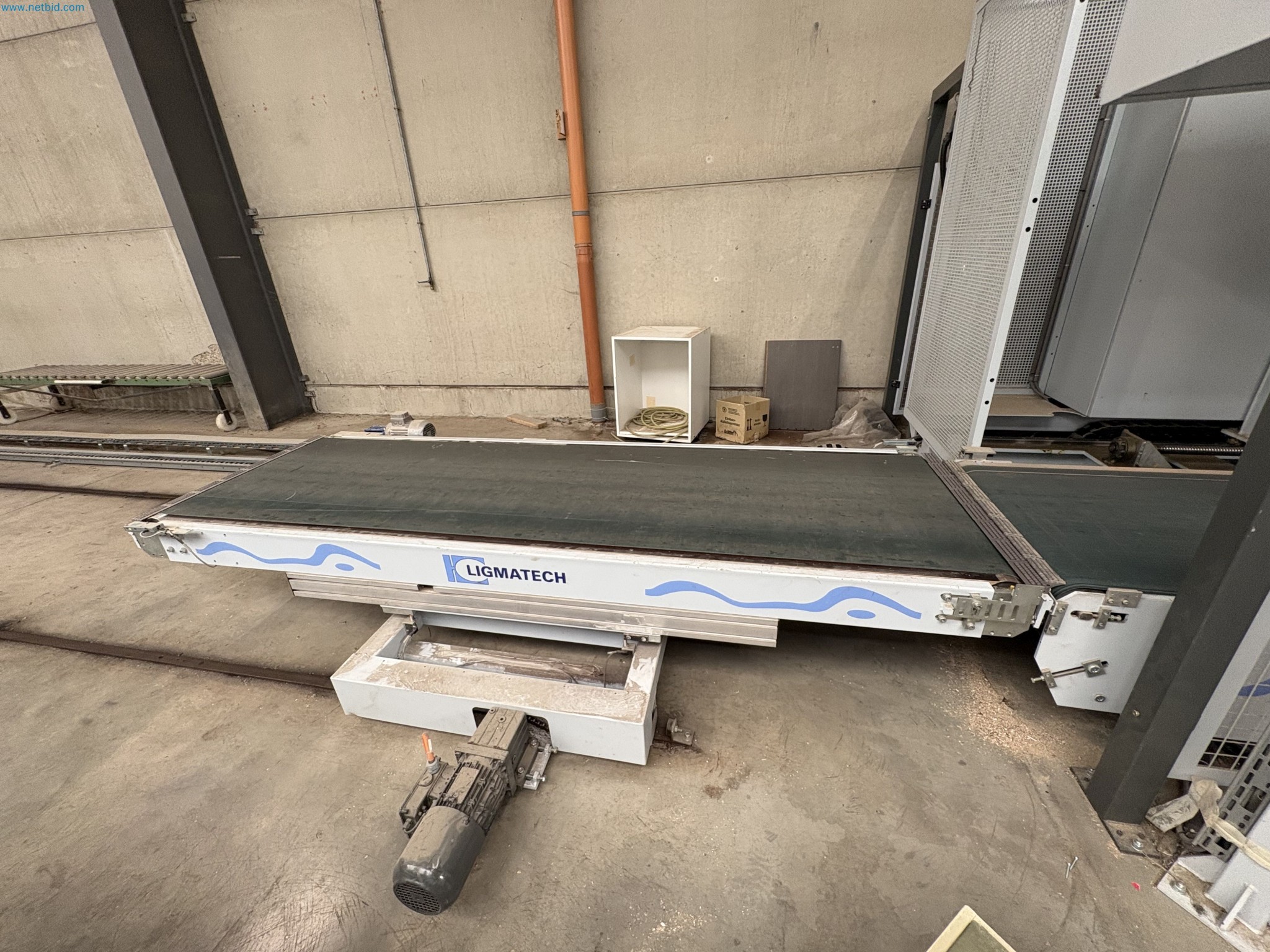

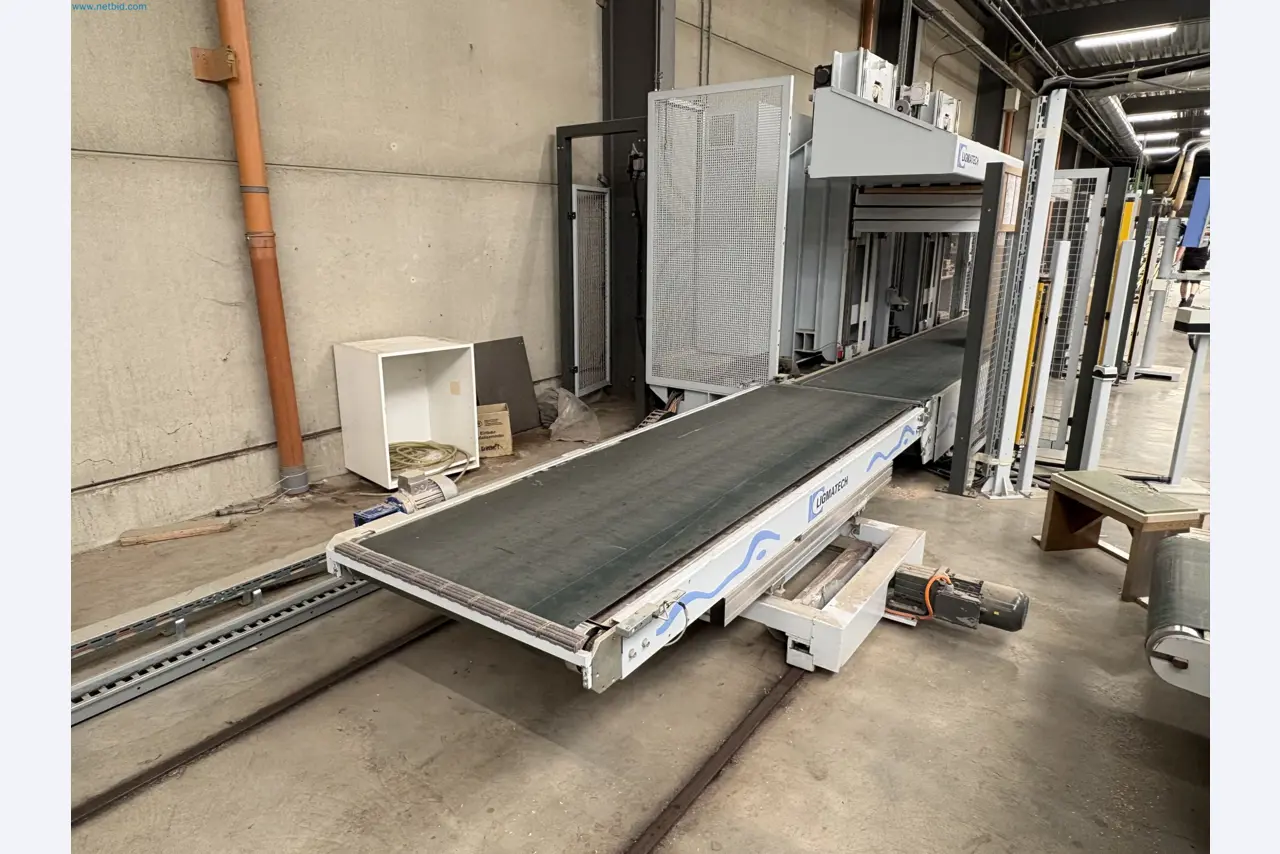

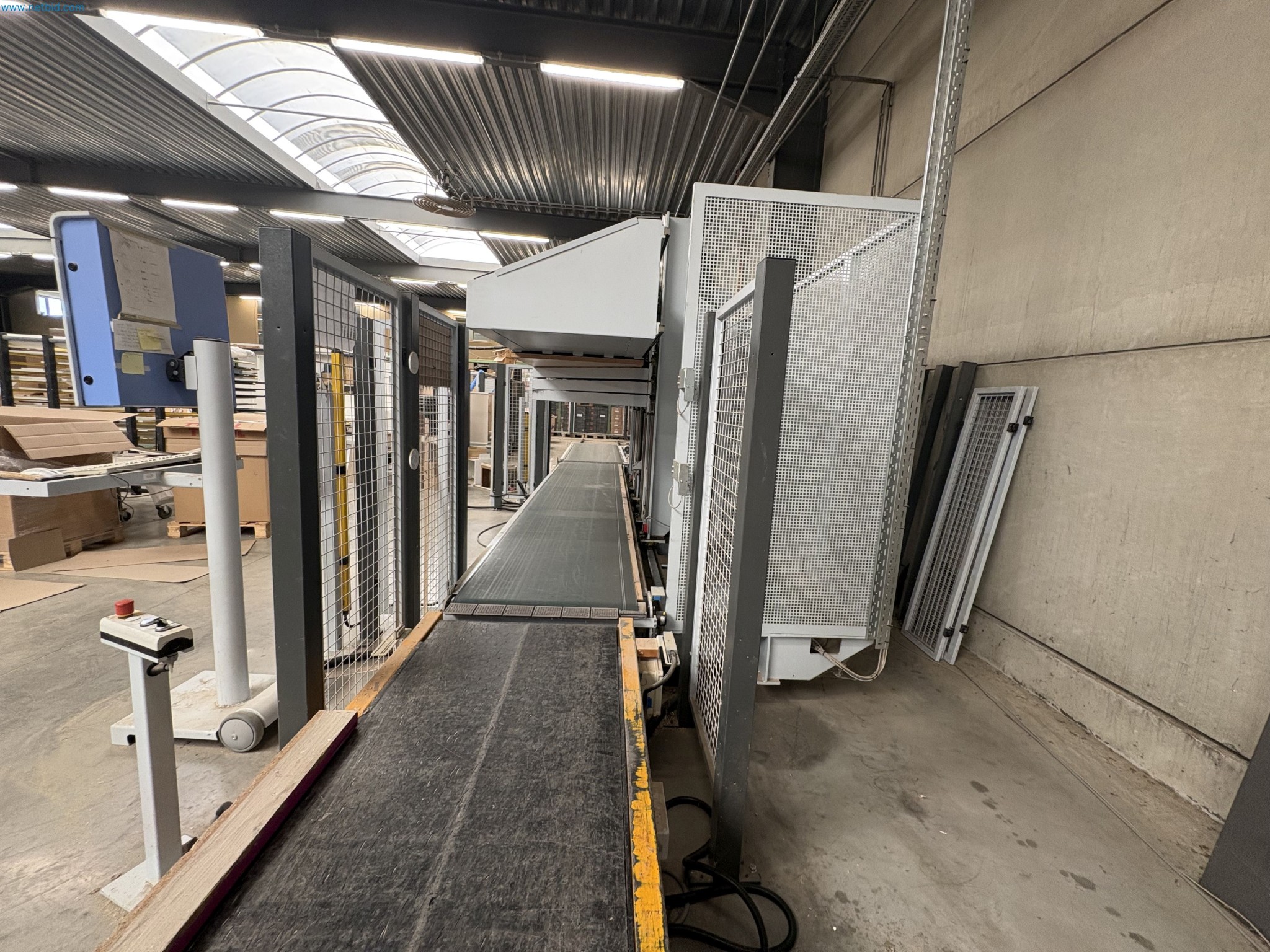

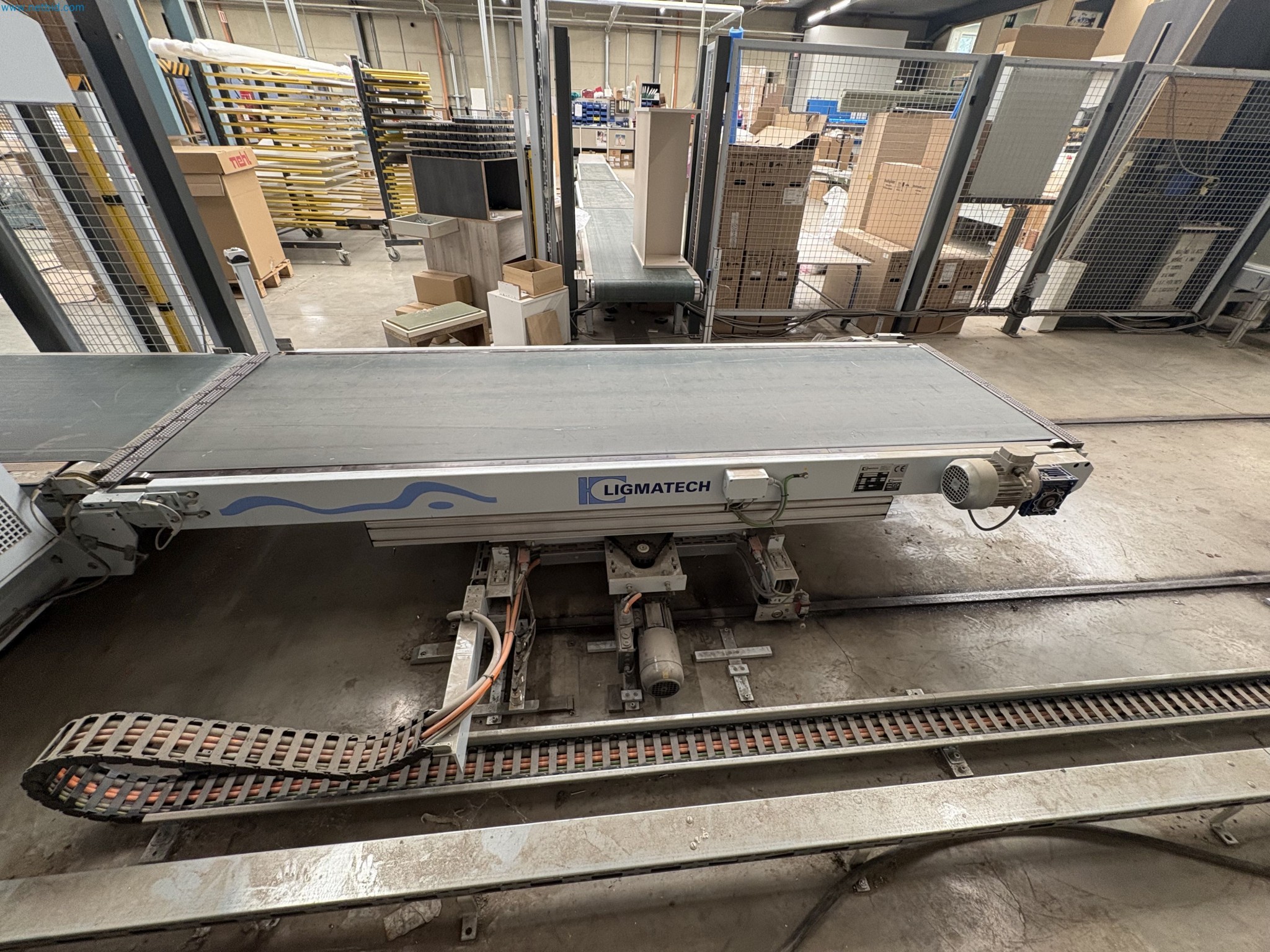

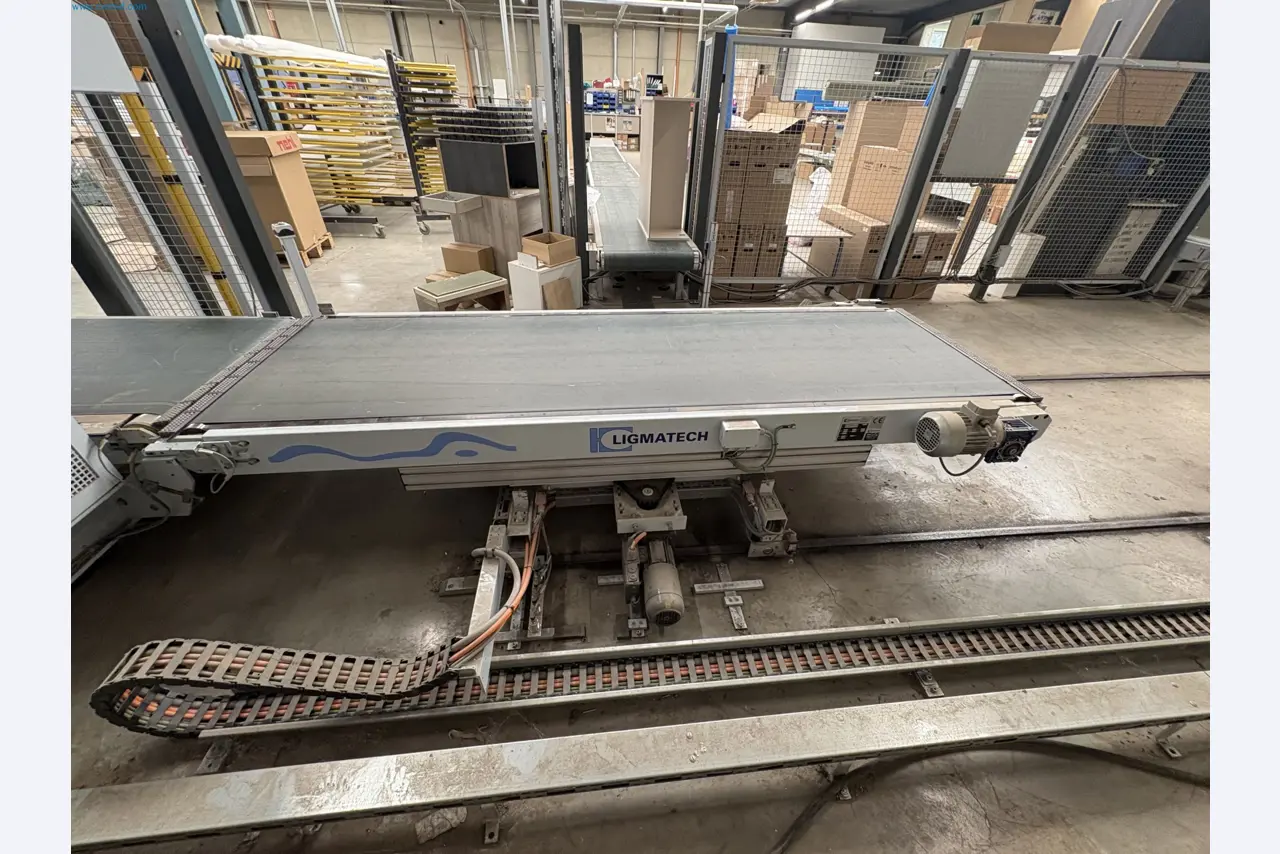

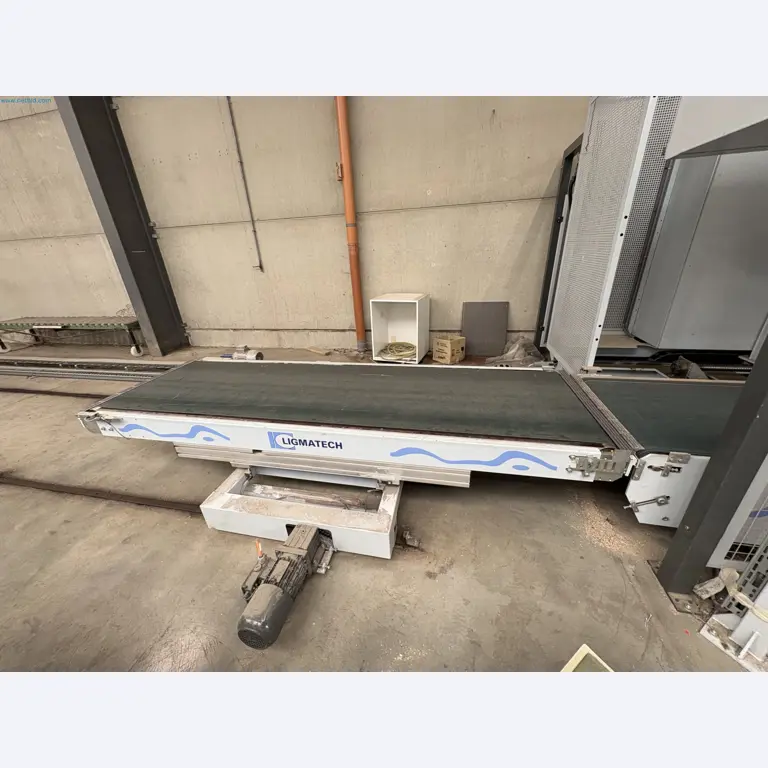

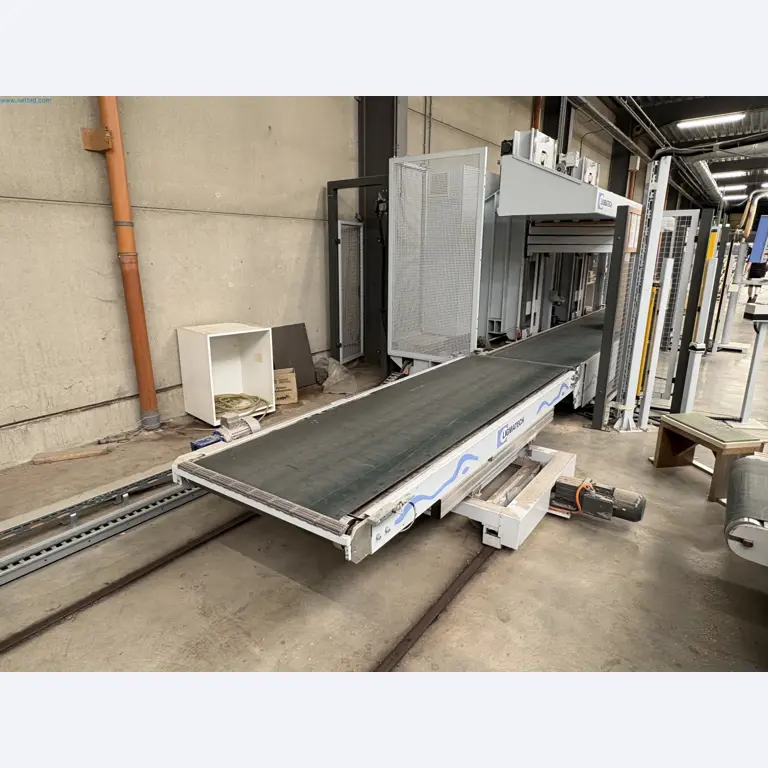

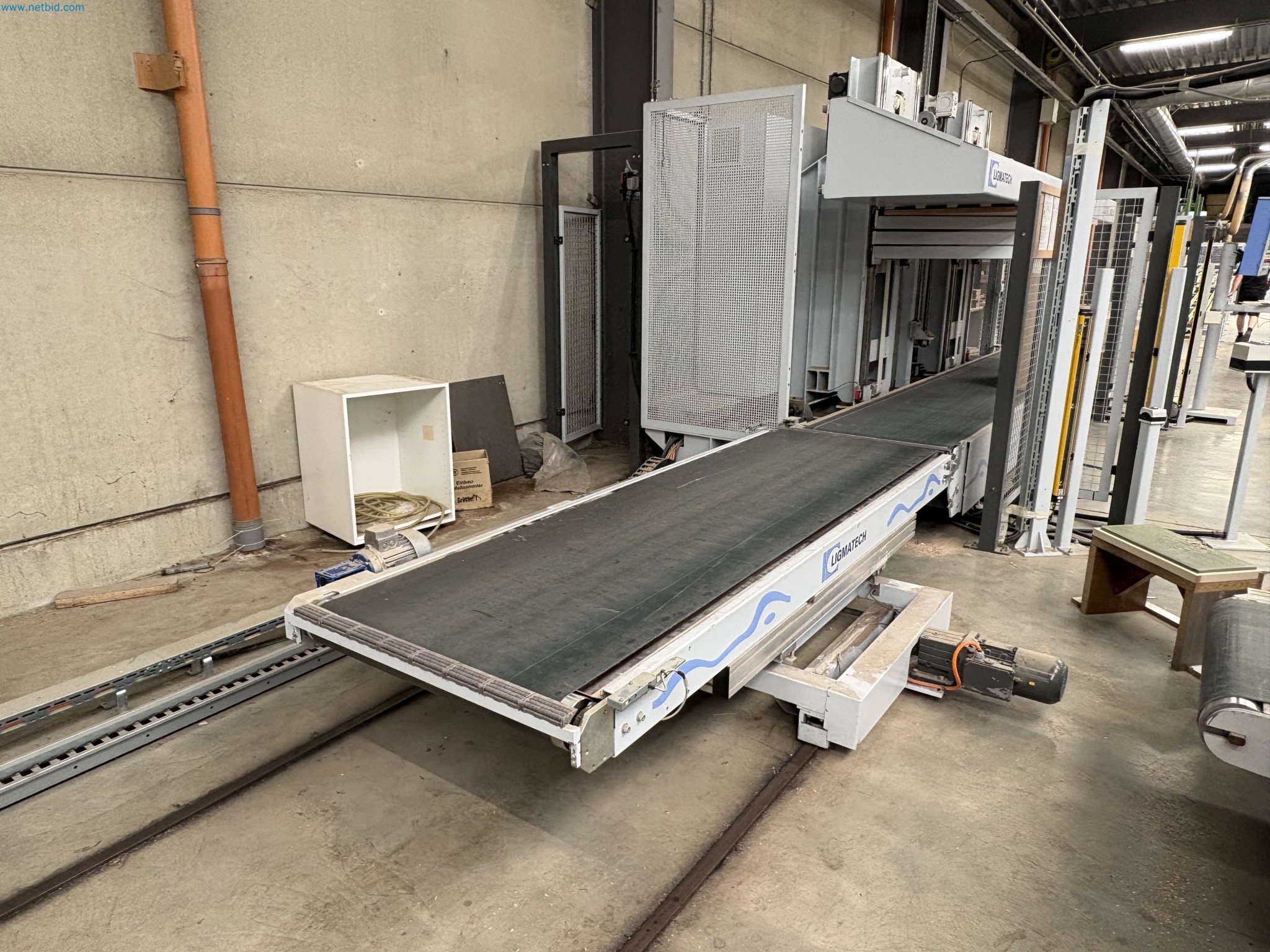

Automated transport and buffering system.

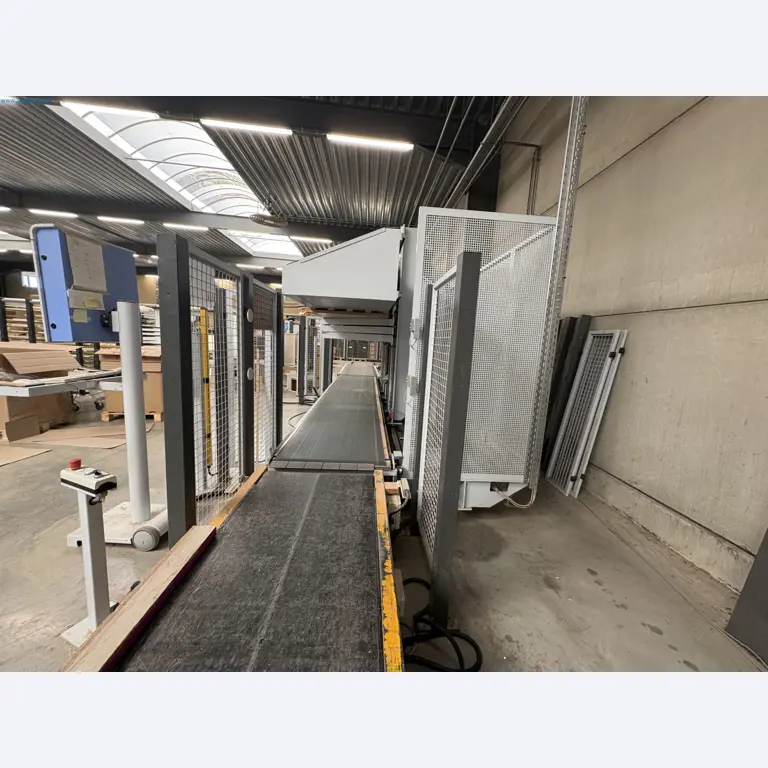

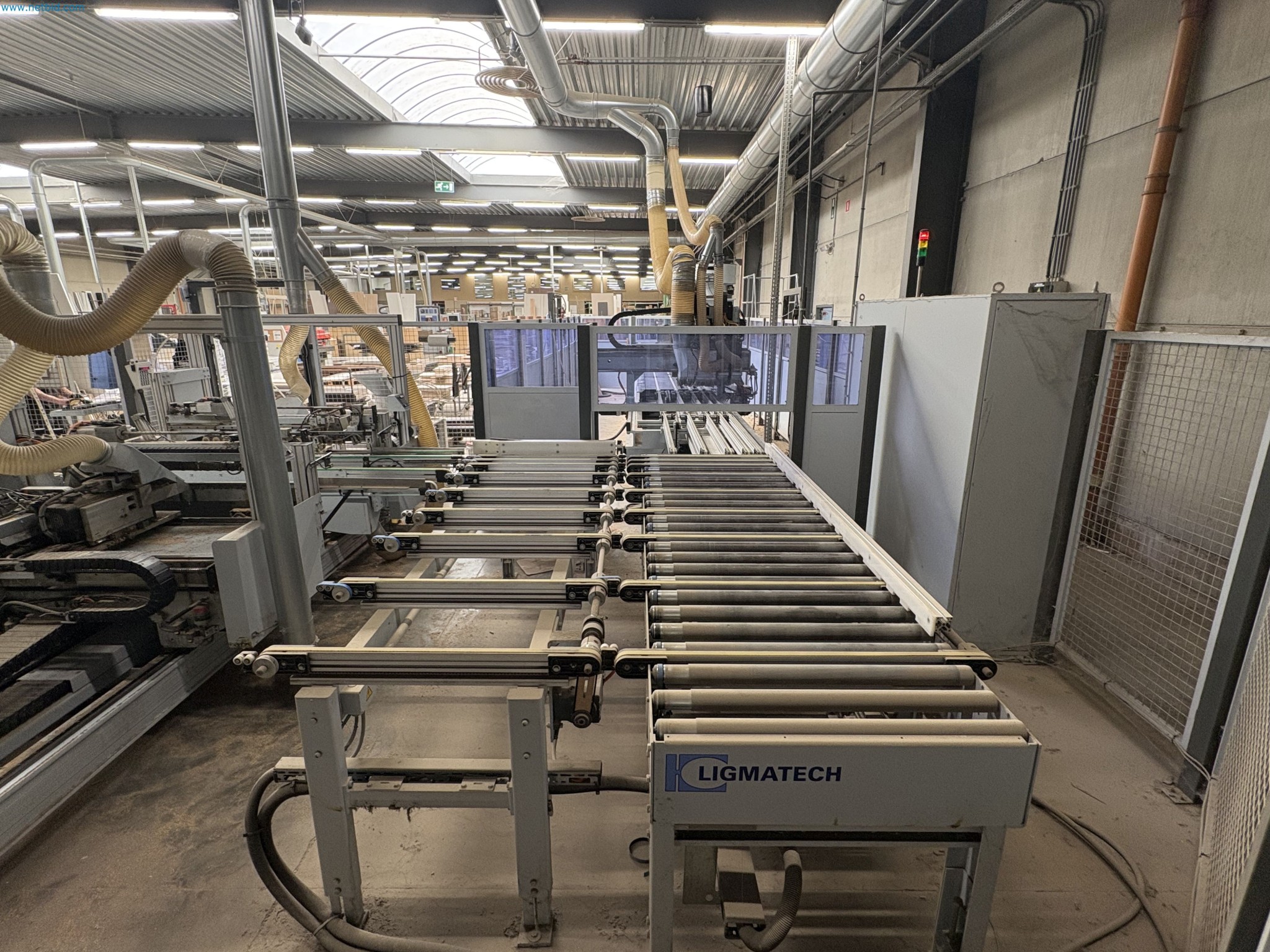

Transfers workpieces between the different machines.
Integrates the complete production line, minimizing manual material handling.

Typical Production Sequence

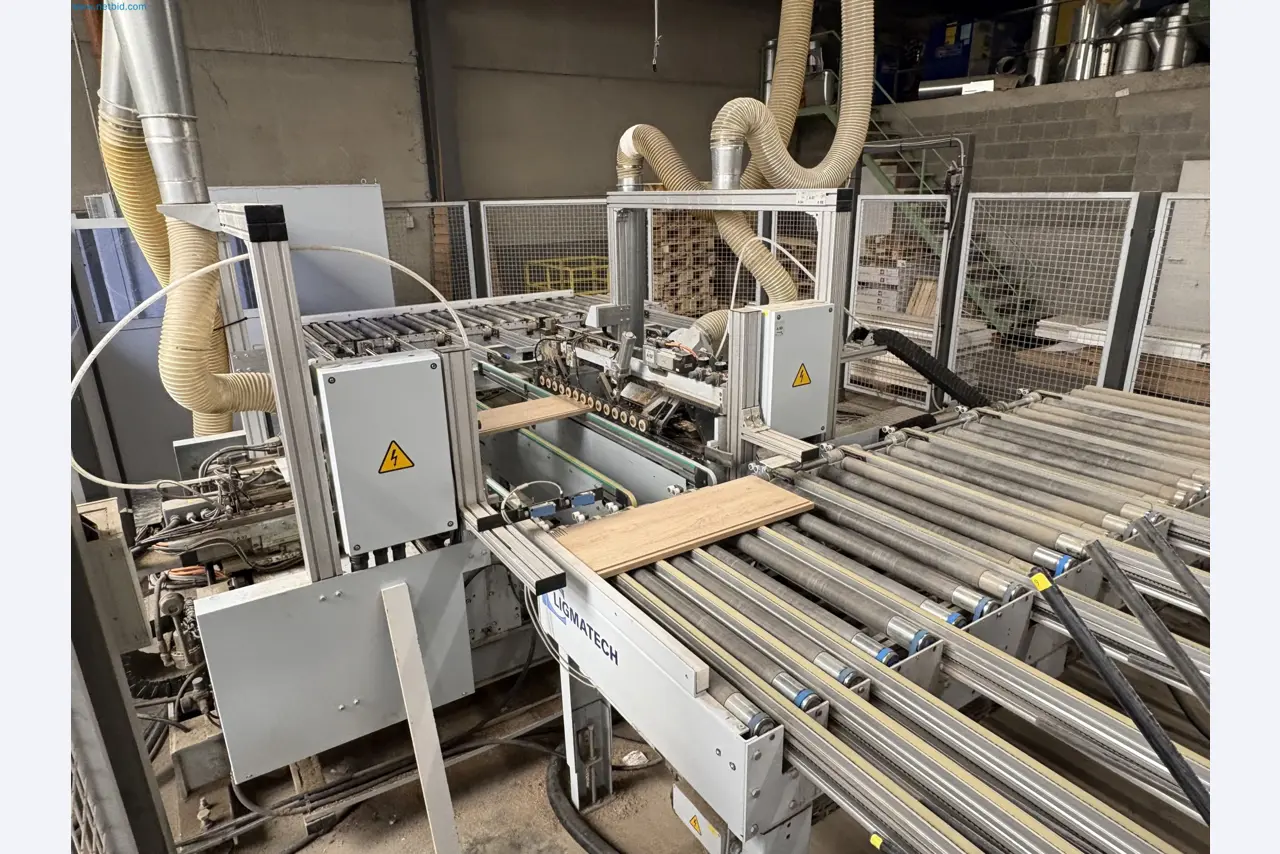

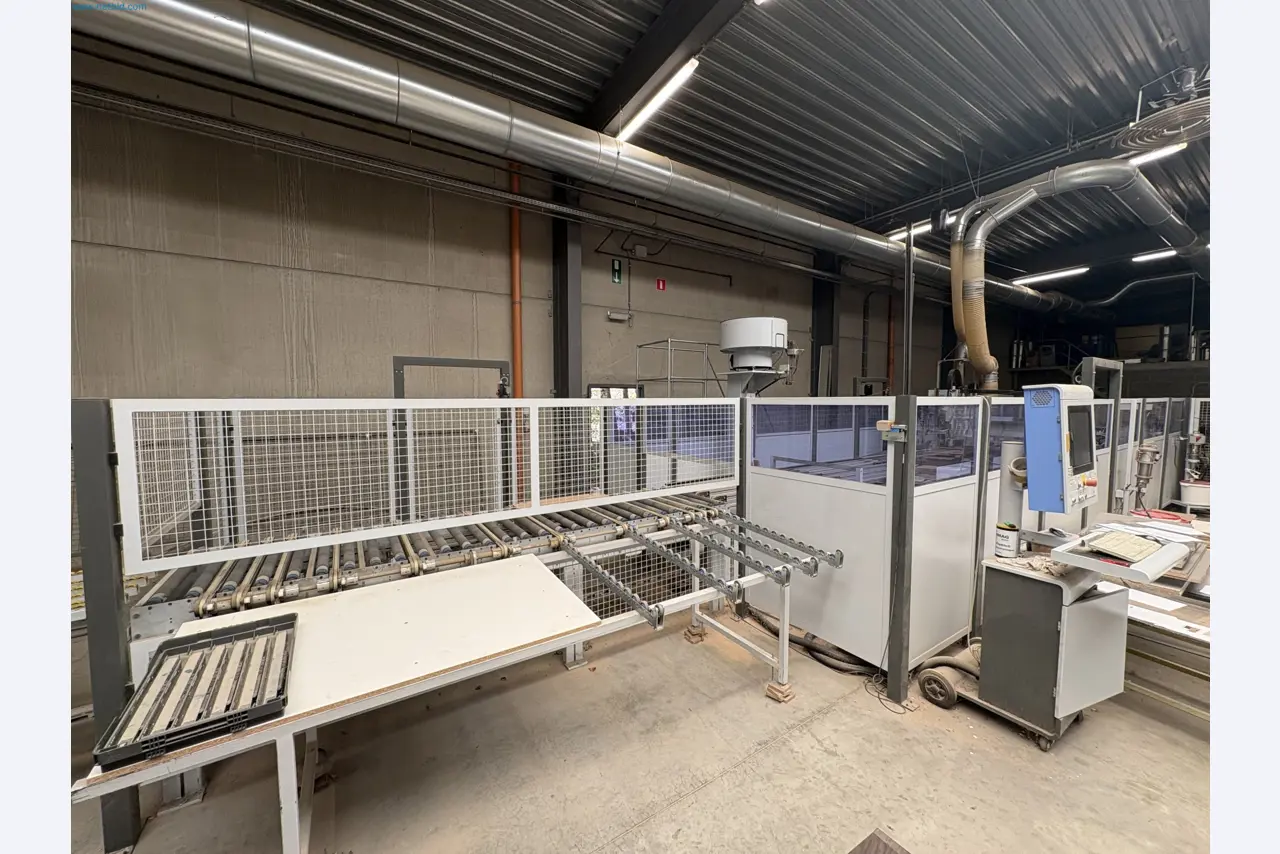

Panel saw (not visible in the photographs)
Part labeling
WEEKE BHH 40
• Edge drilling
• Dowel drilling
WEEKE ABL 210
• Hinge drilling
• CNC milling operations
• Hardware insertion/assembly

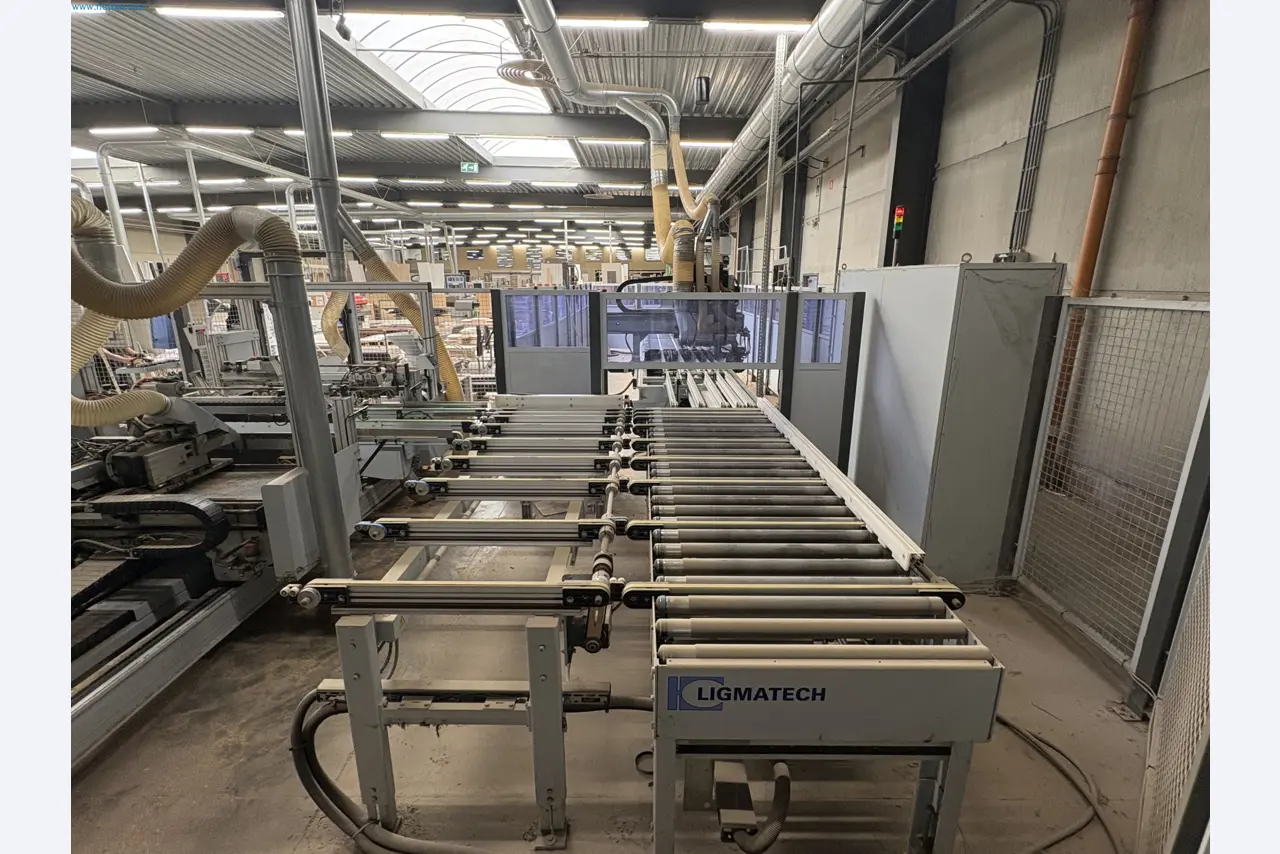

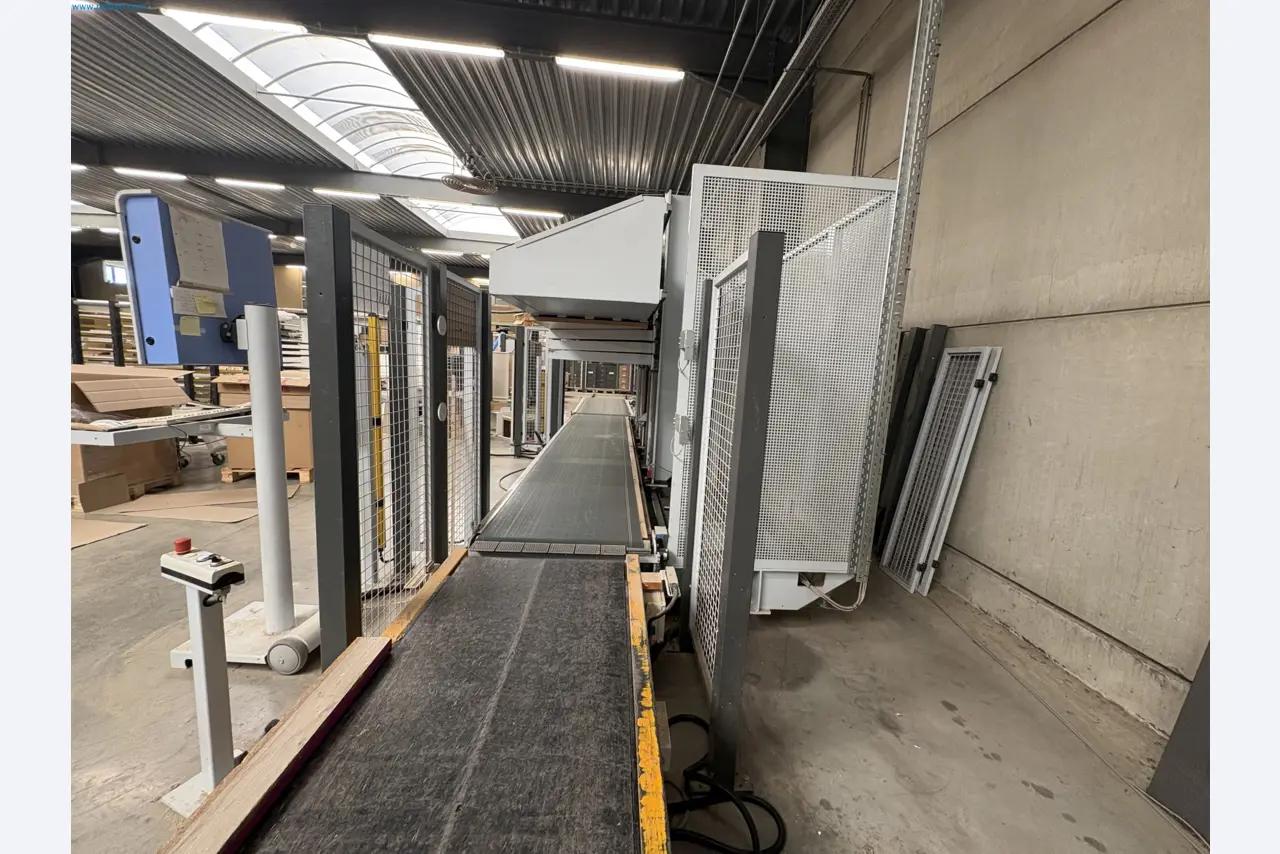

Automated transport conveyors (LIGMATECH MTQ)

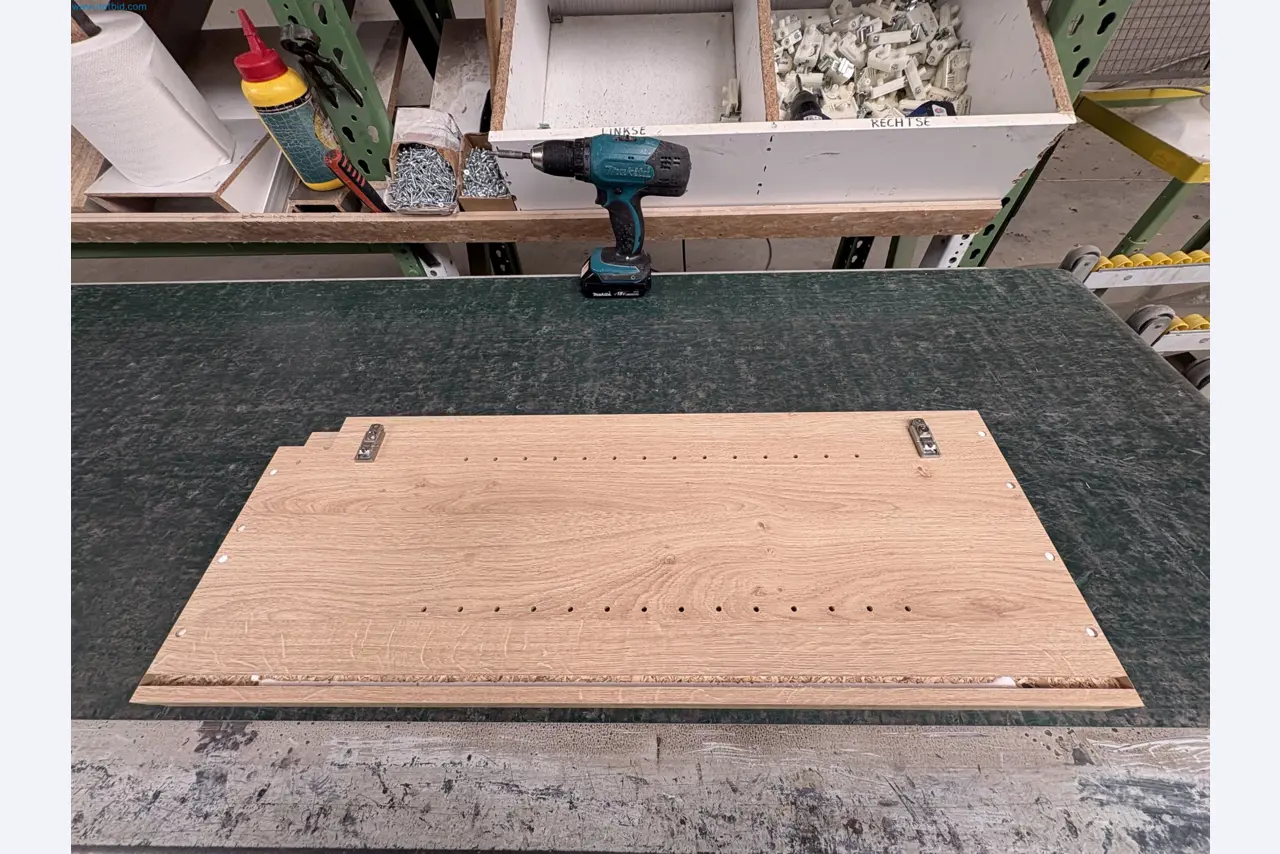

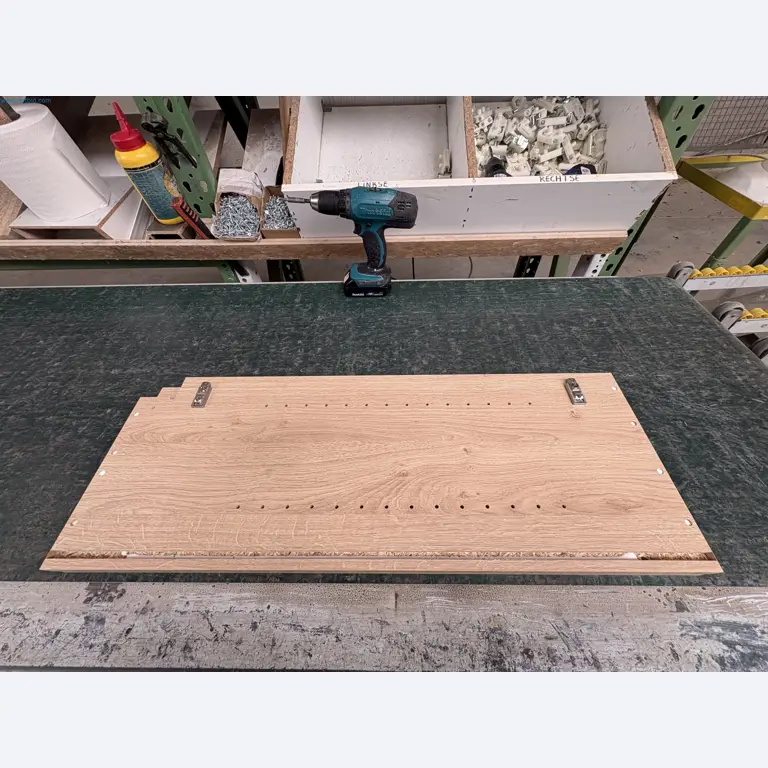

Manual cabinet assembly
LIGMATECH MDE 110
• Pressing of complete cabinet carcasses
