Storage PlatformAUCTION#19581-K1 (19627-1)

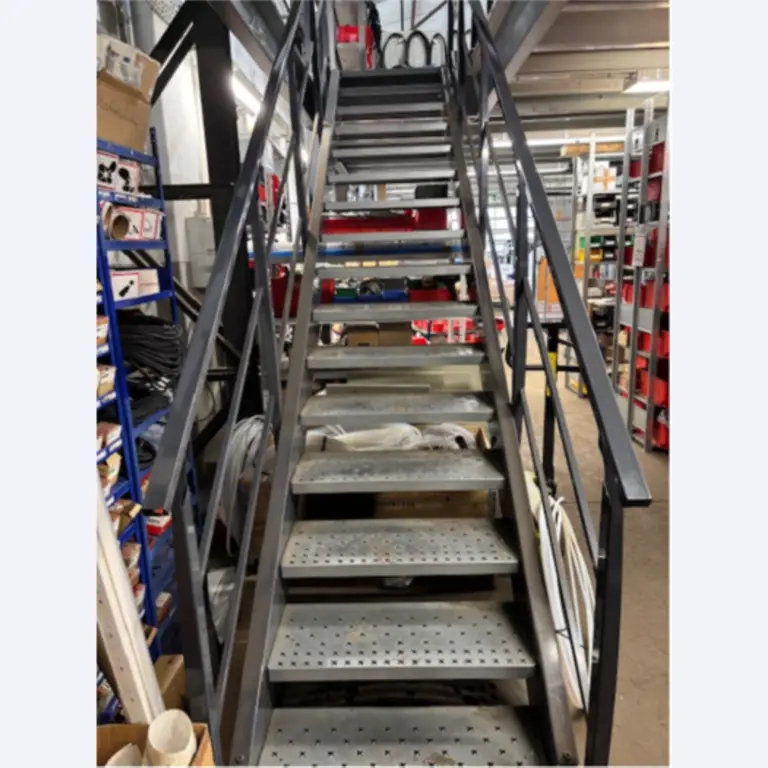

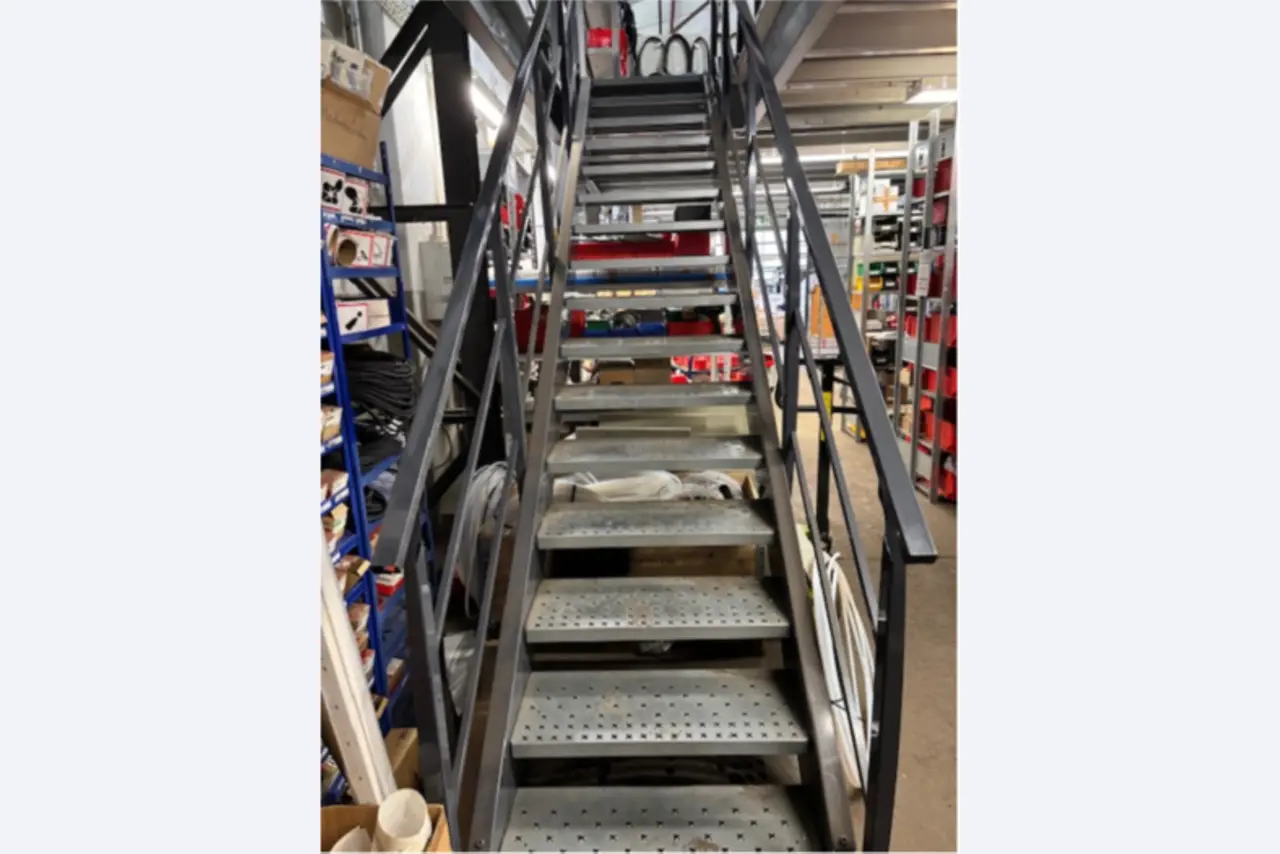

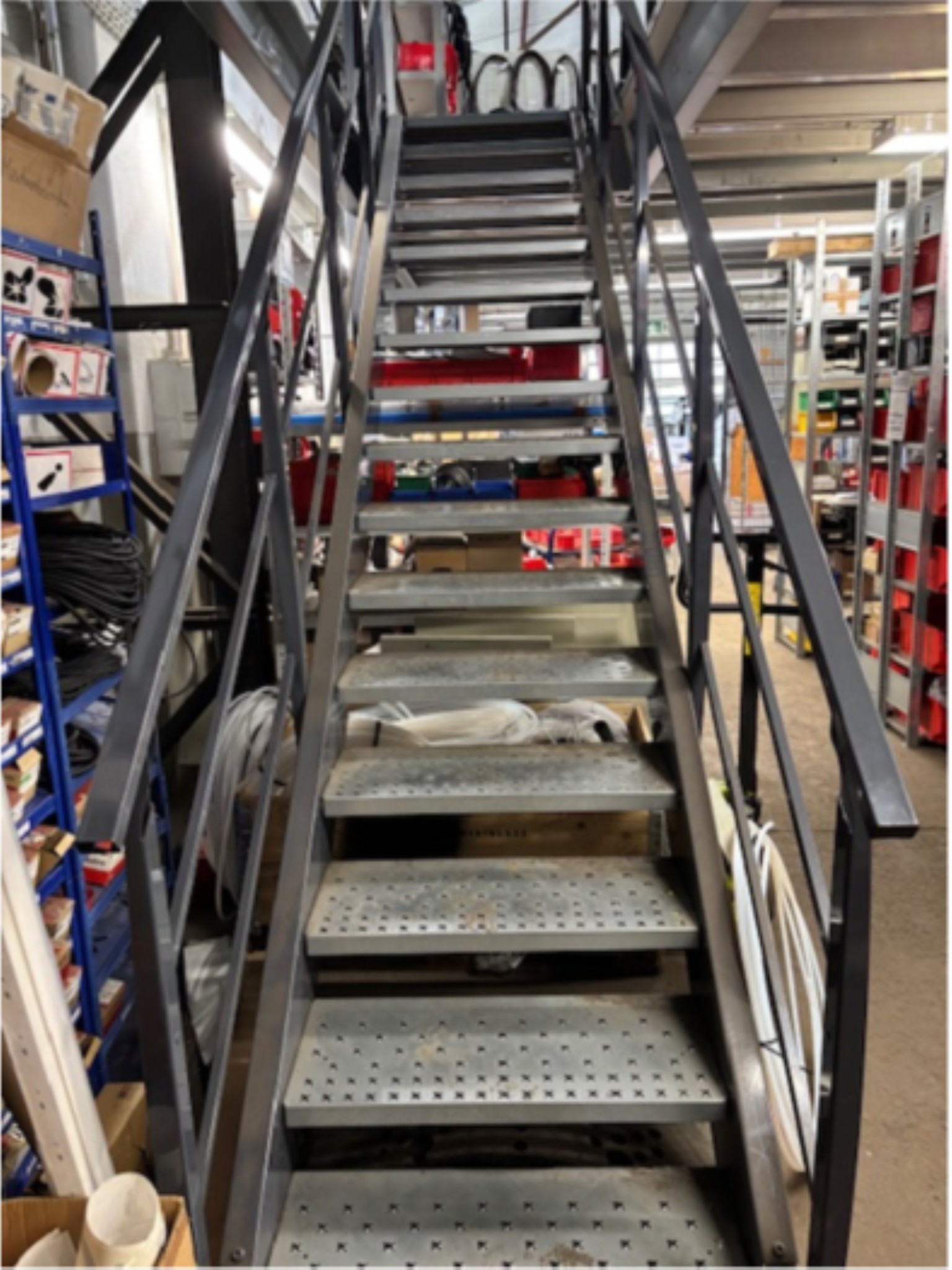

Outer length of connectors: 22,001 mm, outer length of base plates: 22,000 mm, outer depth of connectors: 5,050 mm, outer depth of base plates: 5,000 mm, Height to top of flooring 2,888 mm, clear height to bottom of main beams 2,500 mm, clear height to bottom of secondary beams 2,620 mm, center-to-center distance of secondary beams 637.50 mm, cross-bracing 3 pieces, live load (floor level) 500 kg/m², moving load (hand pallet truck): yes, the weight of the equipment (excluding storage platforms, such as lighting, sprinkler systems, etc.) must be deducted from the live load, max. live load per support 6,881 kg, Max. load per base plate 17.2 kg/cm², the minimum working height must be observed in accordance with applicable regulations, Equipment: 1 set of stairs with a 35° incline, dimensions 1,000 mm, clear width 800 mm, 27 running meters of safety railing, height 1,100 mm, 1 self-closing pallet door, width 2,000 mm, flooring: 38 mm particleboard, top side natural / bottom side white, BS-0017-E, Industrial partition wall beneath the storage platform, length 22,000 mm, depth 5,000 mm, total 27 running meters with 1 90° corner, height 2,400 mm, Panels with 50 × 50 mm mesh, including supports and floor anchors, including a cutout of approx. 2,000 mm for a customer-supplied sliding door; mesh elements, supports, etc., in RAL 7024 graphite gray.

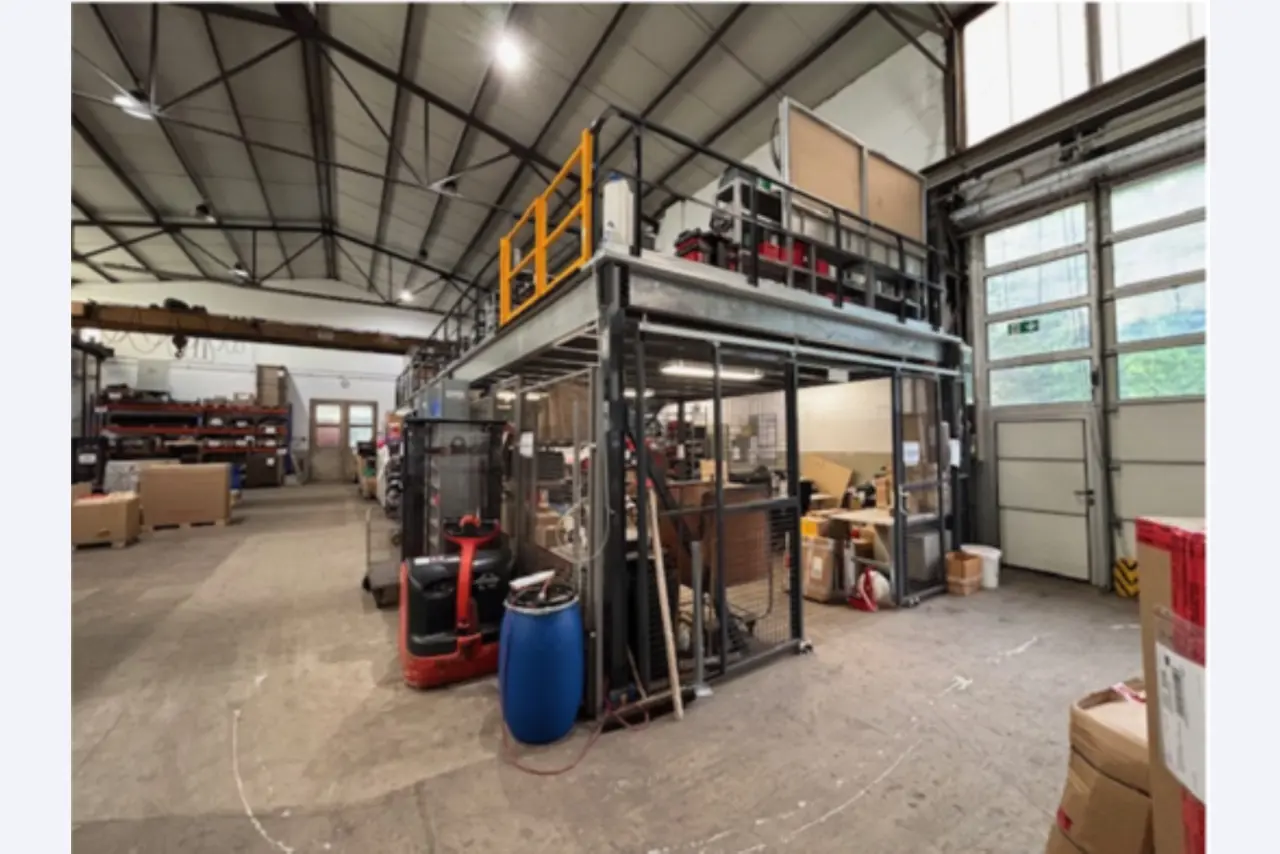

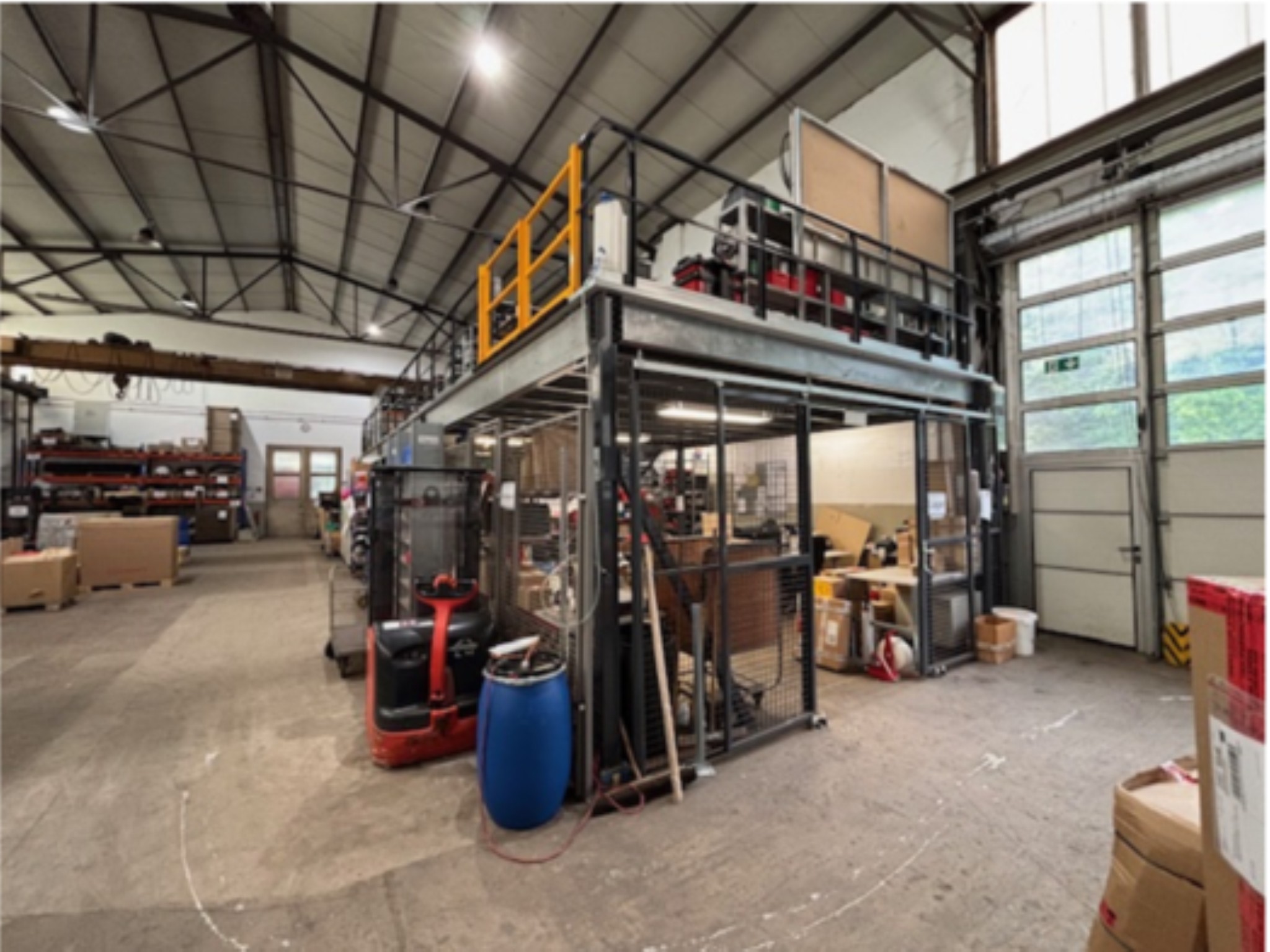

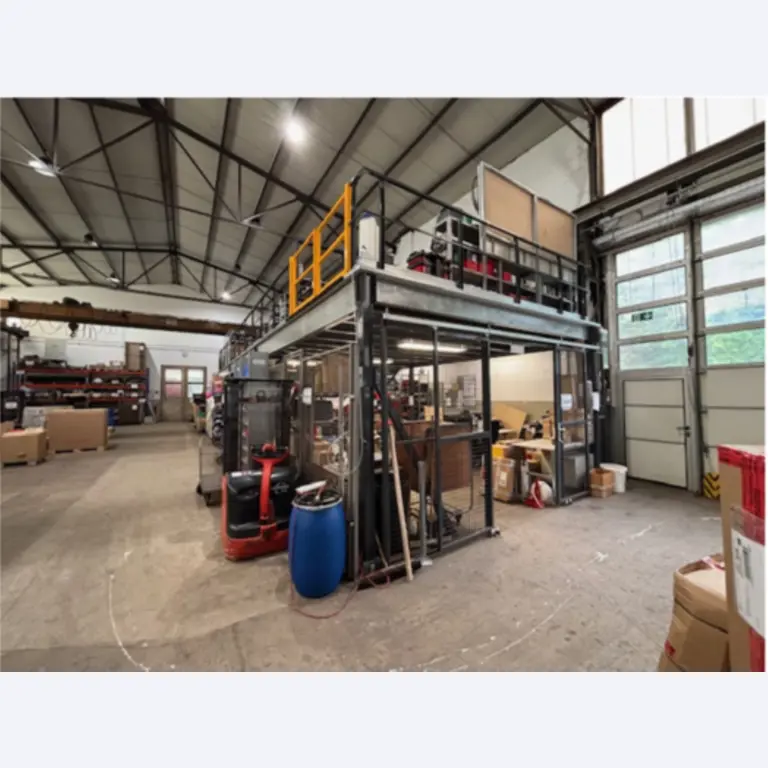

Storage platform without contents
