Complete compressed air station with compressors, air dryers, pressure vessels and accessories Omega AirTRADING#A19676-1

The subject of the sale is a complete compressor station together with the related equipment, including, among other items:

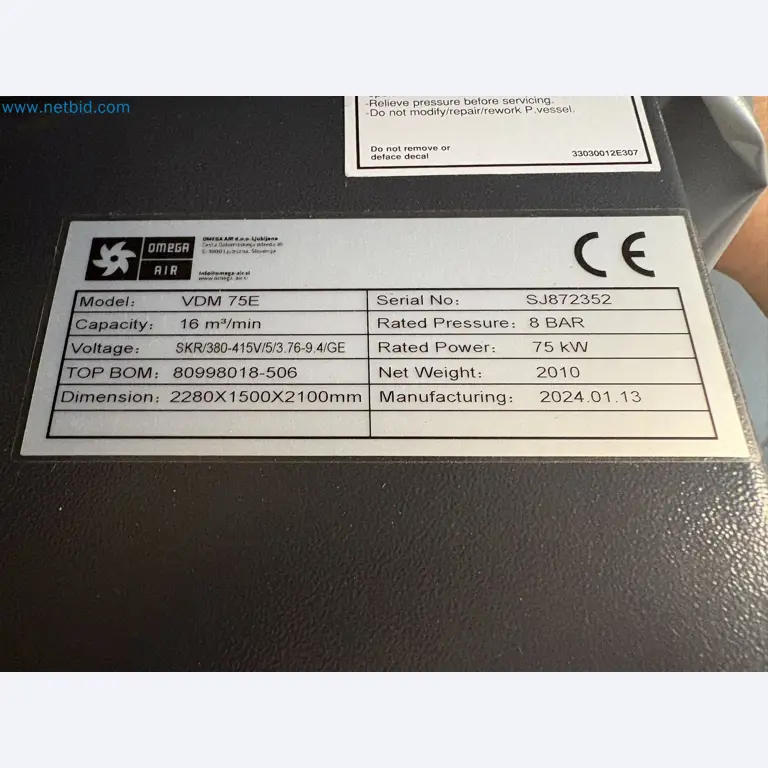

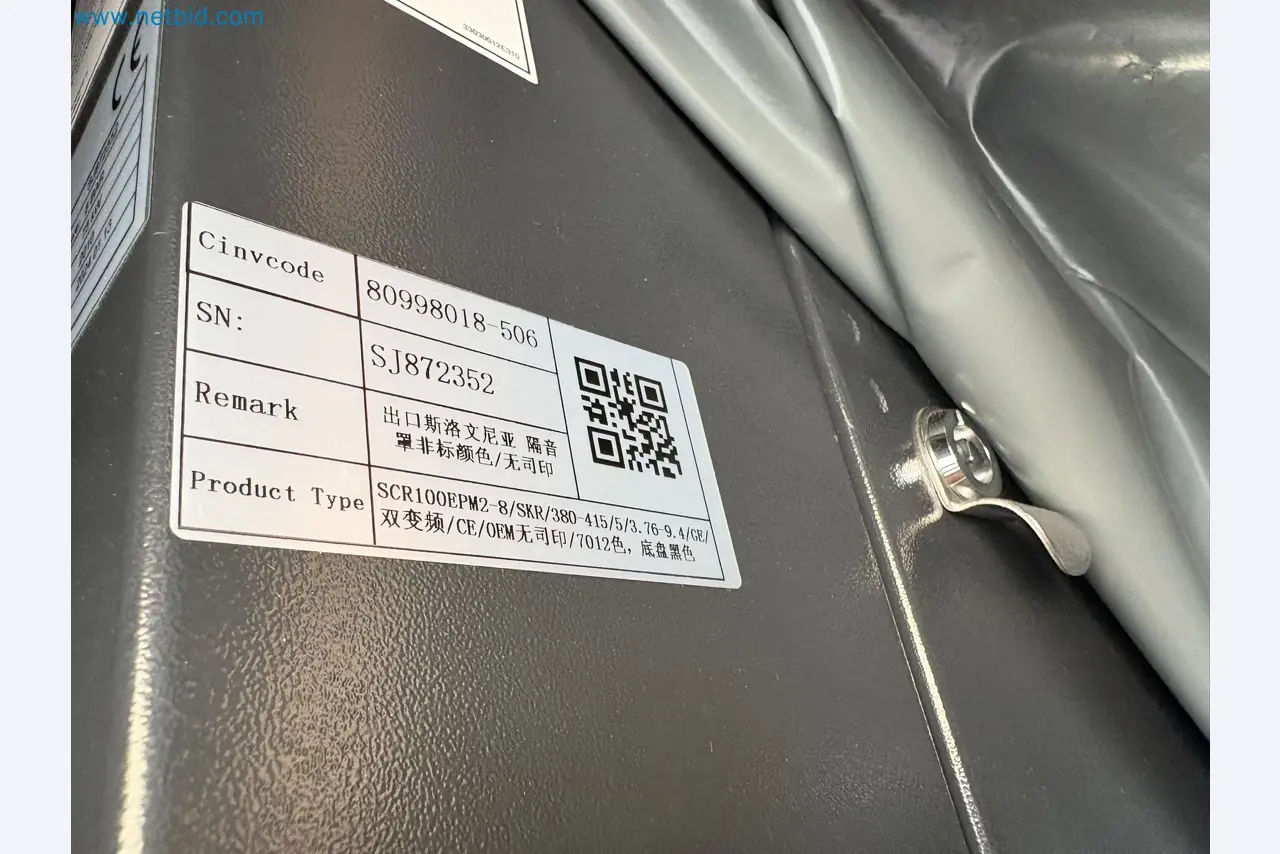

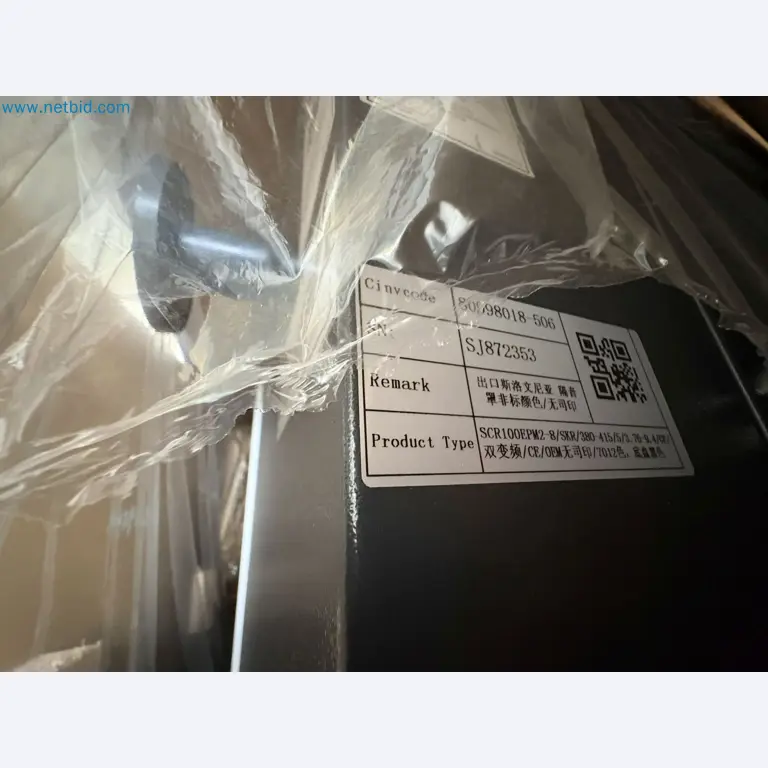

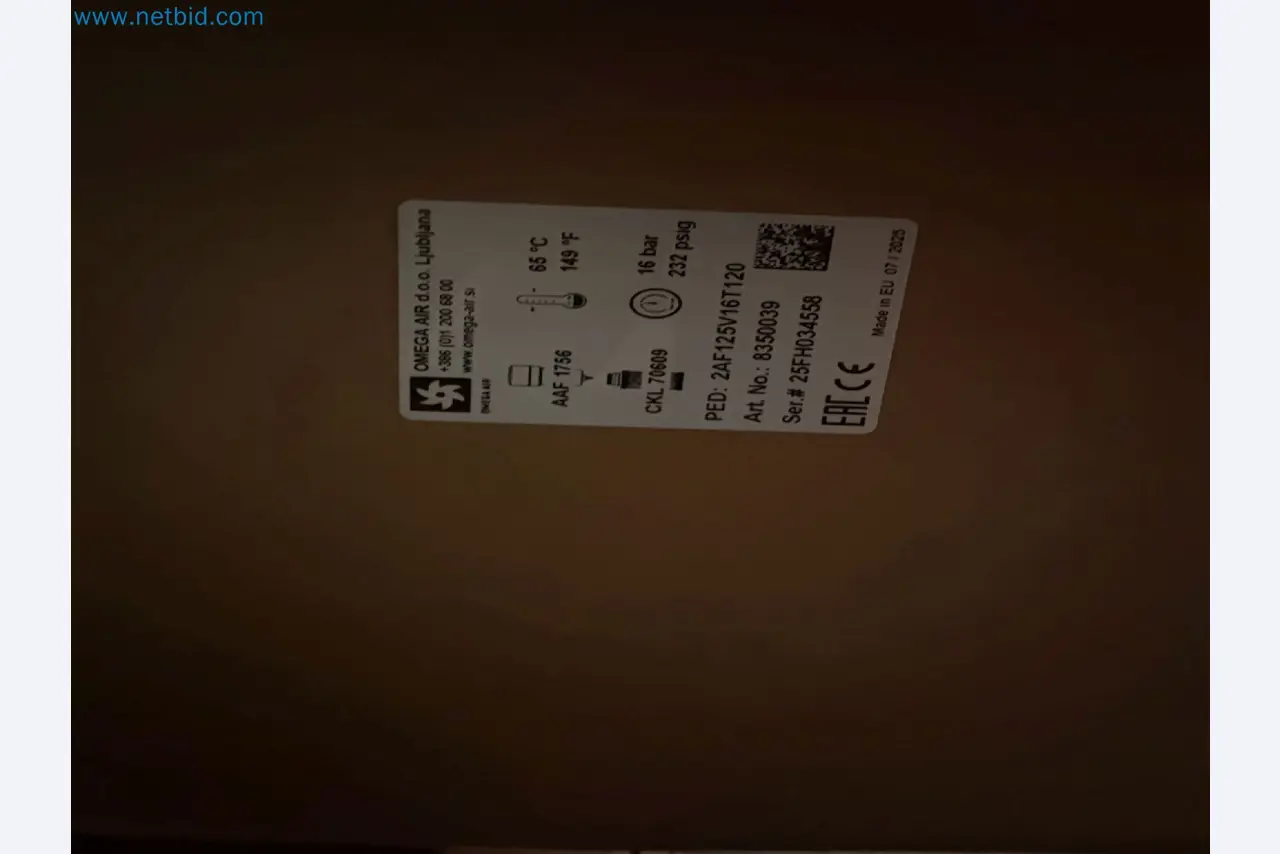

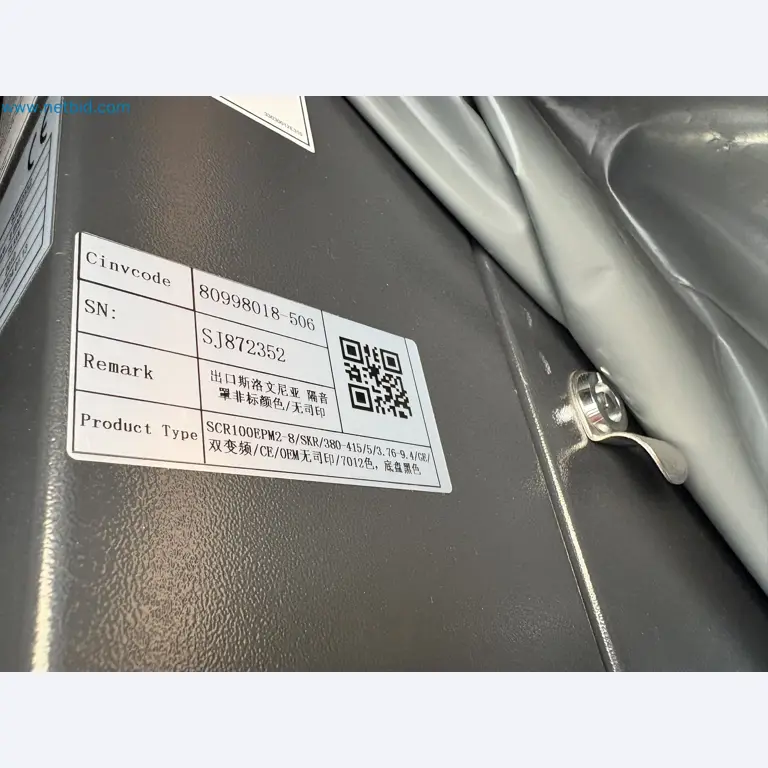

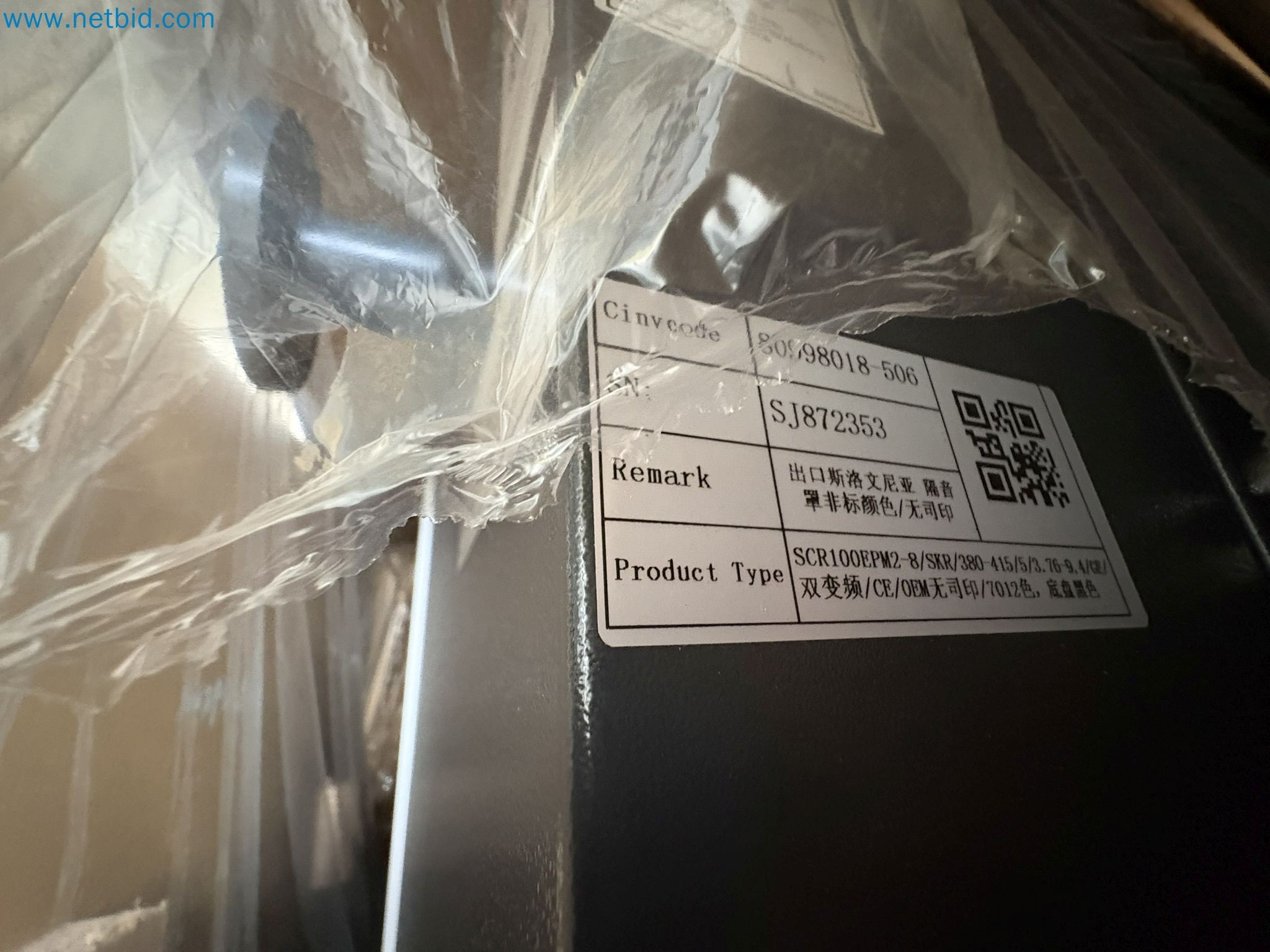

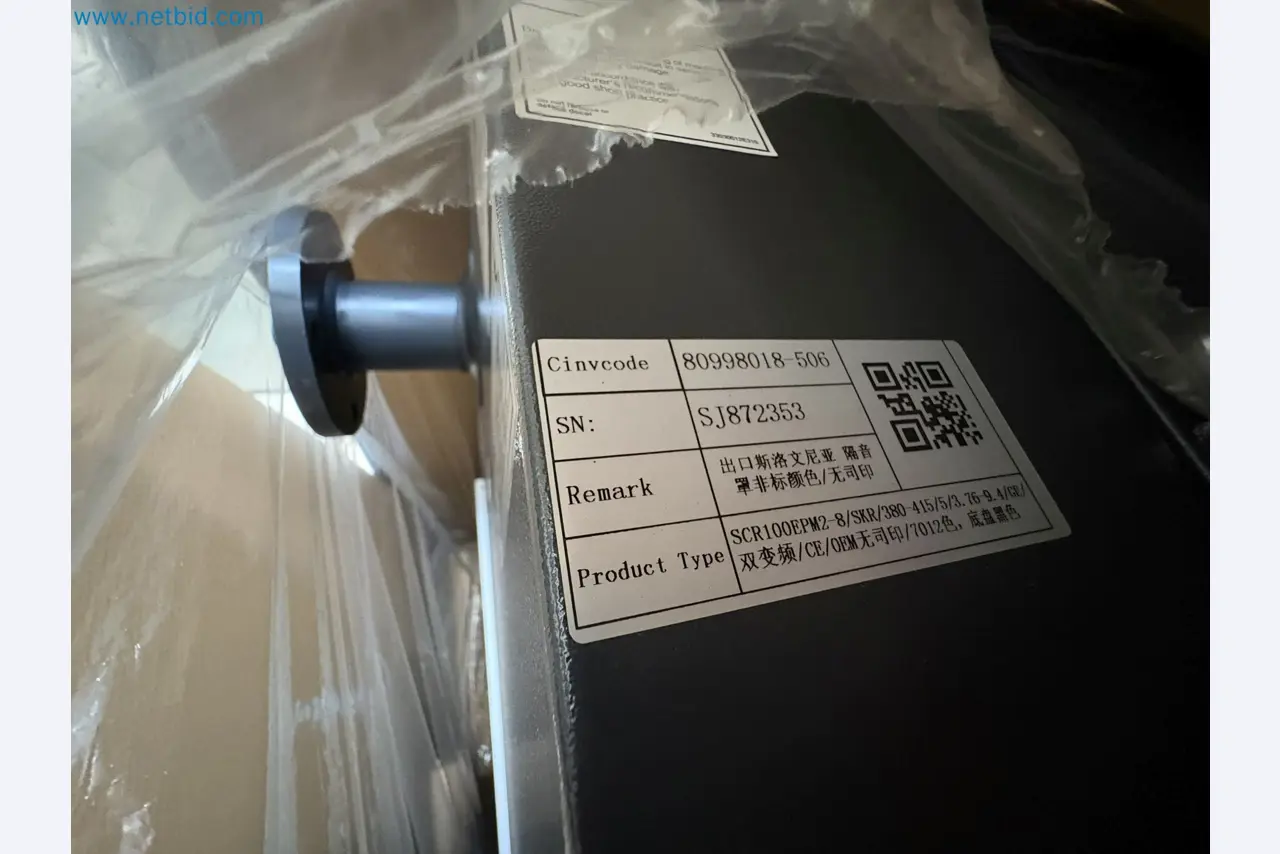

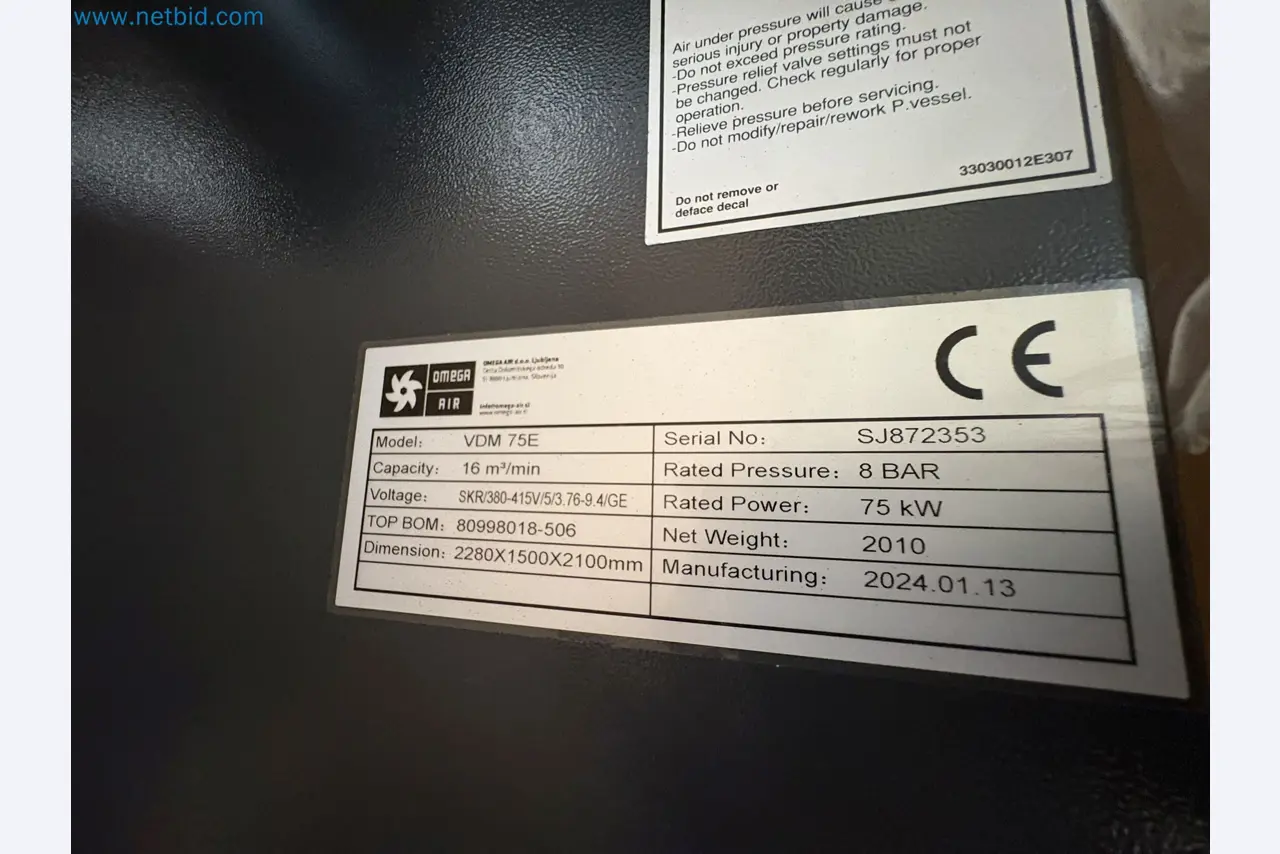

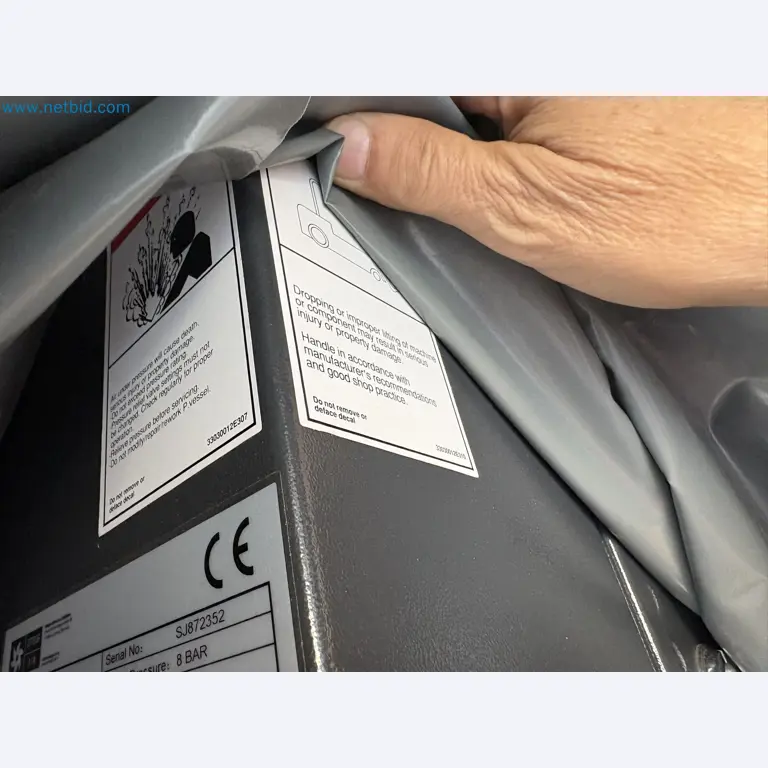

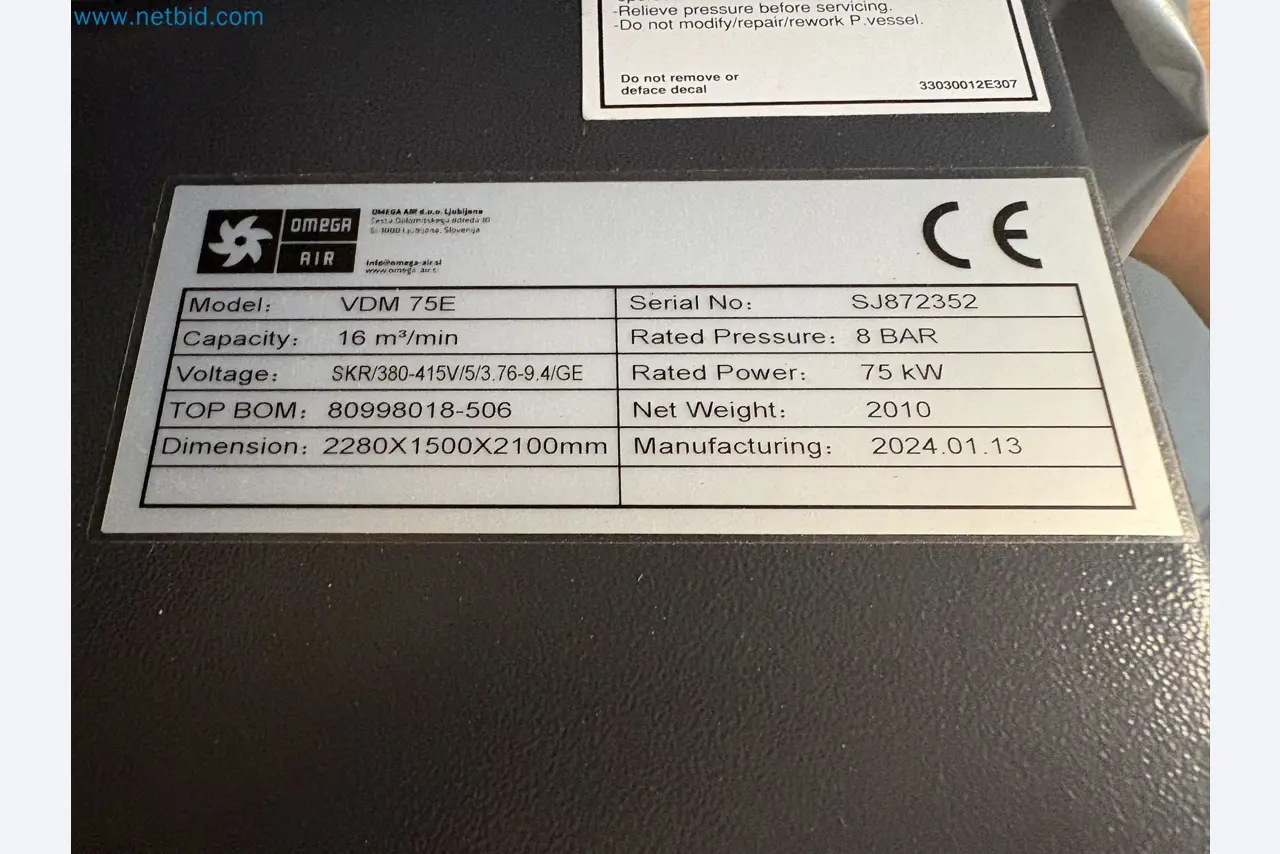

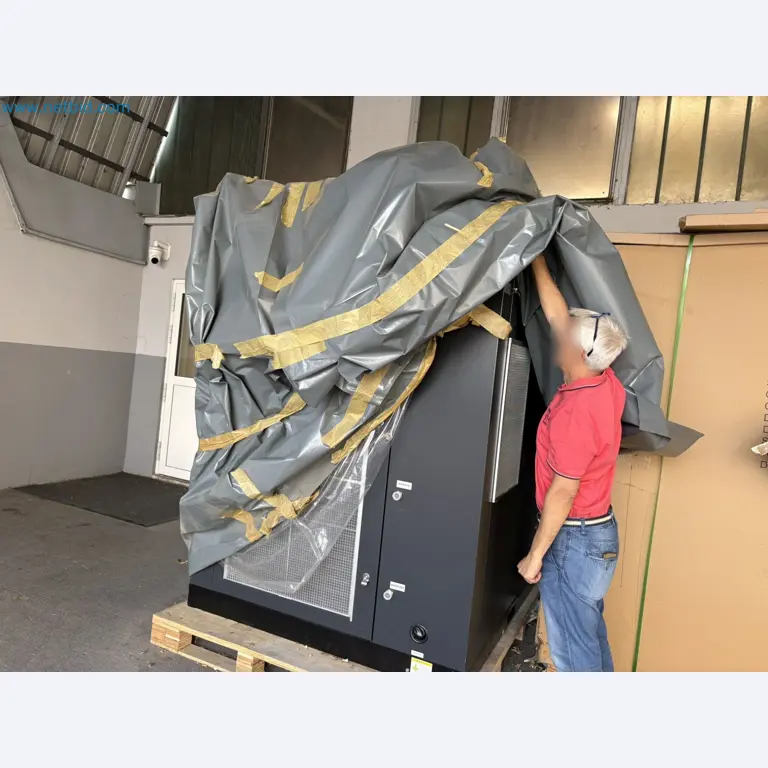

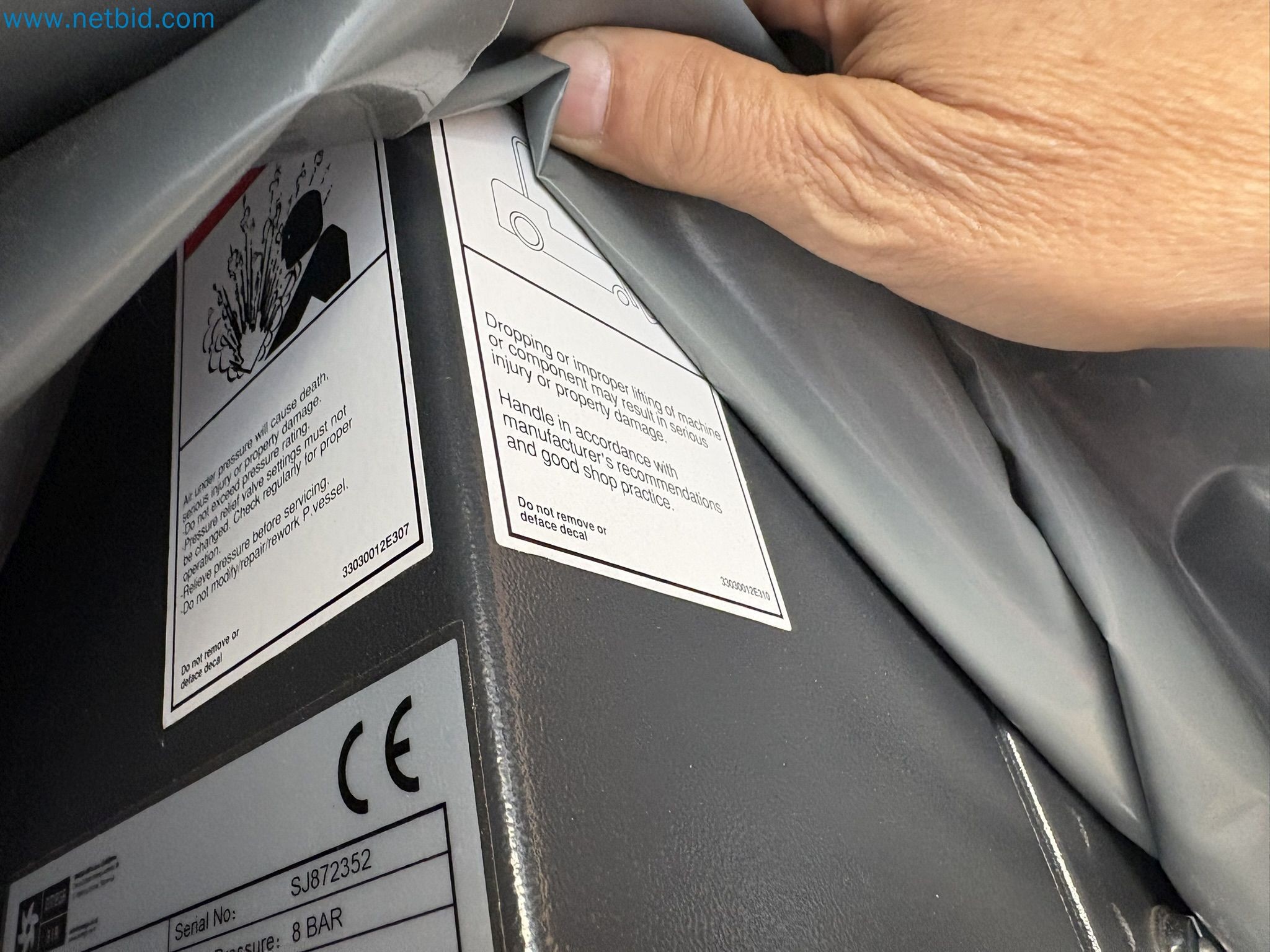

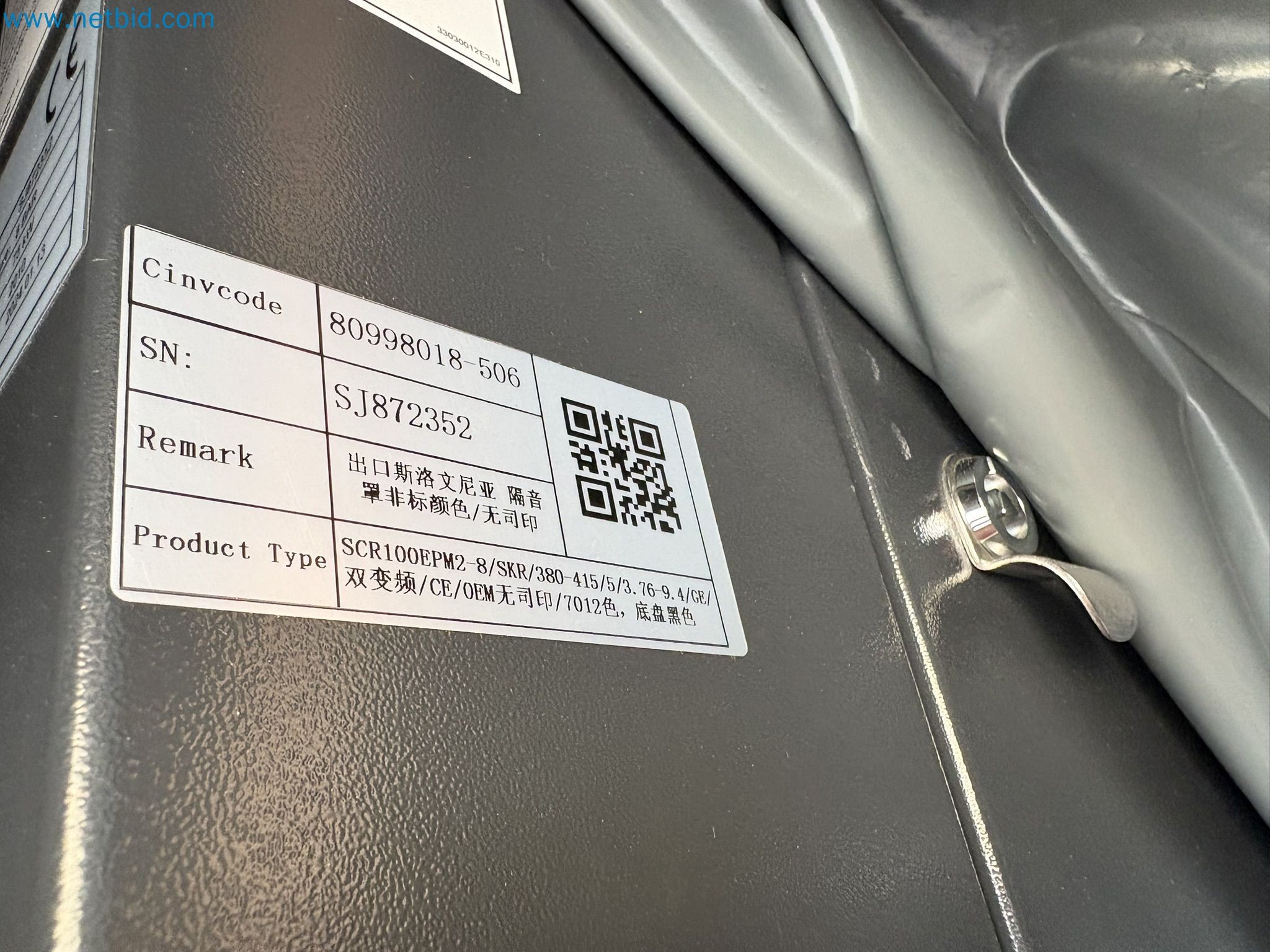

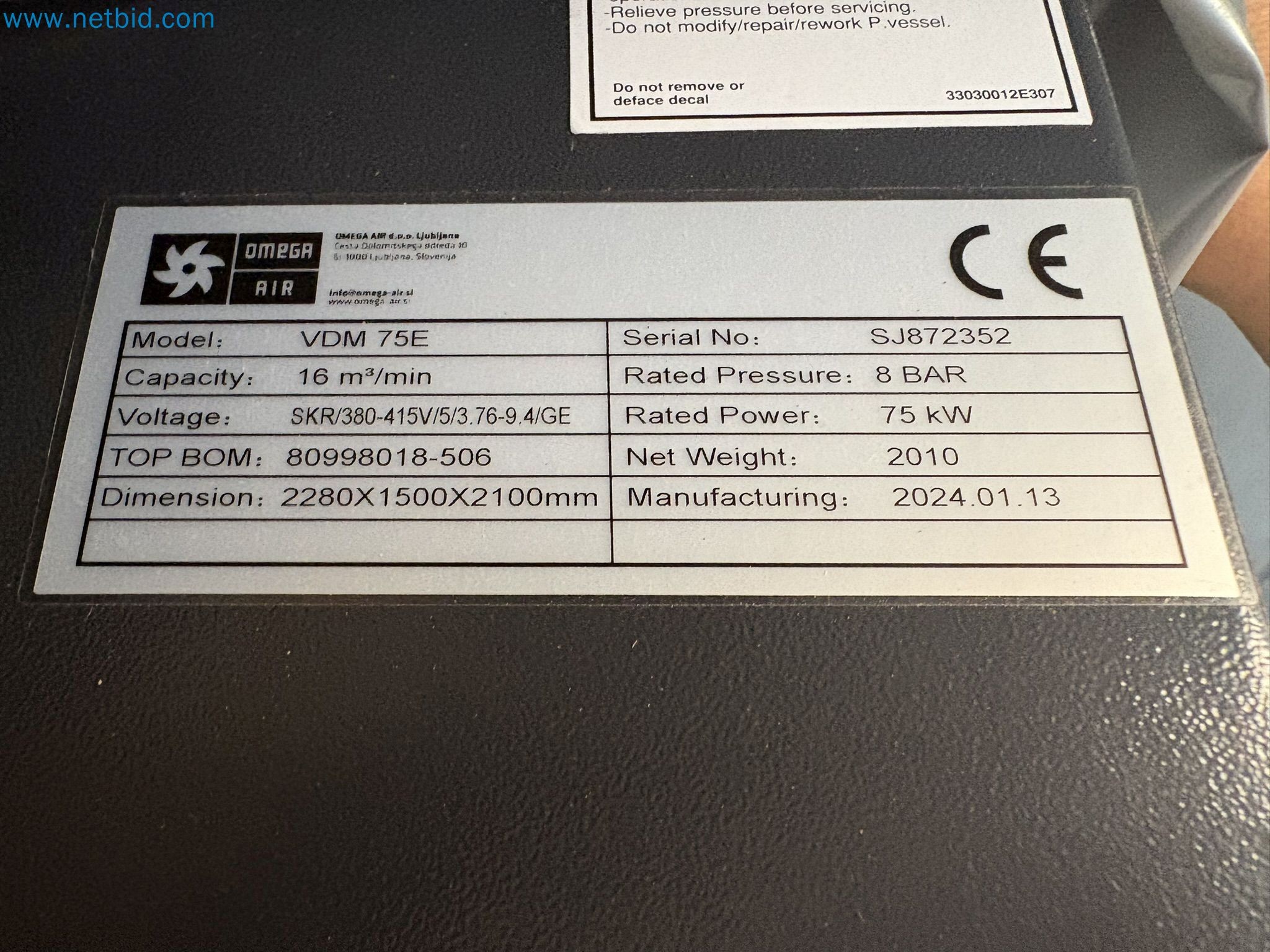

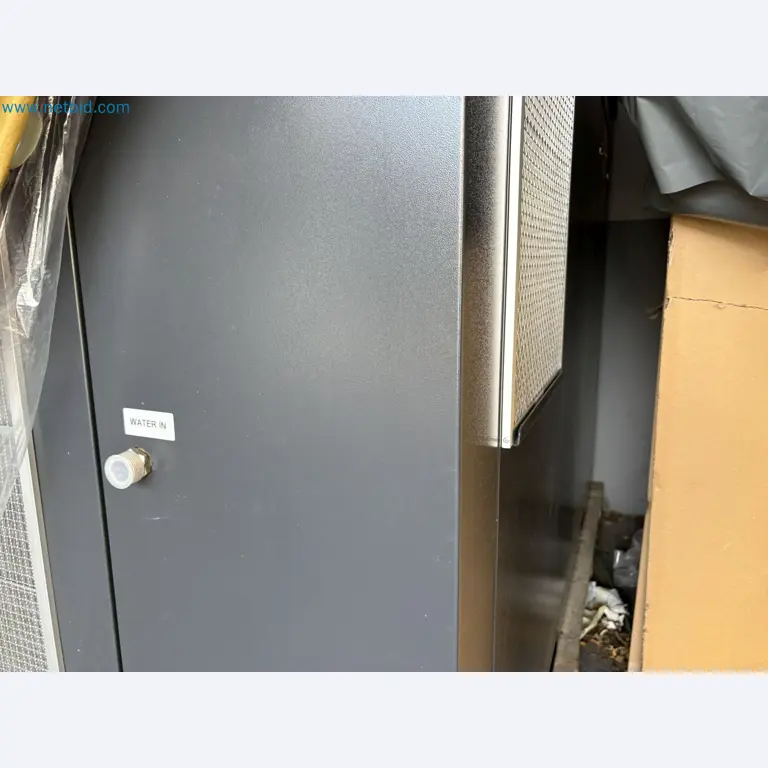

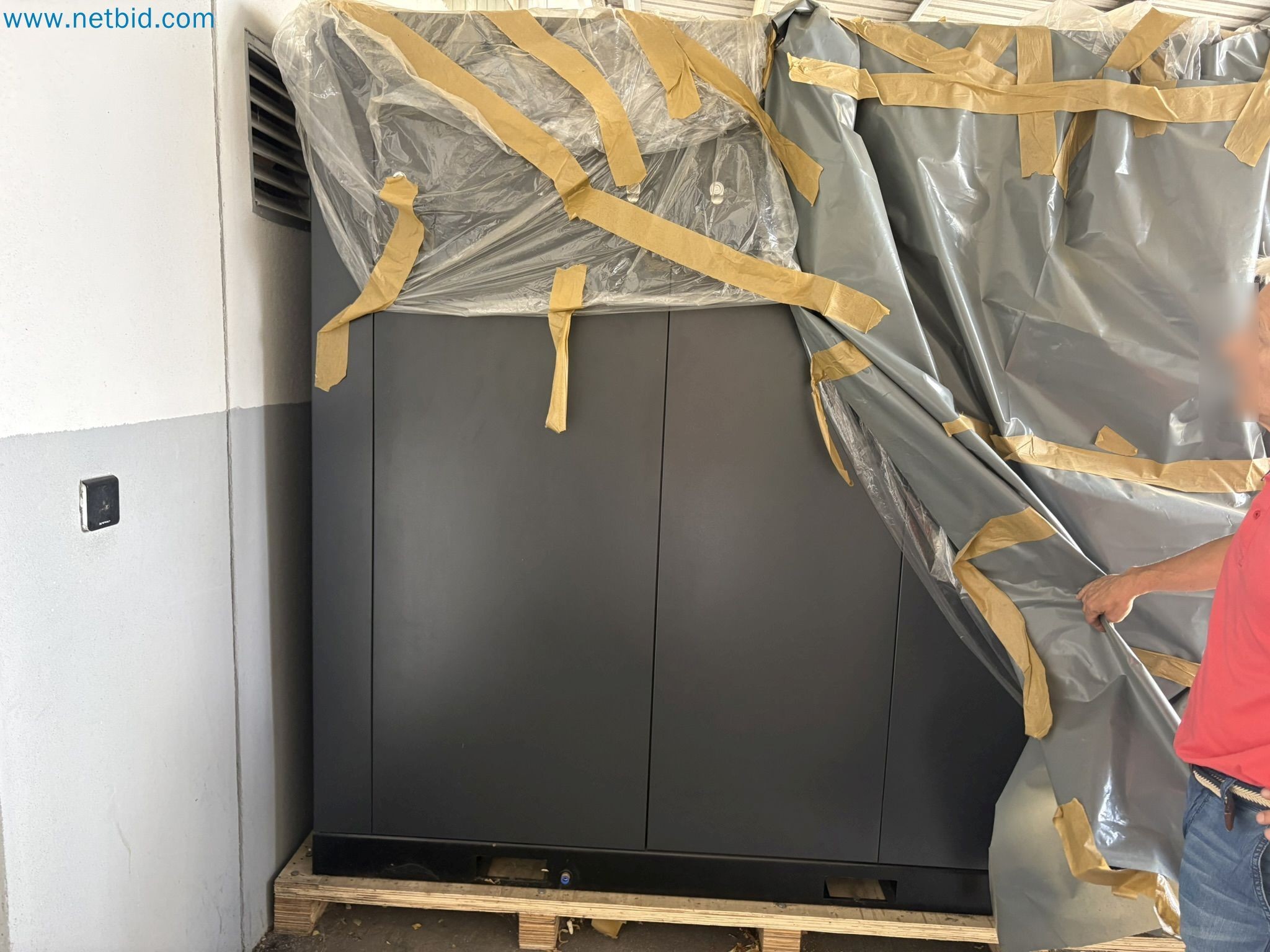

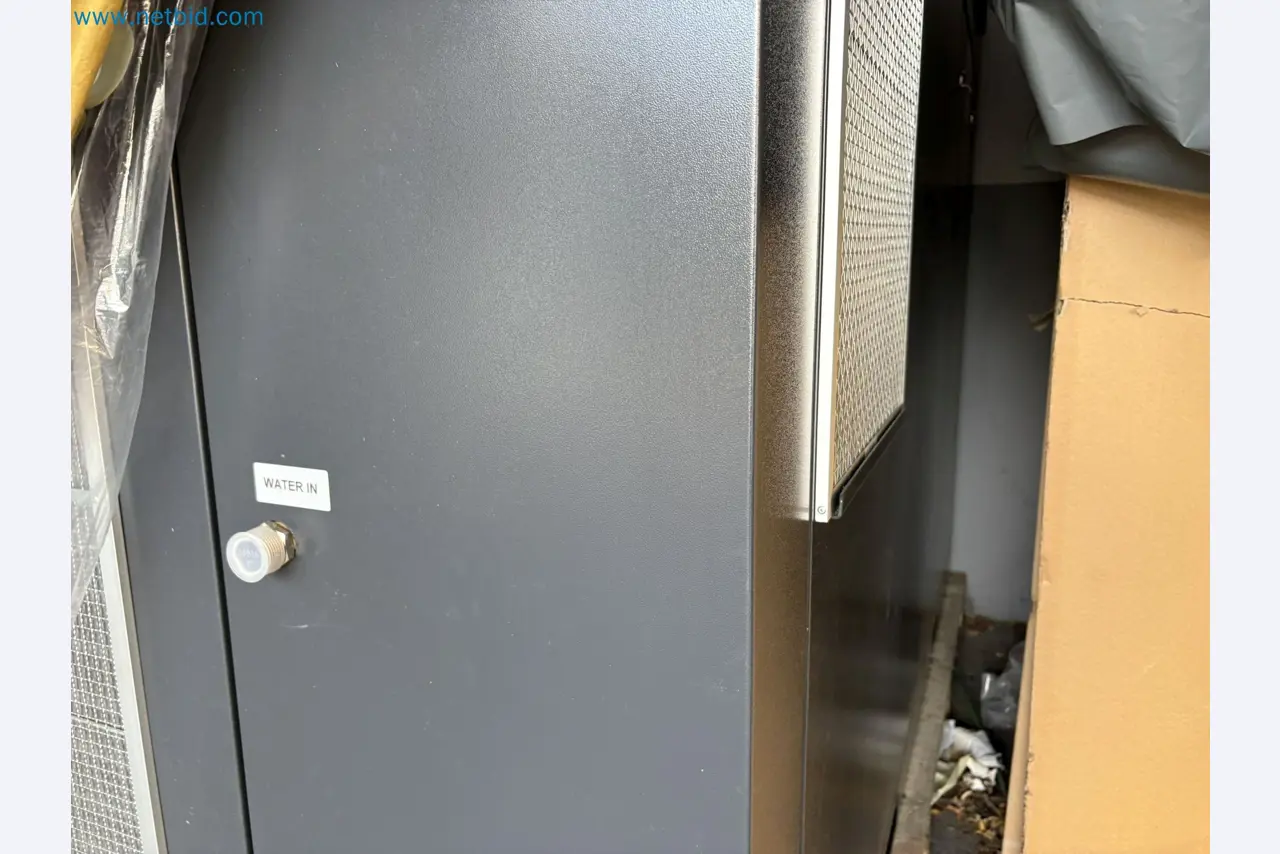

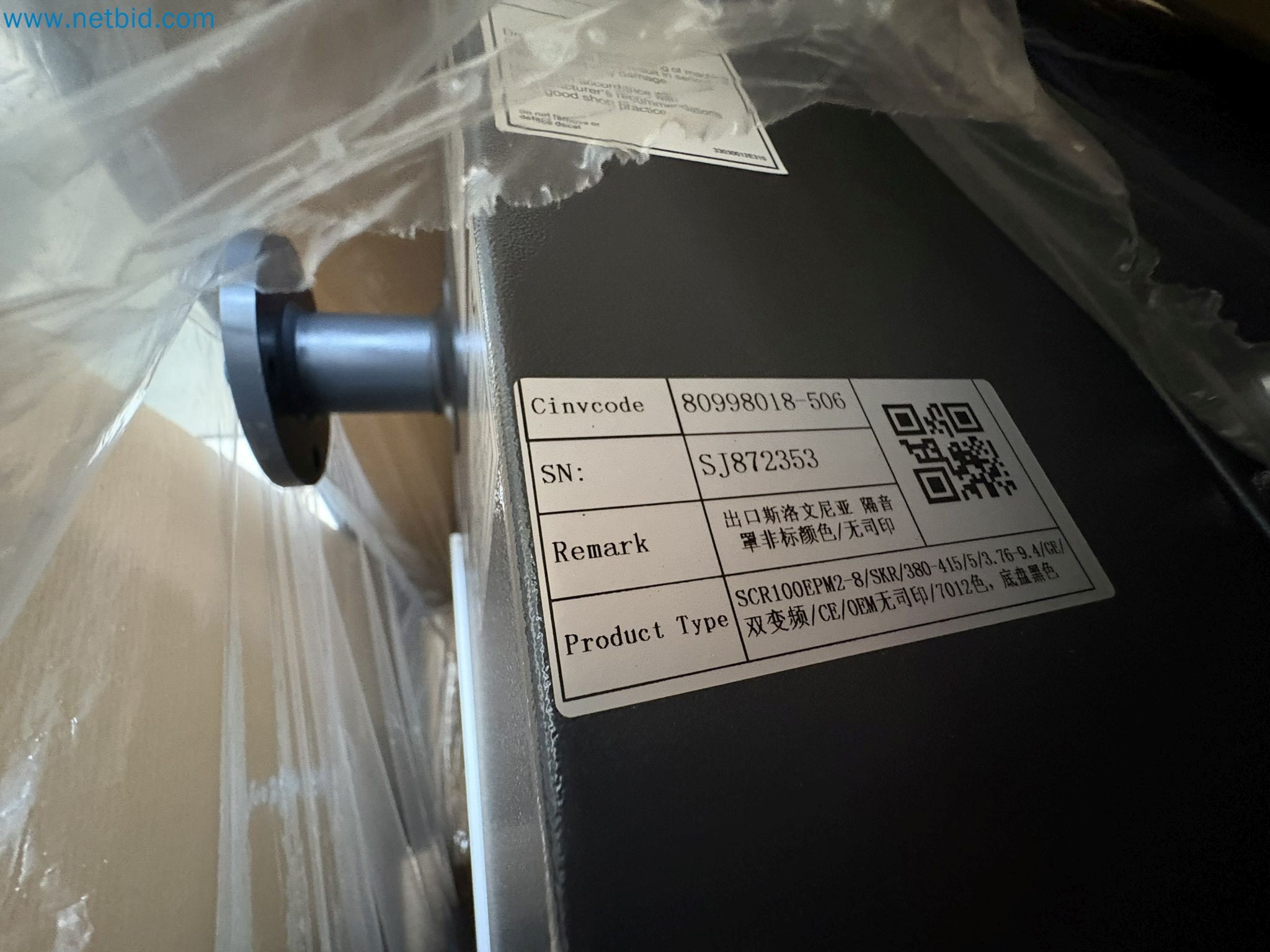

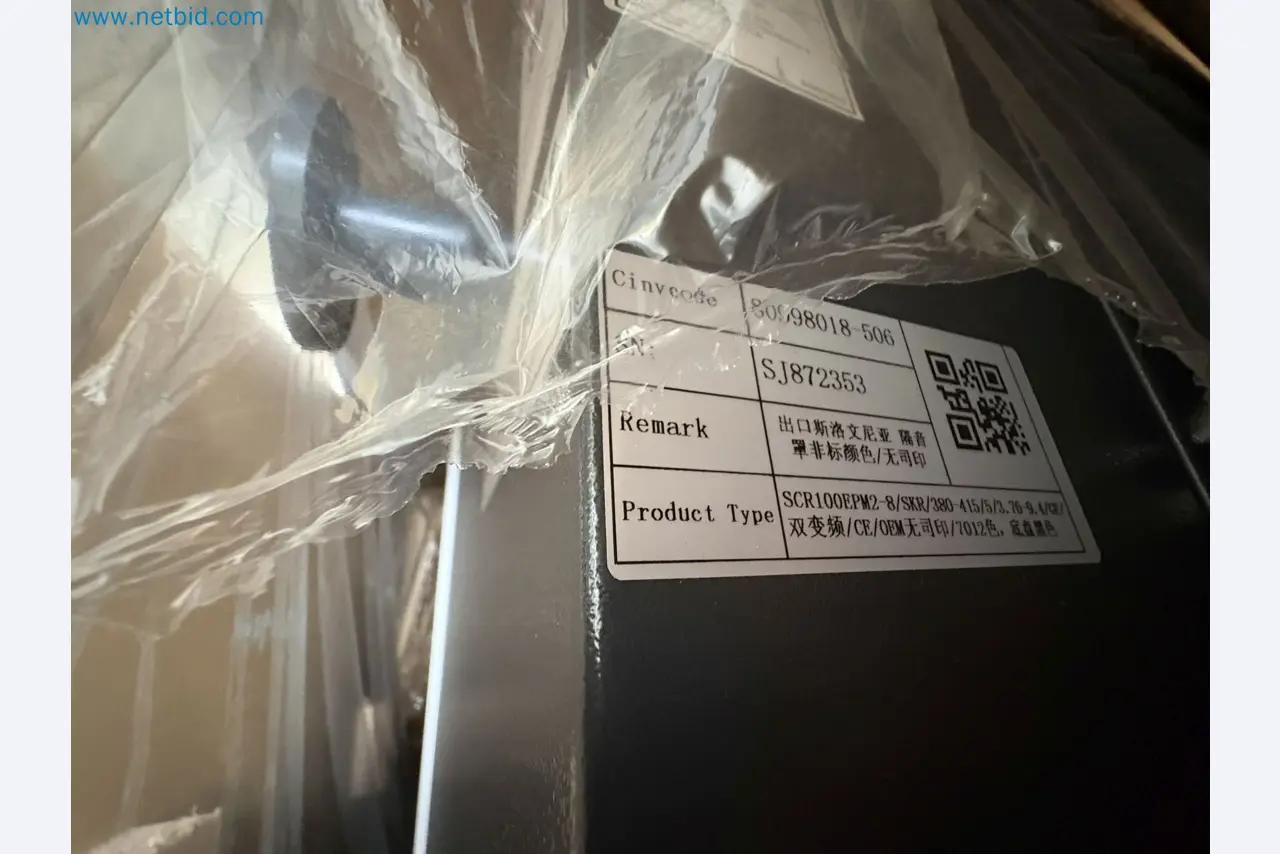

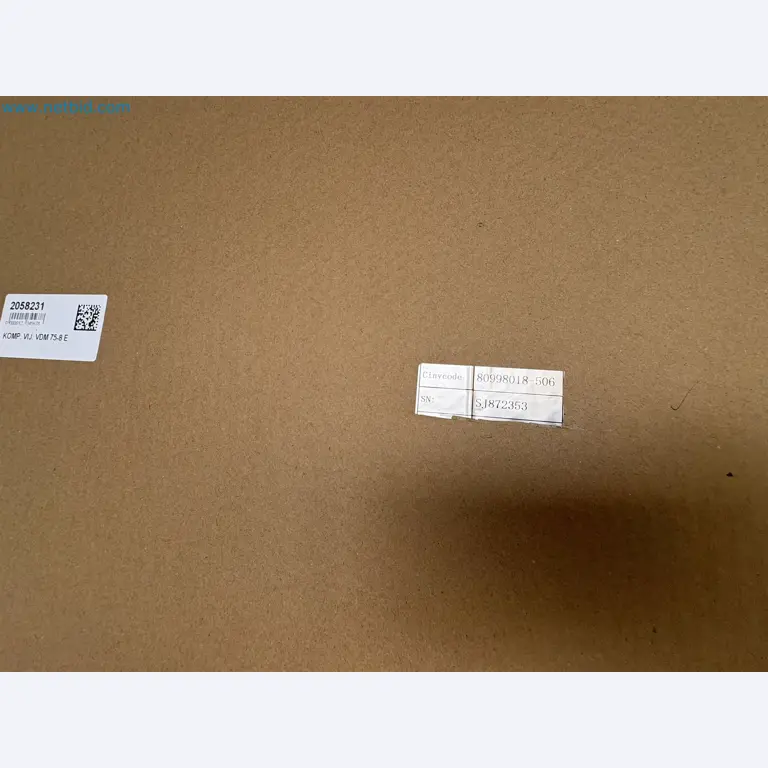

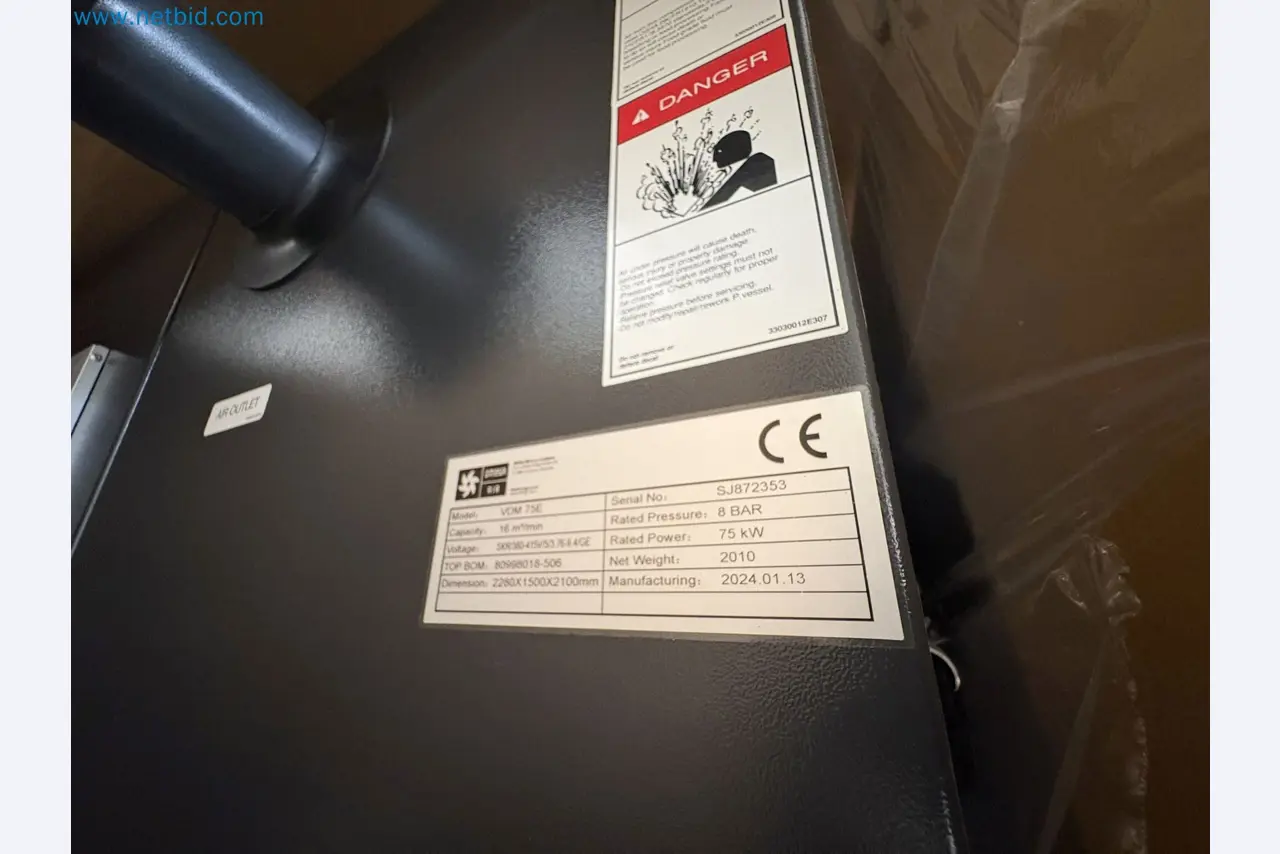

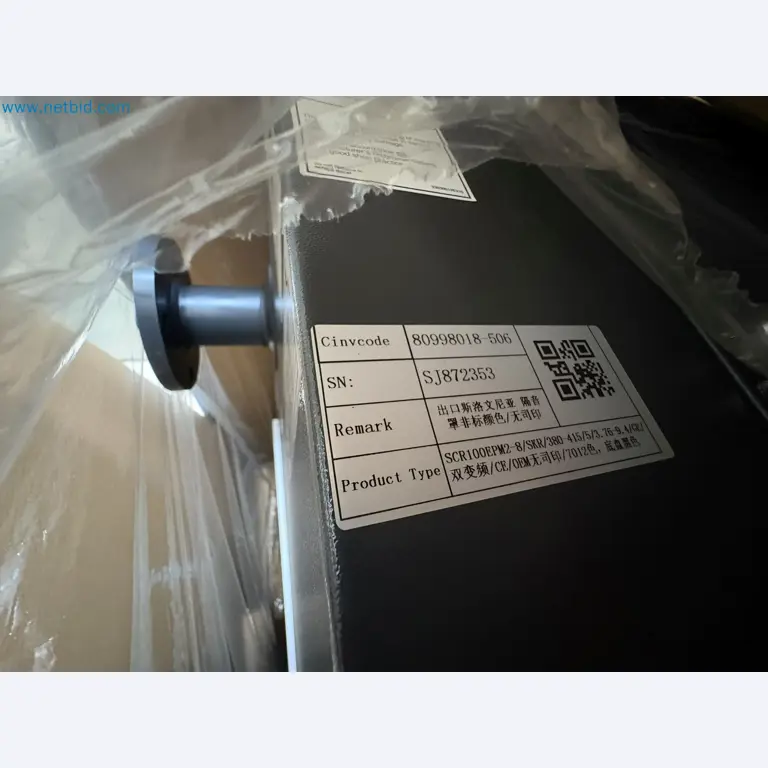

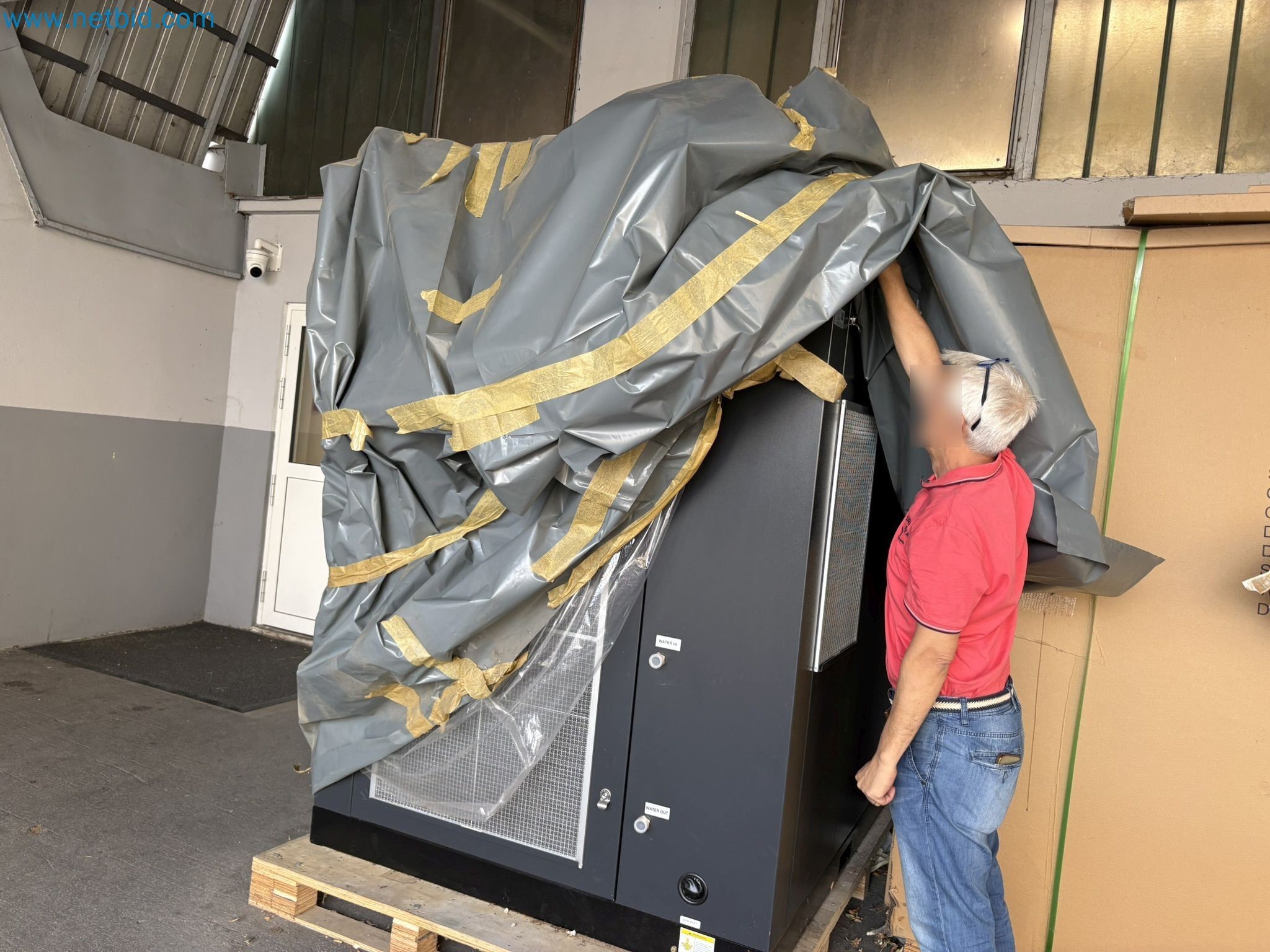

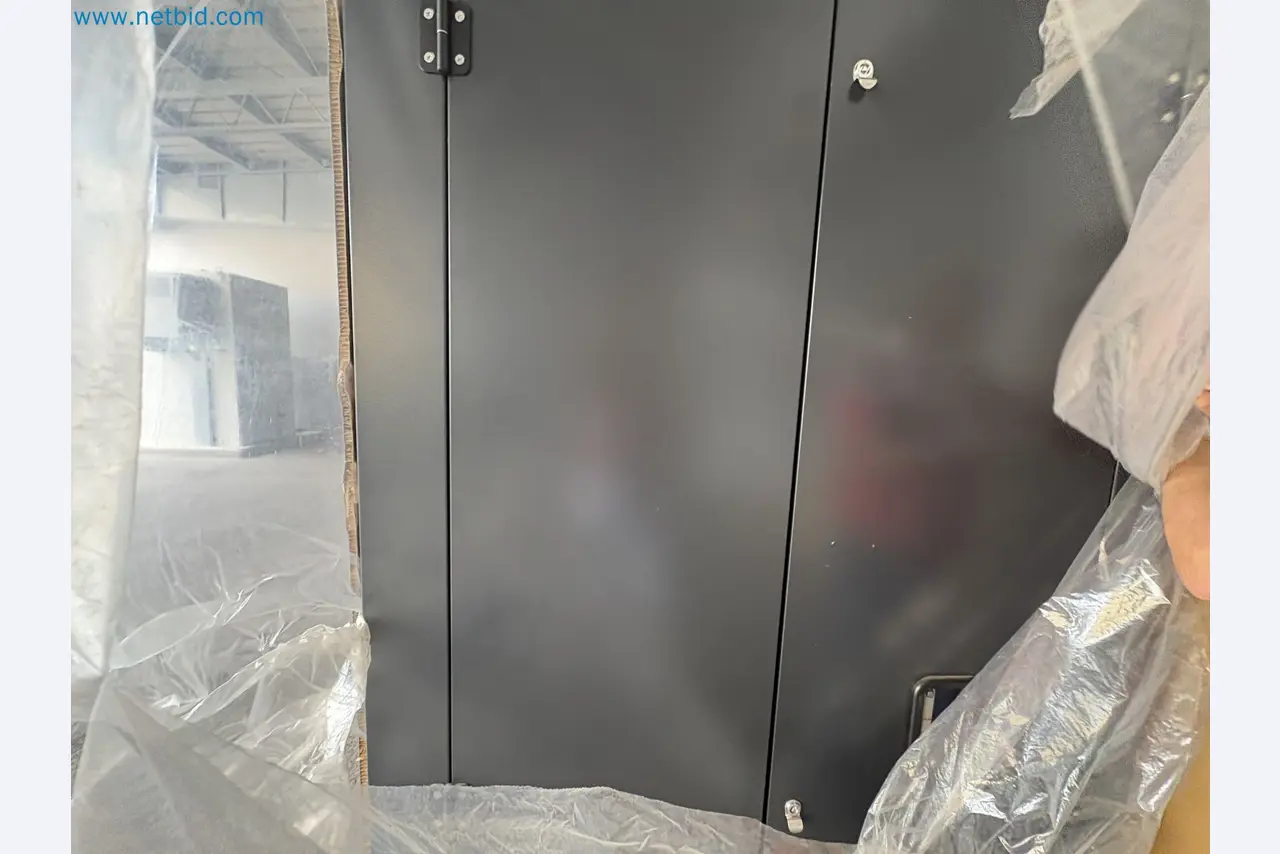

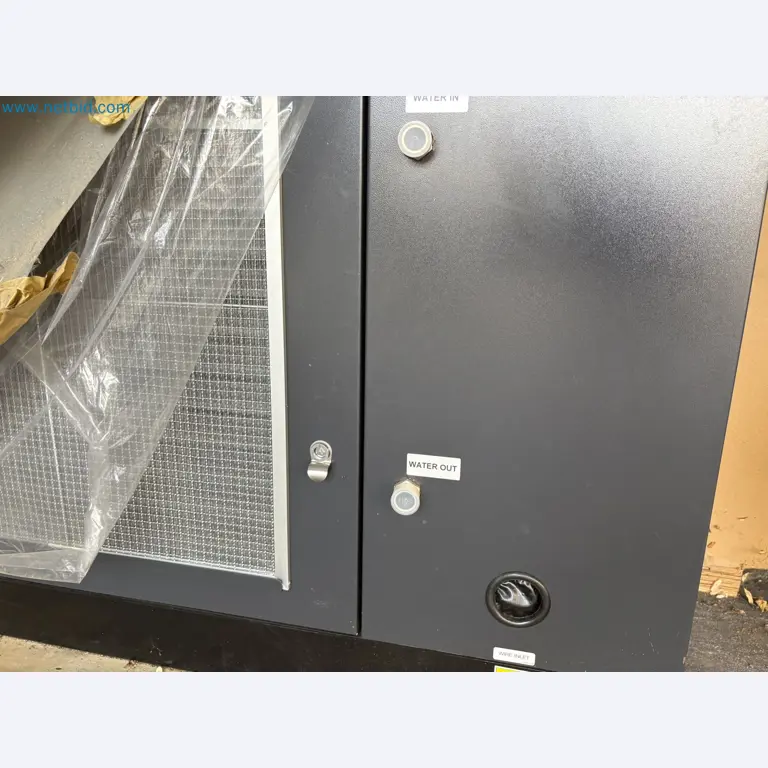

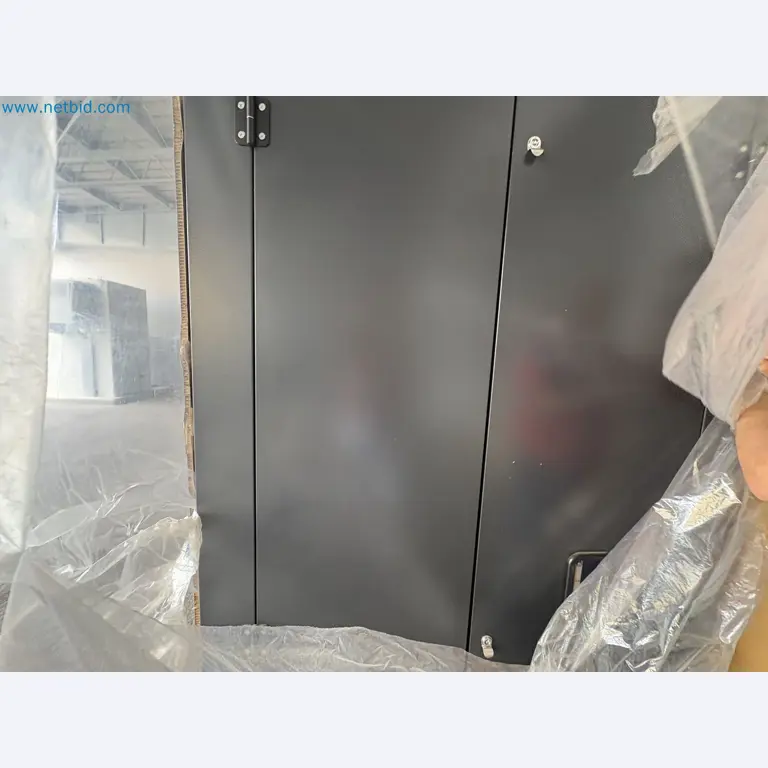

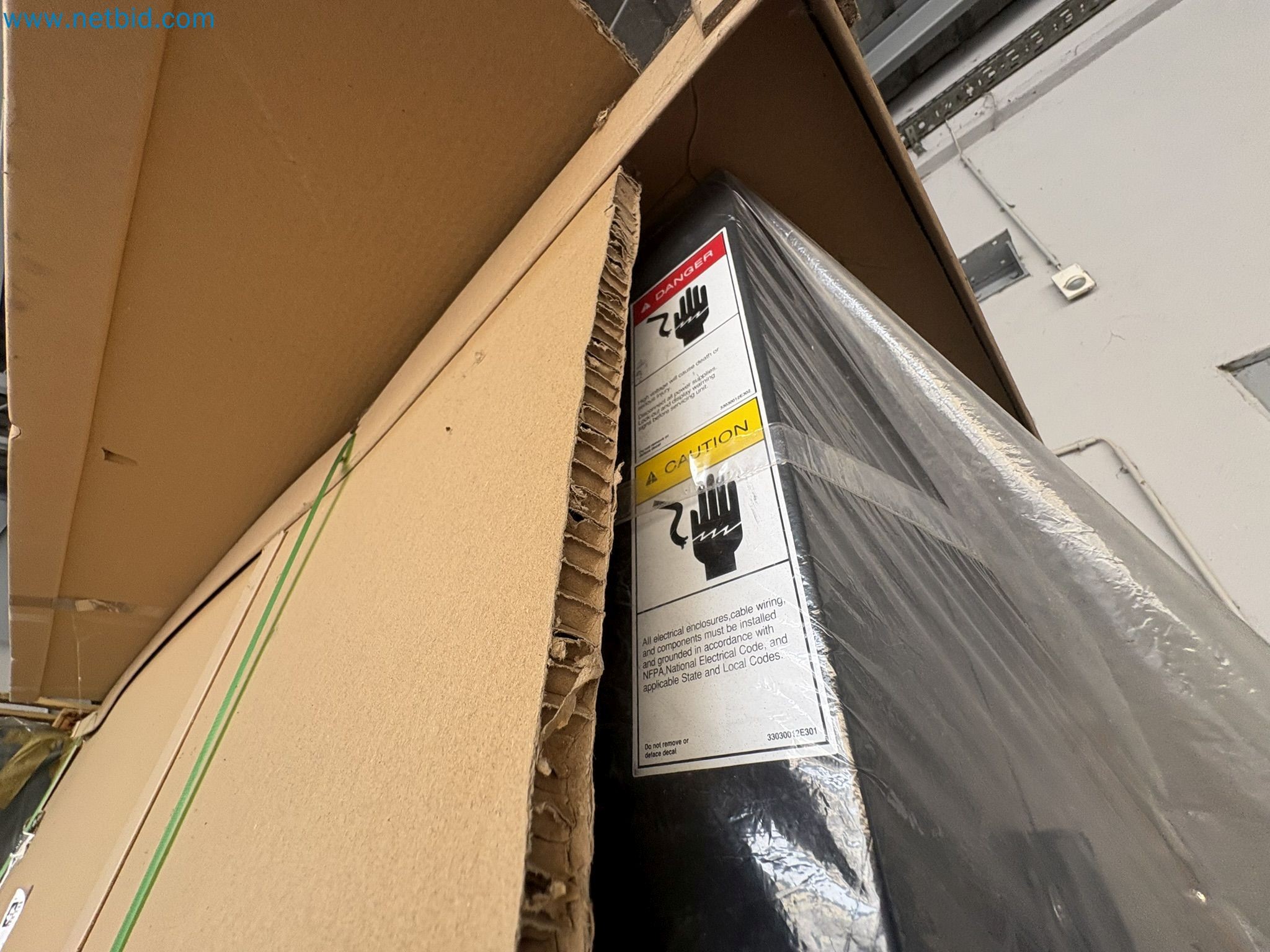

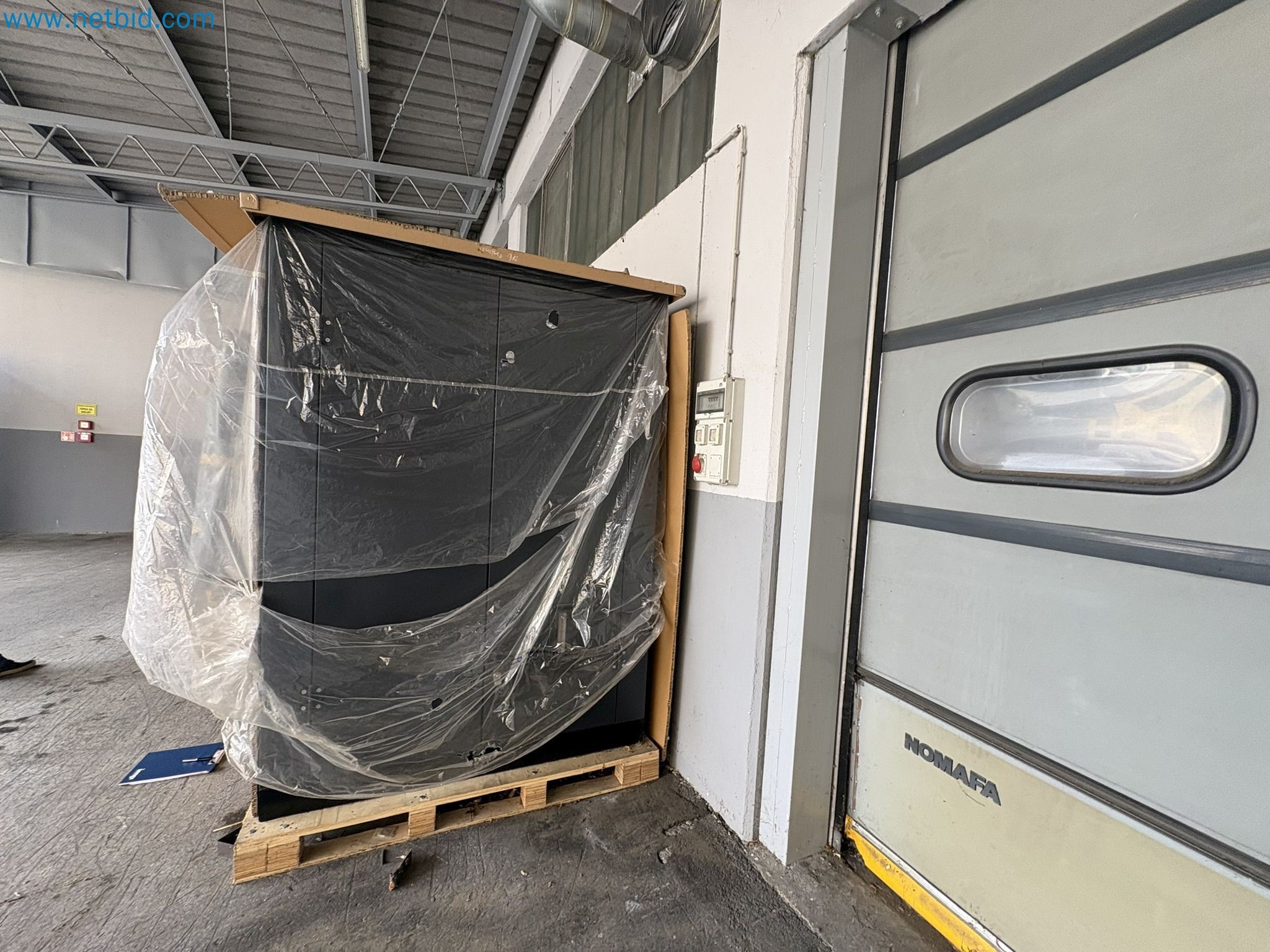

- 2 OMEGA AIR VDM 75E-8 screw compressors, 75 kW, 8 bar, manufactured in 2024; variable-speed screw compressors with microprocessor control; maximum pressure: 7 bar; capacity: 3.6–16 m³/min; nominal motor power: 75 kW; connection: DN65; weight: 2,010 kg; dimensions: 2,260 × 1,500 × 1,950 mm; FIL. AAF 1756 7021 KTL AOK 20B.

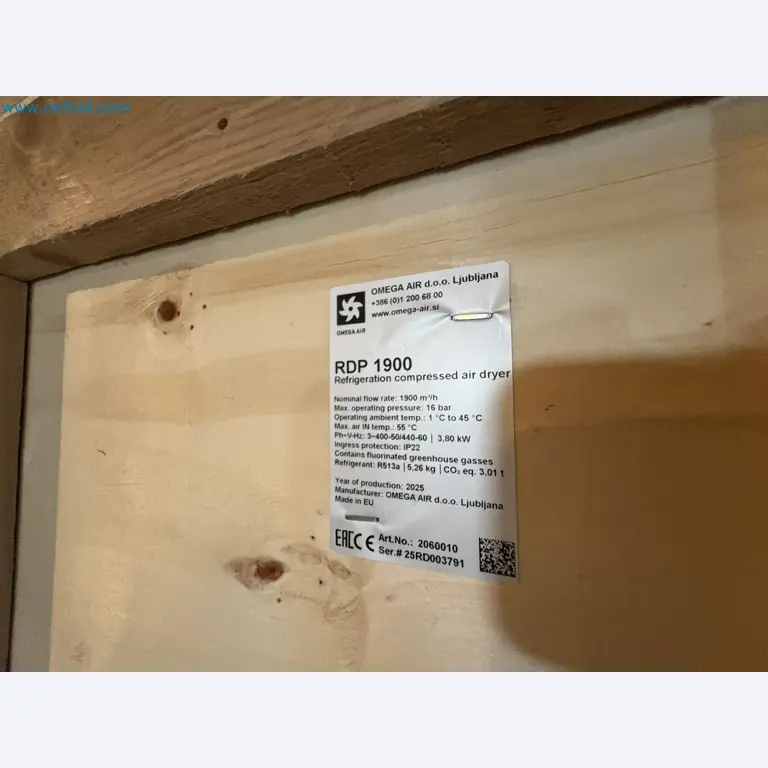

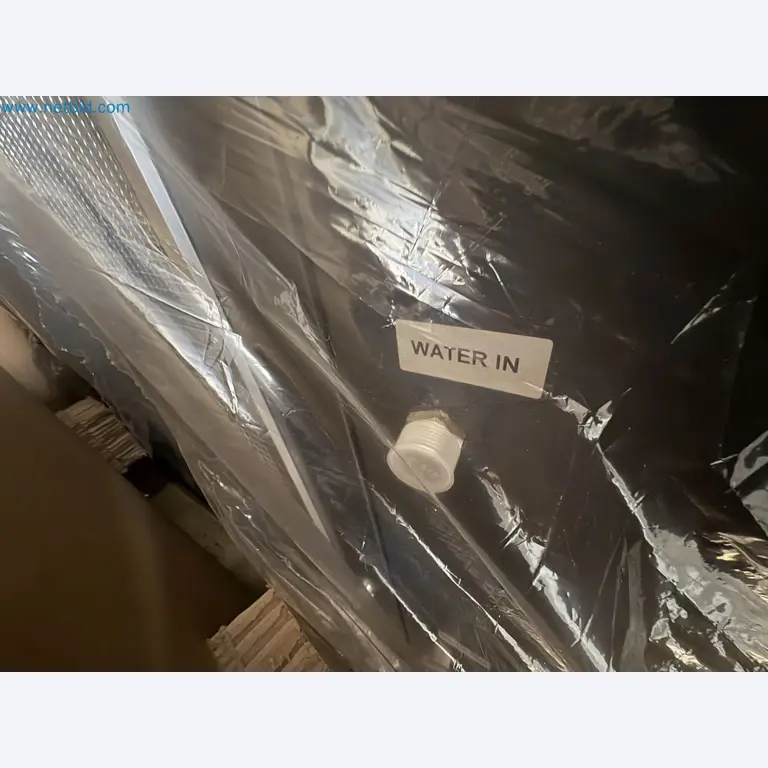

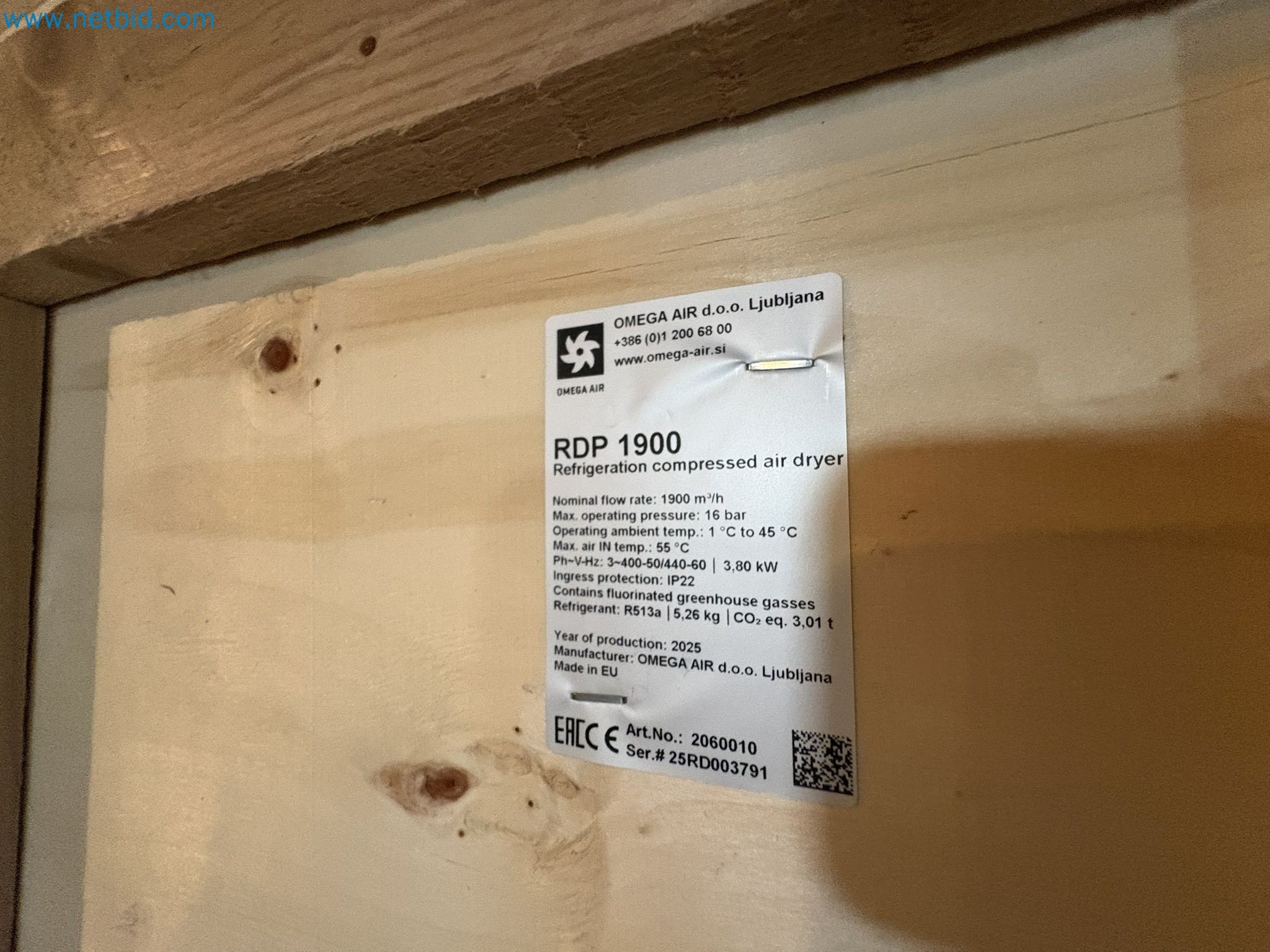

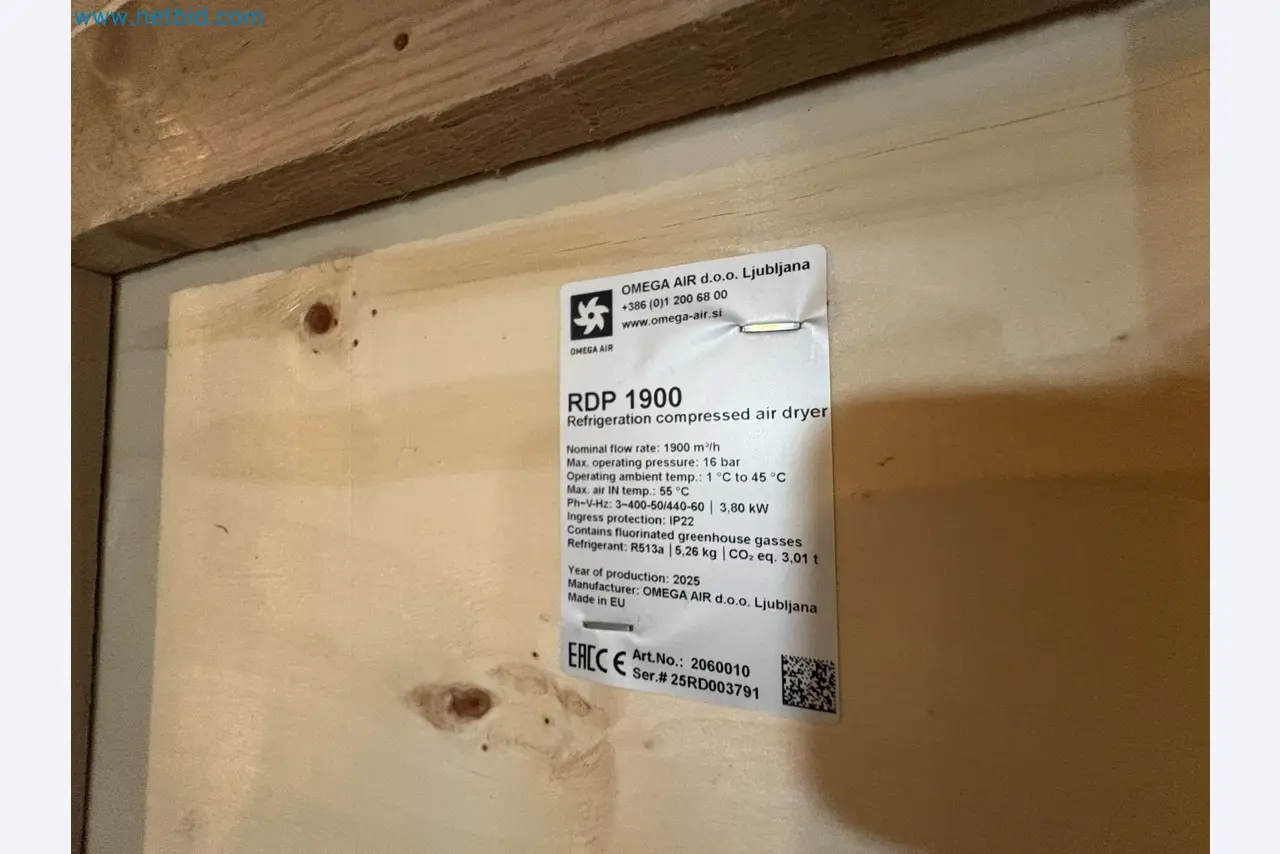

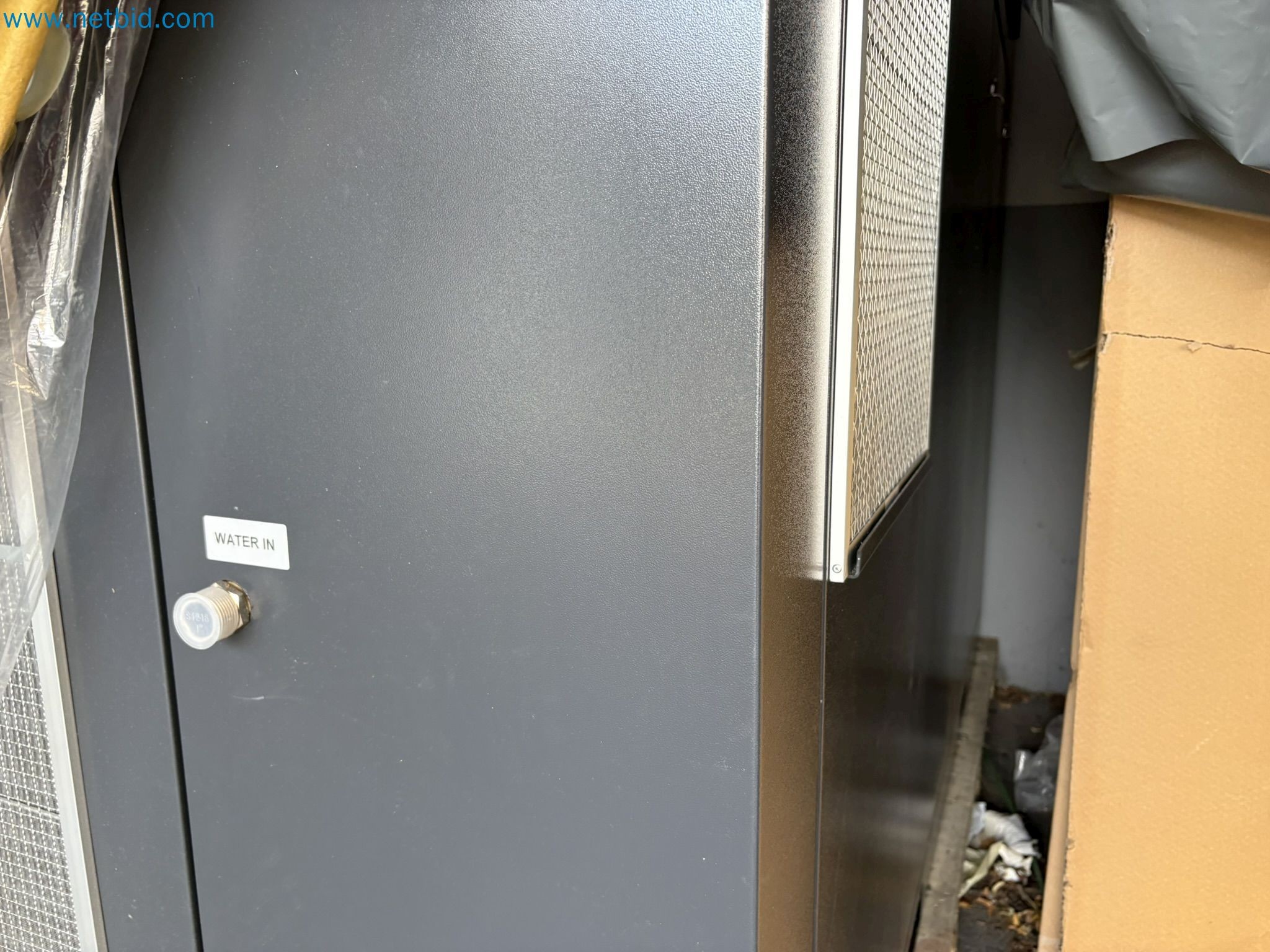

- OMEGA AIR RPD 1900 compressed-air refrigeration dryer; supply and installation of a refrigeration dryer equipped with a refrigeration compressor using R513A refrigerant, a condenser with an electric fan, an air-to-air heat exchanger, a refrigerant-to-air heat exchanger, an electrical control cabinet with temperature regulation, an intelligent volumetric condensate drain and a supporting thermally insulated enclosure.

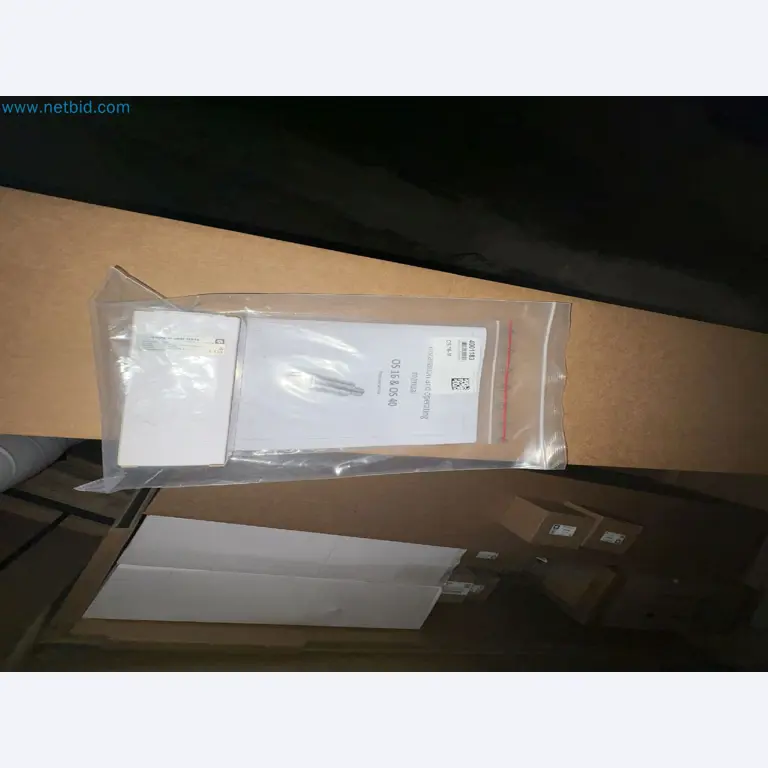

Operating and maintenance instructions, Modbus protocol and commissioning are also included in the scope of supply. Power supply: 400 V / 50 Hz, P = 3.8 kW; maximum operating pressure: 16 bar; flow rate: 1,900 m³/h; operating pressure: 7 bar; compressed-air inlet temperature: 30 °C; ambient temperature: = 25 °C; pressure dew point: 3 °C.

- OMEGA AIR AF 2006 7021 ELOX VLP compressed-air pre-filter; consisting of the upper and lower housing sections, housing seal (O-ring), filter element, filter-element seal, drain valve, nameplate and operating and maintenance instructions. Technical data: connection G 3"; capacity 36 m³/min; operating pressure 7 bar; maximum operating pressure 16 bar; solid-particle filtration 3 µm in accordance with ISO 8573-1, Class 6.

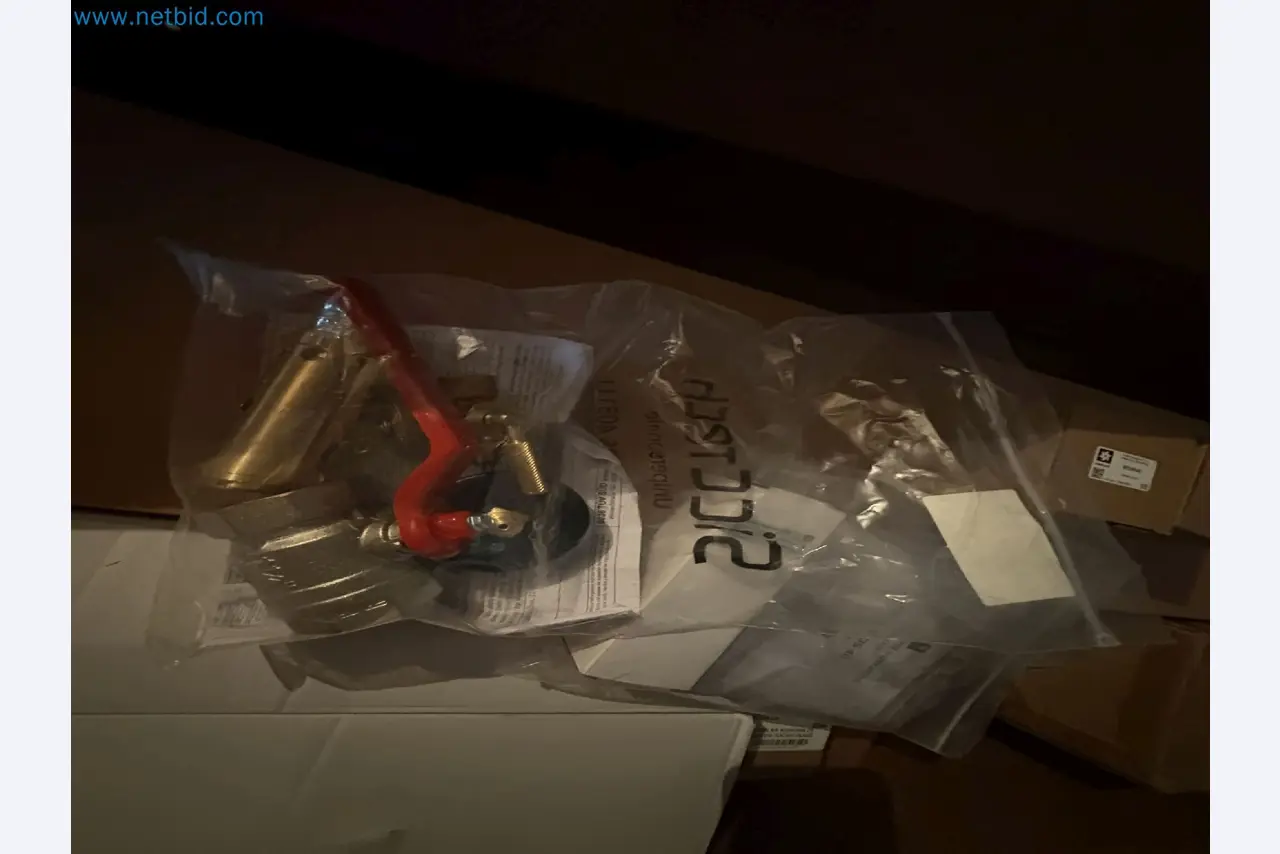

Additional equipment: automatic volumetric condensate drain and differential-pressure gauge.

- OMEGA AIR AF 2006 7021 ELOX VLXM compressed-air microfilter; consisting of the upper and lower housing sections, housing seal (O-ring), filter element, filter-element seal, drain valve, nameplate and operating and maintenance instructions. Technical data: connection G 3"; capacity 36 m³/min; operating pressure 7 bar; maximum operating pressure 16 bar. Filtration performance: solid particles 0.1 µm in accordance with ISO 8573-1, Class 2; oil particles 0.1 mg/m³ in accordance with ISO 8573-1, Class 2. Additional equipment: automatic volumetric condensate drain and differential-pressure gauge.

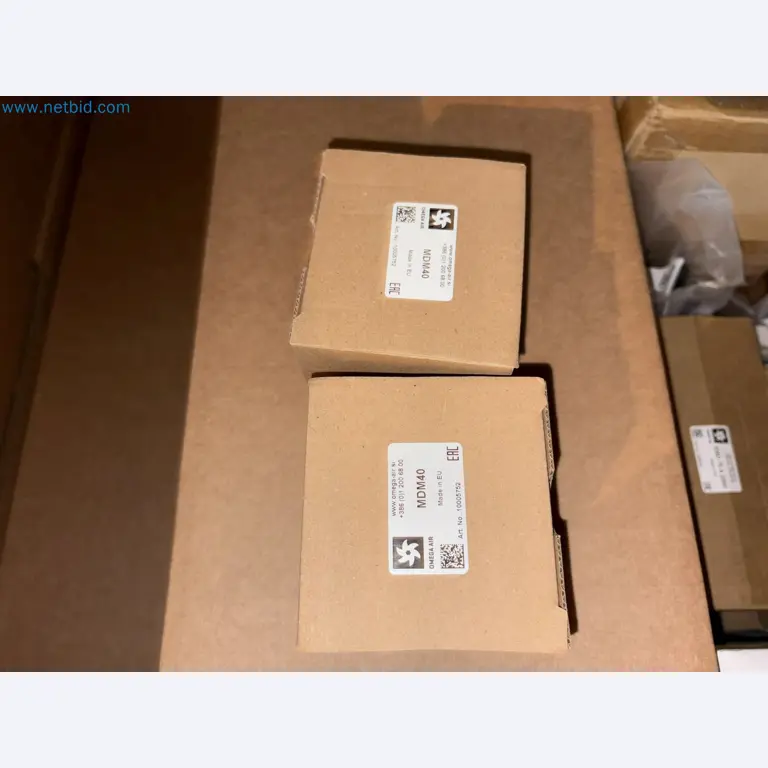

- OMEGA AIR AF 2006 7021 ELOX VLXS, MDM40 compressed-air super-microfilter; supplied with the upper and lower housing sections, housing seal (O-ring), filter element, filter-element seal, drain valve, nameplate and operating and maintenance instructions. Technical data: connection G 3"; capacity 36 m³/min; operating pressure 7 bar; maximum operating pressure 16 bar. Filtration performance: solid particles 0.01 µm in accordance with ISO 8573-1, Class 1; oil particles 0.01 mg/m³ in accordance with ISO 8573-1, Class 1.

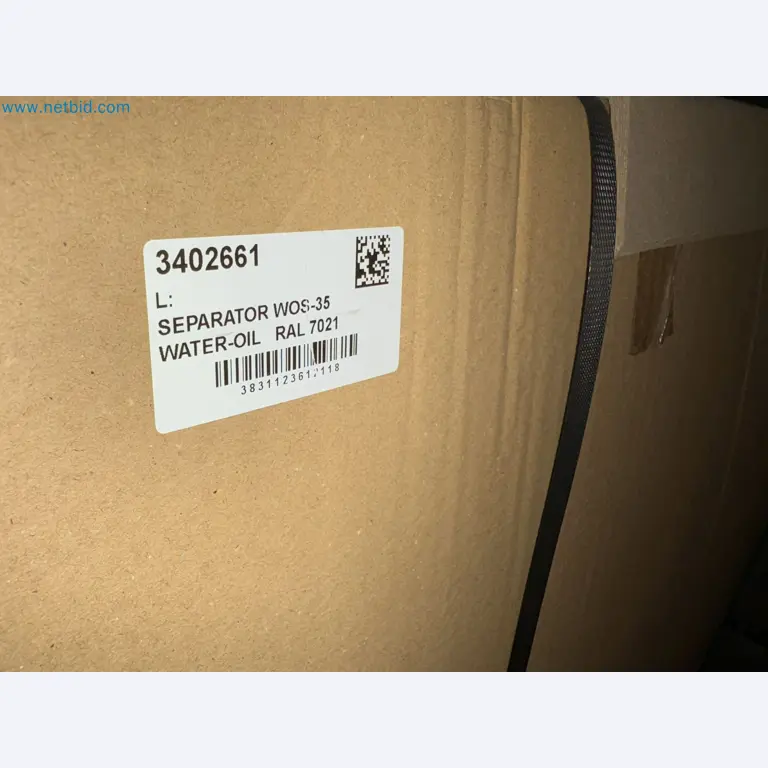

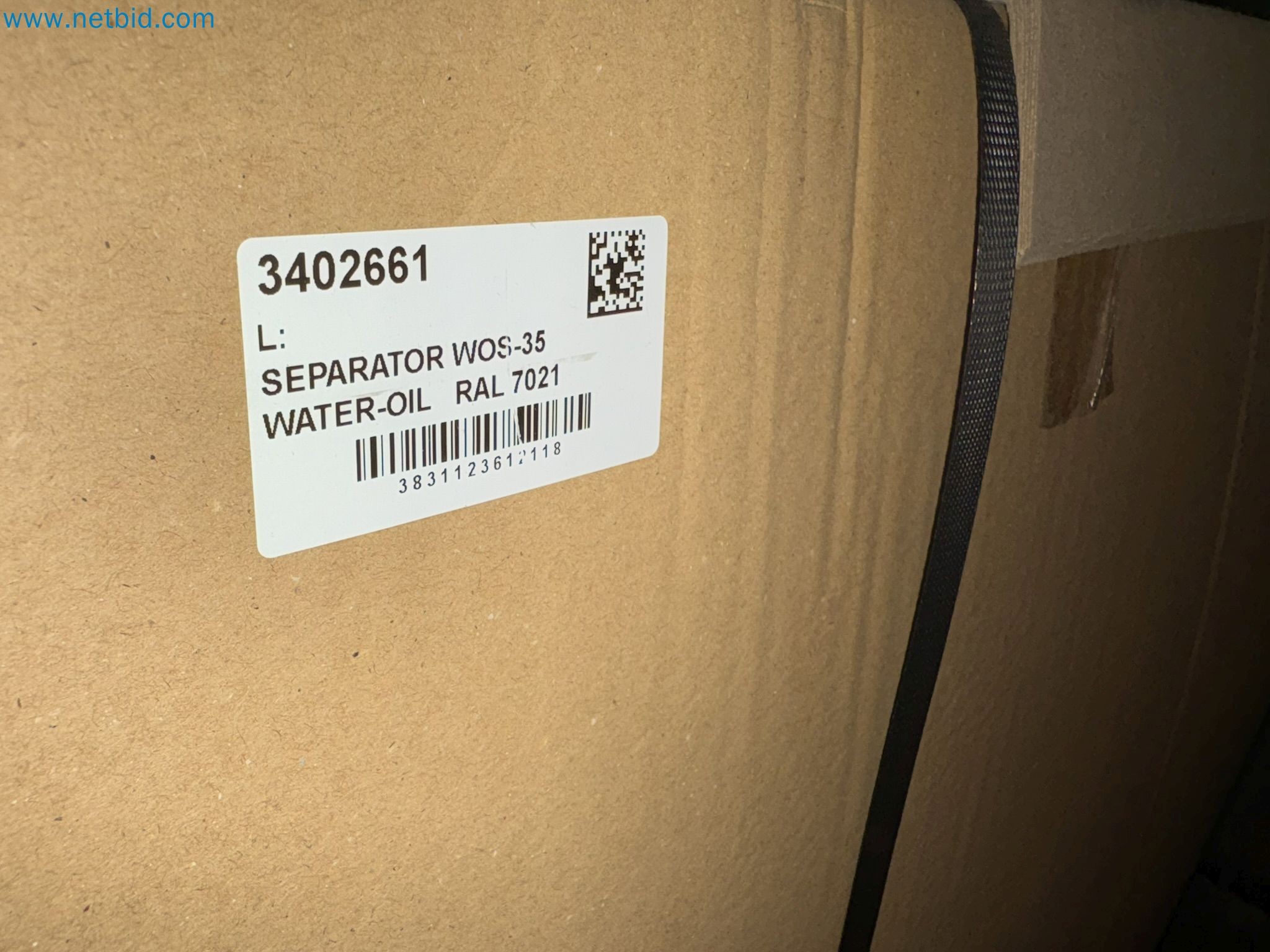

- OMEGA AIR WOS-35 oil/condensate separator, RAL 7021.

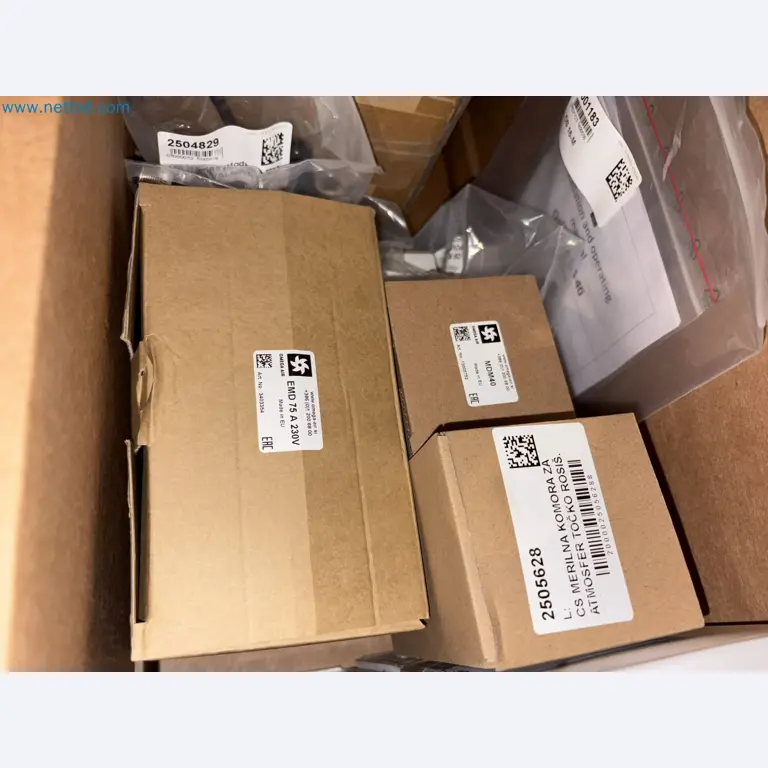

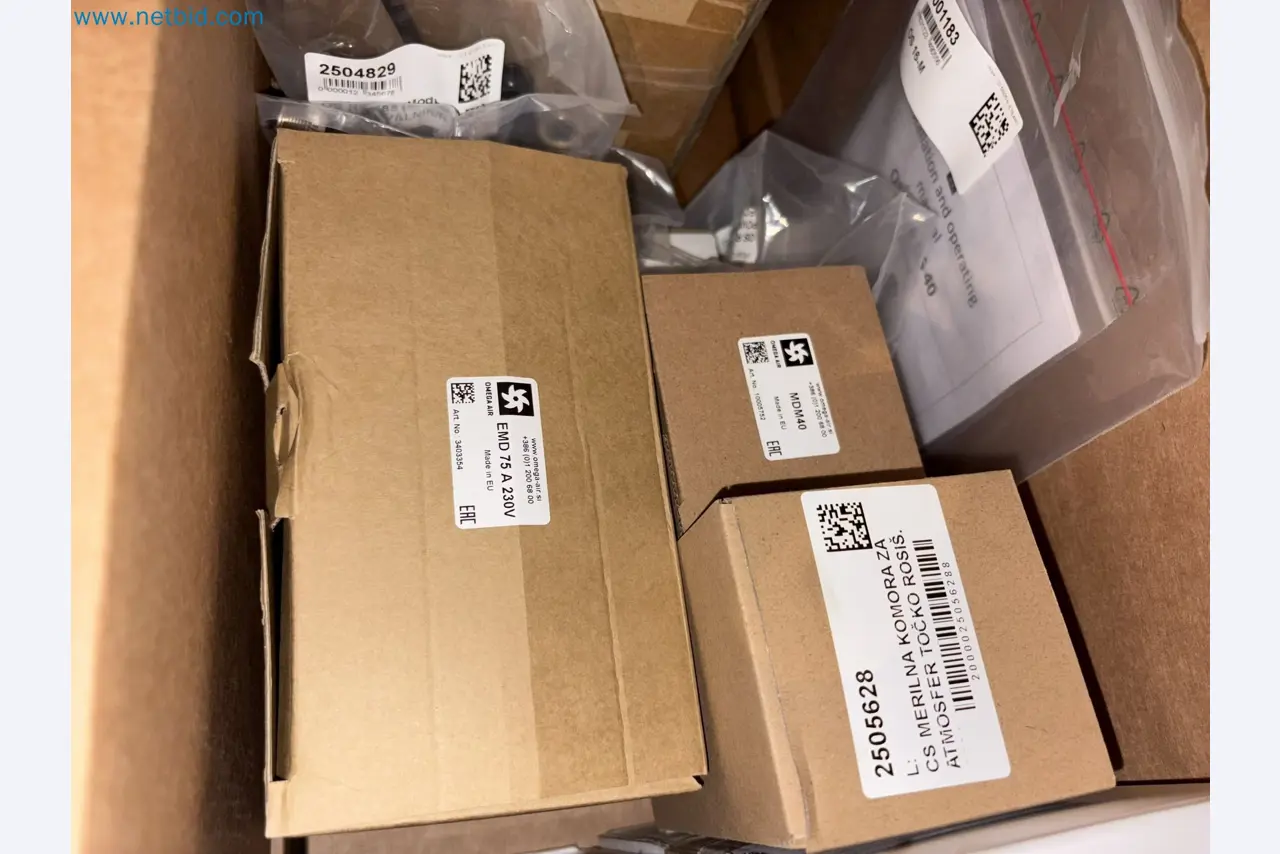

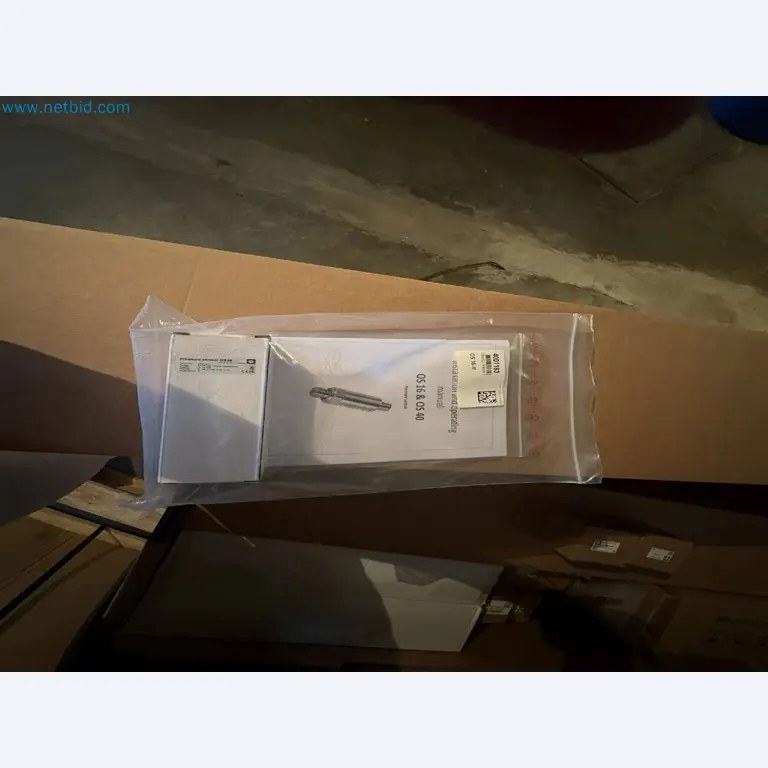

- Equipment for measuring and monitoring operating parameters, OMEGA AIR.

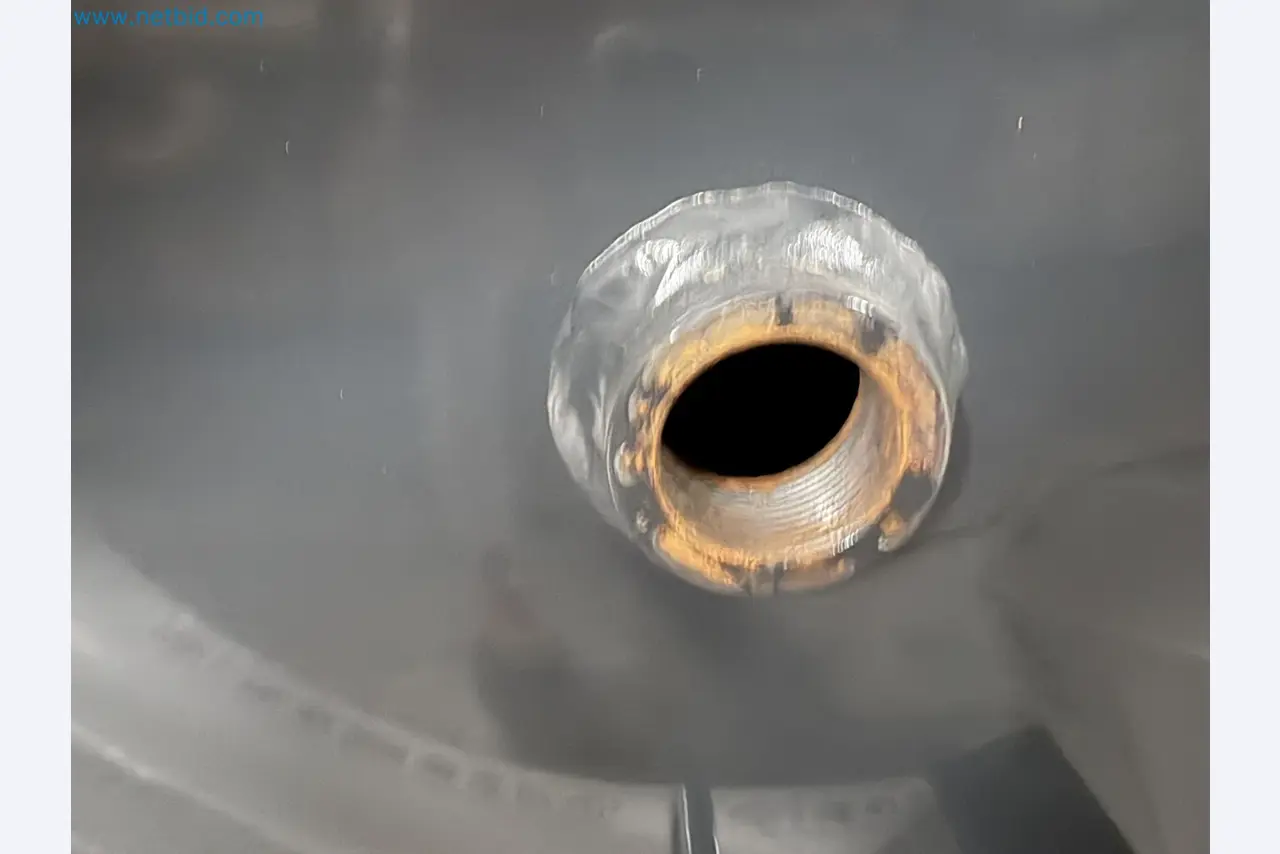

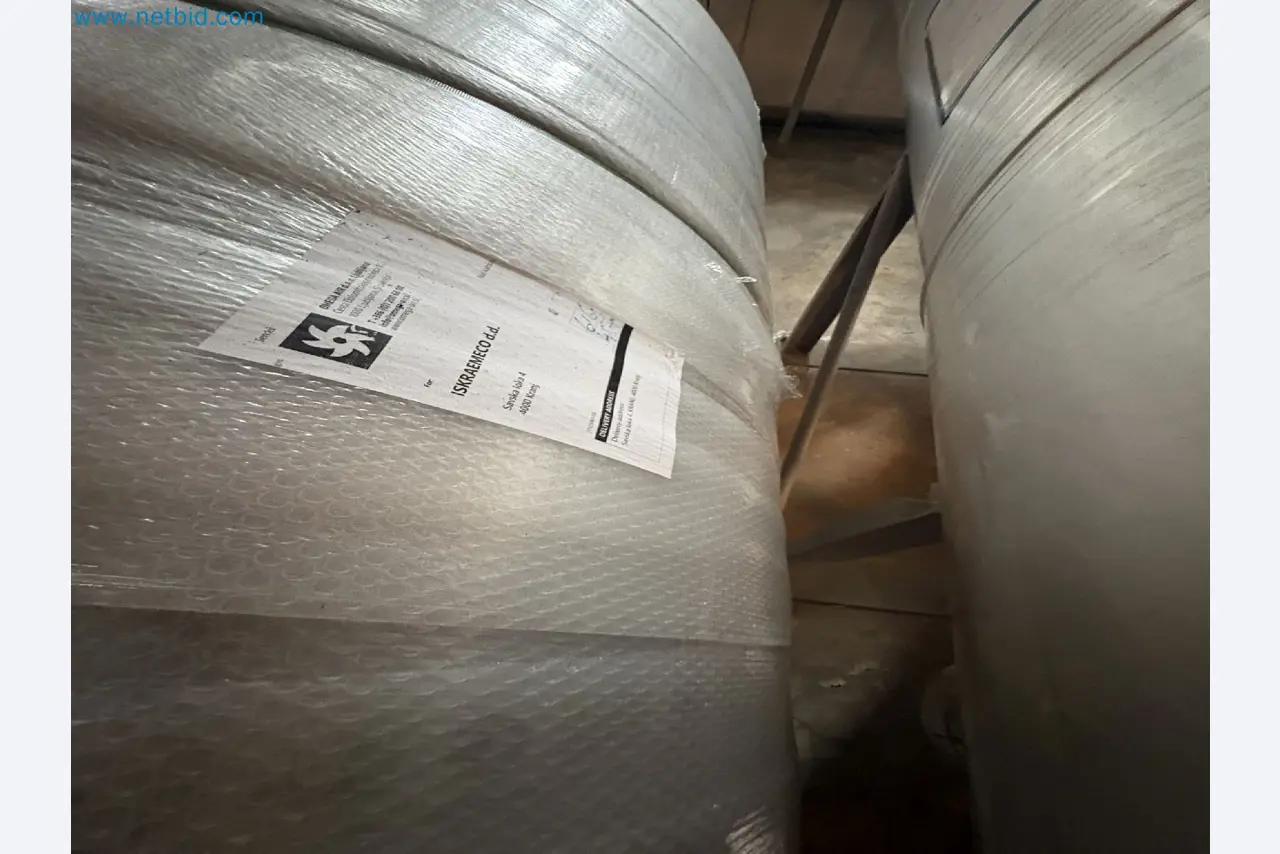

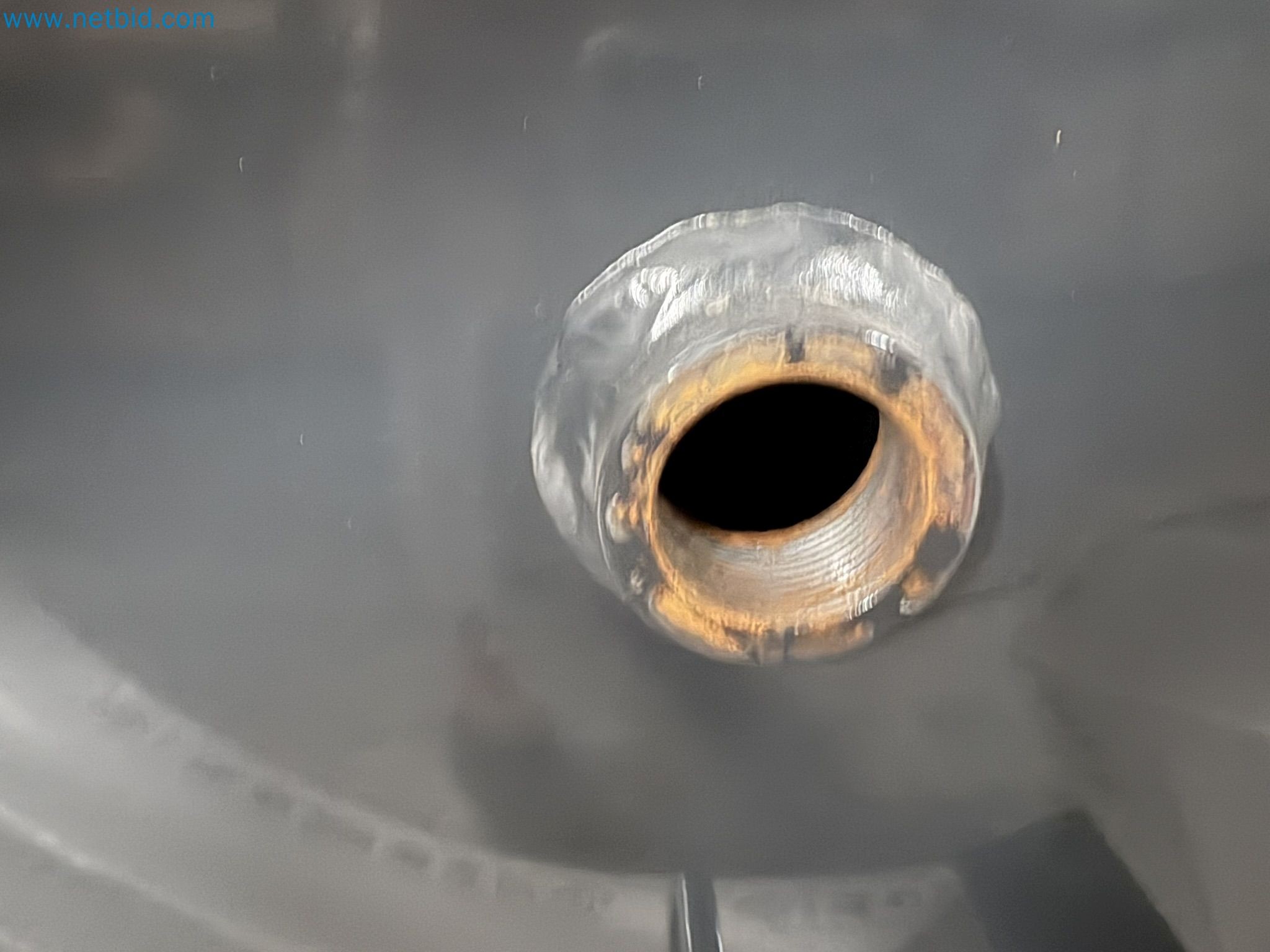

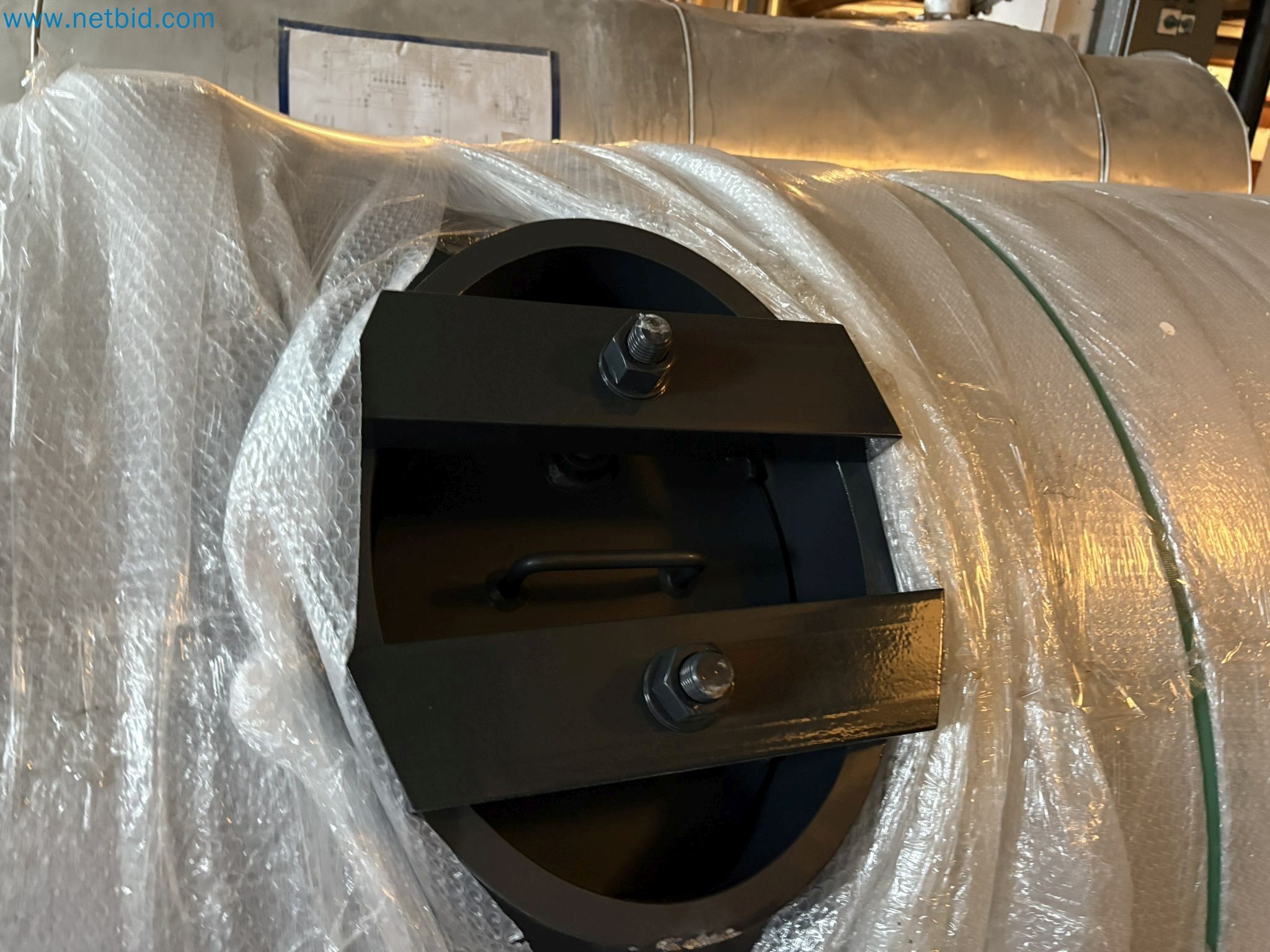

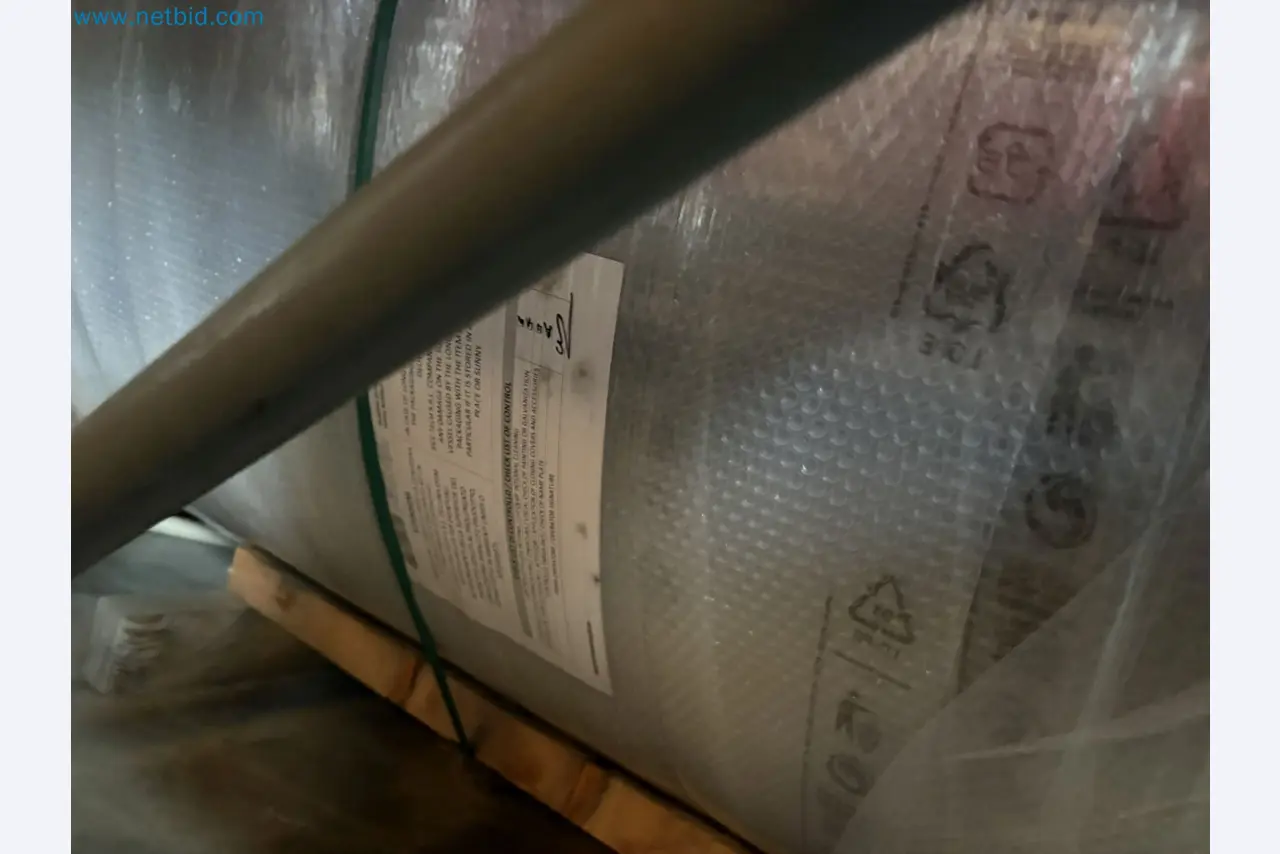

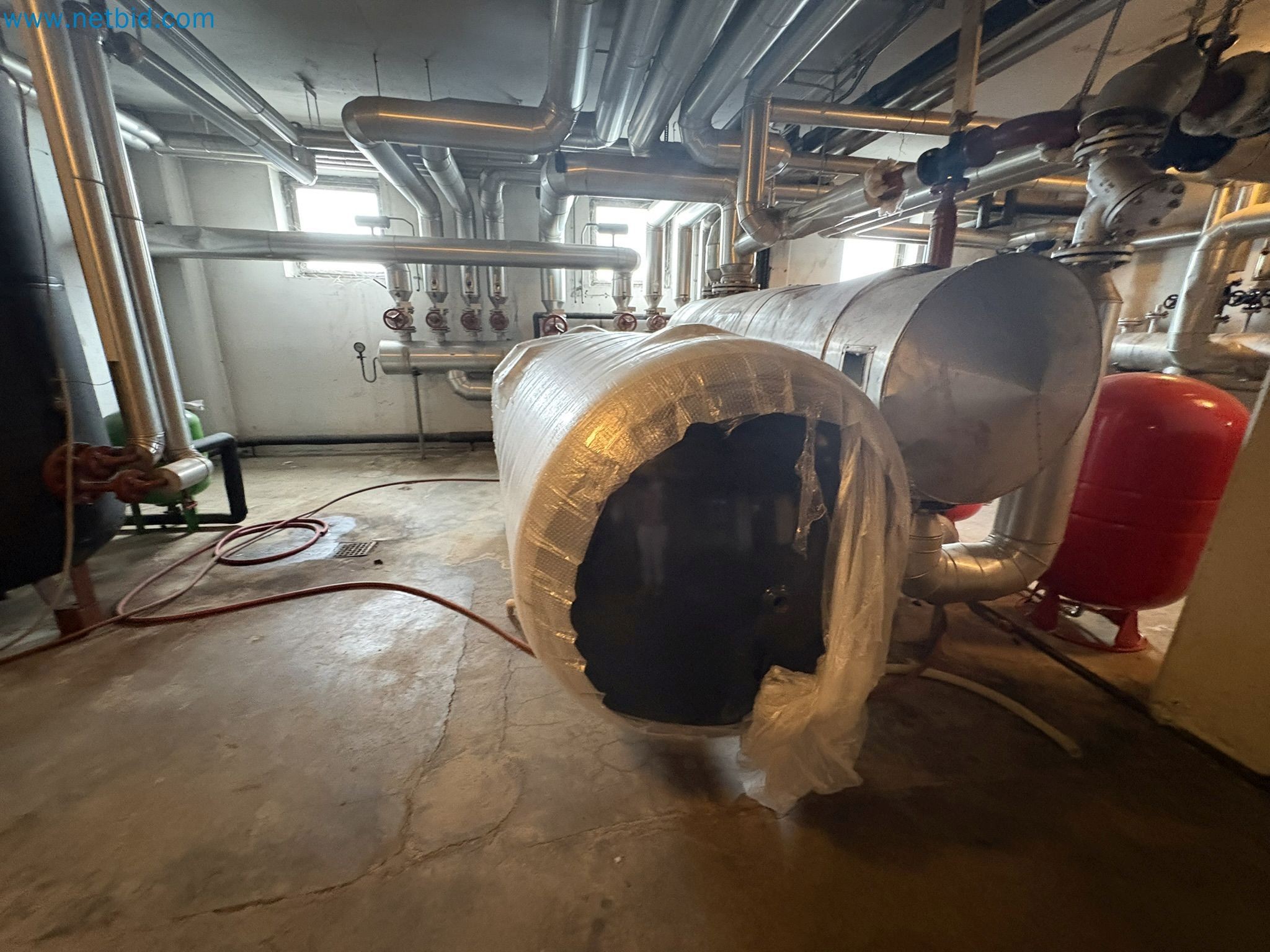

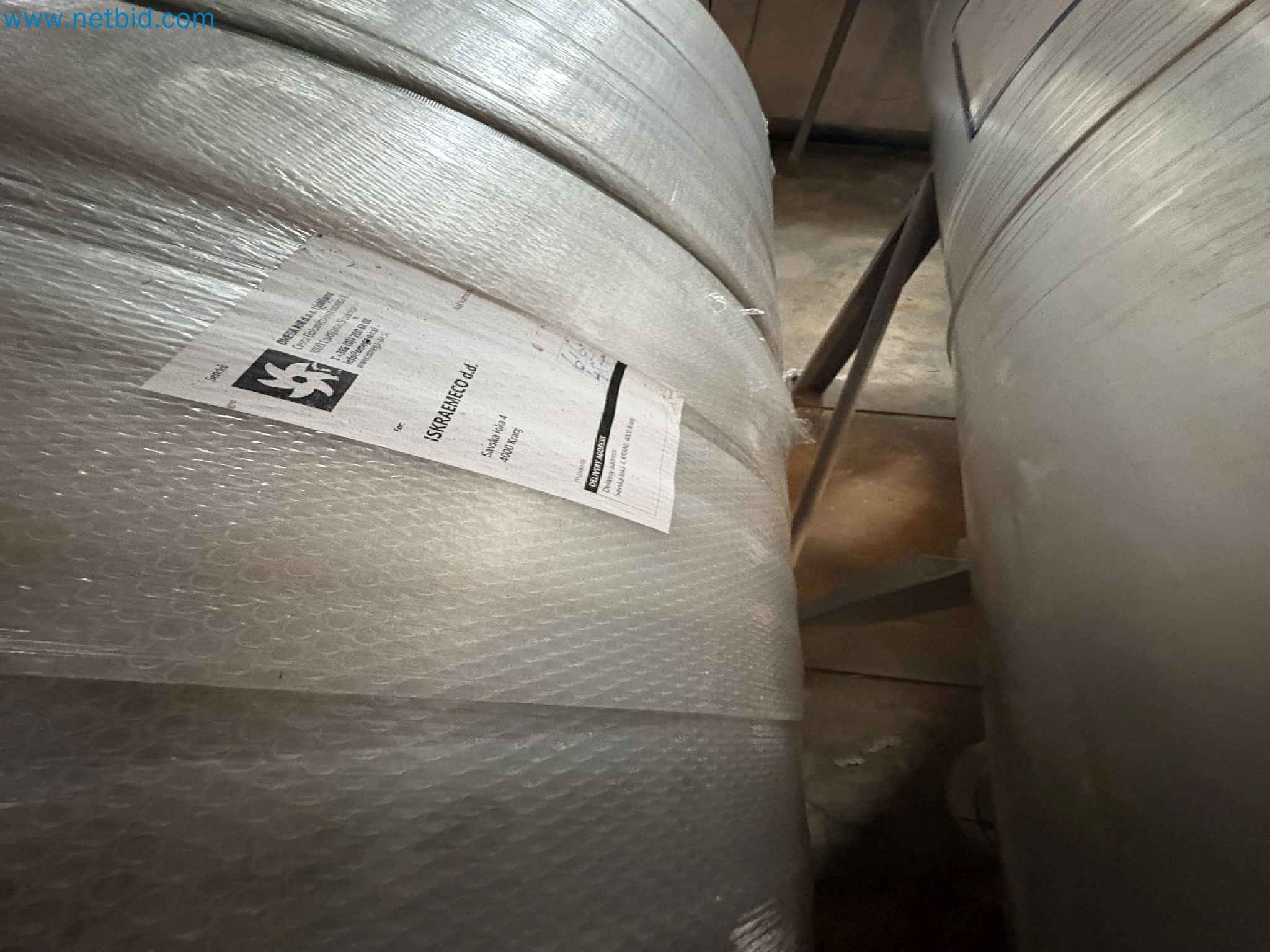

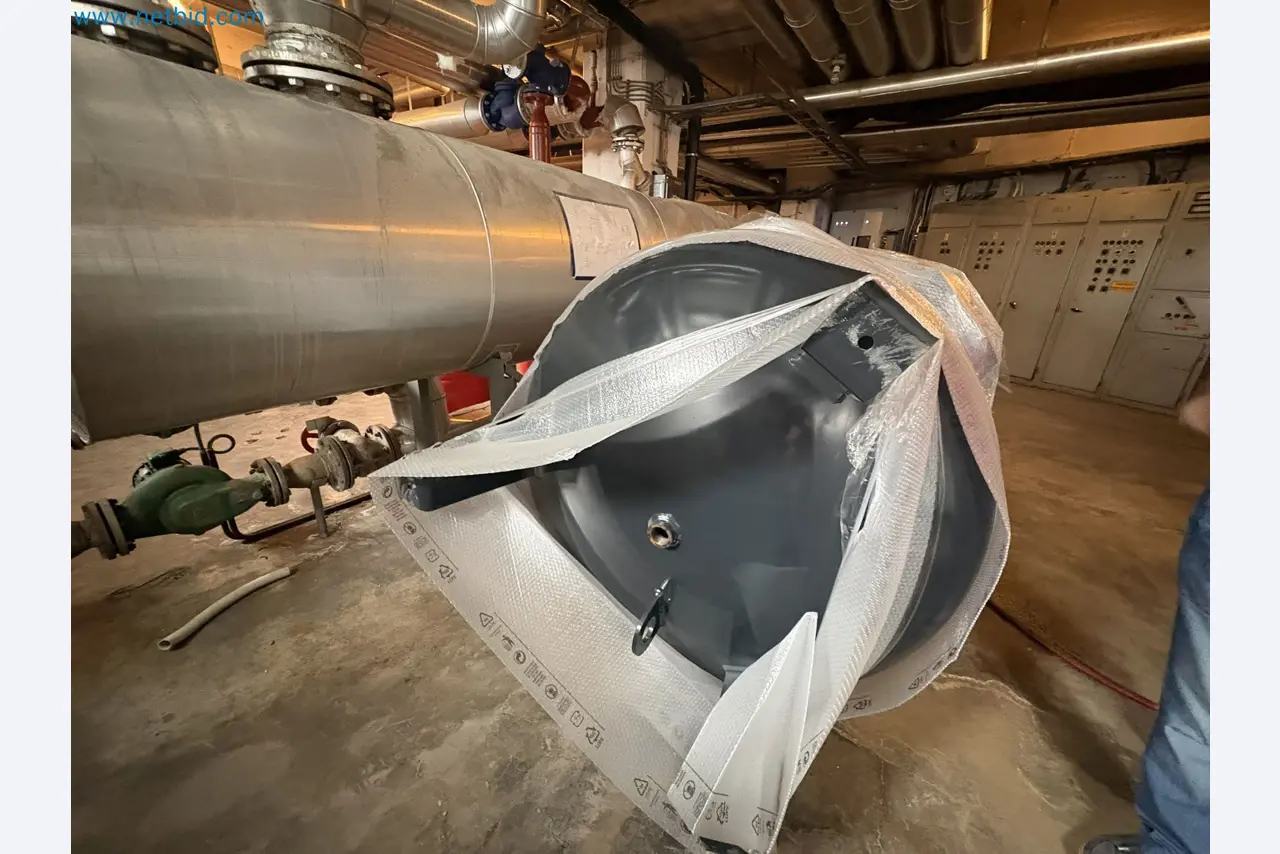

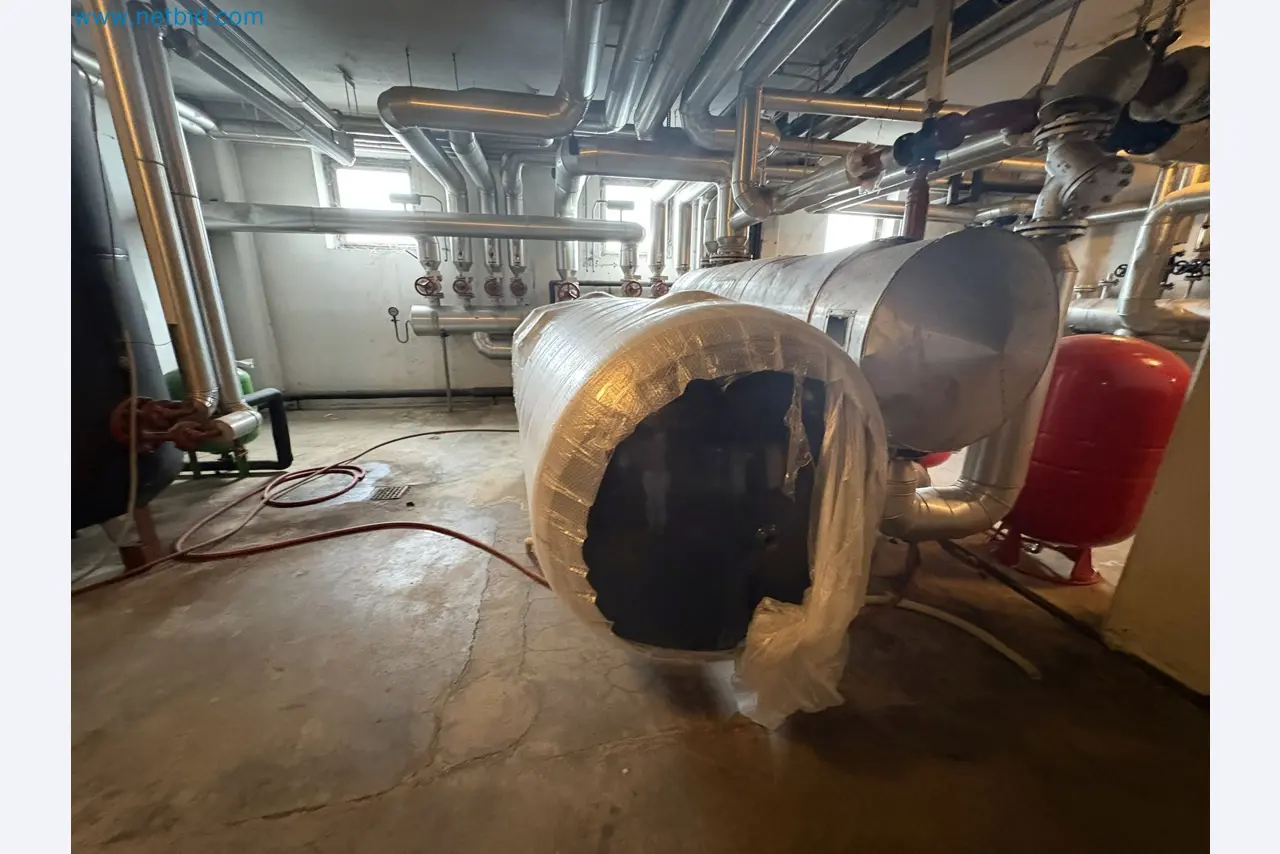

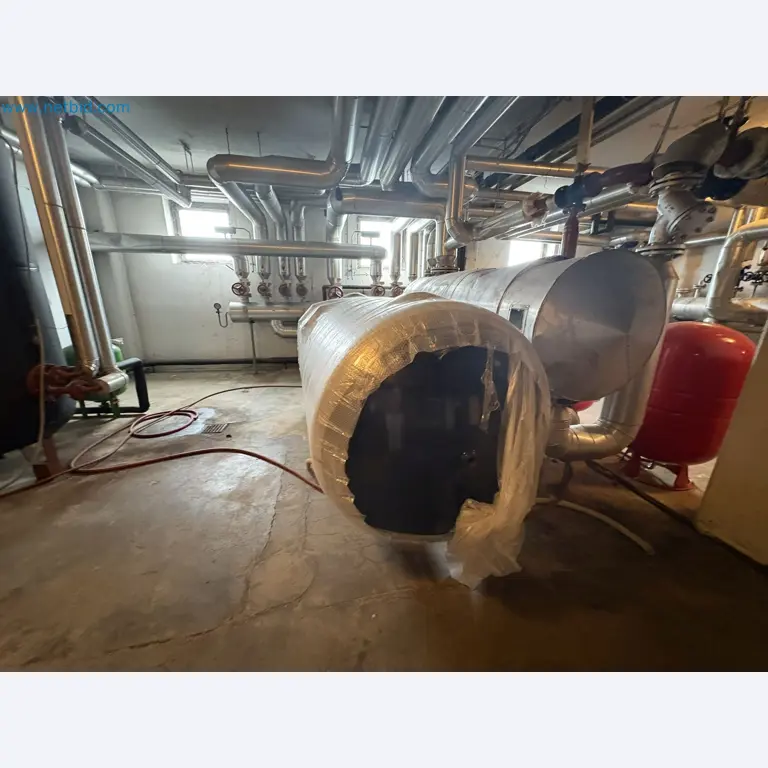

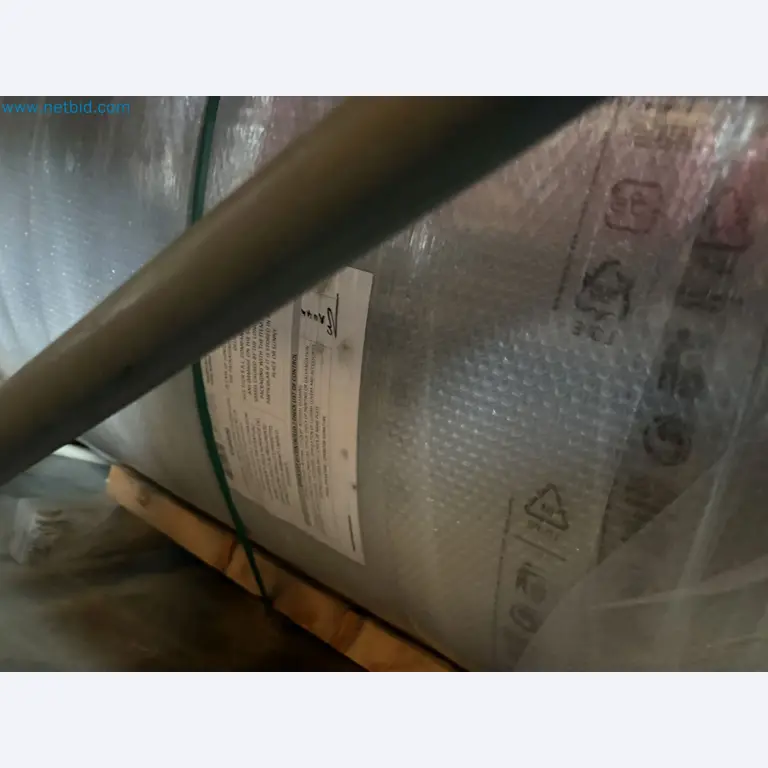

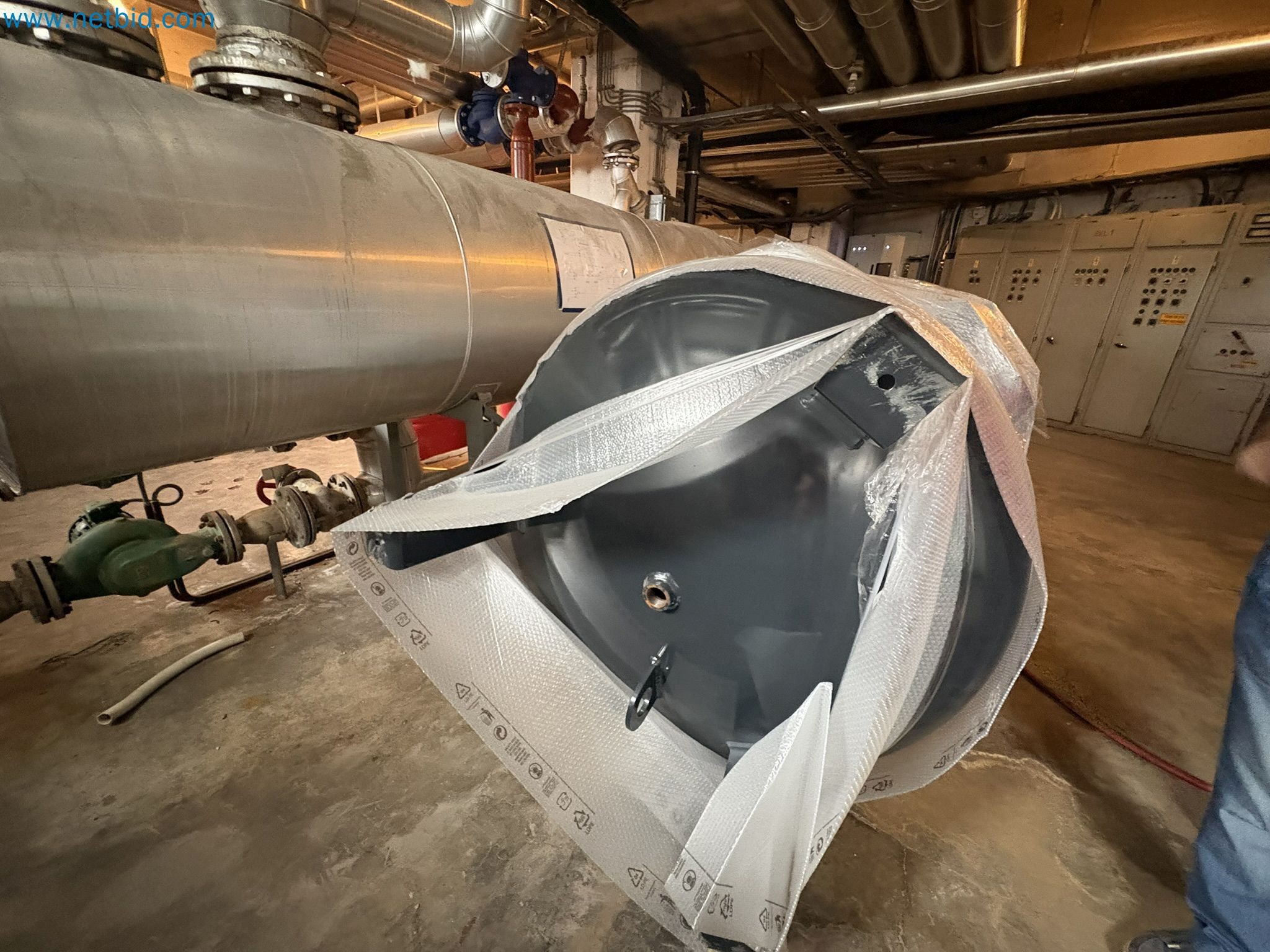

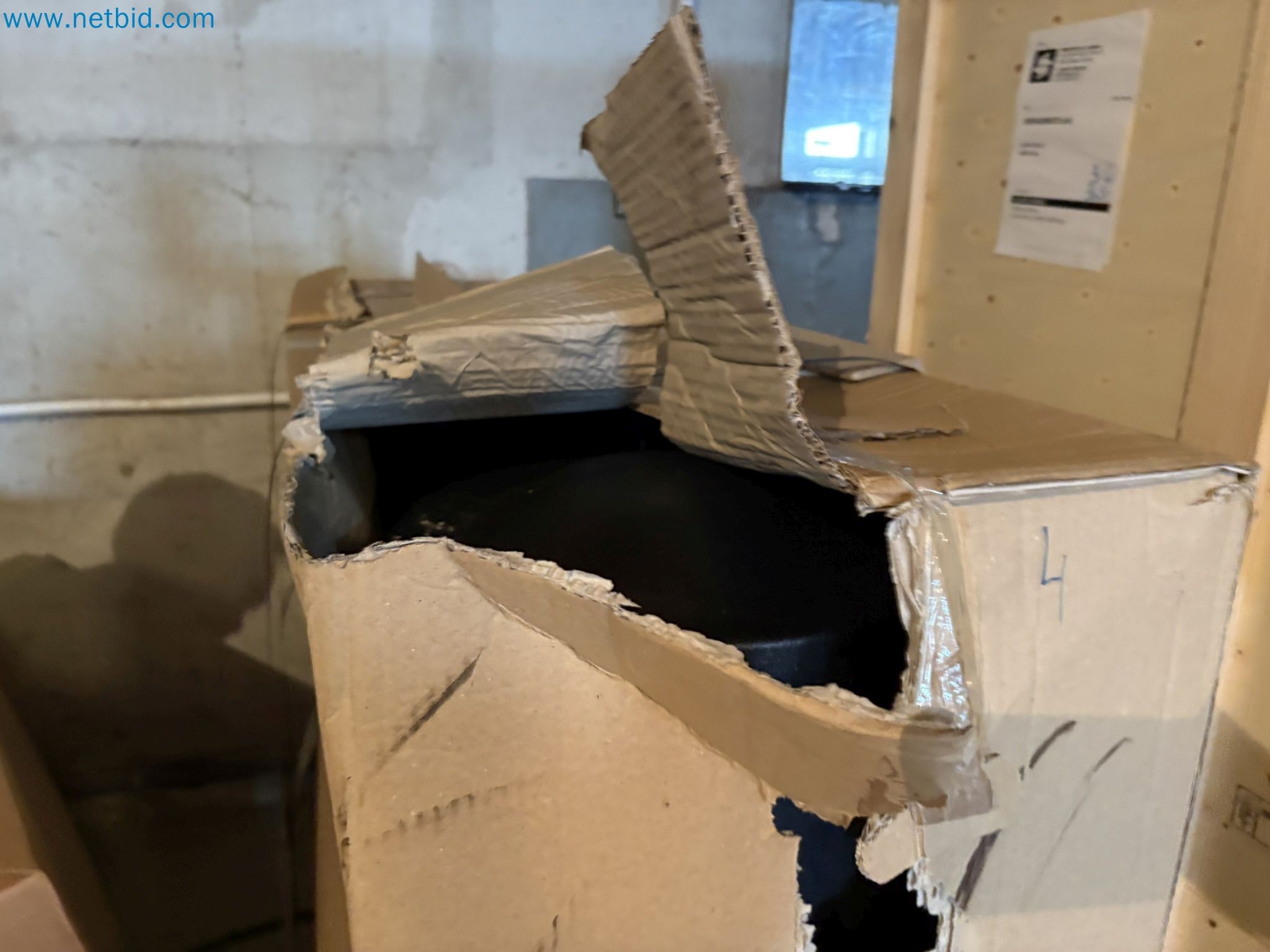

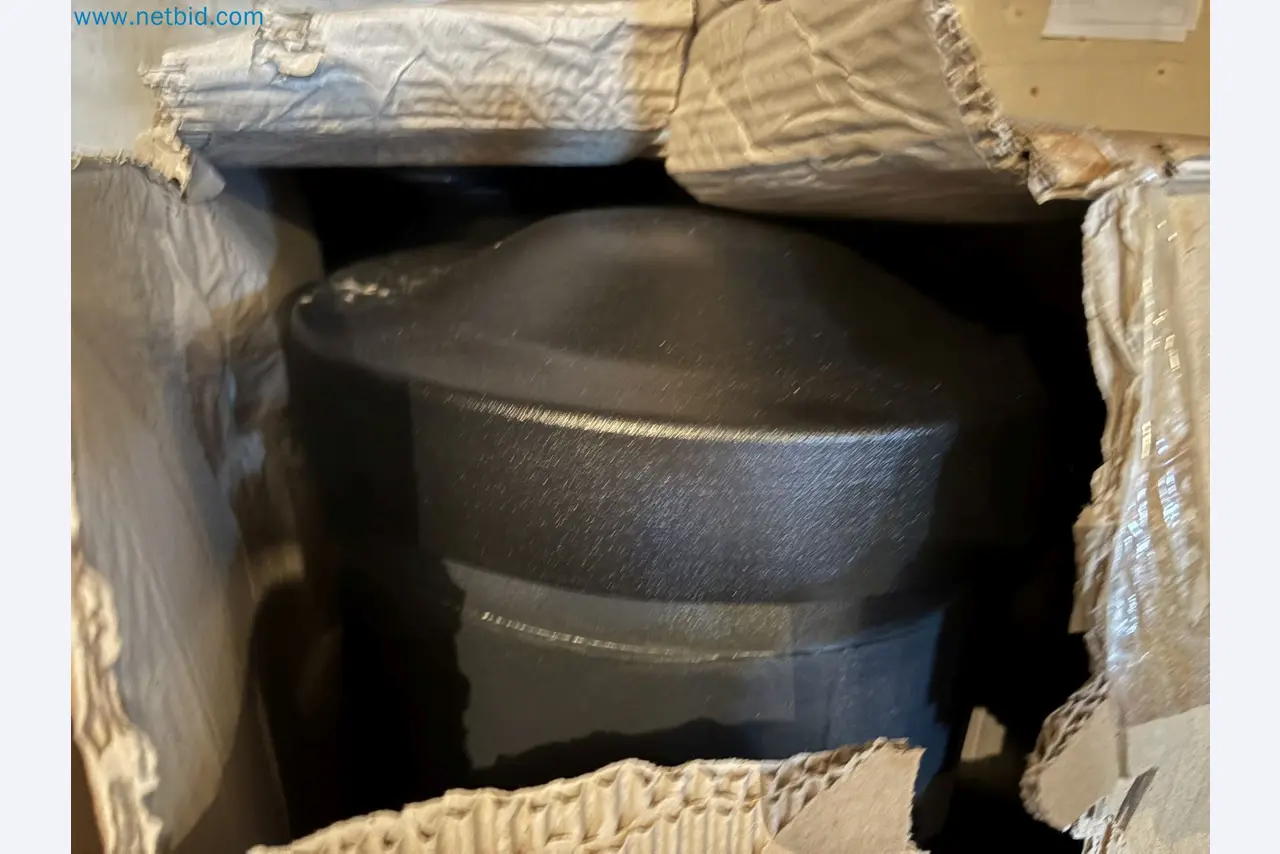

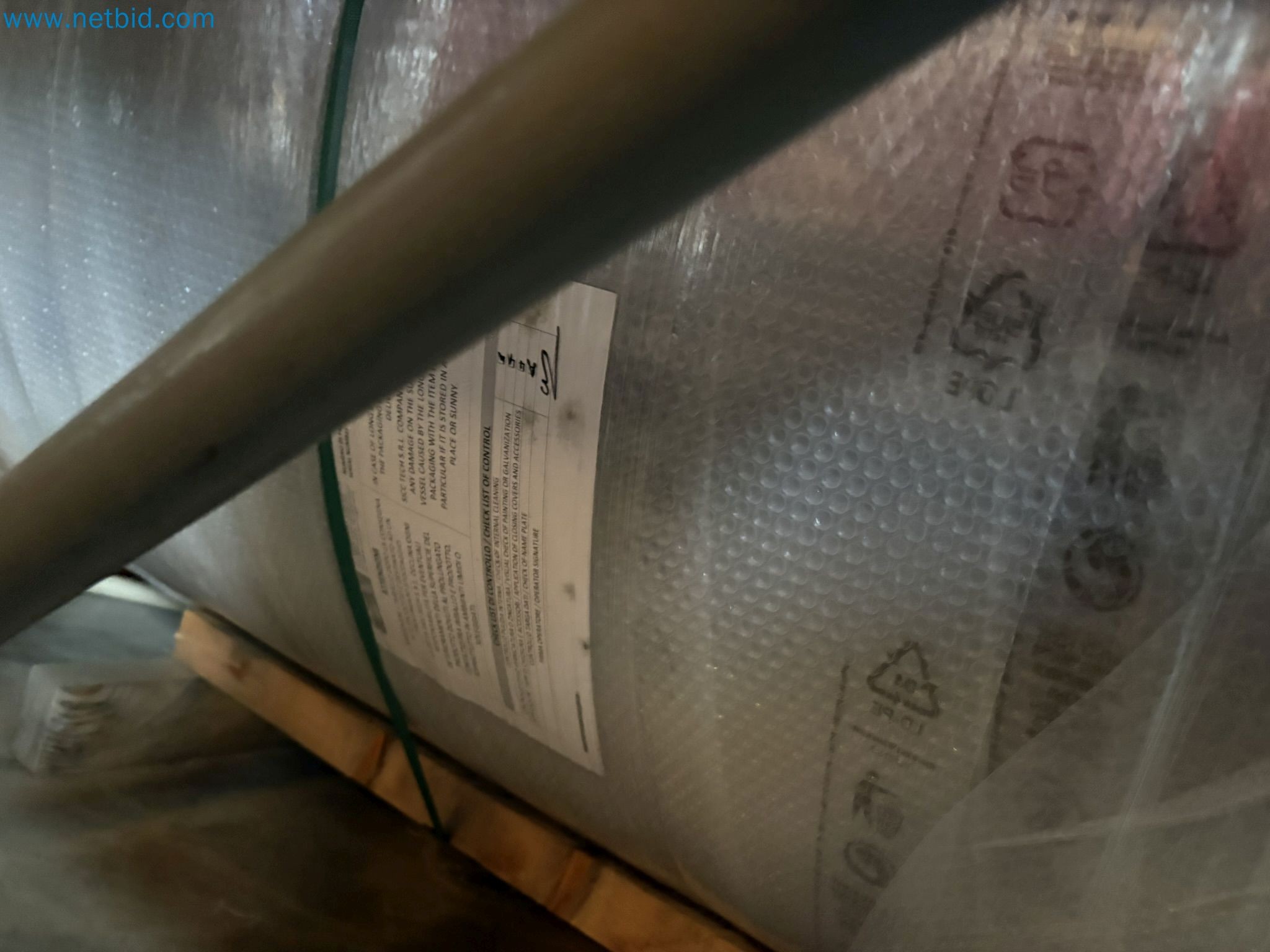

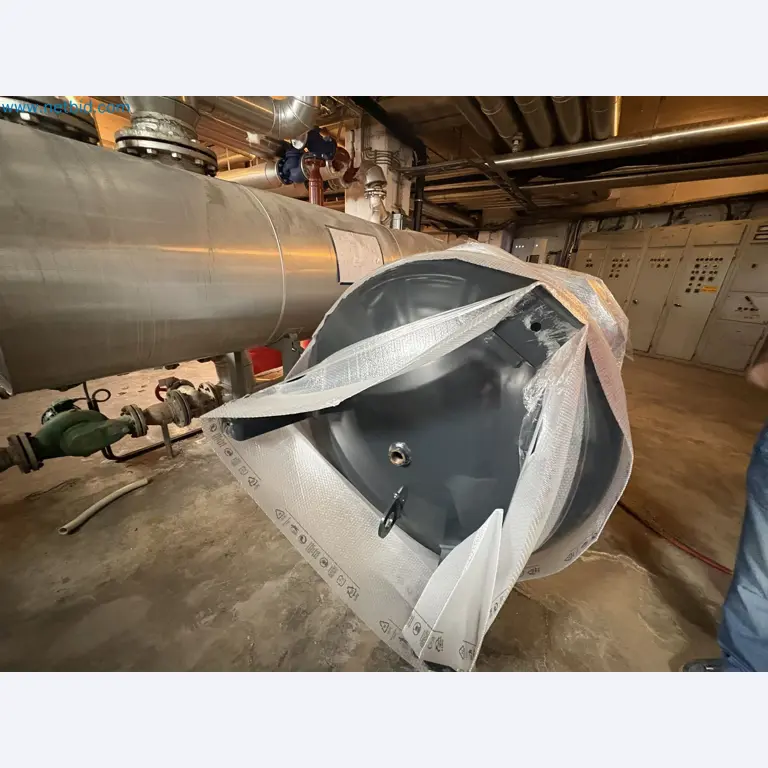

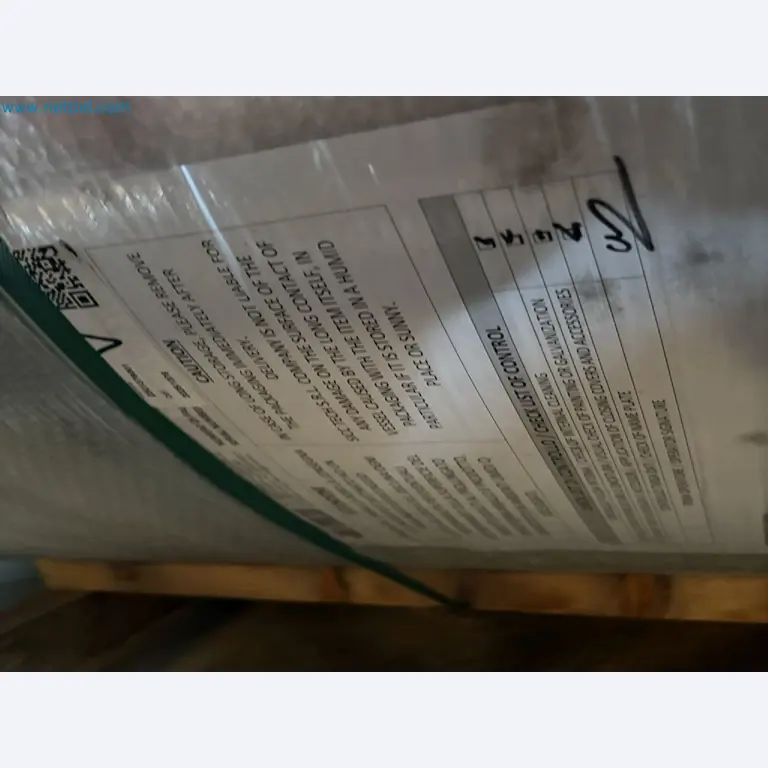

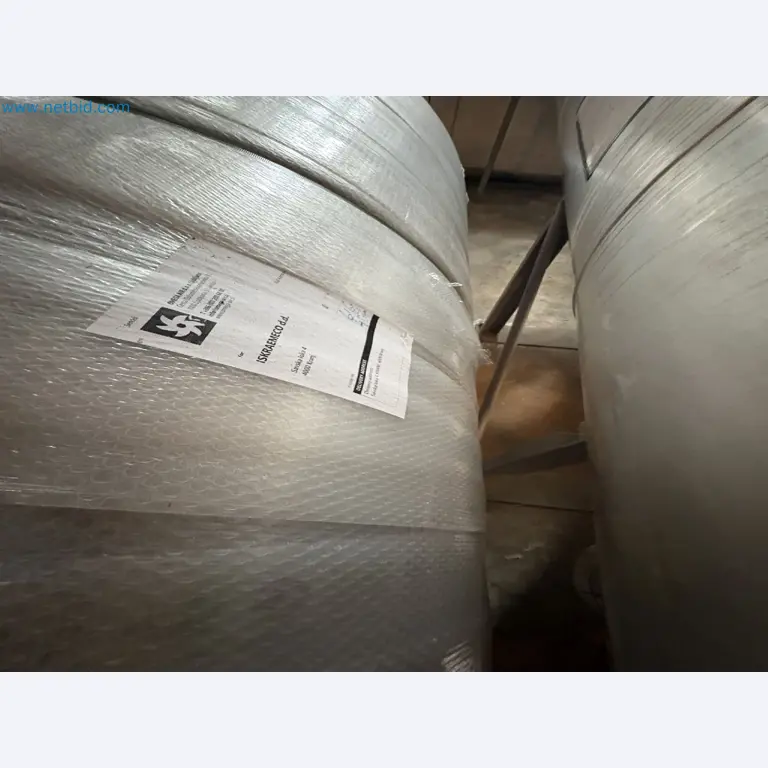

- Pressure vessel, OMEGA AIR.

The equipment is offered for sale exclusively as one complete package, in its existing condition and at the seller’s location.

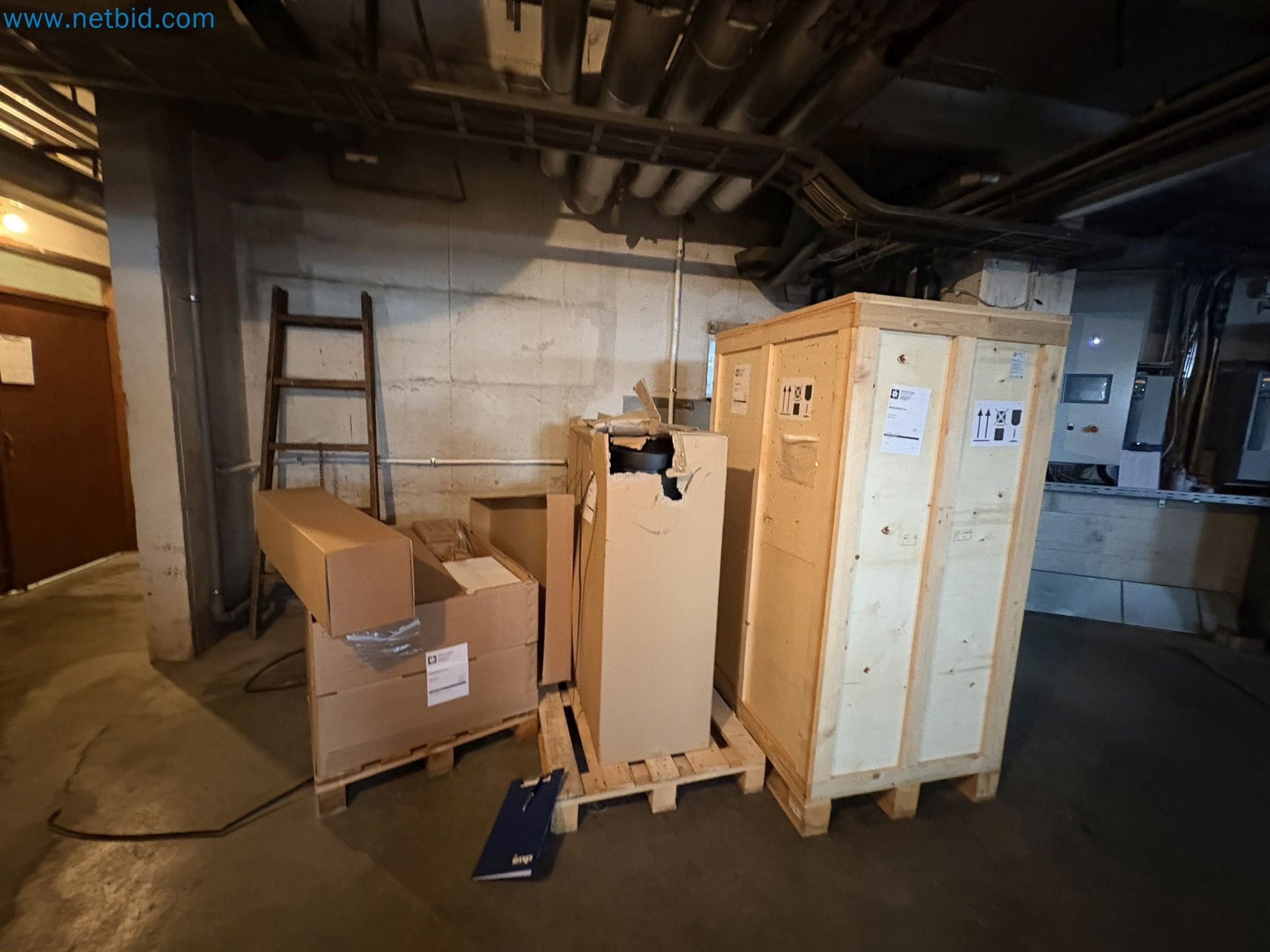

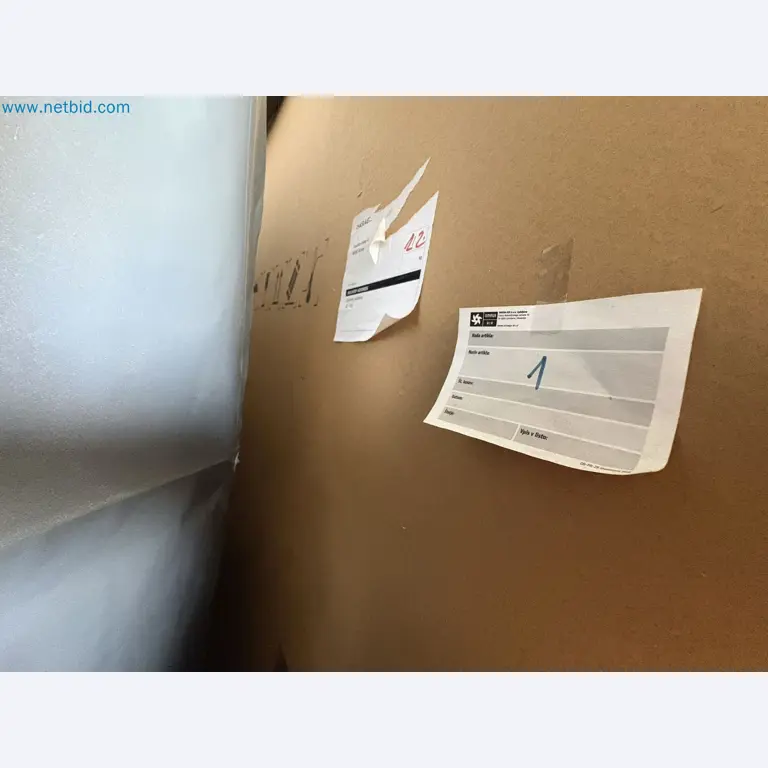

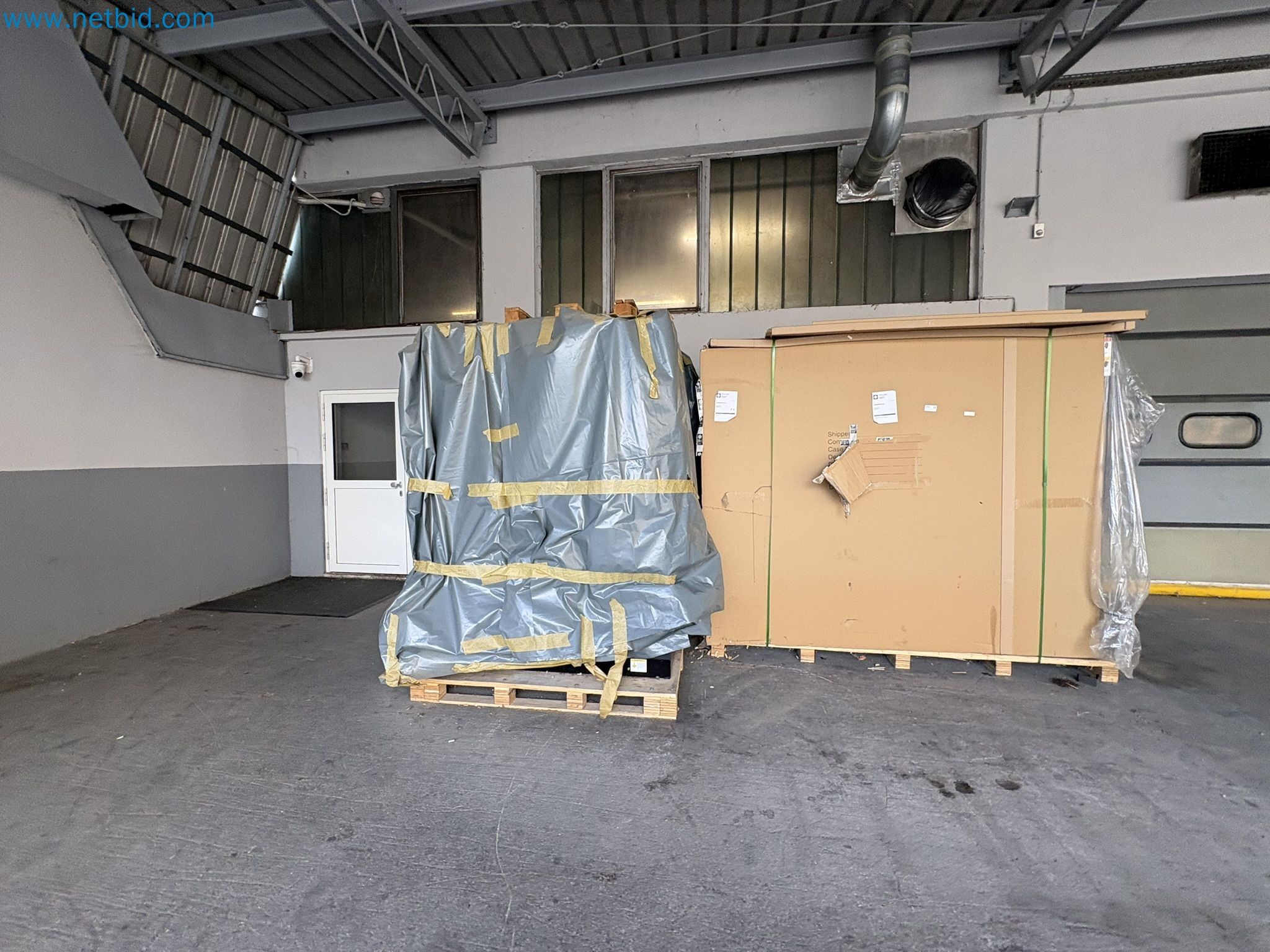

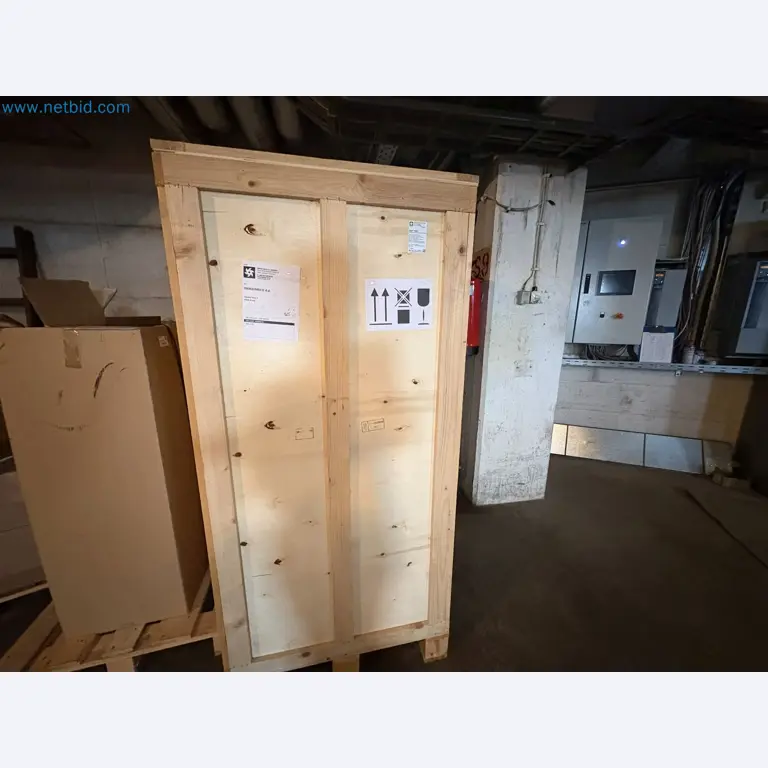

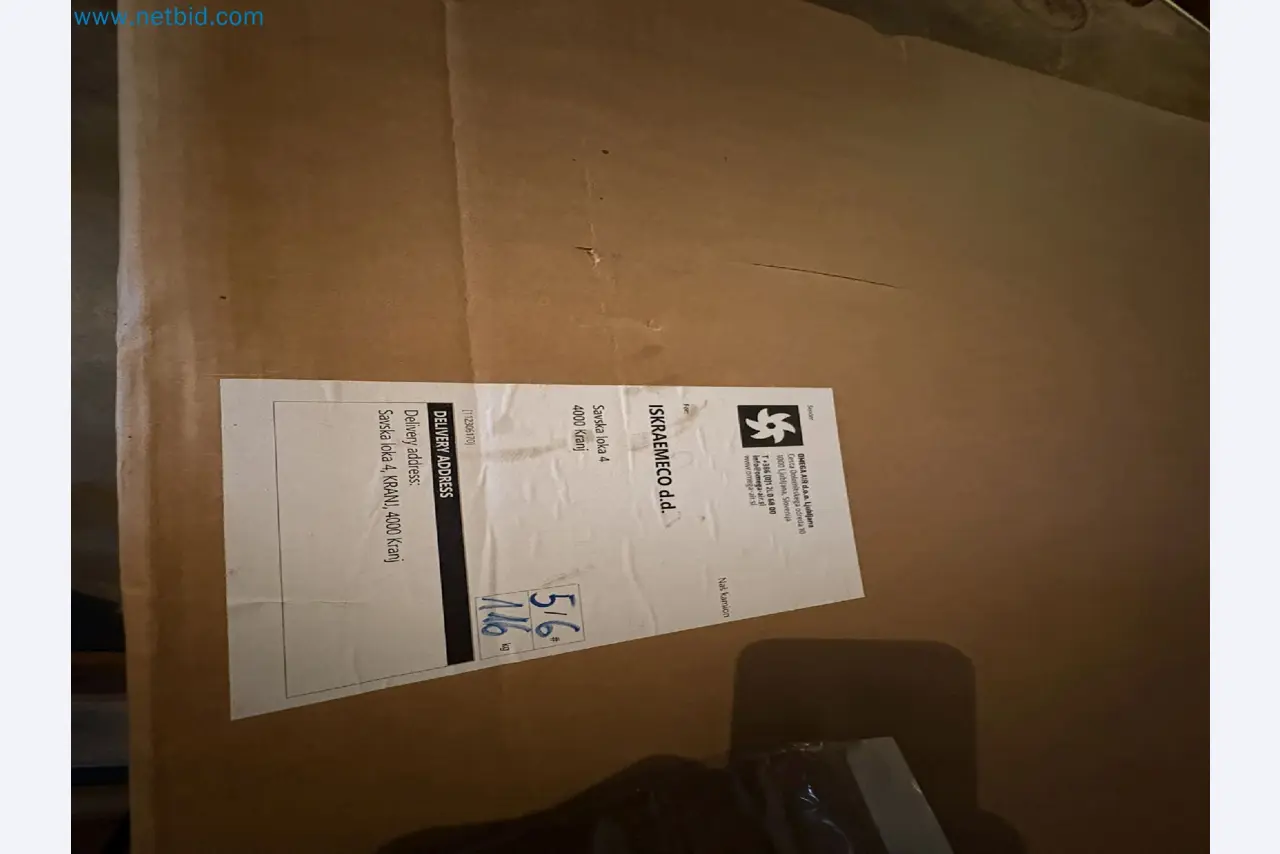

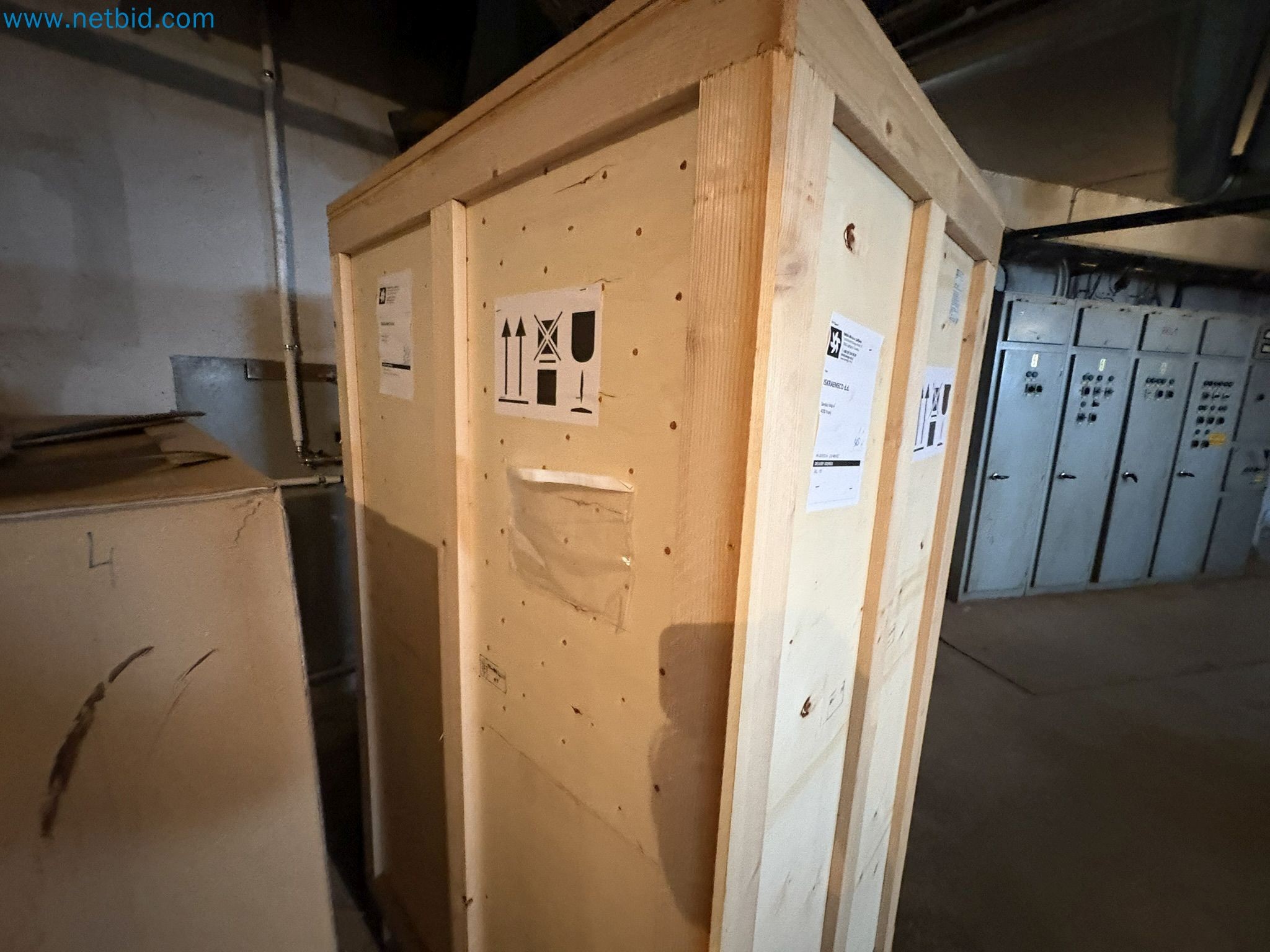

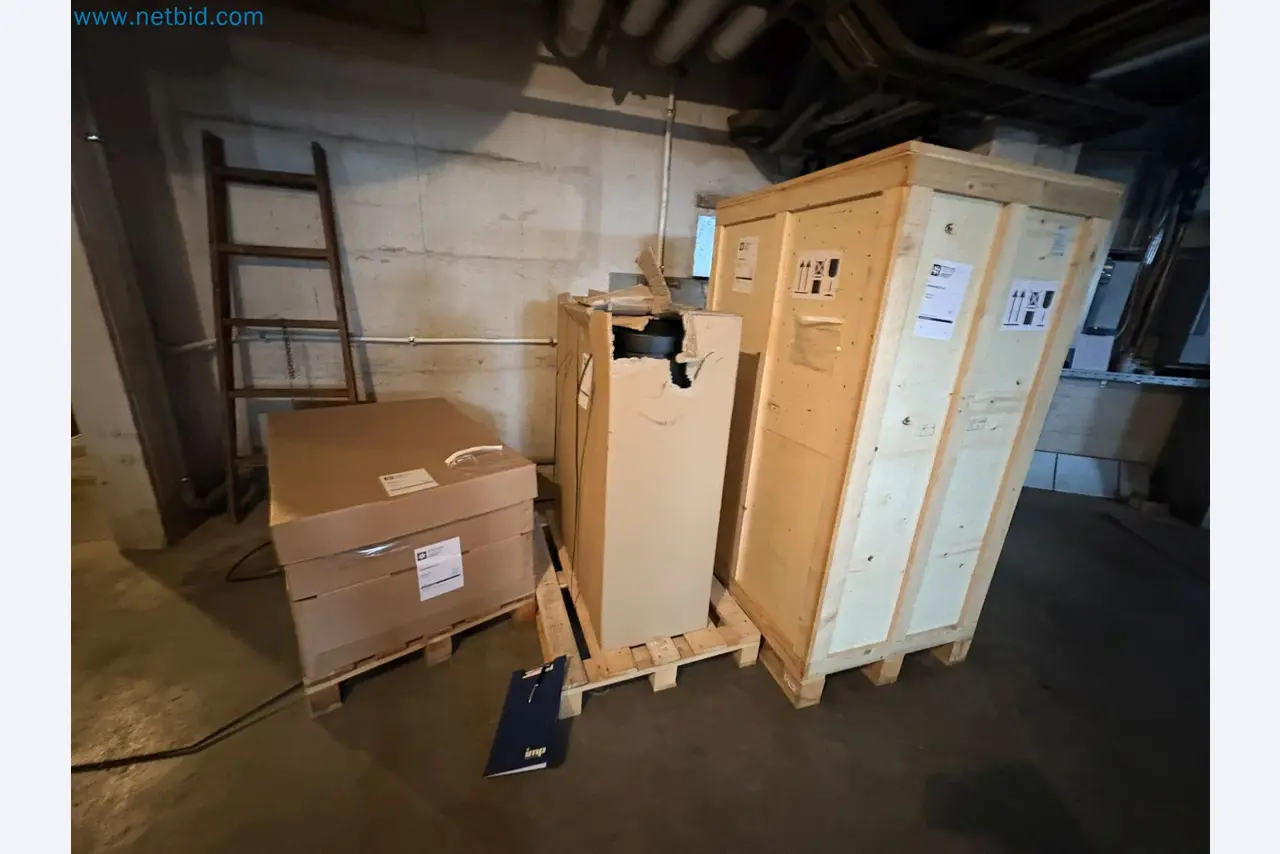

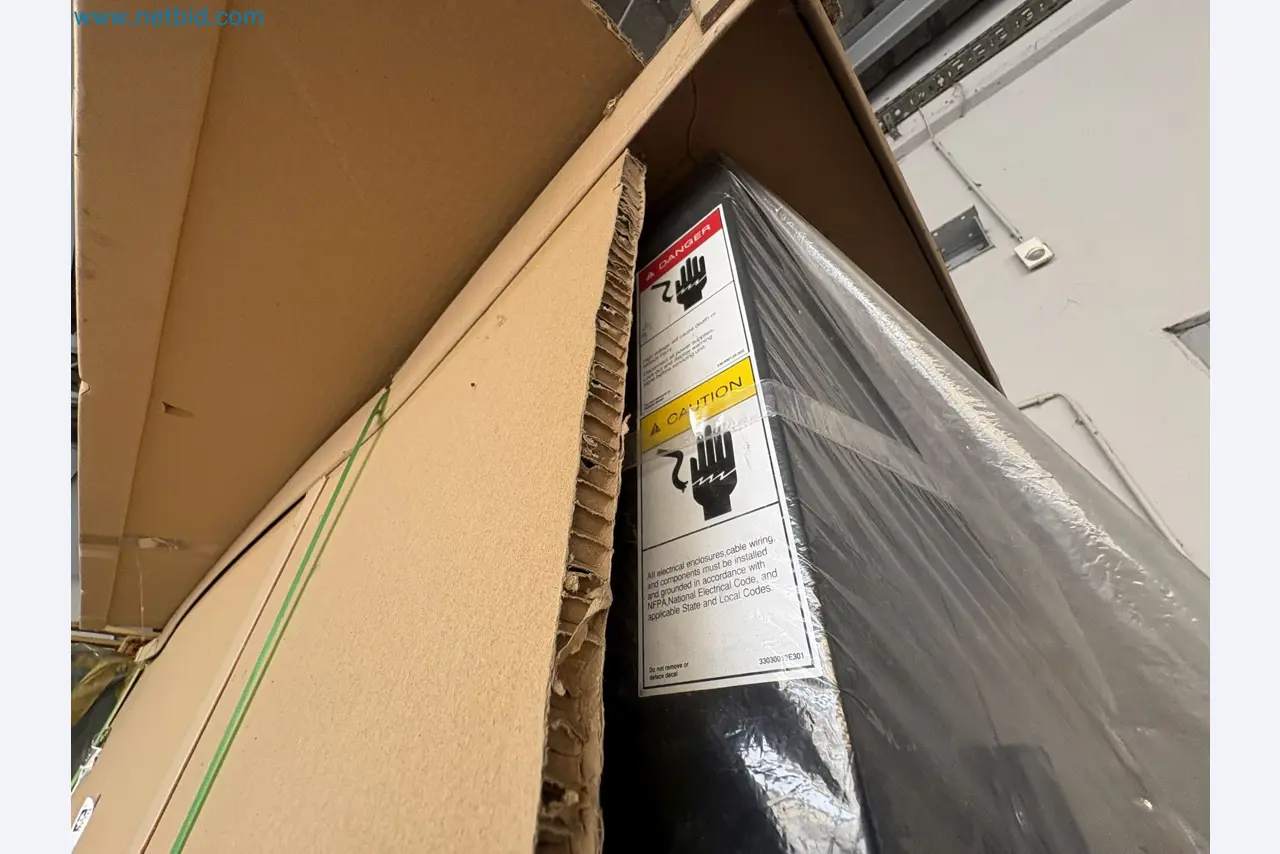

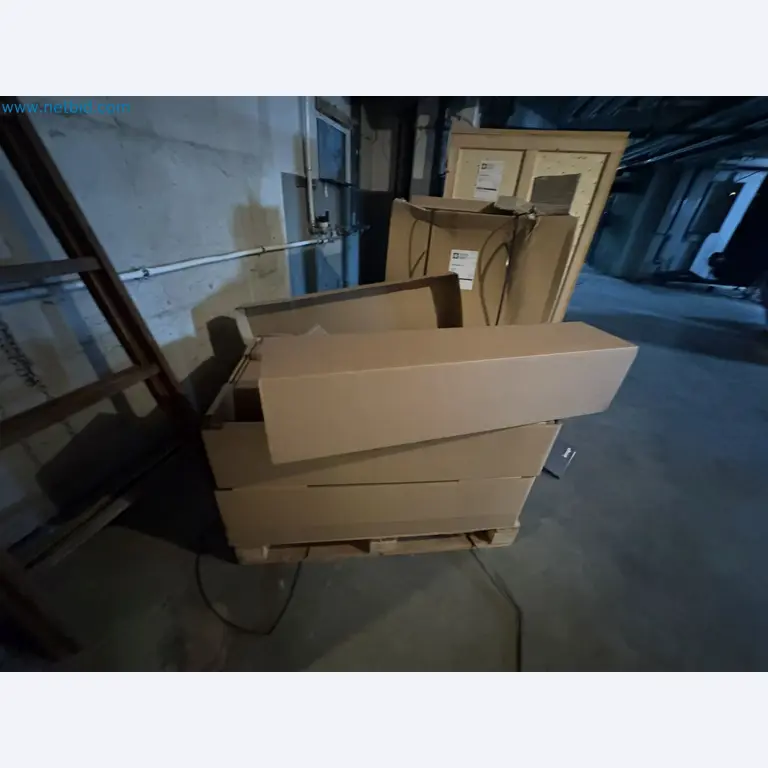

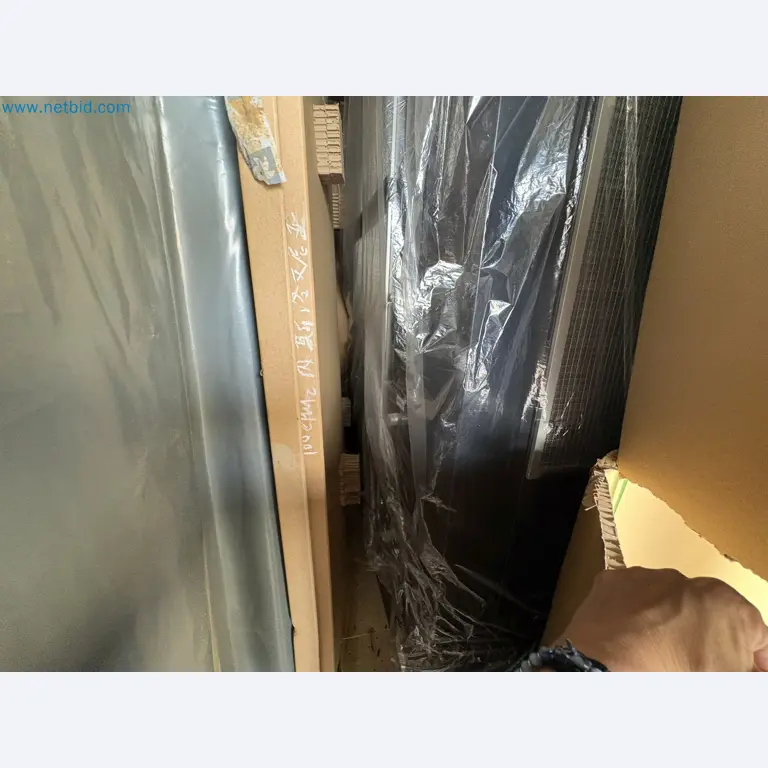

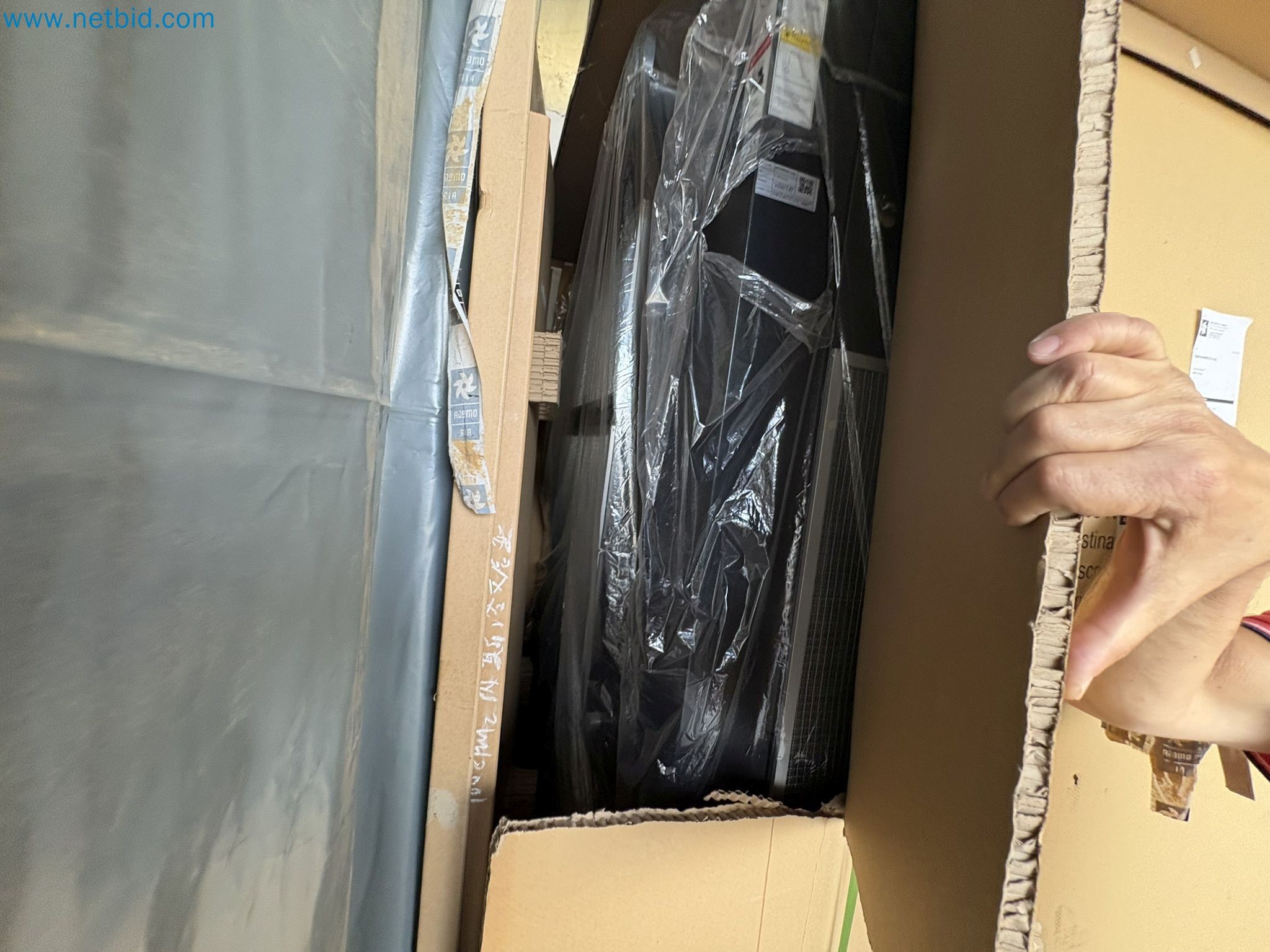

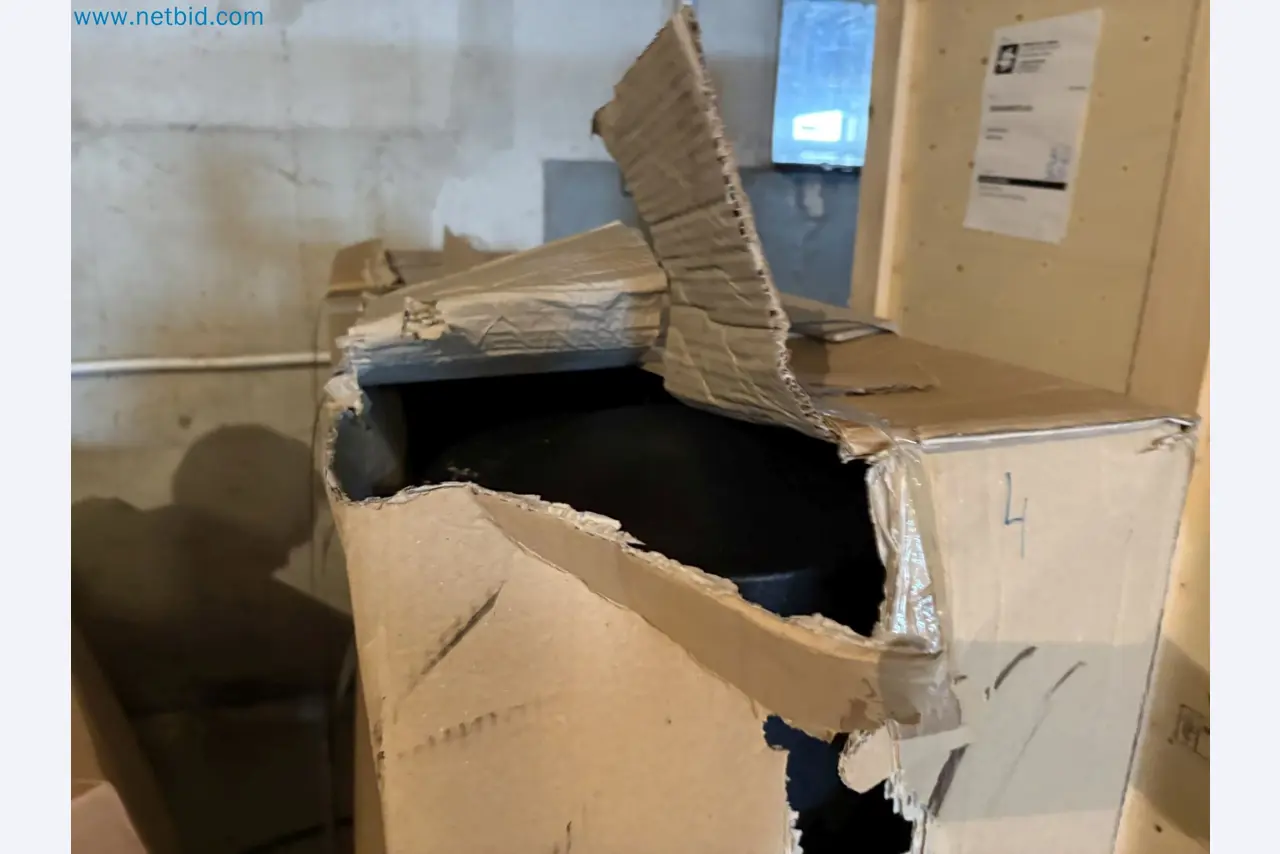

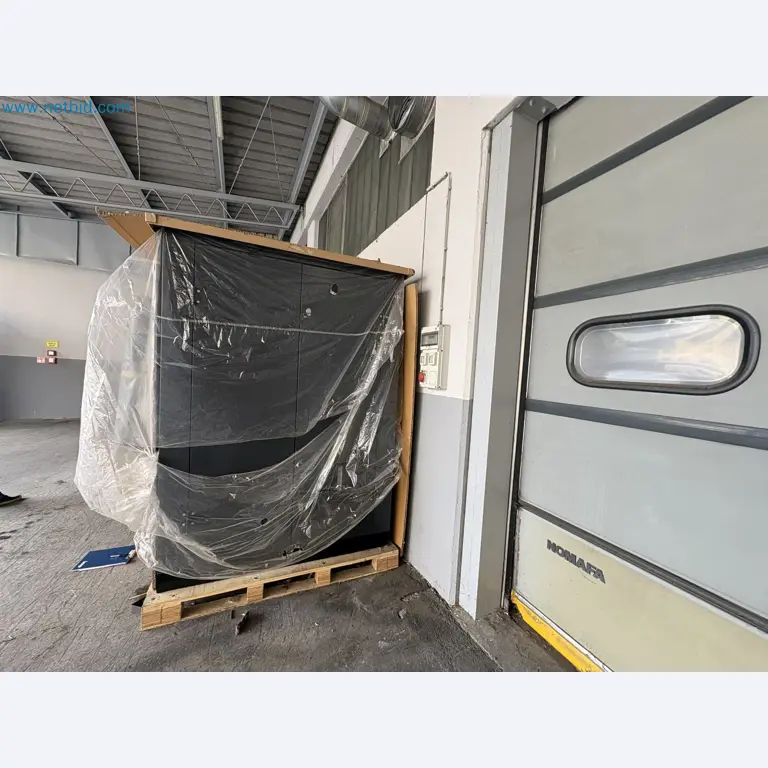

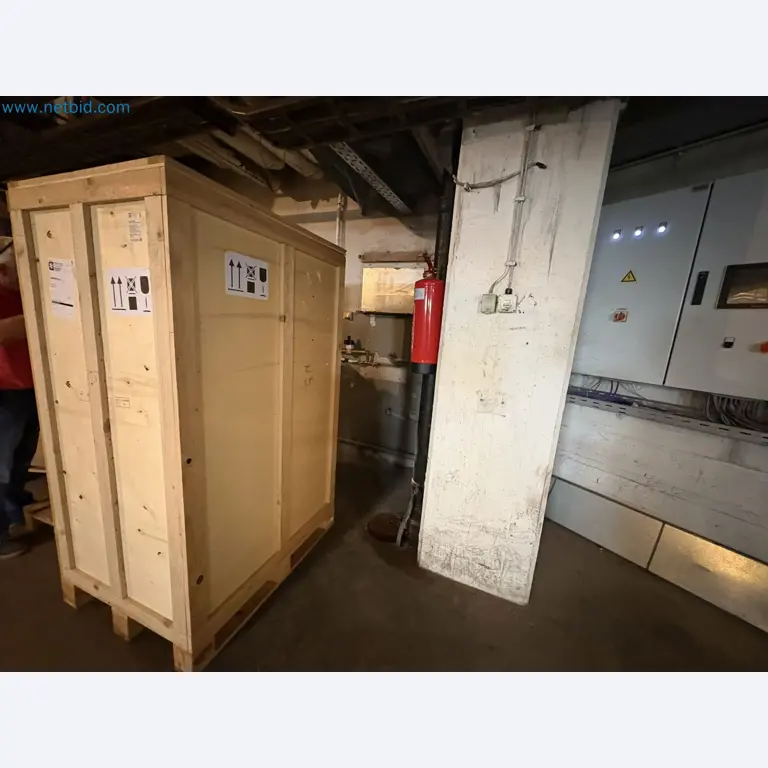

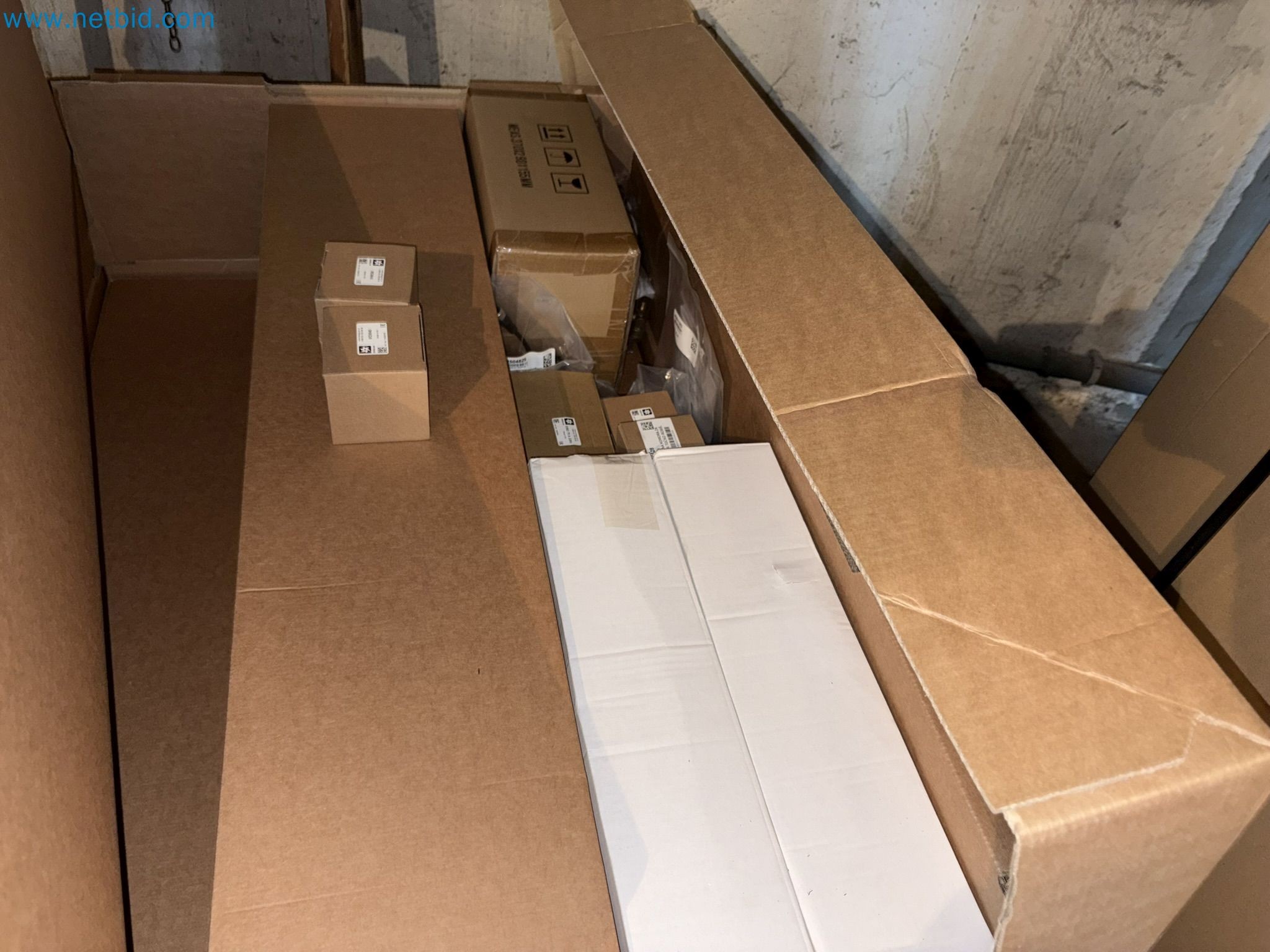

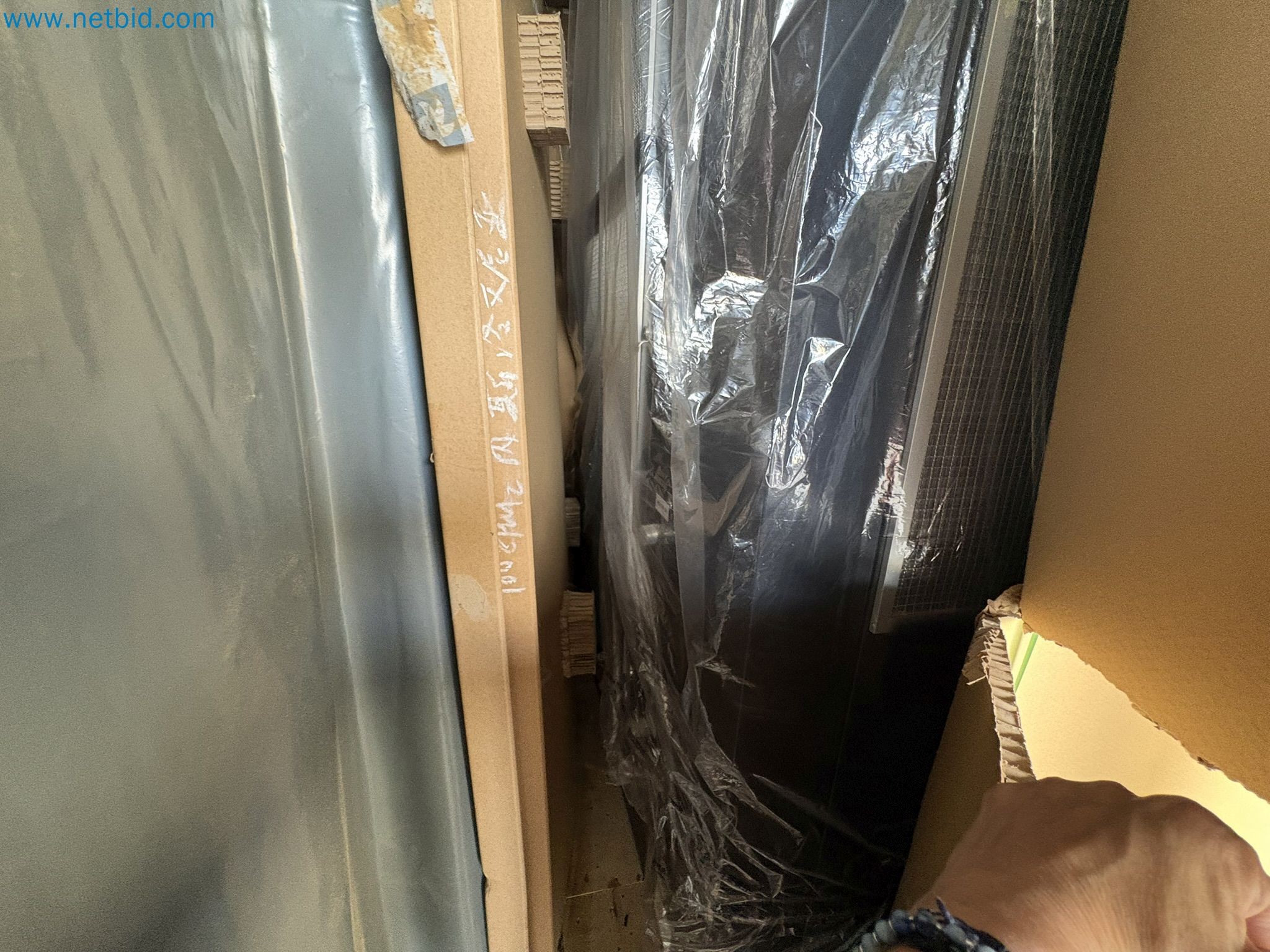

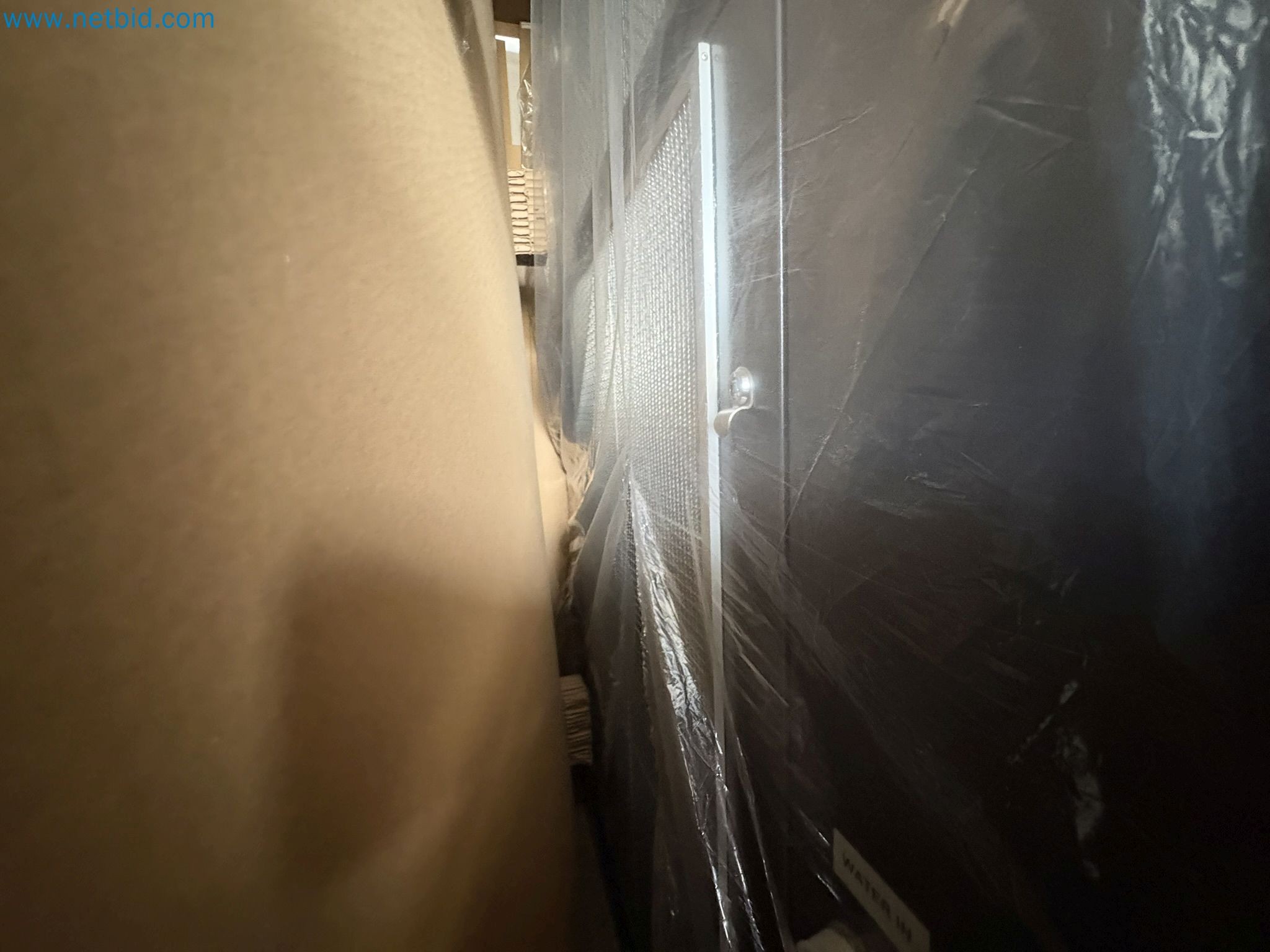

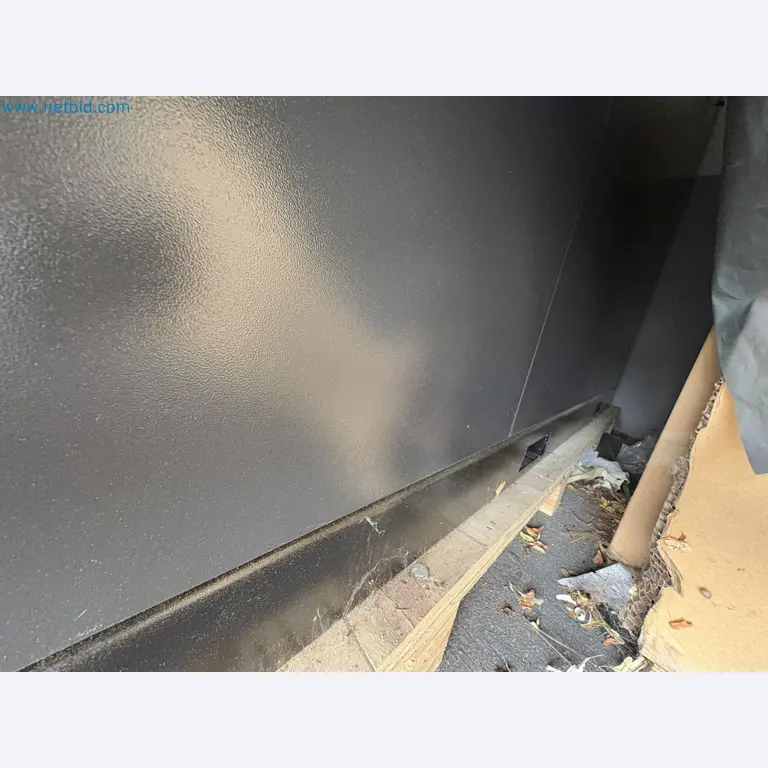

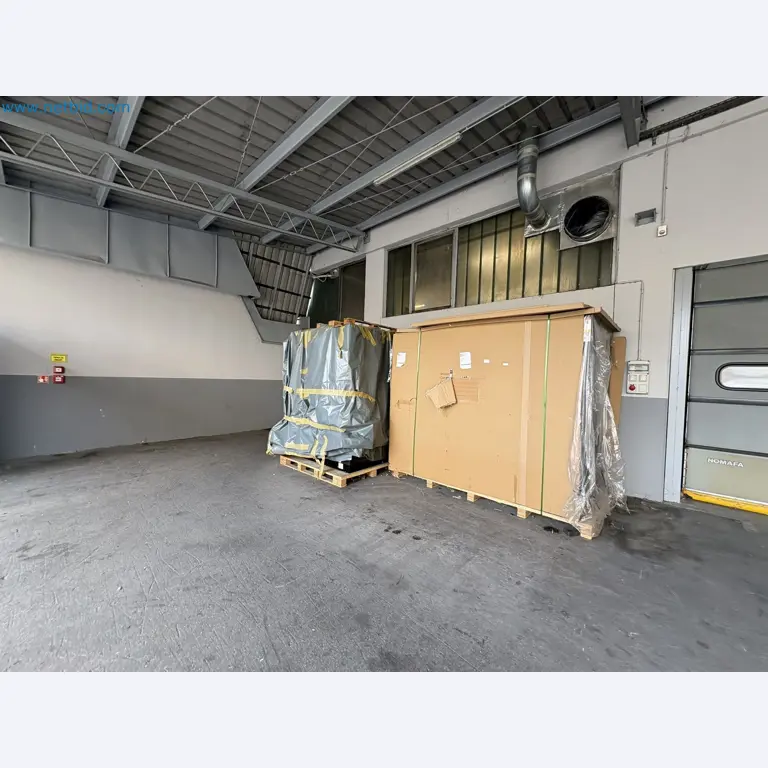

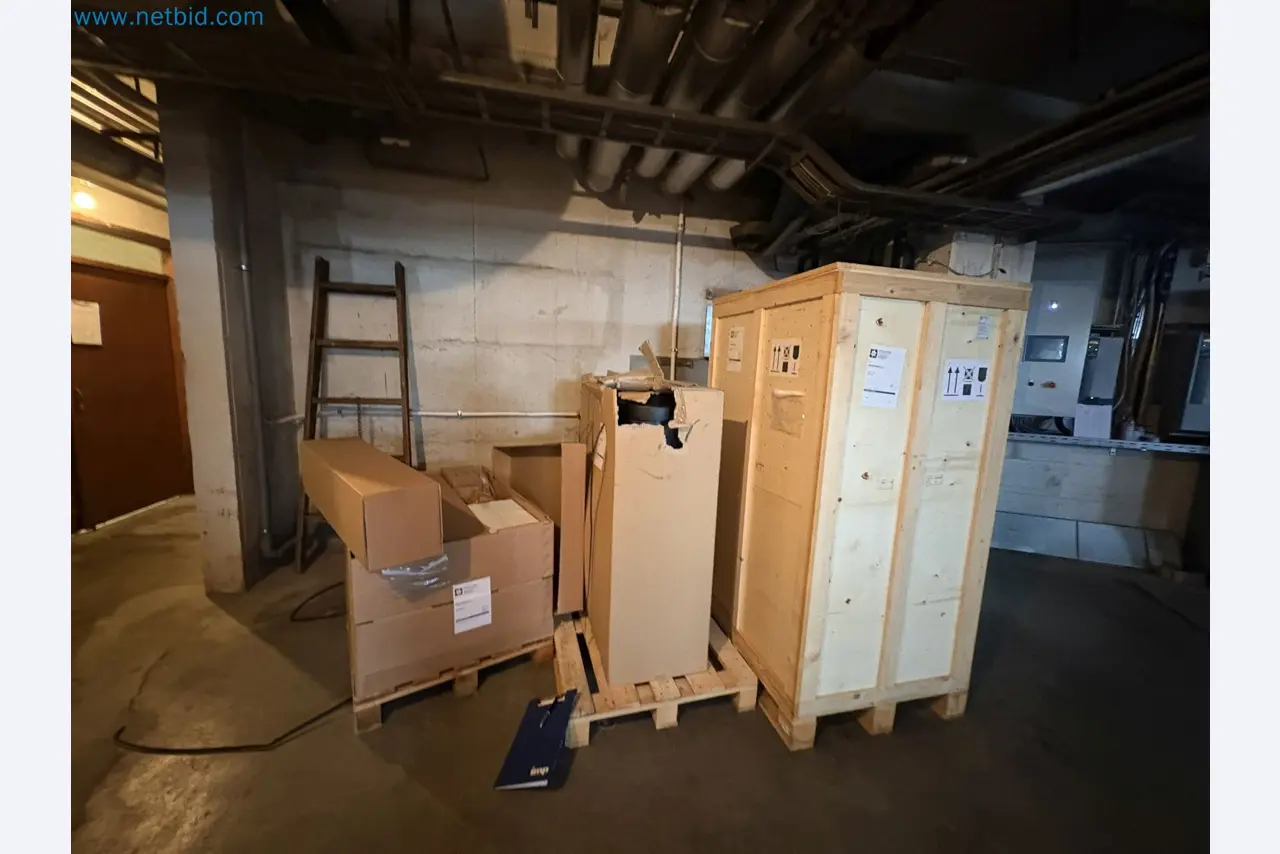

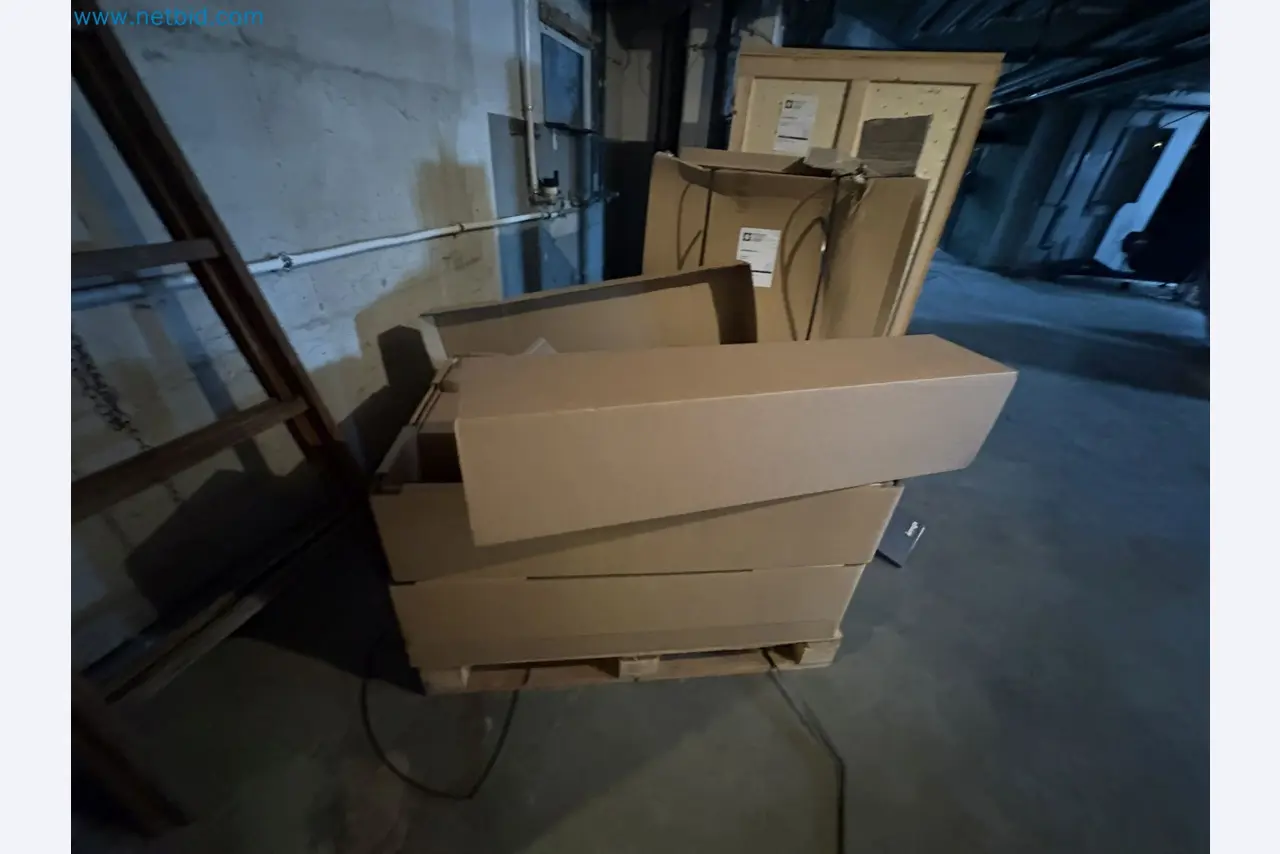

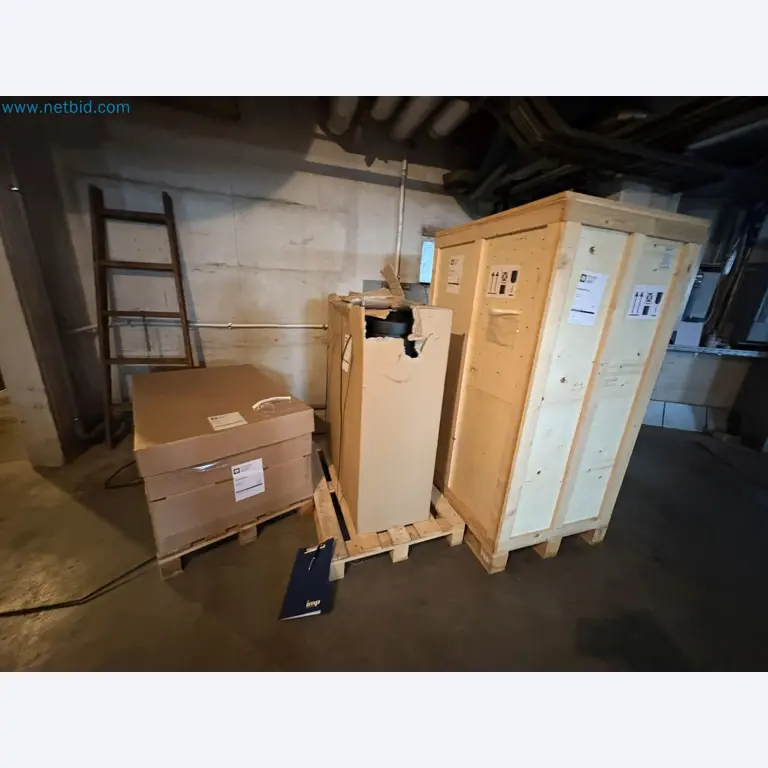

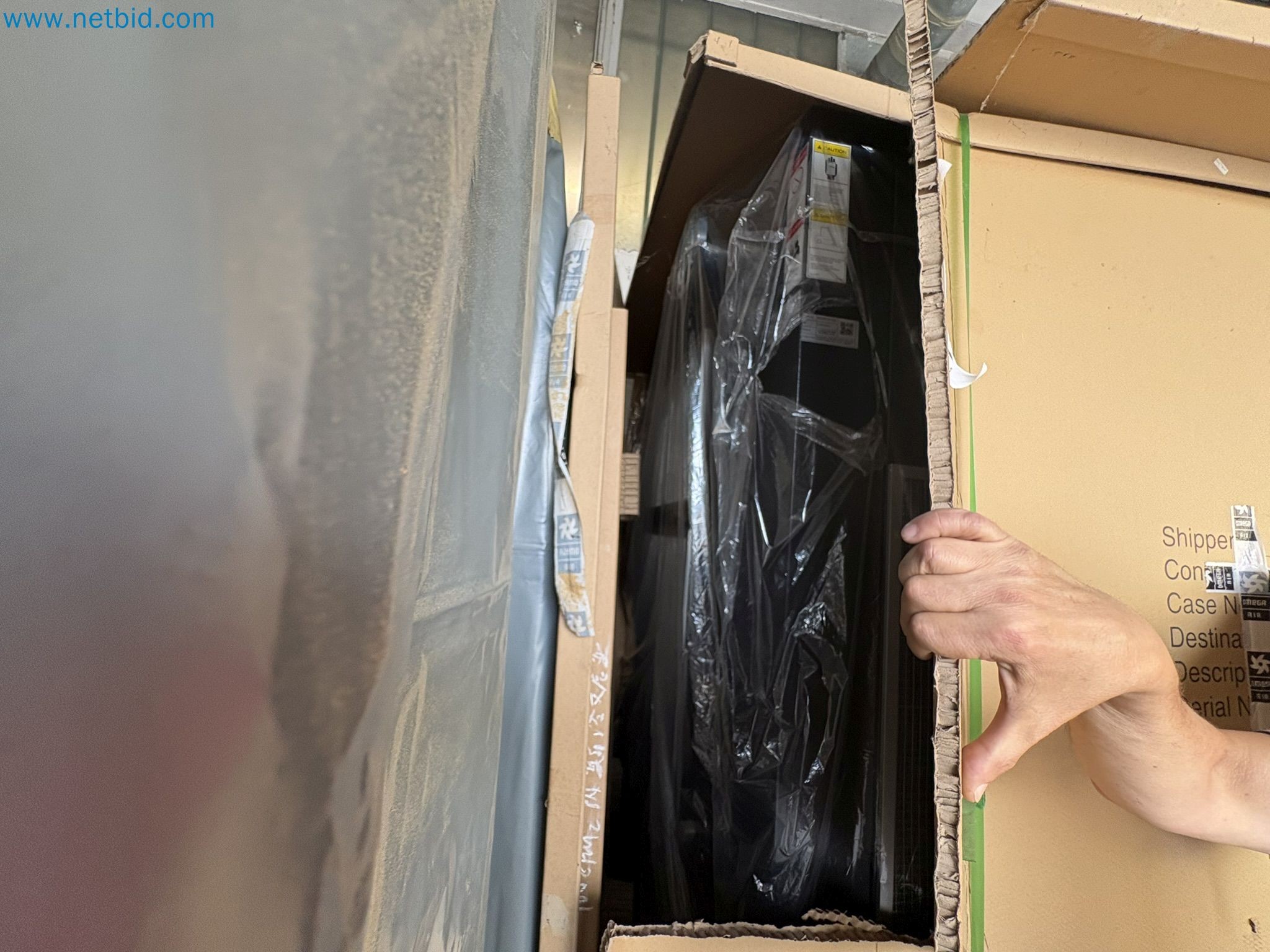

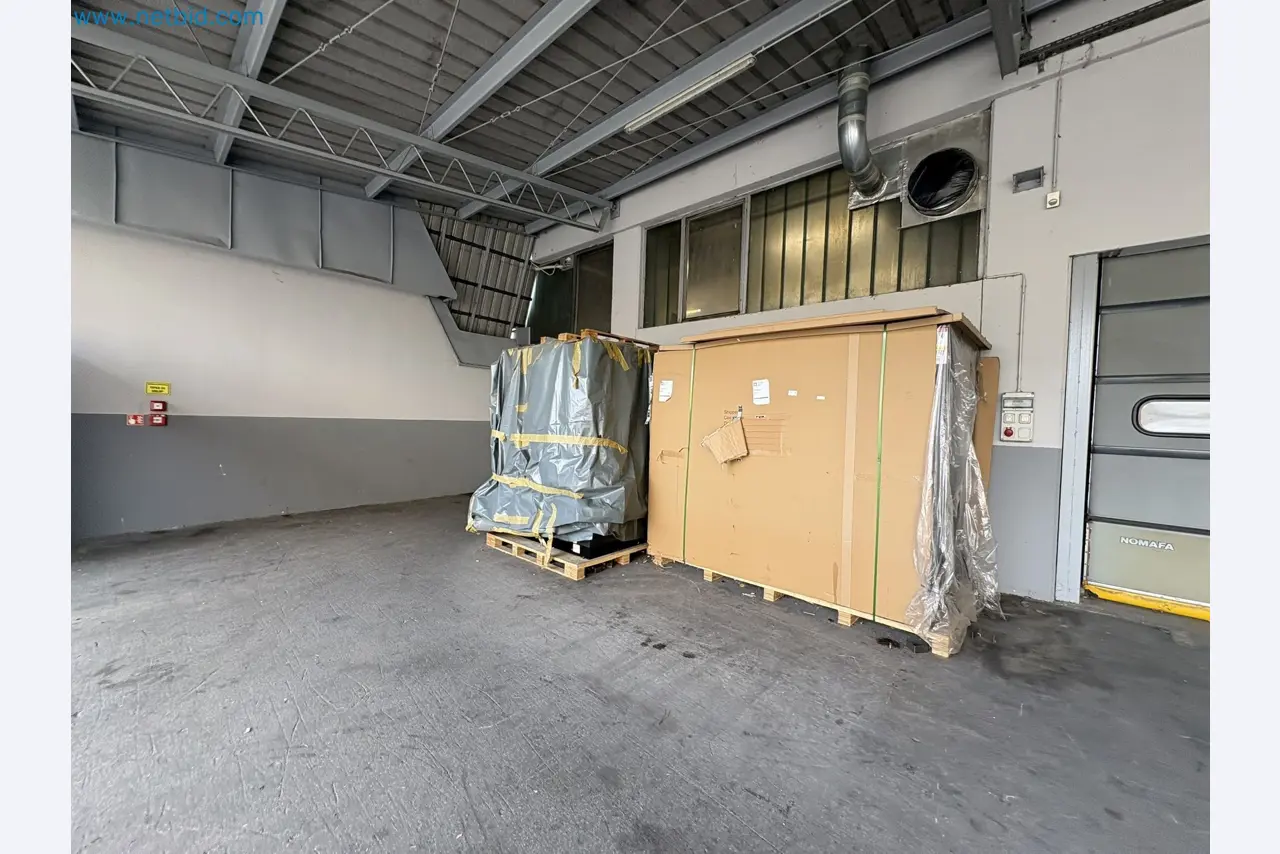

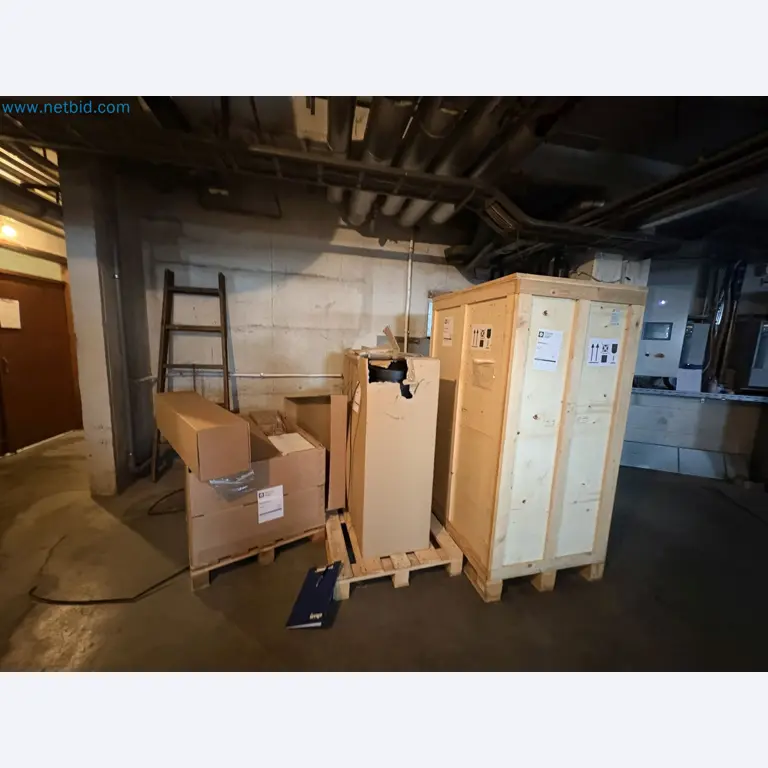

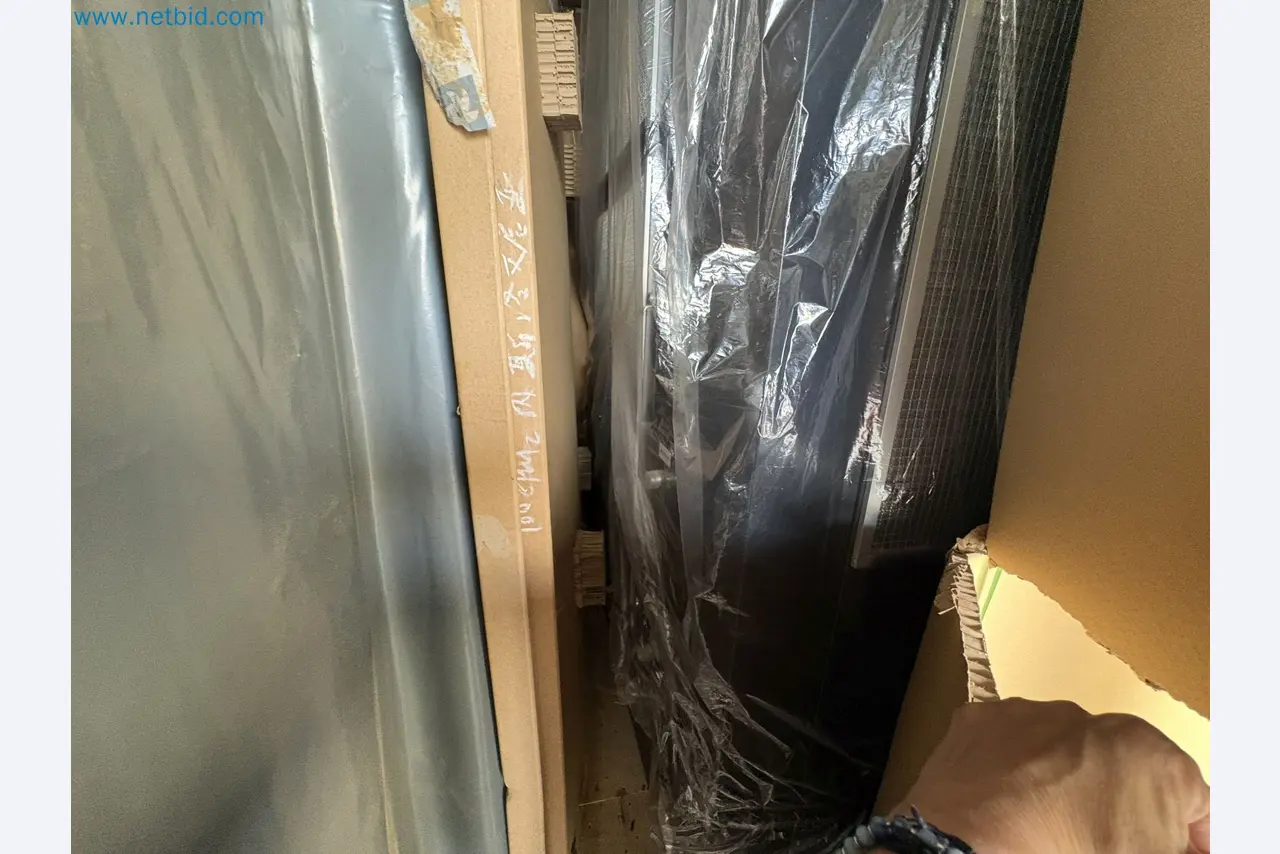

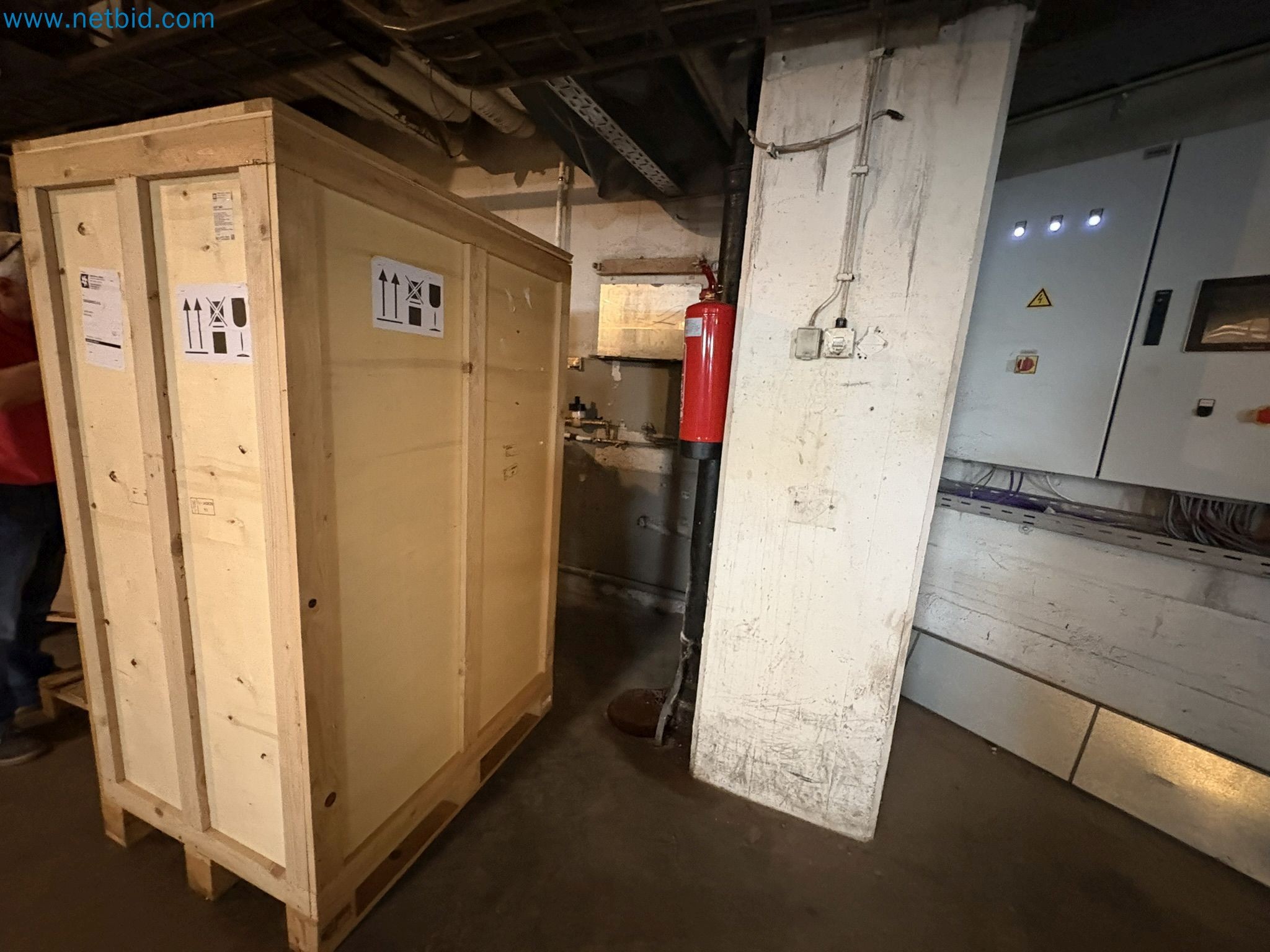

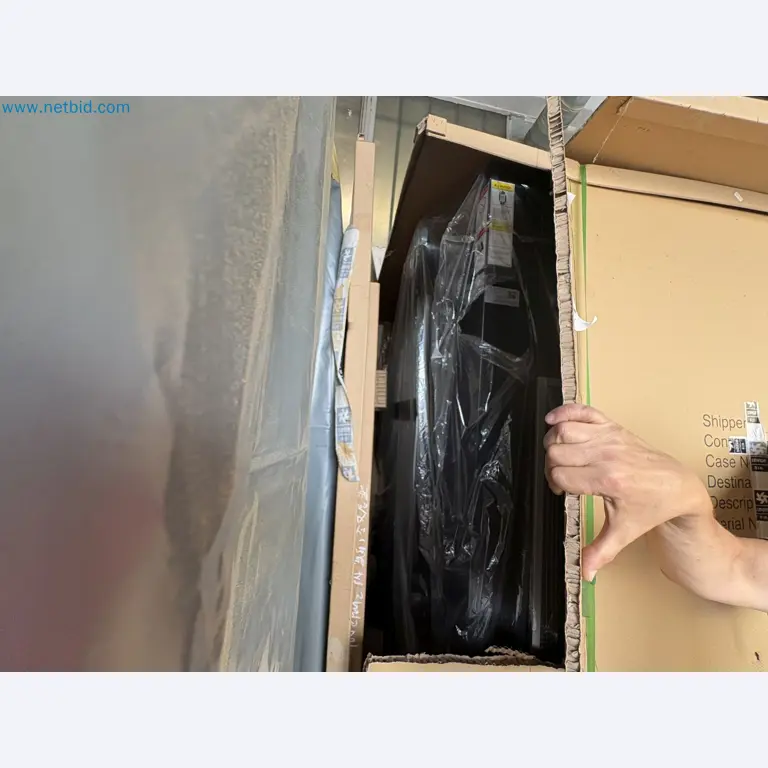

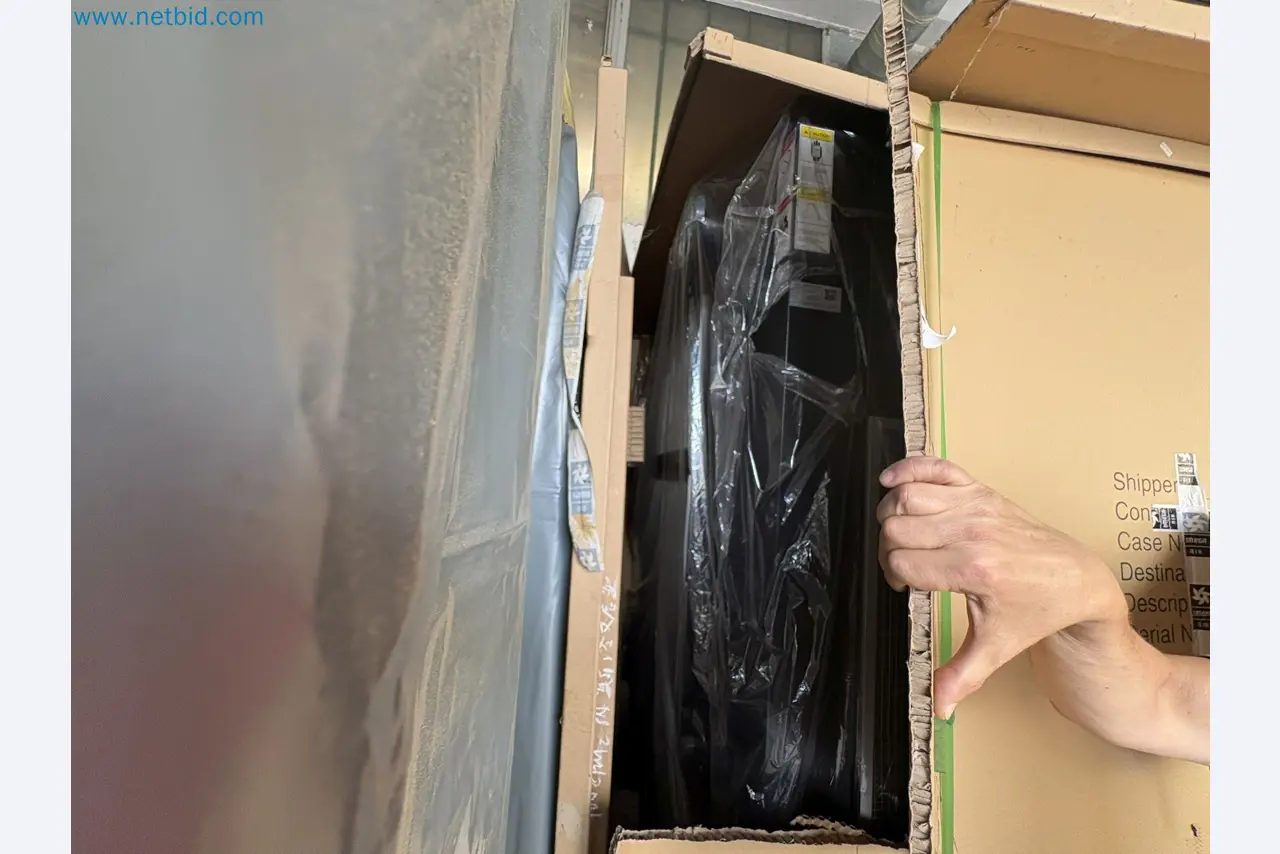

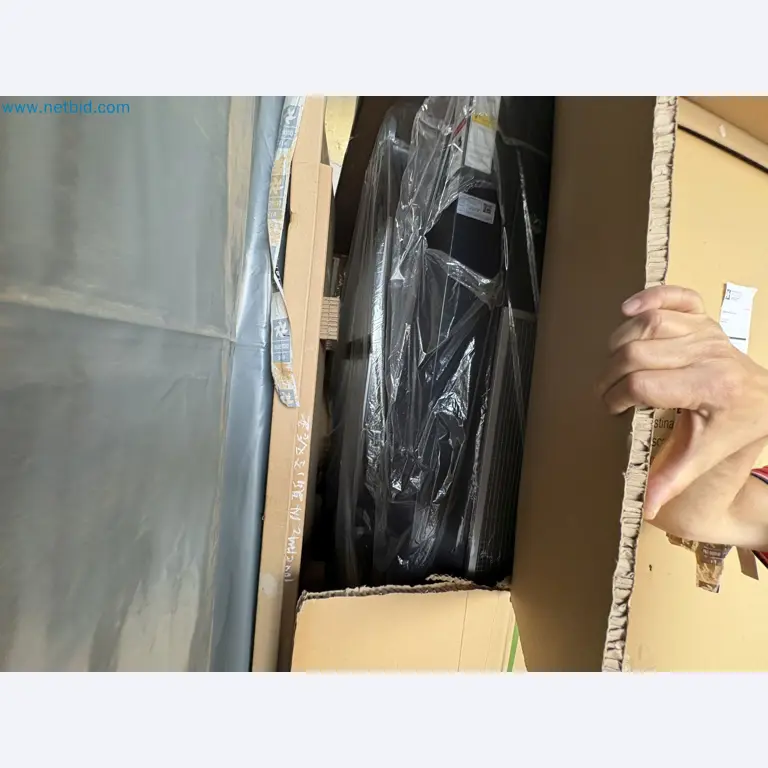

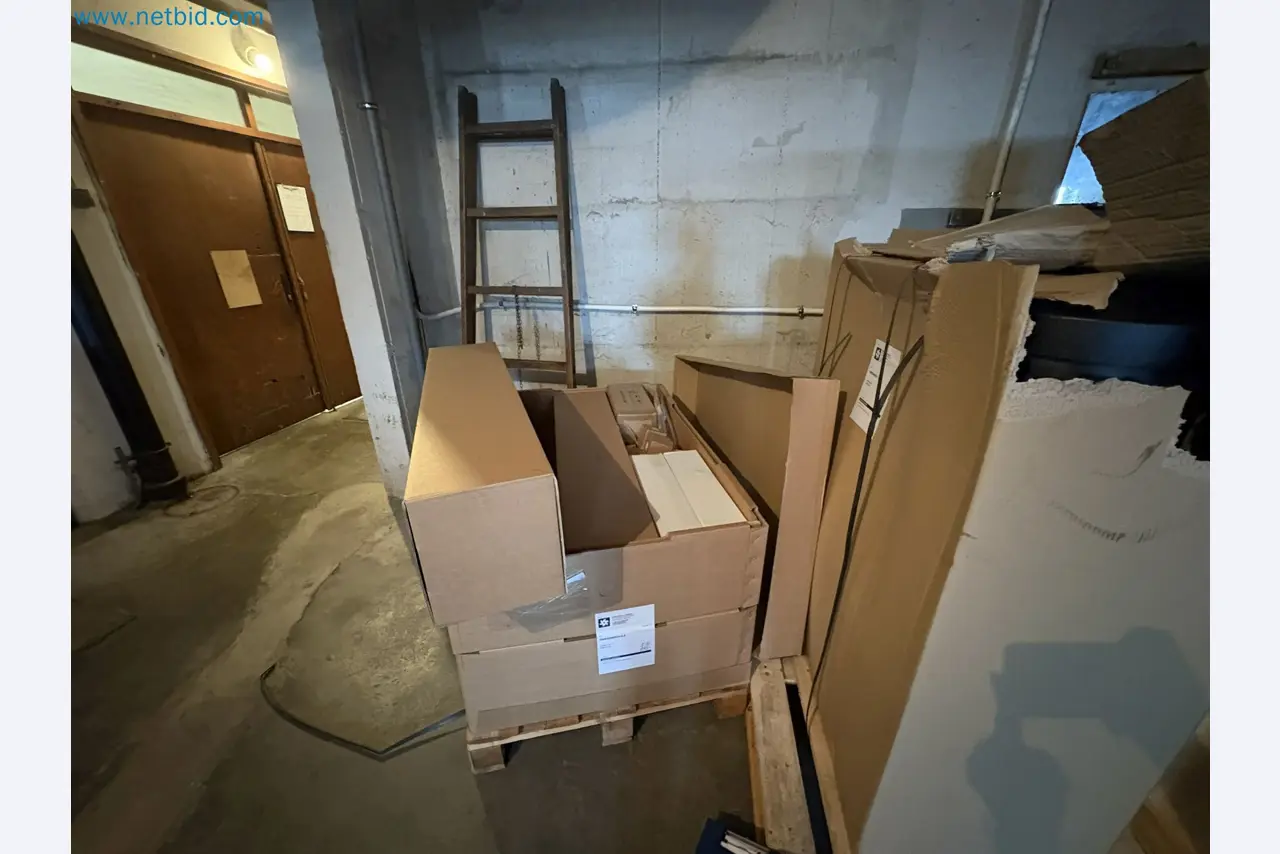

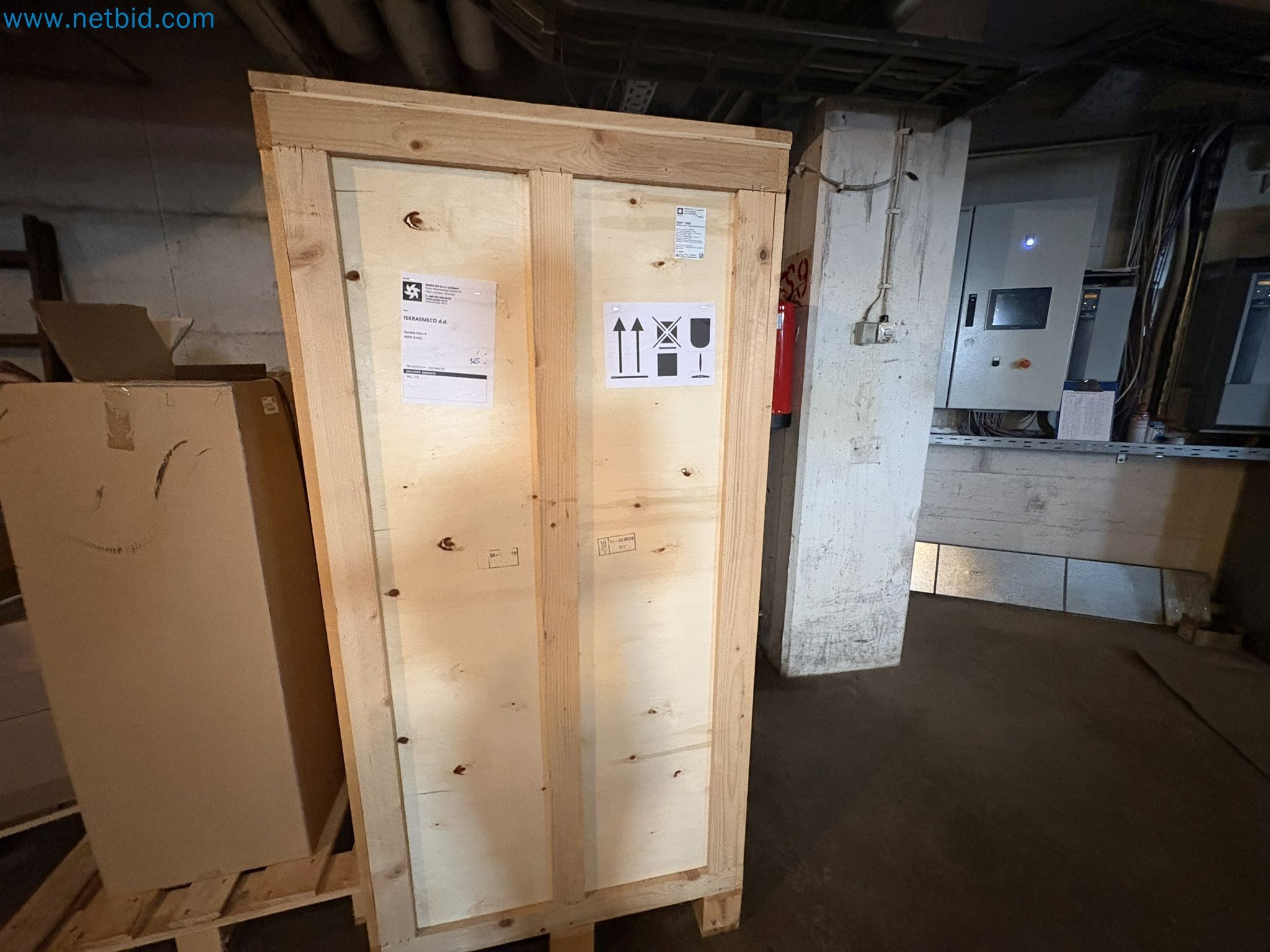

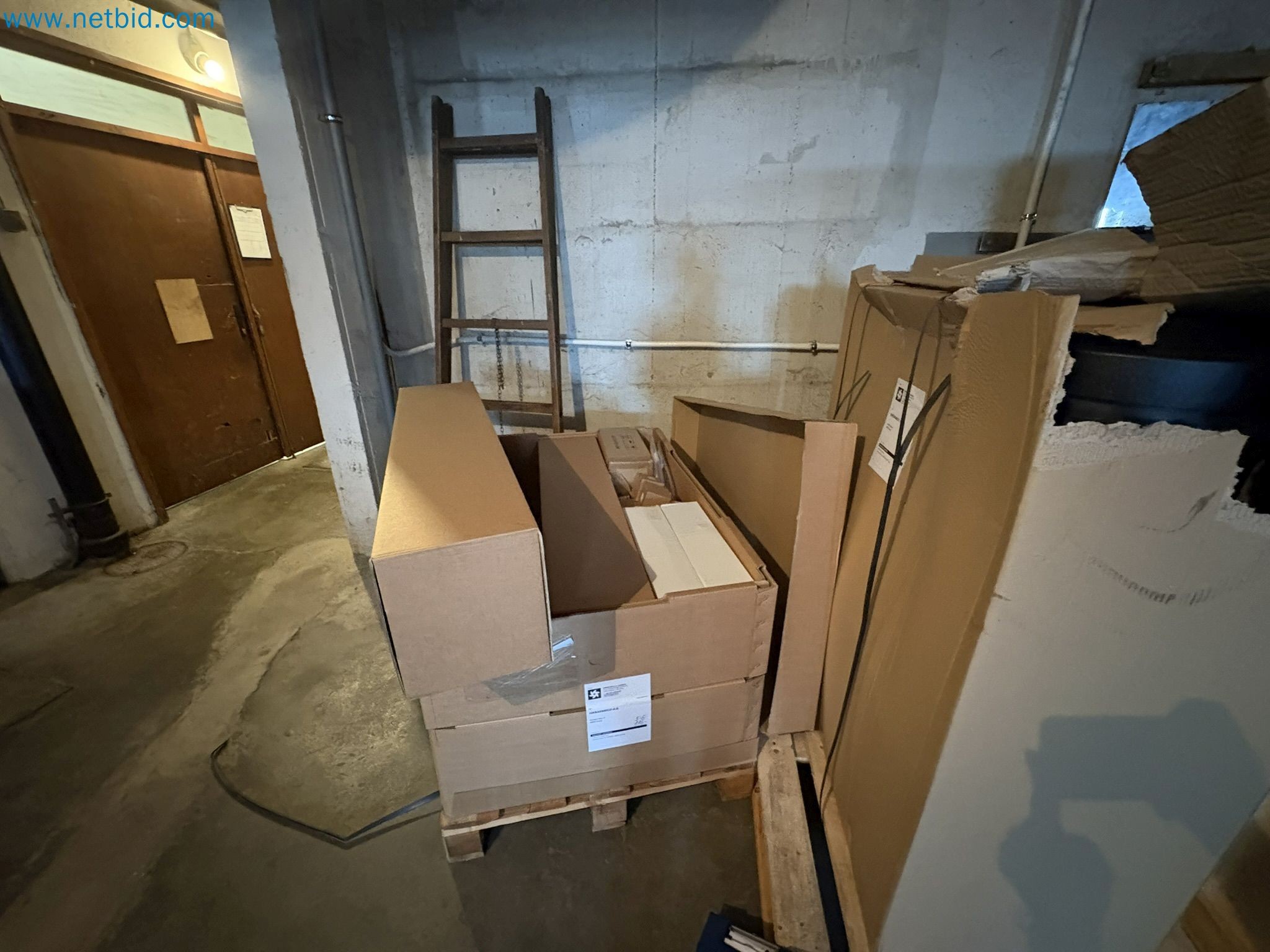

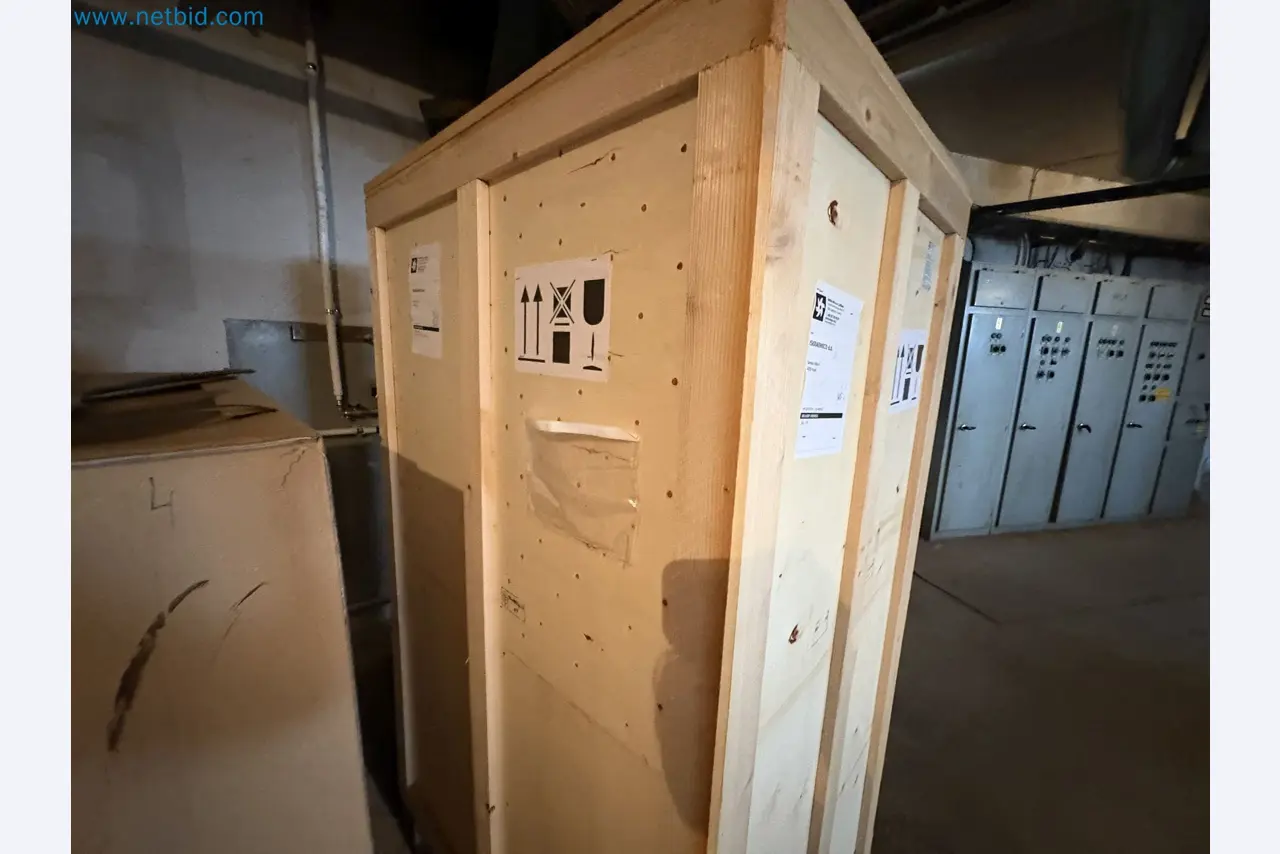

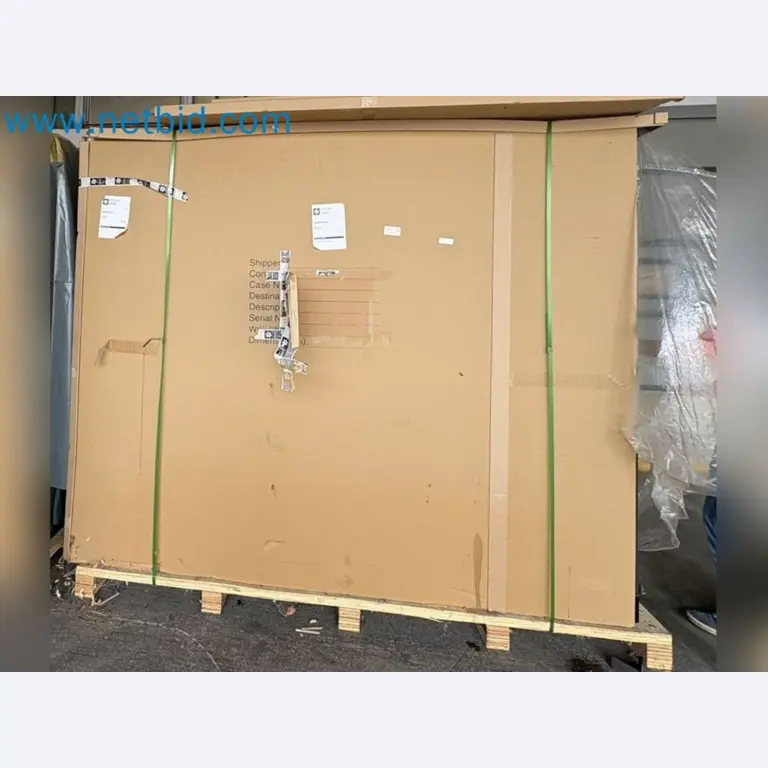

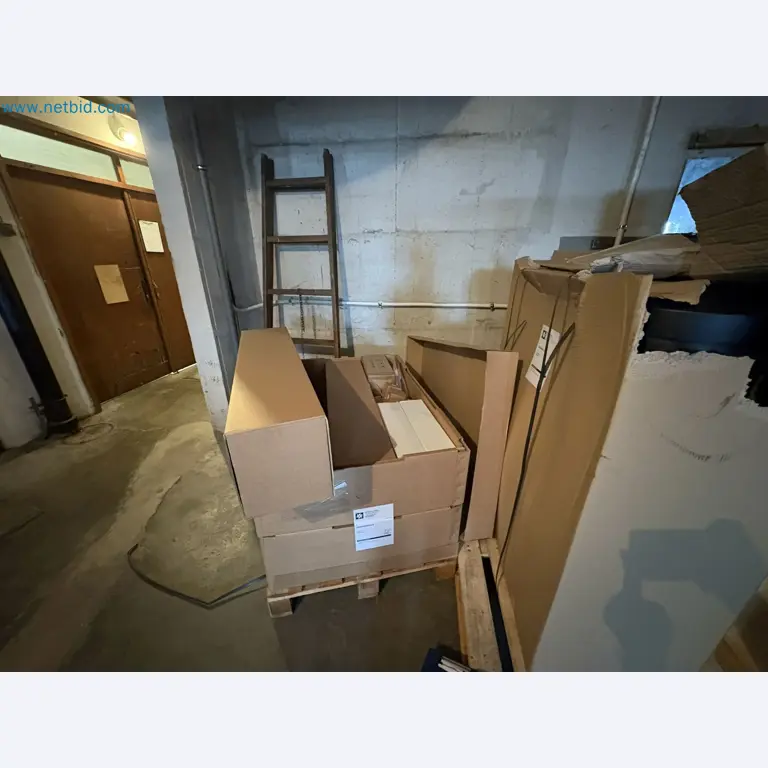

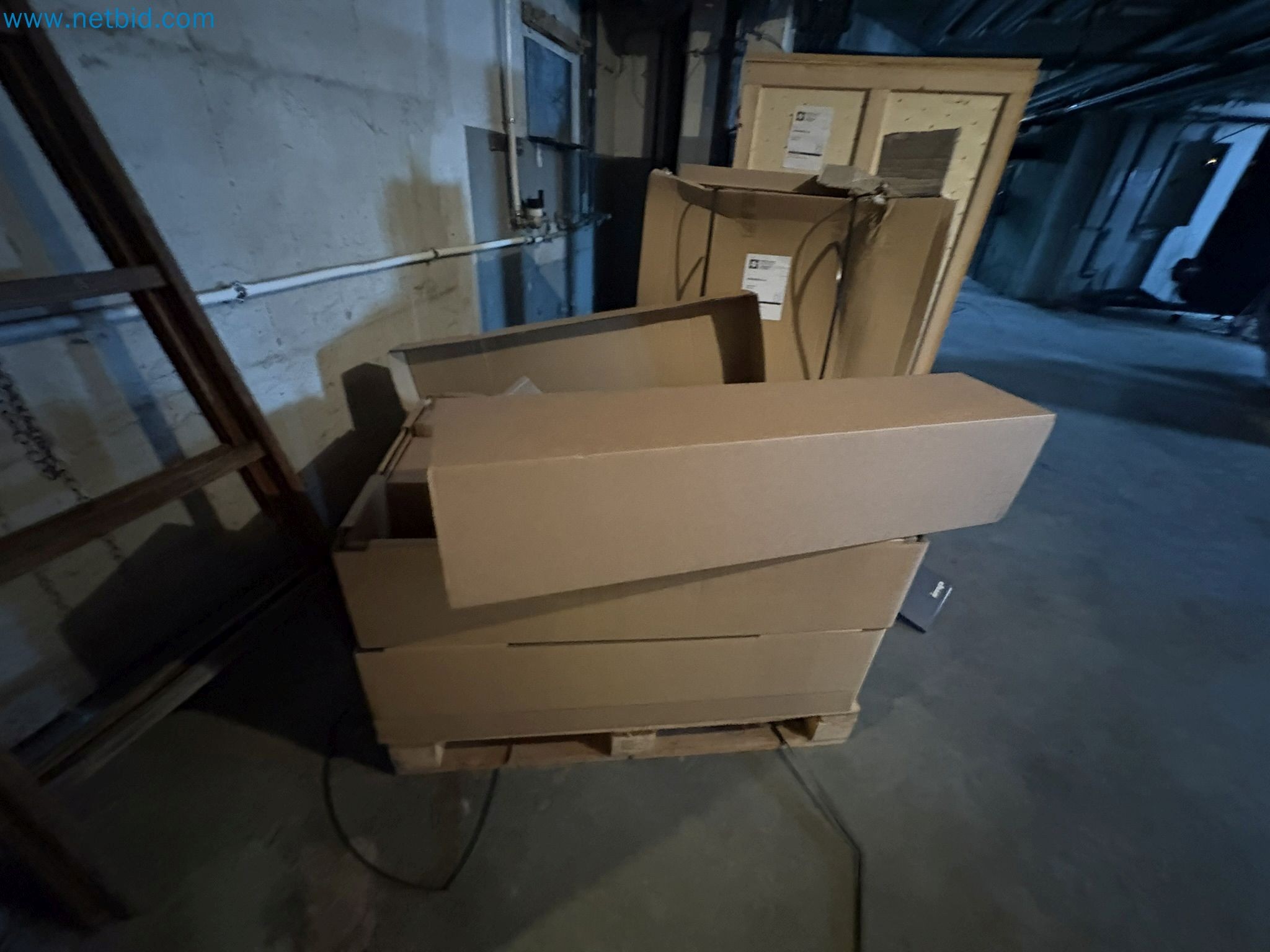

The equipment is unused, has zero operating hours and remains in its original packaging. It has never been unpacked, installed or put into operation.
