Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment

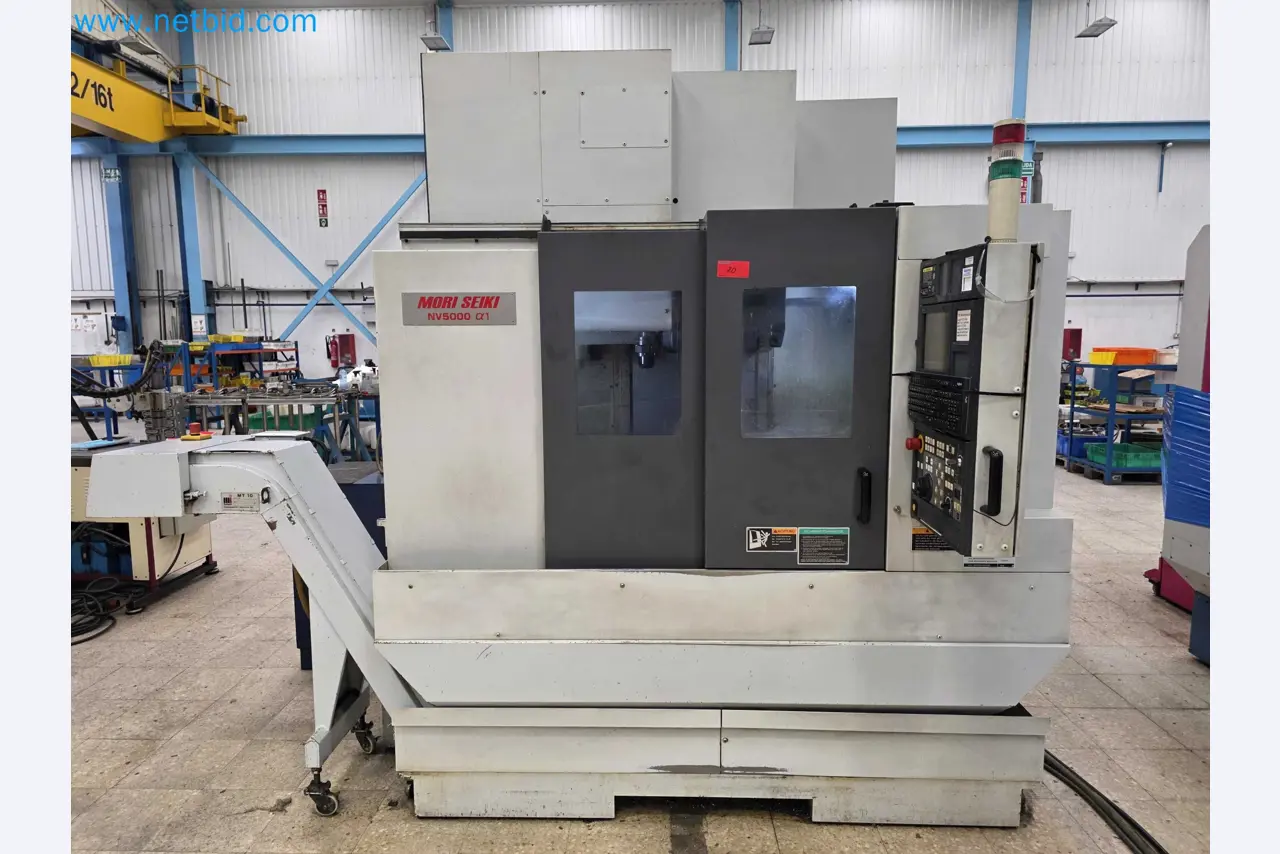

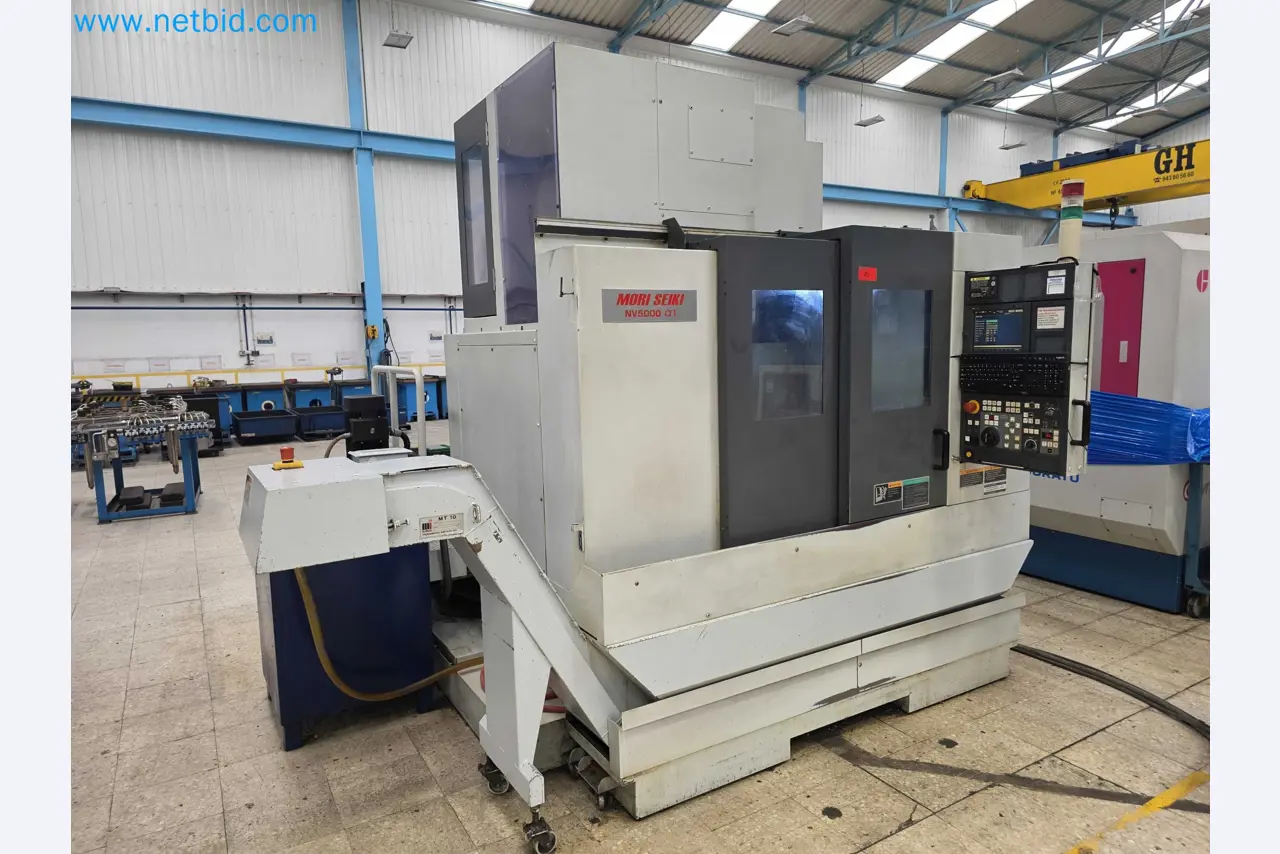

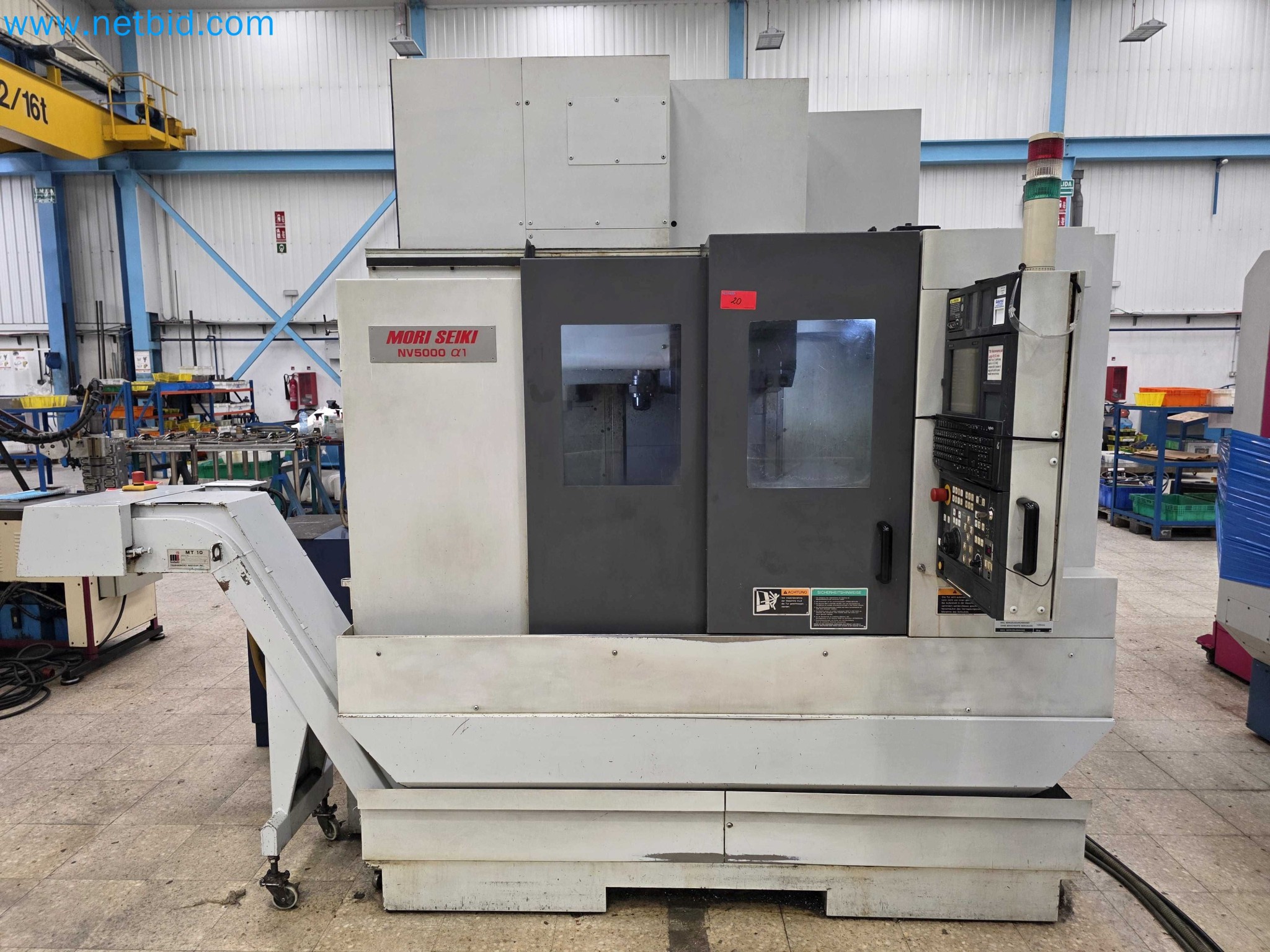

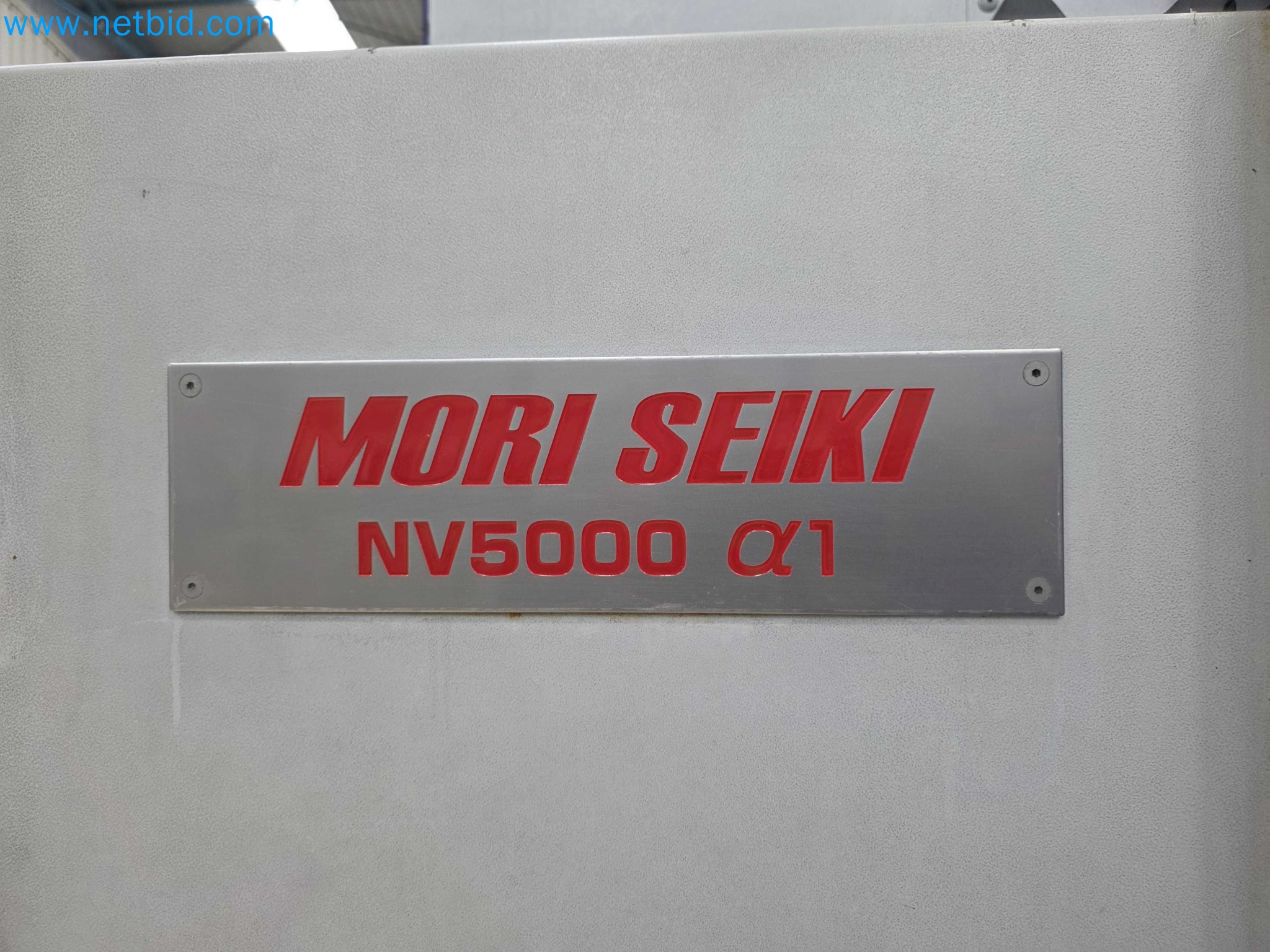

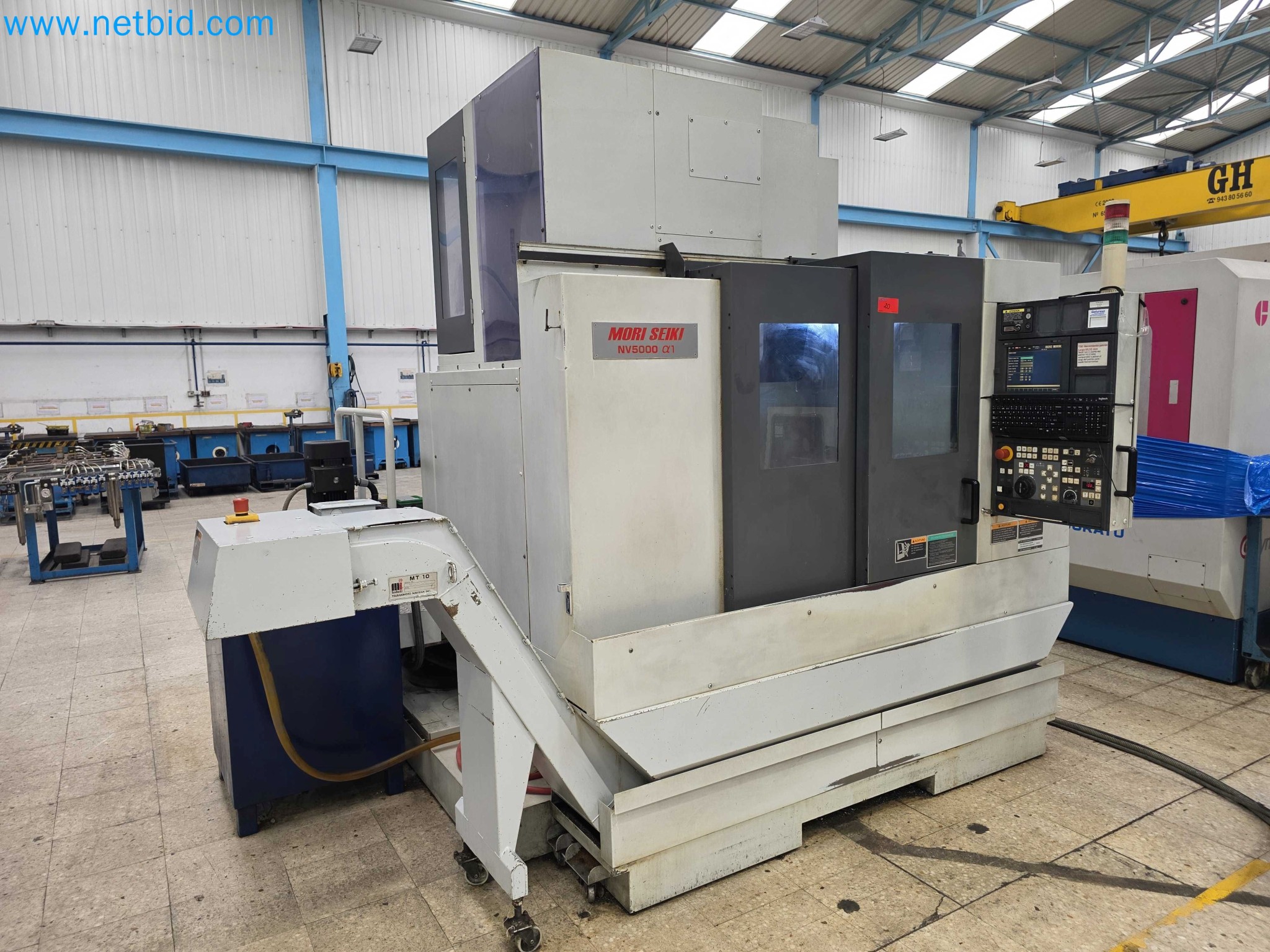

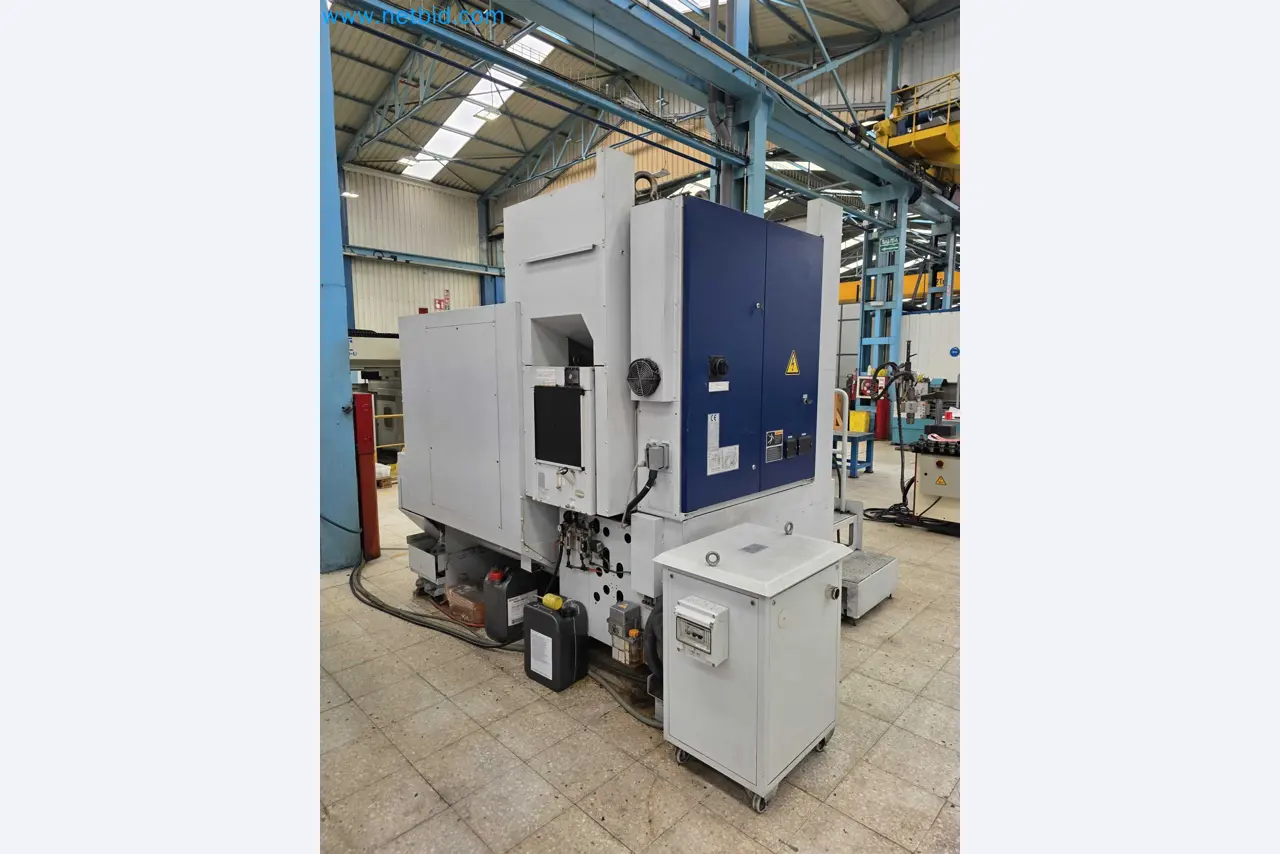

CNC Machining Center MORI SEIKI NV5000 α1A/40AUCTION#A19590-20
Details
Product Type

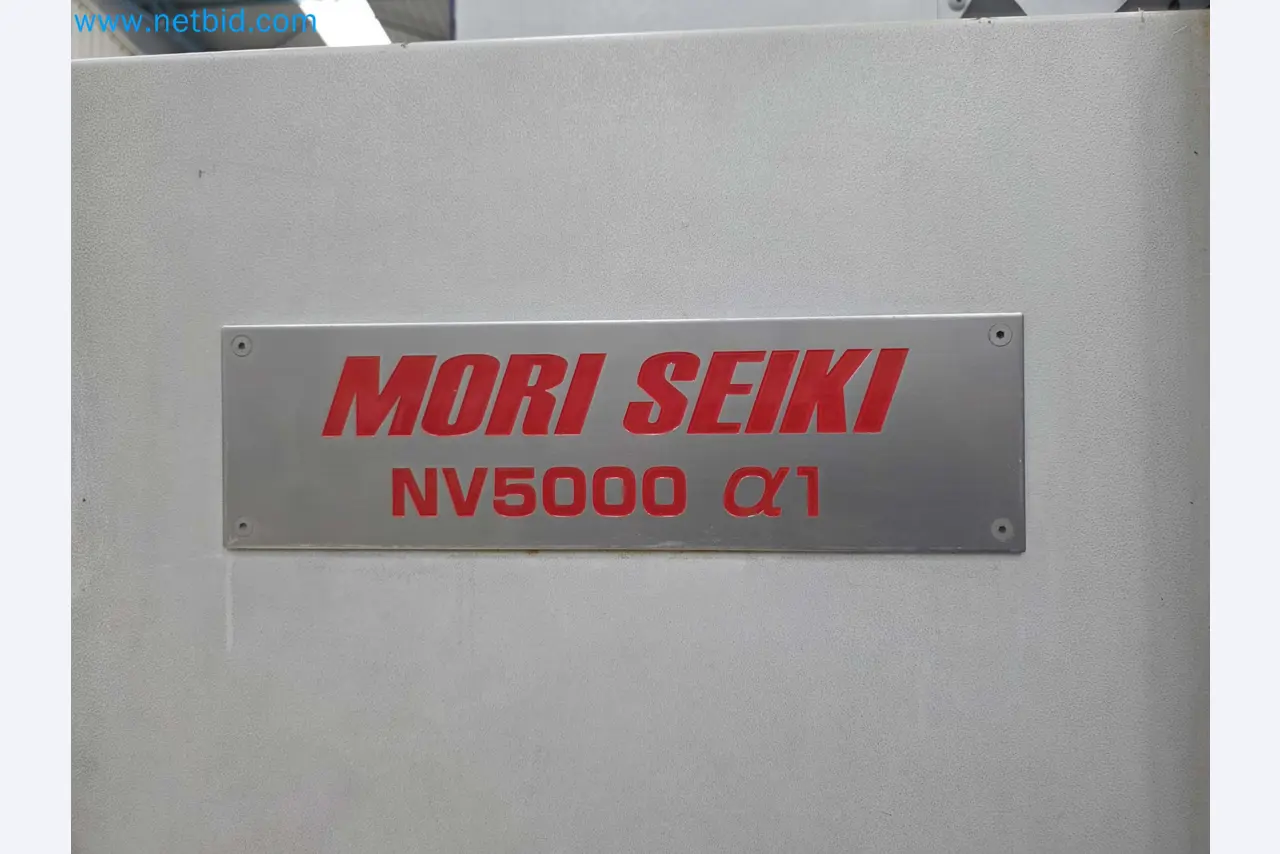

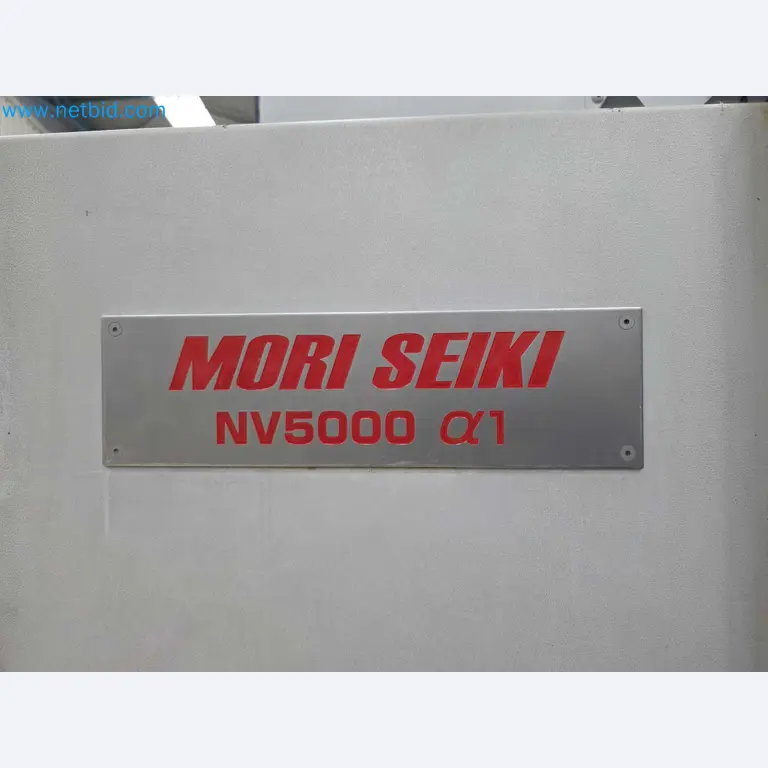

MORI SEIKI
Type
NV5000 α1A/40
Construction Year
2005
Description

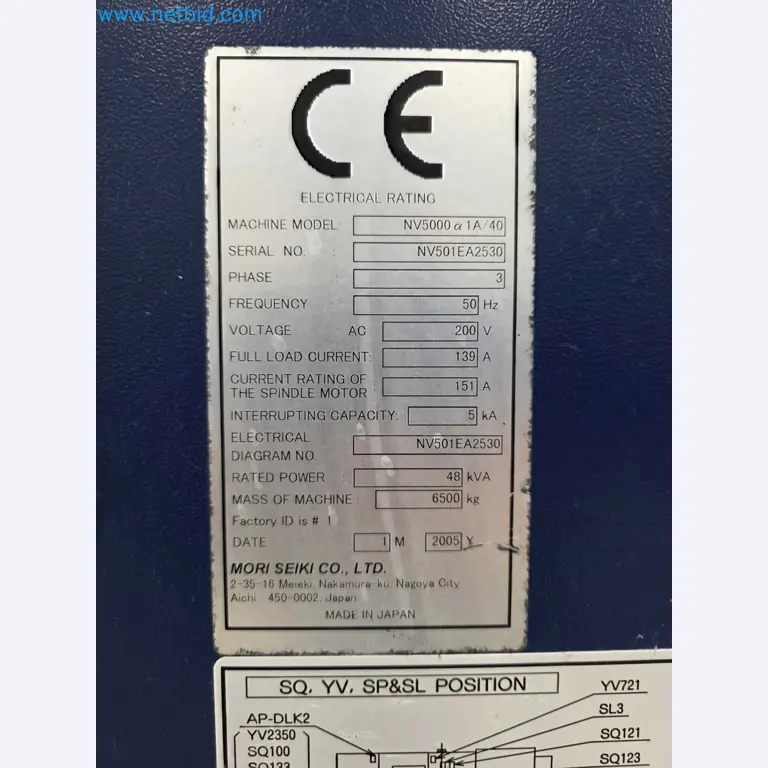

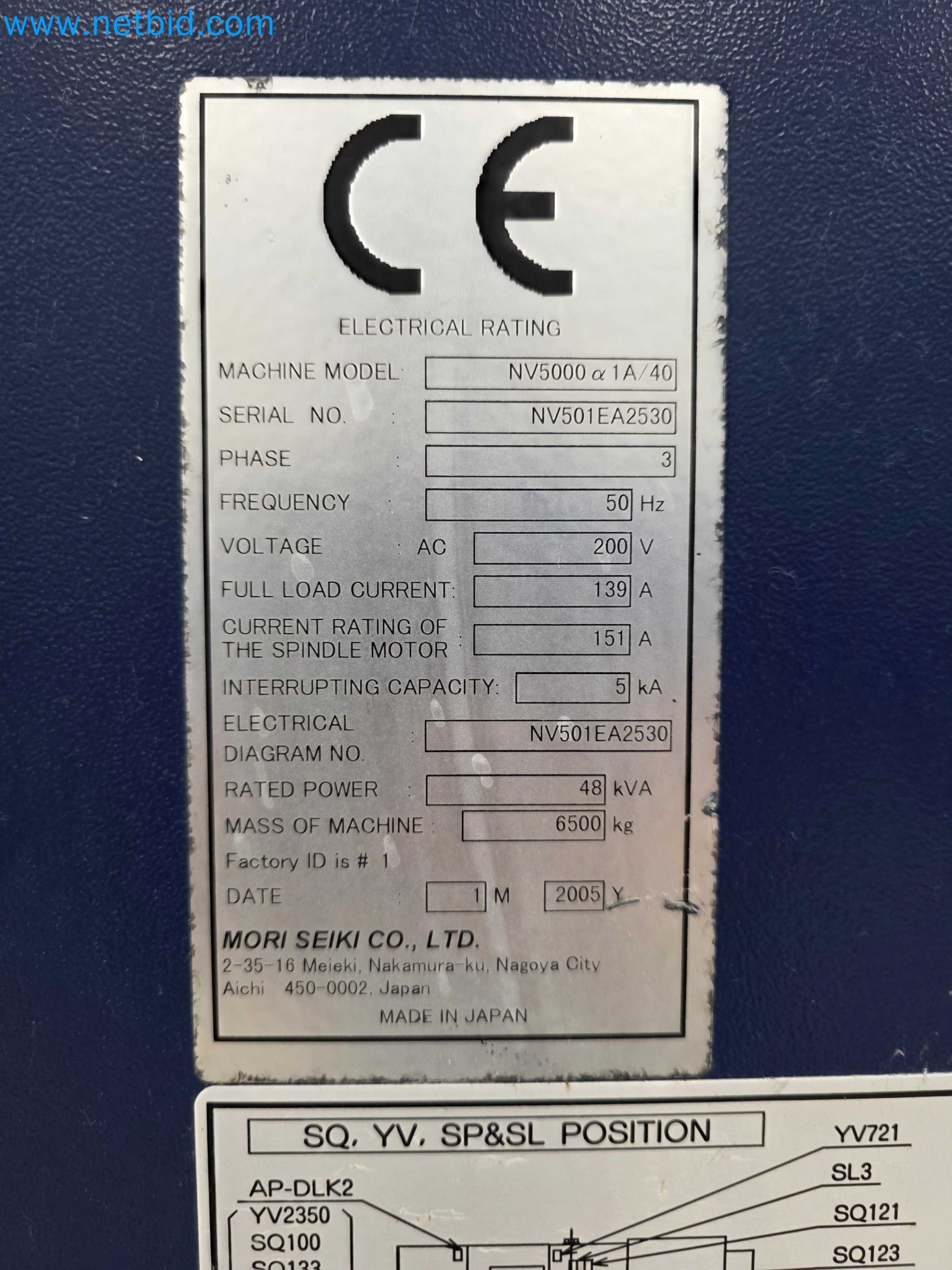

SN: NV501EA2530

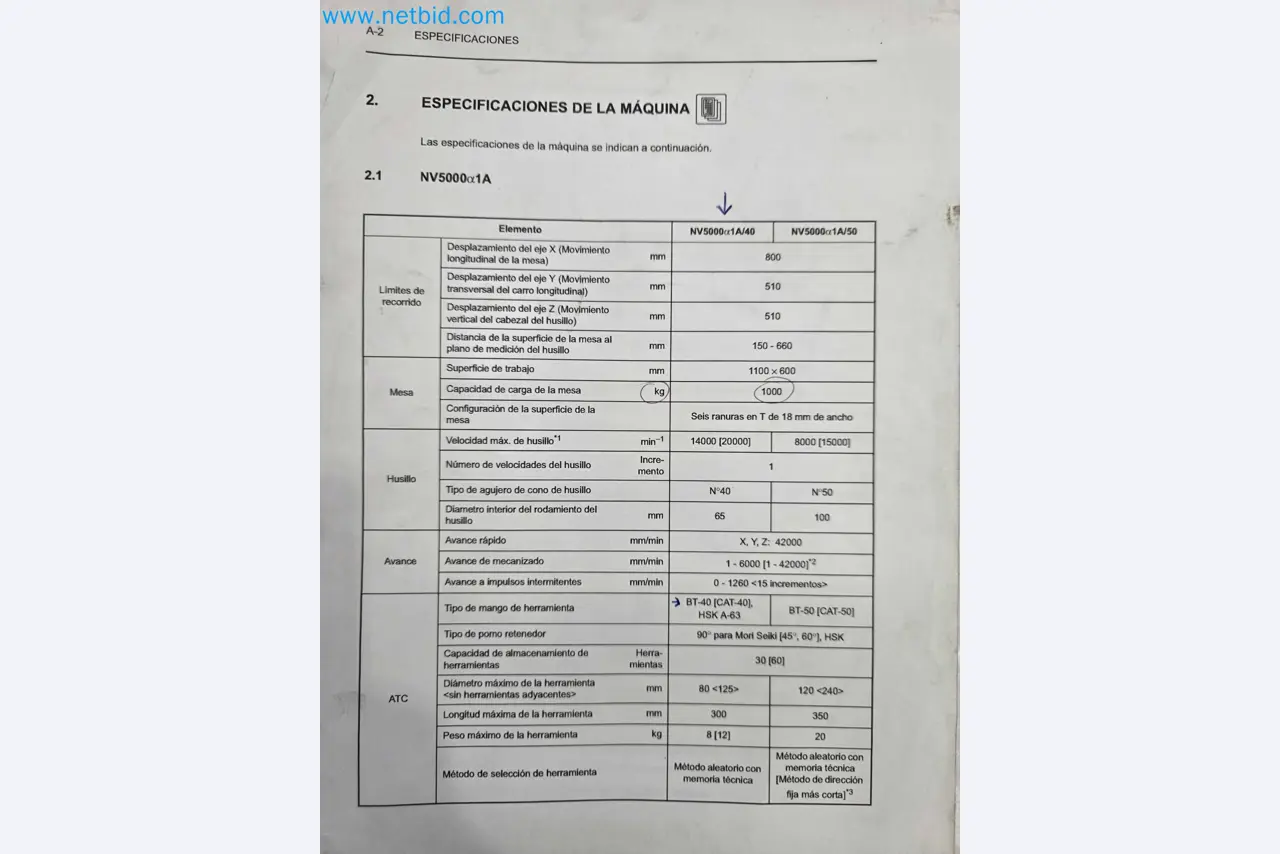

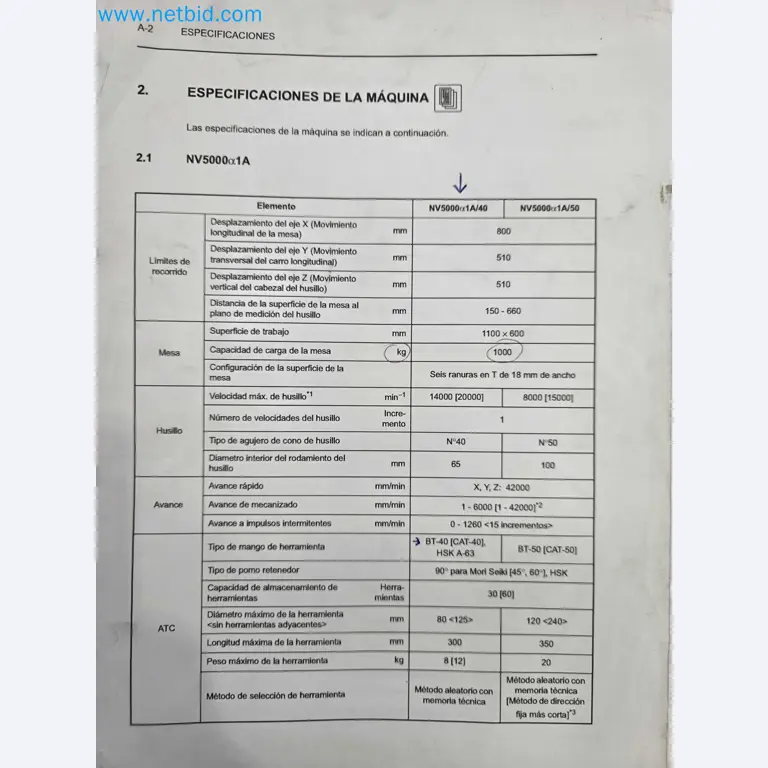

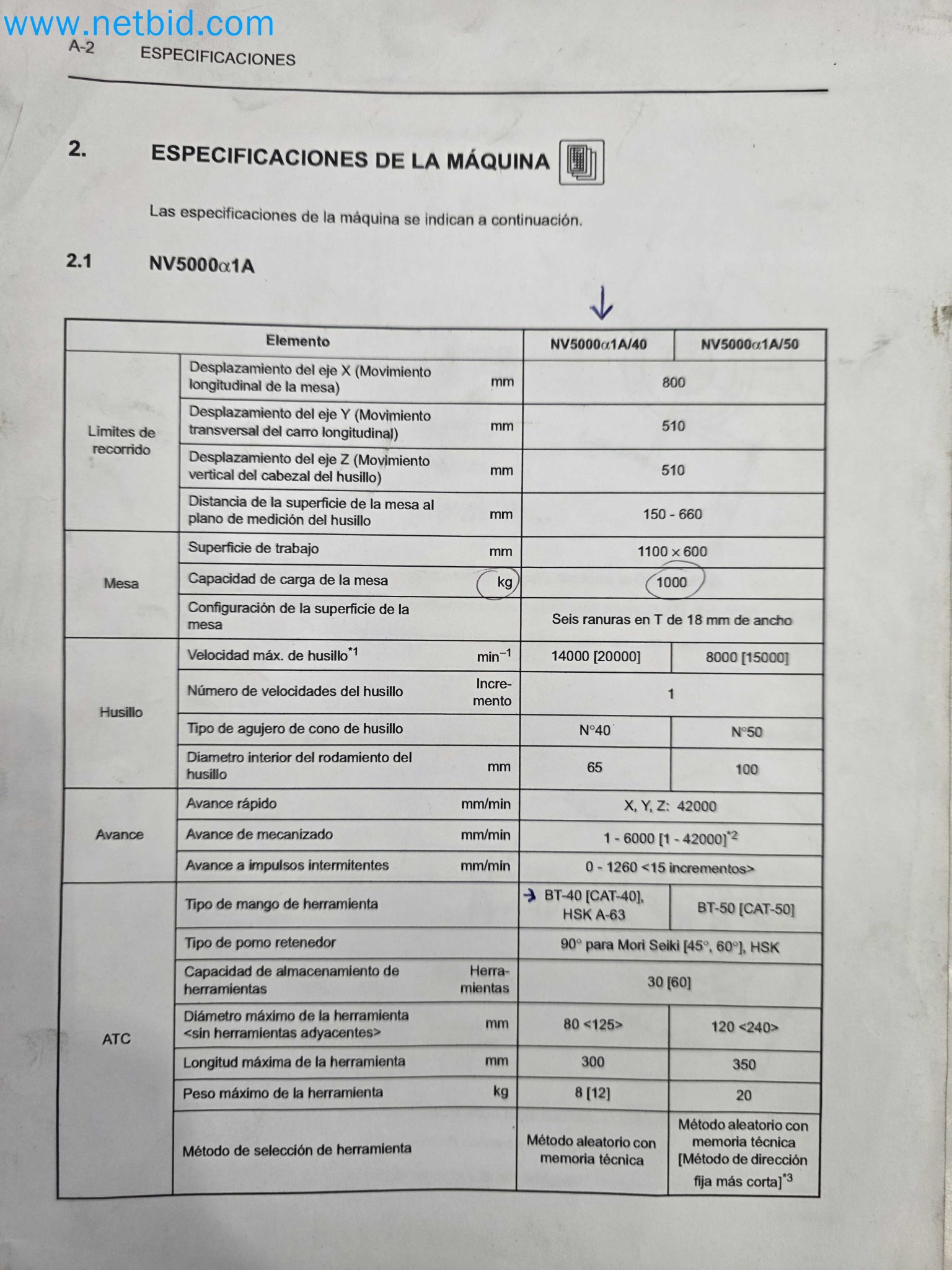

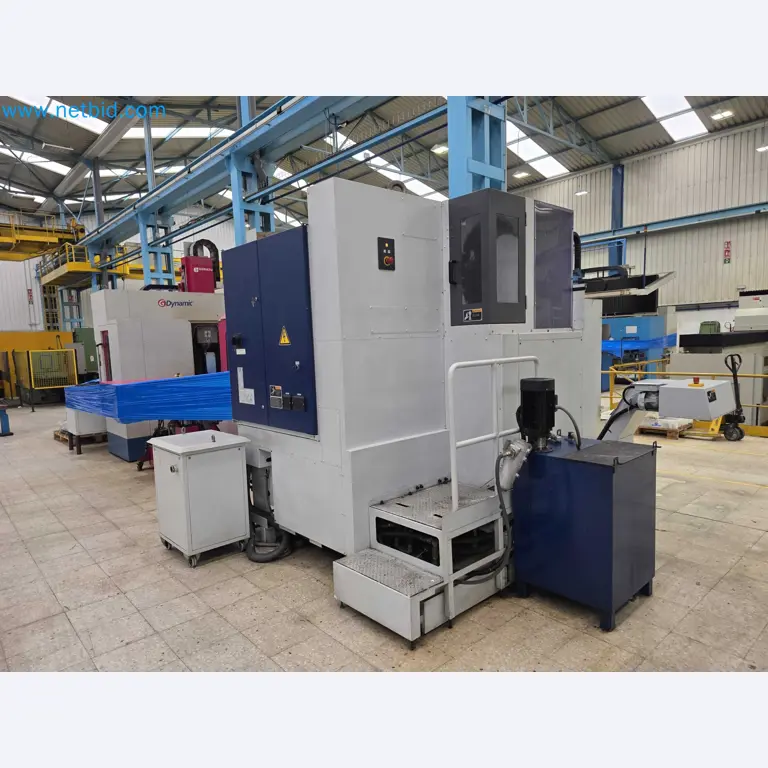

3-axis machining center
X-axis travel: 800 mm
Y-axis travel: 510 mm
Z-axis travel: 510 mm
Distance from table surface to spindle gauge line: 150–660 mm

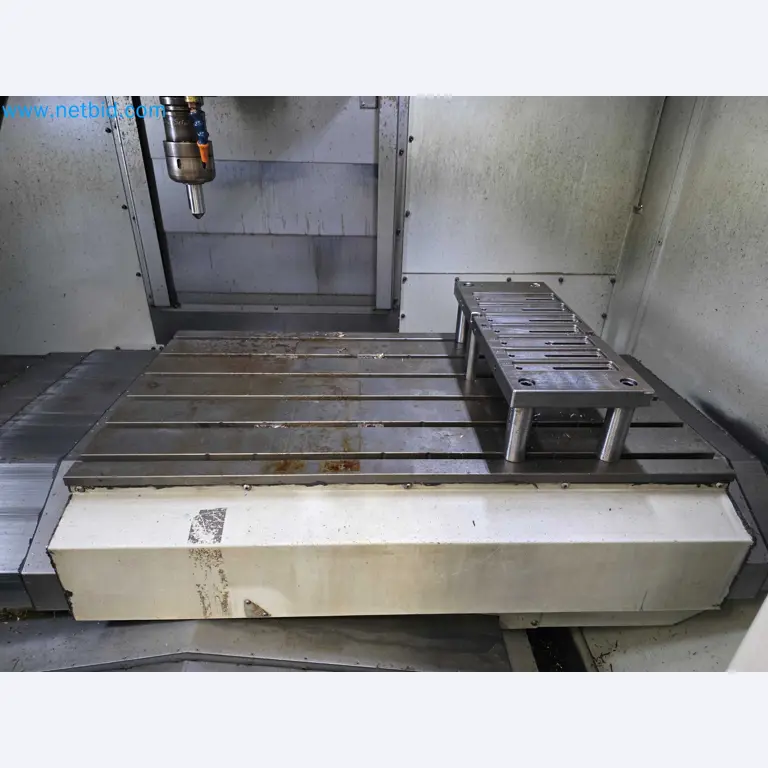

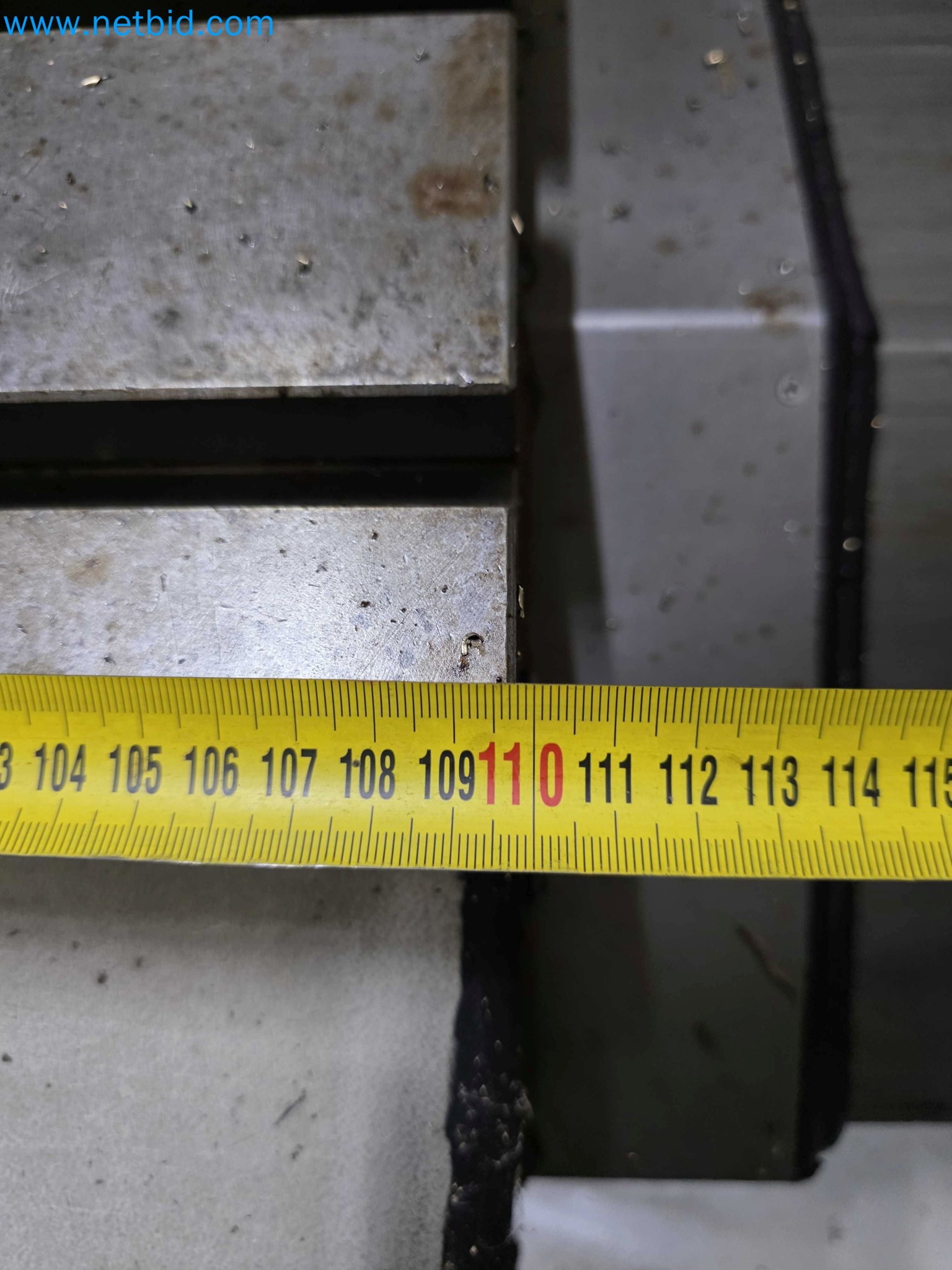

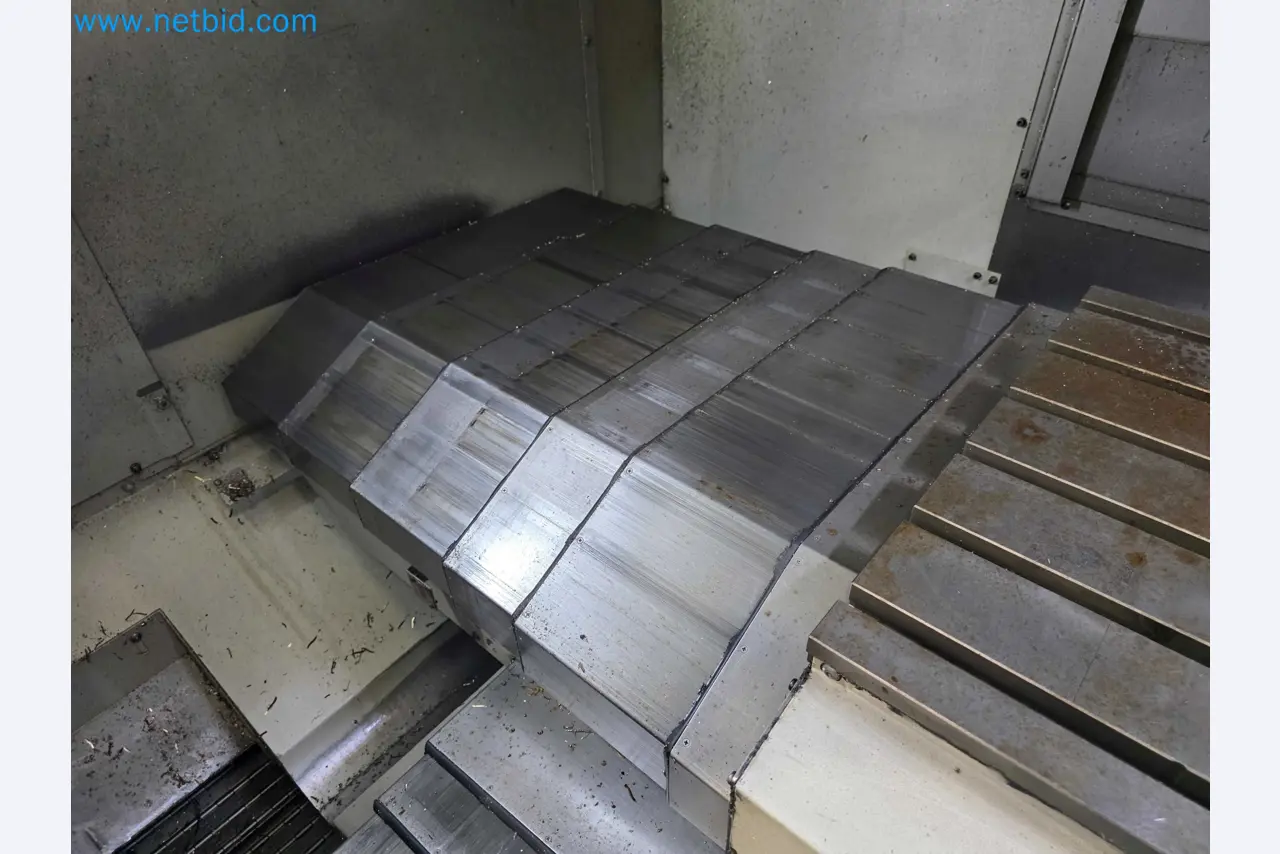

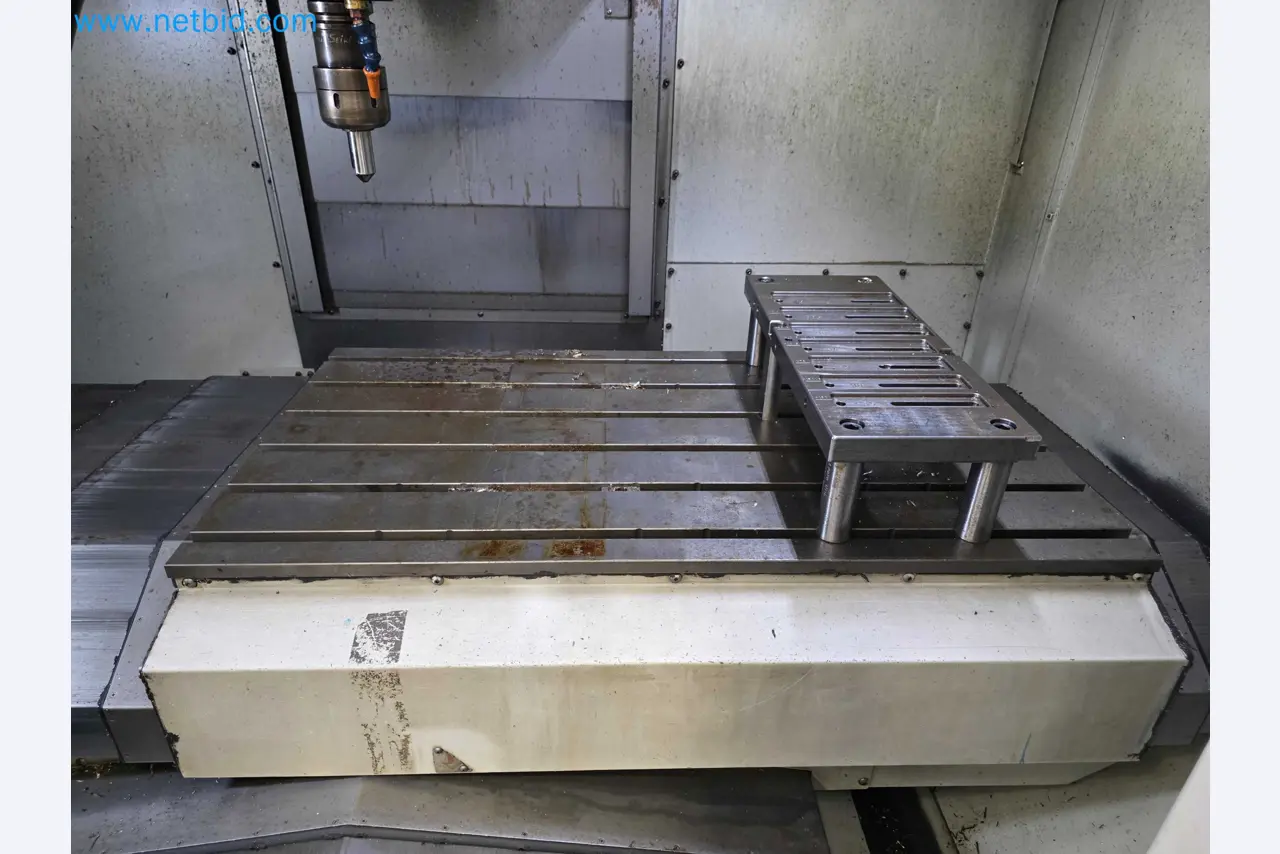

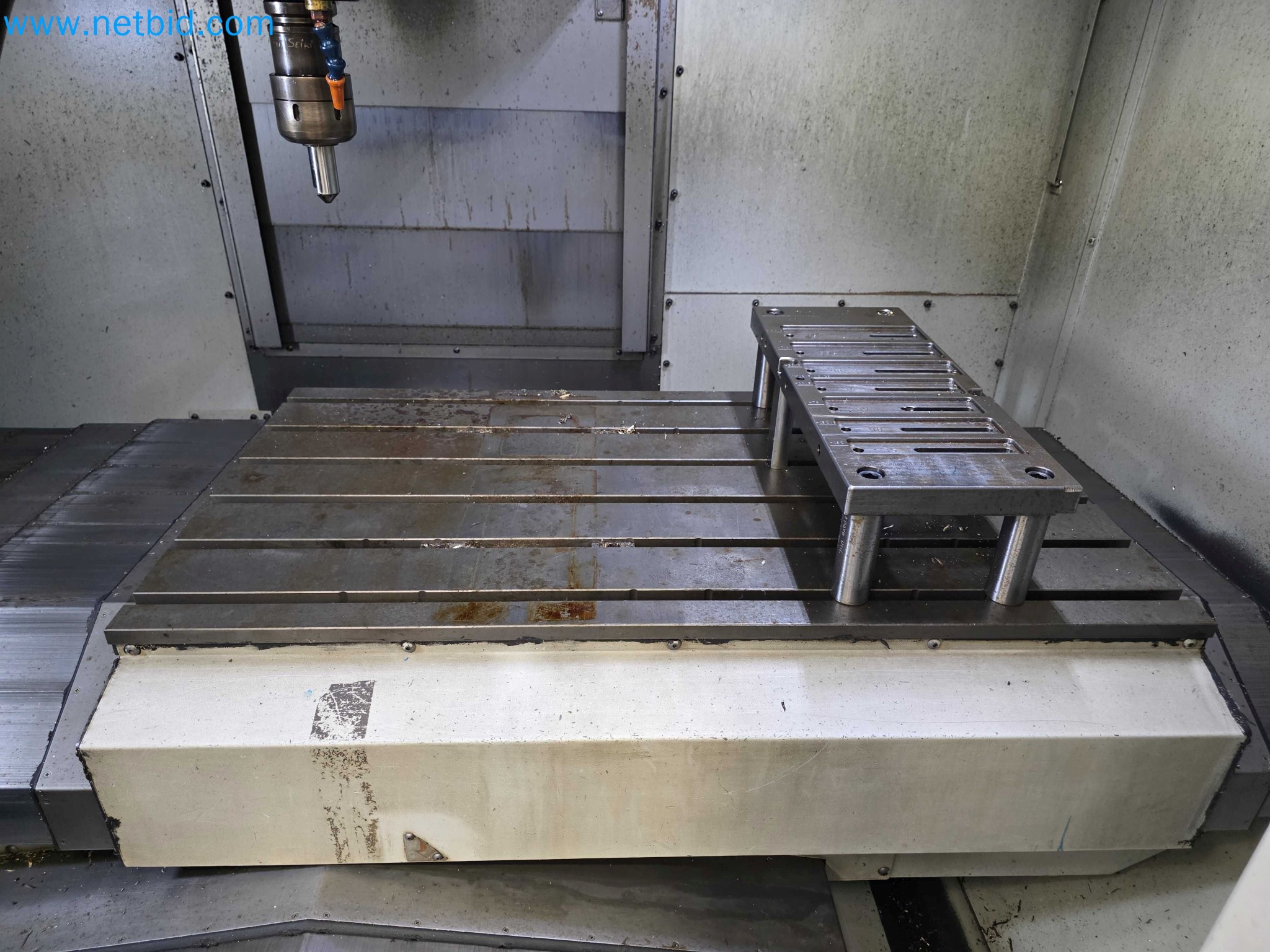

Table working surface: 1100 x 600 mm

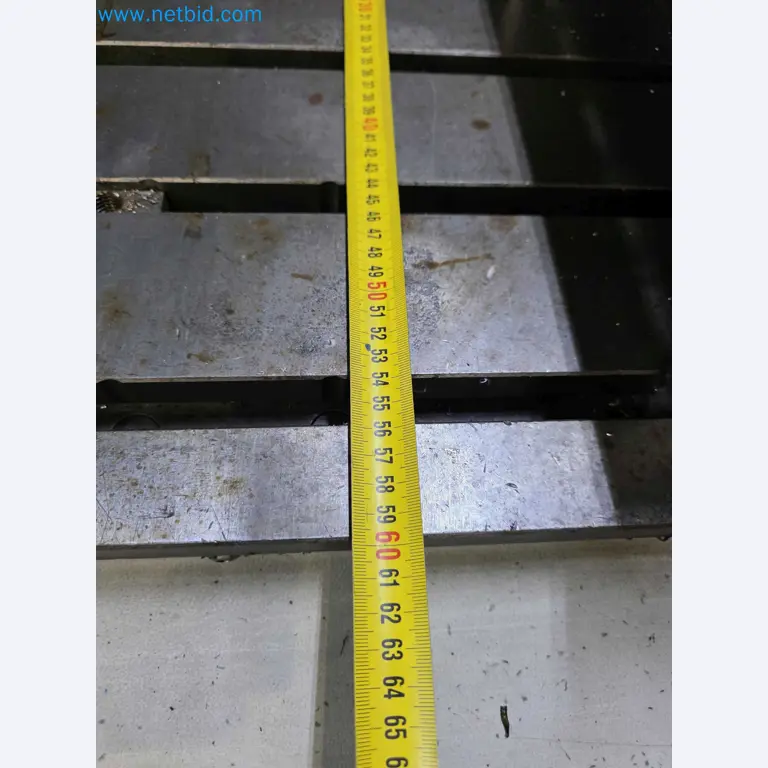

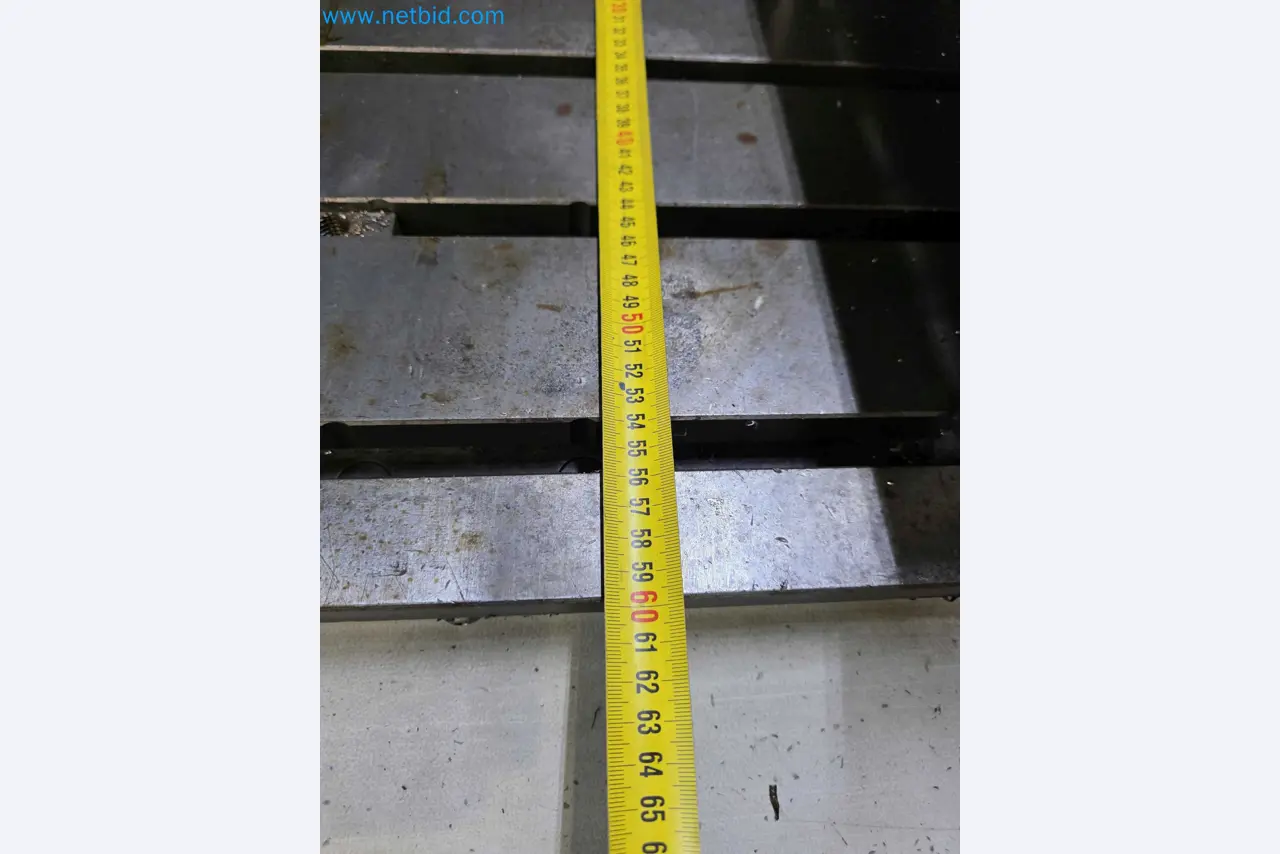

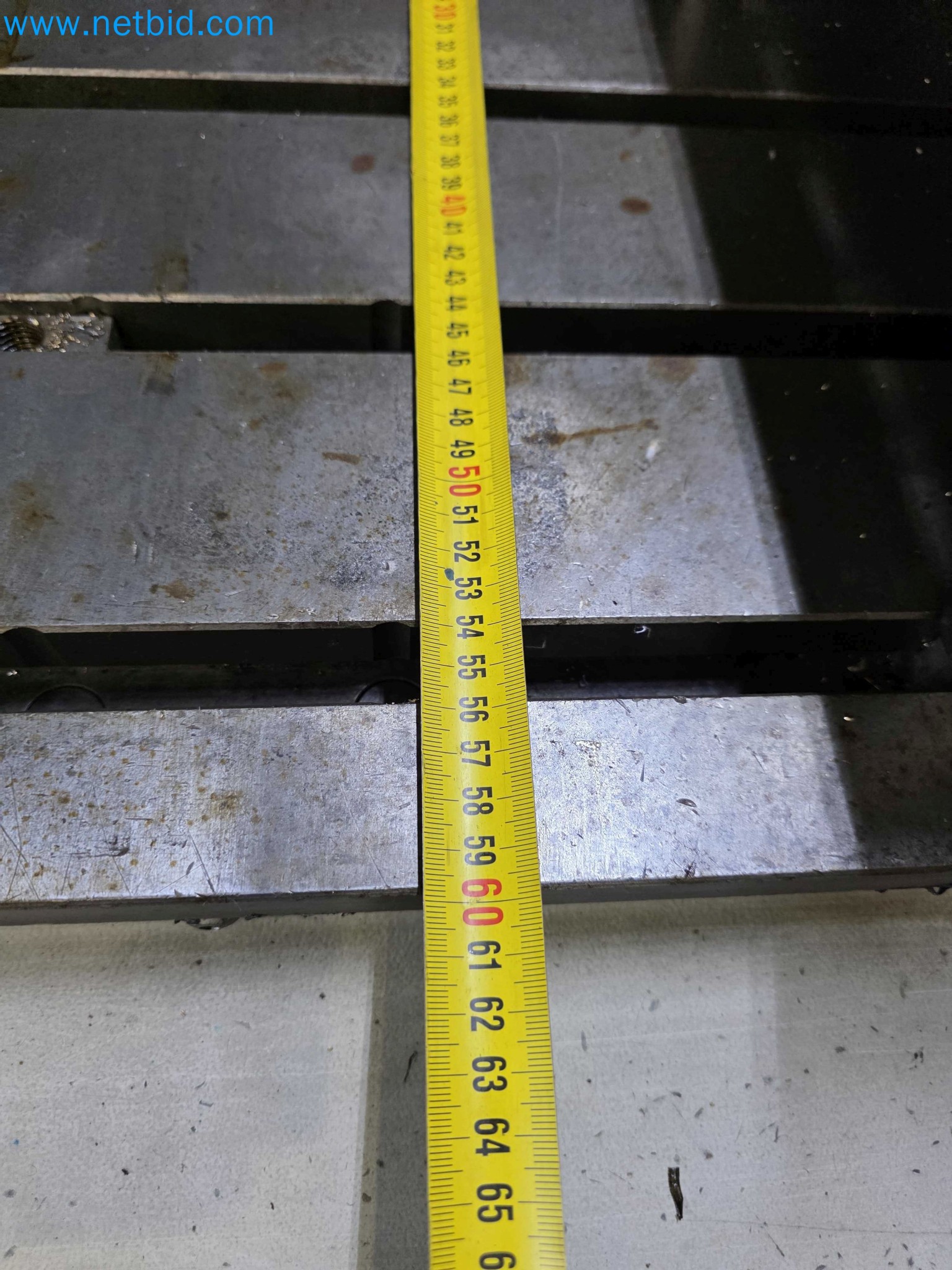

T-slot table with 6 slots, 18 mm wide
Table load capacity: 1000 kg

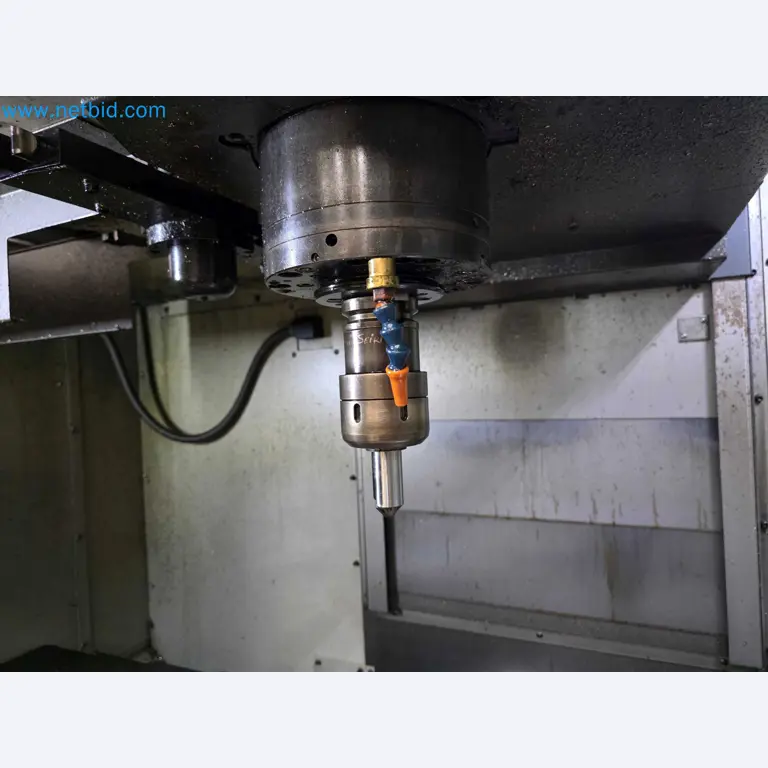

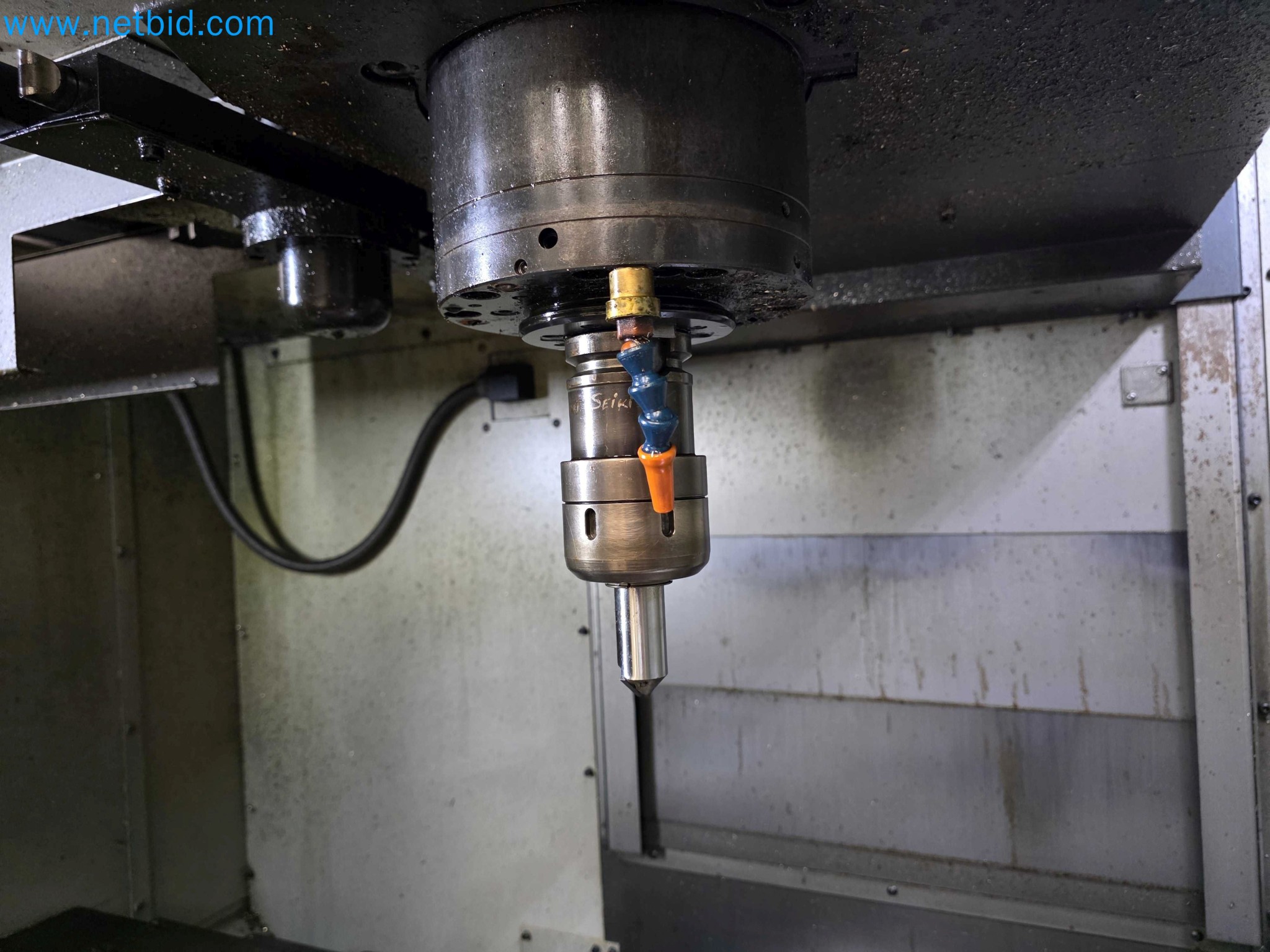

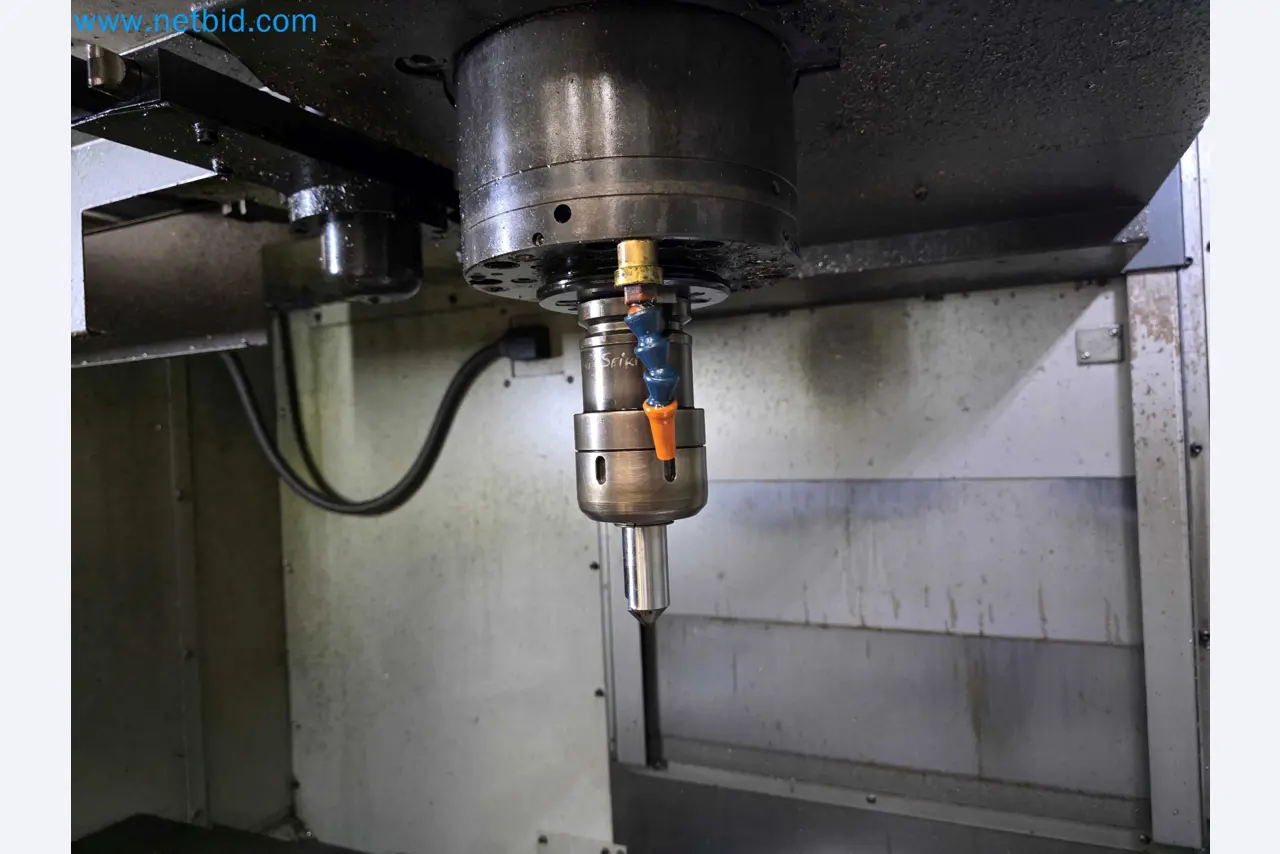

Maximum spindle speed: 14,000 rpm

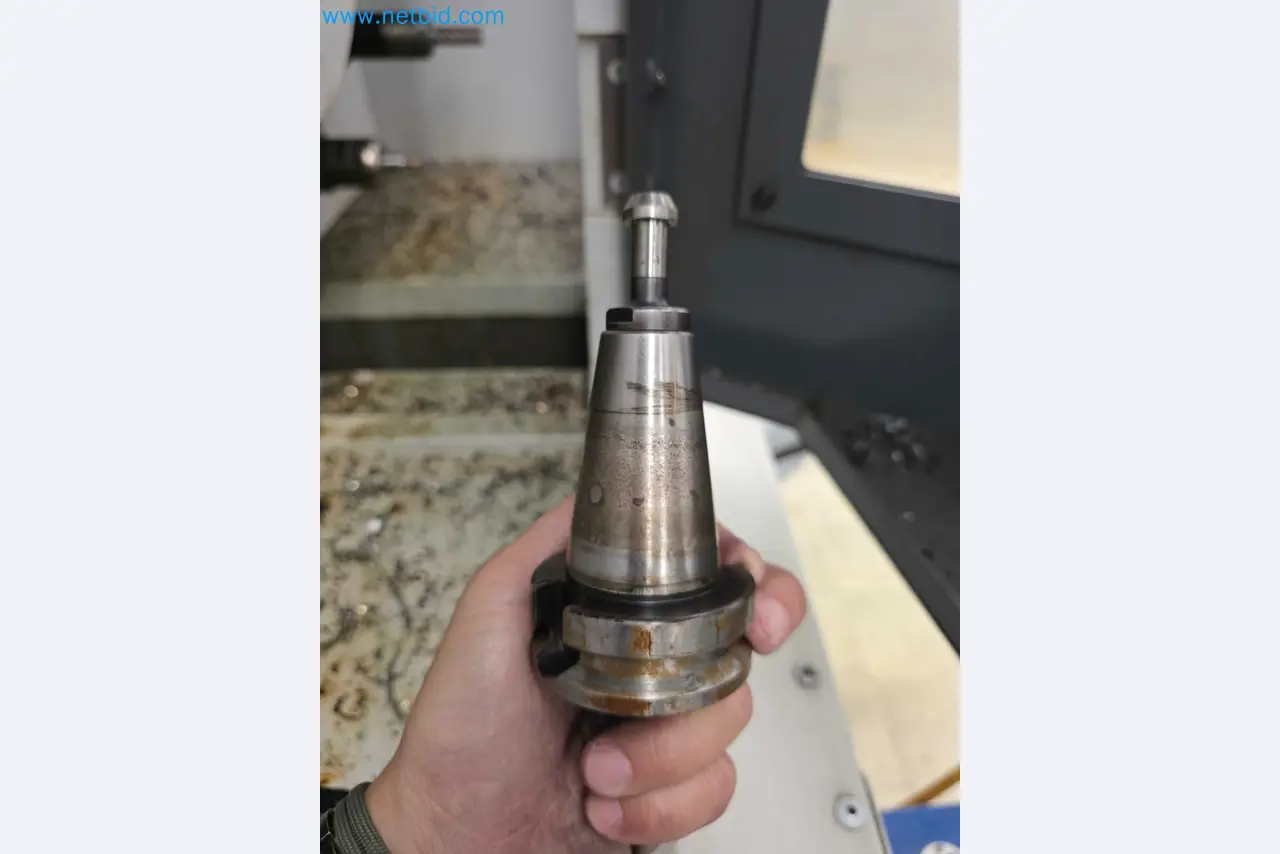

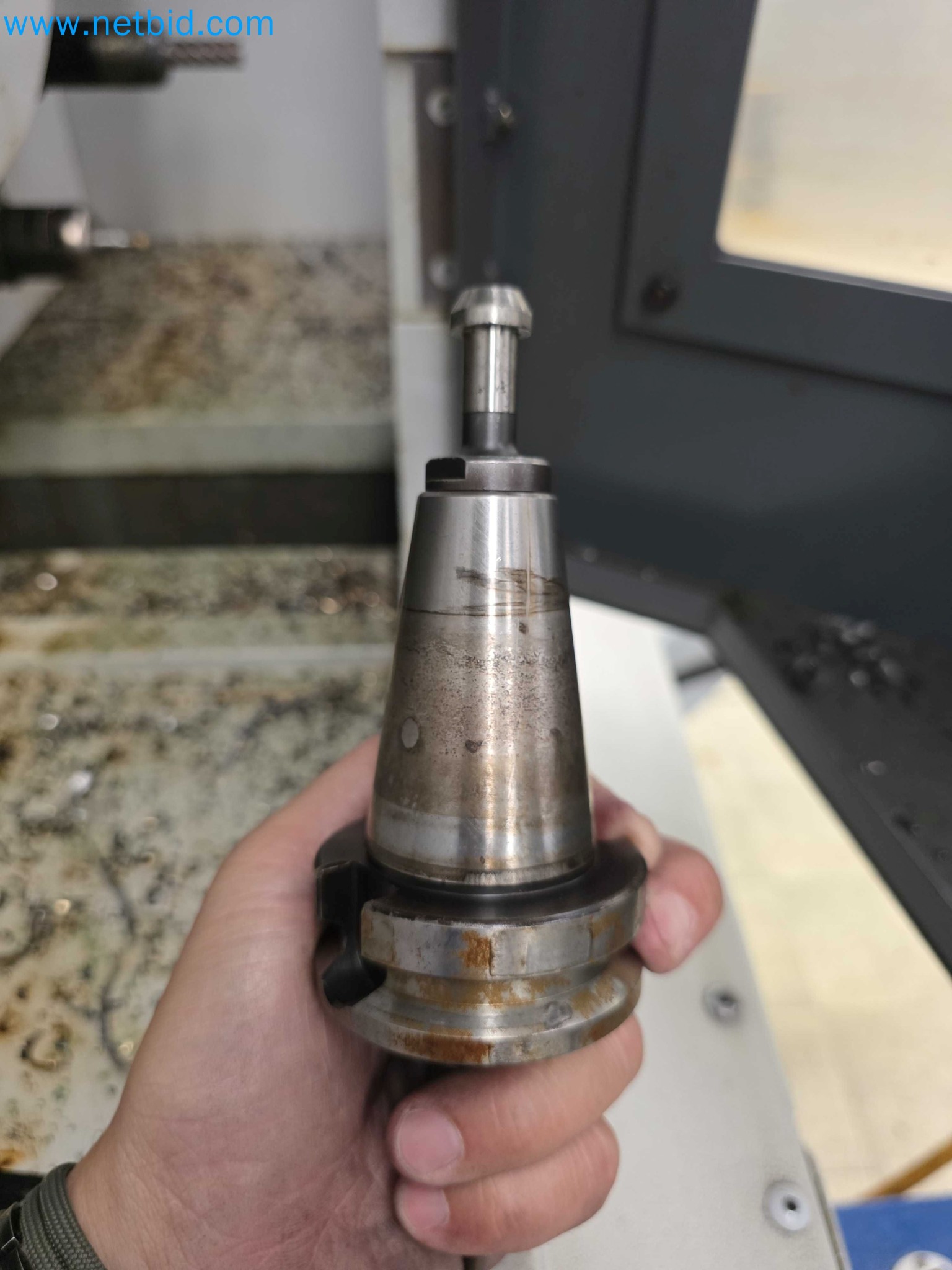

Taper type: BT-40
Spindle bearing inner diameter: 65 mm
Rapid traverse (X-Y-Z axes): 42,000 mm/min

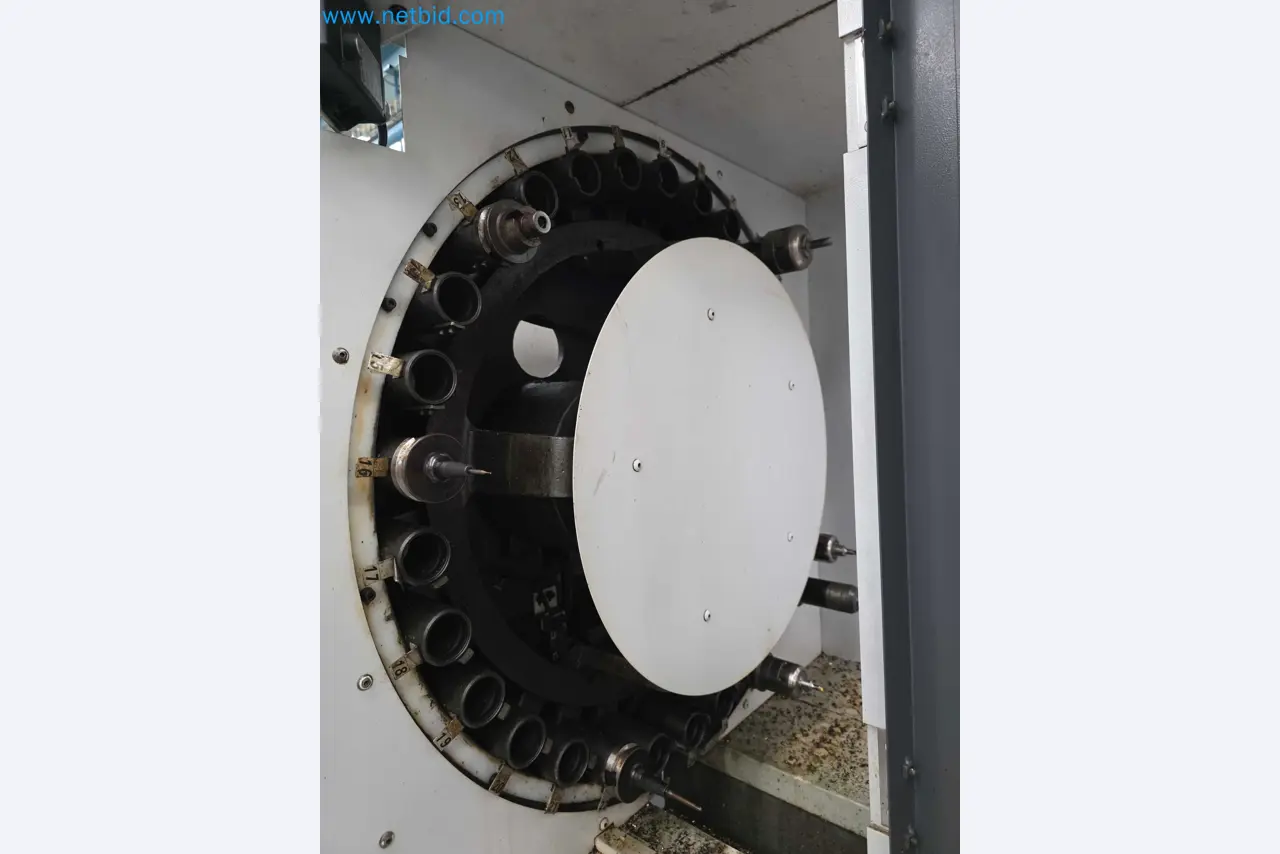

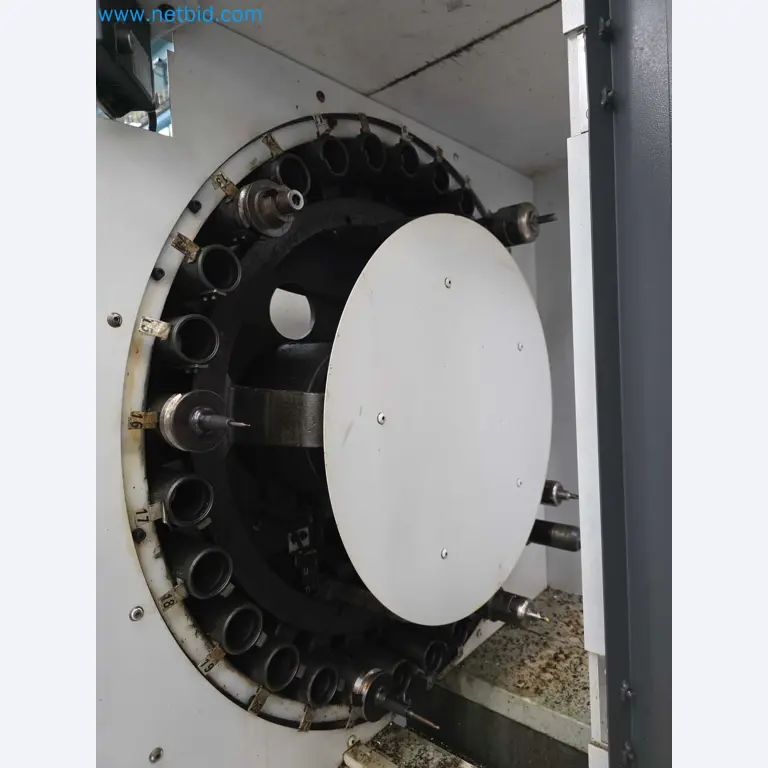

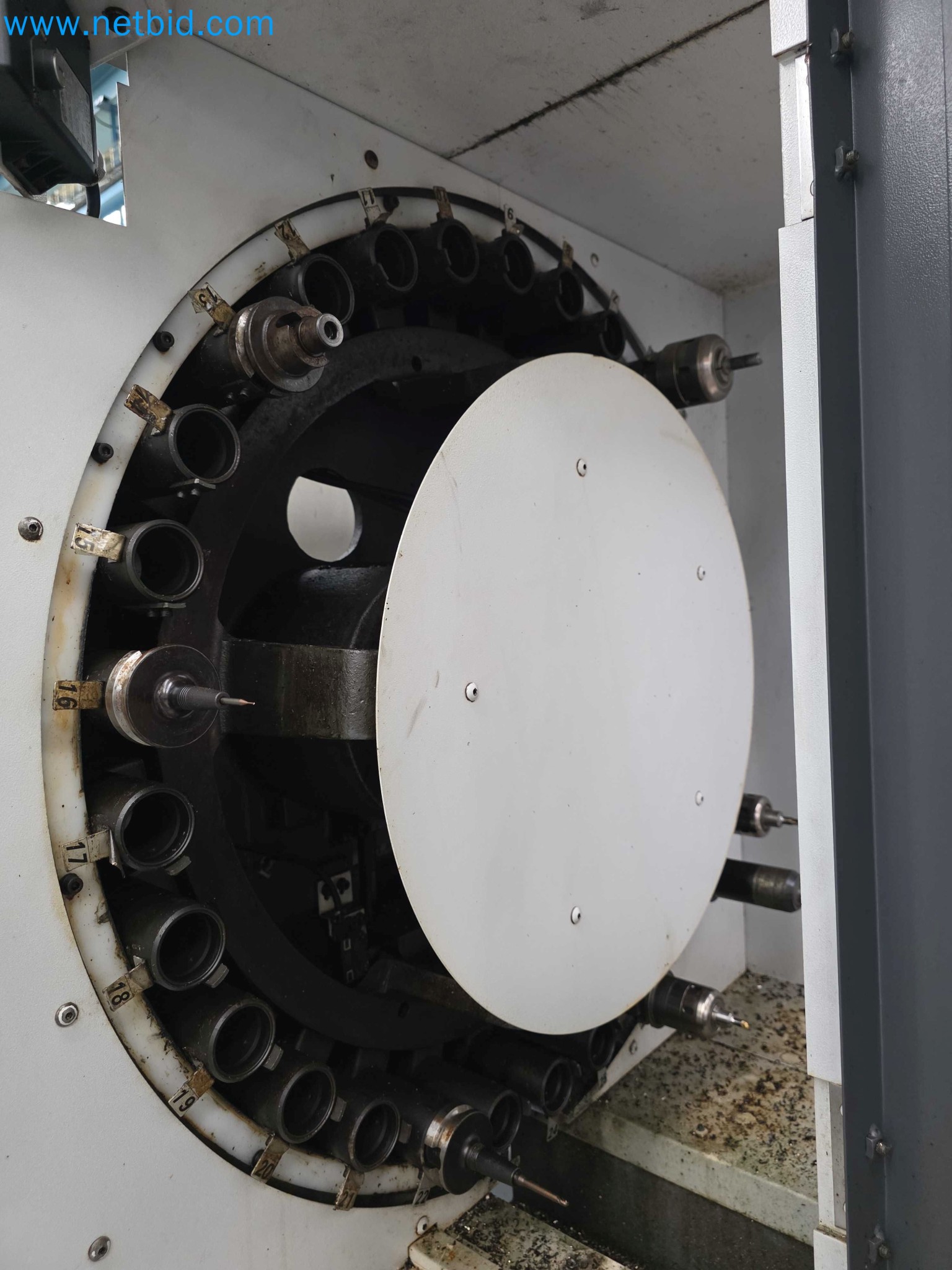

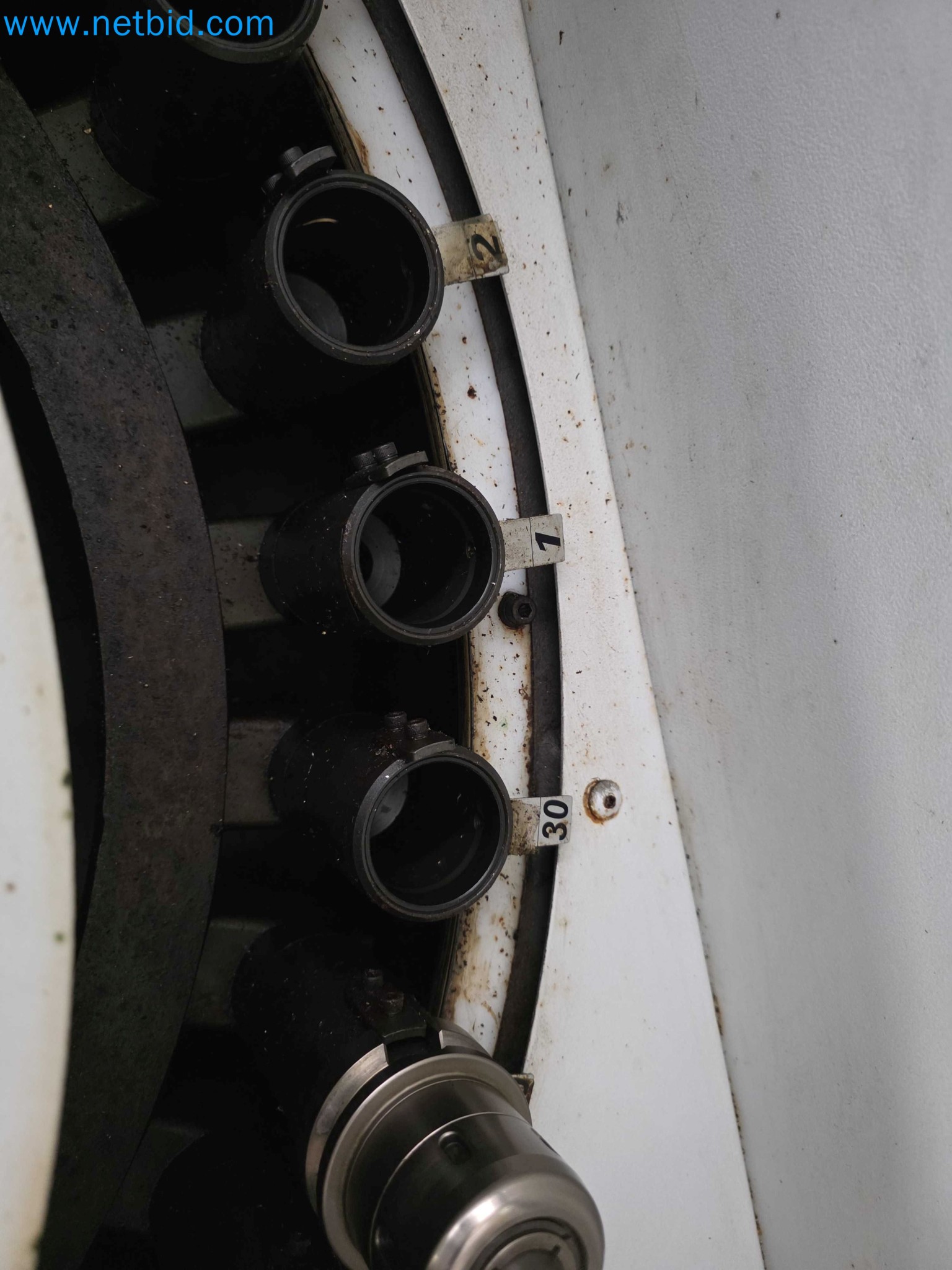

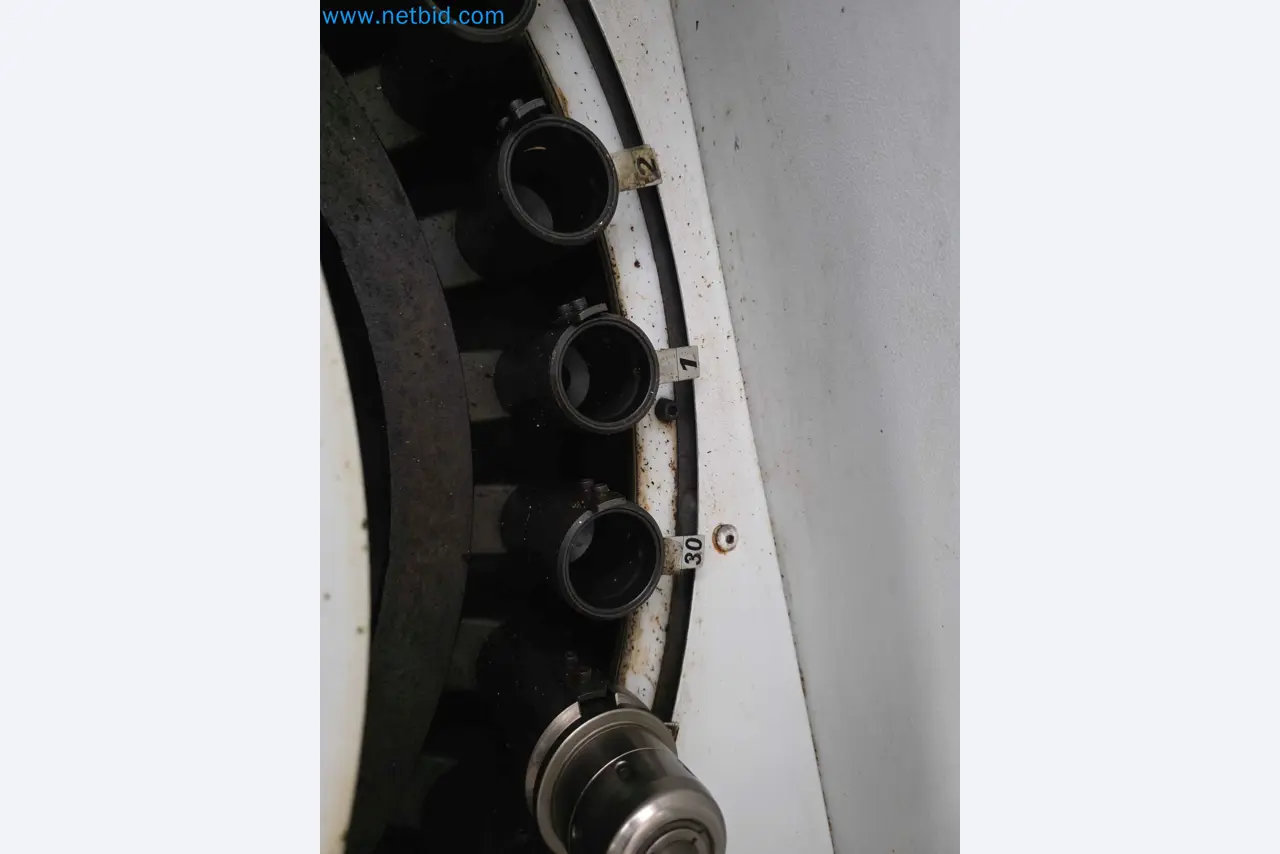

30-position tool magazine
Maximum tool length: 300 mm
Maximum tool weight: 8 kg

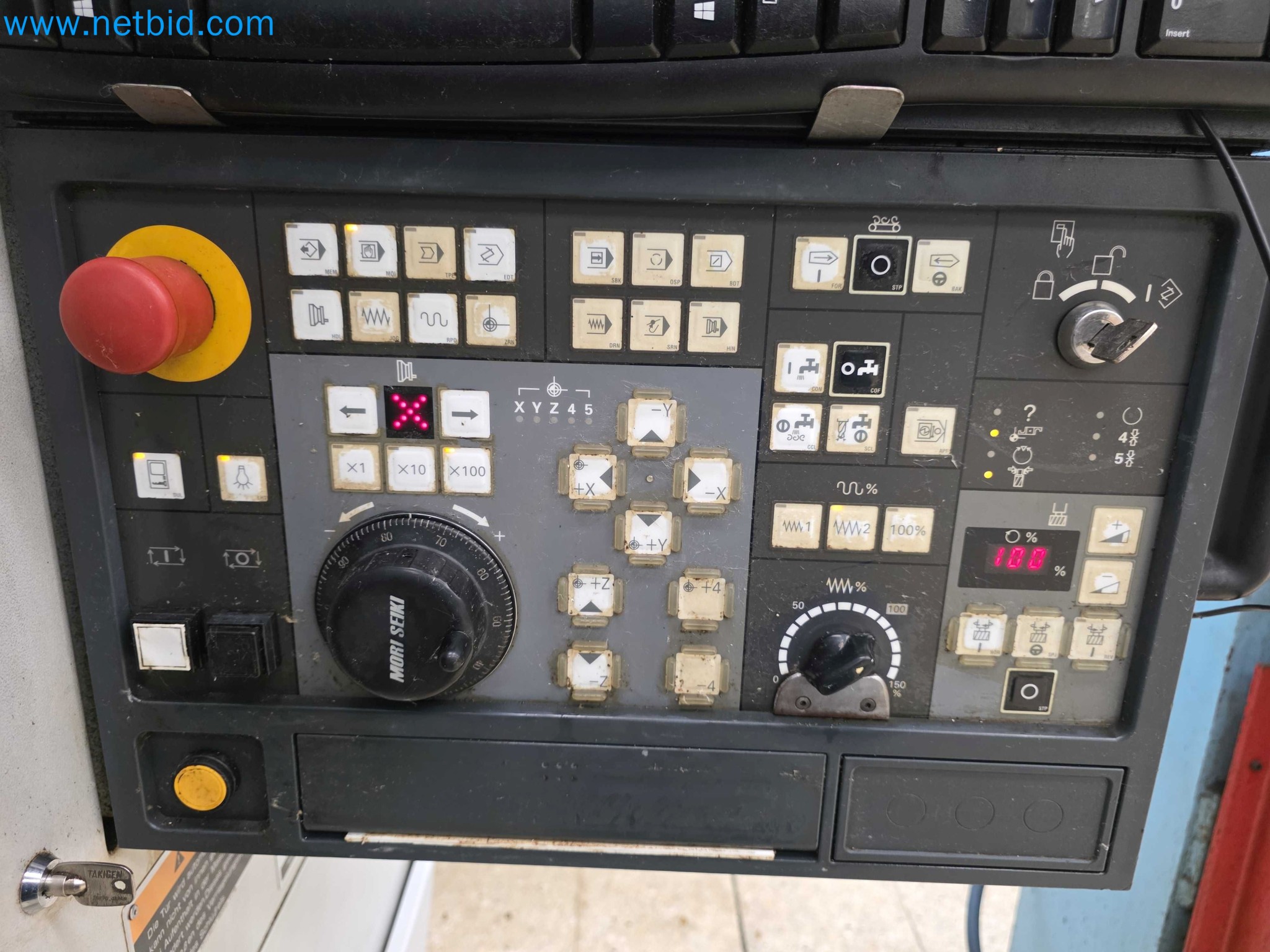

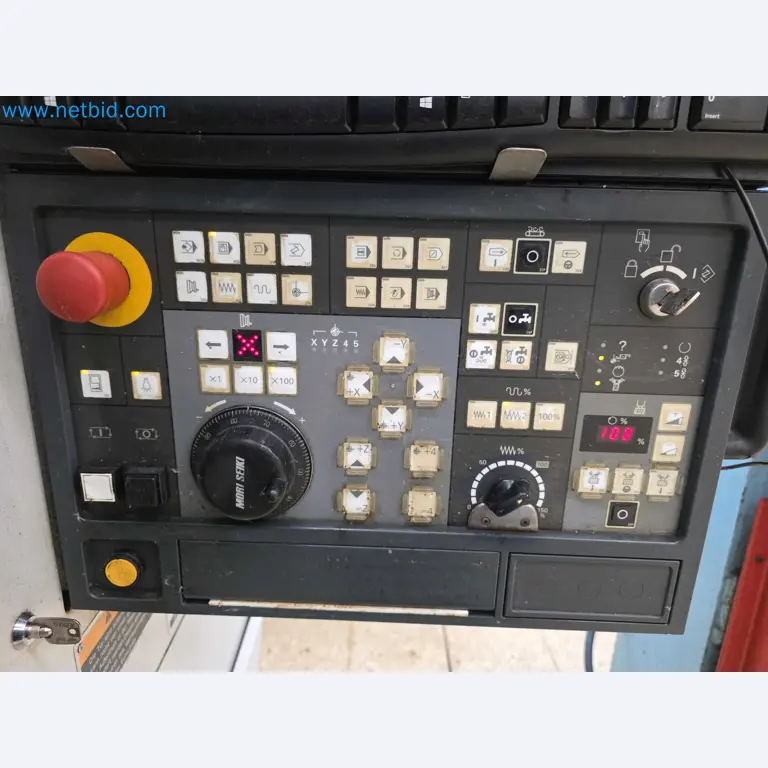

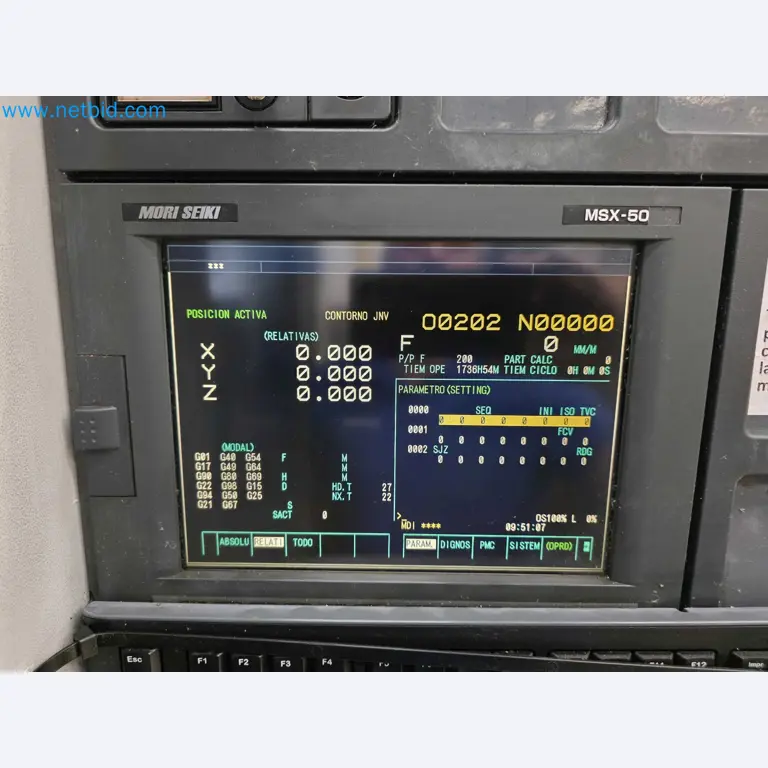

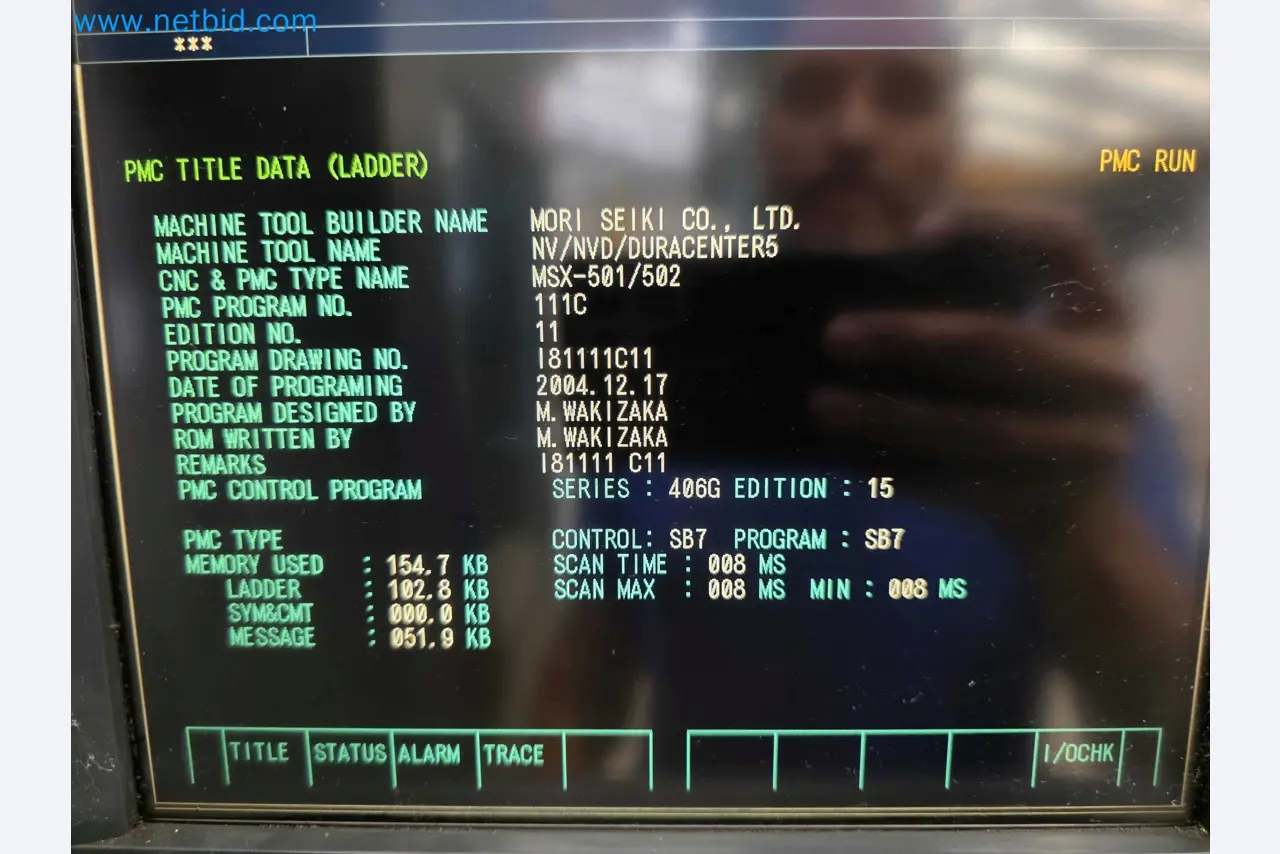

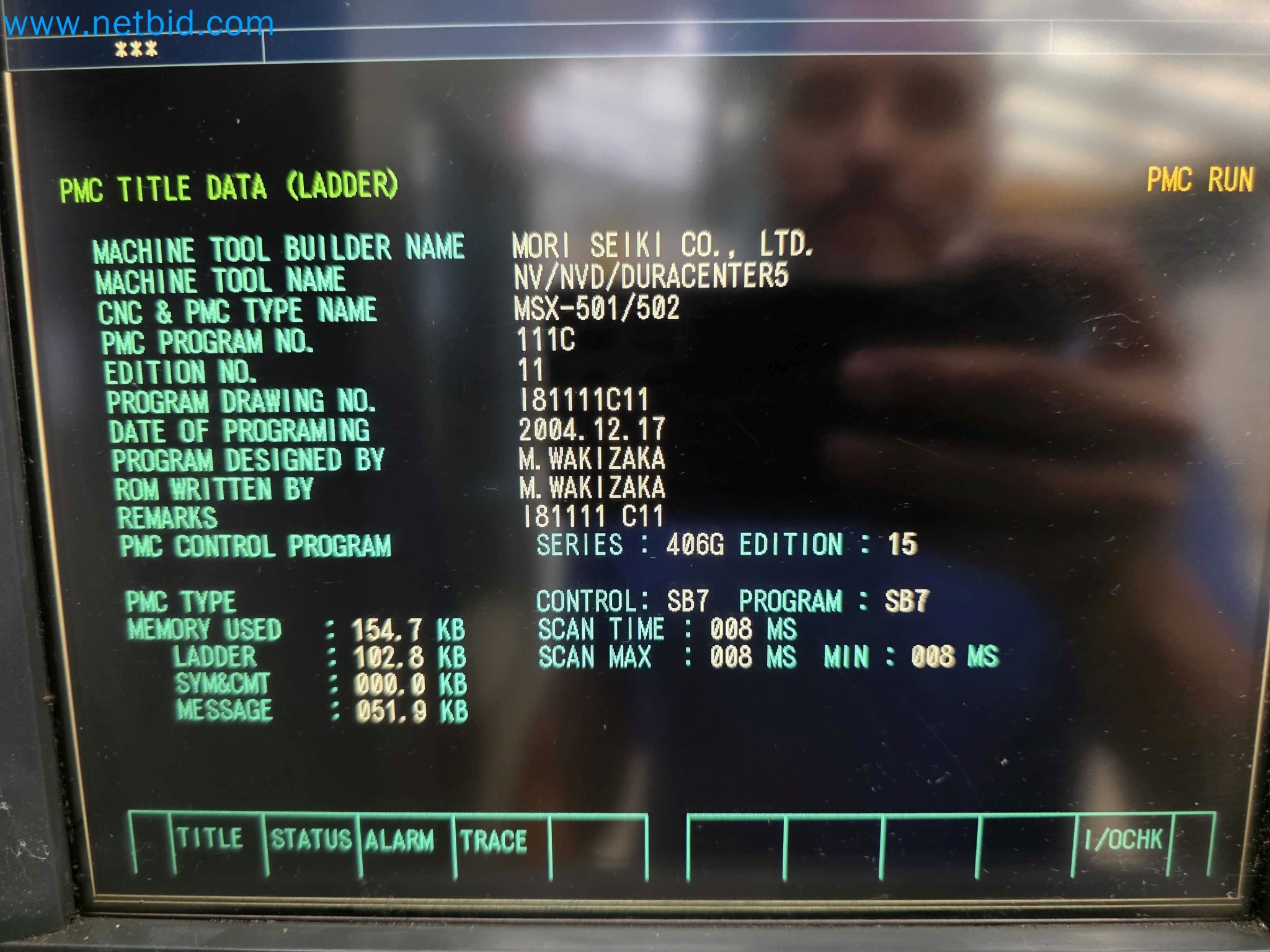

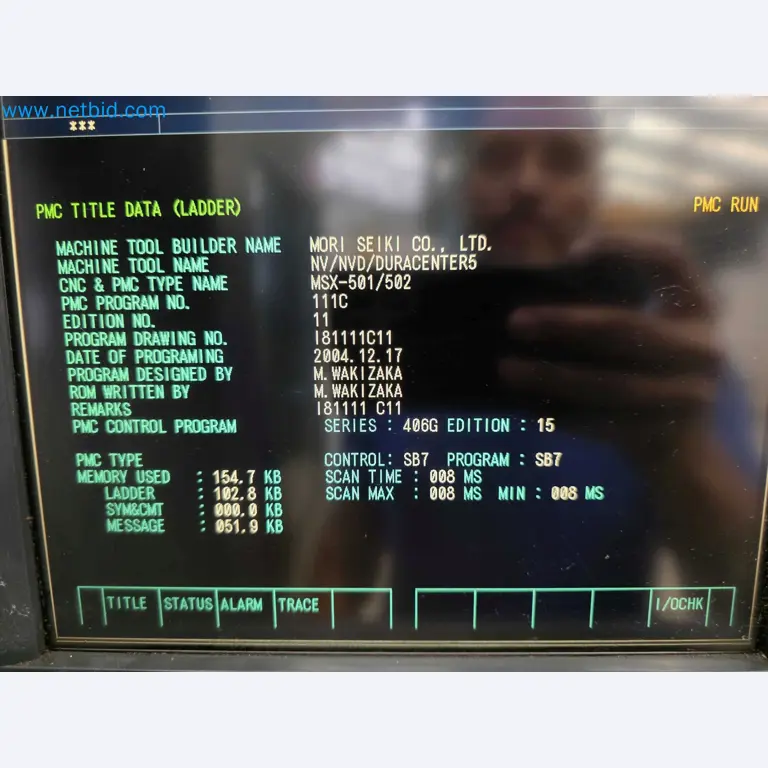

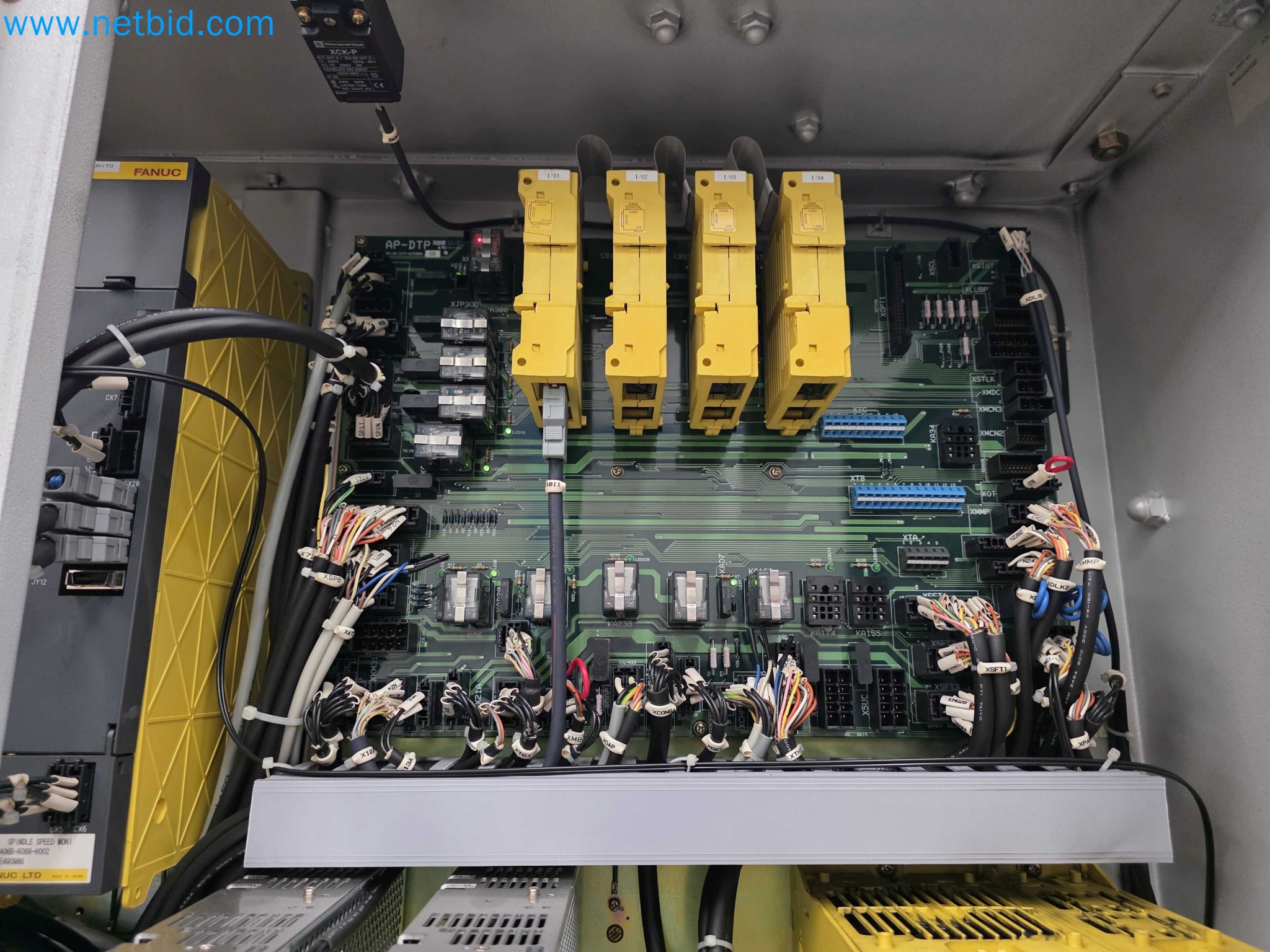

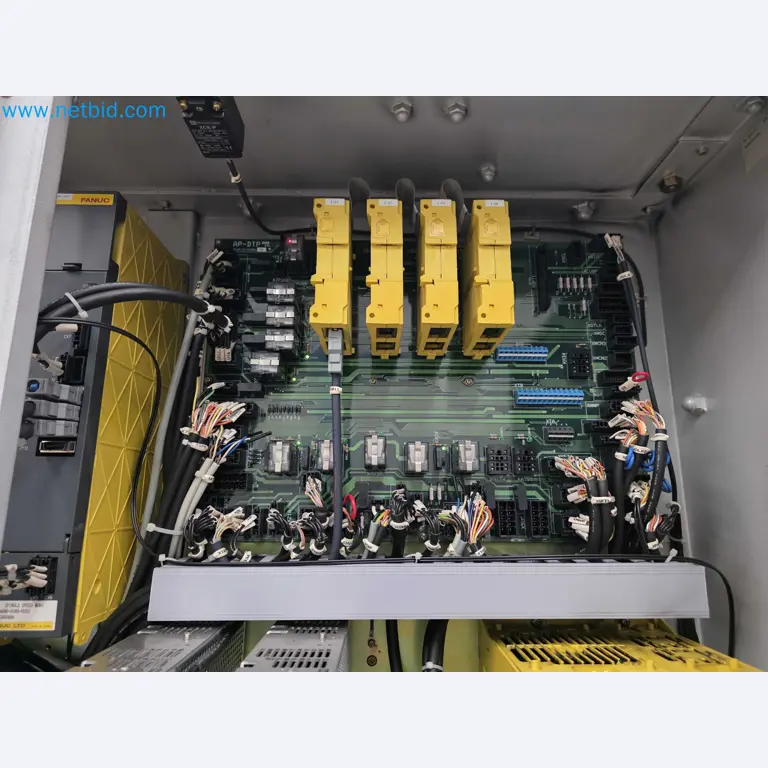

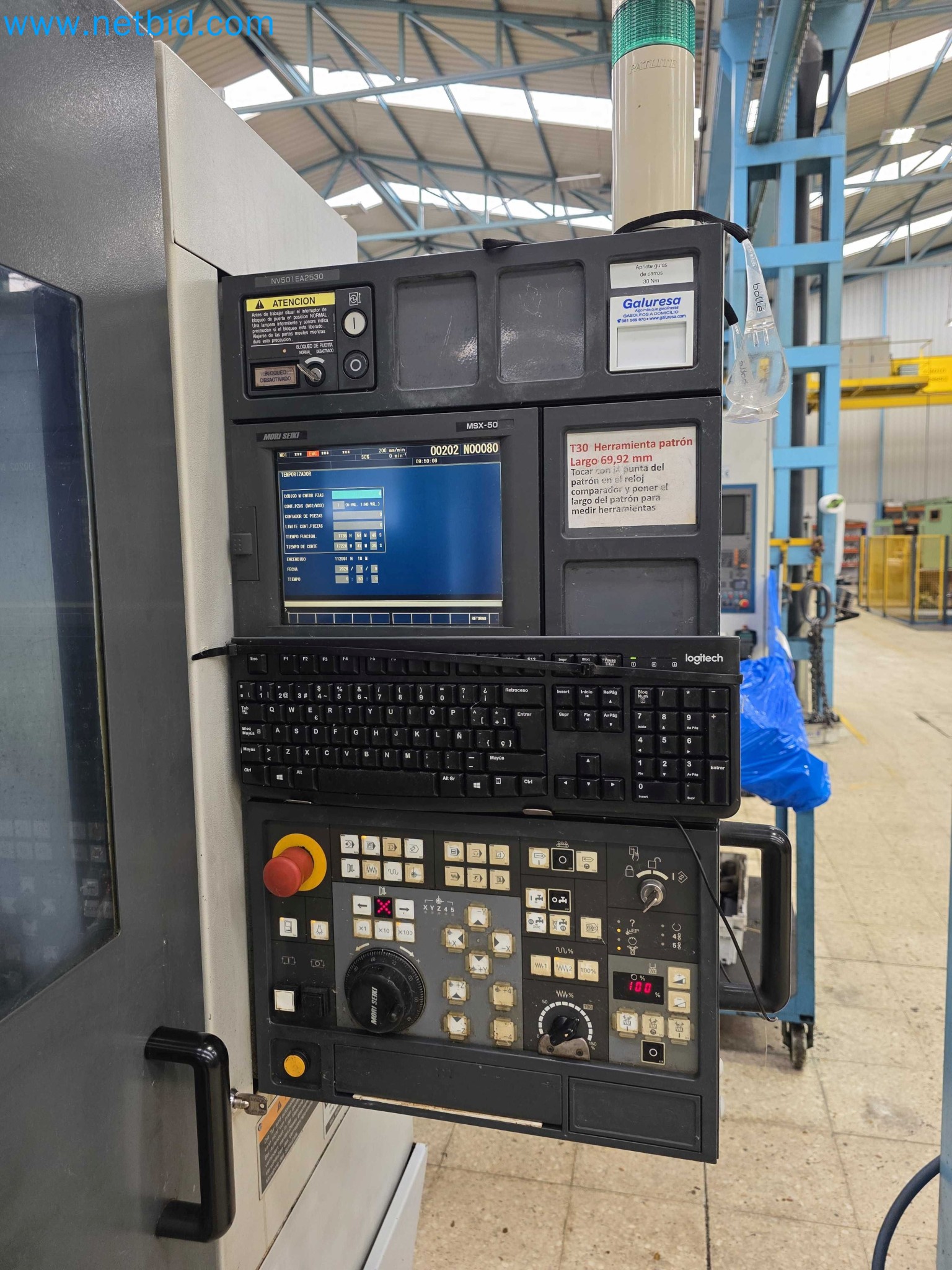

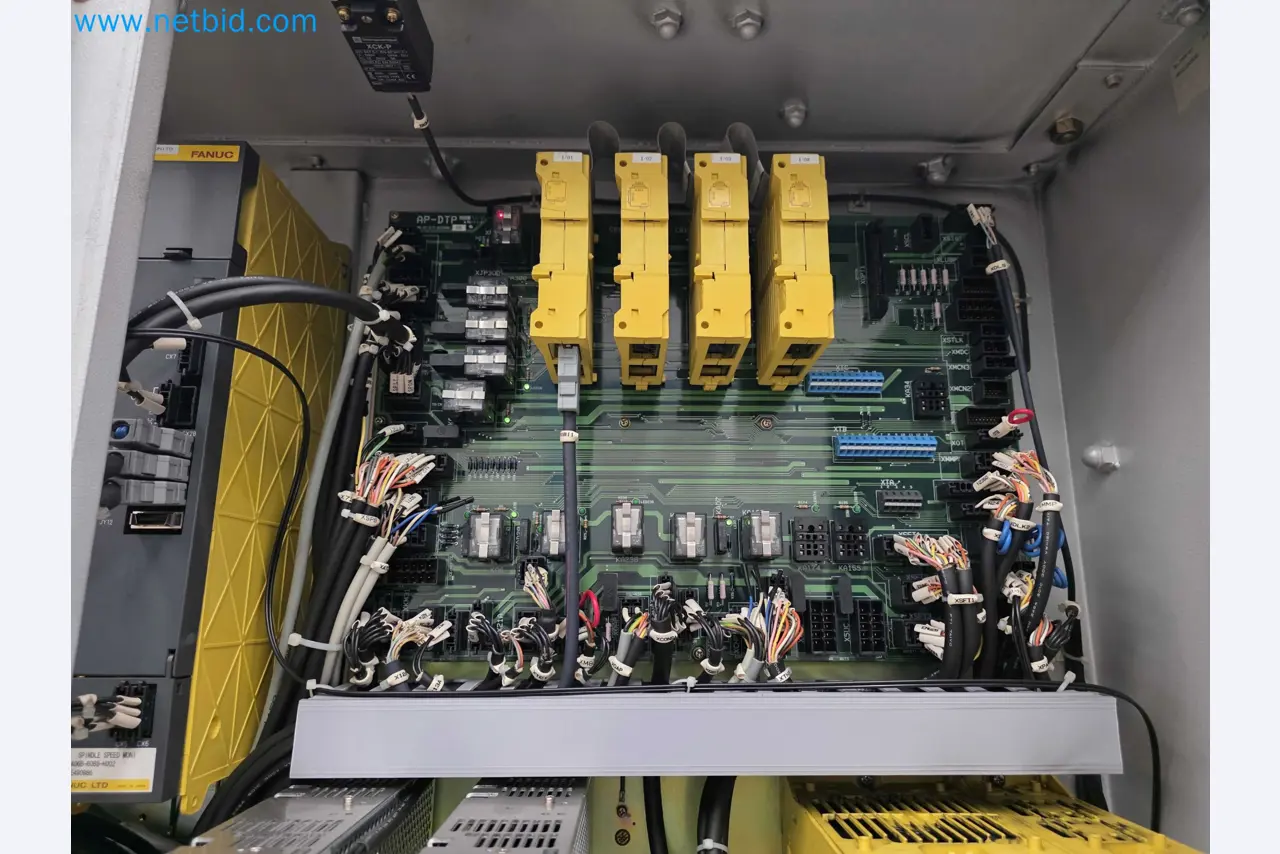

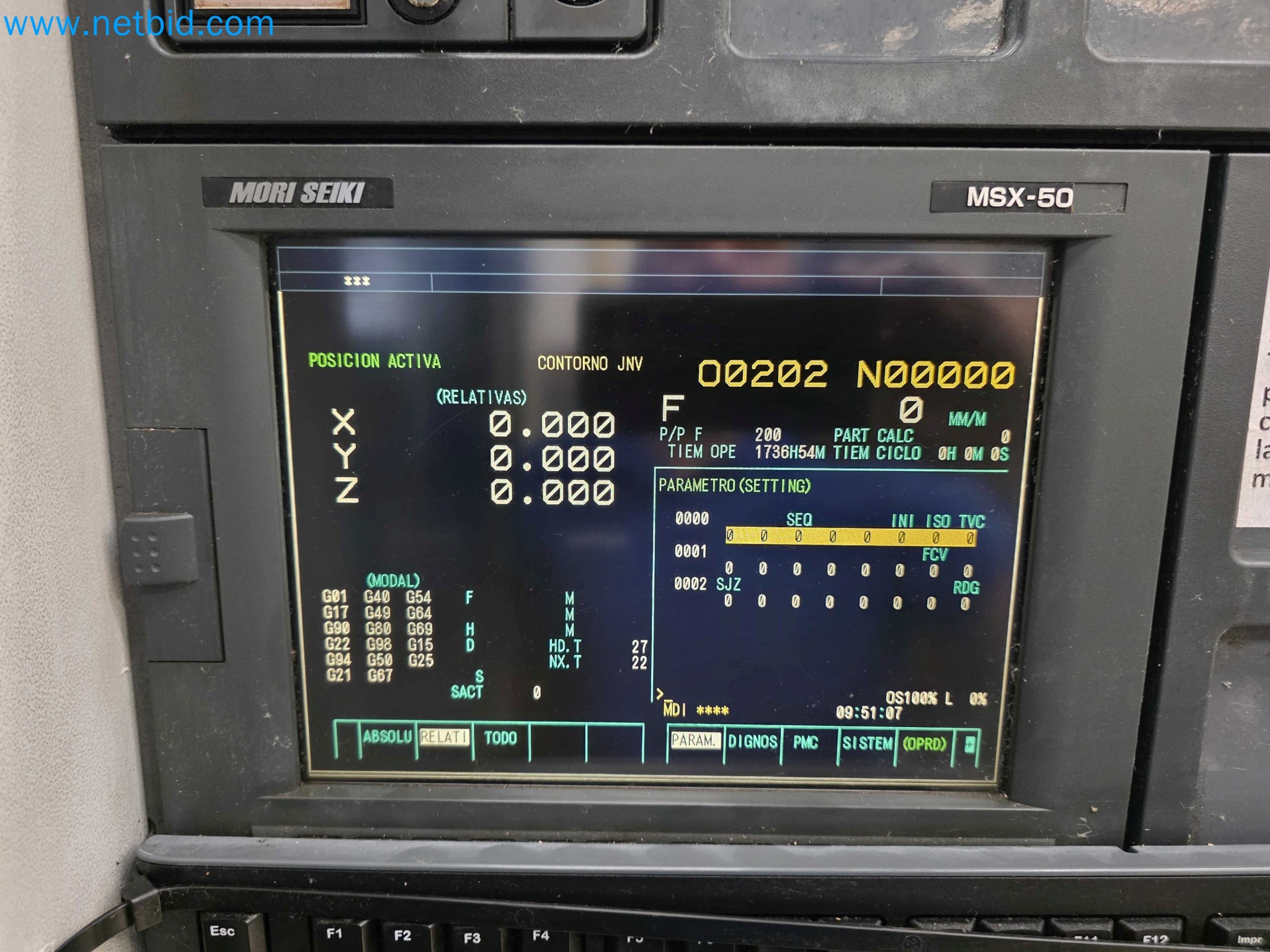

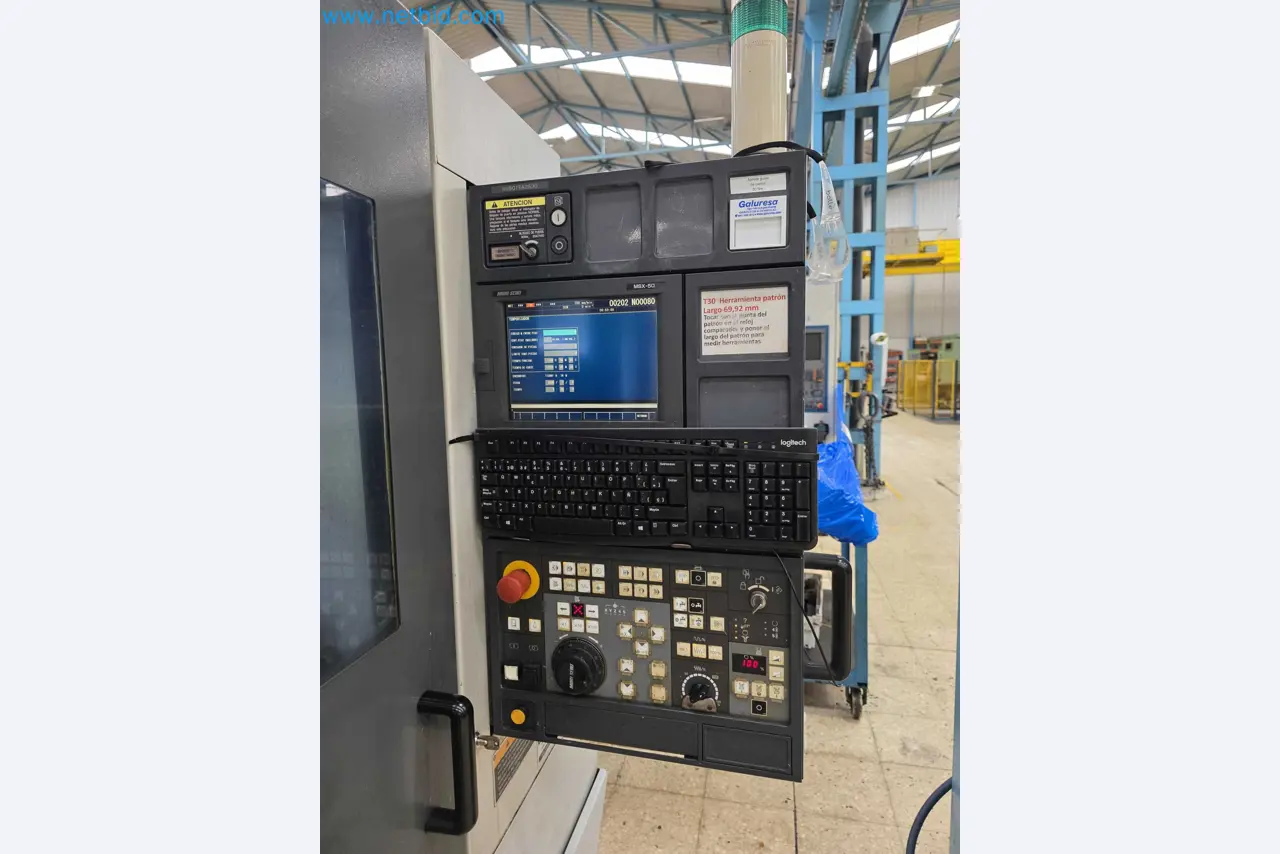

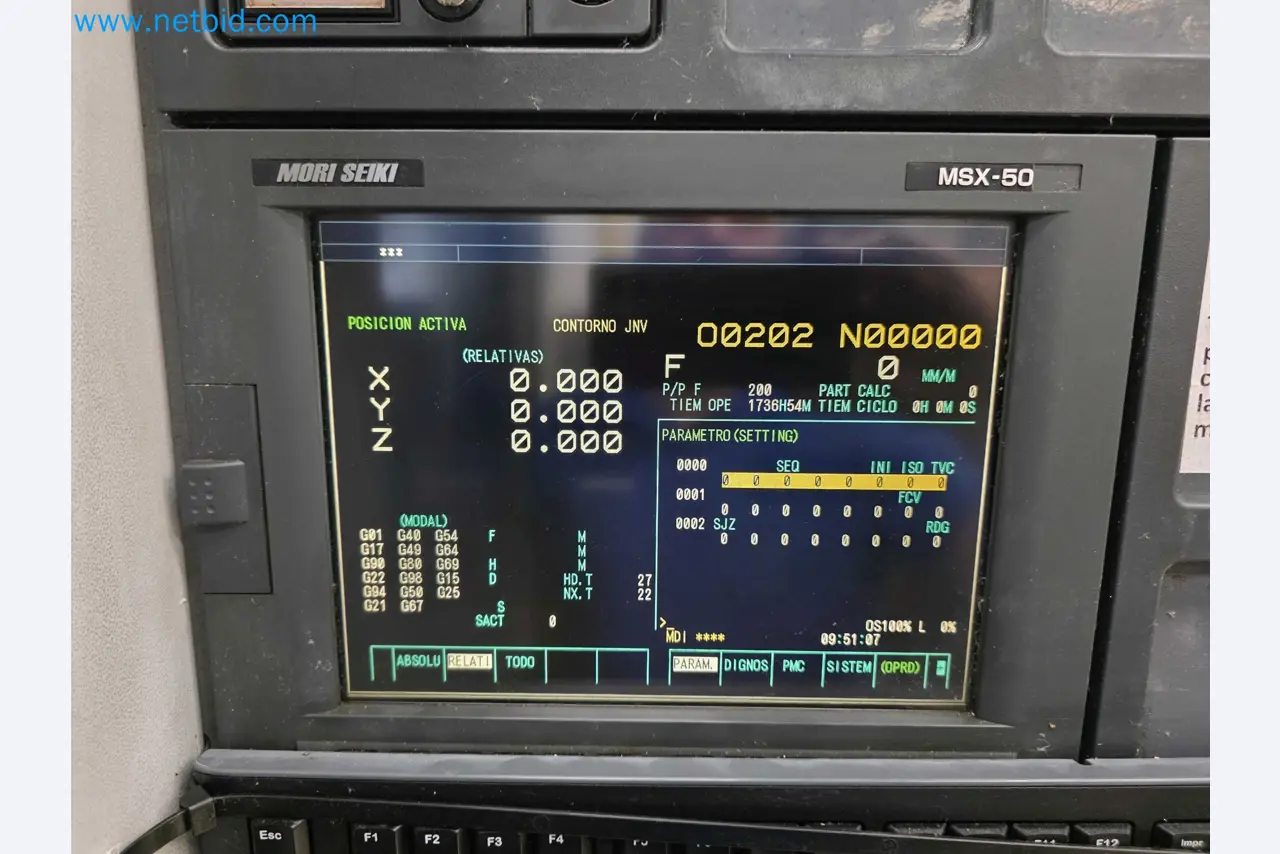

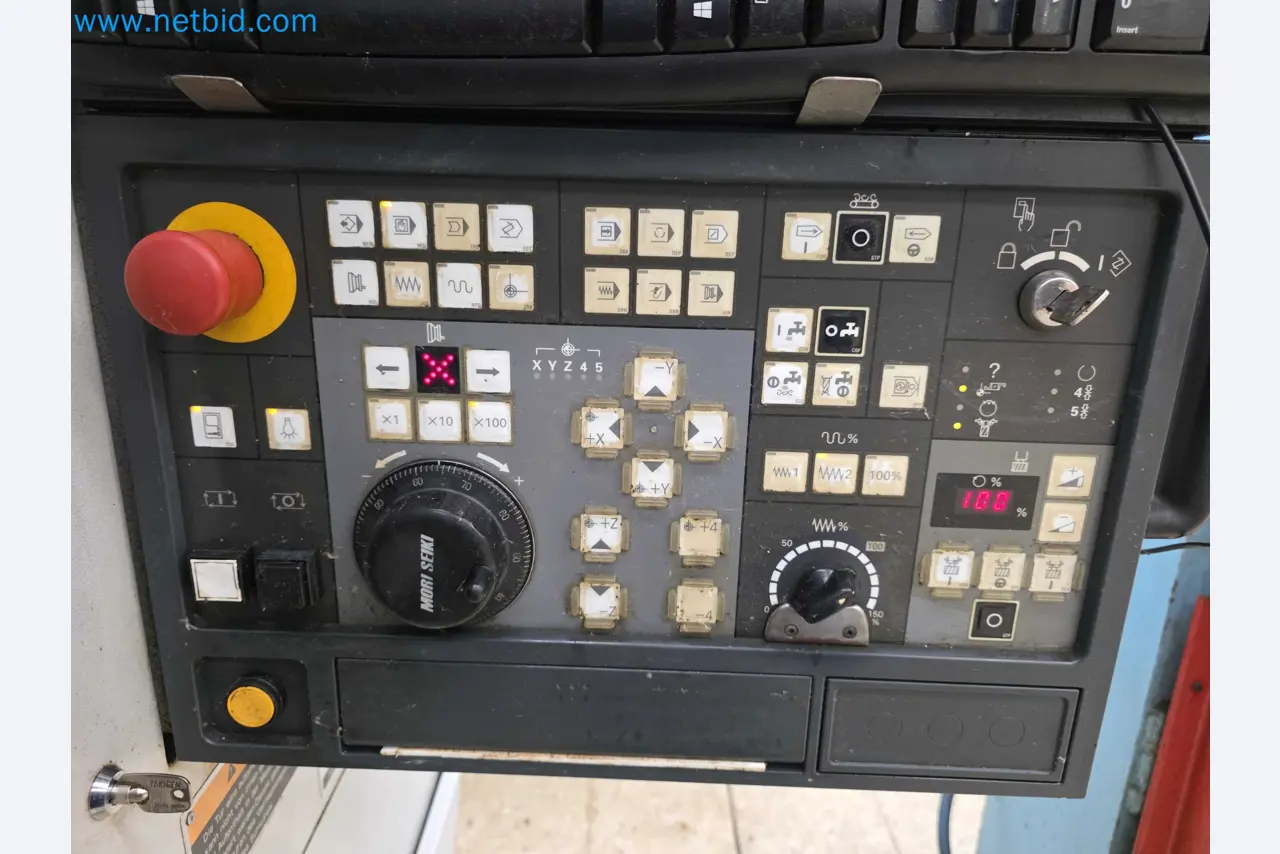

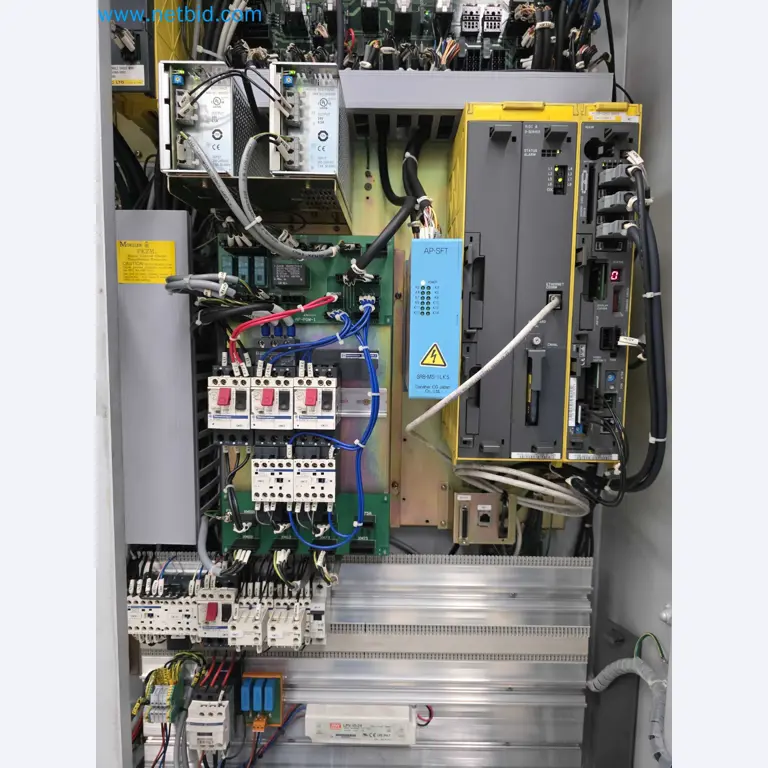

MORI SEIKI MSX-501/502 control

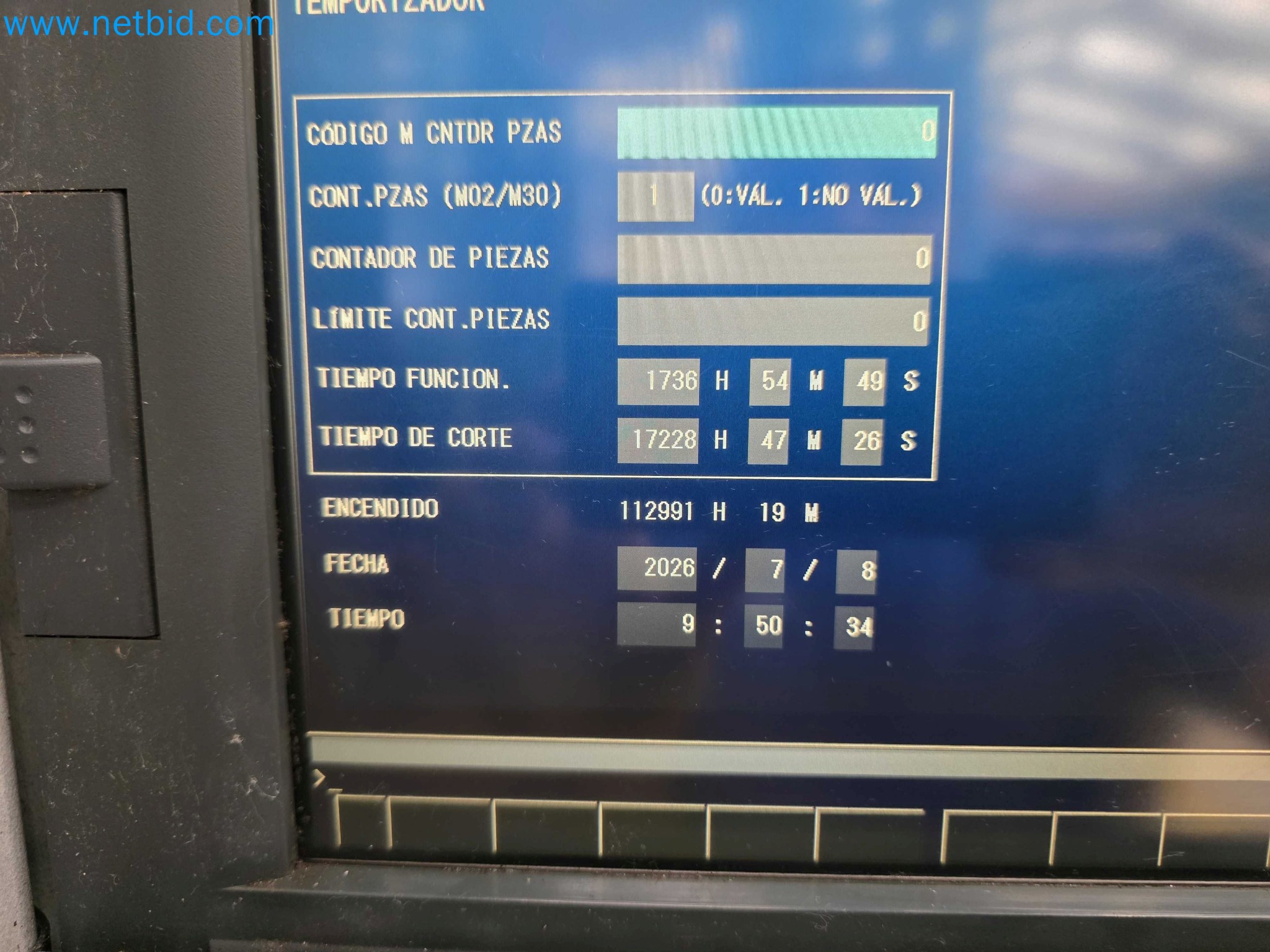

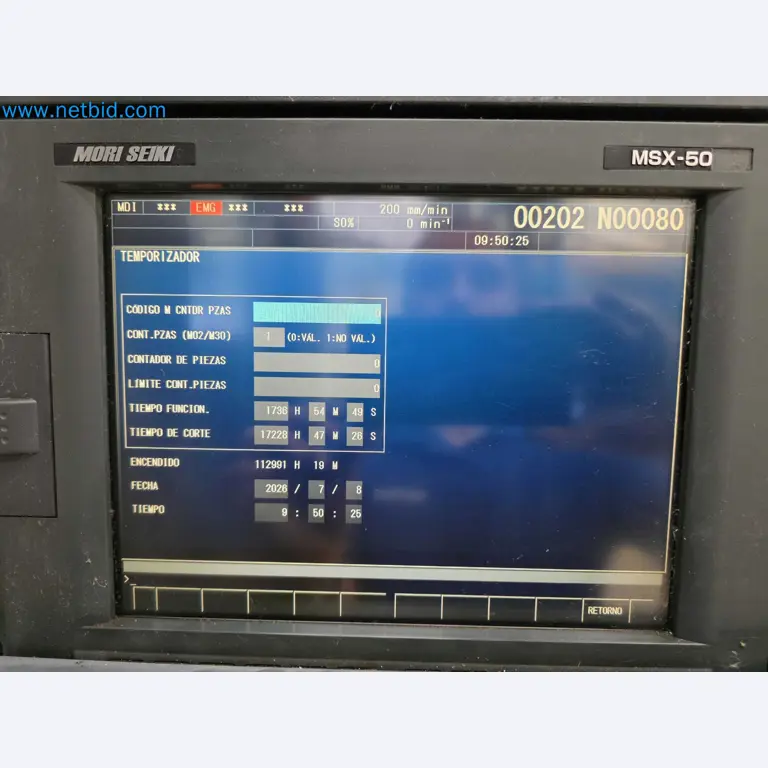

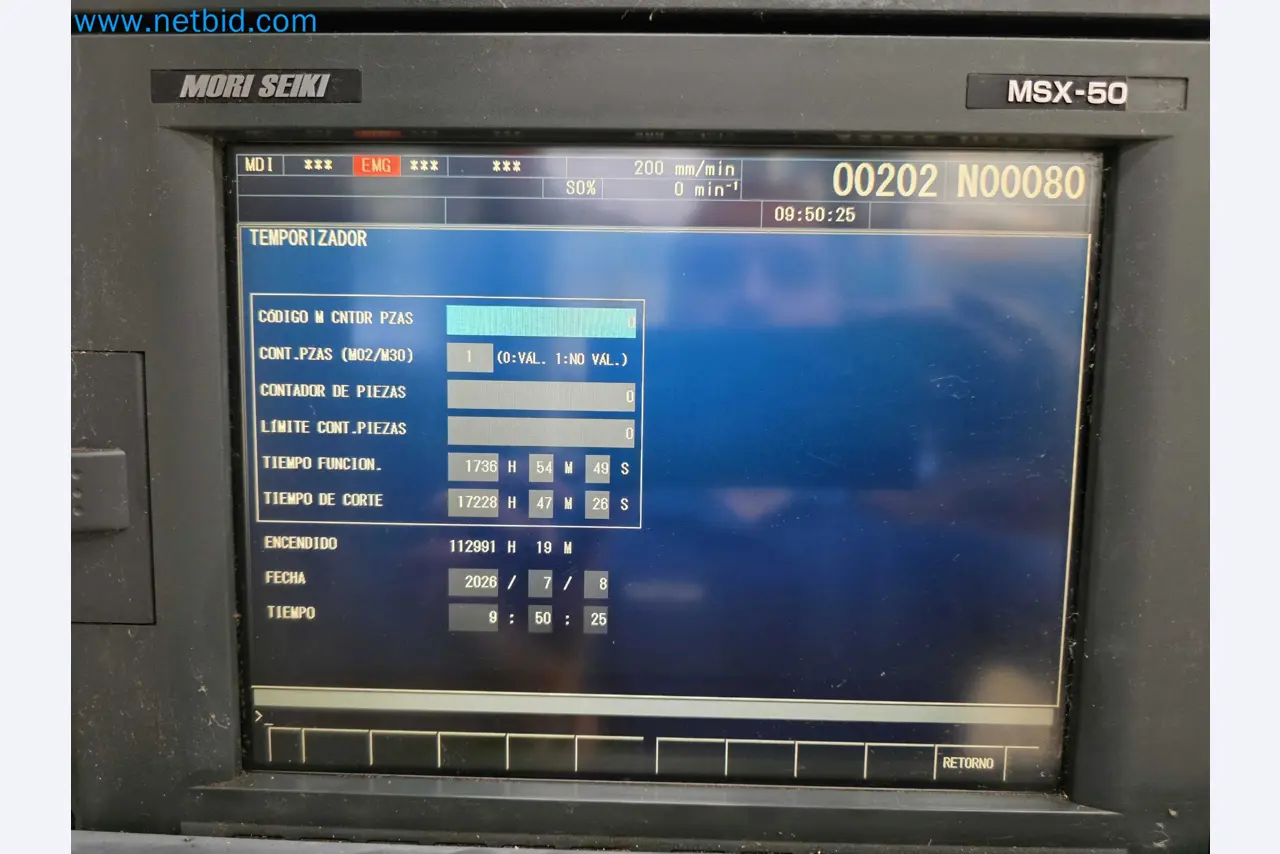

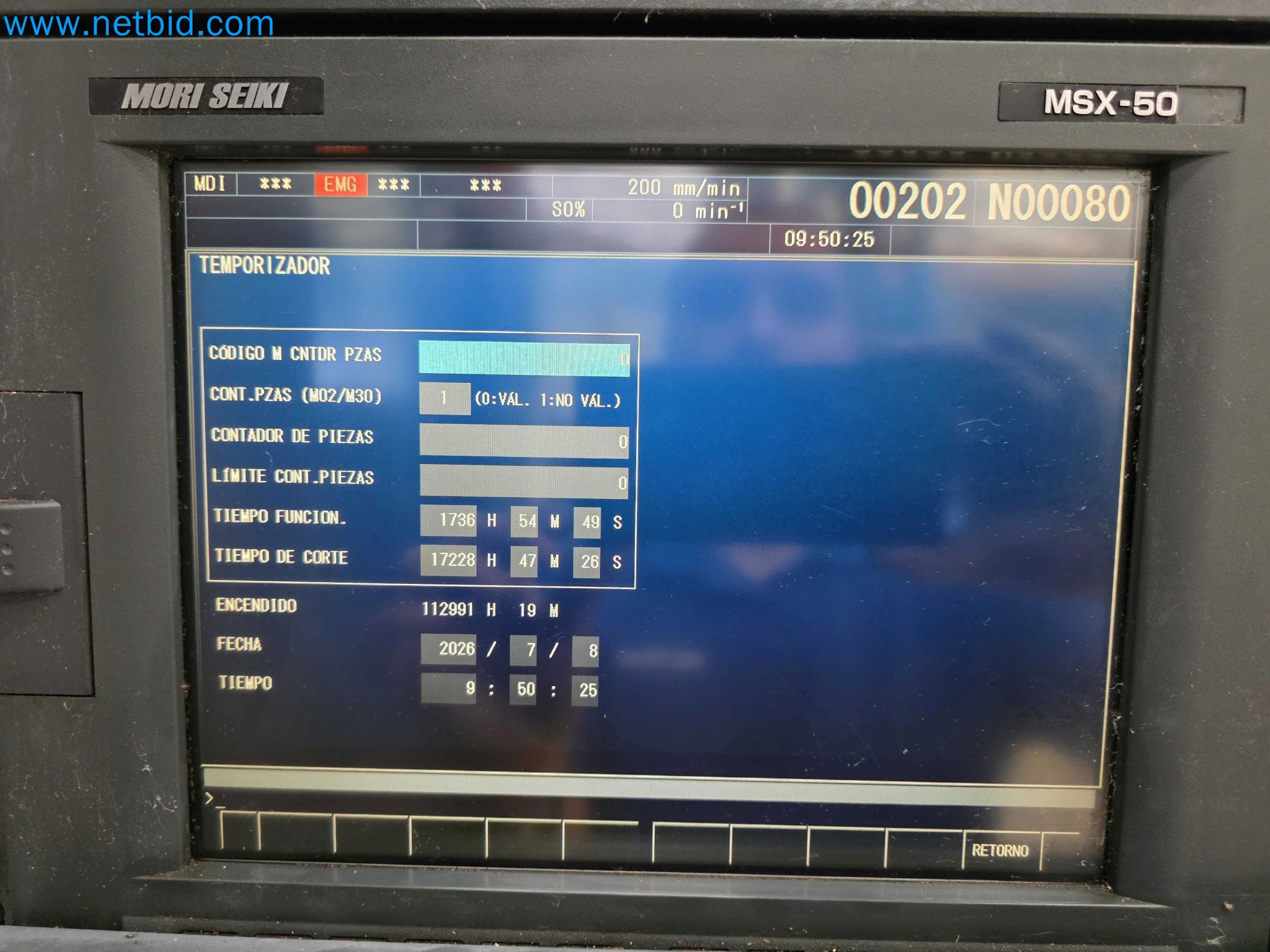

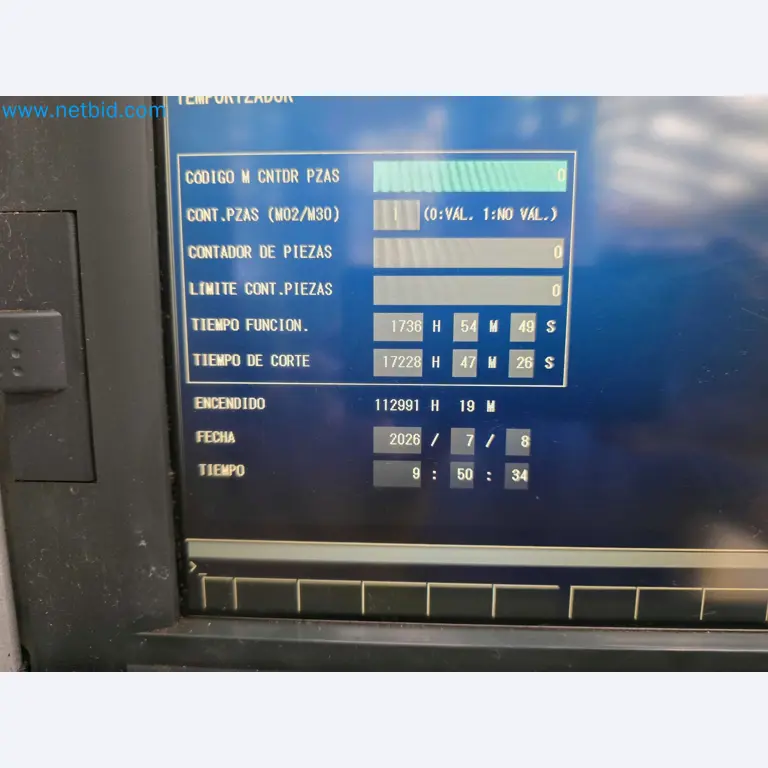

Power-on hours according to counter: 112,991 h
Cutting hours according to counter: 17,228 h

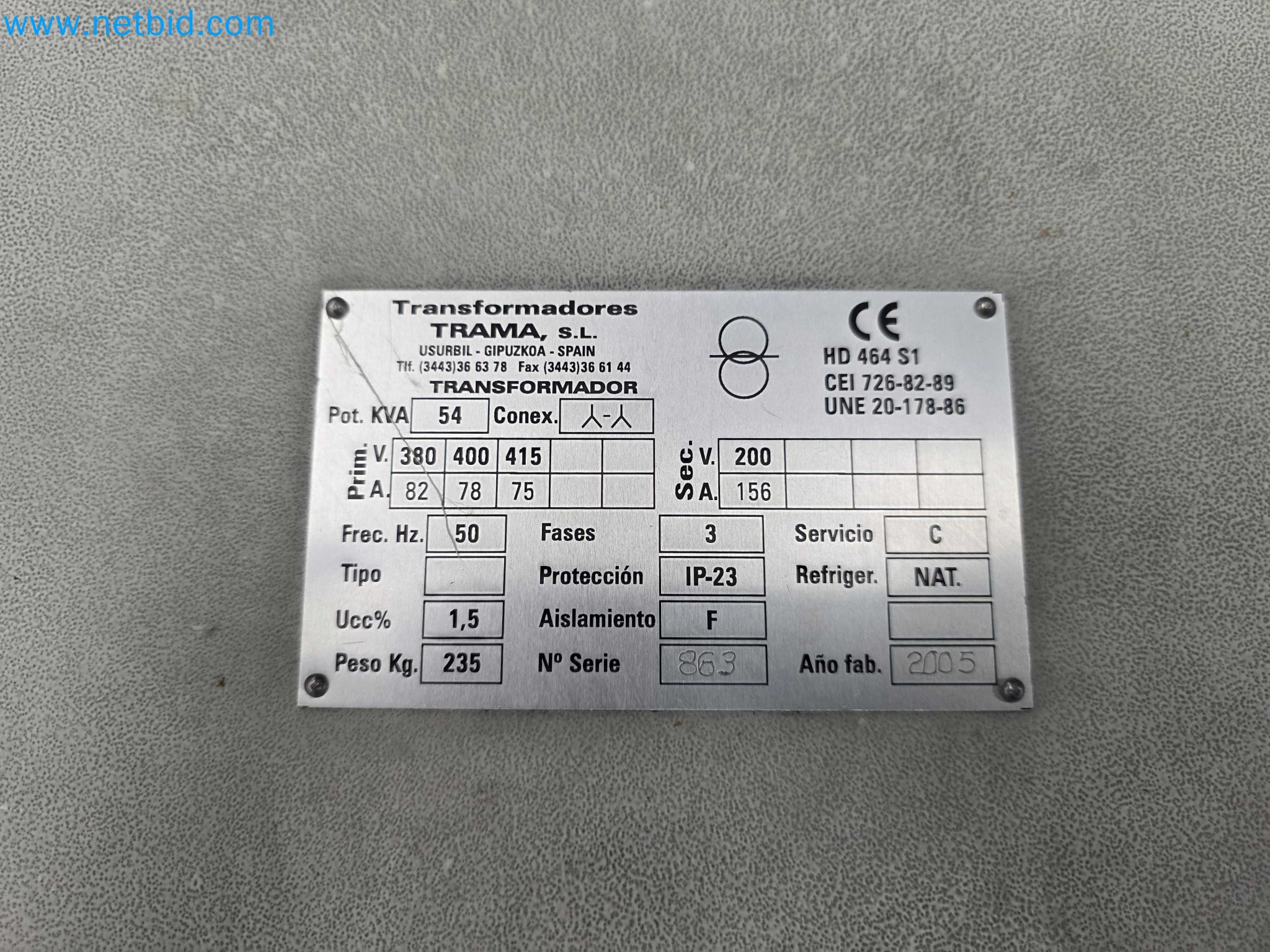

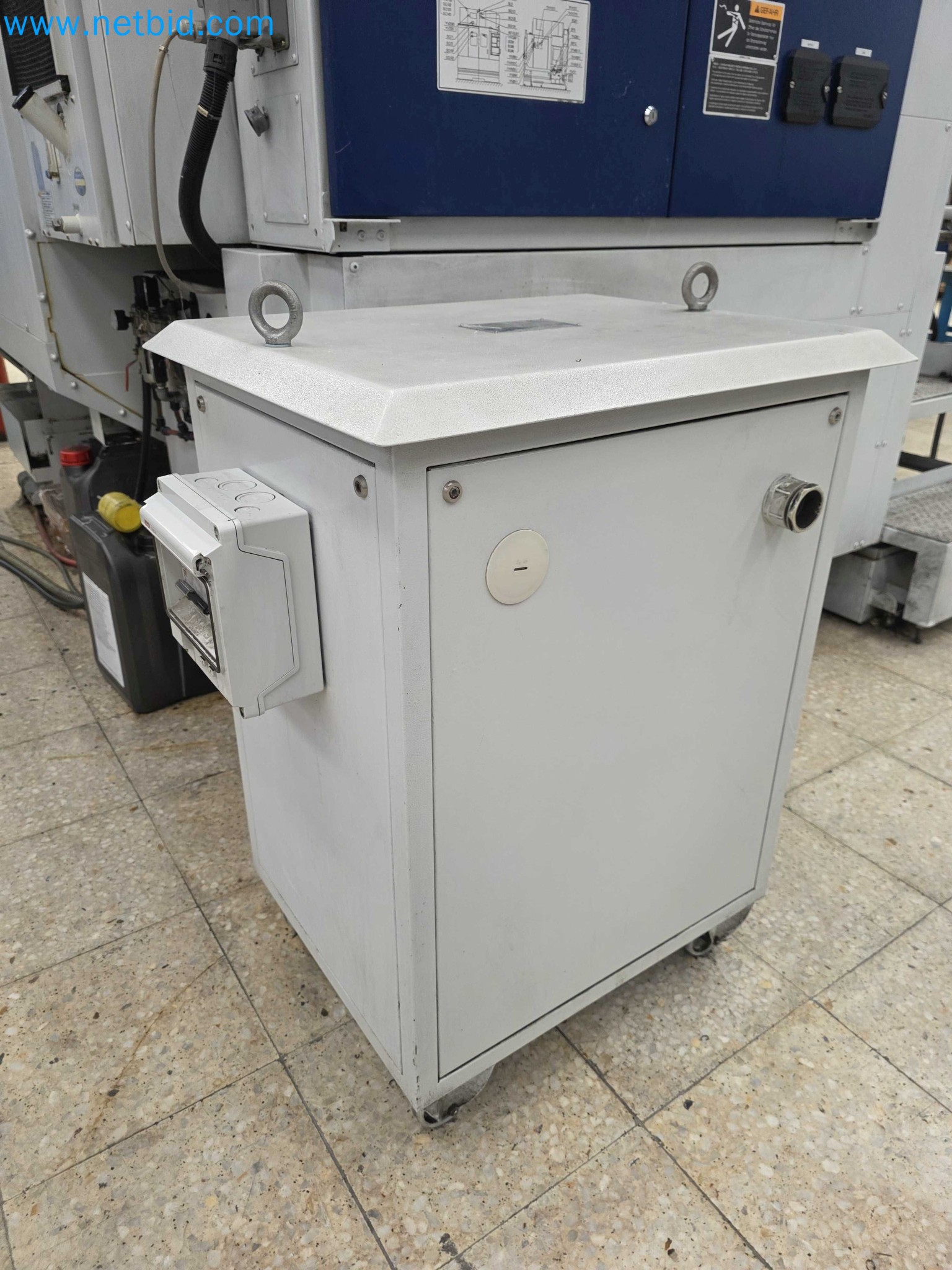

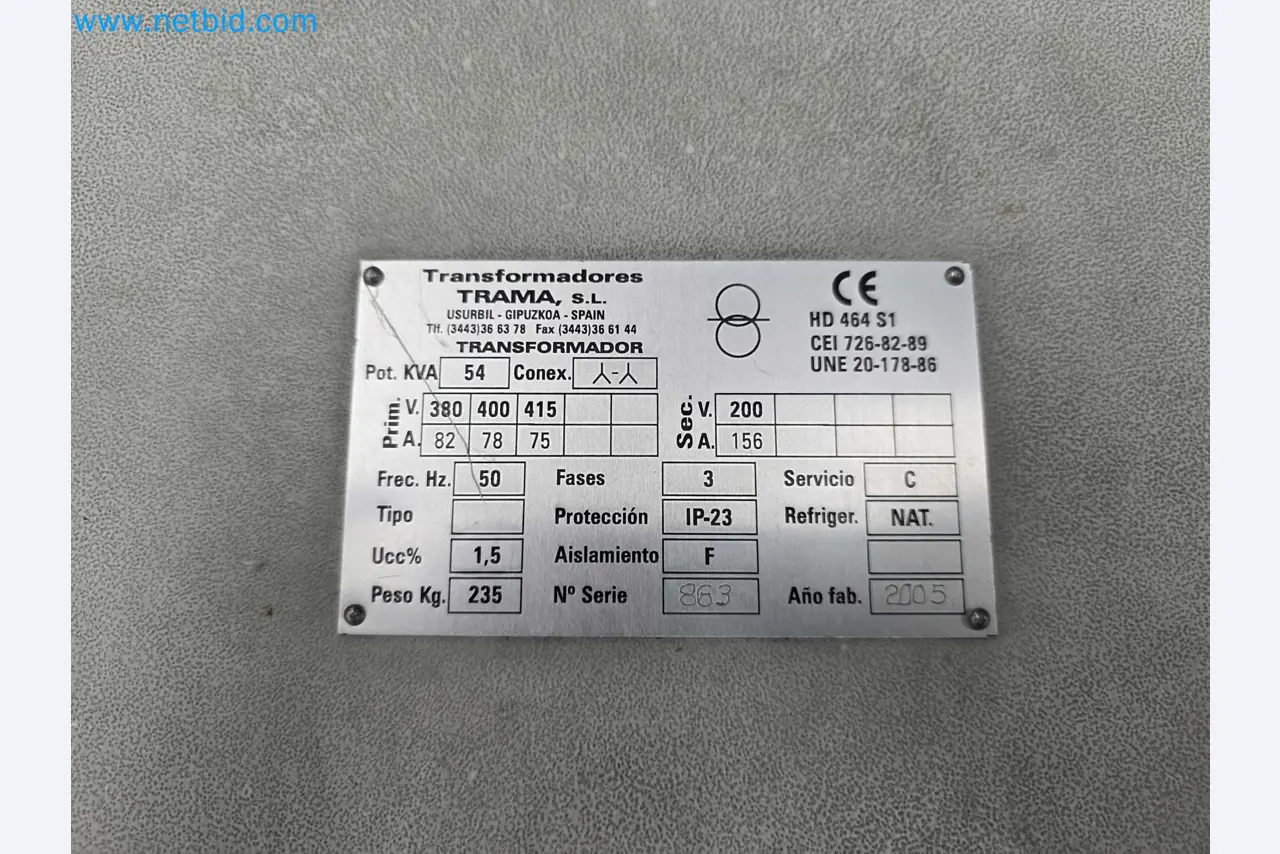

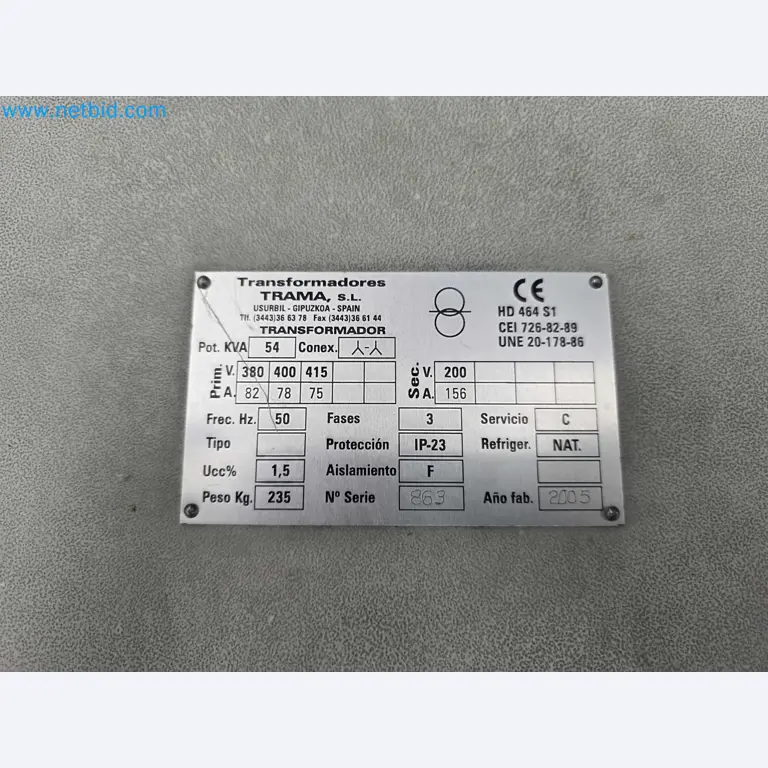

Includes 54 kVA TRAMA transformer

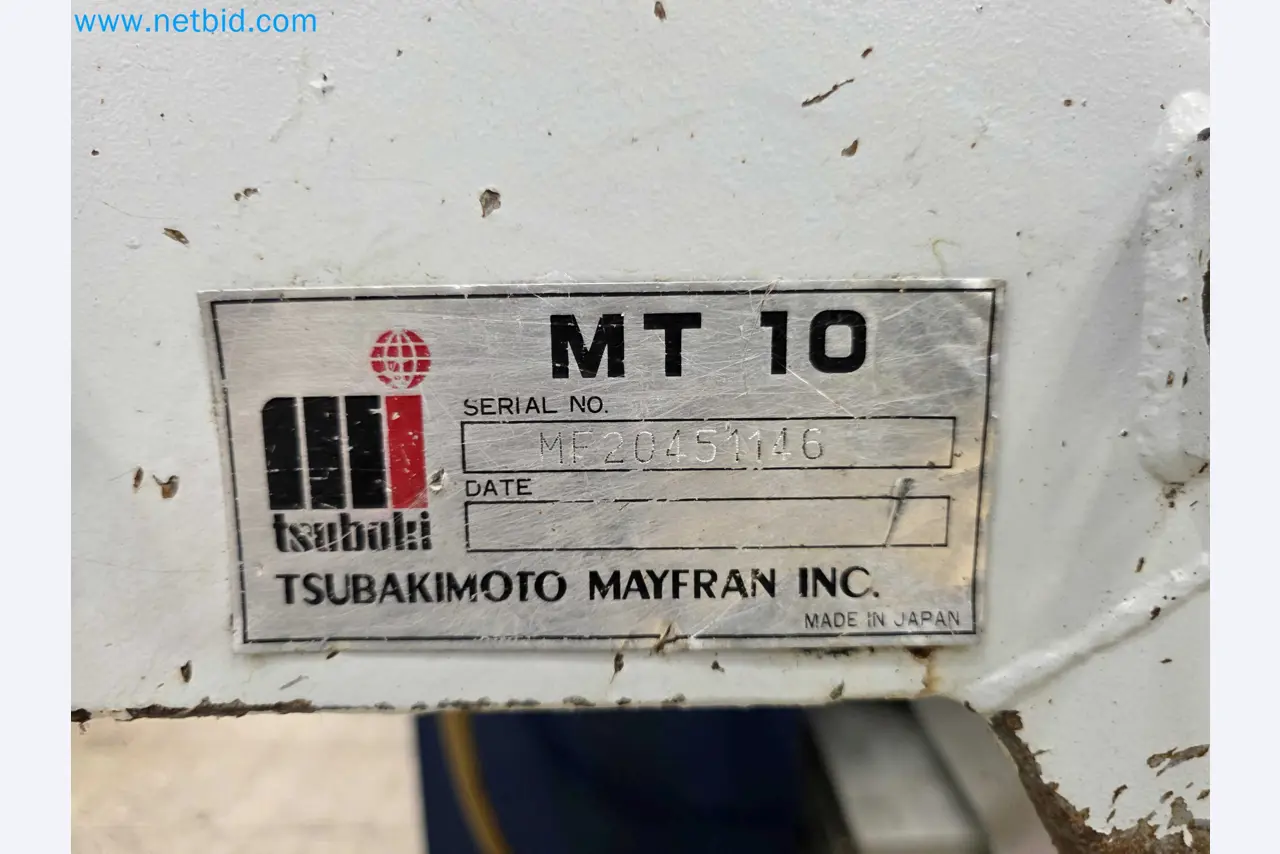

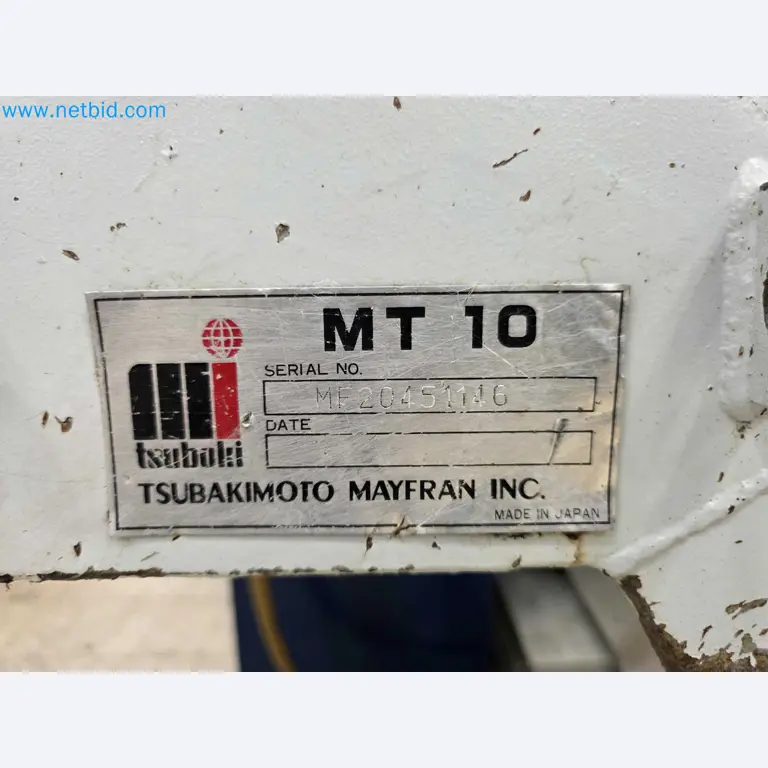

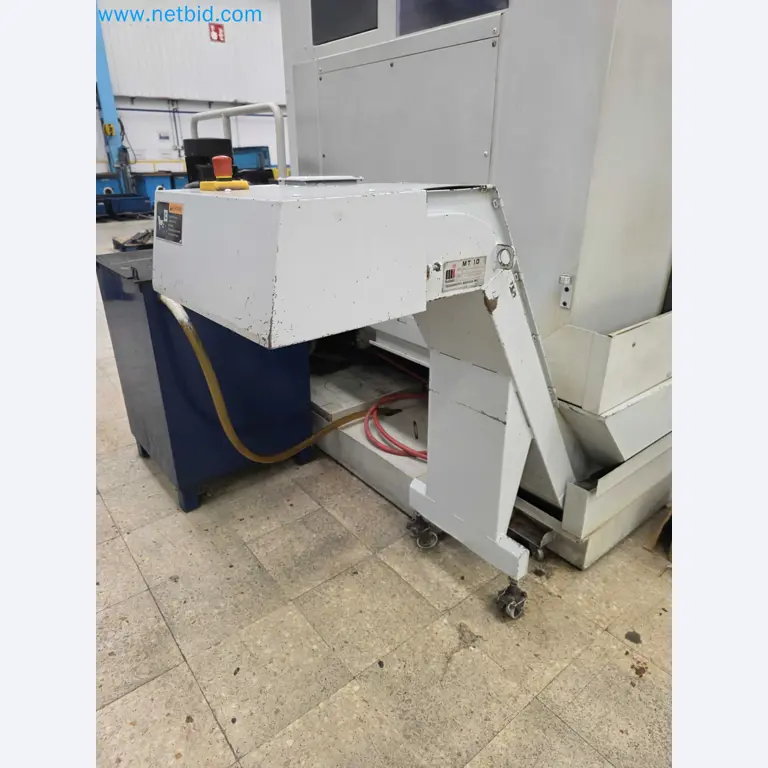

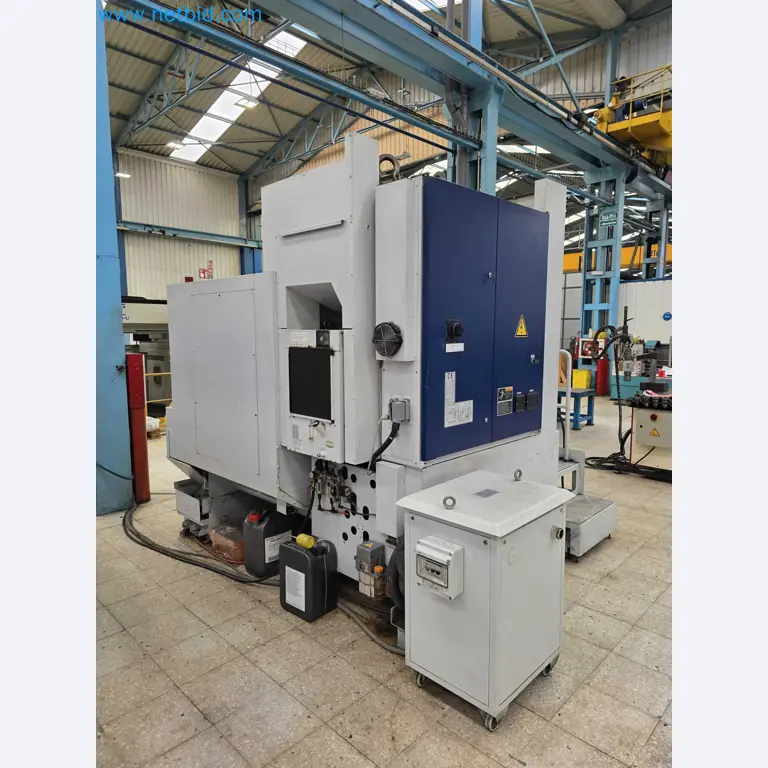

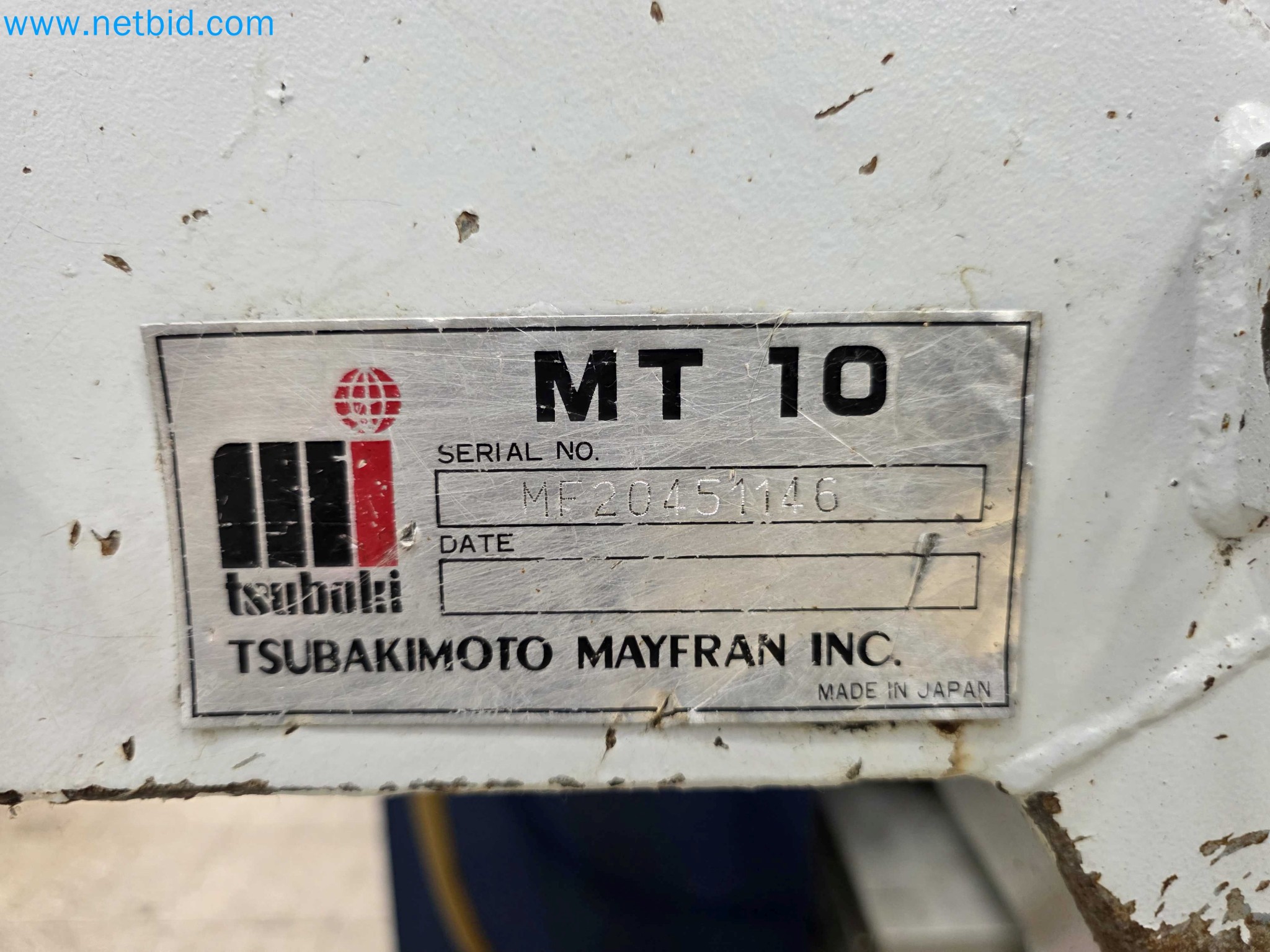

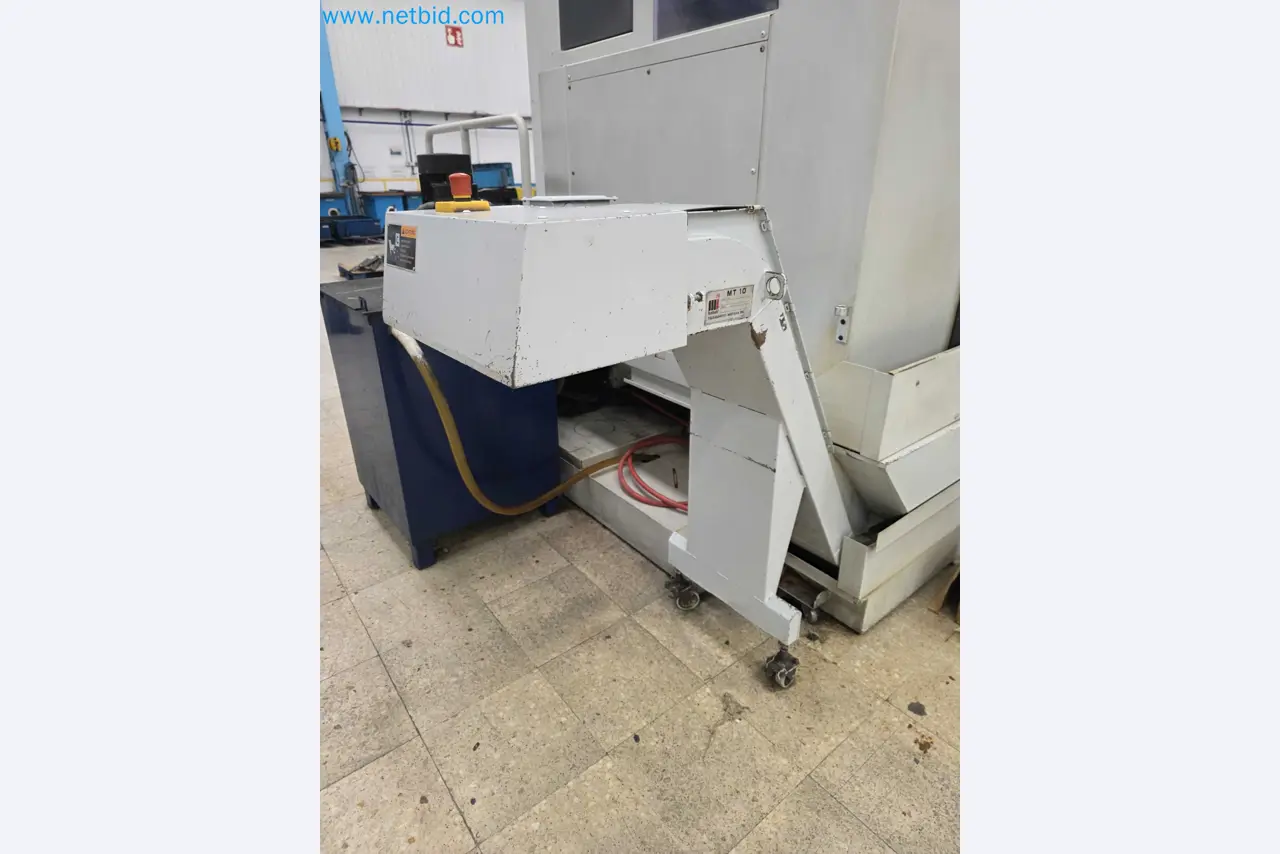

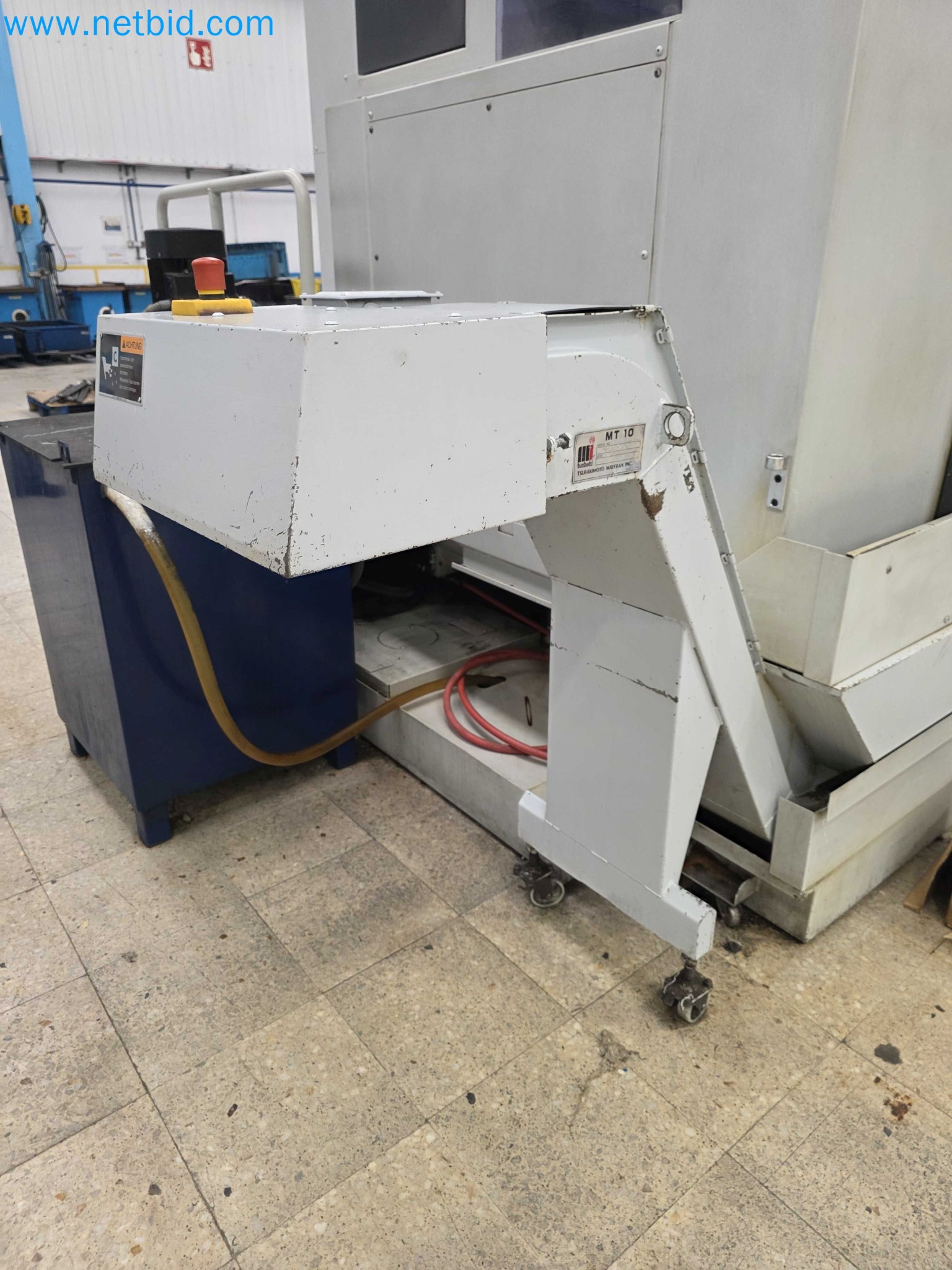

Includes TSUBAKIMOTO chip conveyor; MF20451146
CE compliant
Approximate weight: 6,500 kg
3-axis machining center
X-axis travel: 800 mm
Y-axis travel: 510 mm
Z-axis travel: 510 mm
Distance from table surface to spindle gauge line: 150–660 mm
Table working surface: 1100 x 600 mm
T-slot table with 6 slots, 18 mm wide
Table load capacity: 1000 kg
Maximum spindle speed: 14,000 rpm
Taper type: BT-40
Spindle bearing inner diameter: 65 mm
Rapid traverse (X-Y-Z axes): 42,000 mm/min
30-position tool magazine
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
MORI SEIKI MSX-501/502 control
Power-on hours according to counter: 112,991 h
Cutting hours according to counter: 17,228 h
Includes 54 kVA TRAMA transformer
Includes TSUBAKIMOTO chip conveyor; MF20451146
CE compliant
Approximate weight: 6,500 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
