Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment

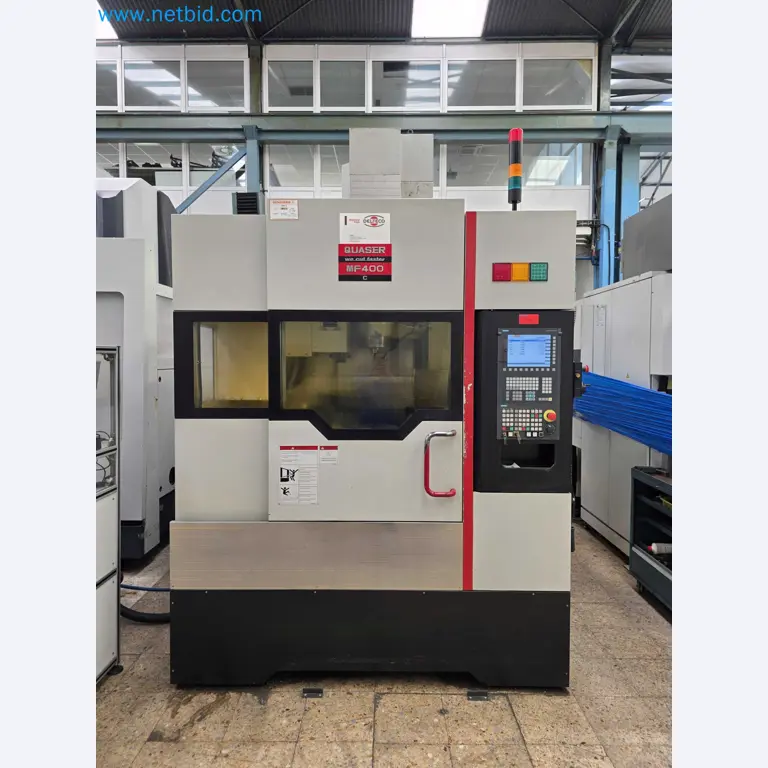

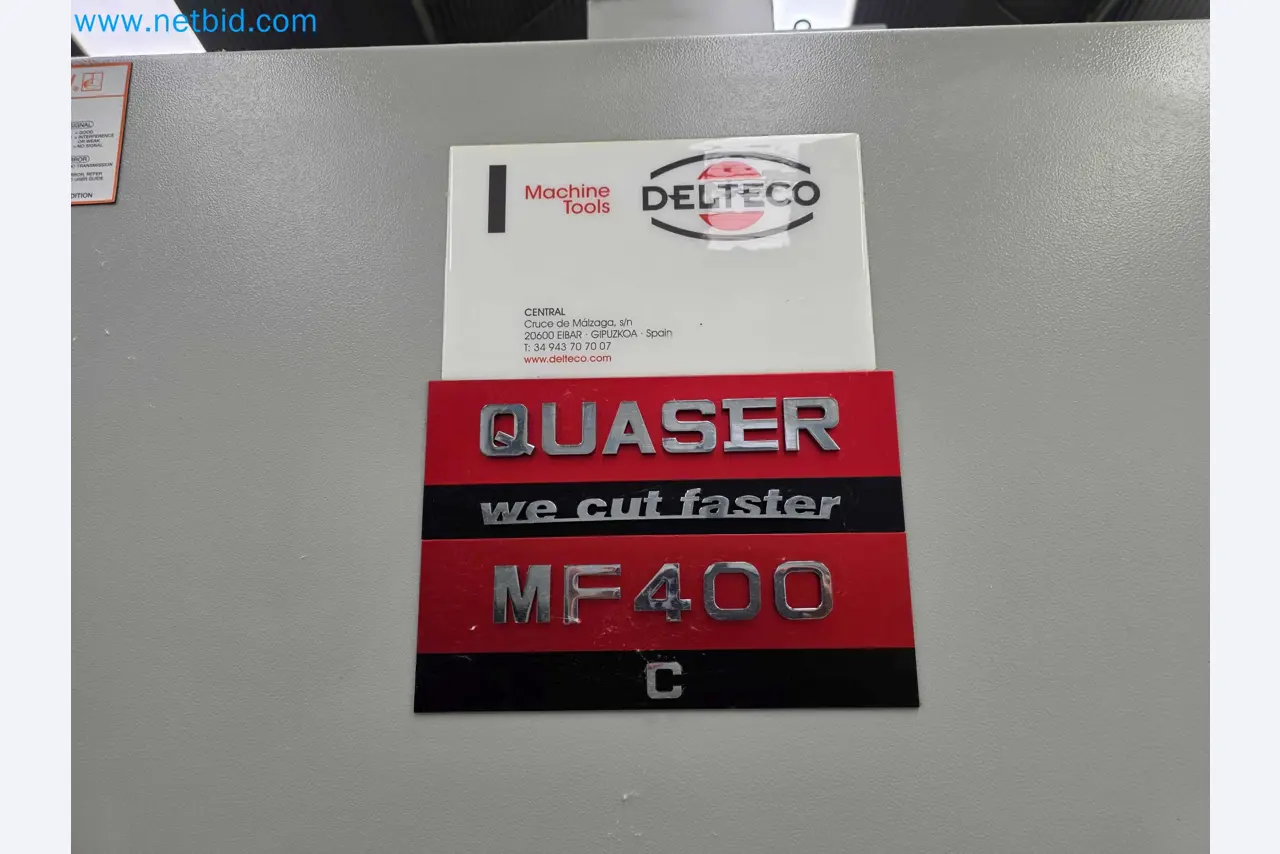

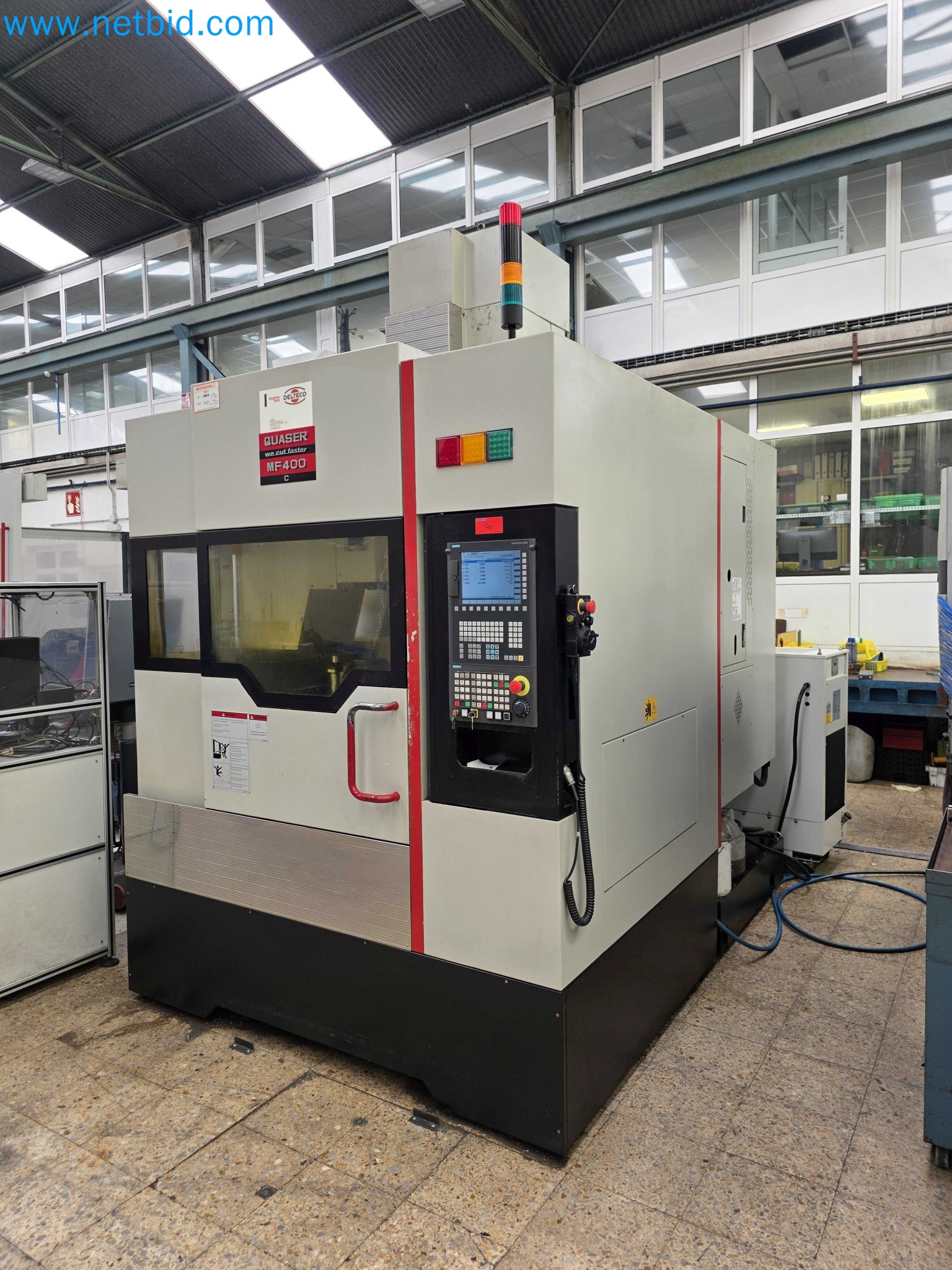

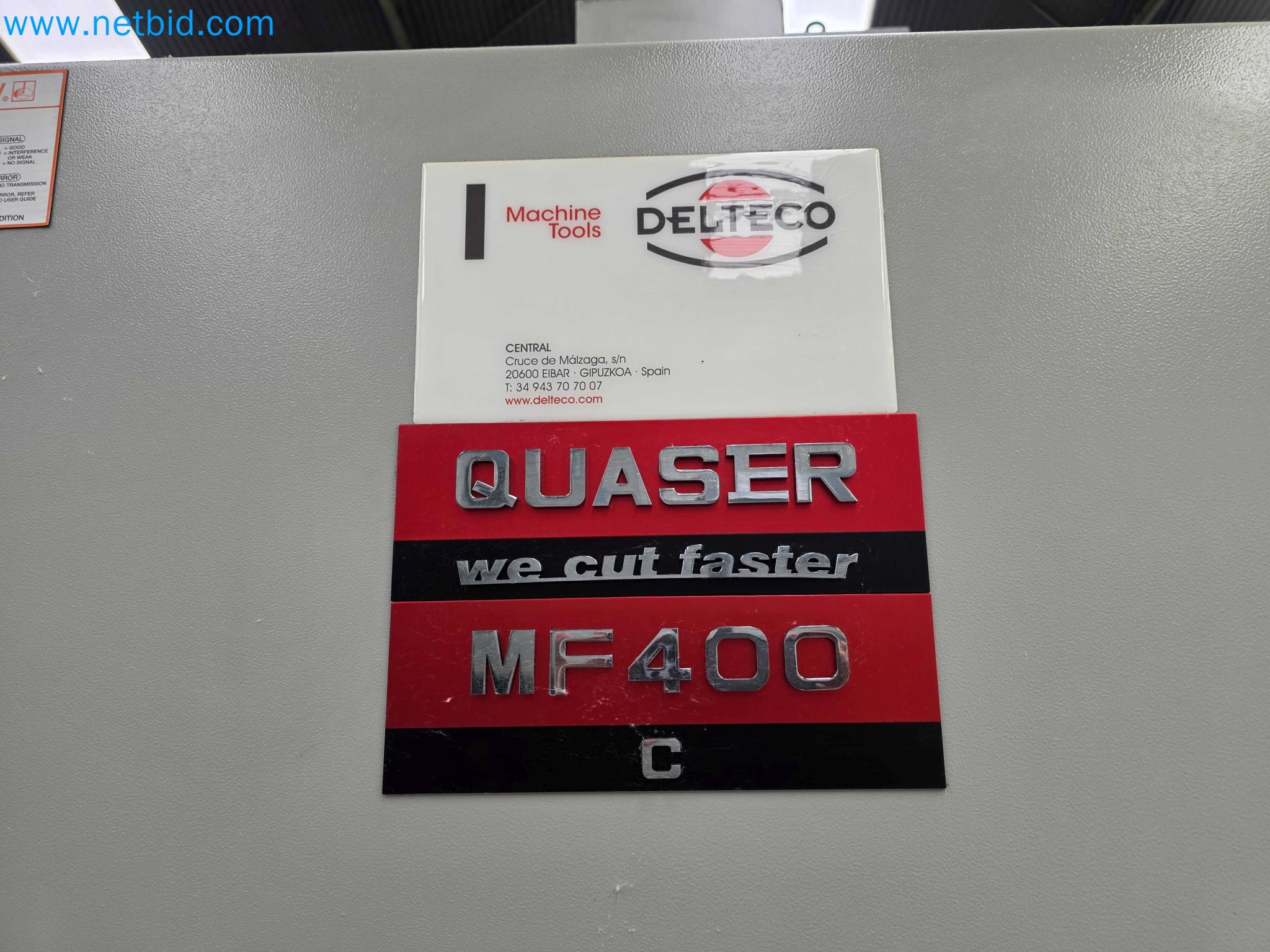

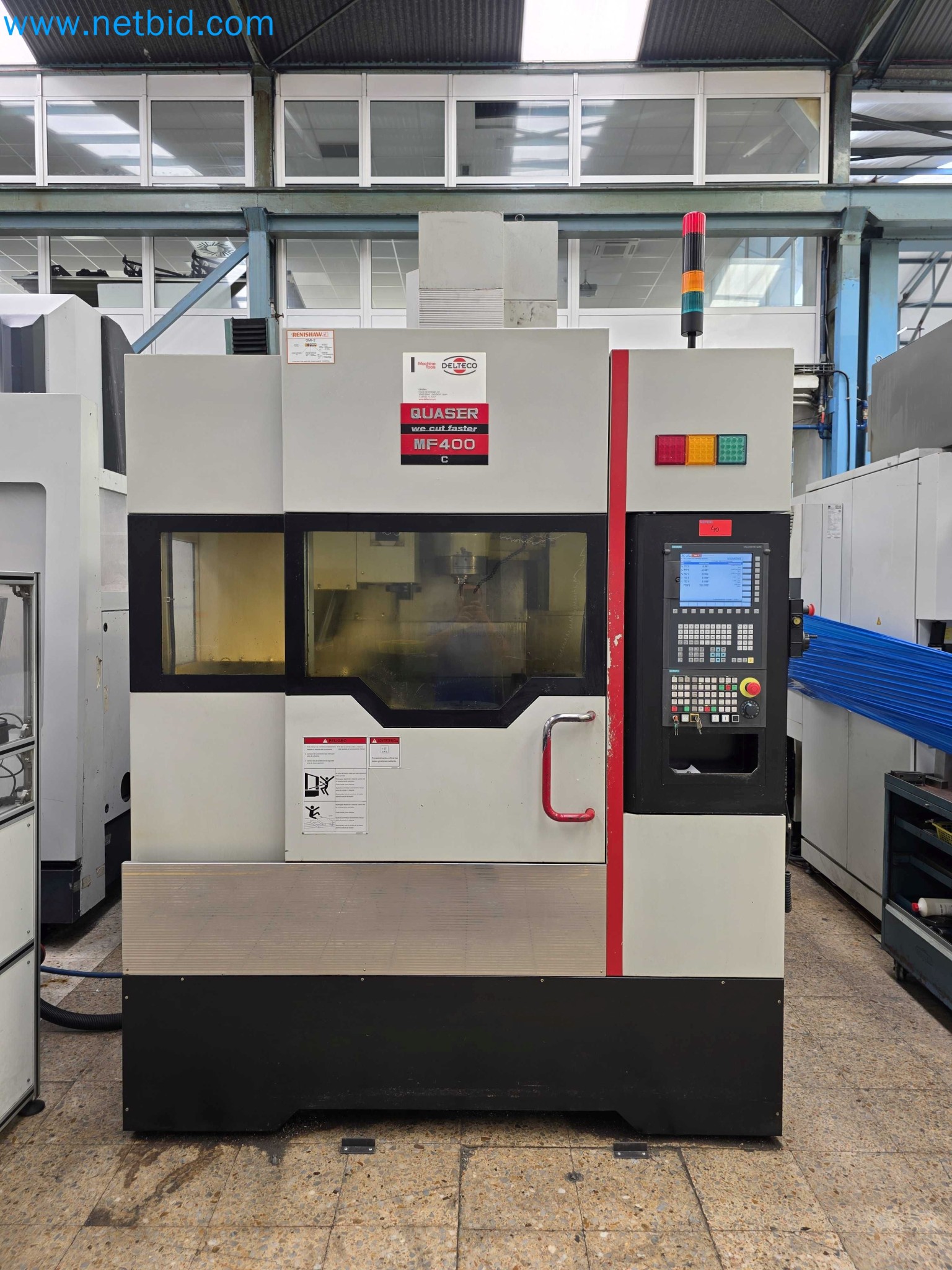

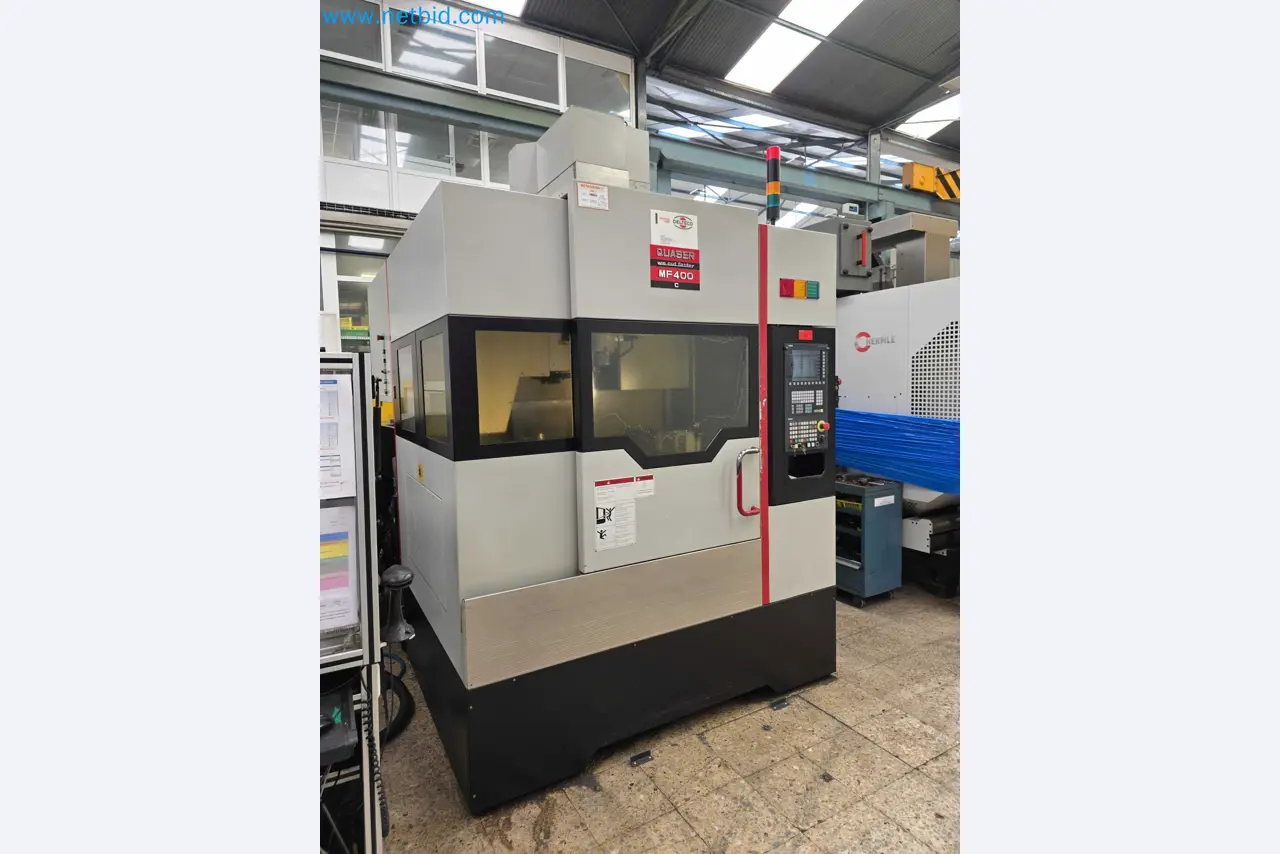

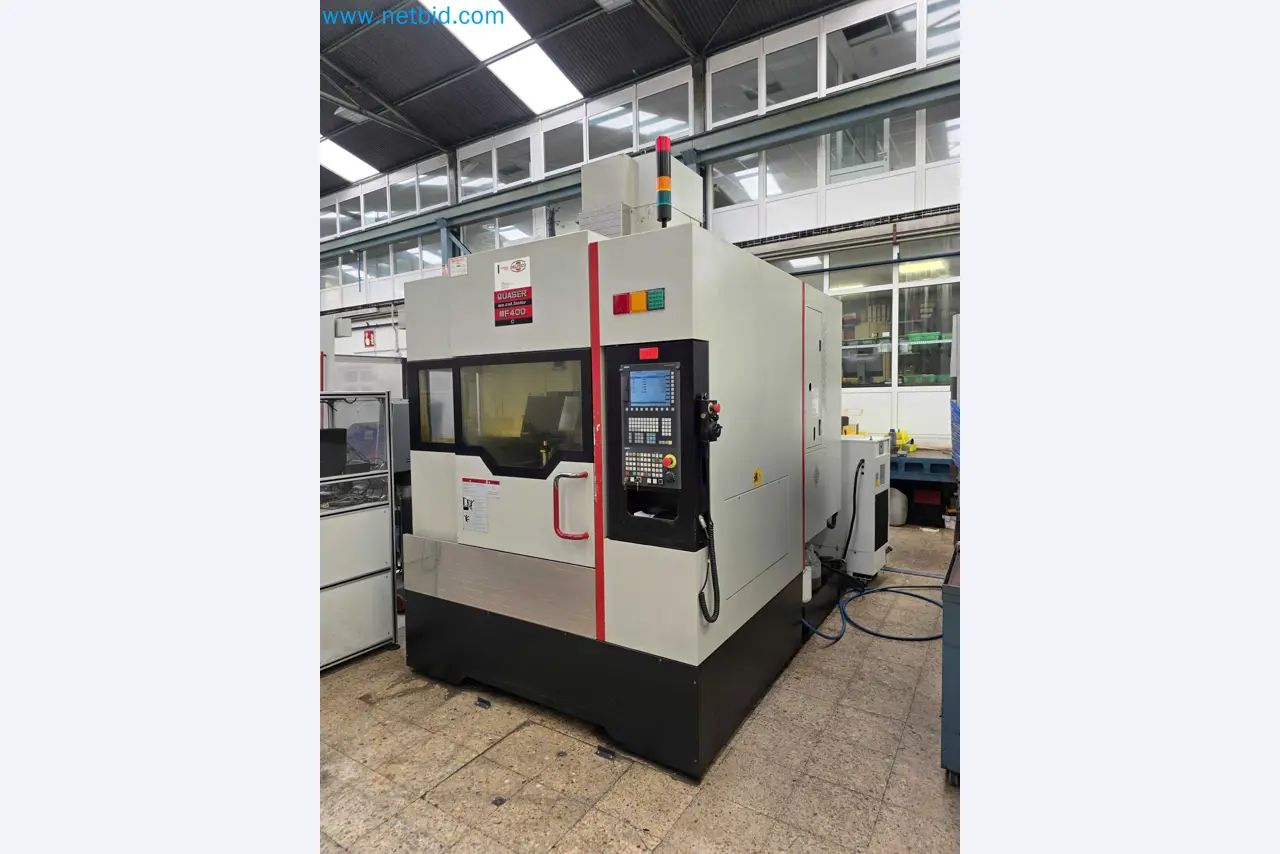

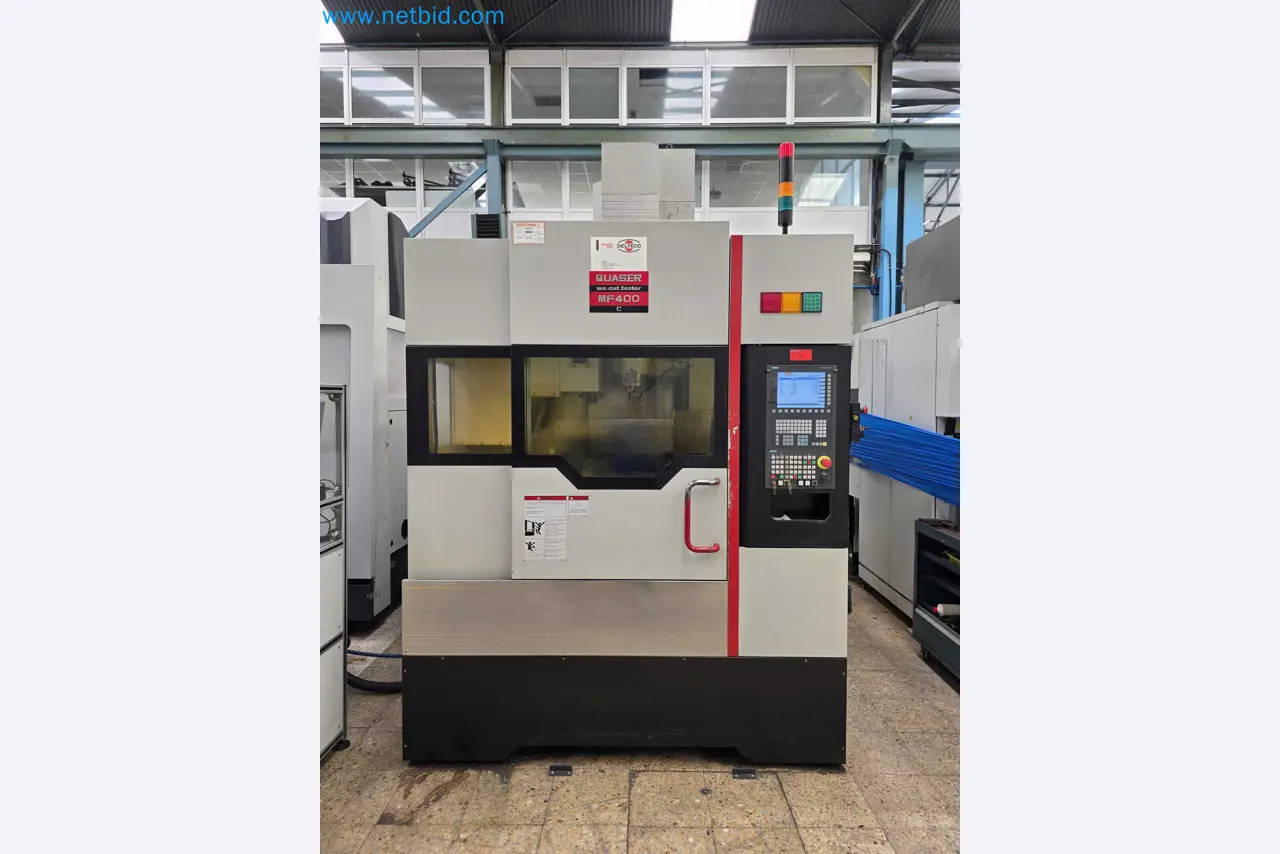

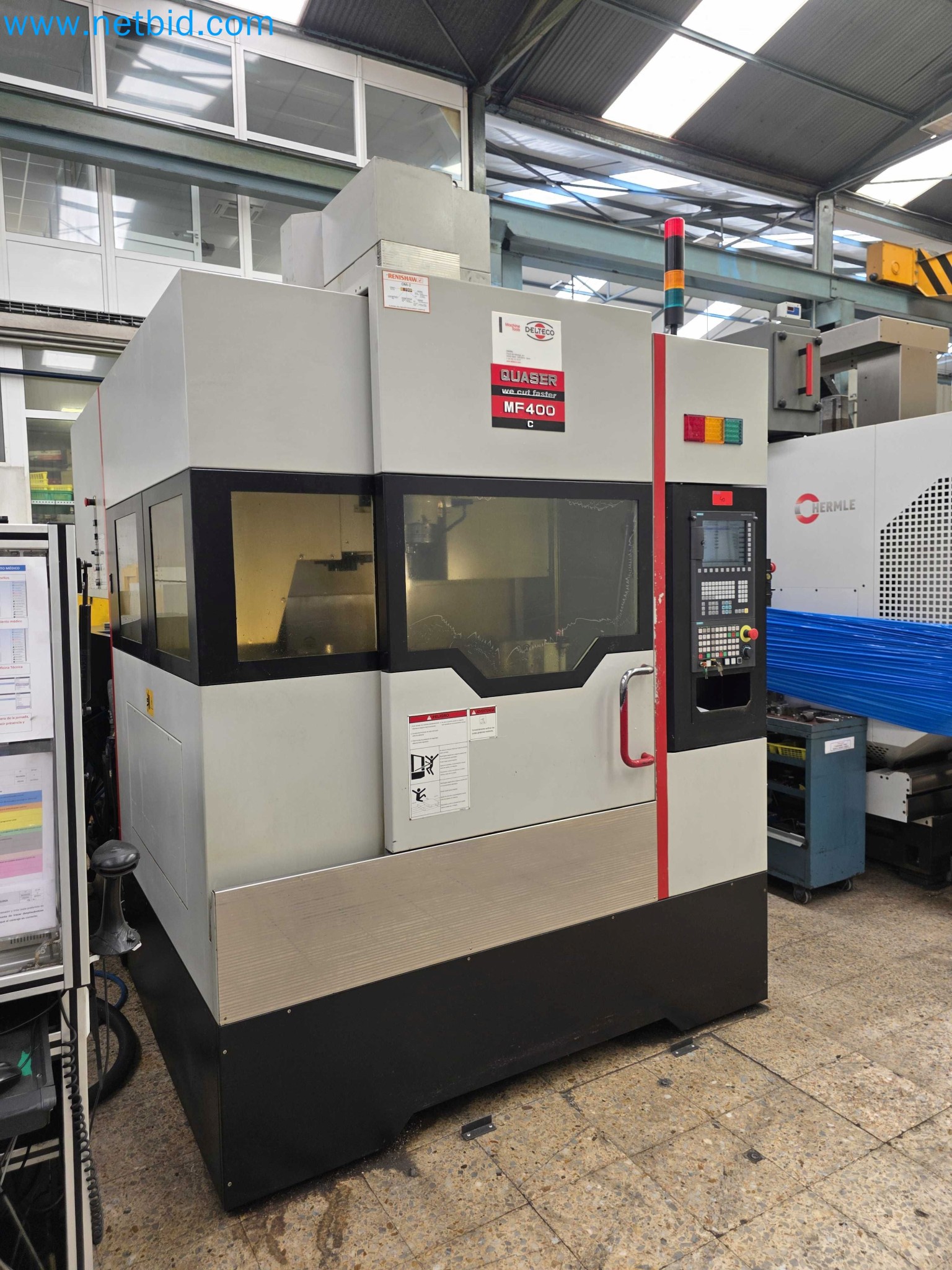

5-Axis Vertical CNC Machining Center QUASER MF 400C/15CAUCTION#A19590-40
Details
Product Type
QUASER
Type
MF 400C/15C
Construction Year
2013
Description

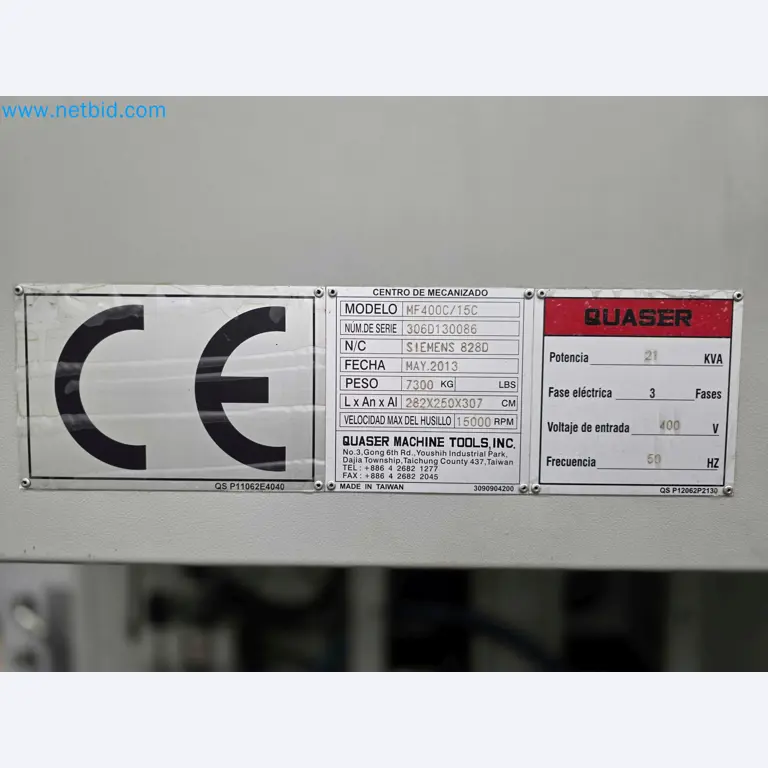

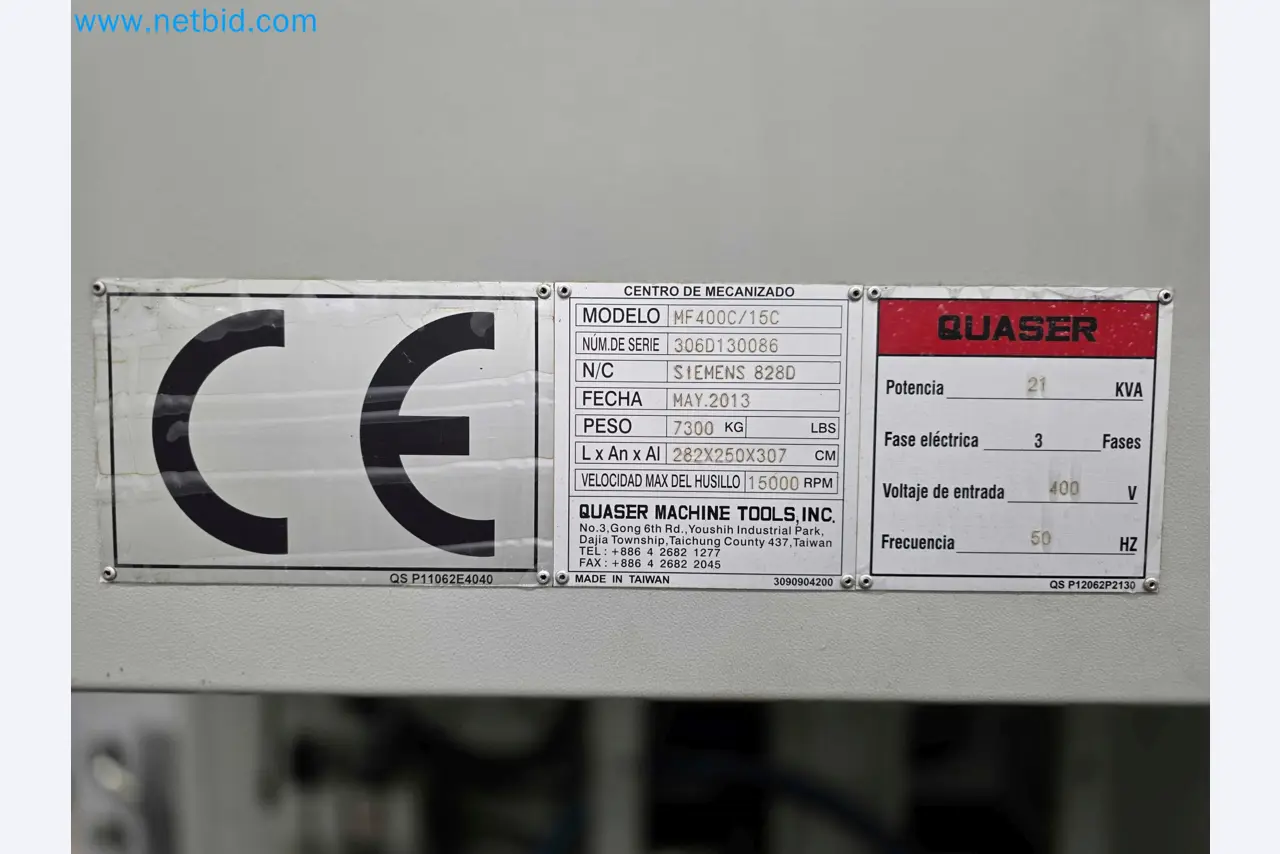

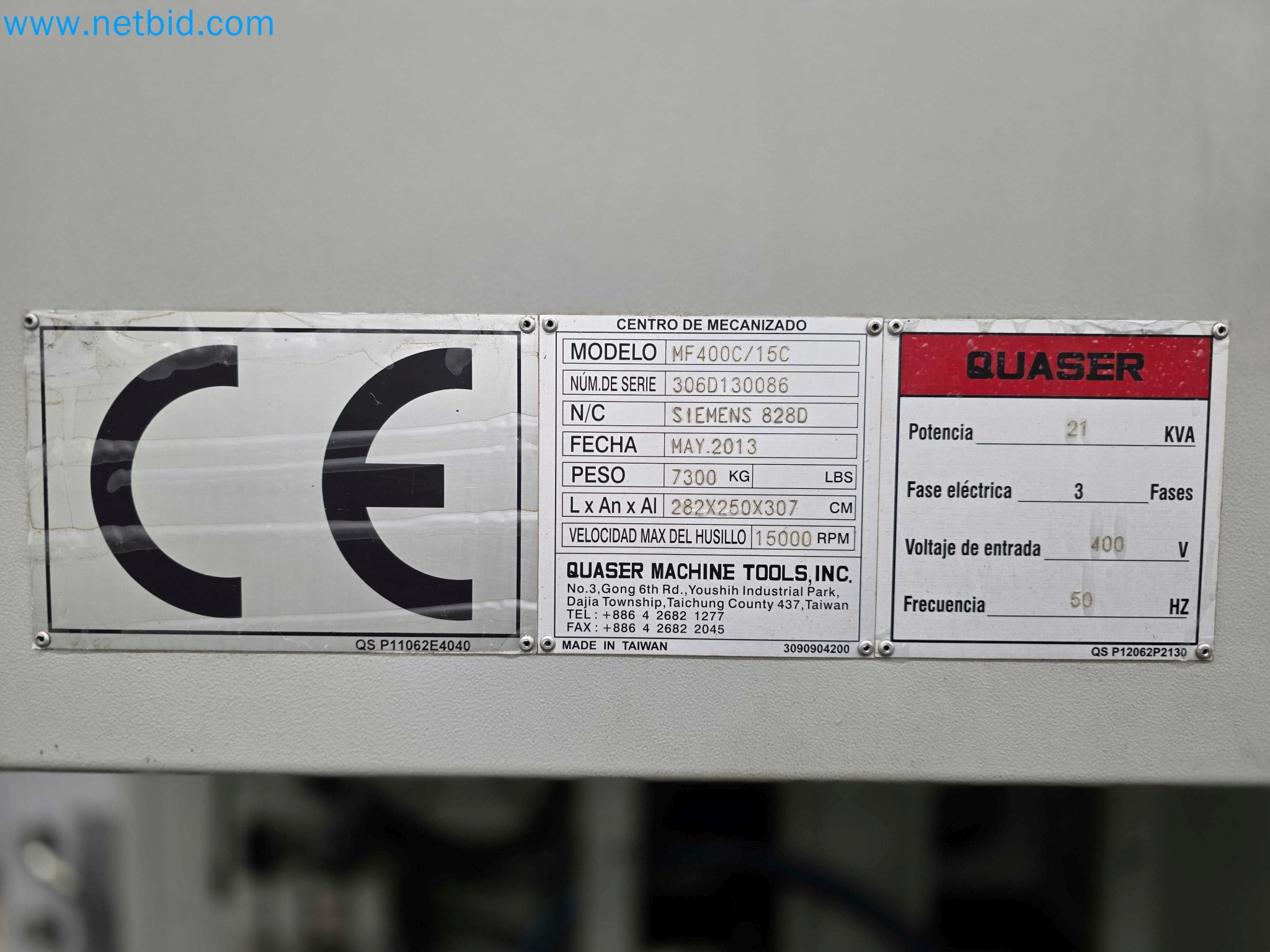

SN: 306D130086

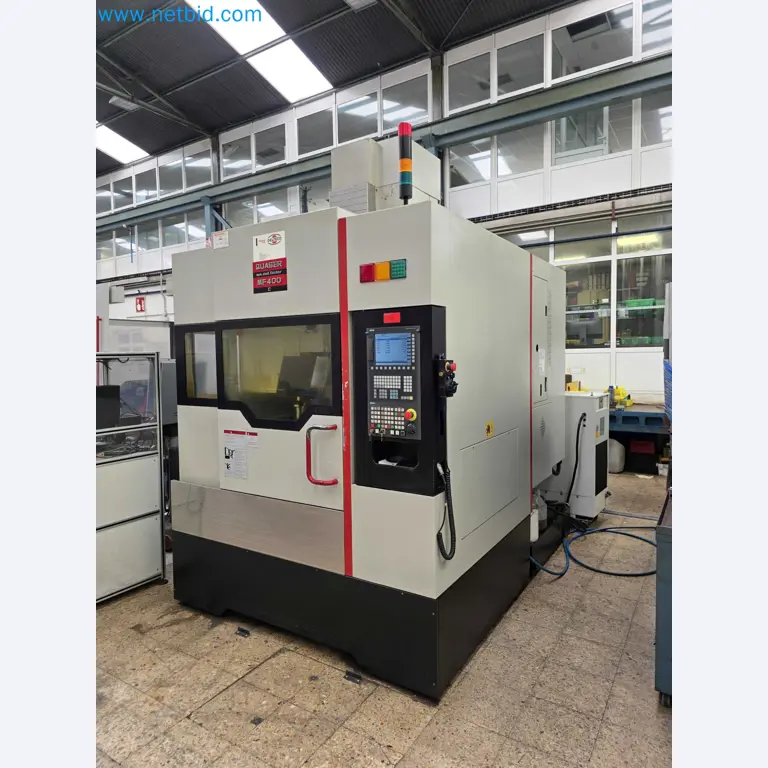

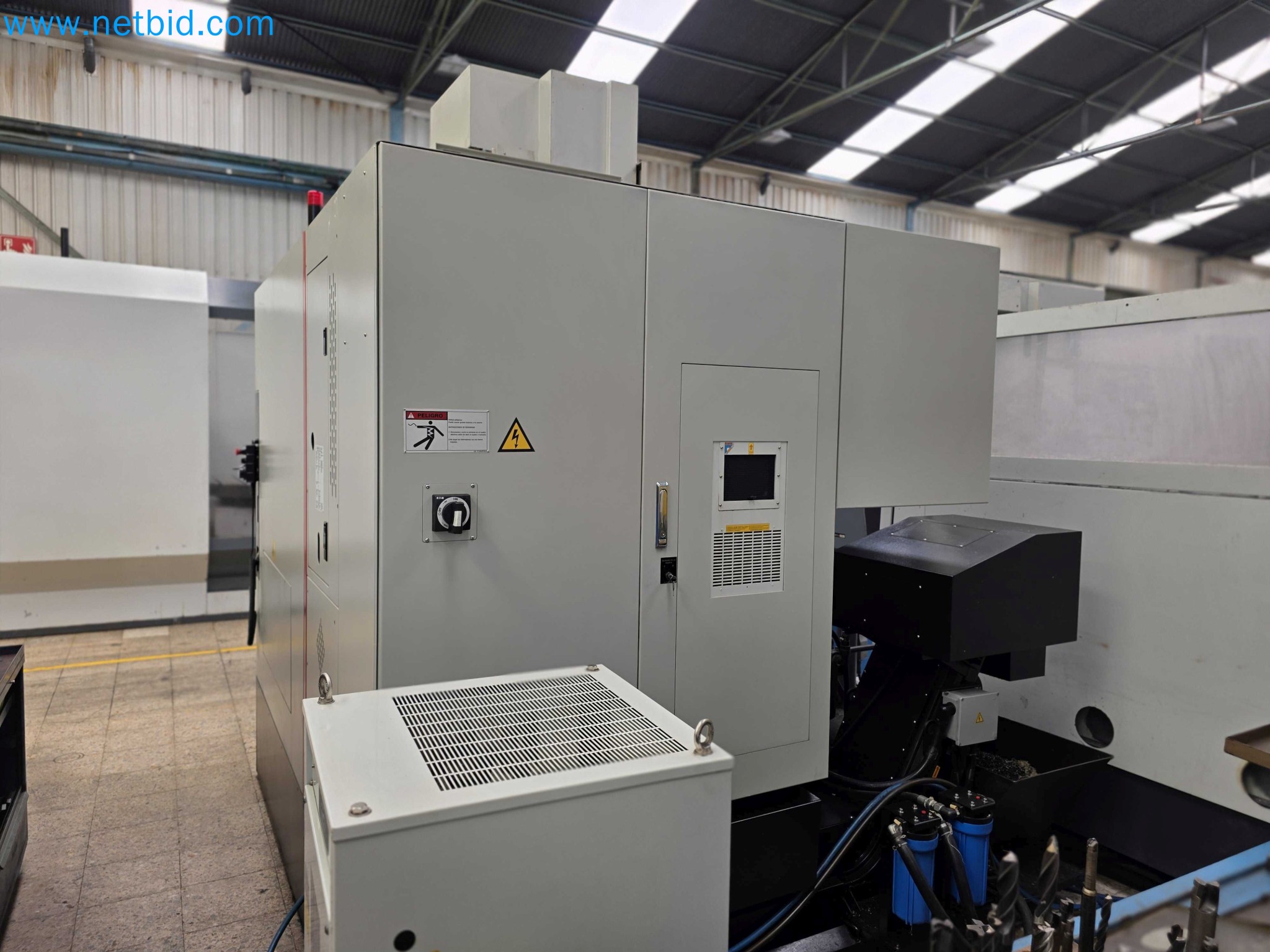

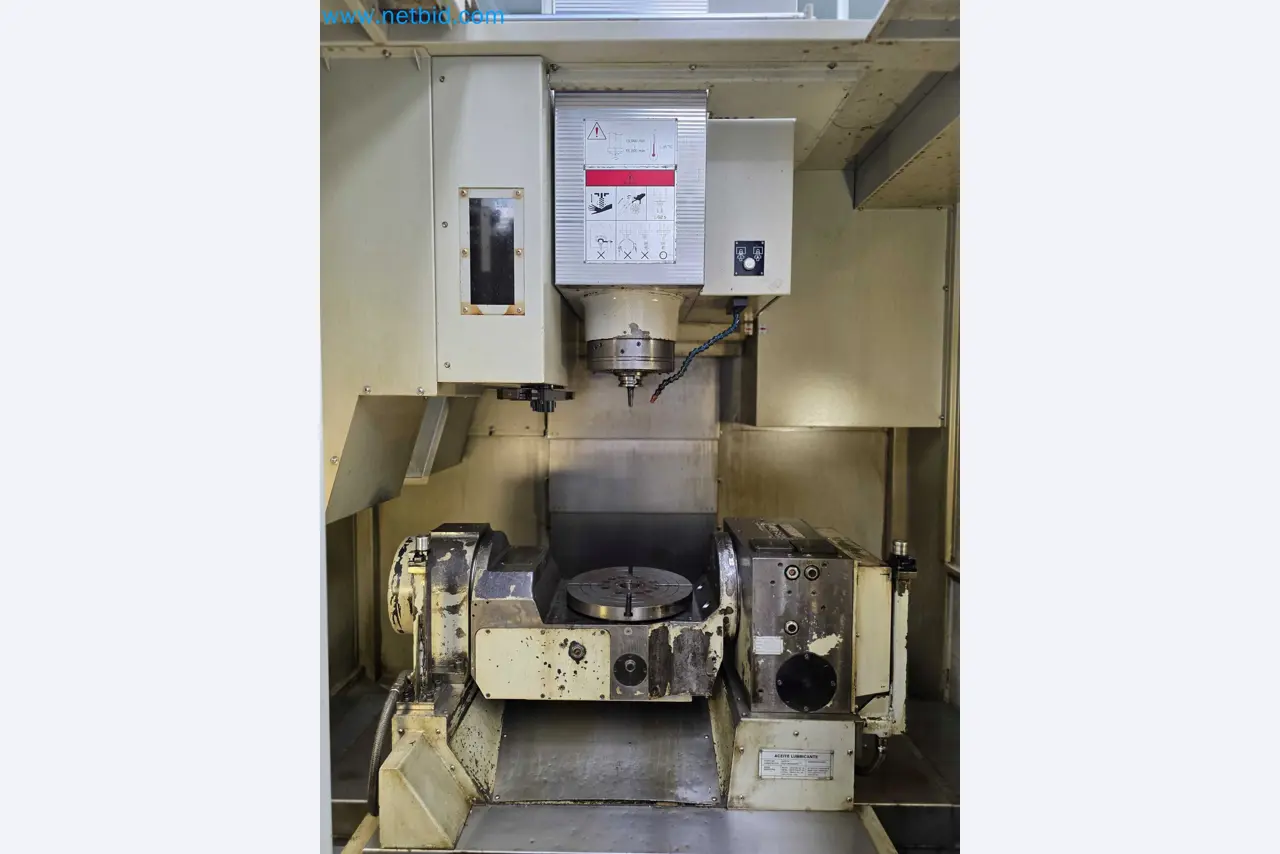

5-axis machining center
Travels:
· X-axis: 410 mm
· Y-axis: 610 mm
· Z-axis: 510 mm

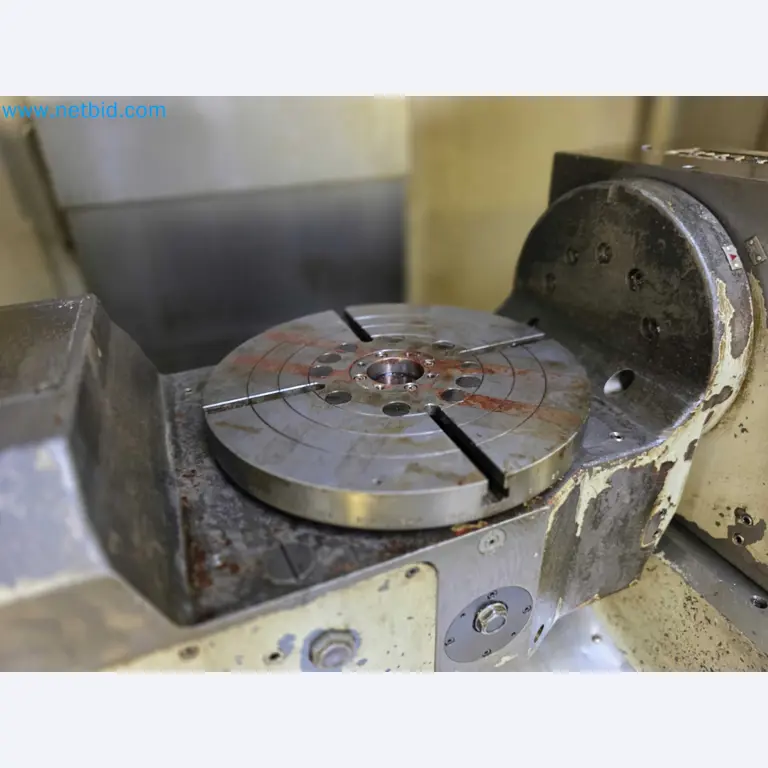

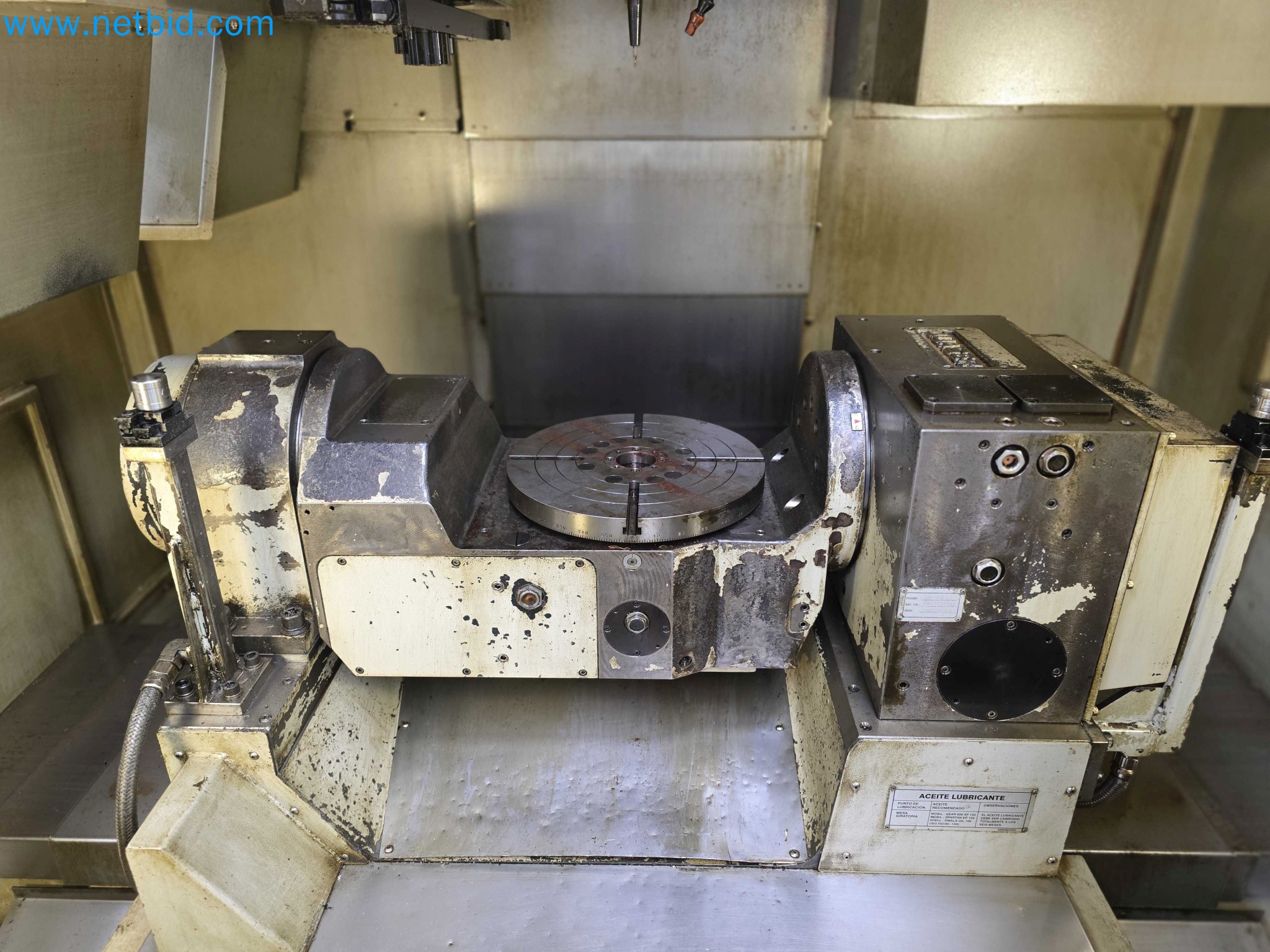

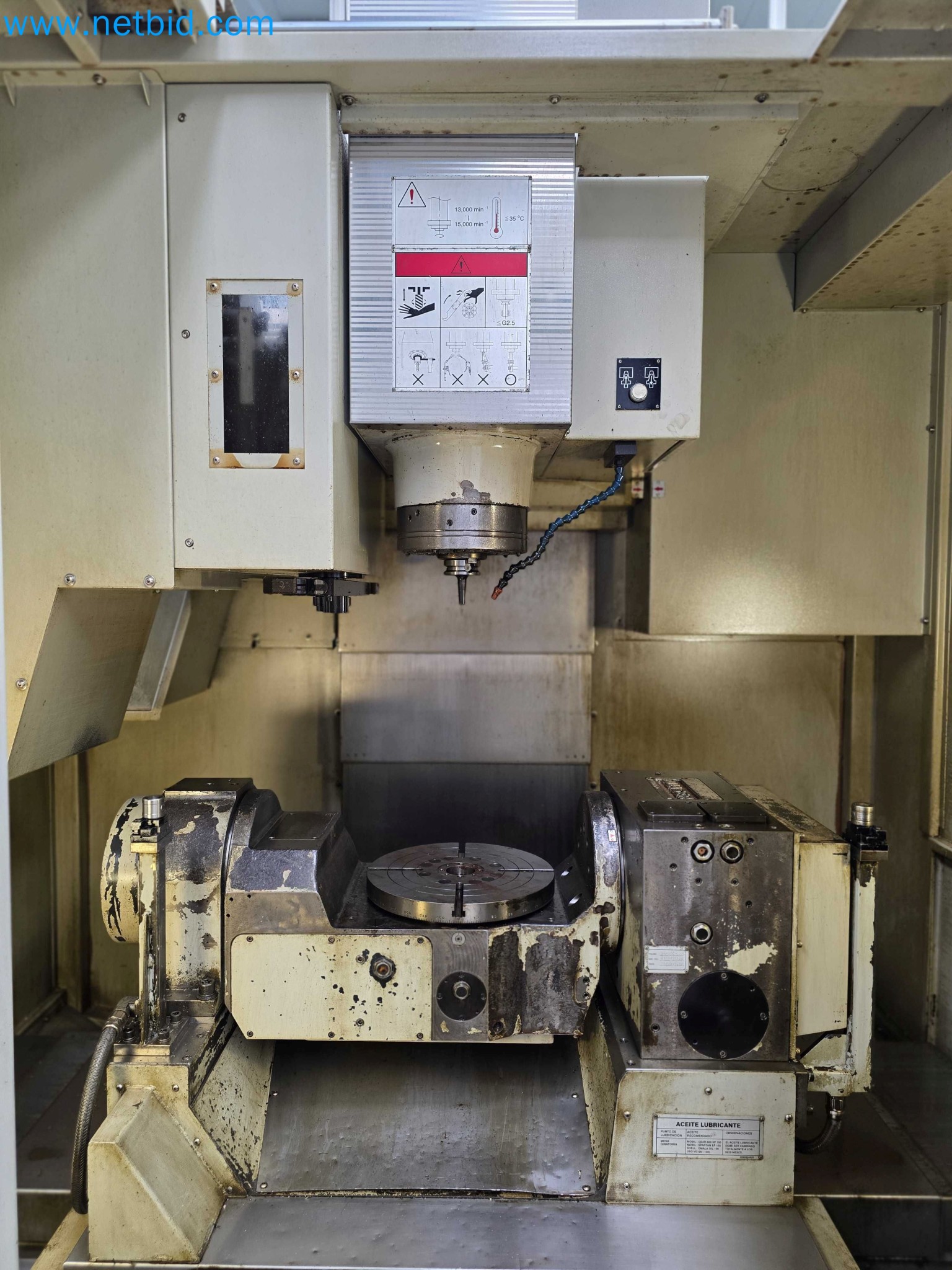

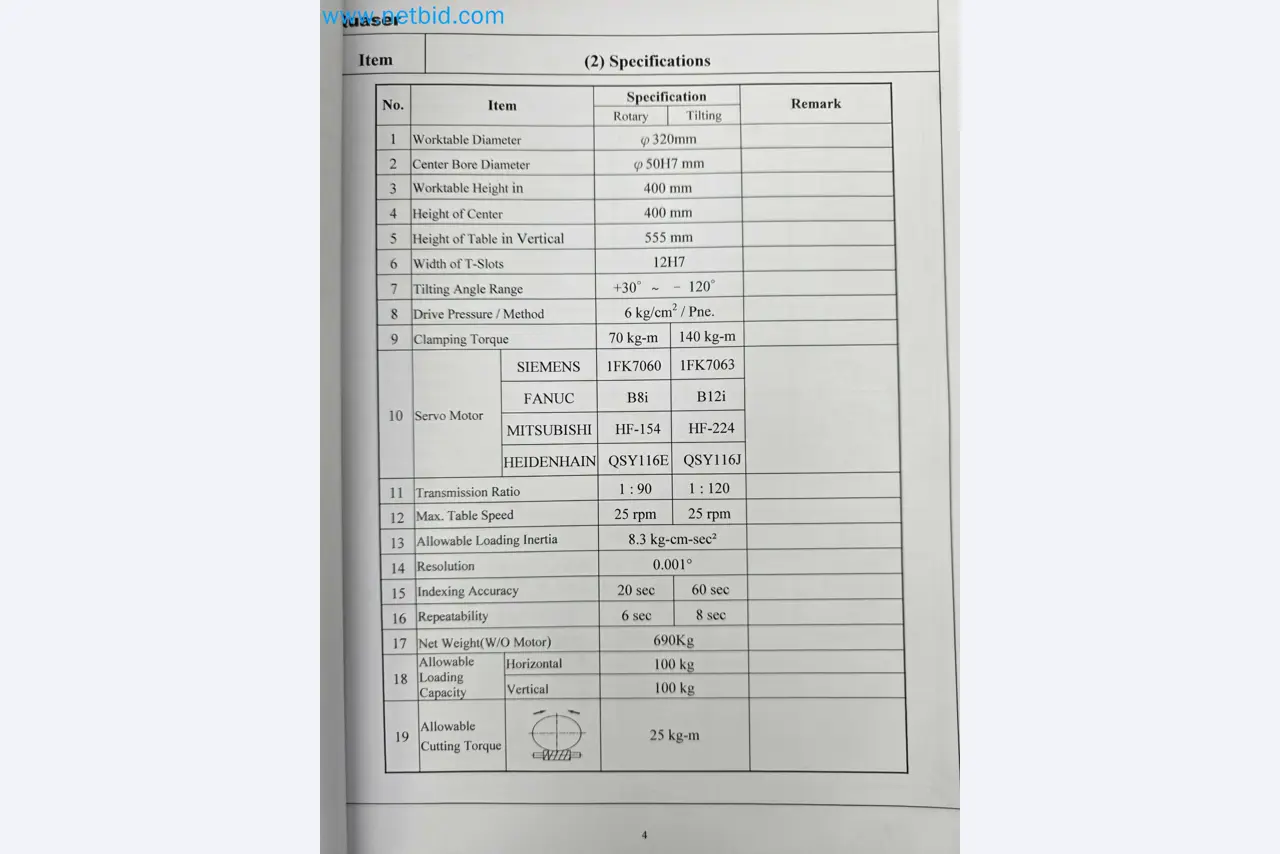

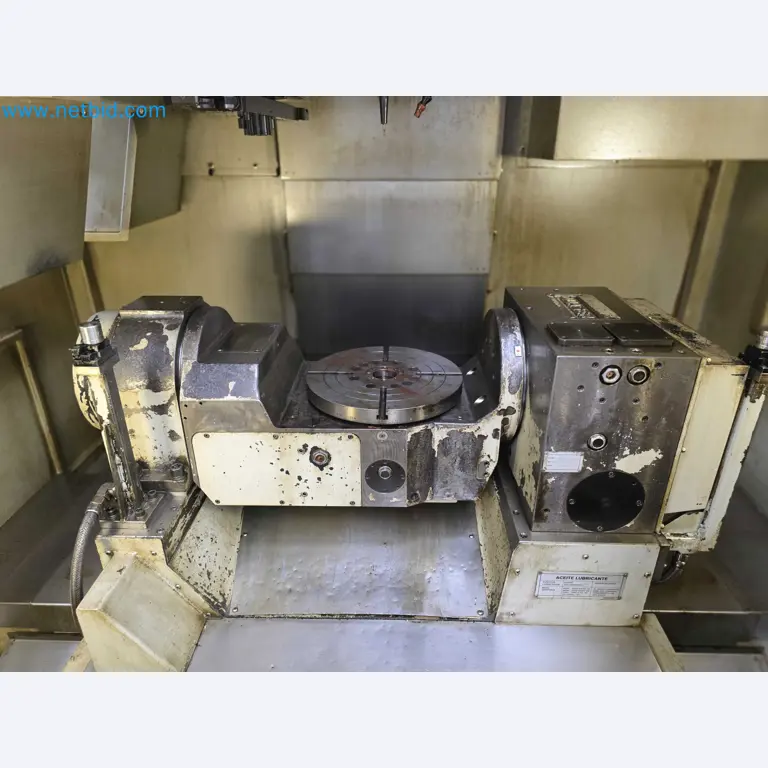

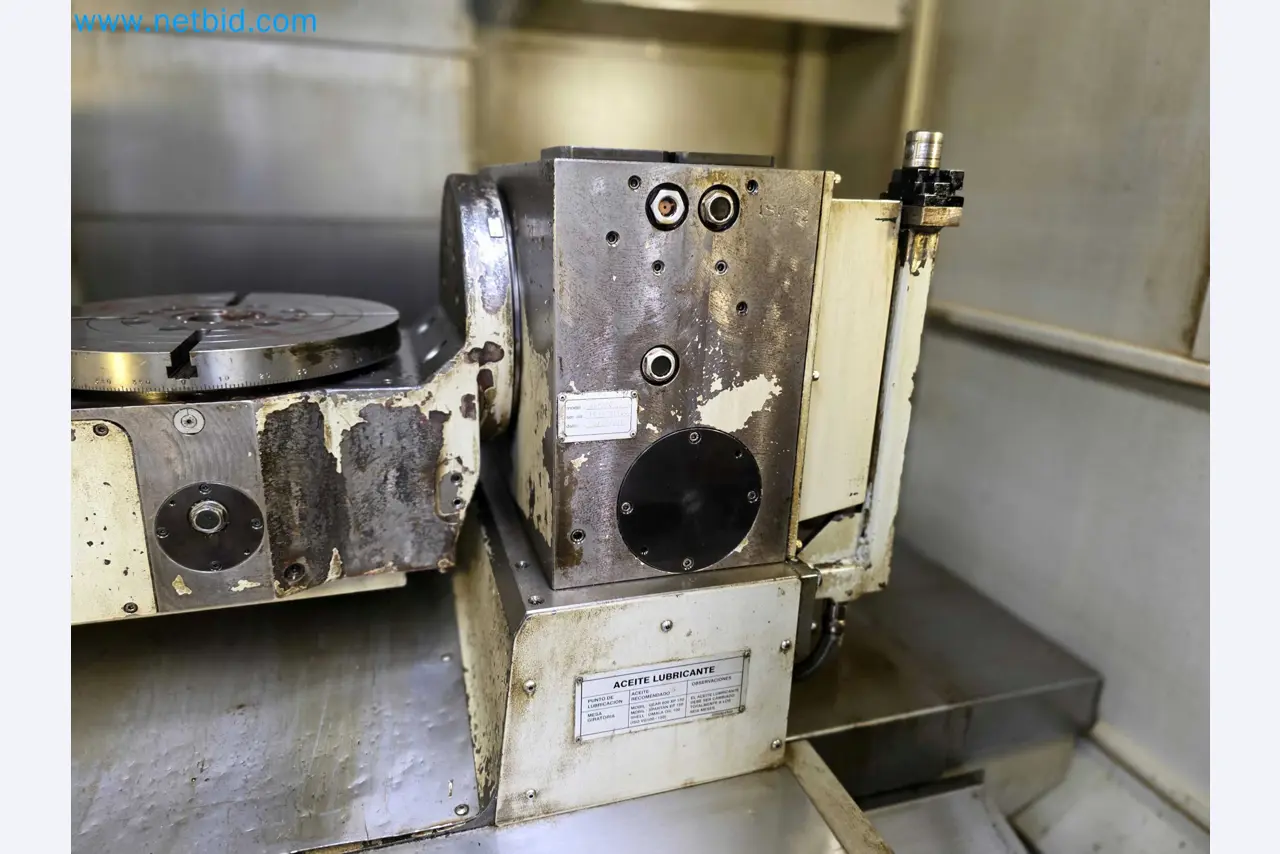

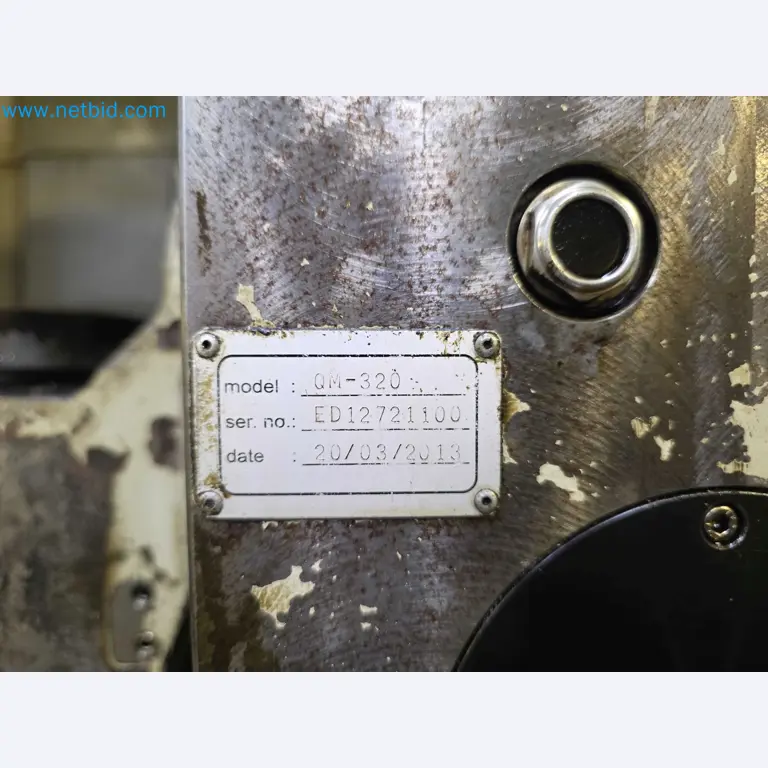

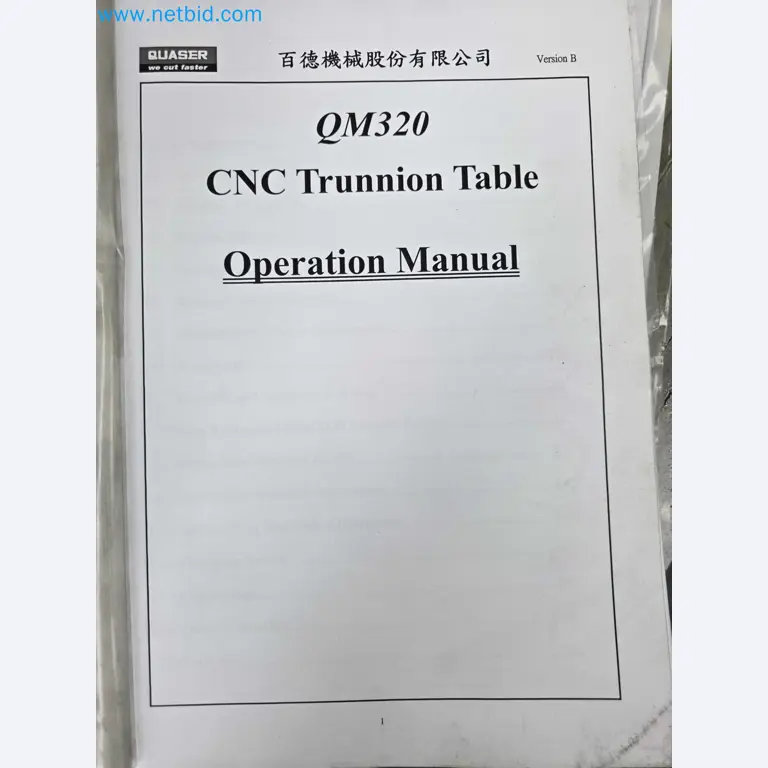

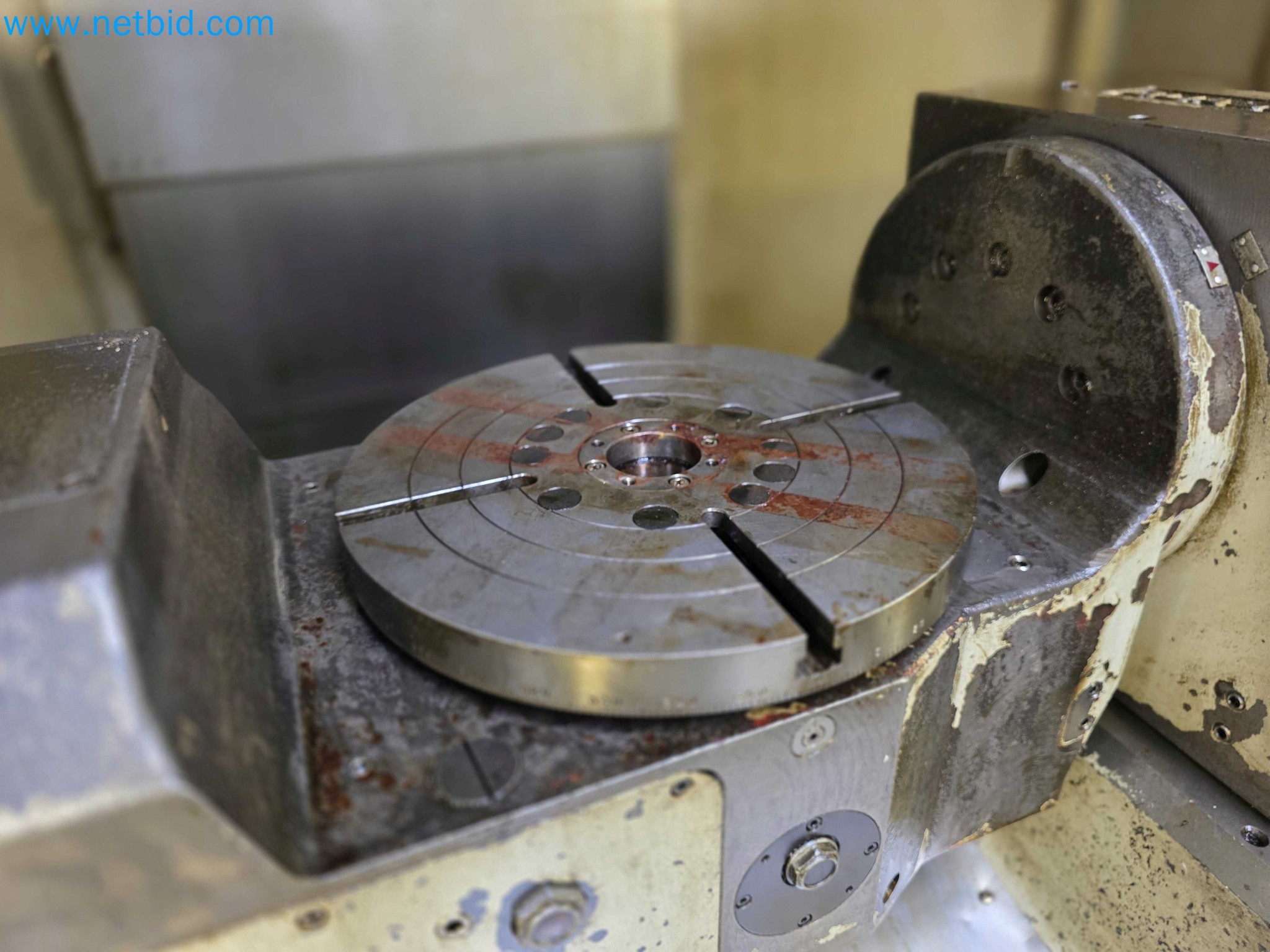

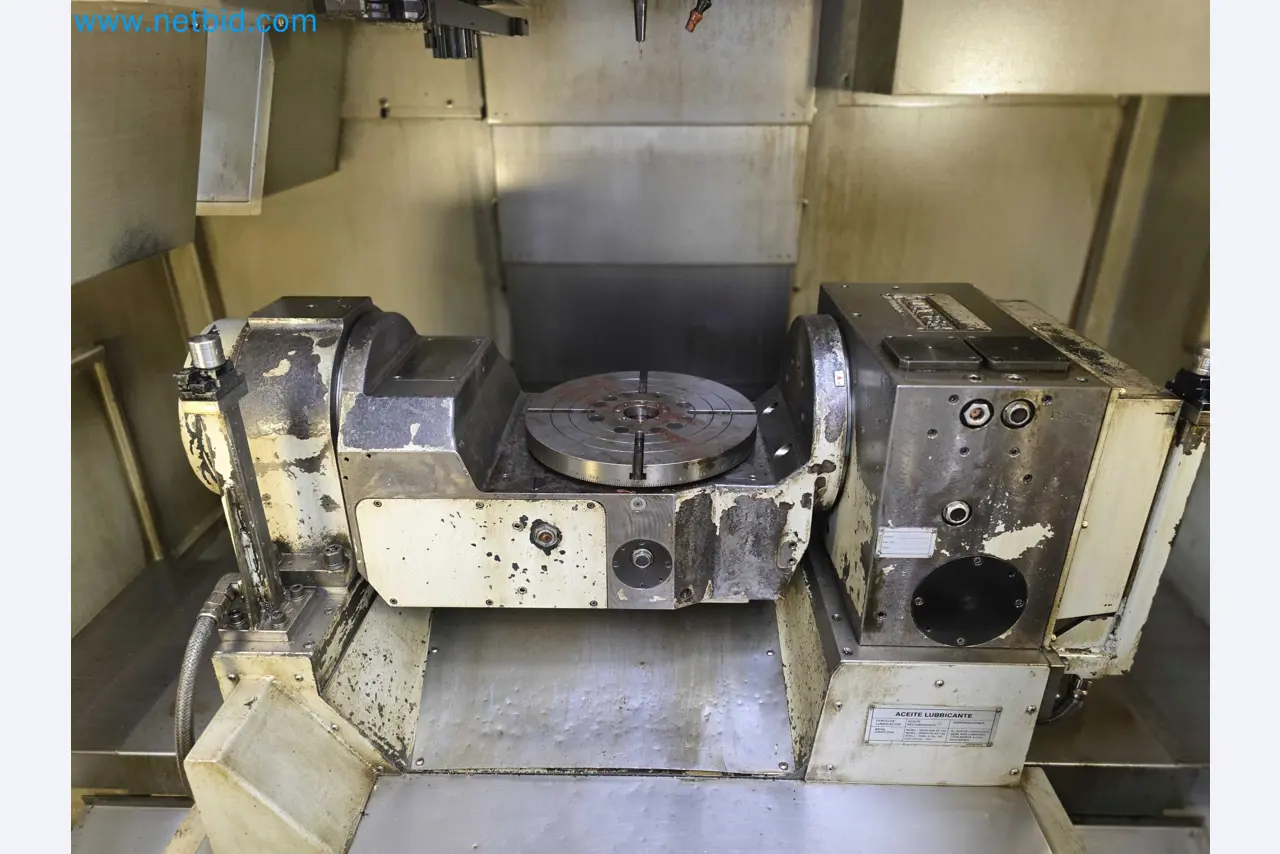

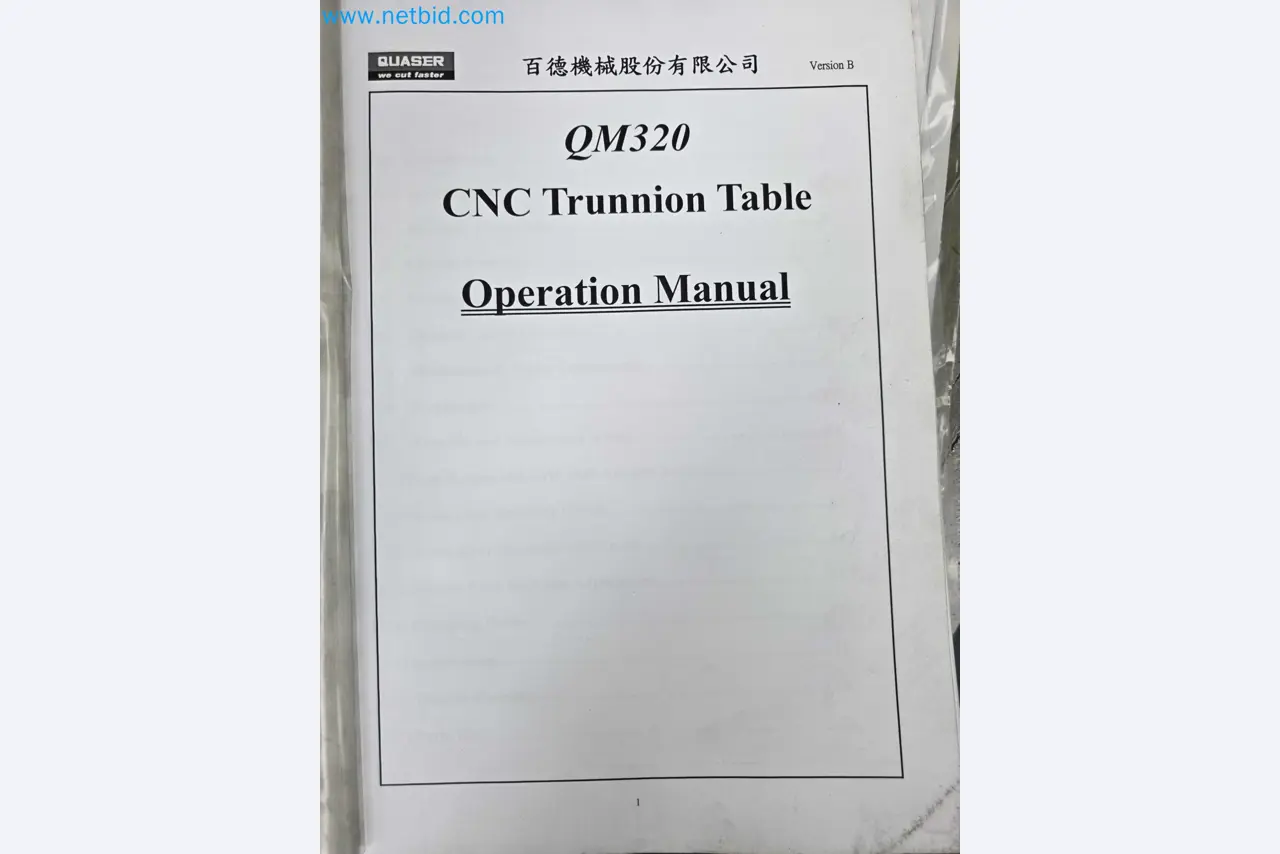

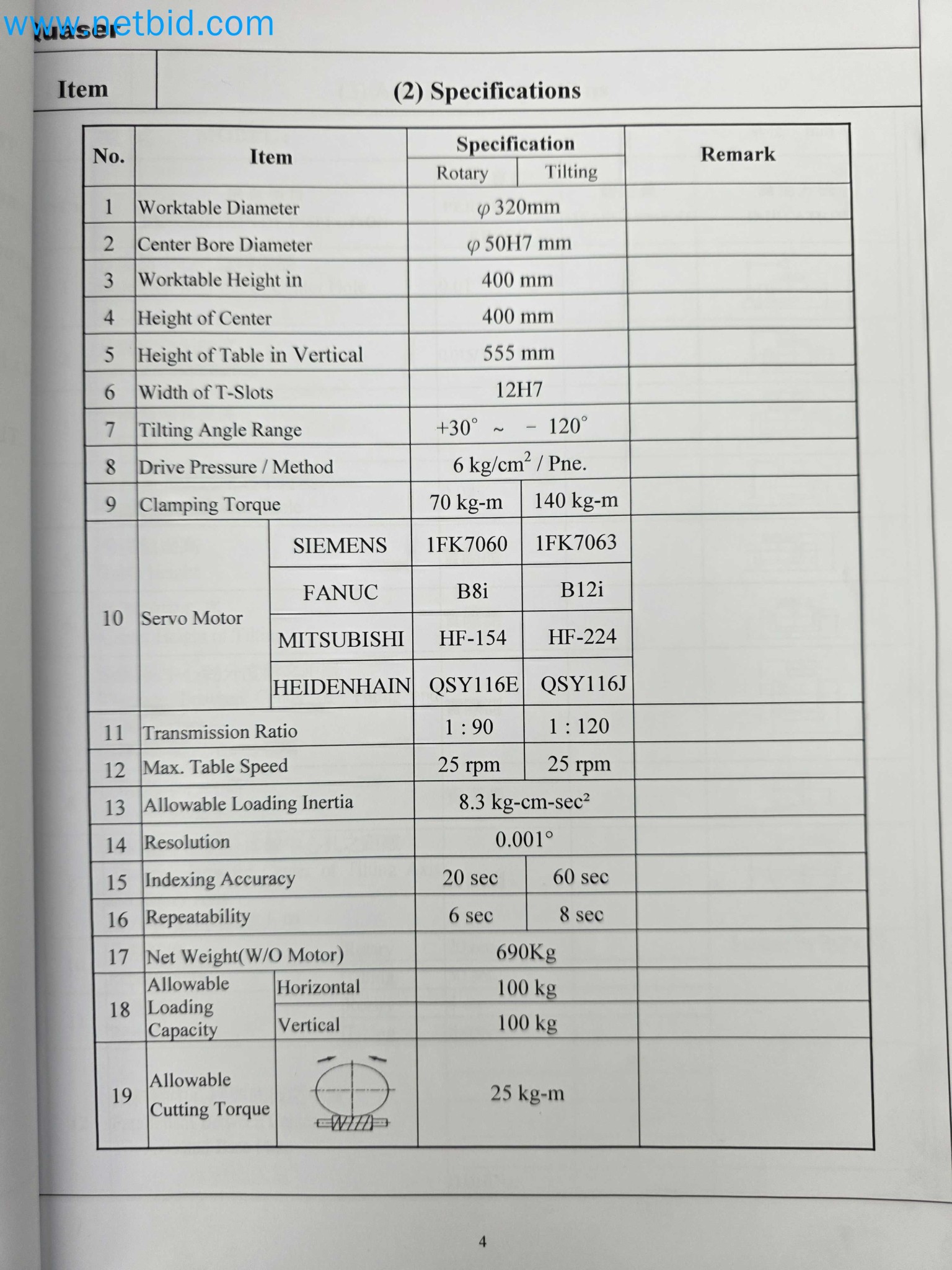

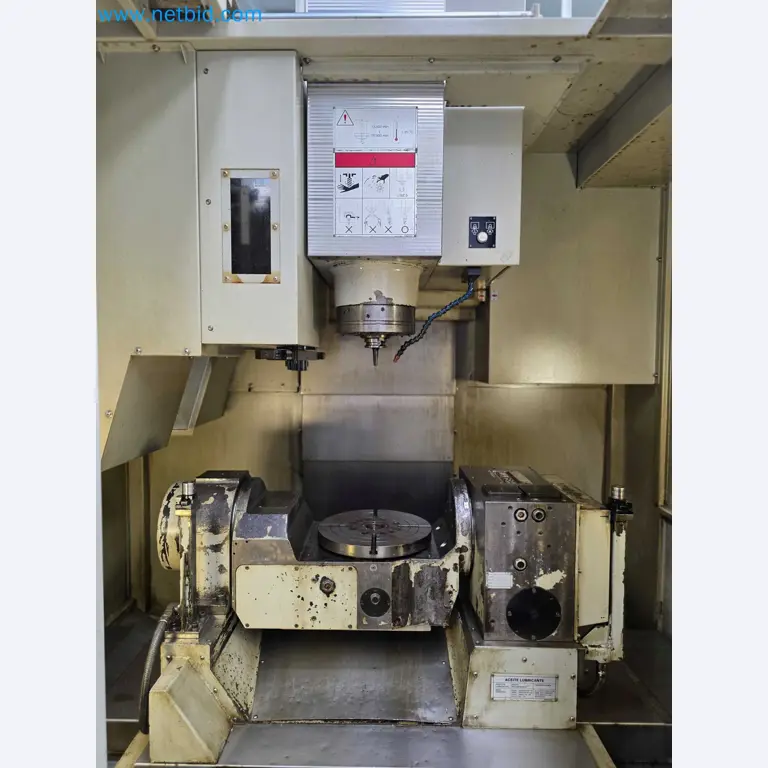

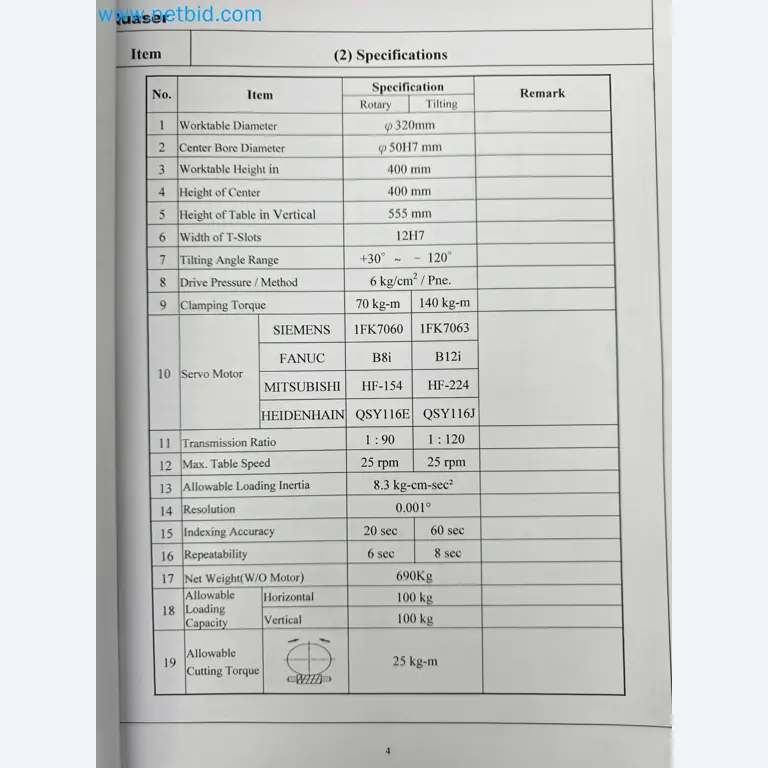

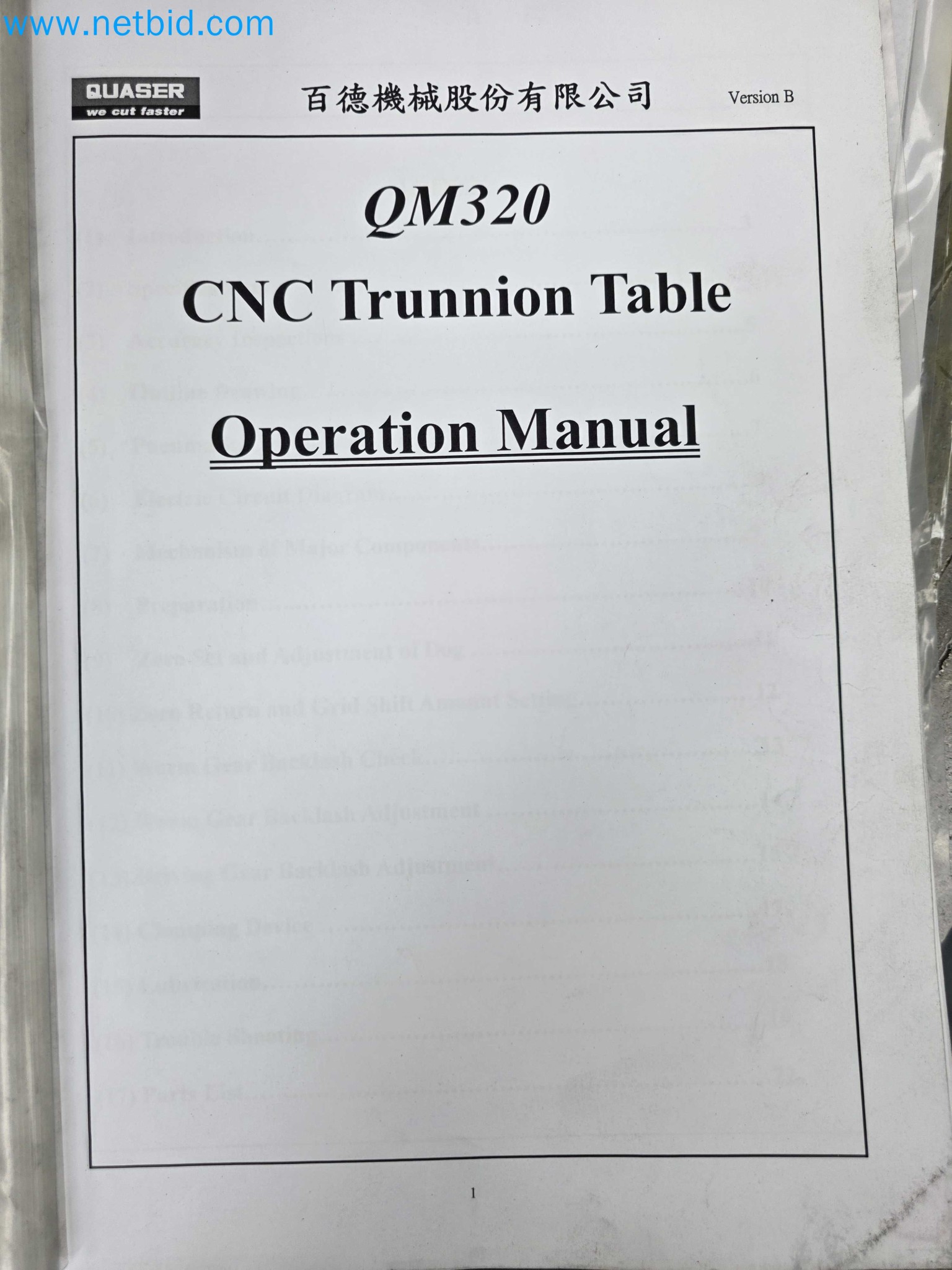

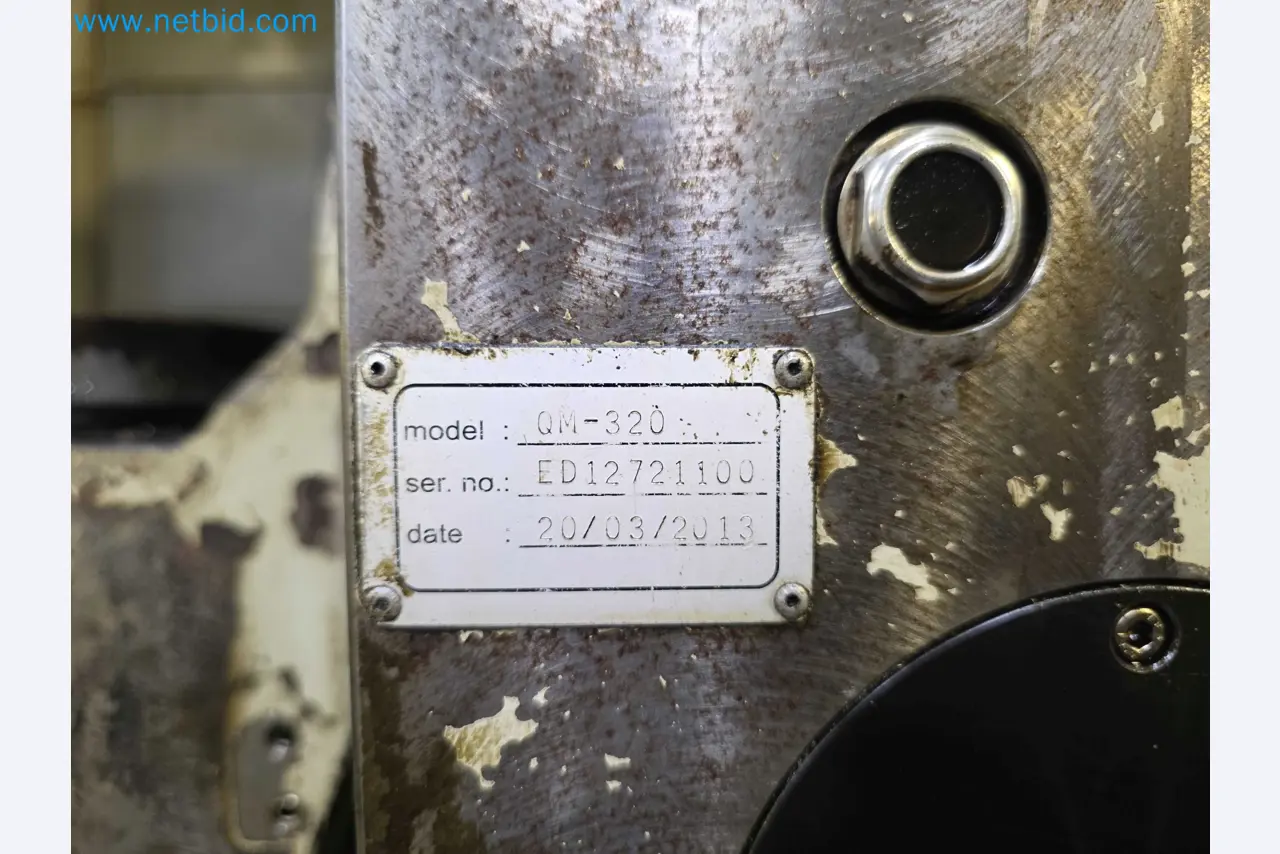

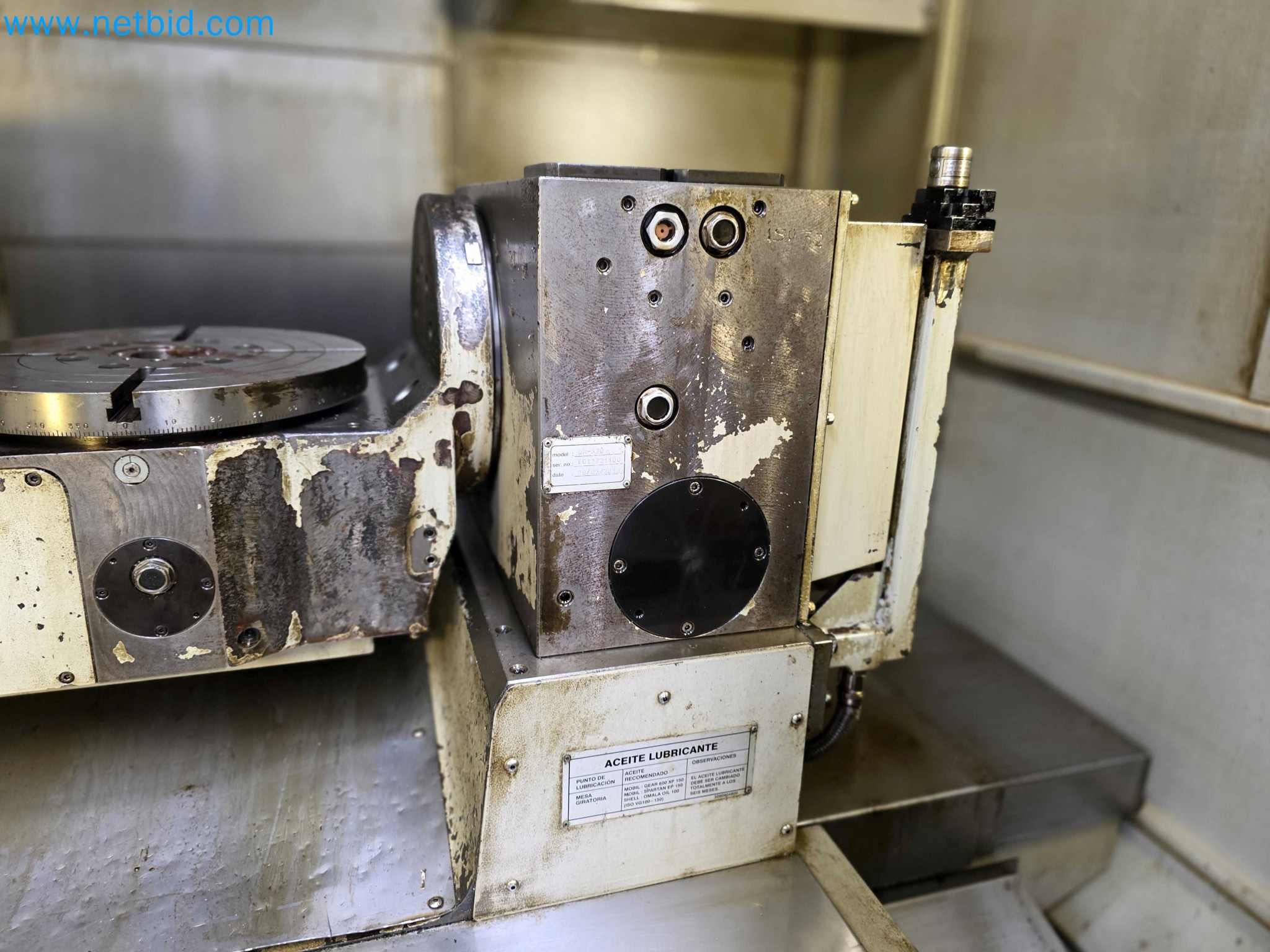

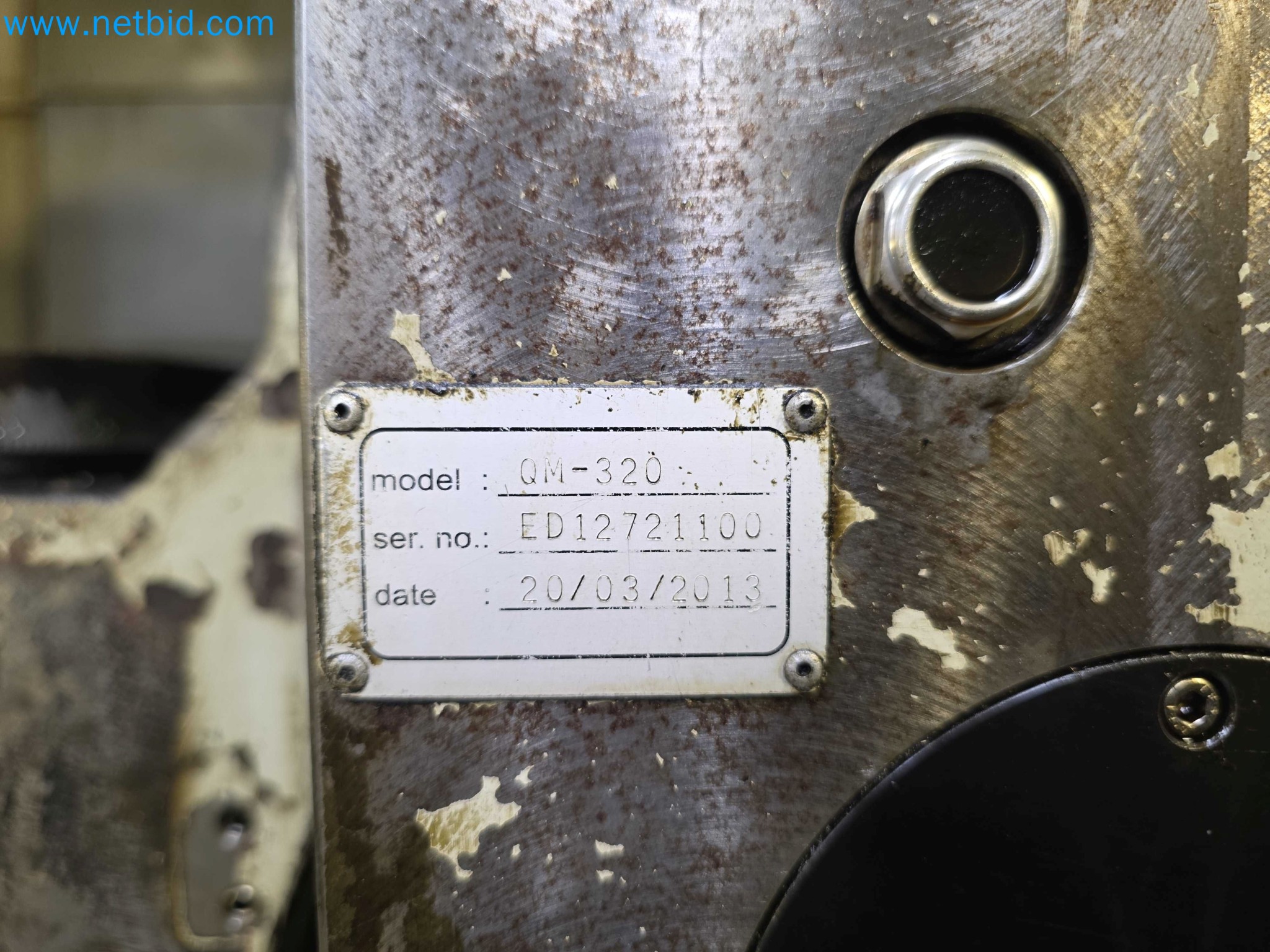

4th and 5th axis on QM-320 table; S.N.: ED12721100
Table diameter: 520 mm

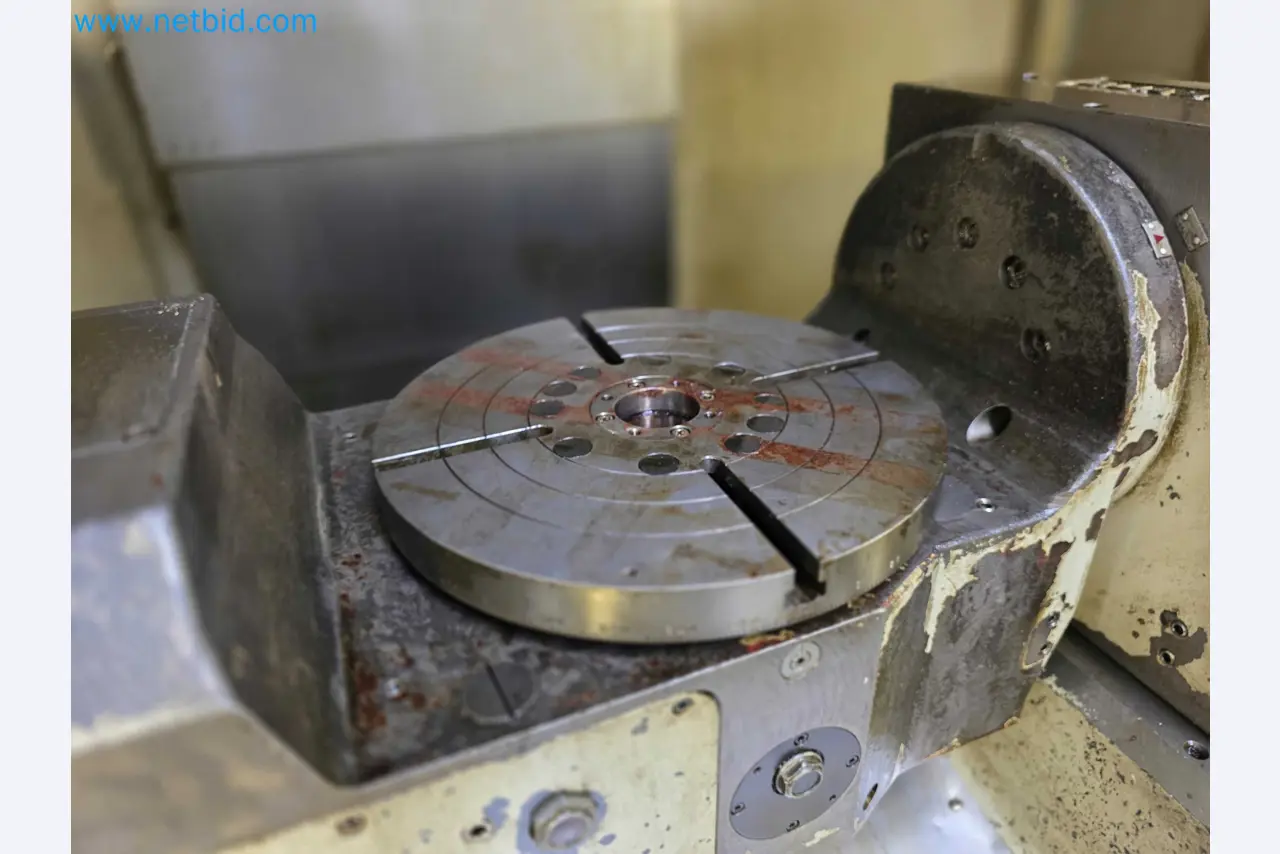

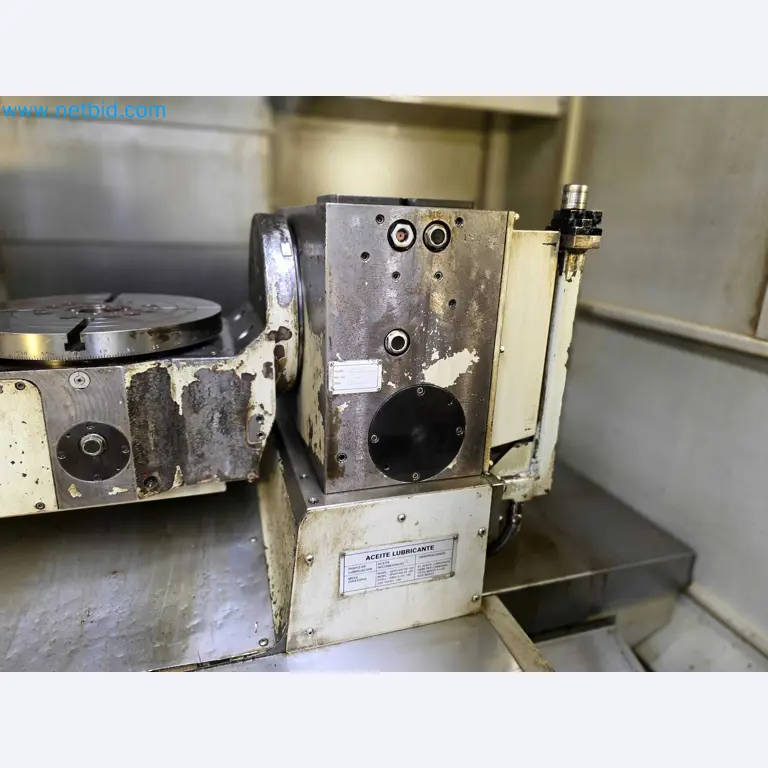

Rotary and tilting table
Maximum inclination: +30° / -120°
Maximum table load capacity: 100 kg
Maximum workpiece dimensions: ?400 × 300 mm

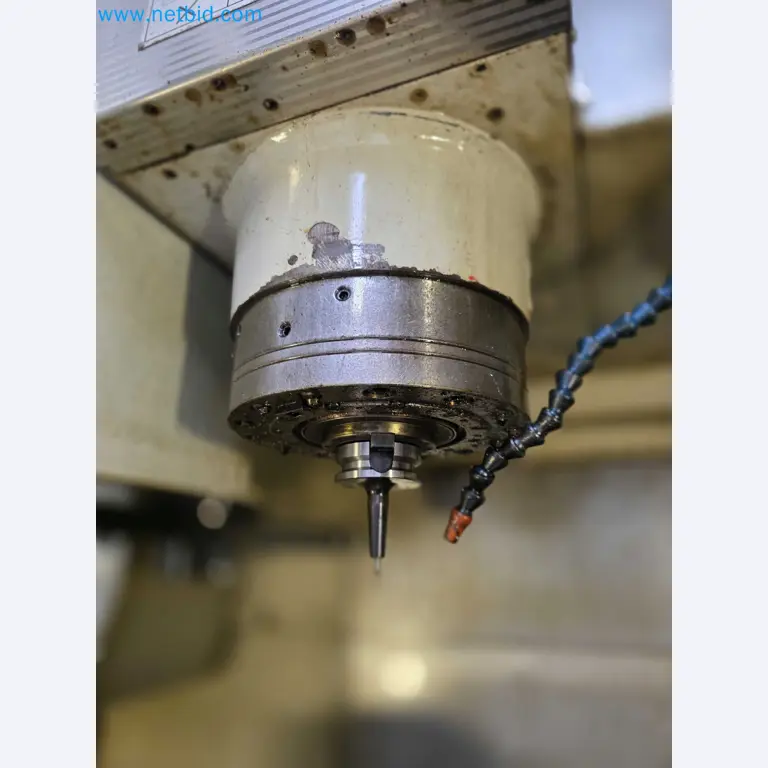

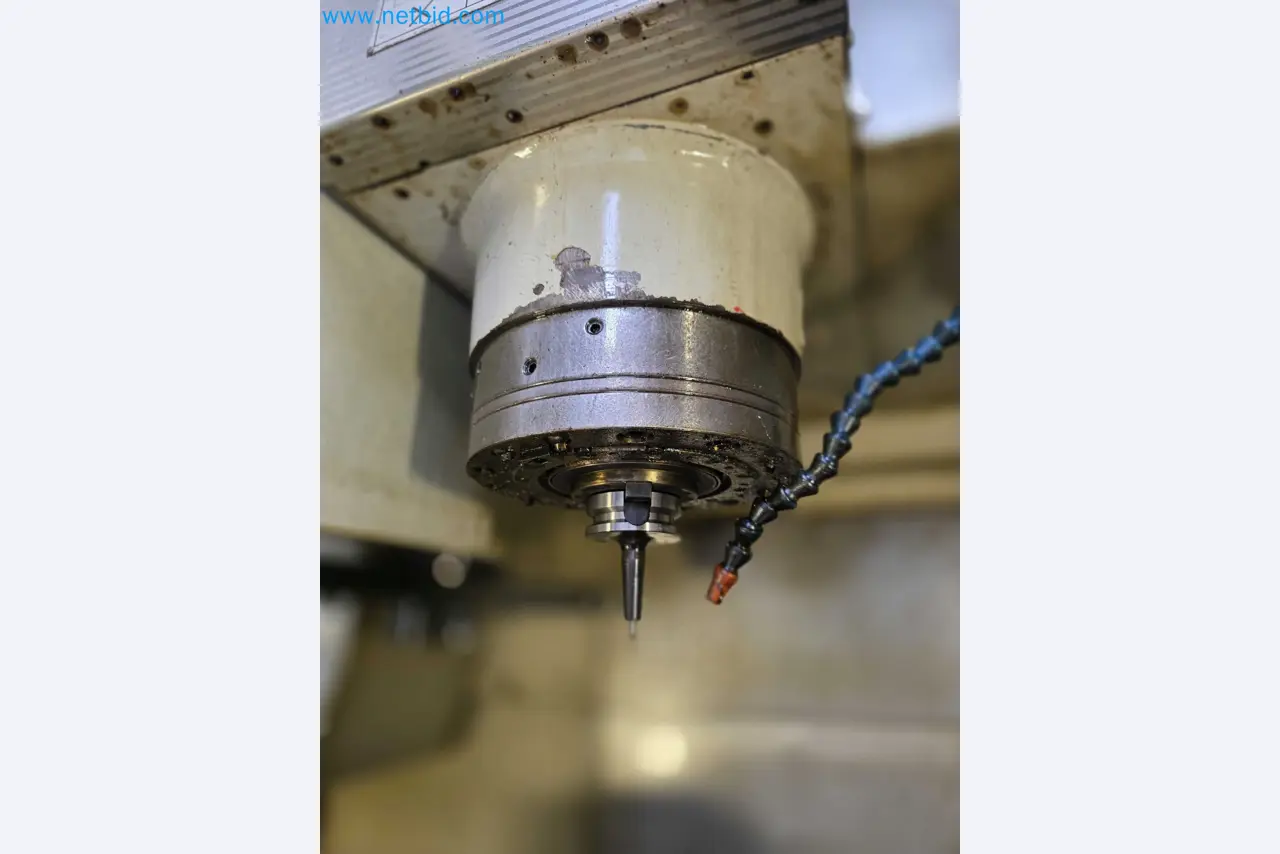

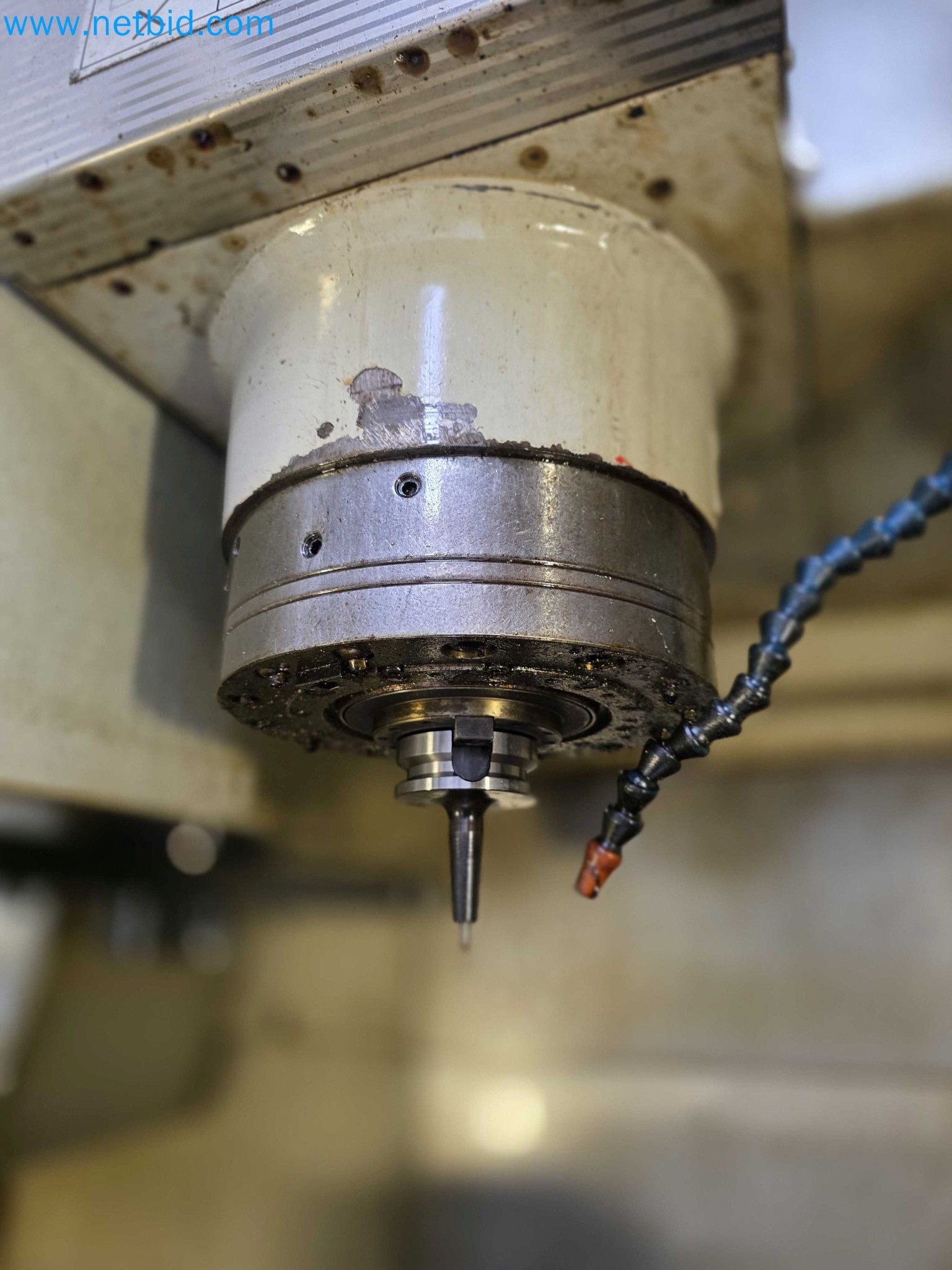

Maximum spindle speed: 15,000 rpm

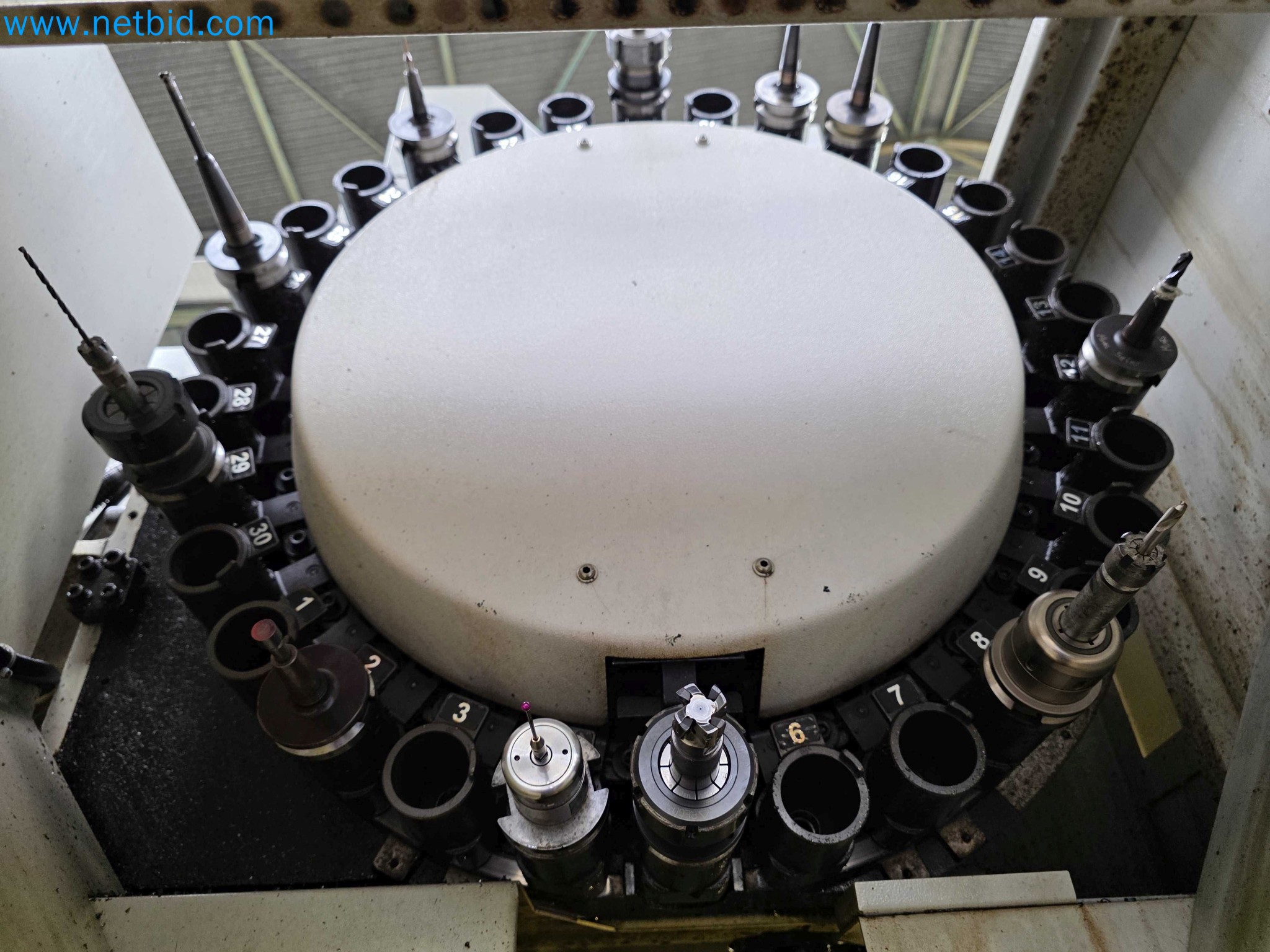

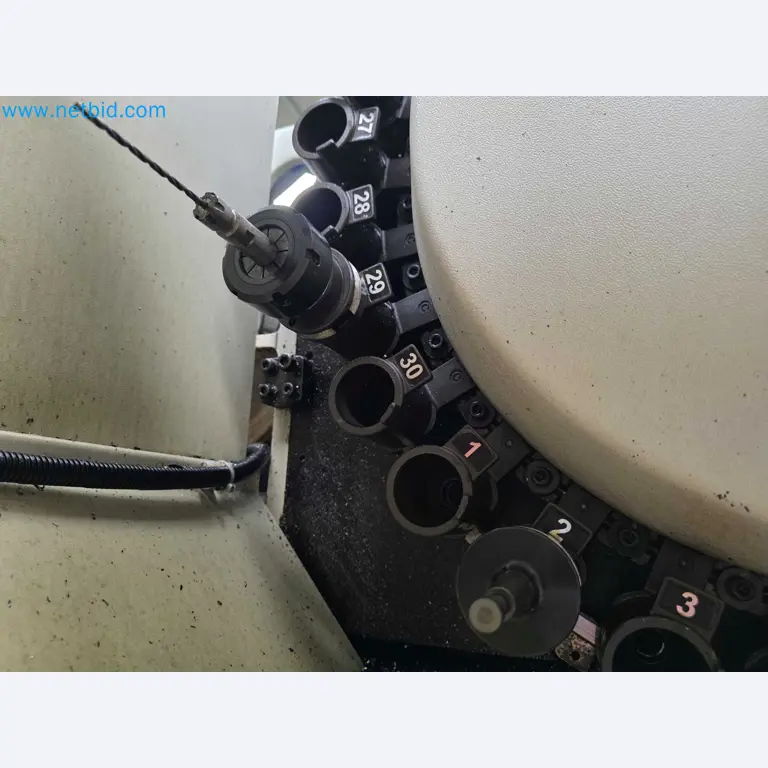

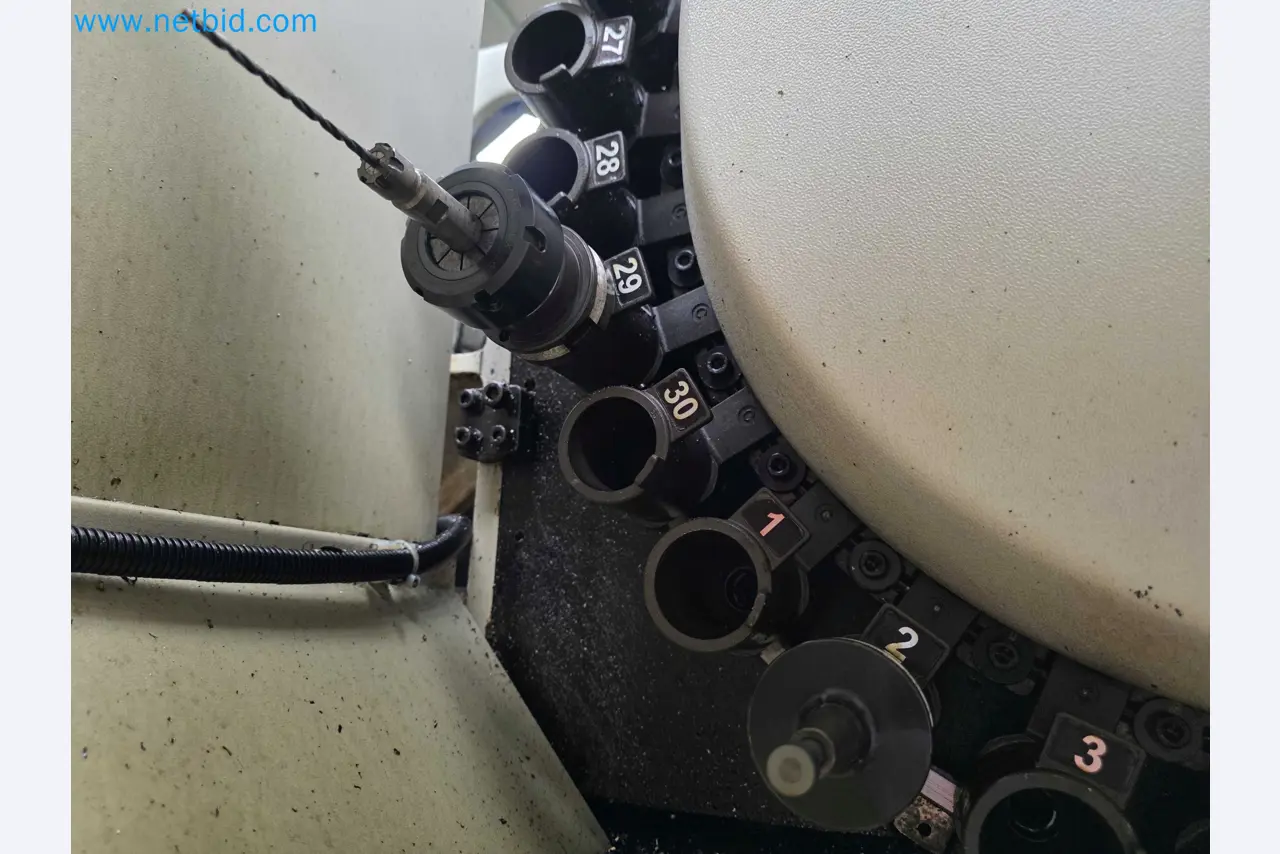

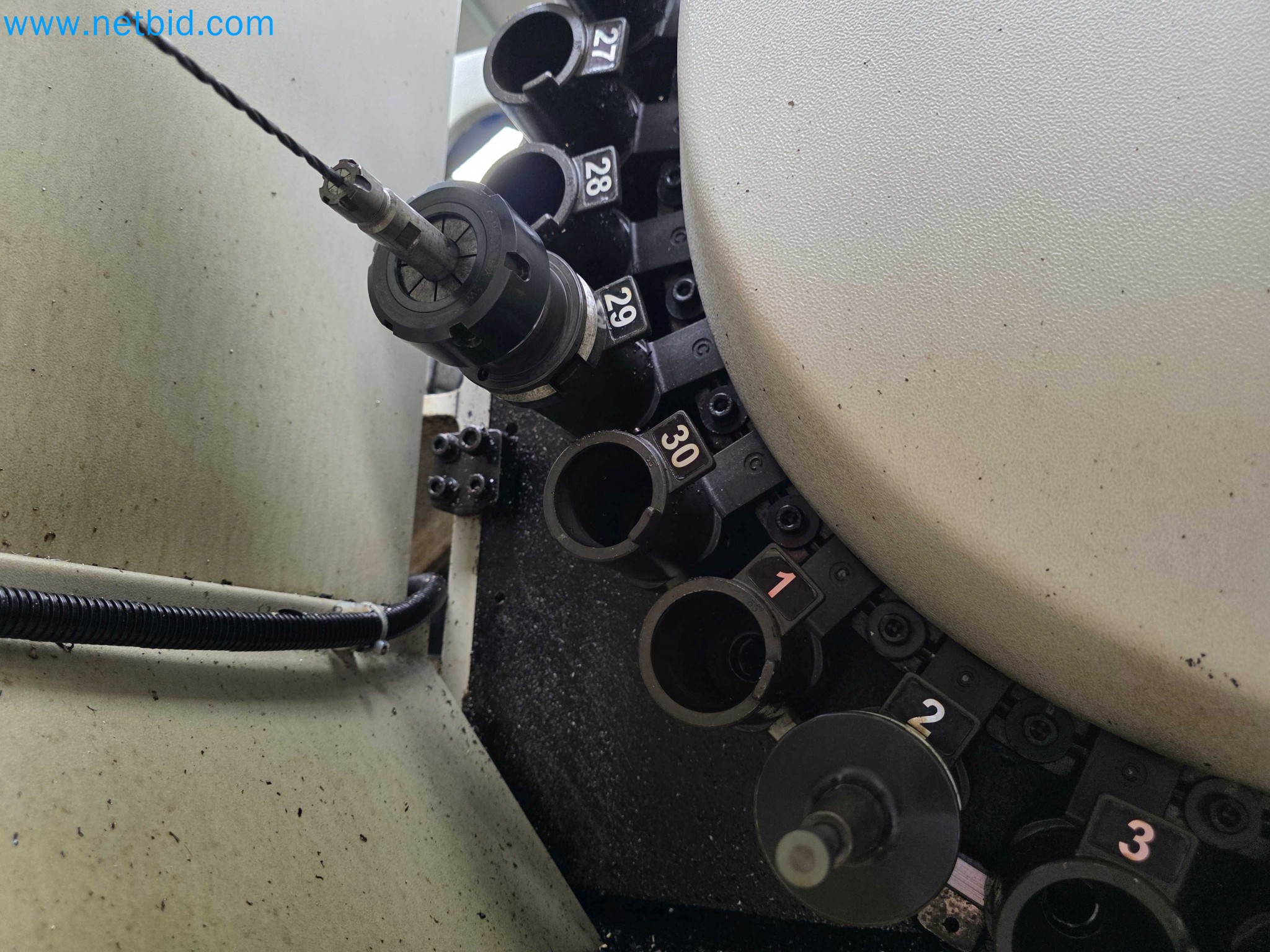

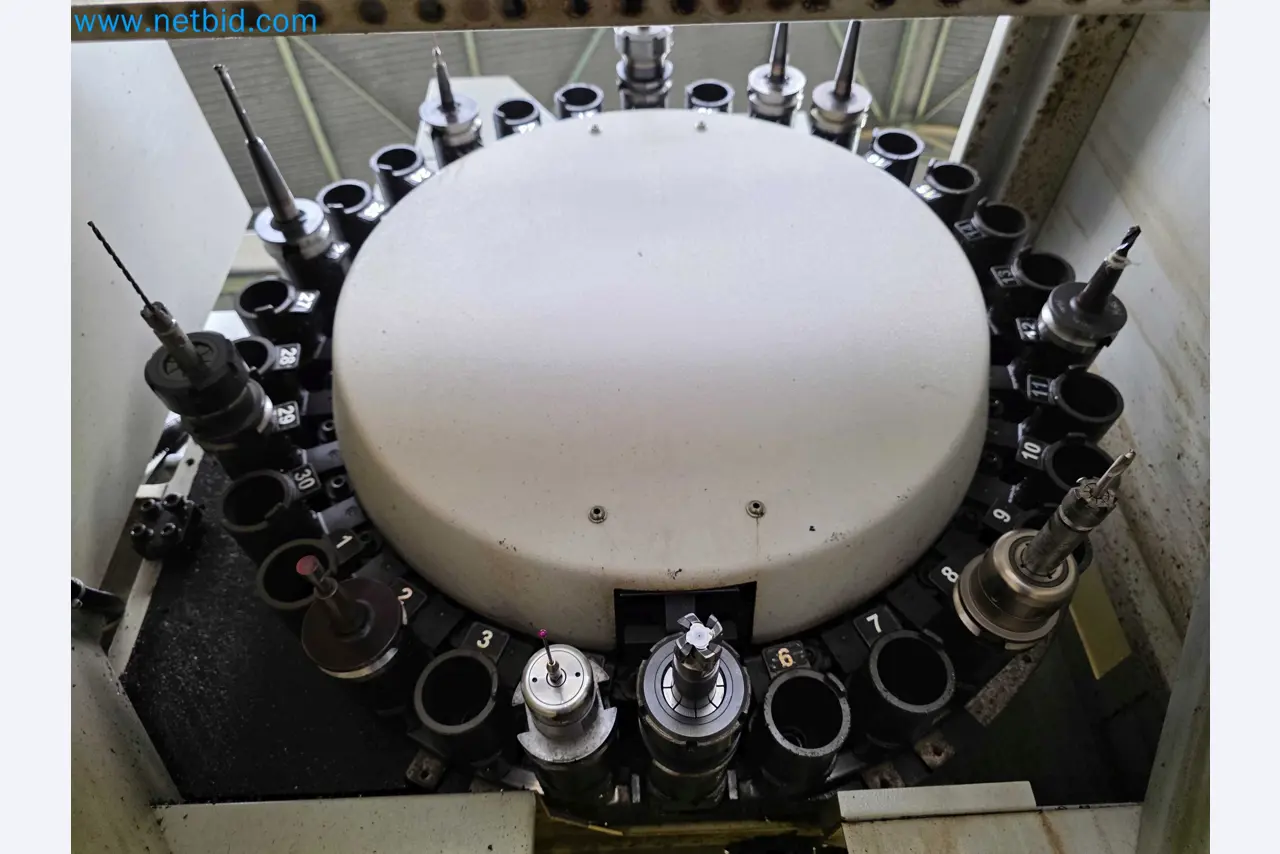

30-position tool magazine
Tooling included

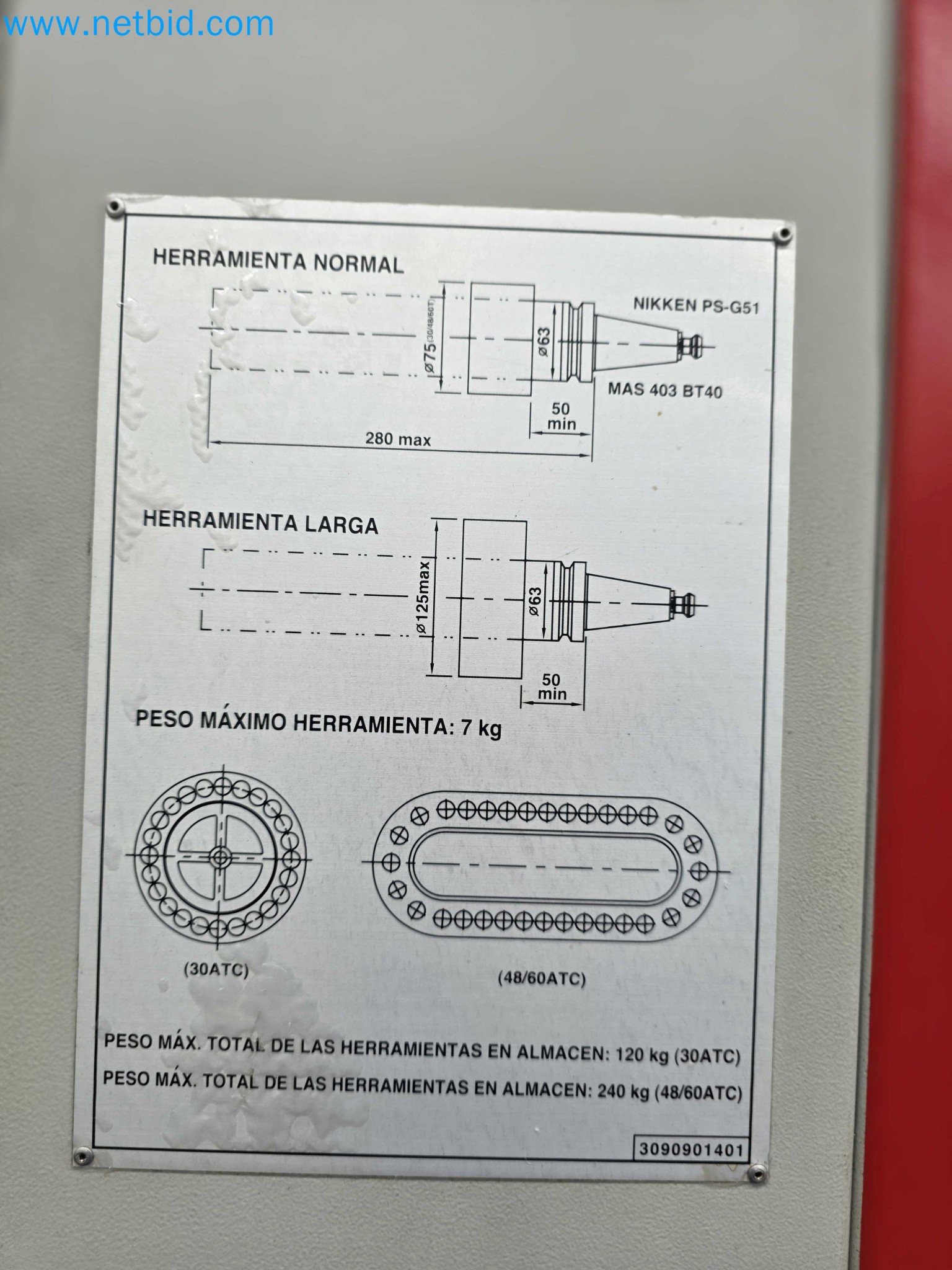

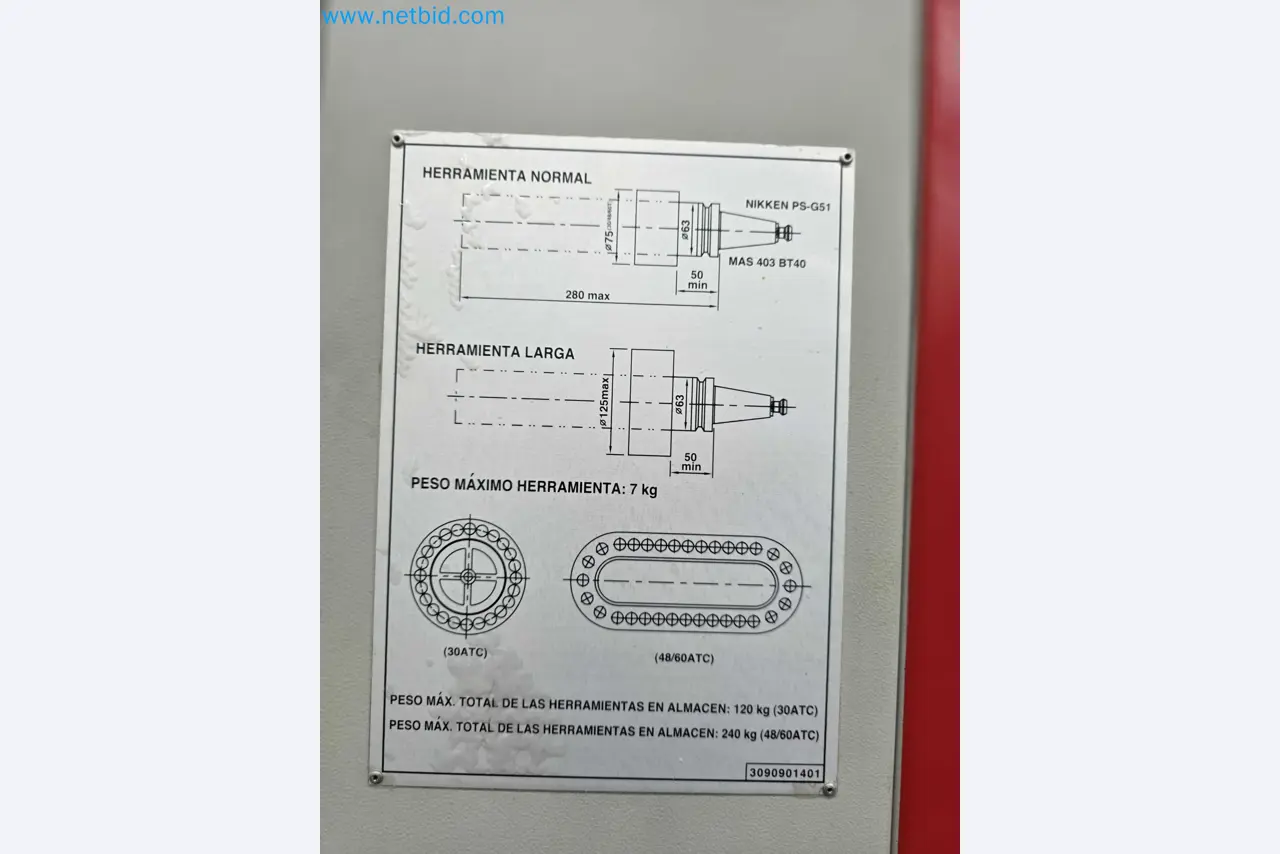

Maximum tool length: 280 mm
Maximum tool diameter: 76.2 mm

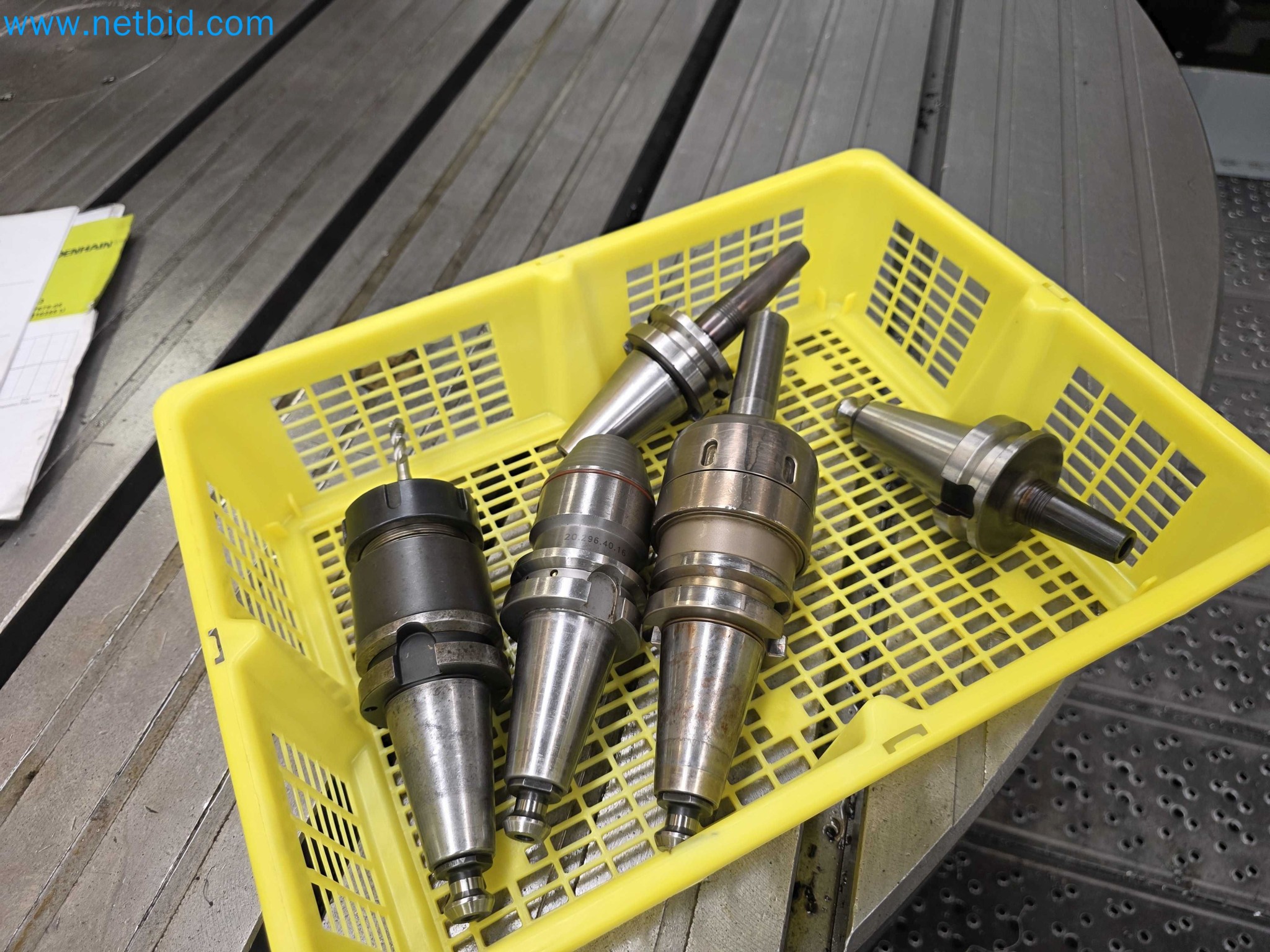

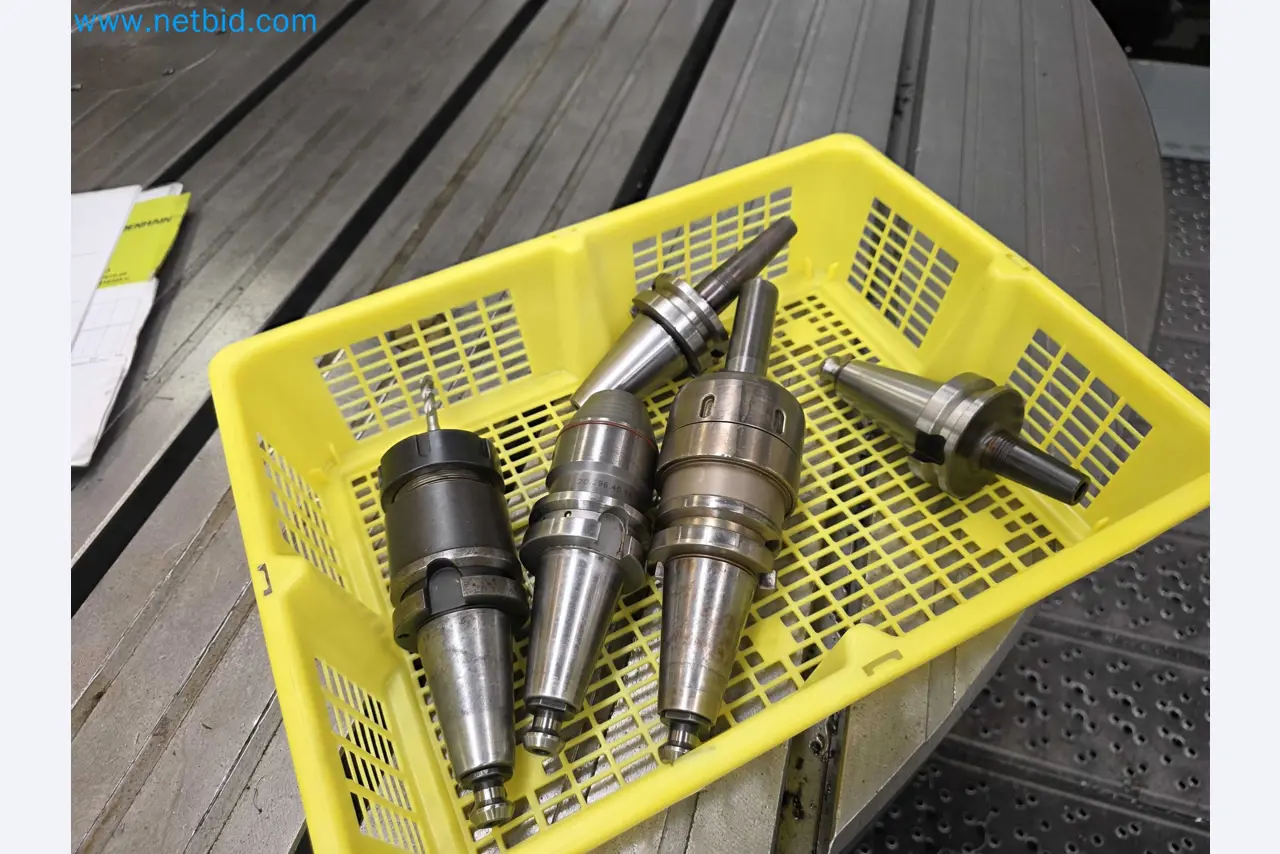

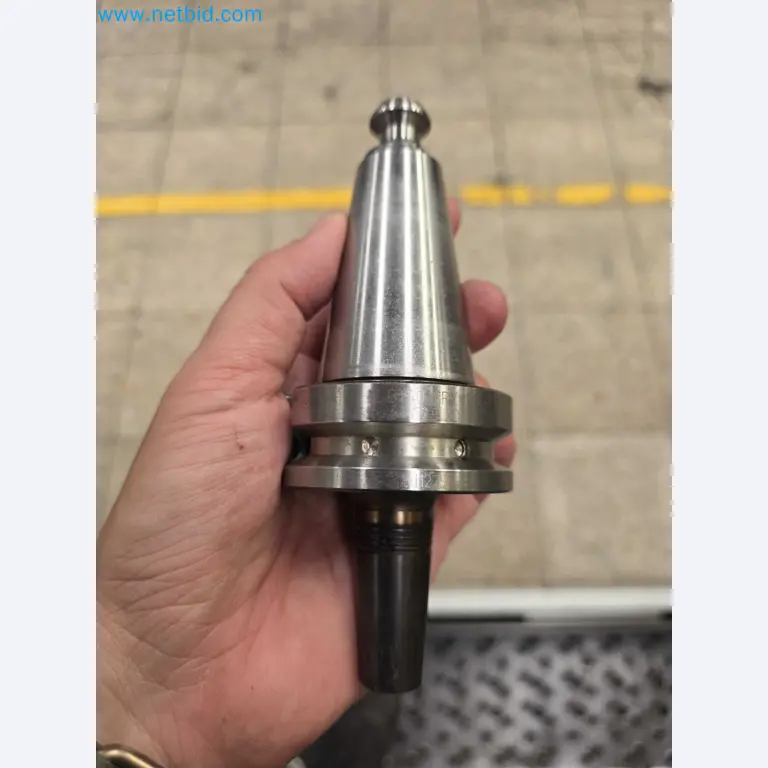

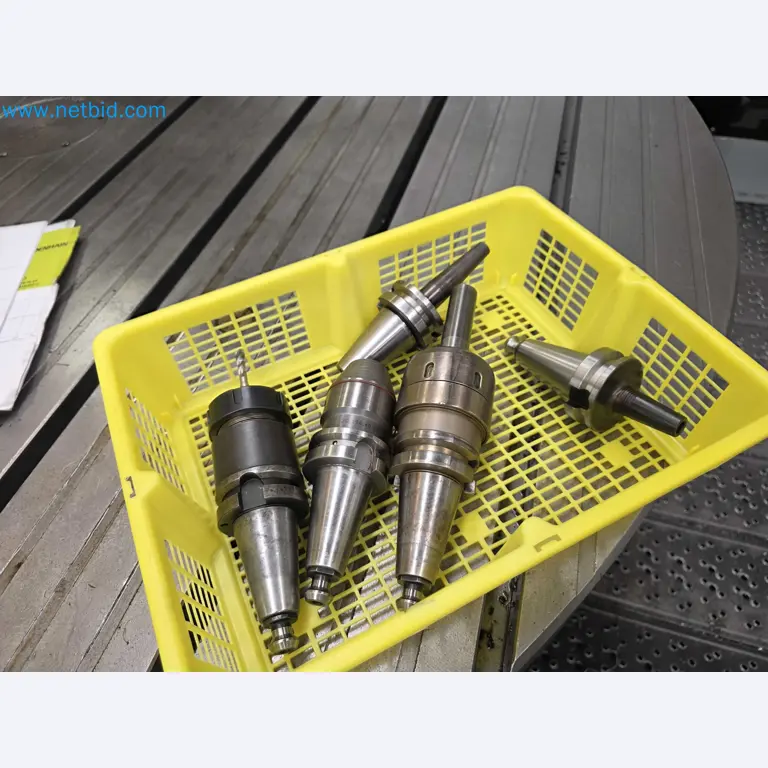

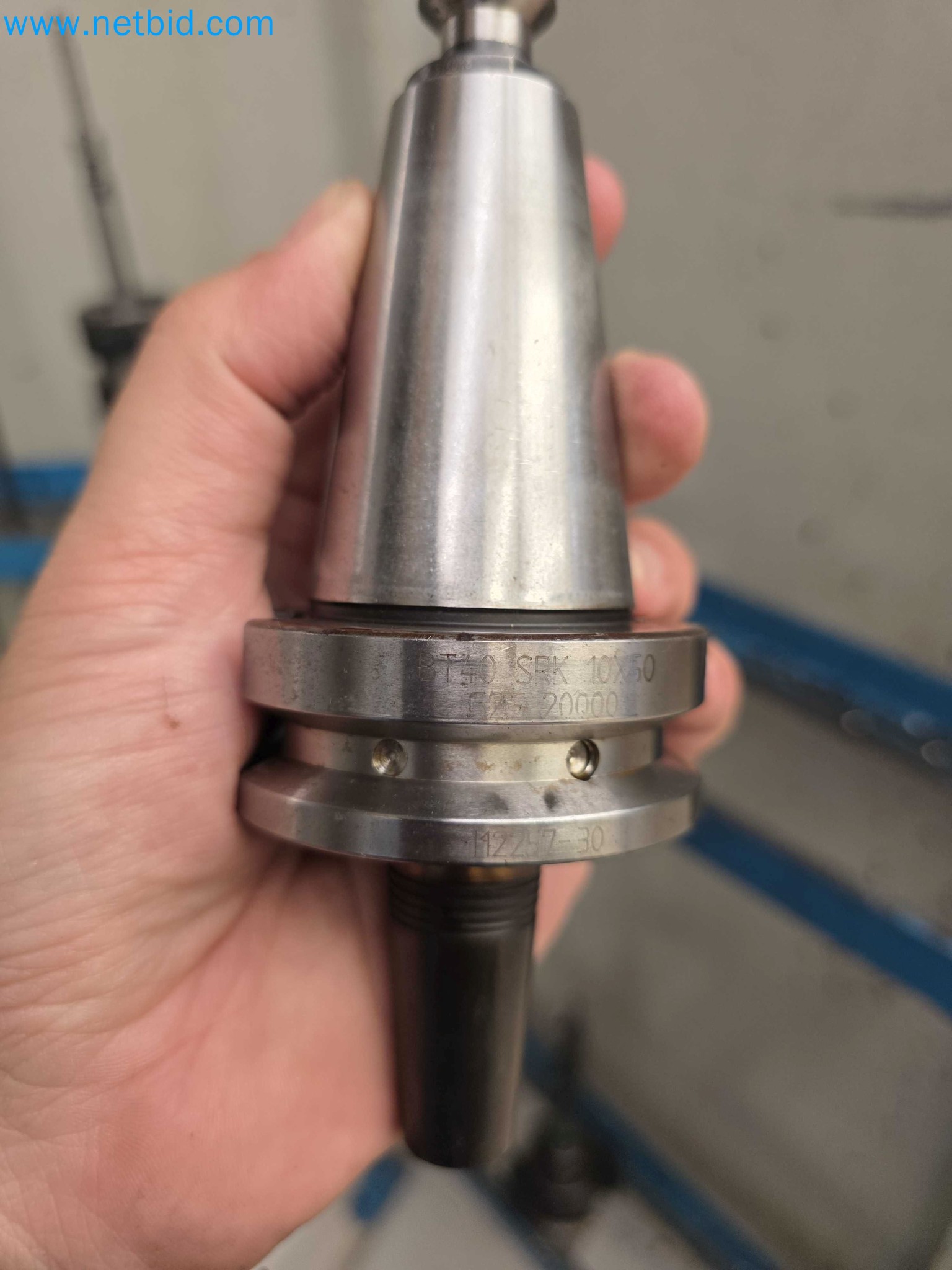

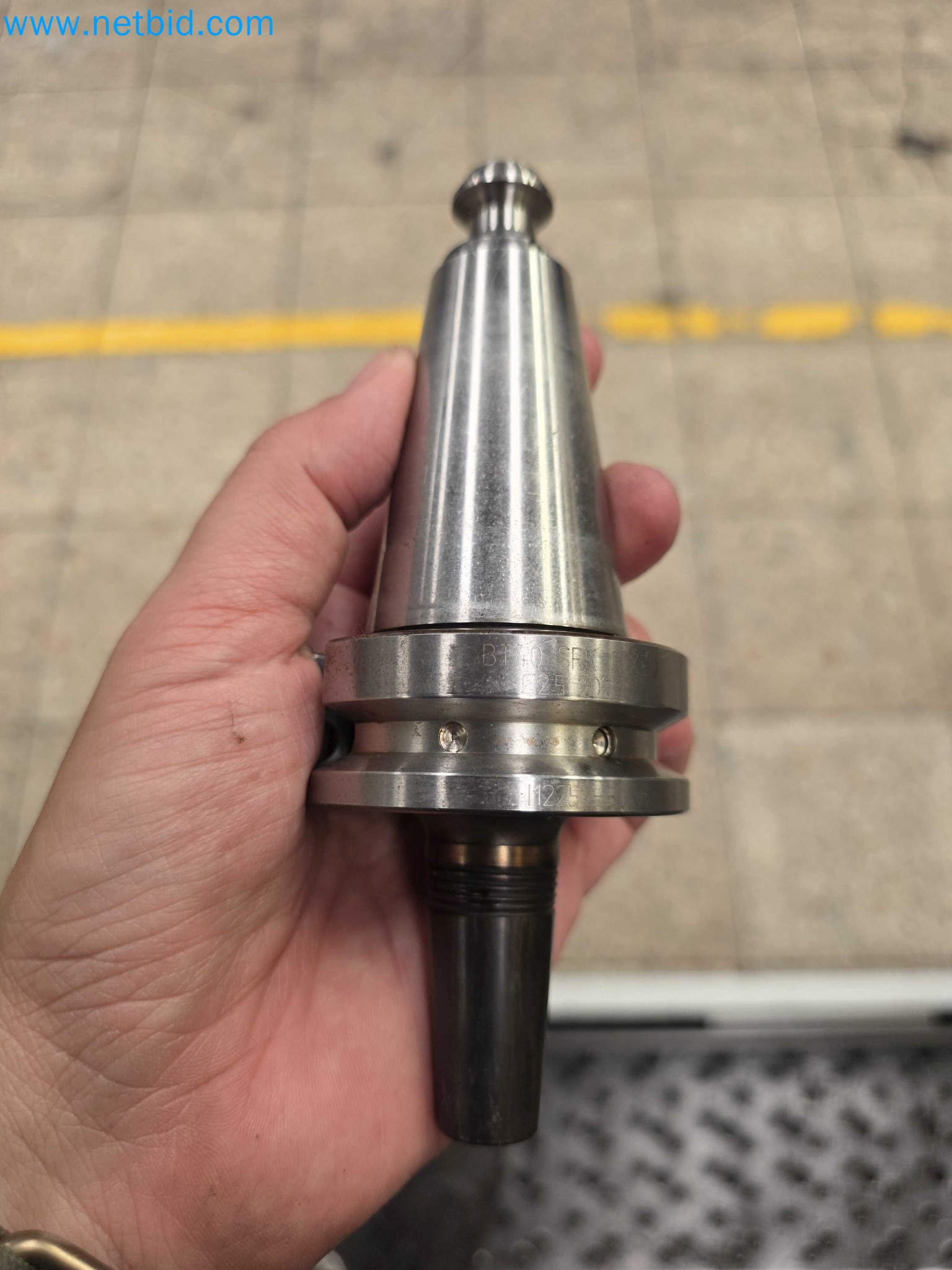

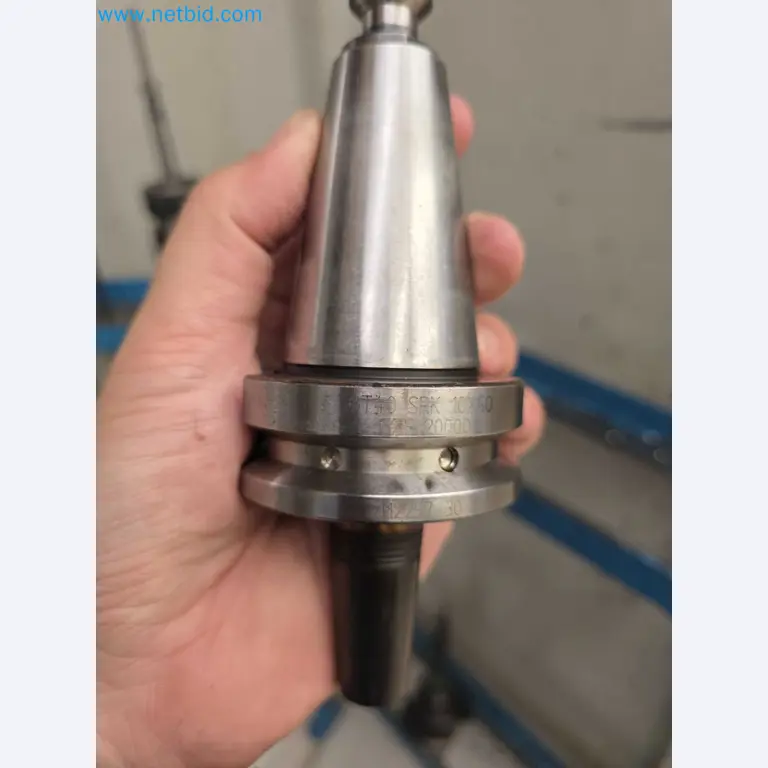

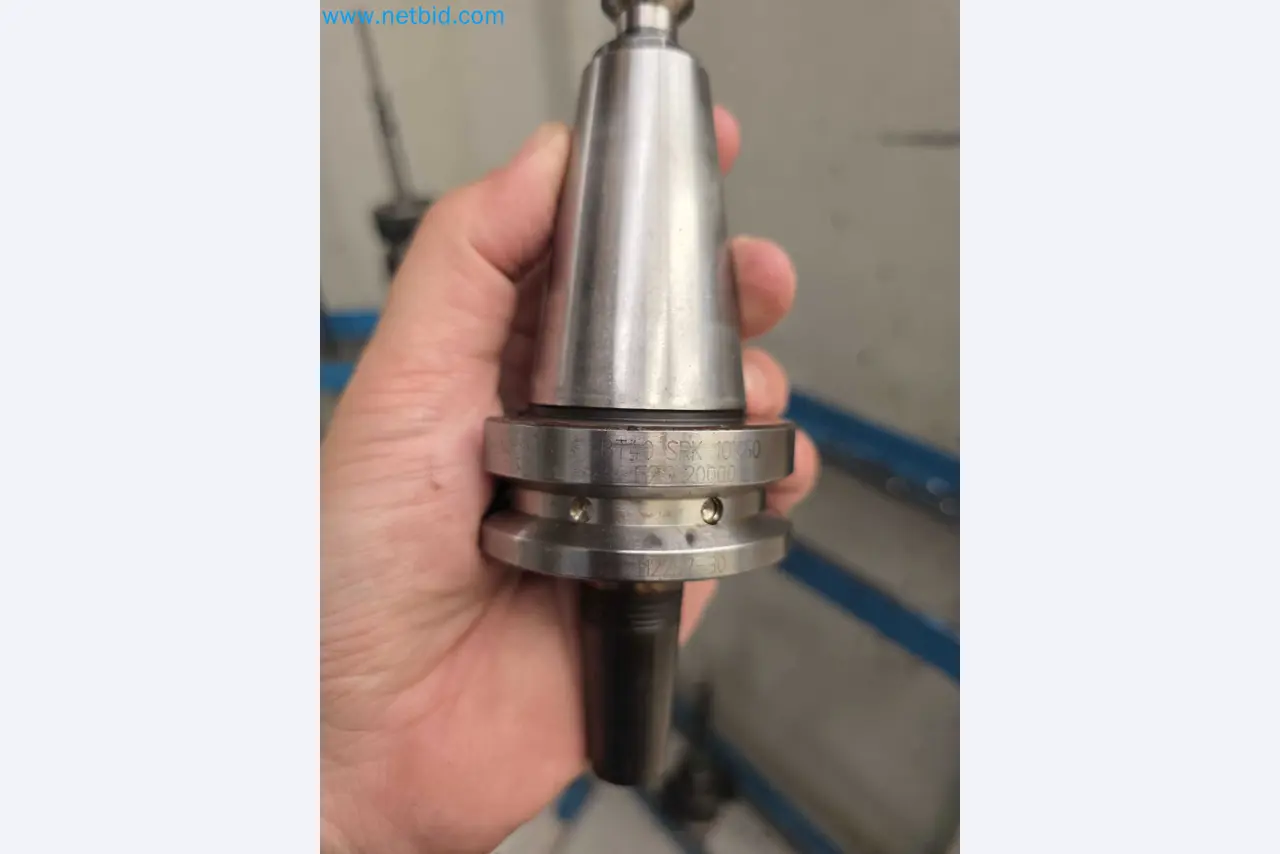

BT-40 tool holders

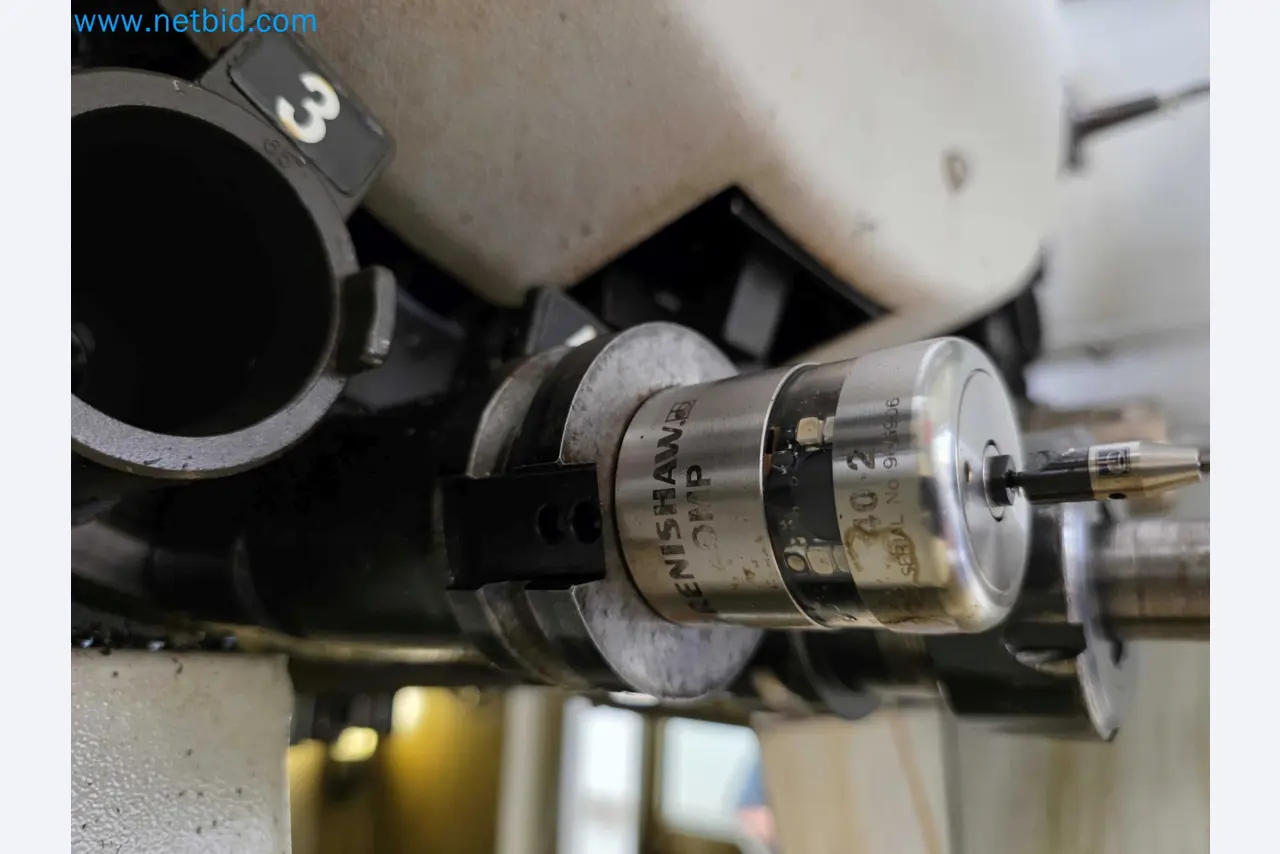

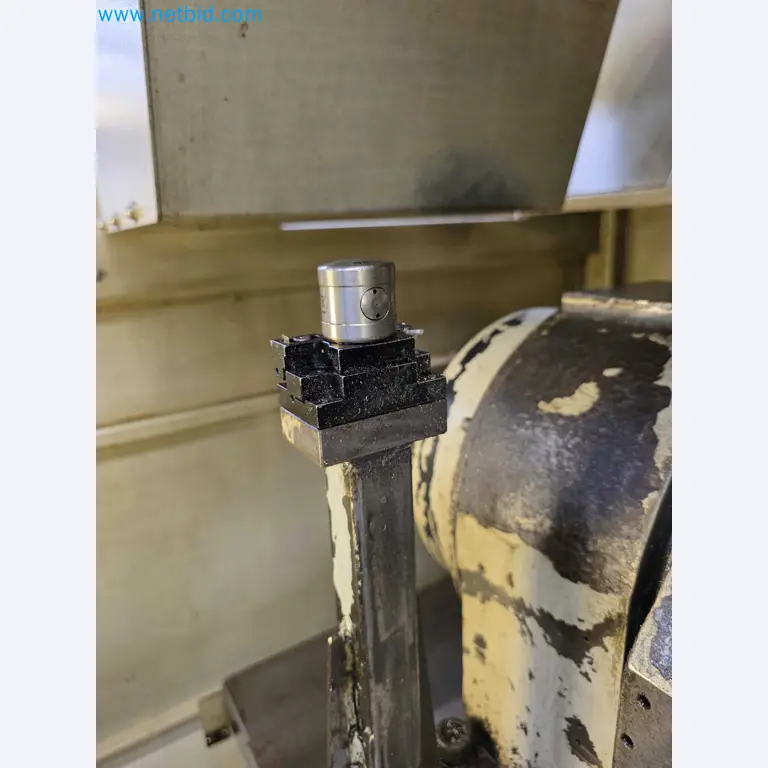

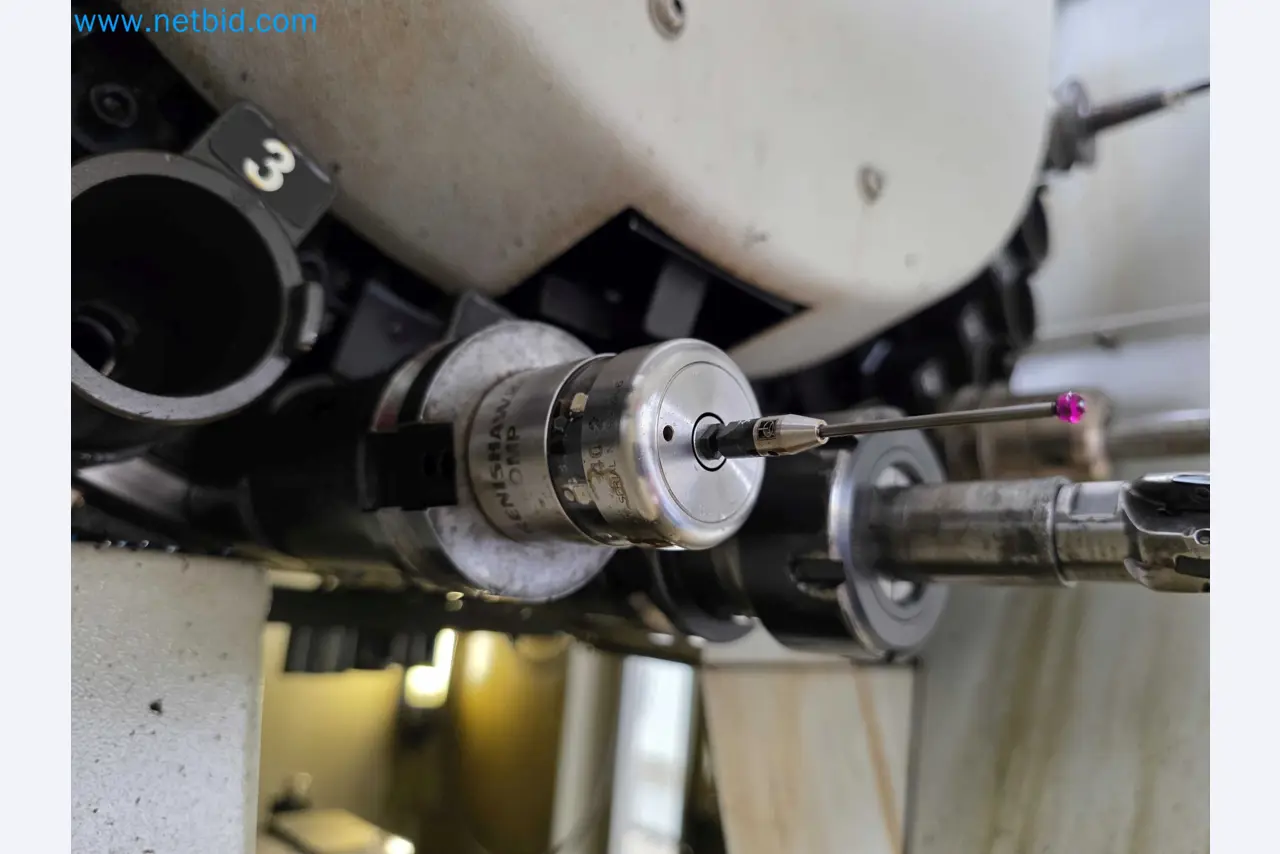

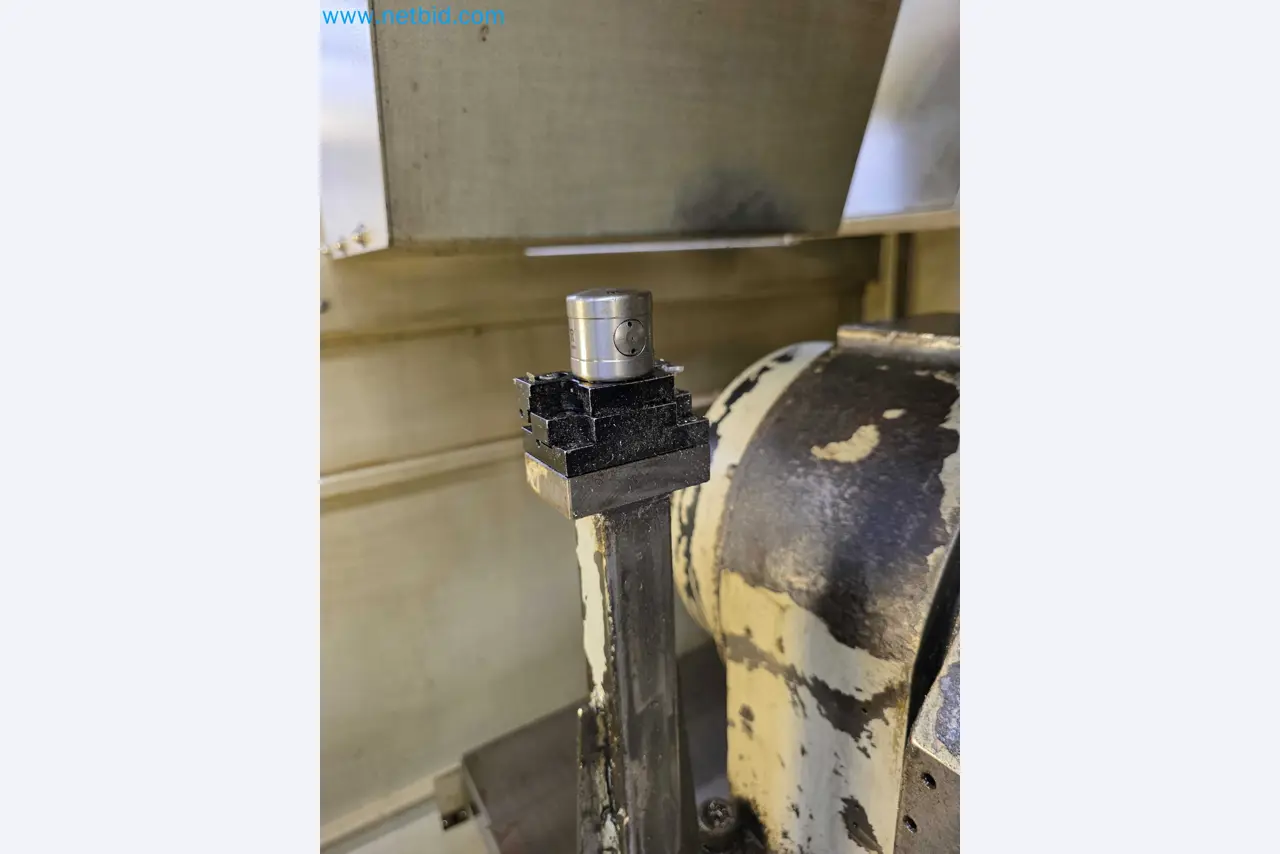

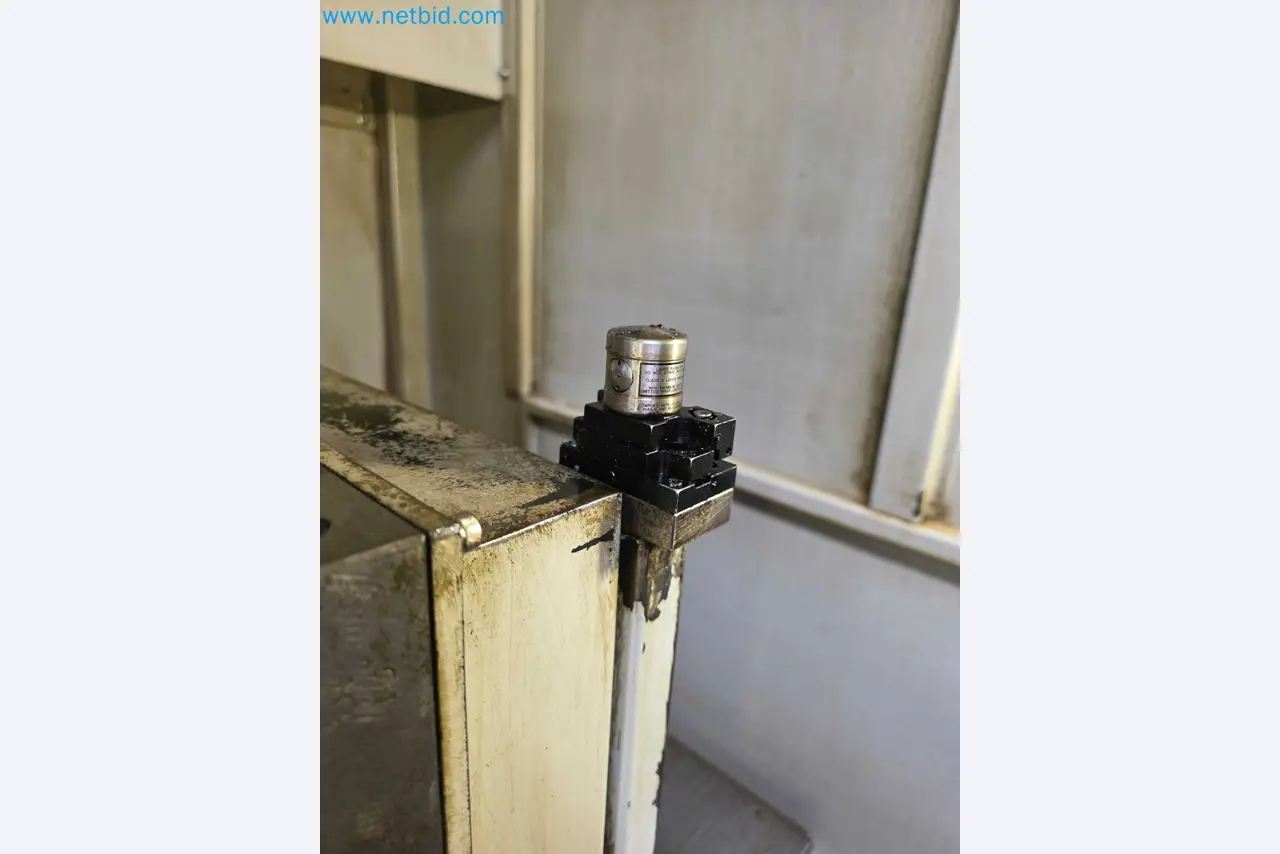

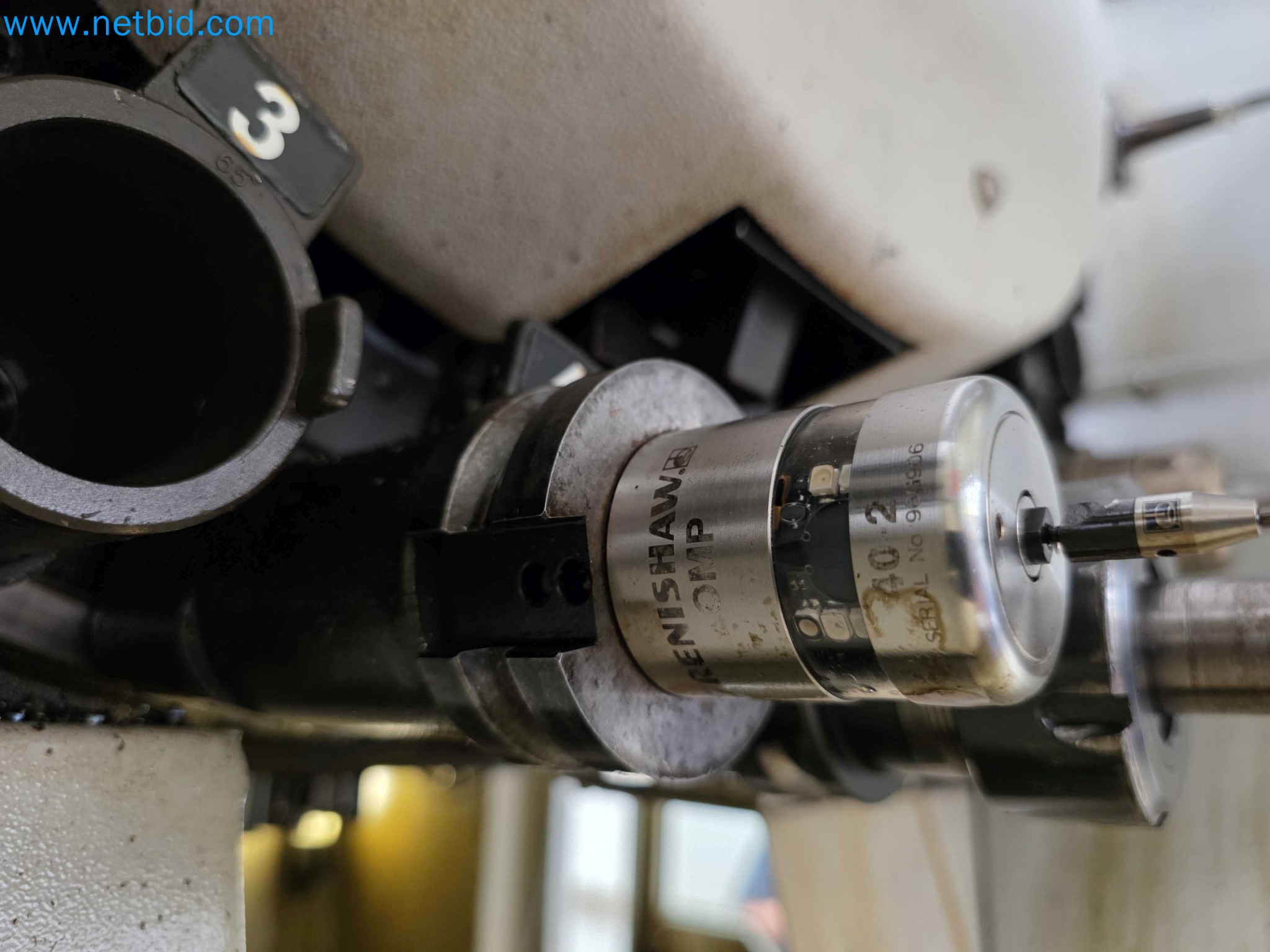

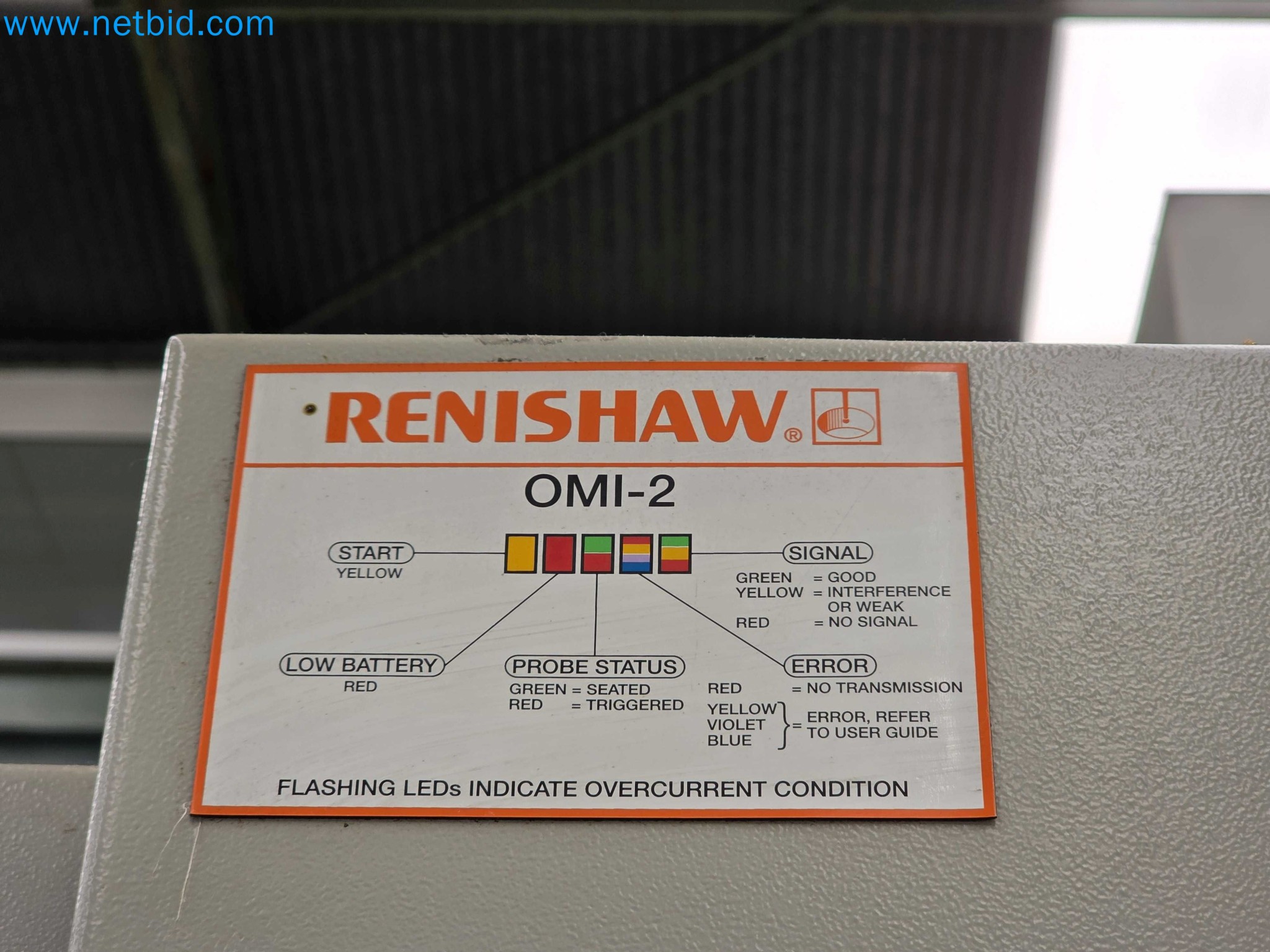

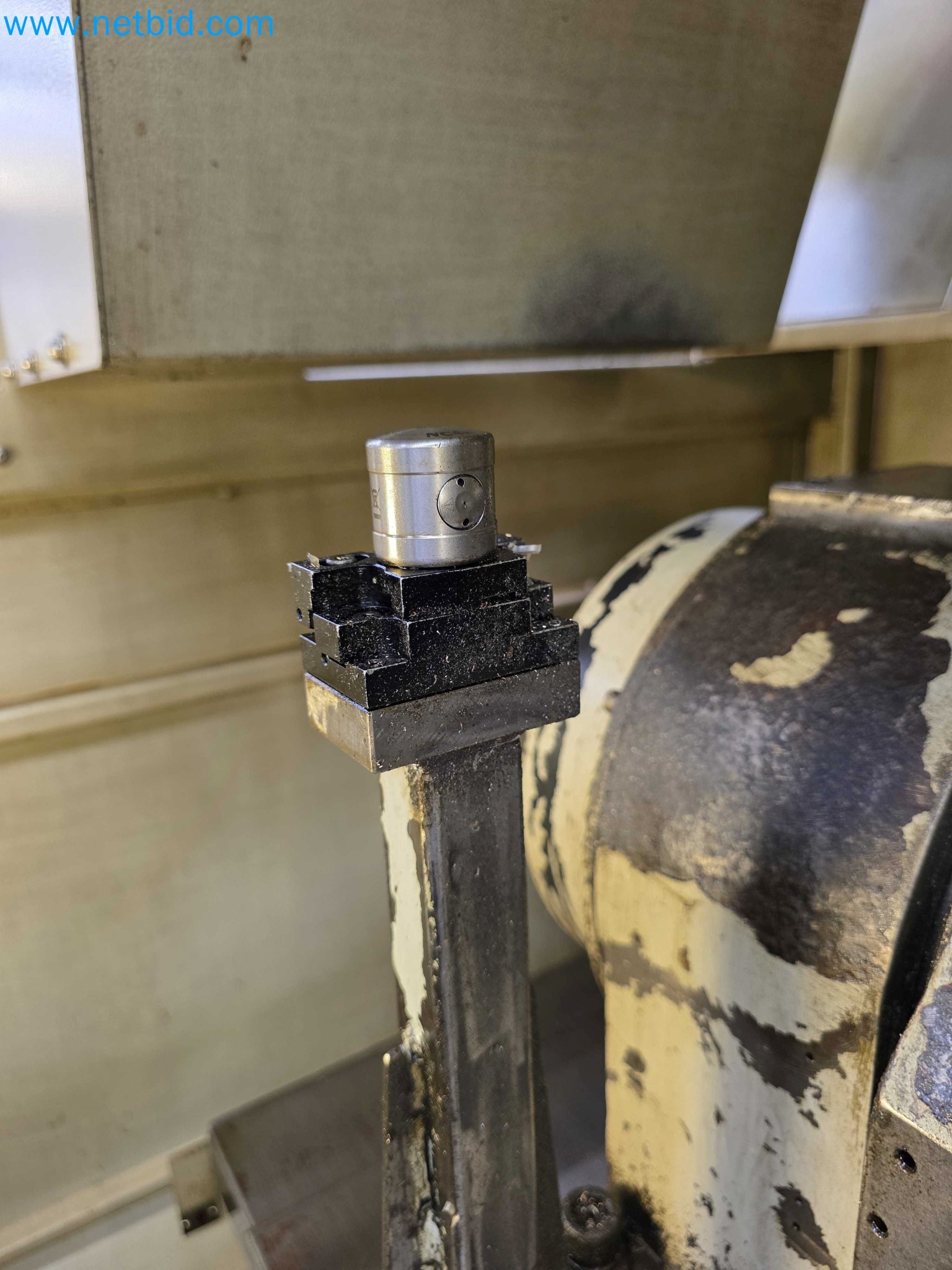

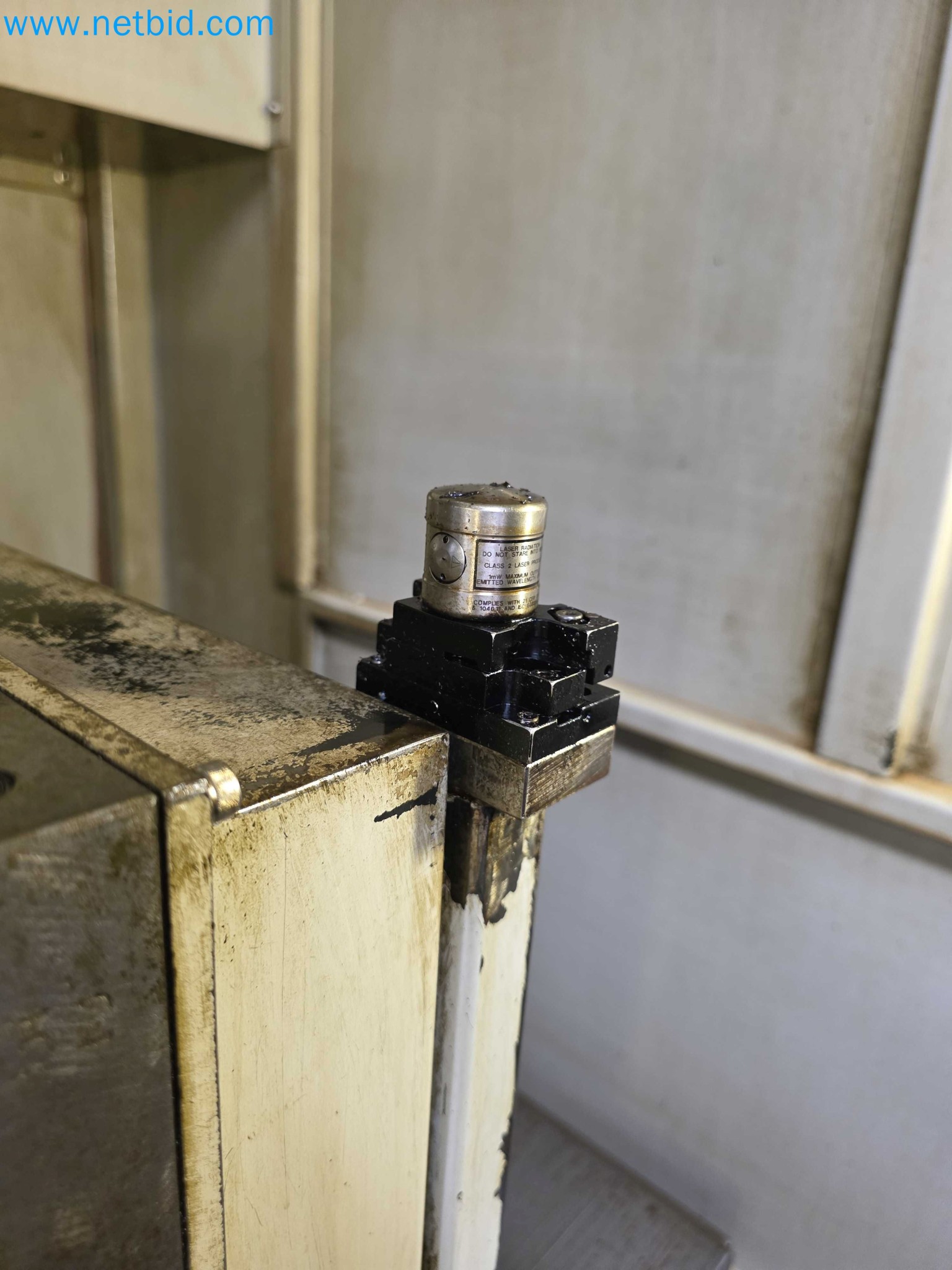

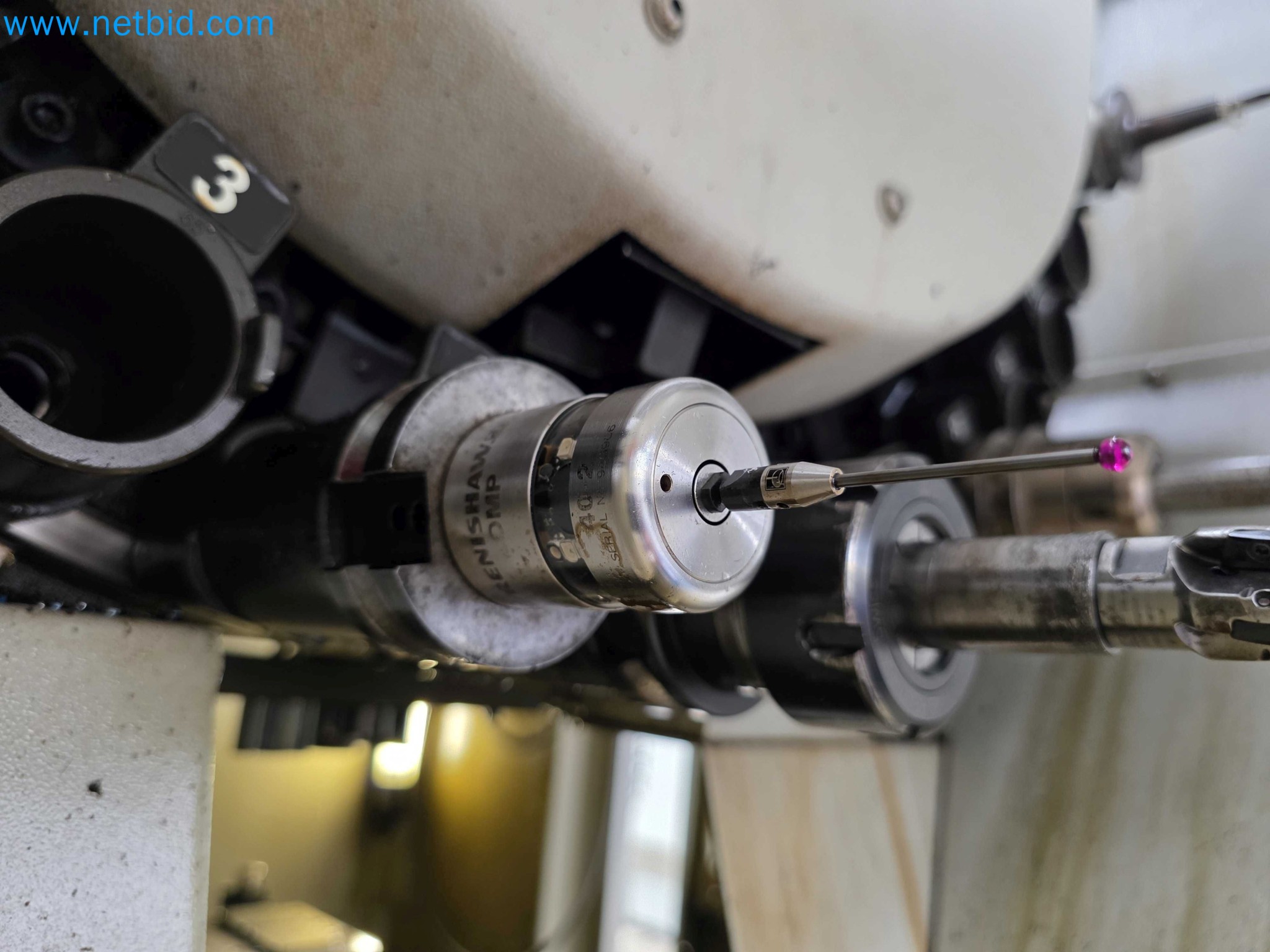

Equipped with RENISHAW OMP 40-2 calibration probe

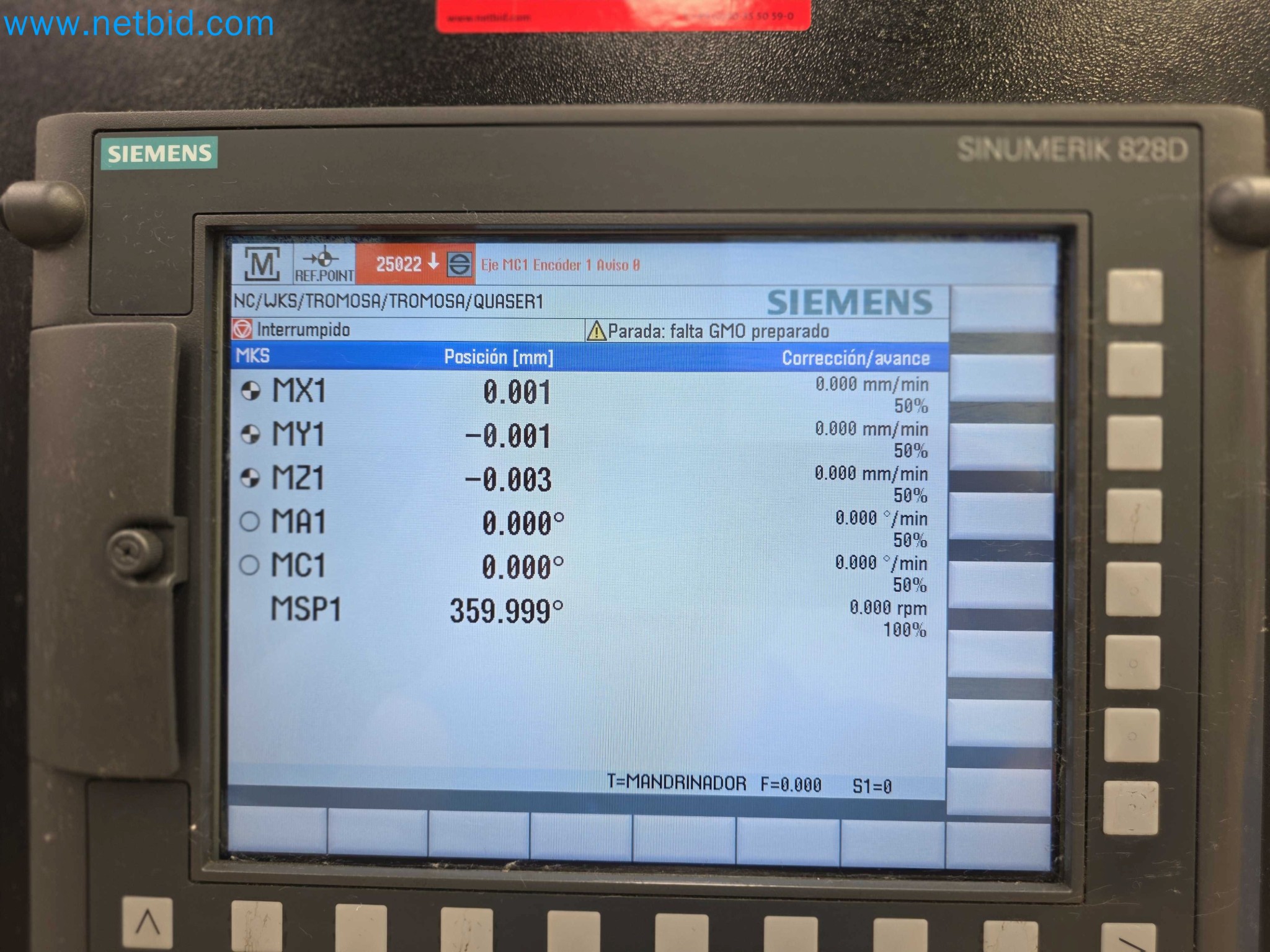

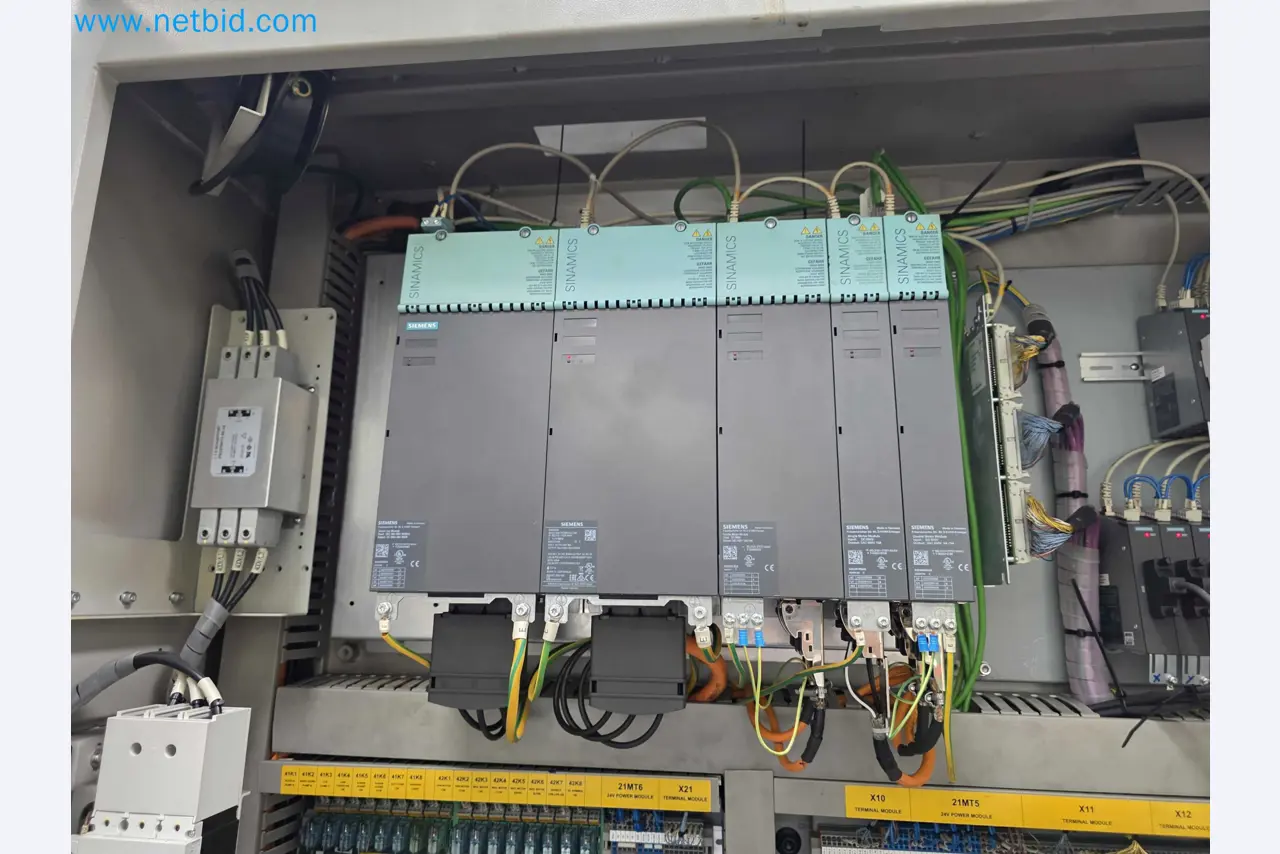

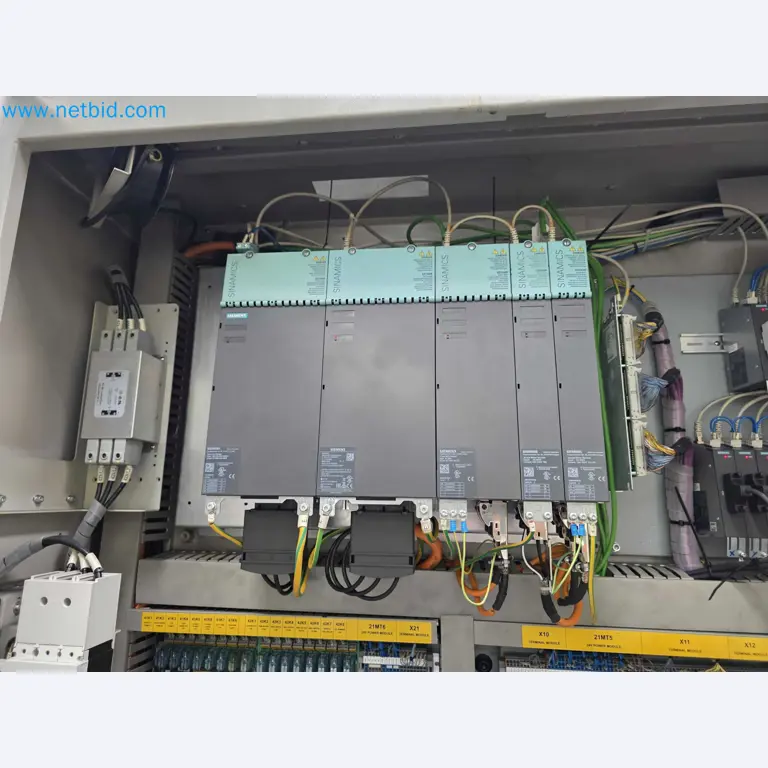

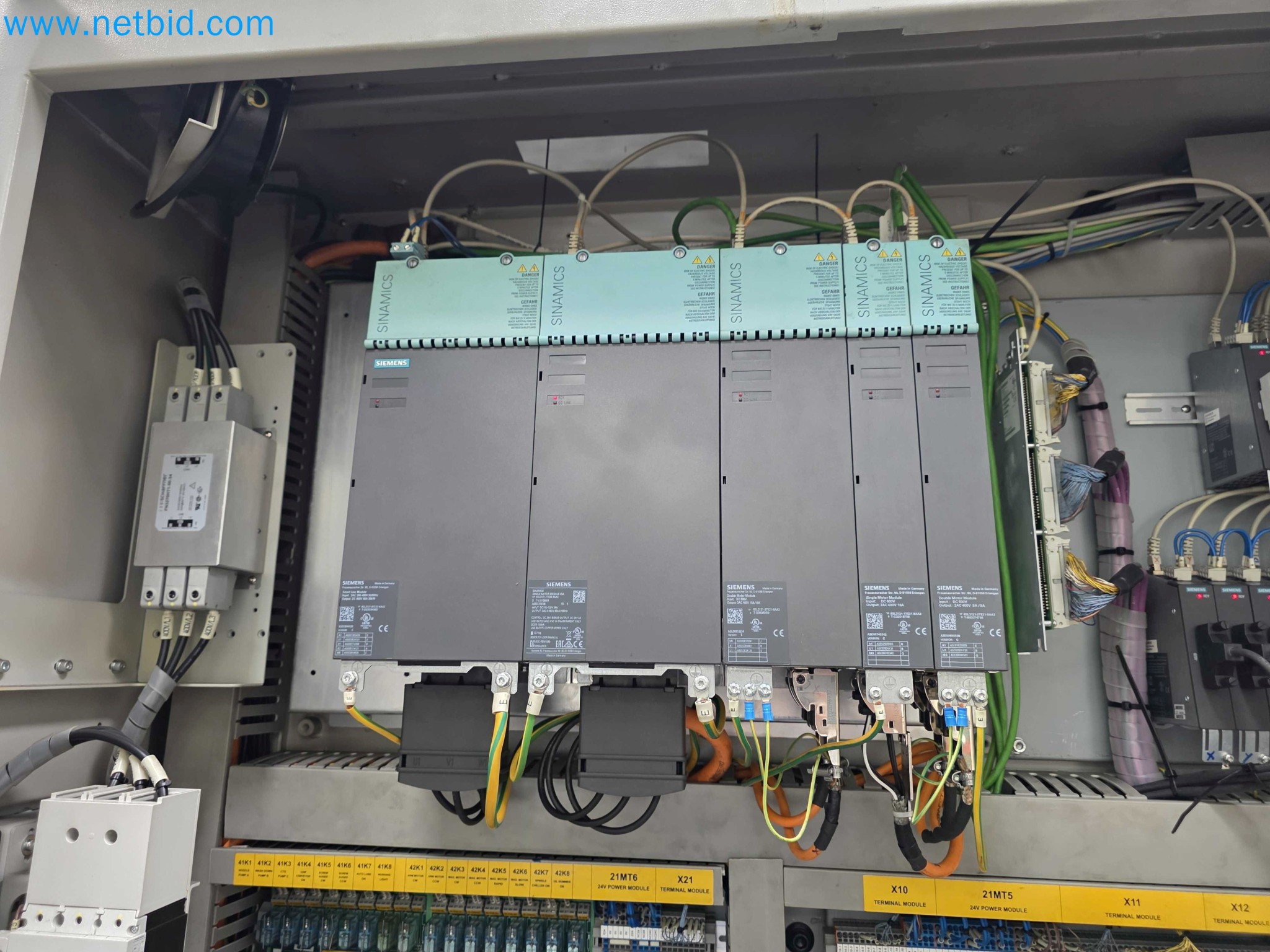

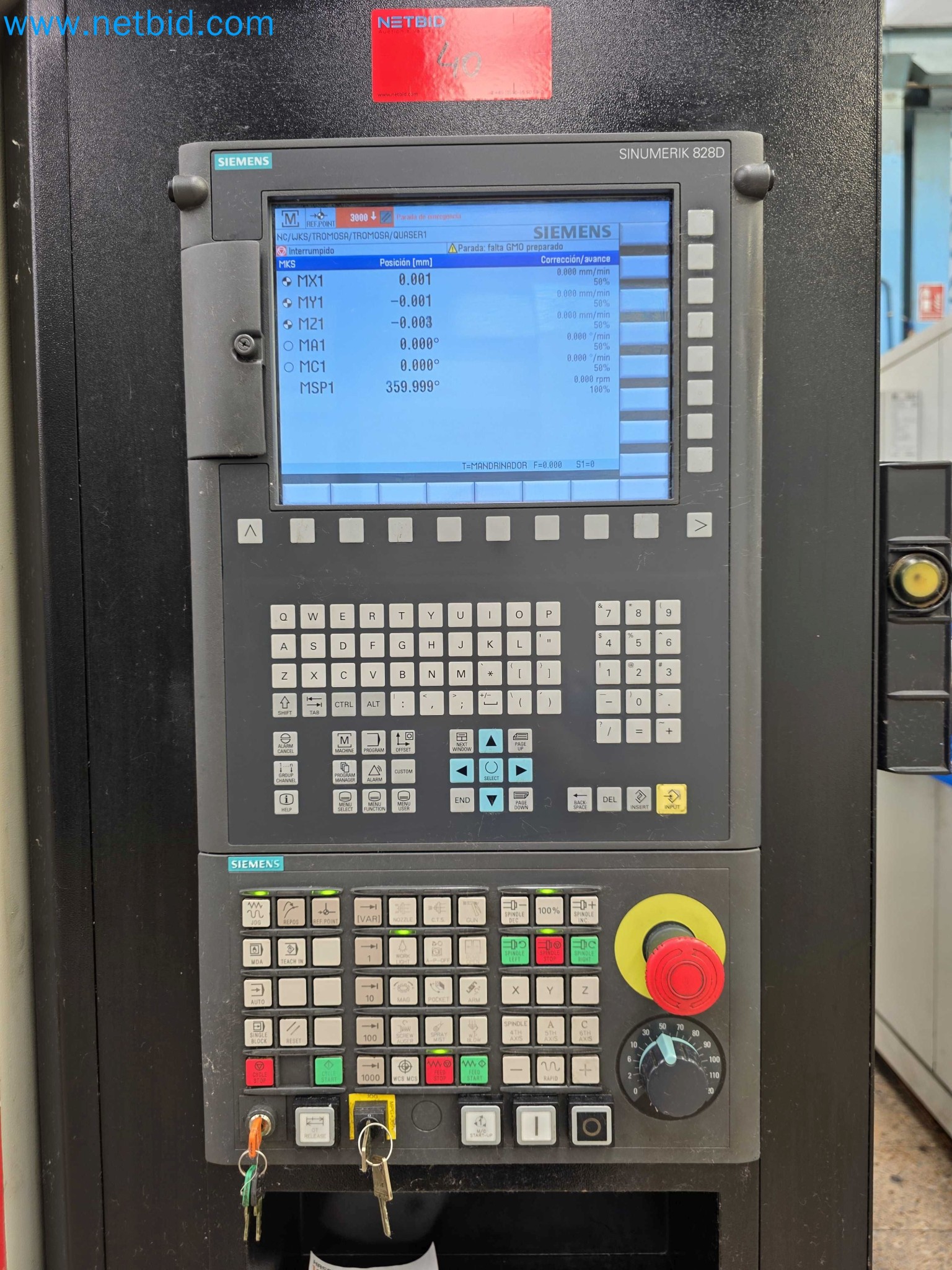

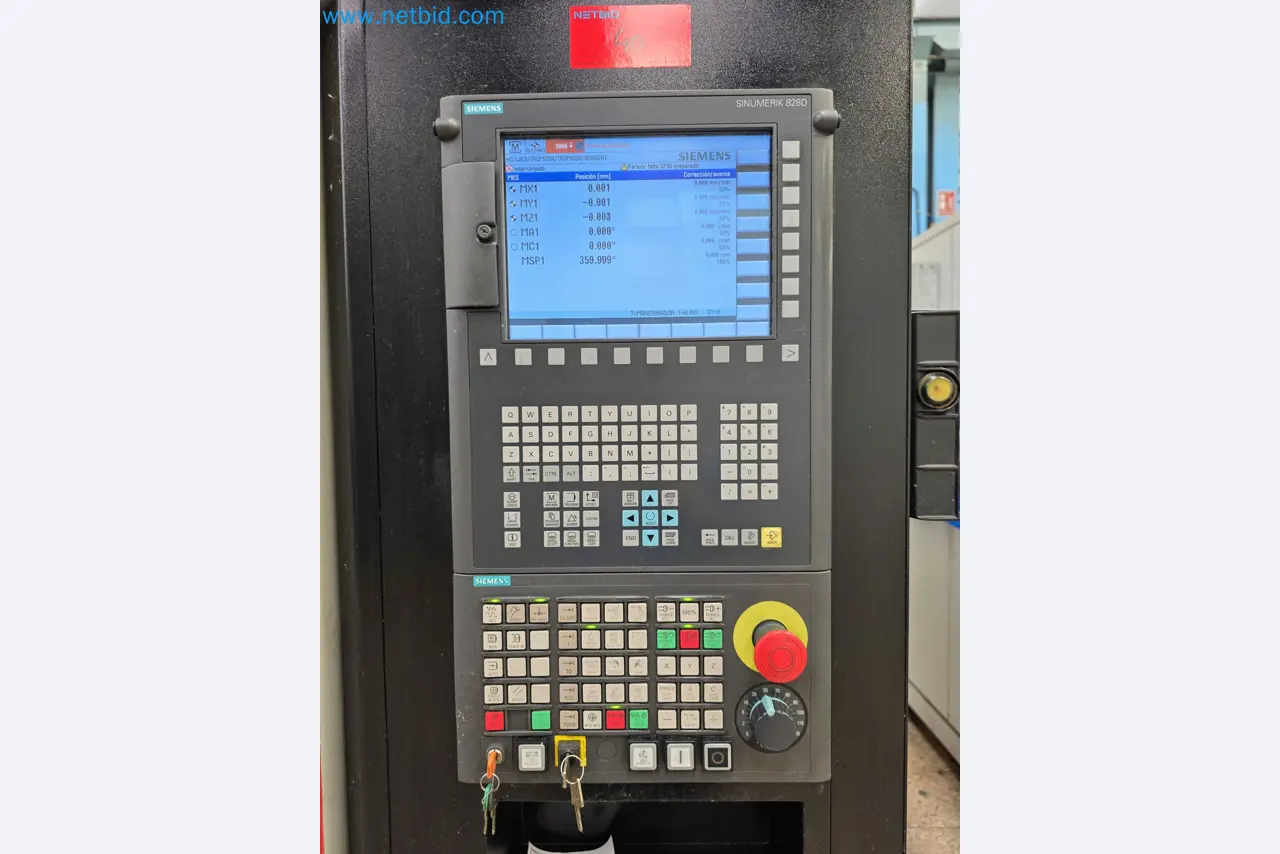

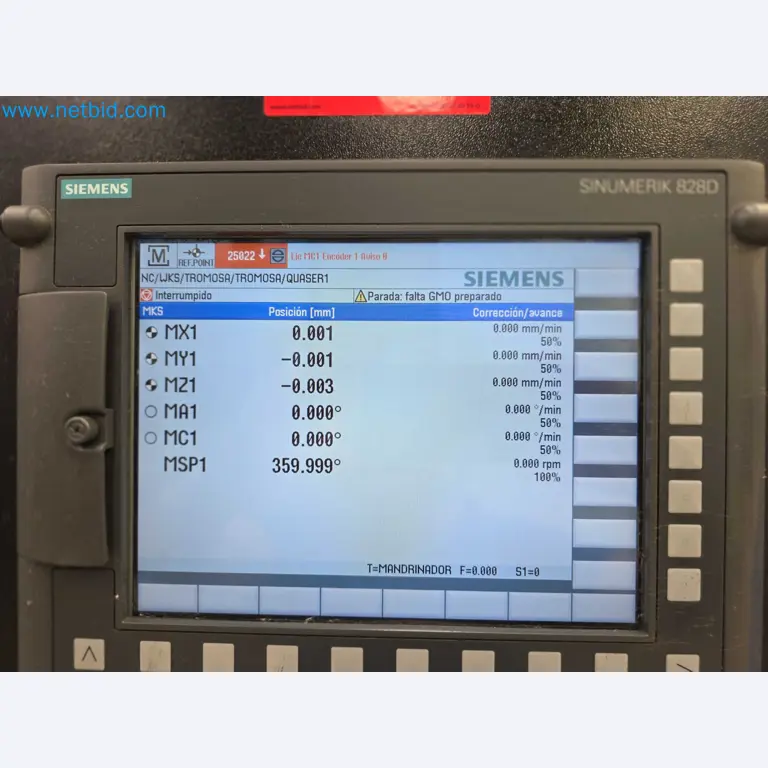

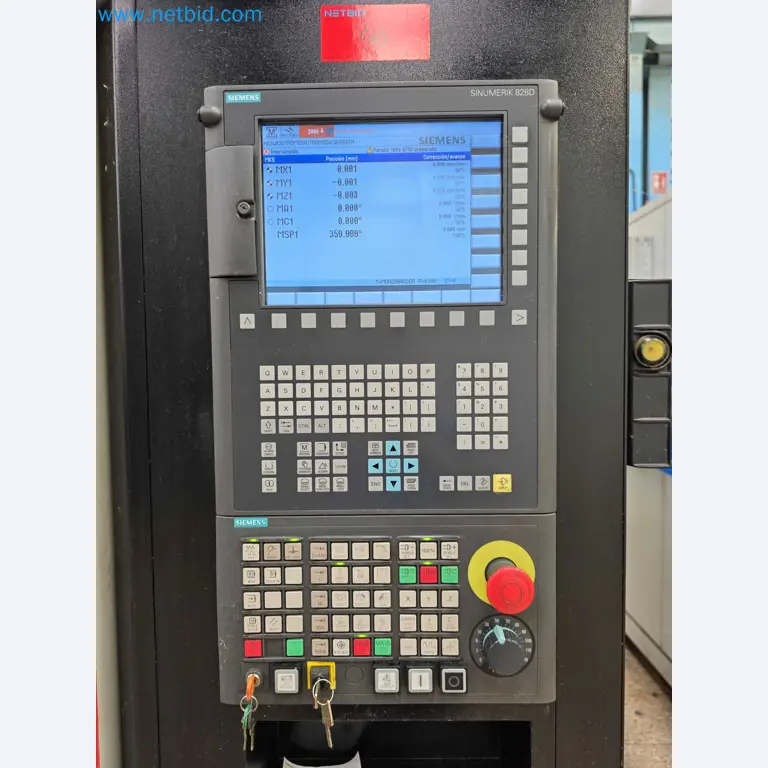

SIEMENS SINUMERIK 828D control
Approximate weight: 7,300 kg
5-axis machining center
Travels:
· X-axis: 410 mm
· Y-axis: 610 mm
· Z-axis: 510 mm
4th and 5th axis on QM-320 table; S.N.: ED12721100
Table diameter: 520 mm
Rotary and tilting table
Maximum inclination: +30° / -120°
Maximum table load capacity: 100 kg
Maximum workpiece dimensions: ?400 × 300 mm
Maximum spindle speed: 15,000 rpm
30-position tool magazine
Tooling included
Maximum tool length: 280 mm
Maximum tool diameter: 76.2 mm
BT-40 tool holders
Equipped with RENISHAW OMP 40-2 calibration probe
SIEMENS SINUMERIK 828D control
Approximate weight: 7,300 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
