Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment
High-Speed Vertical Machining Center FIDIA D321AUCTION#A19590-50
Details
Product Type
FIDIA
Type
D321
Construction Year
2018
Description

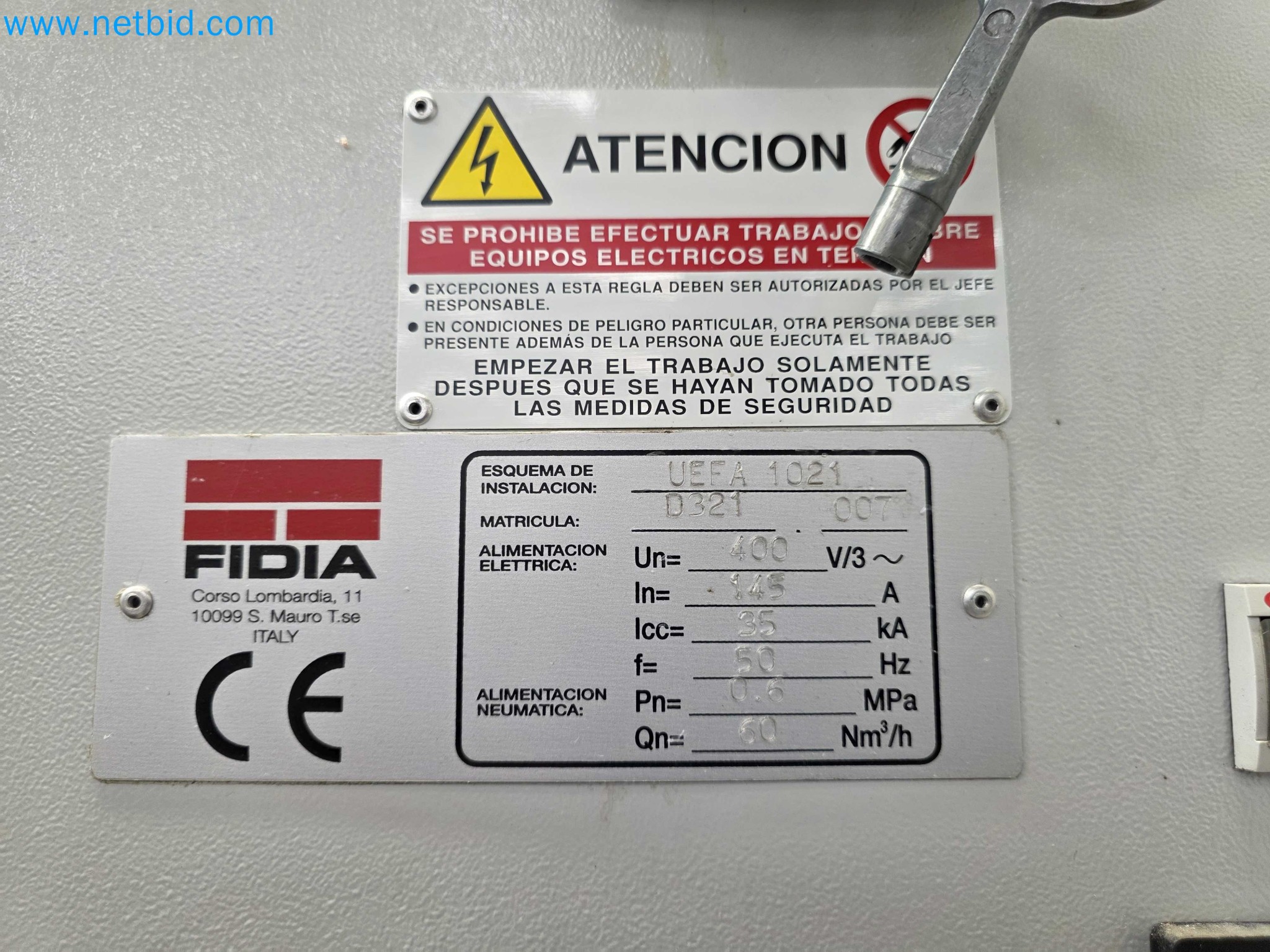

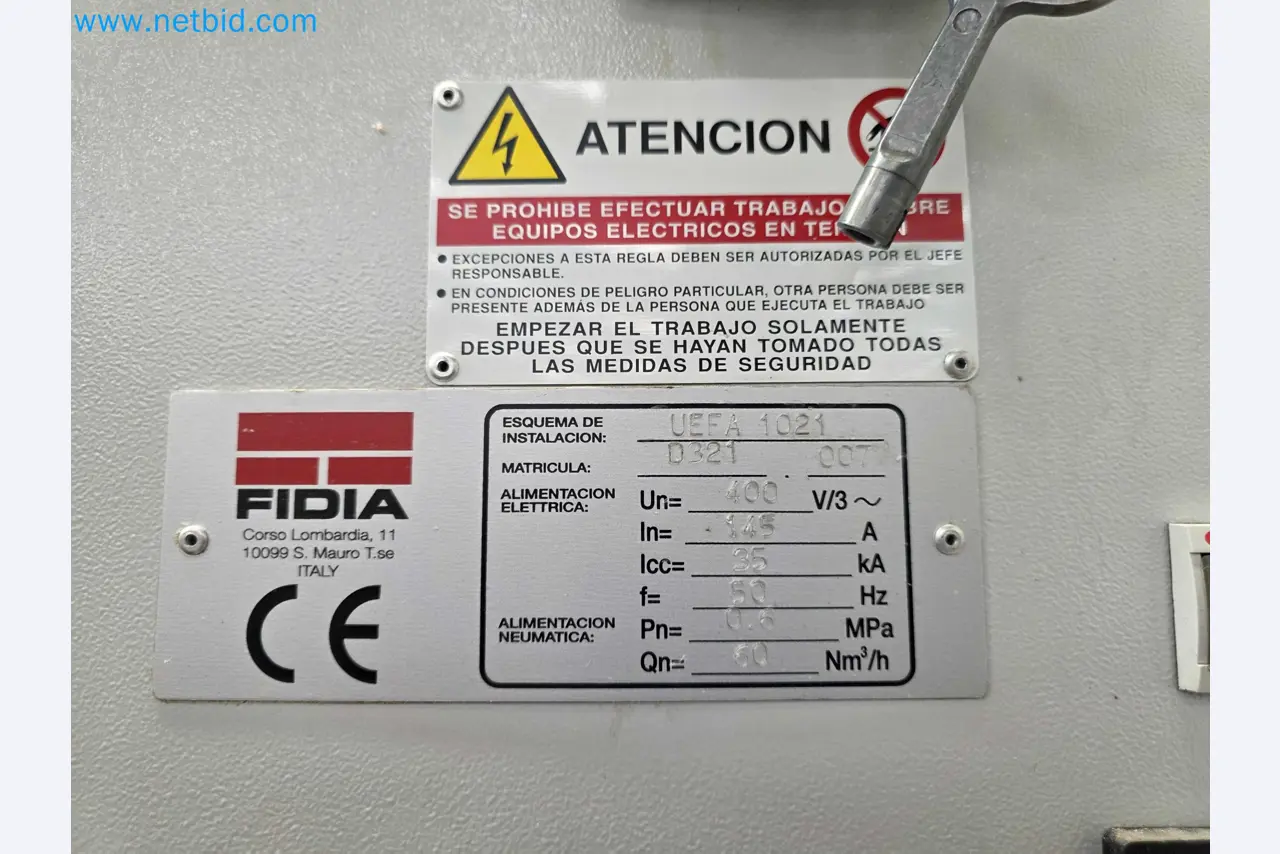

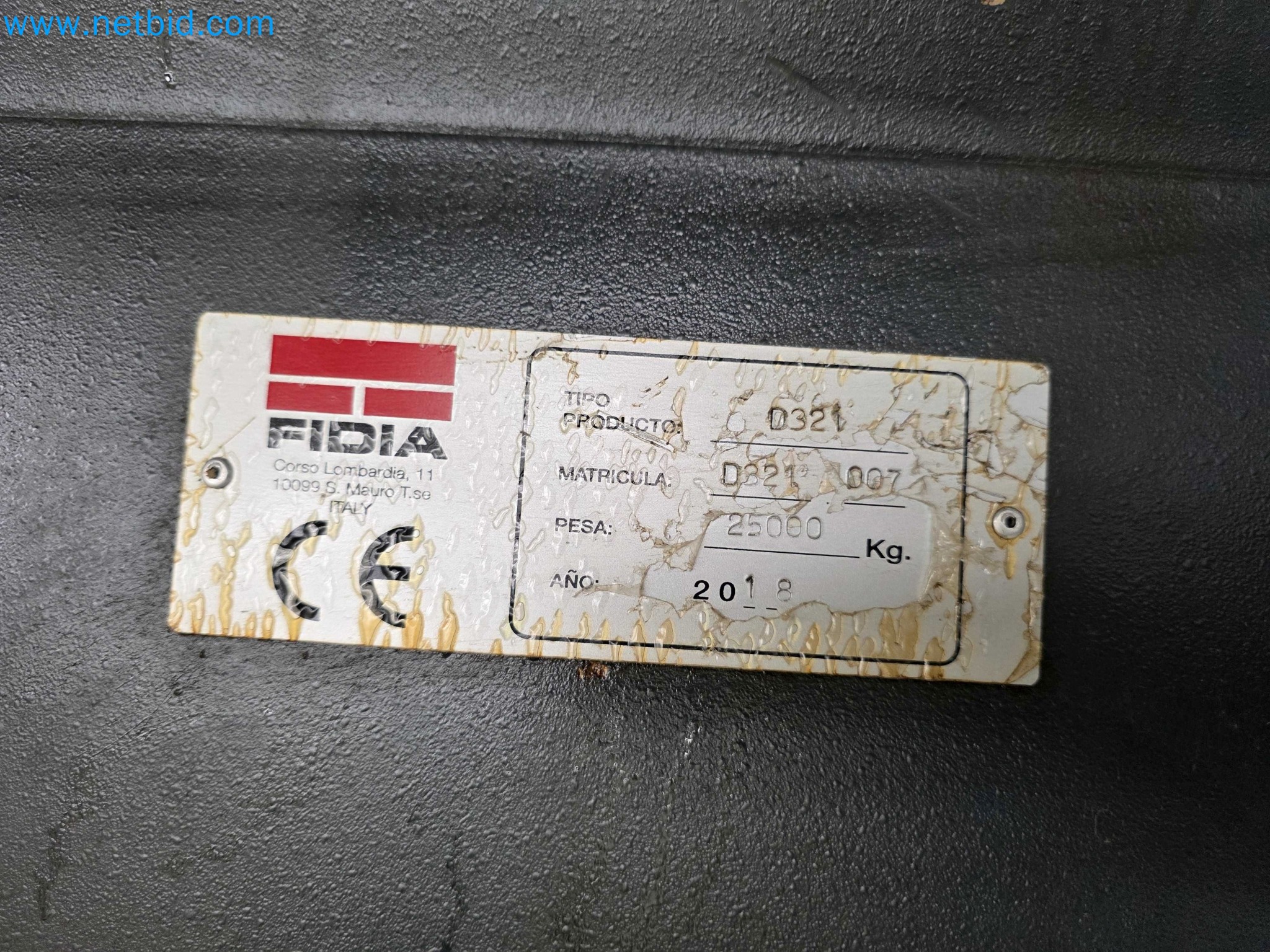

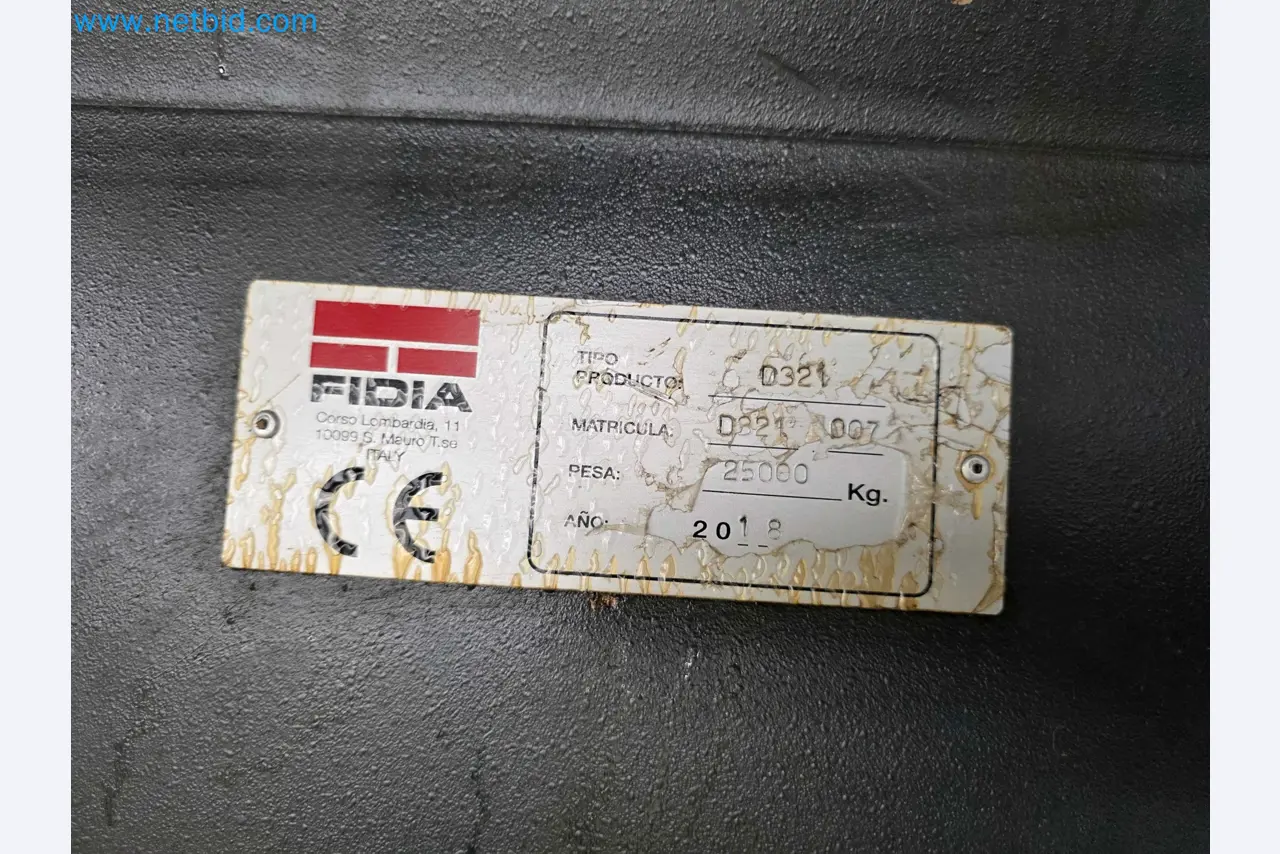

SN: D321 007

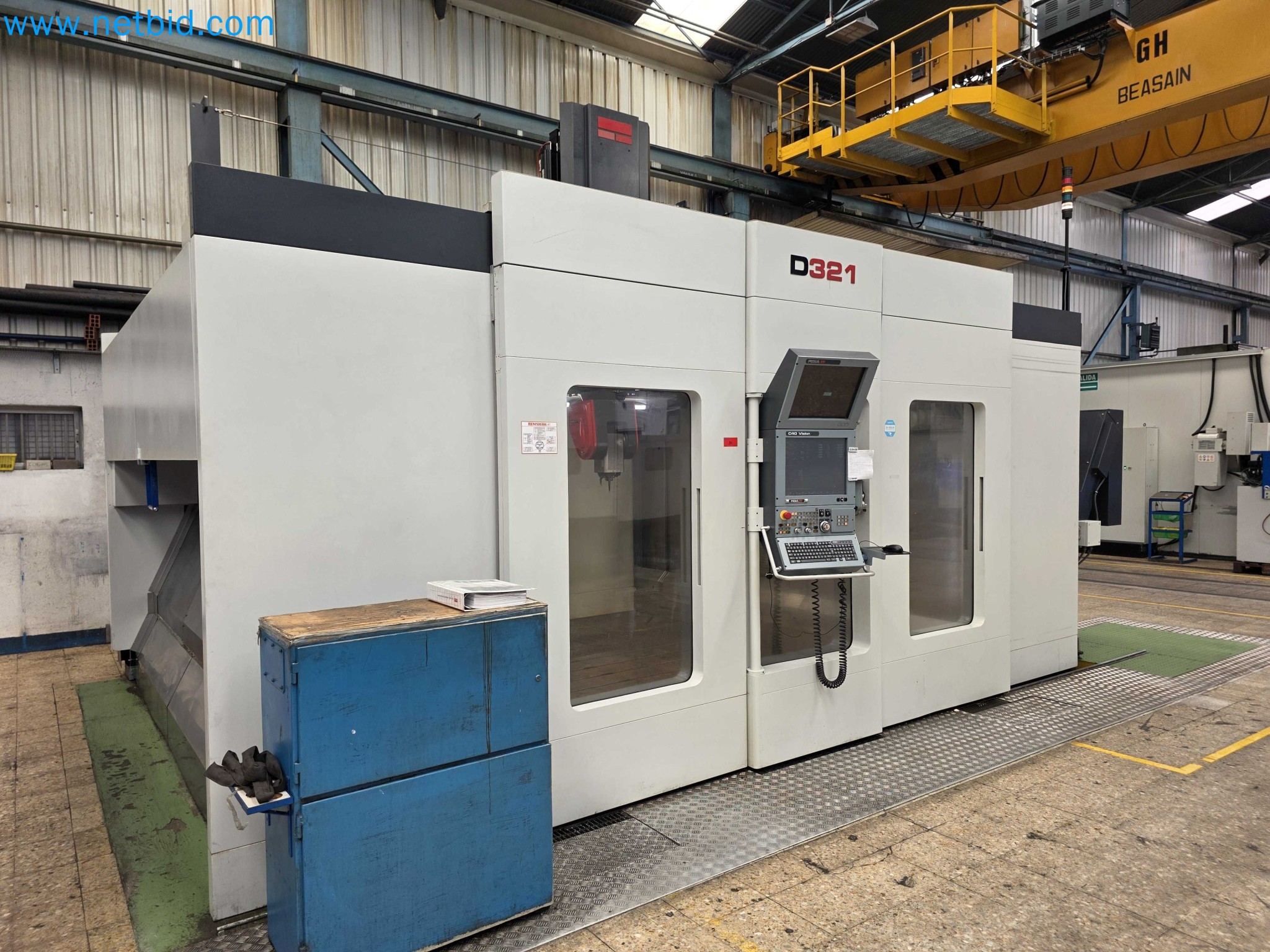

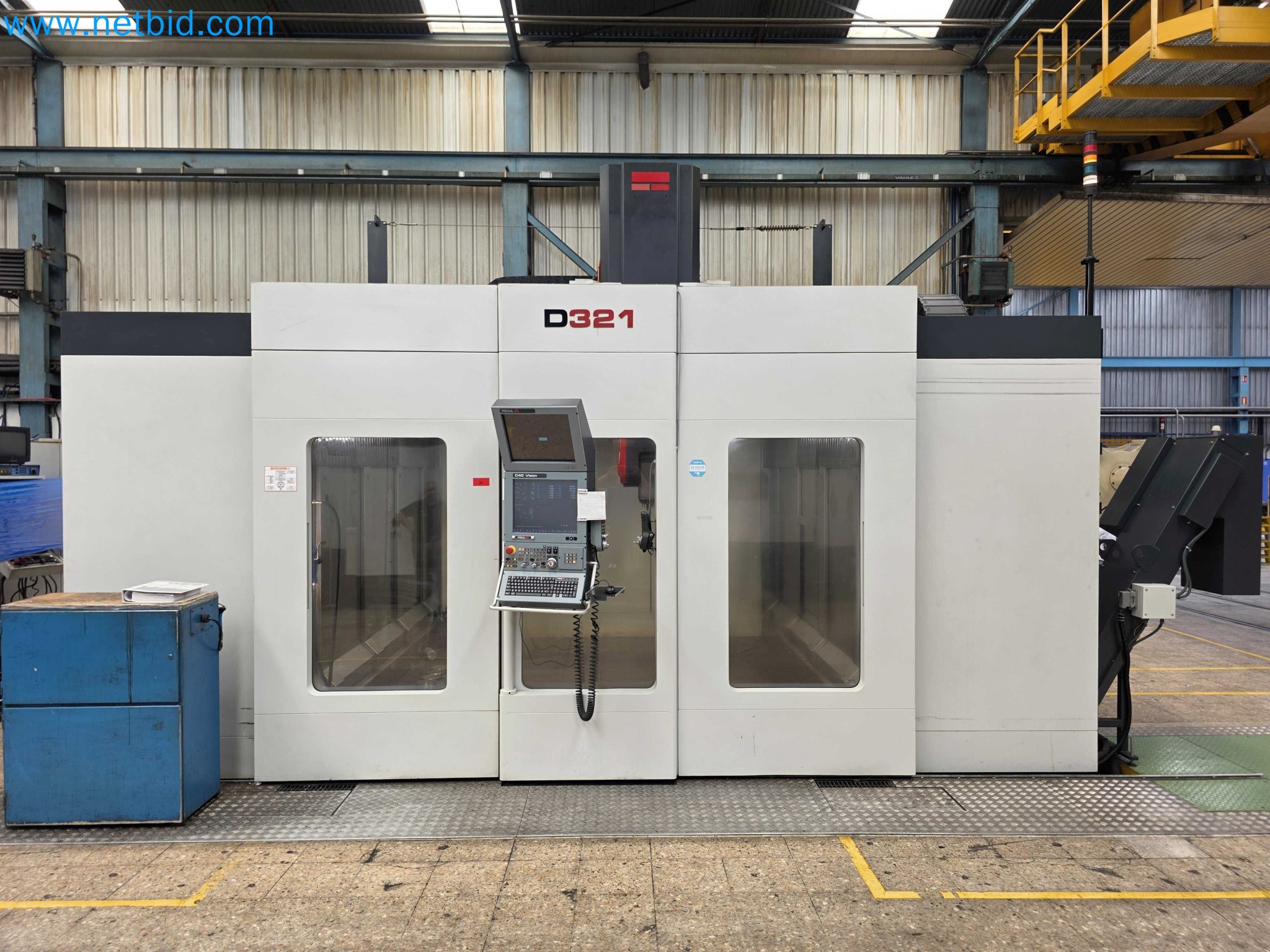

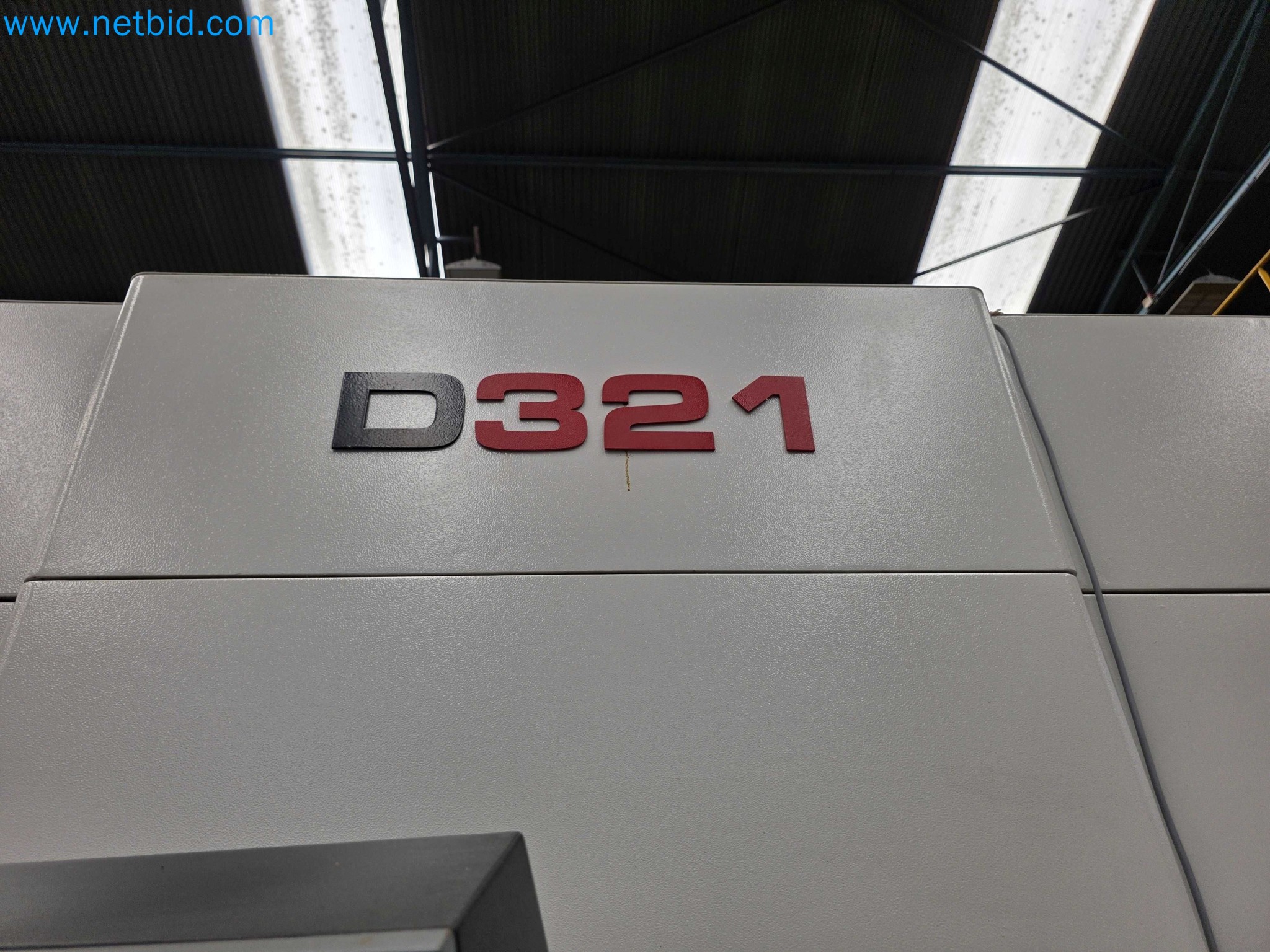

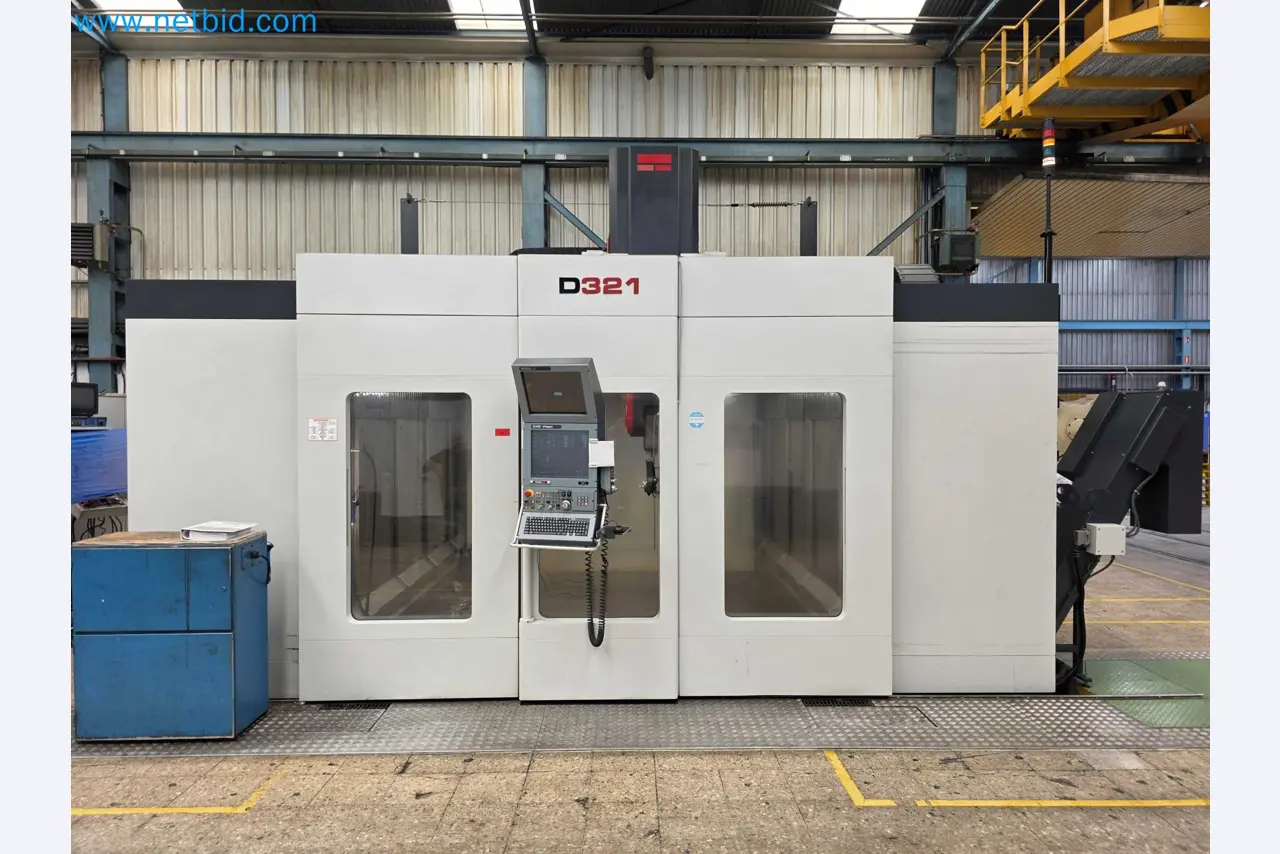

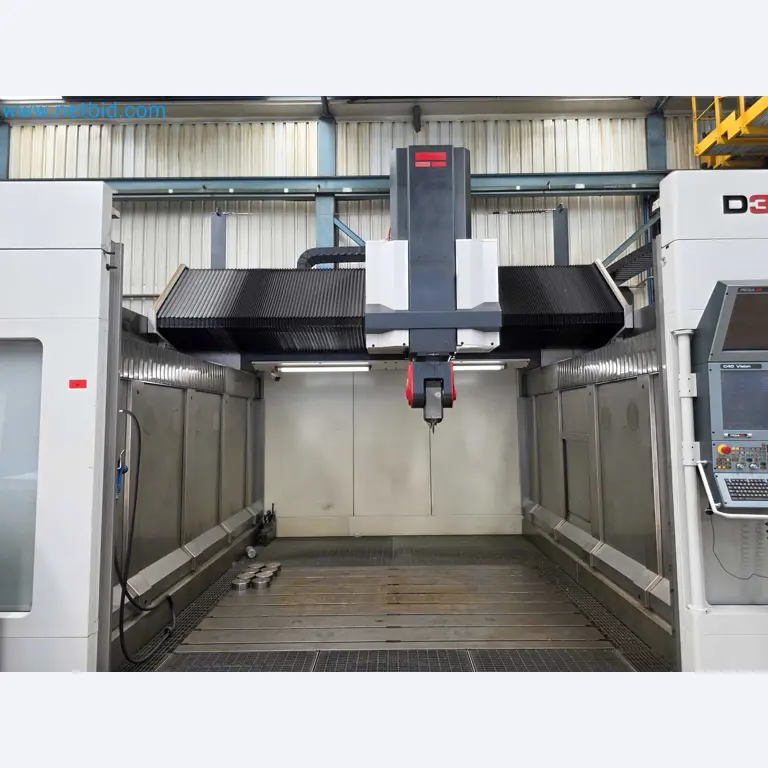

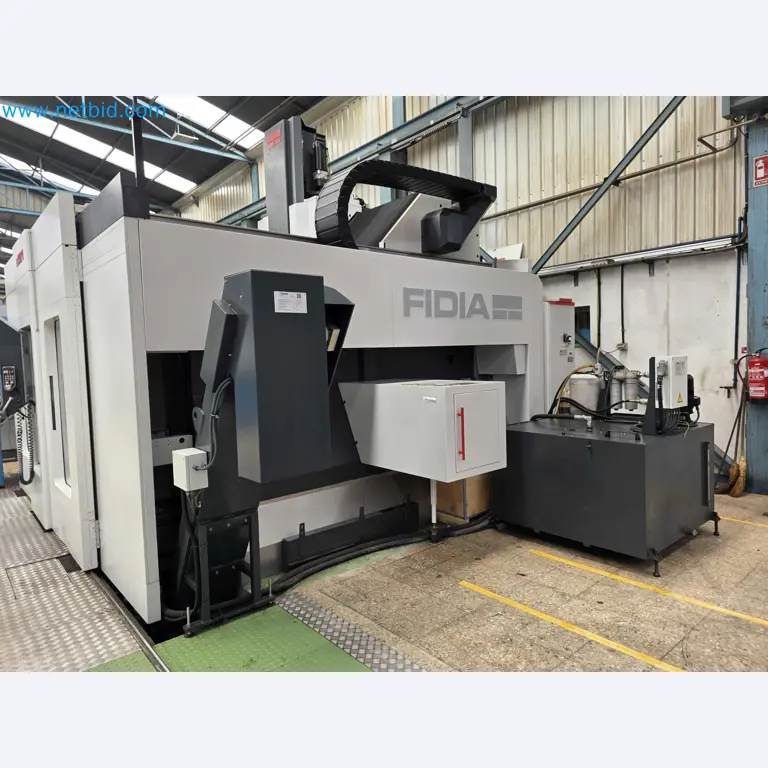

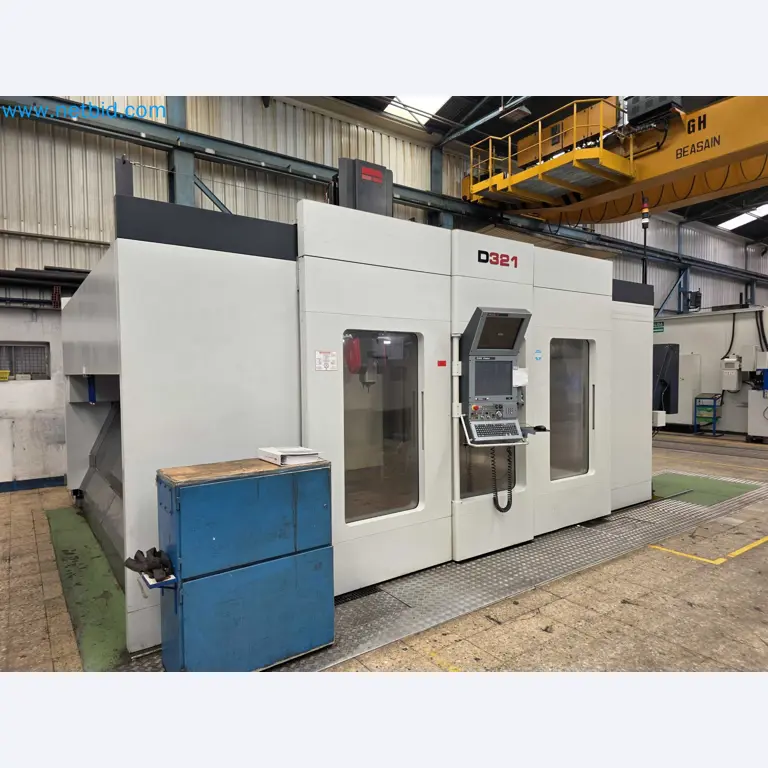

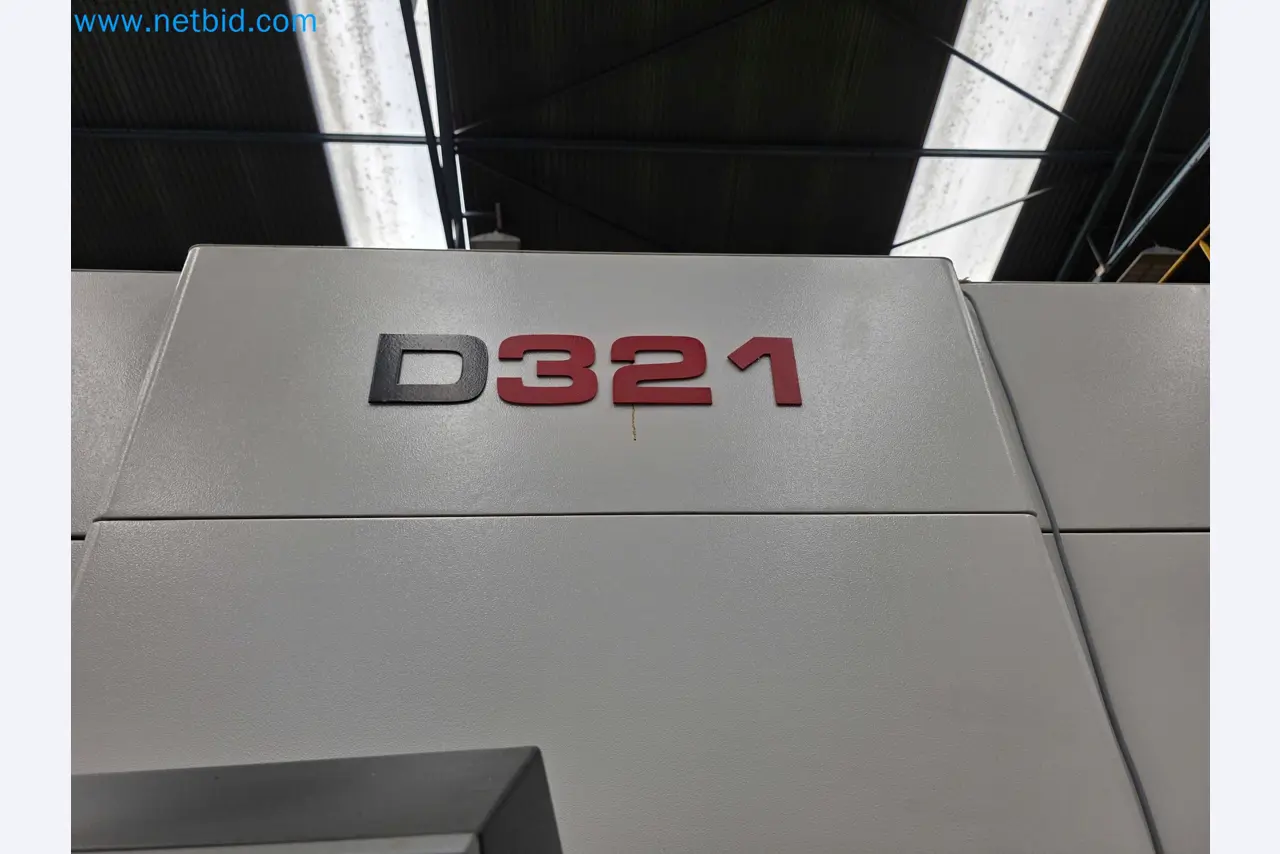

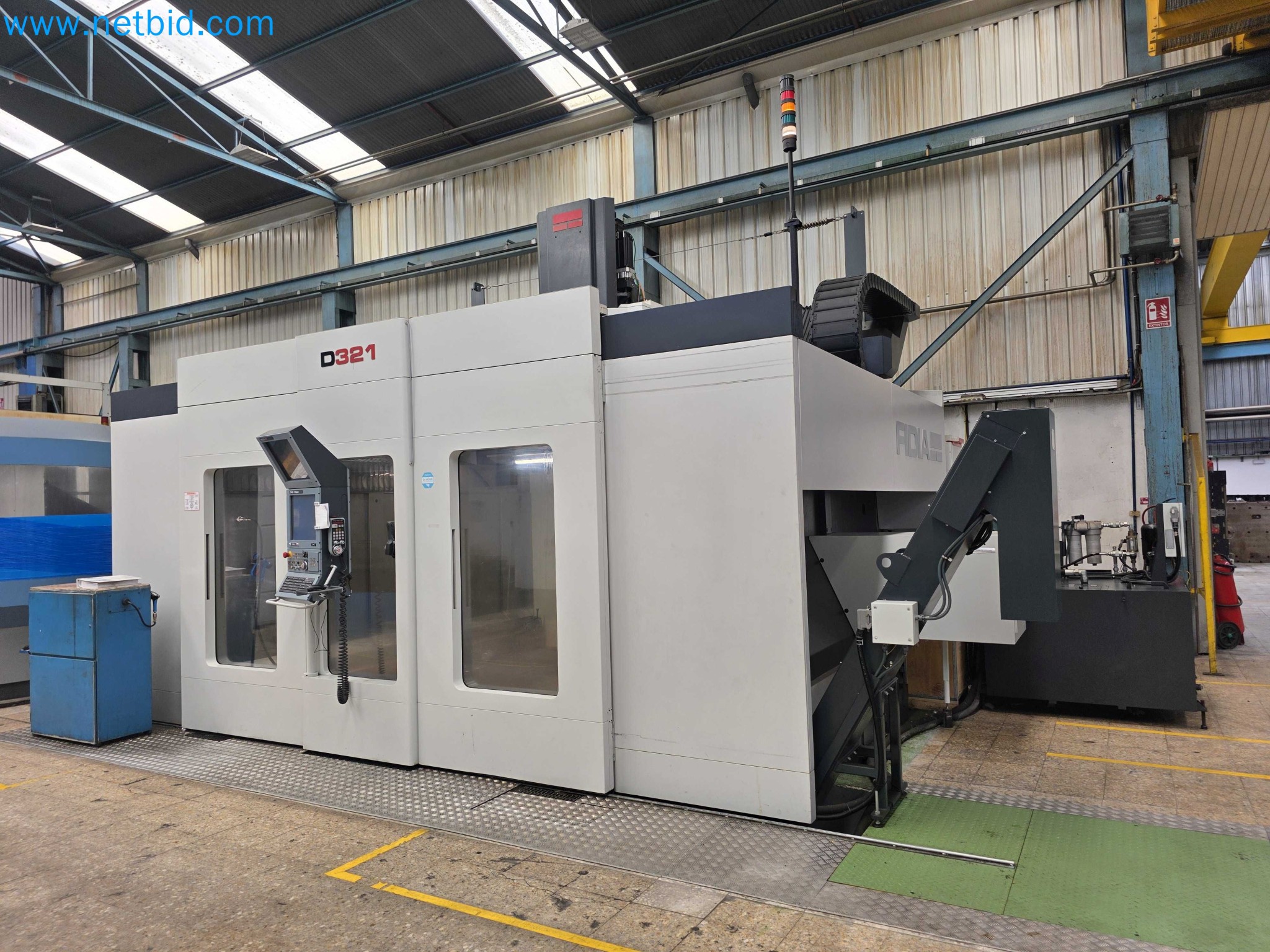

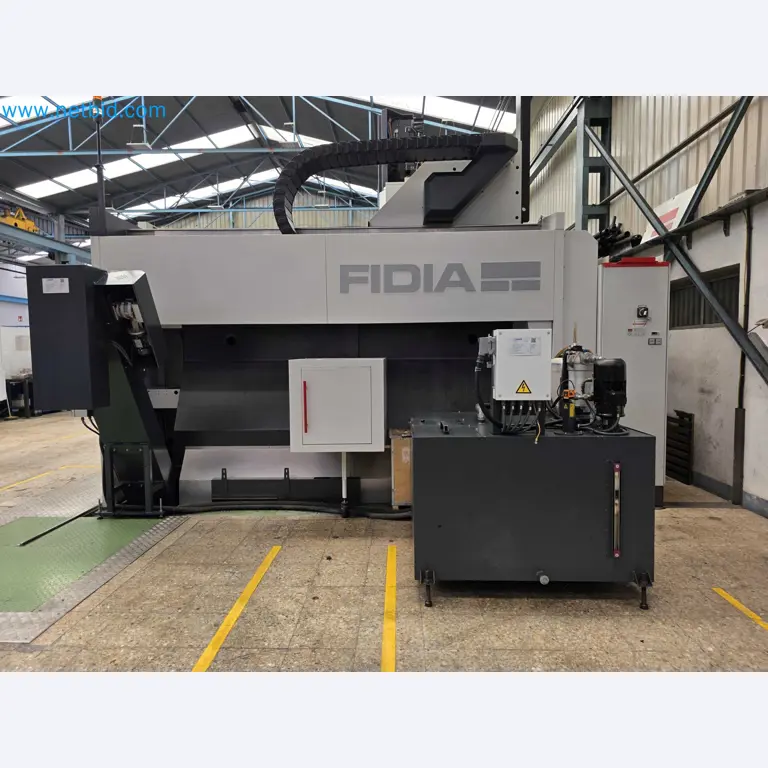

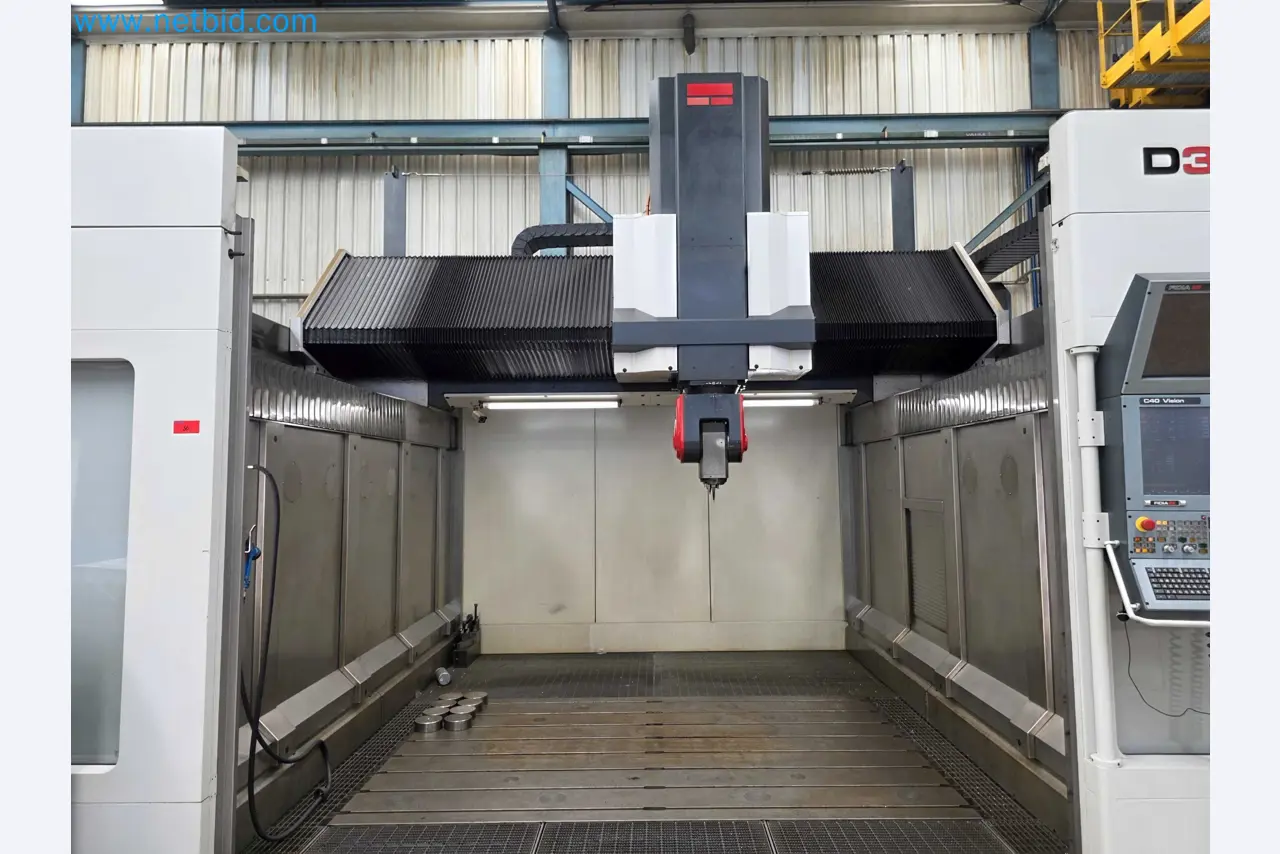

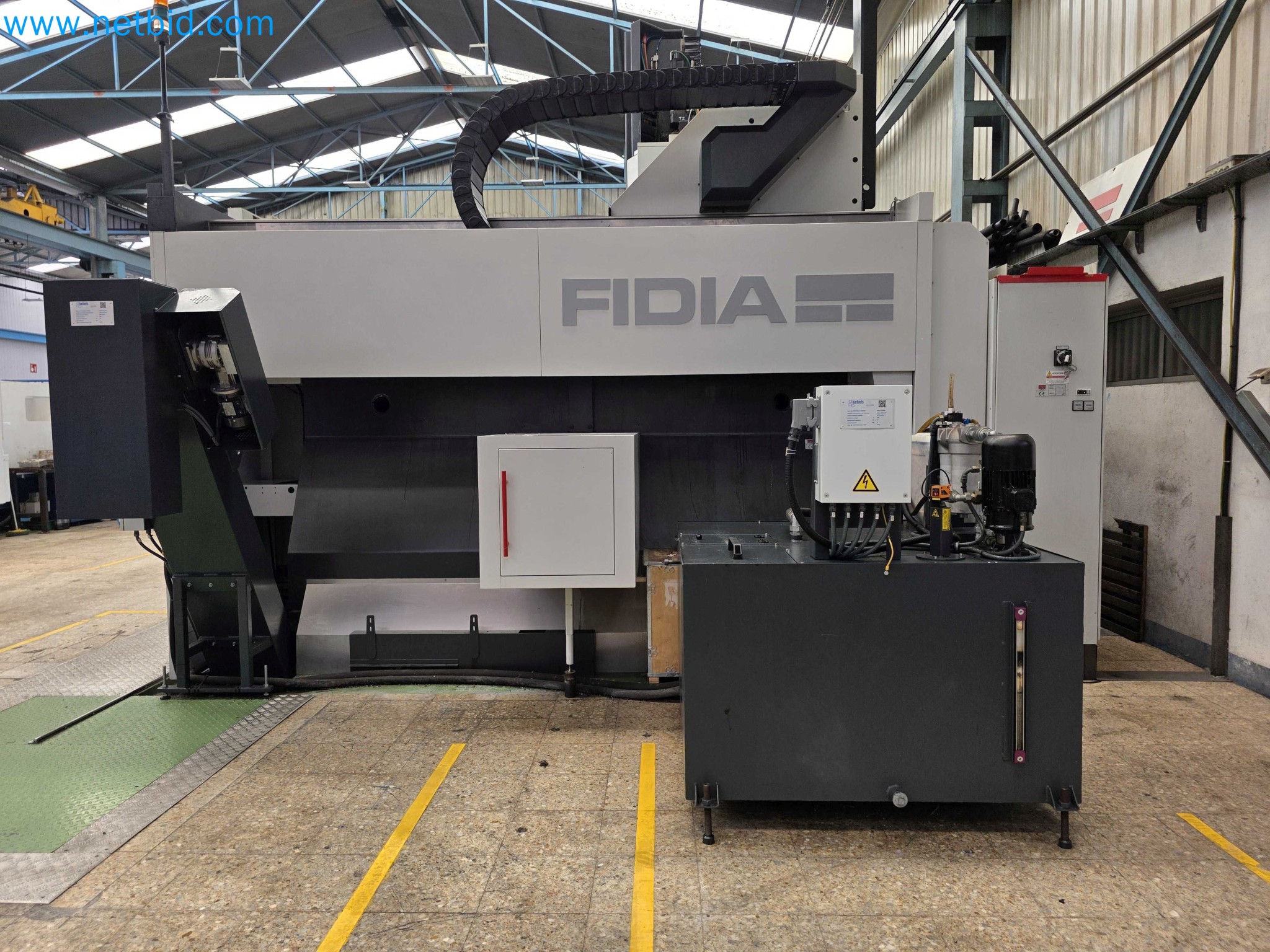

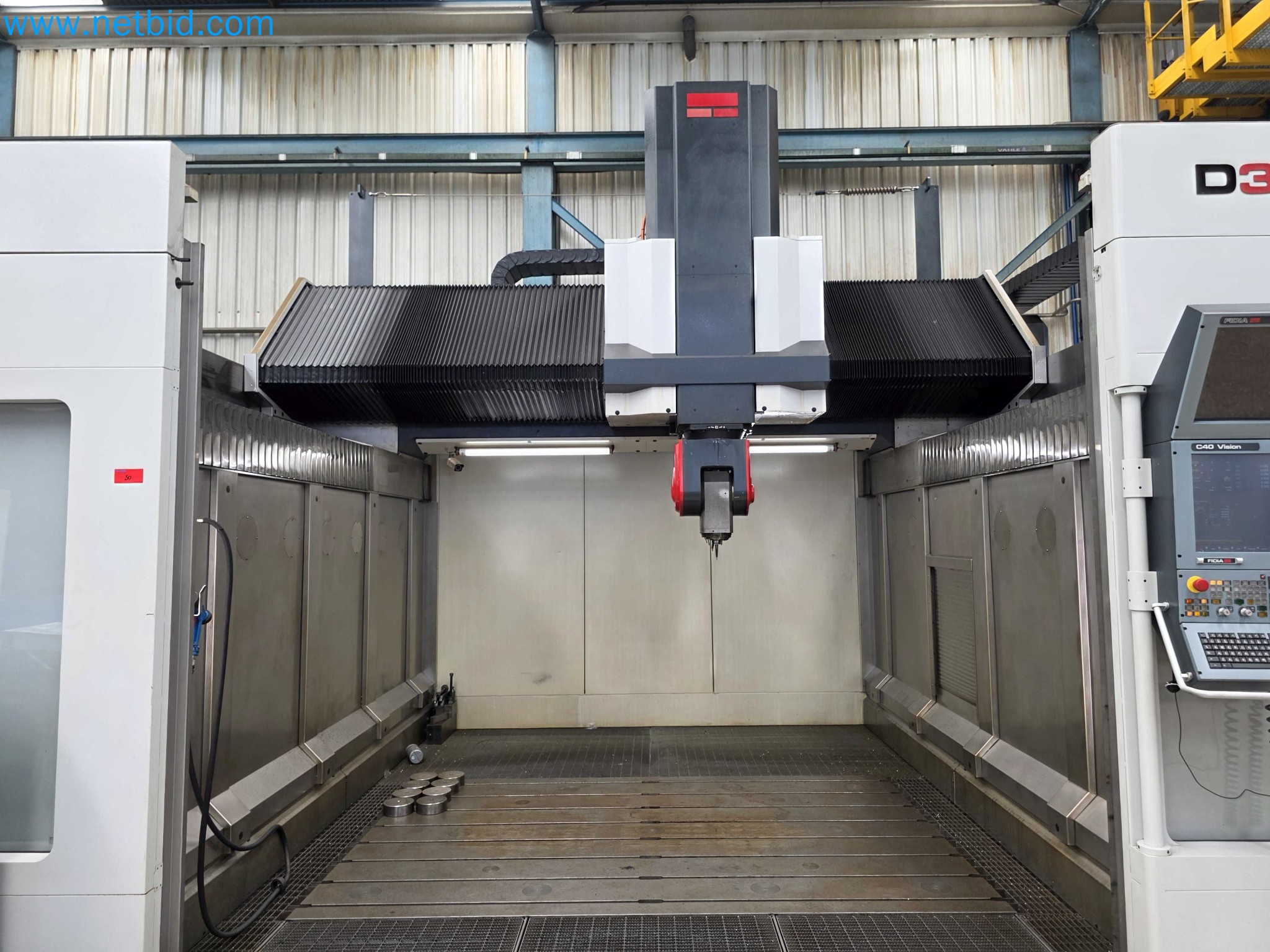

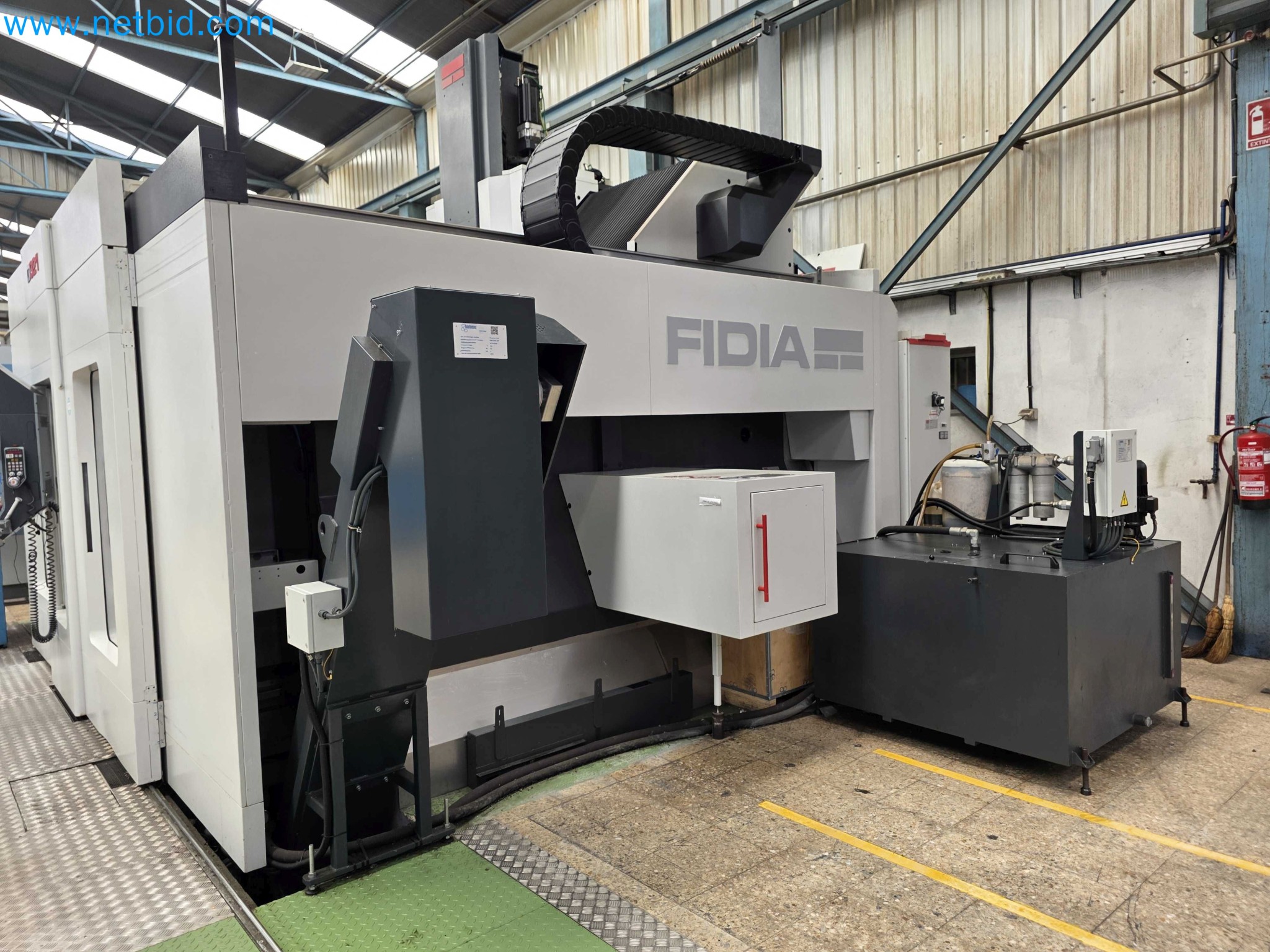

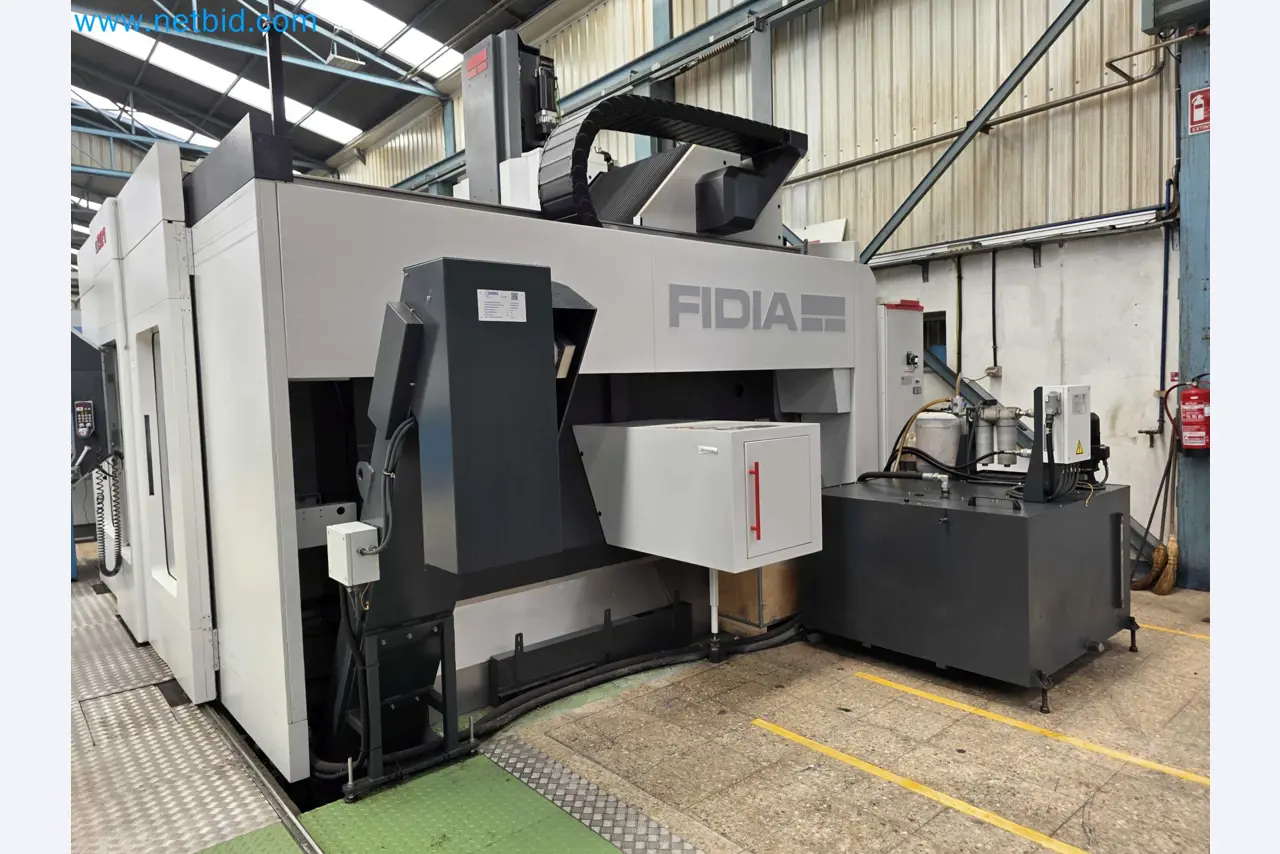

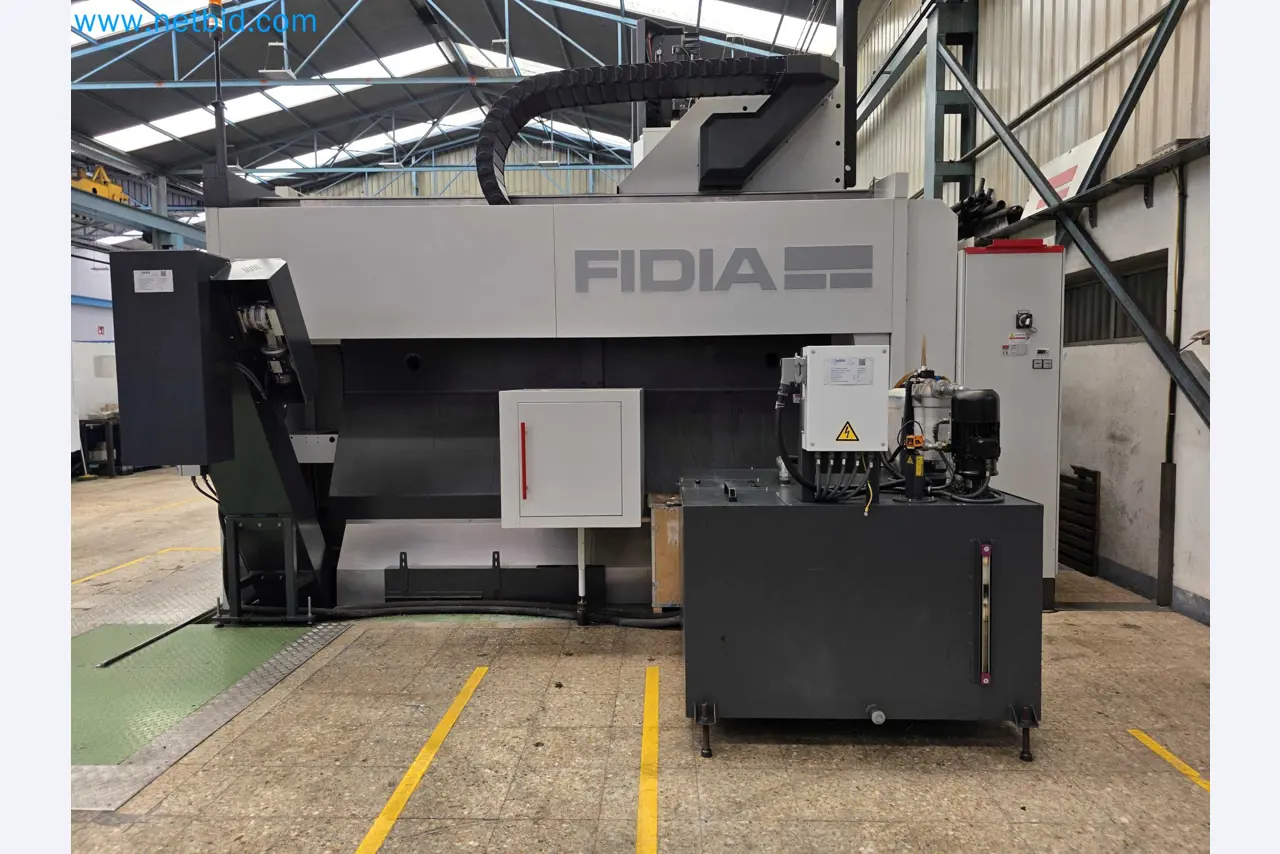

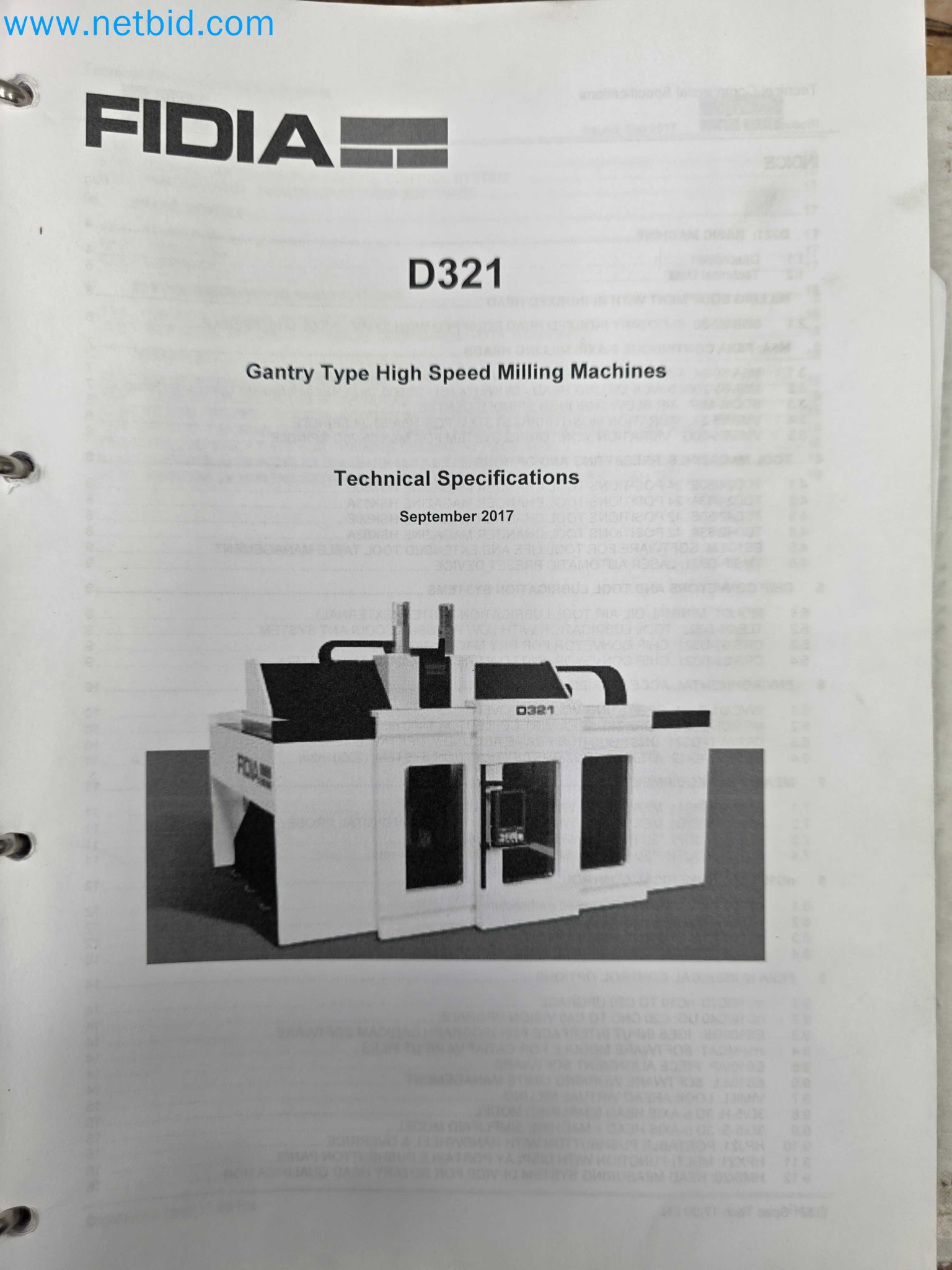

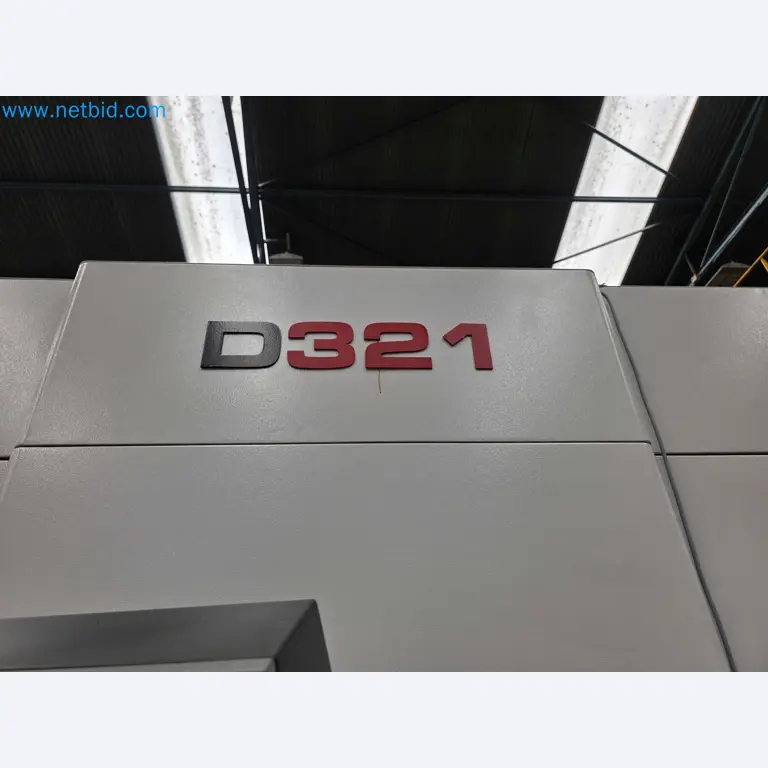

High-speed vertical machining center (5-axis) (D321)
• Linear travels (X / Y / Z): 3,000 × 2,200 × 1,100 mm

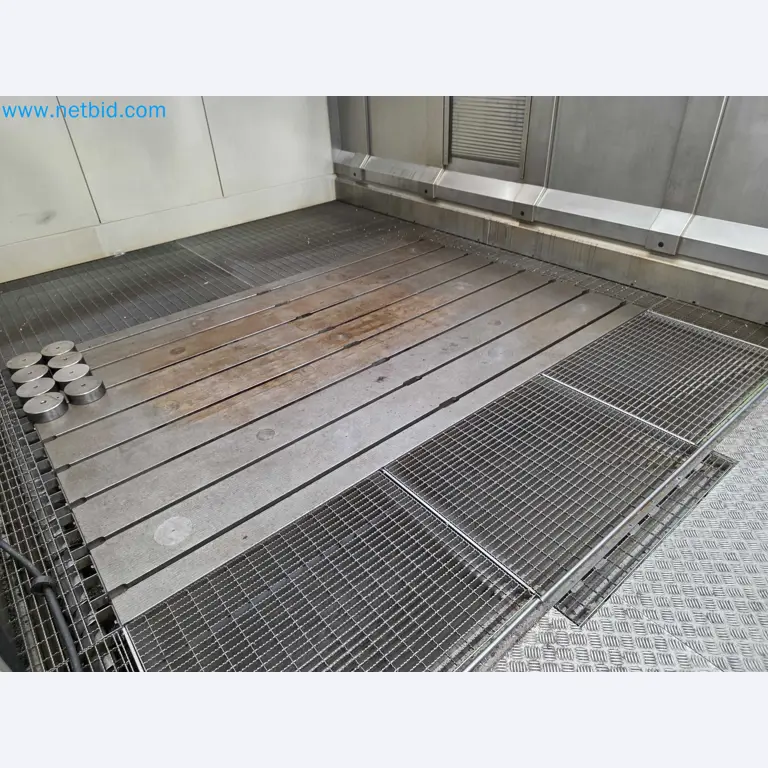

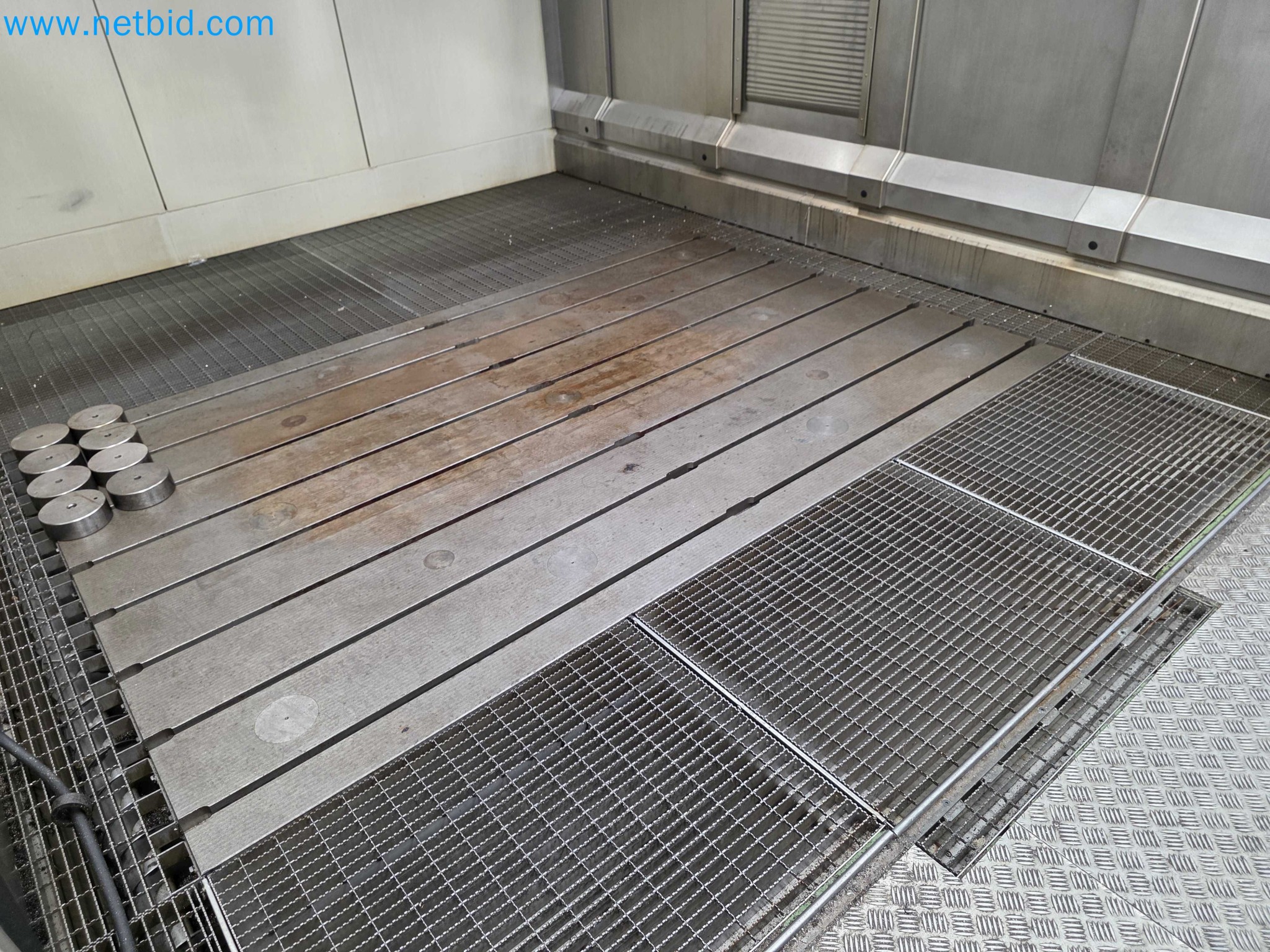

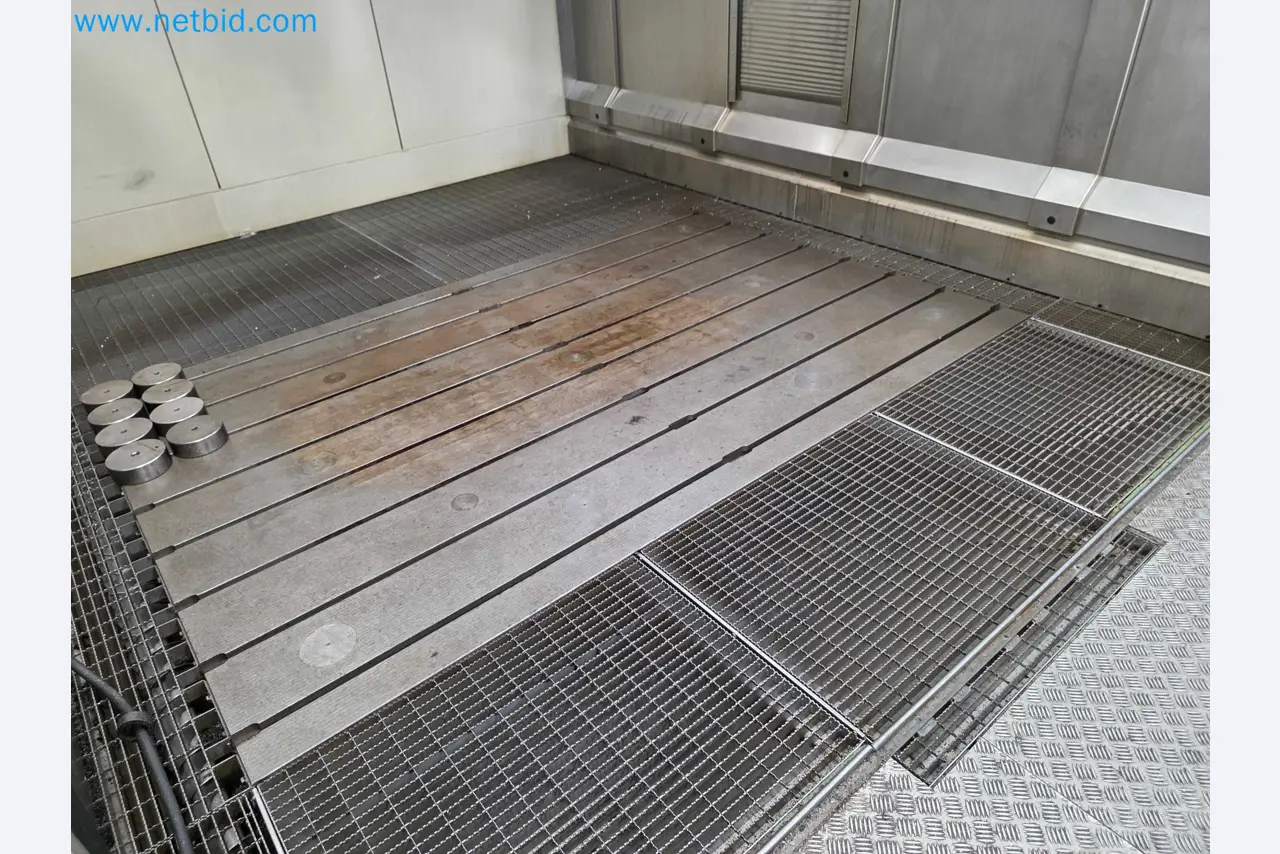

• Worktable: 3,000 × 2,000 mm
• Maximum table load: 20,000 kg

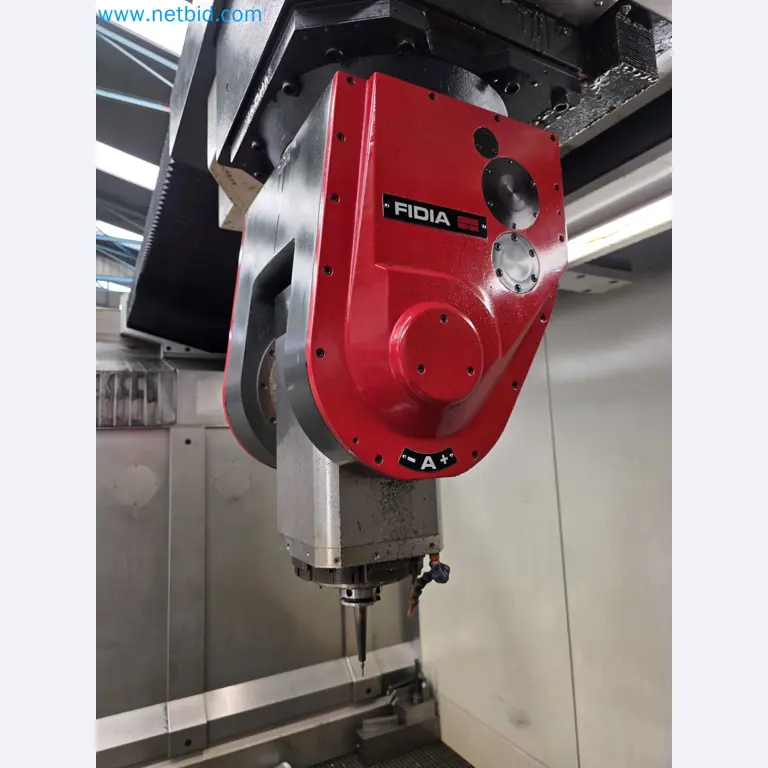

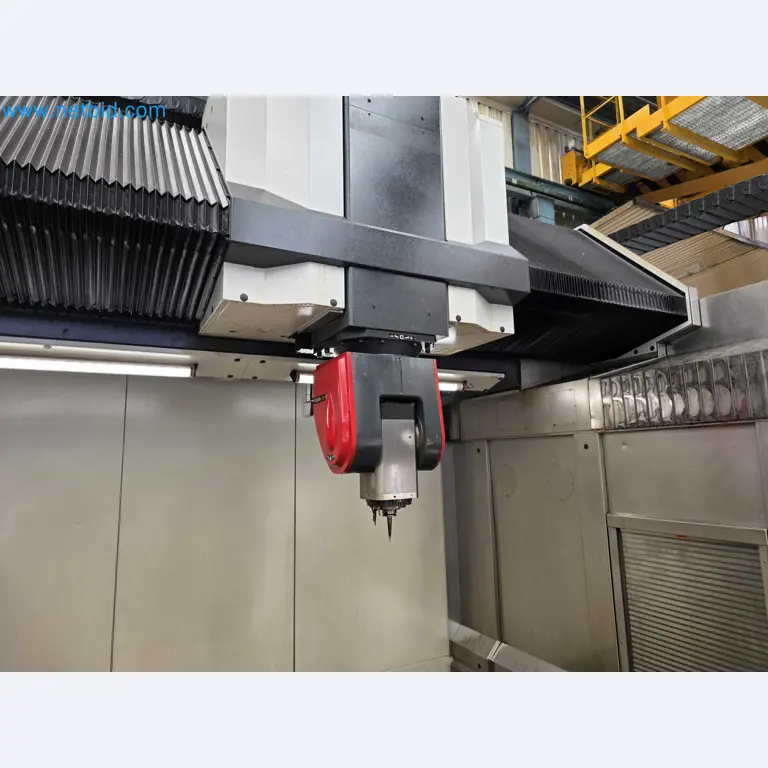

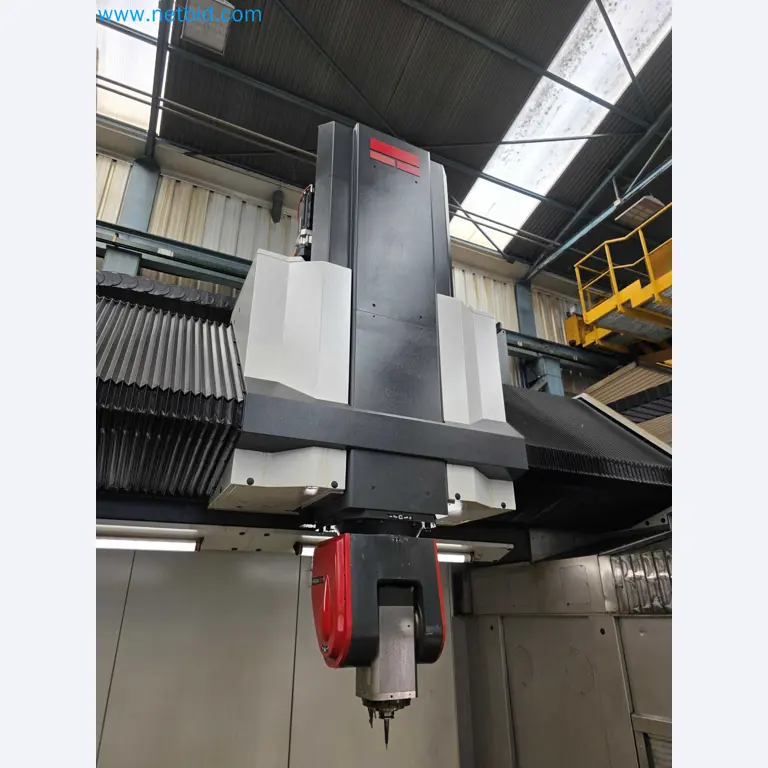

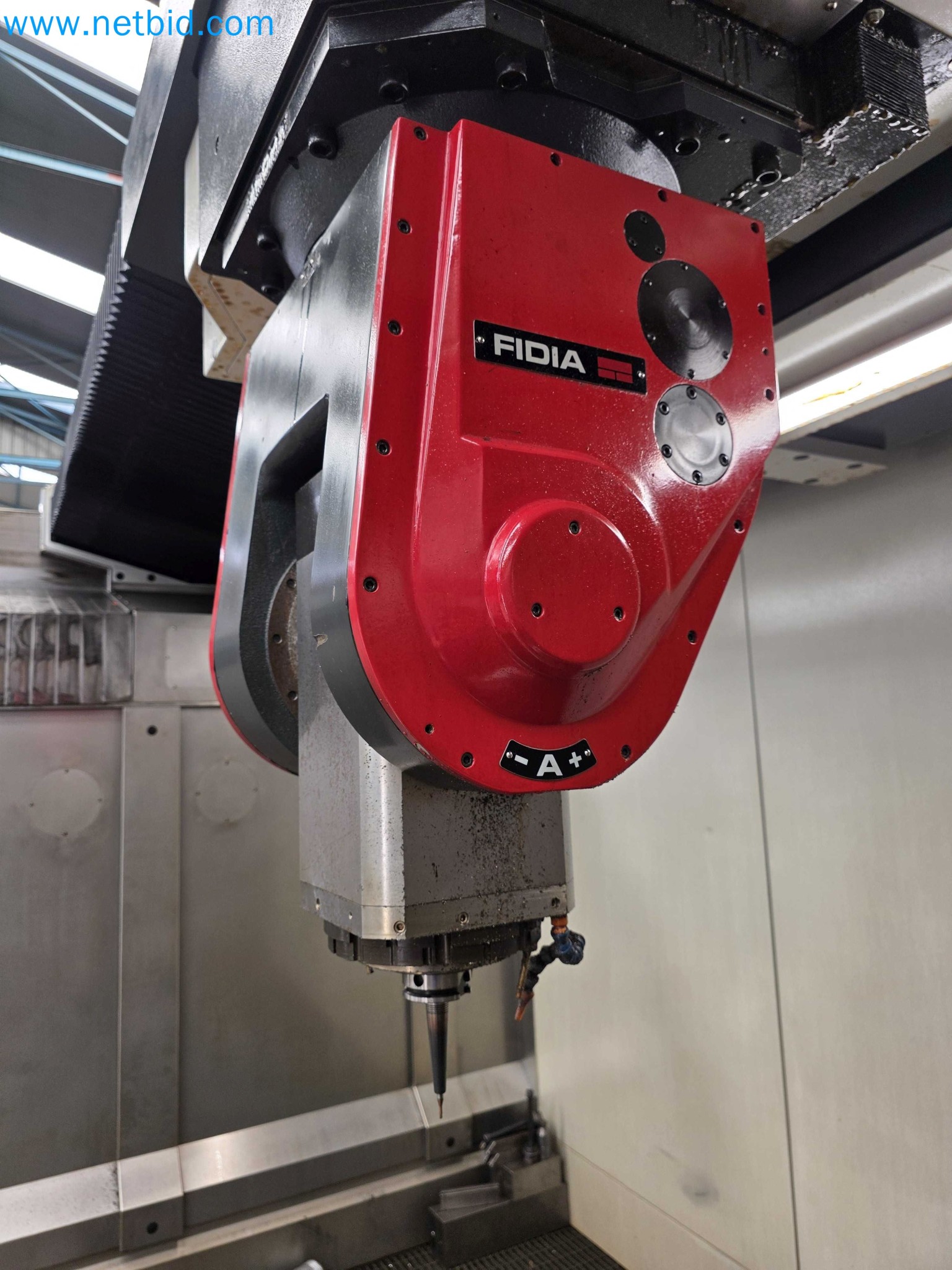

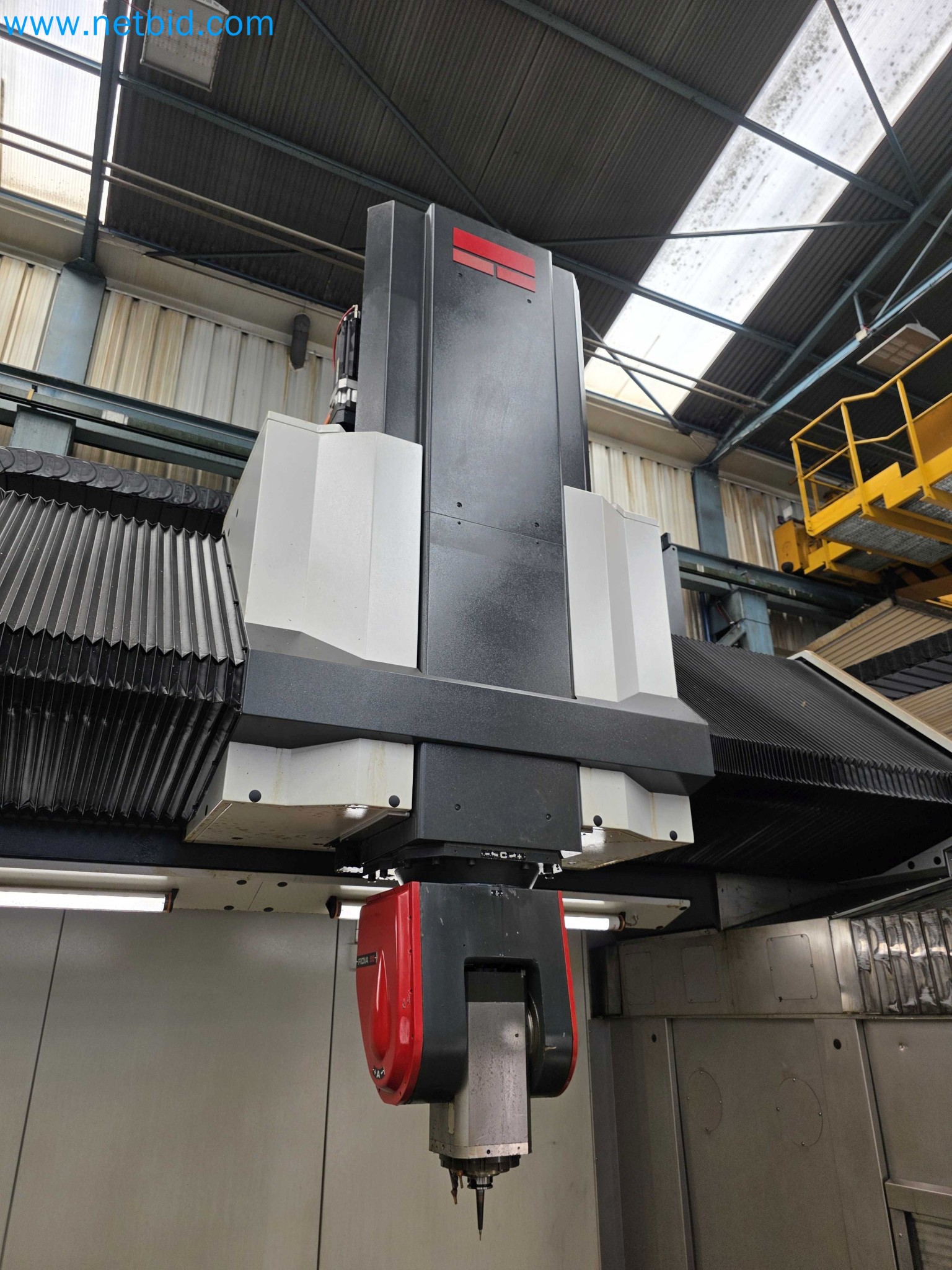

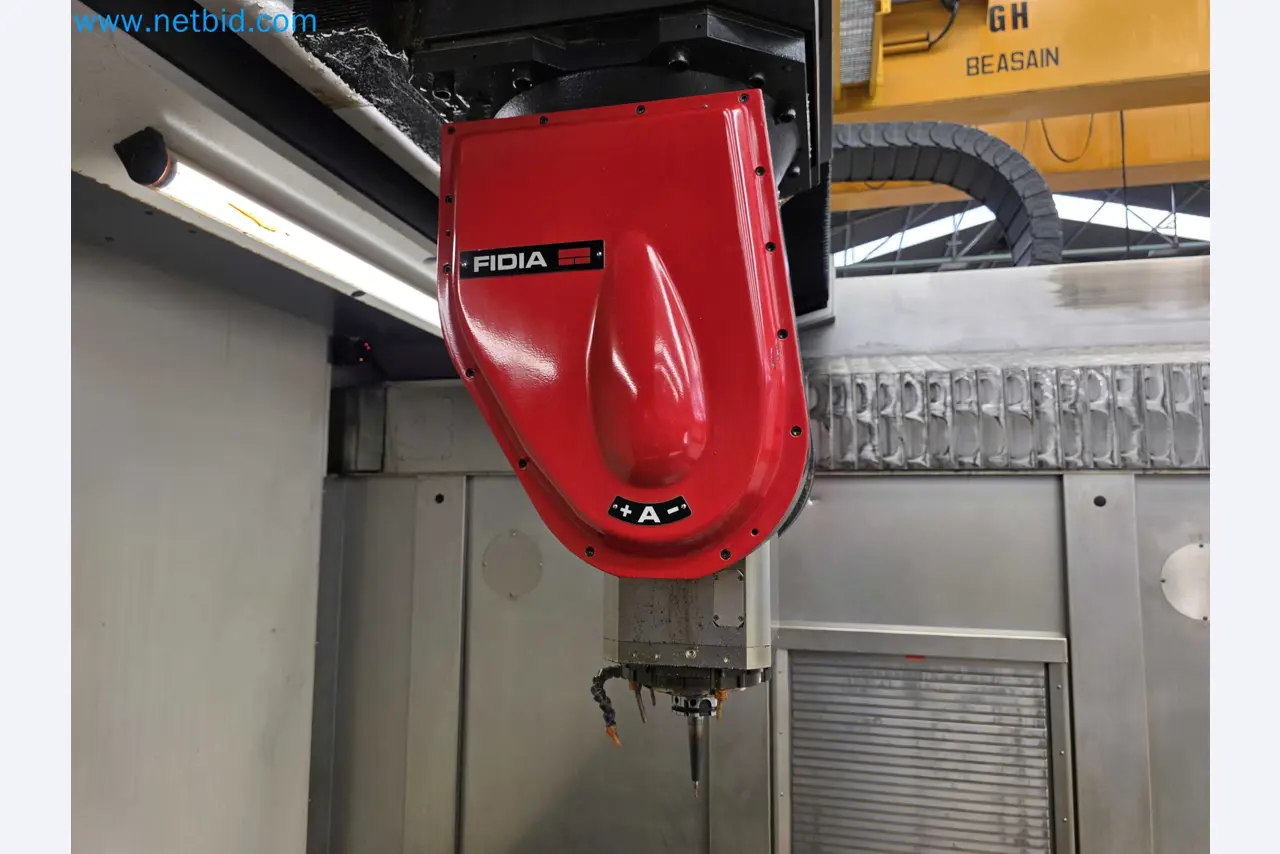

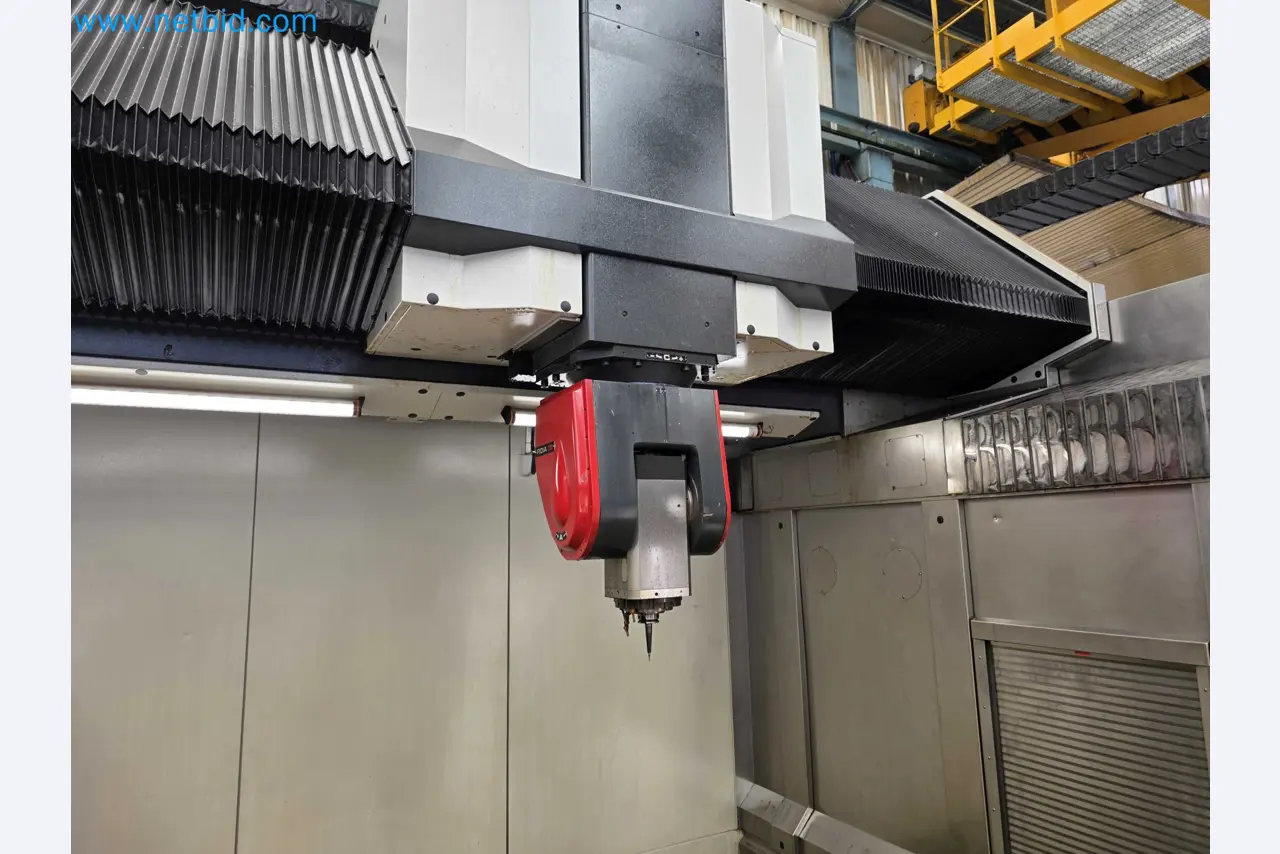

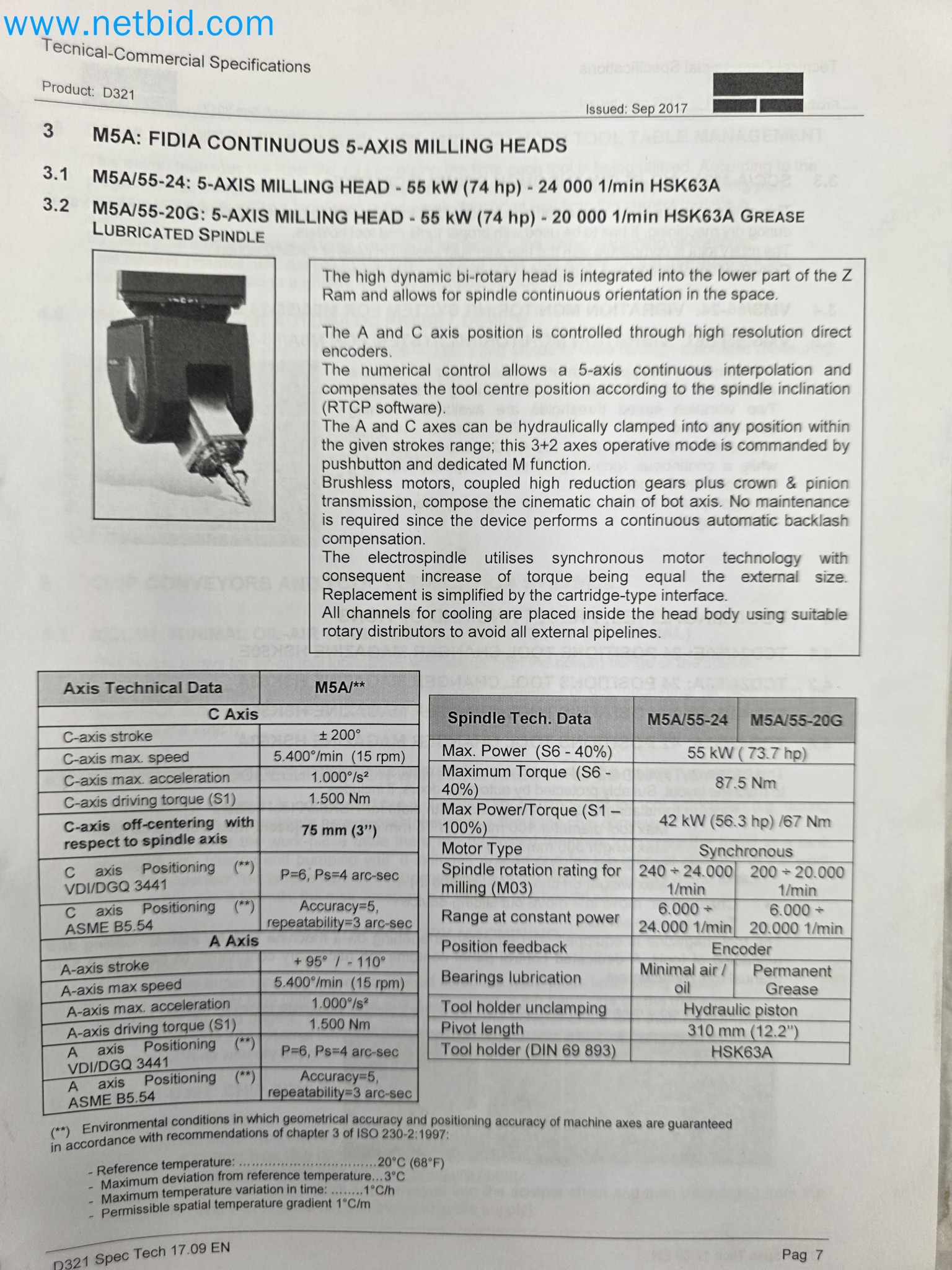

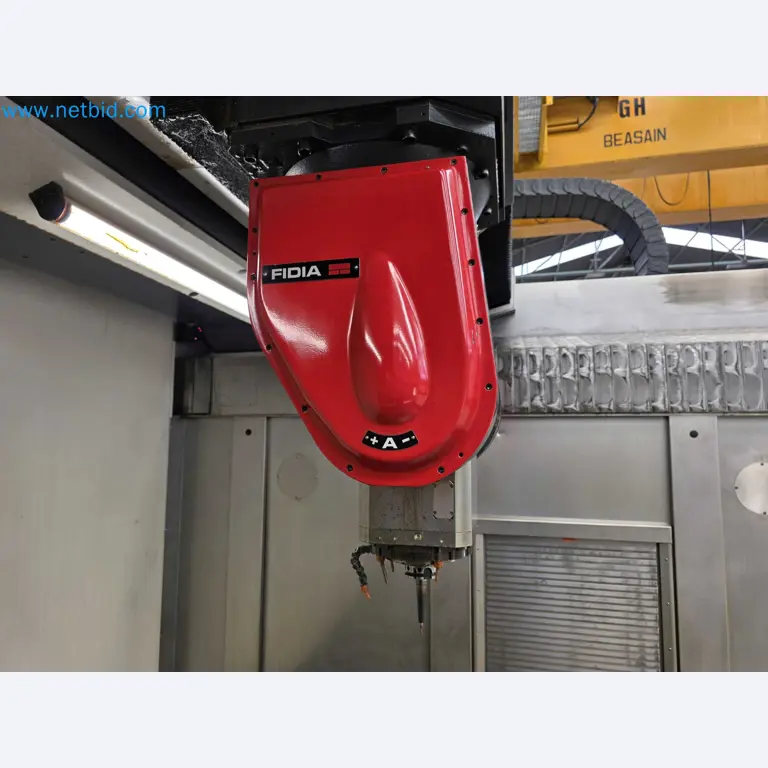

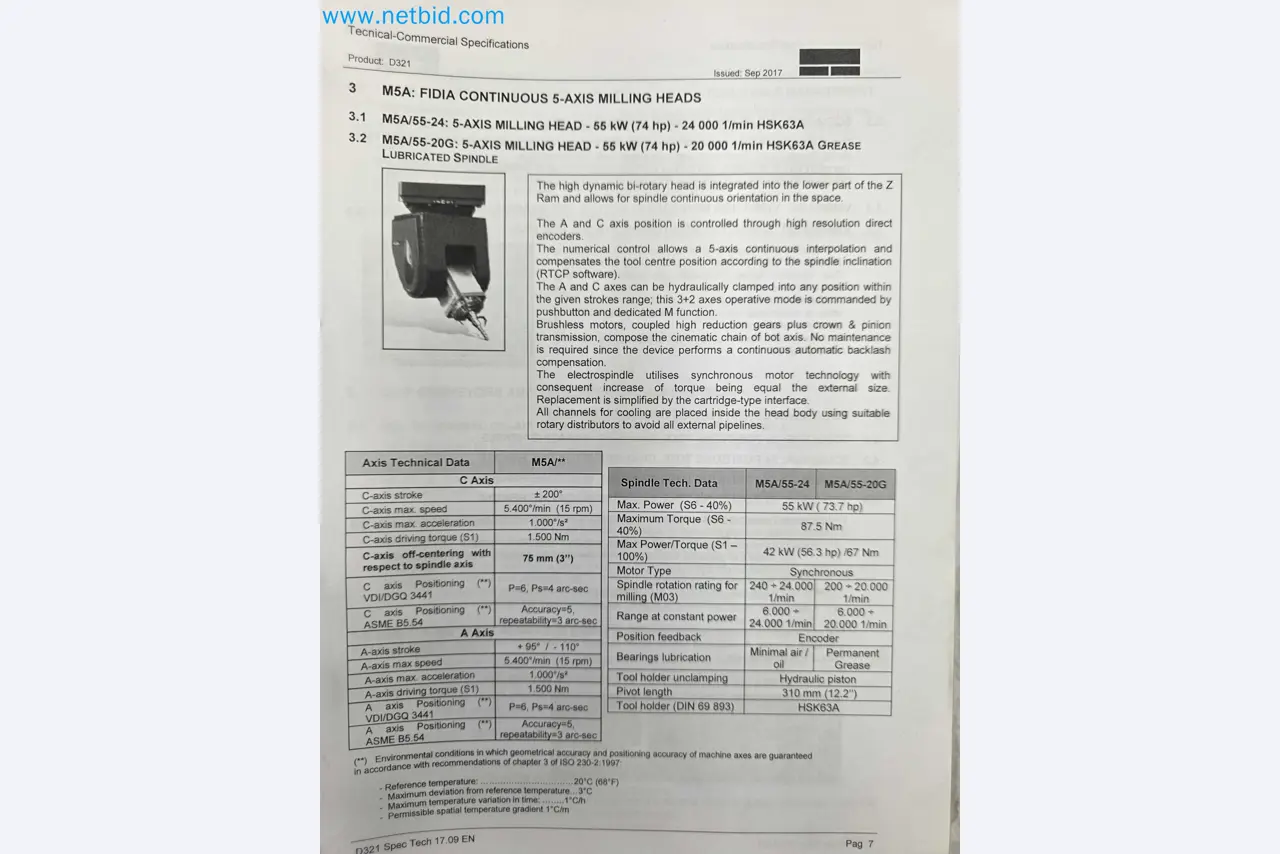

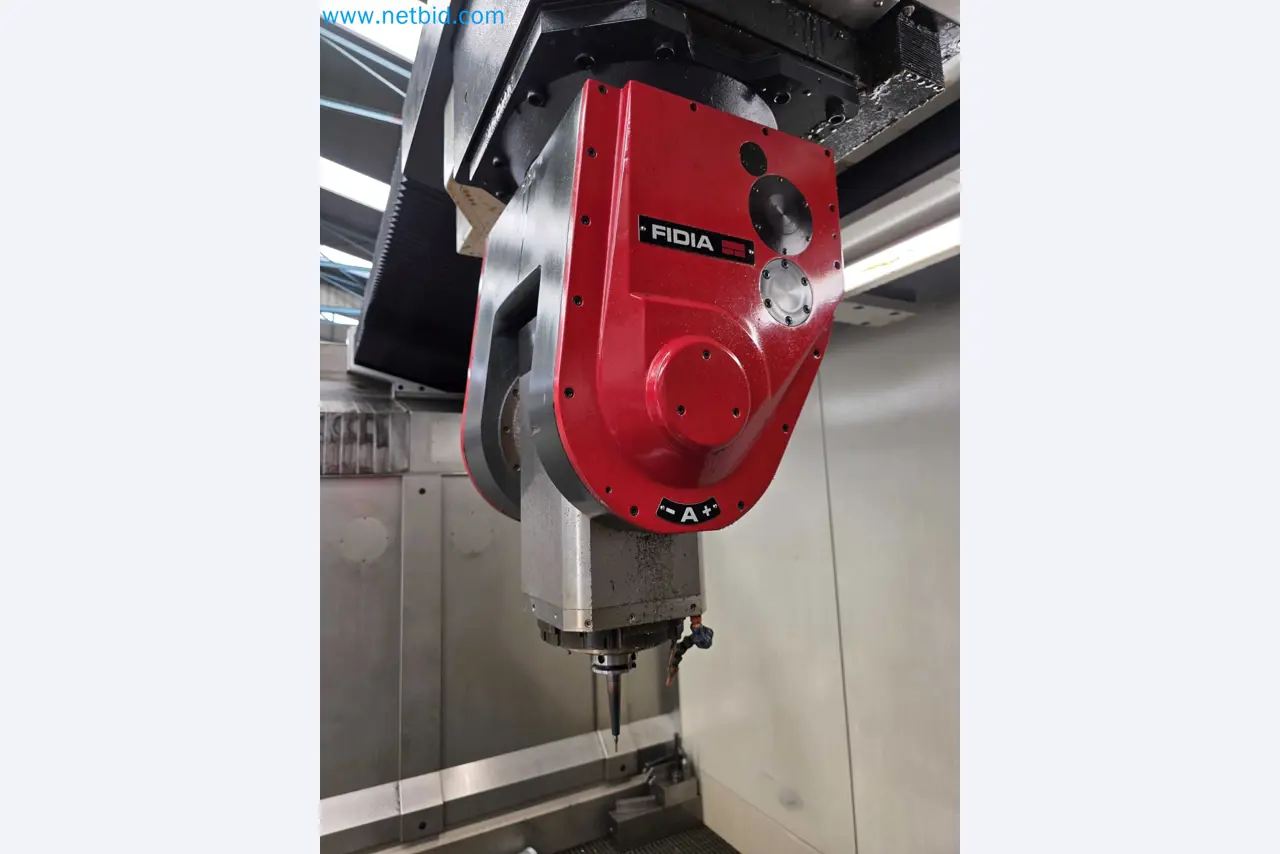

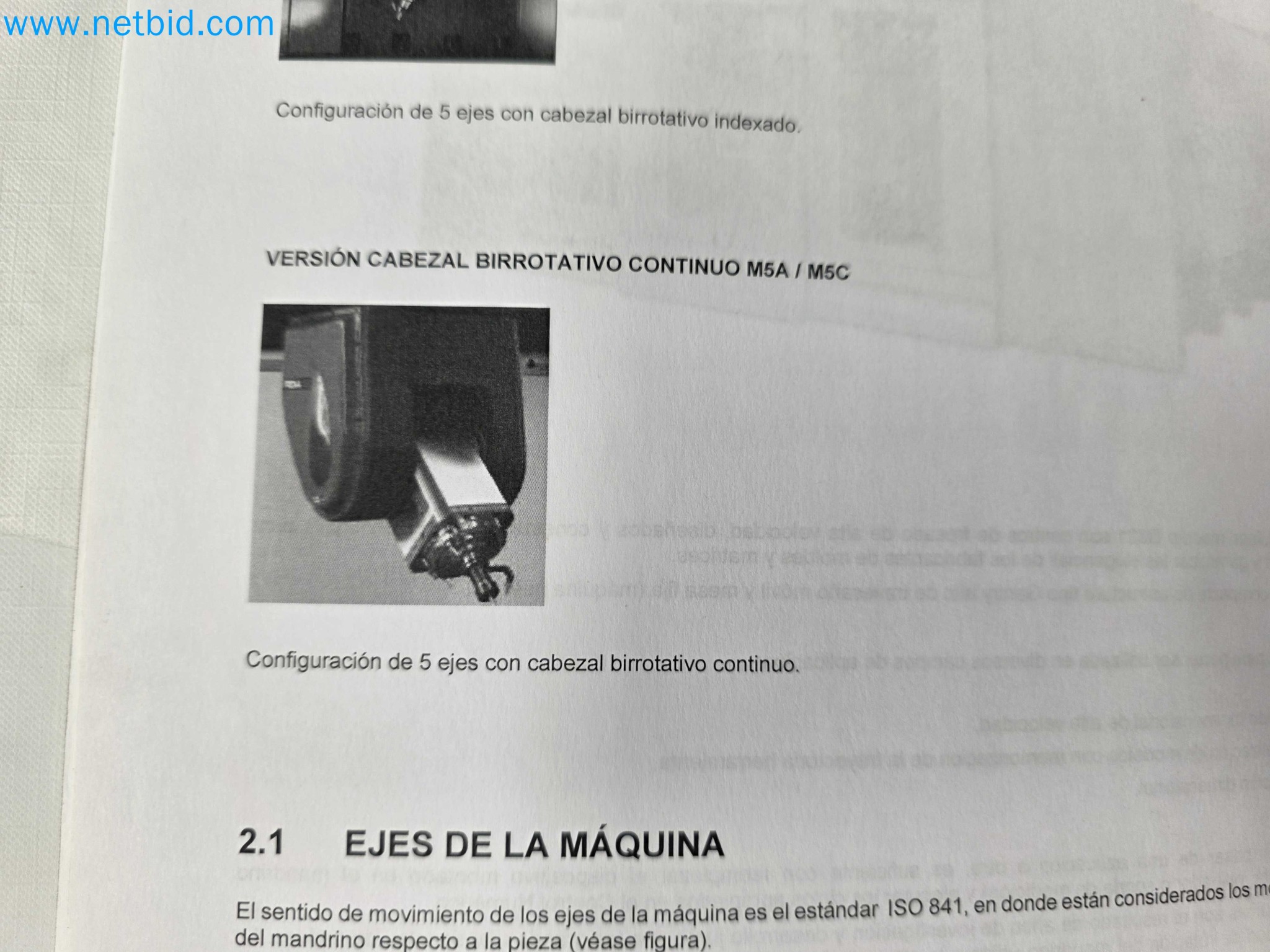

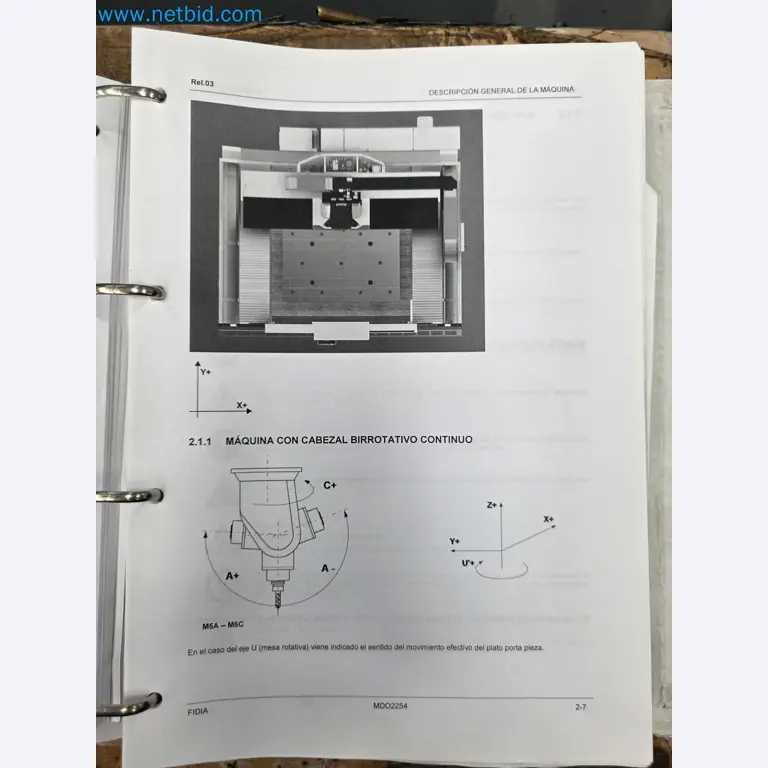

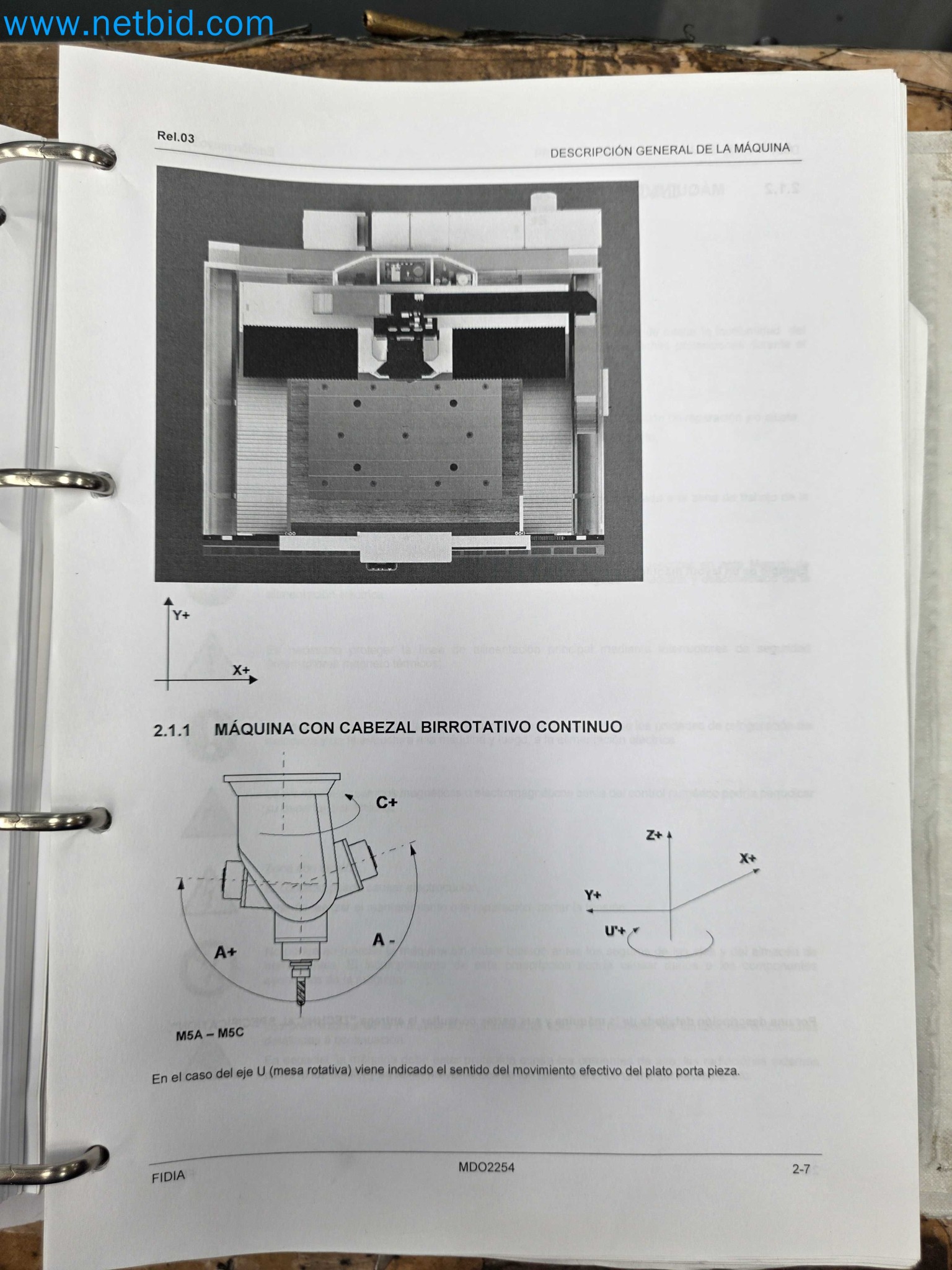

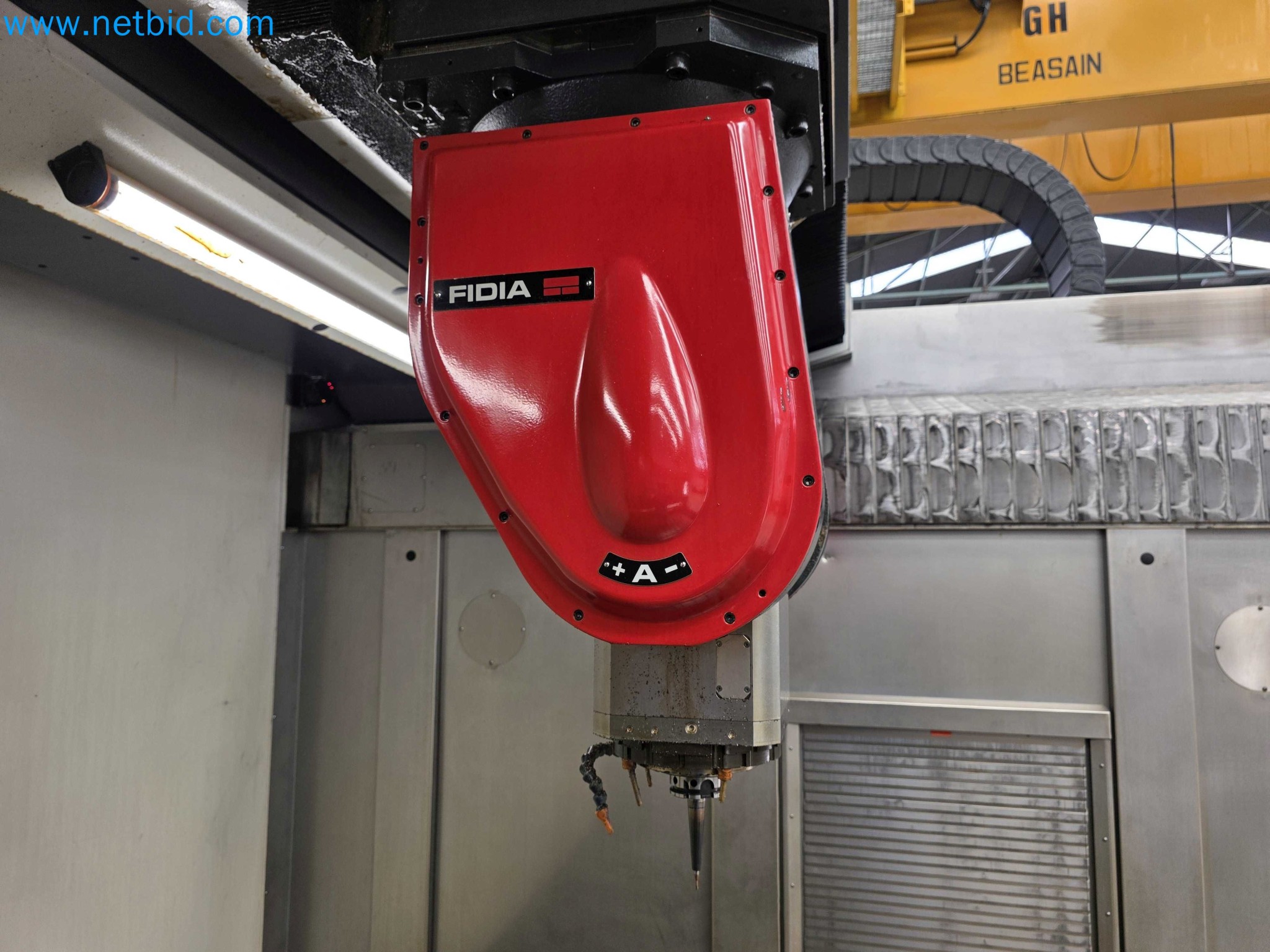

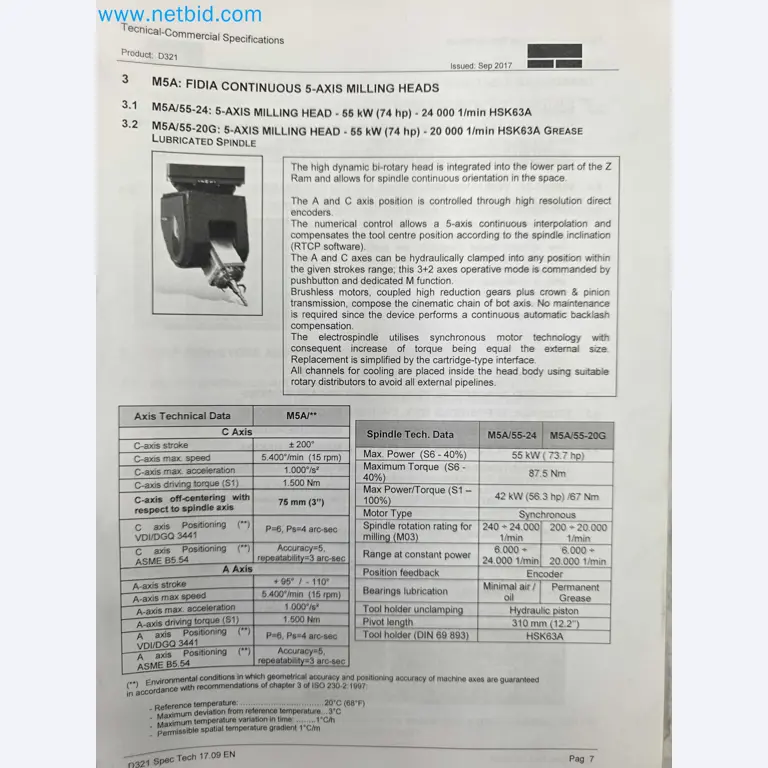

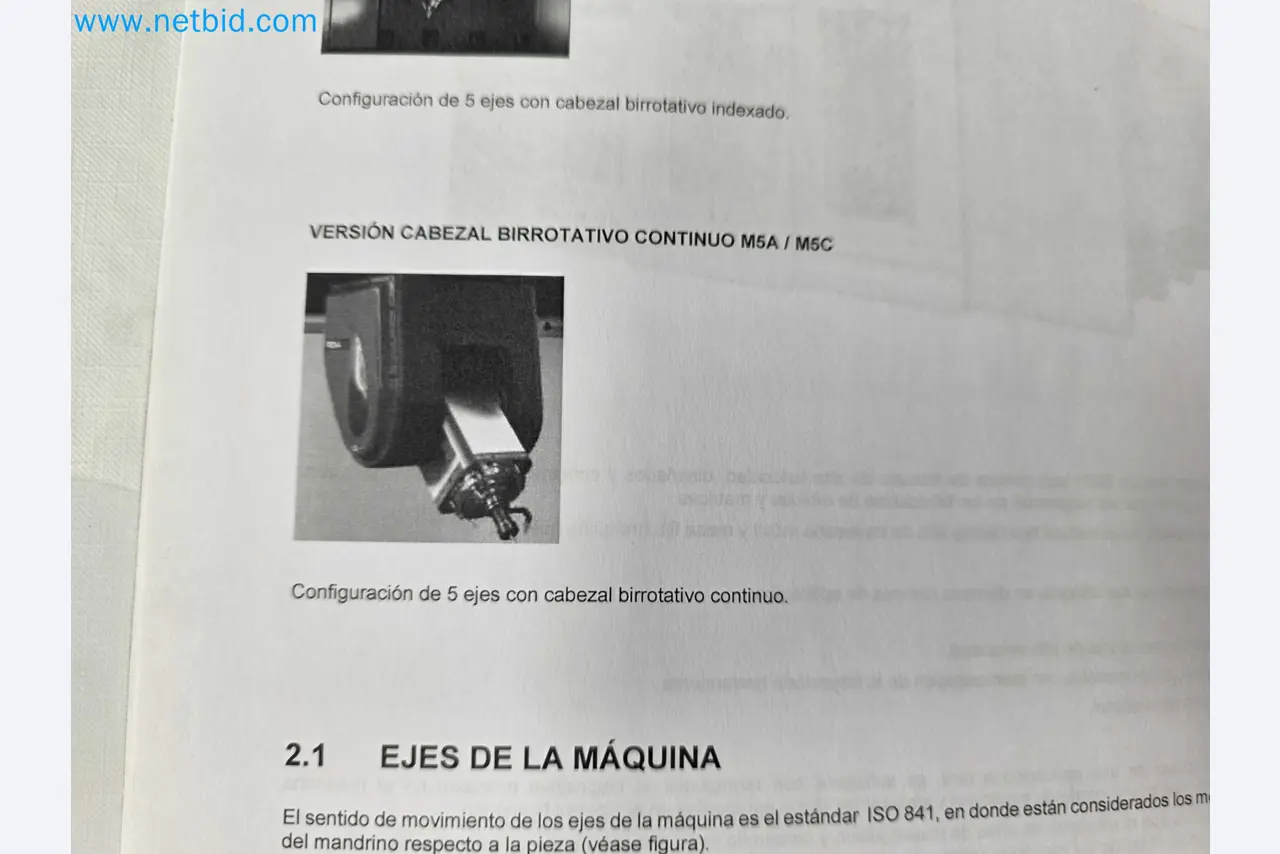

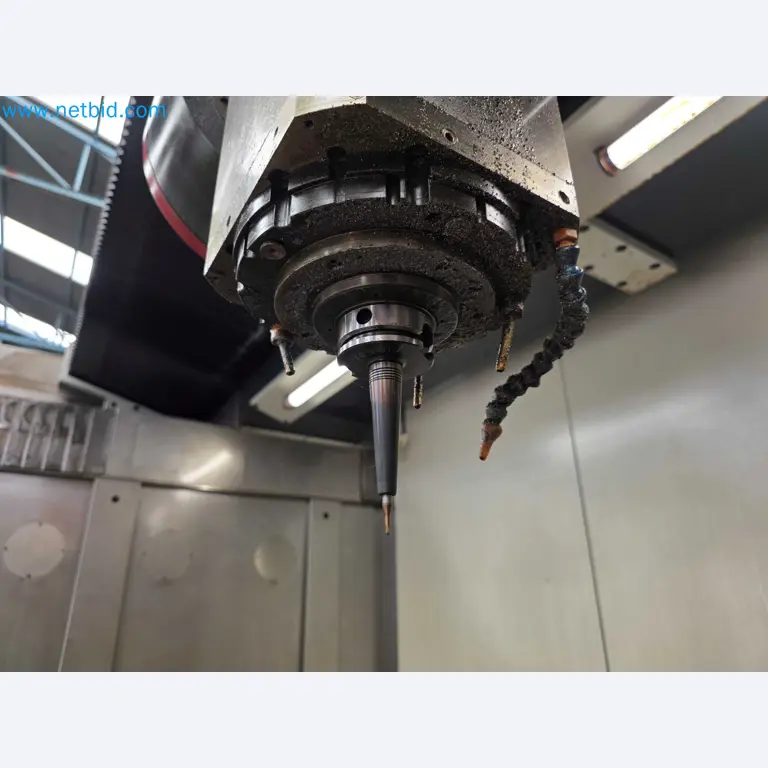

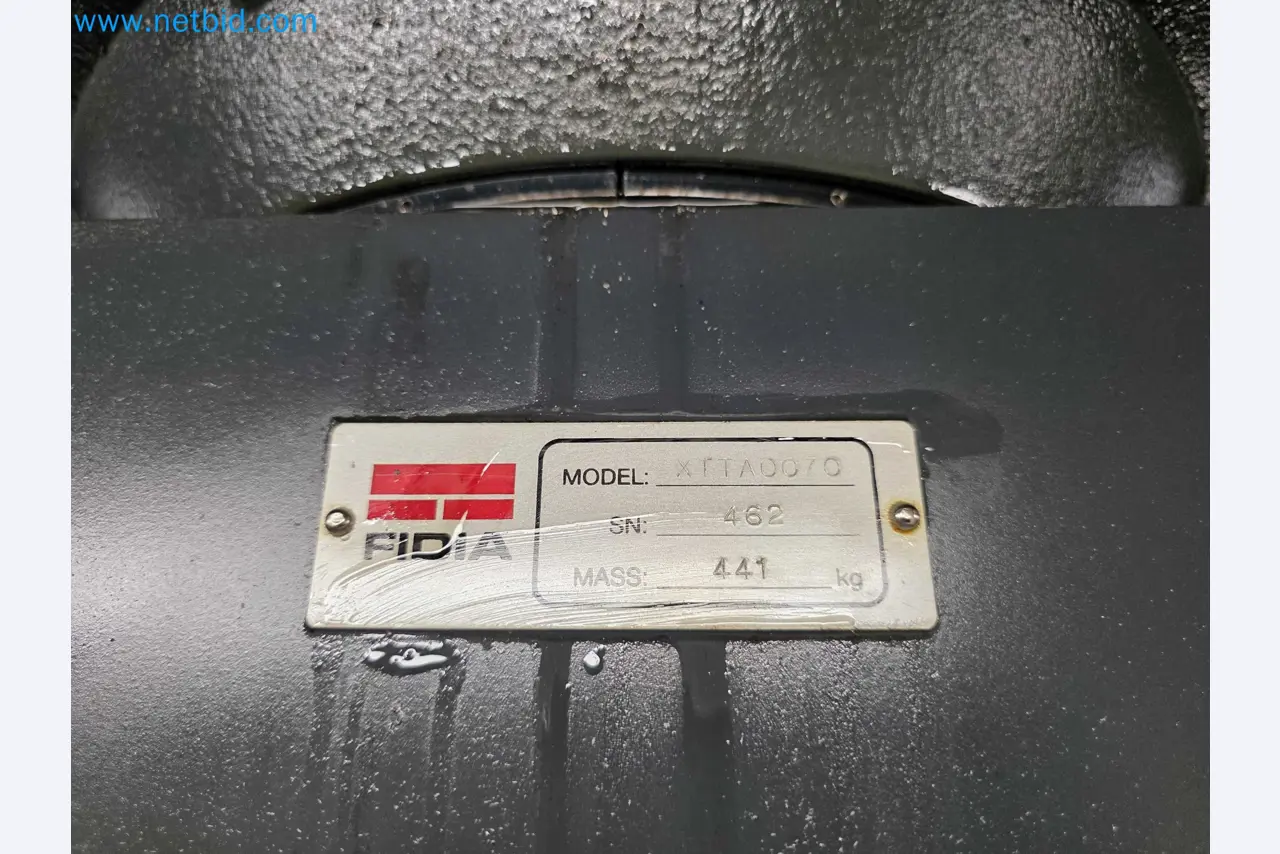

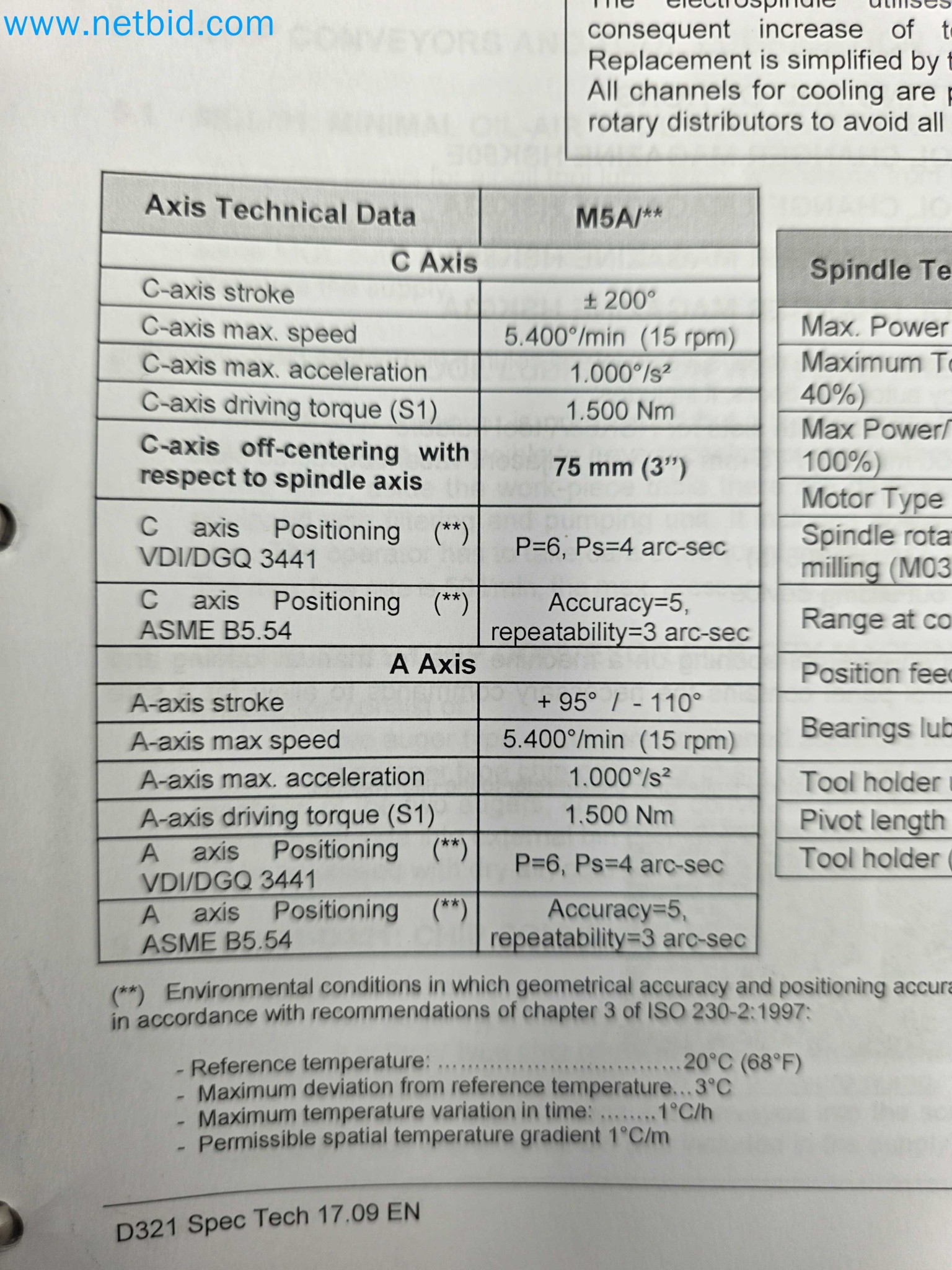

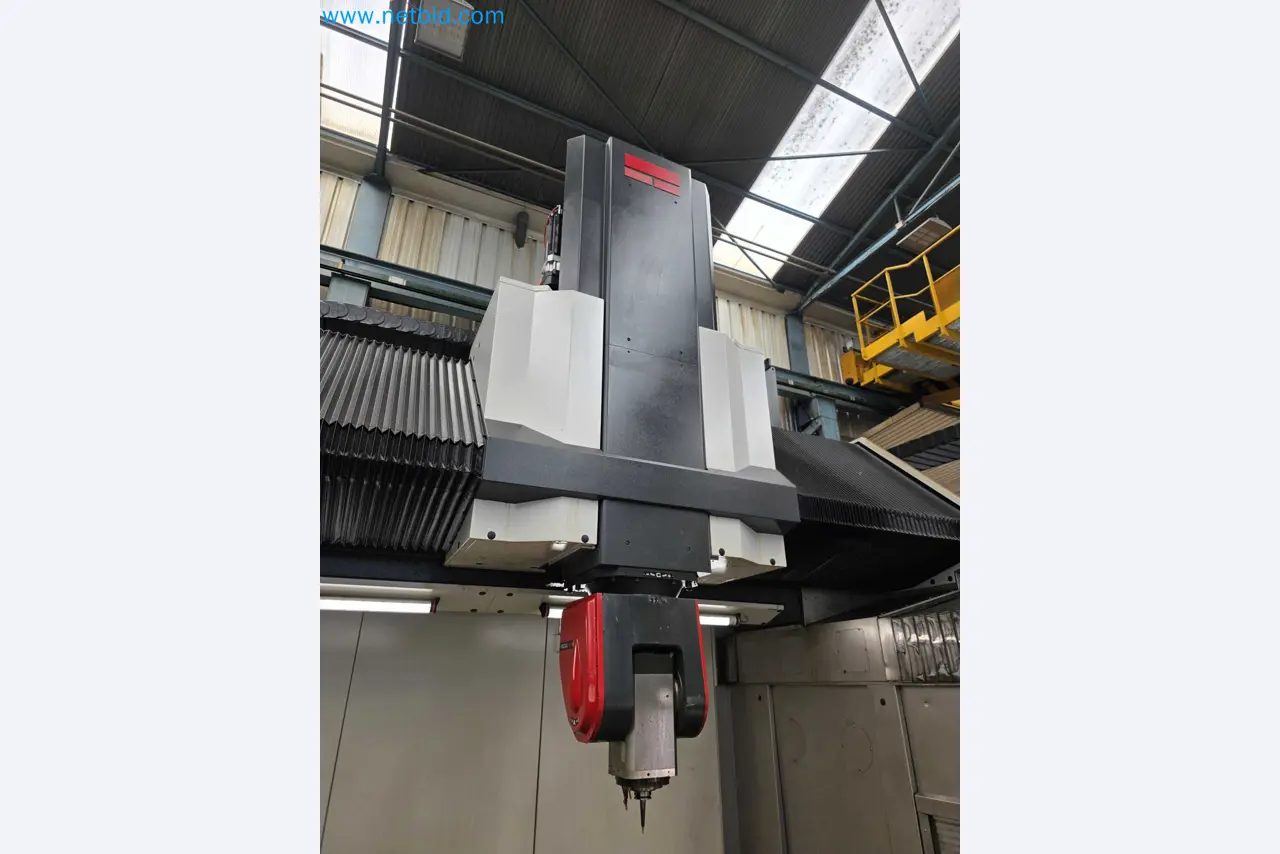

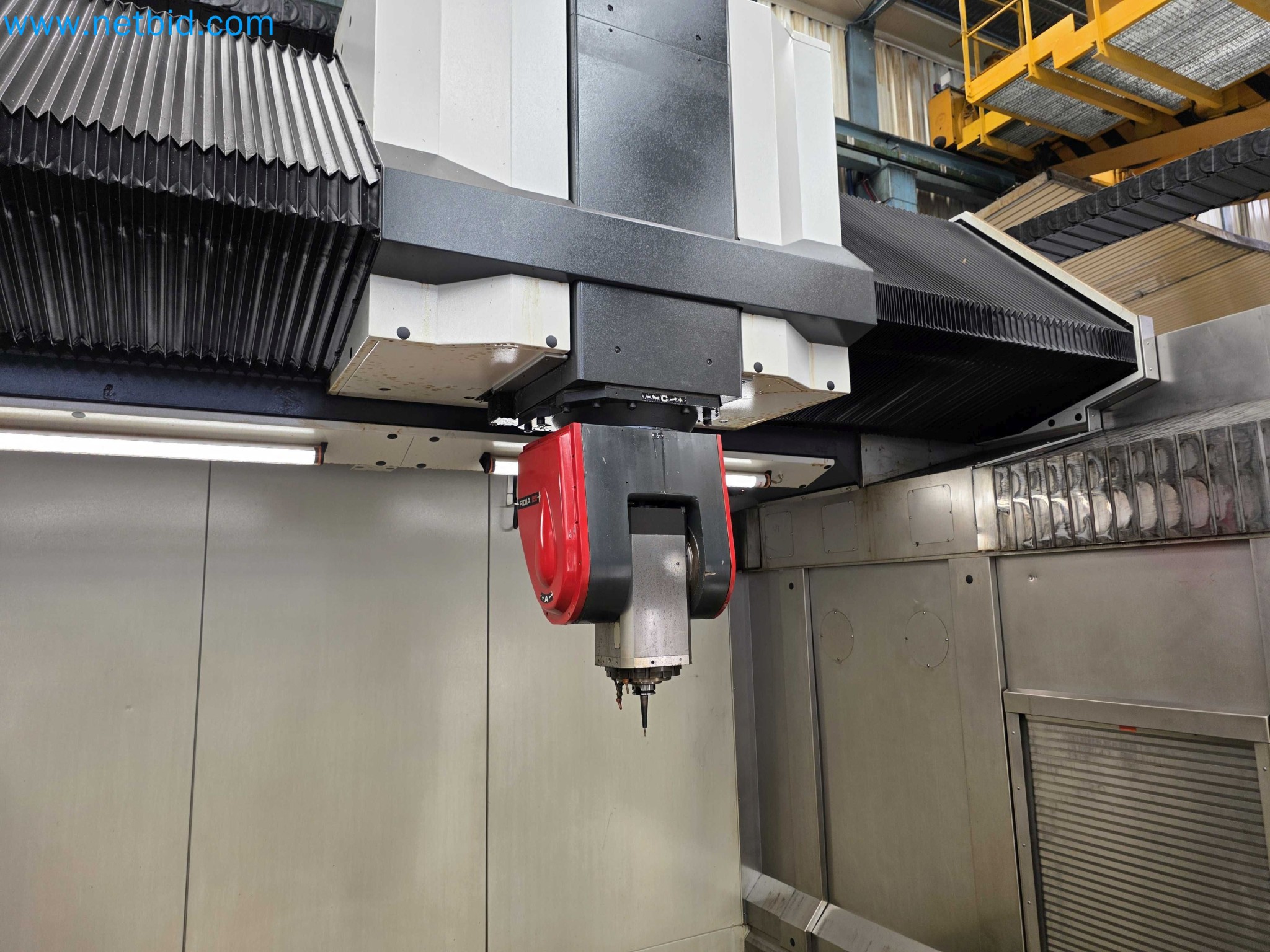

Continuous 5-axis dual rotary head (M5A/55-24)
• A-axis travel: +95° / -110°
• C-axis travel: ±200°

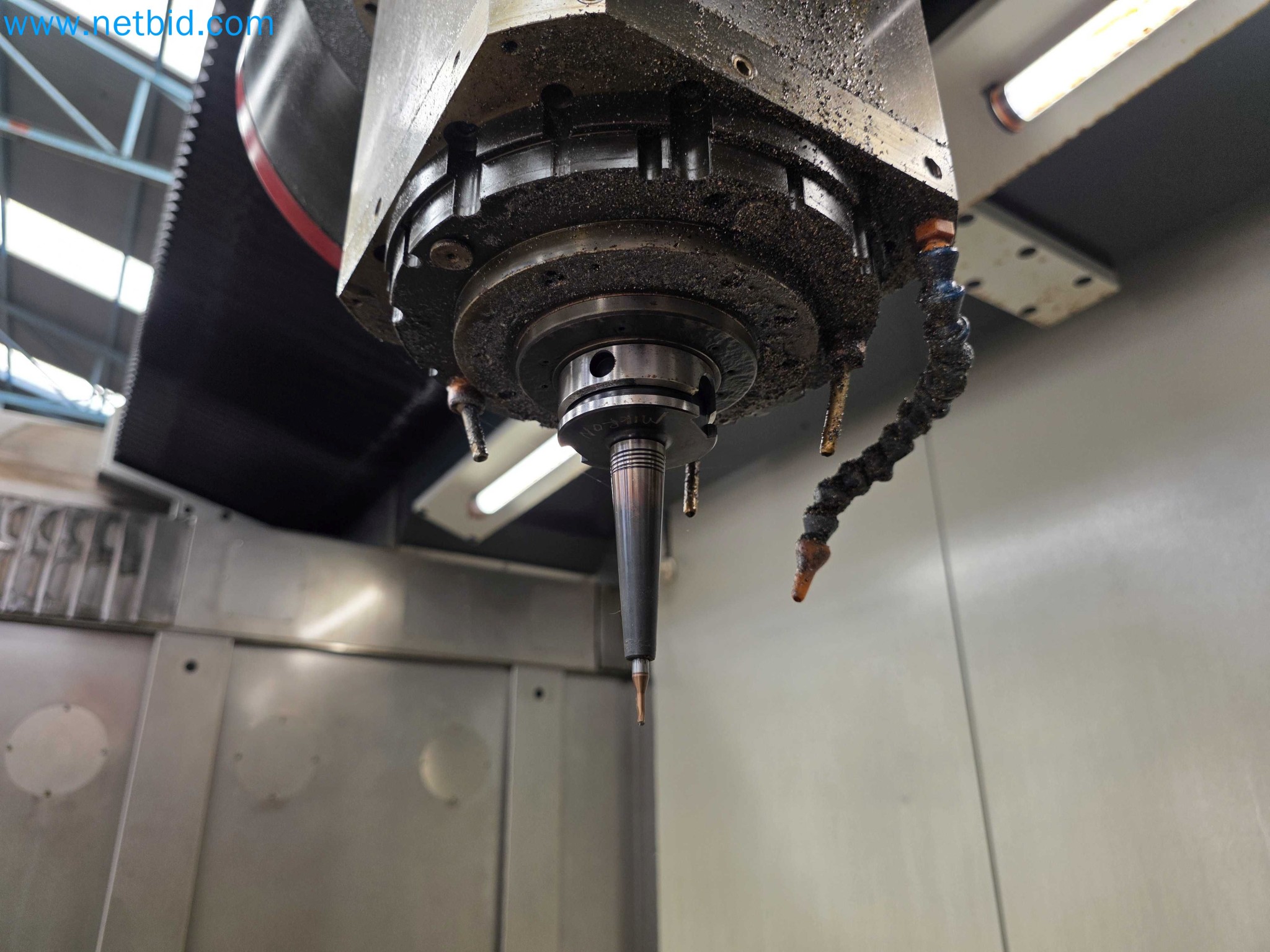

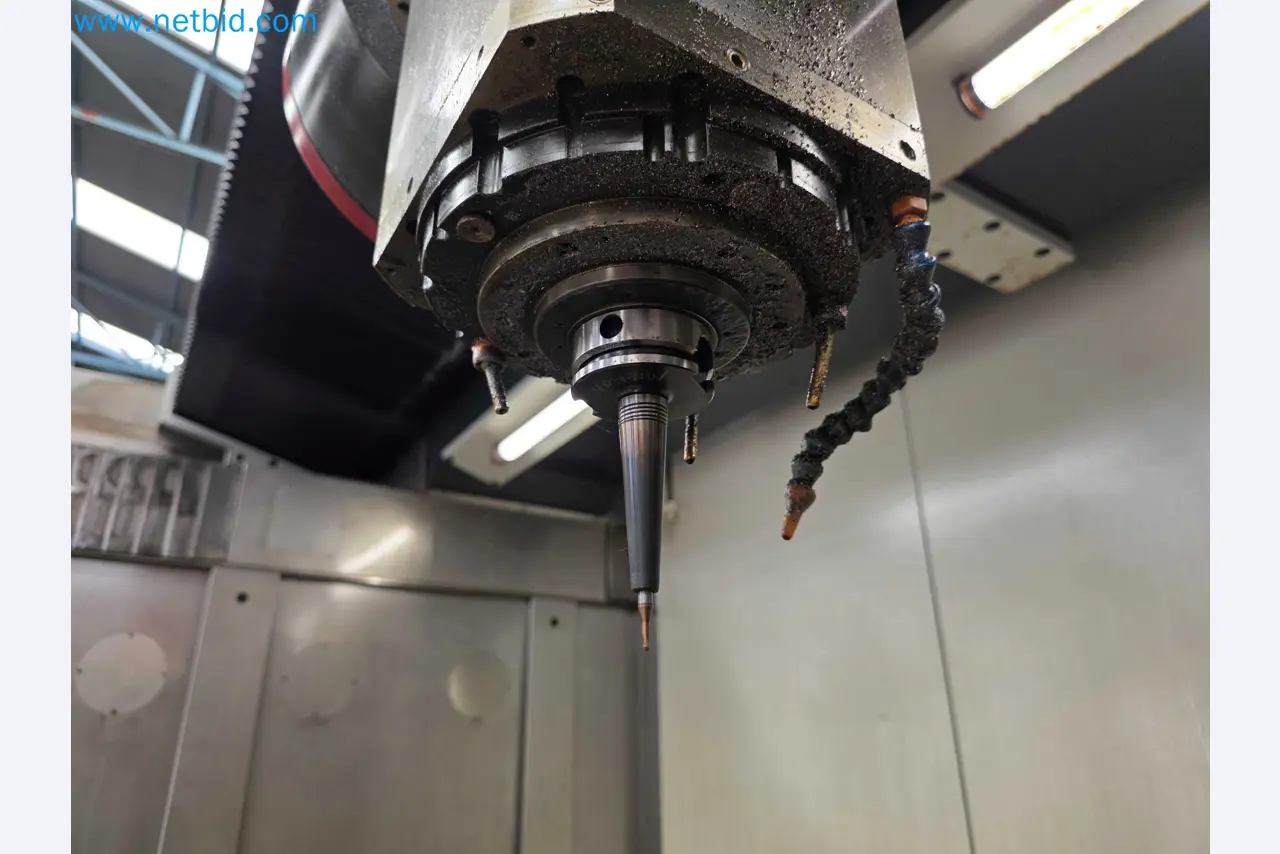

• Spindle: 24,000 rpm / 55 kW (S6) / HSK-A63
Maximum working speeds:
• X-Y-Z axes: 24 m/min
• X-Y-Z axis acceleration: 3 m/s²
• A-C axes: 5,400°/min
• A-C axis acceleration: 1,000°/min²

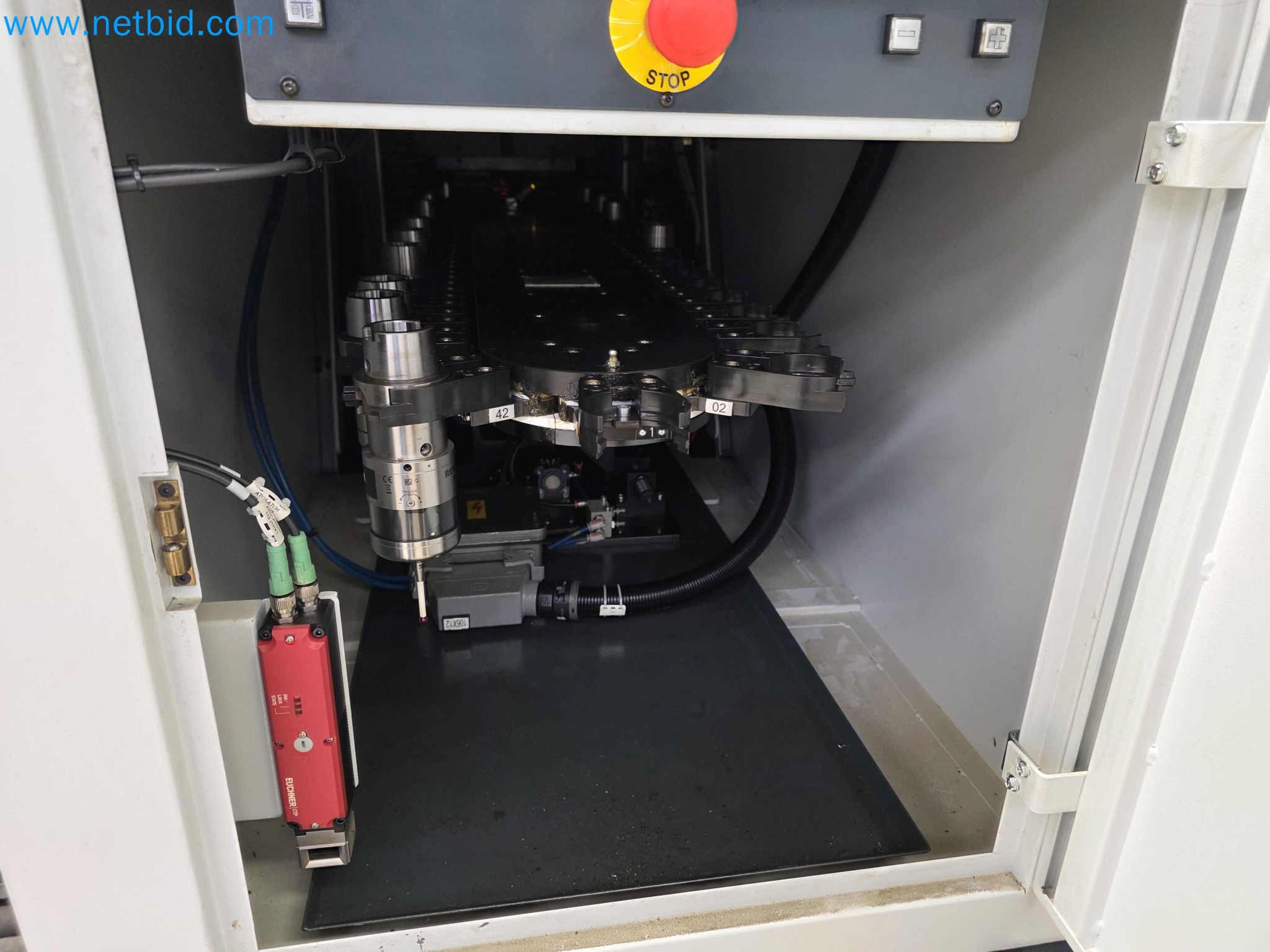

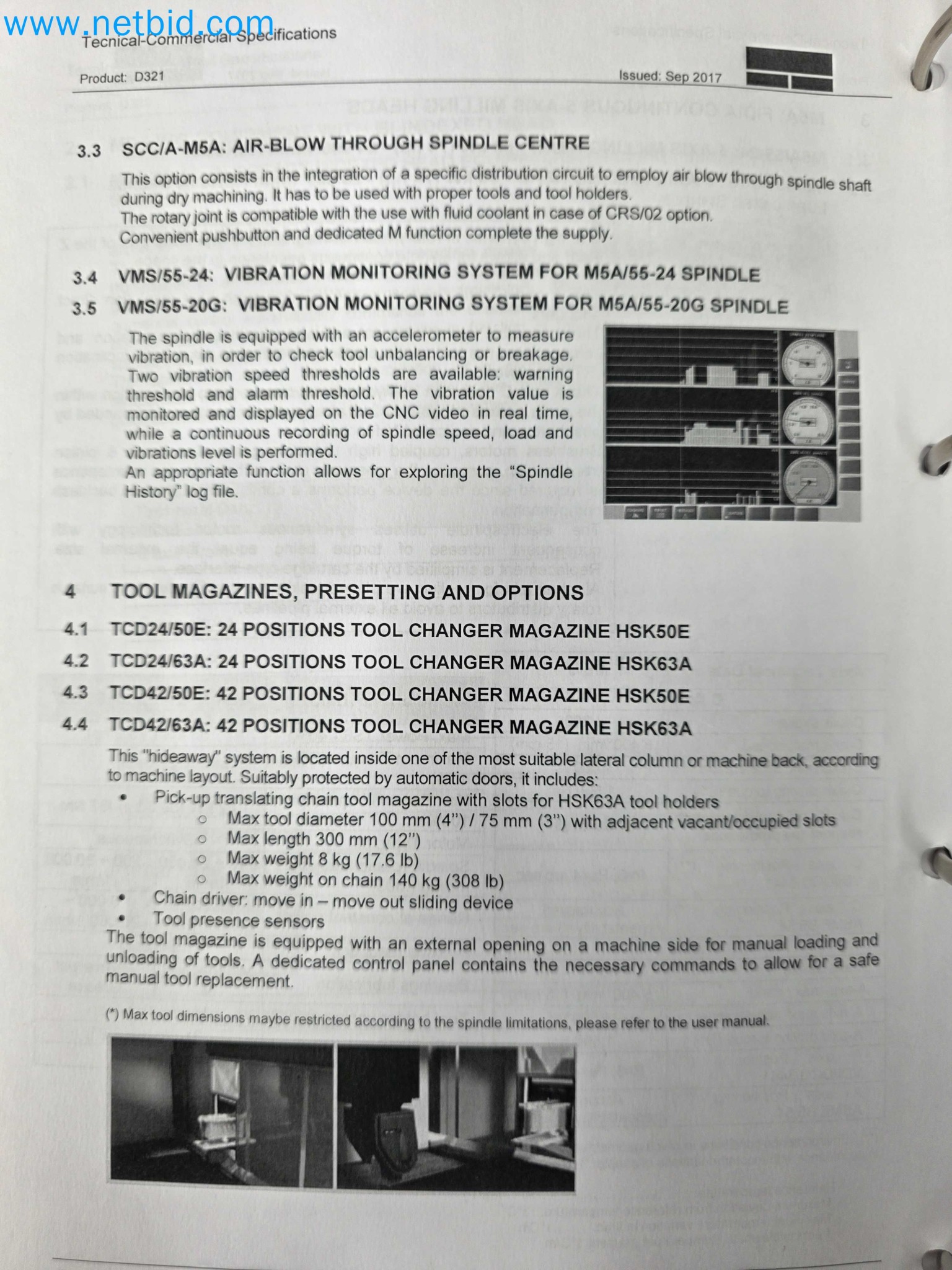

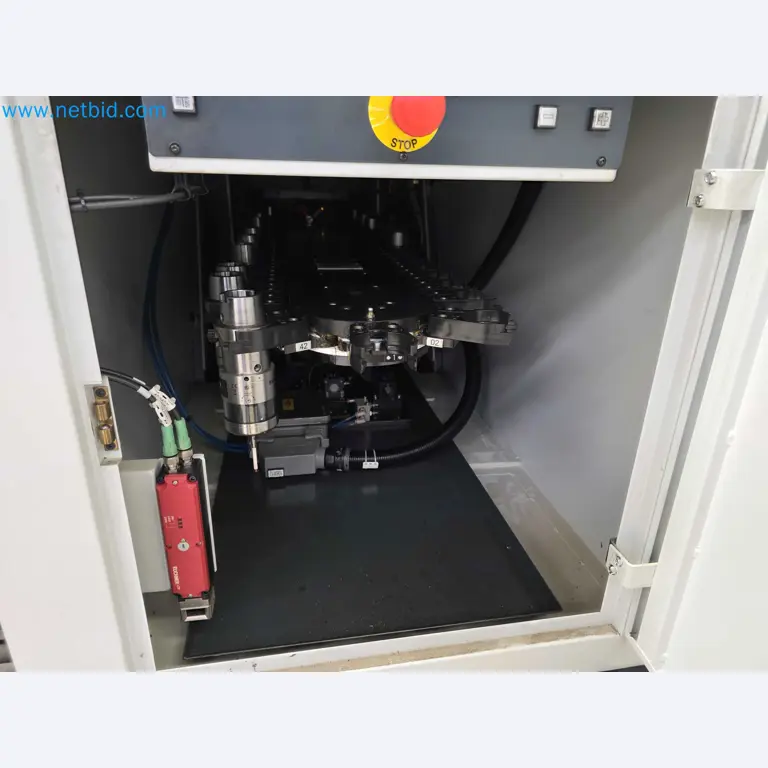

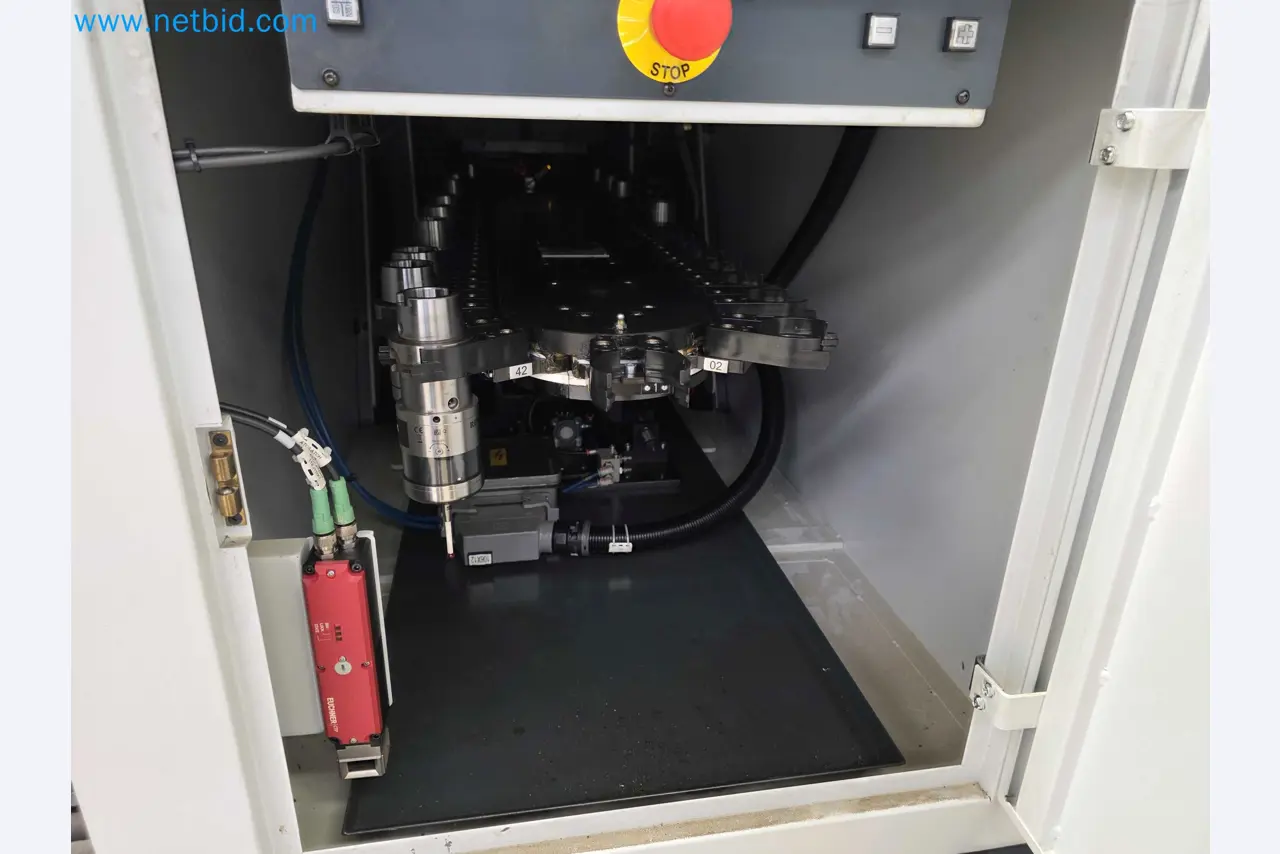

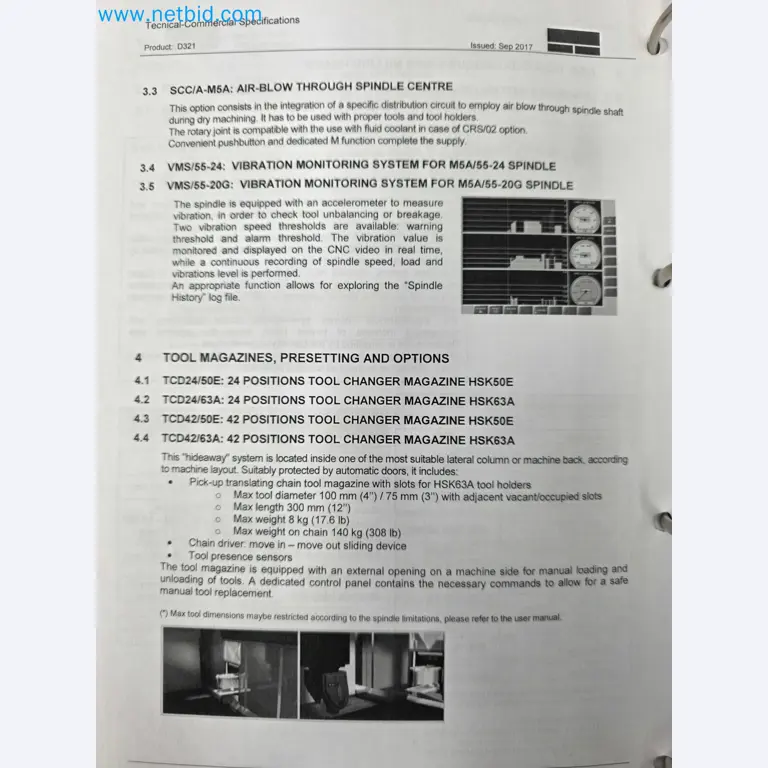

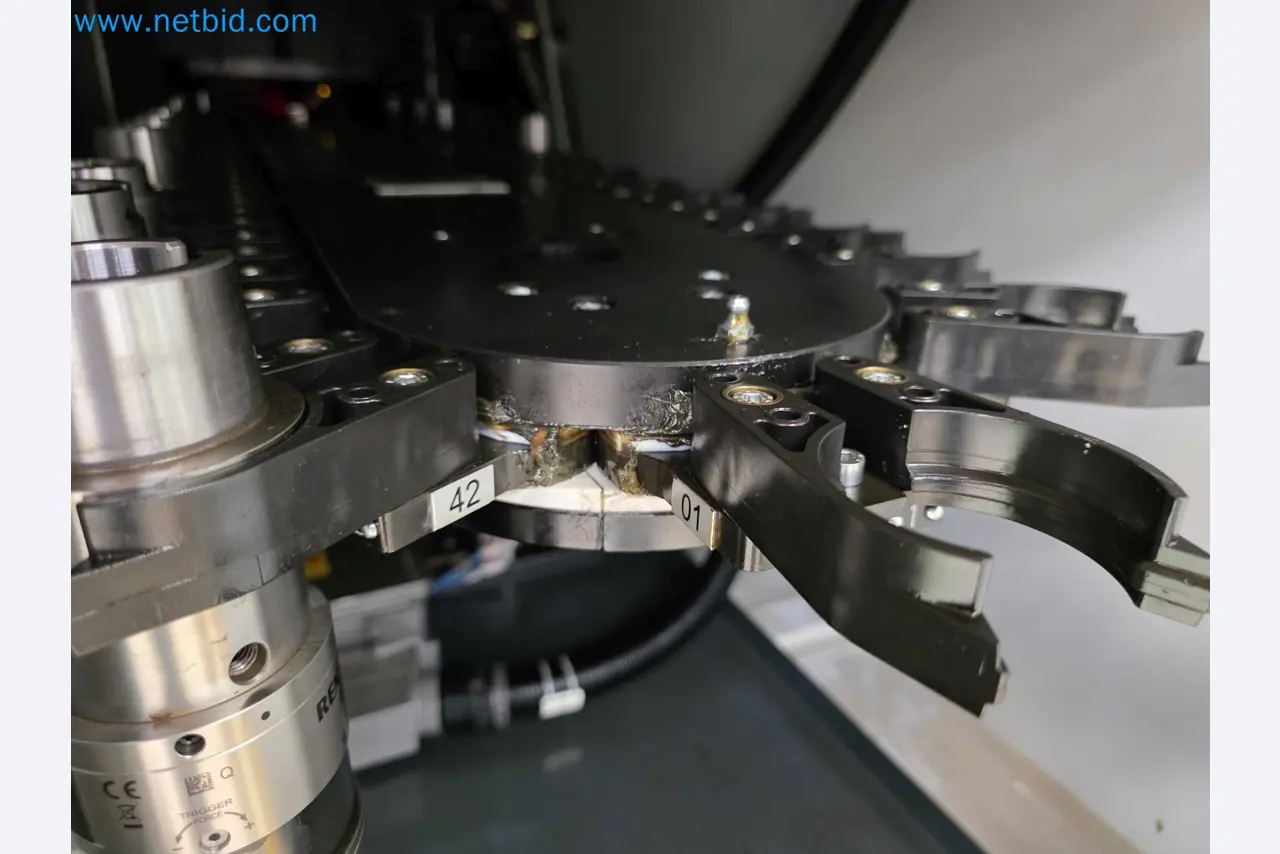

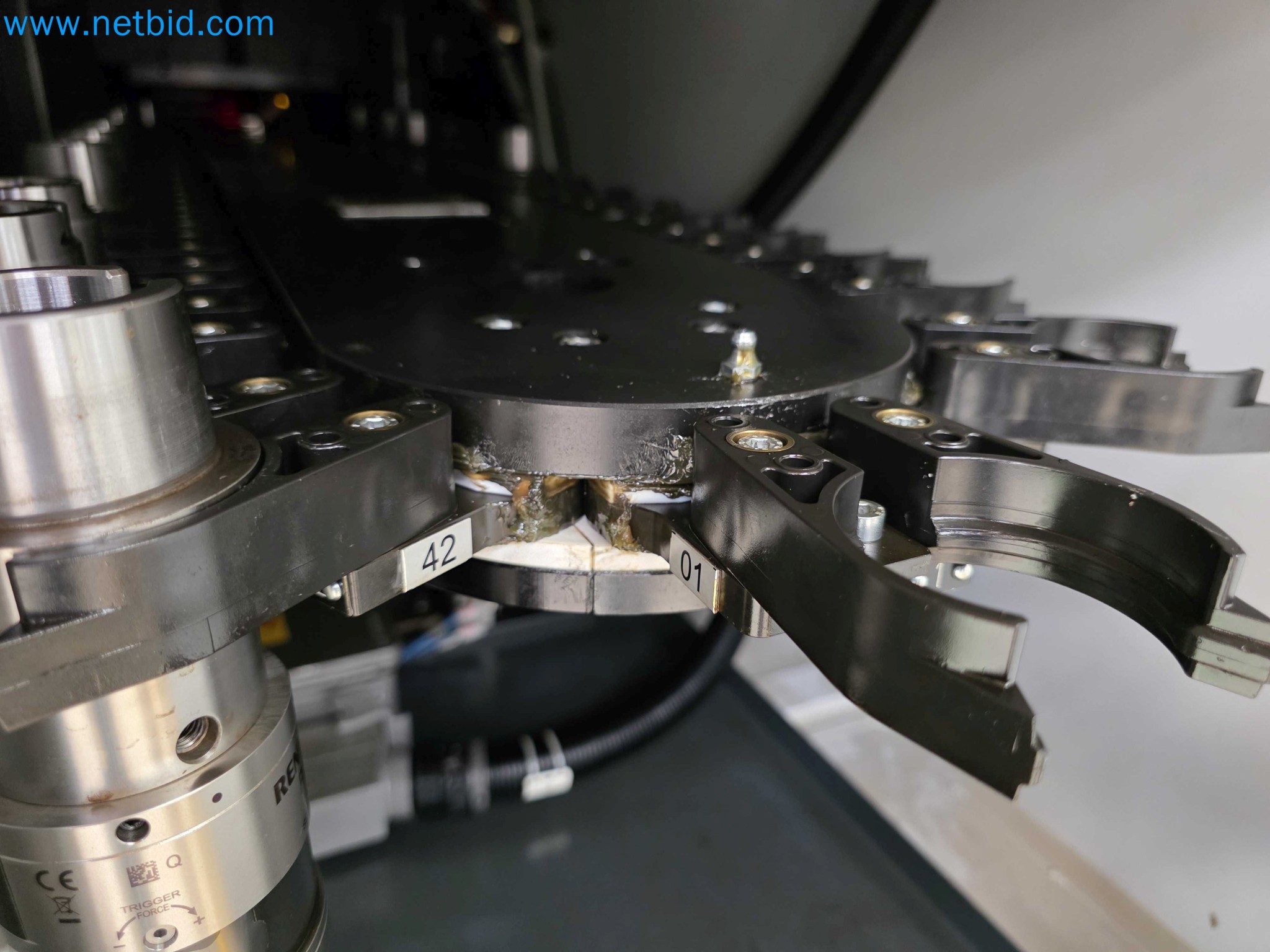

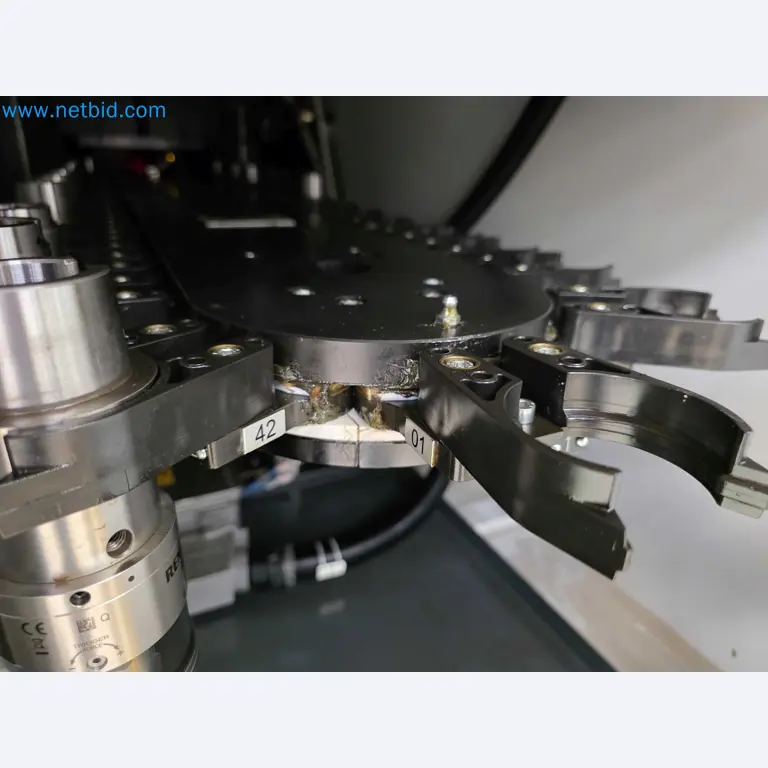

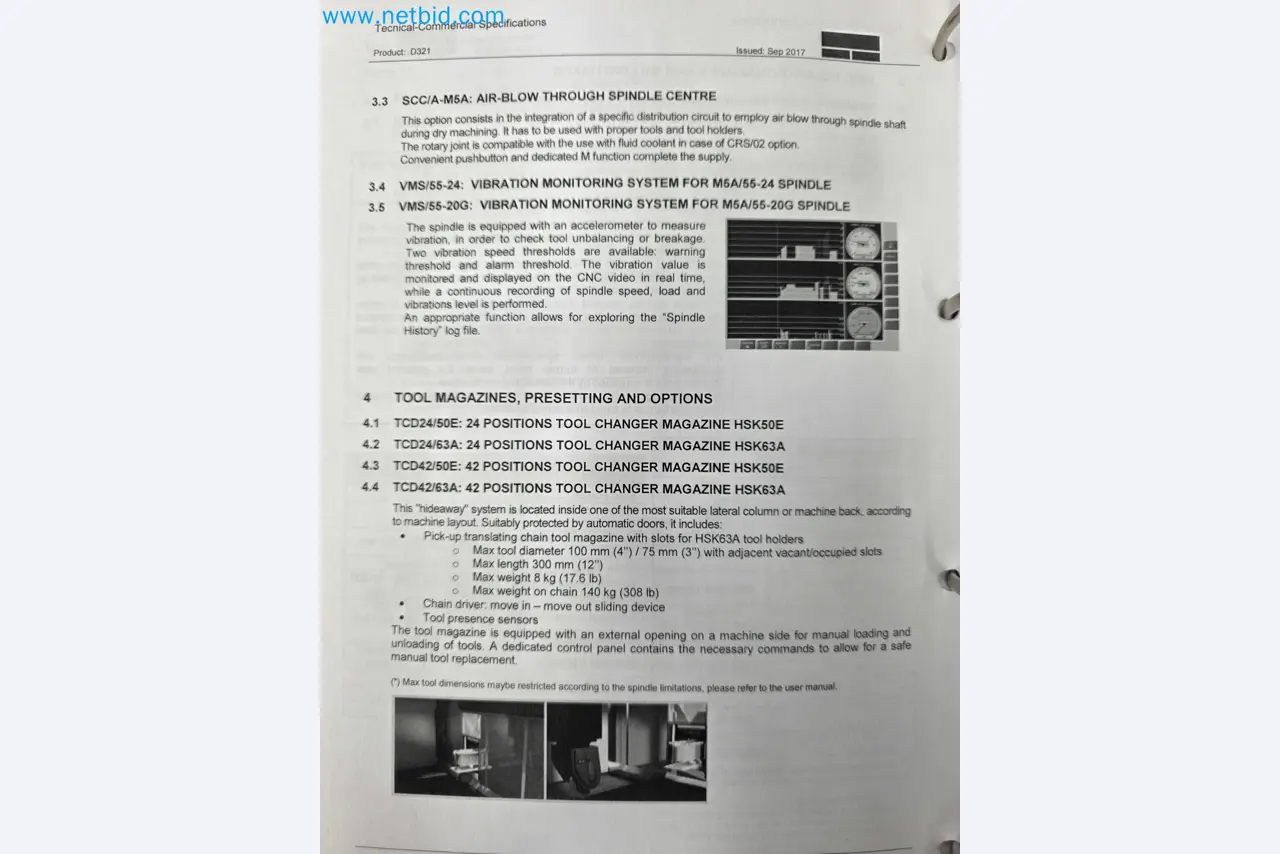

Automatic tool changer
• Capacity: 42 positions

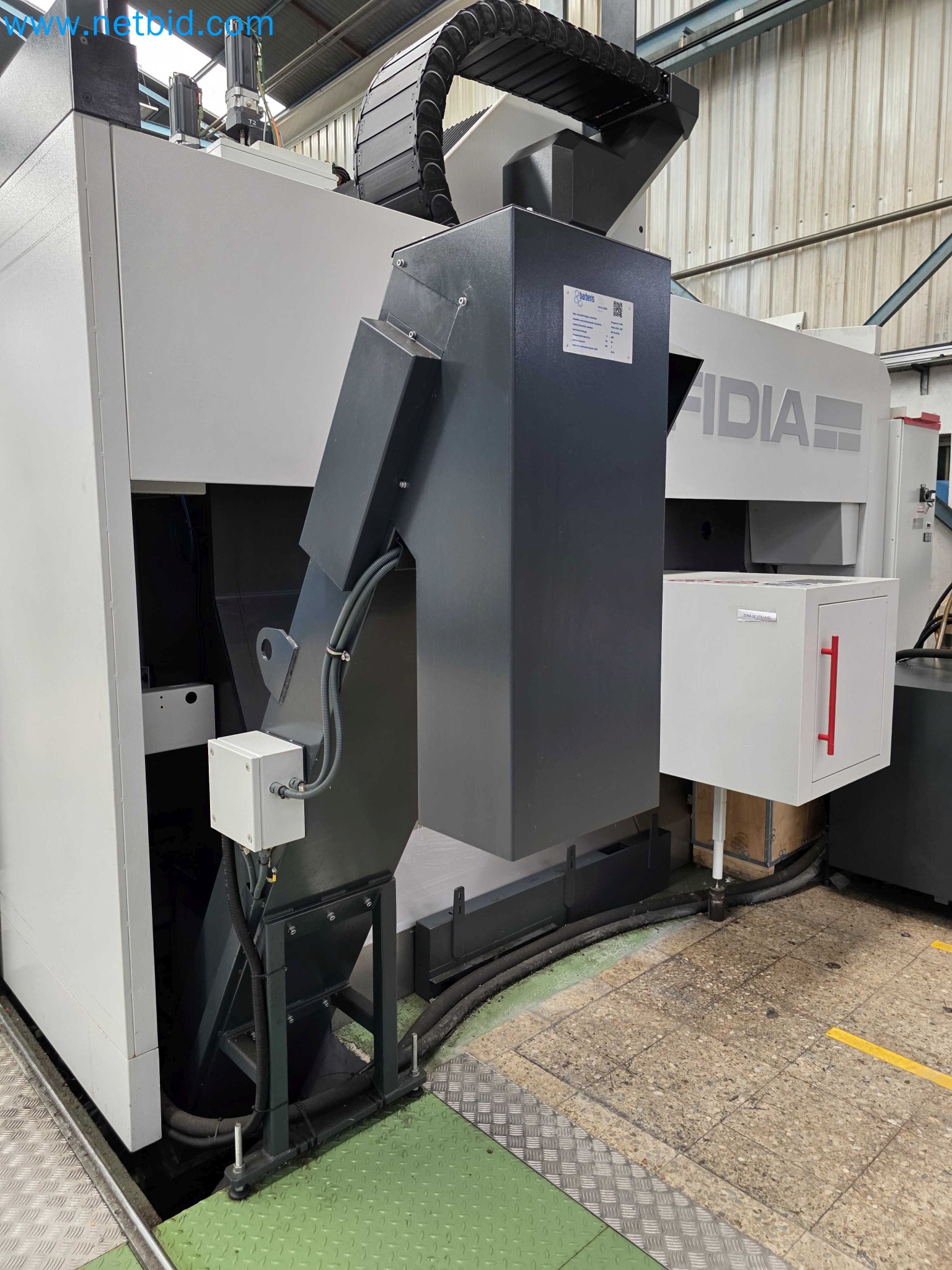

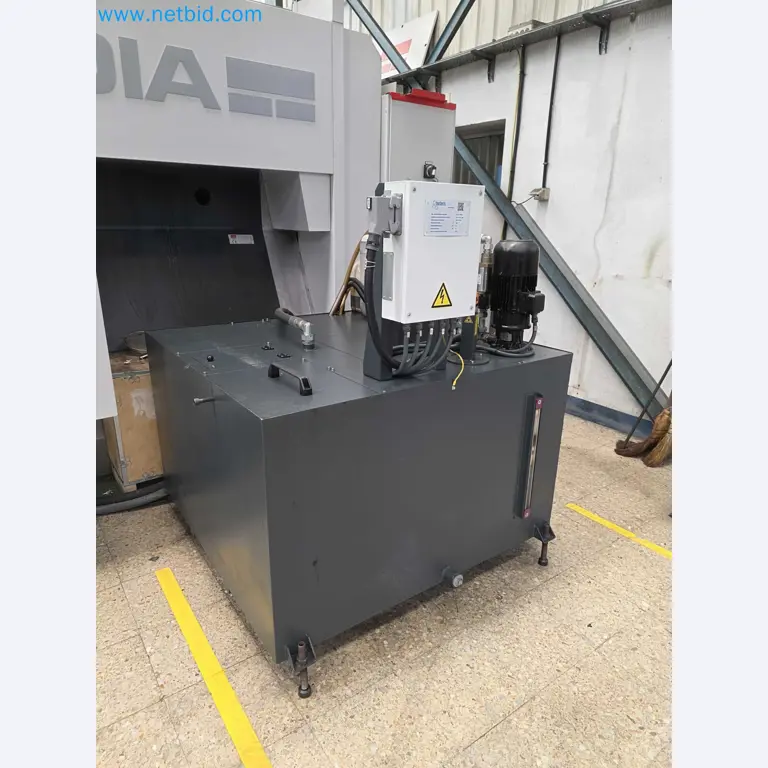

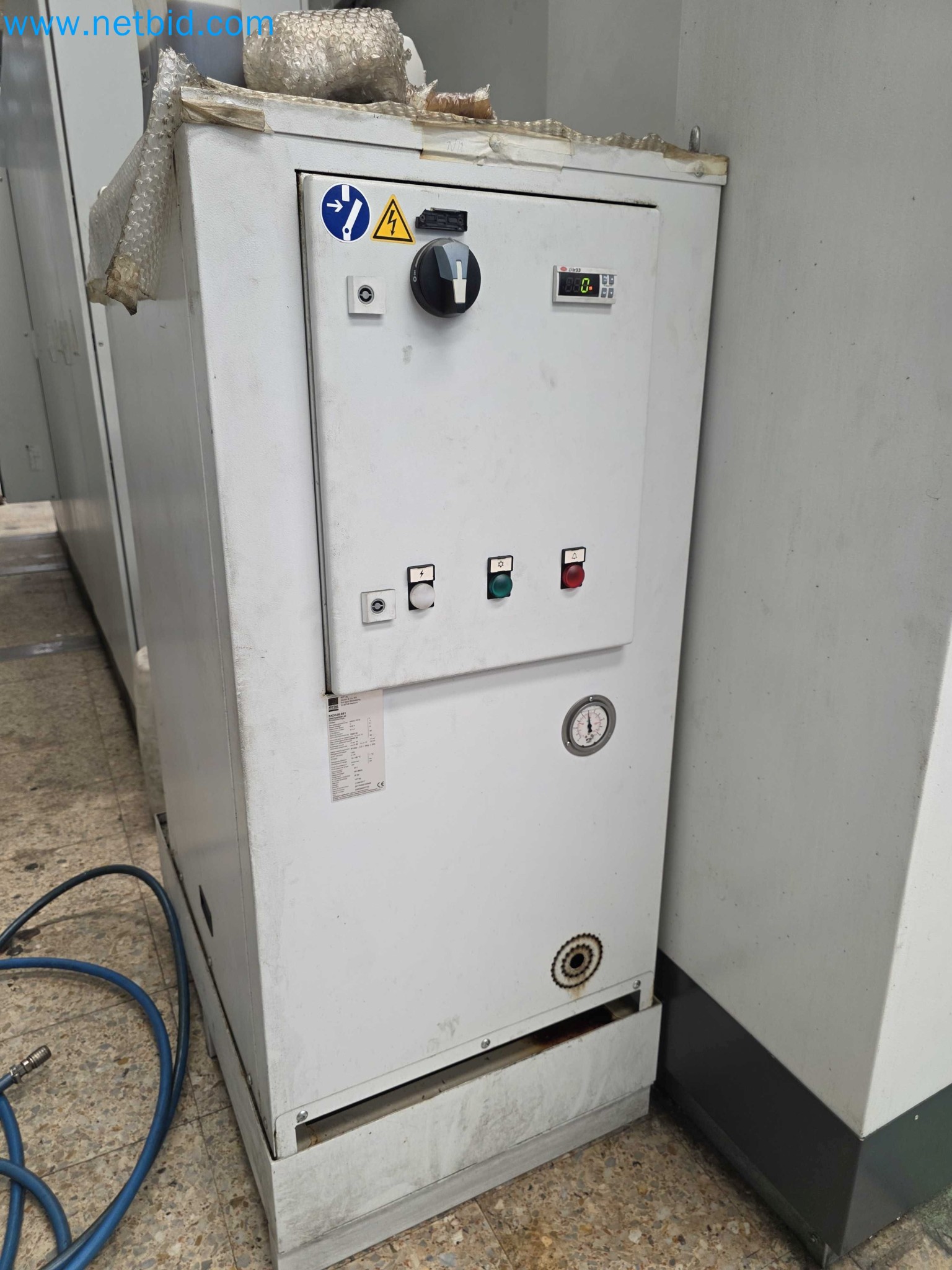

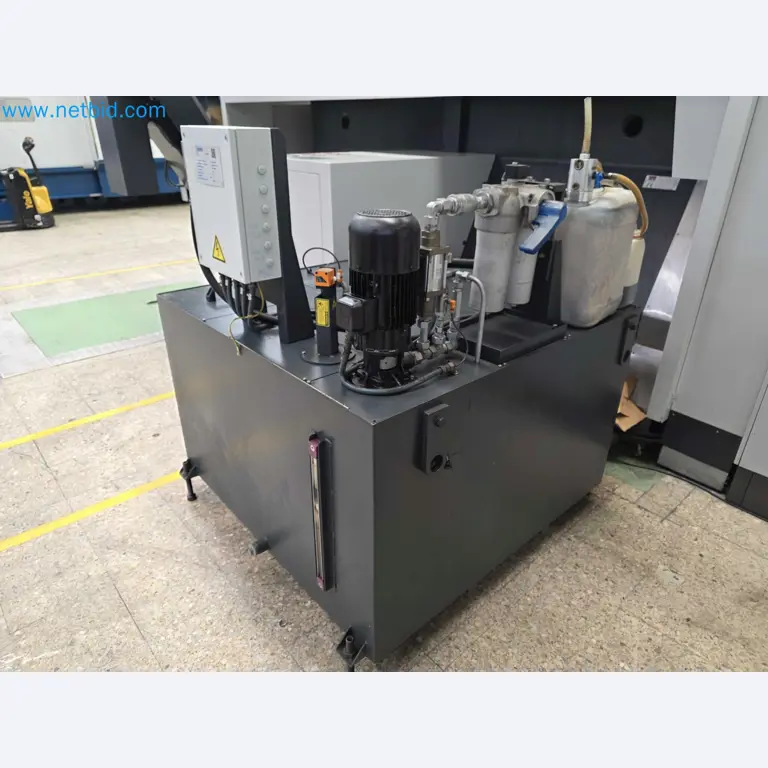

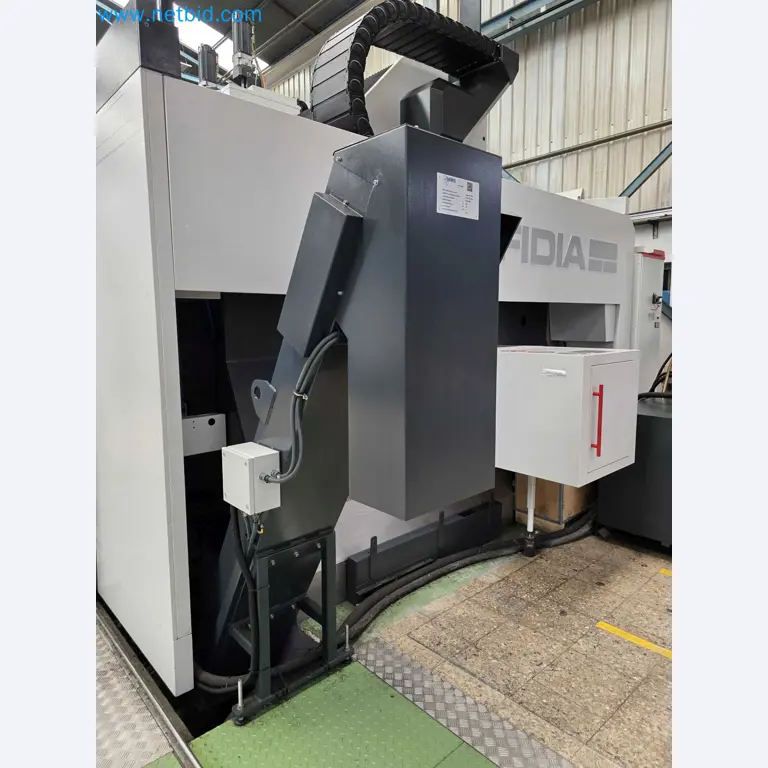

Chip evacuation and cooling system (CRS/01-D321)

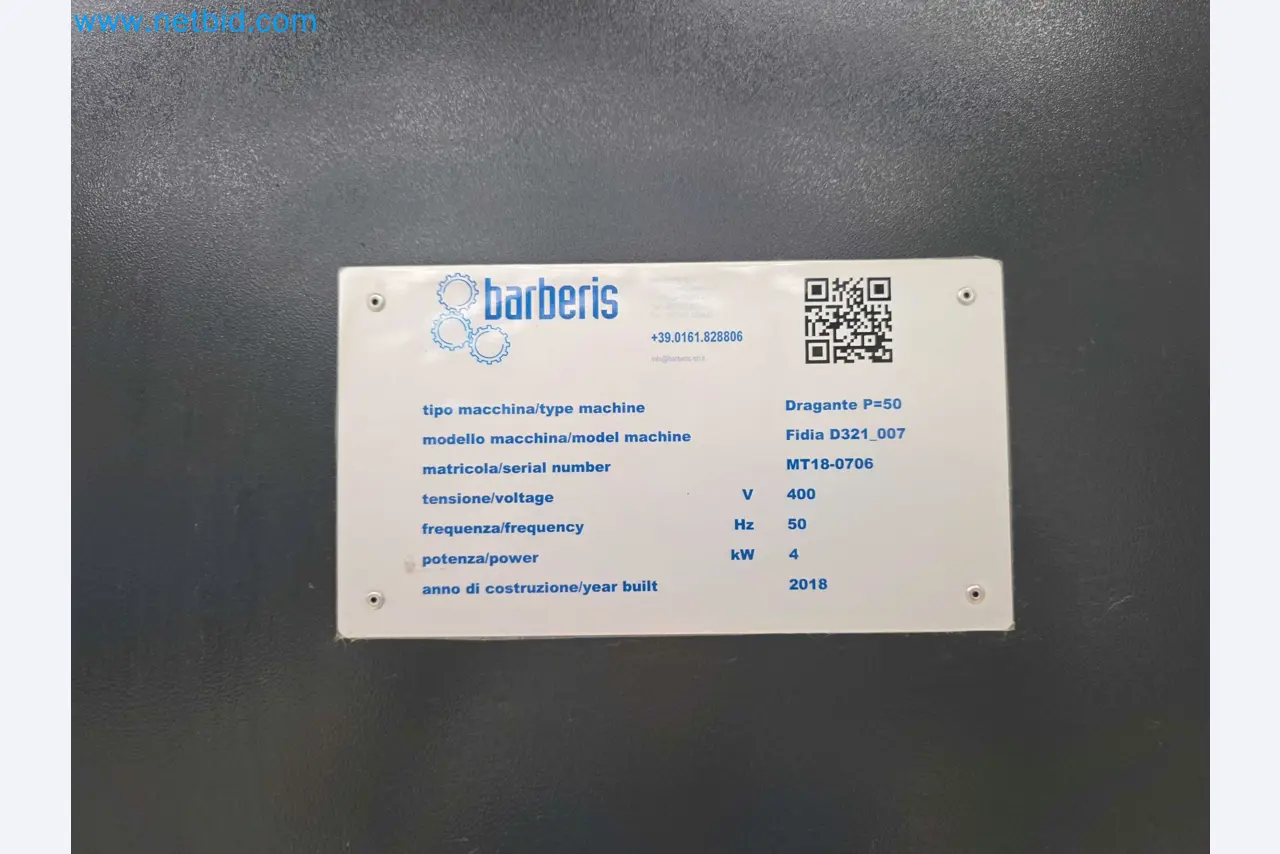

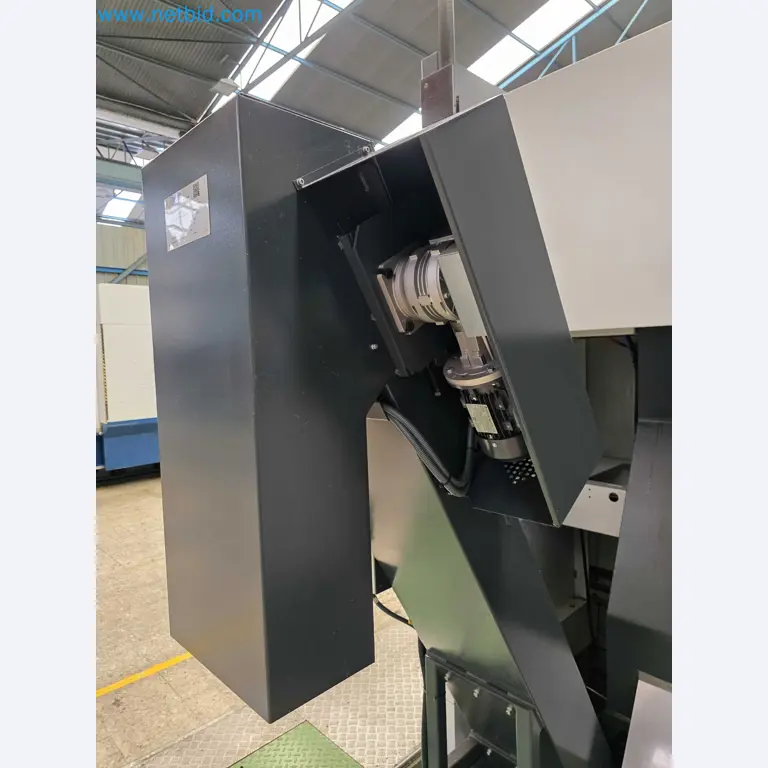

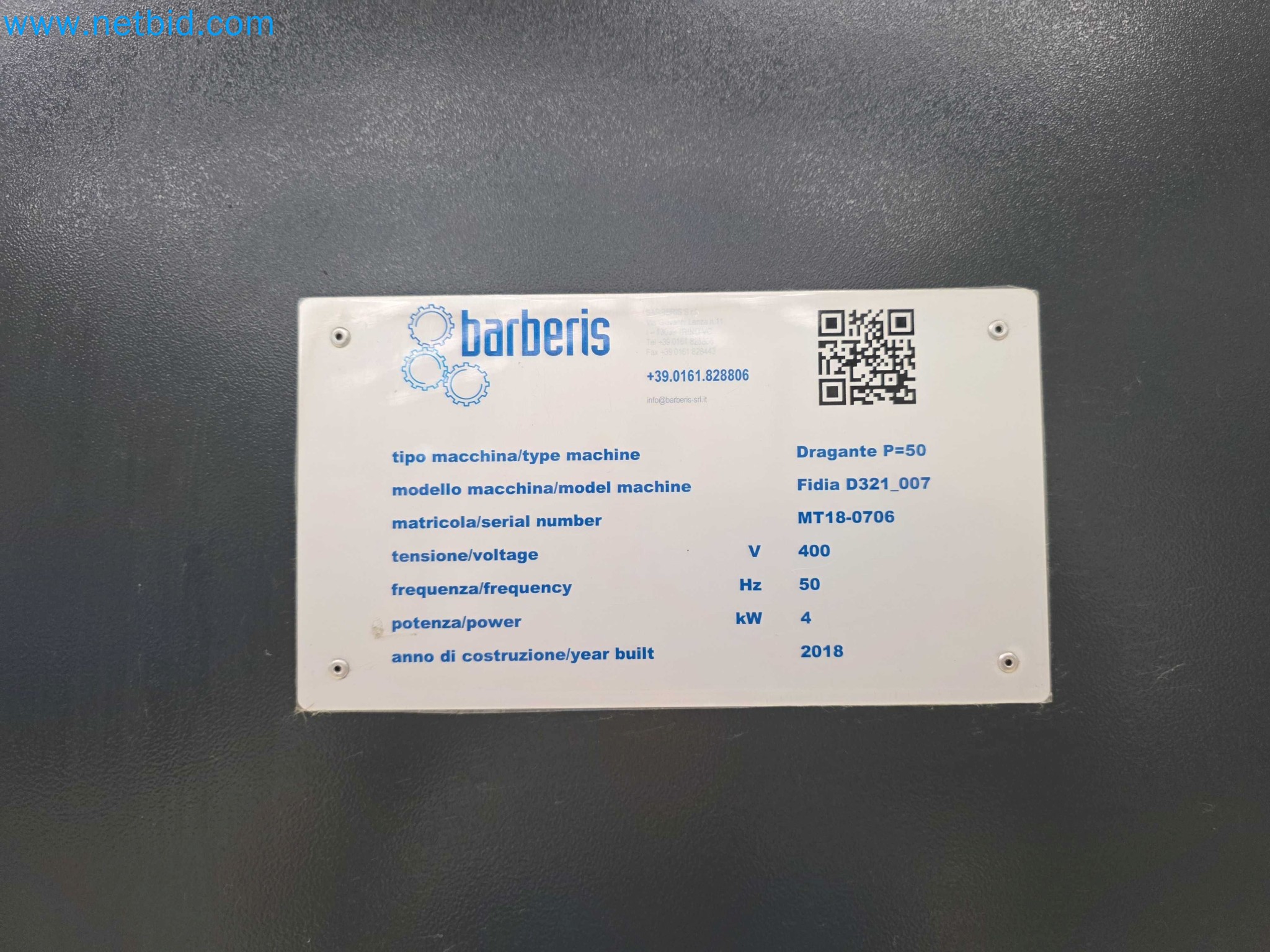

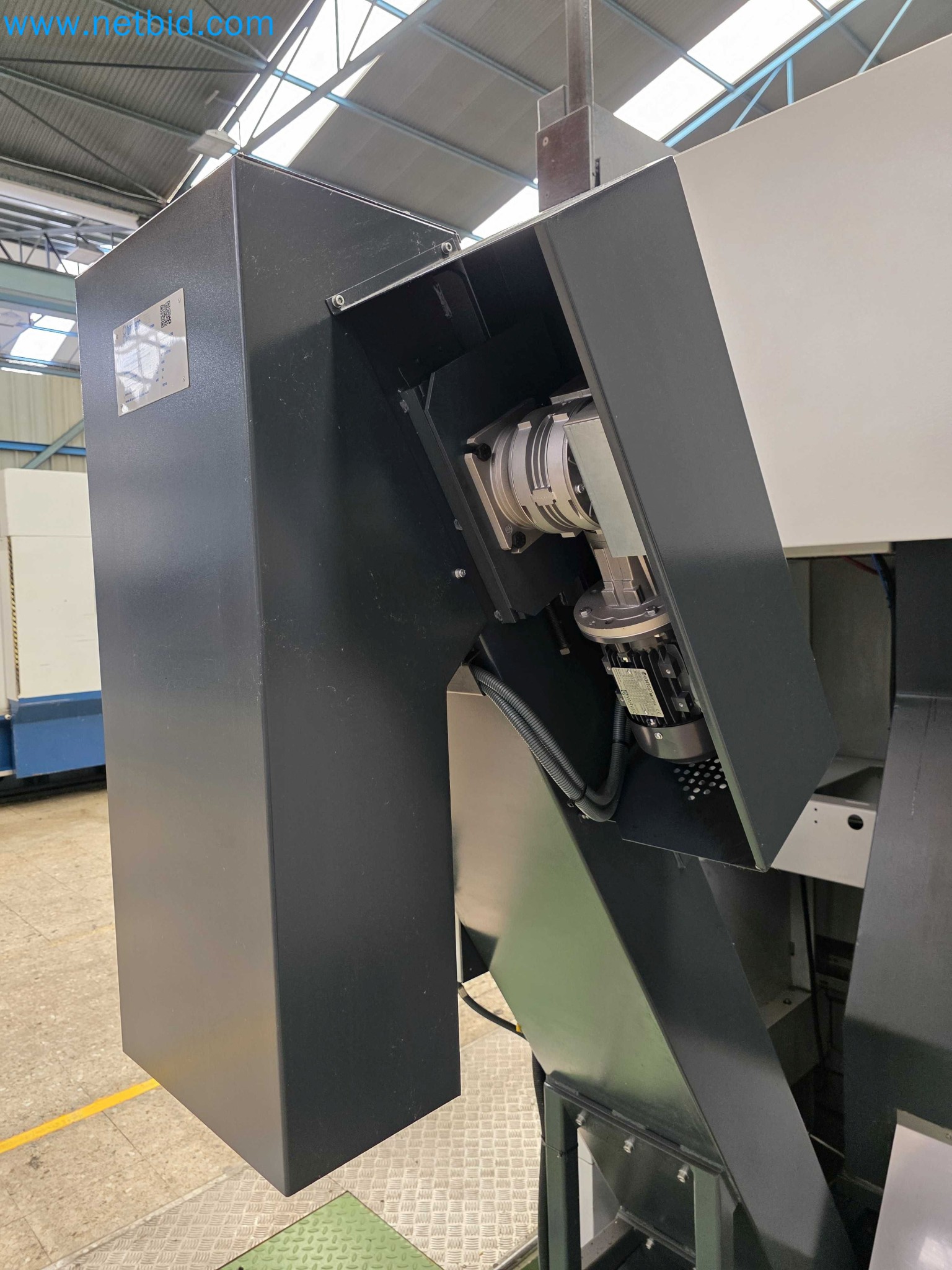

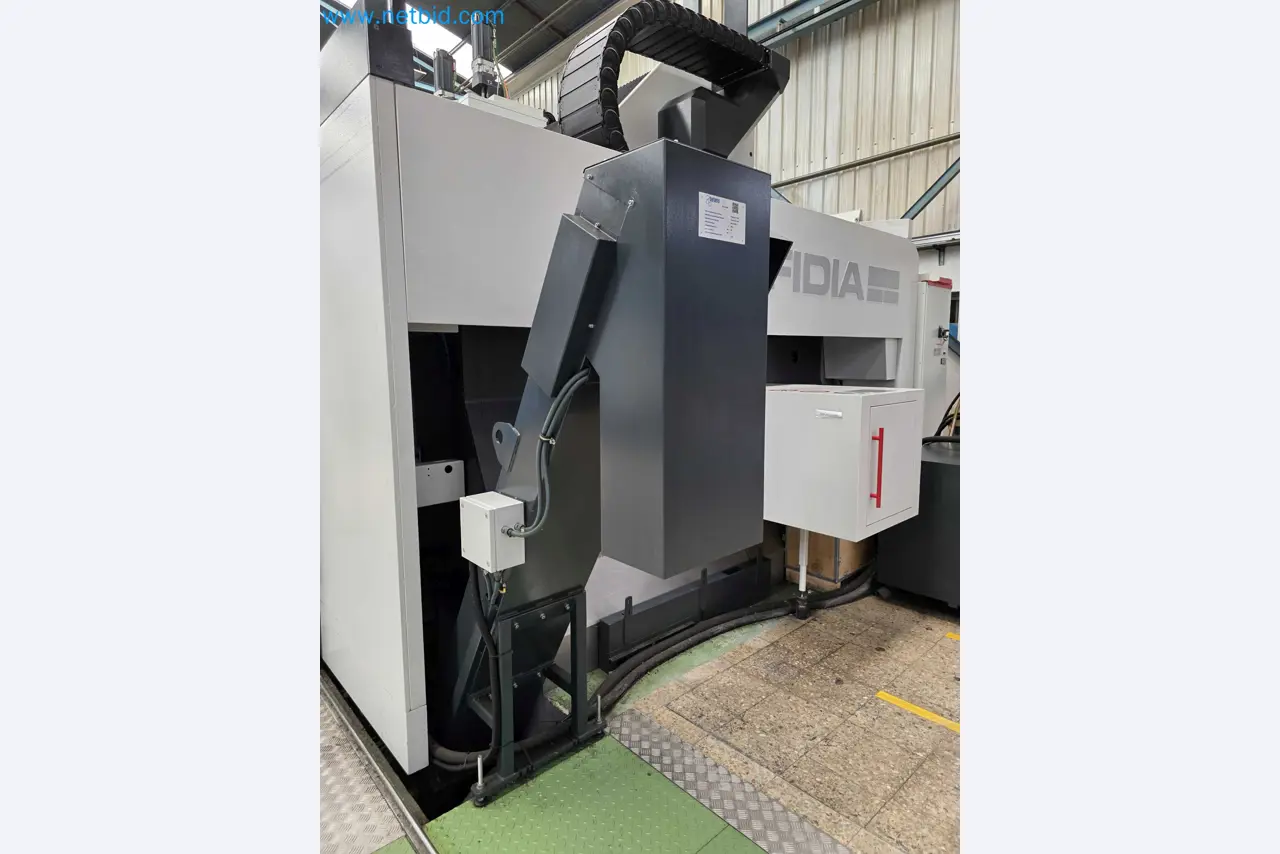

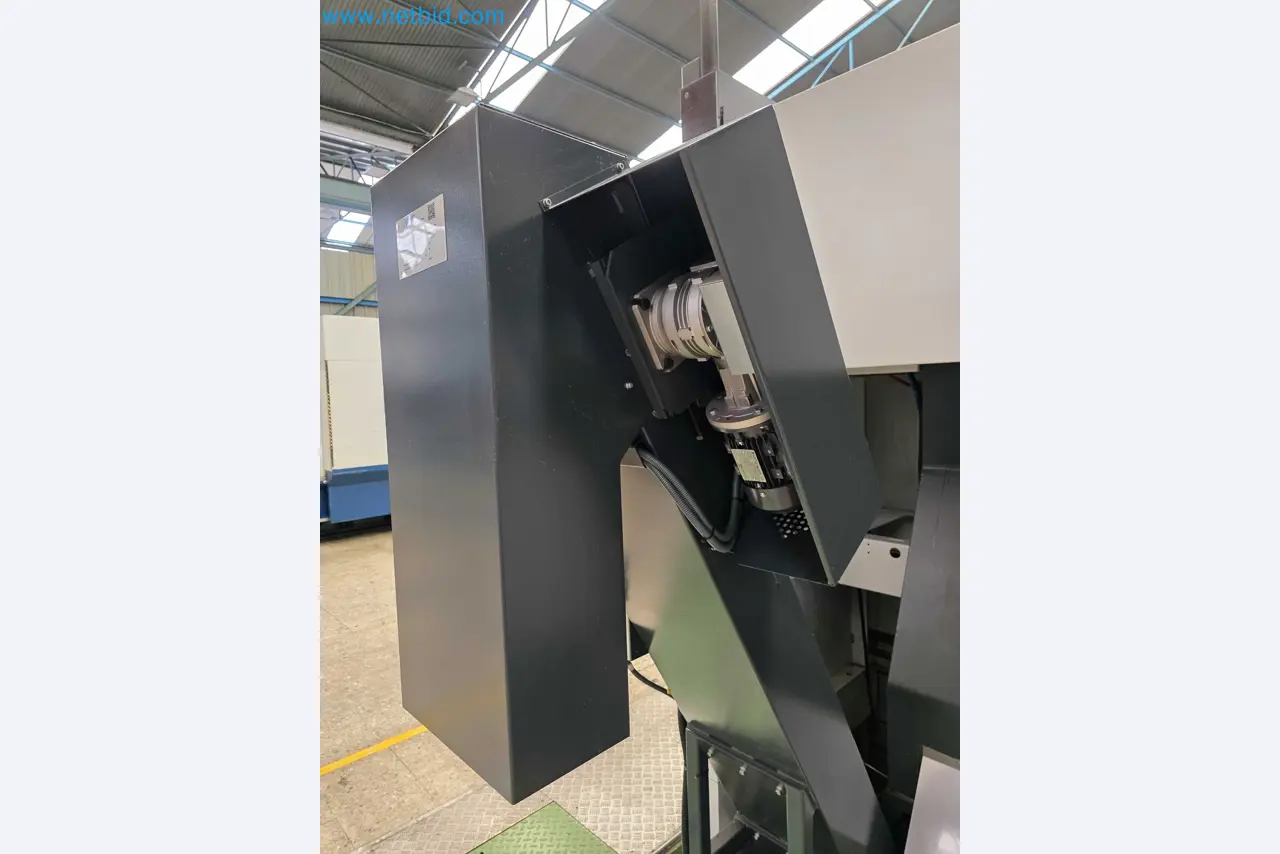

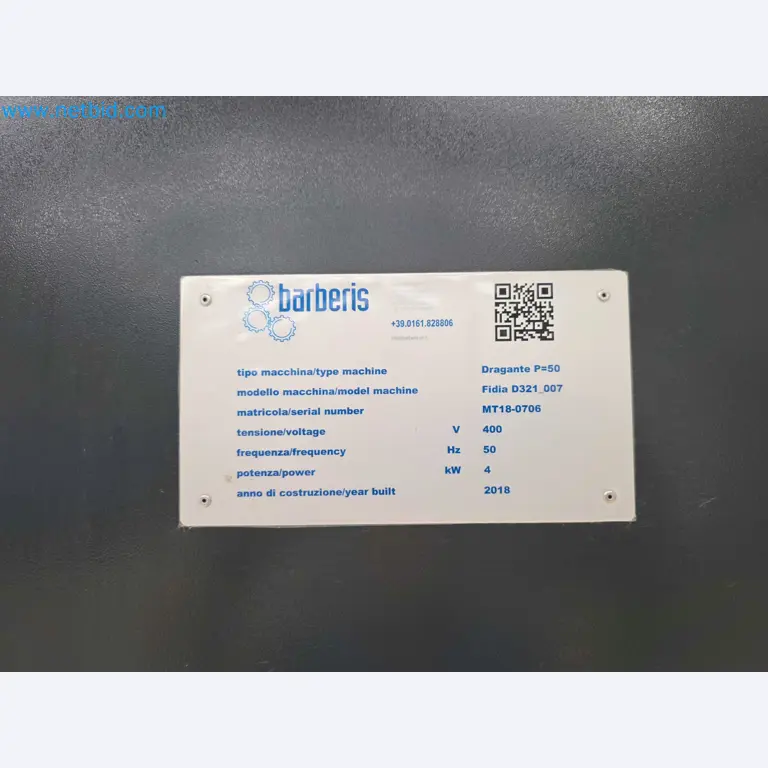

• Longitudinal and transverse chip conveyors (Barberis)
• External tool coolant: 6 bar
• External MQL air/oil lubrication

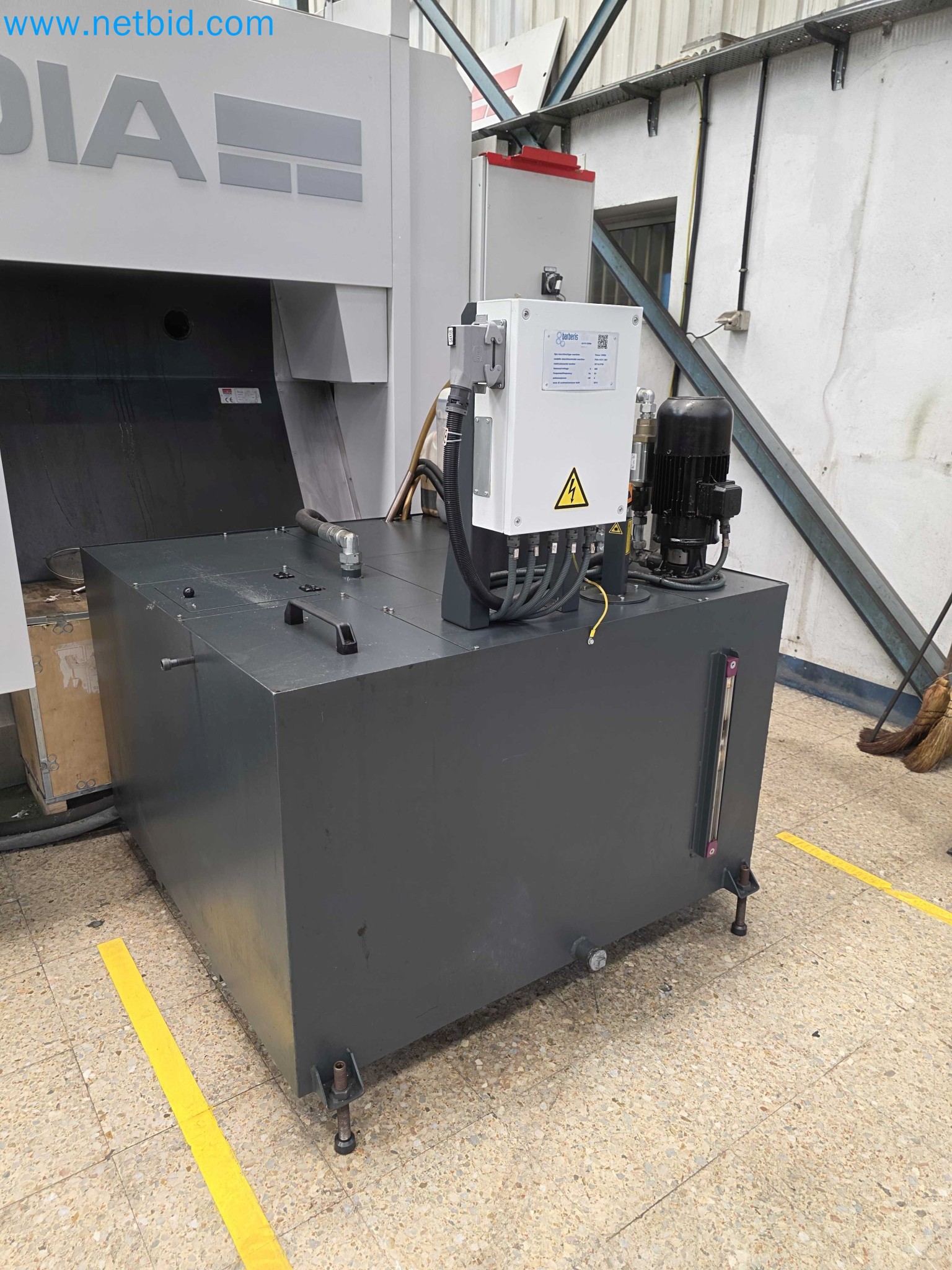

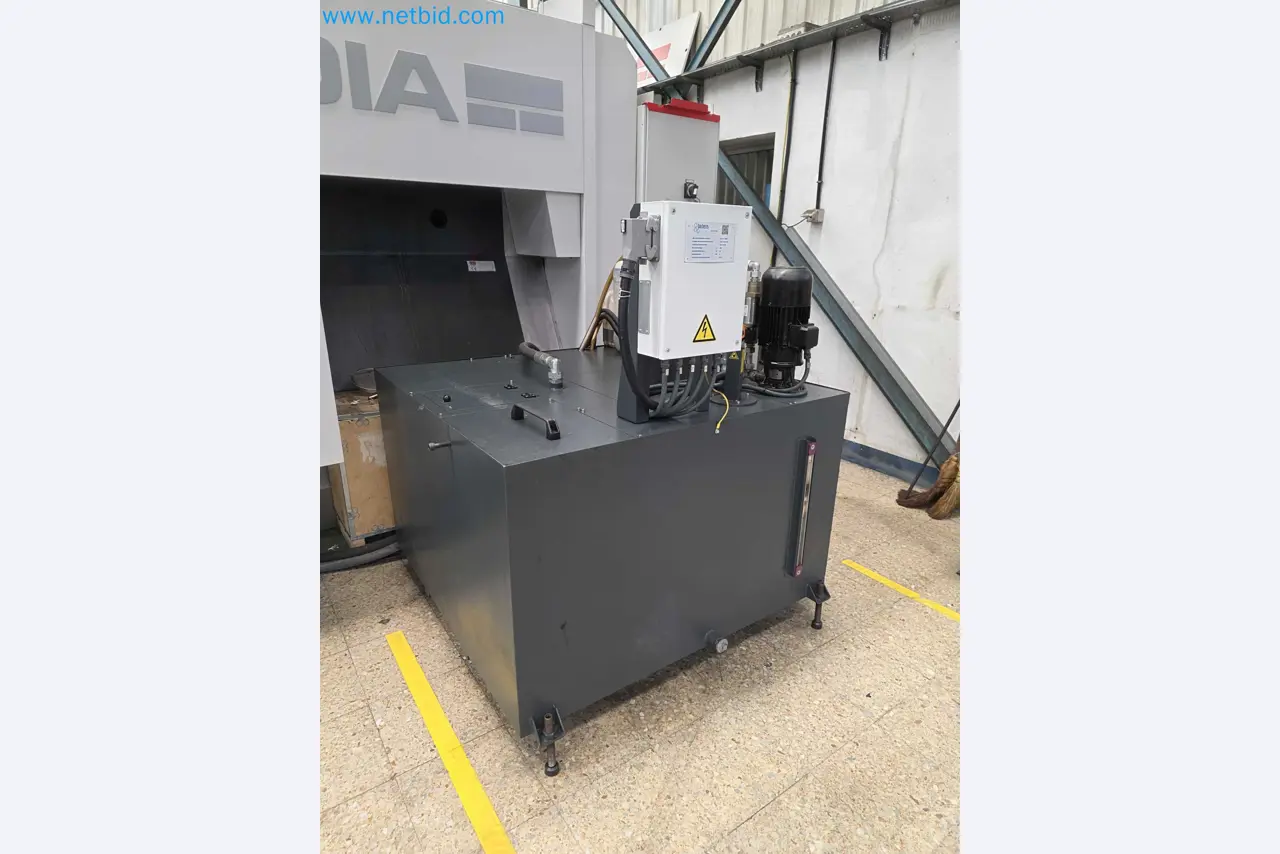

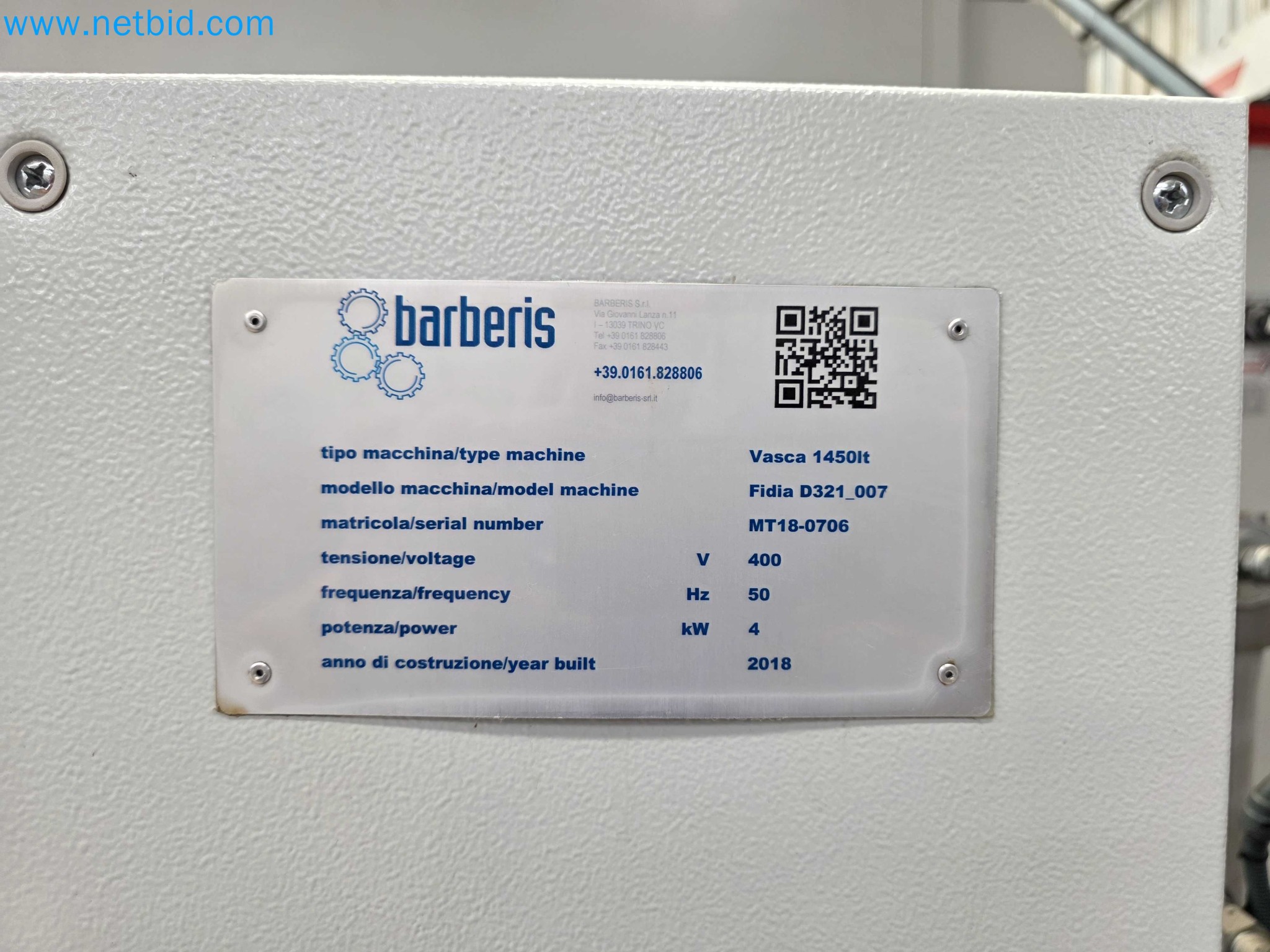

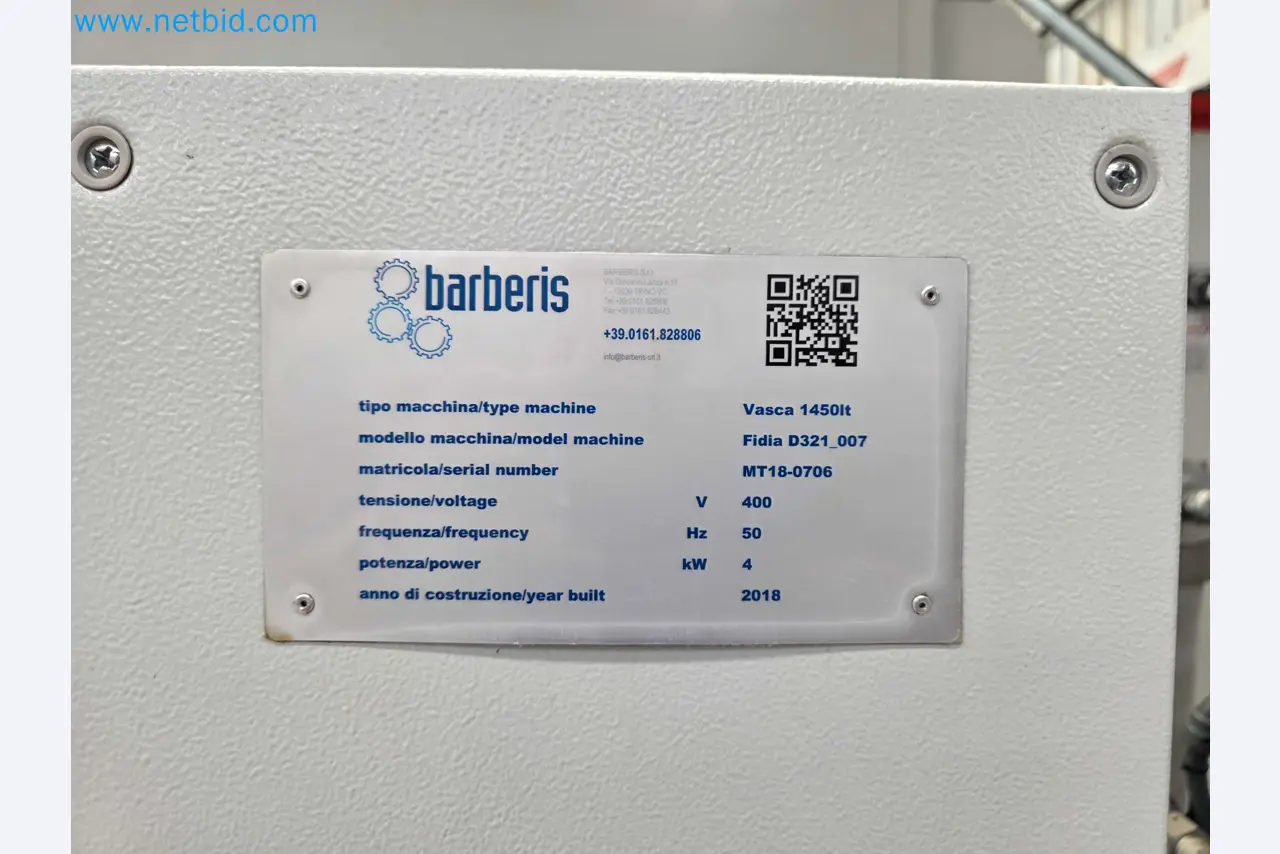

• Barberis coolant tank, 1,450 L

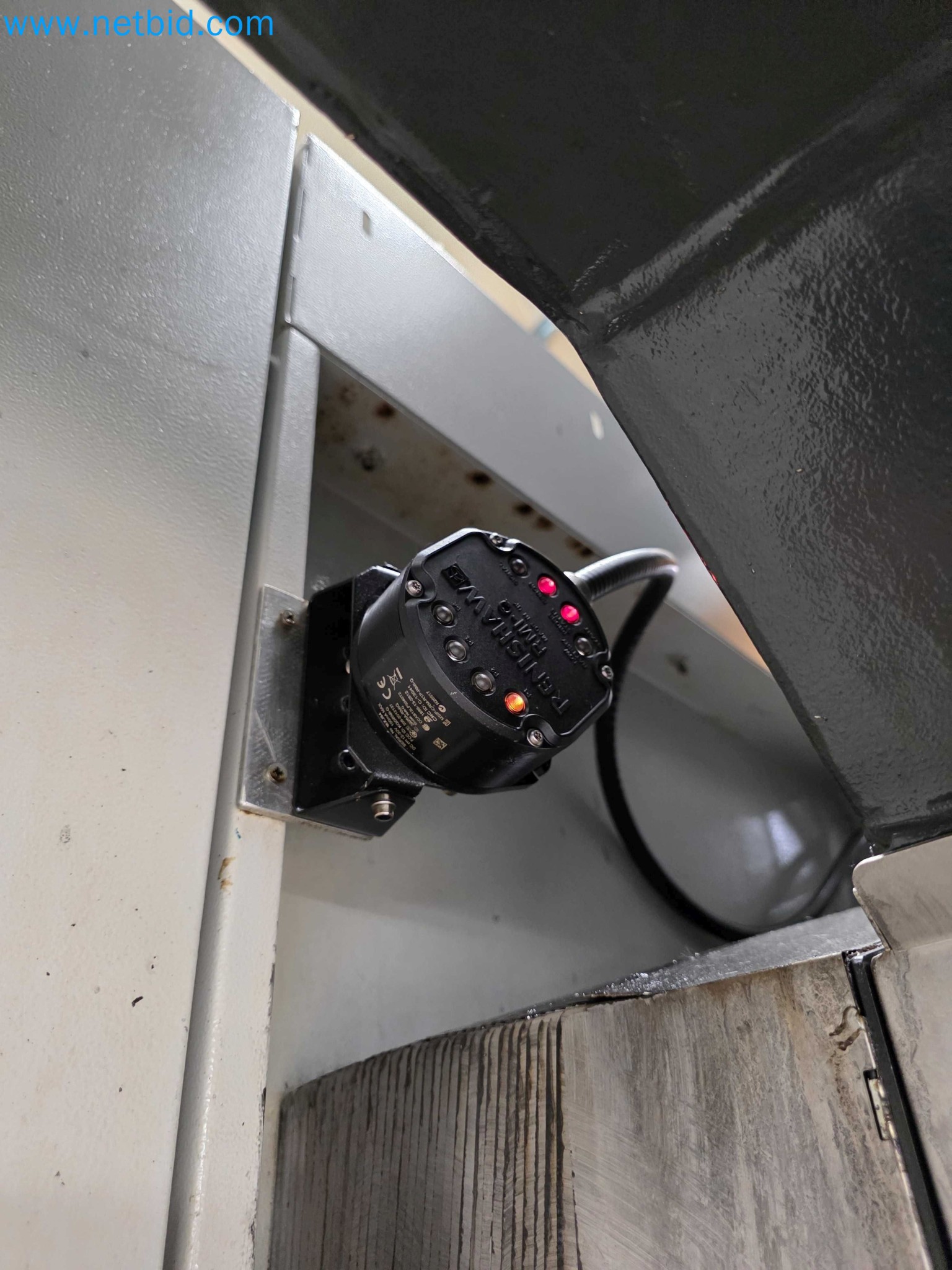

Automatic tool measurement (TMS/F)

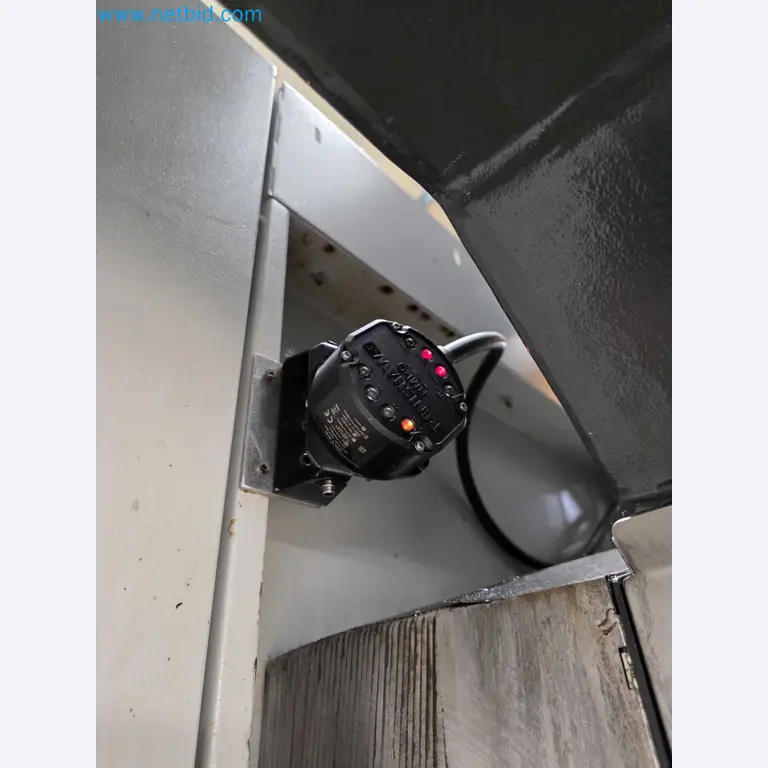

• Fidia laser probe

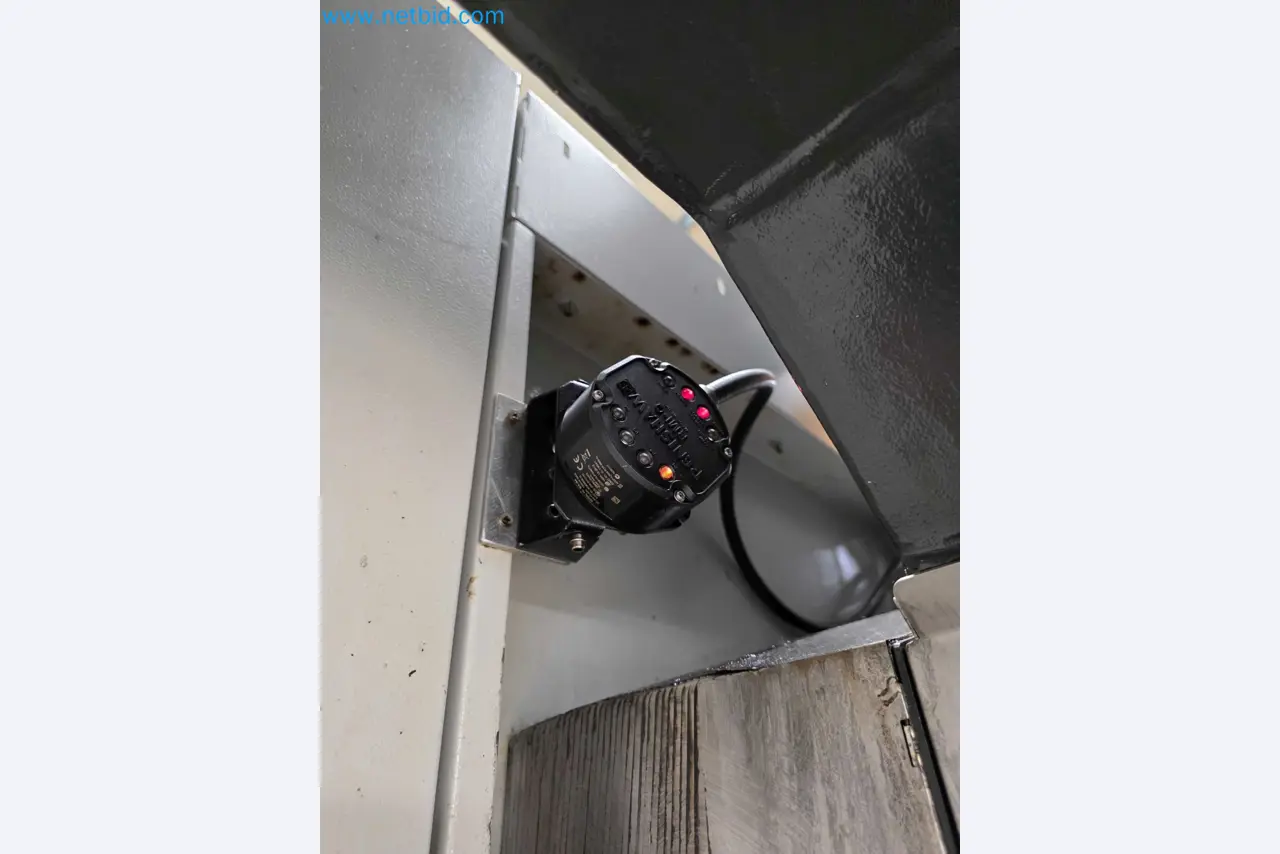

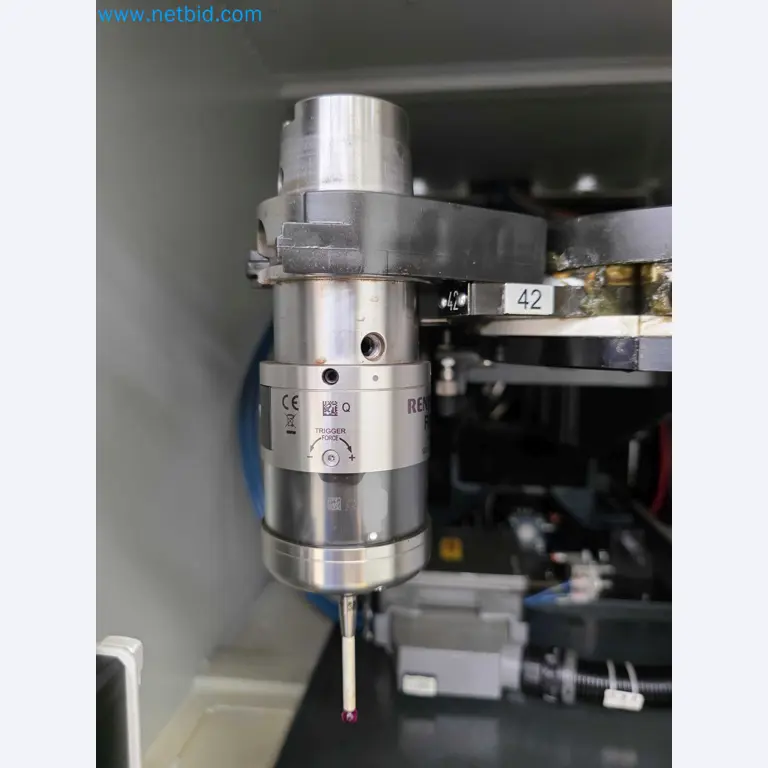

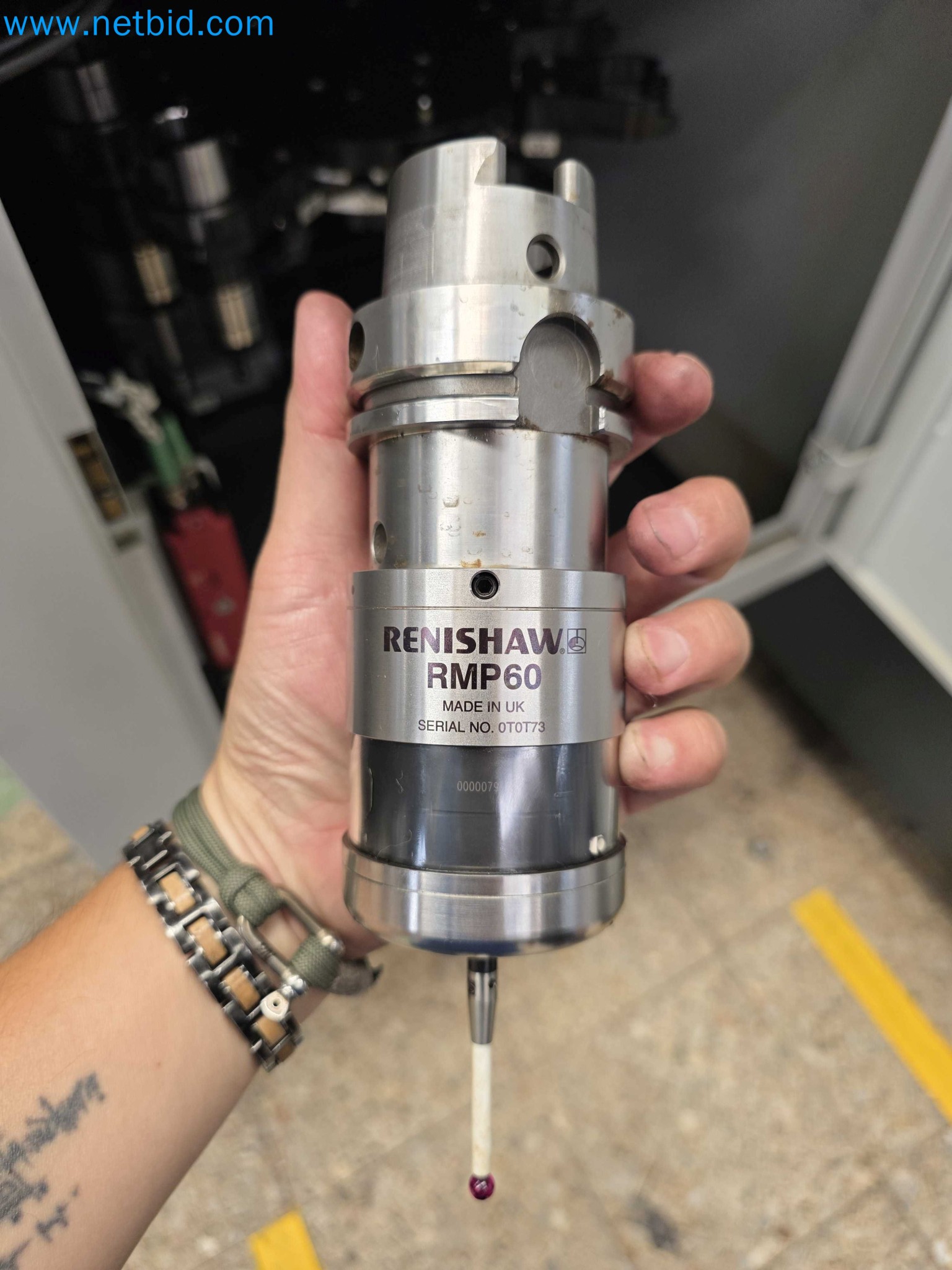

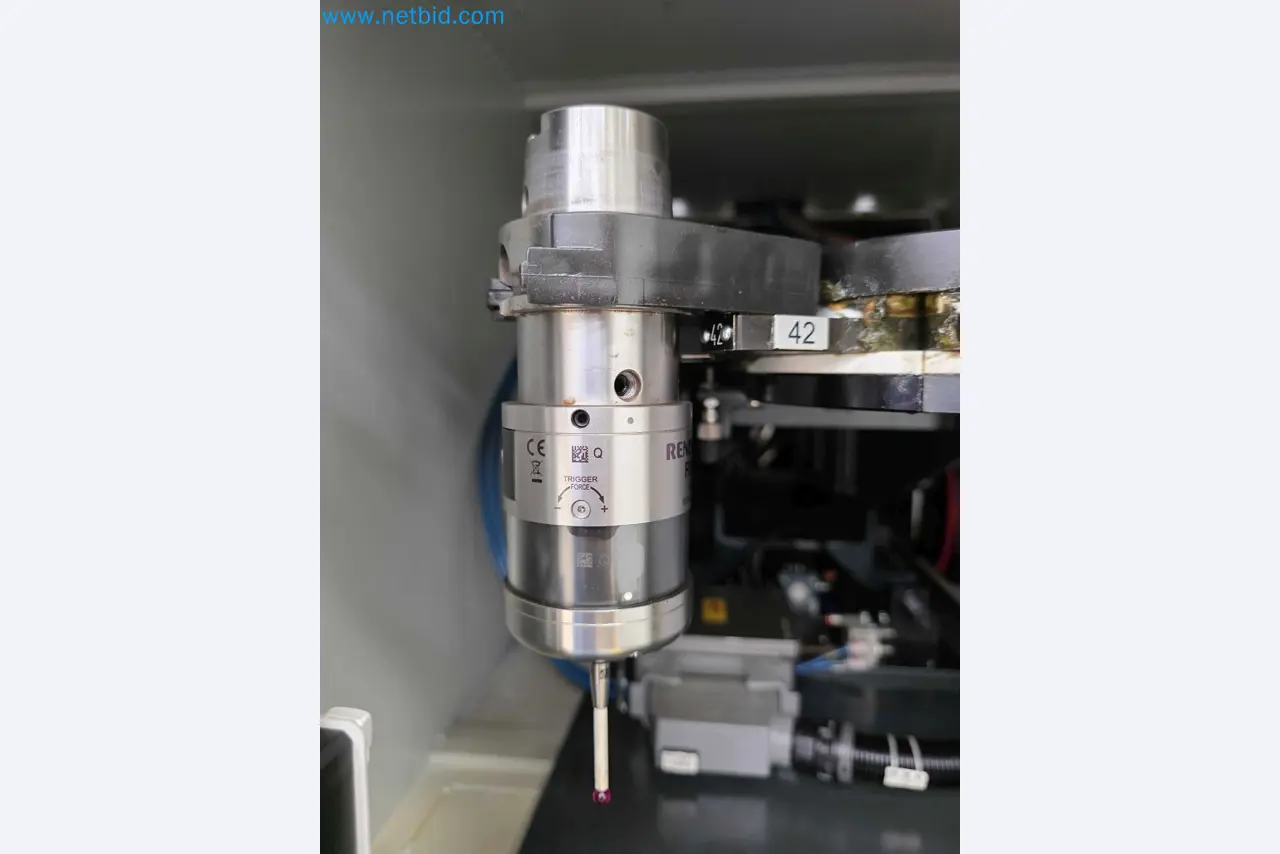

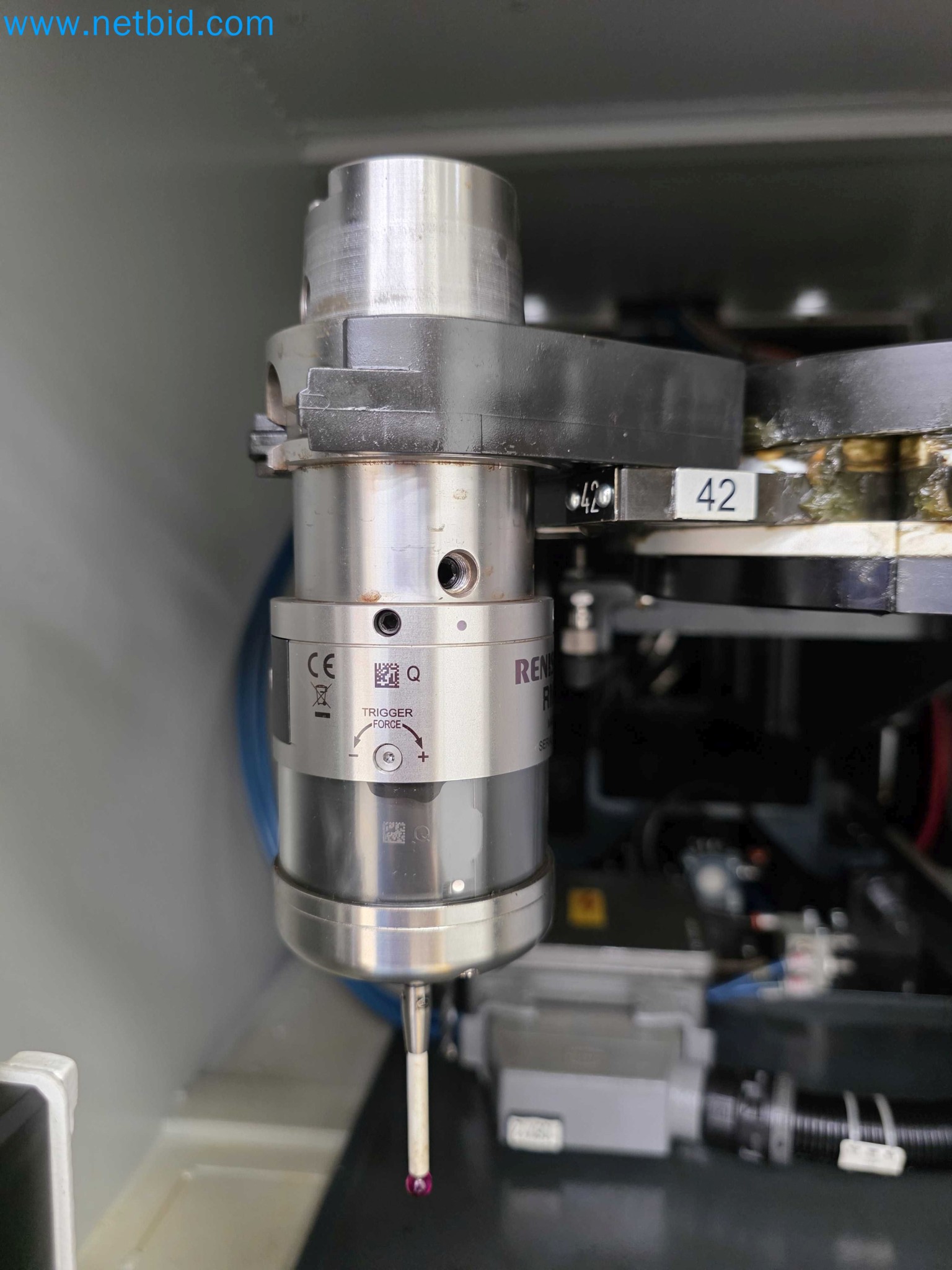

Workpiece measurement/alignment (RDI/RMP60)

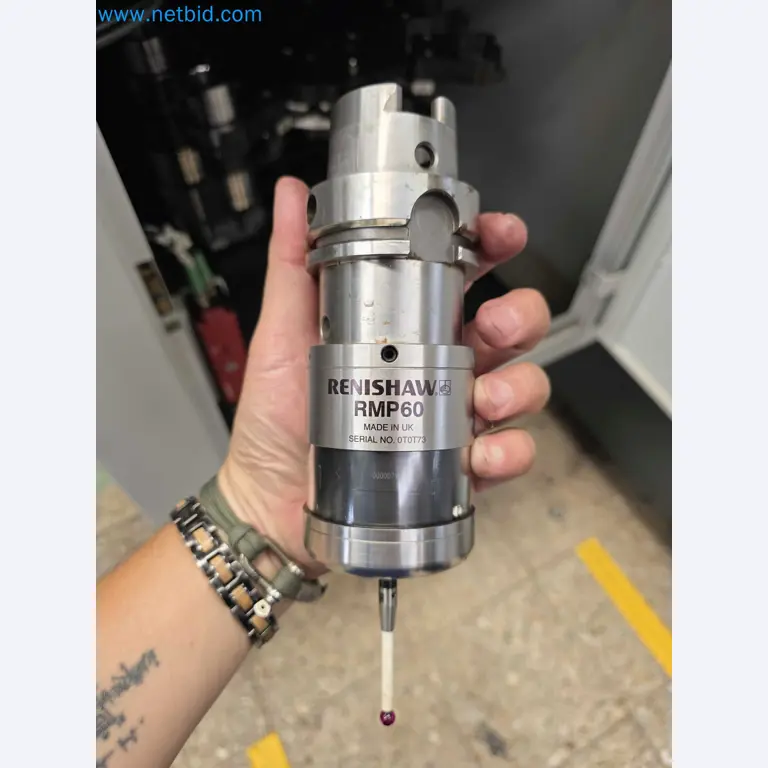

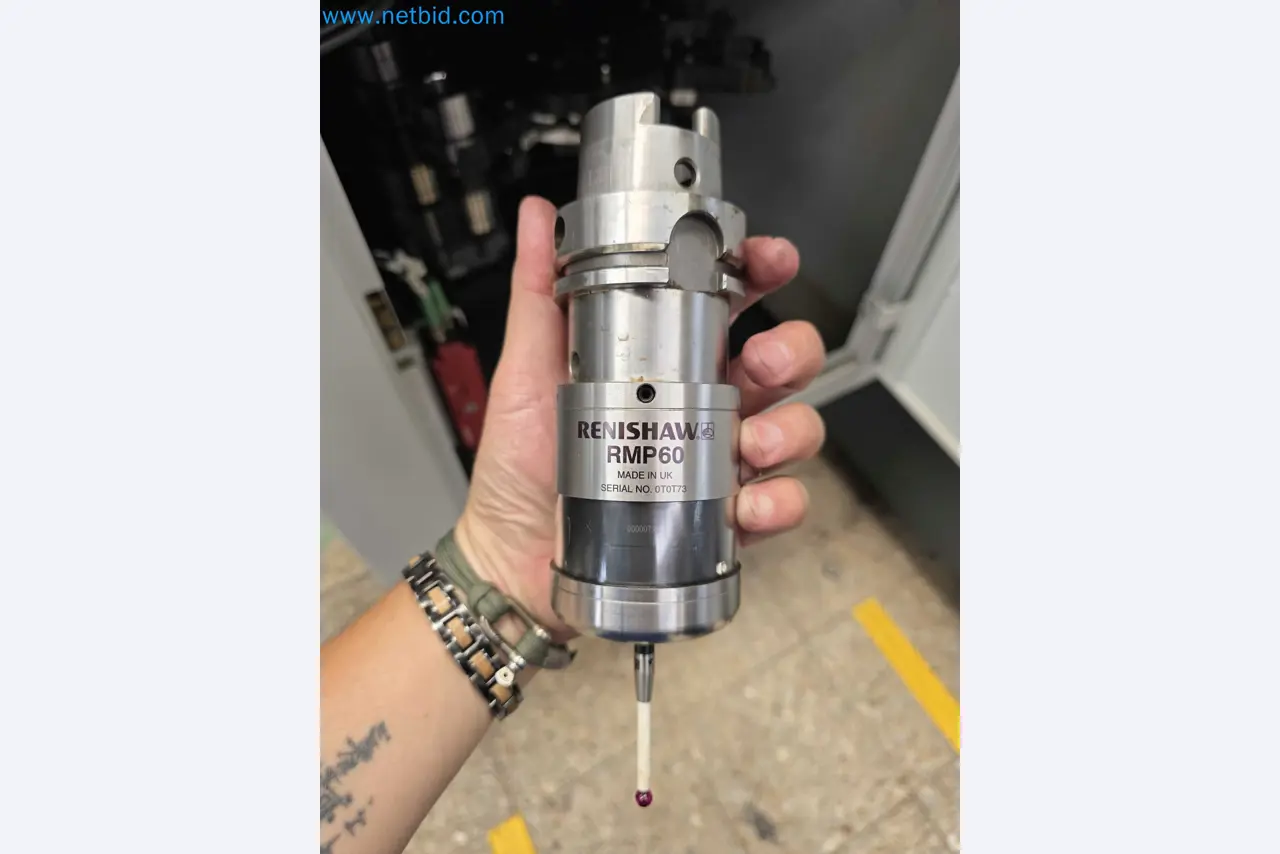

• Renishaw RMP60 probe; S.N.: 0T0T73

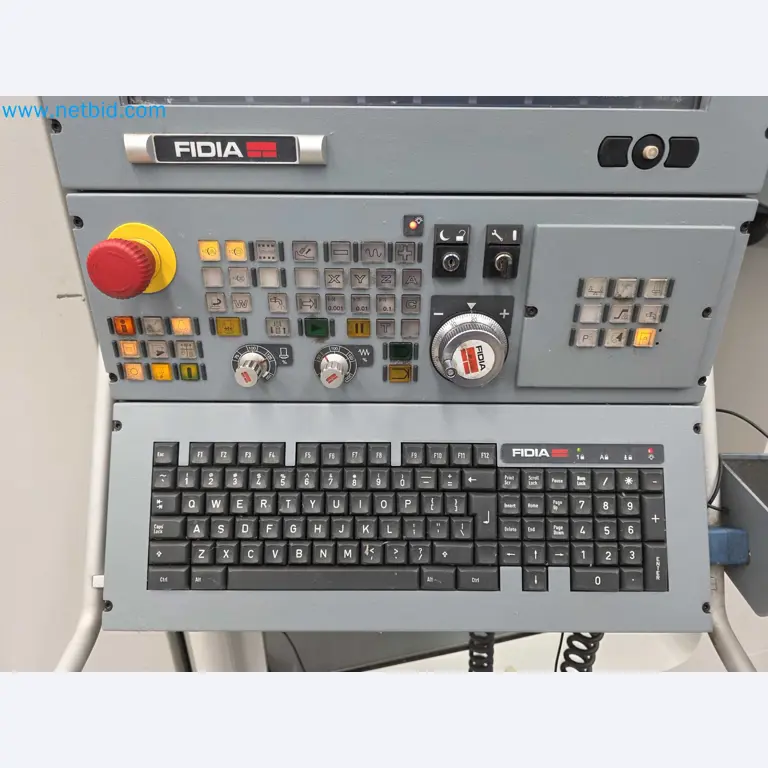

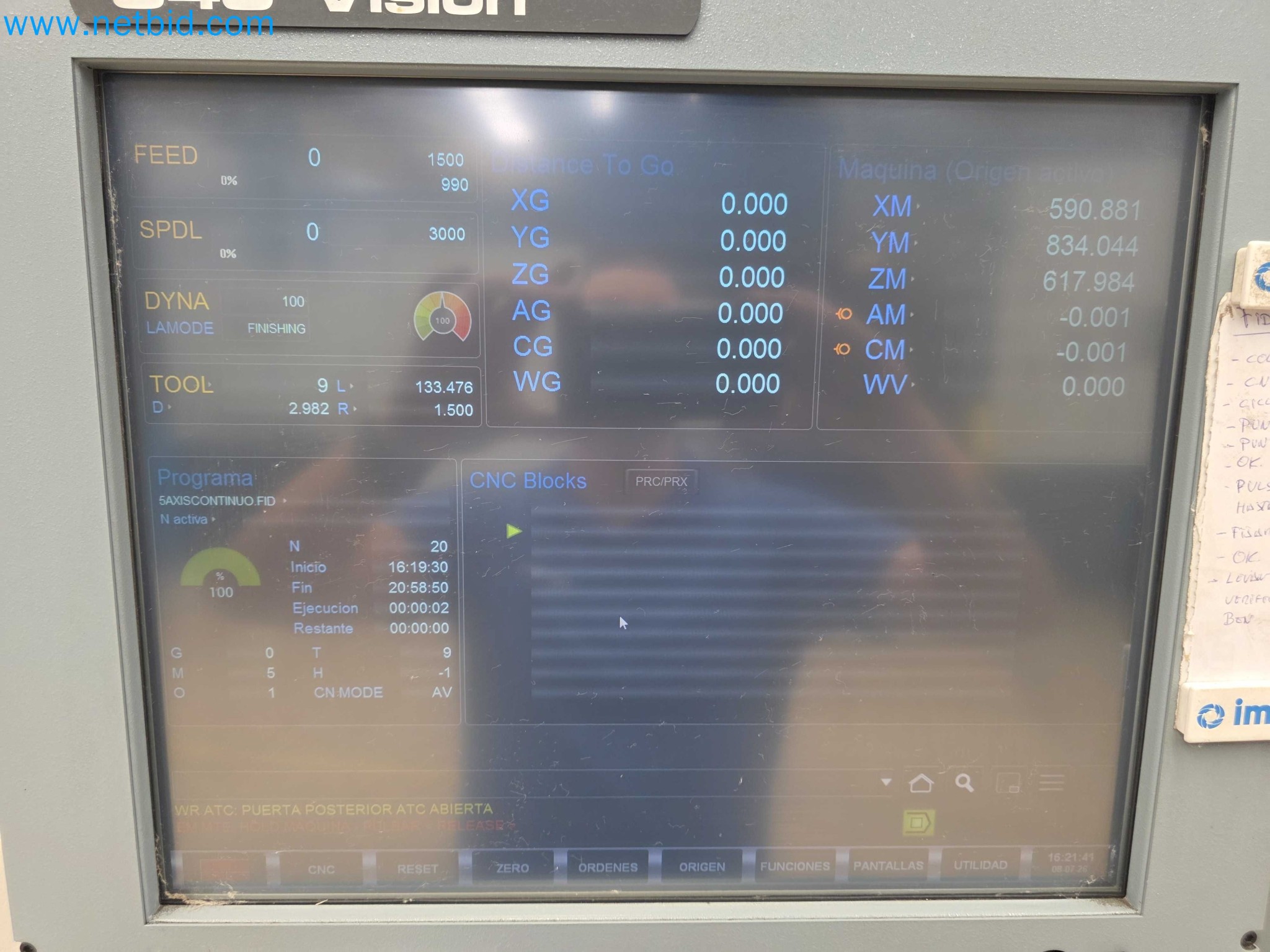

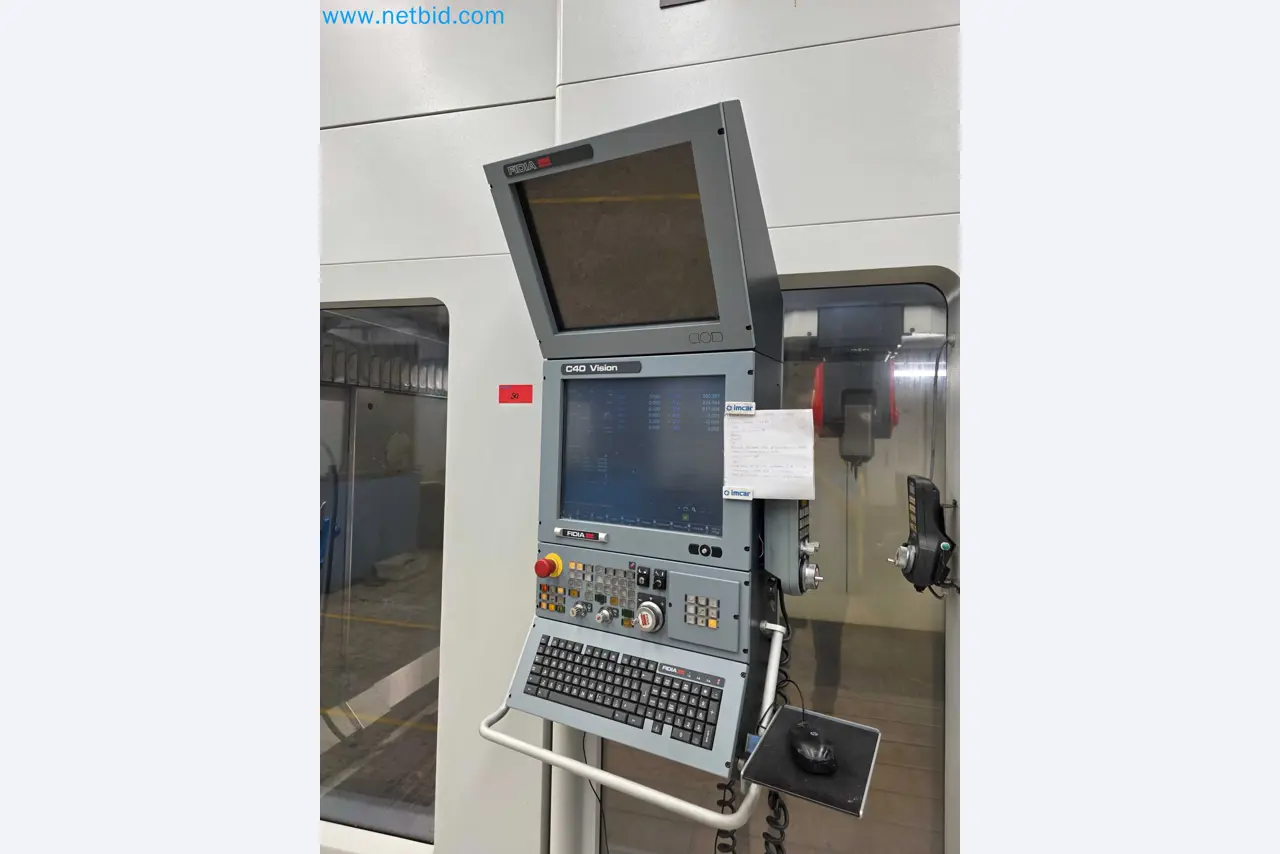

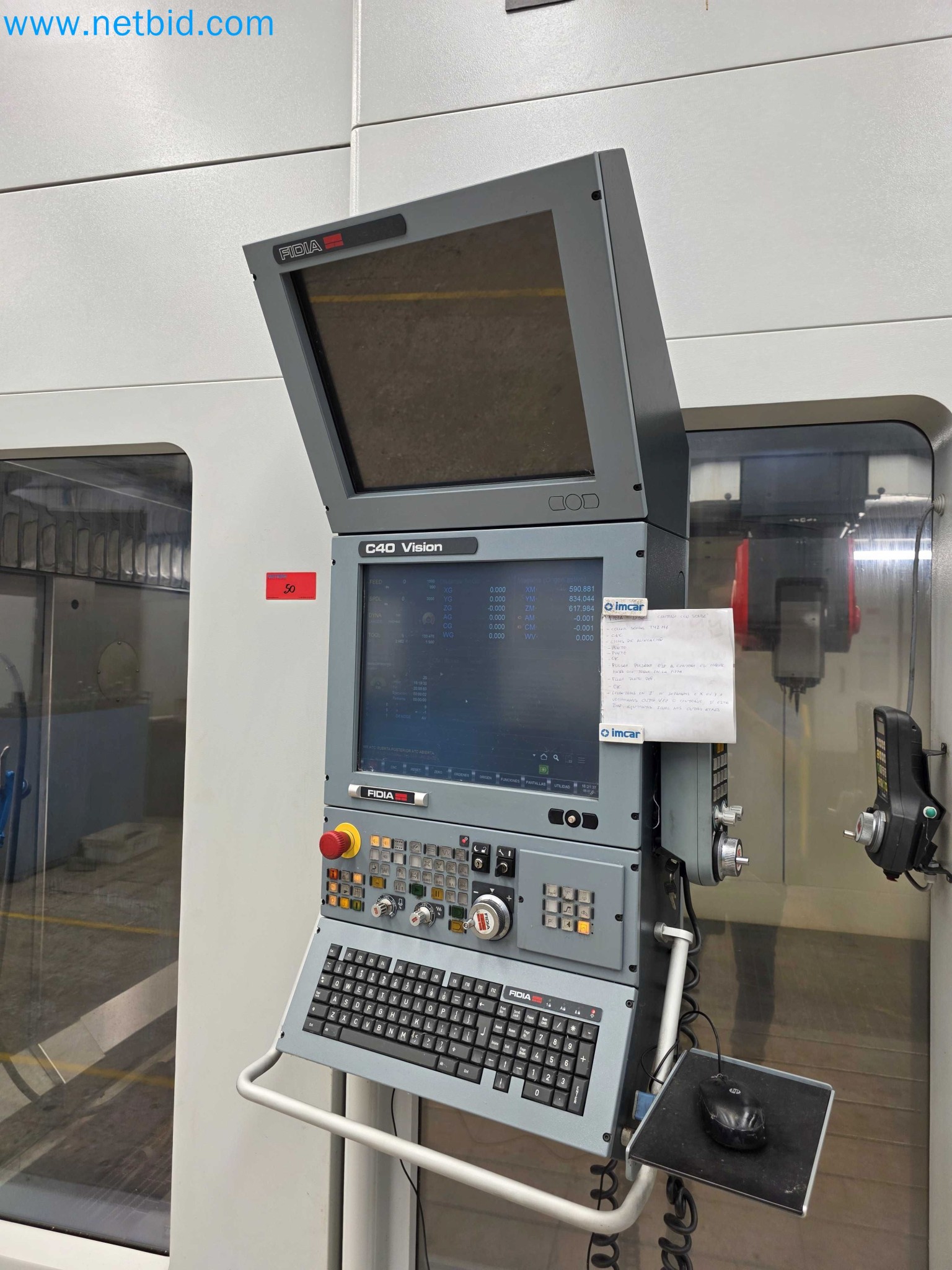

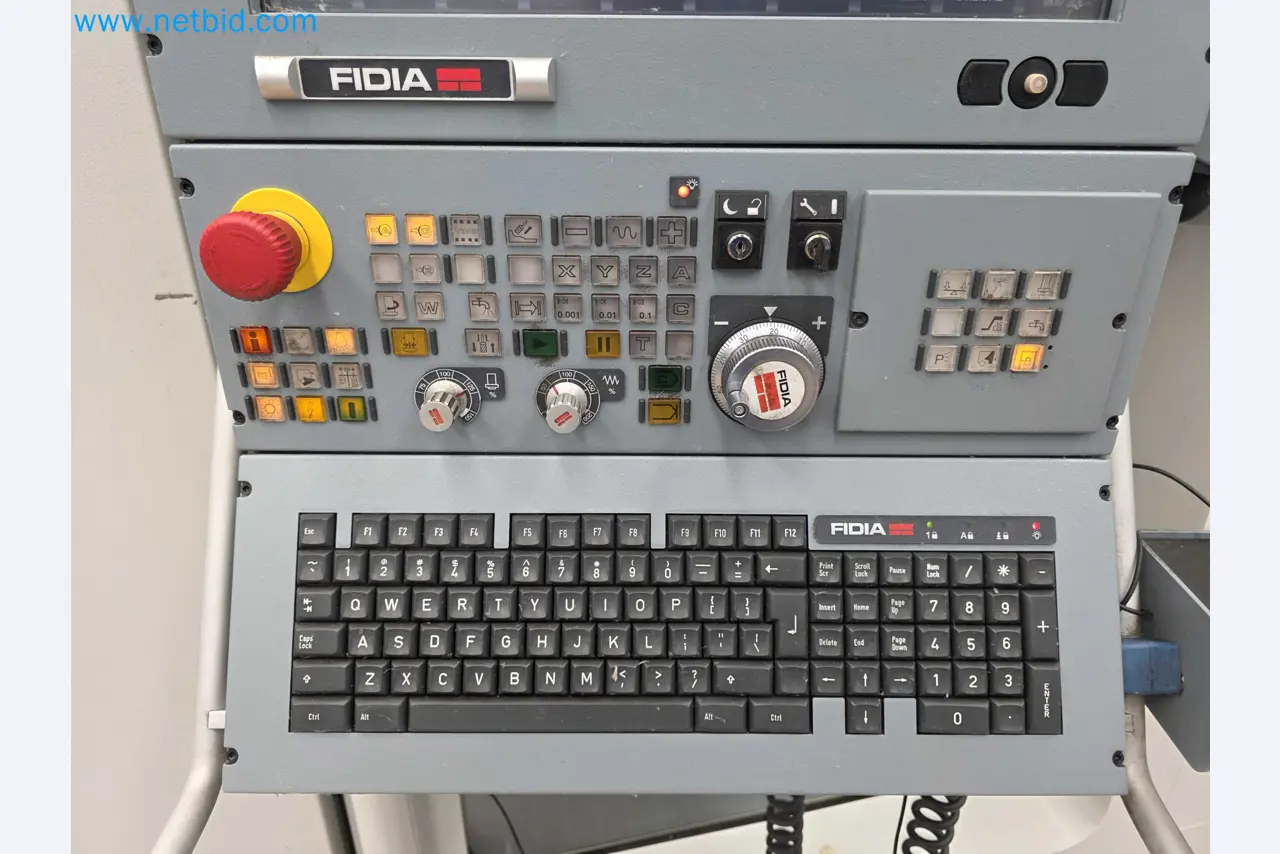

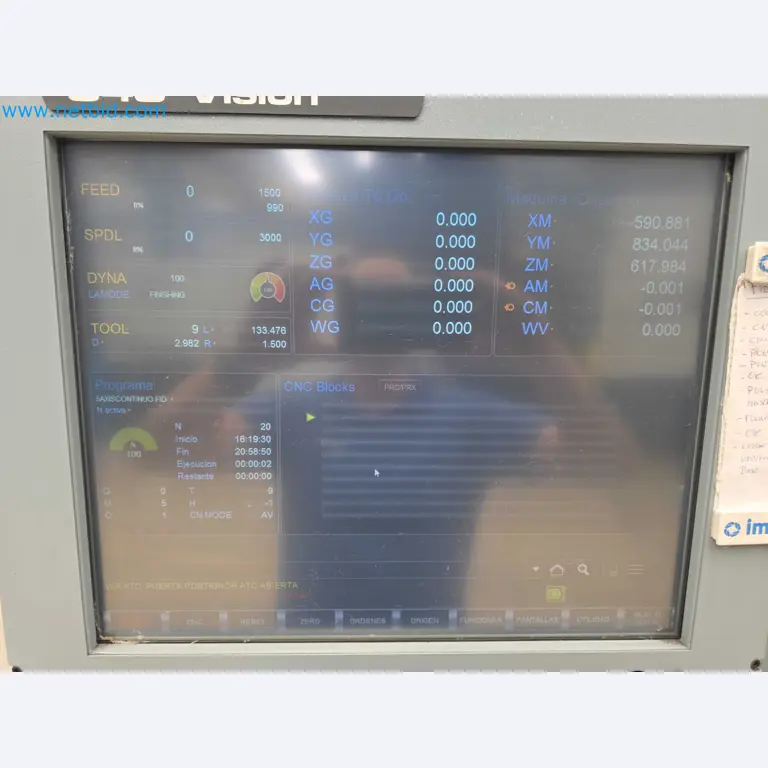

CNC Control

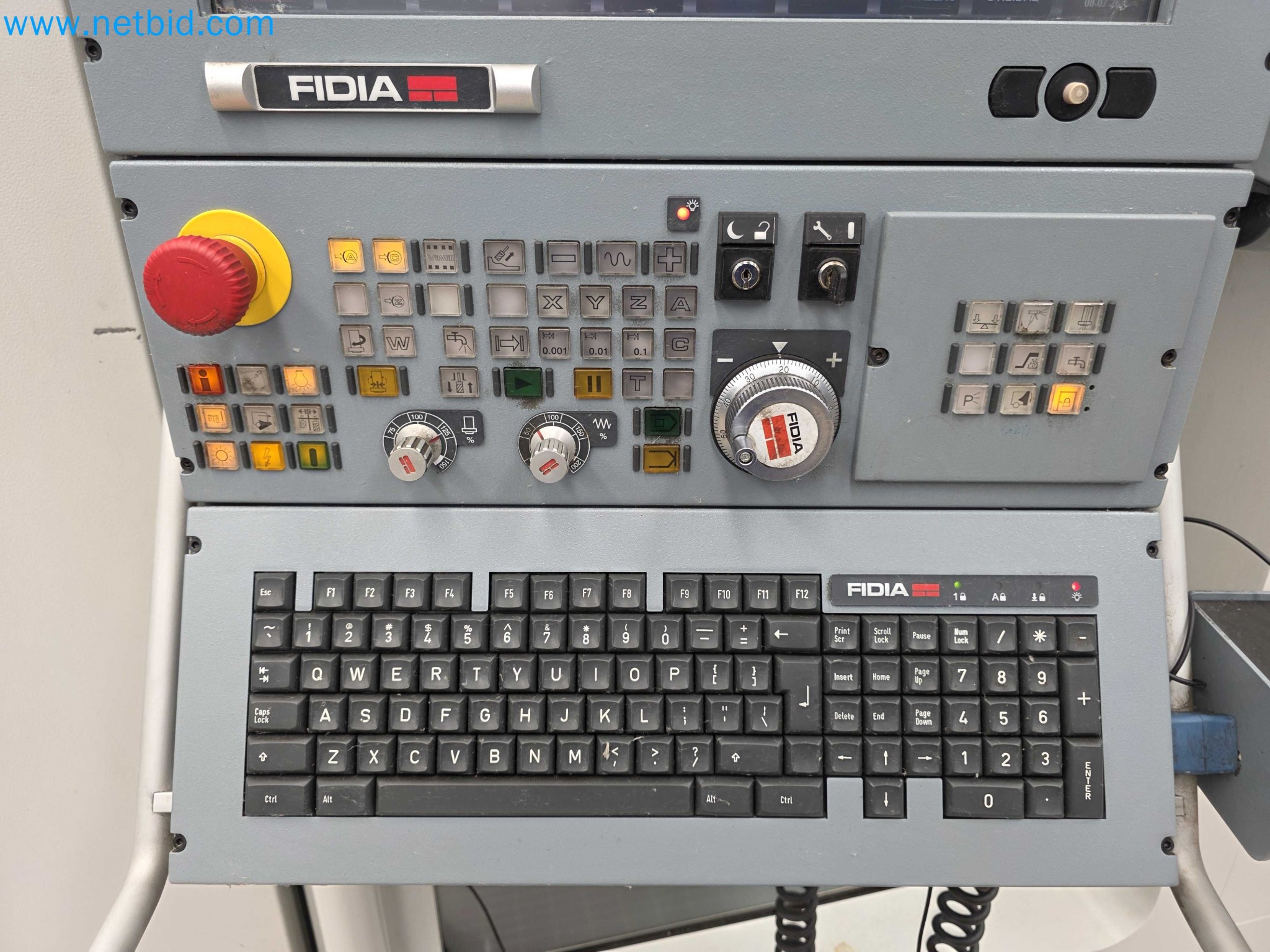

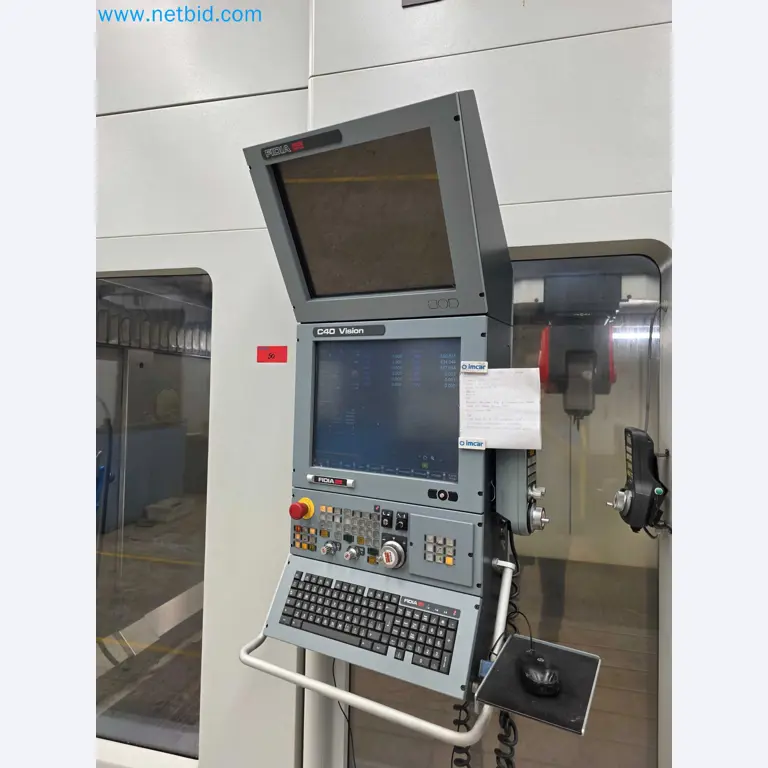

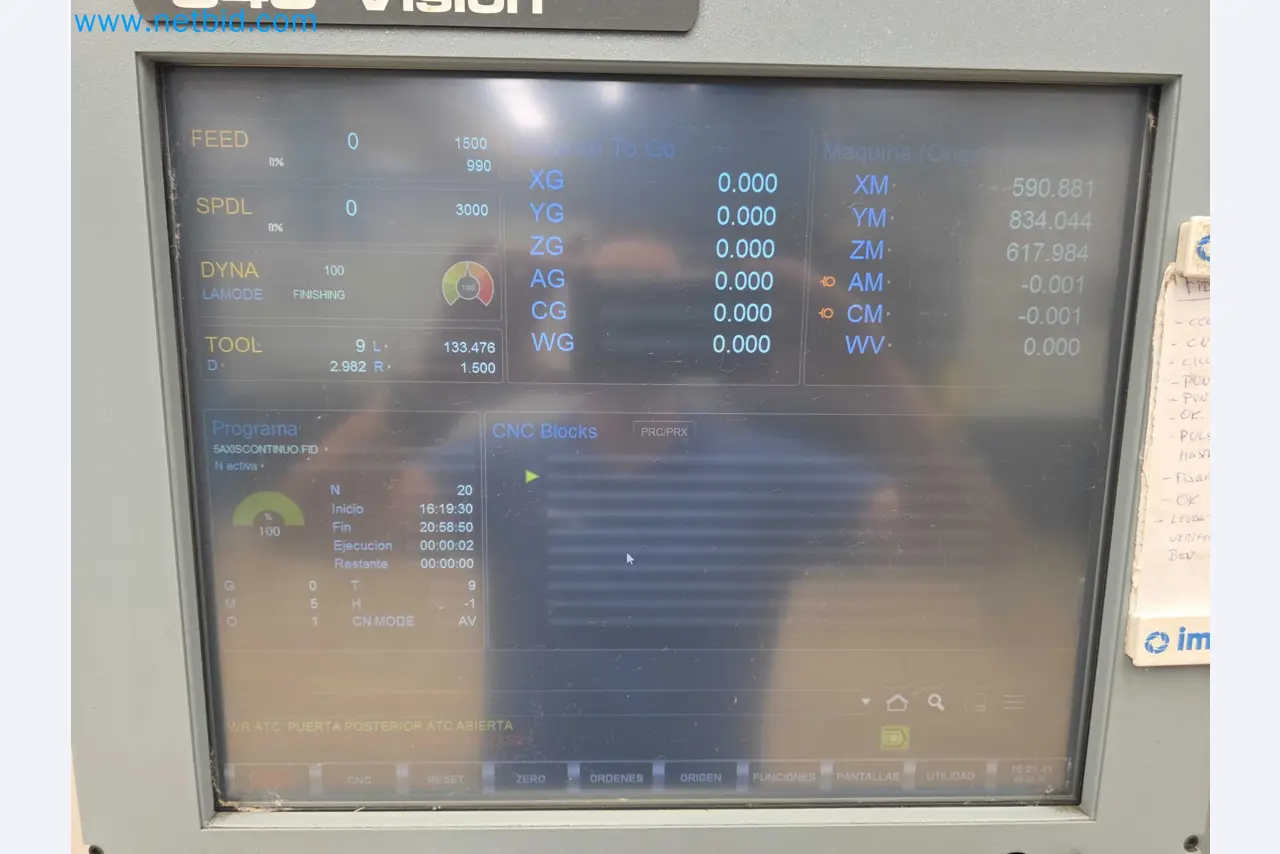

• FIDIA C40 CNC
Head calibration device (HMS/01)

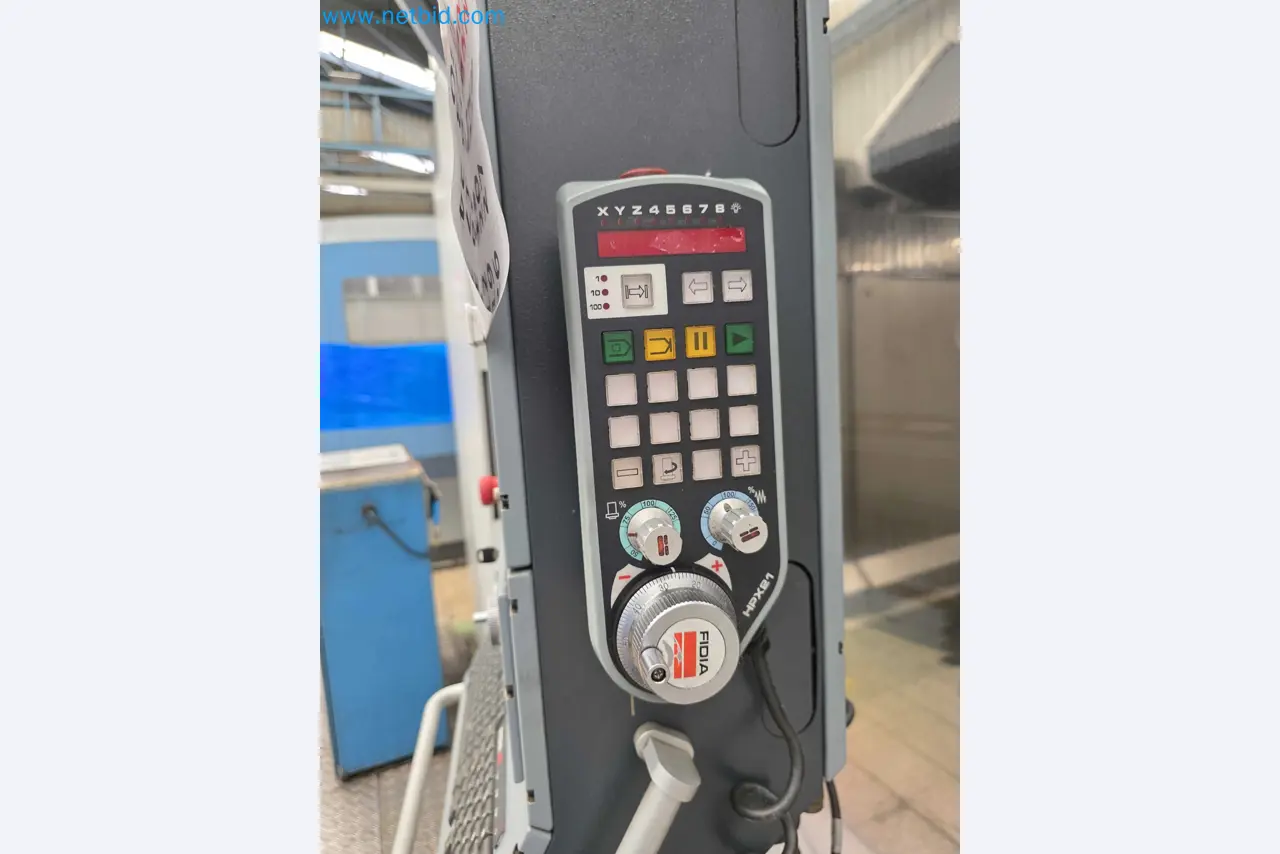

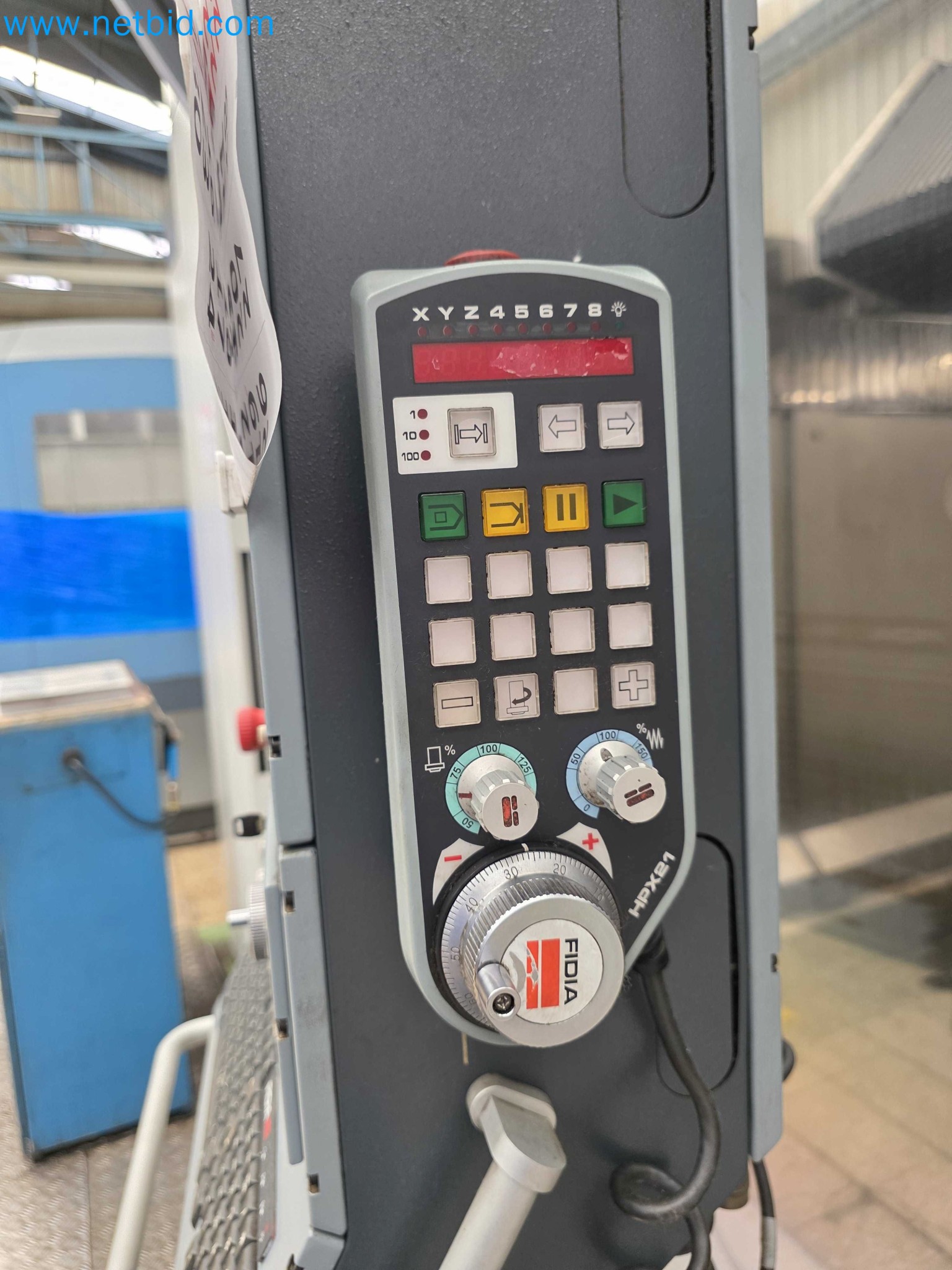

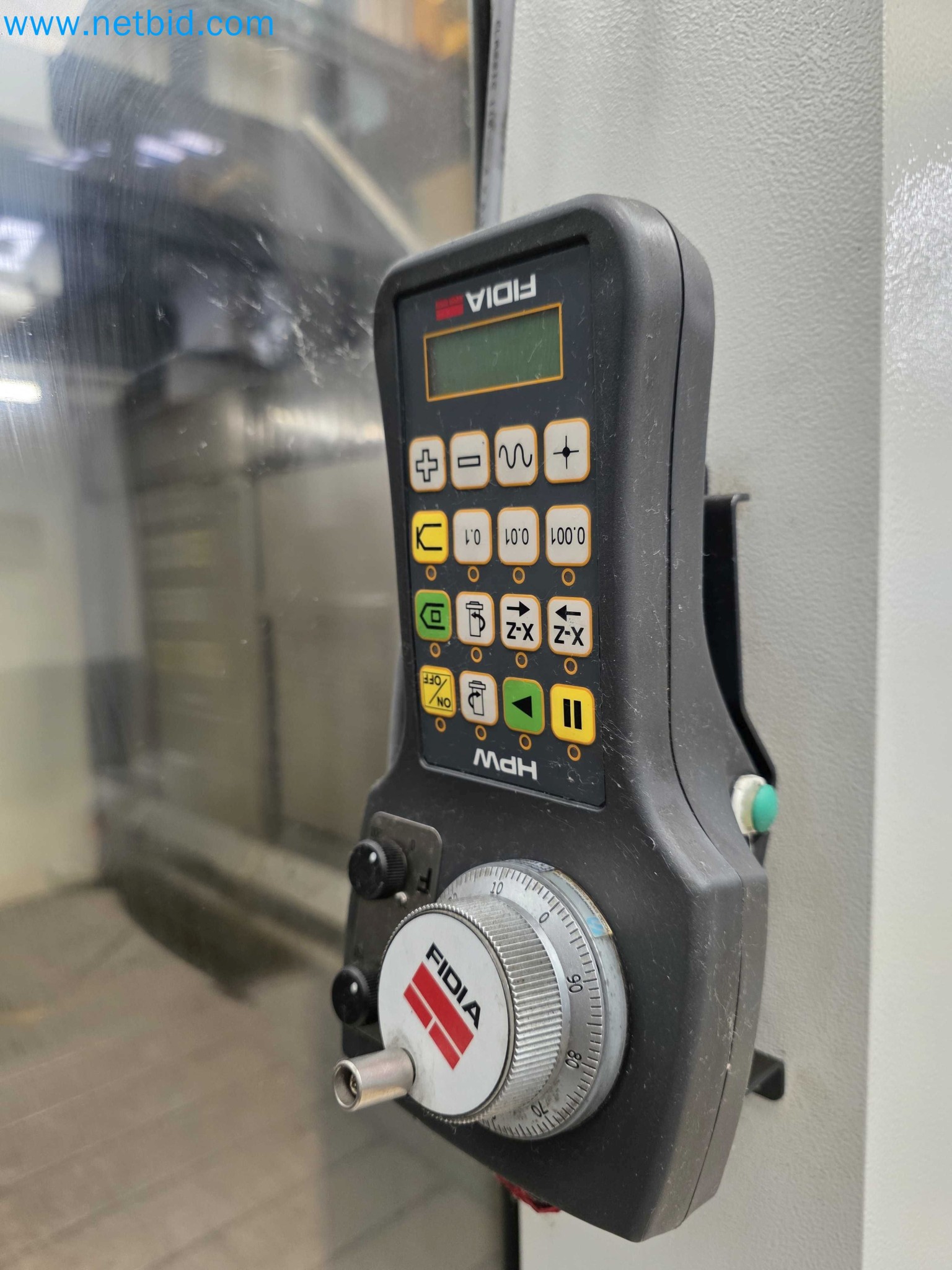

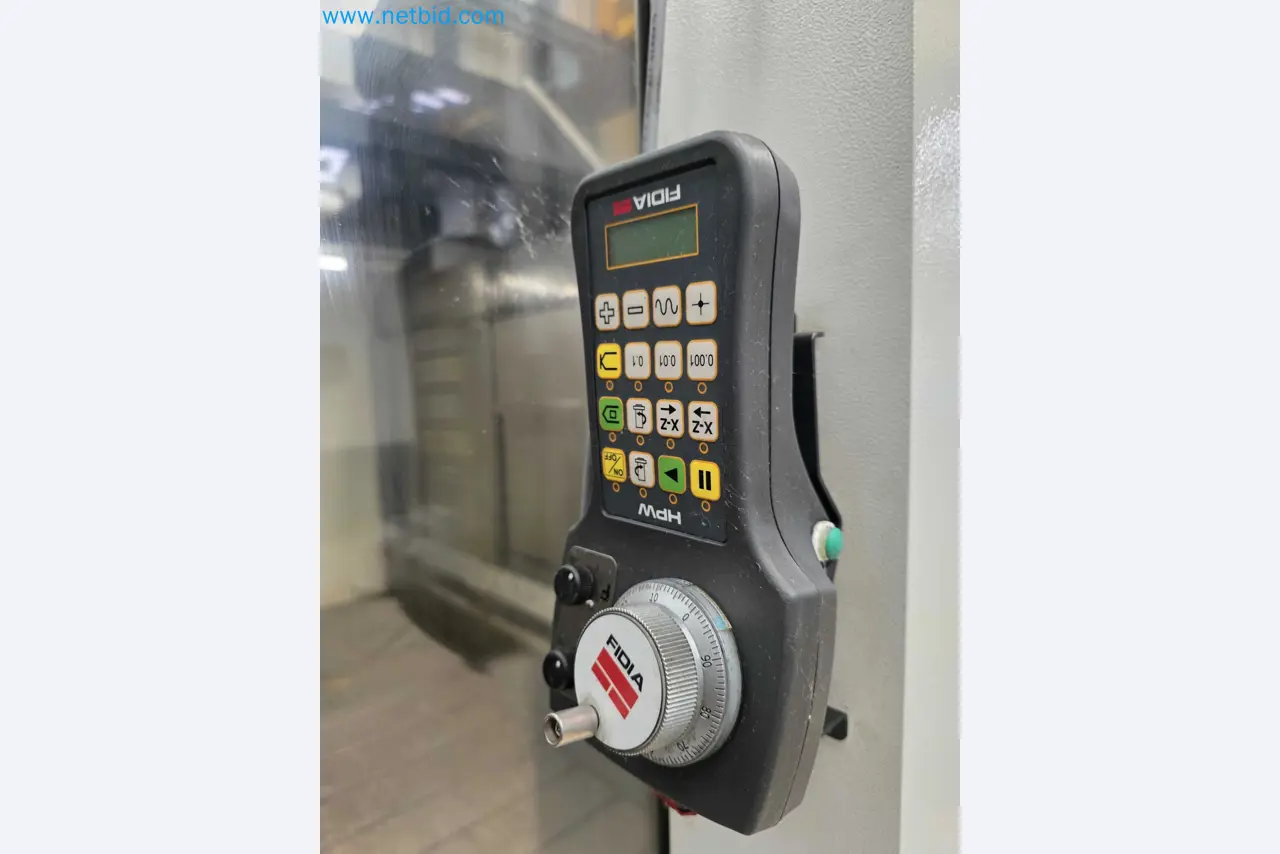

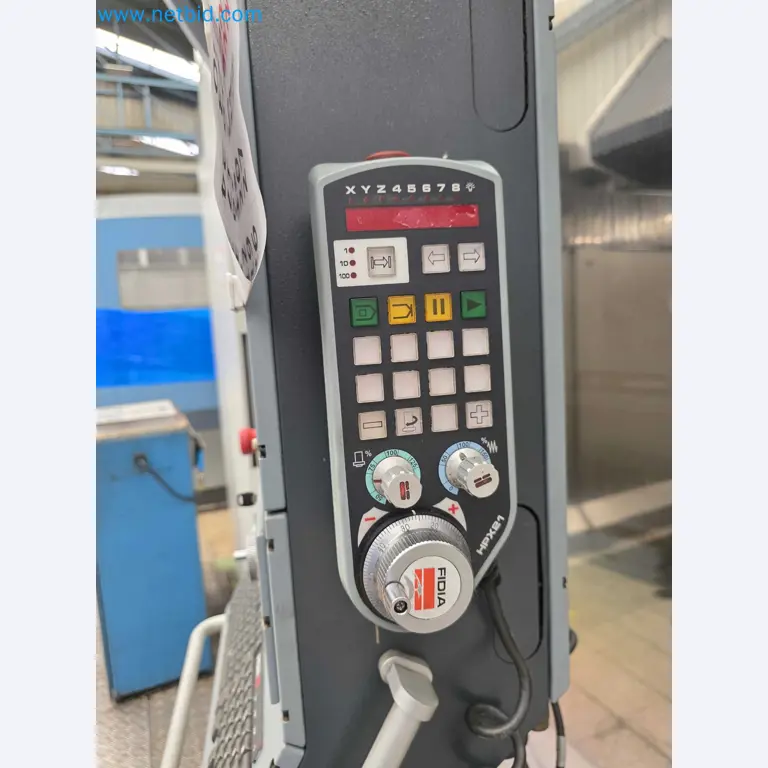

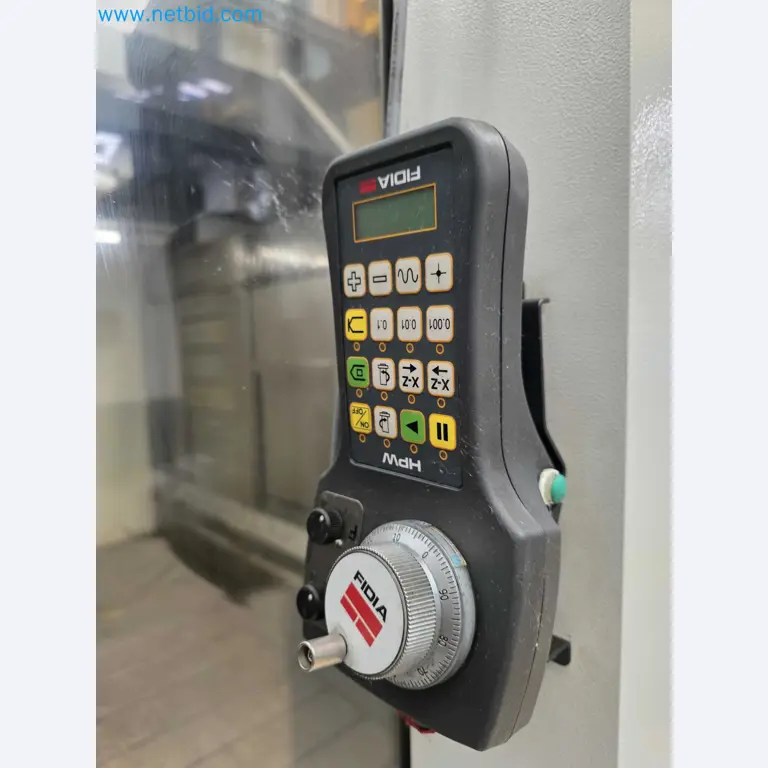

Equipped with wired control pendant (HPX21) and portable control pendant (HPW)

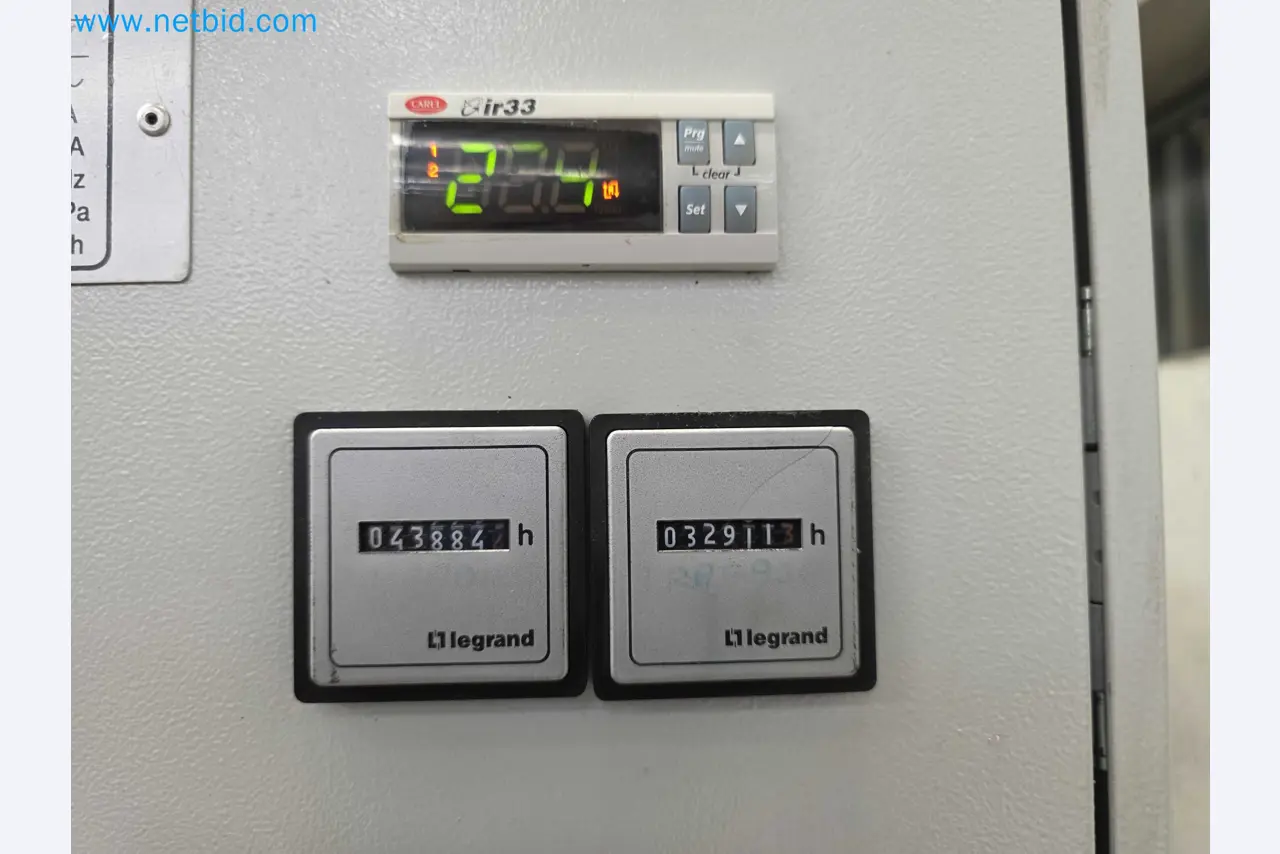

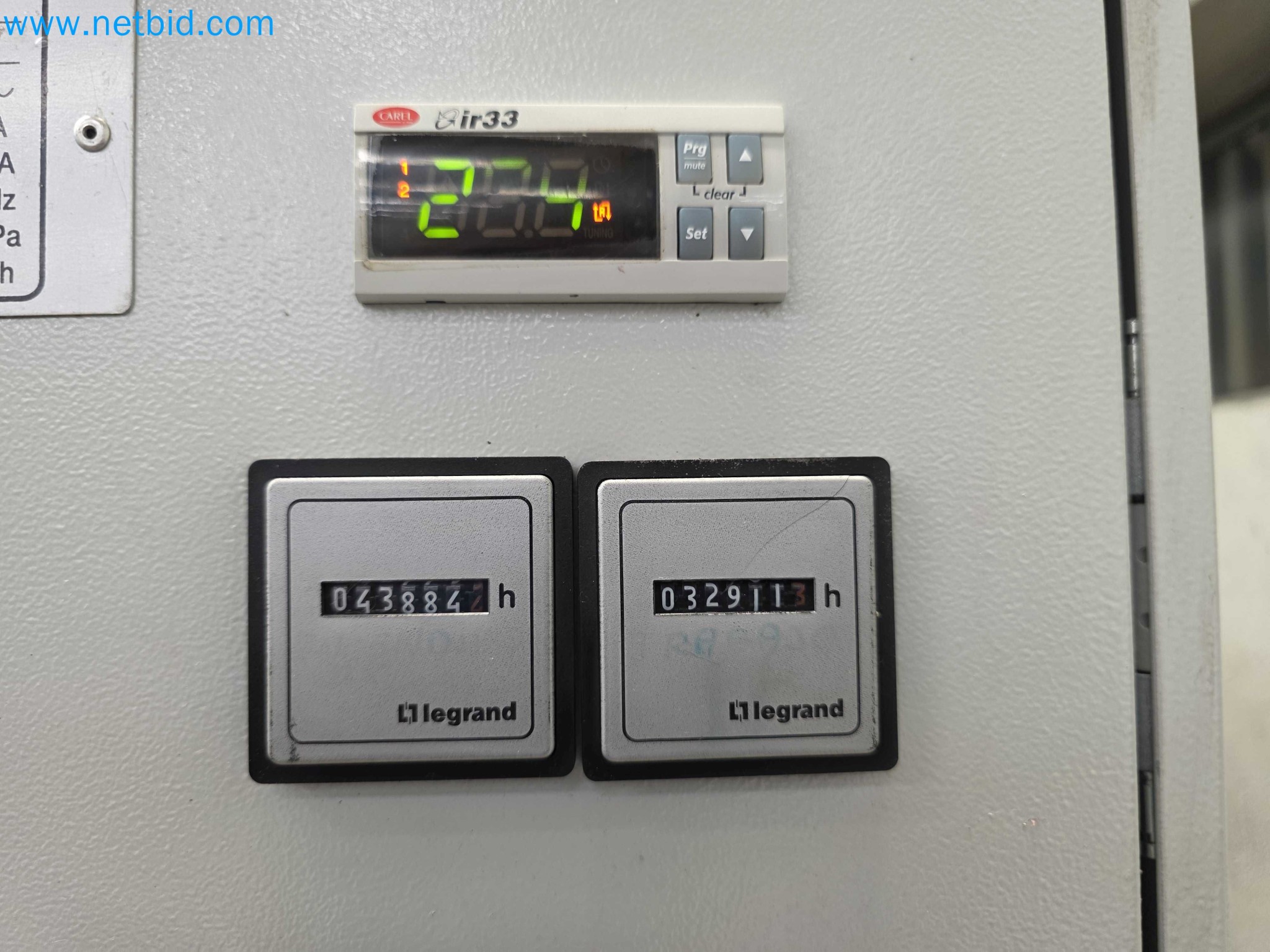

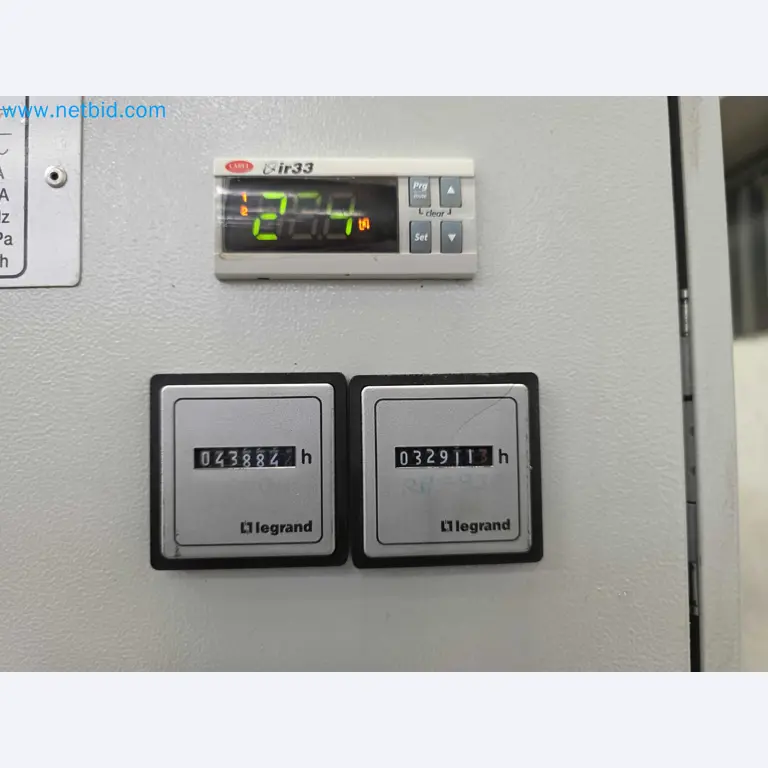

Power-on hours according to counter: 43,884 h
Working hours according to counter: 32,911 h
Approximate weight: 25,000 kg
High-speed vertical machining center (5-axis) (D321)
• Linear travels (X / Y / Z): 3,000 × 2,200 × 1,100 mm
• Worktable: 3,000 × 2,000 mm
• Maximum table load: 20,000 kg
Continuous 5-axis dual rotary head (M5A/55-24)
• A-axis travel: +95° / -110°
• C-axis travel: ±200°
• Spindle: 24,000 rpm / 55 kW (S6) / HSK-A63
Maximum working speeds:
• X-Y-Z axes: 24 m/min
• X-Y-Z axis acceleration: 3 m/s²
• A-C axes: 5,400°/min
• A-C axis acceleration: 1,000°/min²
Automatic tool changer
• Capacity: 42 positions
Chip evacuation and cooling system (CRS/01-D321)
• Longitudinal and transverse chip conveyors (Barberis)
• External tool coolant: 6 bar
• External MQL air/oil lubrication
• Barberis coolant tank, 1,450 L
Automatic tool measurement (TMS/F)
• Fidia laser probe
Workpiece measurement/alignment (RDI/RMP60)
• Renishaw RMP60 probe; S.N.: 0T0T73
CNC Control
• FIDIA C40 CNC
Head calibration device (HMS/01)
Equipped with wired control pendant (HPX21) and portable control pendant (HPW)
Power-on hours according to counter: 43,884 h
Working hours according to counter: 32,911 h
Approximate weight: 25,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
