Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment

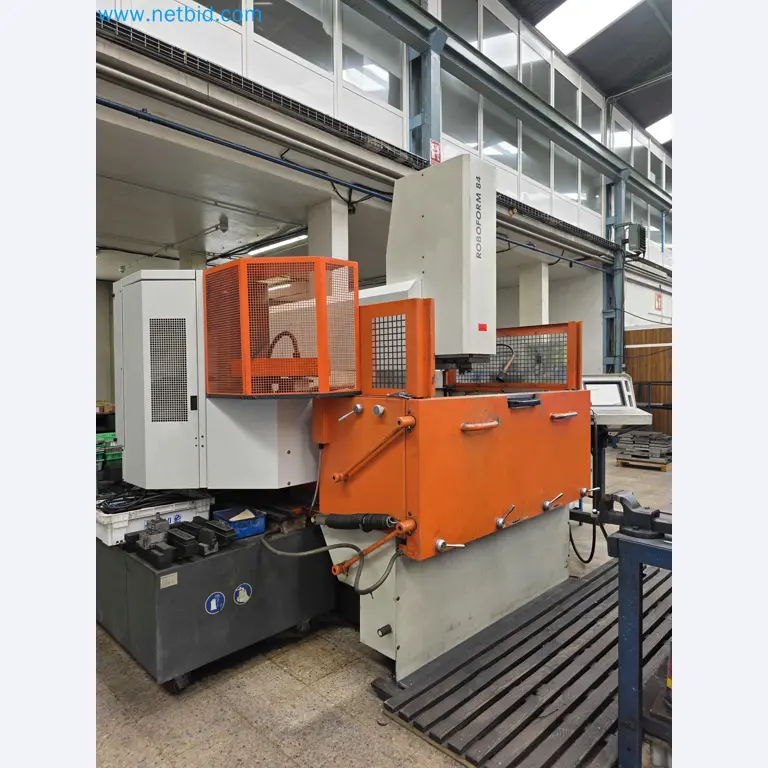

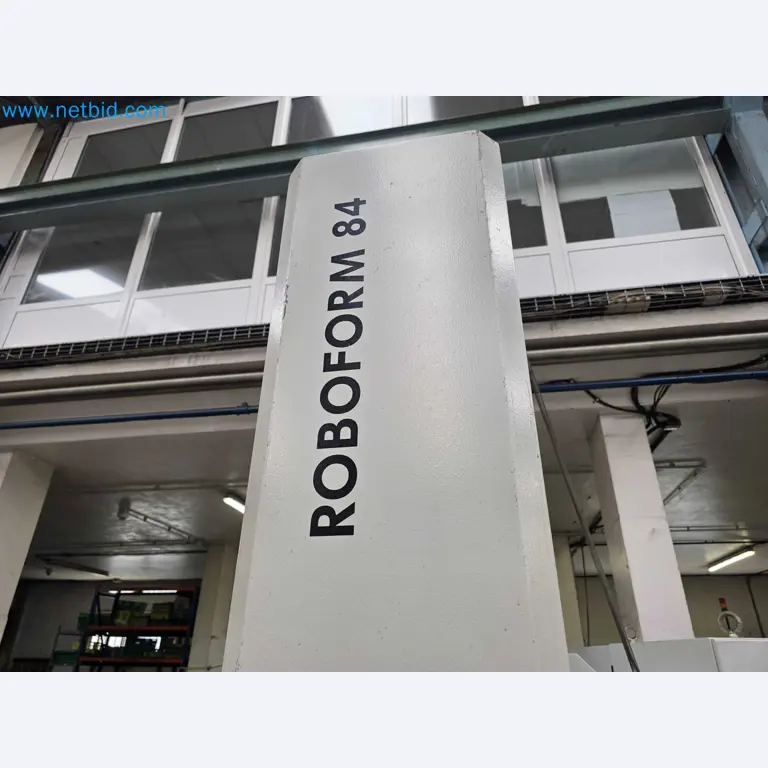

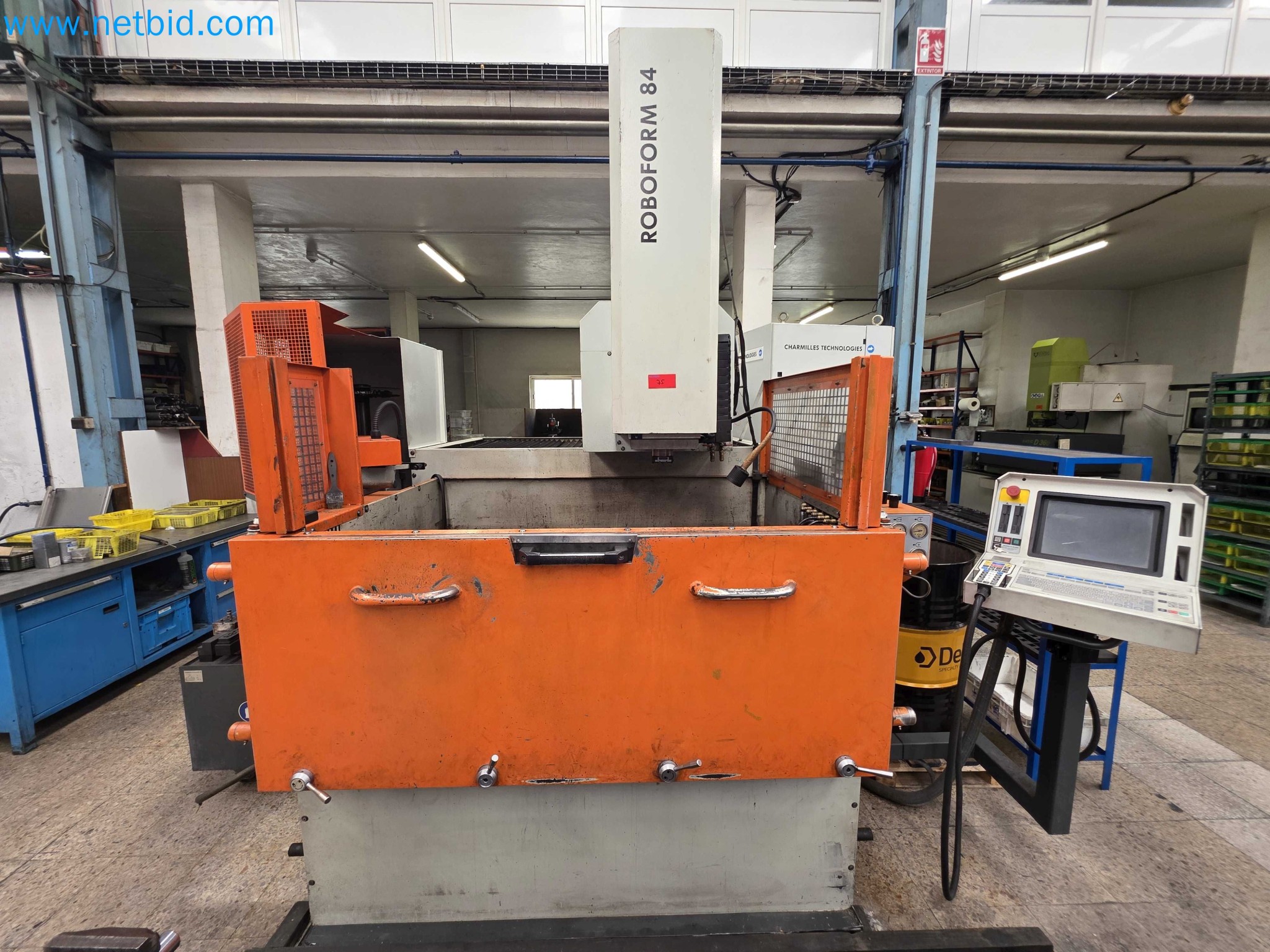

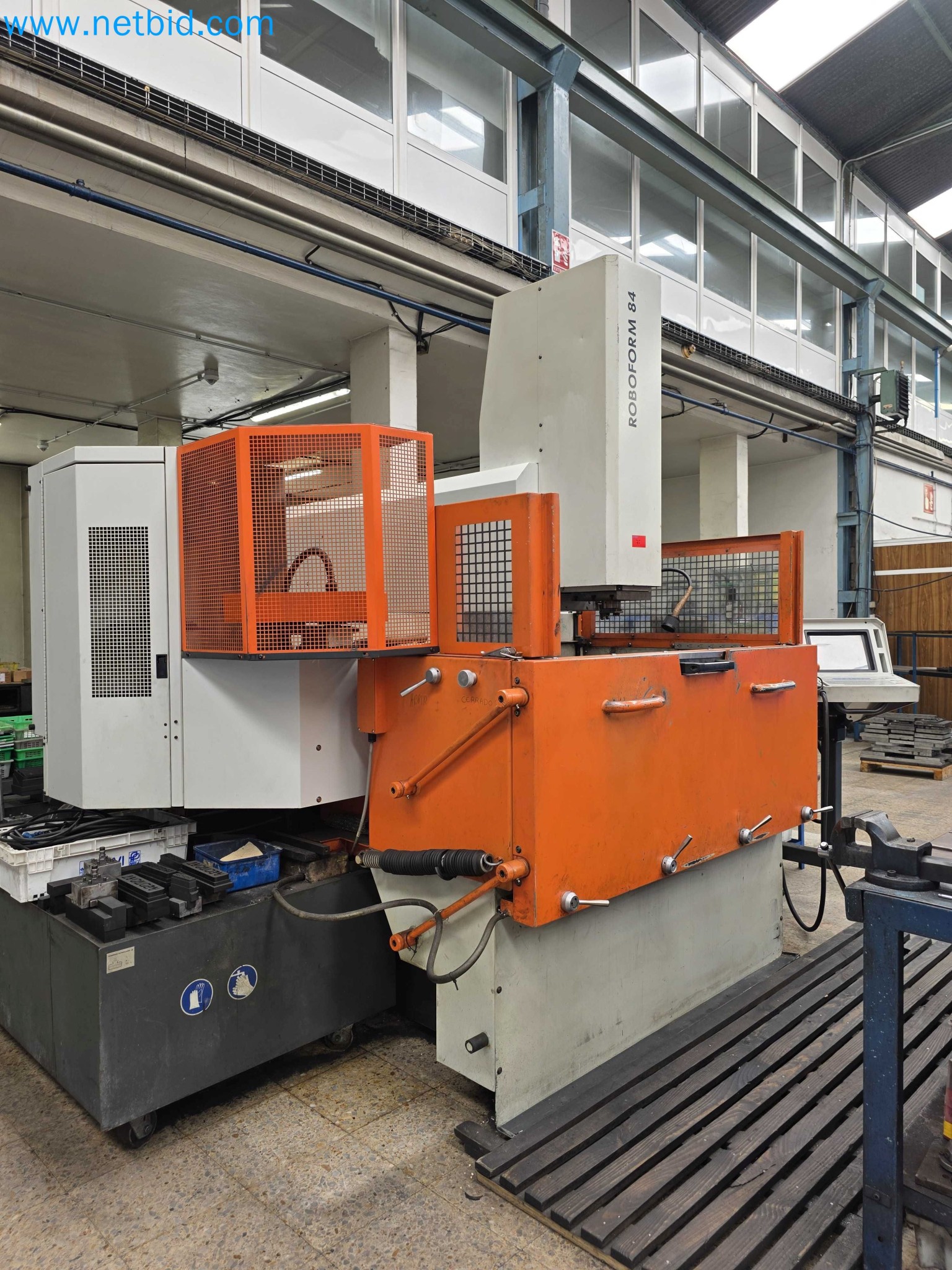

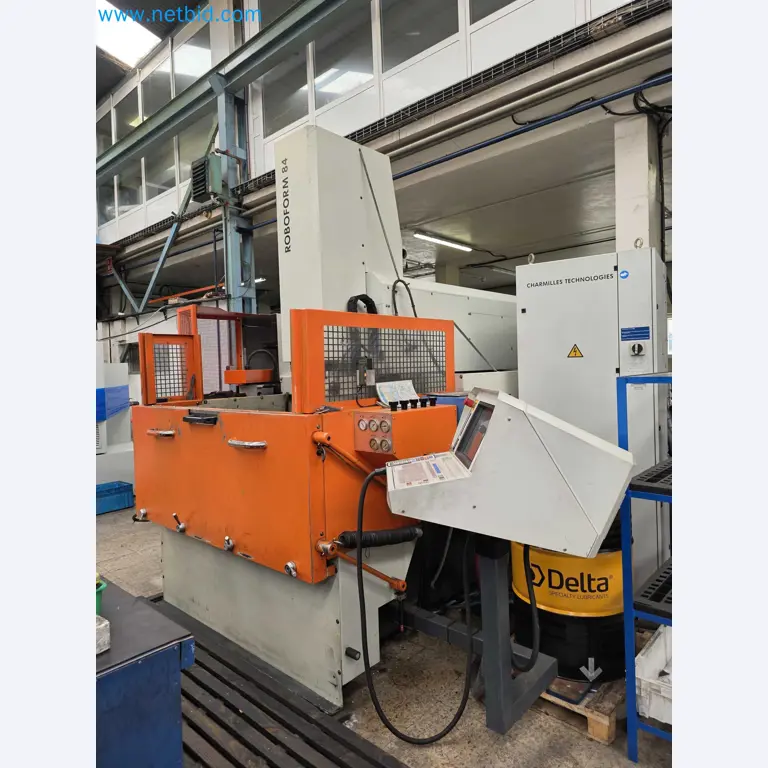

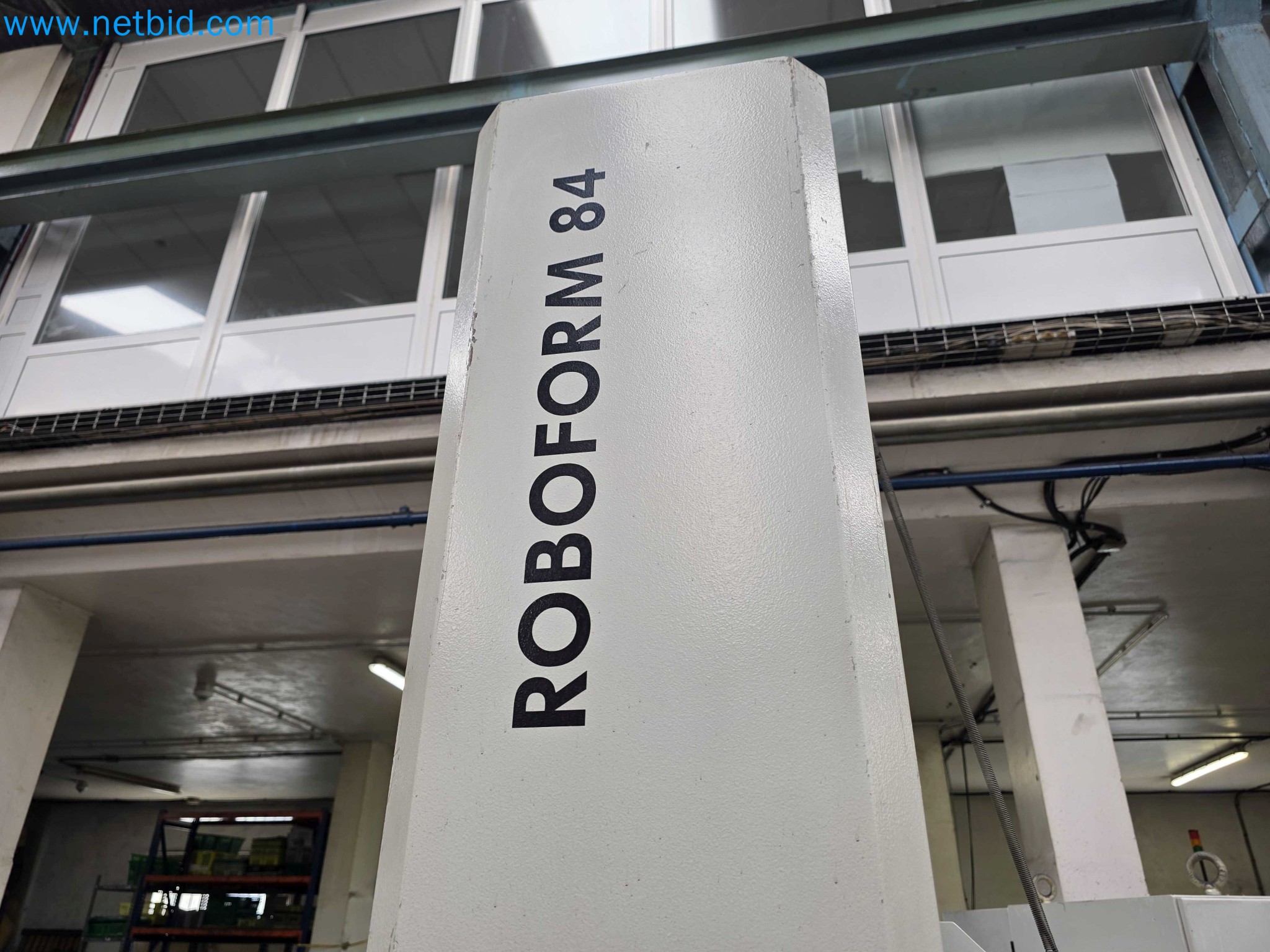

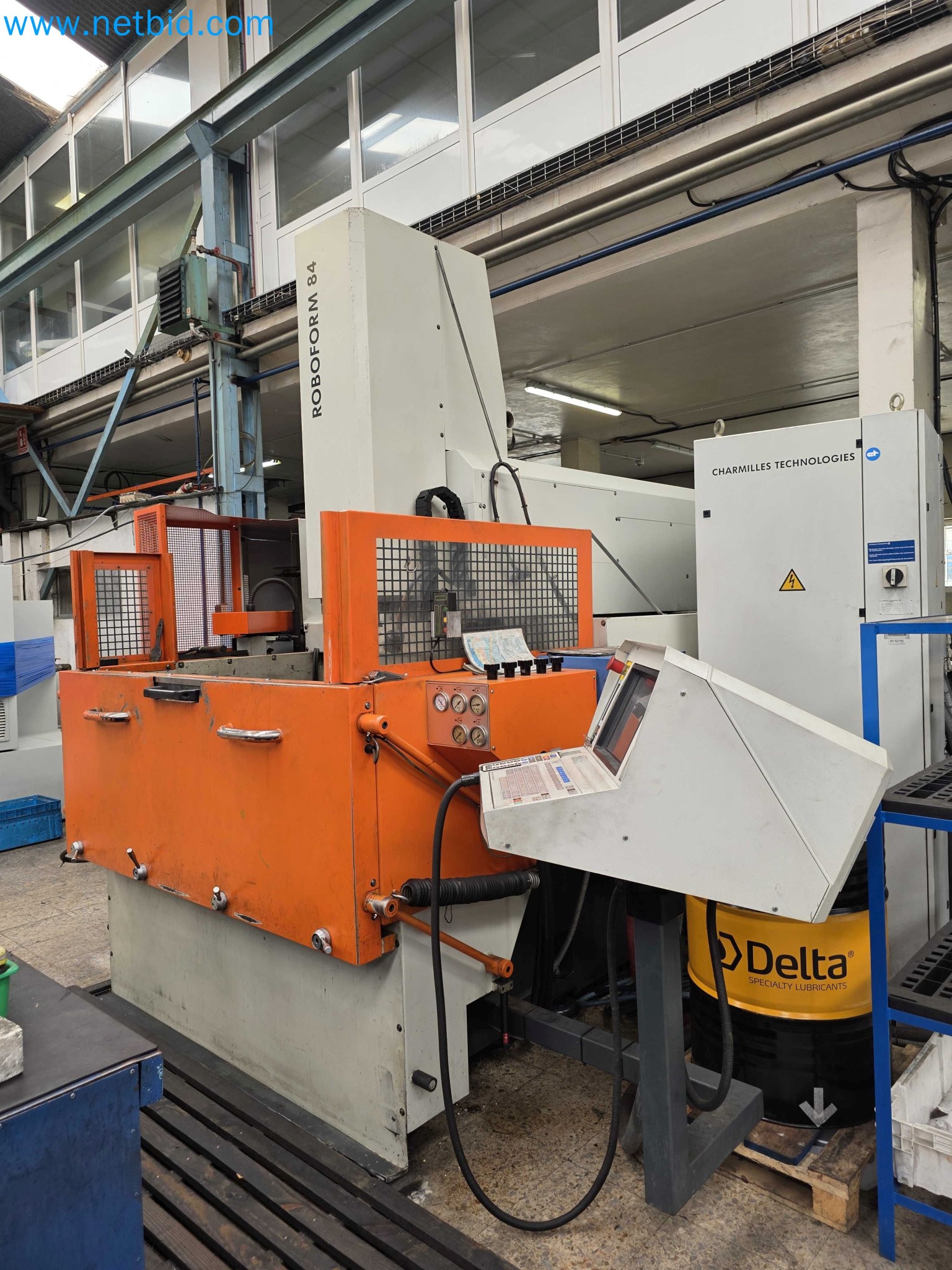

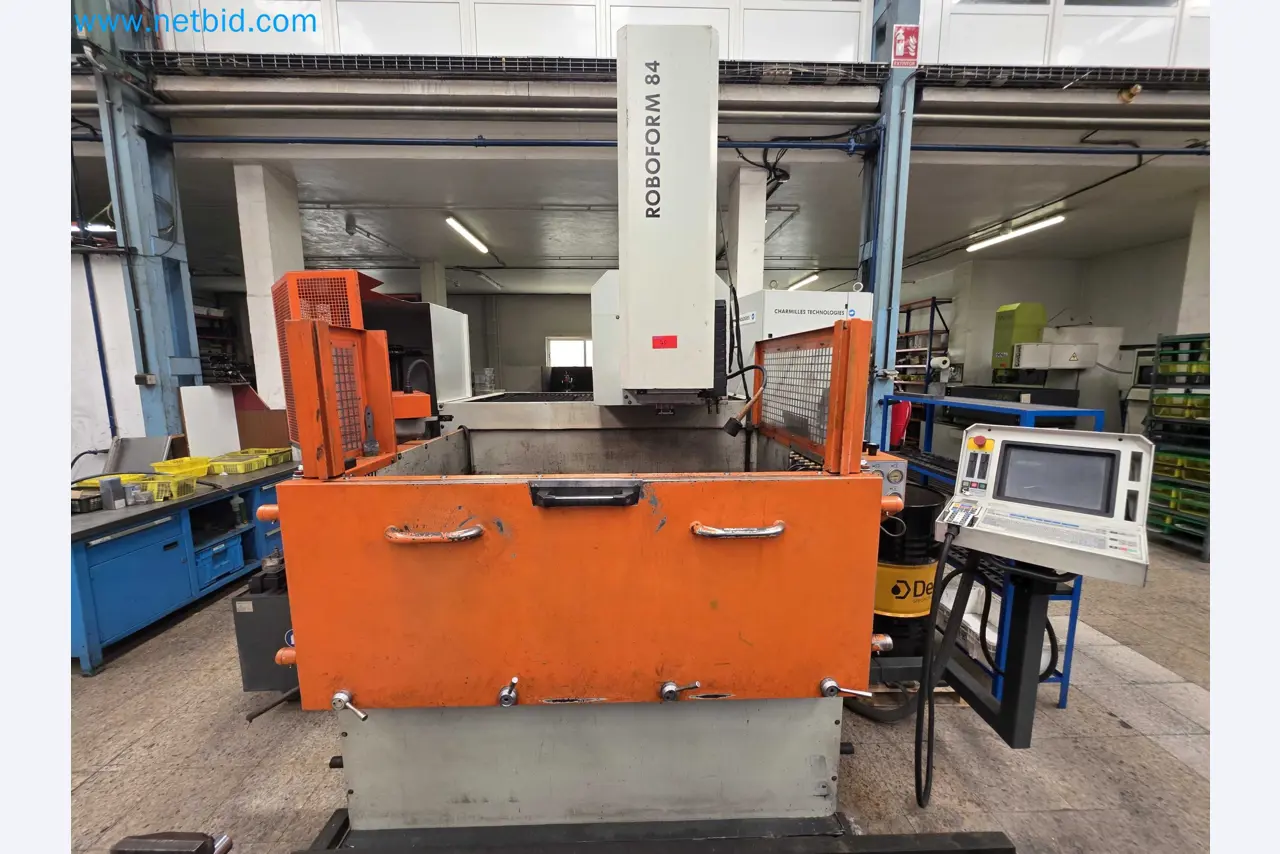

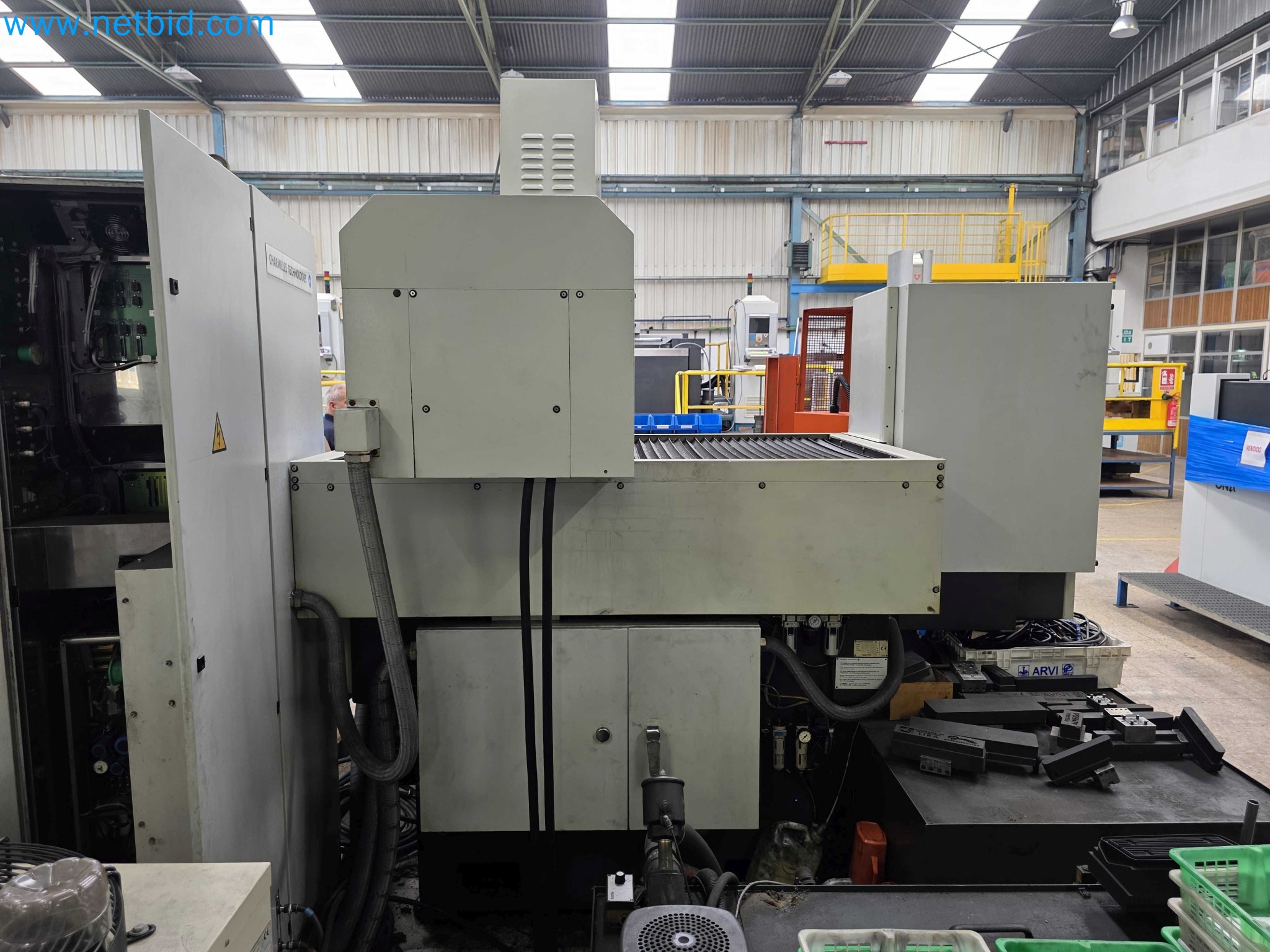

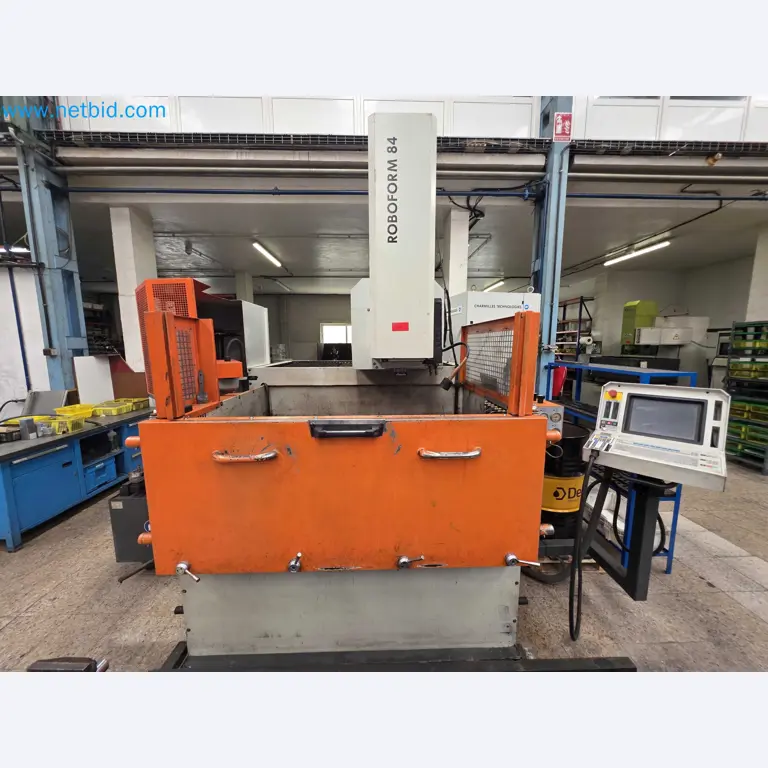

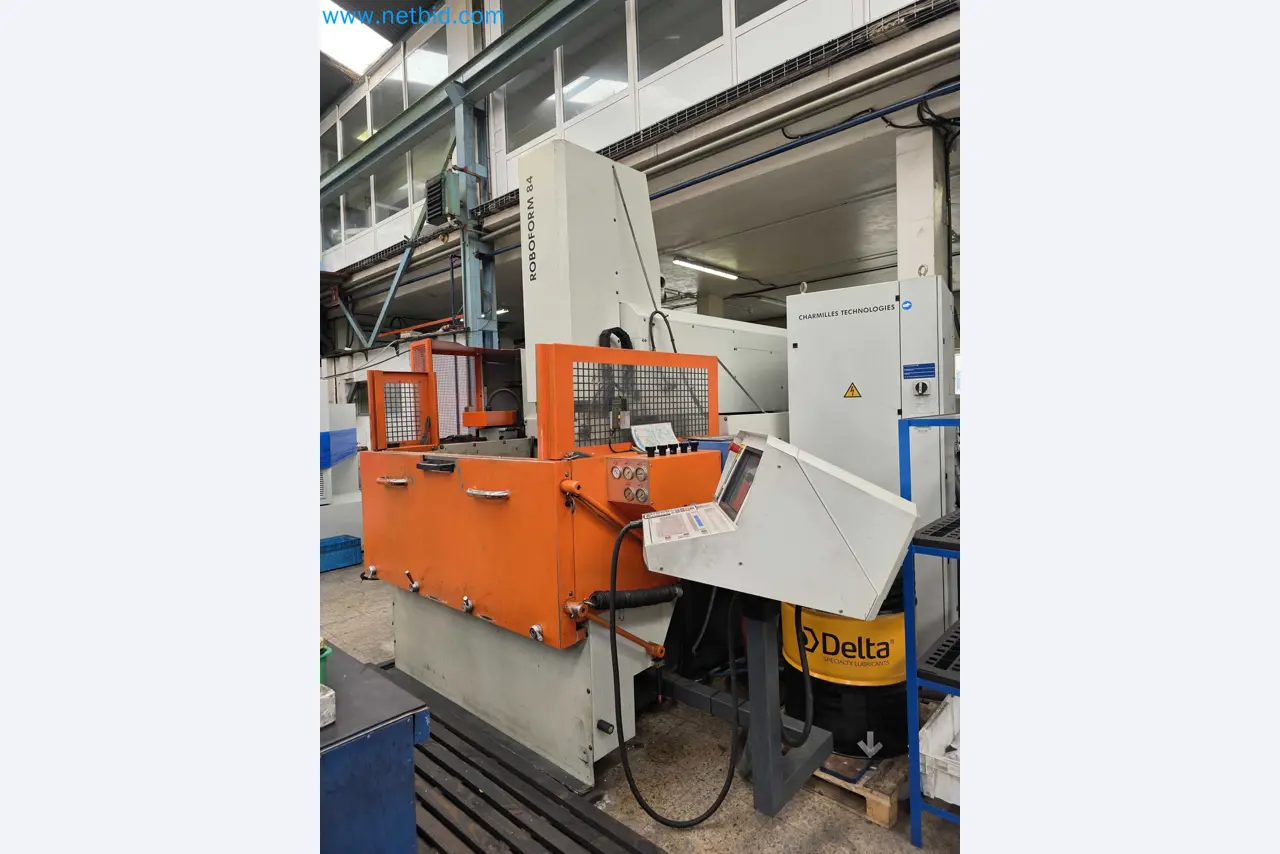

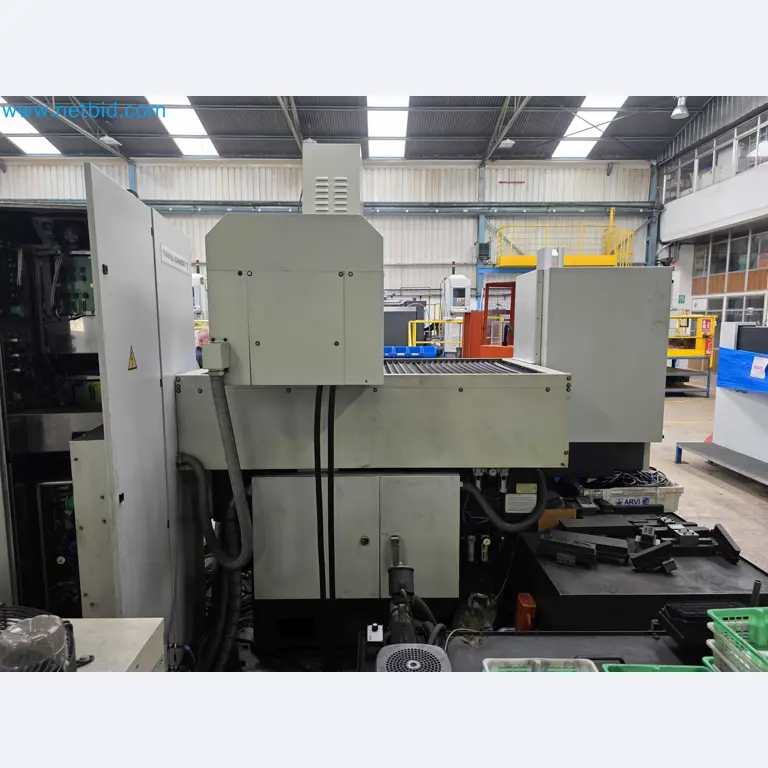

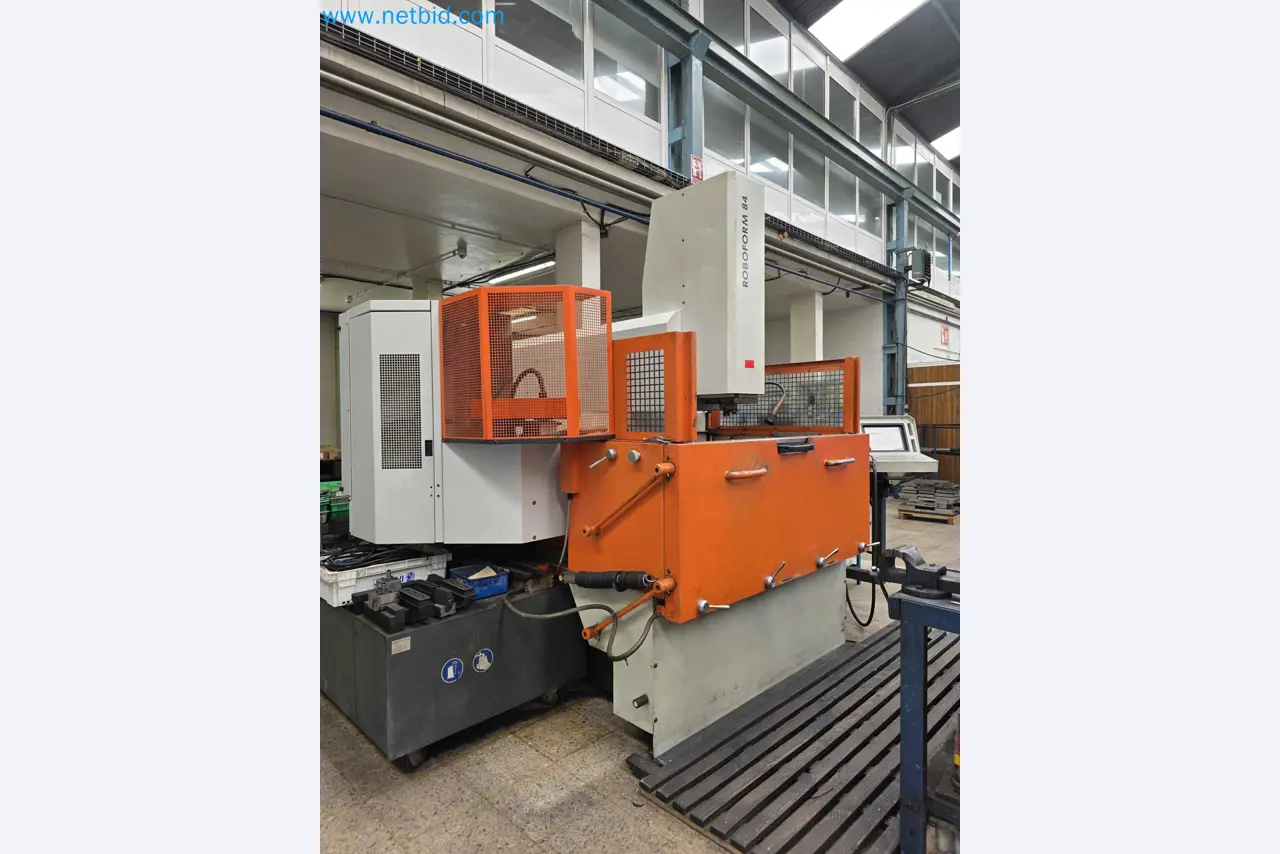

Die-Sinking EDM Machine CHARMILLES ROBOFORM 84AUCTION#A19590-75
Details
Product Type
CHARMILLES
Type

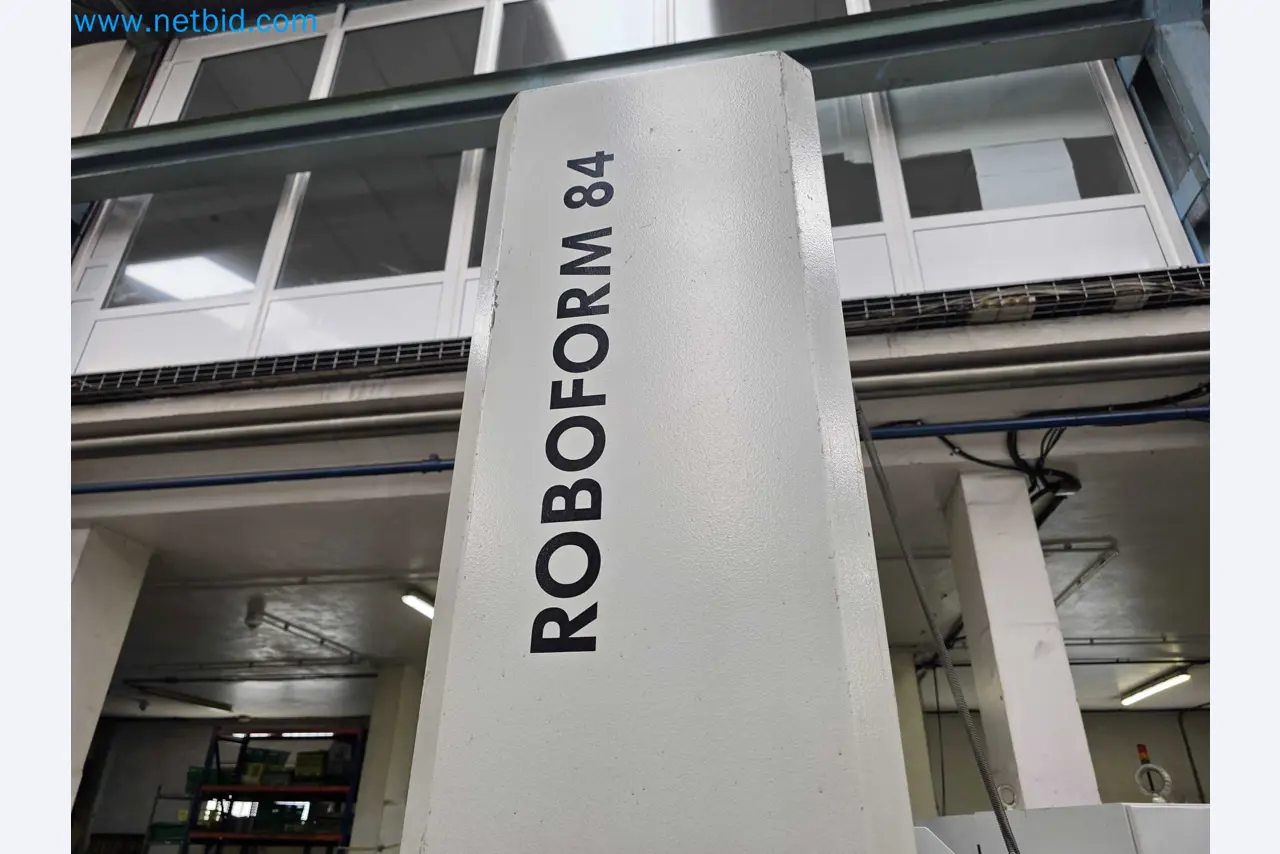

ROBOFORM 84
Construction Year
2000

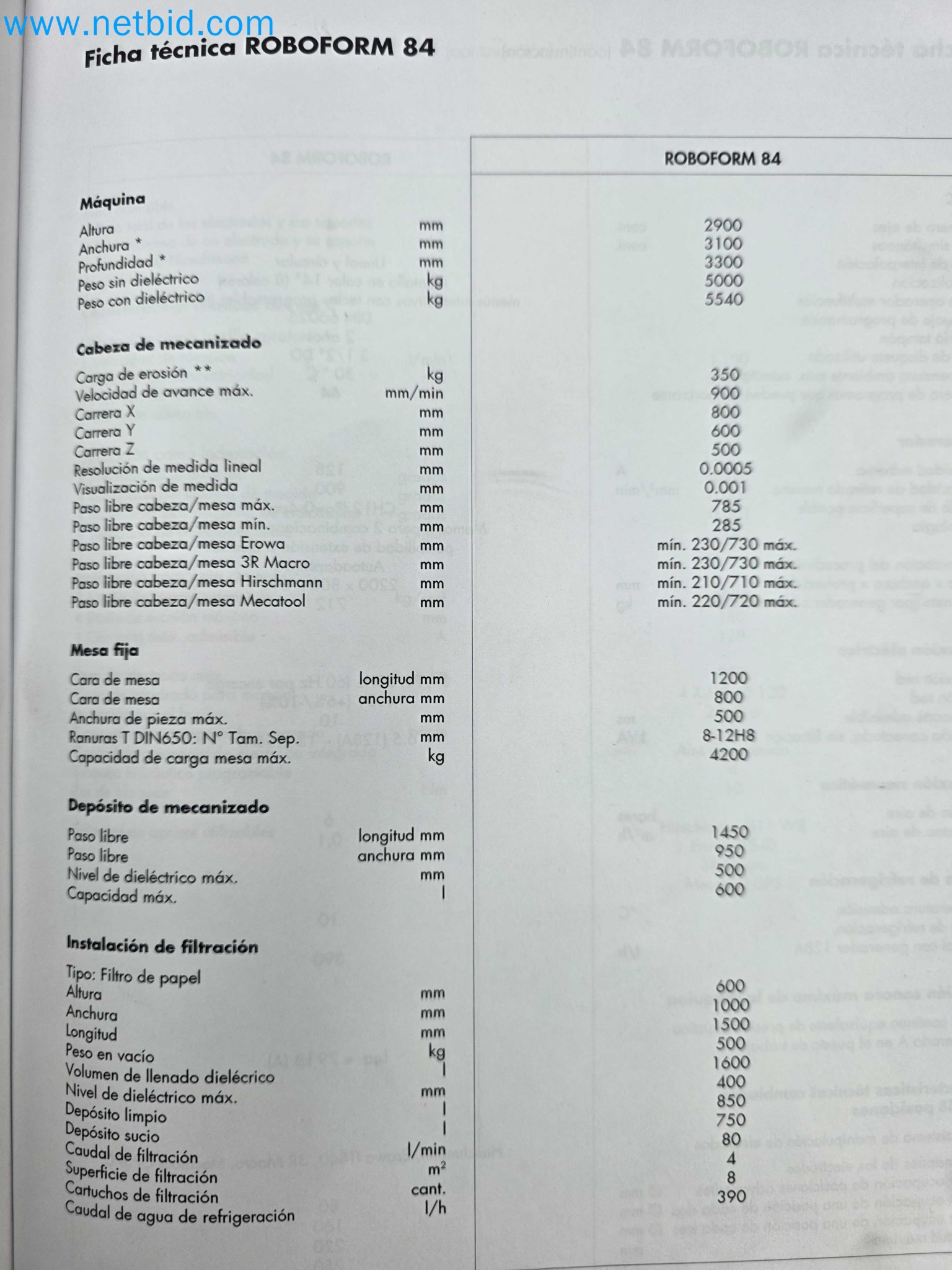

Description

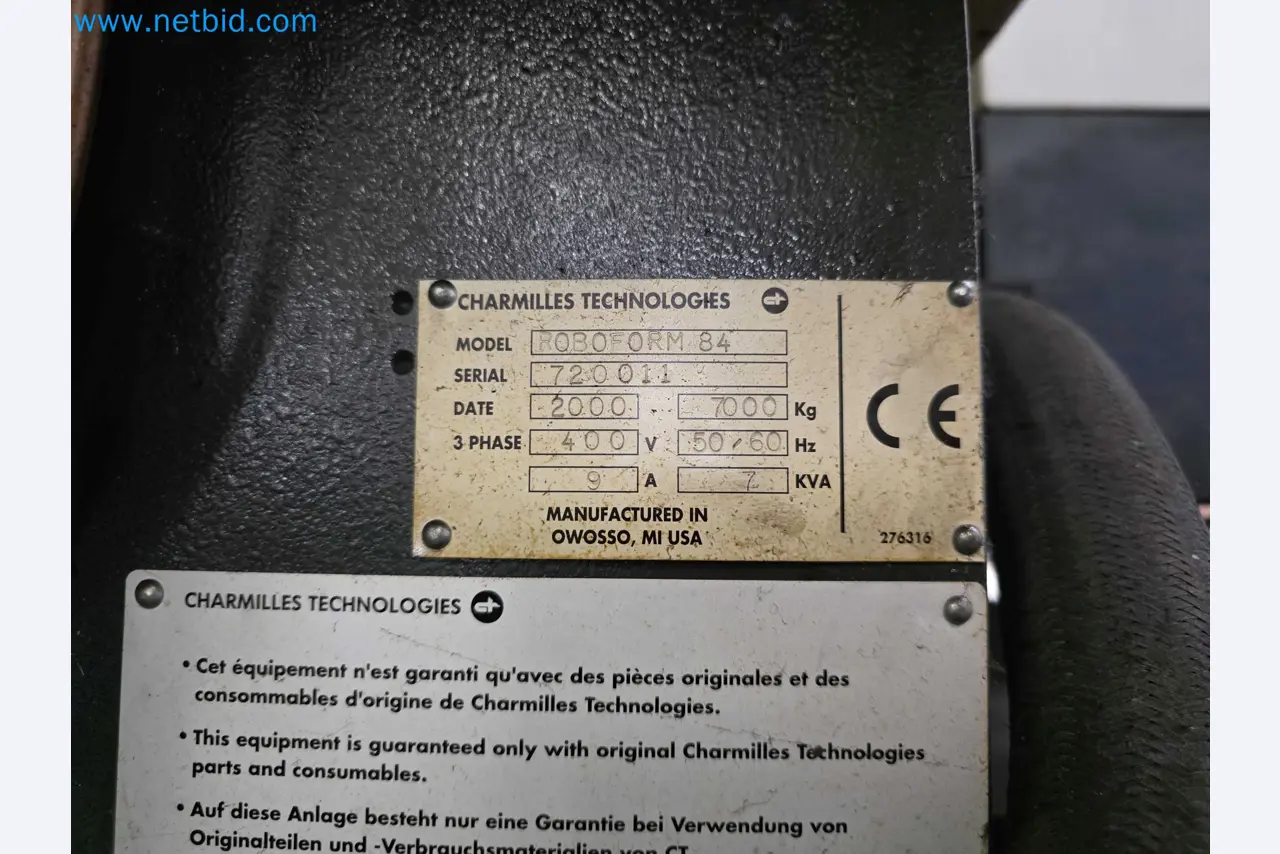

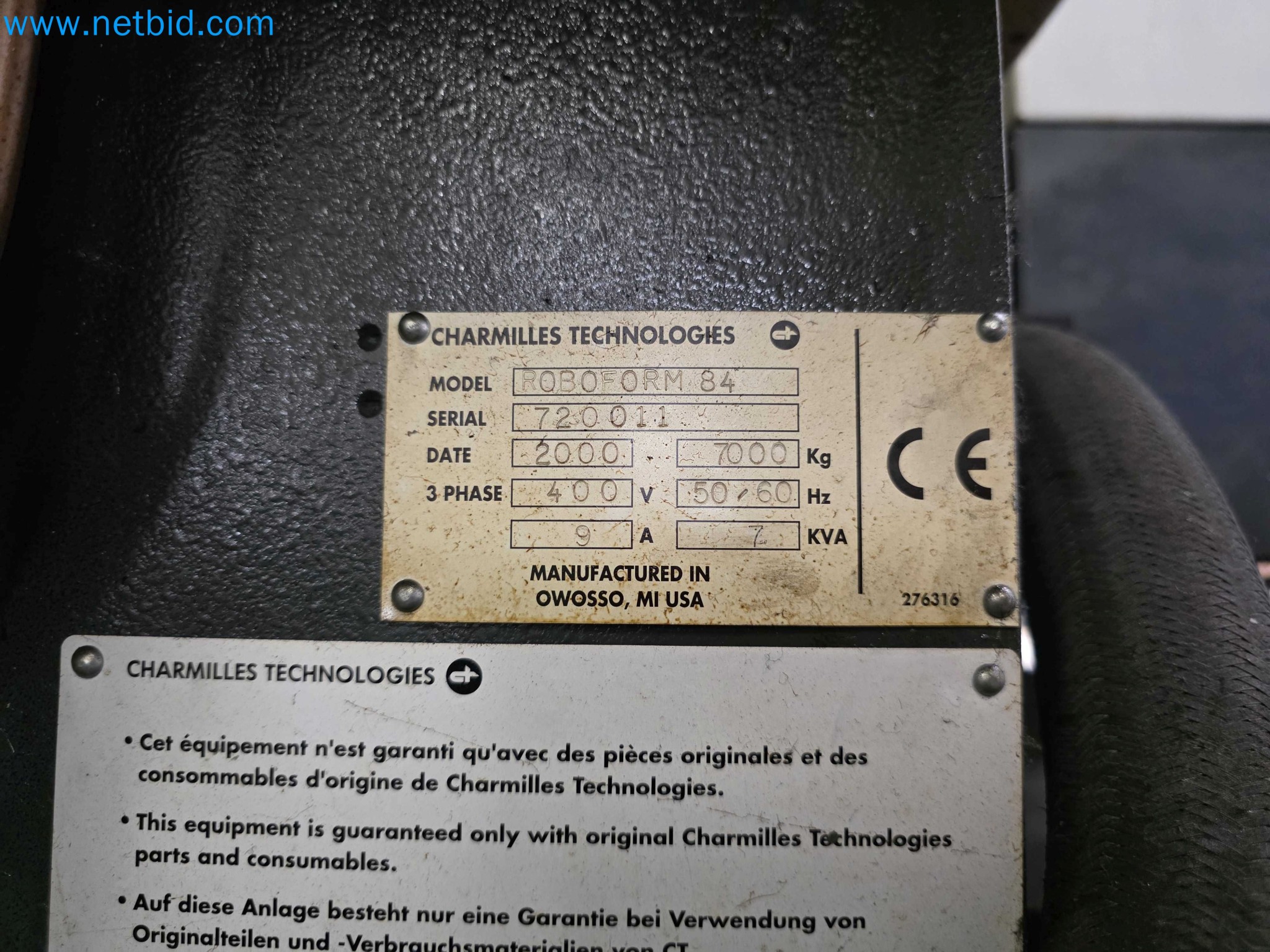

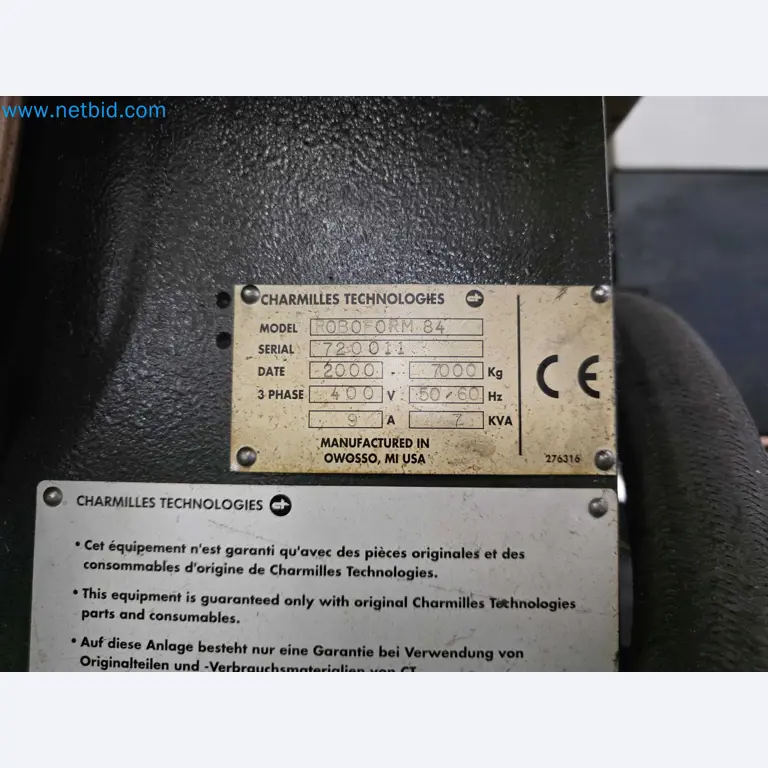

SN: 720011
Number of axes: 4
Simultaneous axes: 4

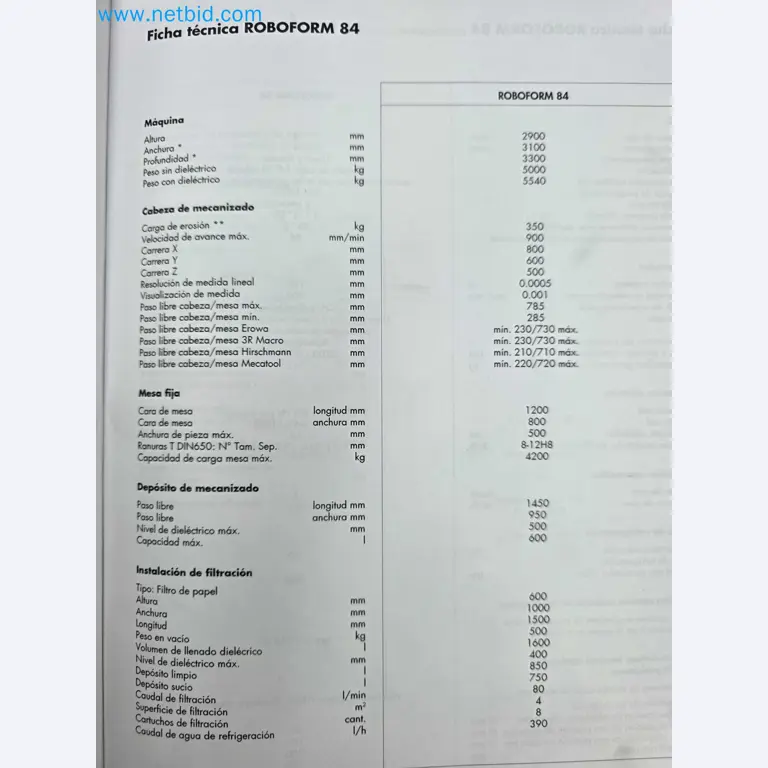

Travels:
· X-axis: 800 mm
· Y-axis: 600 mm
· Z-axis: 500 mm
Maximum feed rate: 900 mm/min
Erosion load: 350 kg
Measurement display resolution: 0.001 mm

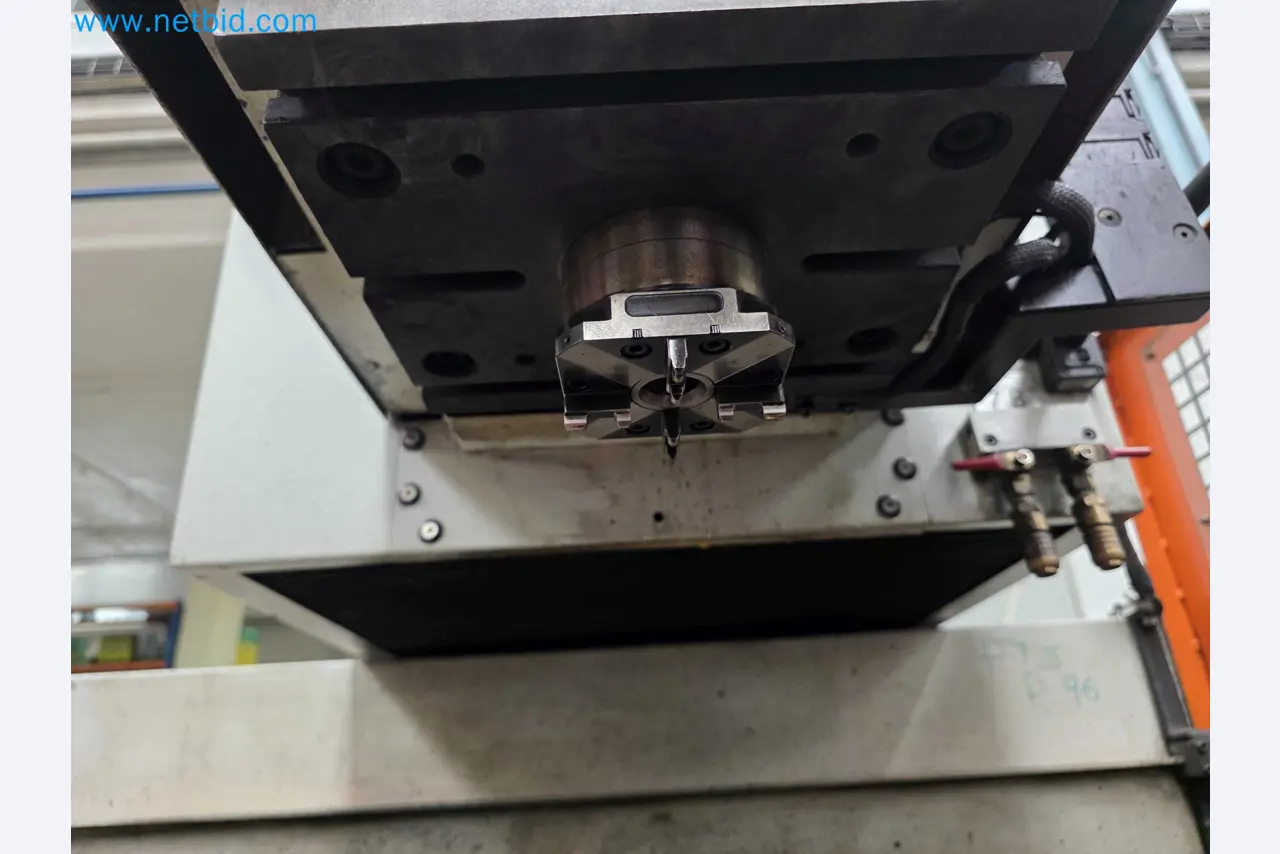

Head/table clearance: from 285 to 785 mm

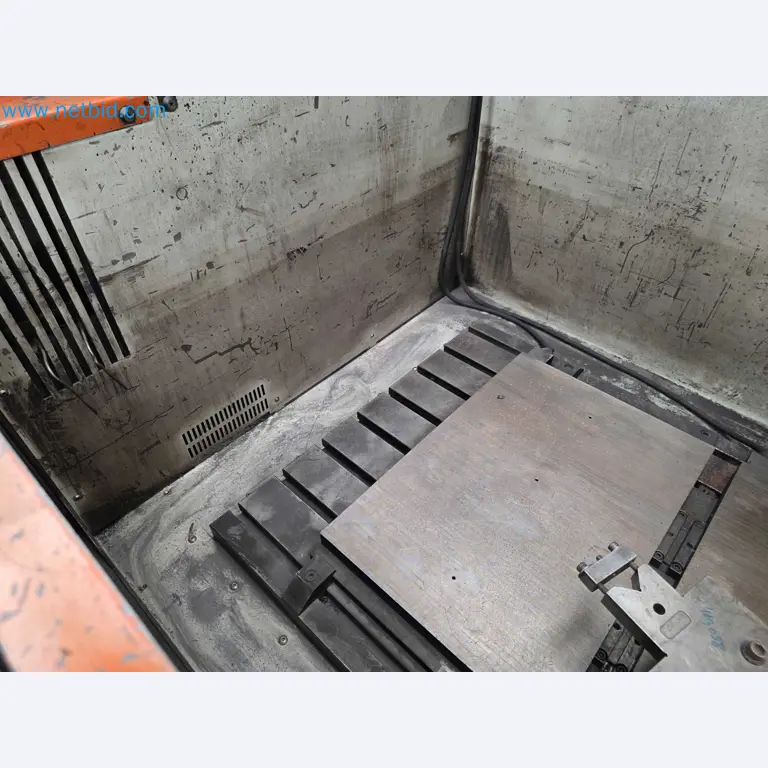

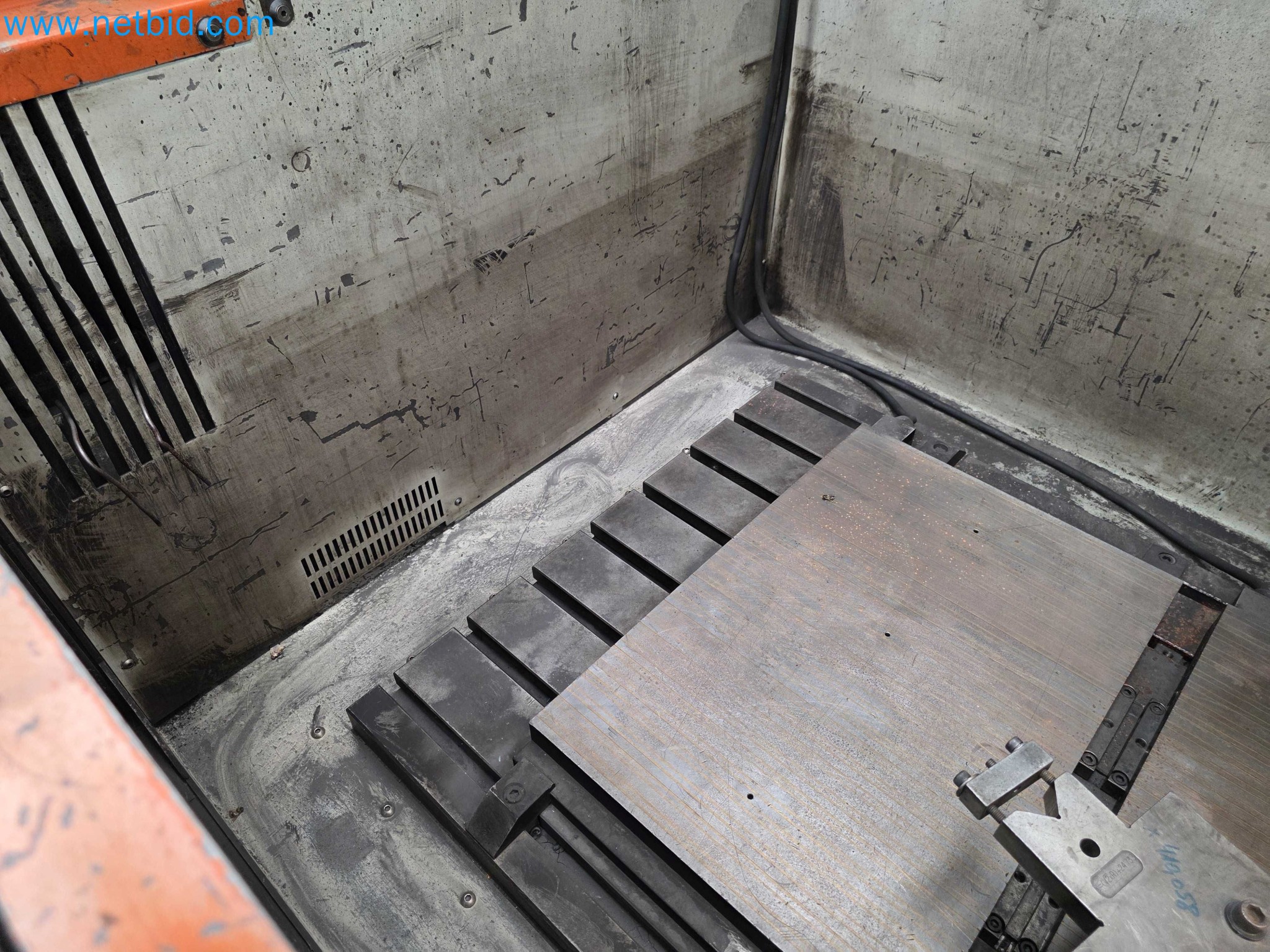

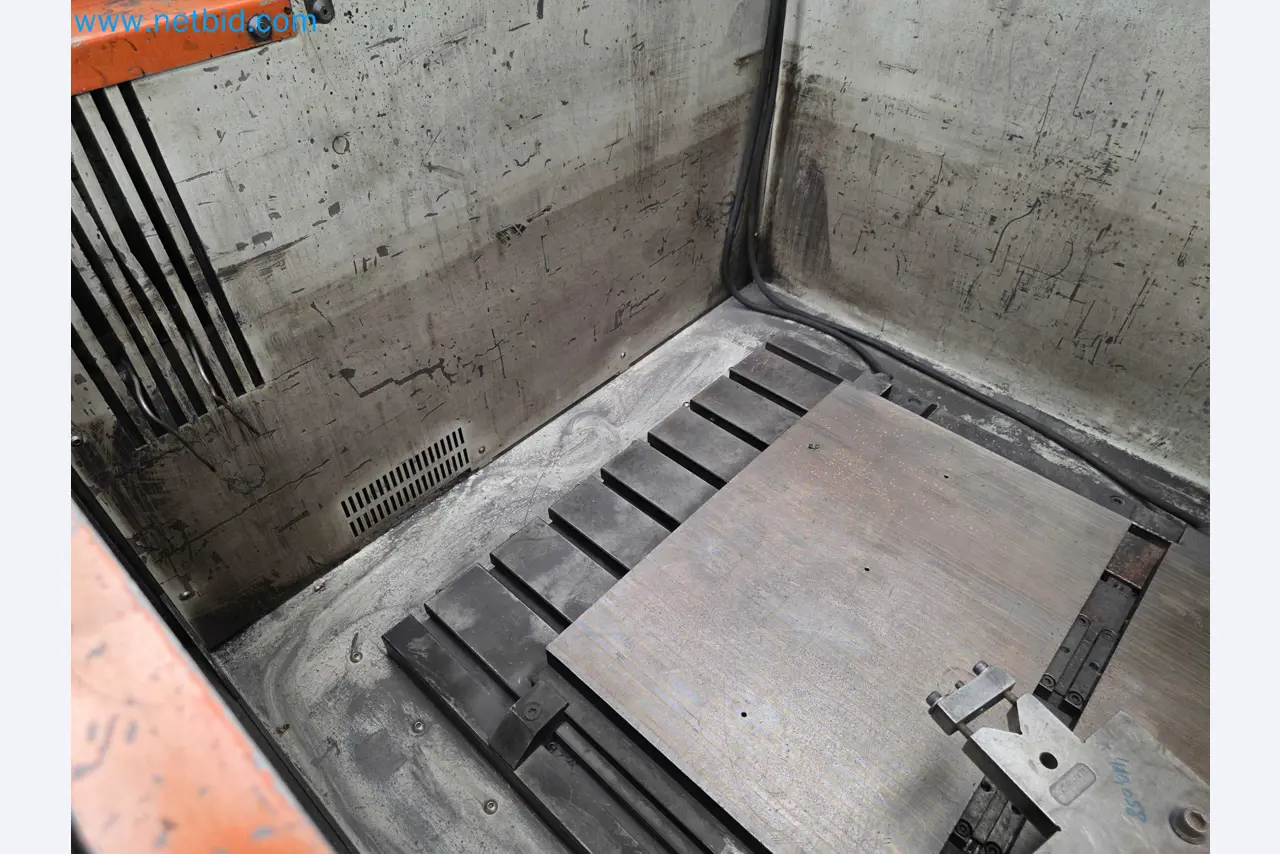

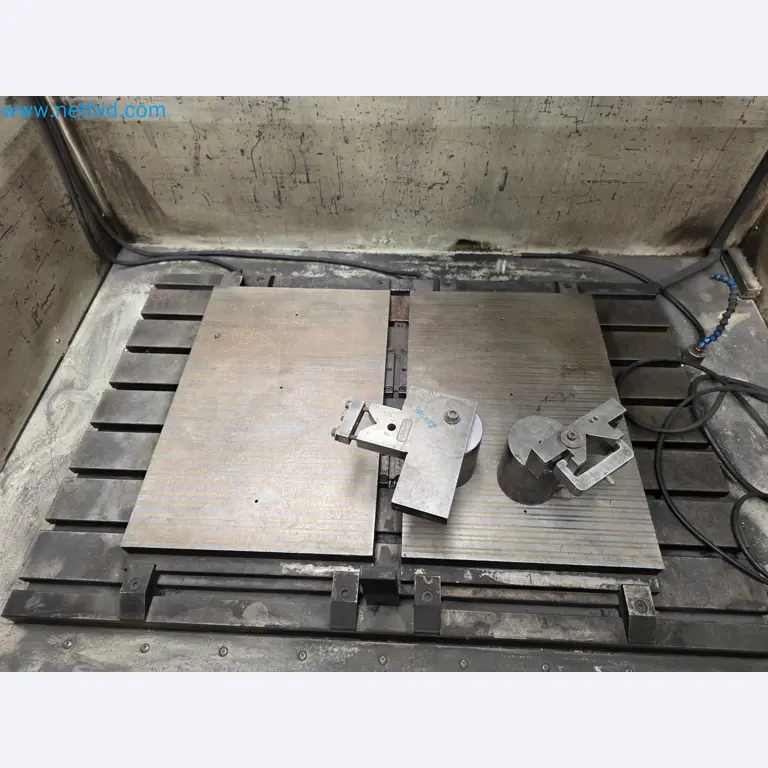

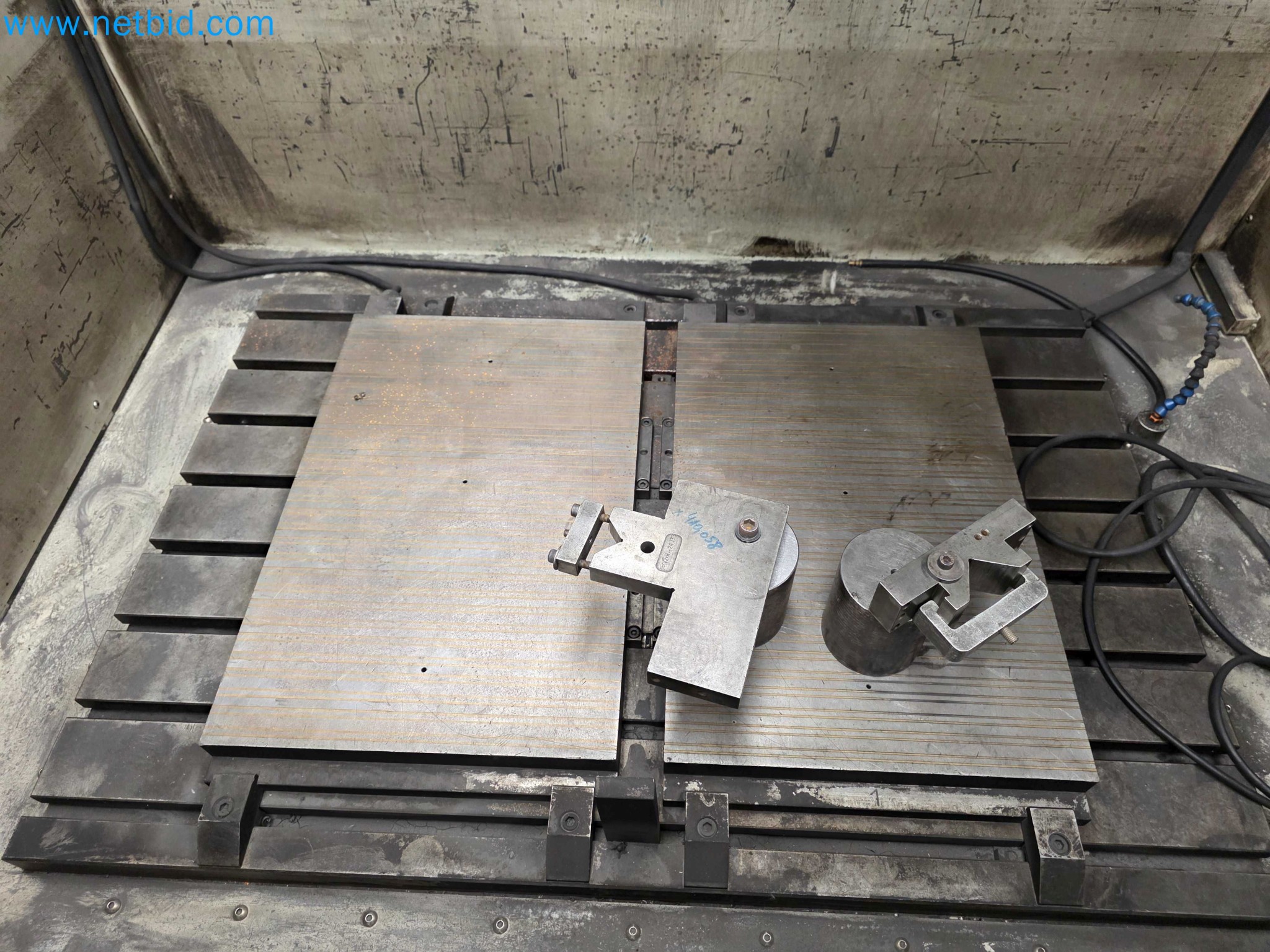

Table dimensions: 1200 x 800 mm
Maximum workpiece width: 500 mm
Maximum table load capacity: 4200 kg

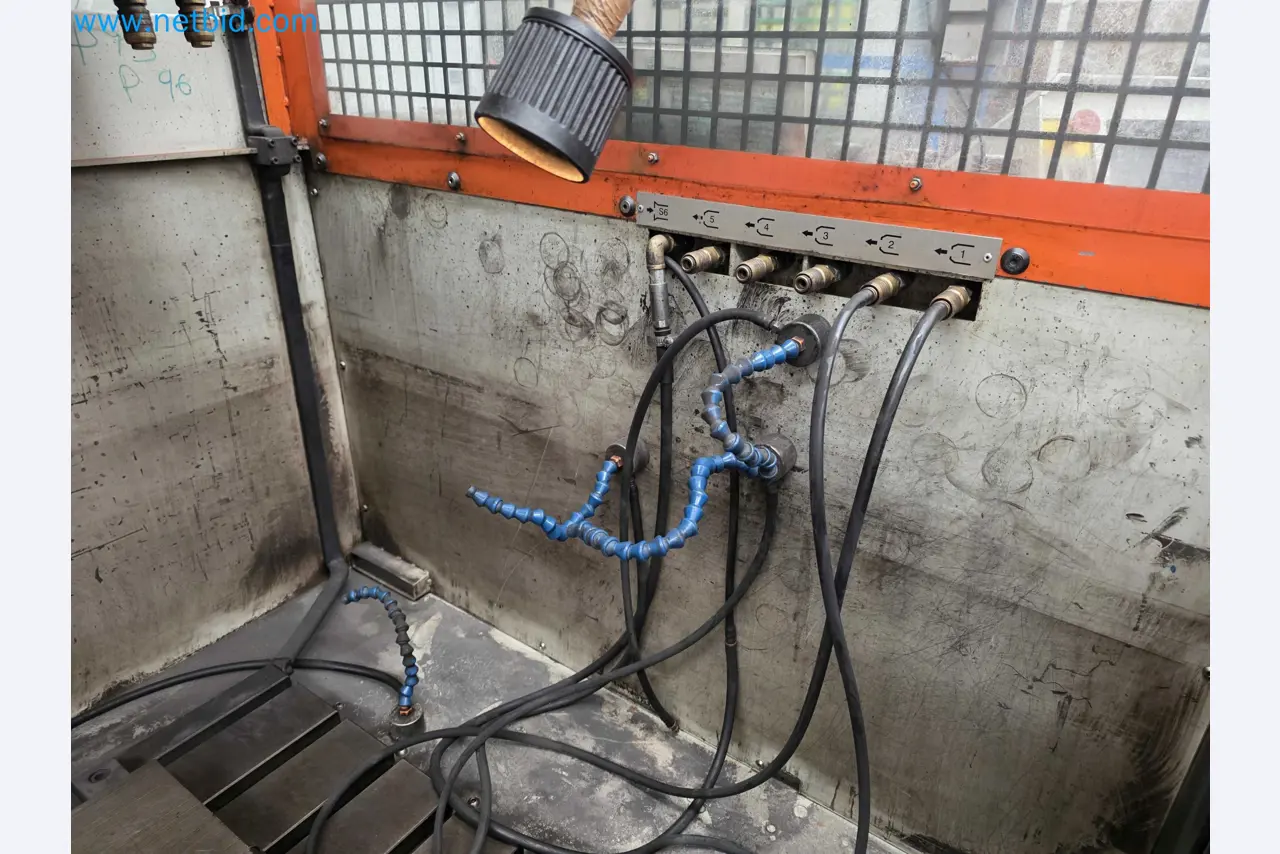

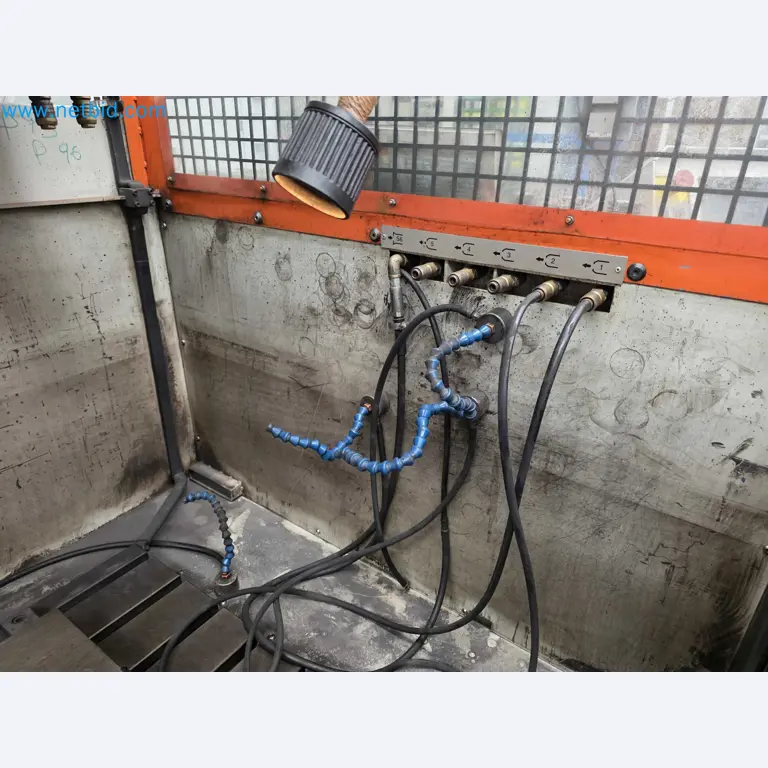

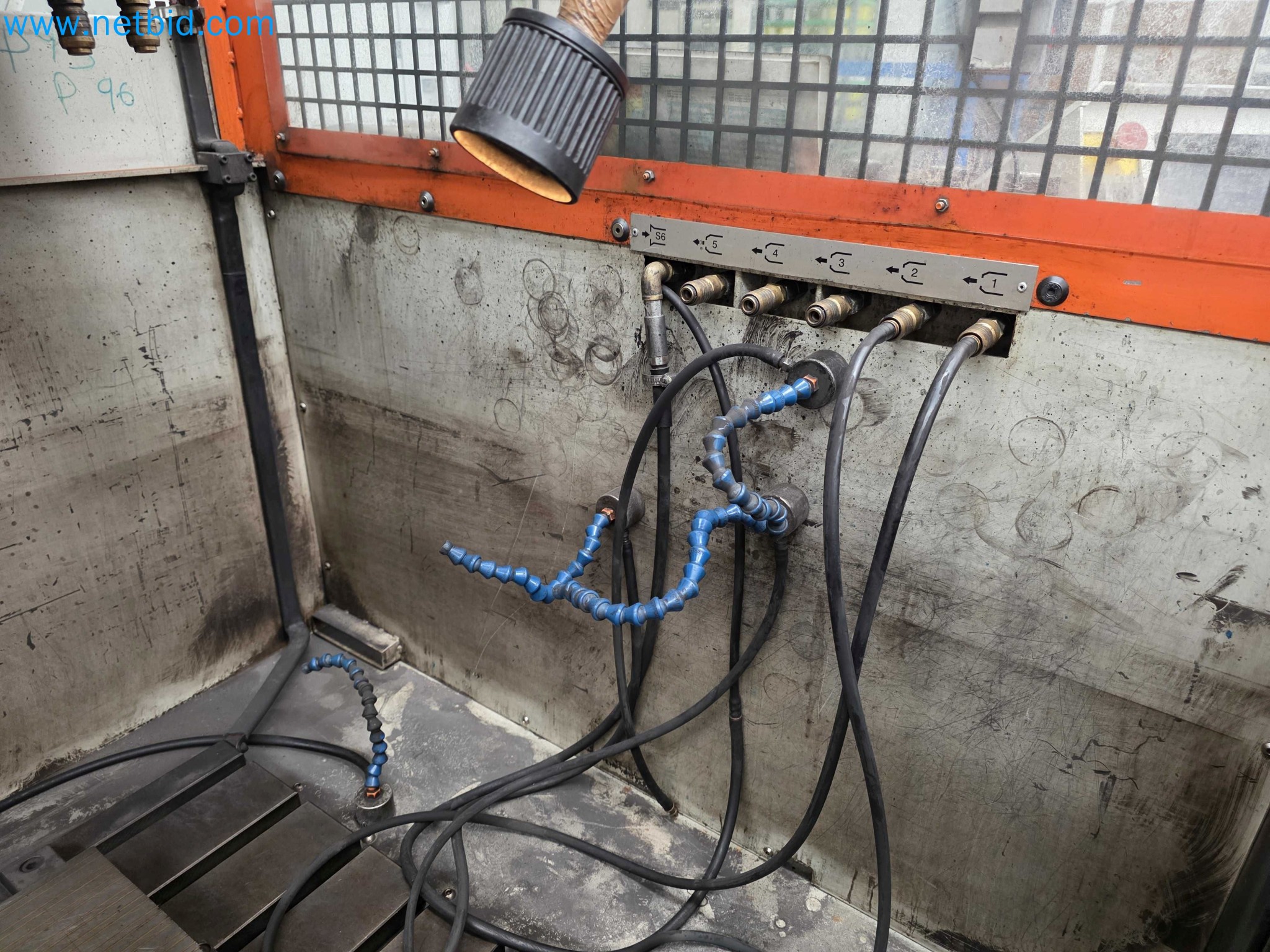

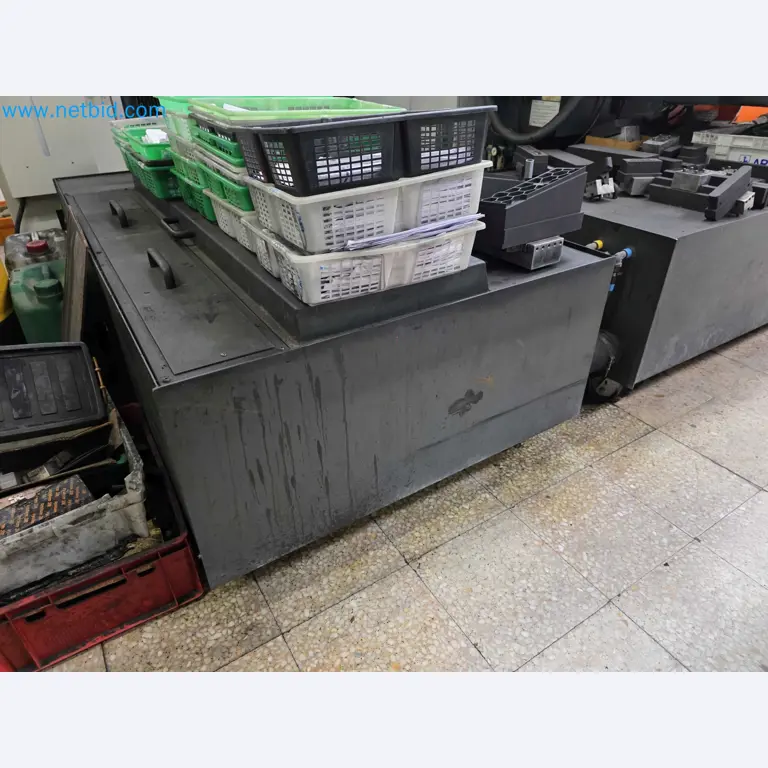

Tank dimensions: 1450 x 950 x 500 mm
Maximum dielectric fluid level: 500 mm
Maximum tank capacity: 600 l

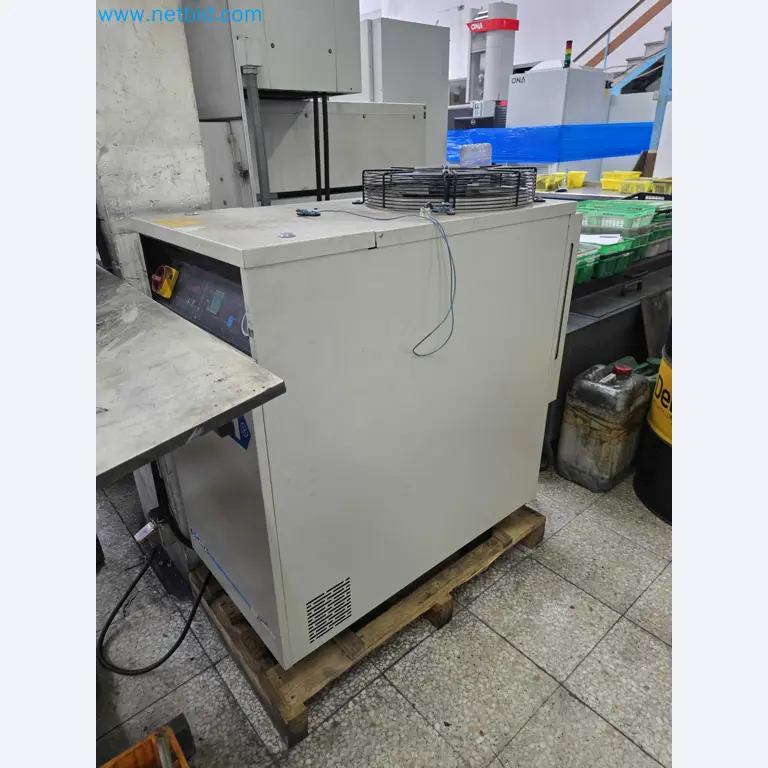

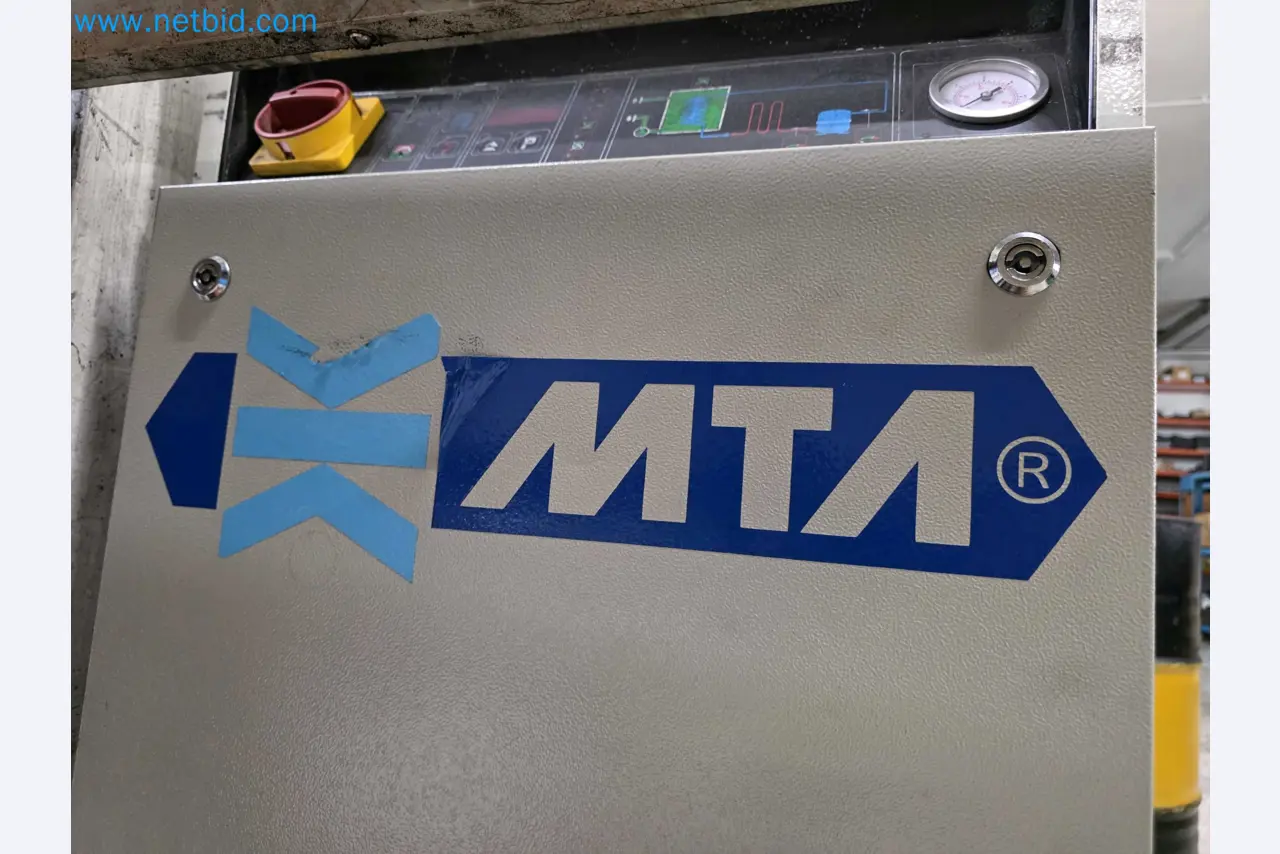

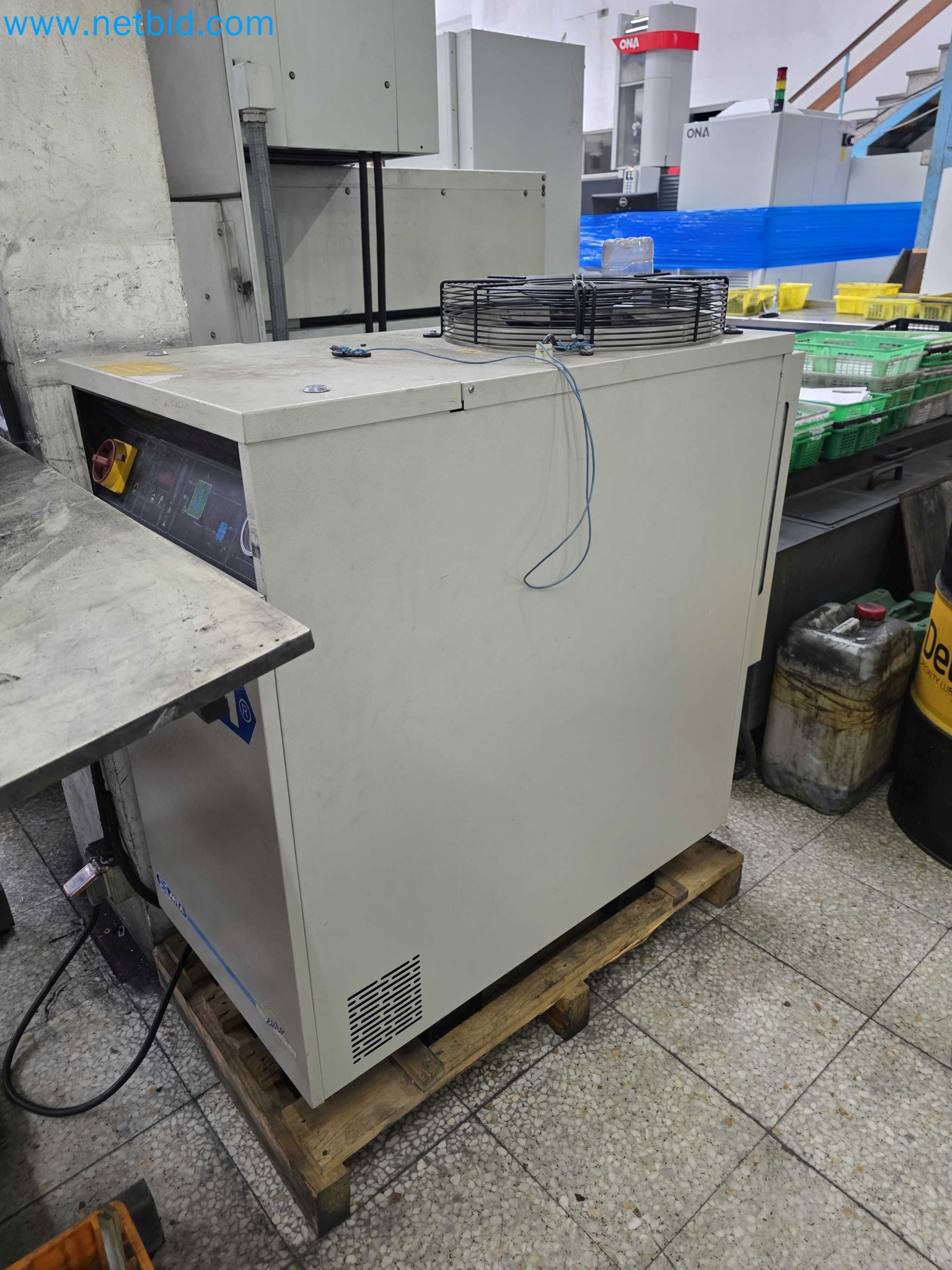

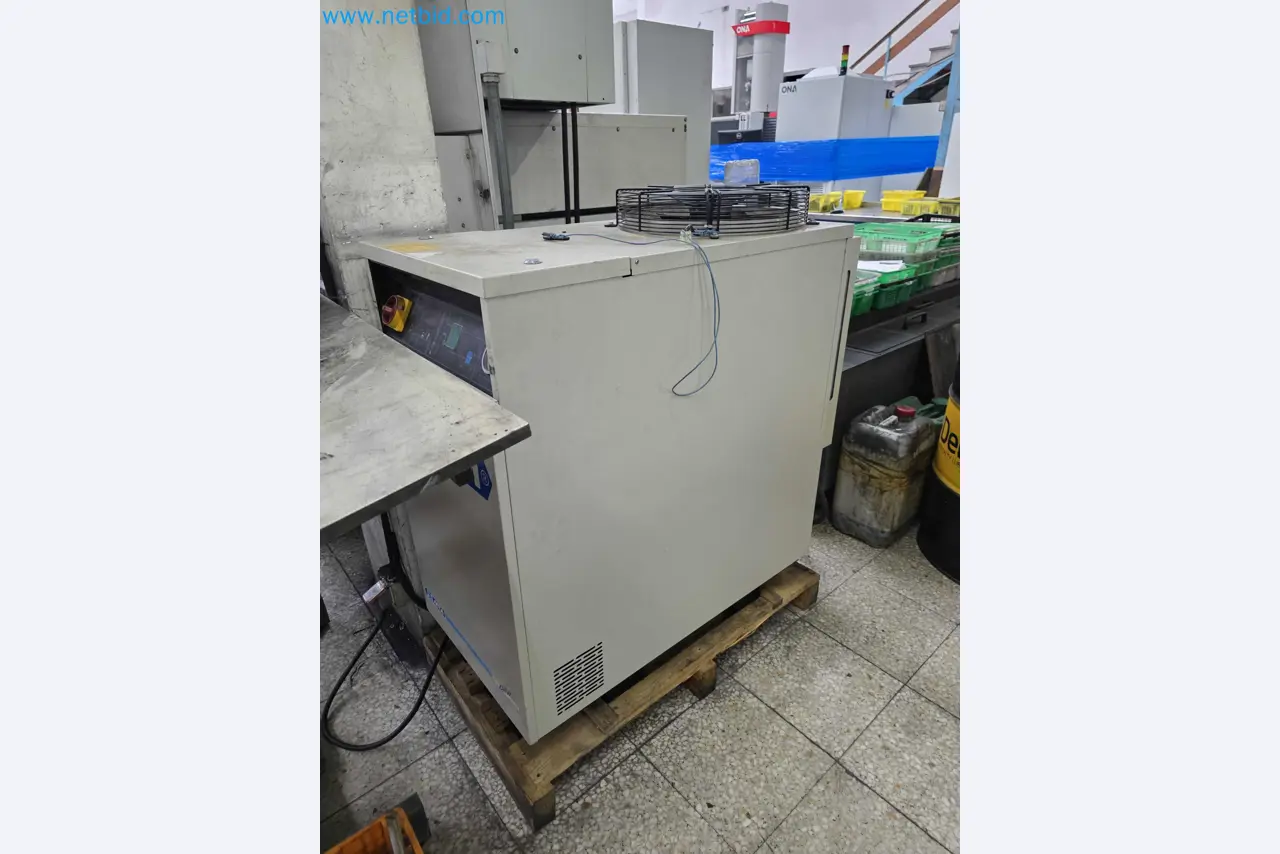

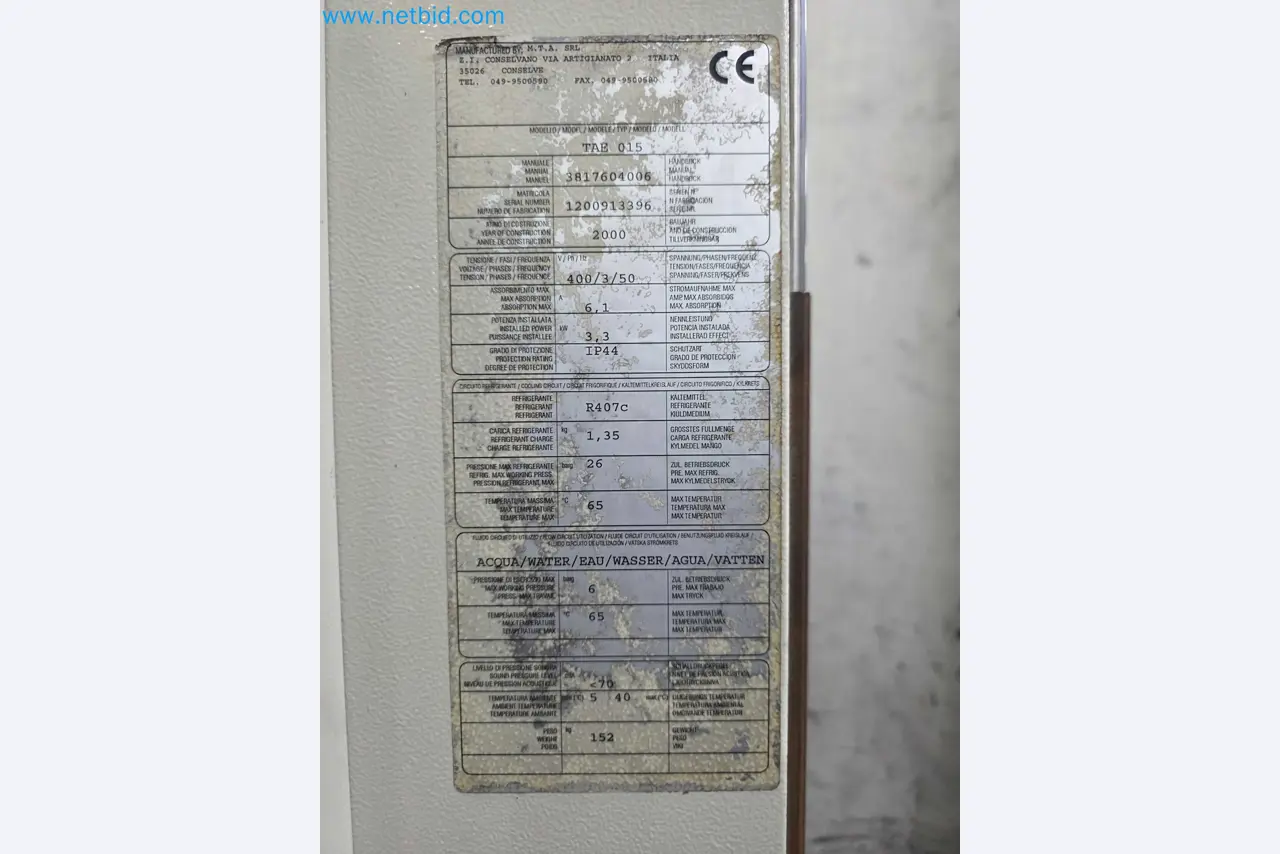

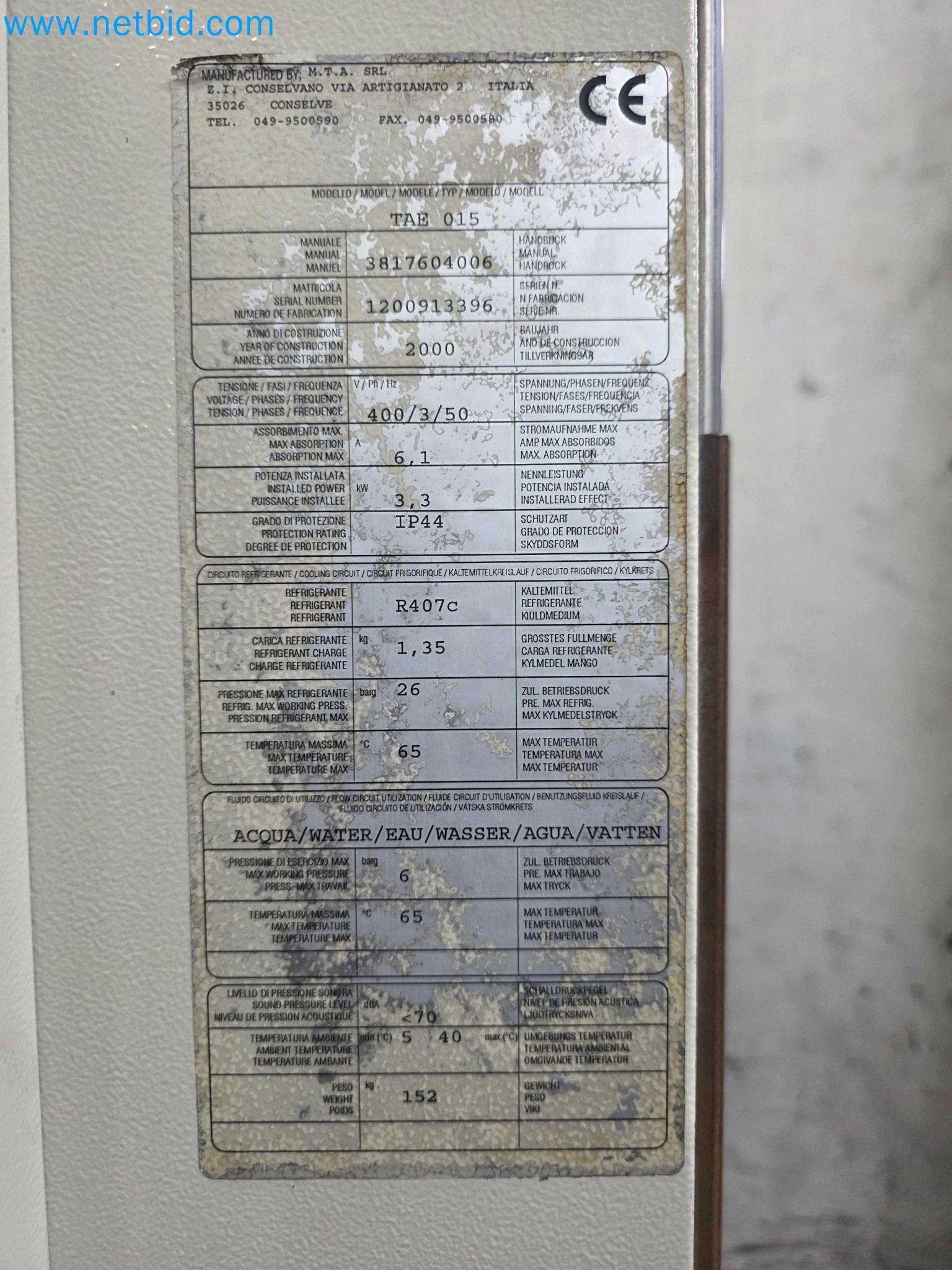

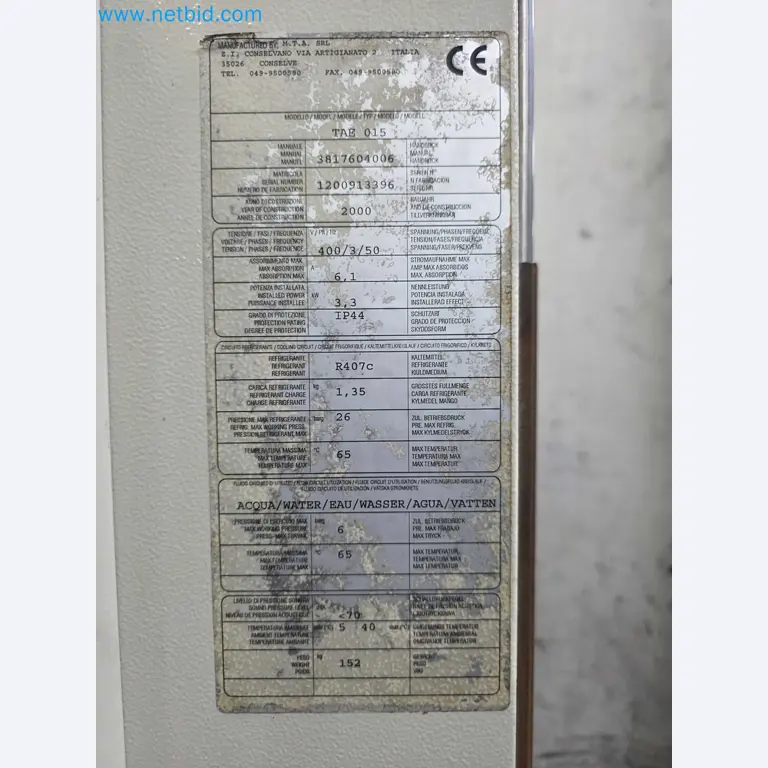

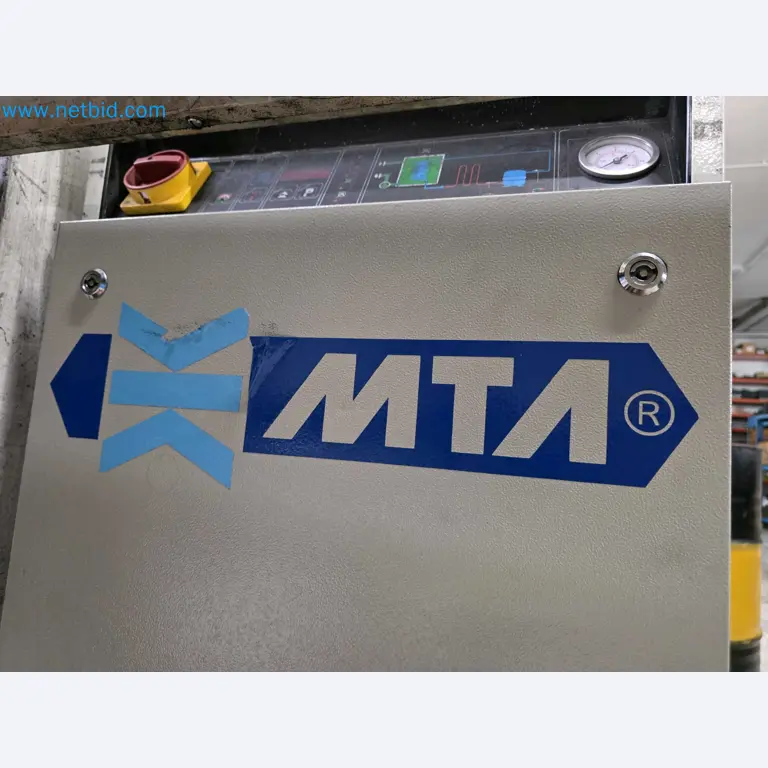

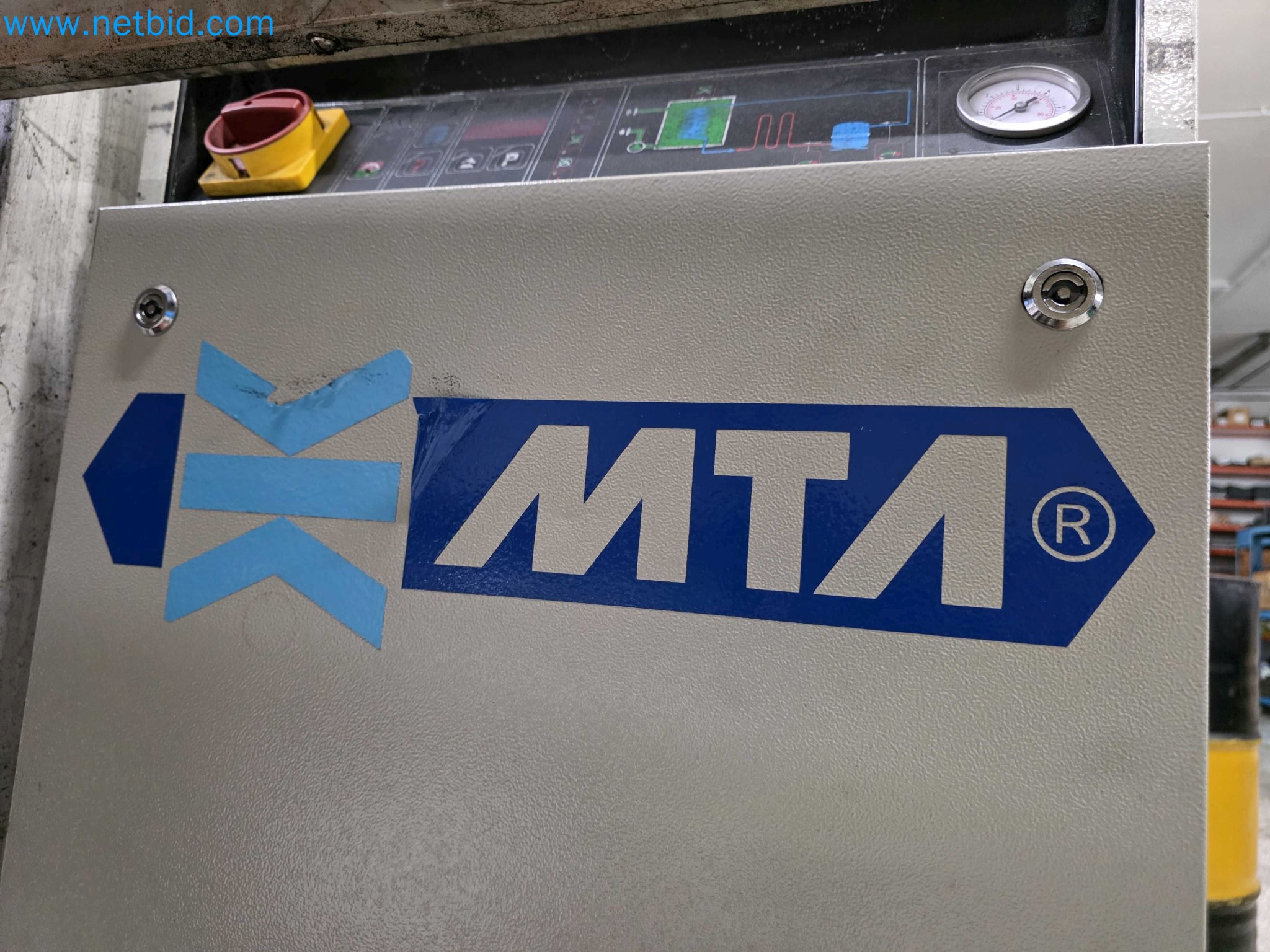

Includes MTA TAE 015 cooler

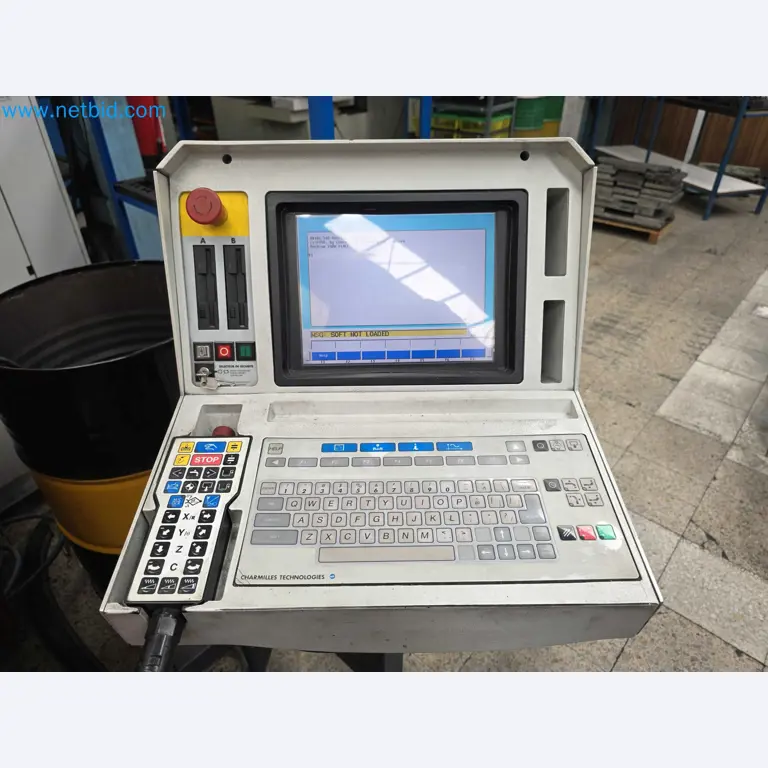

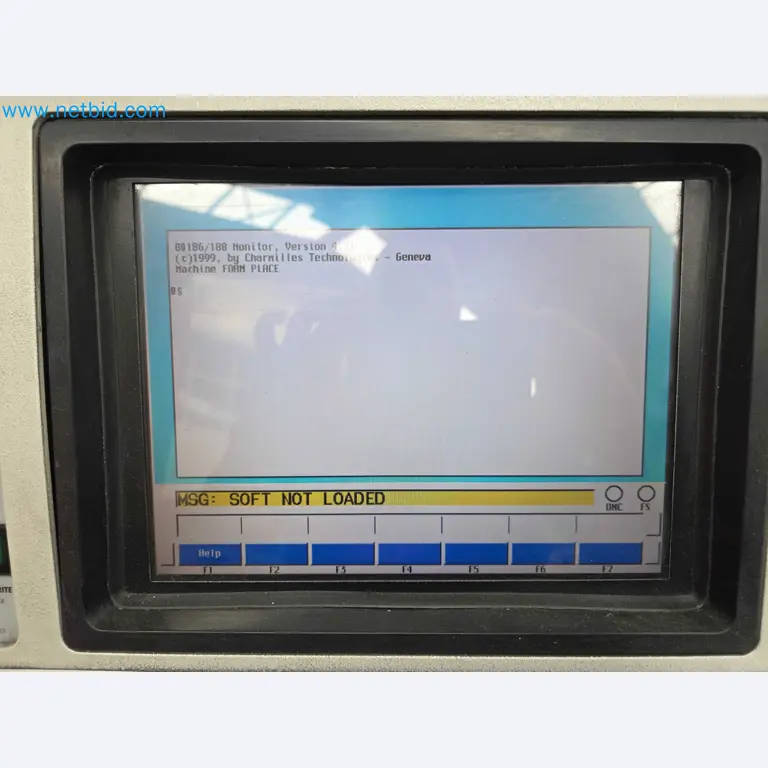

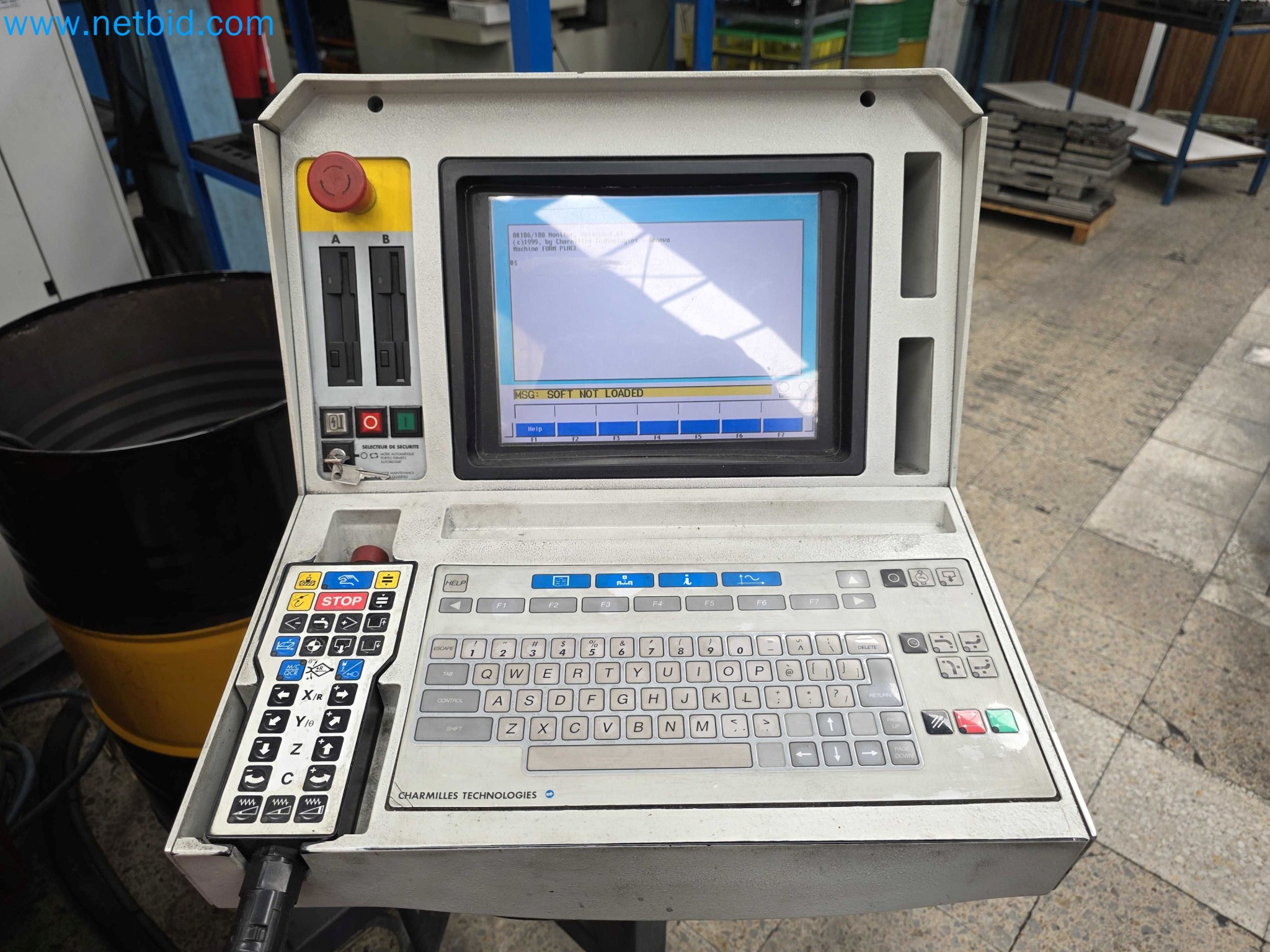

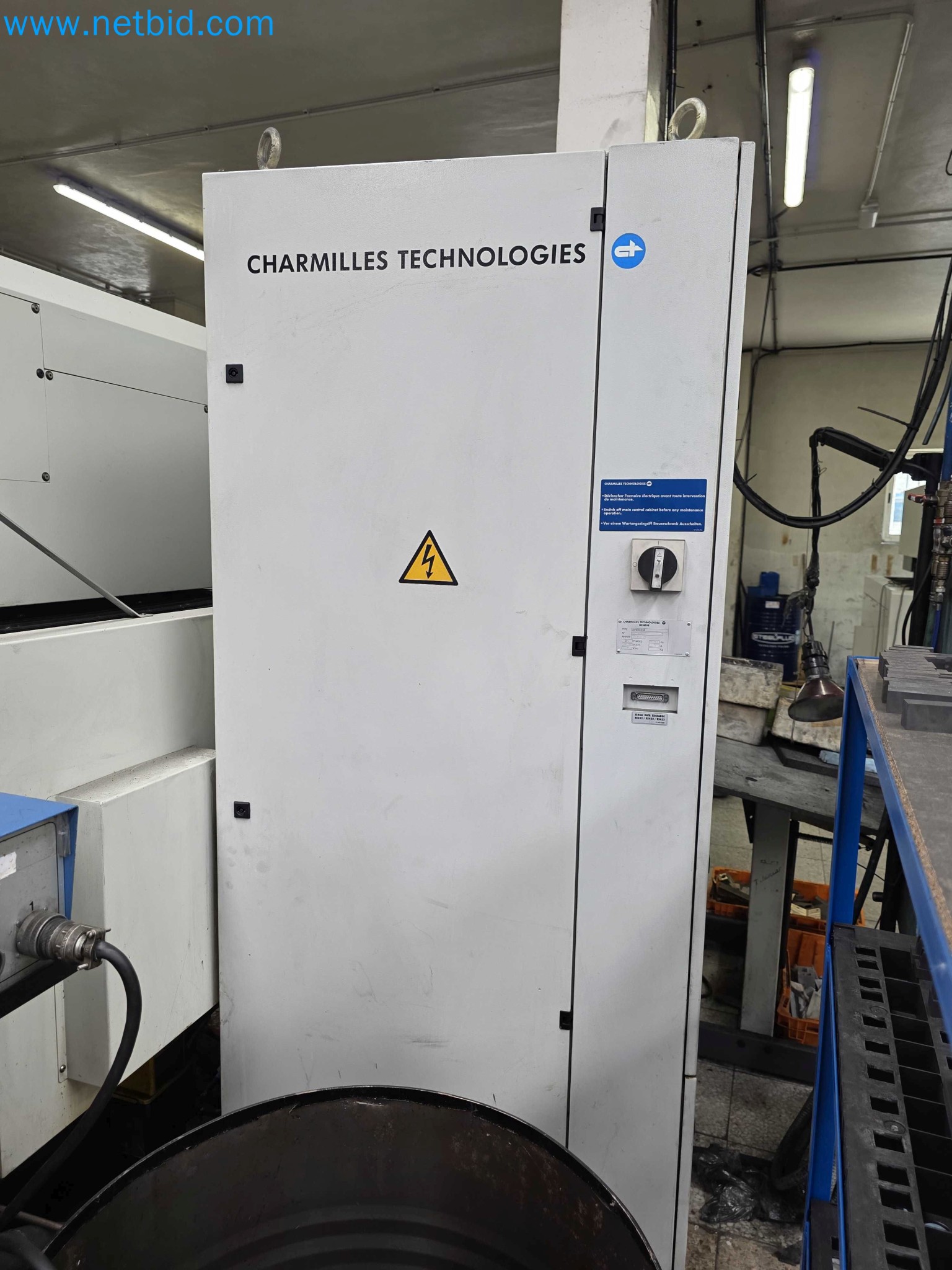

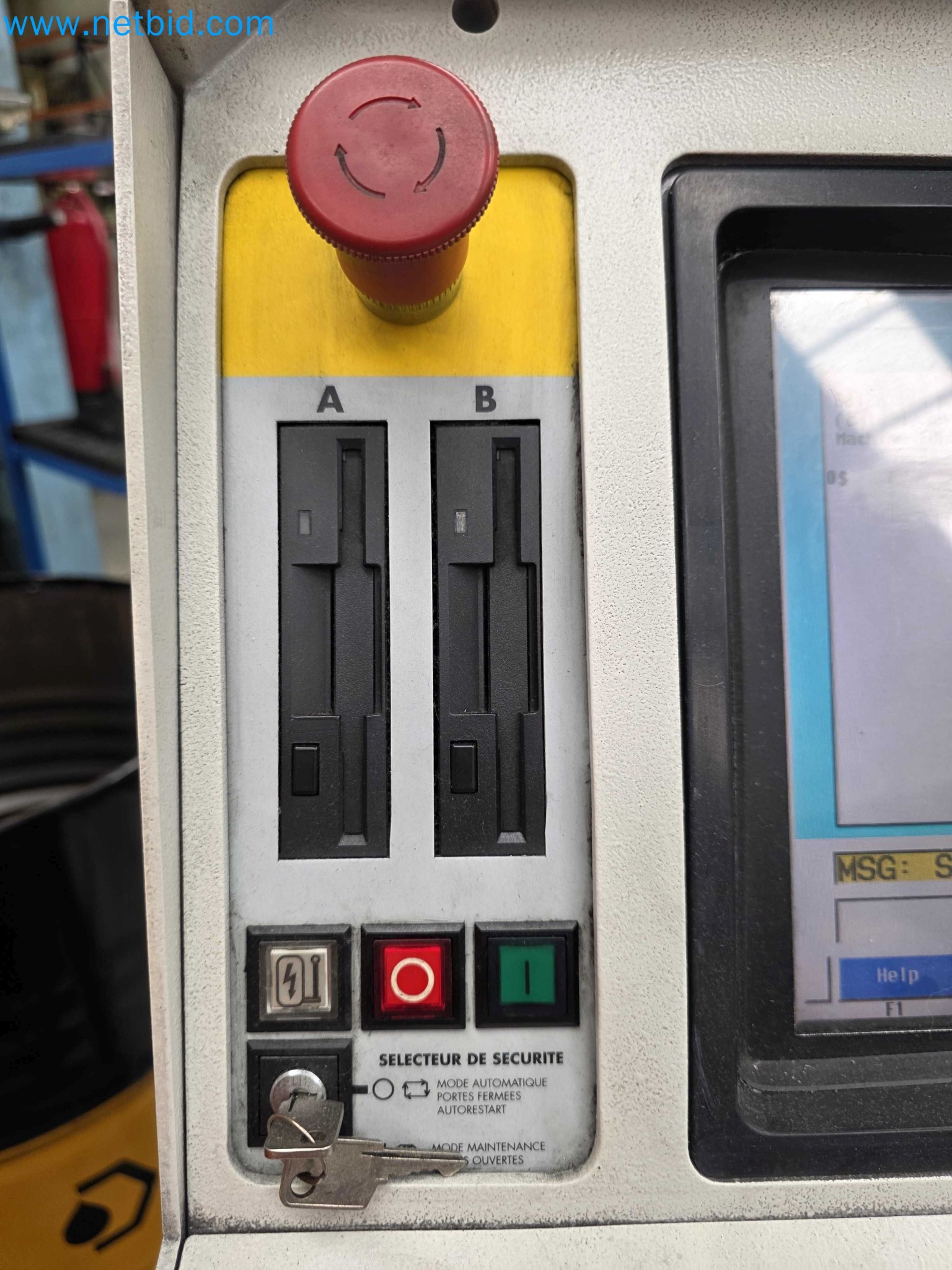

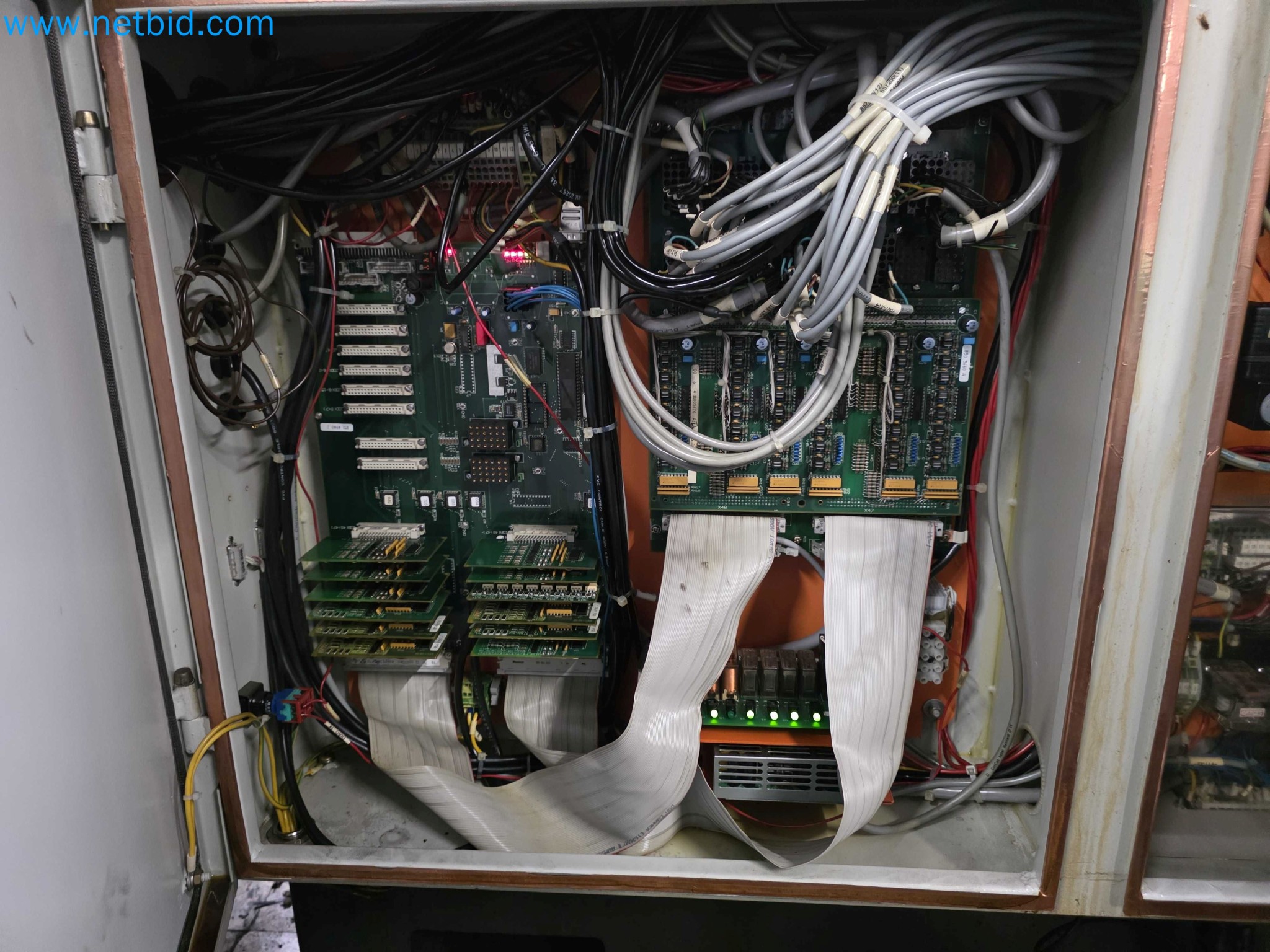

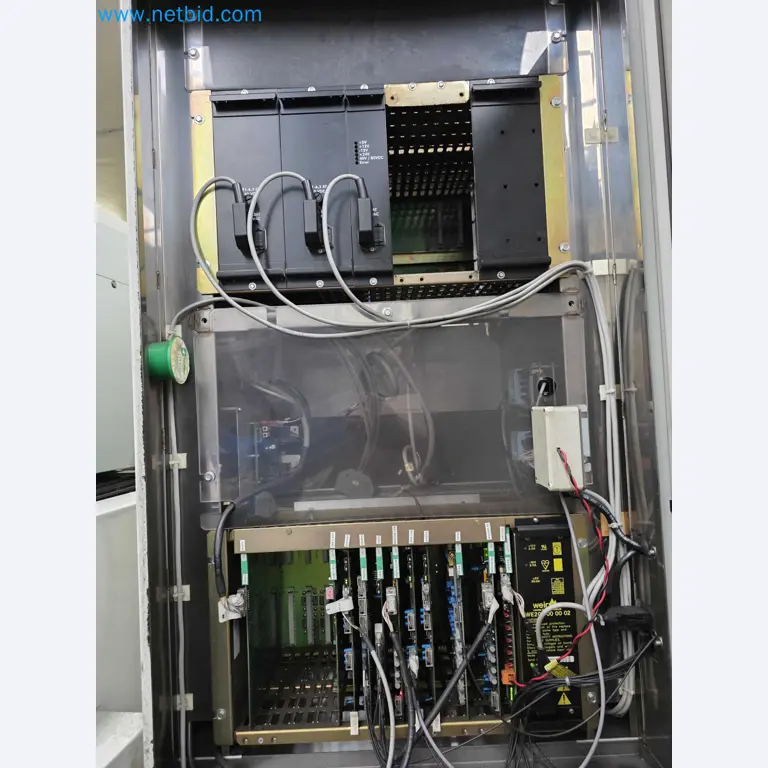

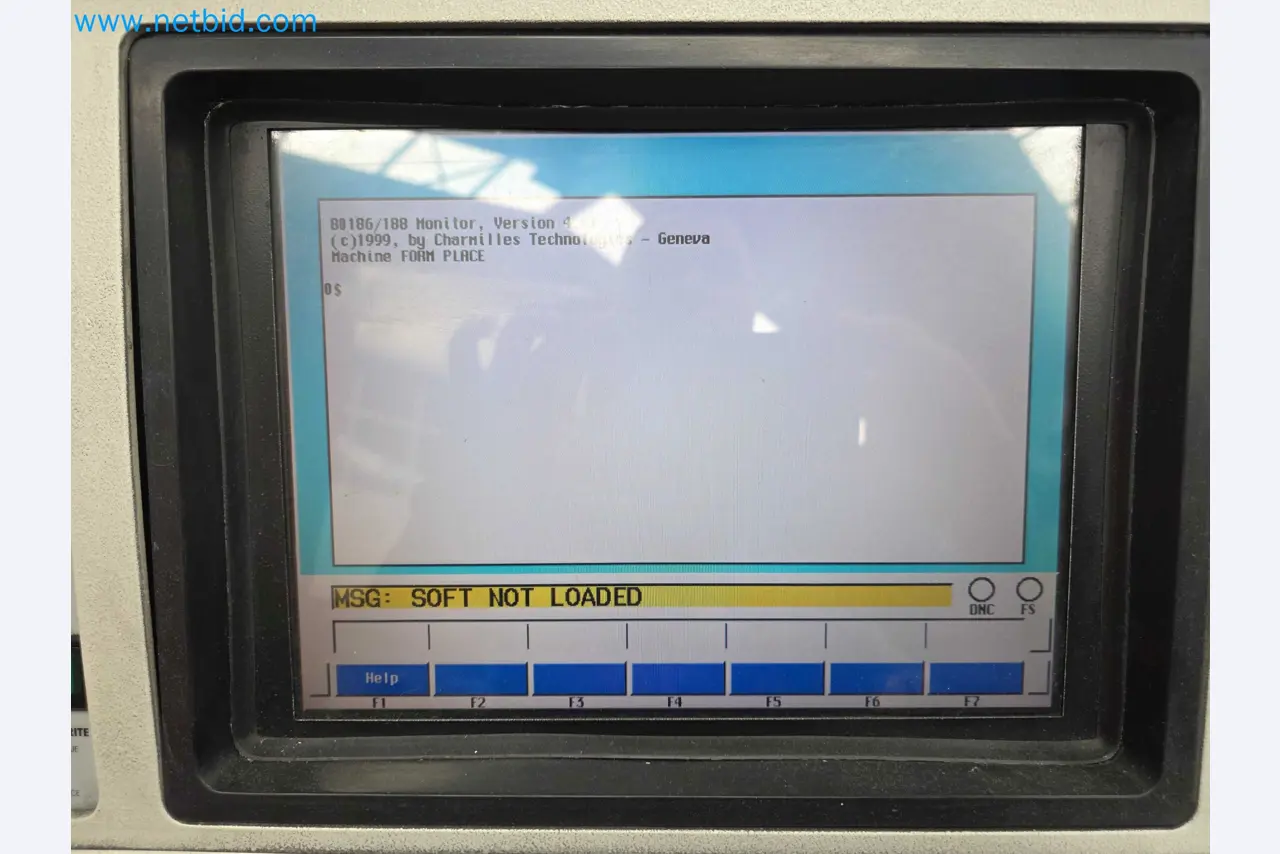

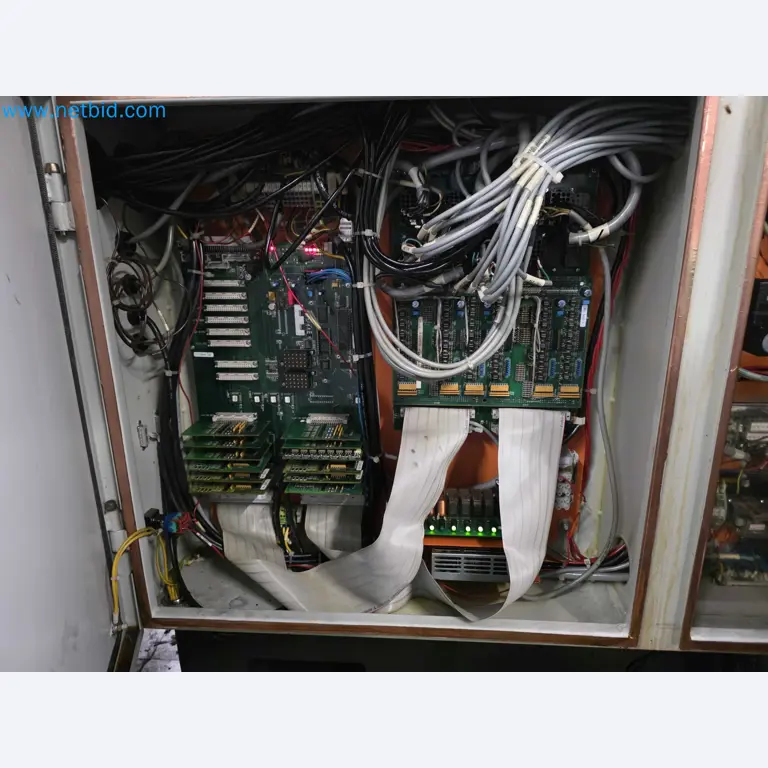

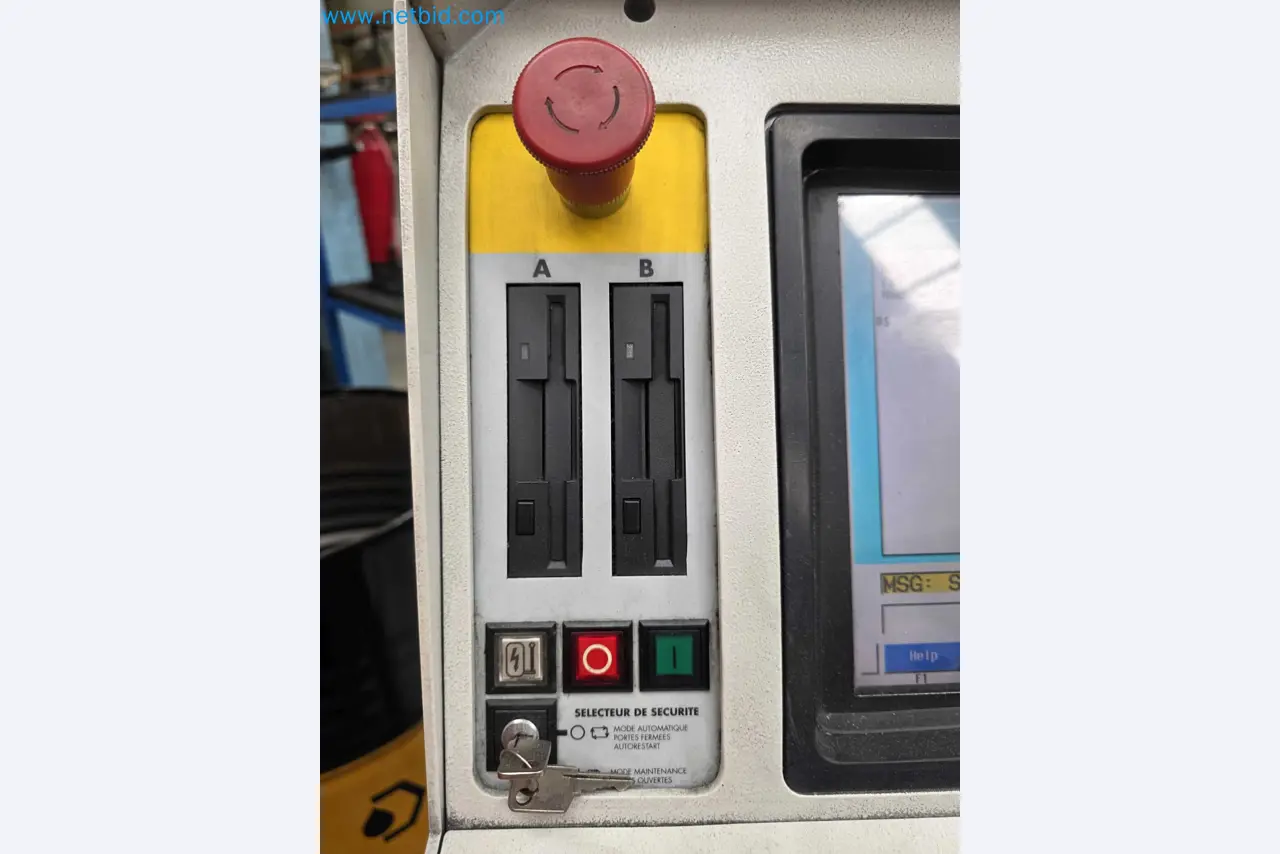

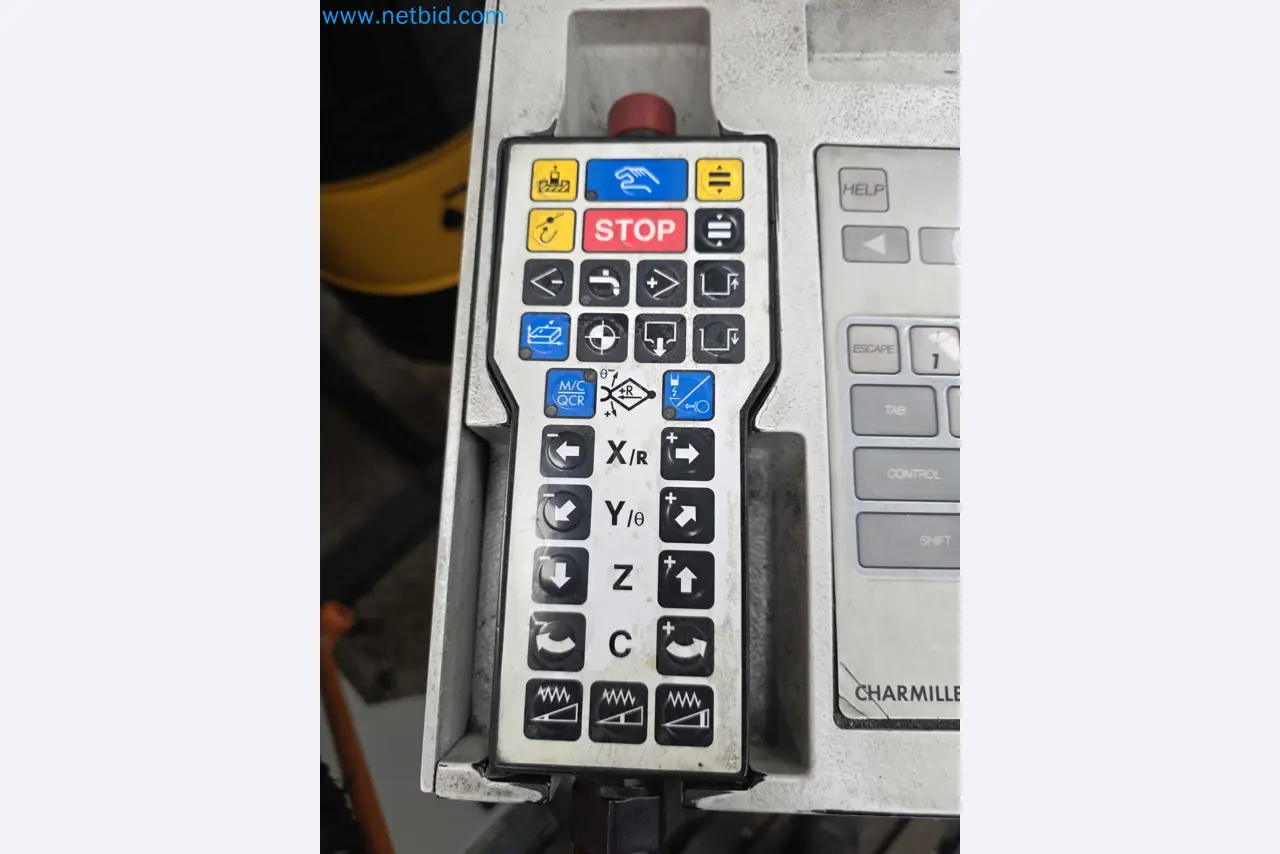

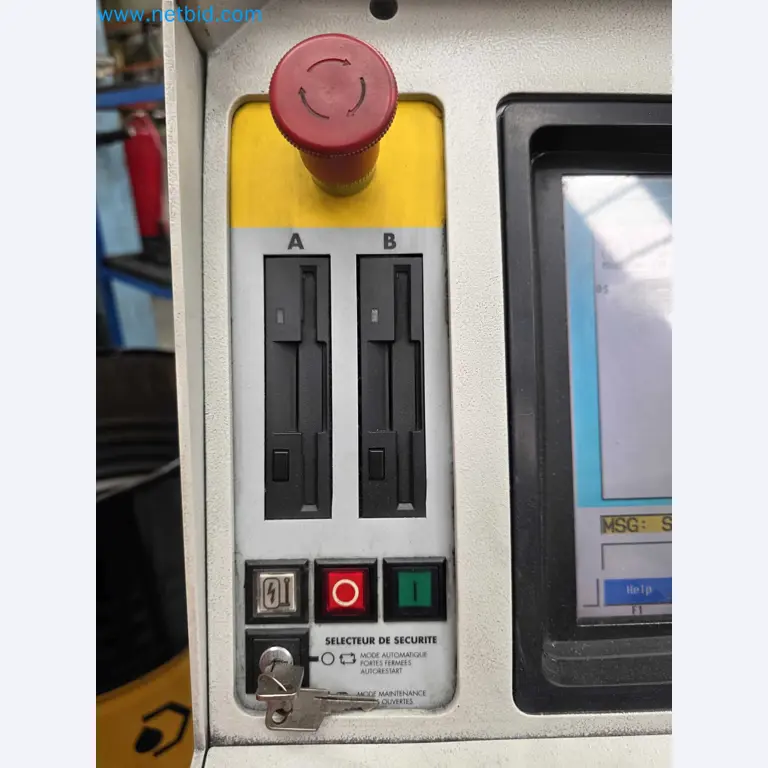

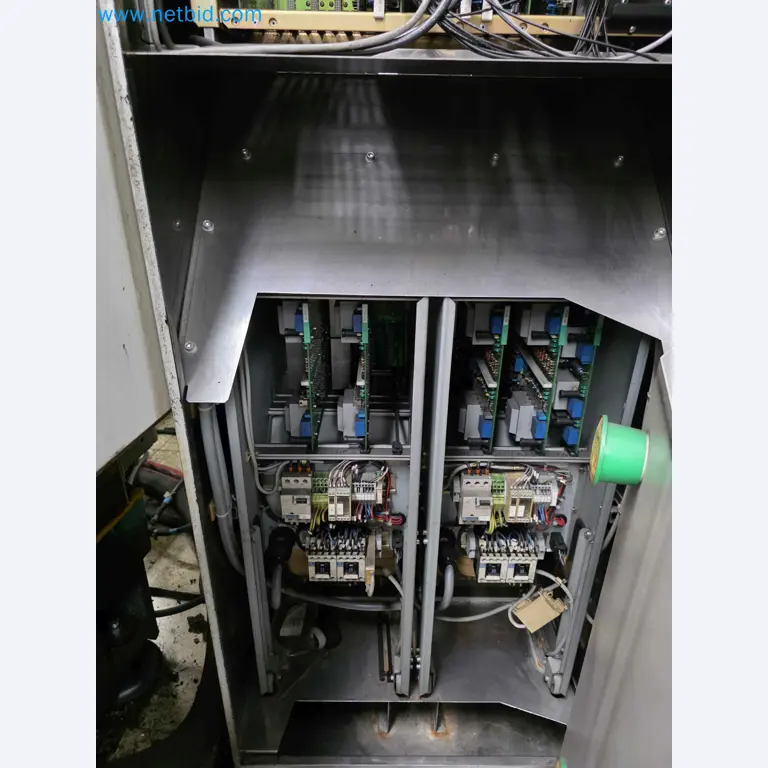

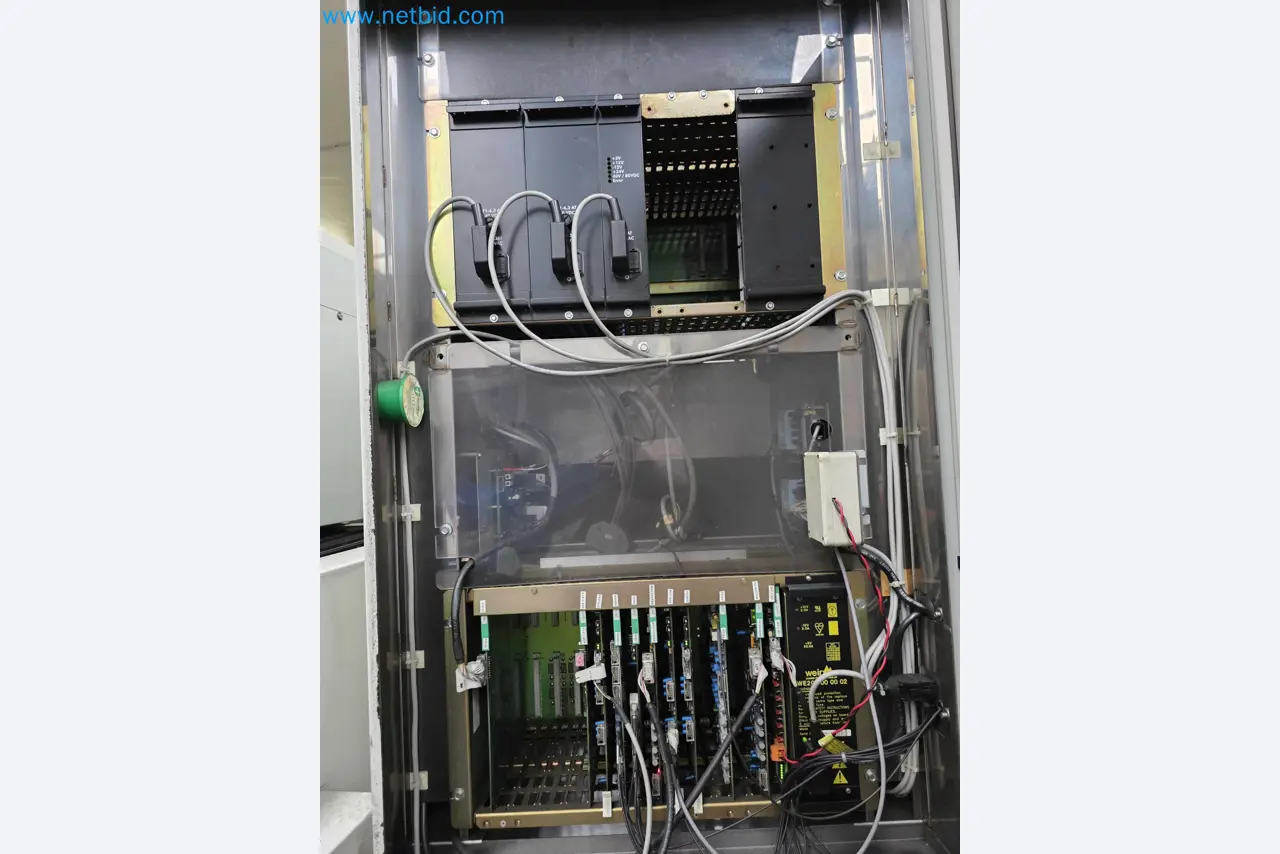

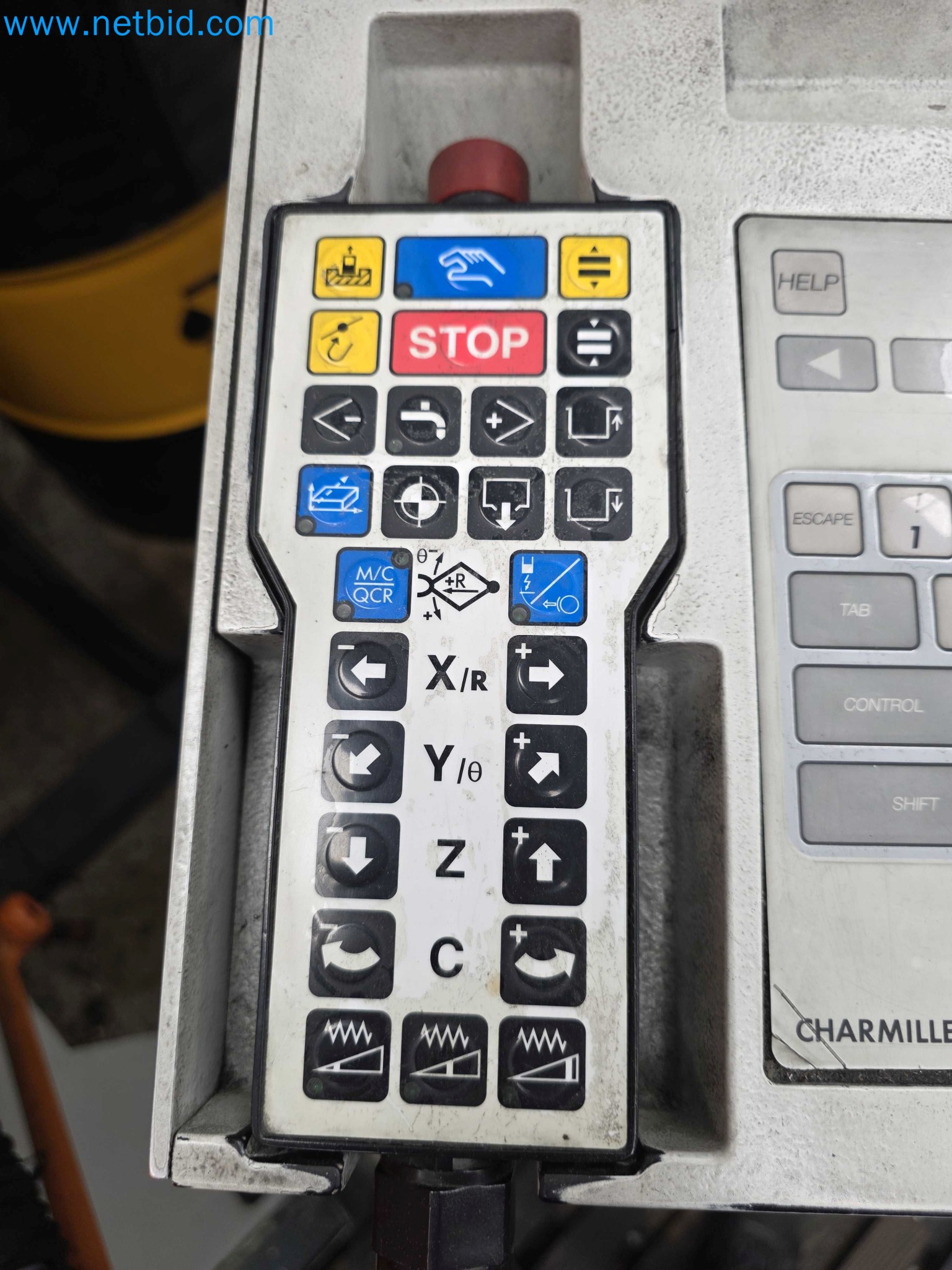

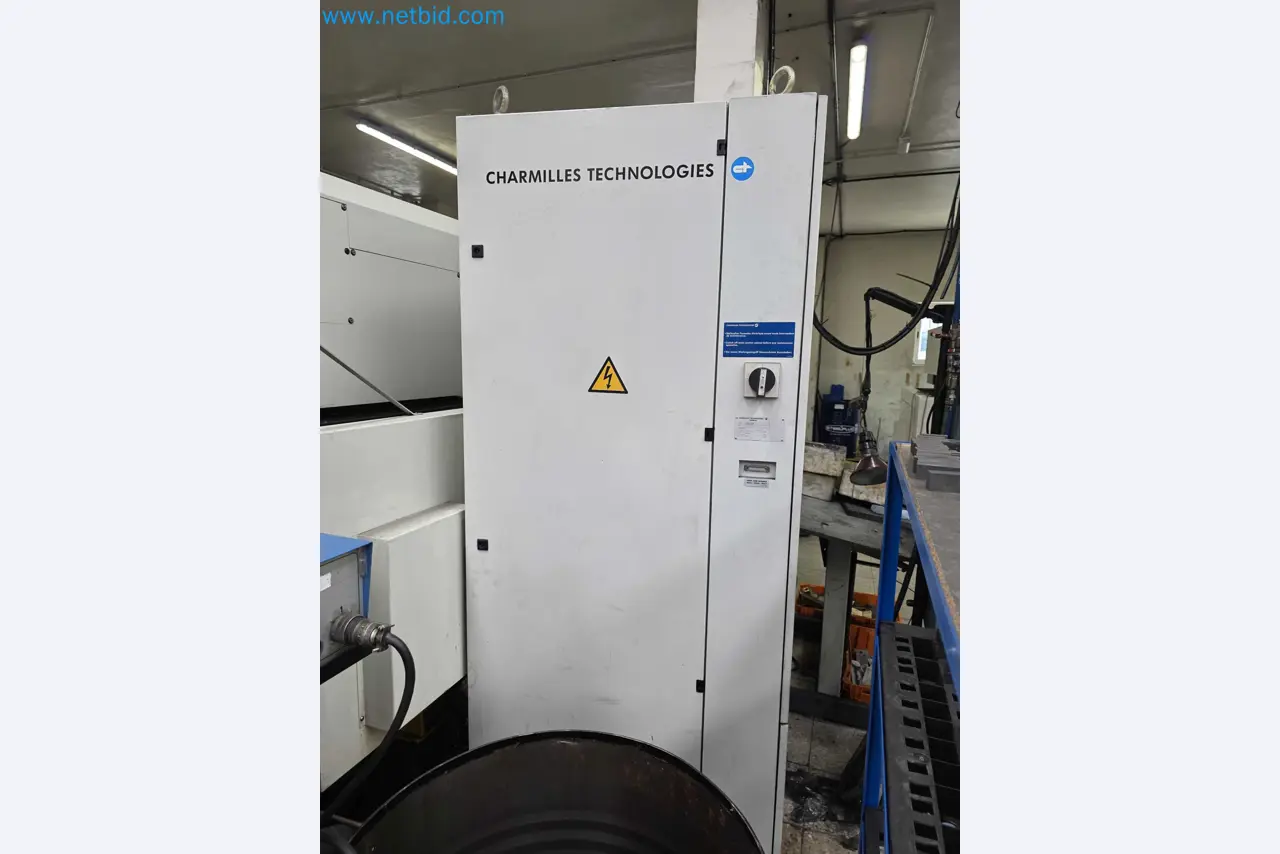

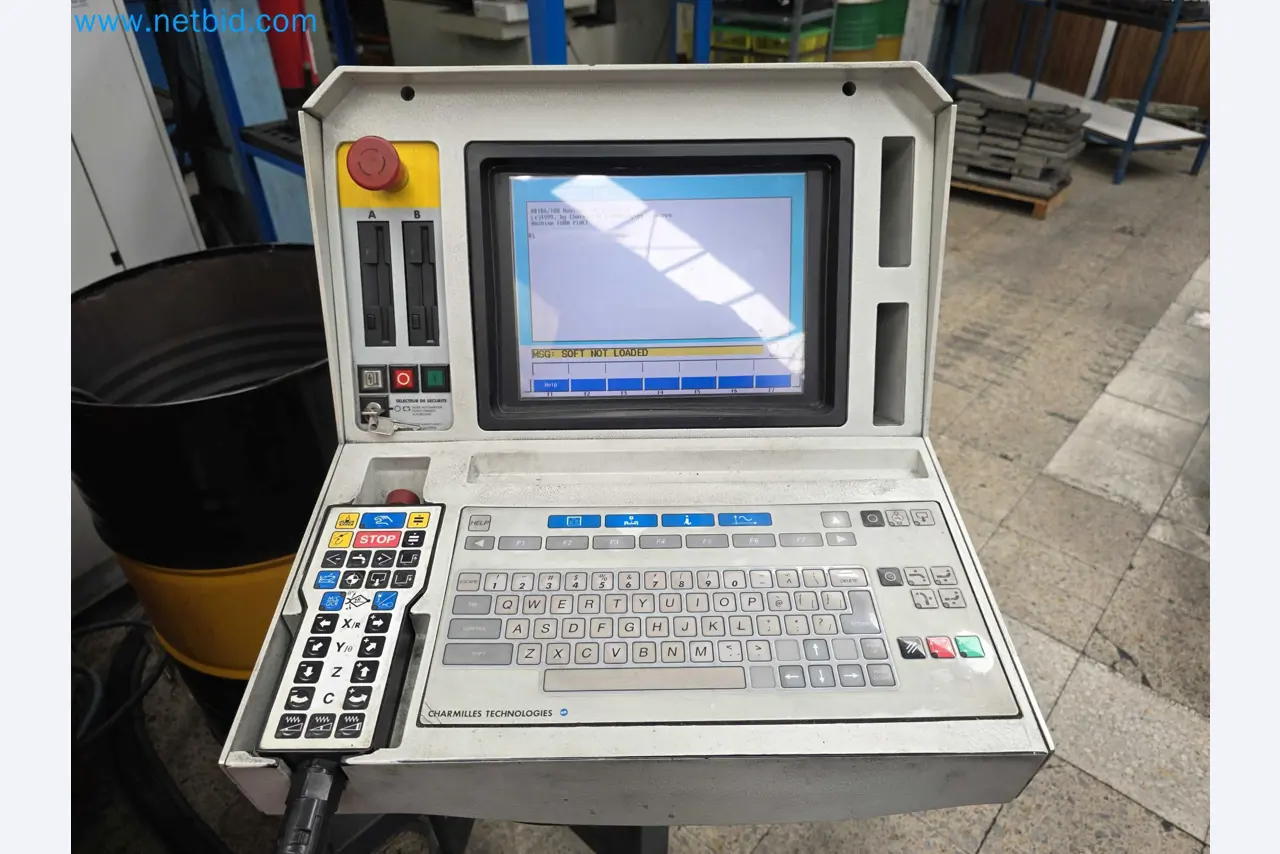

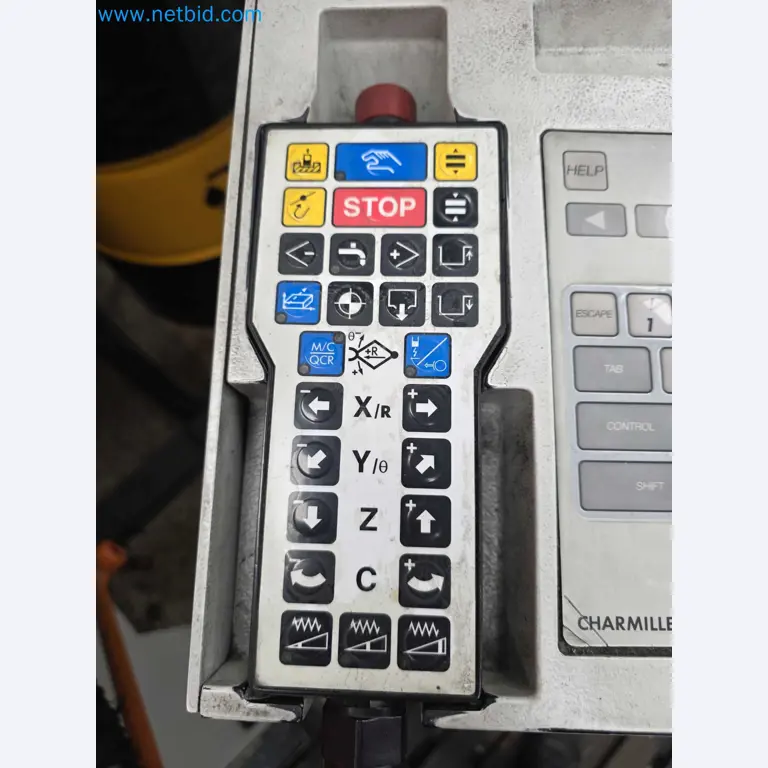

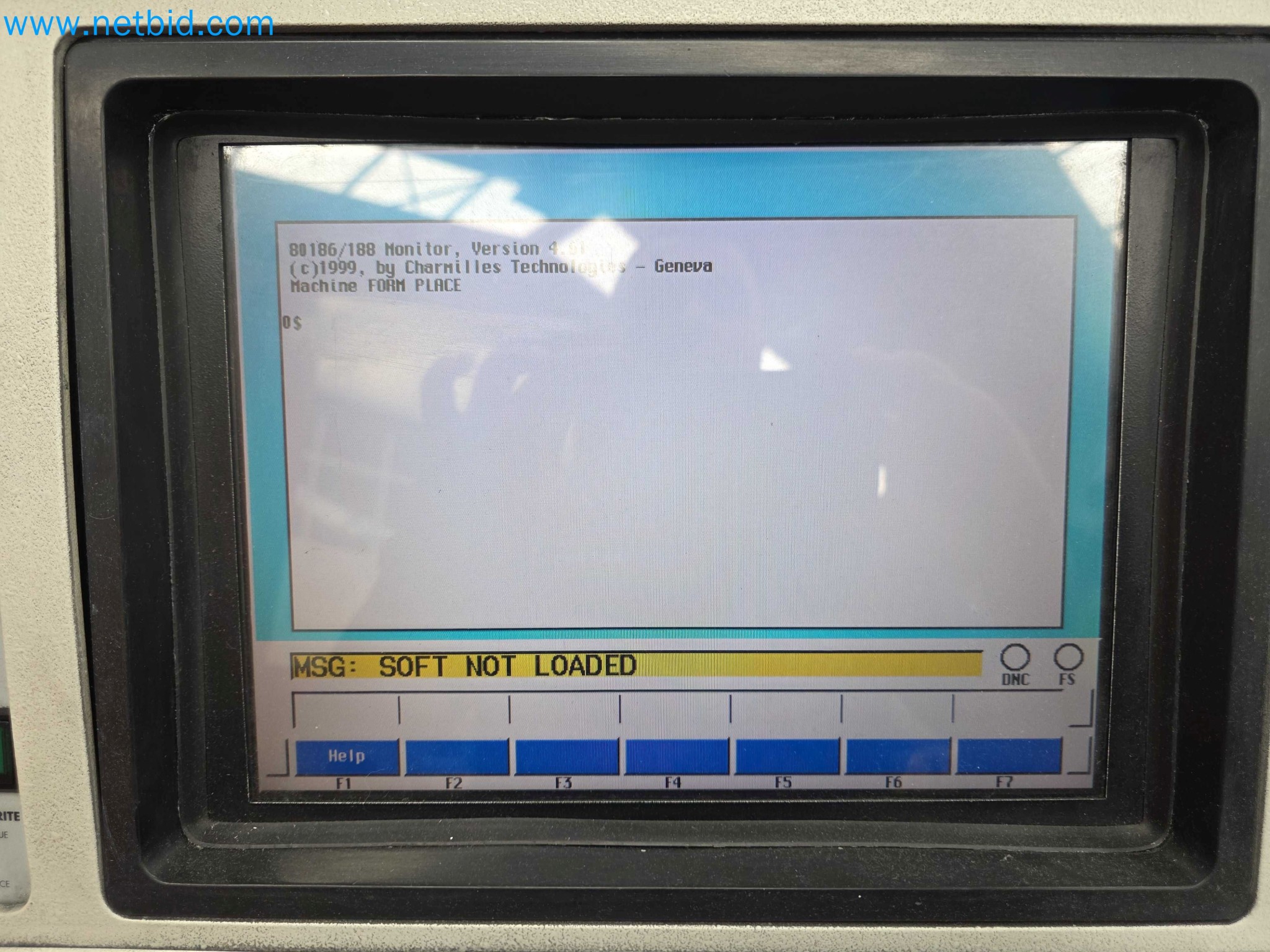

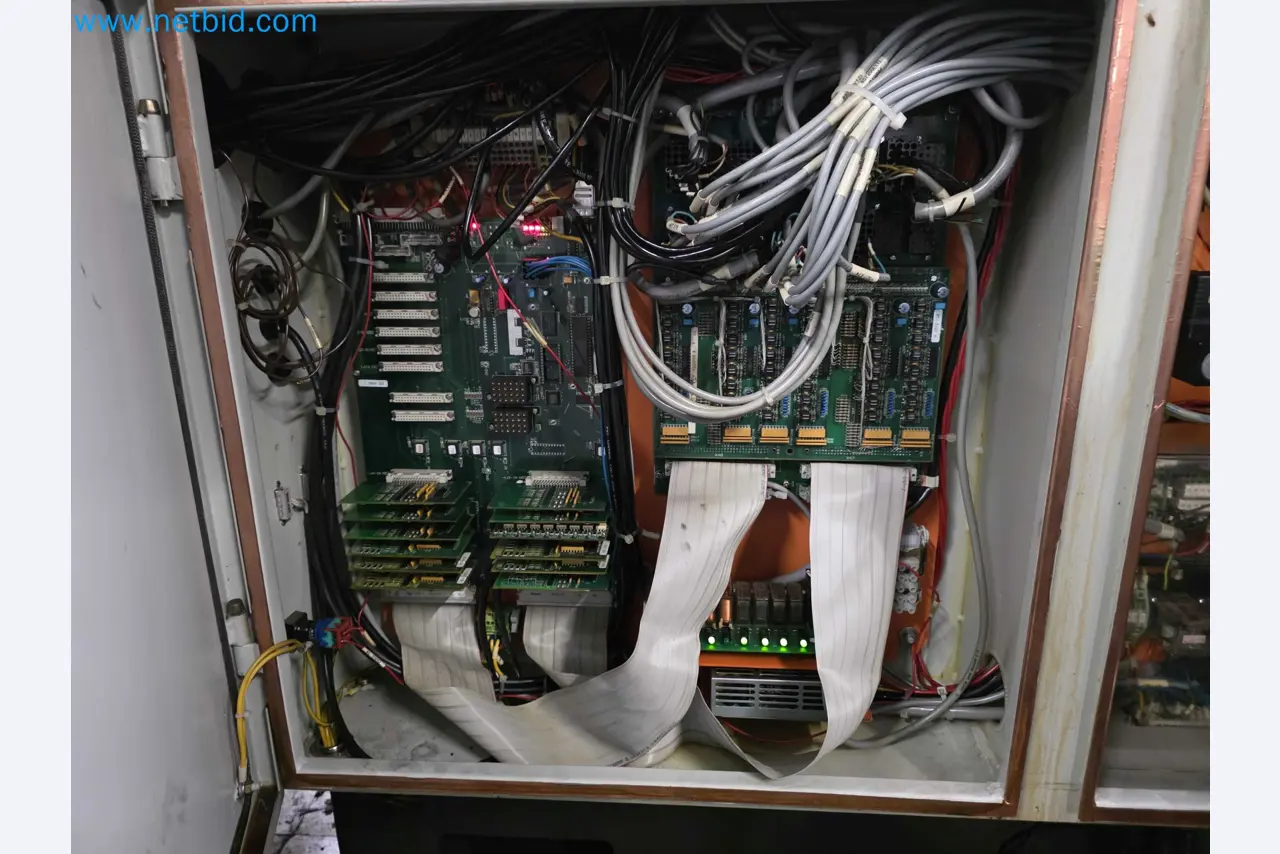

CHARMILLES control
Number of programs that can be stored: 64

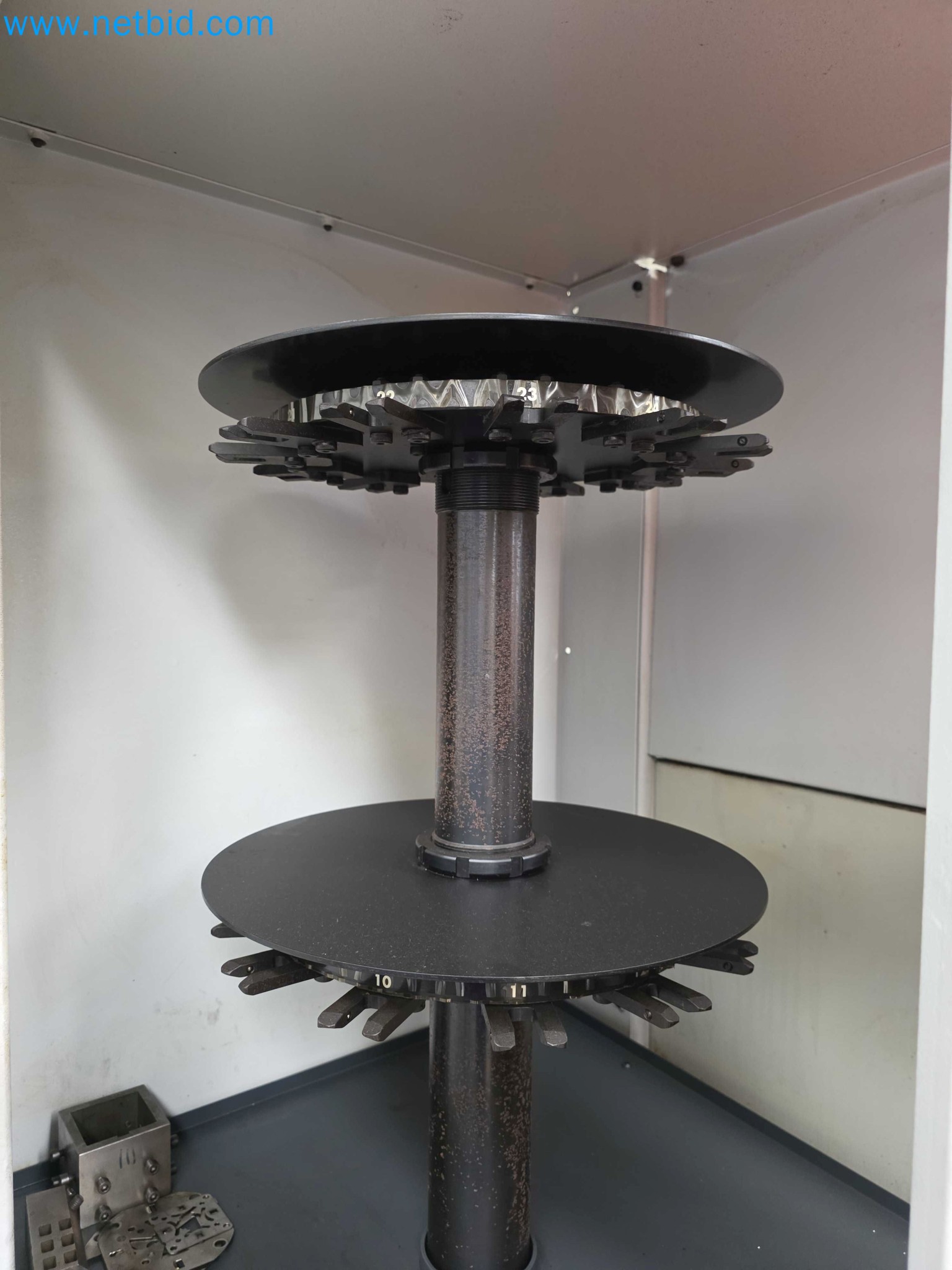

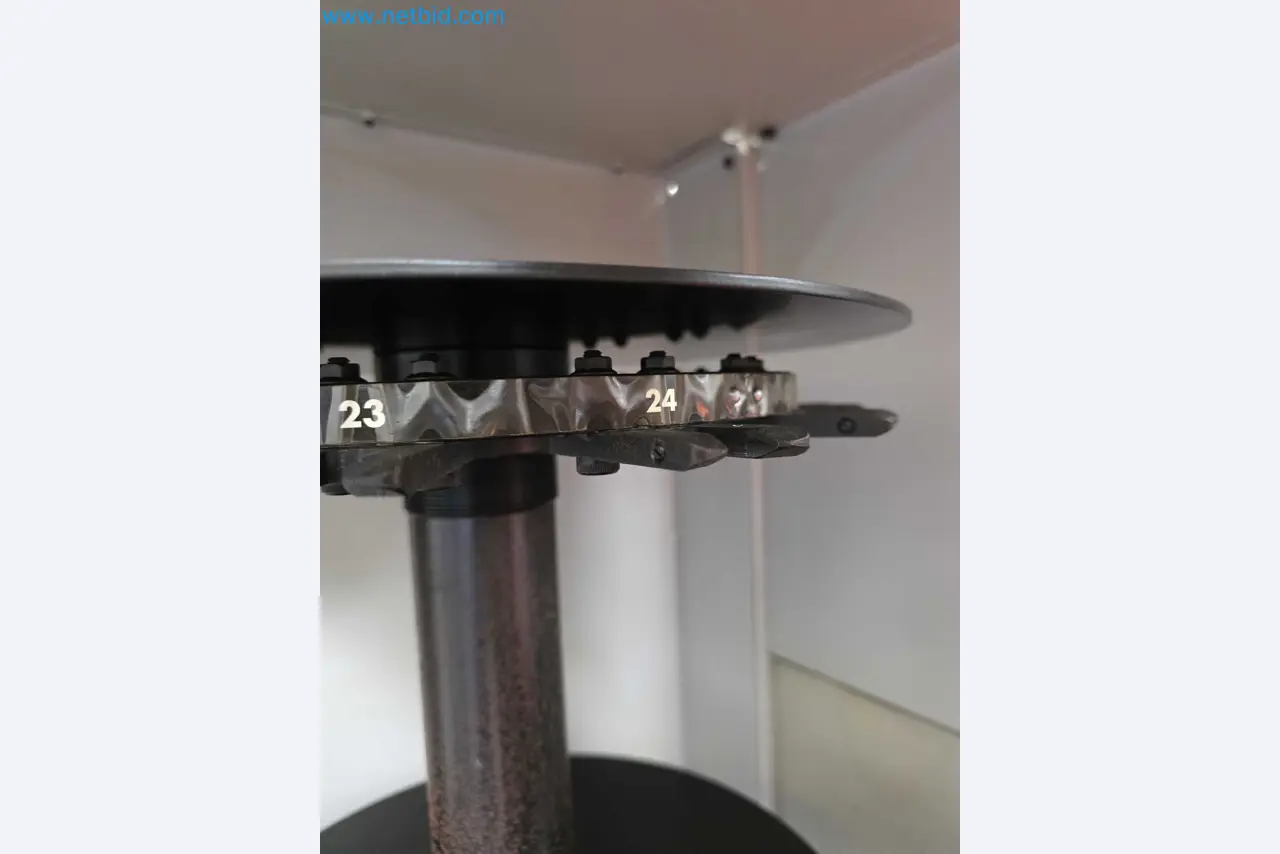

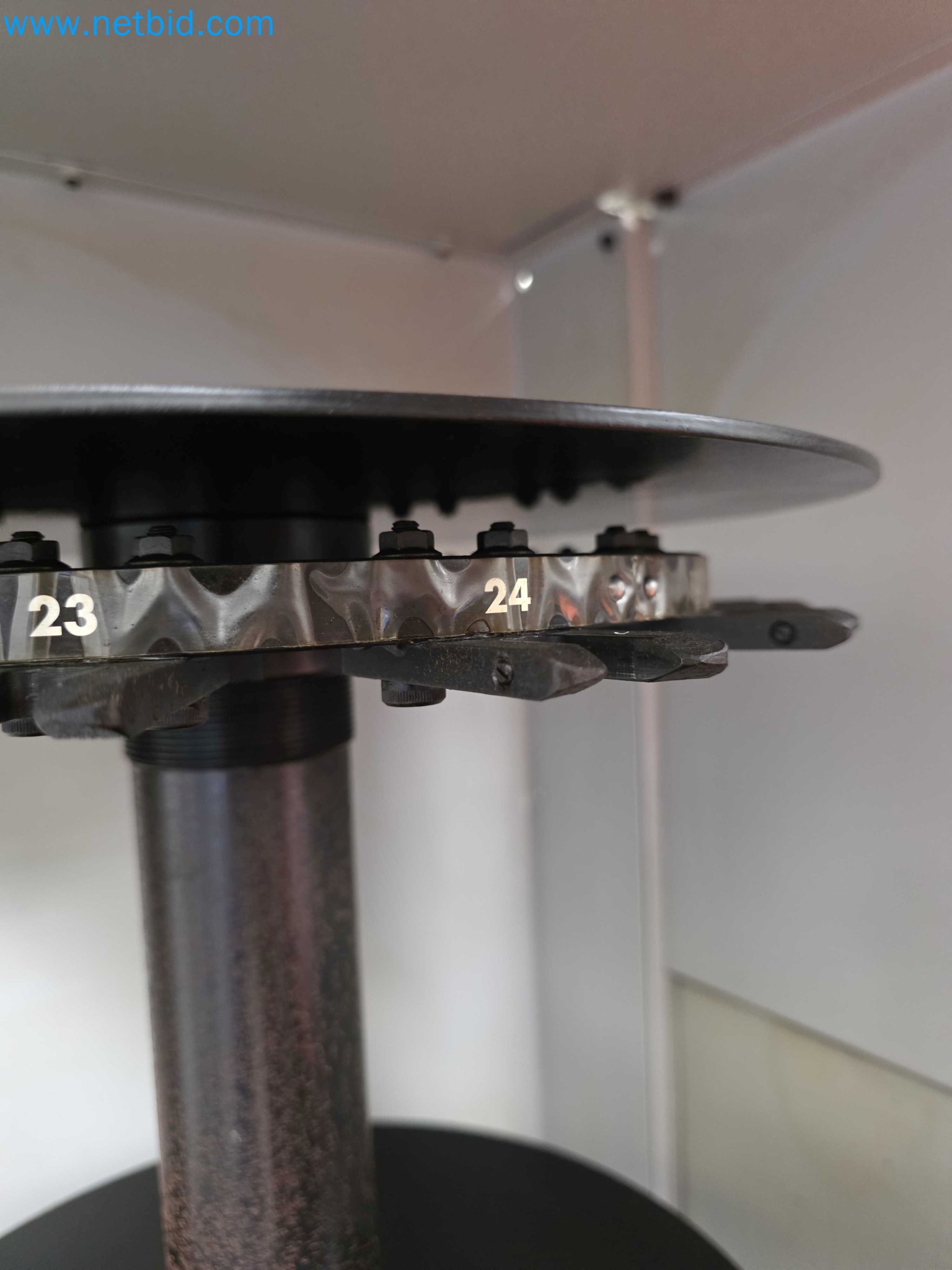

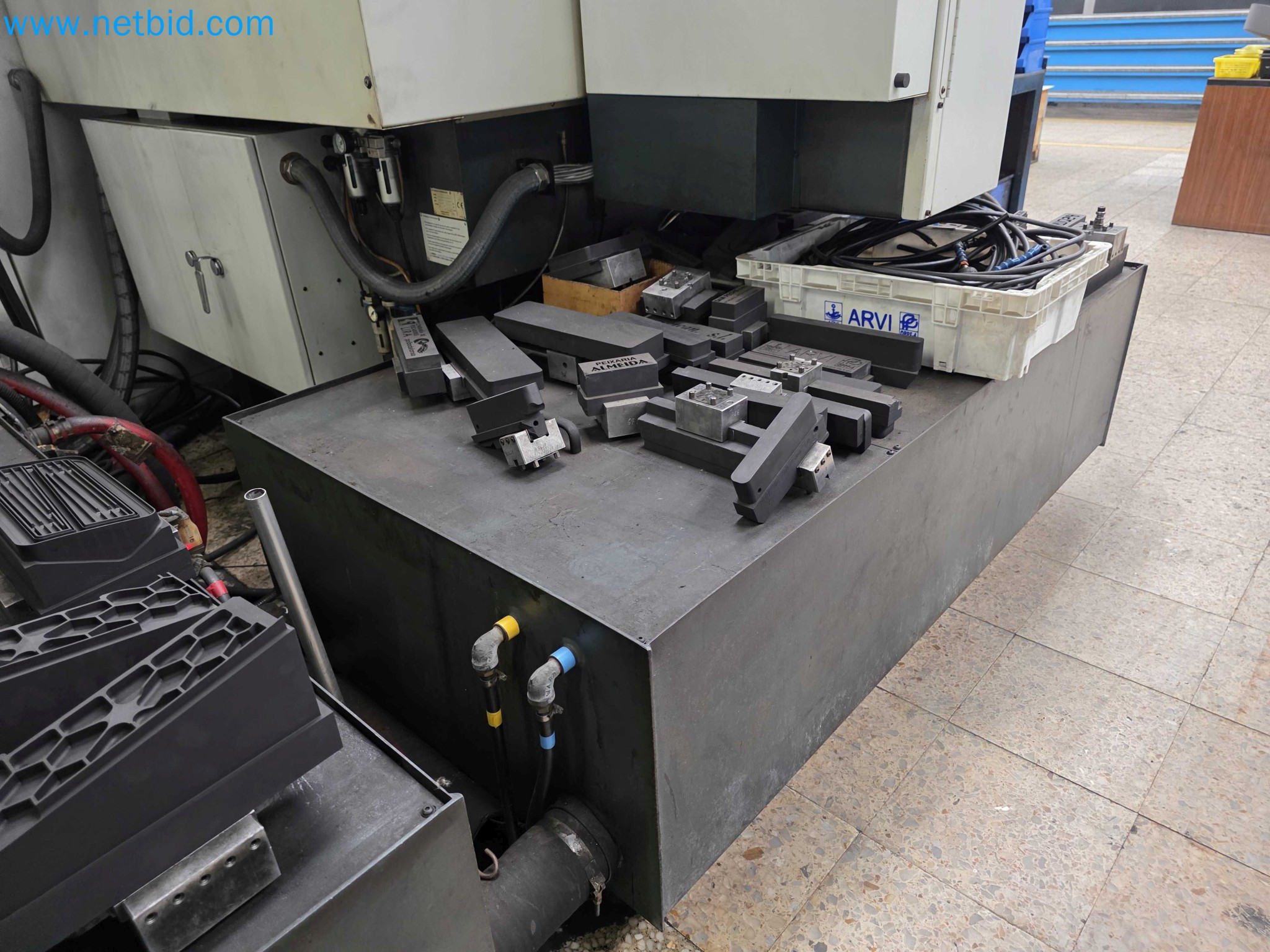

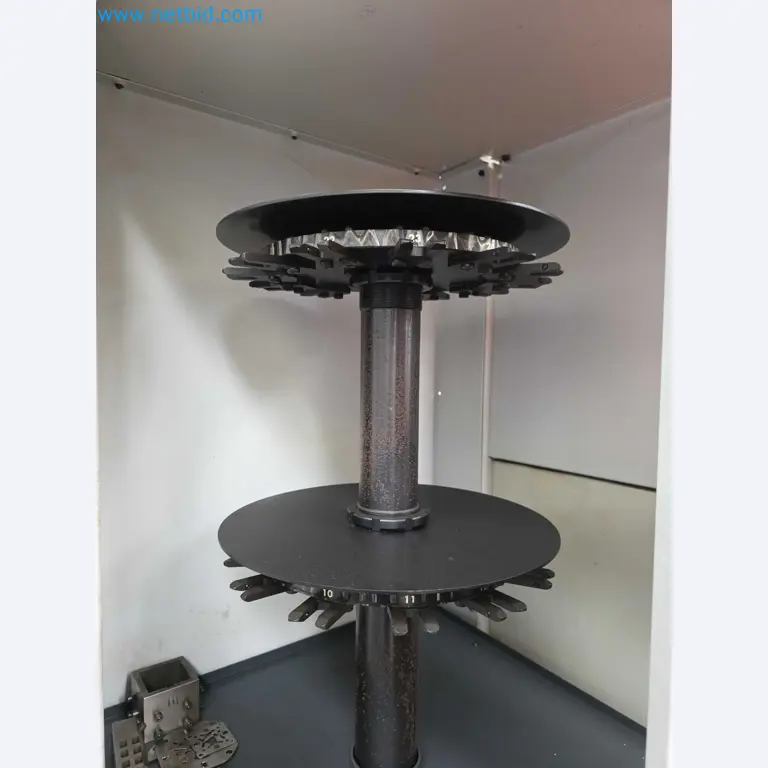

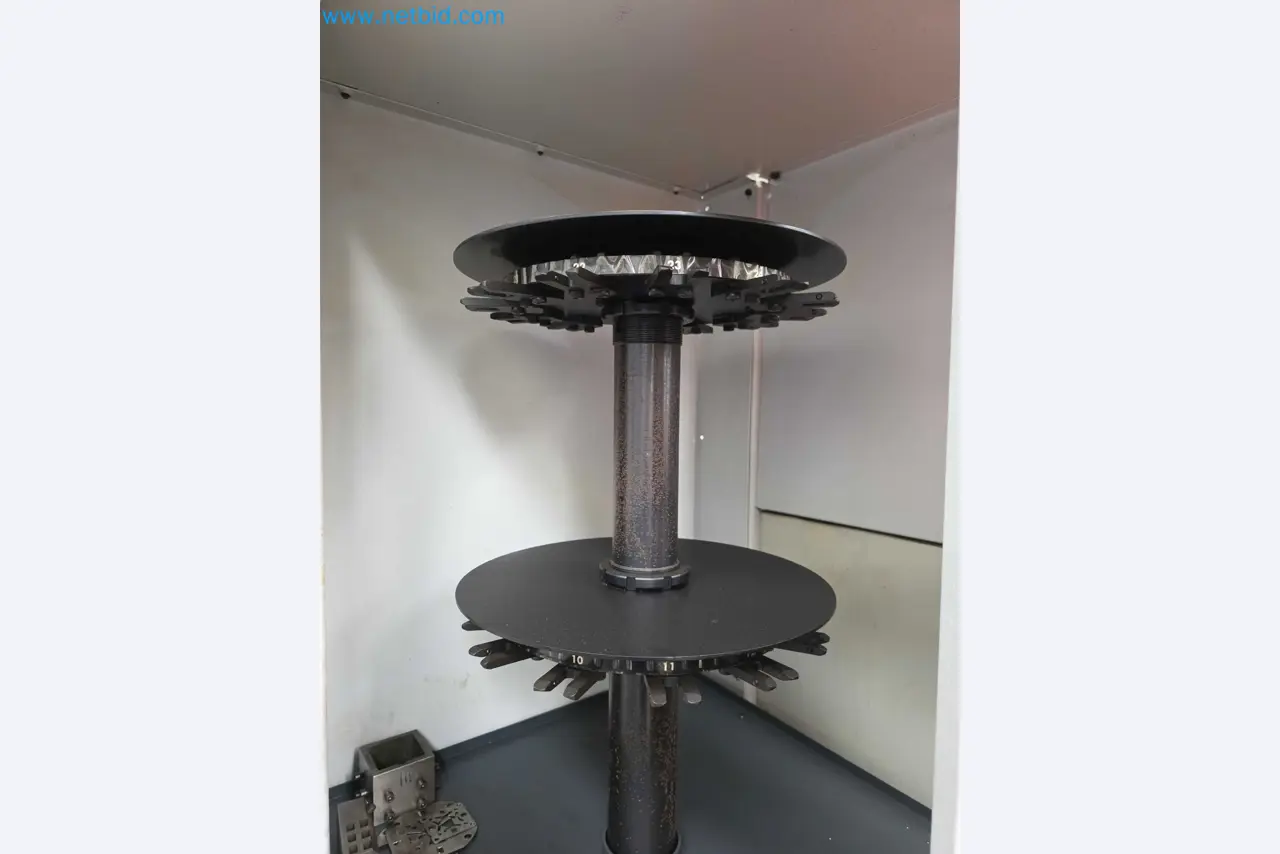

24-position electrode magazine

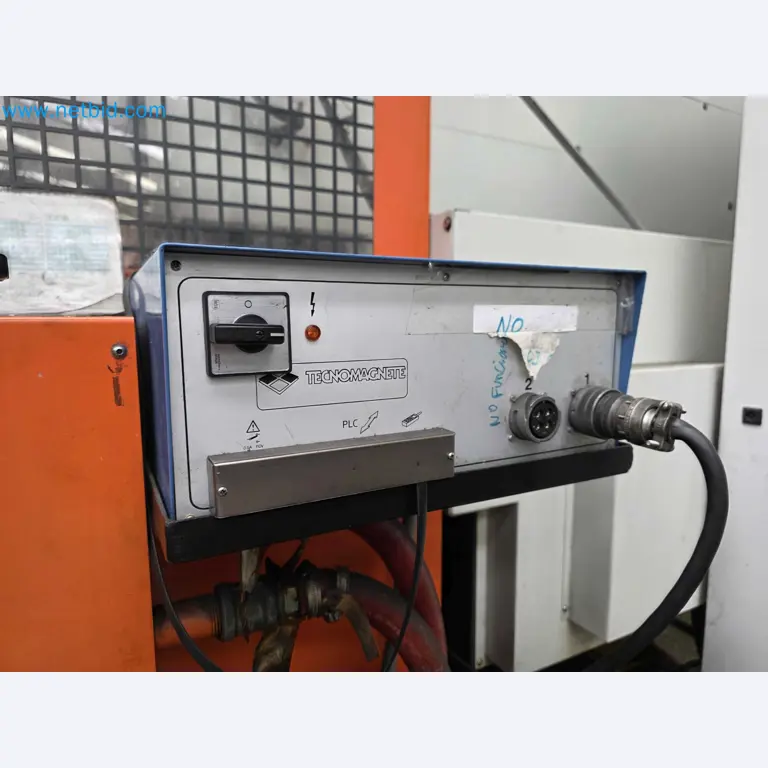

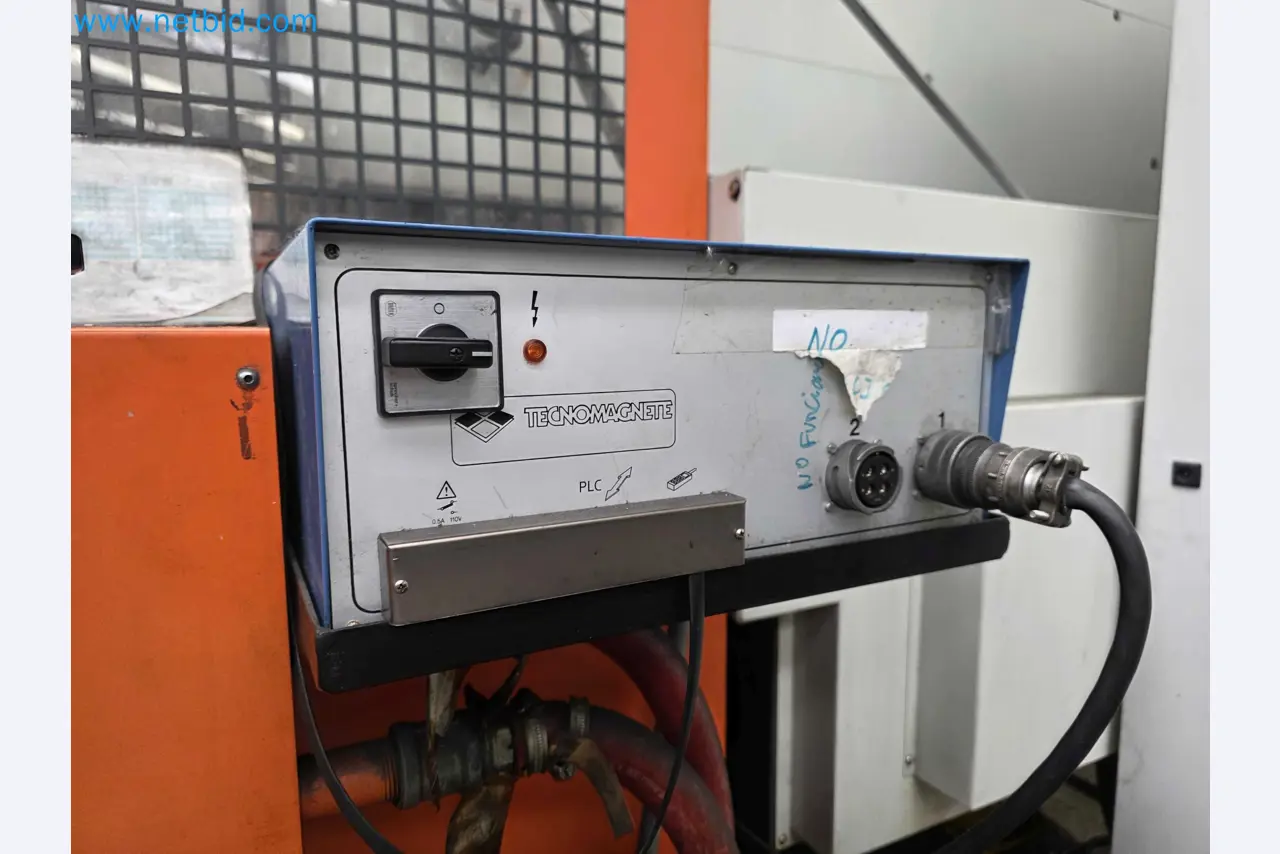

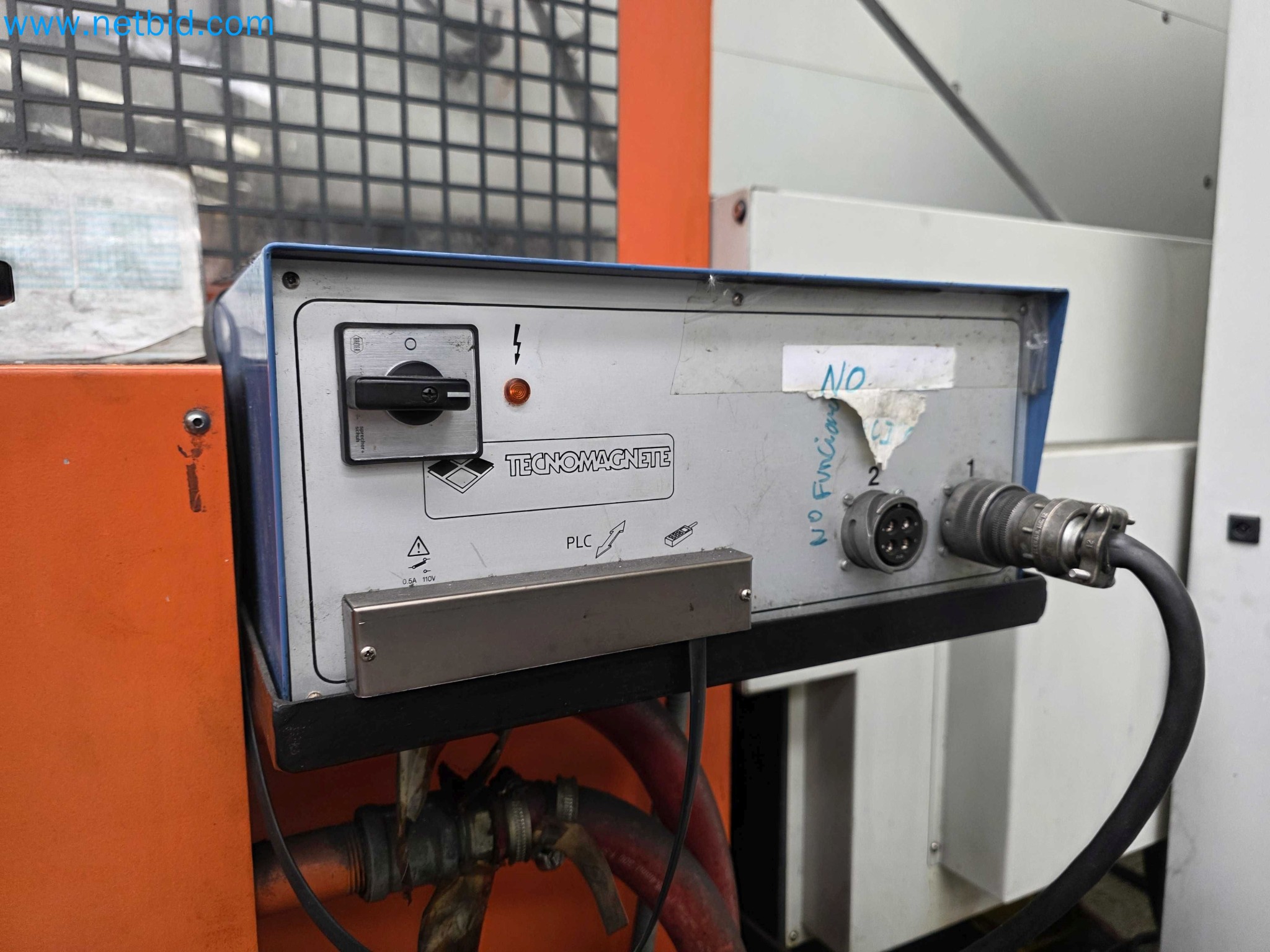

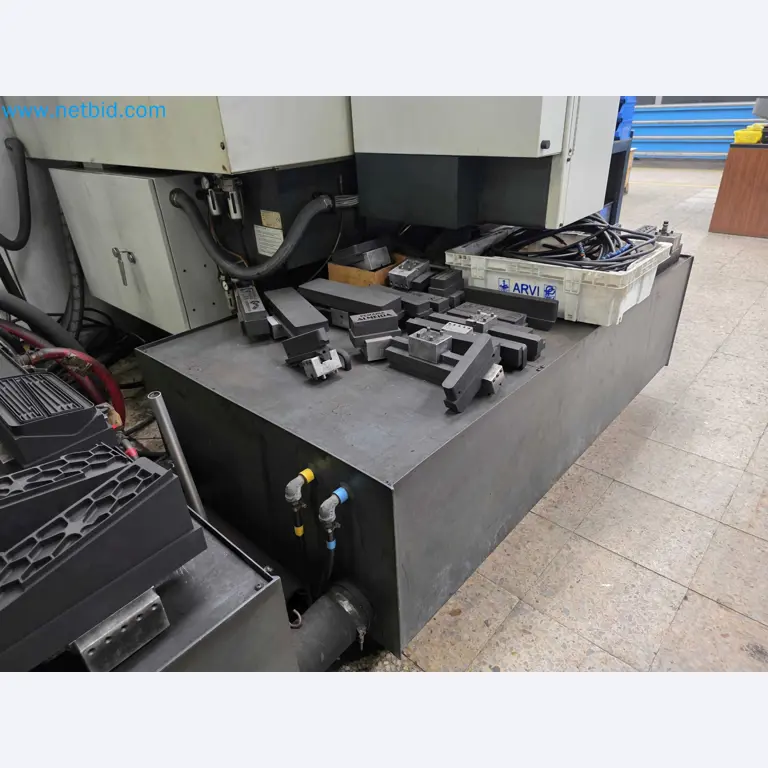

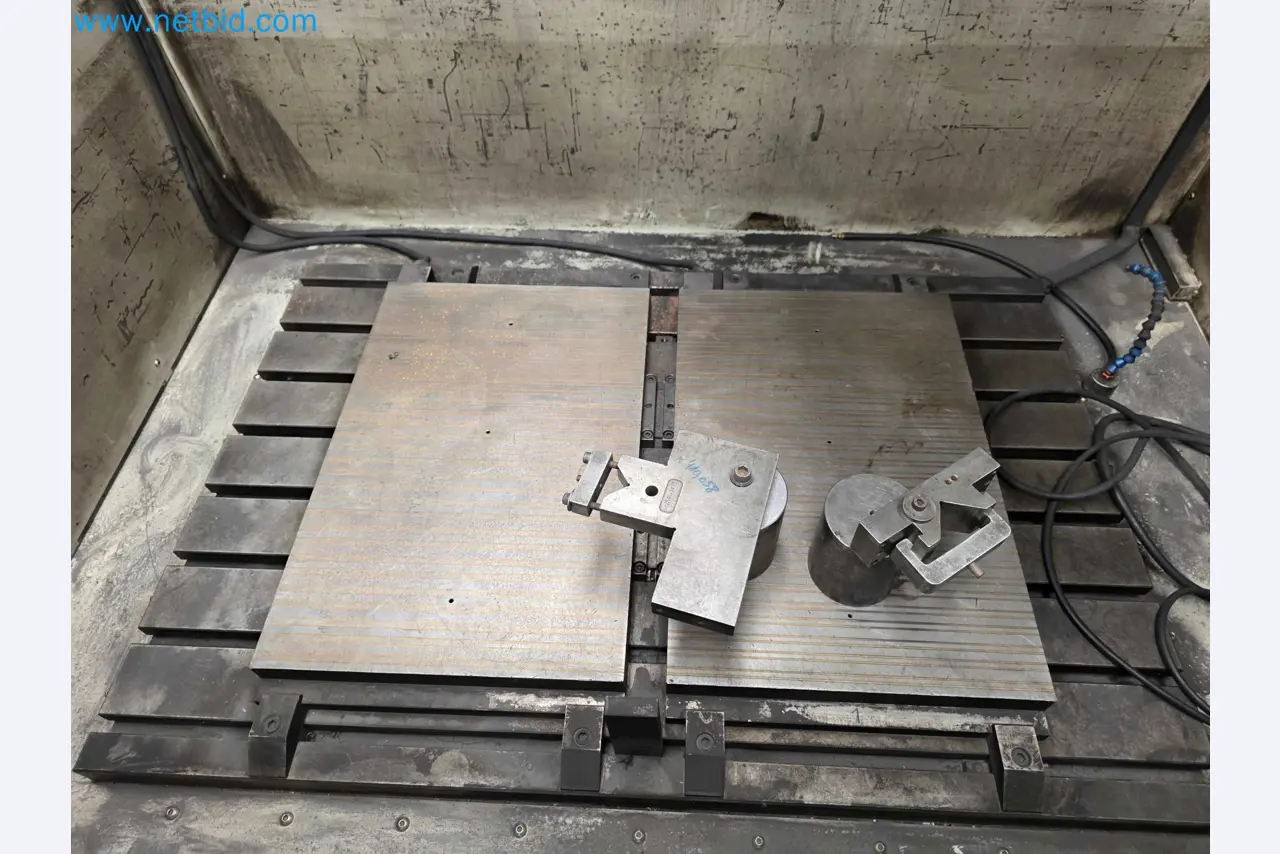

Includes 2 magnetic tables
CE compliant
Approximate maximum weight: 7000 kg
Number of axes: 4
Simultaneous axes: 4
Travels:
· X-axis: 800 mm
· Y-axis: 600 mm
· Z-axis: 500 mm
Maximum feed rate: 900 mm/min
Erosion load: 350 kg
Measurement display resolution: 0.001 mm
Head/table clearance: from 285 to 785 mm
Table dimensions: 1200 x 800 mm
Maximum workpiece width: 500 mm
Maximum table load capacity: 4200 kg
Tank dimensions: 1450 x 950 x 500 mm
Maximum dielectric fluid level: 500 mm
Maximum tank capacity: 600 l
Includes MTA TAE 015 cooler
CHARMILLES control
Number of programs that can be stored: 64
24-position electrode magazine
Includes 2 magnetic tables
CE compliant
Approximate maximum weight: 7000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
