Part of the Auction High-Performance Hydraulic Try-Out Presses

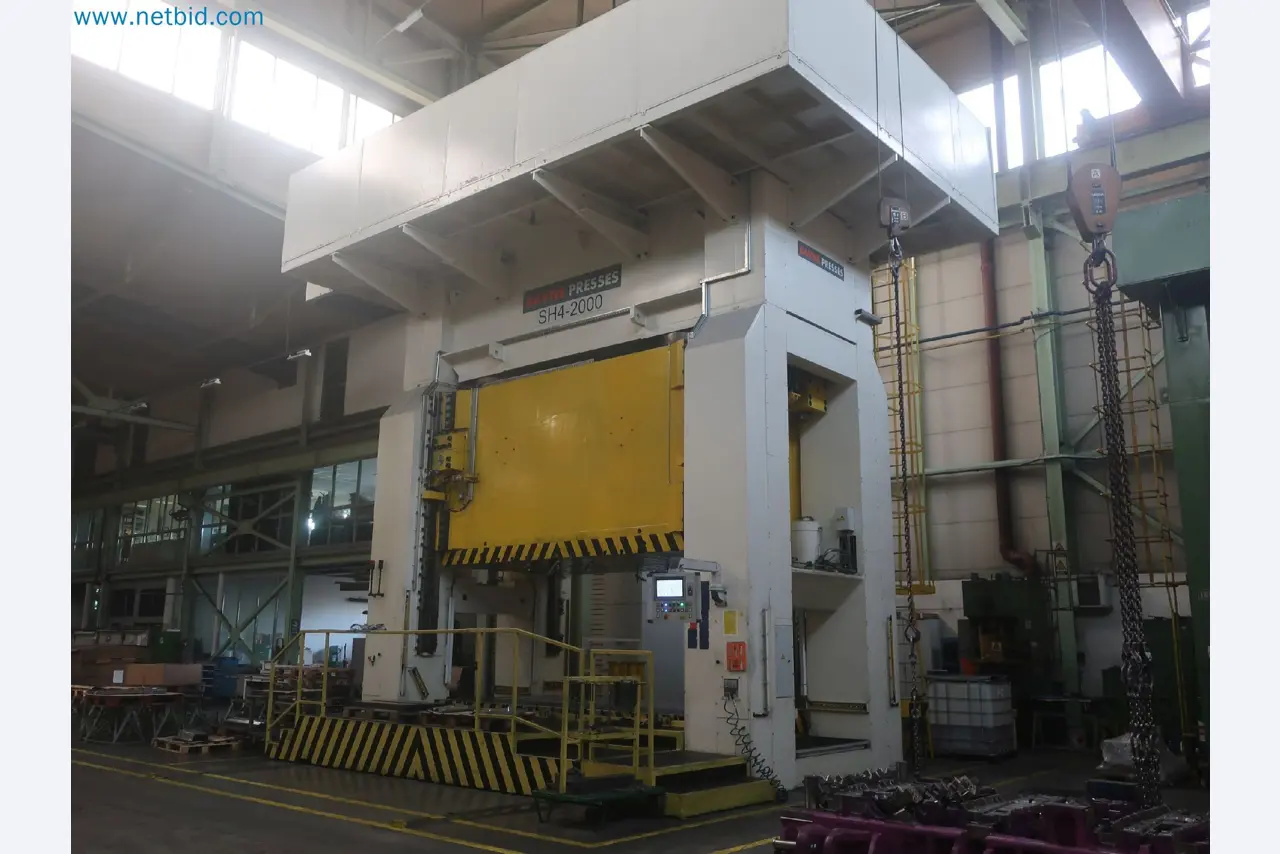

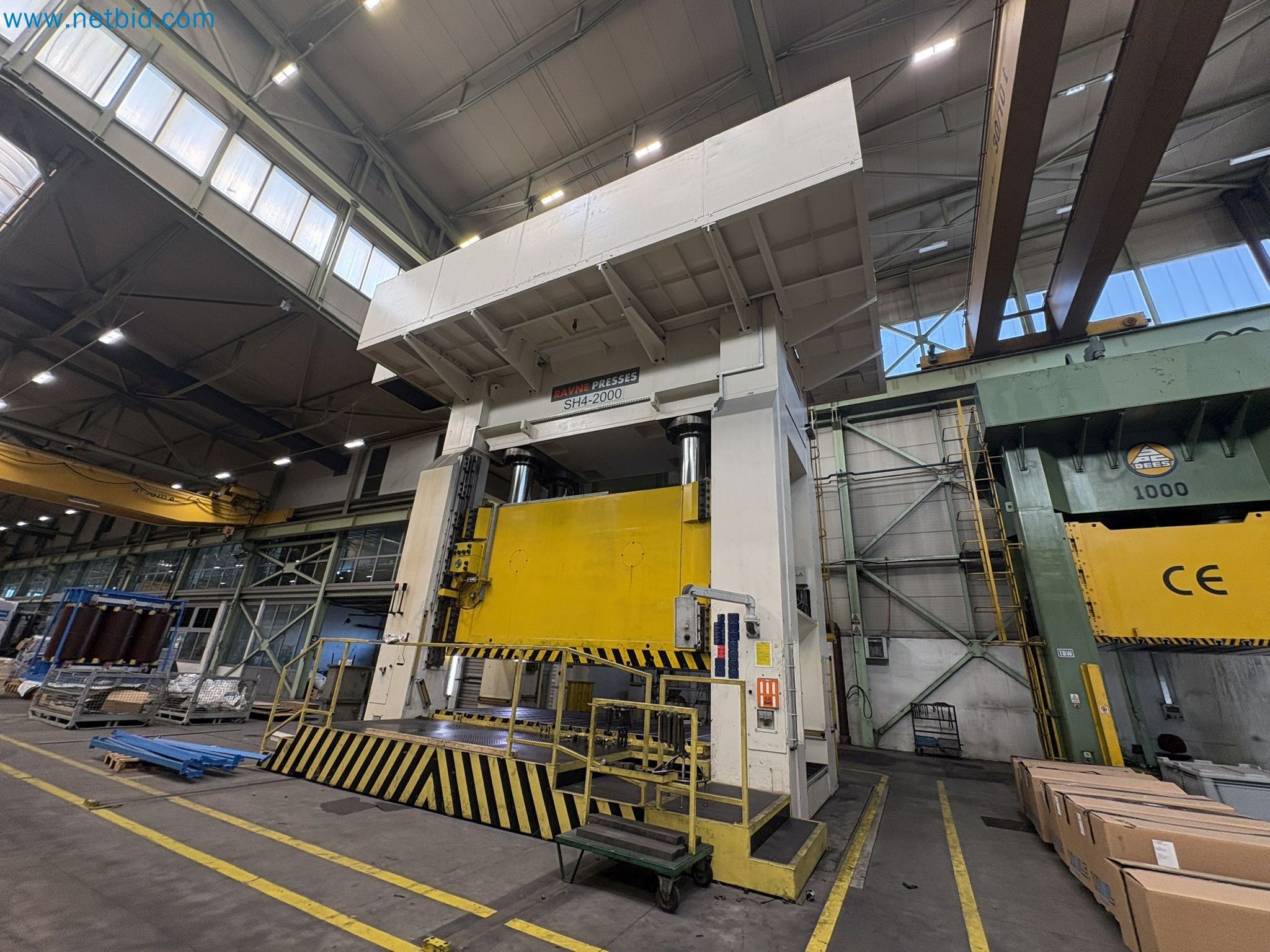

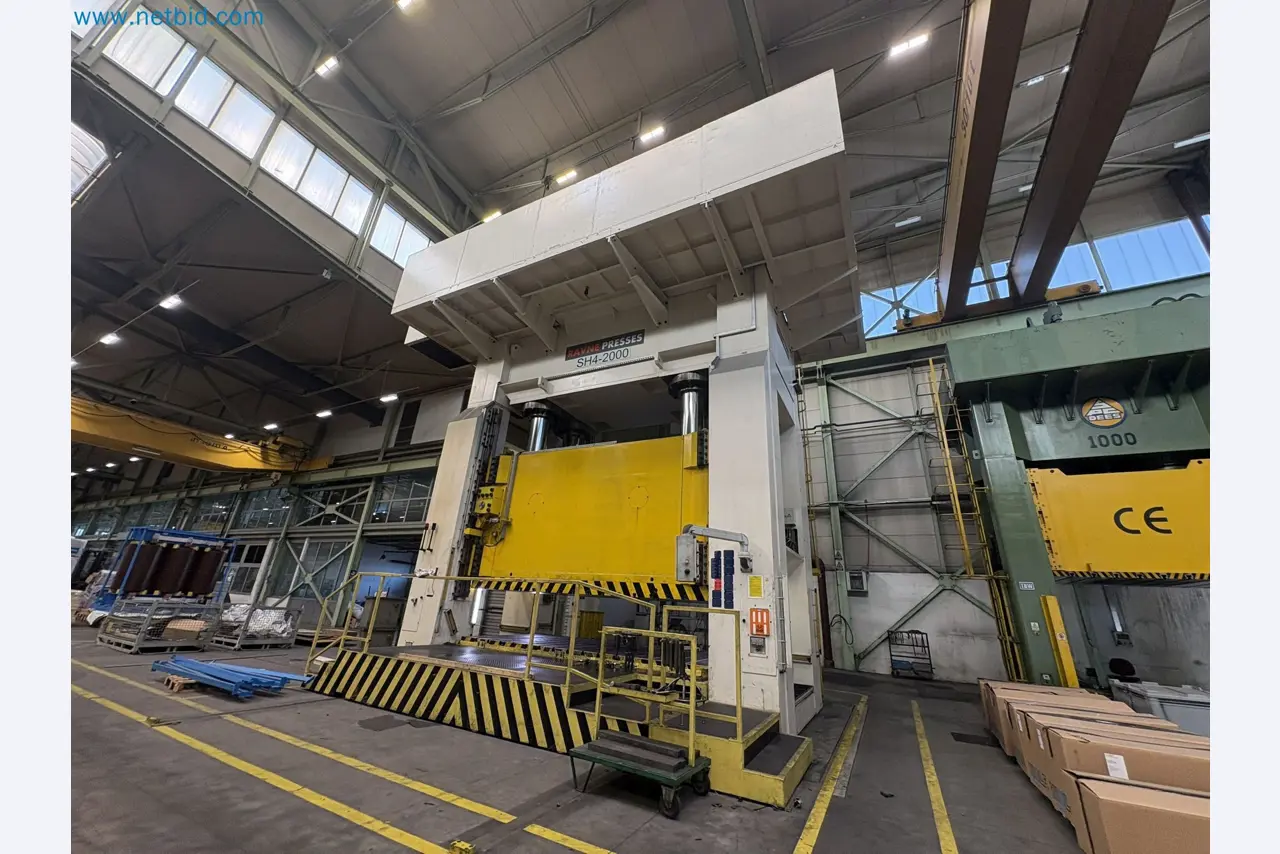

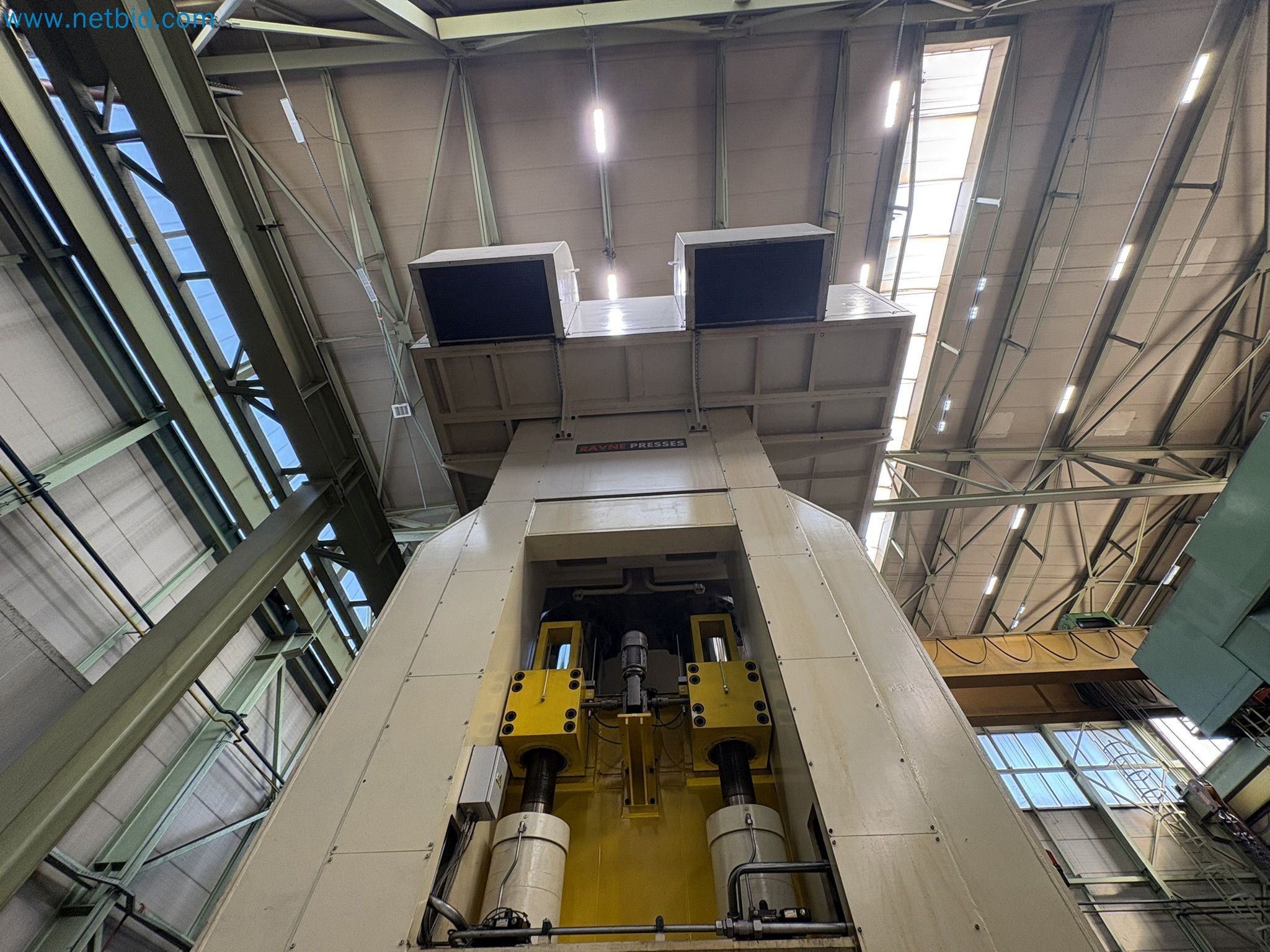

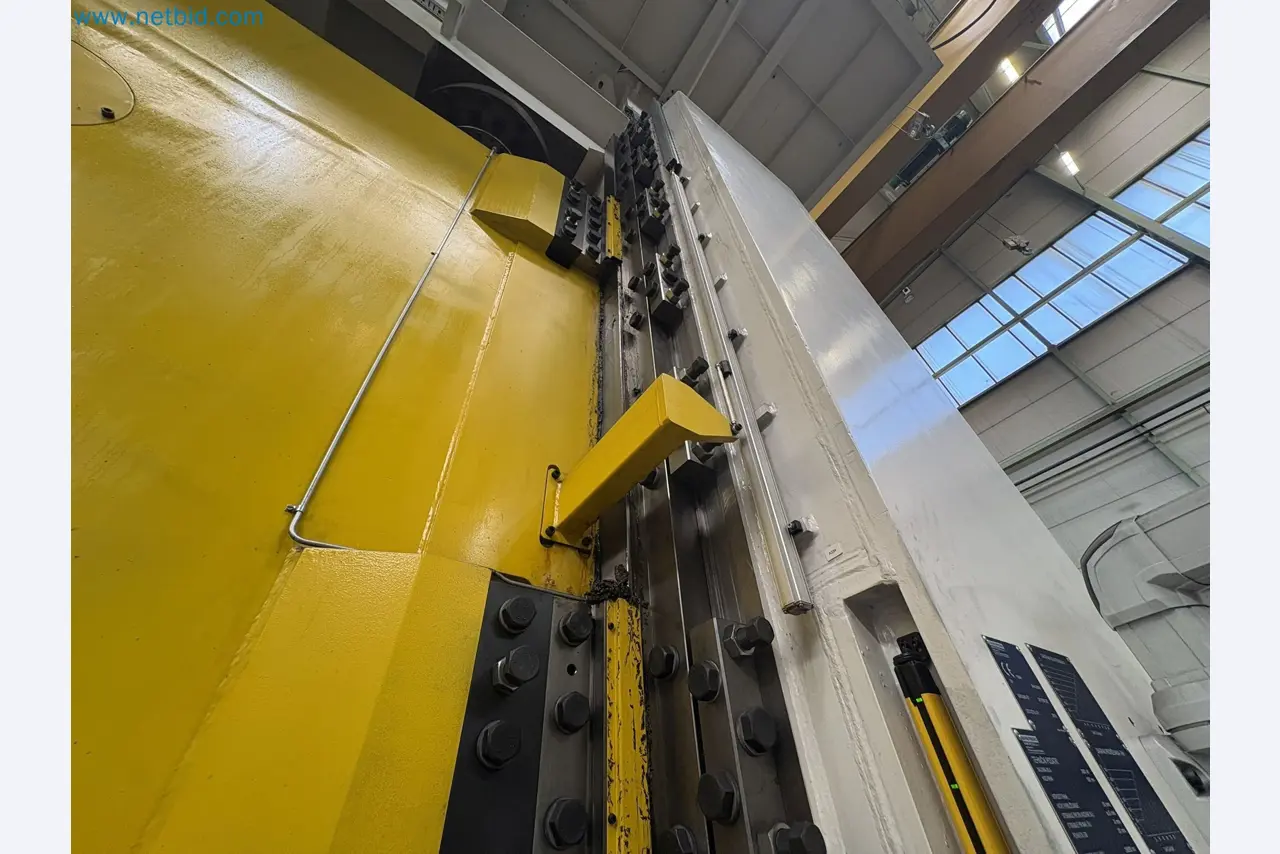

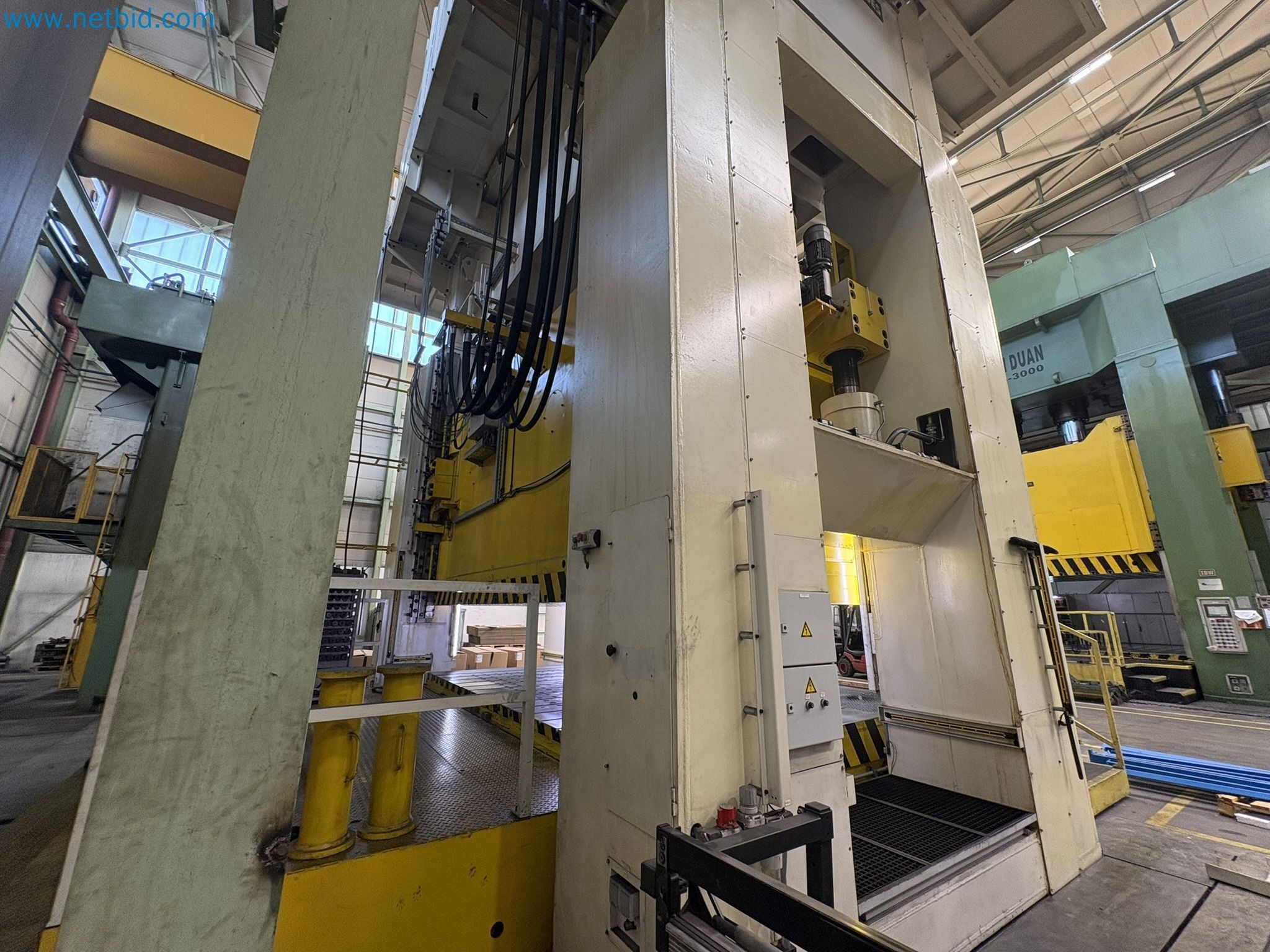

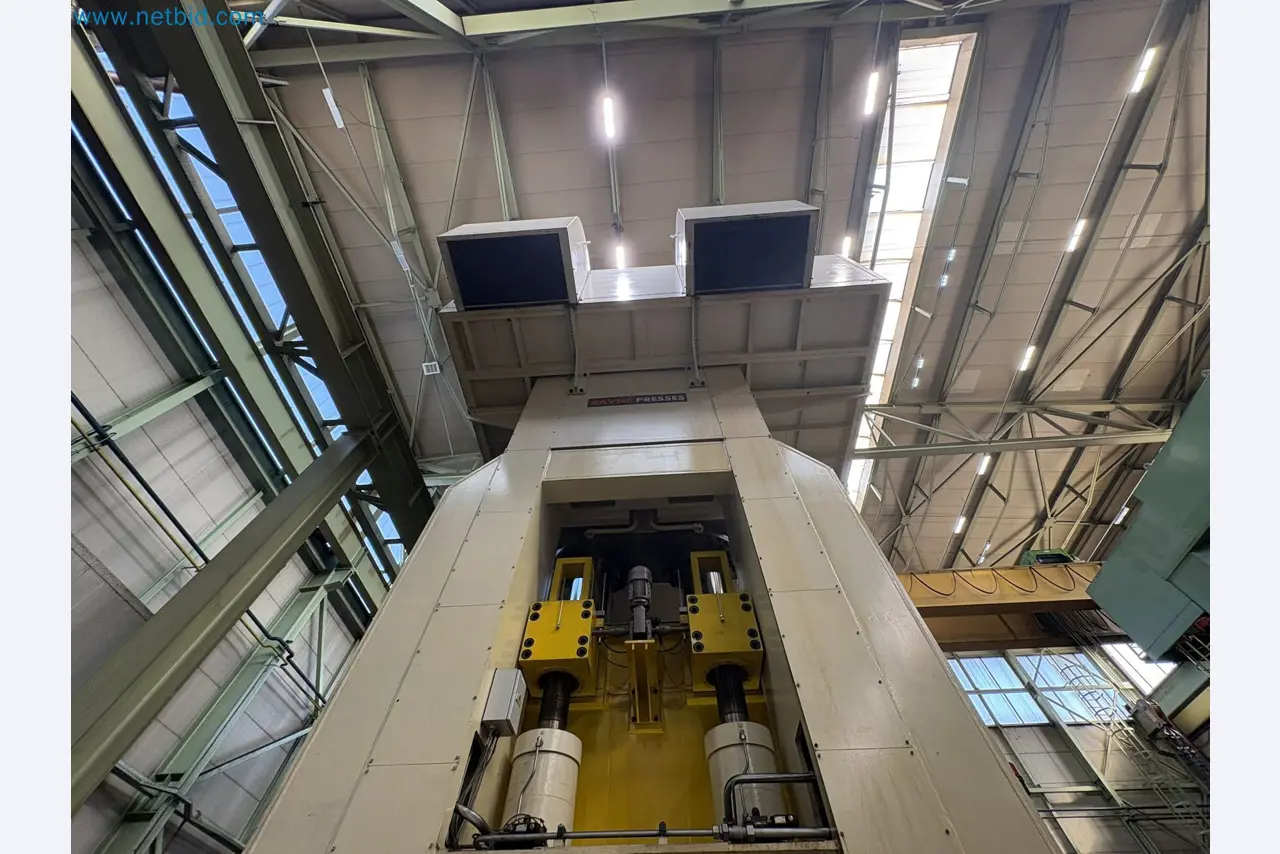

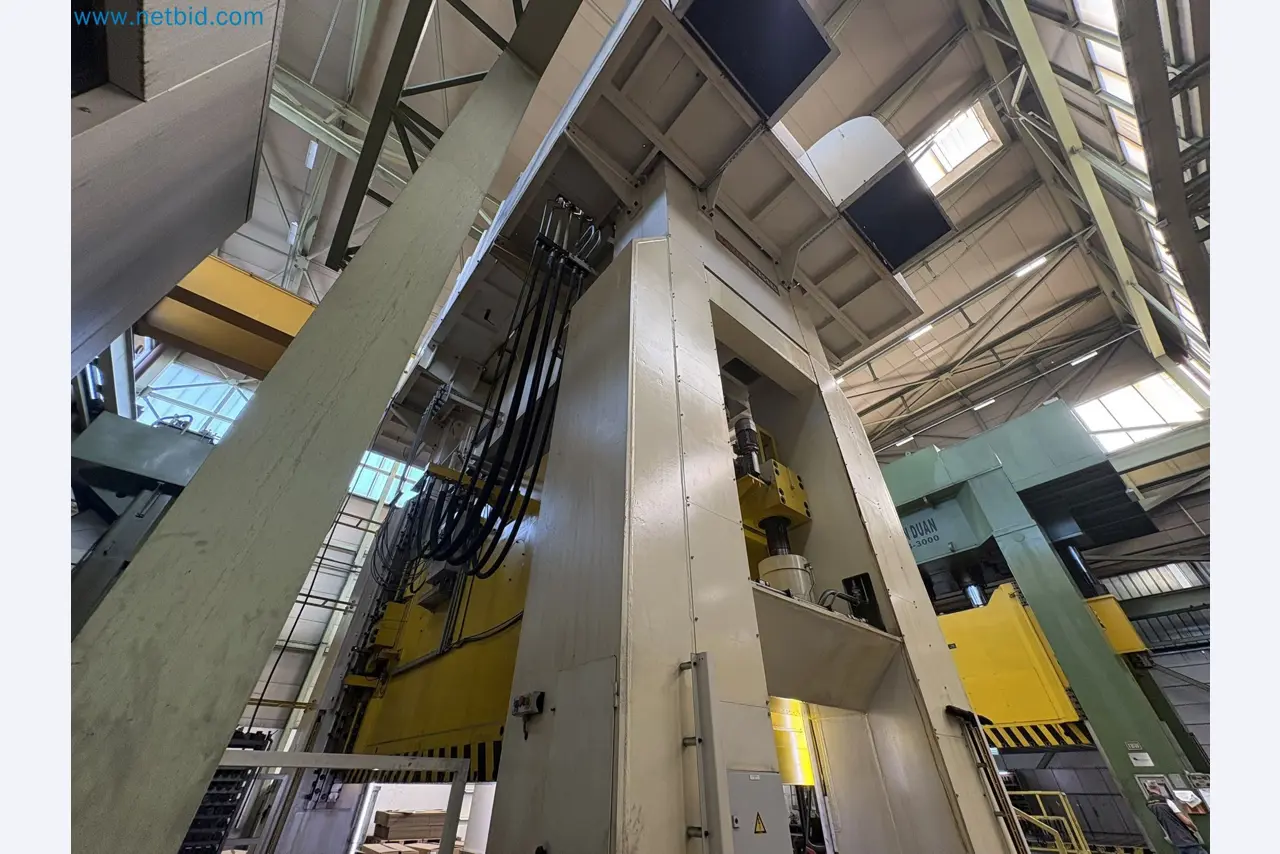

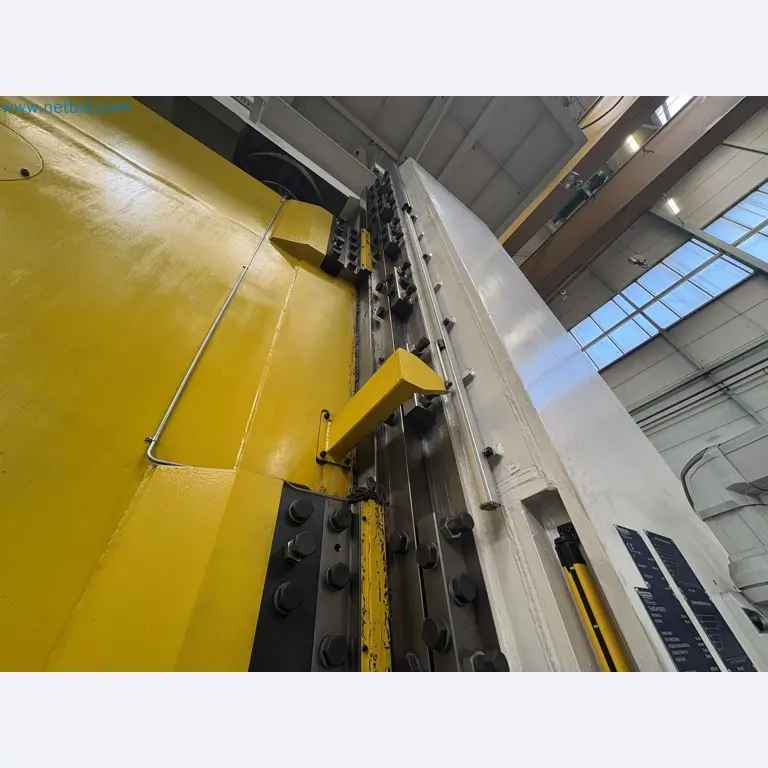

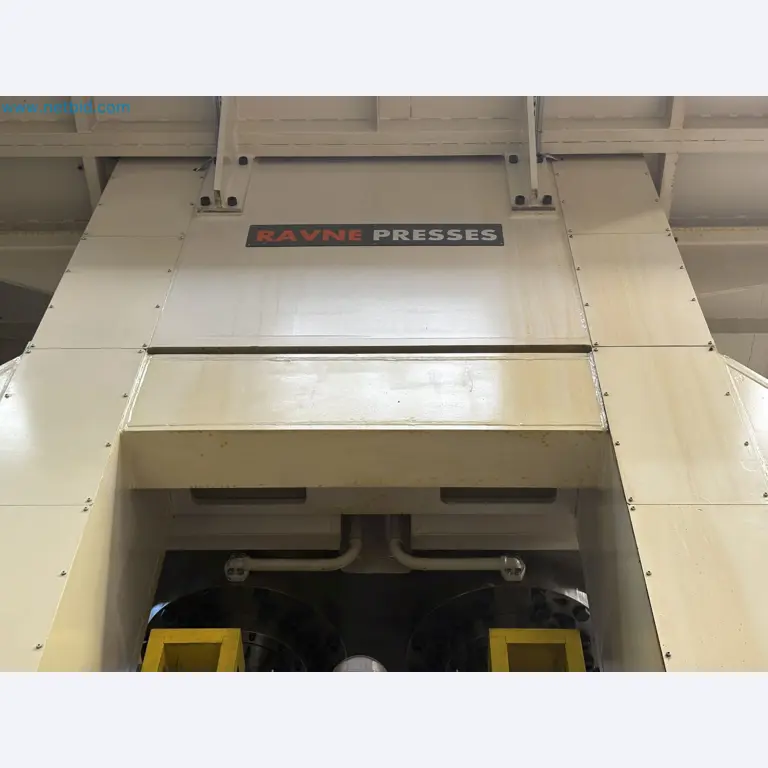

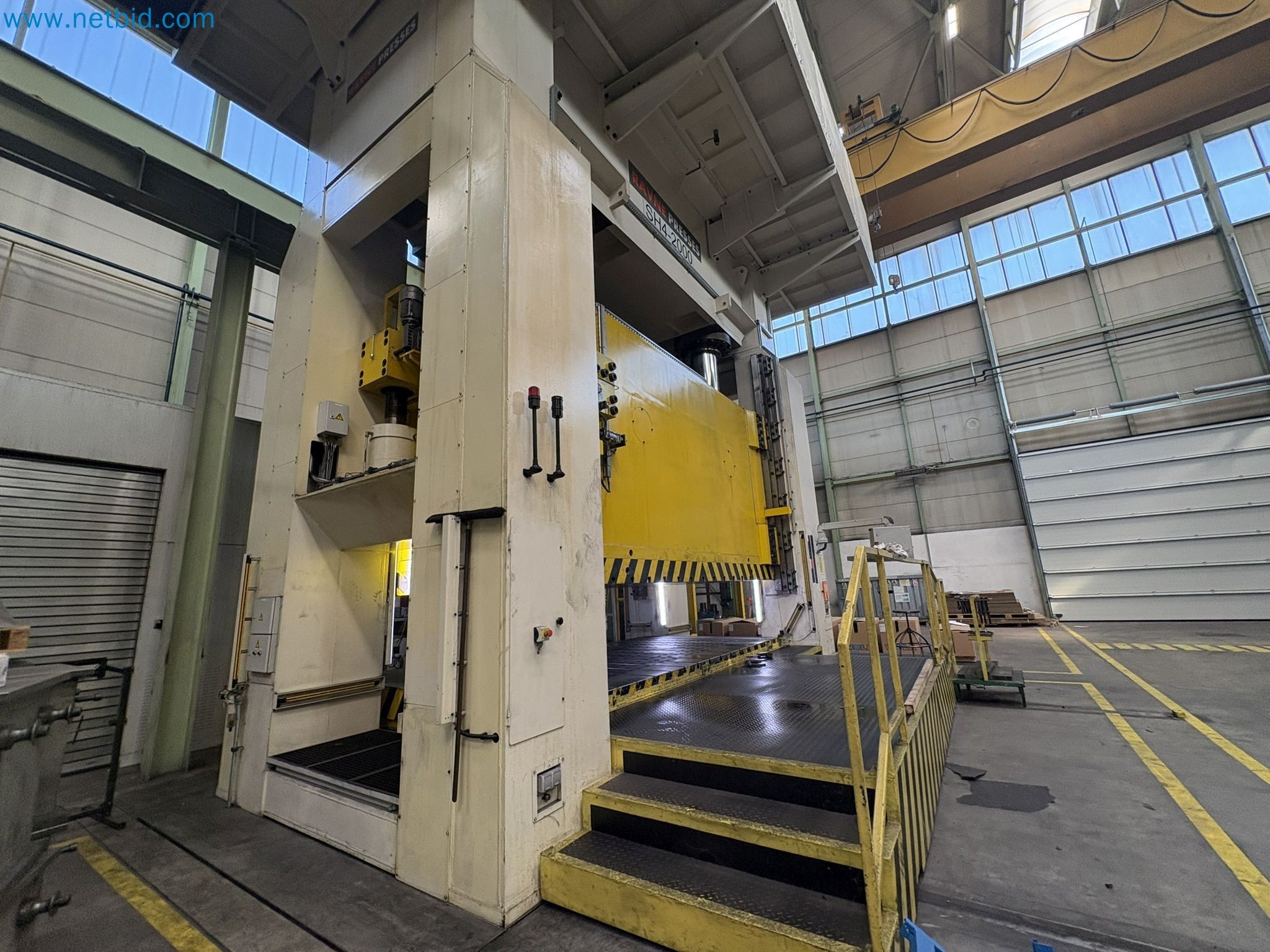

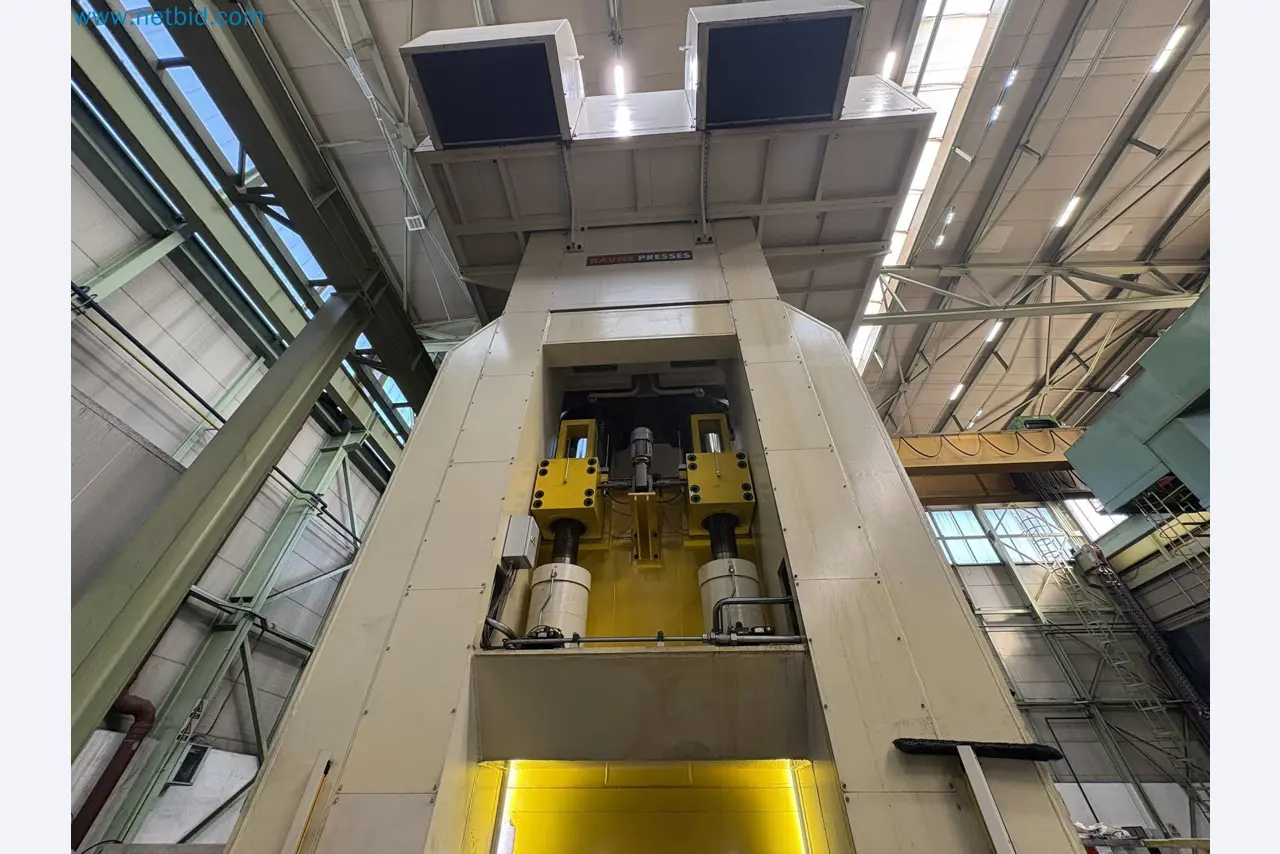

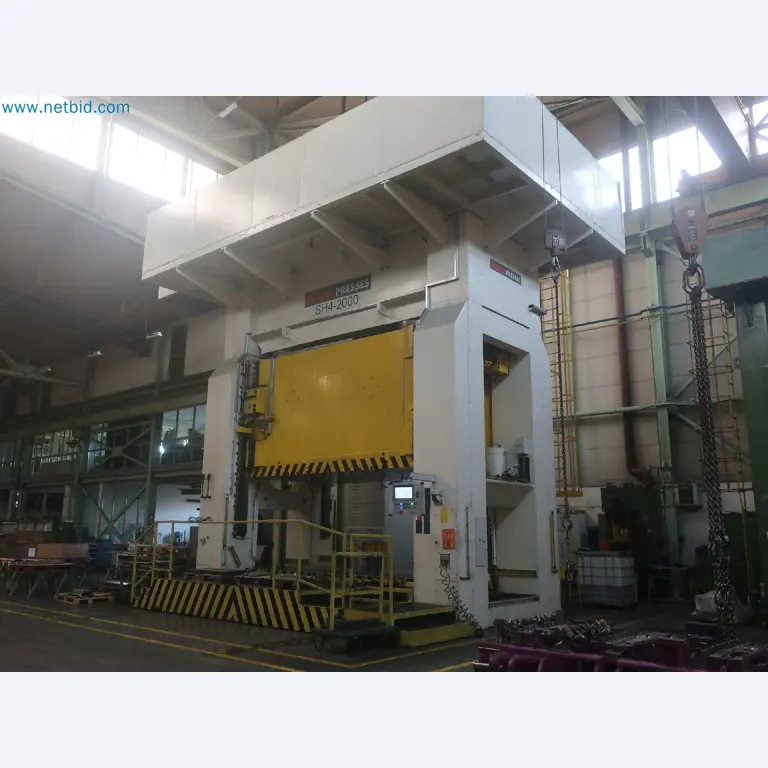

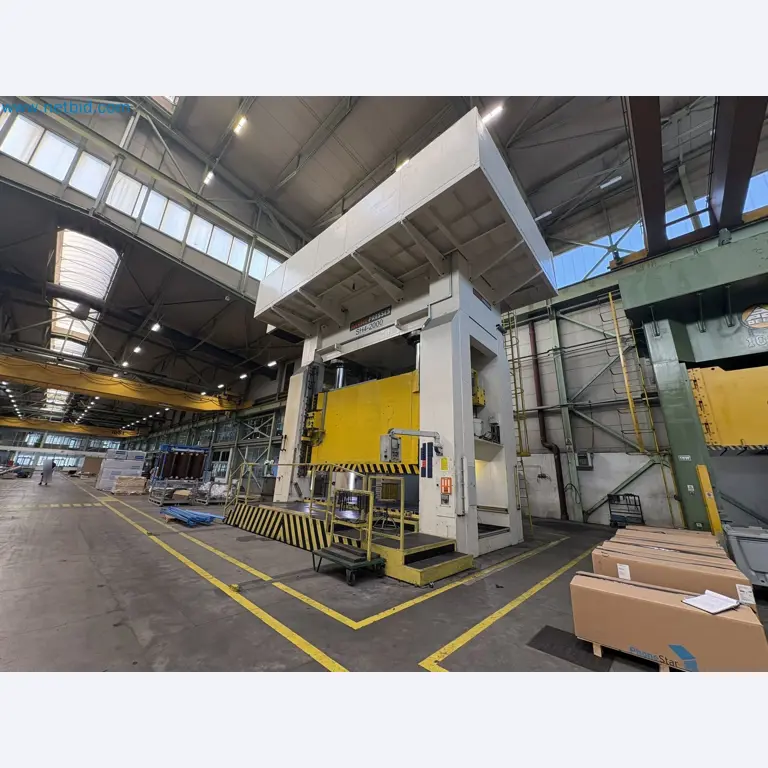

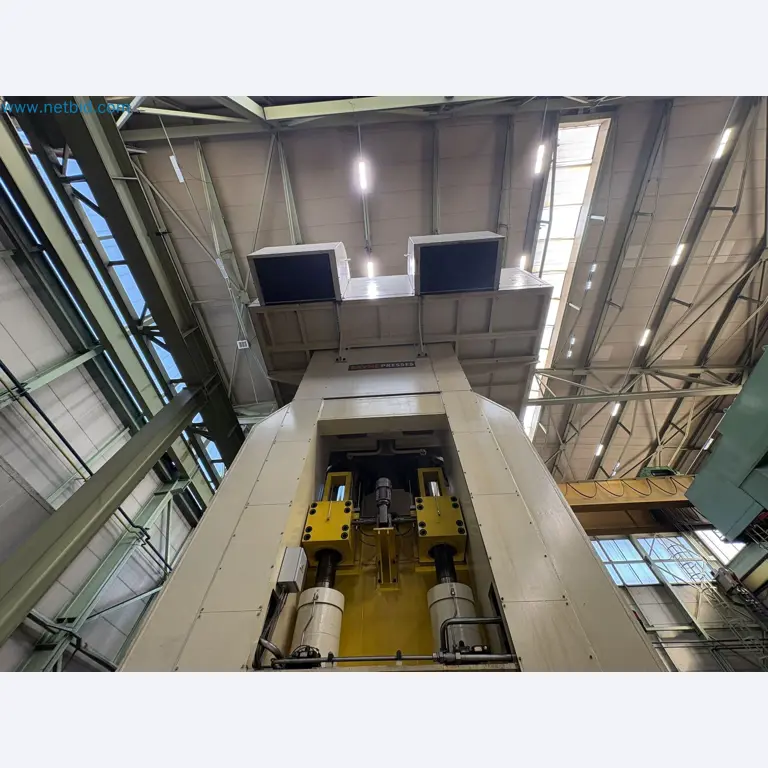

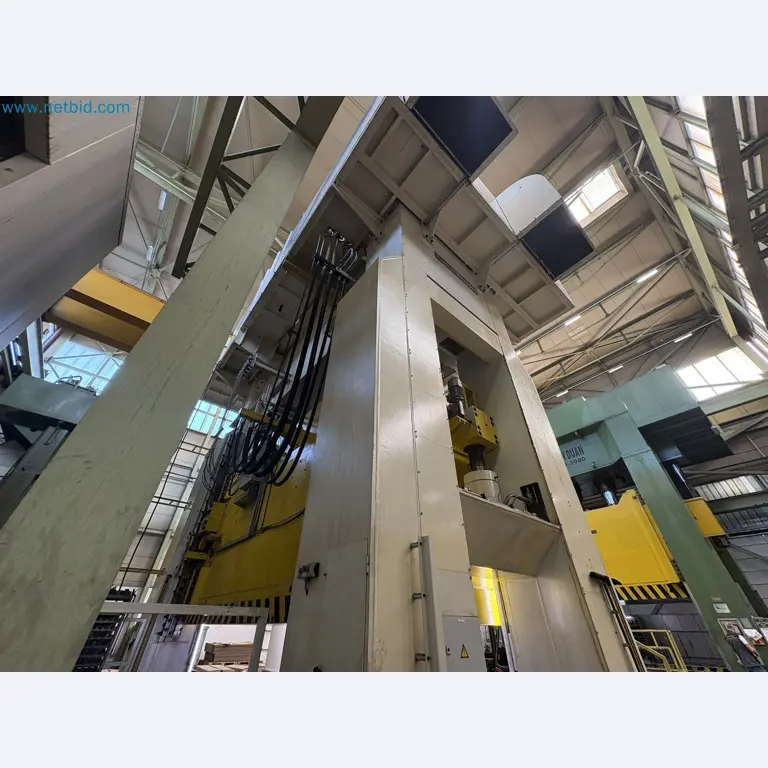

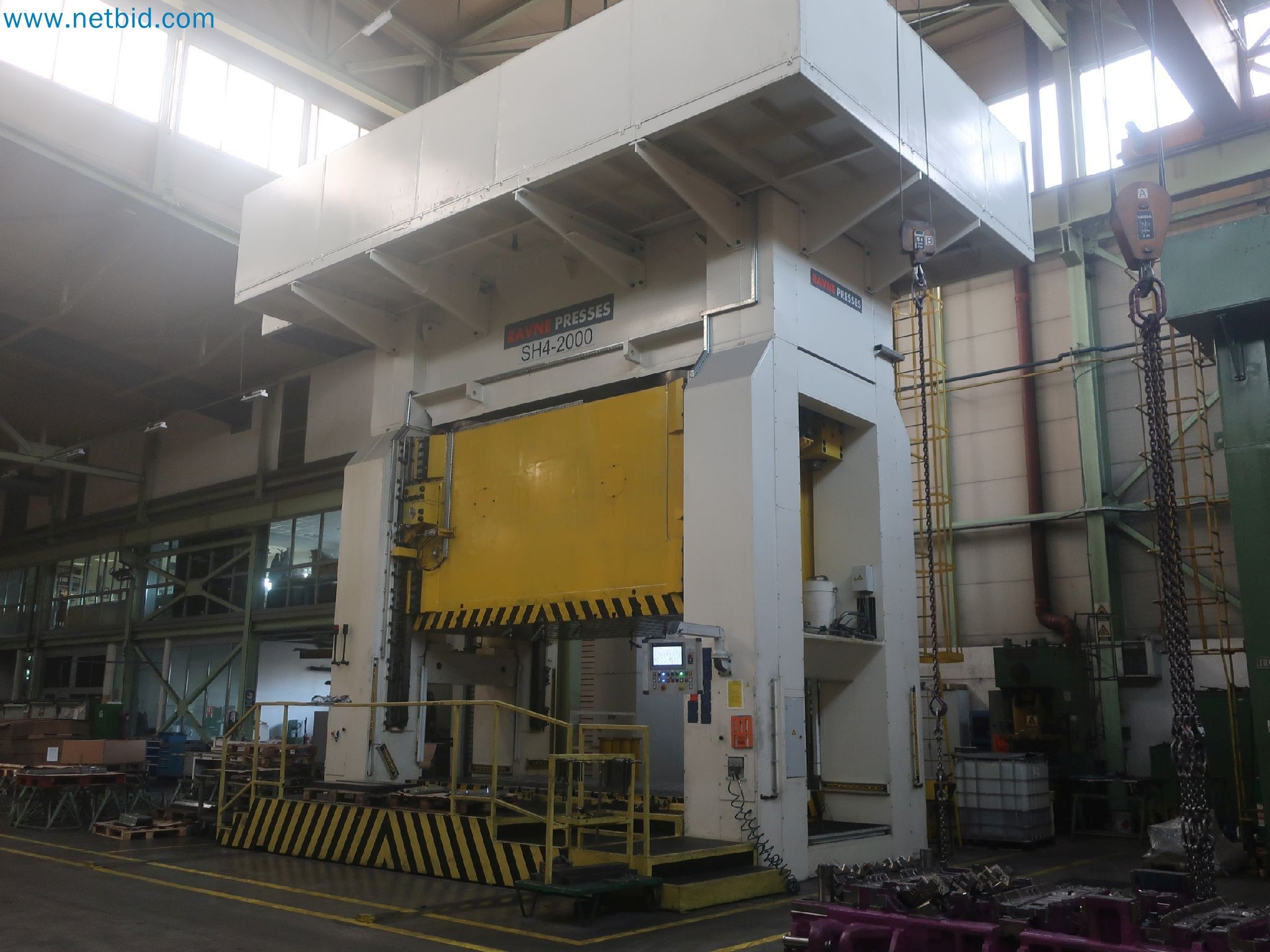

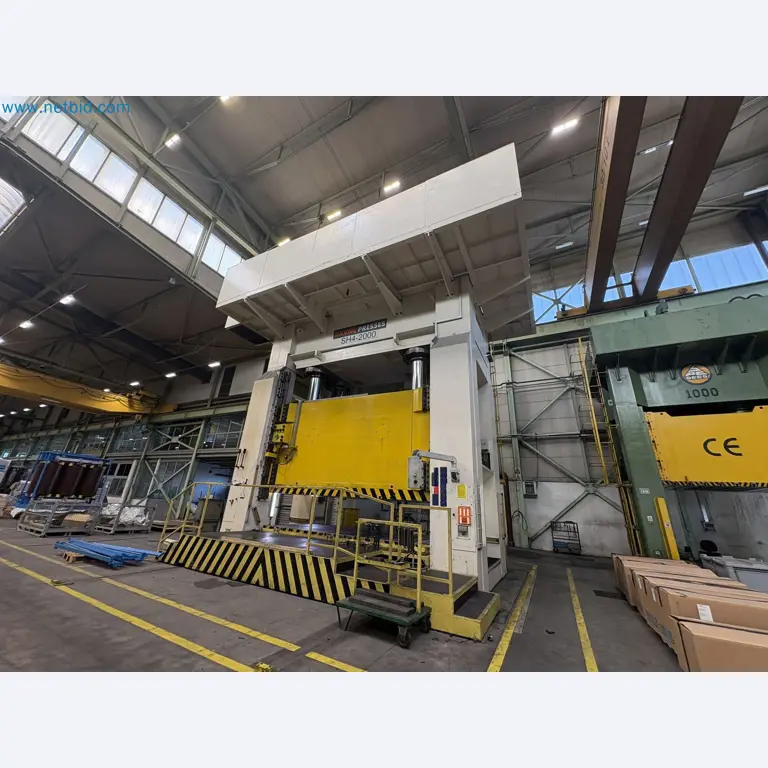

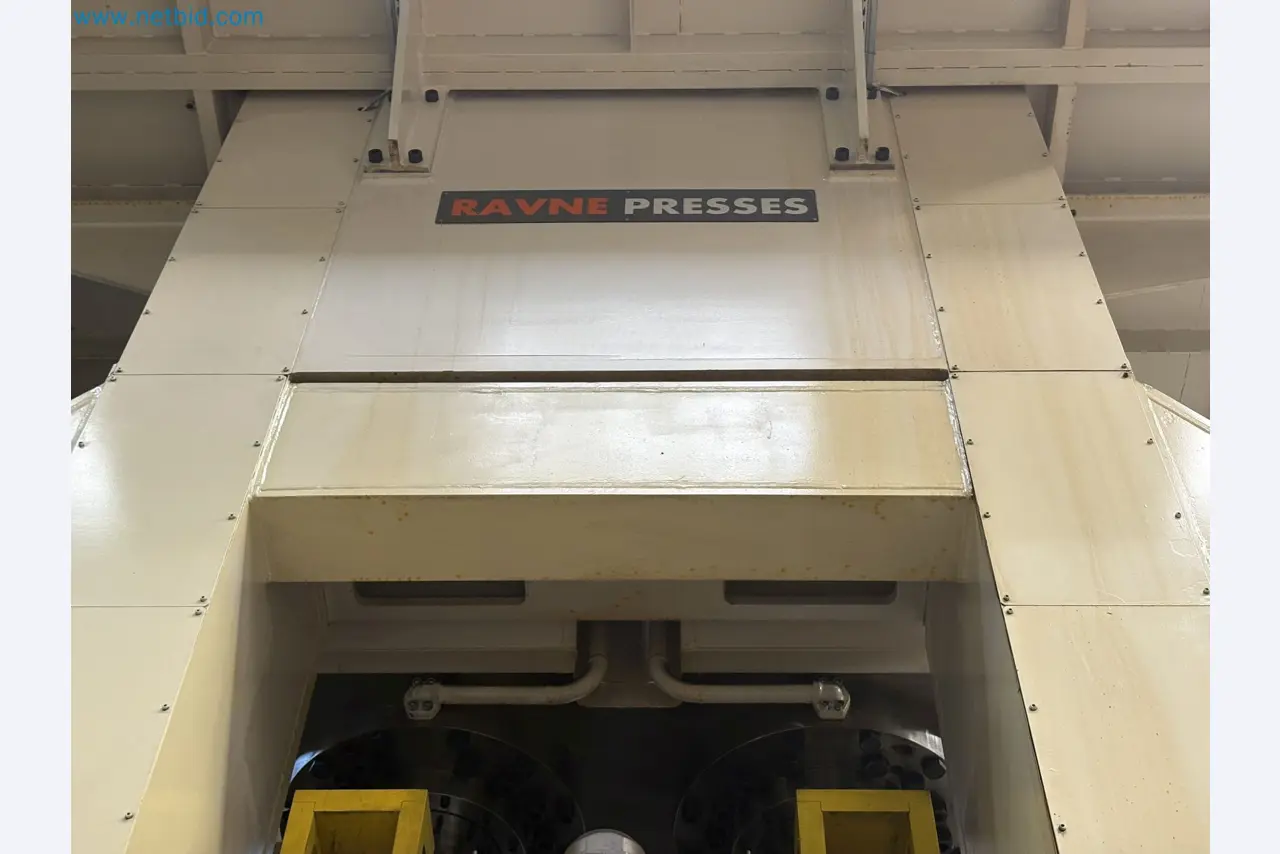

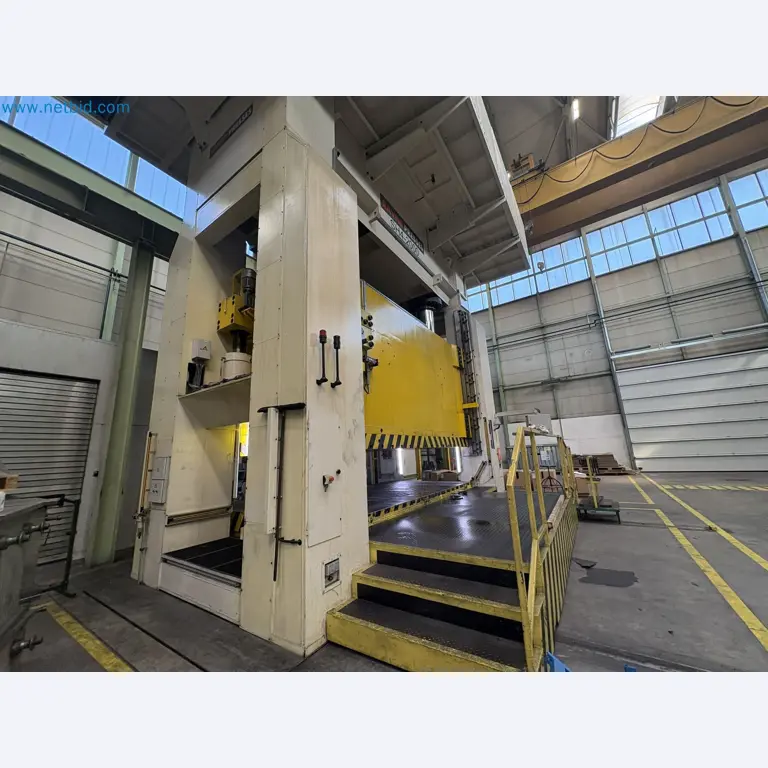

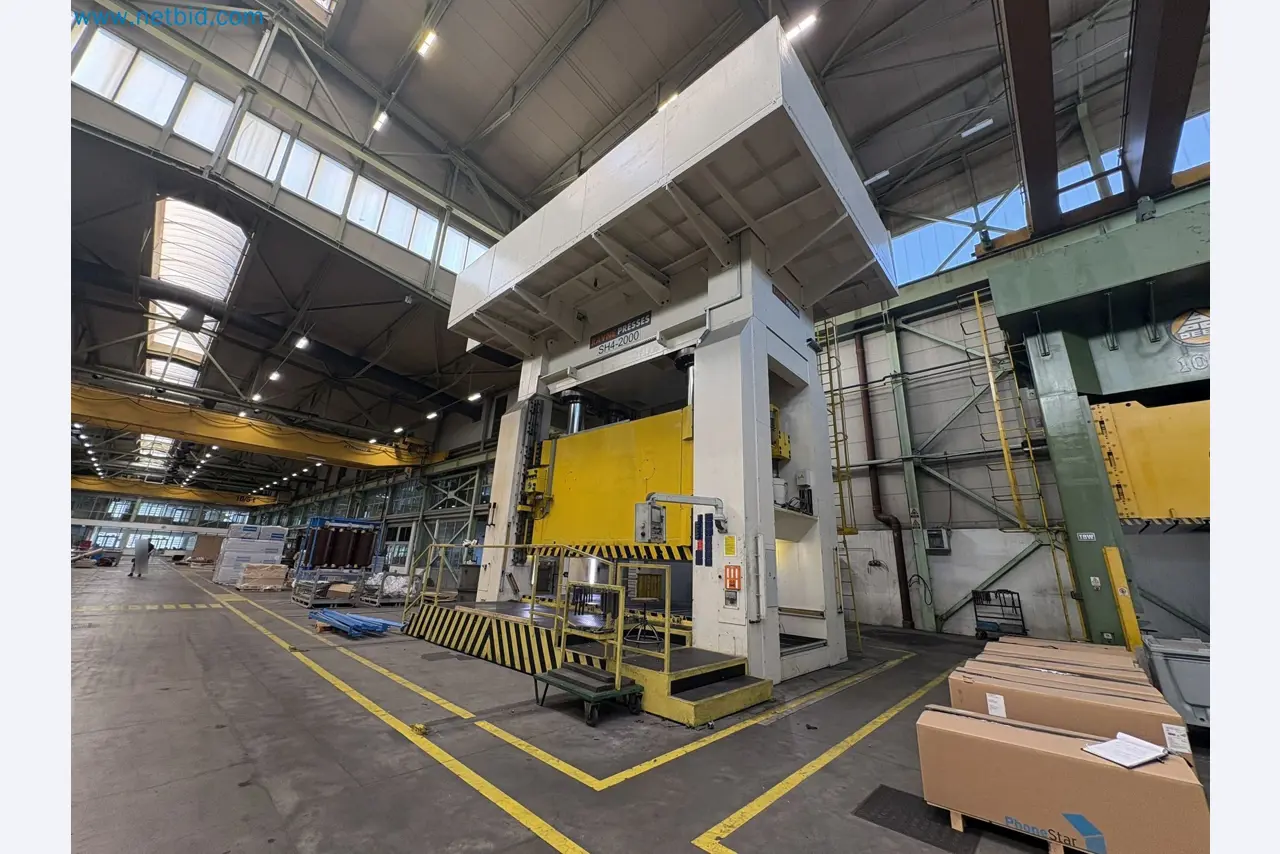

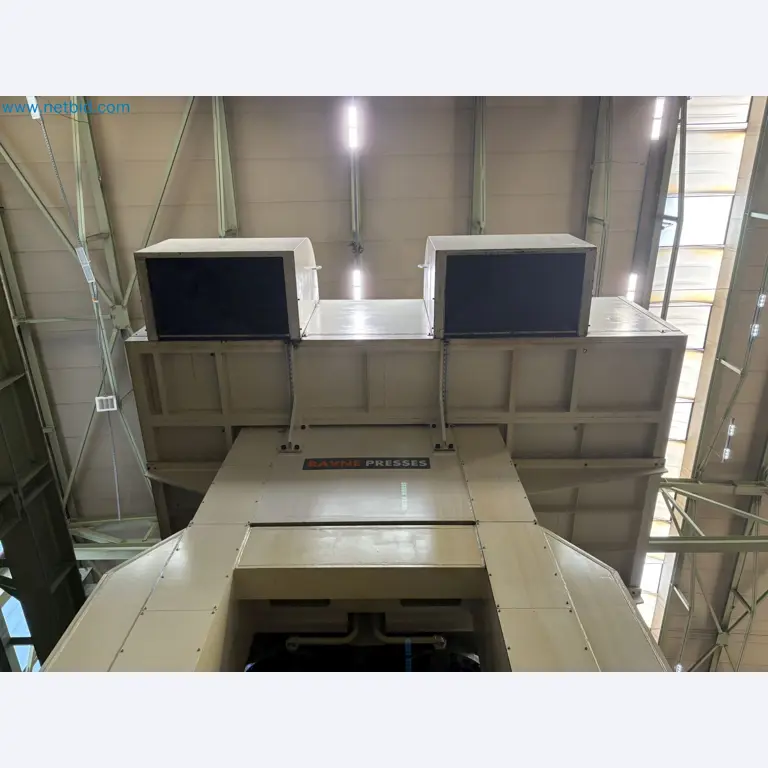

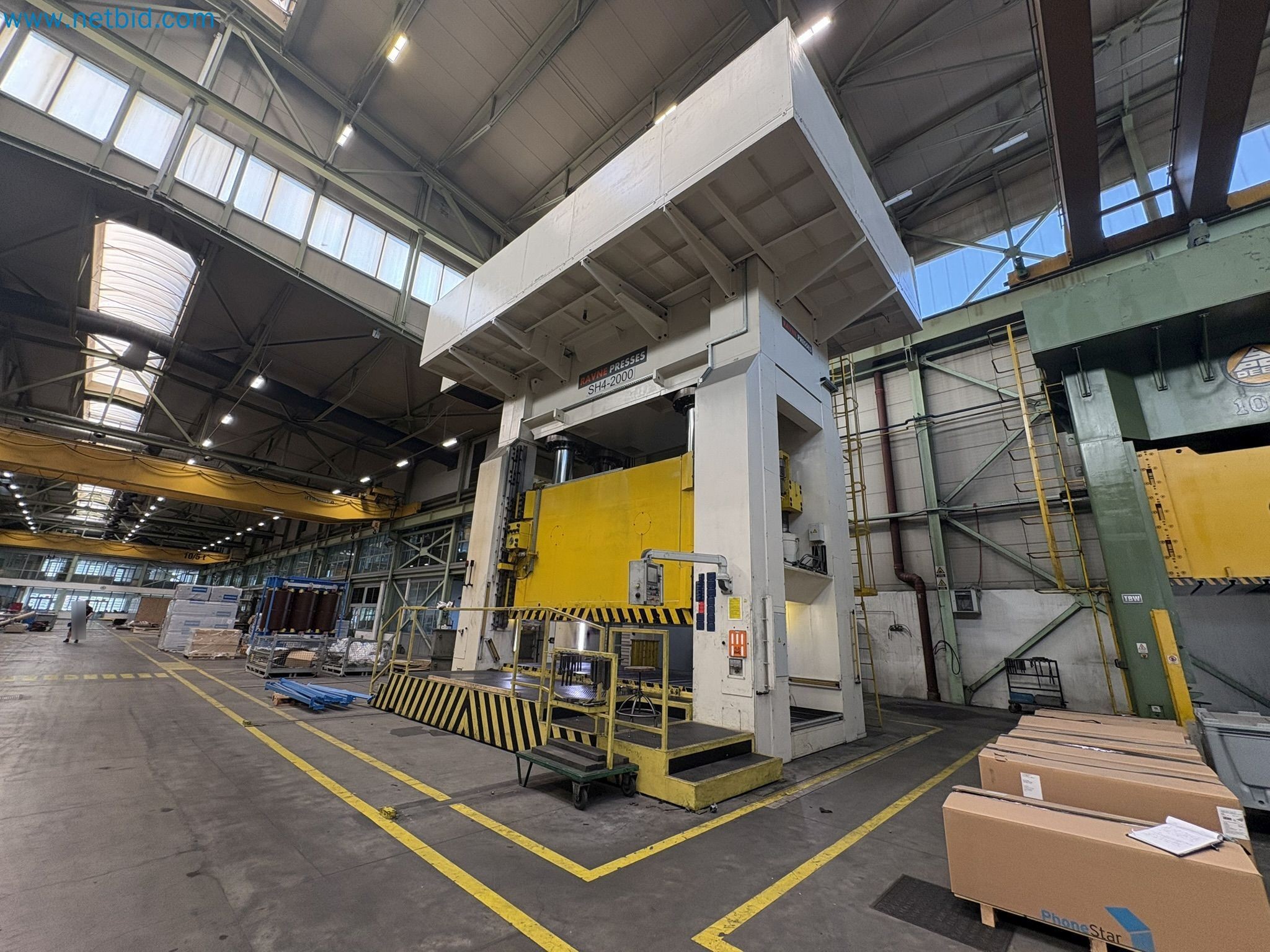

Hydraulic 4-column try-out press Ravne Presses SH4-2000-50-25LIVE#19797-2

Share with

  • High-Performance Hydraulic Try-Out Presses -1
  • High-Performance Hydraulic Try-Out Presses -2
  • High-Performance Hydraulic Try-Out Presses -3

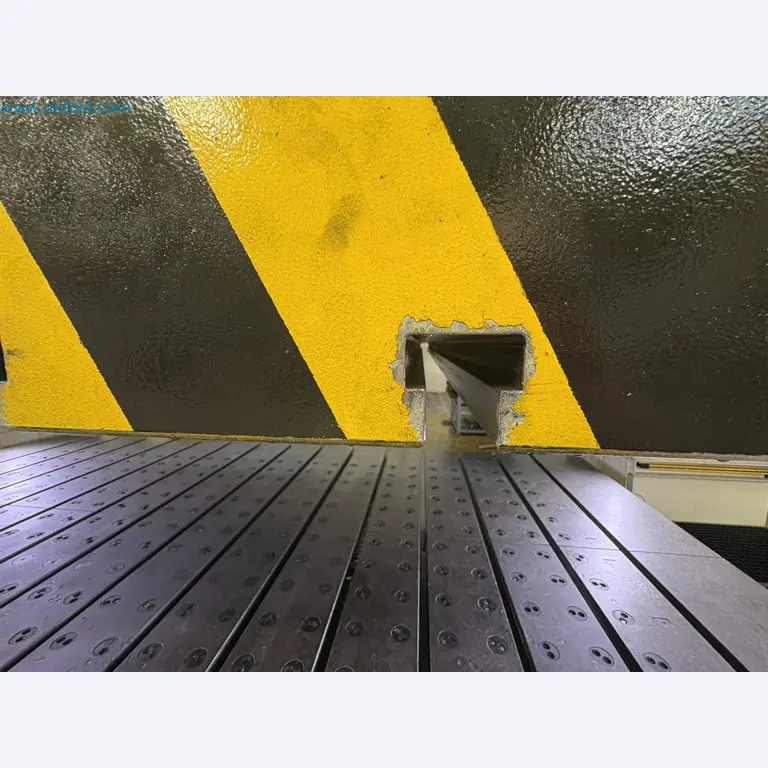

  • High-Performance Hydraulic Try-Out Presses -4

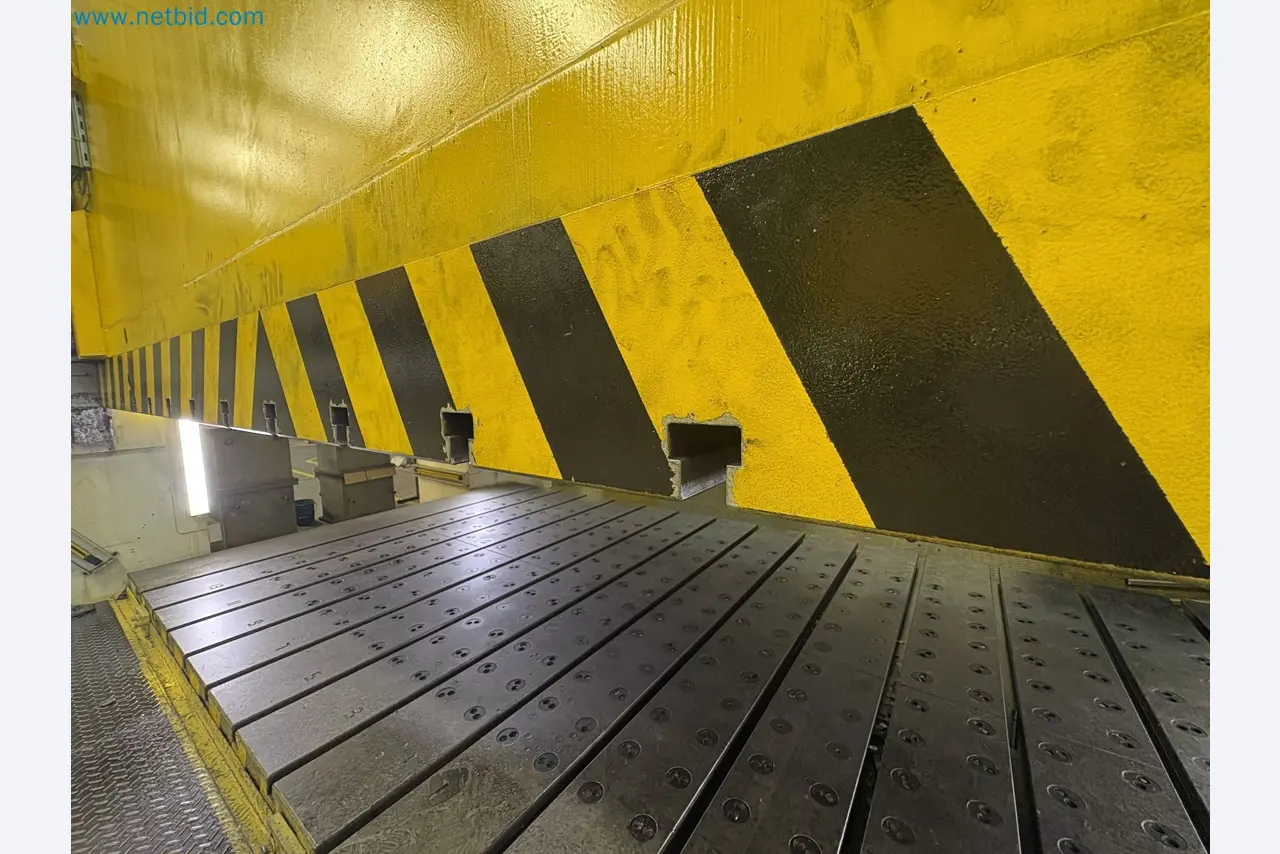

  • High-Performance Hydraulic Try-Out Presses -5
  • High-Performance Hydraulic Try-Out Presses -6
  • High-Performance Hydraulic Try-Out Presses -7

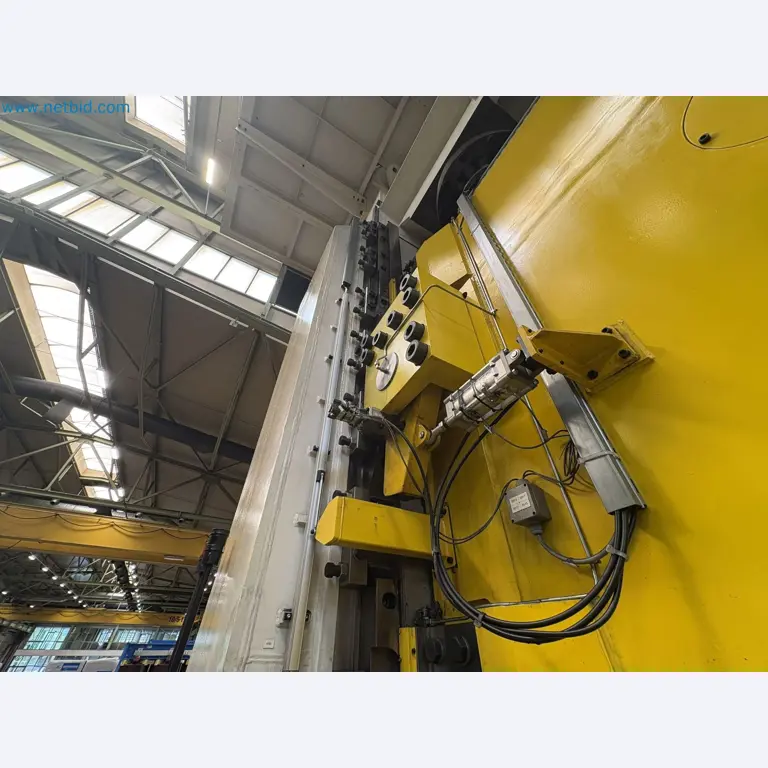

  • High-Performance Hydraulic Try-Out Presses -8

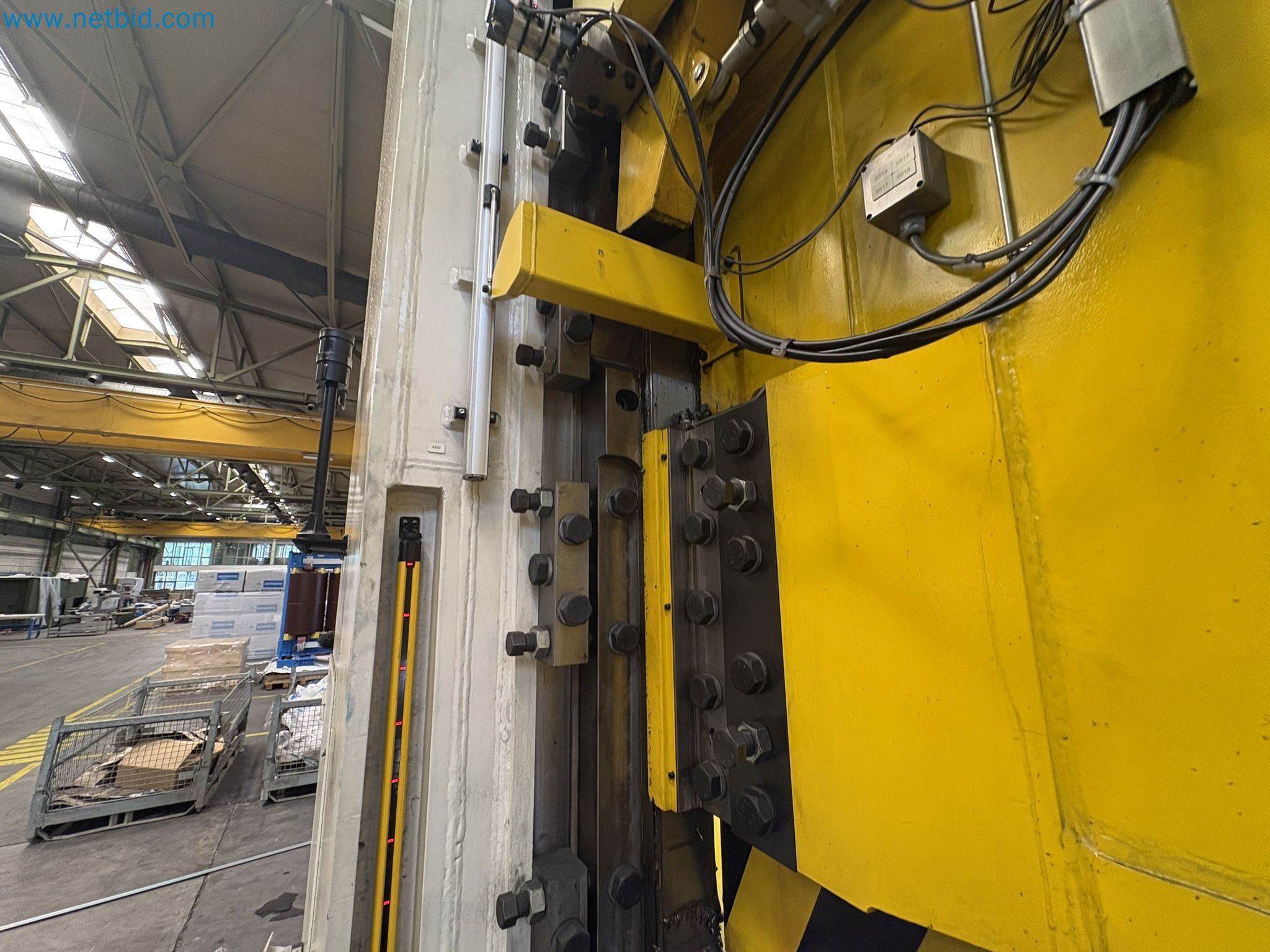

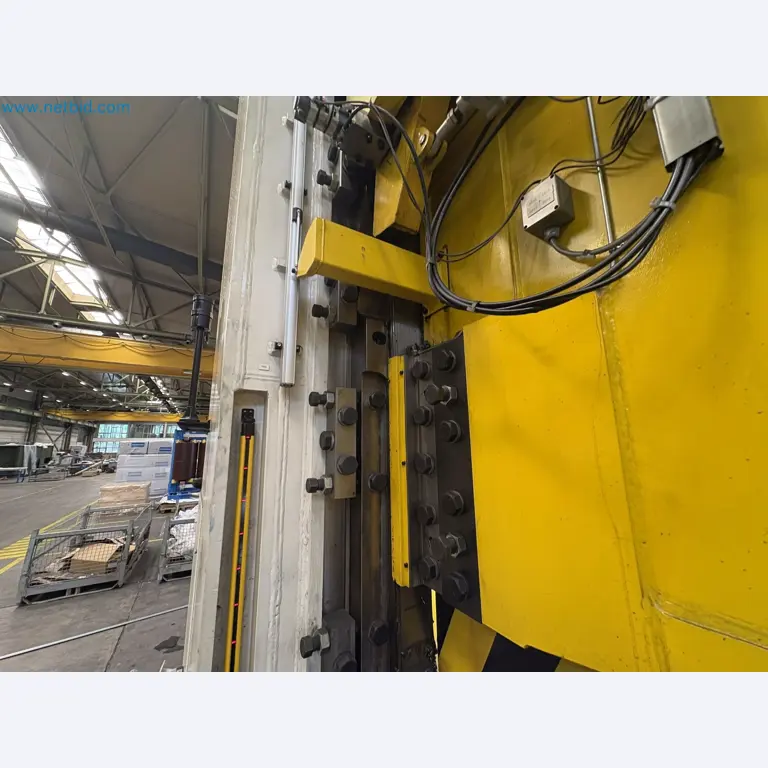

  • High-Performance Hydraulic Try-Out Presses -9

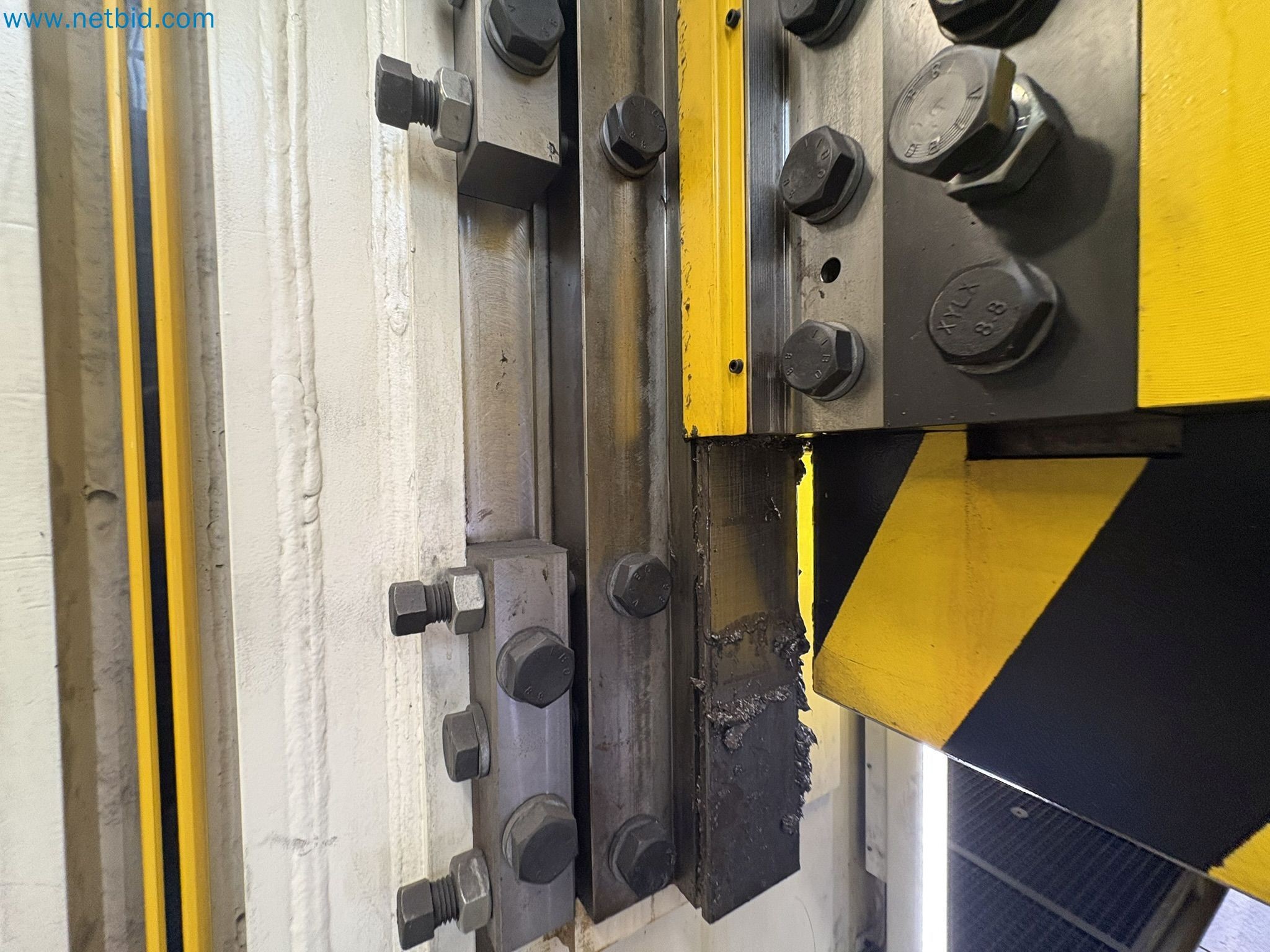

  • High-Performance Hydraulic Try-Out Presses -10
  • High-Performance Hydraulic Try-Out Presses -11
  • High-Performance Hydraulic Try-Out Presses -12
  • High-Performance Hydraulic Try-Out Presses -13
  • High-Performance Hydraulic Try-Out Presses -14
  • High-Performance Hydraulic Try-Out Presses -15

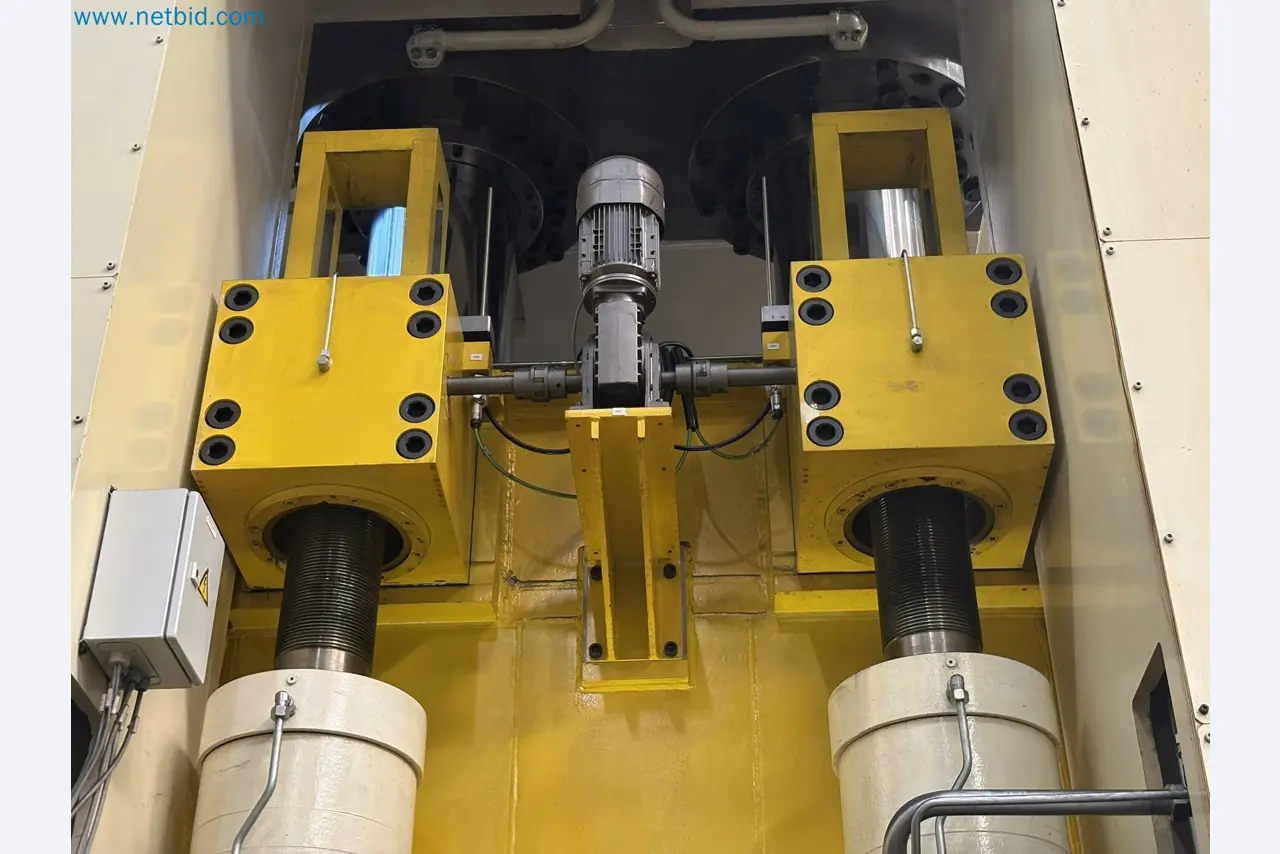

  • High-Performance Hydraulic Try-Out Presses -16

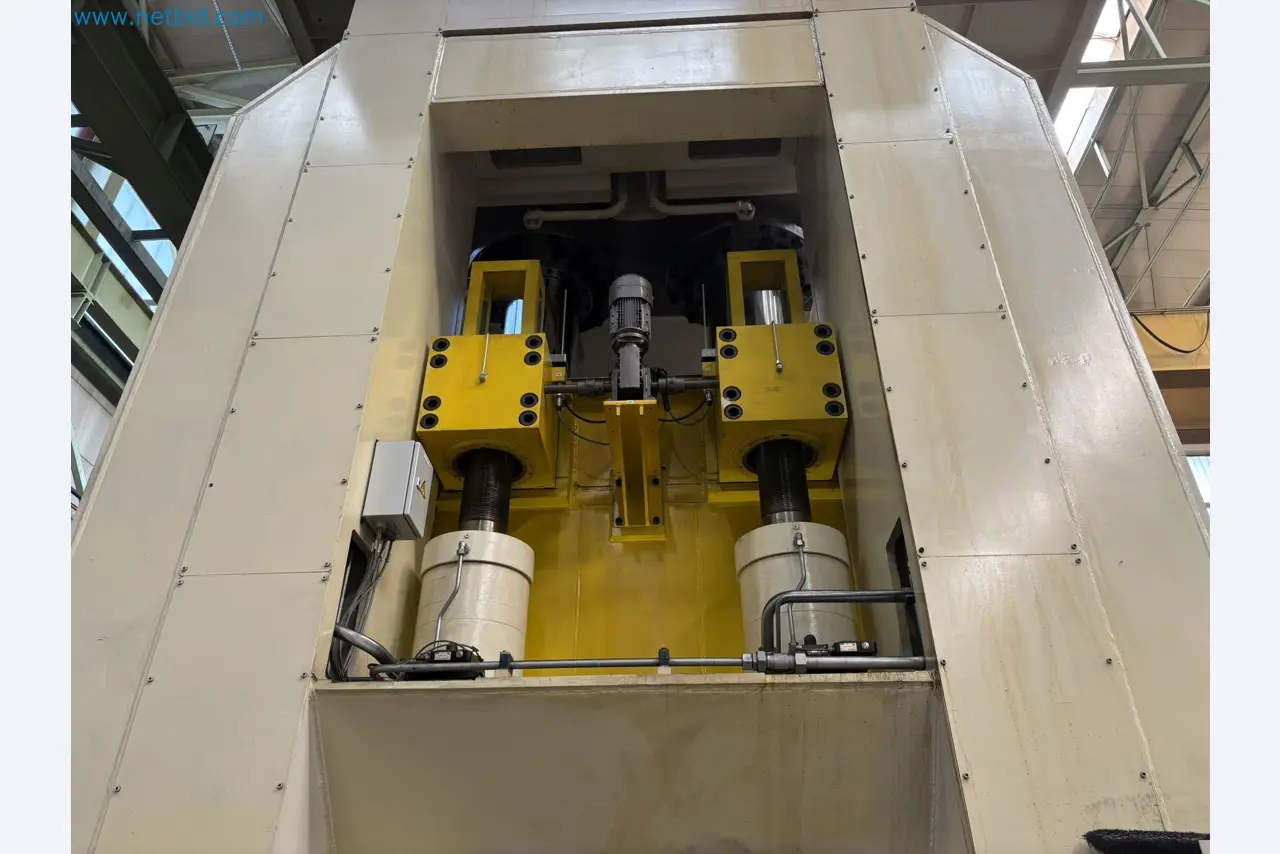

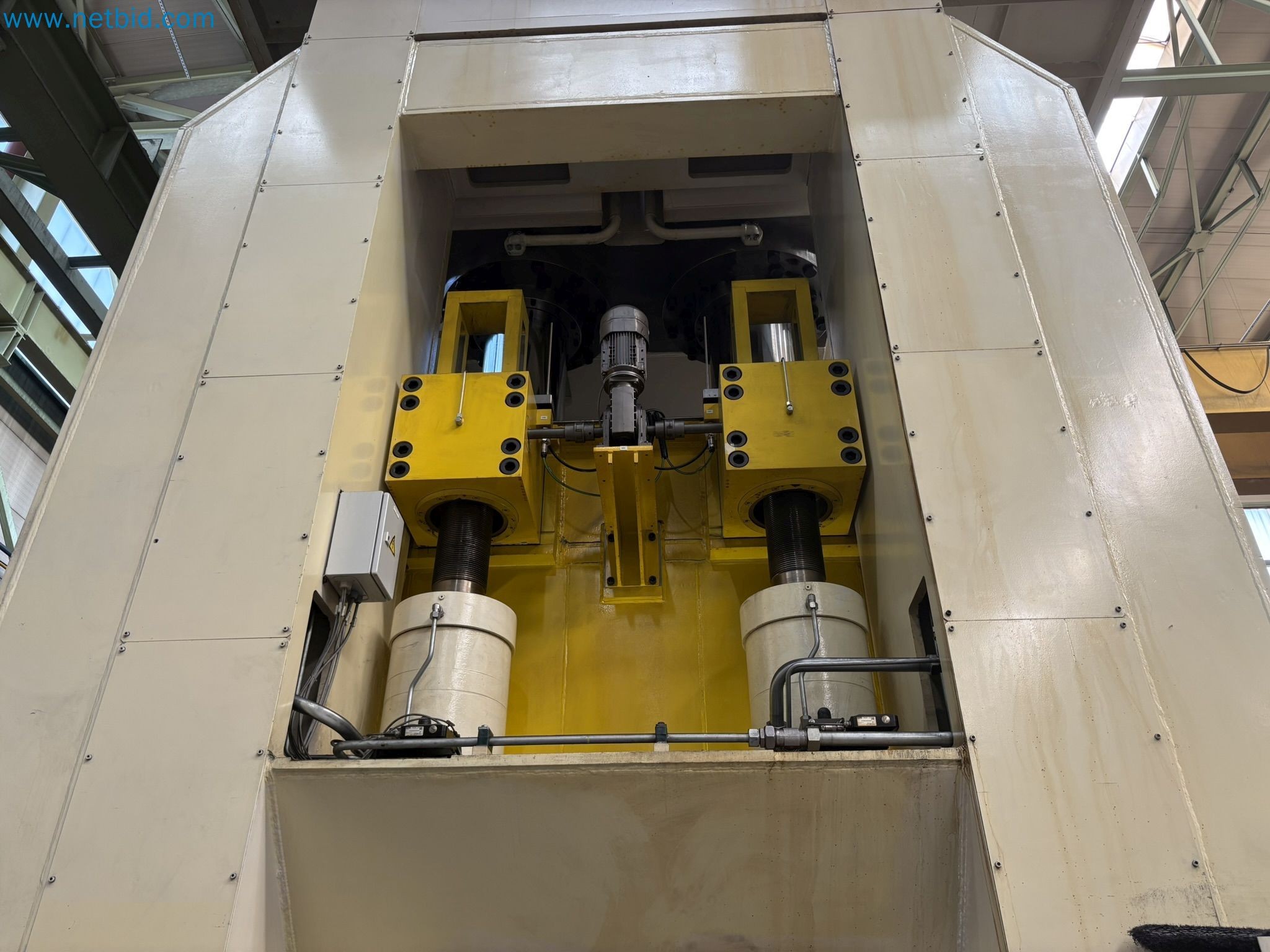

  • High-Performance Hydraulic Try-Out Presses -17
  • High-Performance Hydraulic Try-Out Presses -18

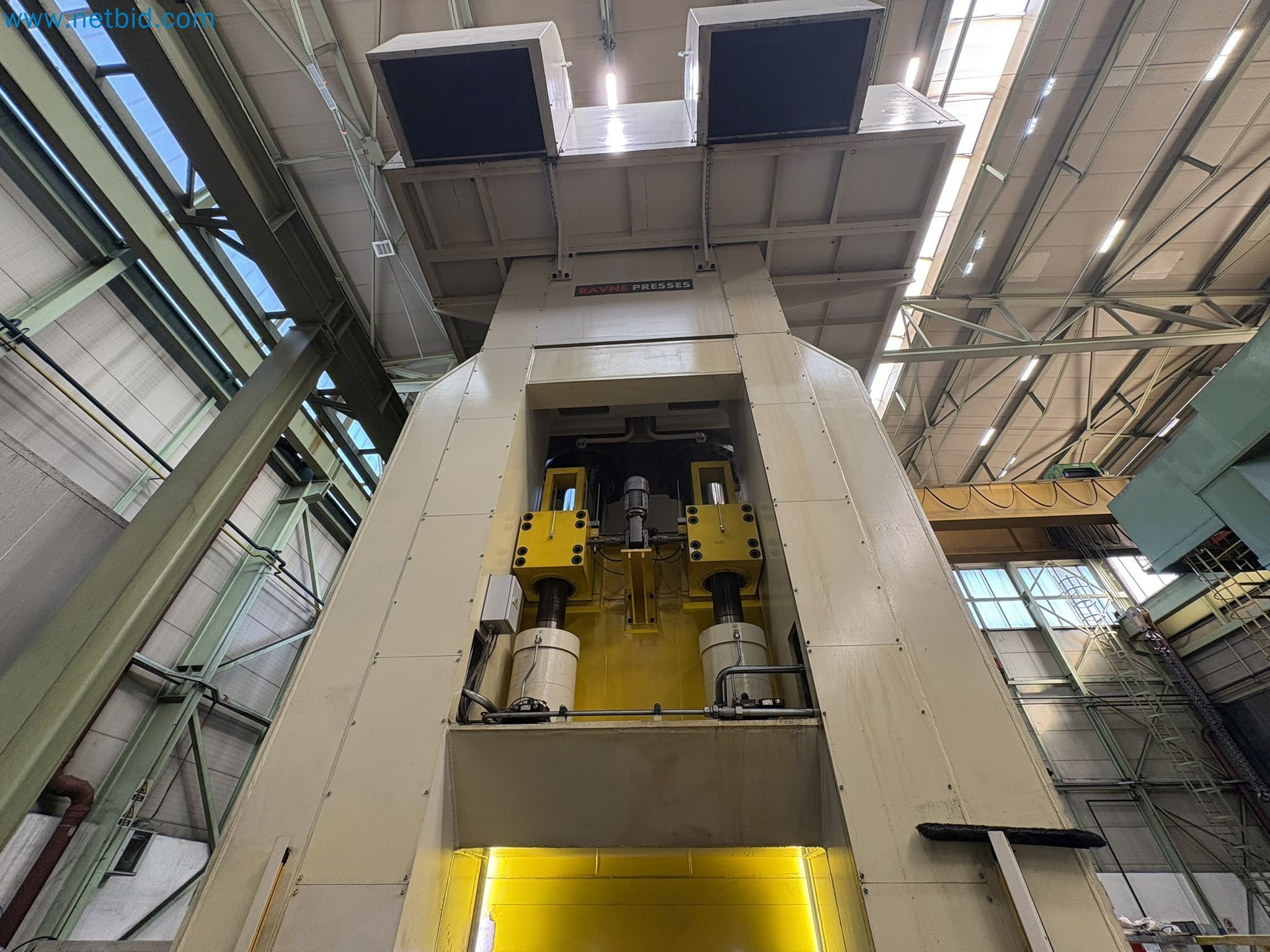

  • High-Performance Hydraulic Try-Out Presses -19
  • High-Performance Hydraulic Try-Out Presses -20

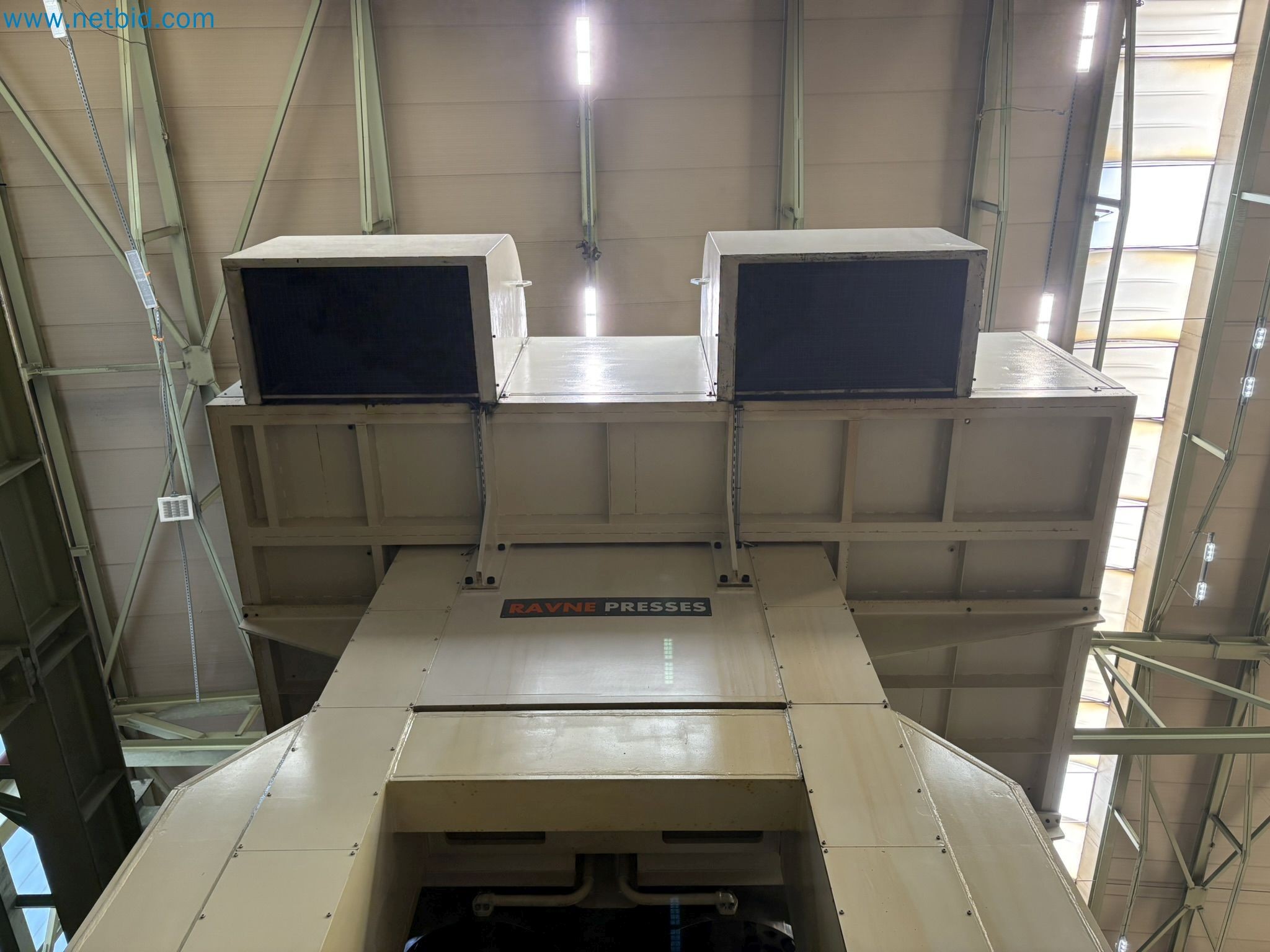

  • High-Performance Hydraulic Try-Out Presses -21
  • High-Performance Hydraulic Try-Out Presses -22
  • High-Performance Hydraulic Try-Out Presses -23
  • High-Performance Hydraulic Try-Out Presses -24
  • High-Performance Hydraulic Try-Out Presses -25
  • High-Performance Hydraulic Try-Out Presses -26
  • High-Performance Hydraulic Try-Out Presses -27
  • High-Performance Hydraulic Try-Out Presses -28
  • High-Performance Hydraulic Try-Out Presses -29
  • High-Performance Hydraulic Try-Out Presses -30
  • High-Performance Hydraulic Try-Out Presses -31

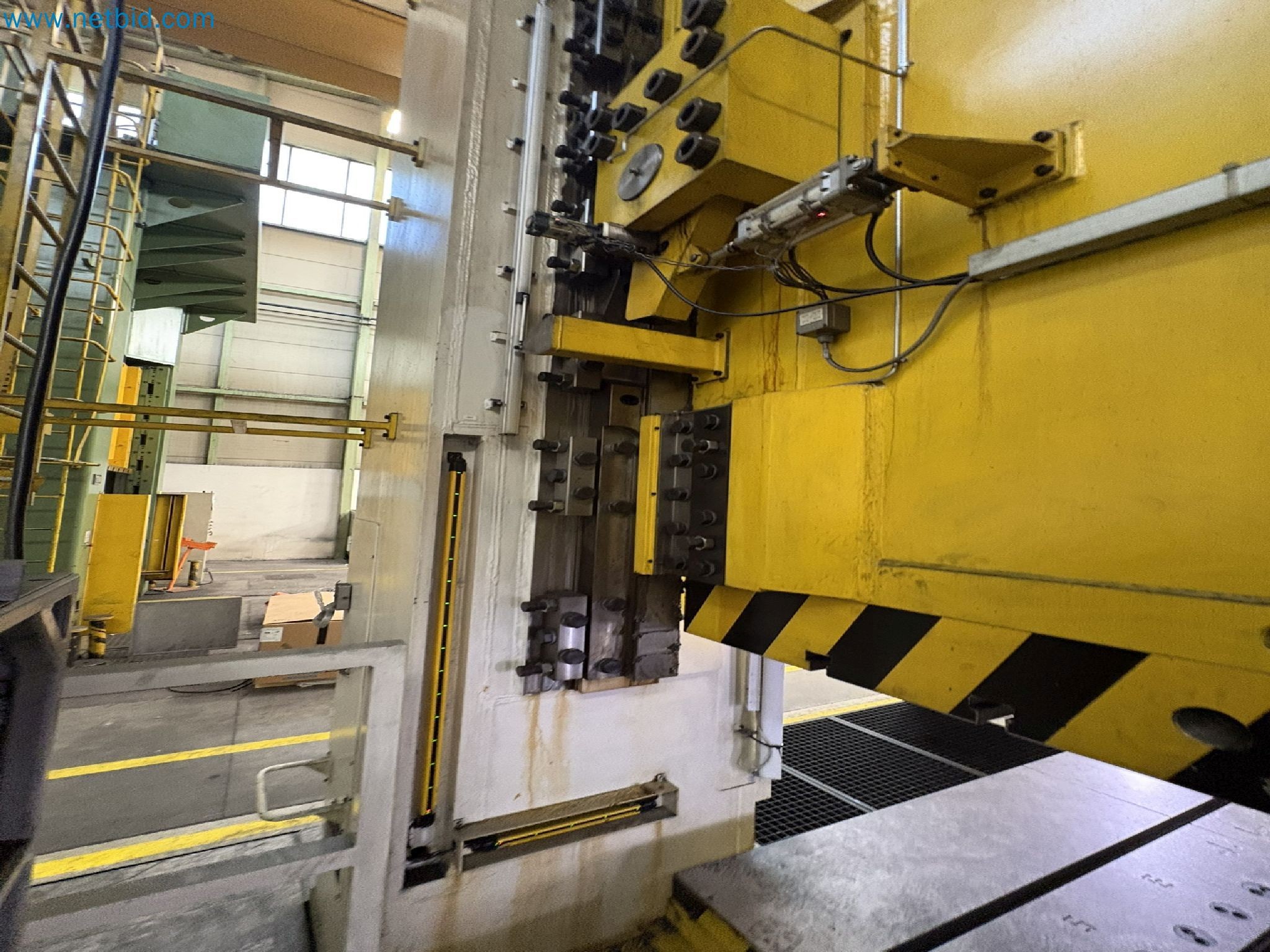

  • High-Performance Hydraulic Try-Out Presses -32
  • High-Performance Hydraulic Try-Out Presses -33
  • High-Performance Hydraulic Try-Out Presses -34
  • High-Performance Hydraulic Try-Out Presses -35

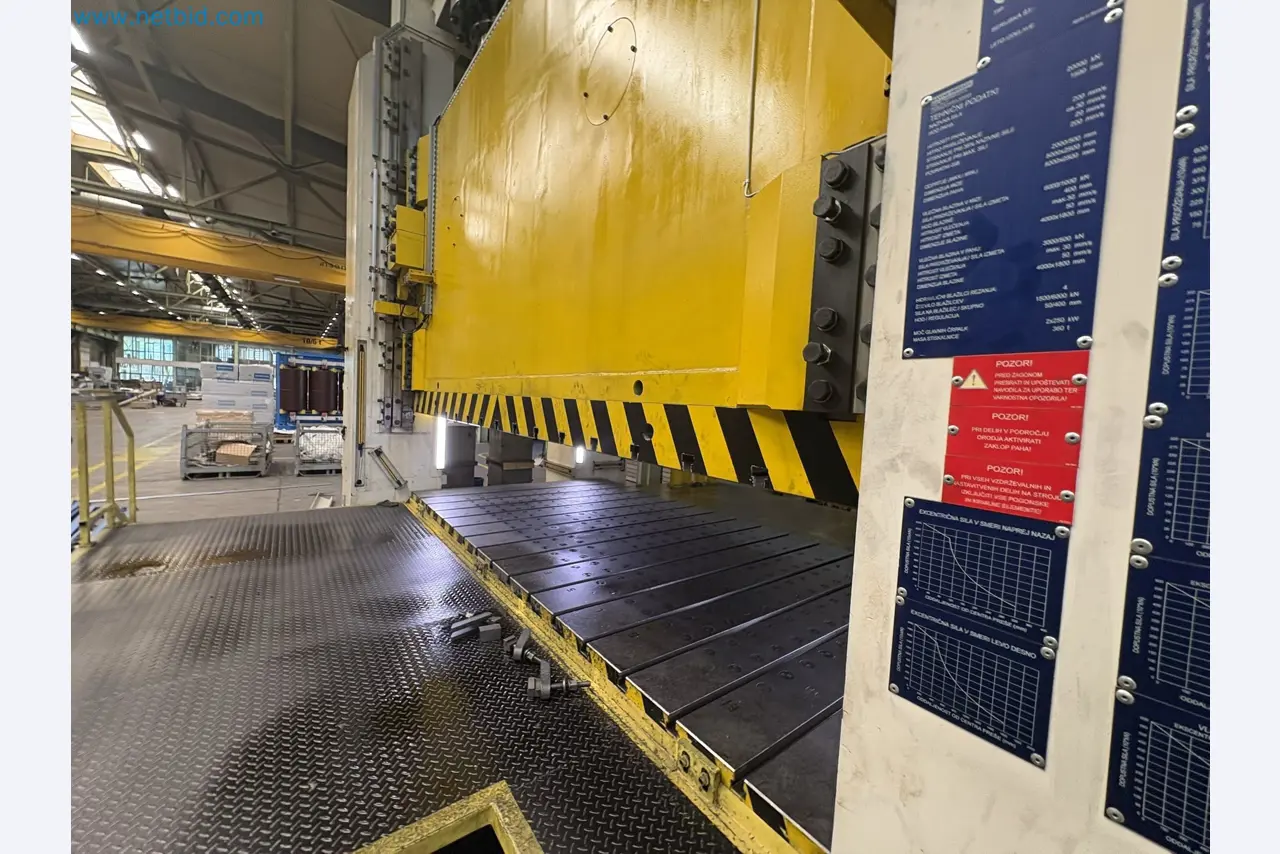

  • High-Performance Hydraulic Try-Out Presses -36

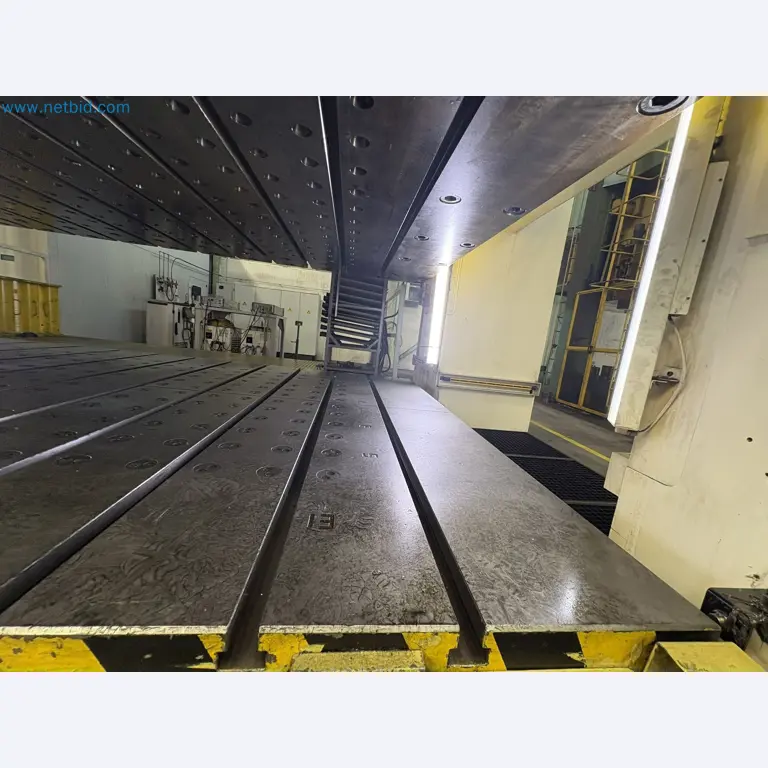

  • High-Performance Hydraulic Try-Out Presses -37

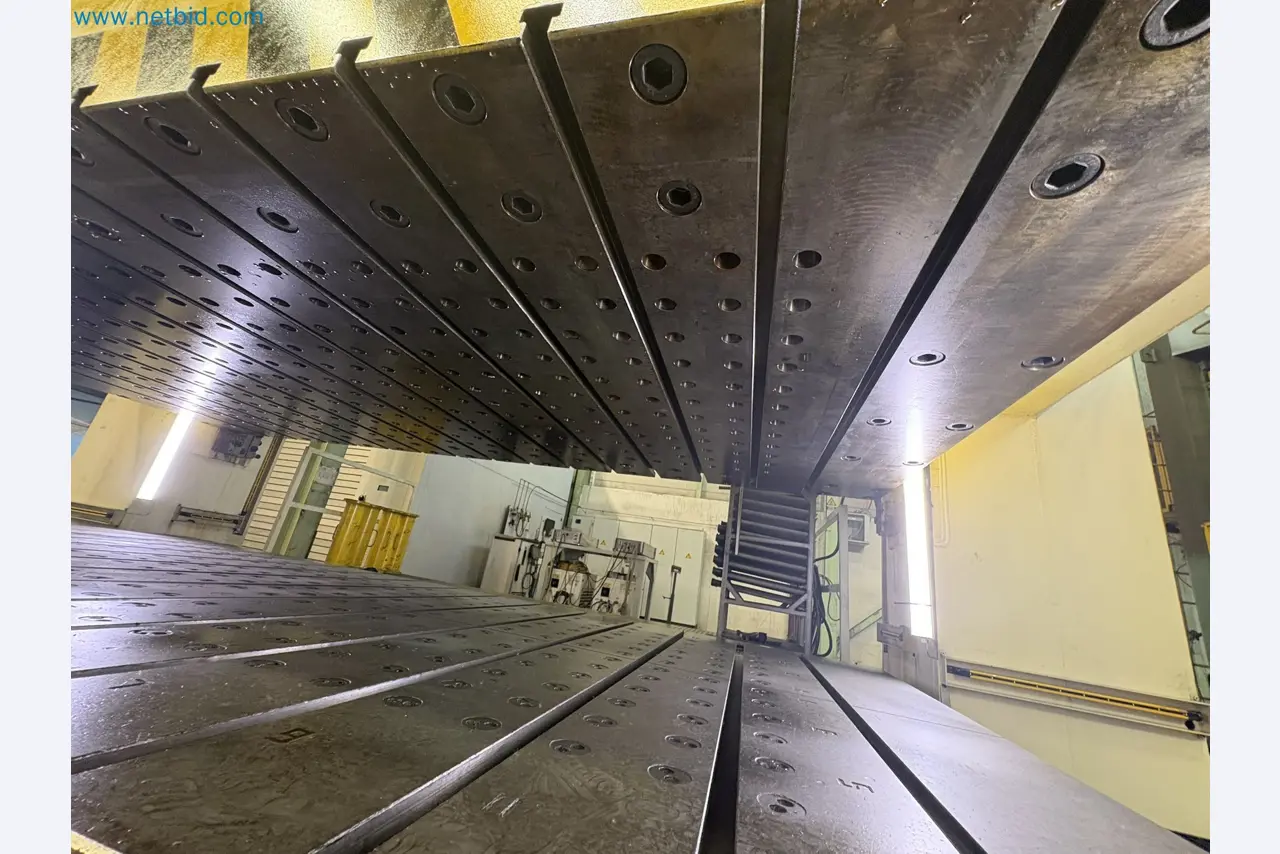

  • High-Performance Hydraulic Try-Out Presses -38
  • High-Performance Hydraulic Try-Out Presses -39

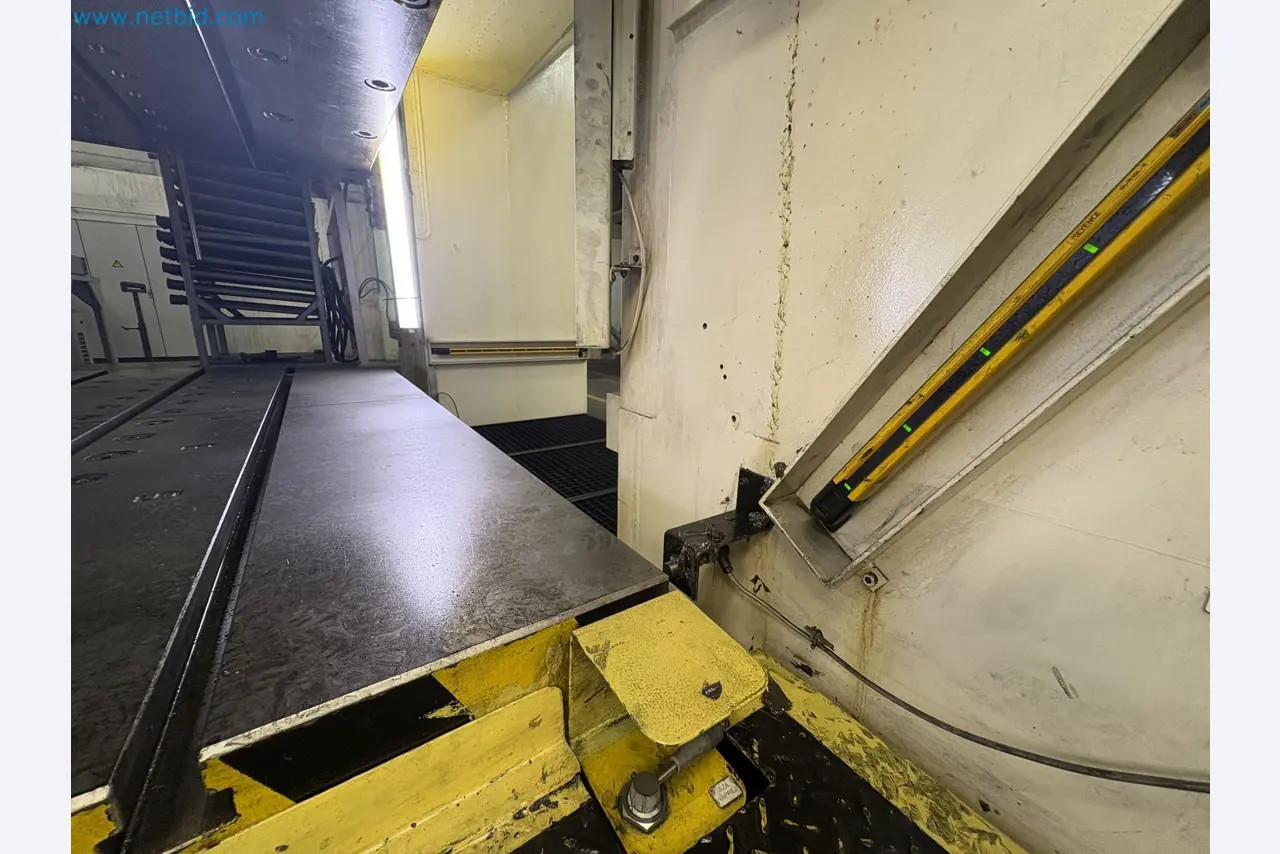

  • High-Performance Hydraulic Try-Out Presses -40
  • High-Performance Hydraulic Try-Out Presses -41
  • High-Performance Hydraulic Try-Out Presses -42
  • High-Performance Hydraulic Try-Out Presses -43
  • High-Performance Hydraulic Try-Out Presses -44
  • High-Performance Hydraulic Try-Out Presses -45

Details

Product Type

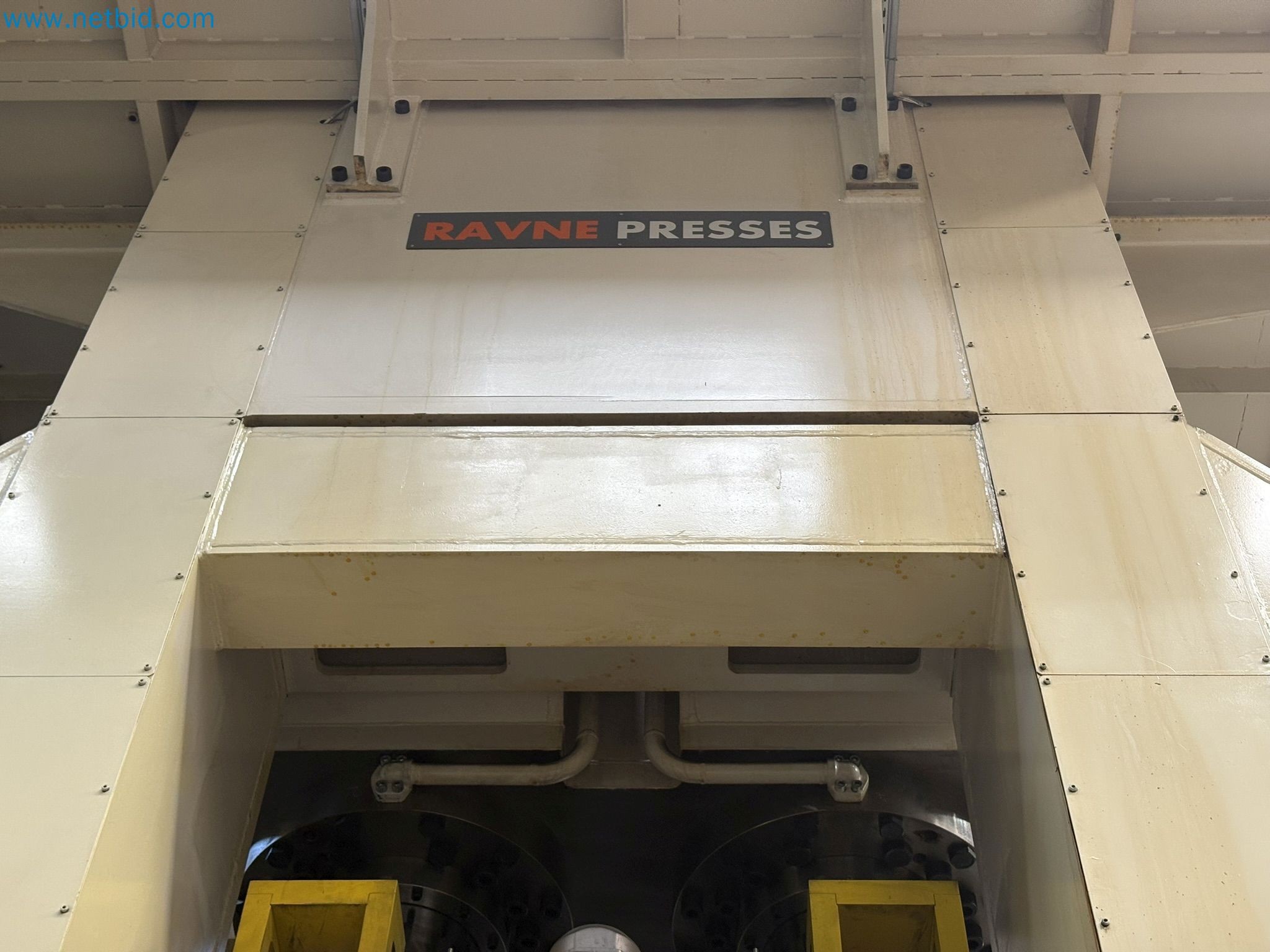

Ravne Presses

Type

SH4-2000-50-25

Construction Year

2018

Description

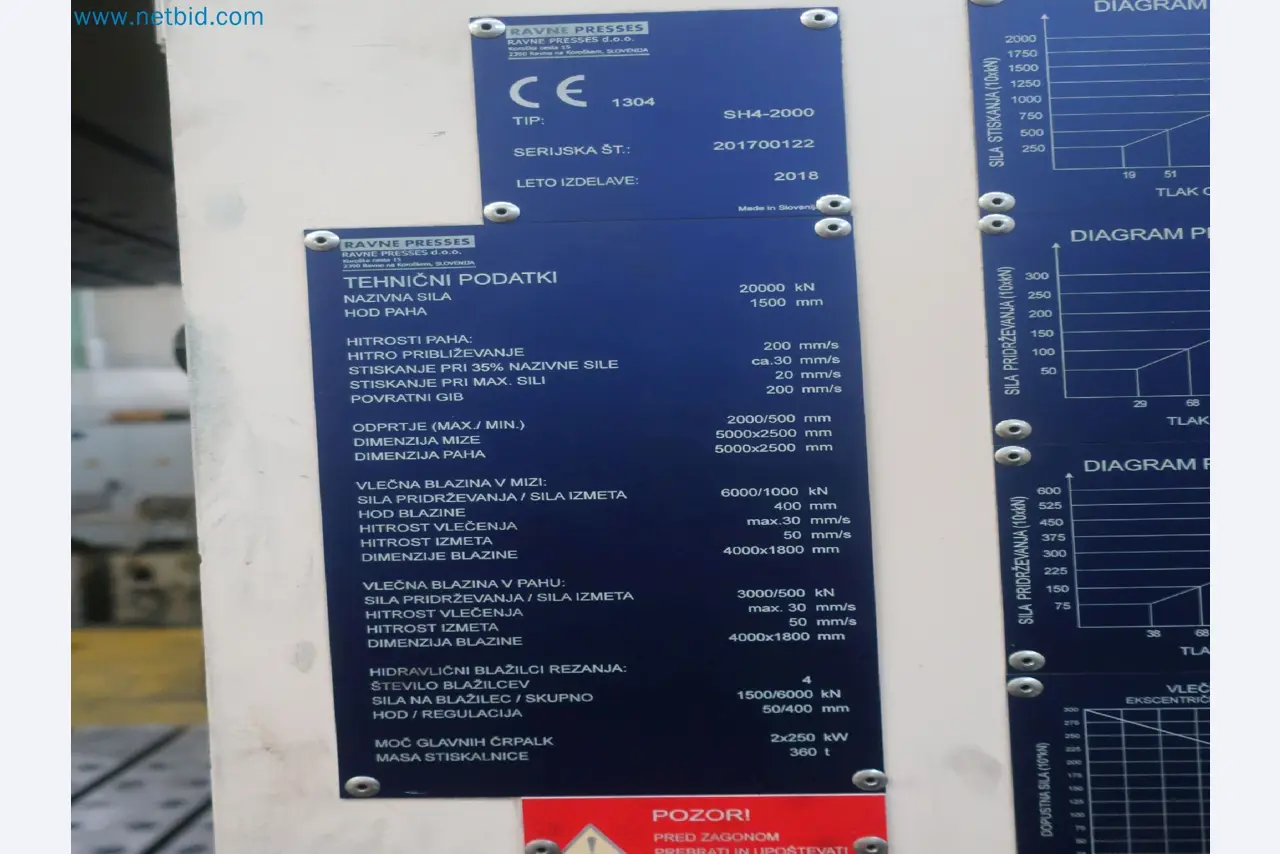

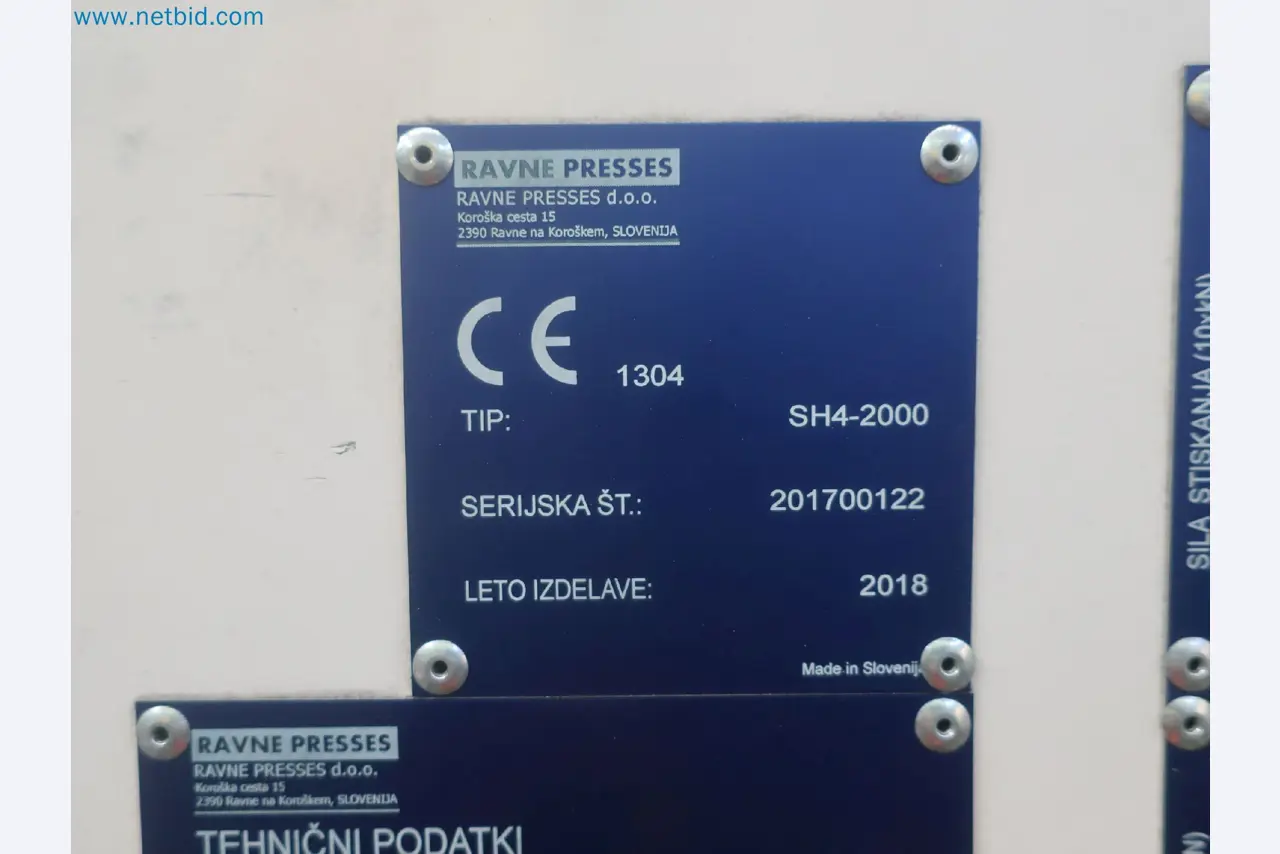

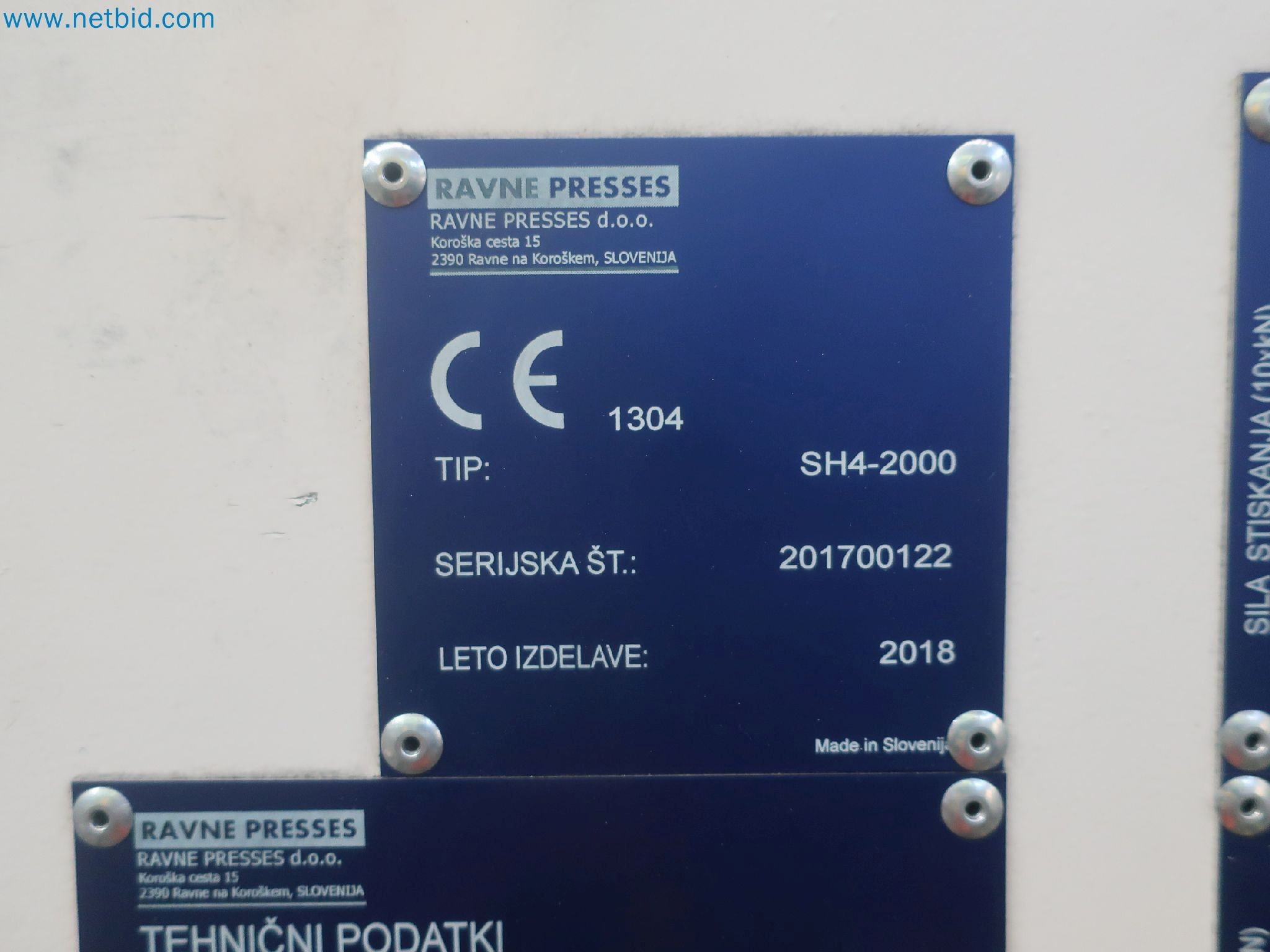

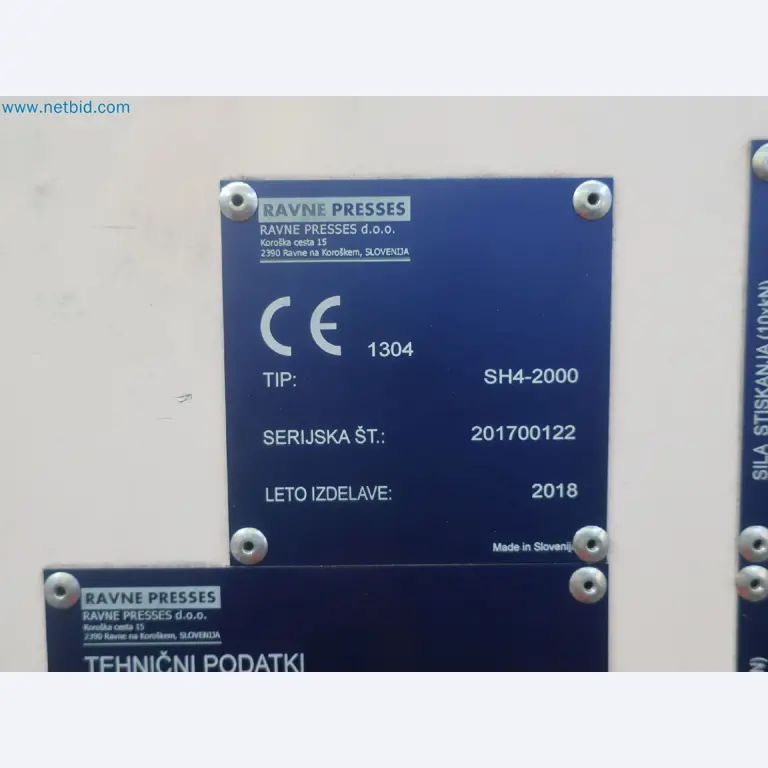

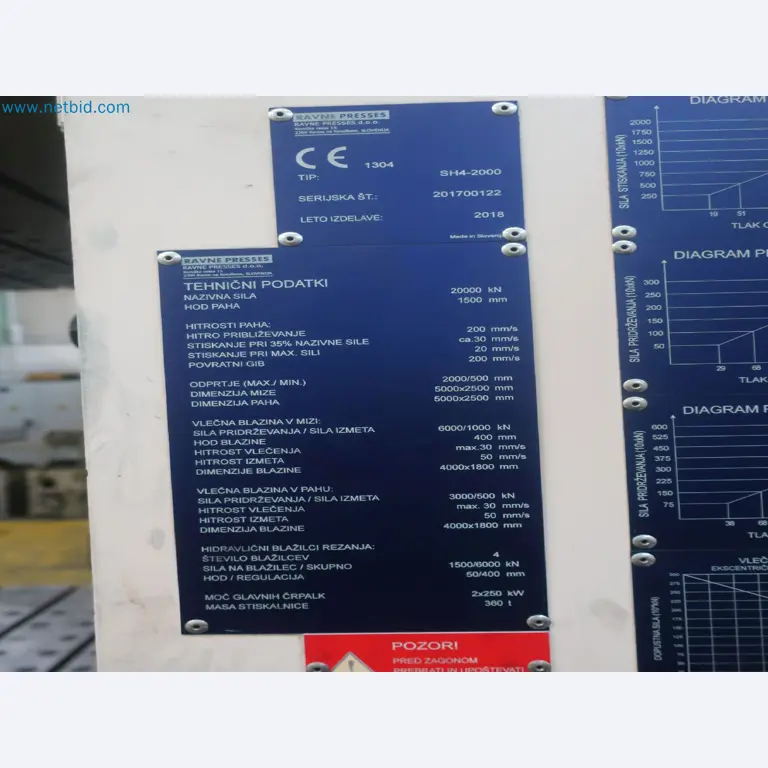

SN: 201700122

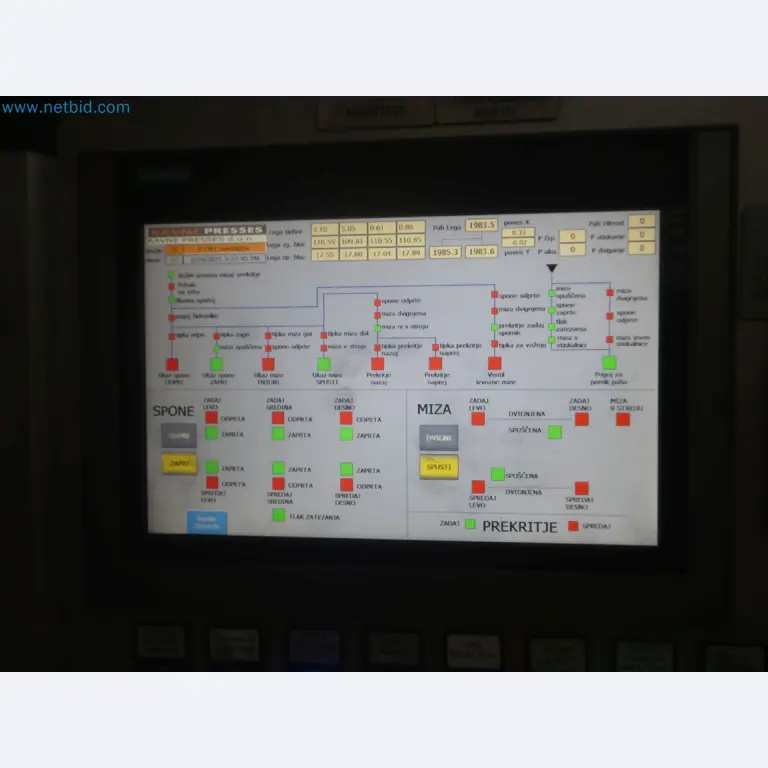

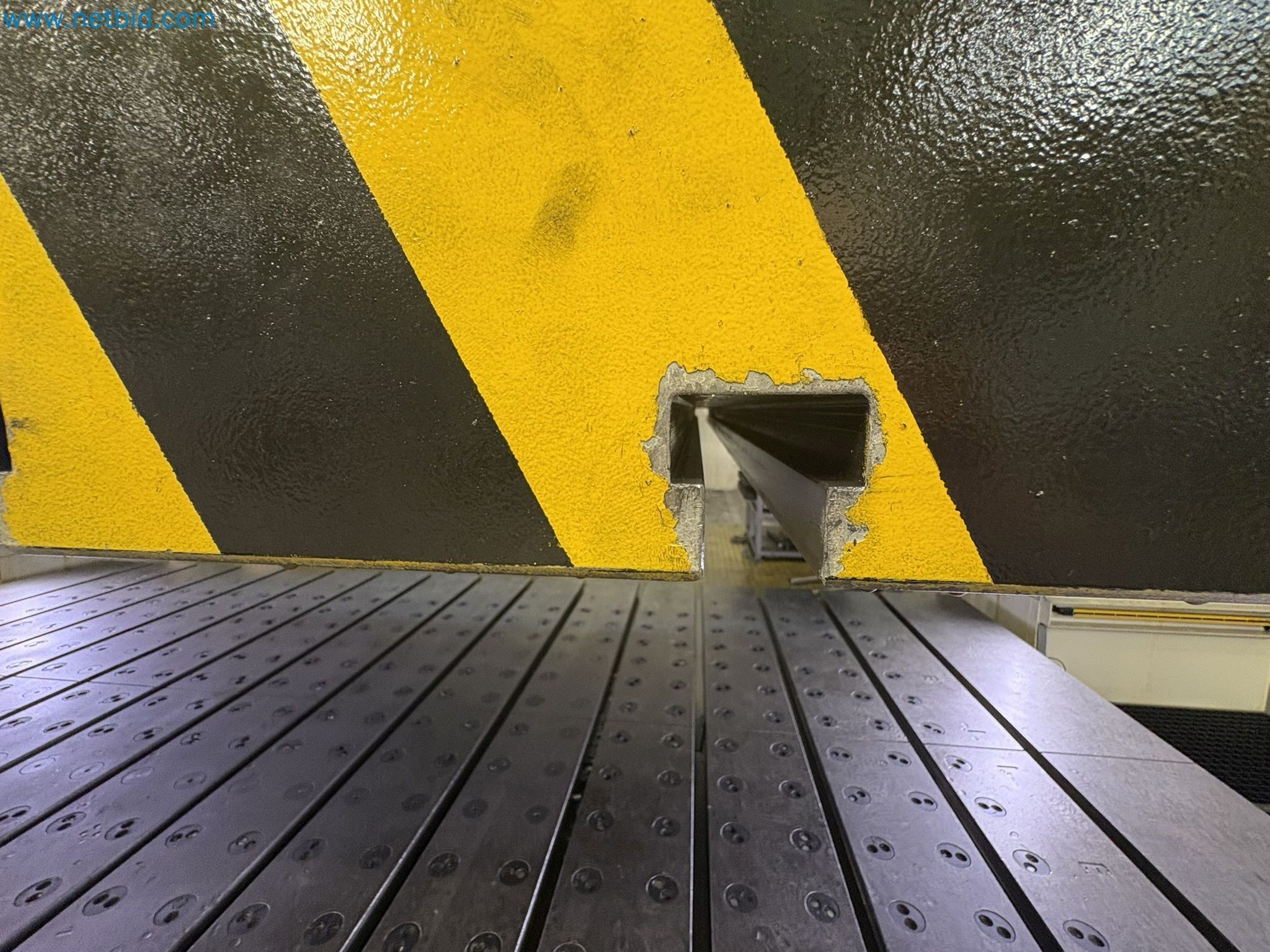

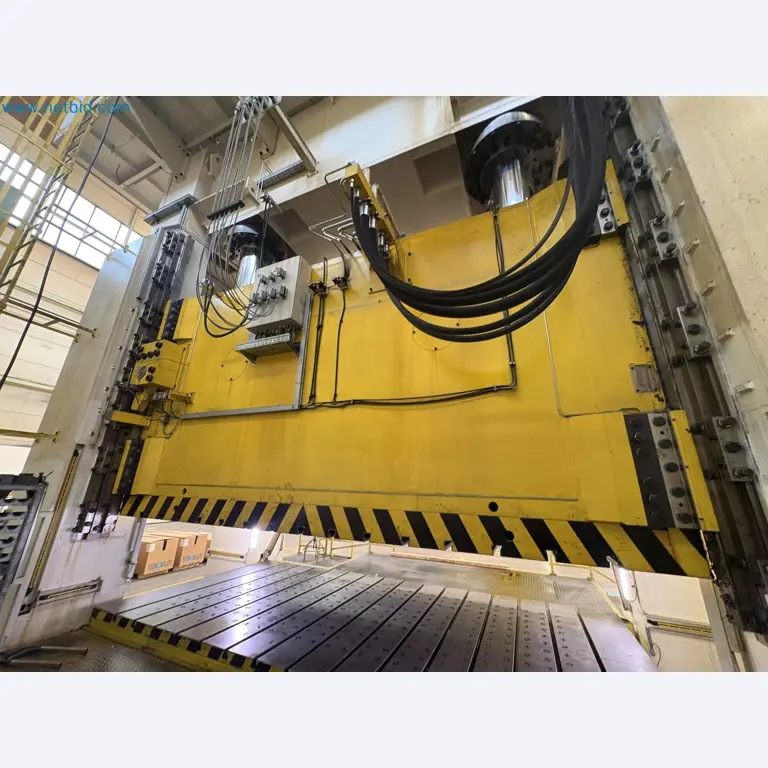

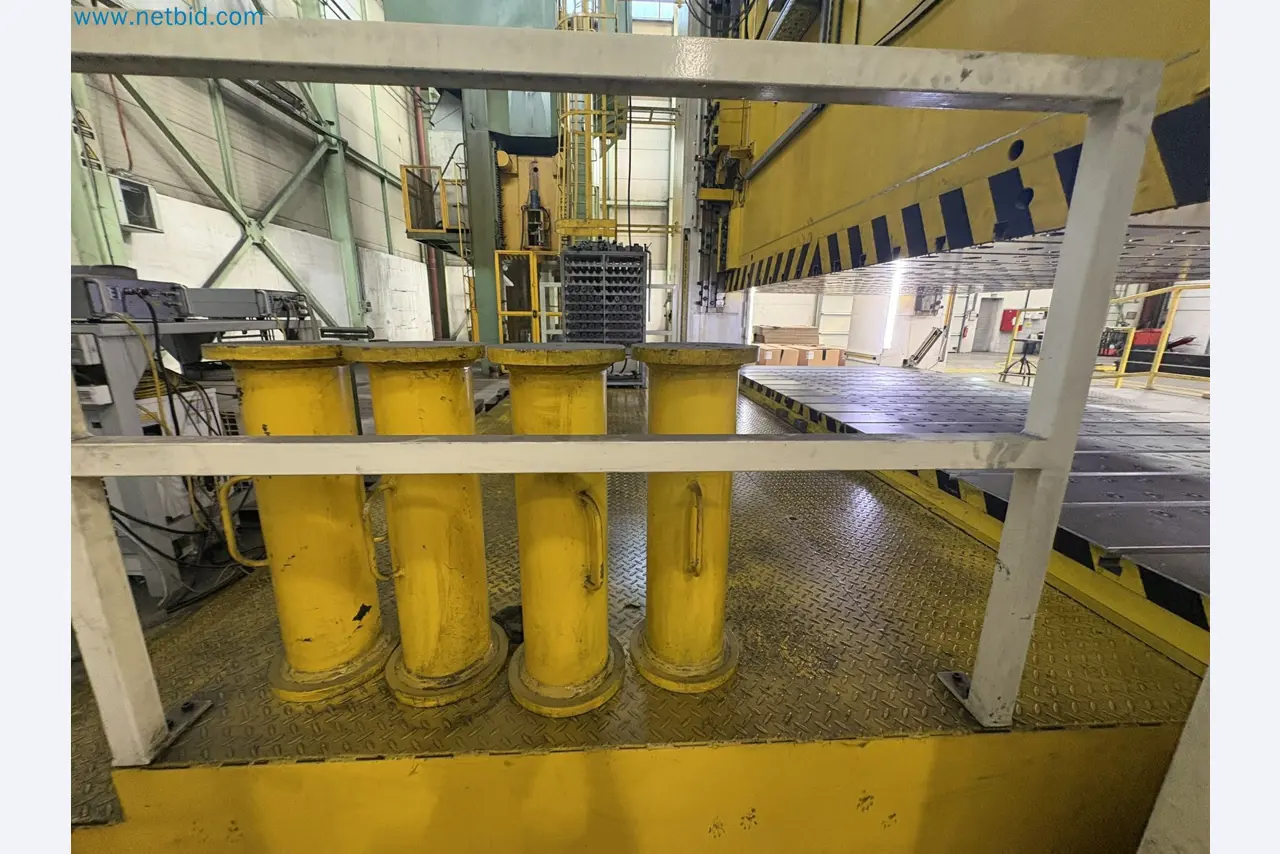

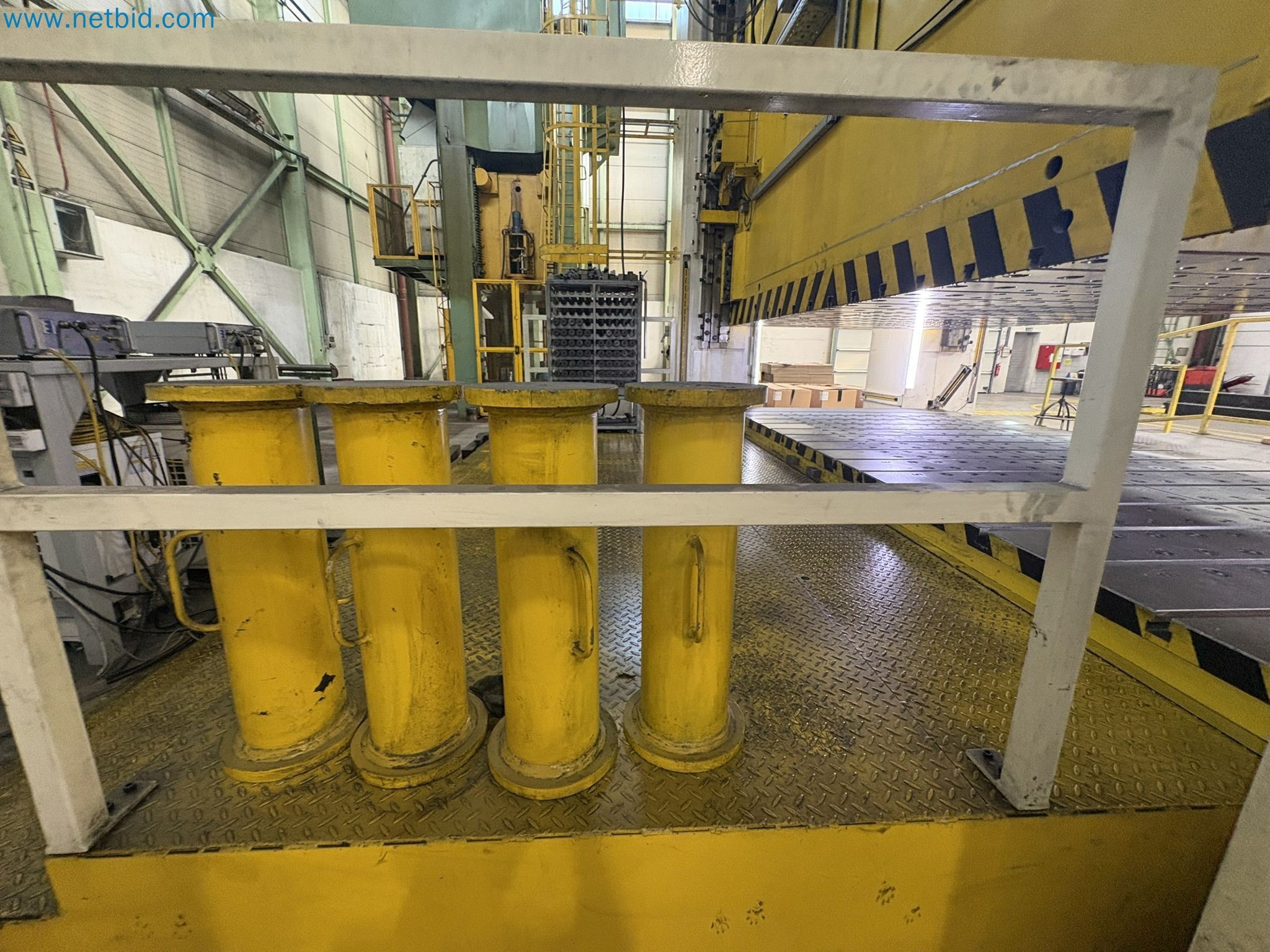

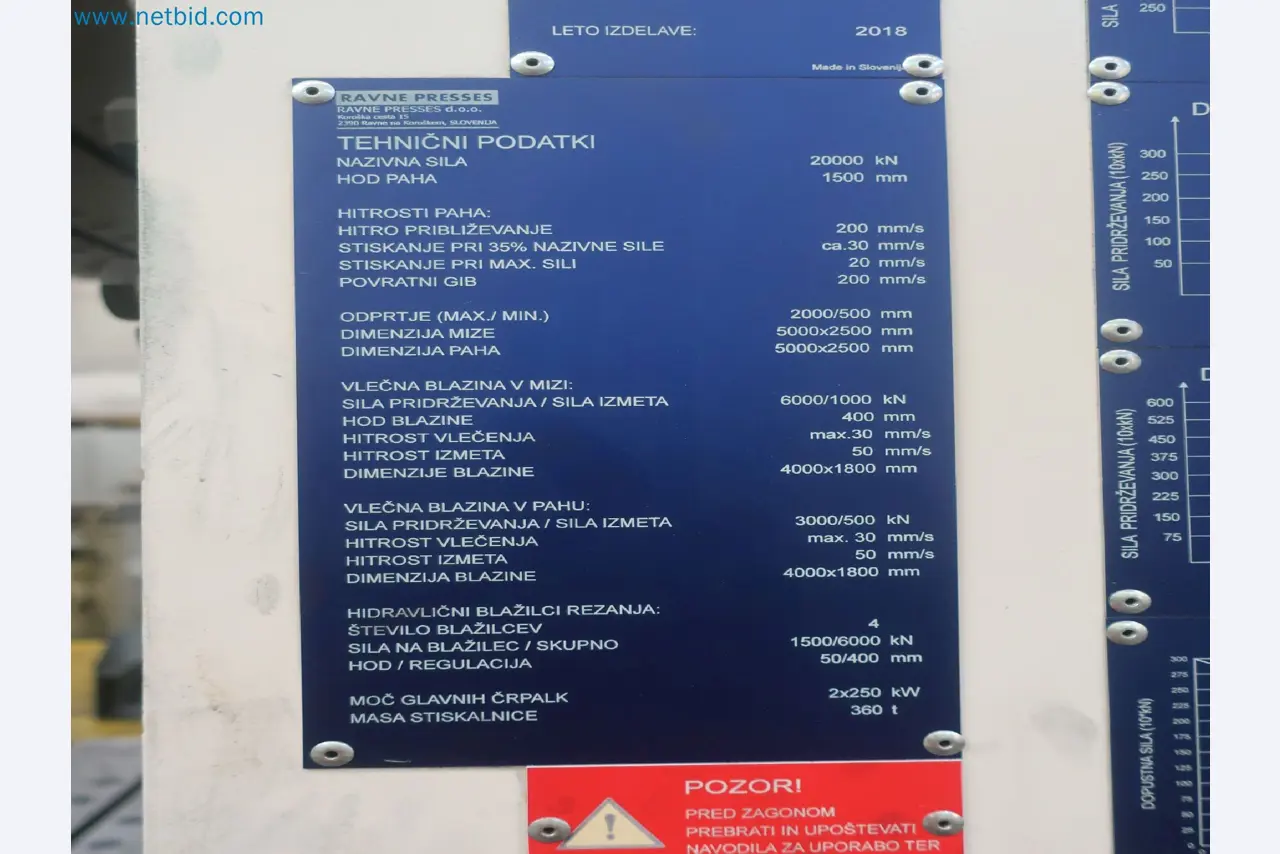

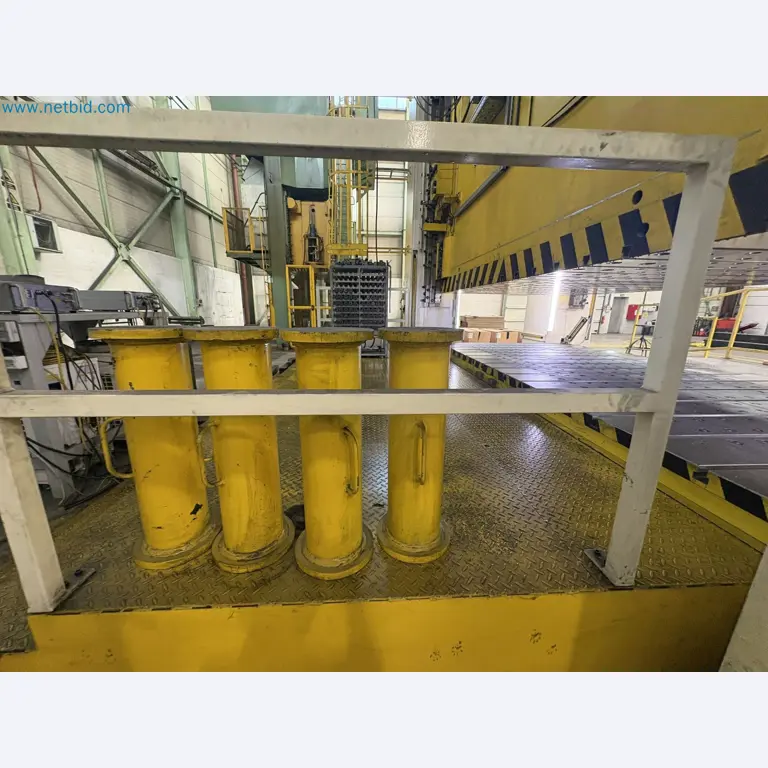

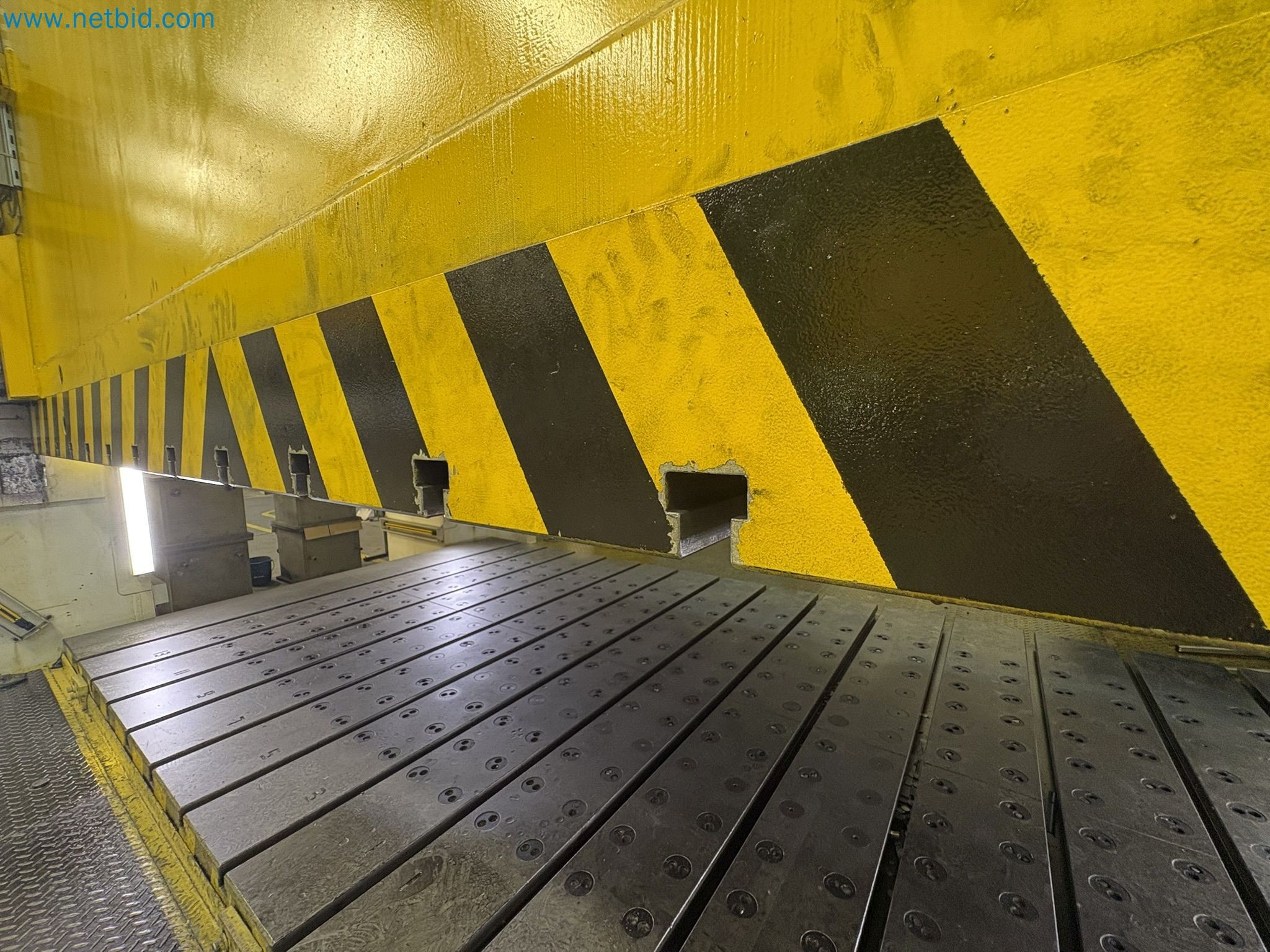

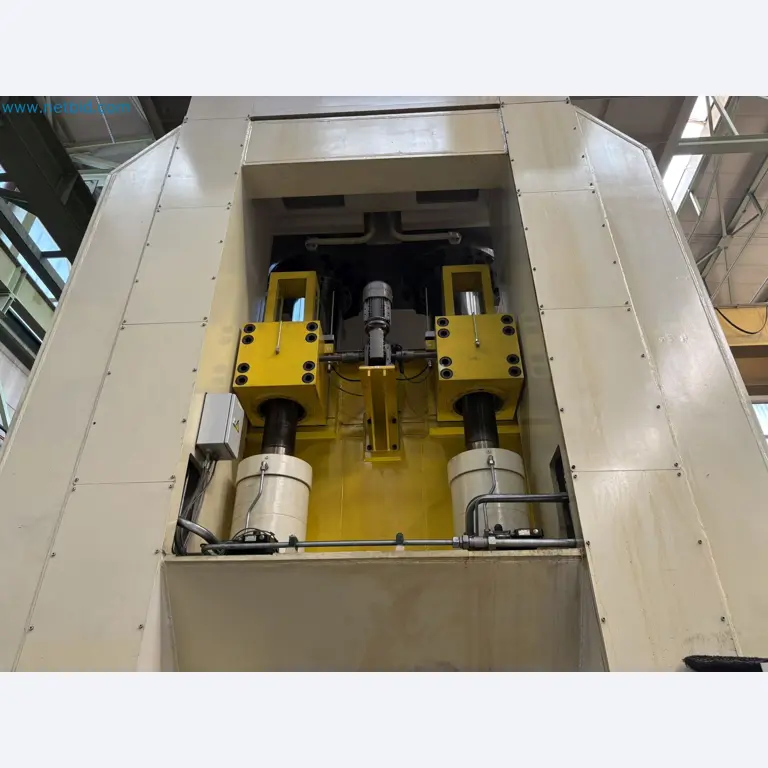

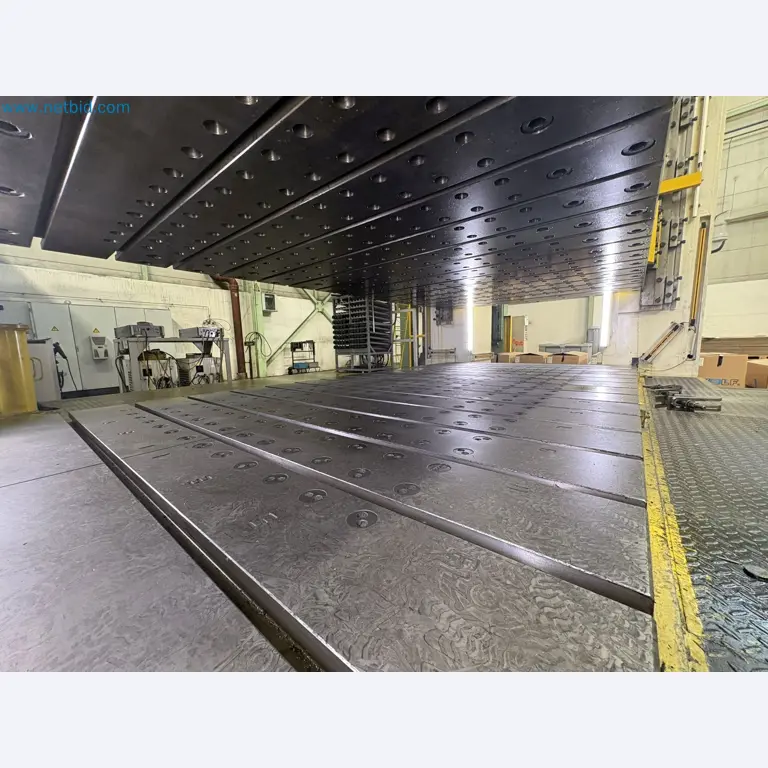

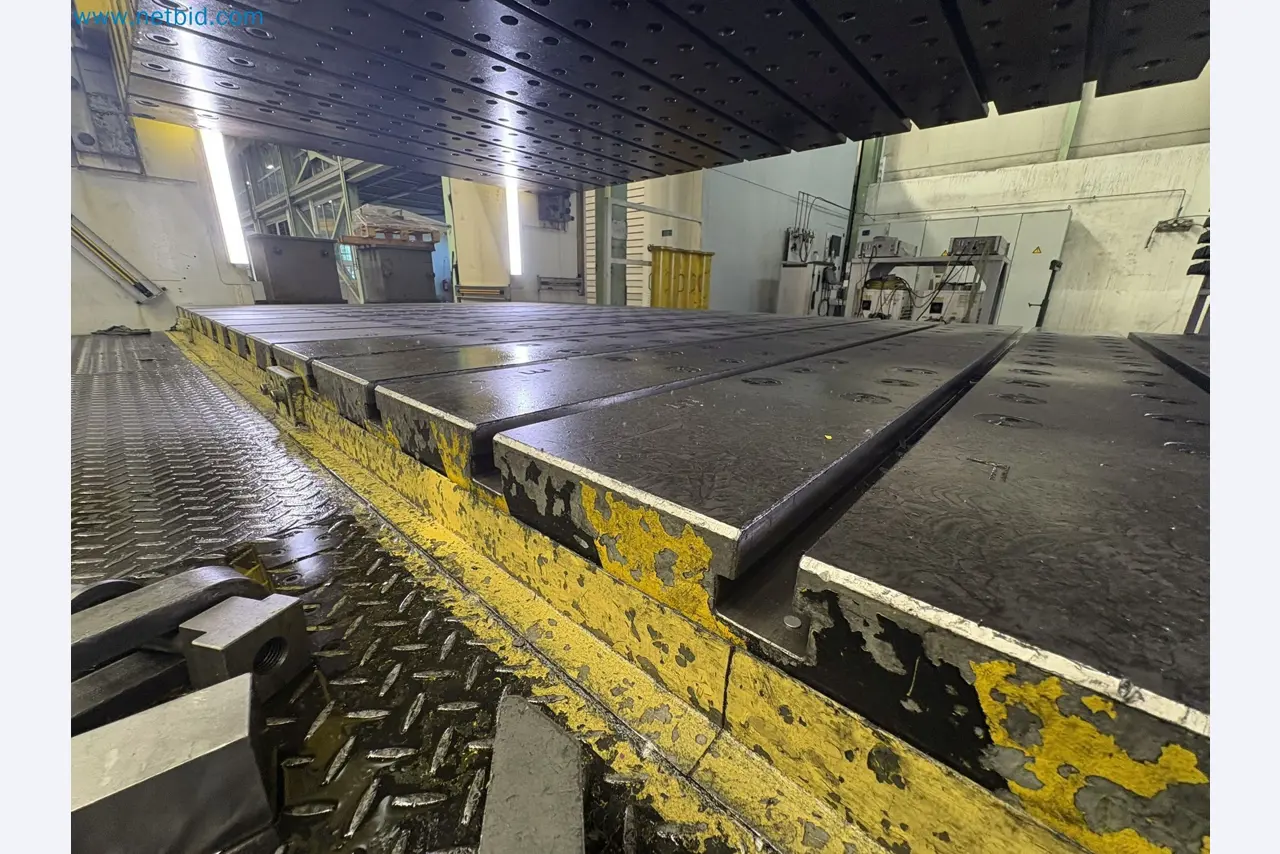

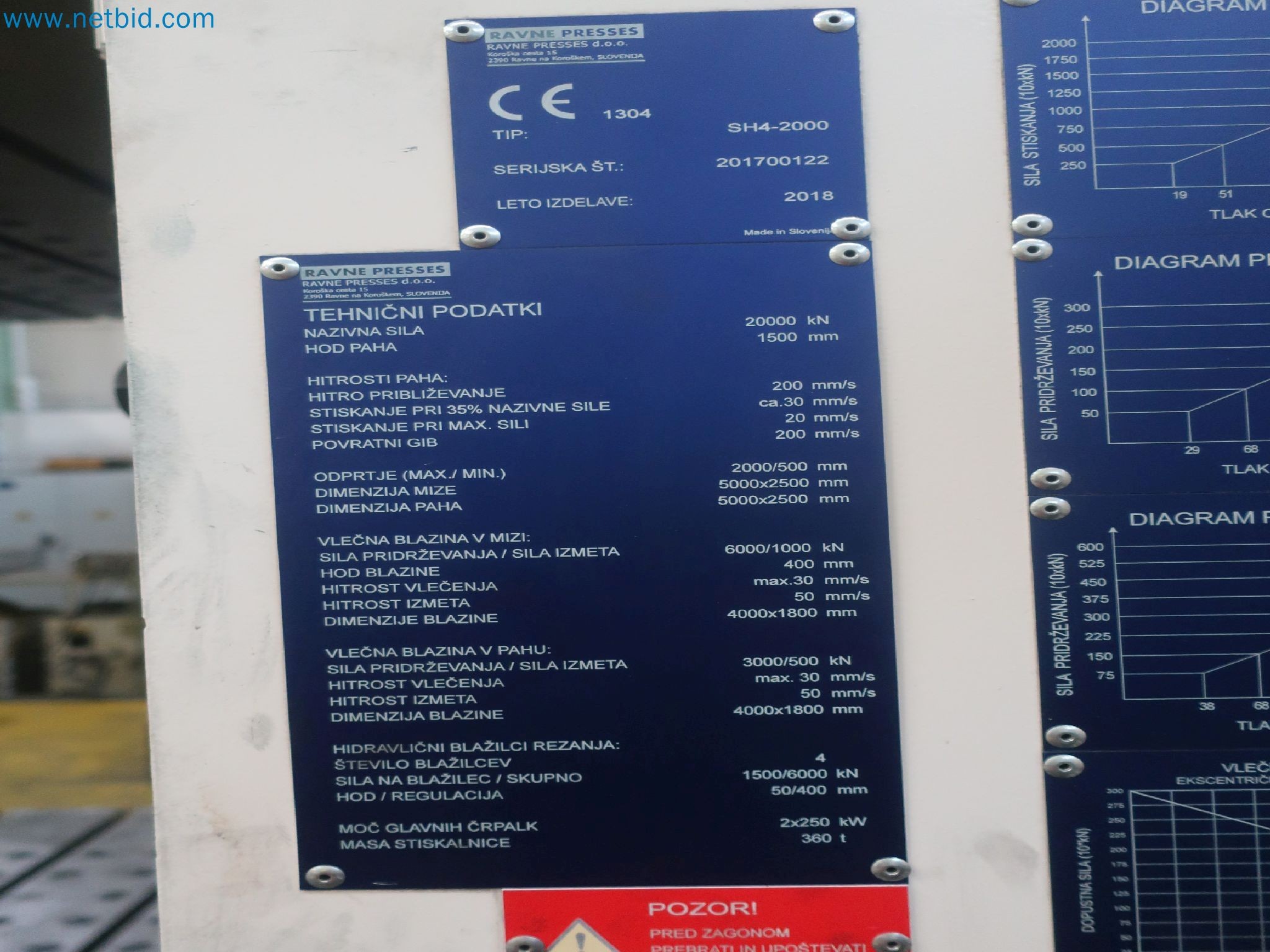

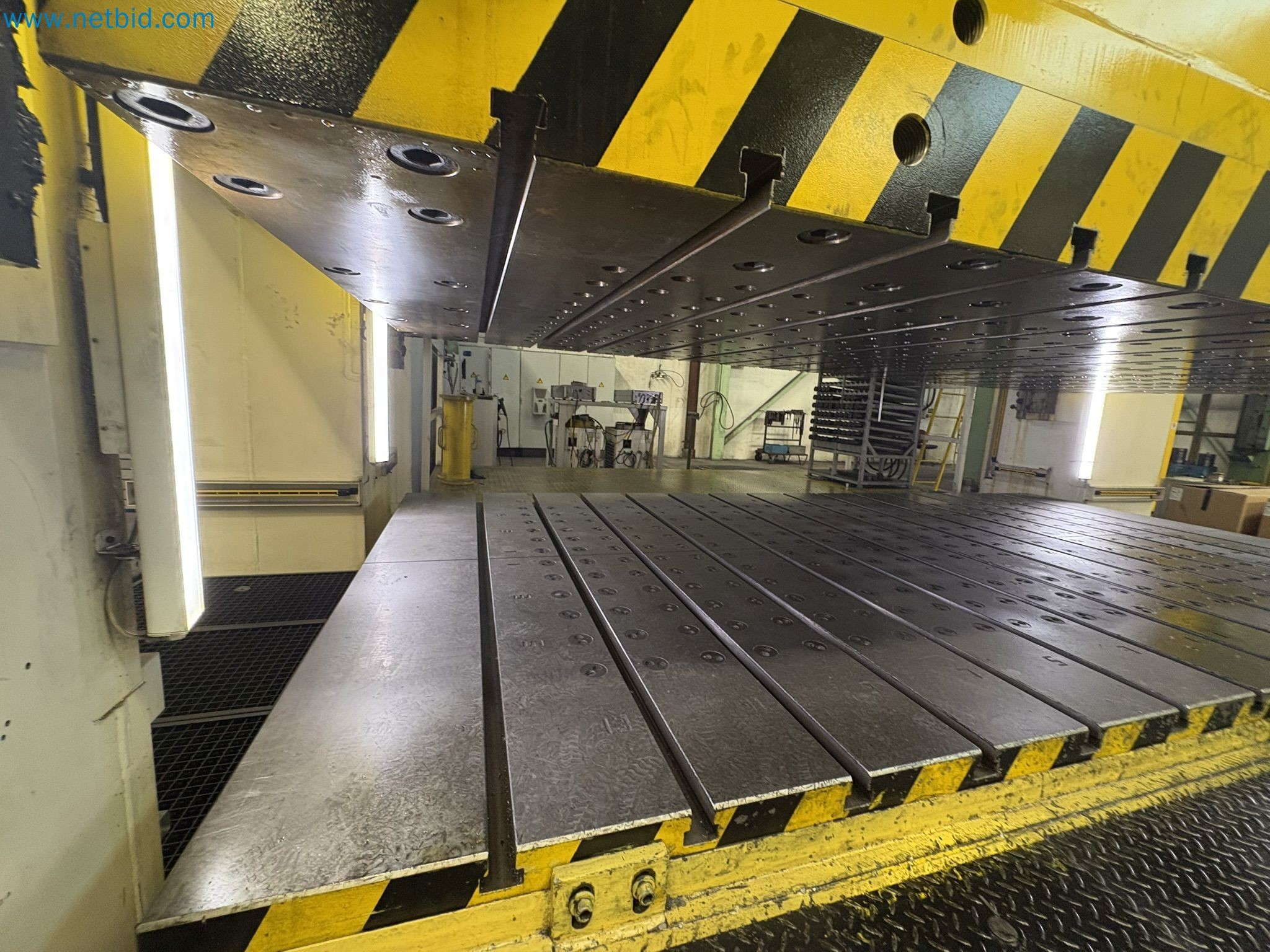

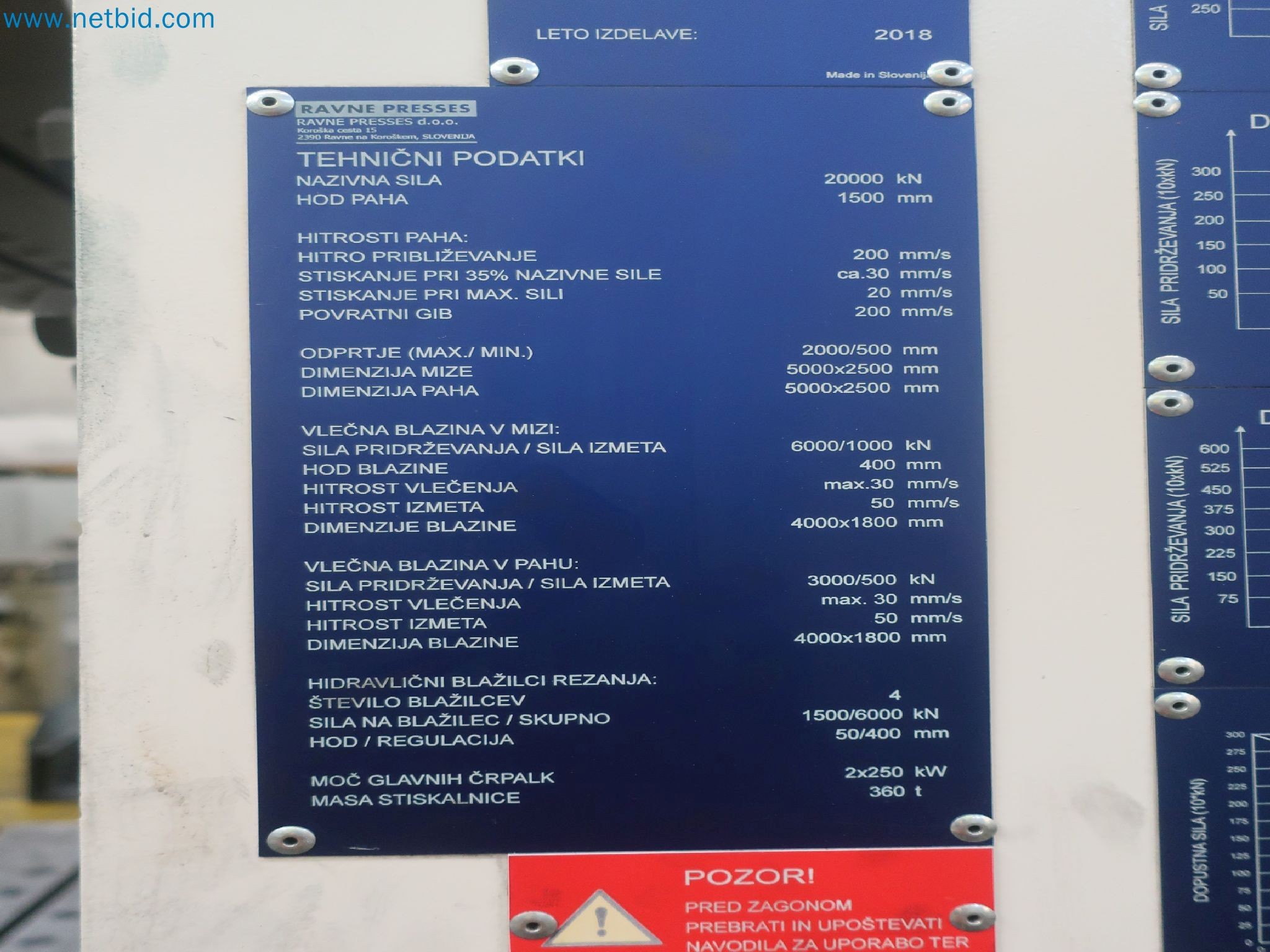

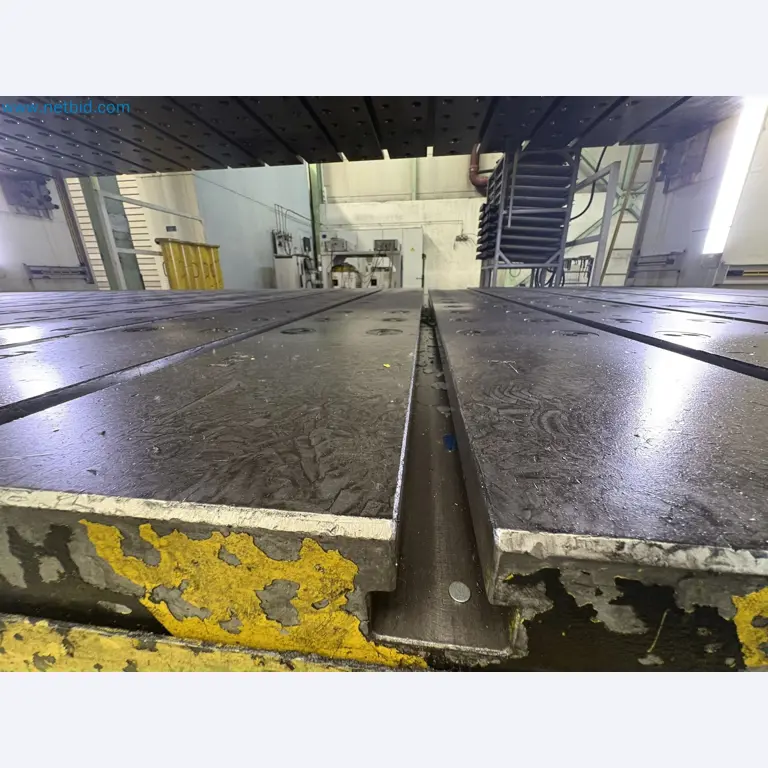

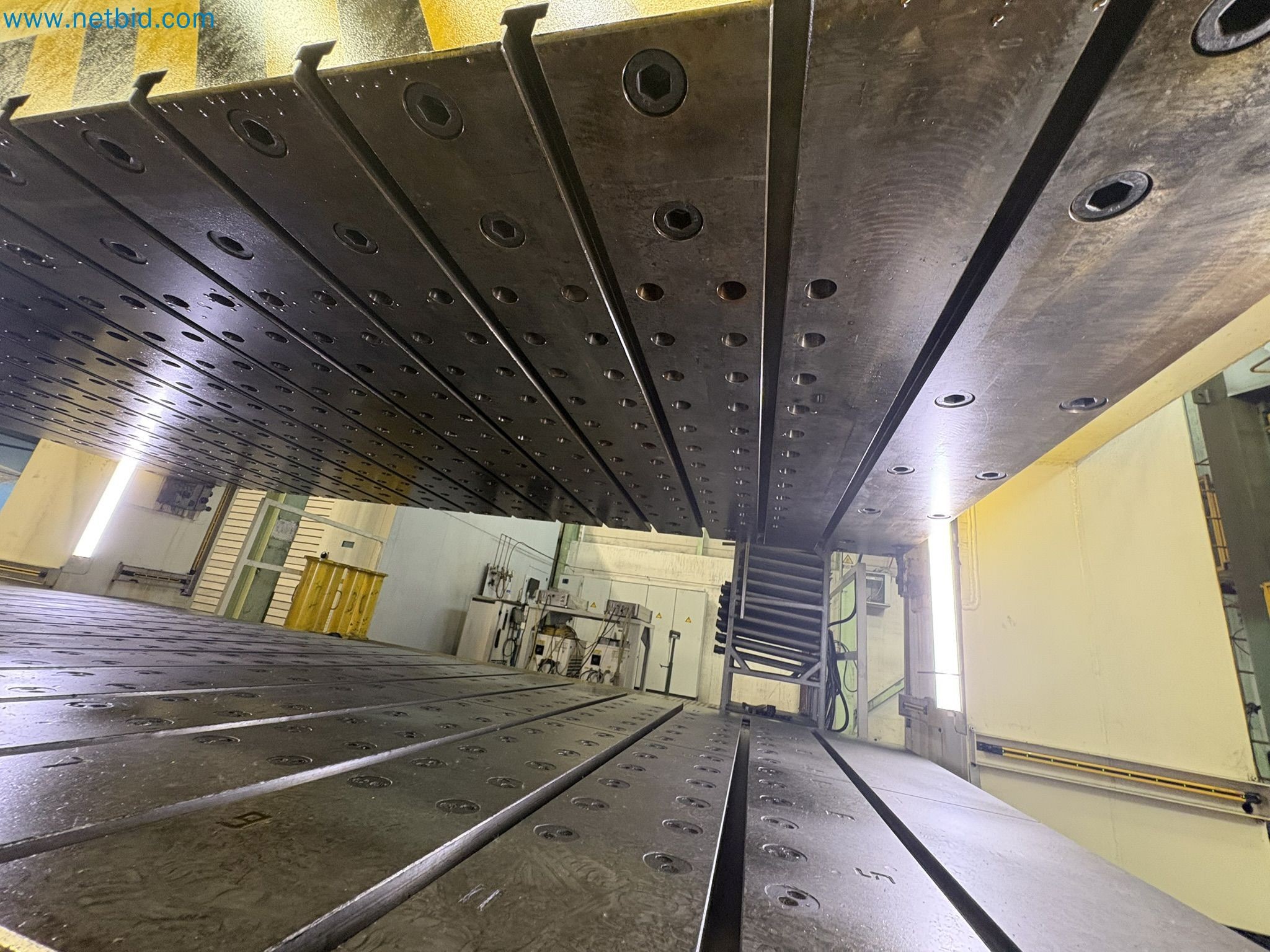

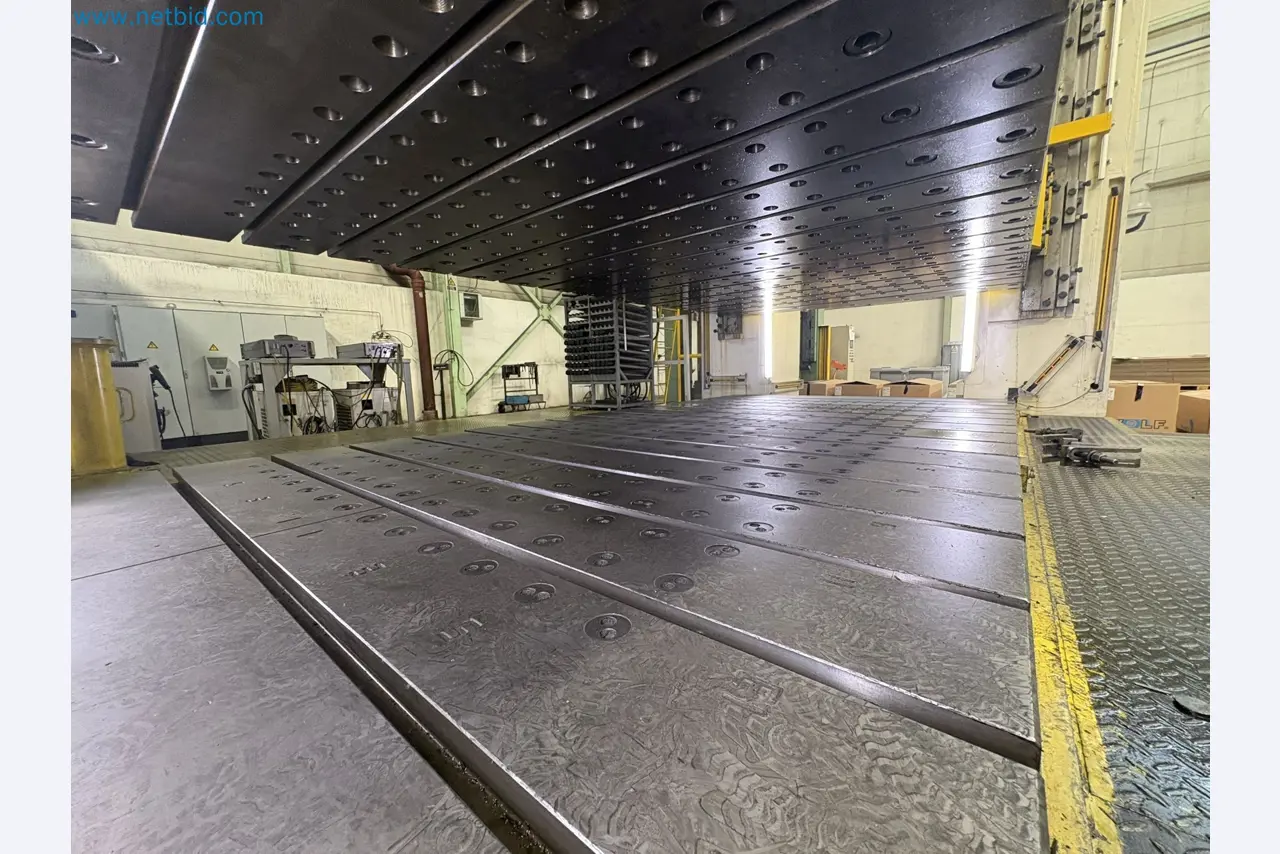

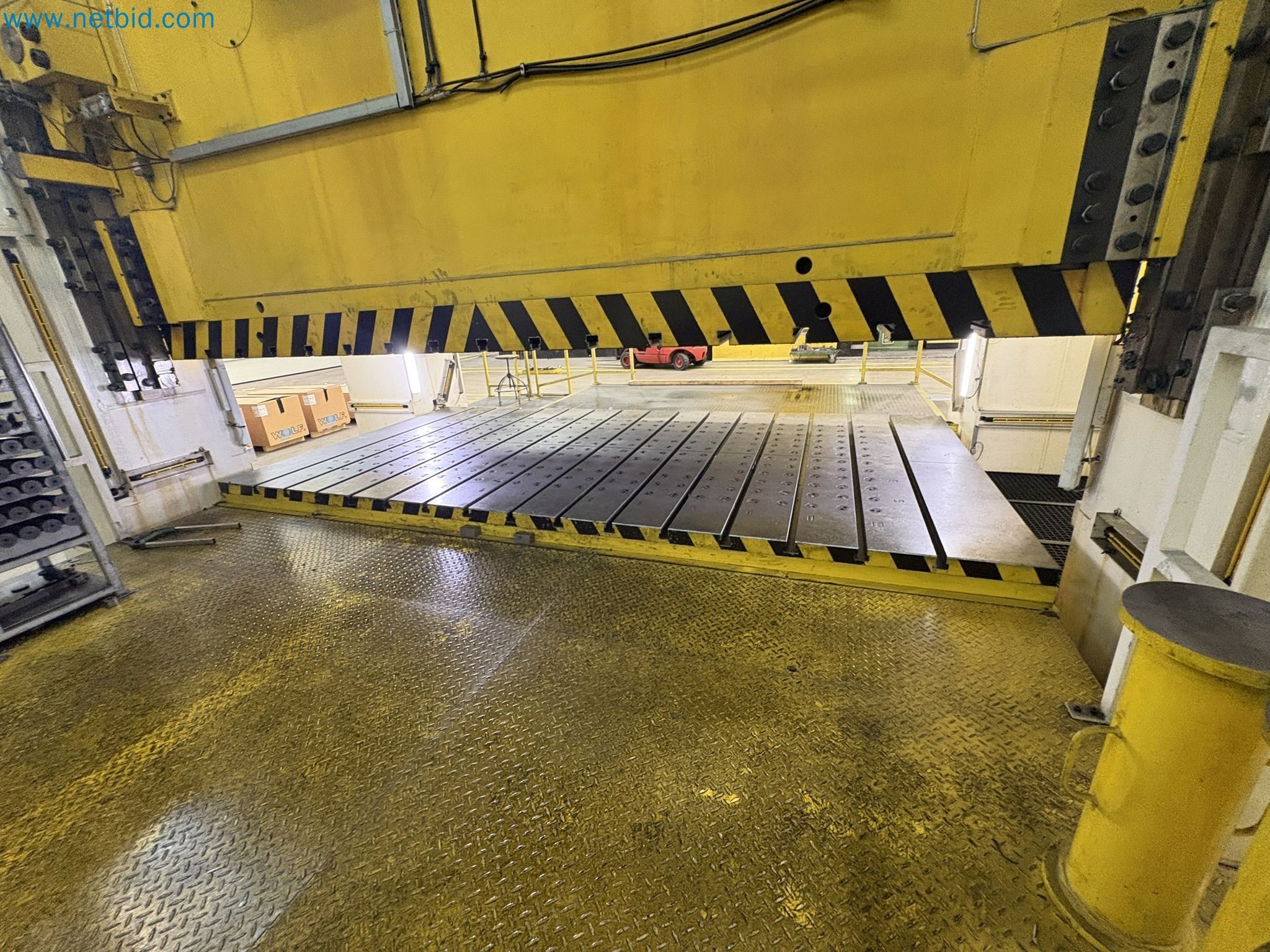

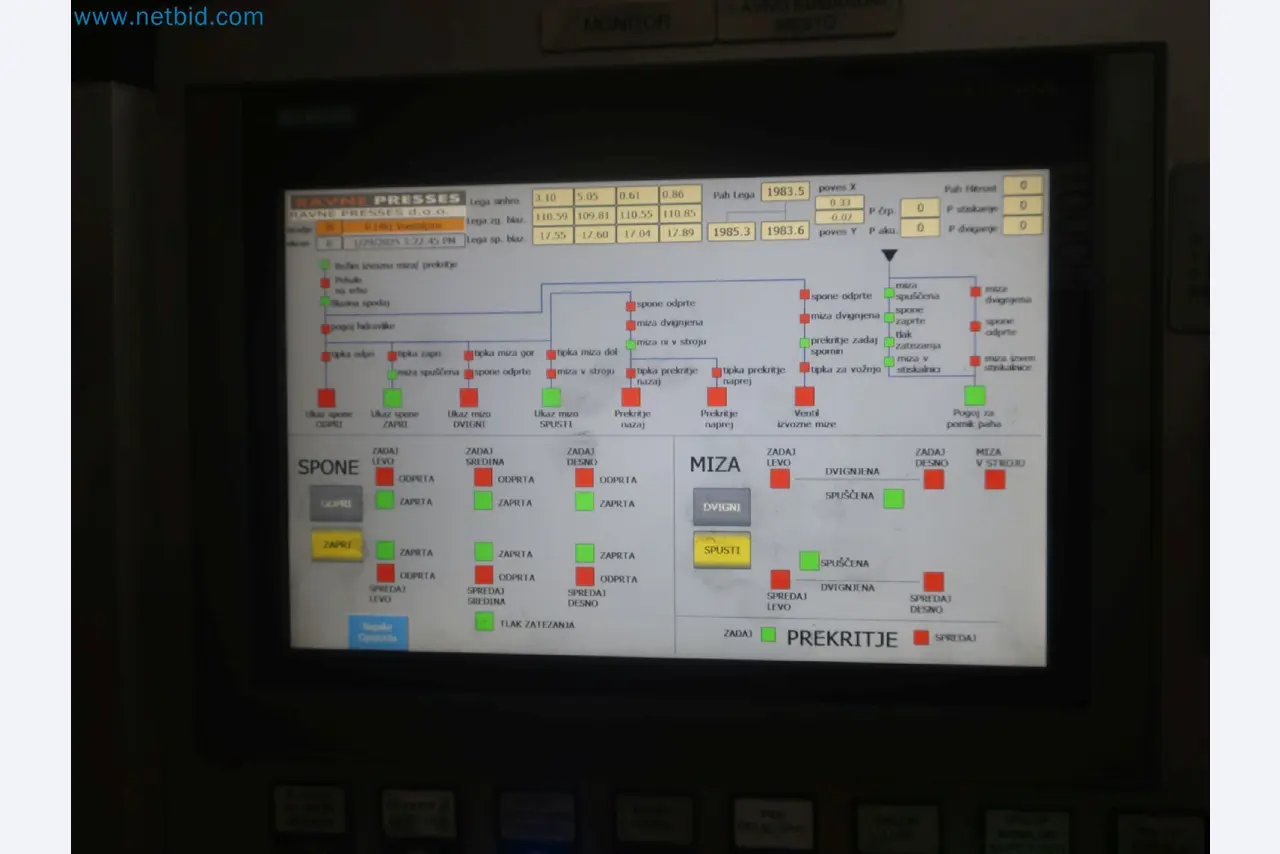

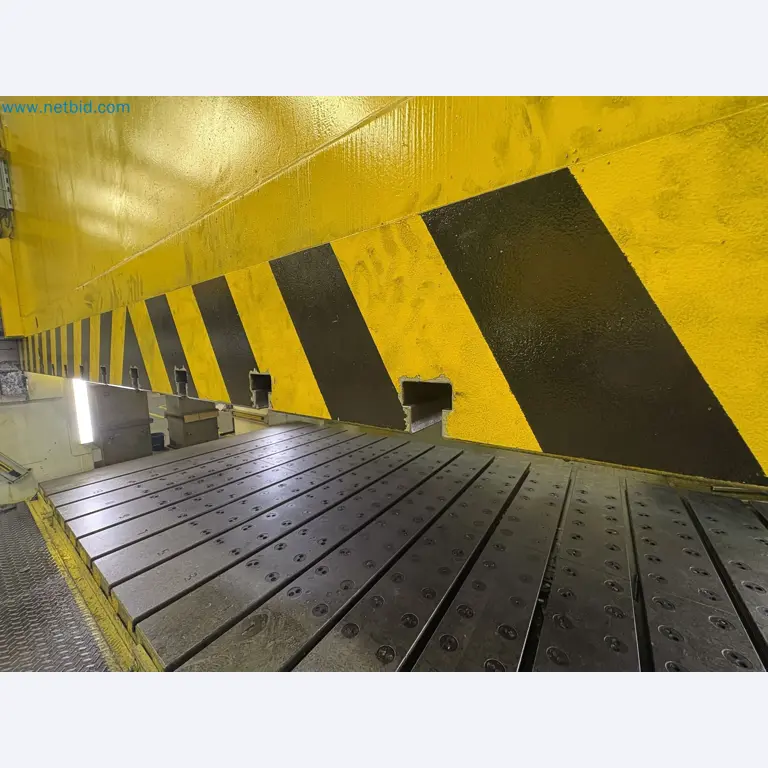

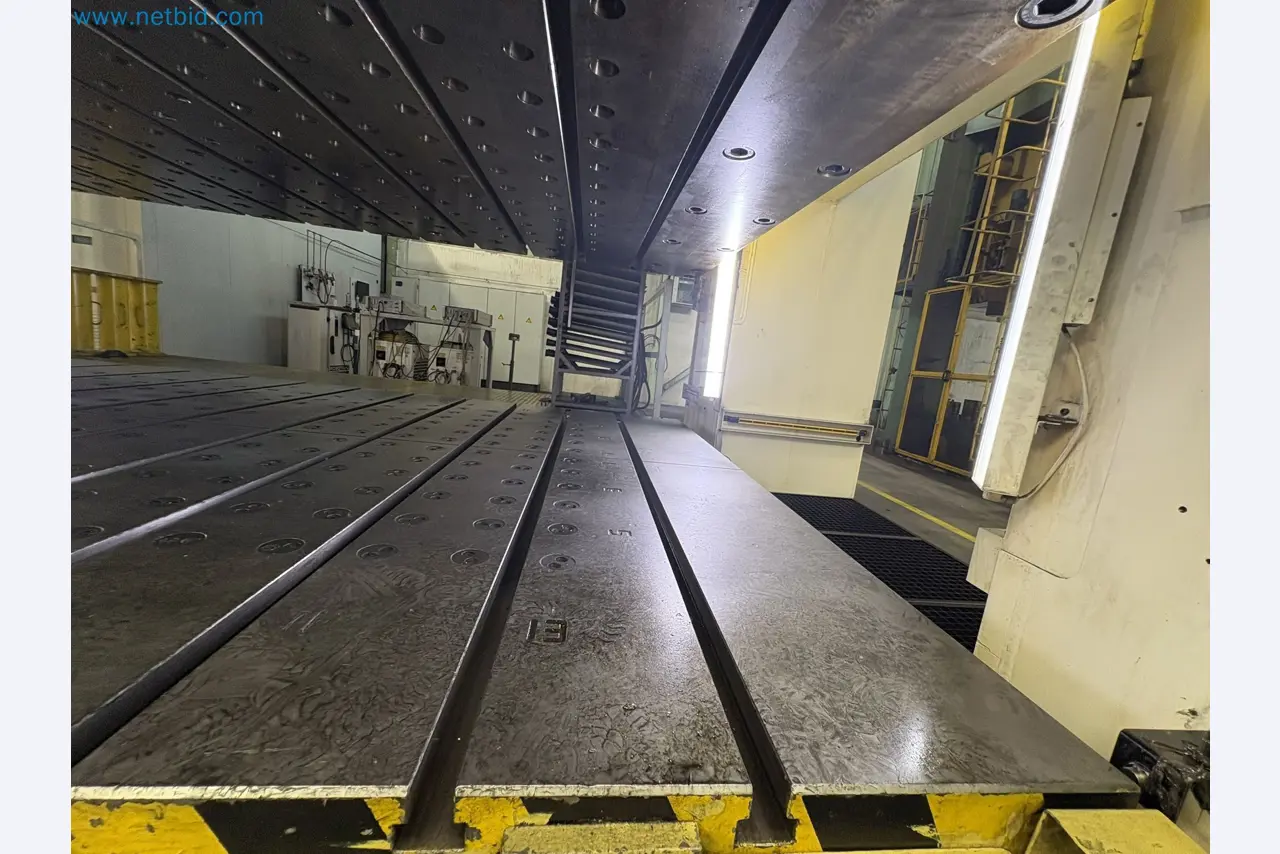

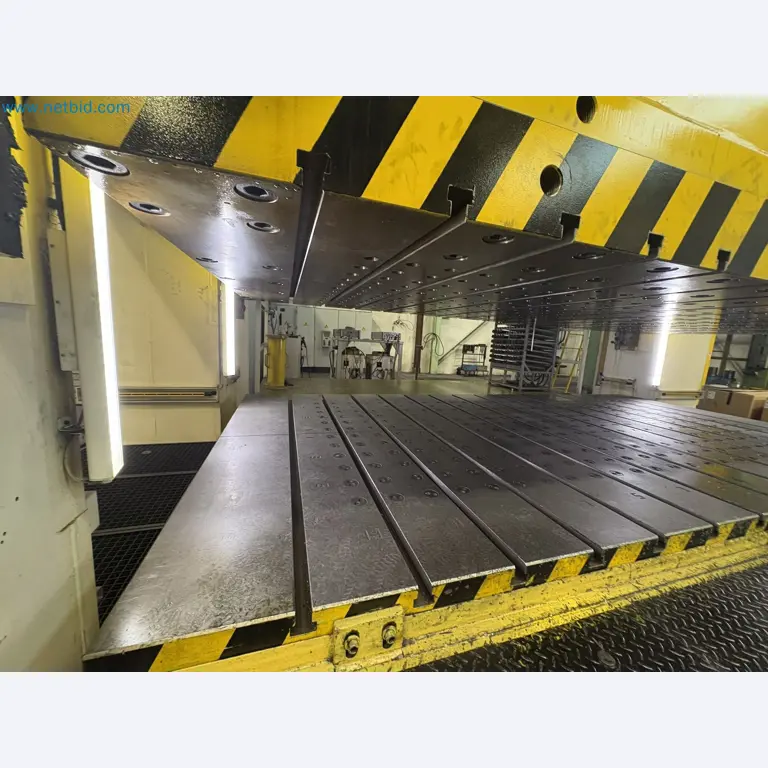

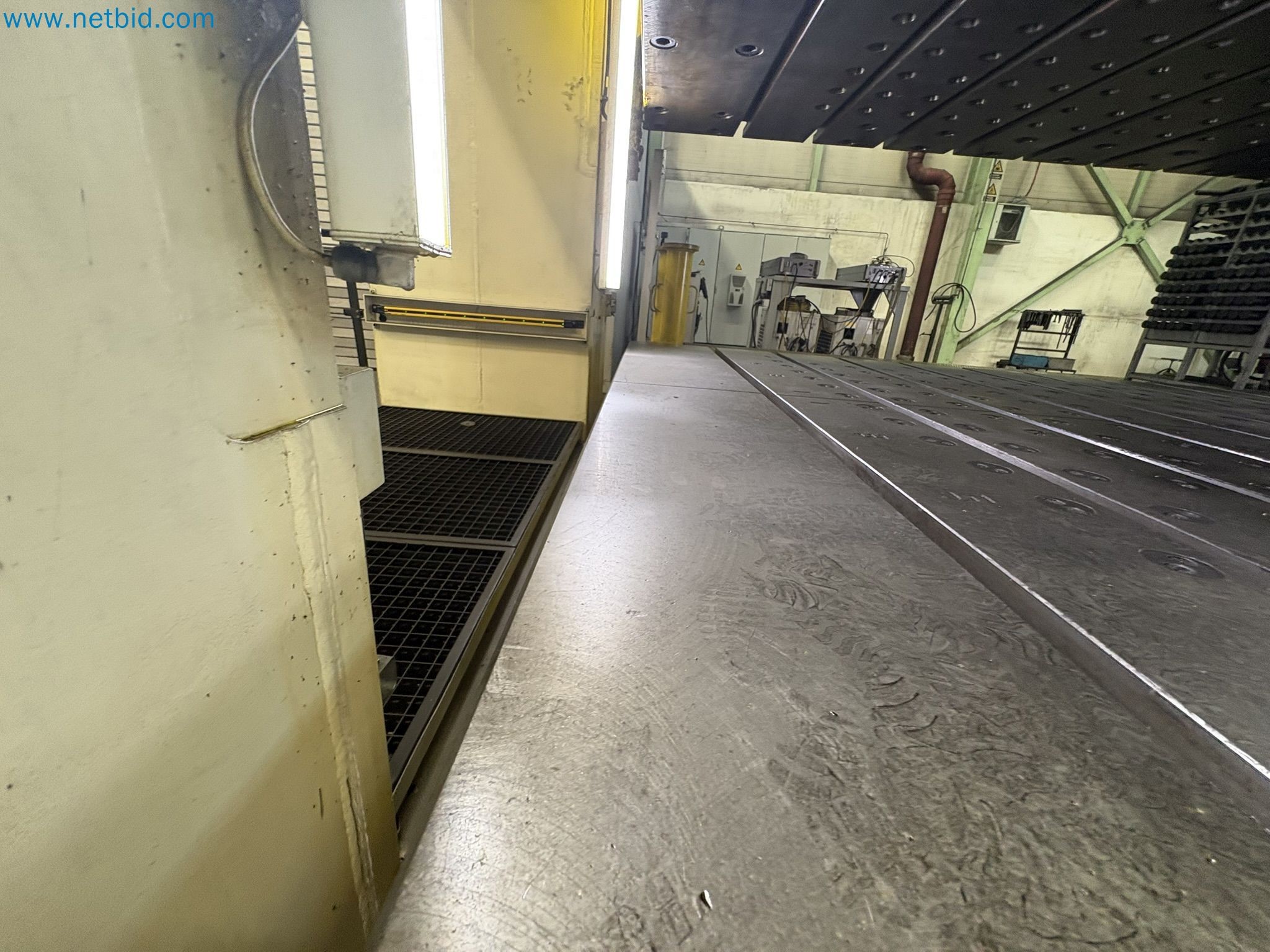

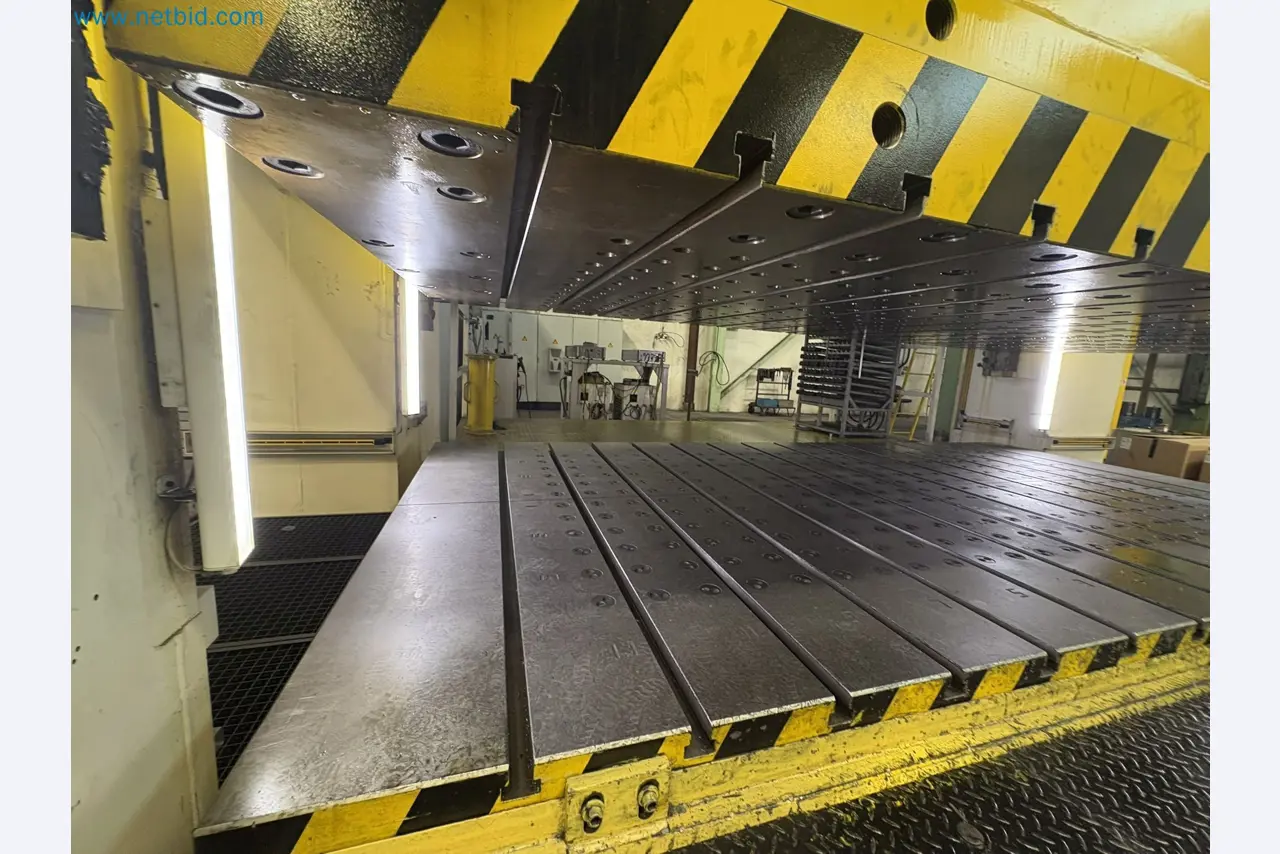

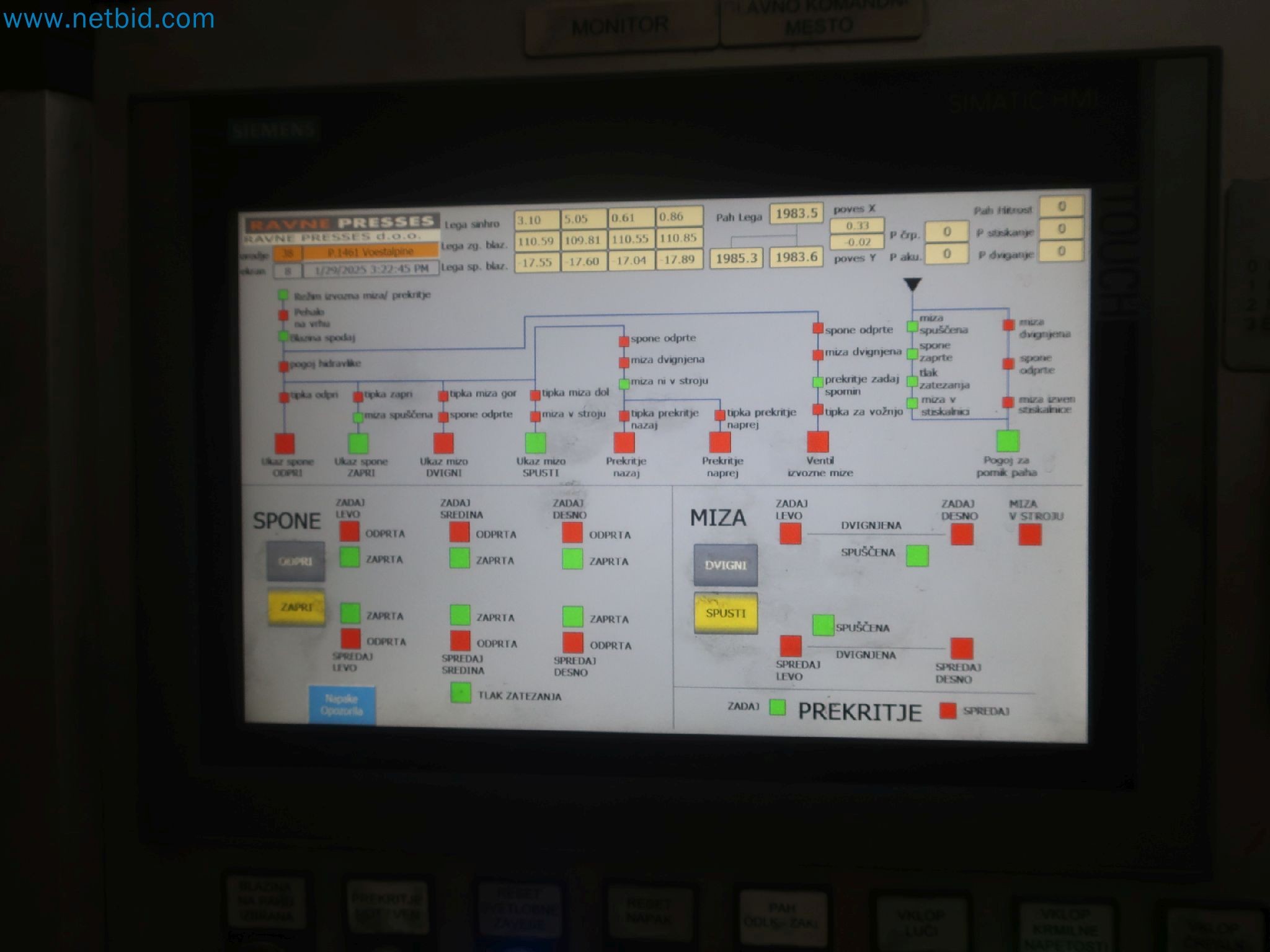

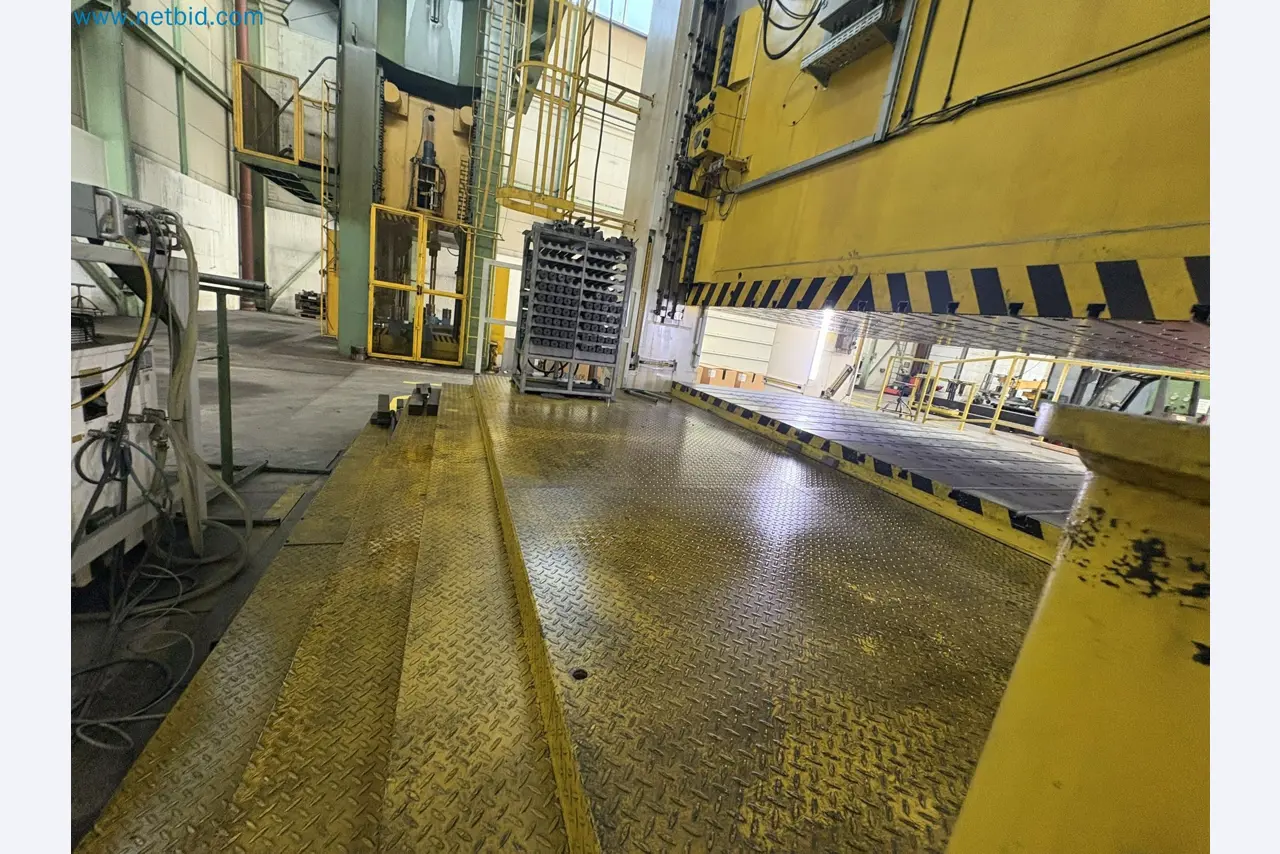

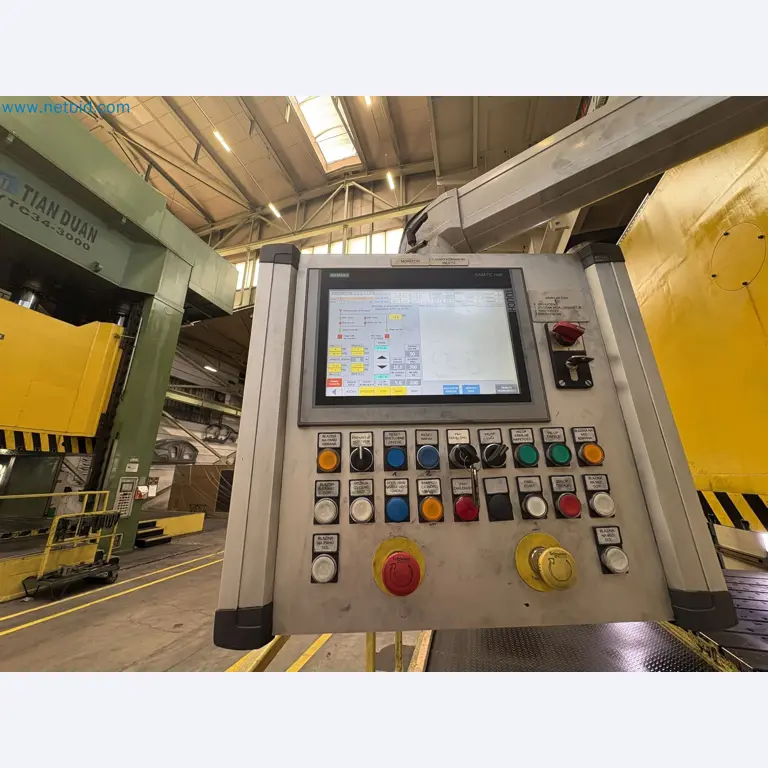

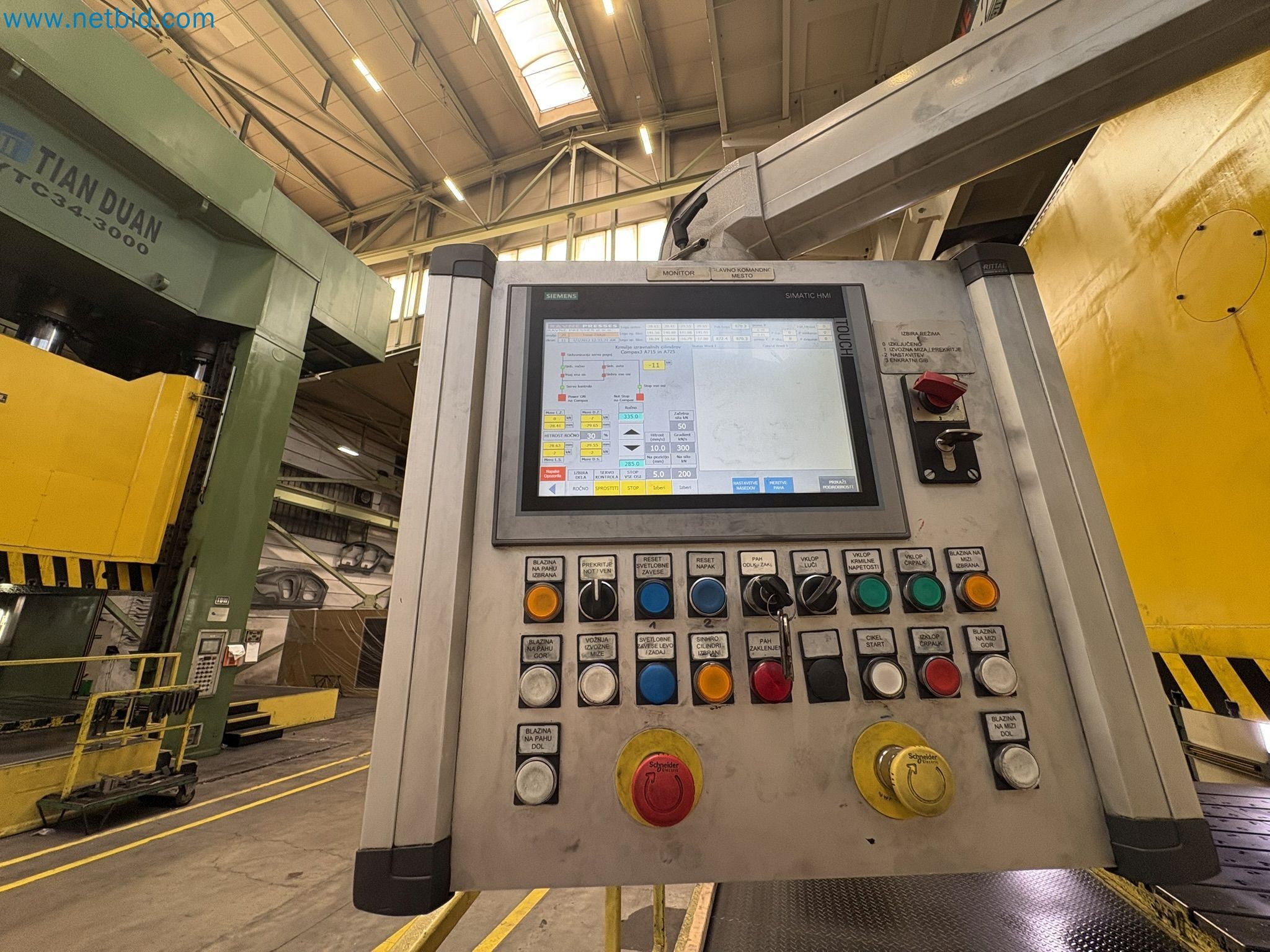

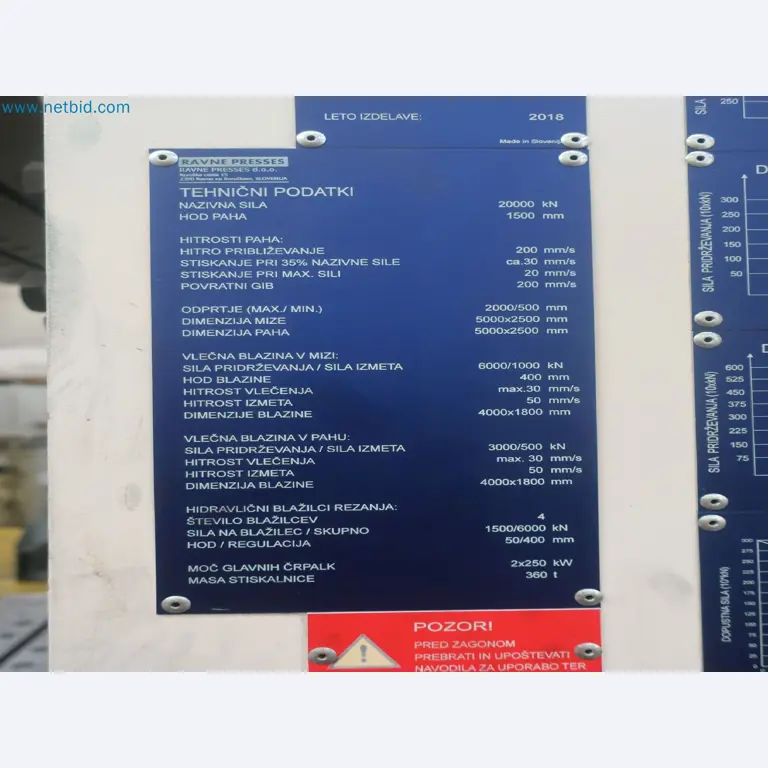

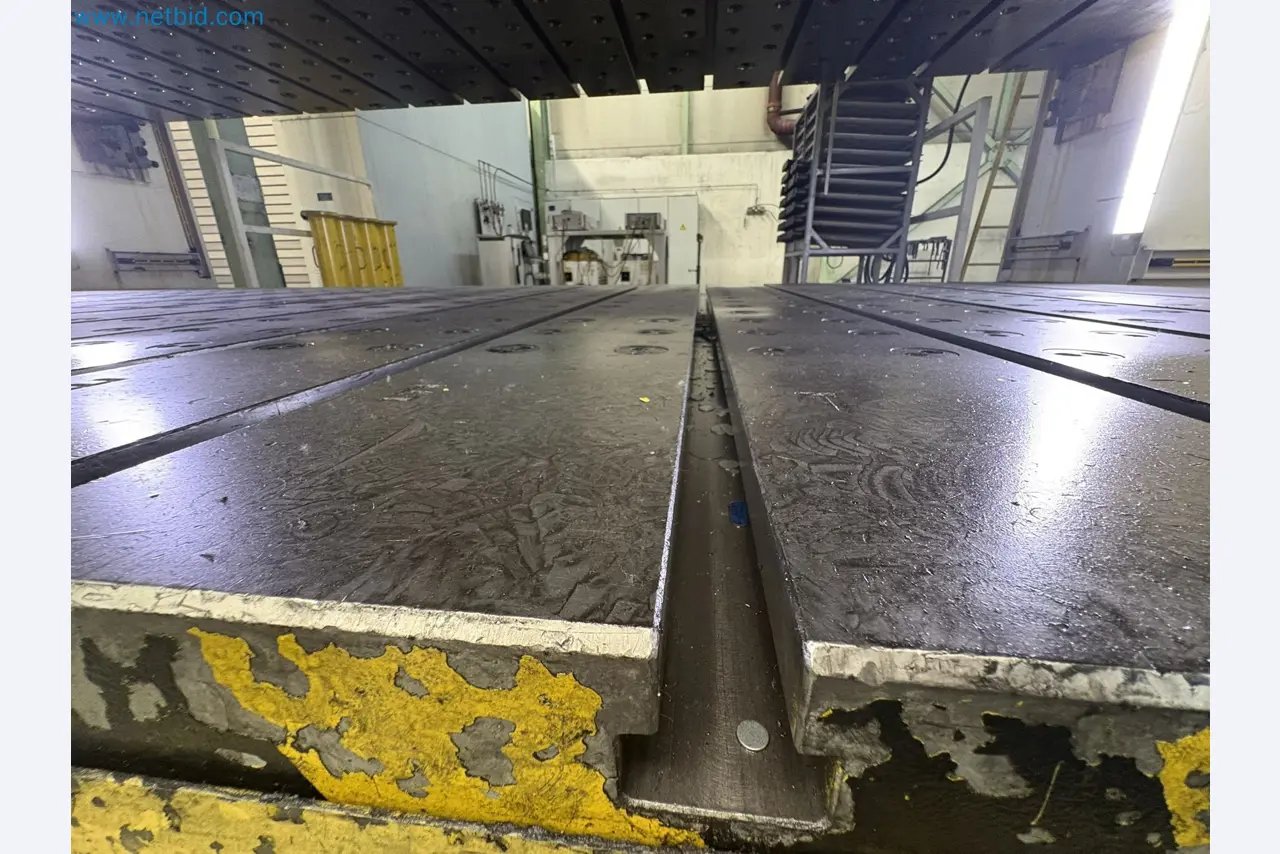

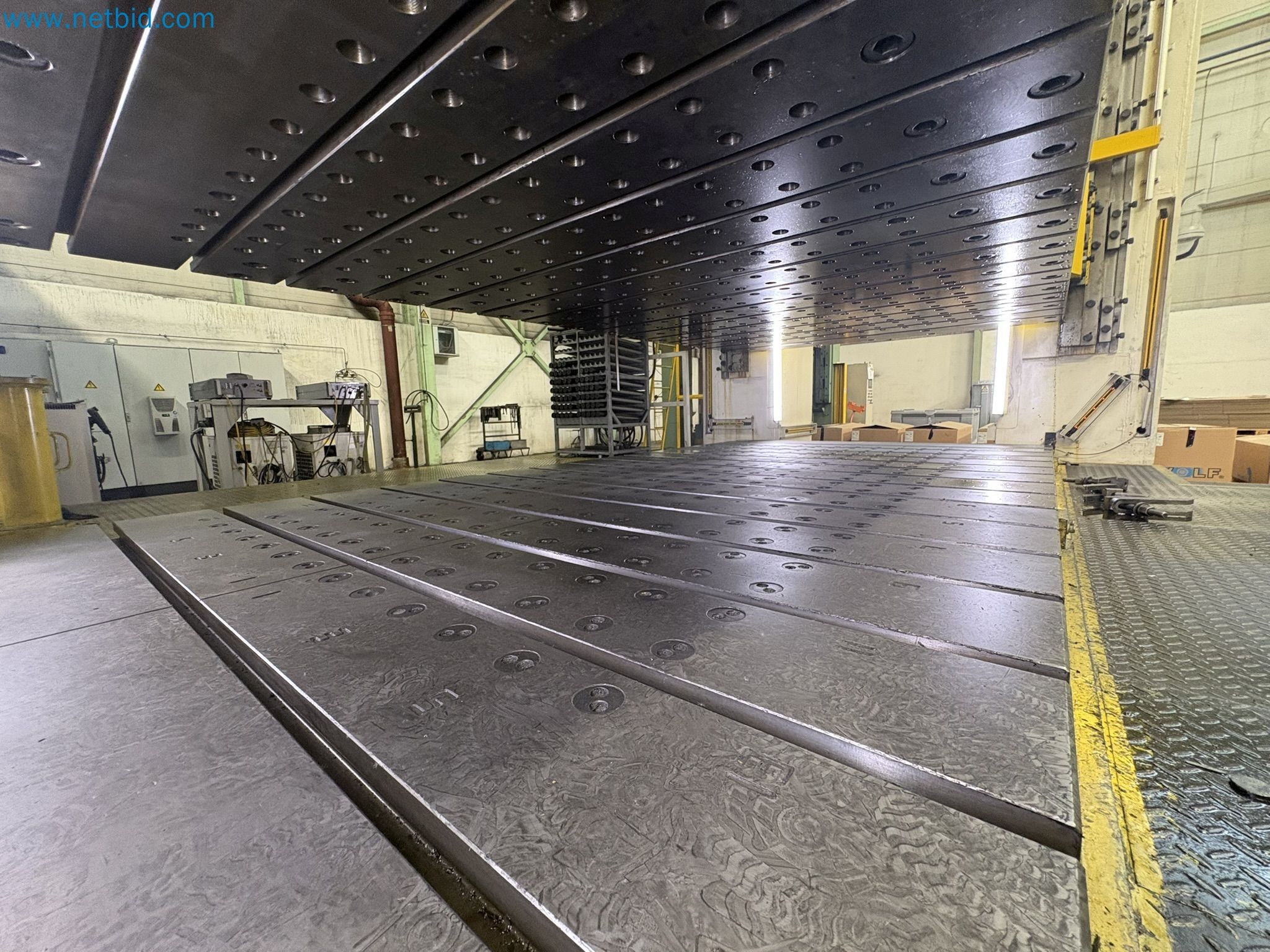

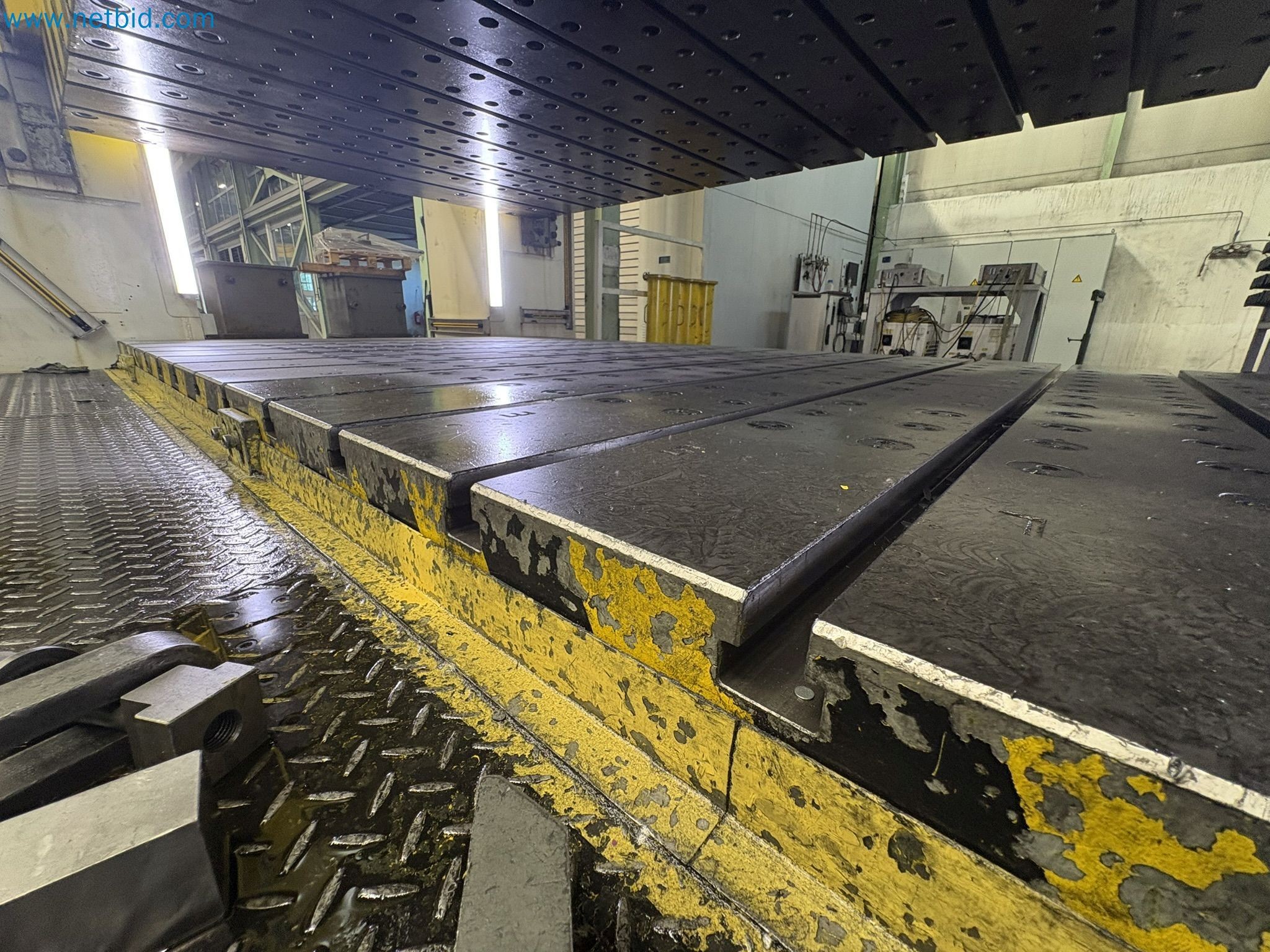

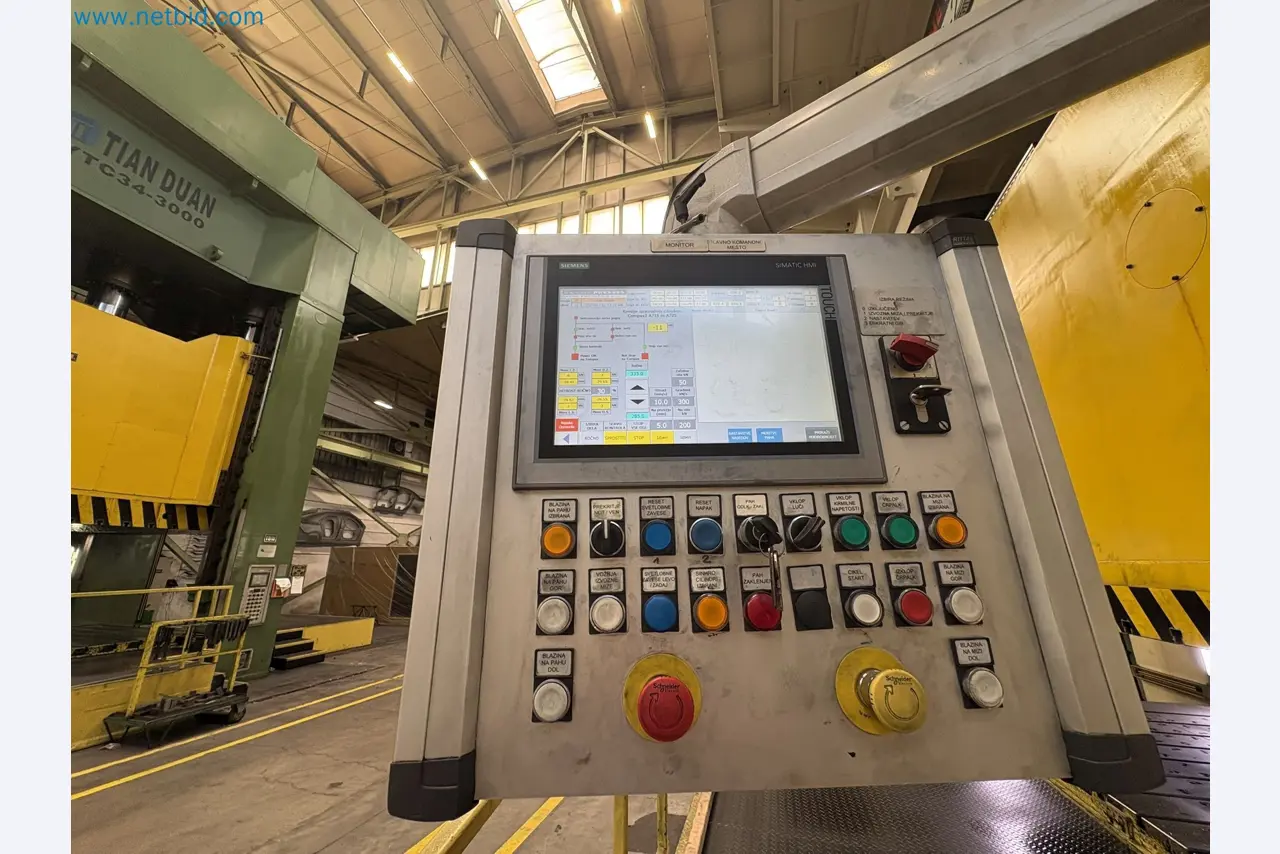

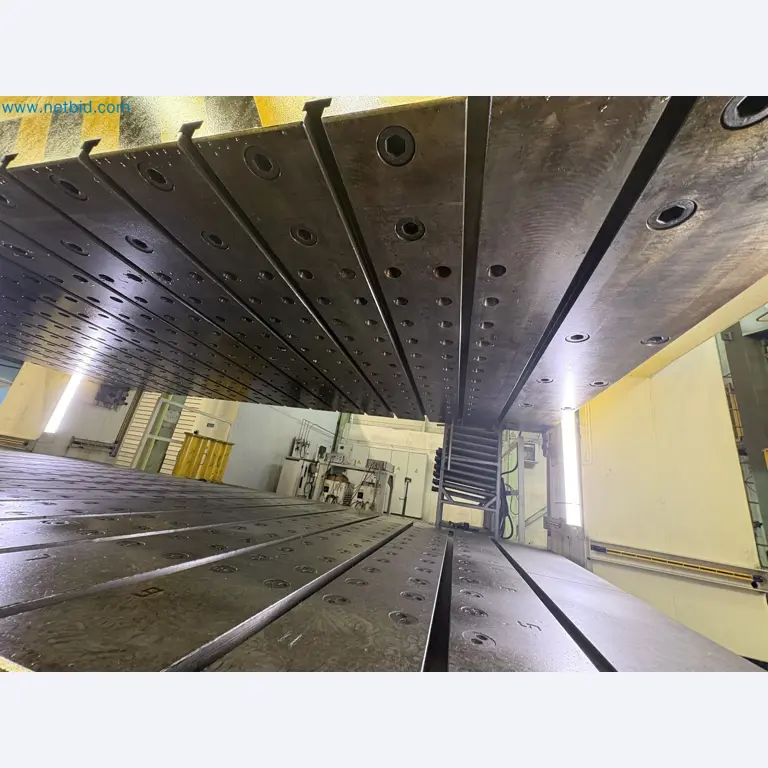

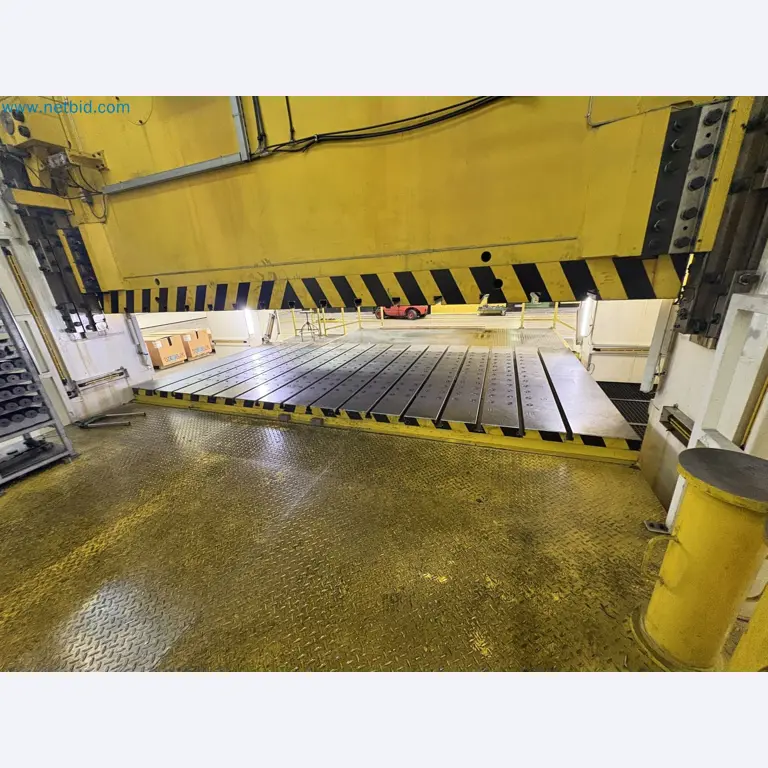

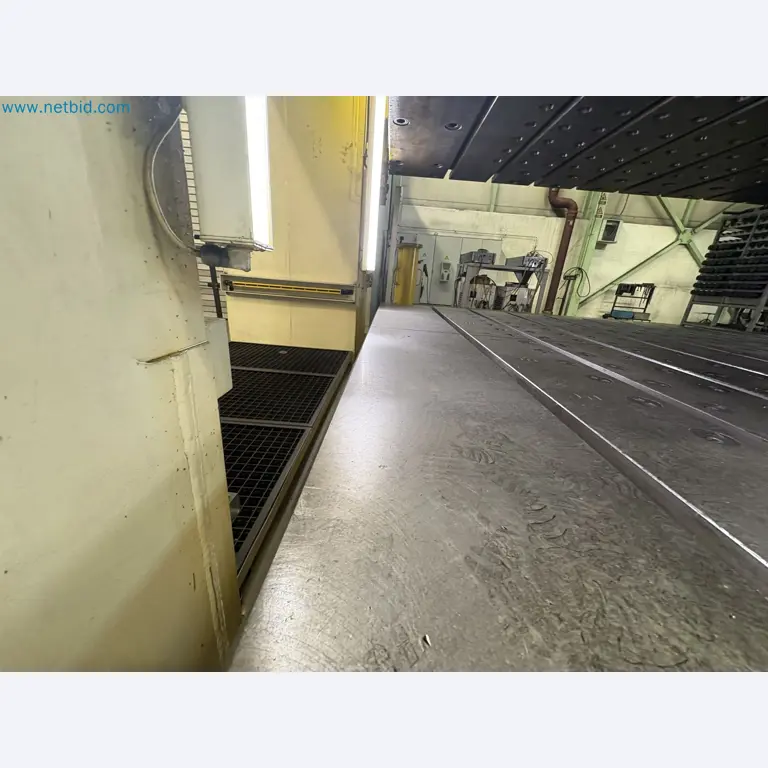

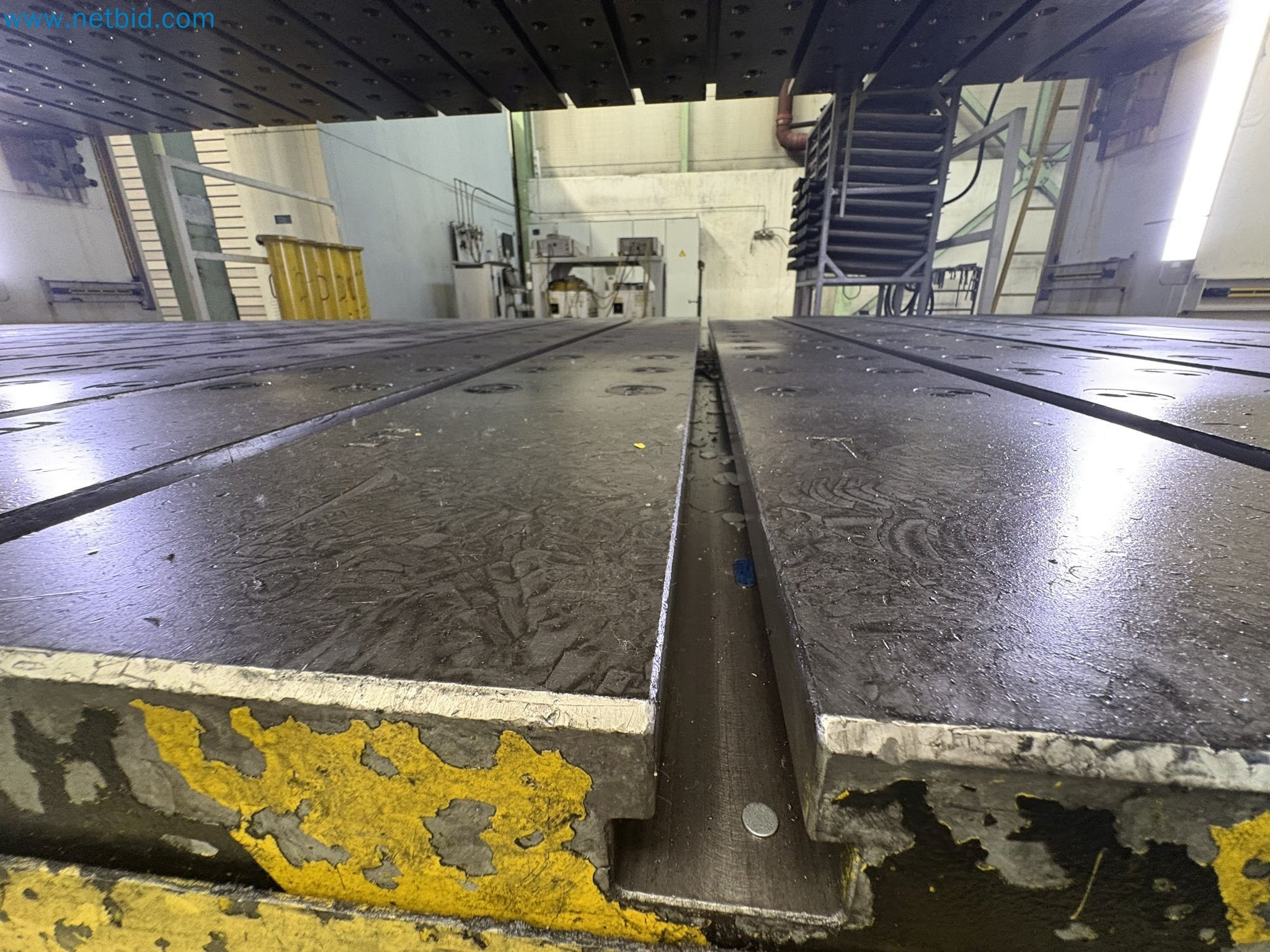

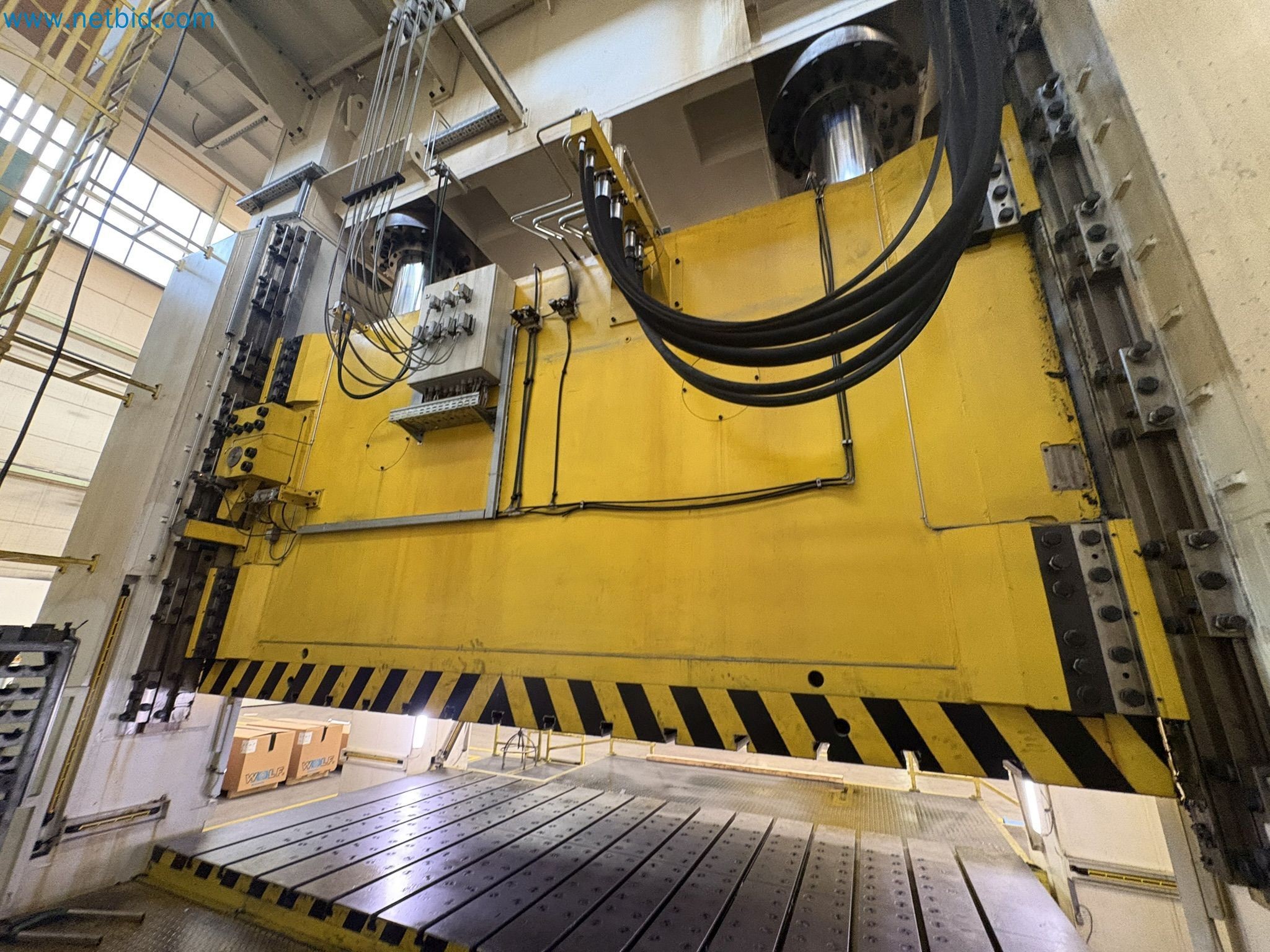

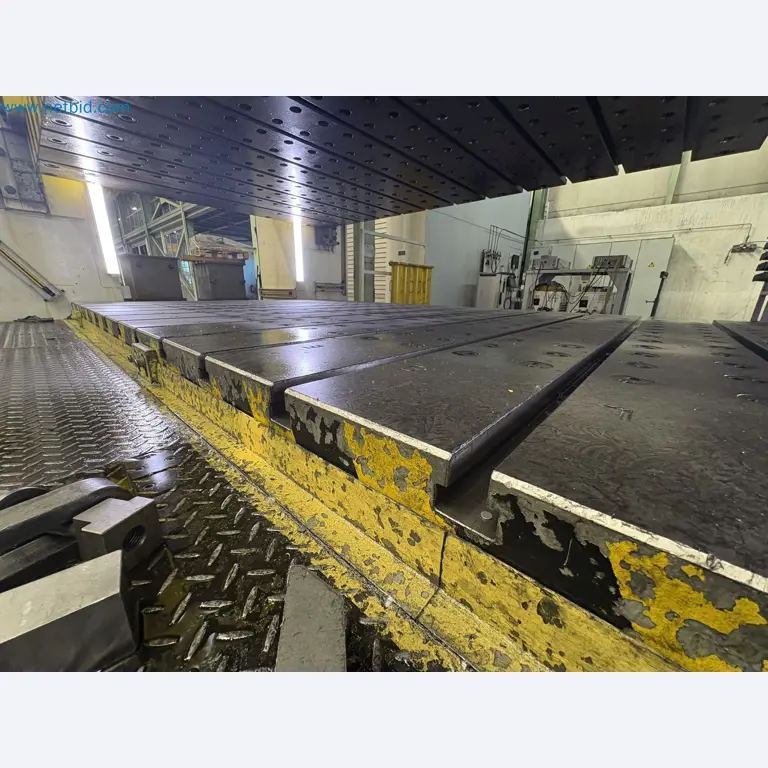

Maximum pressing force 20,000 kN, ram stroke 1,500 mm, table dimensions 5,000 × 2,500 mm, opening between upper and lower table min./max. 500/2,000 mm, upper/lower die cushion force max. 6,000/1,000 kN, stroke 400 mm, die cushion dimensions 4,000 × 1,800 mm, die cushion in table: maximum compressive force 6,000 kN, maximum tensile force 1,000 kN, stroke 400 mm, cushion dimensions 4,000 × 1,800 mm, die cushion in ram: maximum cushion pressure force 3,000 kN, maximum cushion tensile force 500 kN, cushion dimensions 4,000 × 1,800 mm, 4 hydraulic dampers for trimming operations, force 1,500/6,000 kN, stroke 50/400 mm, total press weight approx. 360 t, connected load 2 × 250 kW, control system manufacturer Siemens, type Simatic HMI.

Location

  • SI-3000 Celje, Bežigrajska cesta 10
