Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Plastic Injection machinery and accessories

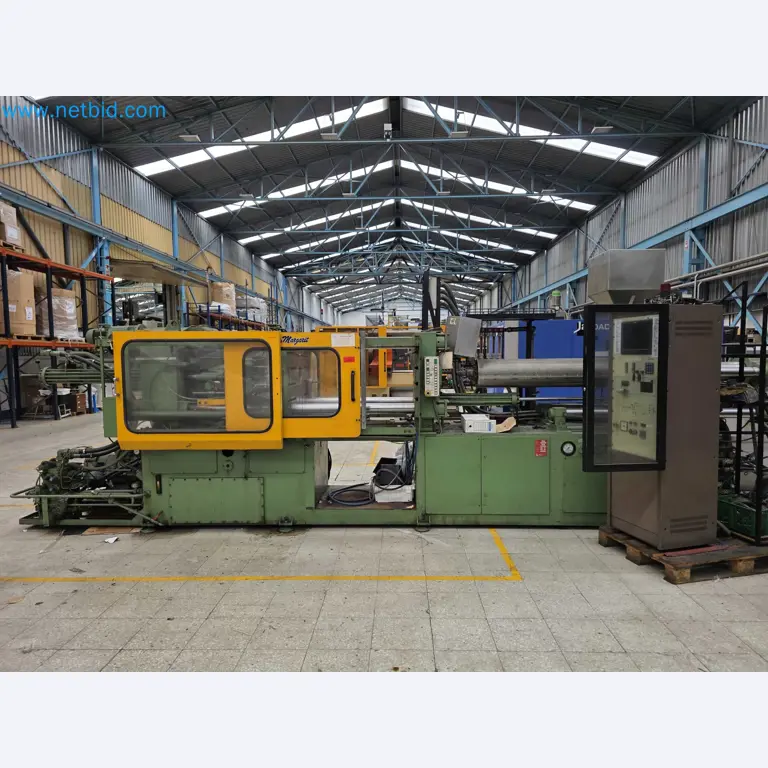

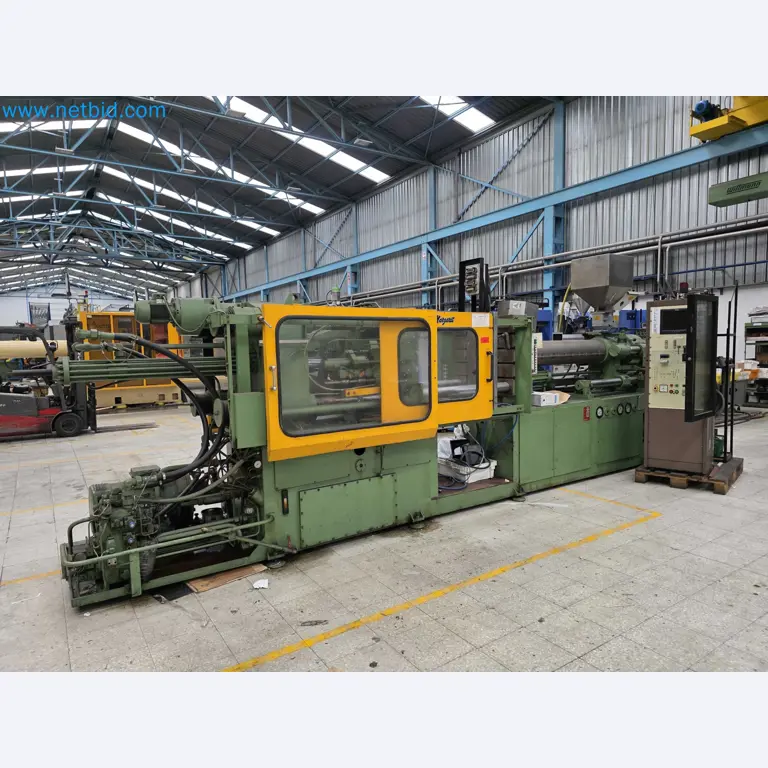

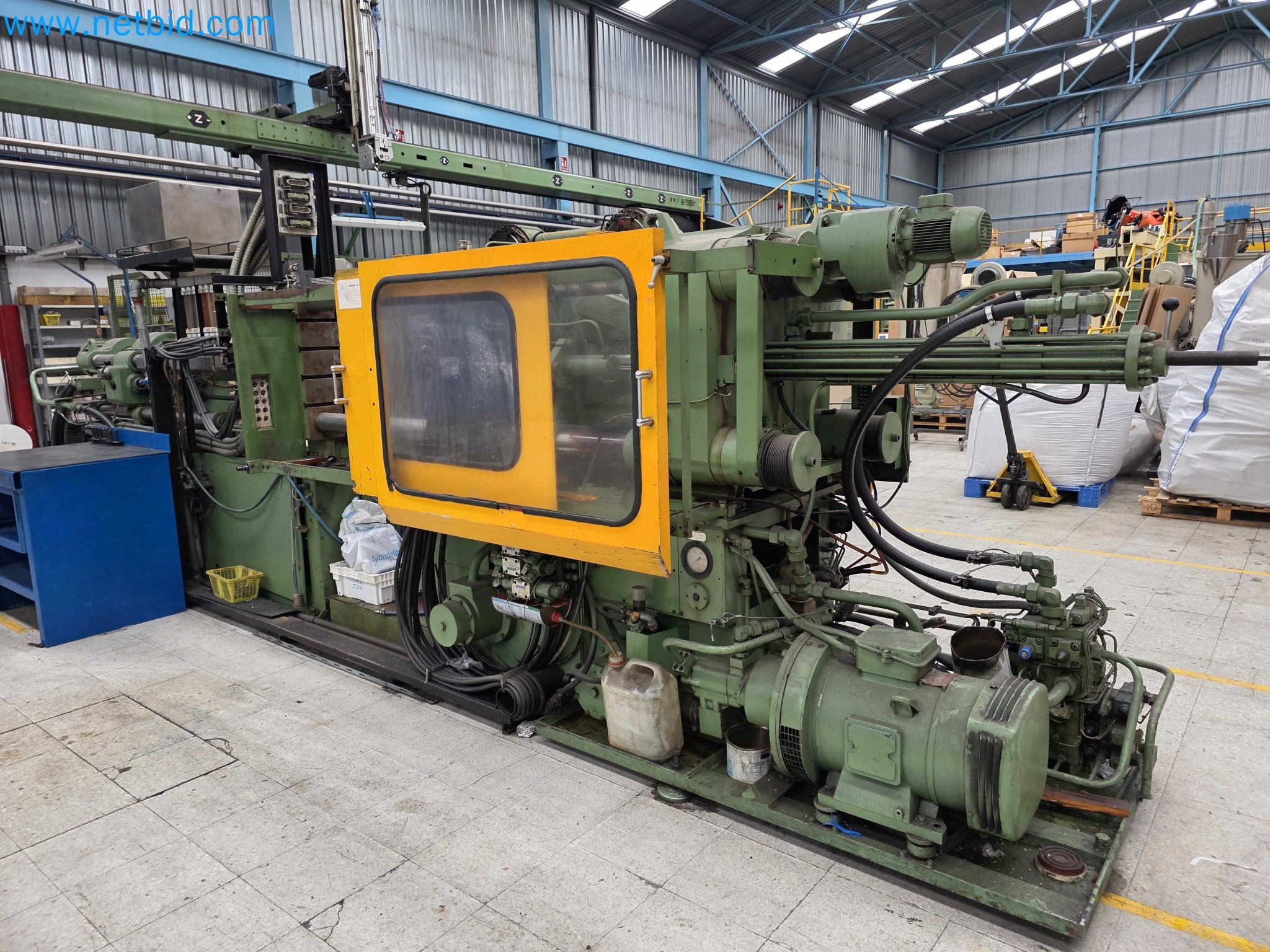

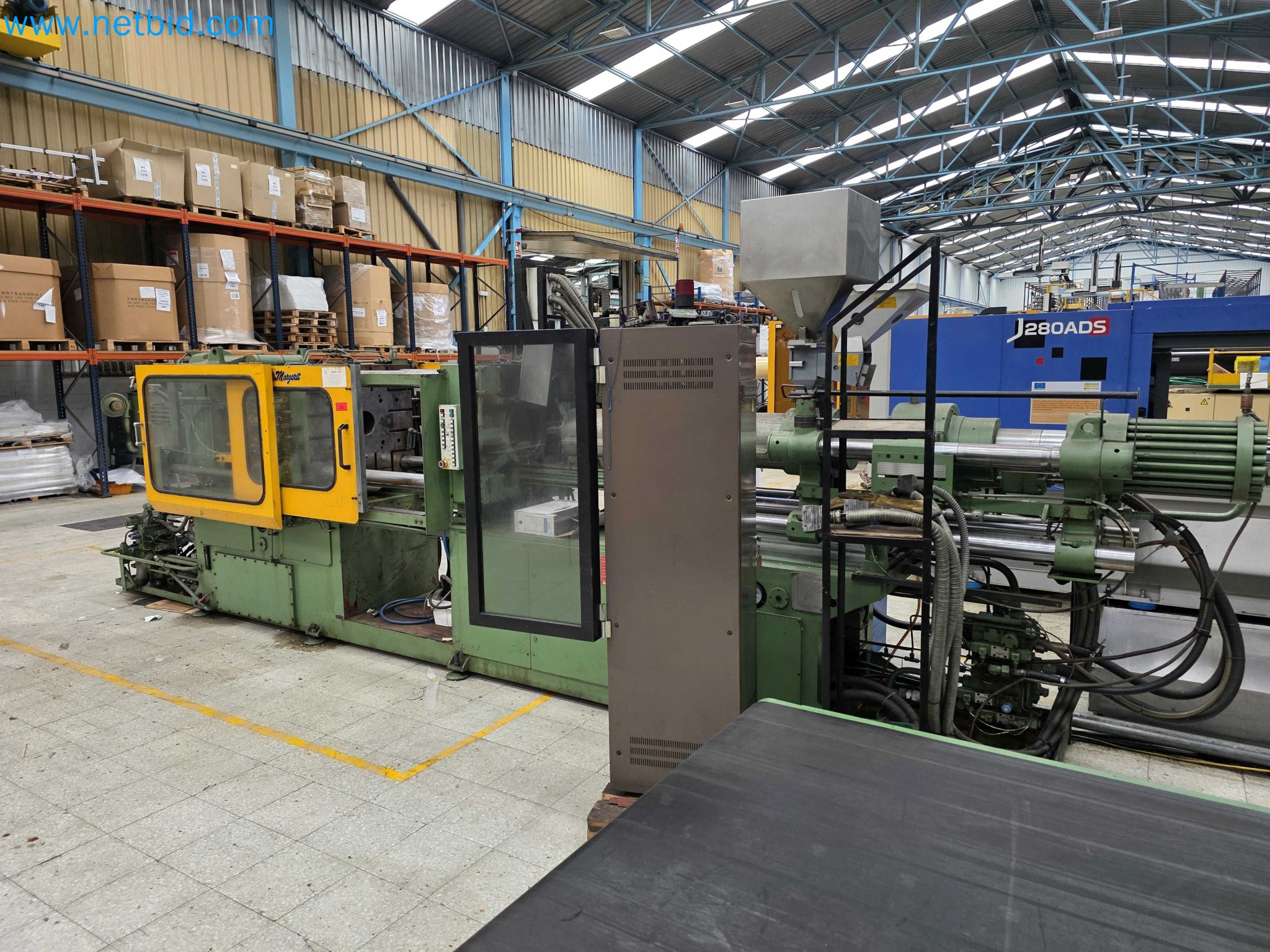

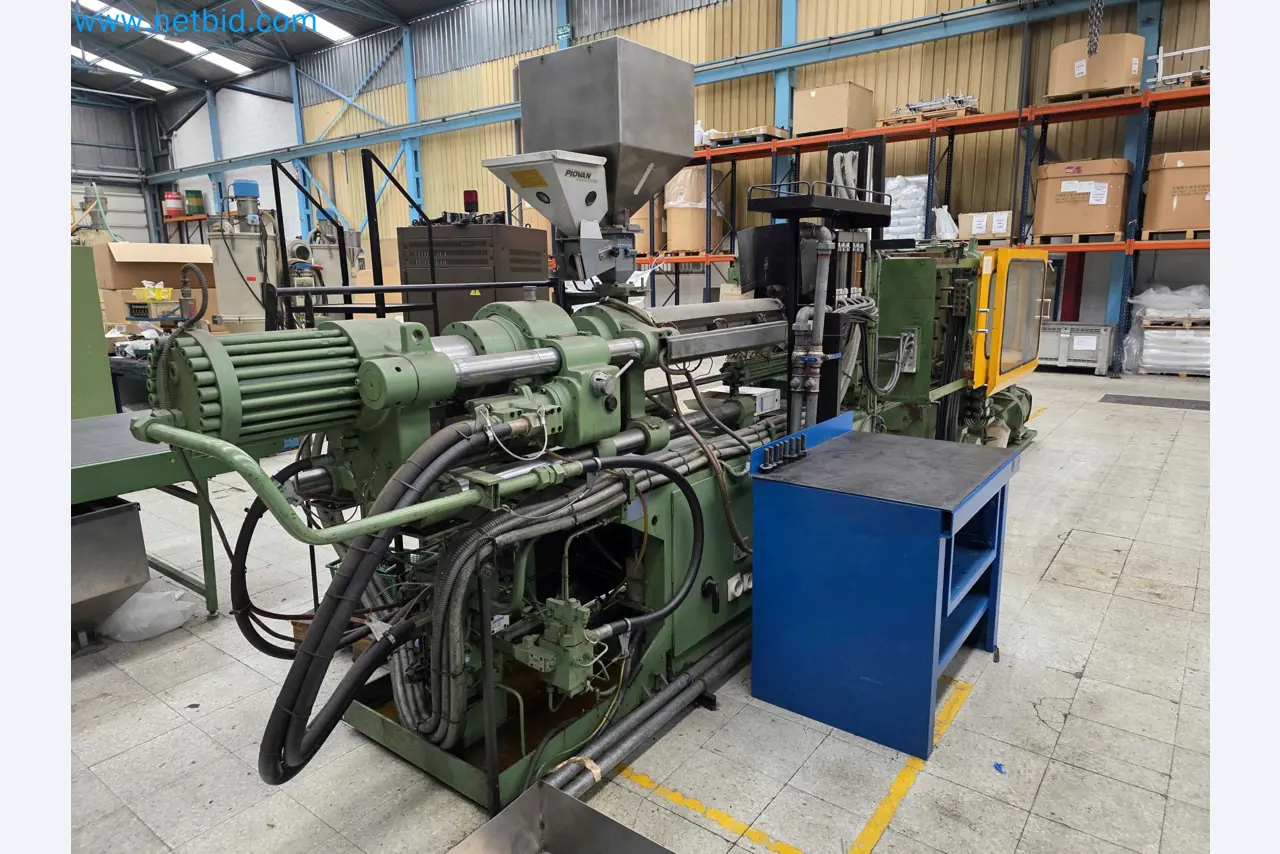

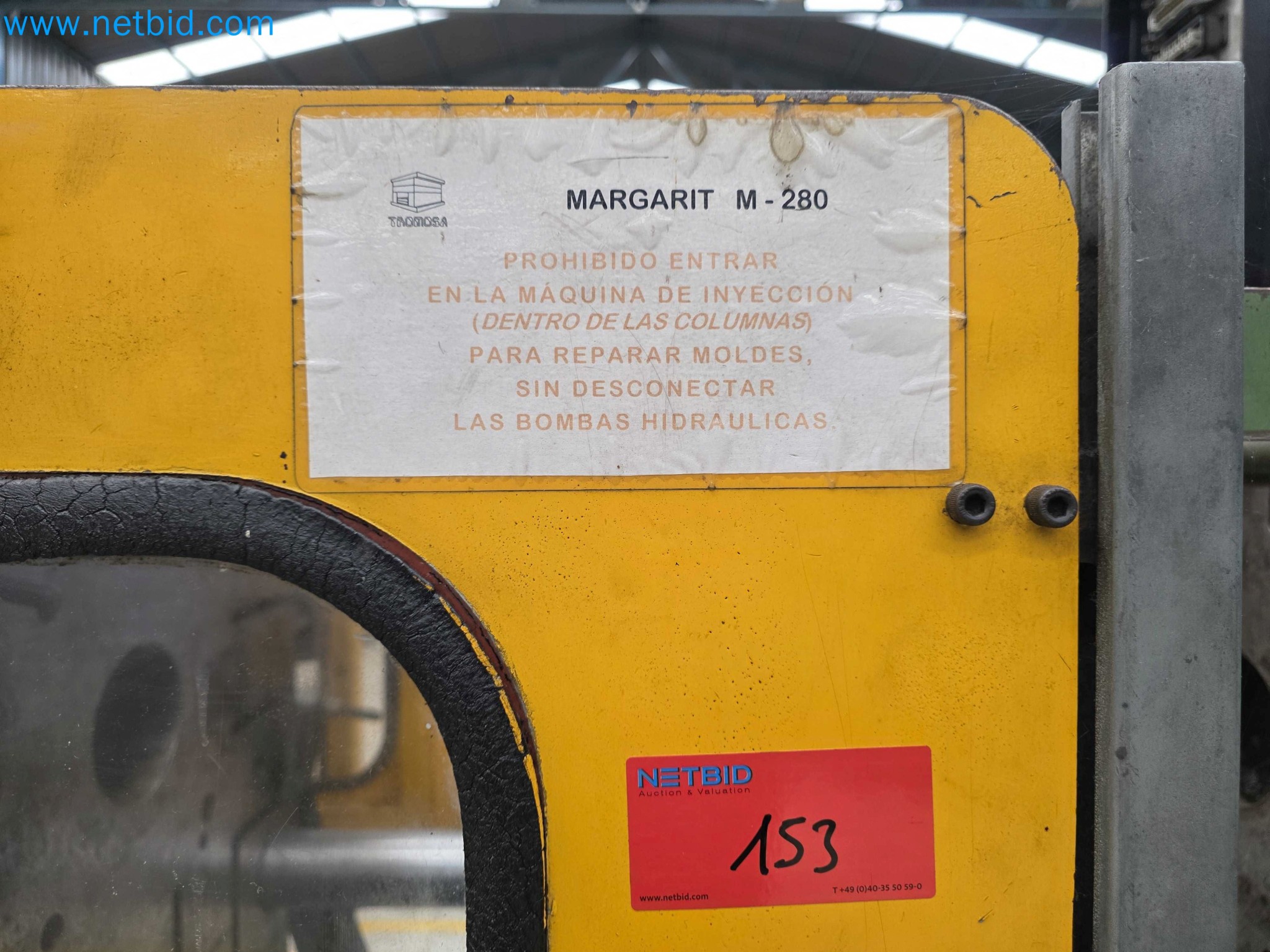

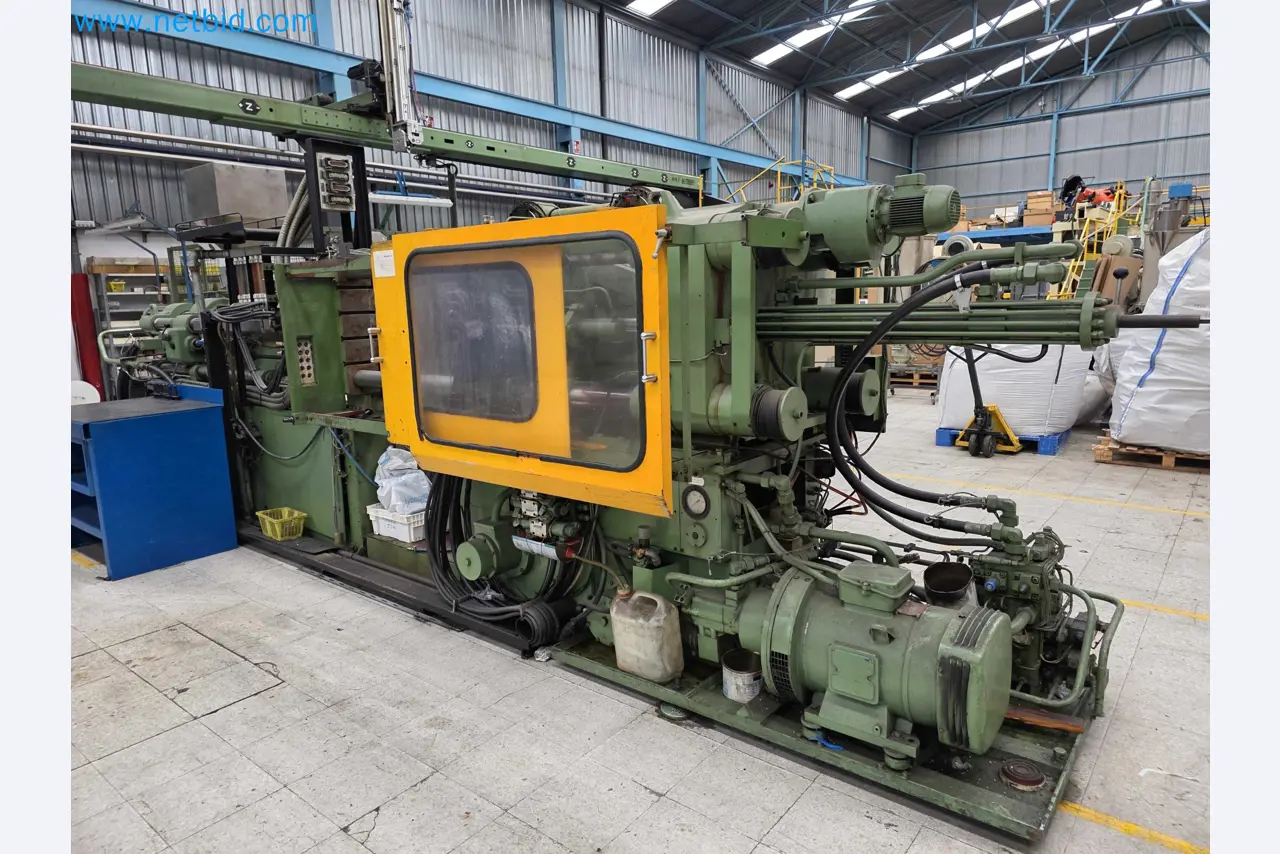

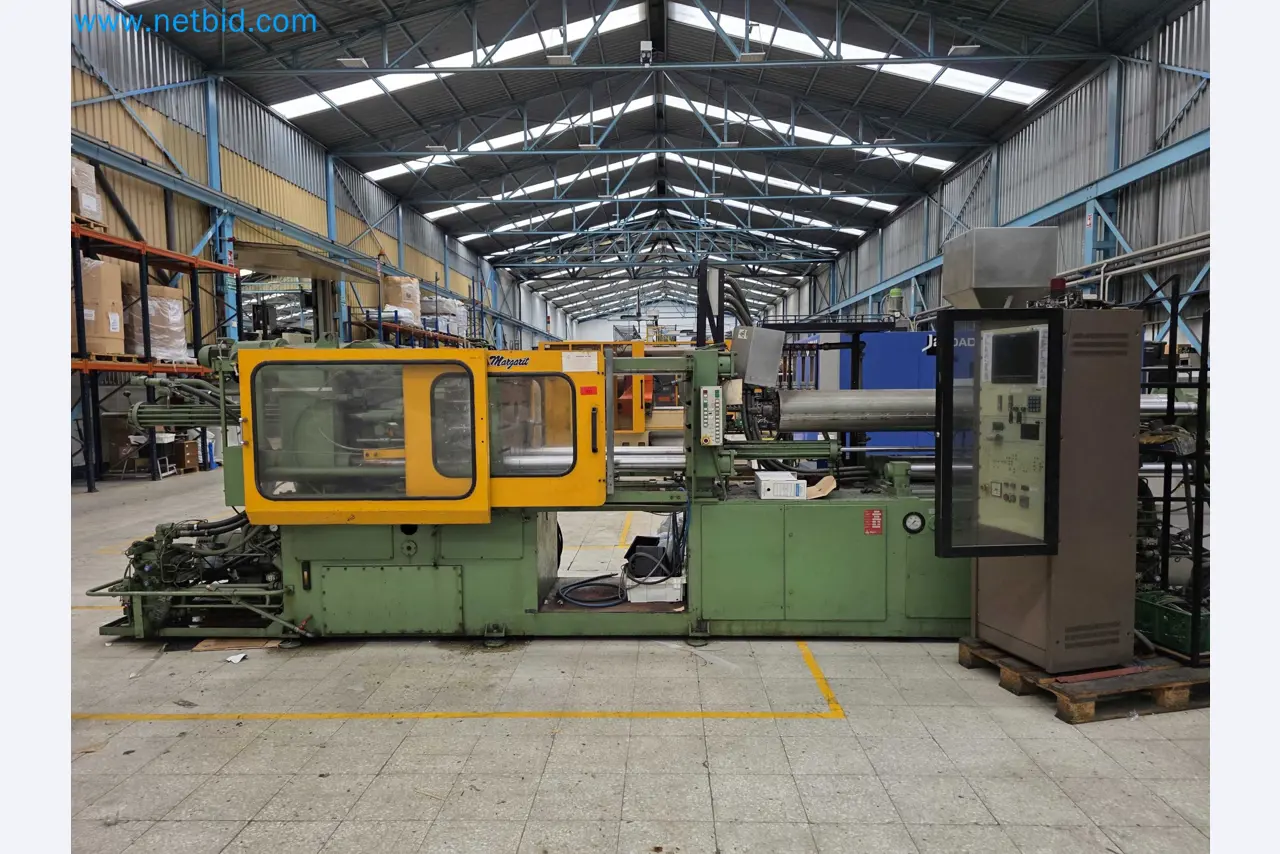

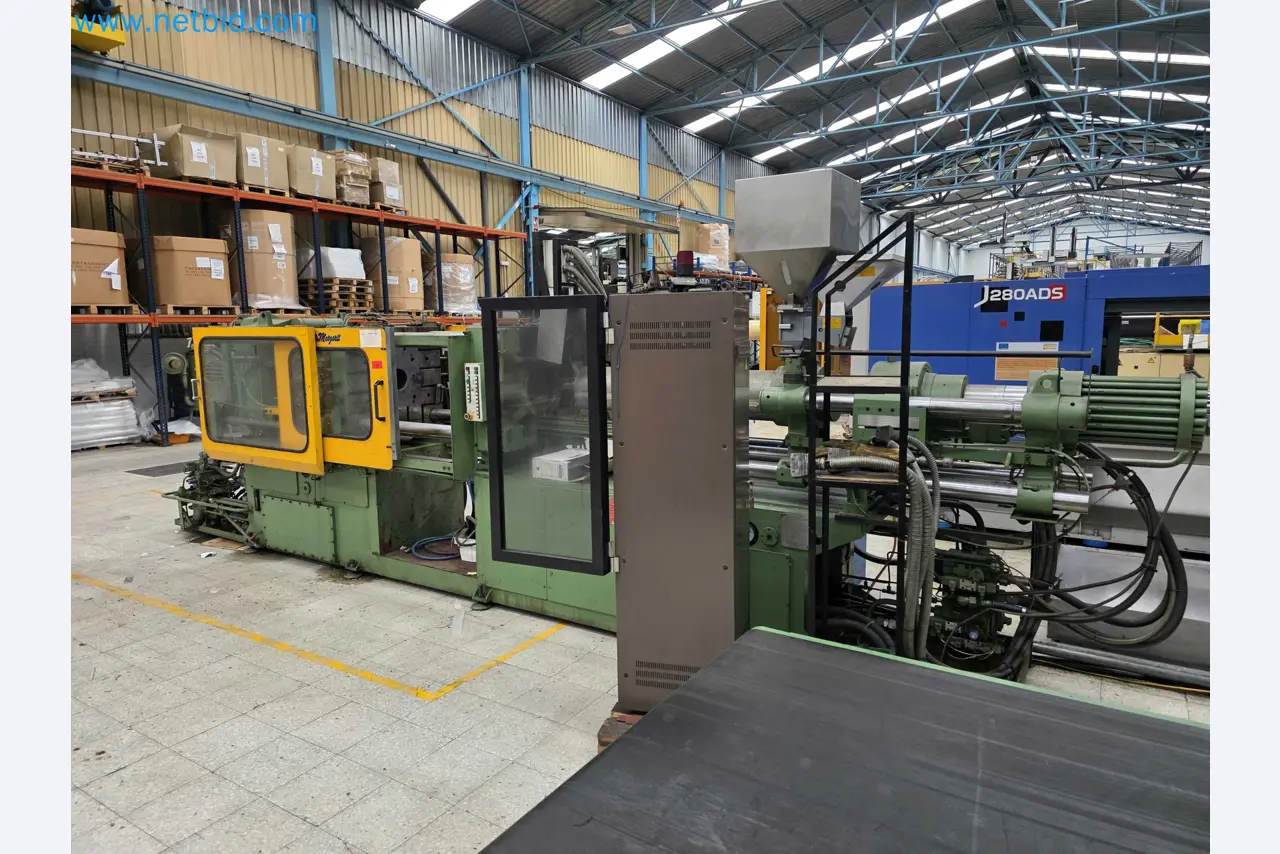

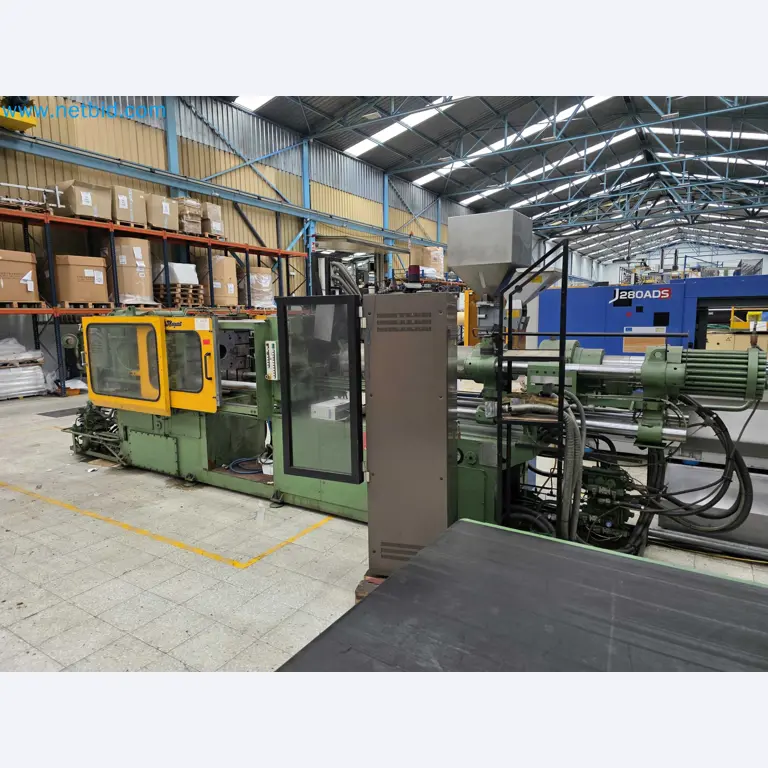

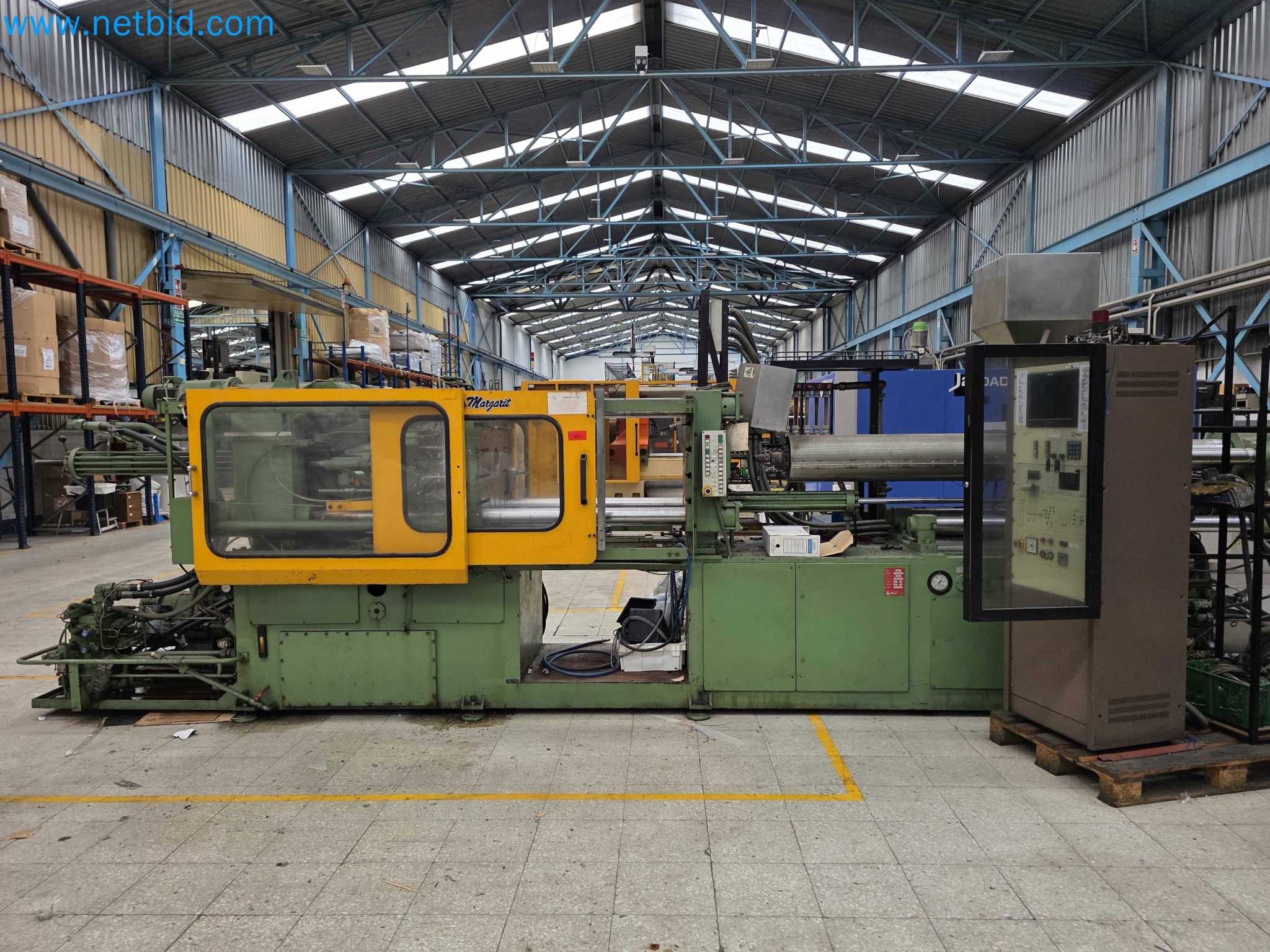

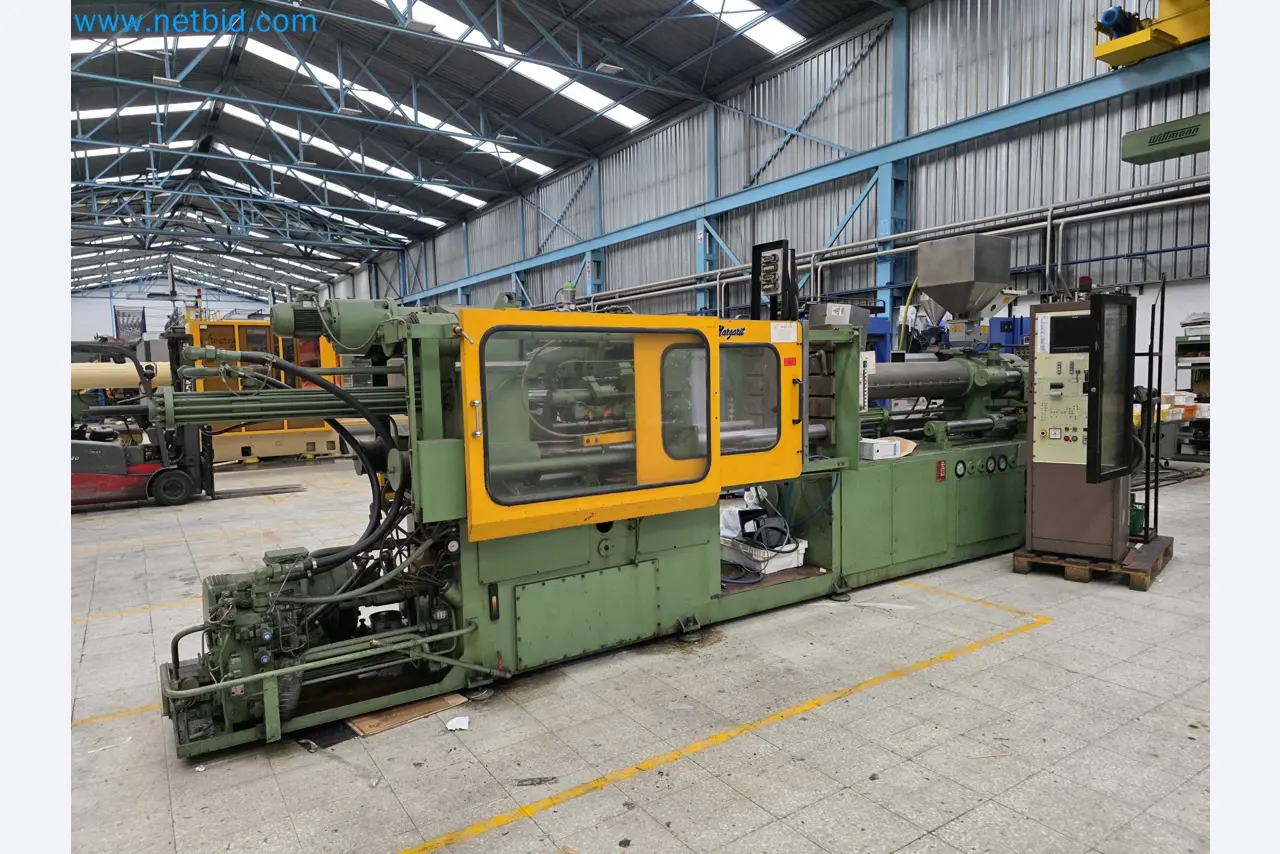

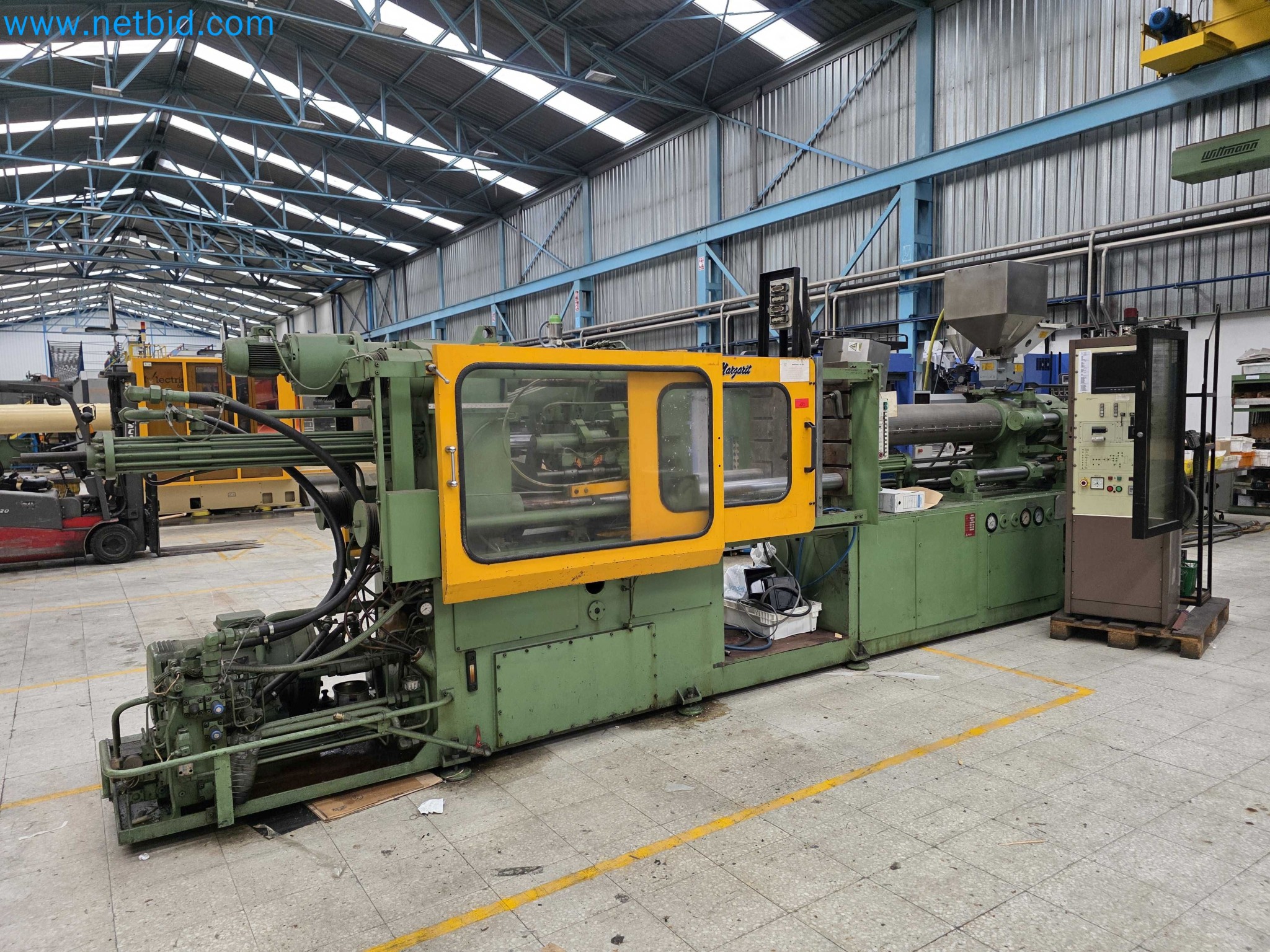

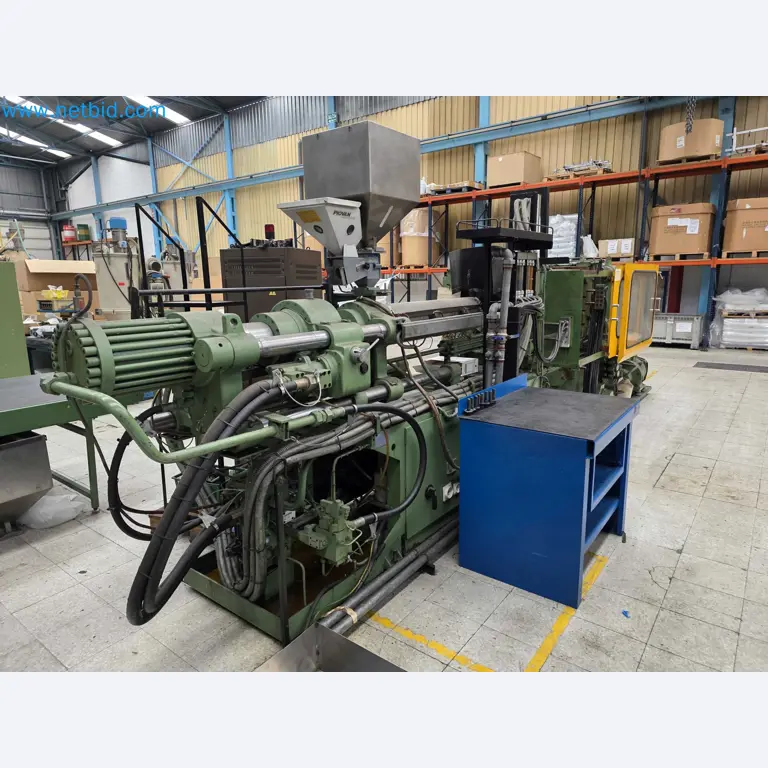

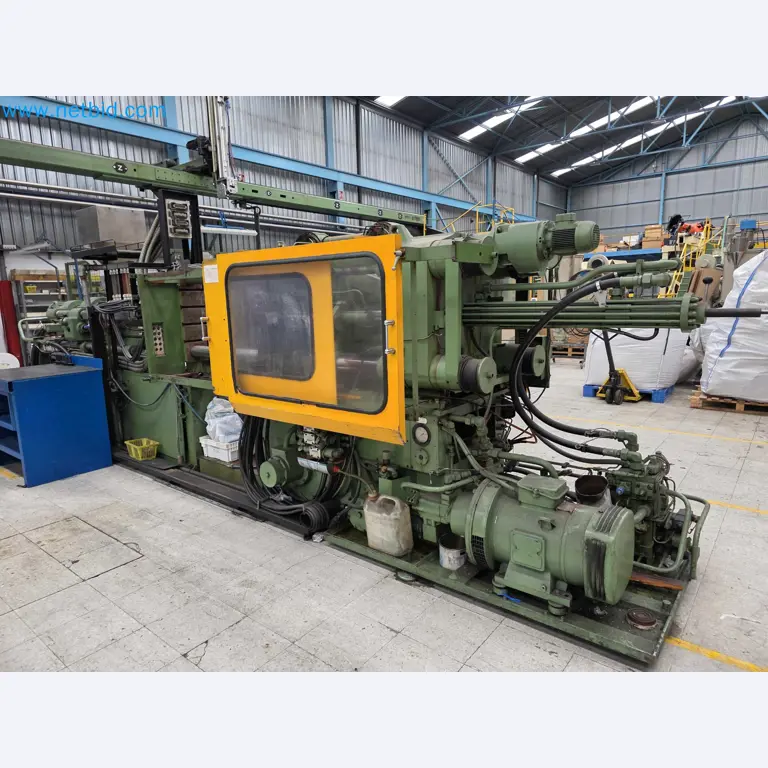

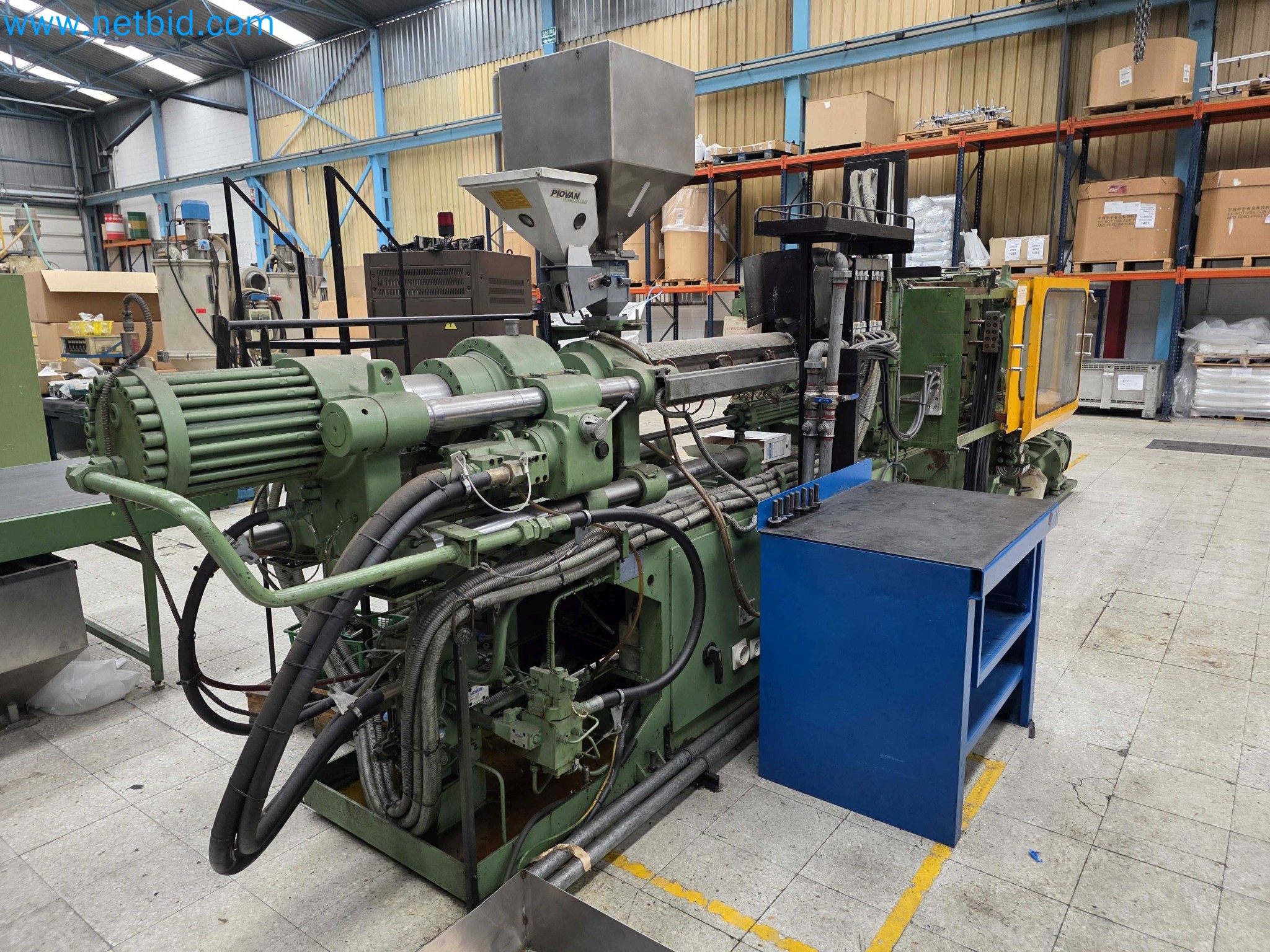

Injection Molding Machine MARGARIT M-280/1170TRADING#A19590-153
Details
Product Type

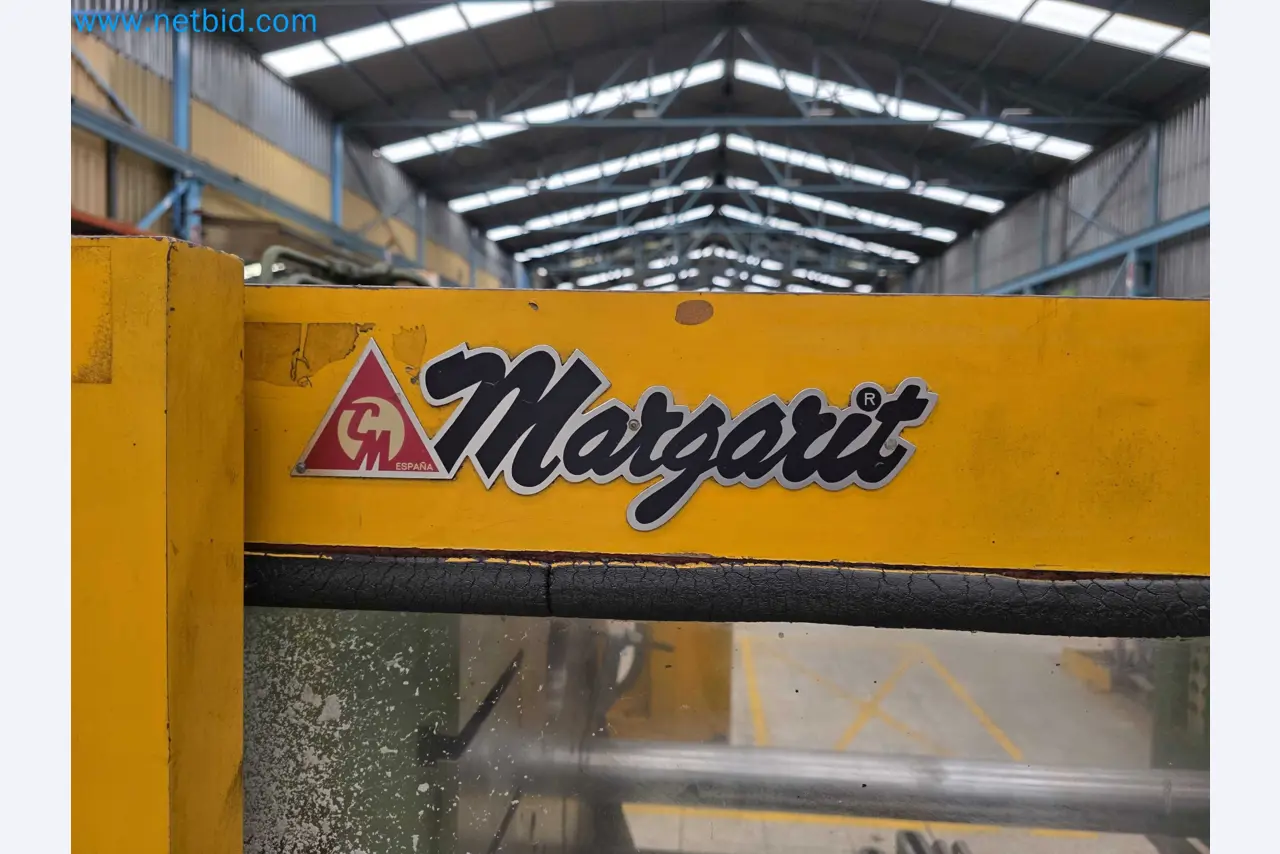

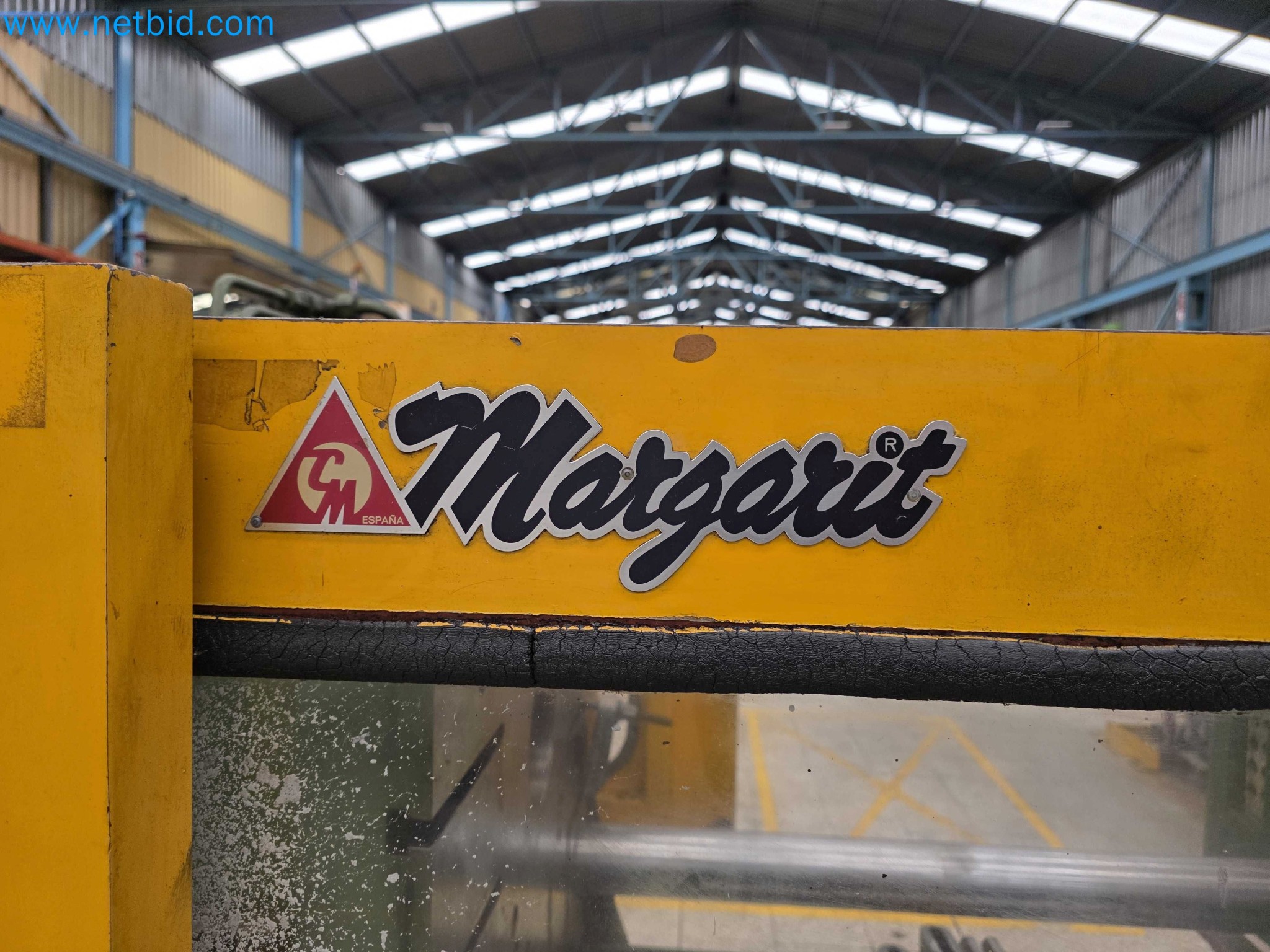

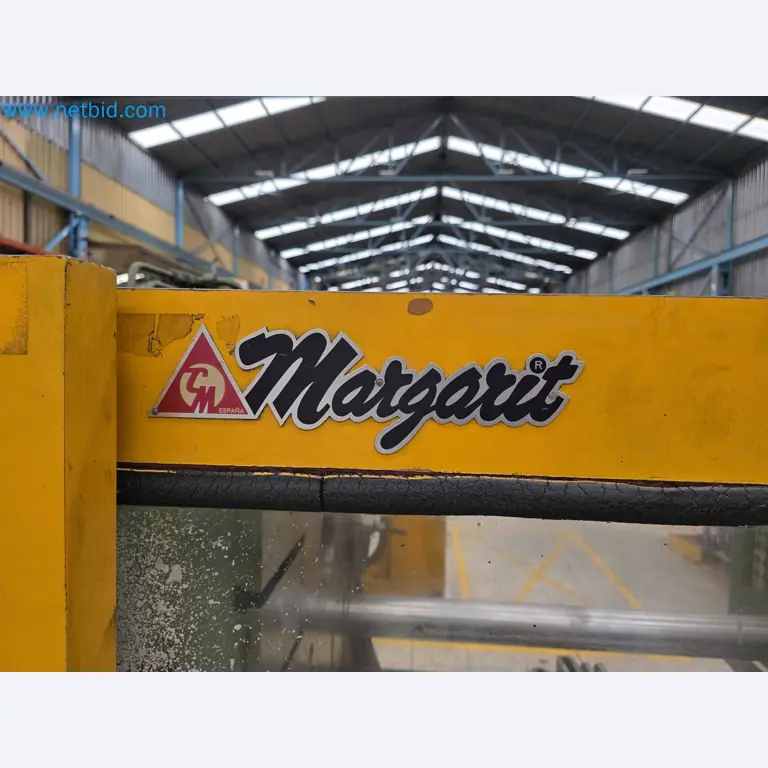

MARGARIT
Type
M-280/1170
Construction Year
1987
Description

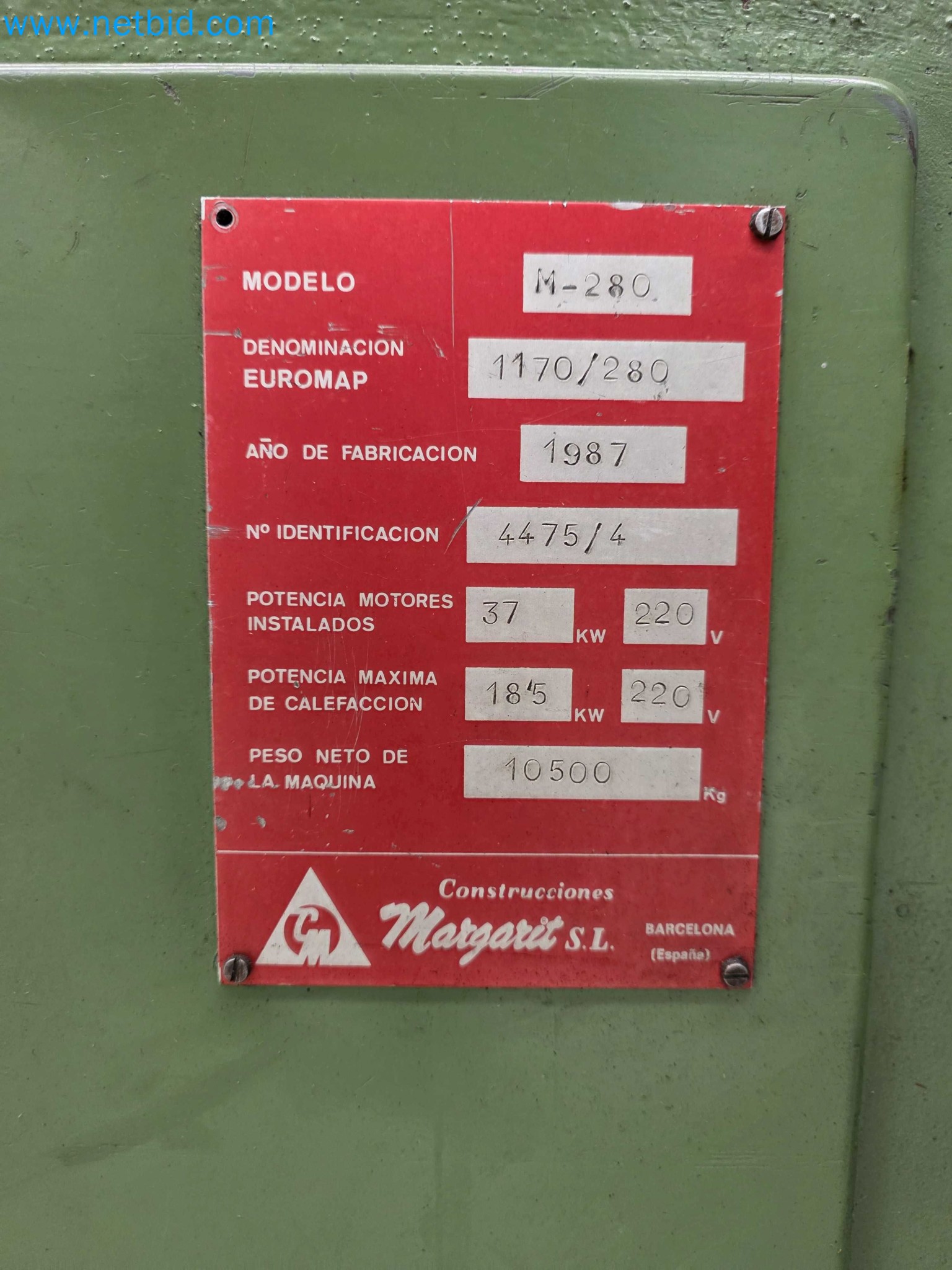

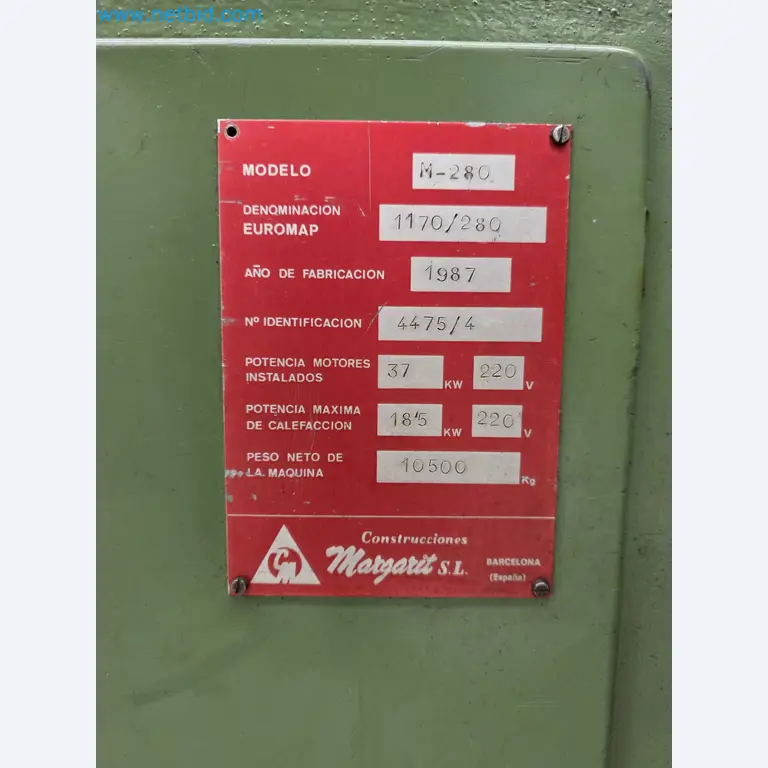

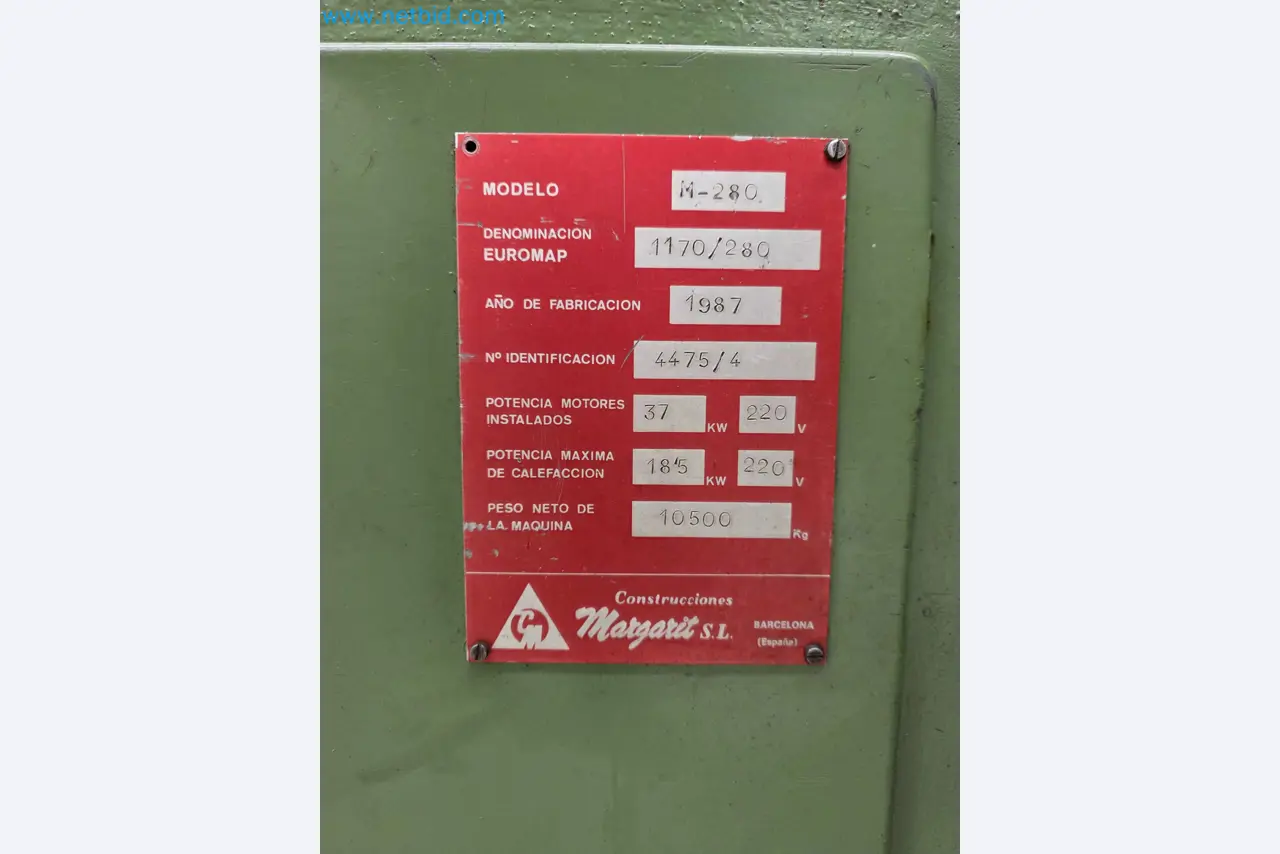

SN: 4475/4

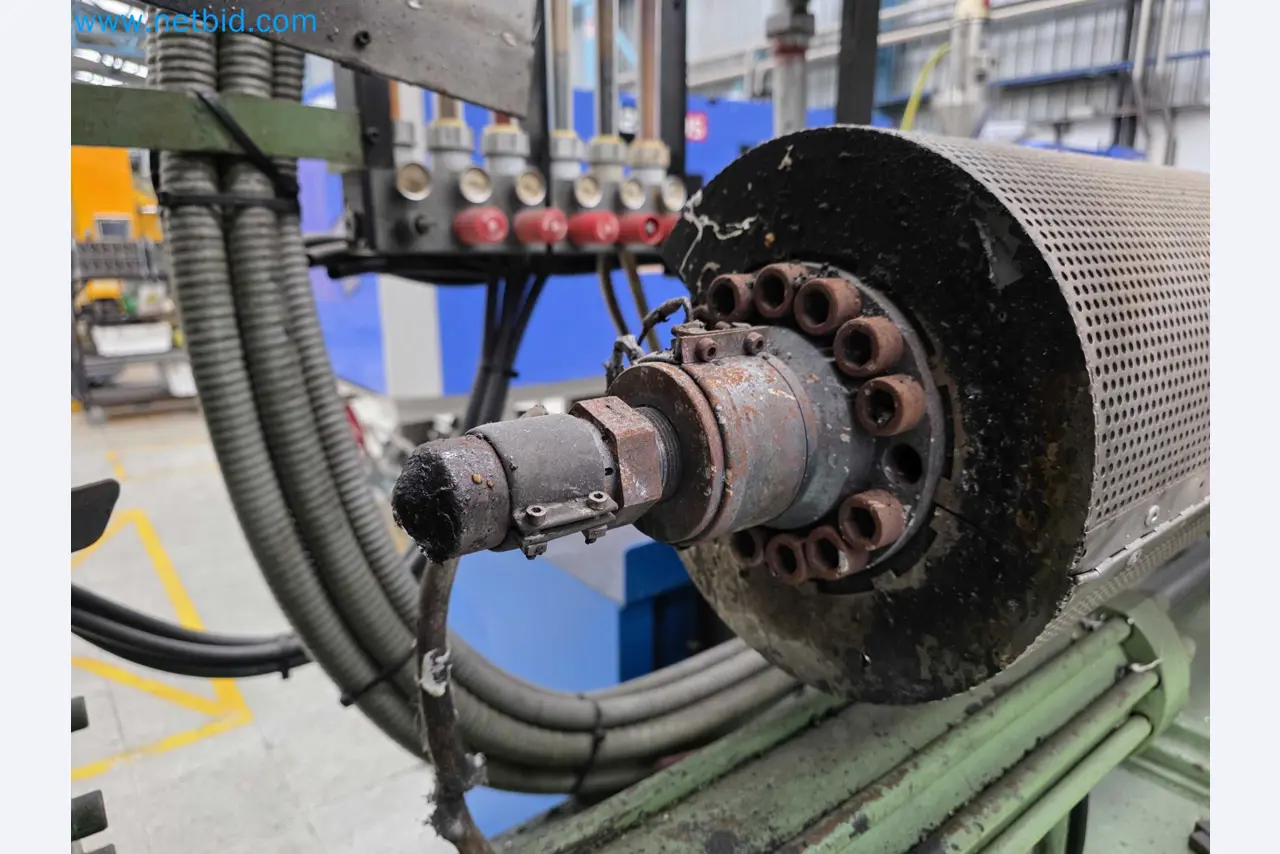

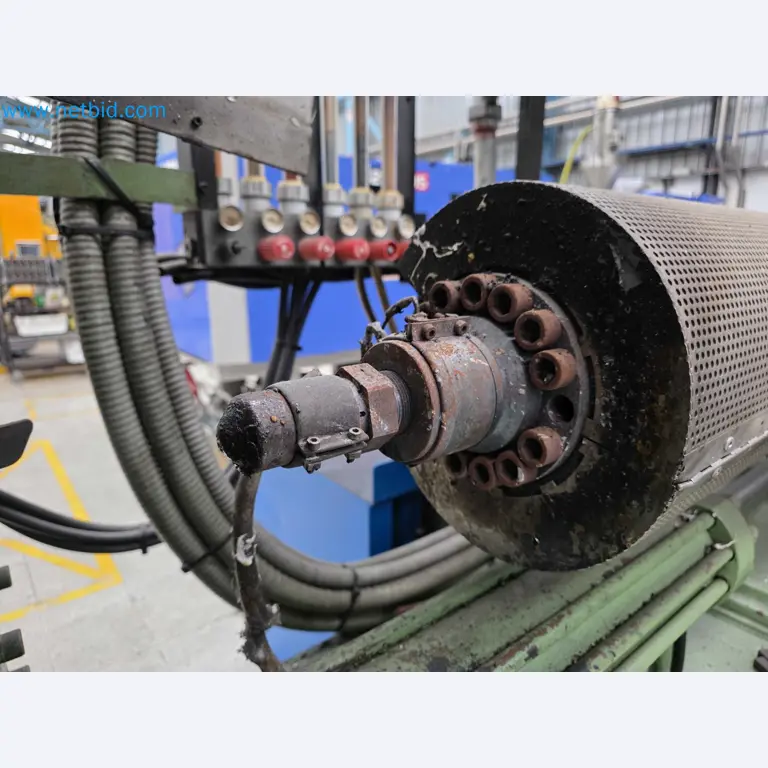

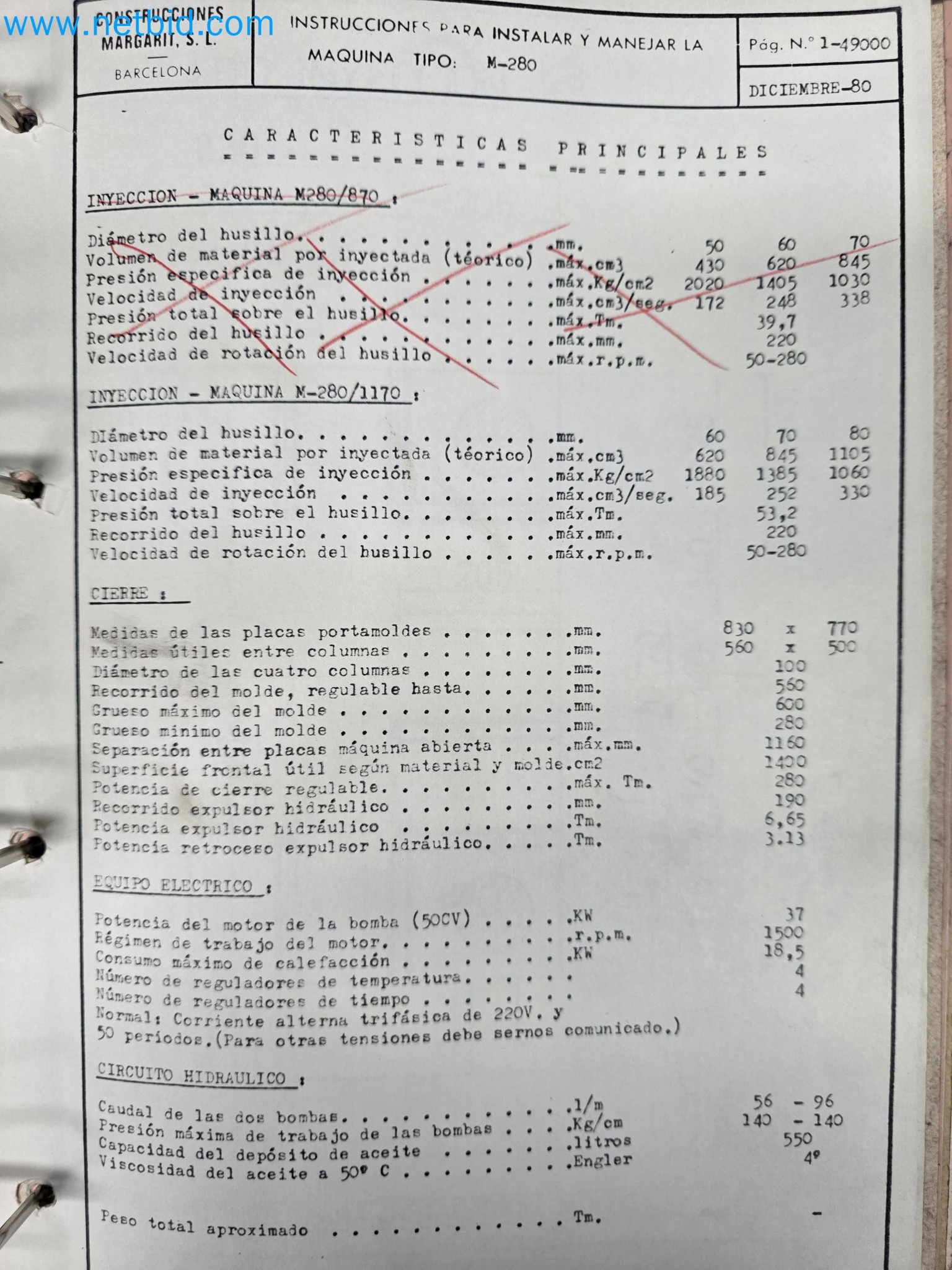

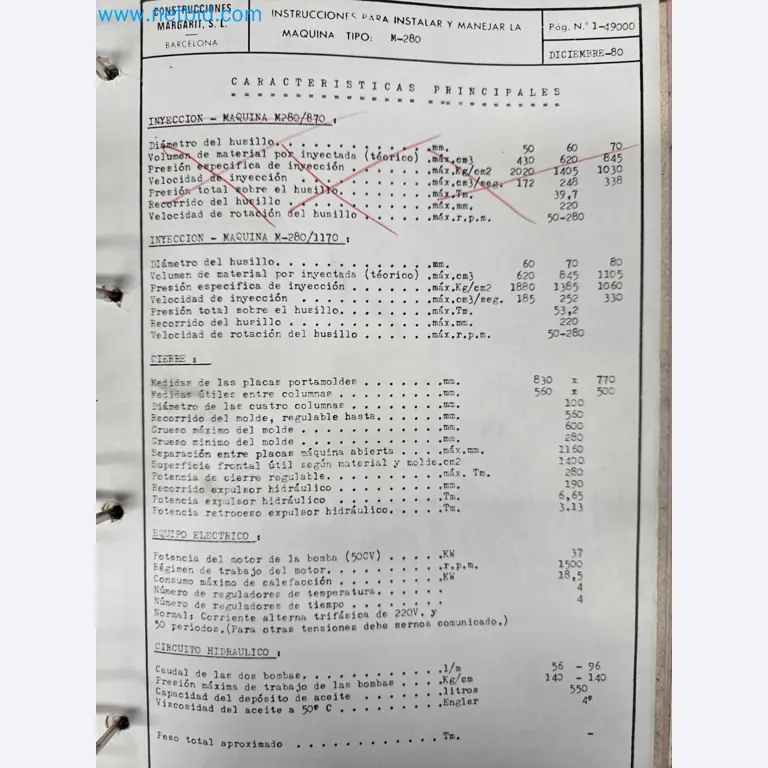

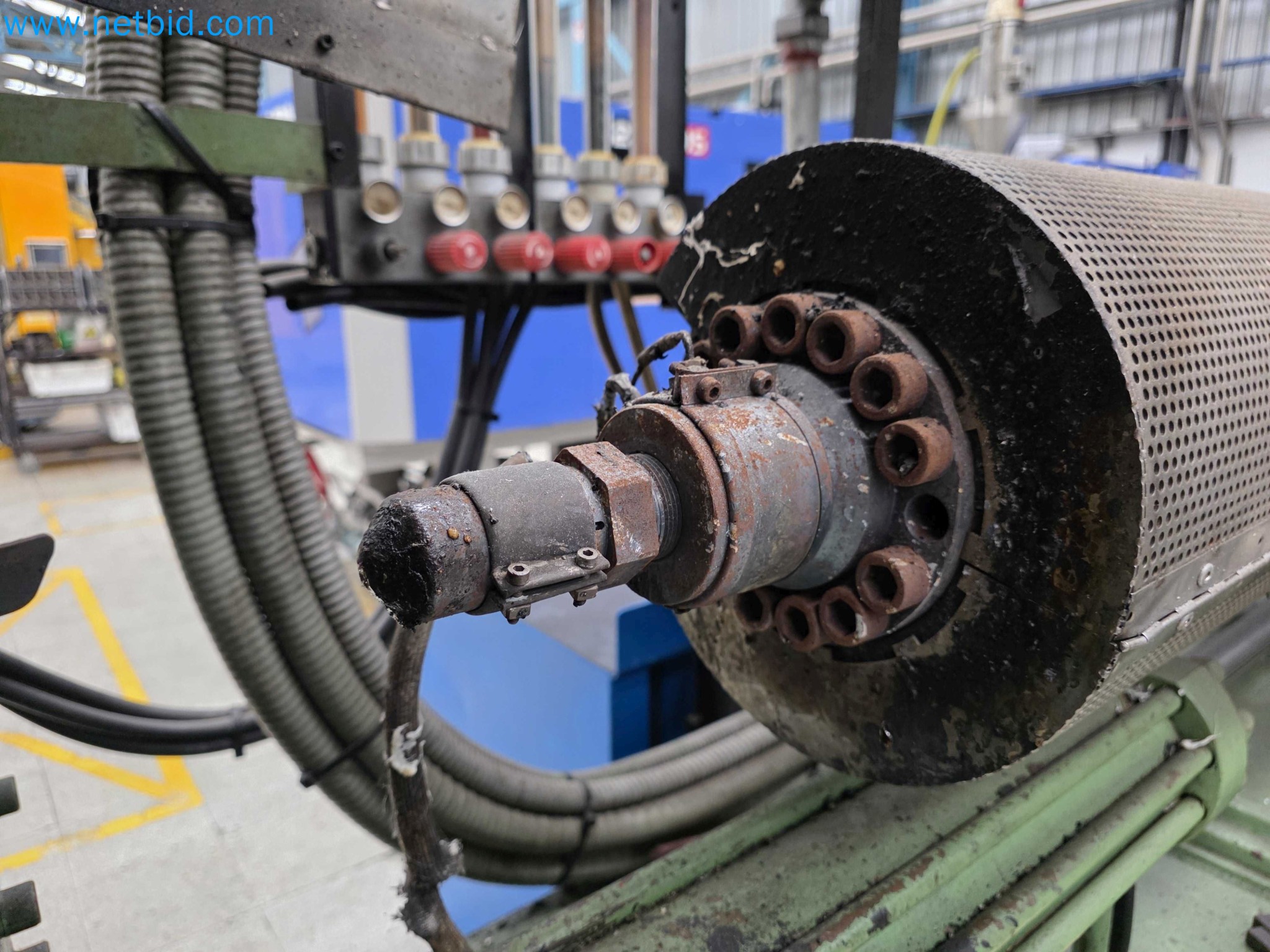

Screw diameter: 60–70–80 mm
Material volume per shot: 620–845–1105 max. cm³
Specific injection pressure: 1880–1385–1060 max. kg/cm²
Injection speed: 185–252–330 max. cm³/s
Total pressure on screw: 53.2 t
Maximum screw stroke: 220 mm
Maximum screw rotation speed: 50–280 rpm

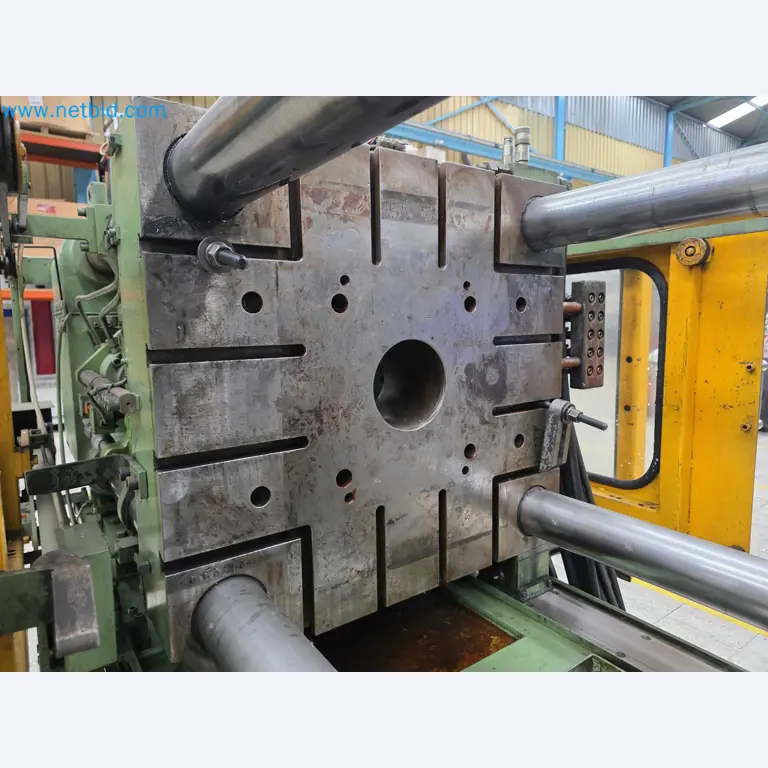

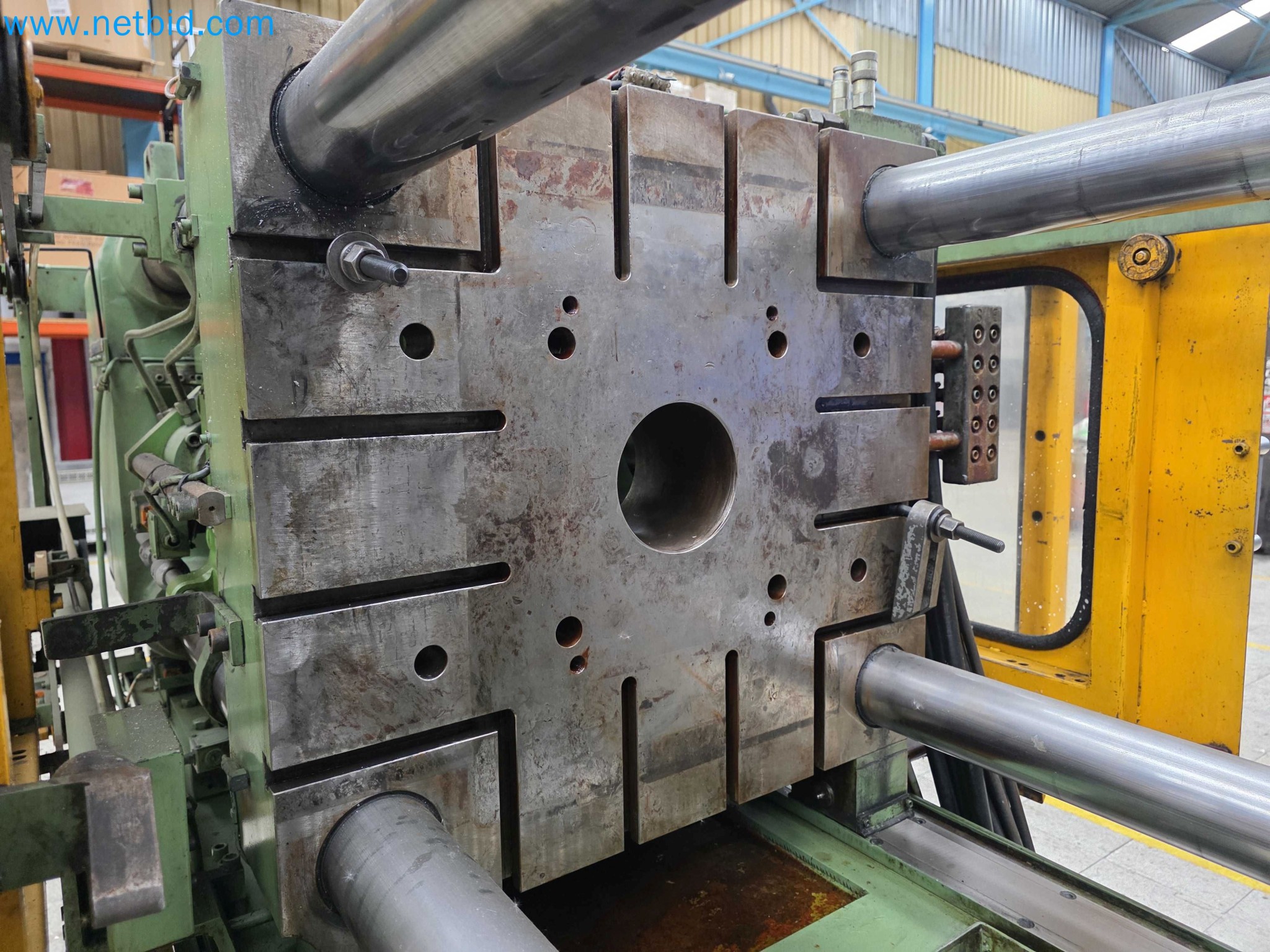

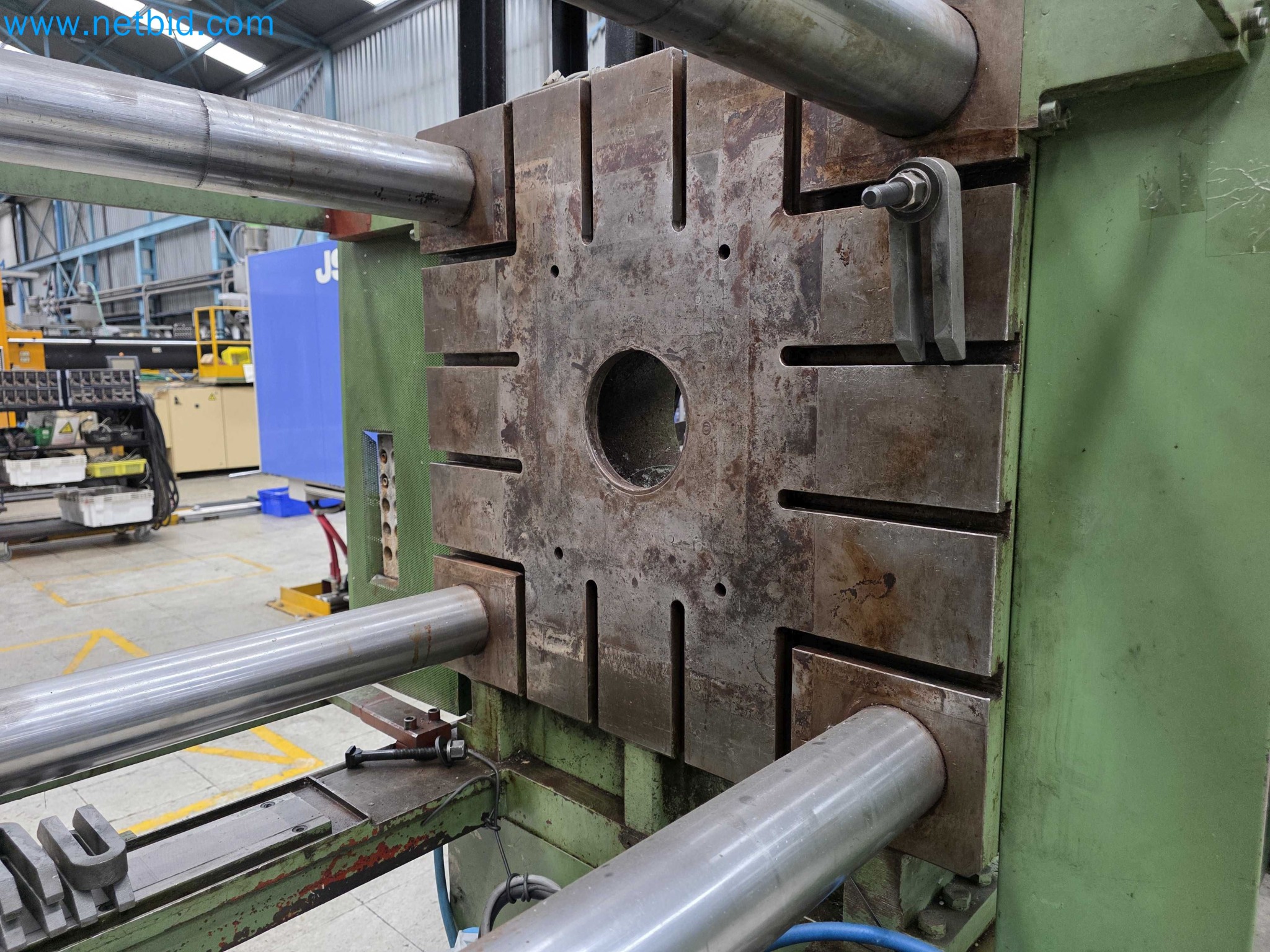

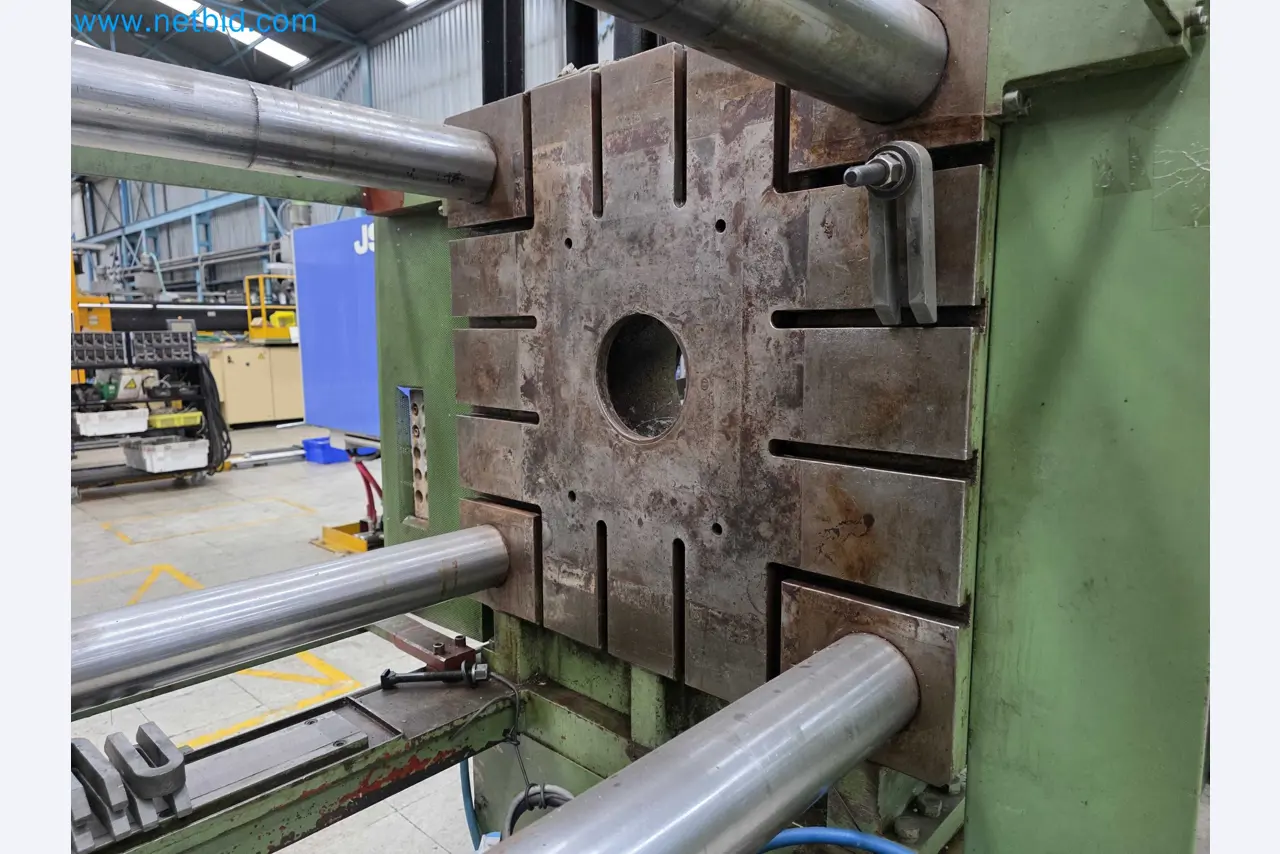

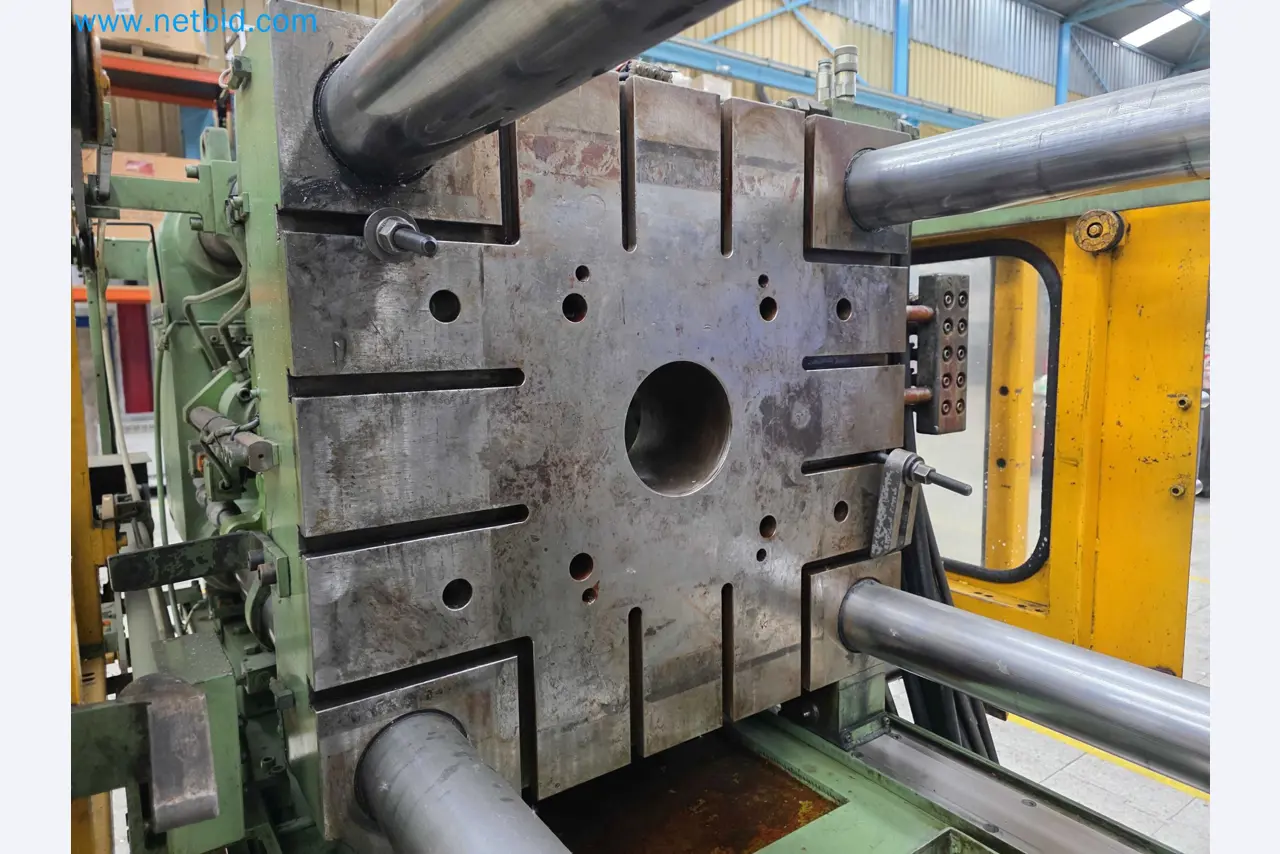

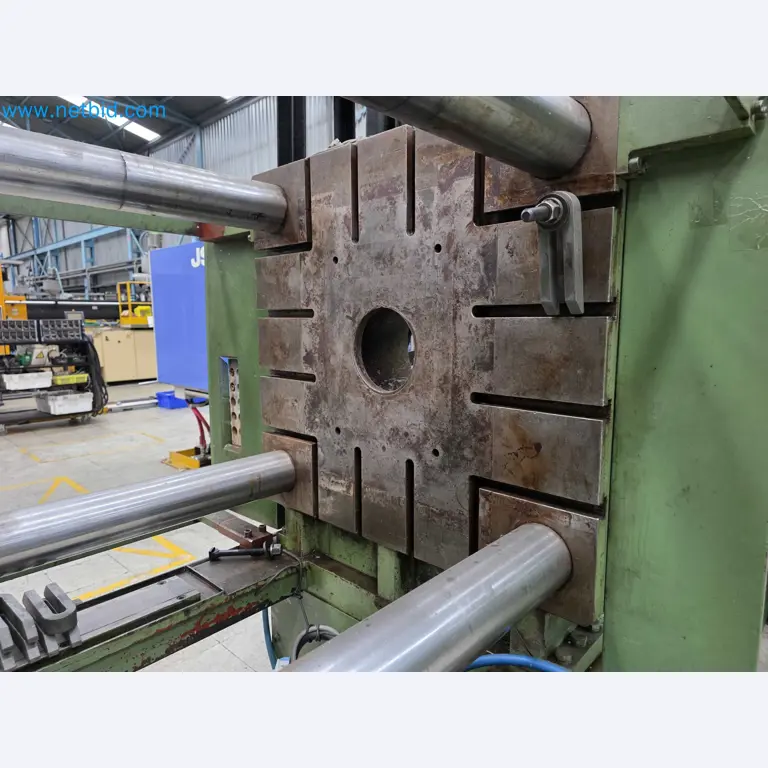

Mould mounting platen dimensions: 830 x 770 mm
Usable dimensions between tie bars: 560 x 500 mm
Mould stroke, adjustable up to 560 mm
Maximum/minimum mould thickness: 600–280 mm
Usable frontal area according to material and mould: 1400 cm²
Maximum adjustable clamping force: 280 t
Hydraulic ejector stroke: 190 mm
Hydraulic ejector force: 6.65 t

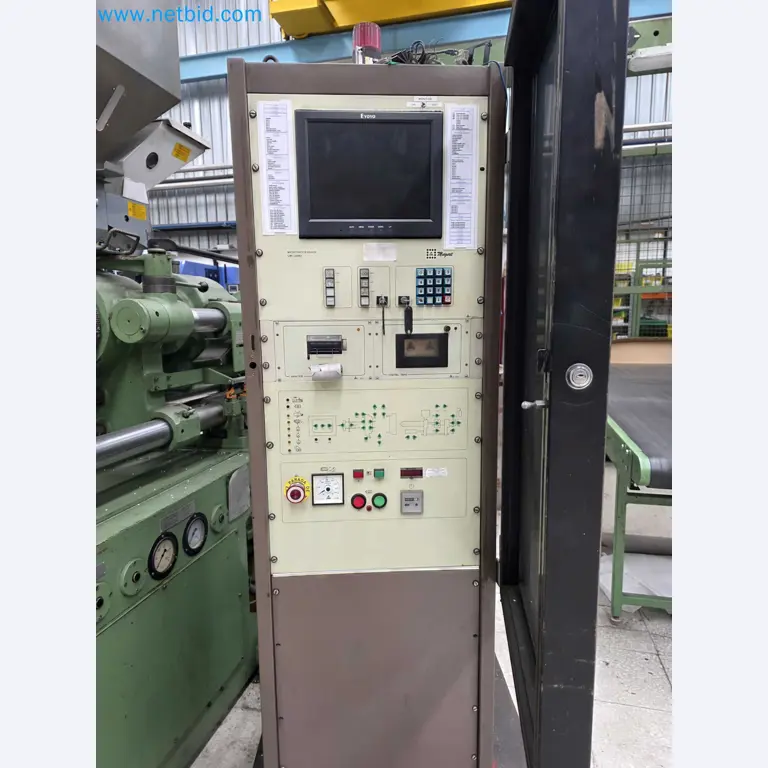

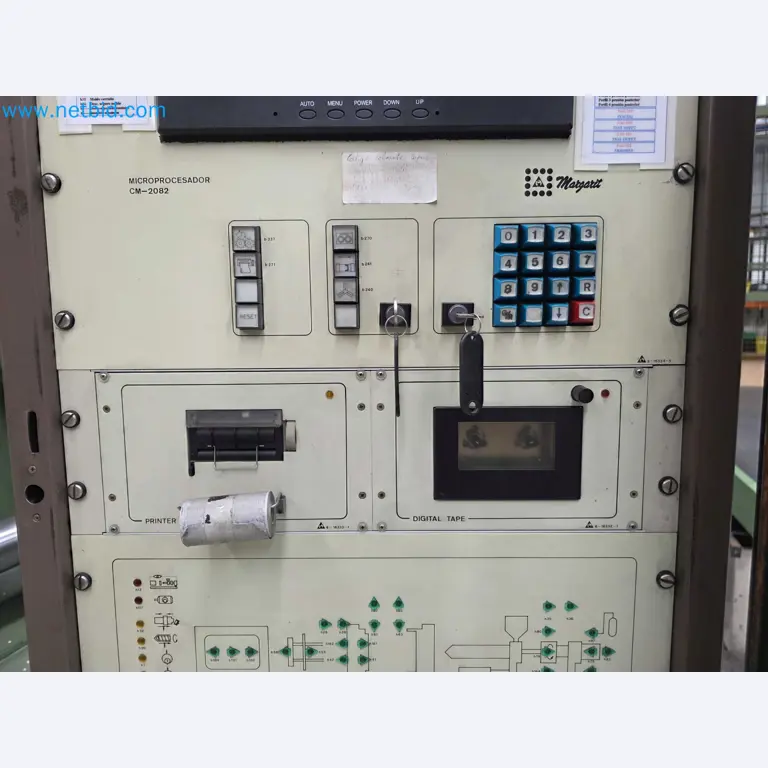

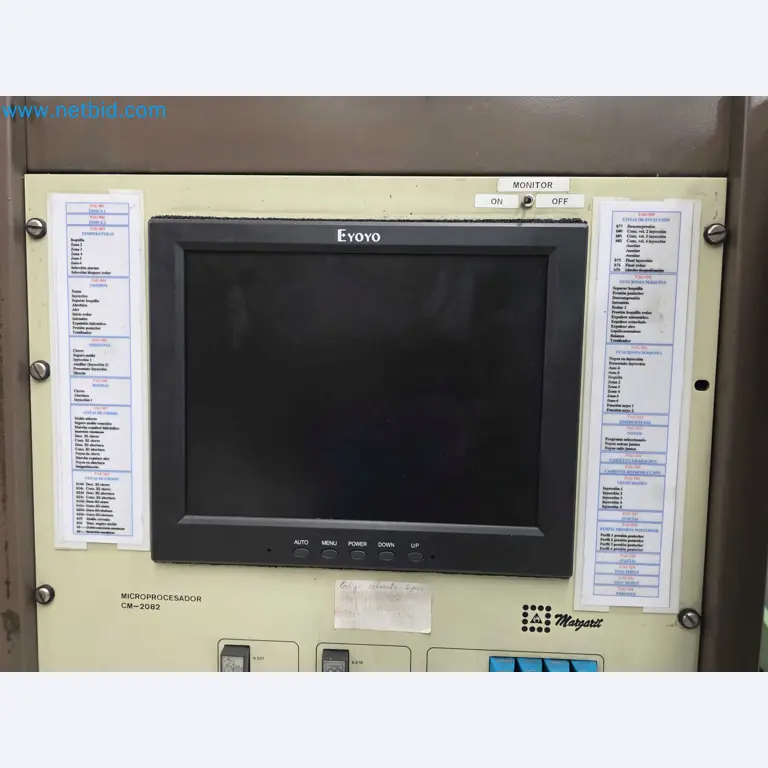

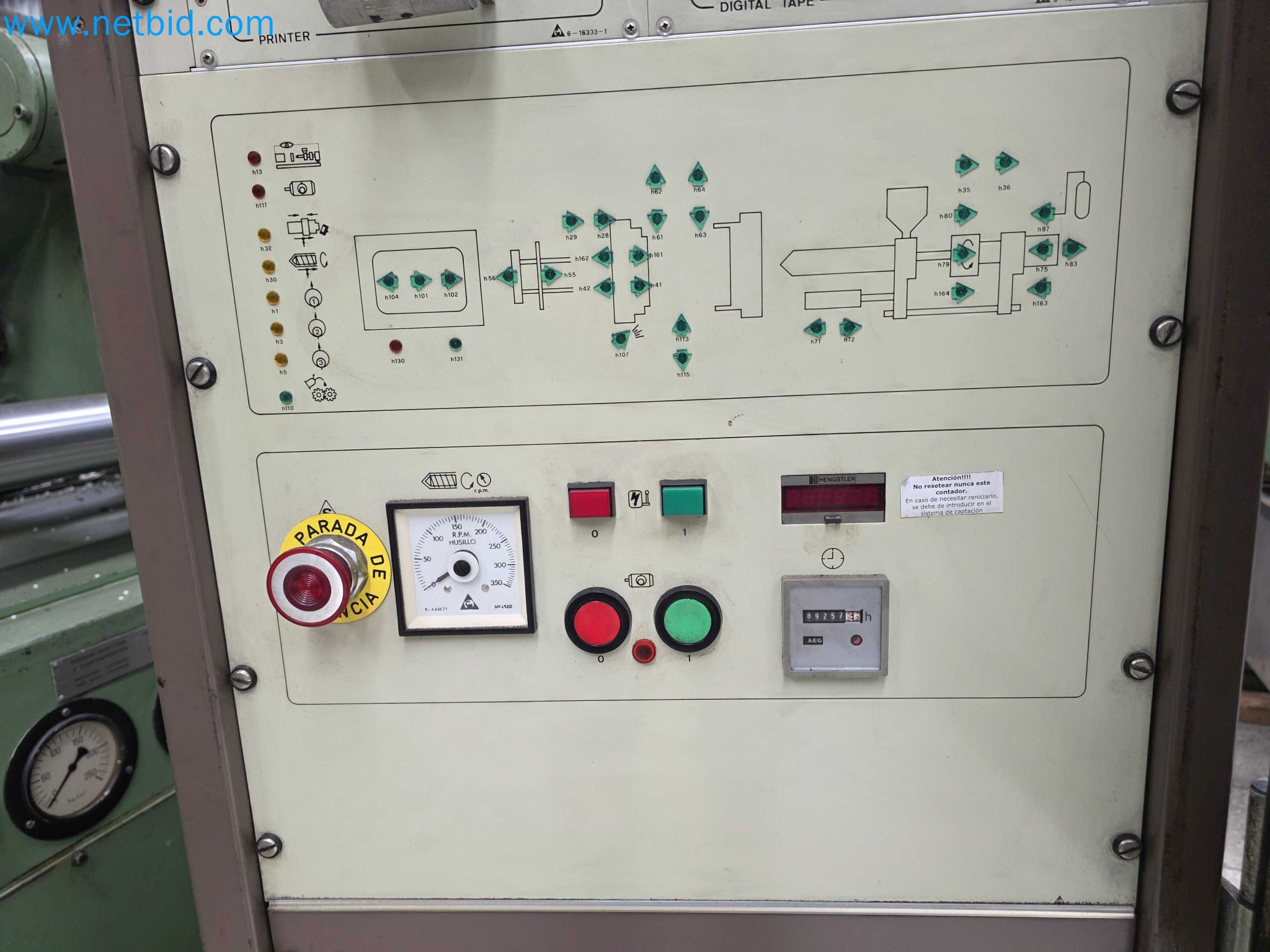

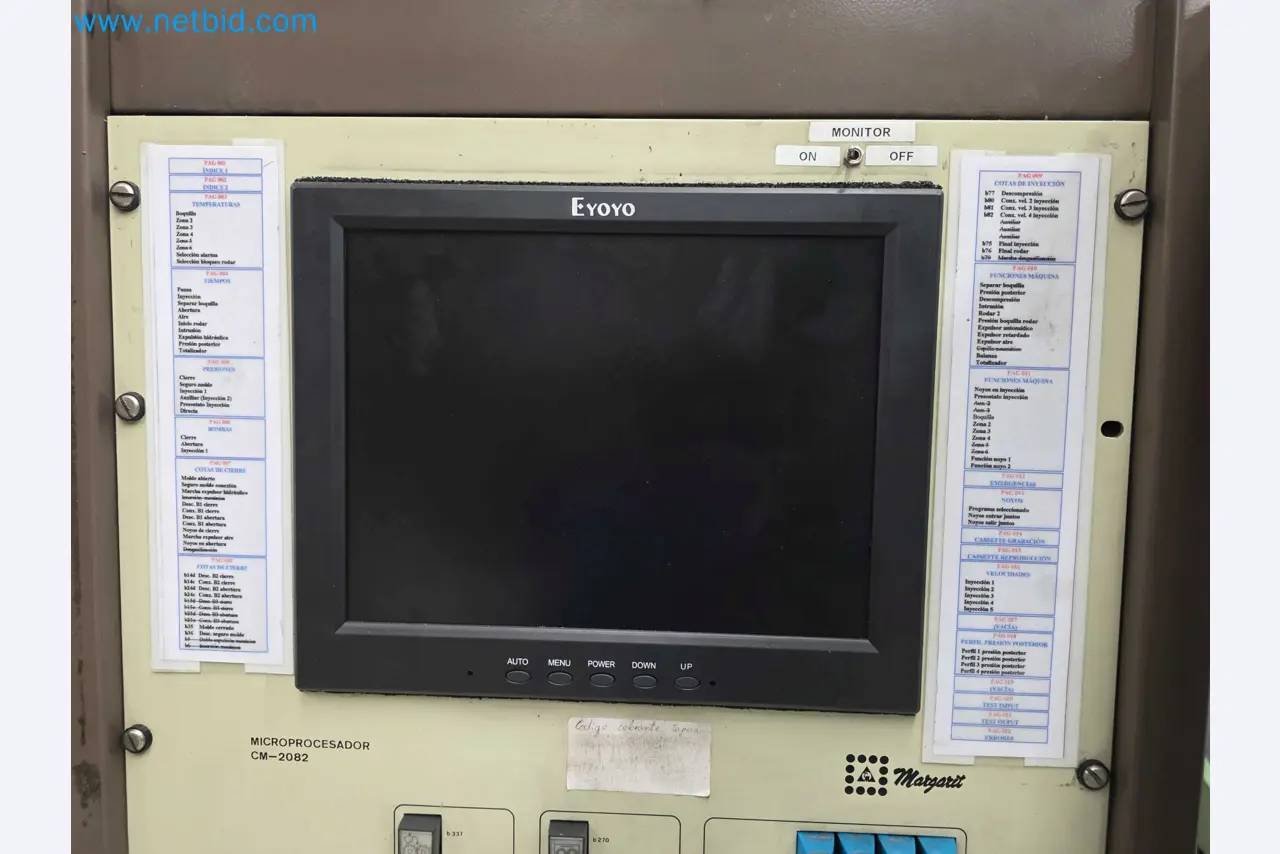

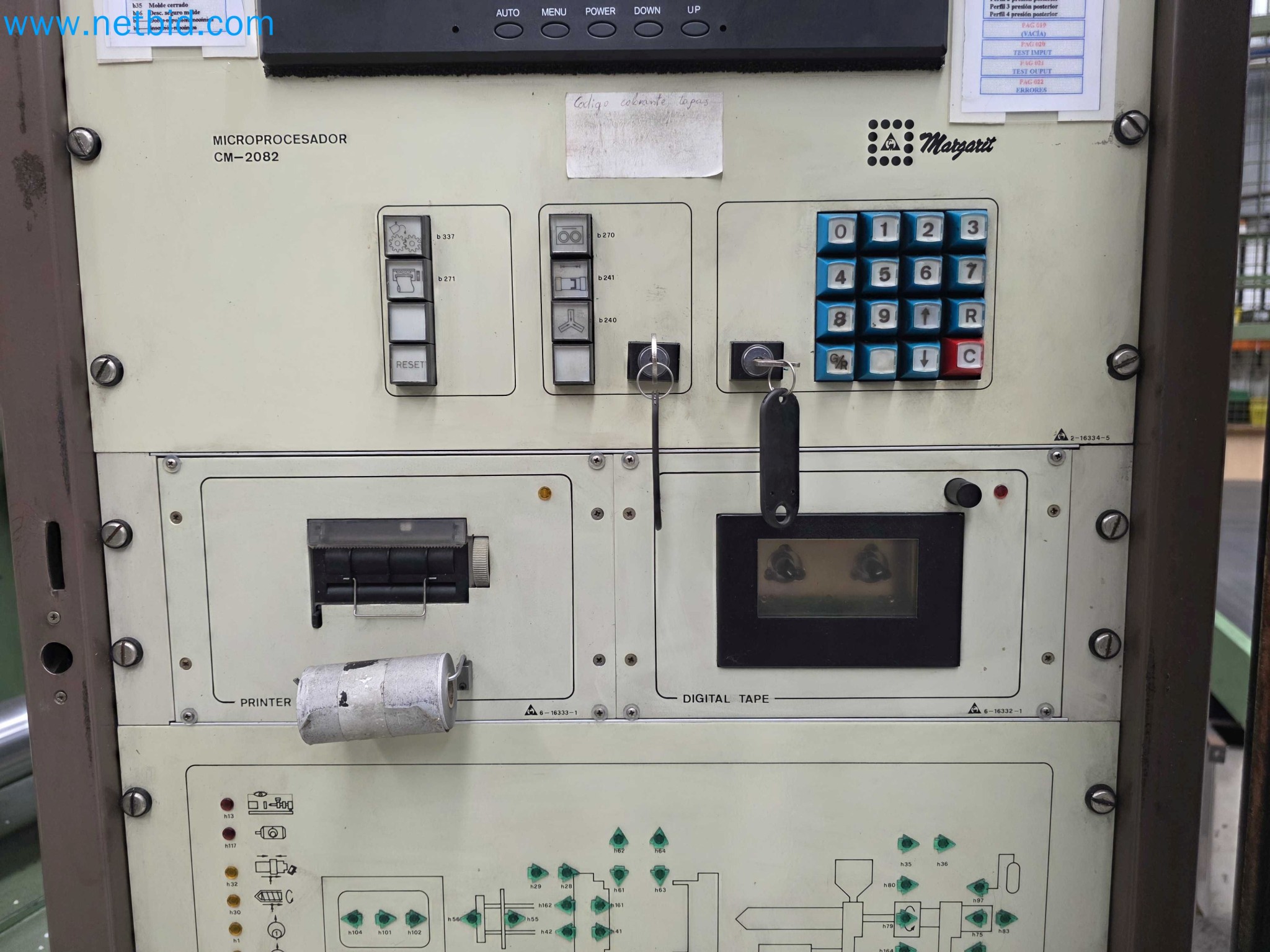

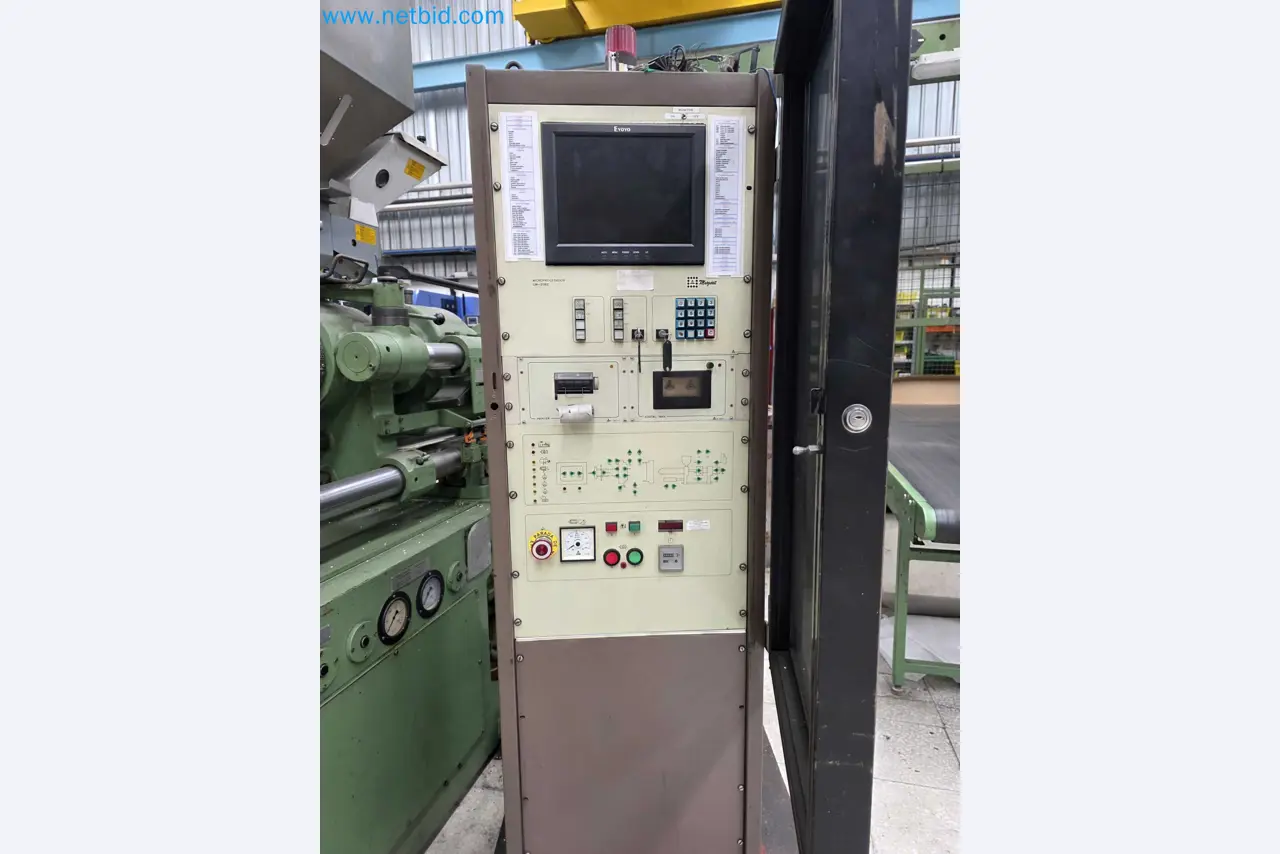

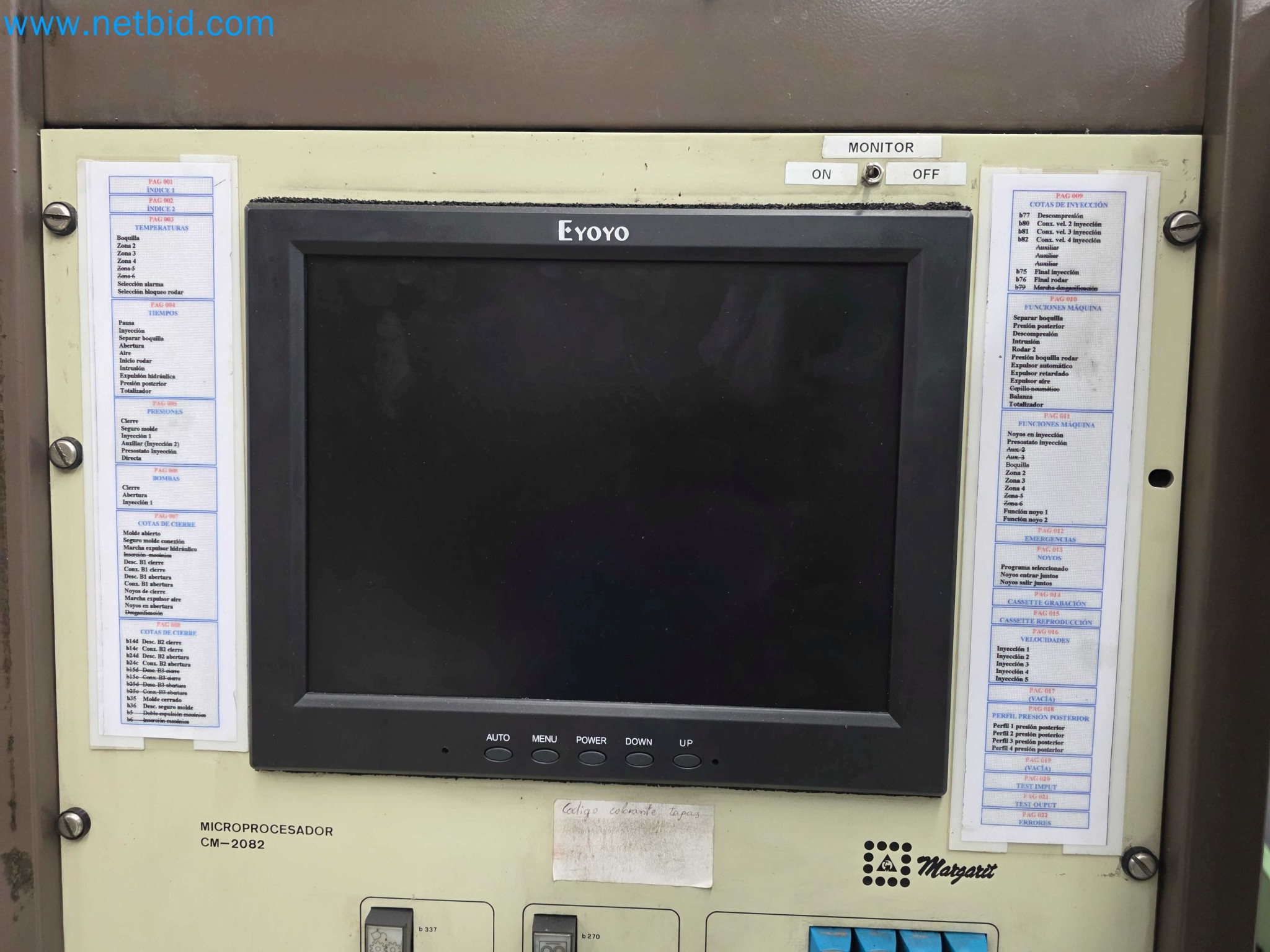

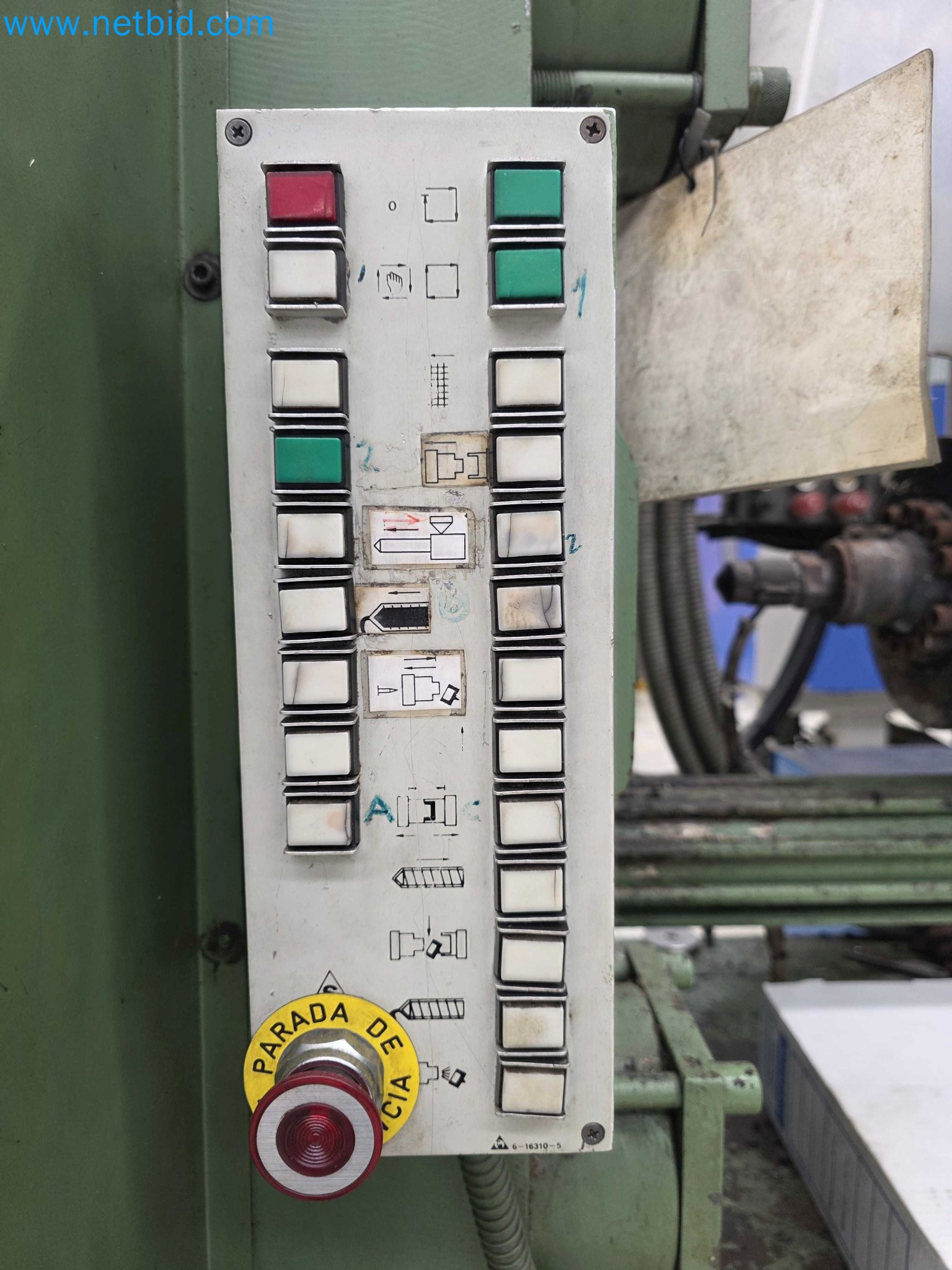

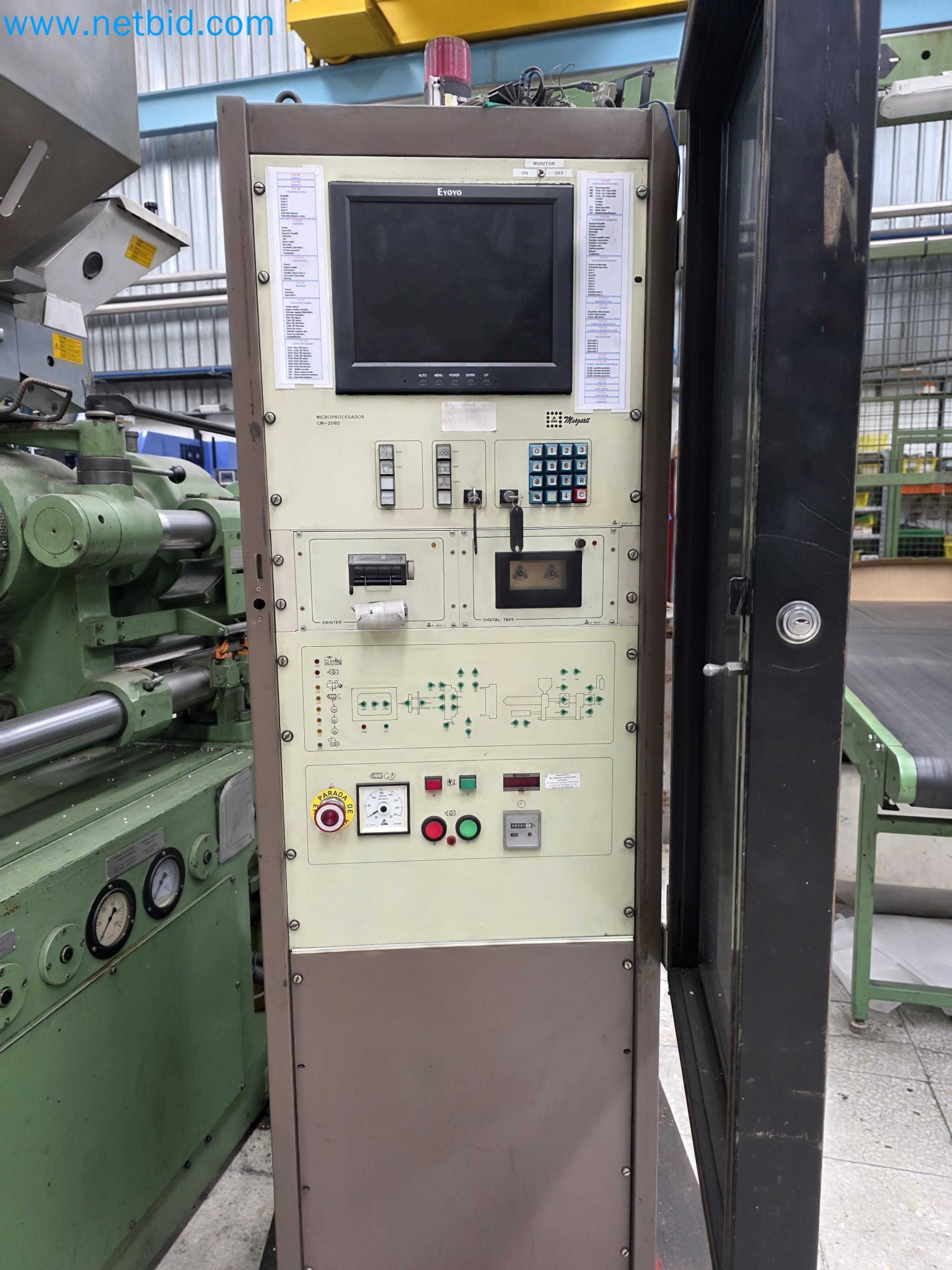

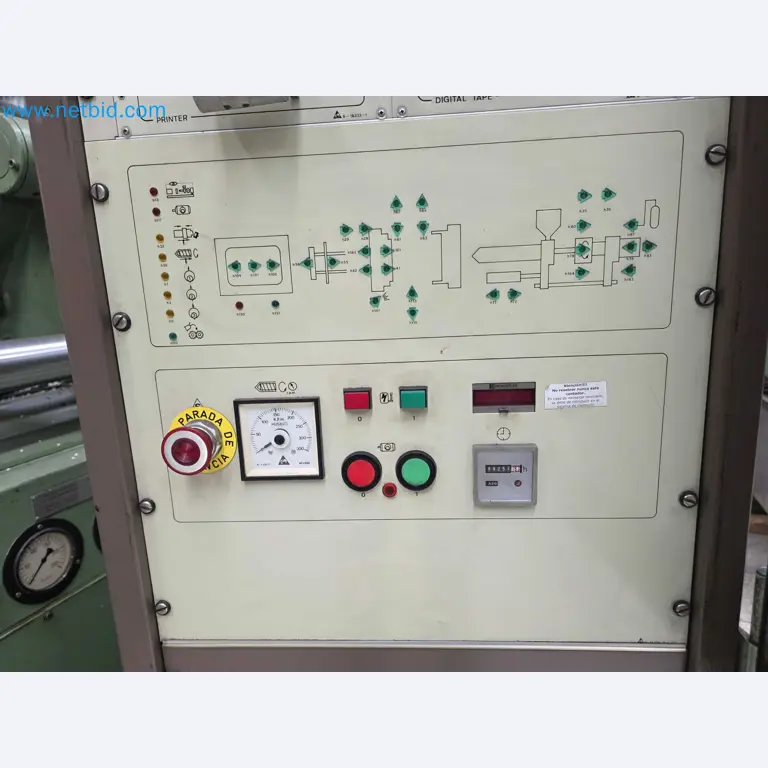

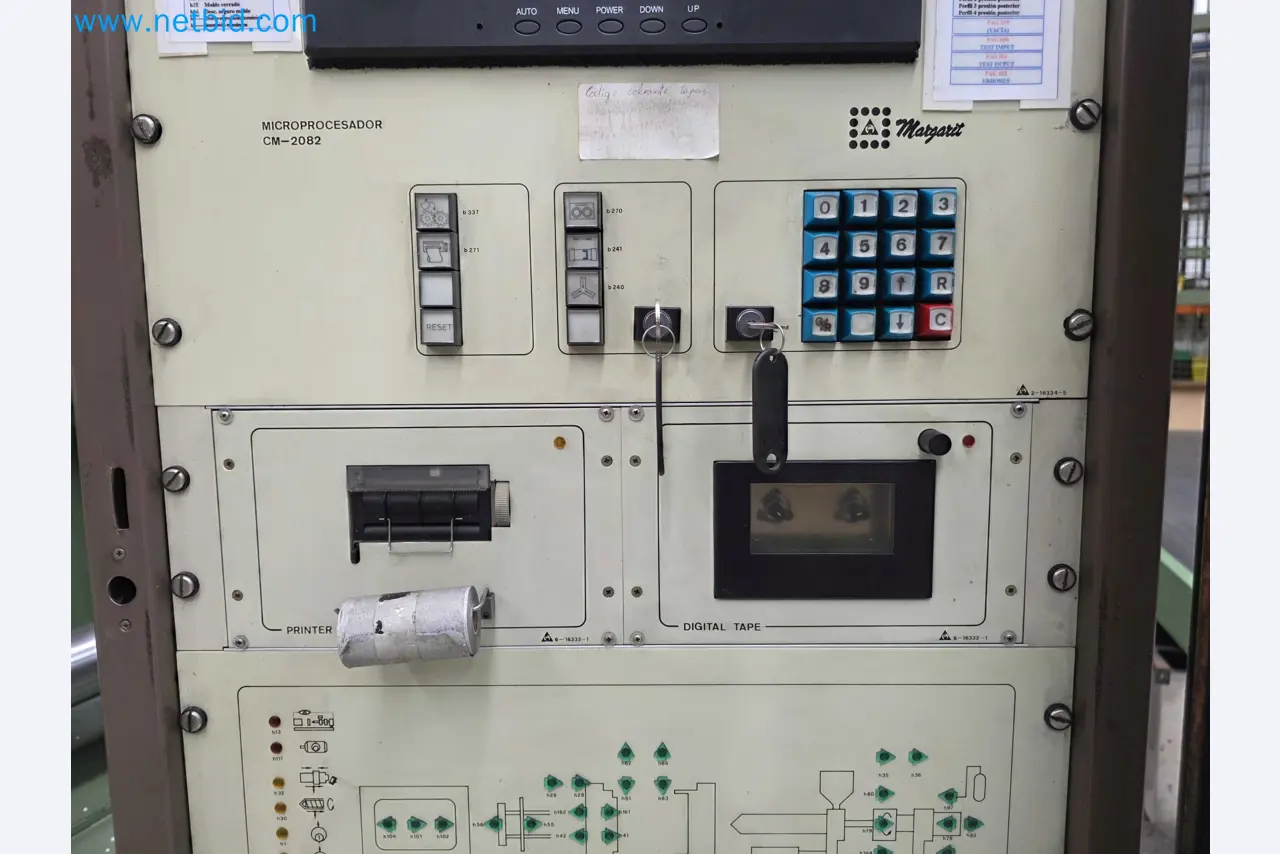

MARGARIT CM-2082 control system

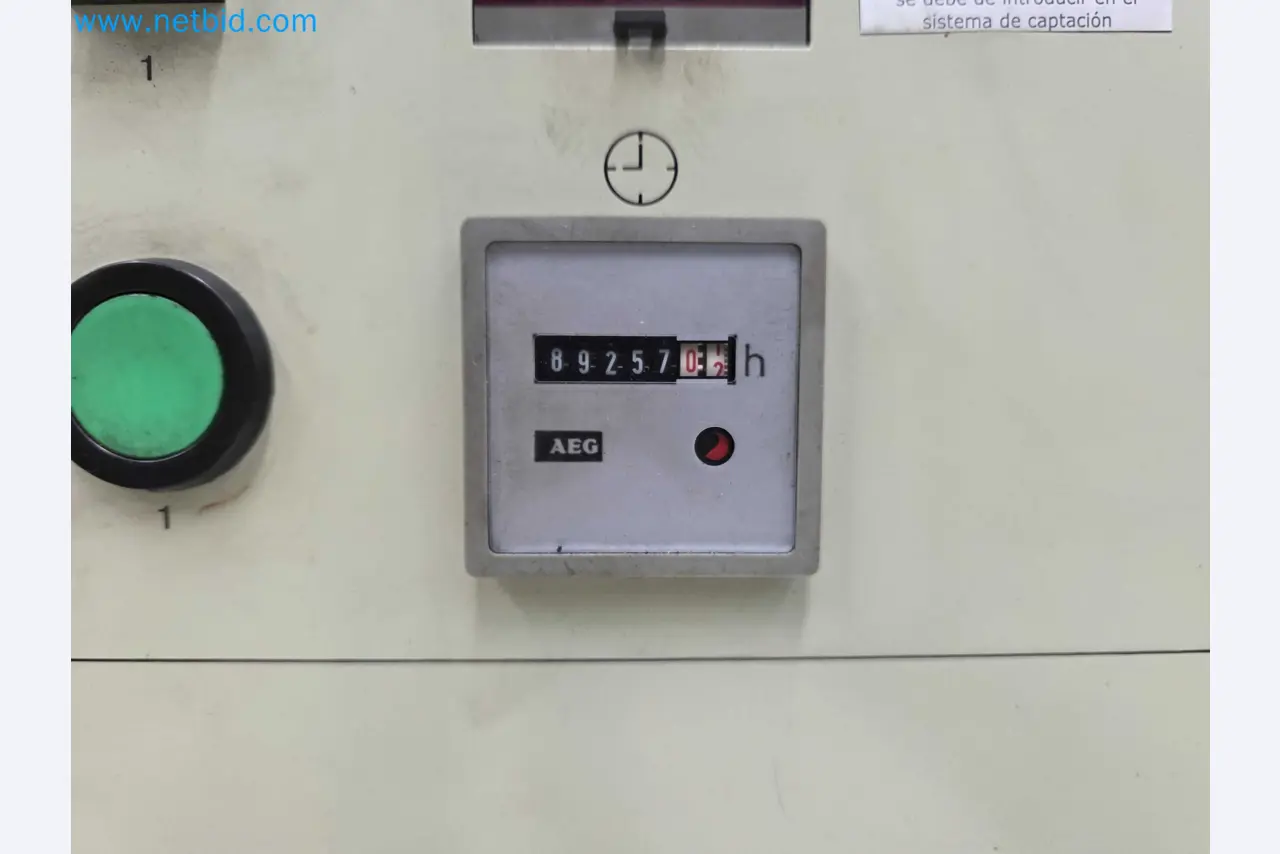

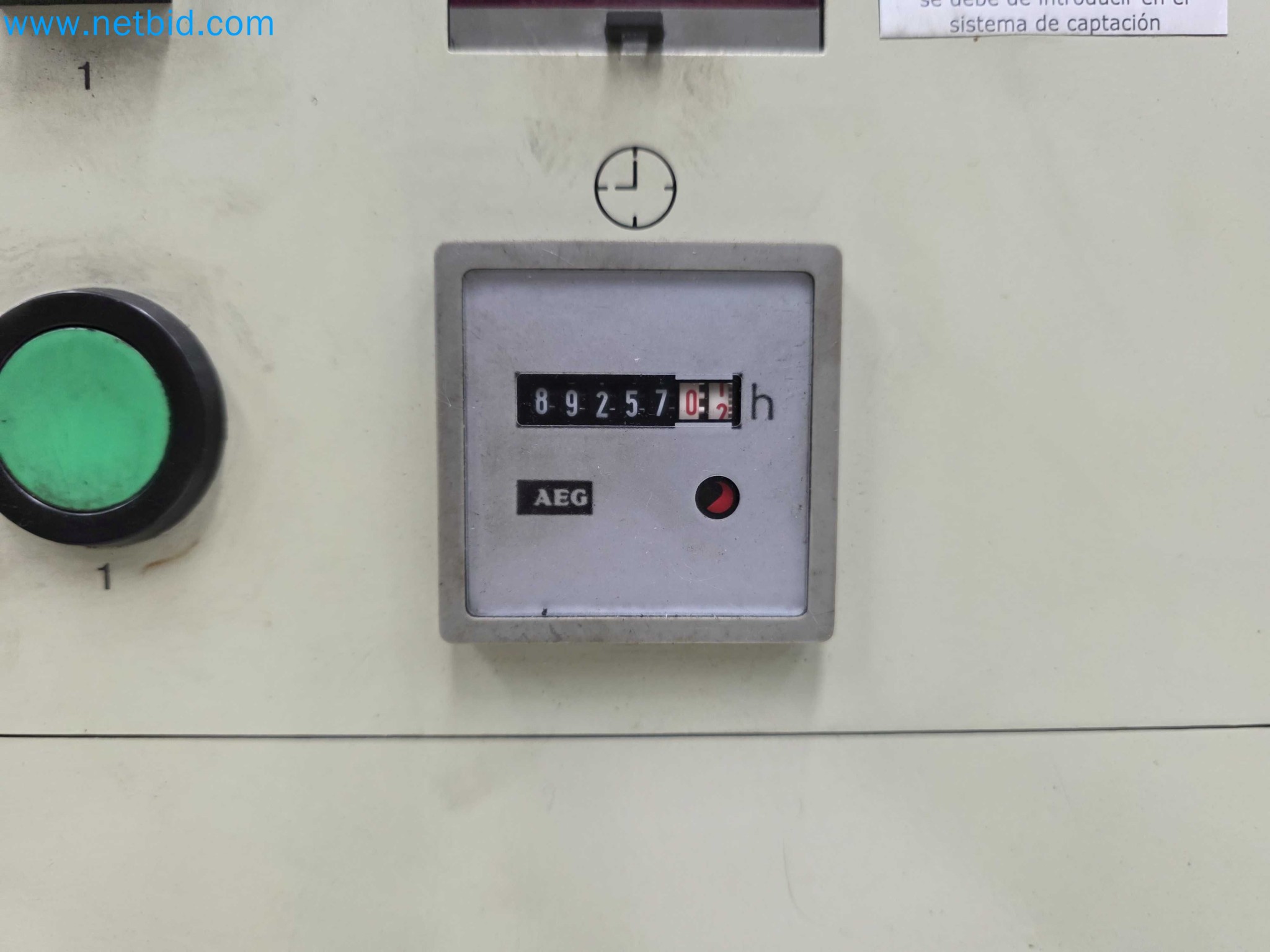

Operating hours according to counter: 89,257 h
Approximate total weight: 10,500 kg
Screw diameter: 60–70–80 mm
Material volume per shot: 620–845–1105 max. cm³
Specific injection pressure: 1880–1385–1060 max. kg/cm²
Injection speed: 185–252–330 max. cm³/s
Total pressure on screw: 53.2 t
Maximum screw stroke: 220 mm
Maximum screw rotation speed: 50–280 rpm
Mould mounting platen dimensions: 830 x 770 mm
Usable dimensions between tie bars: 560 x 500 mm
Mould stroke, adjustable up to 560 mm
Maximum/minimum mould thickness: 600–280 mm
Usable frontal area according to material and mould: 1400 cm²
Maximum adjustable clamping force: 280 t
Hydraulic ejector stroke: 190 mm
Hydraulic ejector force: 6.65 t
MARGARIT CM-2082 control system
Operating hours according to counter: 89,257 h
Approximate total weight: 10,500 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
Oct. 14, 2026 – Oct. 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández: fernandez@netbid.com.
Pickup
In consultation with Mr. Fernández: fernandez@netbid.com.
Auction Terms
Special conditions:
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
