Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Plastic Injection machinery and accessories

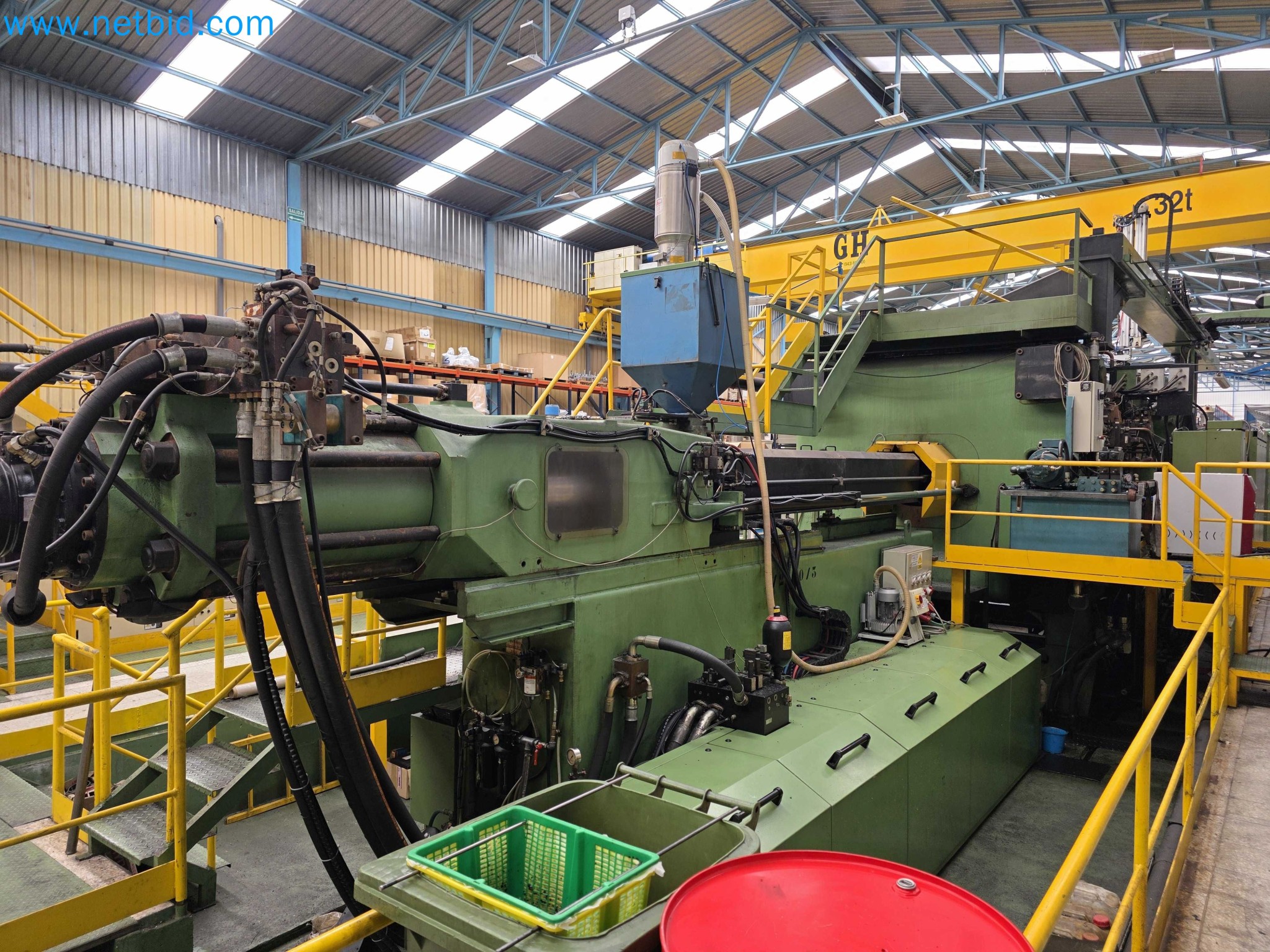

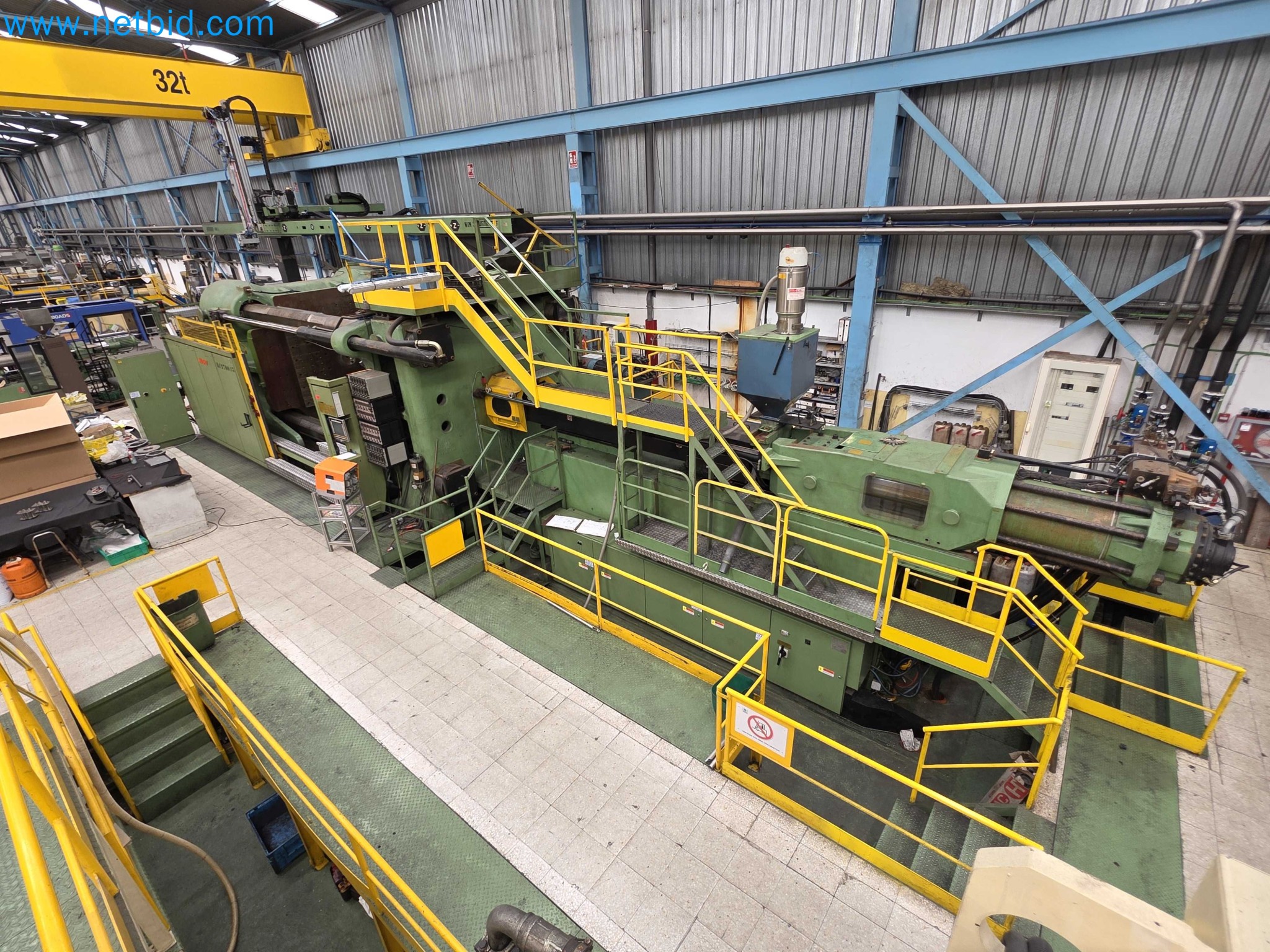

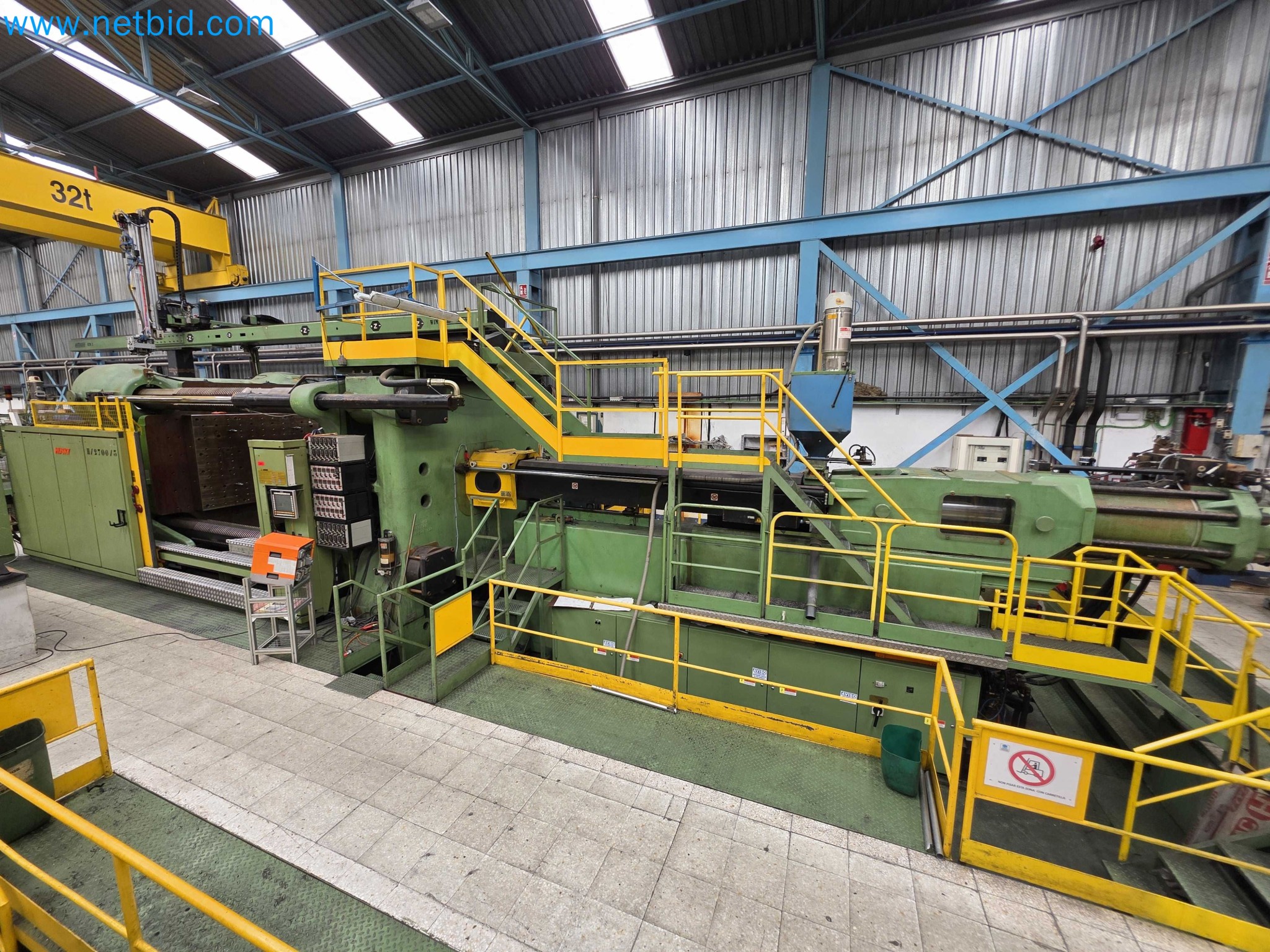

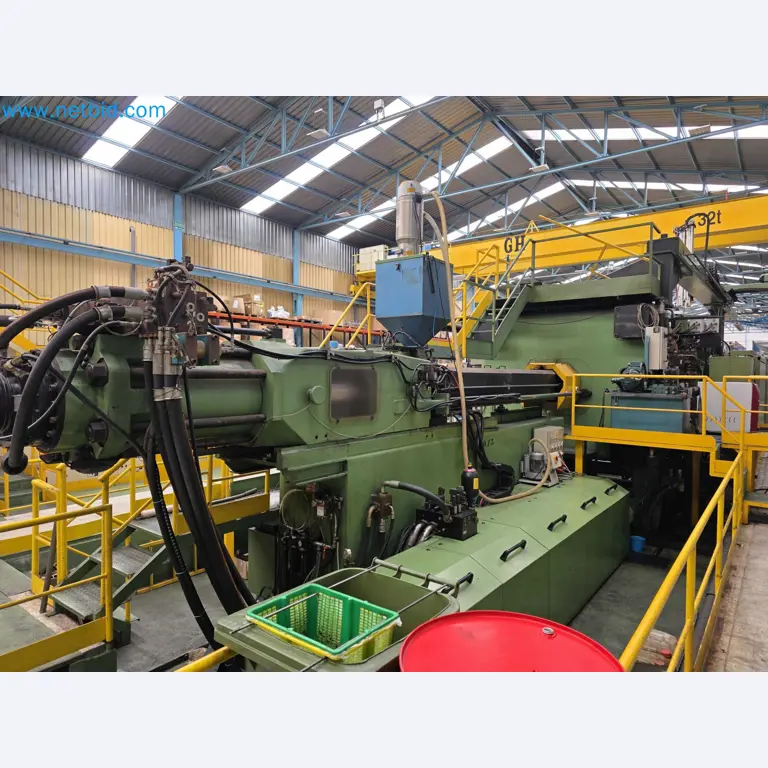

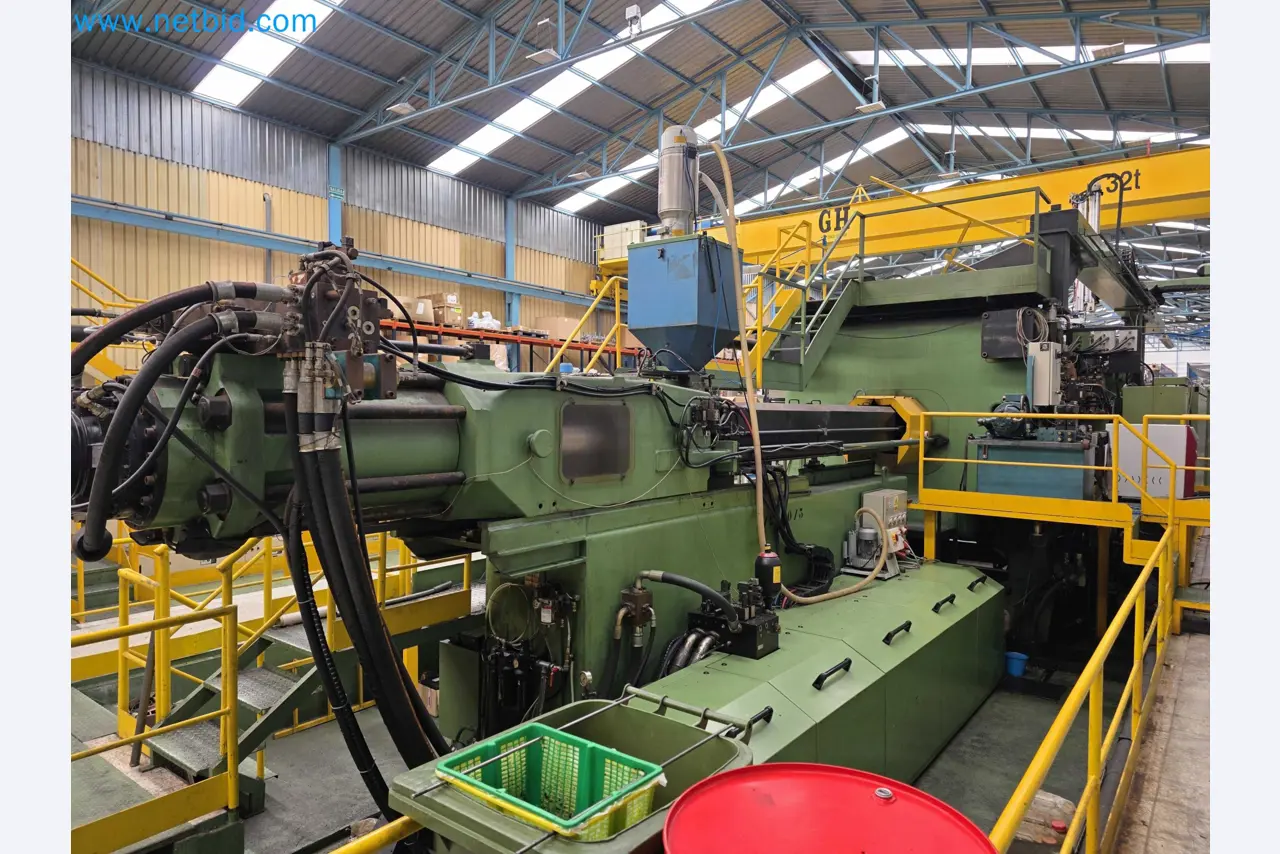

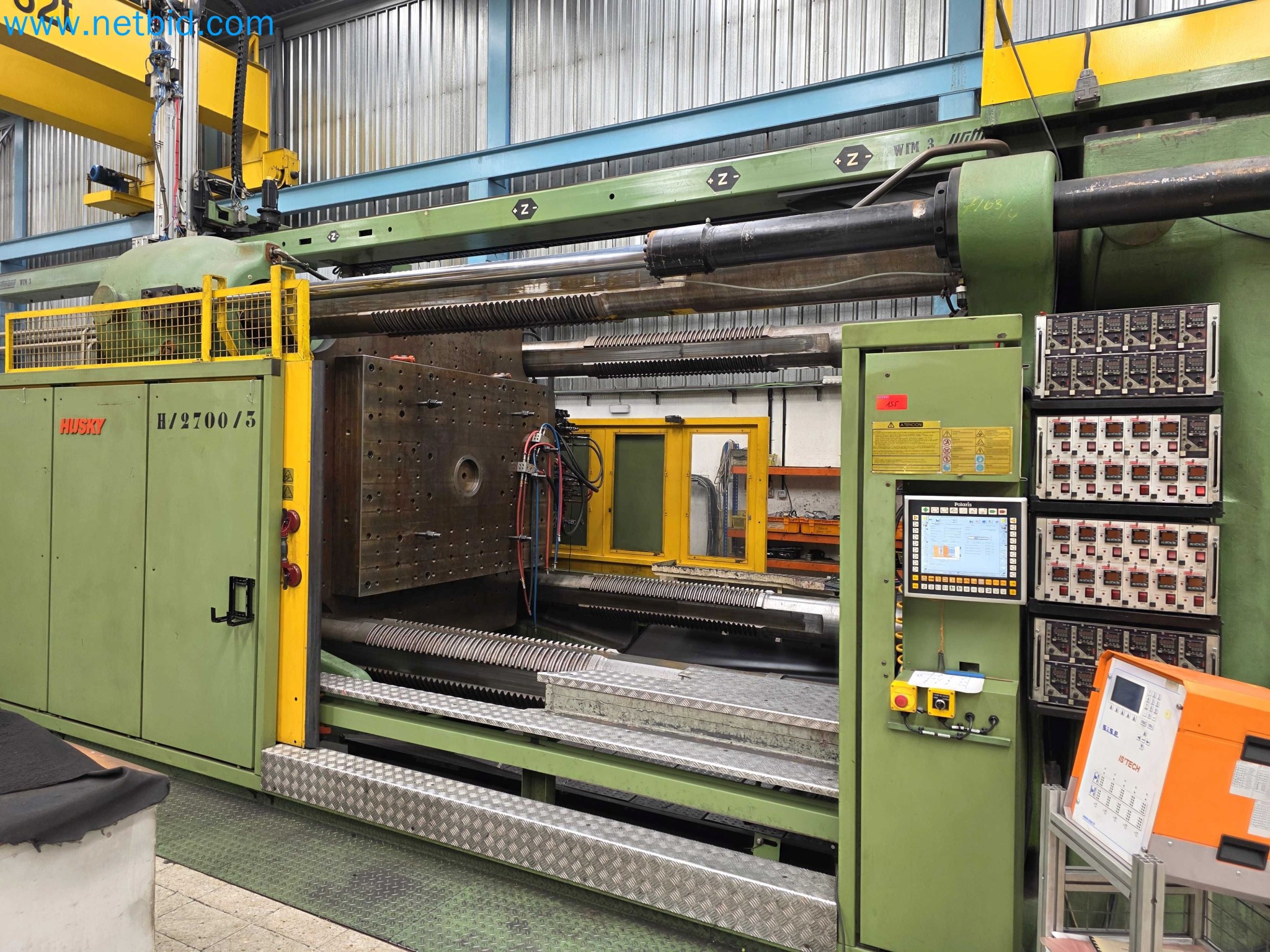

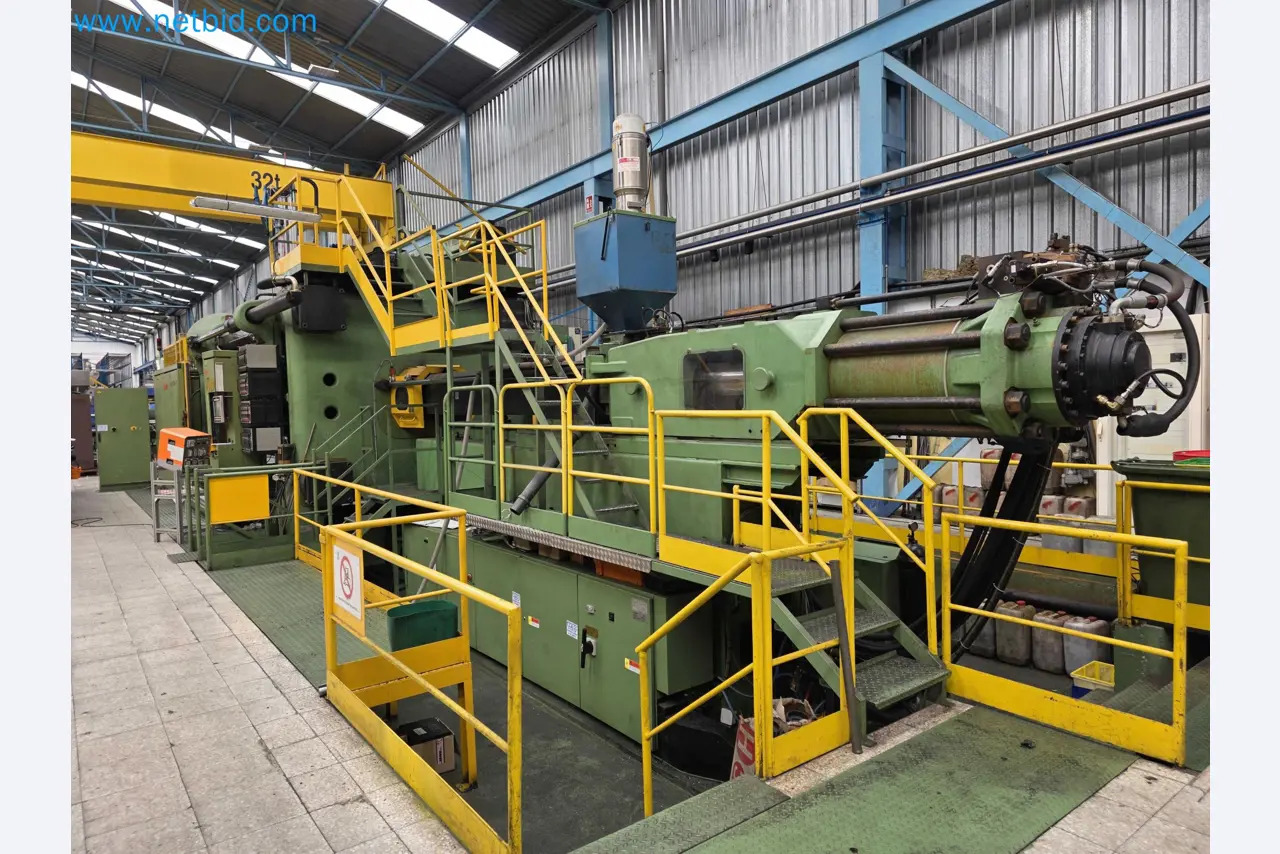

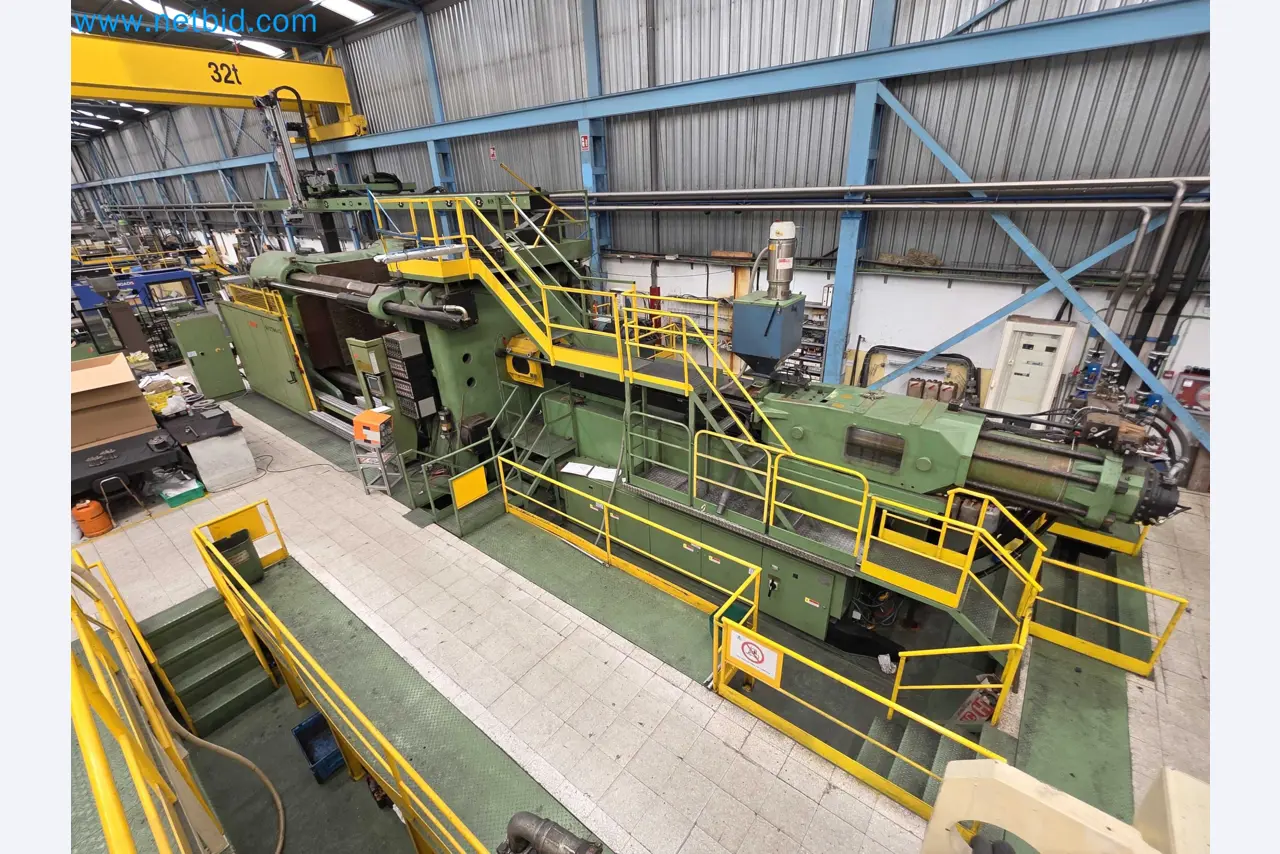

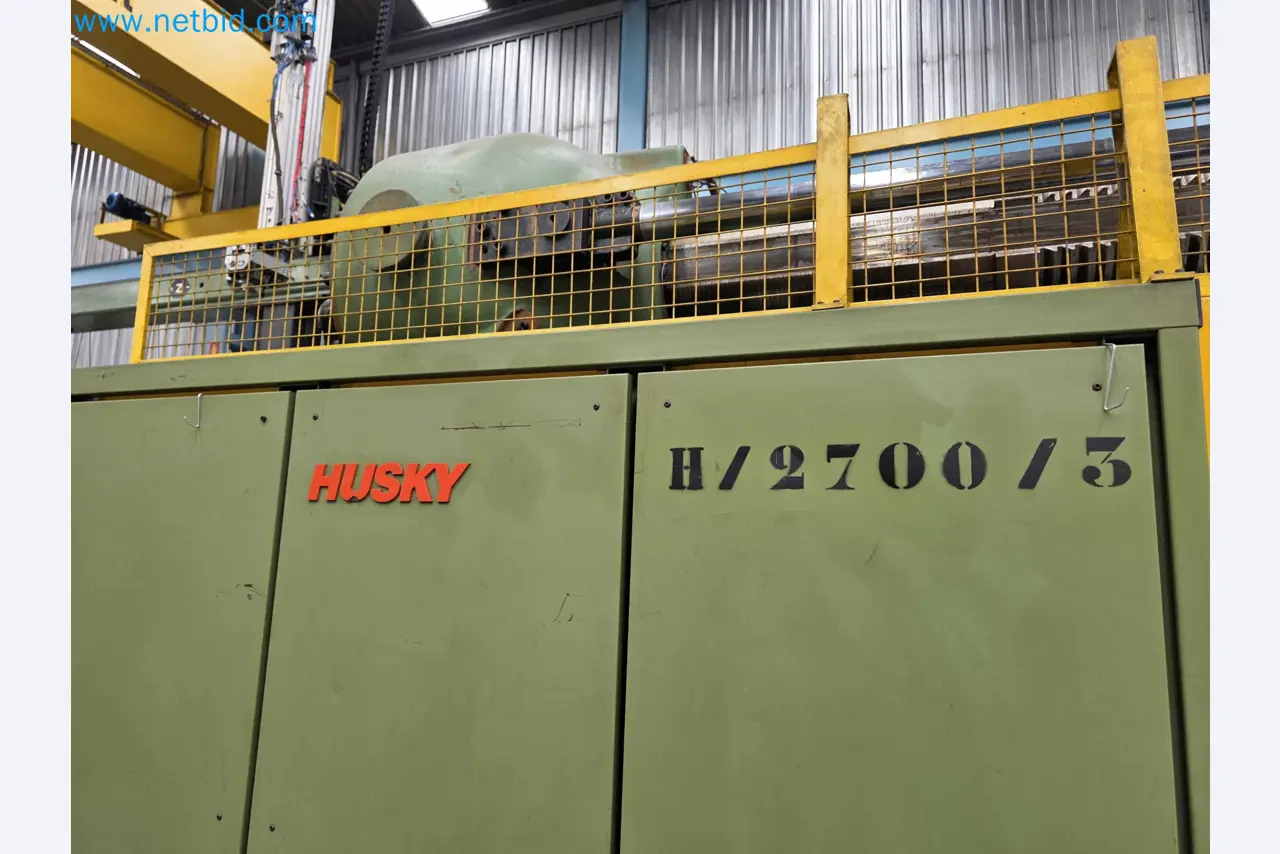

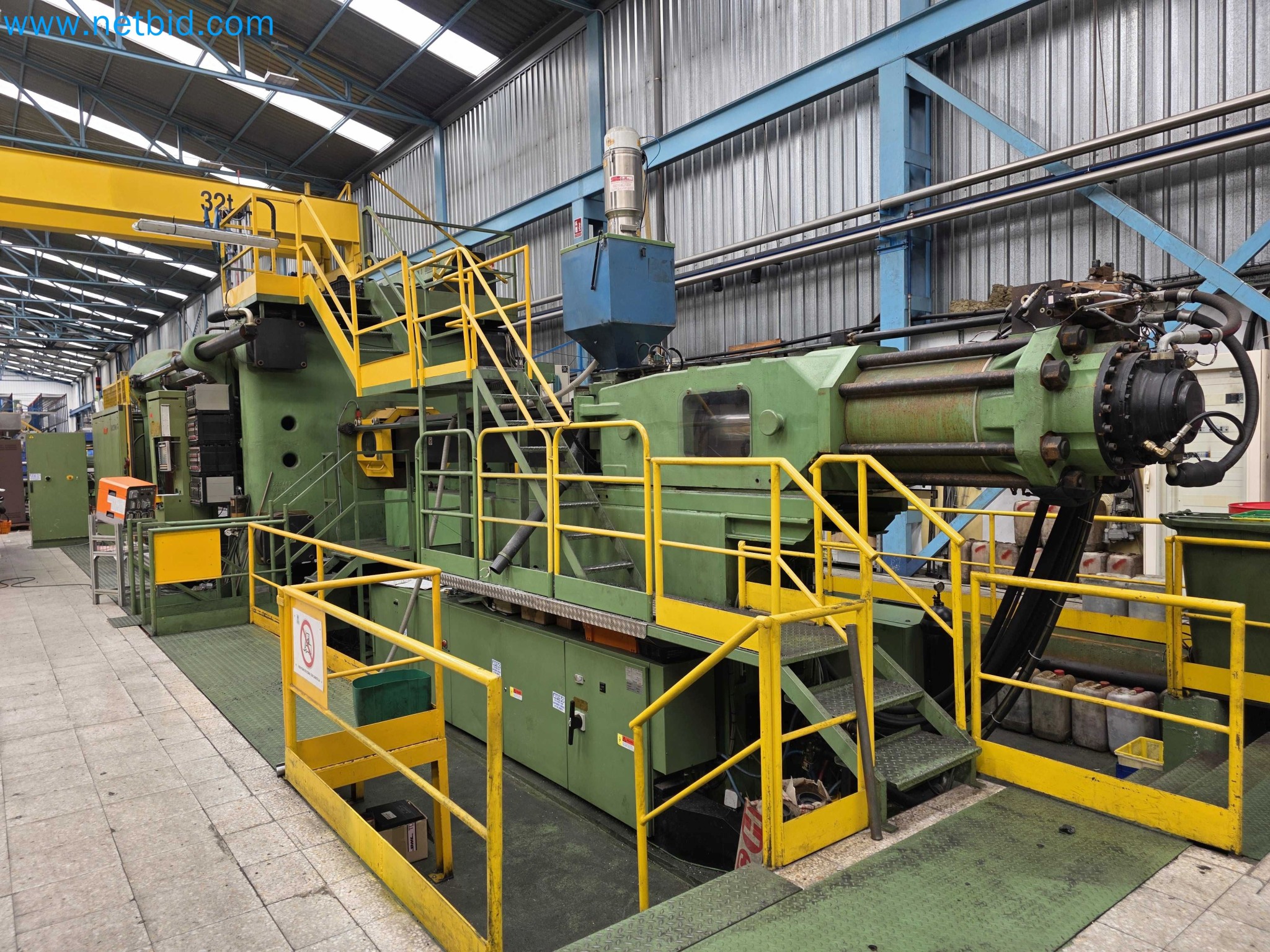

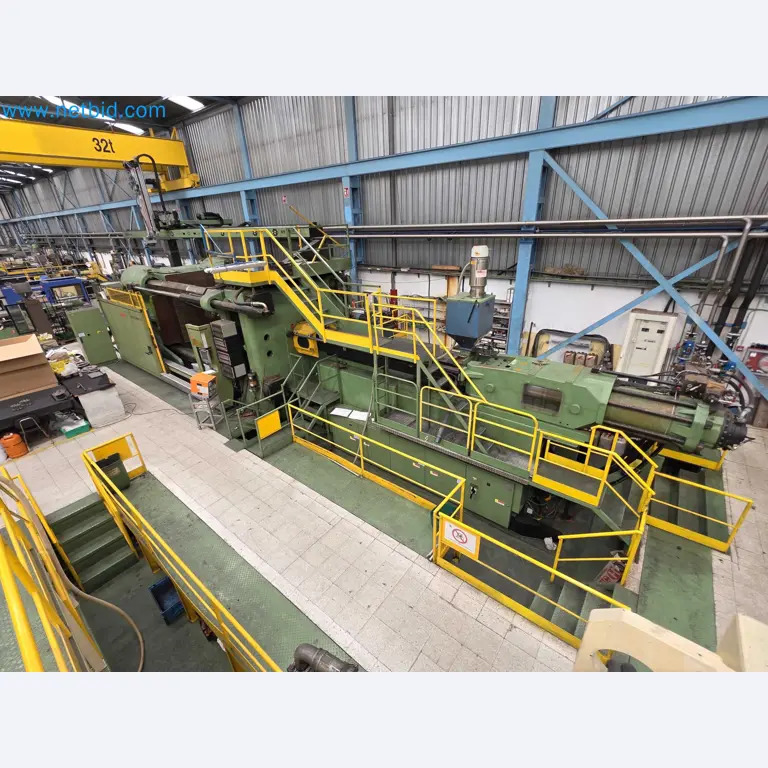

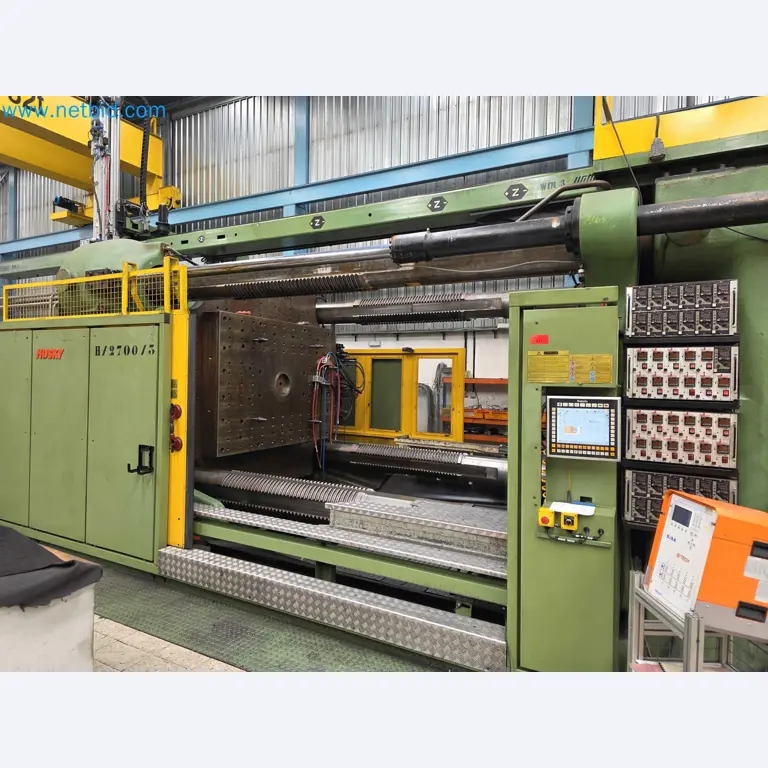

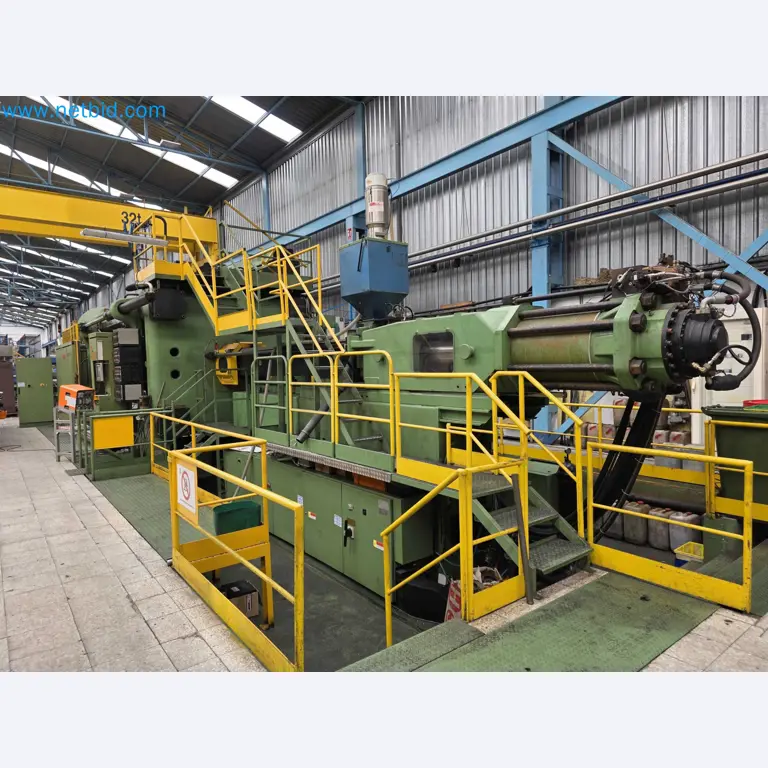

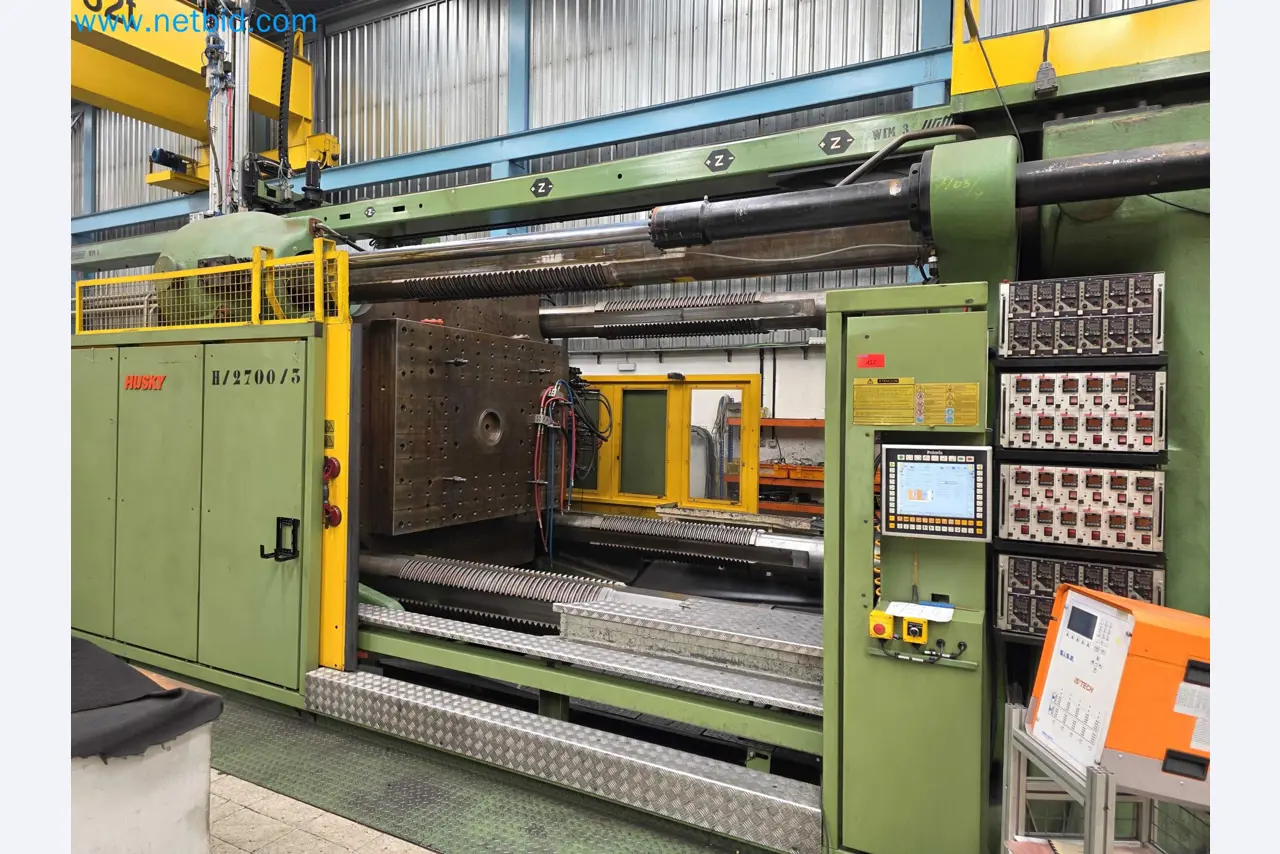

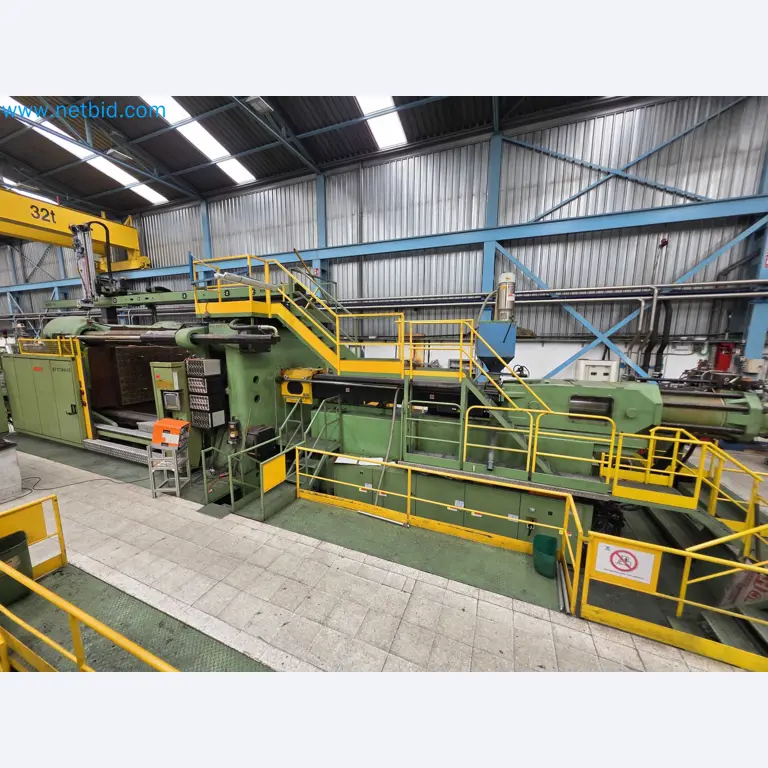

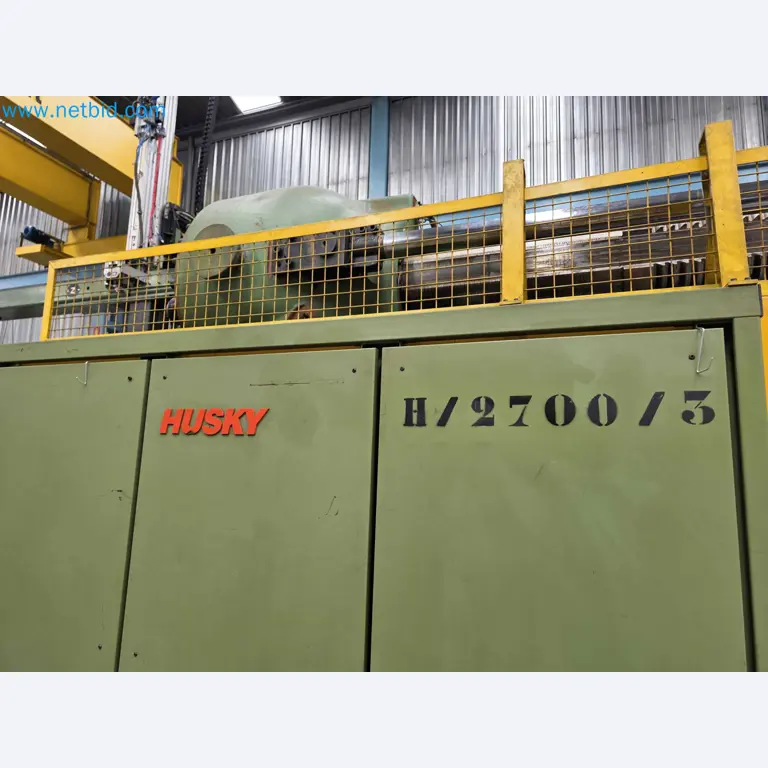

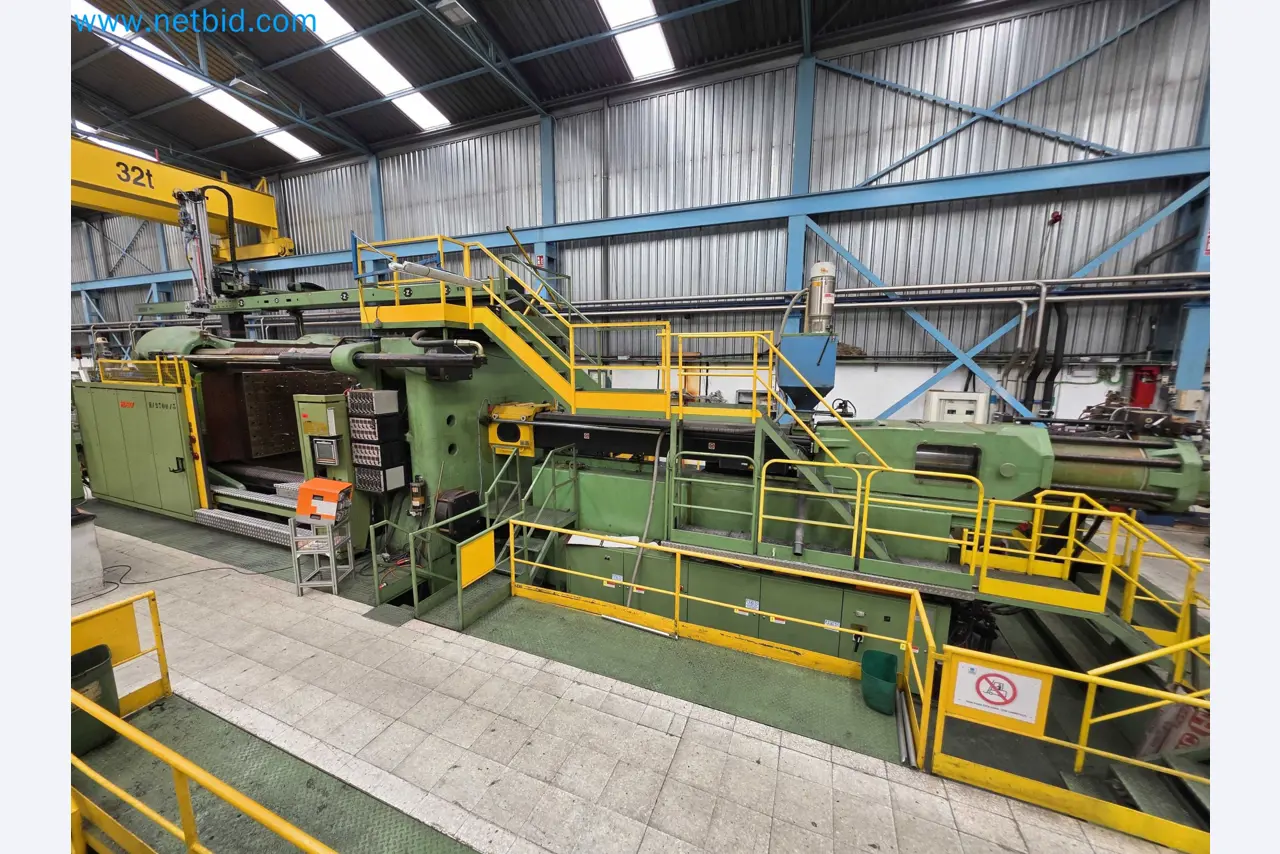

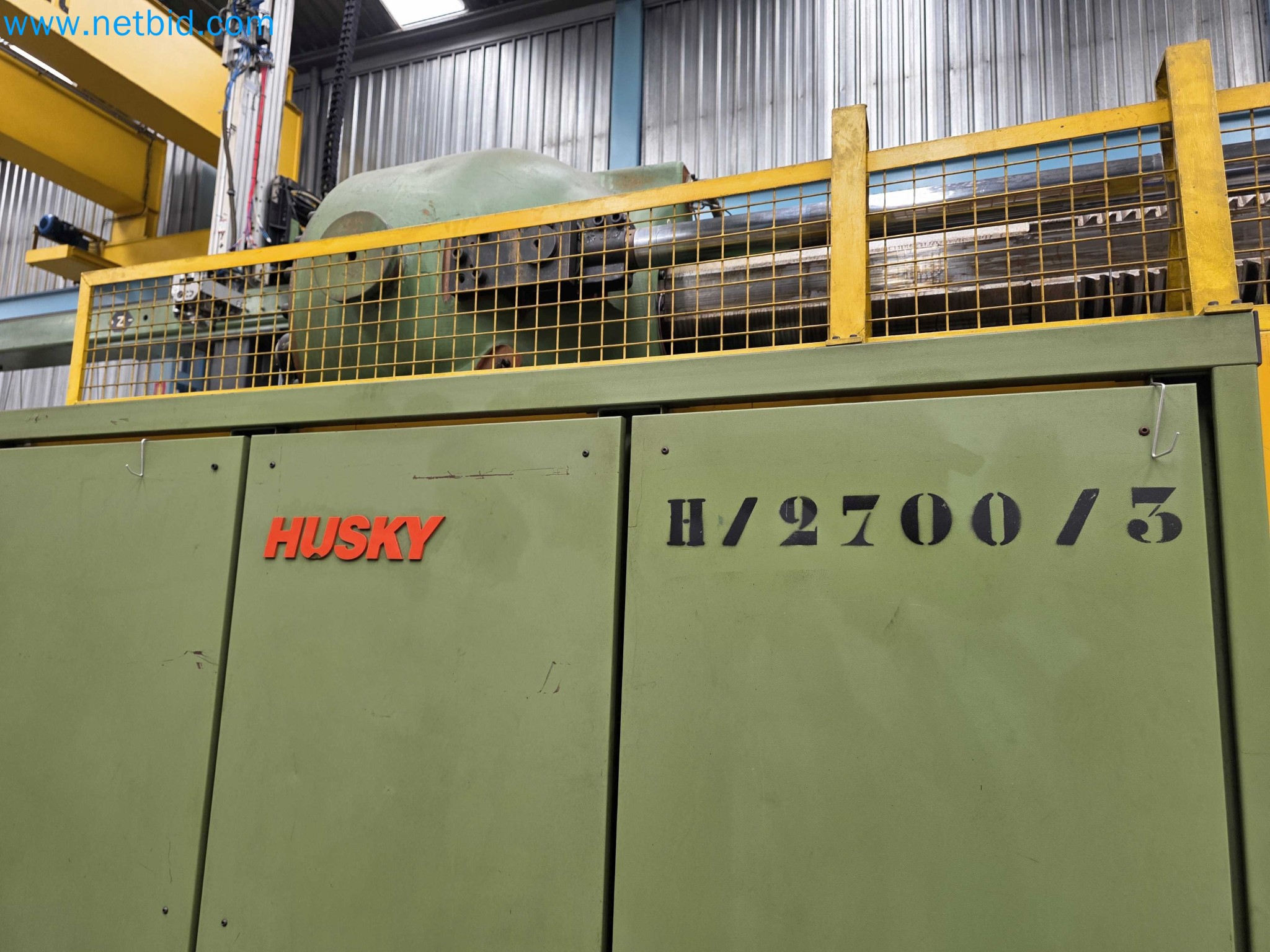

Injection Molding Machine HUSKY E 2700 RS 155/135TRADING#A19590-155
Details
Product Type
HUSKY
Type

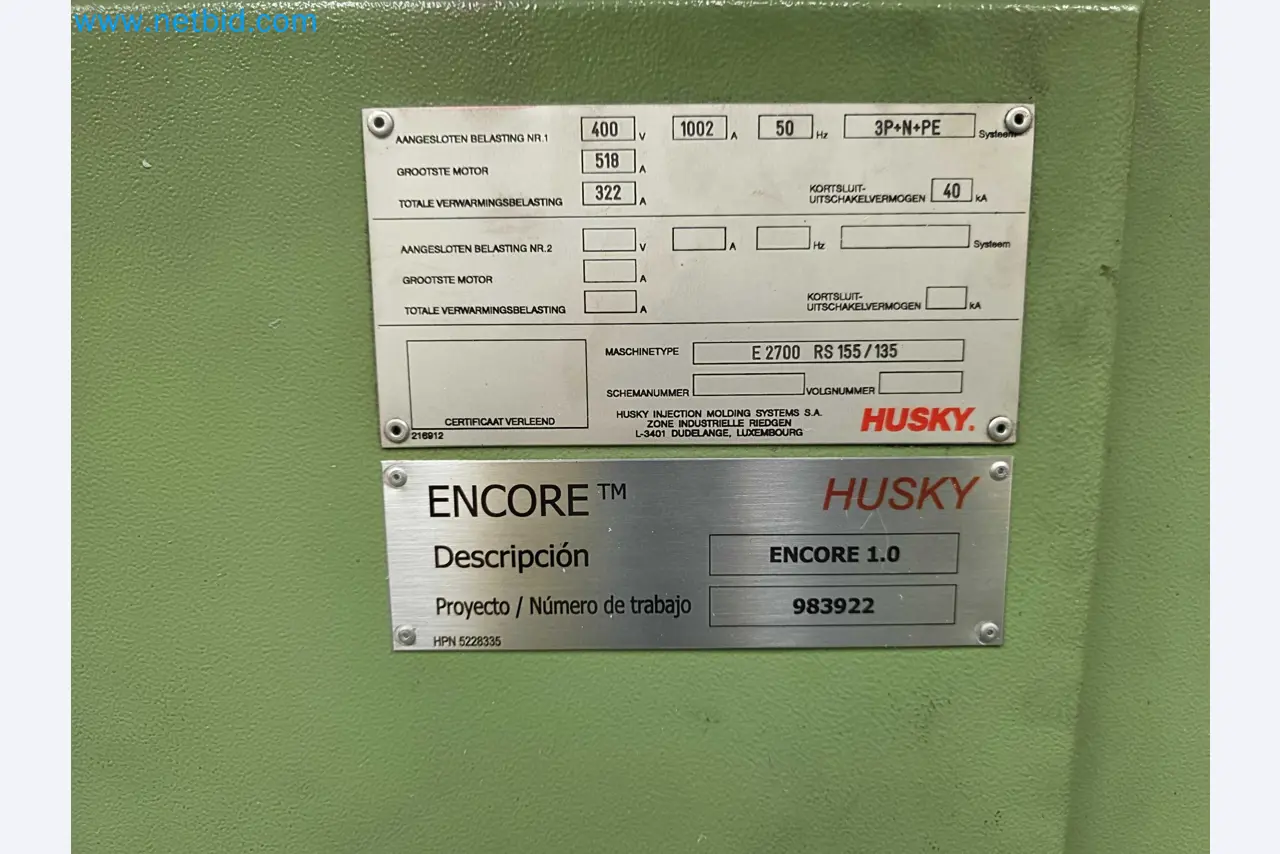

E 2700 RS 155/135
Construction Year
1998

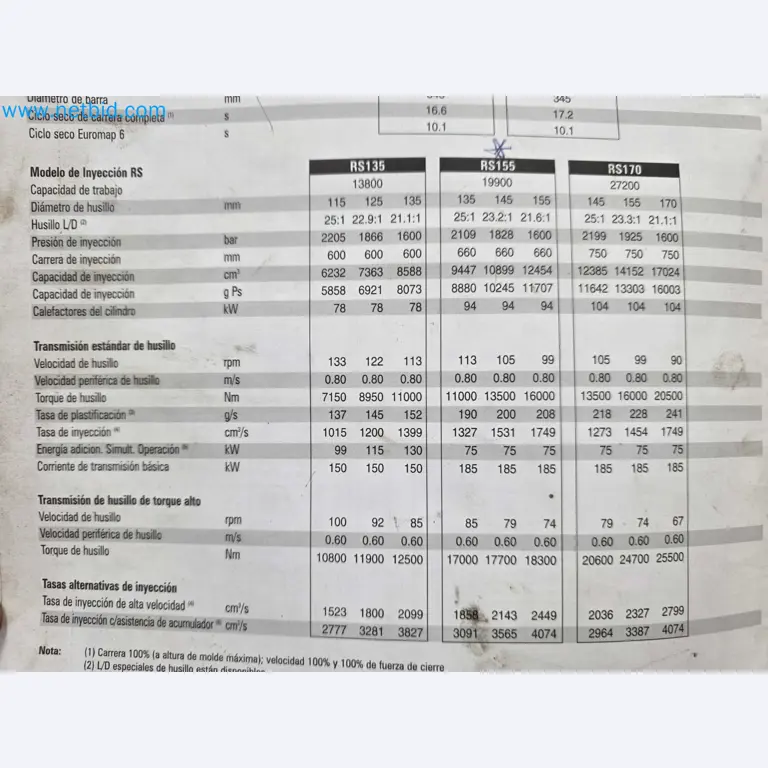

Description

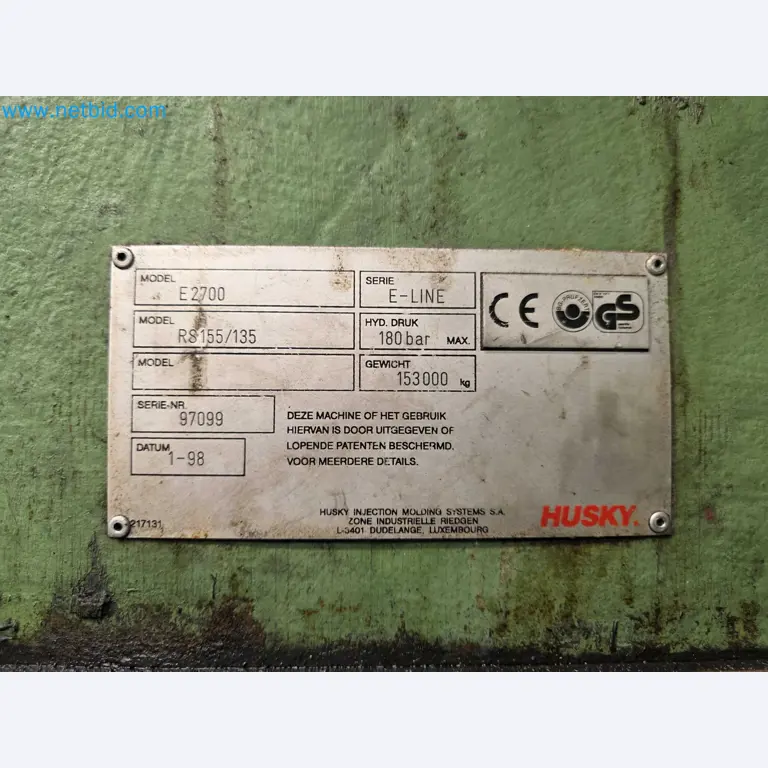

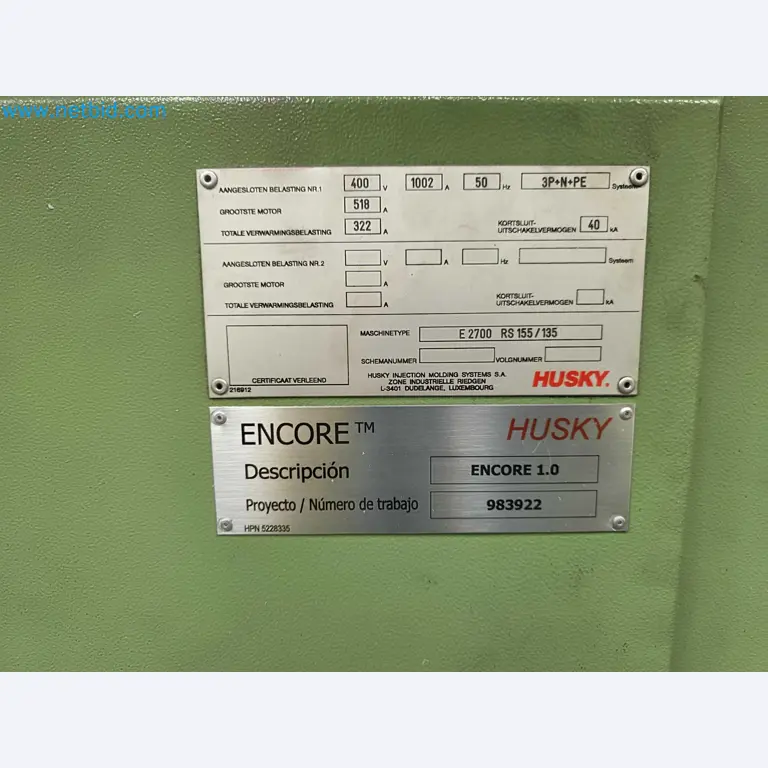

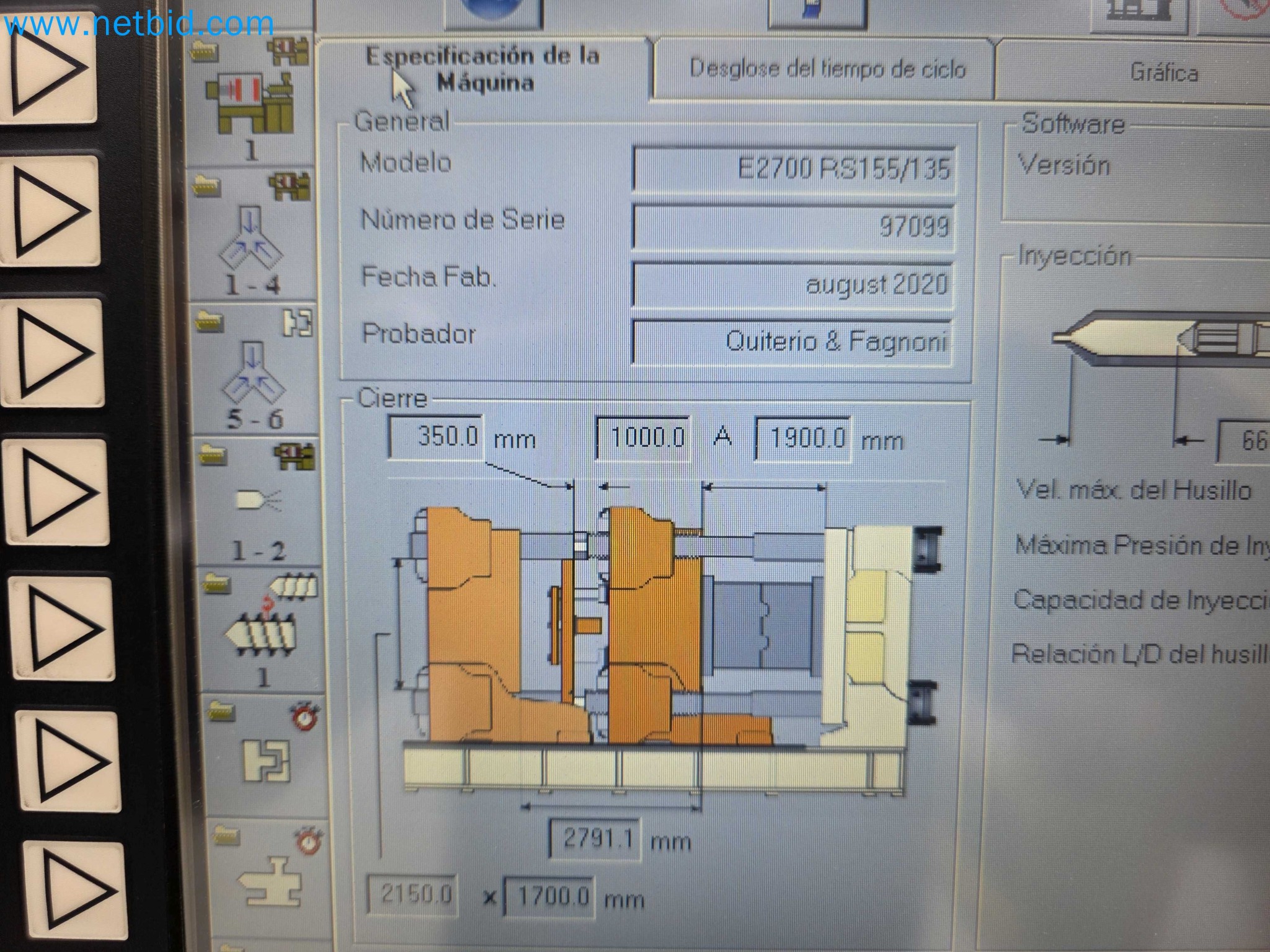

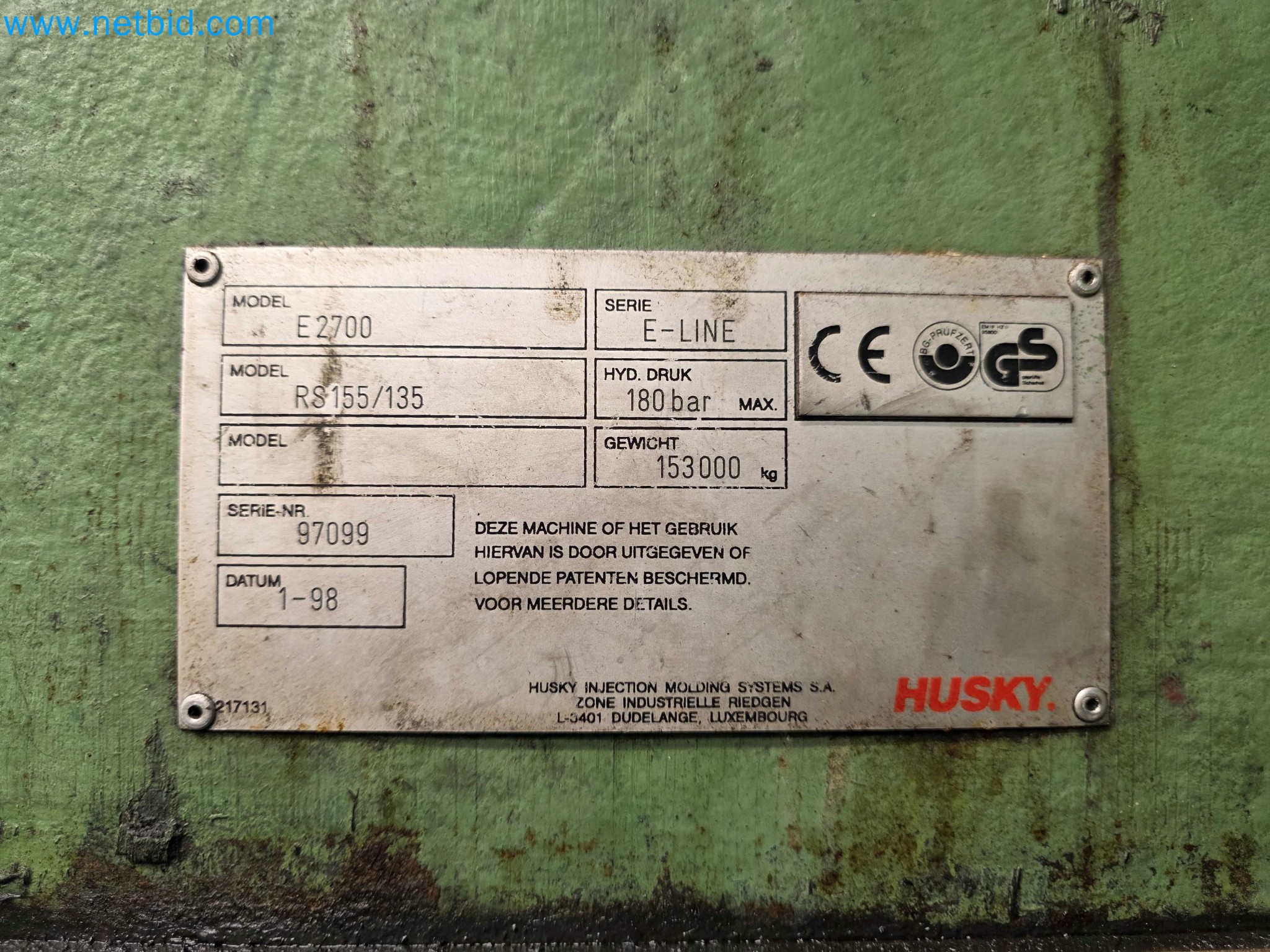

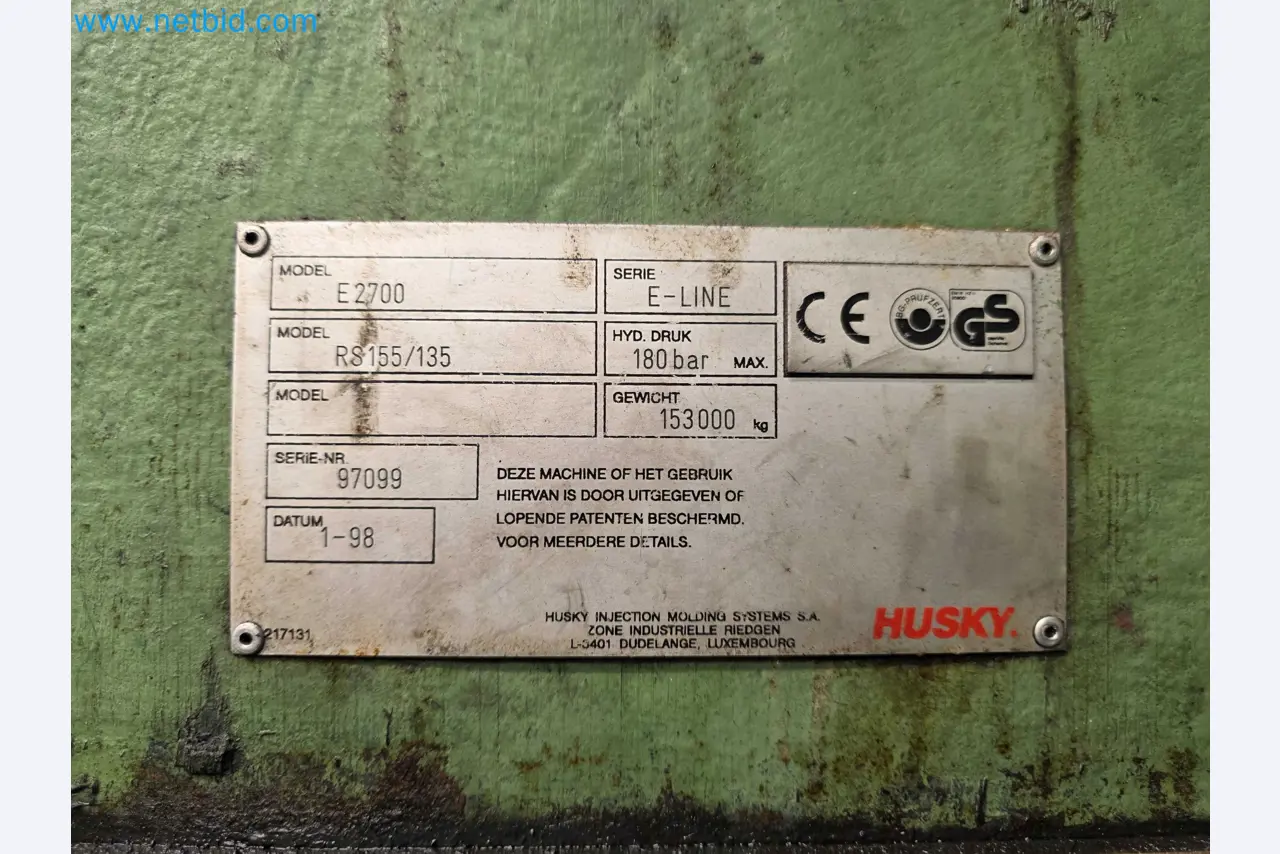

SN: 97099

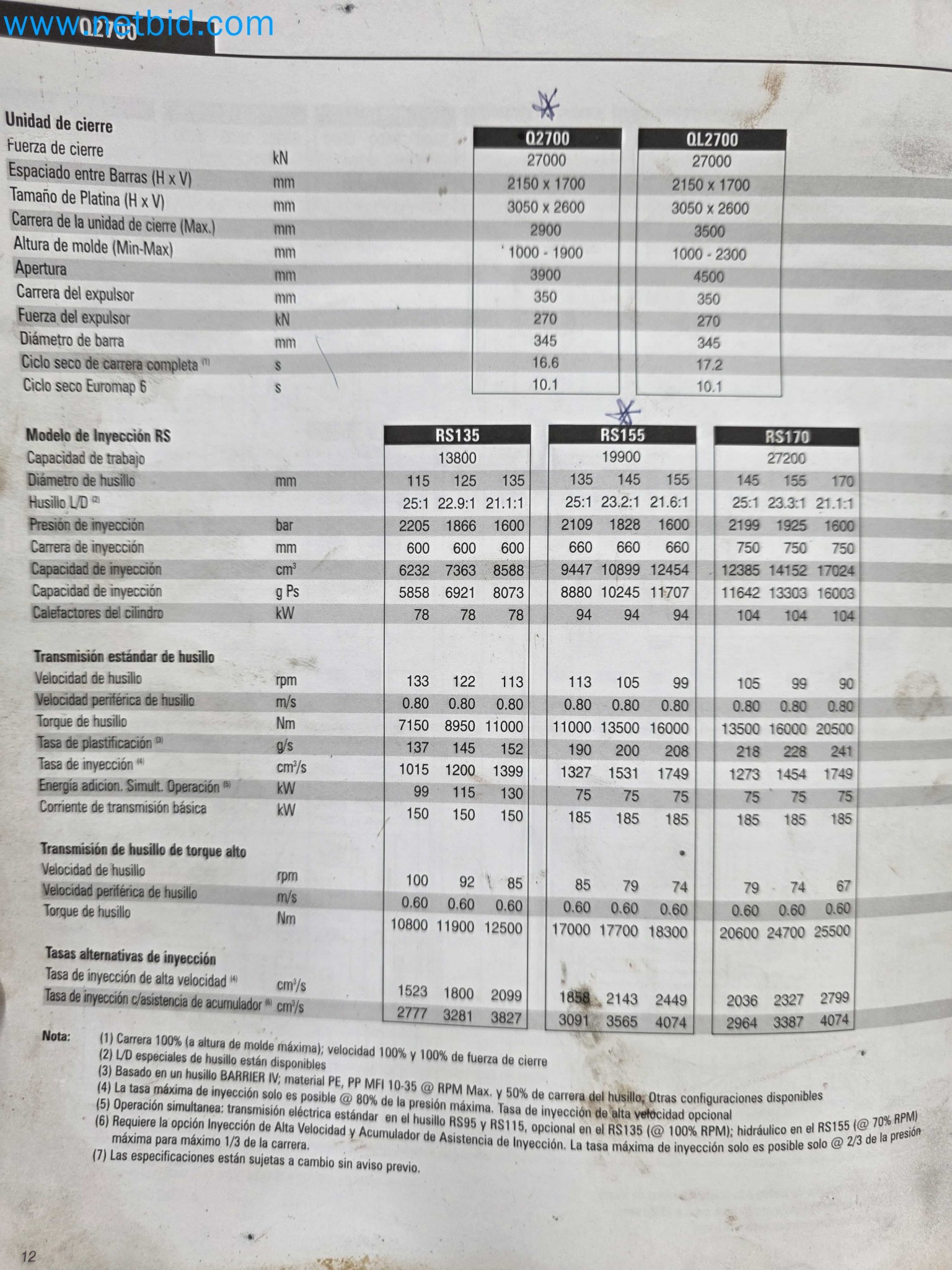

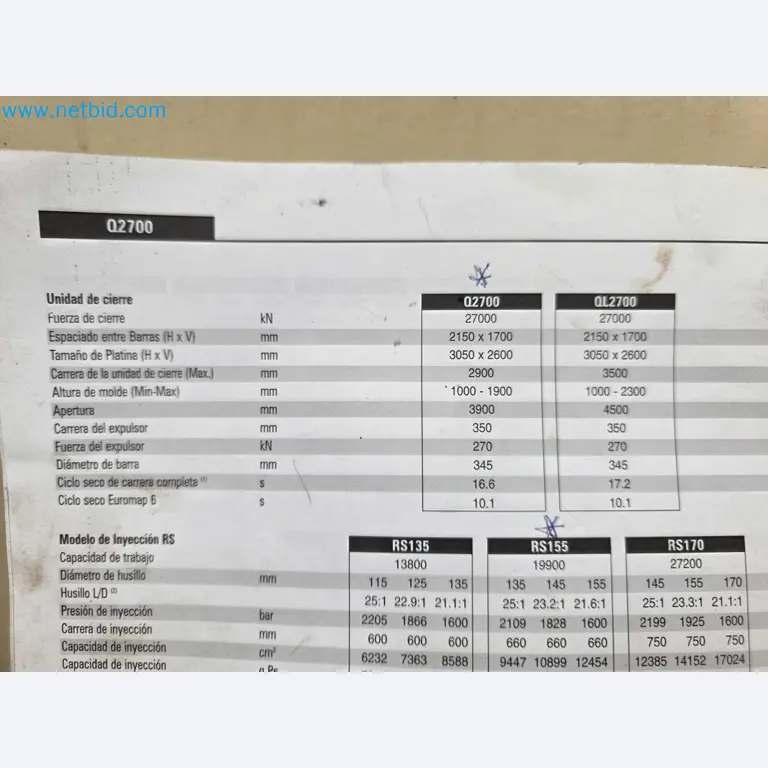

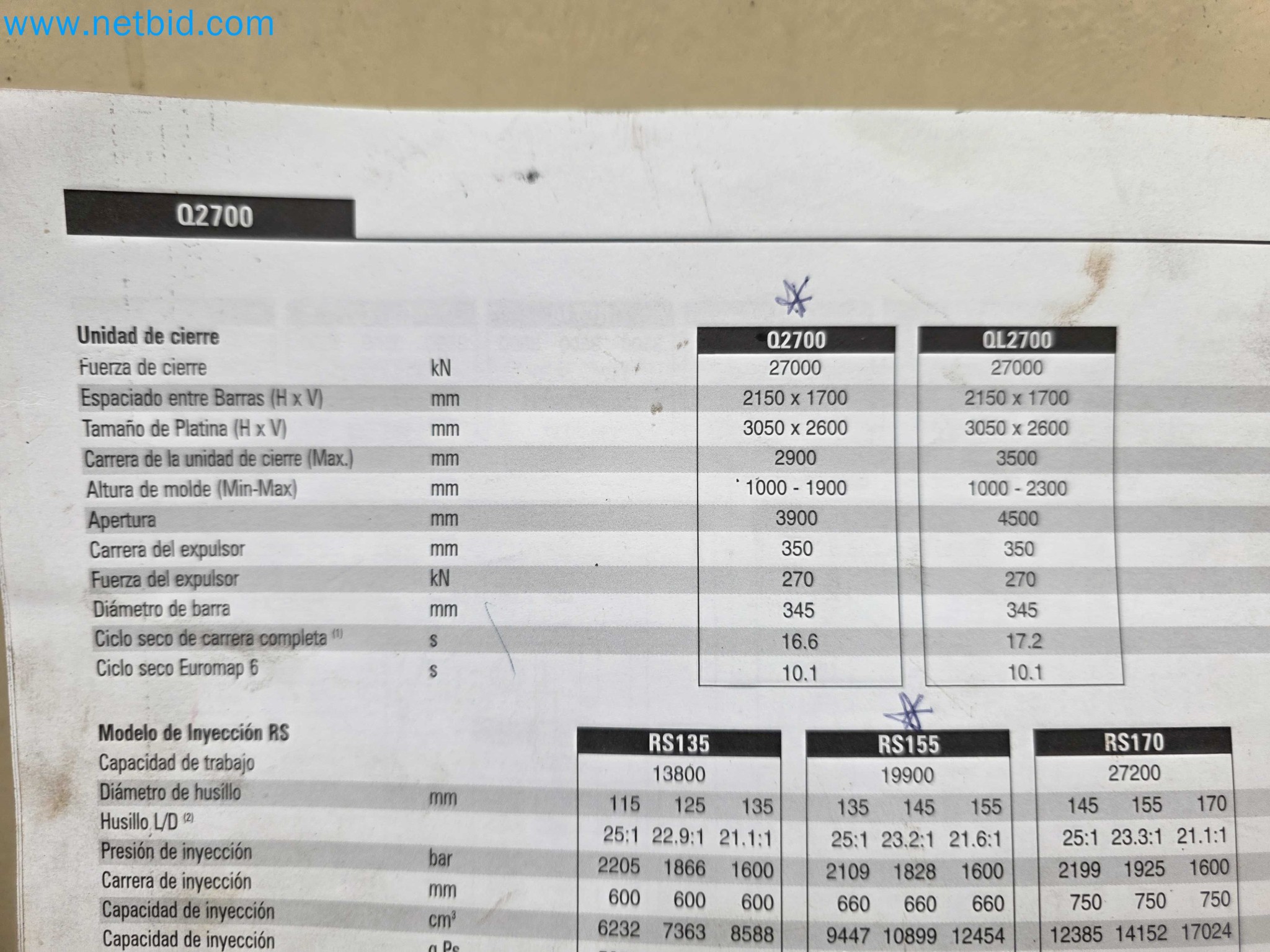

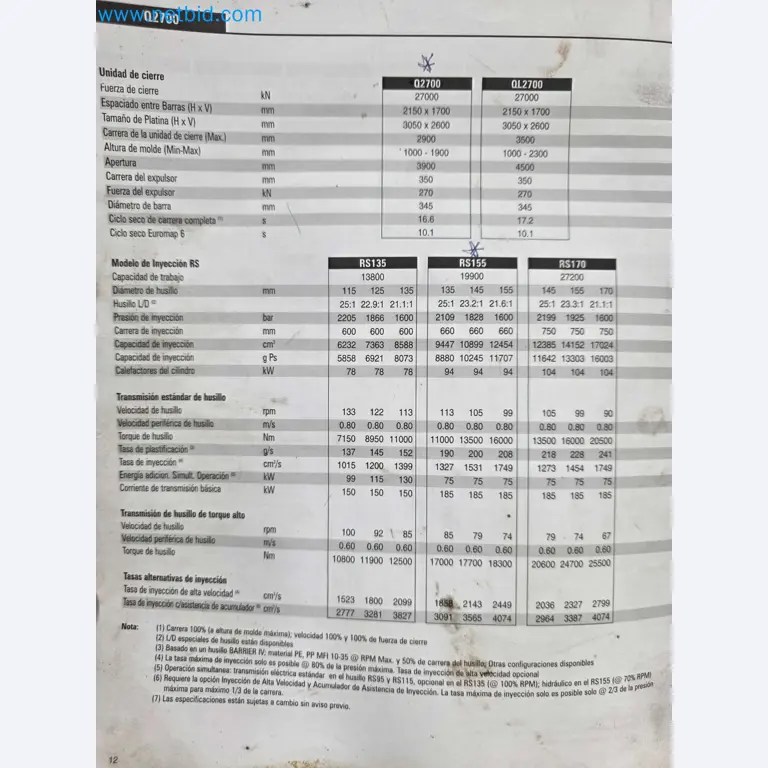

Clamping force: 27,000 kN

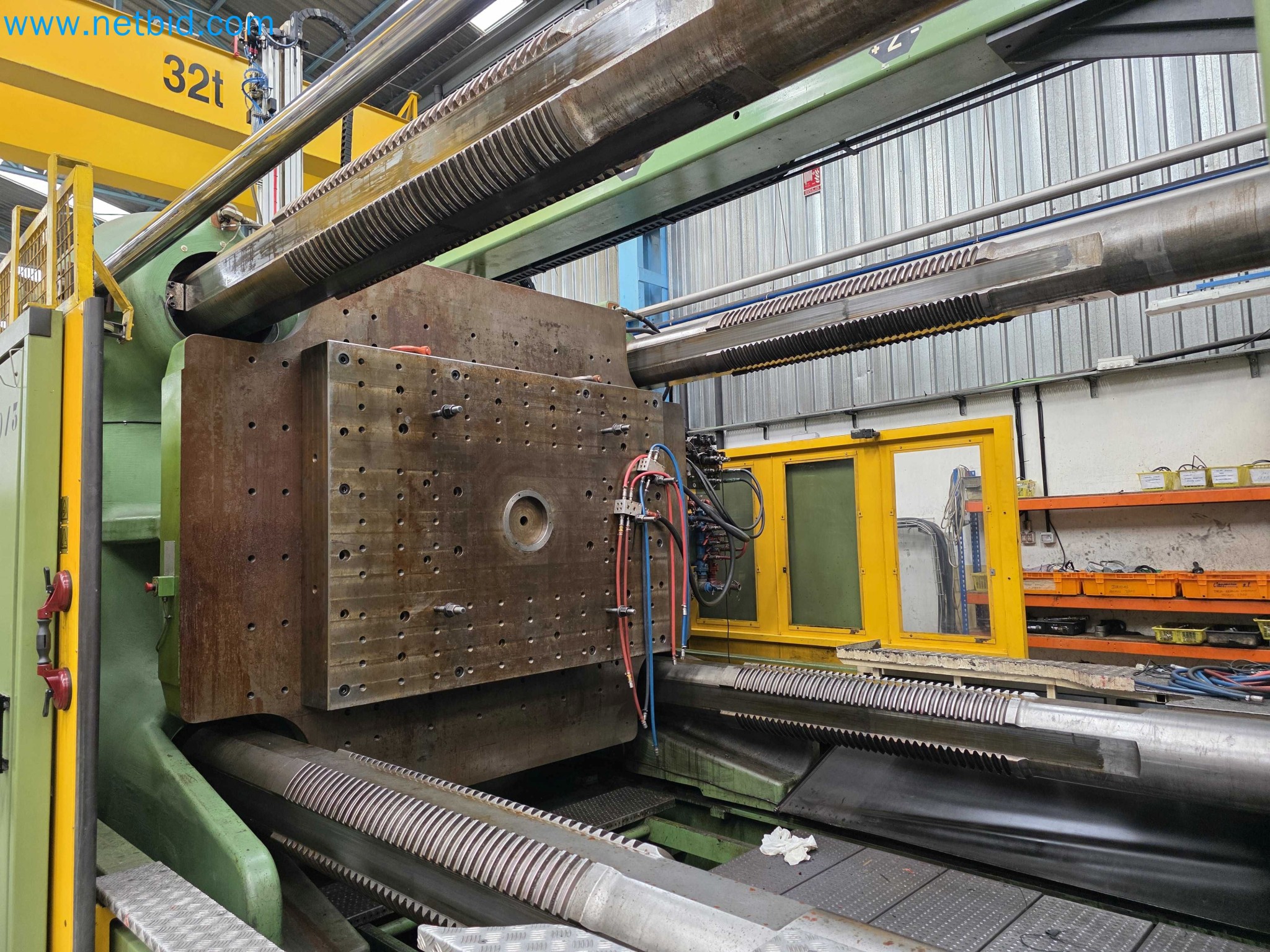

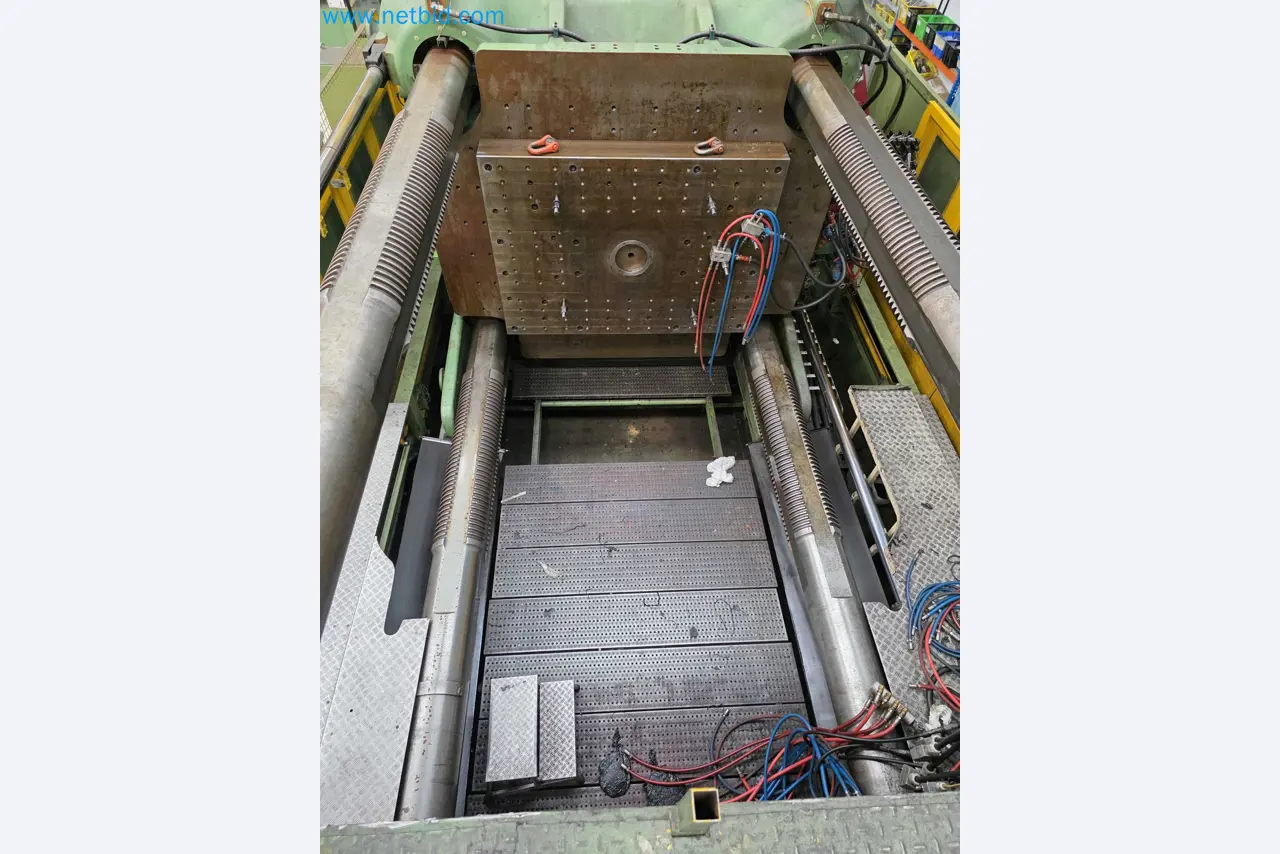

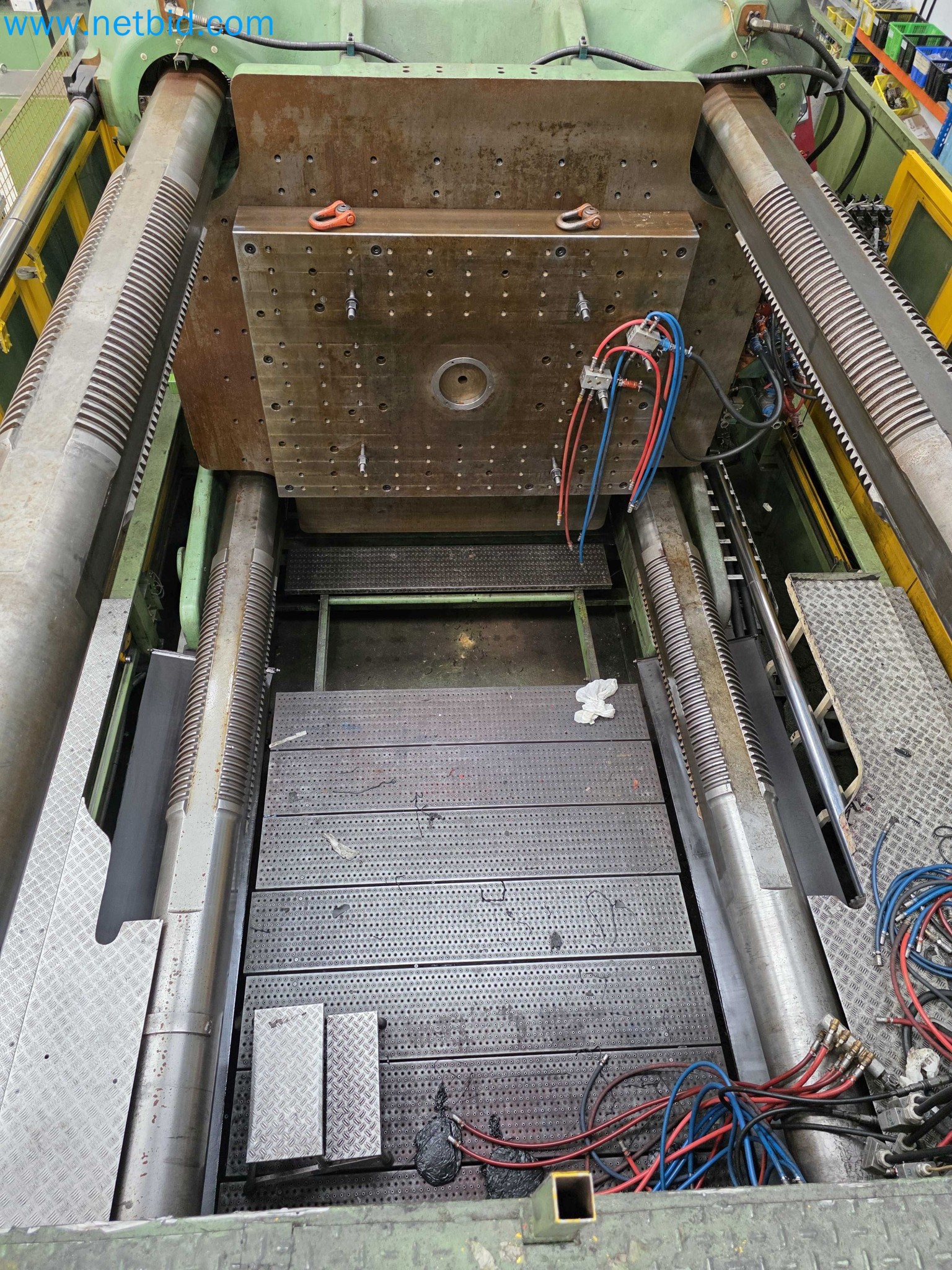

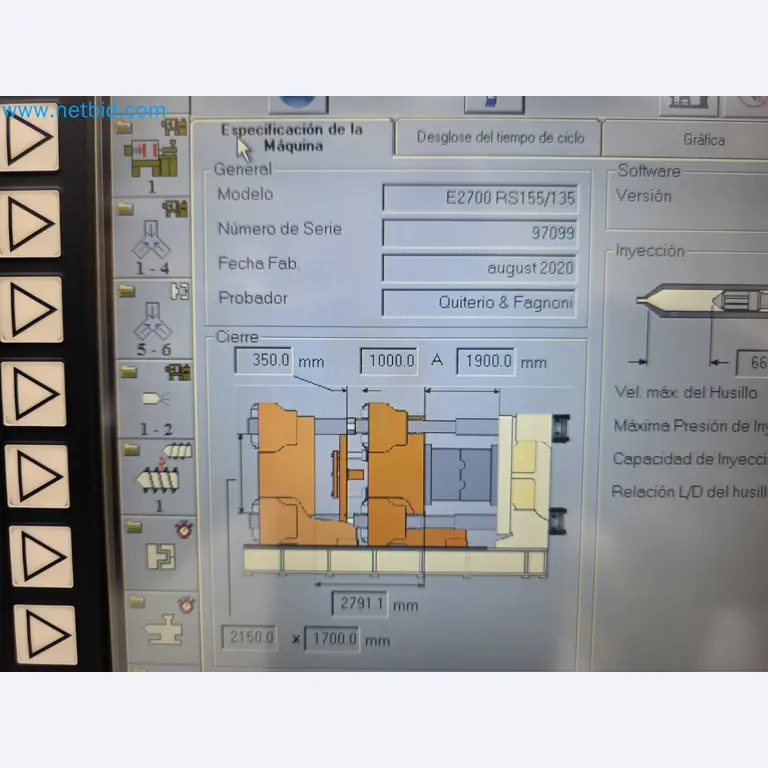

Tie-bar spacing: 2150 x 1700 mm

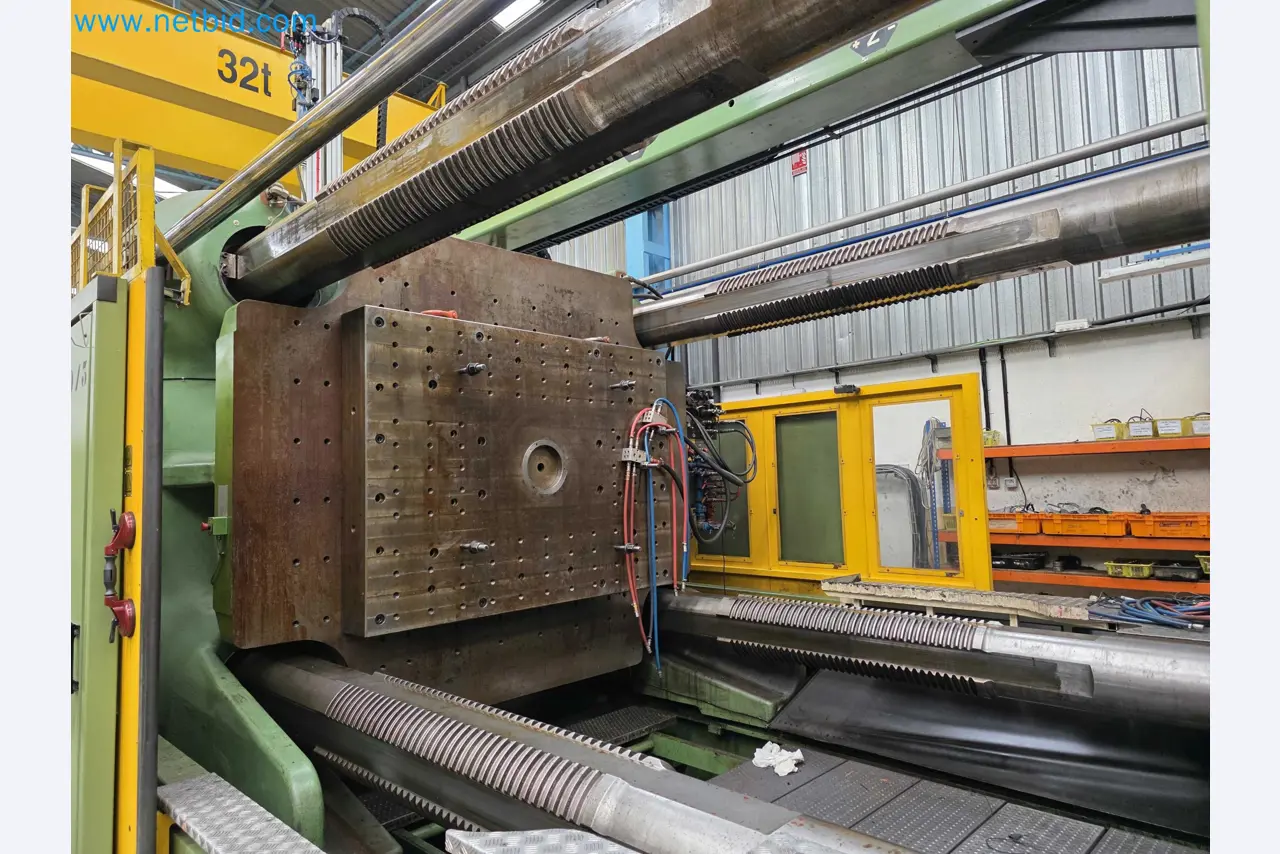

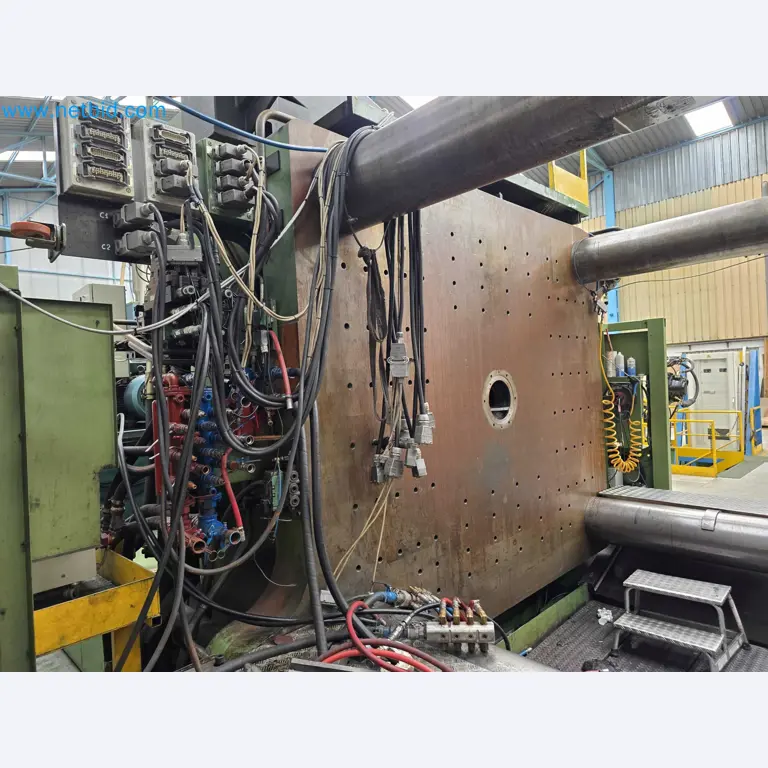

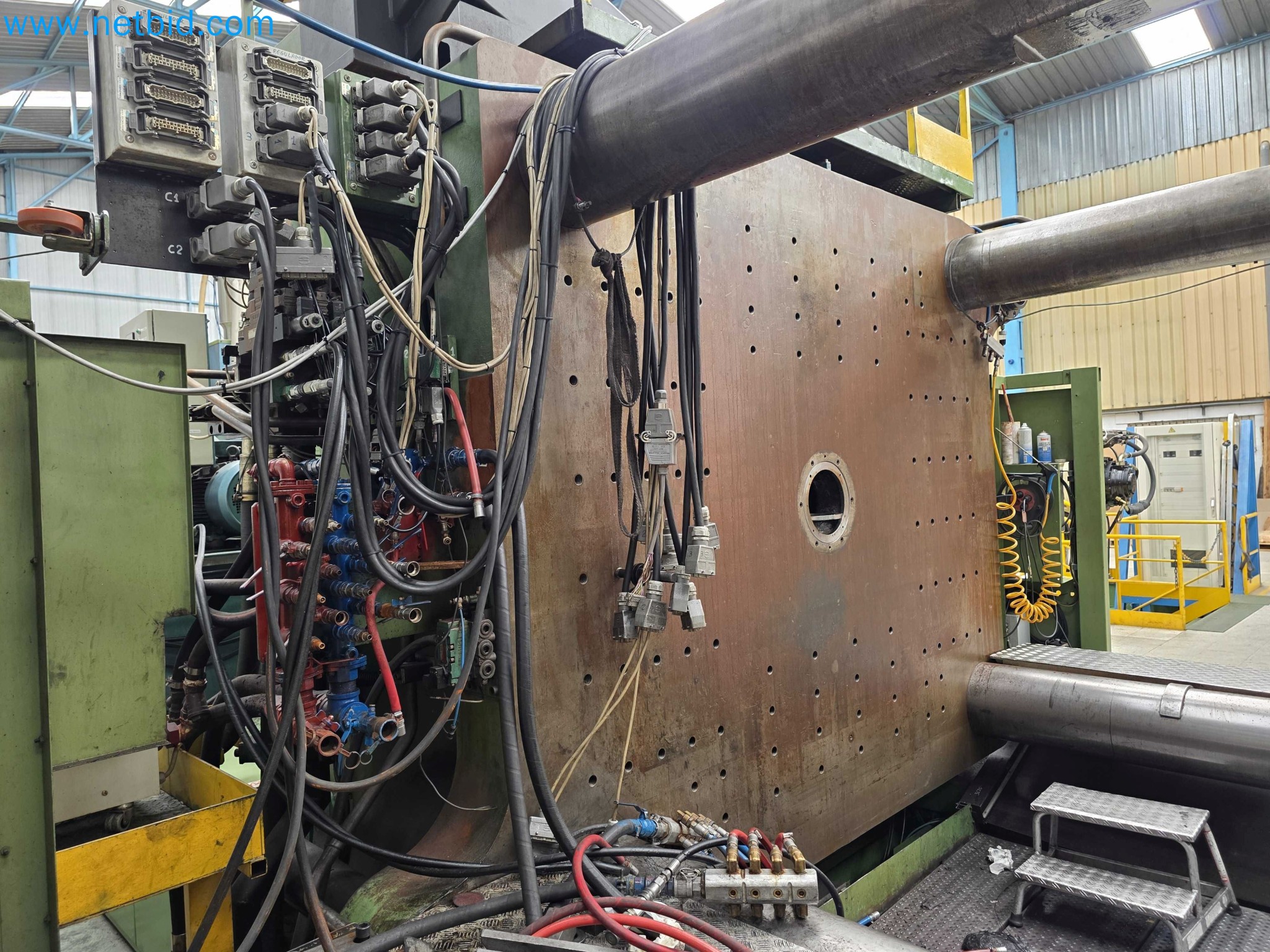

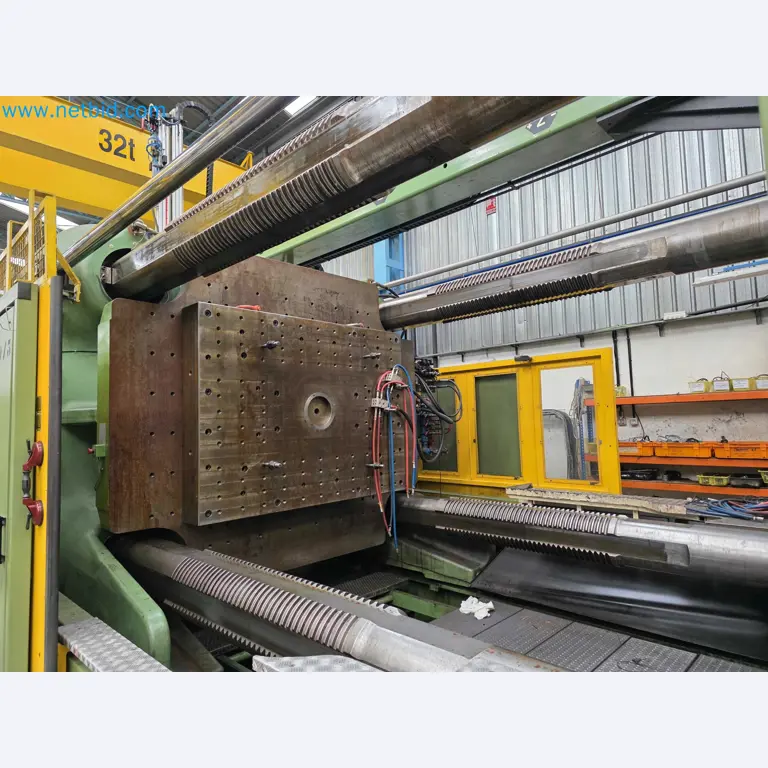

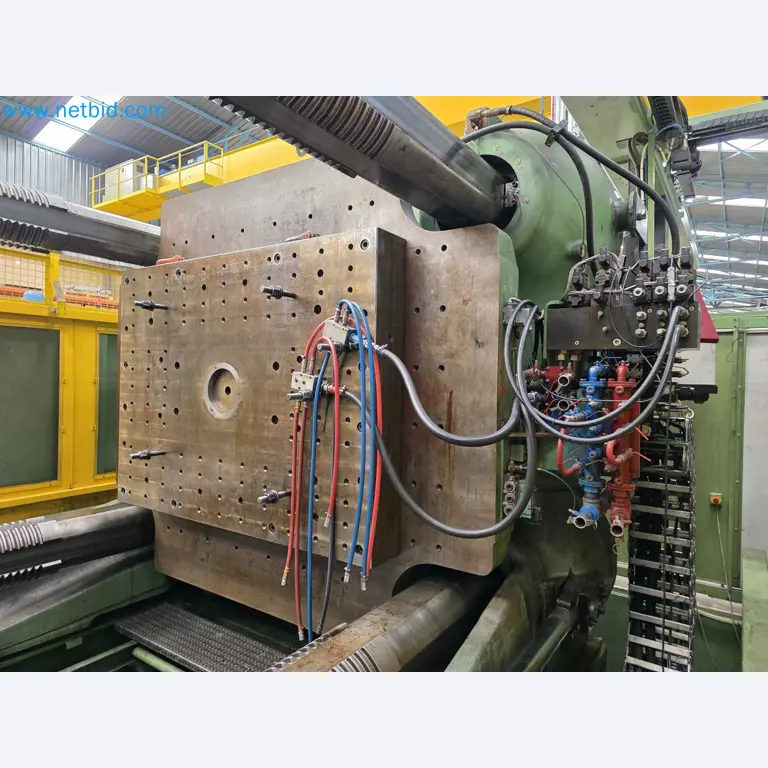

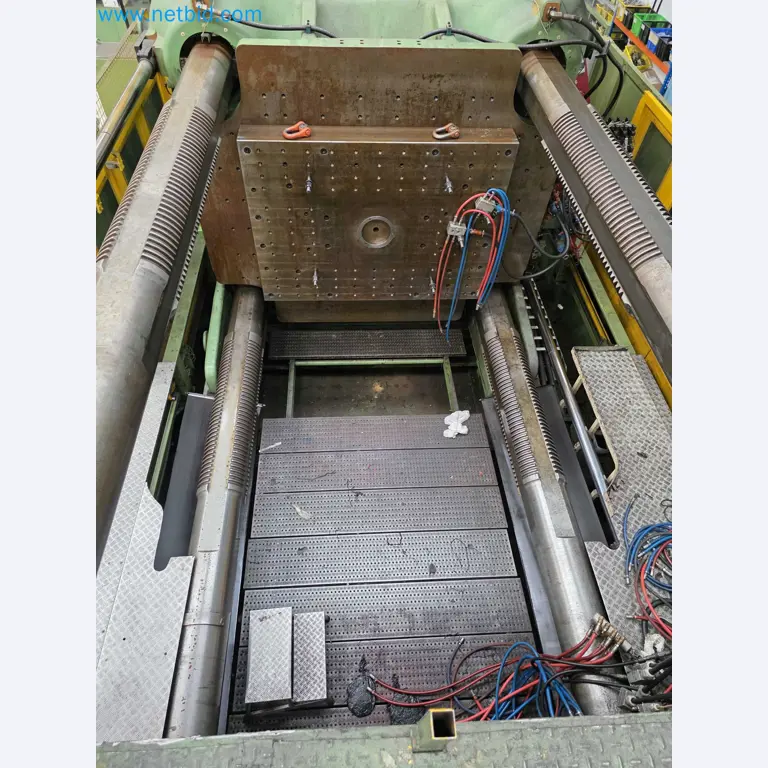

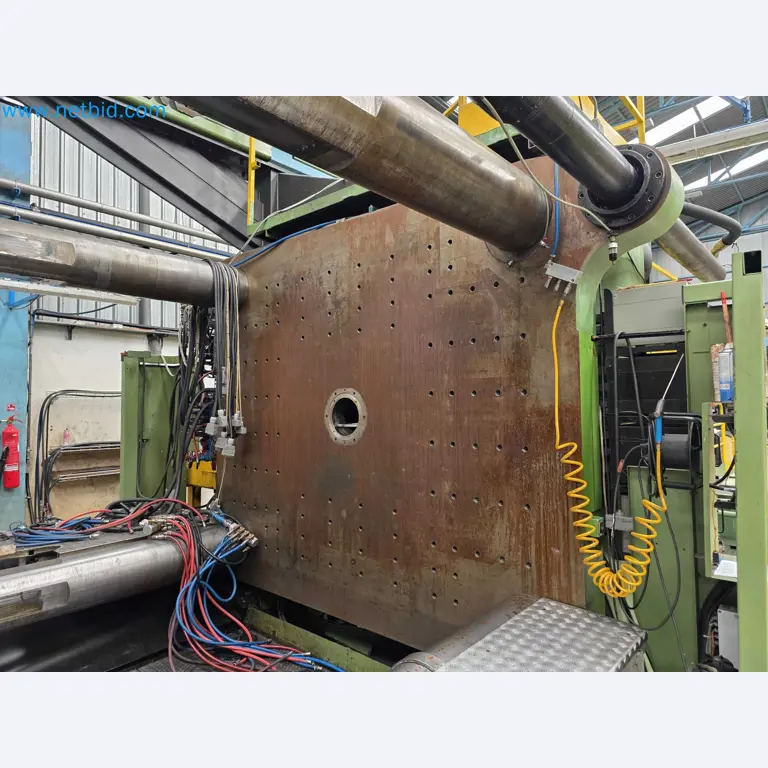

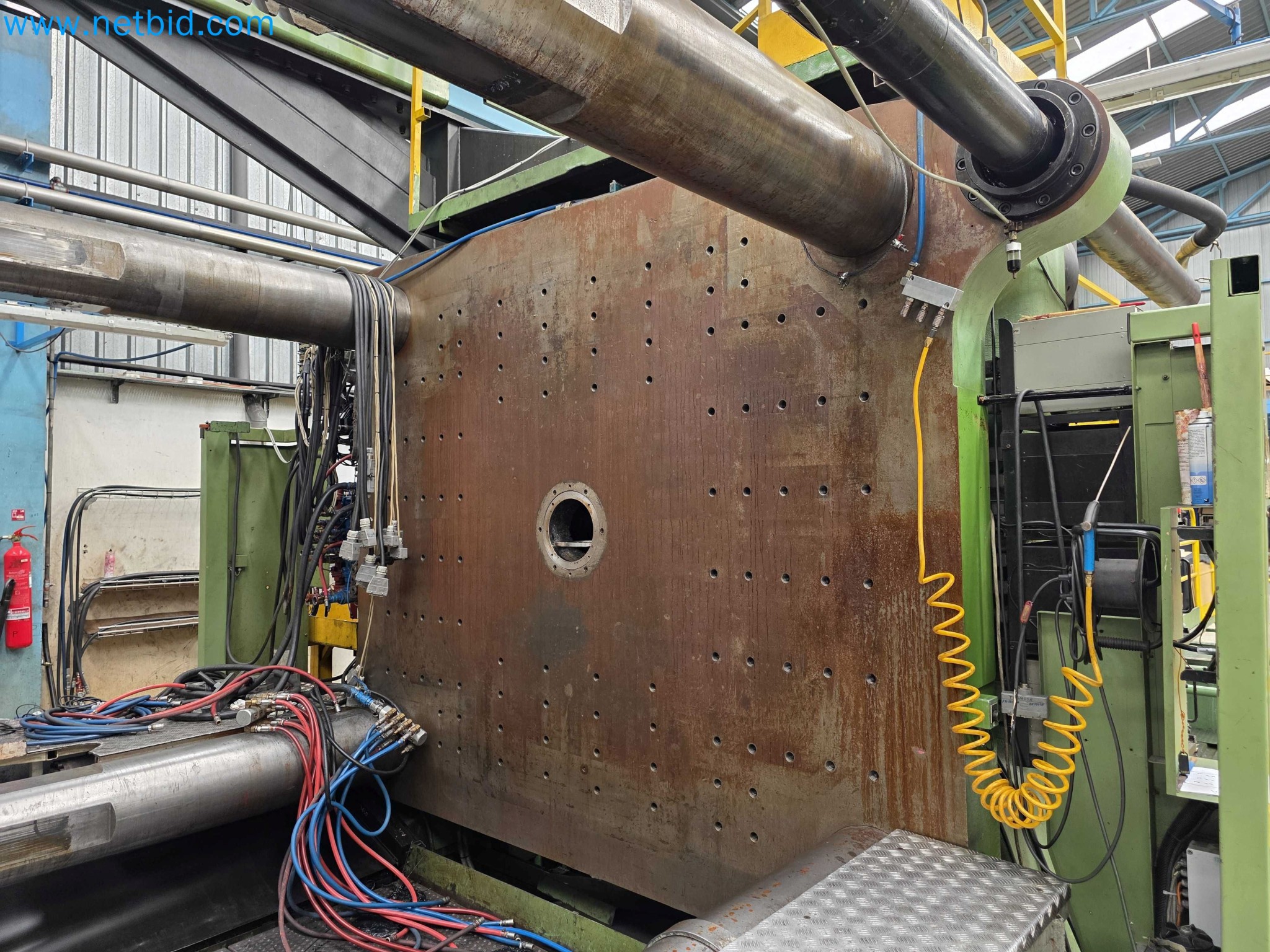

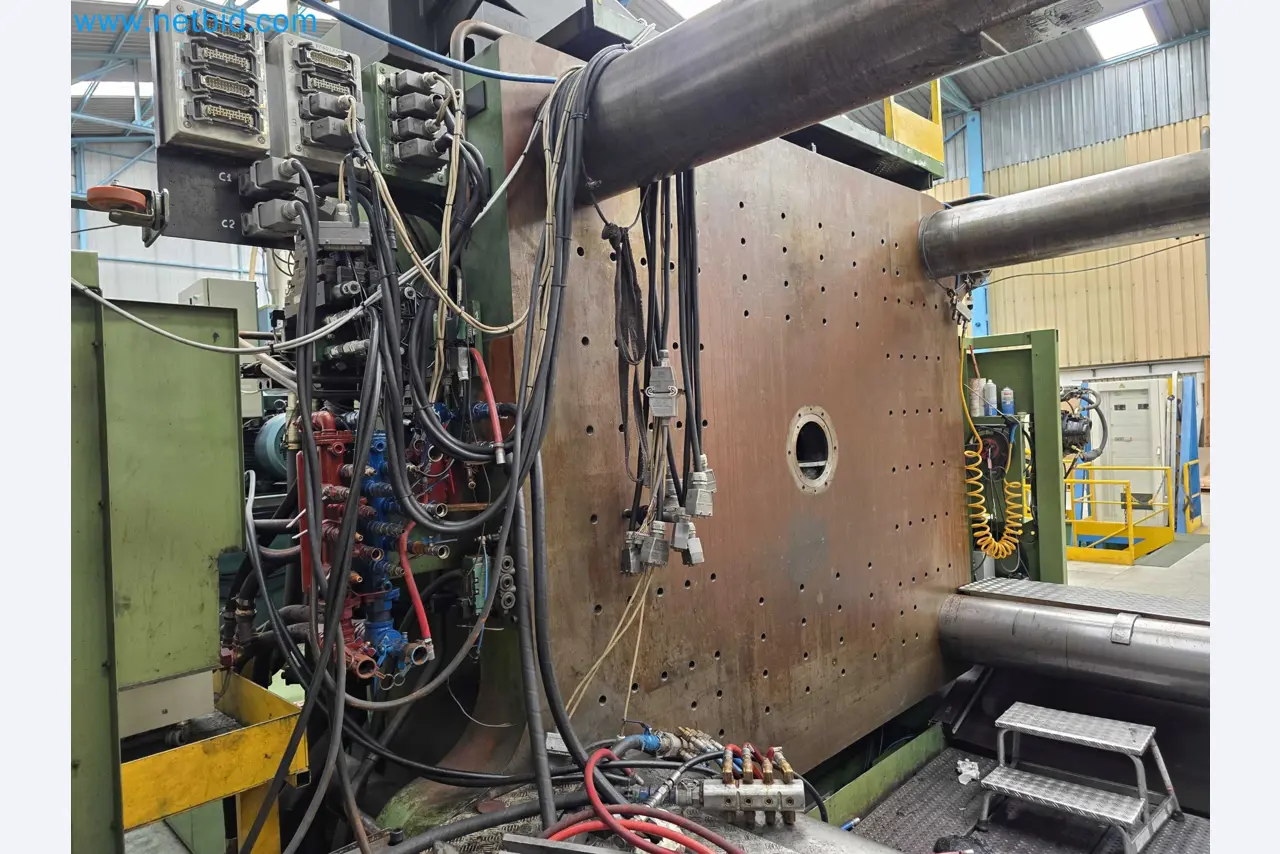

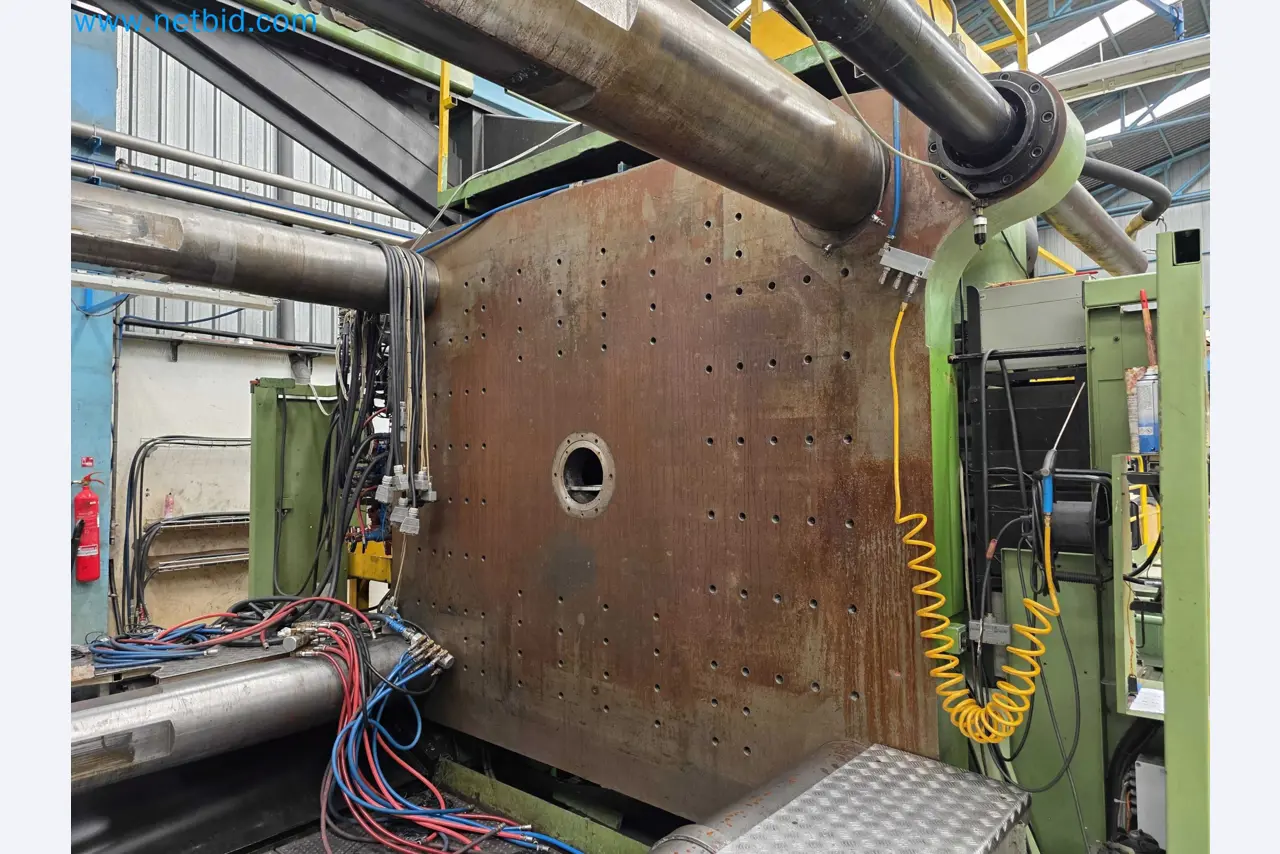

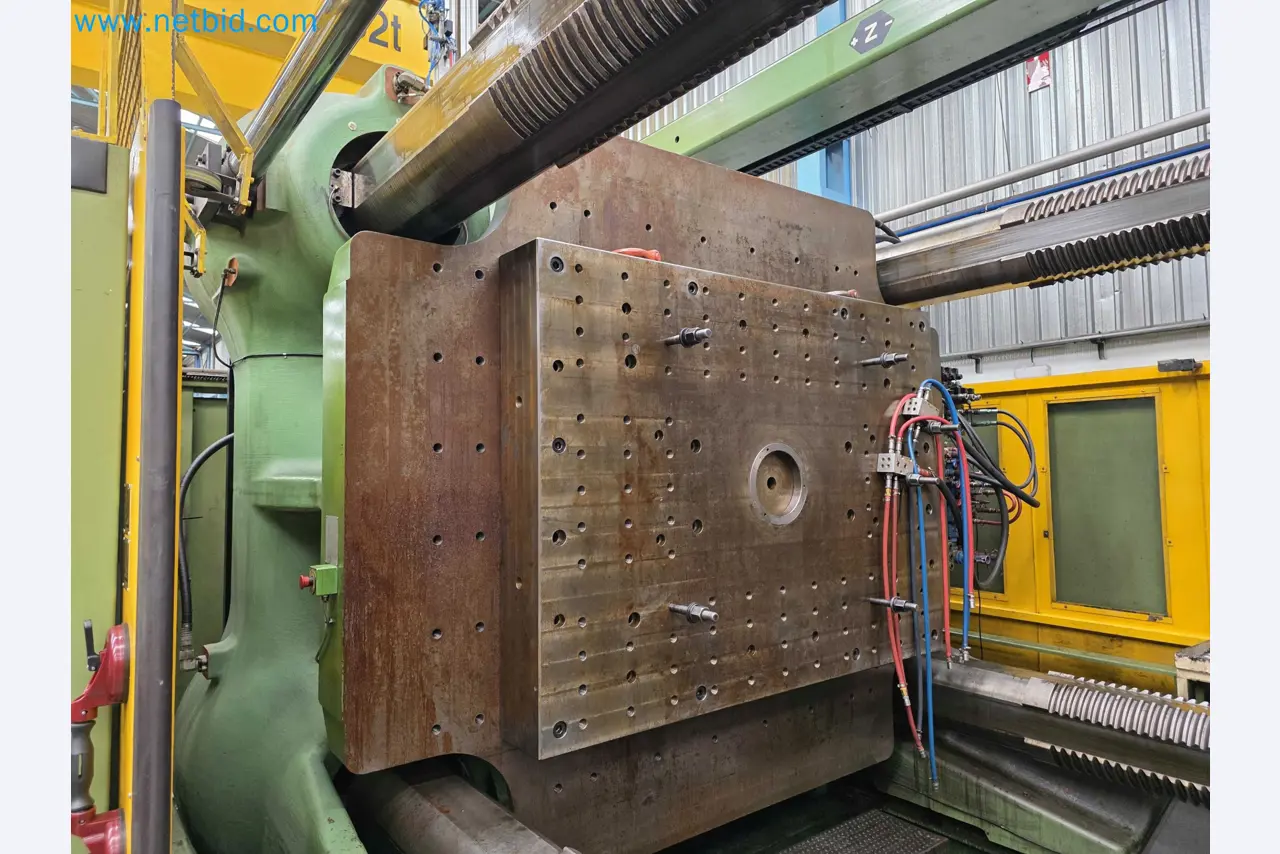

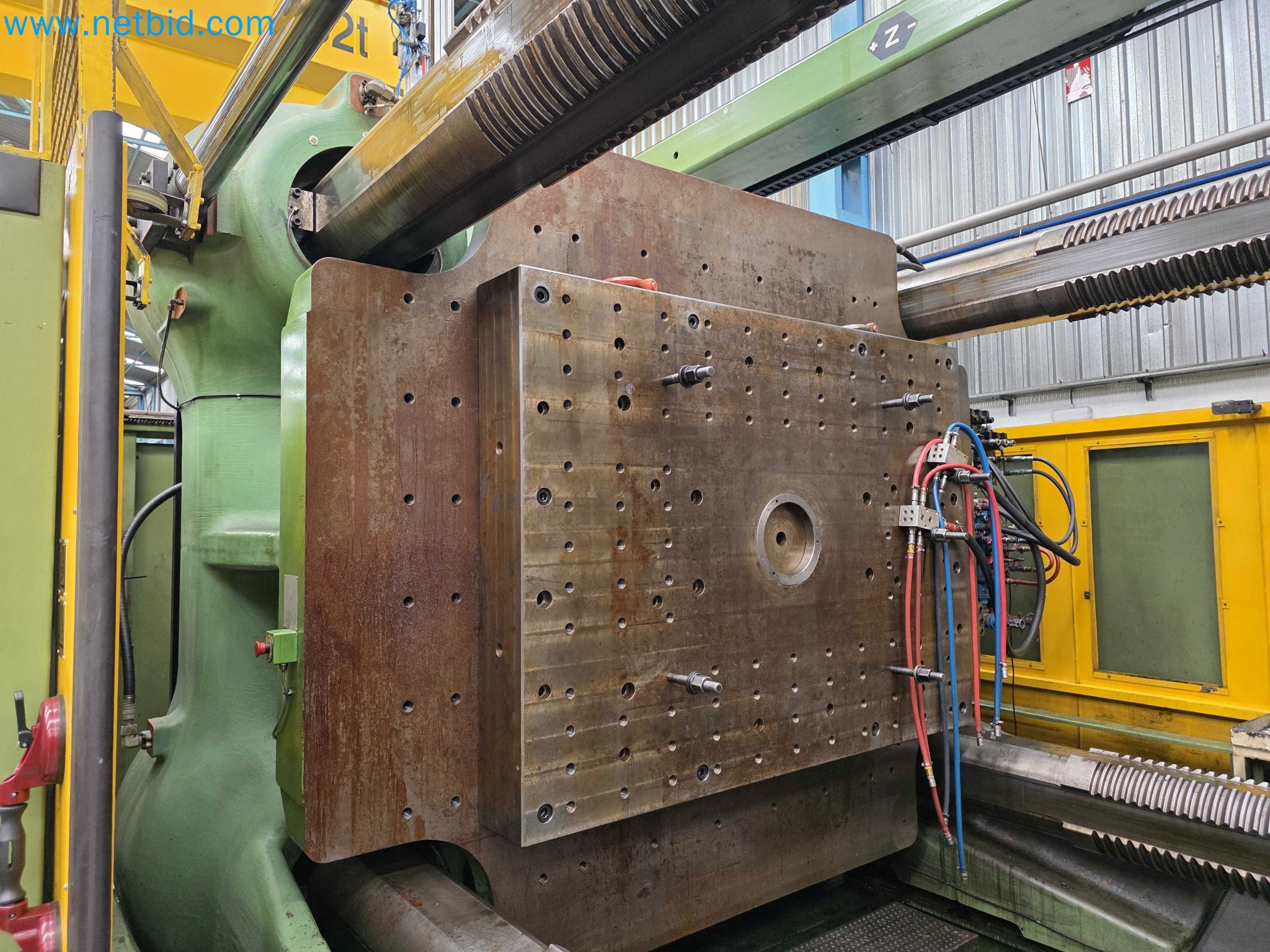

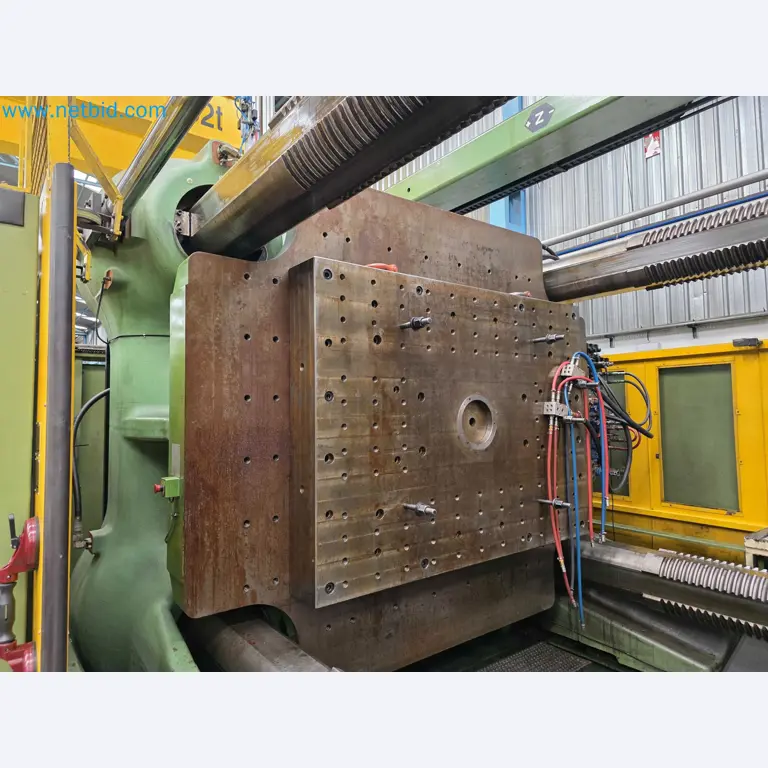

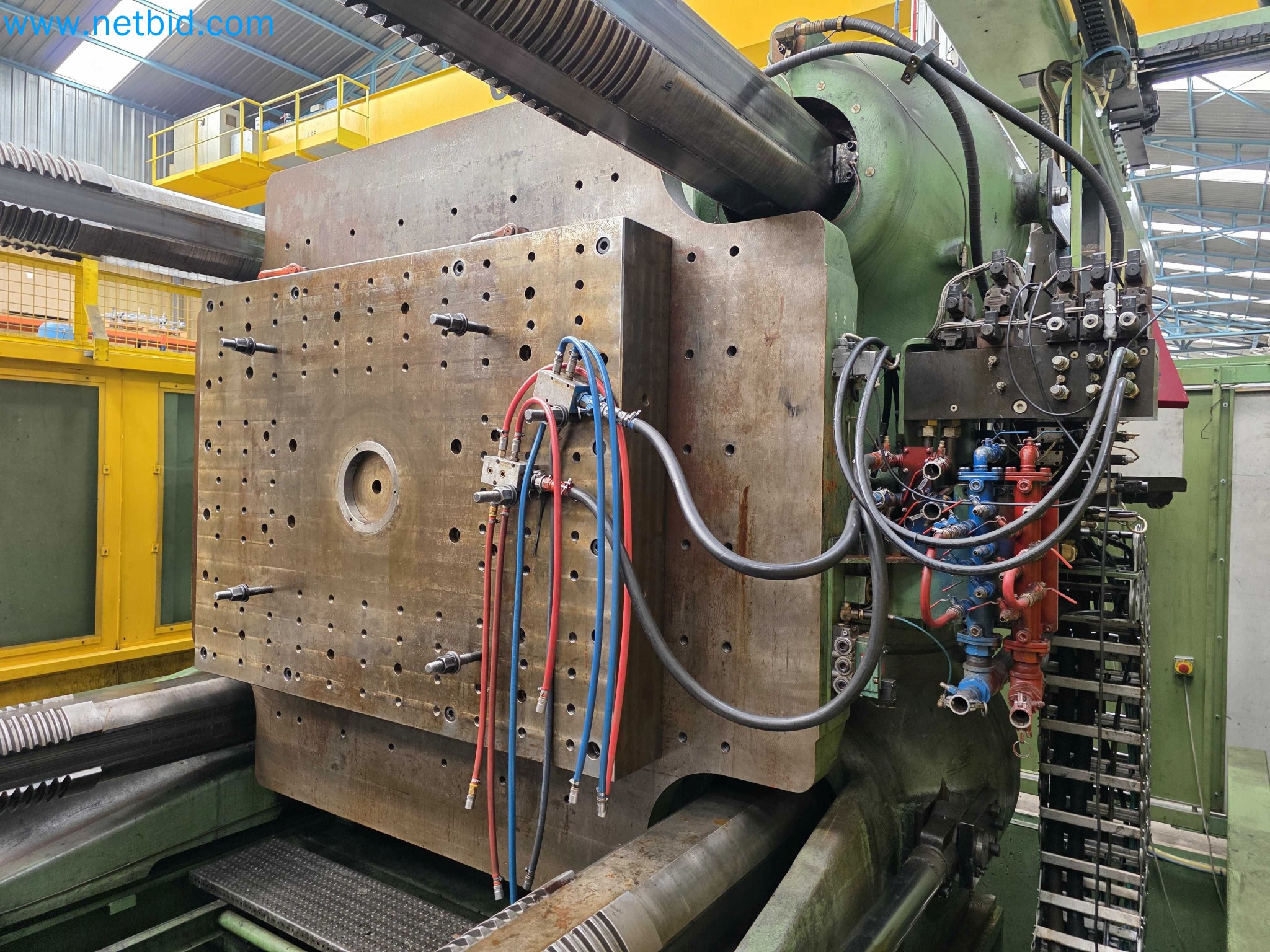

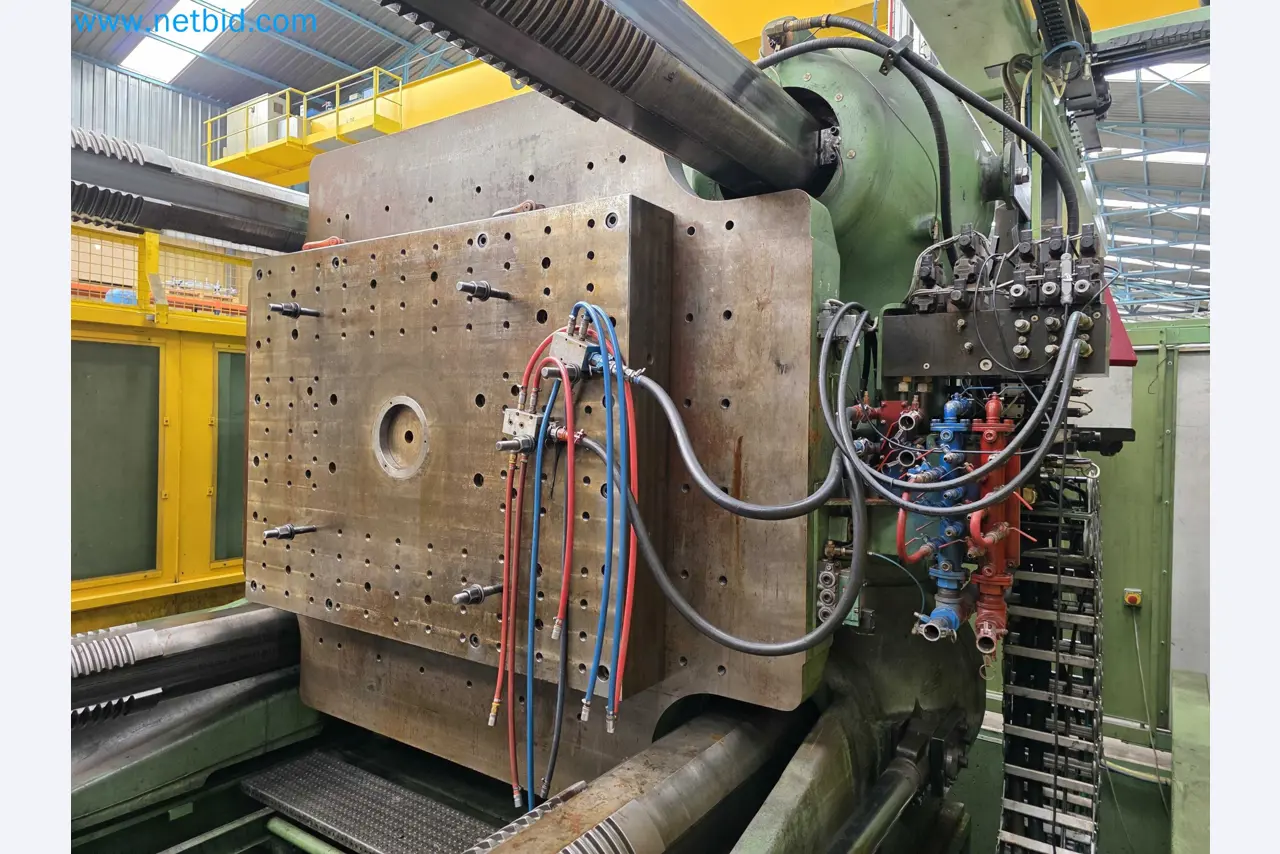

Platen dimensions: 3050 x 2600 mm

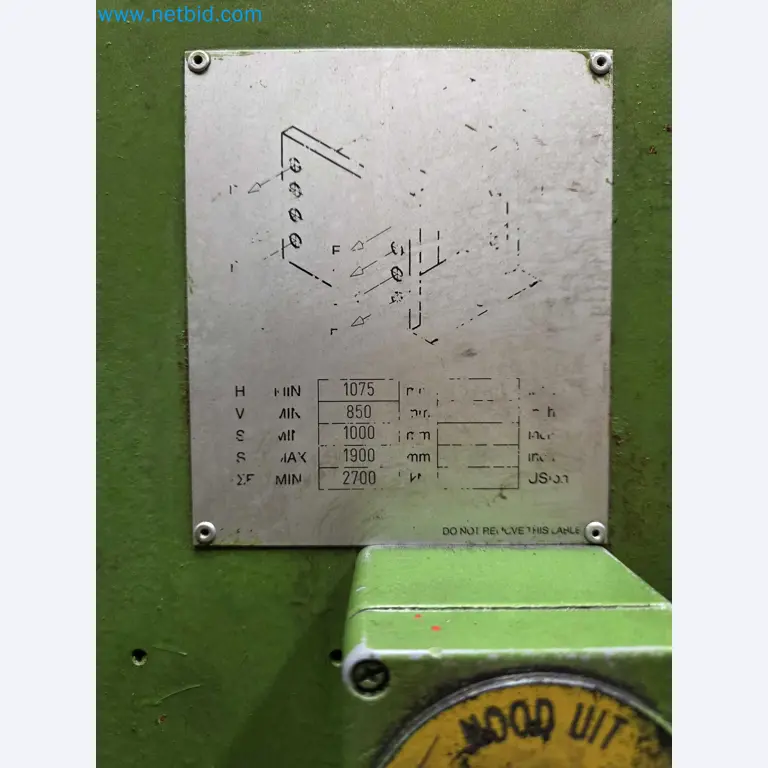

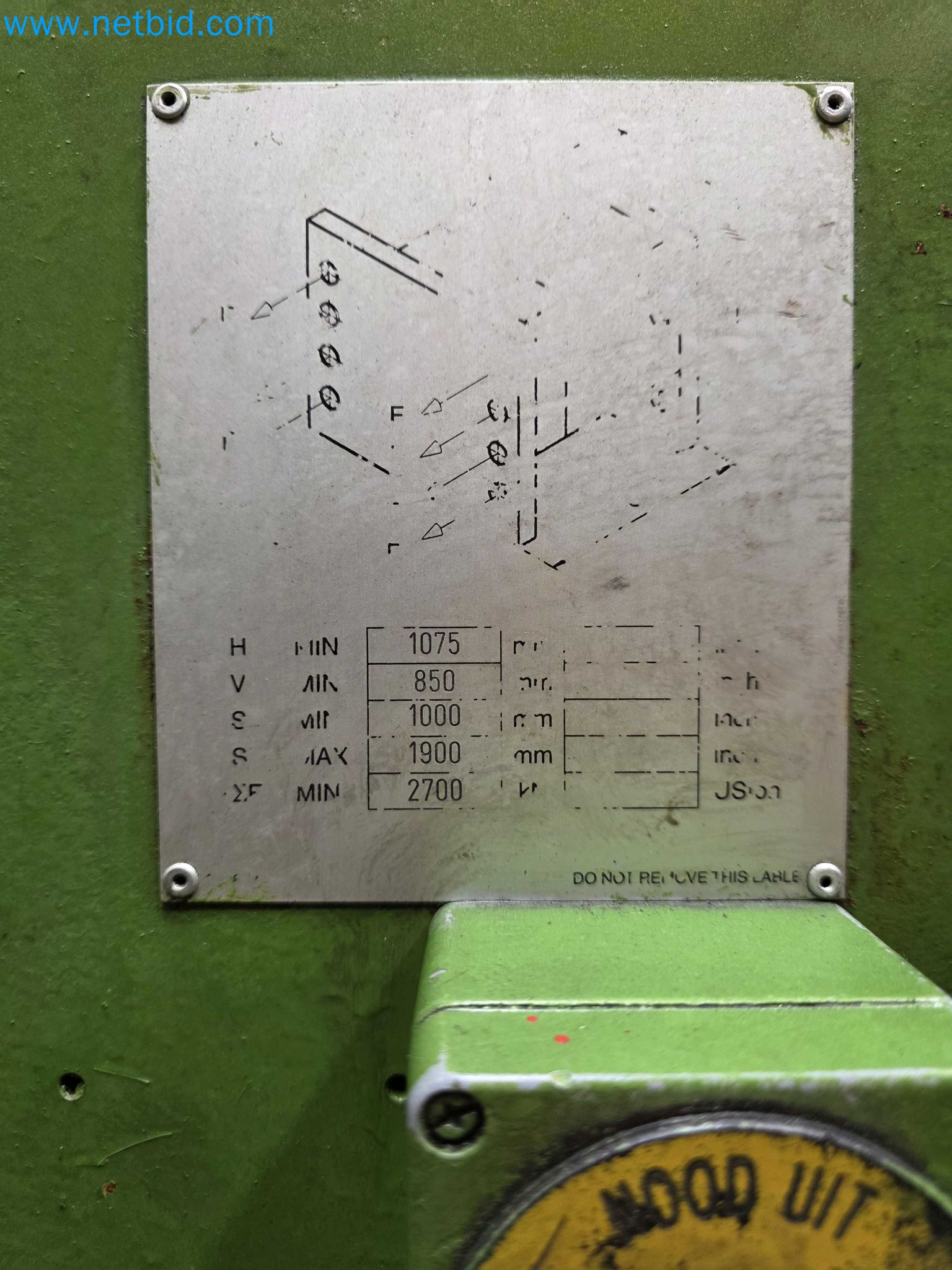

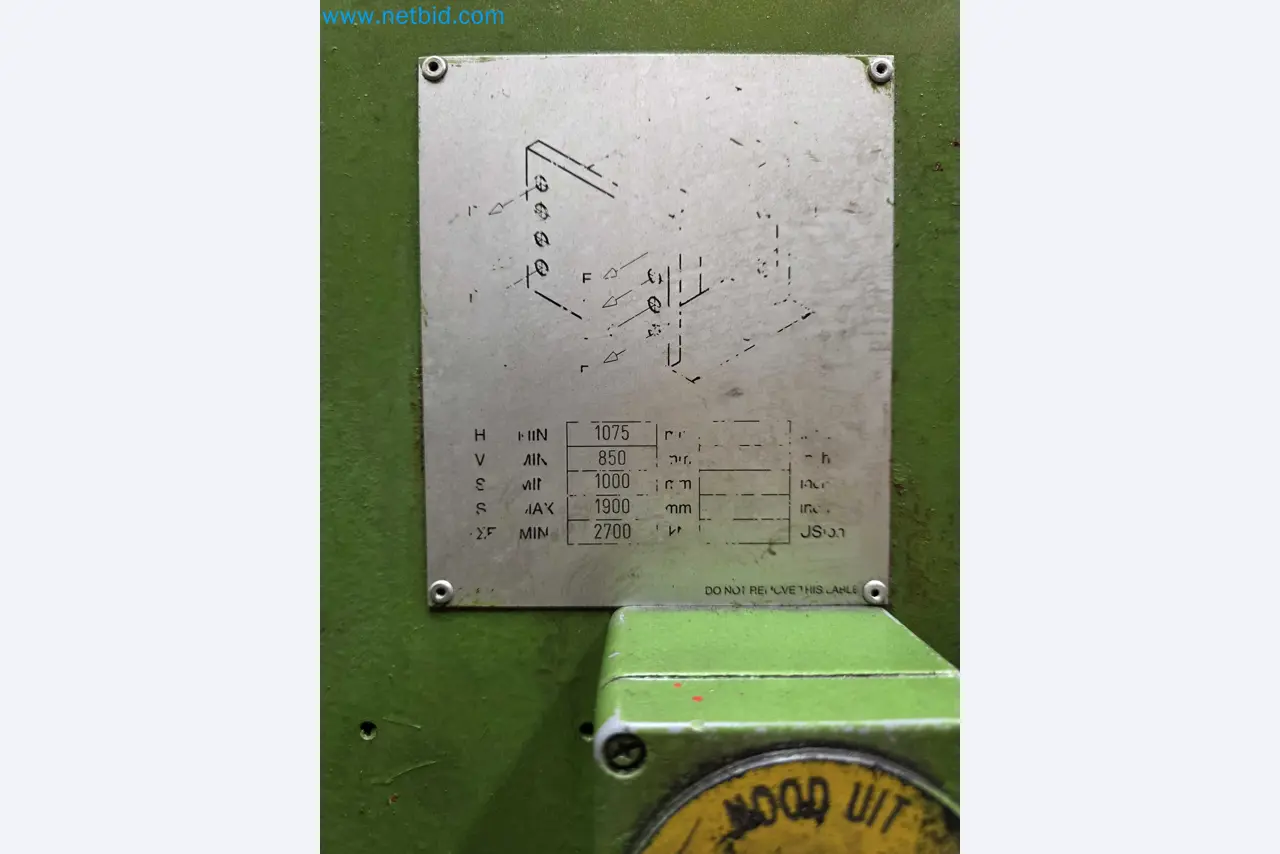

Mould height: 1000–1900 mm
Opening: 3900 mm
Ejector stroke: 350 mm
Ejector force: 270 kN
Tie-bar diameter: 345 mm

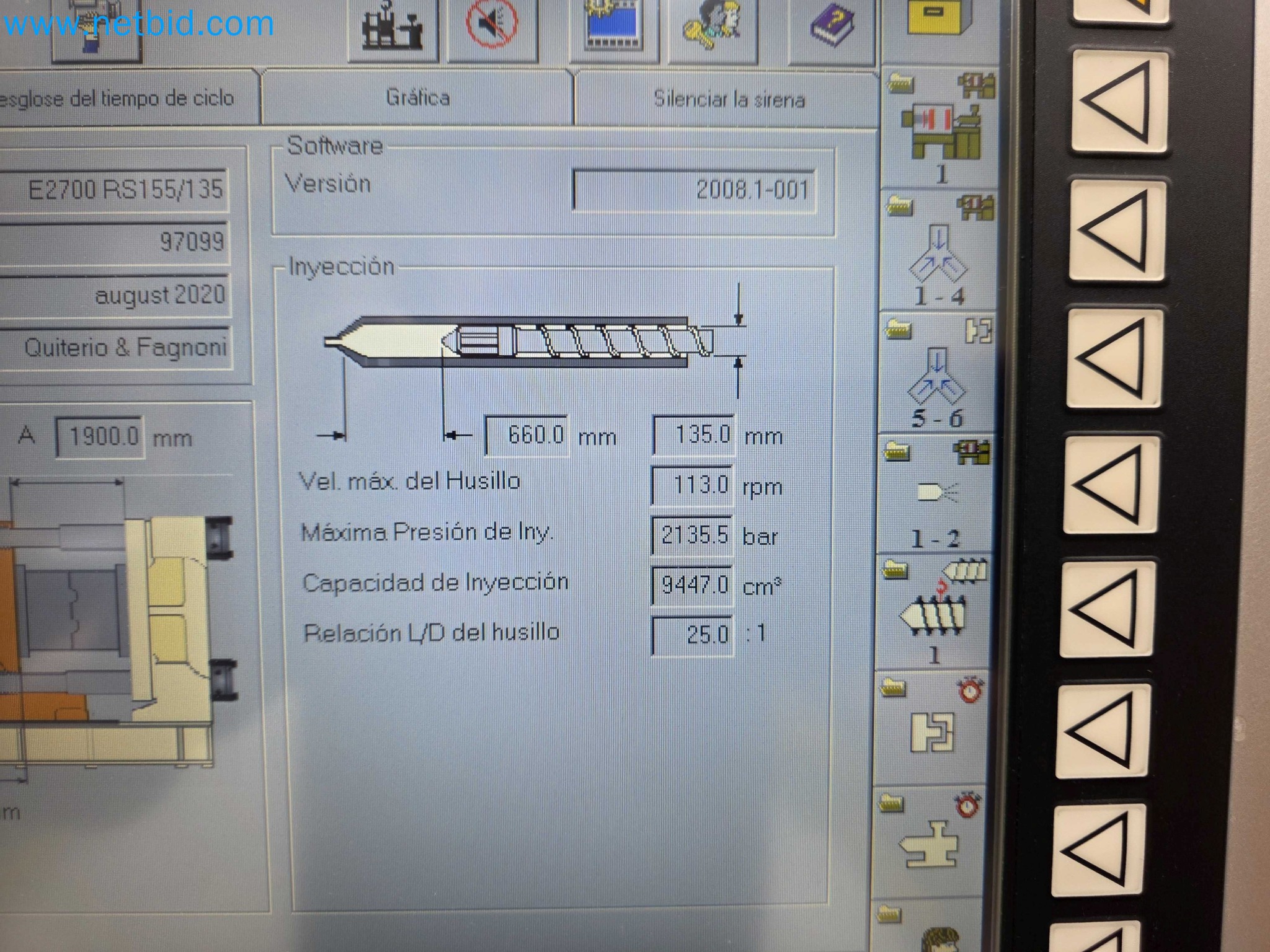

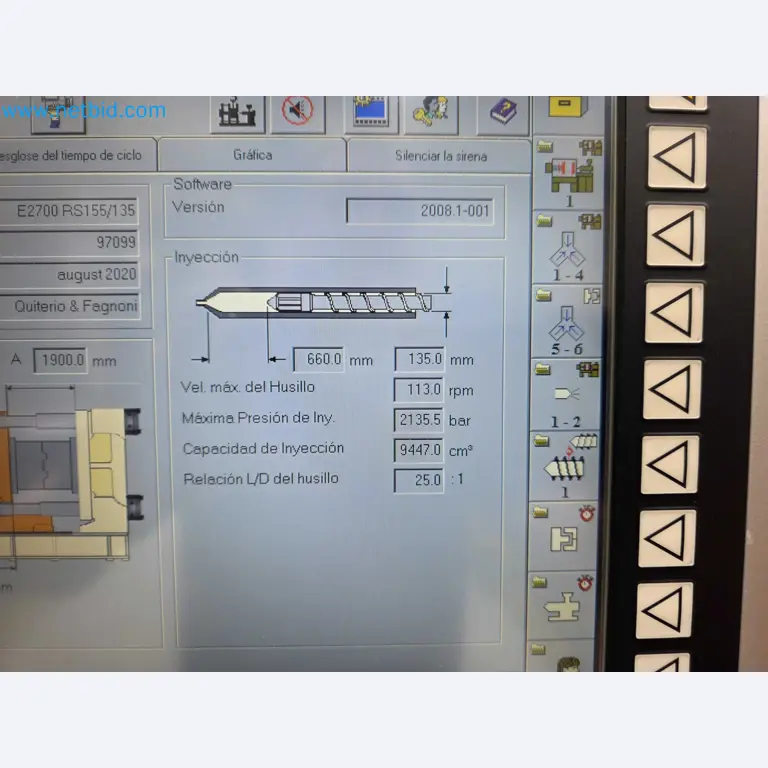

Screw diameter: 135 mm
Maximum screw speed: 113 rpm
Maximum injection pressure: 2109 bar
Injection capacity: 9,447 cm³
Injection capacity: 880 g/Ps
Cylinder heaters: 94 kW
Plasticizing rate: 190 g/s
Injection rate: 1327 cm³/s

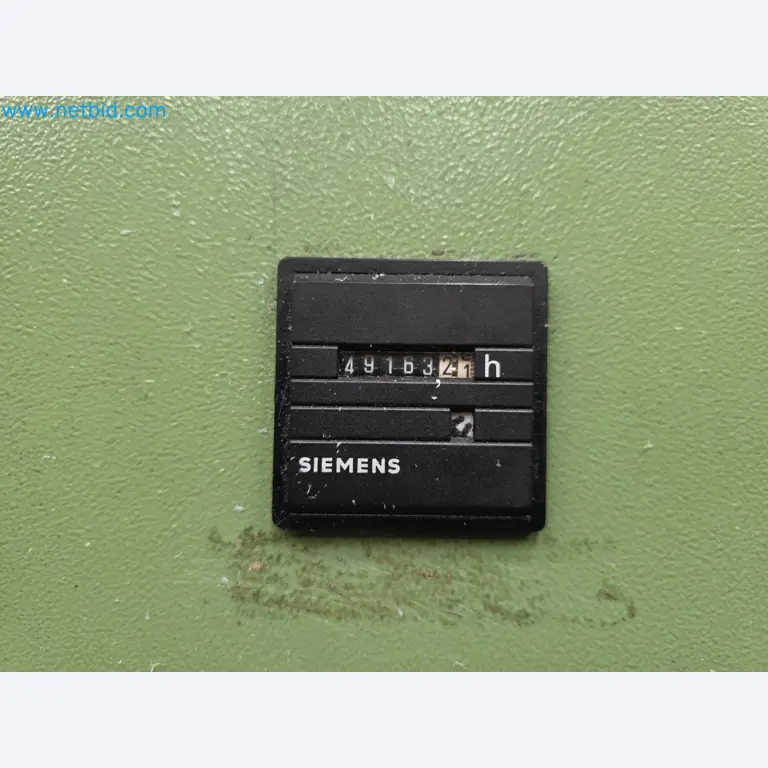

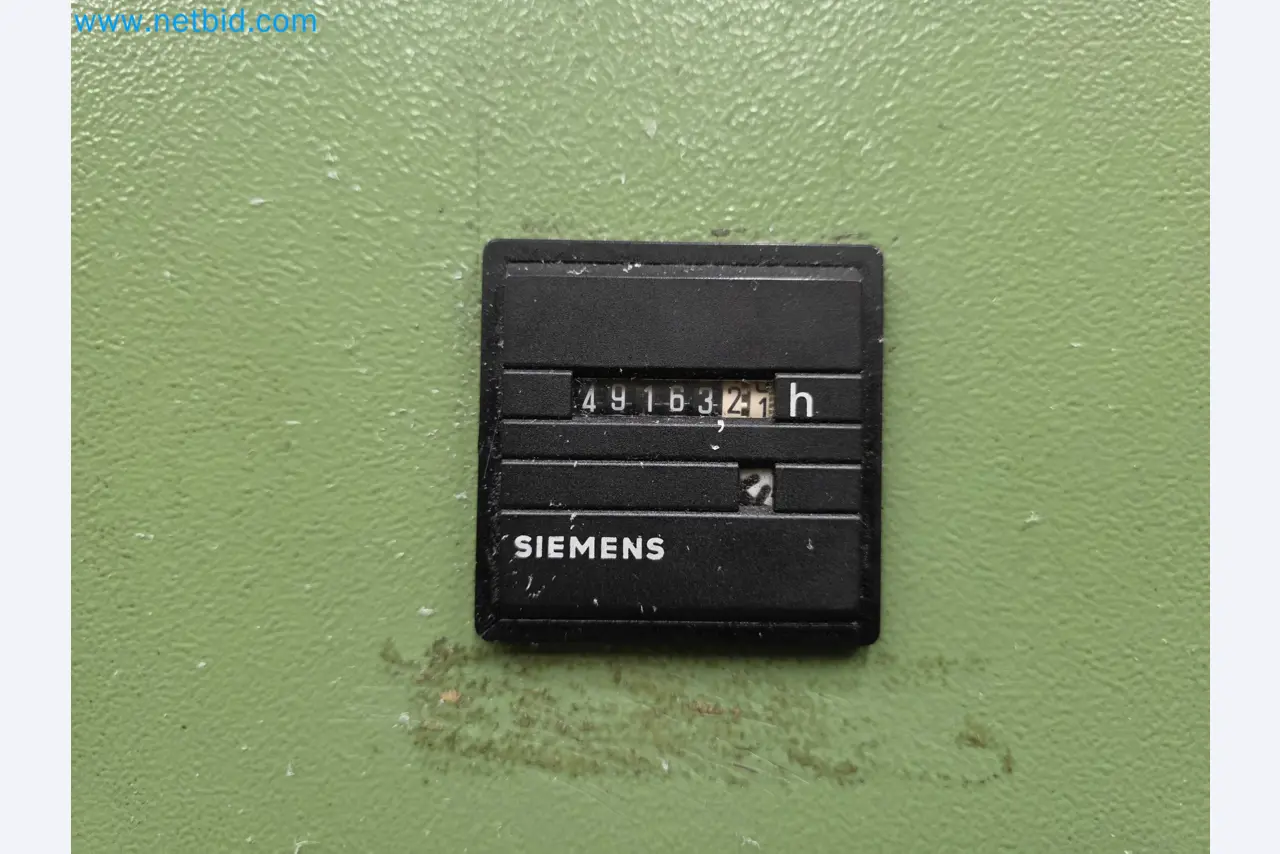

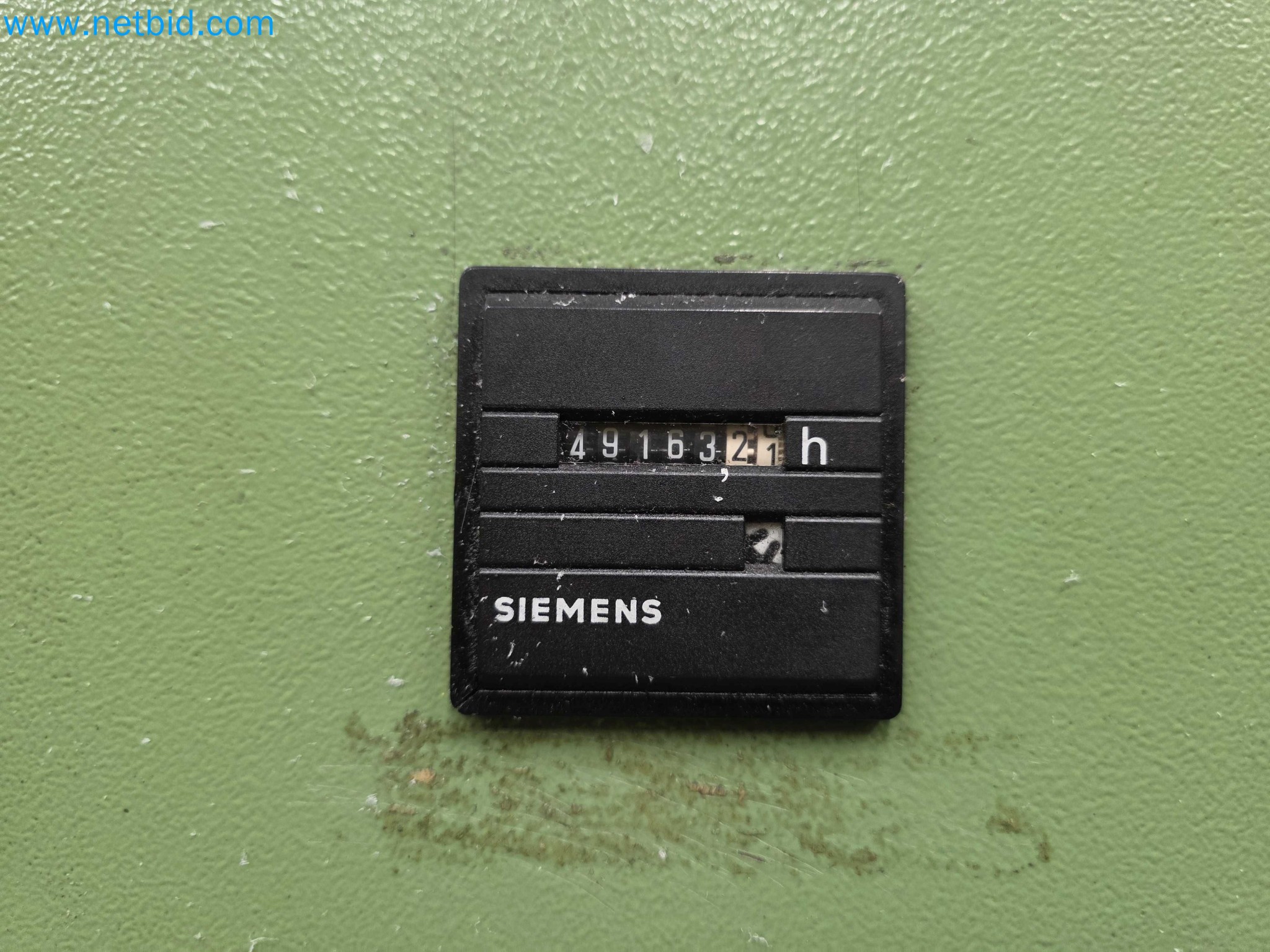

Operating hours according to counter: 49,163 h

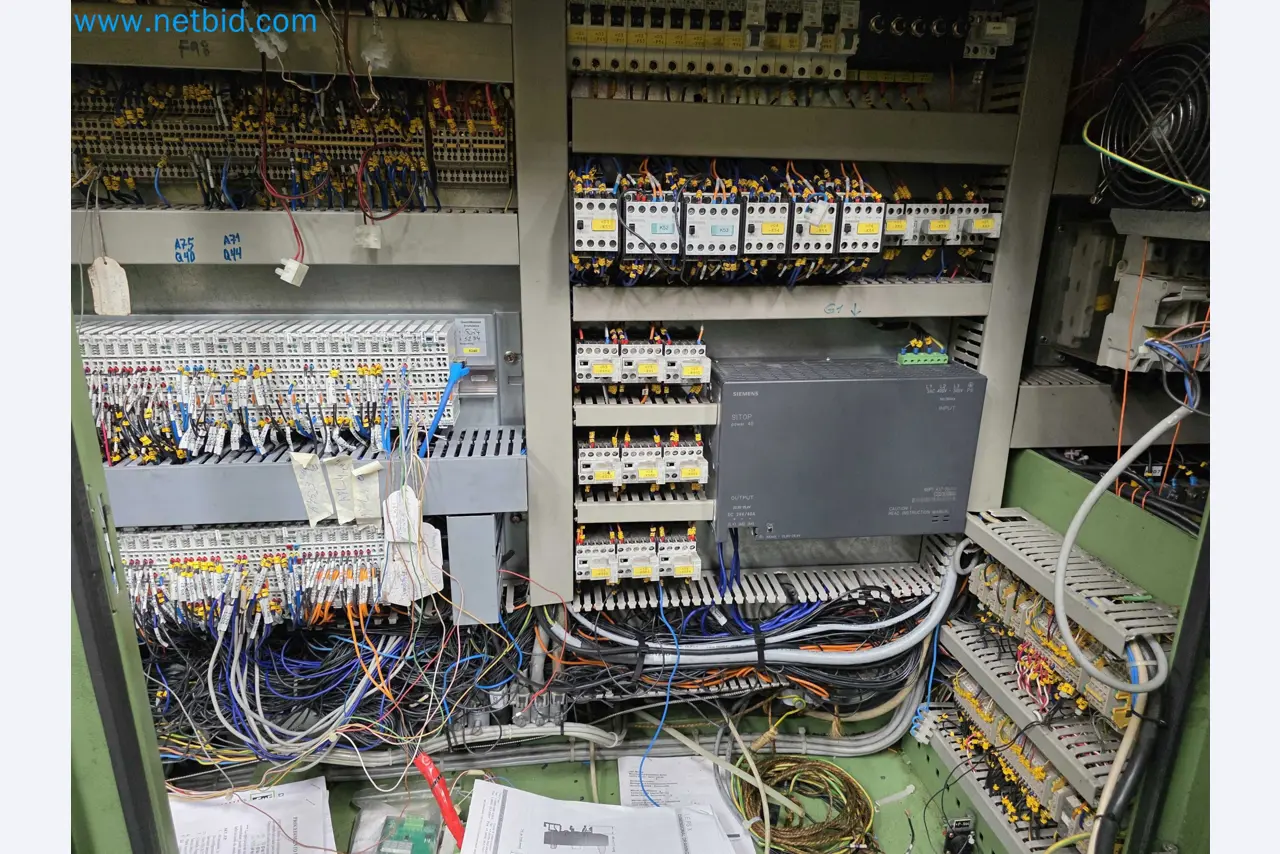

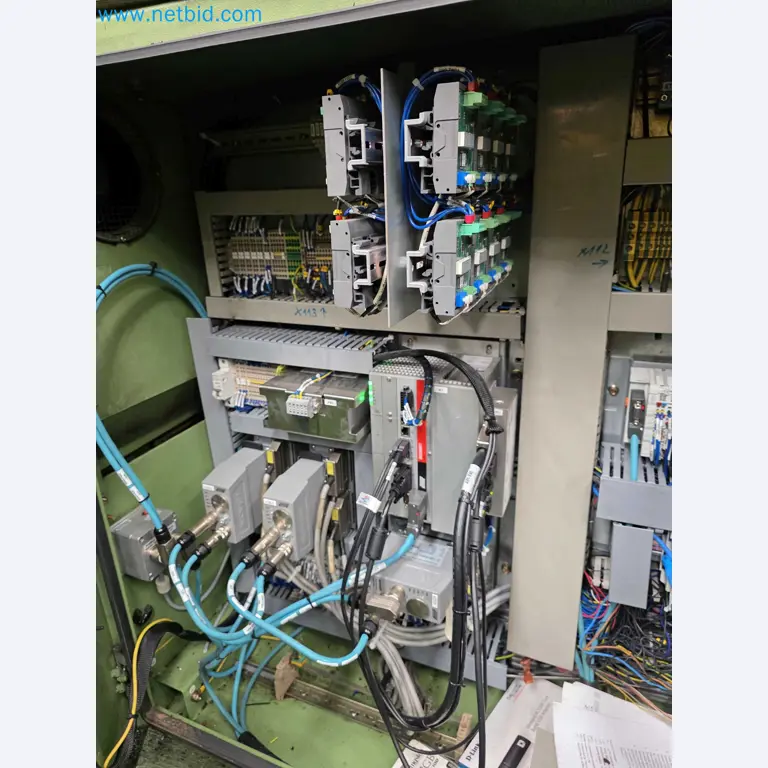

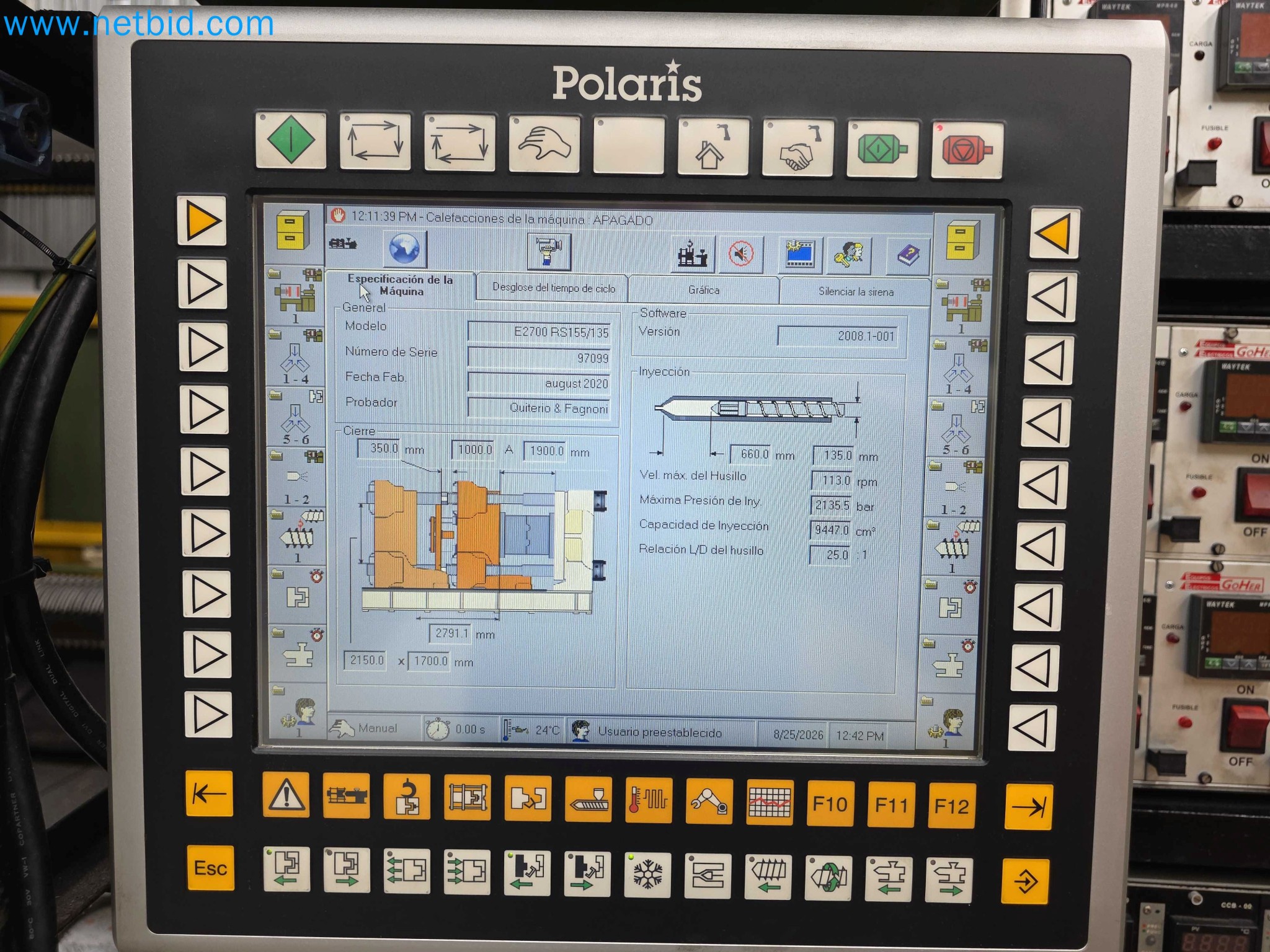

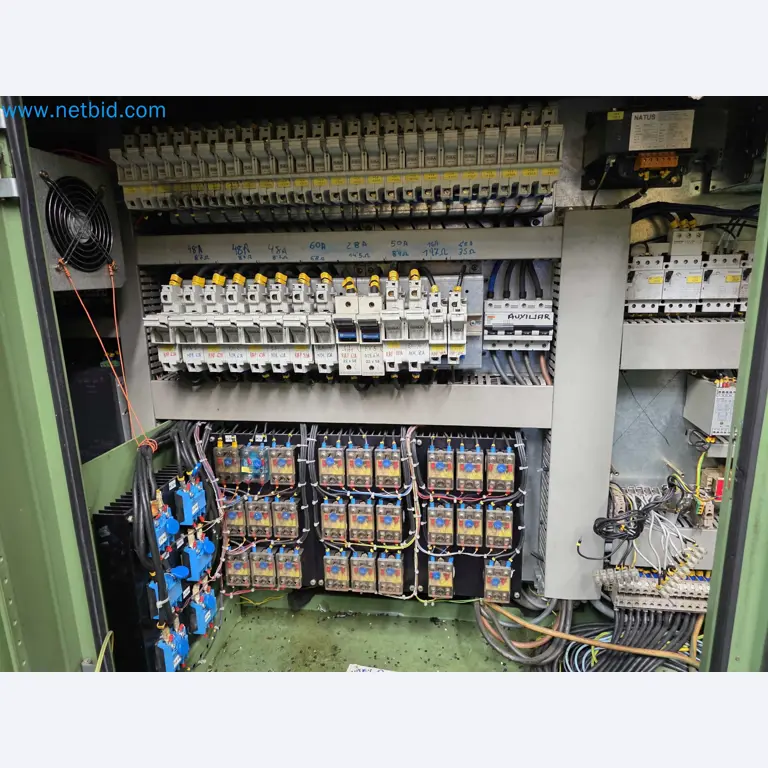

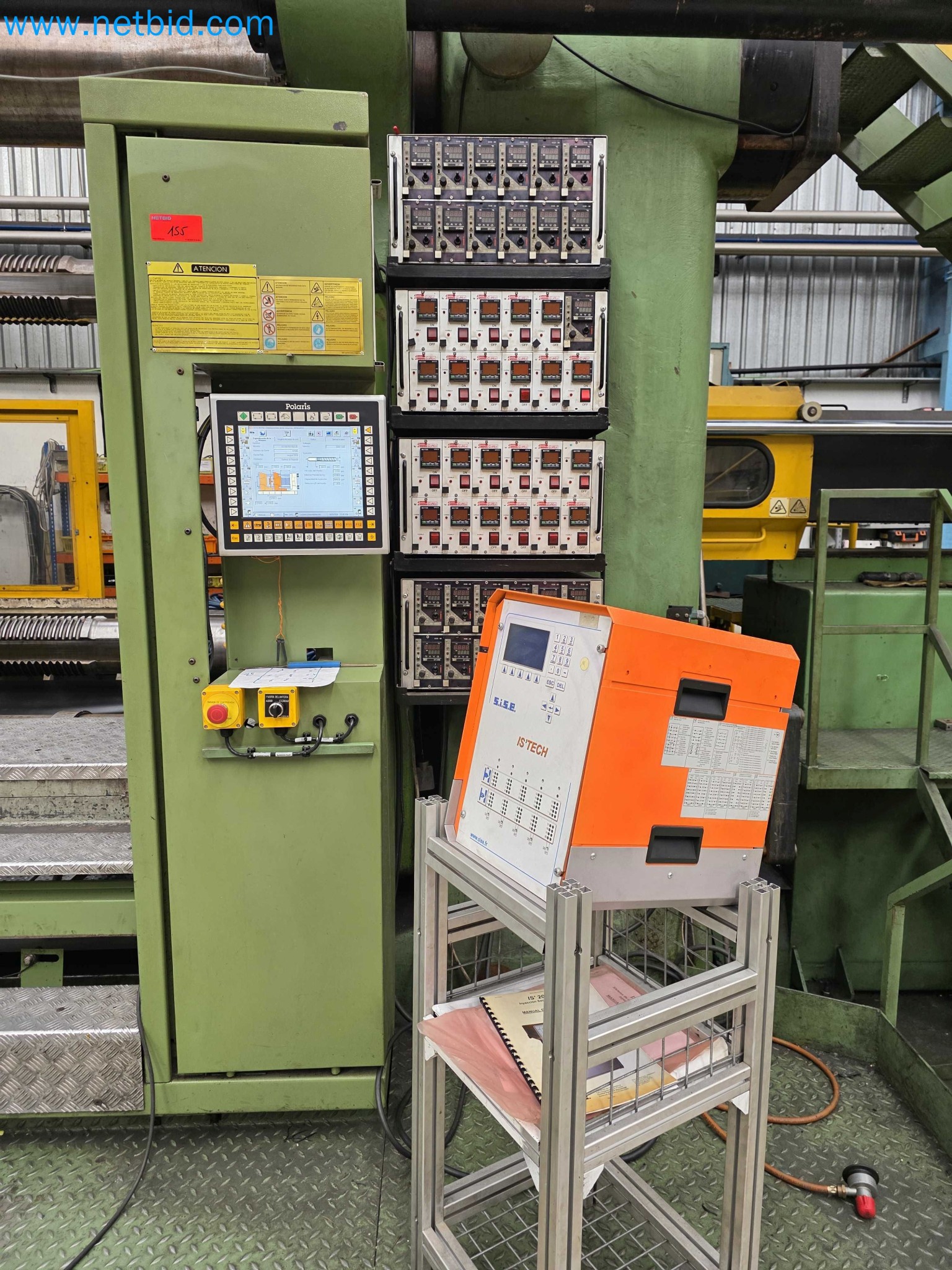

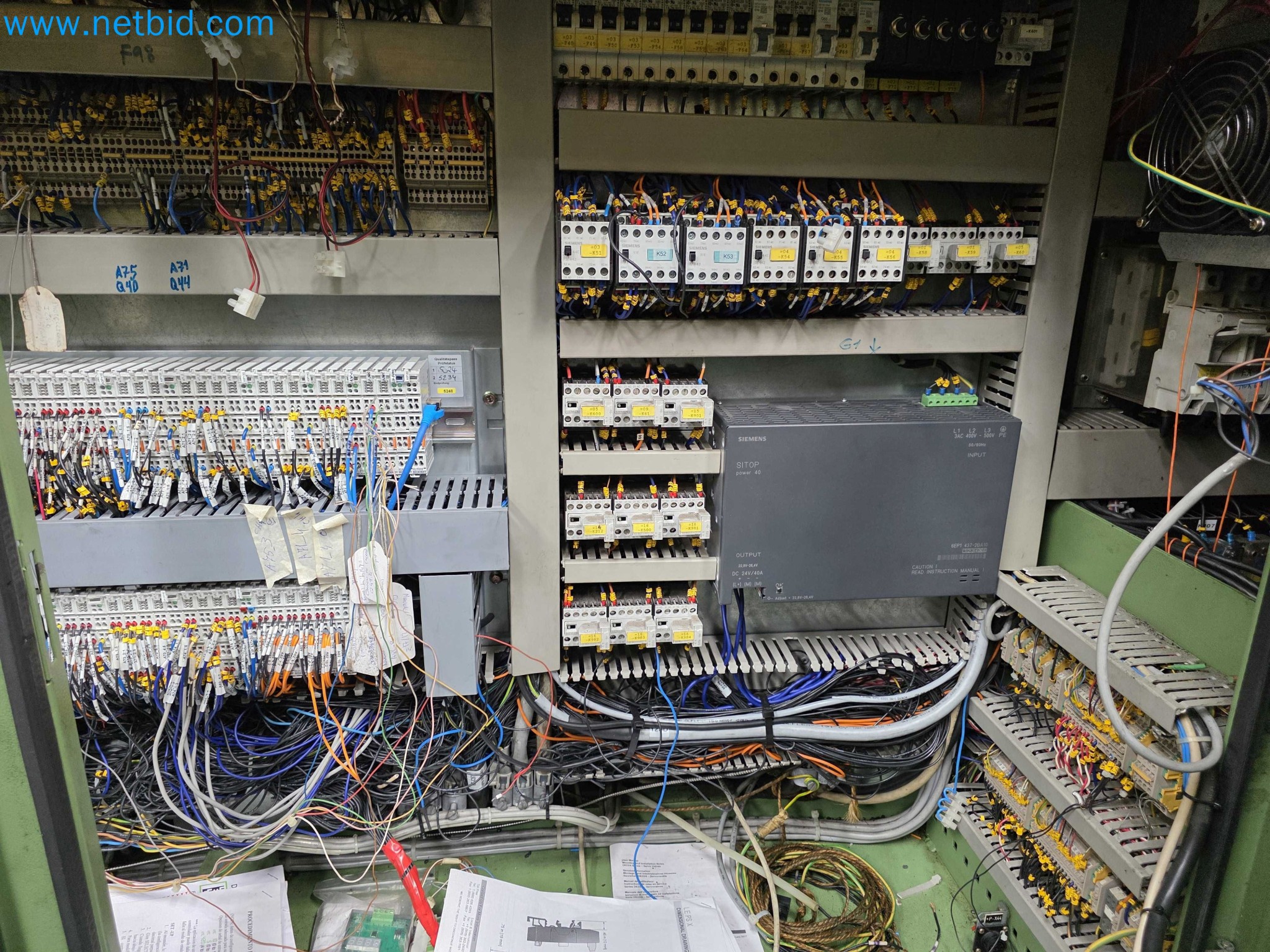

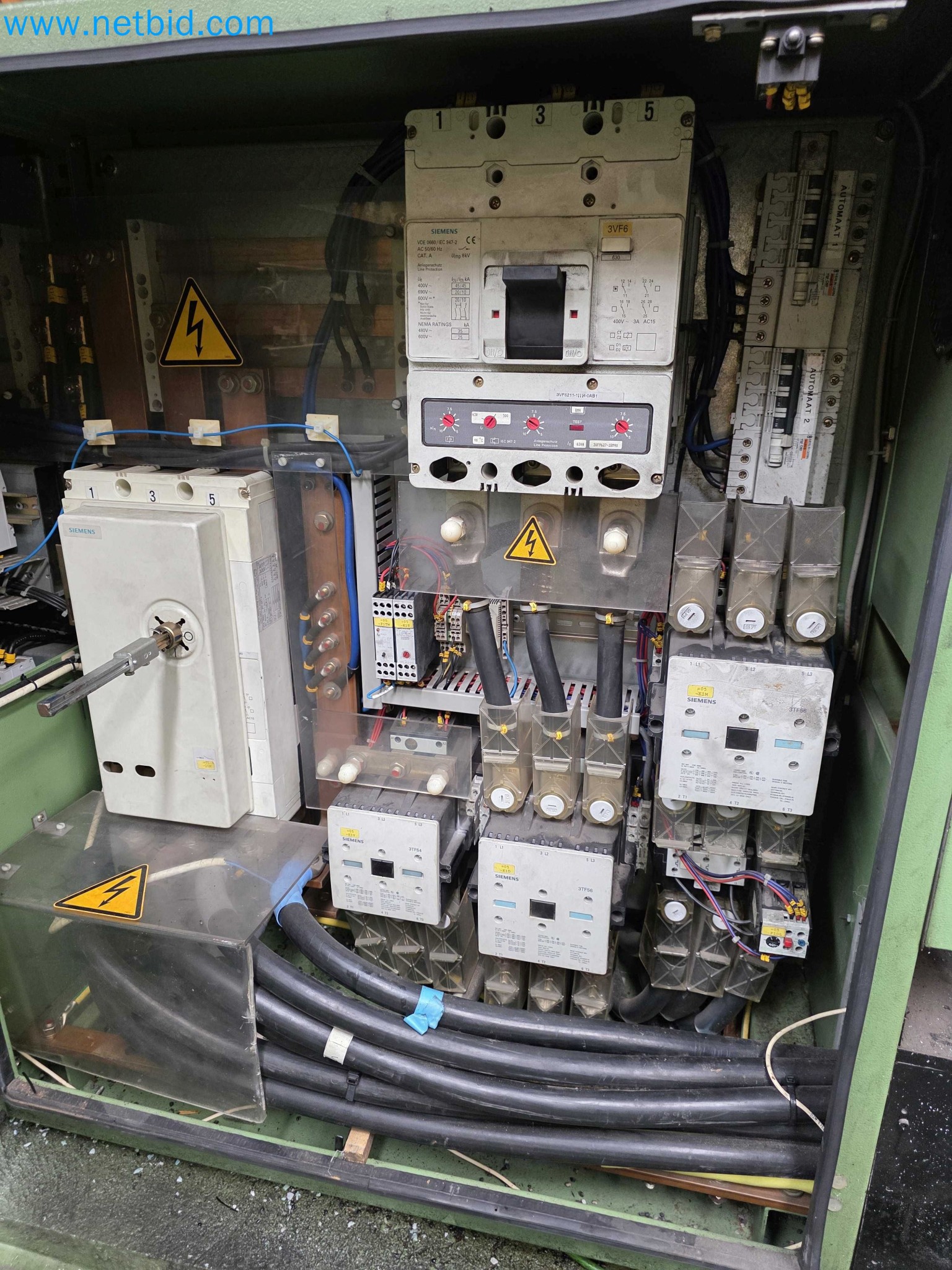

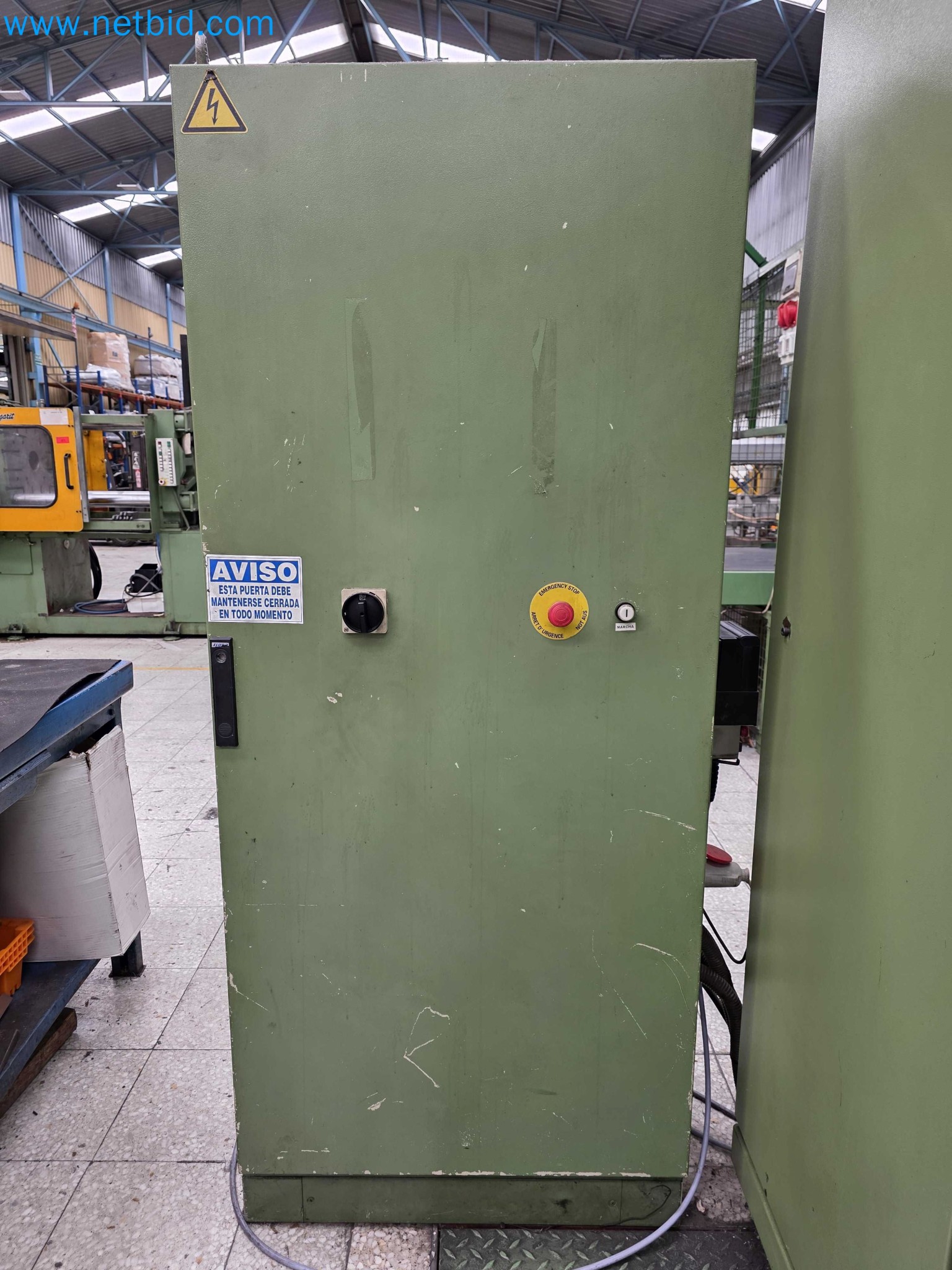

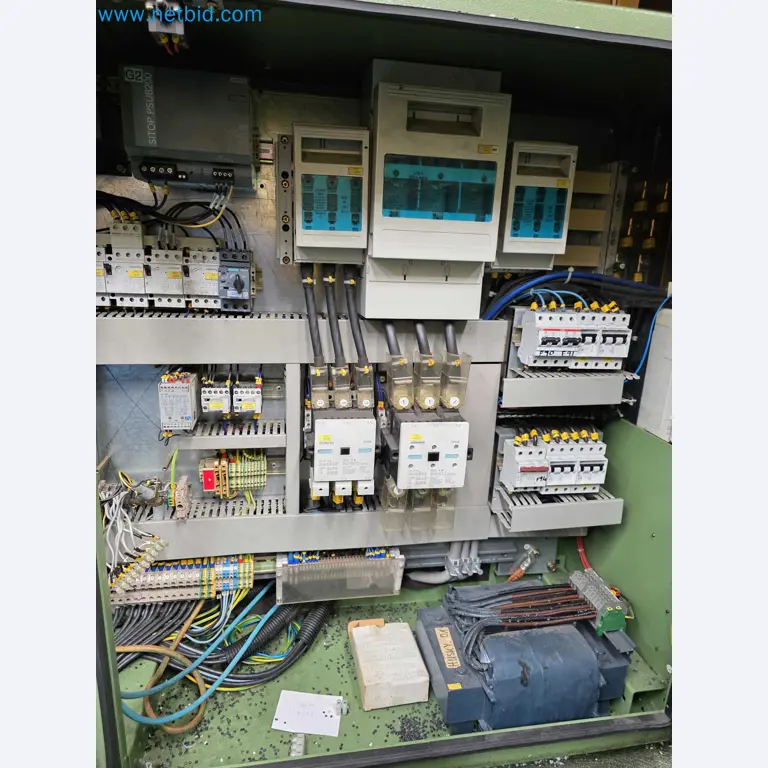

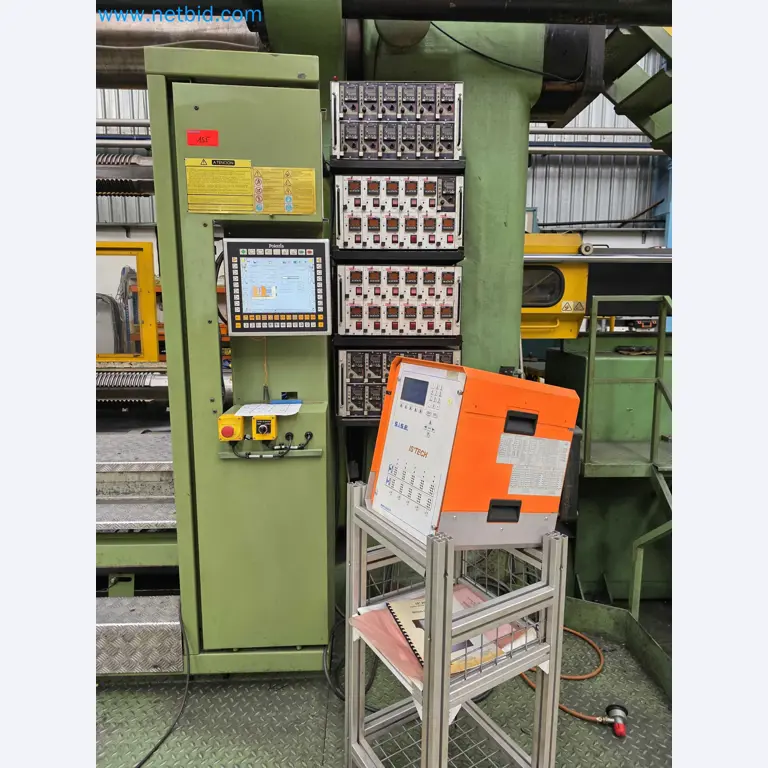

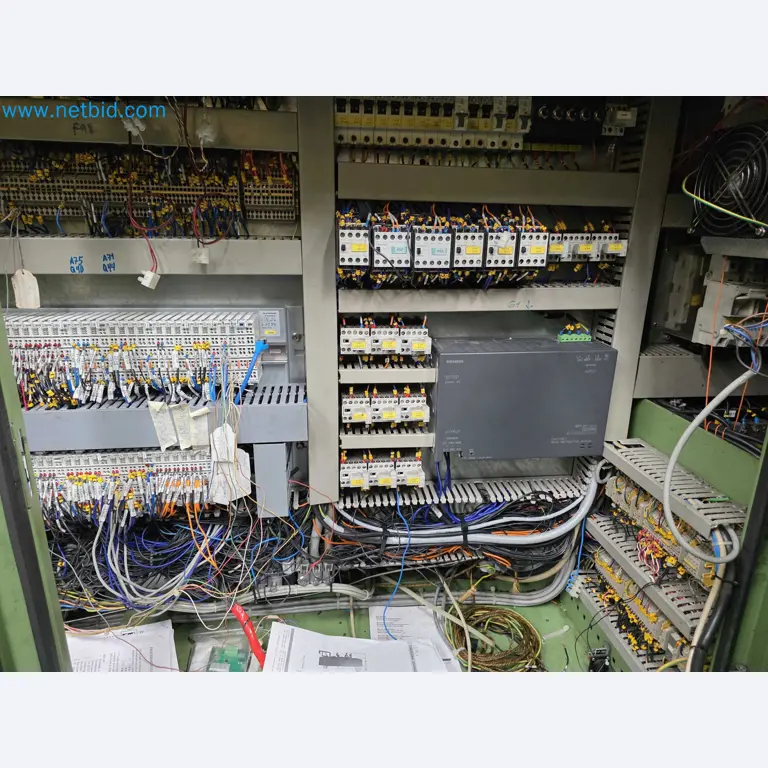

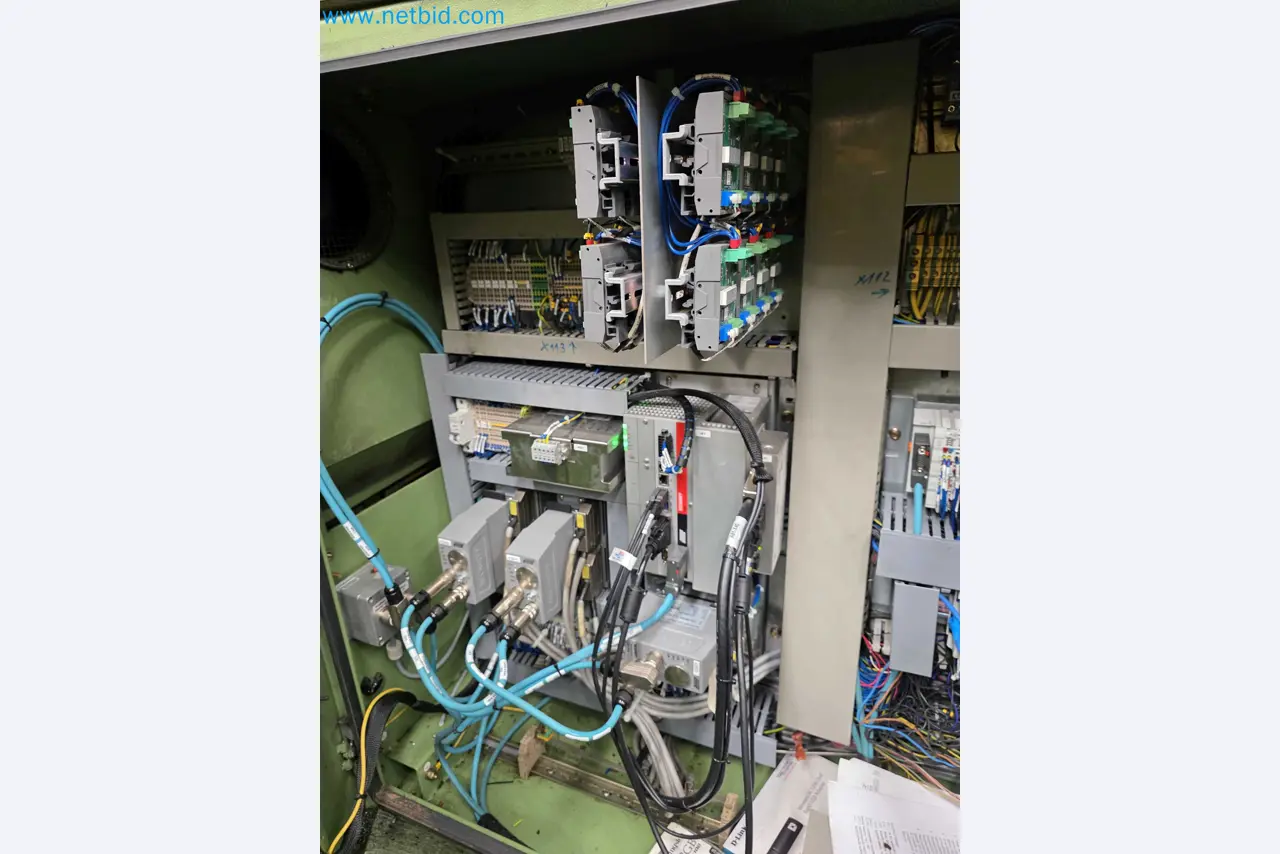

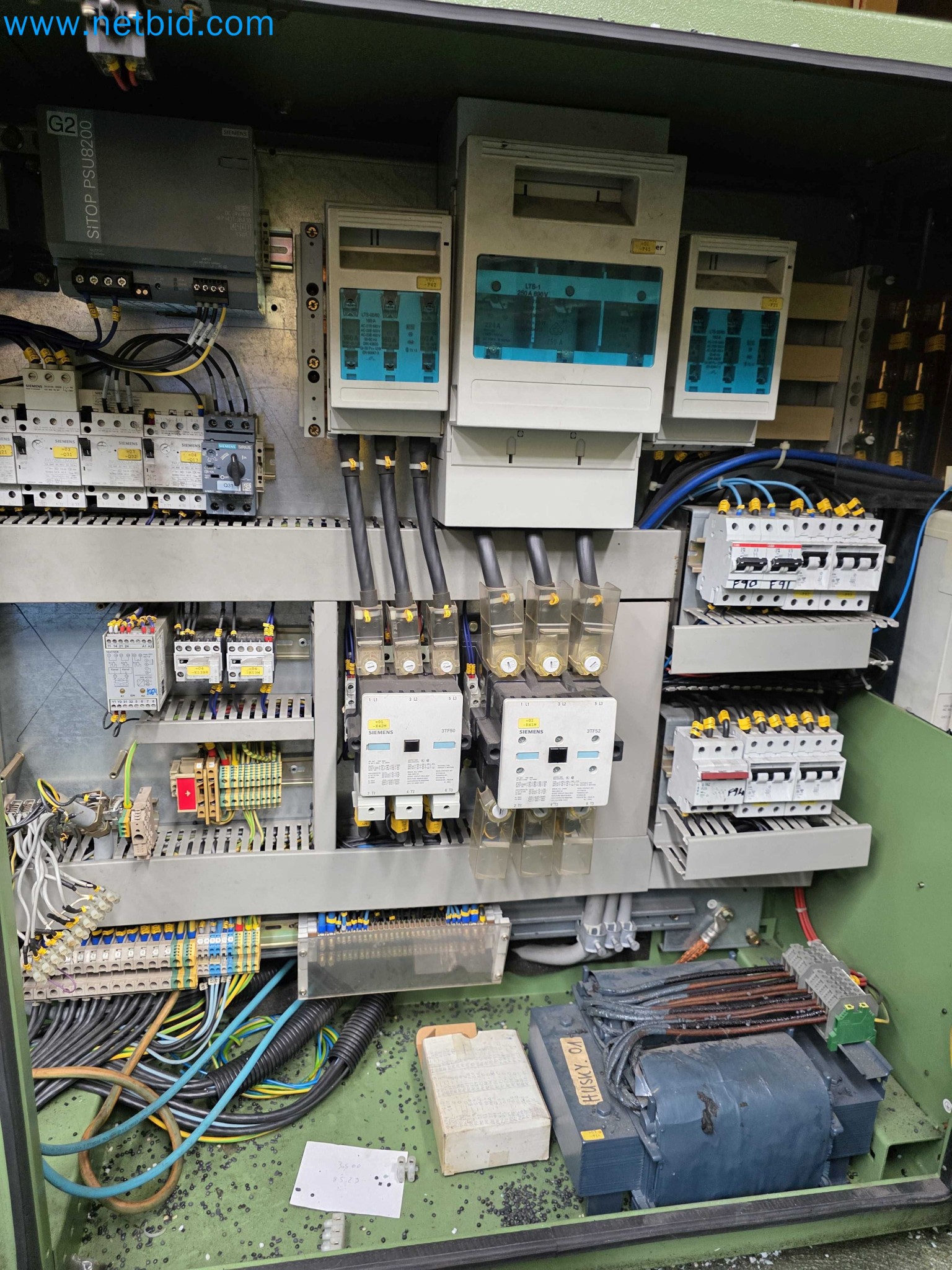

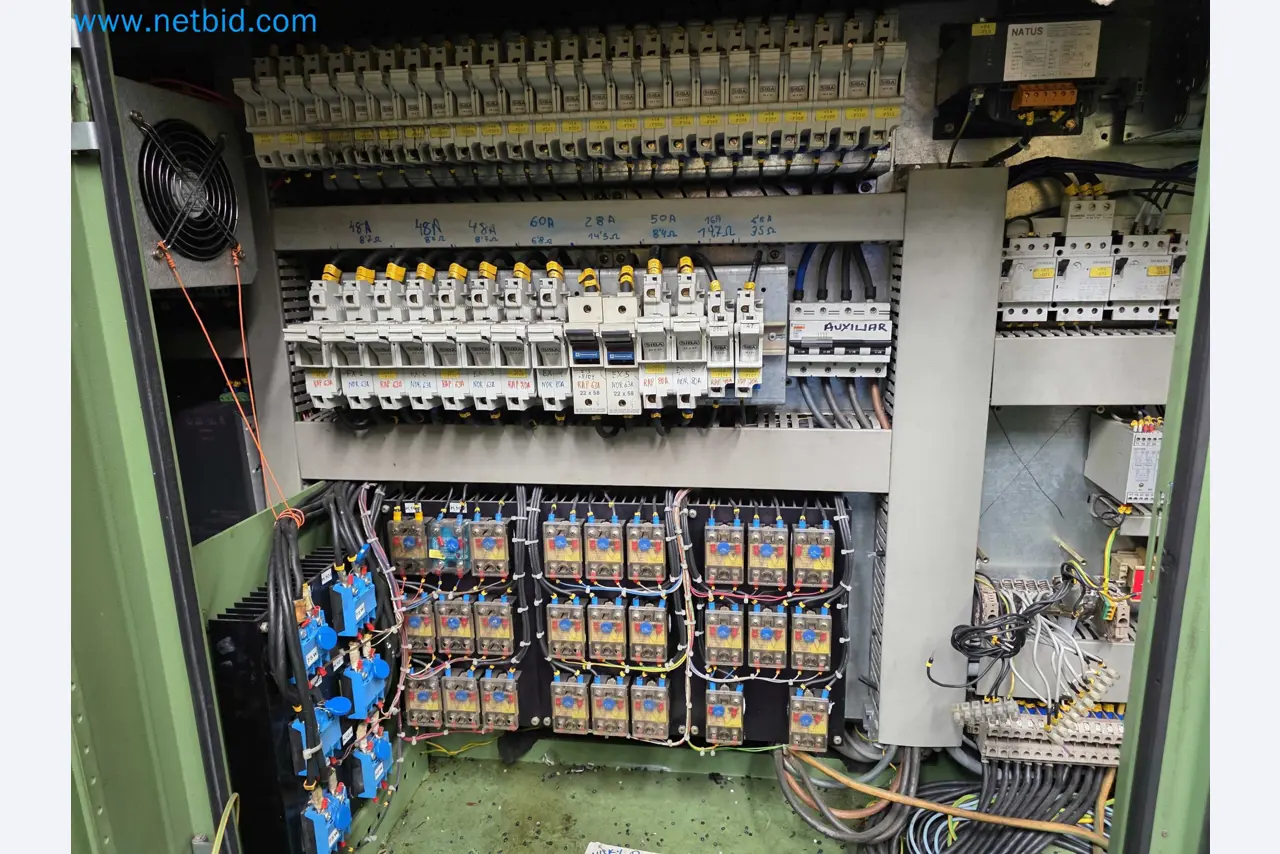

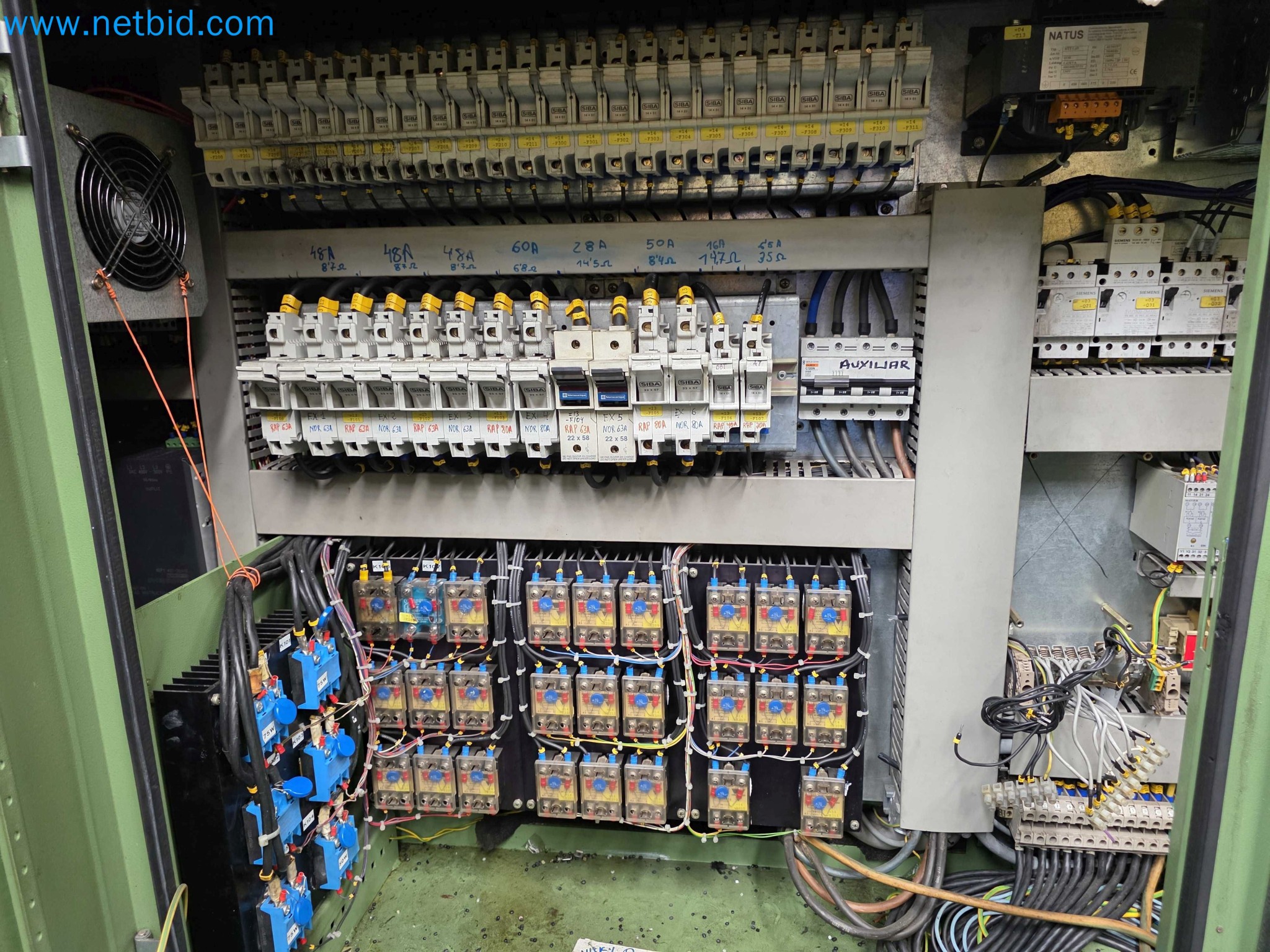

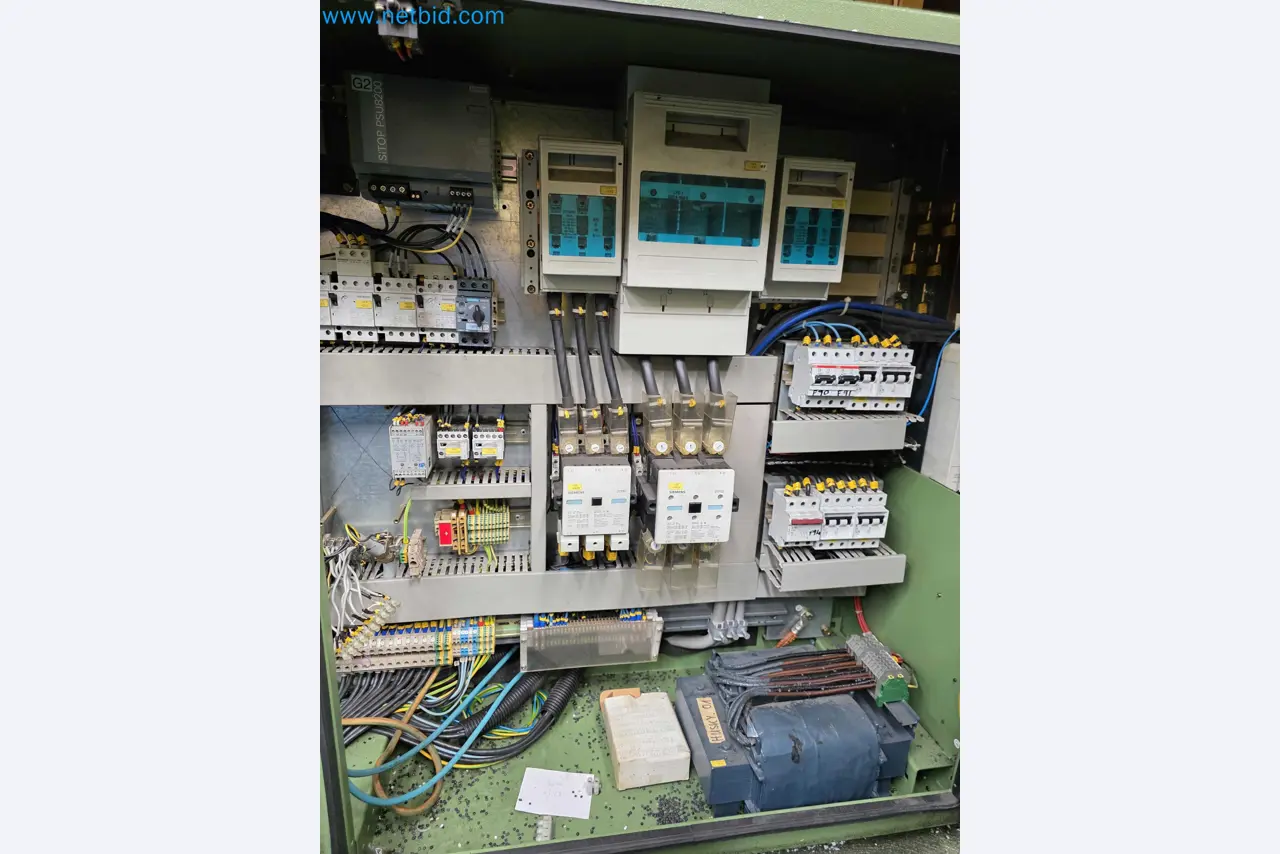

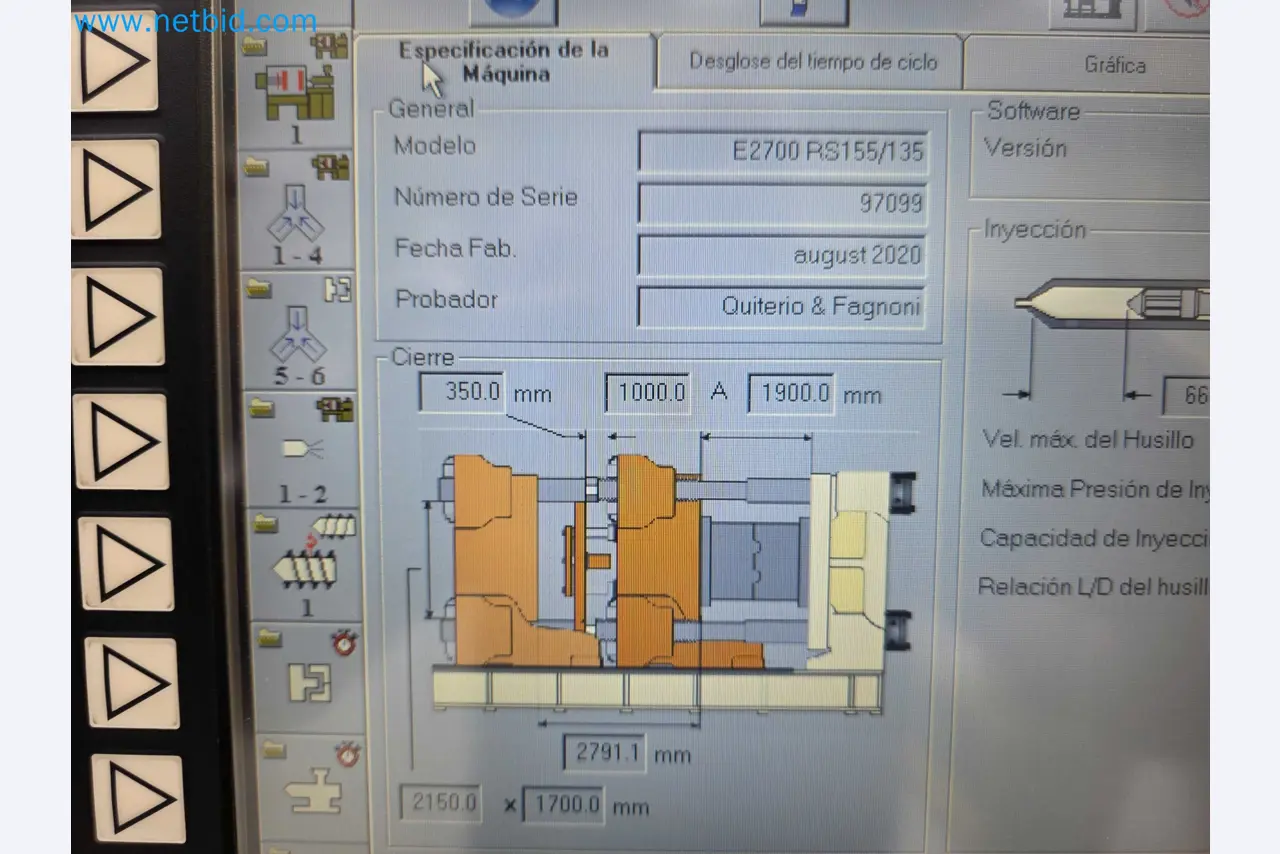

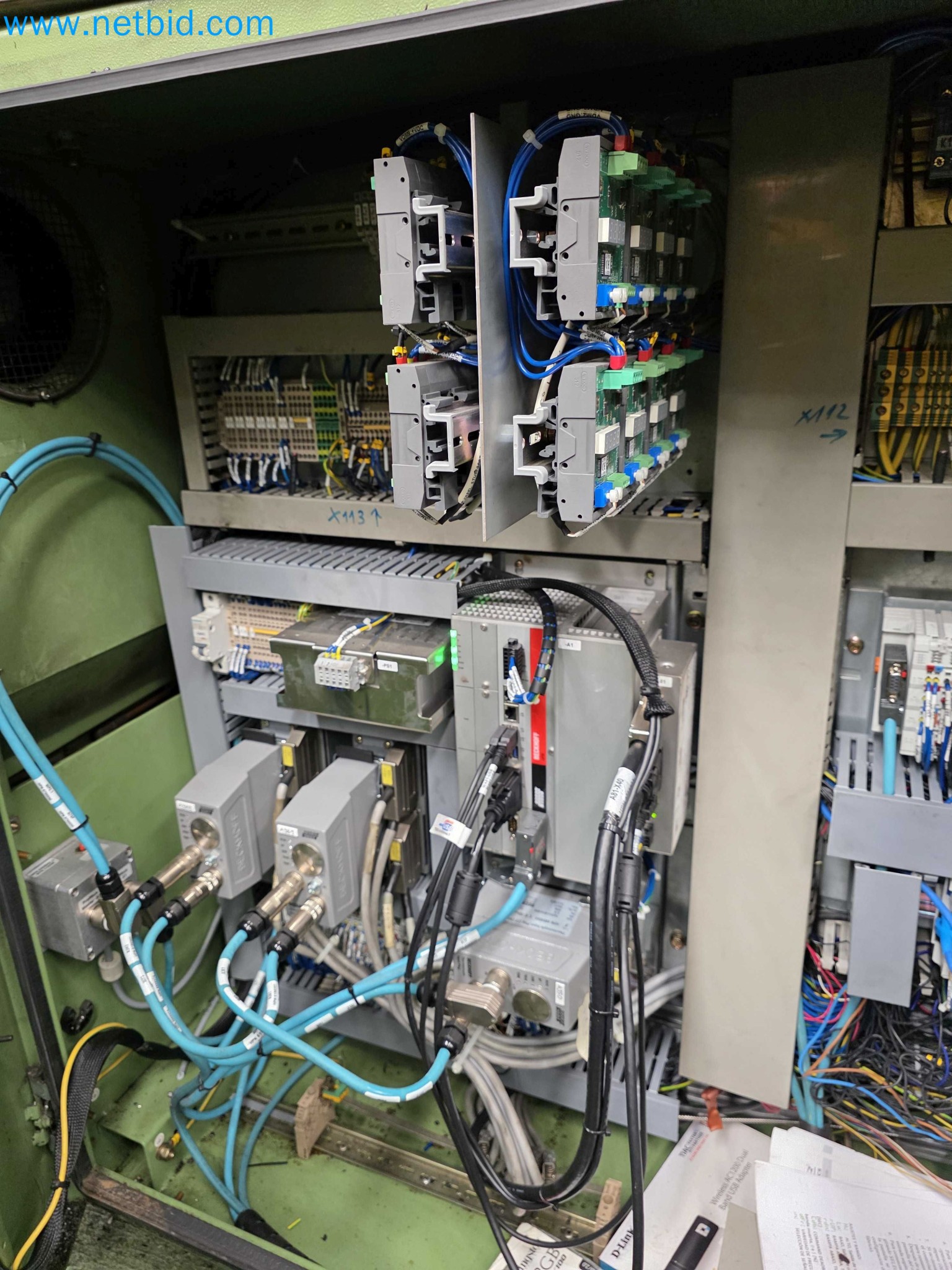

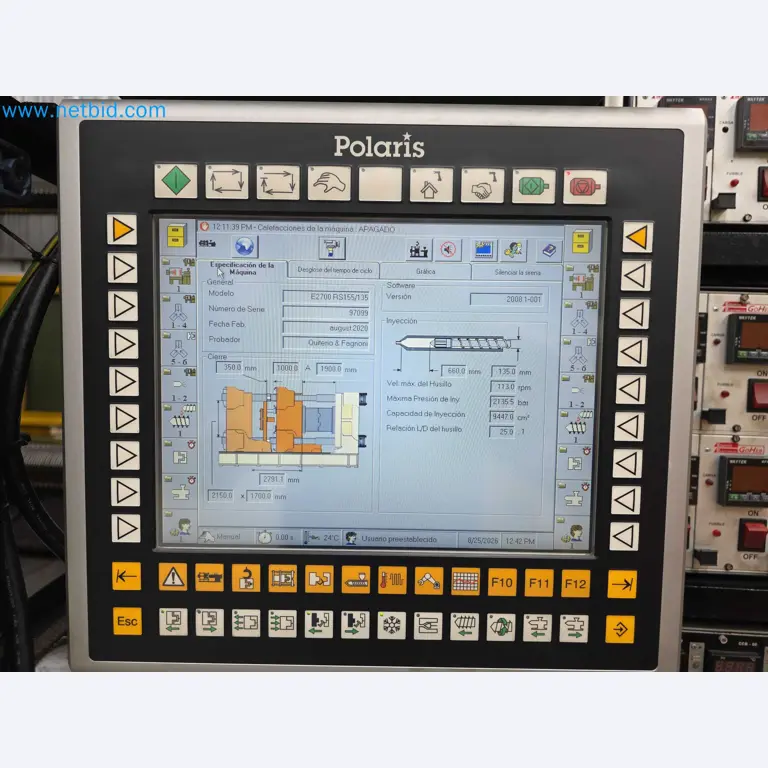

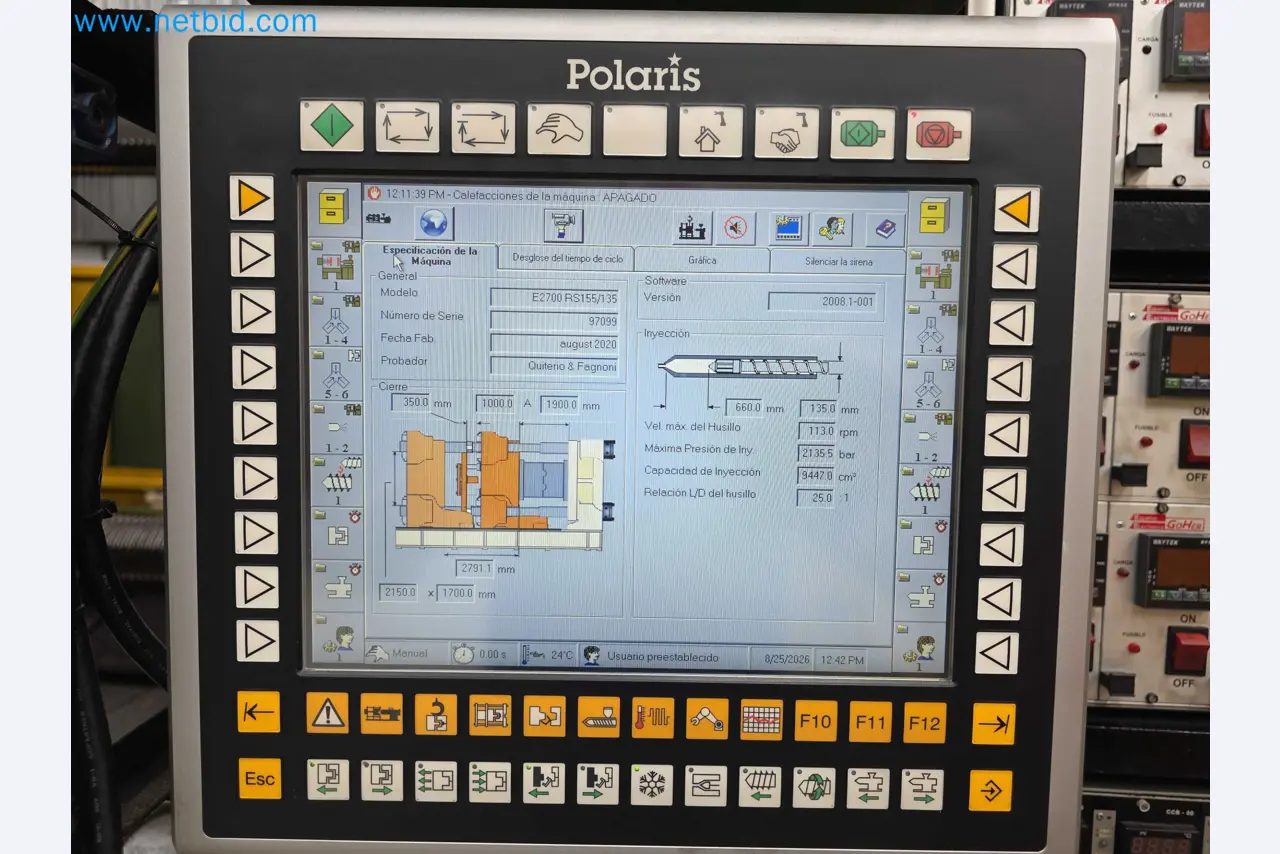

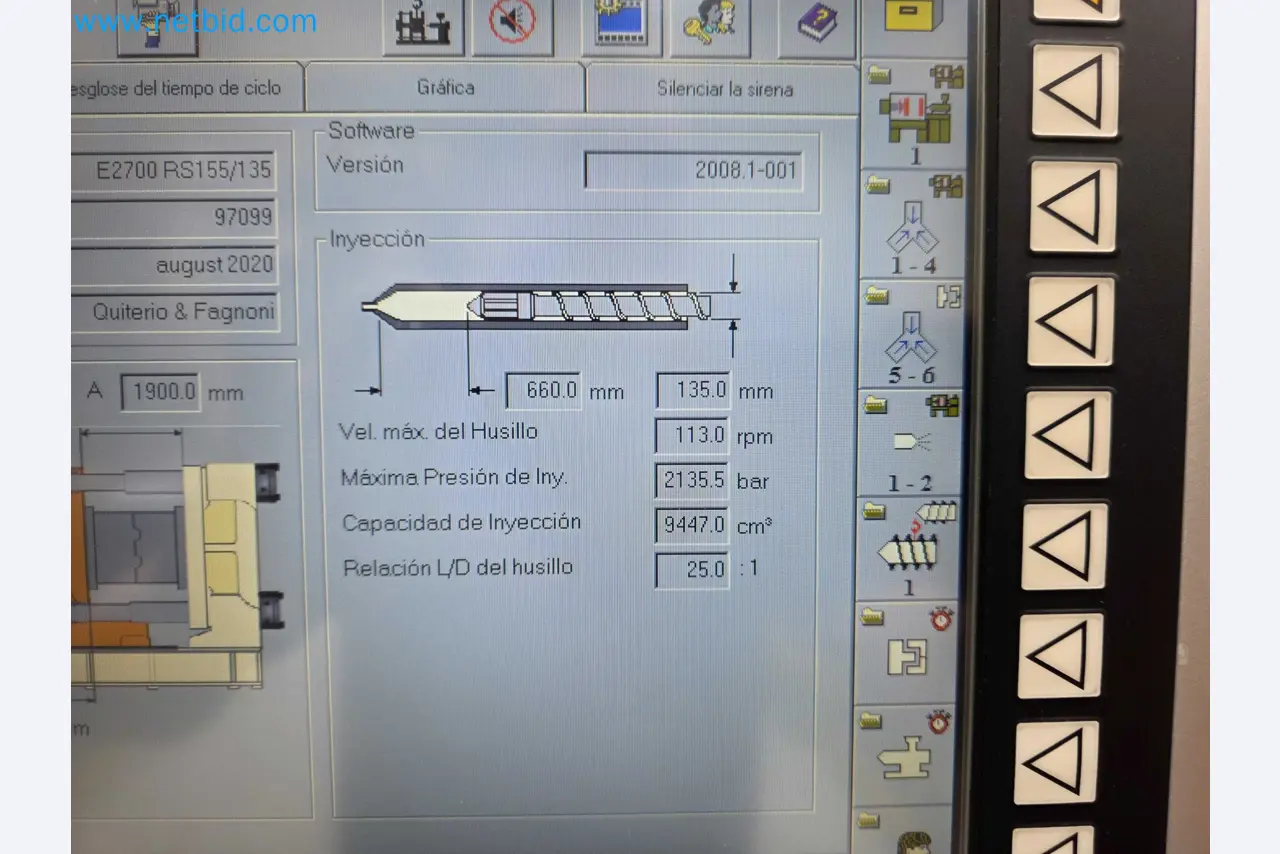

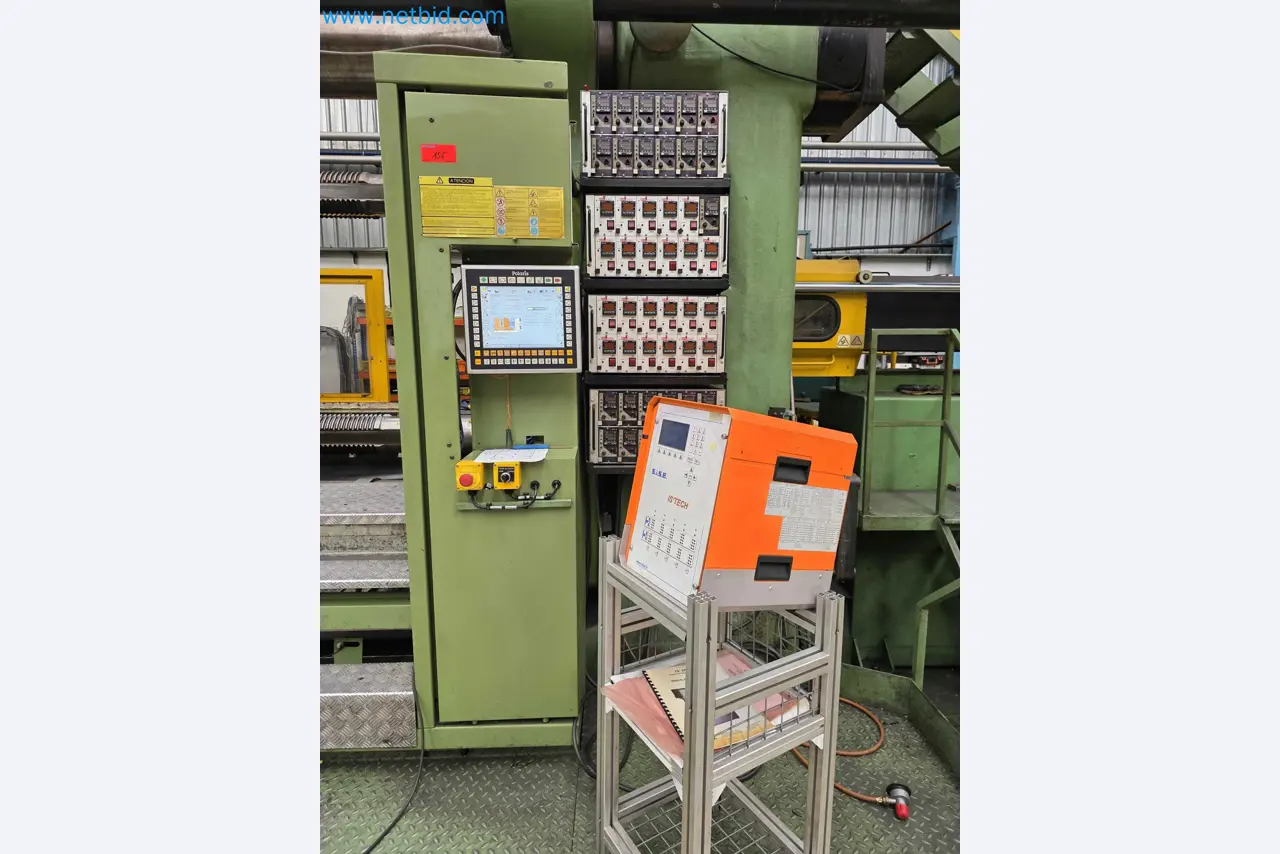

Retrofitted and updated control system in 2008

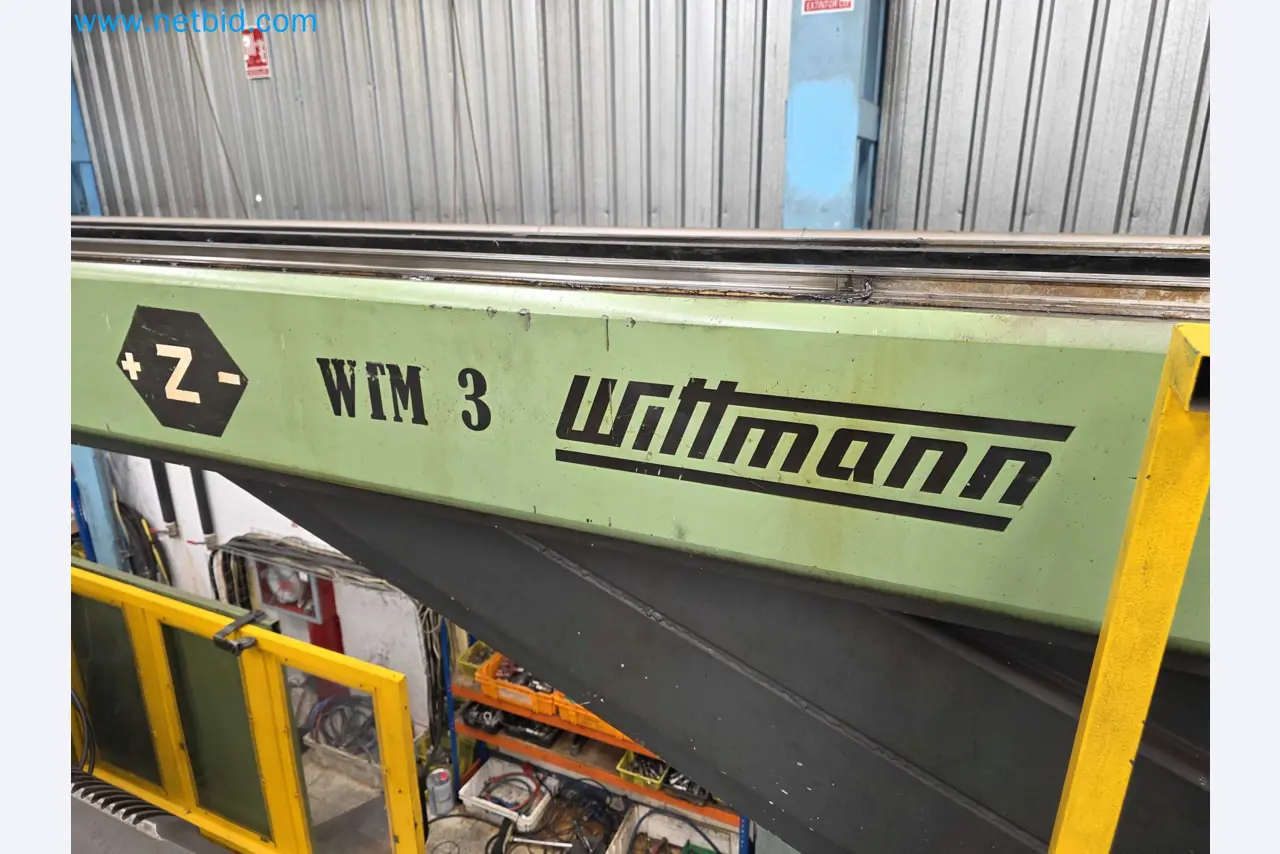

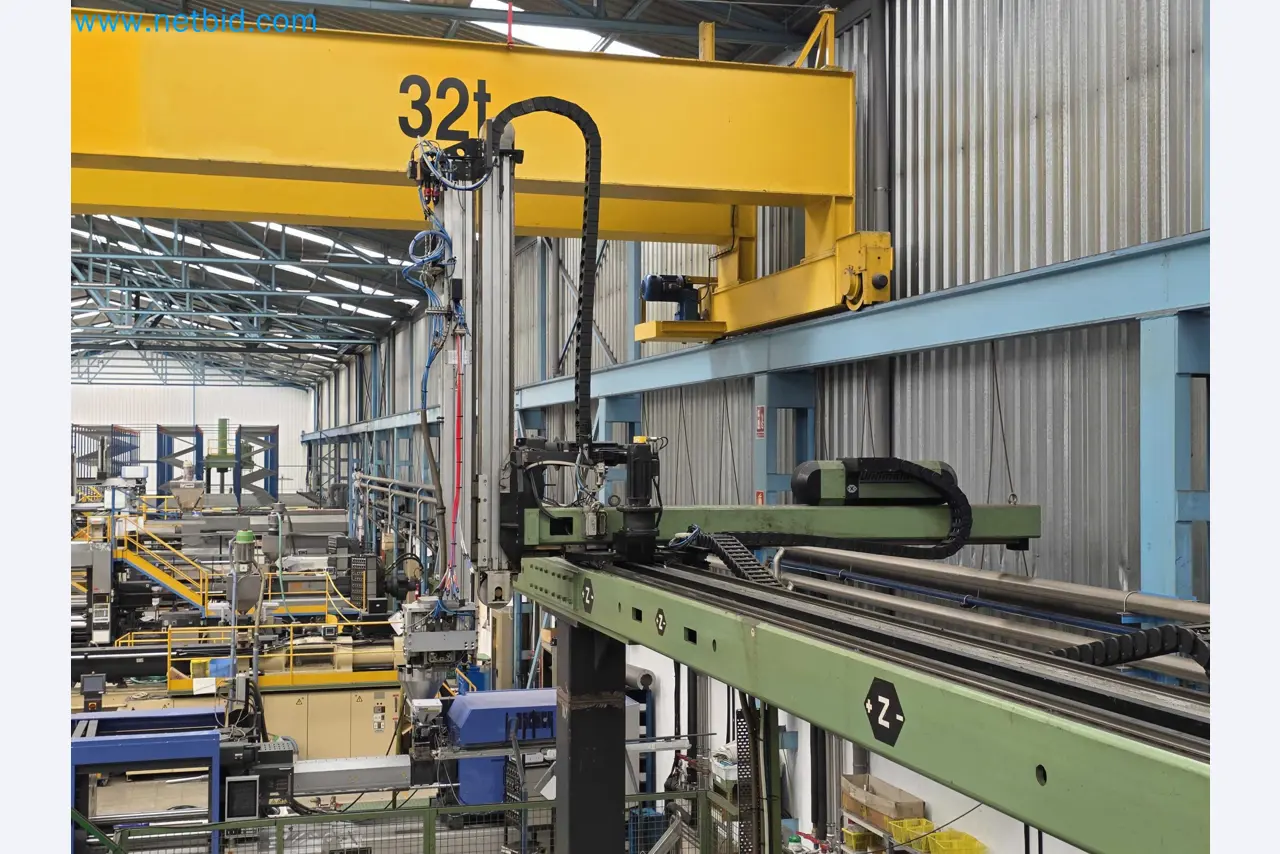

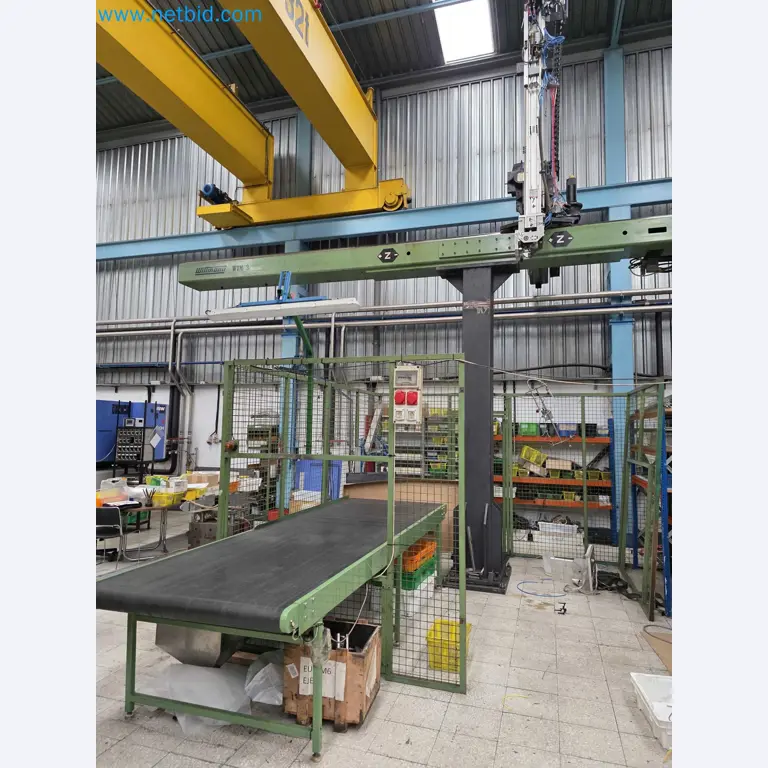

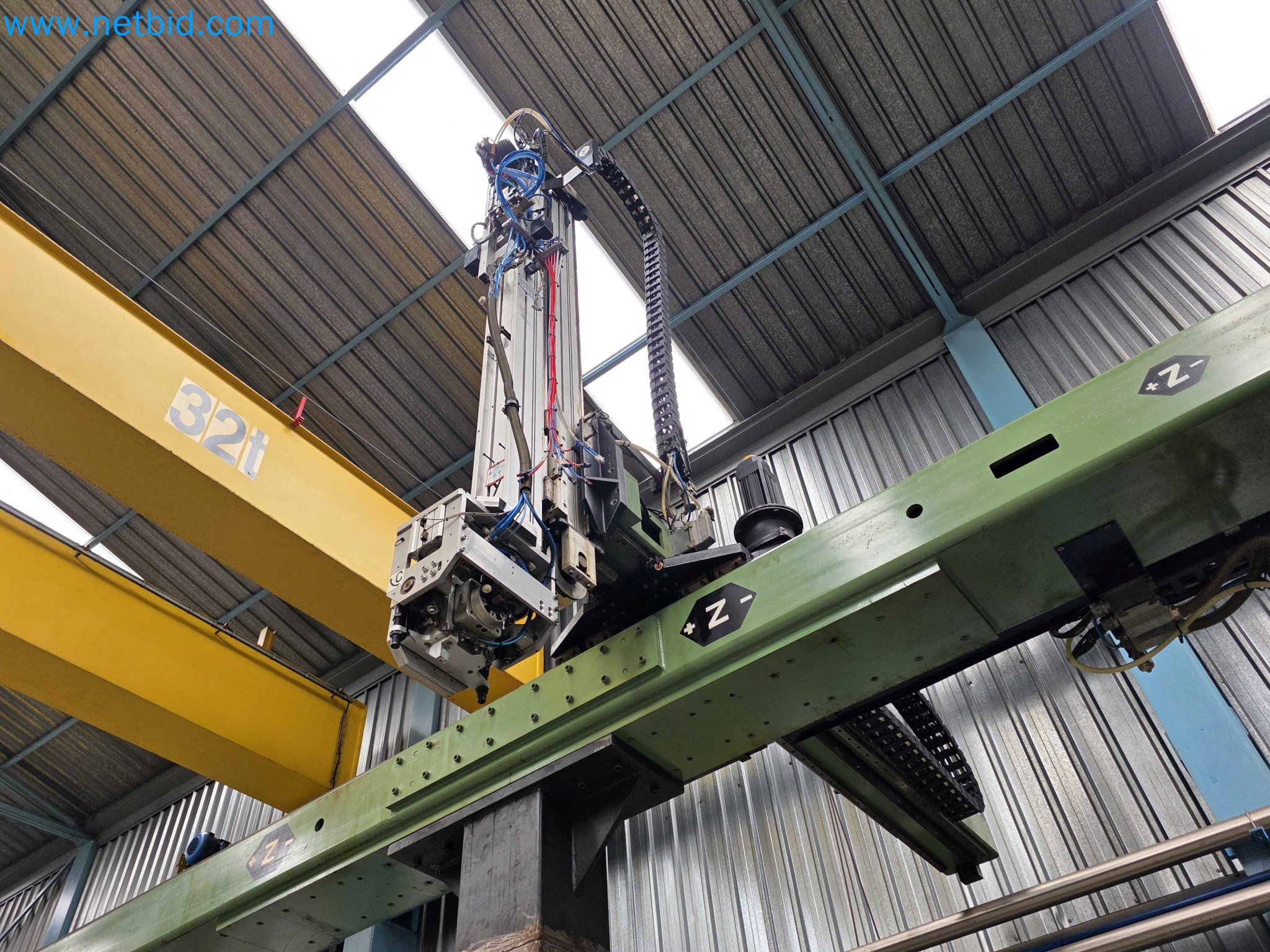

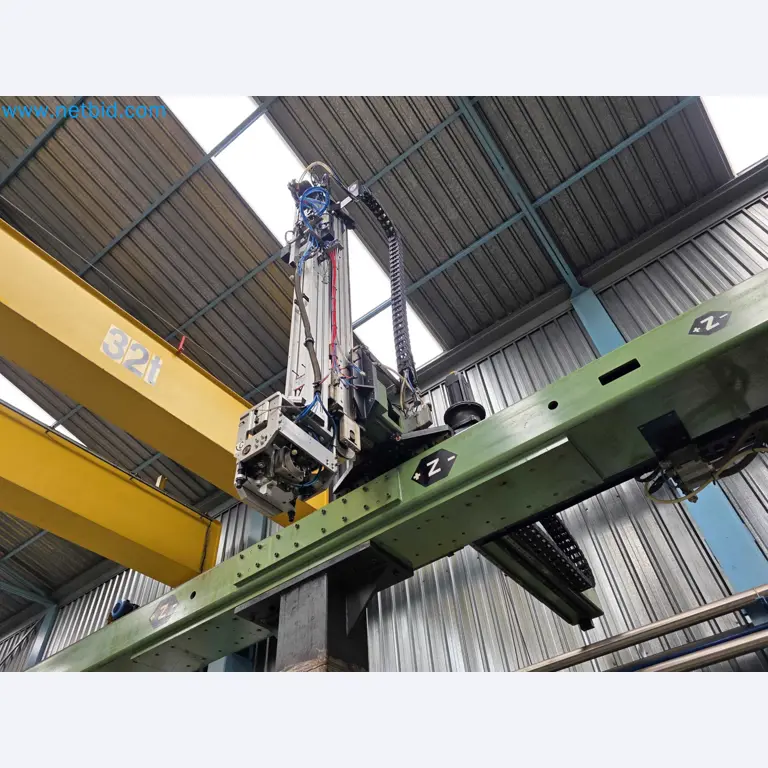

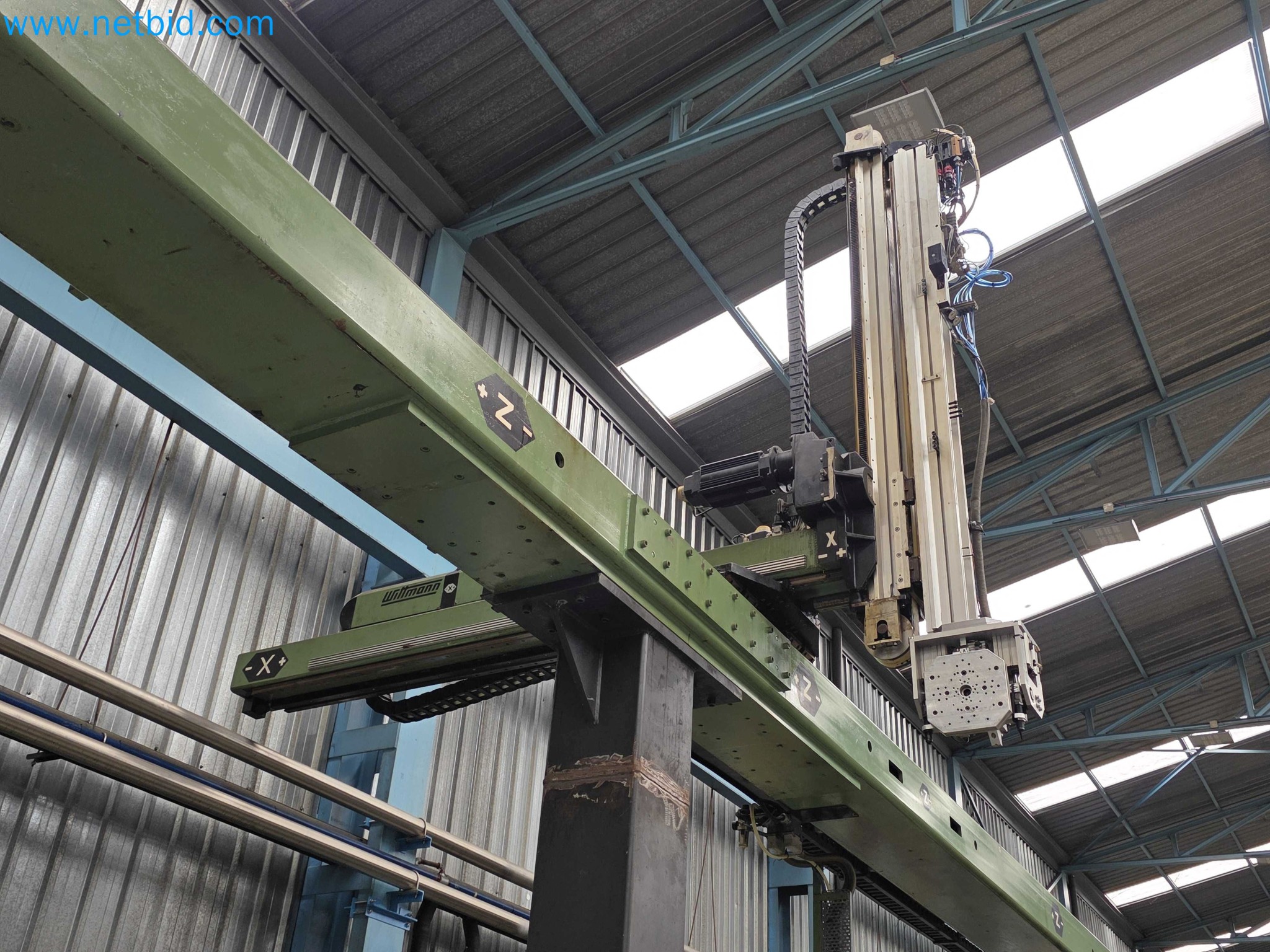

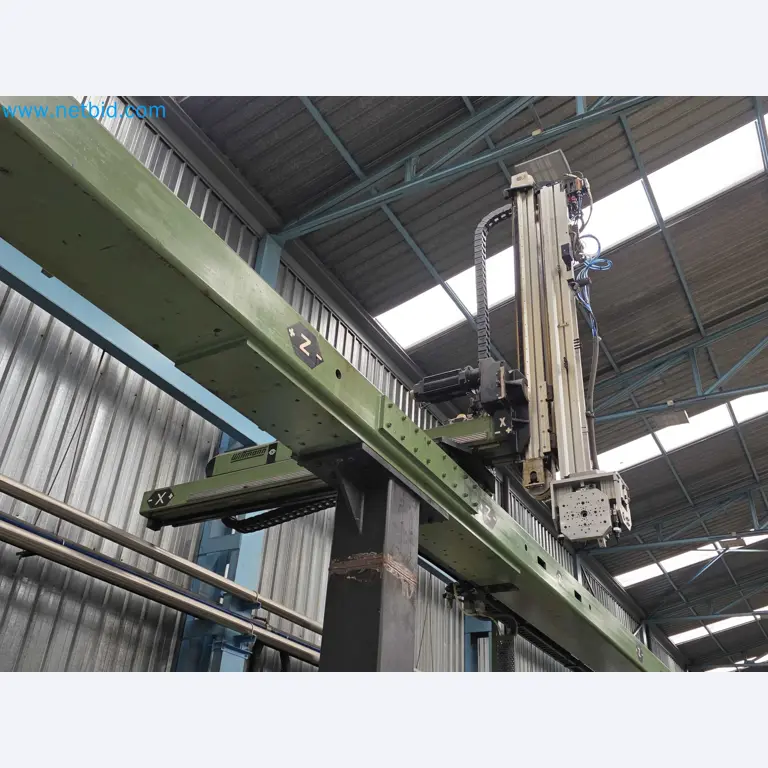

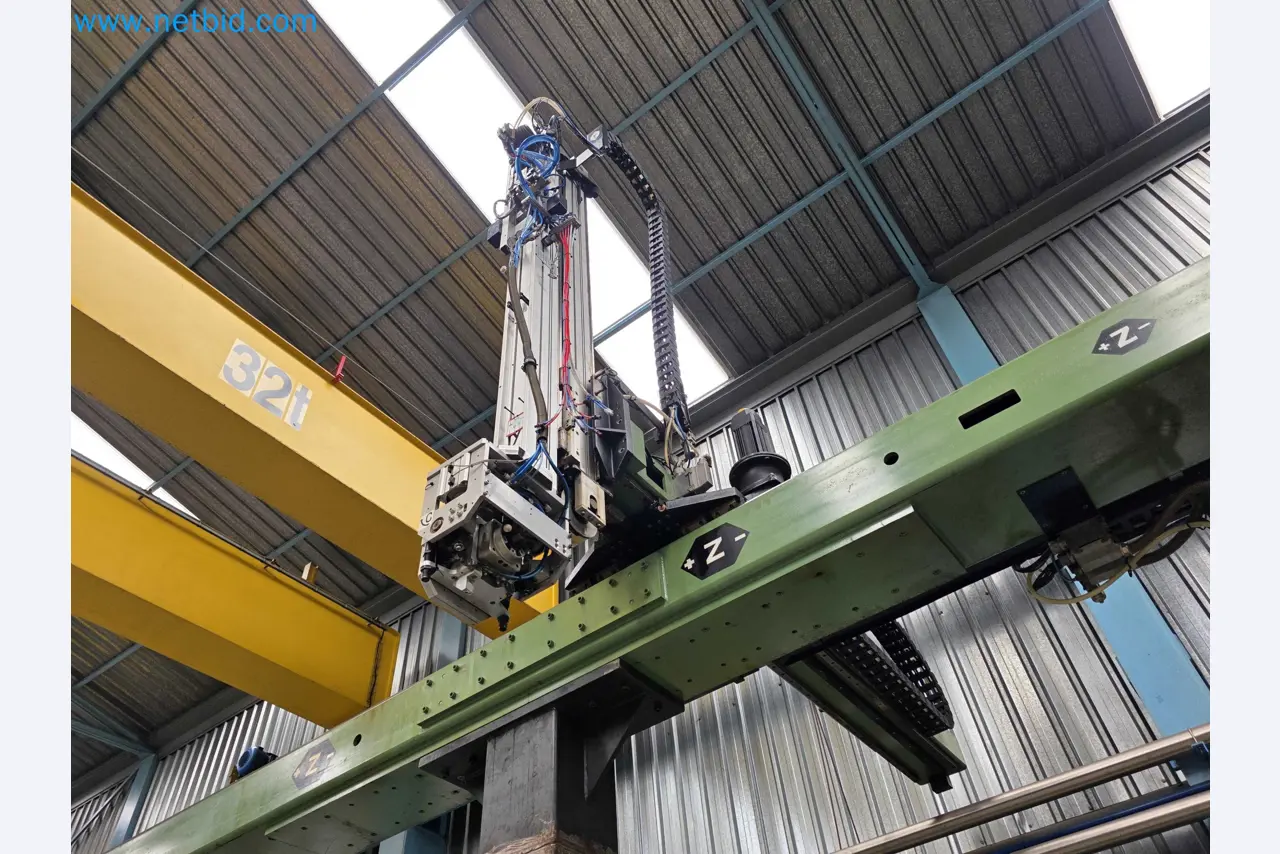

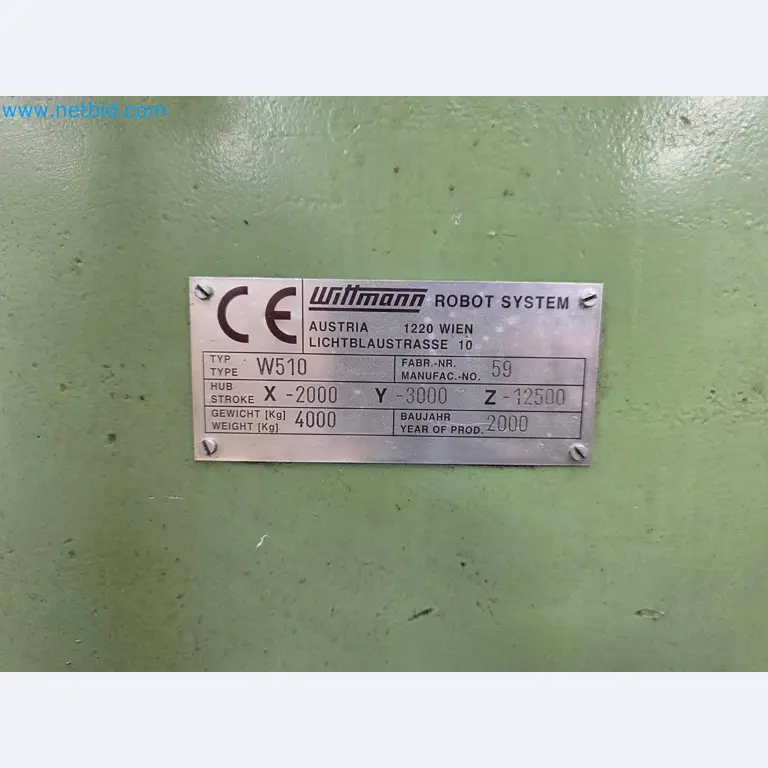

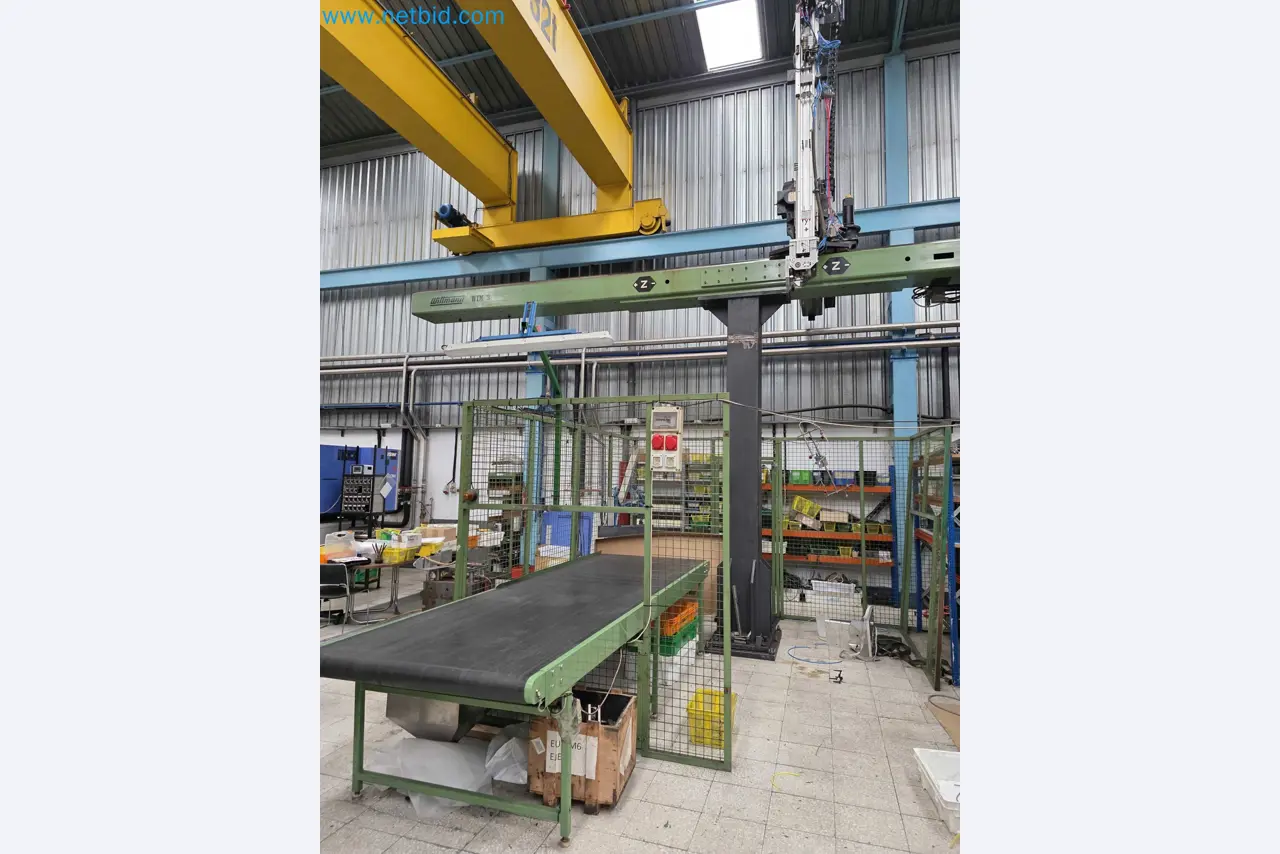

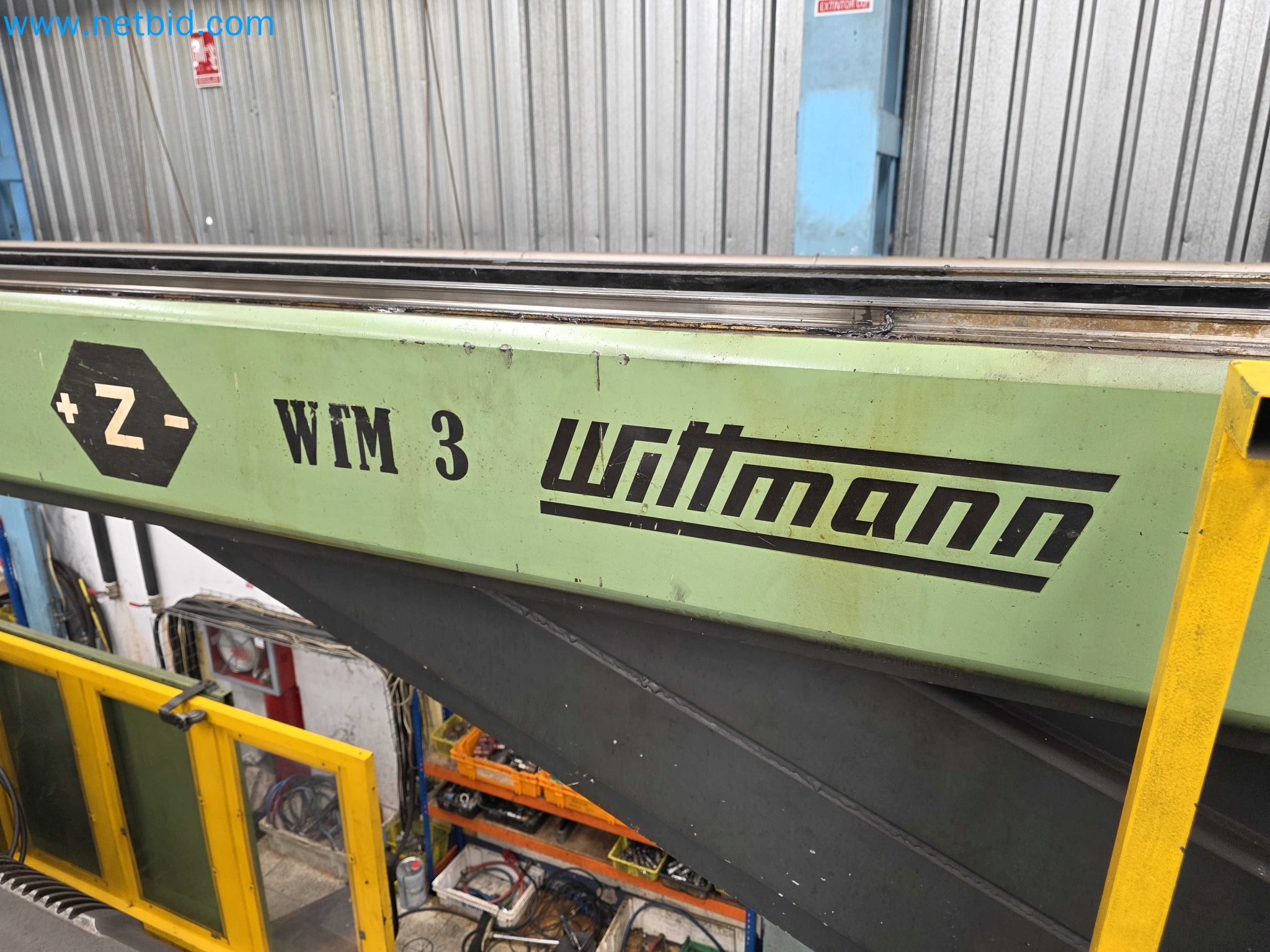

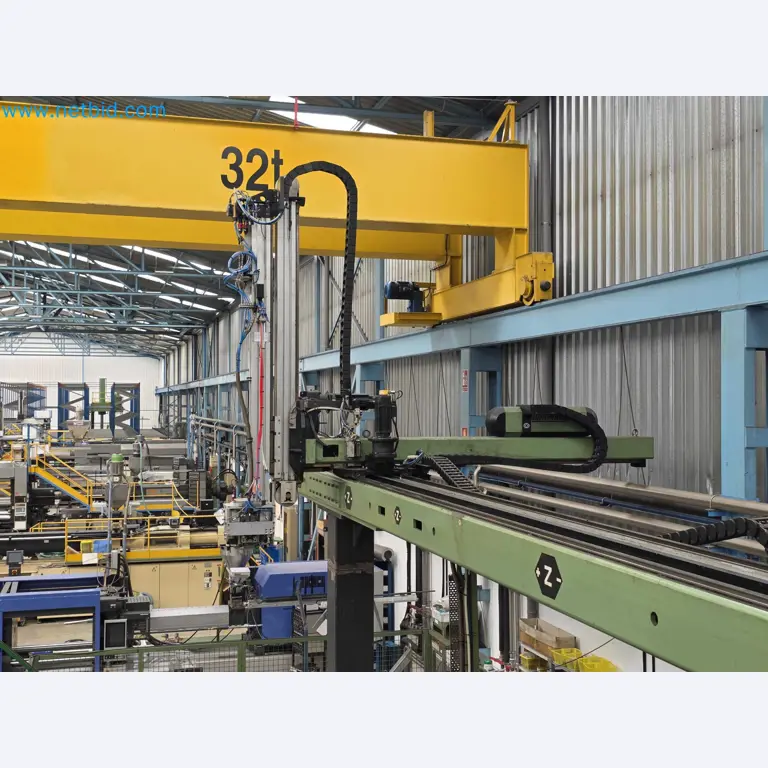

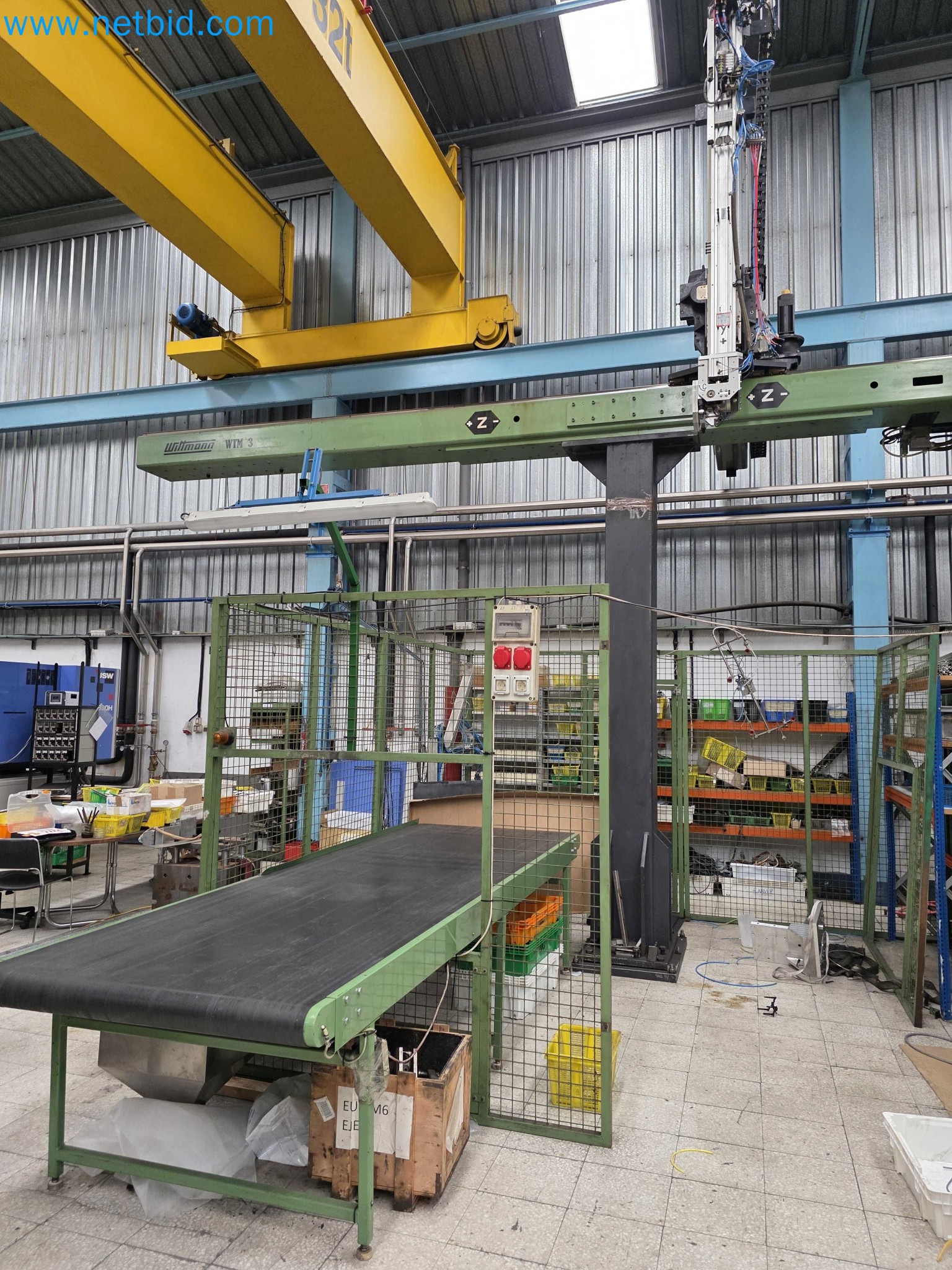

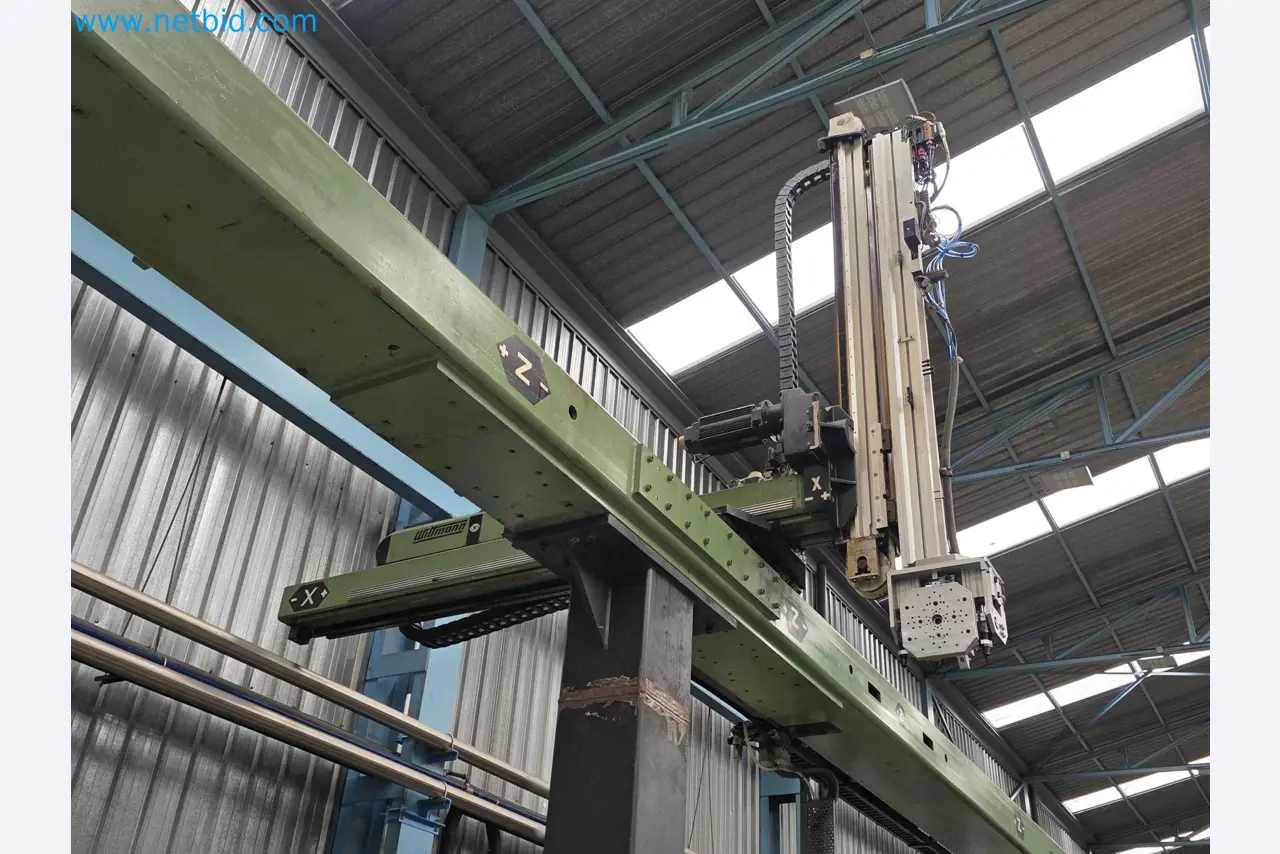

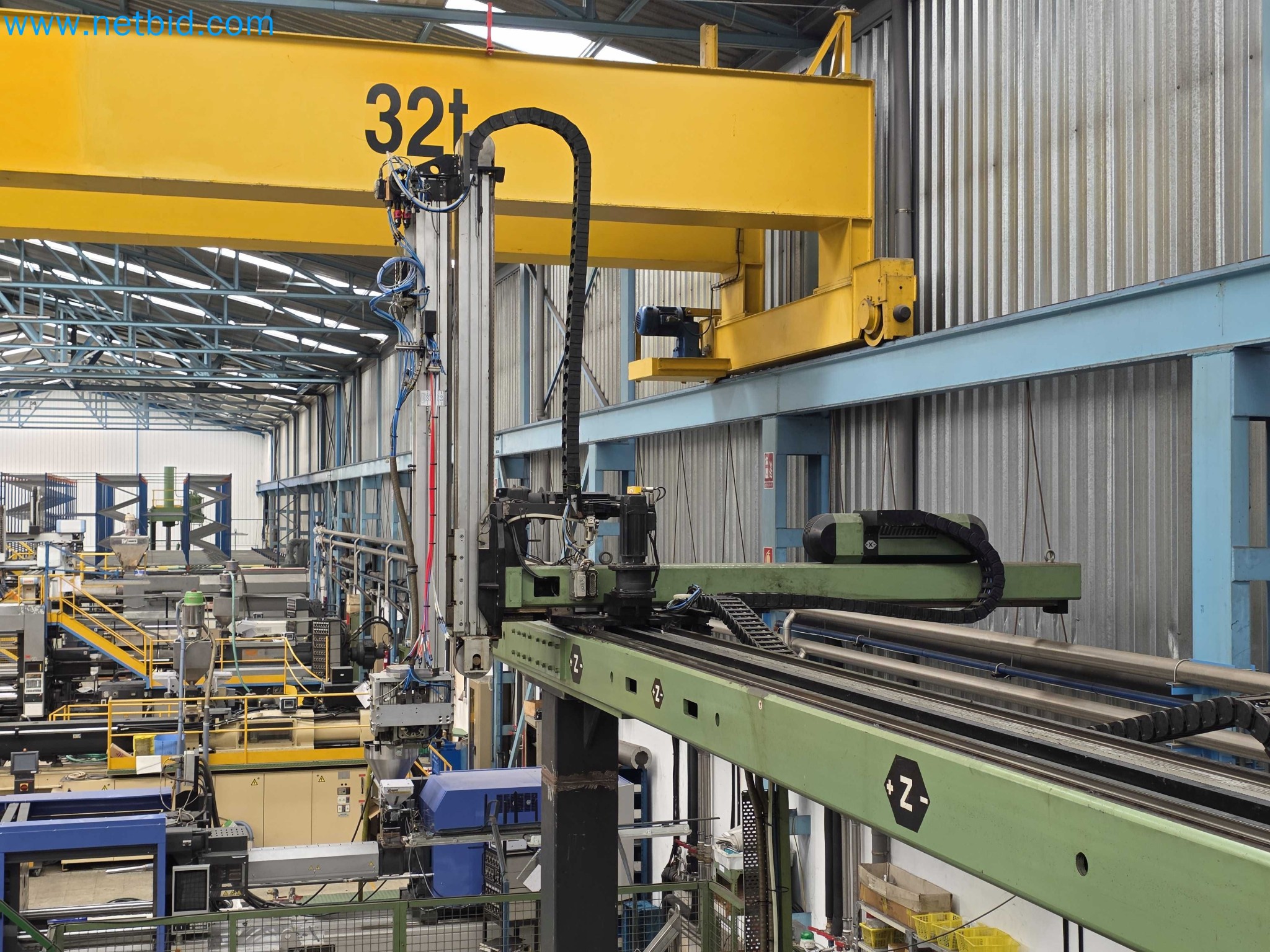

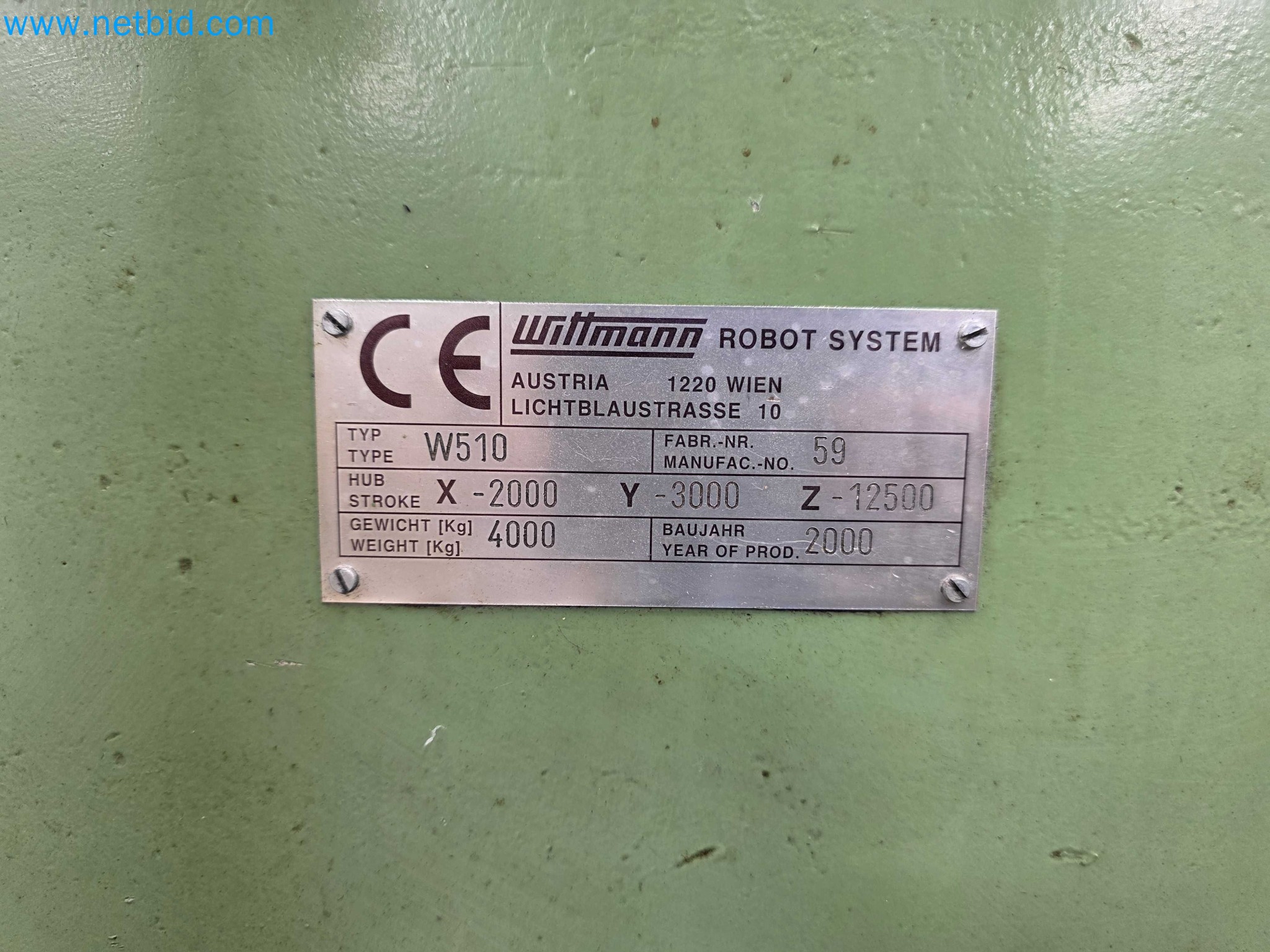

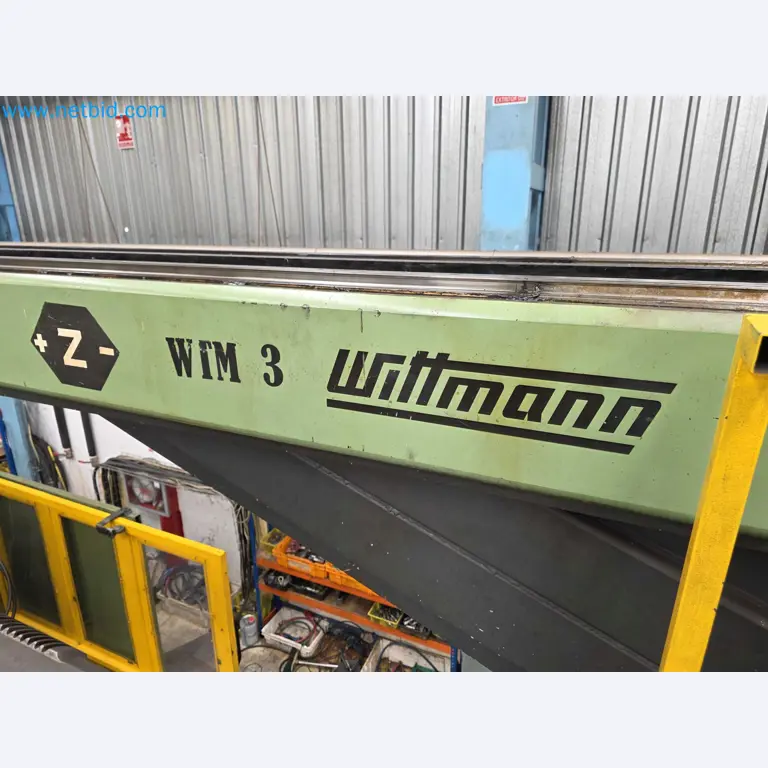

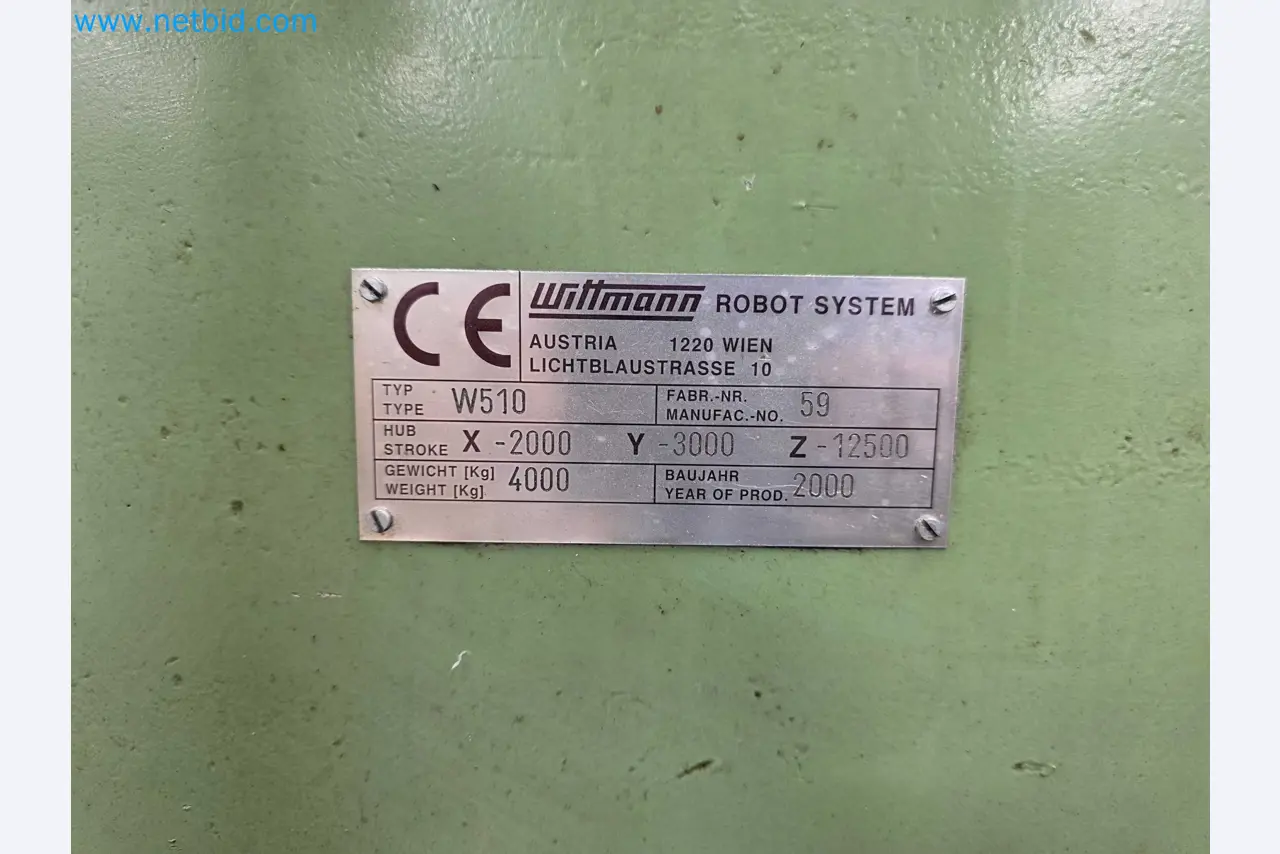

Includes WITTMANN W510 robot
Serial number: 59
Travels:
Weight: 4000 kg

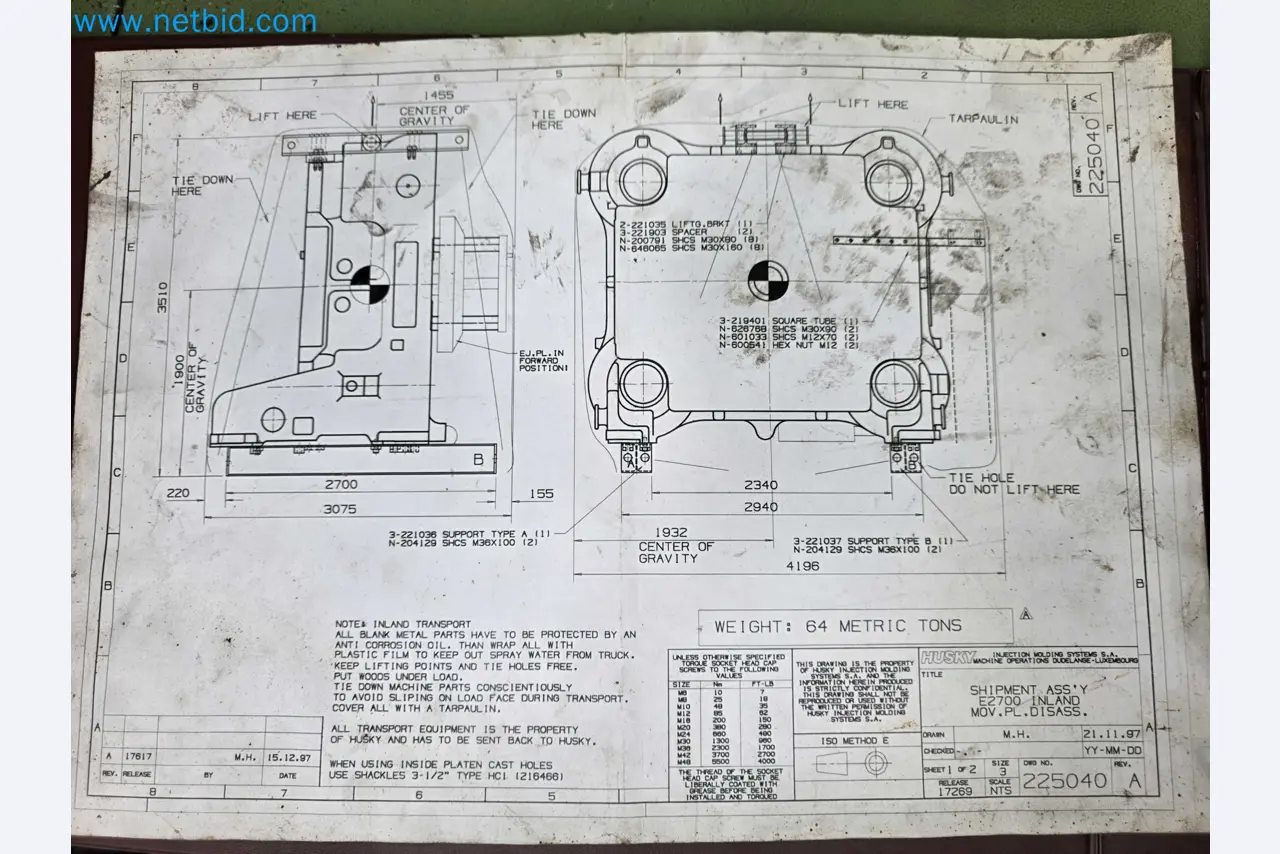

Approximate weight: 153,000 kg
Clamping force: 27,000 kN
Tie-bar spacing: 2150 x 1700 mm
Platen dimensions: 3050 x 2600 mm
Mould height: 1000–1900 mm
Opening: 3900 mm
Ejector stroke: 350 mm
Ejector force: 270 kN
Tie-bar diameter: 345 mm
Screw diameter: 135 mm
Maximum screw speed: 113 rpm
Maximum injection pressure: 2109 bar
Injection capacity: 9,447 cm³
Injection capacity: 880 g/Ps
Cylinder heaters: 94 kW
Plasticizing rate: 190 g/s
Injection rate: 1327 cm³/s
Operating hours according to counter: 49,163 h
Retrofitted and updated control system in 2008
Includes WITTMANN W510 robot
Serial number: 59
Travels:
- X-axis: 2000 mm
- Y-axis: 3000 mm
- Z-axis: 12,500 mm
Weight: 4000 kg
Approximate weight: 153,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
Oct. 14, 2026 – Oct. 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández: fernandez@netbid.com.
Pickup
In consultation with Mr. Fernández: fernandez@netbid.com.
Auction Terms
Special conditions:
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
