Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Plastic Injection machinery and accessories

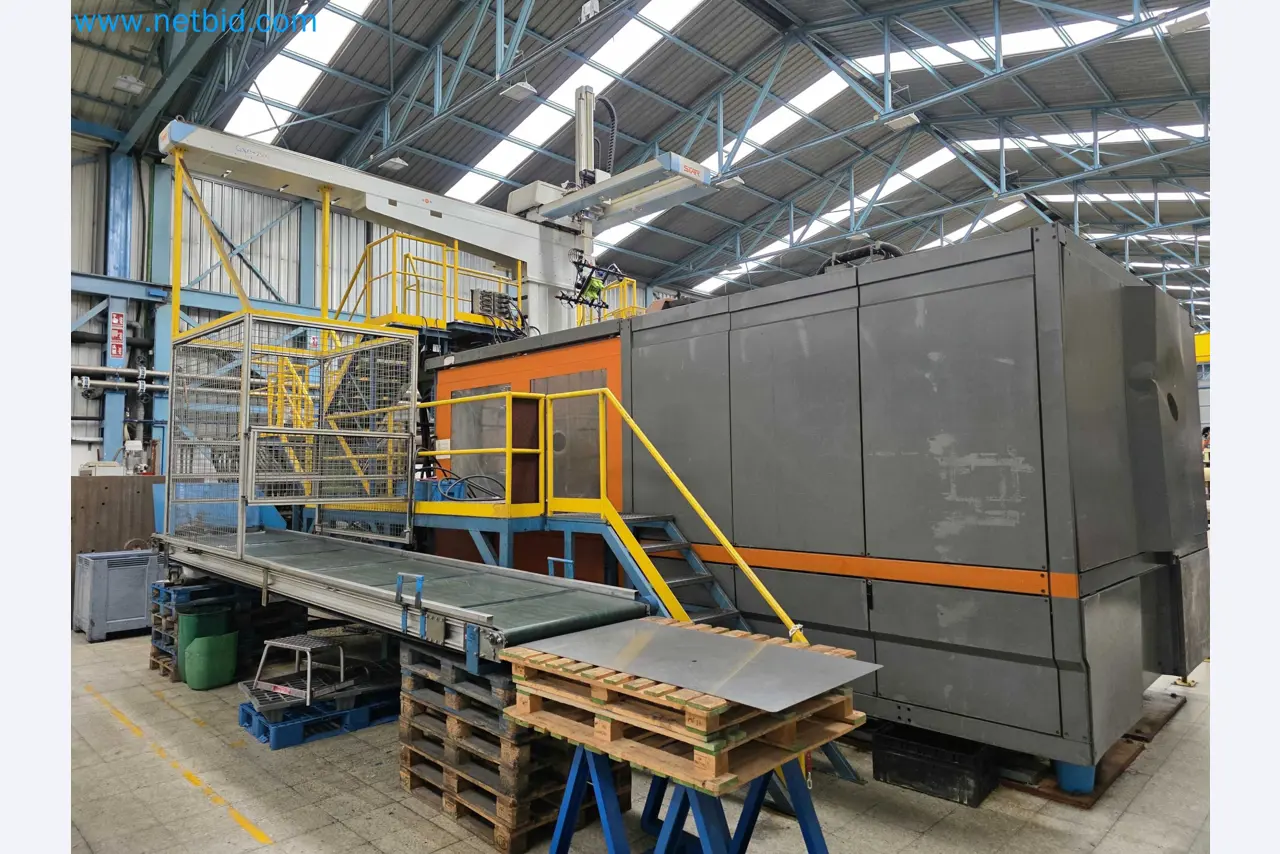

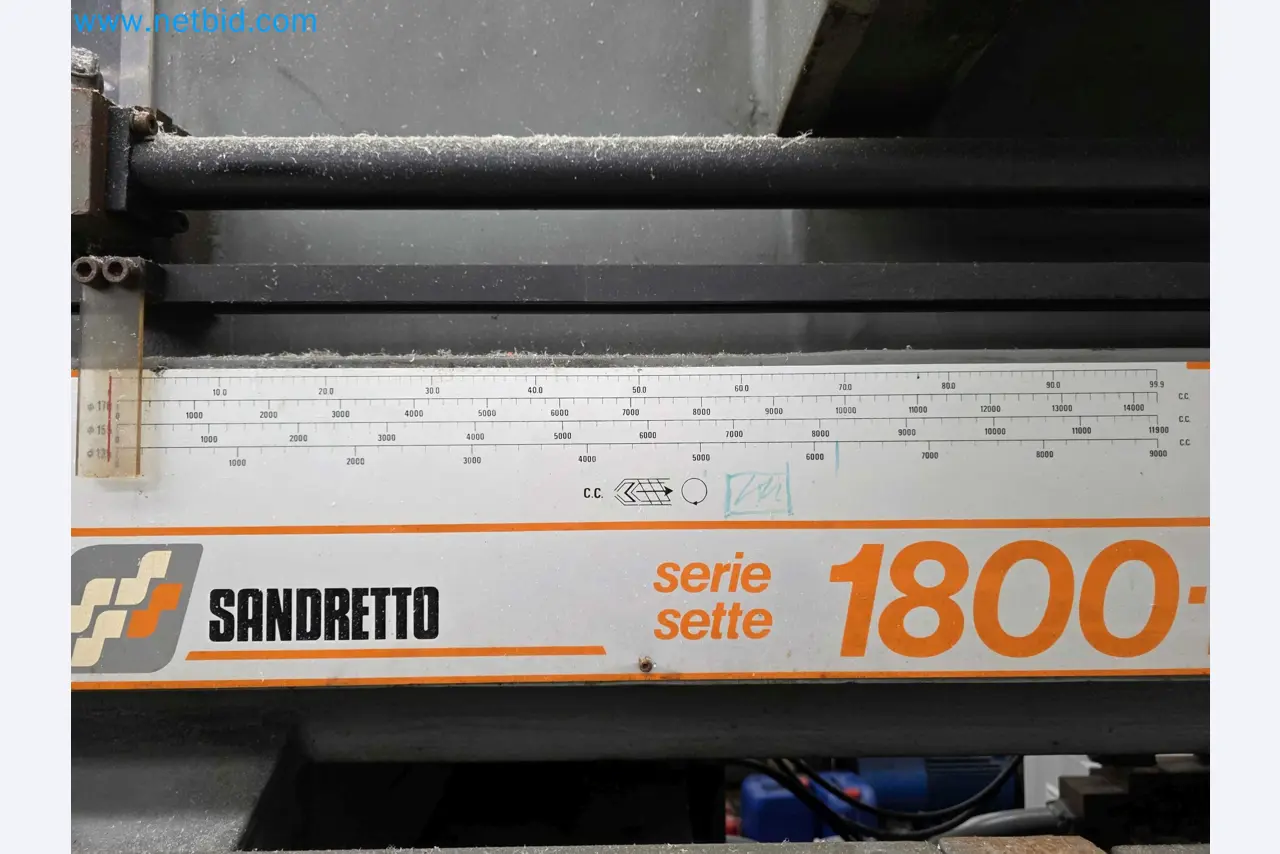

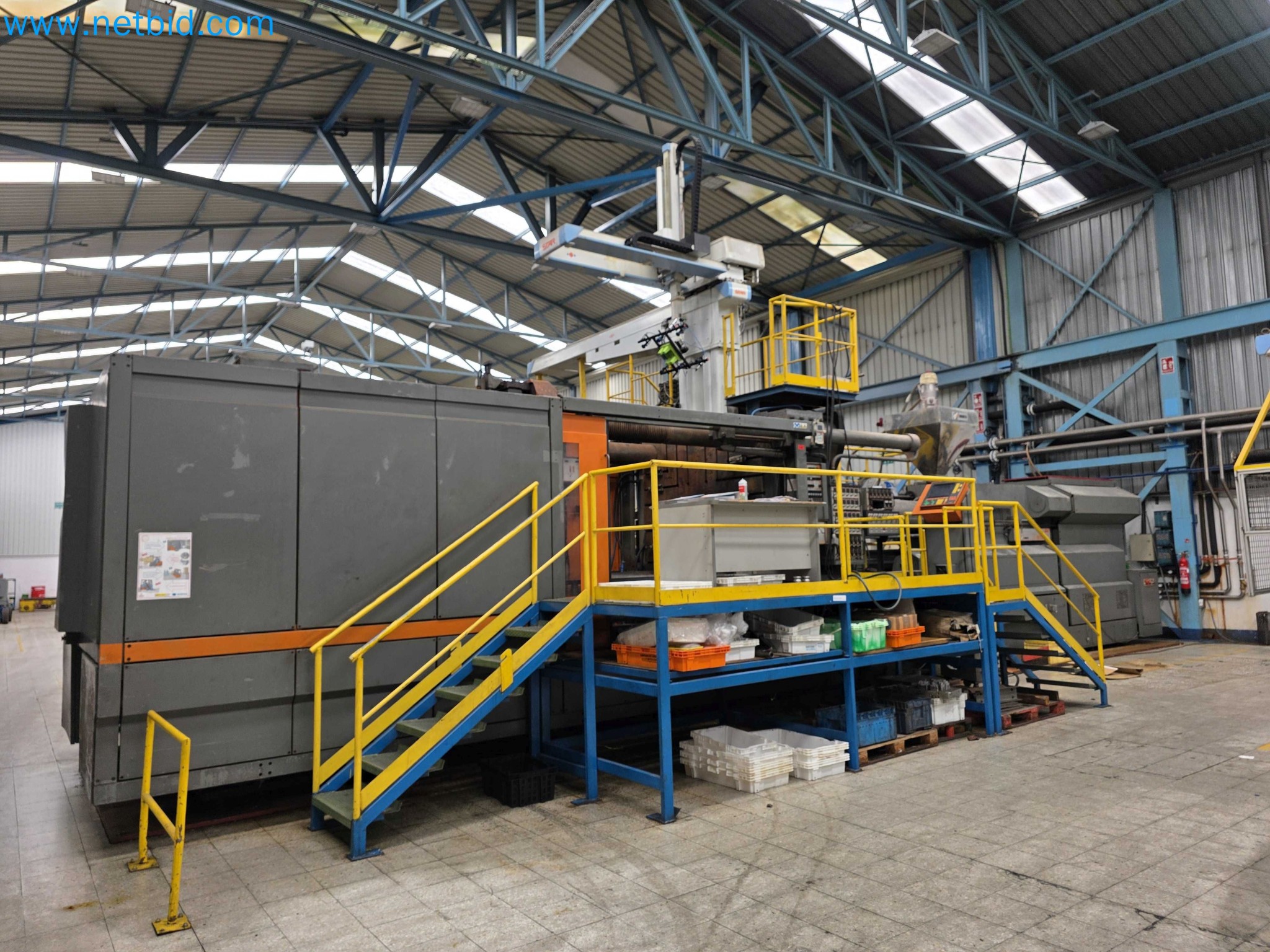

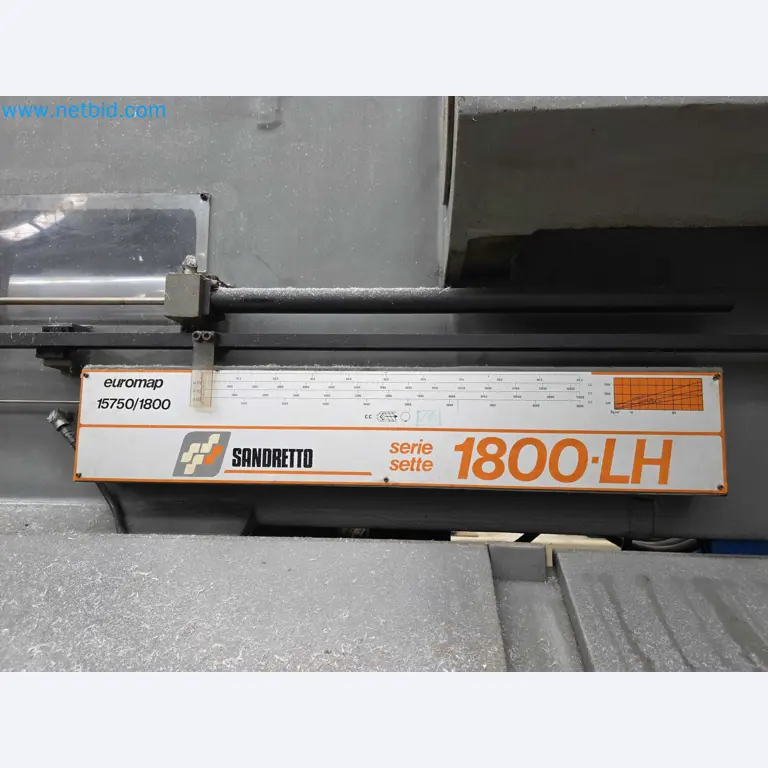

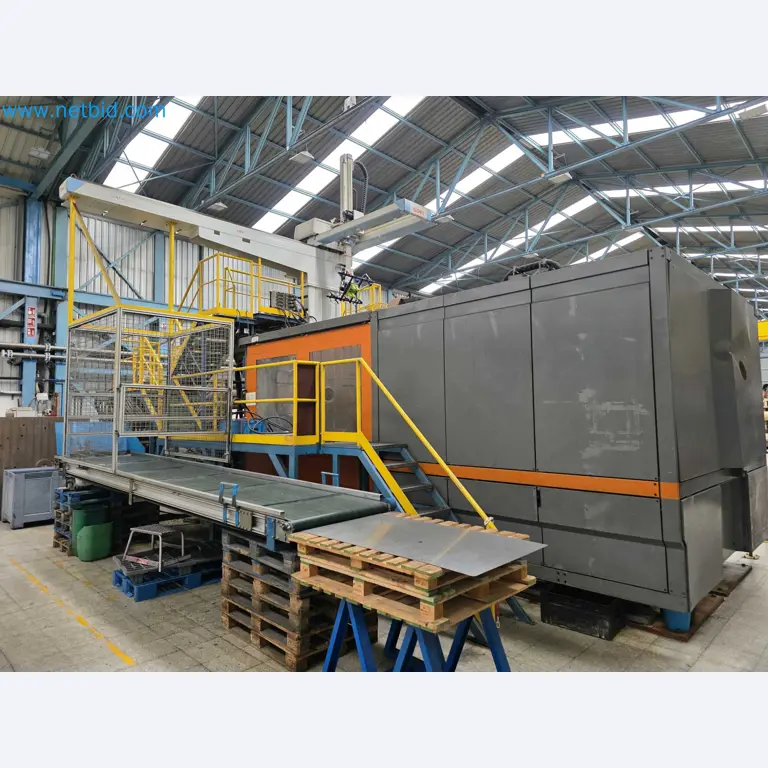

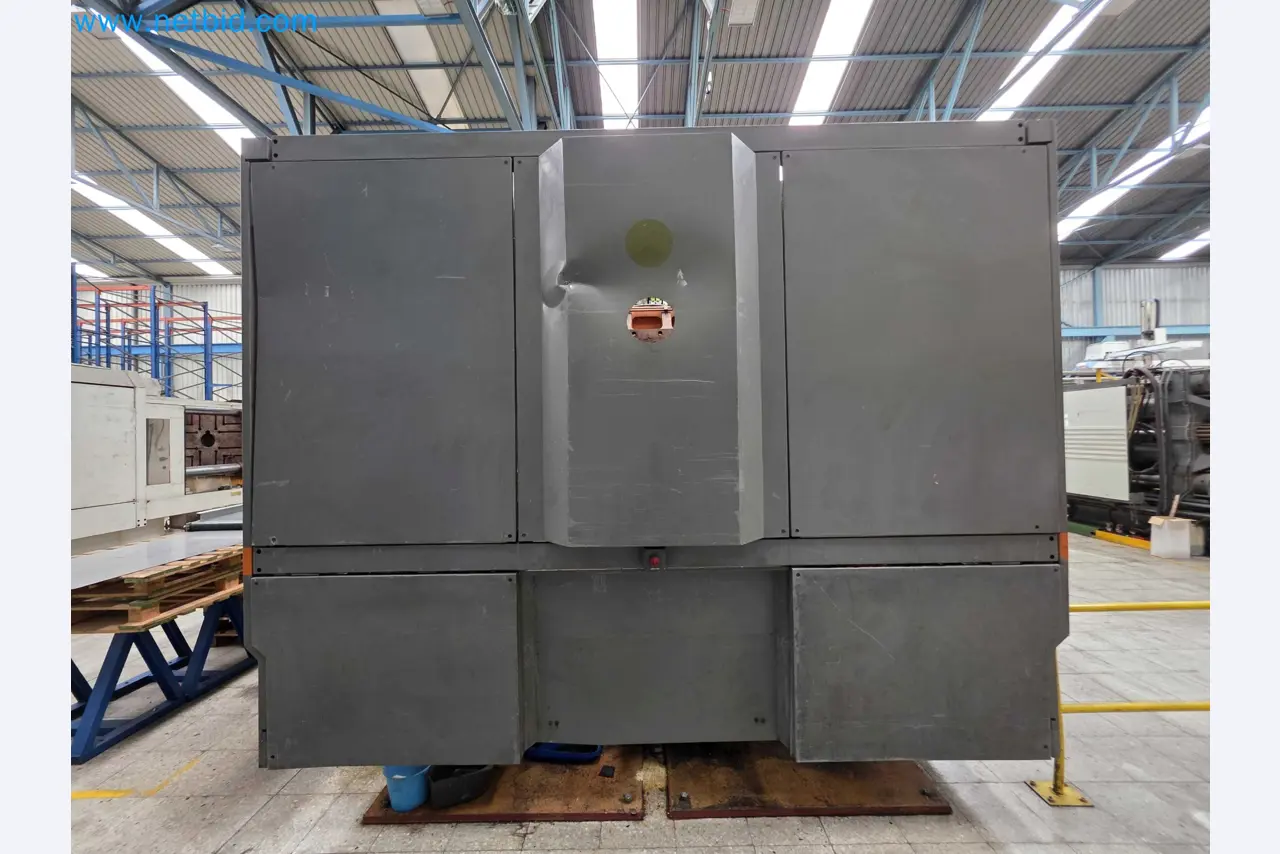

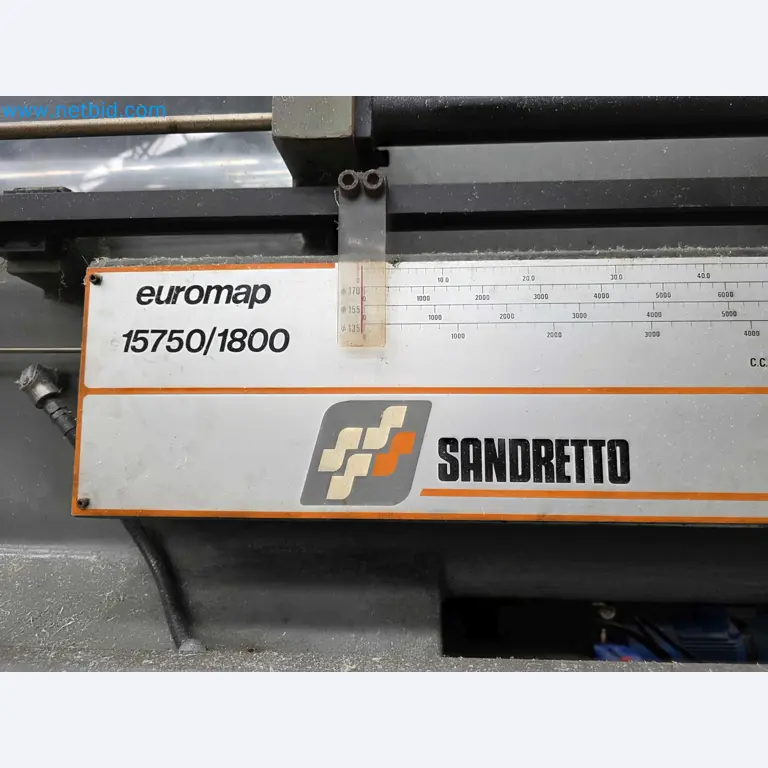

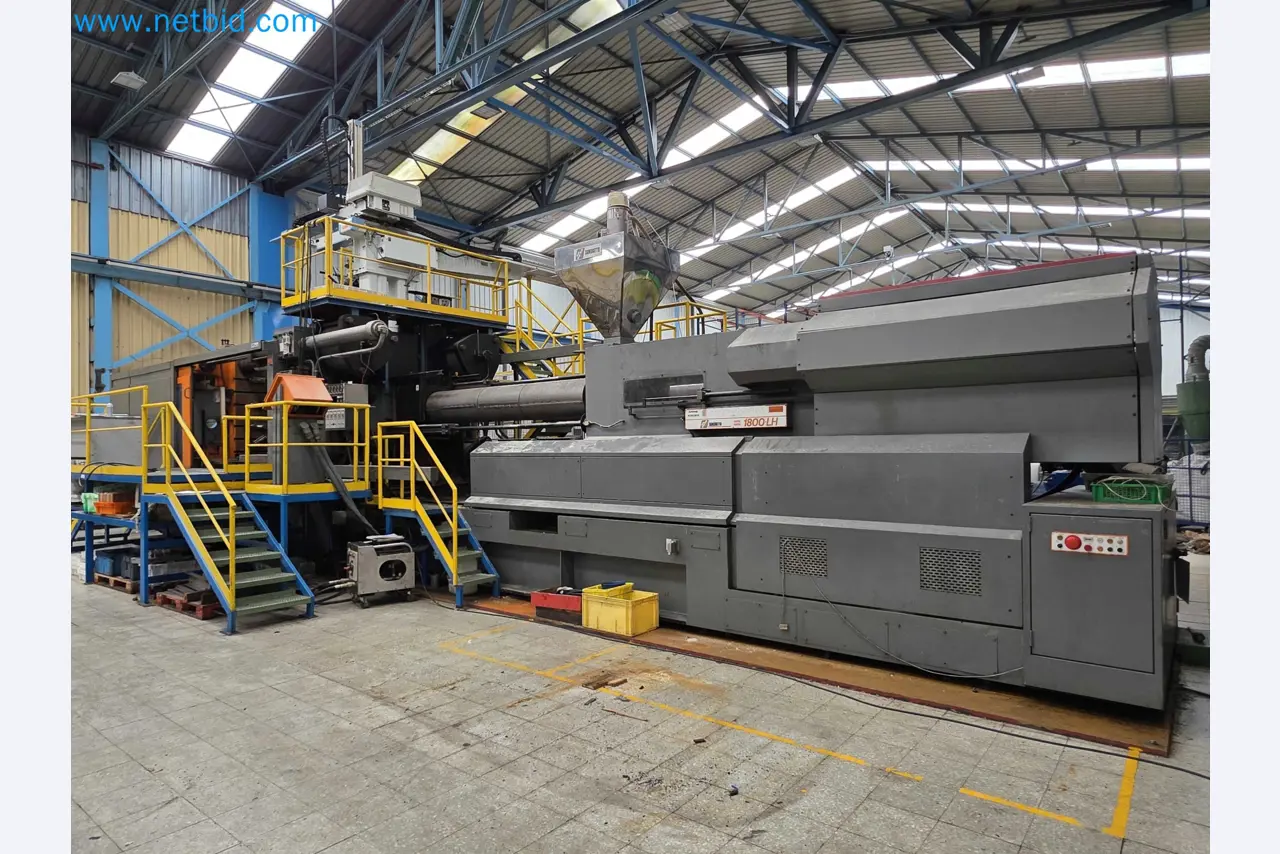

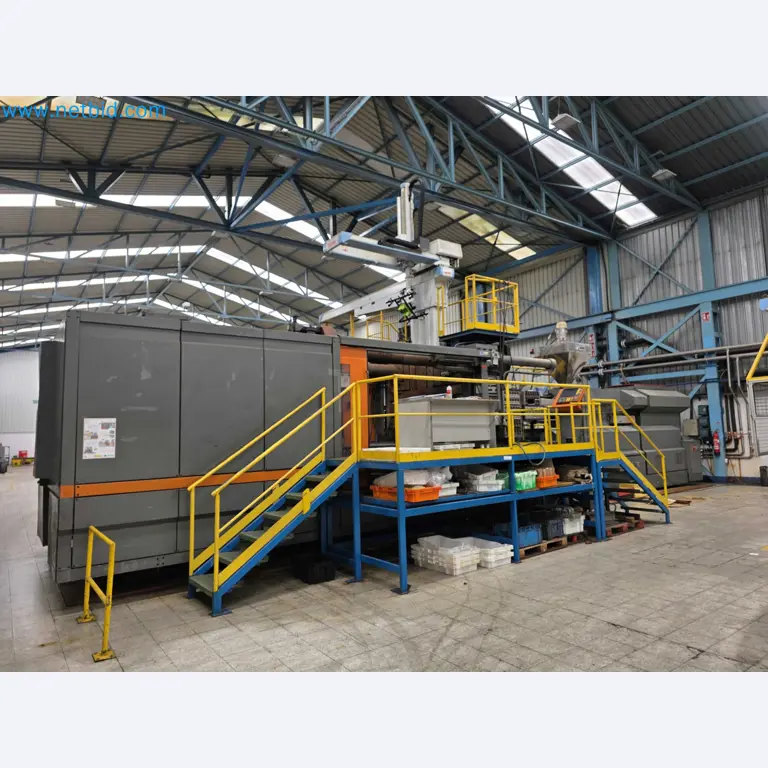

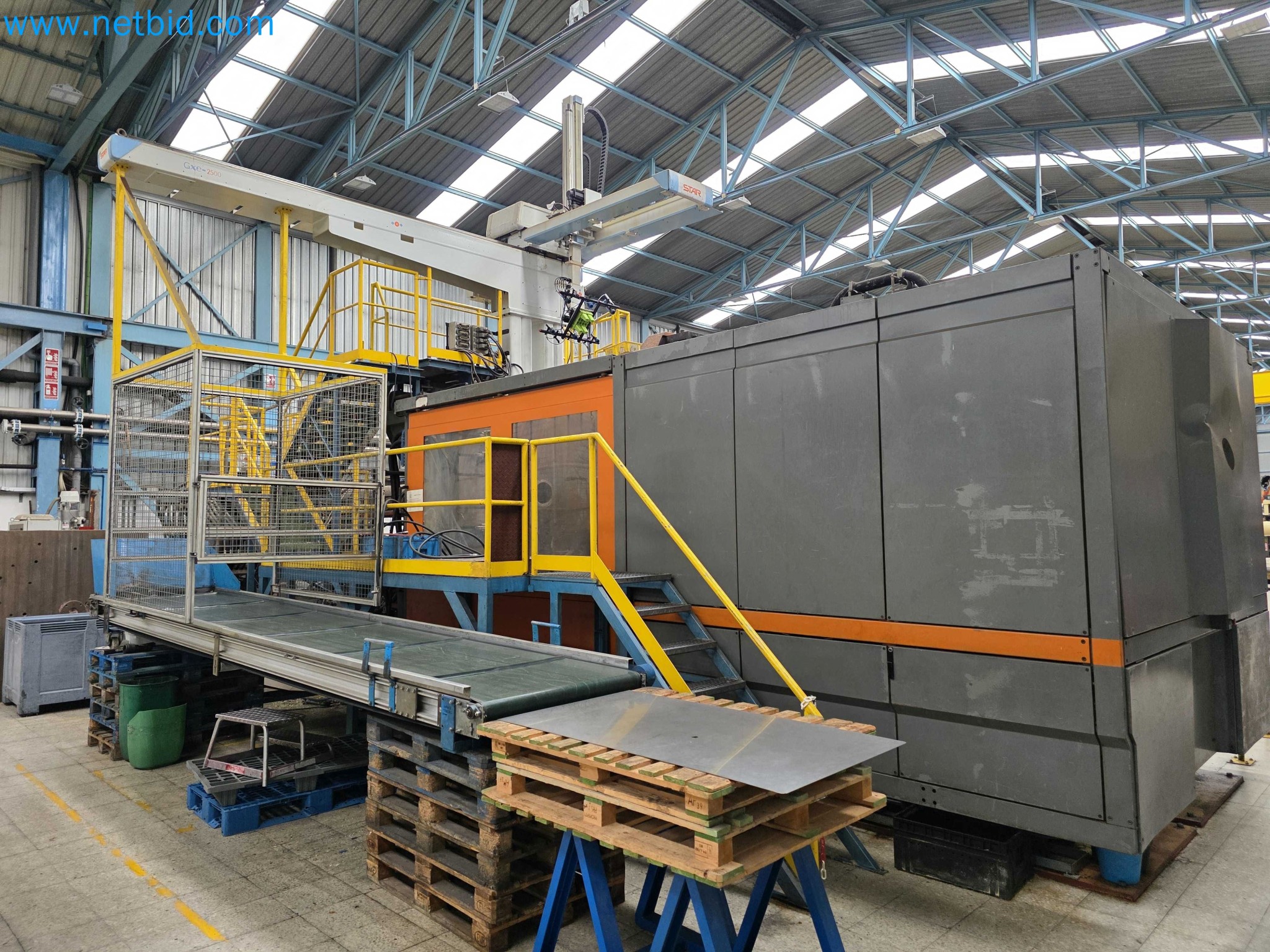

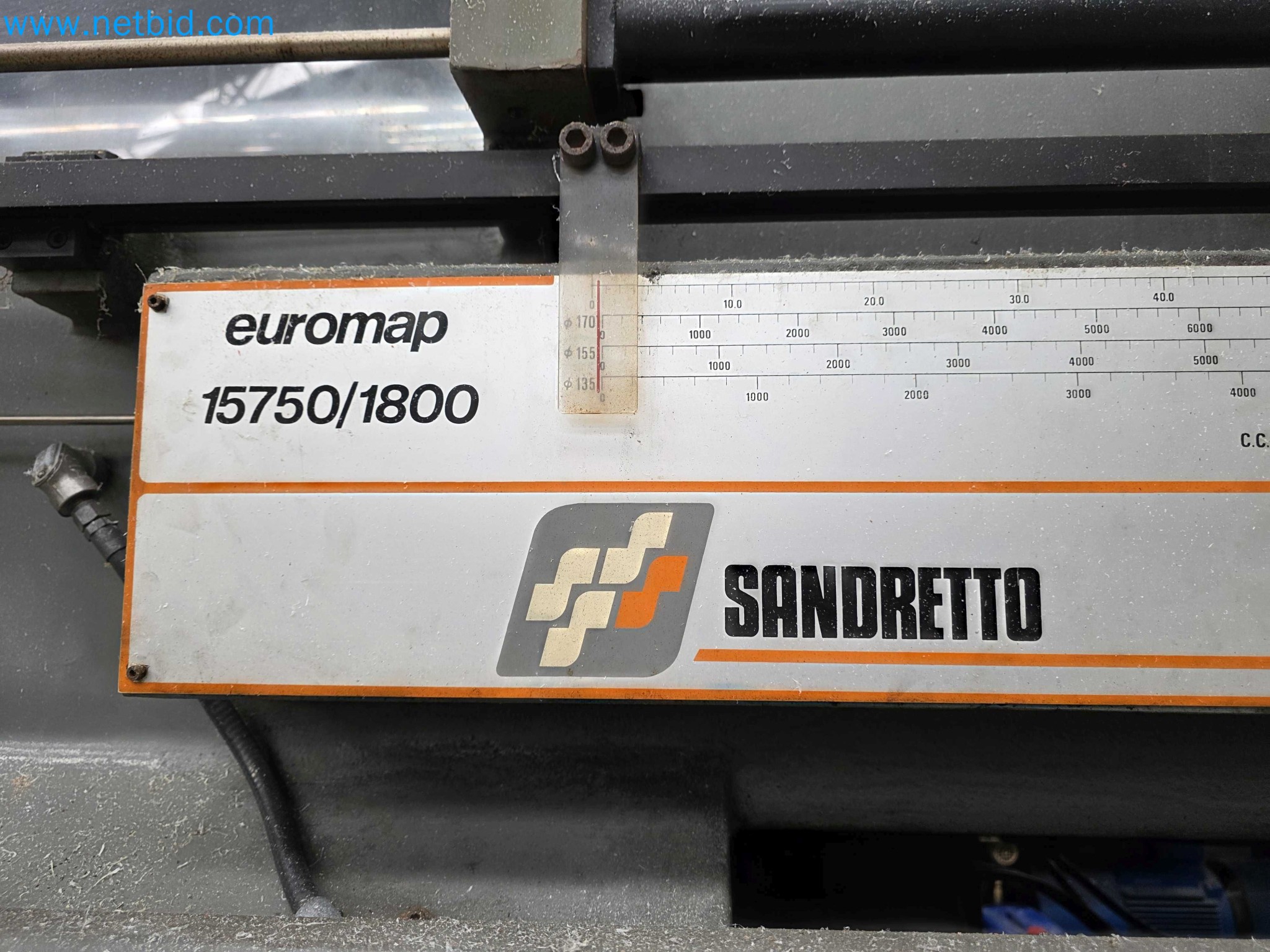

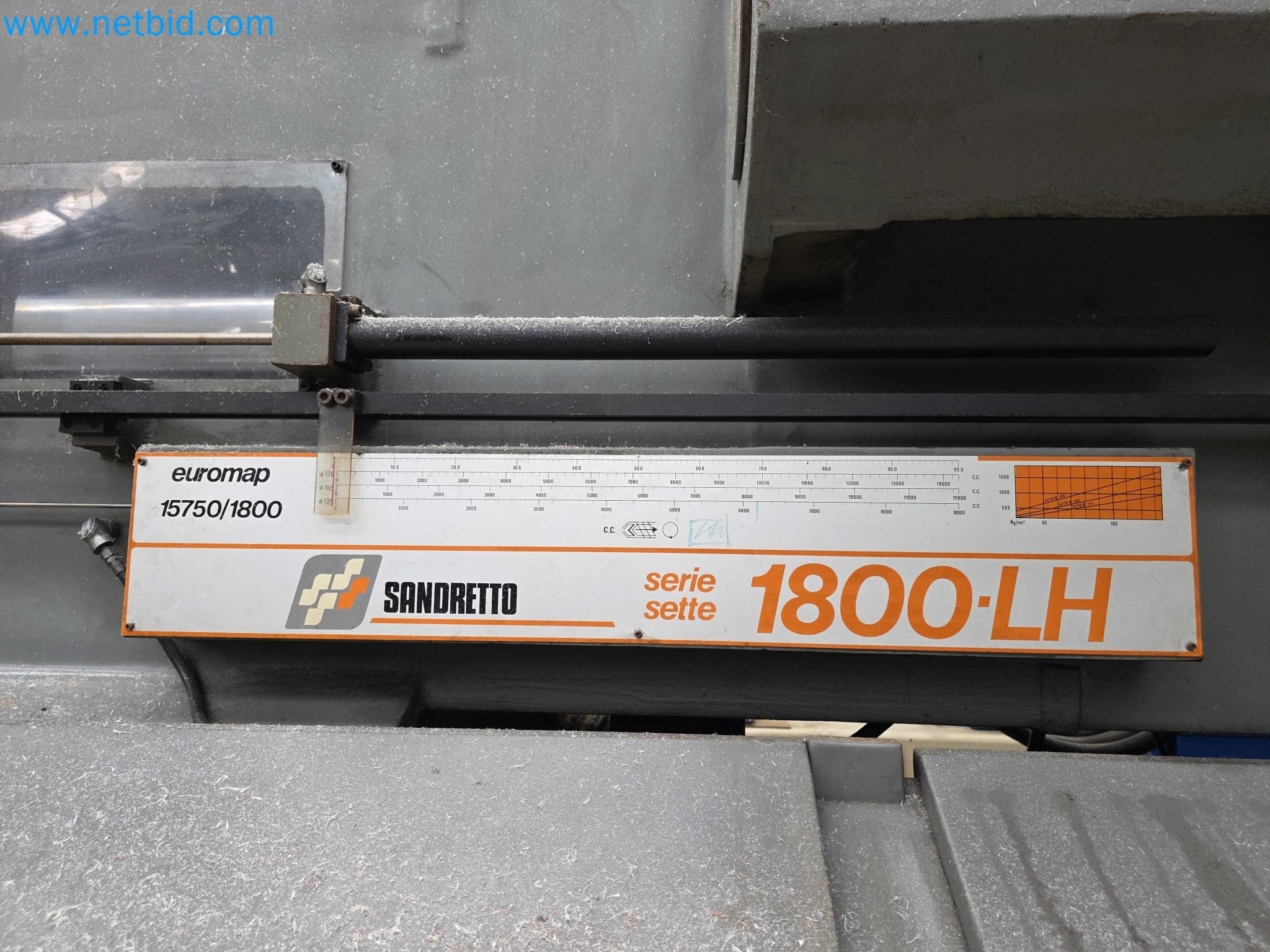

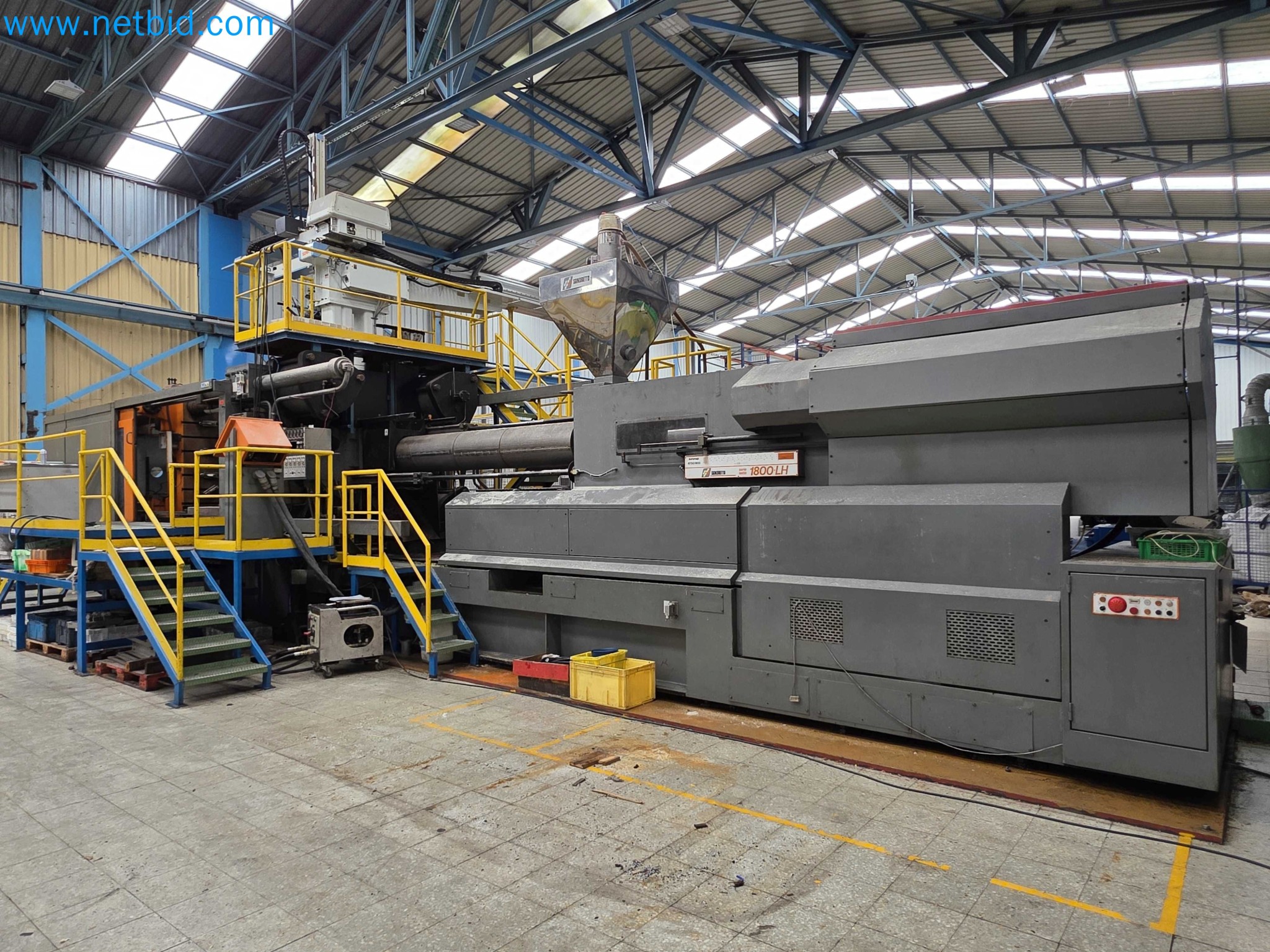

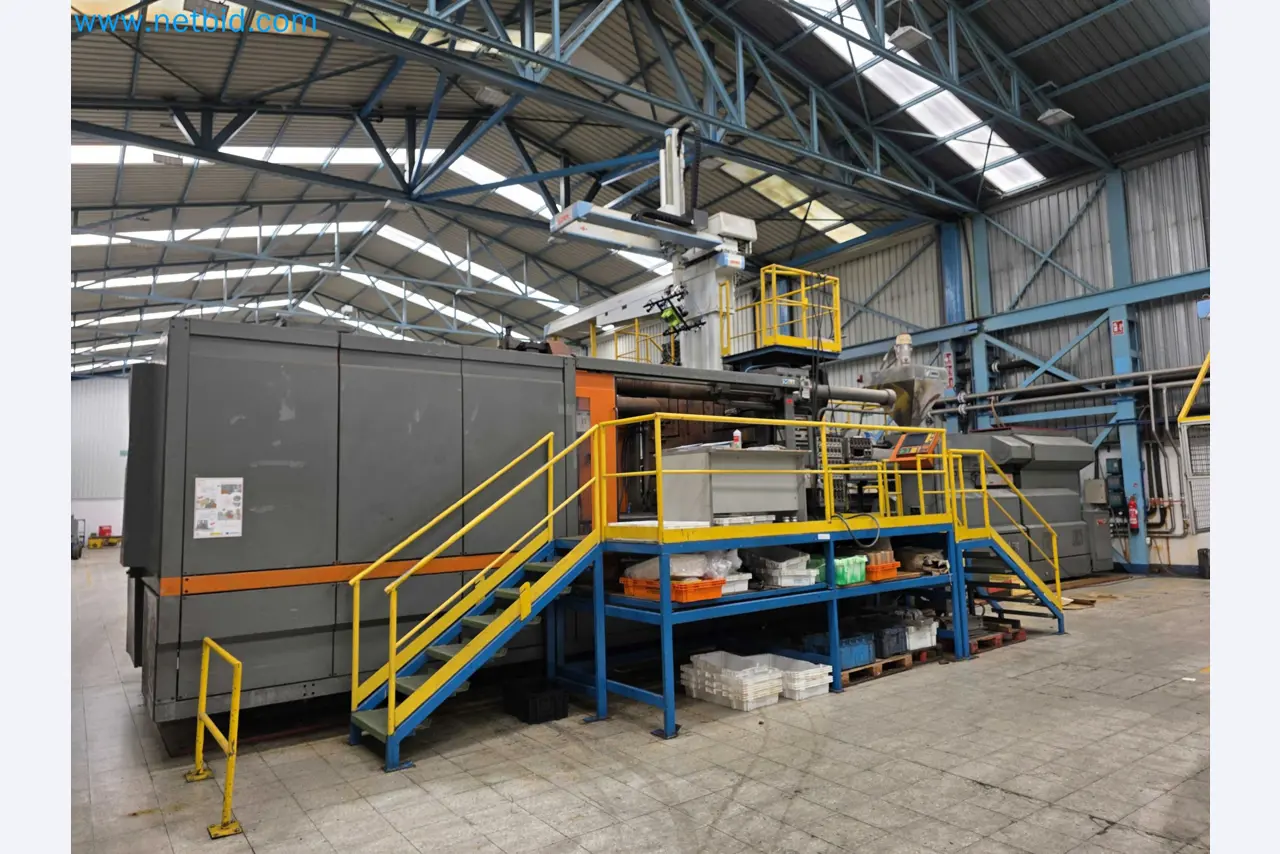

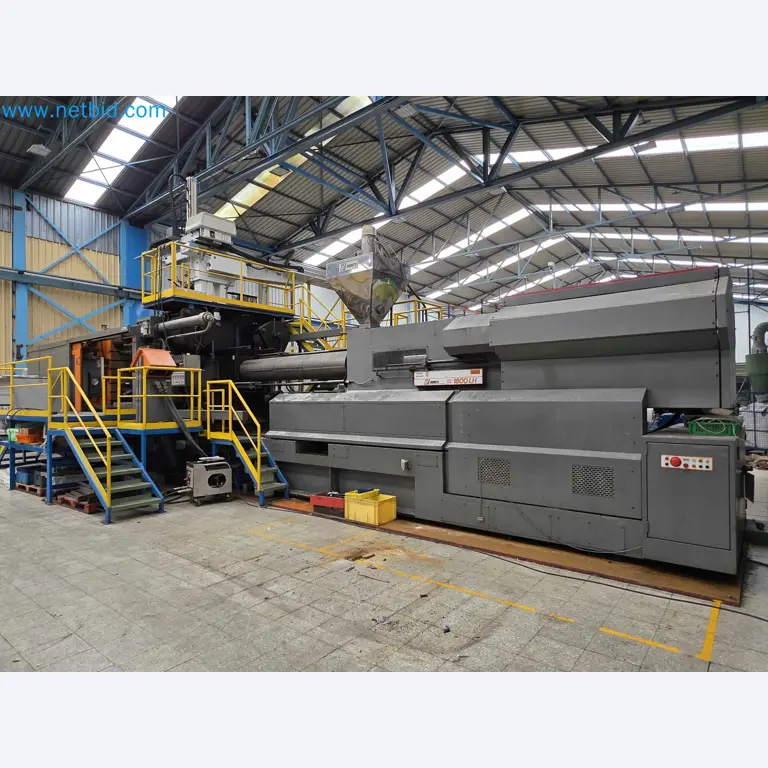

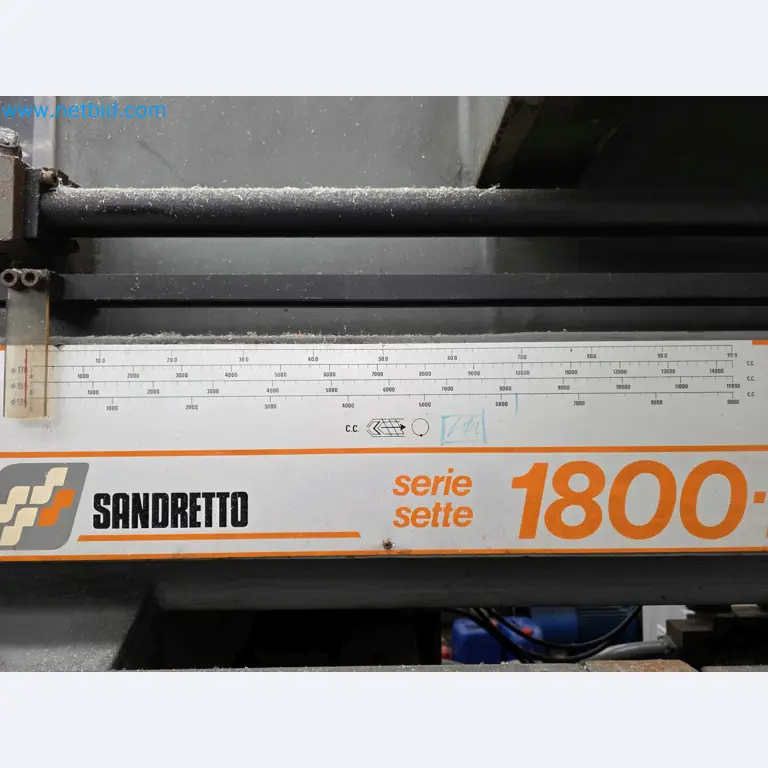

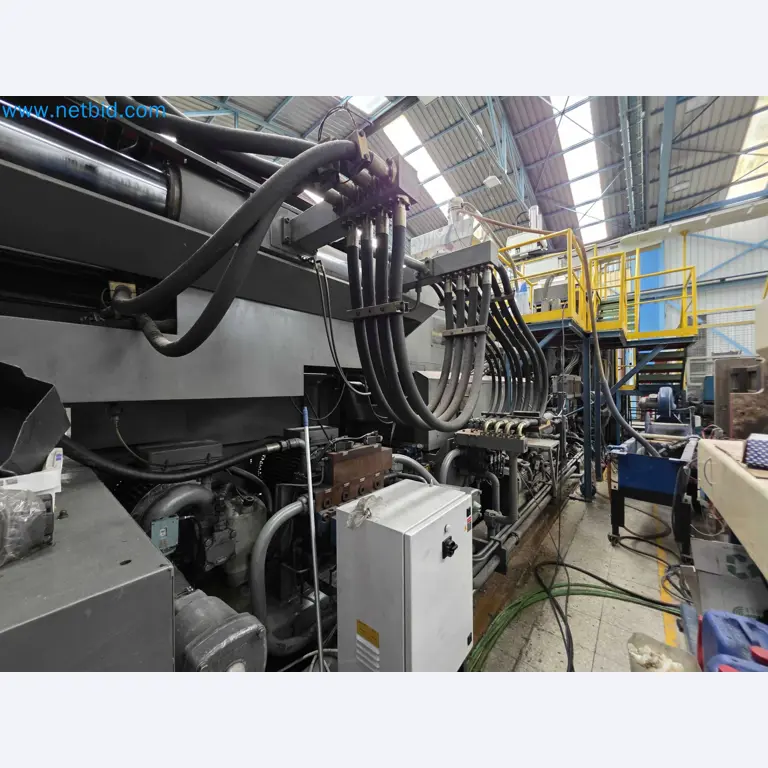

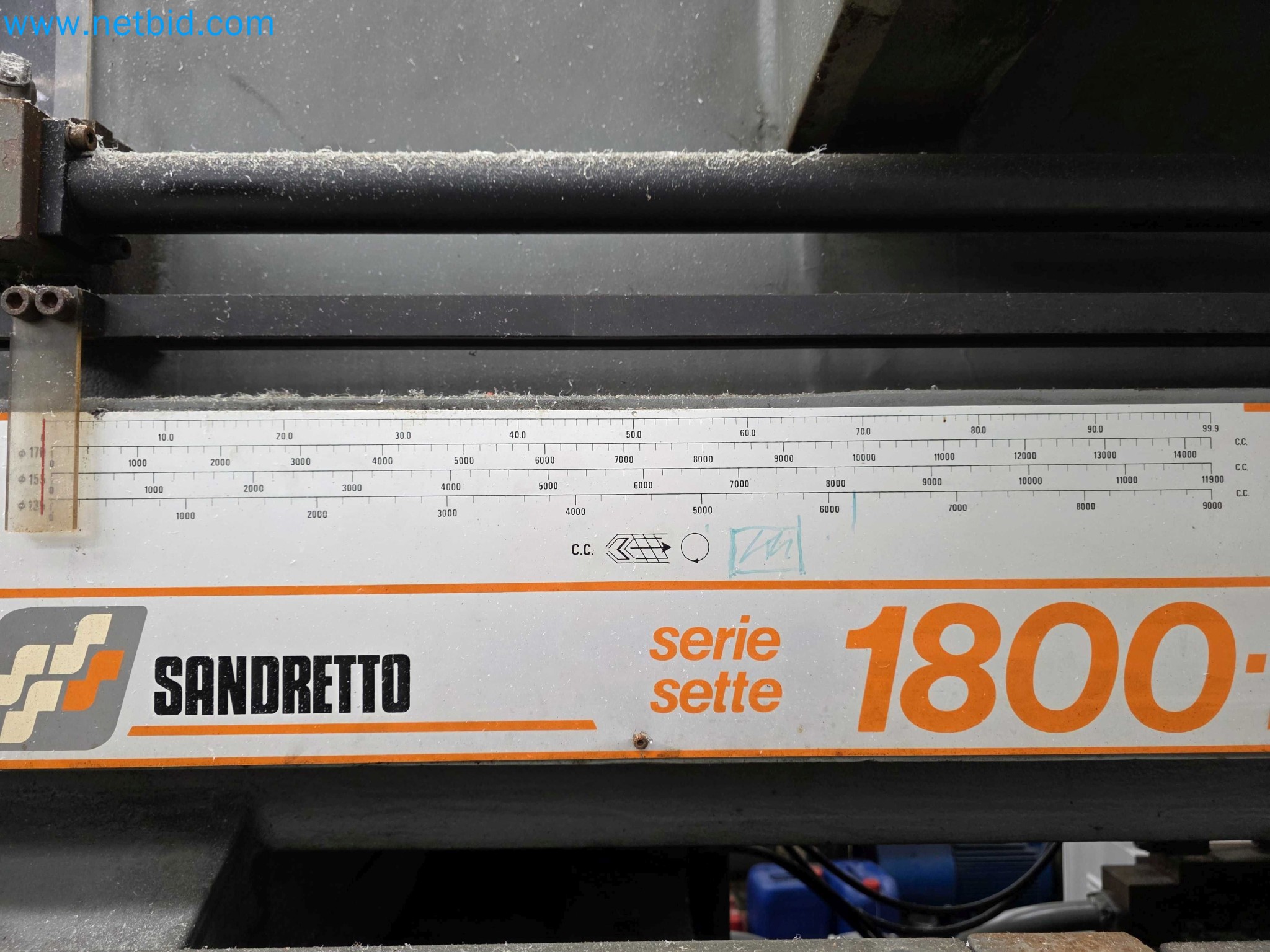

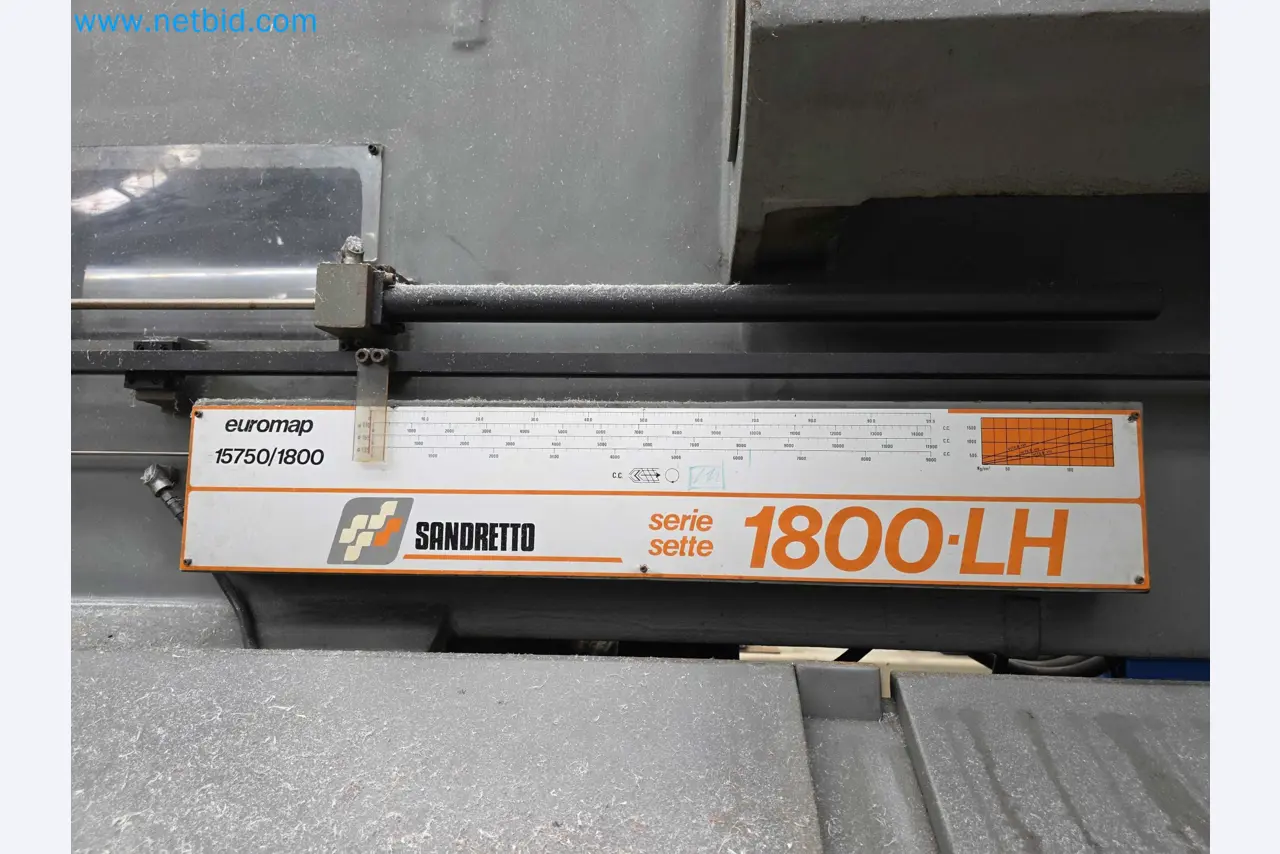

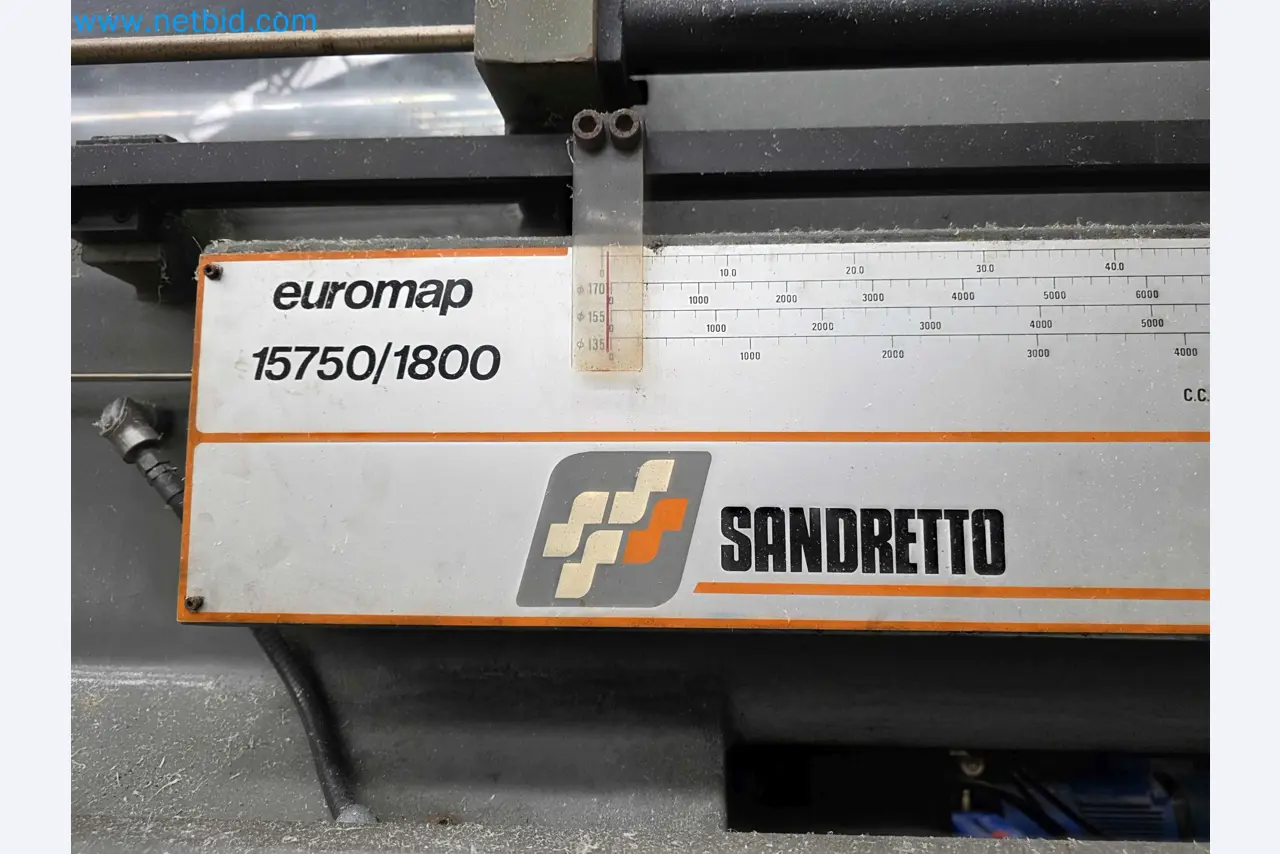

Injection Molding Machine SANDRETTO 1800 LHTRADING#A19590-165
Details
Product Type
SANDRETTO
Type
1800 LH
Construction Year
1990

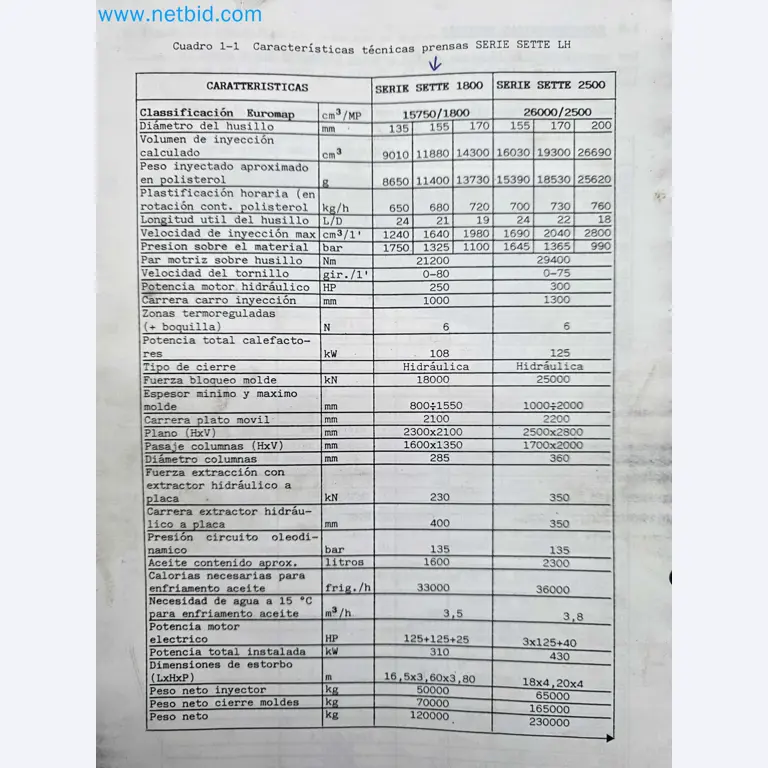

Description

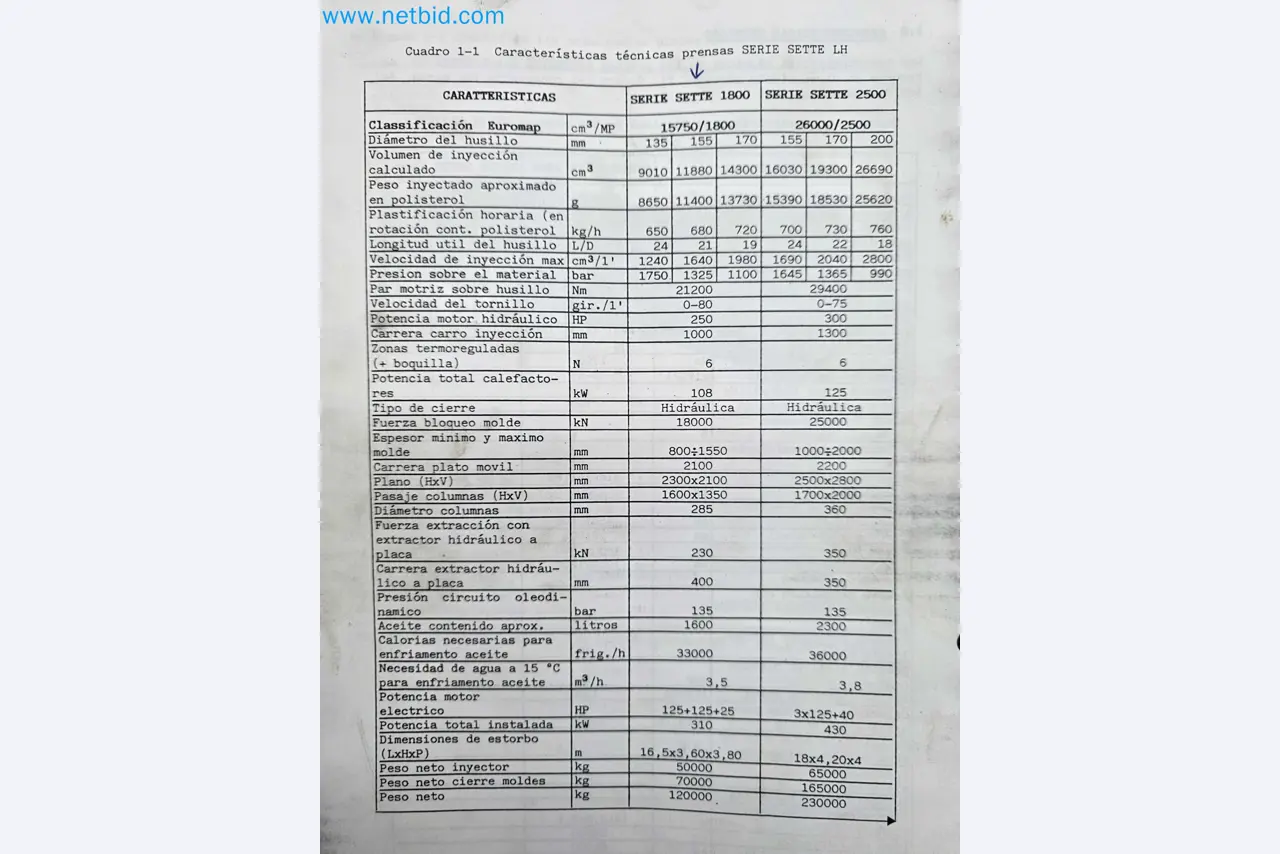

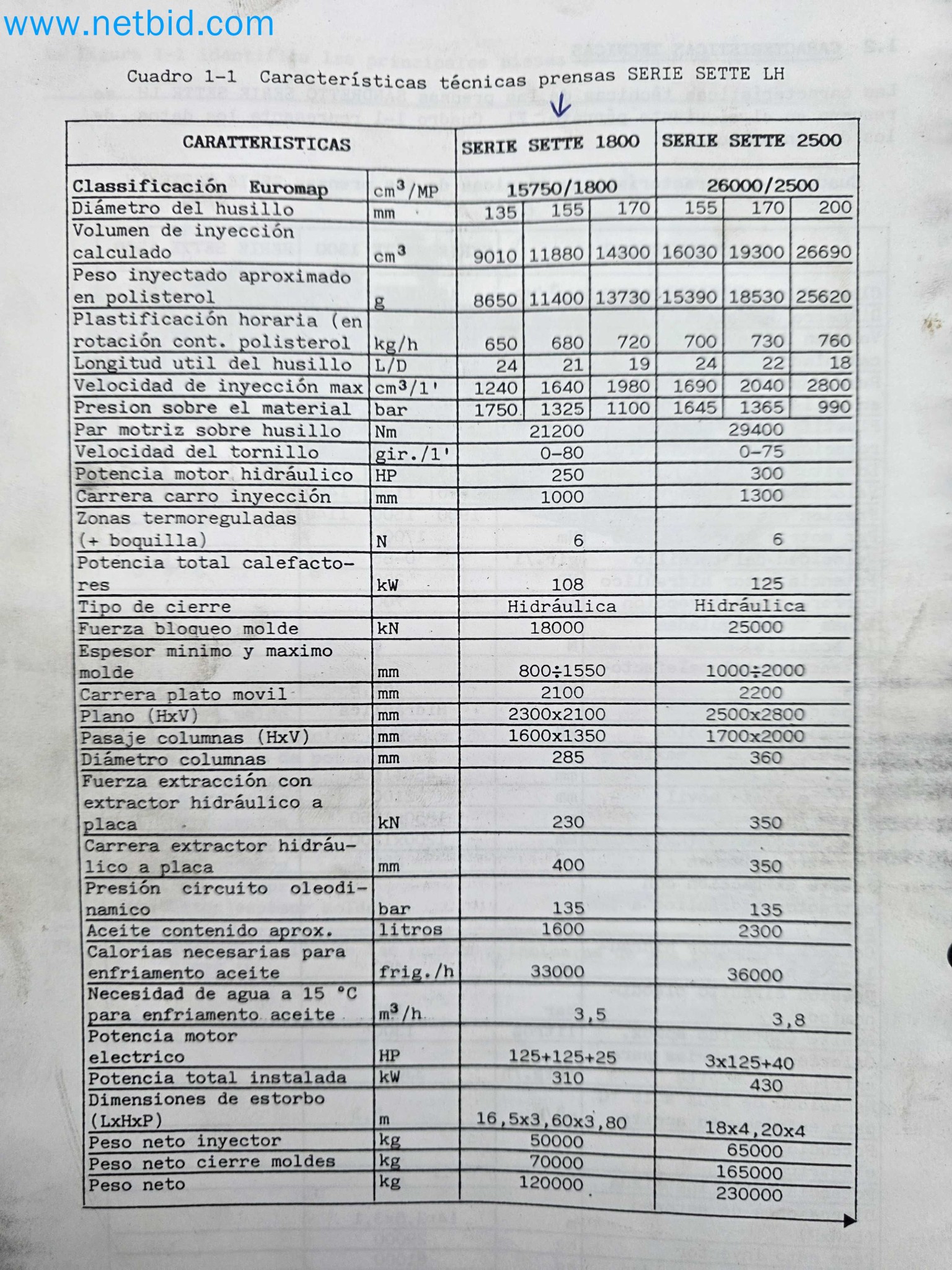

Maximum capacity: 1,800 t

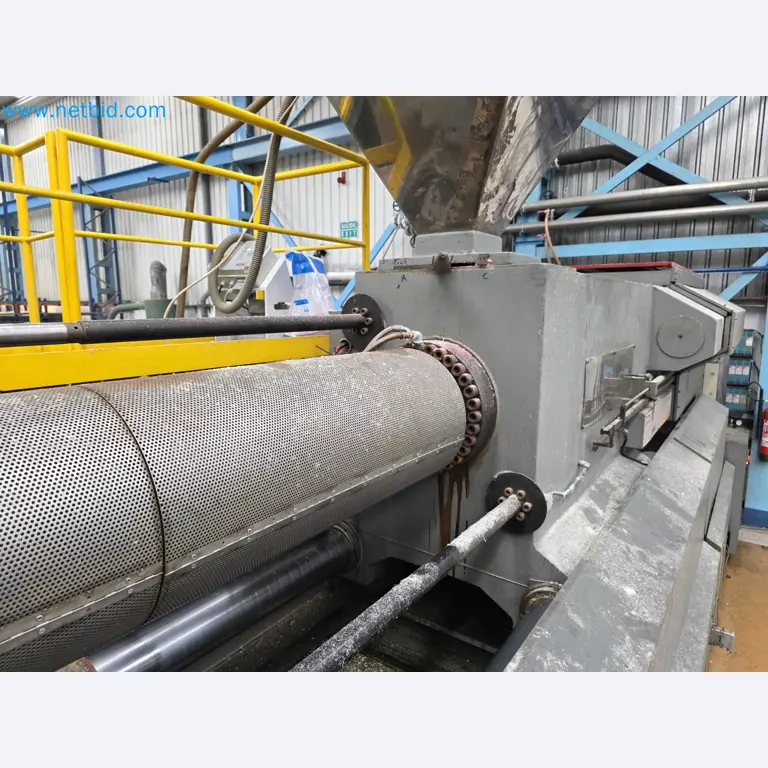

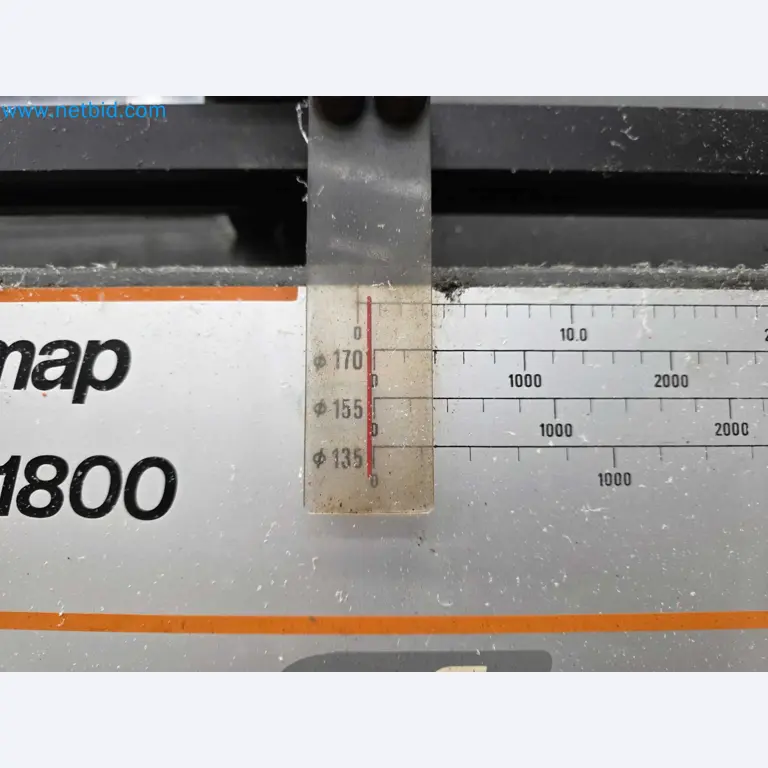

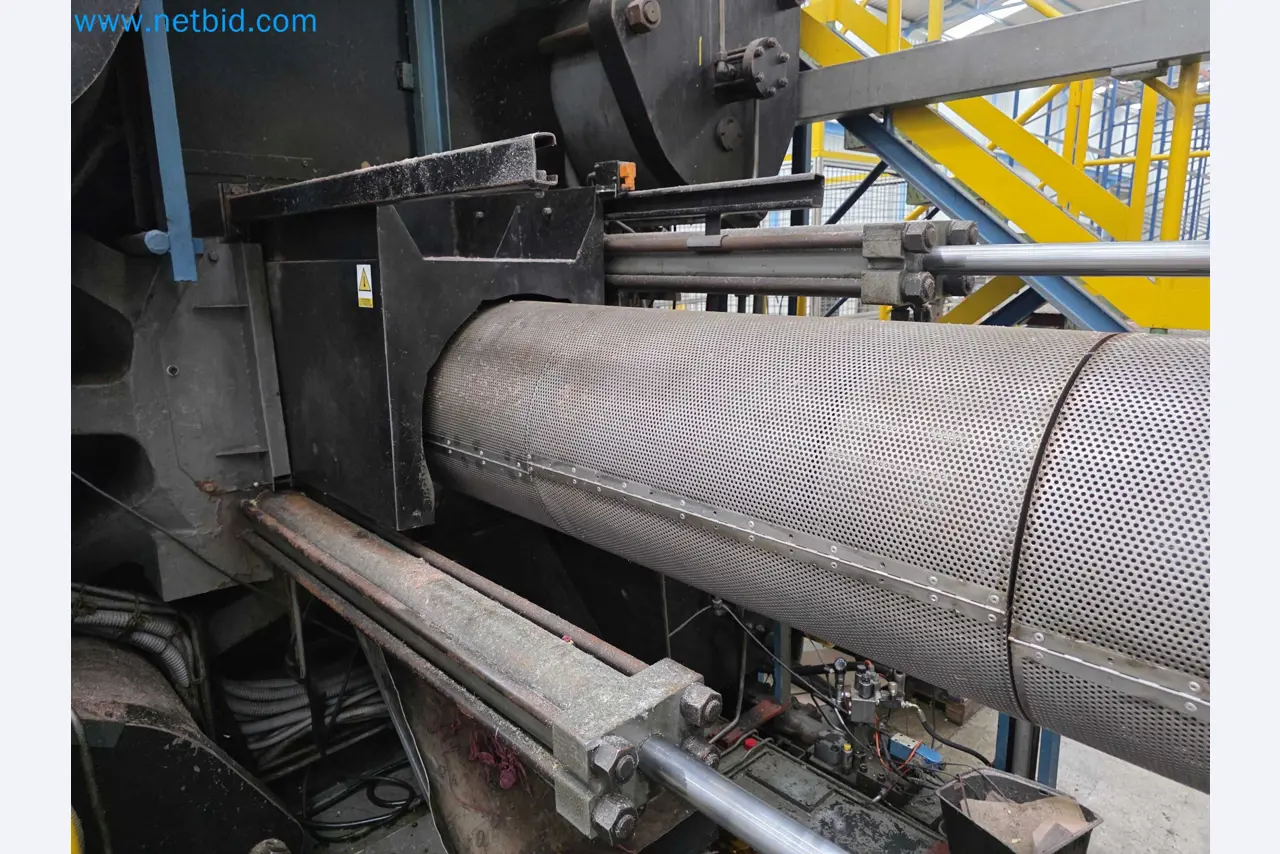

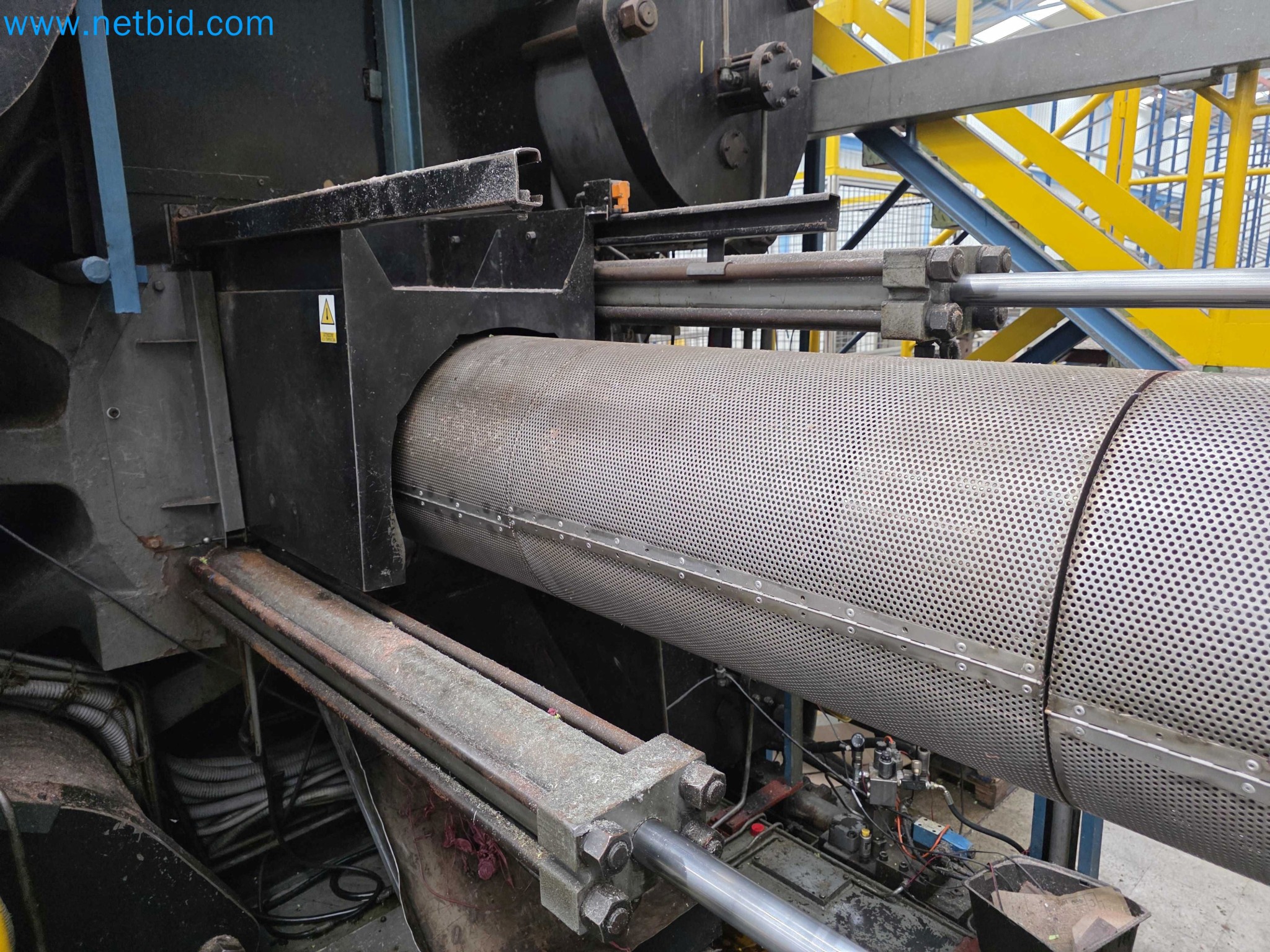

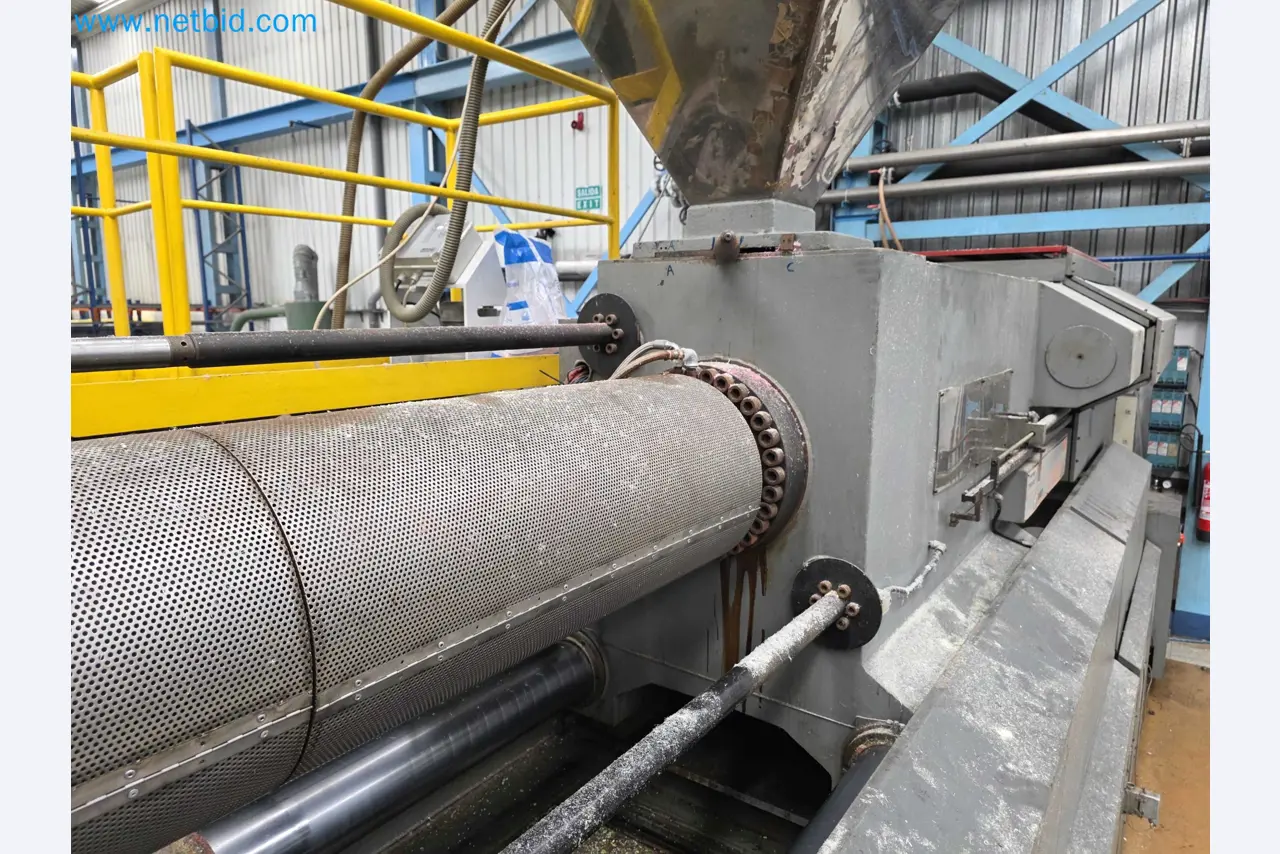

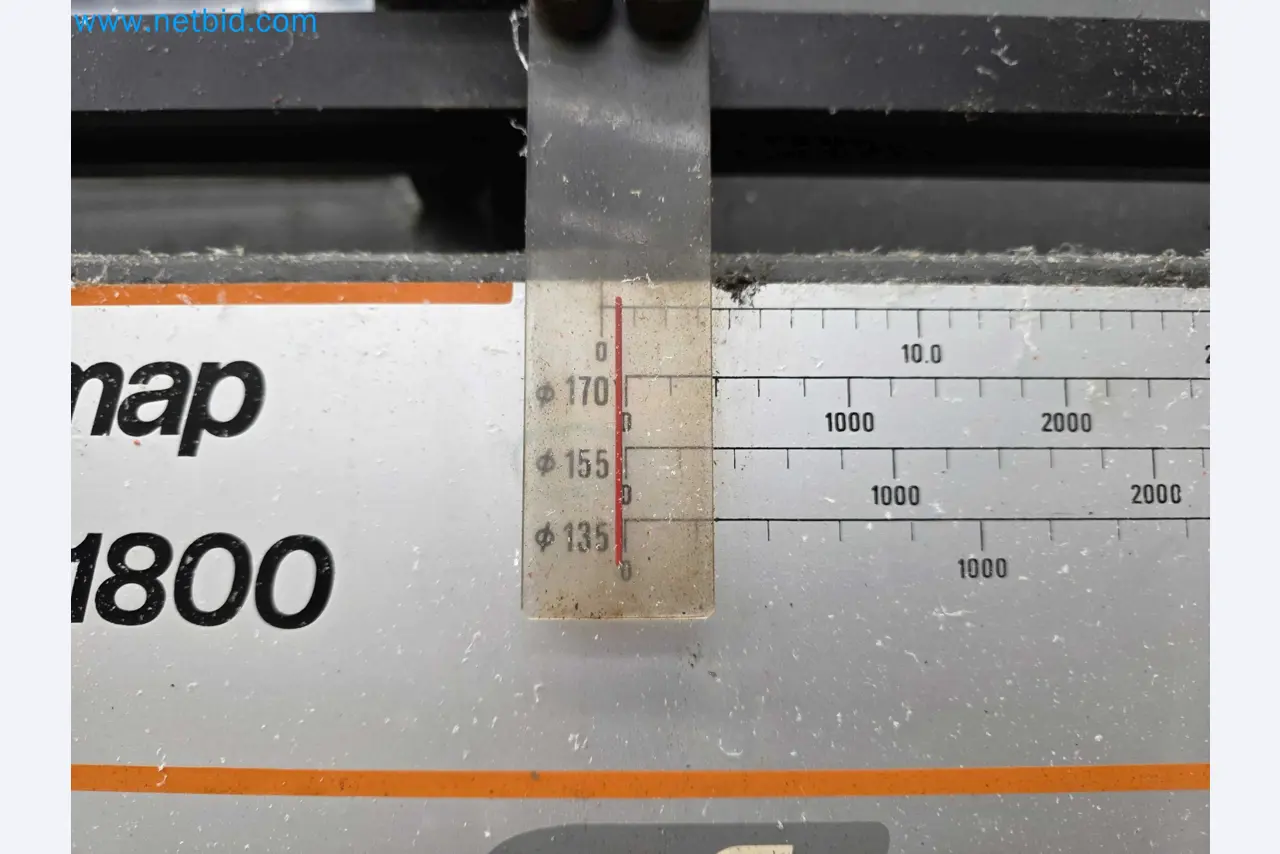

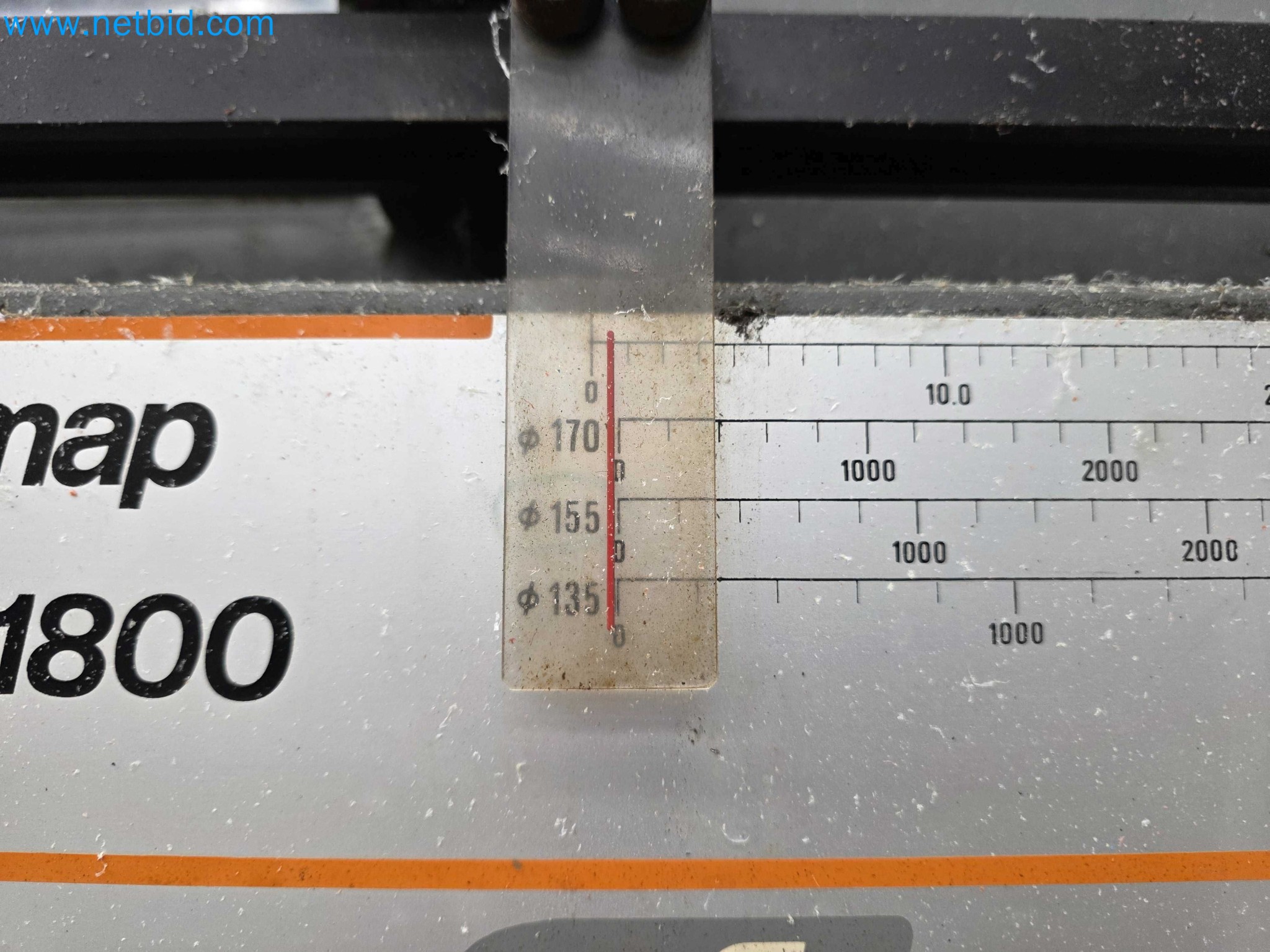

Screw diameter: 155 mm
Calculated injection volume: 11,880 cm³
Useful screw length: 21 L/D
Maximum injection rate: 1640 cm³/s
Plasticizing capacity: 680 kg/h
Pressure on material: 1325 bar
Screw hydraulic motor power: 250 HP

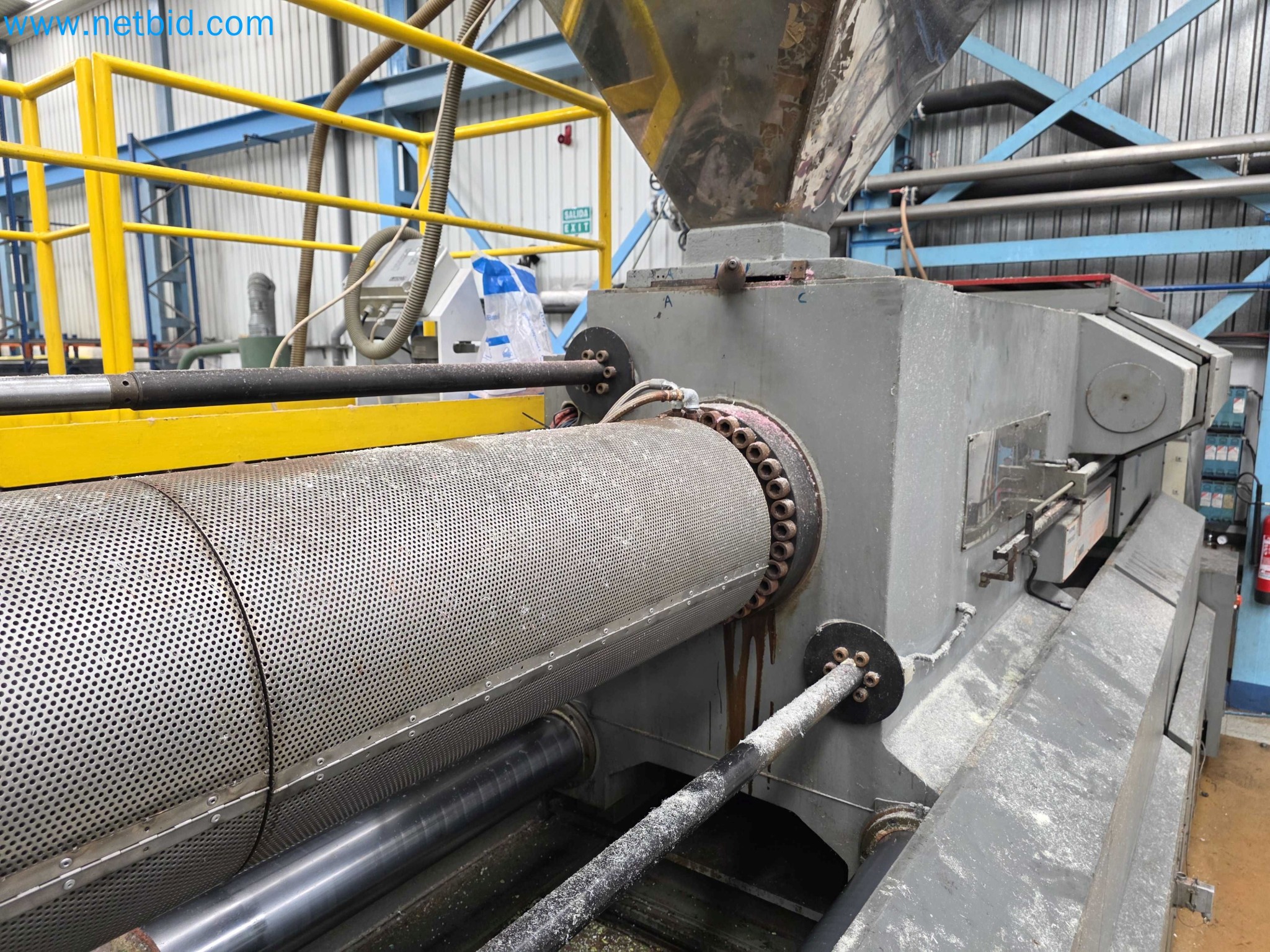

Injection unit stroke: 1000 mm

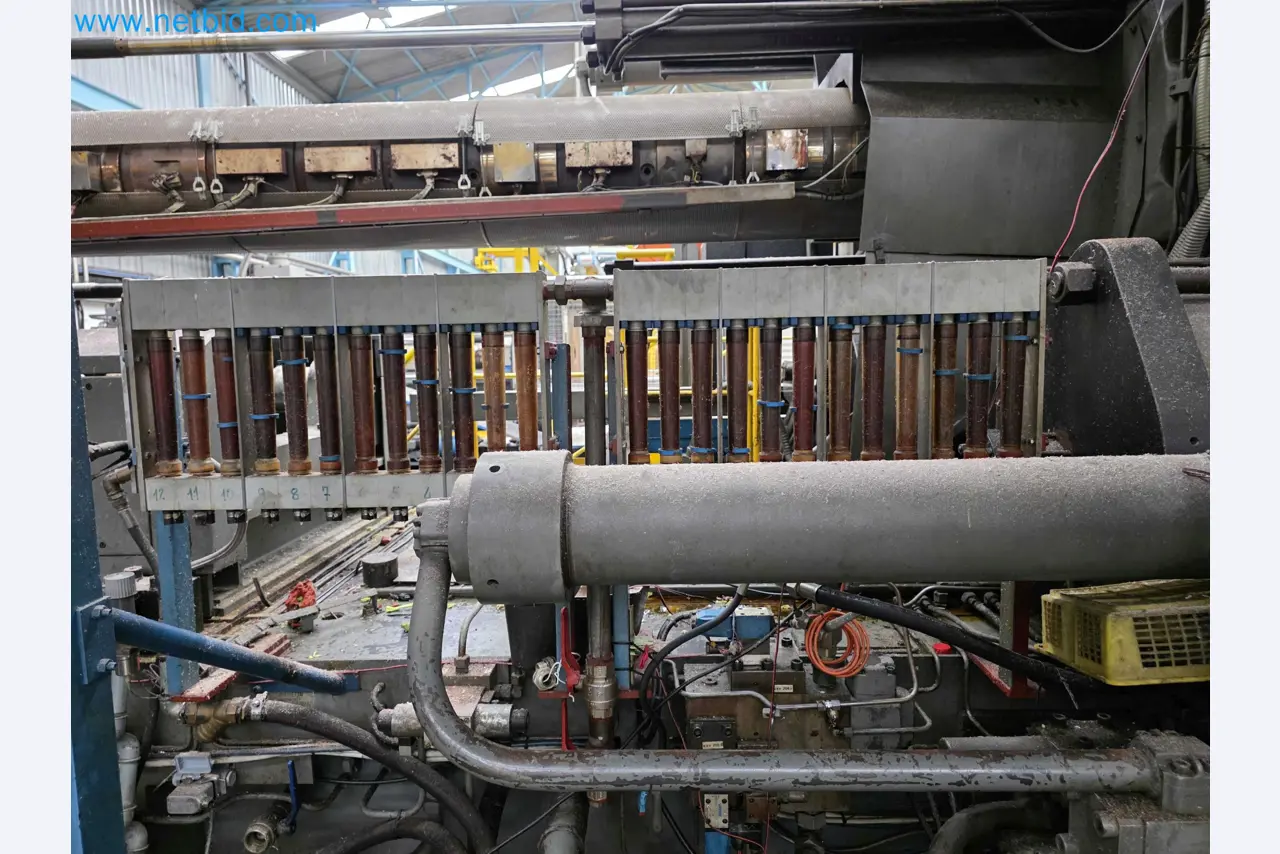

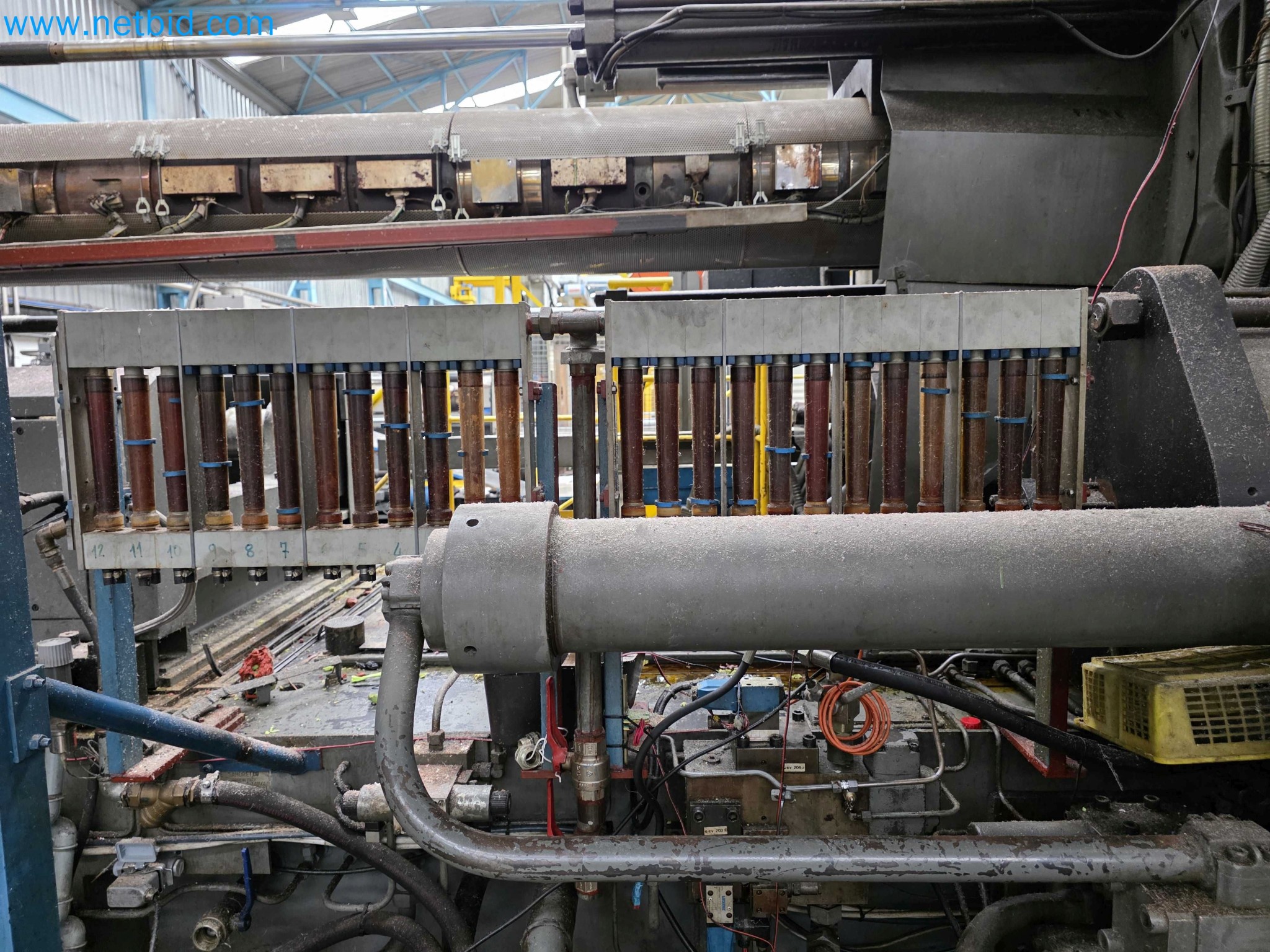

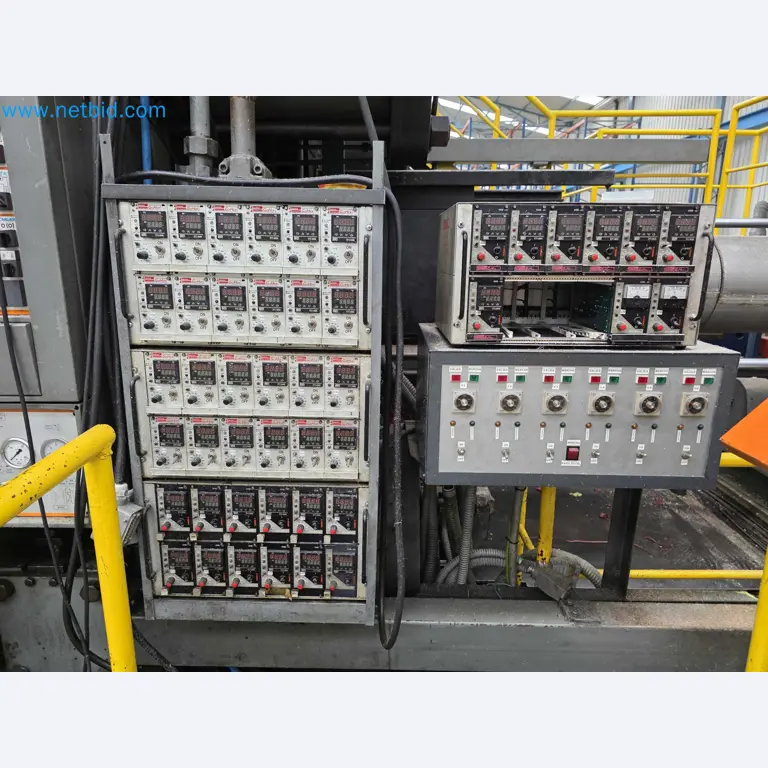

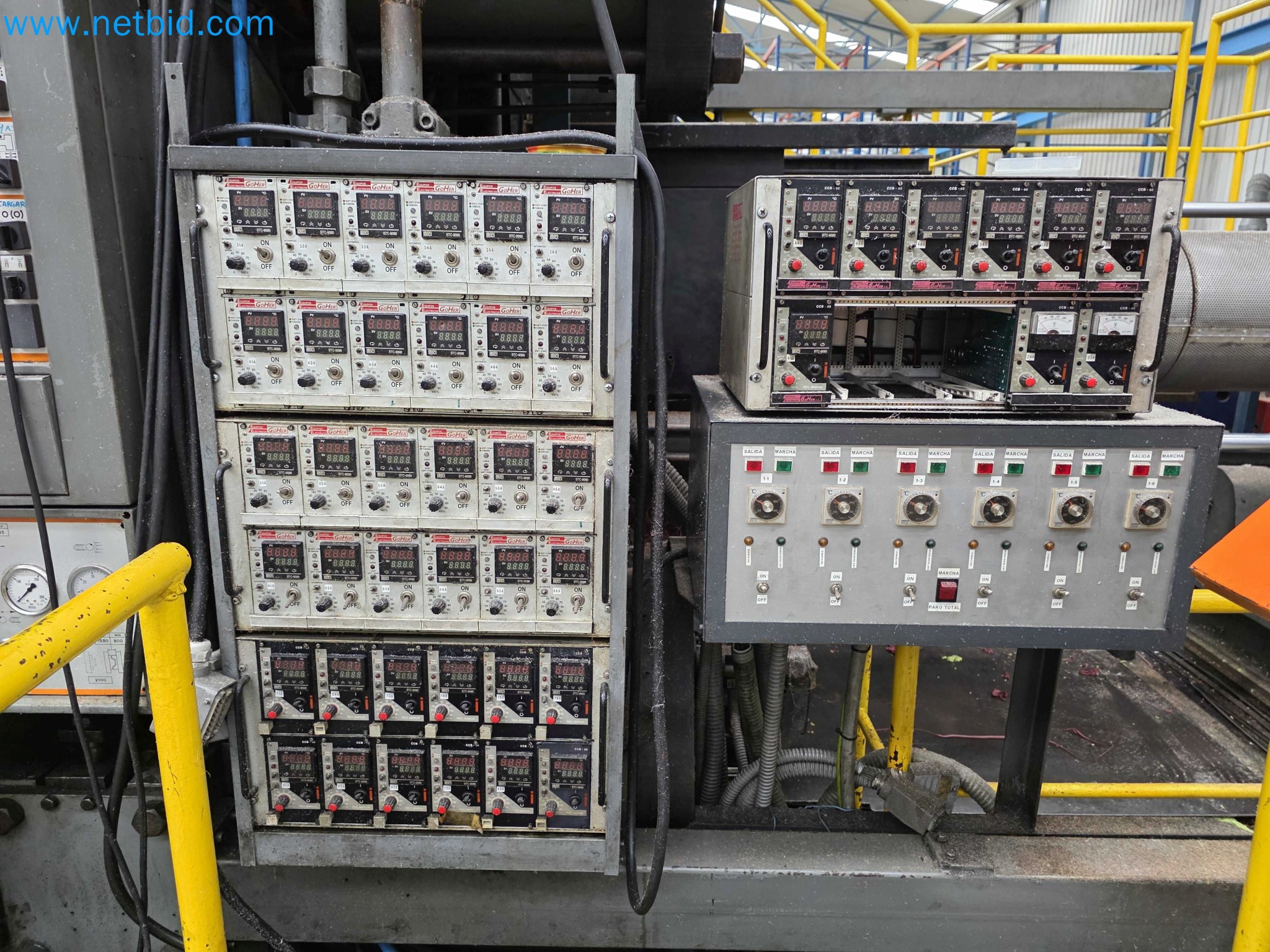

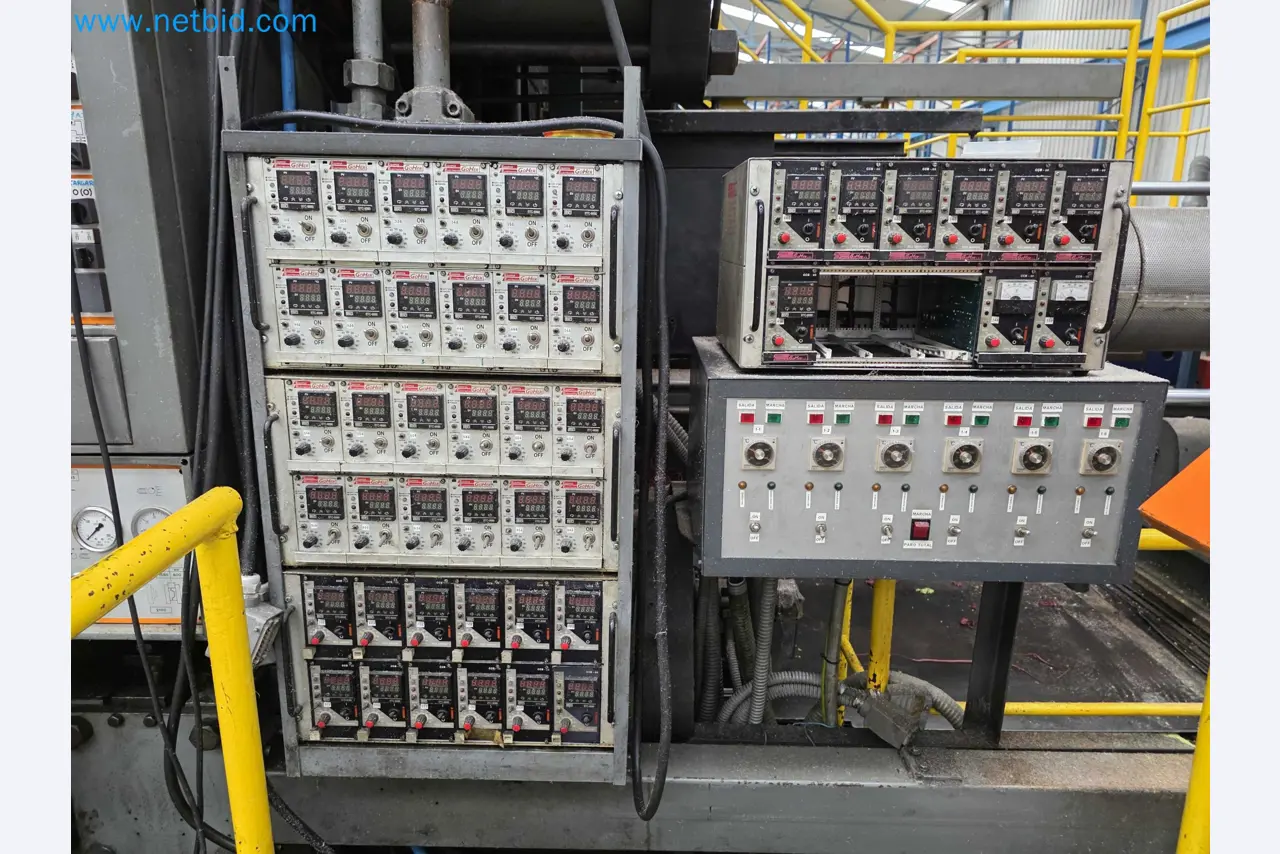

Temperature-controlled zones: 6
Total heating power: 108 kW
Mould clamping force: 18,000 kN
Mould thickness (min/max): 800–1550 mm
Moving platen stroke: 2100 mm

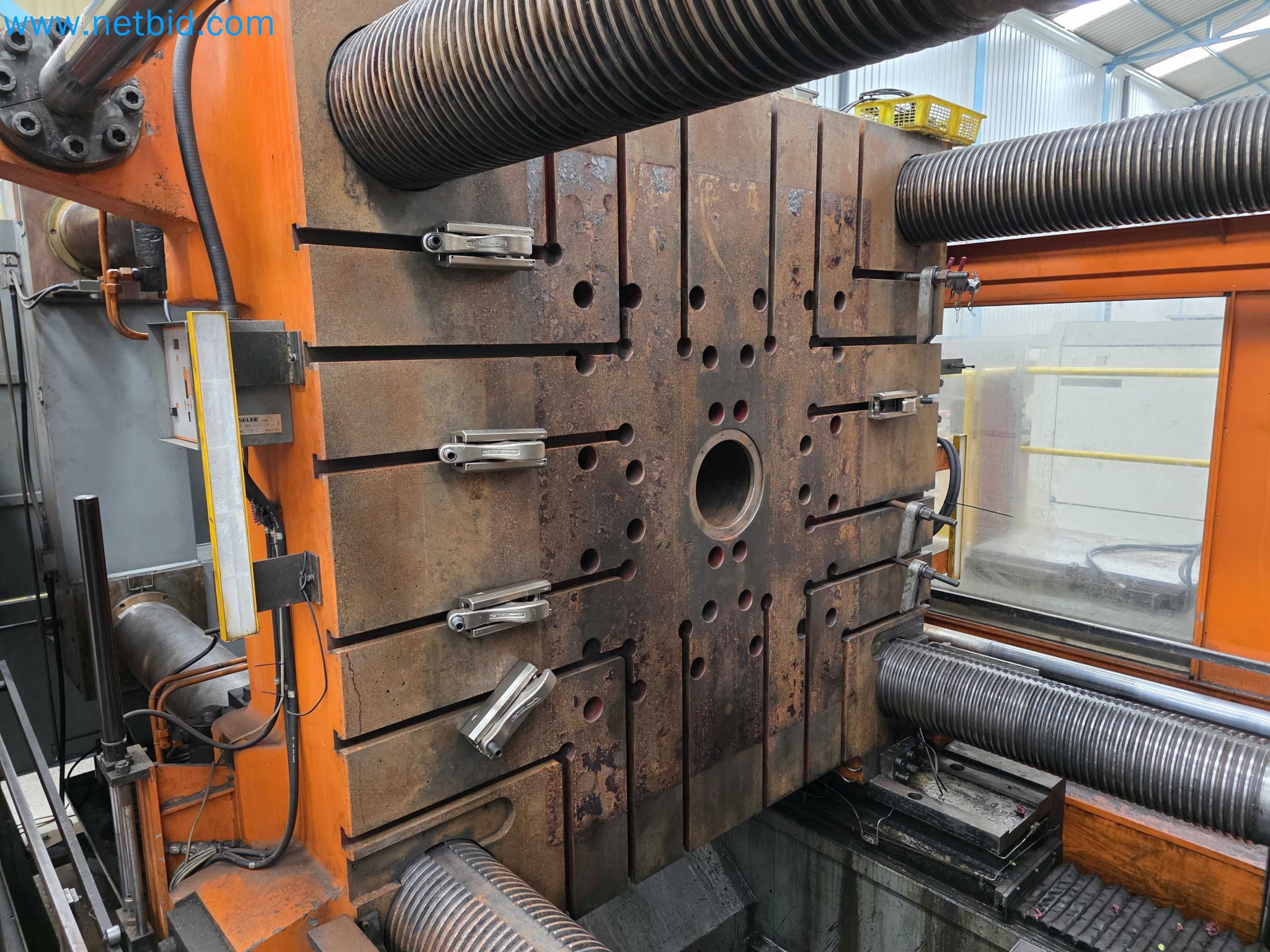

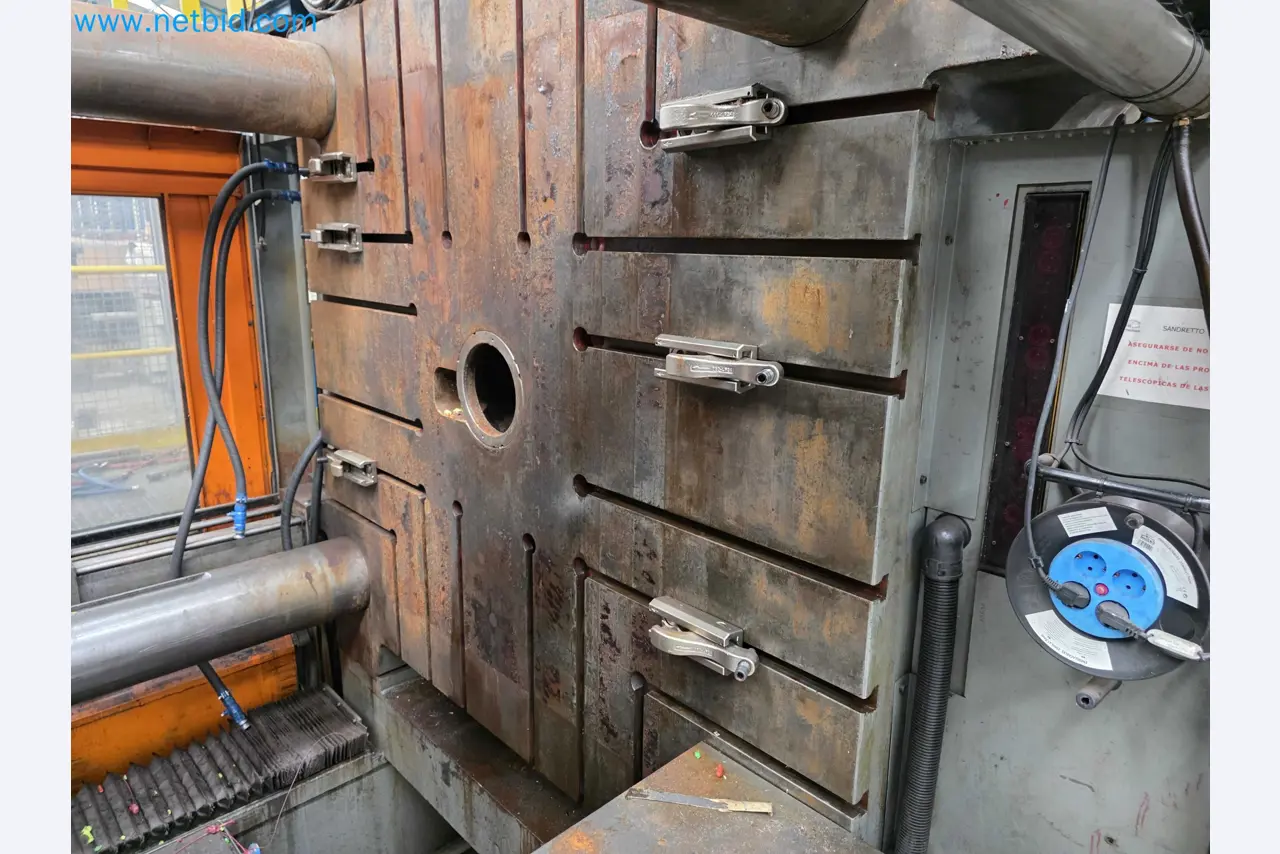

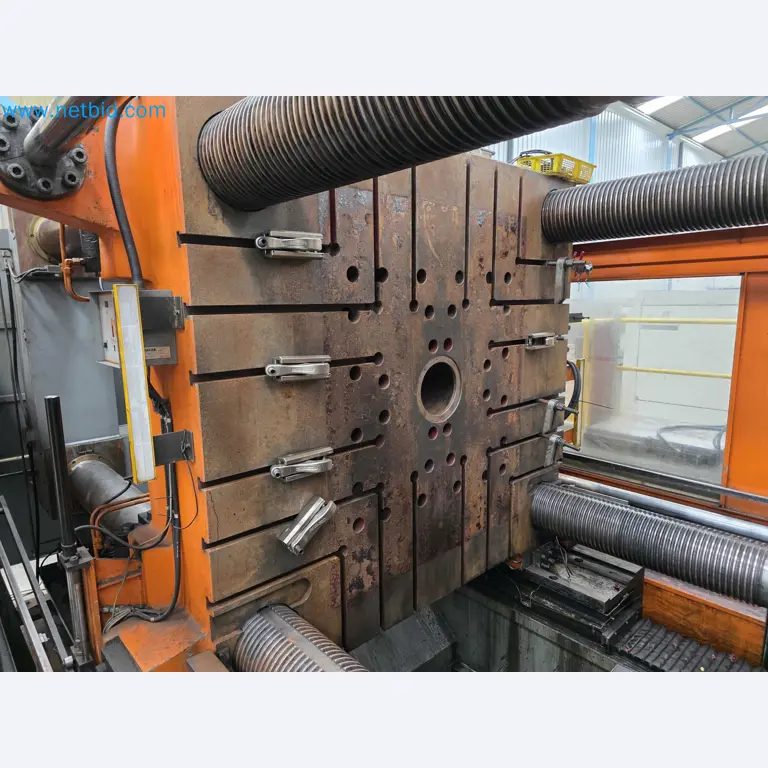

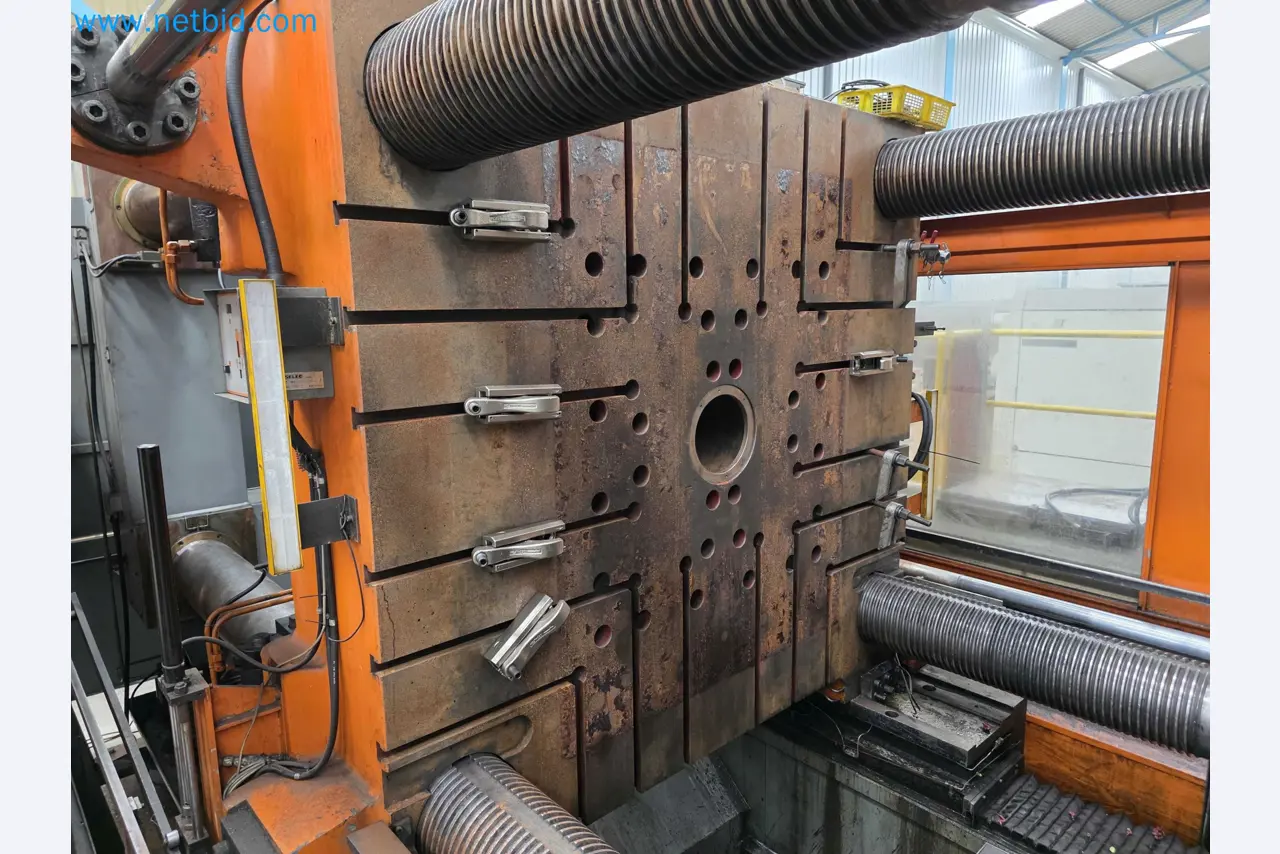

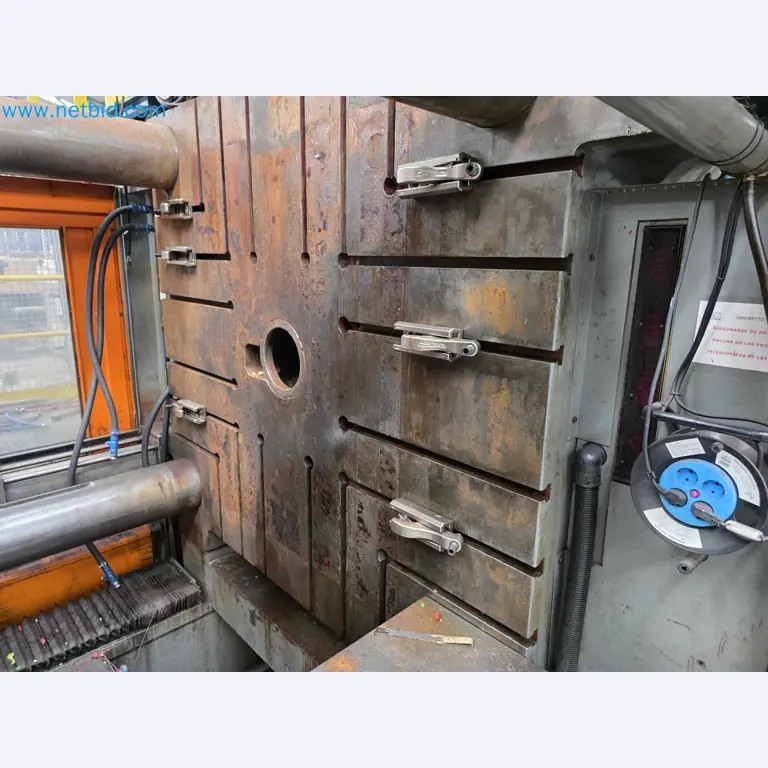

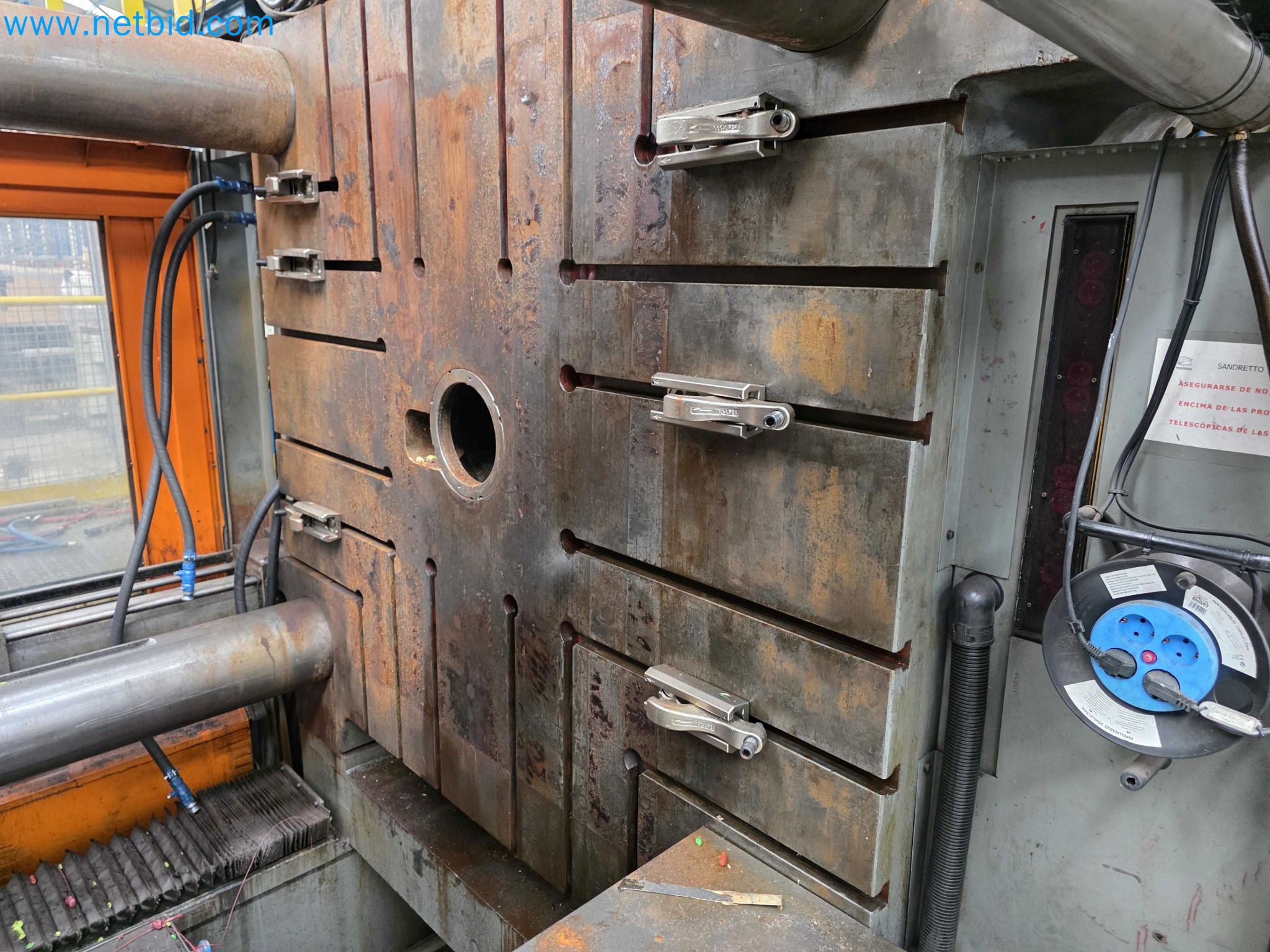

Platen dimensions: 2300 x 2100 mm

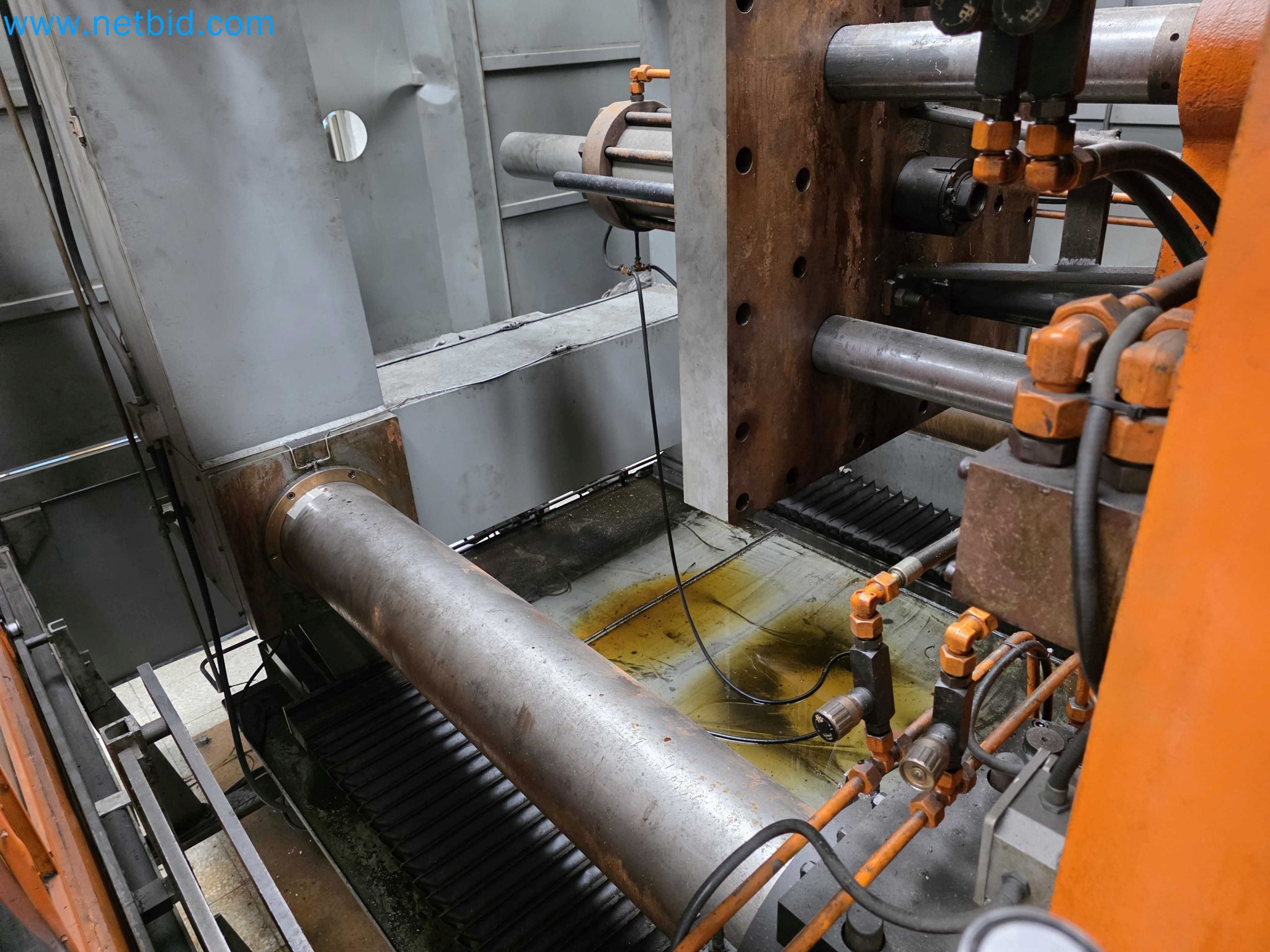

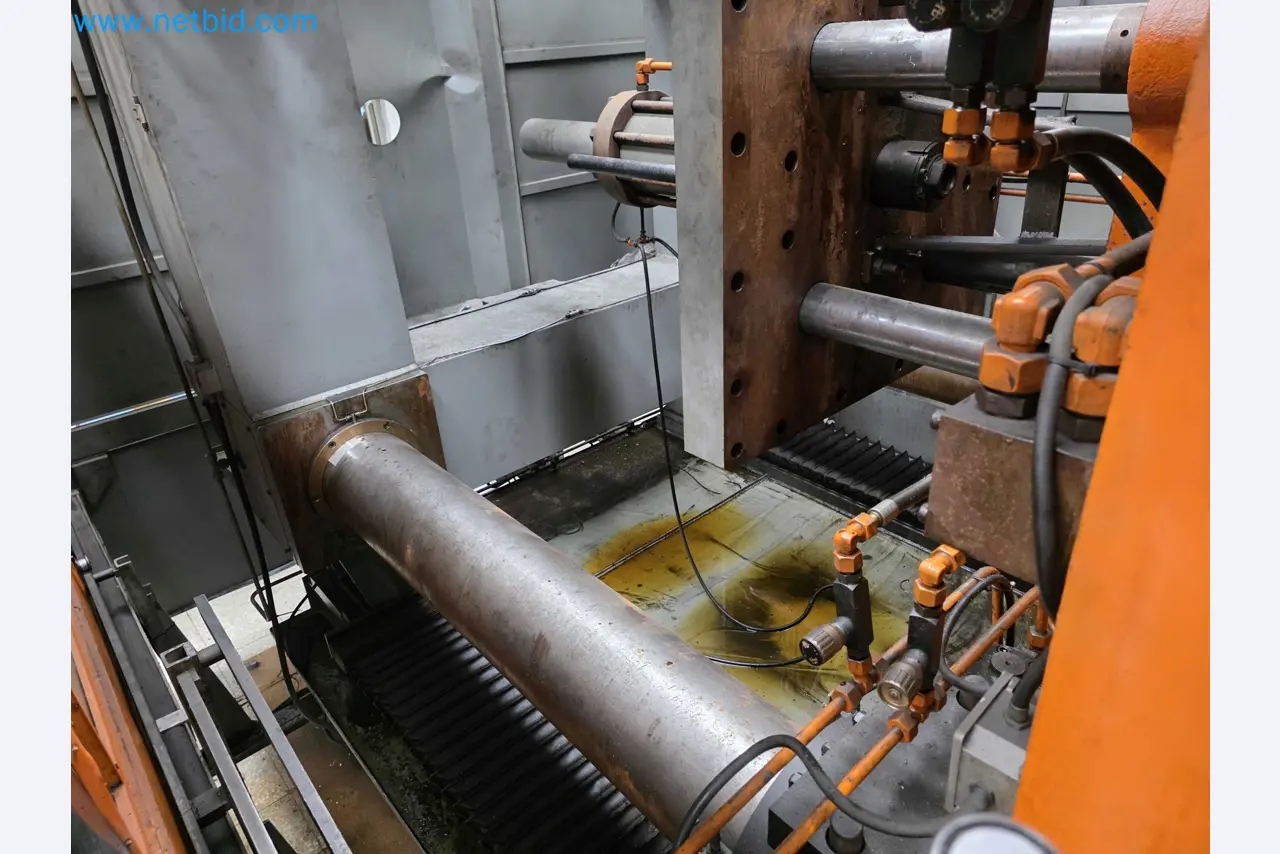

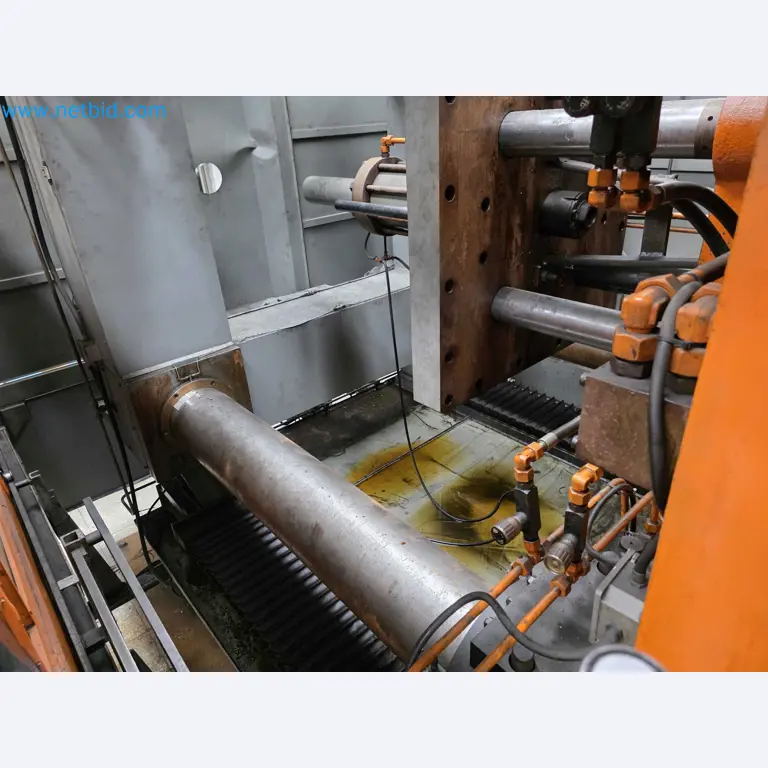

Tie-bar spacing: 1600 x 1350 mm
Tie-bar diameter: 285 mm
Ejection force: 230 kN
Ejector stroke: 400 mm

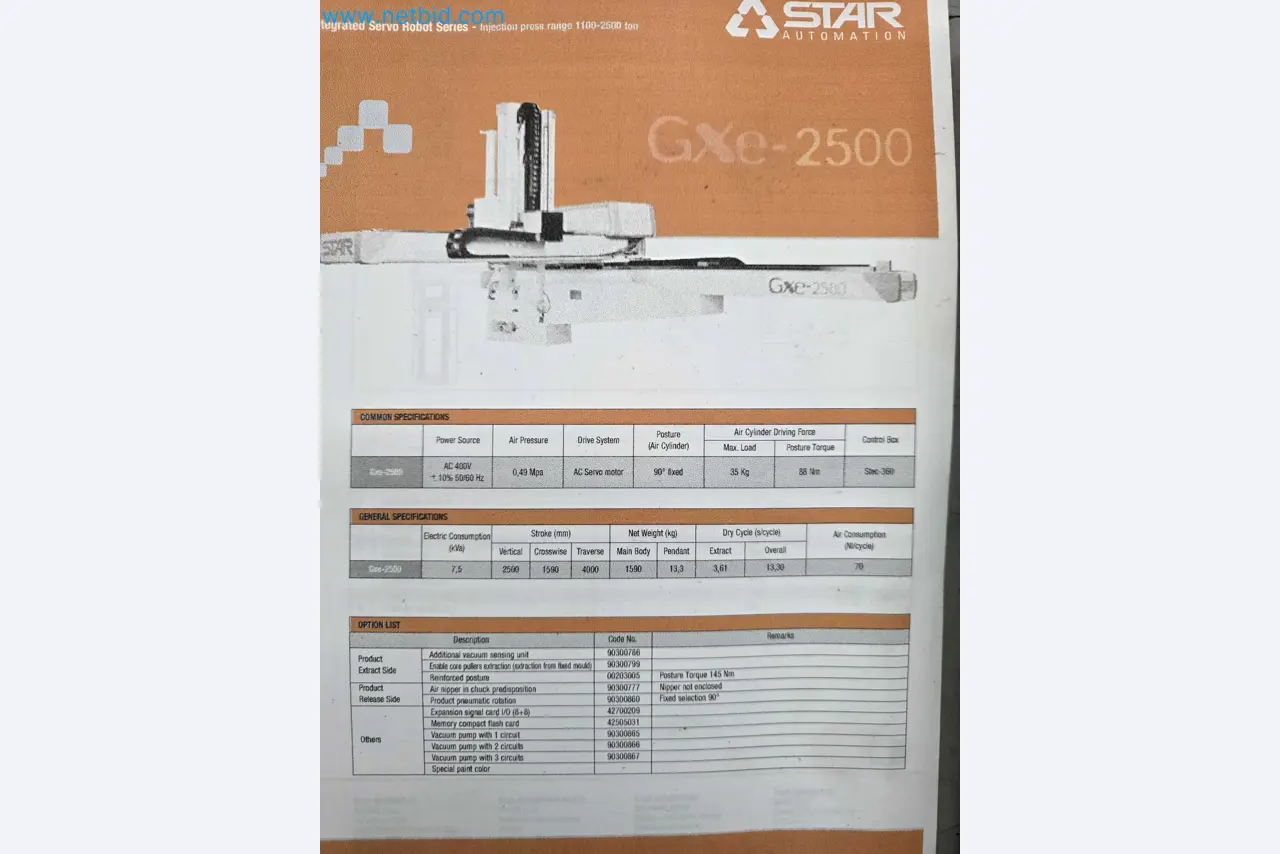

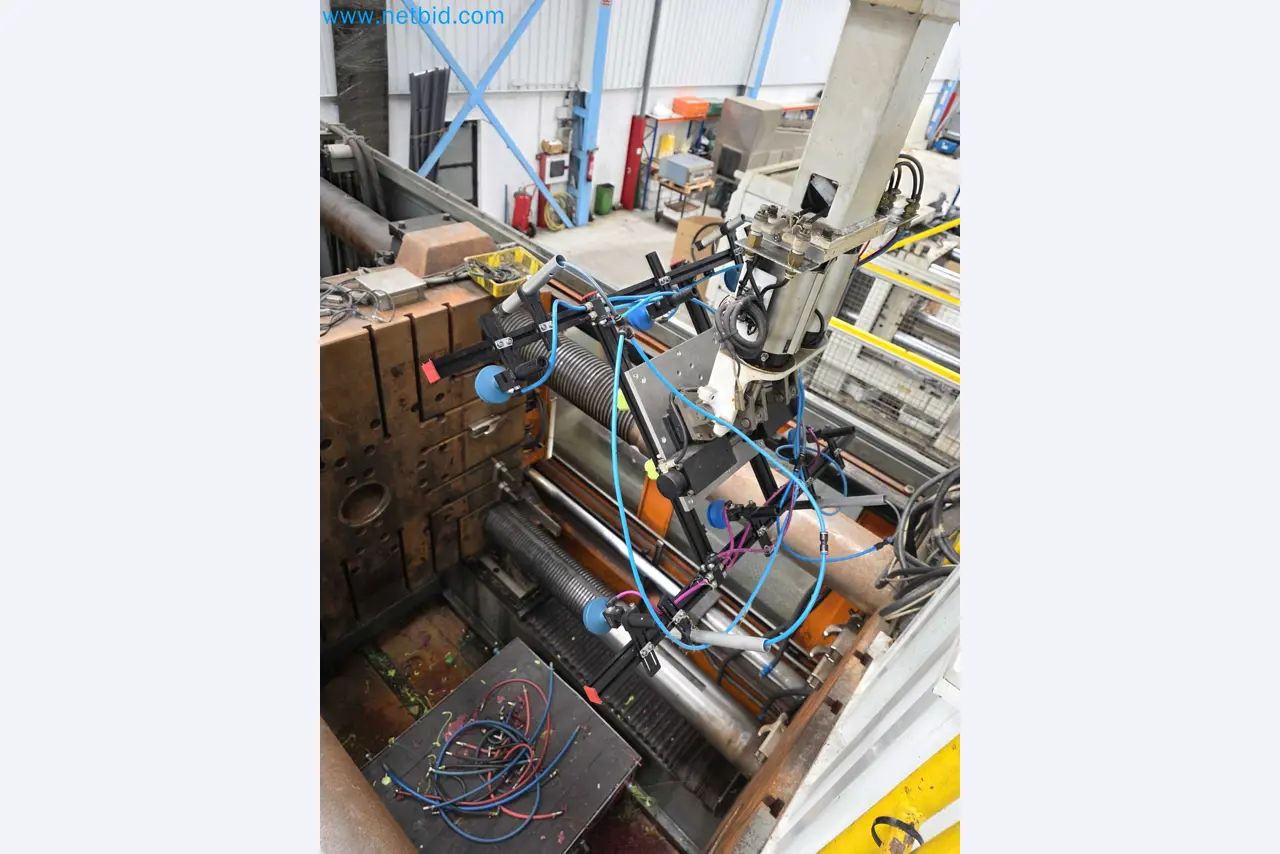

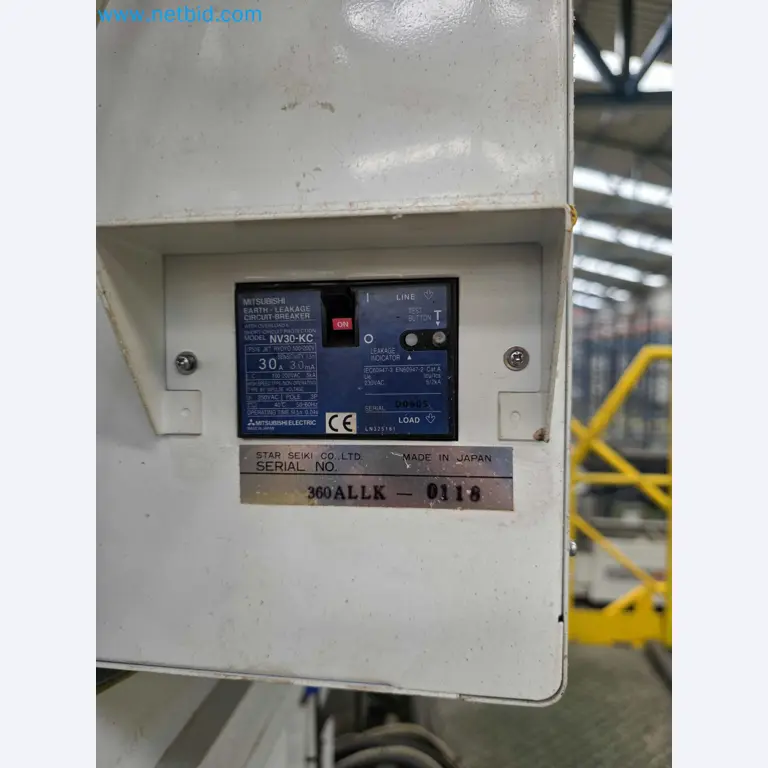

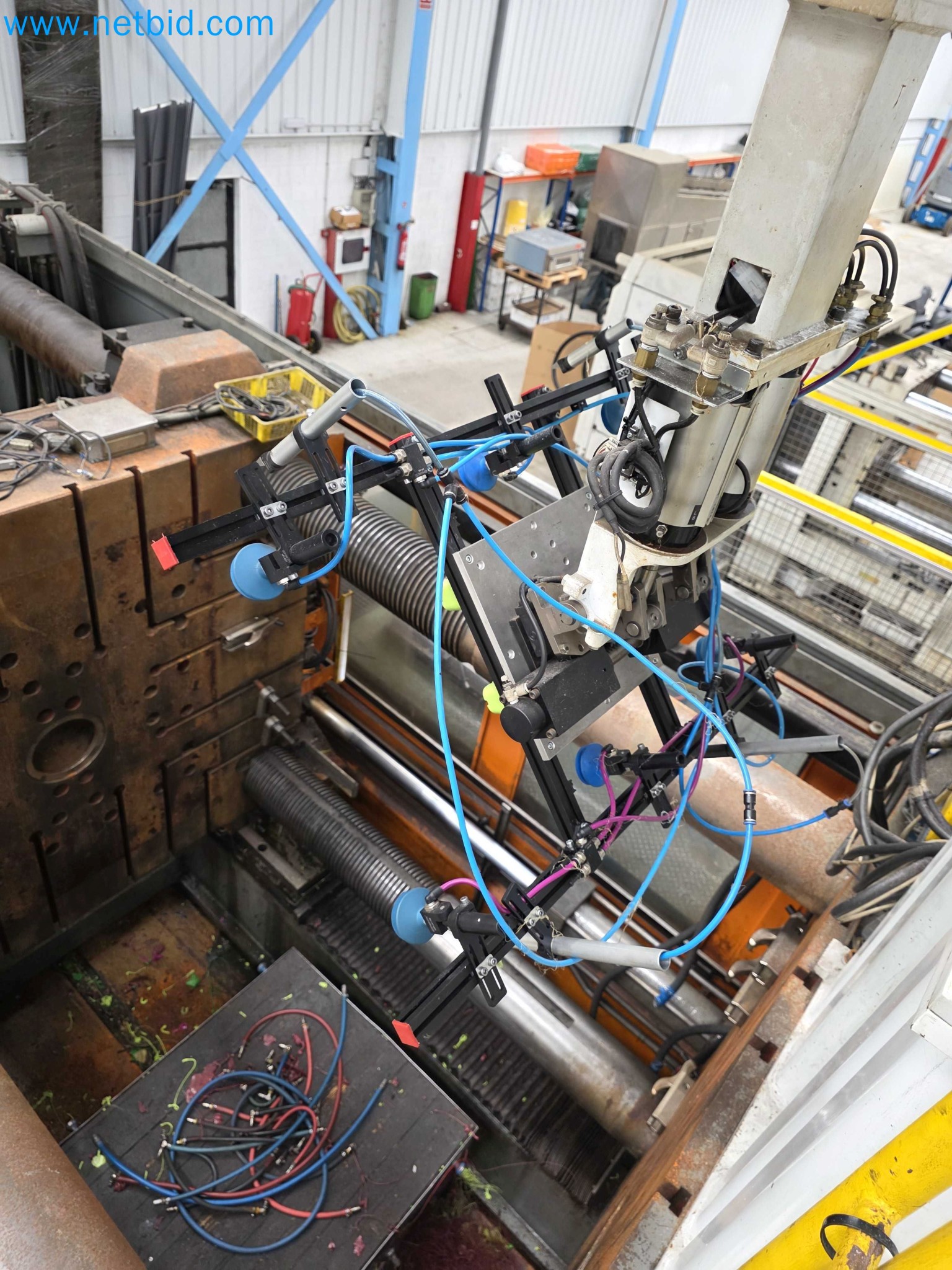

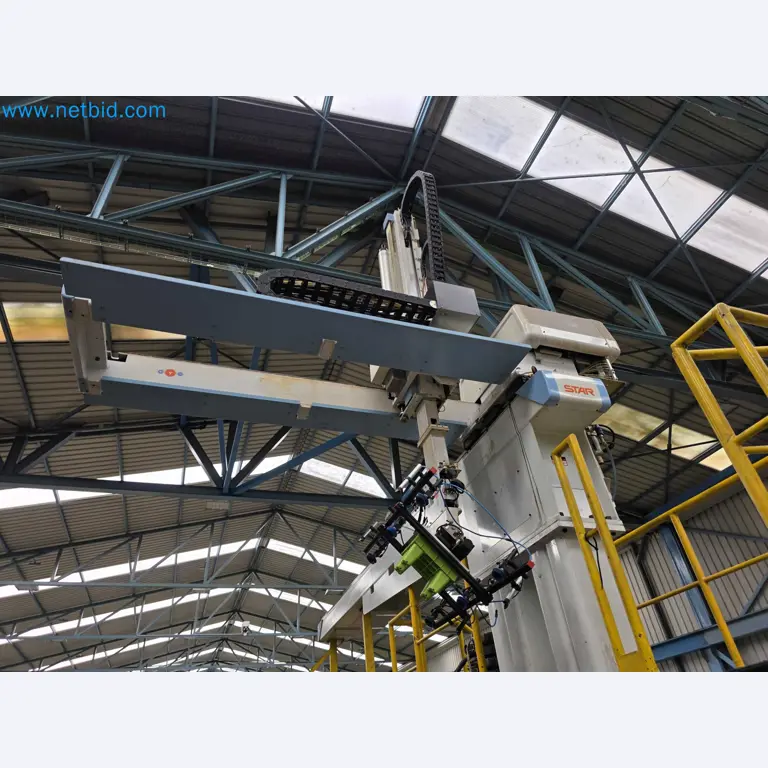

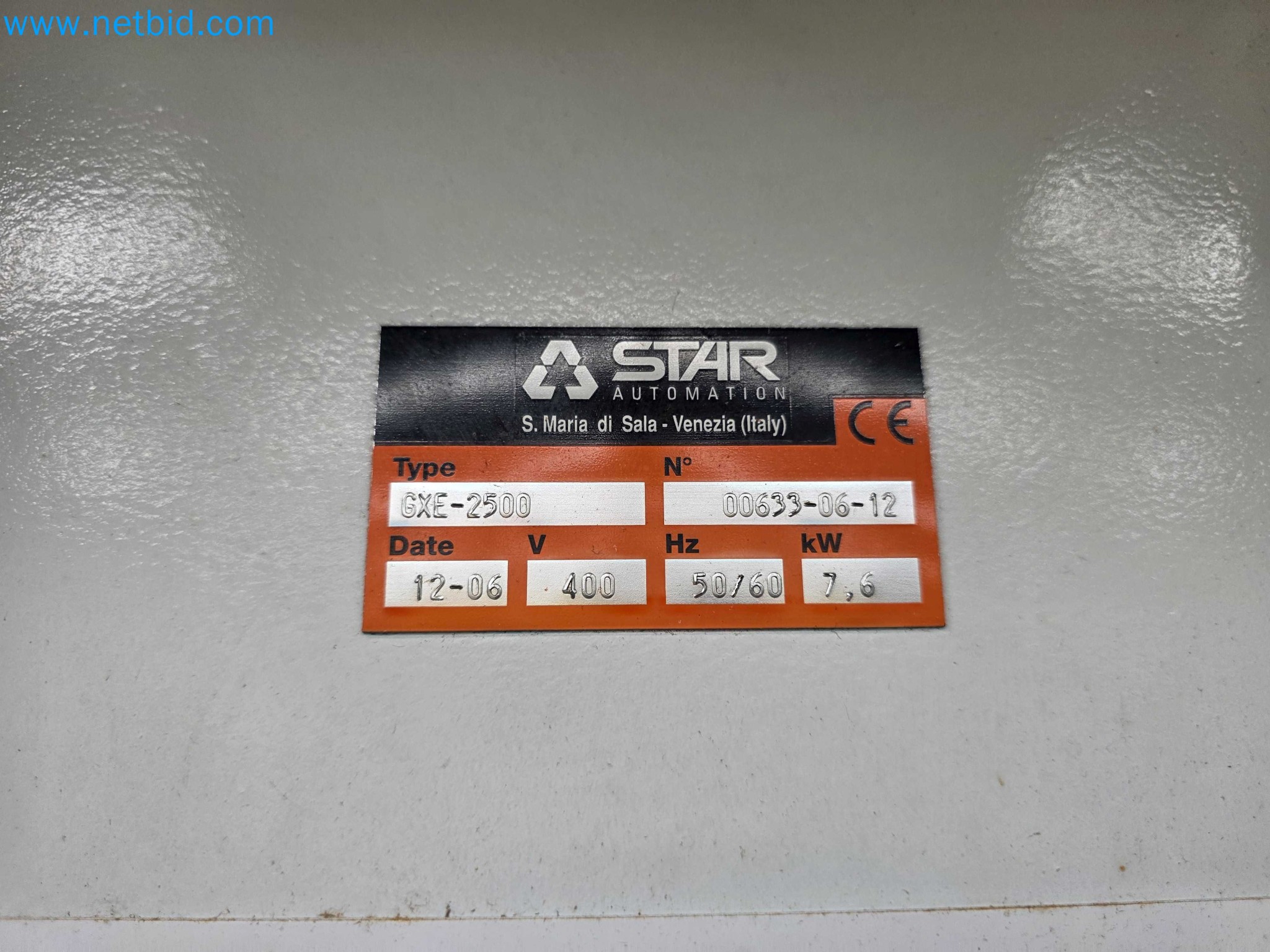

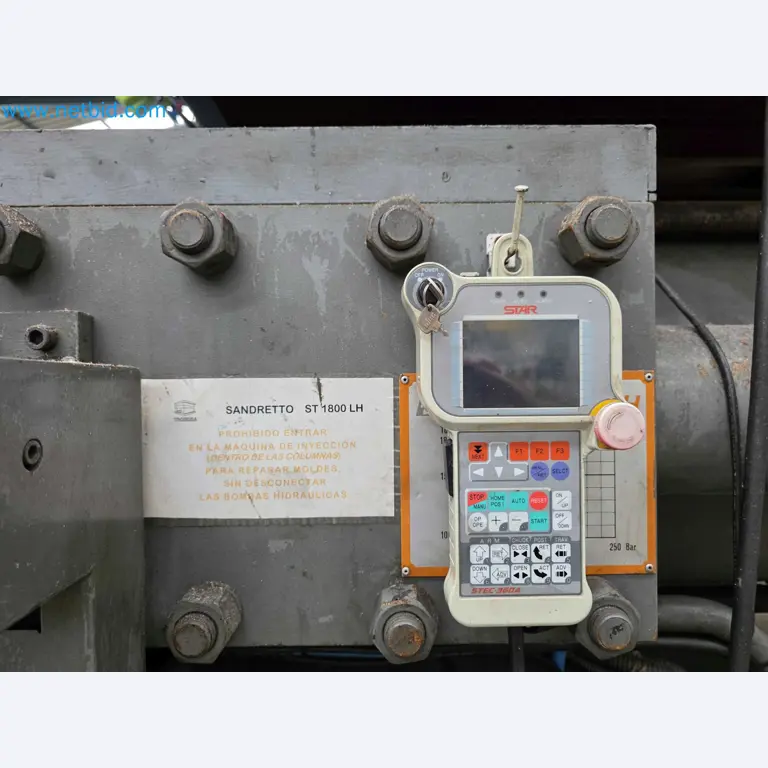

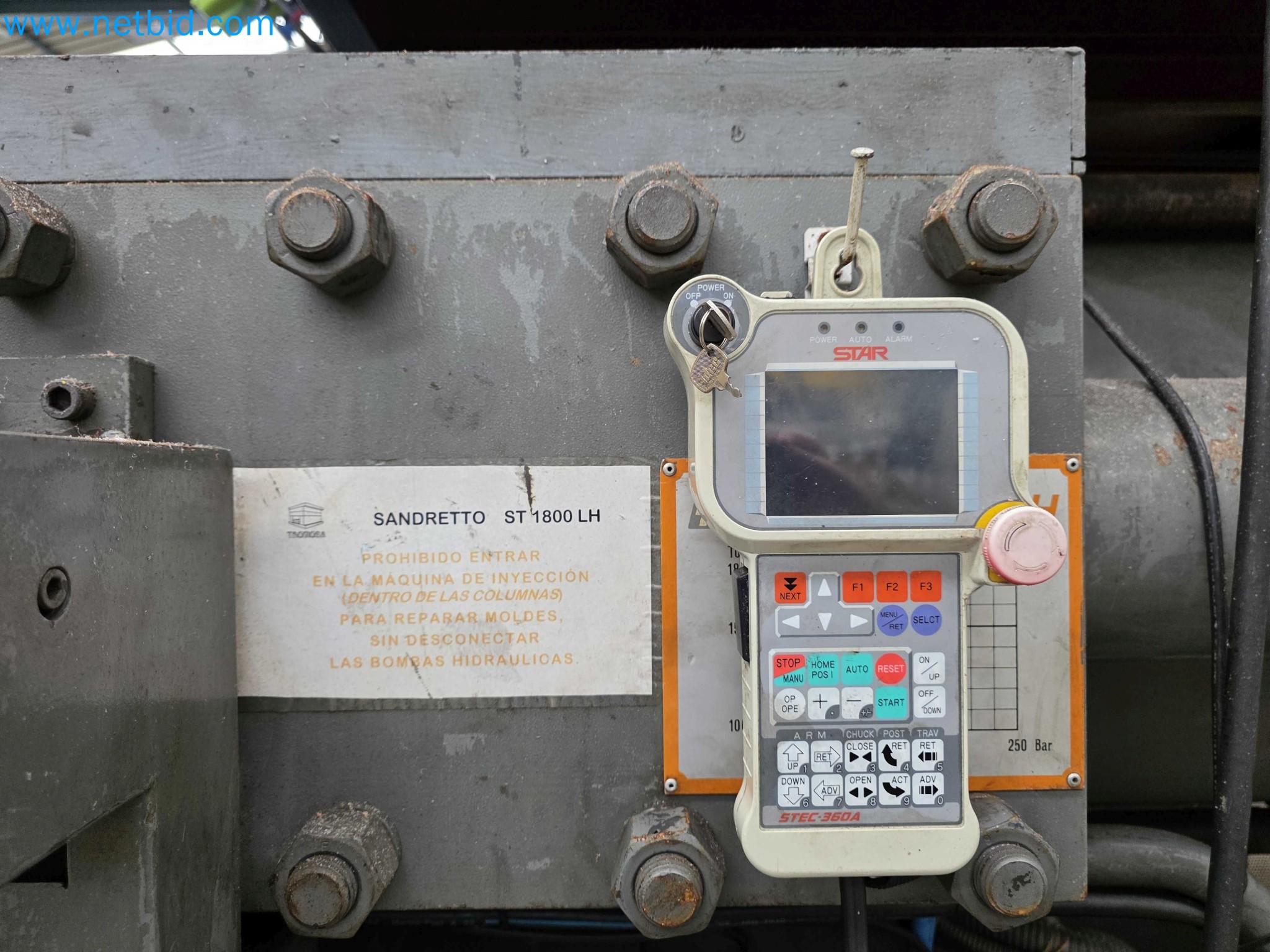

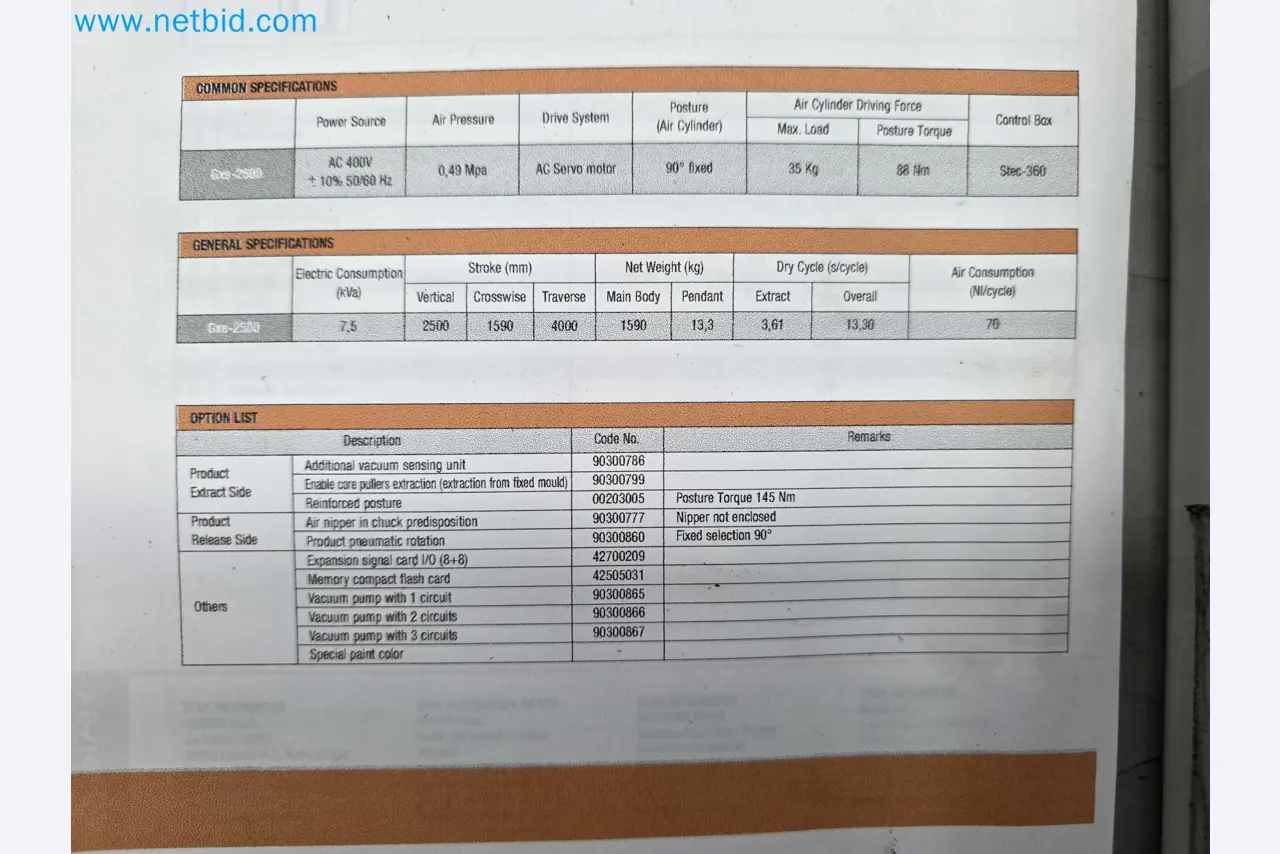

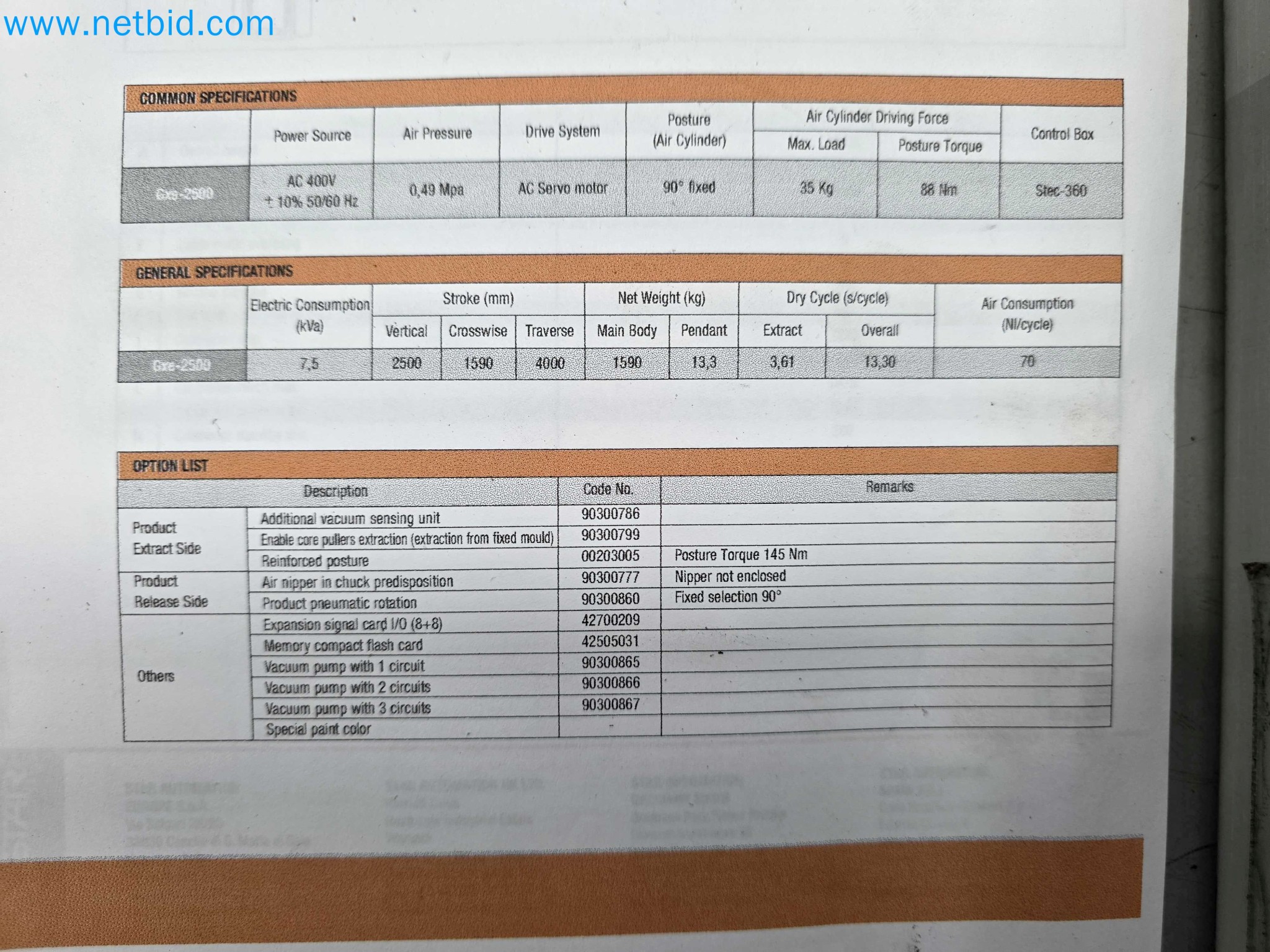

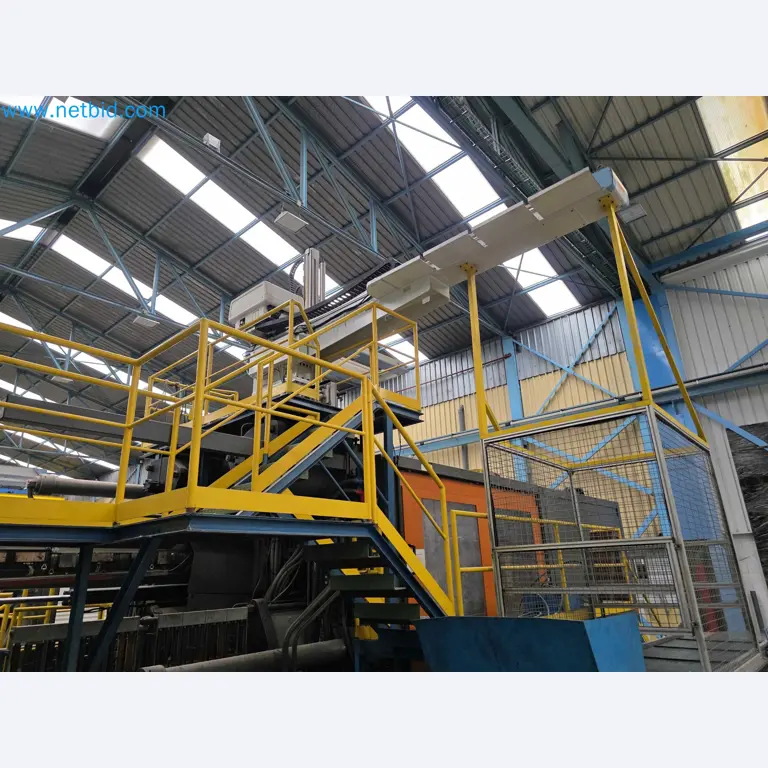

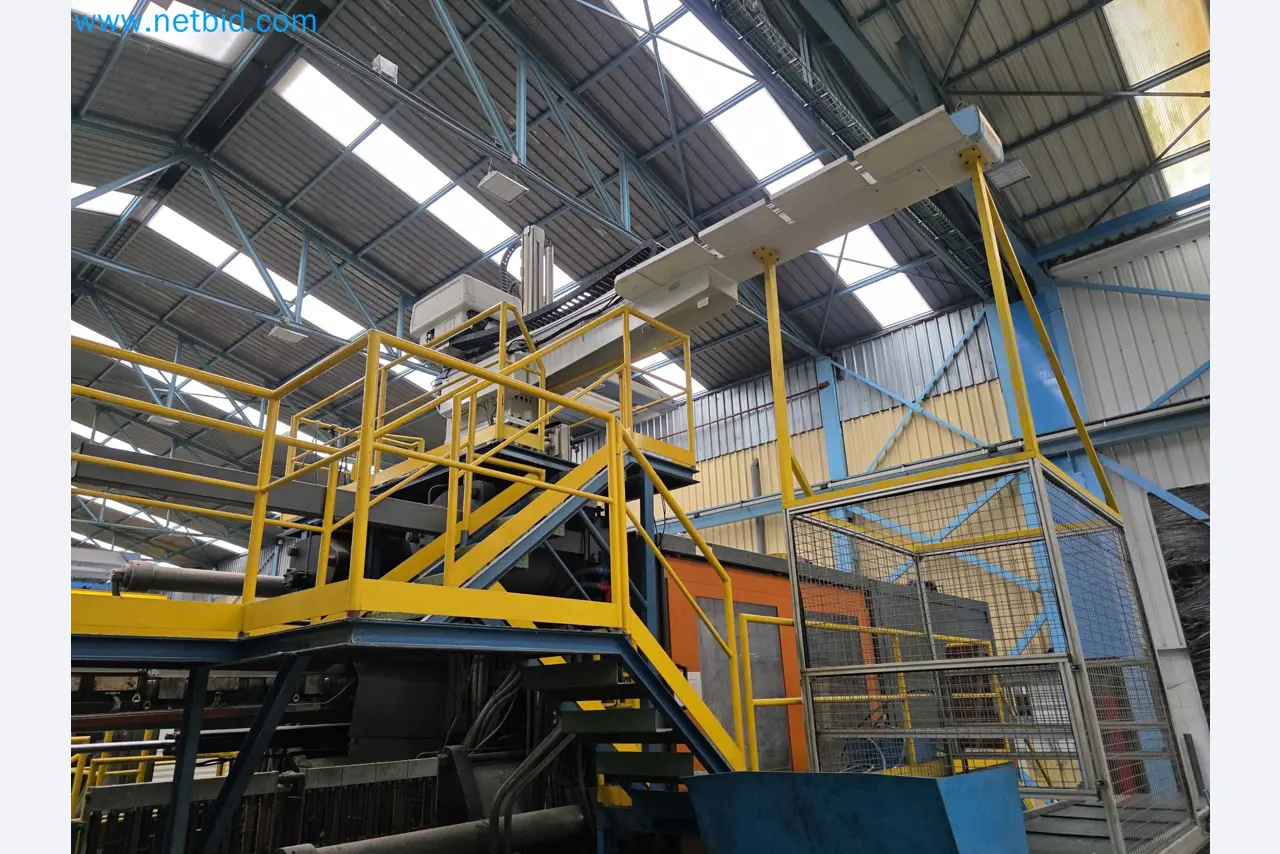

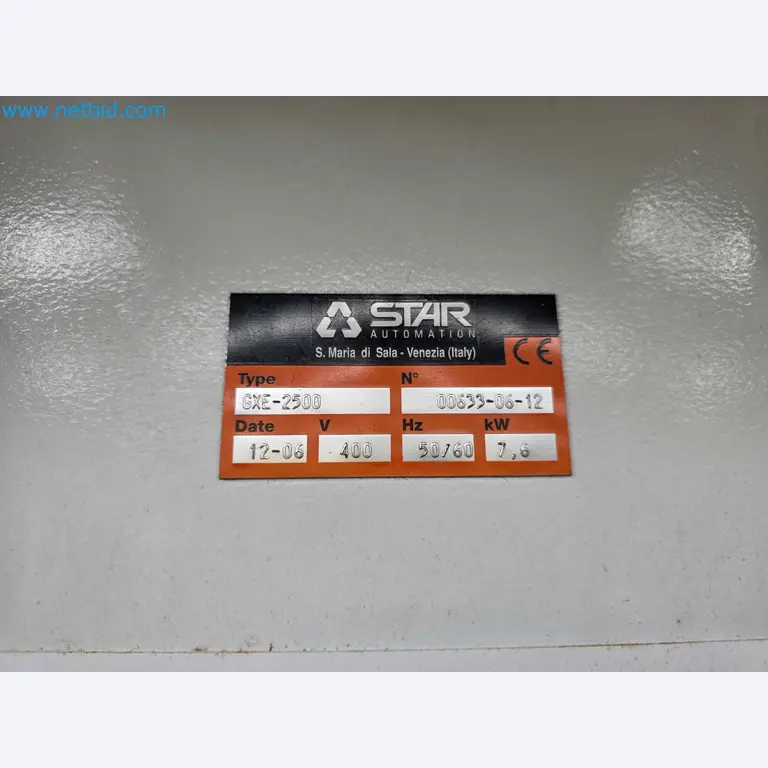

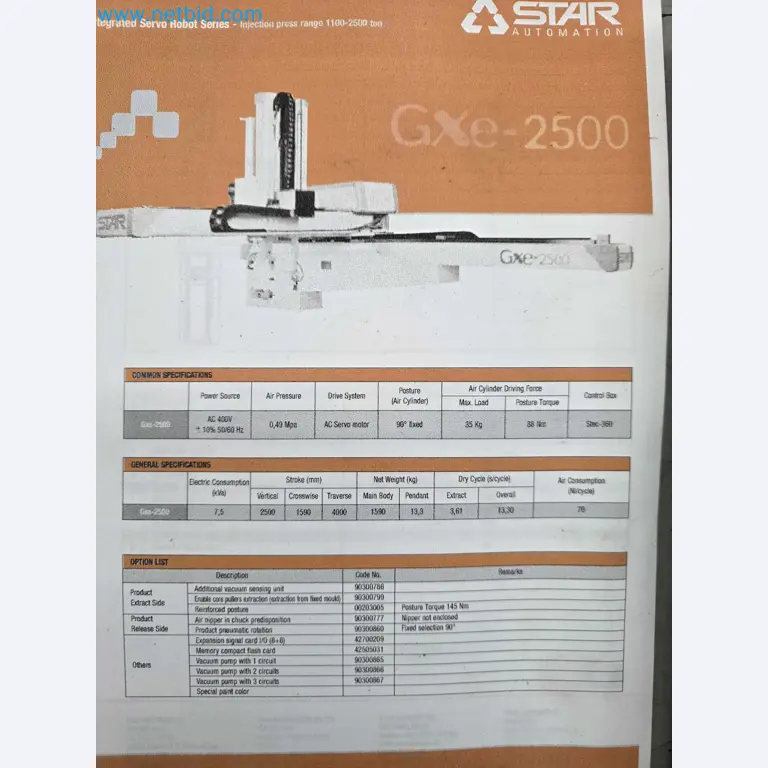

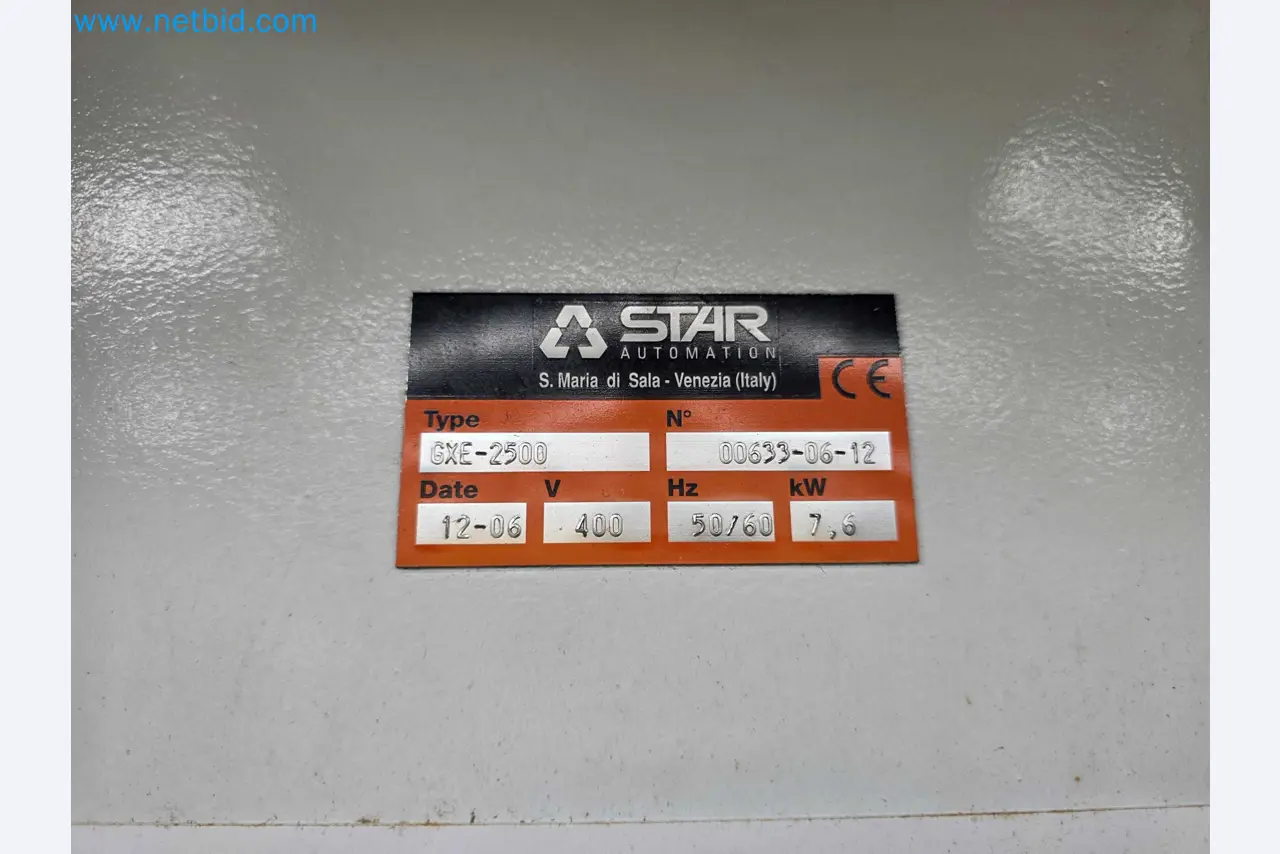

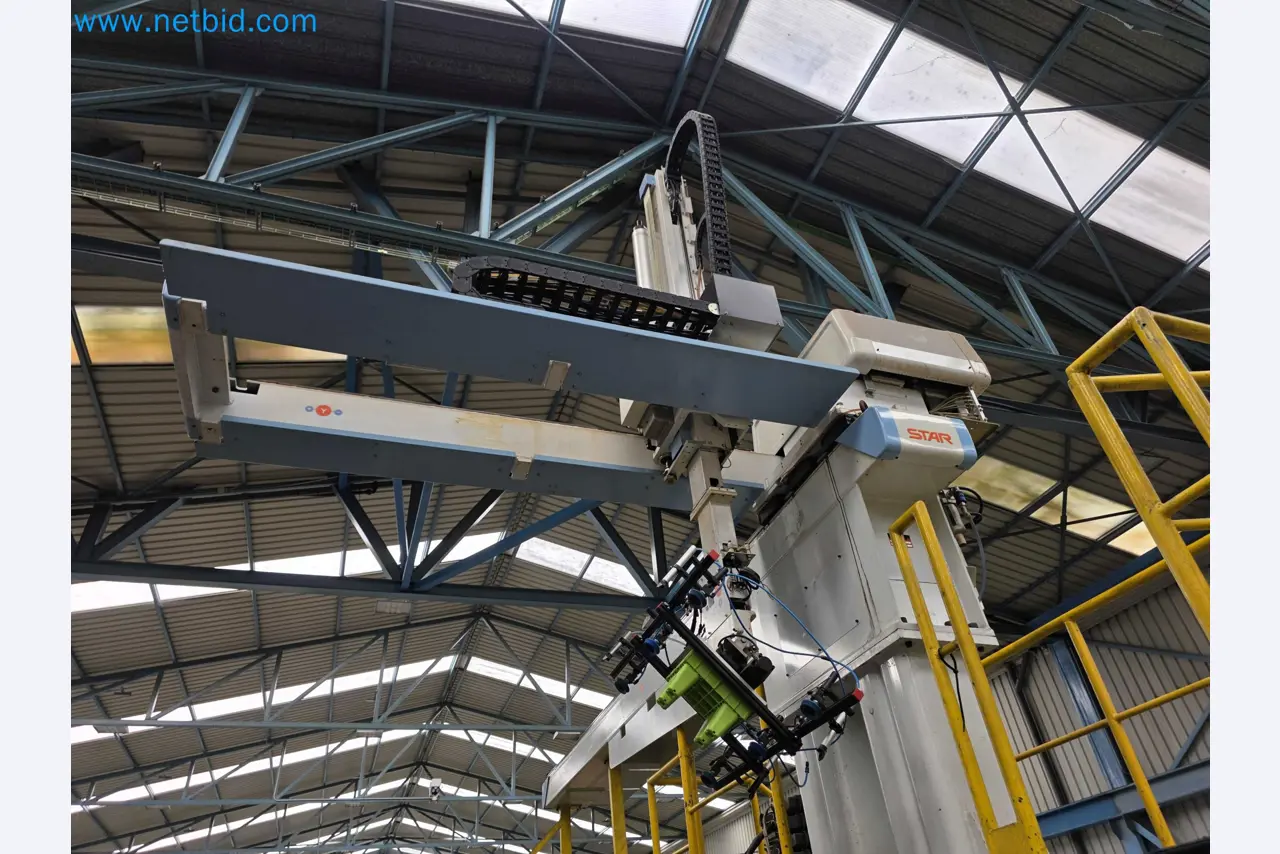

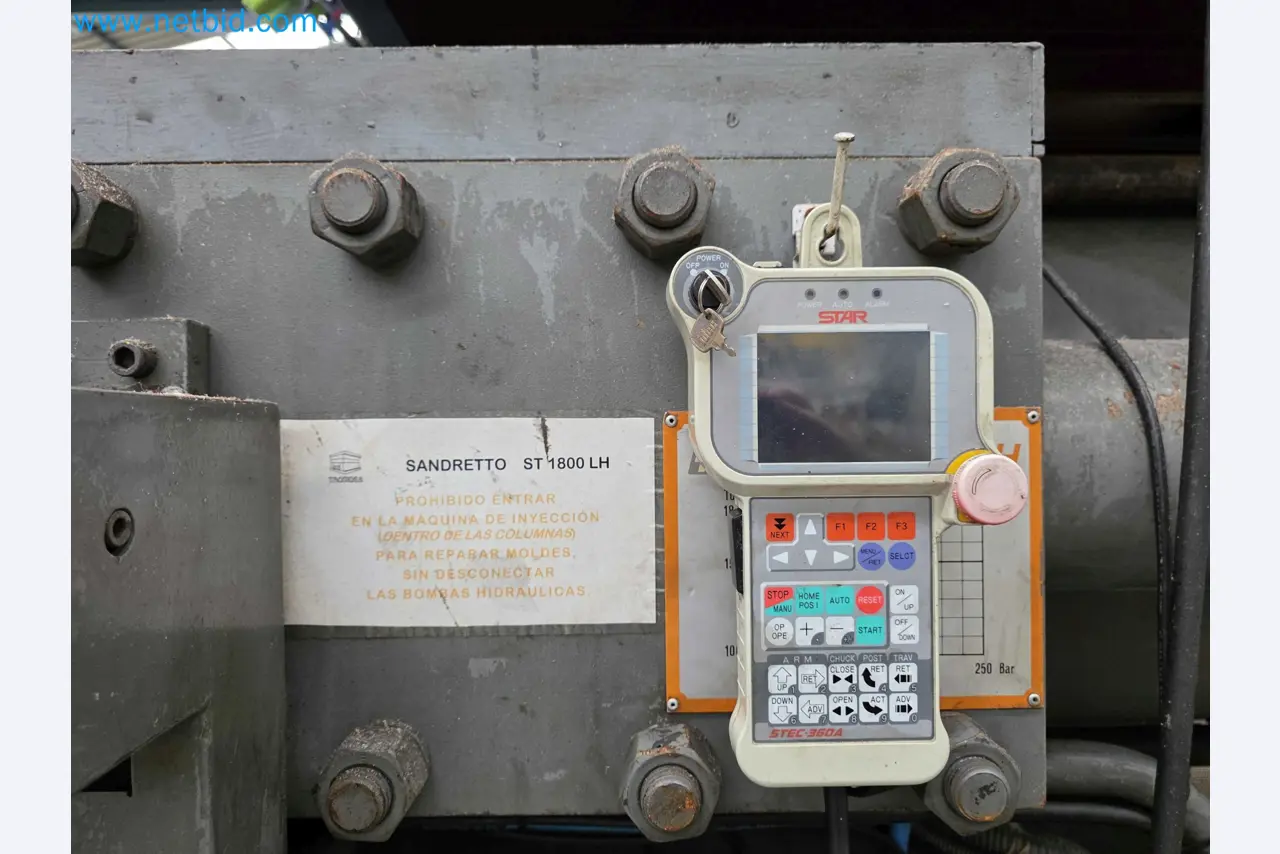

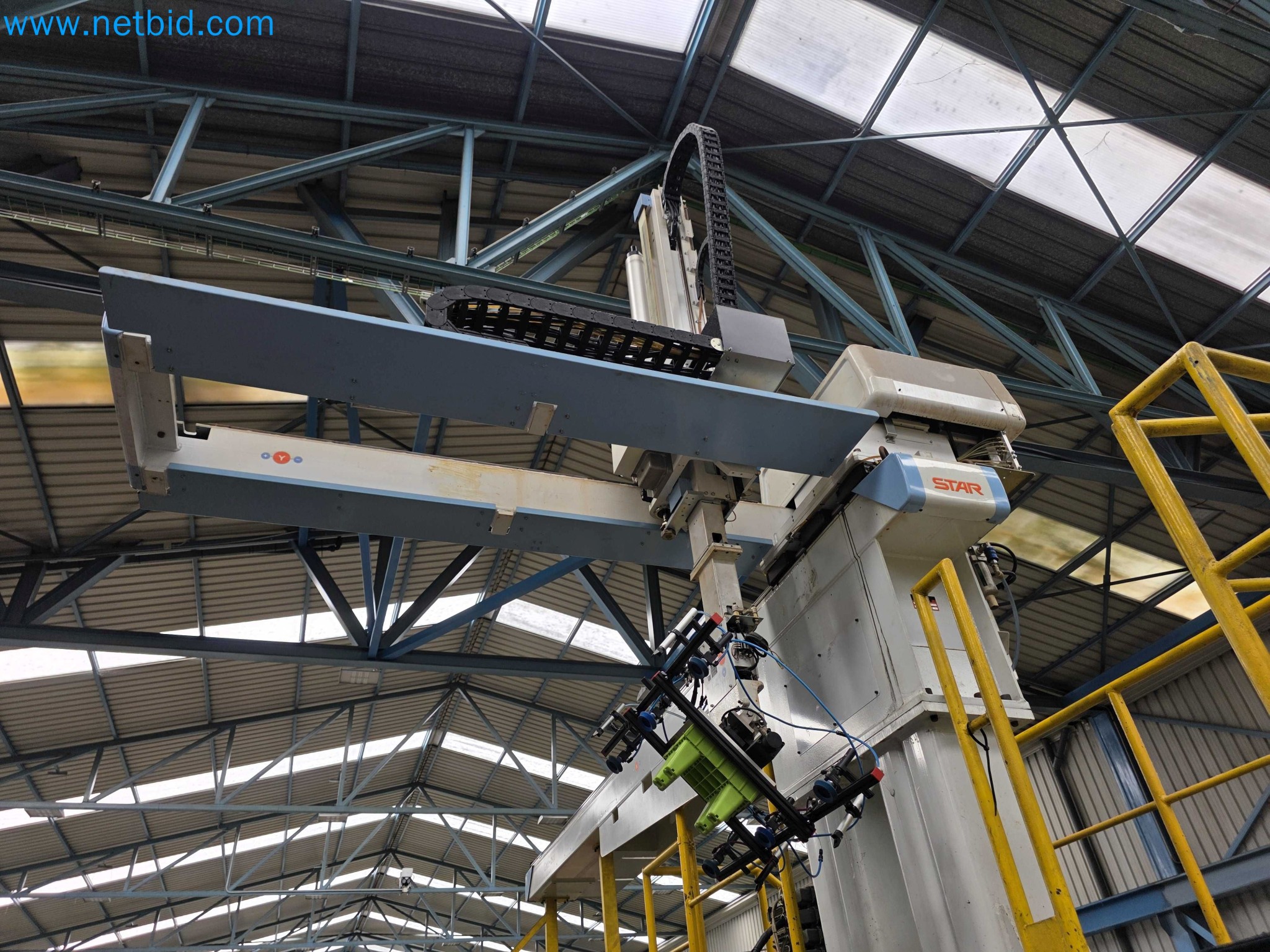

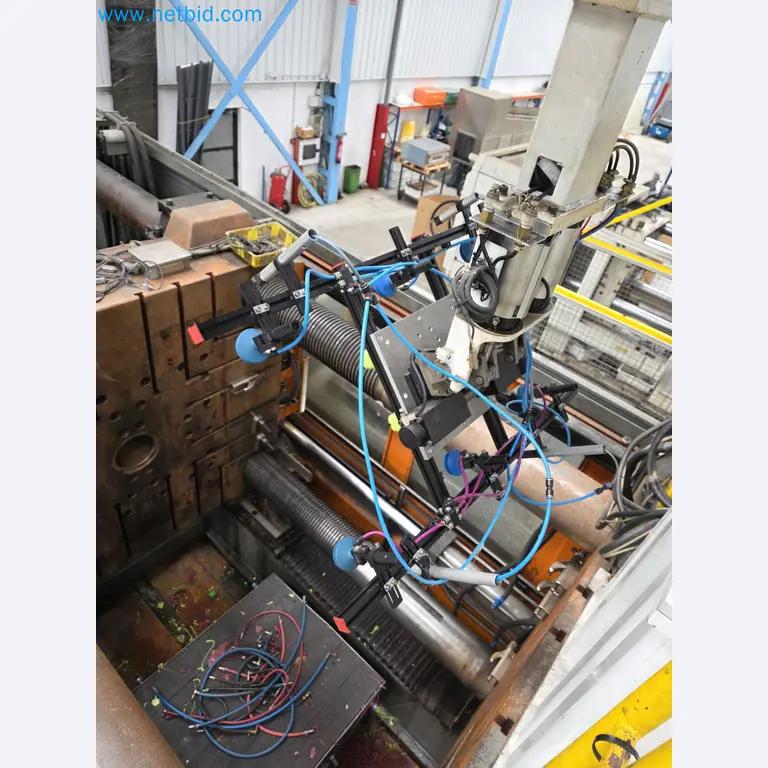

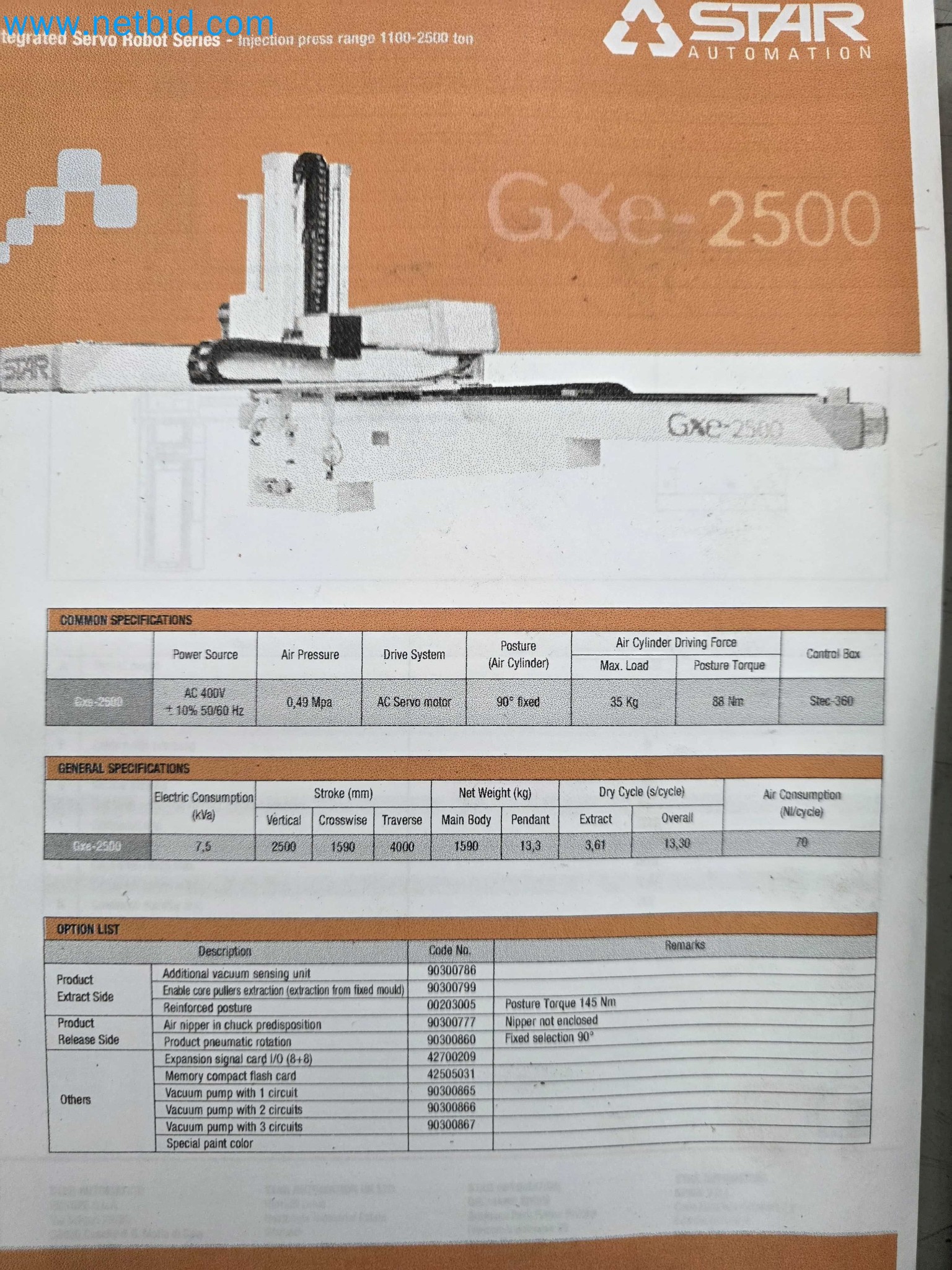

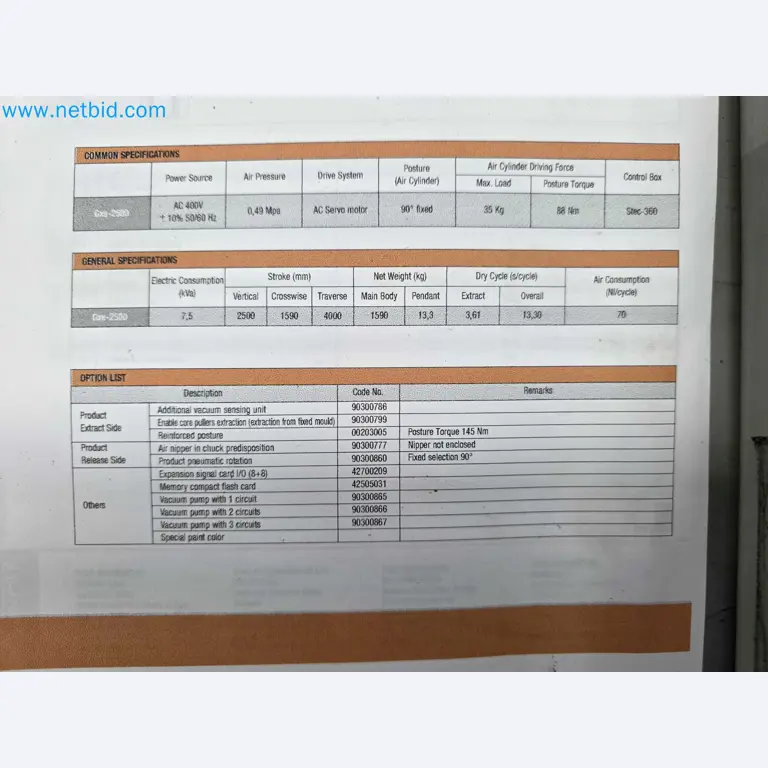

Includes STAR GXE-2500 robot
SN: 00633-06-12
Vertical travel: 1800 mm
Longitudinal travel: 1415 mm
Transverse travel: 3000 mm
Maximum load capacity: 35 kg
Power: 7.6 kW
Approximate weight: 120,000 kg
Screw diameter: 155 mm
Calculated injection volume: 11,880 cm³
Useful screw length: 21 L/D
Maximum injection rate: 1640 cm³/s
Plasticizing capacity: 680 kg/h
Pressure on material: 1325 bar
Screw hydraulic motor power: 250 HP
Injection unit stroke: 1000 mm
Temperature-controlled zones: 6
Total heating power: 108 kW
Mould clamping force: 18,000 kN
Mould thickness (min/max): 800–1550 mm
Moving platen stroke: 2100 mm
Platen dimensions: 2300 x 2100 mm
Tie-bar spacing: 1600 x 1350 mm
Tie-bar diameter: 285 mm
Ejection force: 230 kN
Ejector stroke: 400 mm
Includes STAR GXE-2500 robot
SN: 00633-06-12
Vertical travel: 1800 mm
Longitudinal travel: 1415 mm
Transverse travel: 3000 mm
Maximum load capacity: 35 kg
Power: 7.6 kW
Approximate weight: 120,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
Oct. 14, 2026 – Oct. 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández: fernandez@netbid.com.
Pickup
In consultation with Mr. Fernández: fernandez@netbid.com.
Auction Terms
Special conditions:
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
