Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Plastic Injection machinery and accessories

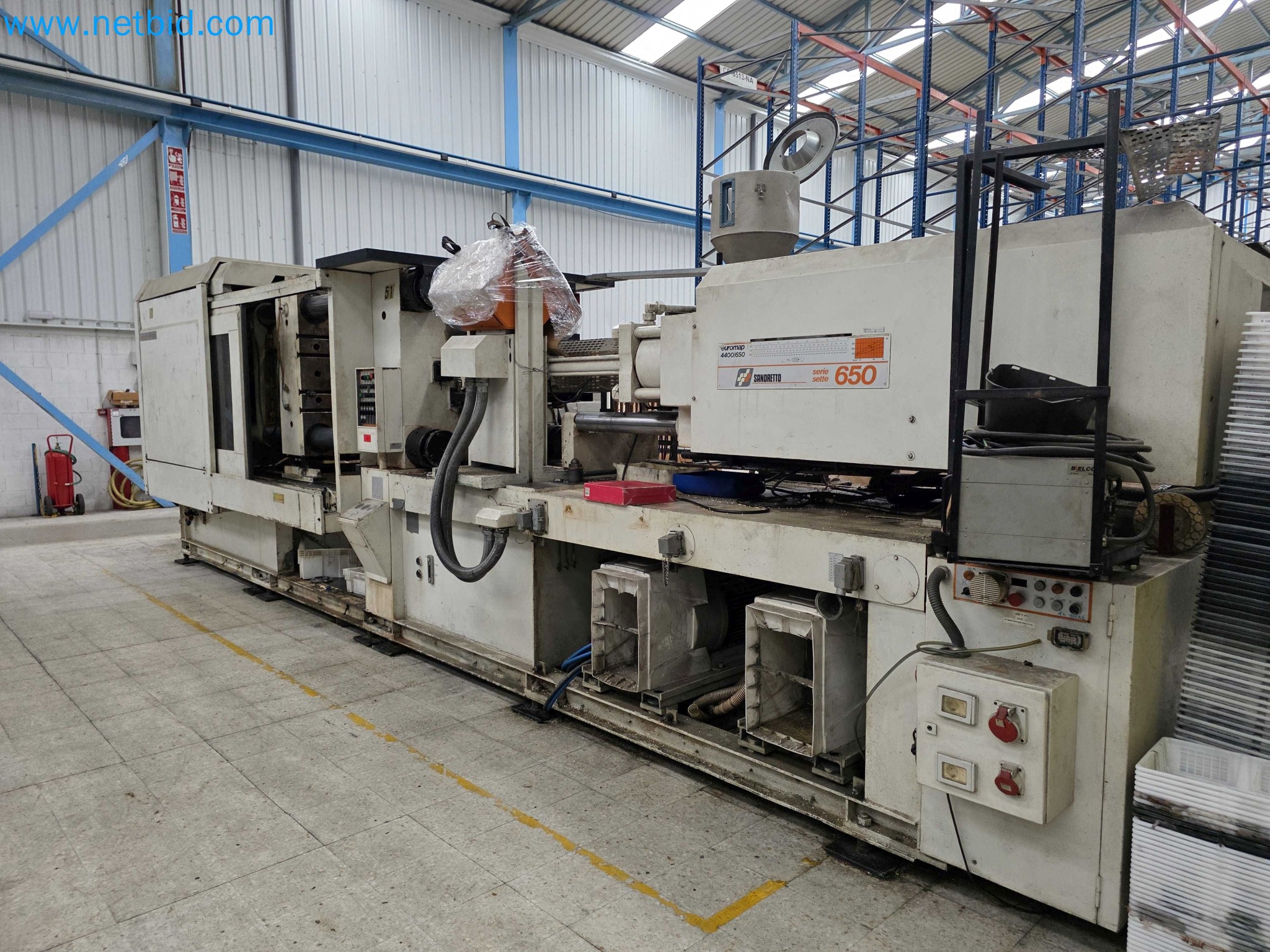

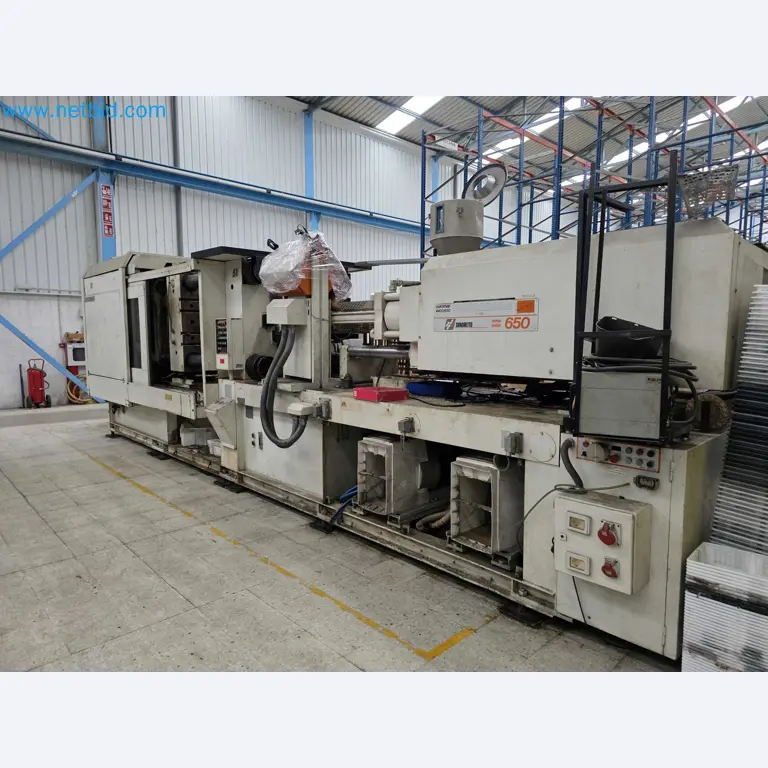

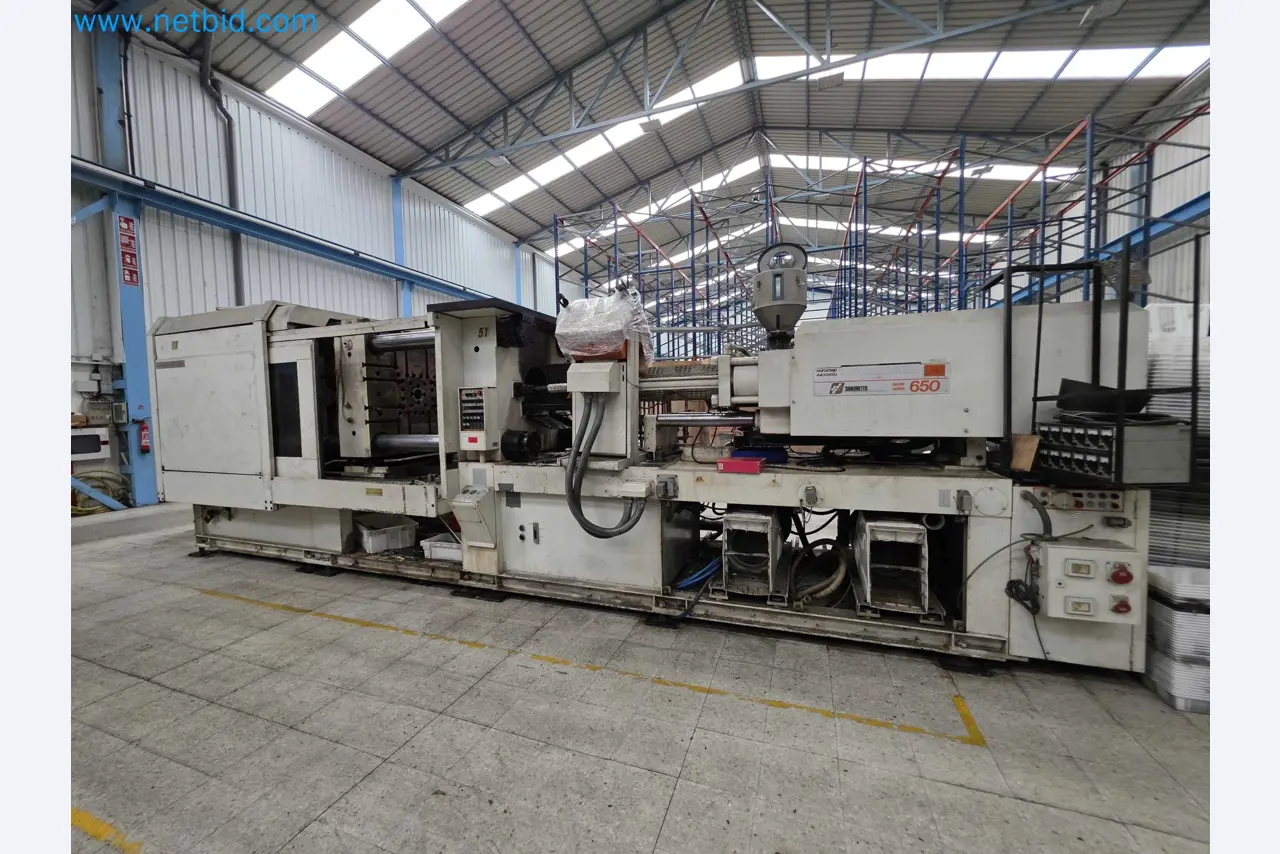

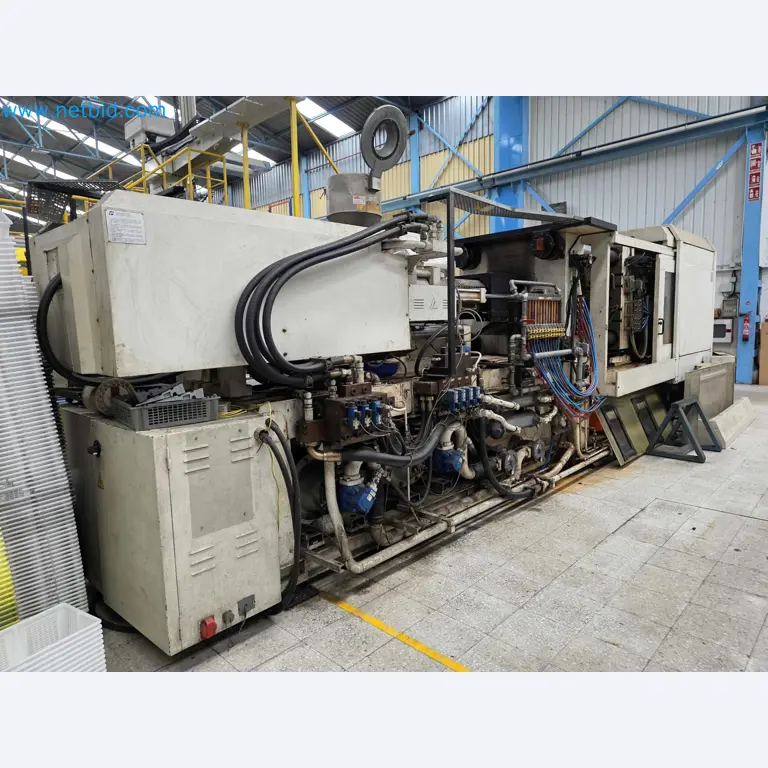

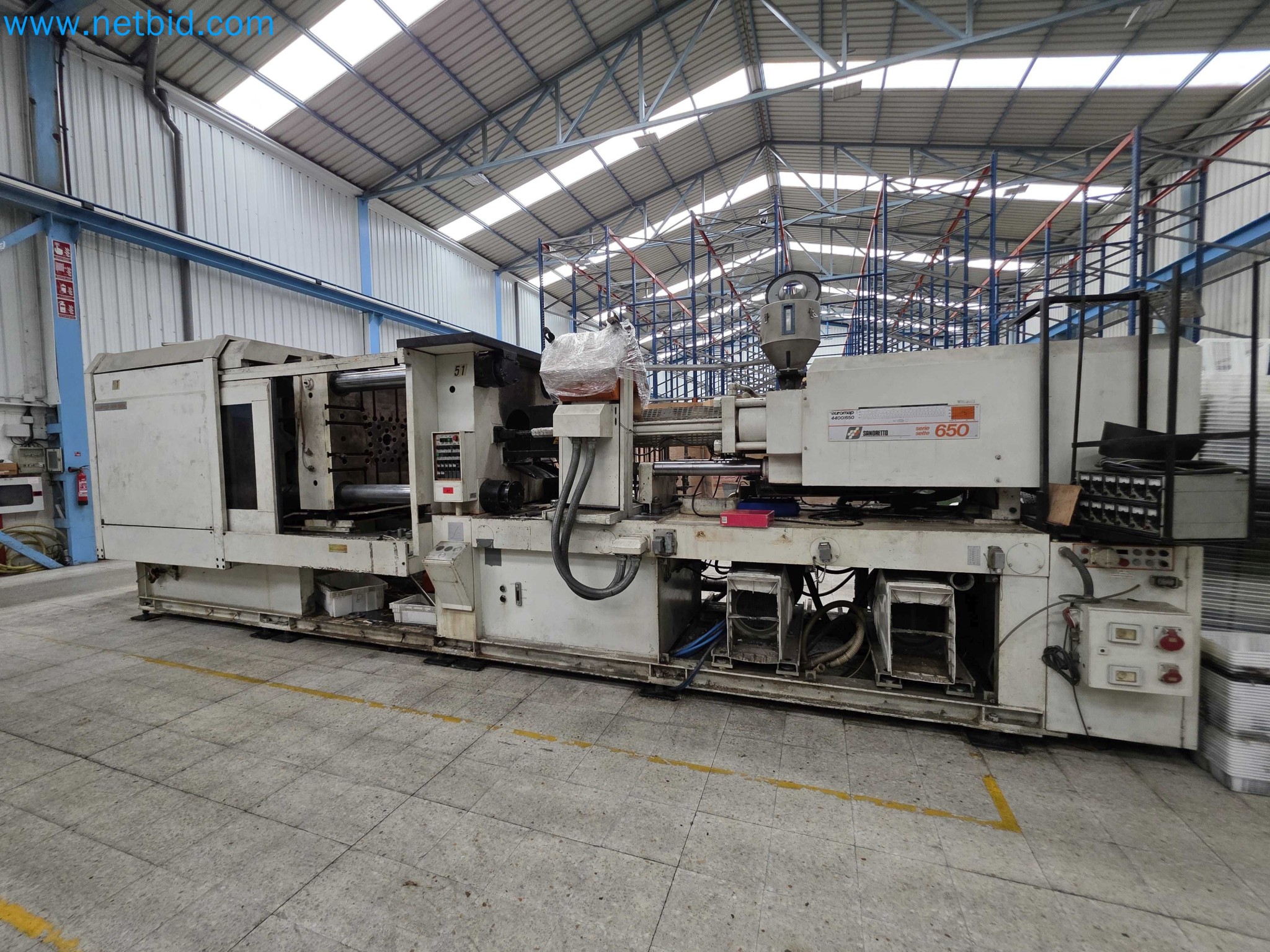

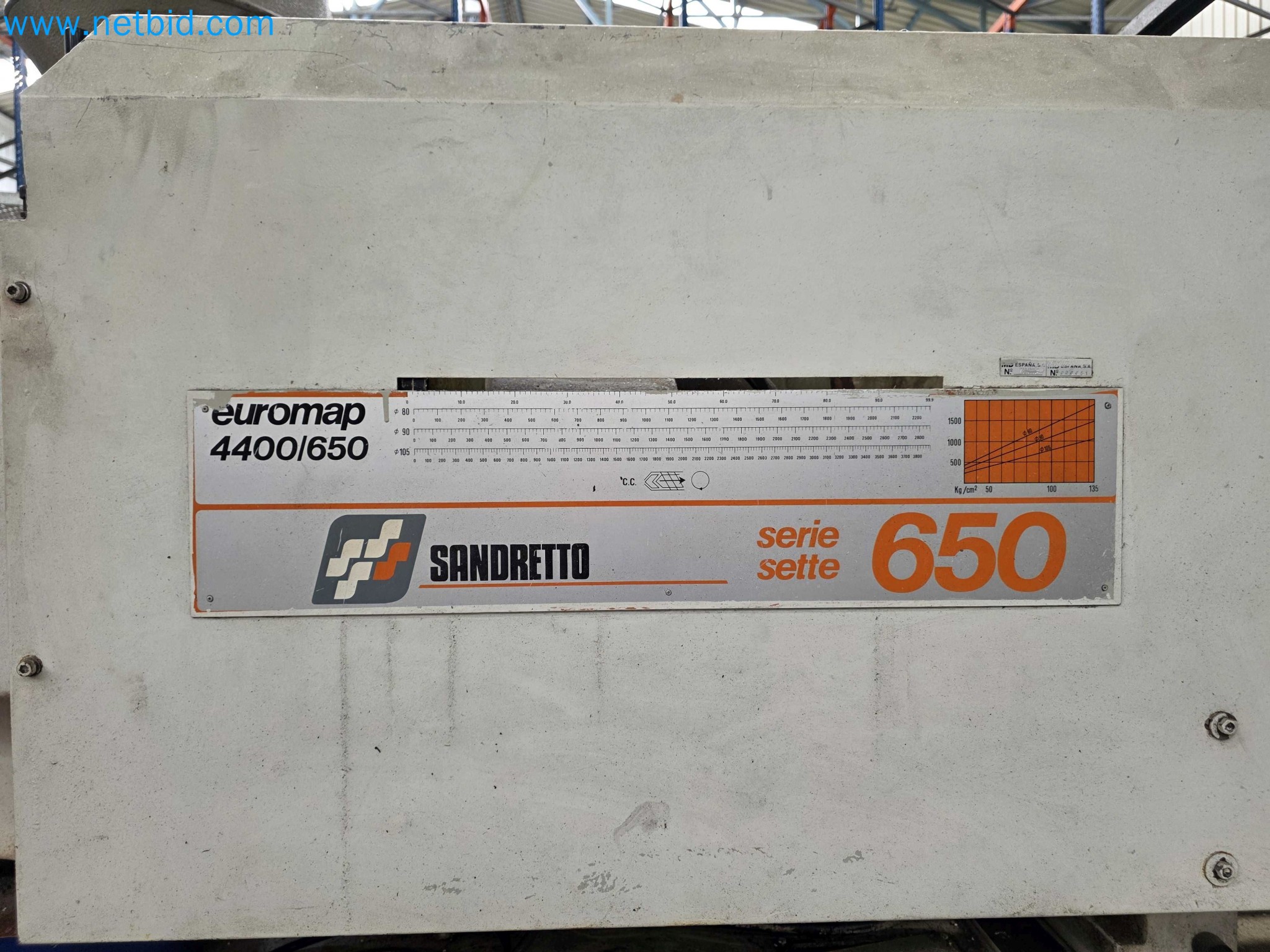

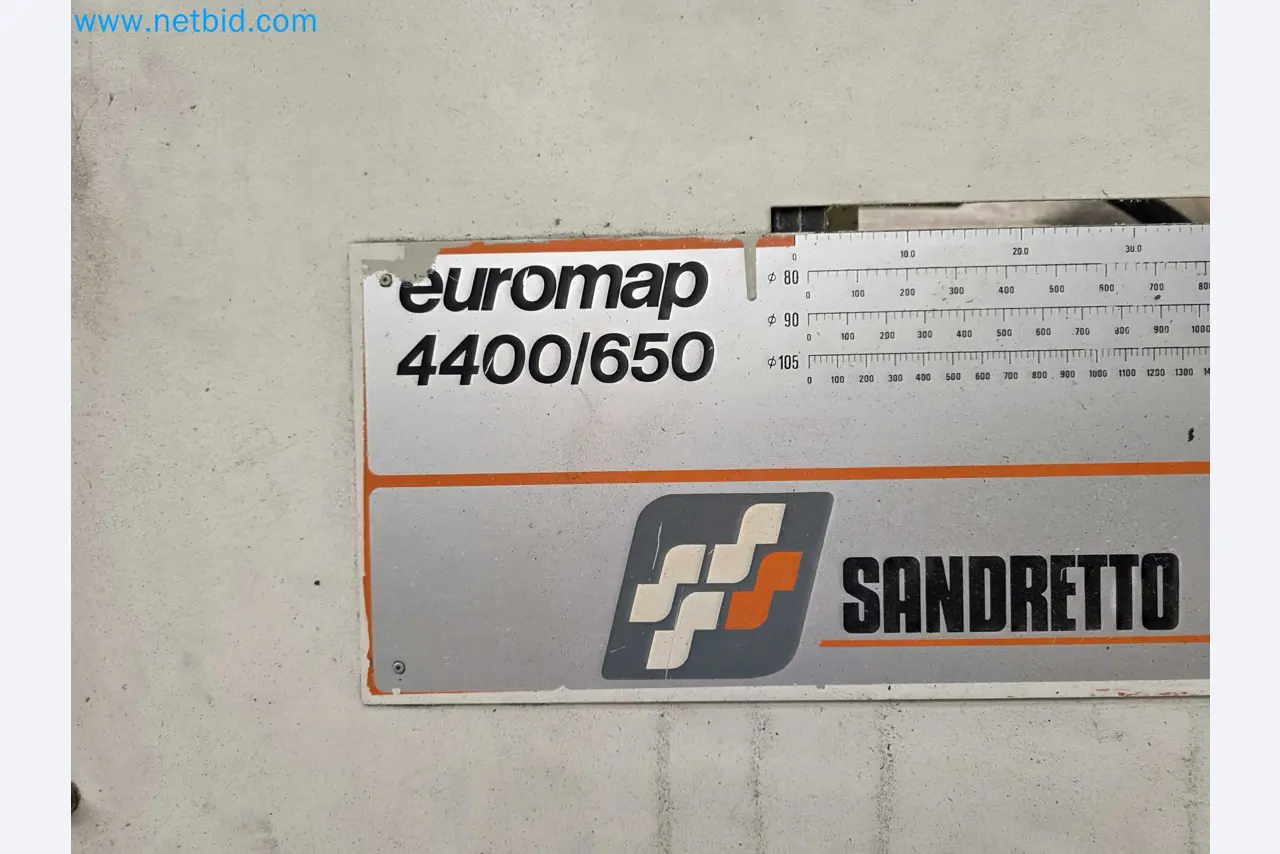

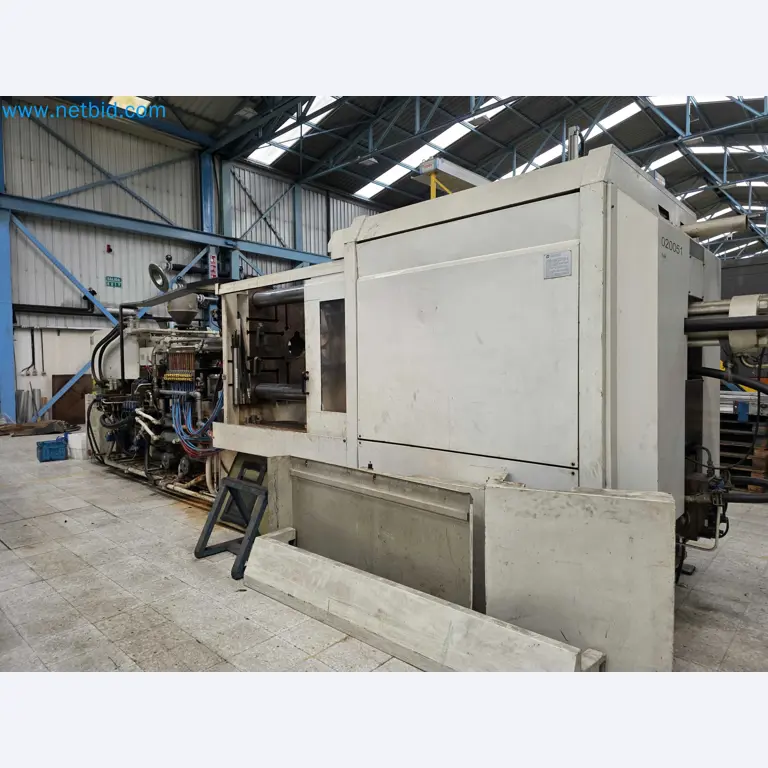

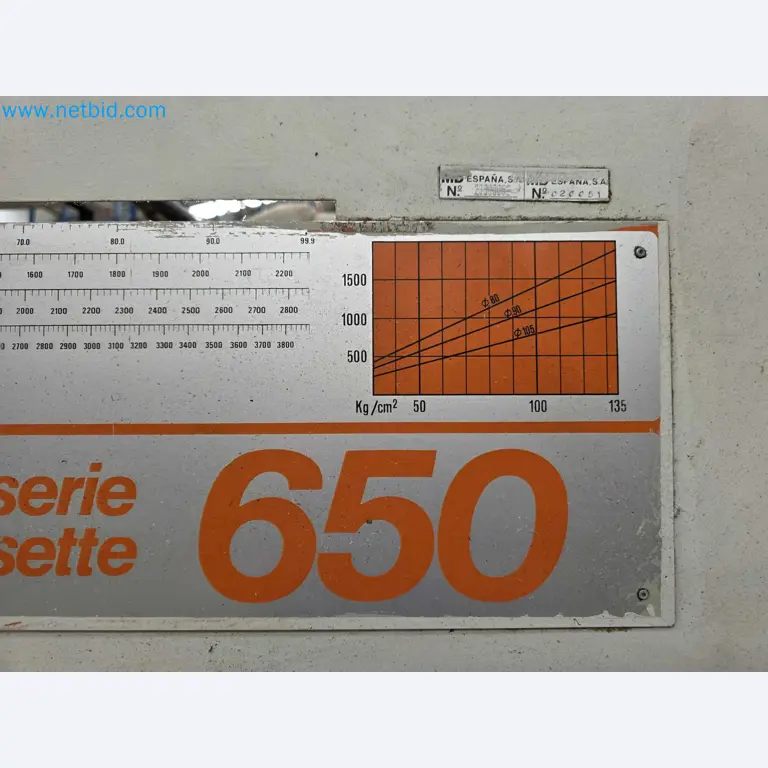

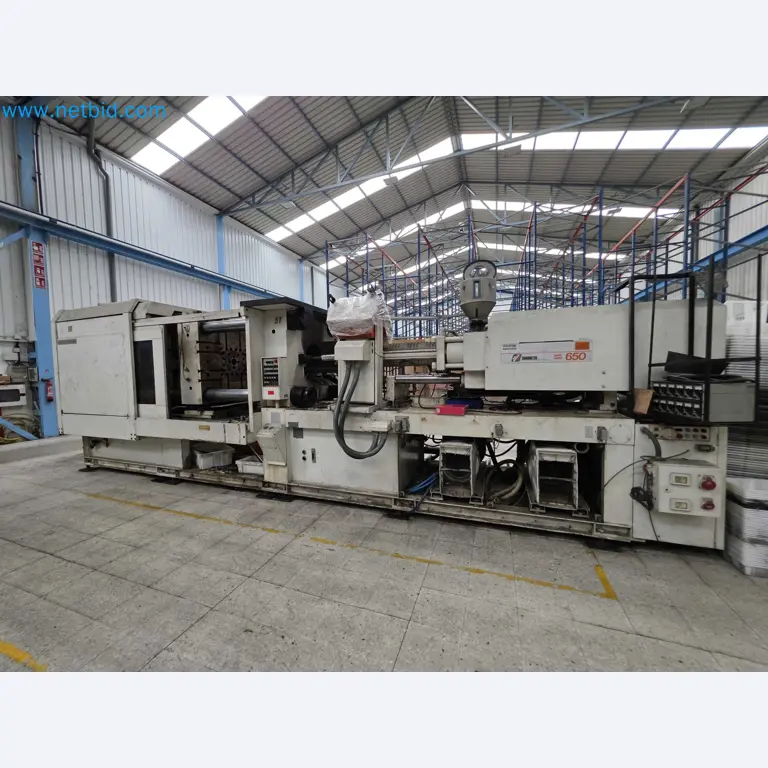

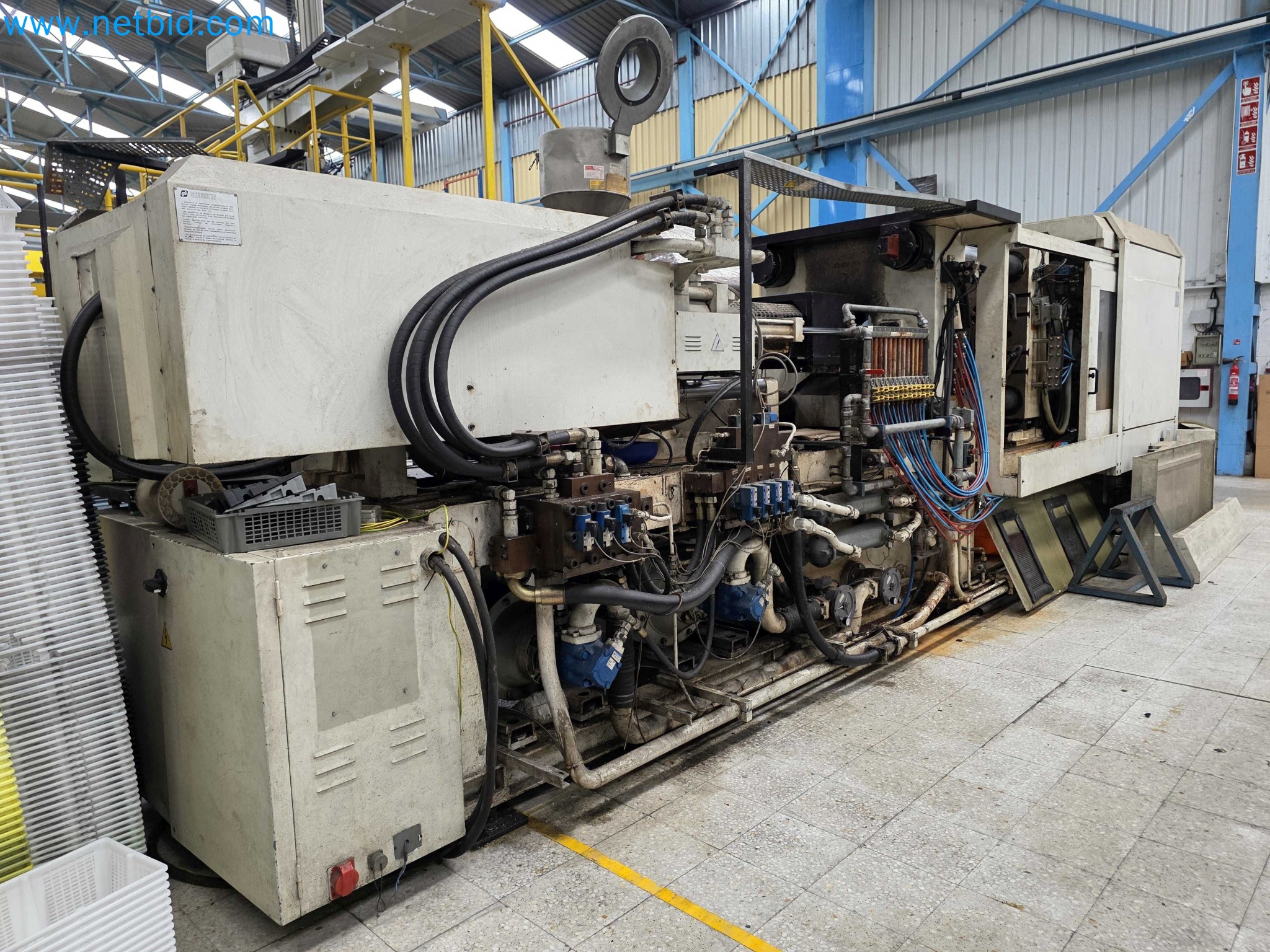

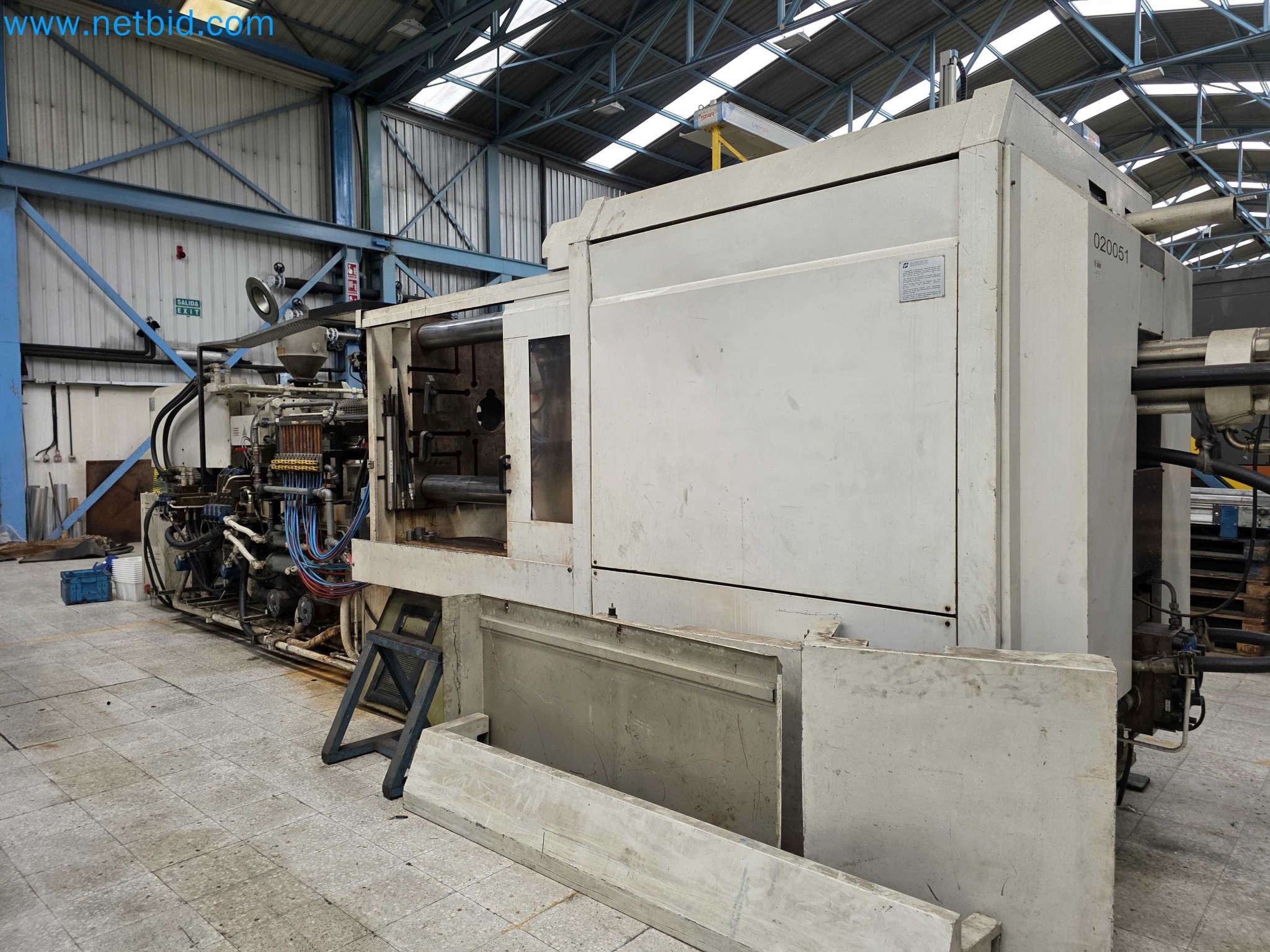

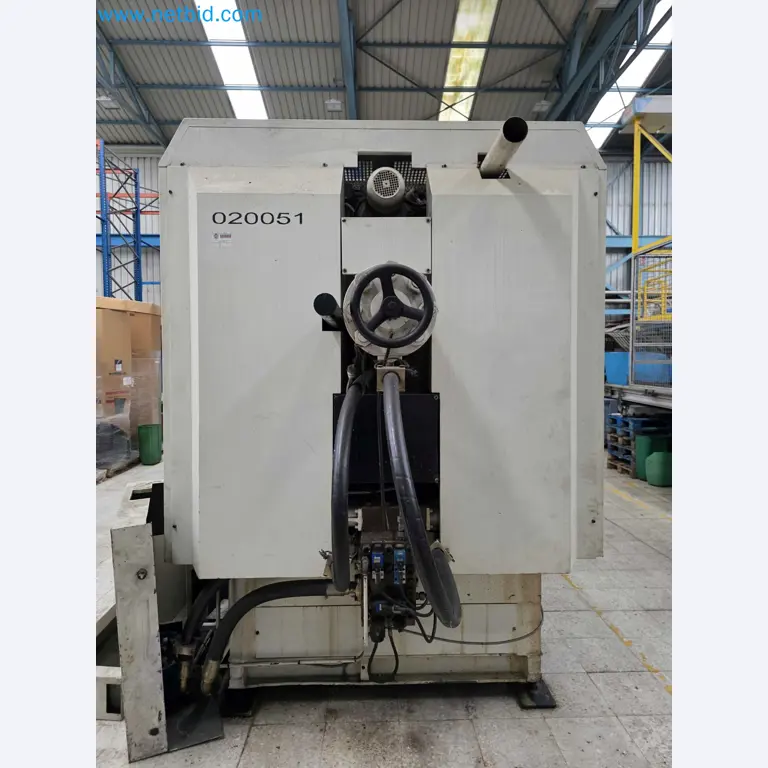

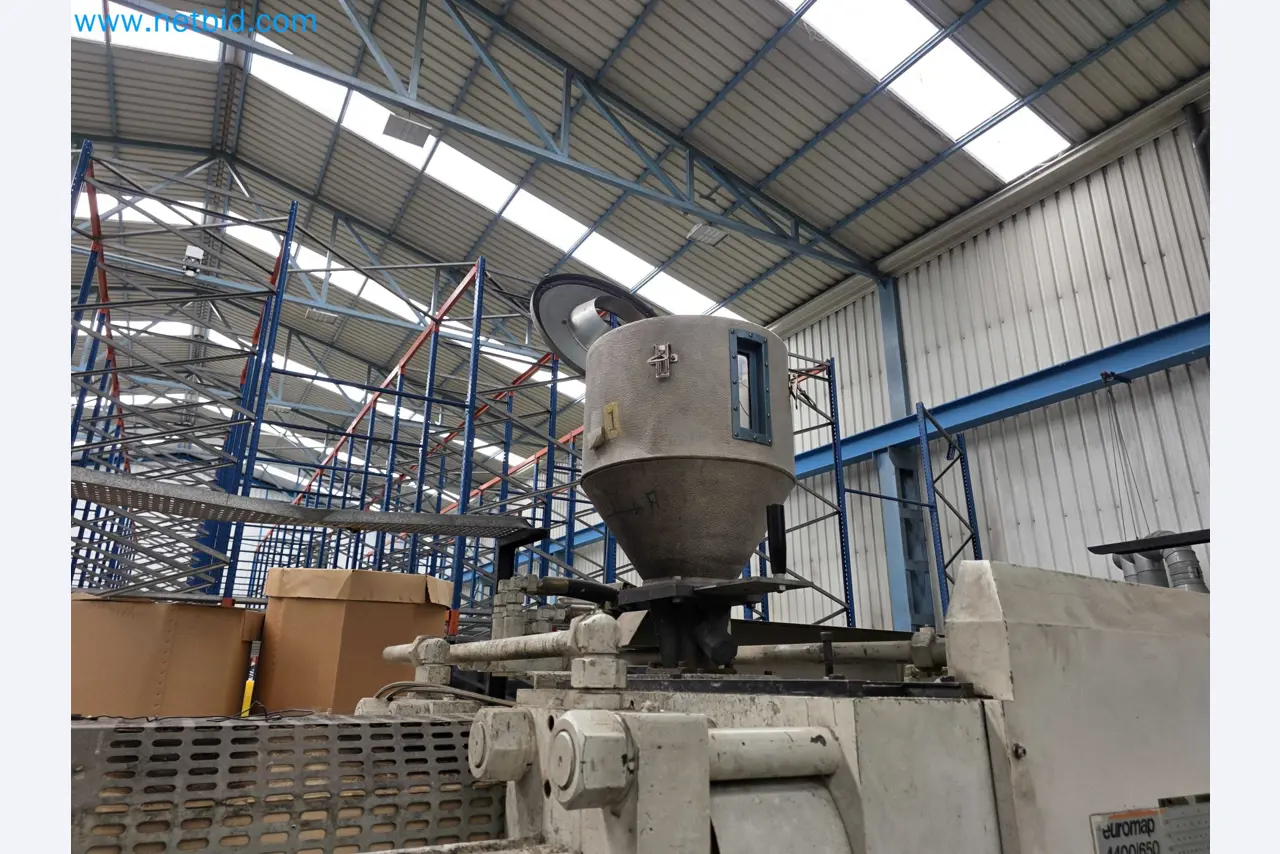

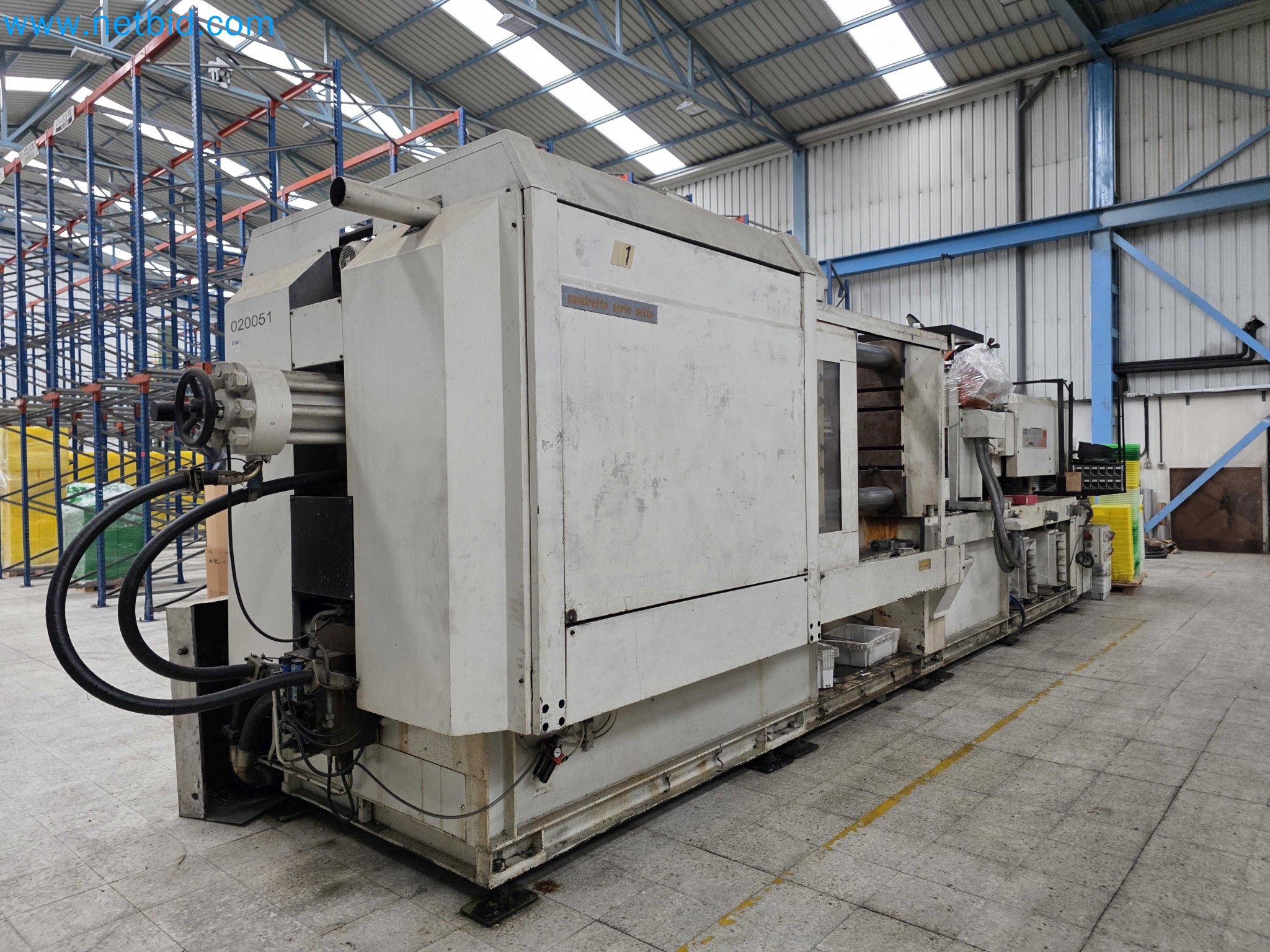

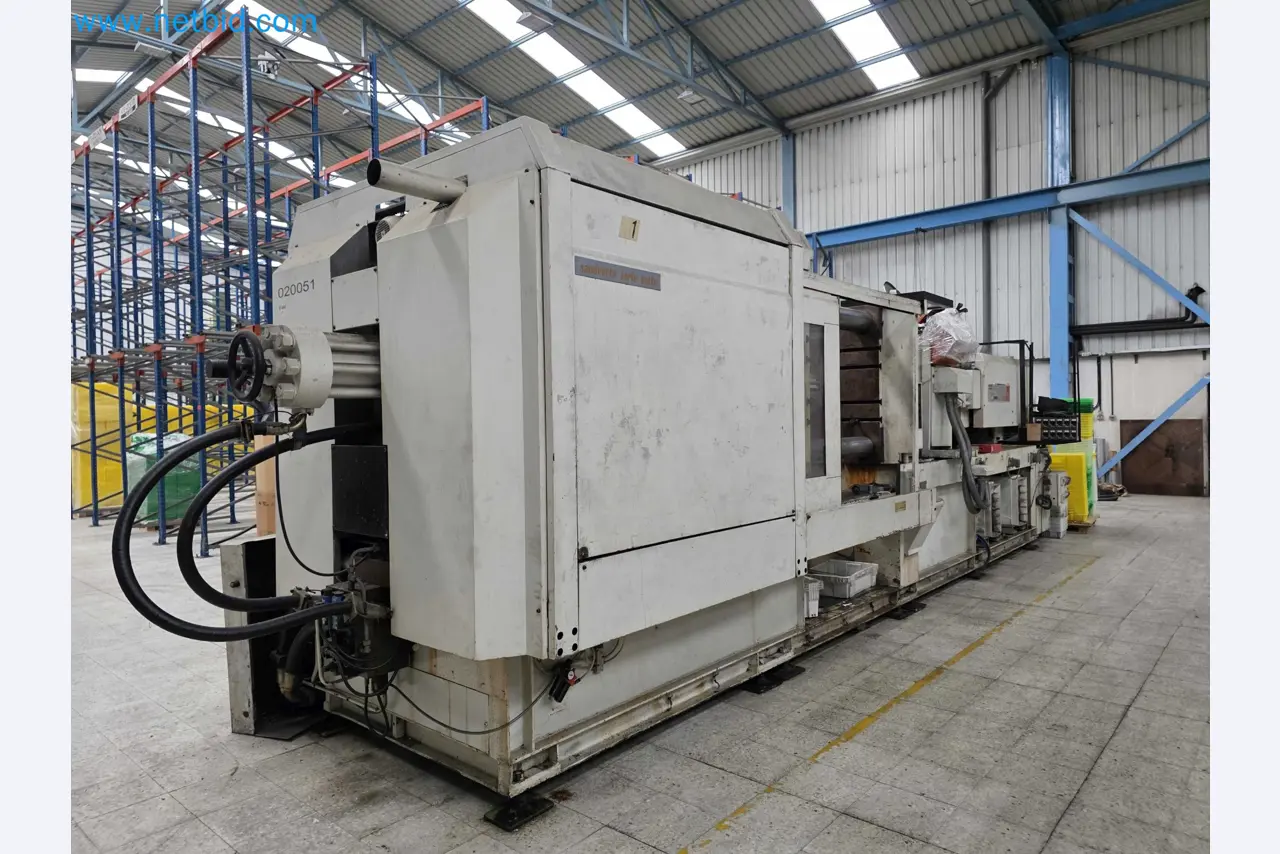

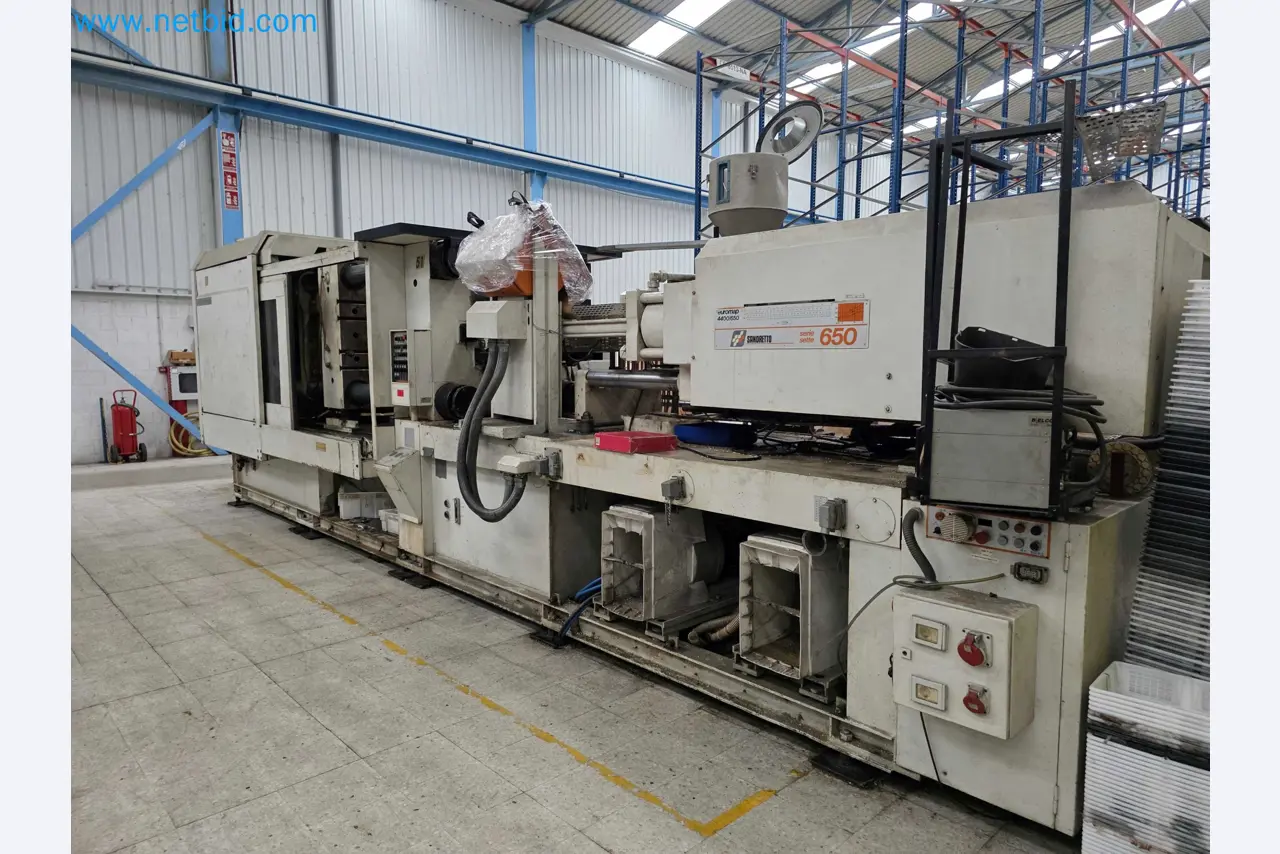

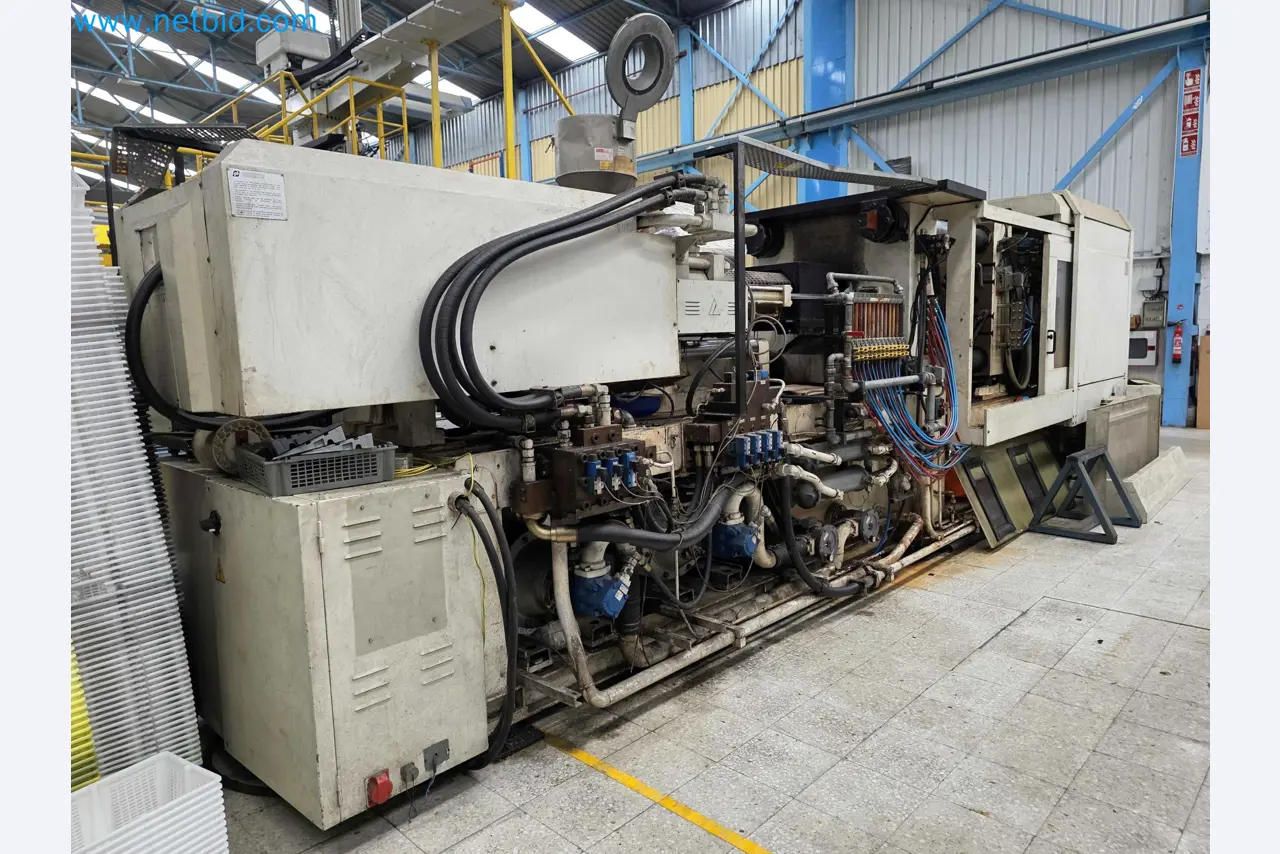

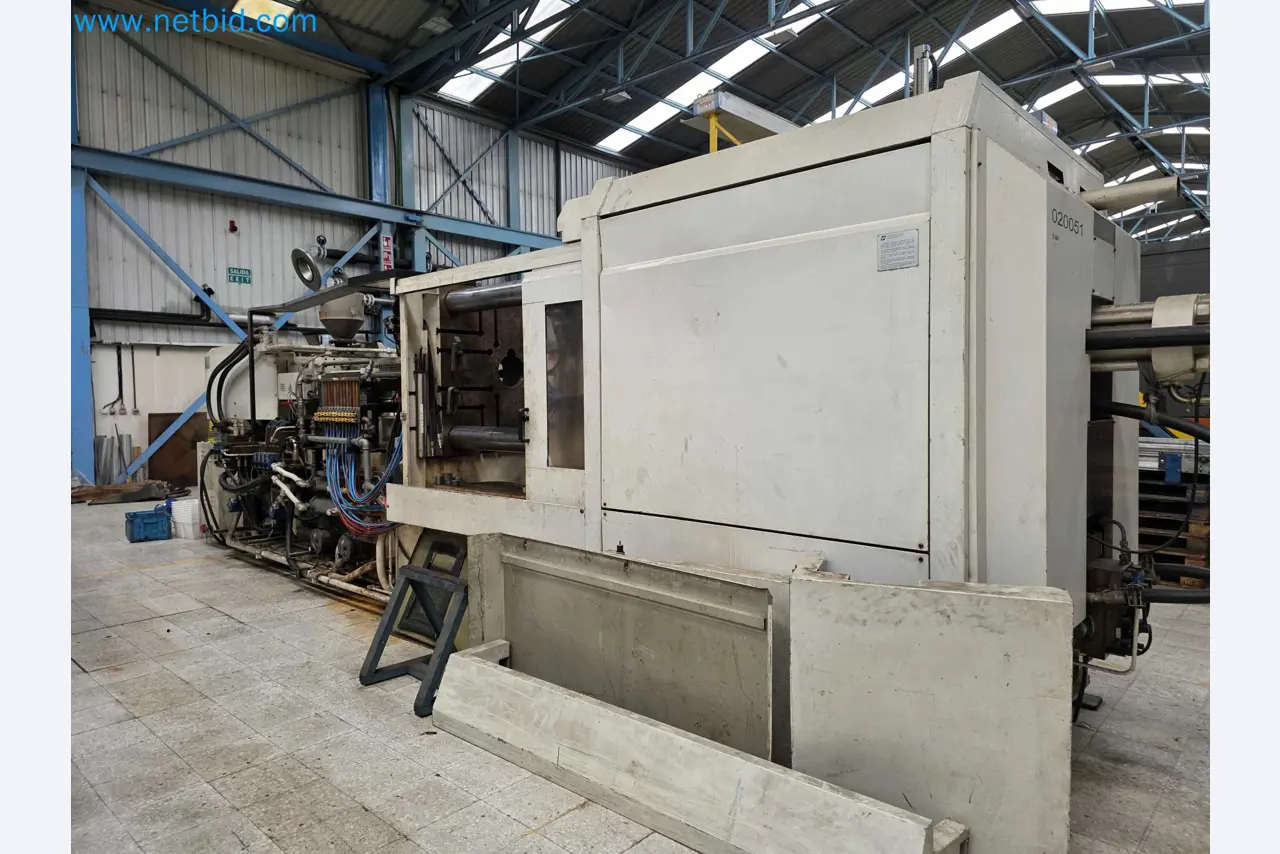

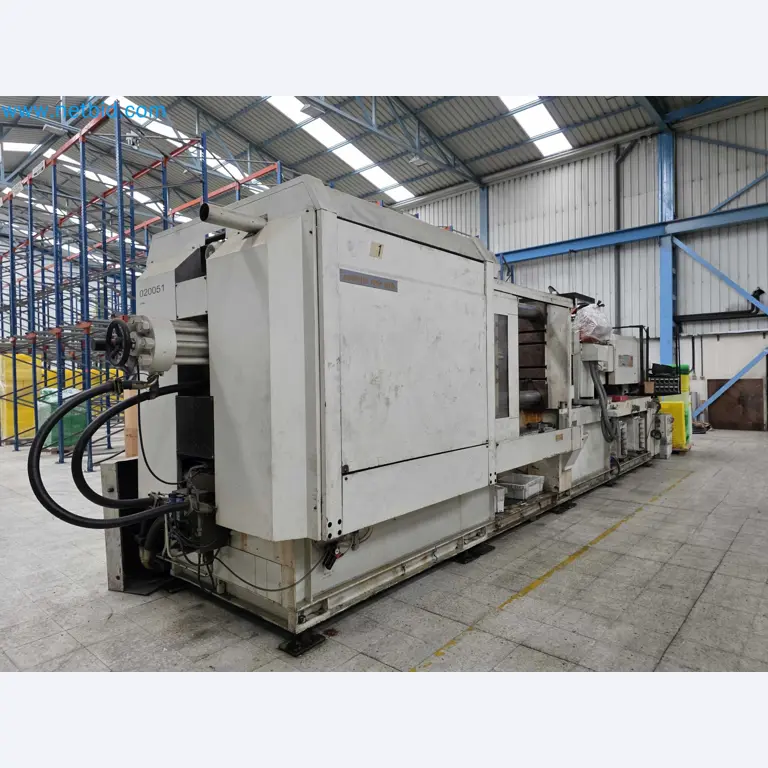

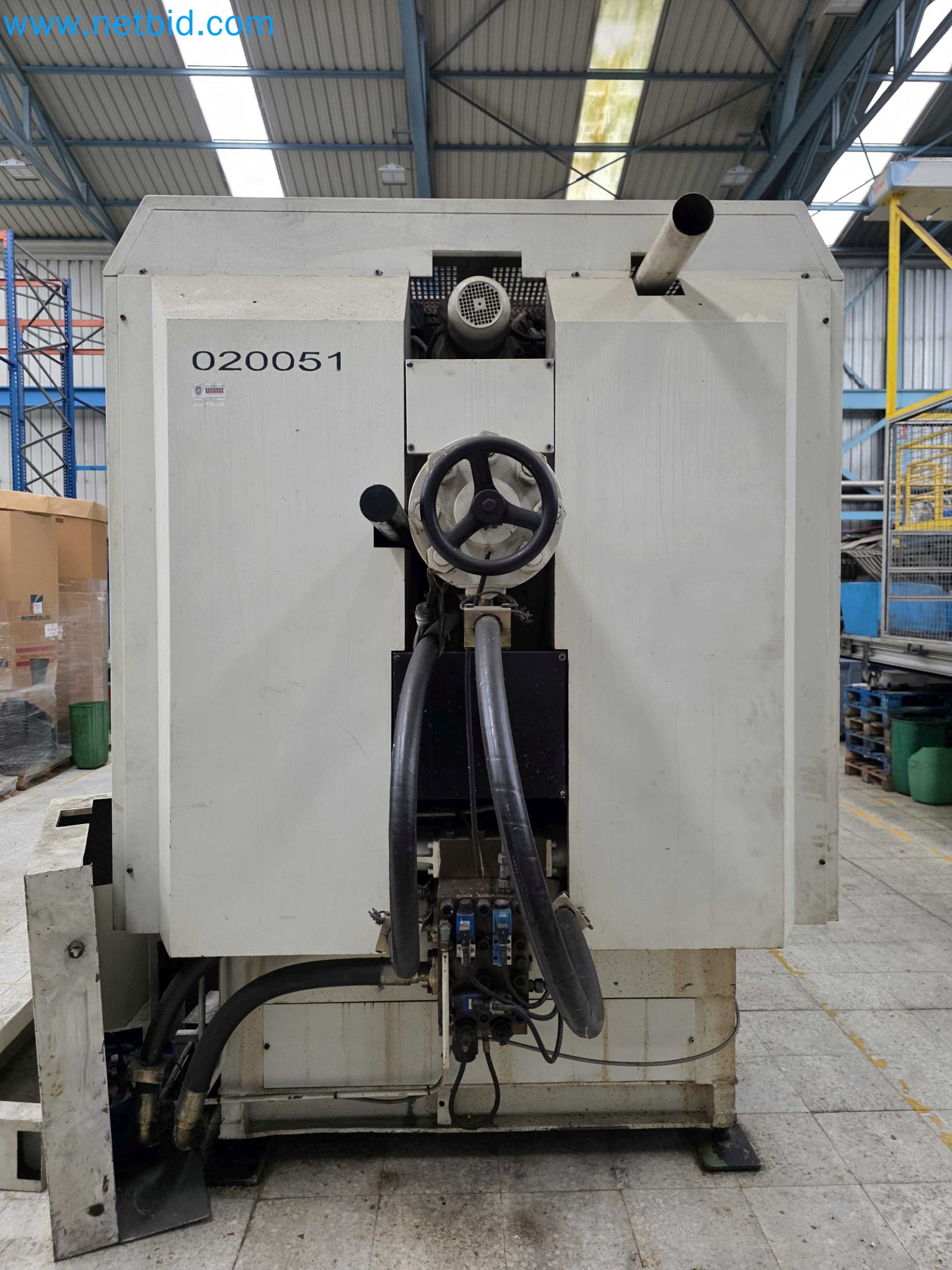

Injection Molding Machine SANDRETTO 650TRADING#A19590-169
Details
Product Type

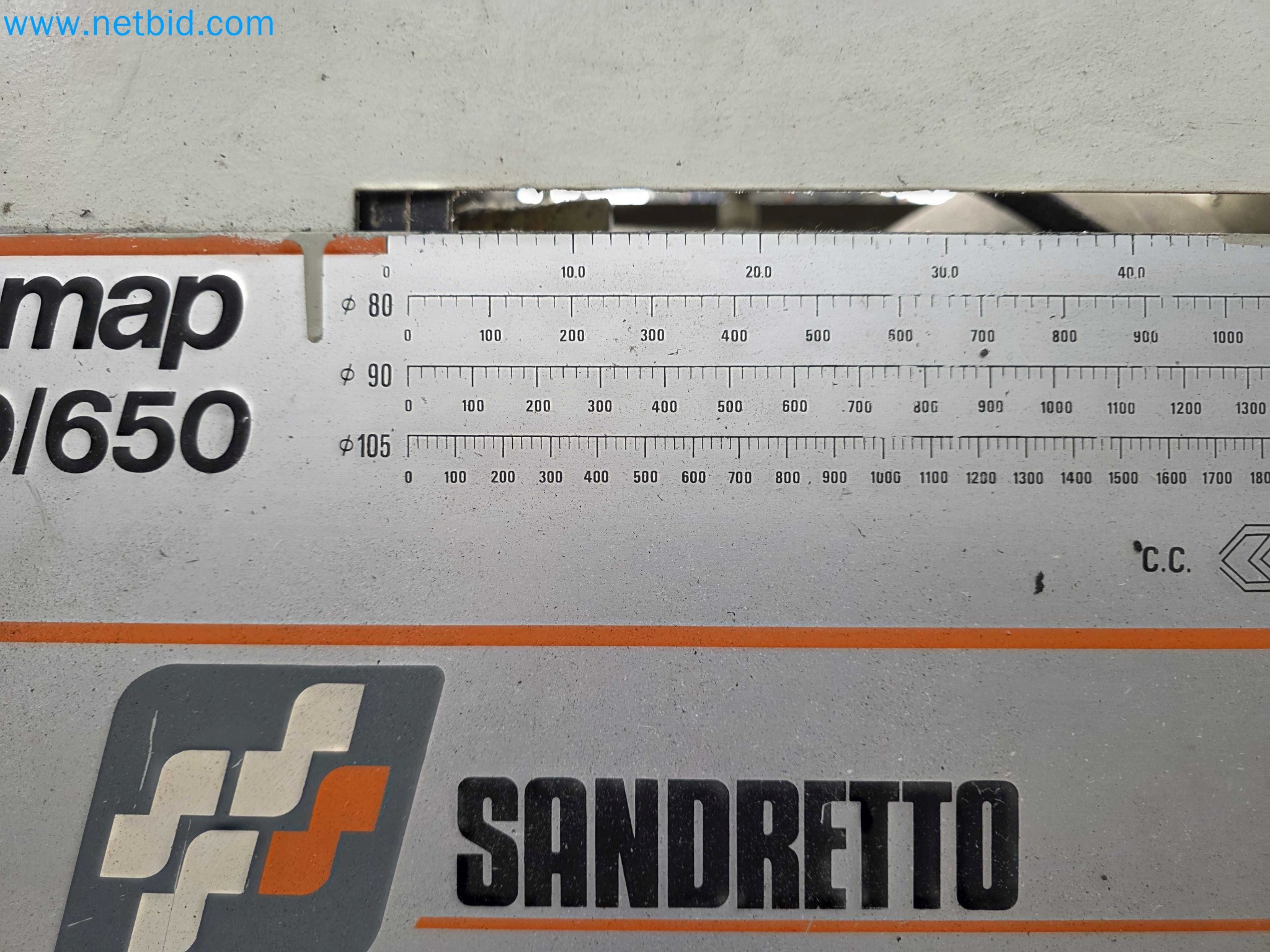

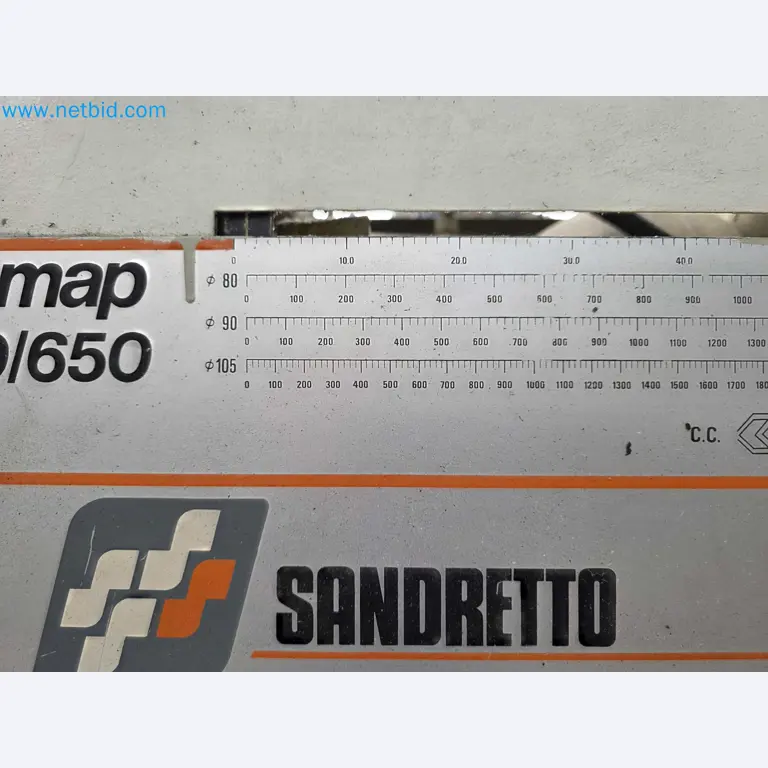

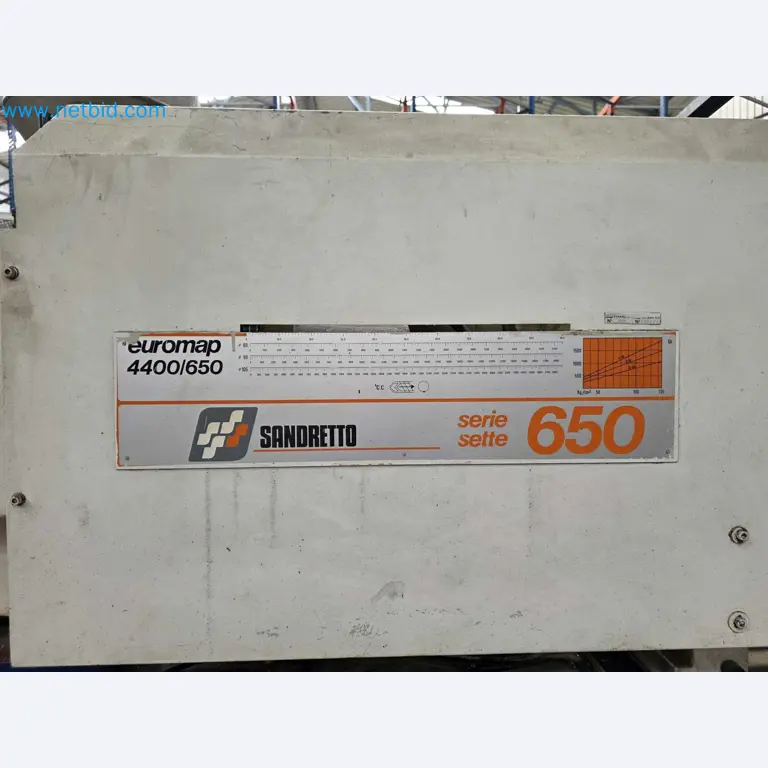

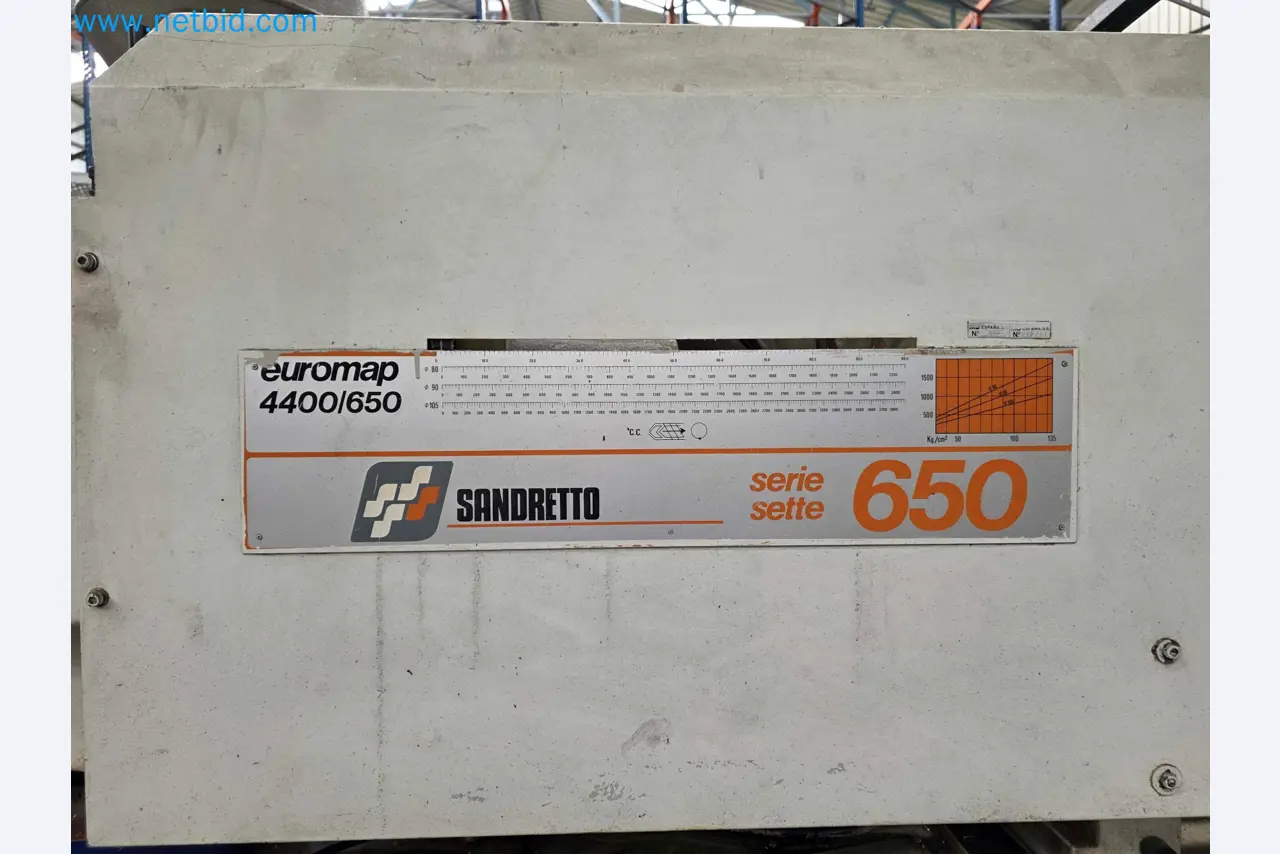

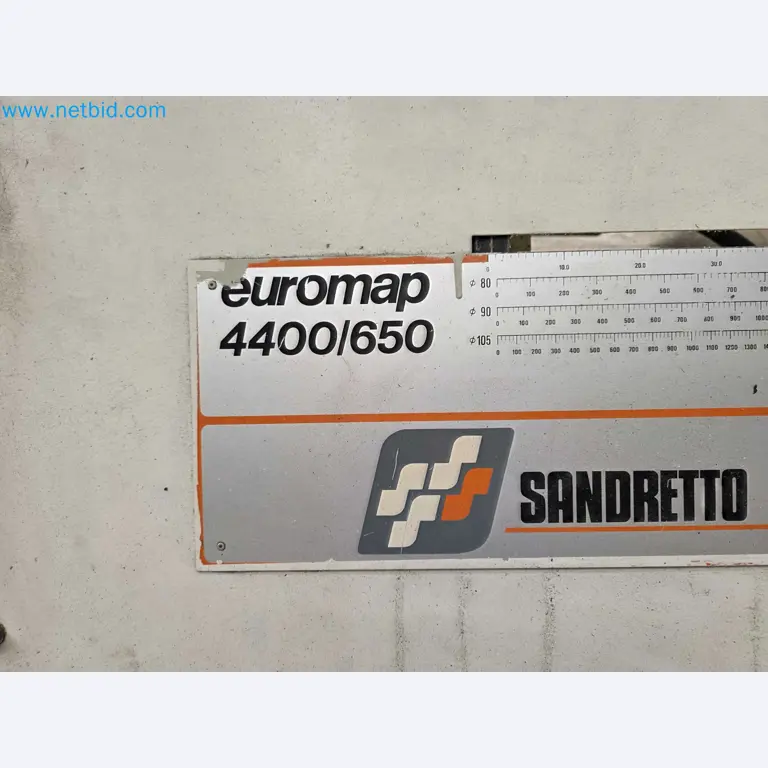

SANDRETTO
Type
650

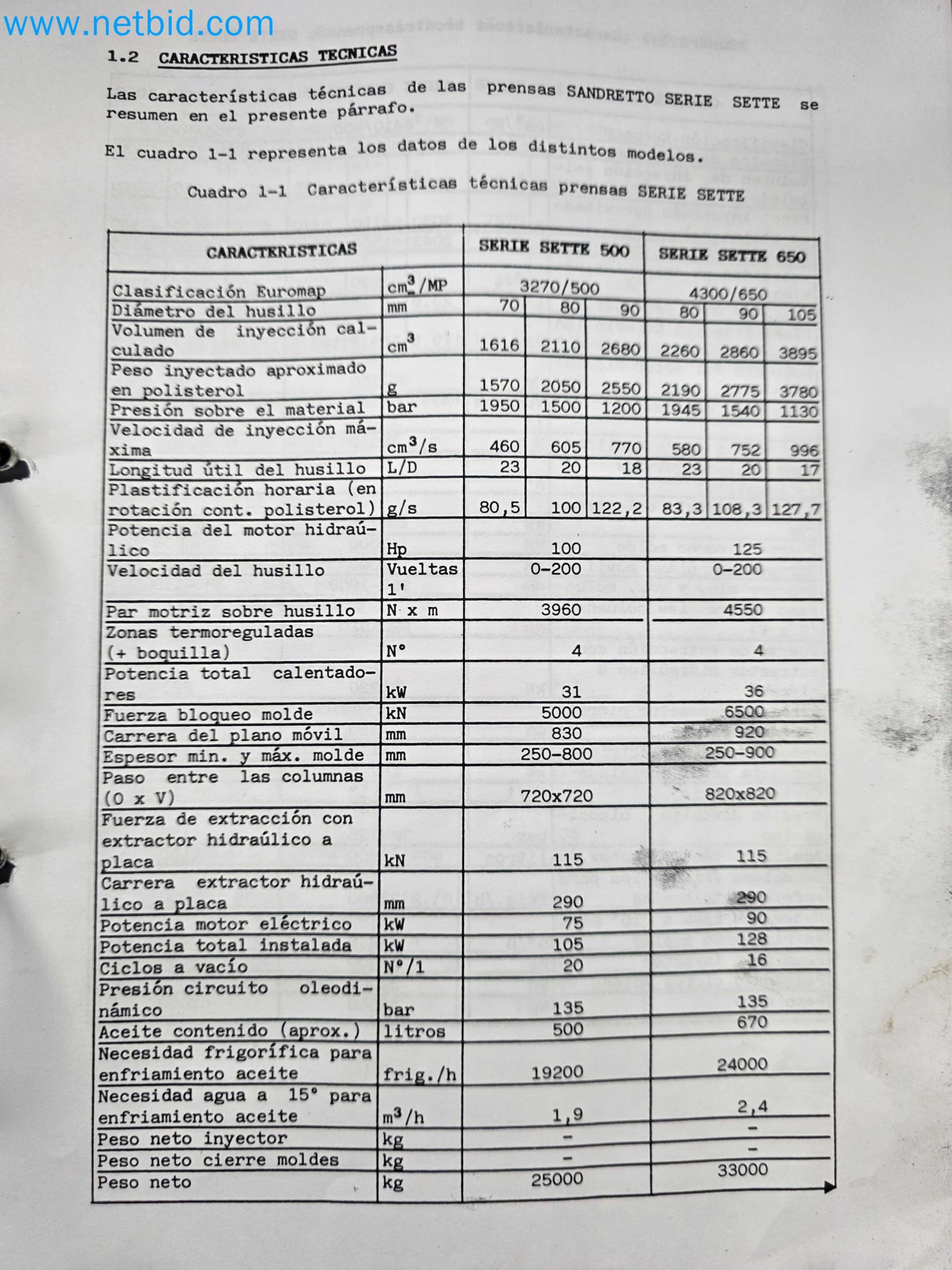

Description

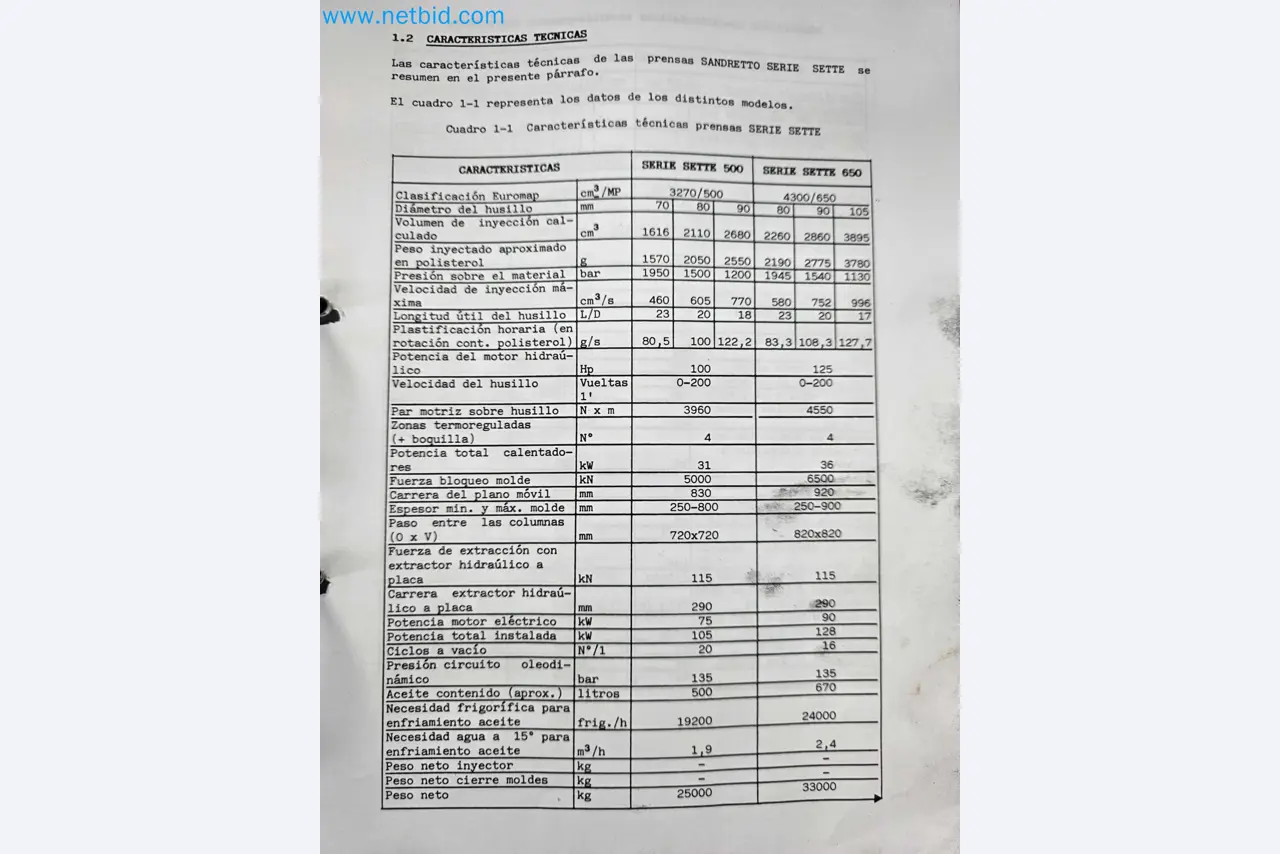

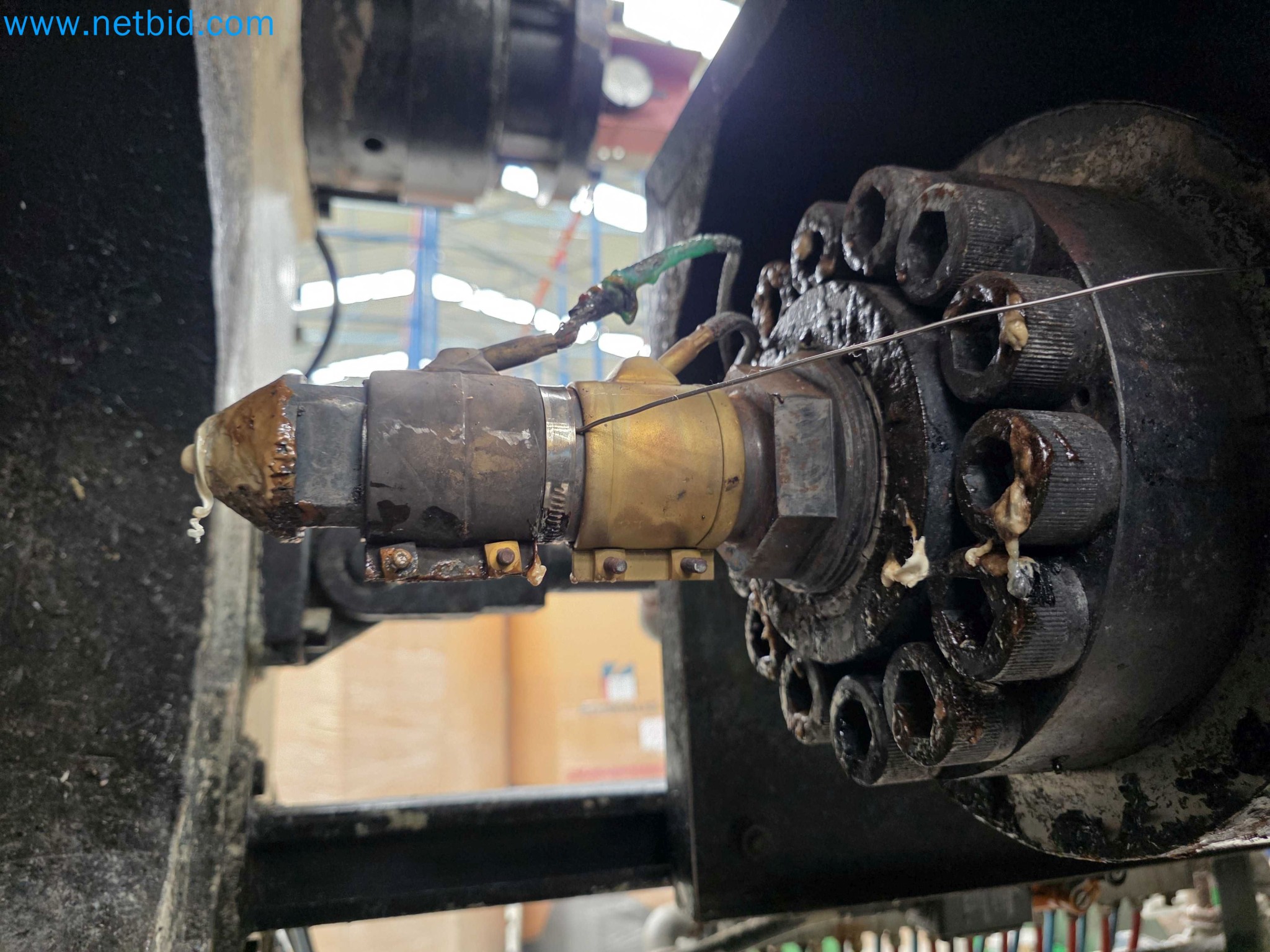

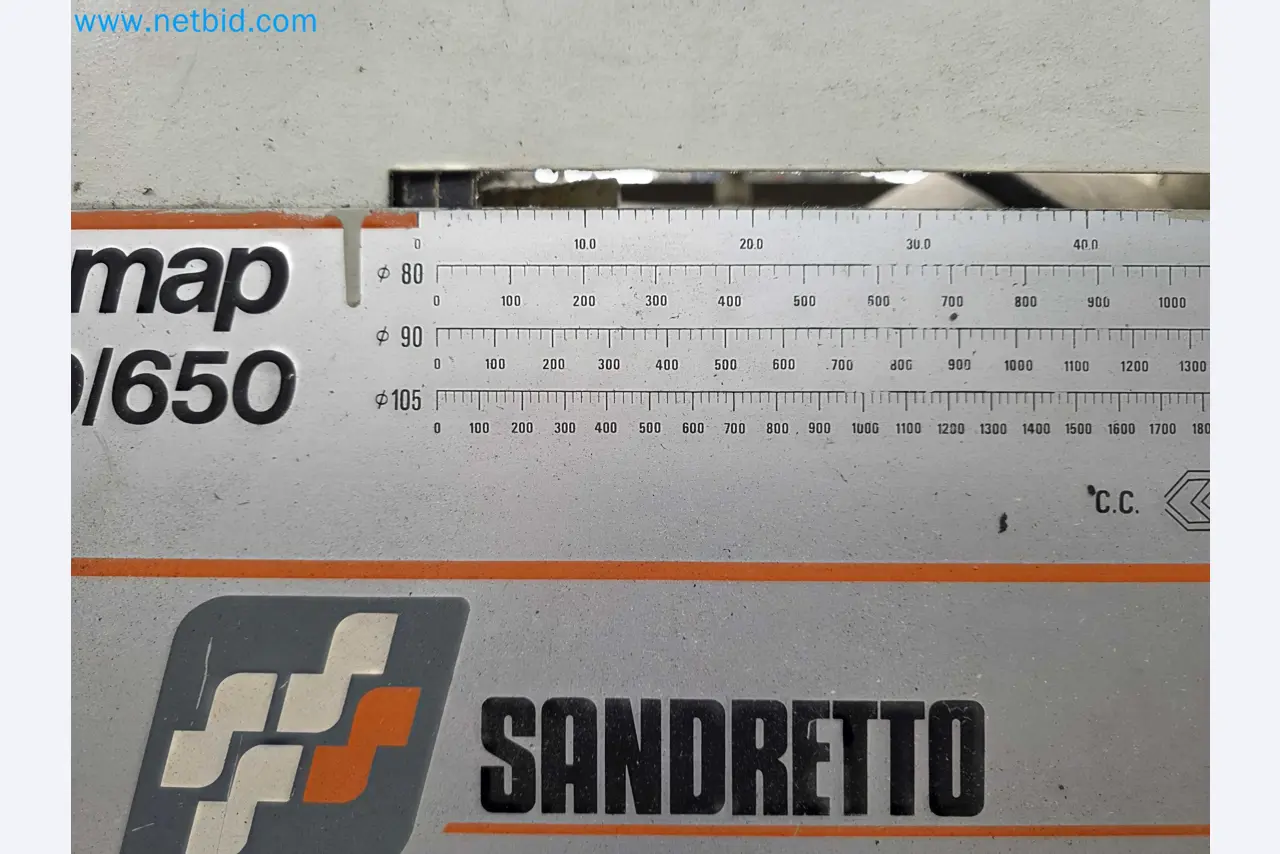

Screw diameter: 80 mm
Calculated injection volume: 2260 cm³
Useful screw length: 23 L/D
Maximum injection rate: 580 cm³/s
Pressure on material: 1945 bar
Screw speed: 0–200 rpm

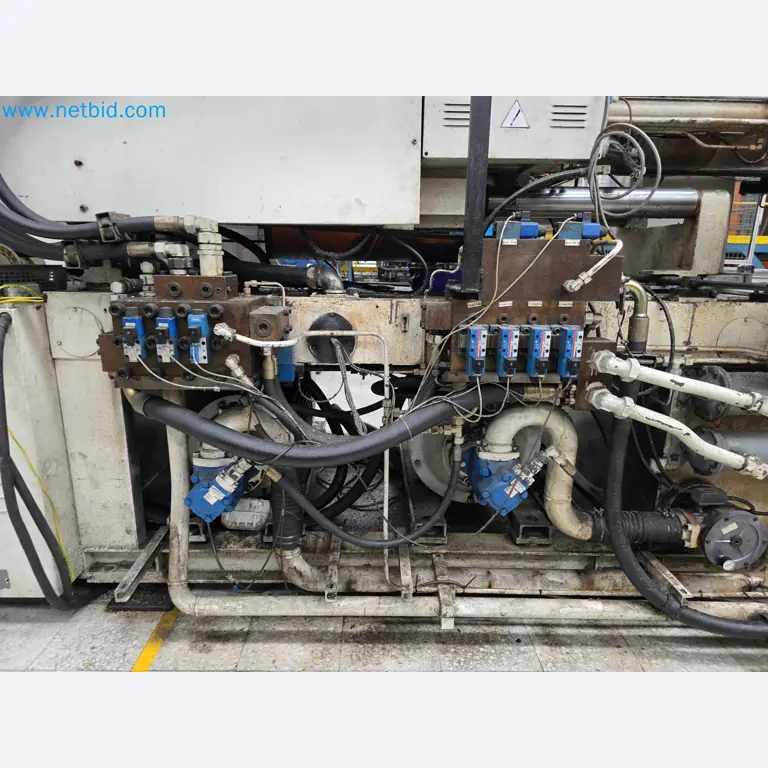

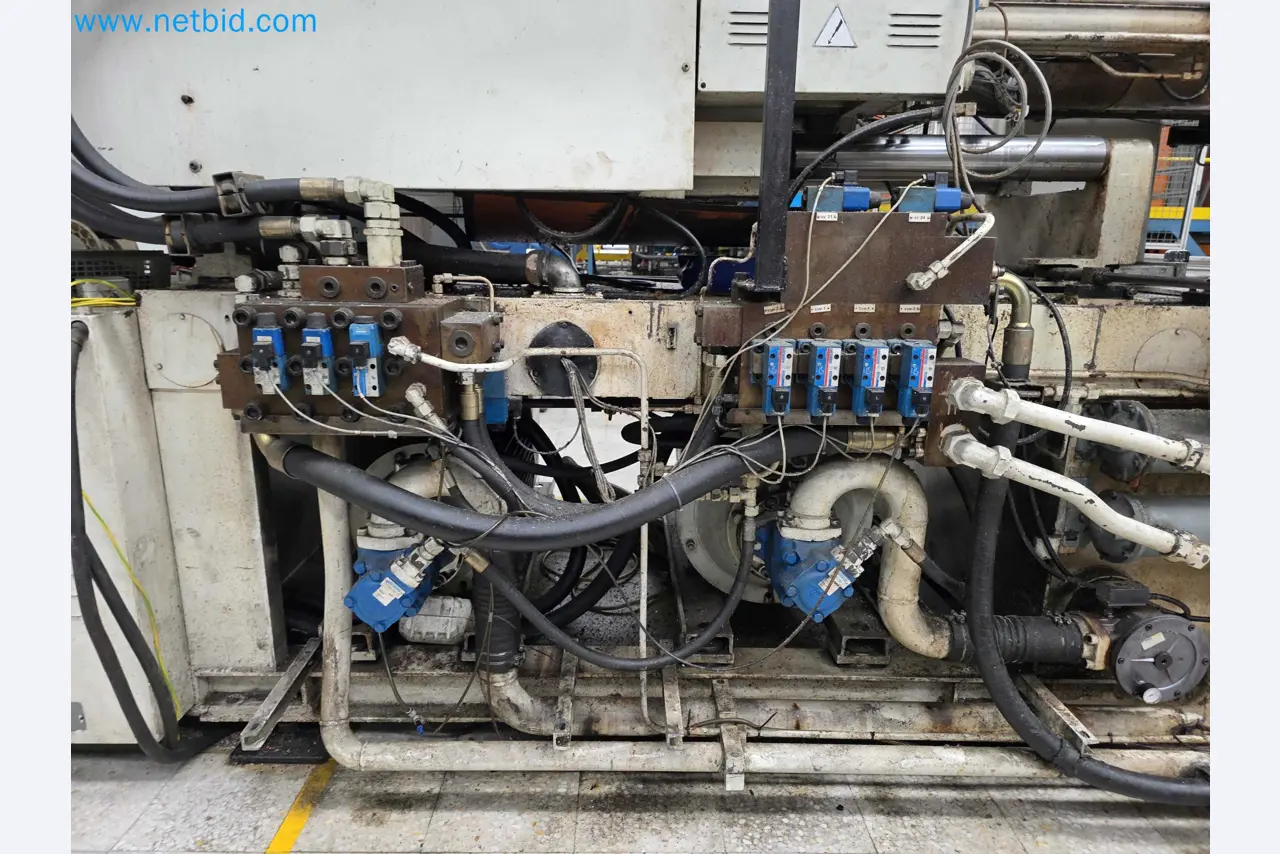

Screw hydraulic motor power: 150 HP
Temperature-controlled zones: 4
Total heating power: 31 kW

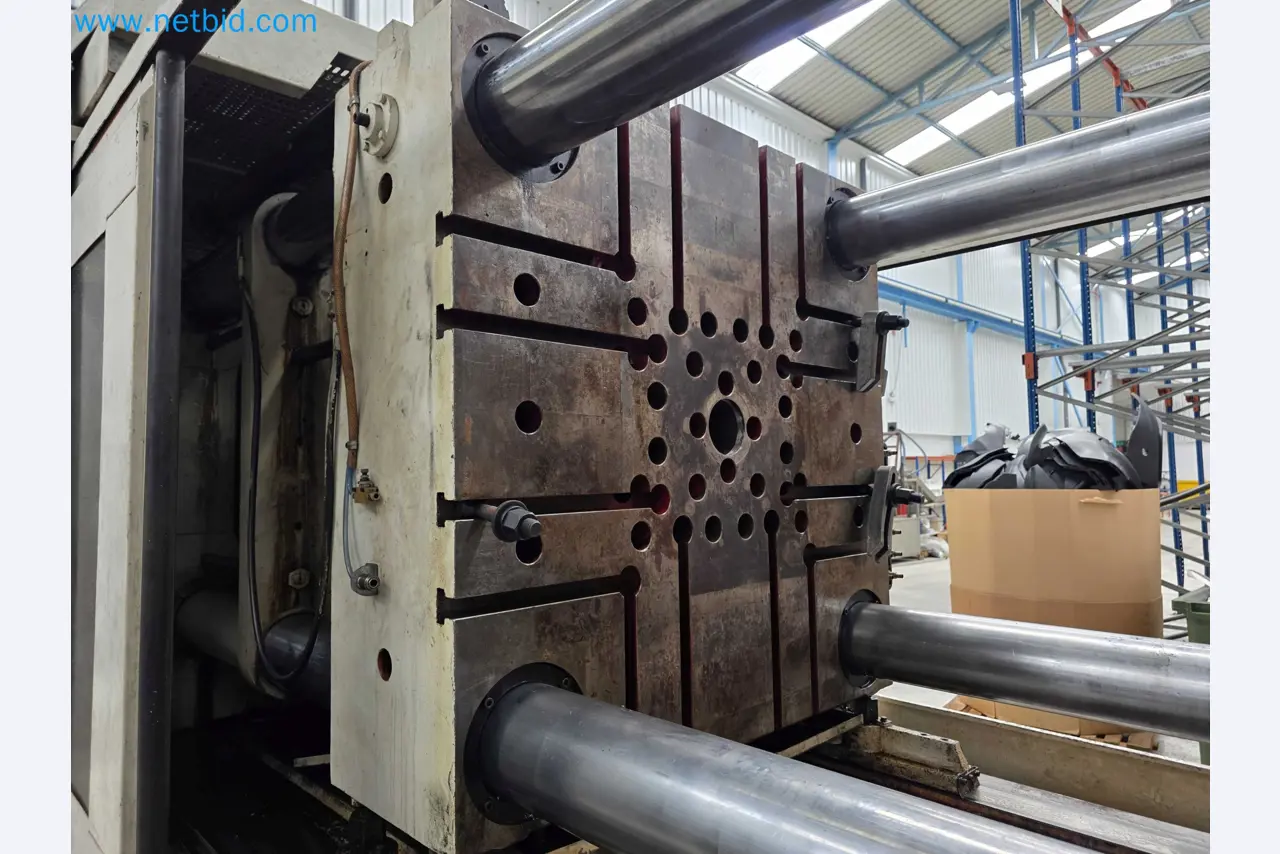

Mould clamping force: 5000 kN
Mould thickness (min/max): 350–1100 mm
Moving platen stroke: 920 mm

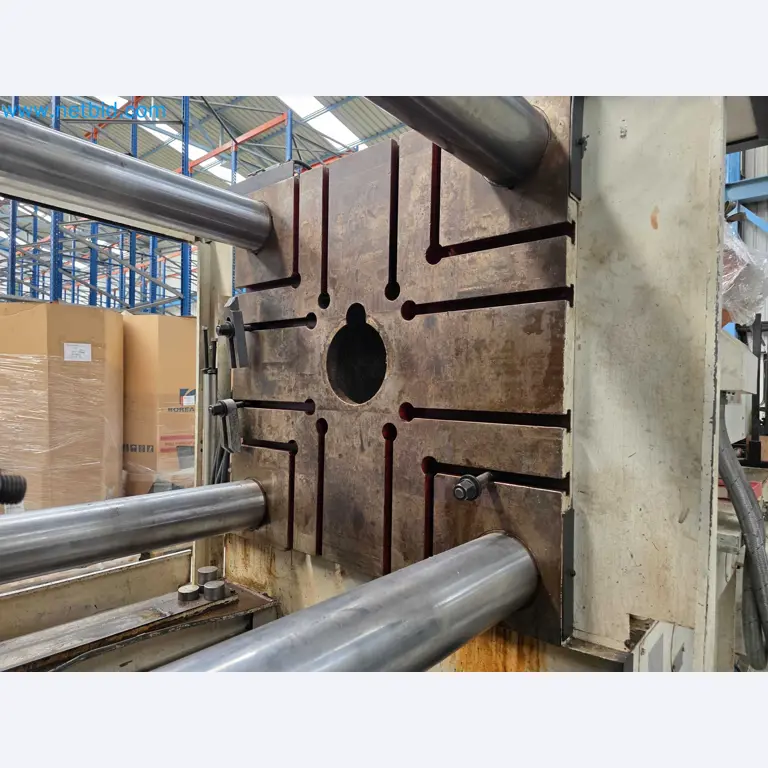

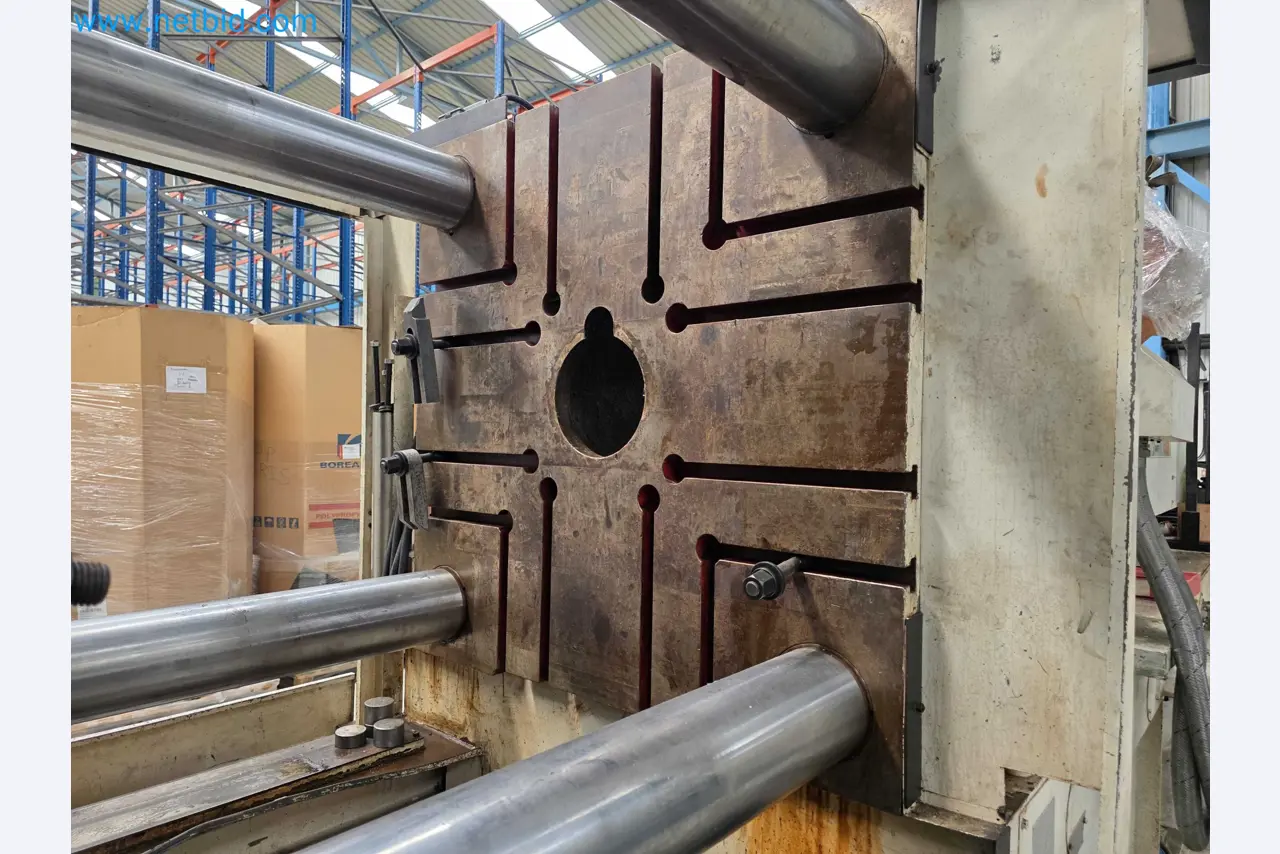

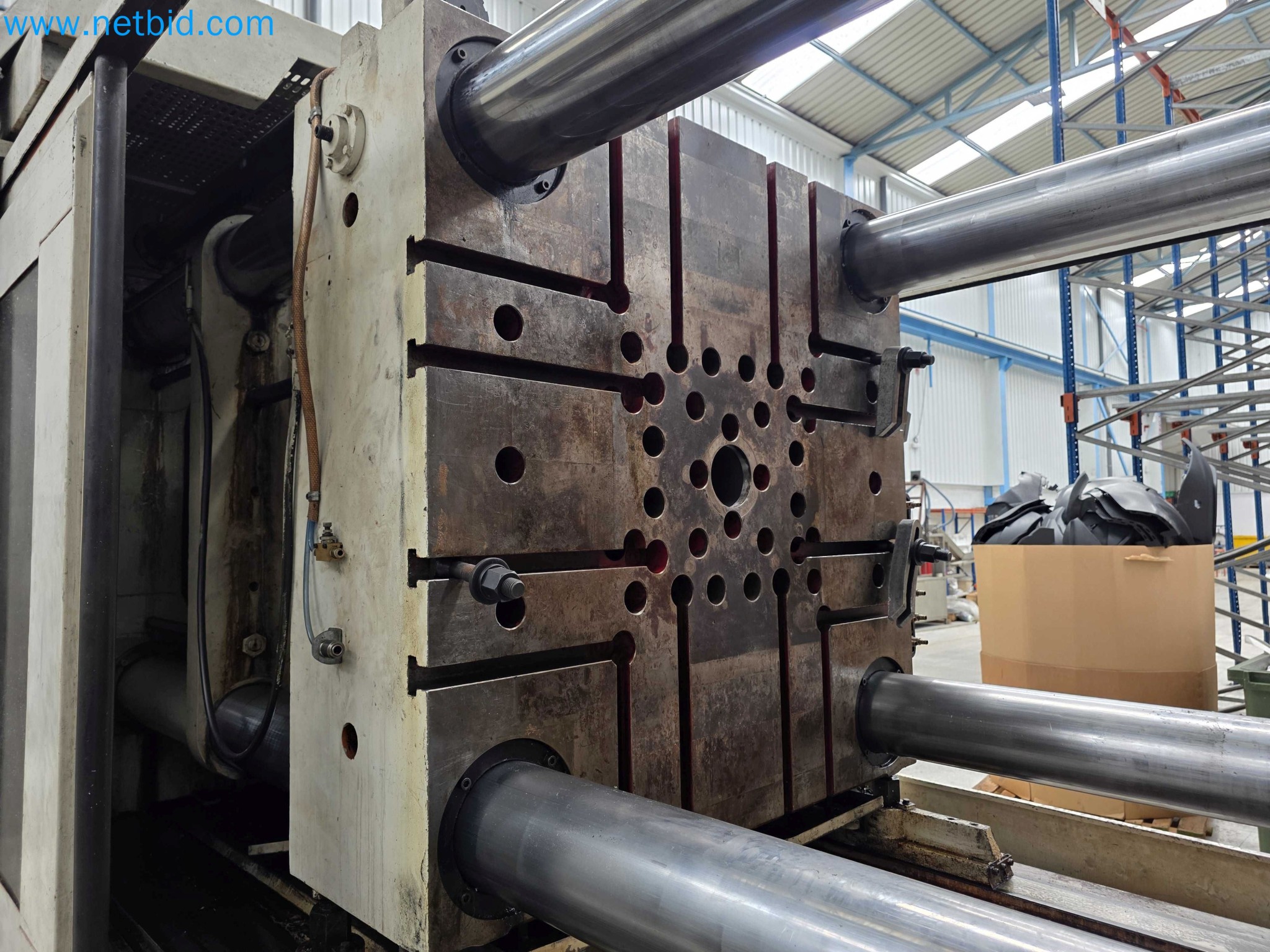

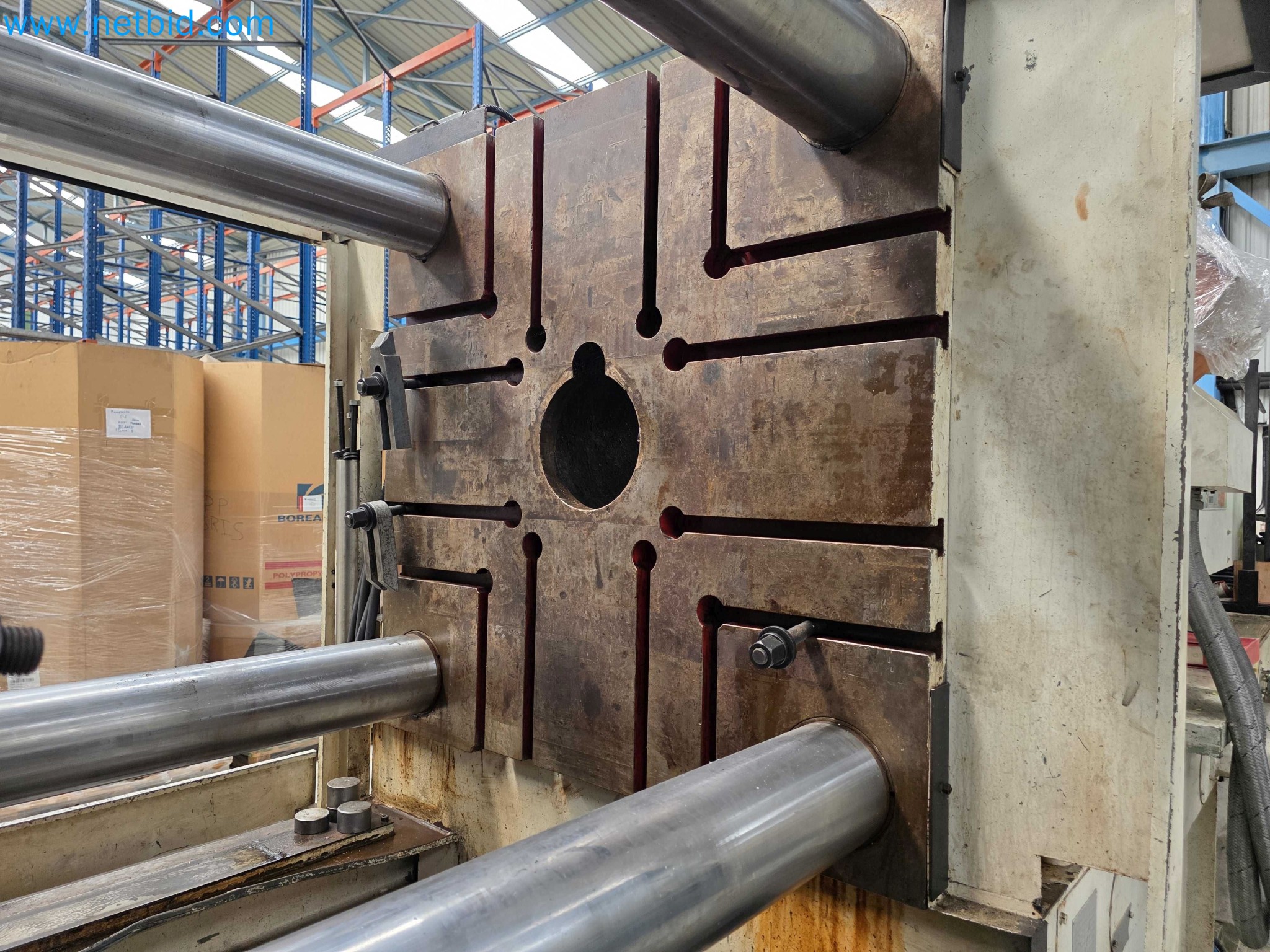

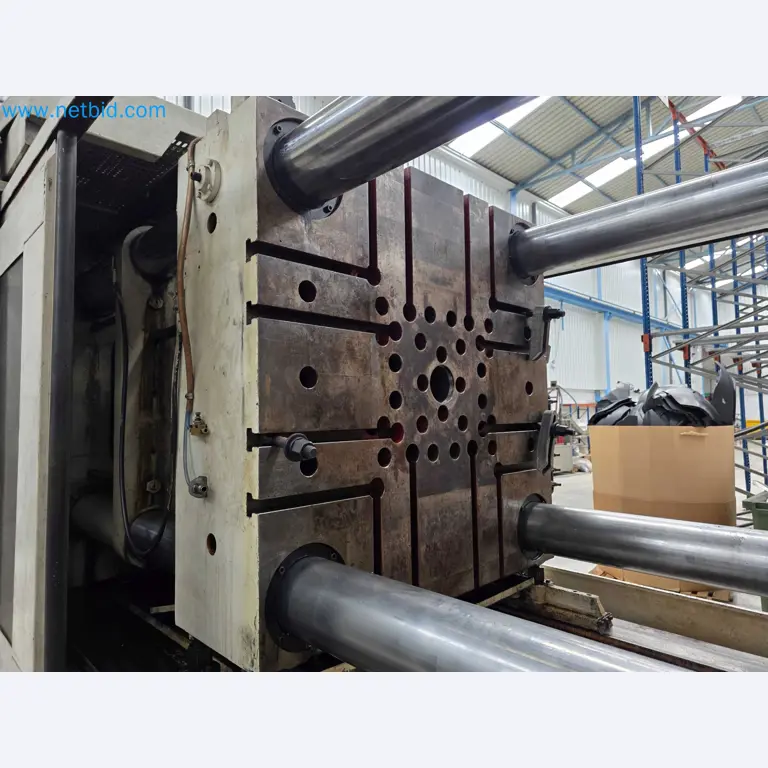

Platen dimensions: 1260 x 1260 mm

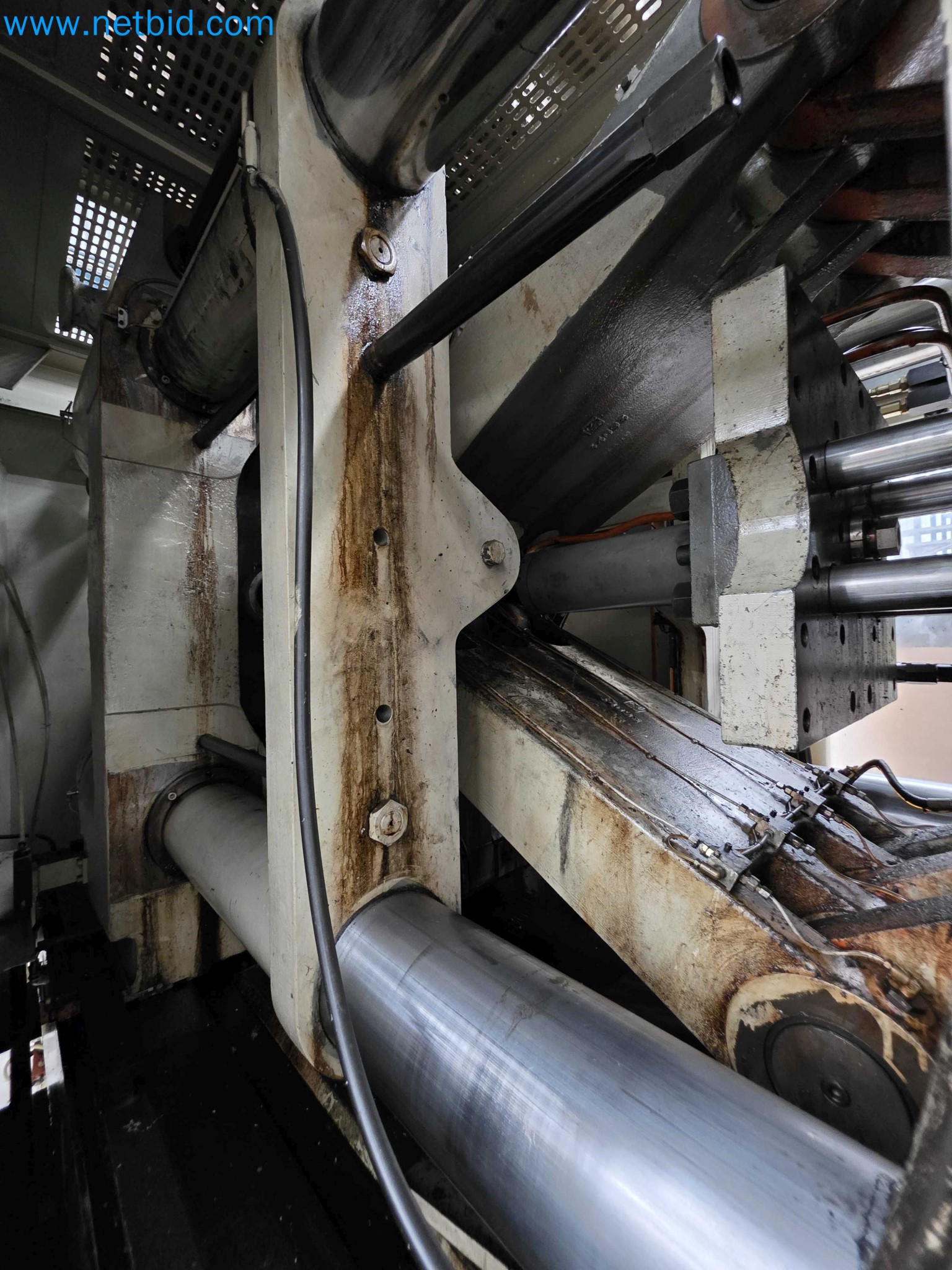

Tie-bar spacing: 820 x 820 mm
Tie-bar diameter: 180 mm
Ejection force: 115 kN
Ejector stroke: 290 mm
Approximate weight: 33,000 kg
Calculated injection volume: 2260 cm³
Useful screw length: 23 L/D
Maximum injection rate: 580 cm³/s
Pressure on material: 1945 bar
Screw speed: 0–200 rpm
Screw hydraulic motor power: 150 HP
Temperature-controlled zones: 4
Total heating power: 31 kW
Mould clamping force: 5000 kN
Mould thickness (min/max): 350–1100 mm
Moving platen stroke: 920 mm
Platen dimensions: 1260 x 1260 mm
Tie-bar spacing: 820 x 820 mm
Tie-bar diameter: 180 mm
Ejection force: 115 kN
Ejector stroke: 290 mm
Approximate weight: 33,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
Oct. 14, 2026 – Oct. 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández: fernandez@netbid.com.
Pickup
In consultation with Mr. Fernández: fernandez@netbid.com.
Auction Terms
Special conditions:
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- In case of bid acceptance item can be sold immediately.
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes and forklift are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
