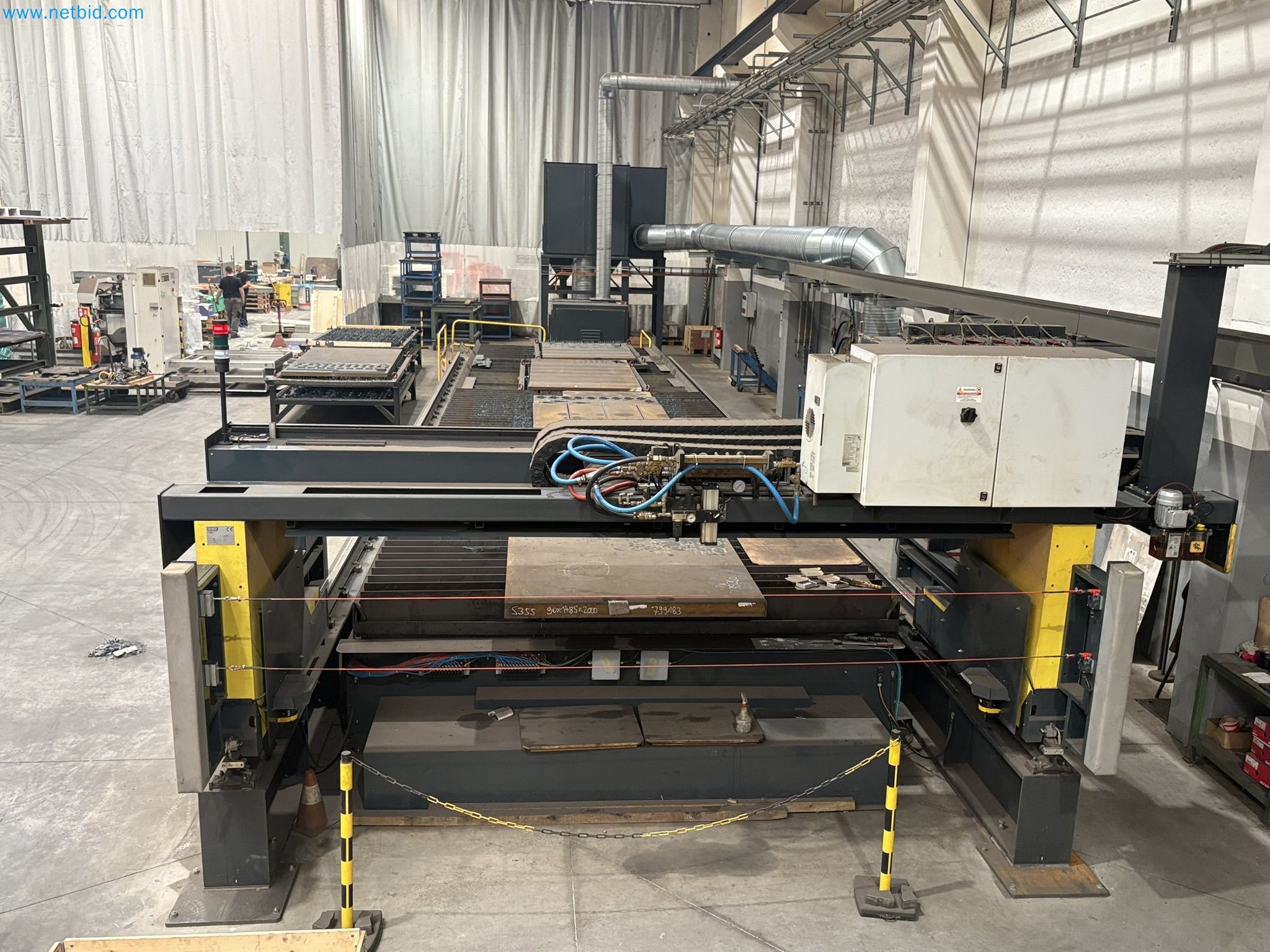

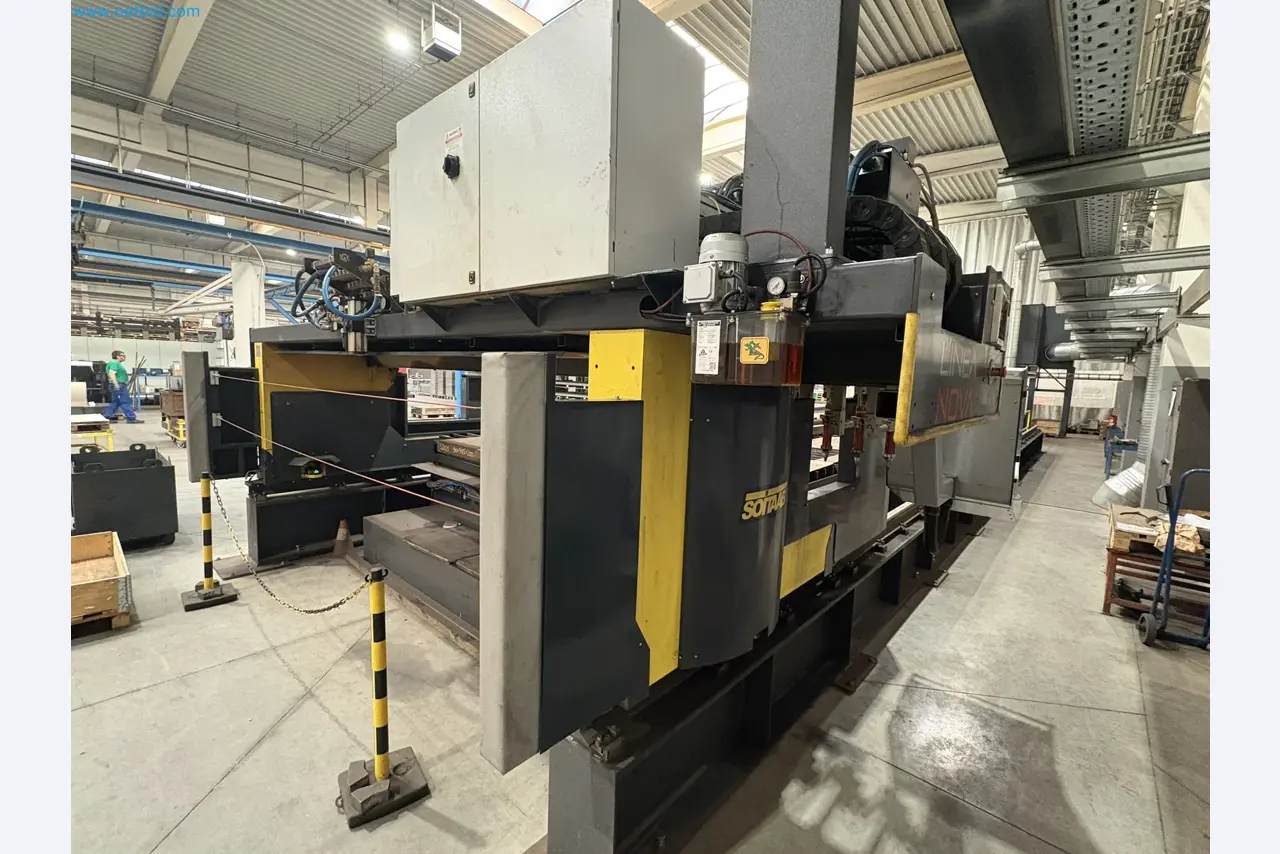

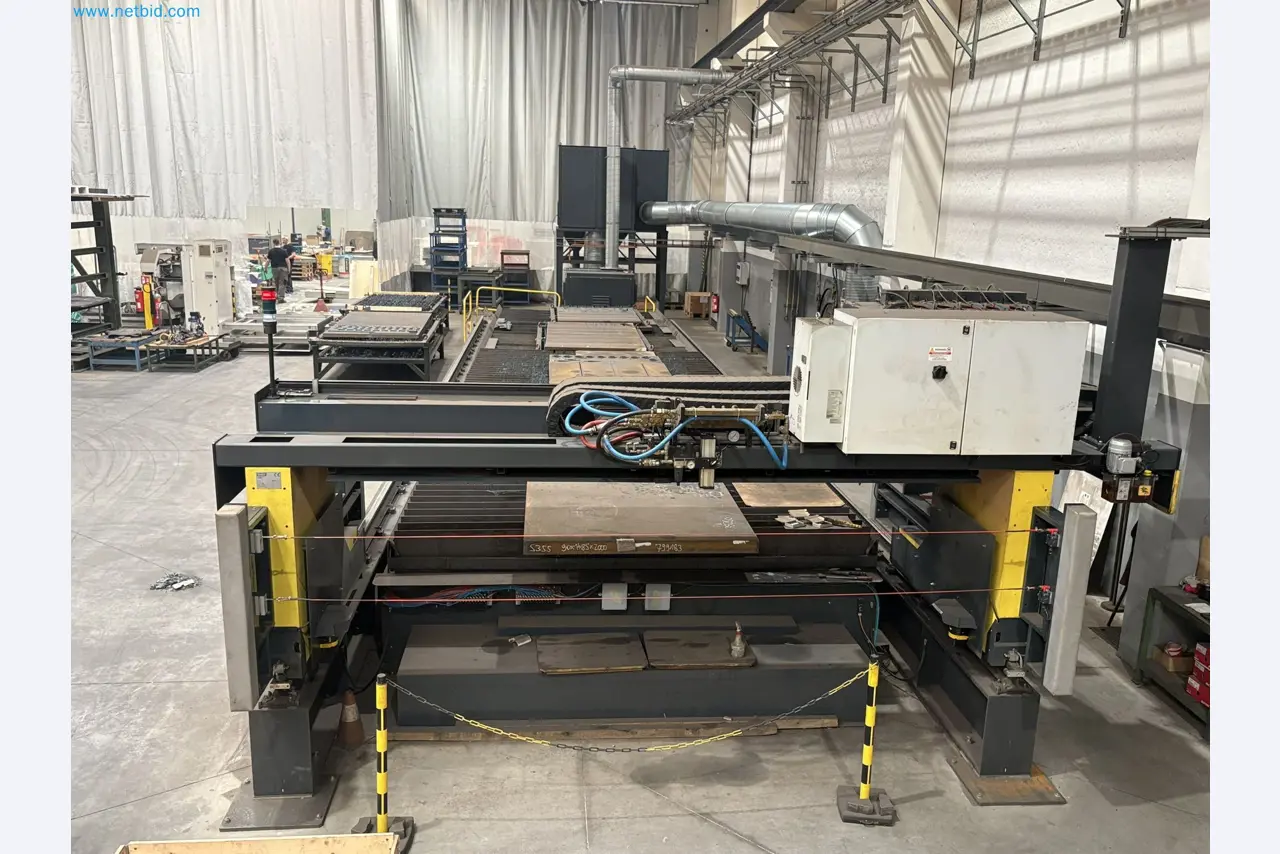

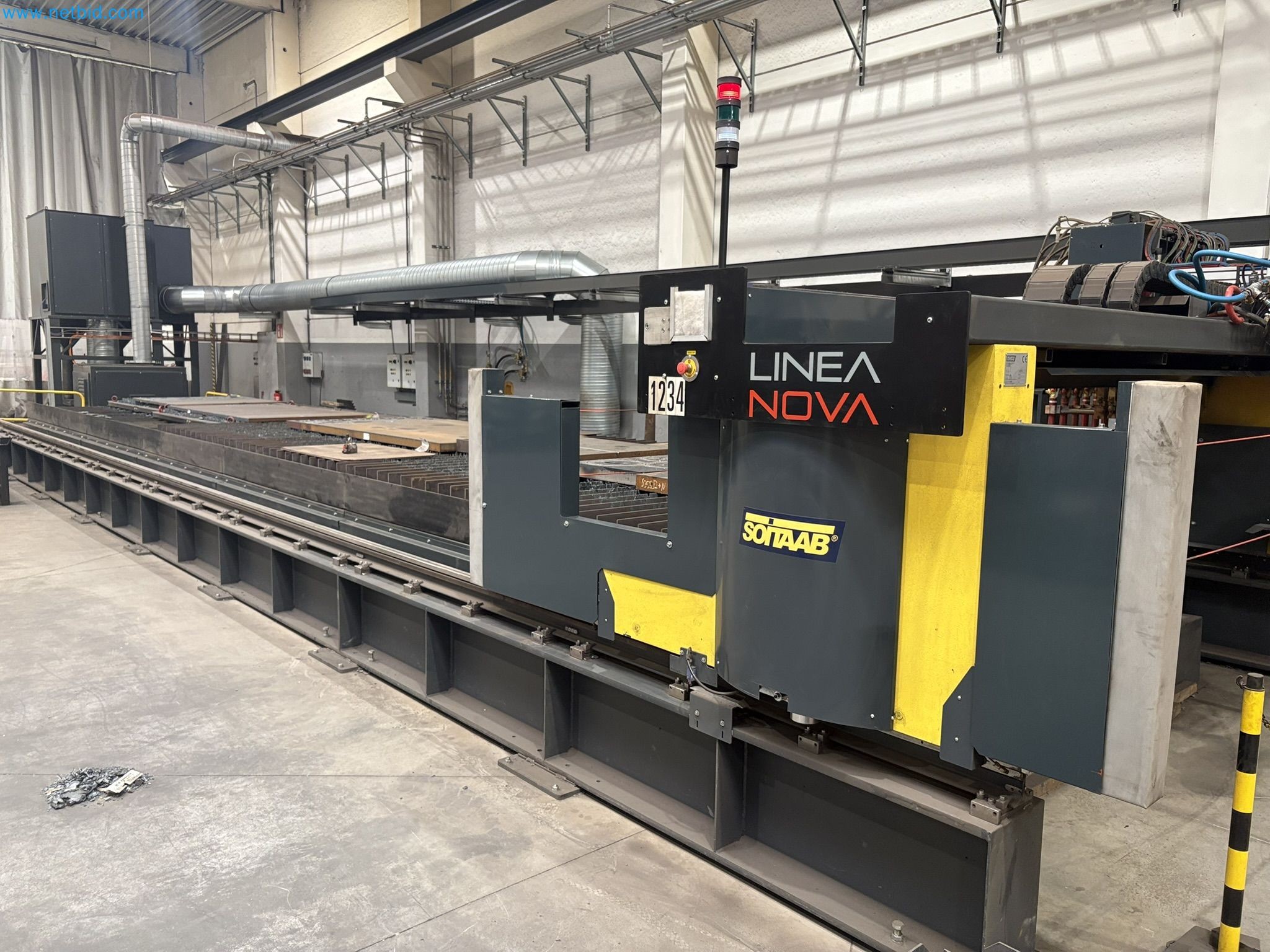

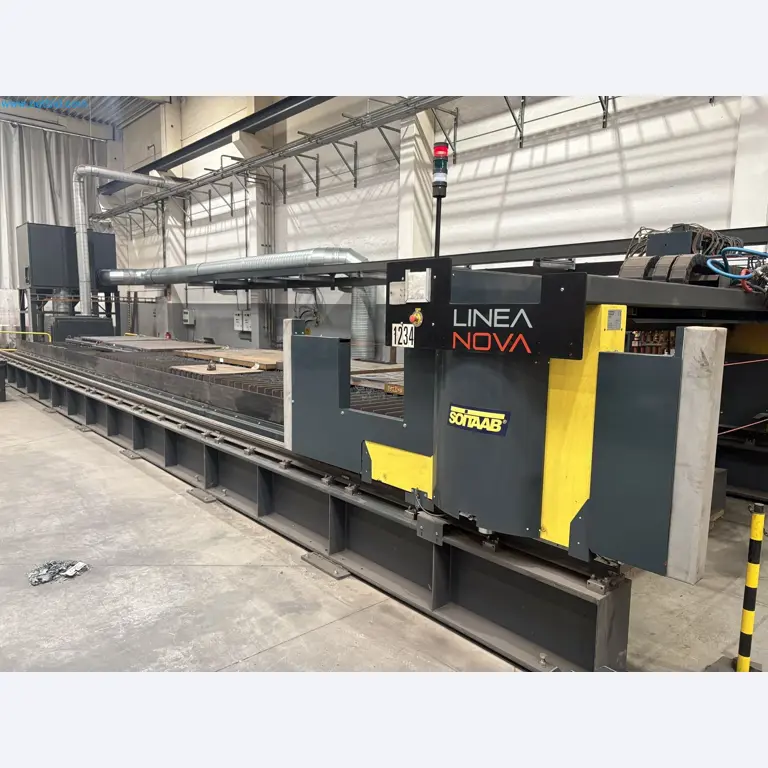

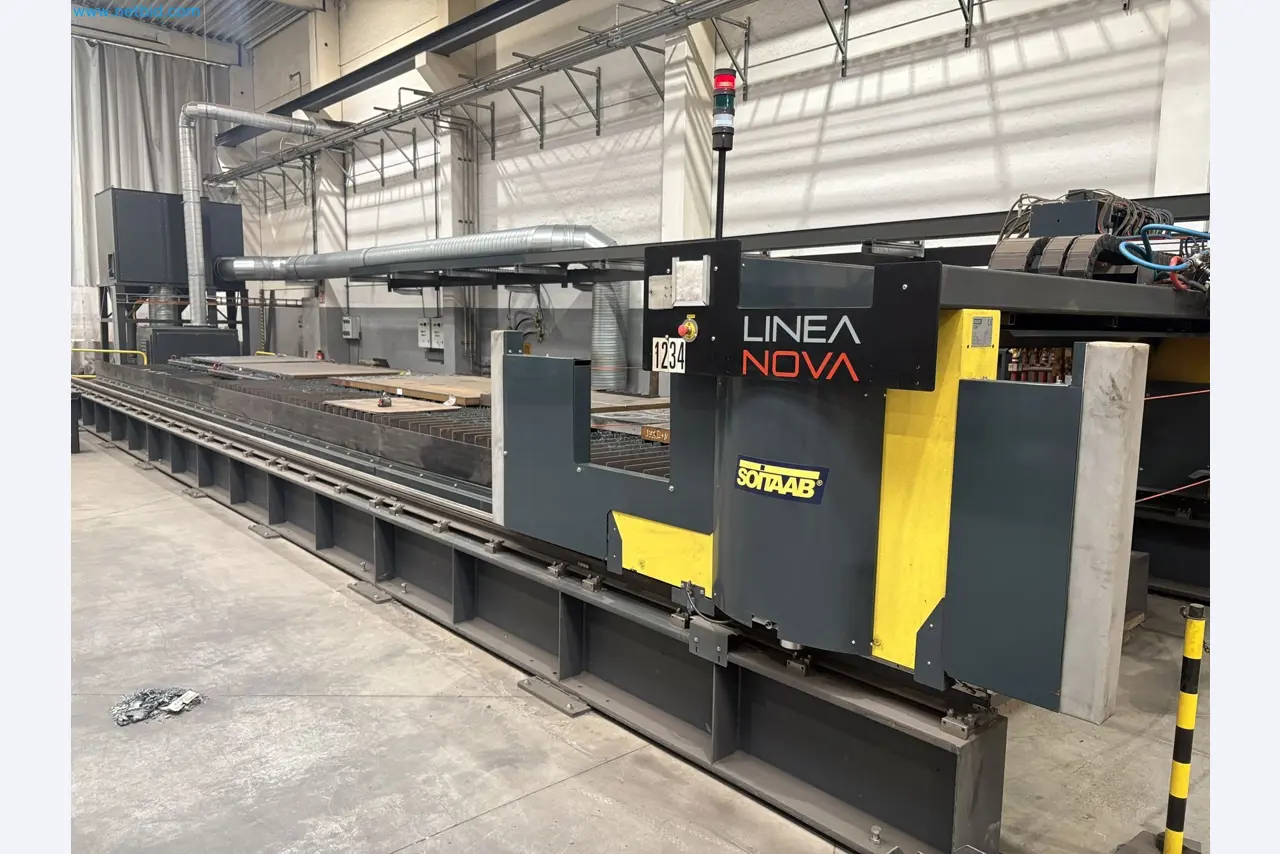

CNC oxy-fuel cutting machine SOITAAB LINEATECH NOVA 40 OXYLIVE#19889-1

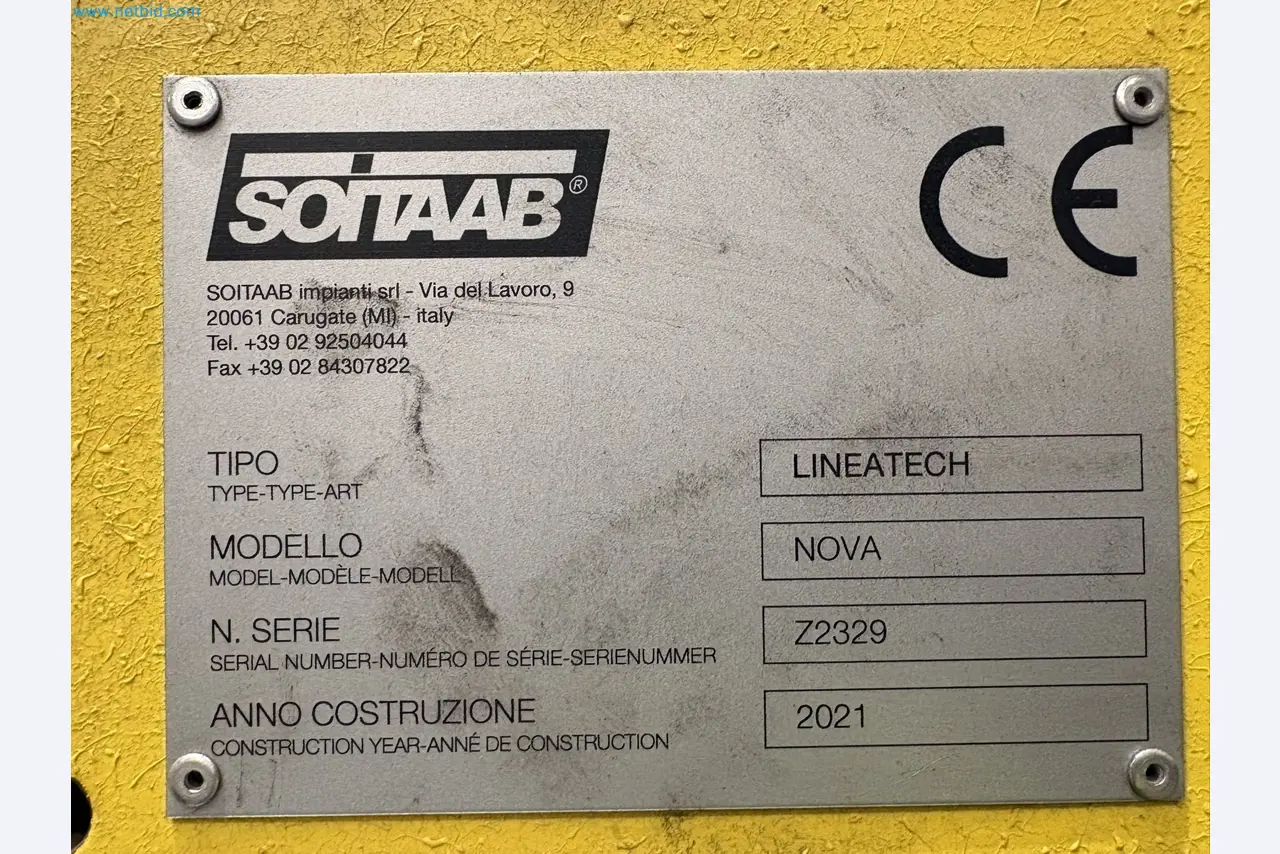

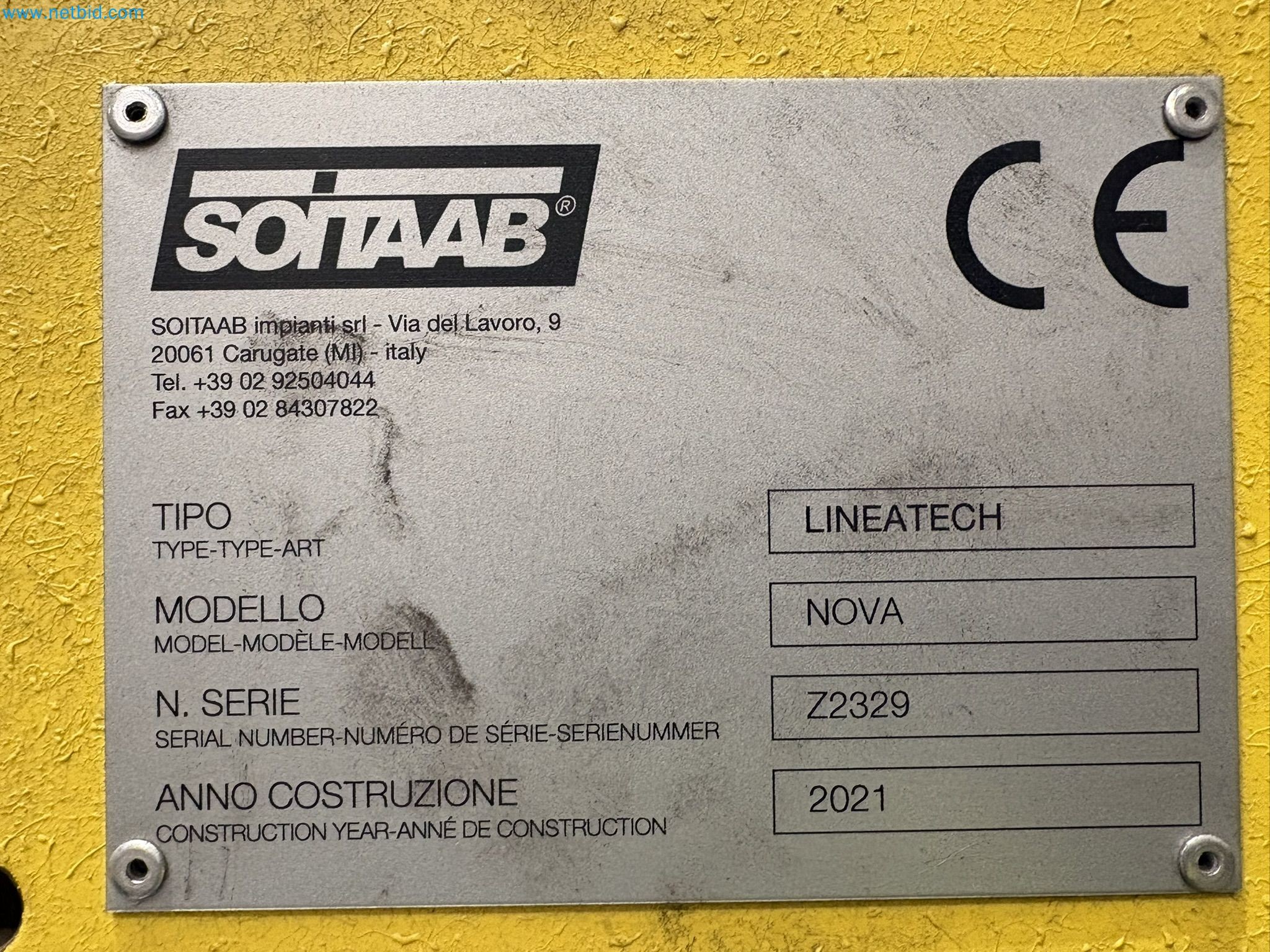

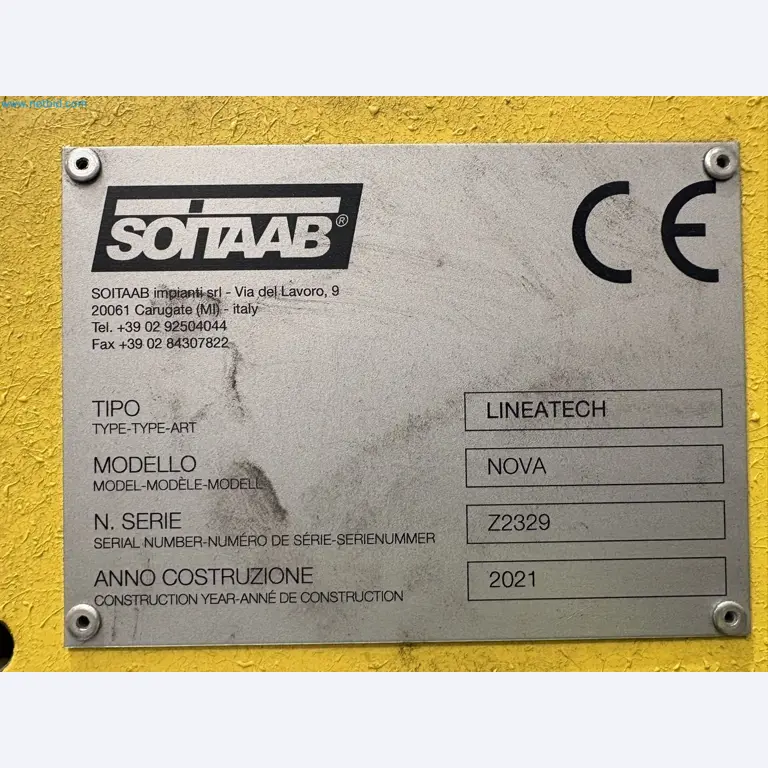

Serial number Z2329
Cutting technology: oxy-fuel (flame cutting)
Working area: 3,000 x 14,000 mm
Max. cutting thickness: up to 300 mm
Max. piercing thickness: up to 150 mm

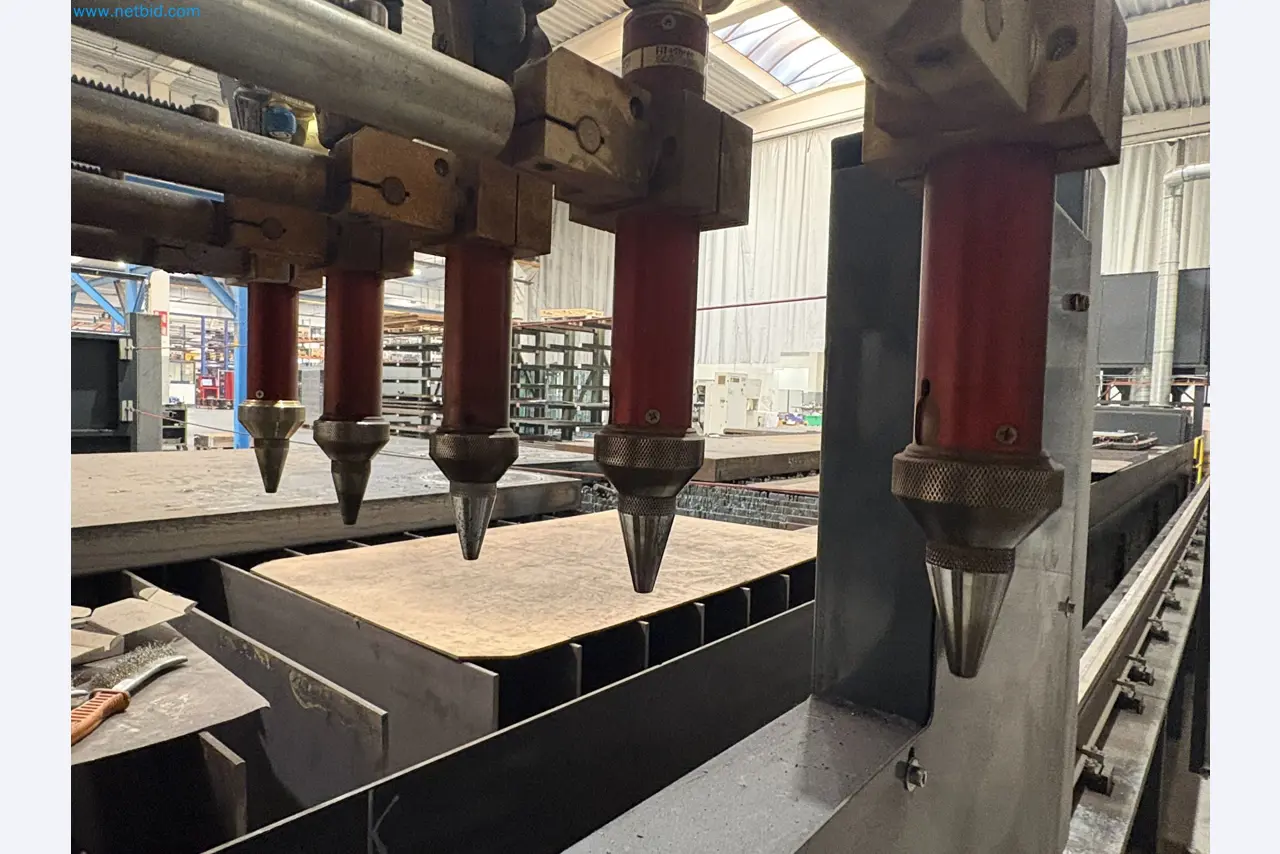

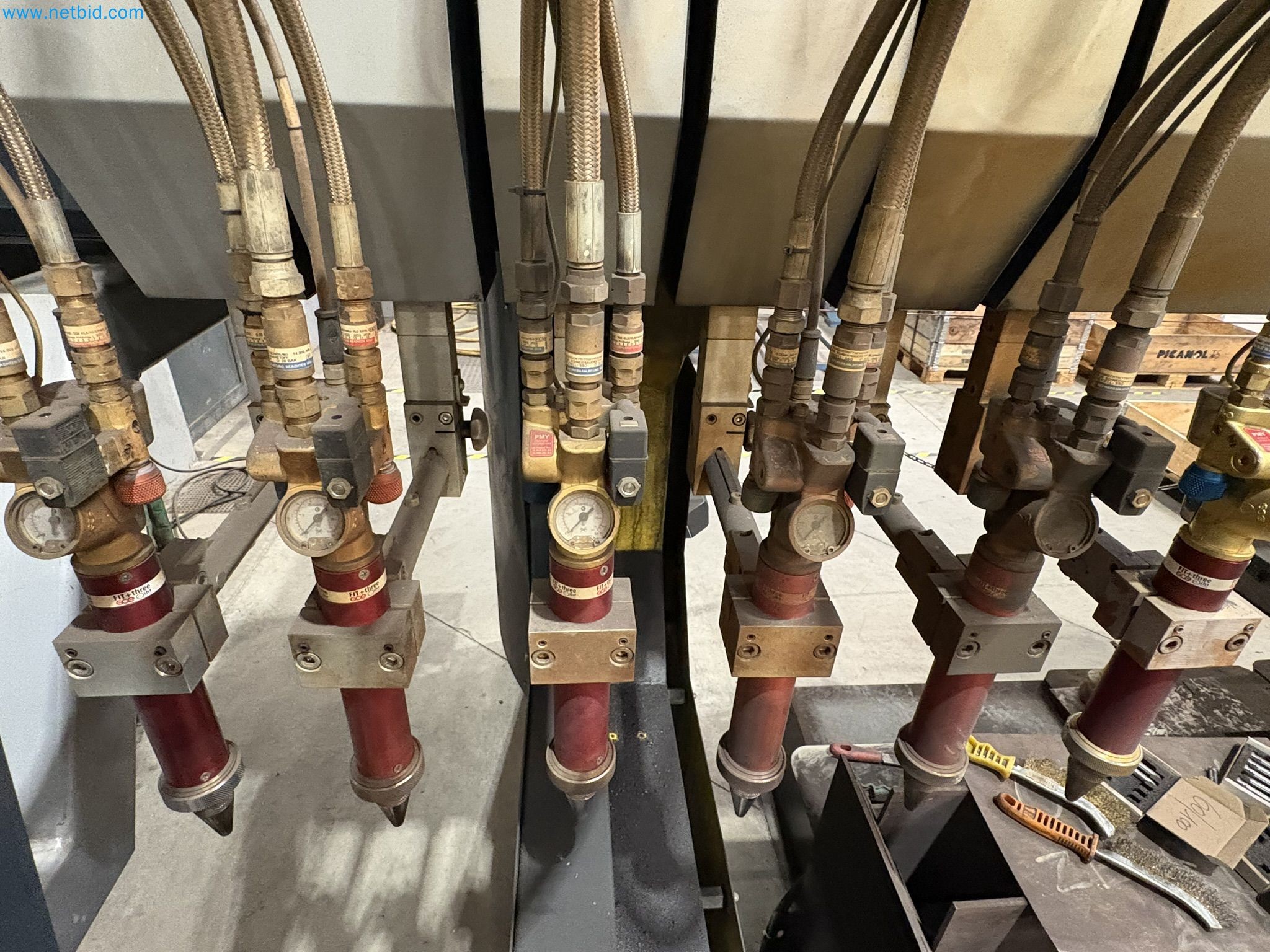

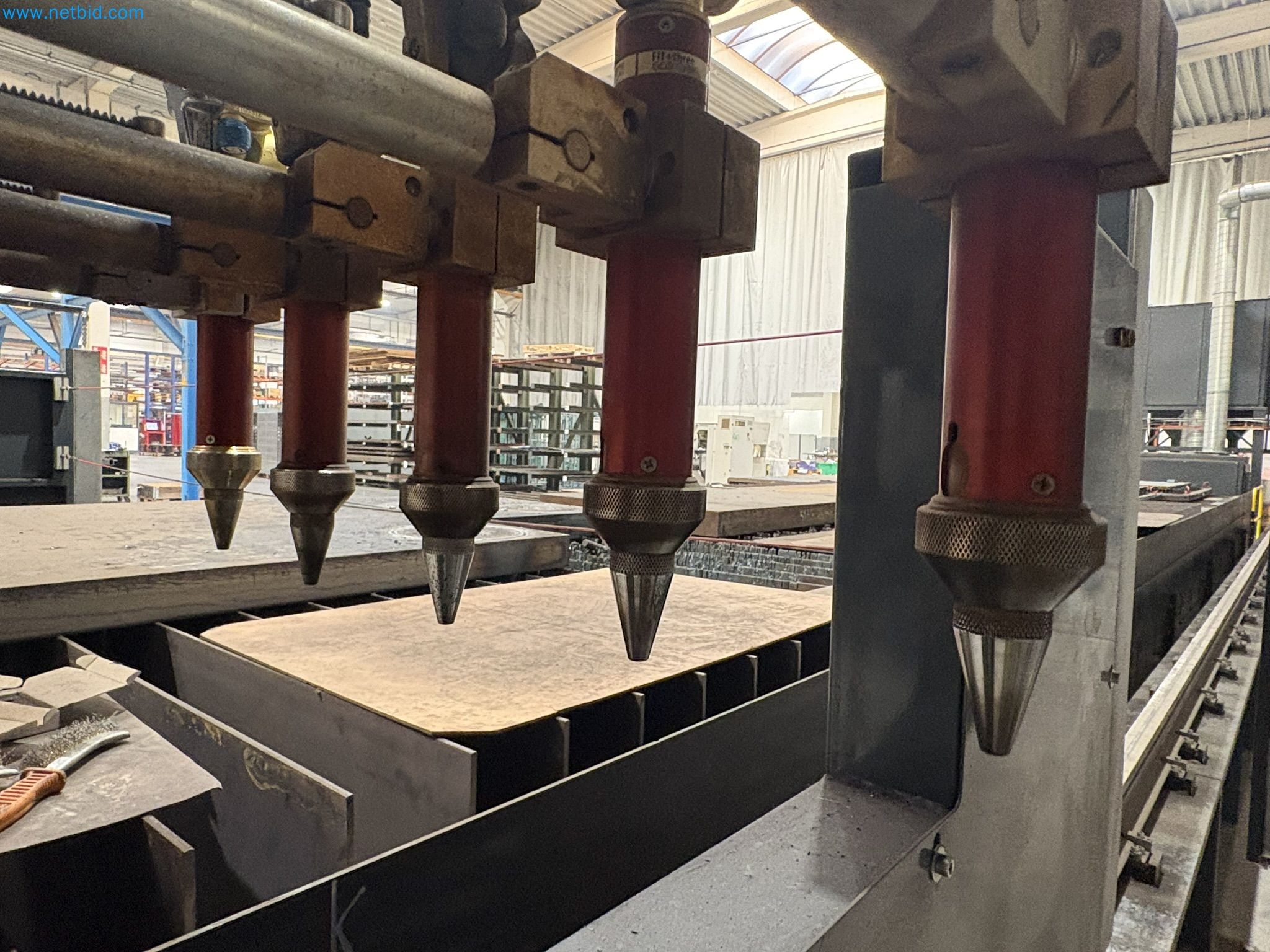

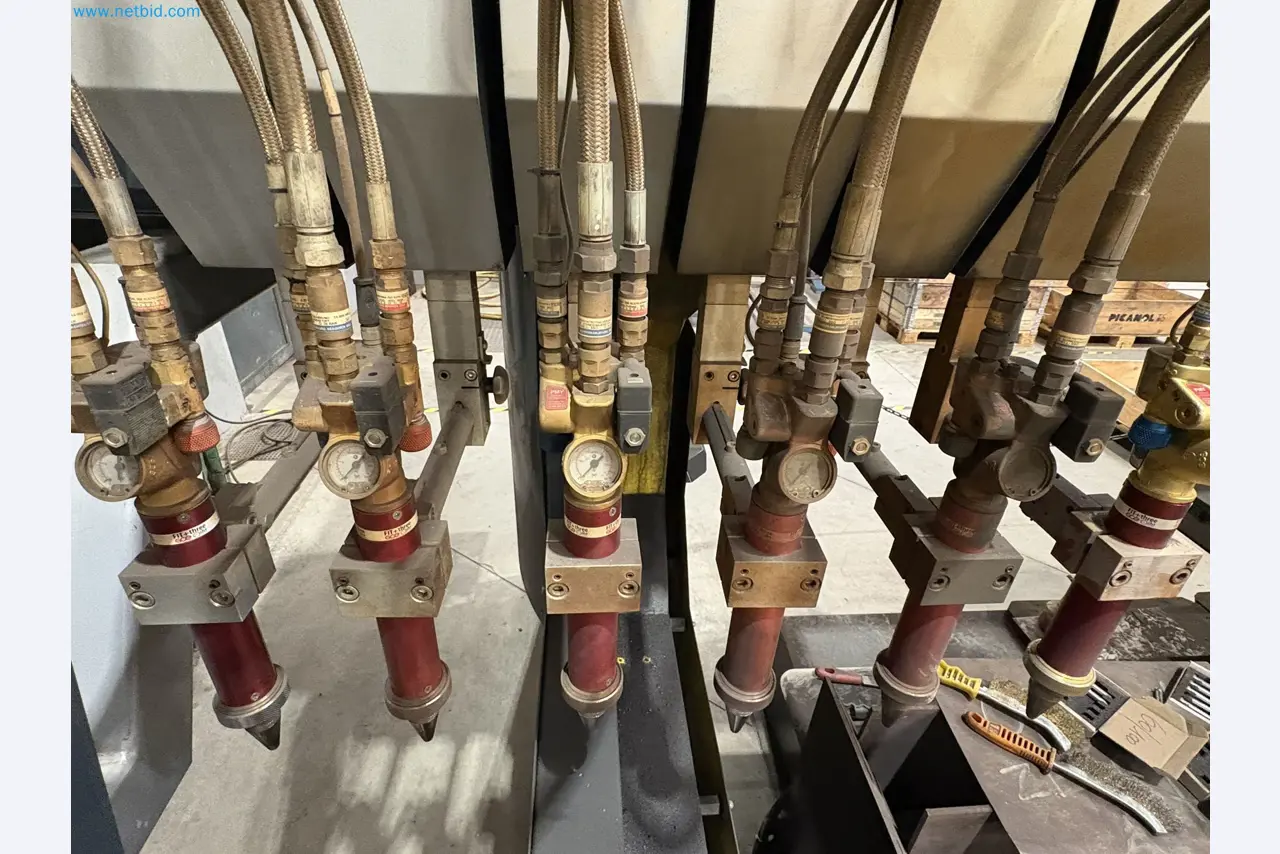

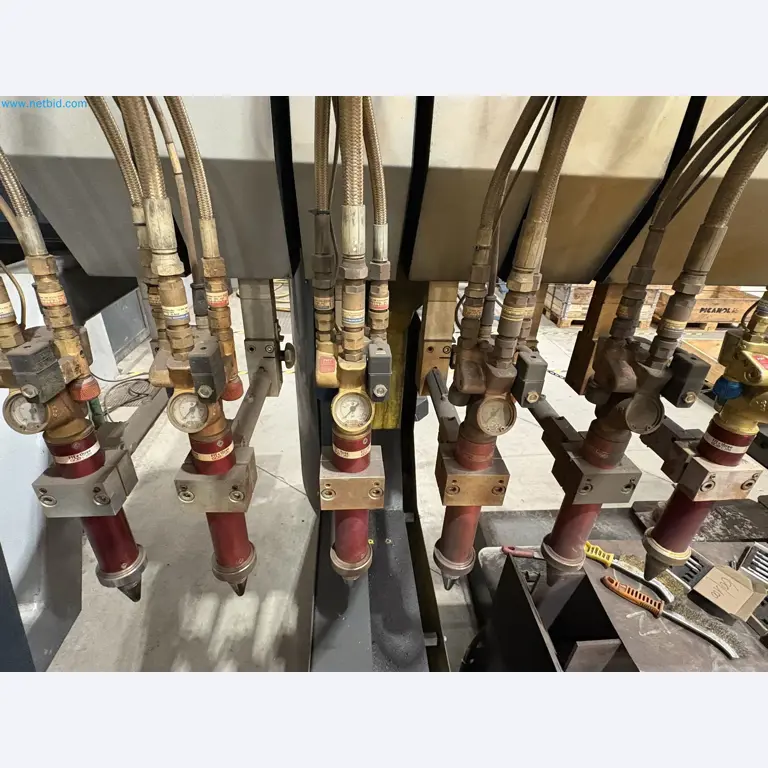

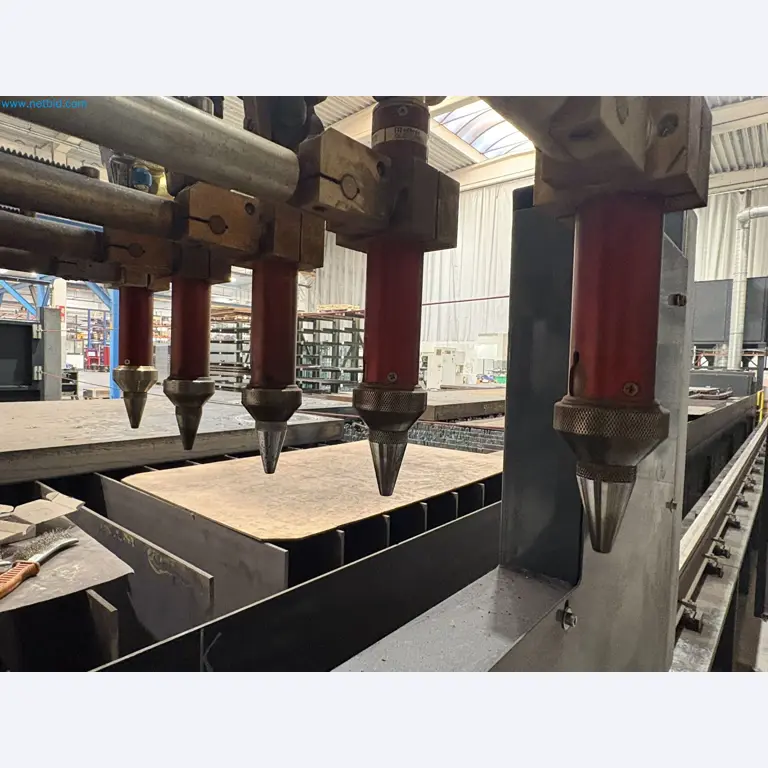

Cutting torches: 6 oxy-fuel torches (1 master + 5 follower carriages)
Cutting configuration: vertical cutting
Drive system: dual brushless servo motors
Travel speed: from 20 m/min

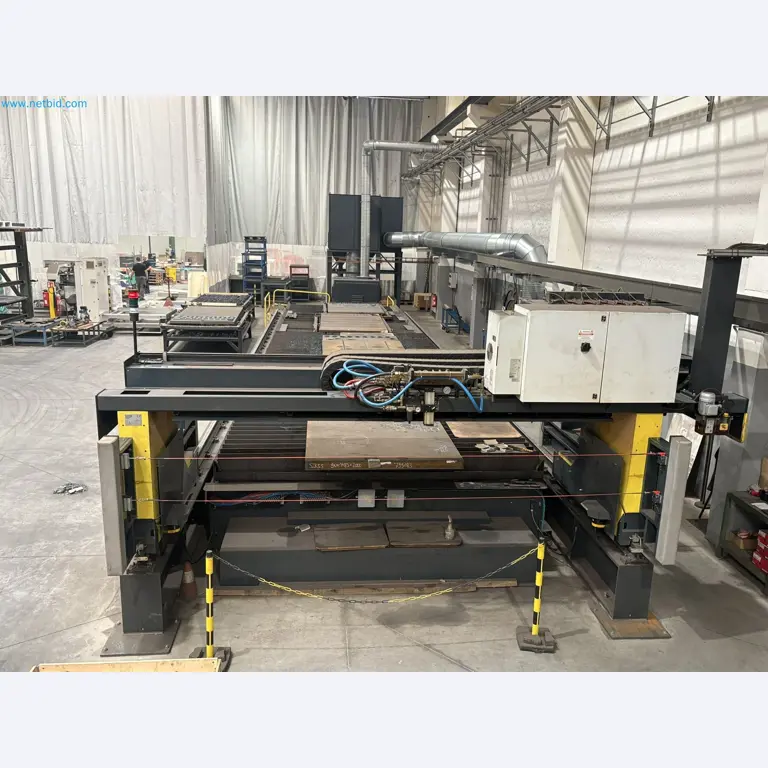

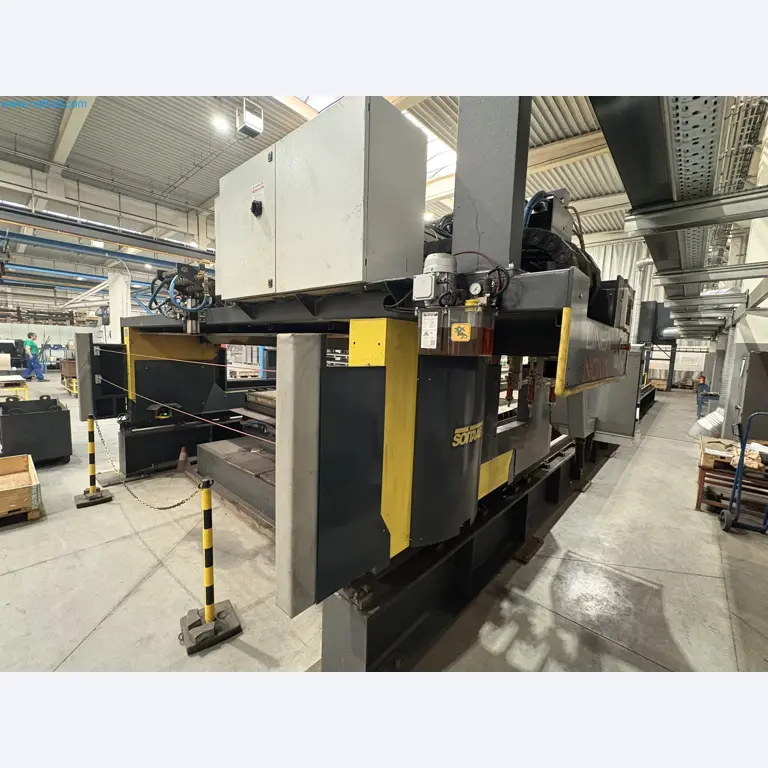

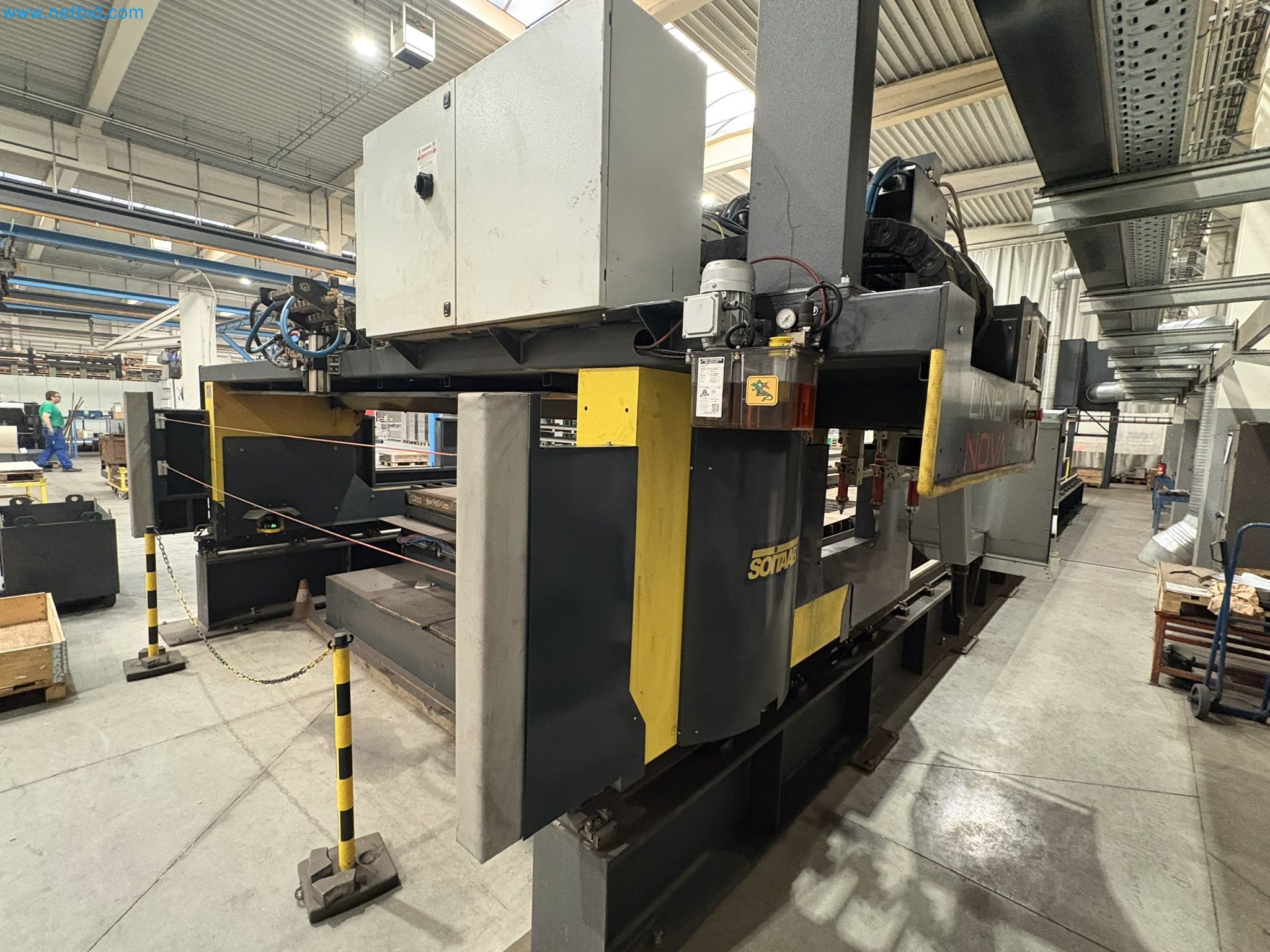

Gantry: double-beam gantry

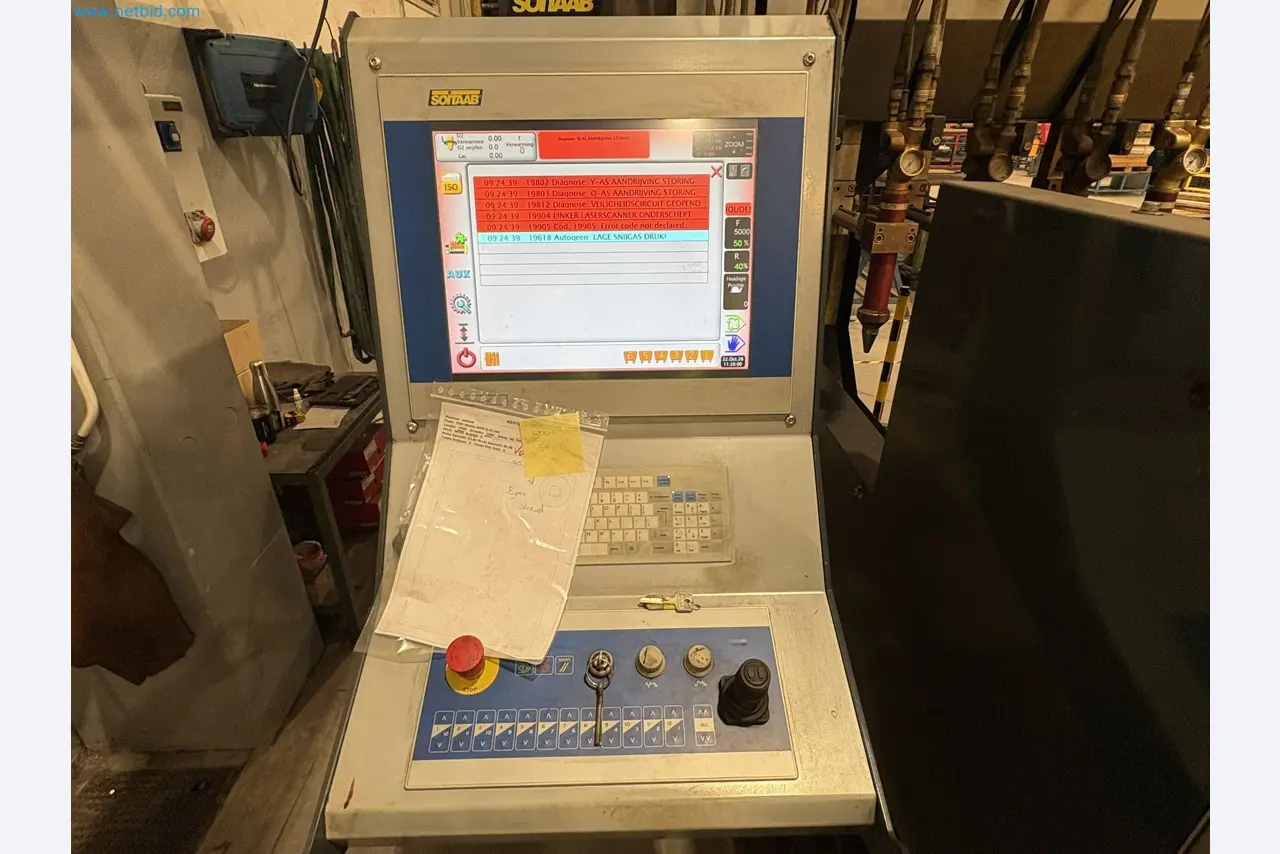

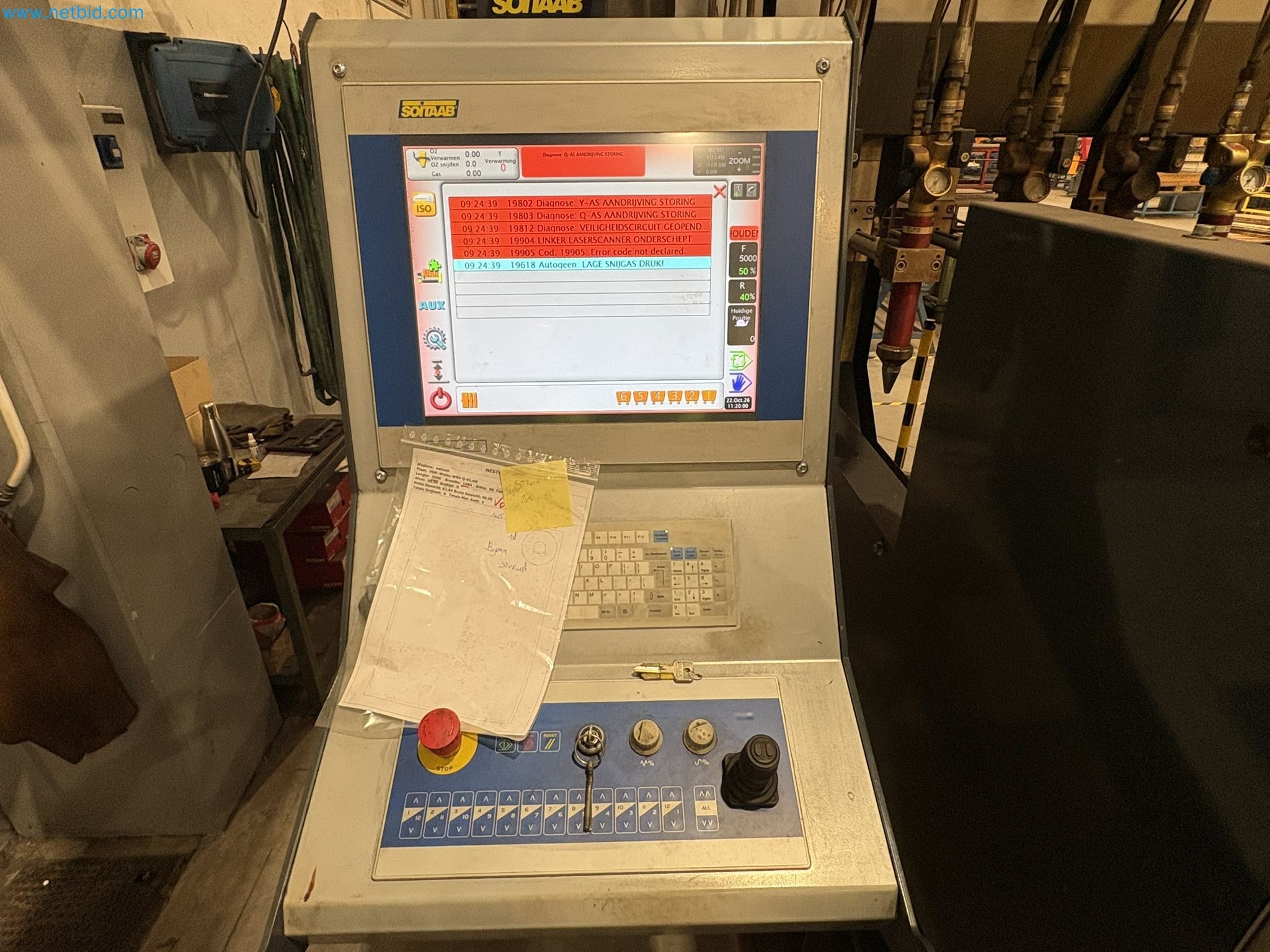

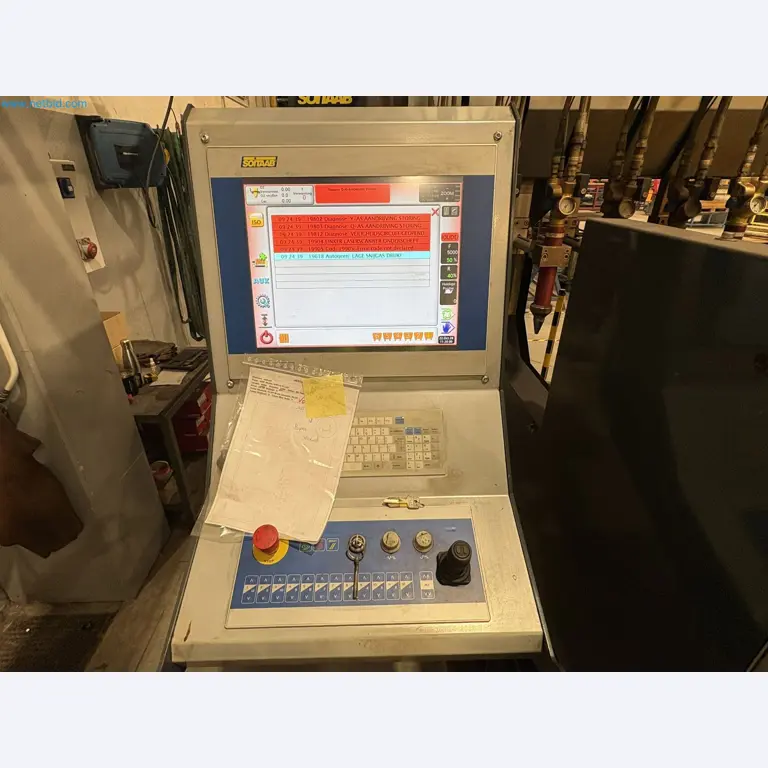

CNC control: touchscreen CNC control system
Software: postprocessor for Lantek software
Cutting database: integrated oxy-fuel database on SOITAAB NC control

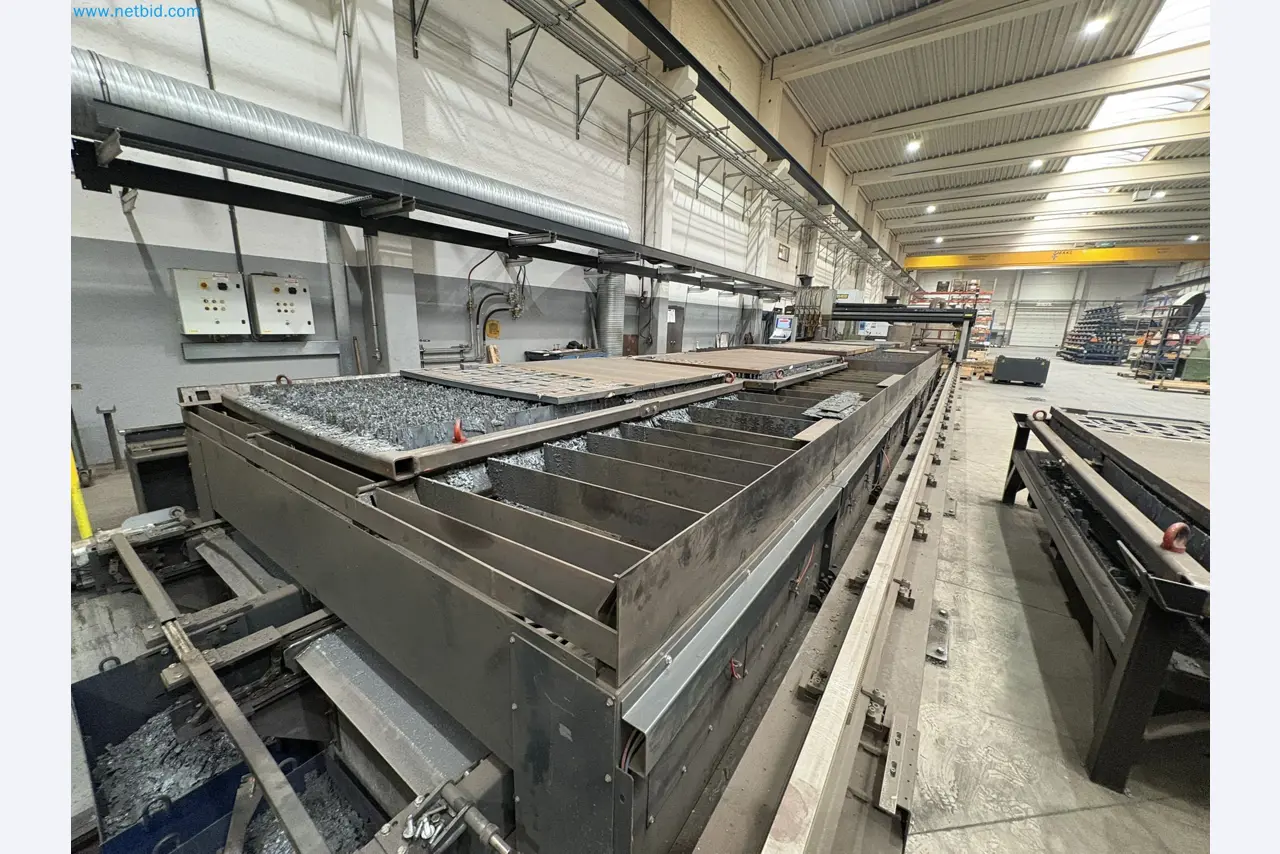

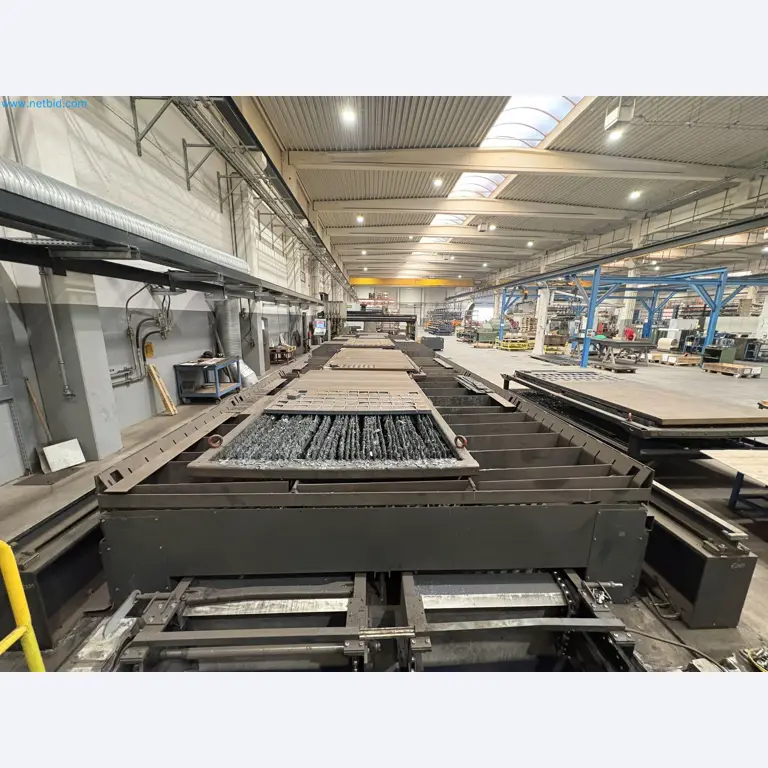

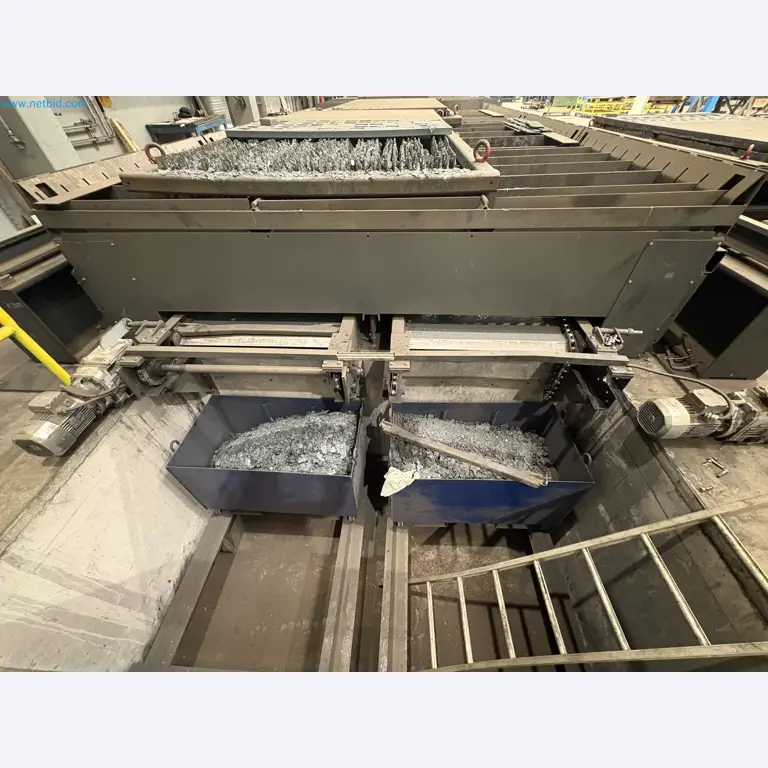

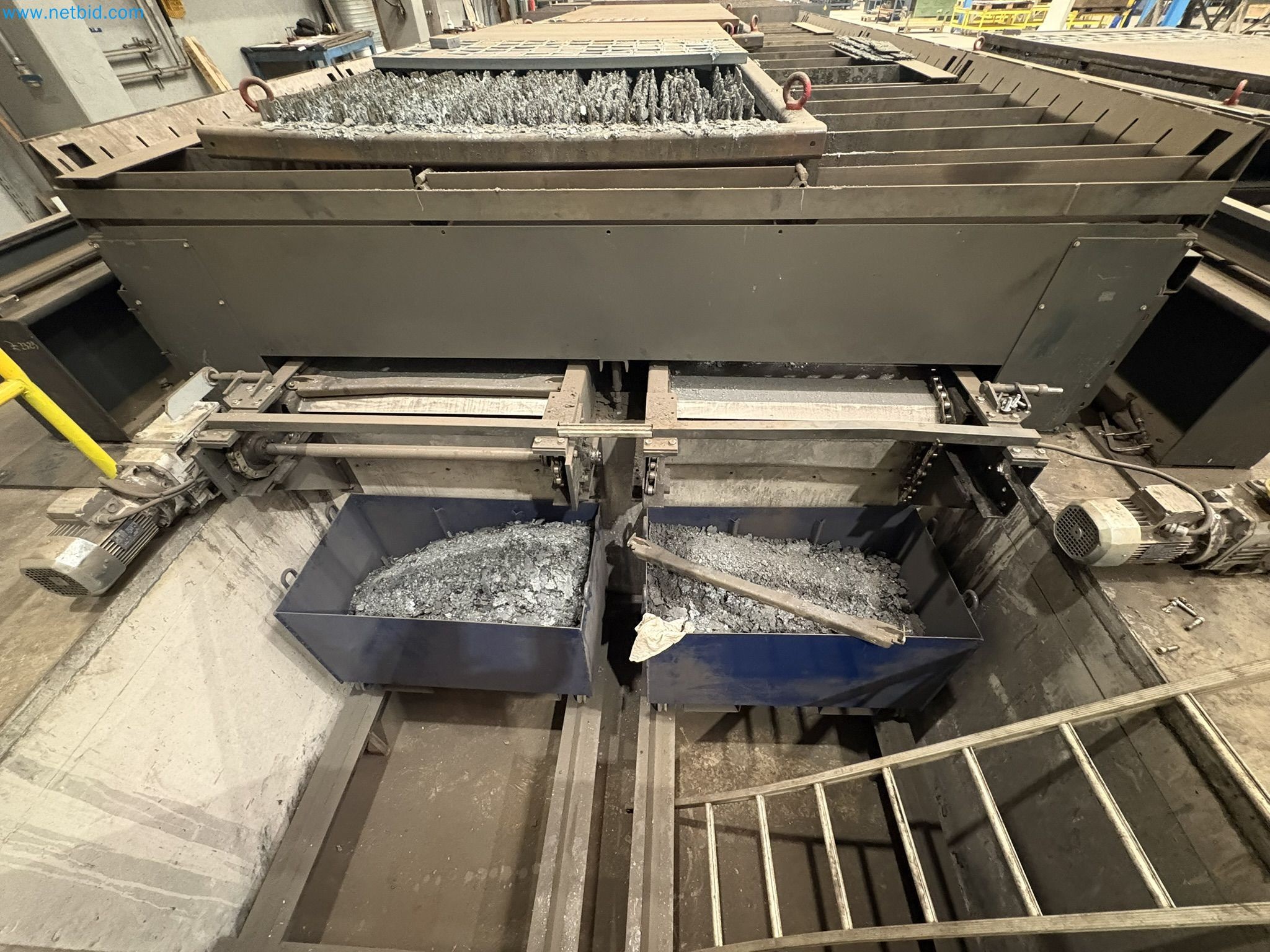

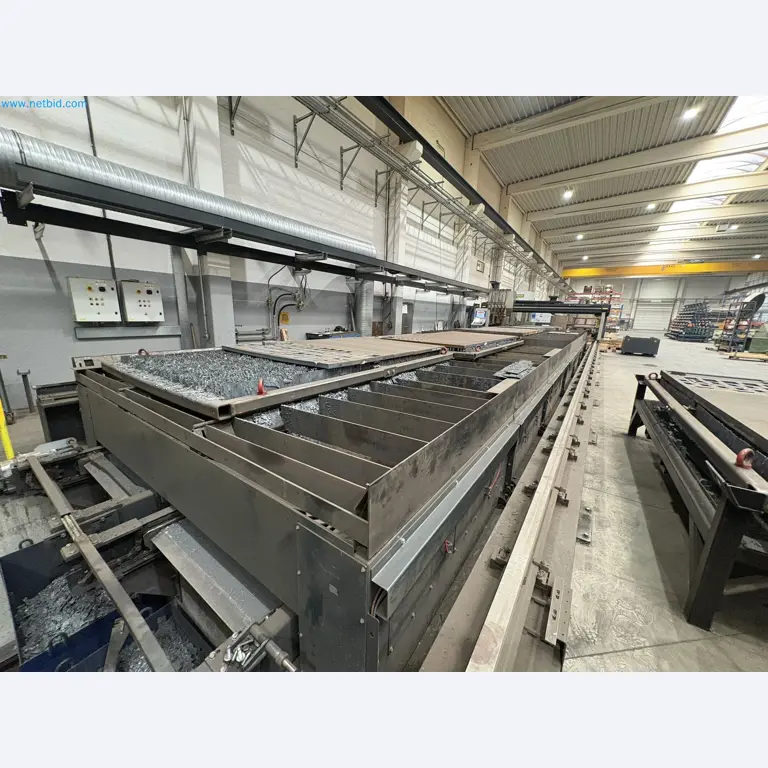

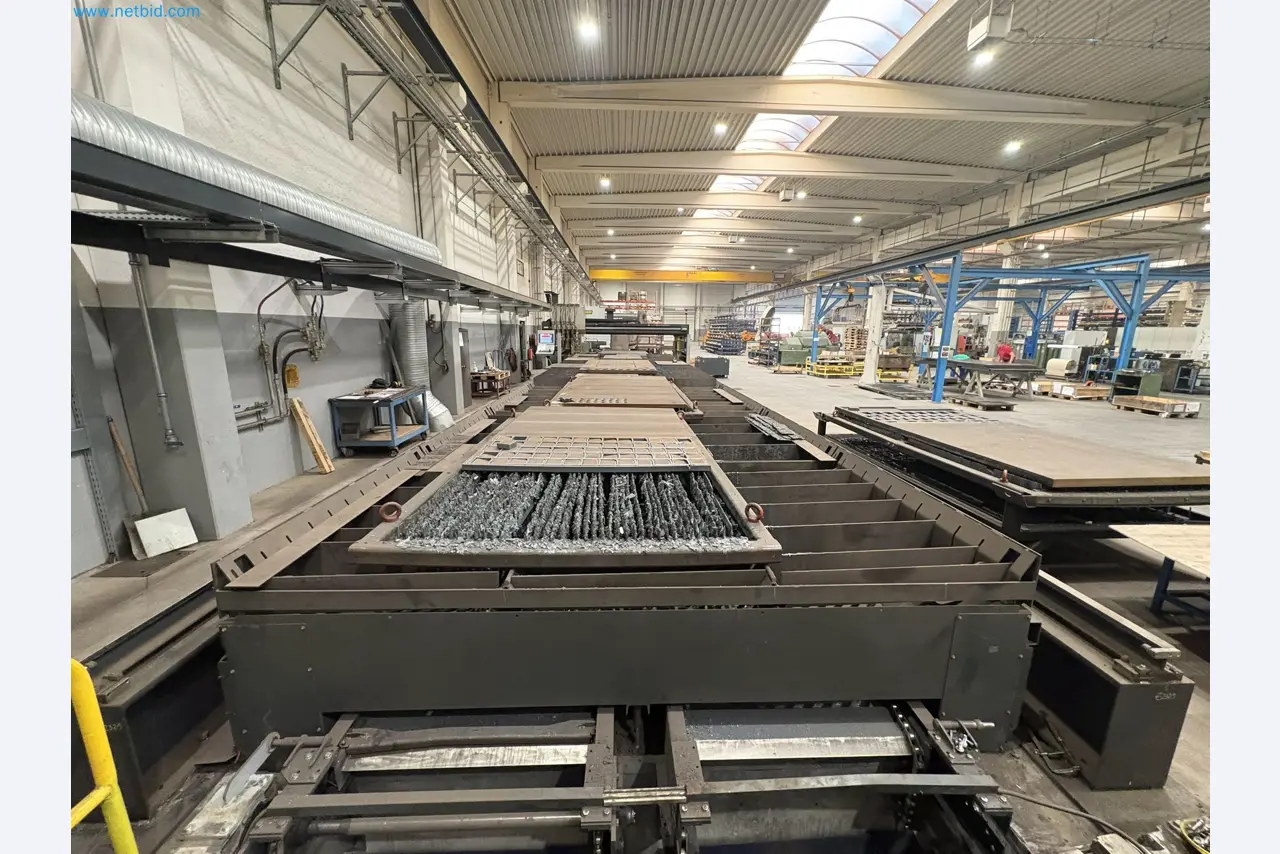

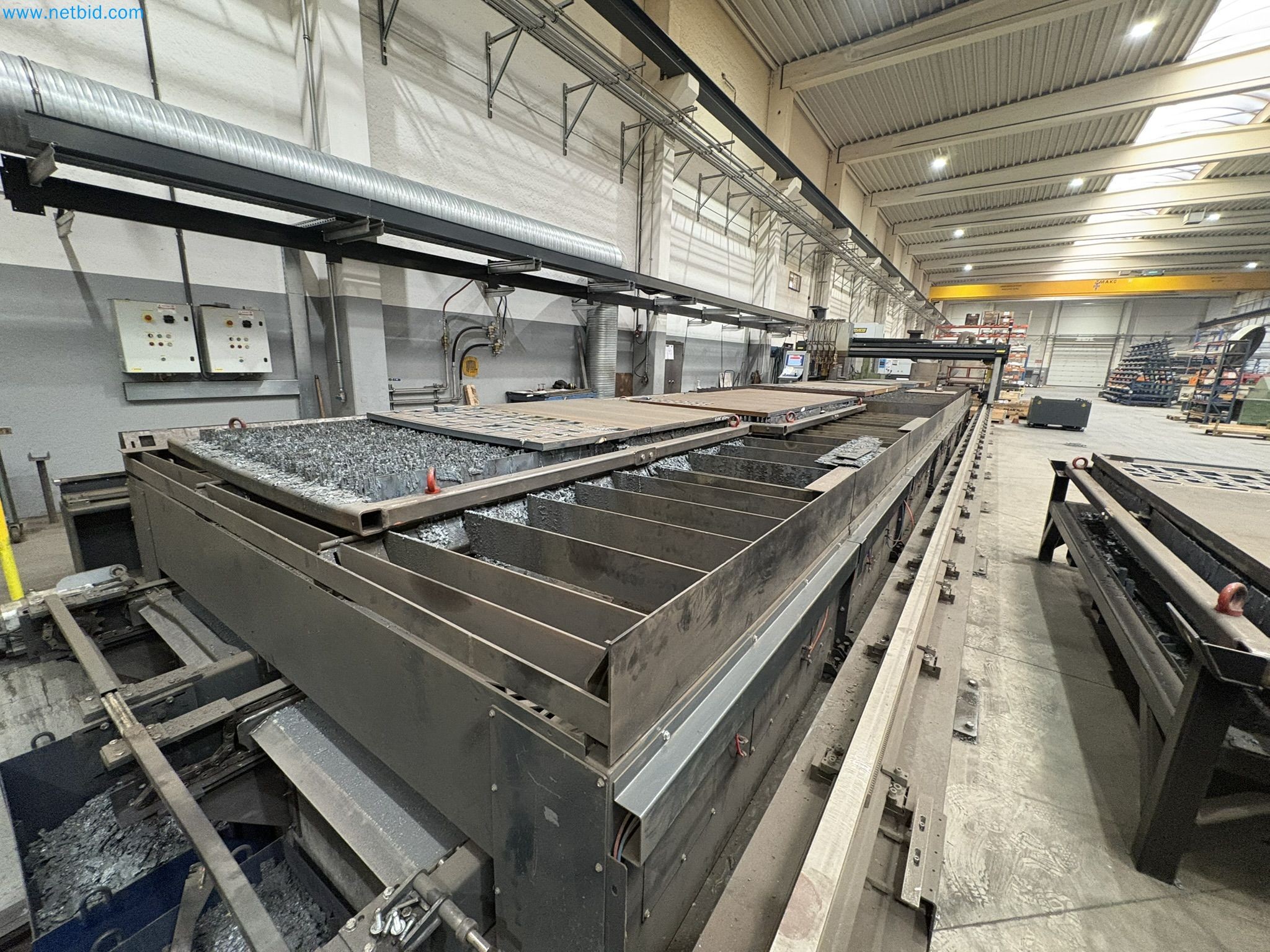

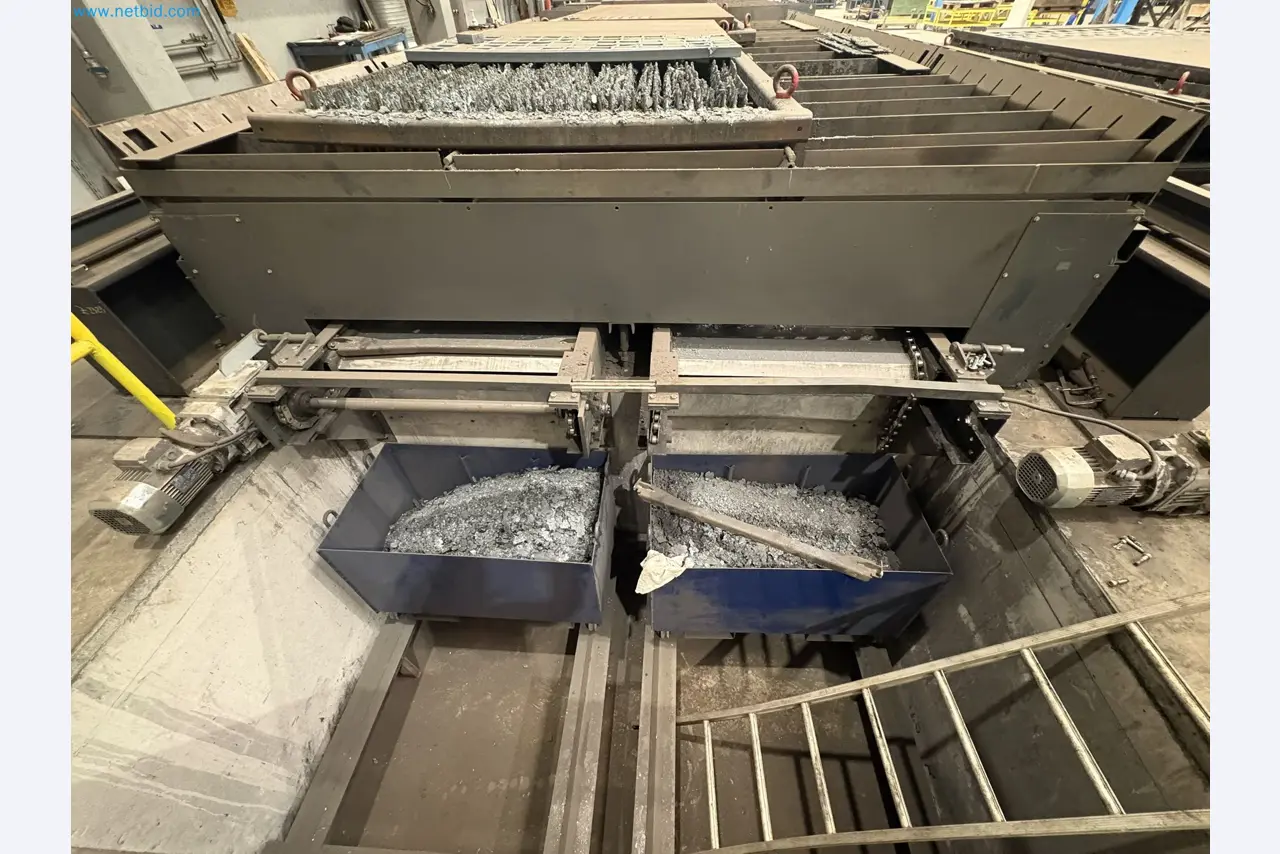

Scrap removal: automatic system with two longitudinal scrap conveyors and collection container

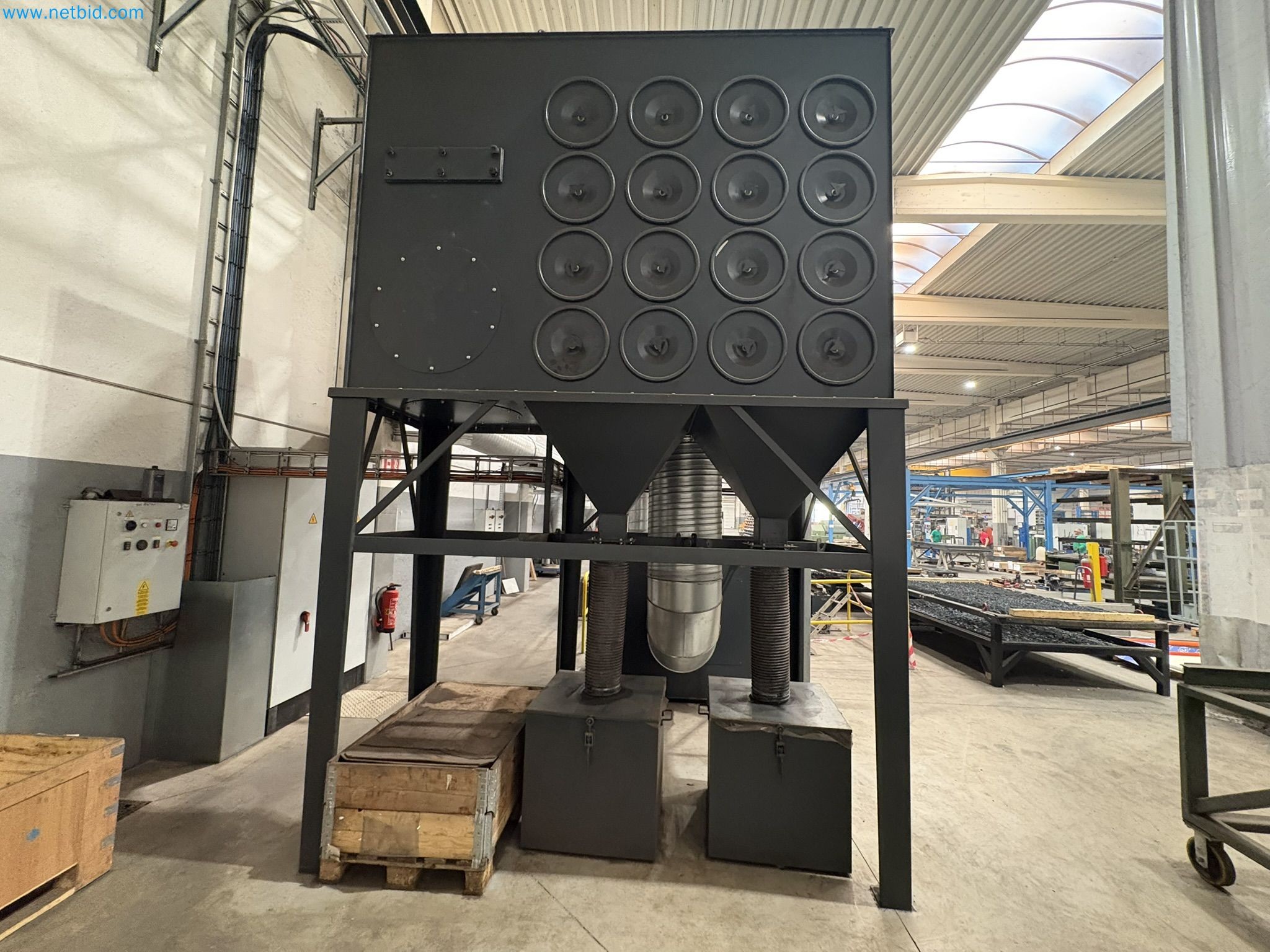

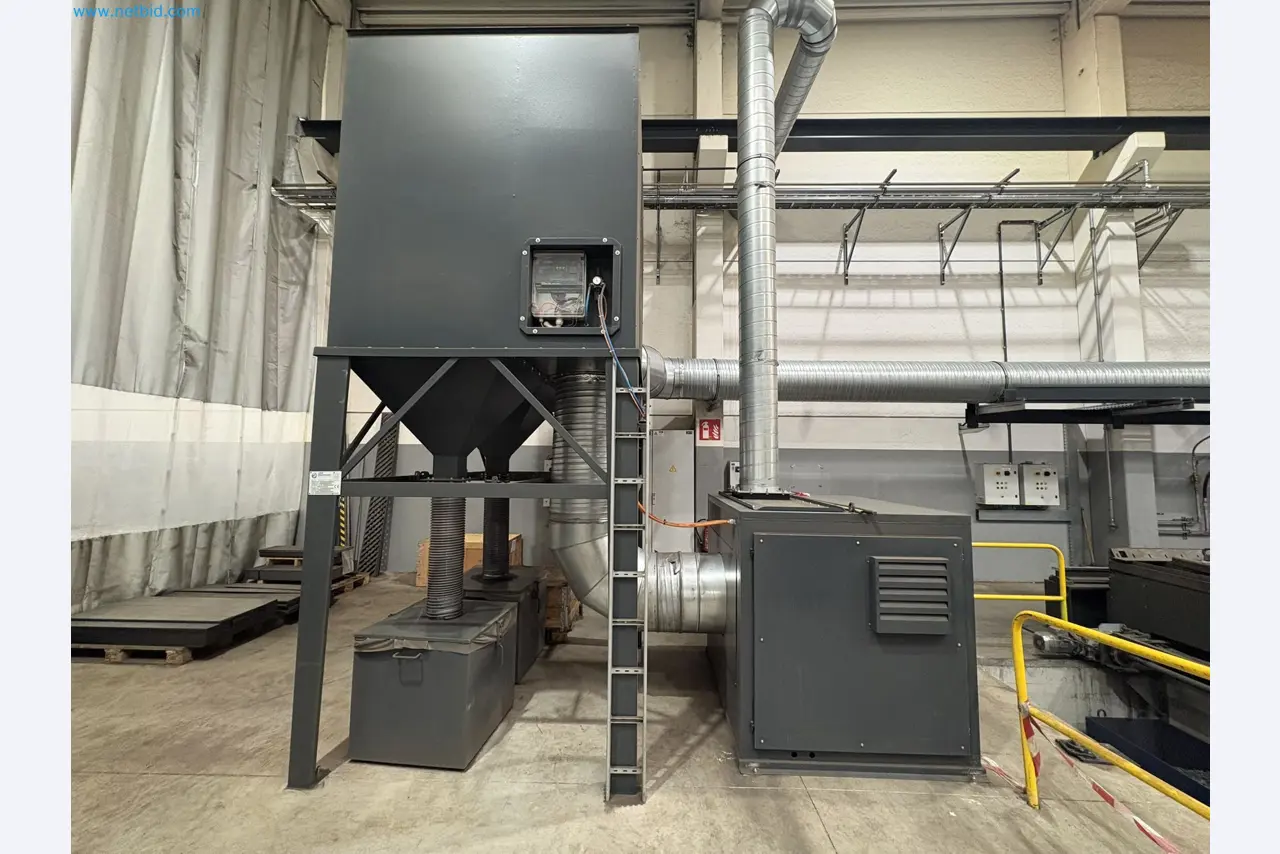

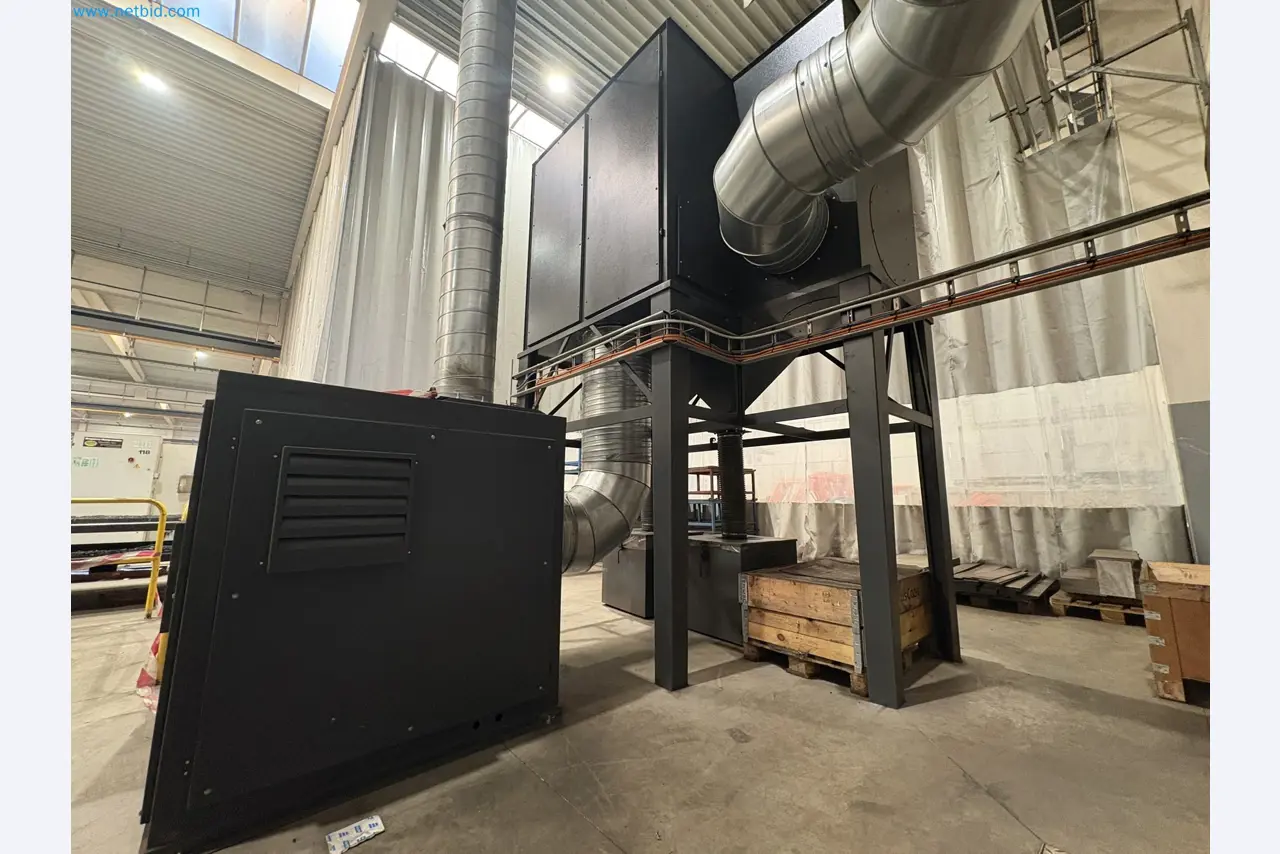

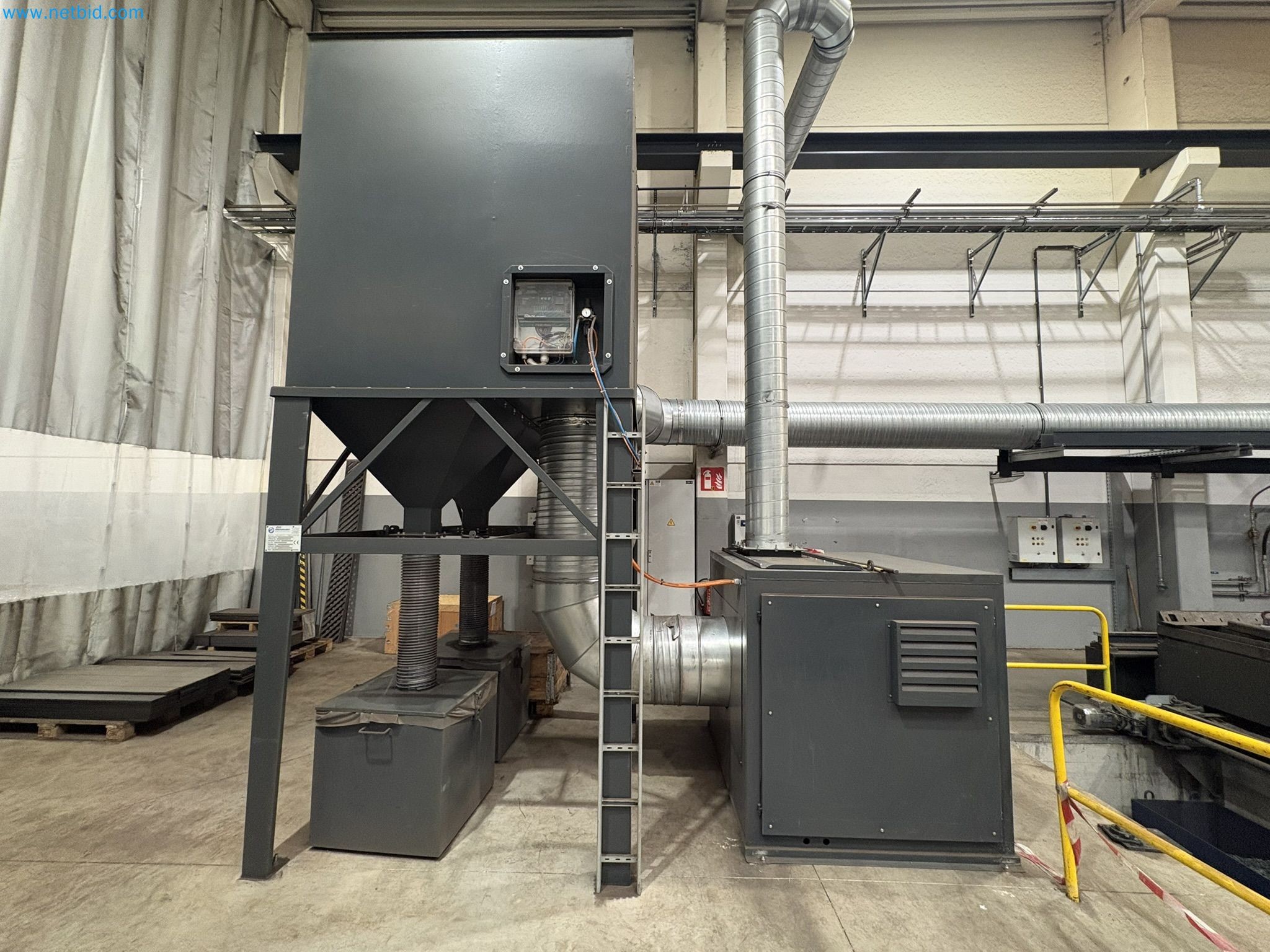

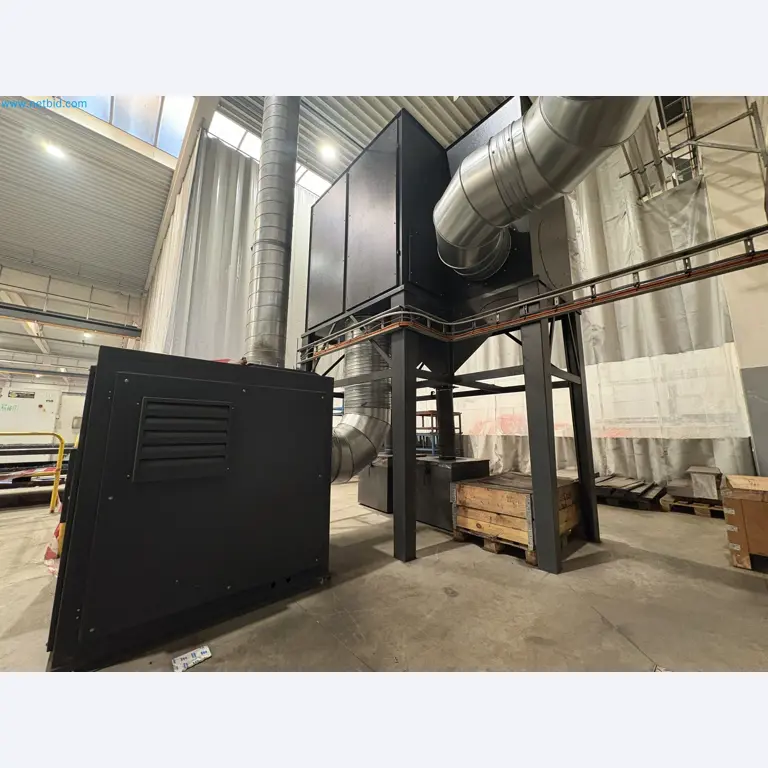

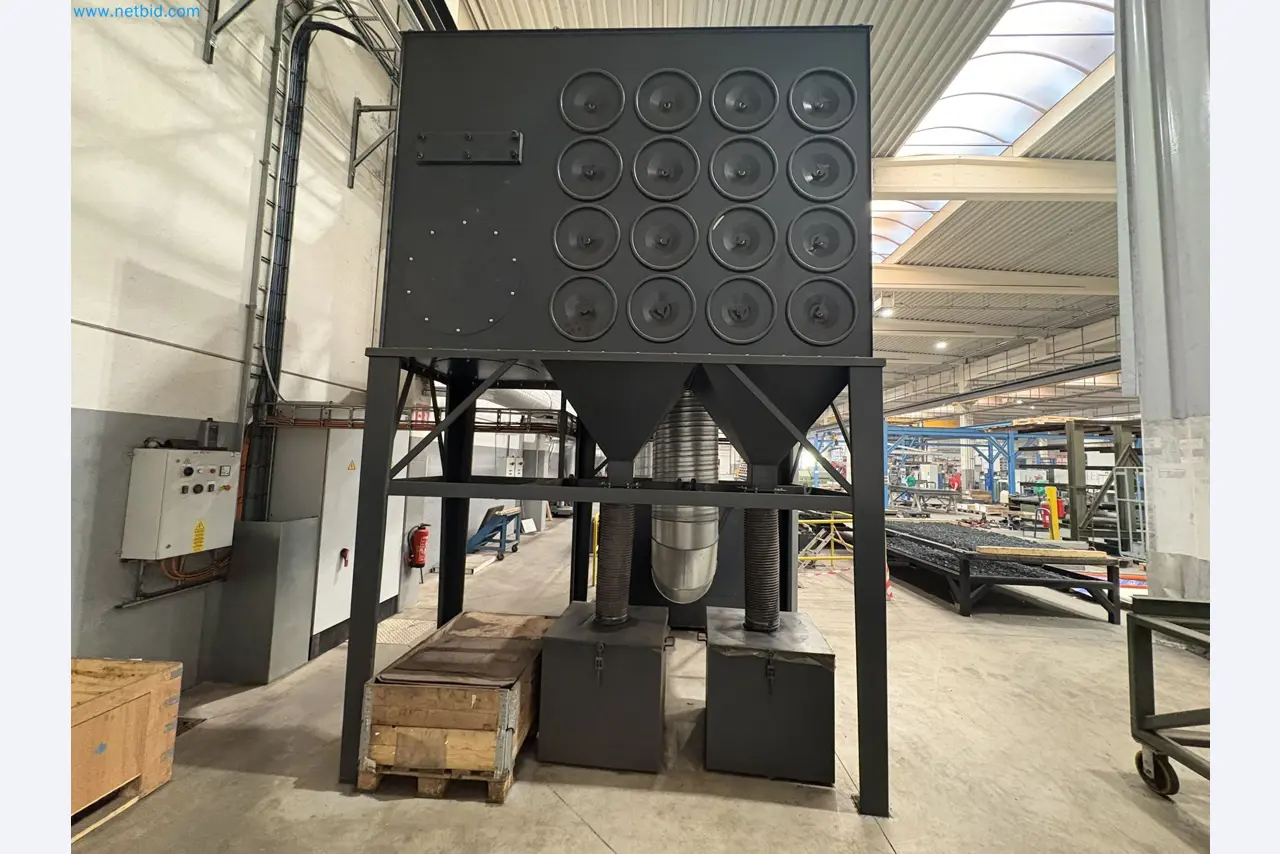

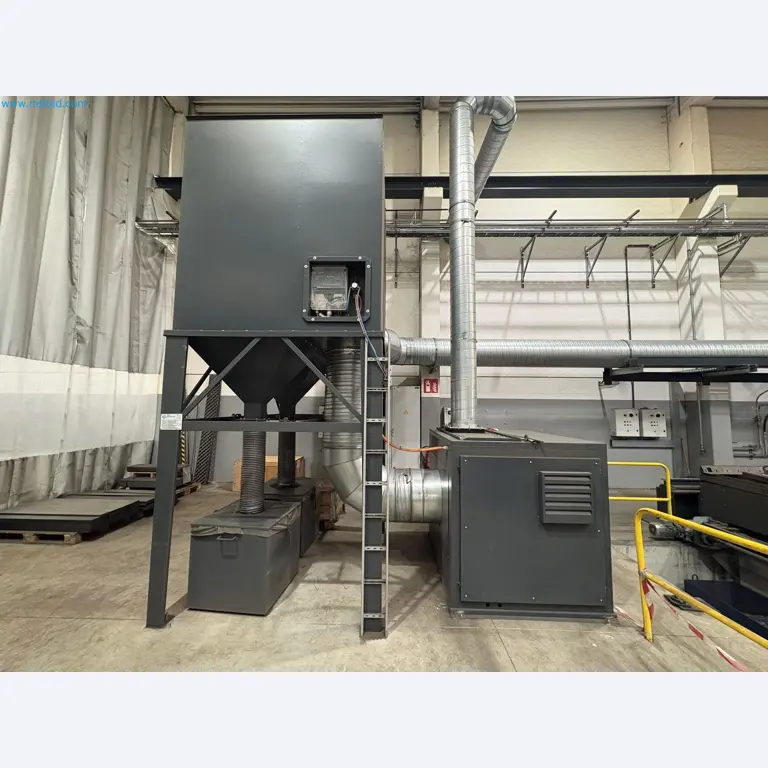

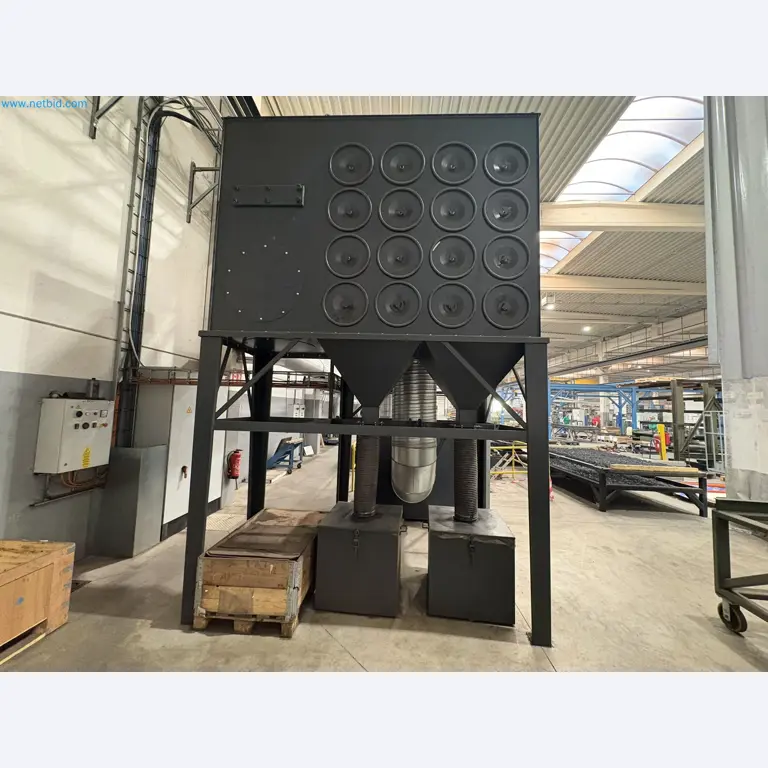

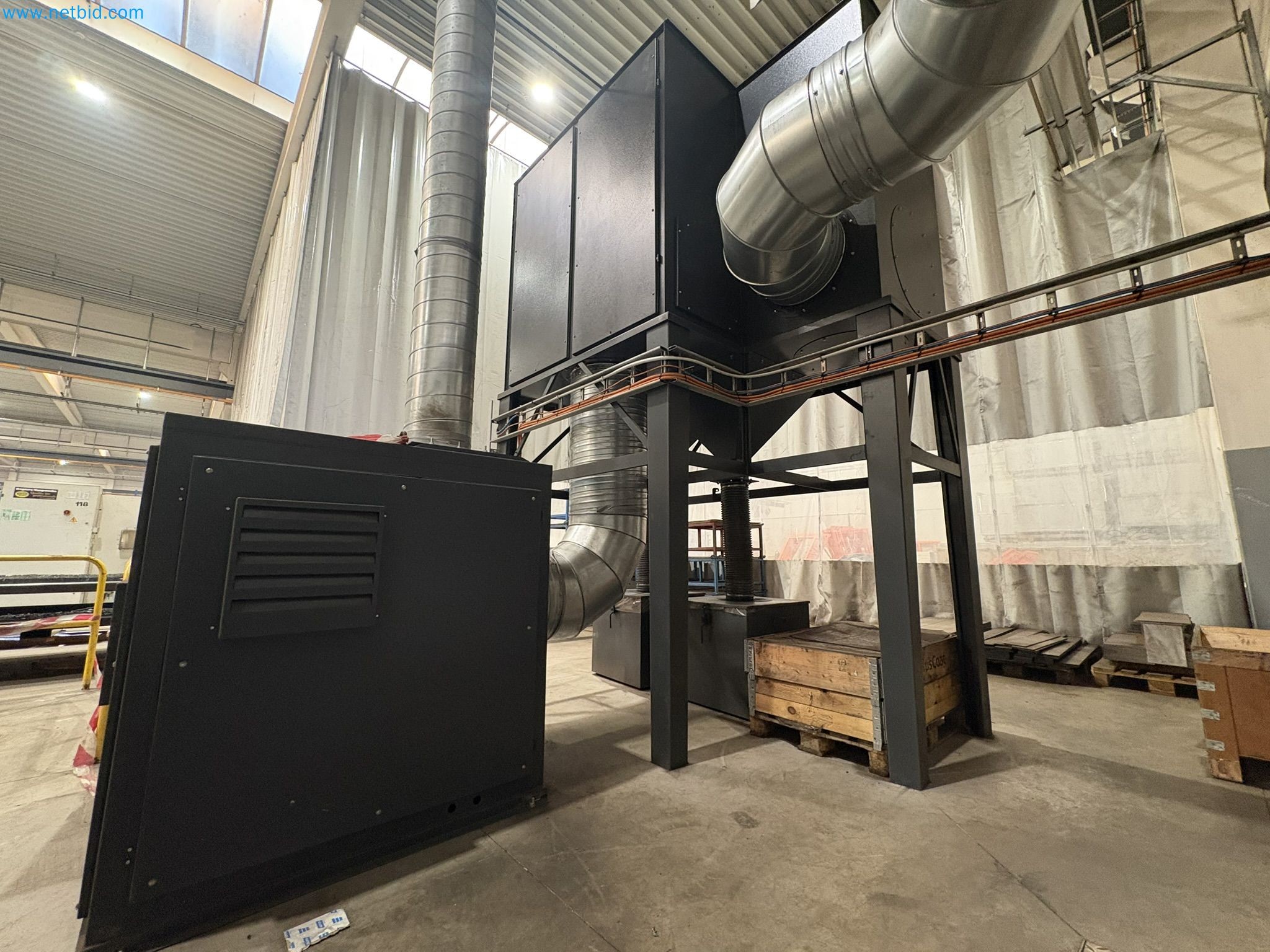

Fume extraction: full-table extraction system with filtration unit

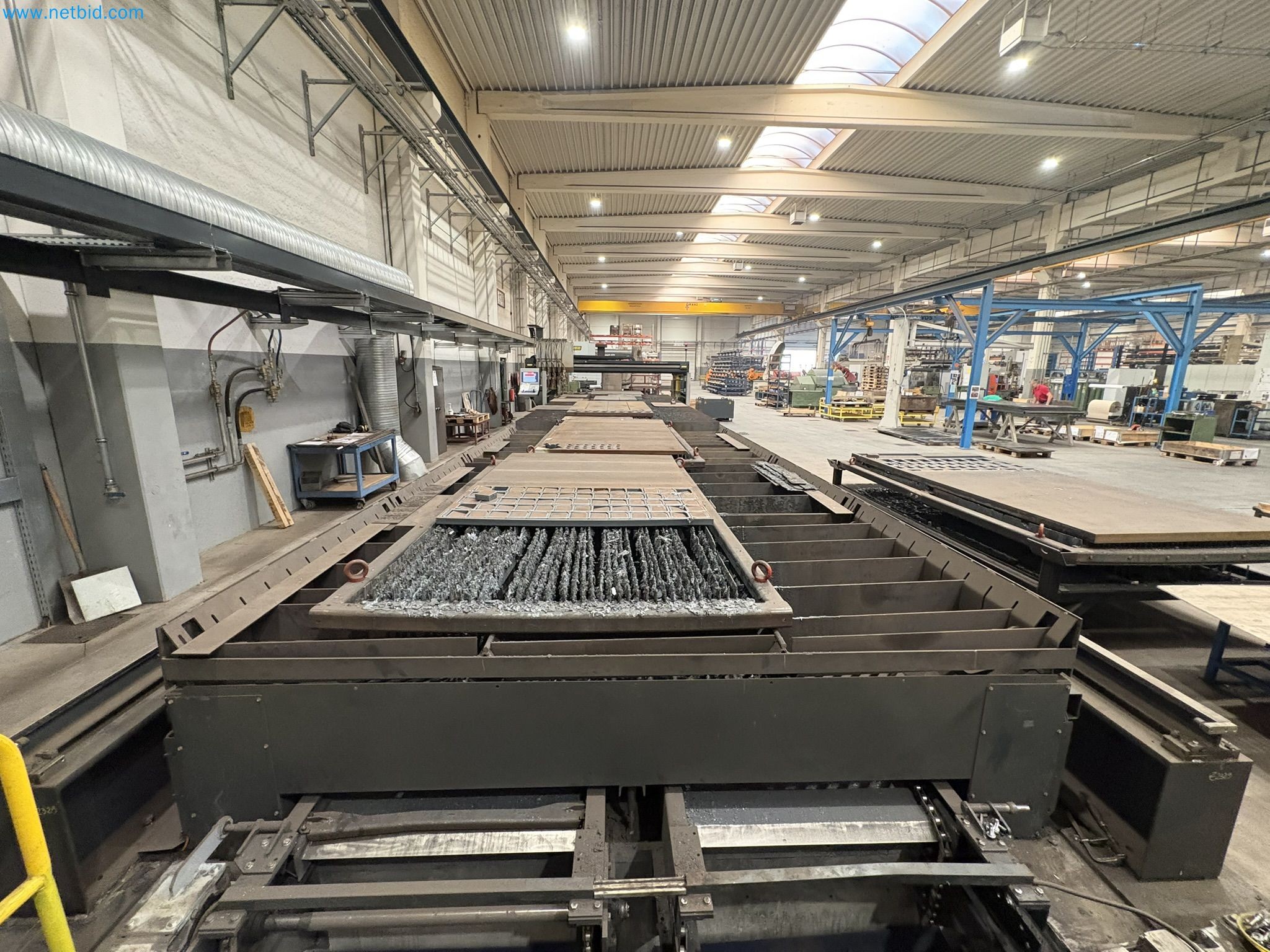

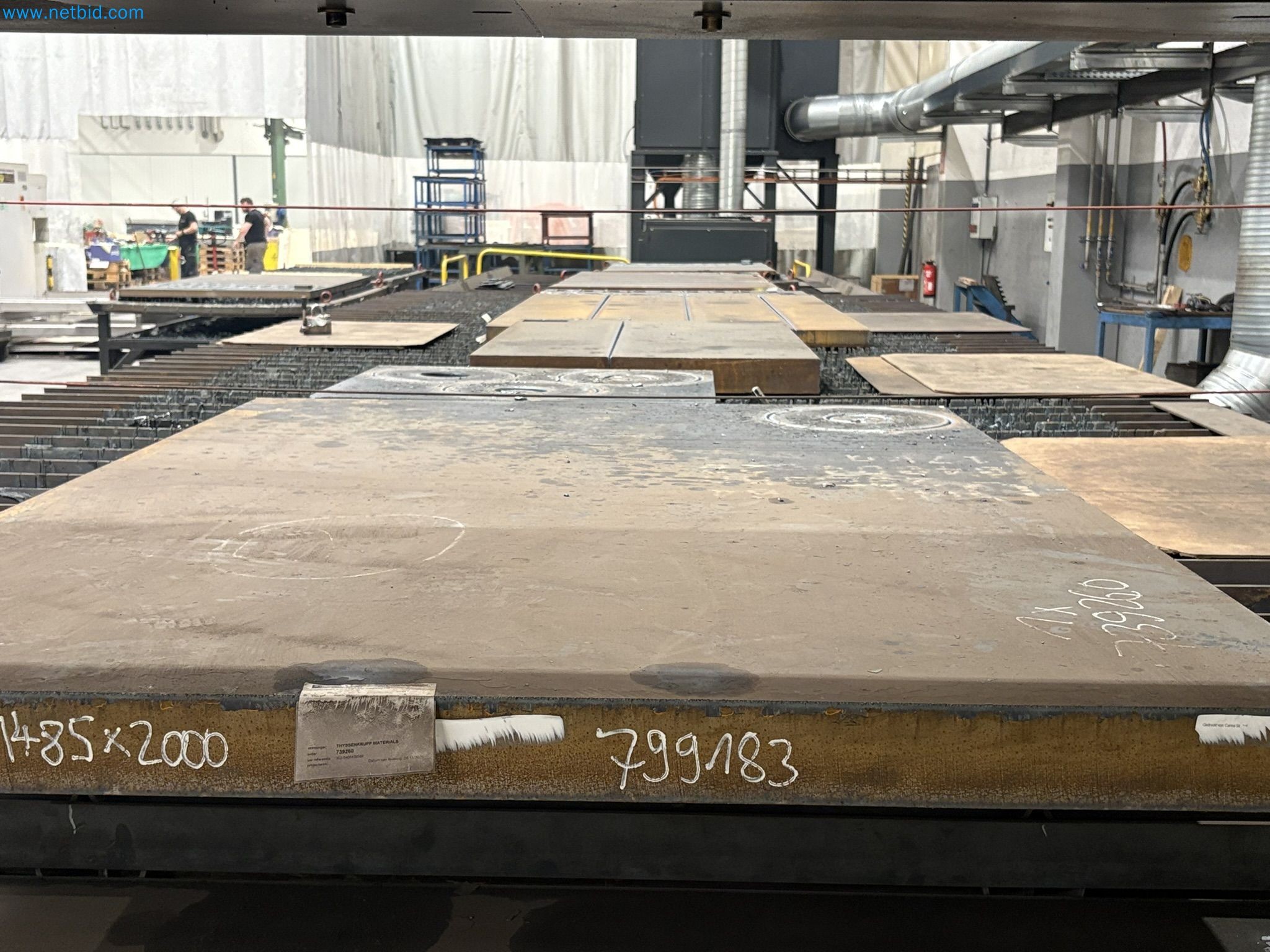

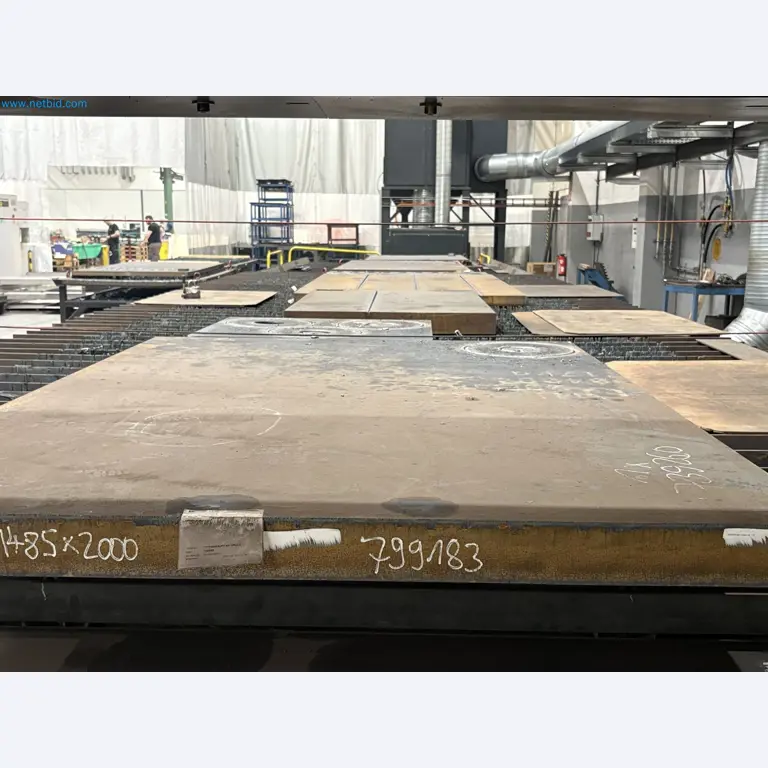

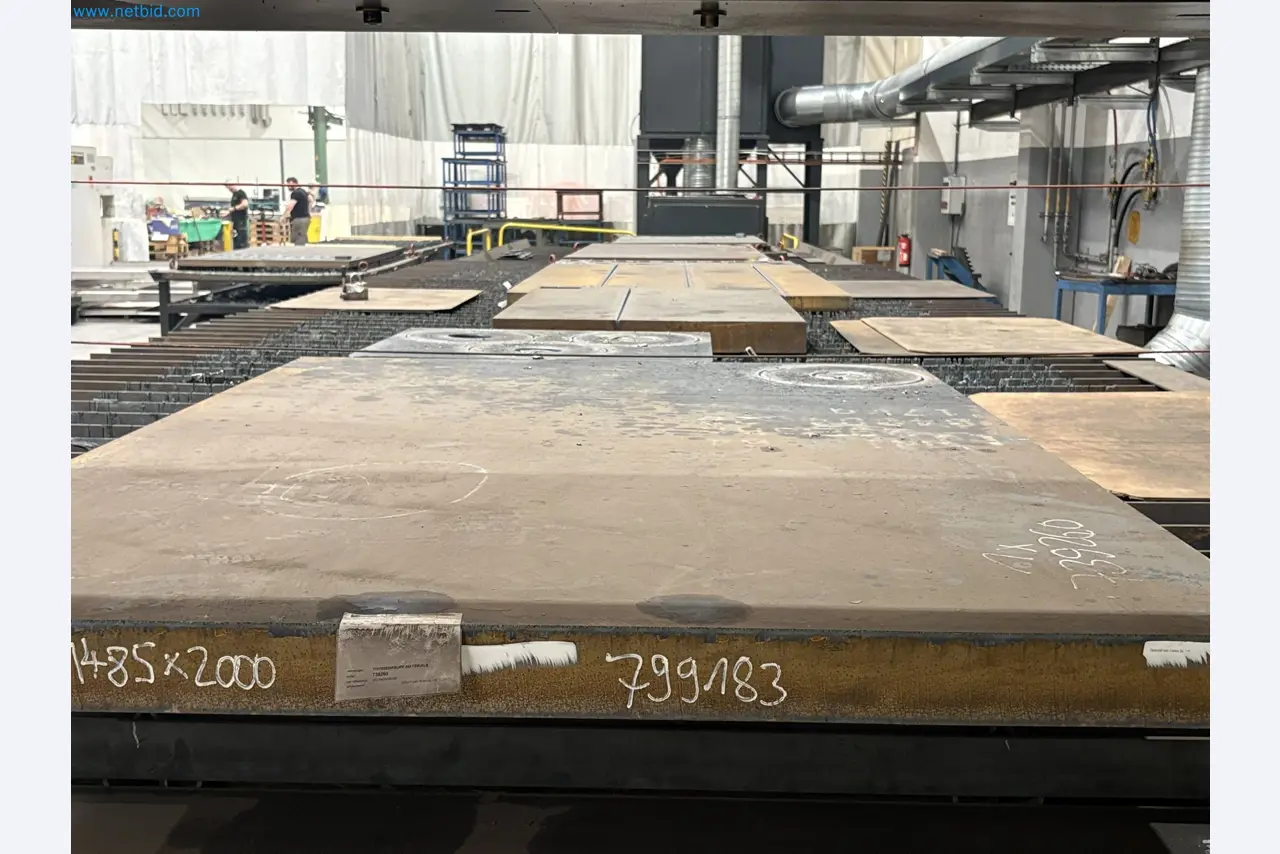

Extraction table: 3 x 14 m

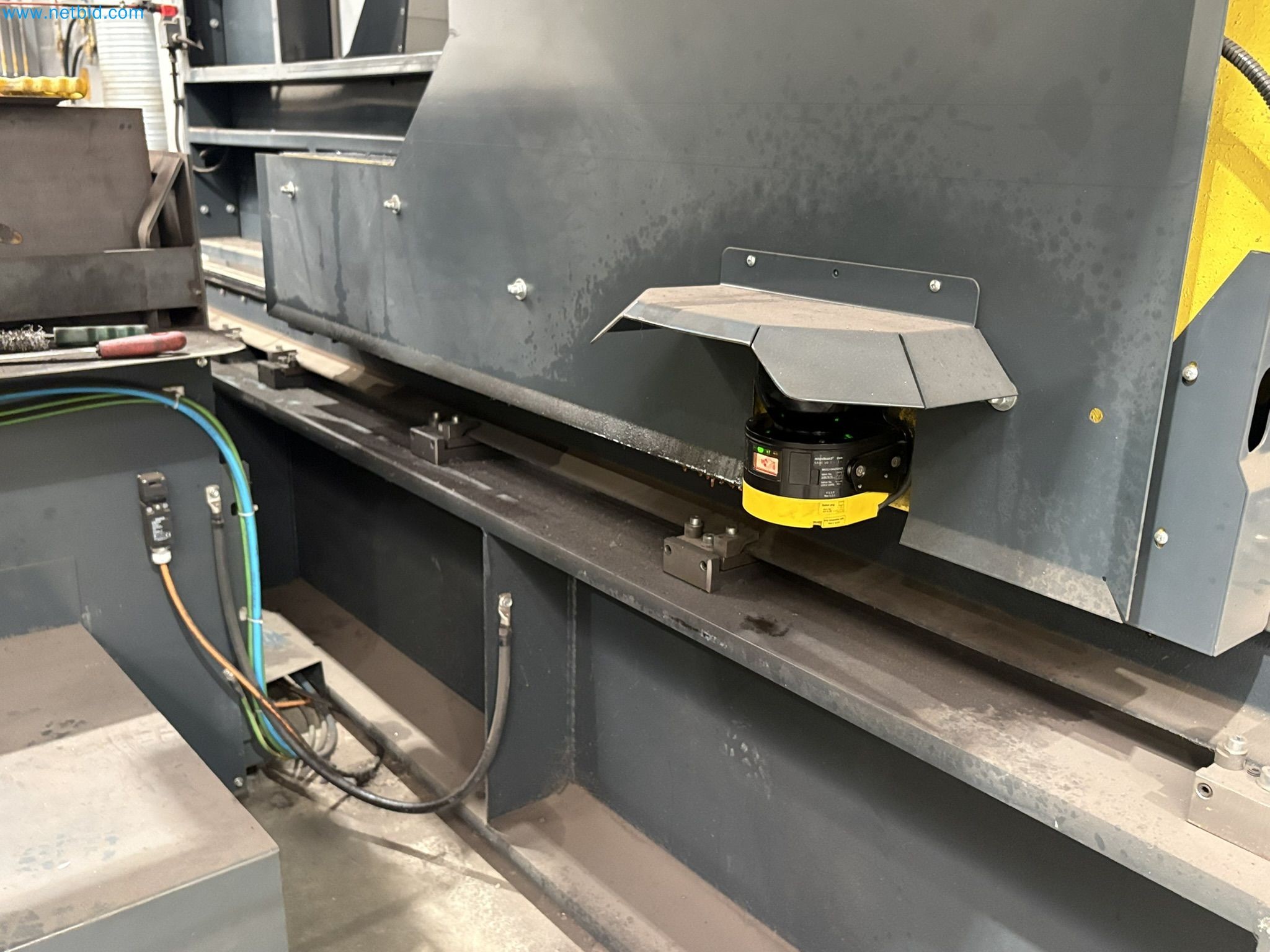

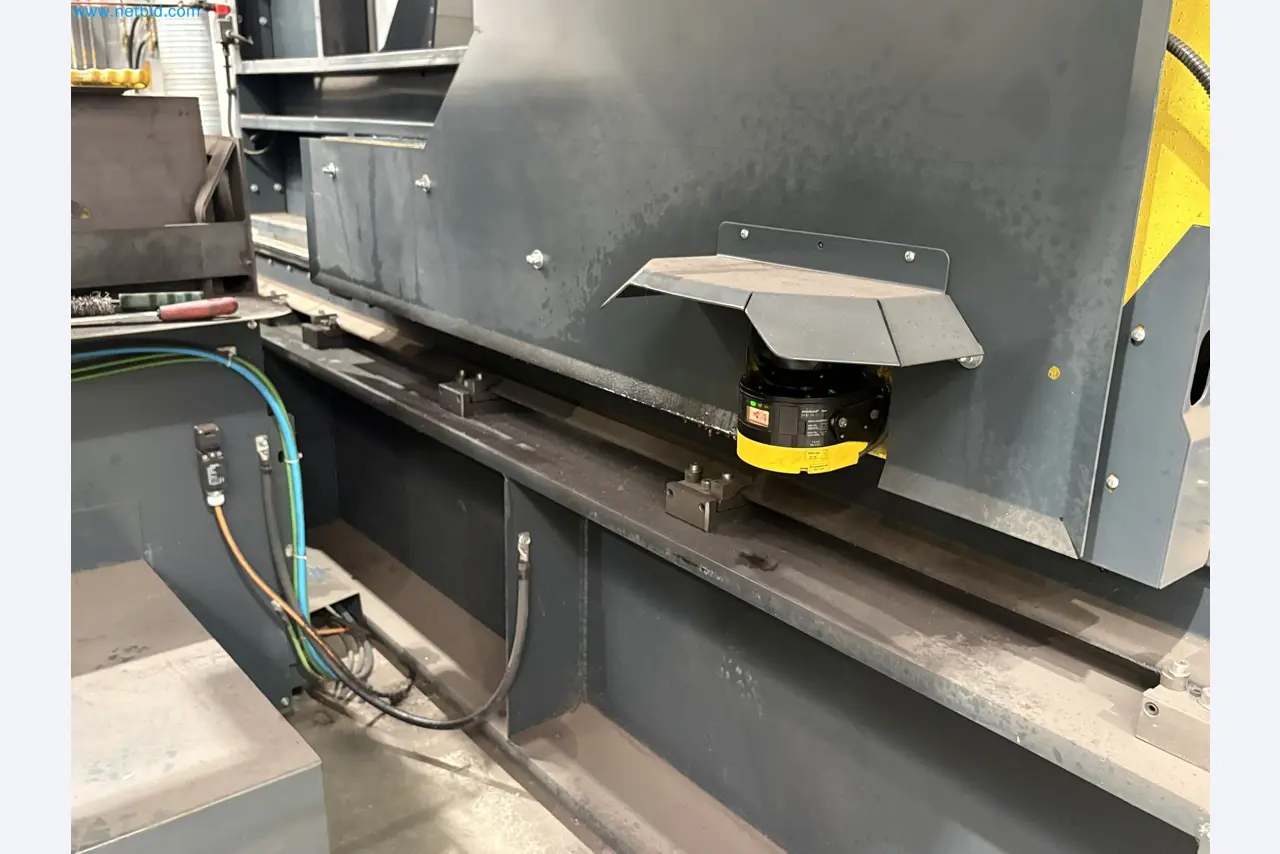

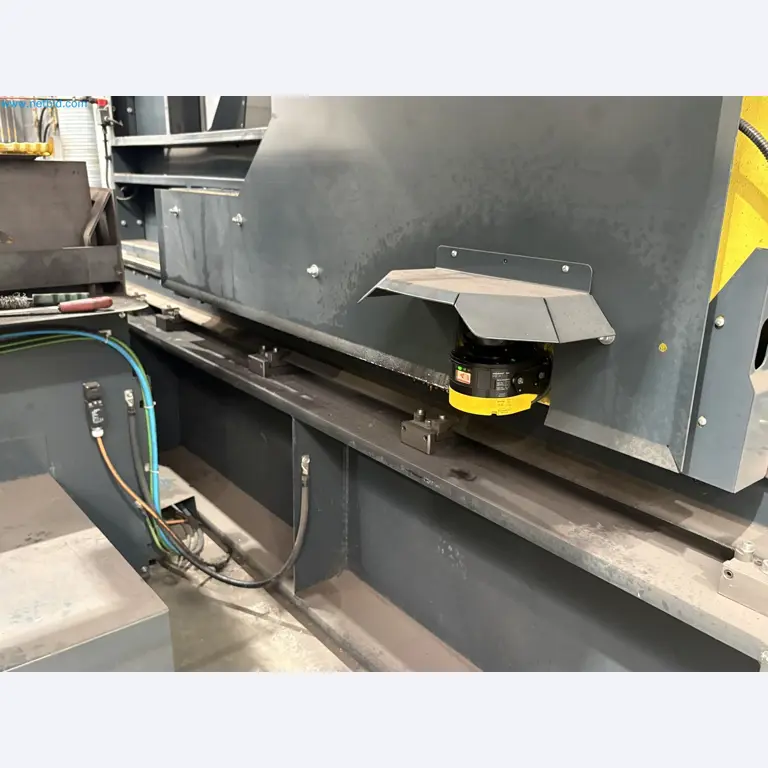

Safety equipment: front and rear safety cables, lateral safety antennas
CE certificate according to supplied documentation
