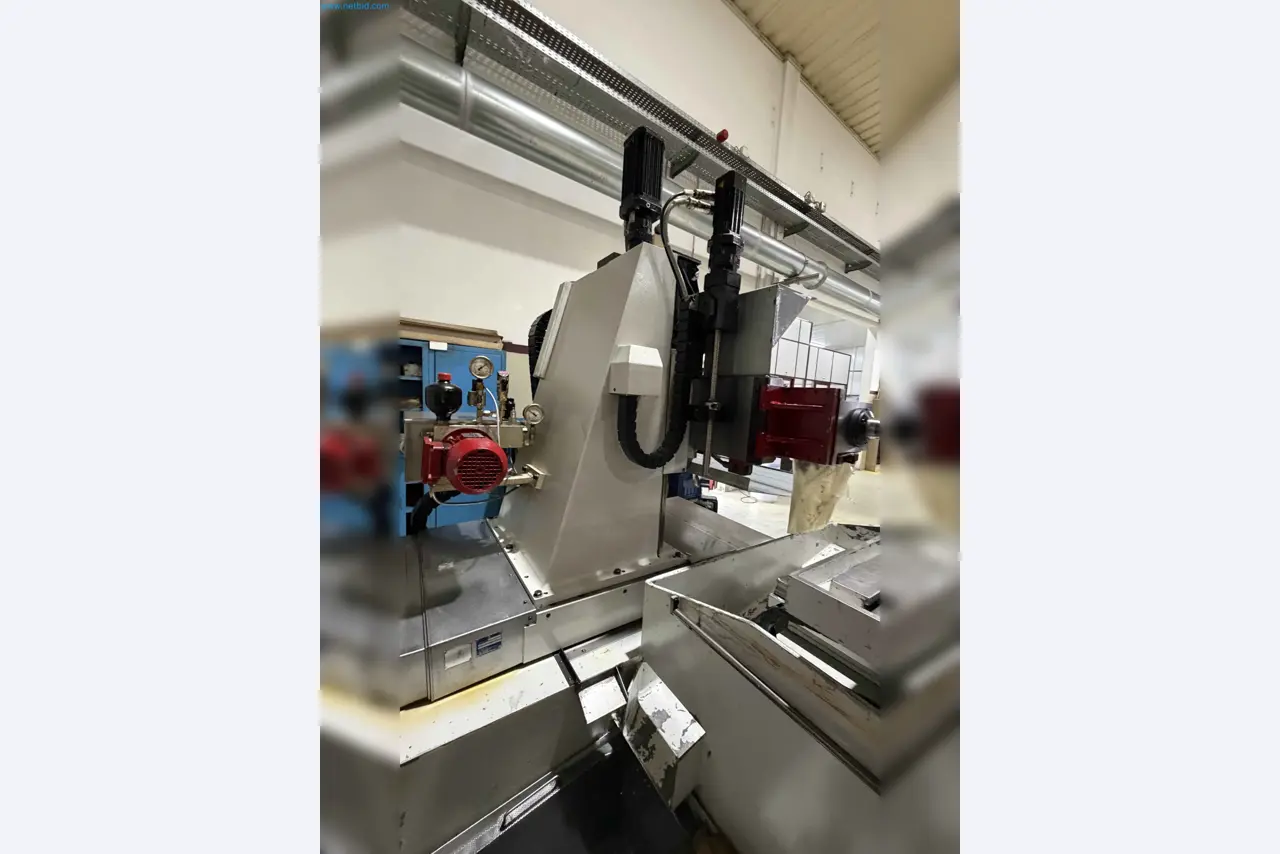

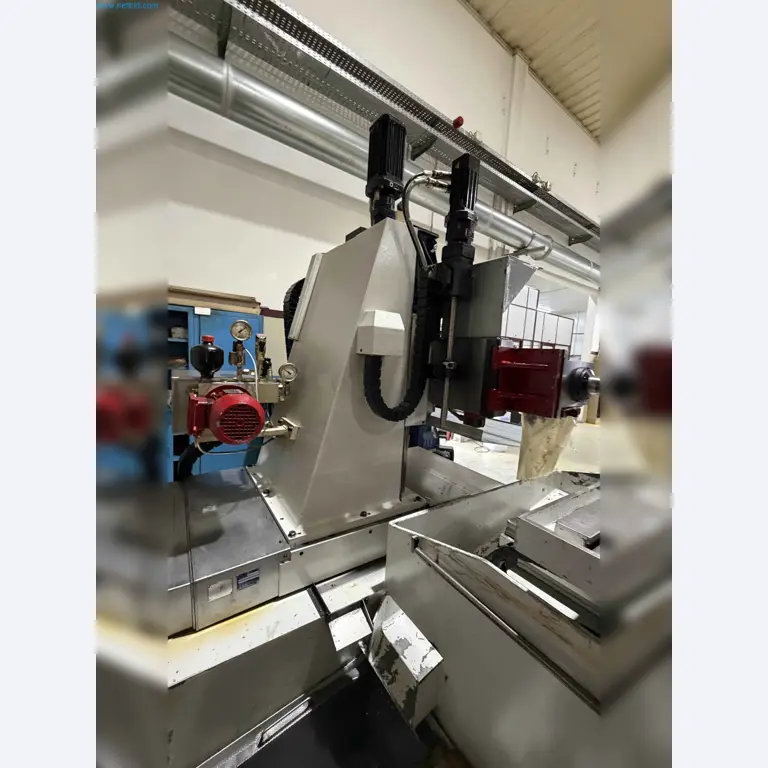

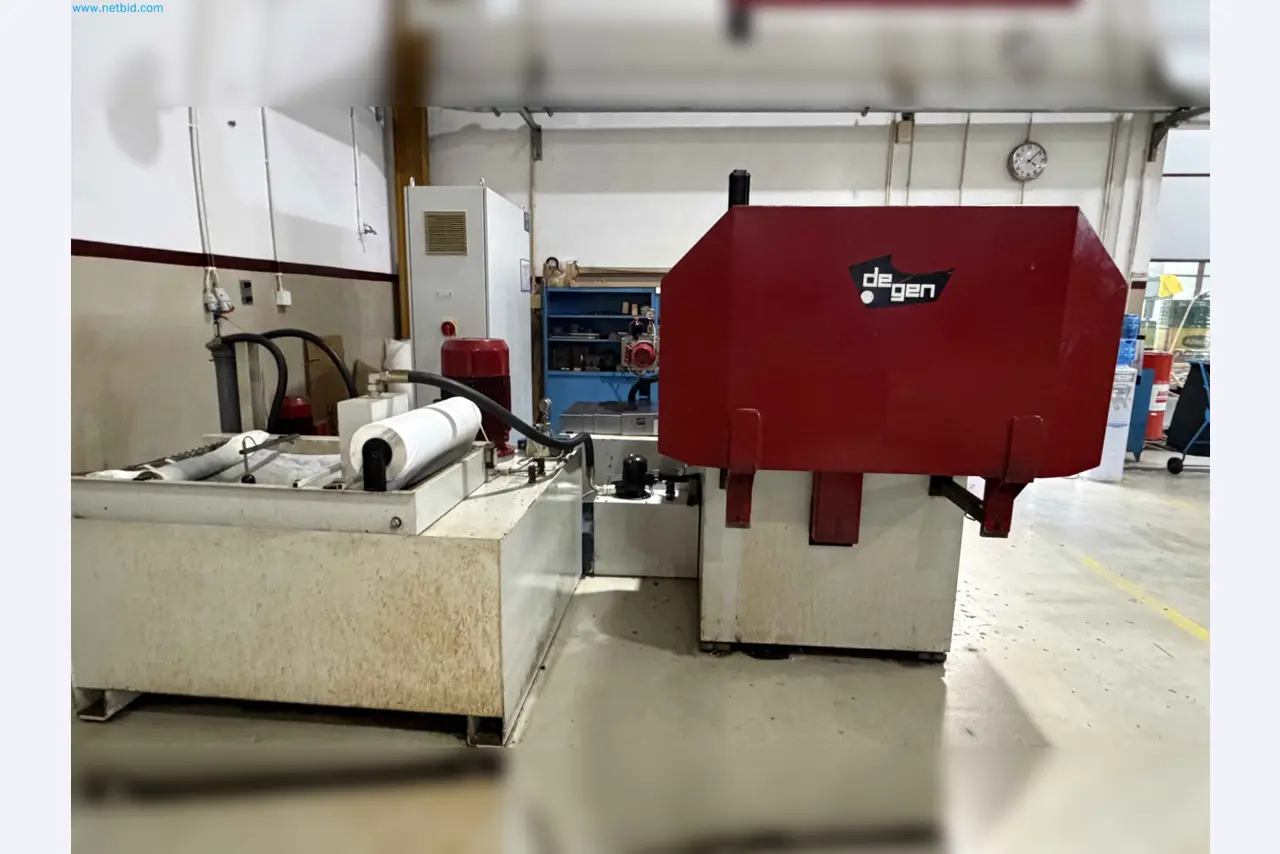

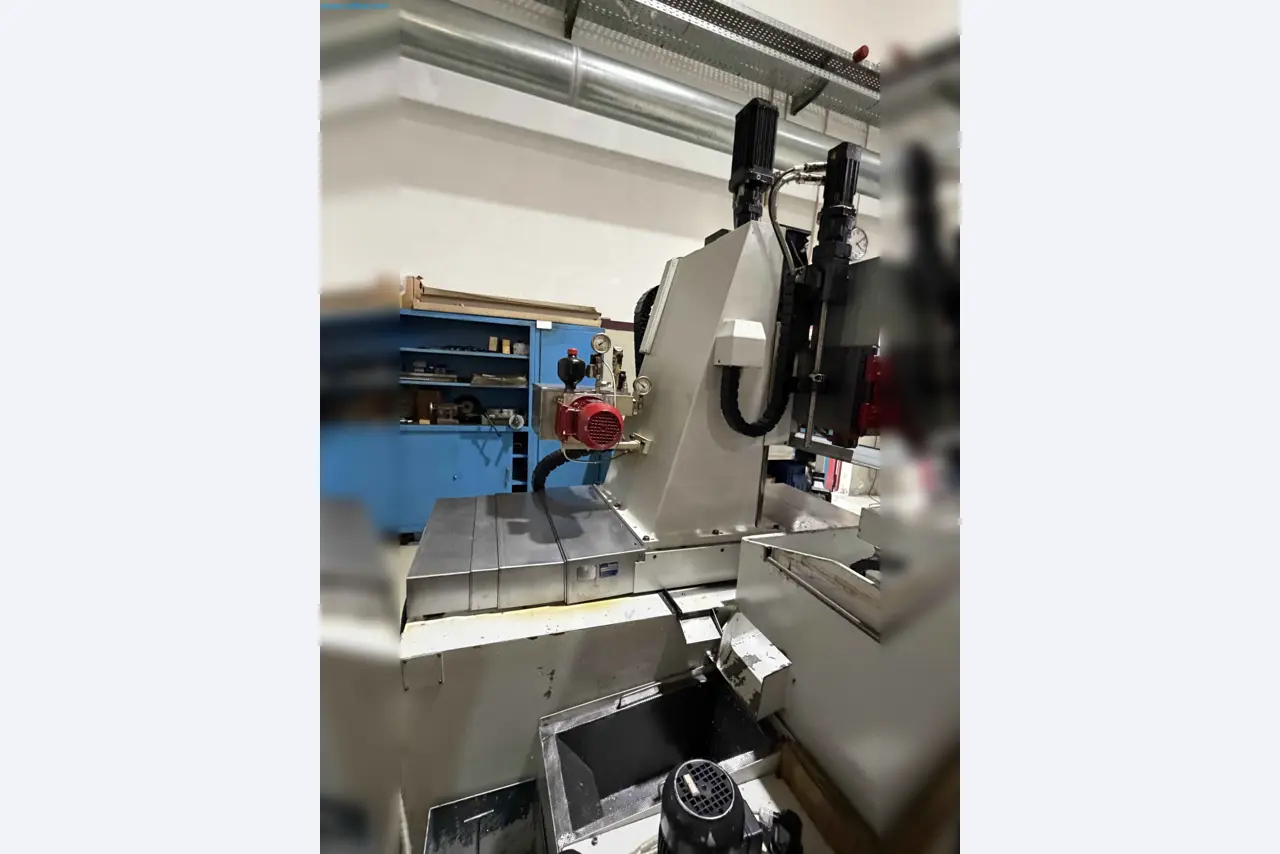

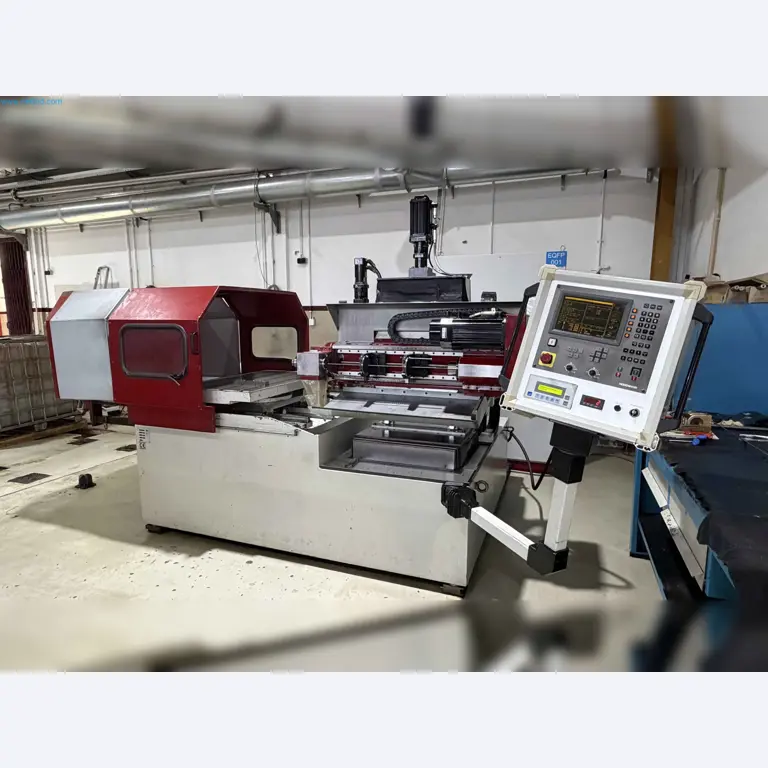

Details

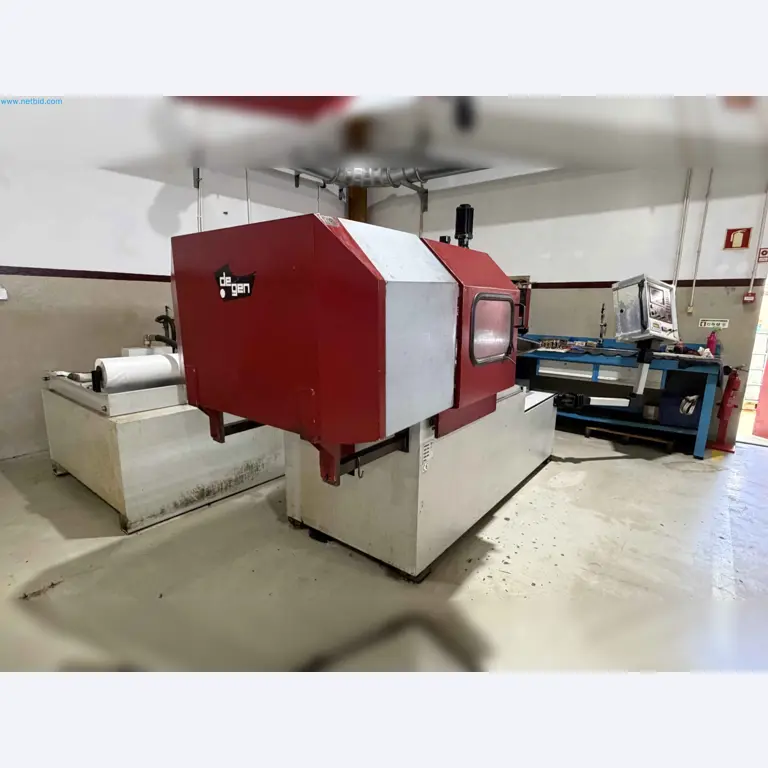

Product Type

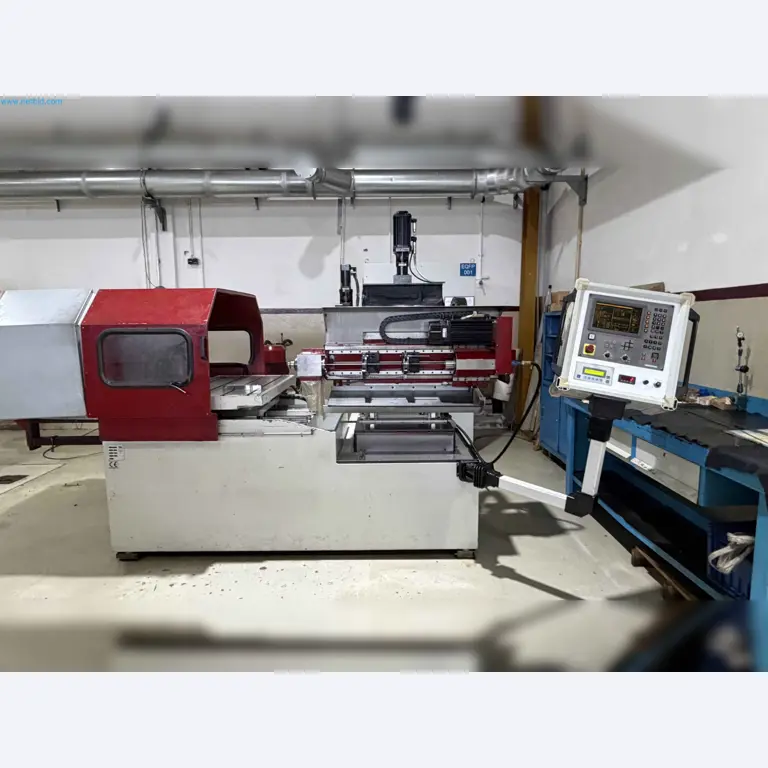

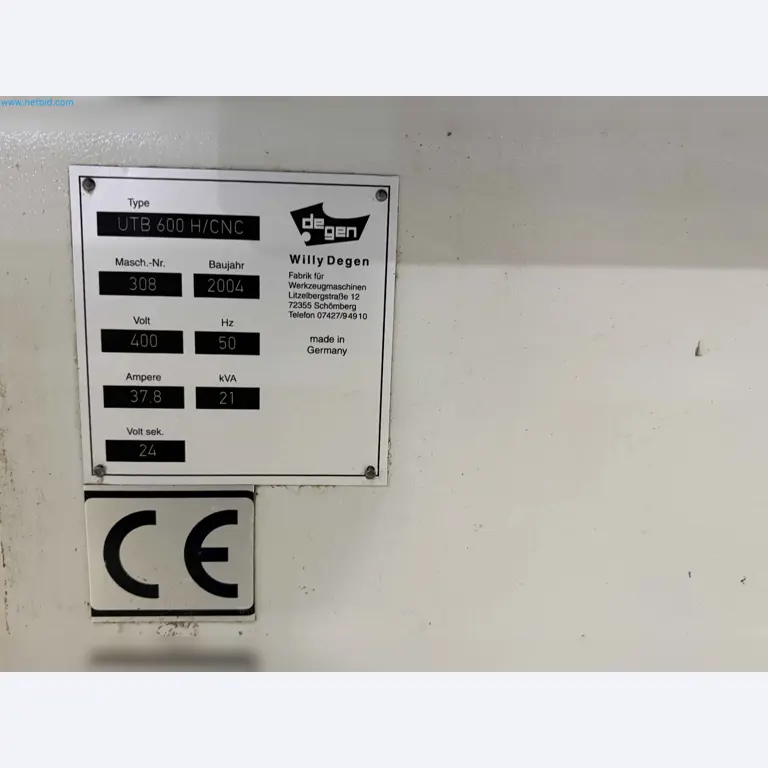

DEGEN

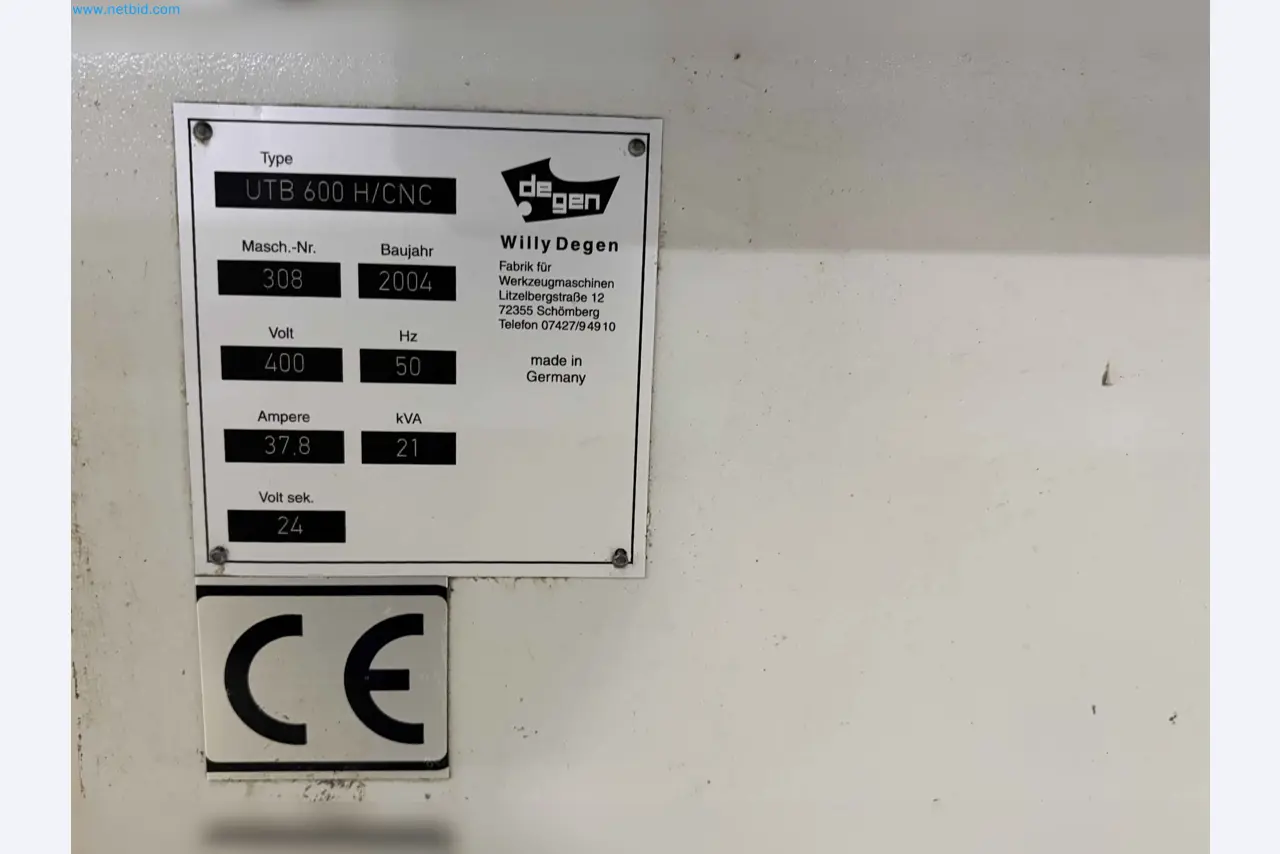

Type

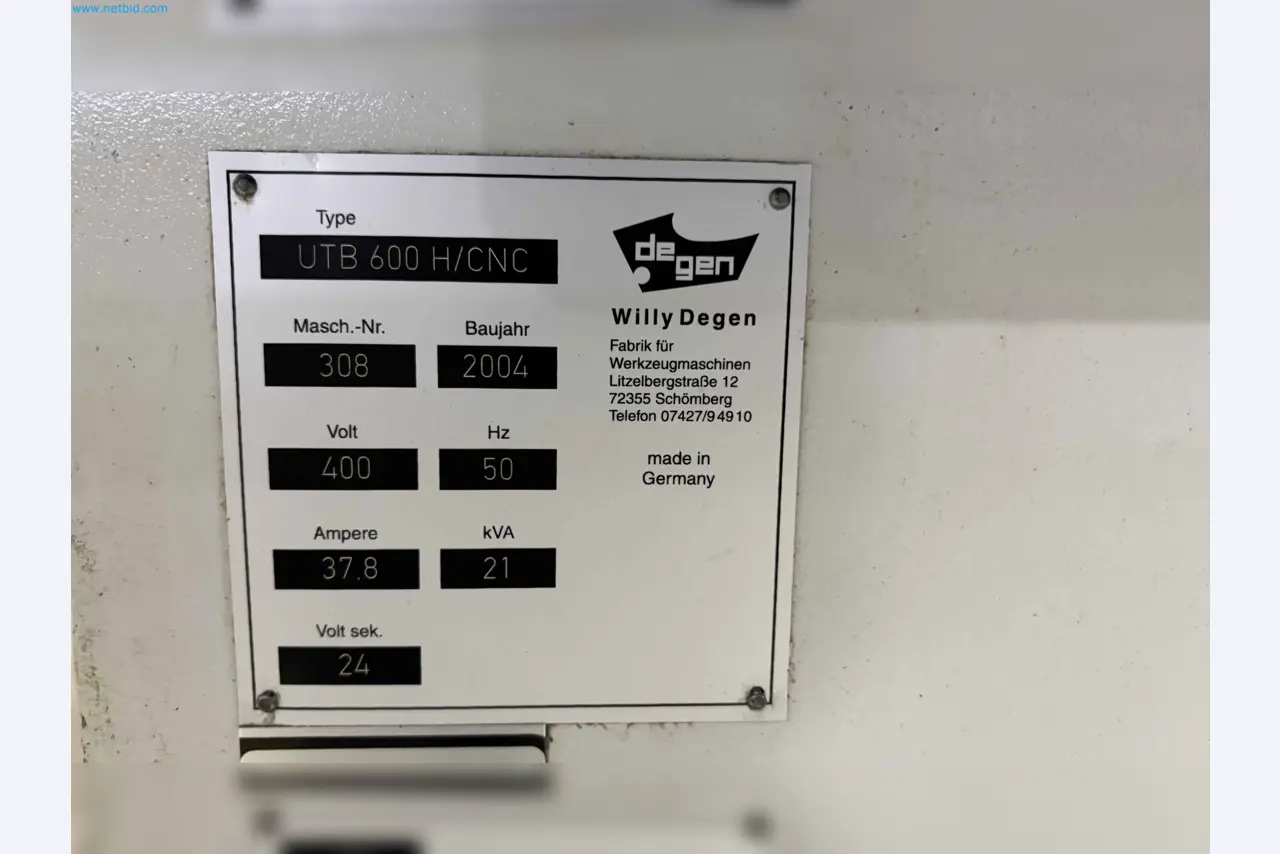

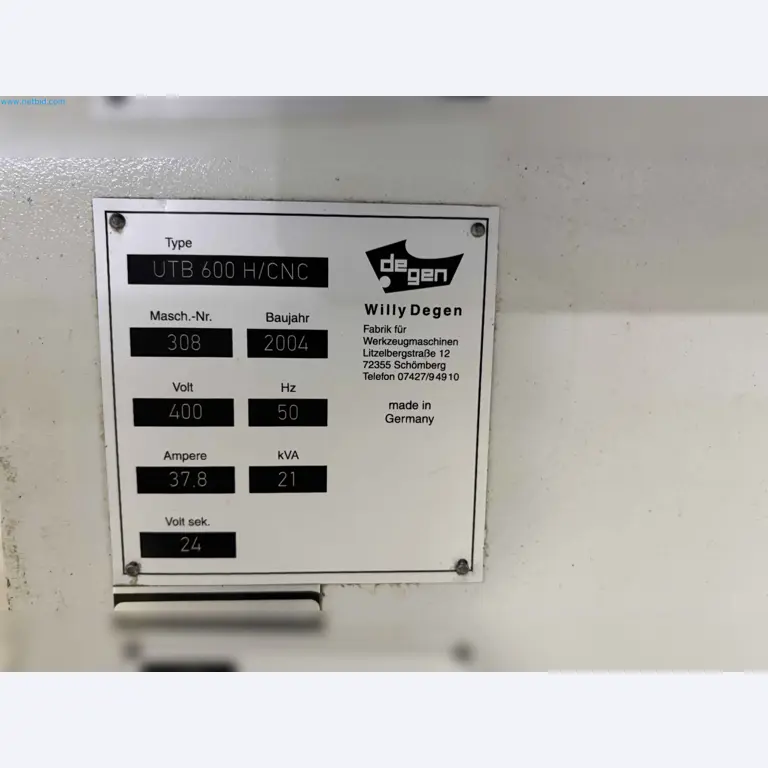

UTB 600 H/CNC
Construction Year
2004
Description

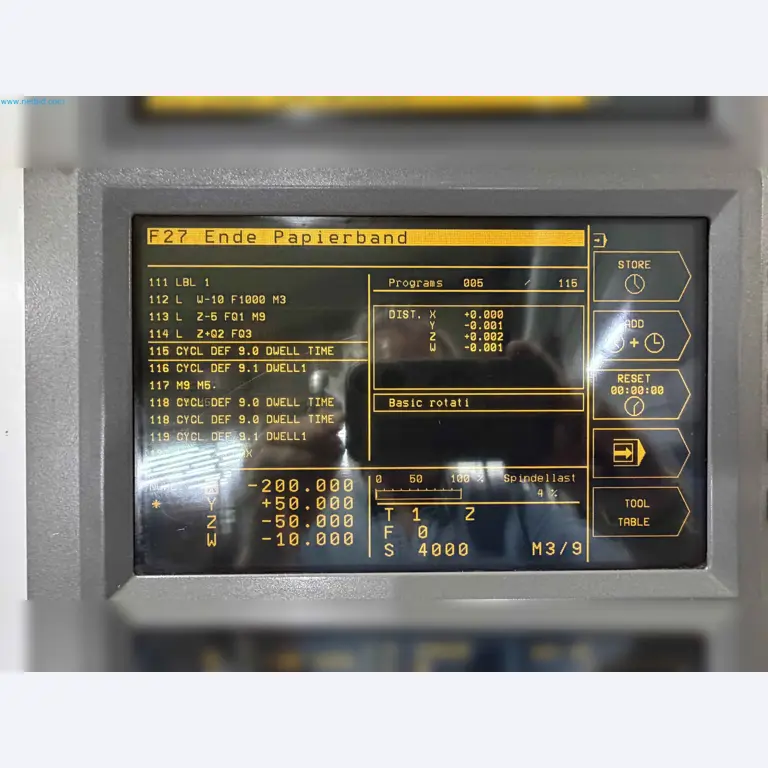

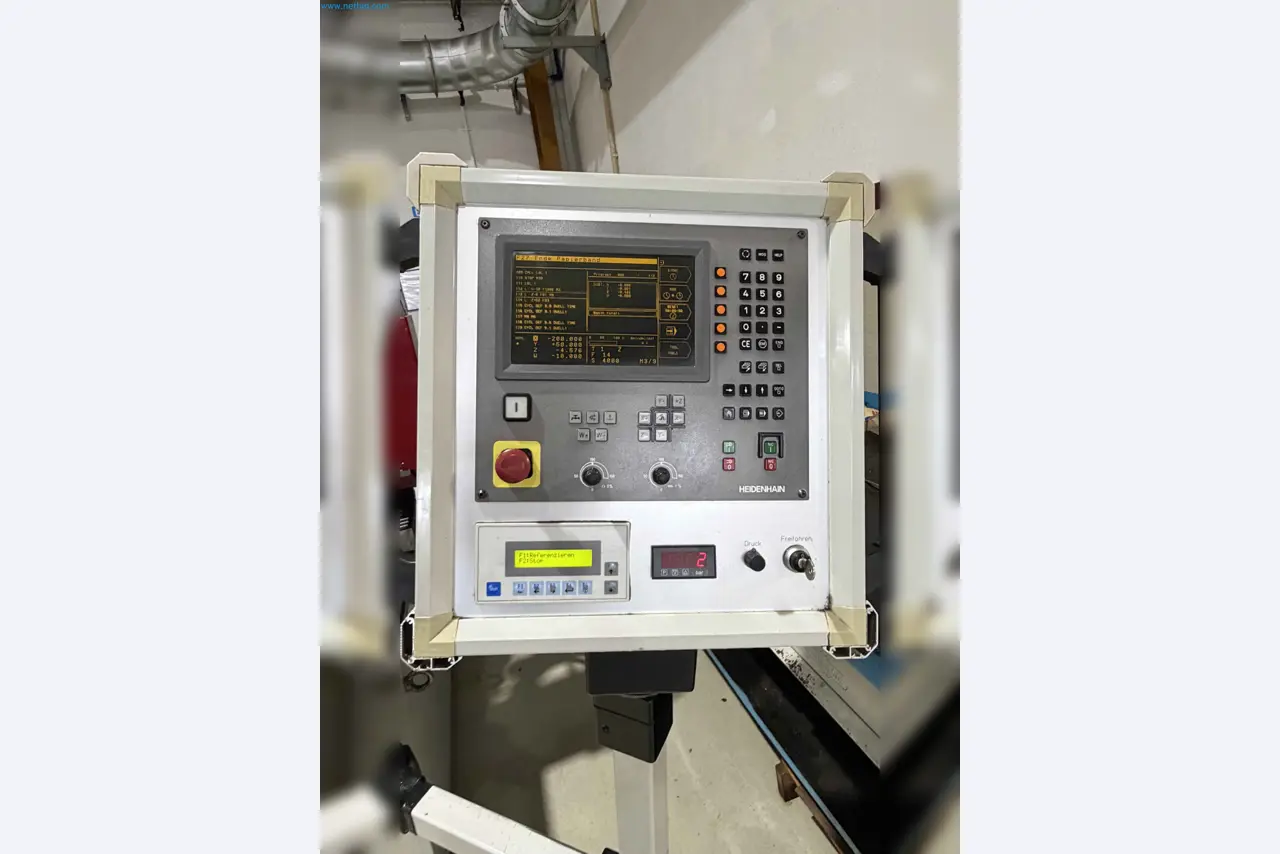

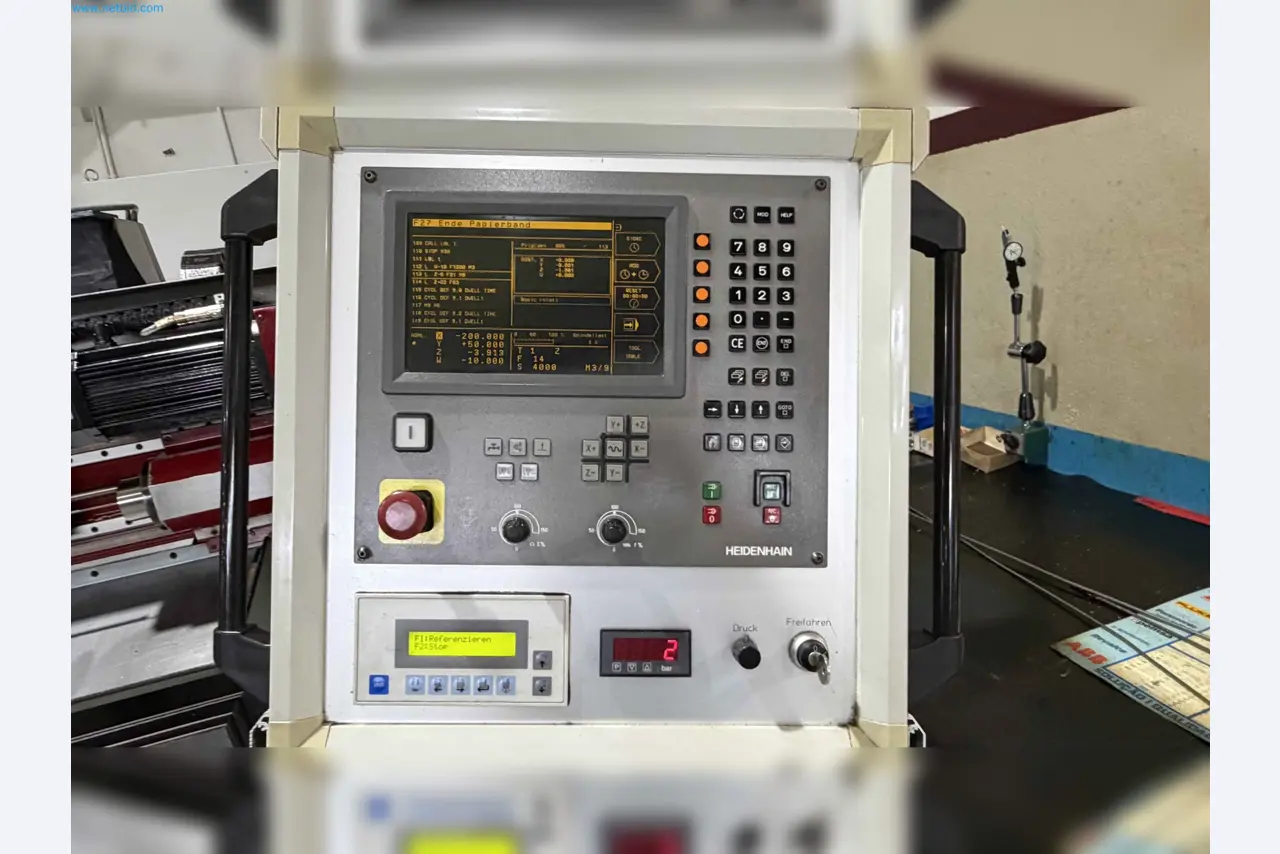

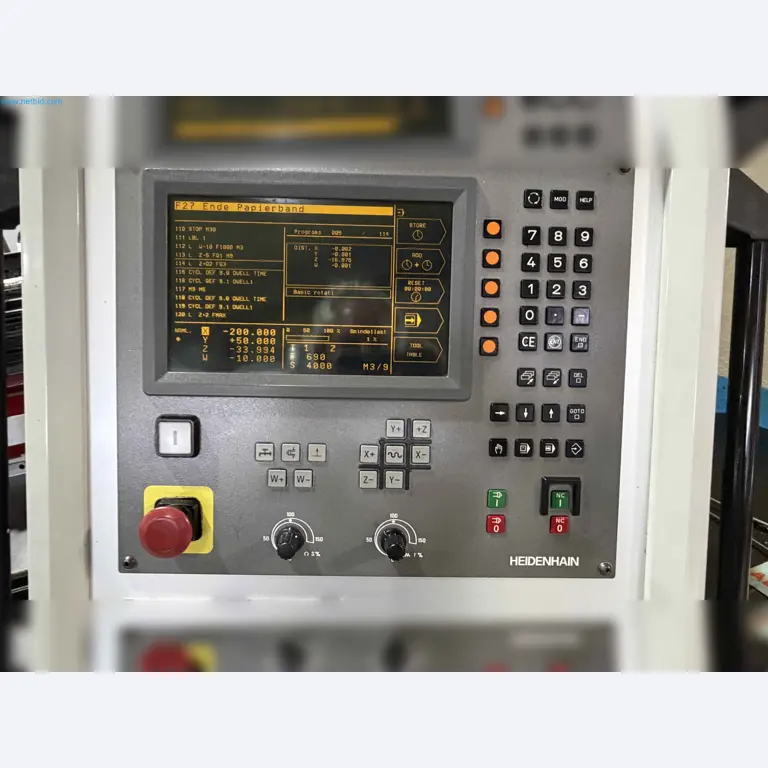

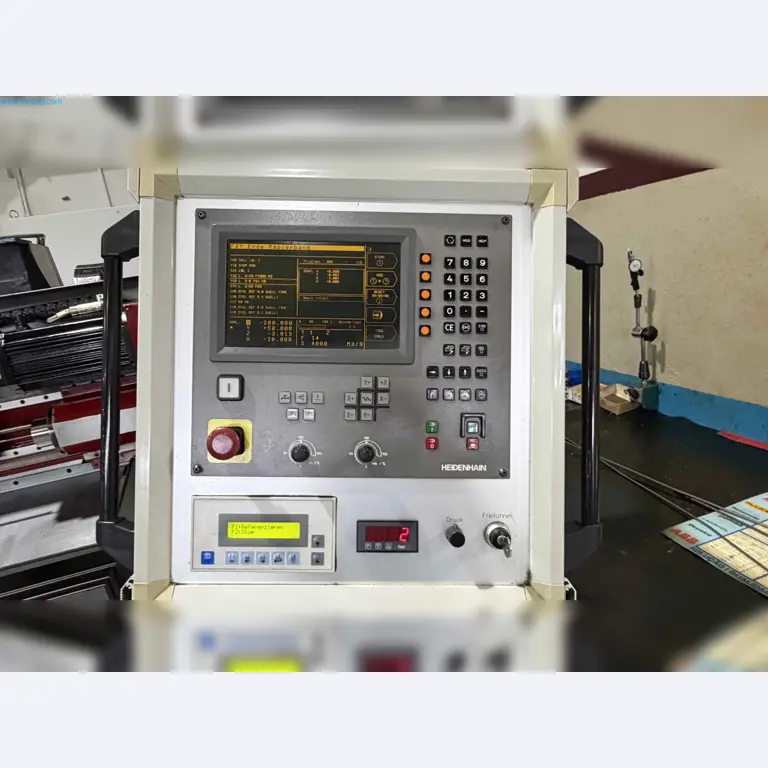

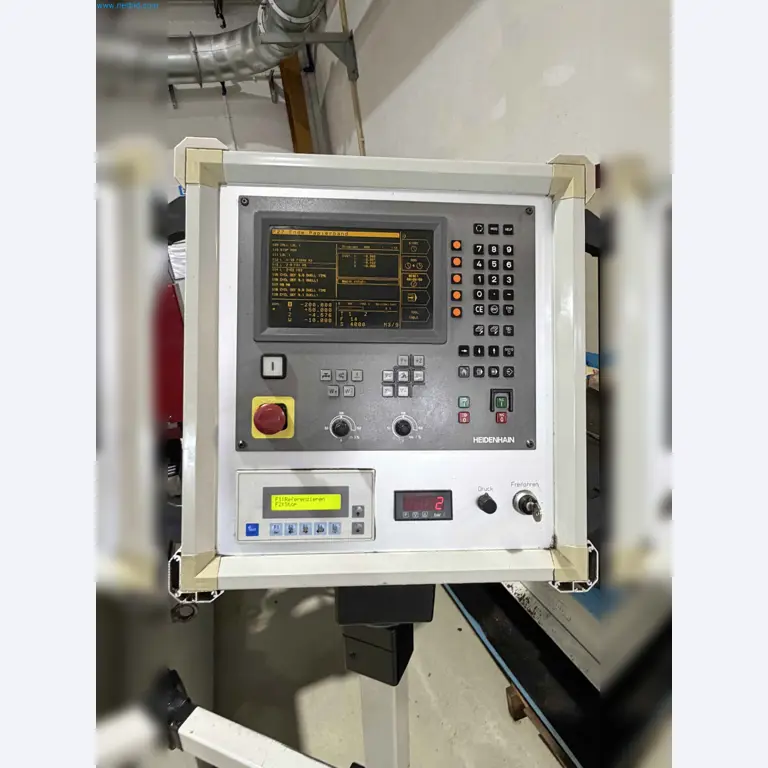

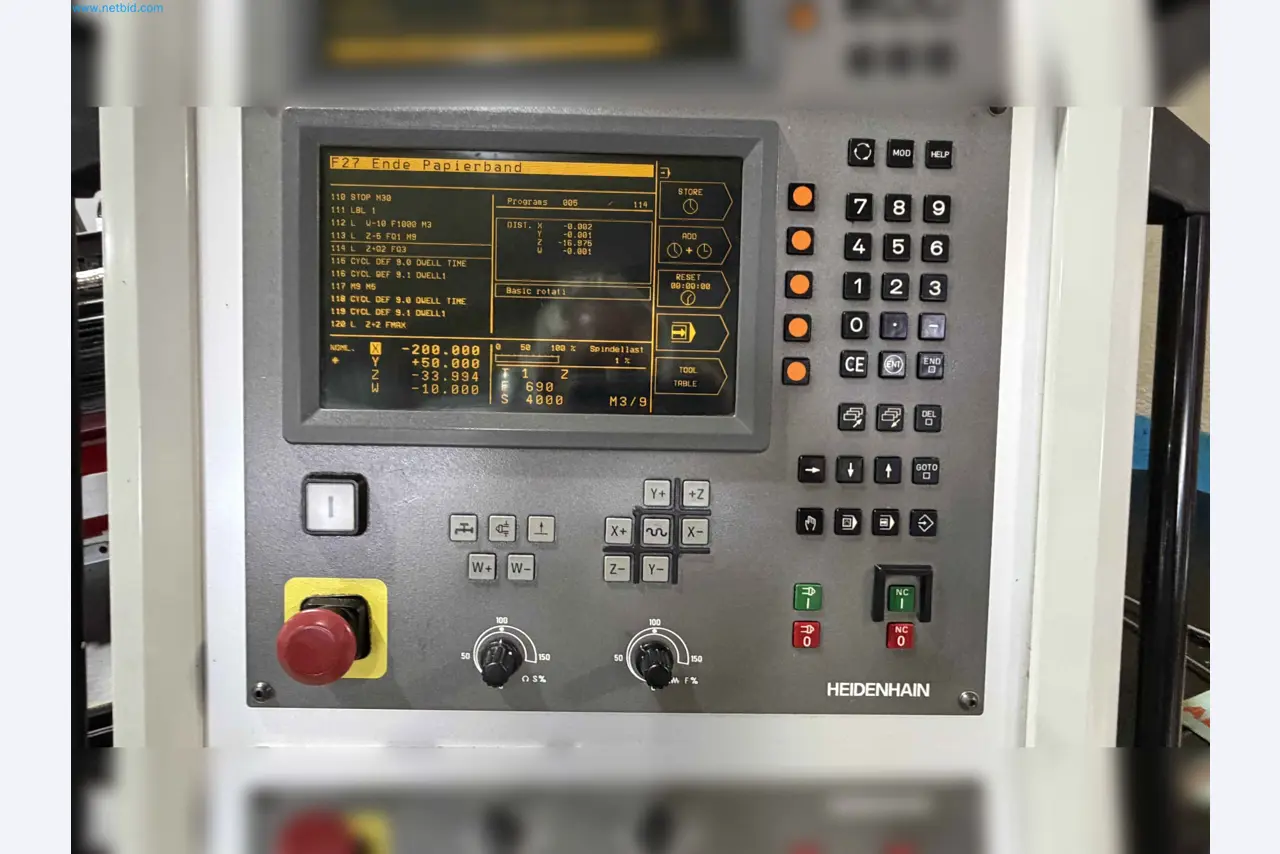

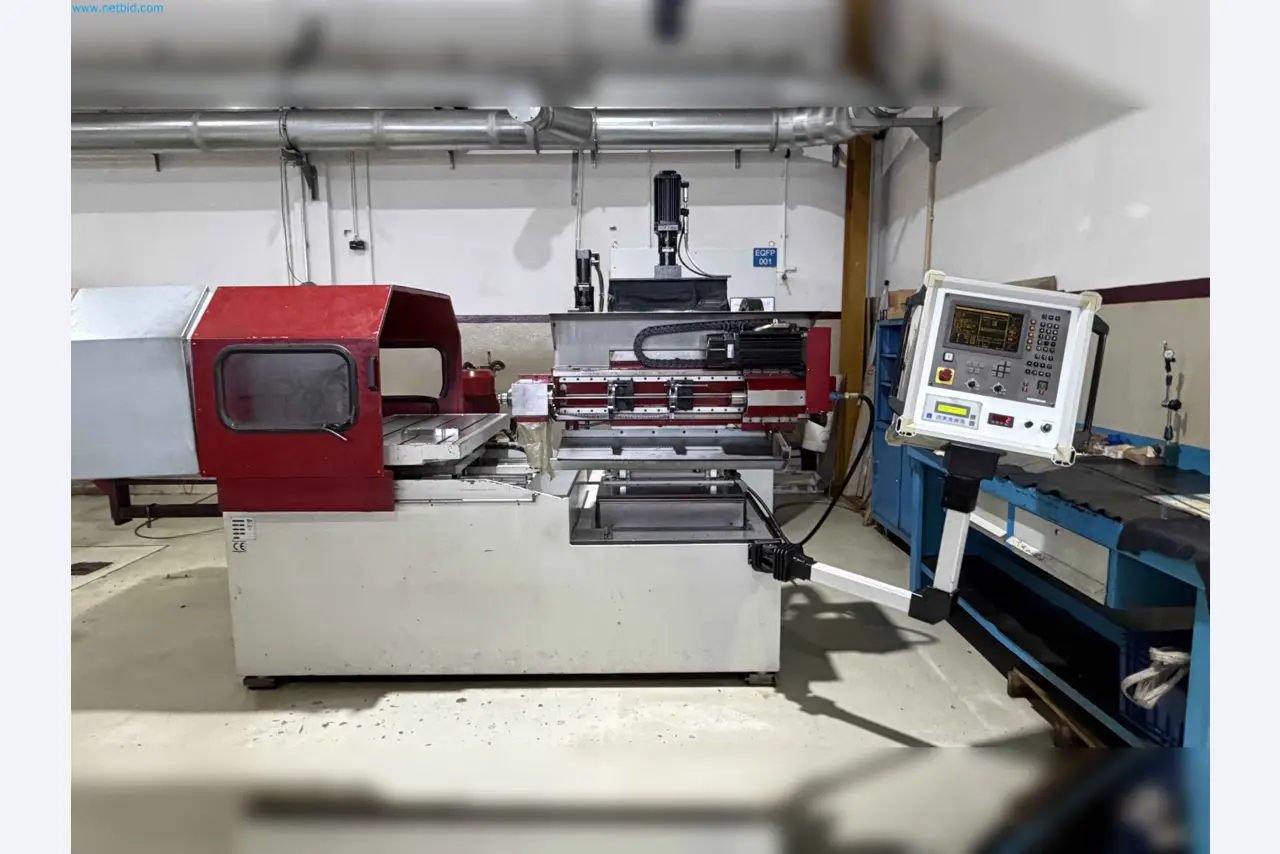

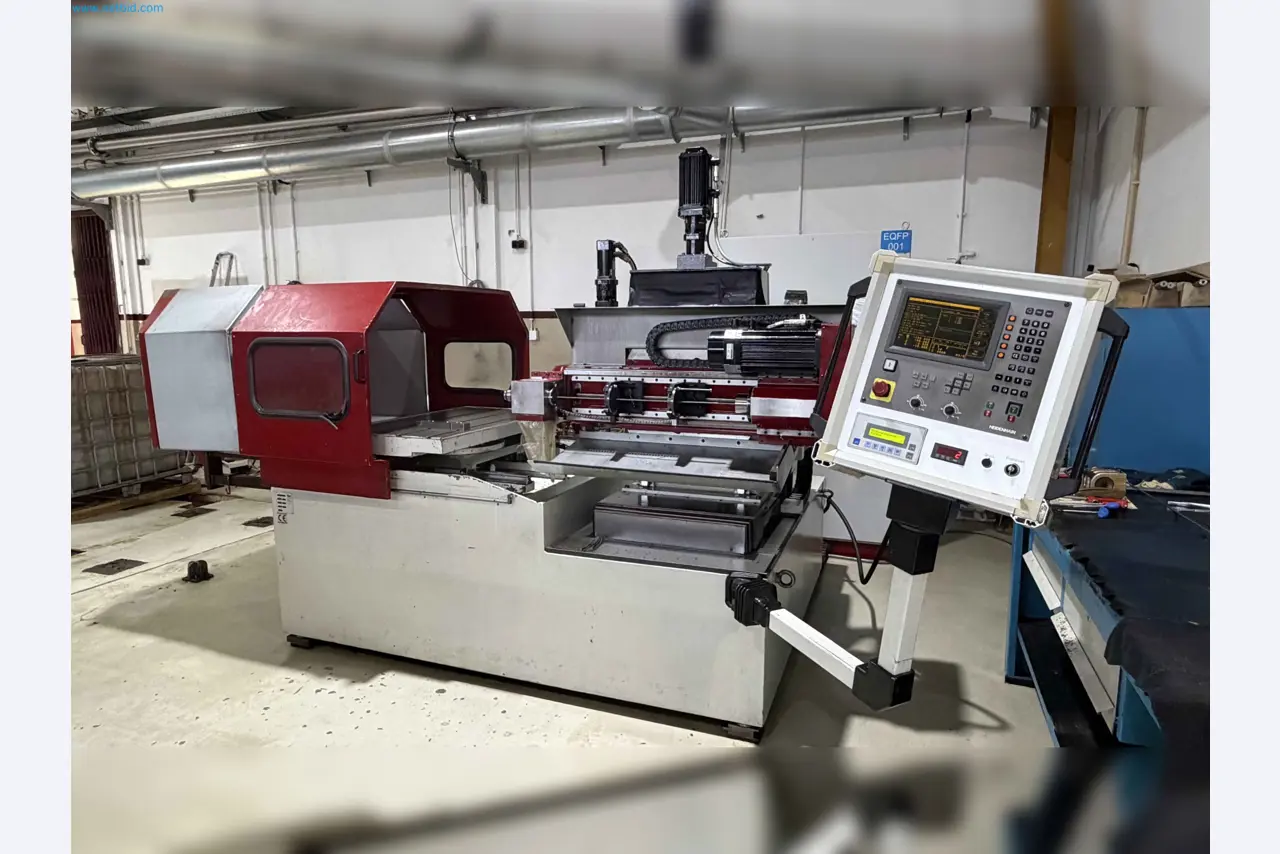

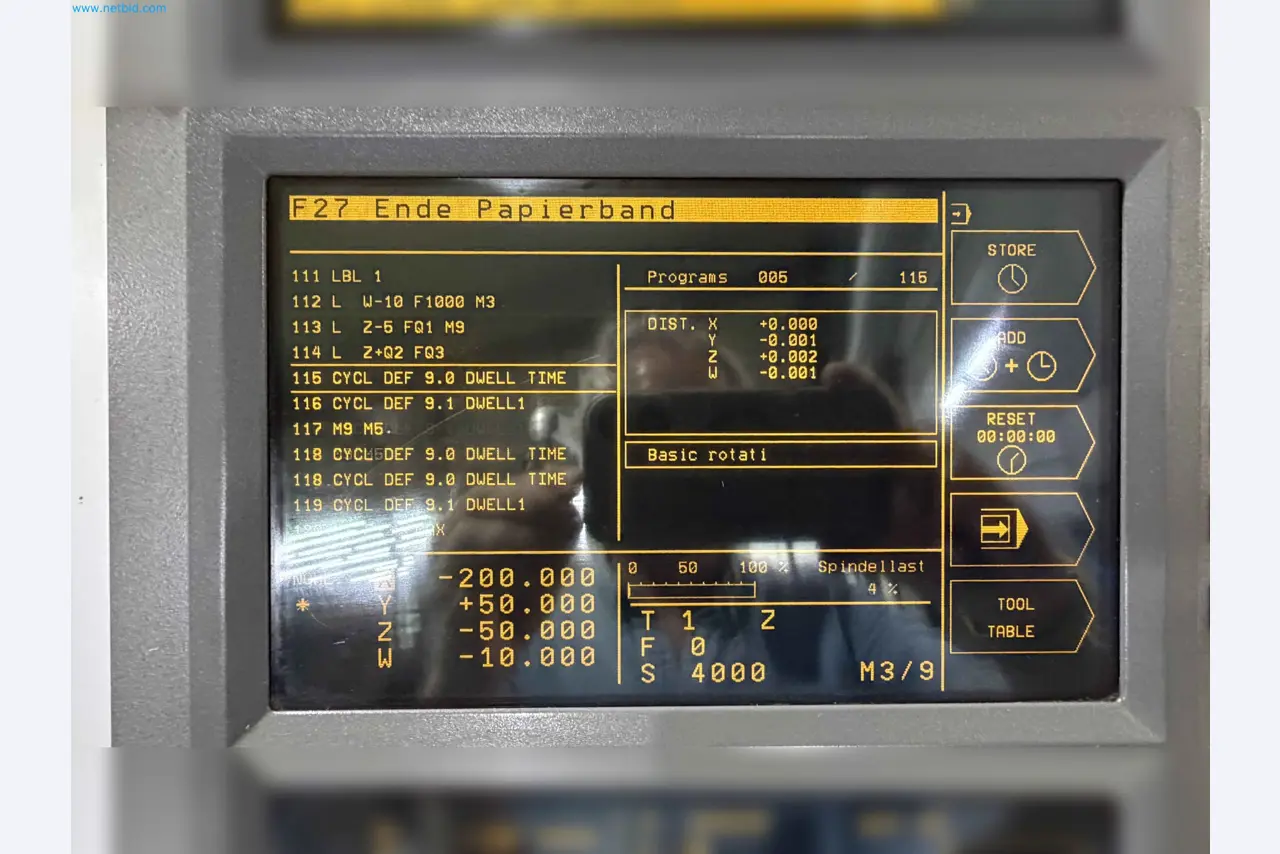

CNC control: Heidenhain TNC 310
CNC-controlled axes:
3 axes (X/Y/Z)
Travels:
X-axis: 600 mm
Y-axis: 400 mm
Z-axis (drilling axis): 600 mm
W-axis (table control): 600 mm

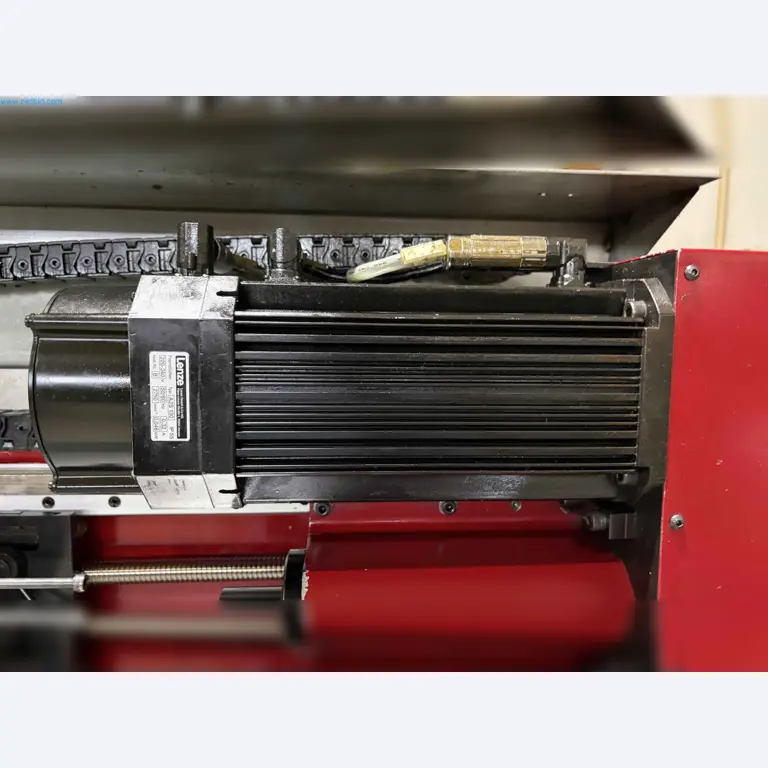

Axis drives

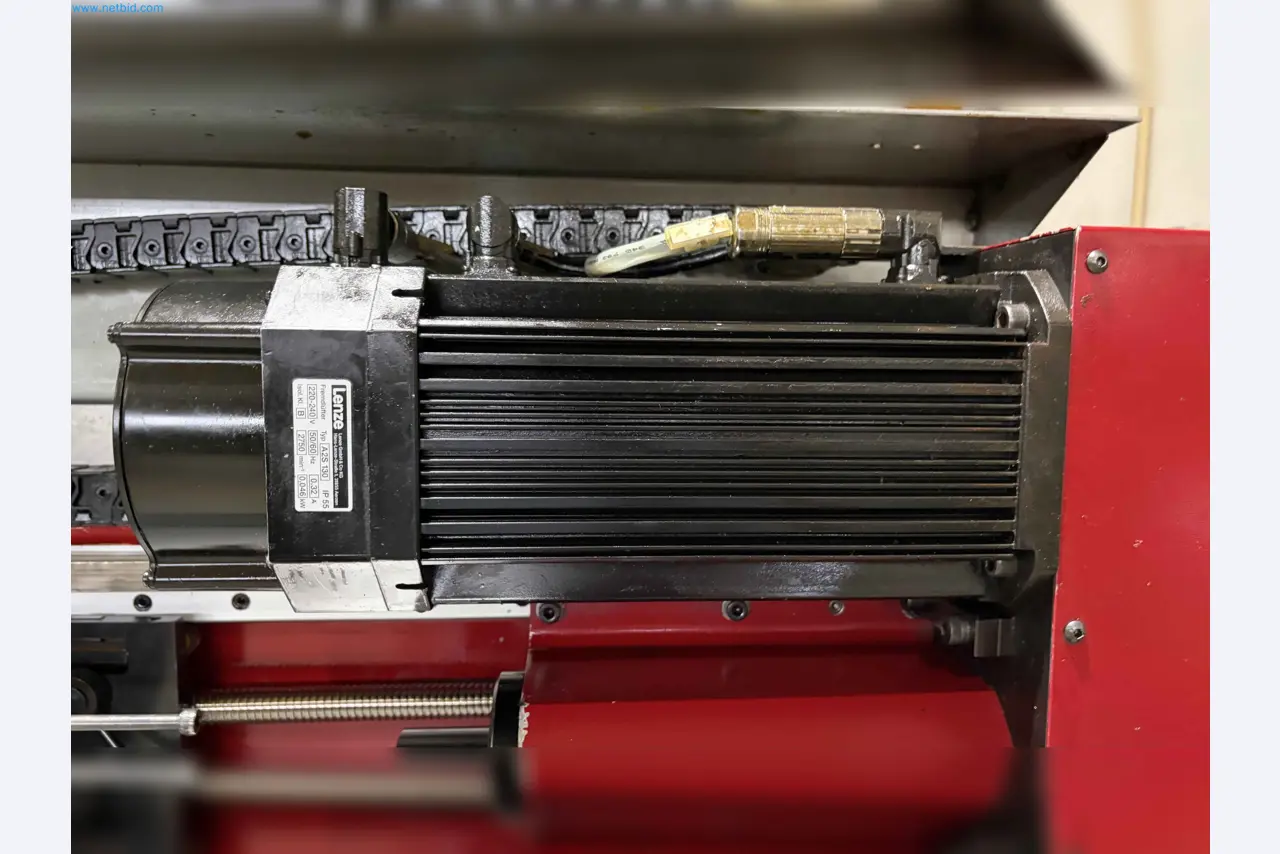

X-axis: Ball screw with servo motor
Y-axis: Ball screw with servo motor
Z-axis: Ball screw with servo motor
W-axis: Ball screw with servo motor

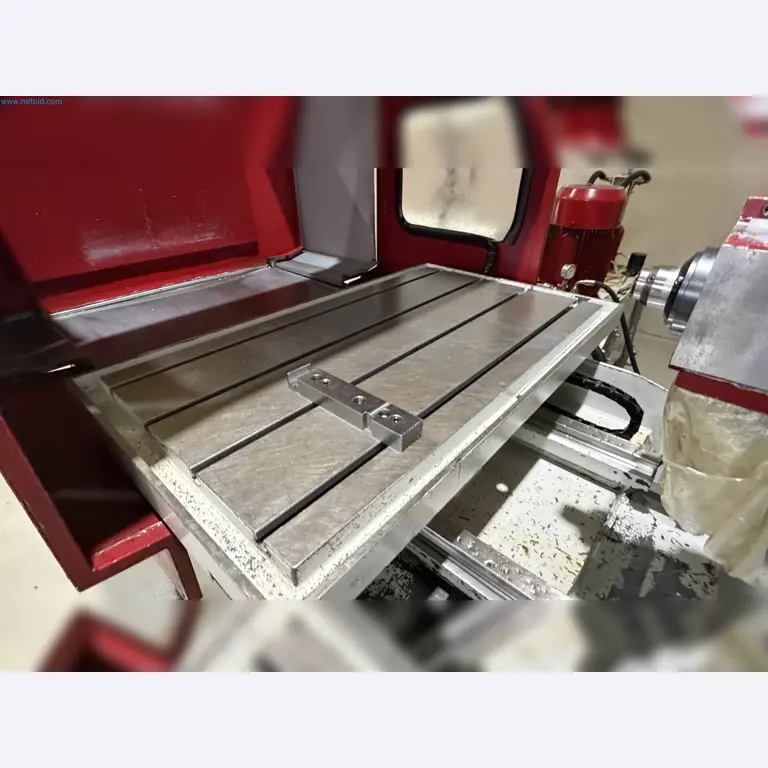

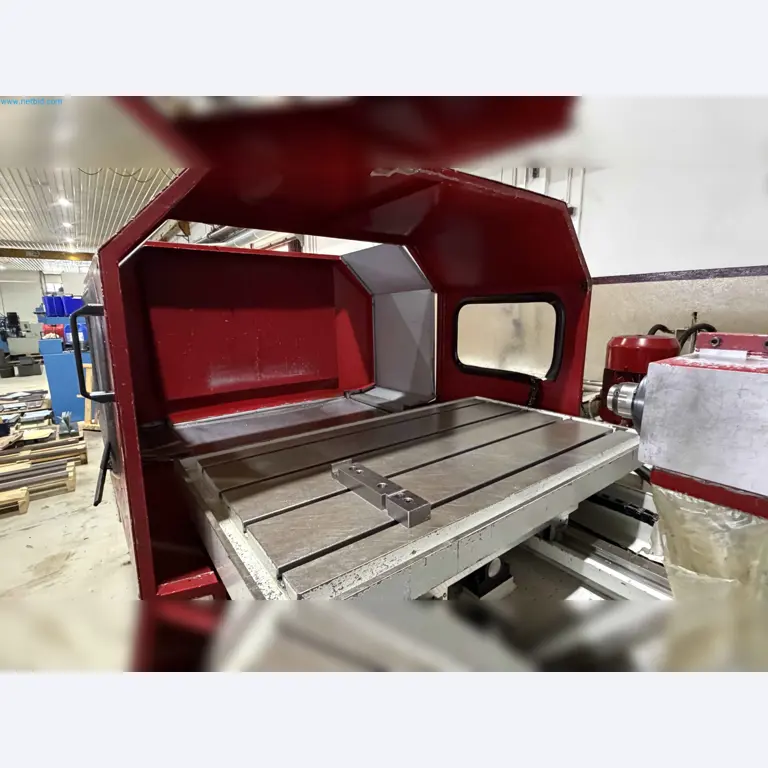

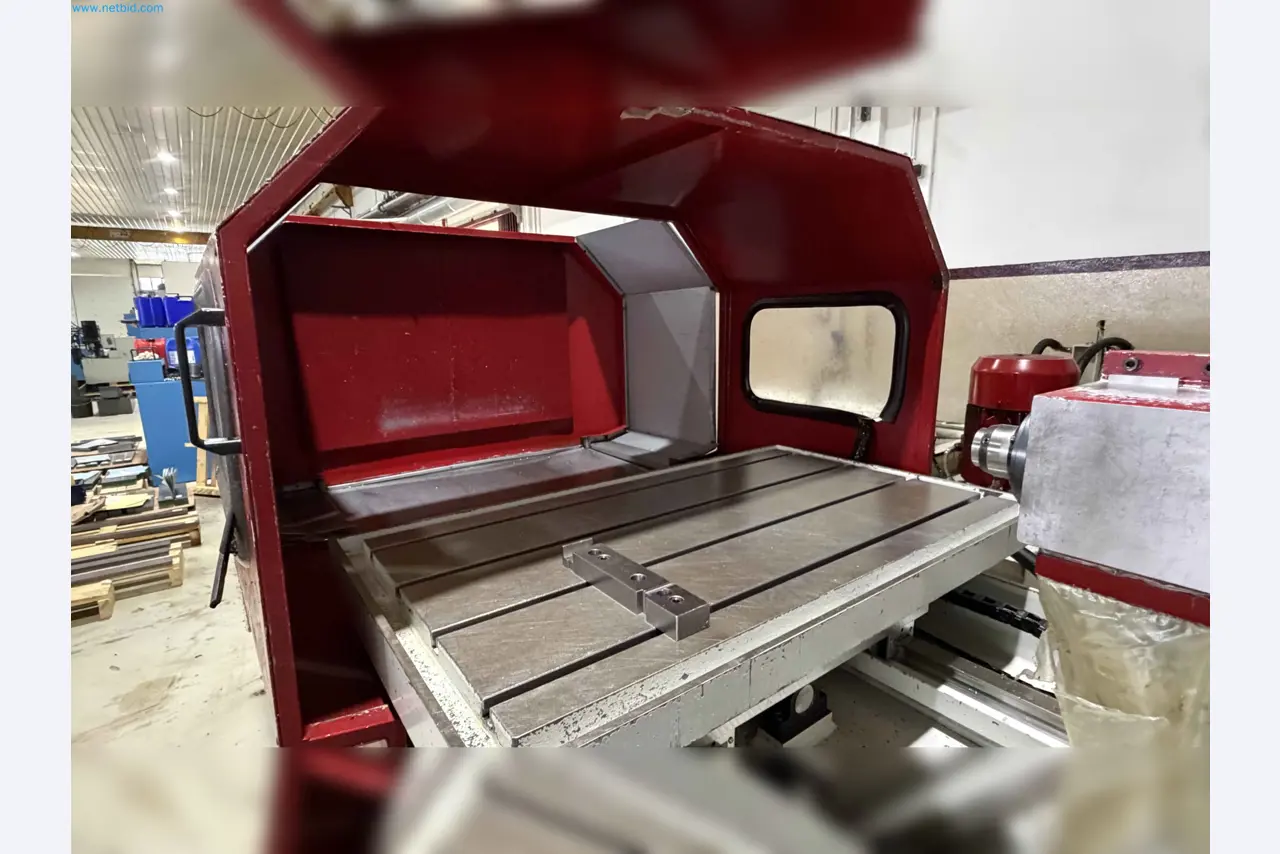

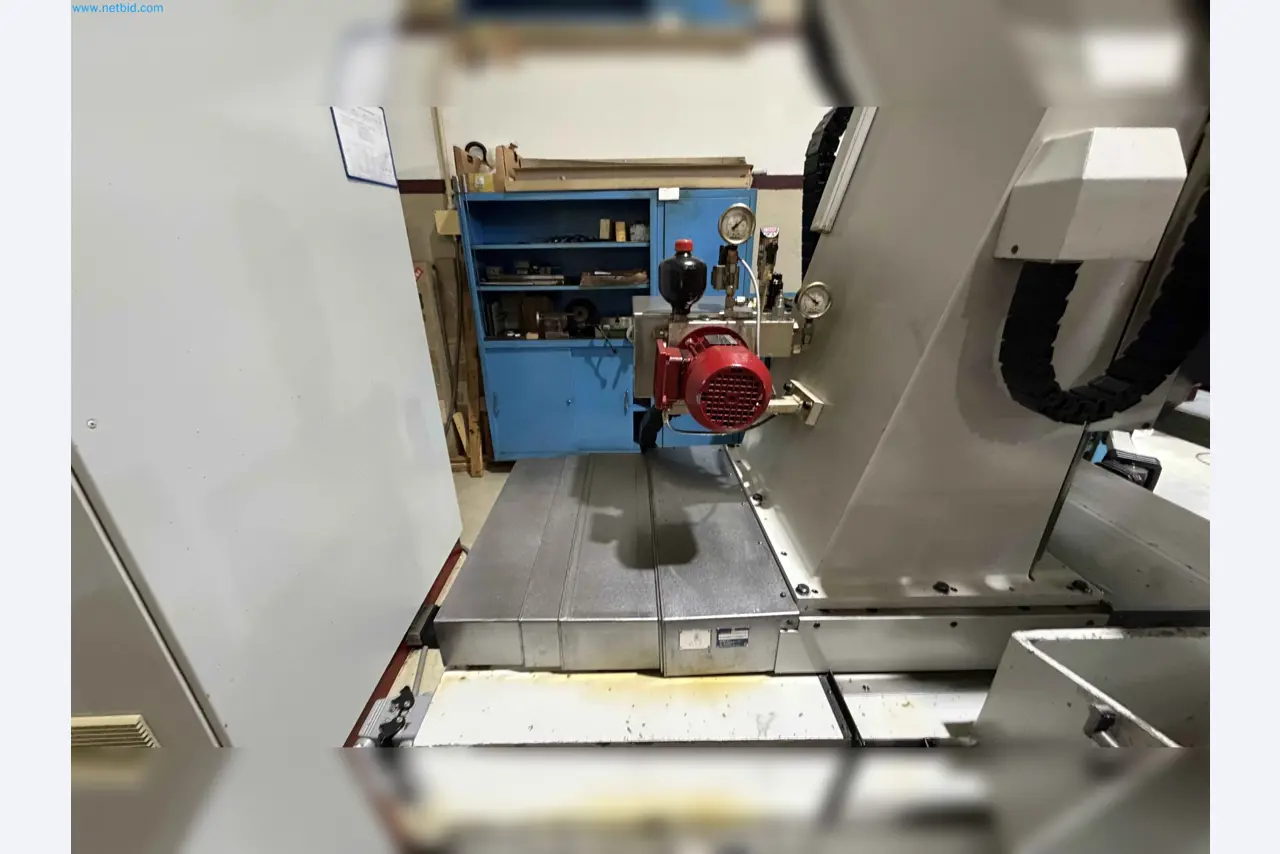

Table:
Load capacity: 2,000 / 3,000 / 5,000 kg
Workpiece dimension: 1,100 × 650 mm
With swivelling table
Drilling / Machining capacity:
Drilling diameter: 4–25 mm
Thread cutting capacity: M20
Milling capacity: 50 cm³/min
Spindle speed: 0–4,000 rpm
Spindle power at 60% duty cycle: 7.5 kW
Spindle power at 100% duty cycle: 5.5 kW

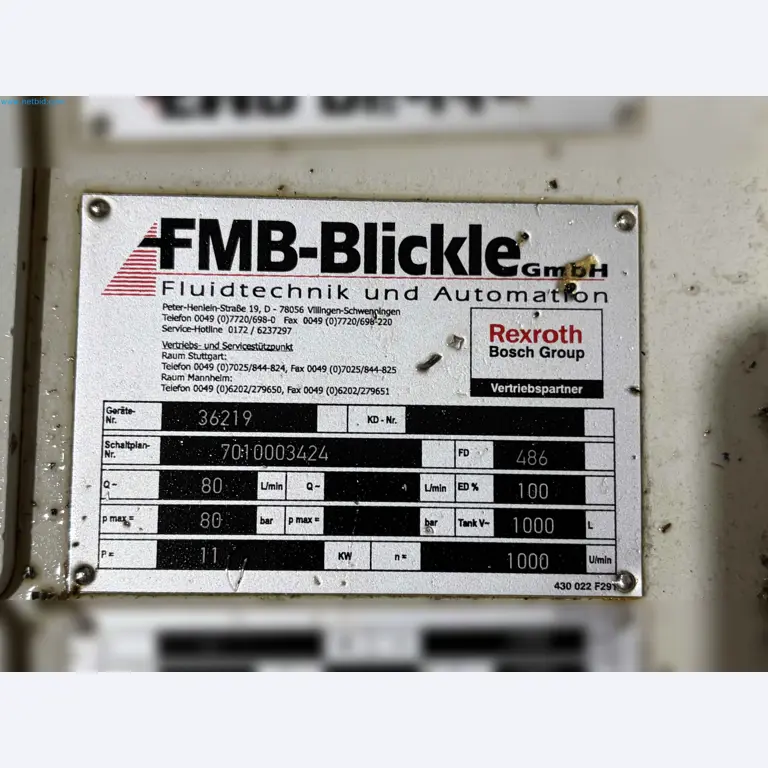

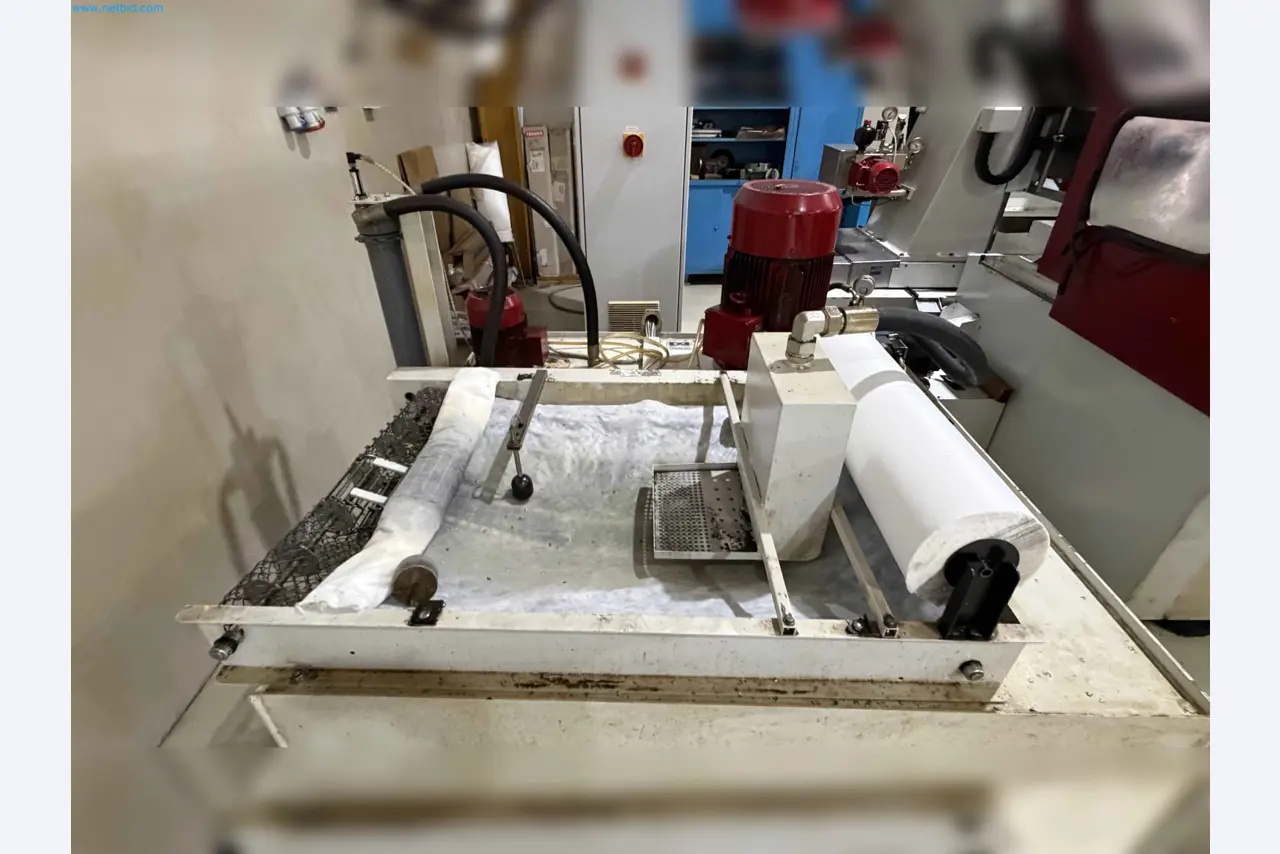

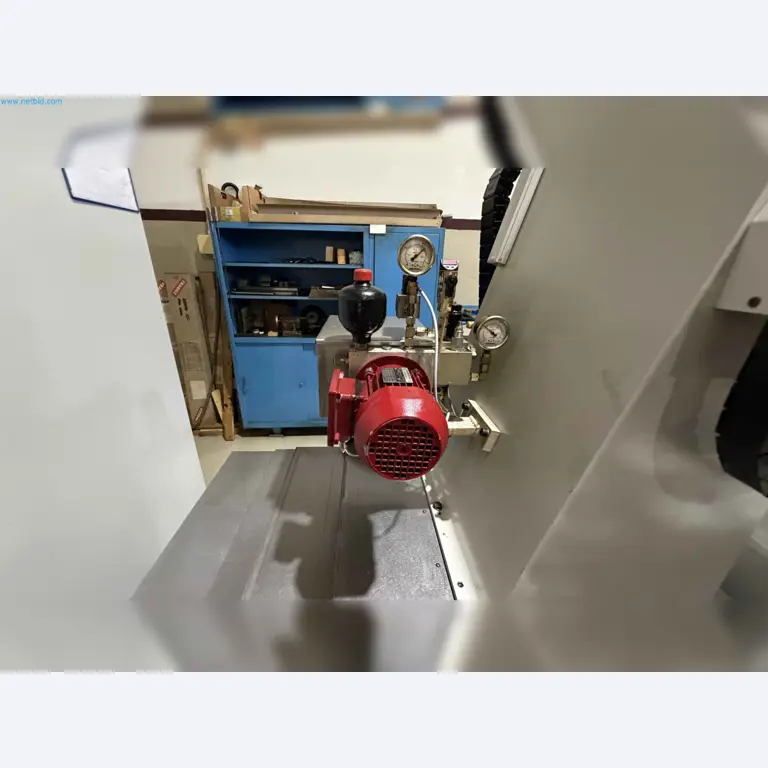

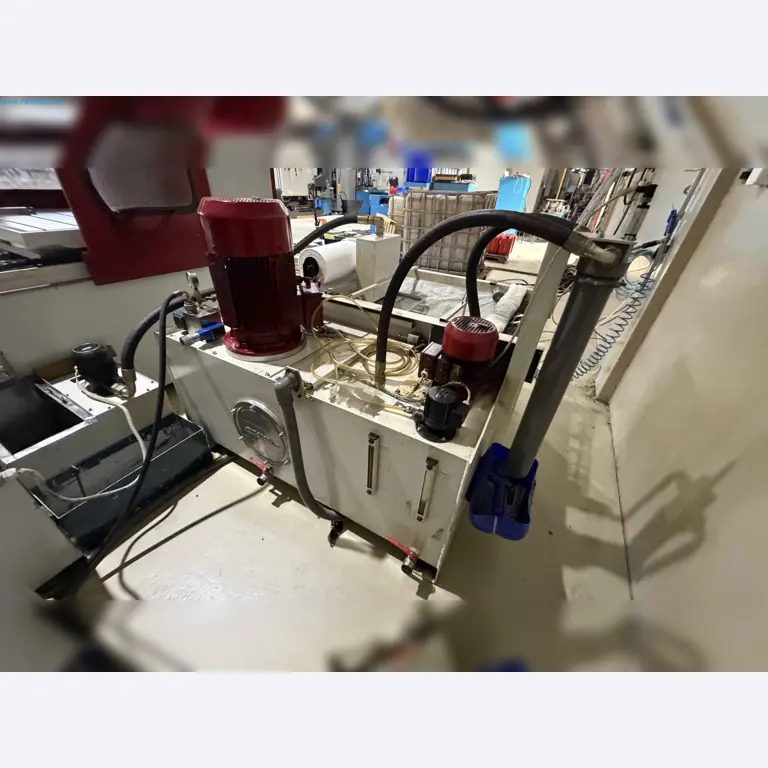

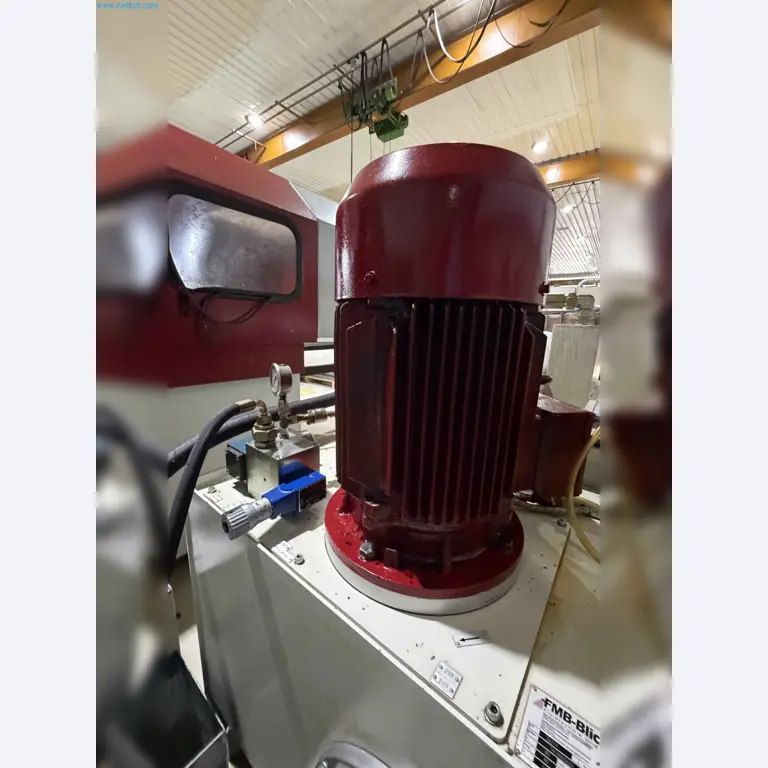

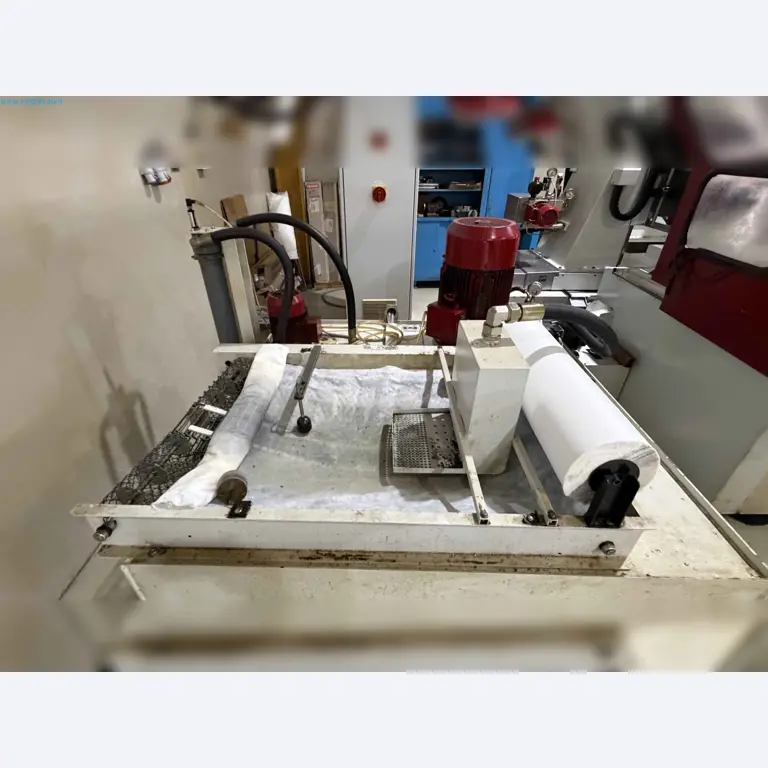

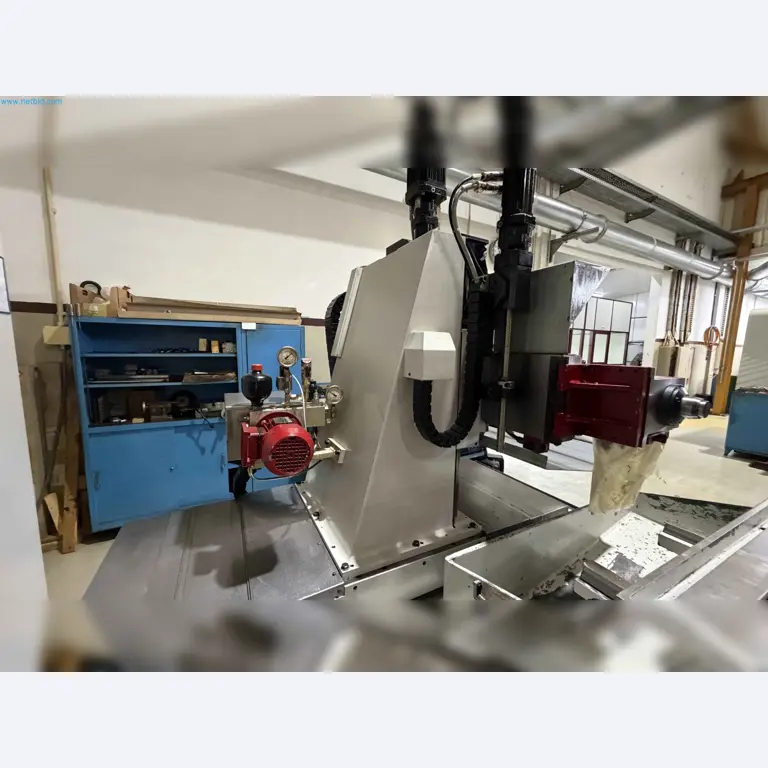

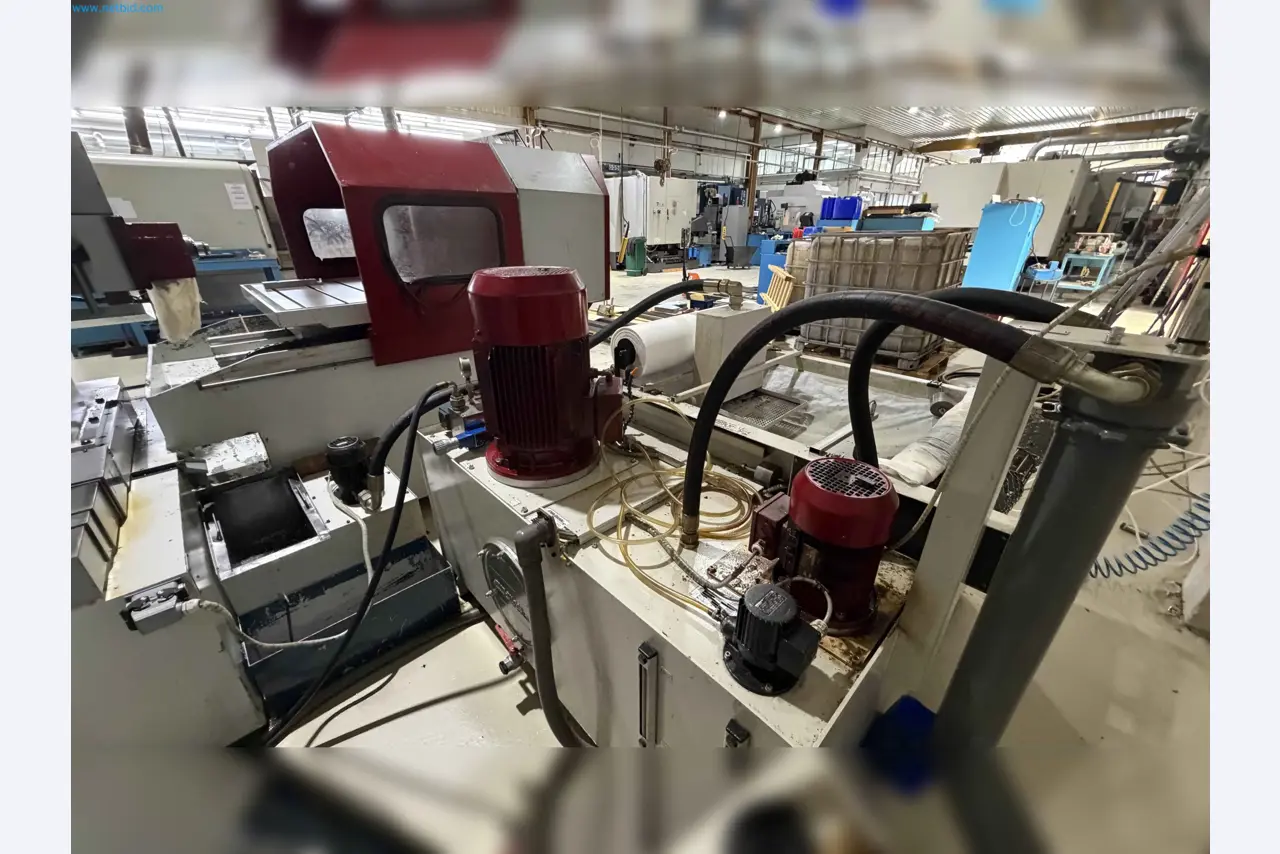

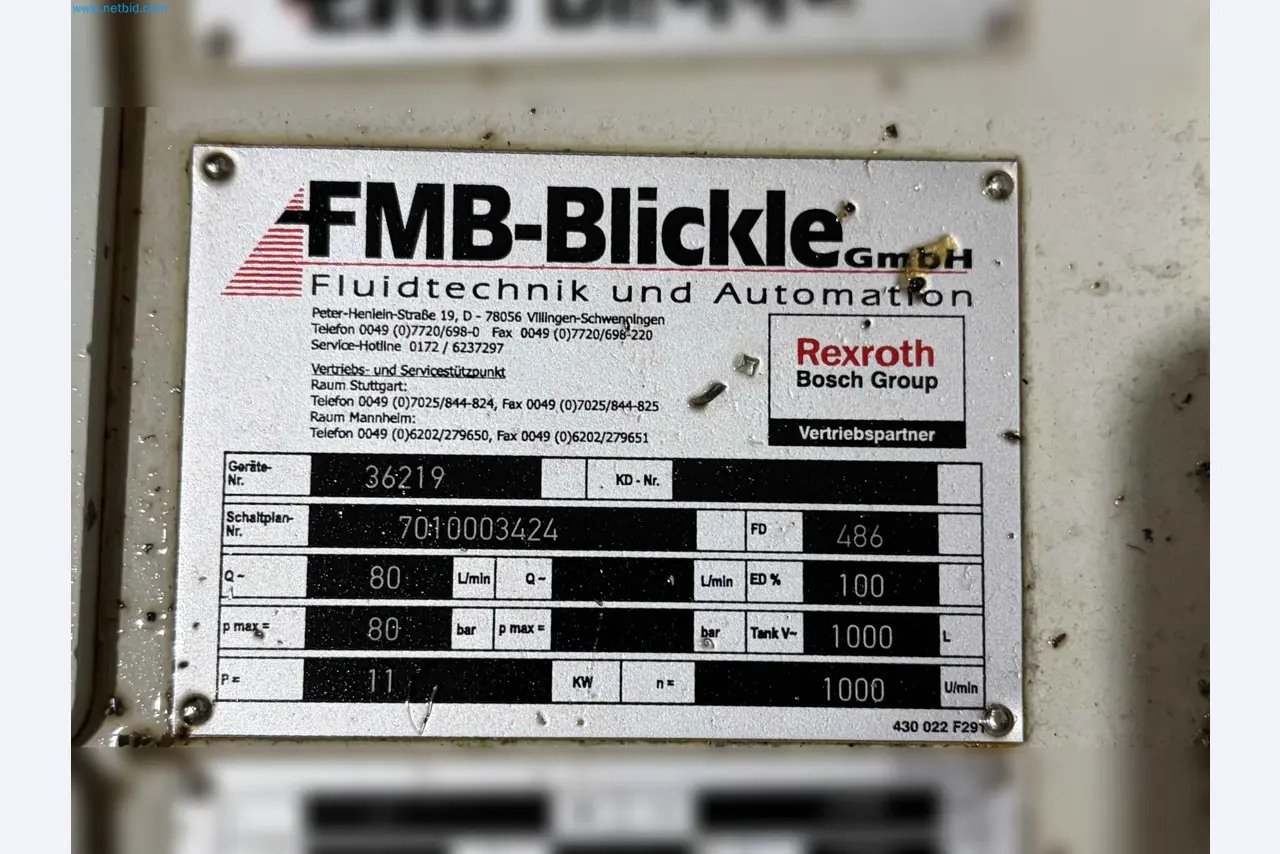

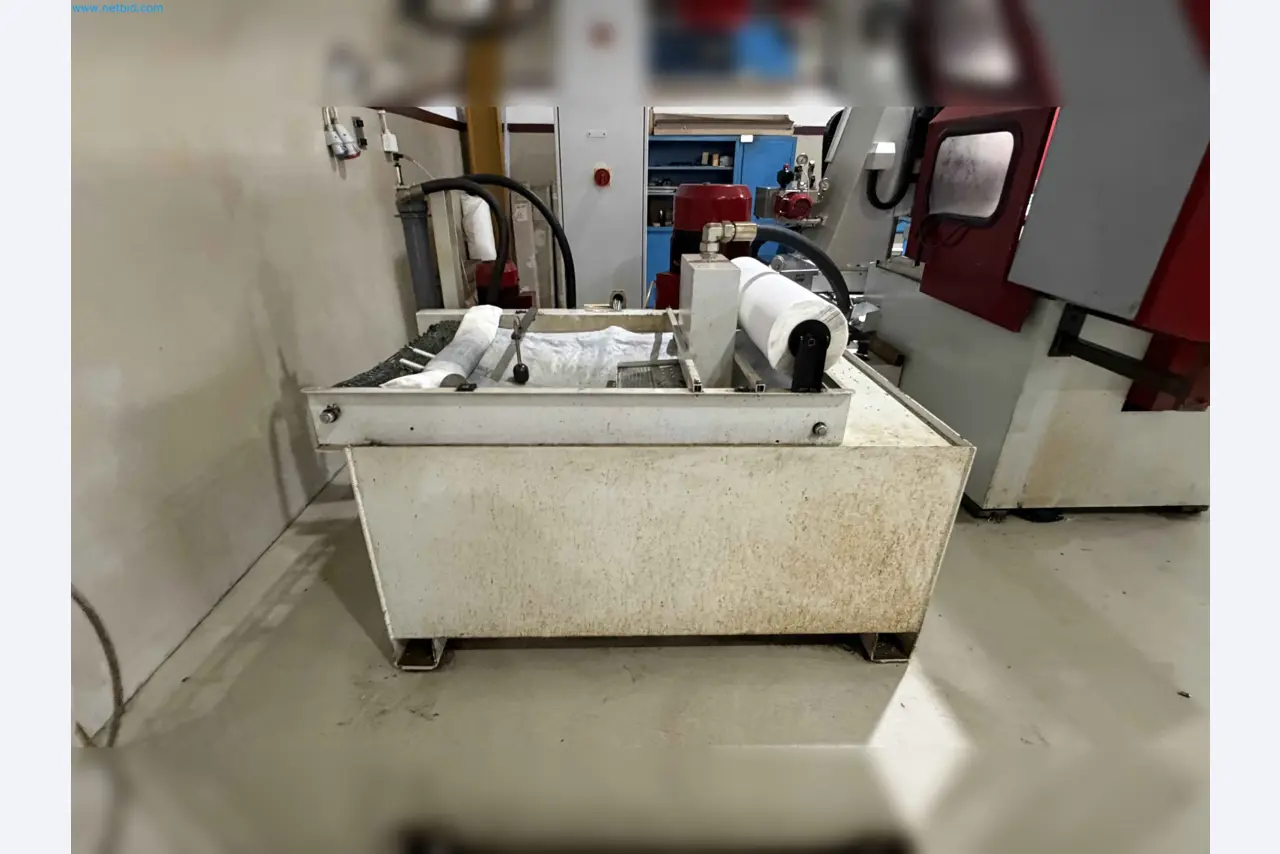

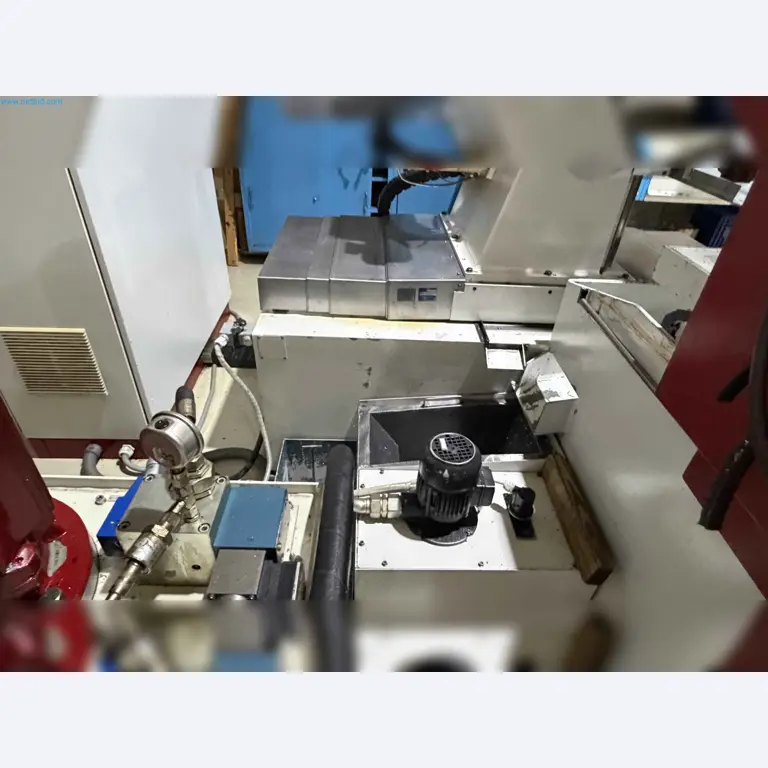

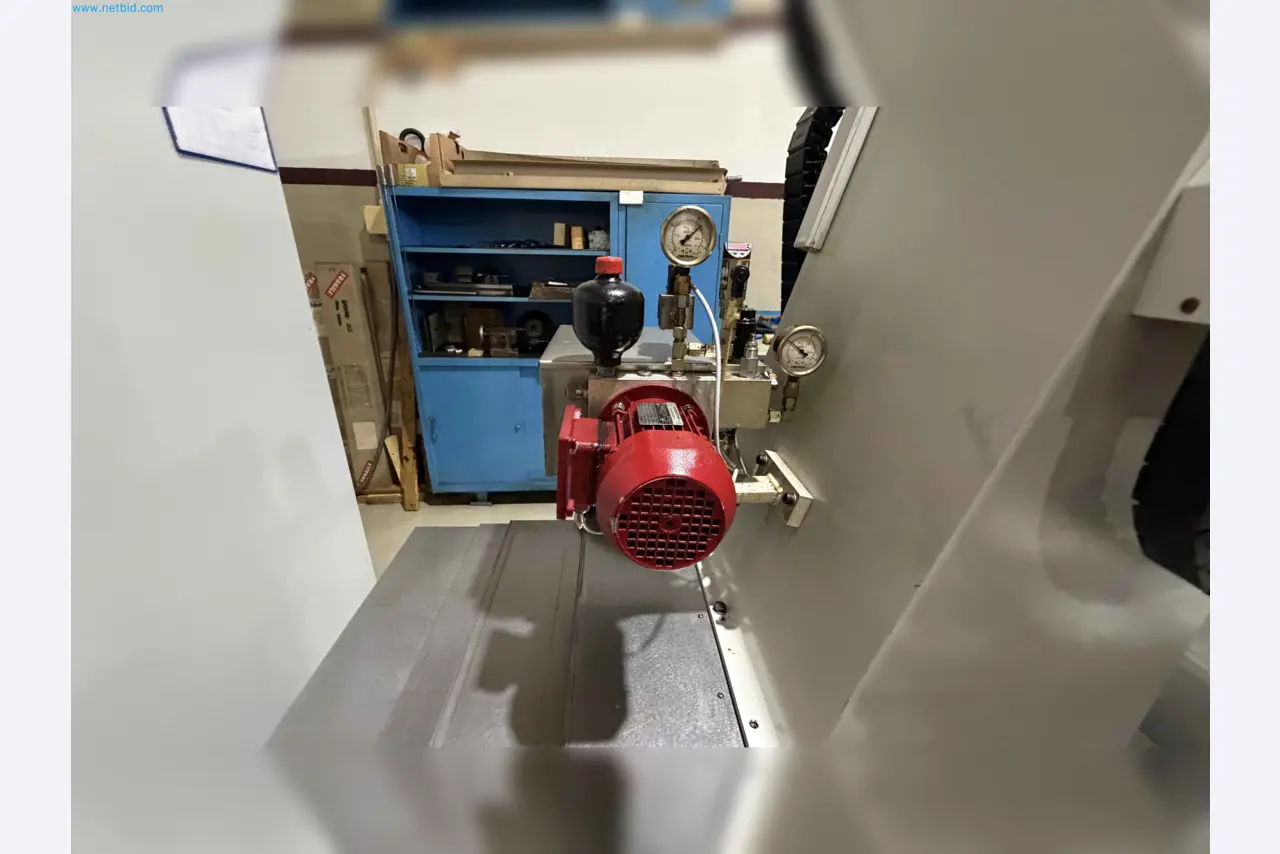

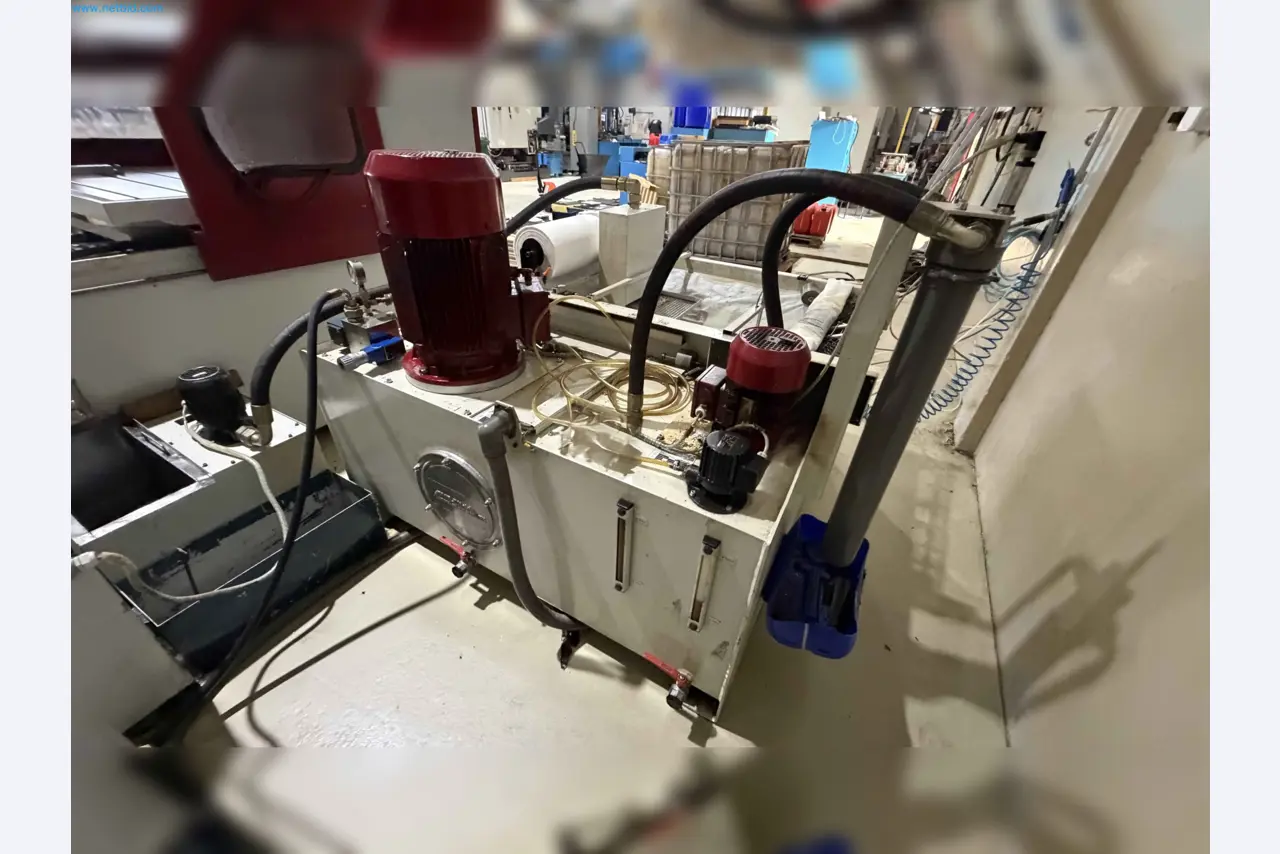

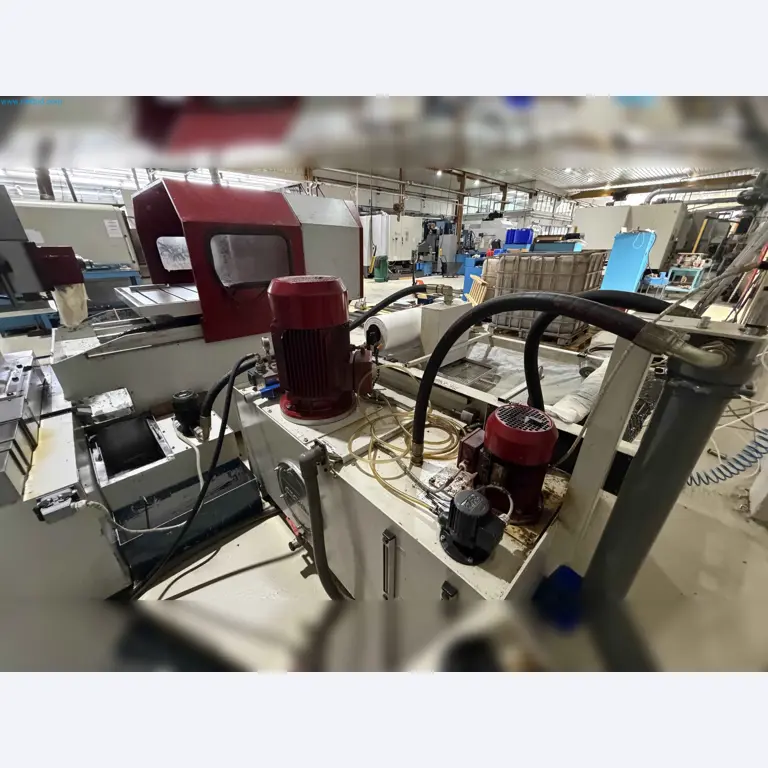

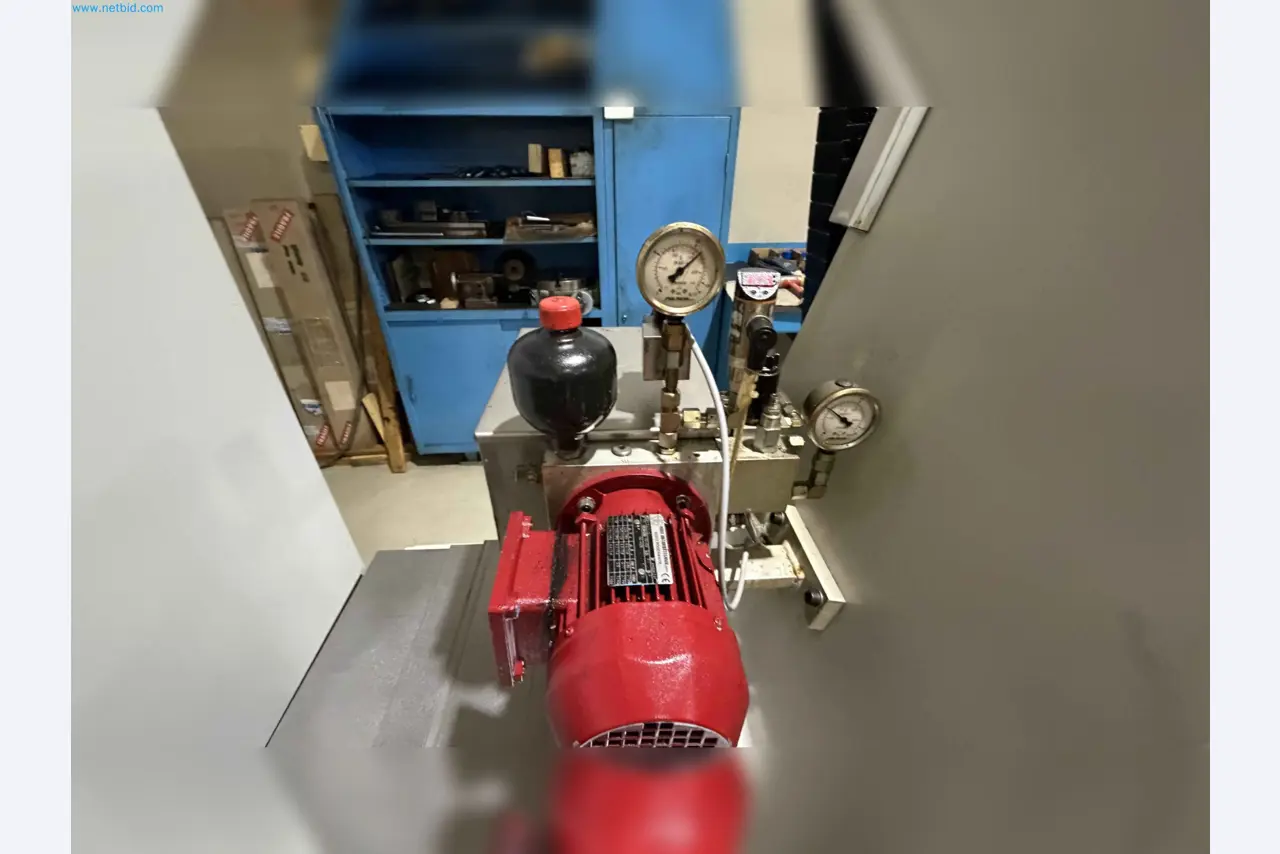

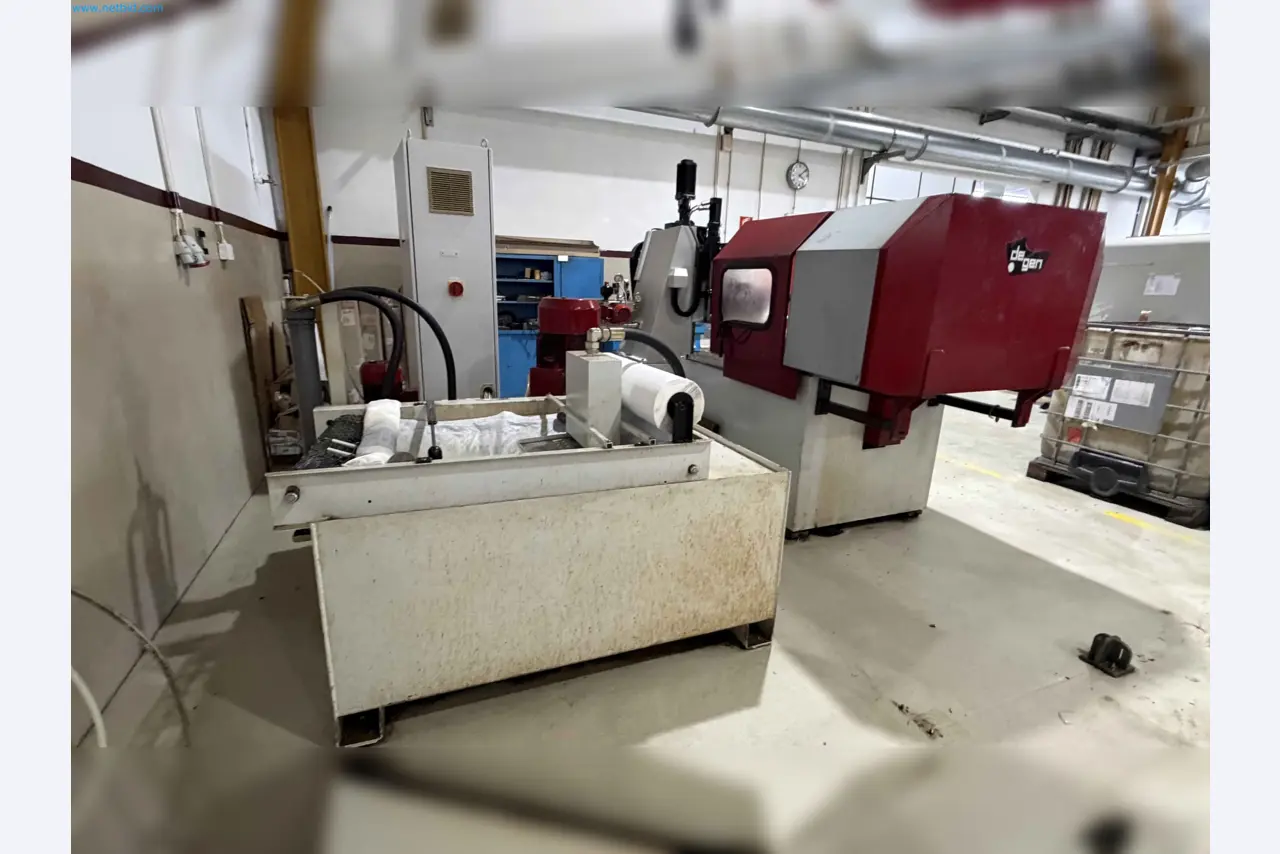

Tooling / Coolant system
Tool holder: cylindrical, Ø 25 mm
Coolant pressure: 0–80 bar

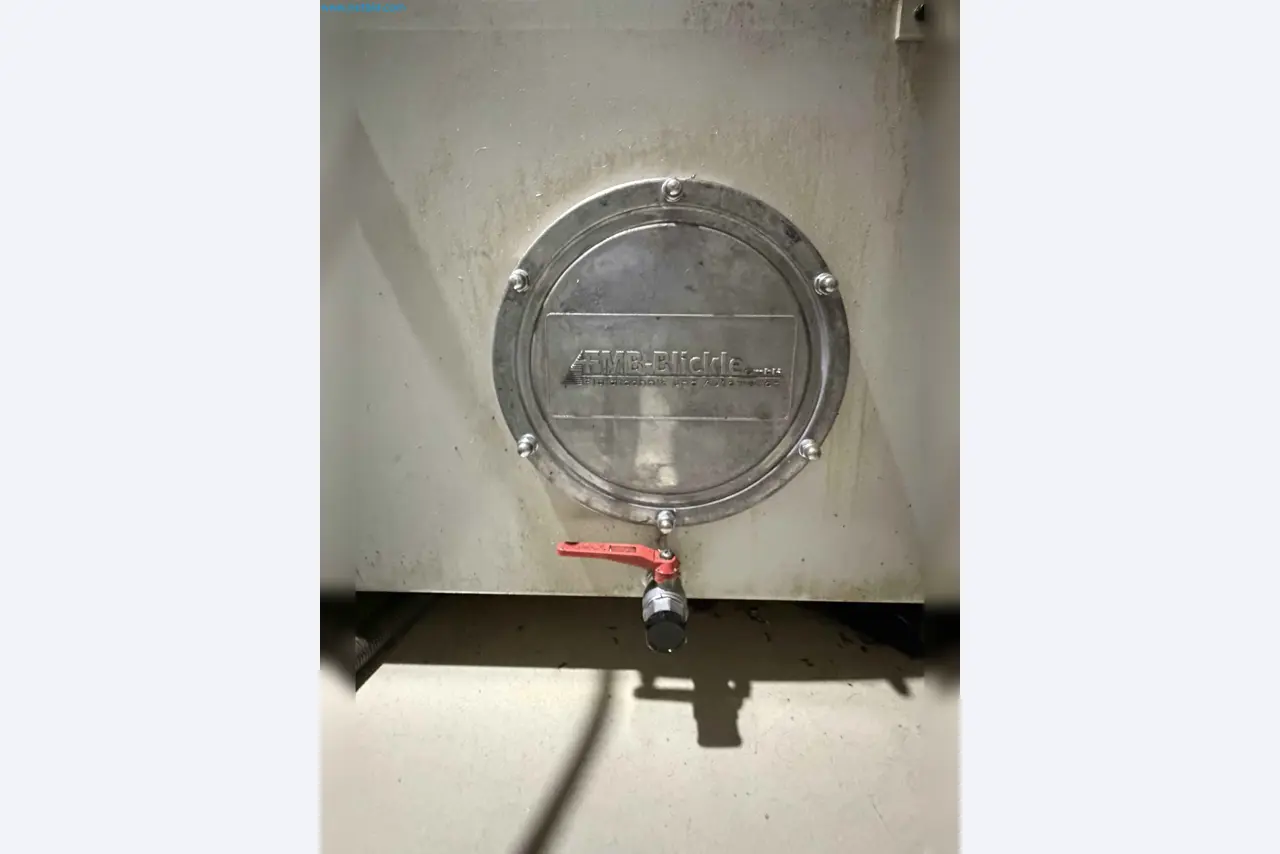

Coolant capacity: 1000 l
Approx. dimensions: 3500 x 1500 x 1750 mm
Approximate weight: 3,500 kg
Optional dismantling and loading by a third party: EUR 500.
Quotes for lot preparation and transport packaging by third parties on request.
CNC-controlled axes:
3 axes (X/Y/Z)
Travels:
X-axis: 600 mm
Y-axis: 400 mm
Z-axis (drilling axis): 600 mm
W-axis (table control): 600 mm
Axis drives
X-axis: Ball screw with servo motor
Y-axis: Ball screw with servo motor
Z-axis: Ball screw with servo motor
W-axis: Ball screw with servo motor
Table:
Load capacity: 2,000 / 3,000 / 5,000 kg
Workpiece dimension: 1,100 × 650 mm
With swivelling table
Drilling / Machining capacity:
Drilling diameter: 4–25 mm
Thread cutting capacity: M20
Milling capacity: 50 cm³/min
Spindle speed: 0–4,000 rpm
Spindle power at 60% duty cycle: 7.5 kW
Spindle power at 100% duty cycle: 5.5 kW
Tooling / Coolant system
Tool holder: cylindrical, Ø 25 mm
Coolant pressure: 0–80 bar
Coolant capacity: 1000 l
Approx. dimensions: 3500 x 1500 x 1750 mm
Approximate weight: 3,500 kg
Optional dismantling and loading by a third party: EUR 500.
Quotes for lot preparation and transport packaging by third parties on request.
