Part of the Auction Press lines from the automotive industry
Press line (86) Weingarten/SchulerTrading#18844-5006
Details
Product Type
Weingarten/Schuler
Description
Last overhaul in 2021, consisting of:

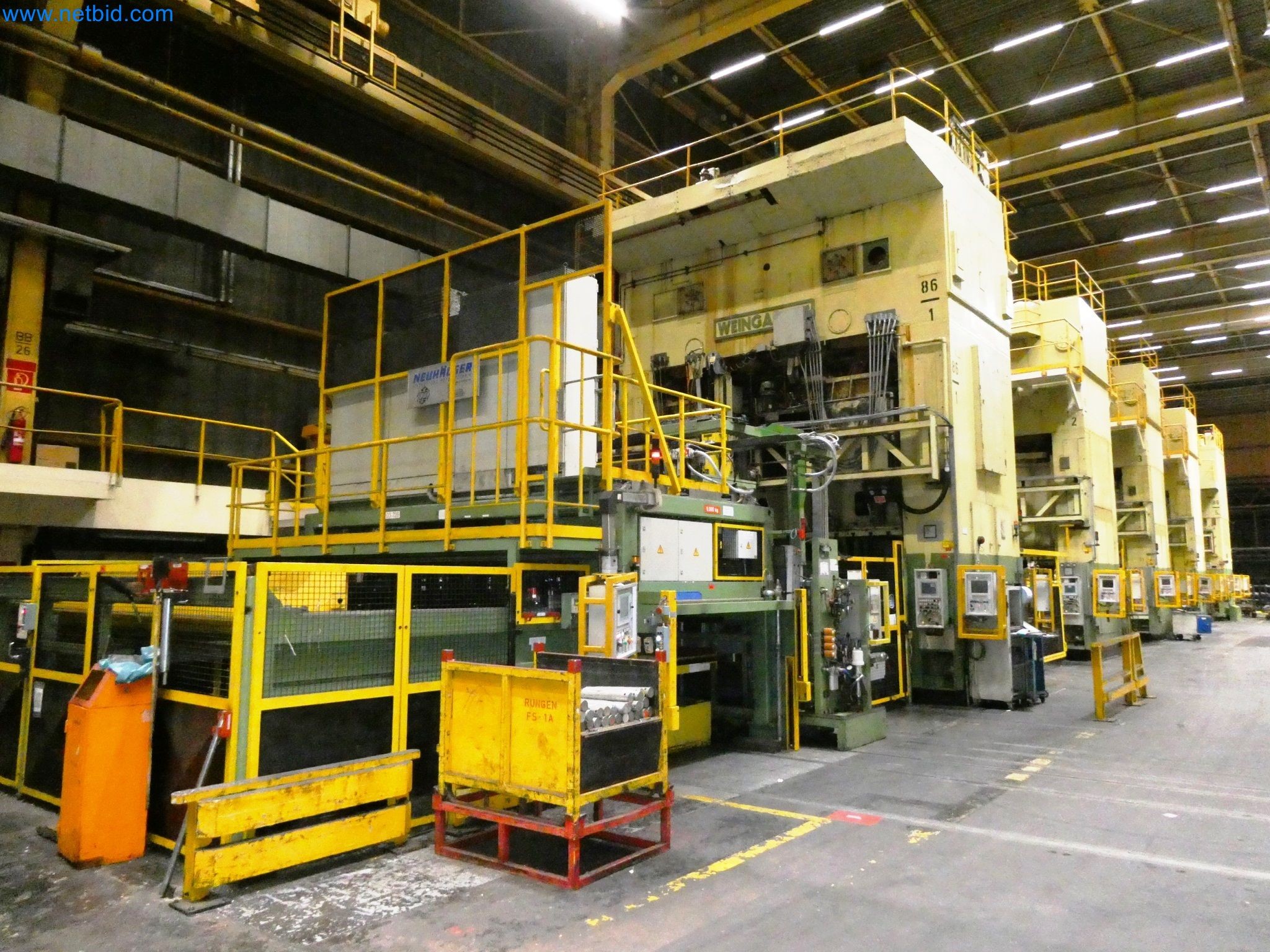

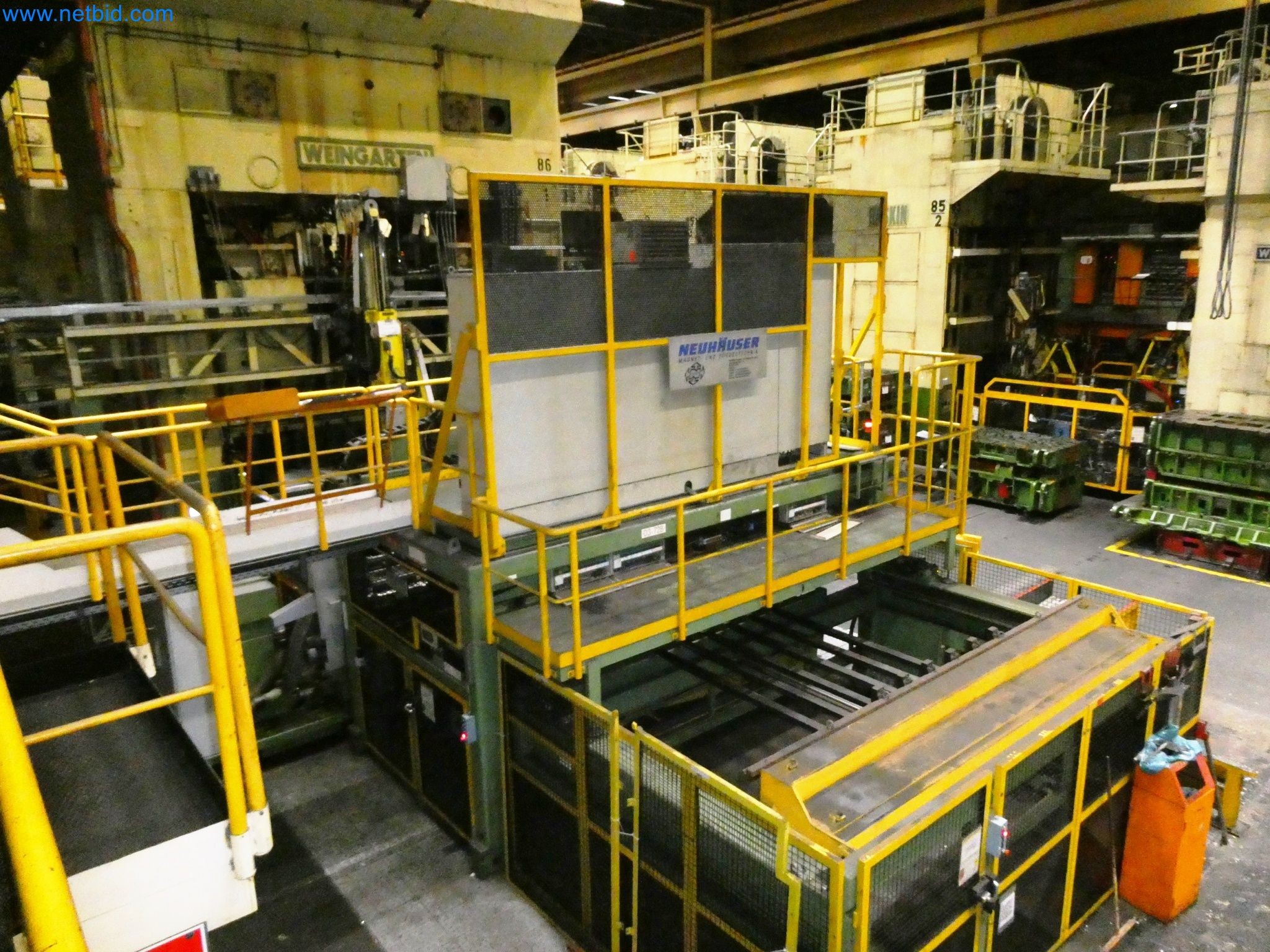

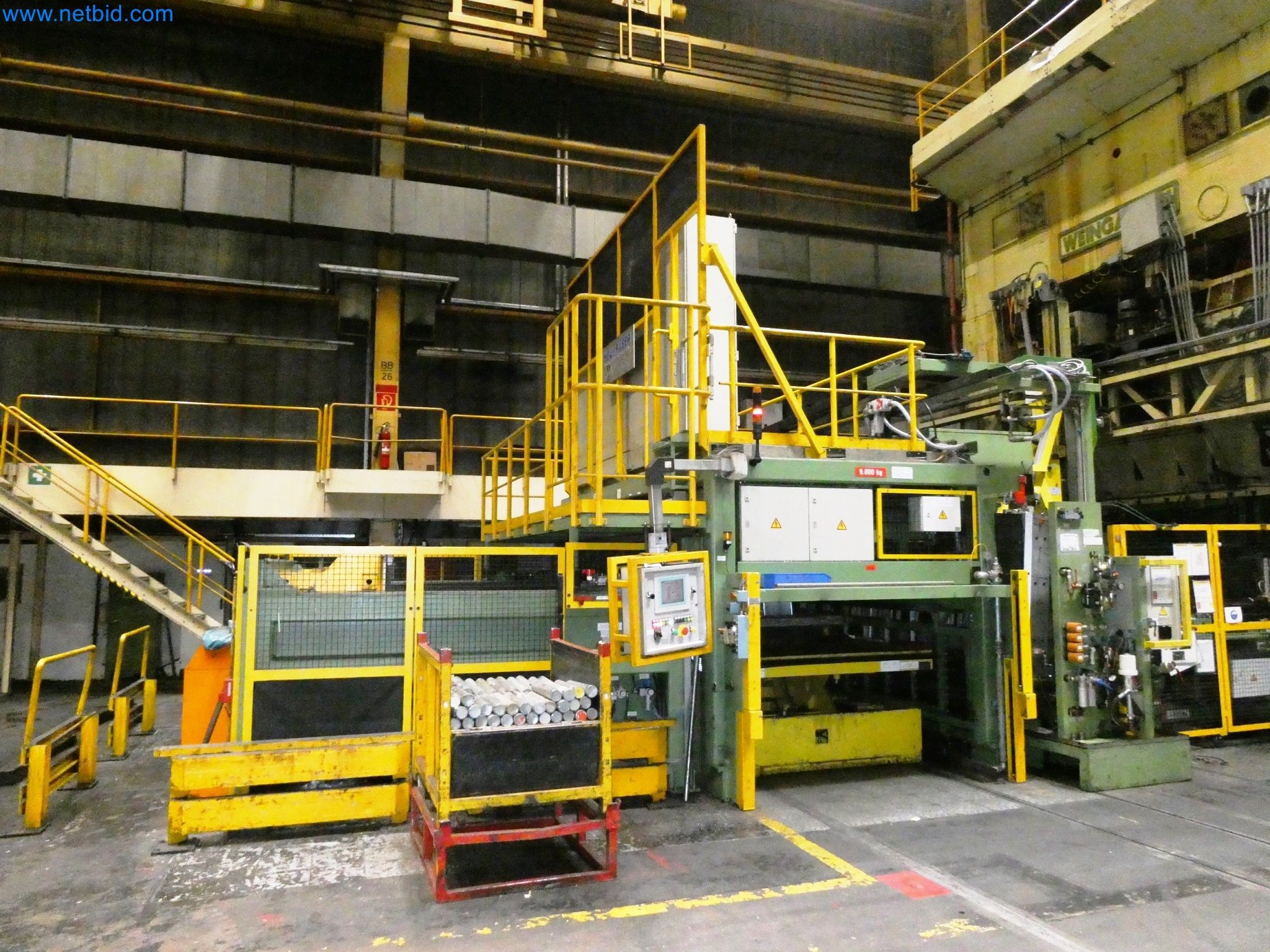

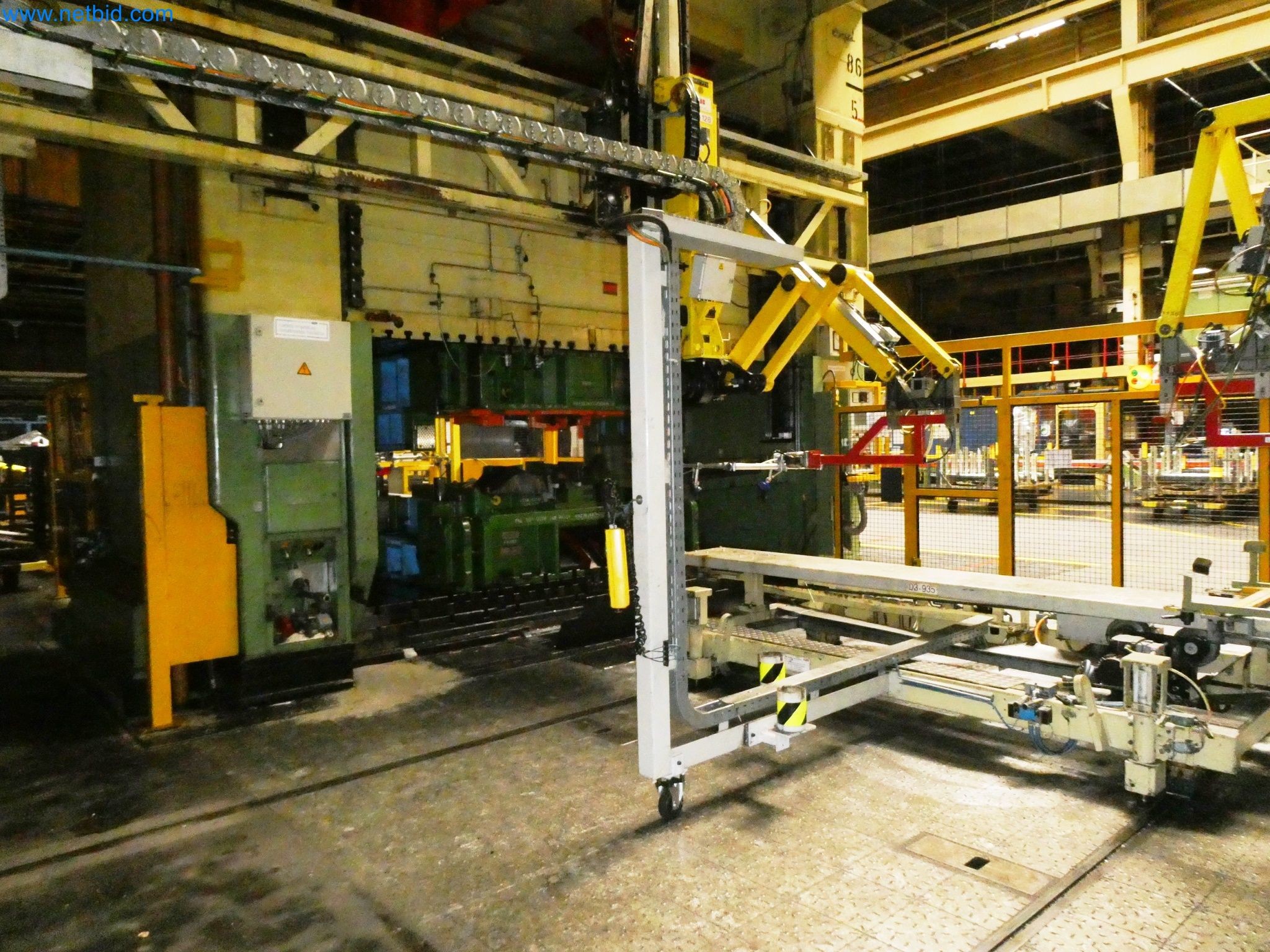

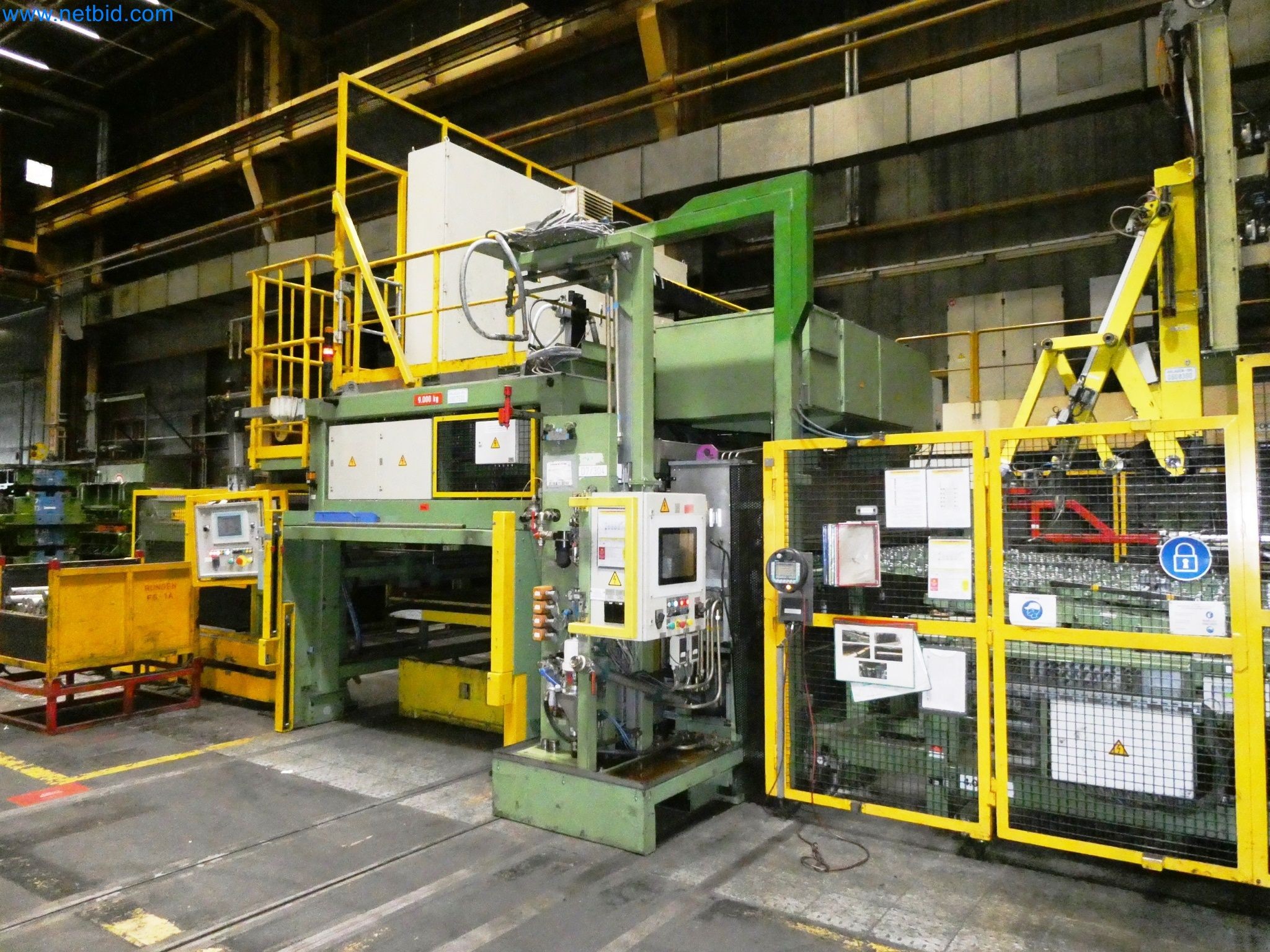

Board automation, Neuhäuser, type 19711505-00, year 2000, SN 367080, material no. FK35835, with integrated AMTEC board washing system, oiler, pallet loading and unloading station, pallet changing trolley, control system, Siemens, system no. 0907500

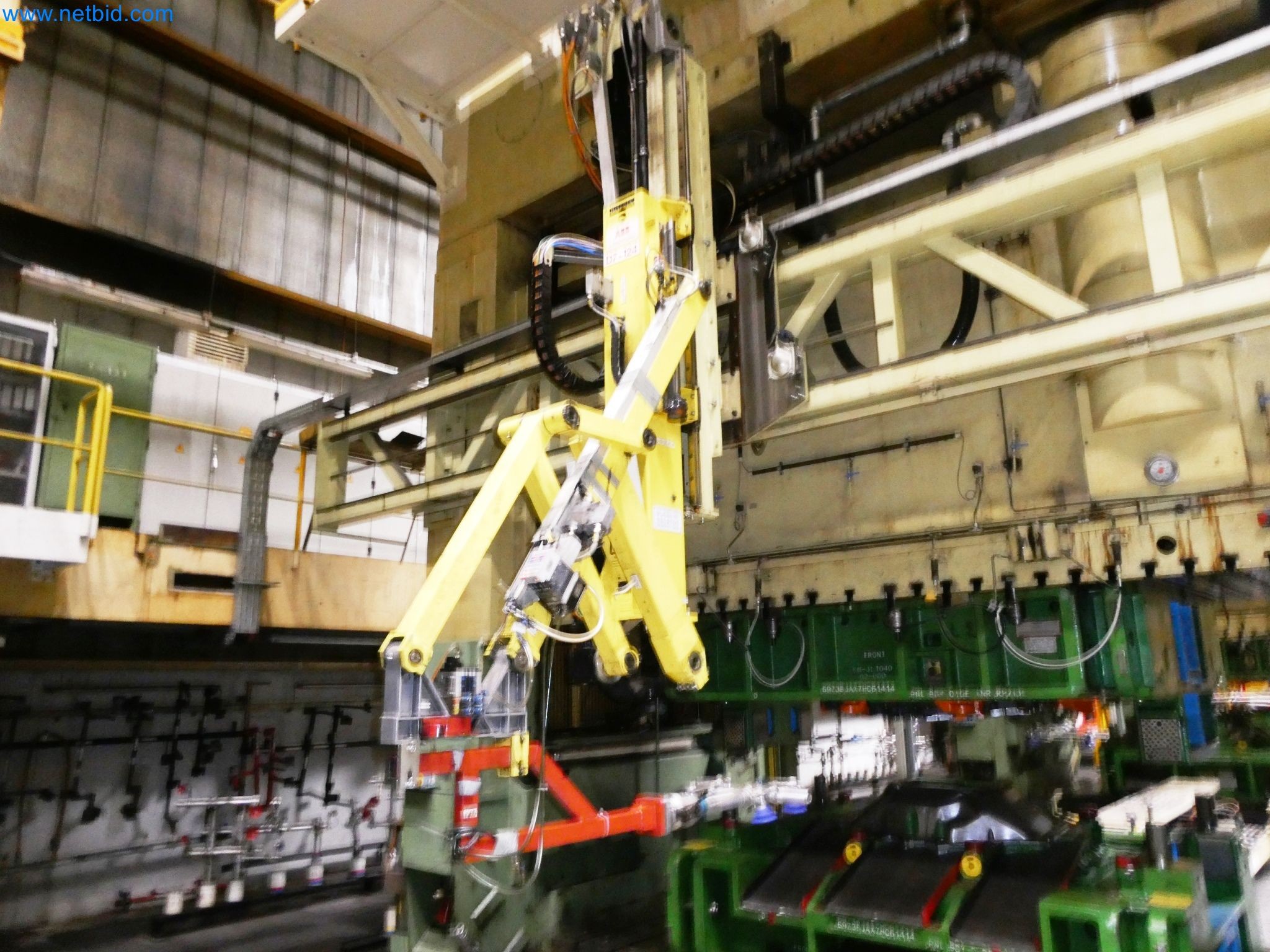

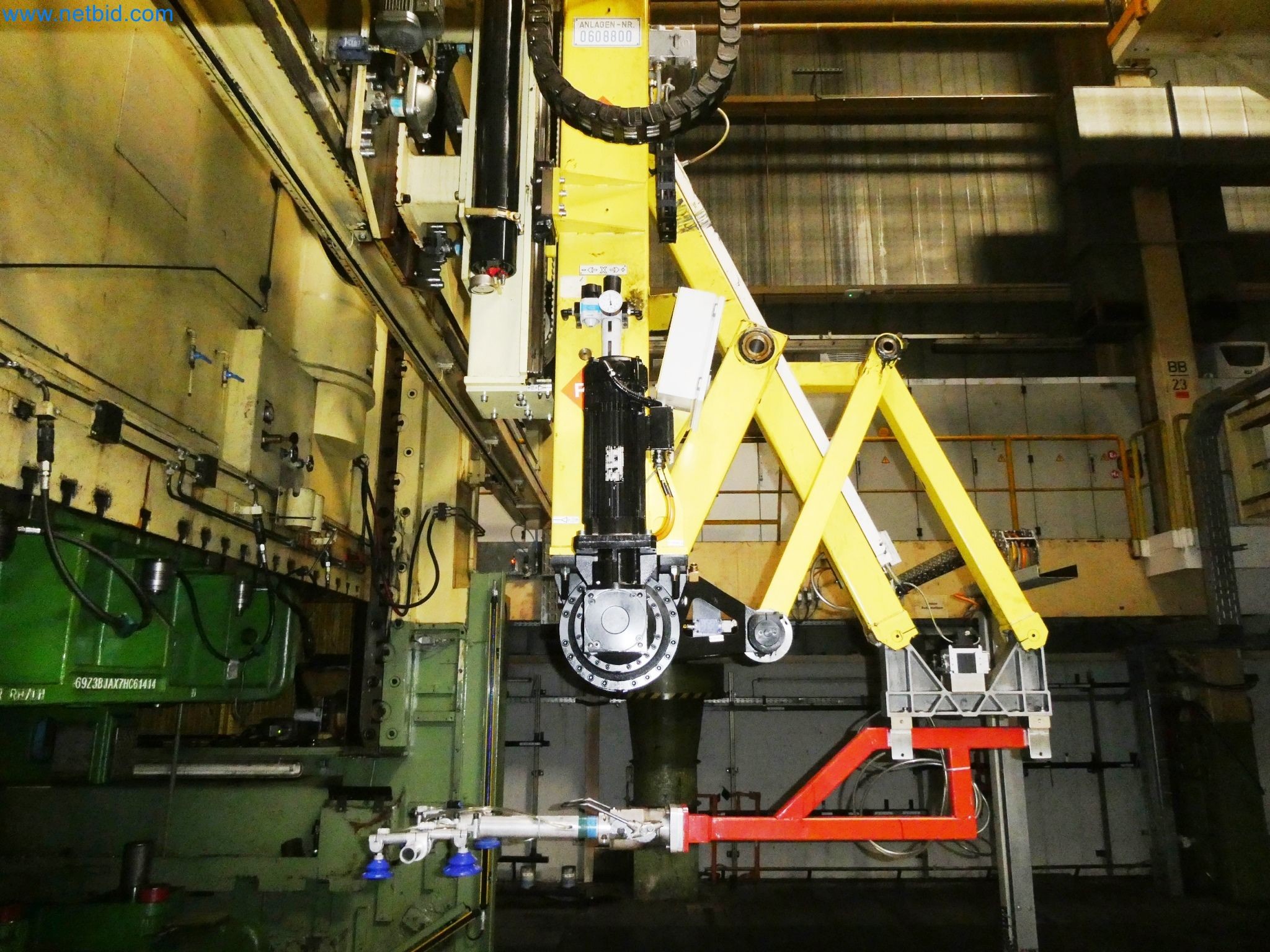

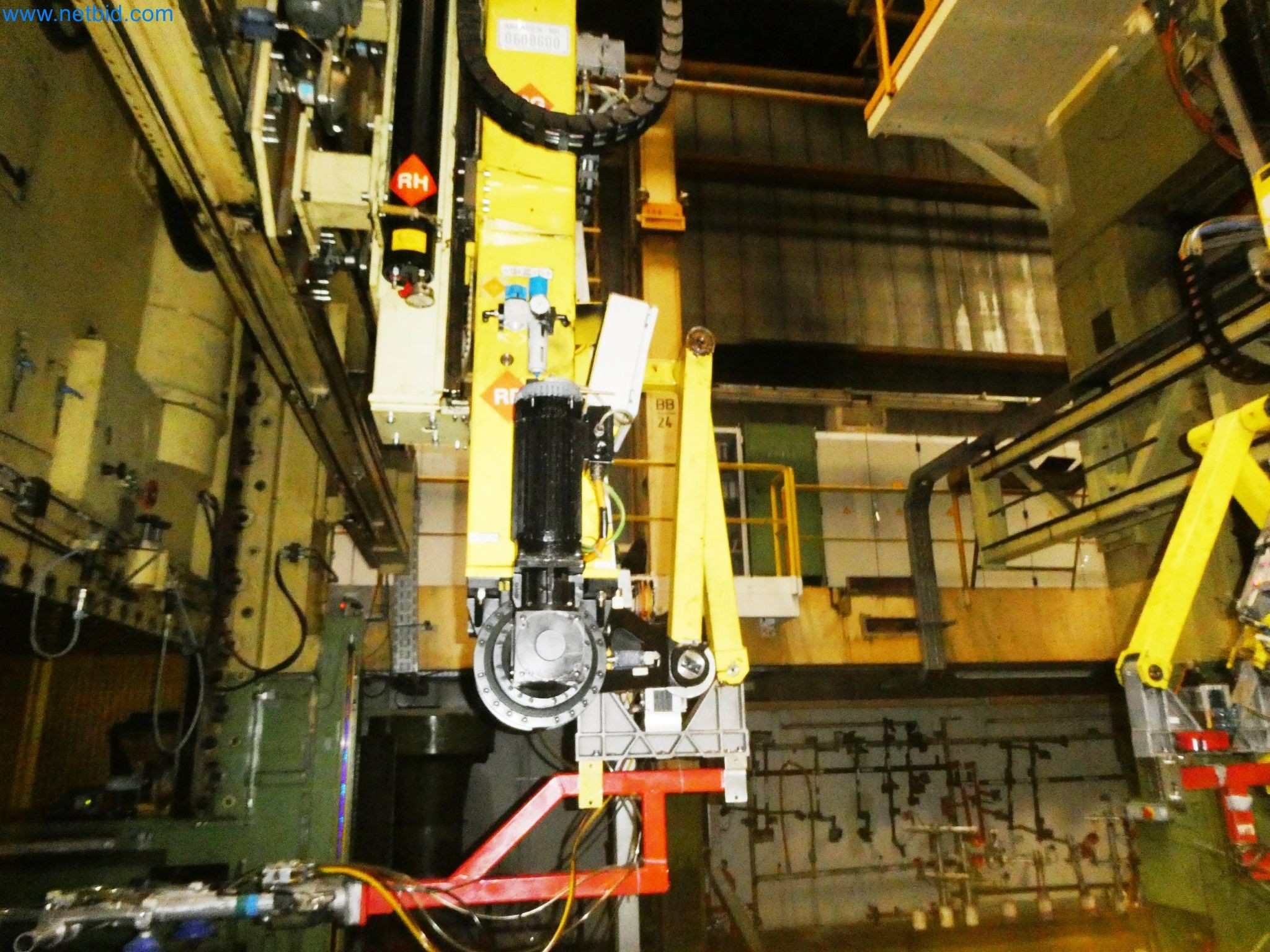

Board gripper, system no. 0608300, mounted on press

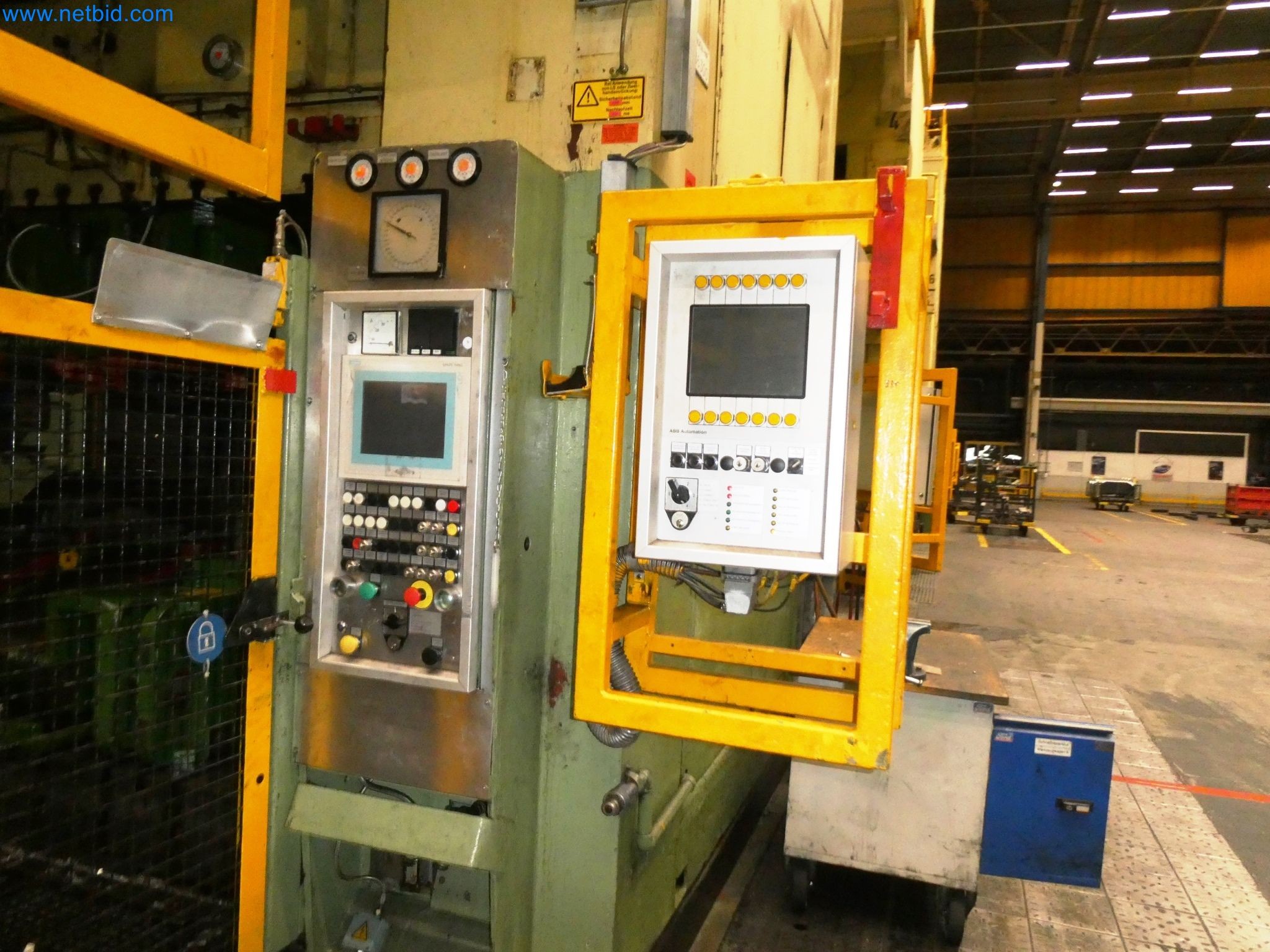

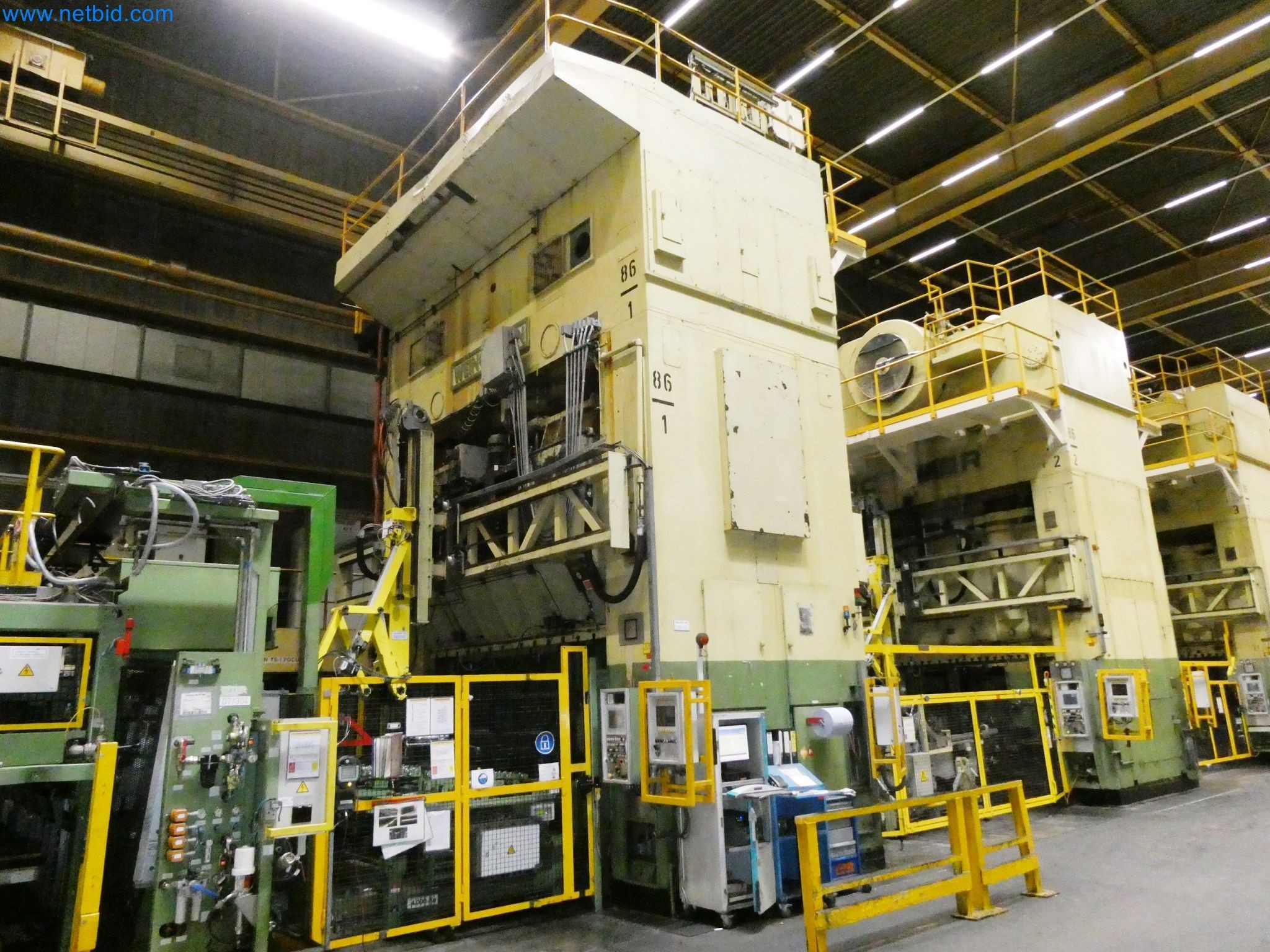

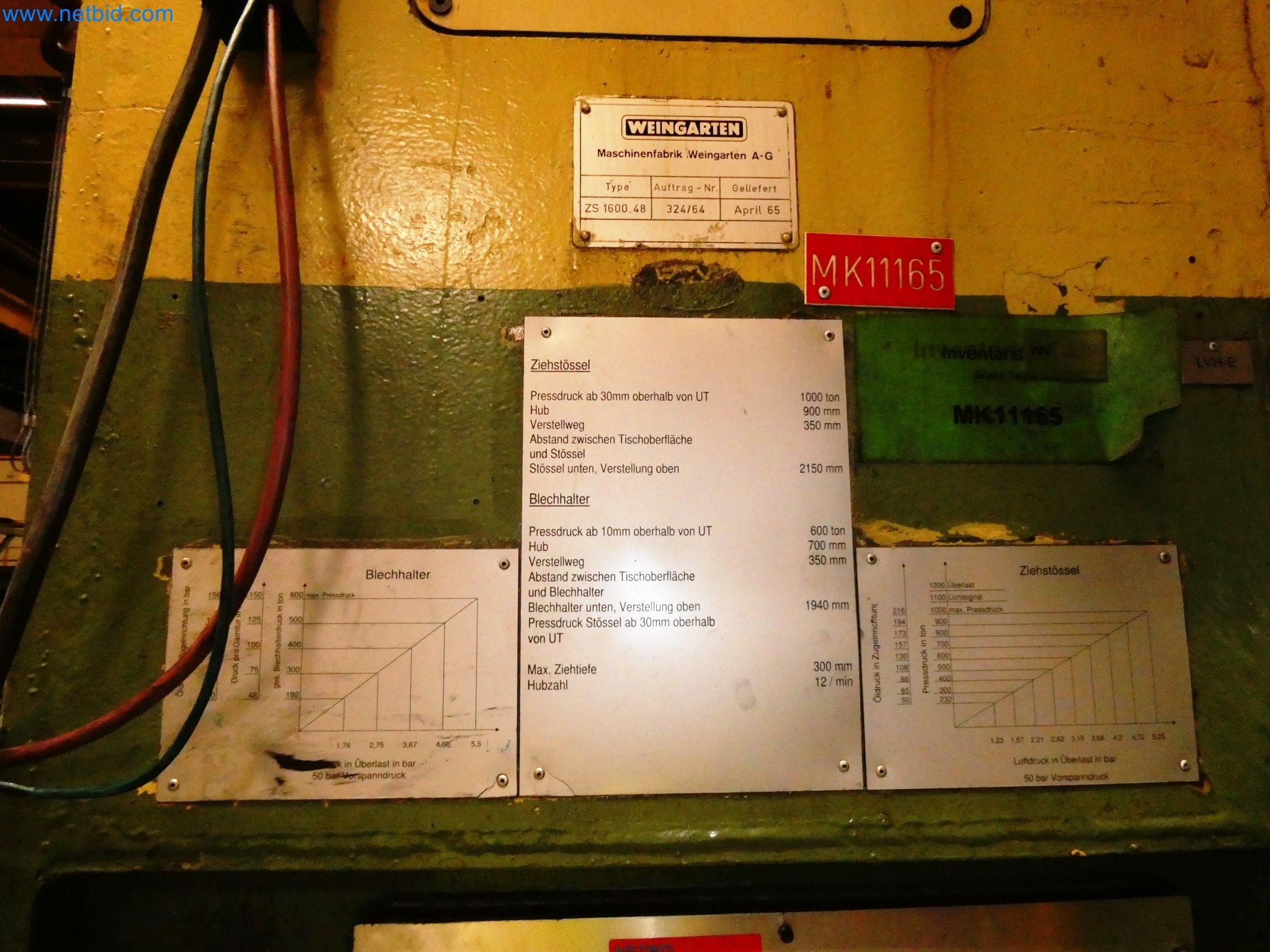

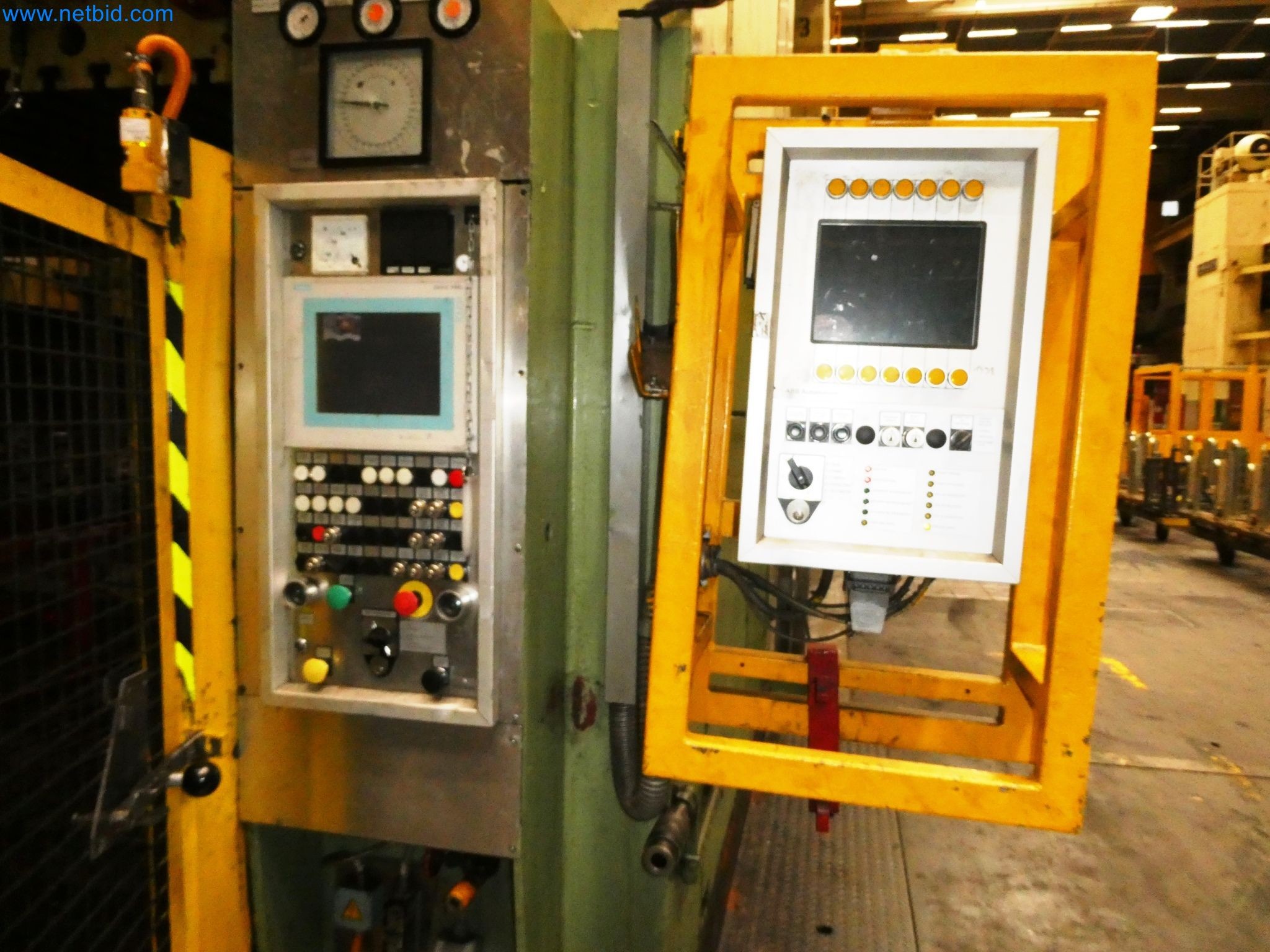

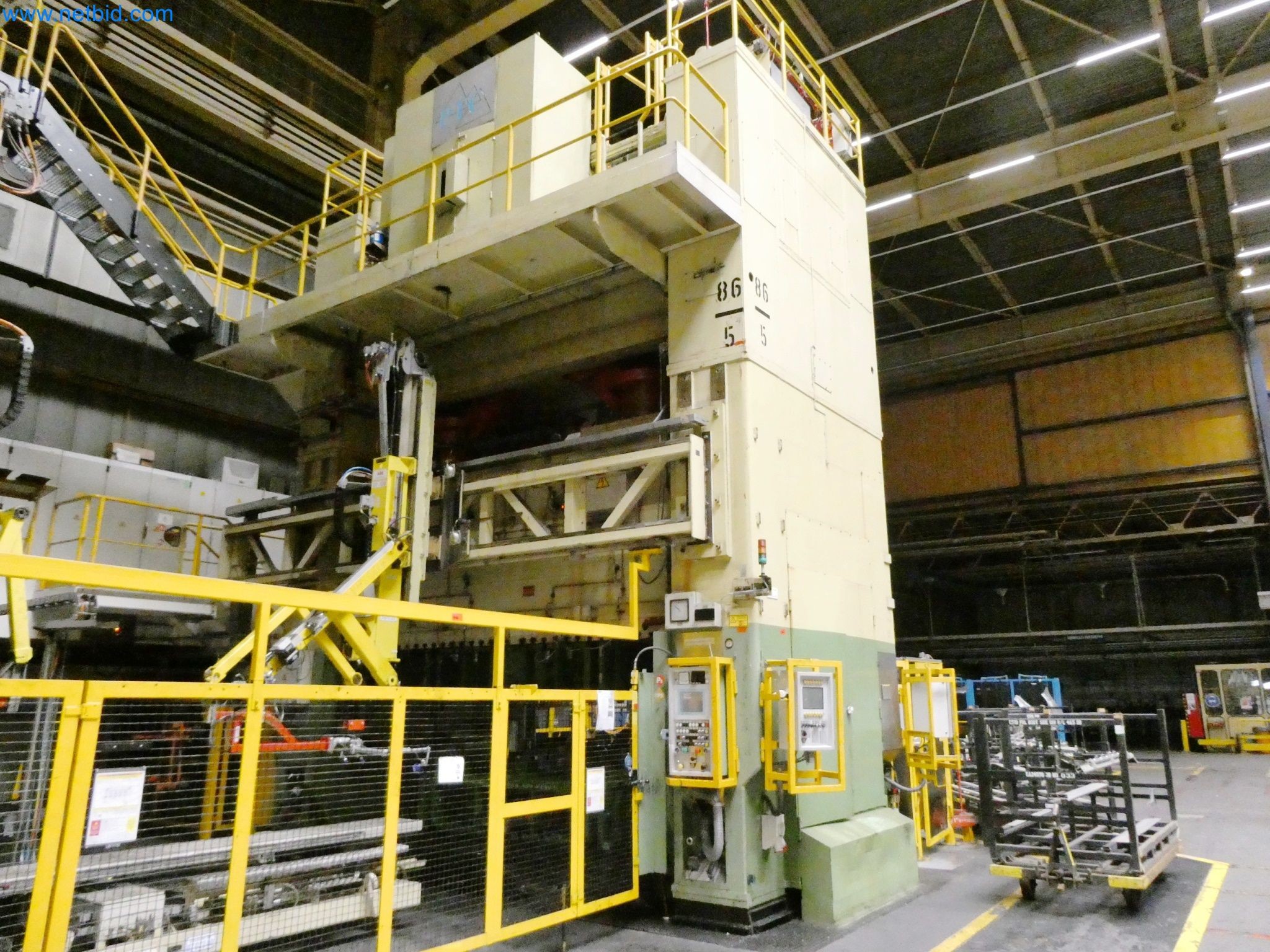

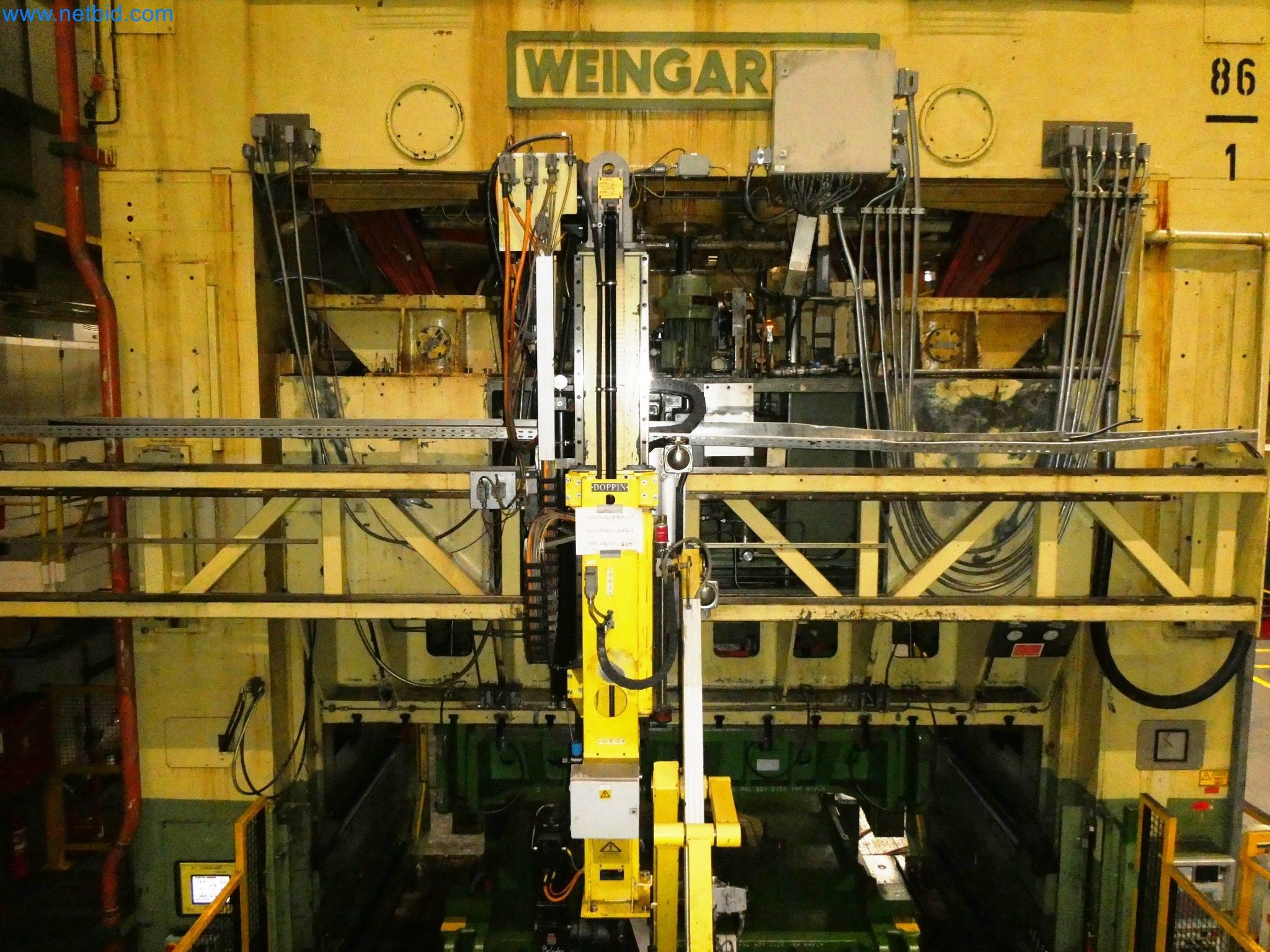

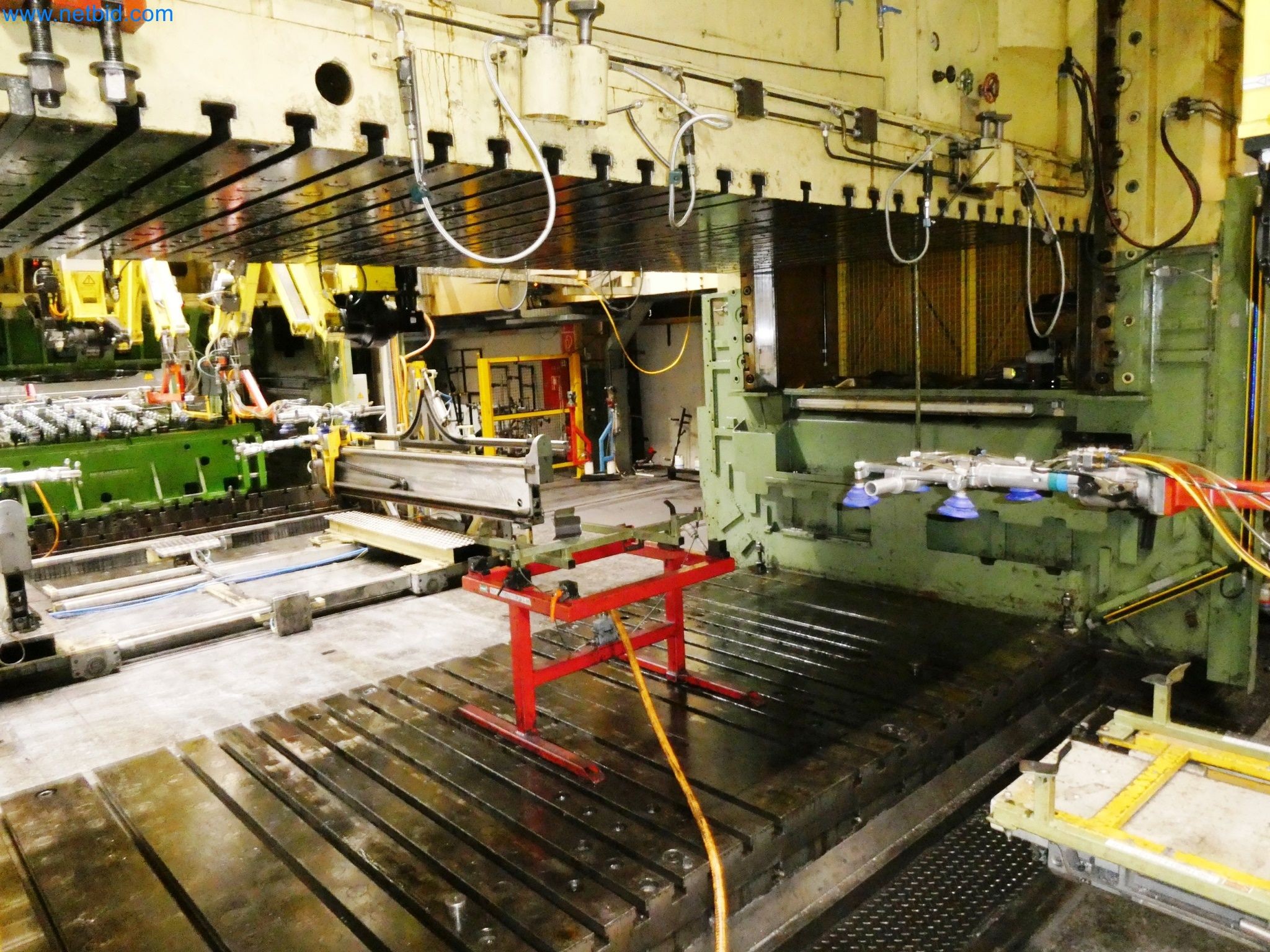

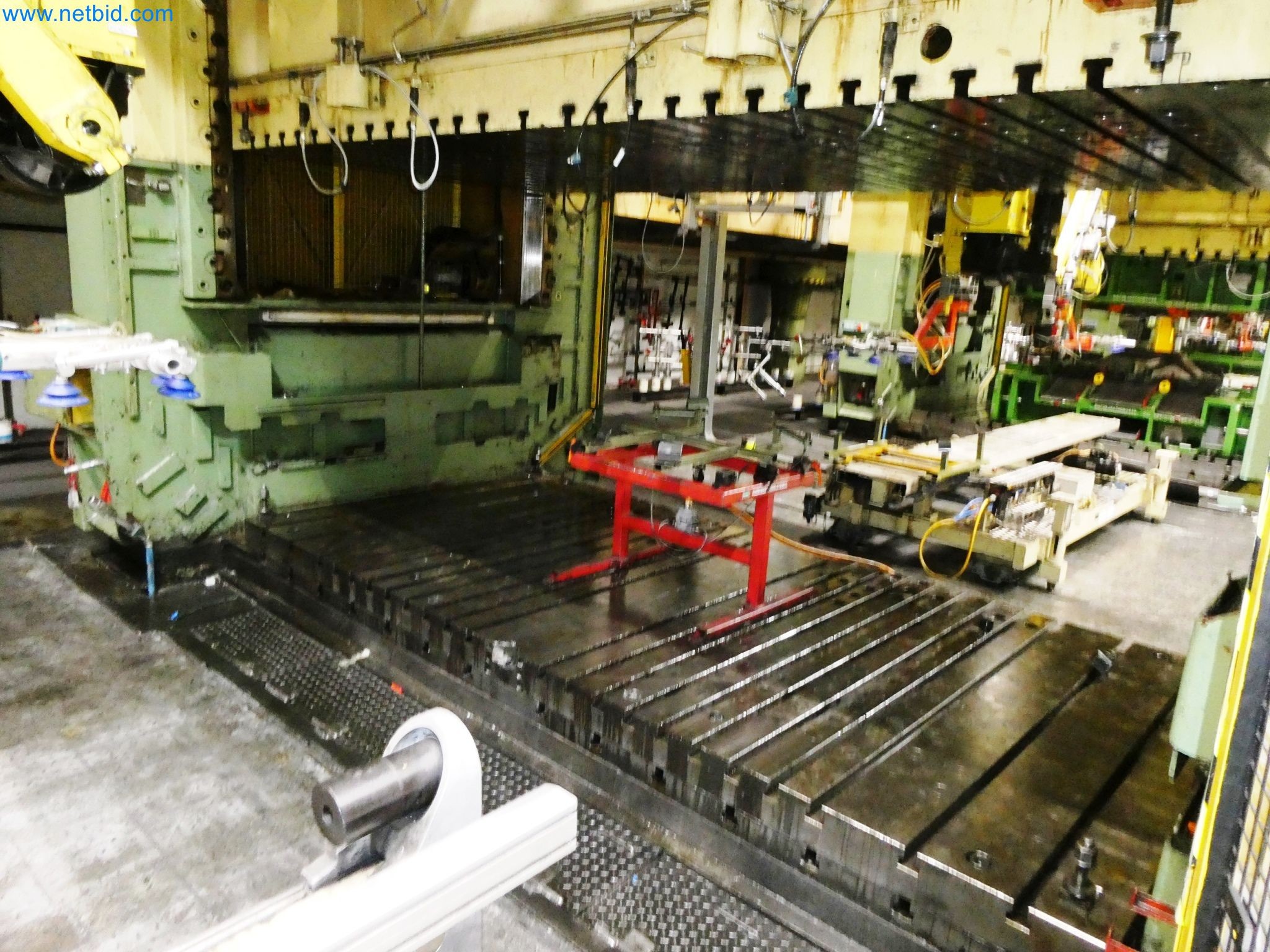

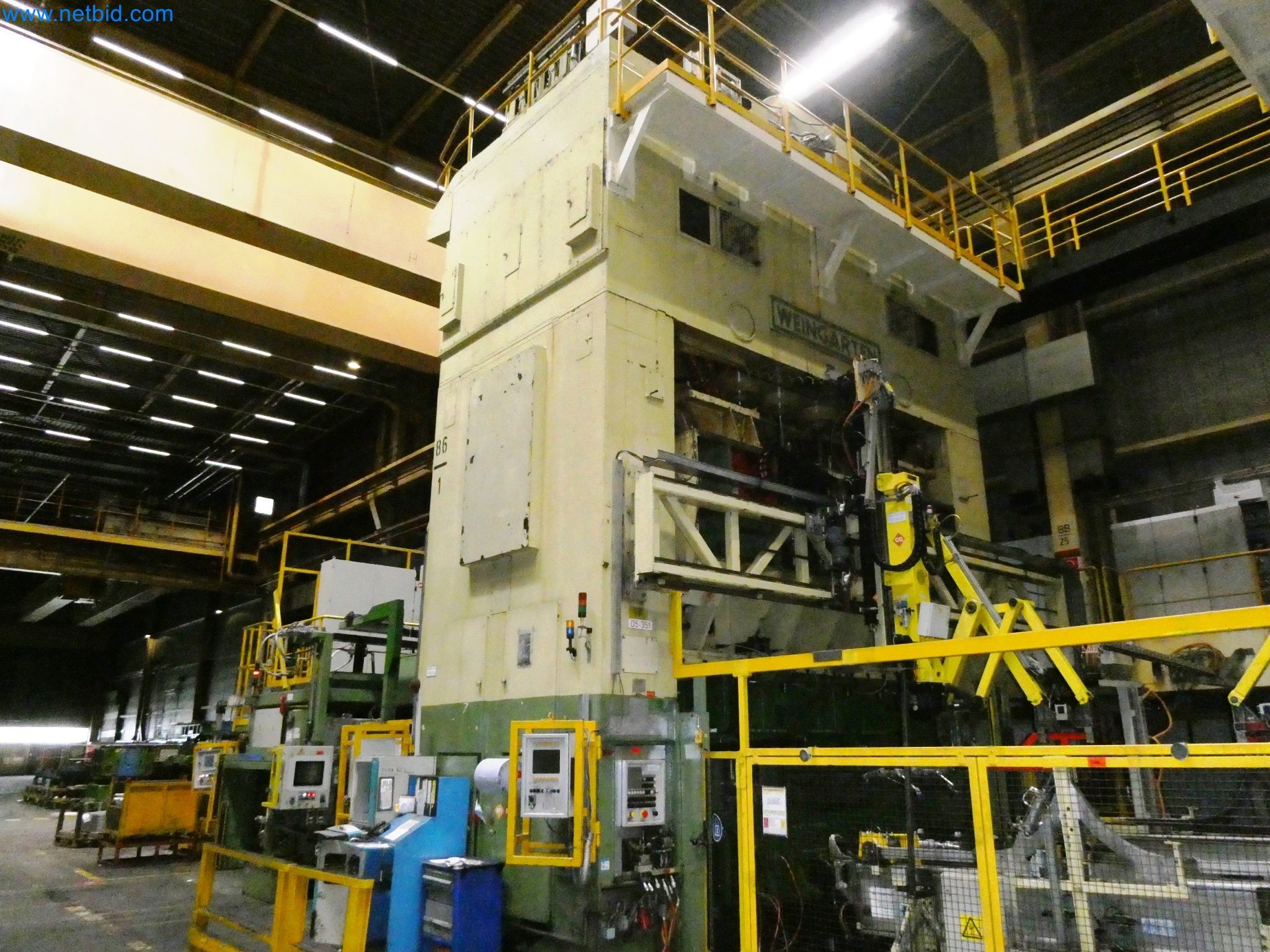

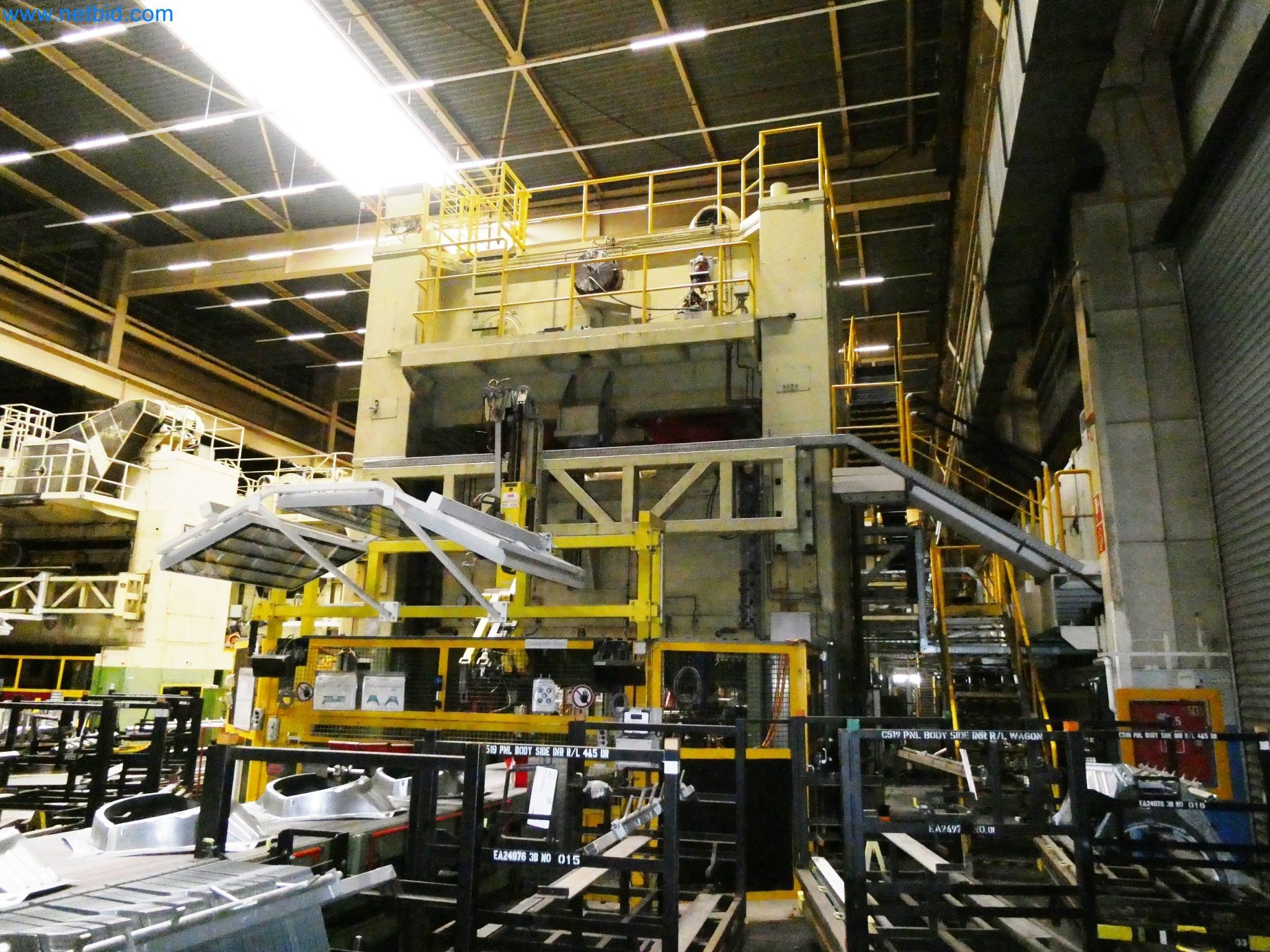

Double column press (MK11165), Weingarten, type ZS 1600.48, built 1965, order no. 324/64, double action, press pressure approx. 1,000 t, stroke 900 mm, stroke adjustment 350 mm, distance between table surface and ram 2.150 mm, sheet holder pressing force 600 t, stroke 700 mm, adjustment 350 mm, clearance height between table surface and sheet holder 1,940 mm, drawing depth max. 300 mm, stroke rate 12/min, upright width approx. 5,000 mm, table size approx. 4,500 x 2,400 mm, control system, Siemens, type S7

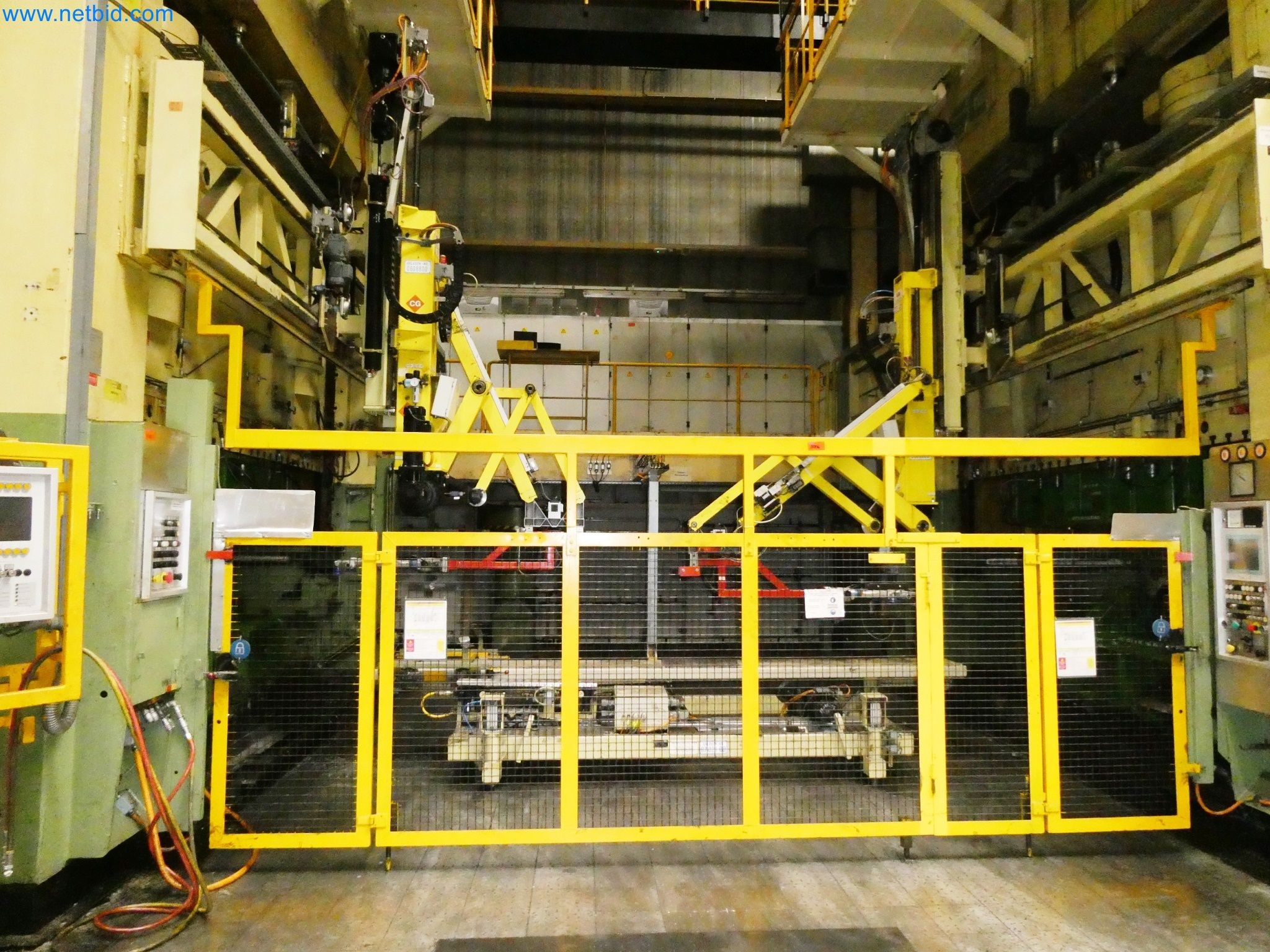

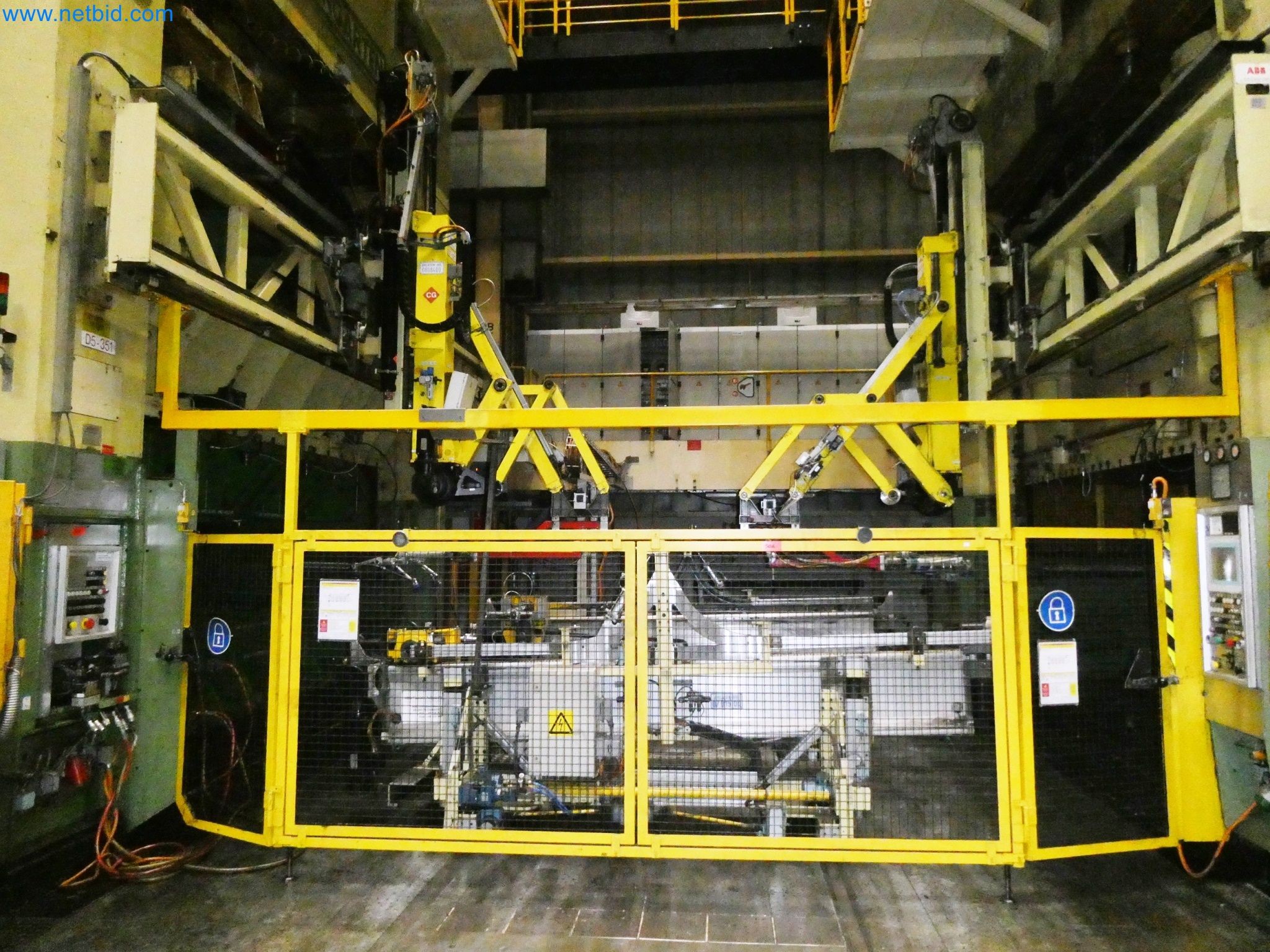

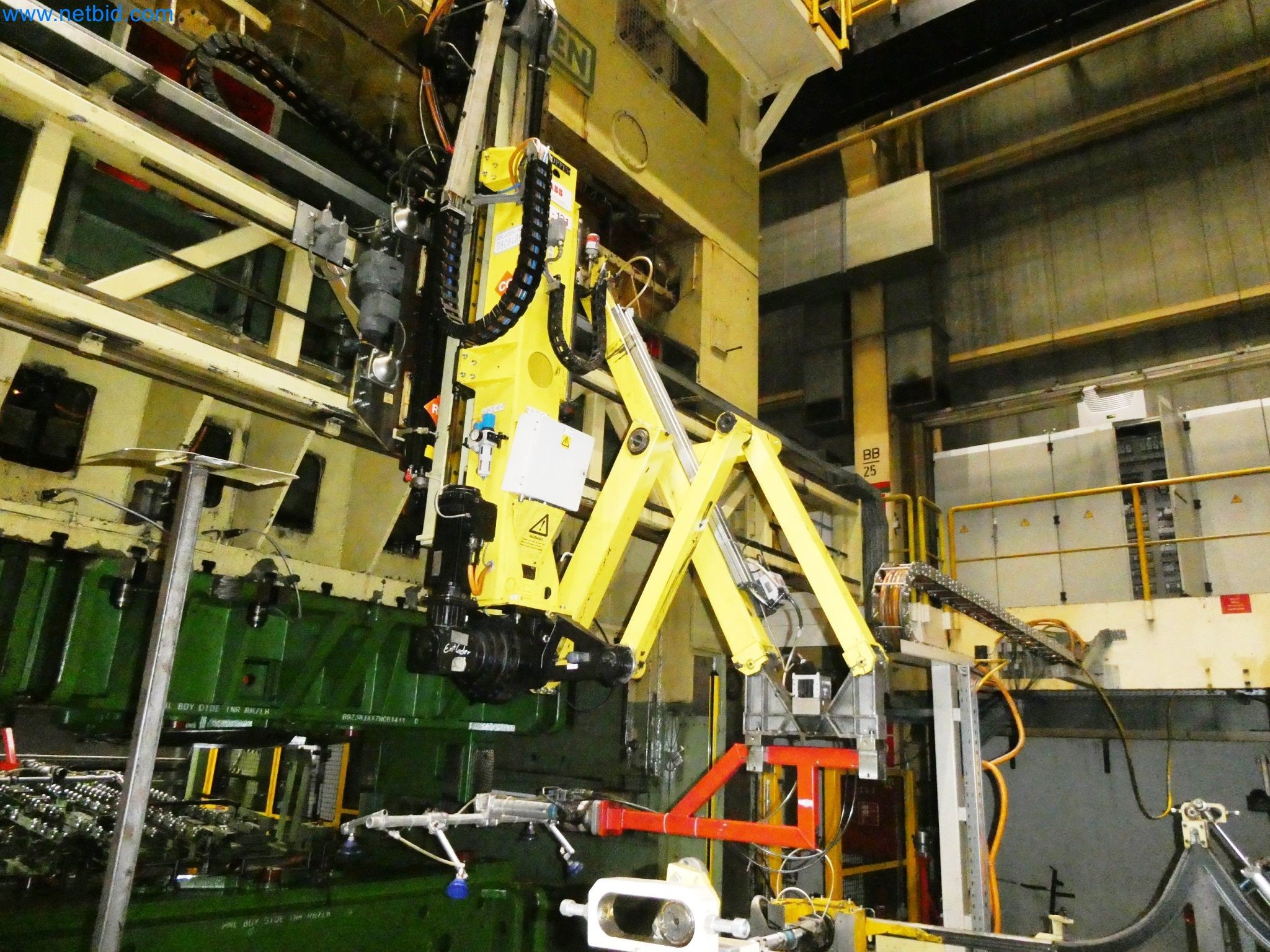

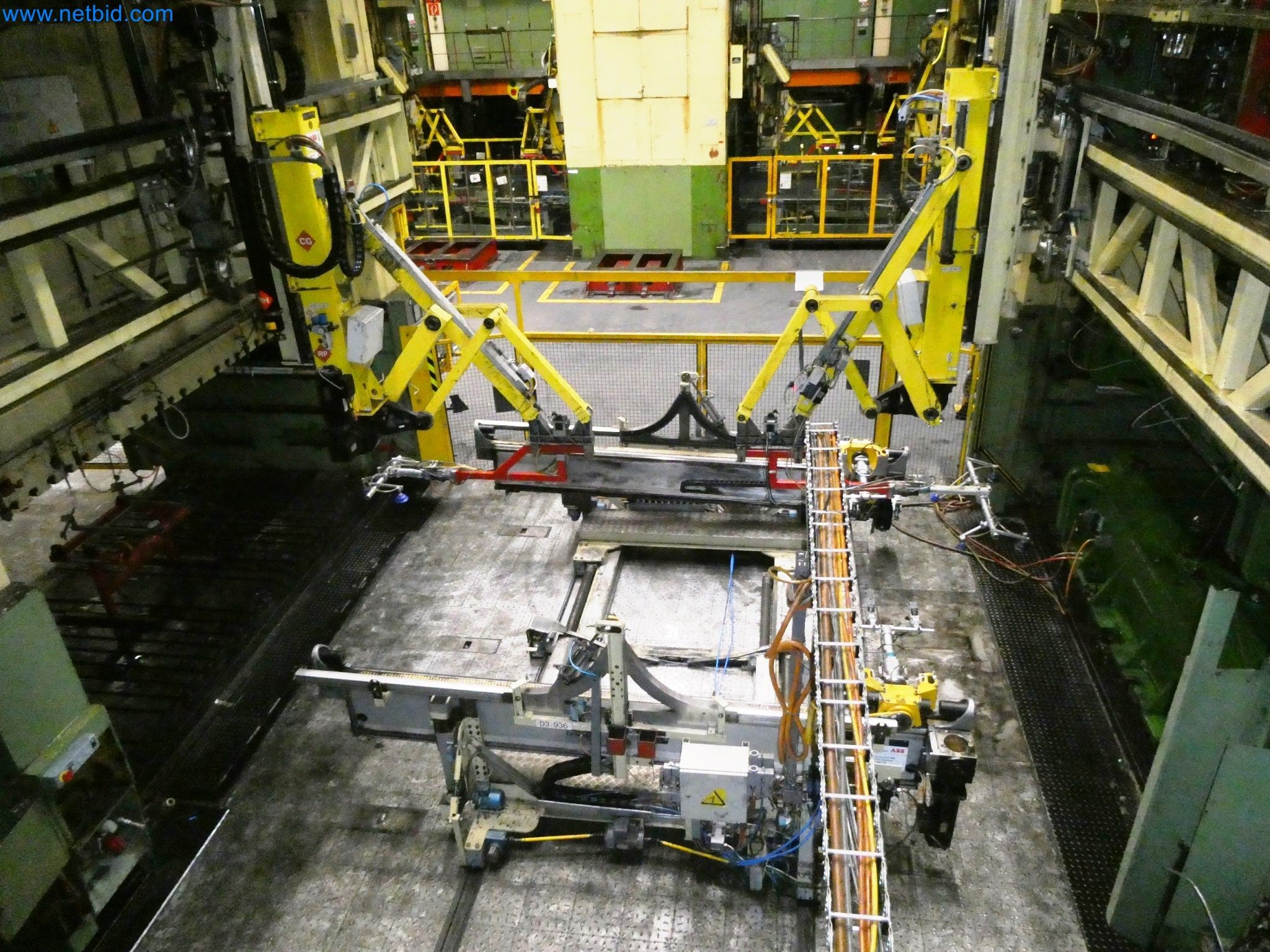

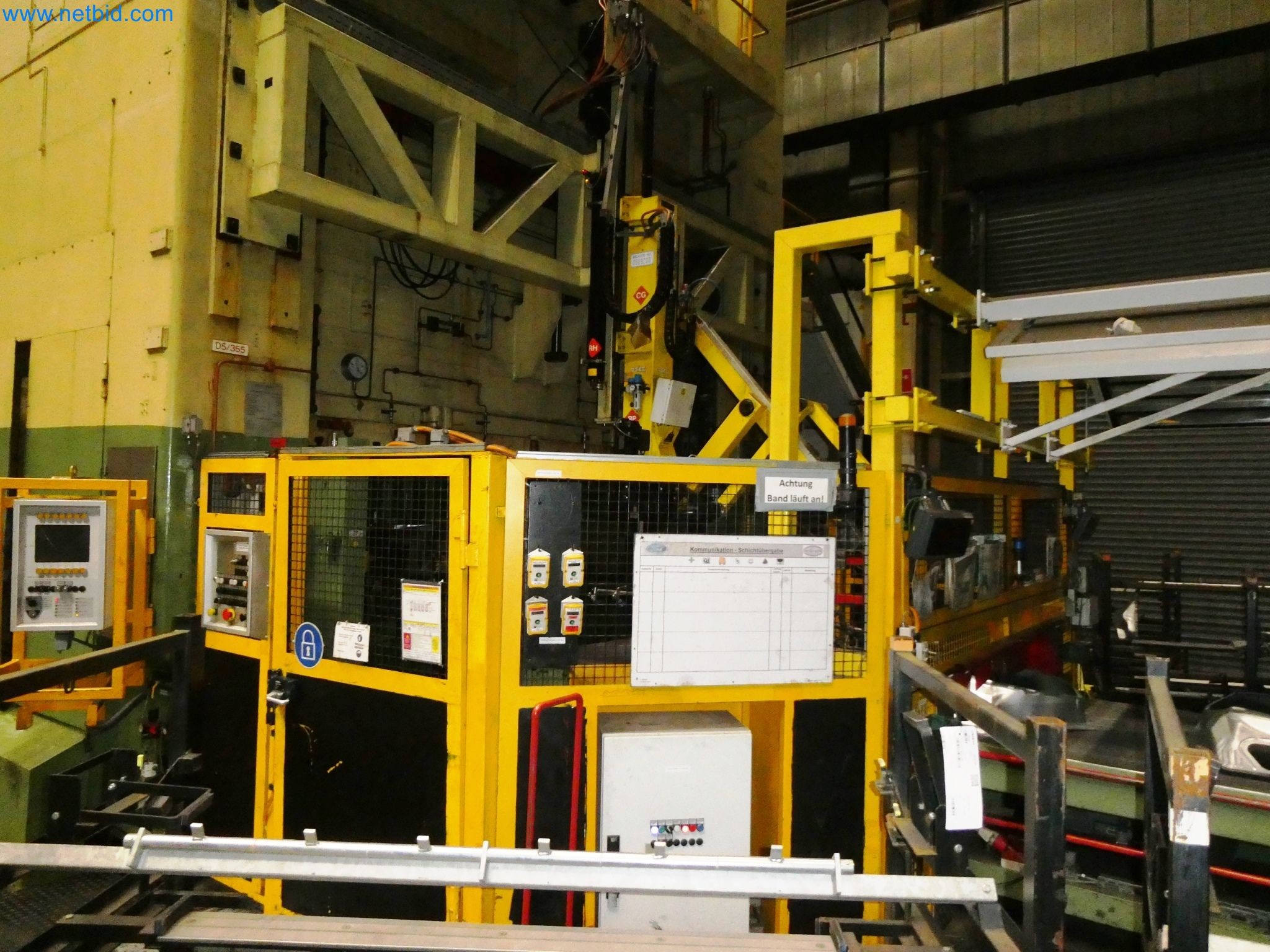

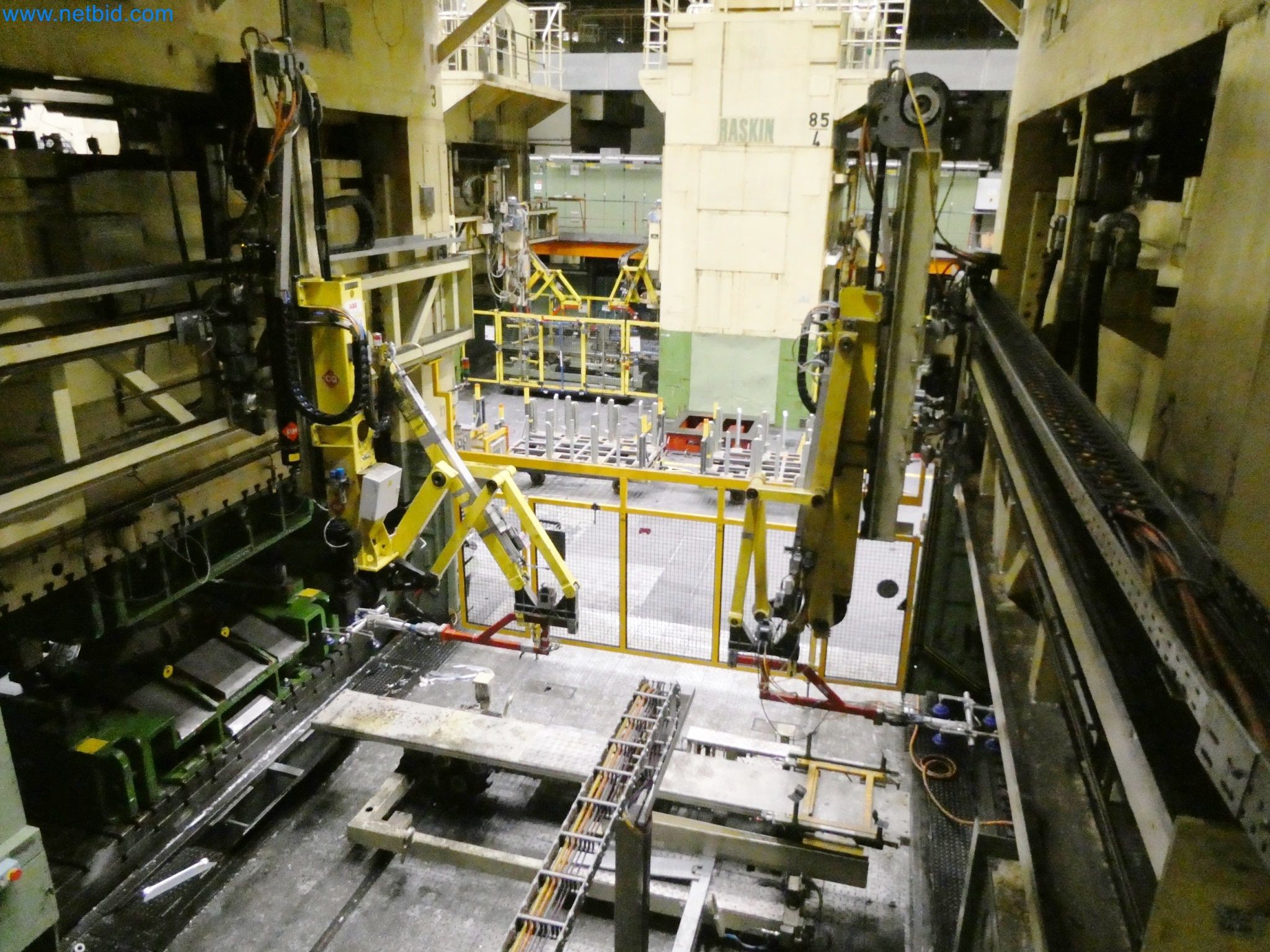

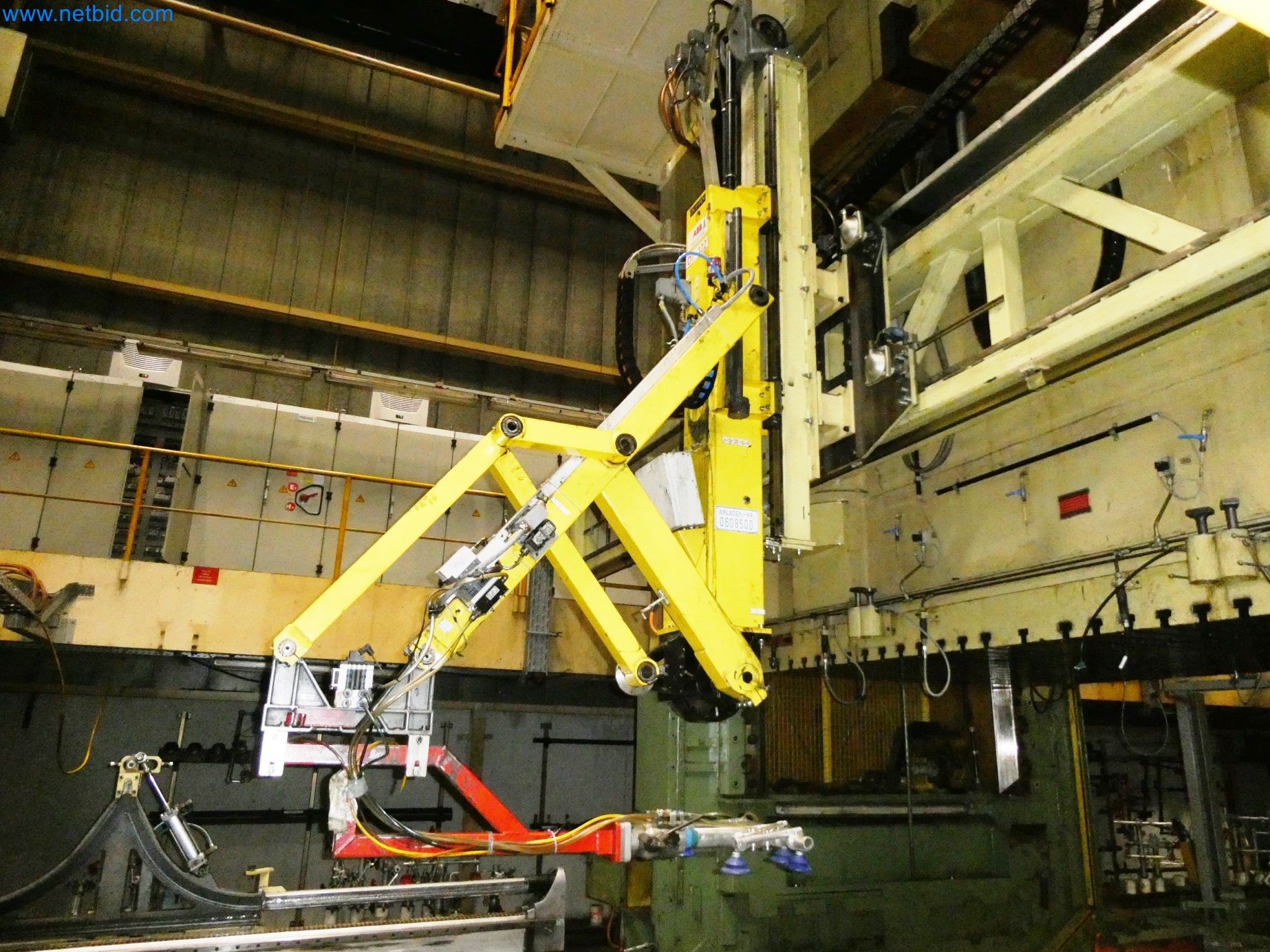

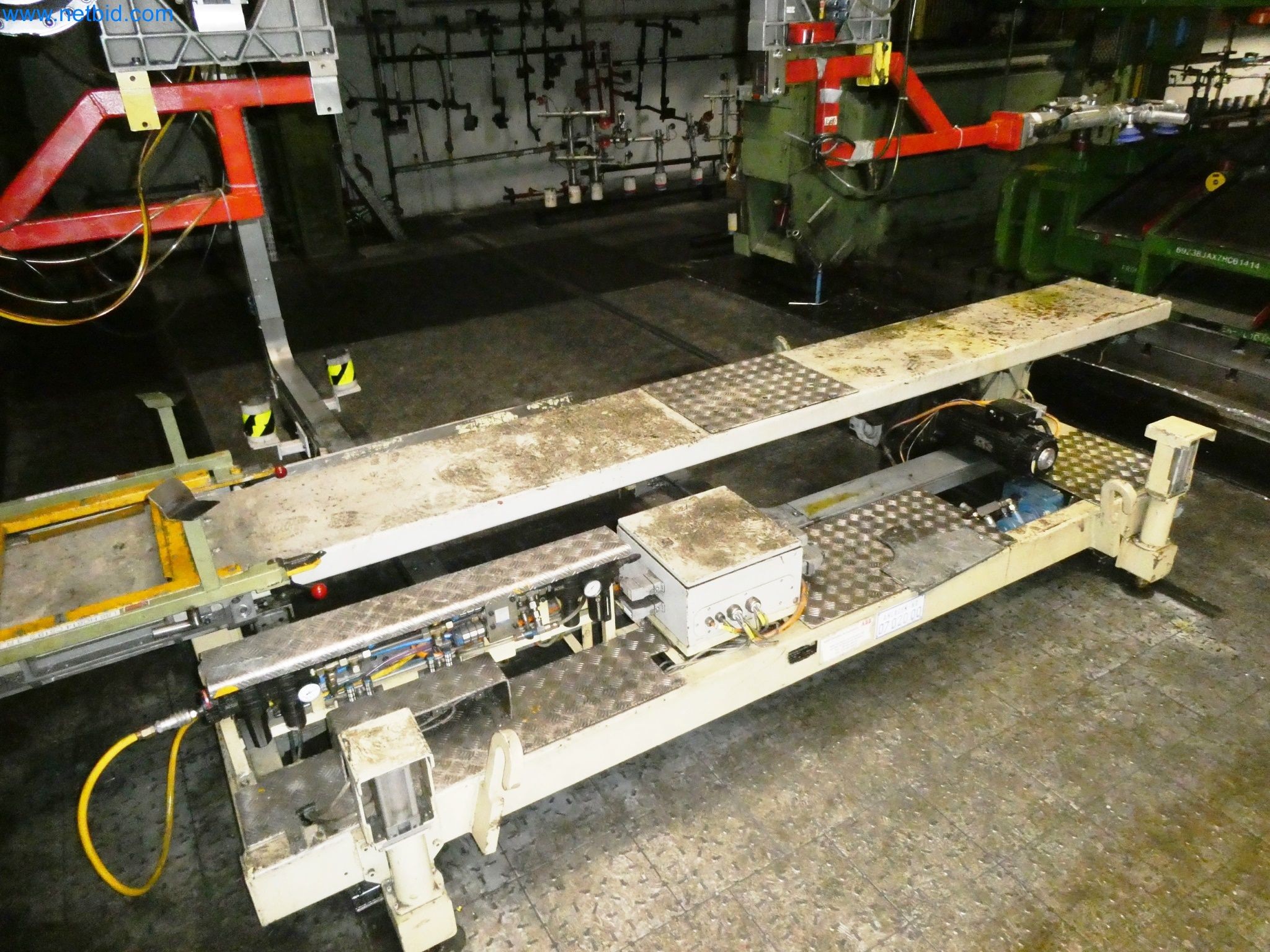

Board automation, ABB, consisting of: 2 board grippers, press-mounted, system no. 0608400, 0608500, board turning and turning station, ABB, mobile, system no. 0701500

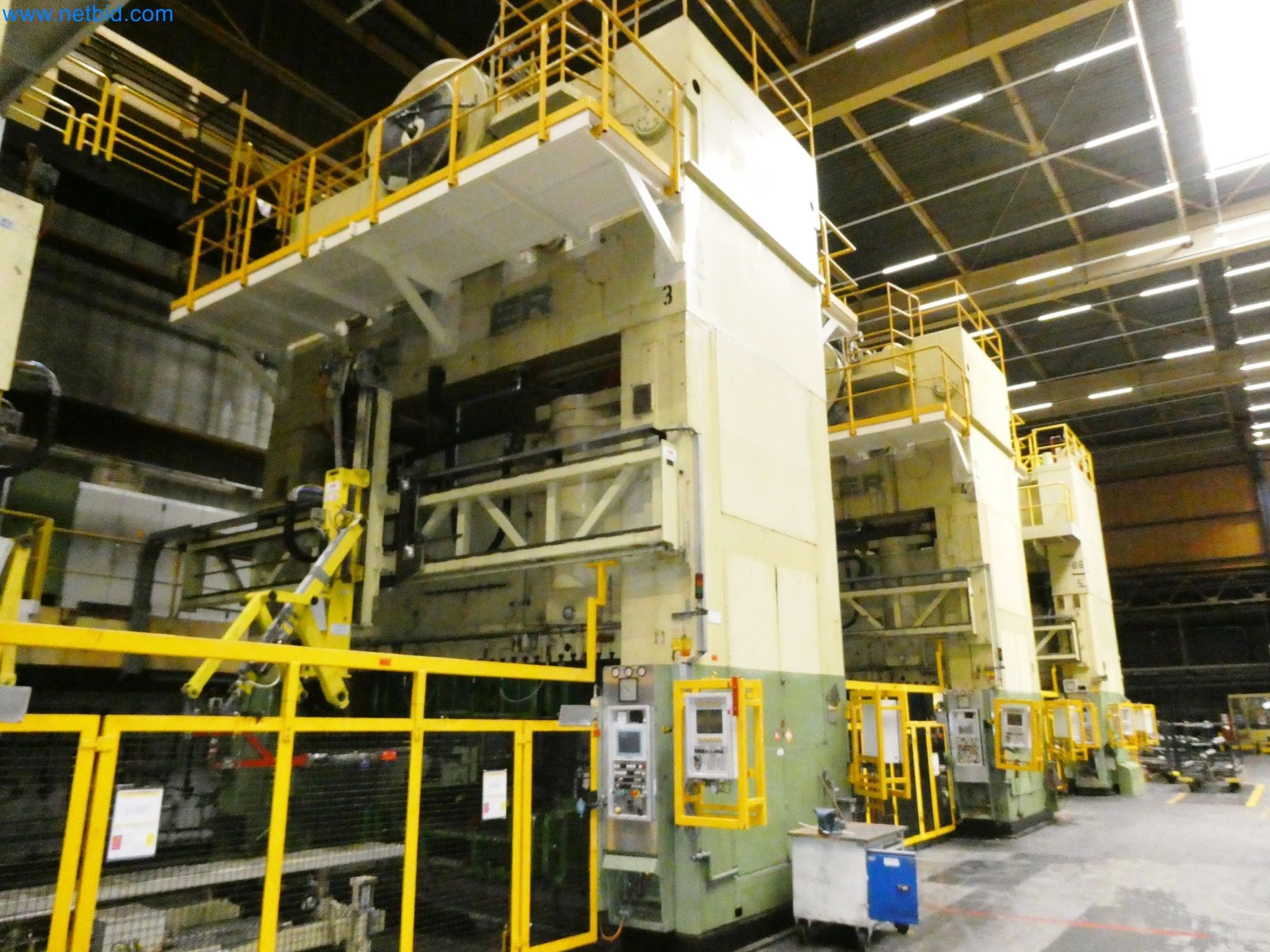

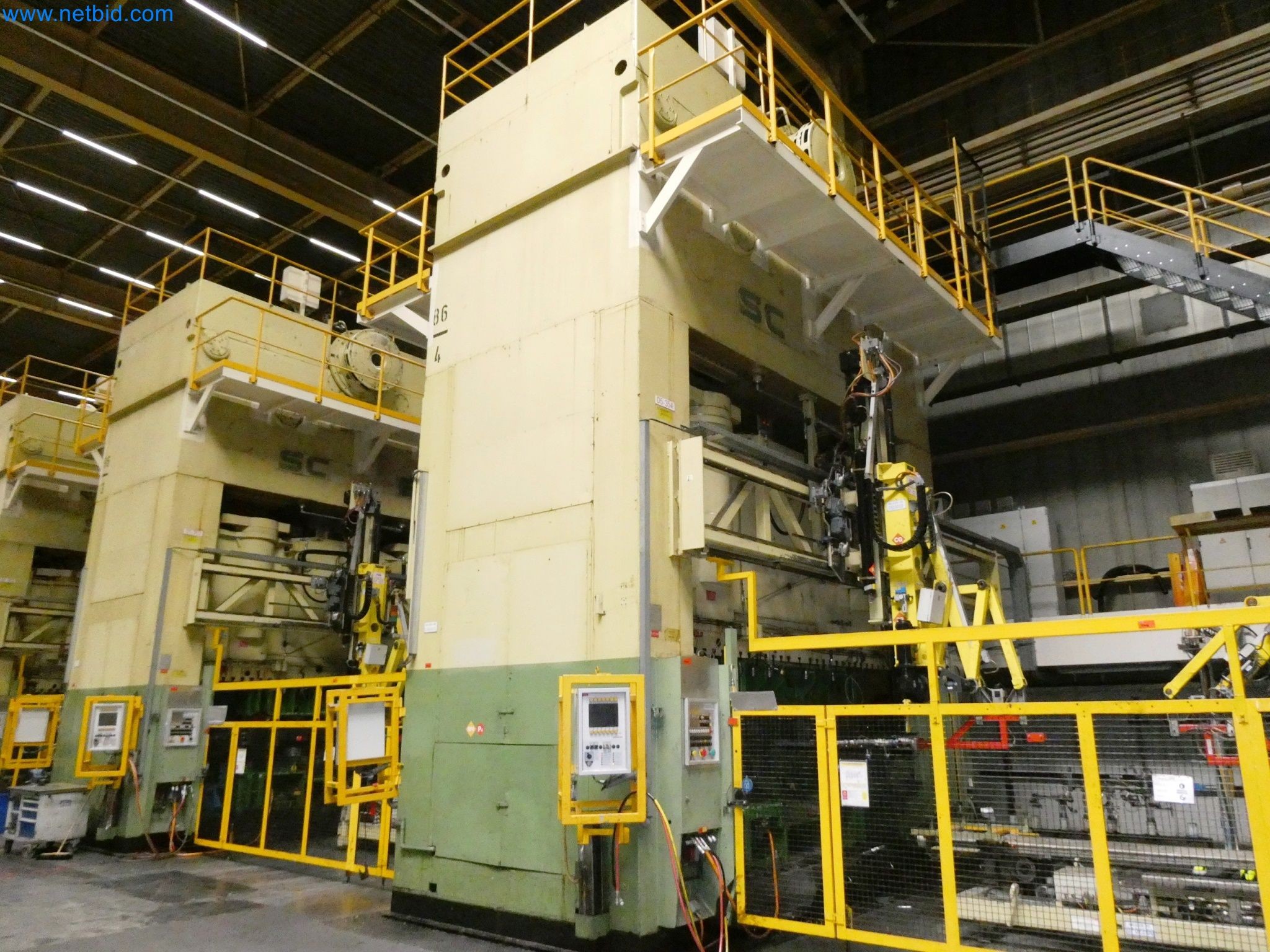

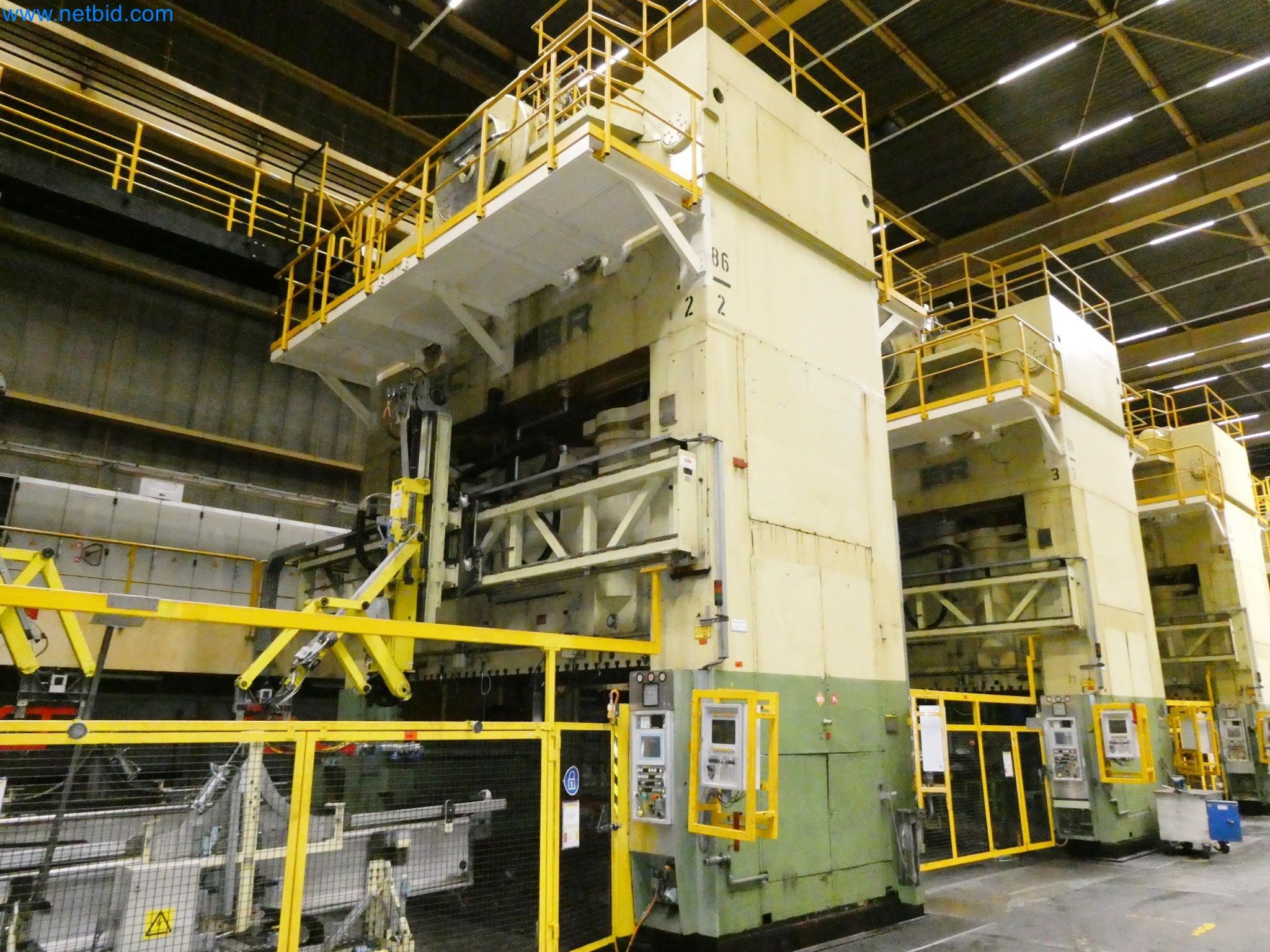

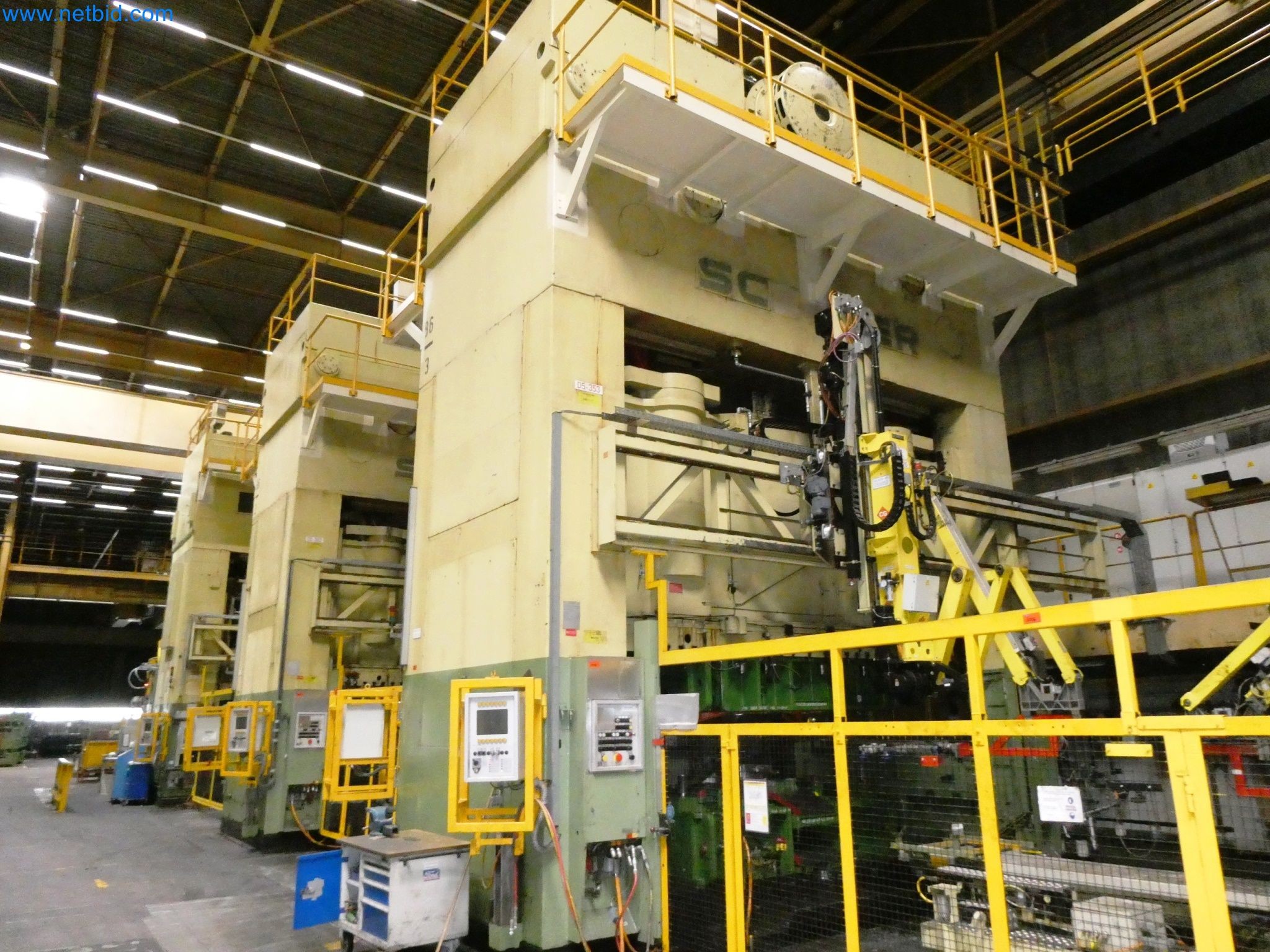

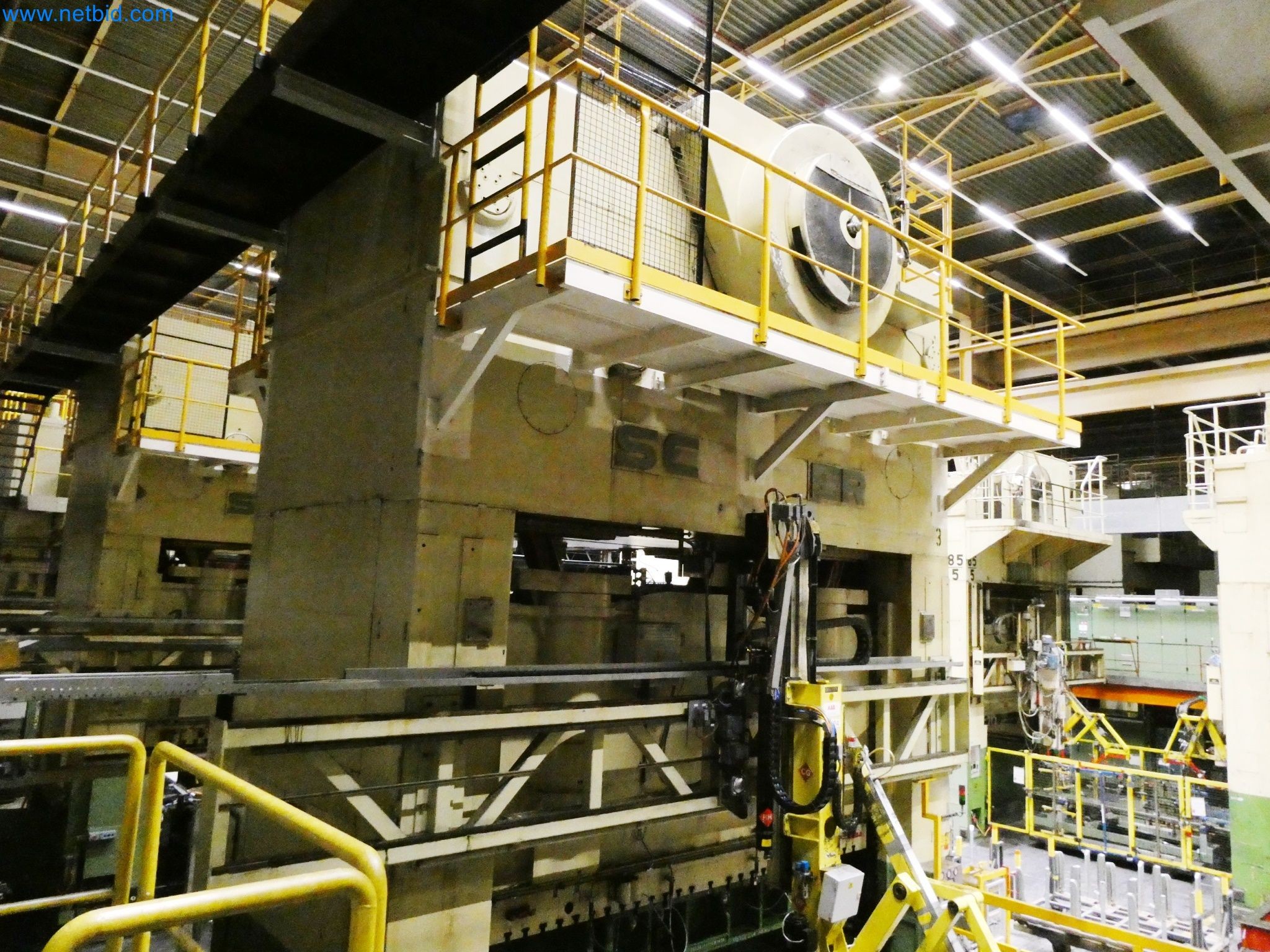

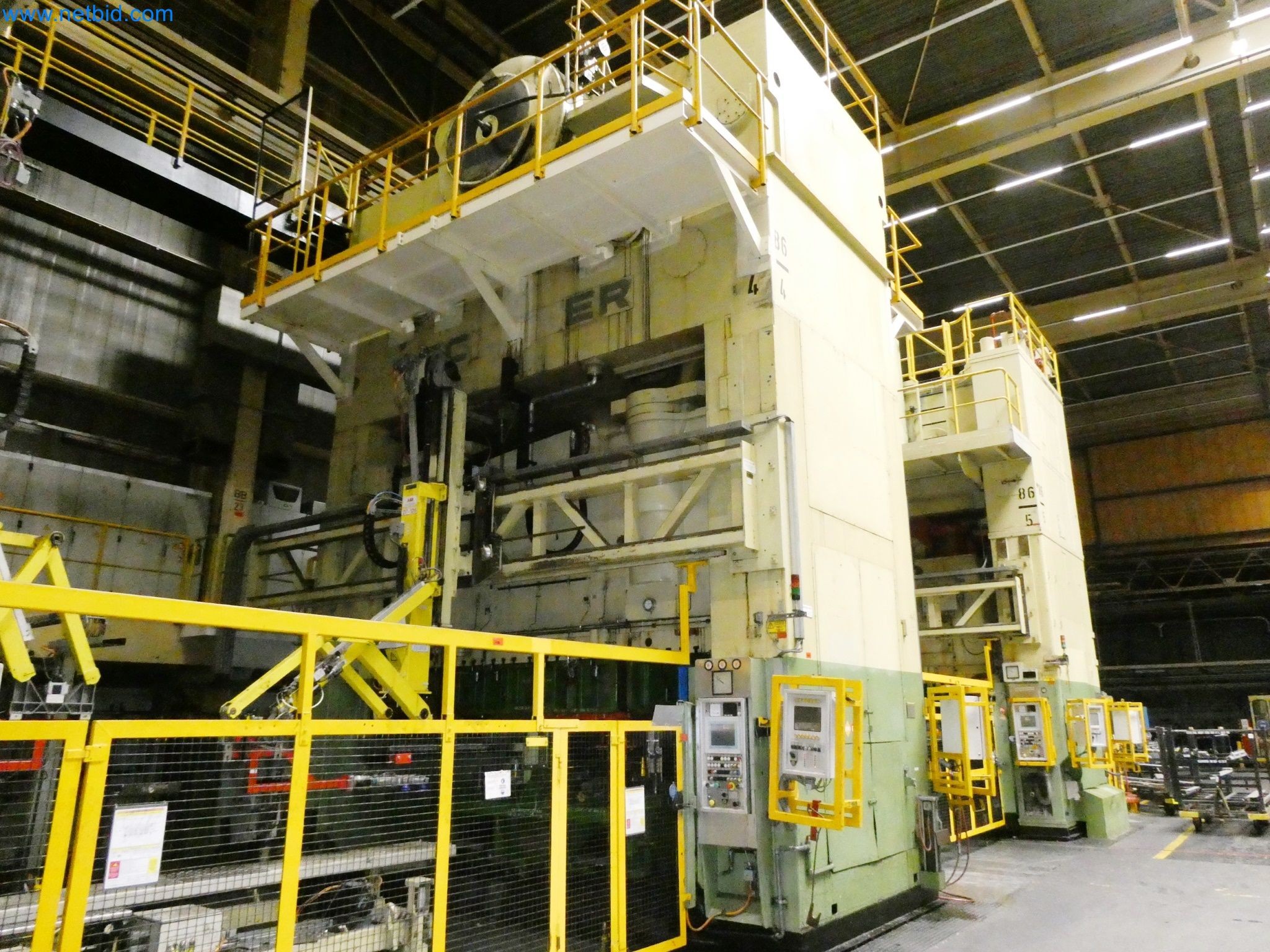

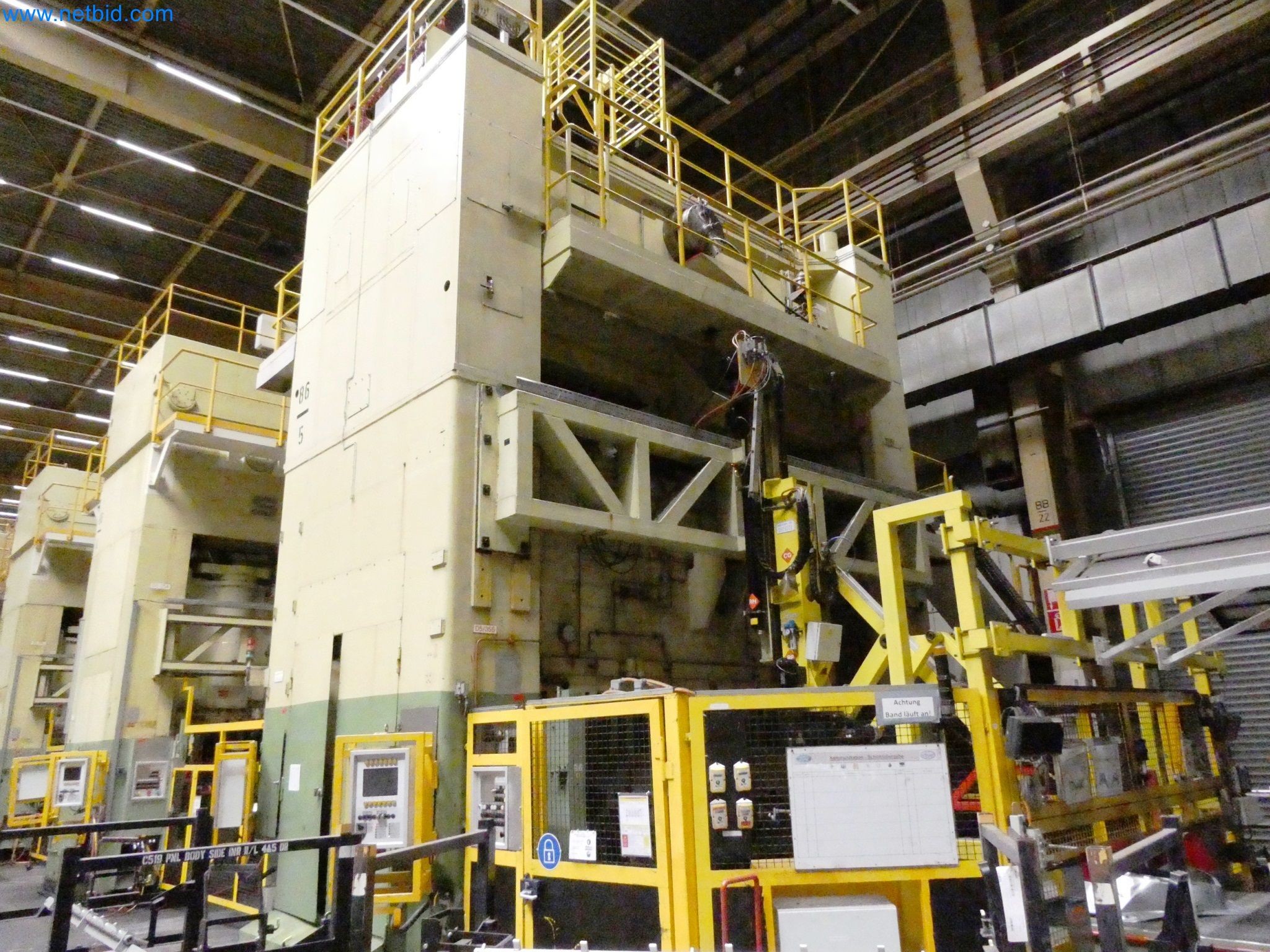

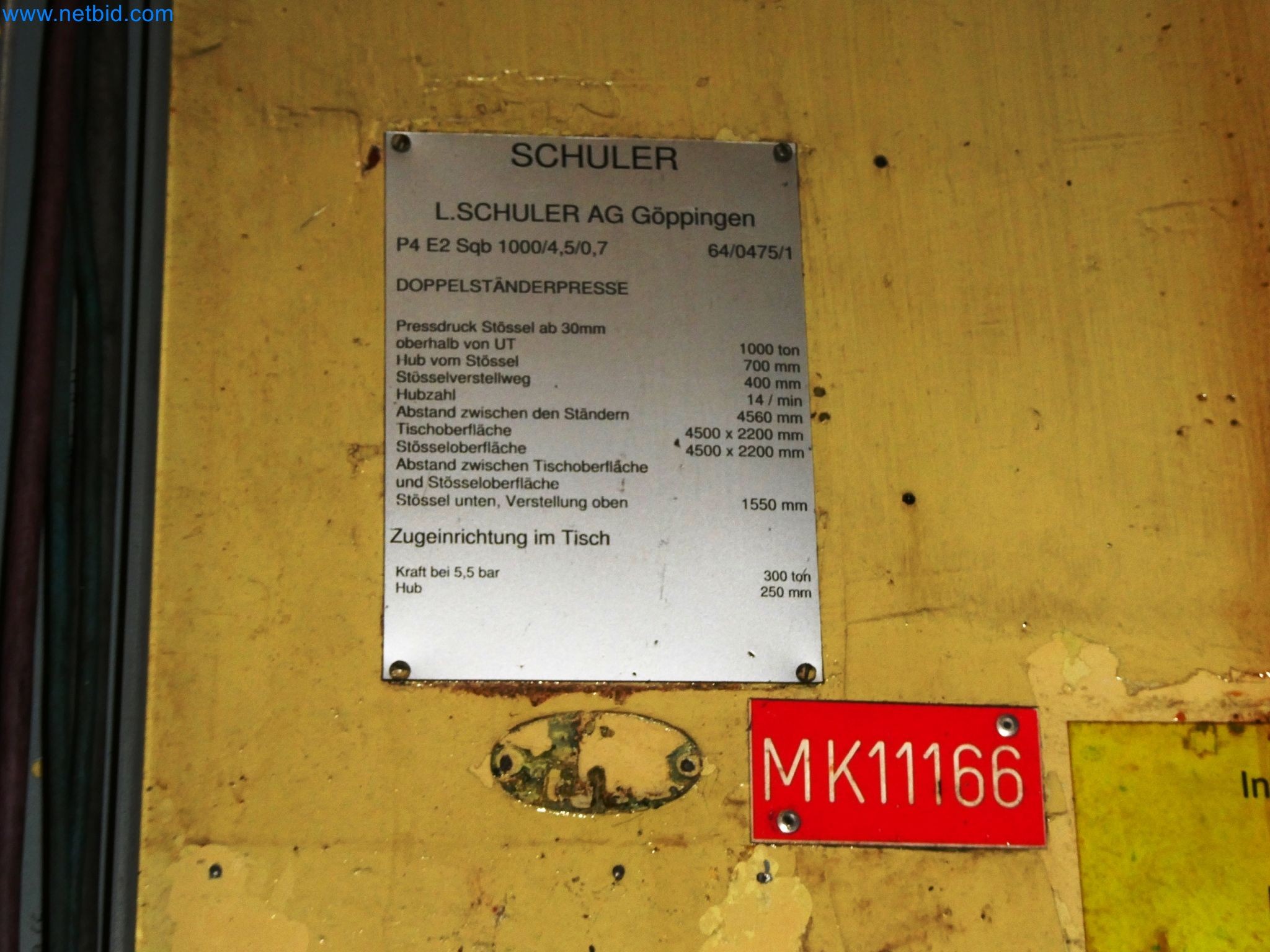

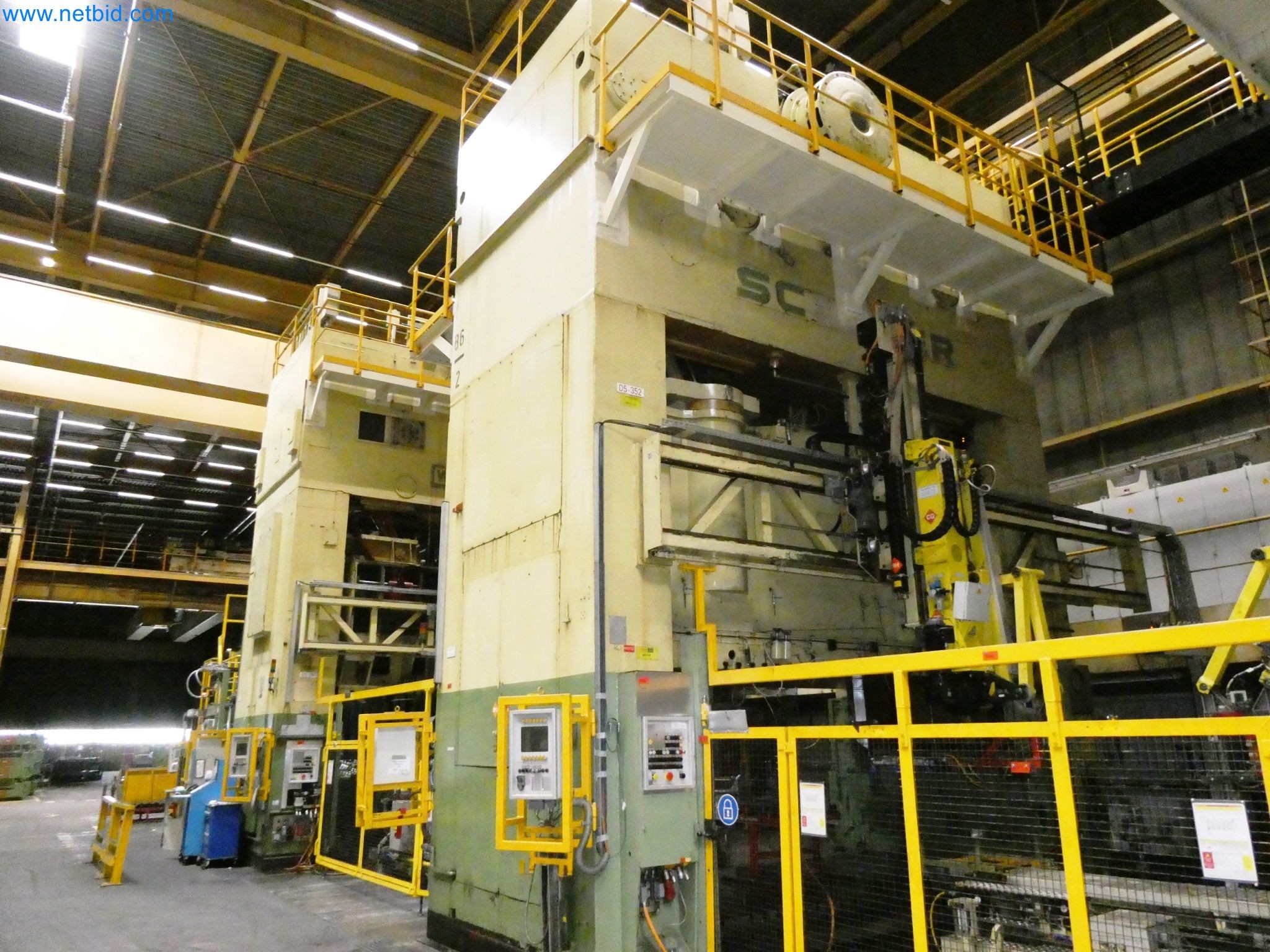

Double column press (MK11166), Schuler, type P4E2 SQB 1000/4.5/0.7, SN 64/0475/1, single action, press pressure approx. 1,000 t, ram stroke 700 mm, ram adjustment 400 stroke rate 14/min, distance between the columns 4.560 mm, table size 4,500 x 2,200 mm, ram size 4,500 x 2,200 mm, distance between table surface and ram surface 1,550 mm, tensile force 300 t, stroke 250 mm, machine no. 0186200, control system, Siemens, type S7

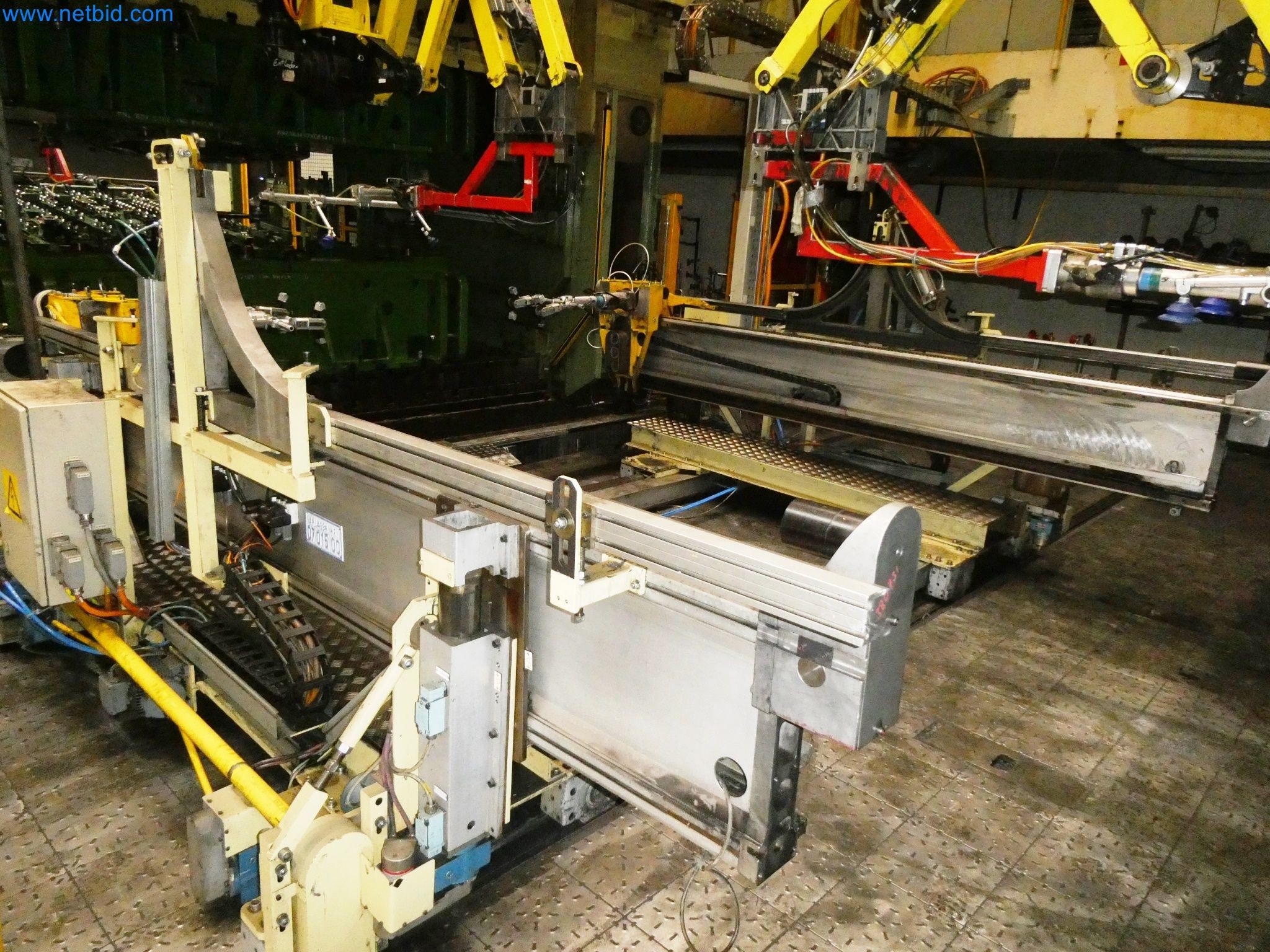

Board automation, ABB, consisting of: 2 board grippers, system no. 0608600, 0608700, with traversing deposit and turning table, system no. 0702000

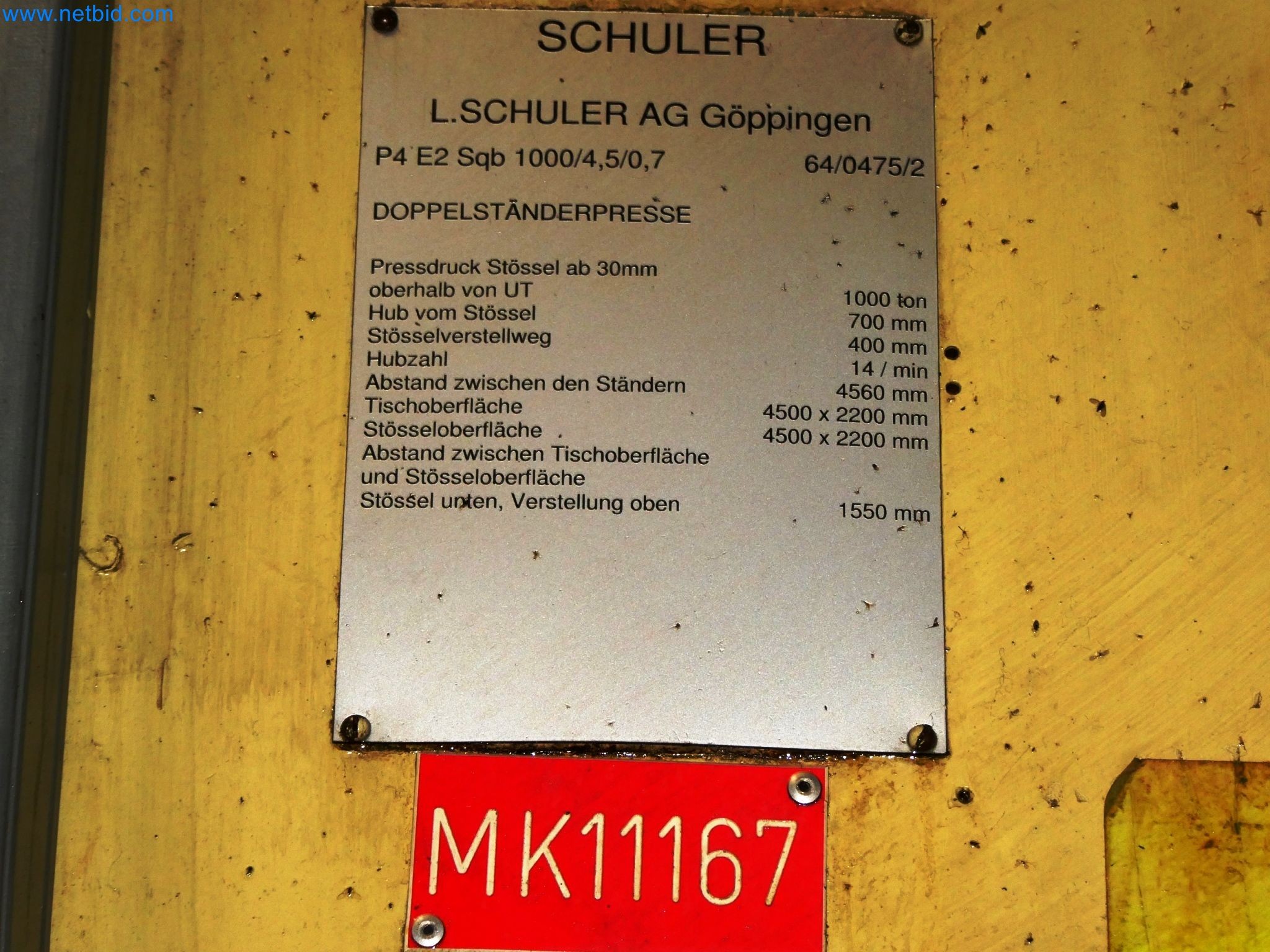

Double column press (MK11167), Schuler, type P4E2 SQB 1000/4.5/0.7, SN 64/0475/2, single action, press pressure 1,000 t, ram stroke 700 mm, distance between the columns 4.560 mm, ram adjustment 400 mm, stroke rate 14/min, table surface 4,500 x 2,200 mm, ram surface 4,500 x 2,200 mm, distance between table and ram surface 1,550 mm, machine no. 0186300, control system Siemens, type S7
Board automation, ABB, consisting of: 2 board grippers, press-mounted, system no. 0608800, 0608900, with board storage and turning table, system no. 0702100

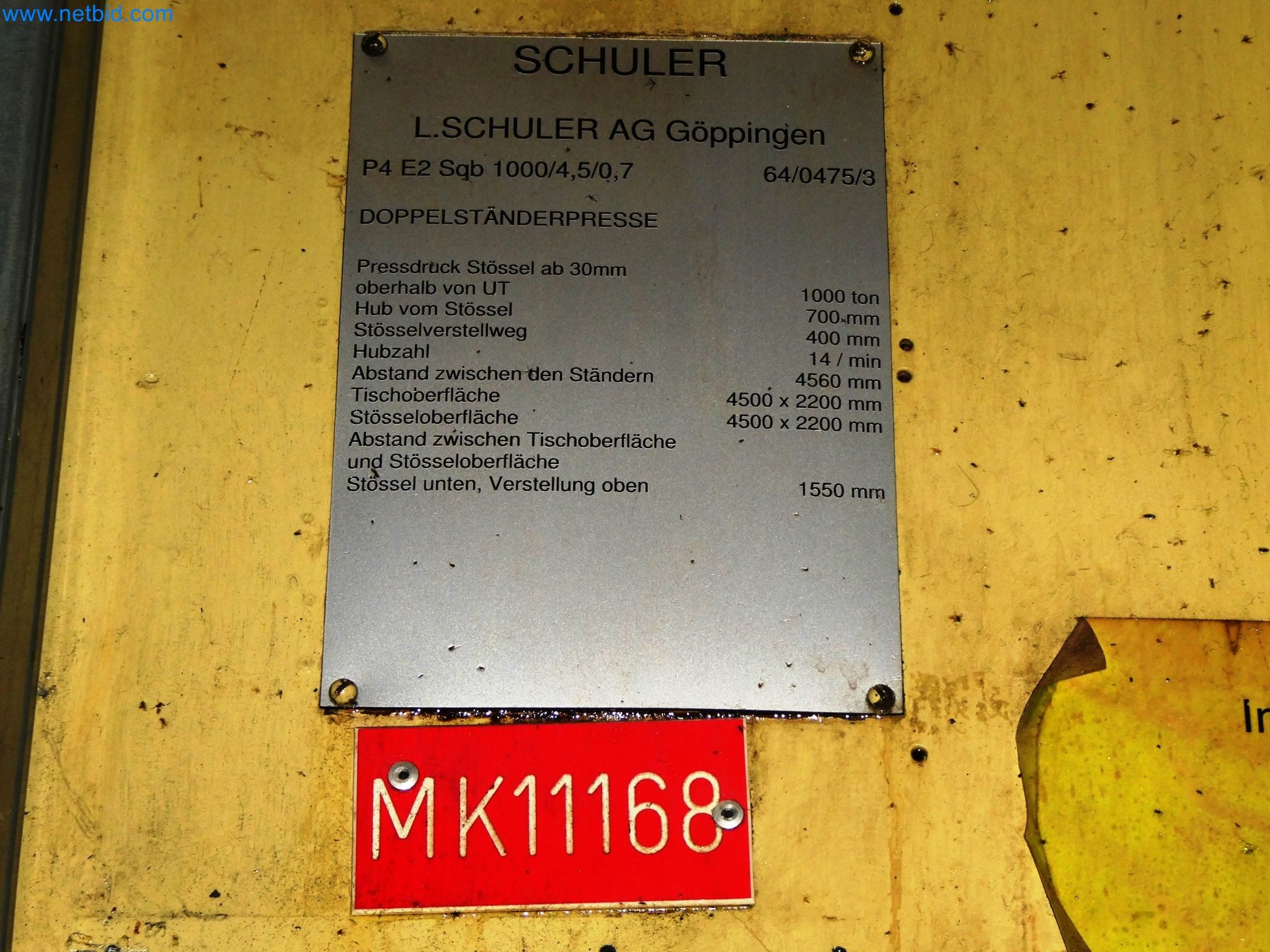

Double column press (MK11168), Schuler, type P4E2SQB 1000/4.5/0.7, SN 64/0475/3, single action, press pressure 1,000 t, ram stroke 700 mm, distance between columns 4.560 mm, ram adjustment 400 mm, stroke rate 14/min, table surface 4,500 x 2,200 mm, ram surface 4,500 x 2,200 mm, distance between table and ram surface 1,550 mm, machine no. 0186300, machine no. 0186400, Siemens control system, type S7
Press automation, ABB, consisting of: 2 blank grippers, press-mounted, system no. 0609000, 0609100, with blank storage and turning table, system no. 0702200

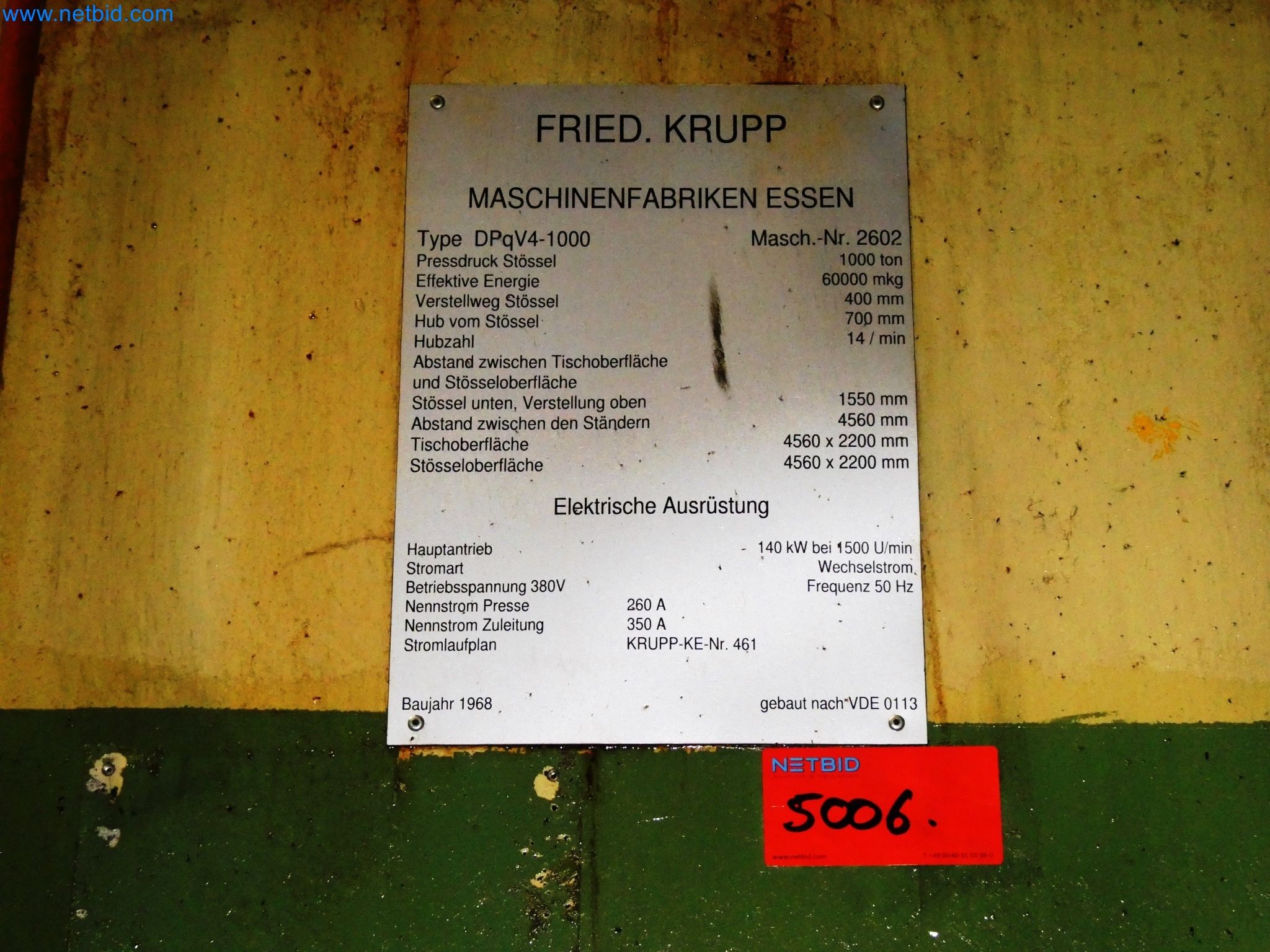

Double column press, Krup, type DPQV4-1000, SN 2602, built 1968, single action, press pressure 1,000 t, slide travel 400 mm, slide stroke 700 mm, stroke rate 14/min, distance between table surface and slide surface 1,550 mm, machine no. 0702200. ram surface 1,550 mm, column width 4,560 mm, table surface 4,560 x 2,200 mm, ram surface 4,560 x 2,200 mm, main drive 140 kW, built 1968, machine no. 0186500, control system Siemens, type S7
Board automation, manufactured by ABB, system no. 0609200, consisting of: Board gripper

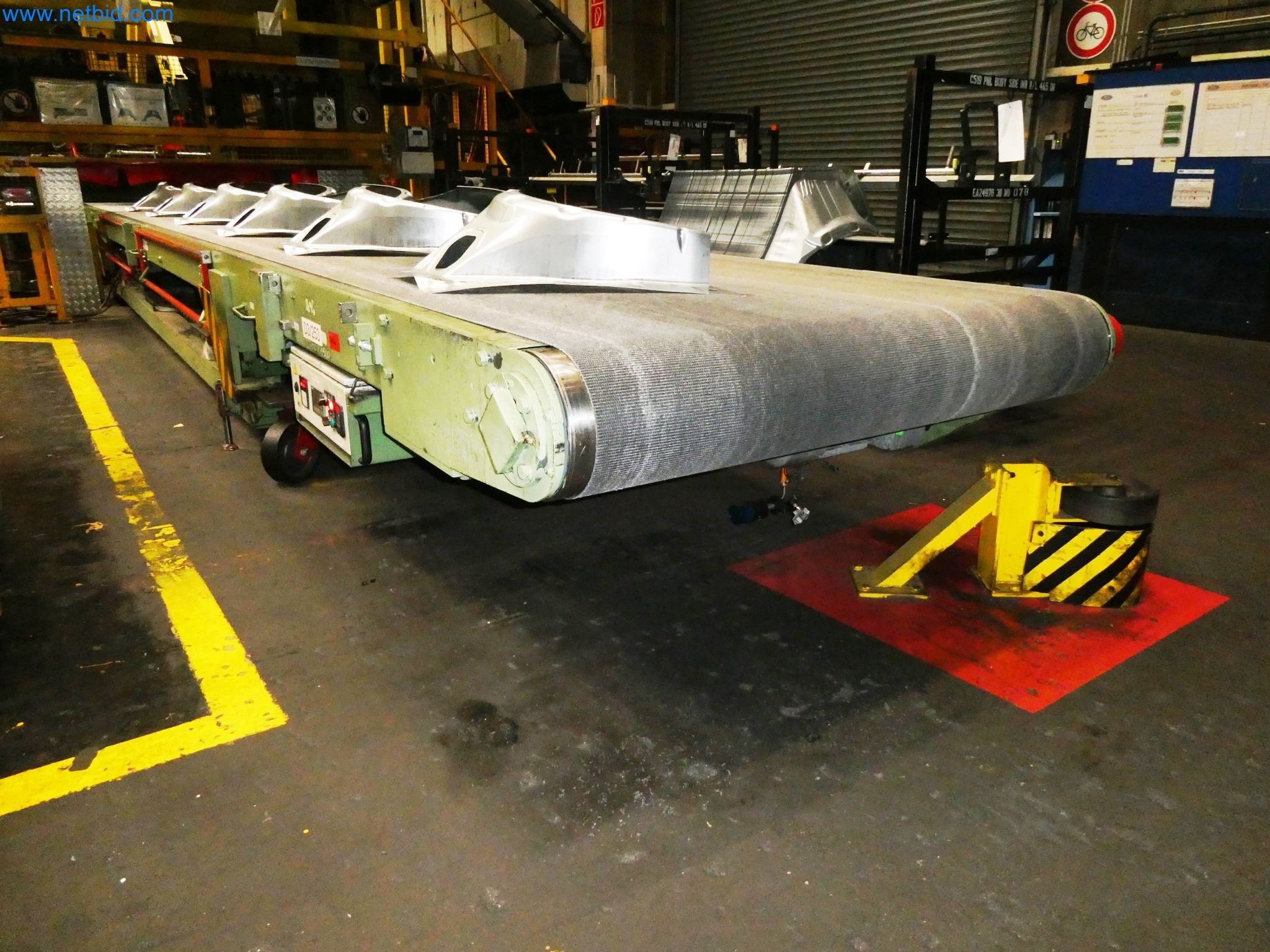

Belt conveyor, approx. 22,700 x 1,500 mm, with PLC control, Siemens, on rollers

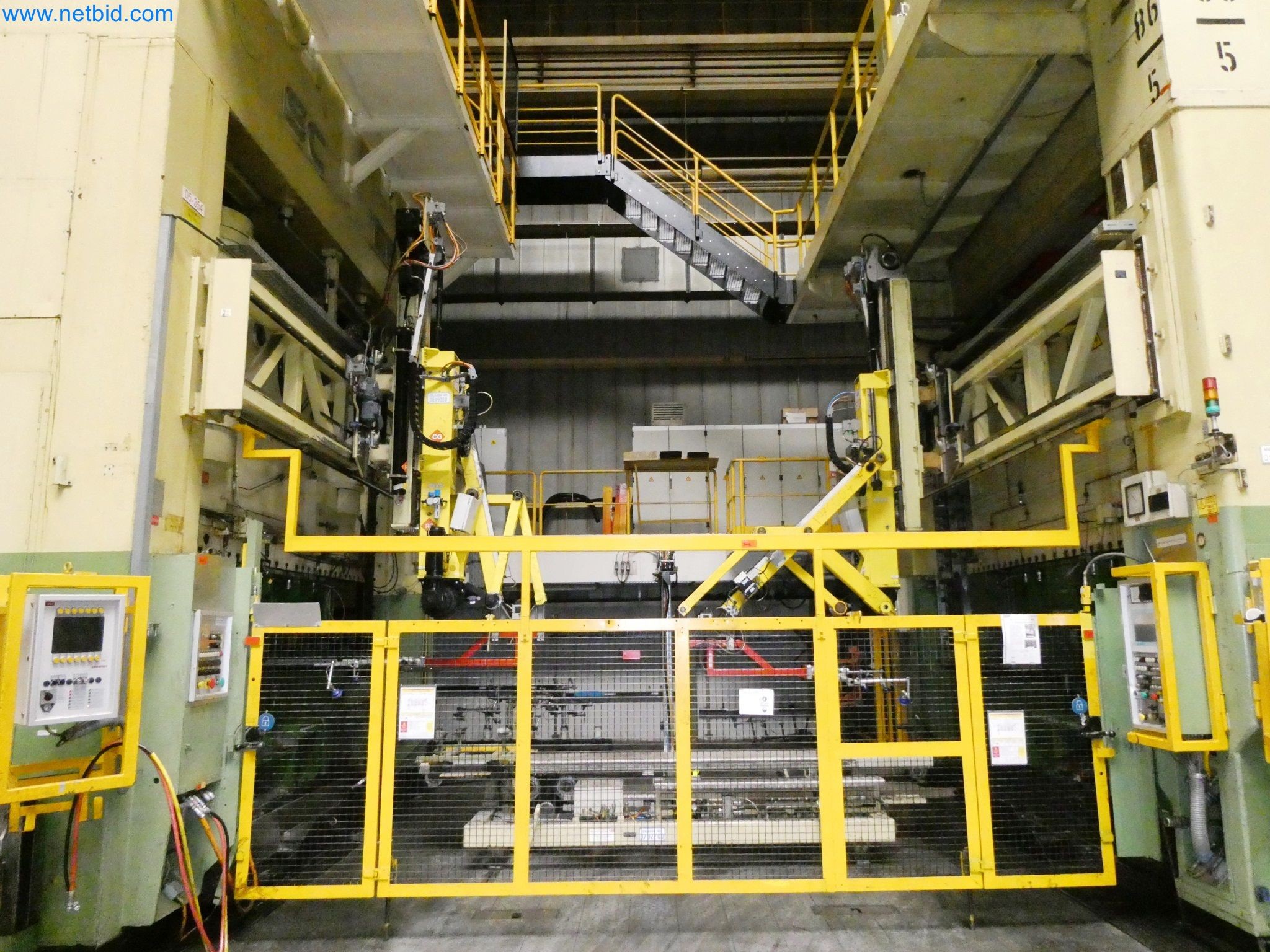

Safety fence system for shielding between the presses and for safeguarding the automation, test lighting, manufactured by Uwe Braun, counter and accessories, control cabinets on gallery
System available from December 2025
Dismantling can be offered as an option
Board automation, Neuhäuser, type 19711505-00, year 2000, SN 367080, material no. FK35835, with integrated AMTEC board washing system, oiler, pallet loading and unloading station, pallet changing trolley, control system, Siemens, system no. 0907500
Board gripper, system no. 0608300, mounted on press
Double column press (MK11165), Weingarten, type ZS 1600.48, built 1965, order no. 324/64, double action, press pressure approx. 1,000 t, stroke 900 mm, stroke adjustment 350 mm, distance between table surface and ram 2.150 mm, sheet holder pressing force 600 t, stroke 700 mm, adjustment 350 mm, clearance height between table surface and sheet holder 1,940 mm, drawing depth max. 300 mm, stroke rate 12/min, upright width approx. 5,000 mm, table size approx. 4,500 x 2,400 mm, control system, Siemens, type S7
Board automation, ABB, consisting of: 2 board grippers, press-mounted, system no. 0608400, 0608500, board turning and turning station, ABB, mobile, system no. 0701500
Double column press (MK11166), Schuler, type P4E2 SQB 1000/4.5/0.7, SN 64/0475/1, single action, press pressure approx. 1,000 t, ram stroke 700 mm, ram adjustment 400 stroke rate 14/min, distance between the columns 4.560 mm, table size 4,500 x 2,200 mm, ram size 4,500 x 2,200 mm, distance between table surface and ram surface 1,550 mm, tensile force 300 t, stroke 250 mm, machine no. 0186200, control system, Siemens, type S7
Board automation, ABB, consisting of: 2 board grippers, system no. 0608600, 0608700, with traversing deposit and turning table, system no. 0702000
Double column press (MK11167), Schuler, type P4E2 SQB 1000/4.5/0.7, SN 64/0475/2, single action, press pressure 1,000 t, ram stroke 700 mm, distance between the columns 4.560 mm, ram adjustment 400 mm, stroke rate 14/min, table surface 4,500 x 2,200 mm, ram surface 4,500 x 2,200 mm, distance between table and ram surface 1,550 mm, machine no. 0186300, control system Siemens, type S7
Board automation, ABB, consisting of: 2 board grippers, press-mounted, system no. 0608800, 0608900, with board storage and turning table, system no. 0702100
Double column press (MK11168), Schuler, type P4E2SQB 1000/4.5/0.7, SN 64/0475/3, single action, press pressure 1,000 t, ram stroke 700 mm, distance between columns 4.560 mm, ram adjustment 400 mm, stroke rate 14/min, table surface 4,500 x 2,200 mm, ram surface 4,500 x 2,200 mm, distance between table and ram surface 1,550 mm, machine no. 0186300, machine no. 0186400, Siemens control system, type S7
Press automation, ABB, consisting of: 2 blank grippers, press-mounted, system no. 0609000, 0609100, with blank storage and turning table, system no. 0702200
Double column press, Krup, type DPQV4-1000, SN 2602, built 1968, single action, press pressure 1,000 t, slide travel 400 mm, slide stroke 700 mm, stroke rate 14/min, distance between table surface and slide surface 1,550 mm, machine no. 0702200. ram surface 1,550 mm, column width 4,560 mm, table surface 4,560 x 2,200 mm, ram surface 4,560 x 2,200 mm, main drive 140 kW, built 1968, machine no. 0186500, control system Siemens, type S7
Board automation, manufactured by ABB, system no. 0609200, consisting of: Board gripper
Belt conveyor, approx. 22,700 x 1,500 mm, with PLC control, Siemens, on rollers
Safety fence system for shielding between the presses and for safeguarding the automation, test lighting, manufactured by Uwe Braun, counter and accessories, control cabinets on gallery
System available from December 2025
Dismantling can be offered as an option
