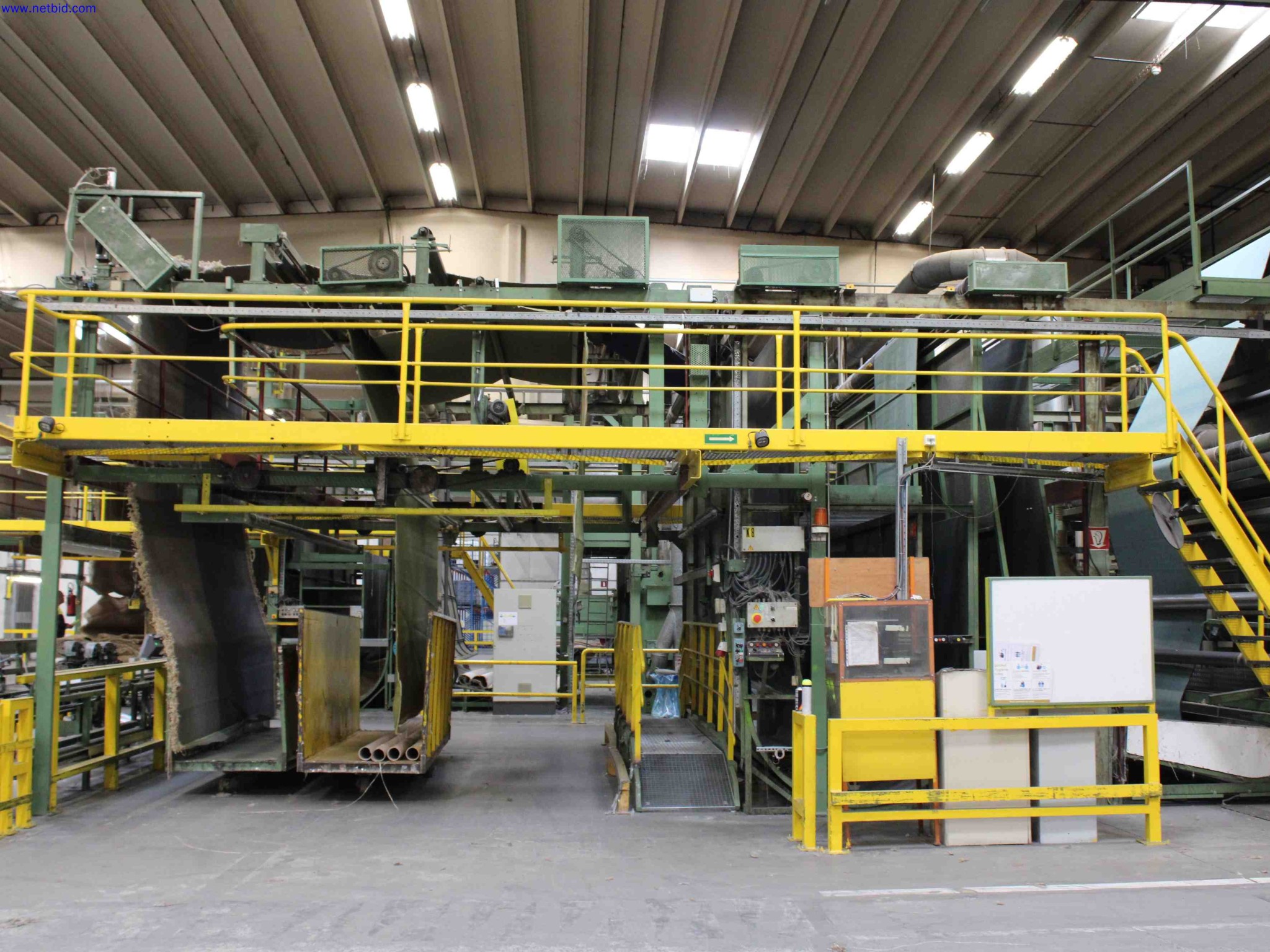

Coating carpet finishing (‘Appret’) lineLIVE#19369-4

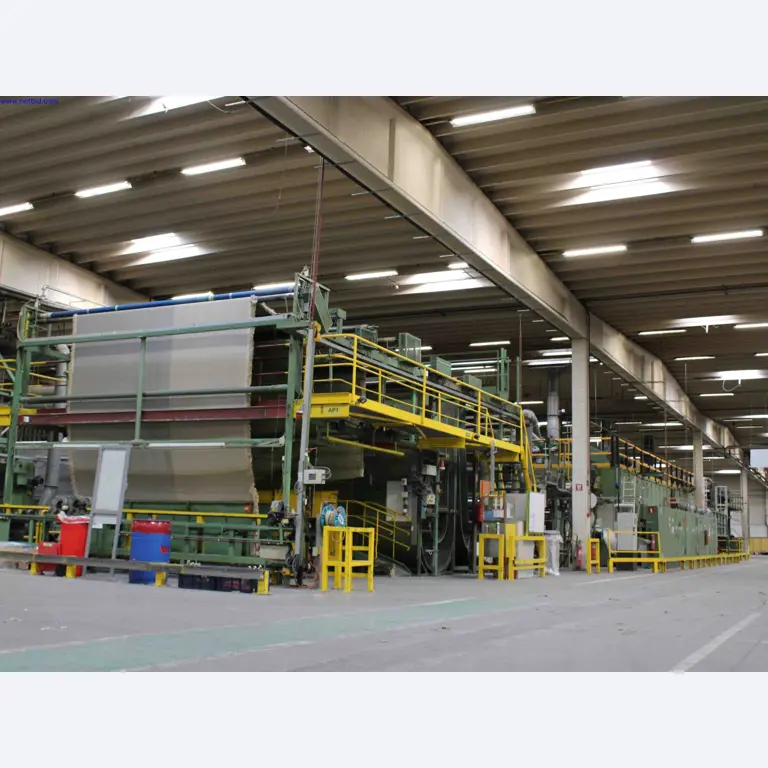

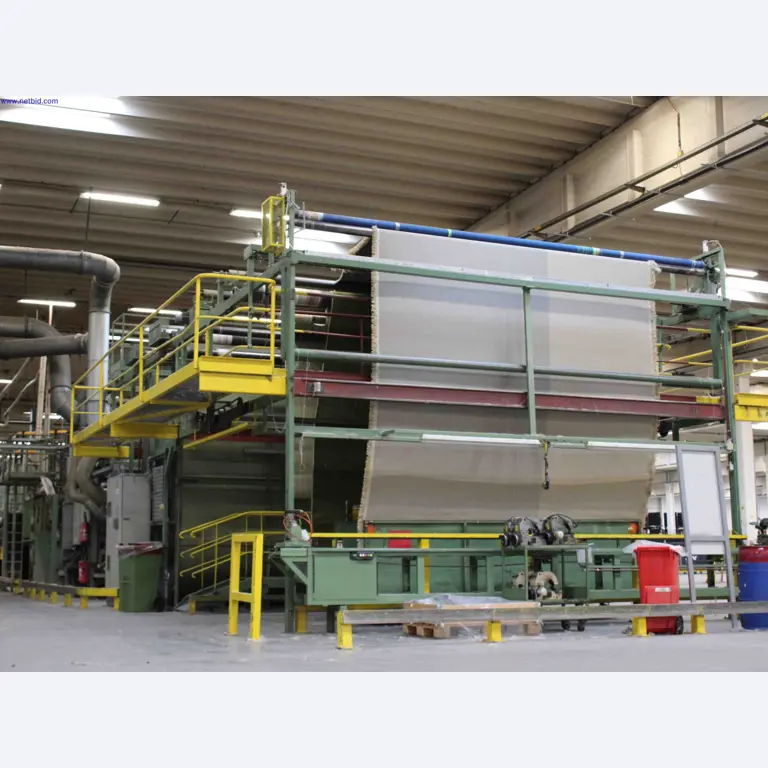

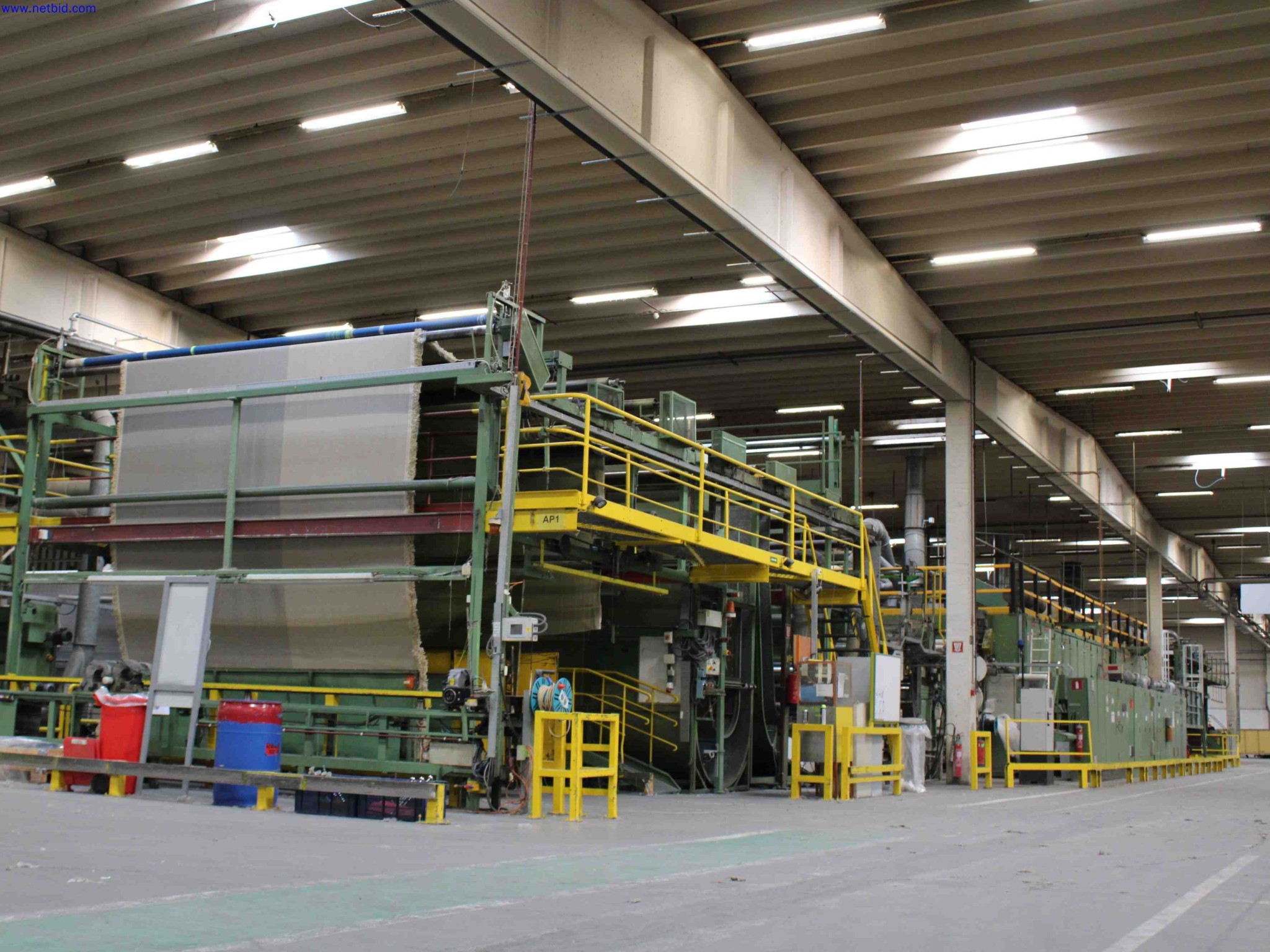

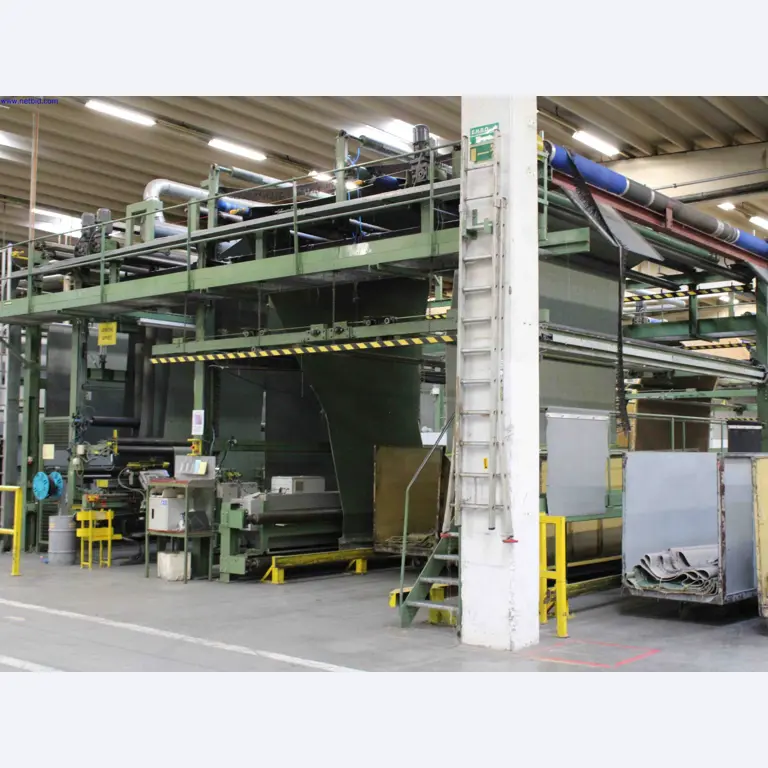

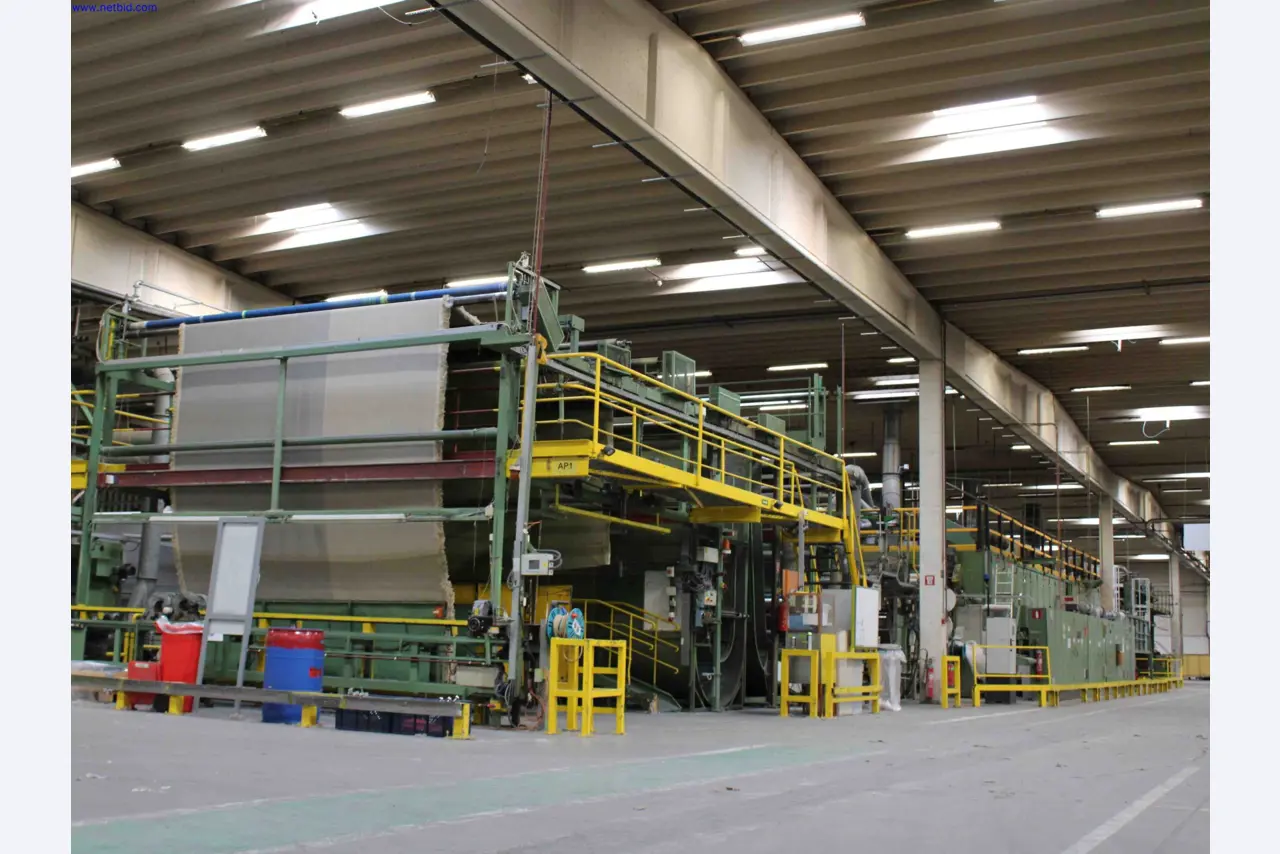

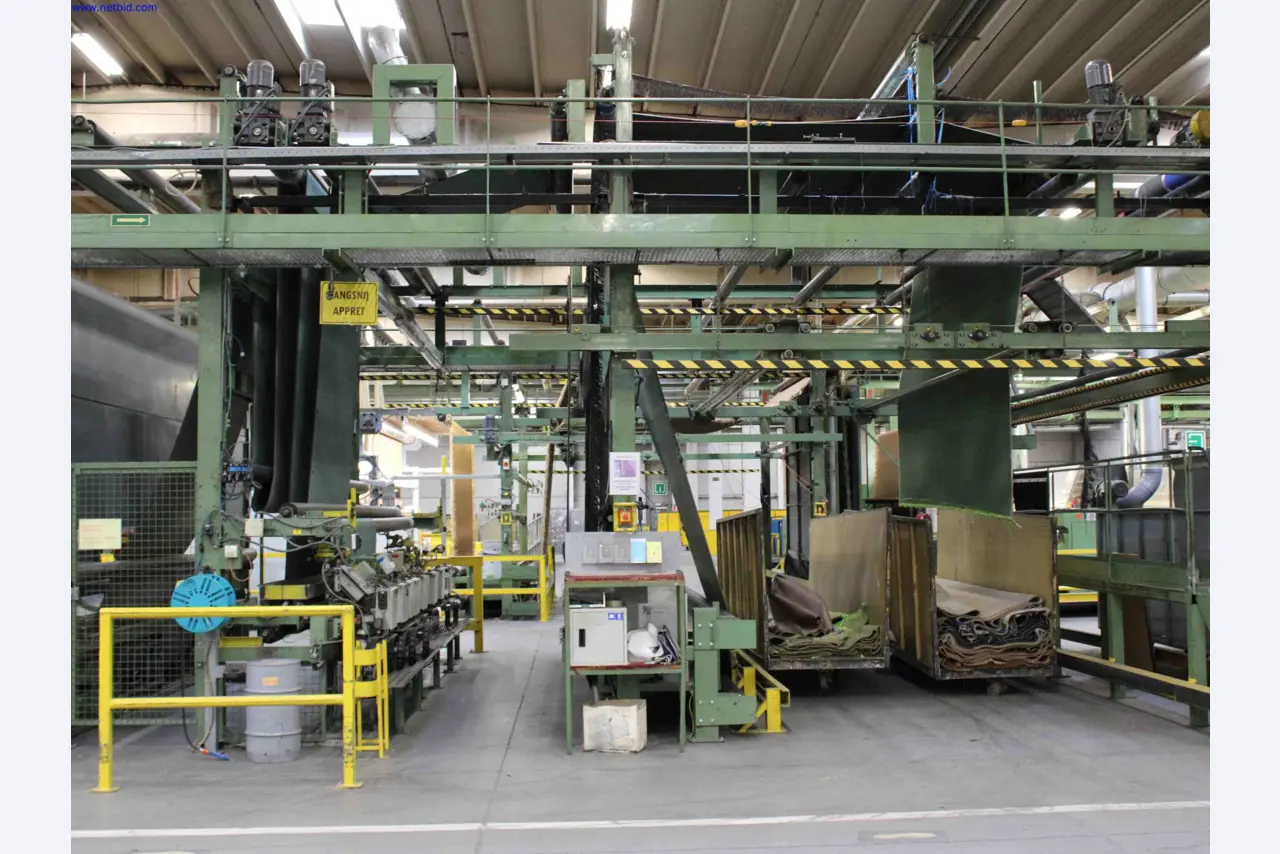

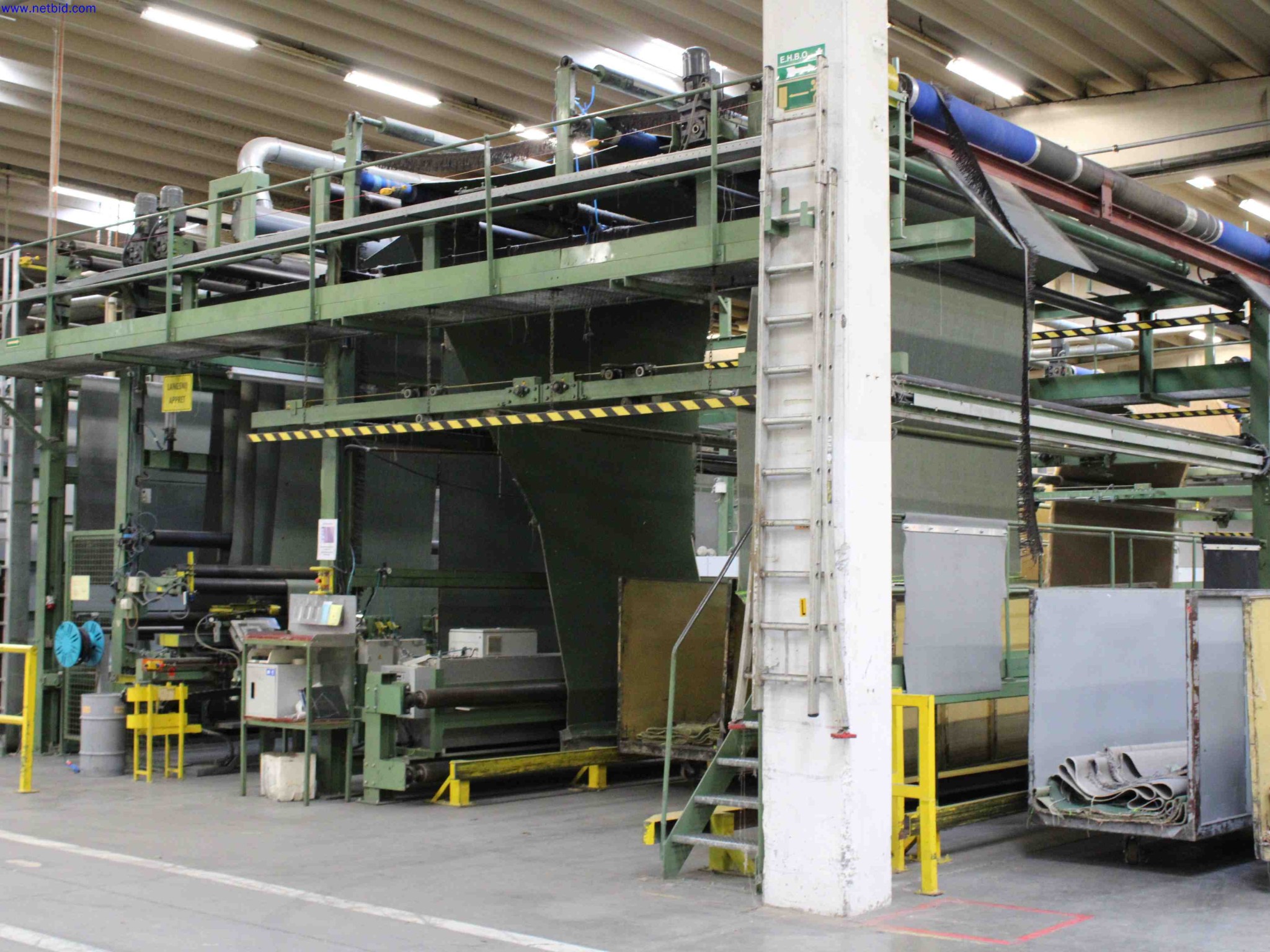

Complete carpet finishing (‘Appret’) line including unwinding, pile preparation, latex back coating, secondary backing lamination, drying/curing oven, cooling,inspection,and winding.
SBV appret1
General
Maximum carpet width: 5 m
Entry zone width: 5.6 m
Oven width: 5.6 m
Length cutting width: 5.8 m
Shearing: not available

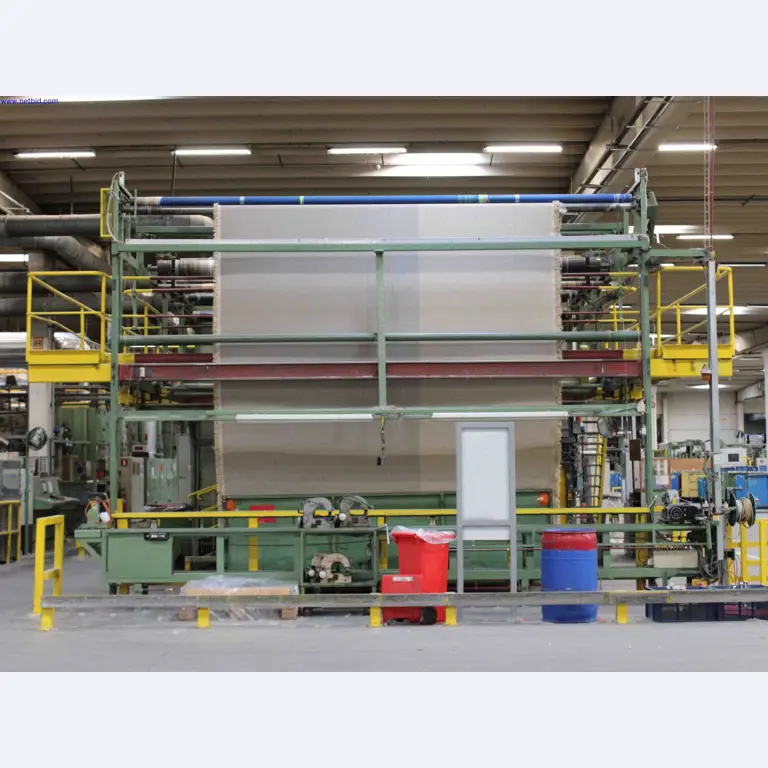

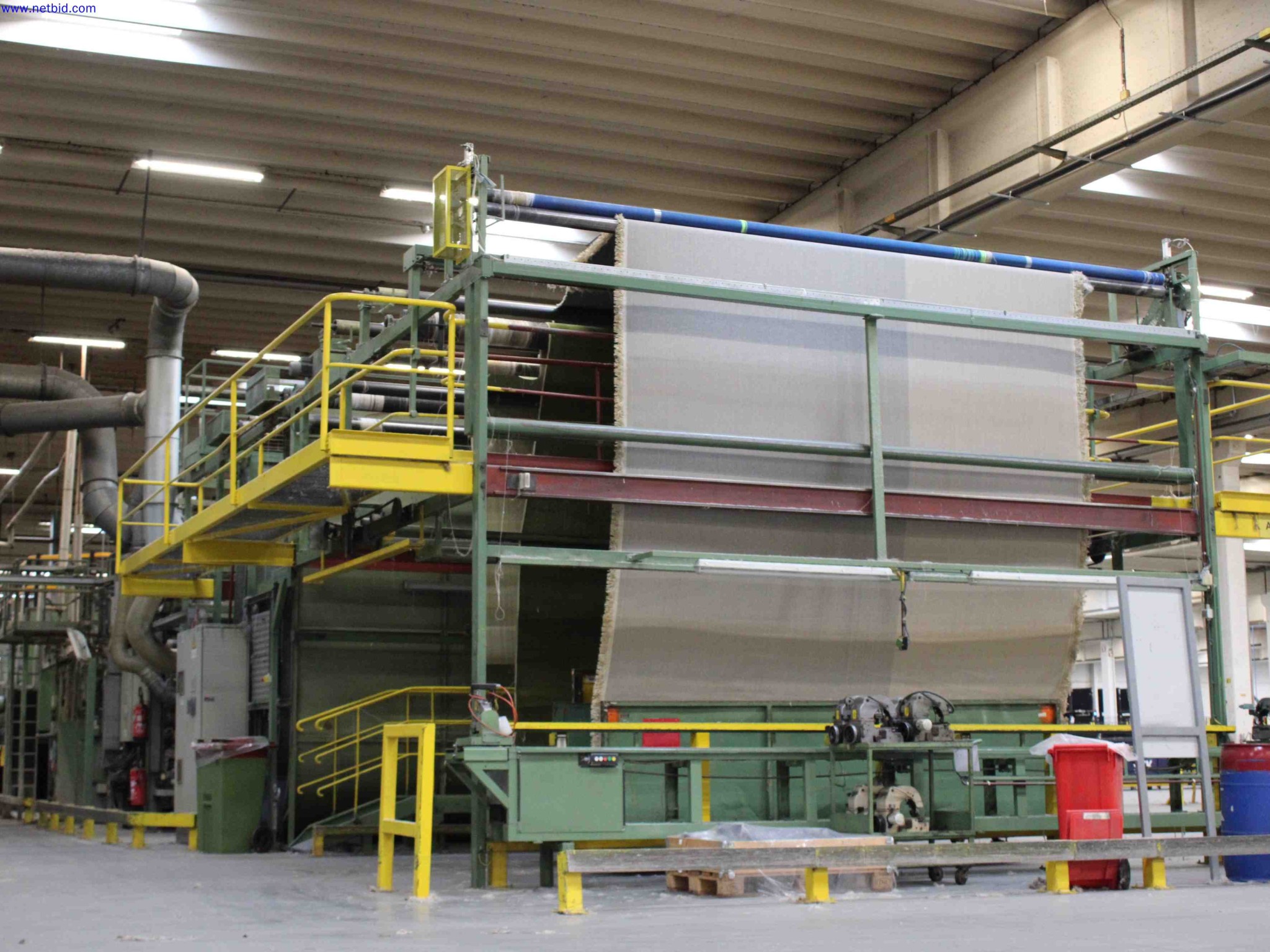

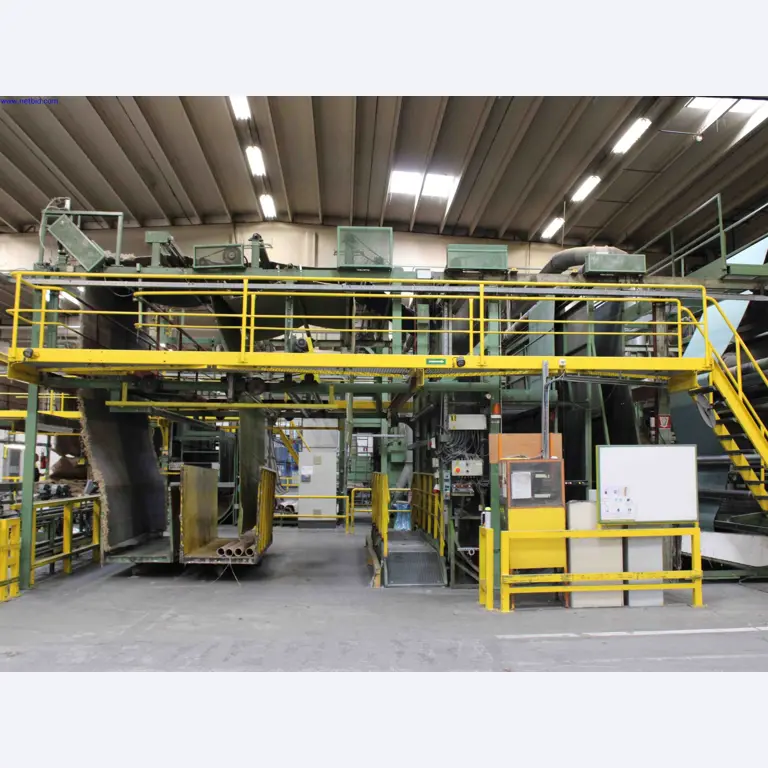

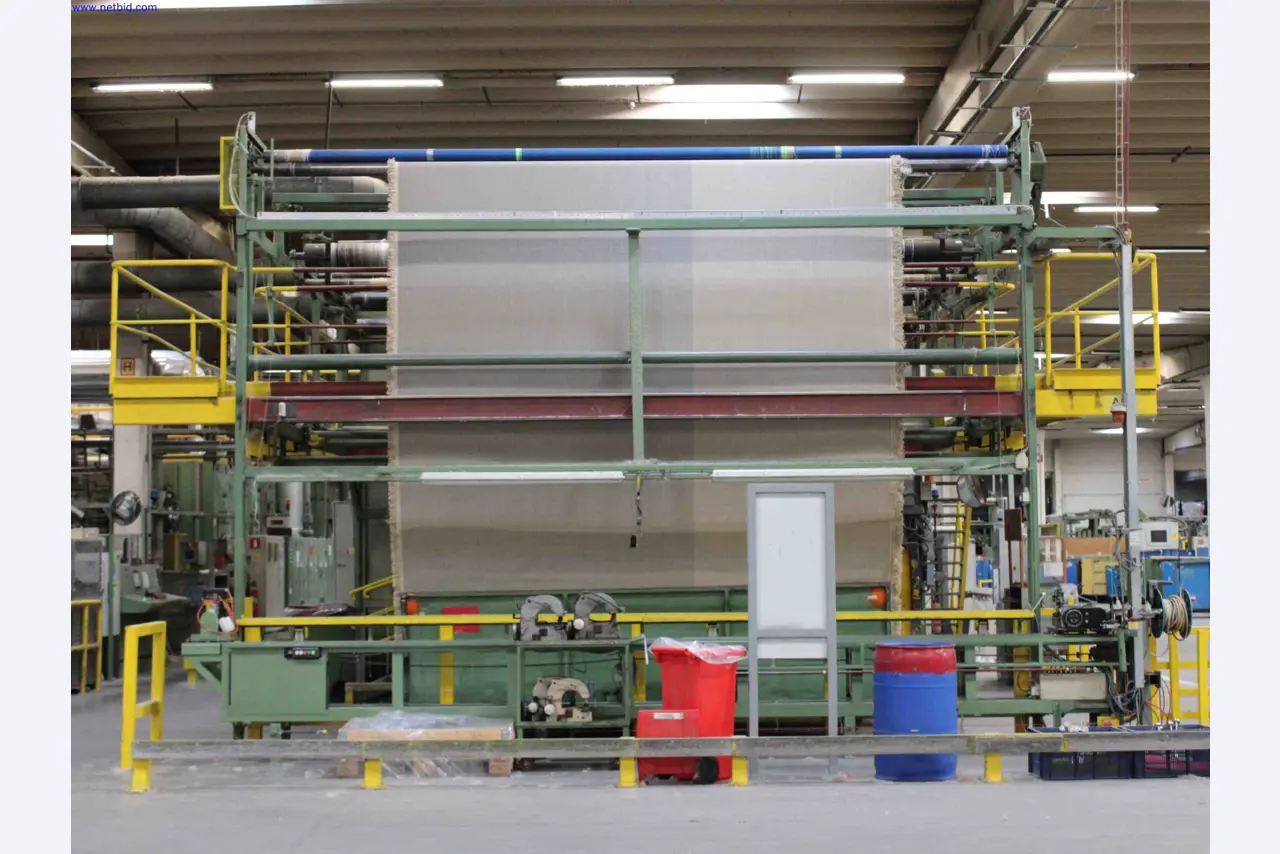

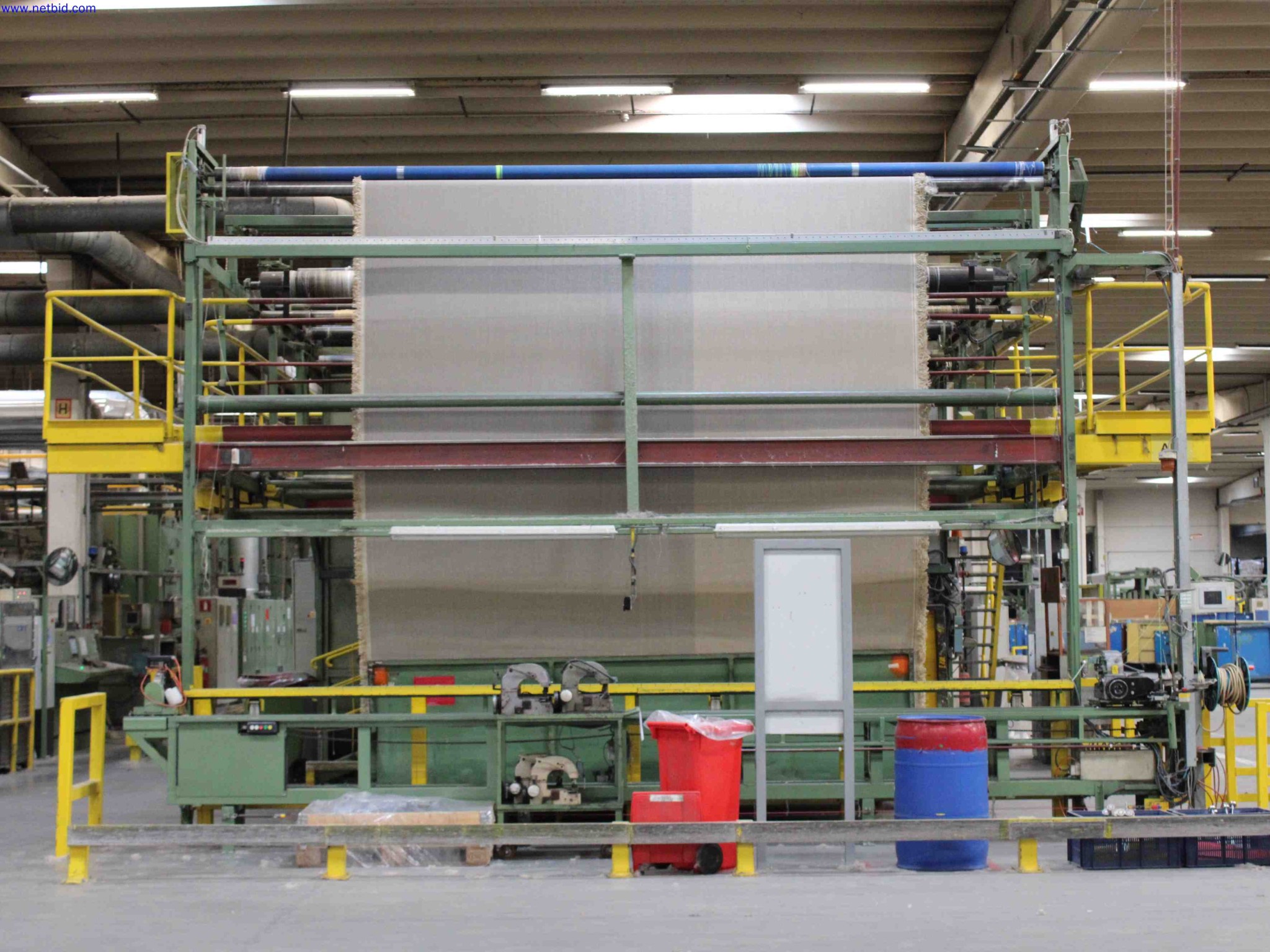

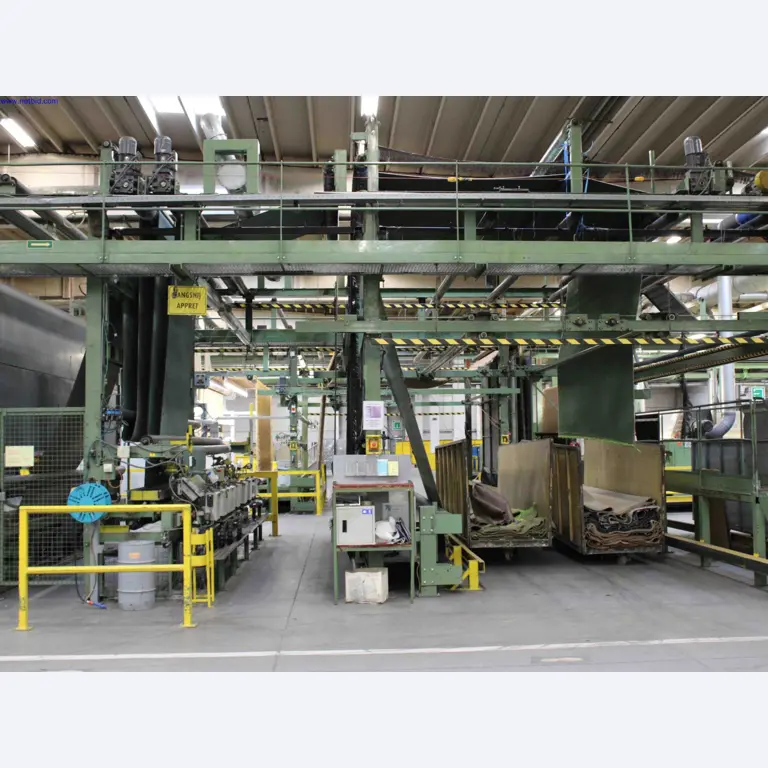

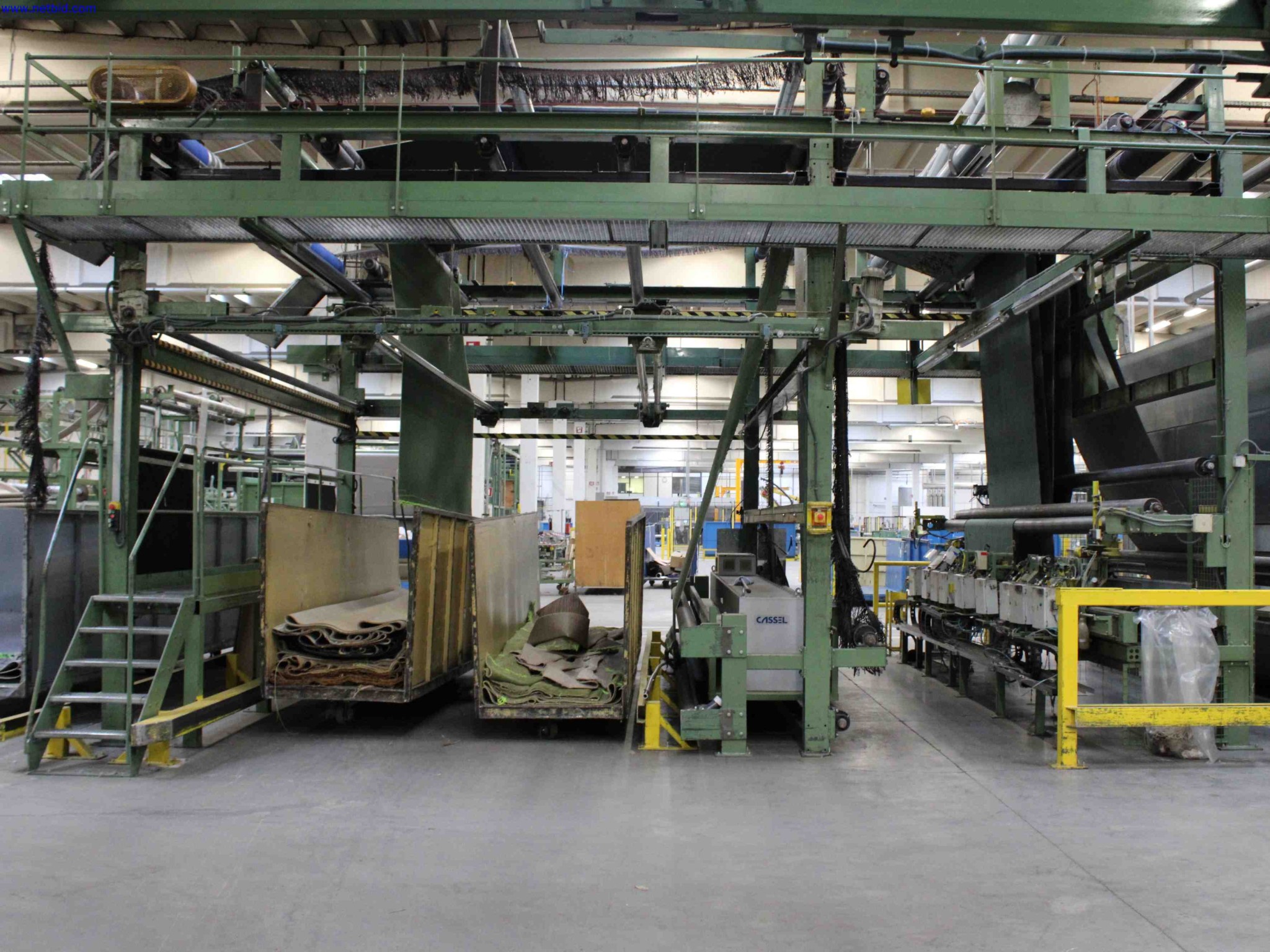

Entry Zone
Carpet alignment: vertical / manually centered
Cleaning: pile & backing side
Pre-steaming: pile & backing side

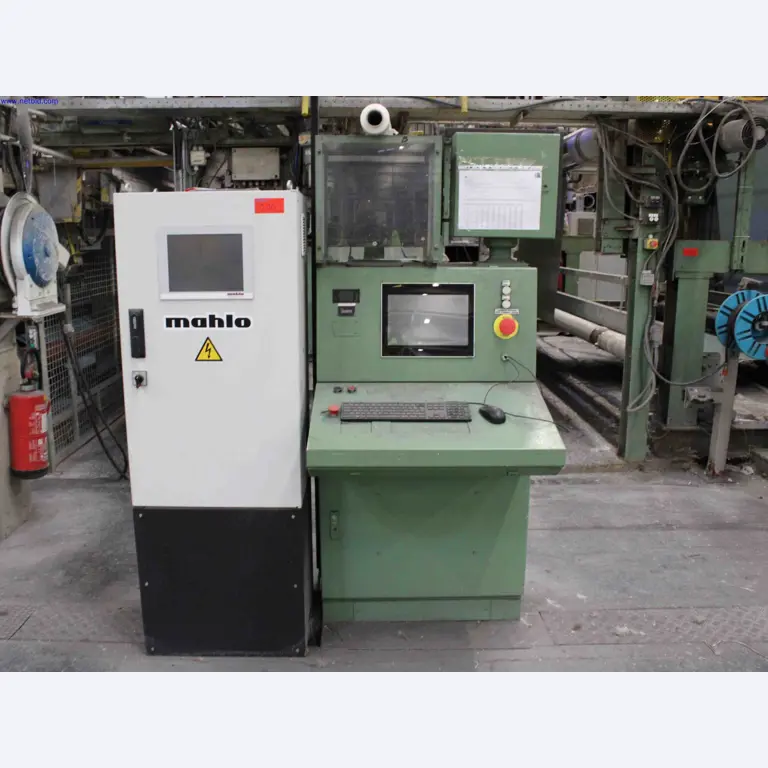

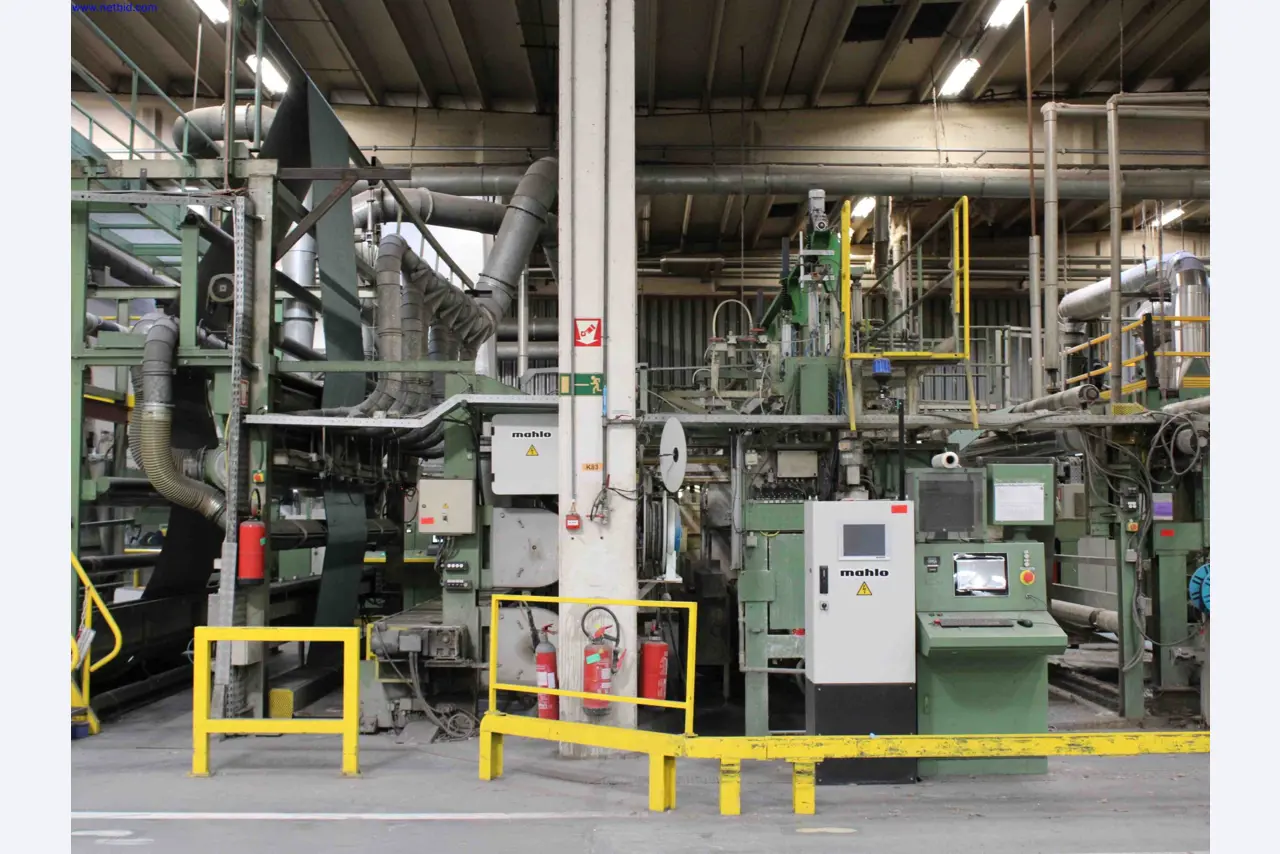

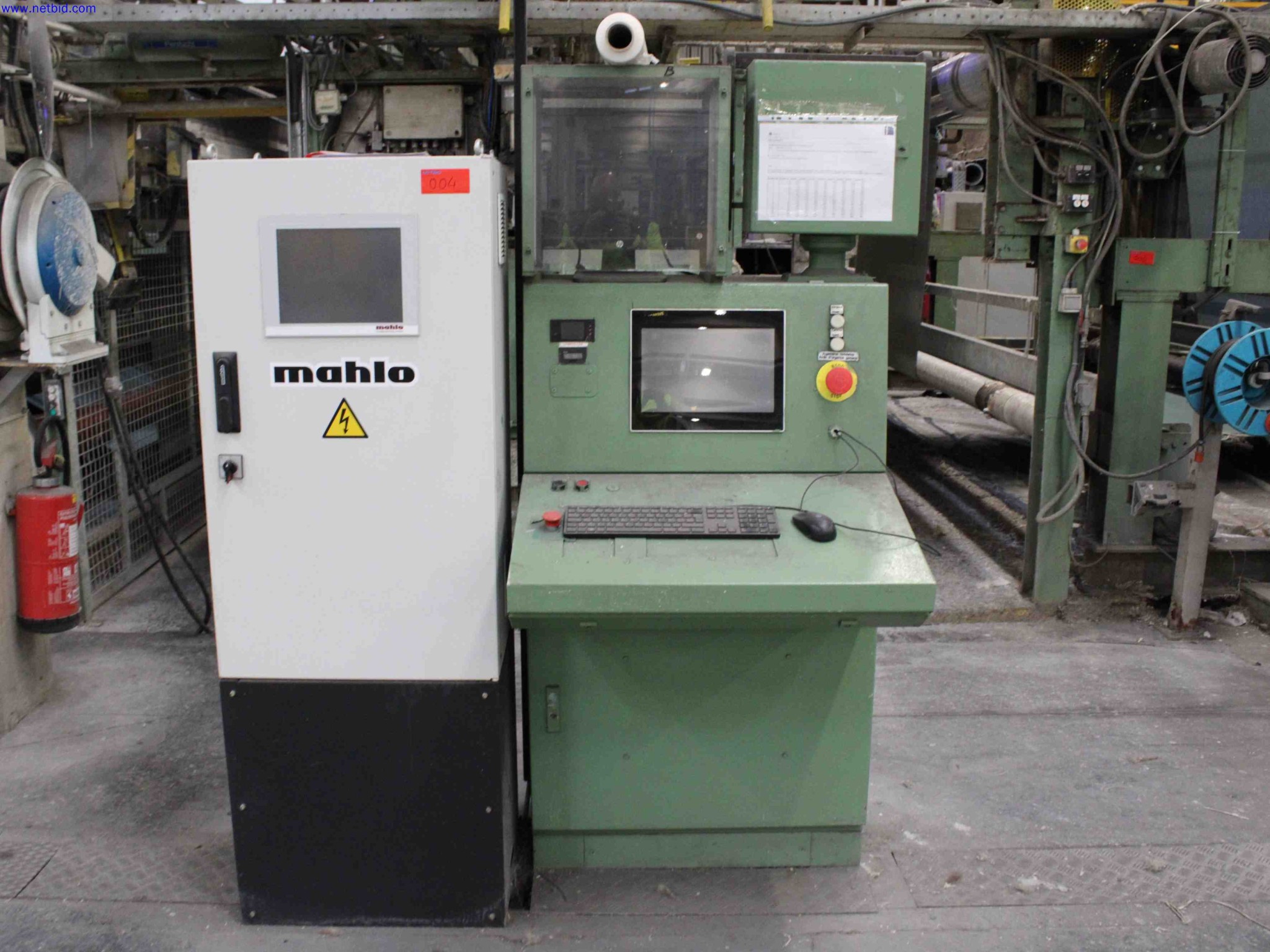

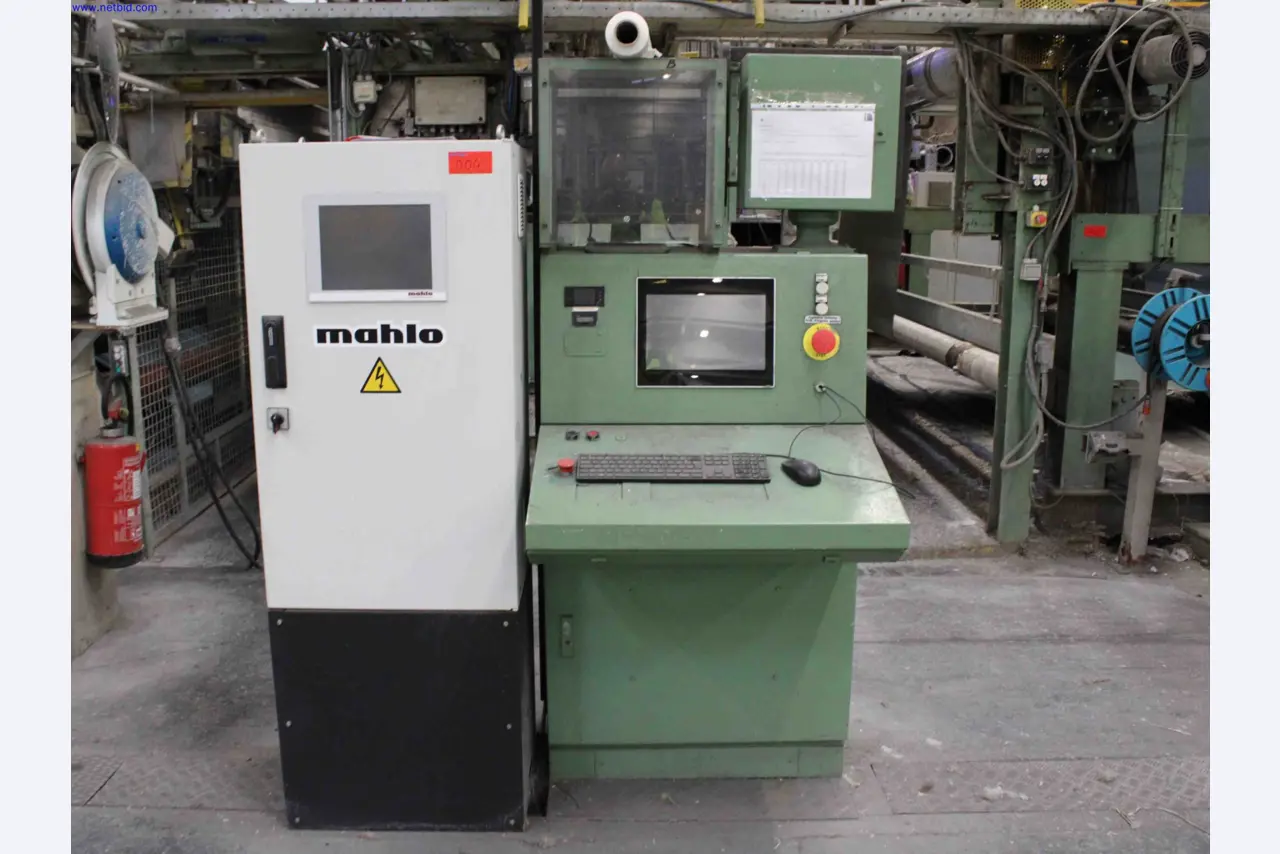

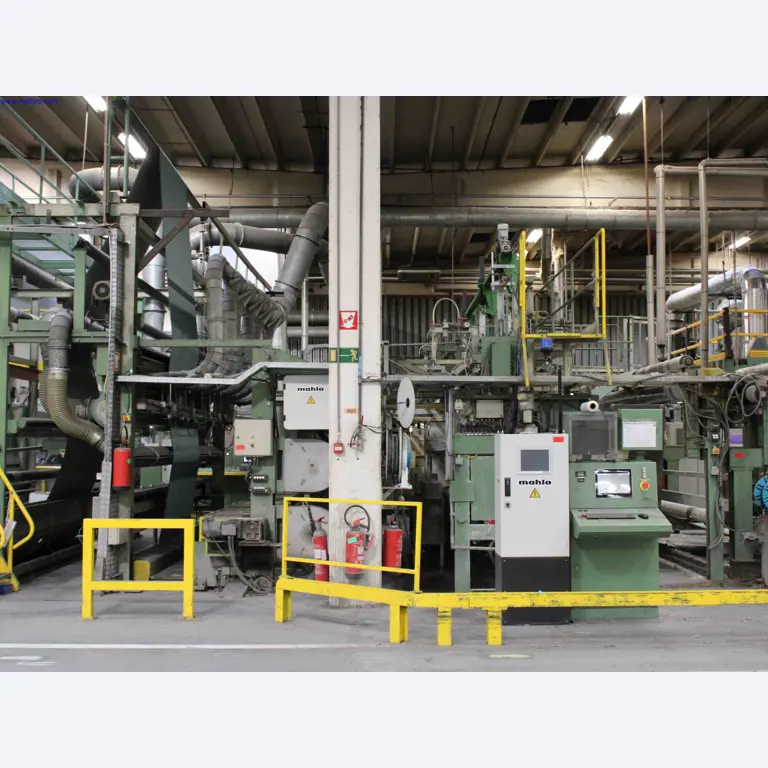

Weft straighteners: Menzel & Mahlo
Latex application: yes

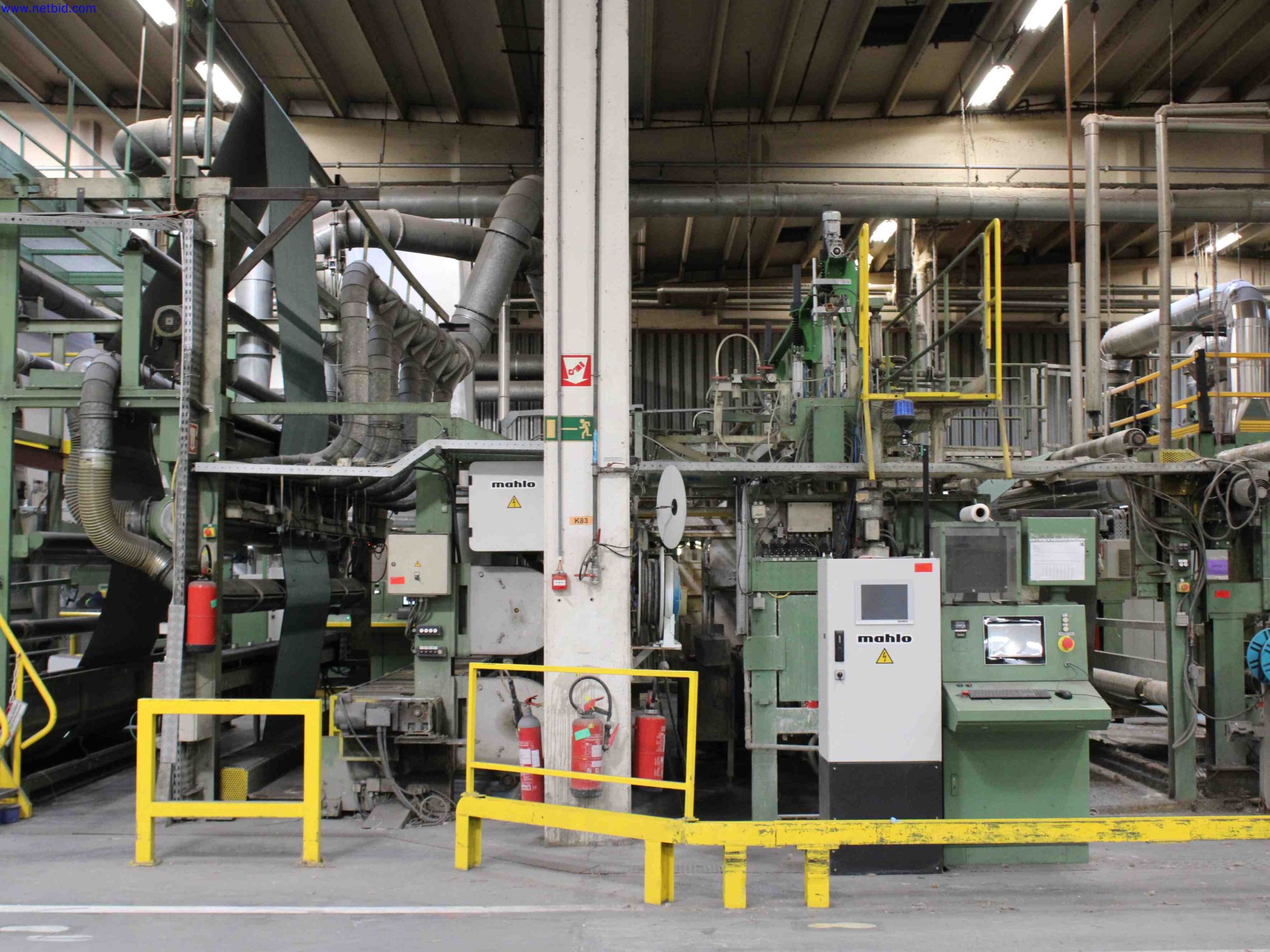

Width measuring system at entry: detection system
Latex application roller: Ø 320 mm
Edge scraping: yes
Latex circulation (chalk): yes
Vinamull application: no

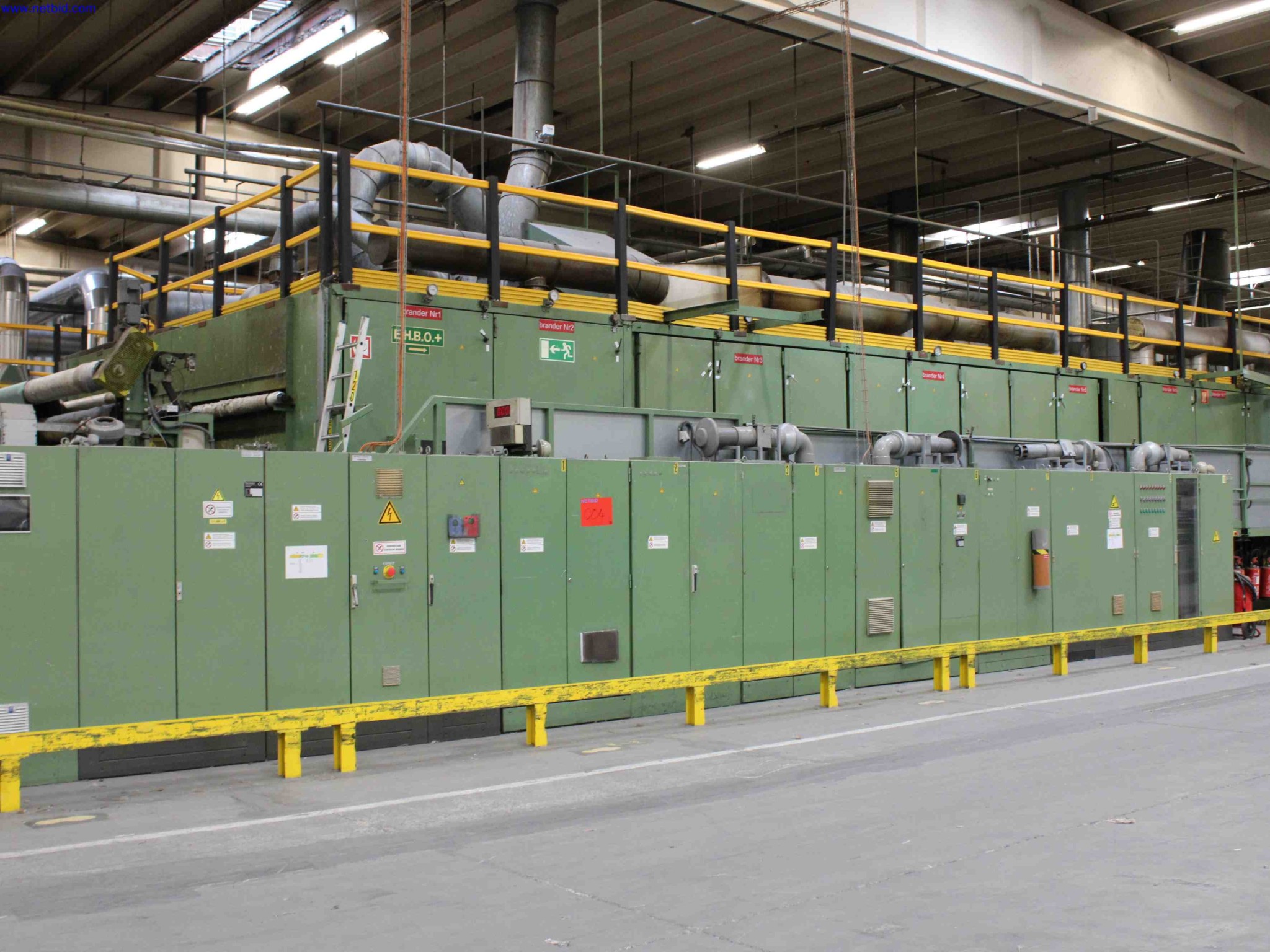

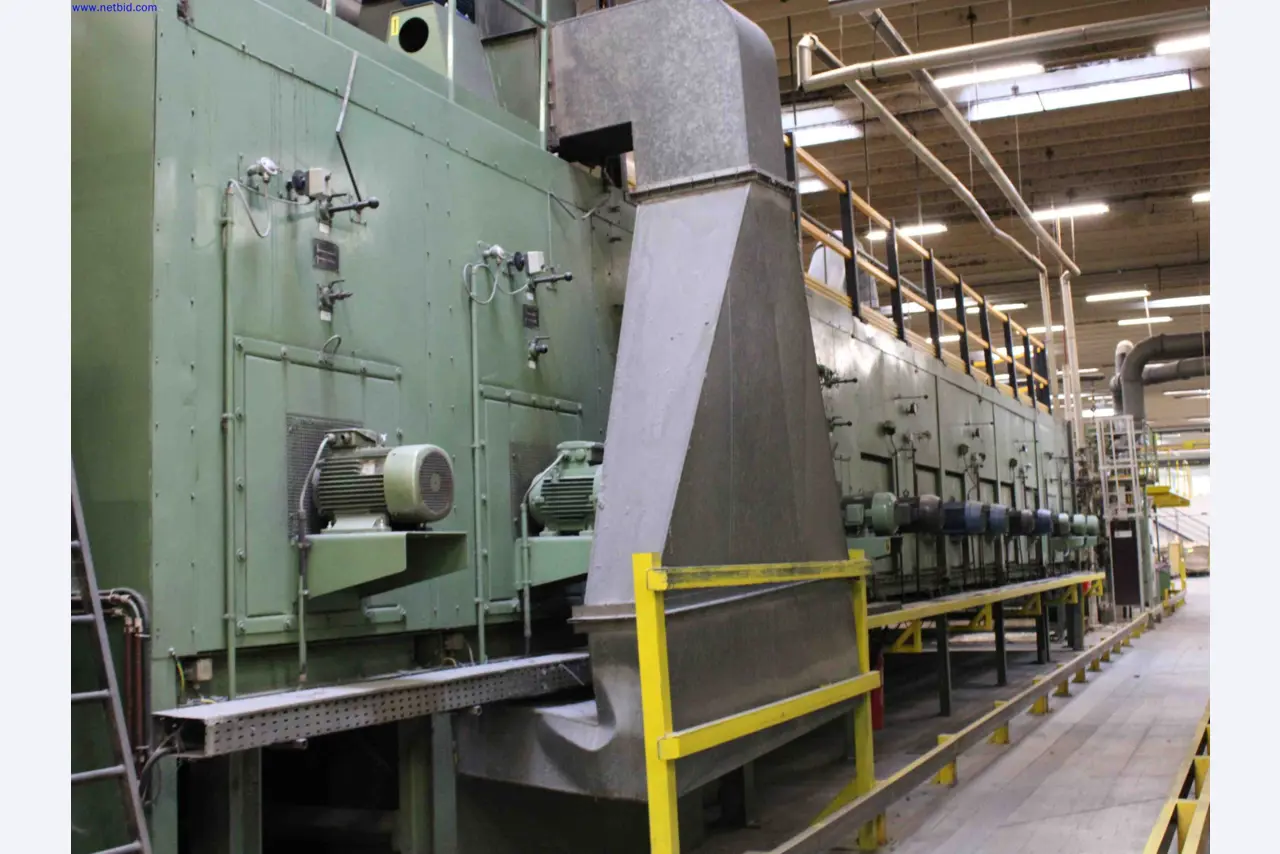

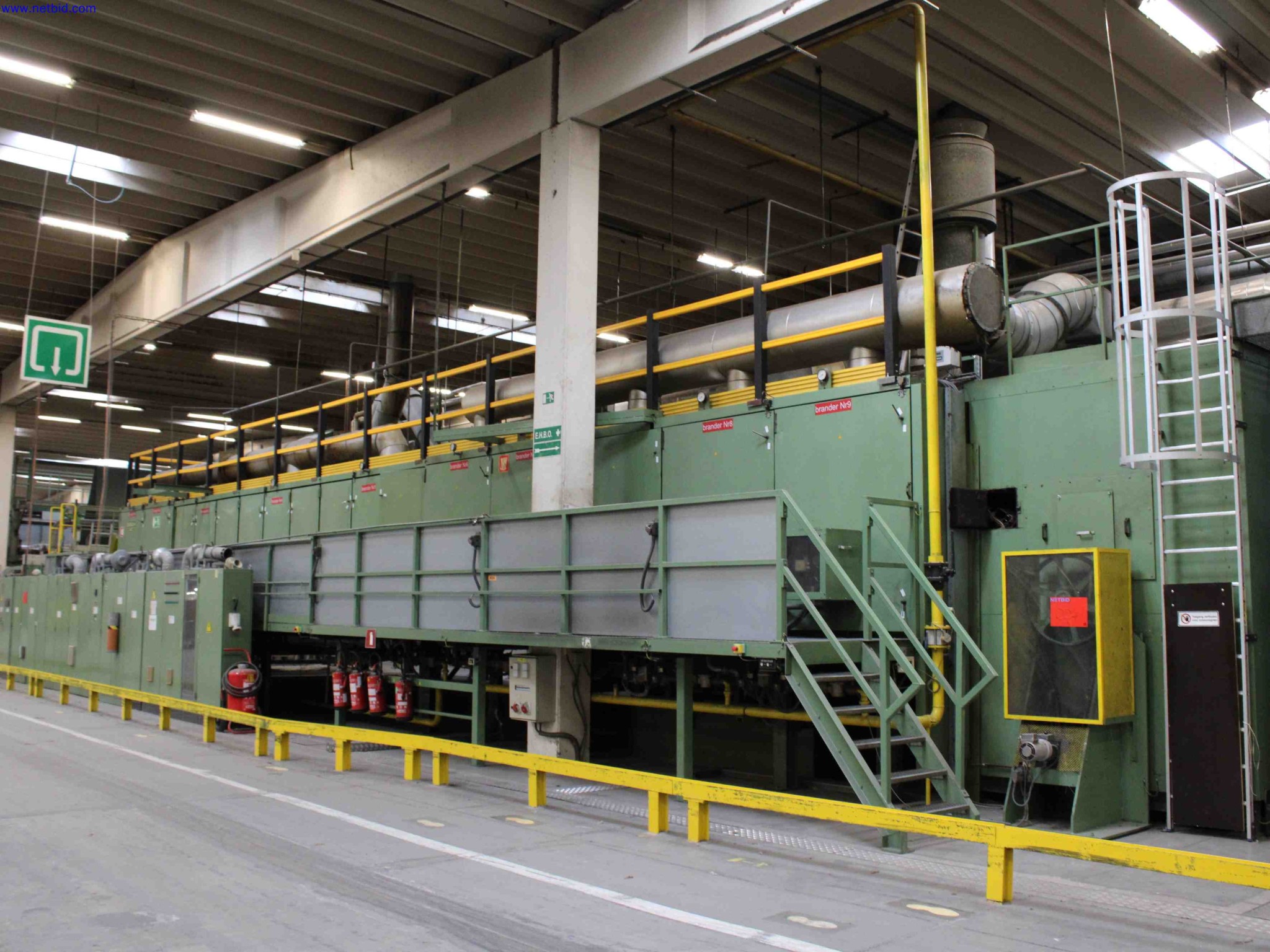

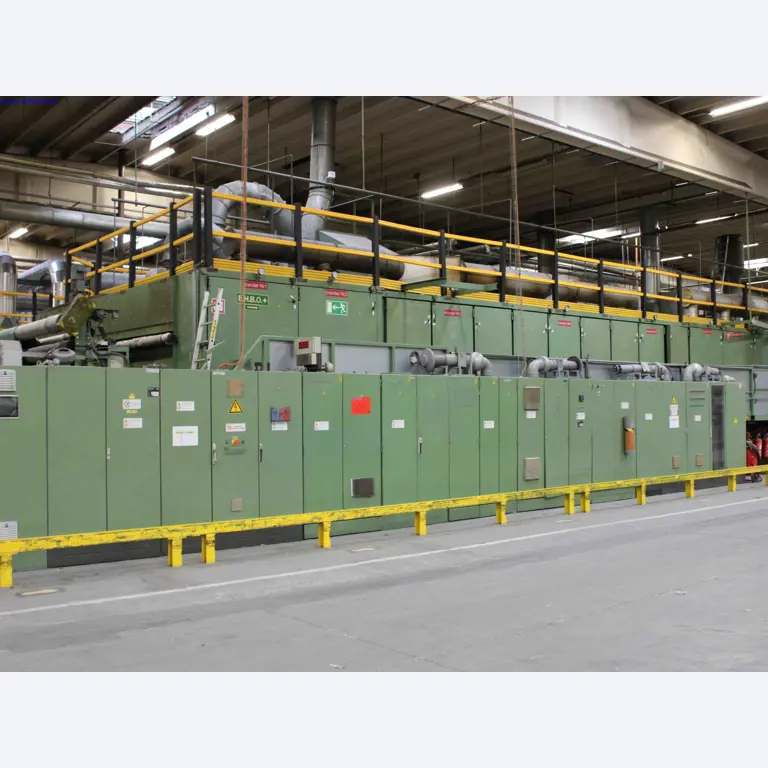

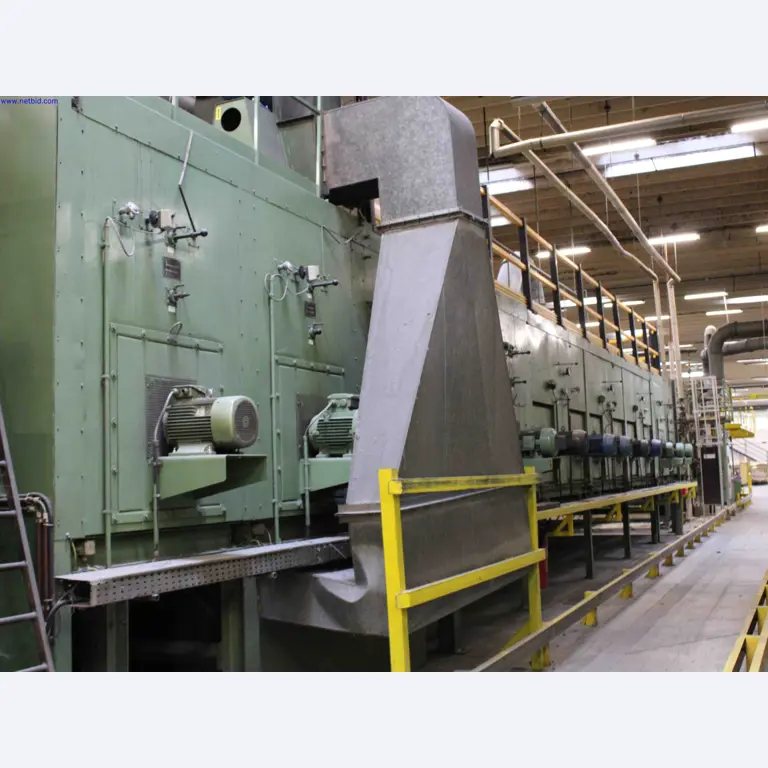

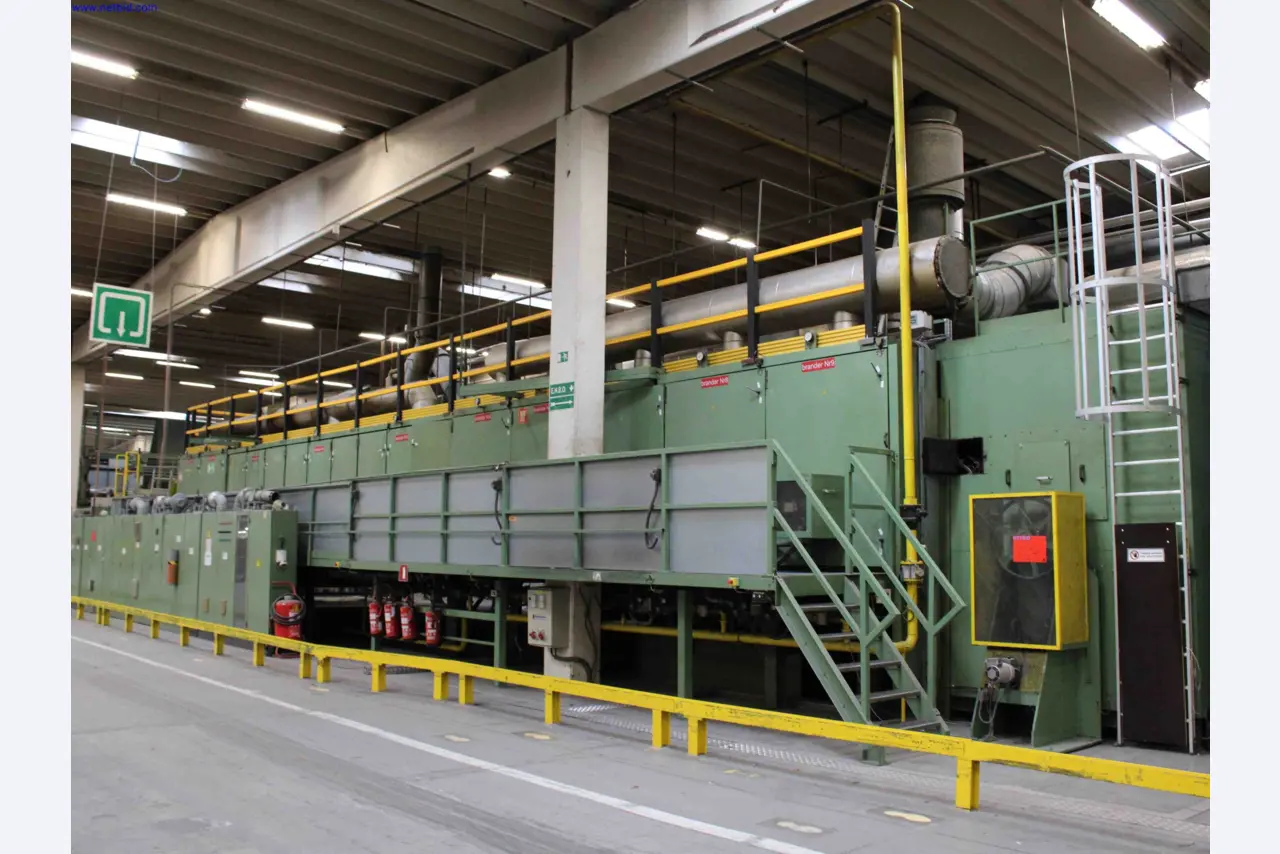

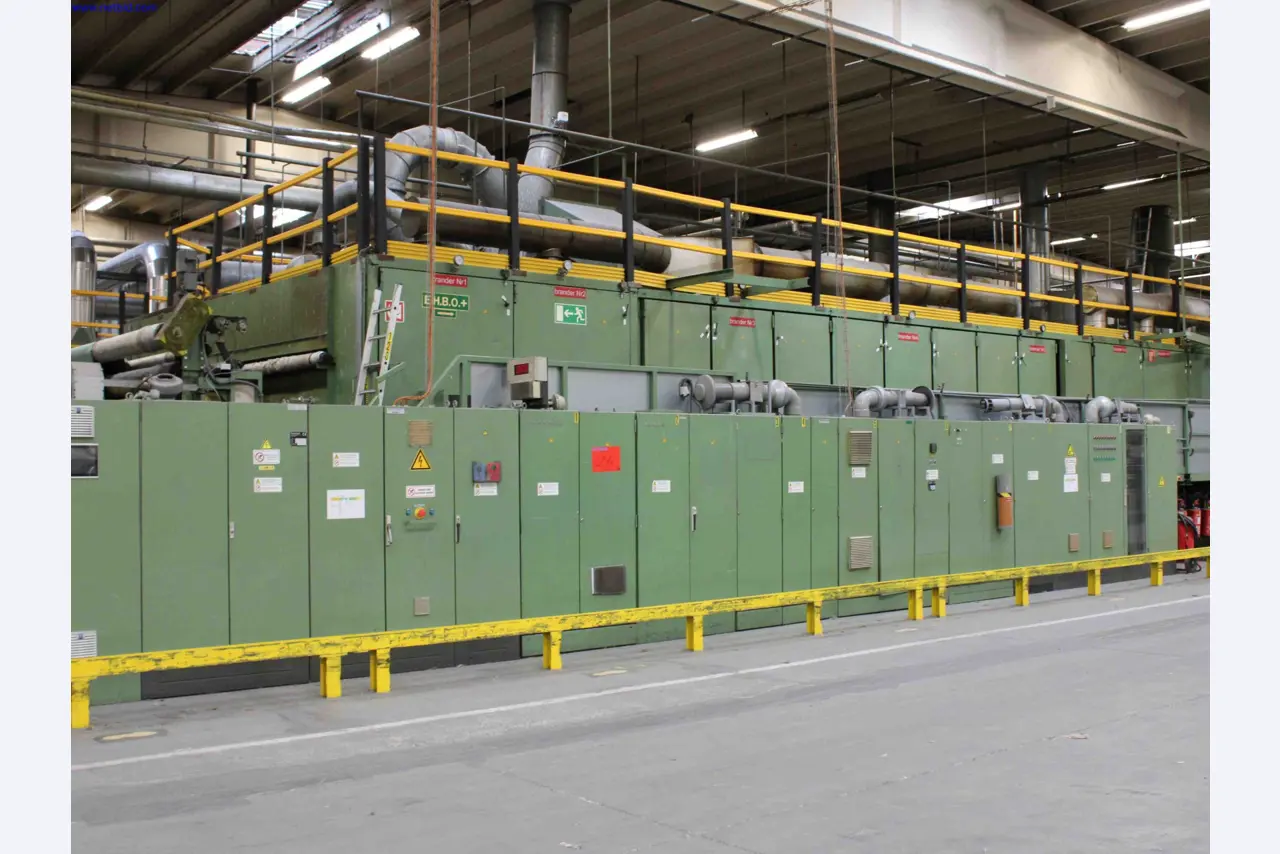

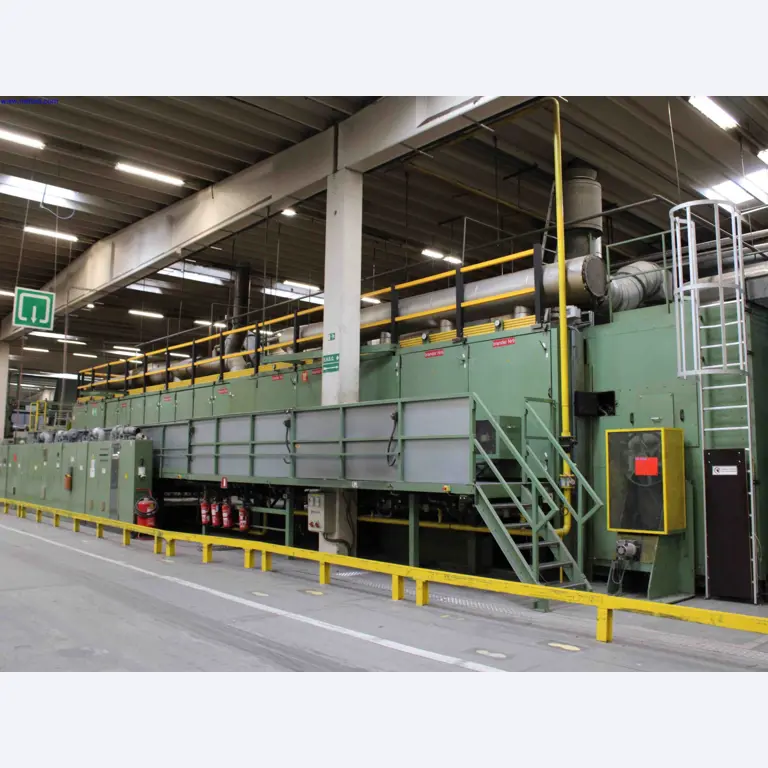

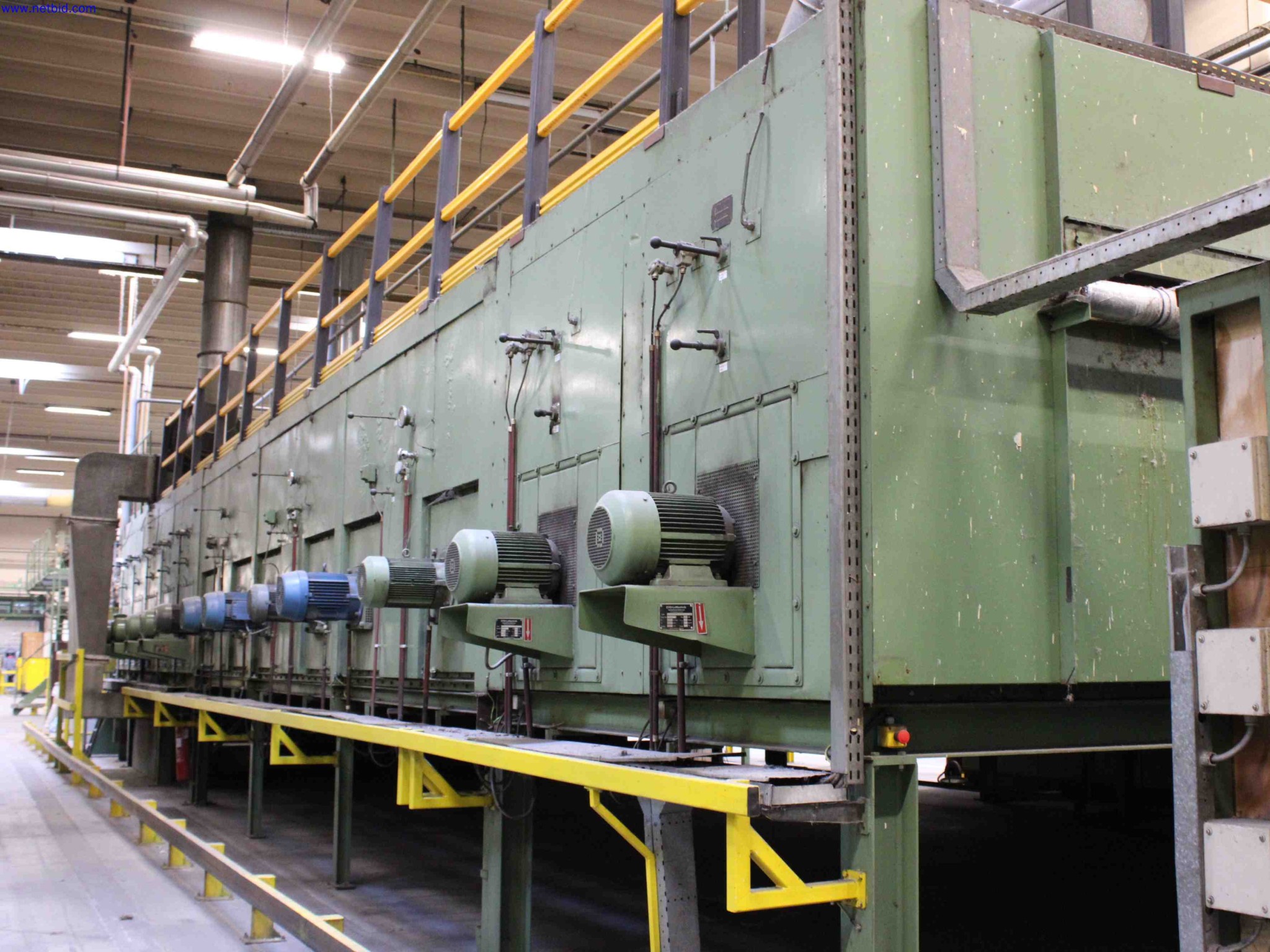

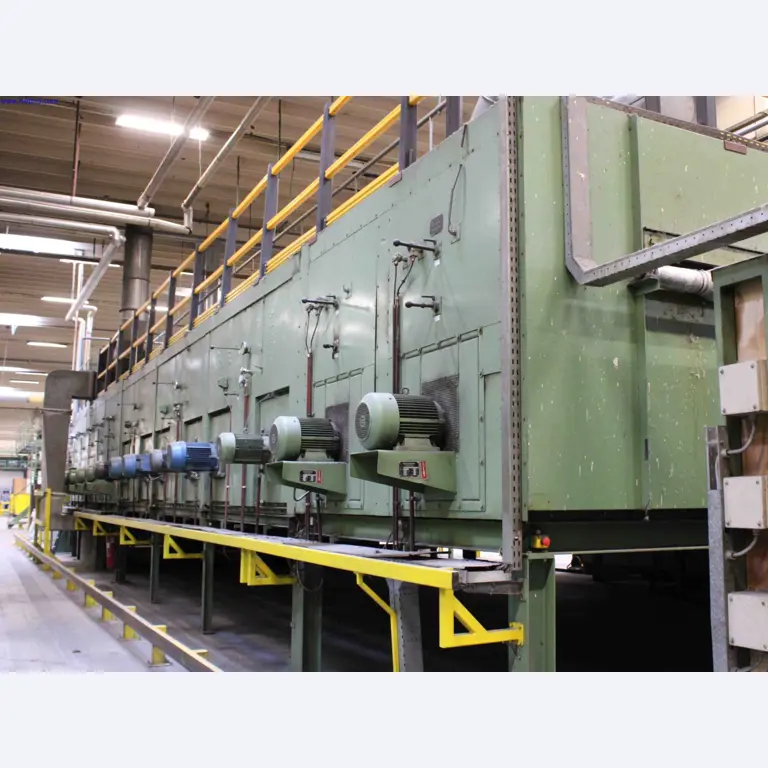

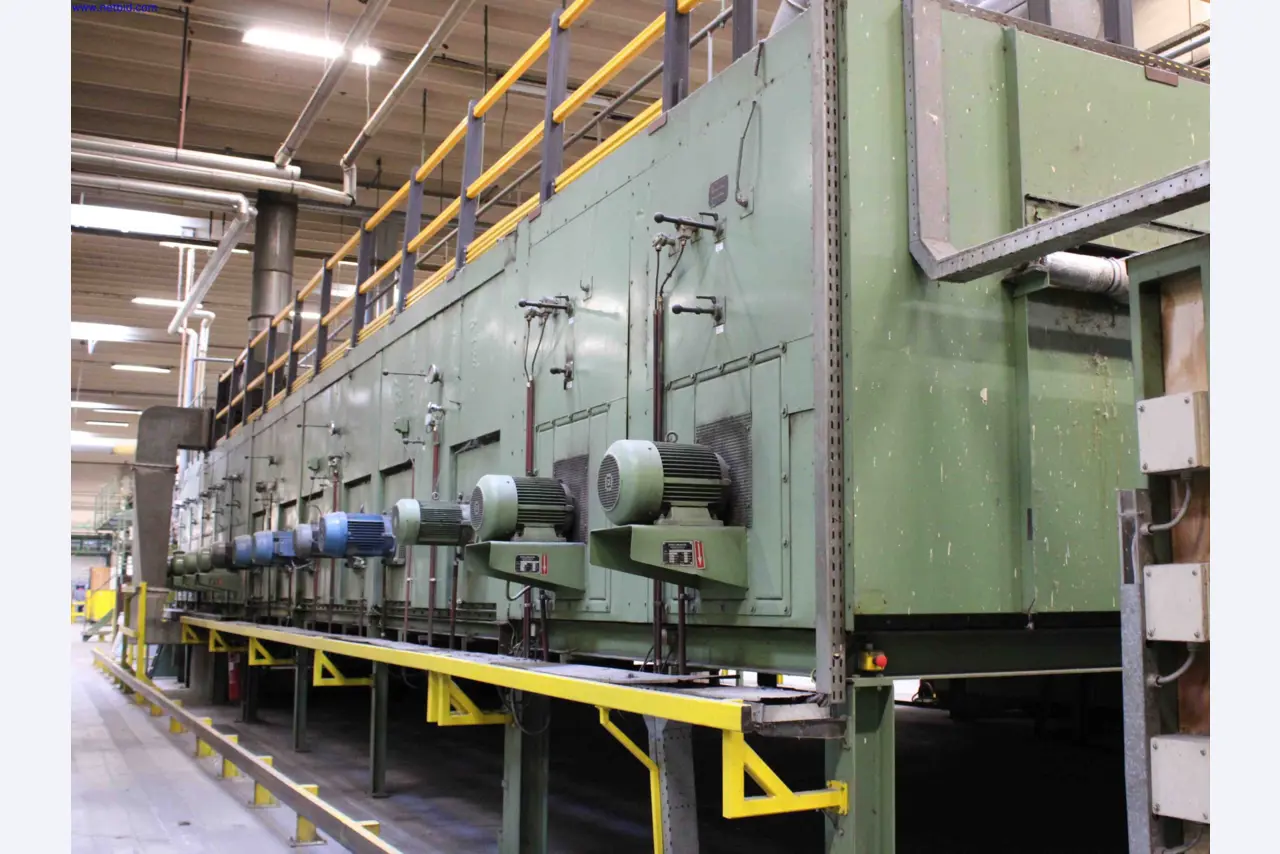

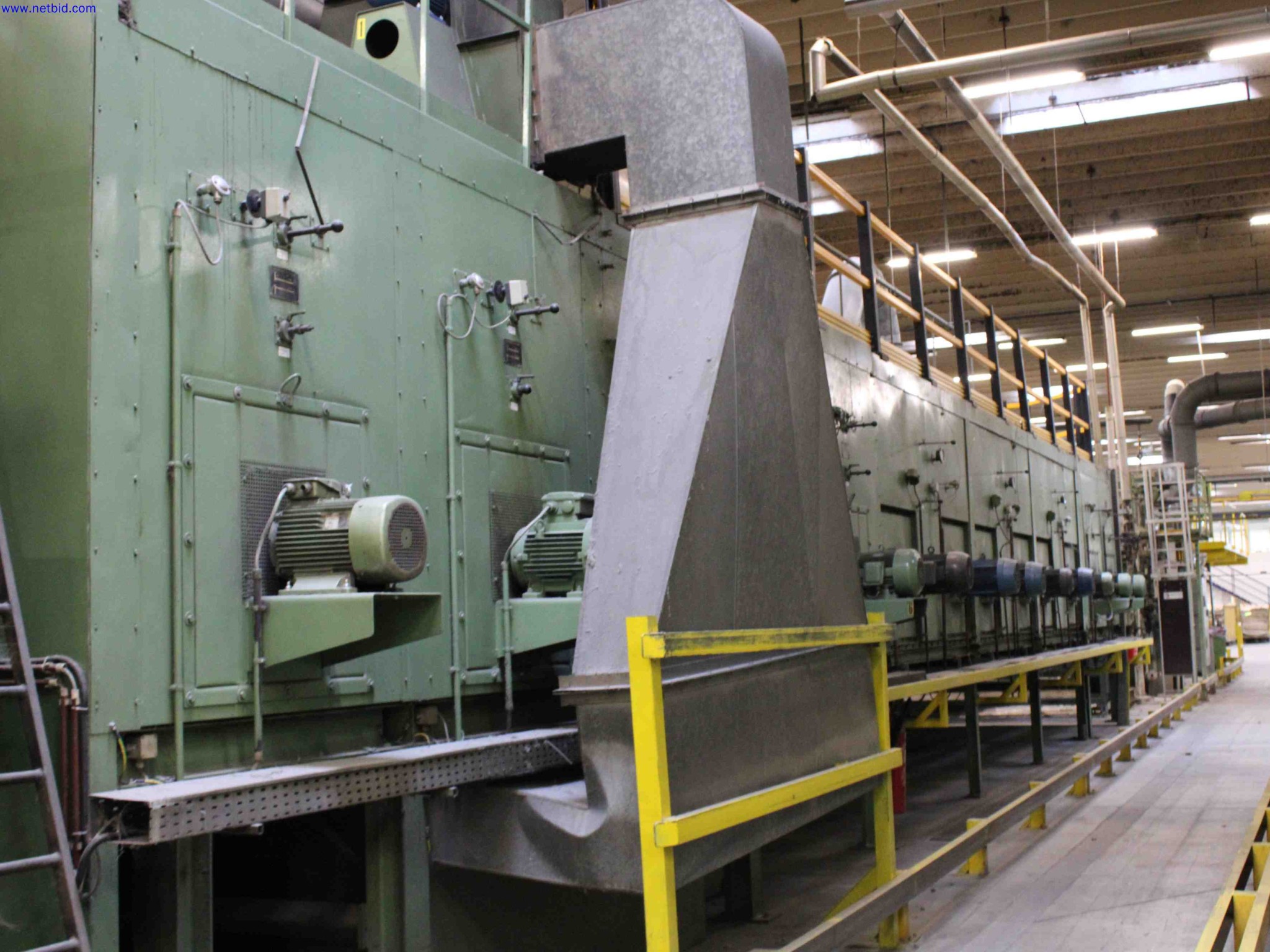

Oven Length: 20 m
Heating fields: Pile side: 10
Back side: 10
Temperature control: Pile side: yes
Back side: yes
Fan speed:
Pile side: mechanically adjustable
Back side: mechanically adjustable
Nozzle type:
Pile side: sleeves
Back side: round
Heating type: gas burners
Steam drum at outlet: yes
Cooling
Cooling under the oven: back side
Number of cooling fields: 5 pcs
Speeds
Maximum electrical speed (latex): 14.5 m/min
Maximum mechanical speed: 14.5 m/min
Shearing speed: not applicable
Shearing
Carpet alignment: vertical / manually centered
Metal detector: yes
Shearing cylinders: none
Pile brushes:
Horizontal: no
Round: no

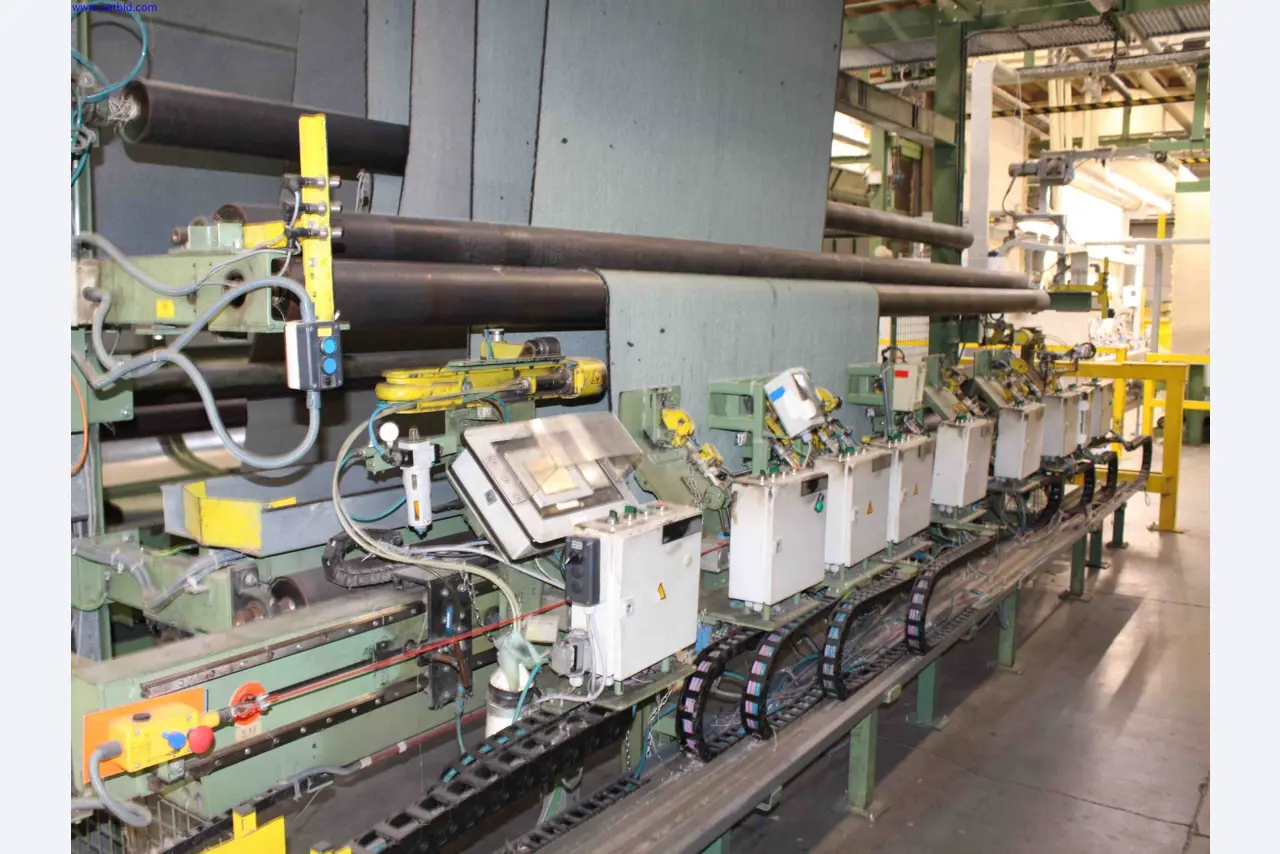

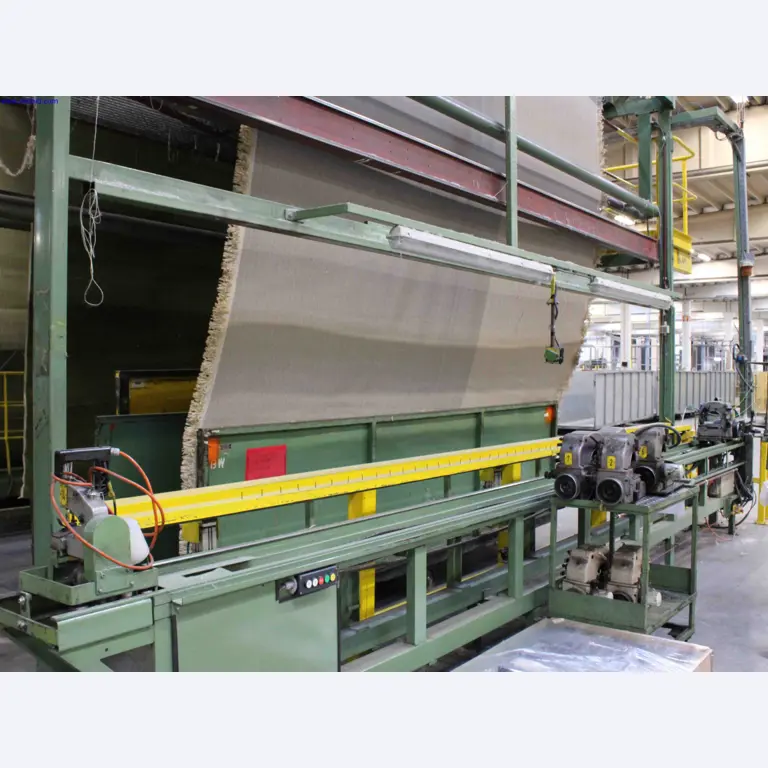

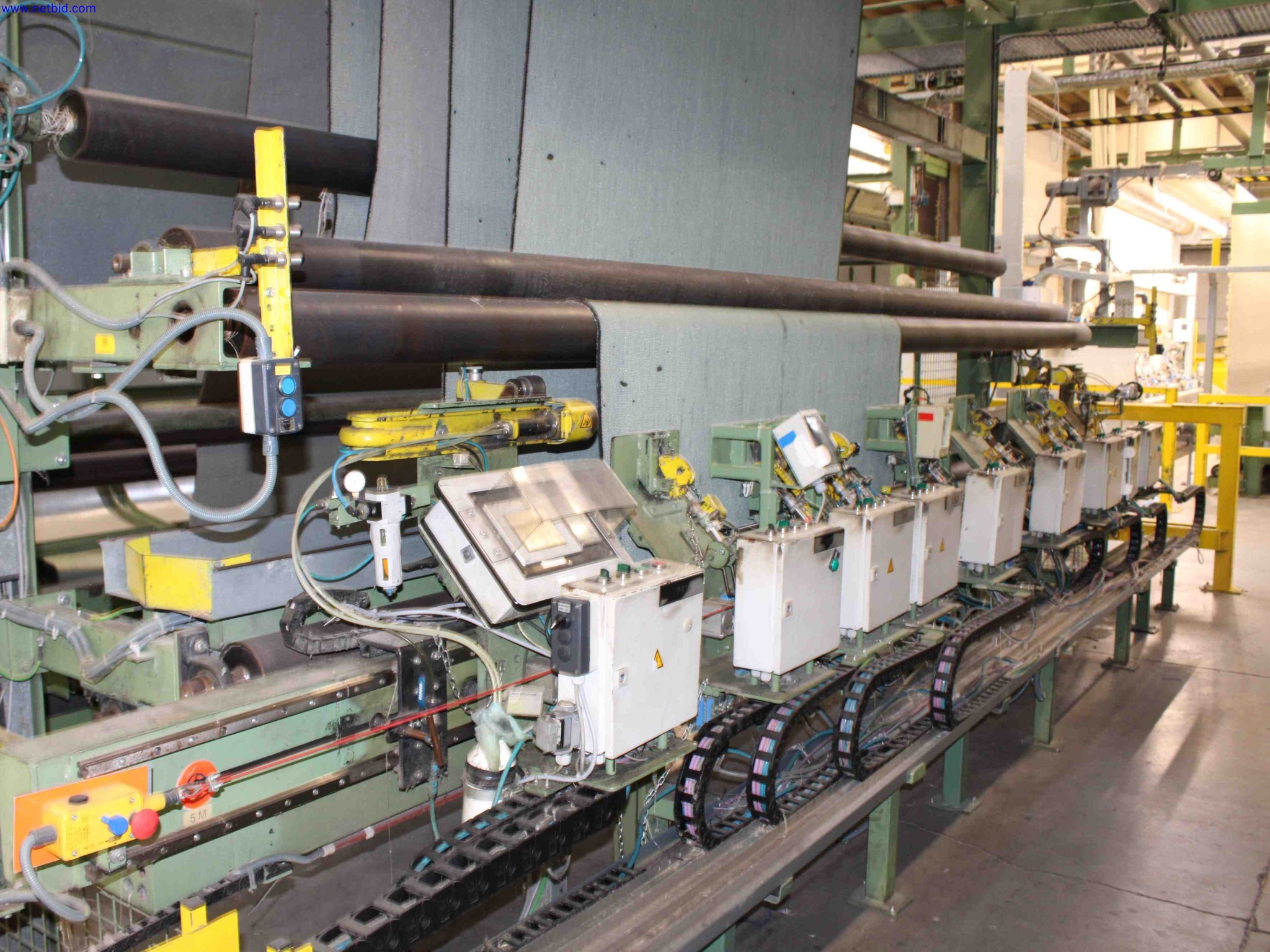

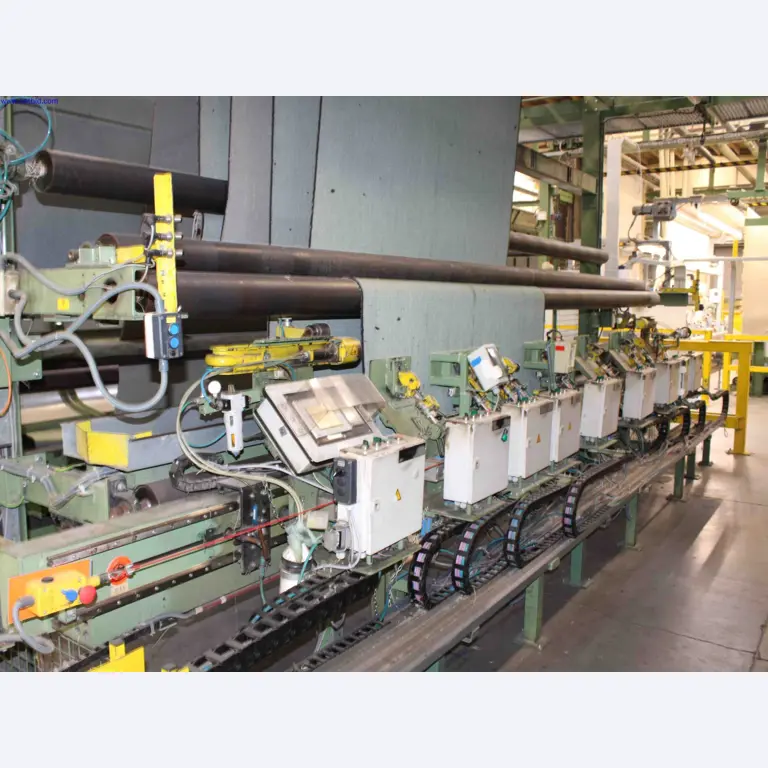

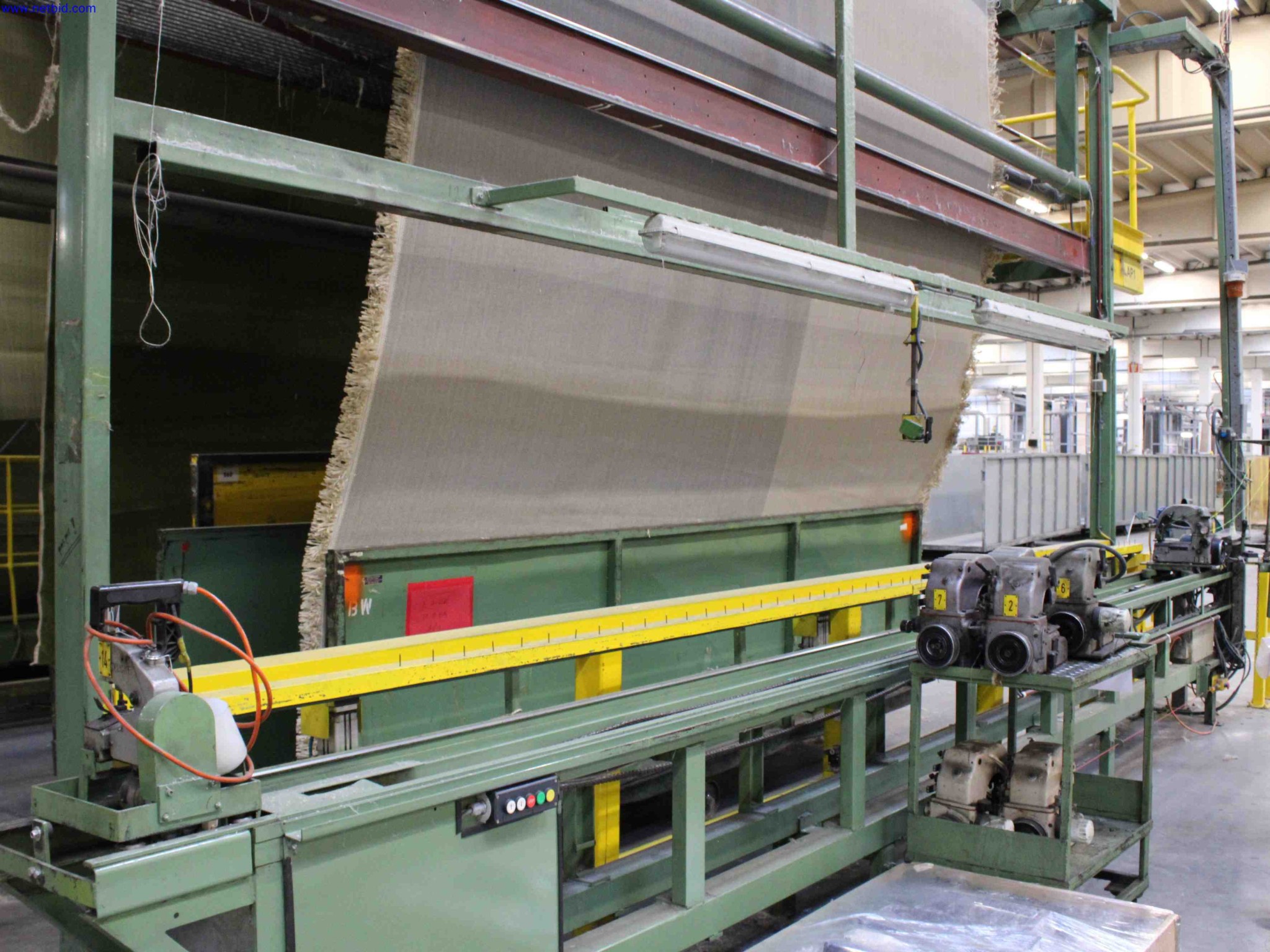

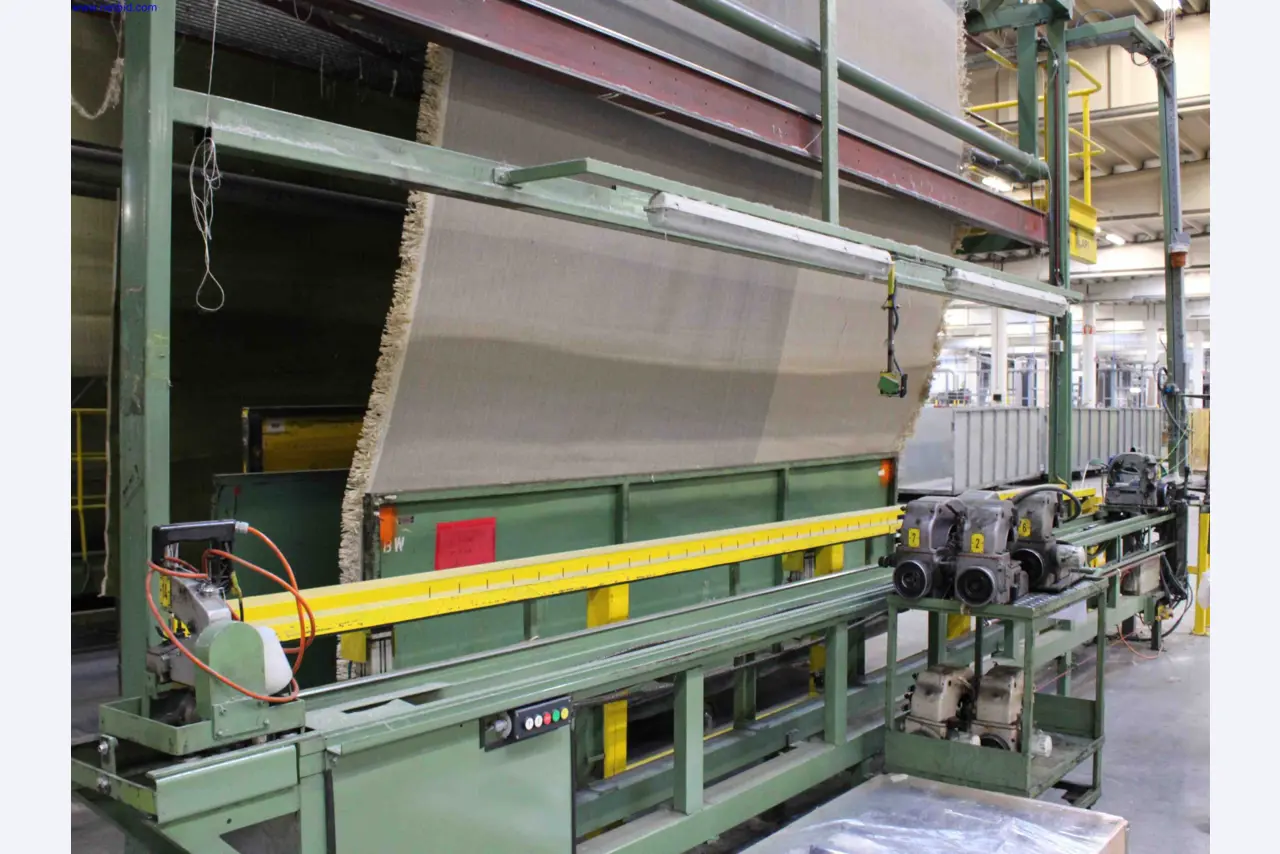

Length Cutting
Carpet alignment: vertical / manually centered
Number of knives: 7
Guiding system:
Head 1 & 6: camera + mechanical guide
Cutting type: fixed knife (single)
Floor mounted.
