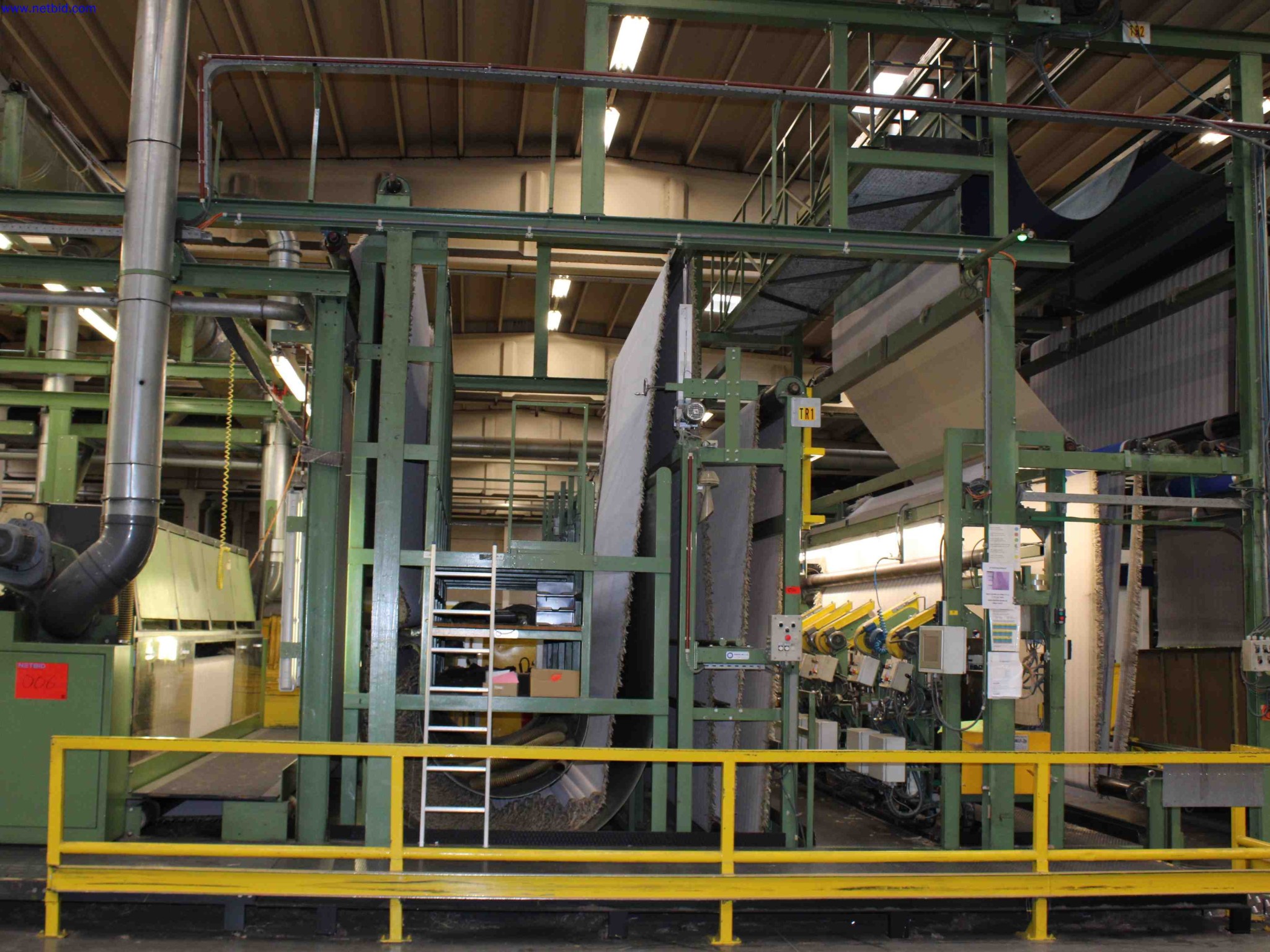

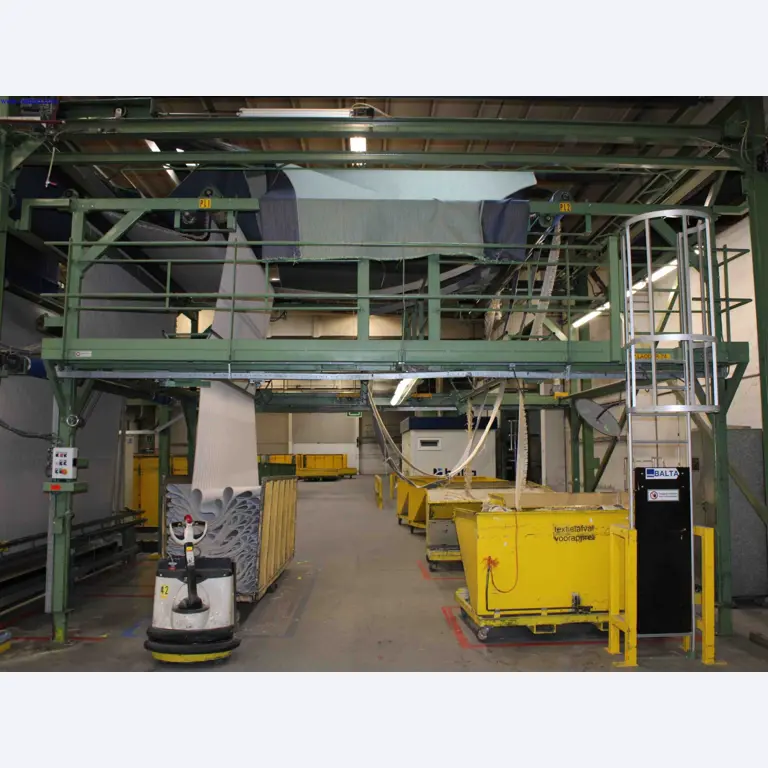

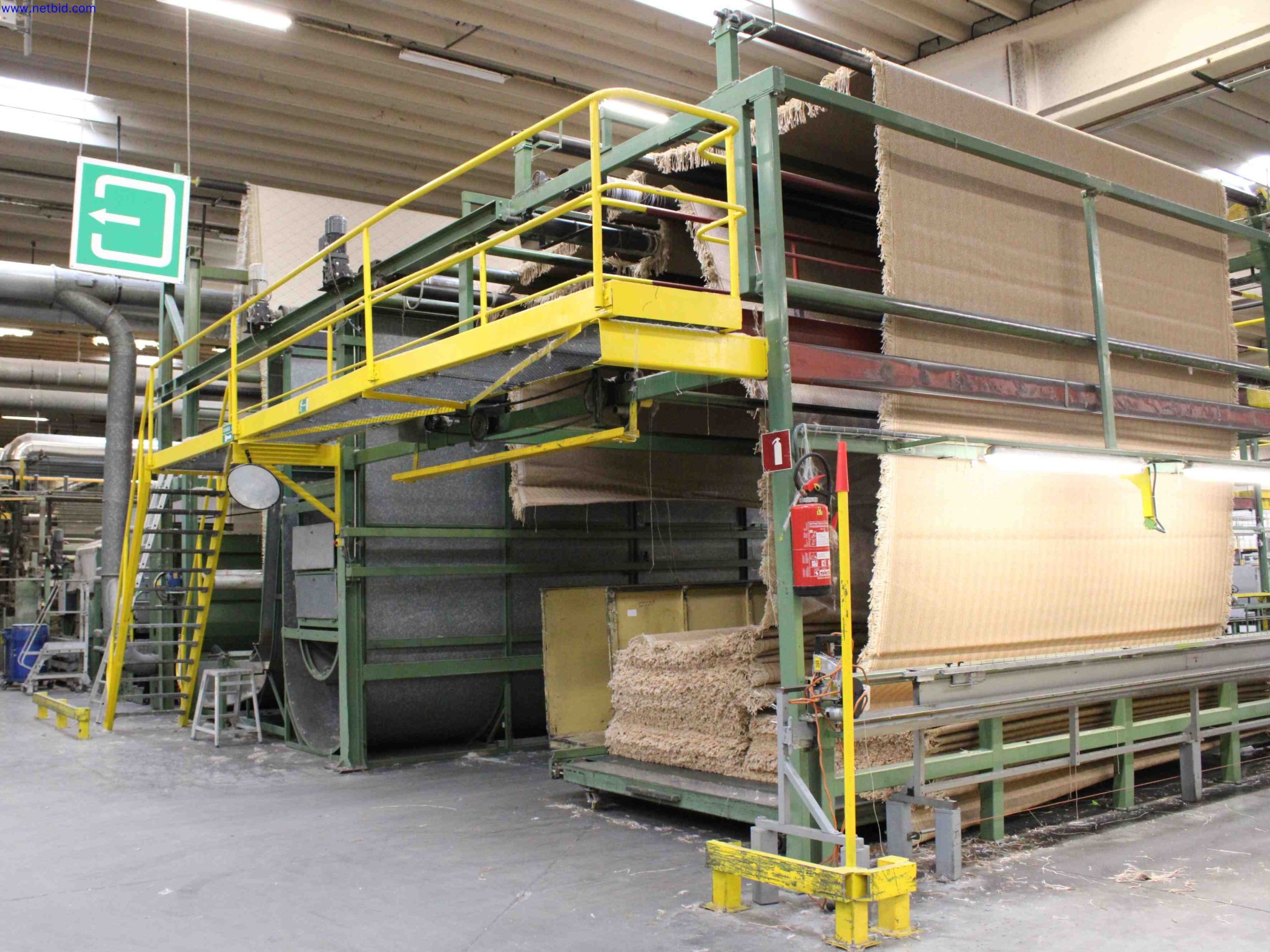

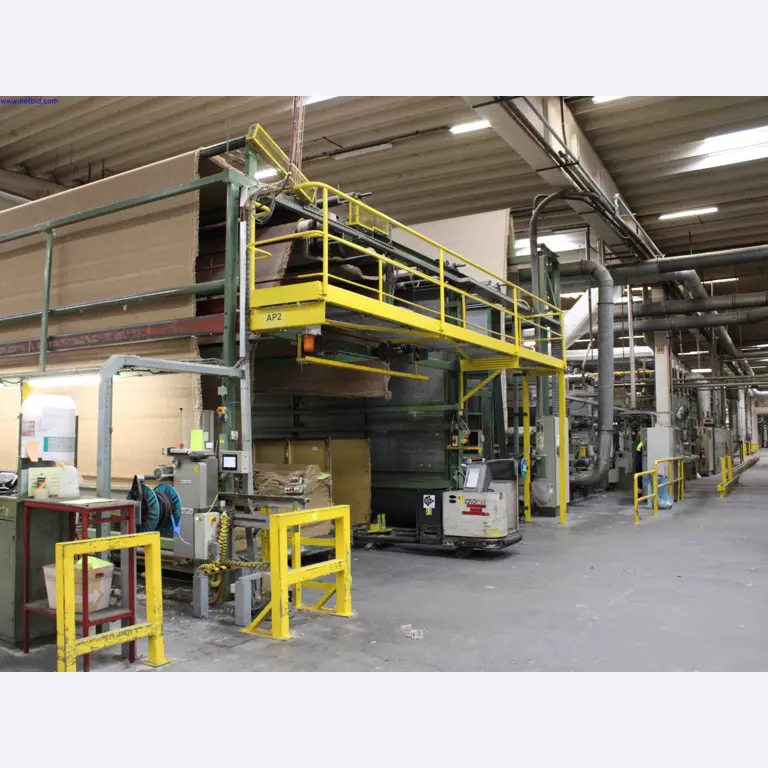

Coating carpet finishing (‘Appret’) lineLIVE#19369-6

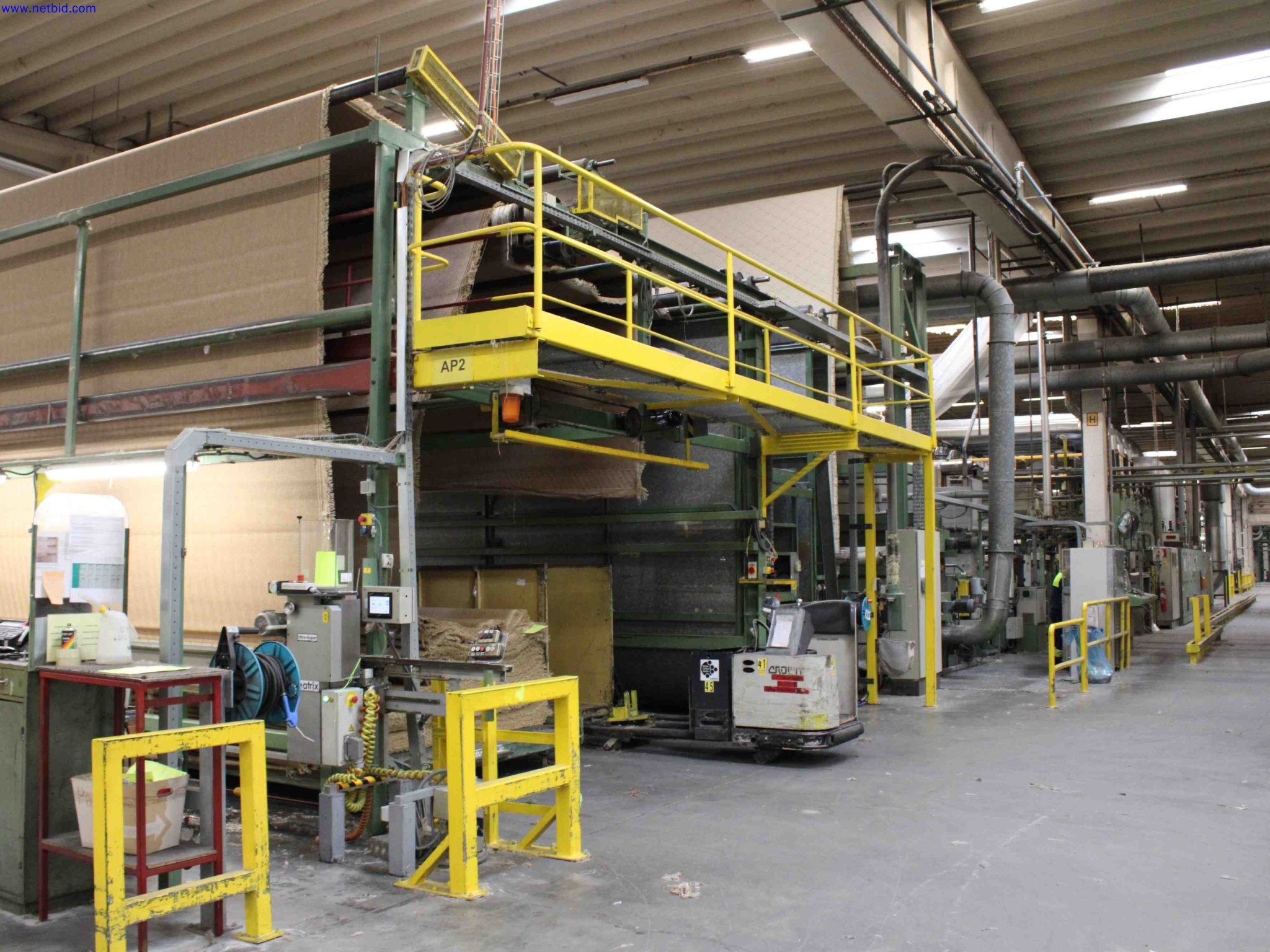

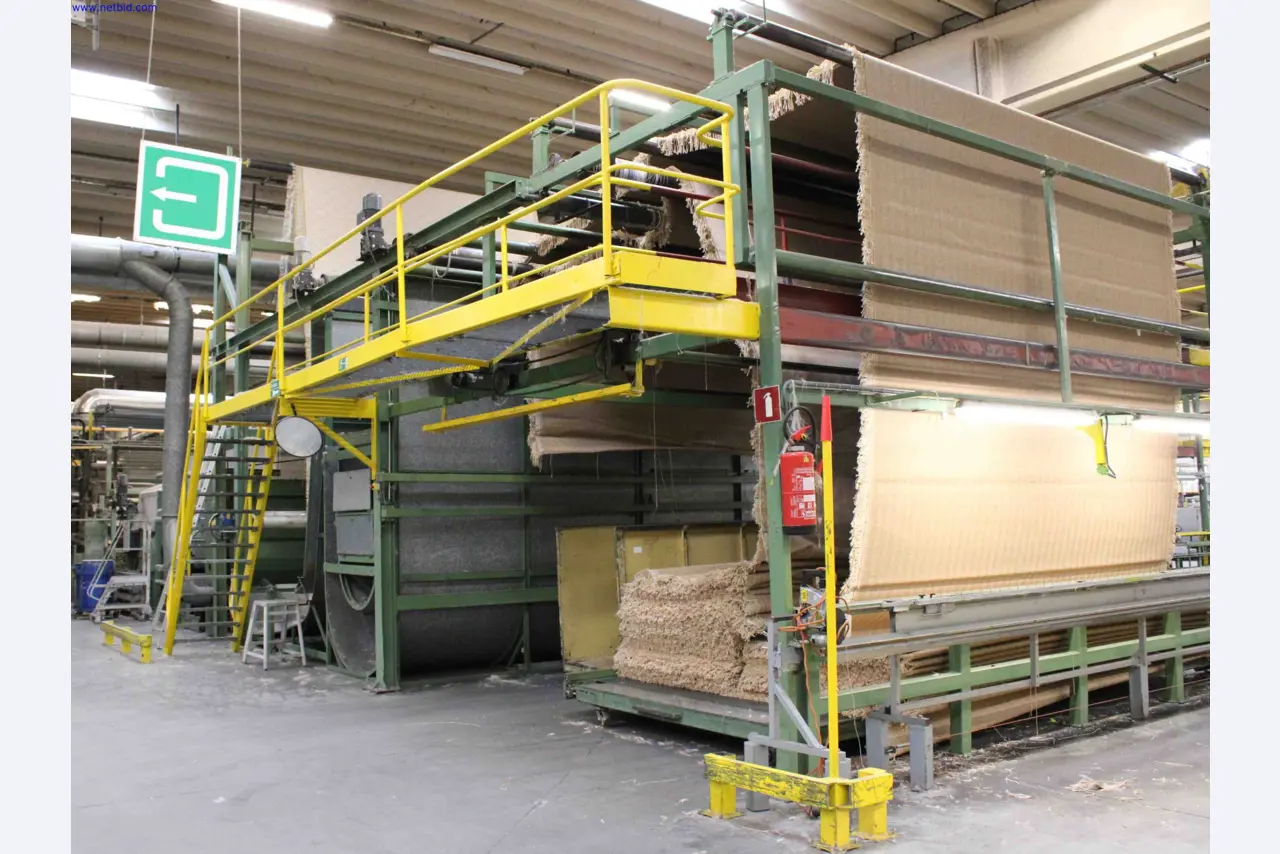

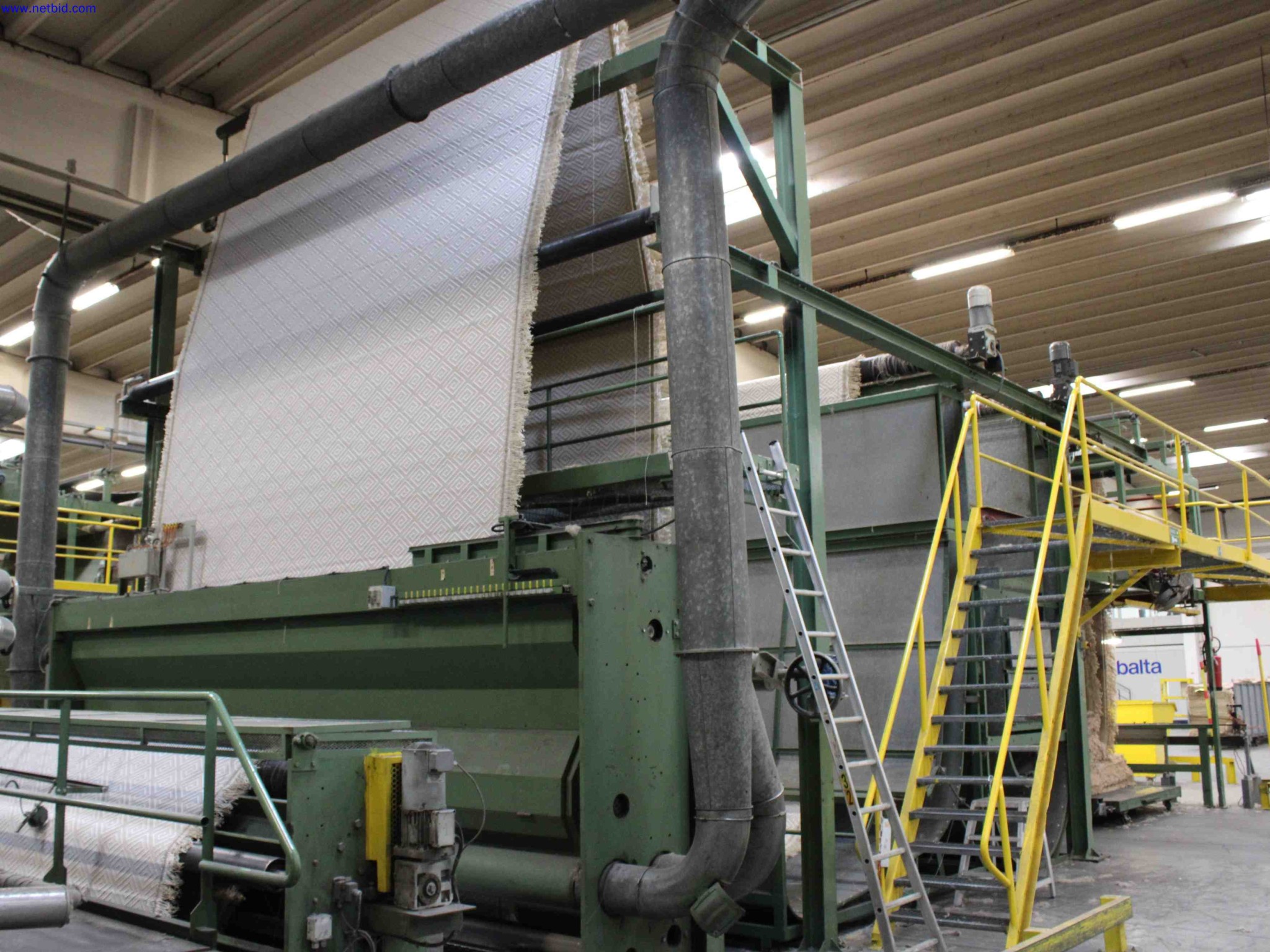

Complete carpet finishing (‘Appret’) line including unwinding, pile preparation, latex back coating, secondary backing lamination, drying/curing oven, cooling, trimming, inspection, and winding
SBV appret2
General
Maximum carpet width: 5 m
Entry zone width: 5.6 m
Oven width: 5.6 m
Shearing width: 5.4 m
Length cutting width: 5.1 m

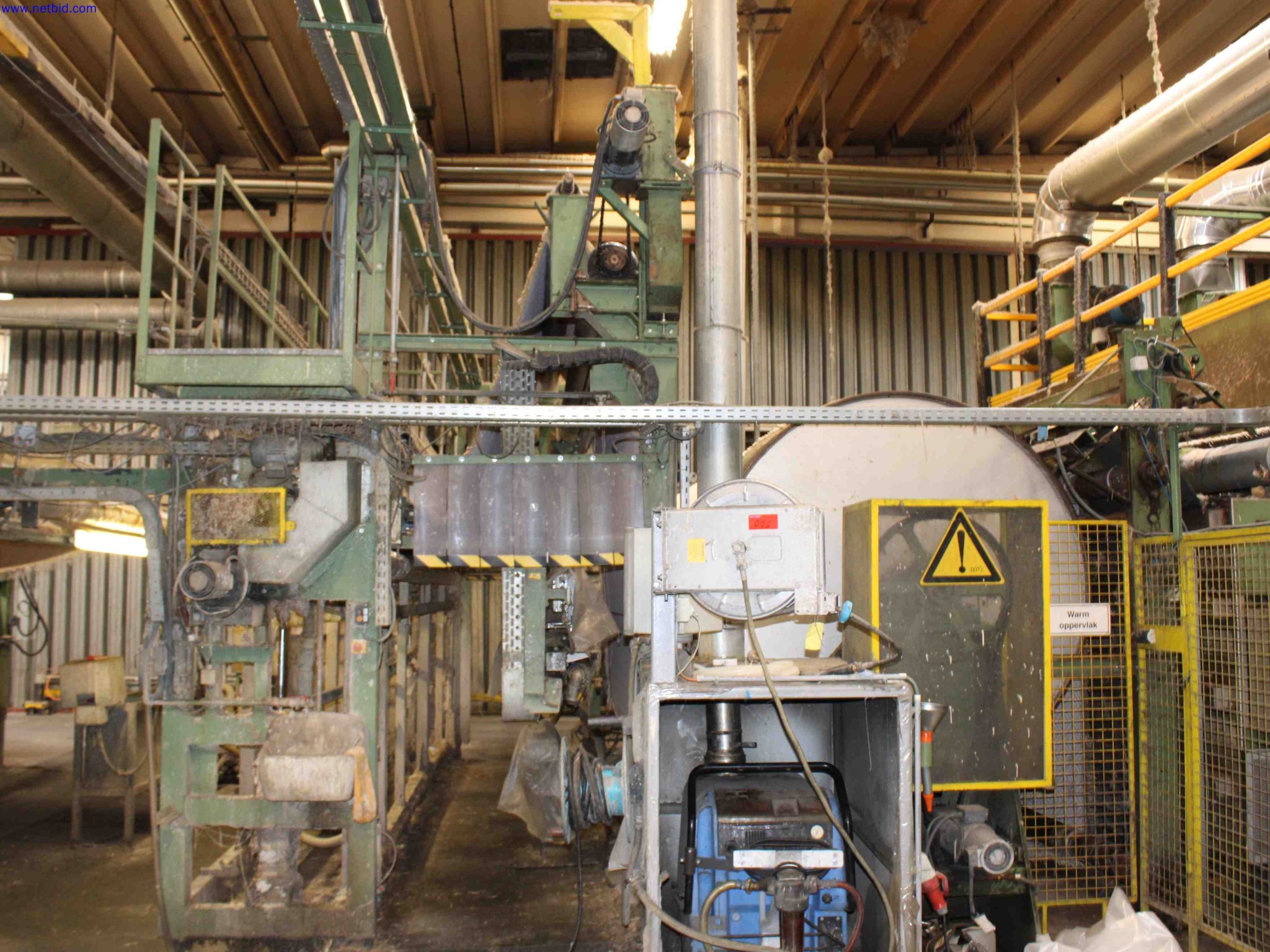

Entry Zone
Carpet alignment: vertical / manually centered
Cleaning: pile & backing side
Pre-steaming: pile & backing side

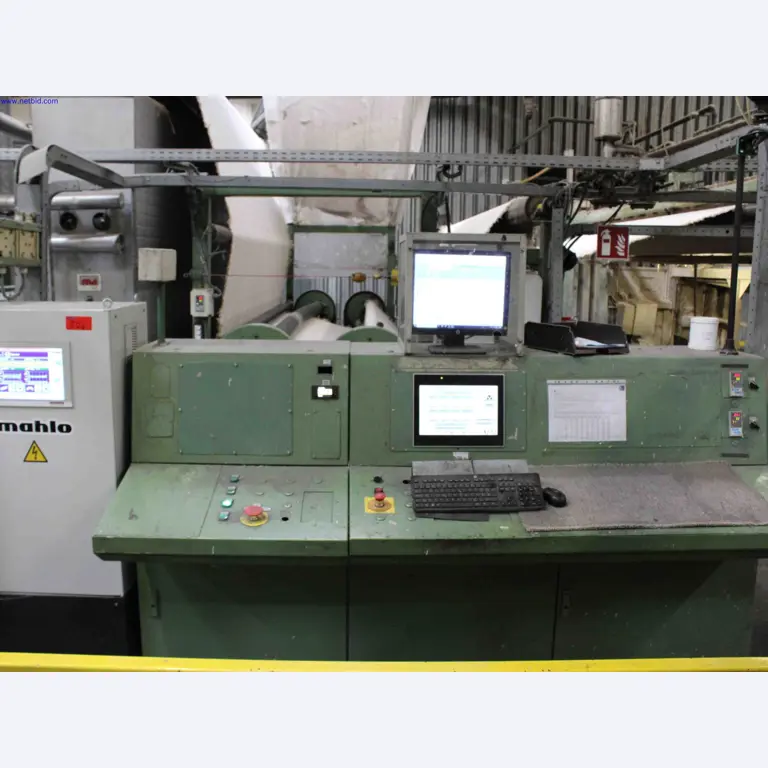

Weft straighteners: Menzel & Mahlo
Latex application: yes
Width measuring system at entry: detection system
Latex application roller: Ø 260 mm
Edge scraping: yes
Latex circulation (chalk): yes
Air-knife: no
Vinamull application: yes (semi-automatic)

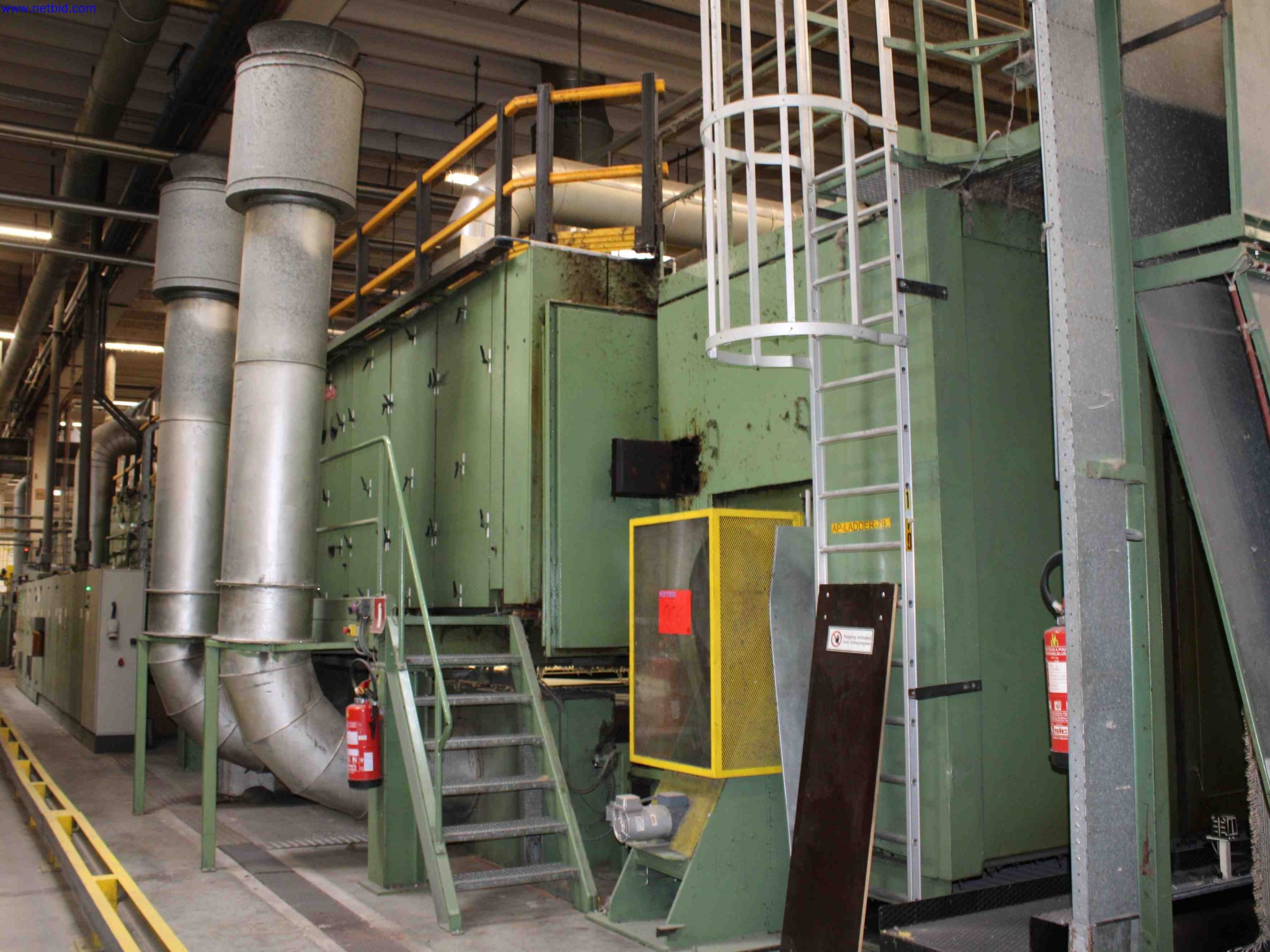

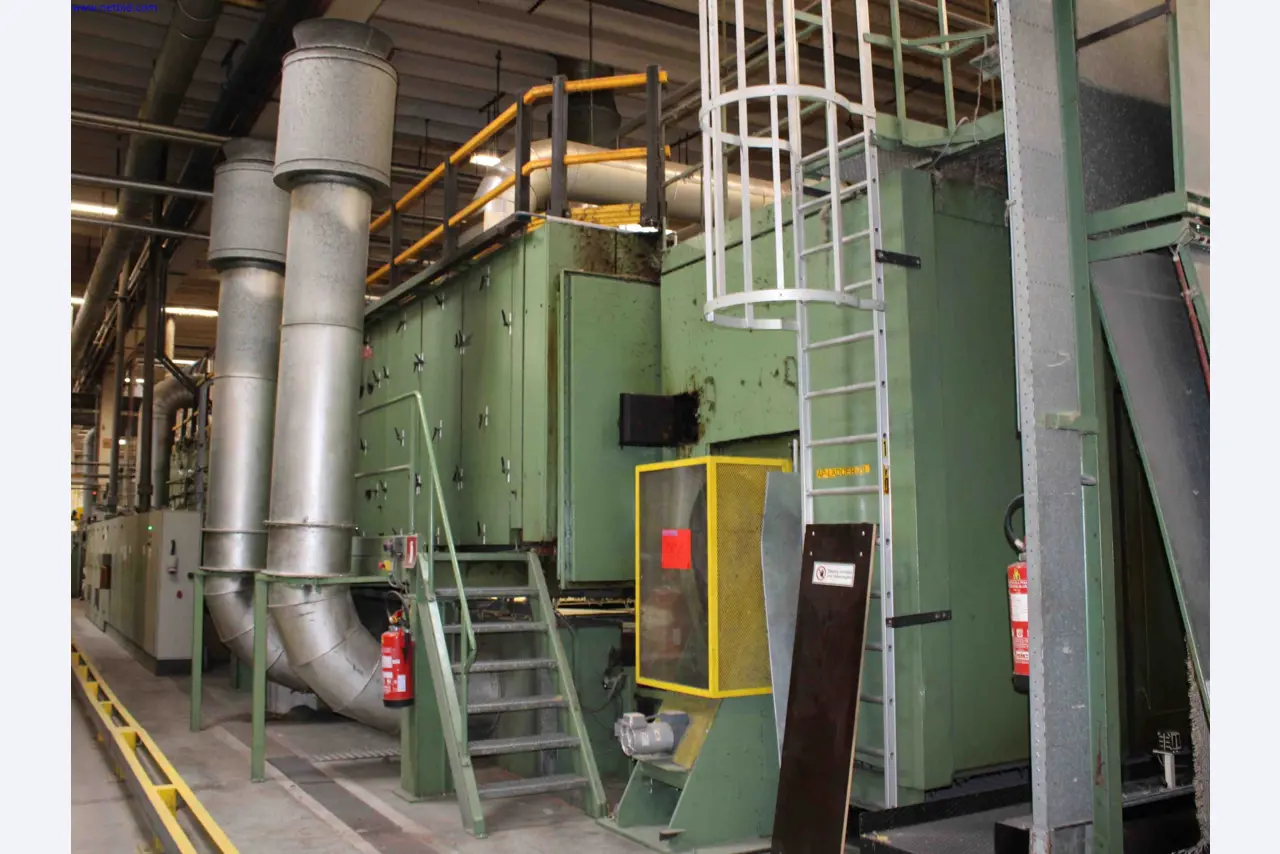

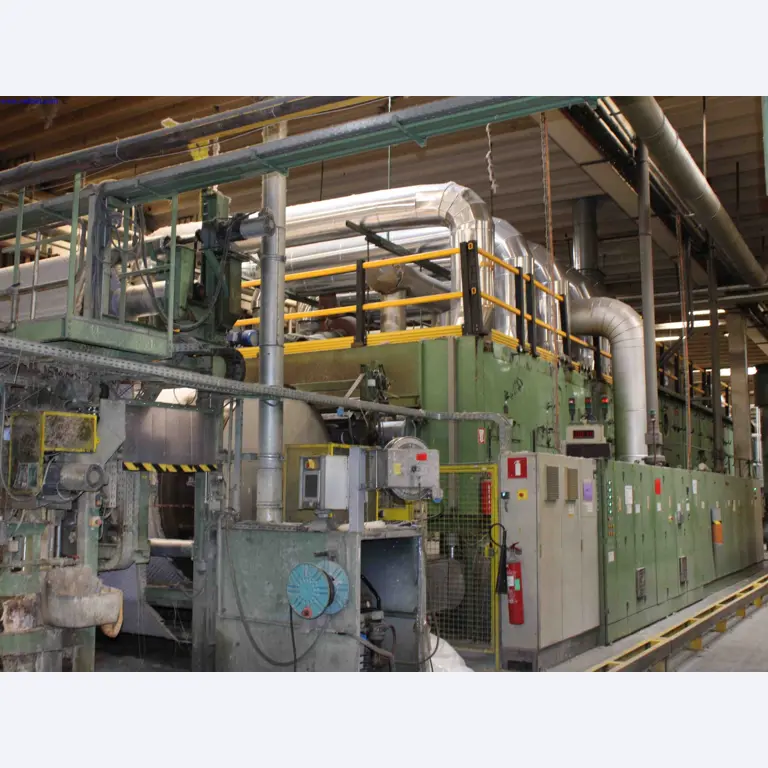

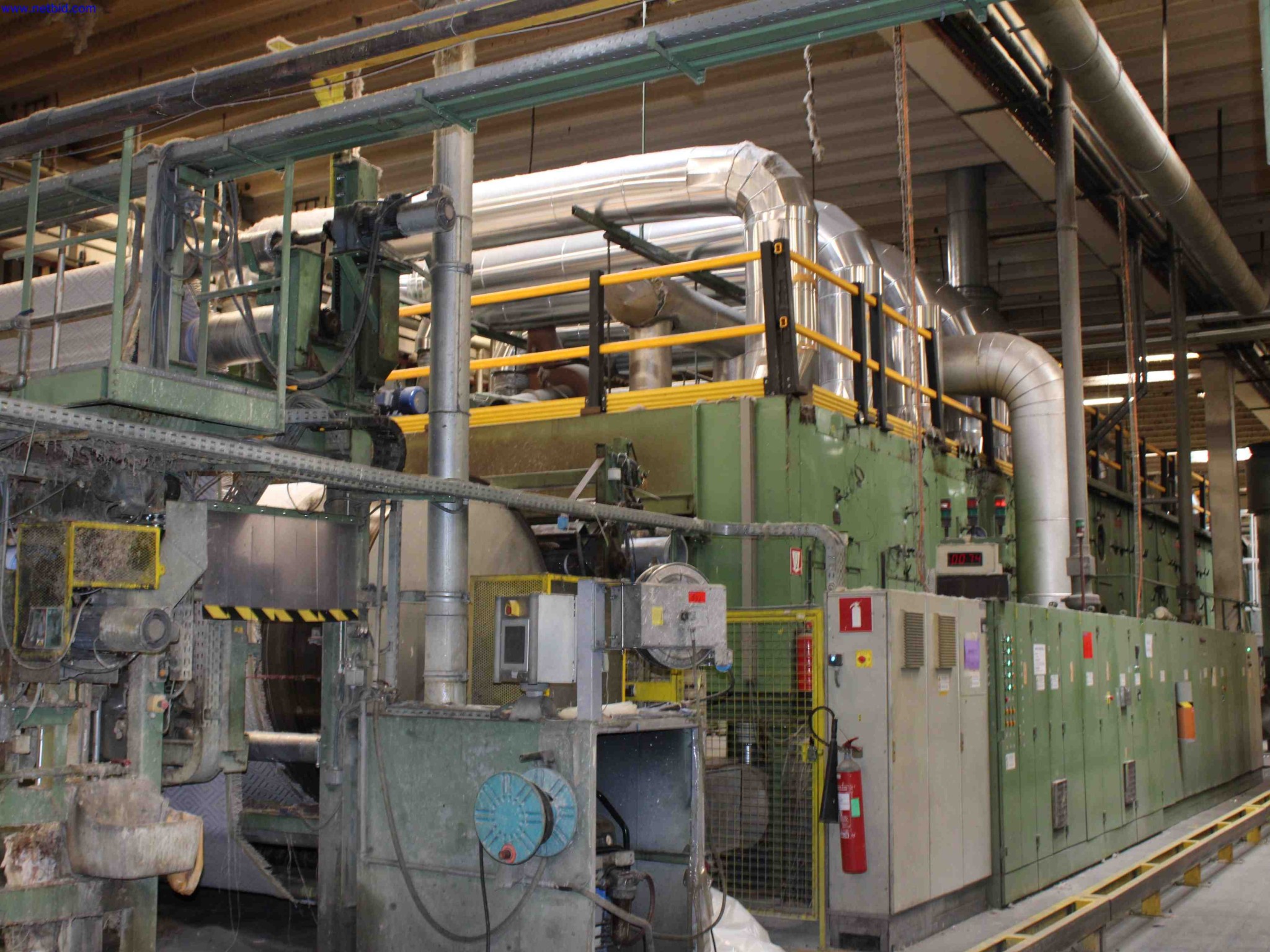

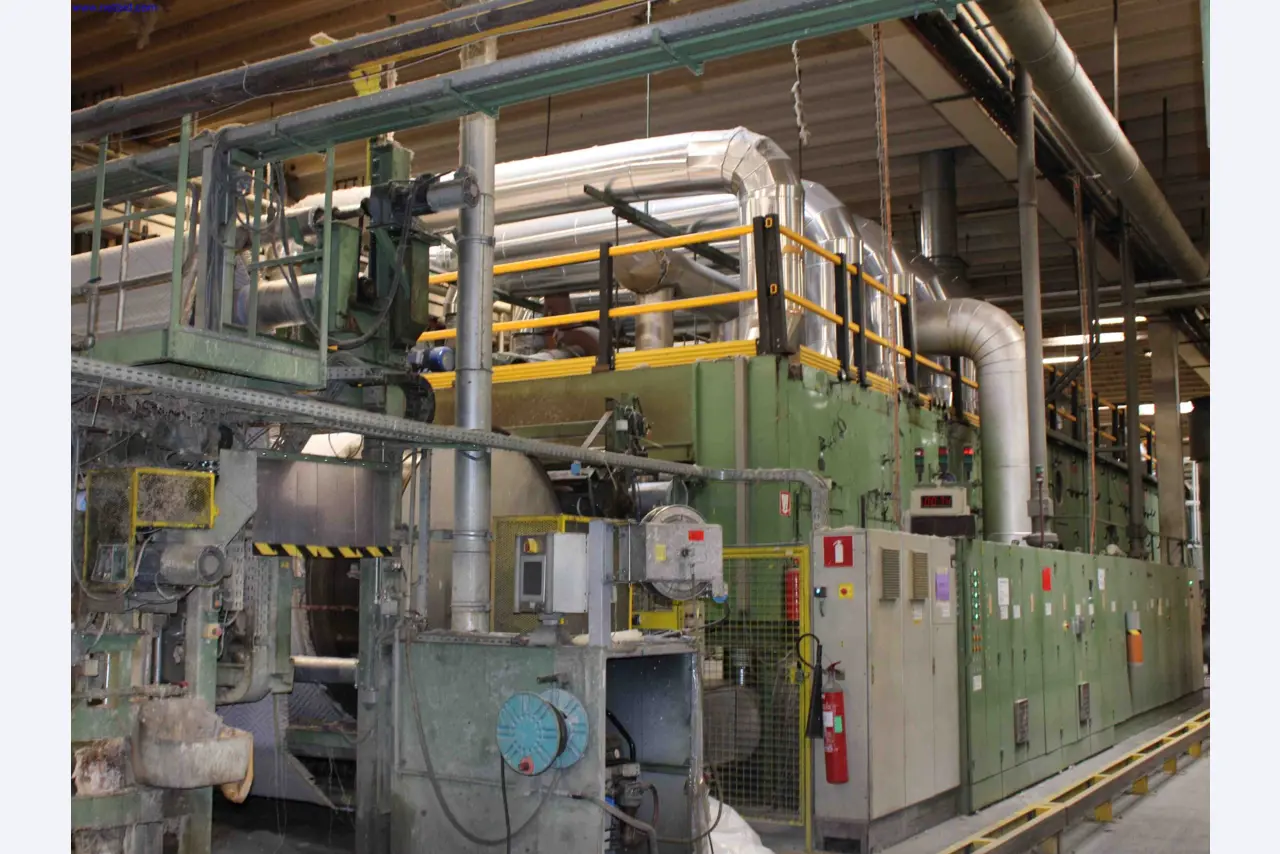

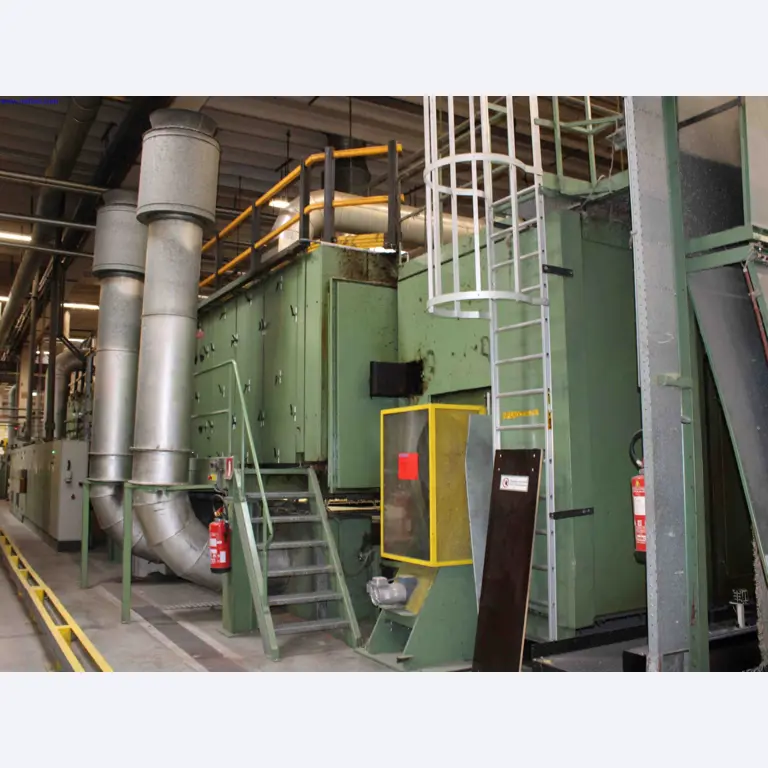

Oven
Length: 20 m
IR heaters before oven: gas / out of service
Steam drum at entry: yes
Heating fields:
Pile side: 8
Back side: 8
Temperature control:
Pile side: yes
Back side: yes
Fan speed:
Pile side: mechanically adjustable
Back side: mechanically adjustable
Nozzle type:
Pile side: both
Back side: round

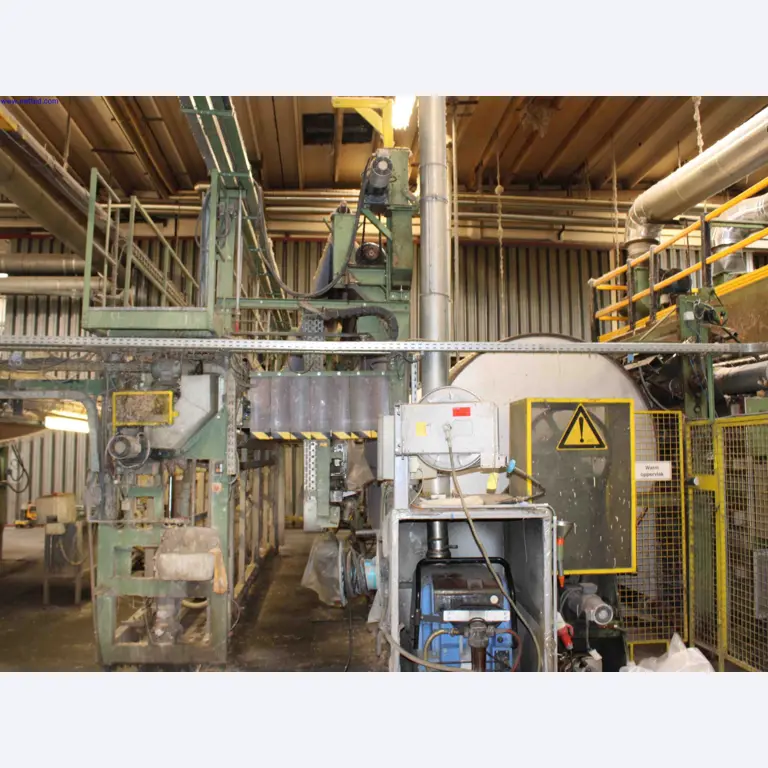

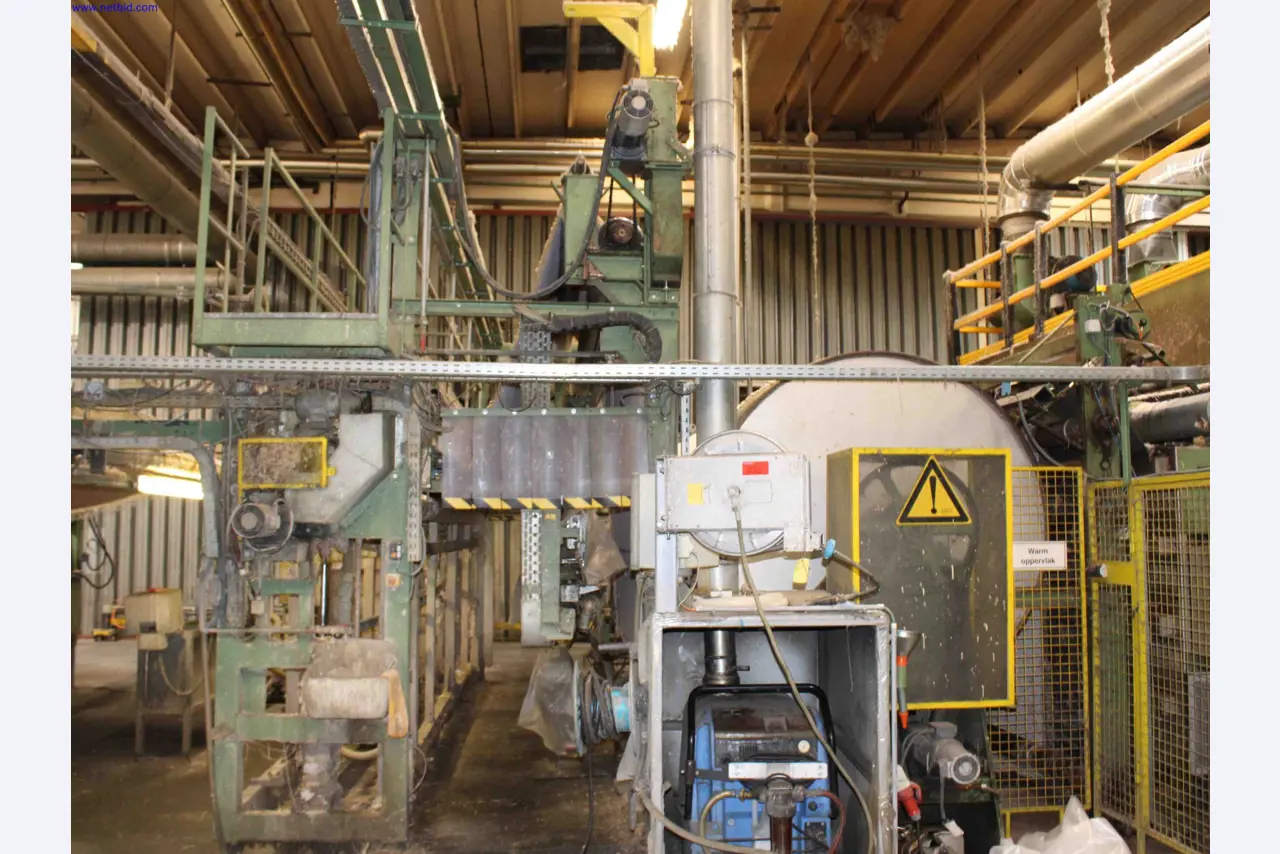

Heating type: gas burners
Steam drum at outlet: yes
IR heating at outlet: no
Cooling
Cooling under the oven: back side
Number of cooling fields: 4 pcs
Speeds
Maximum electrical speed (latex): 14 m/min
Maximum electrical speed (shearing): 14 m/min (transport only)
Maximum mechanical speed: 14 m/min

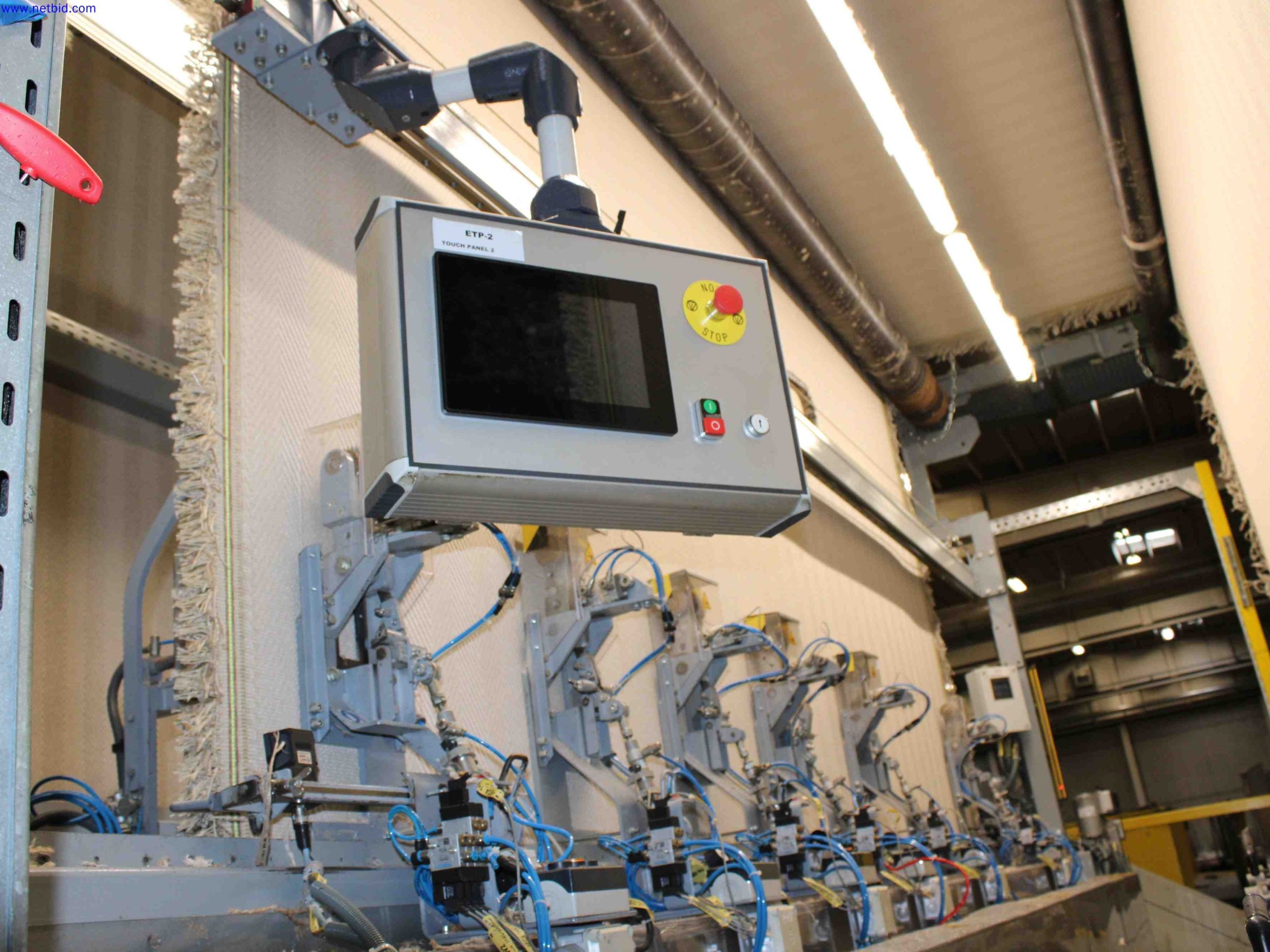

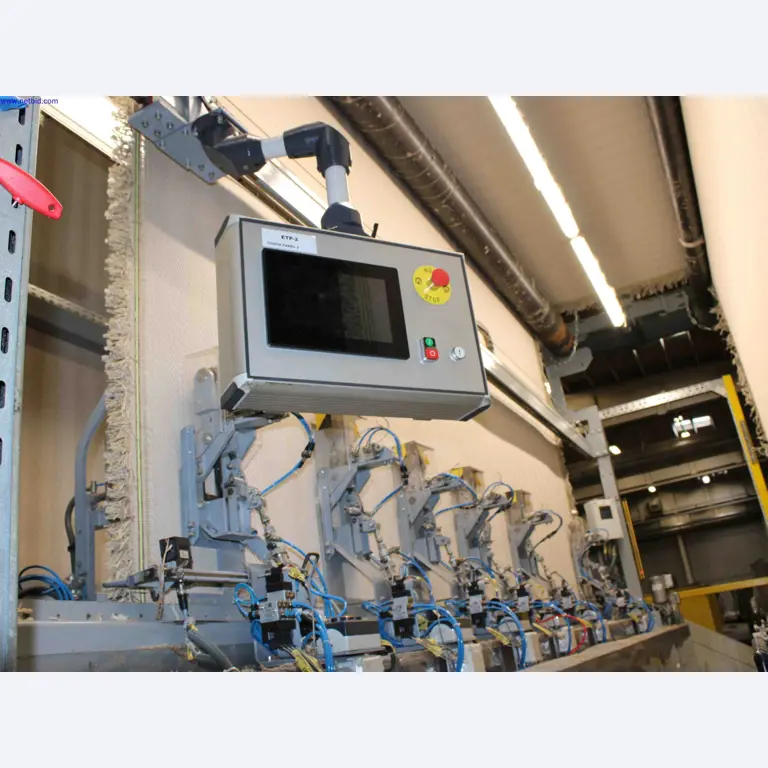

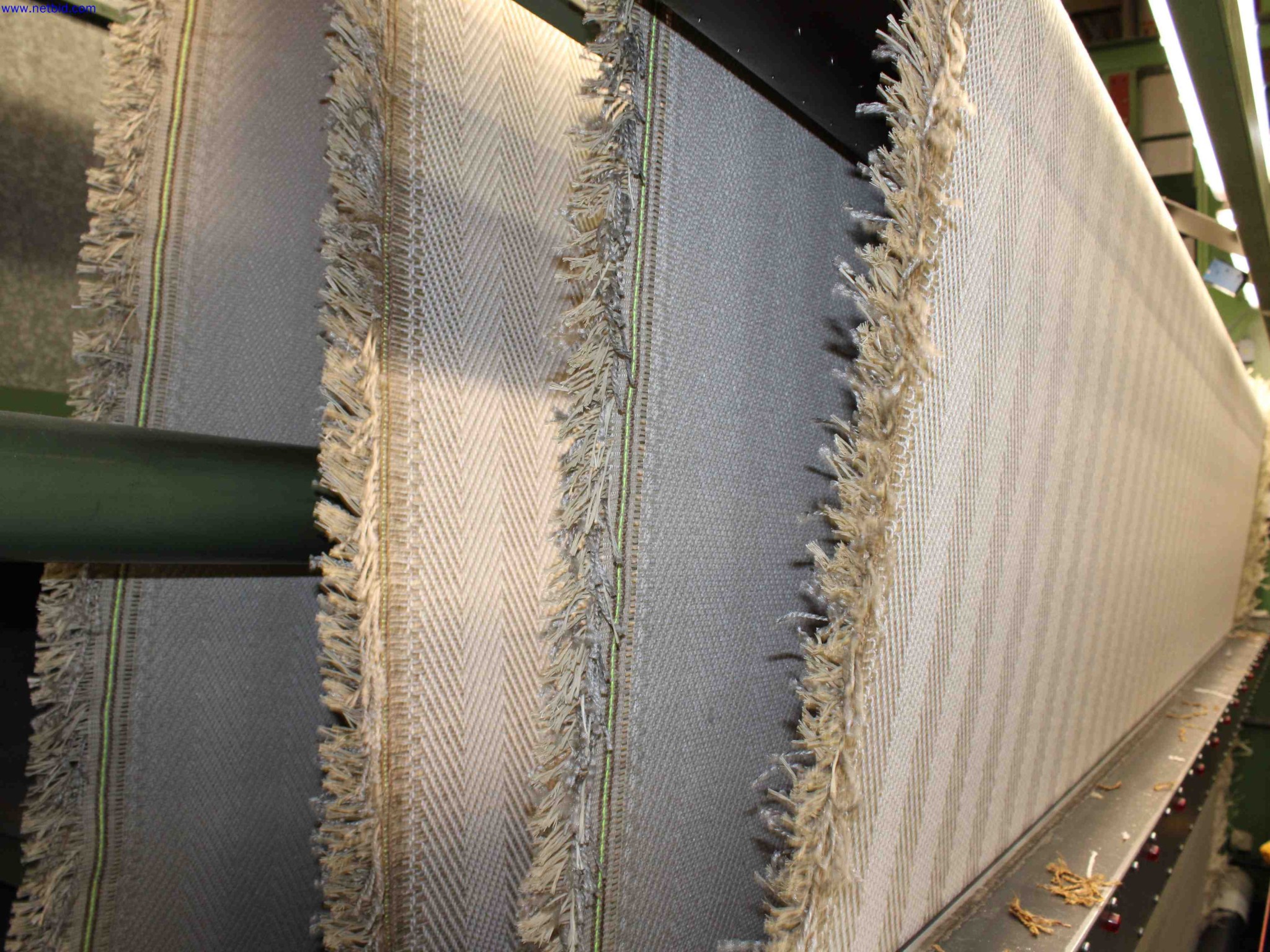

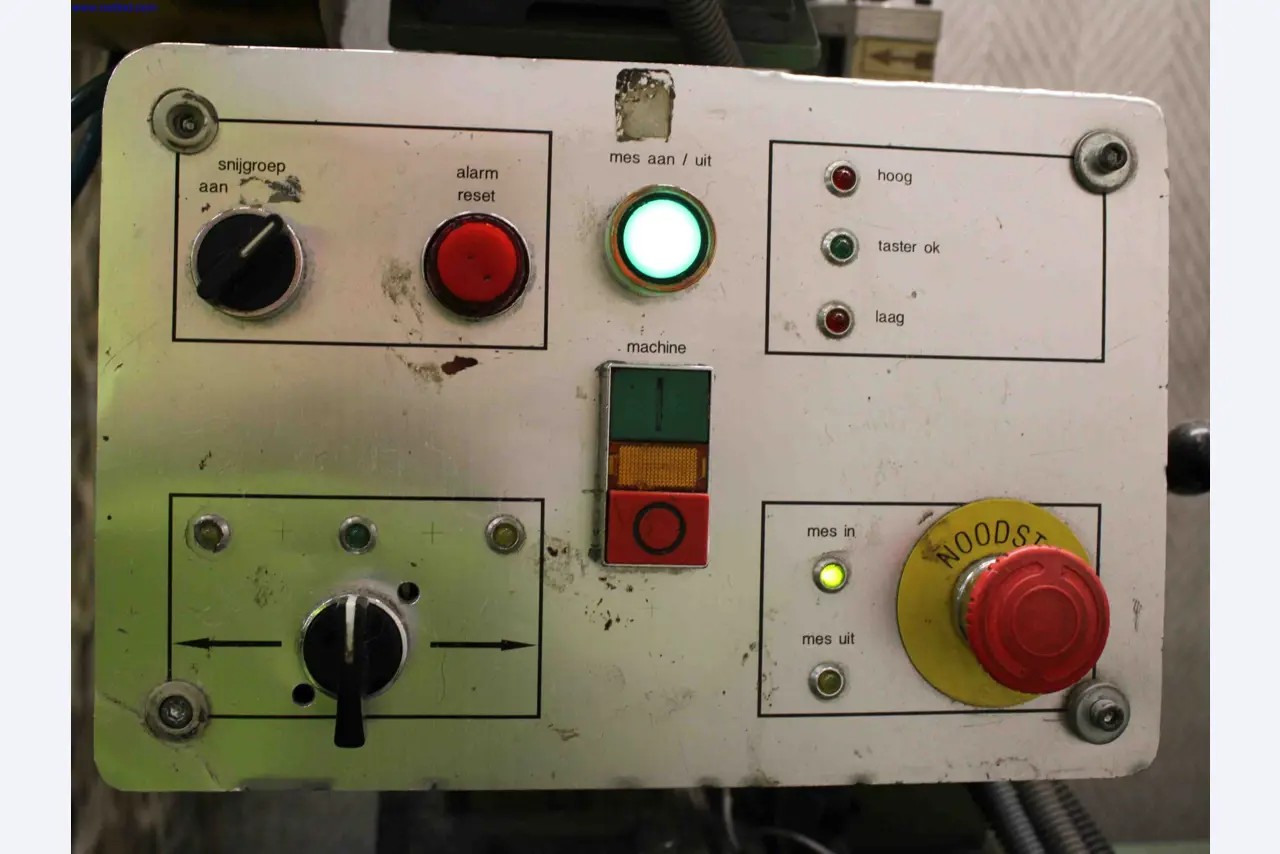

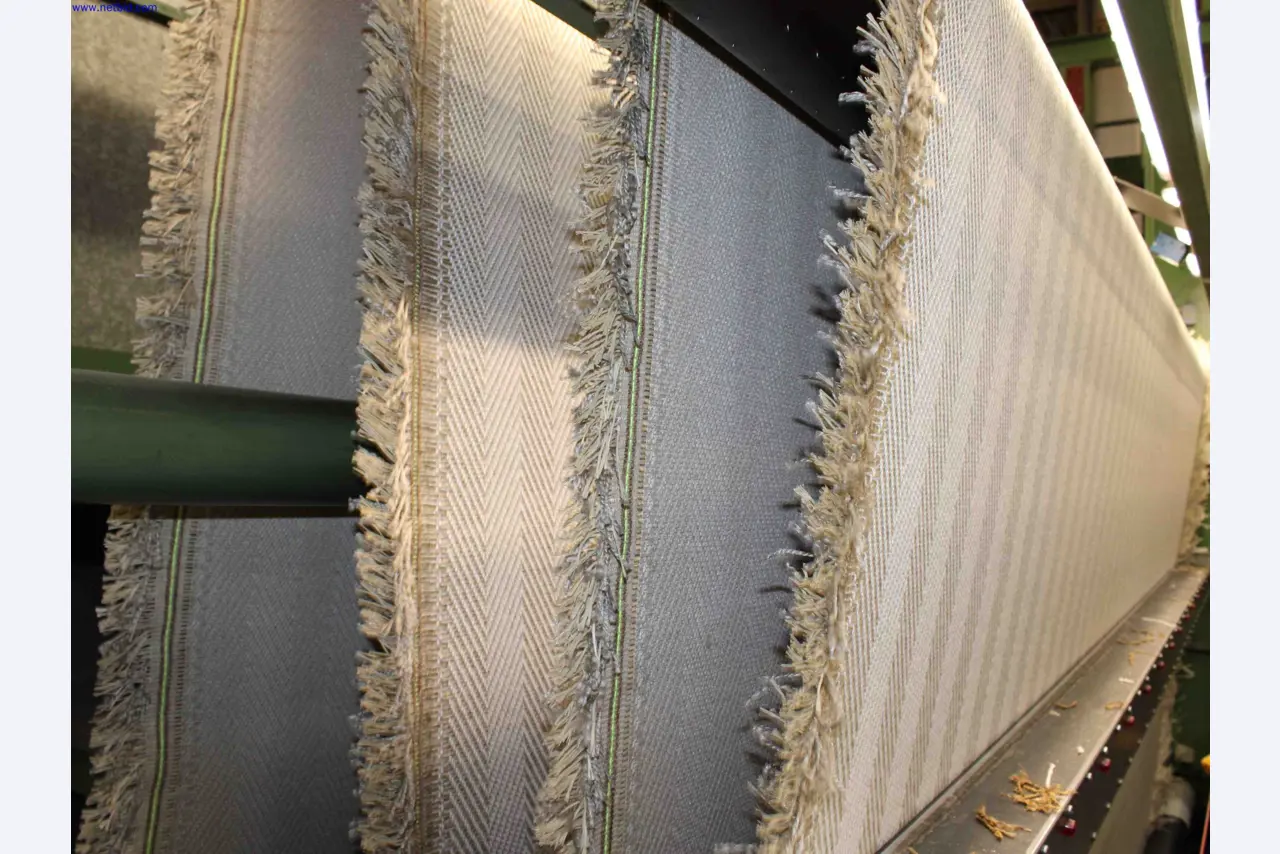

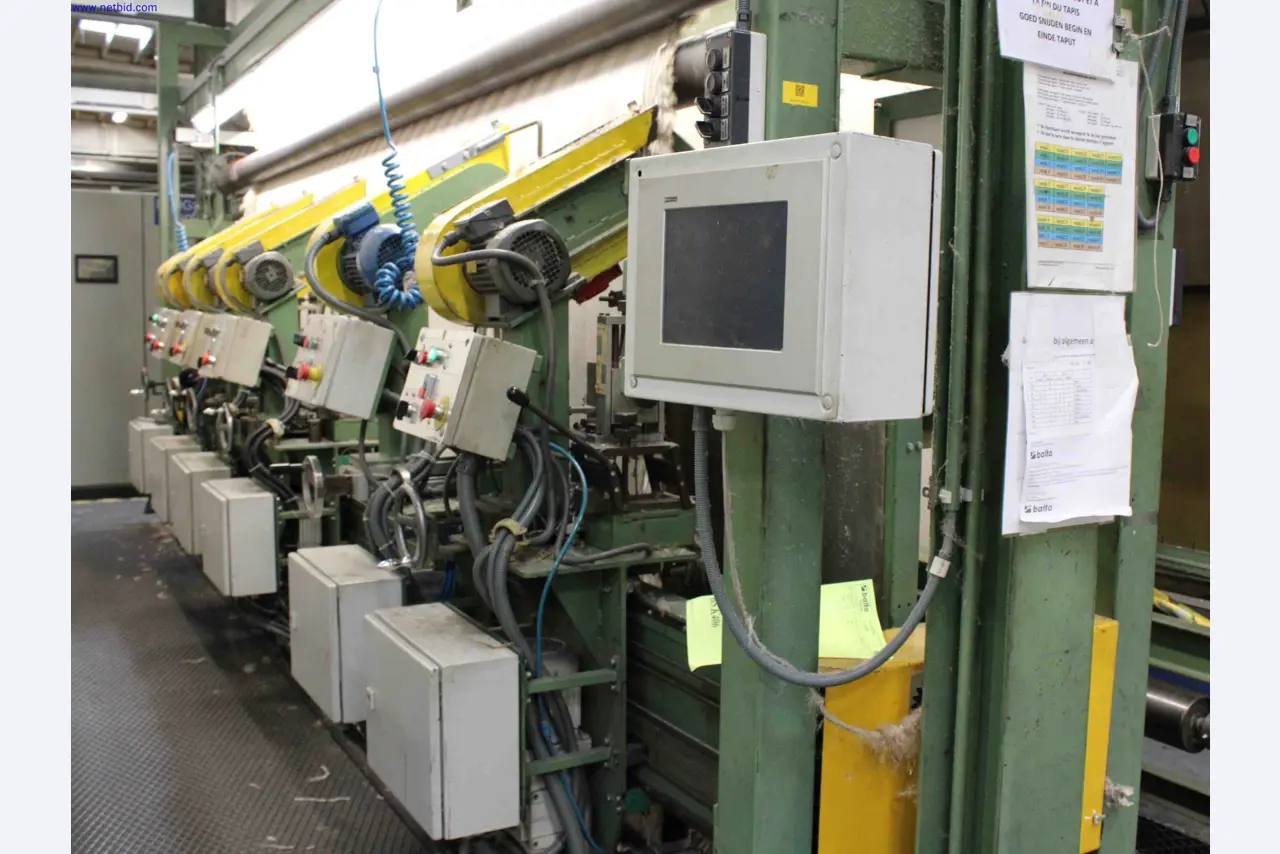

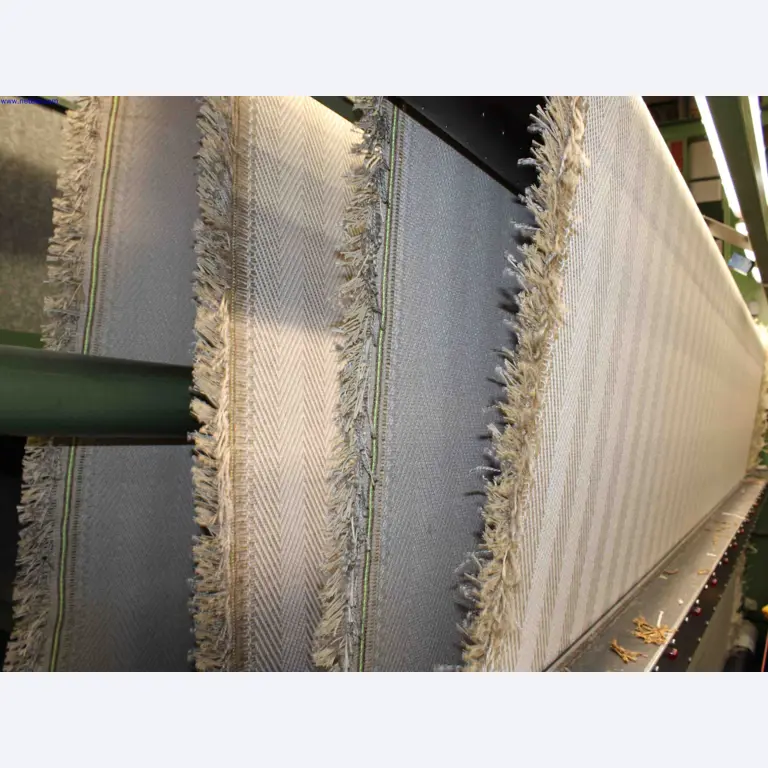

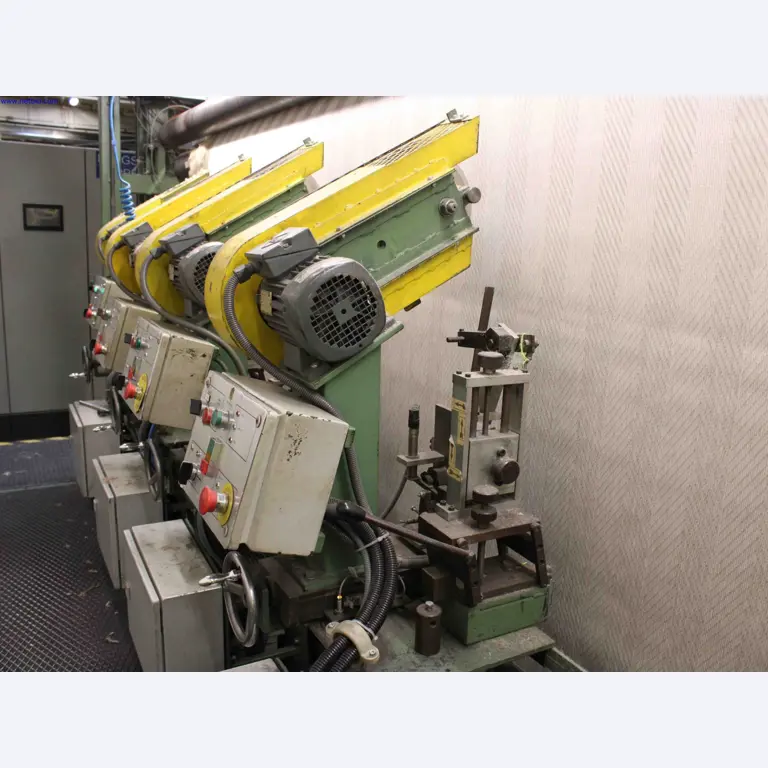

Length Cutting 1
Carpet width: 4 m
Carpet alignment: vertical / side alignment
Number of knives: 6
Guiding system:
Head 1 & 6: camera + mechanical guide
Cutting type: fixed knife (double)
Dust extractor: yes
Bypass mode: yes

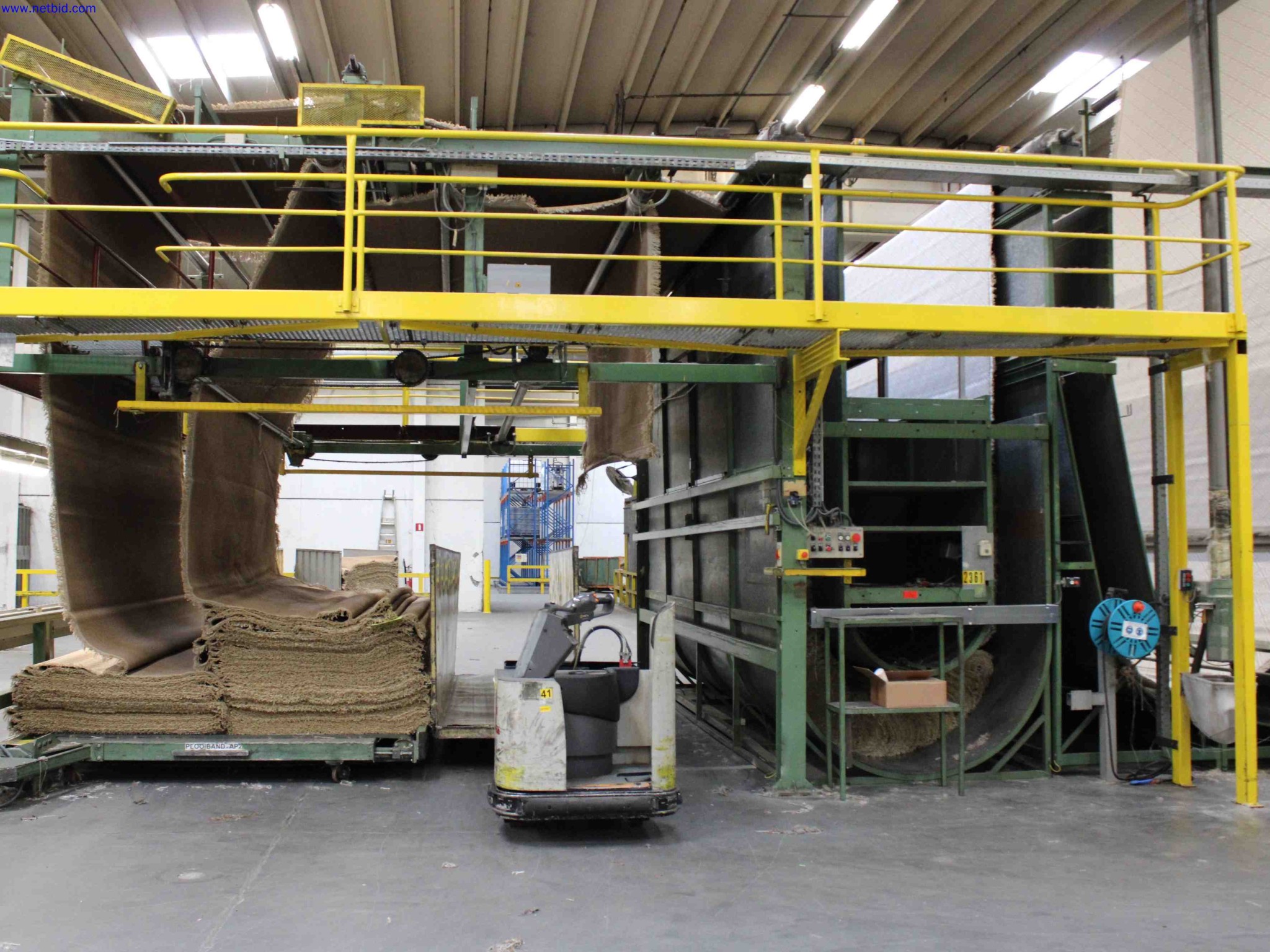

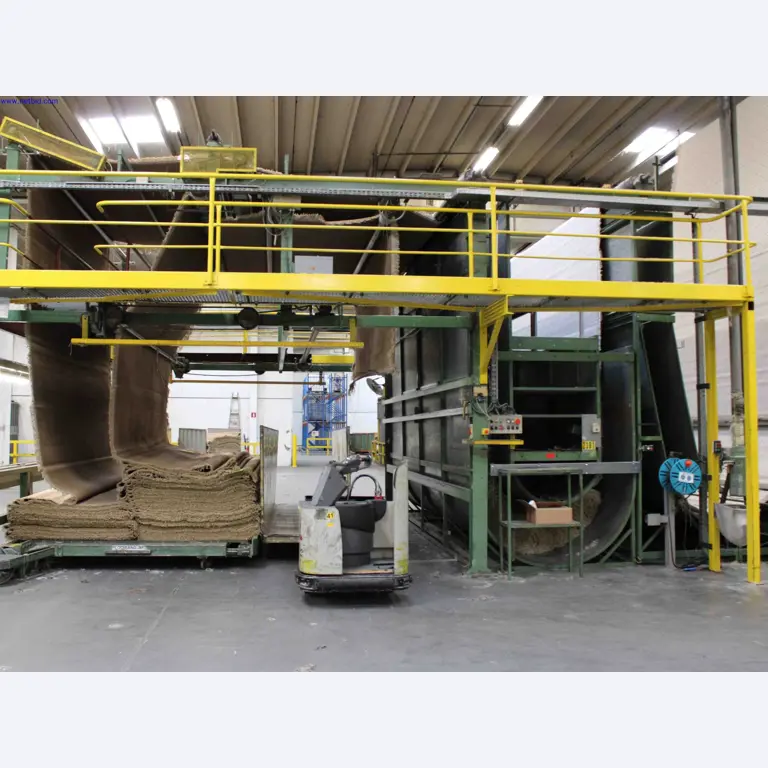

Folding system: 2

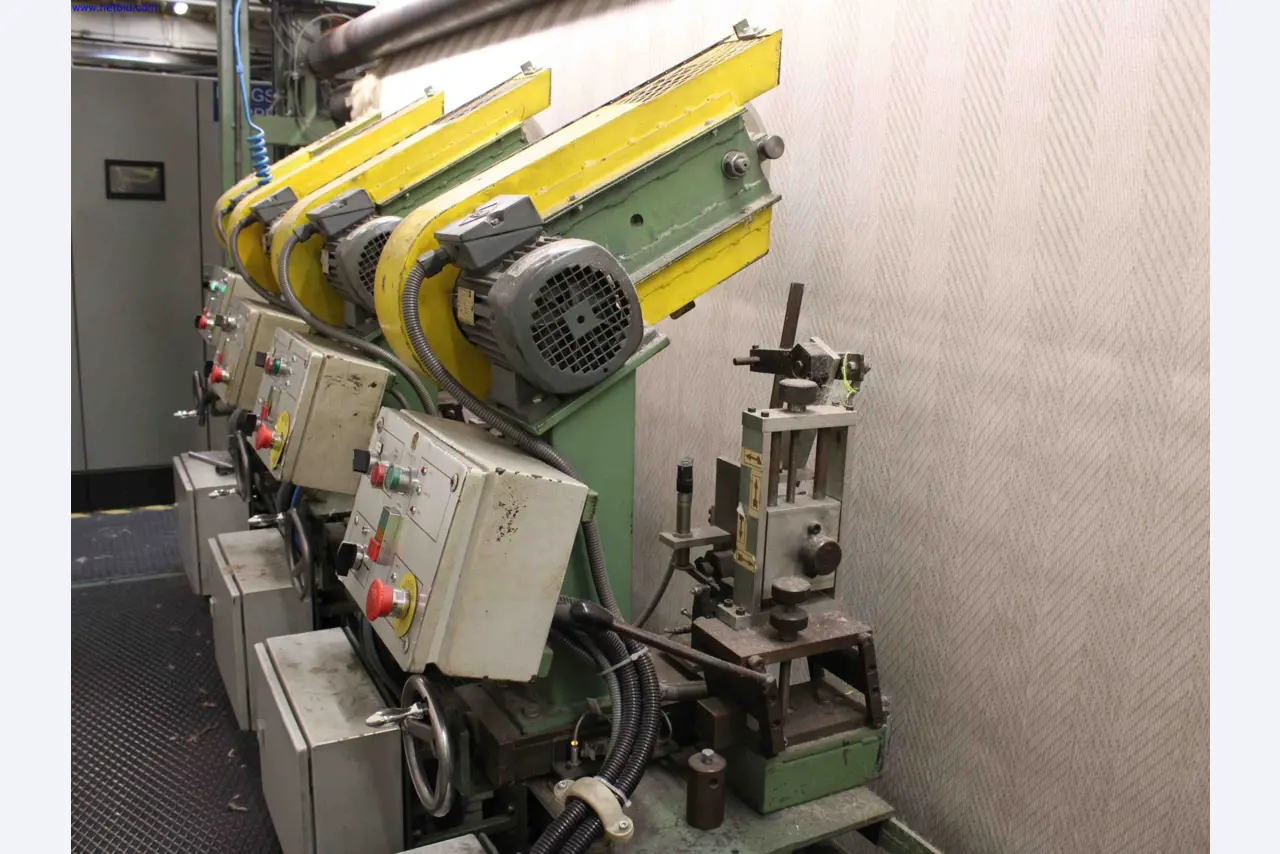

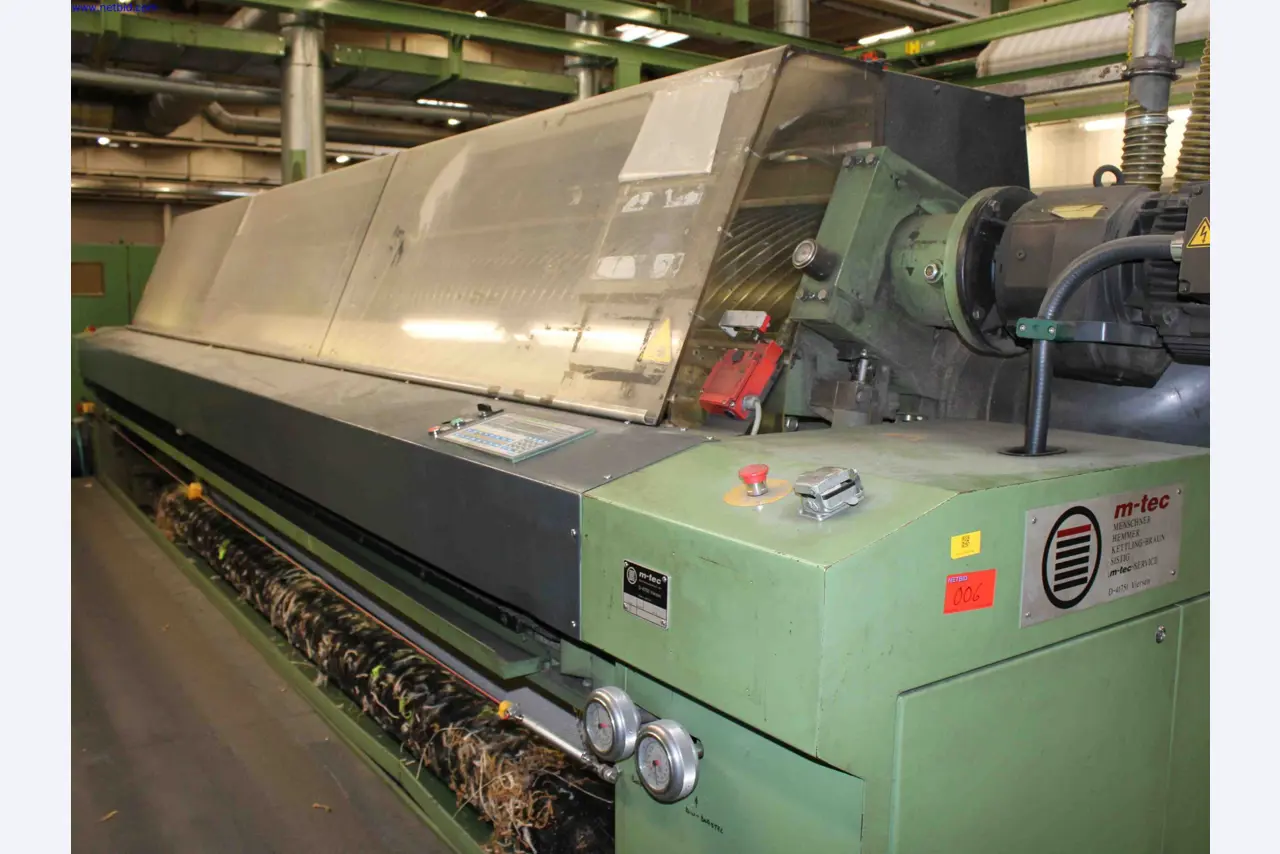

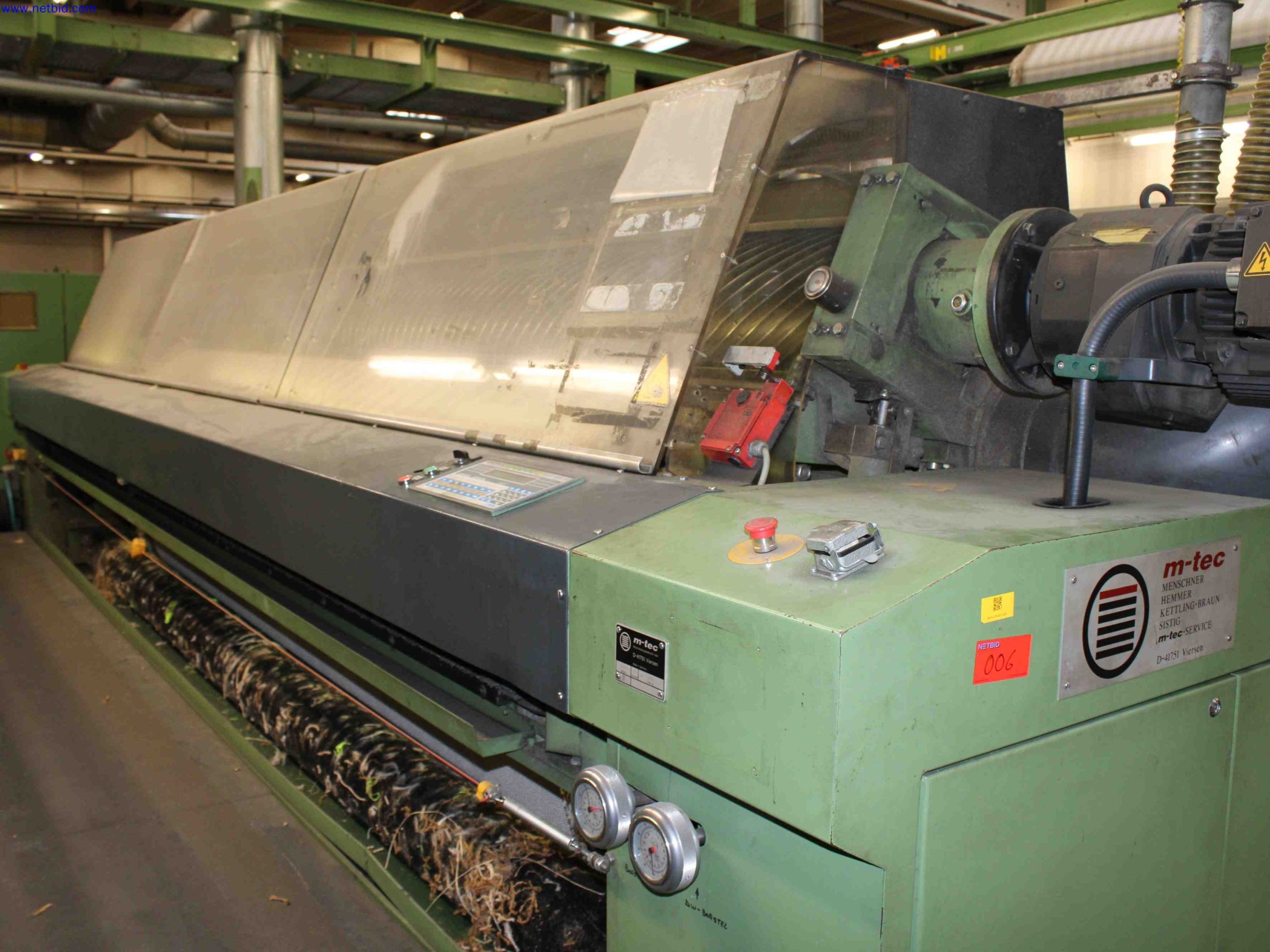

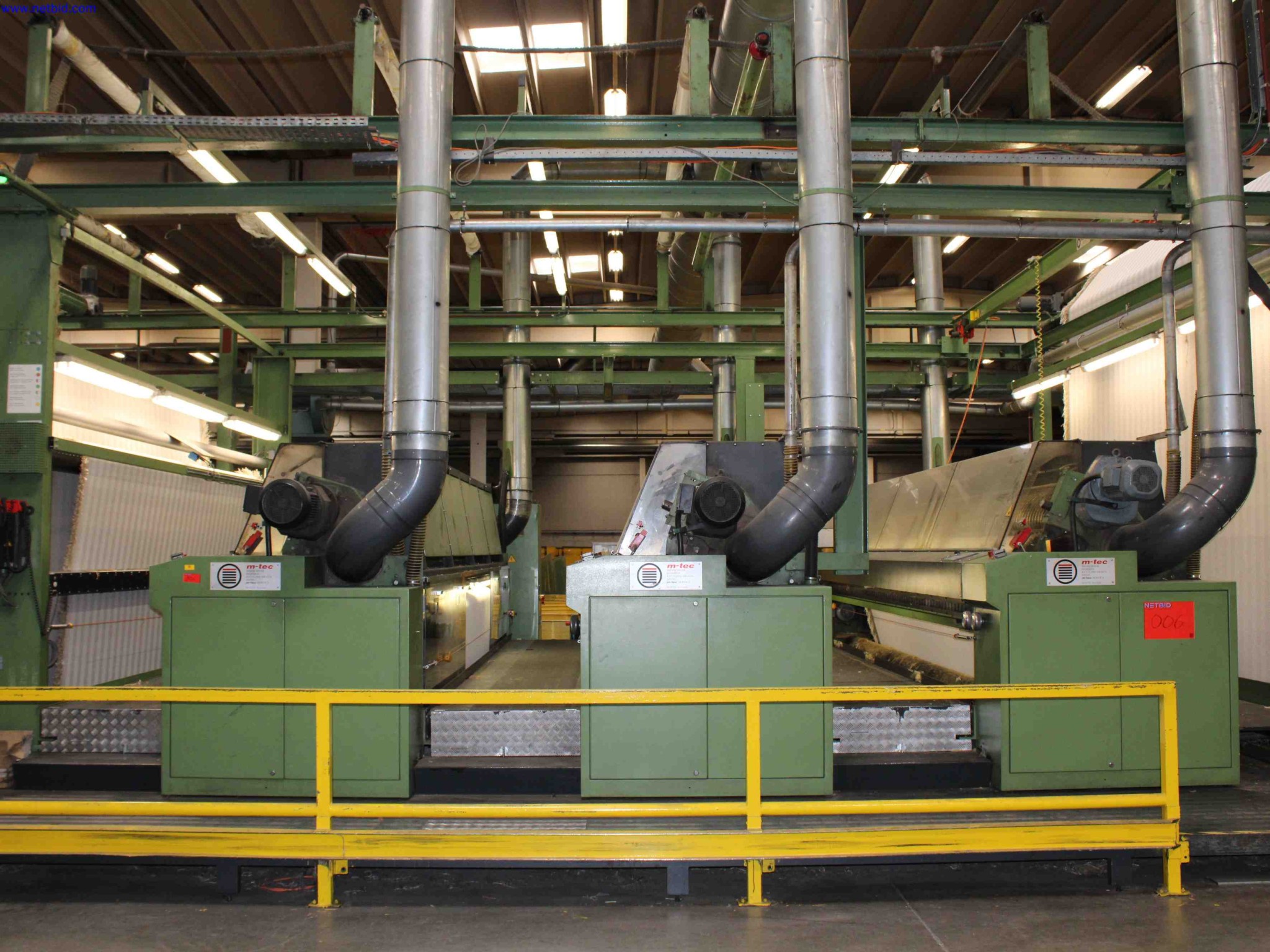

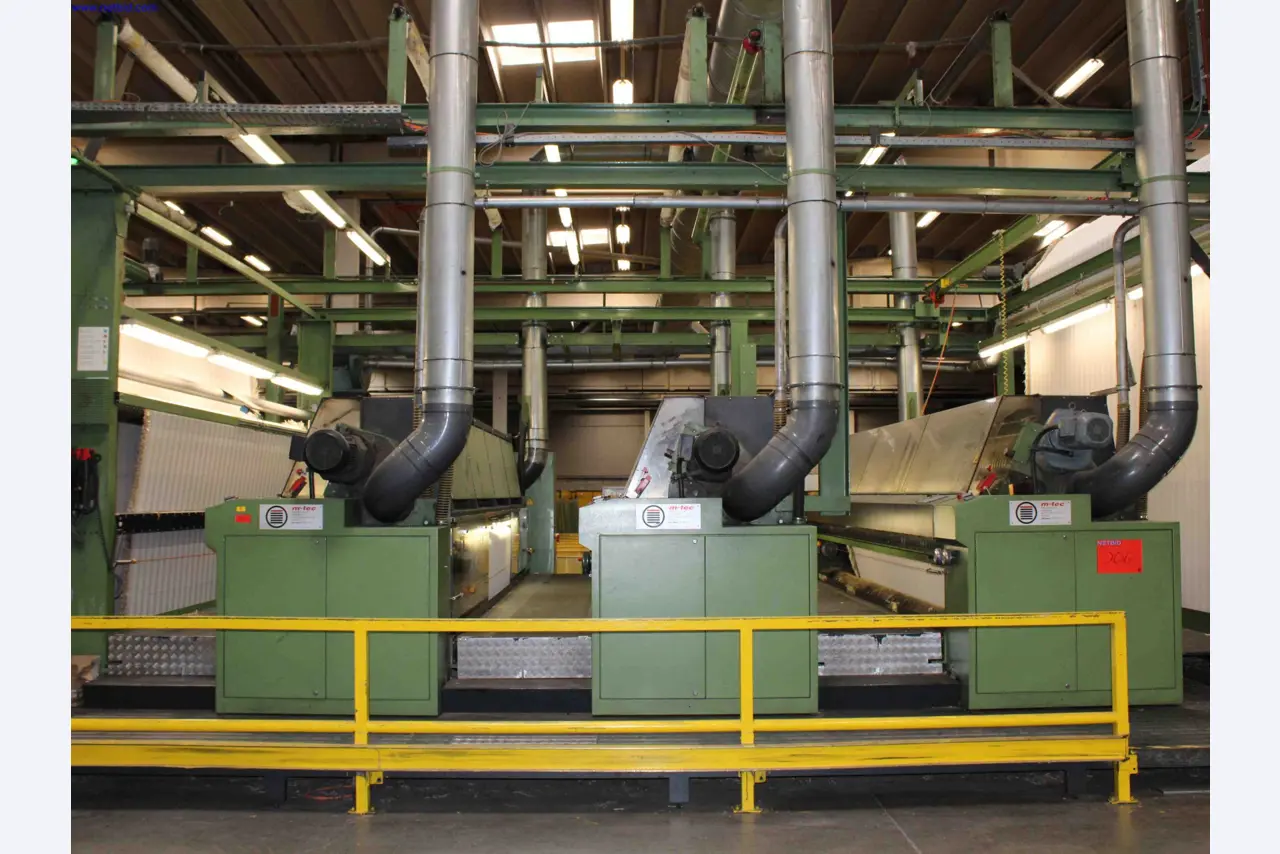

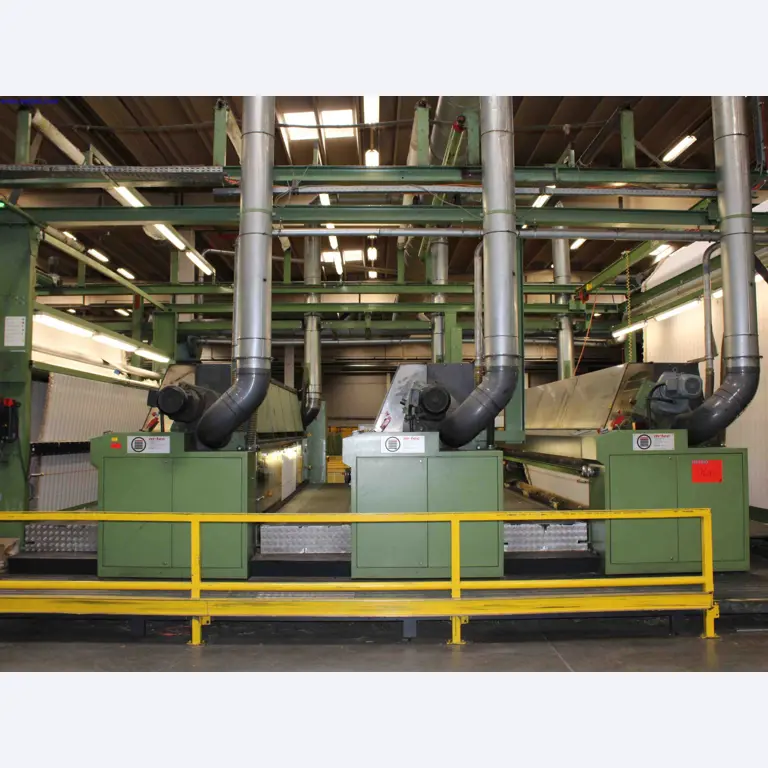

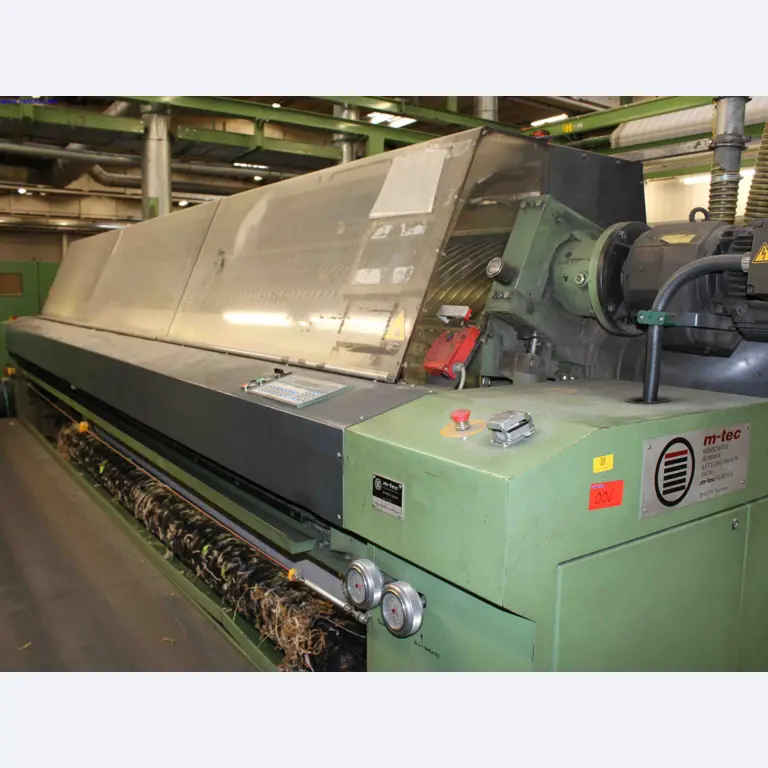

Shearing
Carpet alignment: vertical / manually centered
Metal detector: yes
Number of shearing cylinders: 3
Pile brushes:
Horizontal: 3
Round: 3

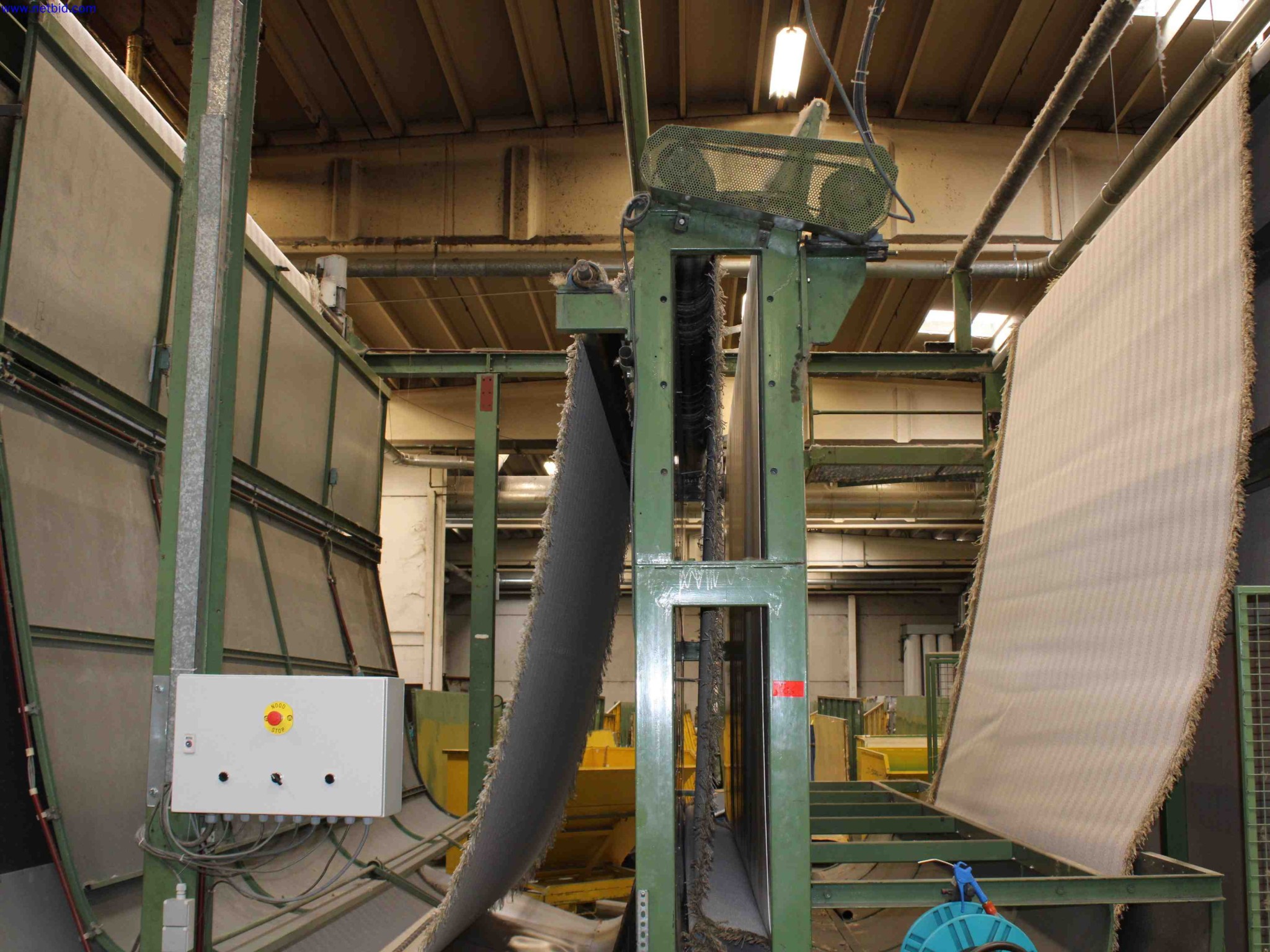

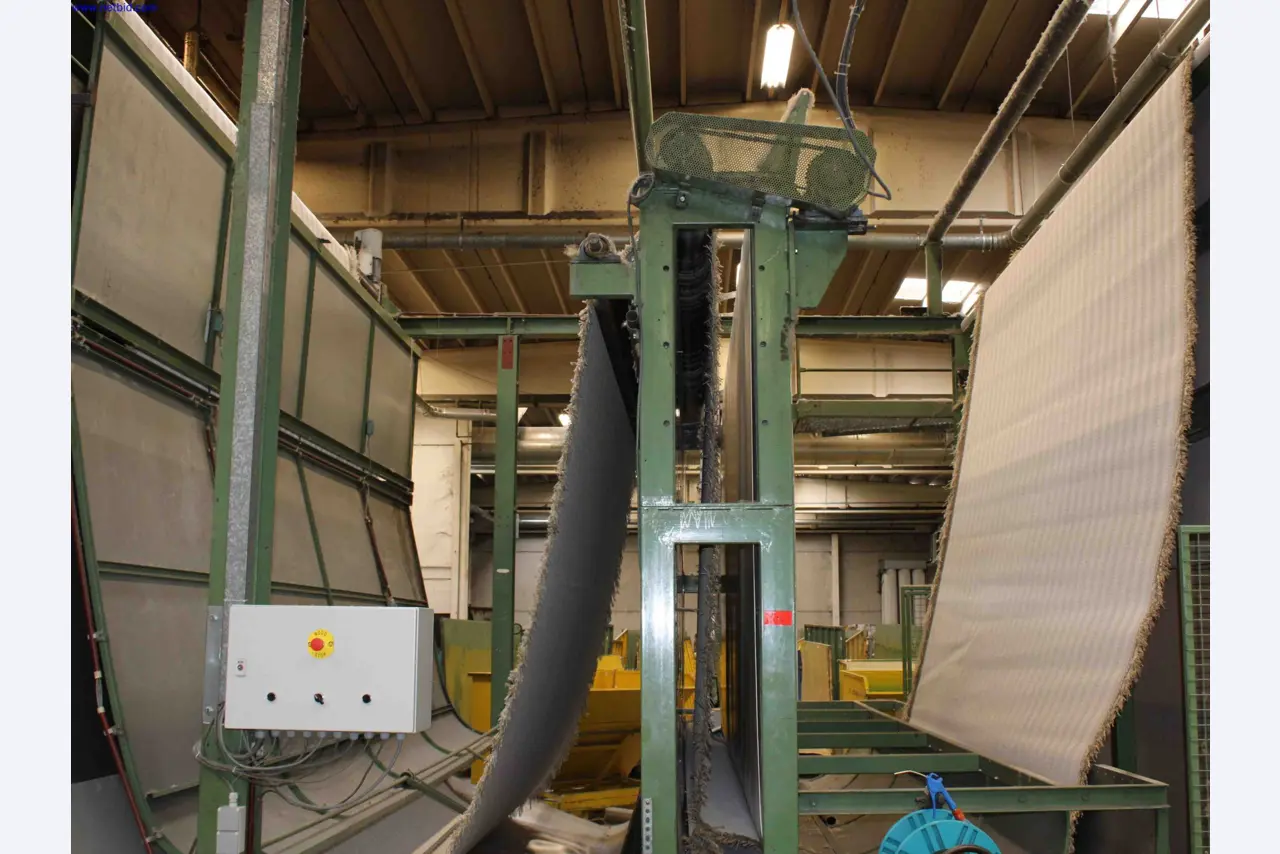

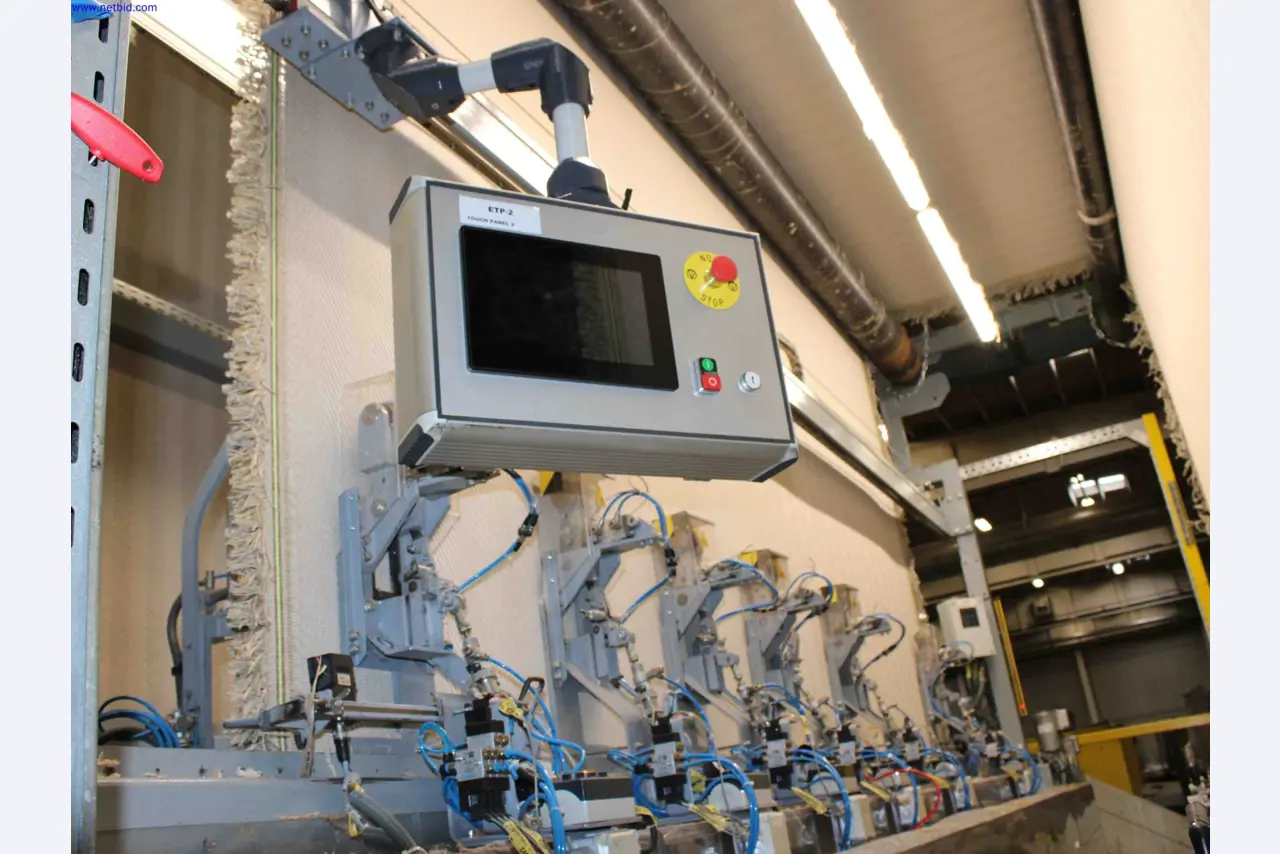

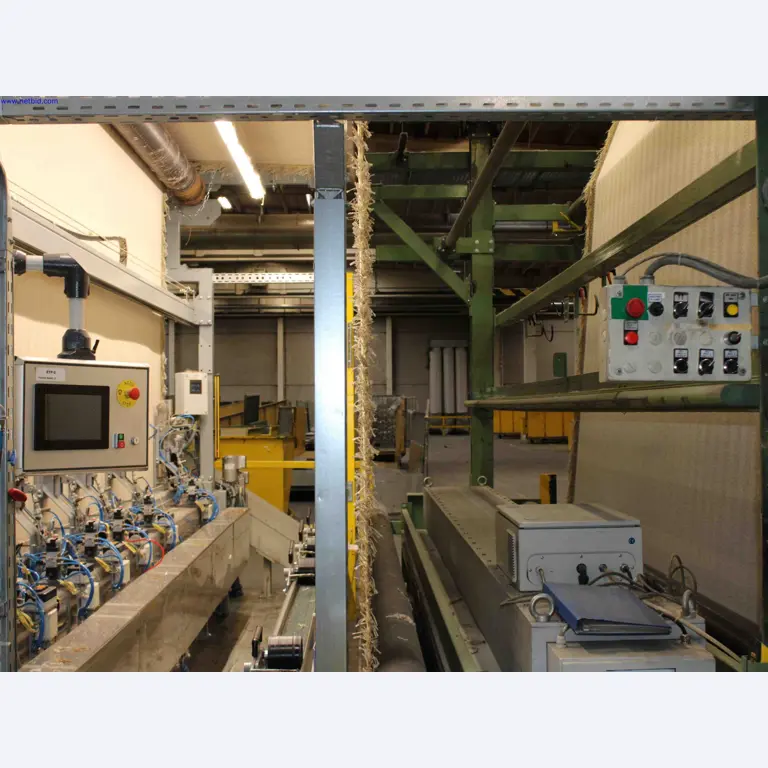

Length Cutting 2
Carpet alignment: vertical / manually centered
Number of knives: 7 (6 fixed + 1 rotating)
Guiding system:
Head 1 & 6: camera + mechanical guide
Cutting type: combined (fixed + rotating)
Folding system: 2
Floor mounted.
