Details
Product Type

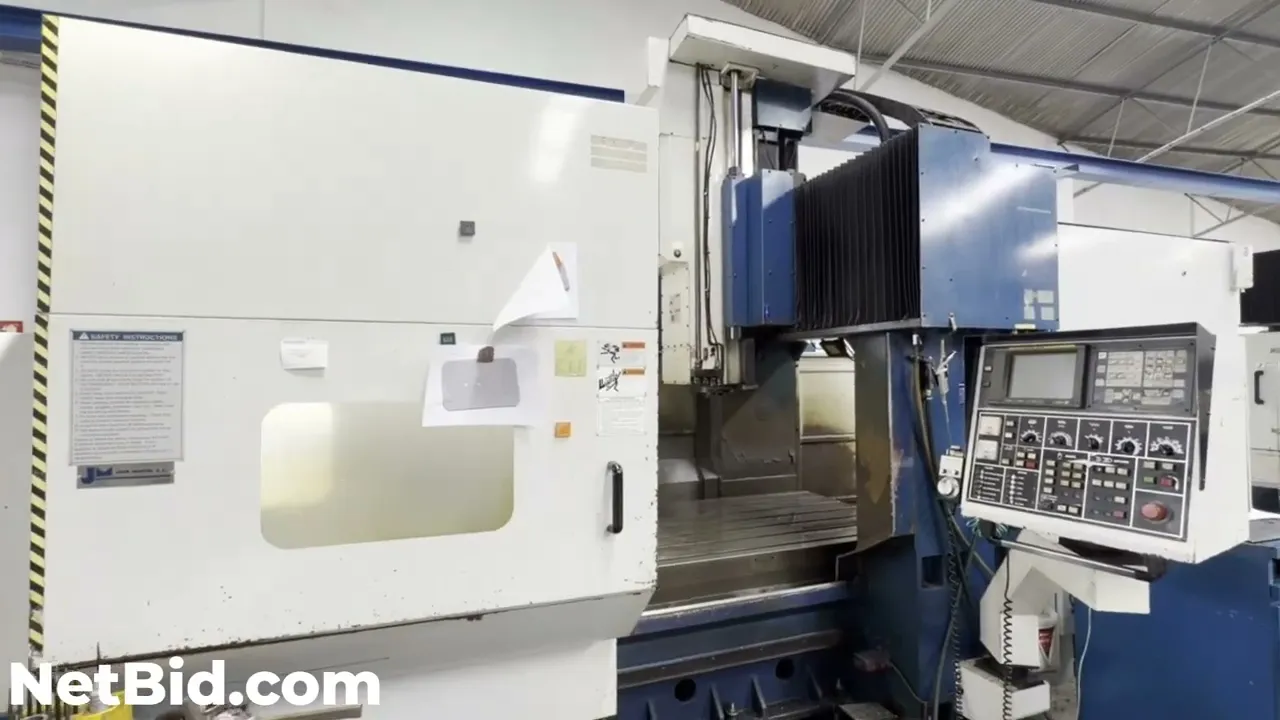

HWEA
Type
VP 2012
Construction Year
1999
Description
Controller: FANUC OMC / 18MC
X Axis: 2000 mm
Y Axis: 1200 mm
Z Axis: 760 mm
Table size: 2000 × 1100 mm
Distance between columns: 1300 mm
Spindle-to-table distance: 200–960 mm
Load capacity: 3500 kg
Distance between columns: 1300 mm
Portal type structure (double column) for higher rigidity
Head / Spindle
Taper: BT50 (ISO50 – DIN69871A)
Speed: 10 – 5000 rpm
Spindle power: 11 / 15 kW (15 / 20 HP)
Drive: continuous variable (stepless)
Rapid traverse X/Y: 20,000 mm/min
Rapid traverse Z: 15,000 mm/min
Feed rate: 1 – 5,000 mm/min
Tool magazine: 30 tools
Tool change: automatic (double arm)
Tool change time (T-T): ~6 sec
Tool type: BT50
Positioning accuracy: ±0.005 mm / 300 mm
Repeatability: ±0.003 mm
Controlled axes: 3 simultaneous axes
Interface: RS-232
Centralized lubrication system
Cooling system with tank
Backlash compensation
Pitch error compensation
DNC + MDI mode
Voltage: AC 220V
Frequency: 50/60 Hz
Phases: 3
Total power: ~50 kVA
Power supply: AC 220V ±10%, three-phase
Air pressure: ~5 kg/cm²
Hydraulic tank: 120 L
Coolant tank: 240 L
Cooling system with tank
Centralized lubrication system
RS-232 interface
Manual handwheel (MPG)
Full enclosure protection
Chip conveyor (FONGEX – Taiwan)
Spindle head with temperature control
Central lubrication
Full enclosure (splash guard 1700 mm)
Approx. dimensions: 6900 mm x 4250 mm
Approx. weight: 16,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
X Axis: 2000 mm
Y Axis: 1200 mm
Z Axis: 760 mm
Table size: 2000 × 1100 mm
Distance between columns: 1300 mm
Spindle-to-table distance: 200–960 mm
Load capacity: 3500 kg
Distance between columns: 1300 mm
Portal type structure (double column) for higher rigidity
Head / Spindle
Taper: BT50 (ISO50 – DIN69871A)
Speed: 10 – 5000 rpm
Spindle power: 11 / 15 kW (15 / 20 HP)
Drive: continuous variable (stepless)
Rapid traverse X/Y: 20,000 mm/min
Rapid traverse Z: 15,000 mm/min
Feed rate: 1 – 5,000 mm/min
Tool magazine: 30 tools
Tool change: automatic (double arm)
Tool change time (T-T): ~6 sec
Tool type: BT50
Positioning accuracy: ±0.005 mm / 300 mm
Repeatability: ±0.003 mm
Controlled axes: 3 simultaneous axes
Interface: RS-232
Centralized lubrication system
Cooling system with tank
Backlash compensation
Pitch error compensation
DNC + MDI mode
Voltage: AC 220V
Frequency: 50/60 Hz
Phases: 3
Total power: ~50 kVA
Power supply: AC 220V ±10%, three-phase
Air pressure: ~5 kg/cm²
Hydraulic tank: 120 L
Coolant tank: 240 L
Cooling system with tank
Centralized lubrication system
RS-232 interface
Manual handwheel (MPG)
Full enclosure protection
Chip conveyor (FONGEX – Taiwan)
Spindle head with temperature control
Central lubrication
Full enclosure (splash guard 1700 mm)
Approx. dimensions: 6900 mm x 4250 mm
Approx. weight: 16,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Location
- 2445-036 Pataias
Dates
Inspection
Safety shoes are required for the tour.
The tour is only possible after prior registration at carrico@netbid.com.
The tour is only possible after prior registration at carrico@netbid.com.
Pickup
05.07.2026 - 10.07.2026
Safety shoes are required for collection.
Collection is only possible after prior registration at carrico@netbid.com.
Collection is only possible after prior registration at carrico@netbid.com.
