Details
Product Type

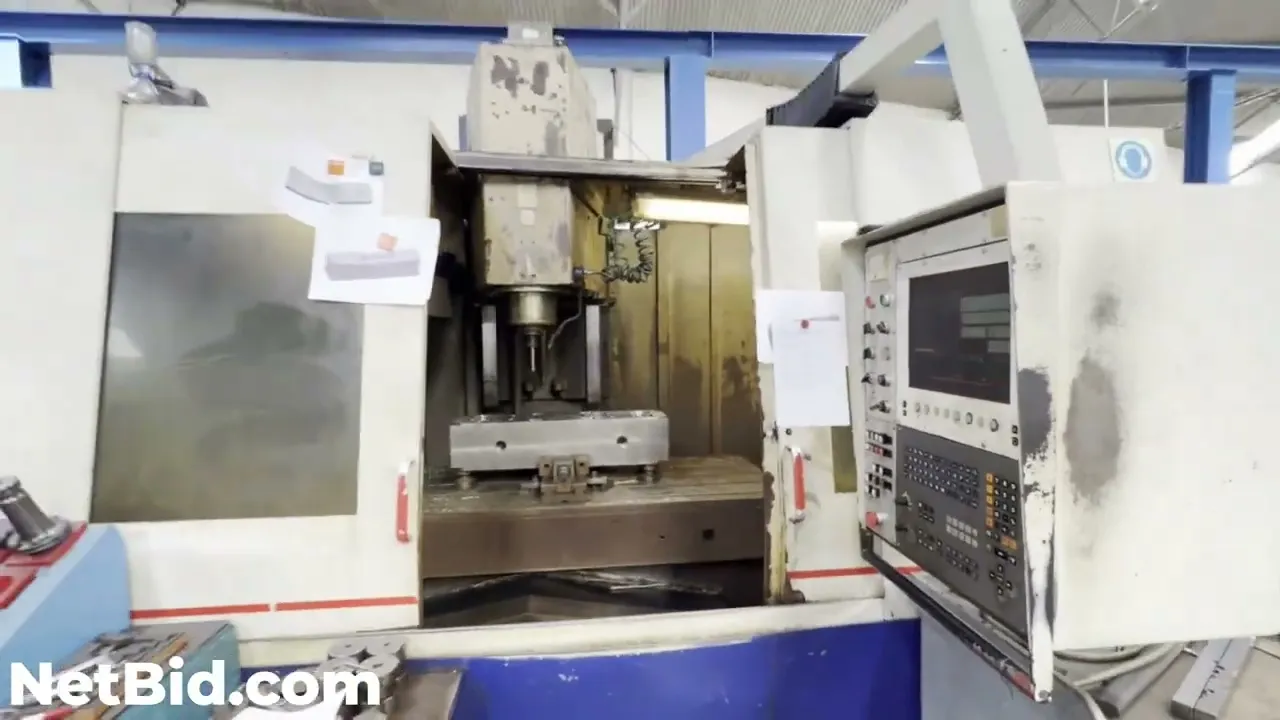

ZPS
Type
MCFV 1680 NT - P3.02
Construction Year
1999
Description
Controller: HEIDENHAIN TNC 426 PB
X Axis: 1650 mm
Y Axis: 810 mm
Z Axis: 810 mm
Working Table
Usable area: 1800 × 780 mm
Number of T-slots: 5 × 18 mm
Distance between slots: 150 mm
Maximum load capacity: 1750 kg
Spindle
Taper: ISO 50
Speed:
Low: 30 – 1000 rpm
High: 1021 – 6000 rpm
Power:
Continuous: 17 kW
Overload: 20.5 kW
Torque:
Continuous: 650 Nm
Max.: 955 Nm
Drive: ZF planetary gearbox
Feeds
Programmable feeds: 0 – 20 m/min
Rapid traverse X/Y/Z: 20 m/min
Tooling (ATC)
Tool holder type: ISO 50
Magazine capacity: 16 tools (32 optional)
Tool change time:
T-T: 9 sec
ATC-ATC: 14 sec
Tool dimensions
Max. diameter:
130 mm (adjacent occupied)
220 mm (free adjacent)
Max. length: 300 mm
Max. weight: 12 kg
Accuracy
Positioning: 0.020 mm
Repeatability: 0.008 mm
(Standard VDI/DGQ 3441 and JIS B6336)
Voltage: 3 × 400 V / 50 Hz
Installed power: 51 kW
Consumption: 34 kVA
Max. current: 87 A
Cooling: Tank 420 L
Coolant pump: 0.94 kW / 50 l/min
Filtration: Tank 100 L
Lubrication: Tank: 2.7 L
Through spindle cooling:
3 kW
20 l/min
Compressed Air
Pressure: 0.55 – 0.65 MPa
Consumption: 6 m³/h
Automatic ATC
Hydraulic system with certified accumulator
Complete cooling system
Centralized lubrication
Separate control panel
Telescopic covers
Internal cooling system (through spindle)
Filtration unit
Approx. dimensions: 4120 × 2440 mm x 3700 mm
Approx. weight: 11,400 kg
Optional dismantling and loading cost provided by third parties: €1000.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
X Axis: 1650 mm
Y Axis: 810 mm
Z Axis: 810 mm
Working Table
Usable area: 1800 × 780 mm
Number of T-slots: 5 × 18 mm
Distance between slots: 150 mm
Maximum load capacity: 1750 kg
Spindle
Taper: ISO 50
Speed:
Low: 30 – 1000 rpm
High: 1021 – 6000 rpm
Power:
Continuous: 17 kW
Overload: 20.5 kW
Torque:
Continuous: 650 Nm
Max.: 955 Nm
Drive: ZF planetary gearbox
Feeds
Programmable feeds: 0 – 20 m/min
Rapid traverse X/Y/Z: 20 m/min
Tooling (ATC)
Tool holder type: ISO 50
Magazine capacity: 16 tools (32 optional)
Tool change time:
T-T: 9 sec
ATC-ATC: 14 sec
Tool dimensions
Max. diameter:
130 mm (adjacent occupied)
220 mm (free adjacent)
Max. length: 300 mm
Max. weight: 12 kg
Accuracy
Positioning: 0.020 mm
Repeatability: 0.008 mm
(Standard VDI/DGQ 3441 and JIS B6336)
Voltage: 3 × 400 V / 50 Hz
Installed power: 51 kW
Consumption: 34 kVA
Max. current: 87 A
Cooling: Tank 420 L
Coolant pump: 0.94 kW / 50 l/min
Filtration: Tank 100 L
Lubrication: Tank: 2.7 L
Through spindle cooling:
3 kW
20 l/min
Compressed Air
Pressure: 0.55 – 0.65 MPa
Consumption: 6 m³/h
Automatic ATC
Hydraulic system with certified accumulator
Complete cooling system
Centralized lubrication
Separate control panel
Telescopic covers
Internal cooling system (through spindle)
Filtration unit
Approx. dimensions: 4120 × 2440 mm x 3700 mm
Approx. weight: 11,400 kg
Optional dismantling and loading cost provided by third parties: €1000.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Location
- 2445-036 Pataias
Dates
Inspection
Safety shoes are required for the tour.
The tour is only possible after prior registration at carrico@netbid.com.
The tour is only possible after prior registration at carrico@netbid.com.
Pickup
05.07.2026 - 10.07.2026
Safety shoes are required for collection.
Collection is only possible after prior registration at carrico@netbid.com.
Collection is only possible after prior registration at carrico@netbid.com.
