Details
Product Type
TUL
Type

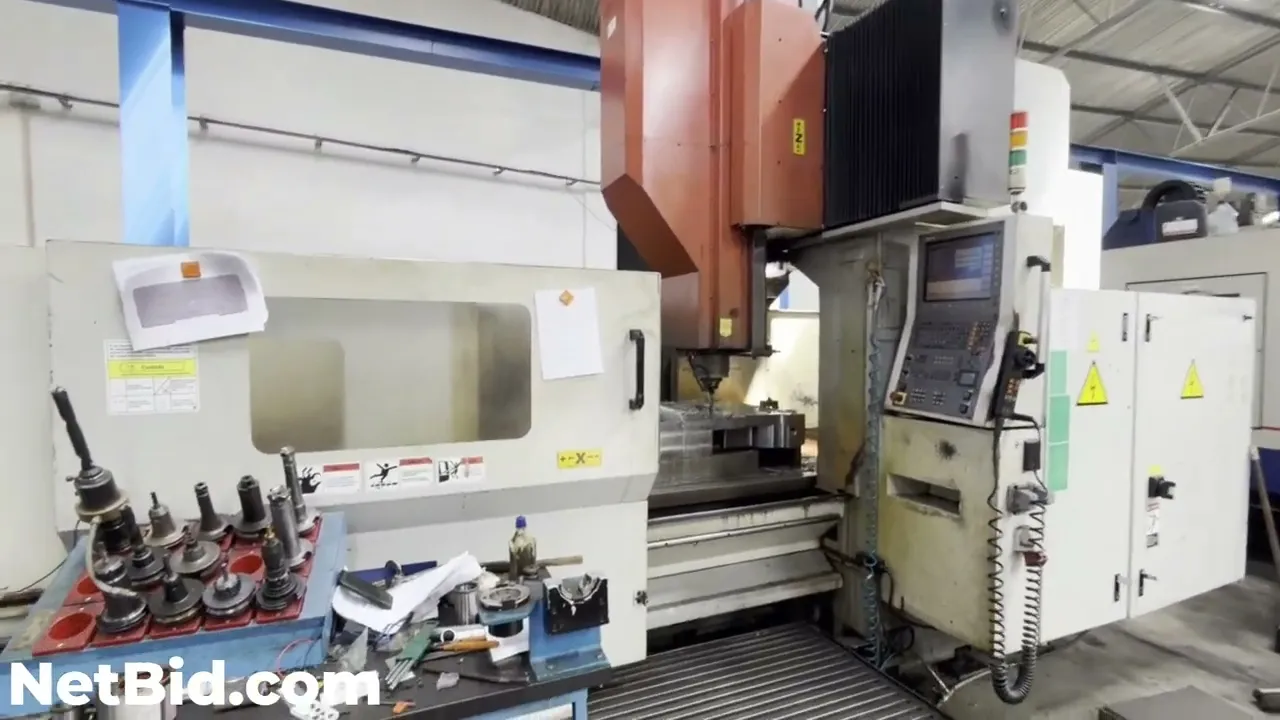

TC 2215 - SN 22 065
Construction Year
2003
Description
HEIDENHAIN iTNC 530
CNC system
Graphical interface
DIN/ISO and conversational programming
Program simulation
Machining capacities:
X Axis: 2200 mm
Y Axis: 1500 mm
Z Axis: 100 mm
Distance between columns: 1600 mm
Working table:
Table size: 2000 × 1400 mm
Spindle:
Speed: up to 6000 rpm
Drive: ZF gearbox
Tool taper: ISO 50 (DIN 69871)
Through spindle cooling system
High torque for heavy machining
ATC system
Automatic tool change
Circular magazine
Capacity: 17 tools
Accuracy:
0.01 / 300 mm (JIS)
~0.025 mm (VDI)
Repeatability: ±0.003 mm
Electrical system:
Drives: SIEMENS SIMODRIVE 611
Full integration with HEIDENHAIN CNC
Modular architecture
Heidenhain CNC + Siemens integration
Power supply: 200 – 575 V
Frequency: 50 / 60 Hz
Phases: 3
Power: 40 / 45 / 50 kVA
Cooling system
Tank: 400 – 600 liters
Through tool cooling
High-pressure pump
External temperature control unit (refrigerant R407C)
Pneumatic system
Pressure: 5 – 7 kg/cm²
Consumption: >100 L/min
Filter and regulation unit (FRL)
Air cleaning system
Fluid capacities:
Hydraulic: 40 L
Lubrication: 8 L
Spindle cooling: 30 L
Coolant: >400 L
Auxiliary systems:
High-pressure pump (15 kg/cm²)
Through tool cooling system
Working area cleaning system
Chip conveyor
Approx. dimensions: 7100 × 5200 × 4830 mm
Approx. weight: 21,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
CNC system
Graphical interface
DIN/ISO and conversational programming
Program simulation
Machining capacities:
X Axis: 2200 mm
Y Axis: 1500 mm
Z Axis: 100 mm
Distance between columns: 1600 mm
Working table:
Table size: 2000 × 1400 mm
Spindle:
Speed: up to 6000 rpm
Drive: ZF gearbox
Tool taper: ISO 50 (DIN 69871)
Through spindle cooling system
High torque for heavy machining
ATC system
Automatic tool change
Circular magazine
Capacity: 17 tools
Accuracy:
0.01 / 300 mm (JIS)
~0.025 mm (VDI)
Repeatability: ±0.003 mm
Electrical system:
Drives: SIEMENS SIMODRIVE 611
Full integration with HEIDENHAIN CNC
Modular architecture
Heidenhain CNC + Siemens integration
Power supply: 200 – 575 V
Frequency: 50 / 60 Hz
Phases: 3
Power: 40 / 45 / 50 kVA
Cooling system
Tank: 400 – 600 liters
Through tool cooling
High-pressure pump
External temperature control unit (refrigerant R407C)
Pneumatic system
Pressure: 5 – 7 kg/cm²
Consumption: >100 L/min
Filter and regulation unit (FRL)
Air cleaning system
Fluid capacities:
Hydraulic: 40 L
Lubrication: 8 L
Spindle cooling: 30 L
Coolant: >400 L
Auxiliary systems:
High-pressure pump (15 kg/cm²)
Through tool cooling system
Working area cleaning system
Chip conveyor
Approx. dimensions: 7100 × 5200 × 4830 mm
Approx. weight: 21,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Location
- 2445-036 Pataias
Dates
Inspection
Safety shoes are required for the tour.
The tour is only possible after prior registration at carrico@netbid.com.
The tour is only possible after prior registration at carrico@netbid.com.
Pickup
05.07.2026 - 10.07.2026
Safety shoes are required for collection.
Collection is only possible after prior registration at carrico@netbid.com.
Collection is only possible after prior registration at carrico@netbid.com.
