Details
Product Type
LGB
Type
R 2112
Construction Year
1992
Description
Machining capacities:
Grinding area: 2100 × 1200 mm
Magnetic table: 2000 × 1000 mm (new)
Maximum workpiece height: 1000 mm
Maximum workpiece length: 2100 mm
Maximum workpiece width: 1200 mm
Machine configuration

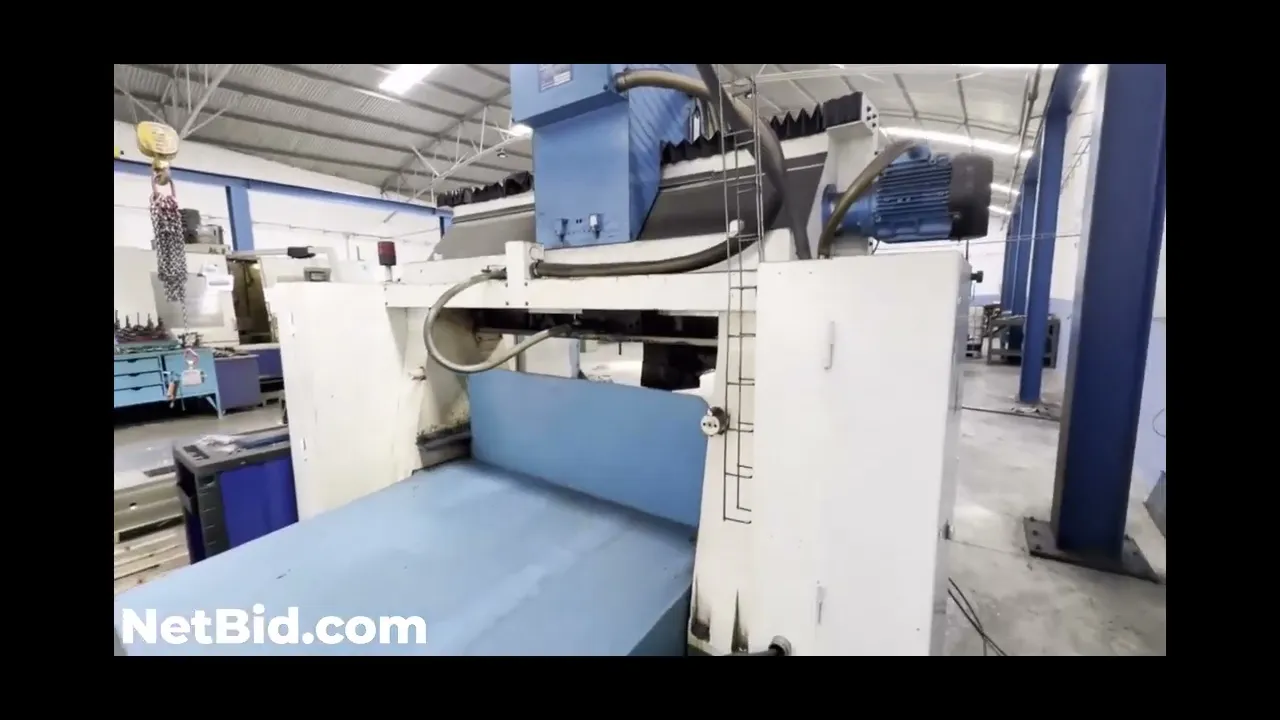

Type: Surface Grinding Machine (flat grinding machine)
Grinding system with vertical grinding wheel
Large-capacity magnetic table, extended longitudinal table
Automatic longitudinal movement
Working area protected with flexible guard
Heavy-duty structure
Axis protection with industrial bellows
Fluid containment system
Control system:
Electro-mechanical / manual control
Digital readout system (DRO – Metrologic)
Digital control panel
Digital measurement system
Independent controls for axes and feeds
Manual system with automatic feed
Operational functions for:
positioning
automatic feed
longitudinal feed
cycle control
Hydraulic / cooling system
Fluid tank
Coolant return system
Basic filtration system
Electrical / drive system
LGB dedicated control modules
Equipped with:
Toshiba VF-S15 frequency inverter, allowing speed control and improved operational efficiency
Spindle speed control
Machine partially upgraded (inverter drive)
Updated system compared to original configuration
Approx. dimensions: 5500 mm x 2500 x 2500
Approx. weight: 10,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Grinding area: 2100 × 1200 mm
Magnetic table: 2000 × 1000 mm (new)
Maximum workpiece height: 1000 mm
Maximum workpiece length: 2100 mm
Maximum workpiece width: 1200 mm
Machine configuration
Type: Surface Grinding Machine (flat grinding machine)
Grinding system with vertical grinding wheel
Large-capacity magnetic table, extended longitudinal table
Automatic longitudinal movement
Working area protected with flexible guard
Heavy-duty structure
Axis protection with industrial bellows
Fluid containment system
Control system:
Electro-mechanical / manual control
Digital readout system (DRO – Metrologic)
Digital control panel
Digital measurement system
Independent controls for axes and feeds
Manual system with automatic feed
Operational functions for:
positioning
automatic feed
longitudinal feed
cycle control
Hydraulic / cooling system
Fluid tank
Coolant return system
Basic filtration system
Electrical / drive system
LGB dedicated control modules
Equipped with:
Toshiba VF-S15 frequency inverter, allowing speed control and improved operational efficiency
Spindle speed control
Machine partially upgraded (inverter drive)
Updated system compared to original configuration
Approx. dimensions: 5500 mm x 2500 x 2500
Approx. weight: 10,000 kg
Optional dismantling and loading cost provided by third parties: €1500.
Any additional costs related to lot preparation and packing requirements for transport, provided by third parties, are available upon request.
Location
- 2445-036 Pataias
Dates
Inspection
Safety shoes are required for the tour.
The tour is only possible after prior registration at carrico@netbid.com.
The tour is only possible after prior registration at carrico@netbid.com.
Pickup
05.07.2026 - 10.07.2026
Safety shoes are required for collection.
Collection is only possible after prior registration at carrico@netbid.com.
Collection is only possible after prior registration at carrico@netbid.com.
