Horizontal CNC Turning Center ERGOMAT TND 65 SAUCTION#19565-SM04 (A19569-4)

CNC Control System
• CNC: Fanuc Series Oi TD
• Dual-channel programming
• Simultaneous machining capability
Feature
• Independent control of both turrets
• Multi-path machining

Mechanical Configuration
Main Spindle
• Bar capacity: 60 mm
• Max speed: 4,000 rpm
• Collet system installed

Sub-Spindle
• Max speed: 5,000 rpm
• Bar capacity: 30 mm

Turret System
Upper Turret
• 12 stations
• VDI 25 interface
• Live tooling capable

Lower Turret
• 8 stations
• VDI 25 interface

Live Tooling
• Driven tools installed
• Radial + axial machining

Axes & Motion
• X1/Z1: 260 mm
• X2/Z2: 230 mm
• Rapid traverse: up to 30 m/min

C-Axis
• On both spindles
• Resolution: 0.001°

Working Capacity
• Max diameter: 65 mm
• Max length: 100 mm

Cooling & Chip Management
• Coolant: 6 bar
• Tank capacity: 200 L
• Integrated chip conveyor

Electrical System
CNC & Drives
• Fanuc servo amplifiers (original OEM)
• Spindle drive + axis drives
Auxiliary Components
• Yaskawa V1000 inverter
• Siemens modules
• Murr Elektronik power supplies
• Power: 34 kW
• Voltage: 400V / 50Hz / 3~
• Current: 61.3 A

Additional Equipment
• FWI Tecnologia system (auxiliary automation interface)
• Chip conveyor integrated

Tooling Included
• Heimatec driven tools
• Multiple tool holders
• Collet holders / modular tooling

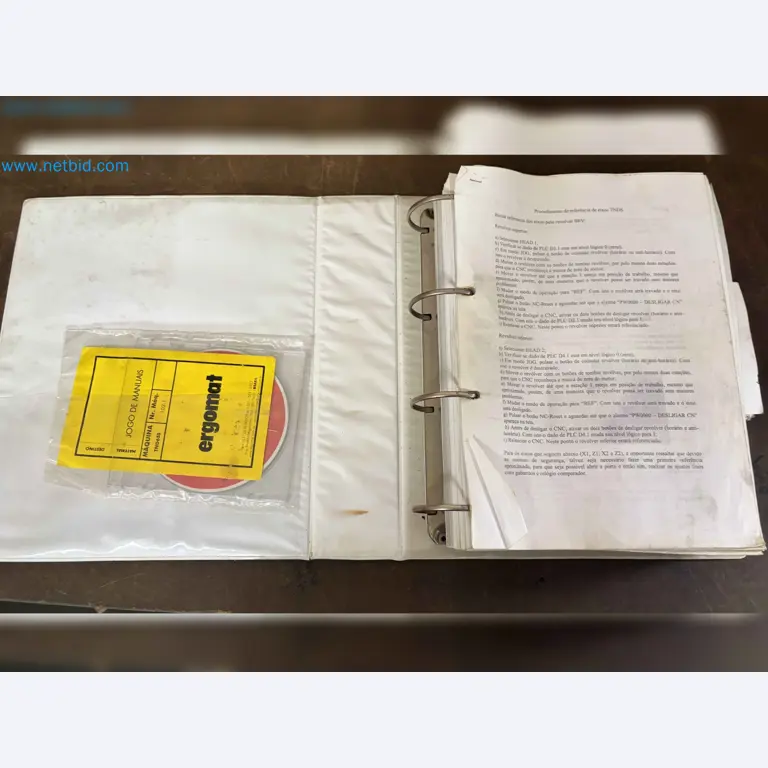

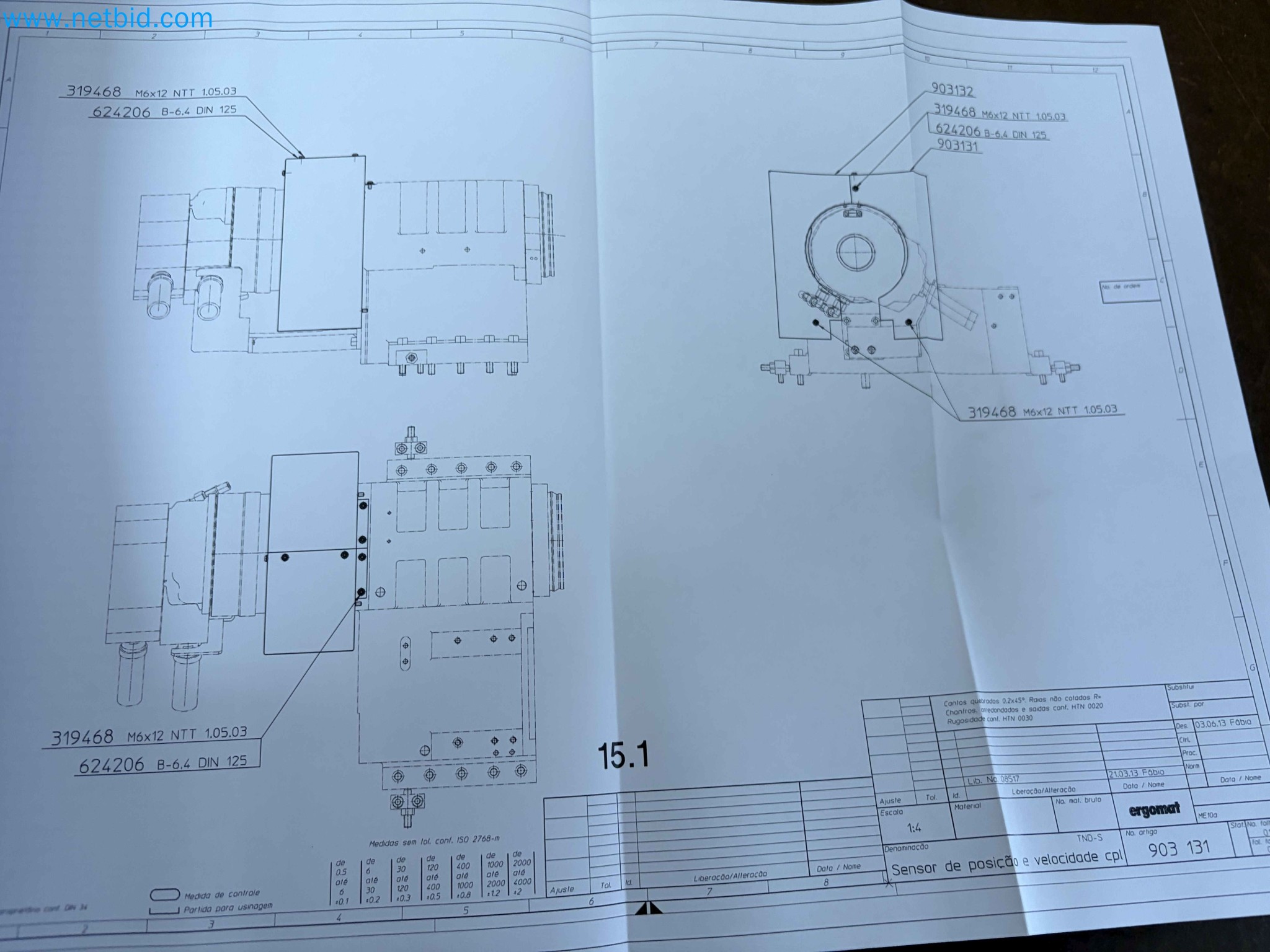

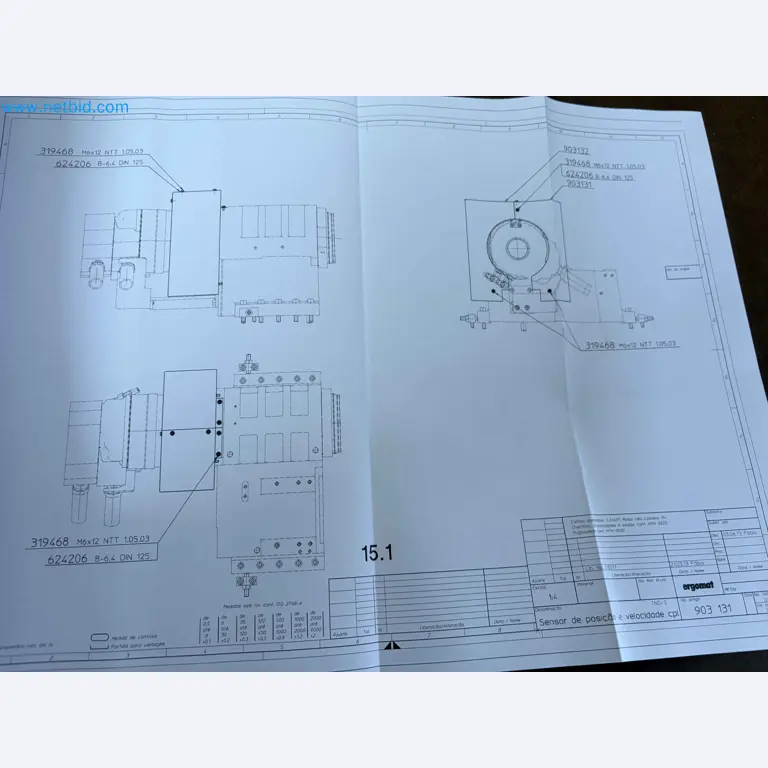

Documentation

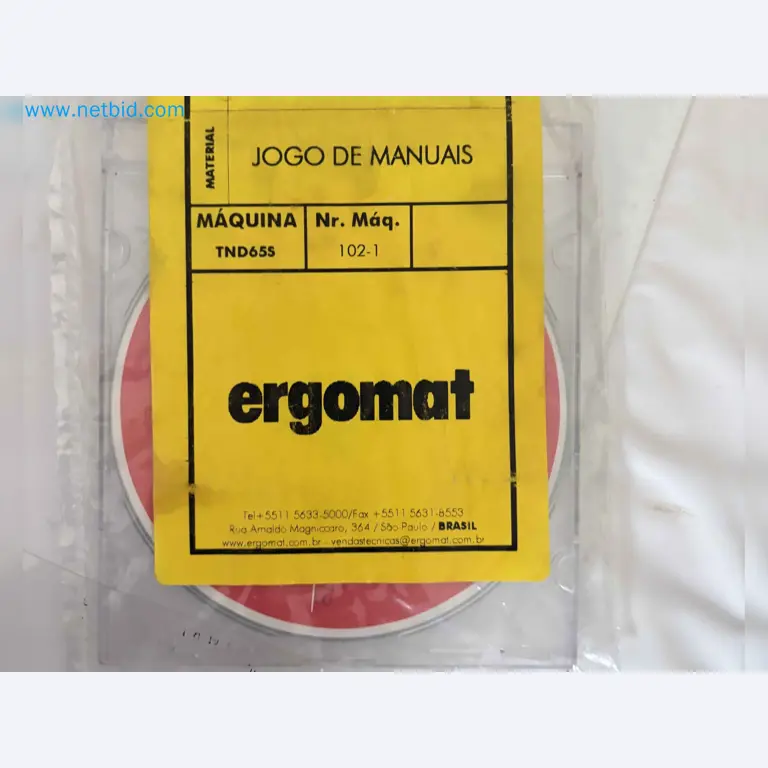

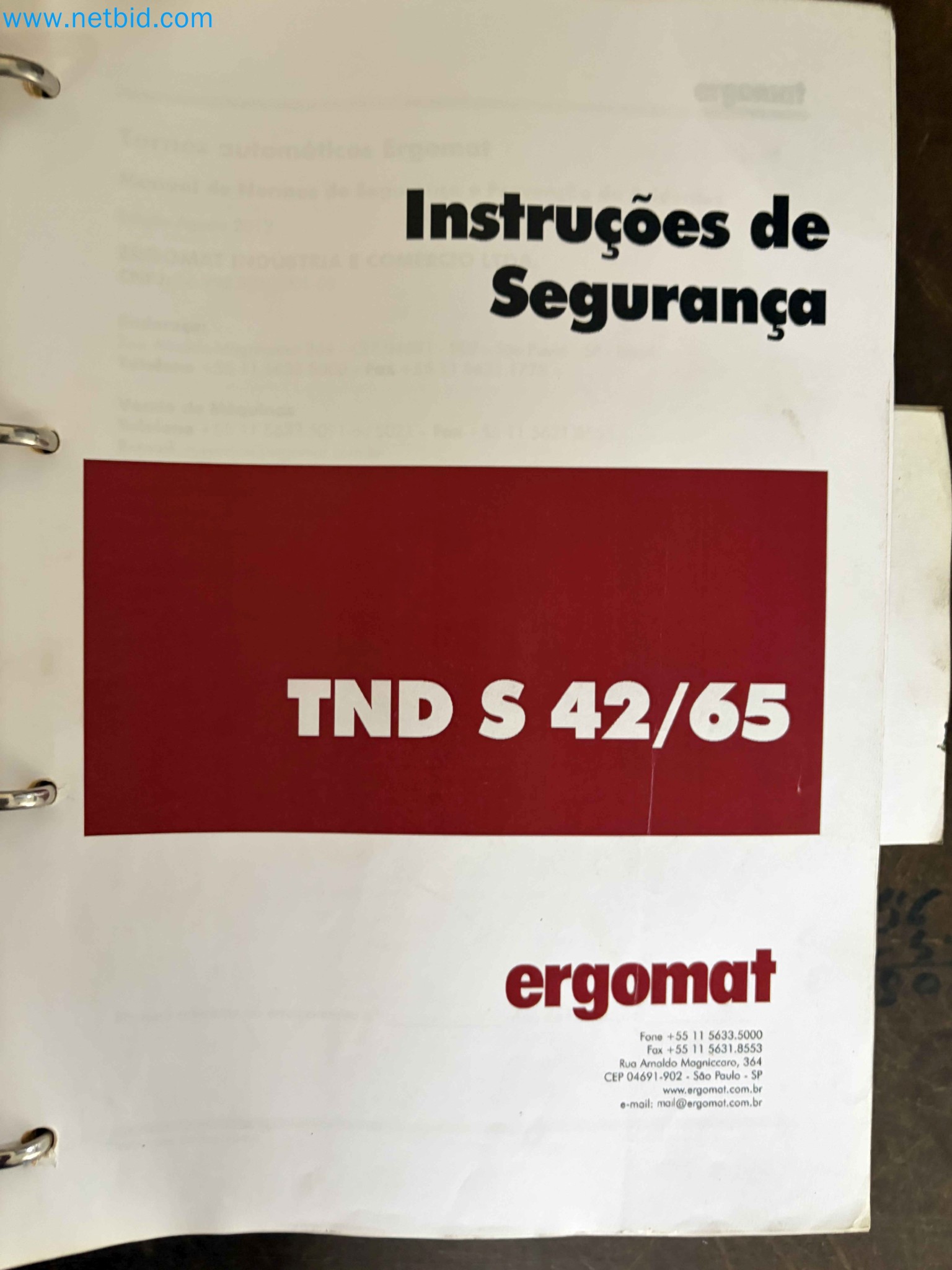

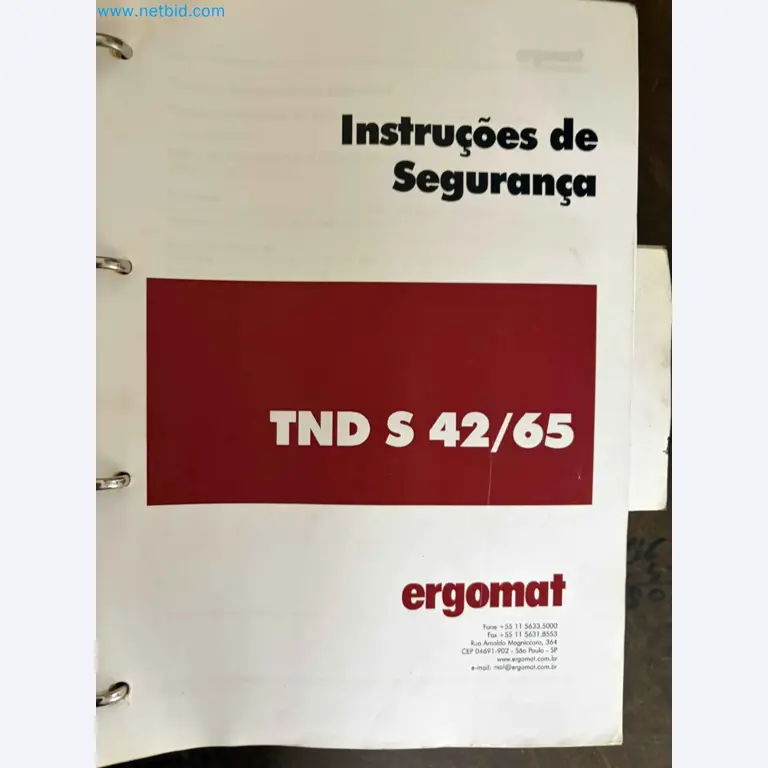

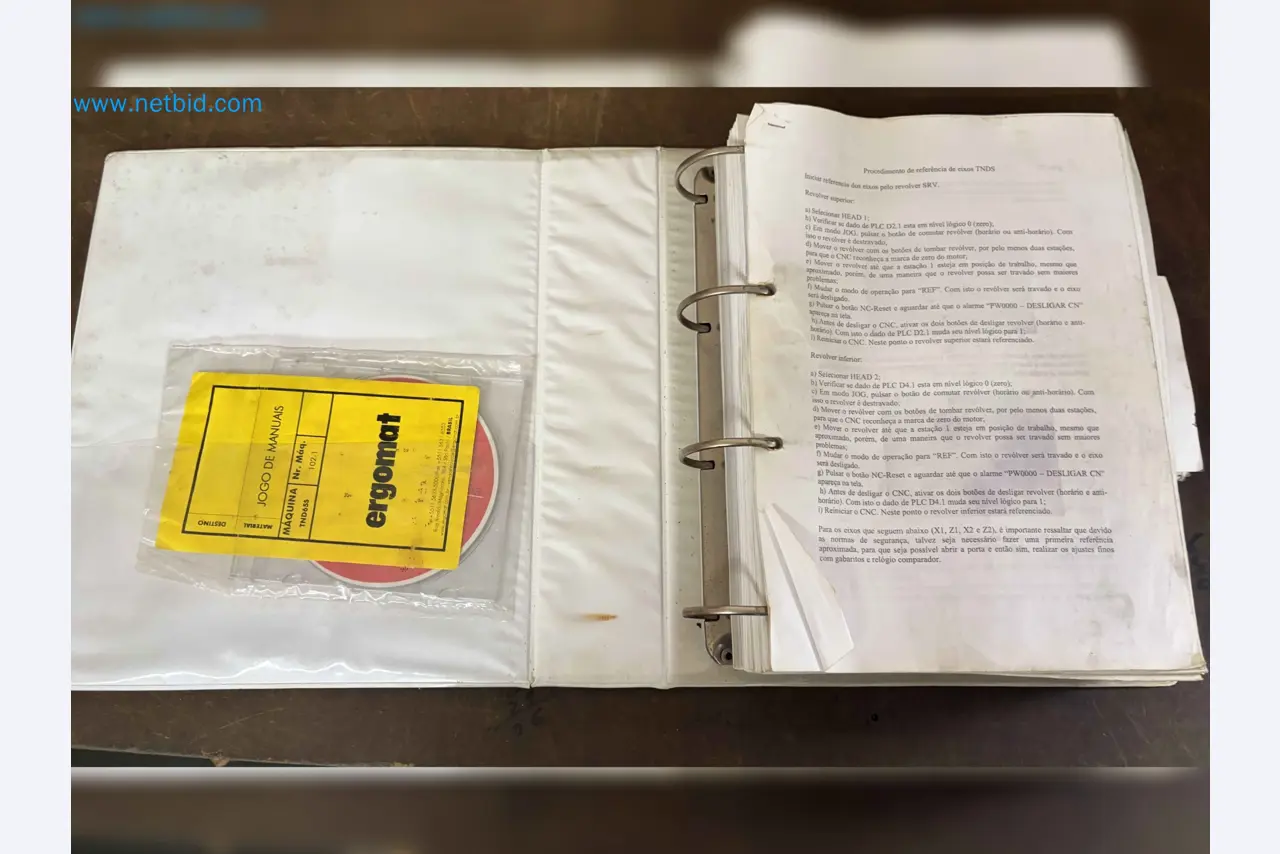

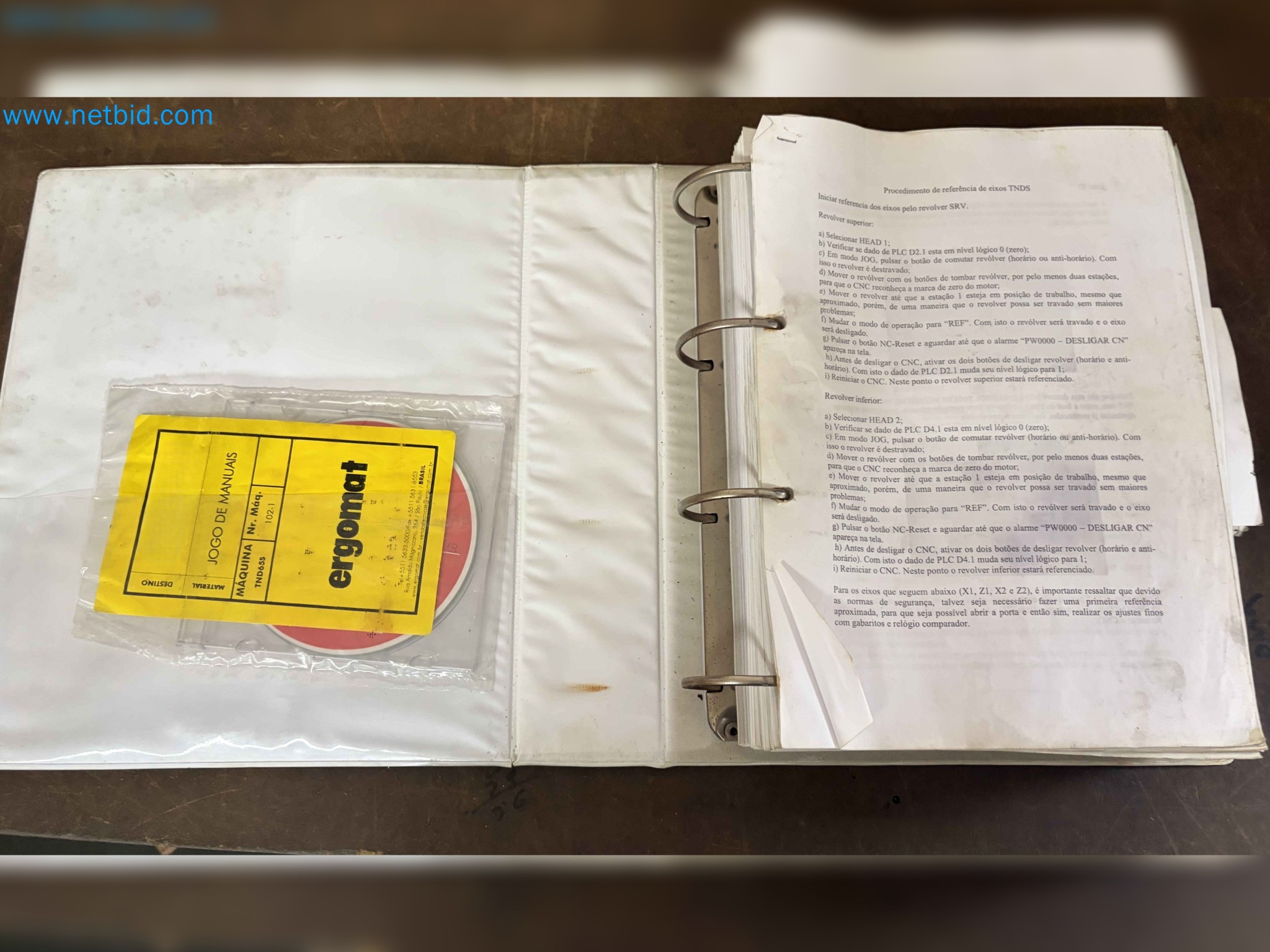

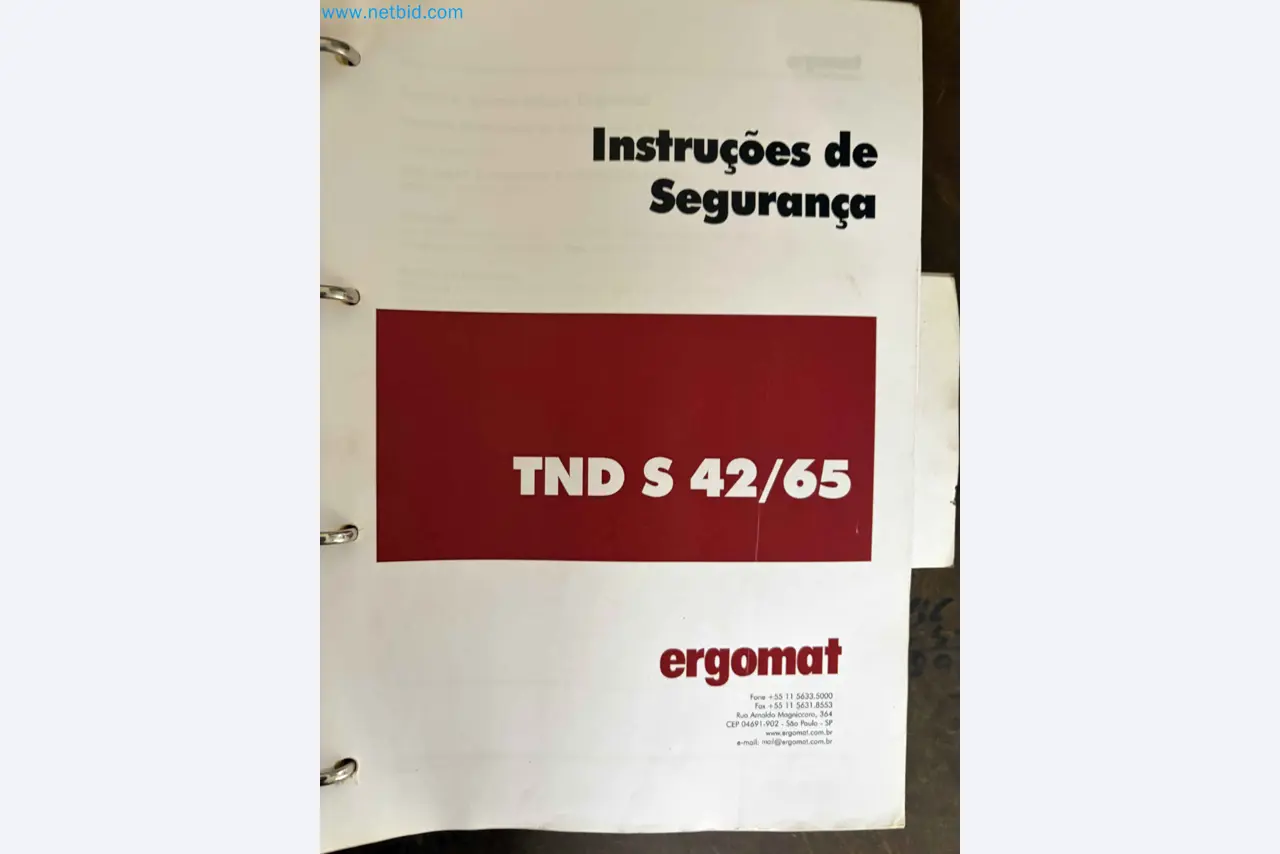

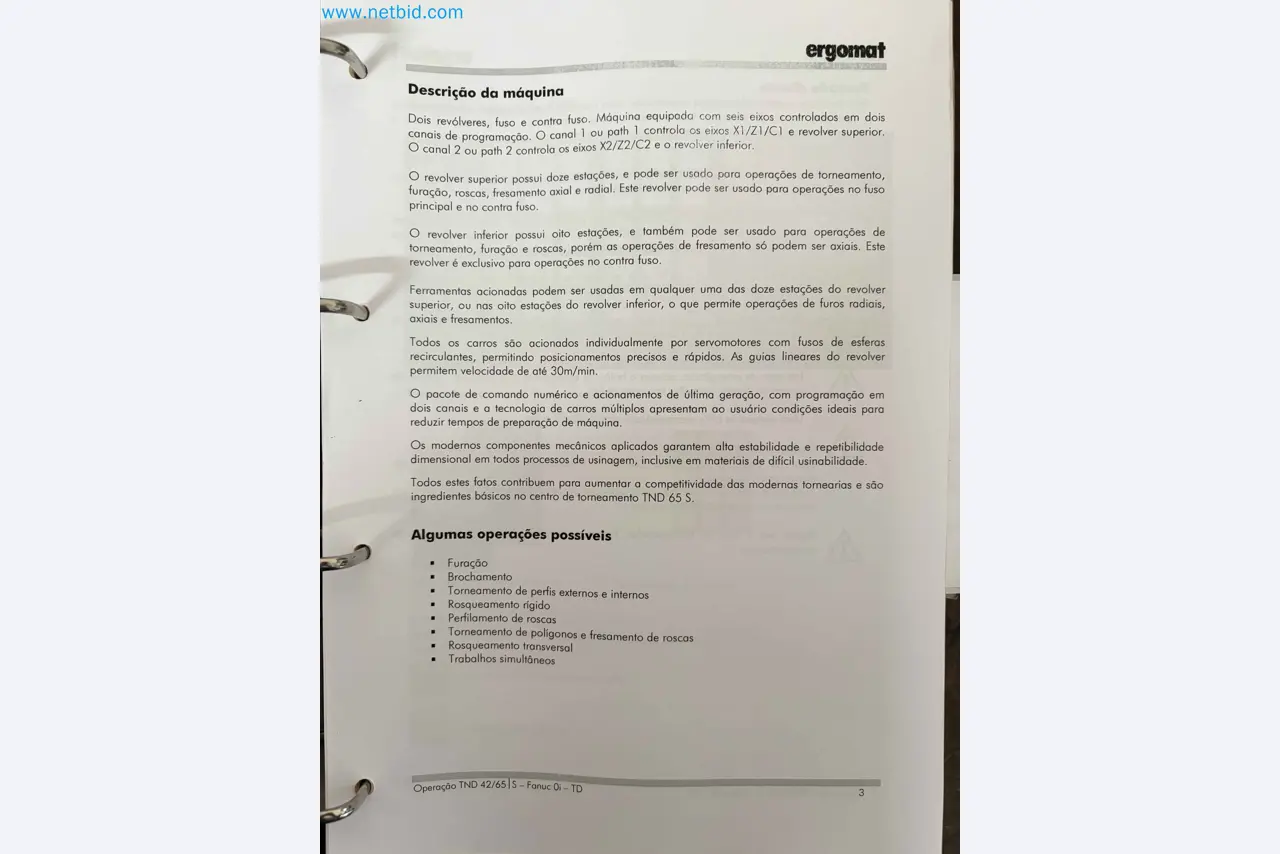

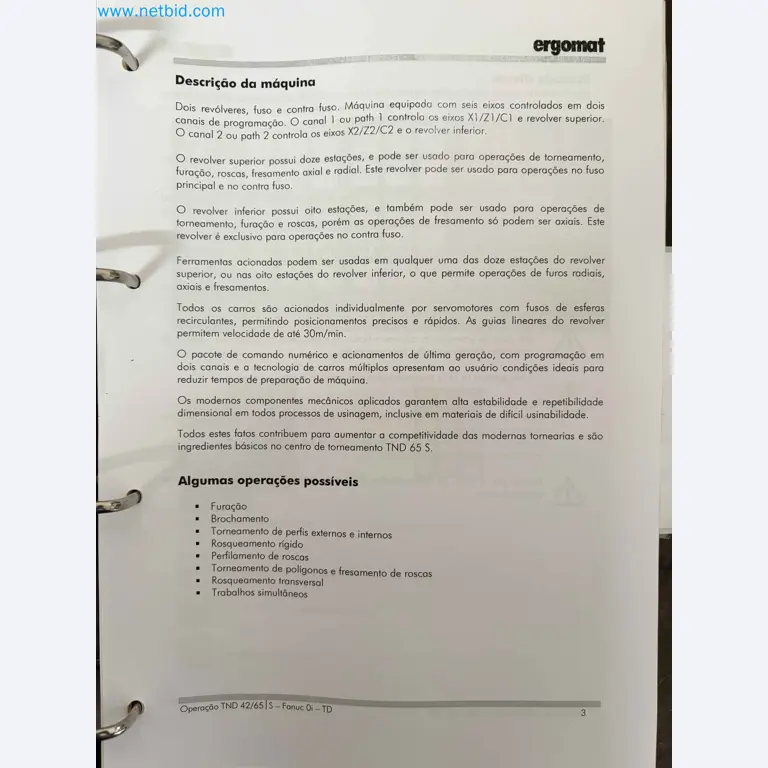

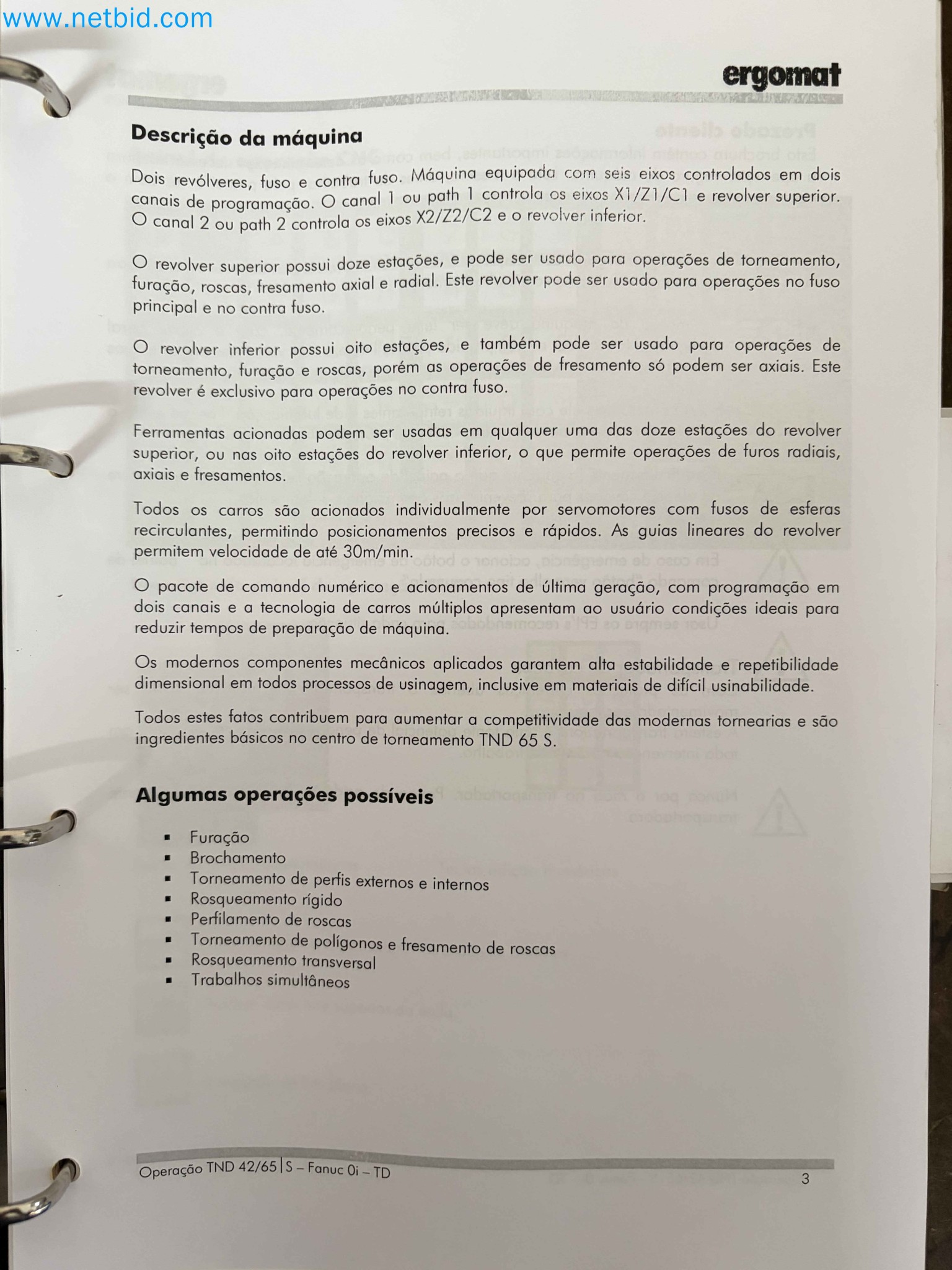

• Ergomat machine manuals
• Sauter turret manual
• Hydraulic and coolant documentation

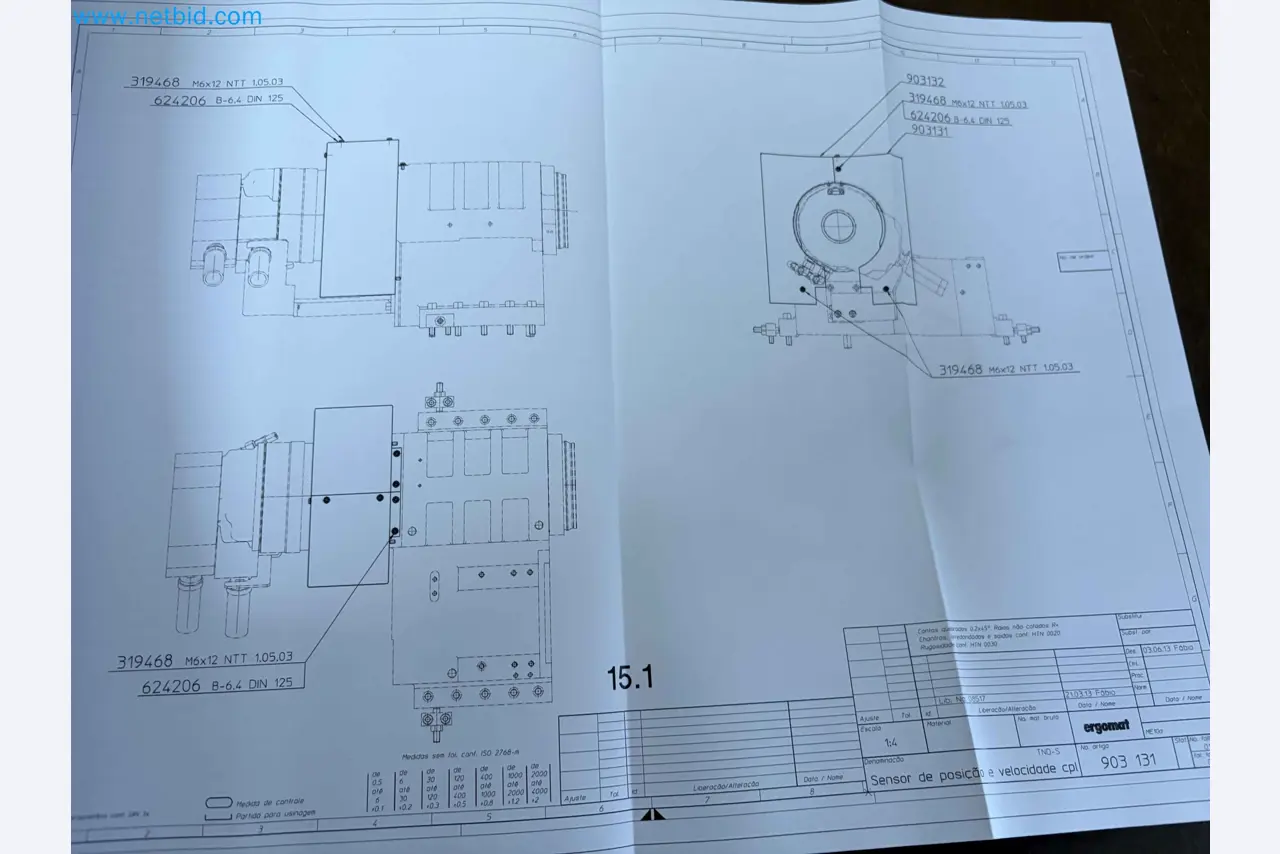

• Electrical/cabinet documentation

Approx. dimensions: 2115 mm x 1700 mm x 1900 mm
Approximate weight: 3510 kg

Optional dismantling & loading cost provided by third party: 500 €.
Any additional cost related to lot preparation and packaging requirements for transport provided by third party available upon request.
