Part of the Auction Tromosa Asset Sale (Troqueles Y Moldes De Galicia, Sa): Cnc Machining Centres, Edm Machines And Mould Manufacturing Equipment

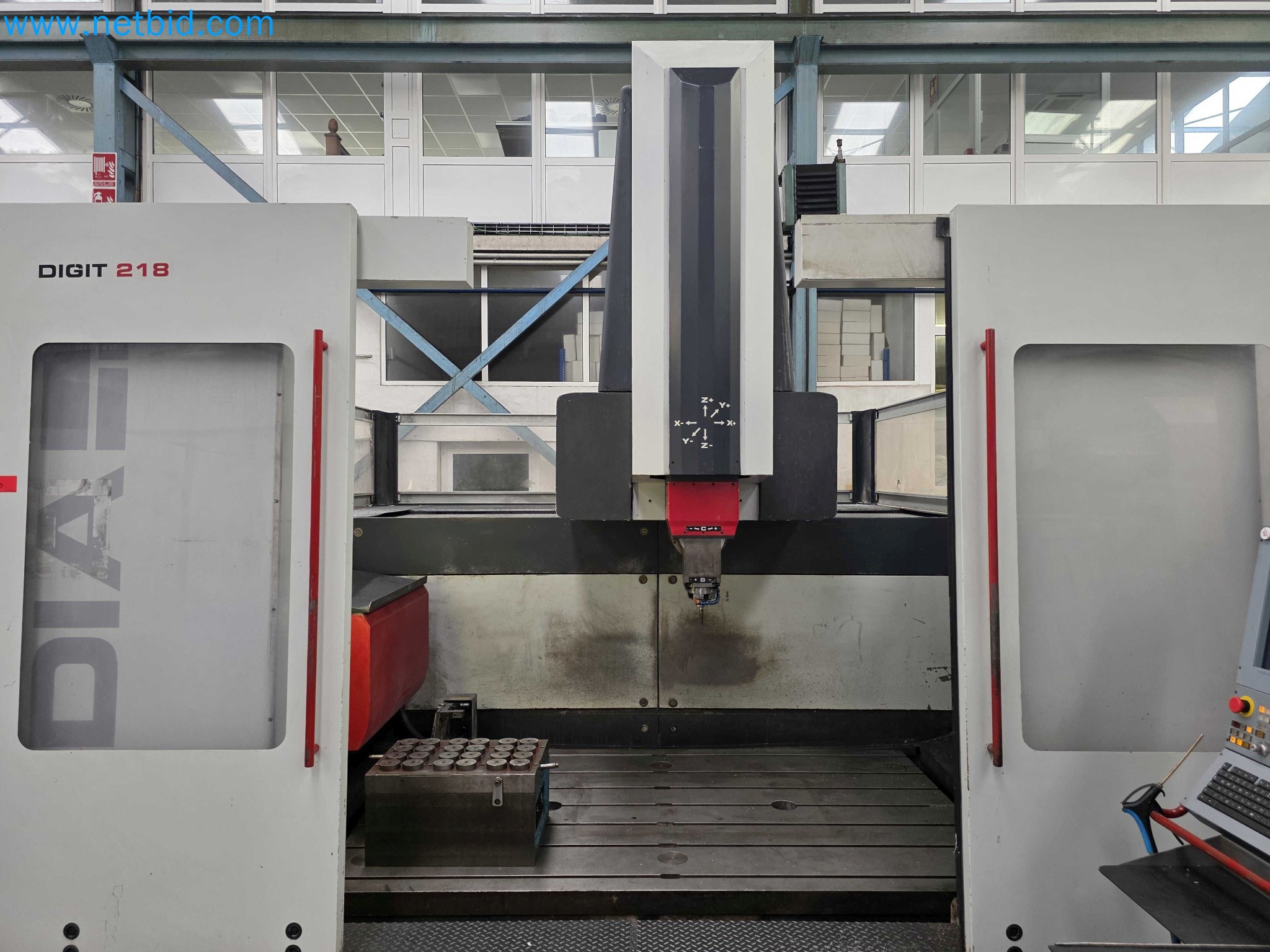

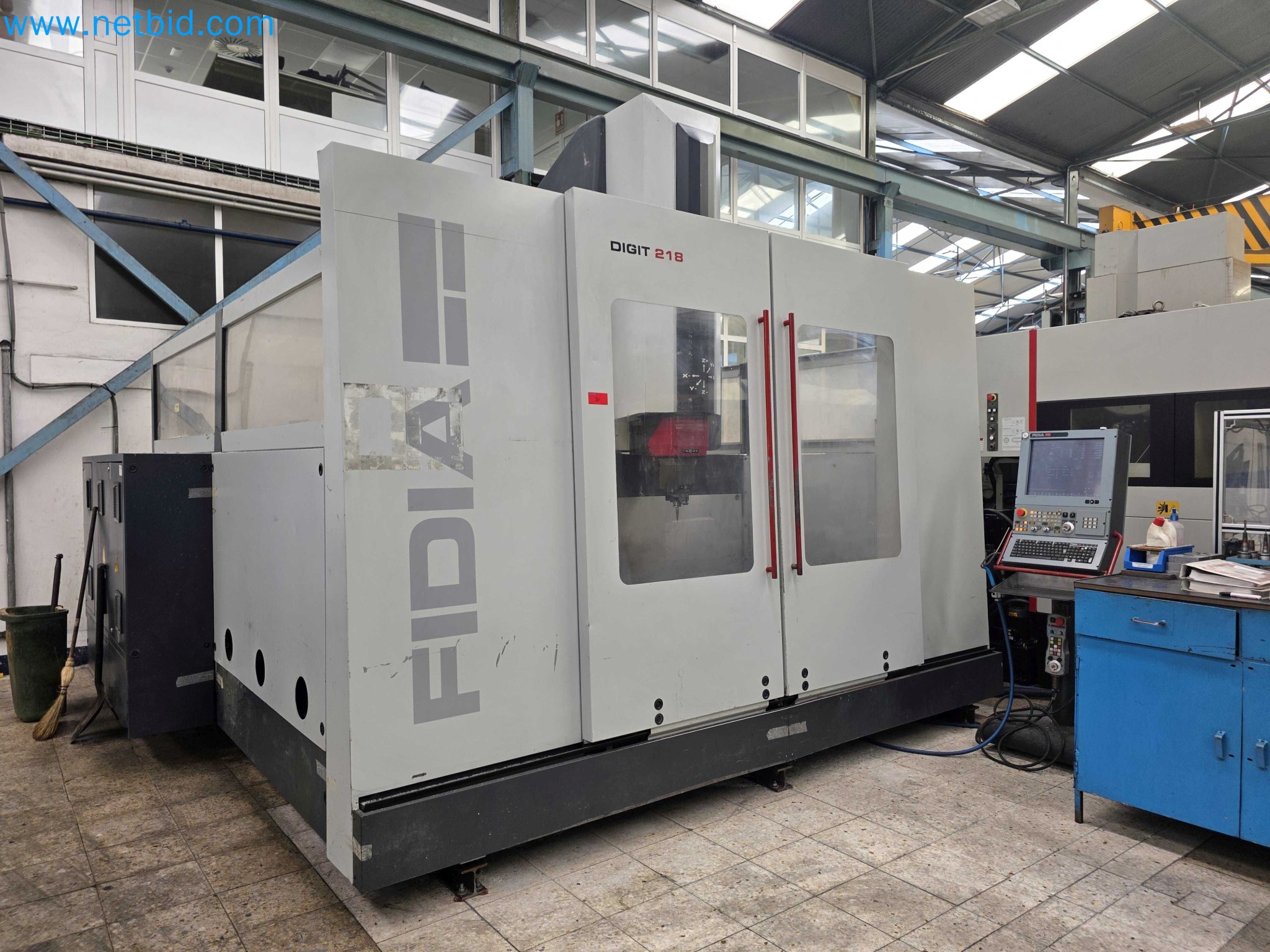

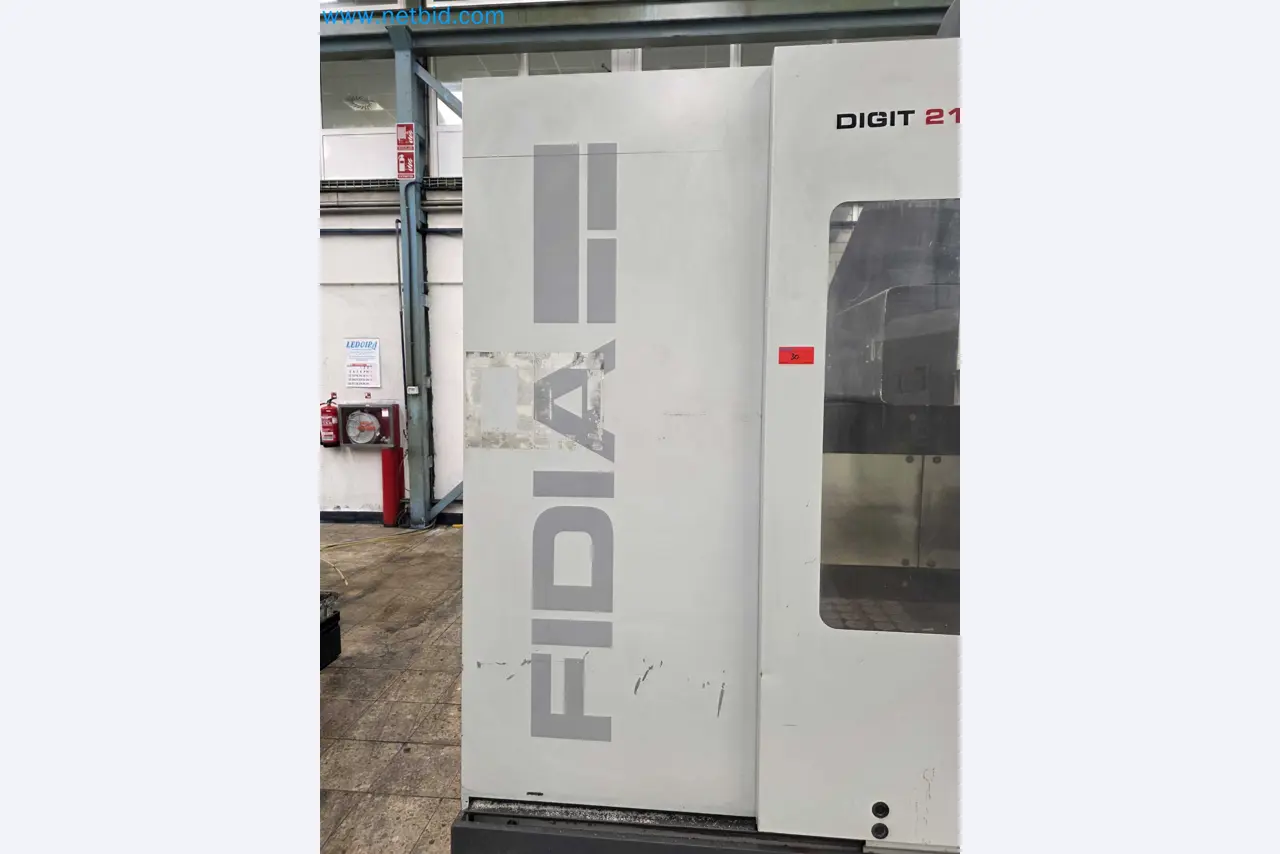

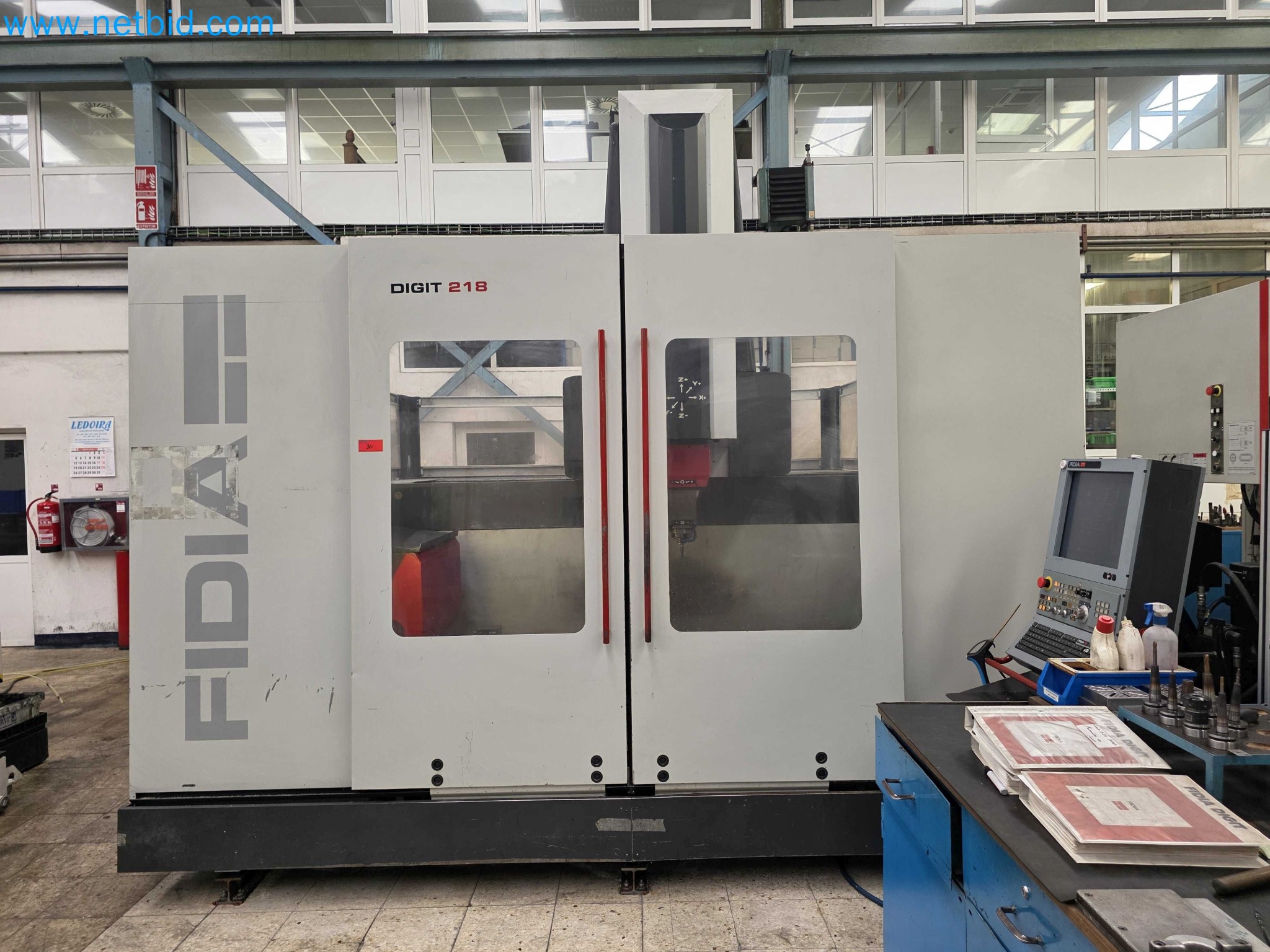

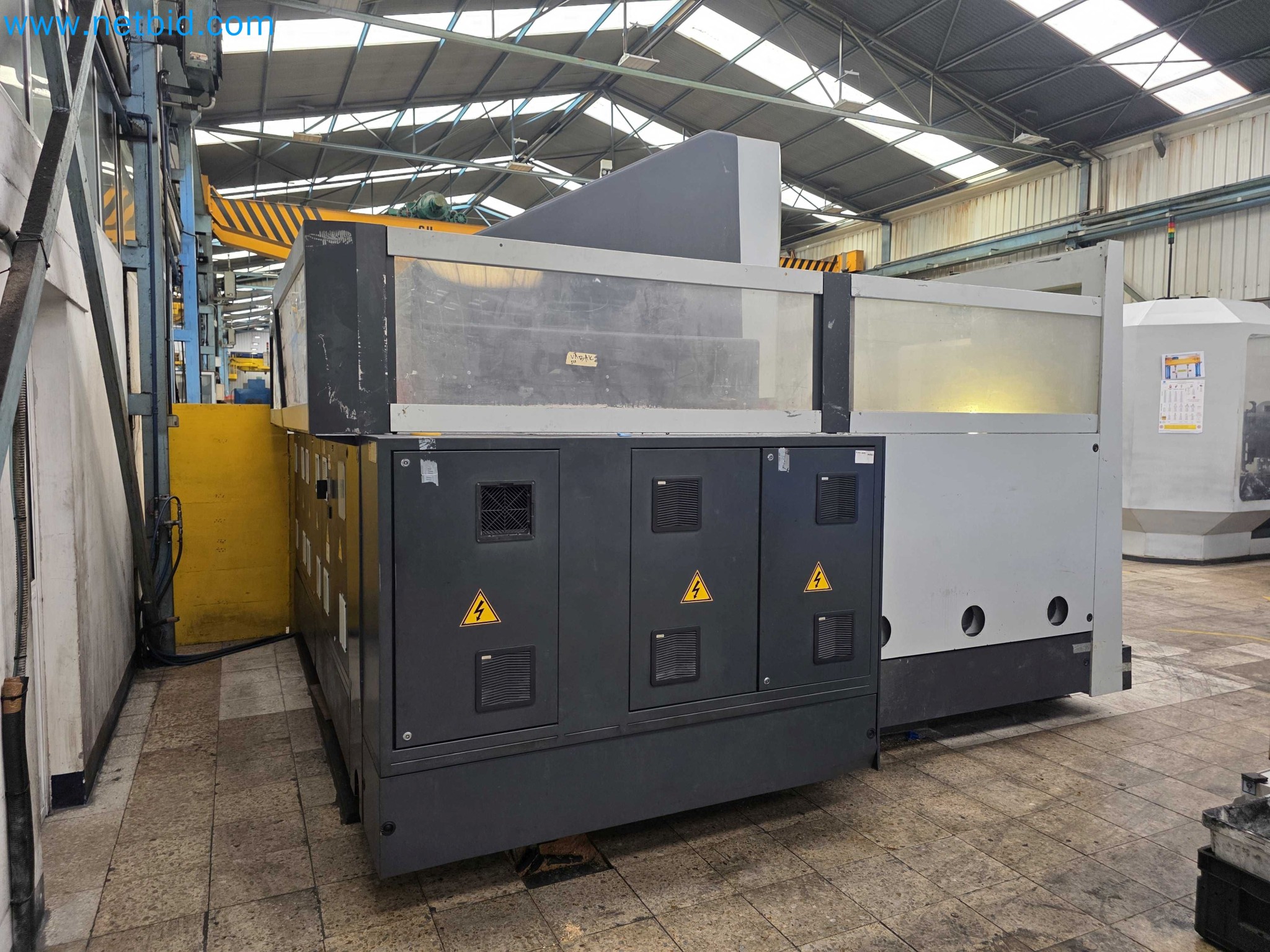

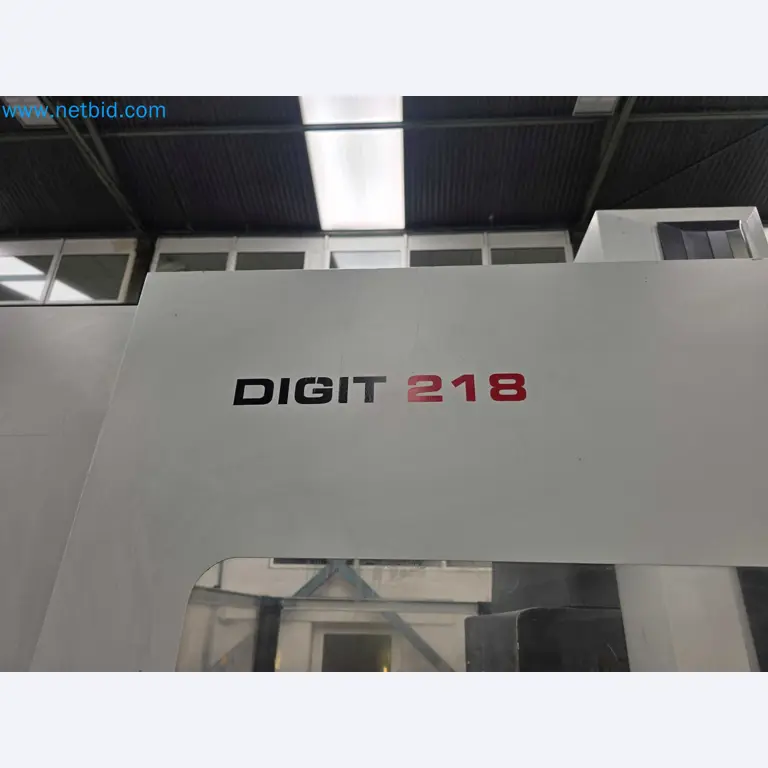

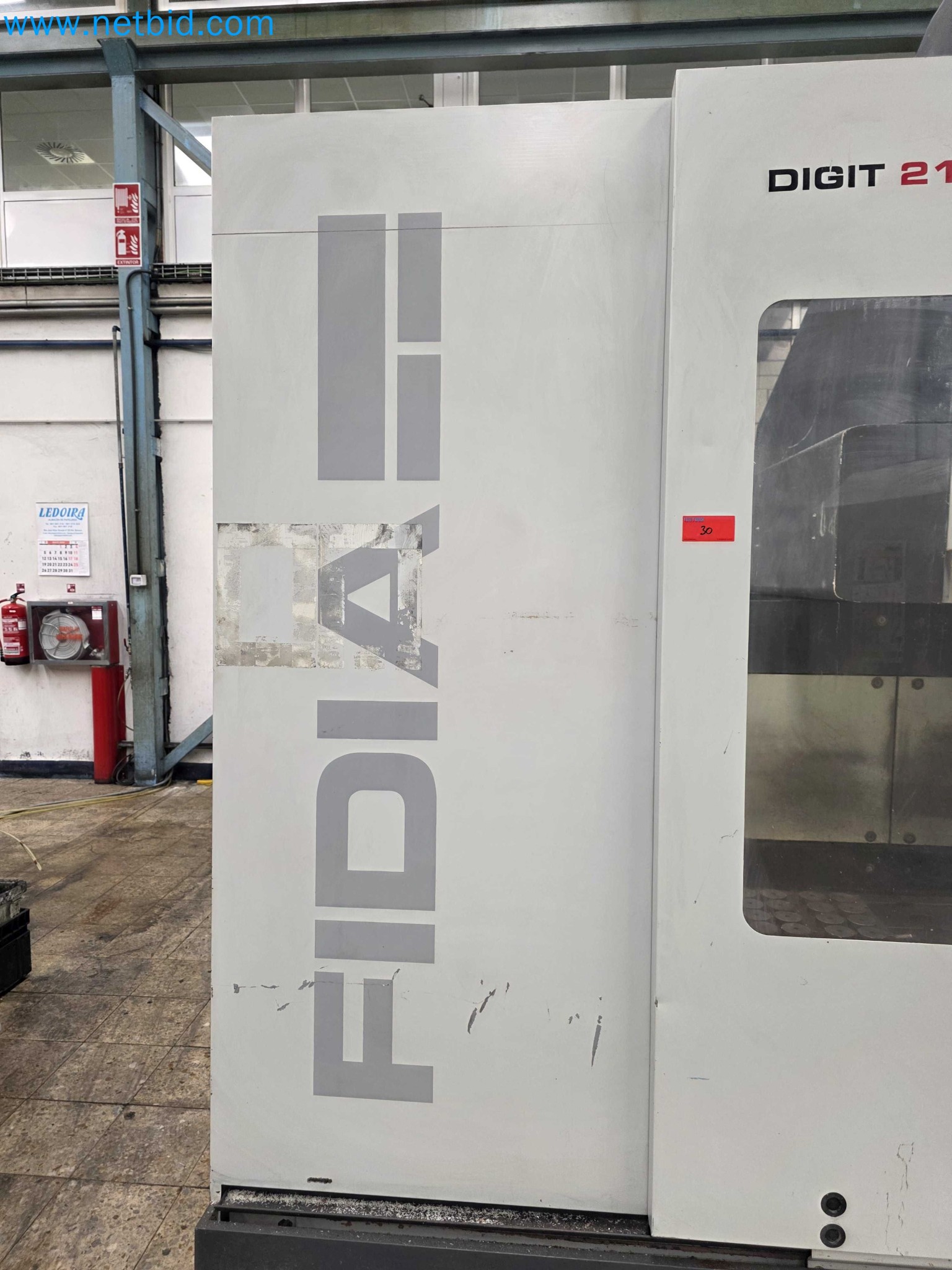

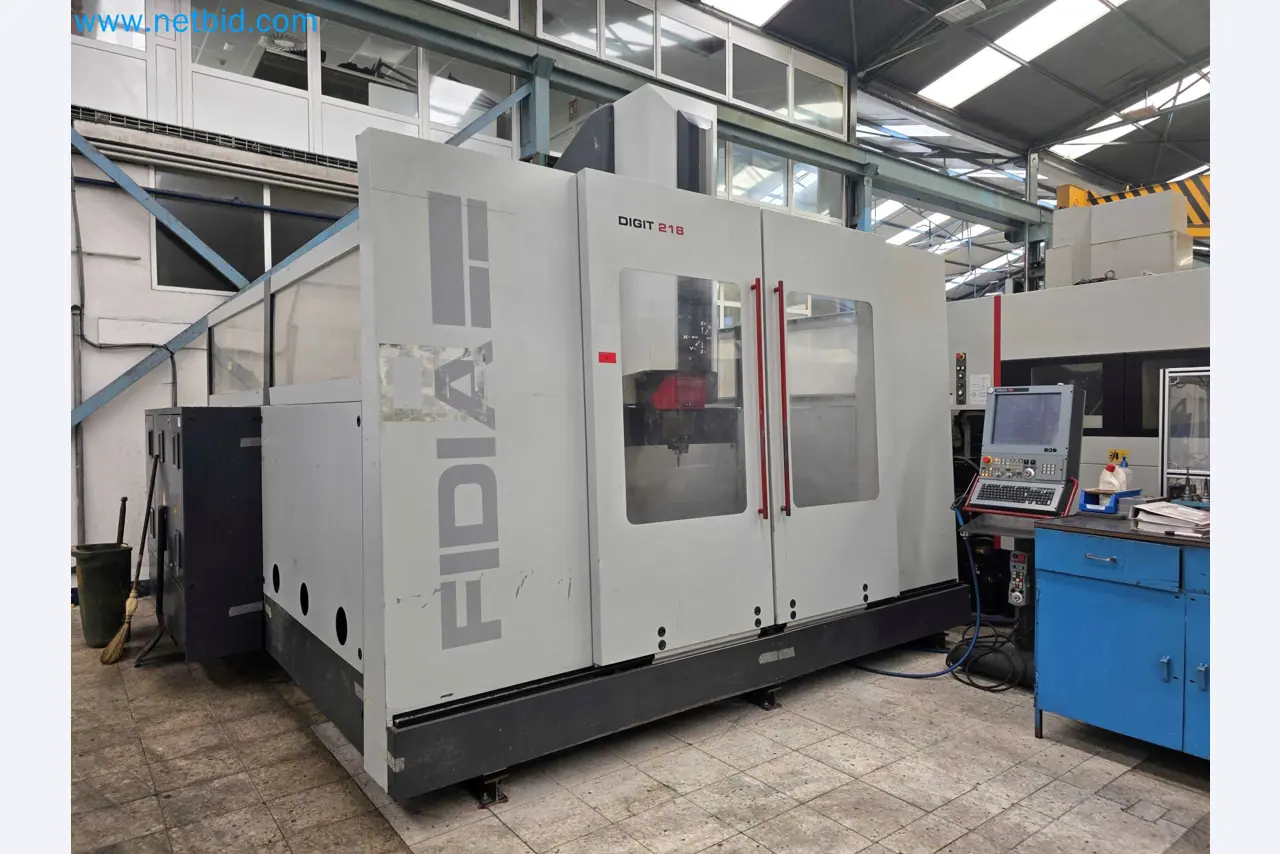

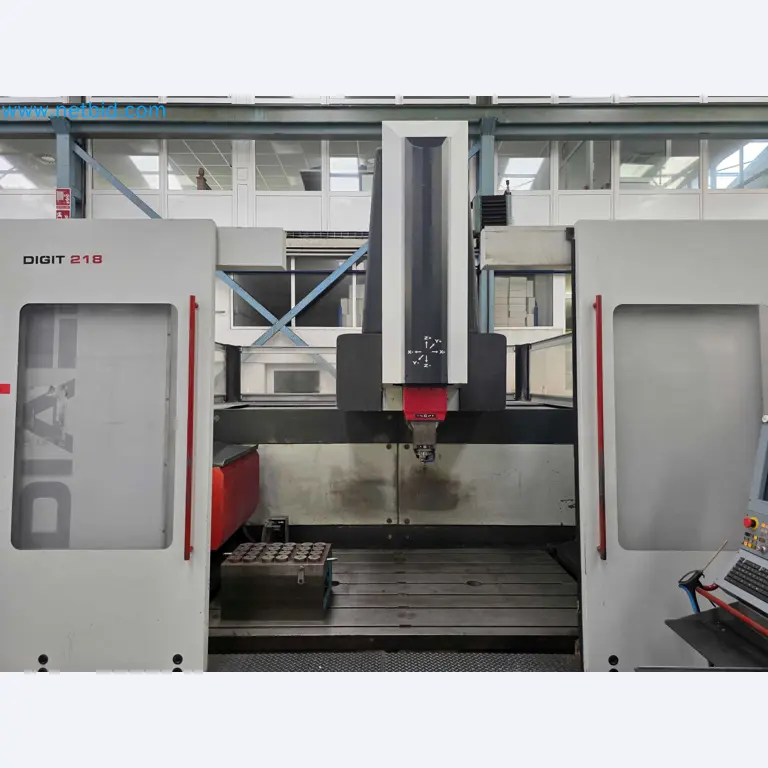

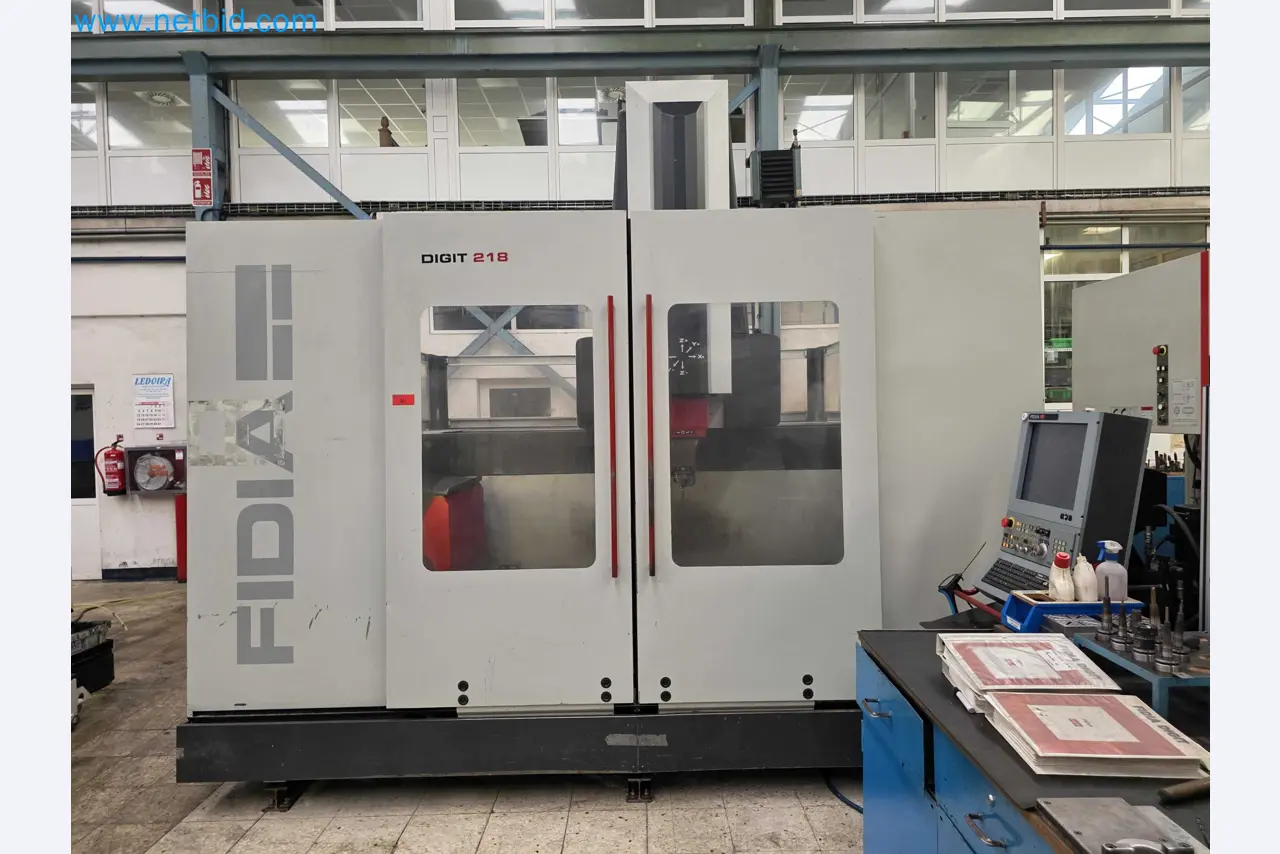

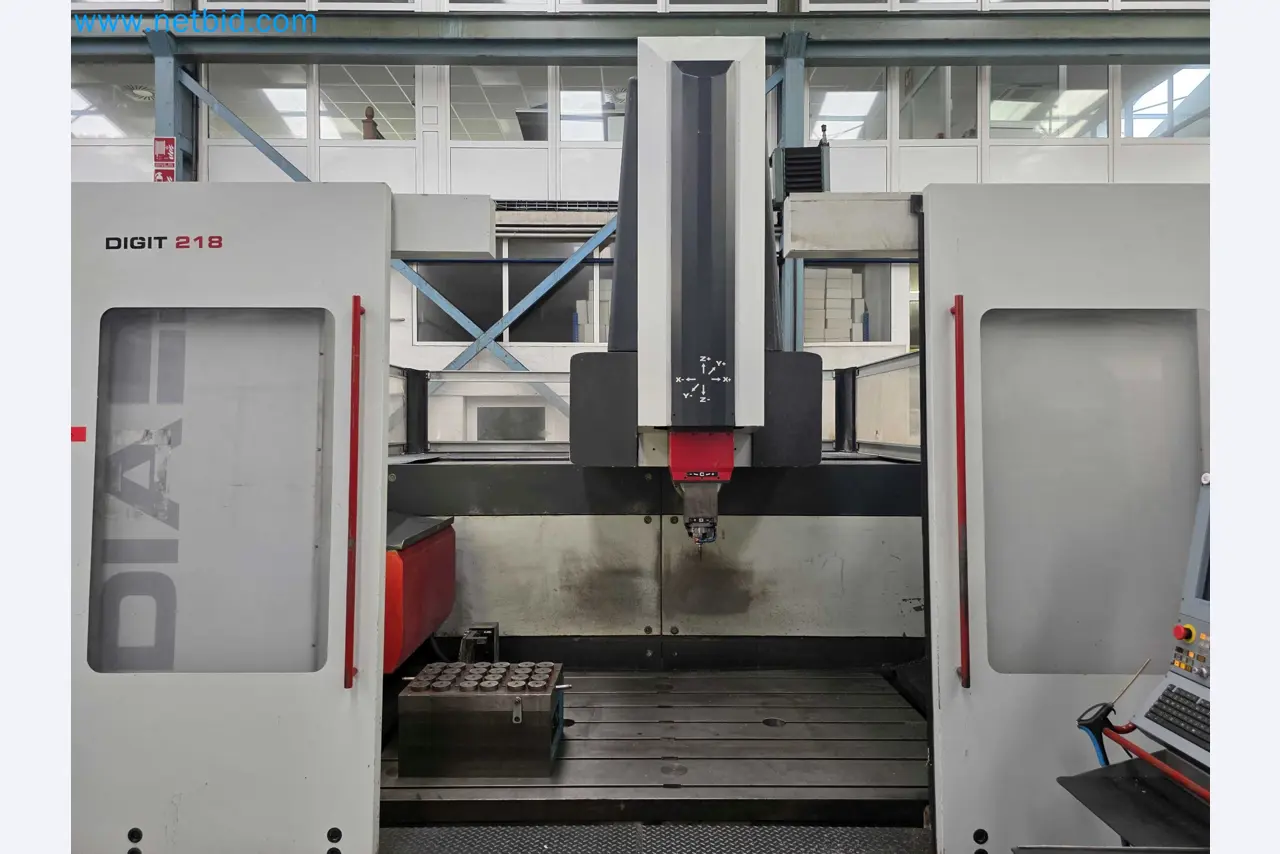

High-Speed Milling Center FIDIA DIGIT 218AUCTION#A19590-30
Details
Product Type
FIDIA
Type

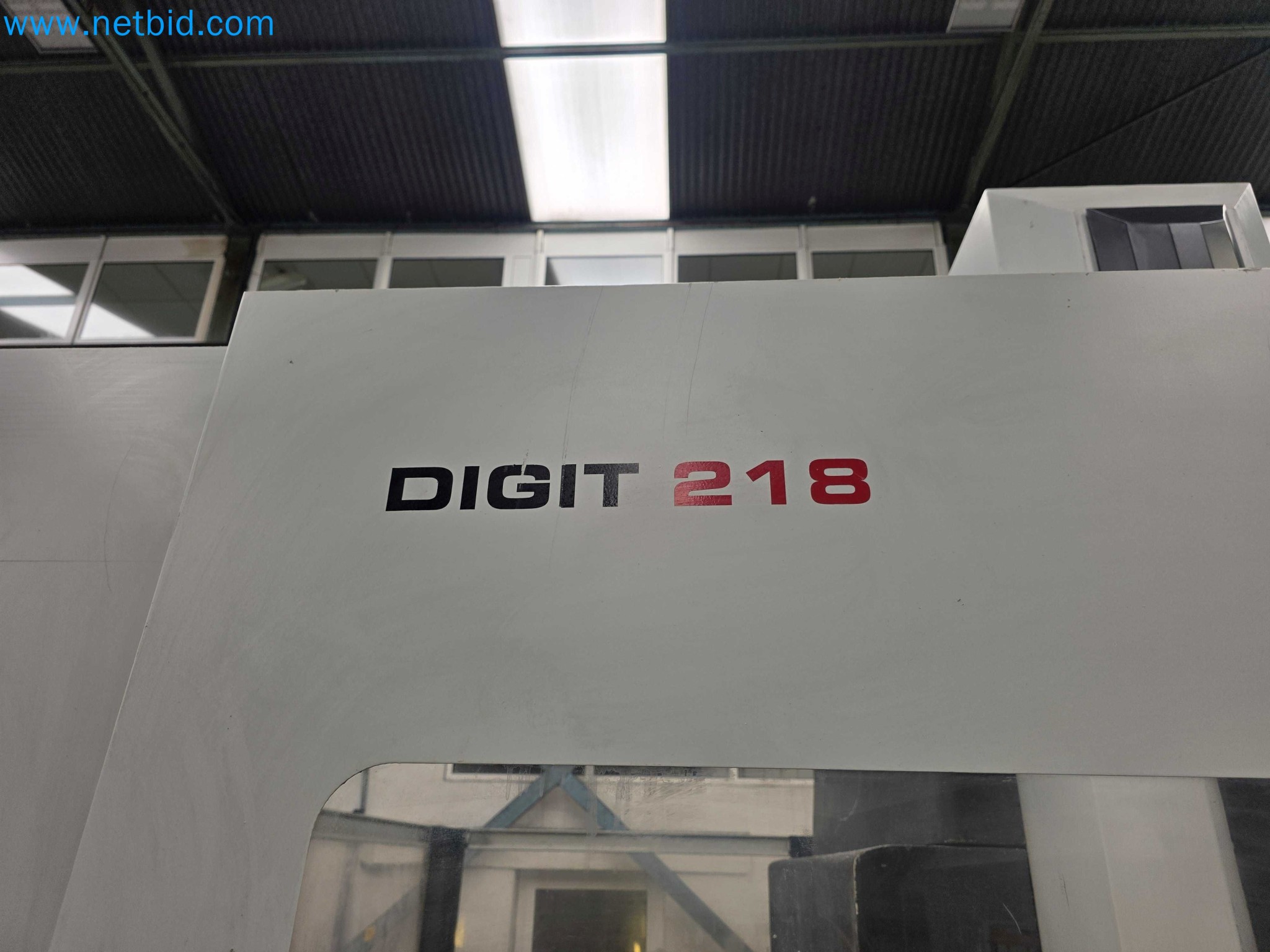

DIGIT 218
Construction Year
2001
Description

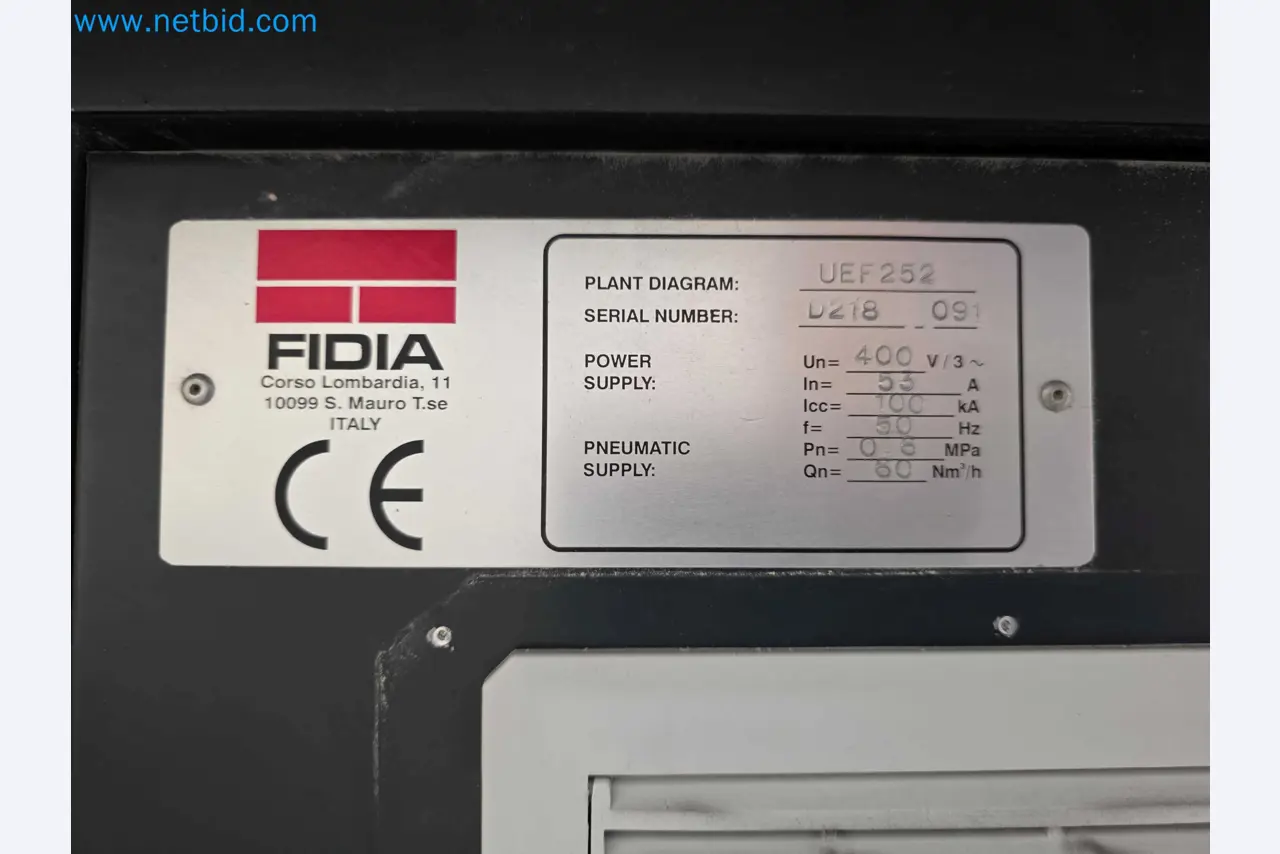

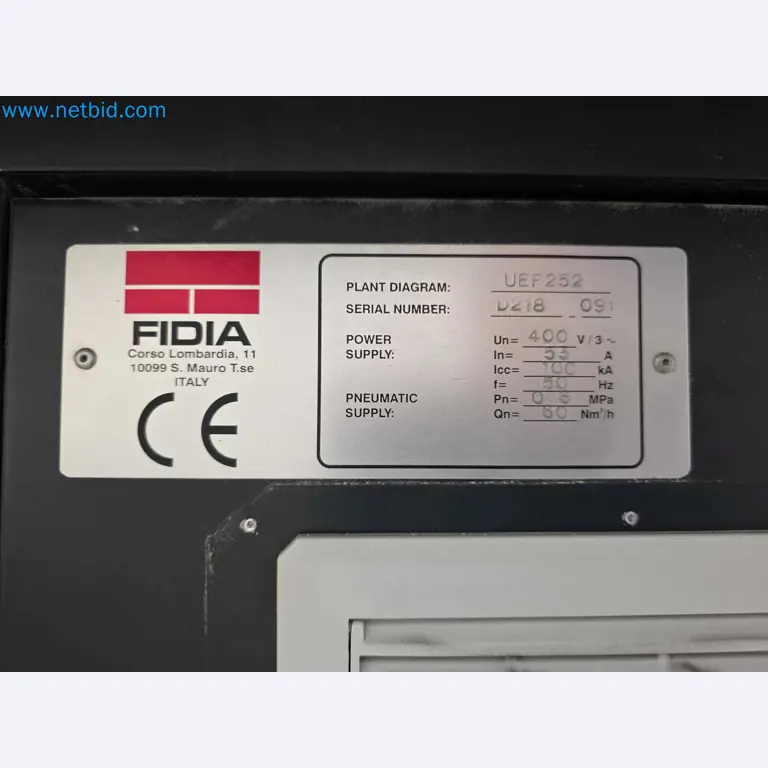

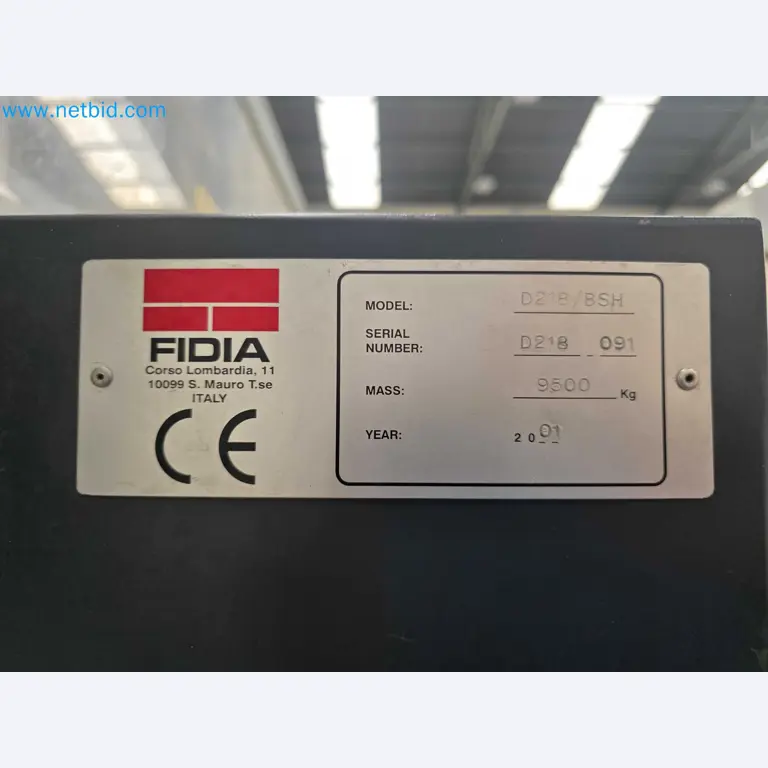

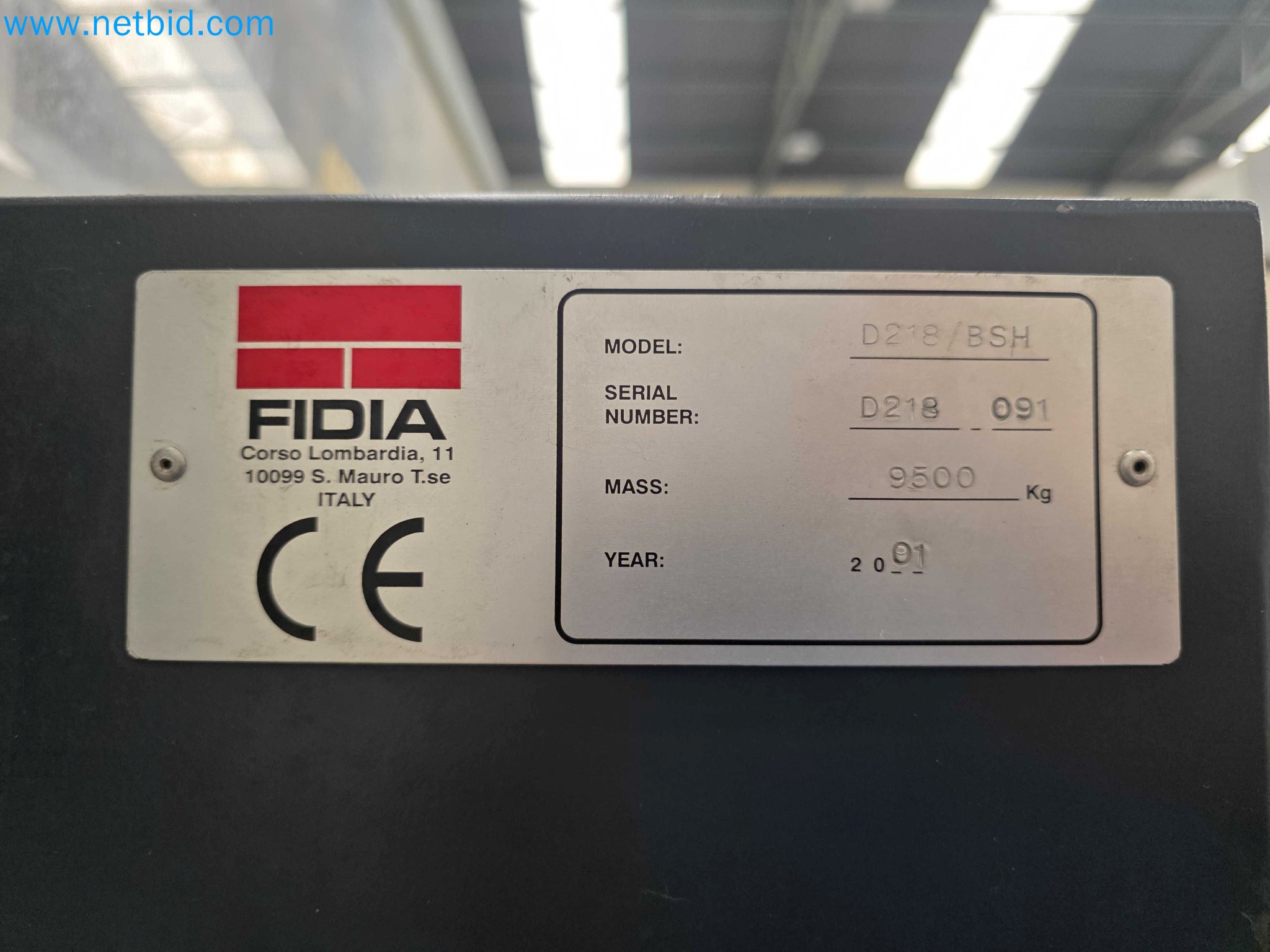

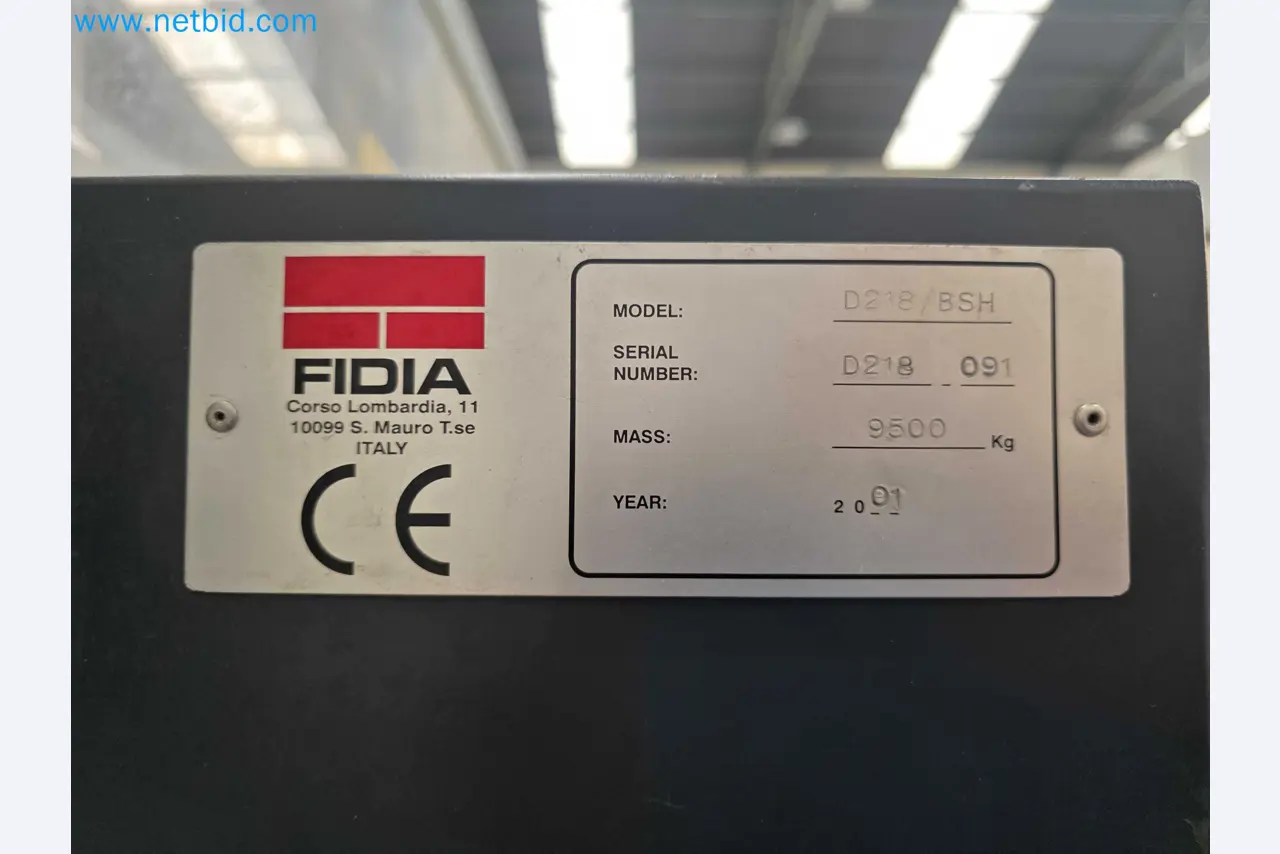

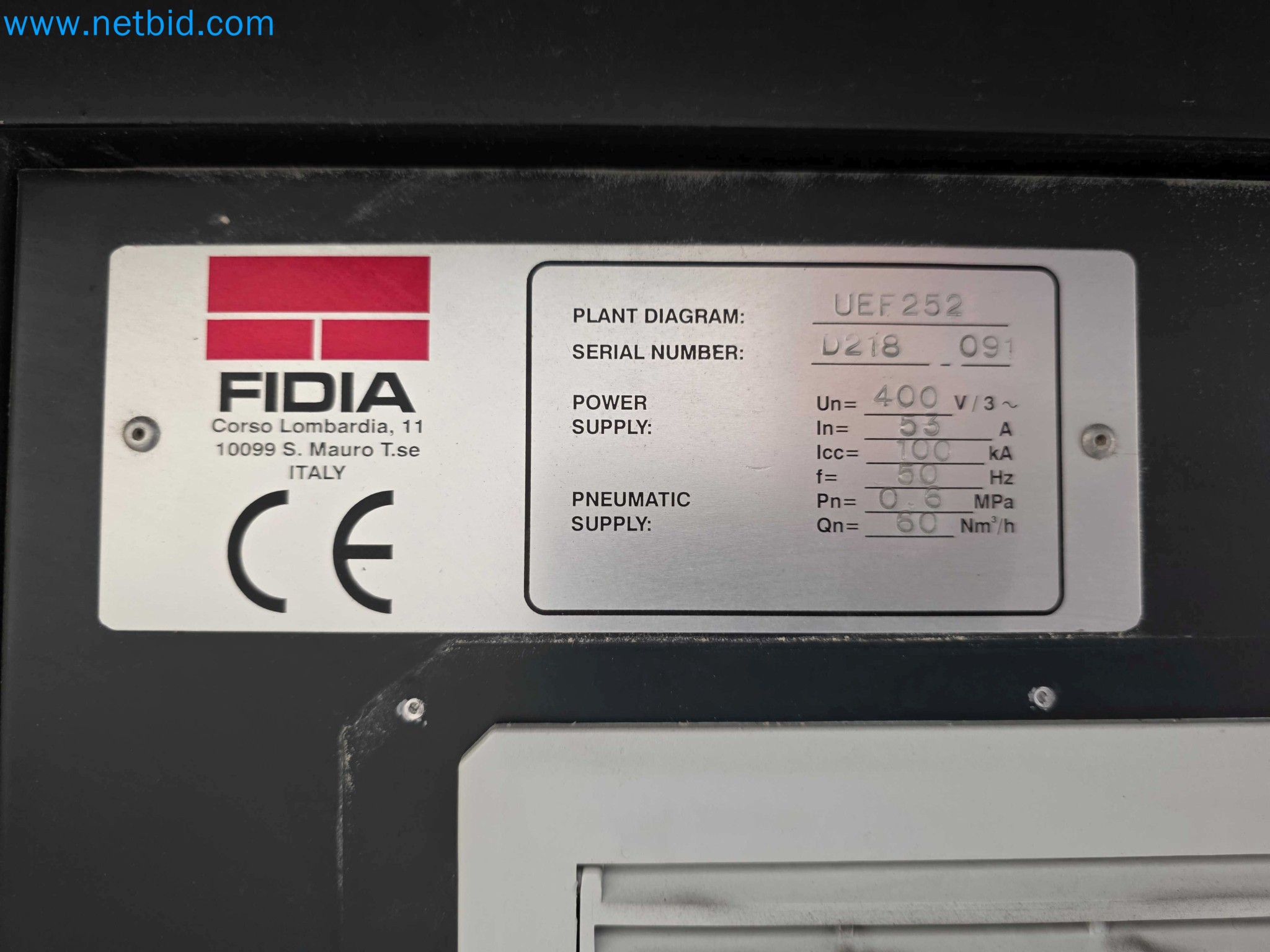

SN: D218 091
5-axis

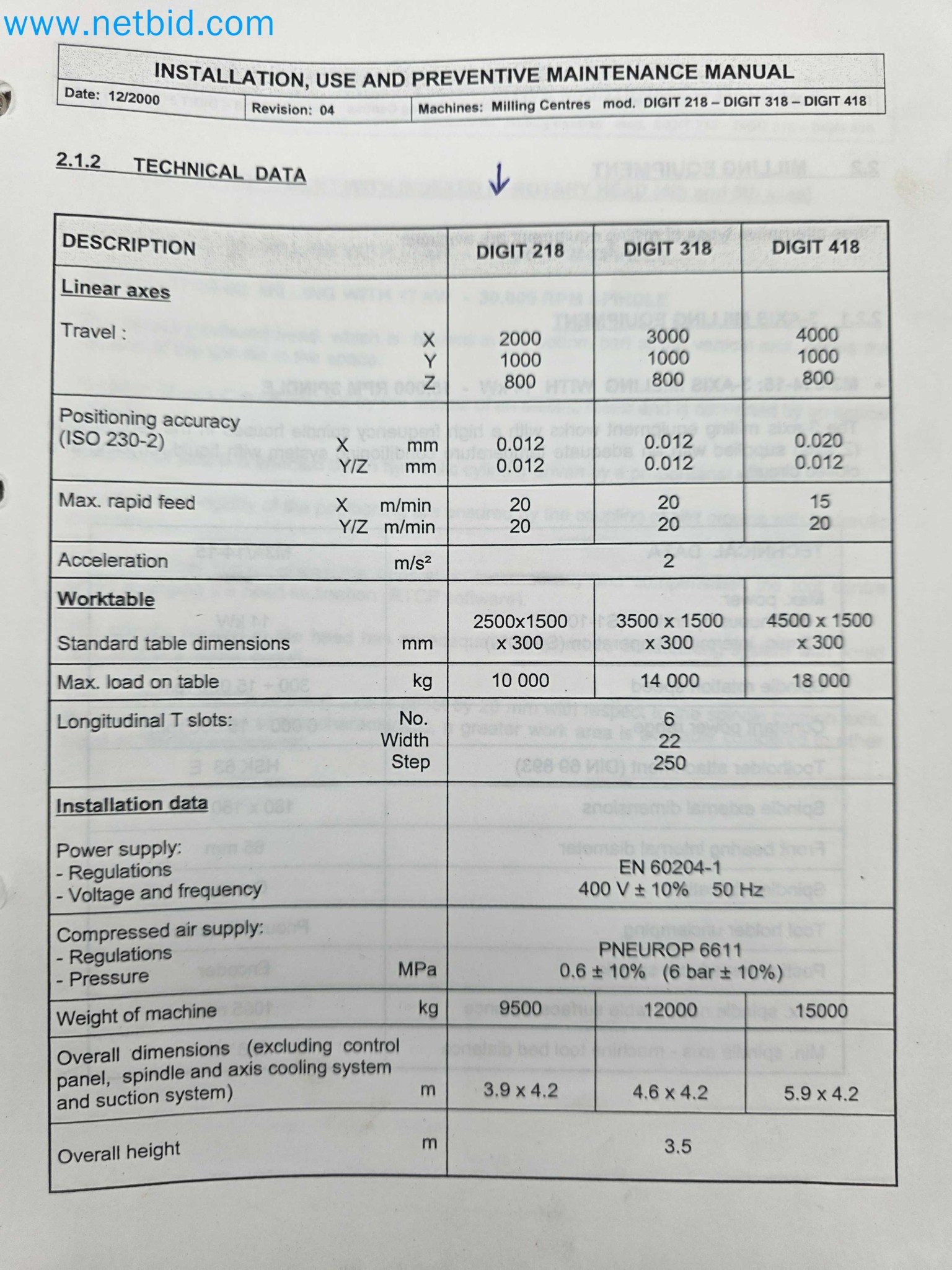

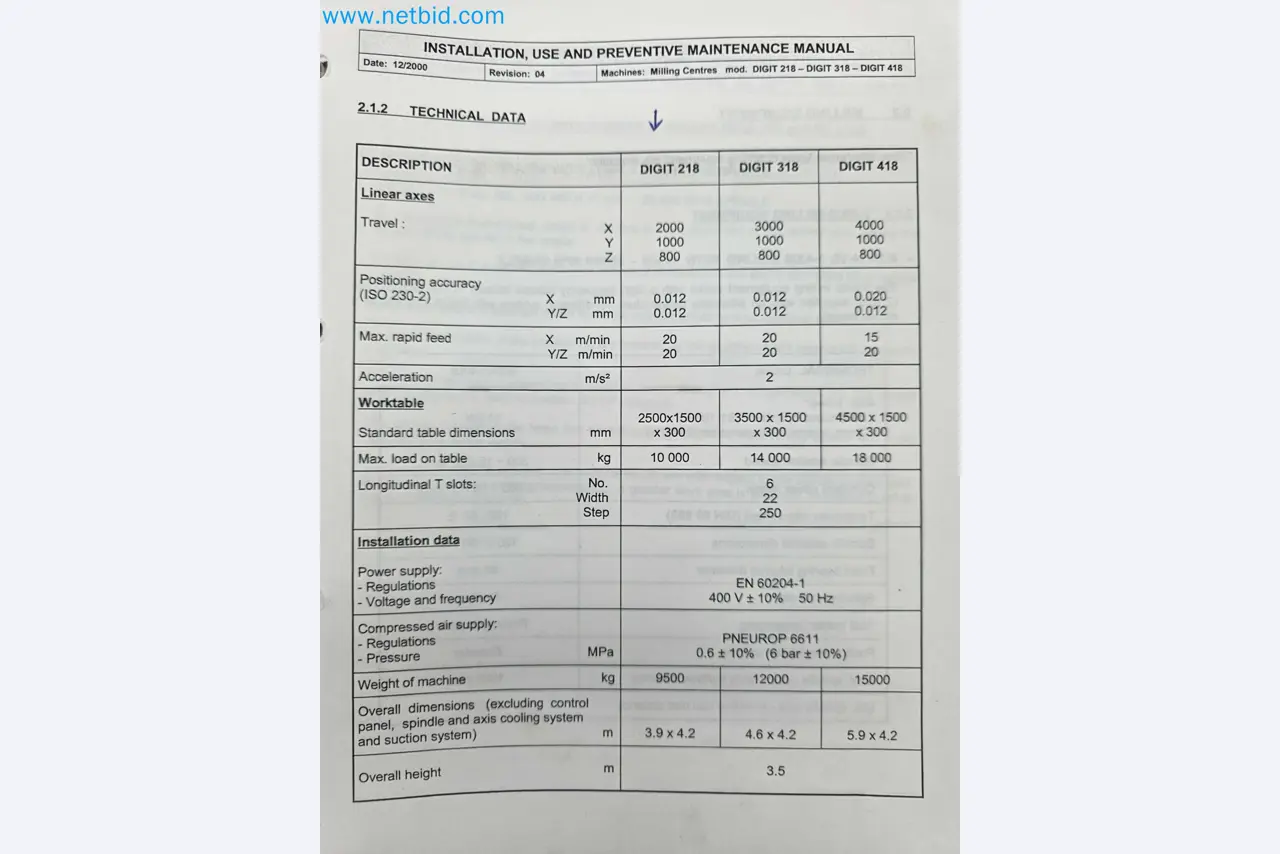

Travels:
· X-axis: 2000 mm
· Y-axis: 1000 mm
· Z-axis: 800 mm

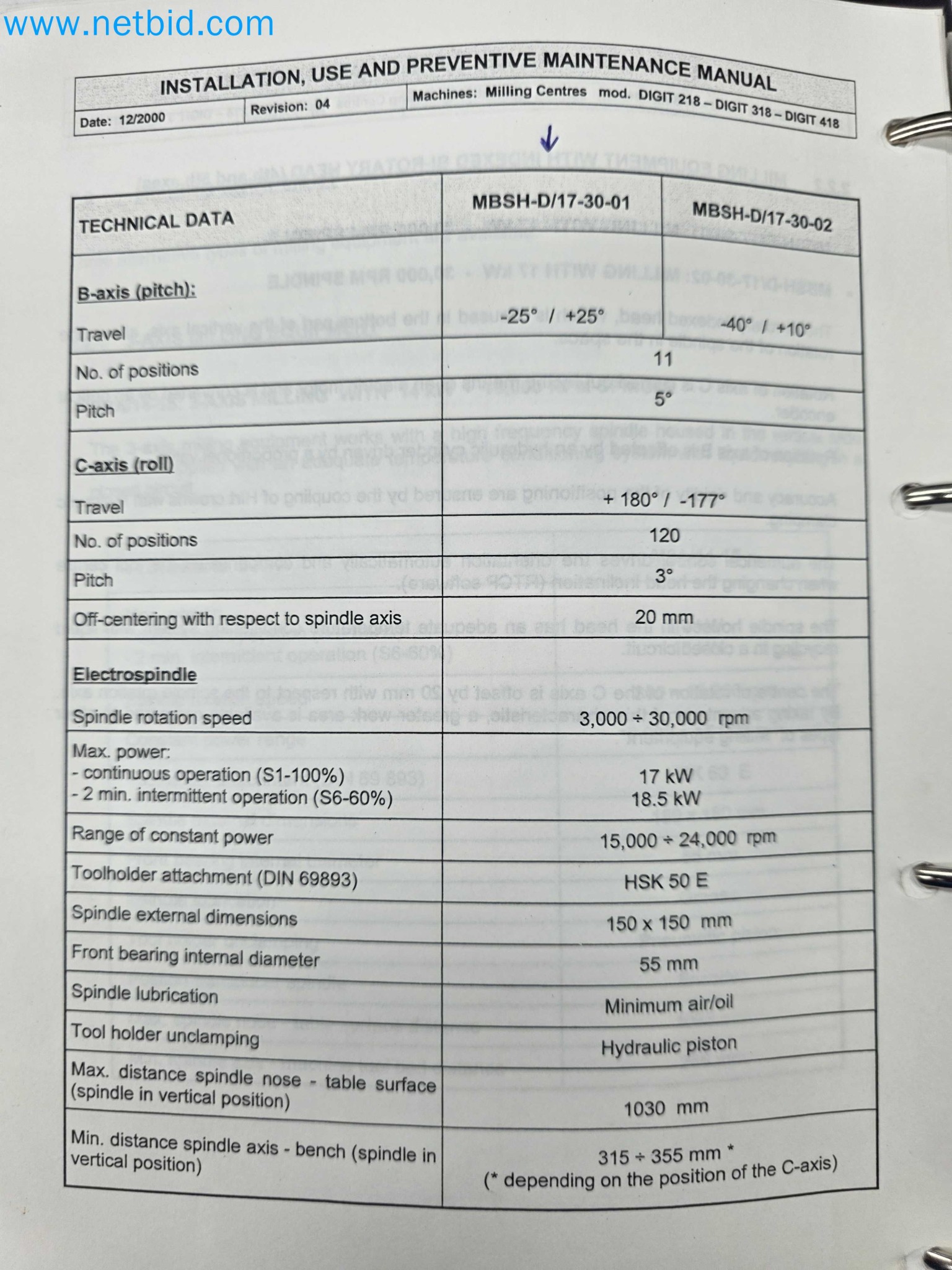

· B-axis: -25°/+25°
· C-axis: +180°/-177°
Positioning accuracy:
· X/Y/Z axes: 0.012 mm

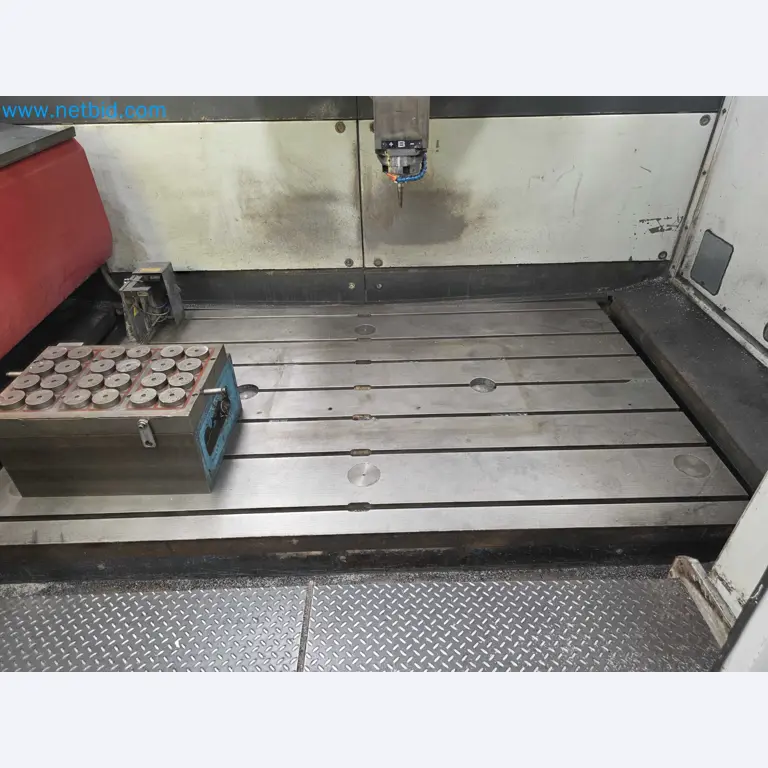

Standard table dimensions: 2500 x 1500 x 300 mm
Maximum table load: 10,000 kg

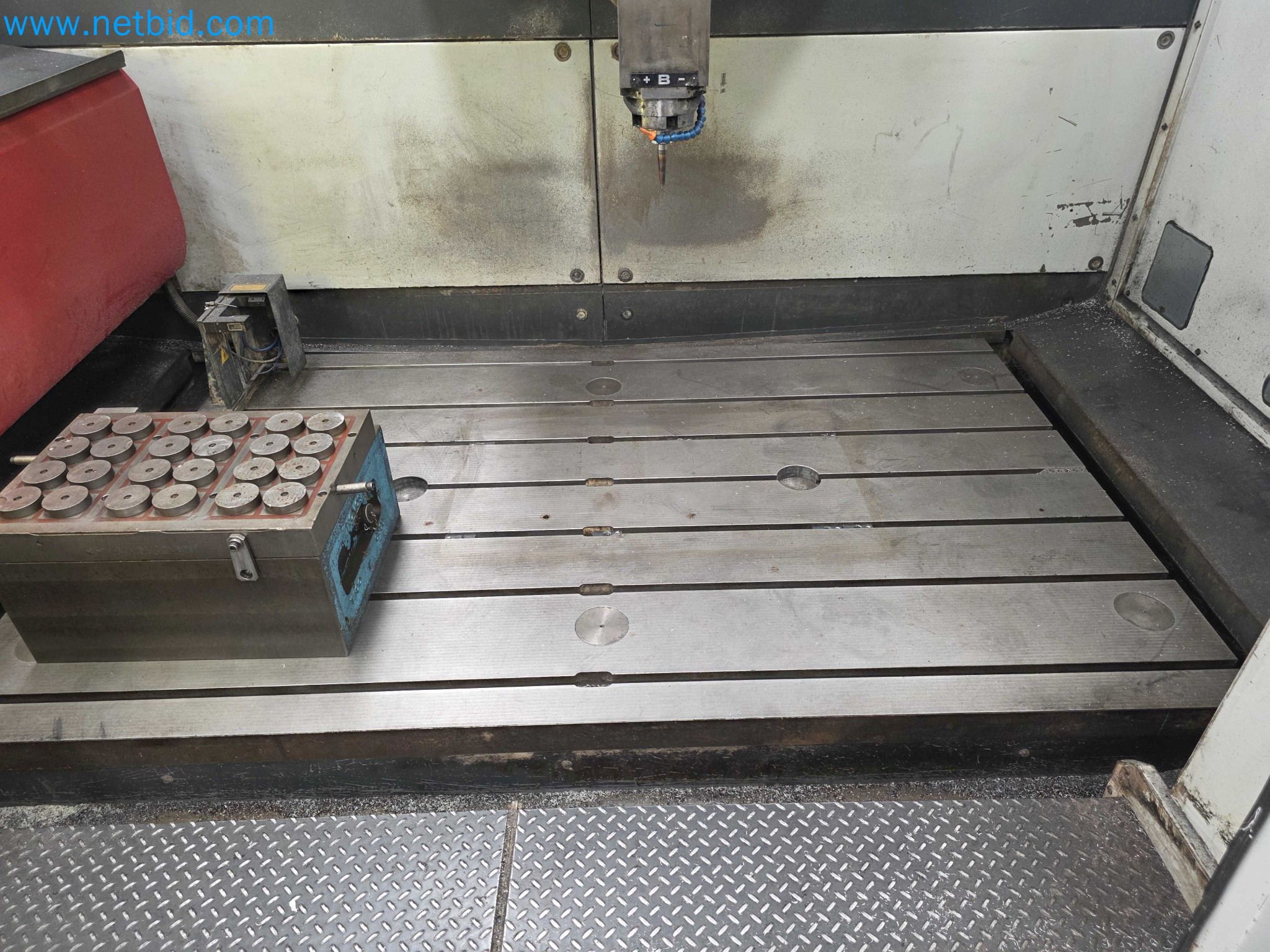

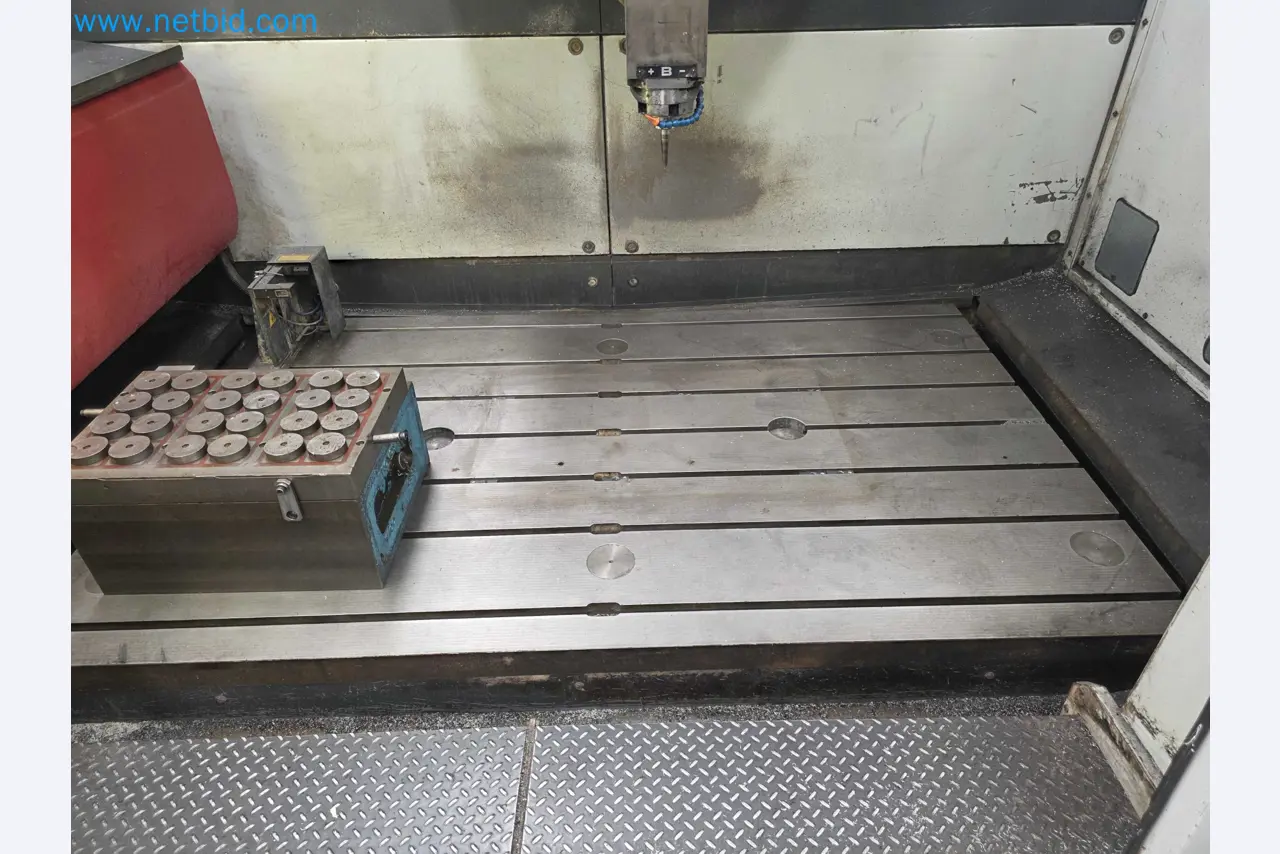

T-slot table with 6 slots, 22 mm wide
Maximum rapid traverse (X/Y/Z axes): 20 m/min
Acceleration: 2 m/s²

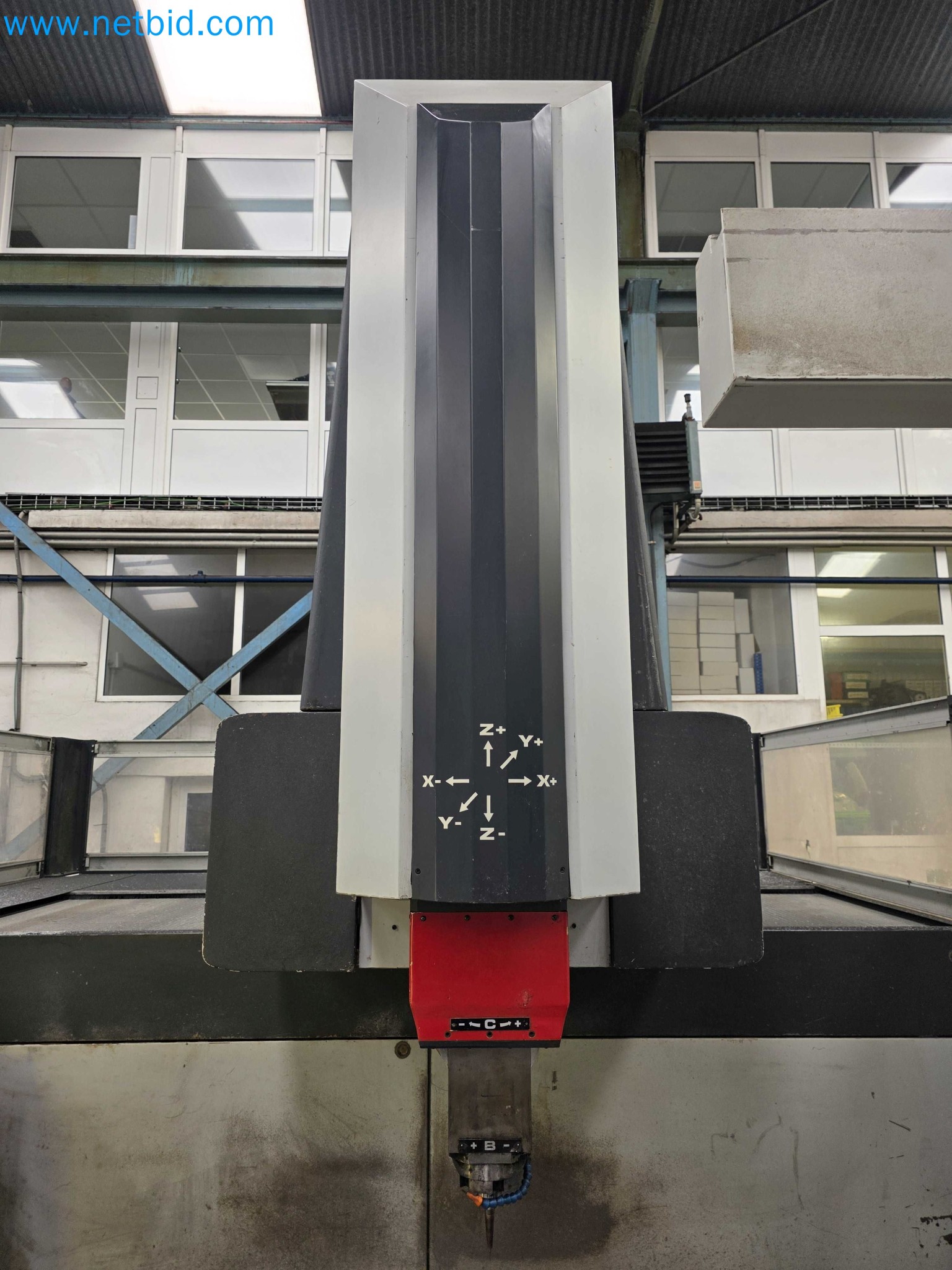

Spindle speed range: 3,000 to 30,000 rpm

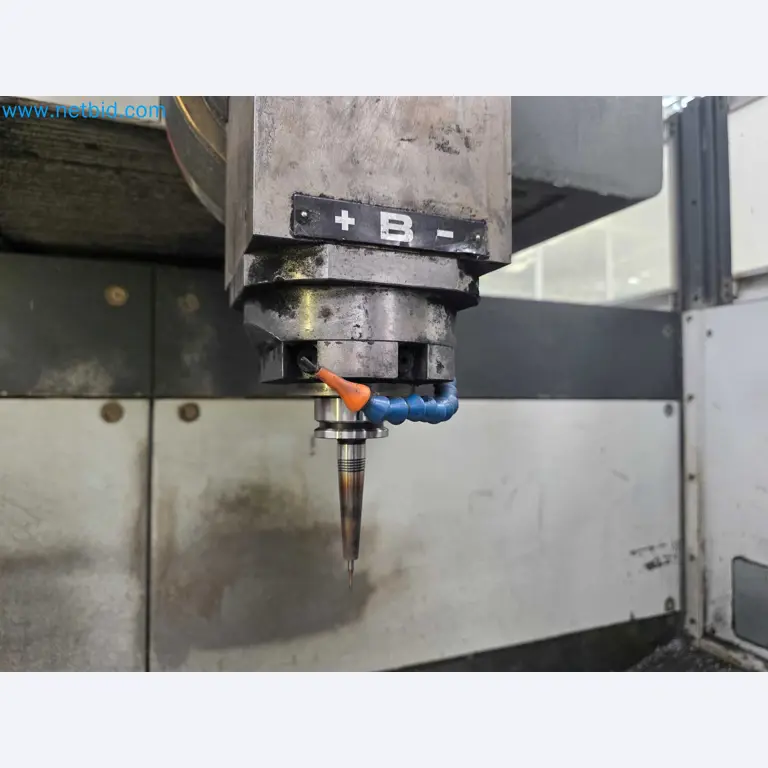

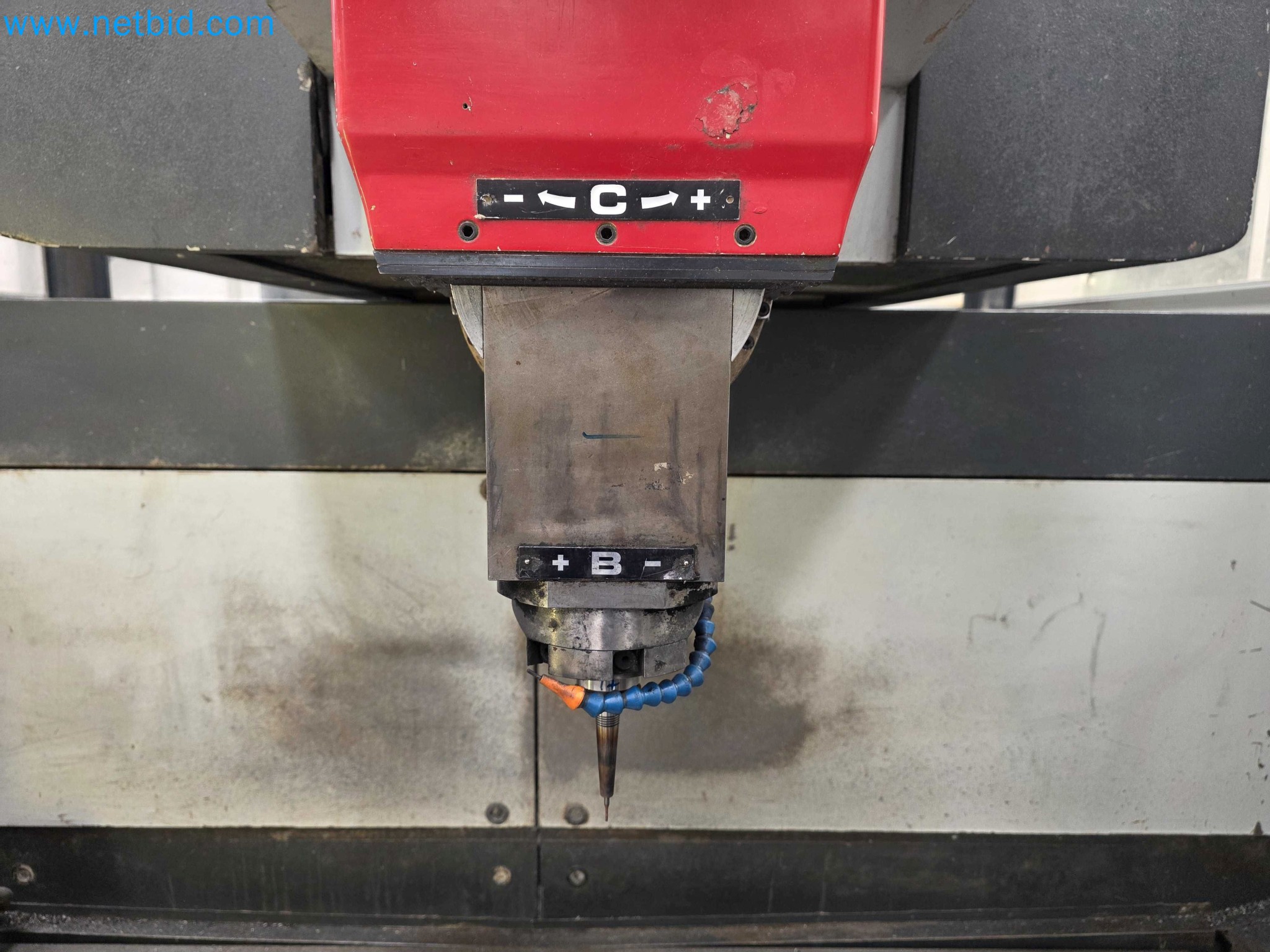

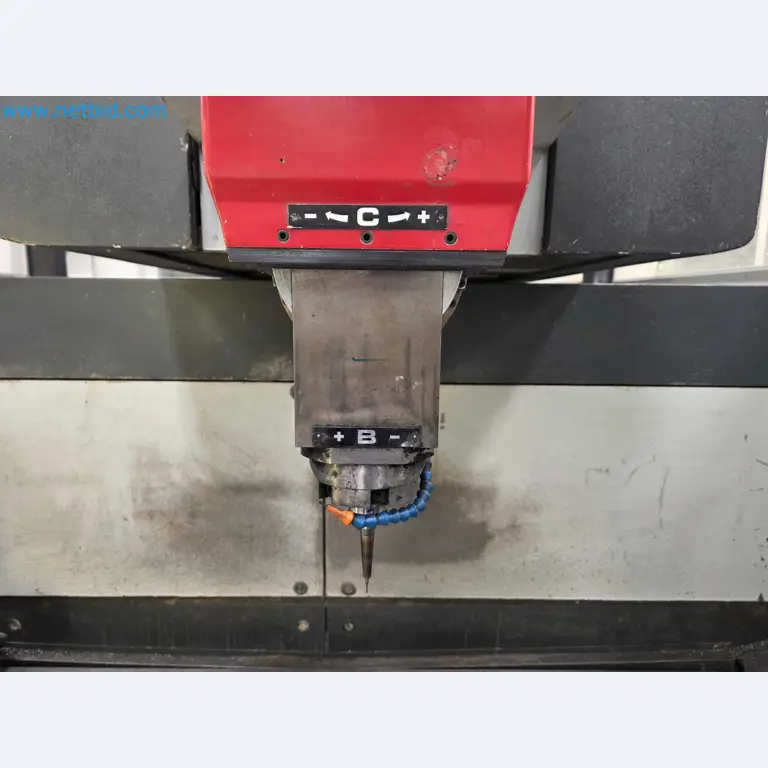

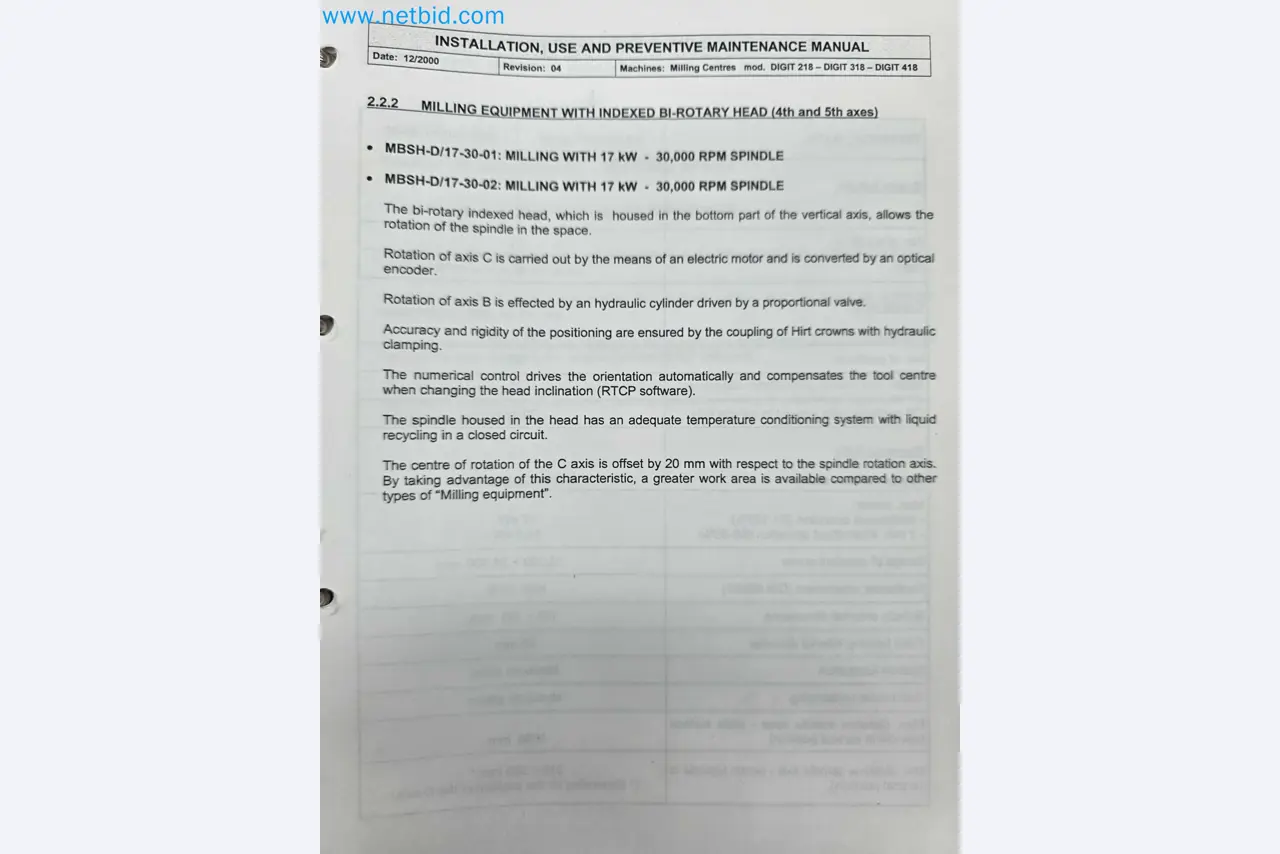

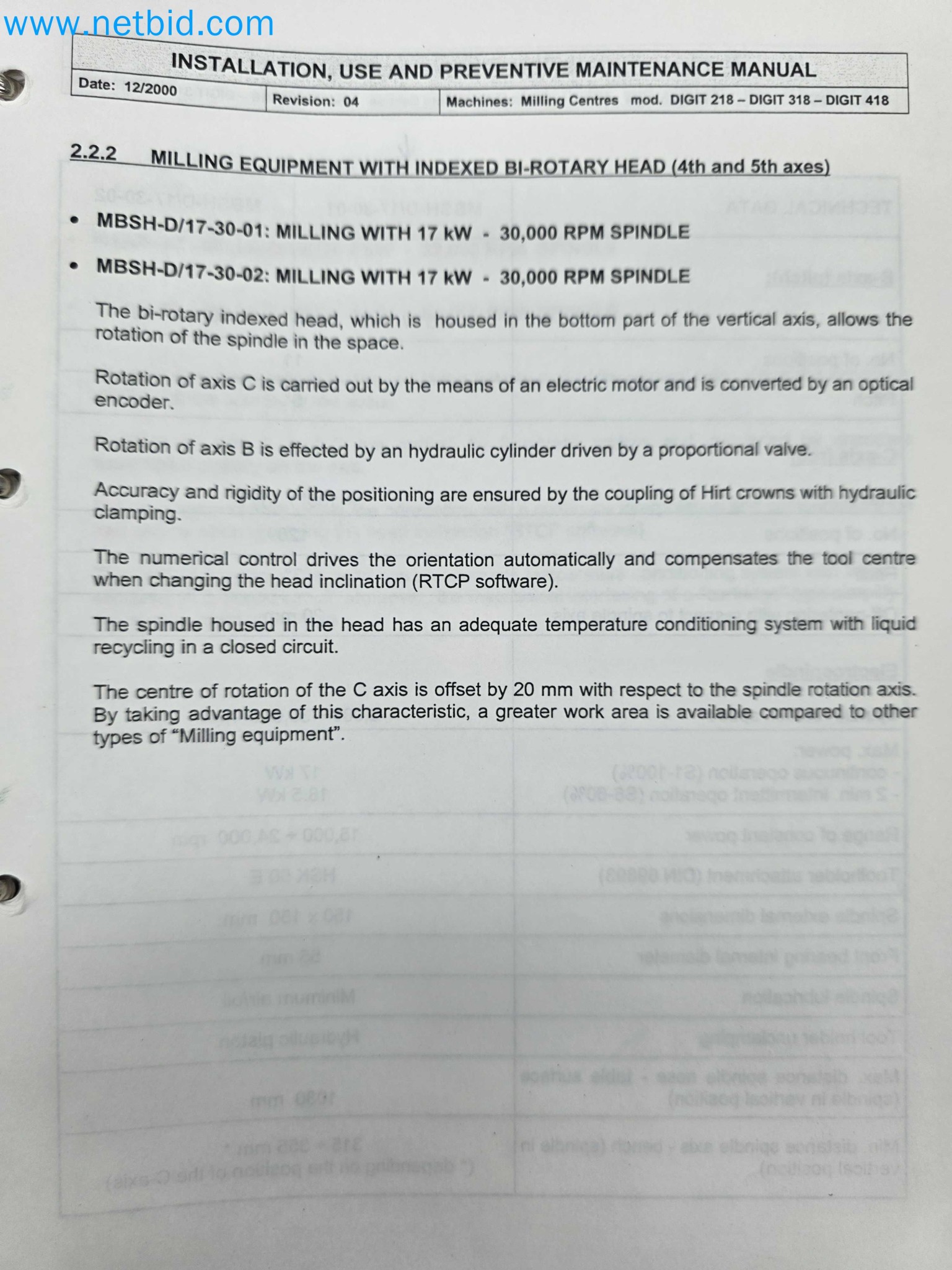

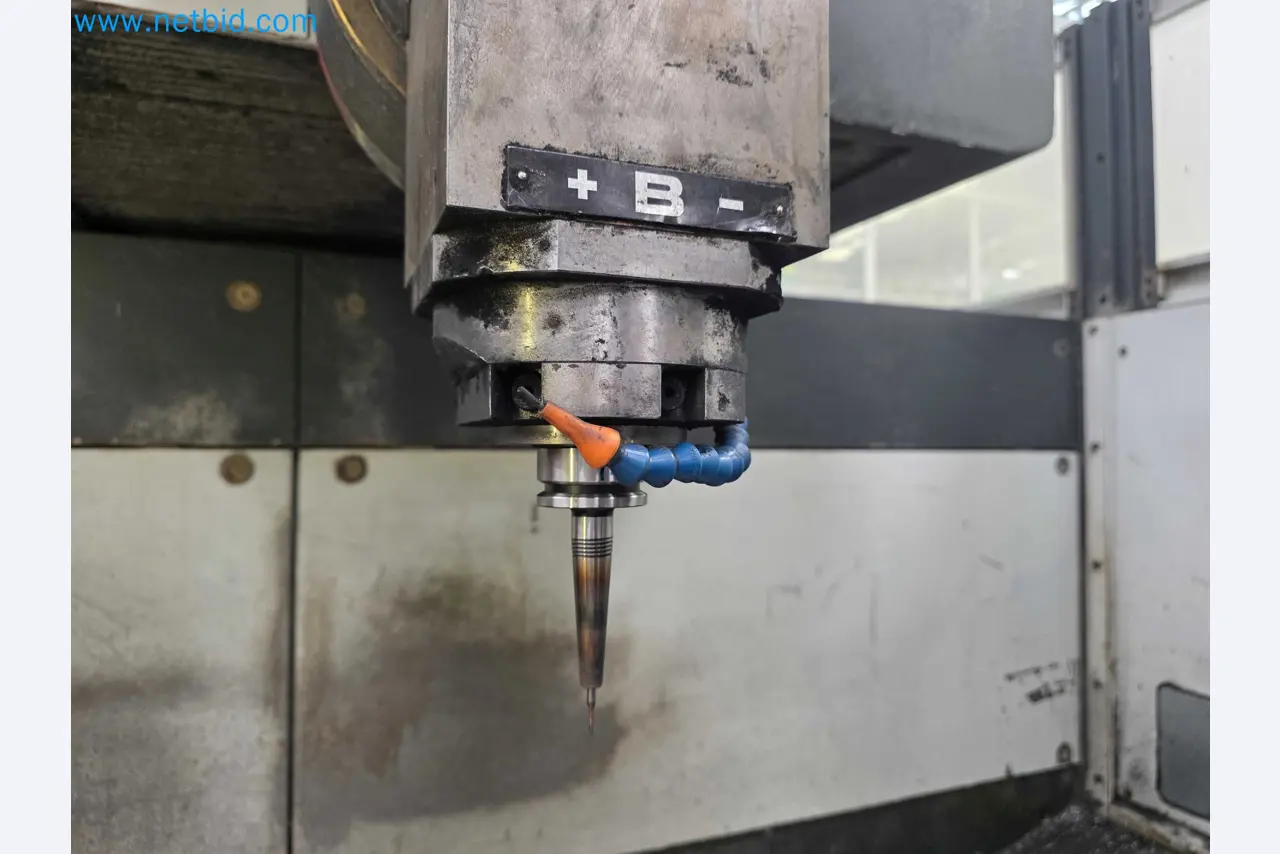

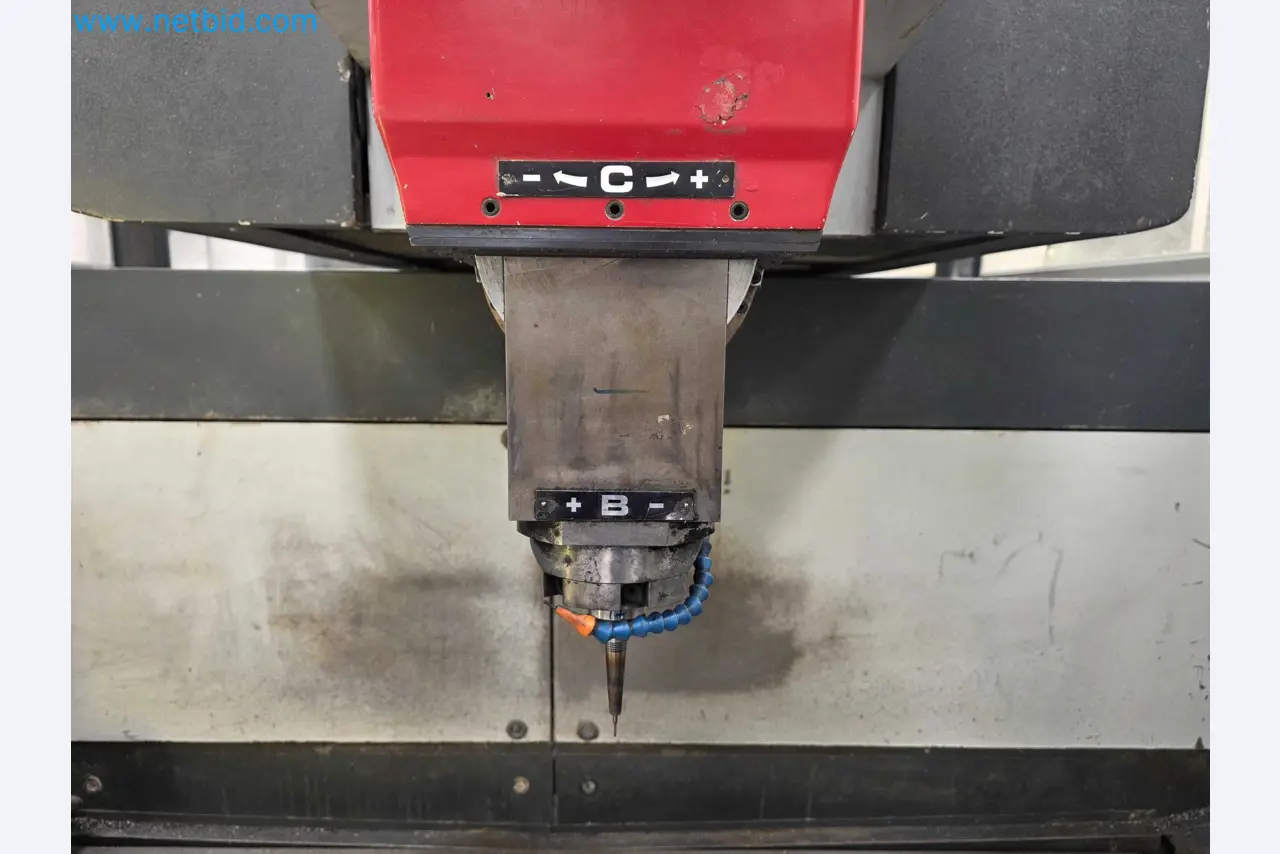

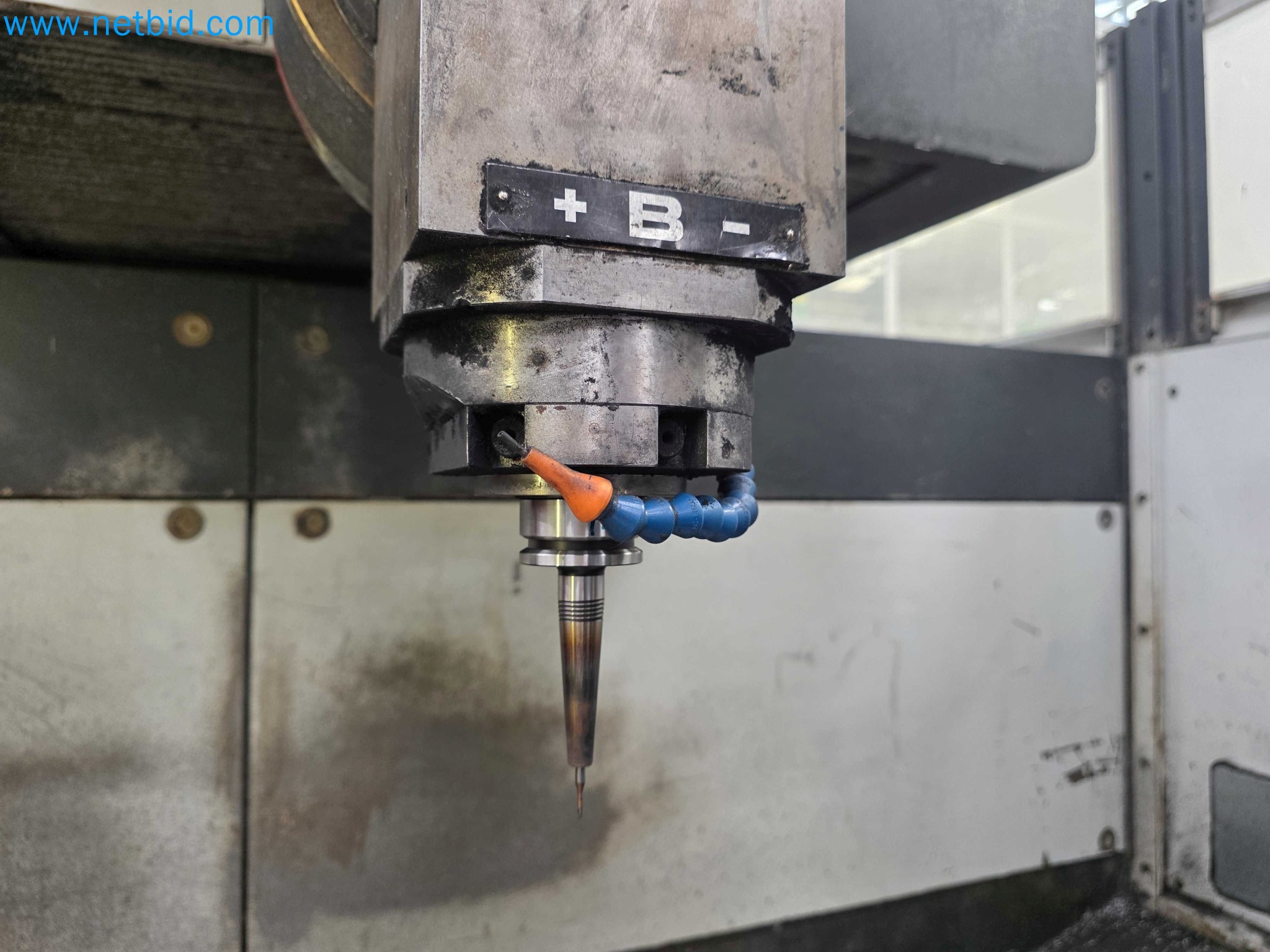

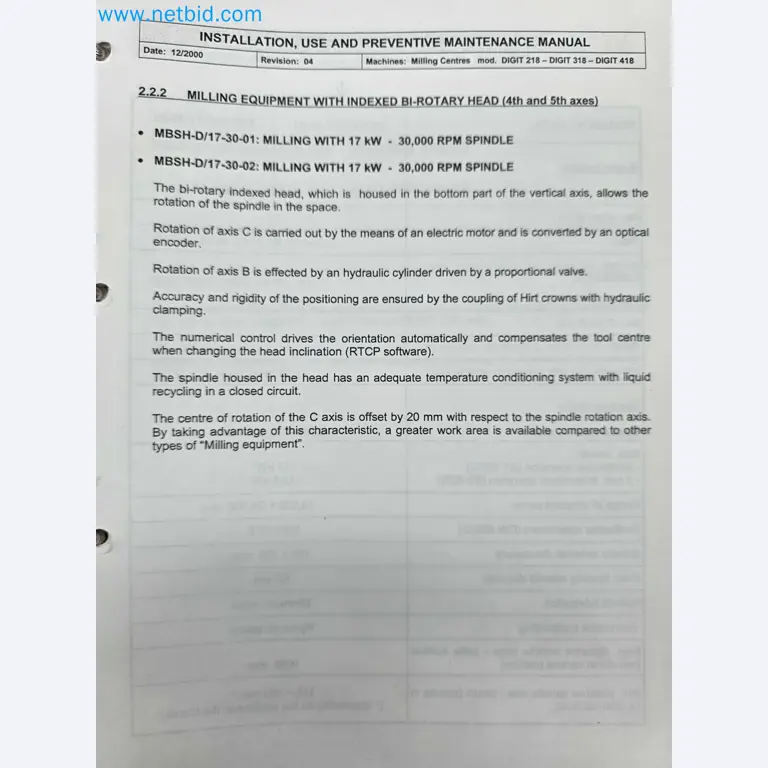

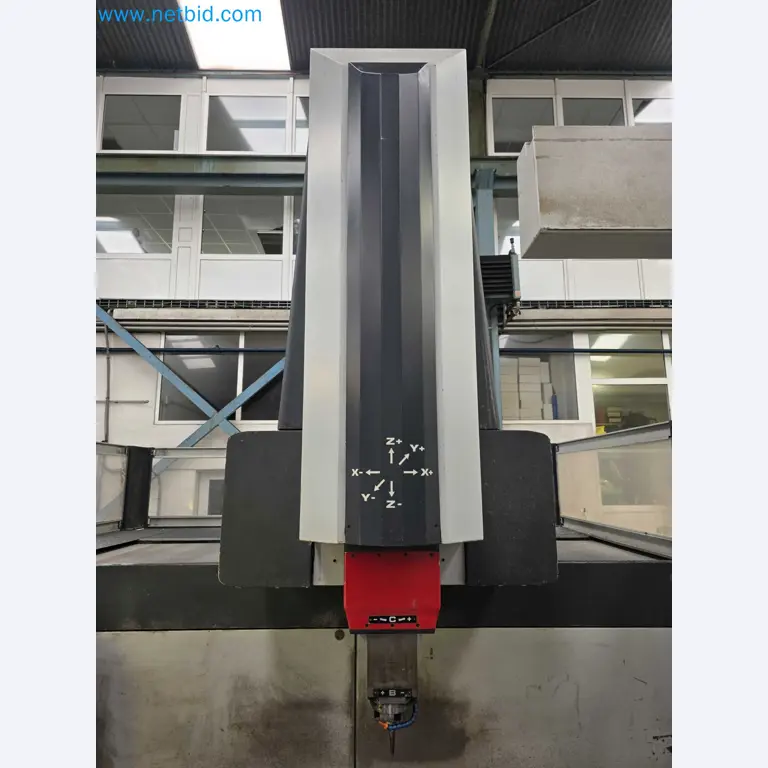

MBSH-D/17-30-01 milling head
Head power: 17 kW

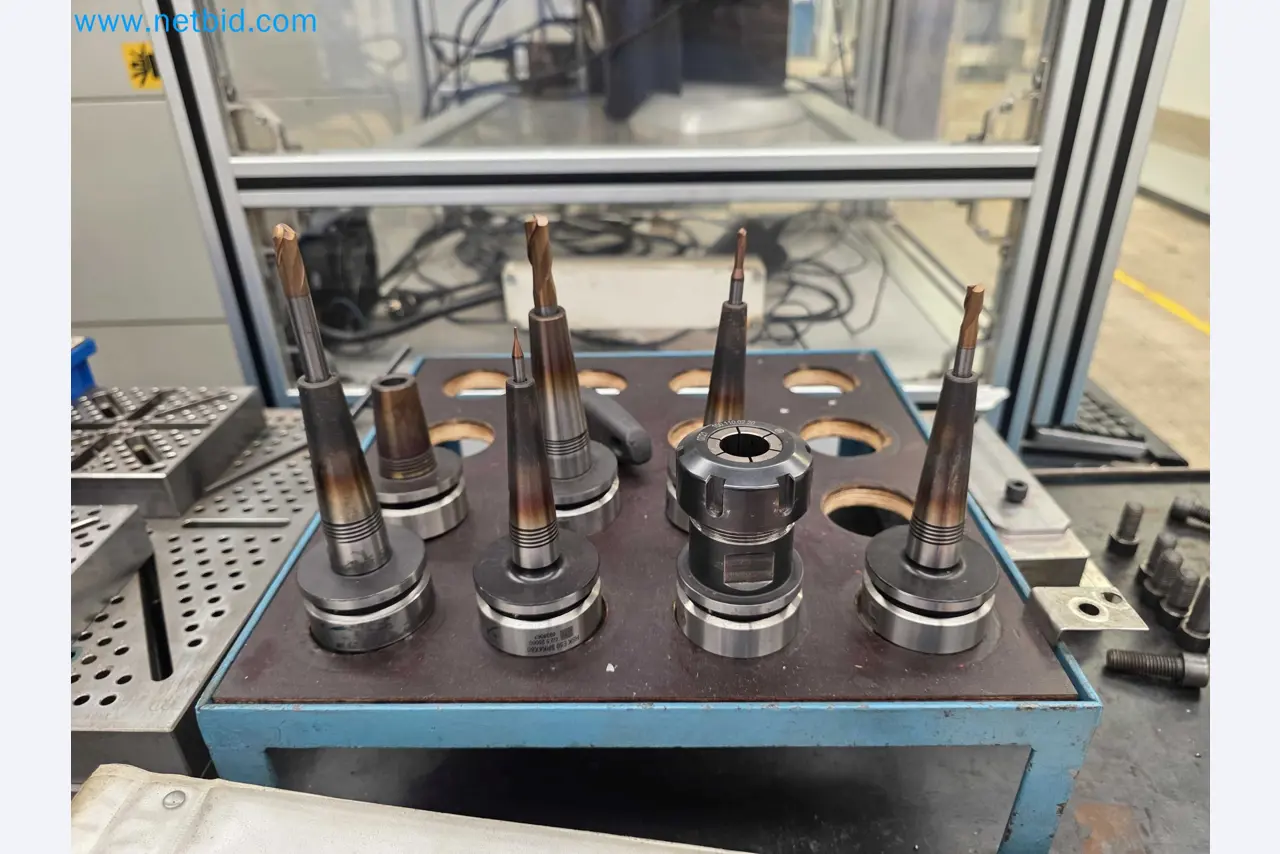

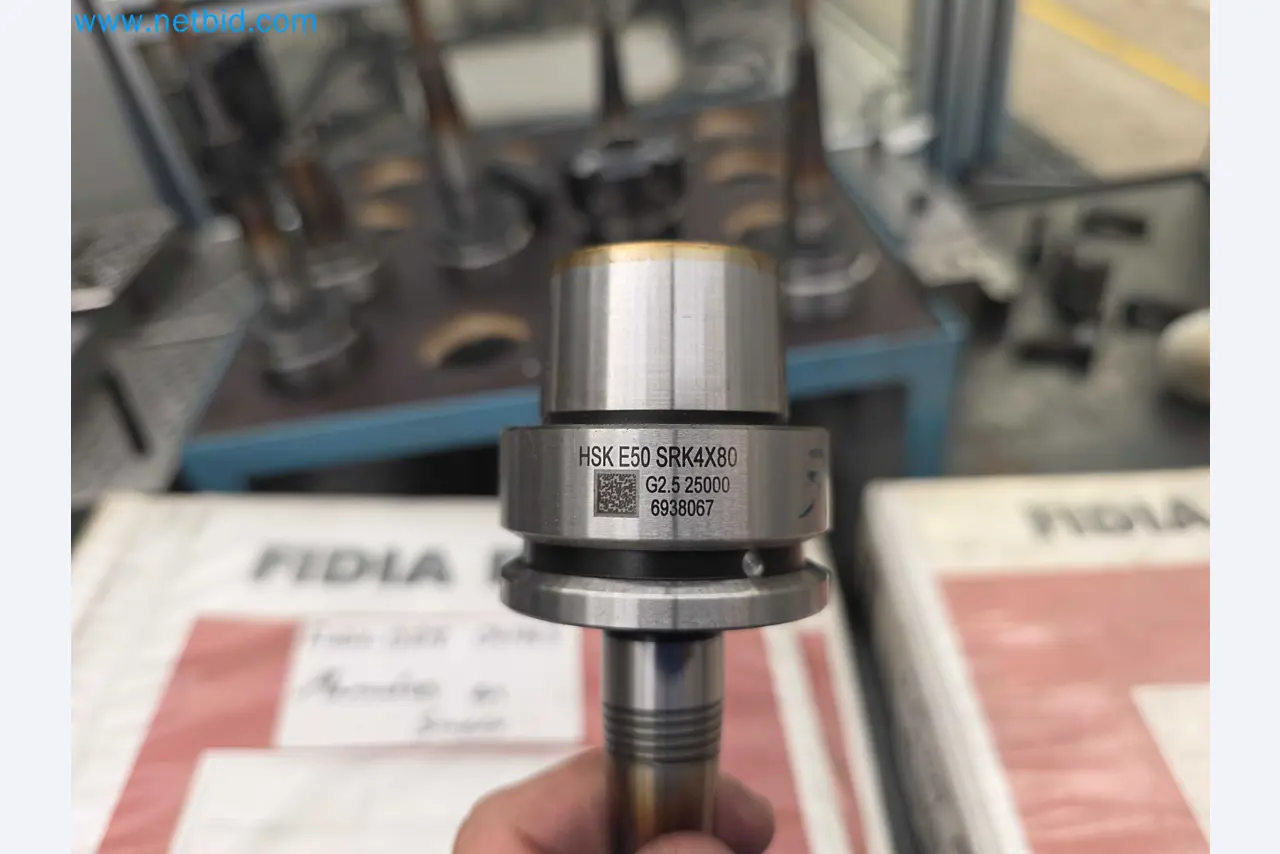

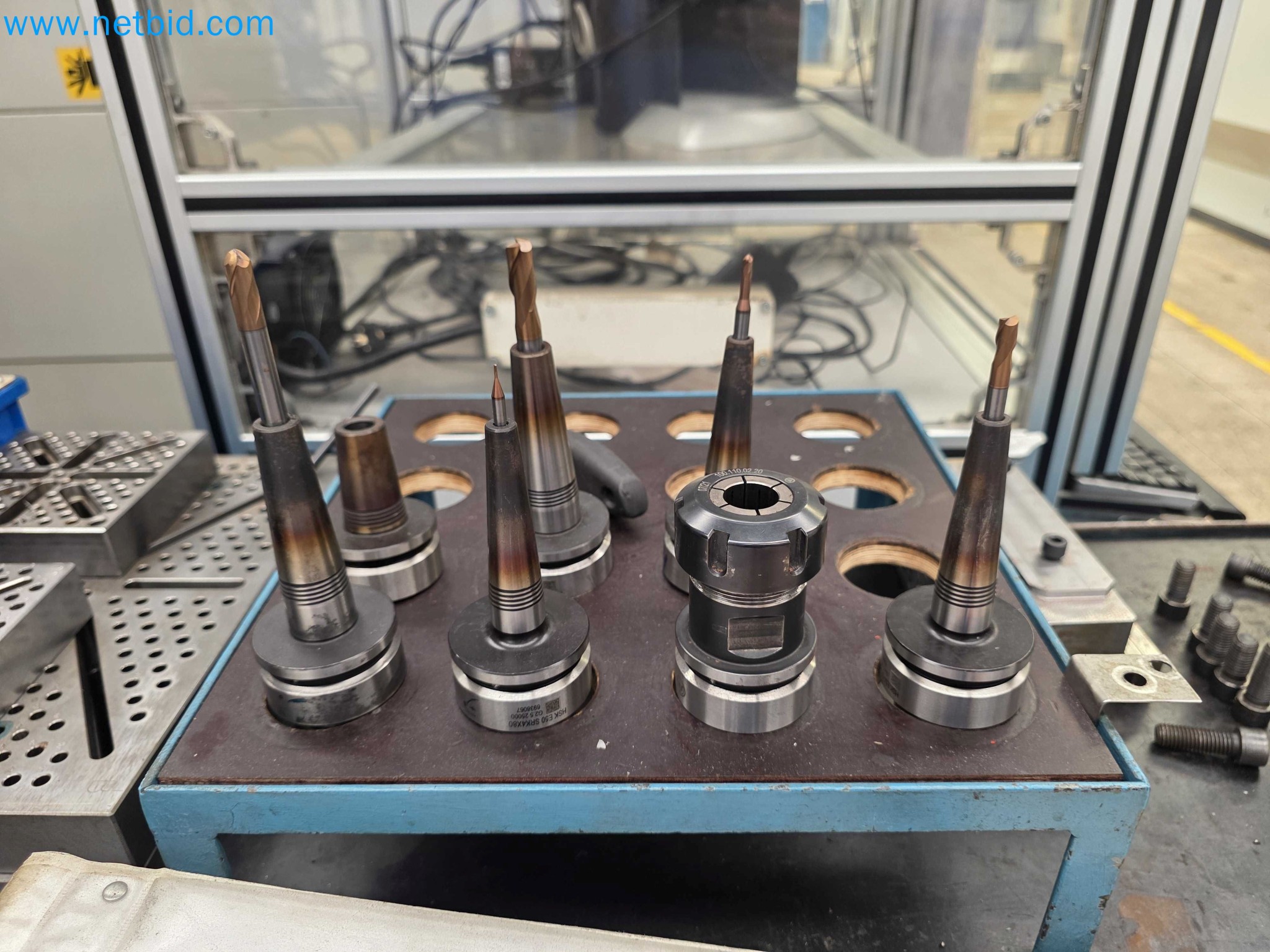

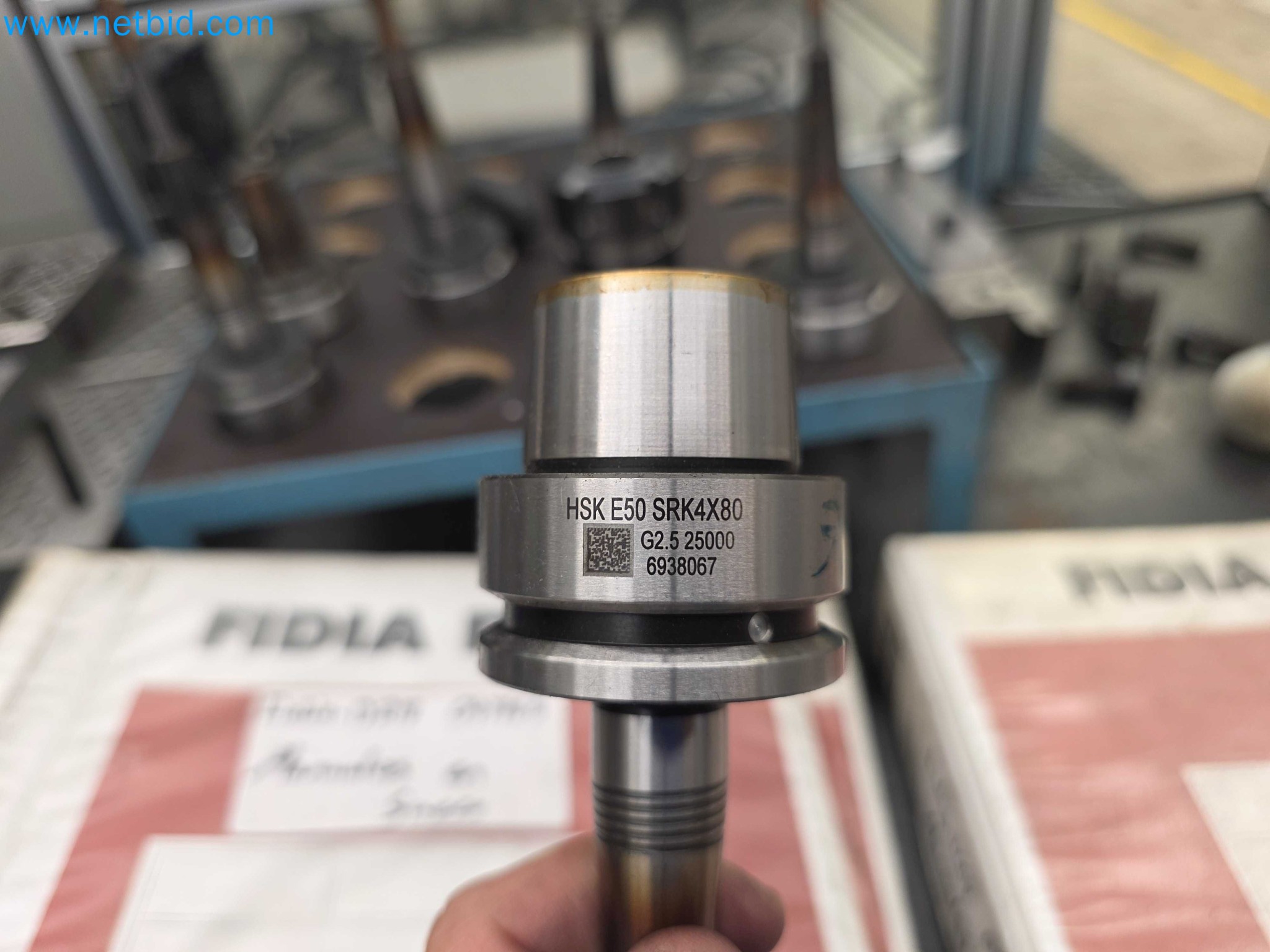

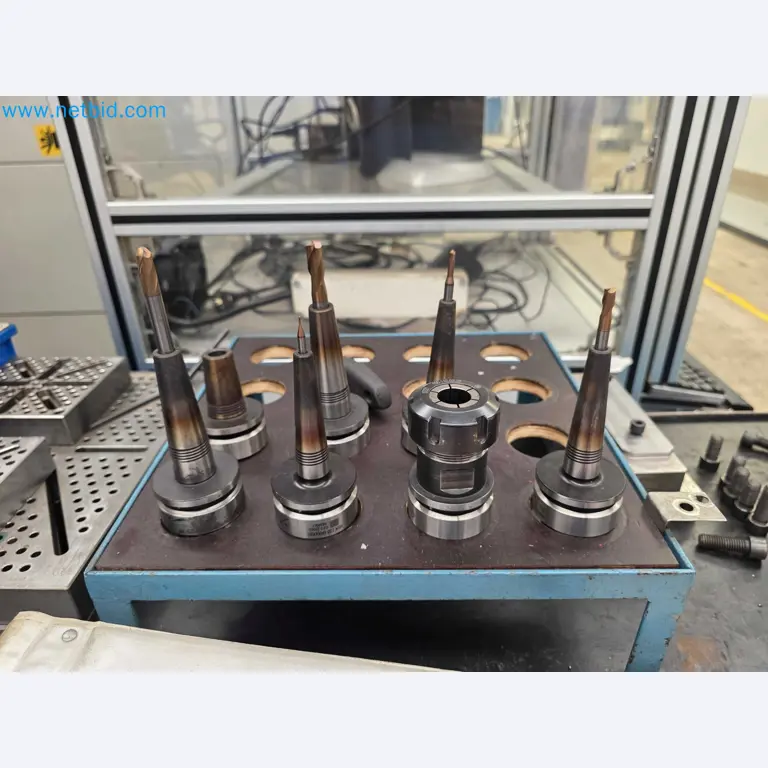

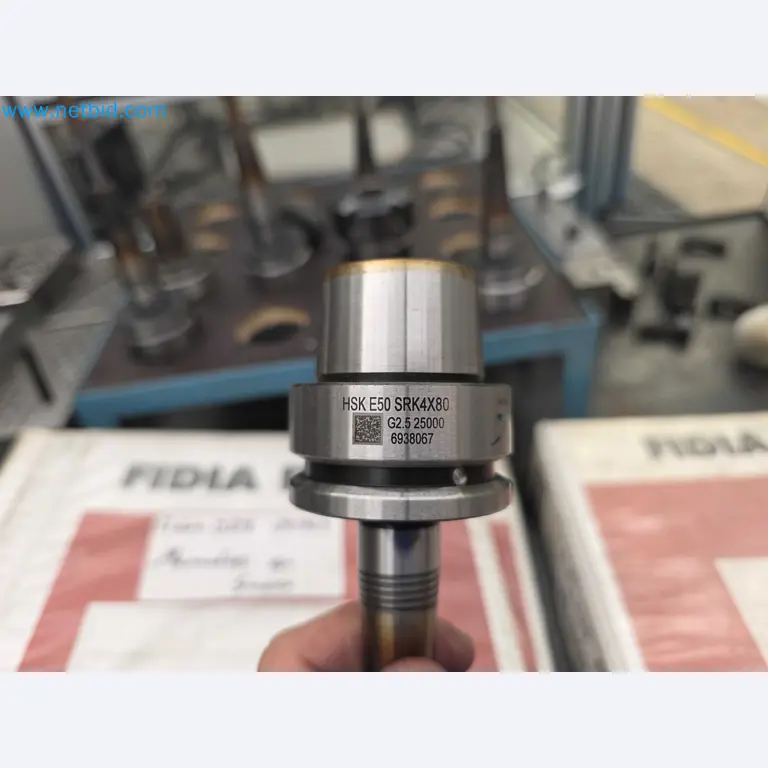

HSK 50 tool holders

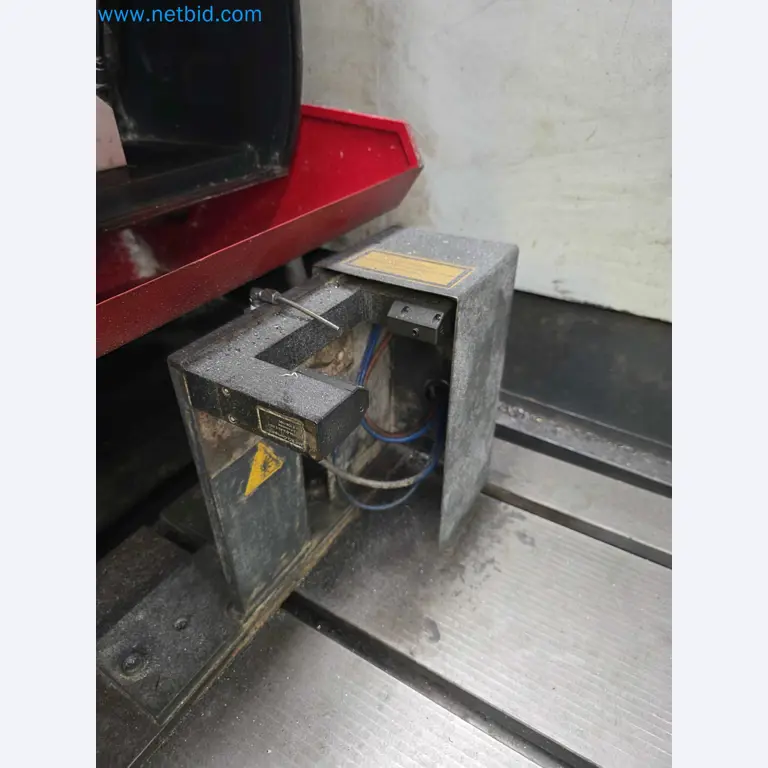

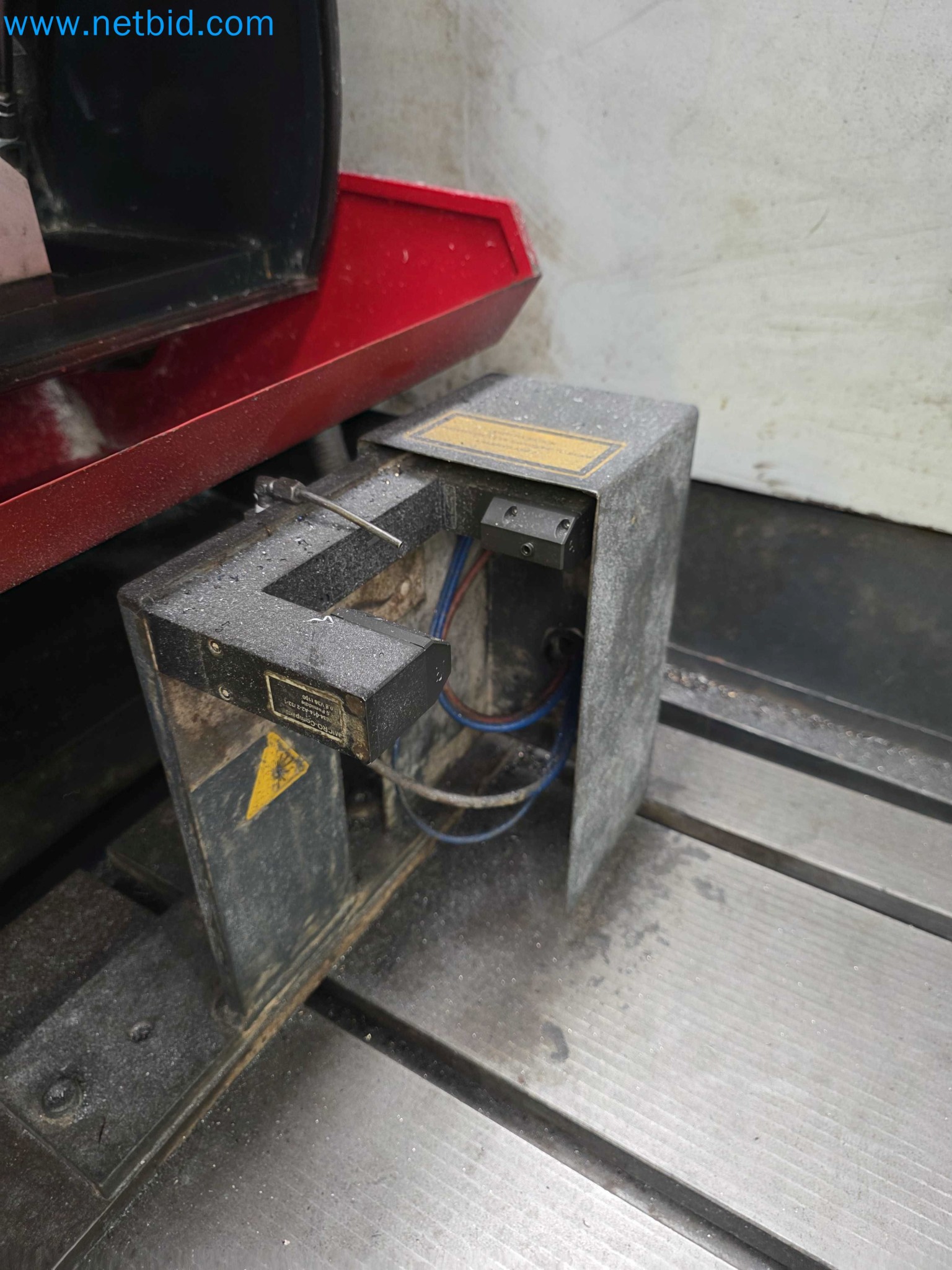

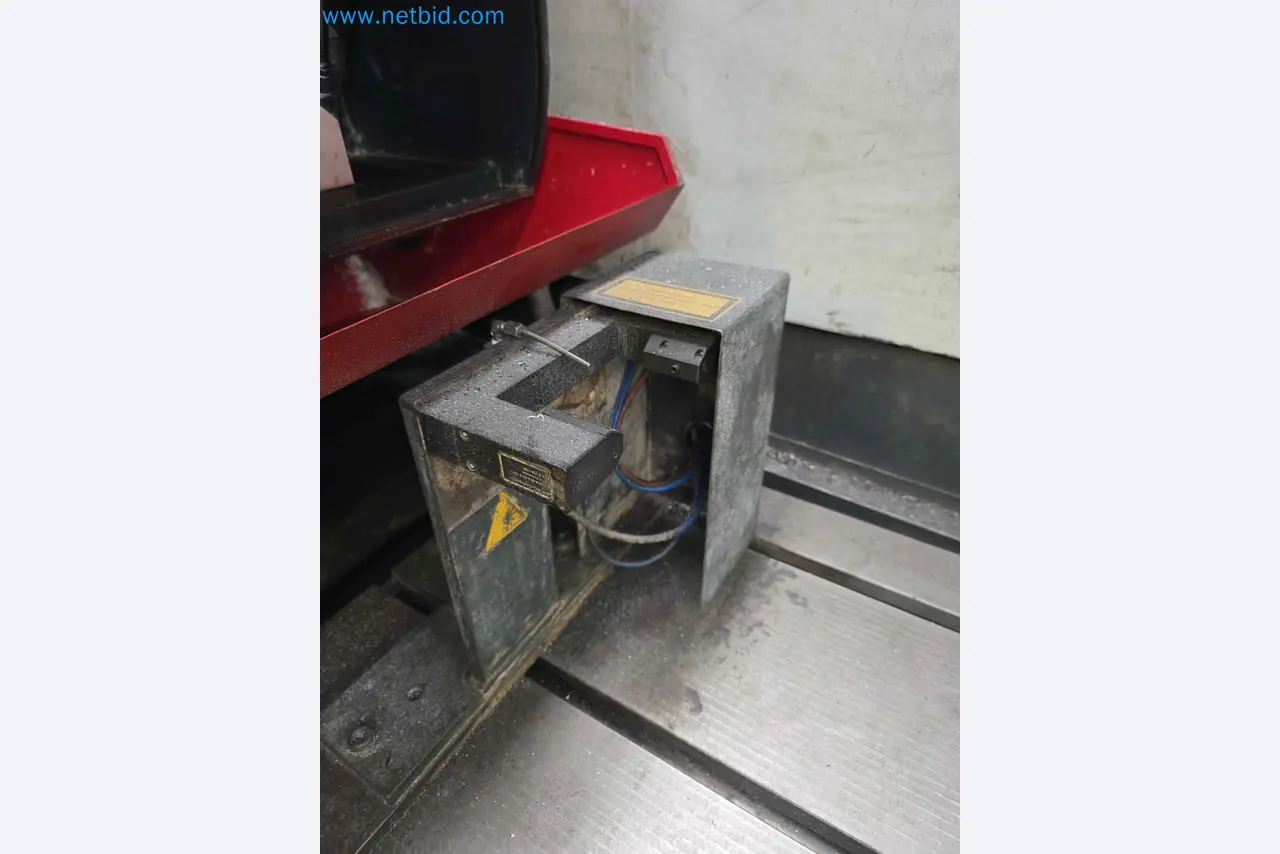

Equipped with laser tool measurement system

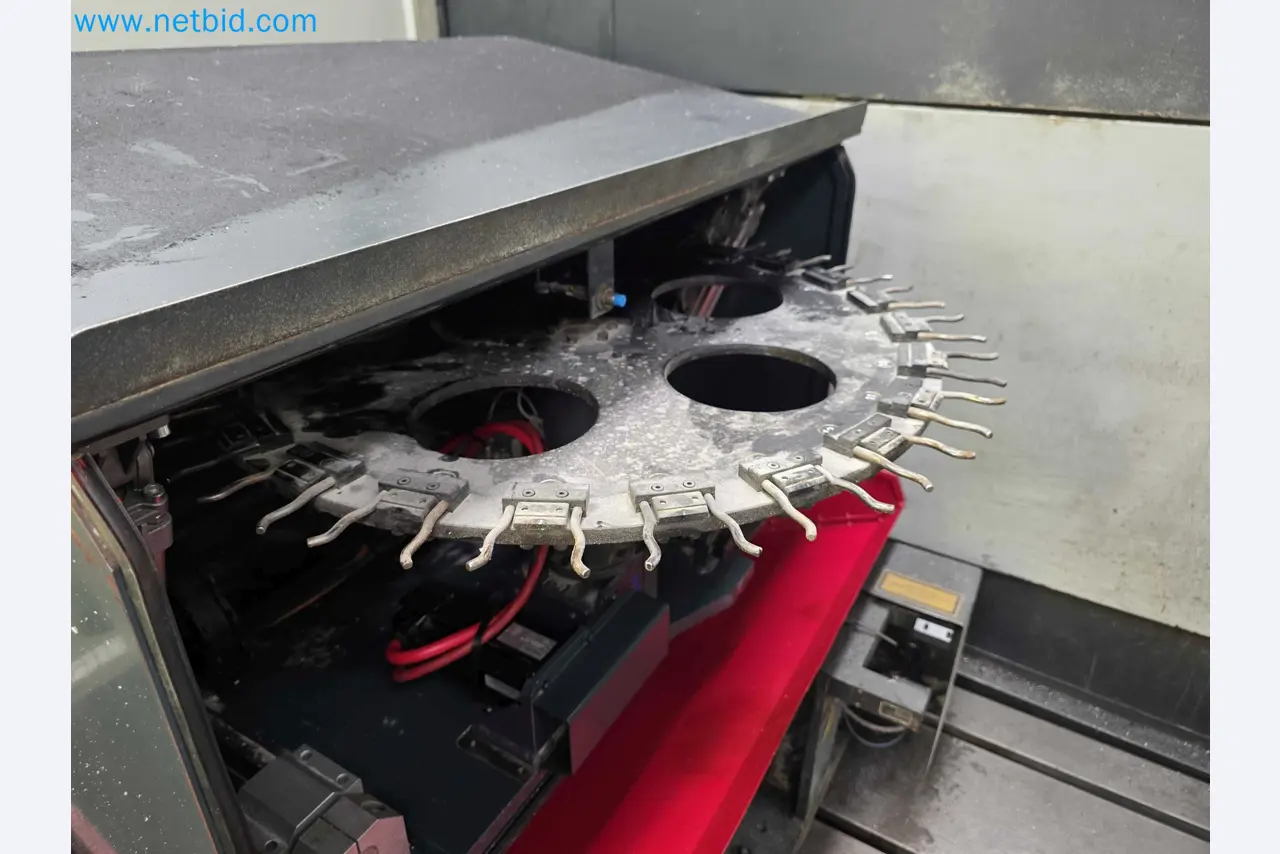

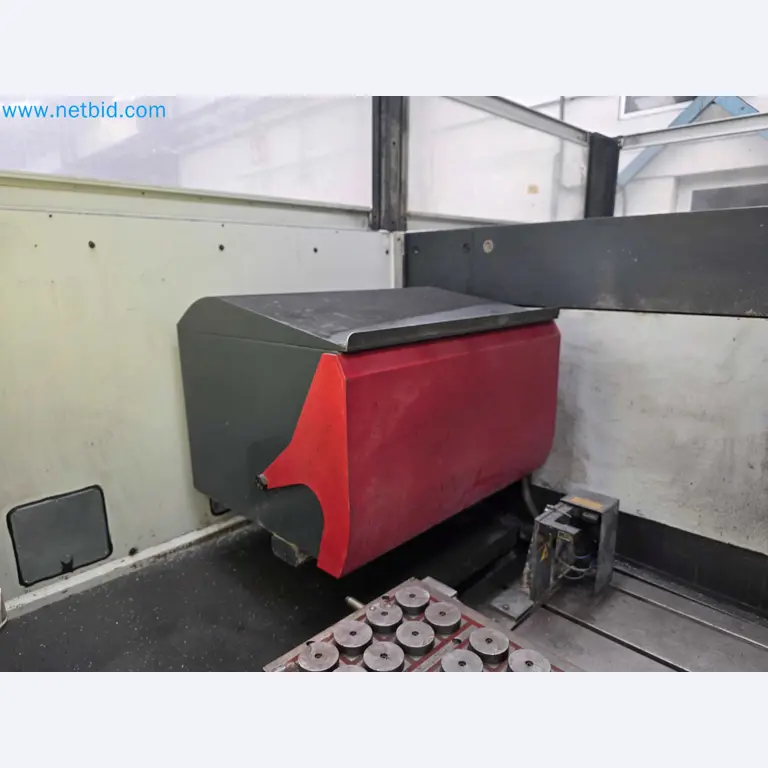

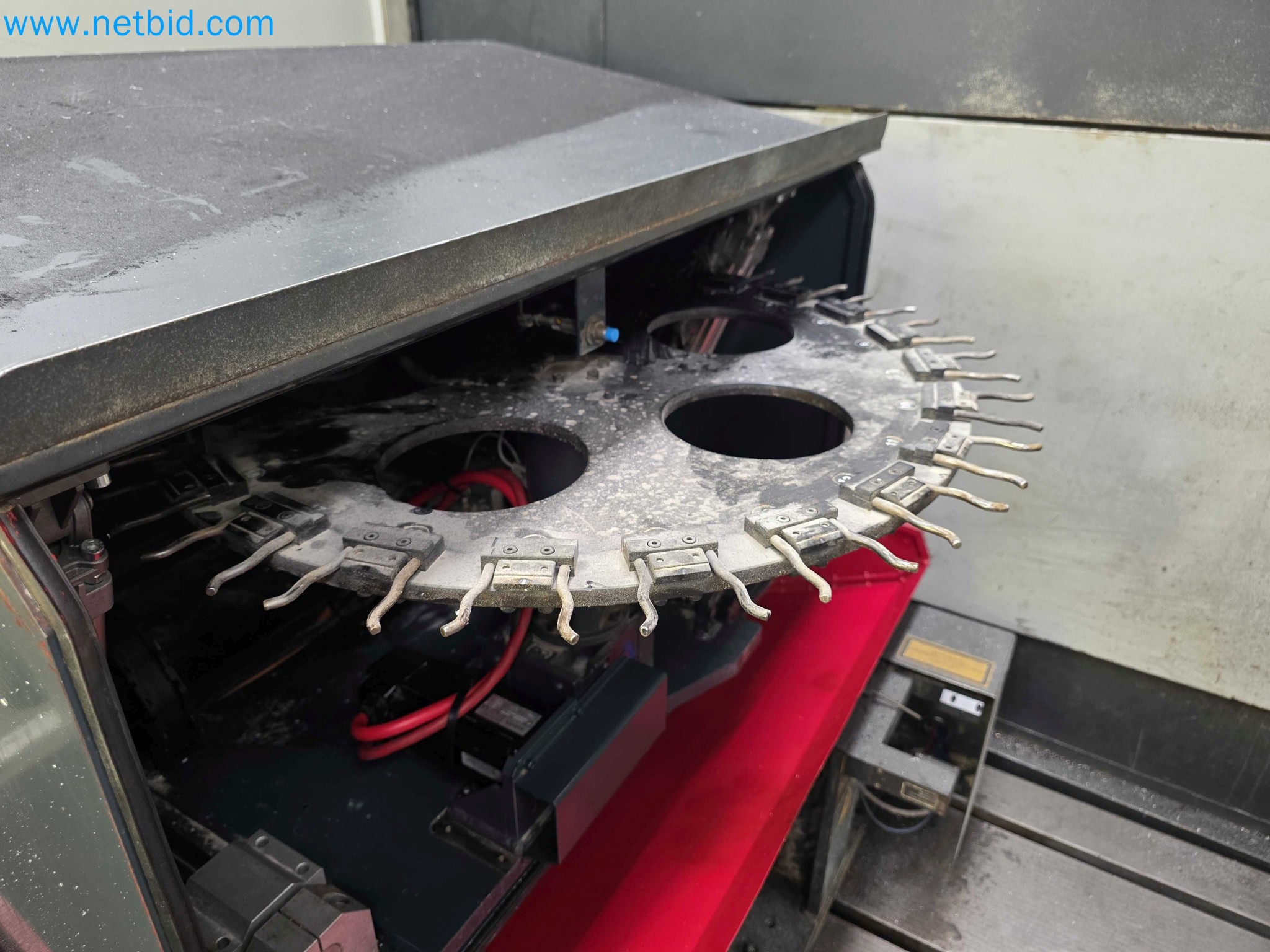

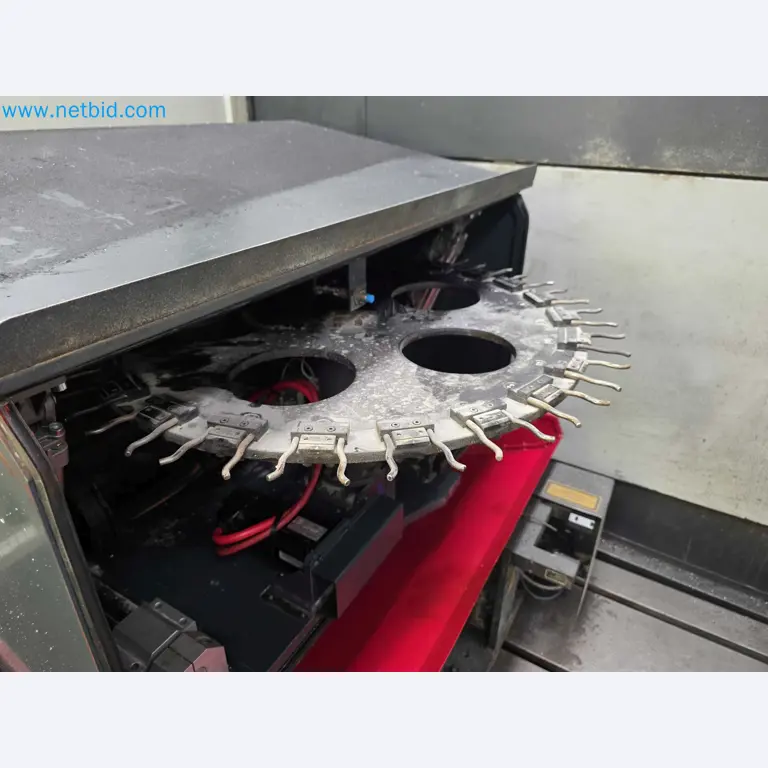

24-position tool magazine

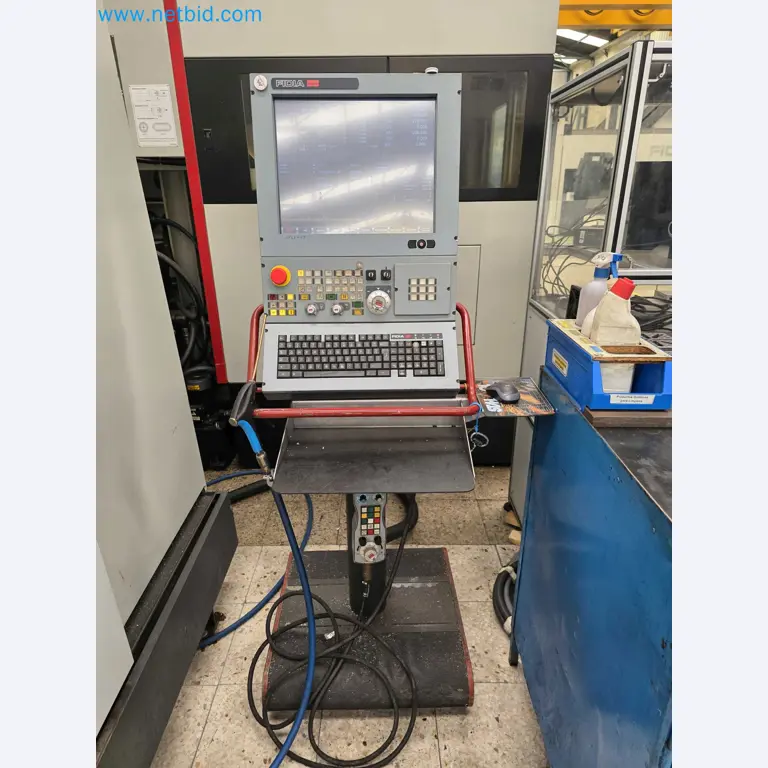

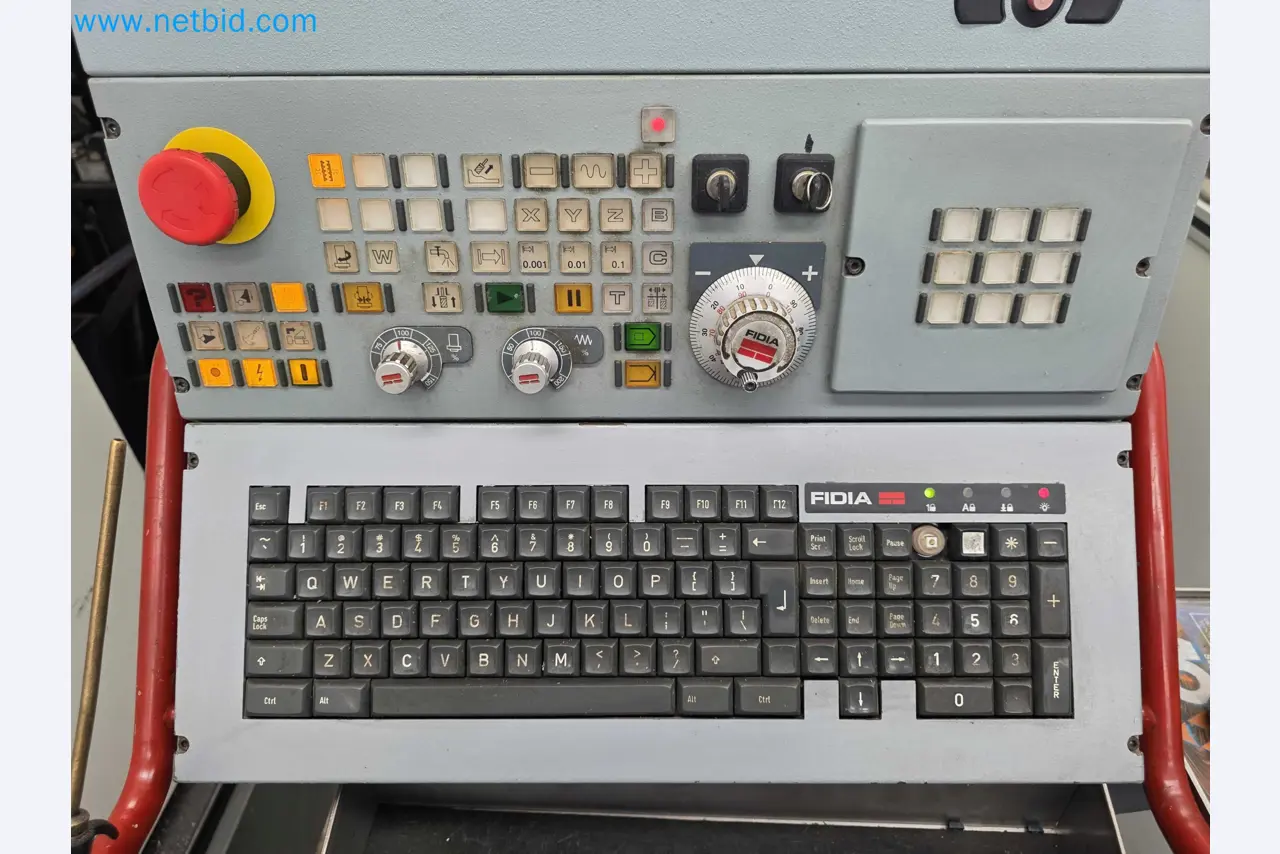

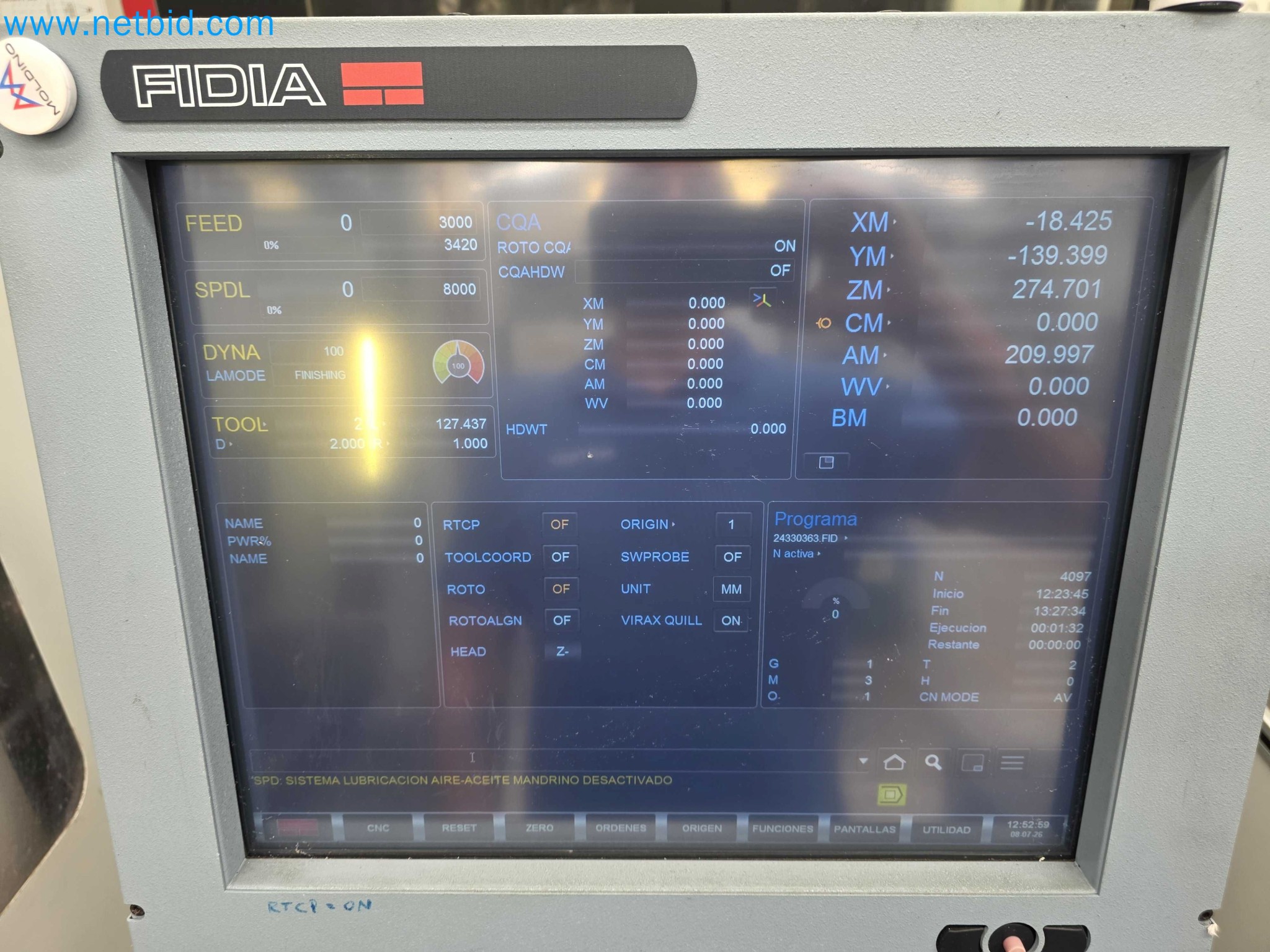

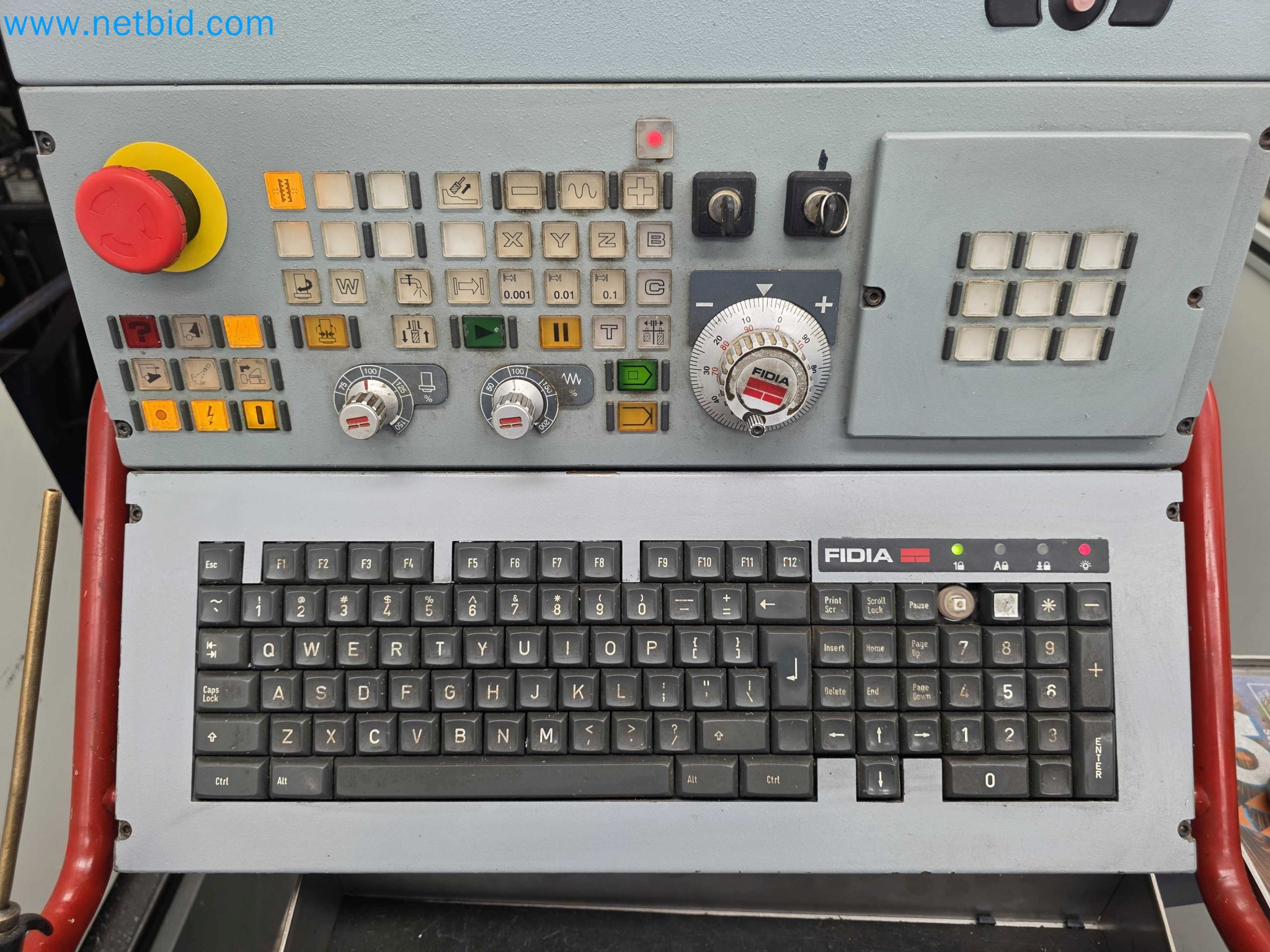

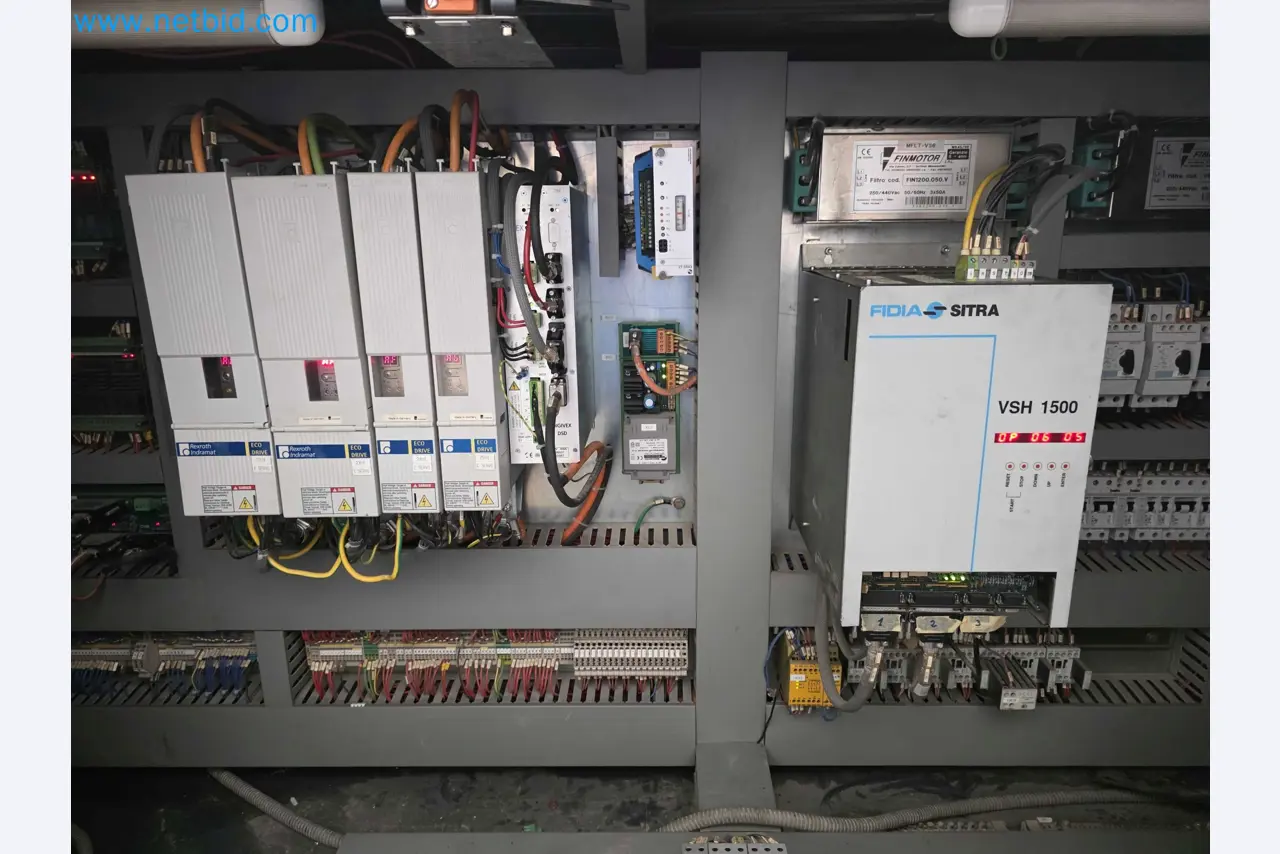

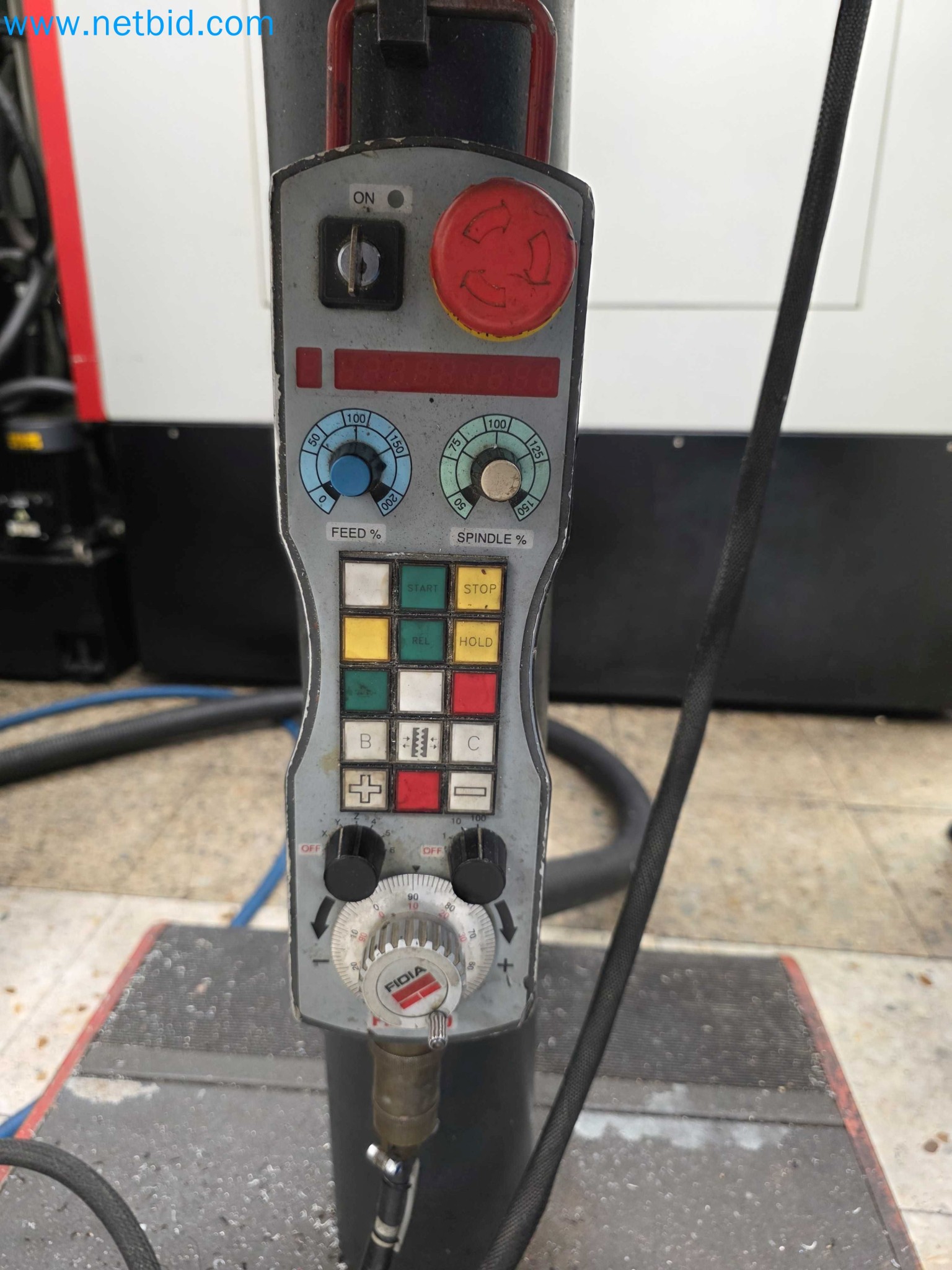

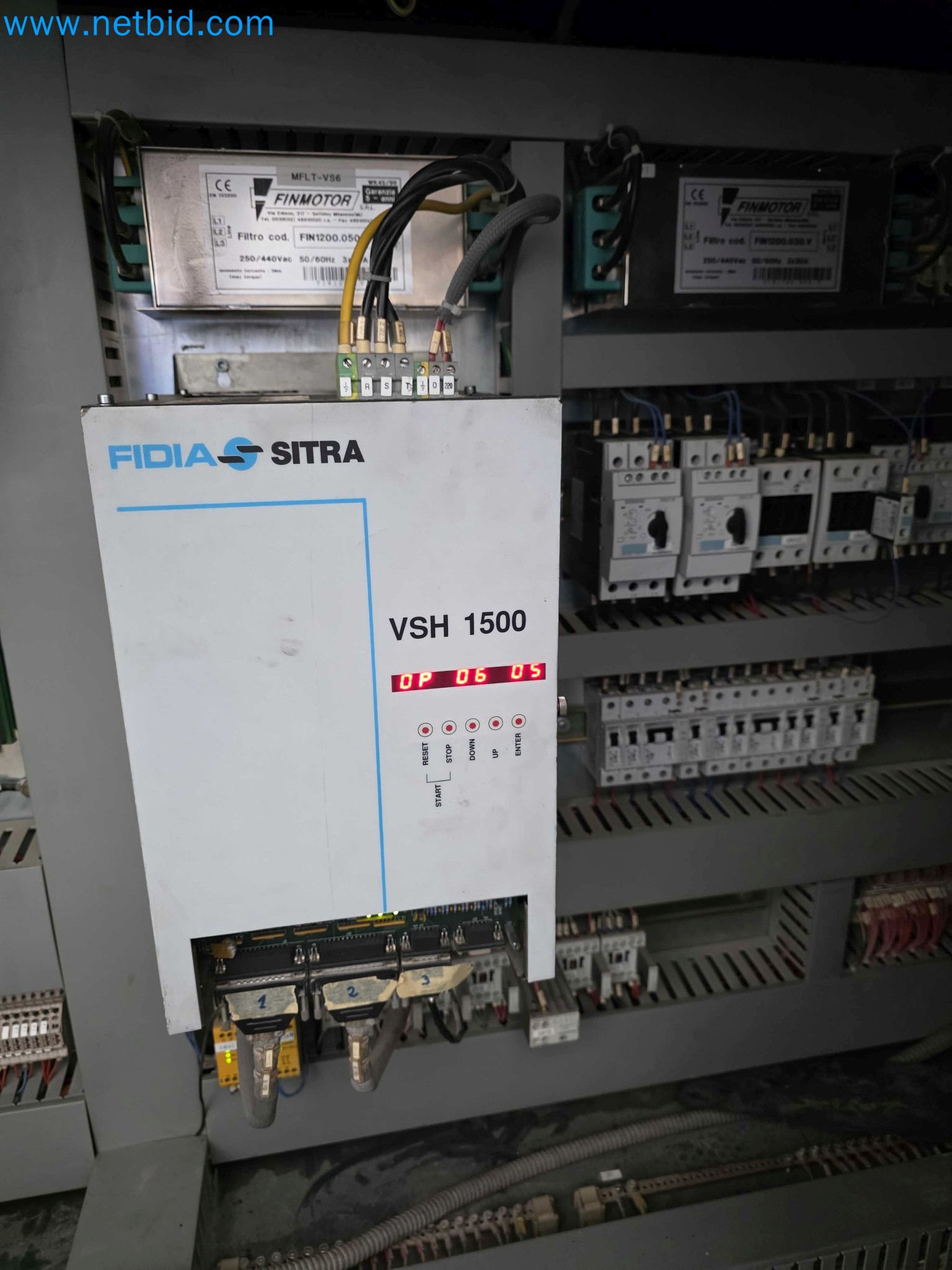

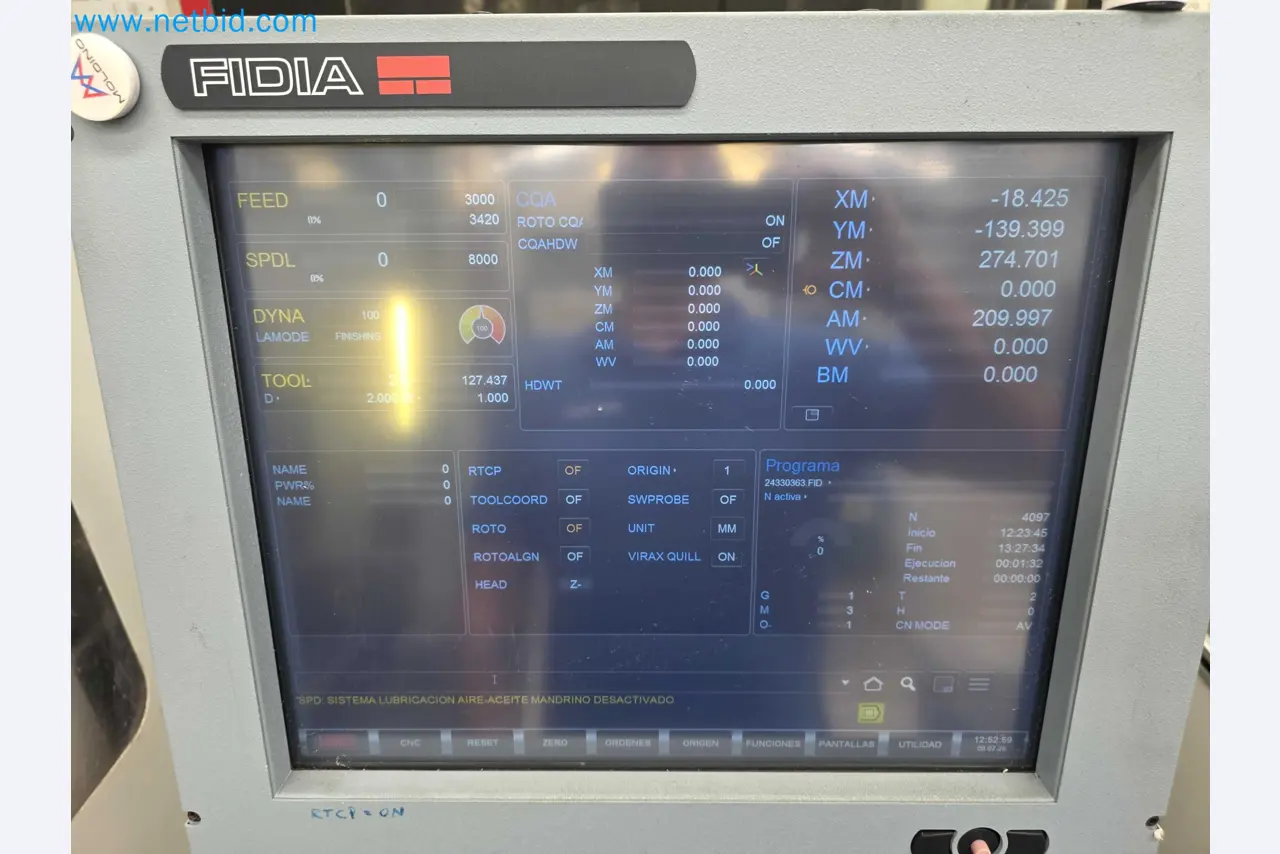

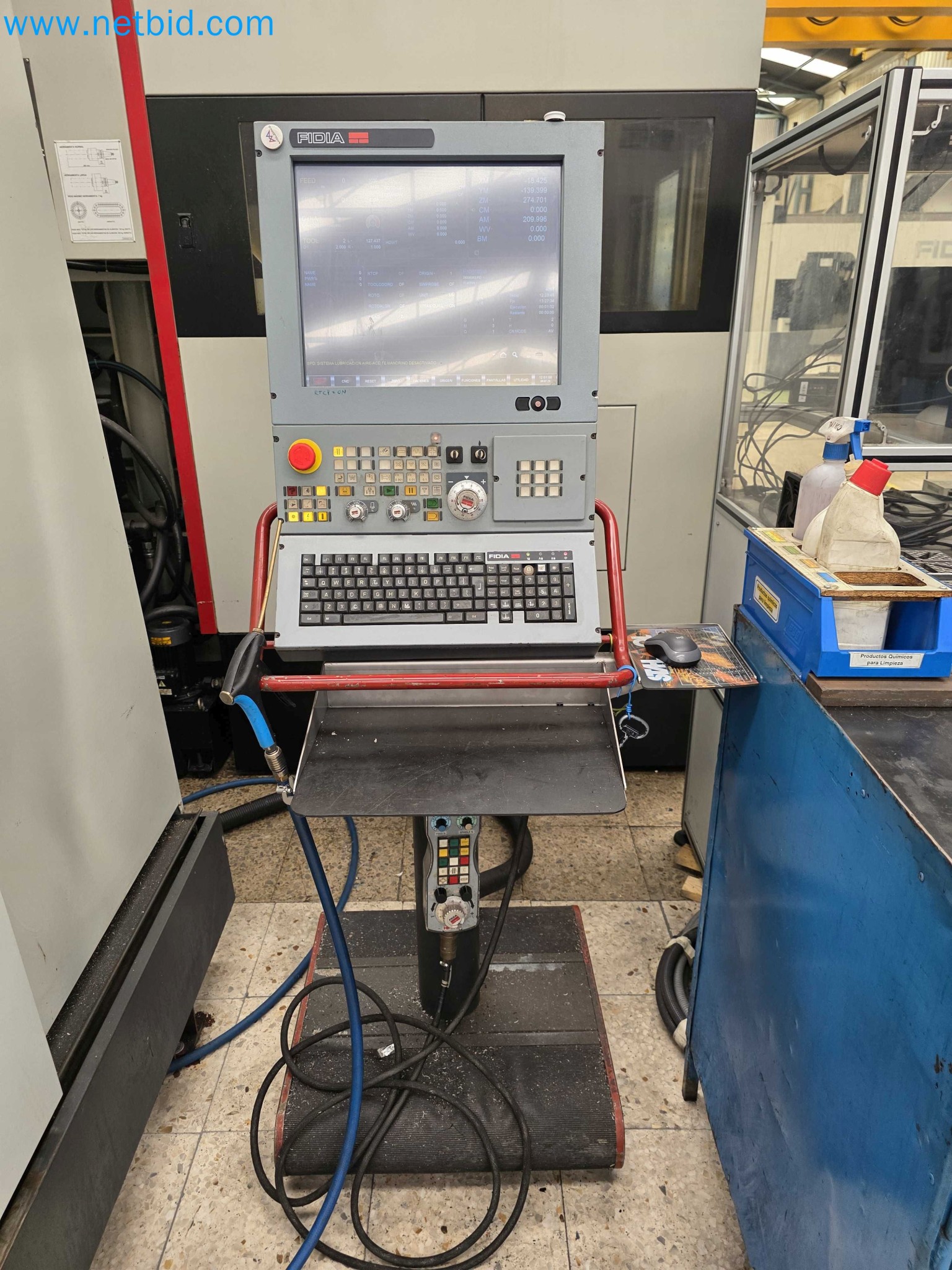

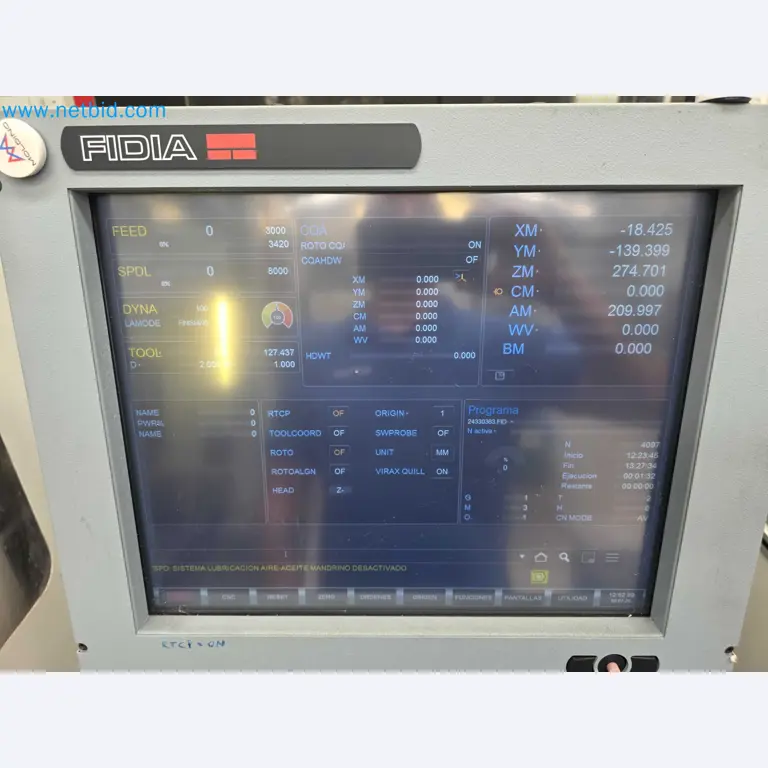

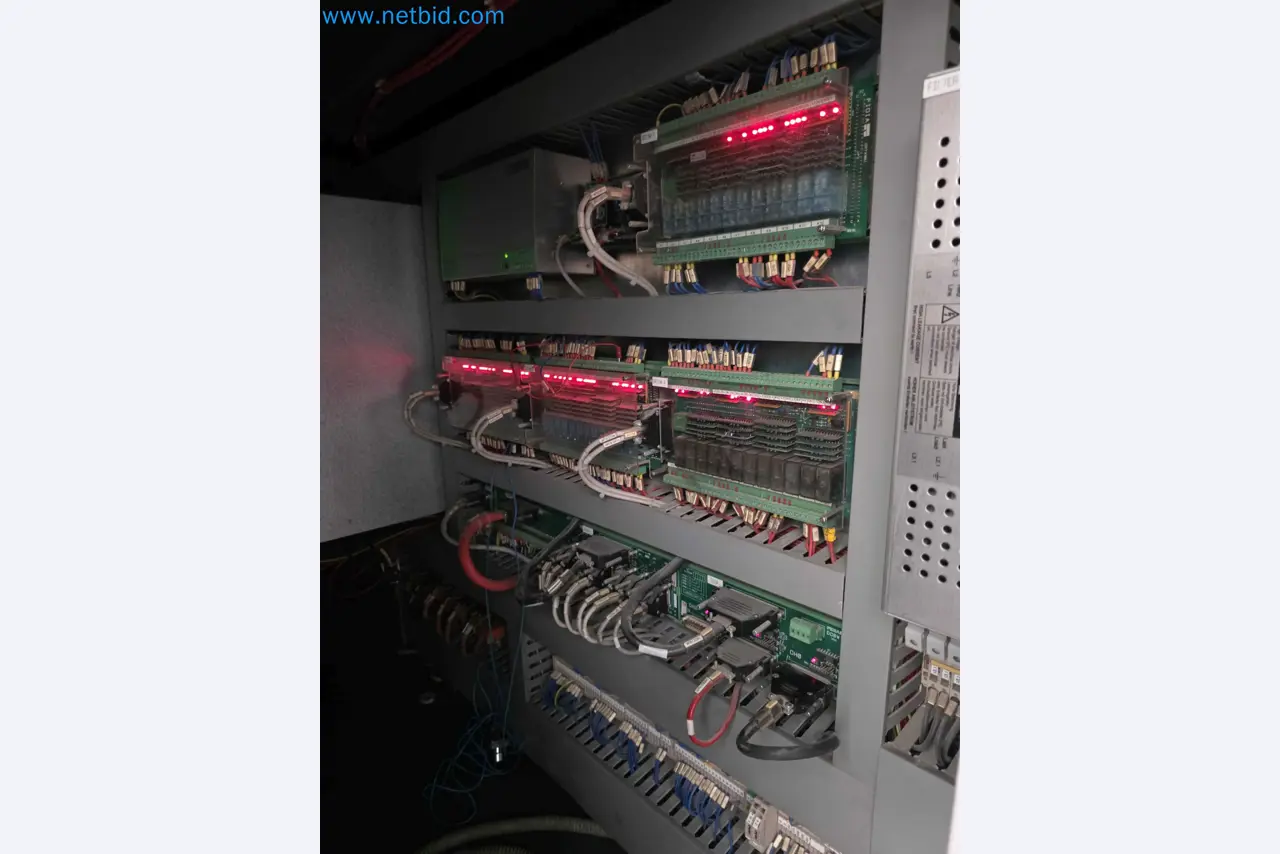

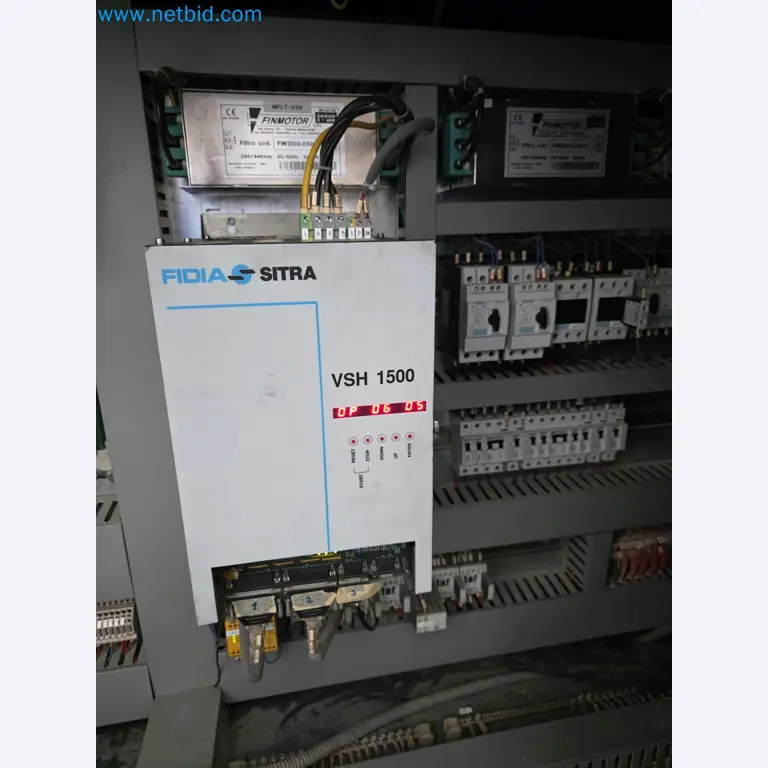

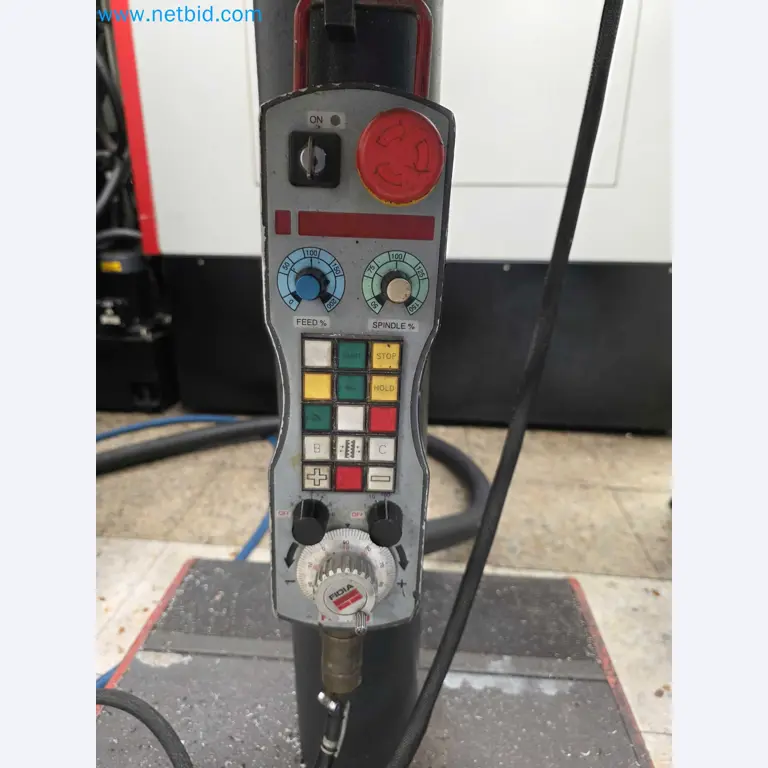

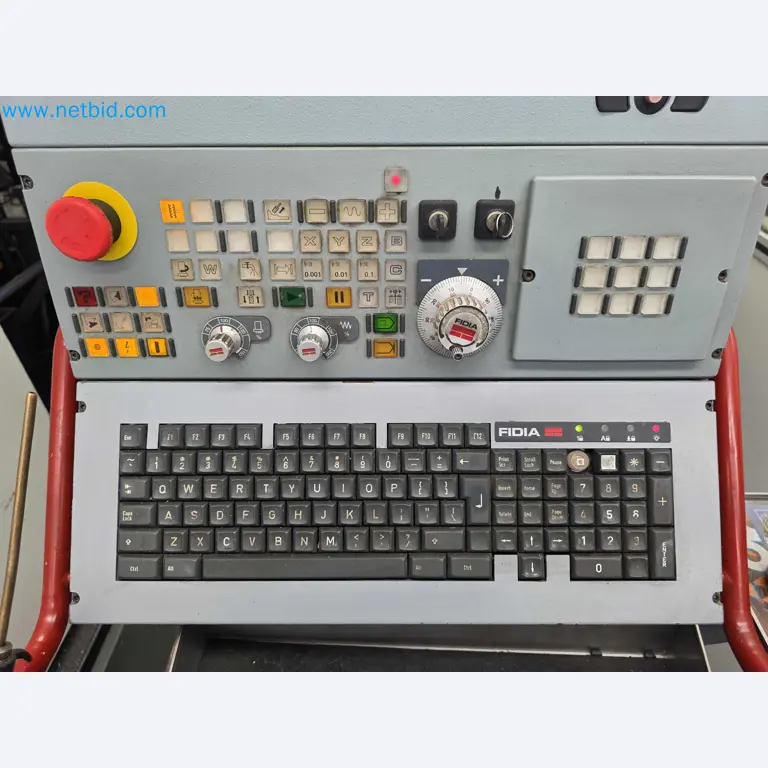

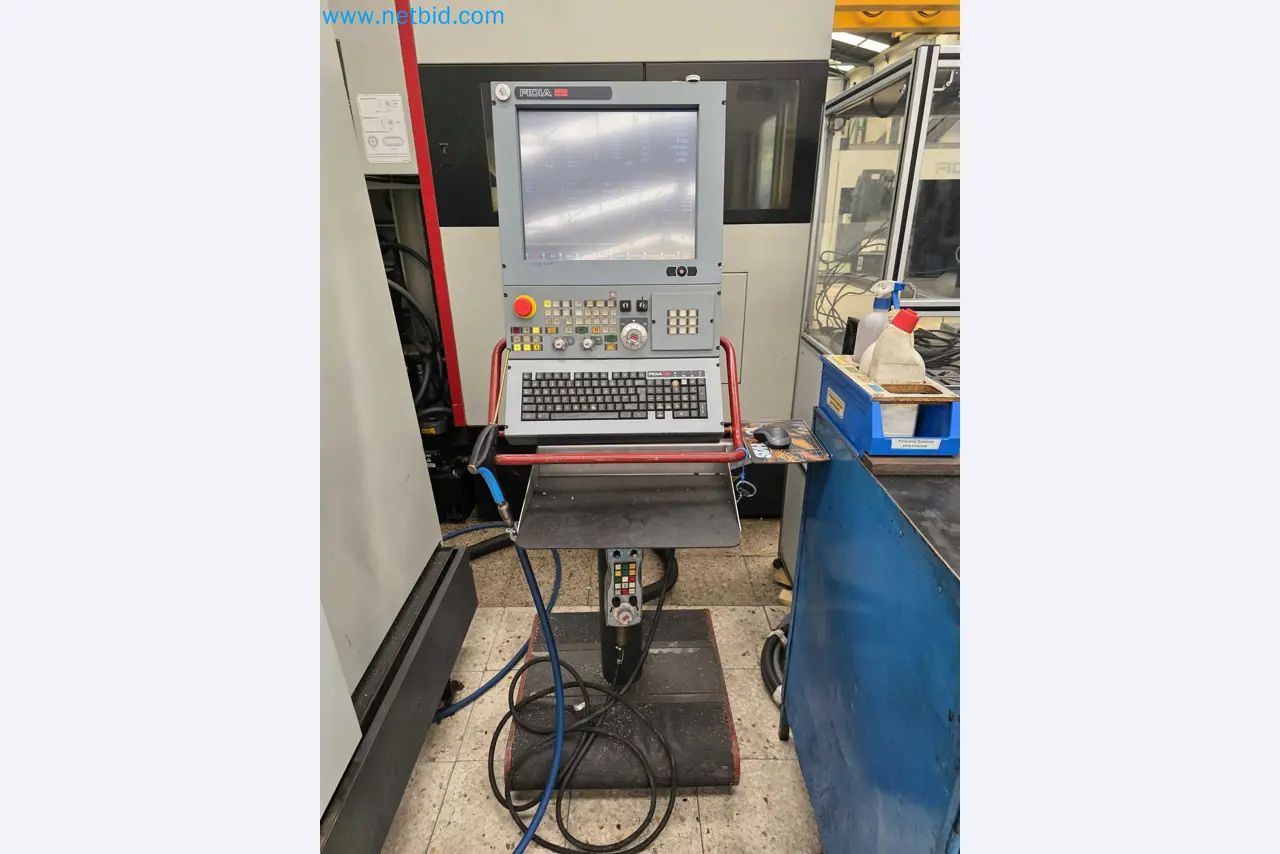

FIDIA control

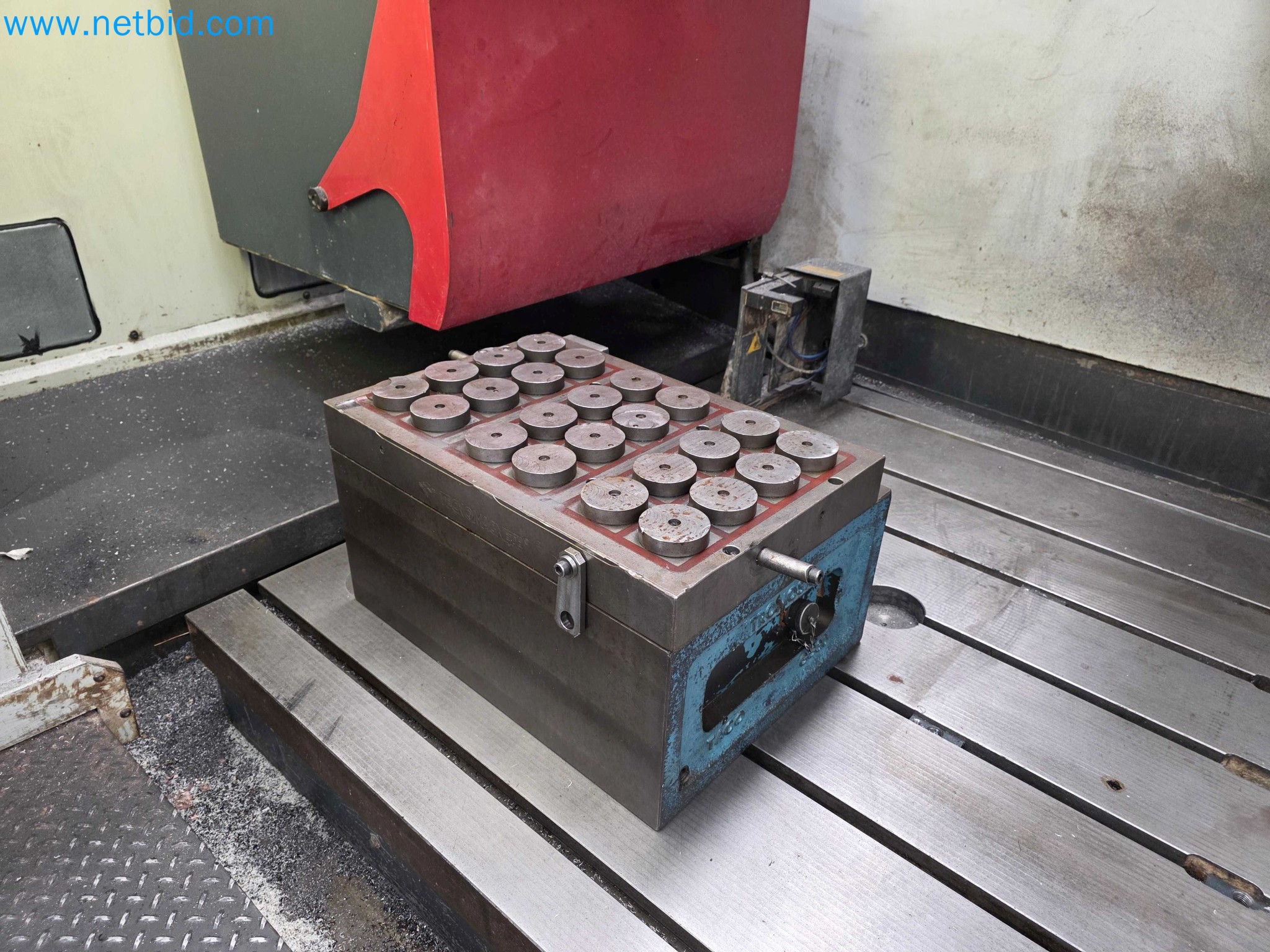

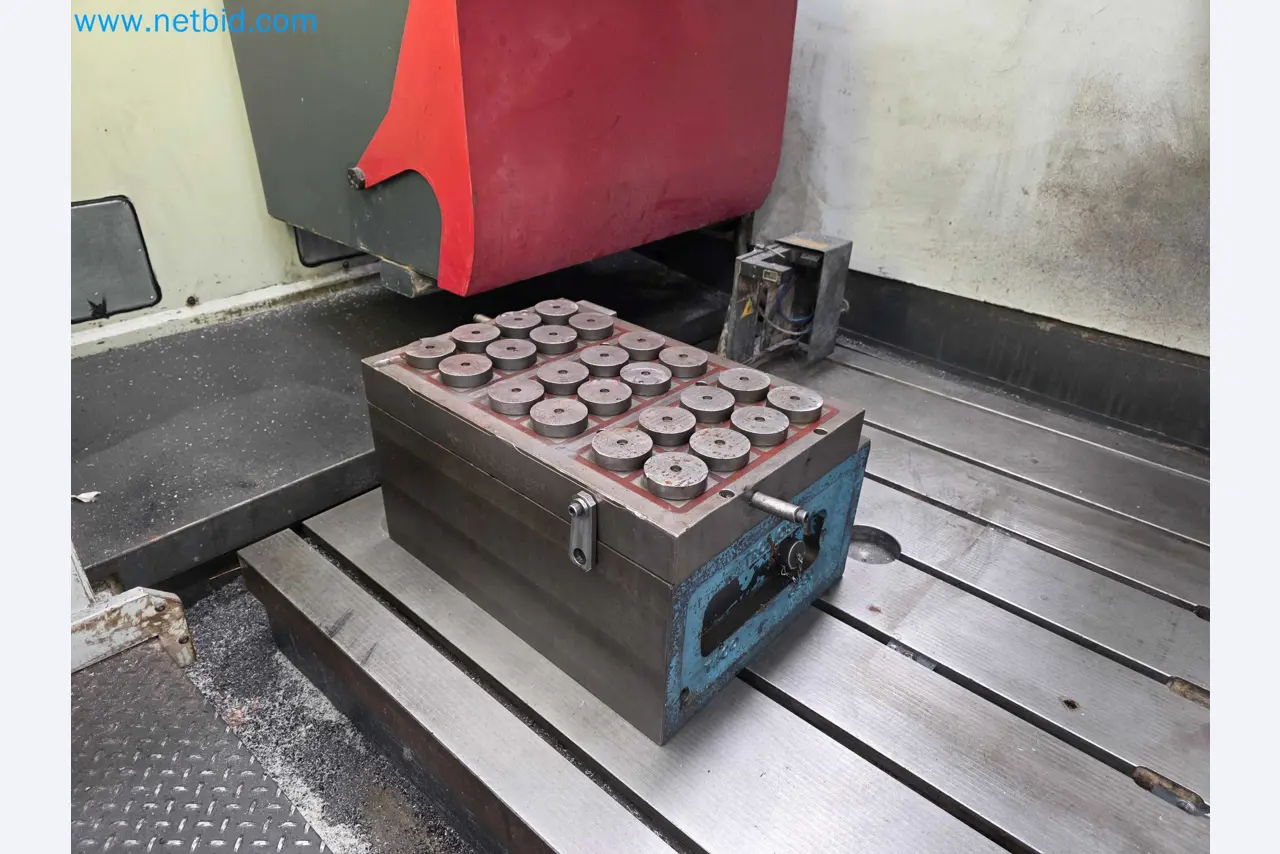

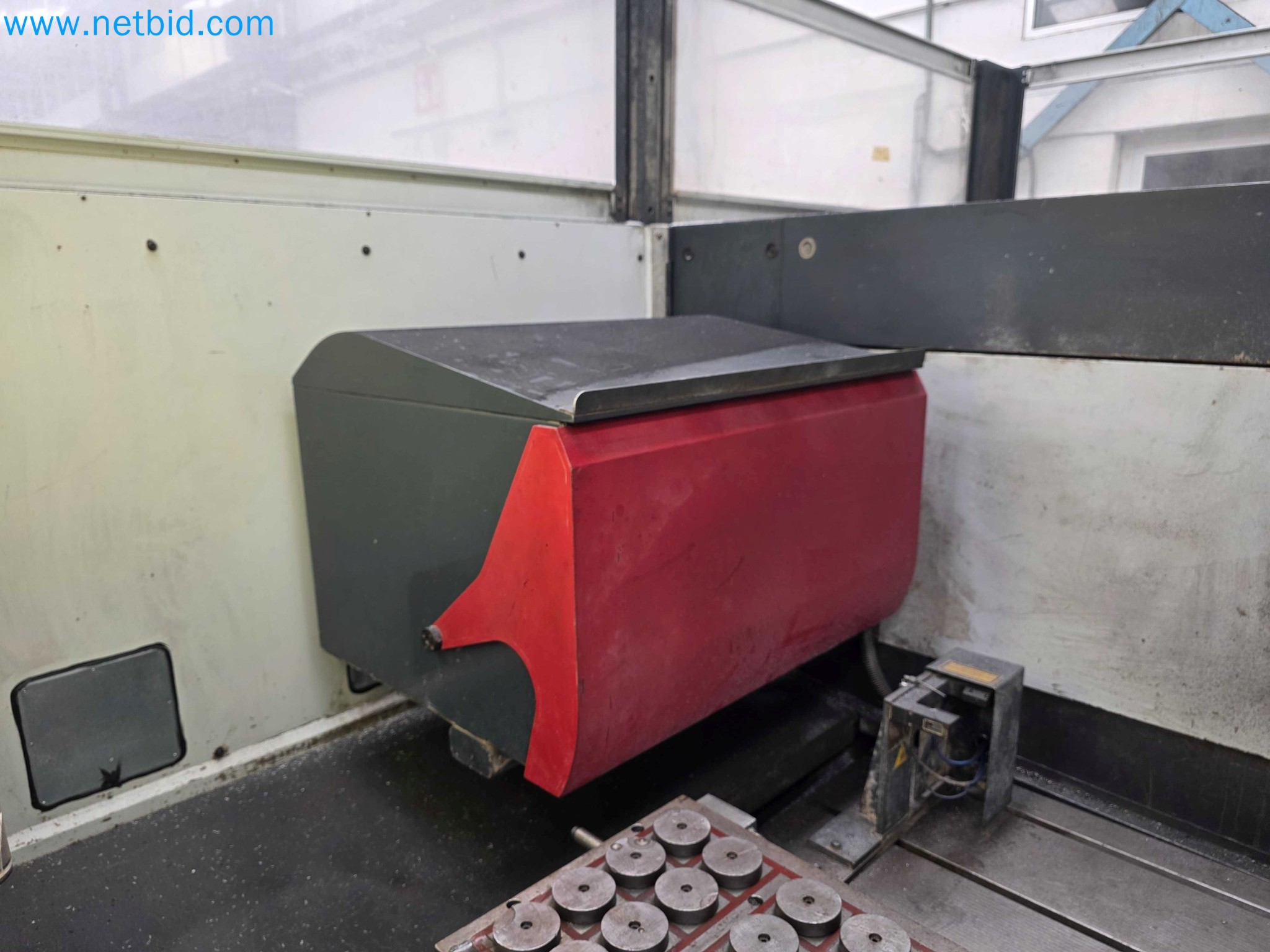

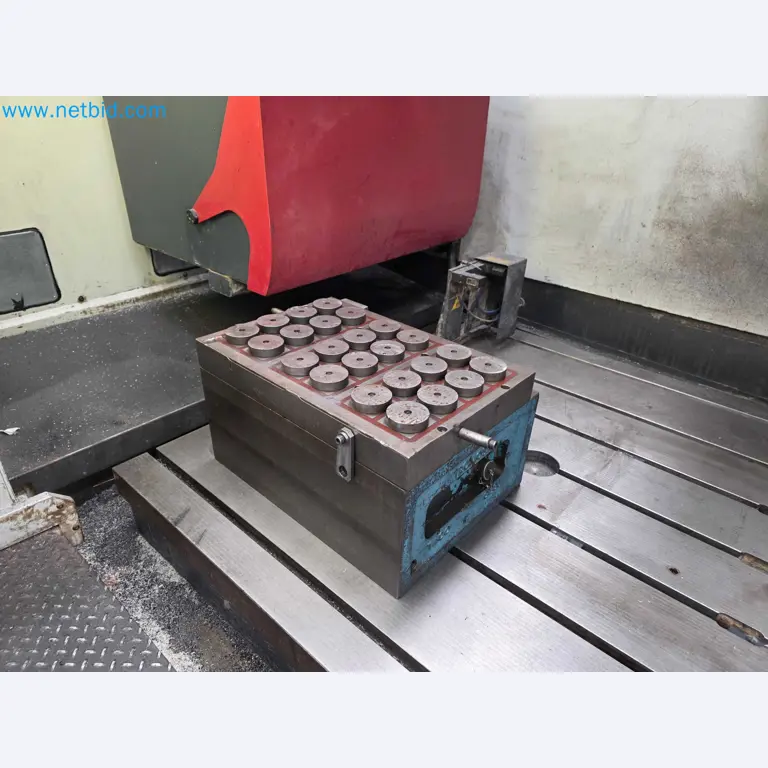

Includes cube fixture with magnetic chuck, 620 x 410 x 330 mm

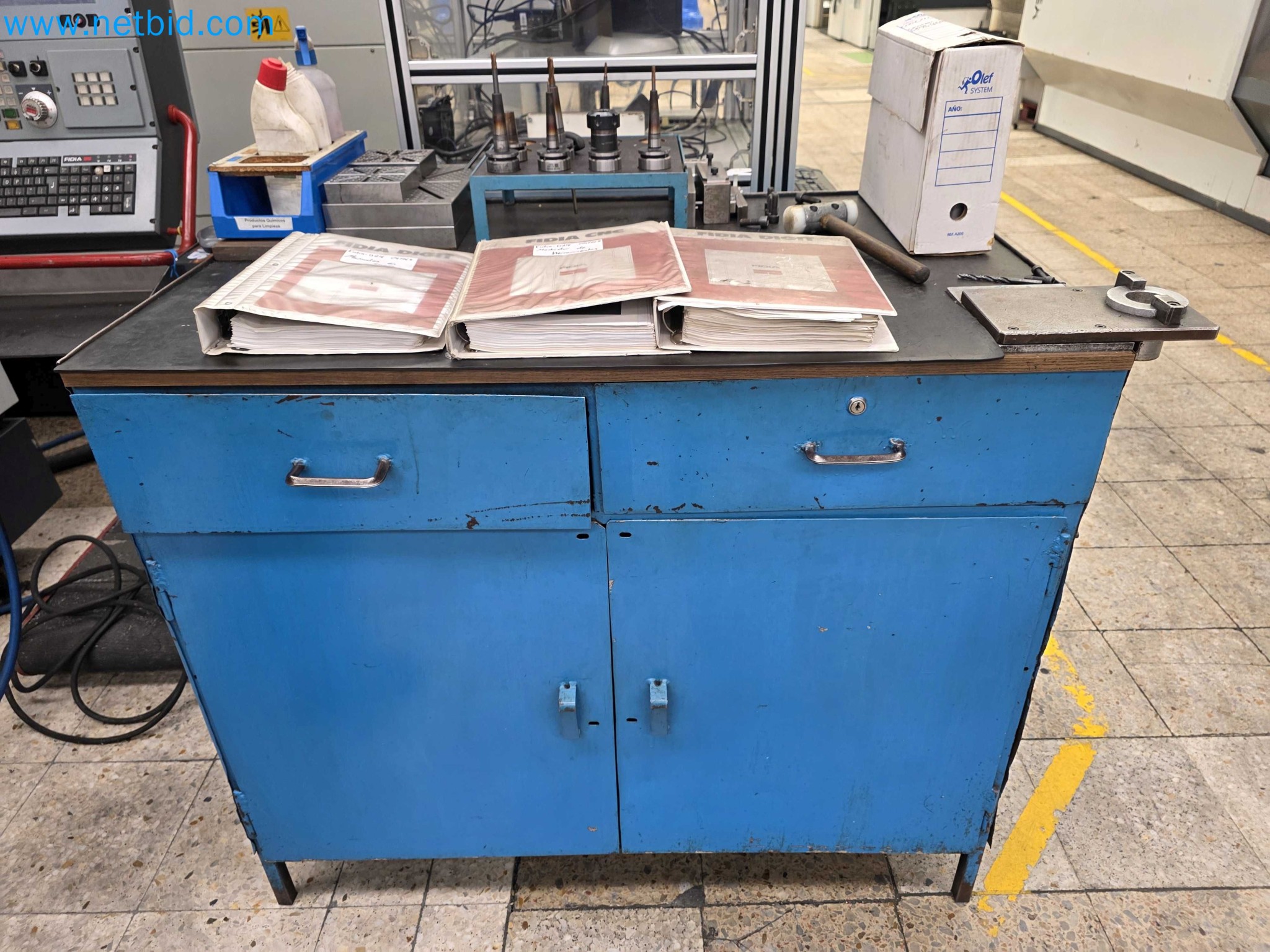

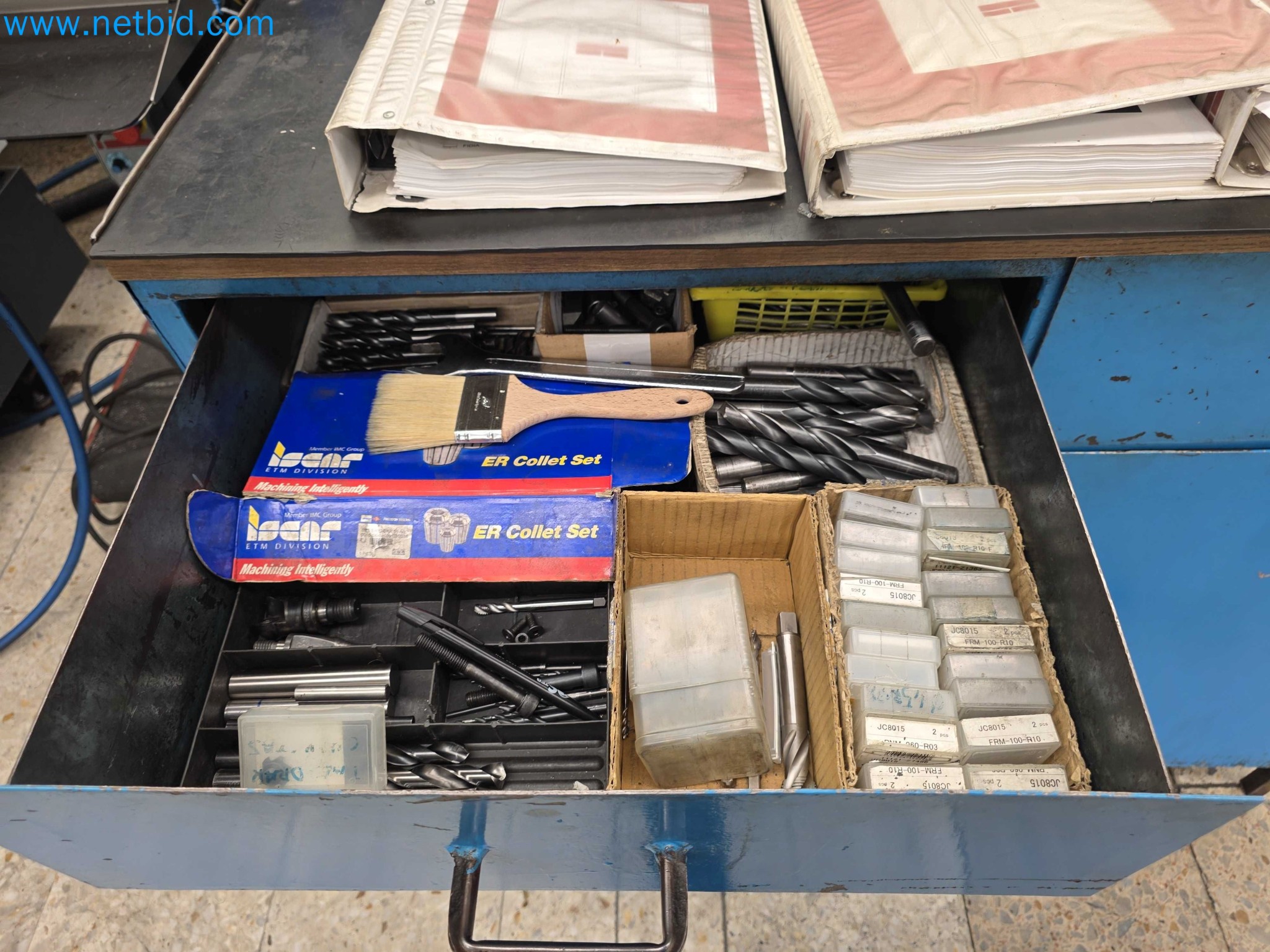

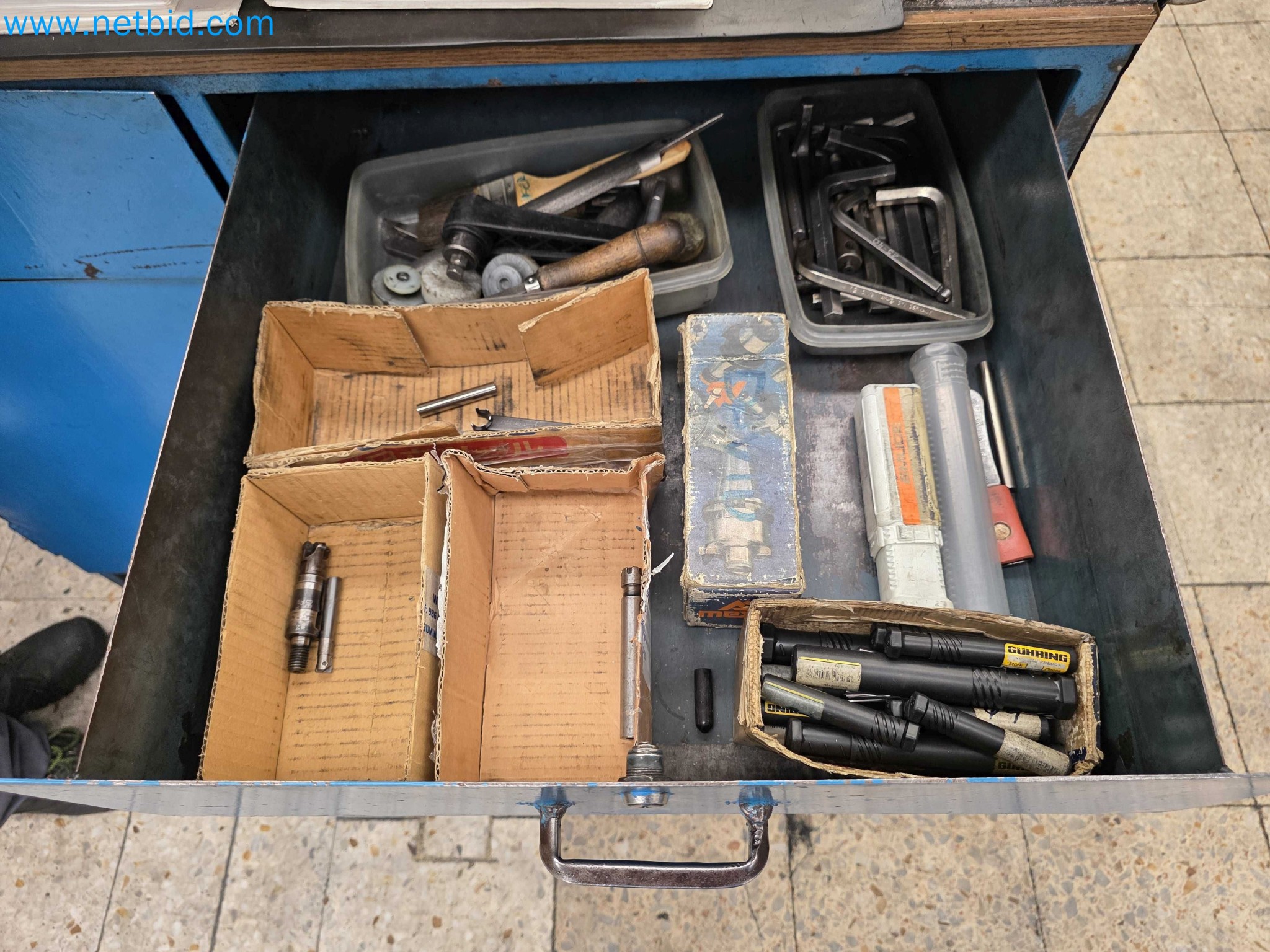

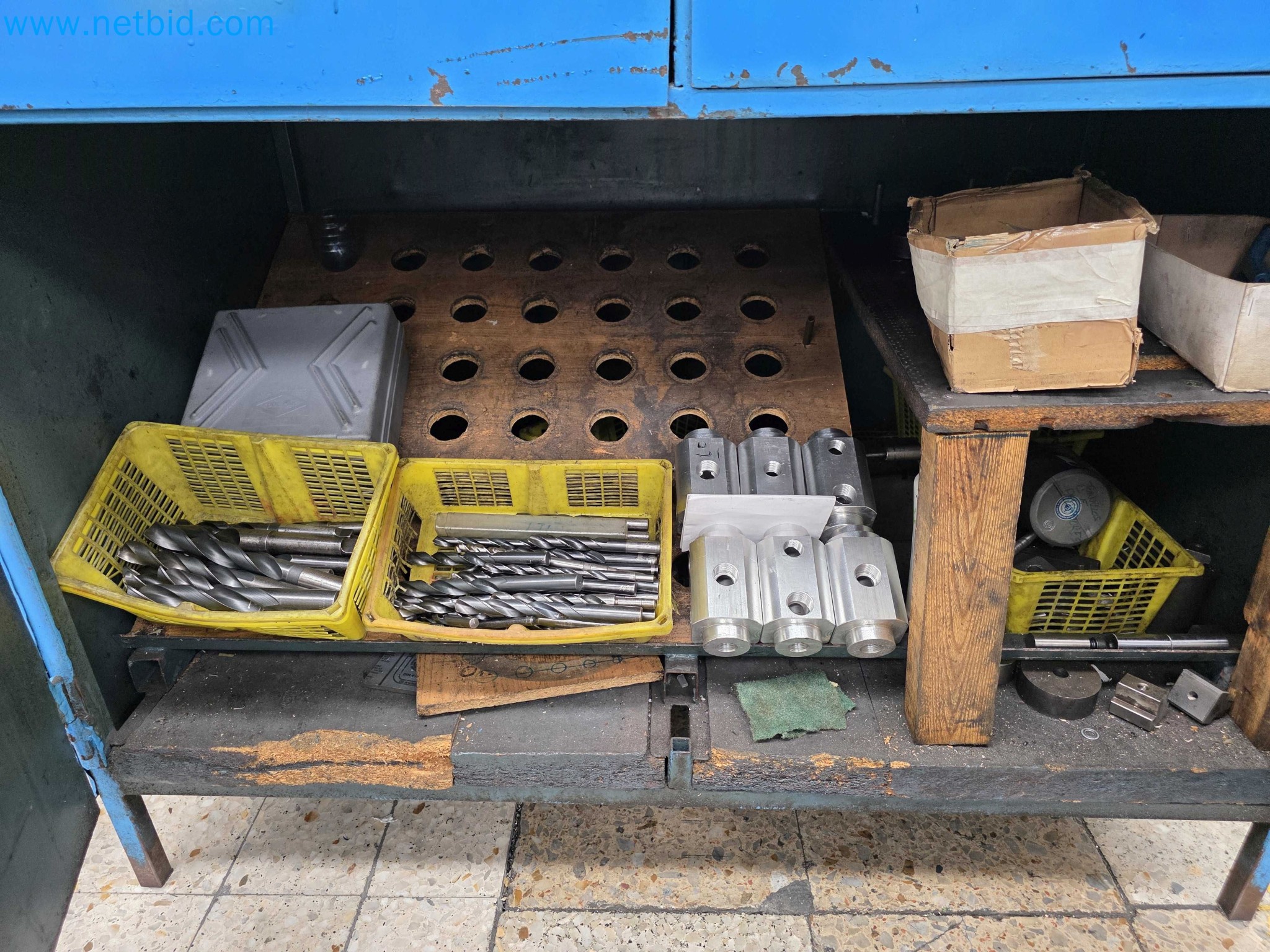

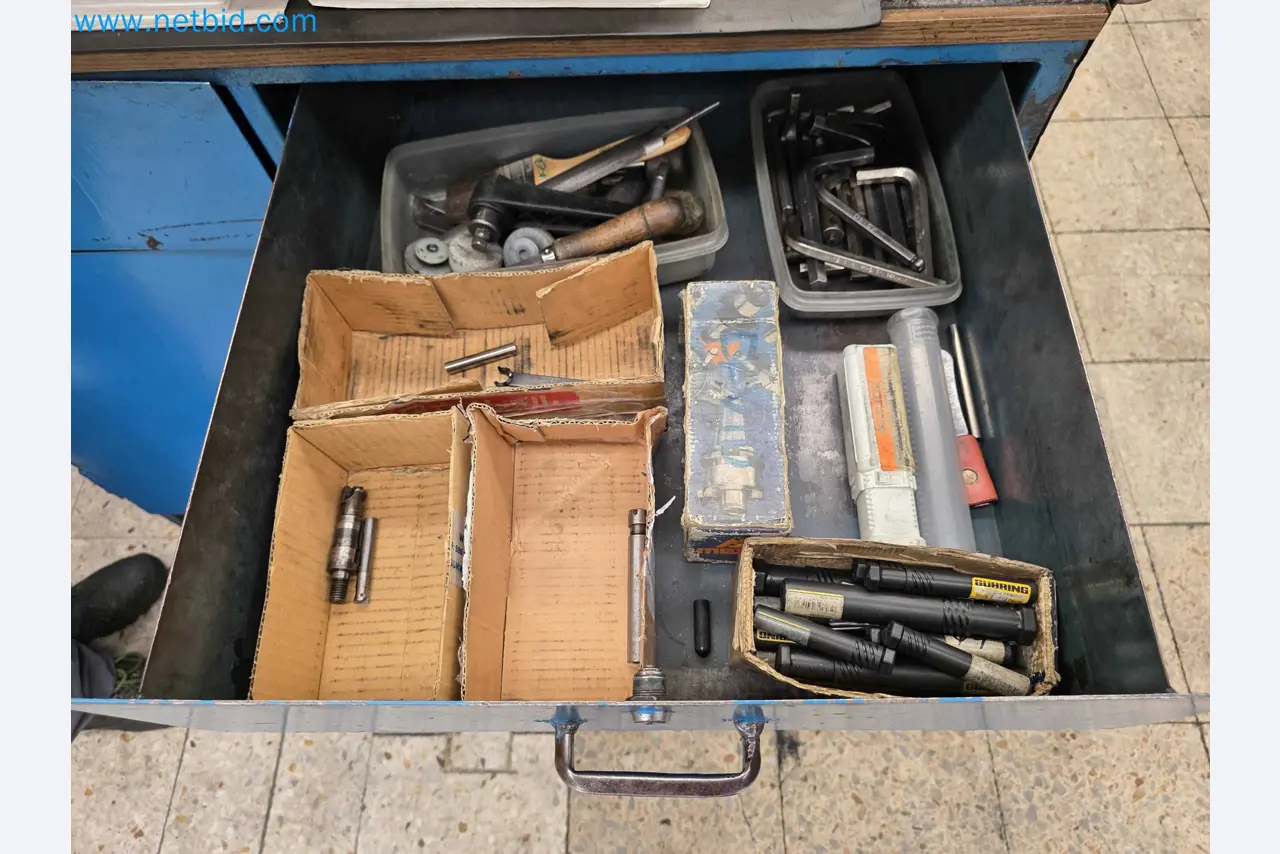

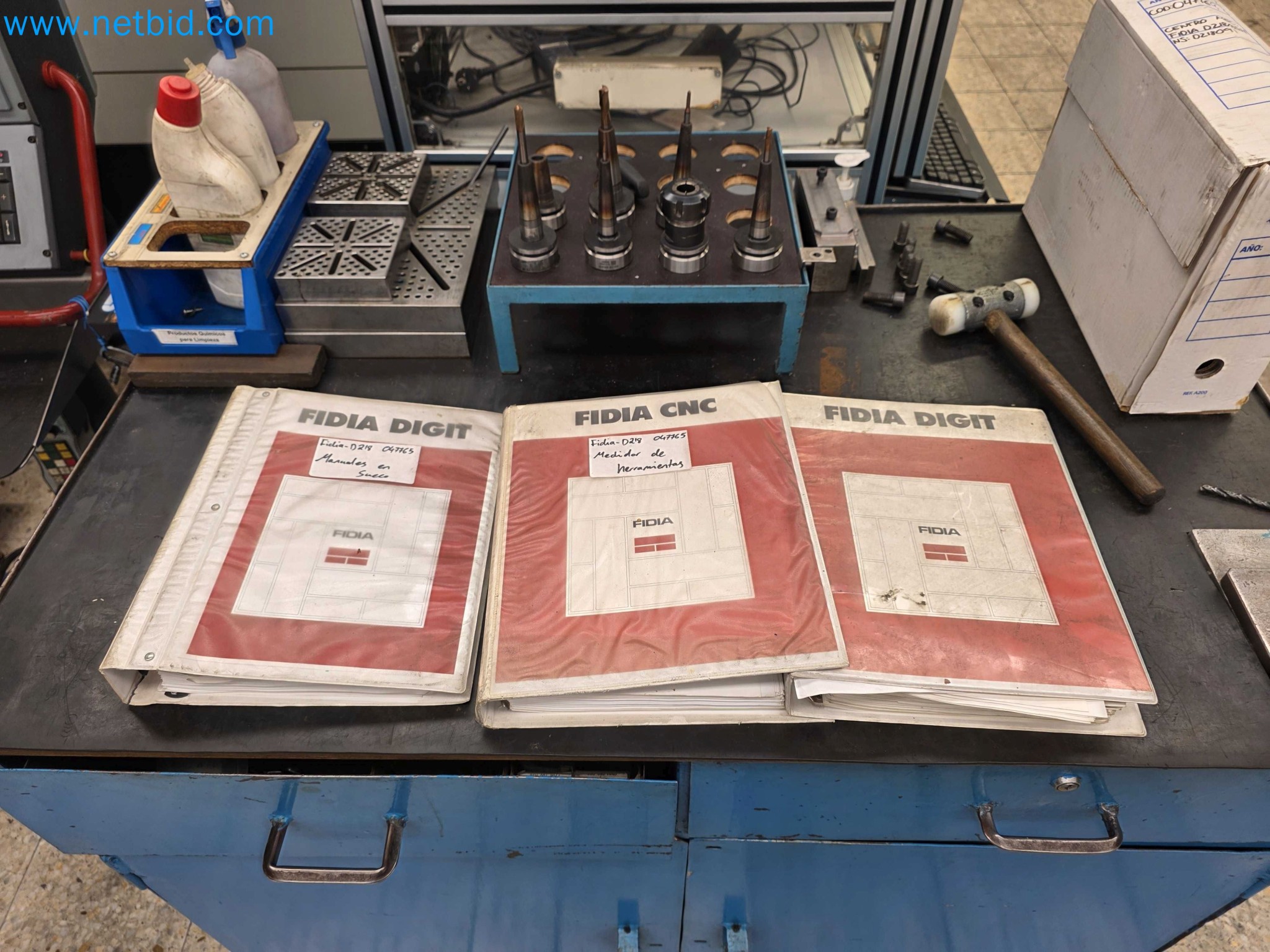

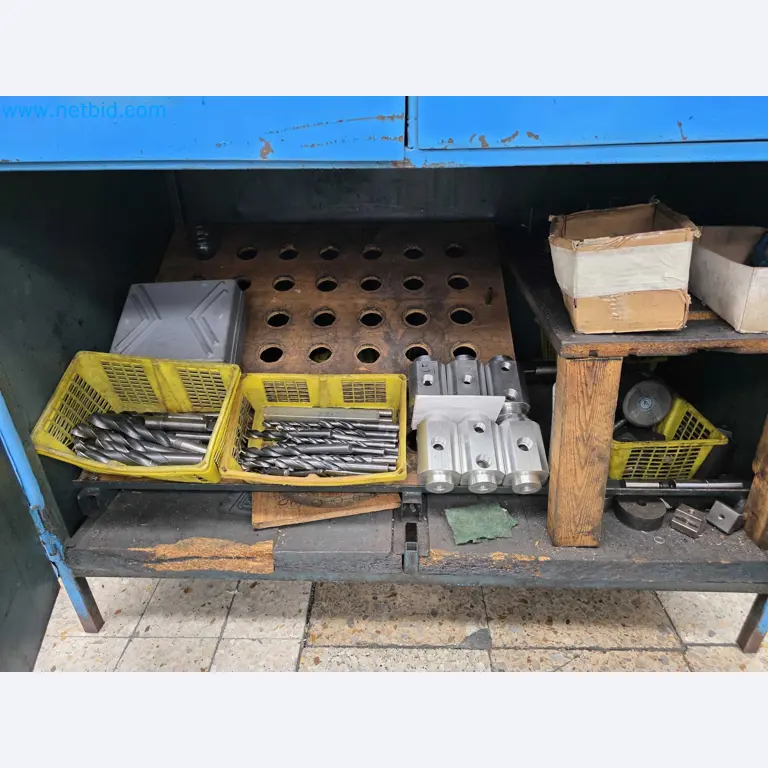

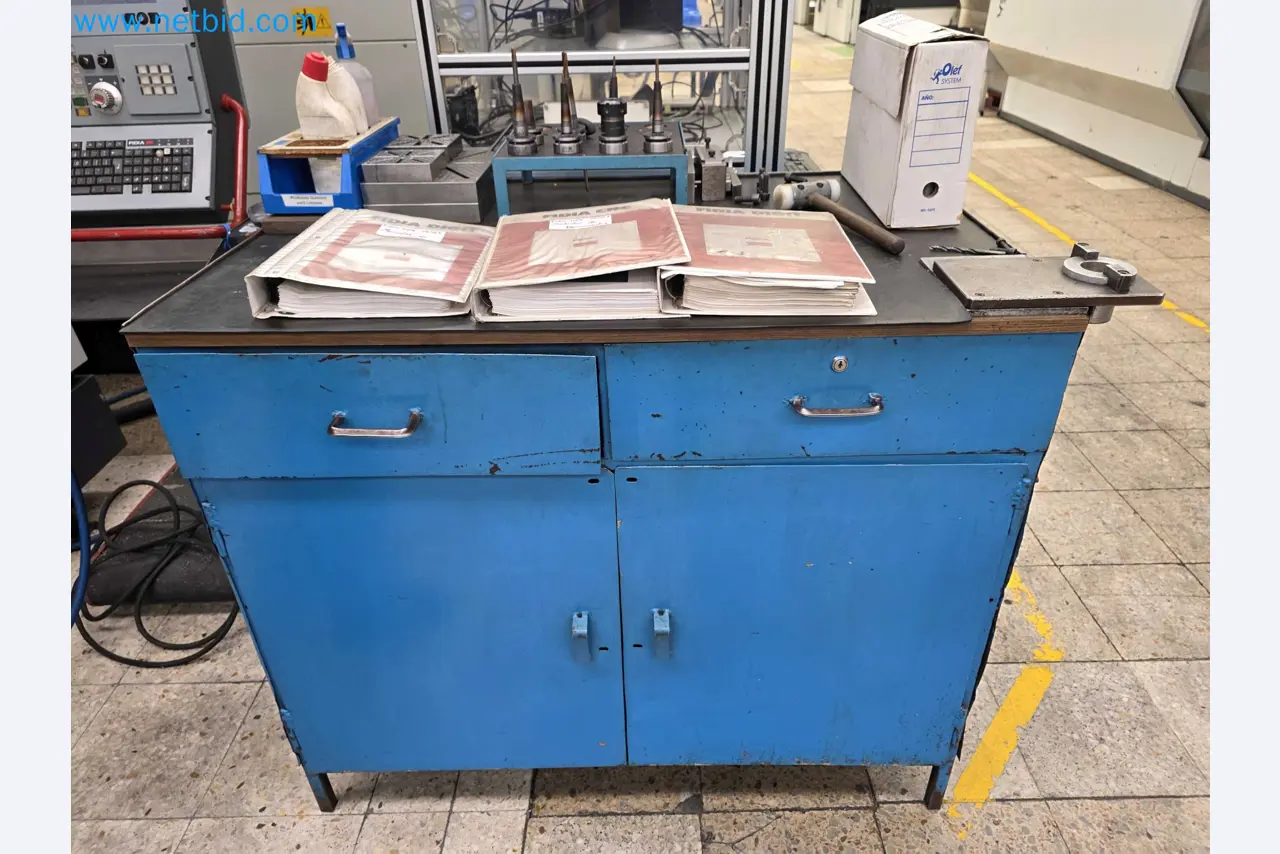

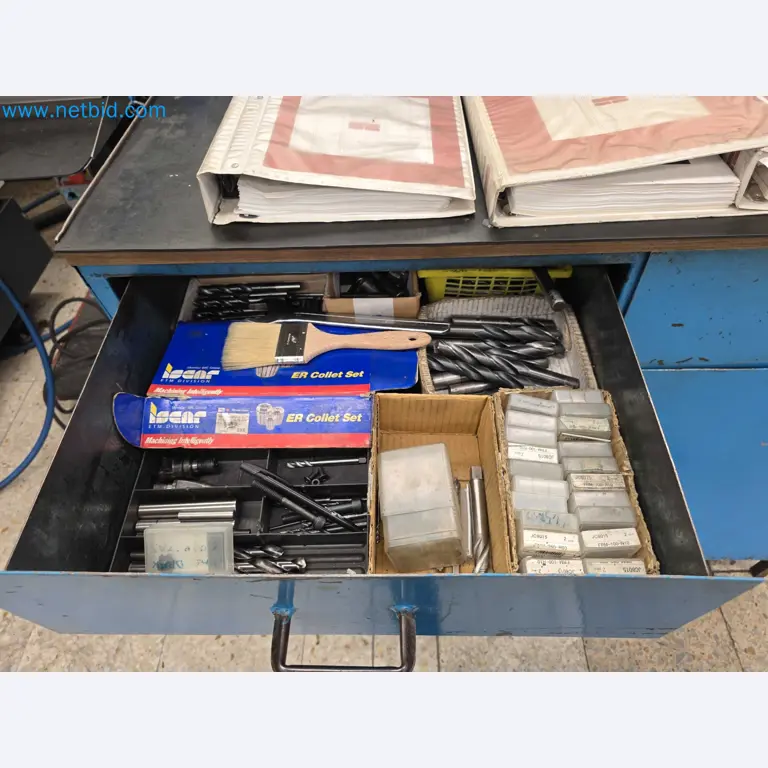

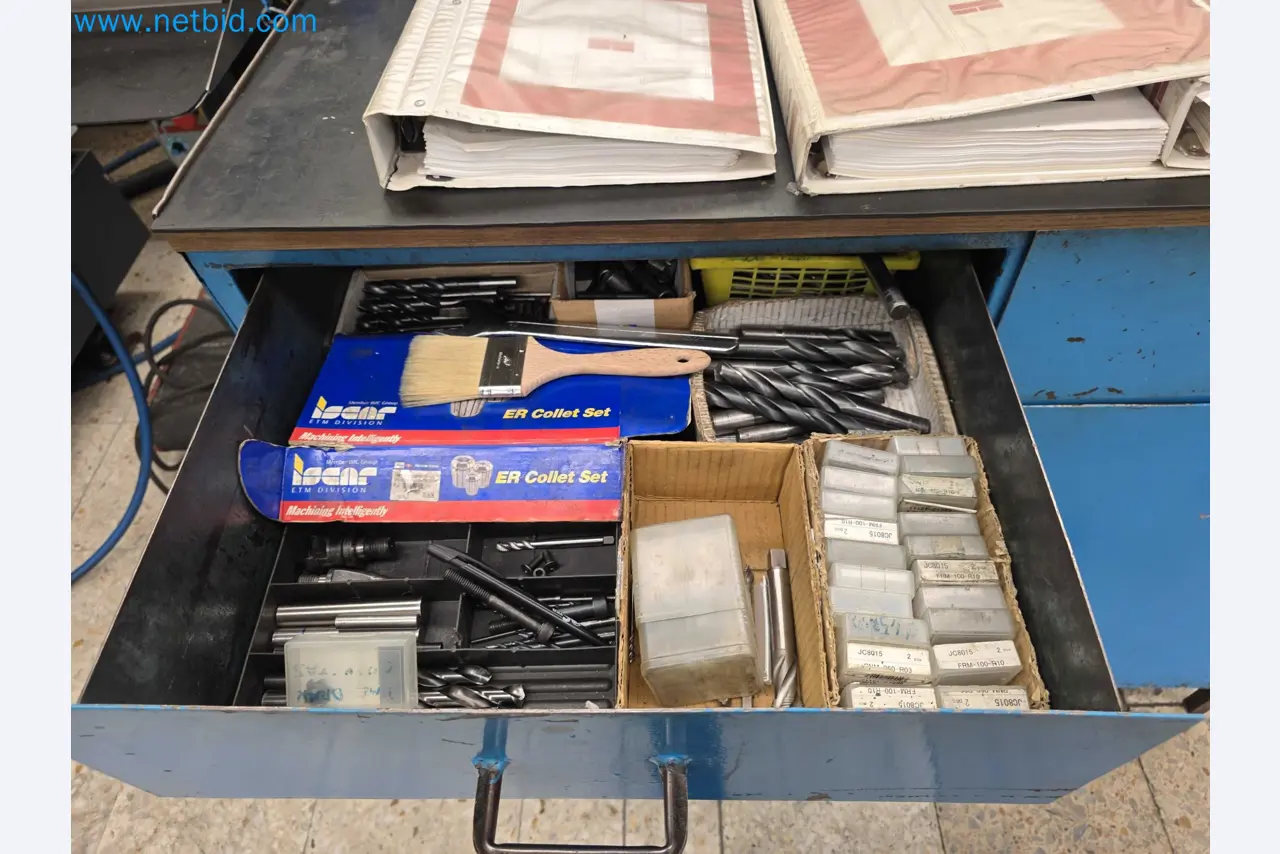

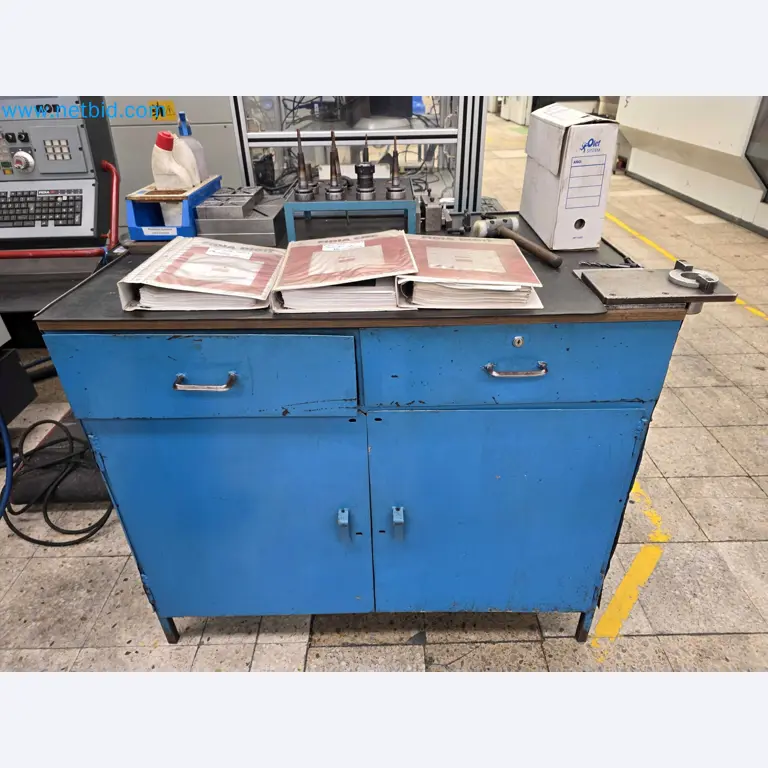

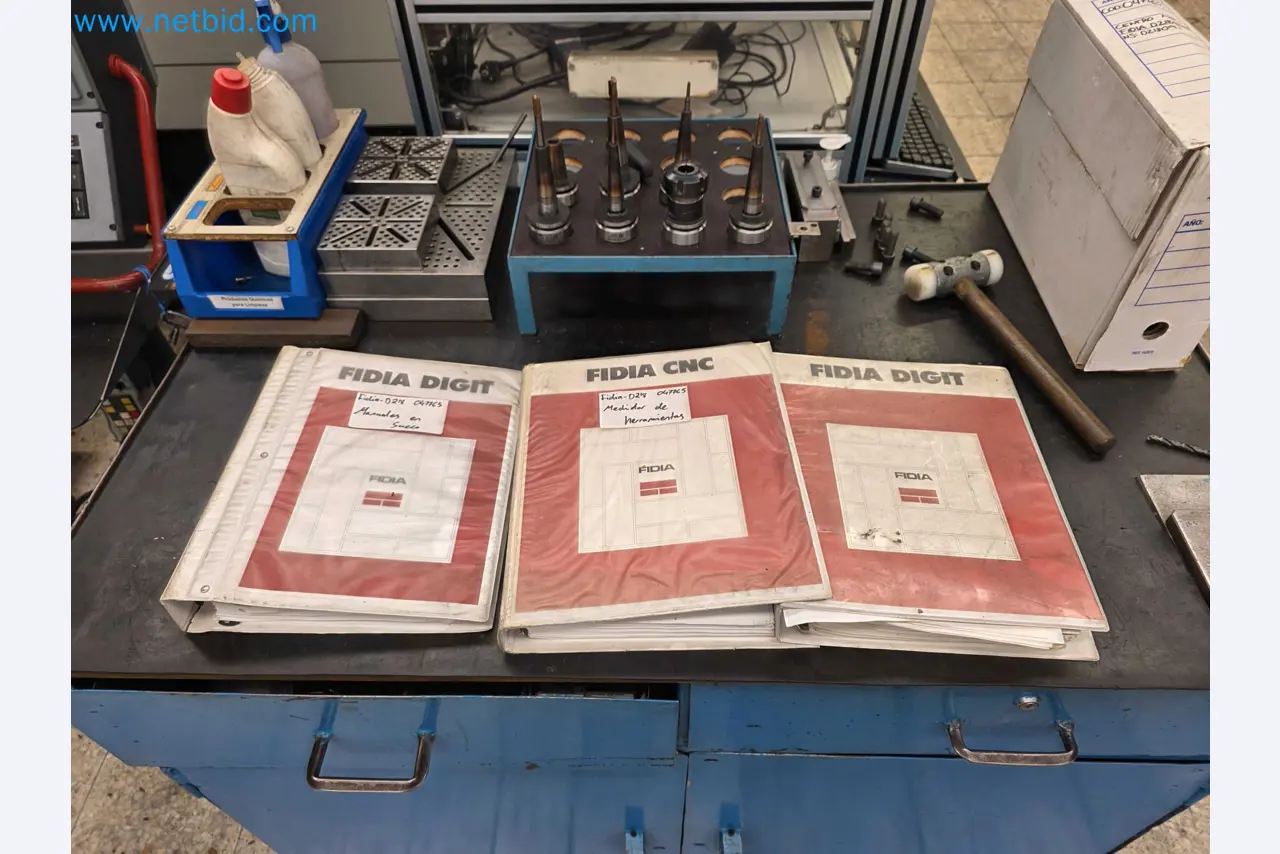

Drawer cabinet with accessories included
Approximate weight: 9,500 kg
5-axis
Travels:
· X-axis: 2000 mm
· Y-axis: 1000 mm
· Z-axis: 800 mm
· B-axis: -25°/+25°
· C-axis: +180°/-177°
Positioning accuracy:
· X/Y/Z axes: 0.012 mm
Standard table dimensions: 2500 x 1500 x 300 mm
Maximum table load: 10,000 kg
T-slot table with 6 slots, 22 mm wide
Maximum rapid traverse (X/Y/Z axes): 20 m/min
Acceleration: 2 m/s²
Spindle speed range: 3,000 to 30,000 rpm
MBSH-D/17-30-01 milling head
Head power: 17 kW
HSK 50 tool holders
Equipped with laser tool measurement system
24-position tool magazine
FIDIA control
Includes cube fixture with magnetic chuck, 620 x 410 x 330 mm
Drawer cabinet with accessories included
Approximate weight: 9,500 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
