Part of the Auction Tromosa Asset Sale: CNC Machining Centres, Edm Machines And Mould Manufacturing Equipment

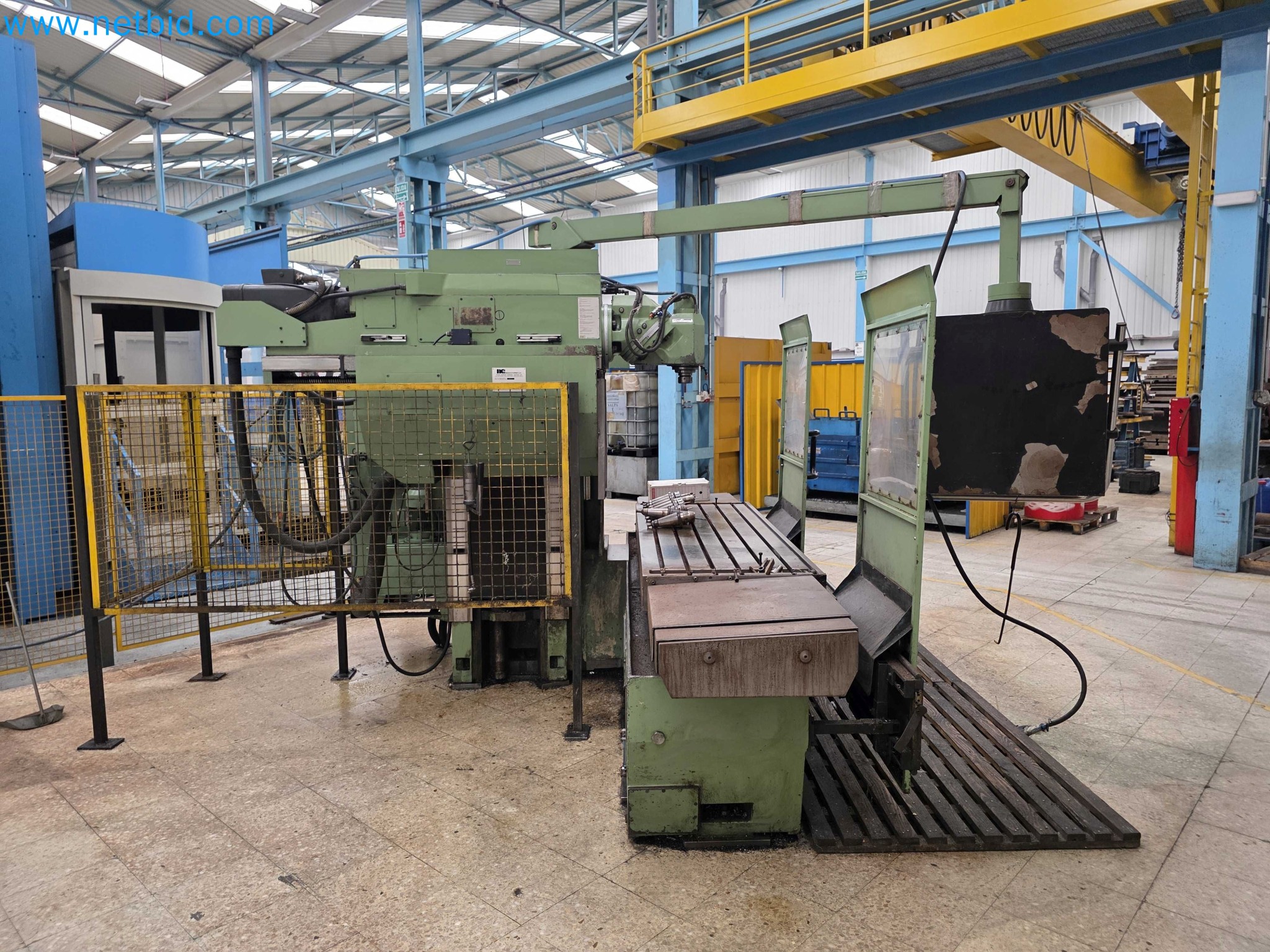

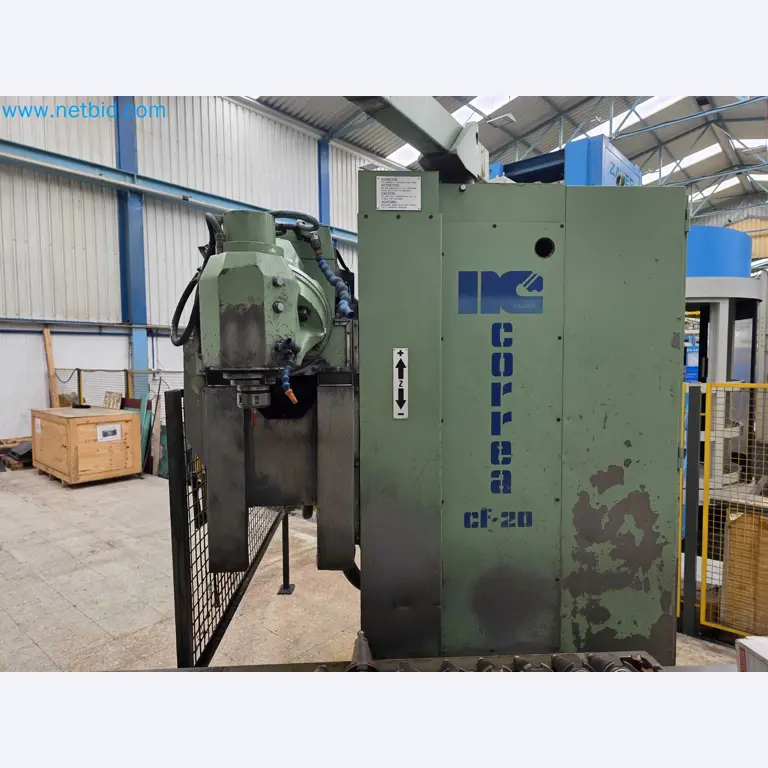

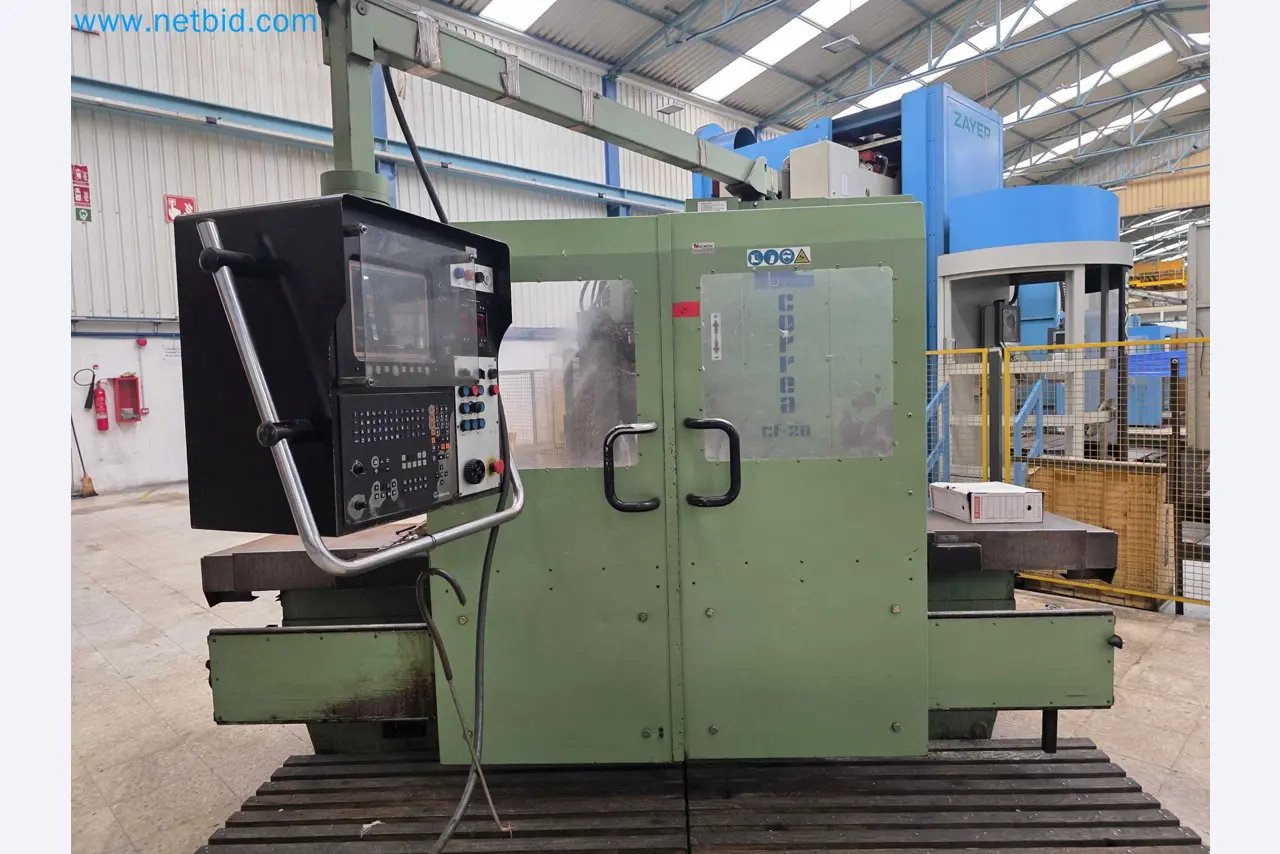

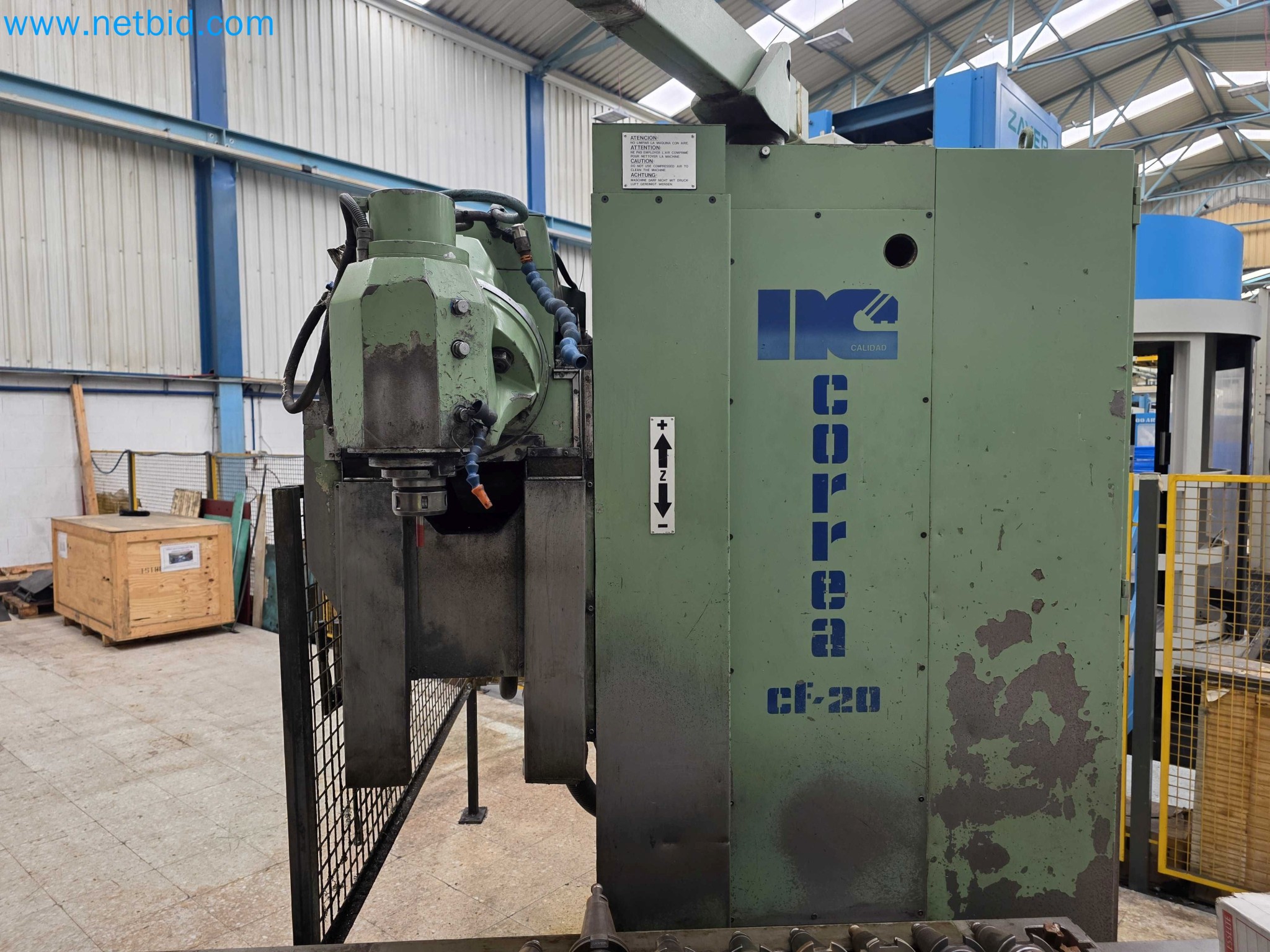

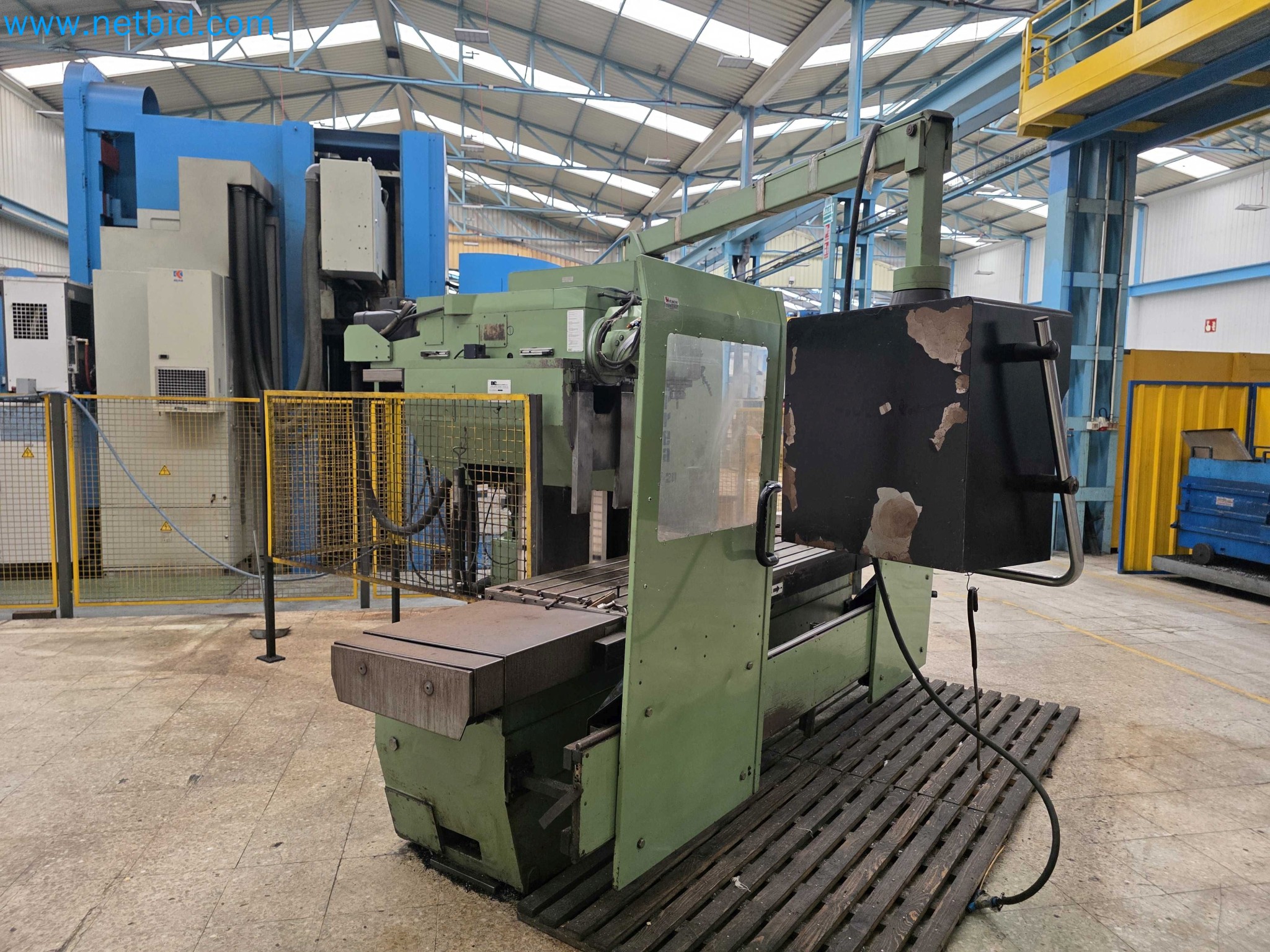

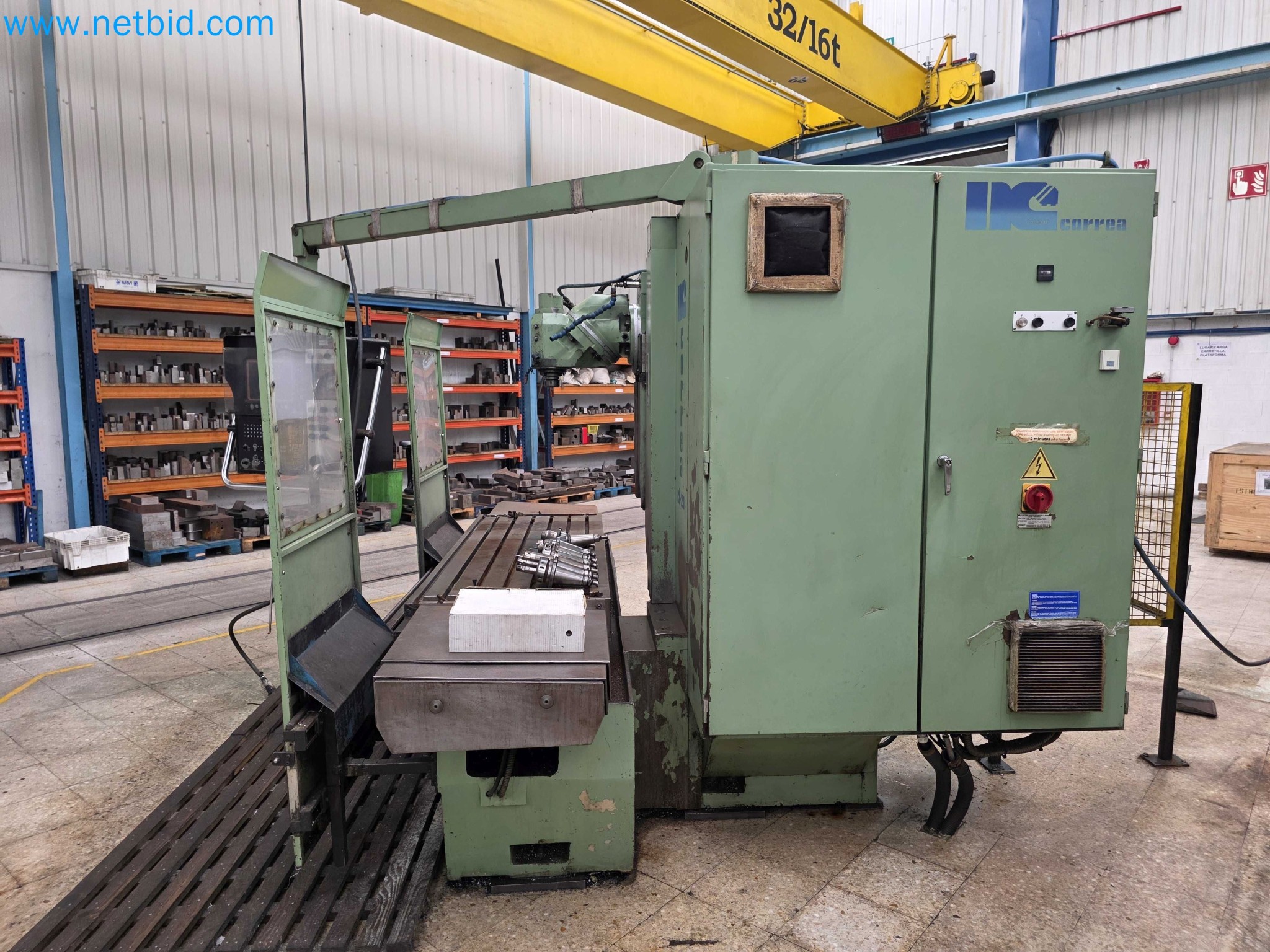

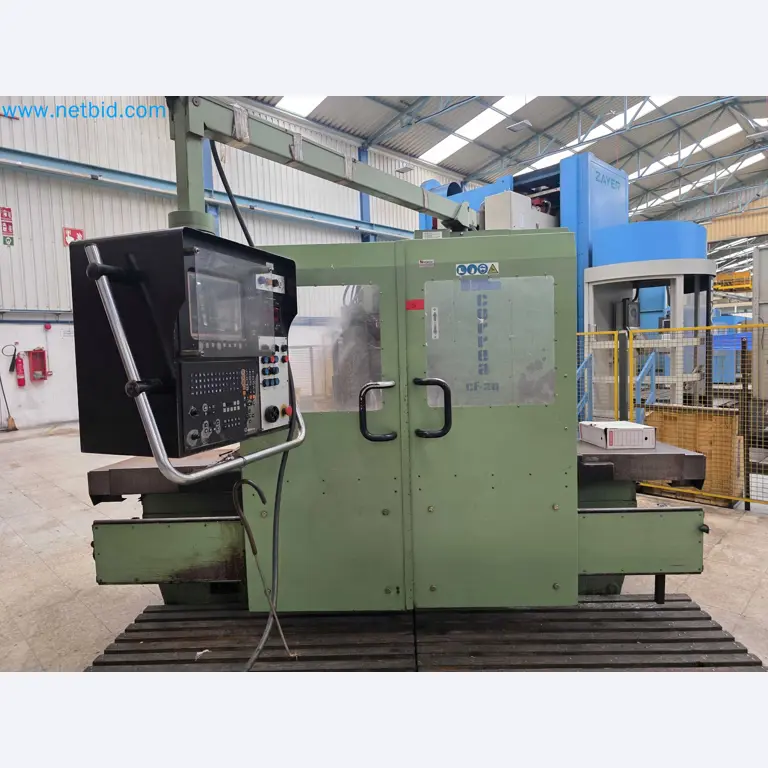

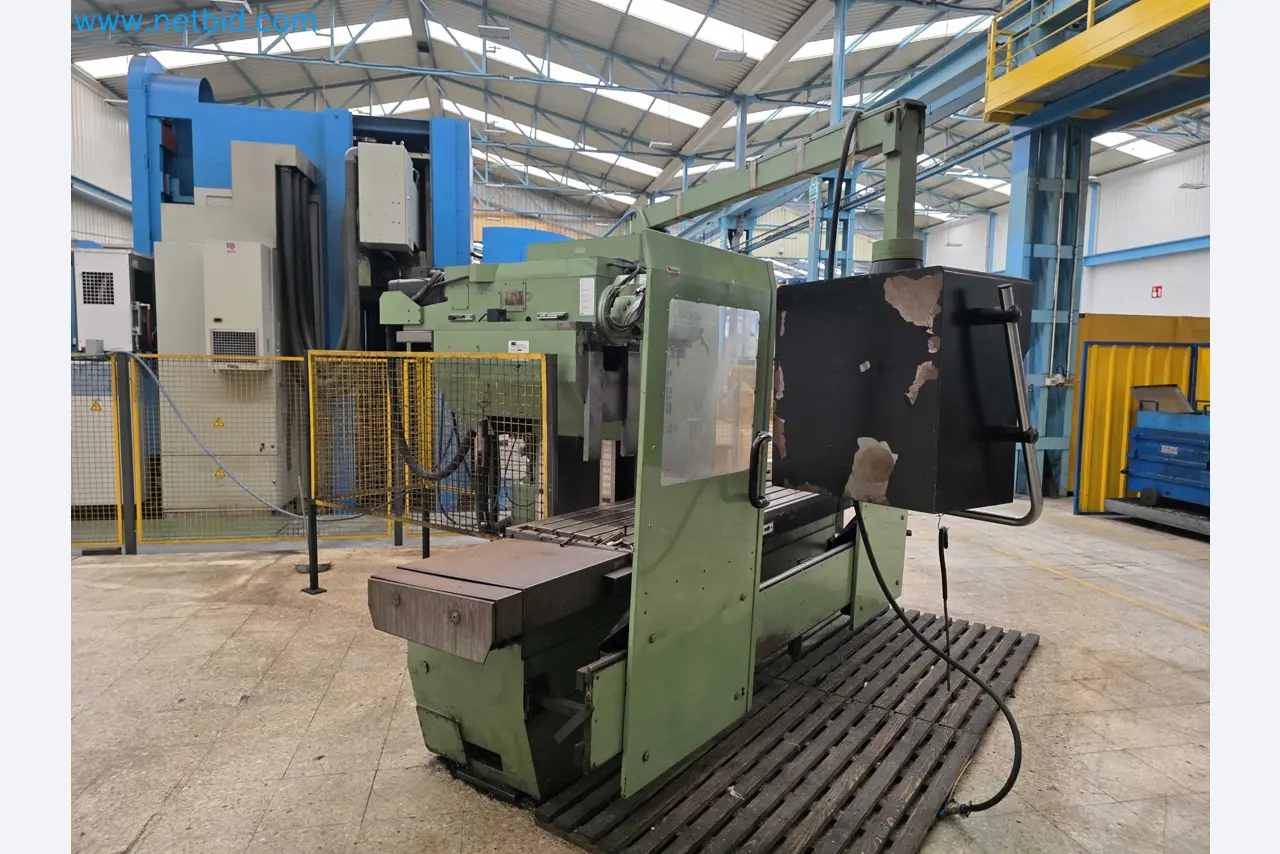

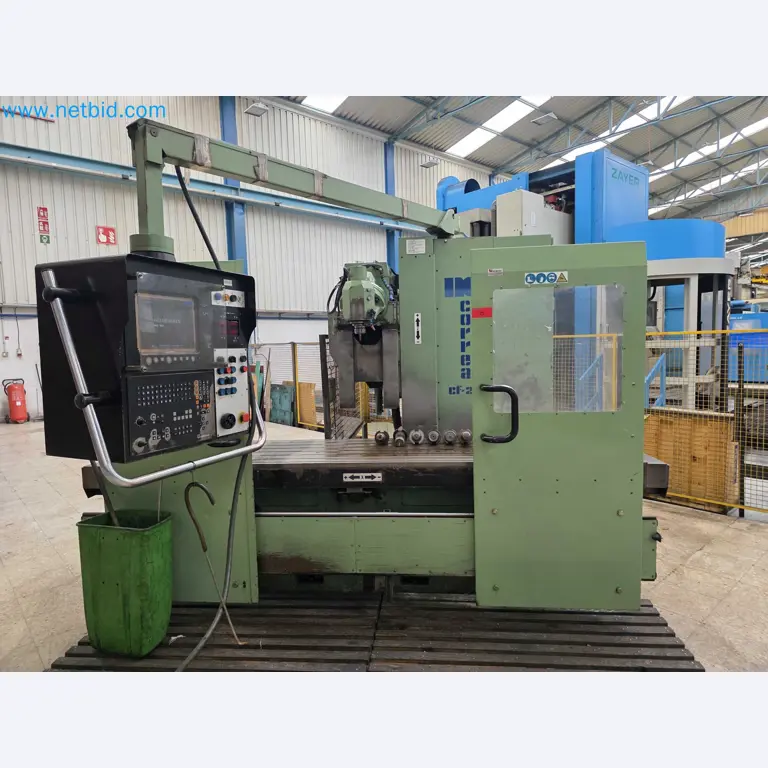

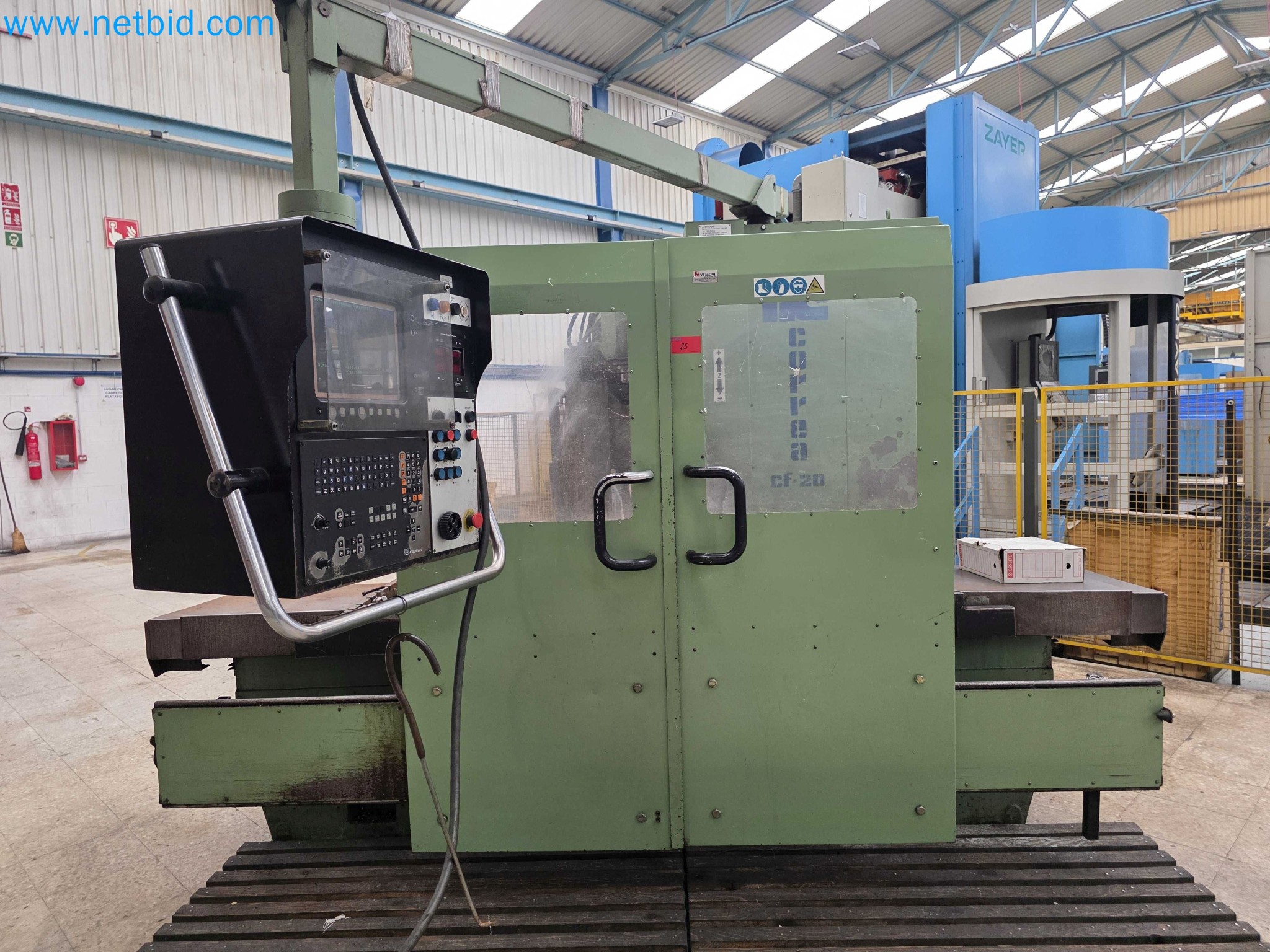

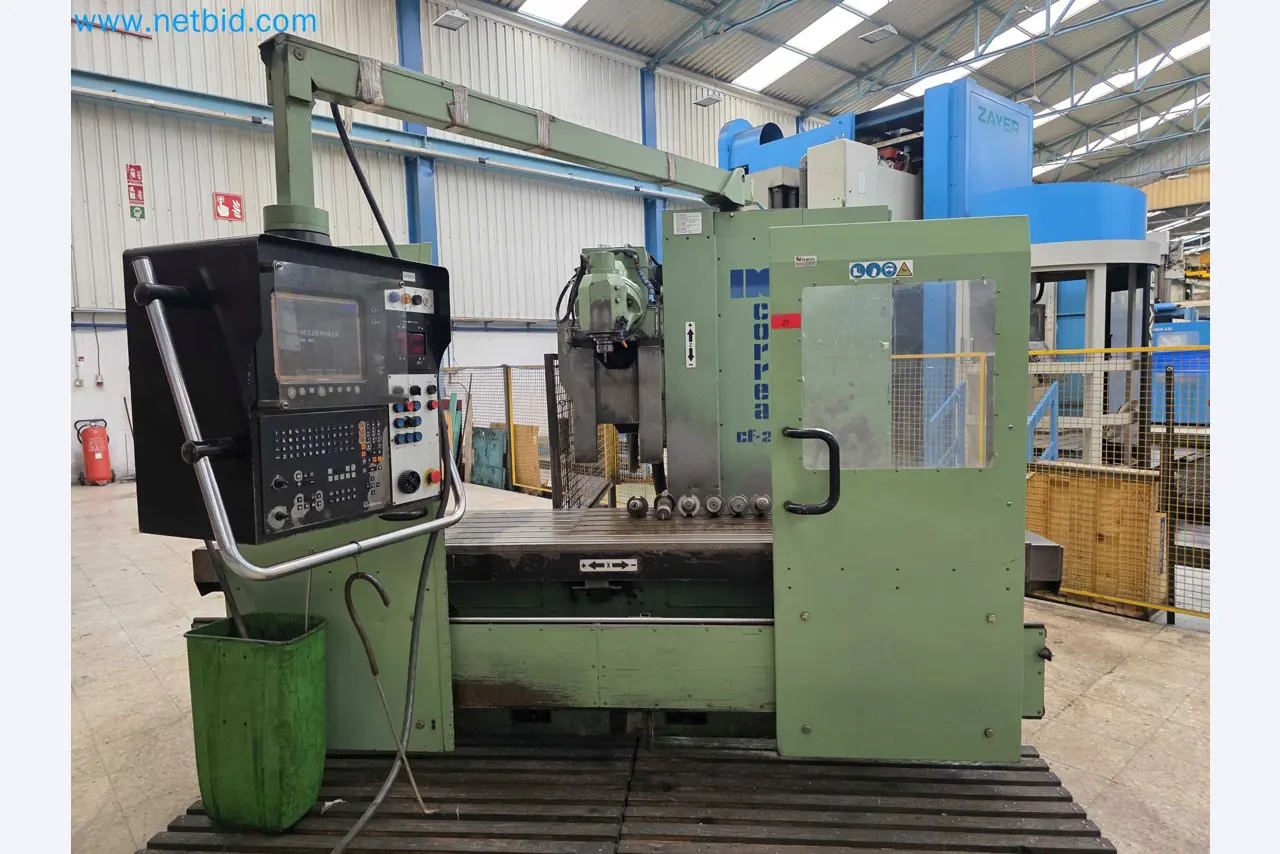

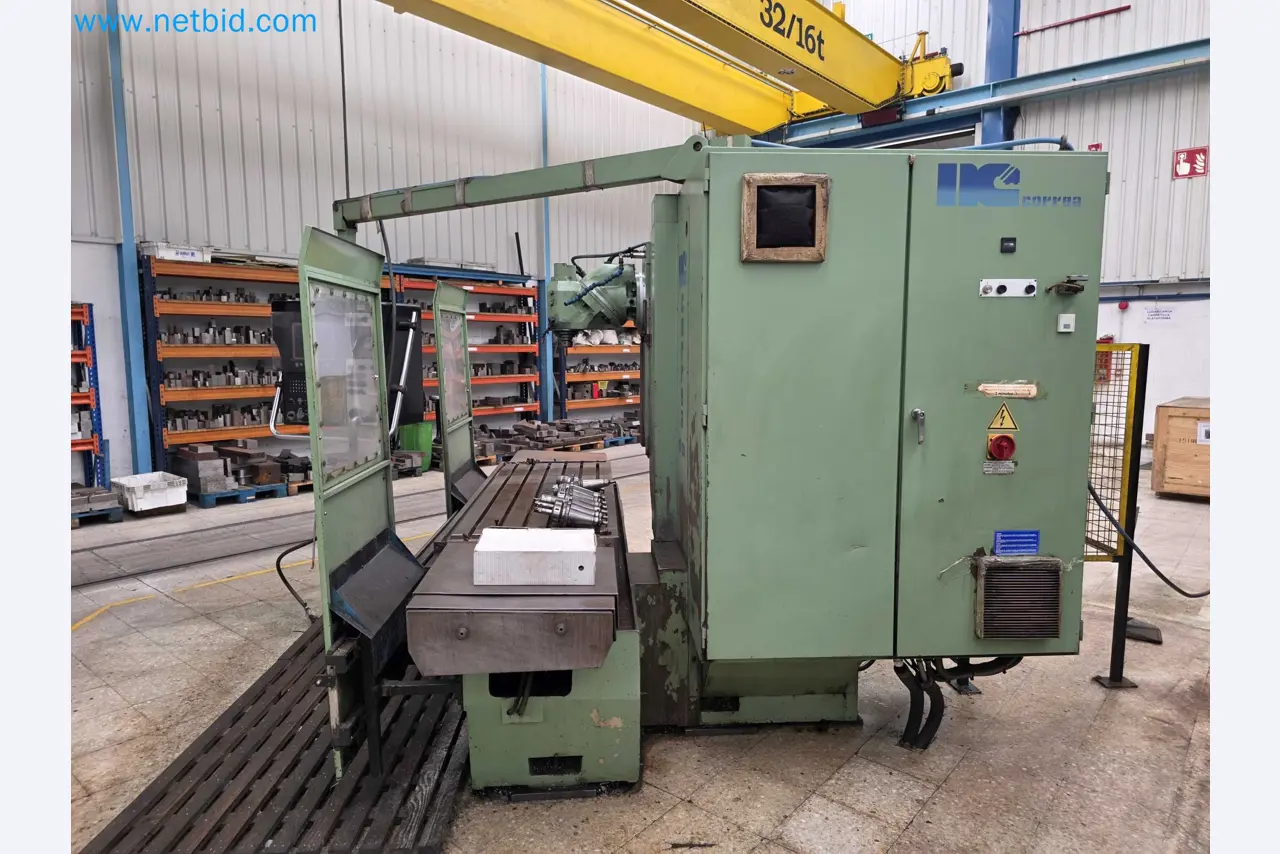

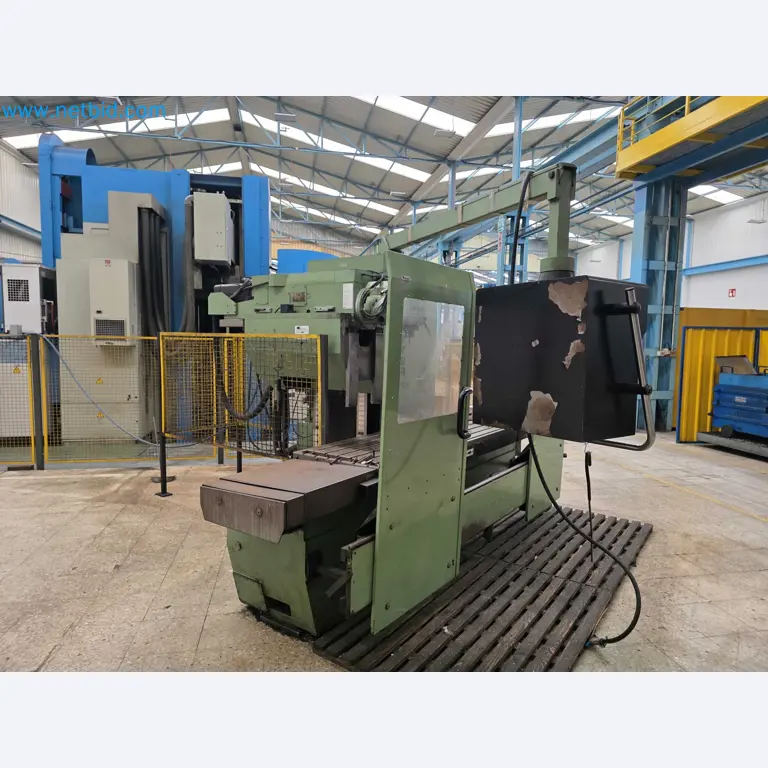

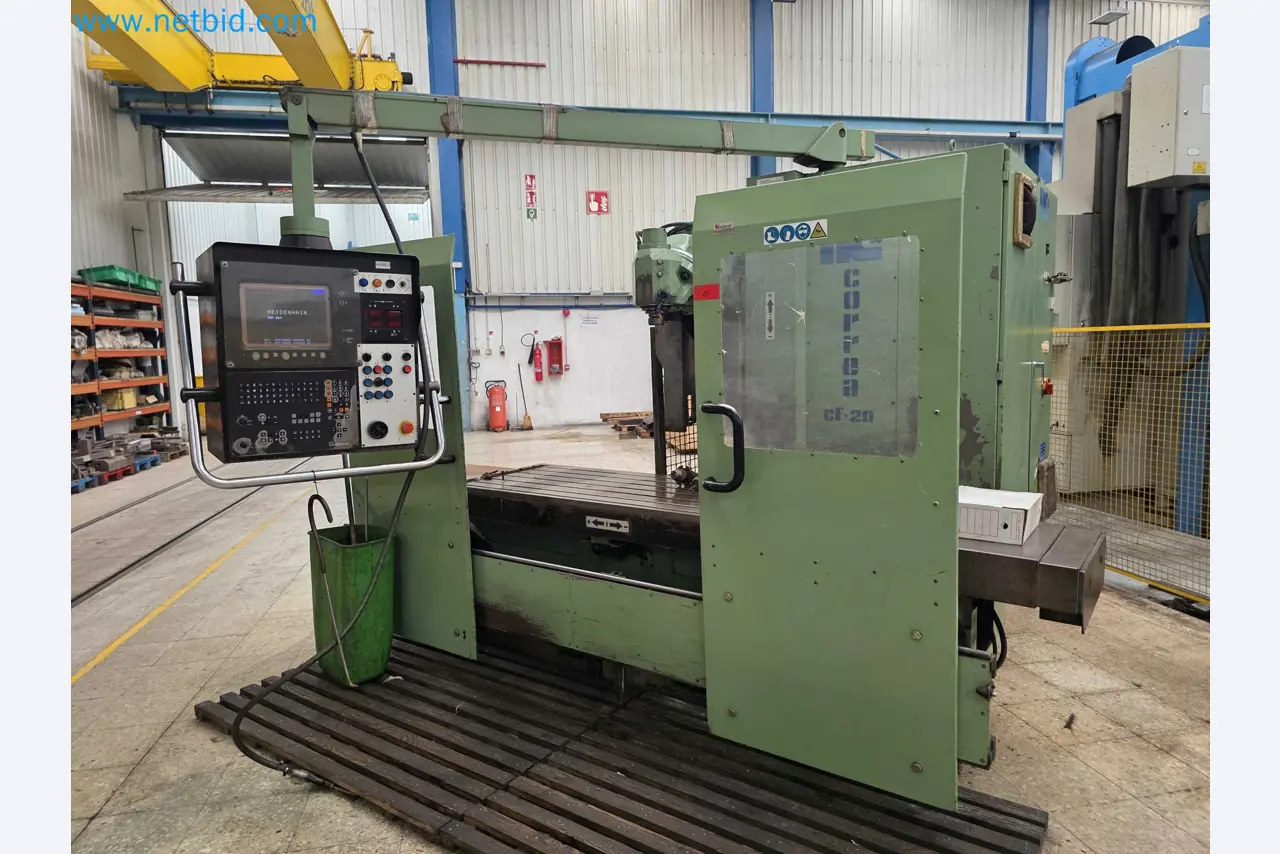

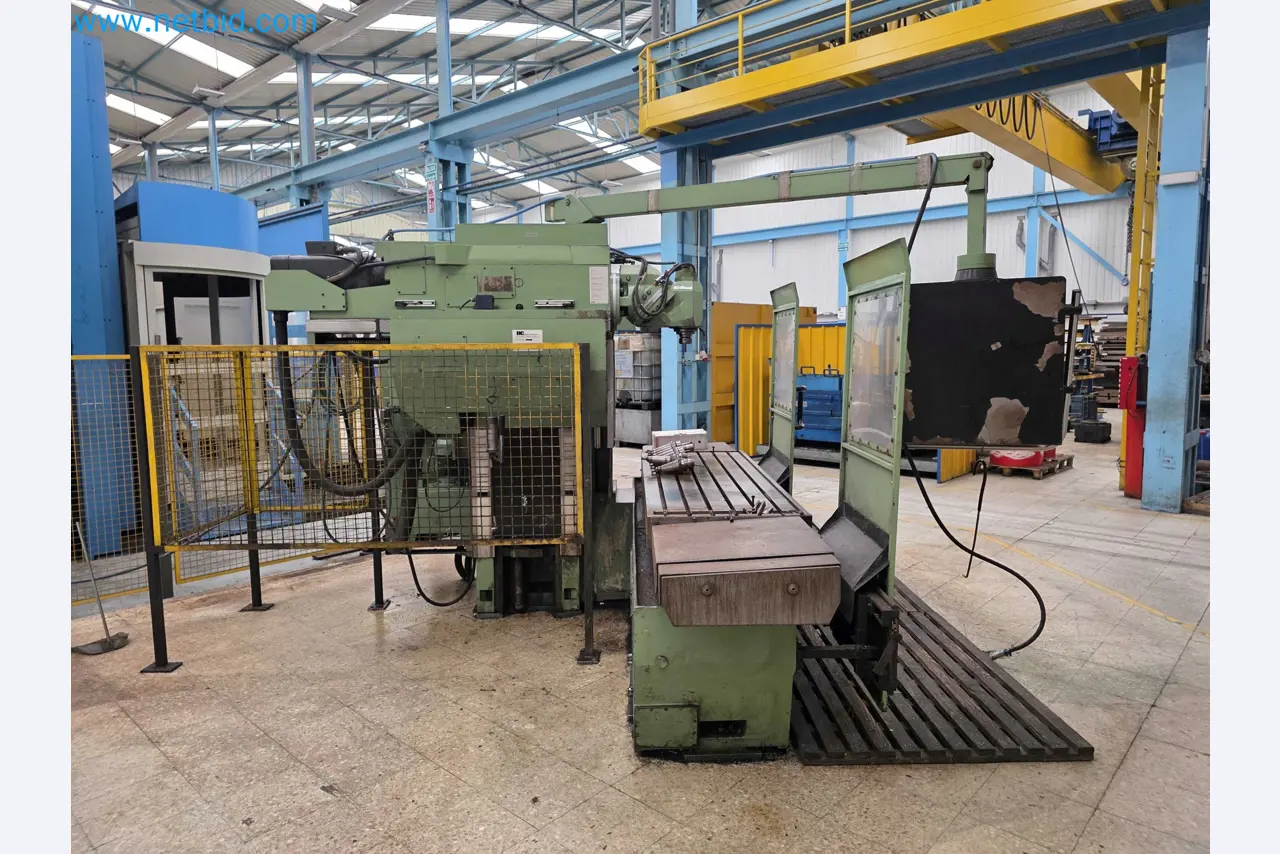

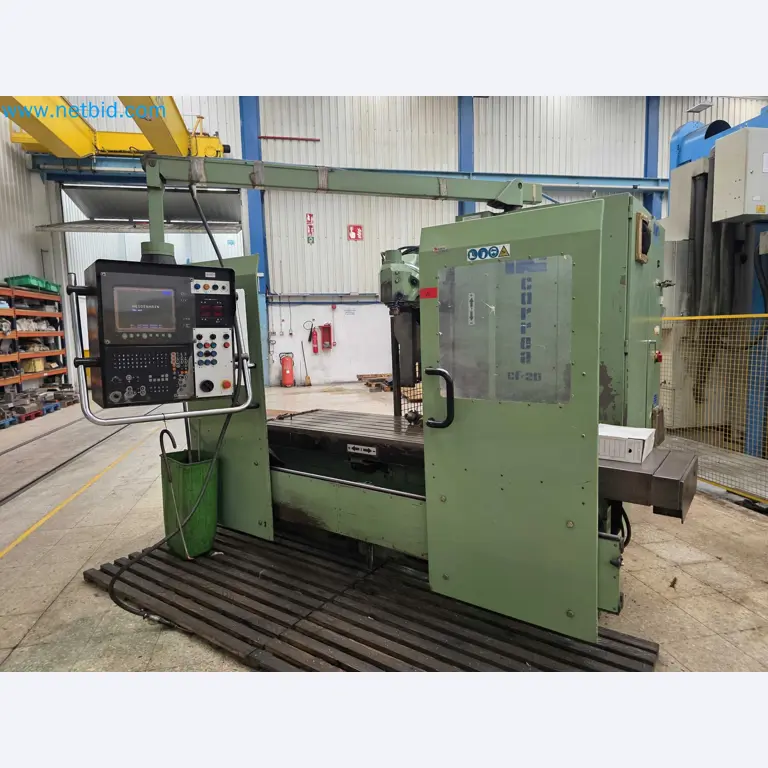

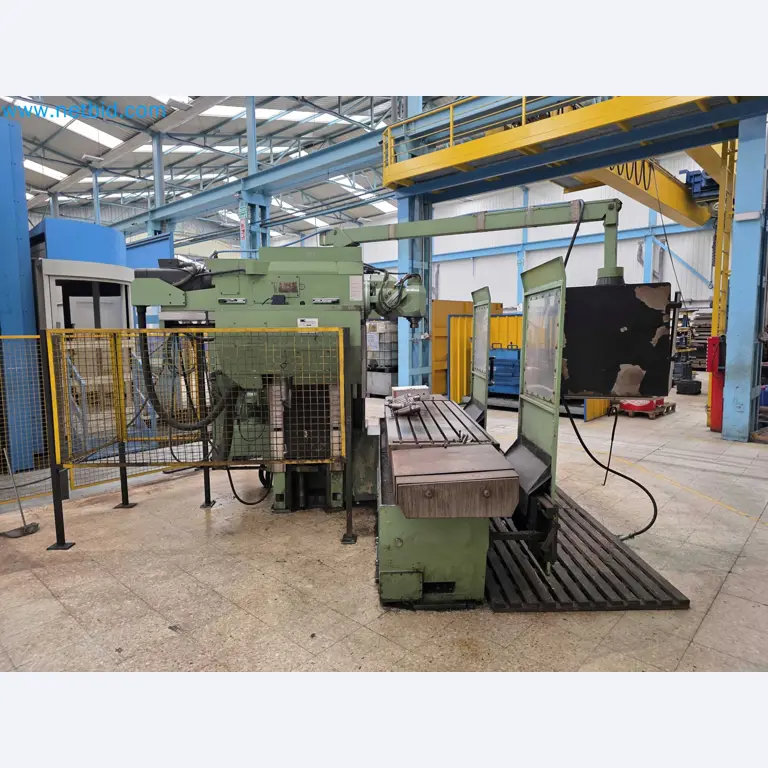

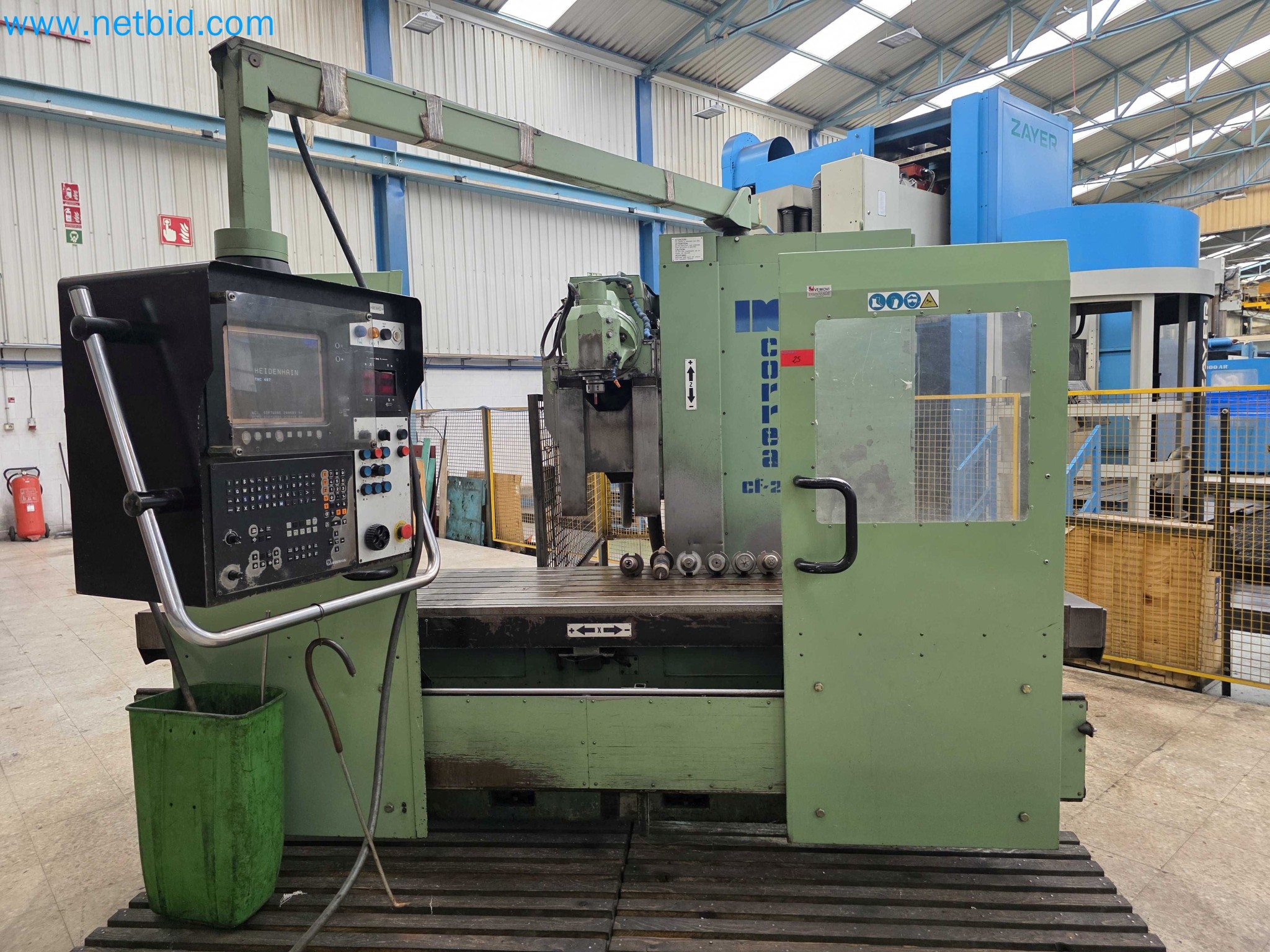

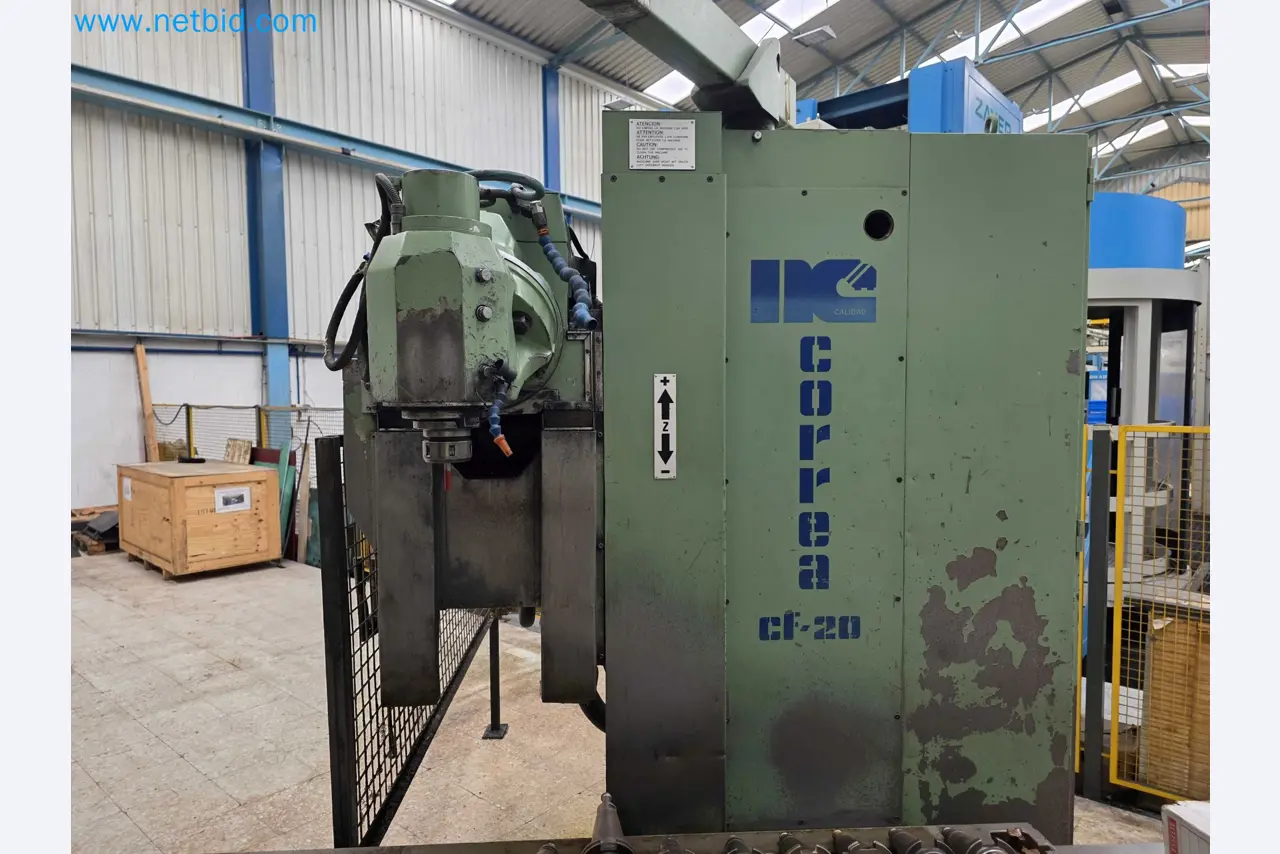

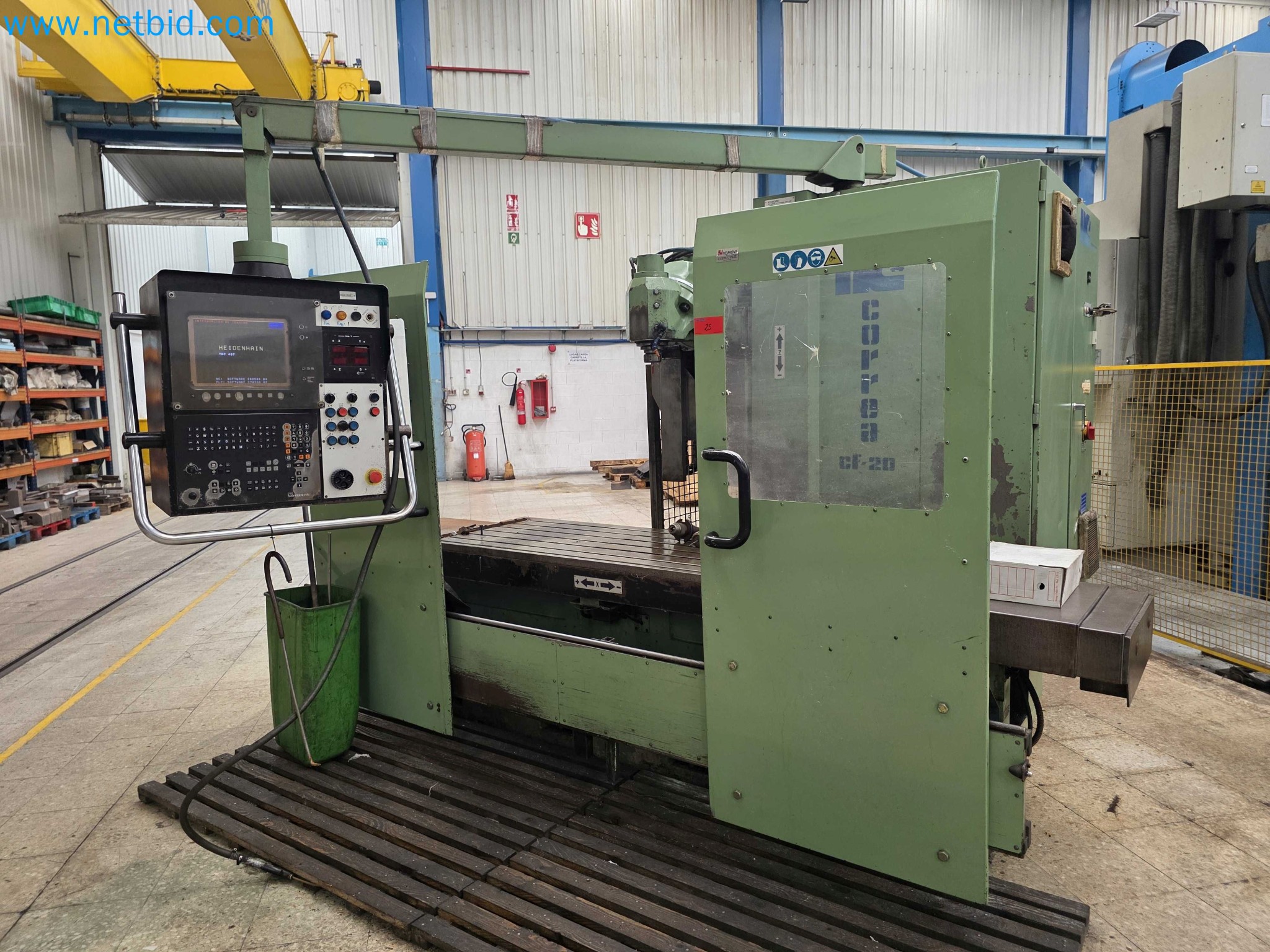

Horizontal Milling Machine NICOLAS CORREA CF 20-20AUCTION#A19590-25
Details
Product Type
NICOLAS CORREA
Type
CF 20-20

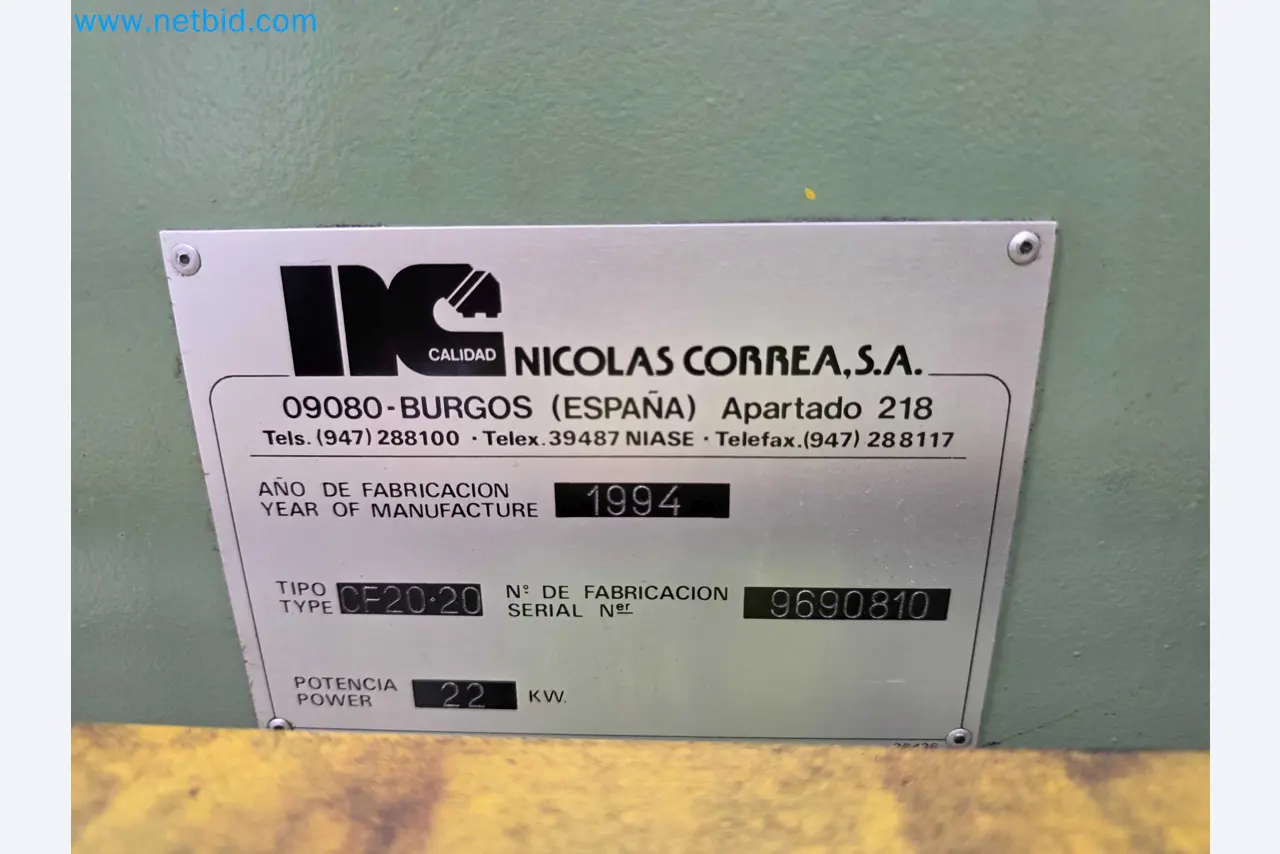

Construction Year
1994
Description

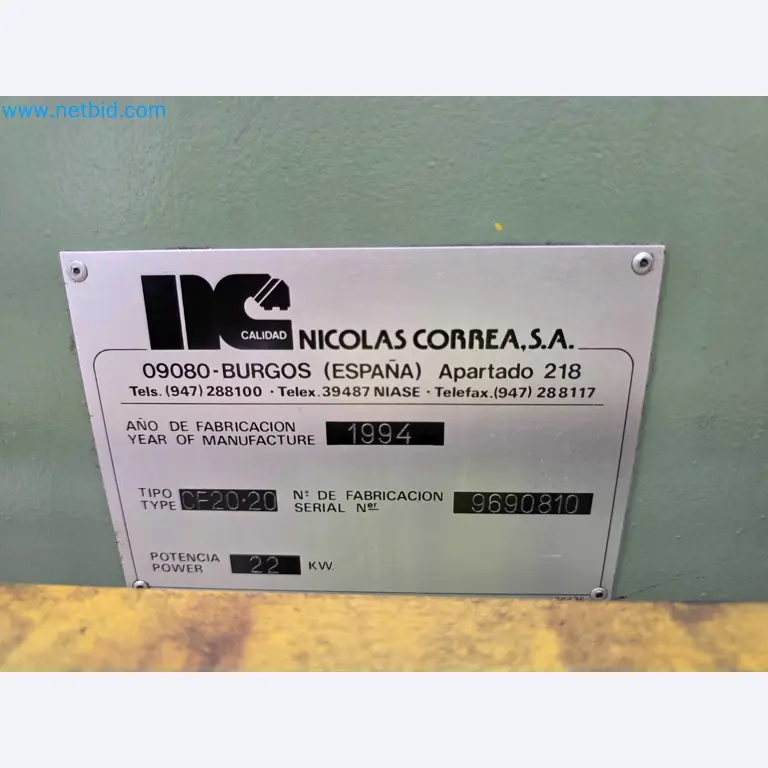

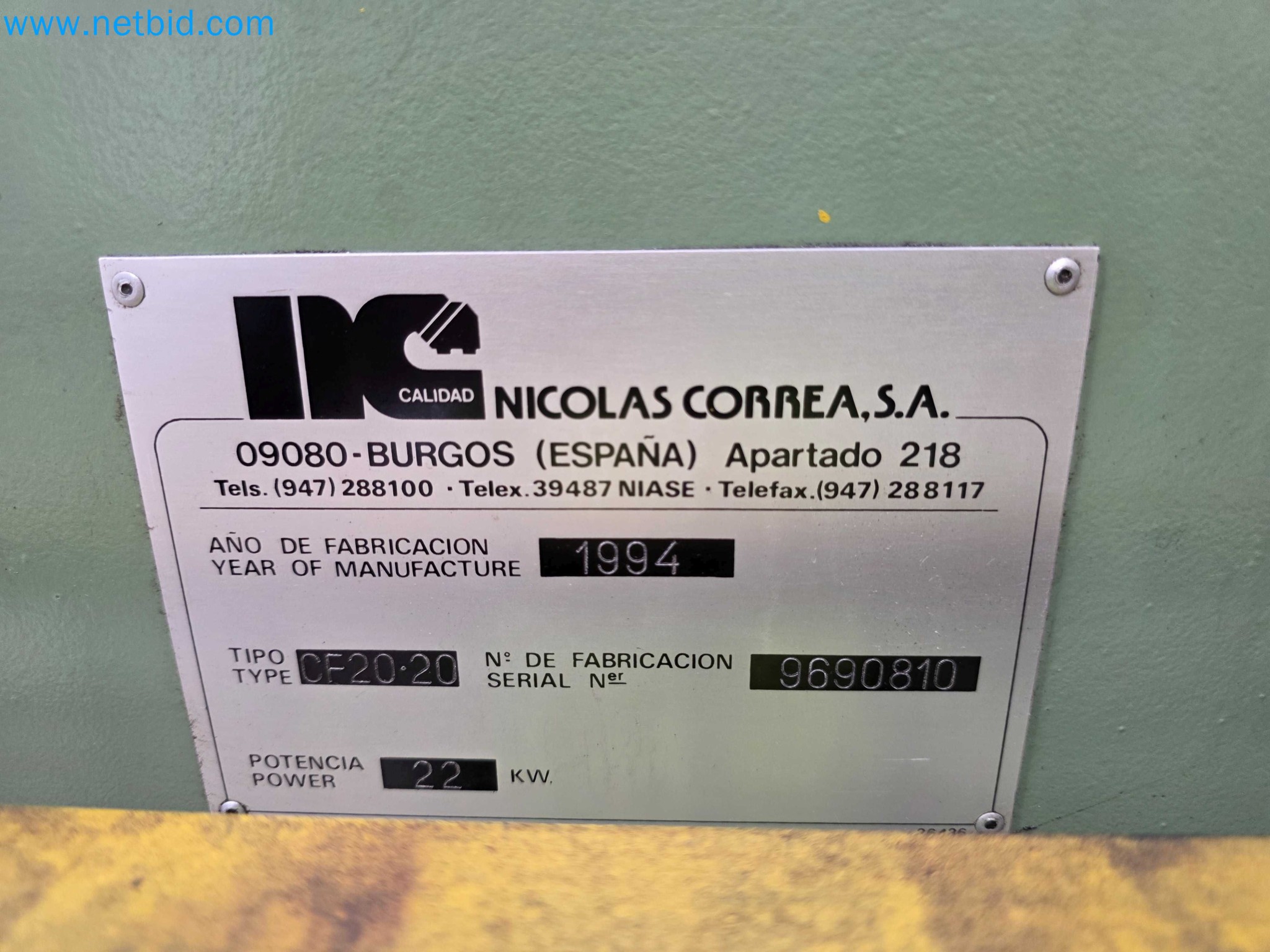

SN: 9690810

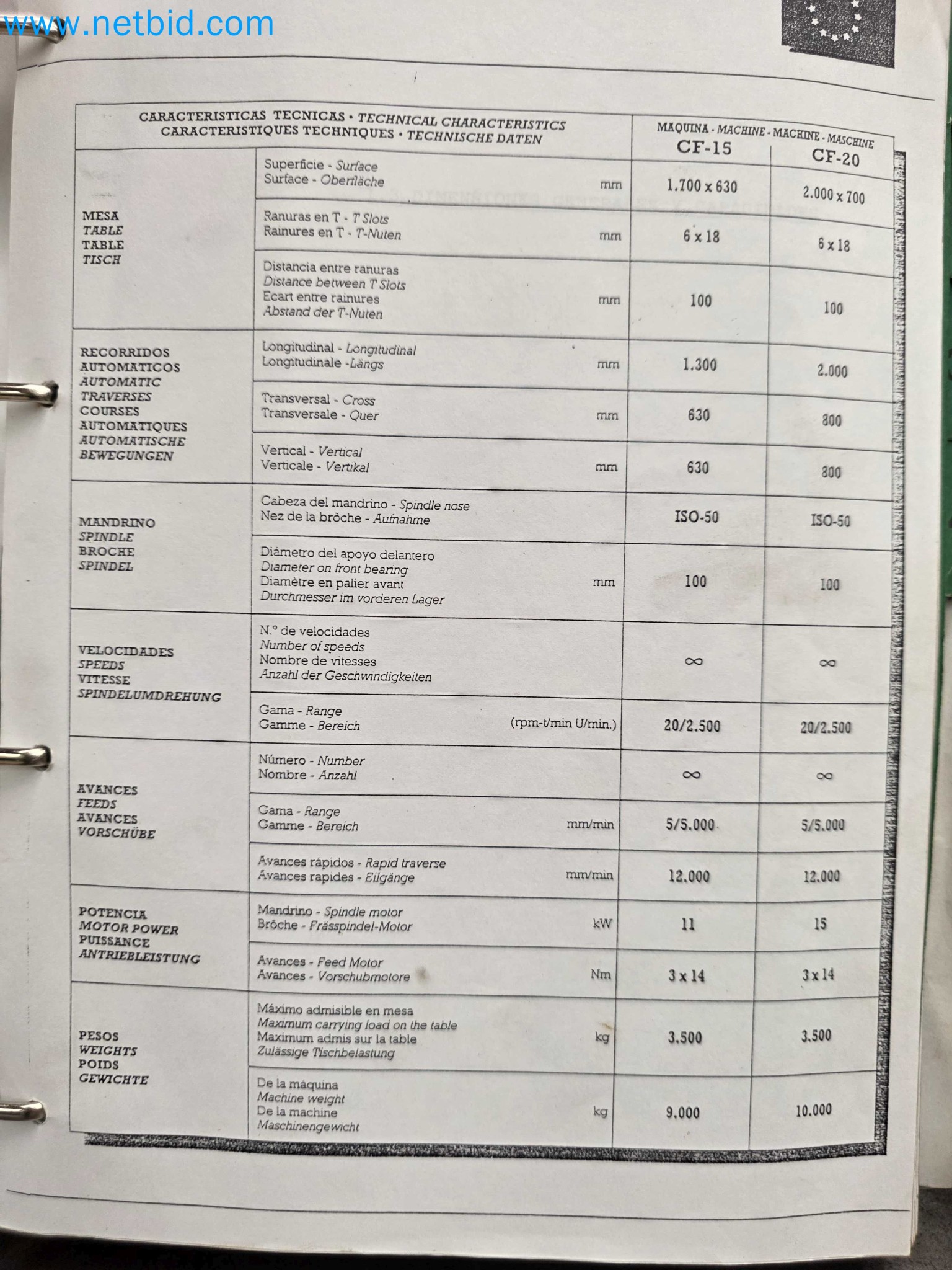

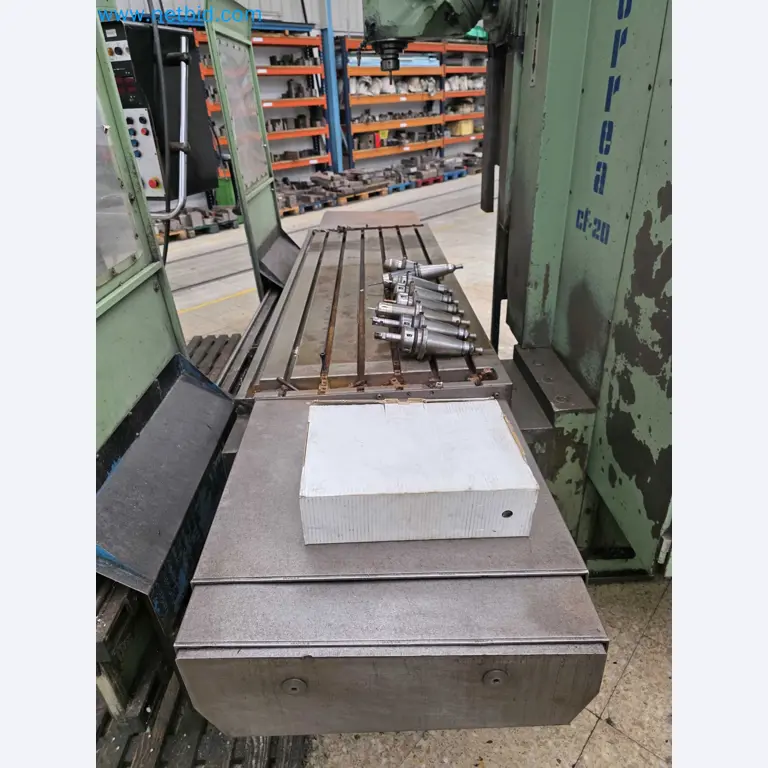

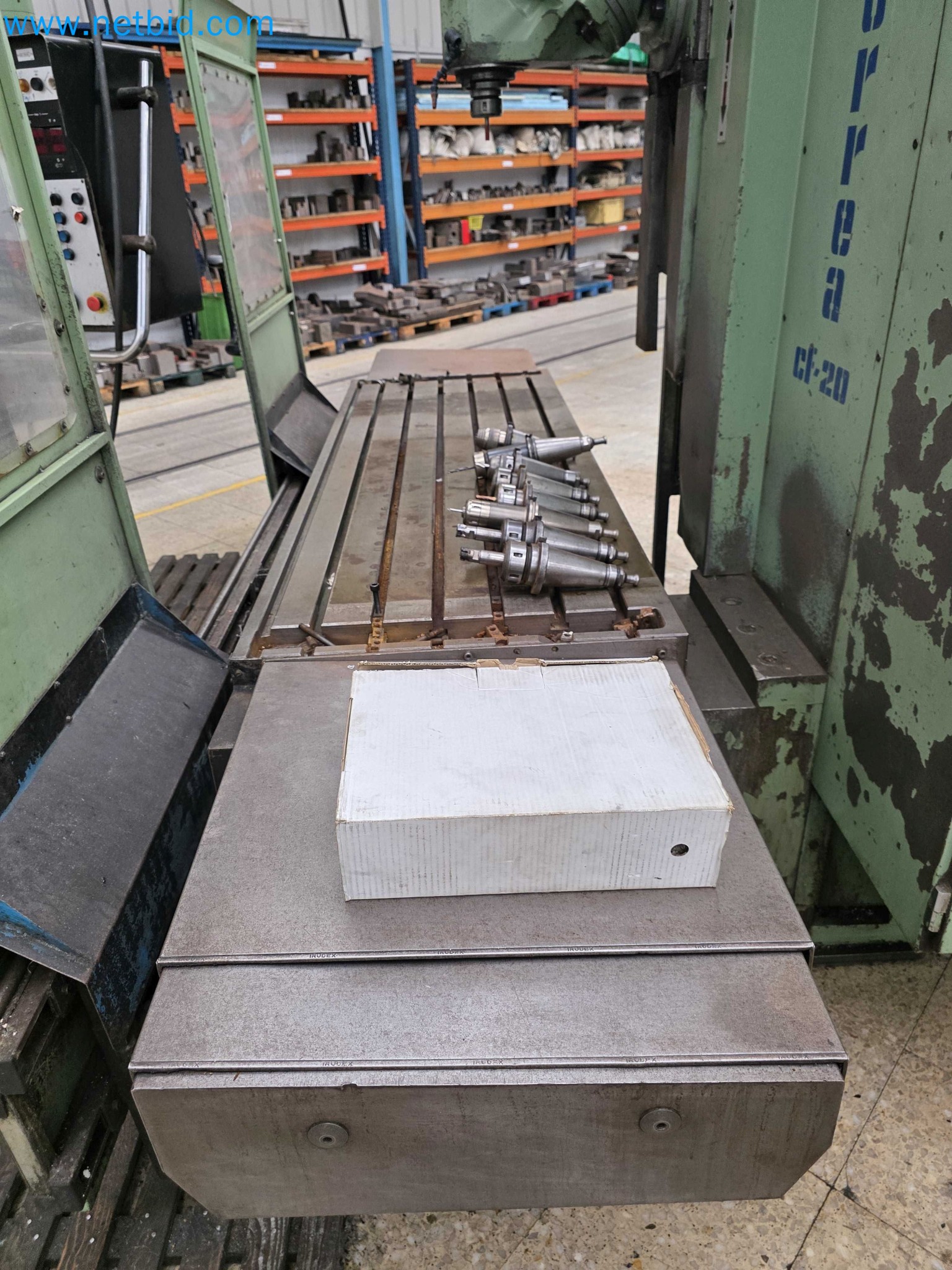

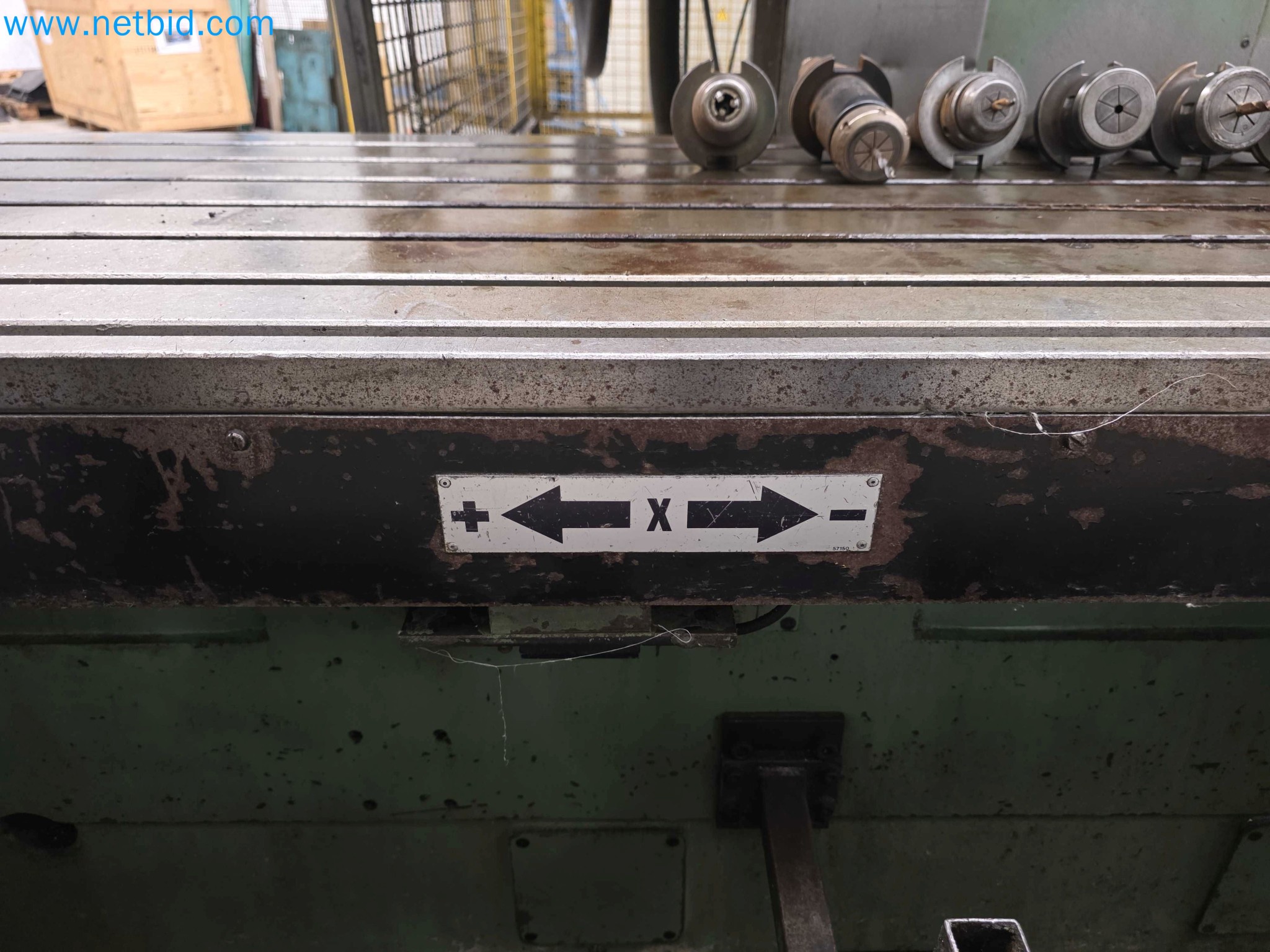

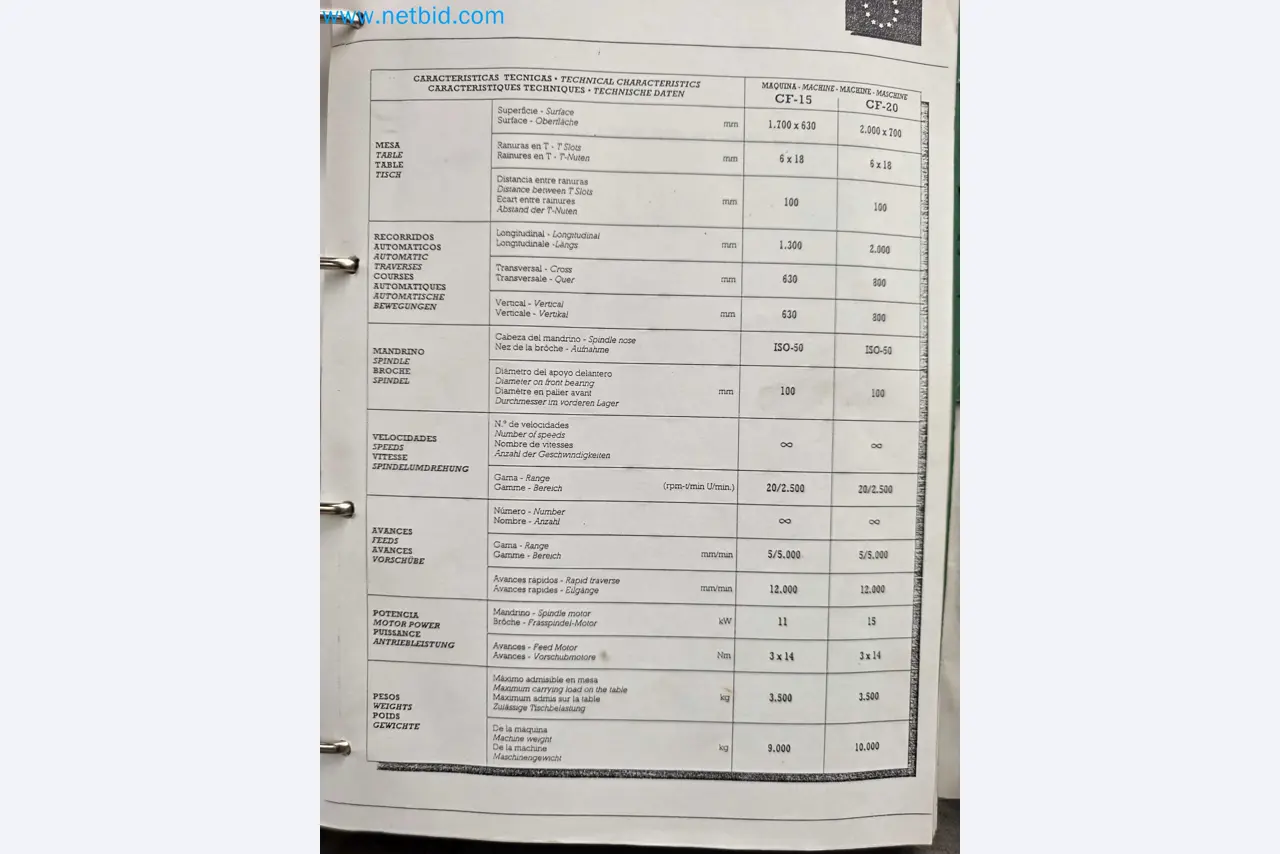

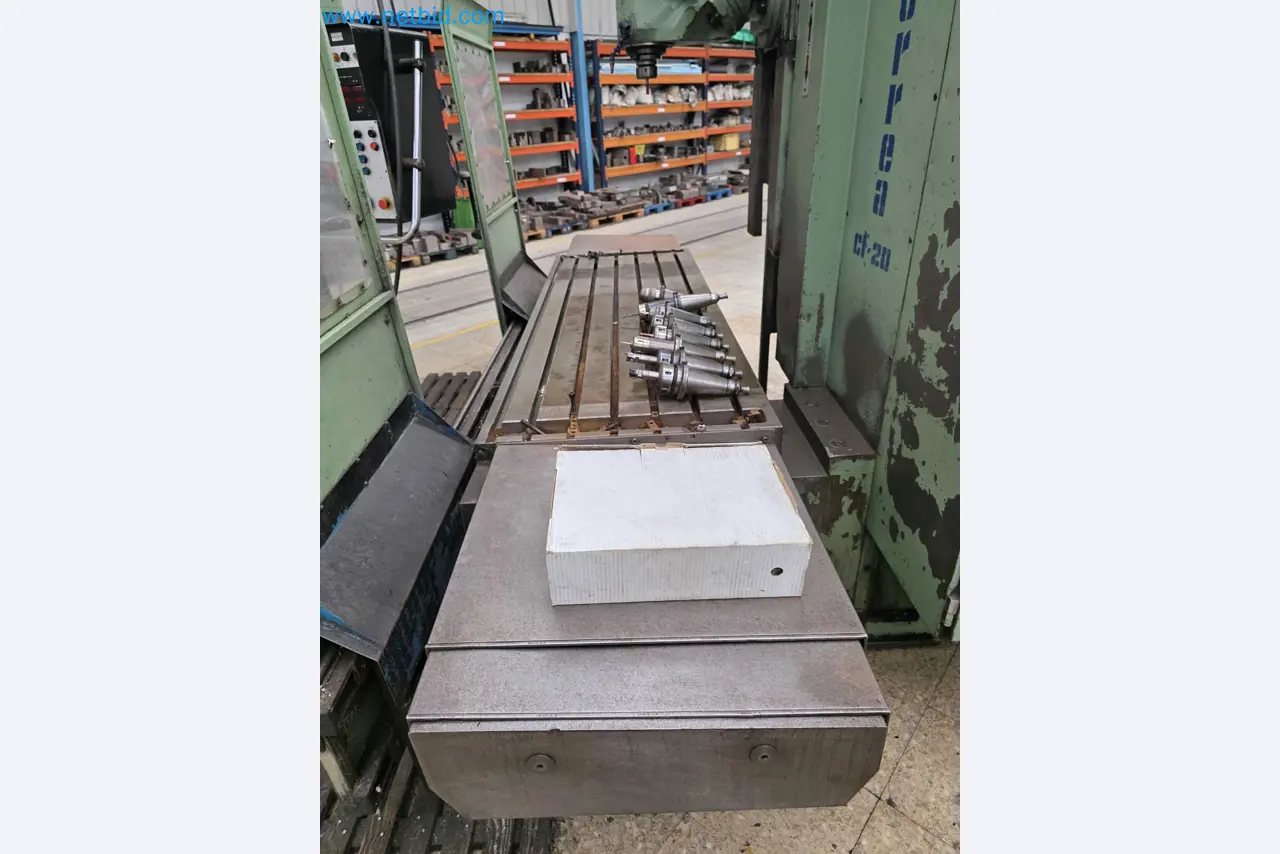

Worktable dimensions: 2000 x 700 mm

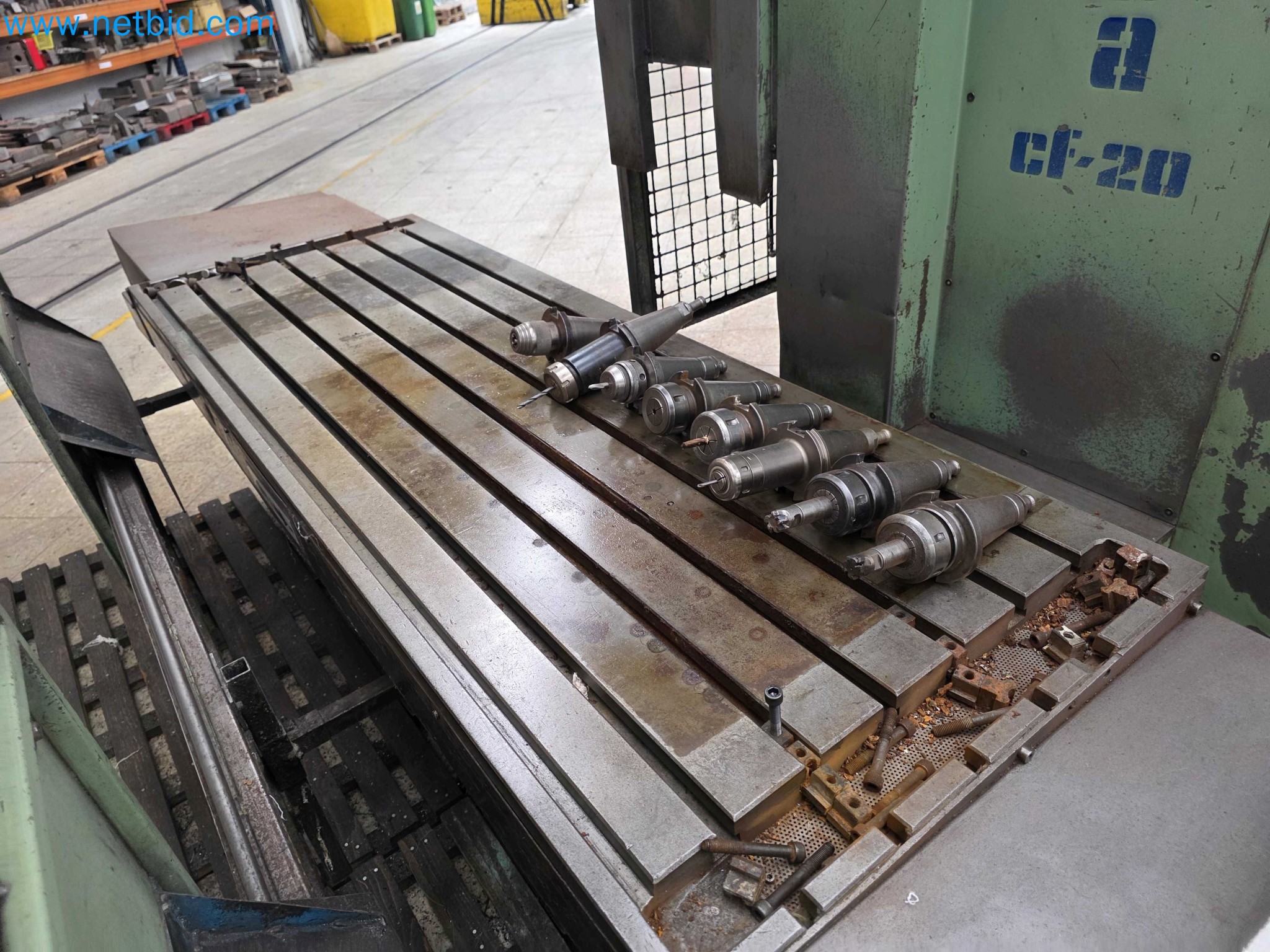

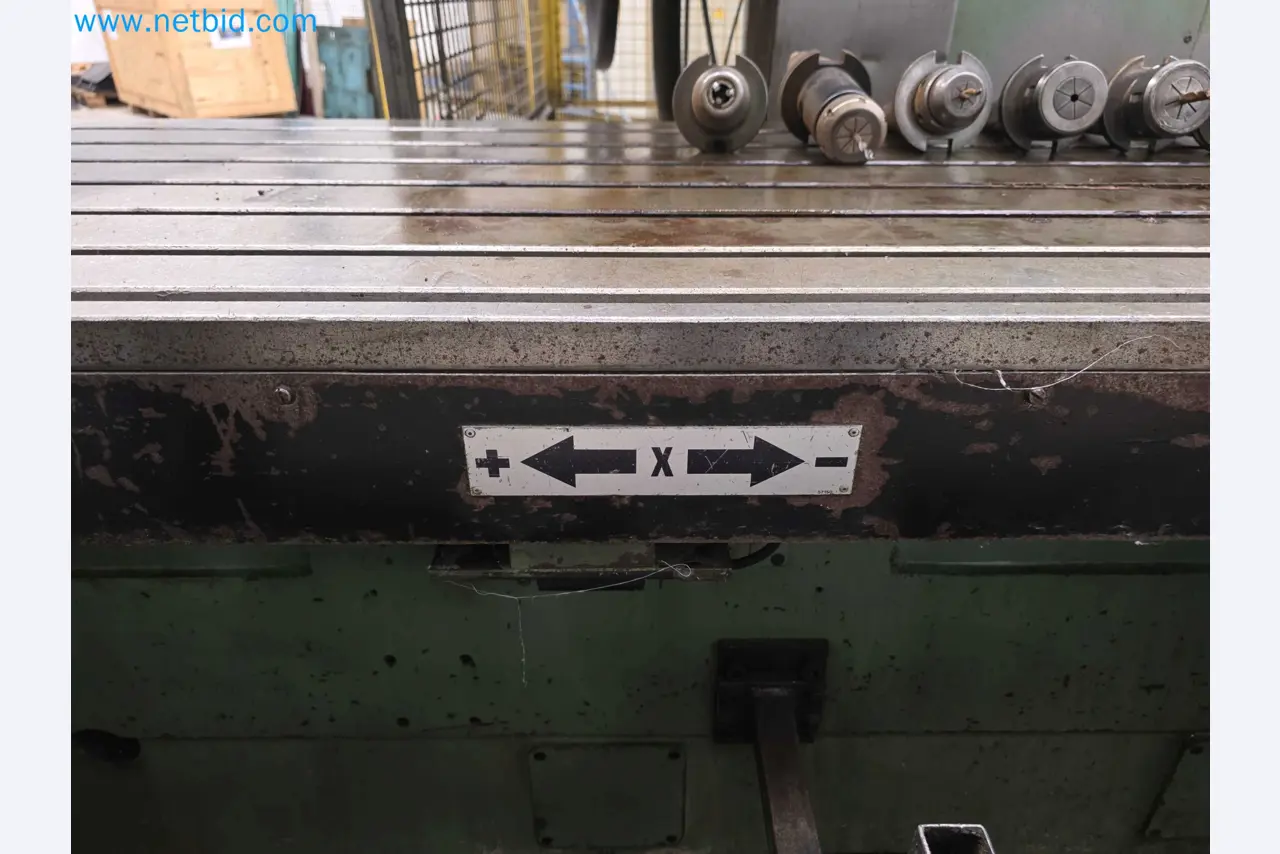

T-slot table with 6 slots, 18 mm wide
Distance between T-slots: 100 mm
Maximum table load: 3500 kg
X-axis travel: 2000 mm
Y-axis travel: 800 mm

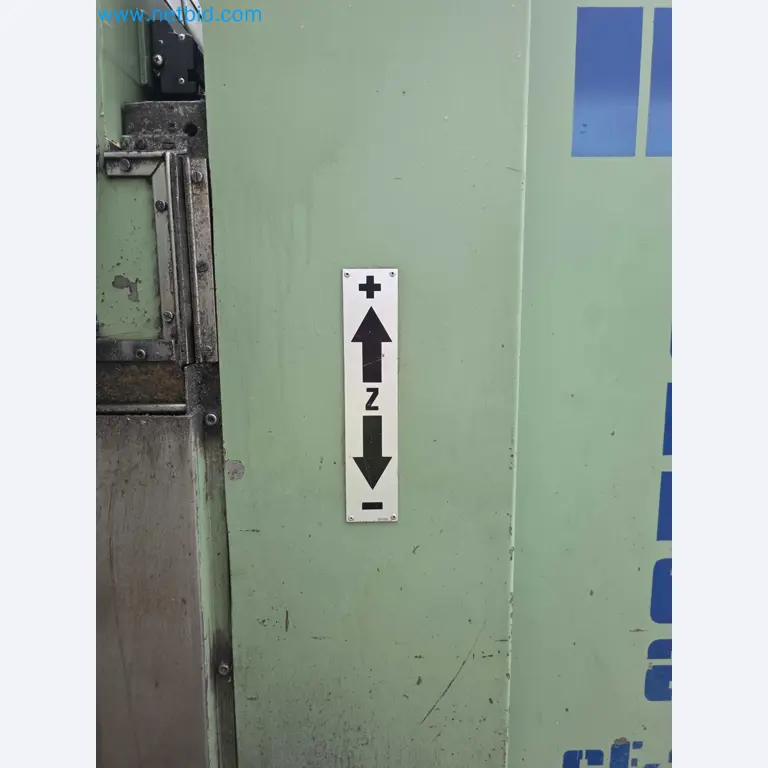

Z-axis travel: 800 mm
Spindle power: 15 kW
Speed range: 20 to 2500 rpm

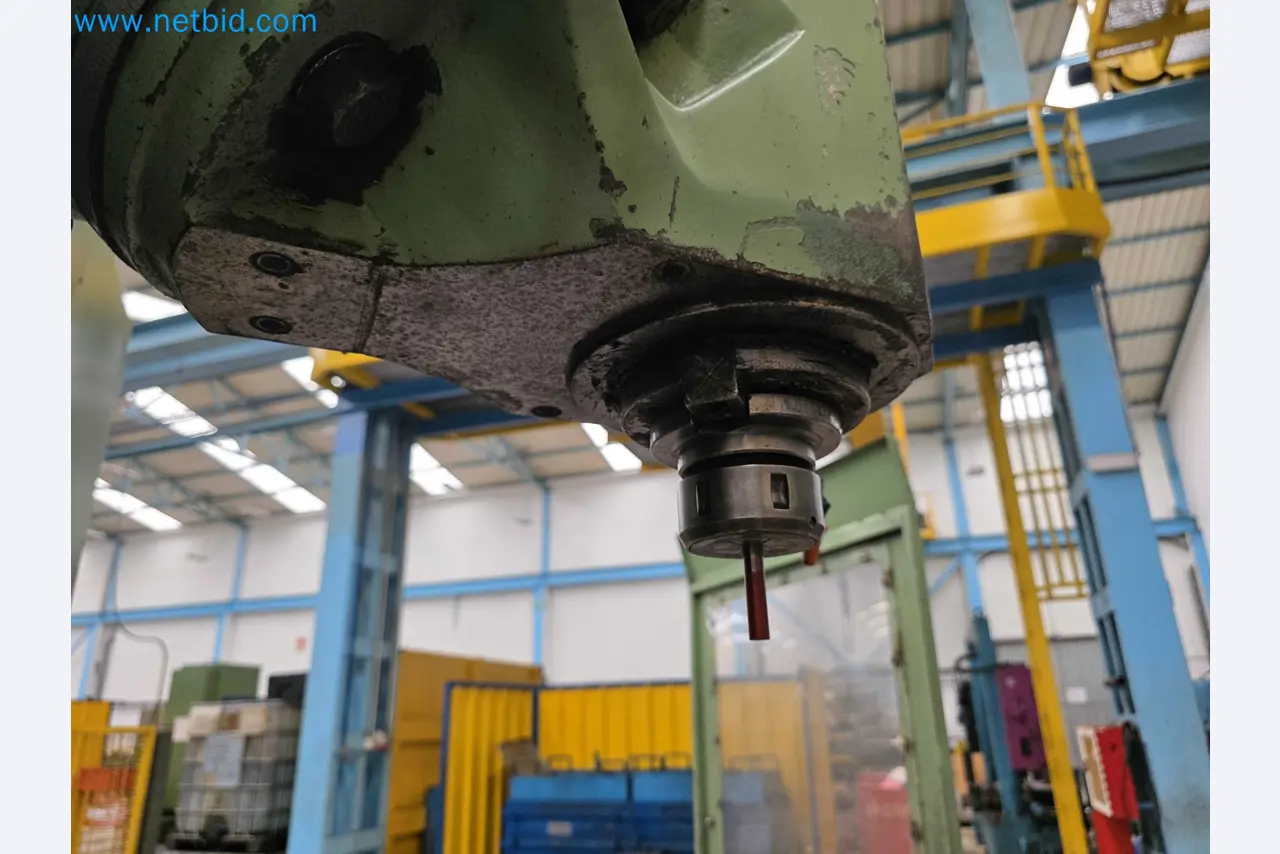

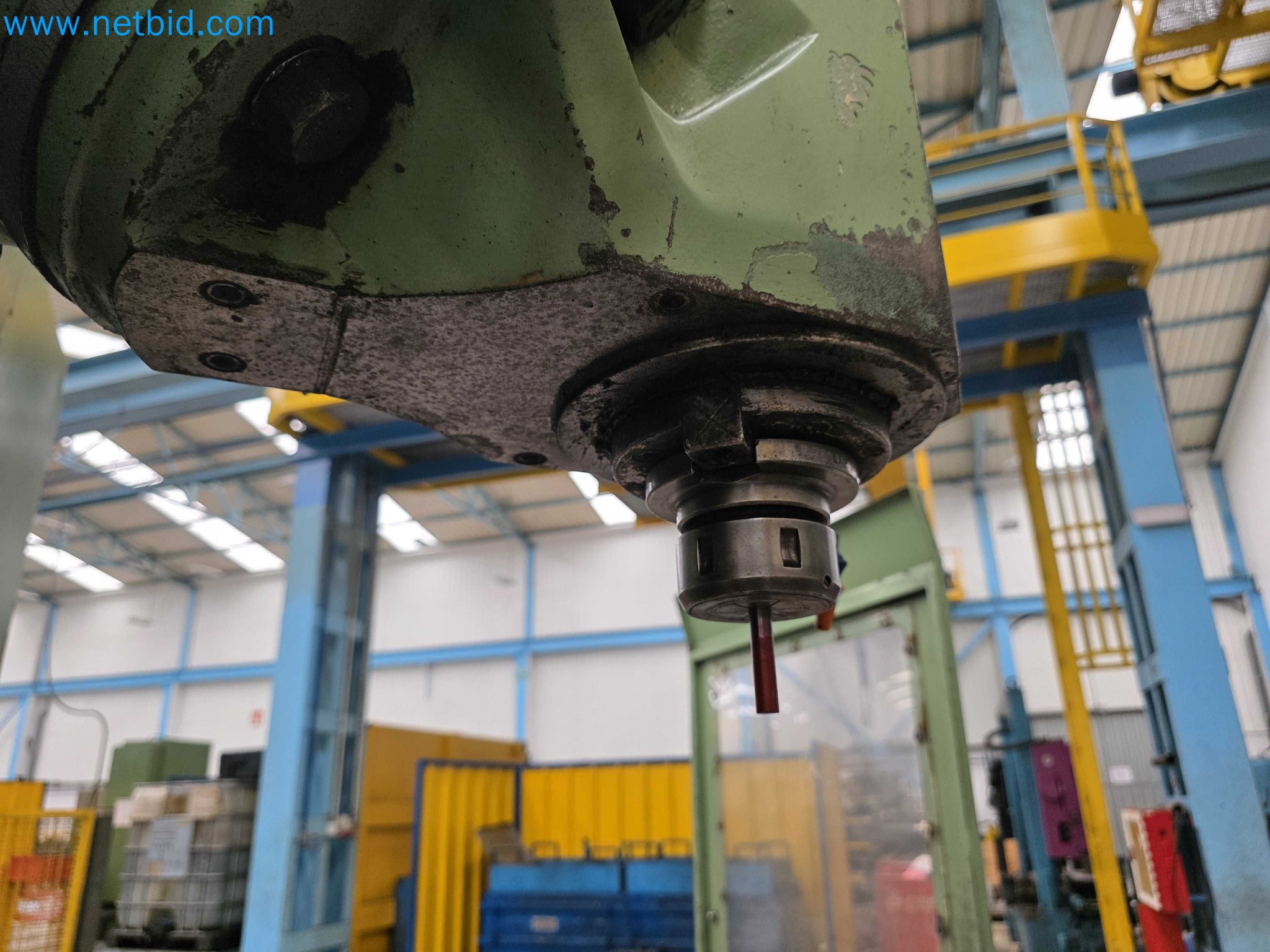

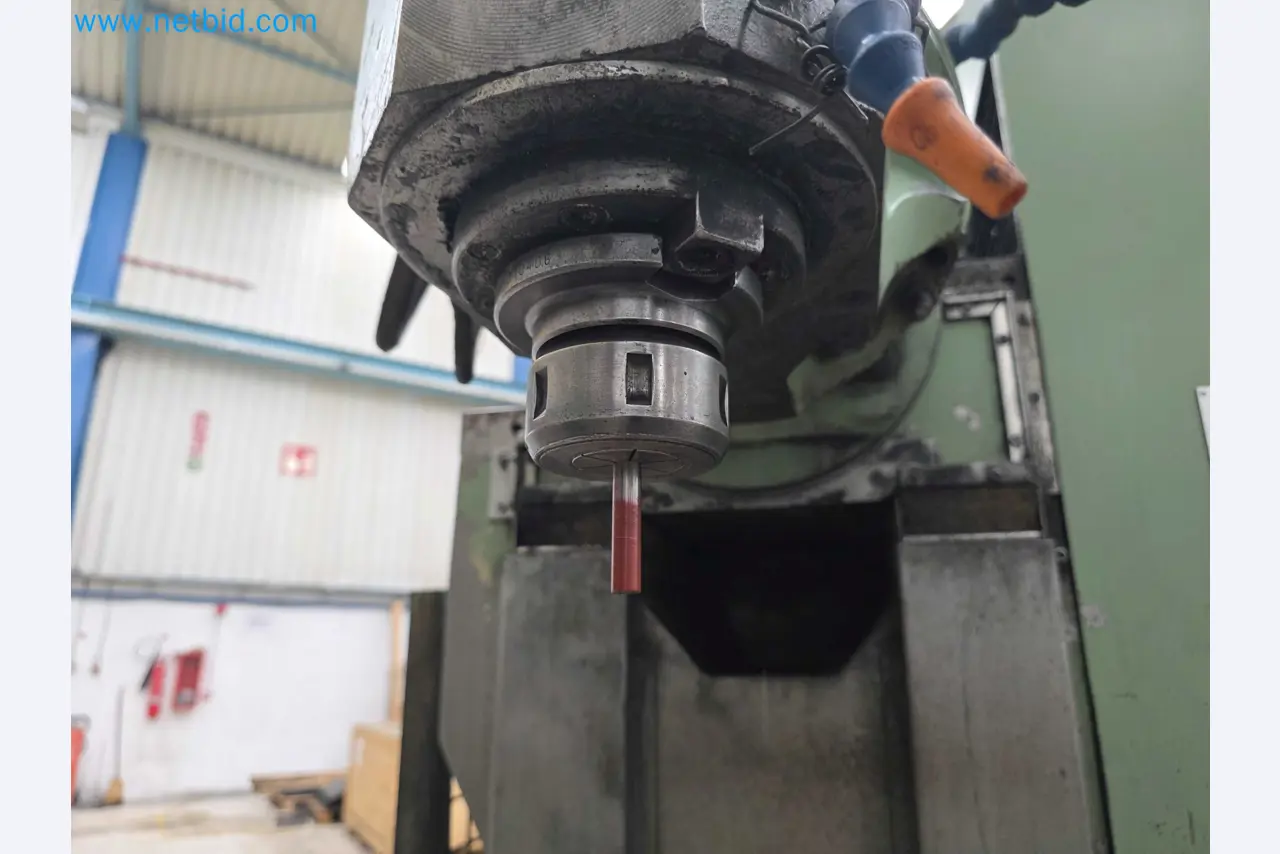

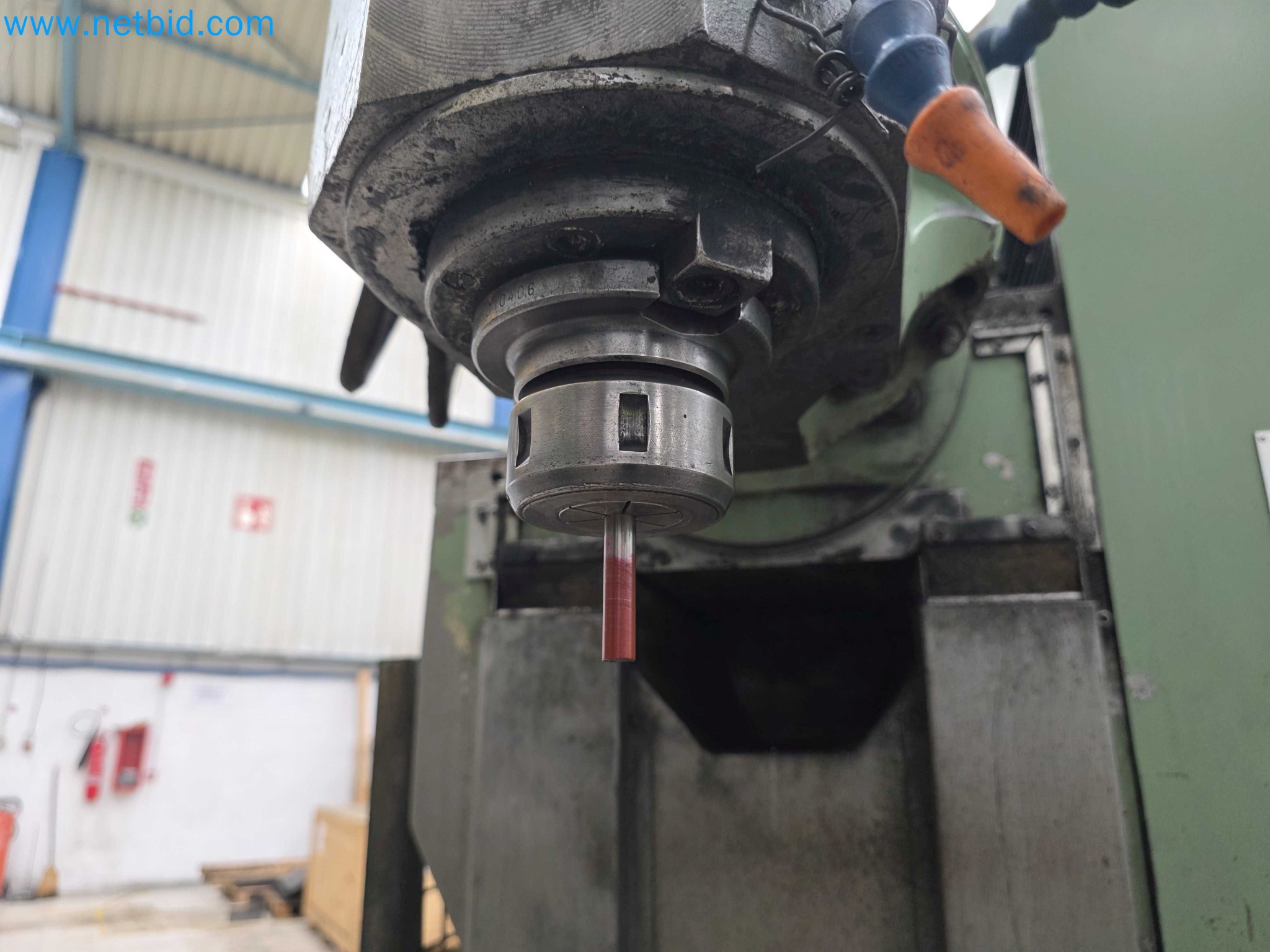

ISO-50 taper
Feed rate range: 5 to 5000 mm/min
Rapid traverse: 12,000 mm/min

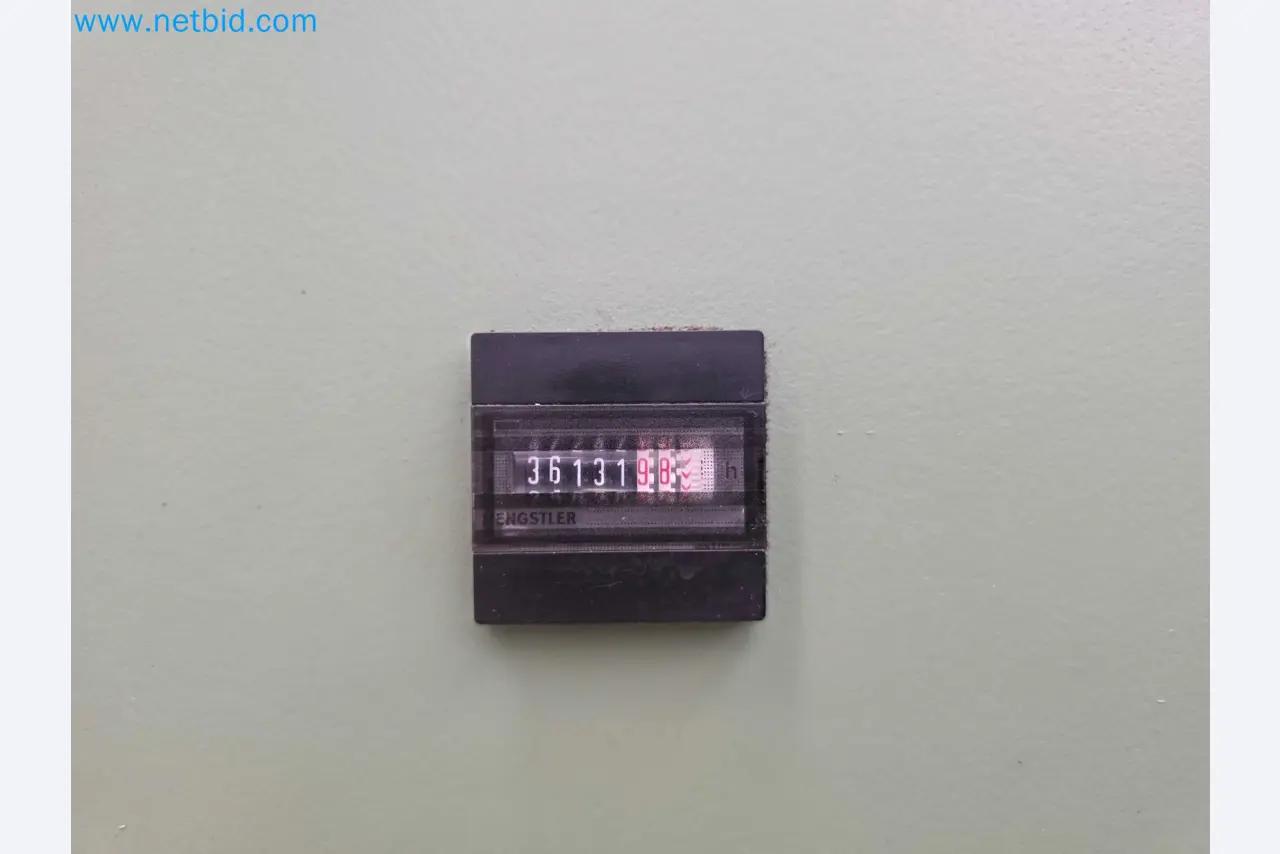

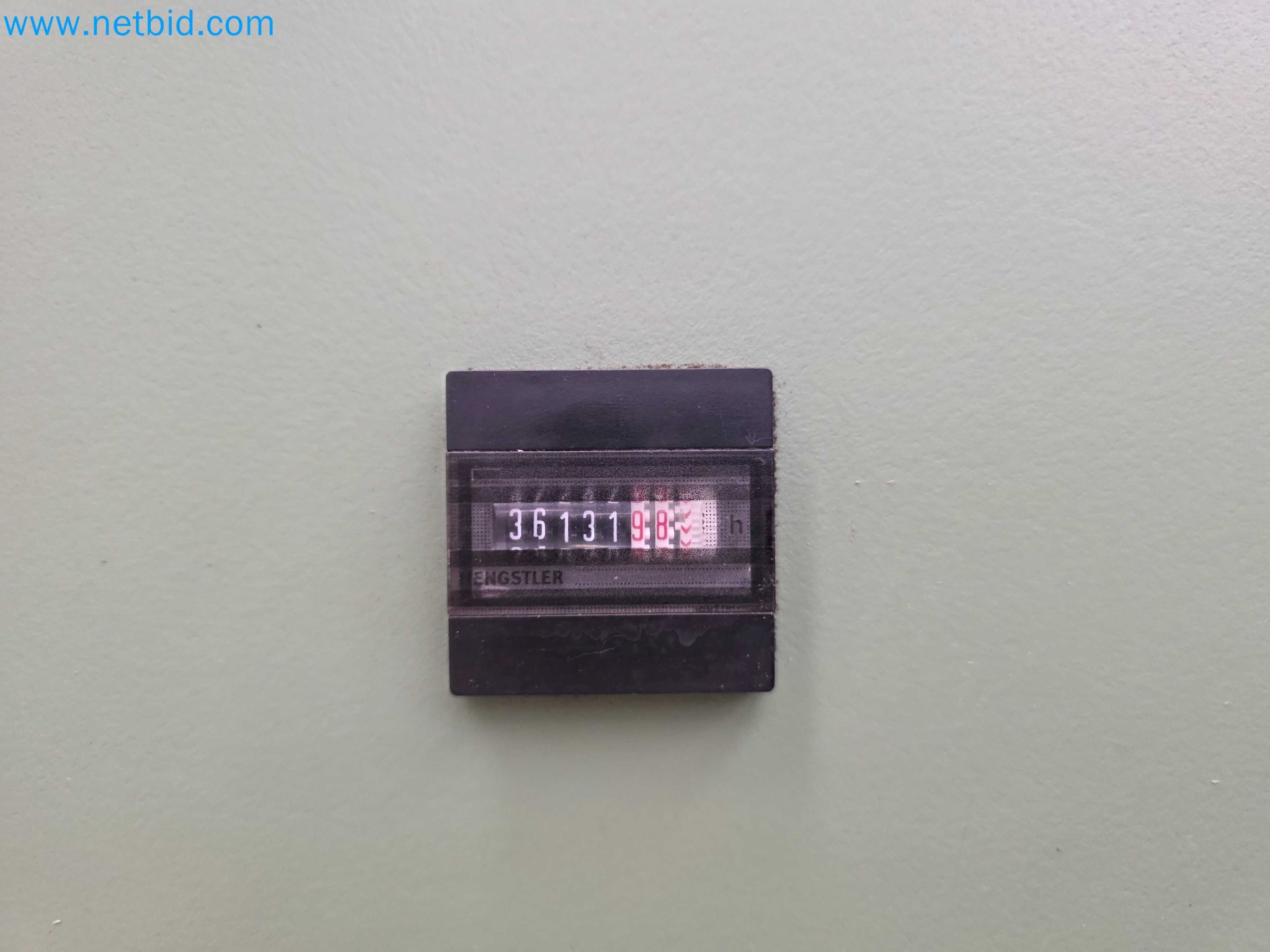

Working hours according to counter: 36,131 h
Total power: 22 kW

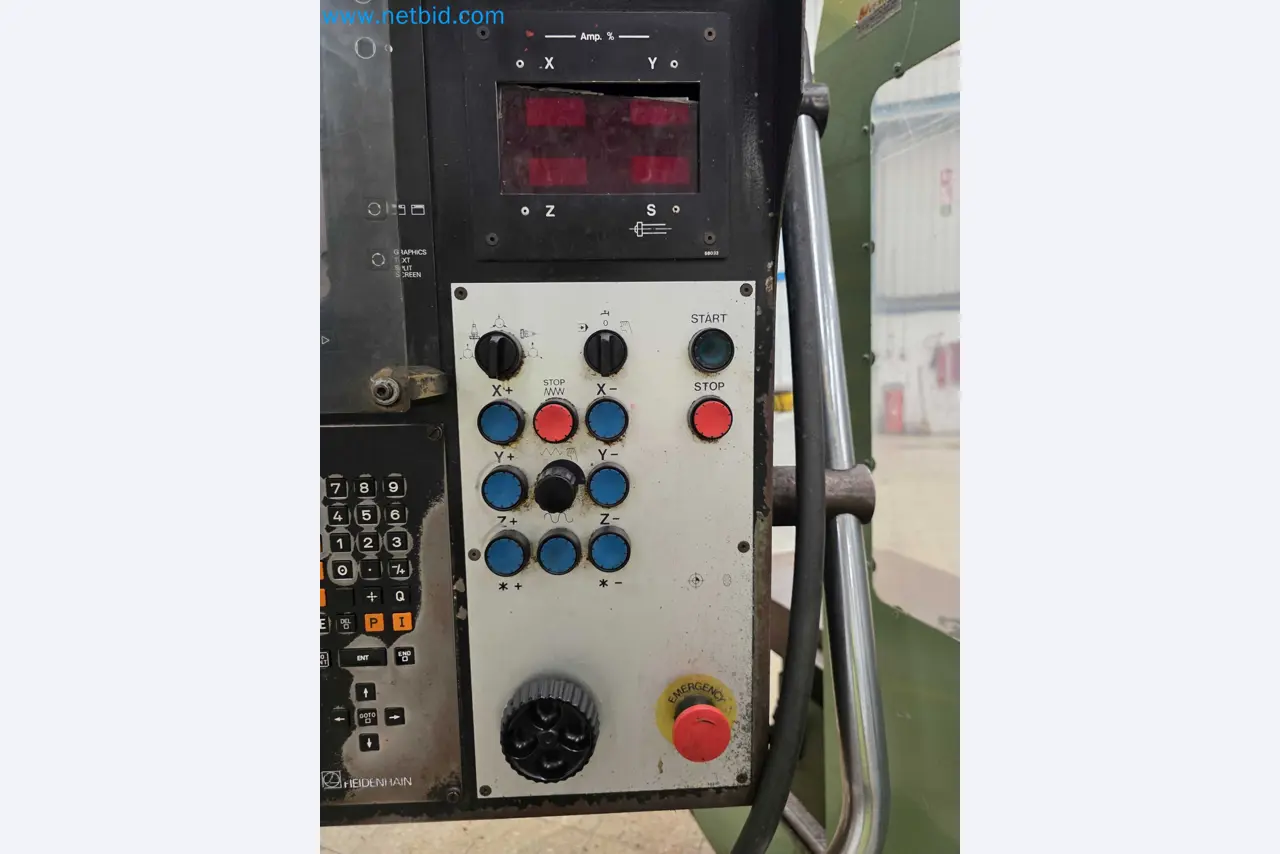

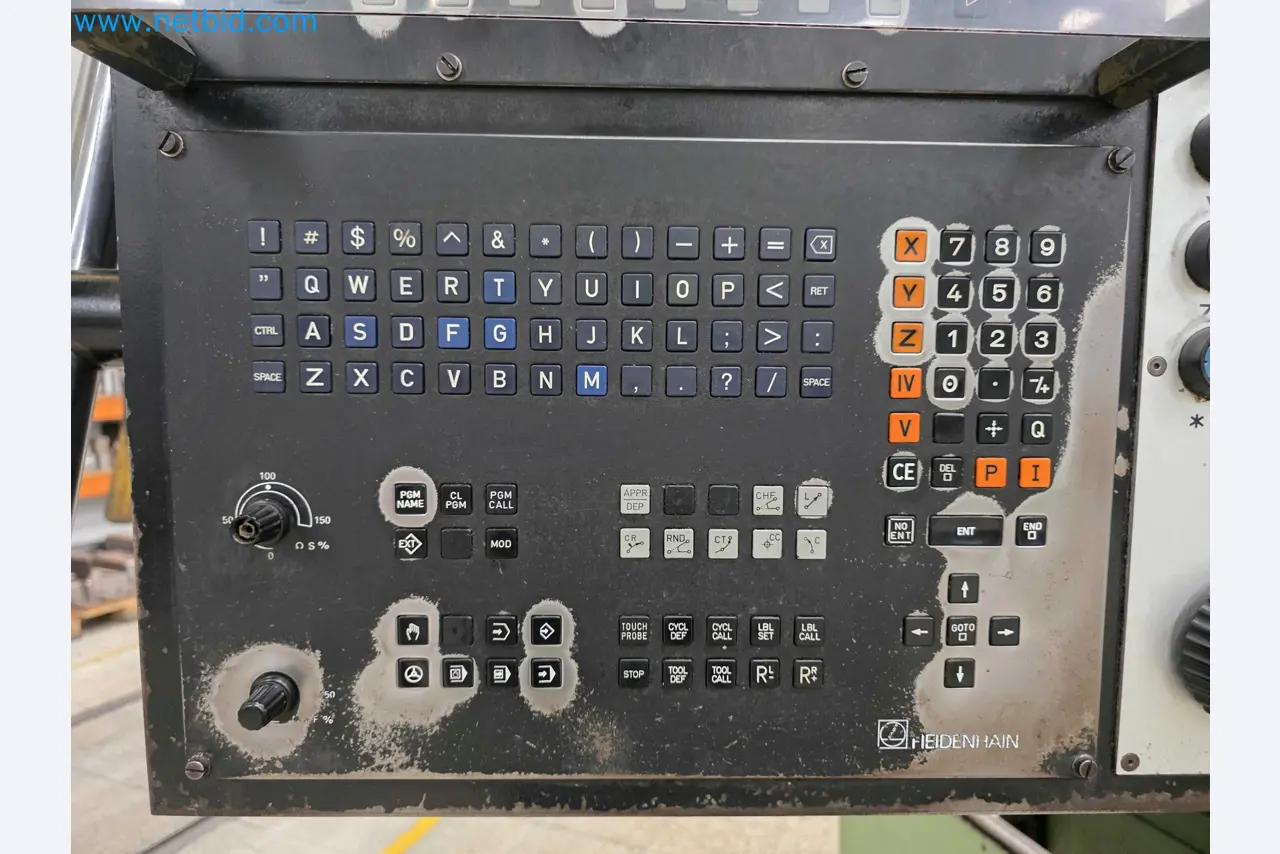

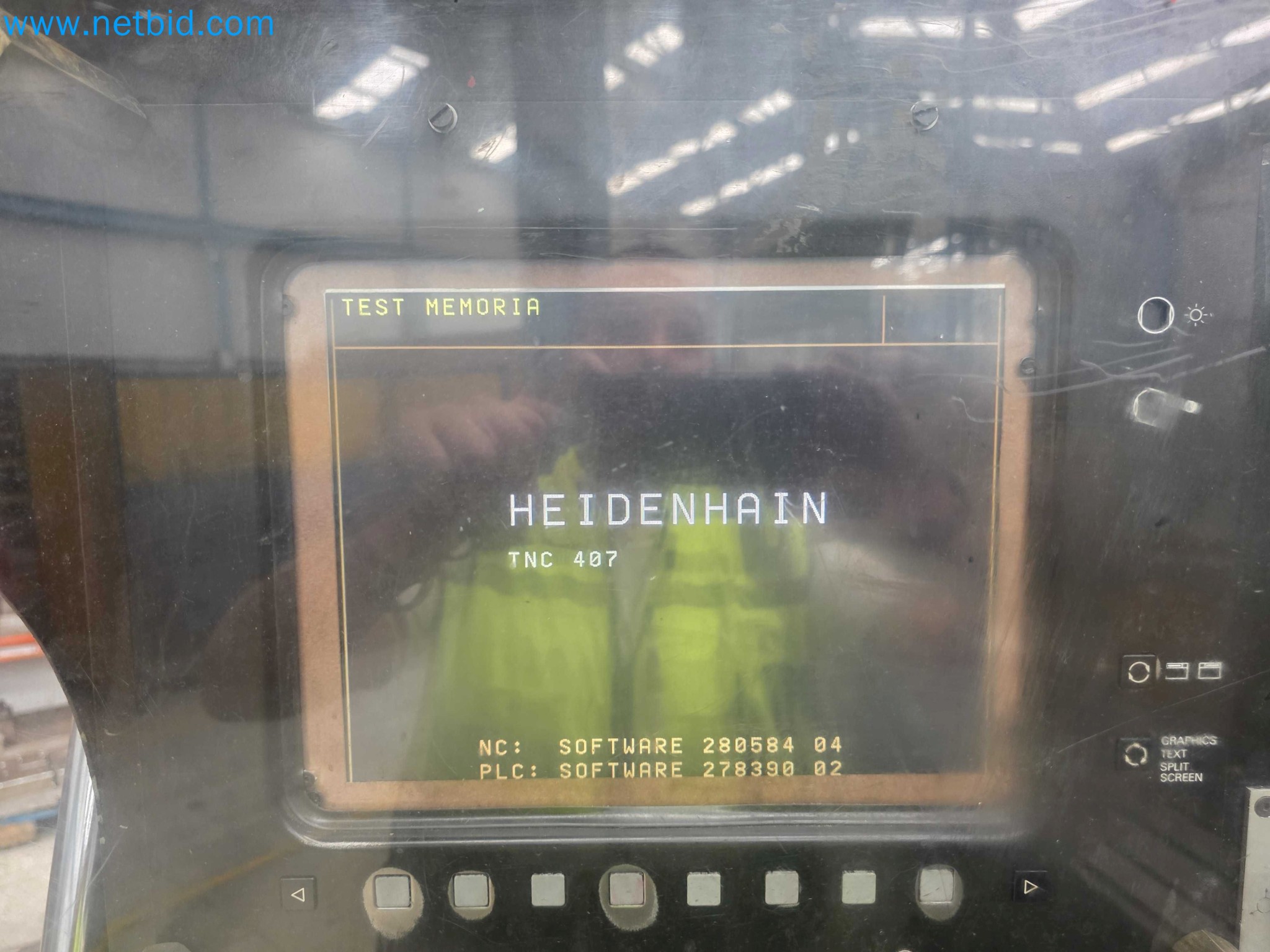

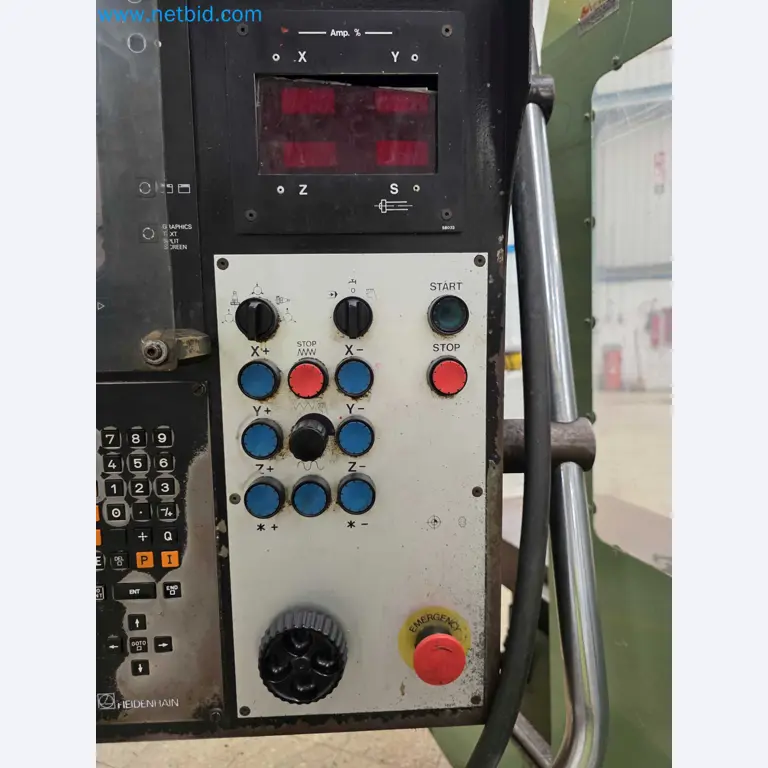

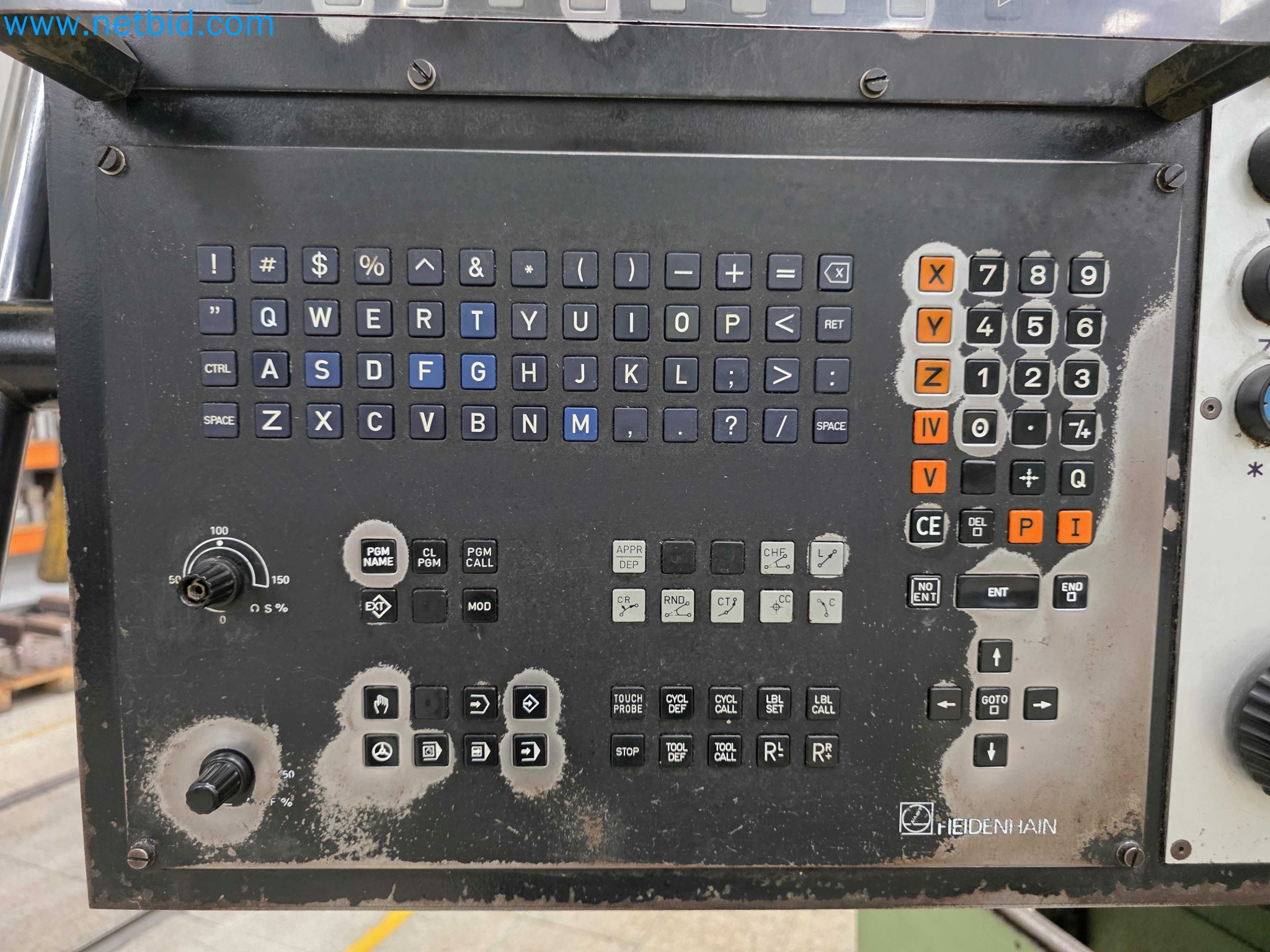

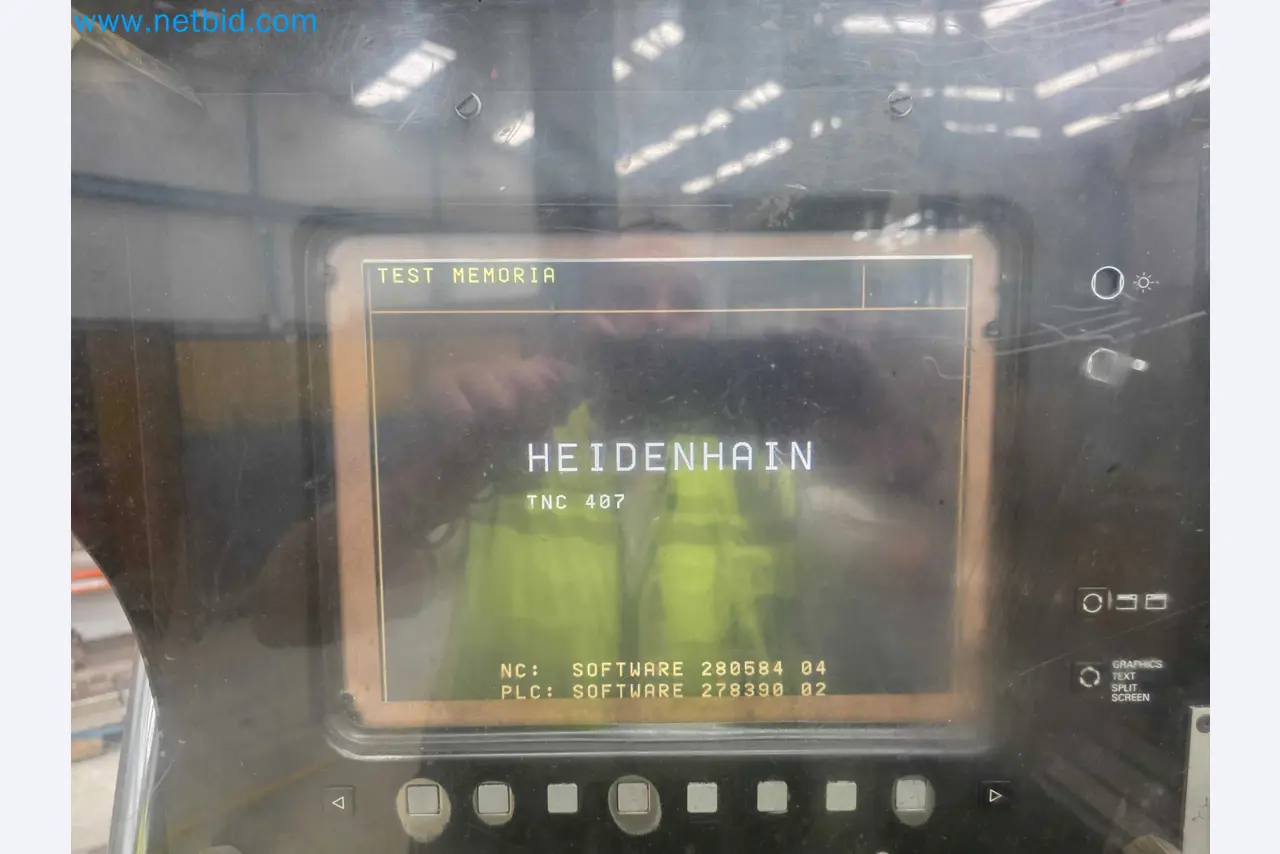

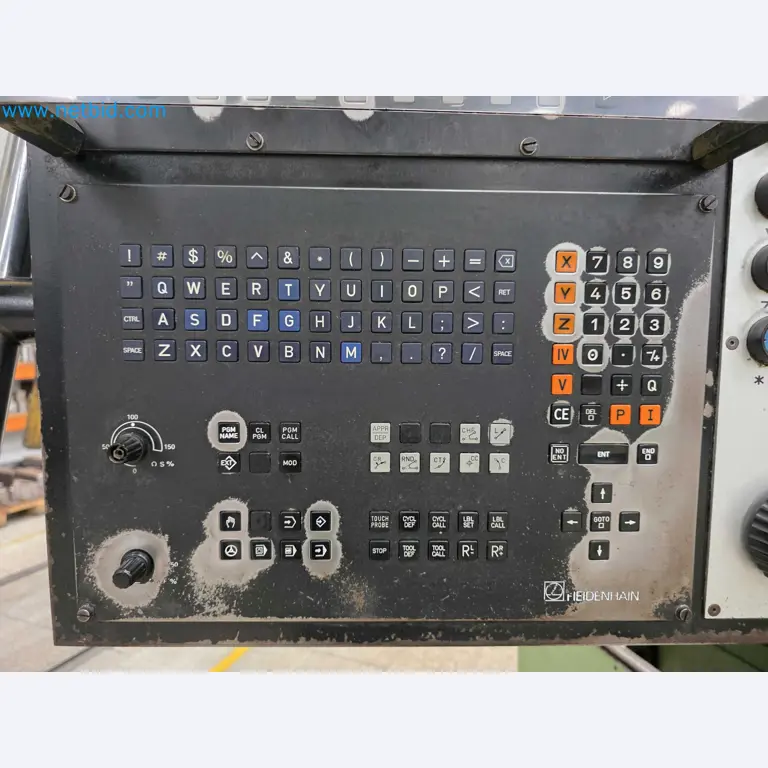

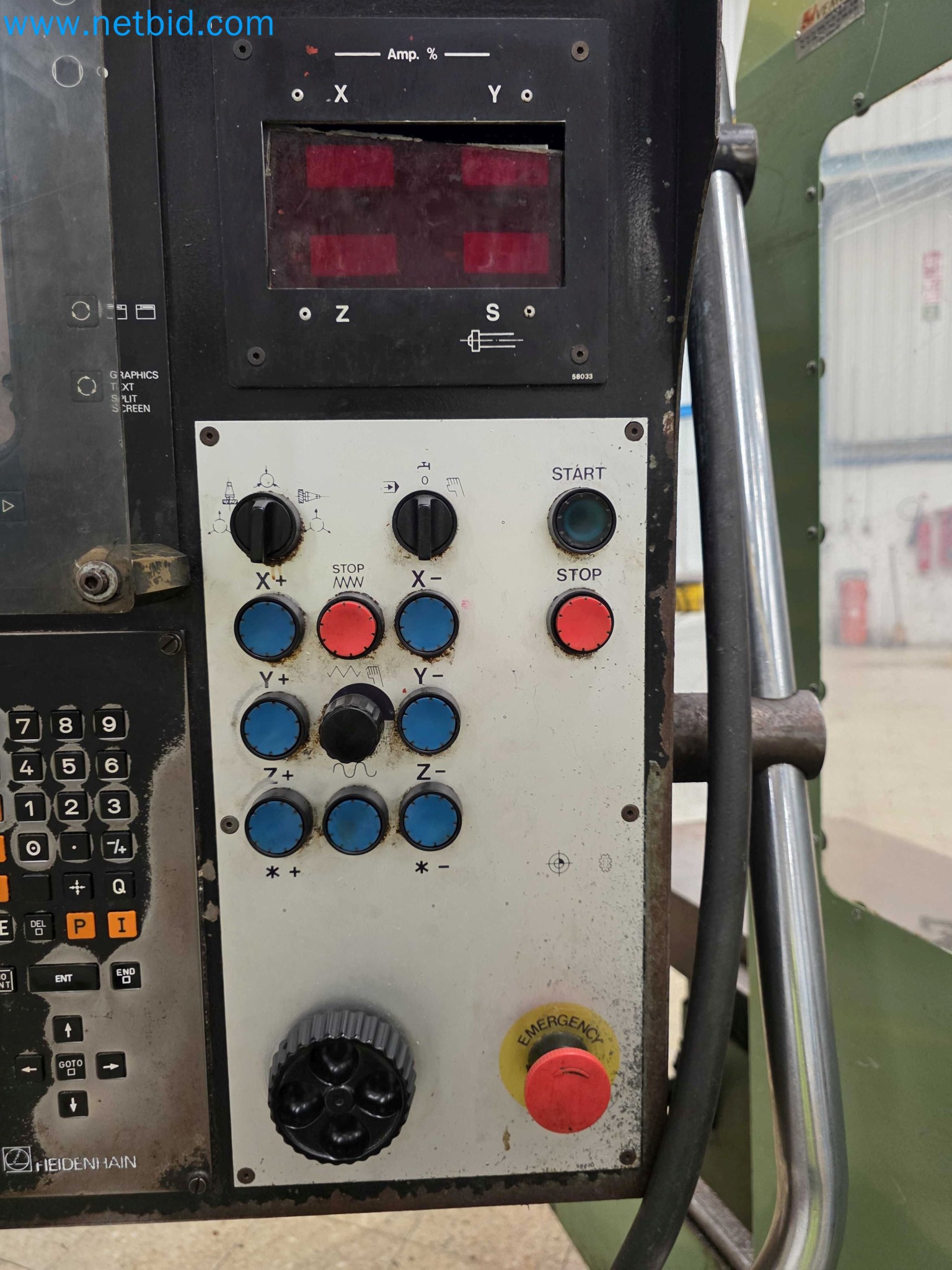

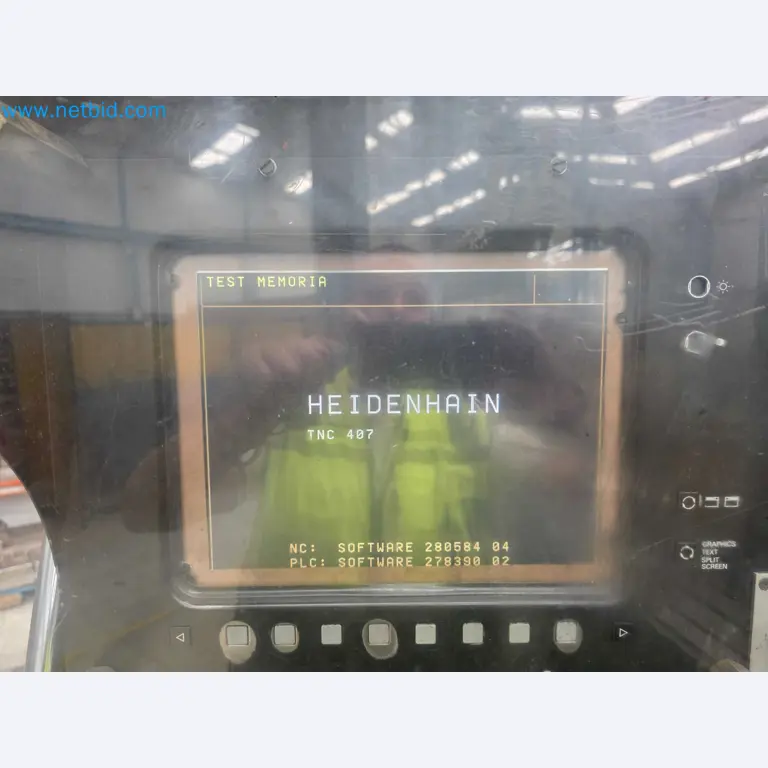

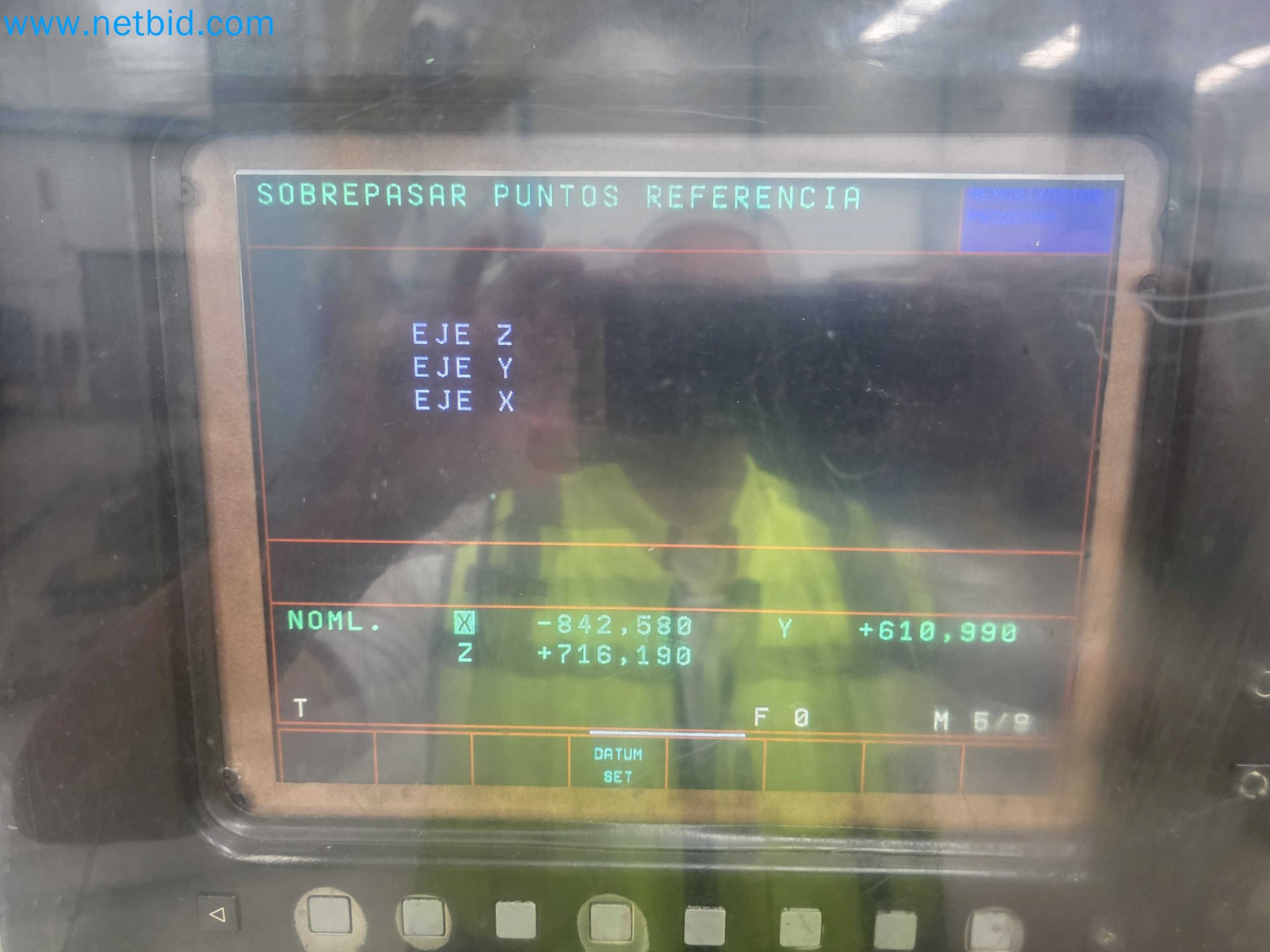

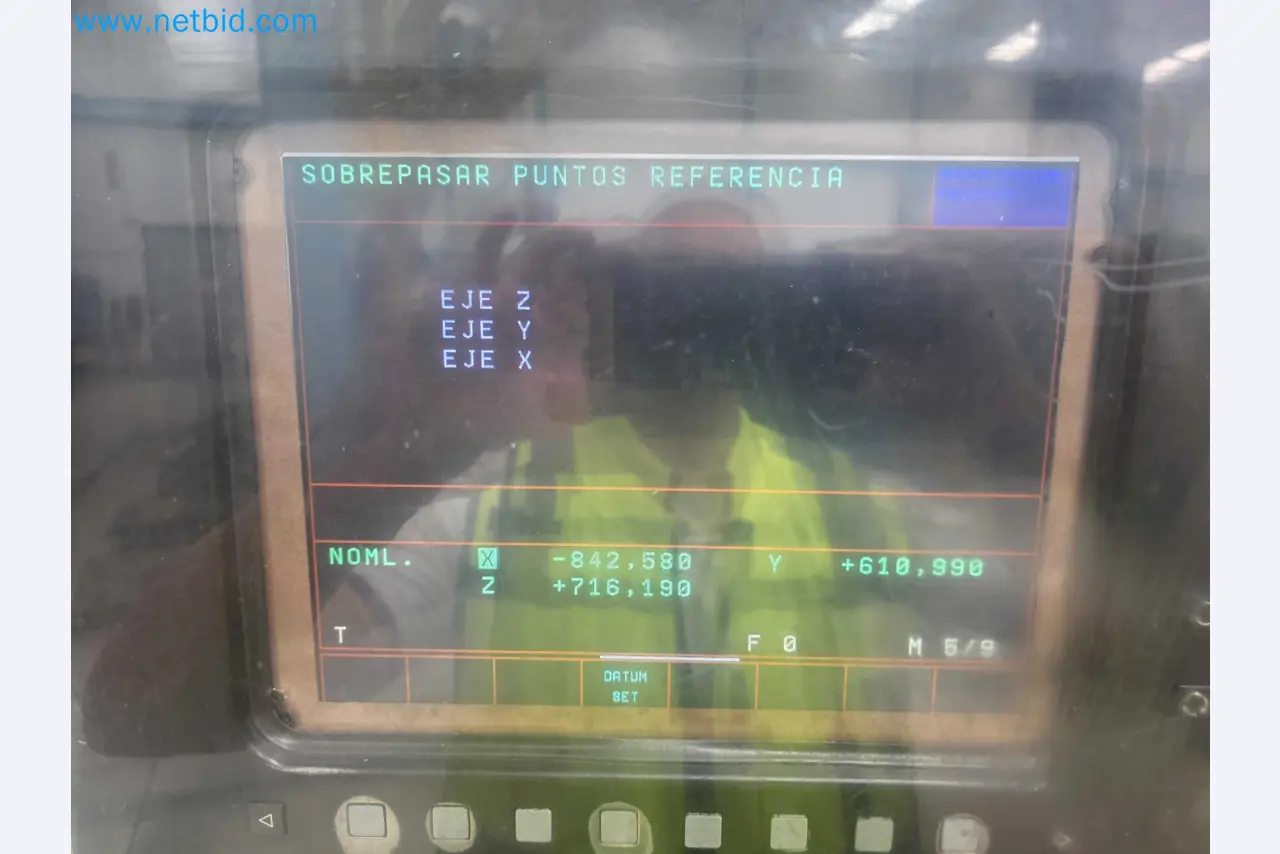

HEIDENHAIN TNC 407 control

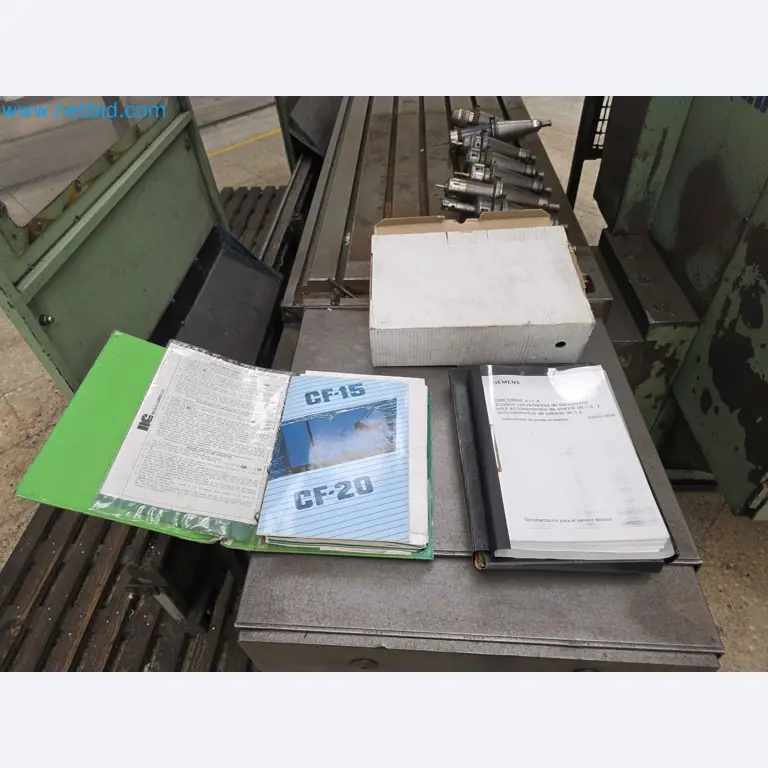

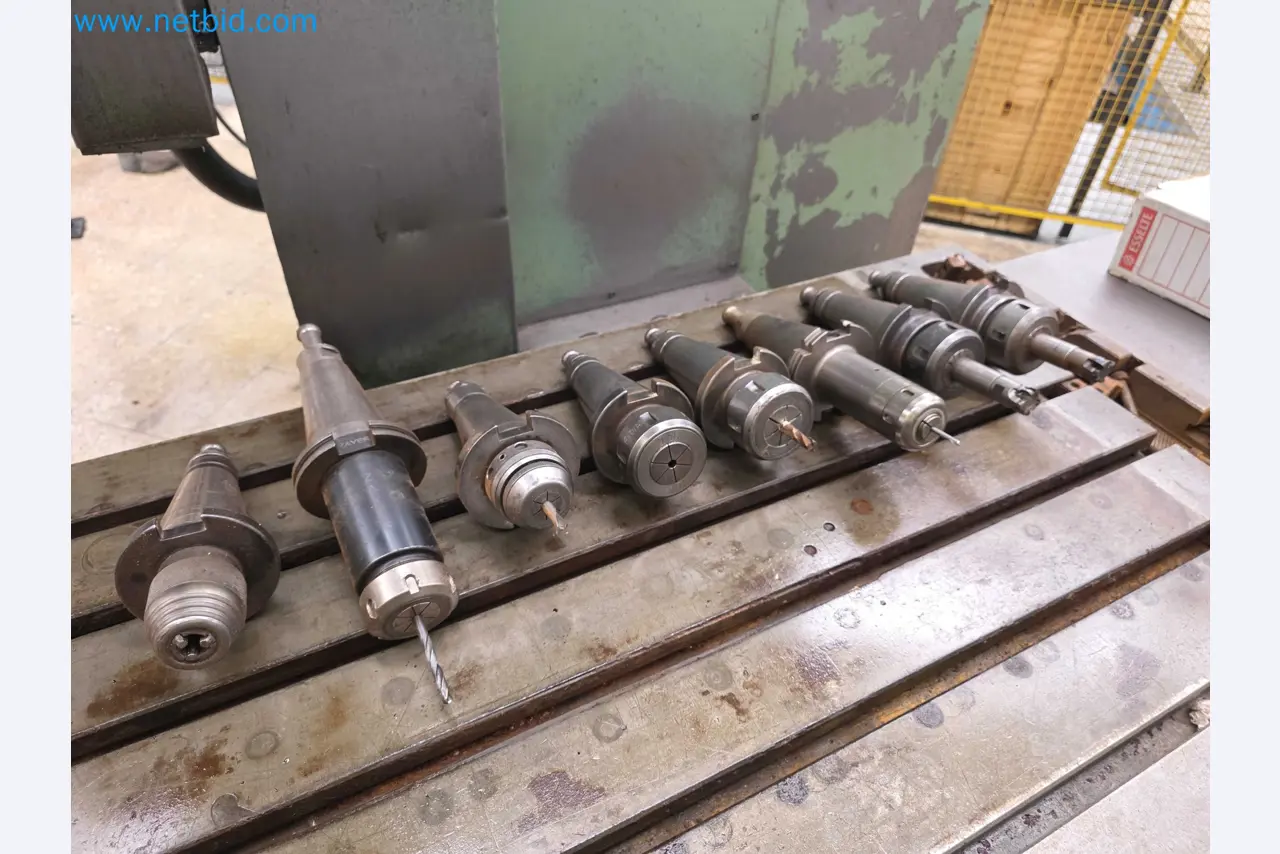

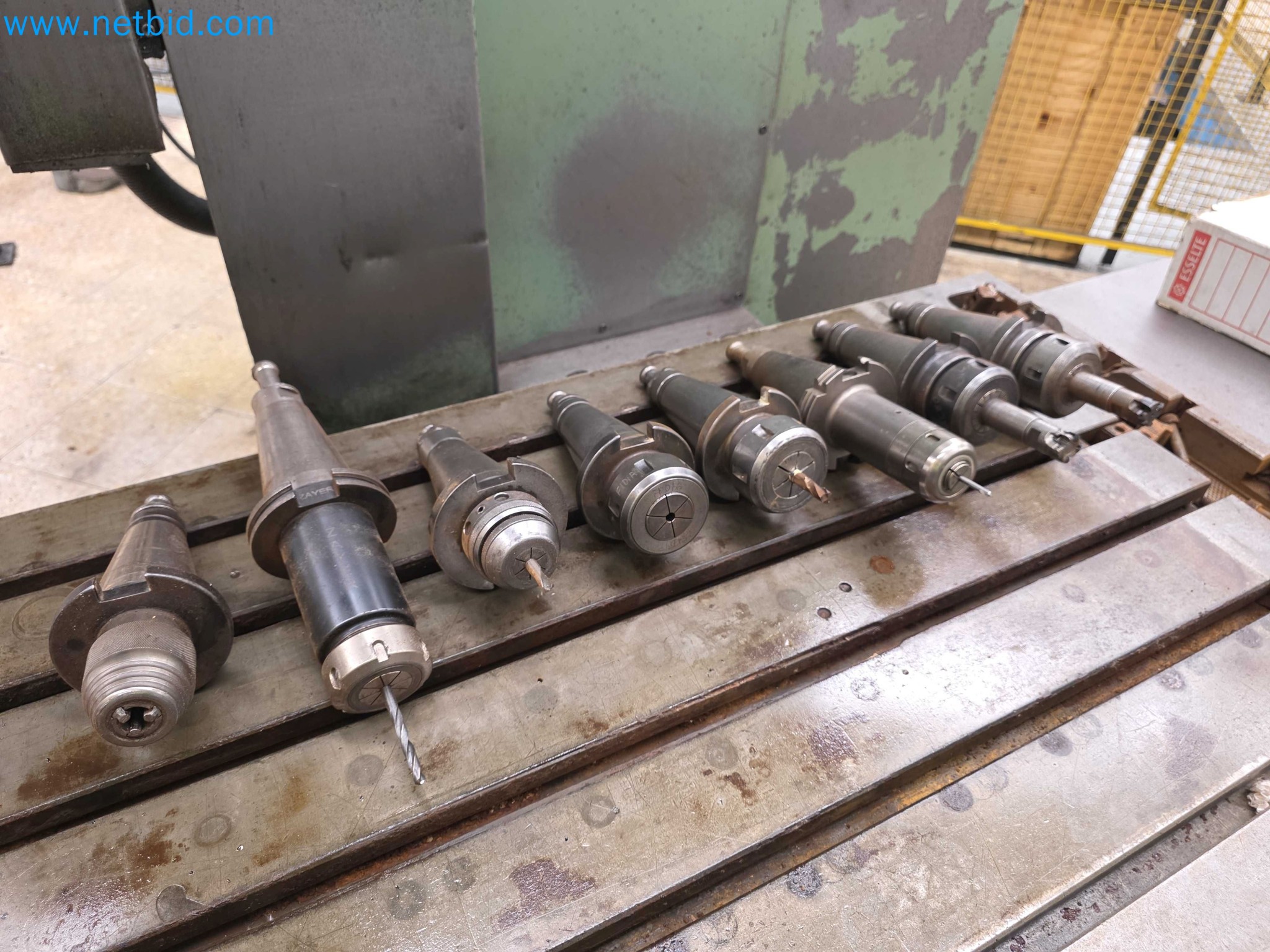

Spare tool holders with tools included
Approximate weight: 10,000 kg
Worktable dimensions: 2000 x 700 mm
T-slot table with 6 slots, 18 mm wide
Distance between T-slots: 100 mm
Maximum table load: 3500 kg
X-axis travel: 2000 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm
Spindle power: 15 kW
Speed range: 20 to 2500 rpm
ISO-50 taper
Feed rate range: 5 to 5000 mm/min
Rapid traverse: 12,000 mm/min
Working hours according to counter: 36,131 h
Total power: 22 kW
HEIDENHAIN TNC 407 control
Spare tool holders with tools included
Approximate weight: 10,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
In consultation with Mr. Fernández: fernandez@netbid.com.
Pickup
In consultation with Mr. Fernández: fernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
