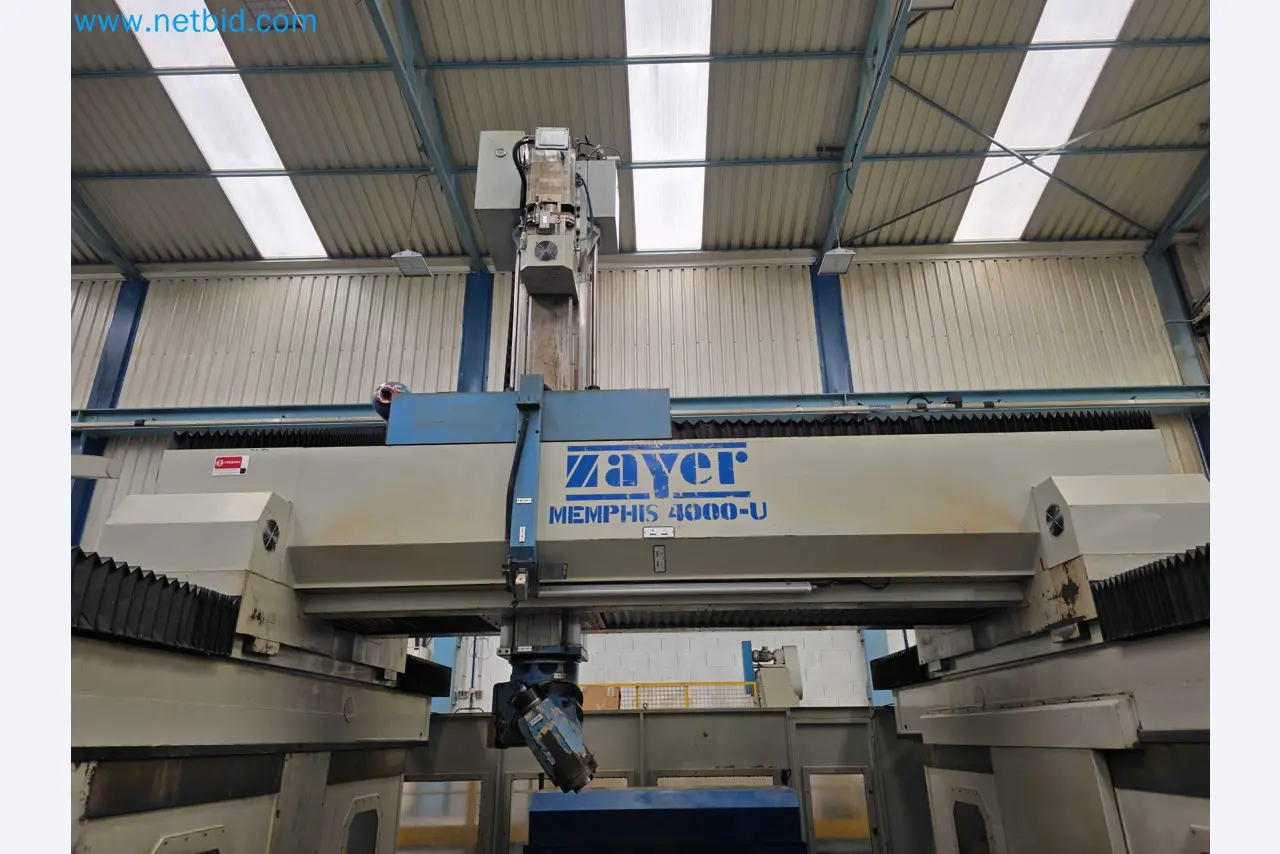

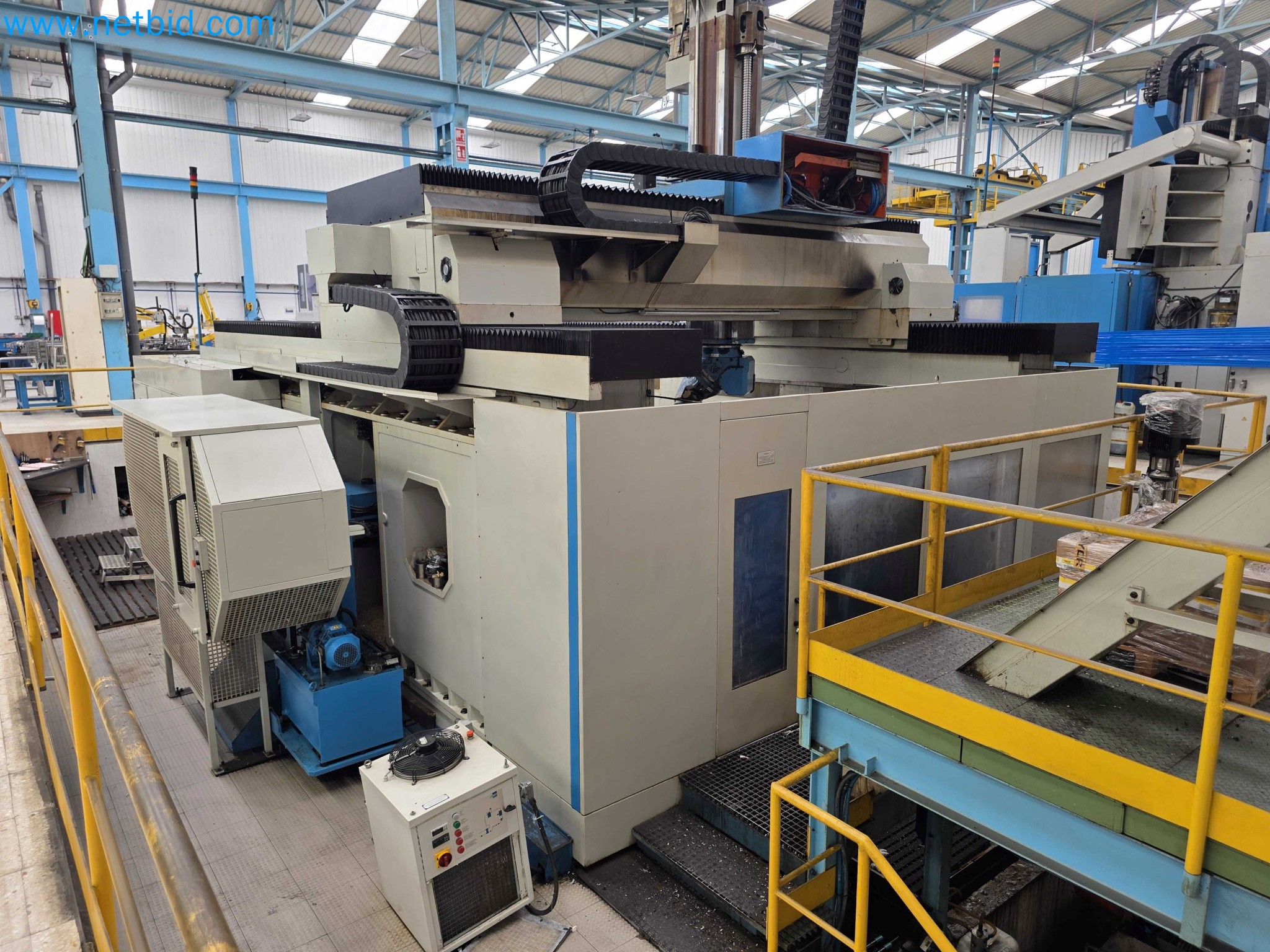

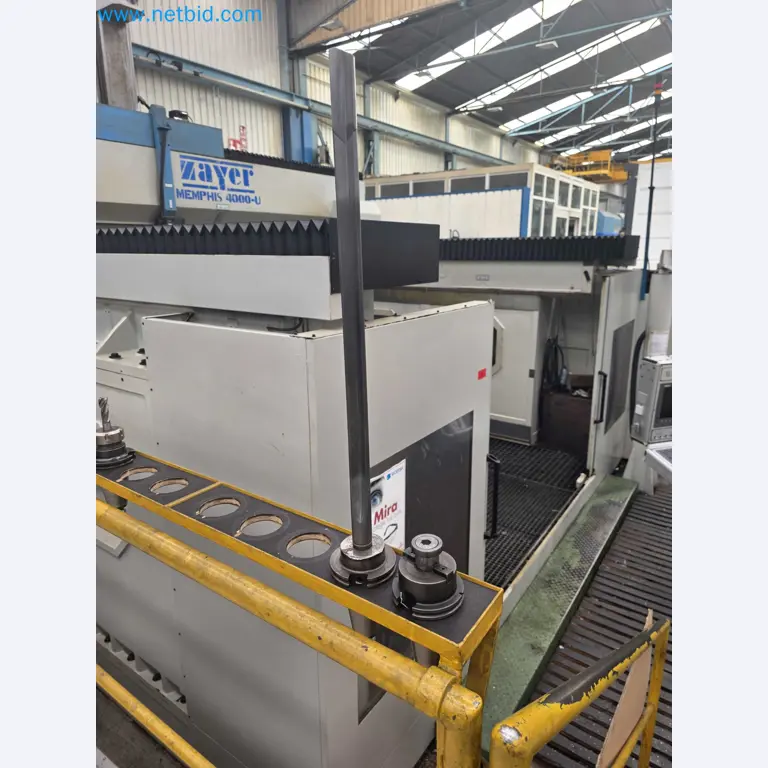

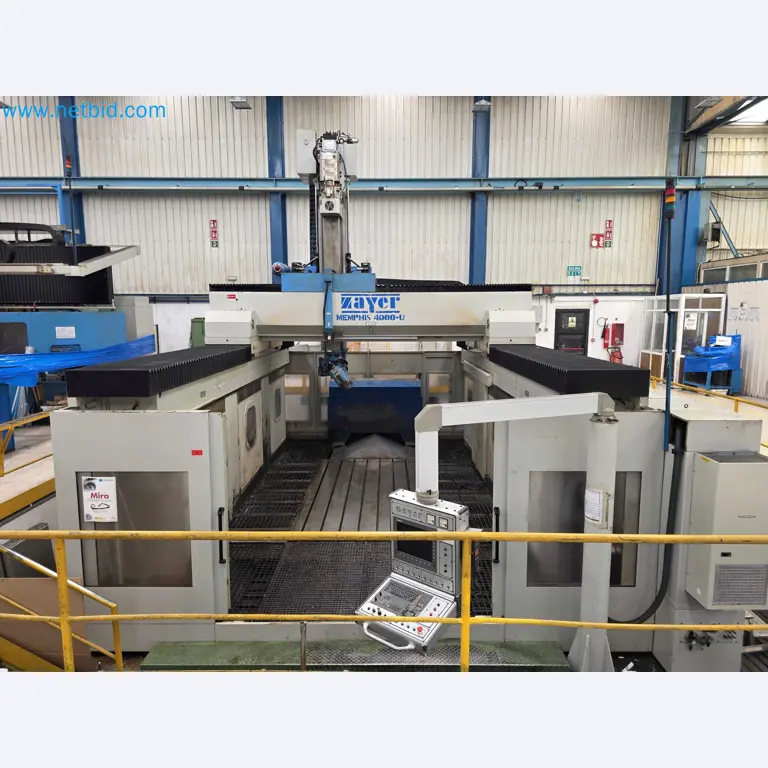

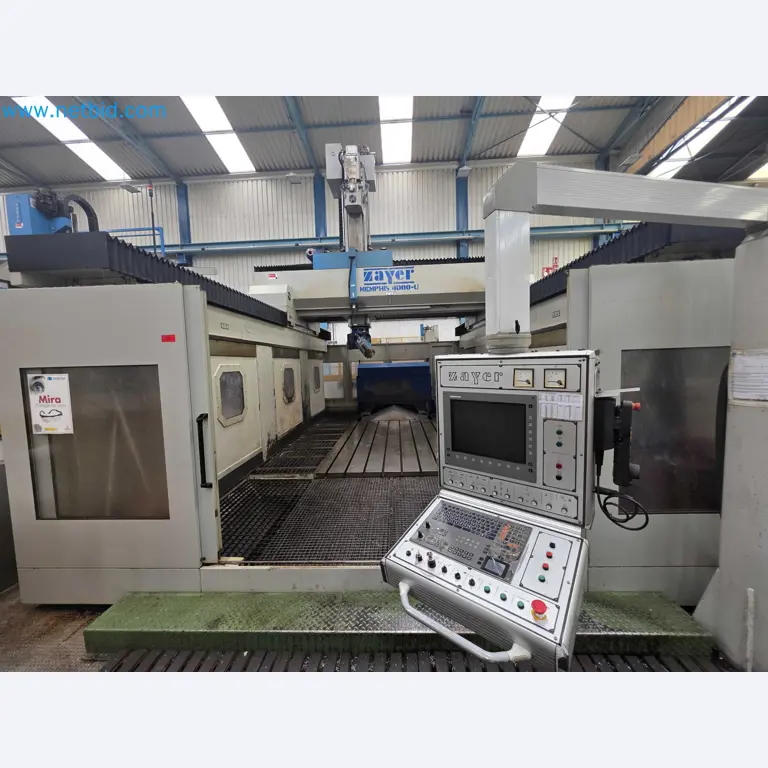

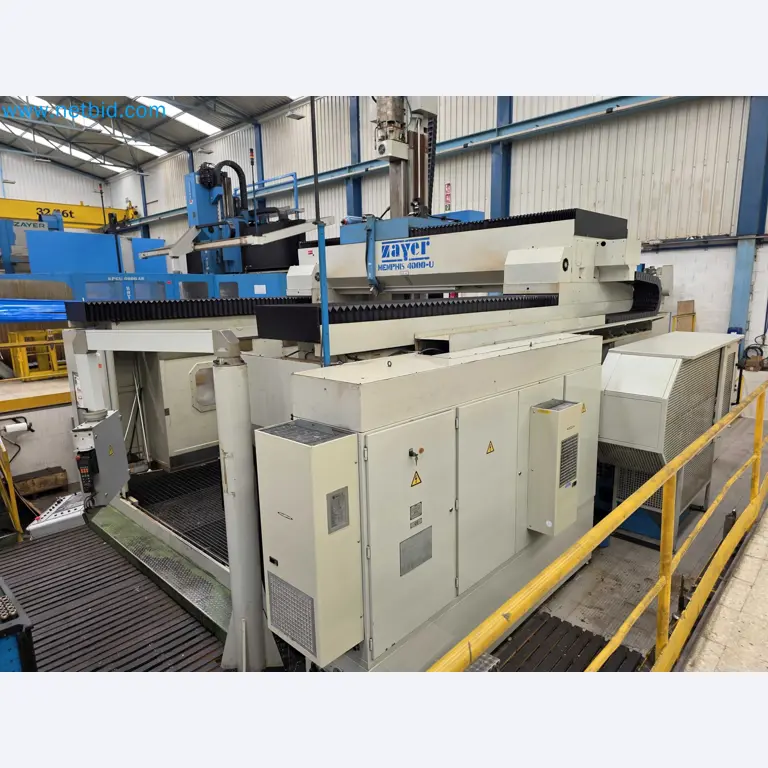

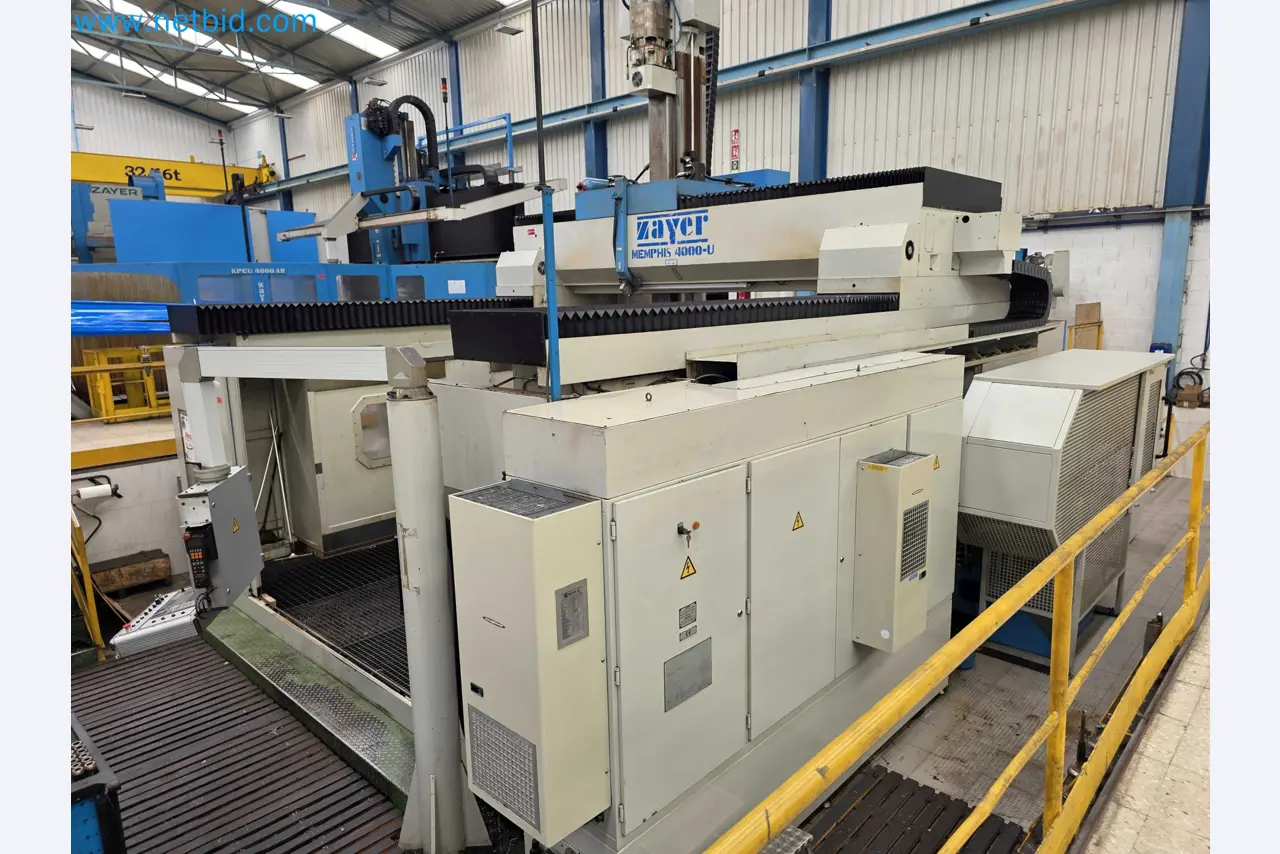

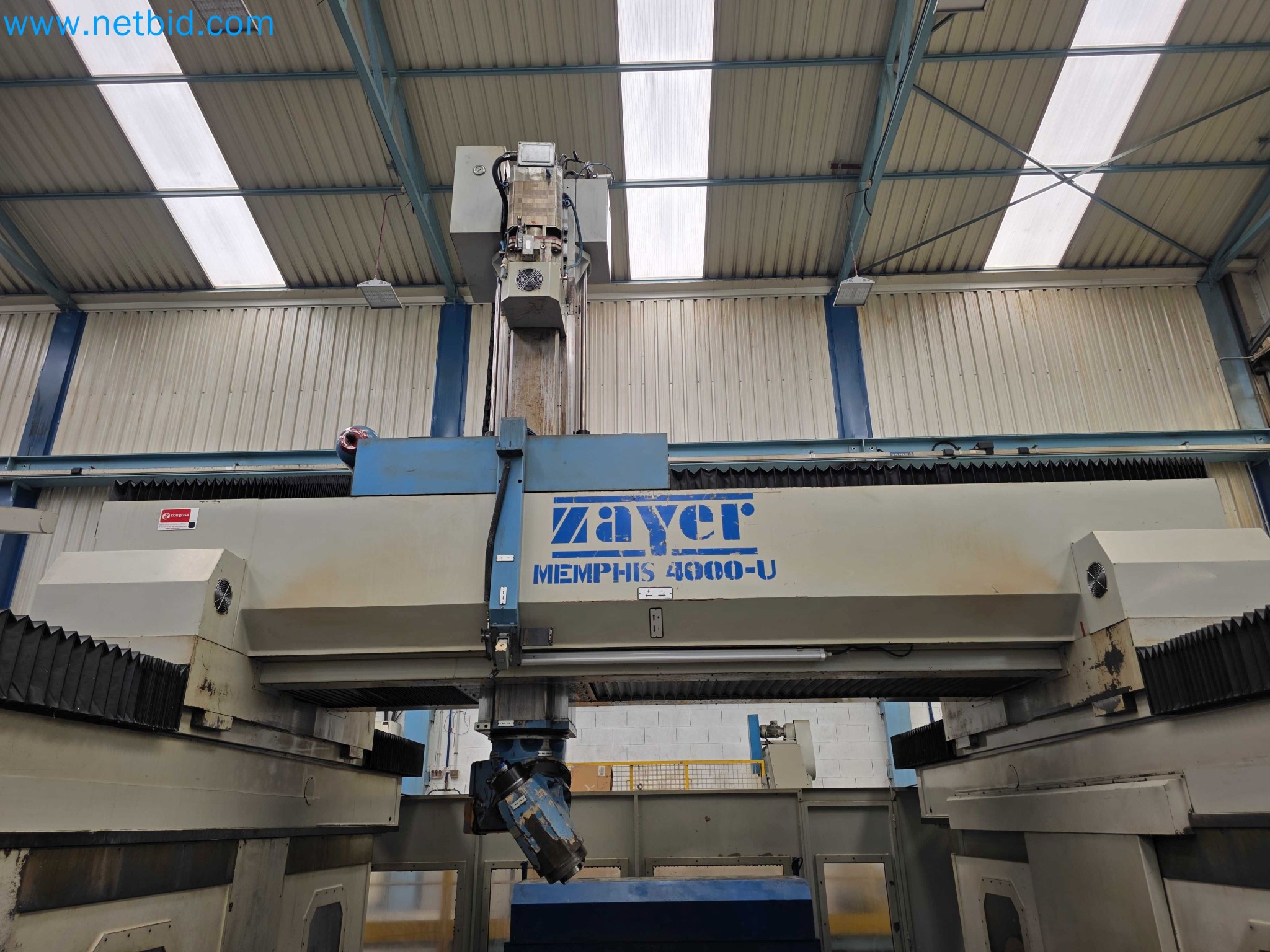

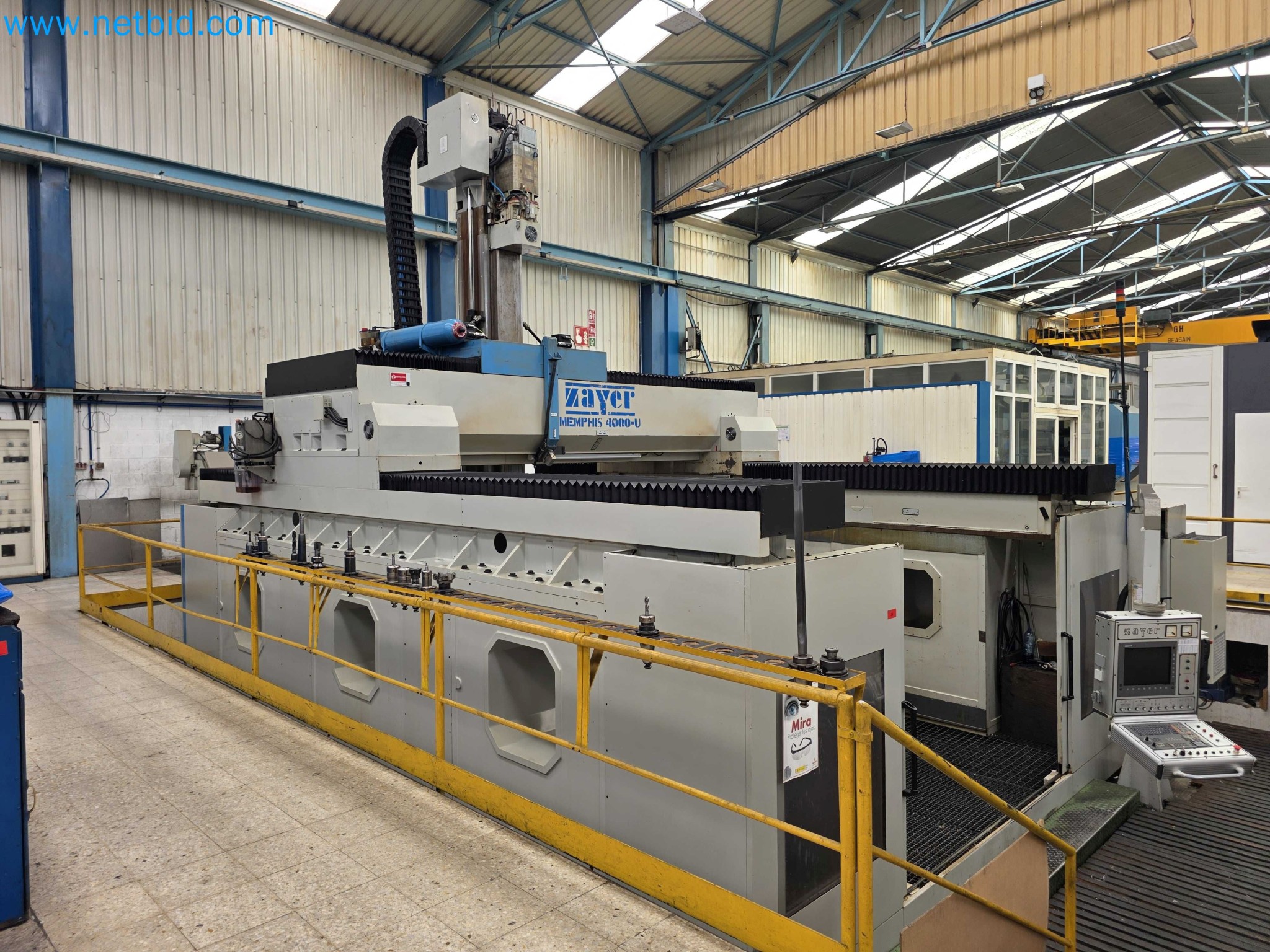

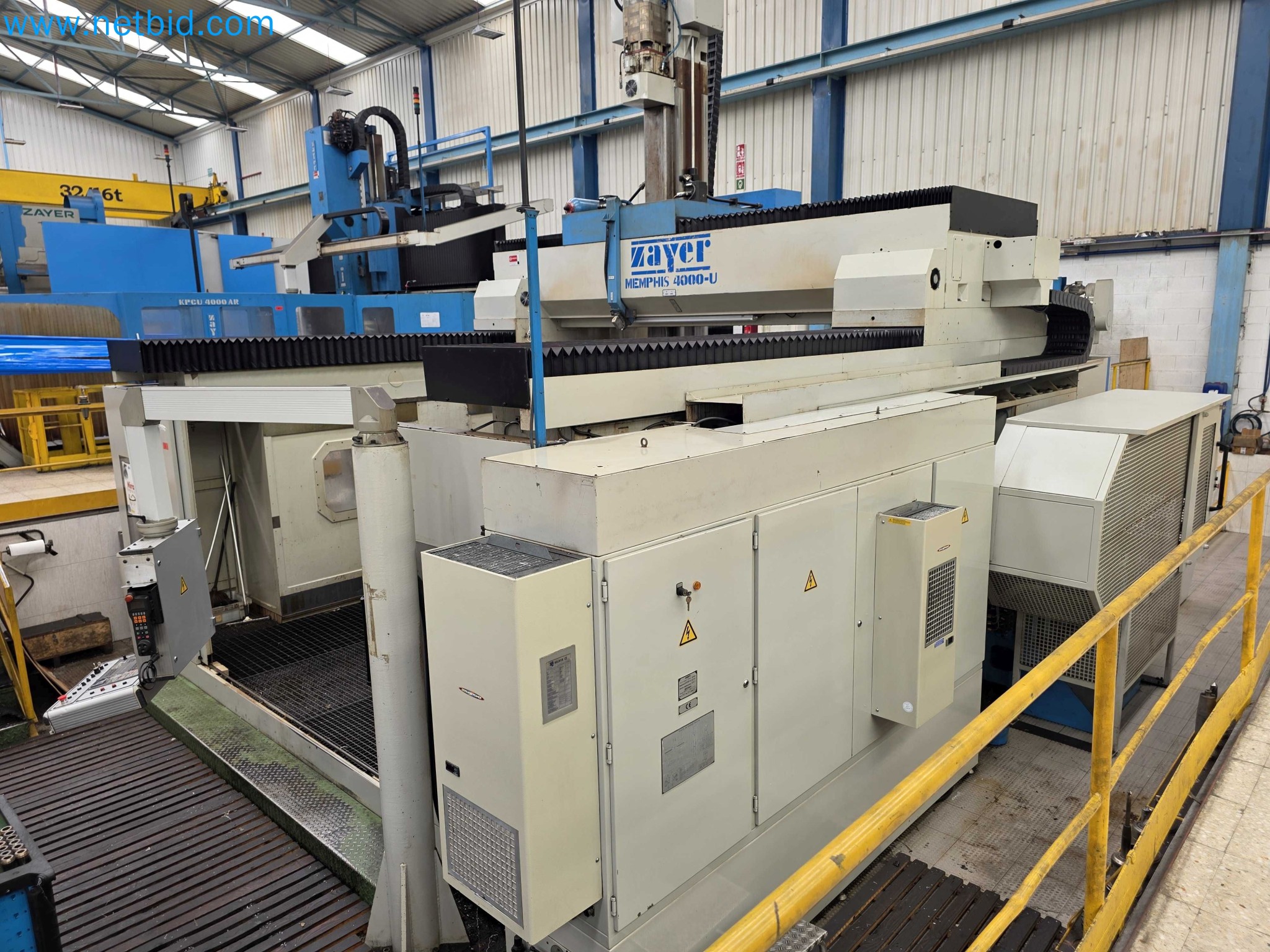

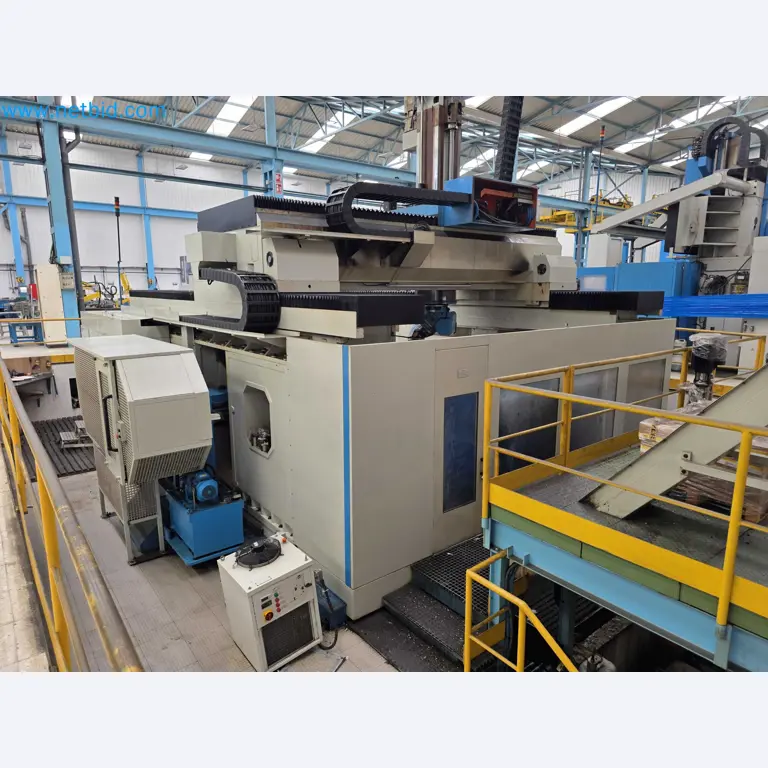

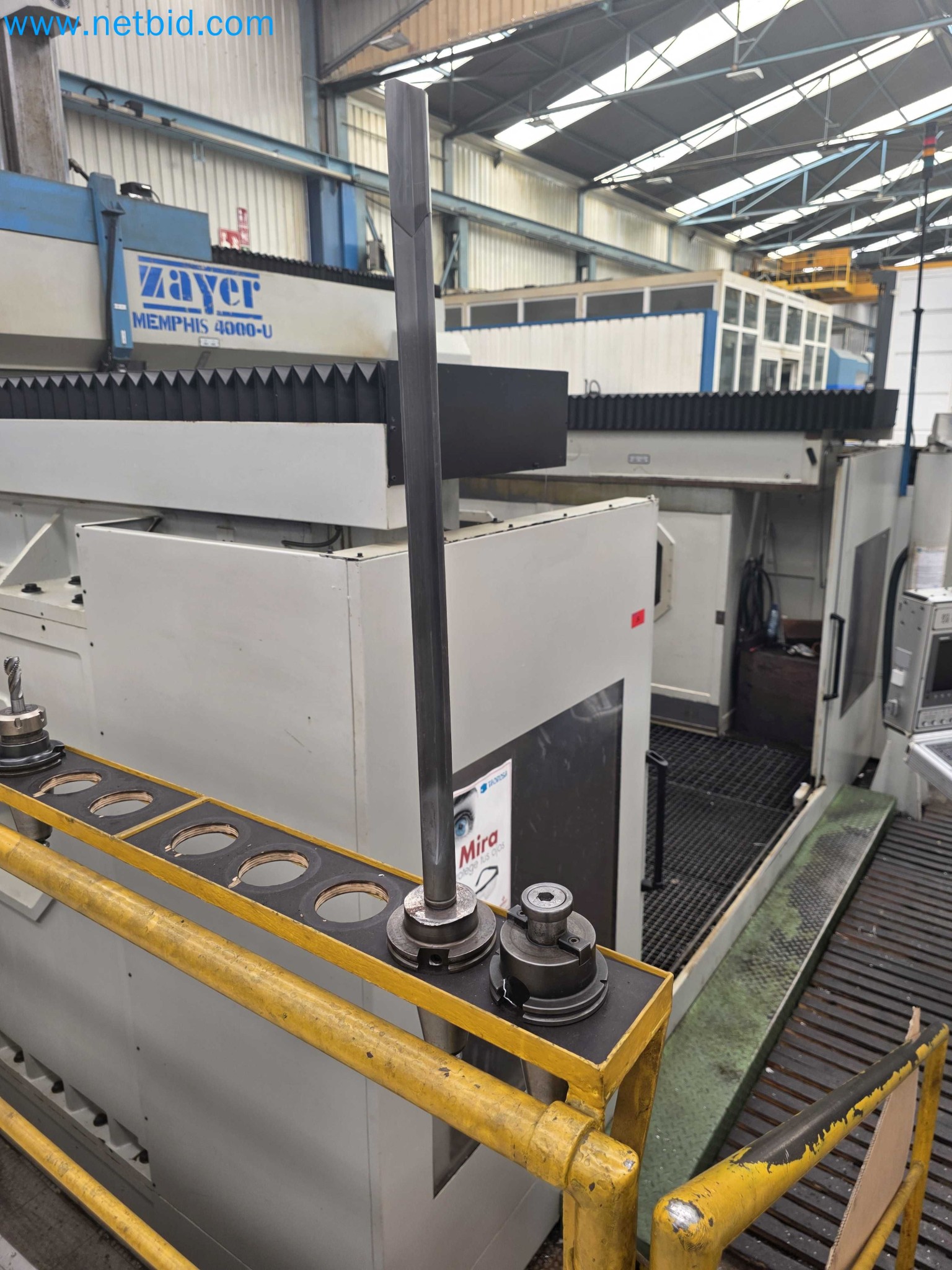

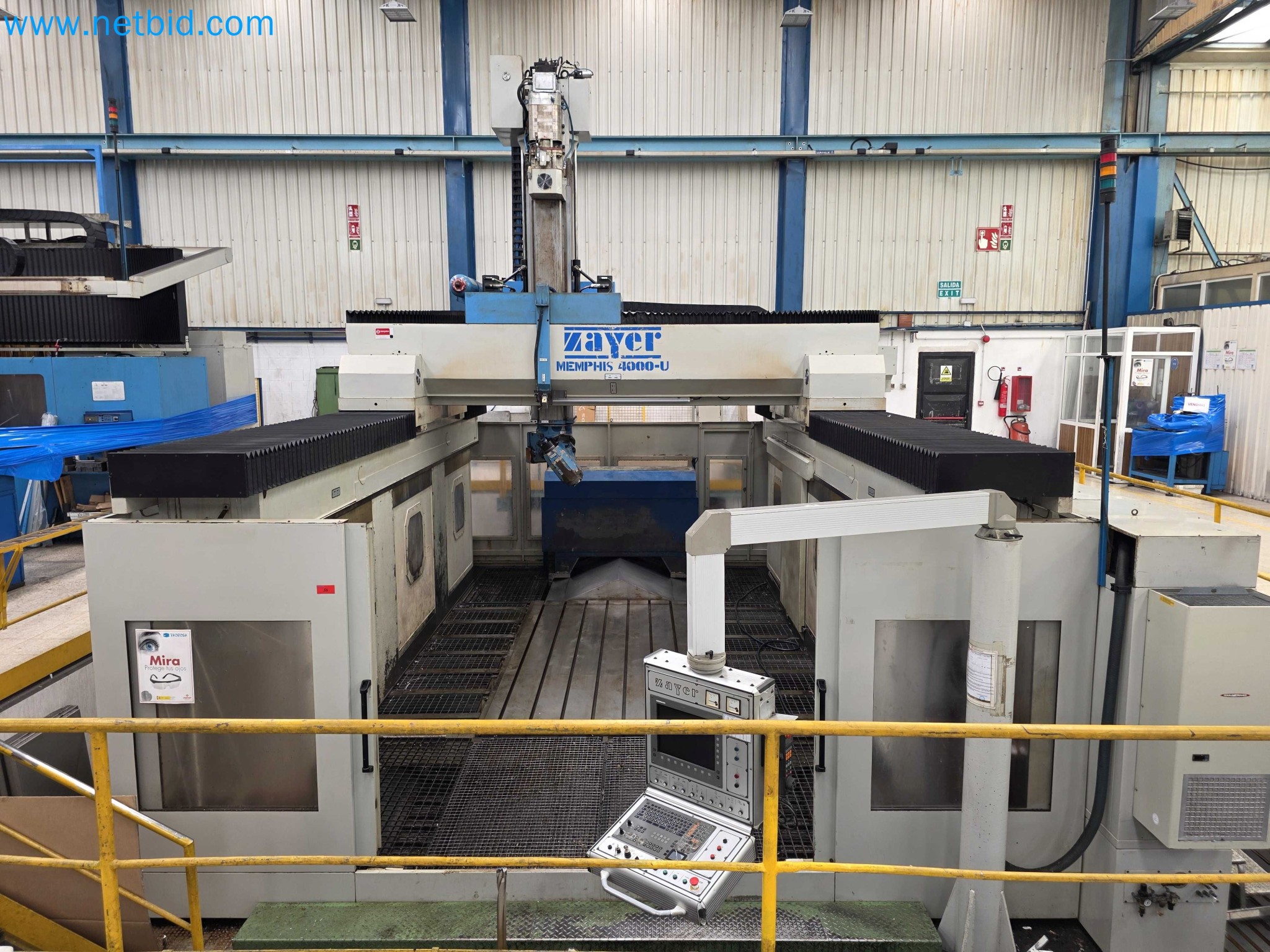

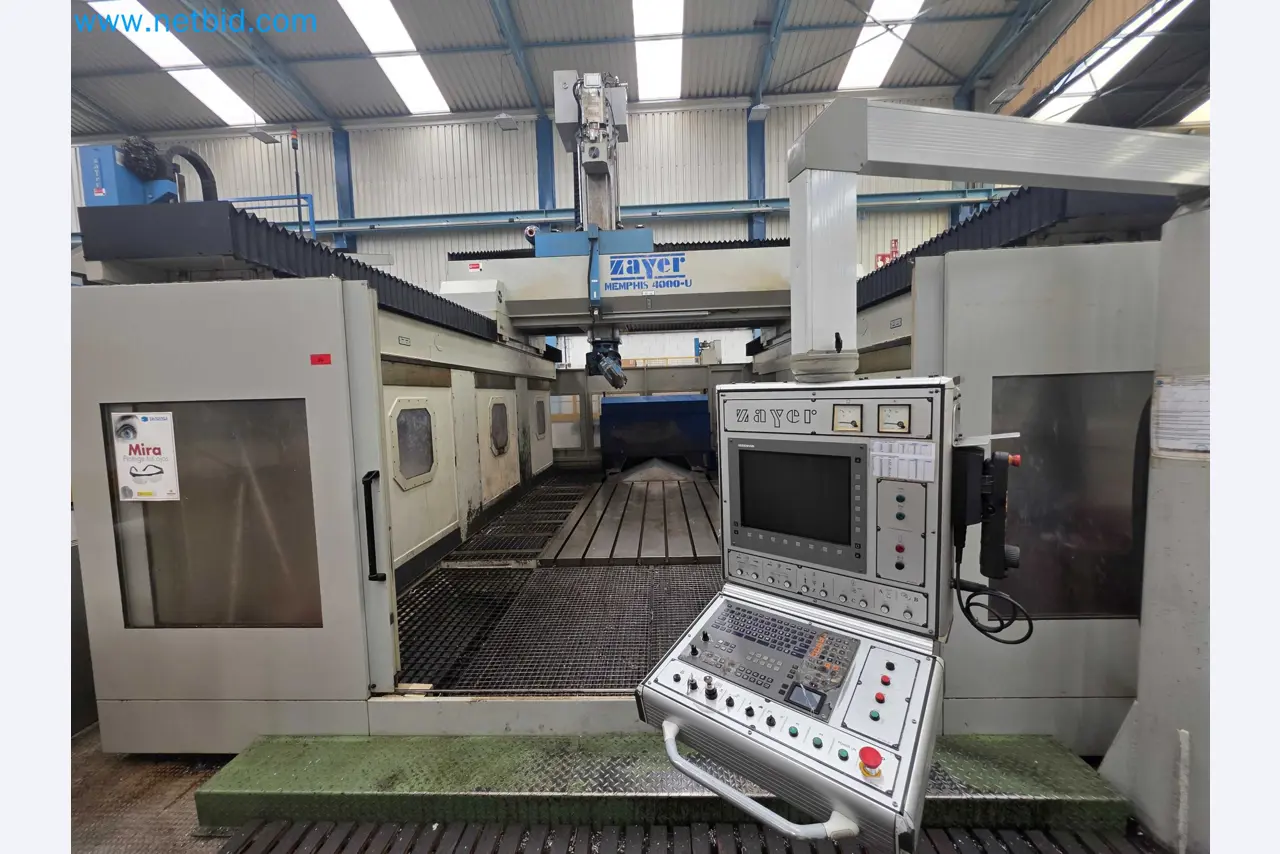

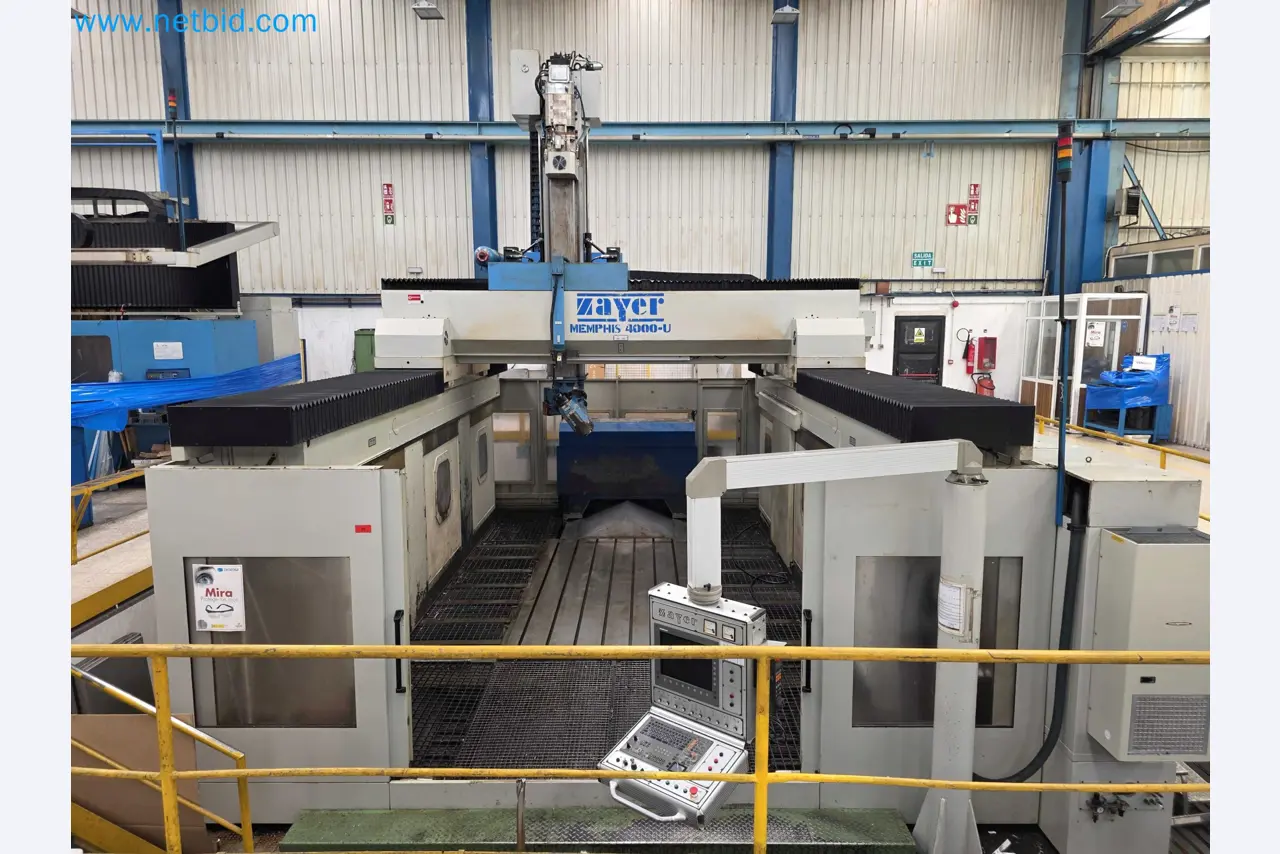

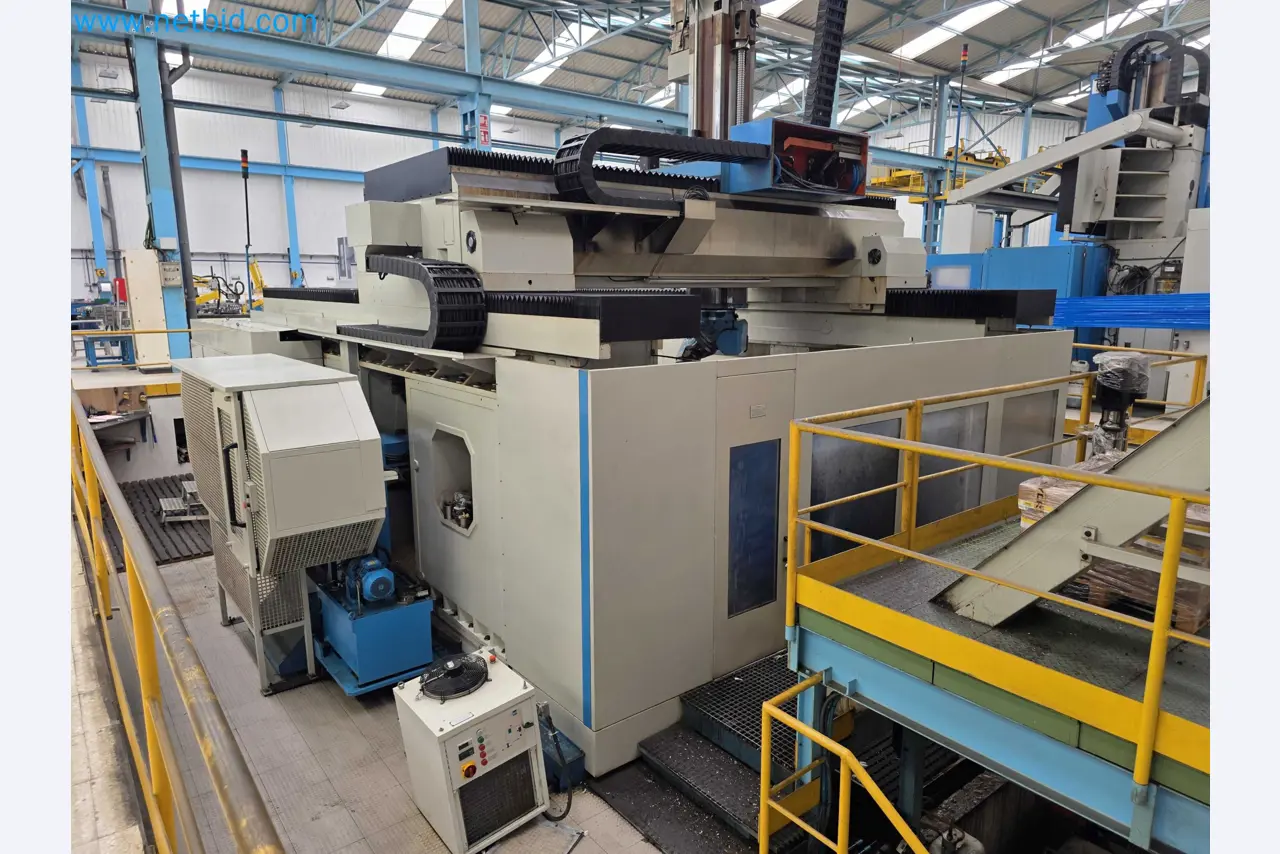

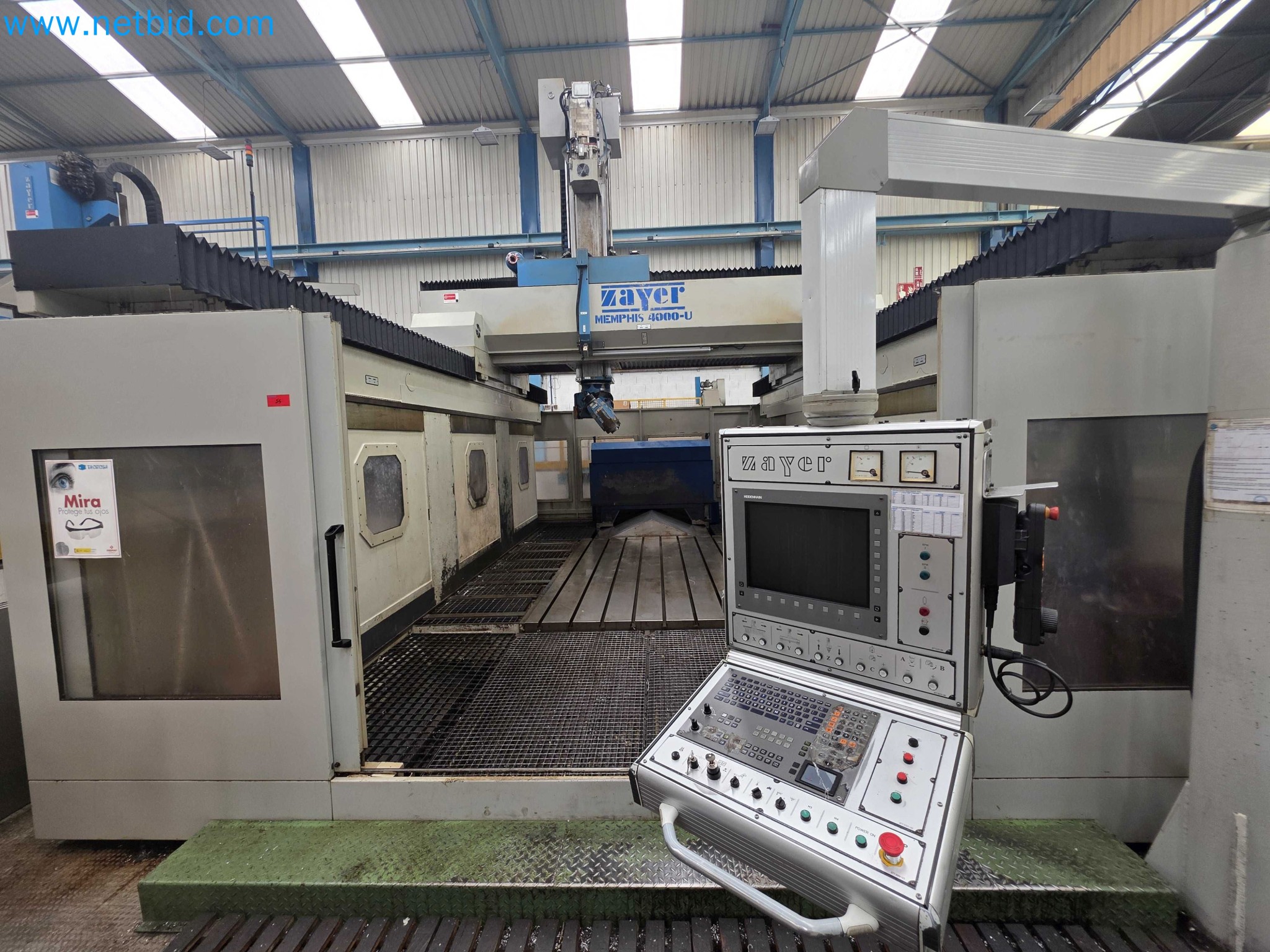

CNC Portal Milling Machine ZAYER MEMPHIS 4000-UAUCTION#A19590-55
Details
Product Type
ZAYER
Type
MEMPHIS 4000-U
Construction Year
2005

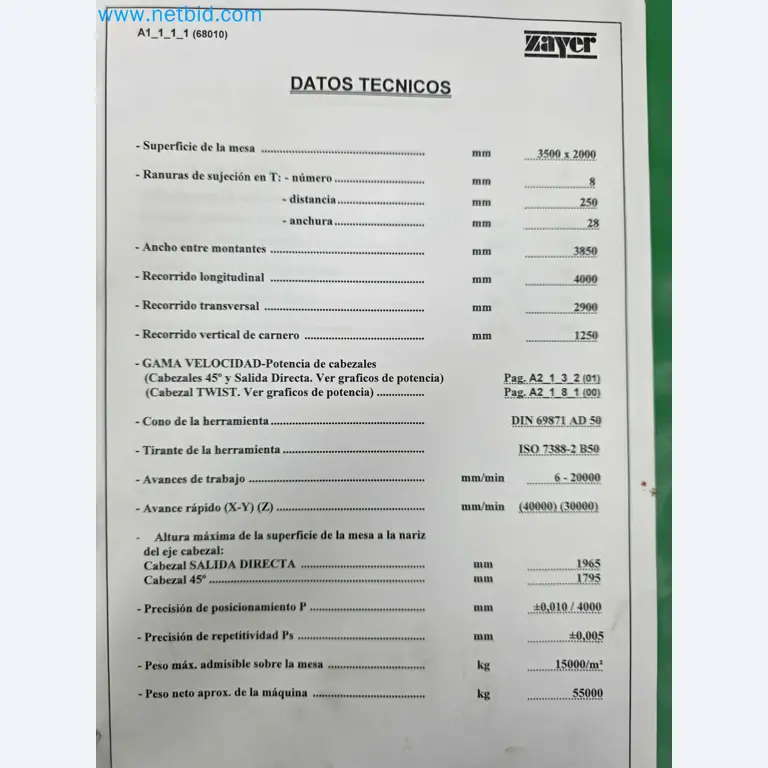

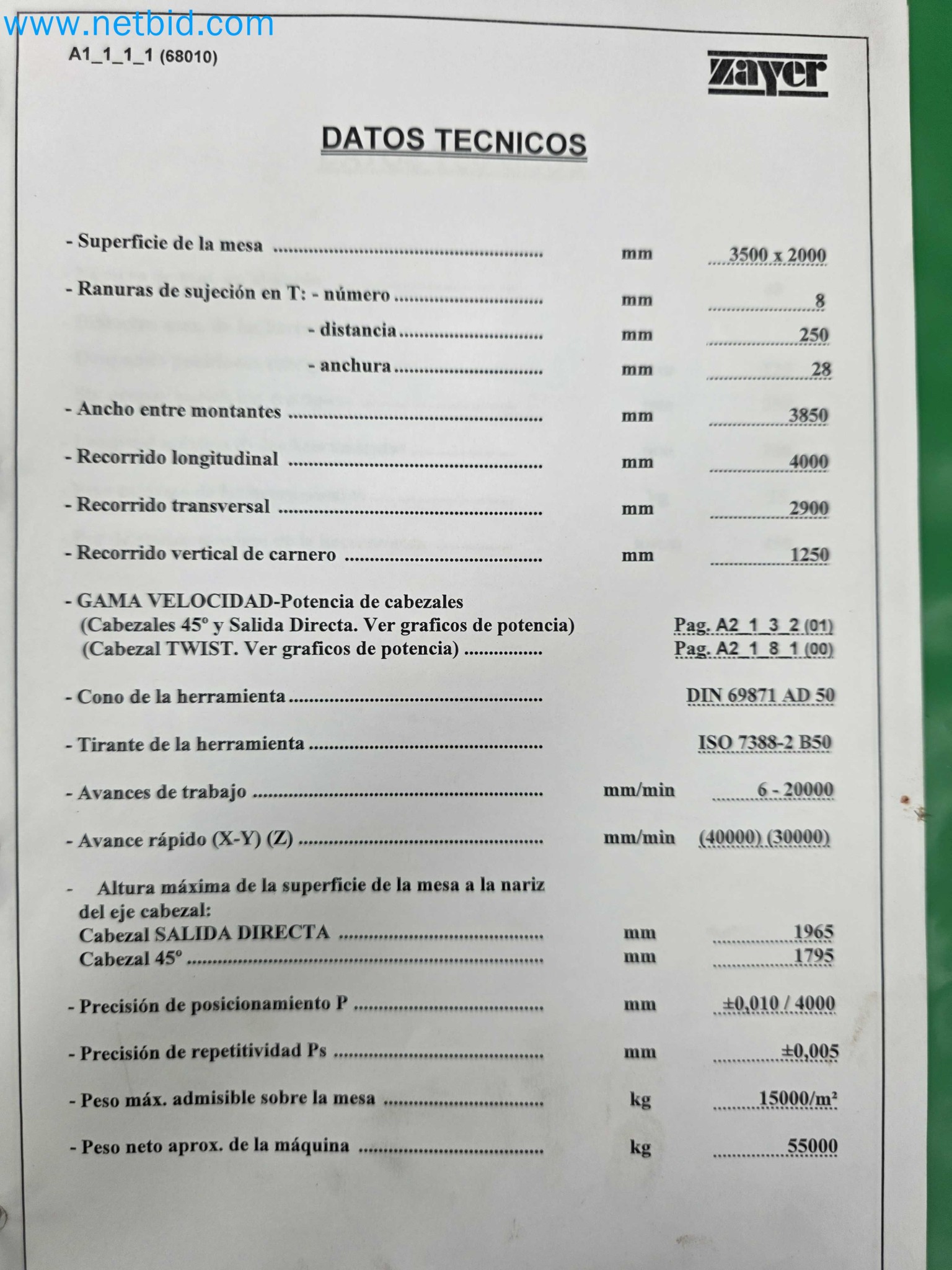

Description

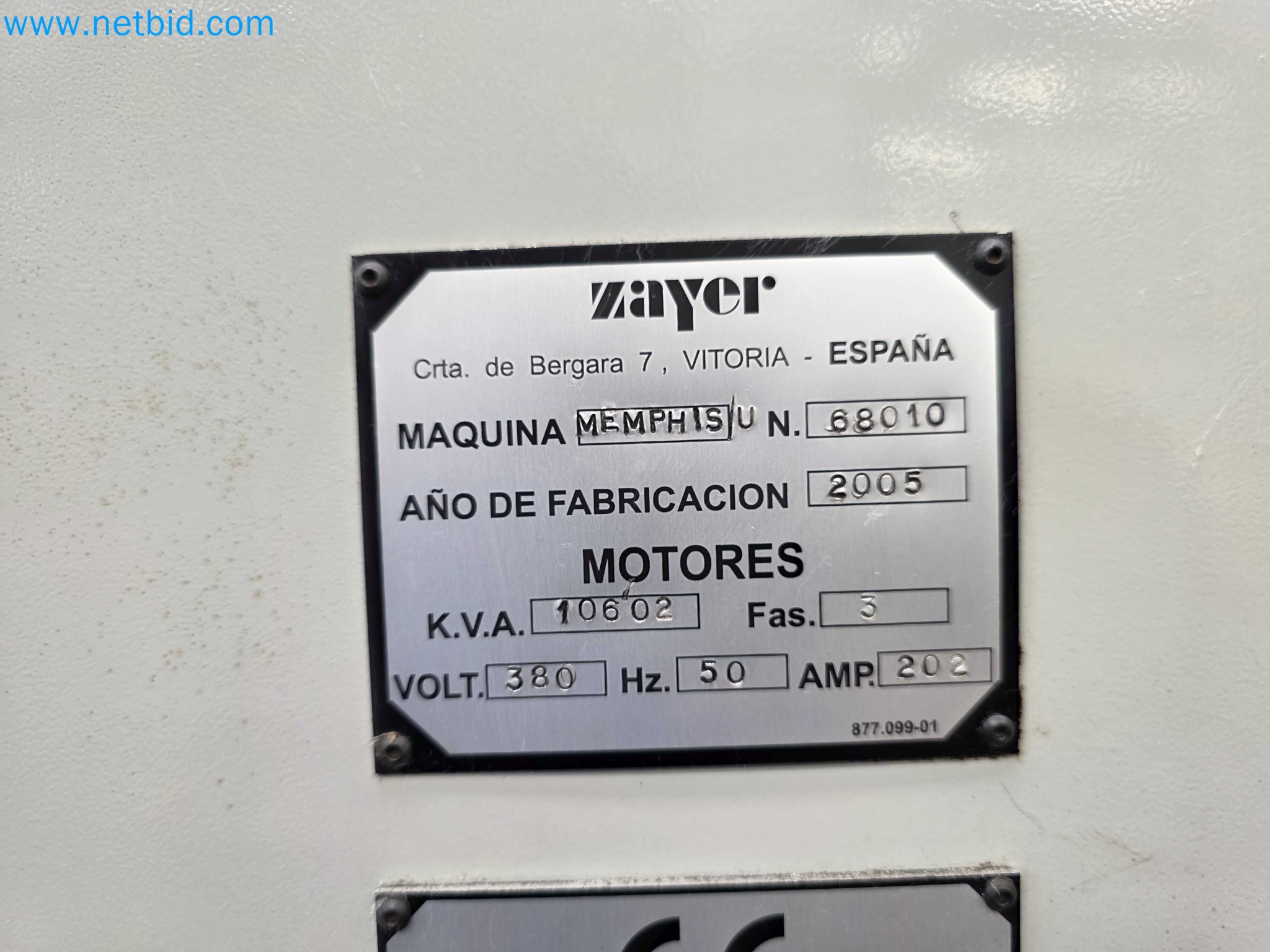

SN: 68010
5-axis

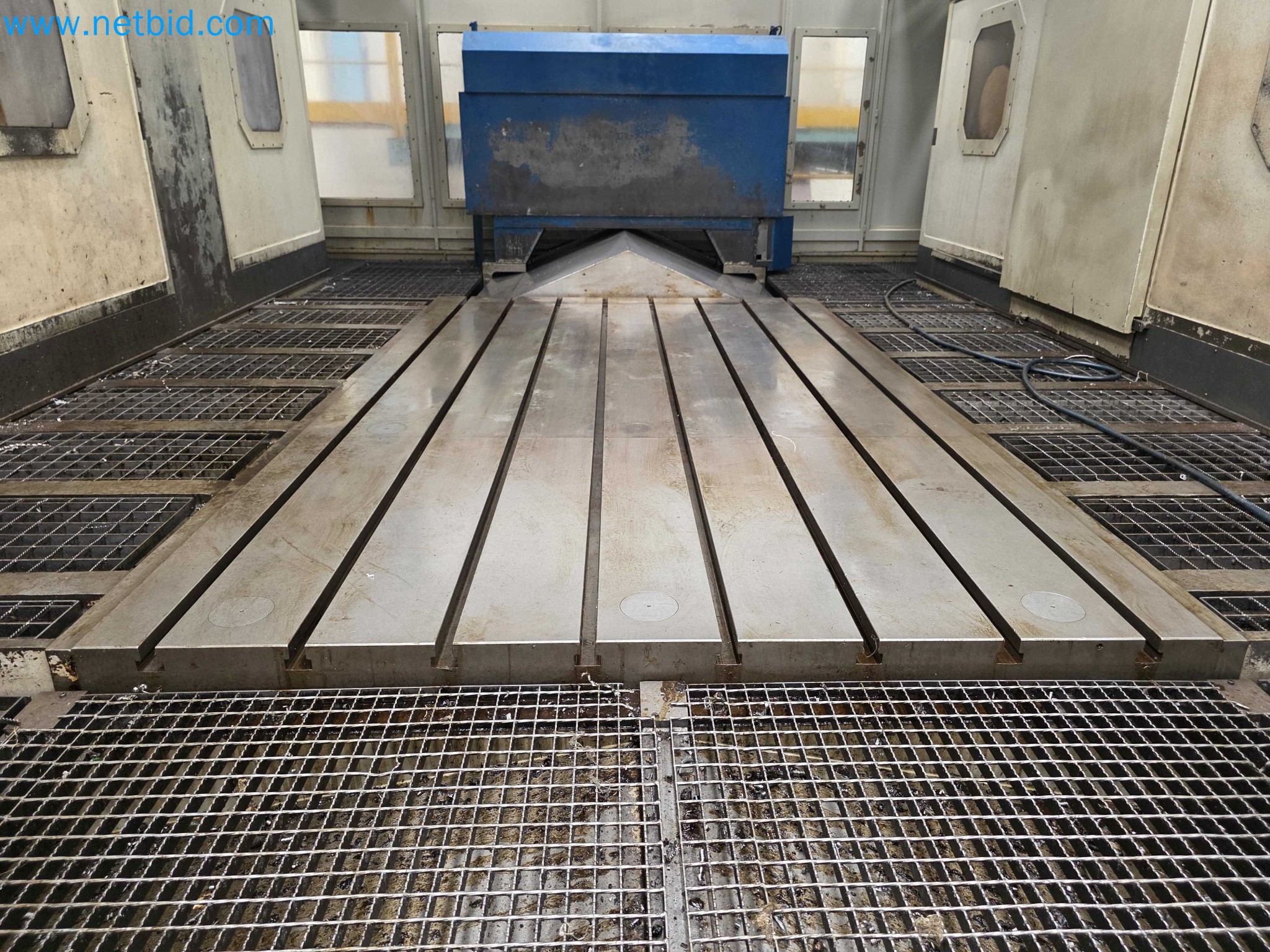

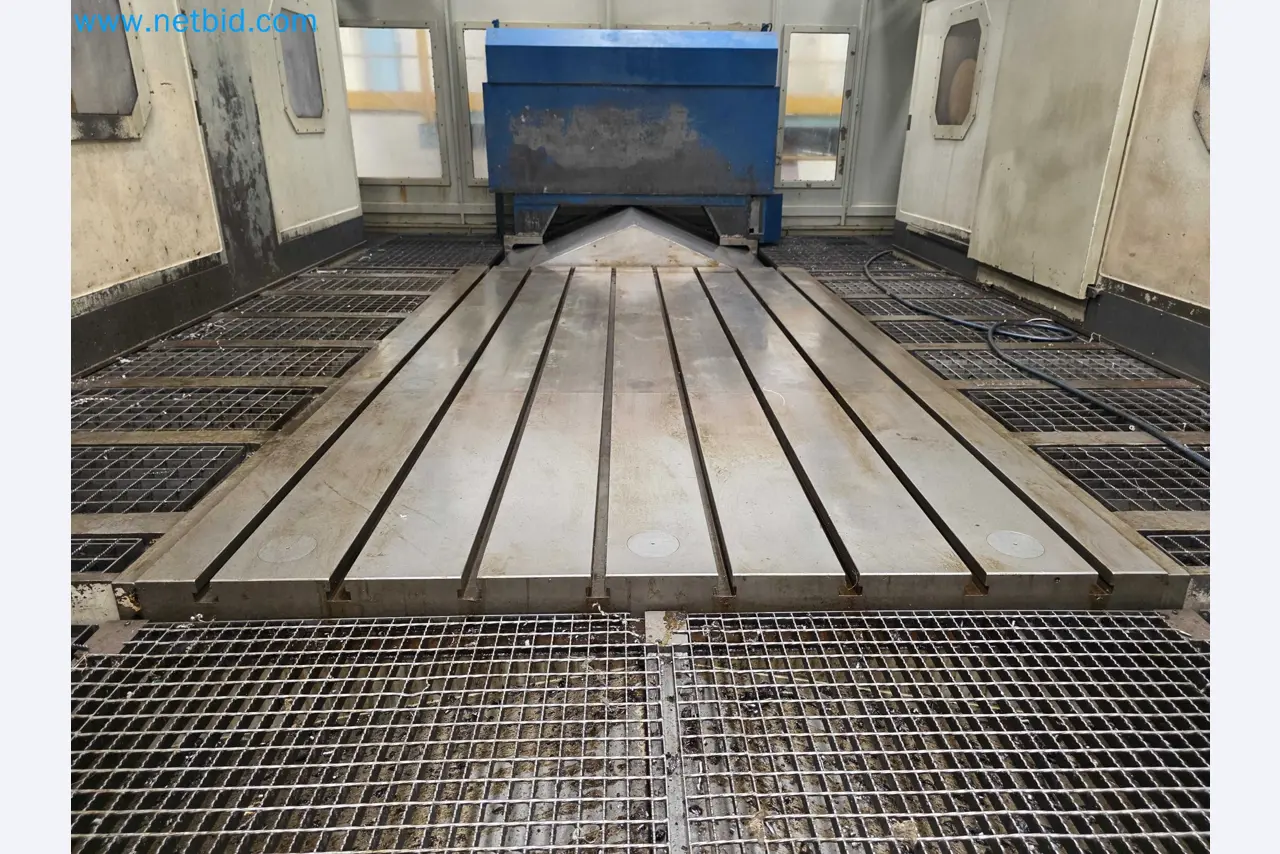

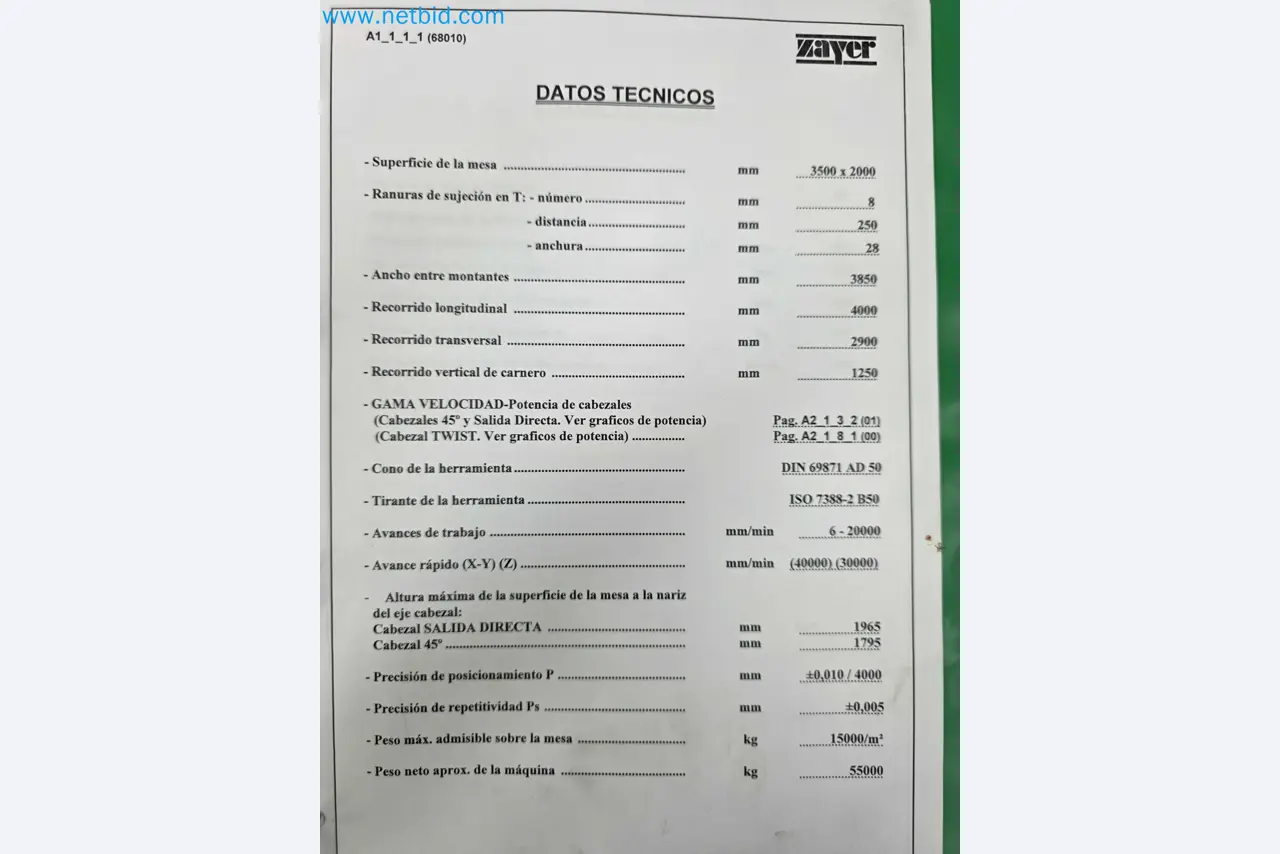

Table dimensions: 3500 x 2000 mm
T-slot table with 8 slots, 28 mm wide
Travels:
· X-axis: 4000 mm
· Y-axis: 2900 mm
· Z-axis: 1250 mm
Distance between columns: 3850 mm

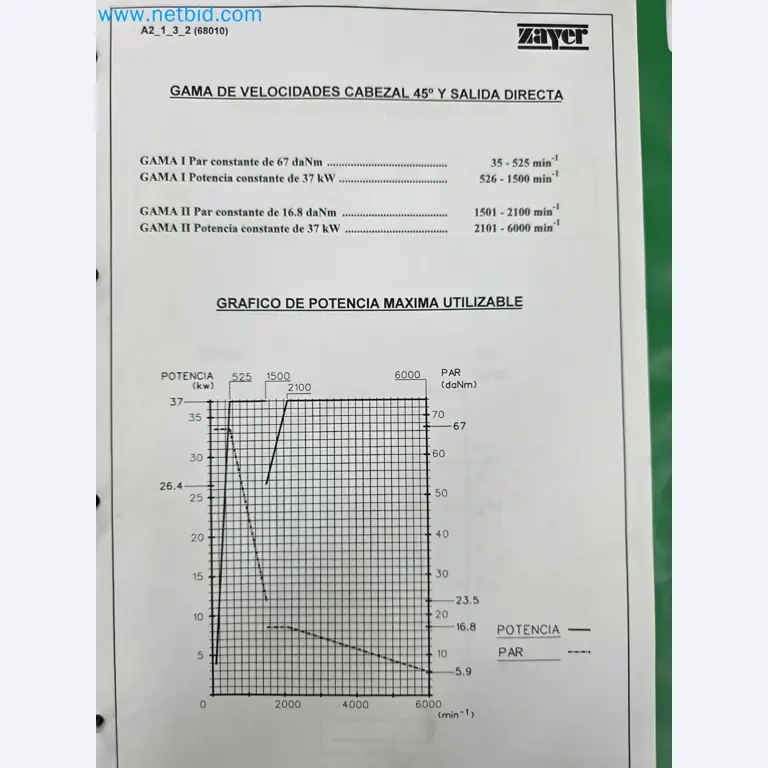

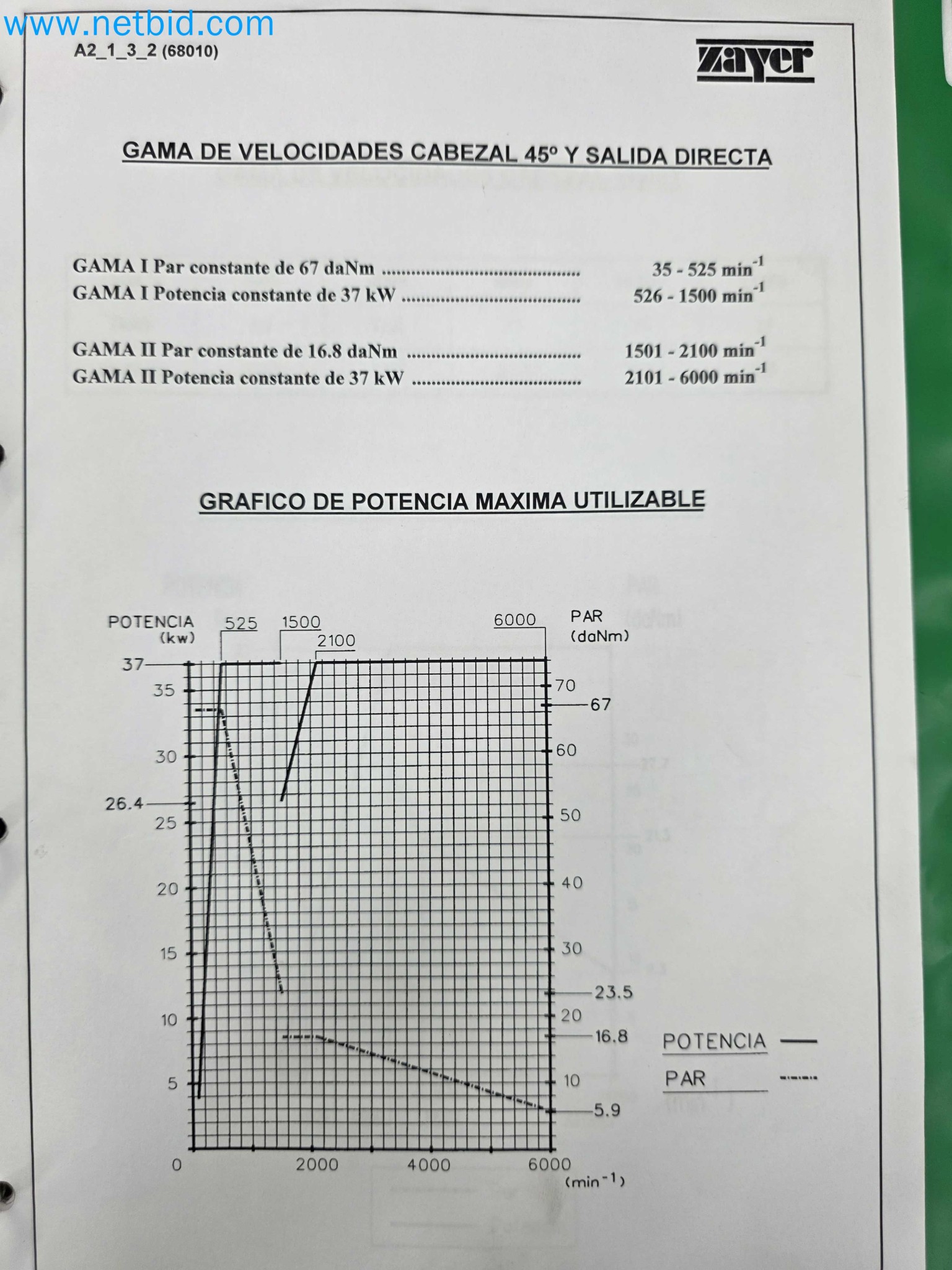

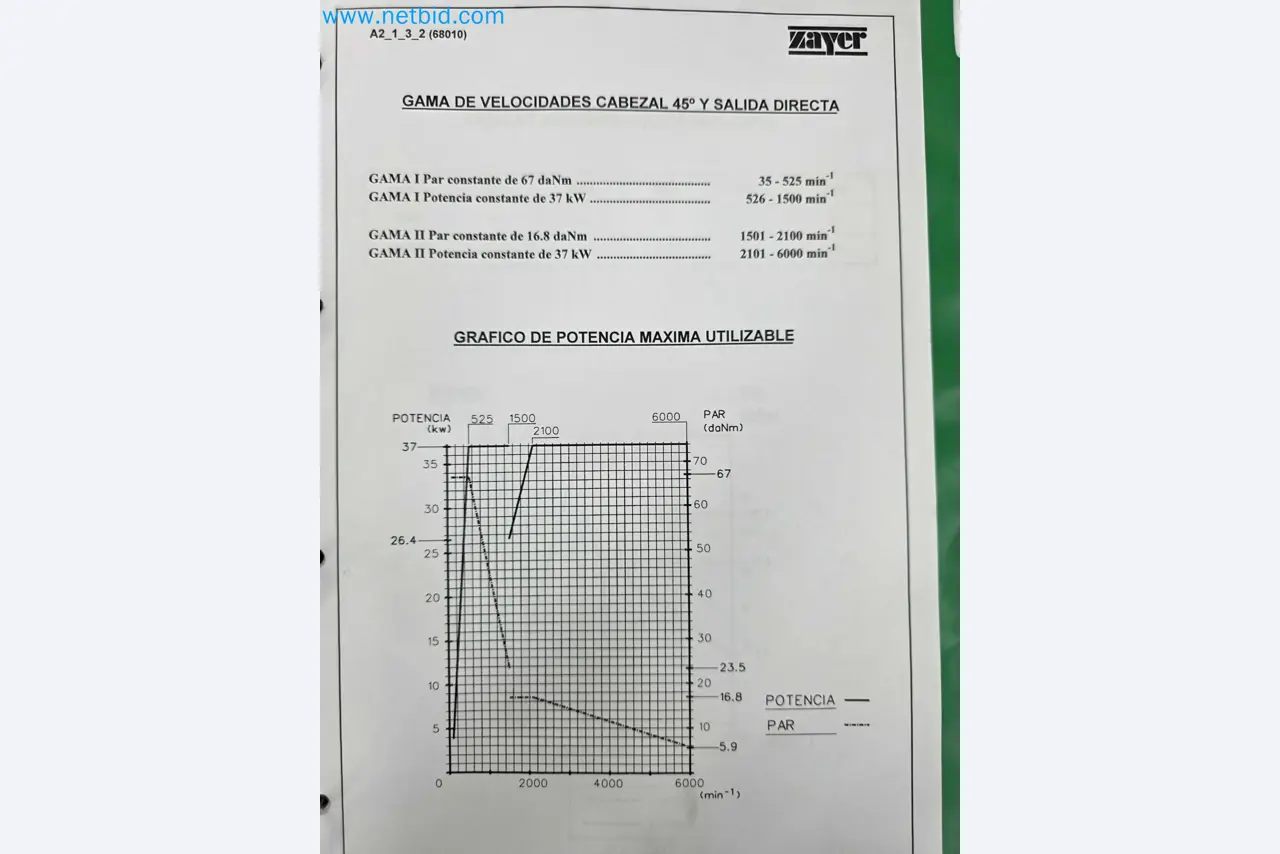

Maximum spindle speed: 6000 rpm
Spindle motor power: 37 kW
Working feed rates: 6–20,000 mm/min
Rapid traverse:
· X/Y axes: 40,000 mm/min
· Z-axis: 30,000 mm/min

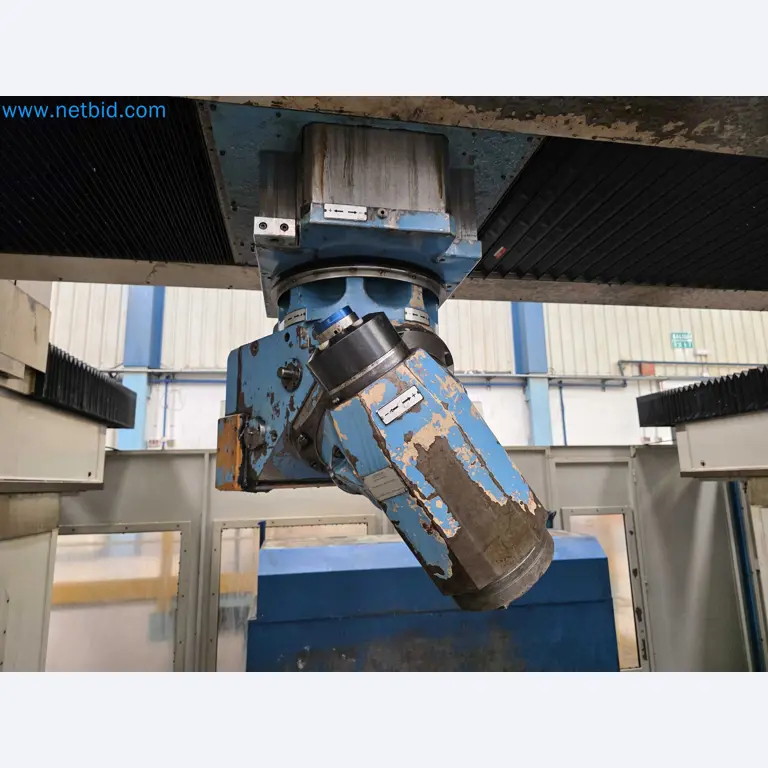

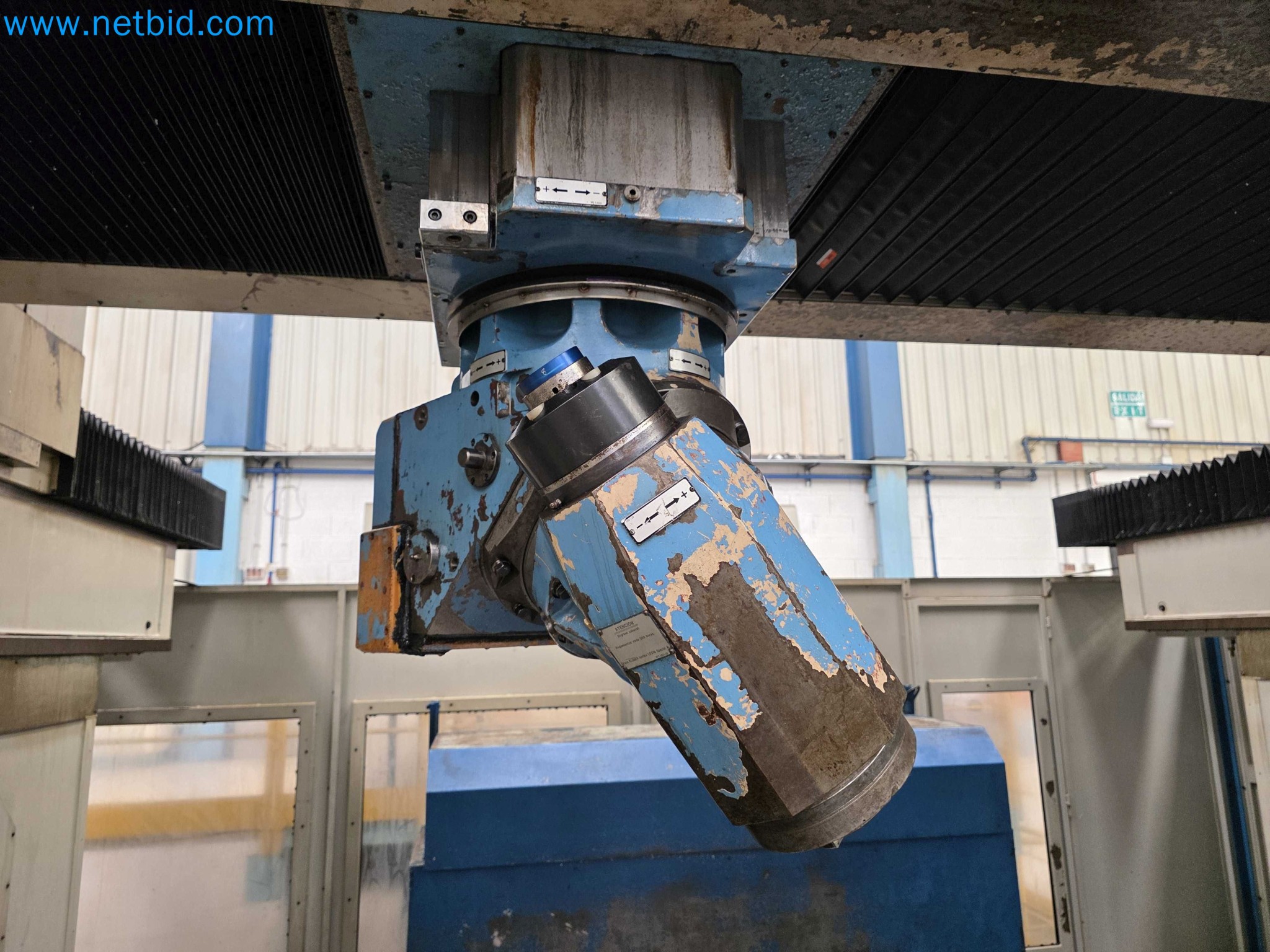

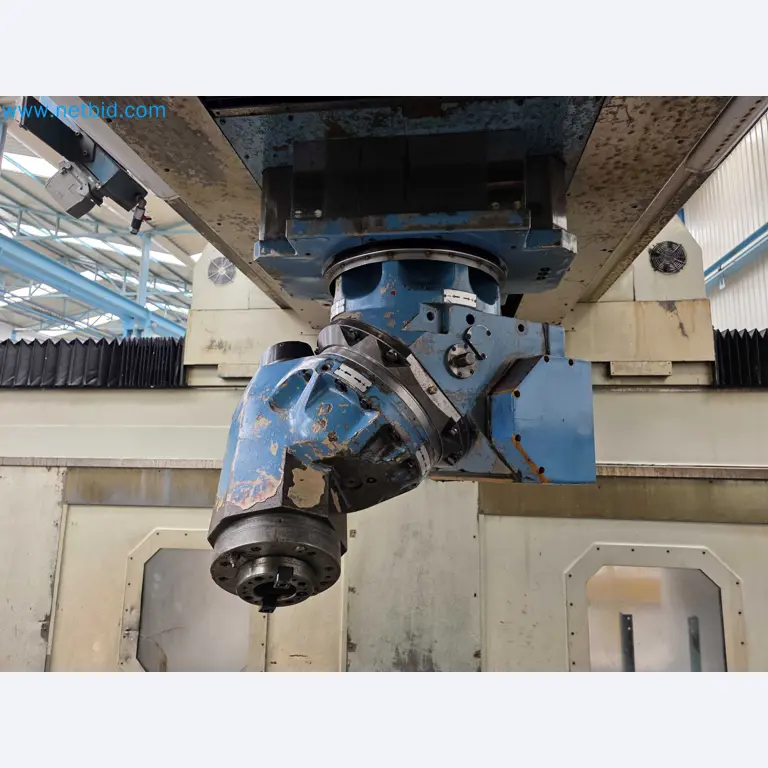

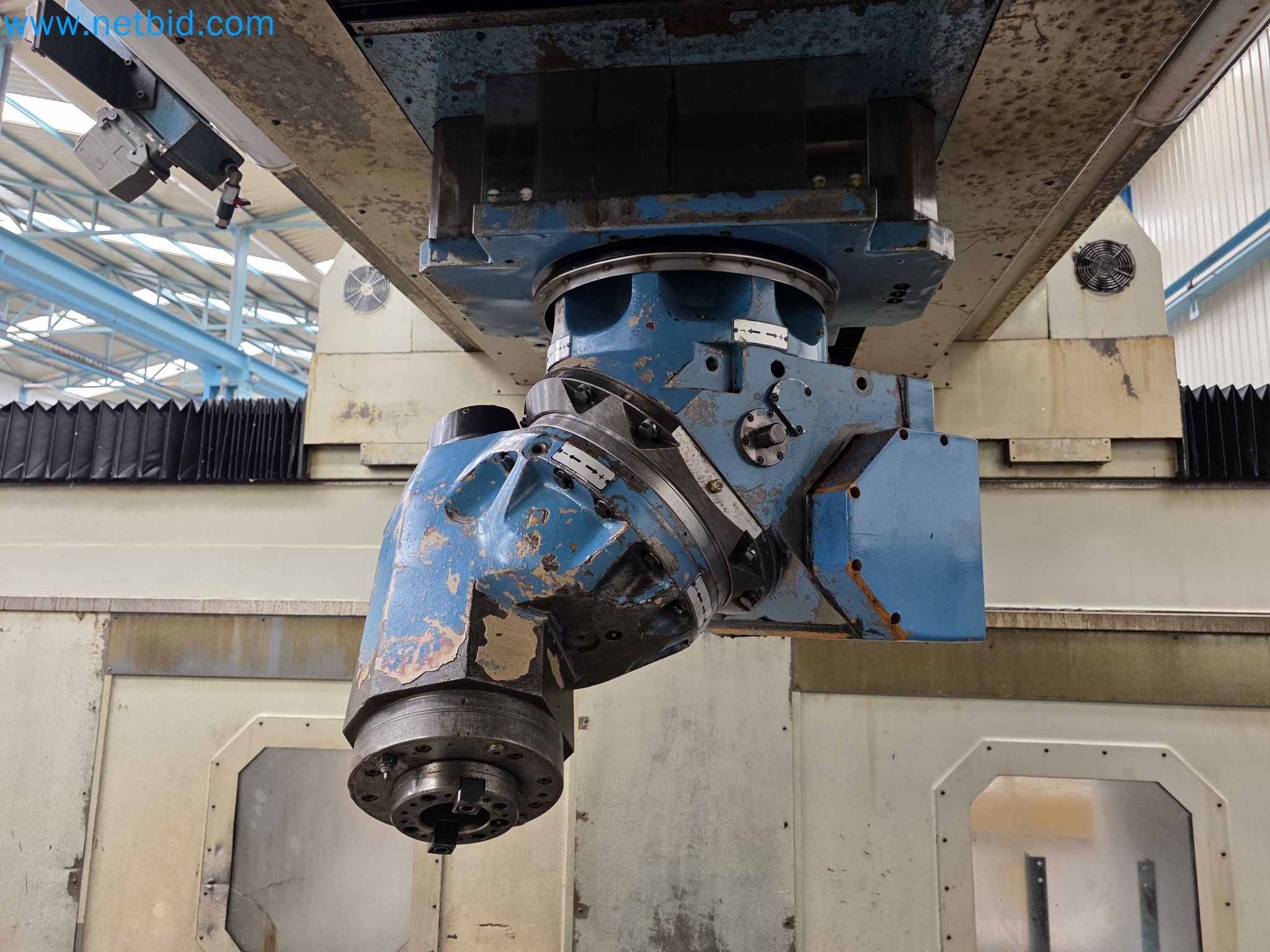

Automatic 45° head with 360,000 positions, positioning in increments of 0.001°
Maximum distance from table surface to spindle nose: 1795 mm

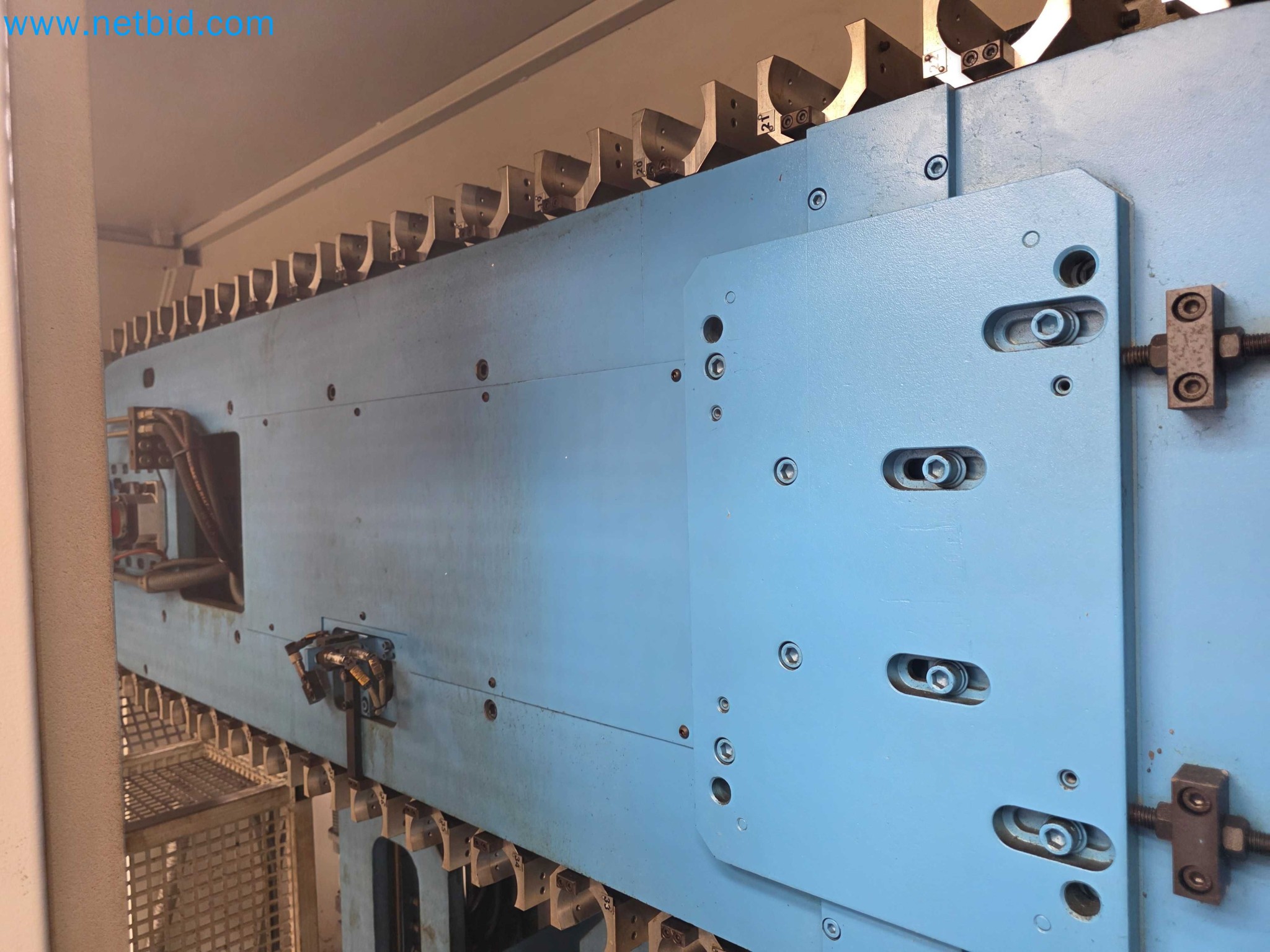

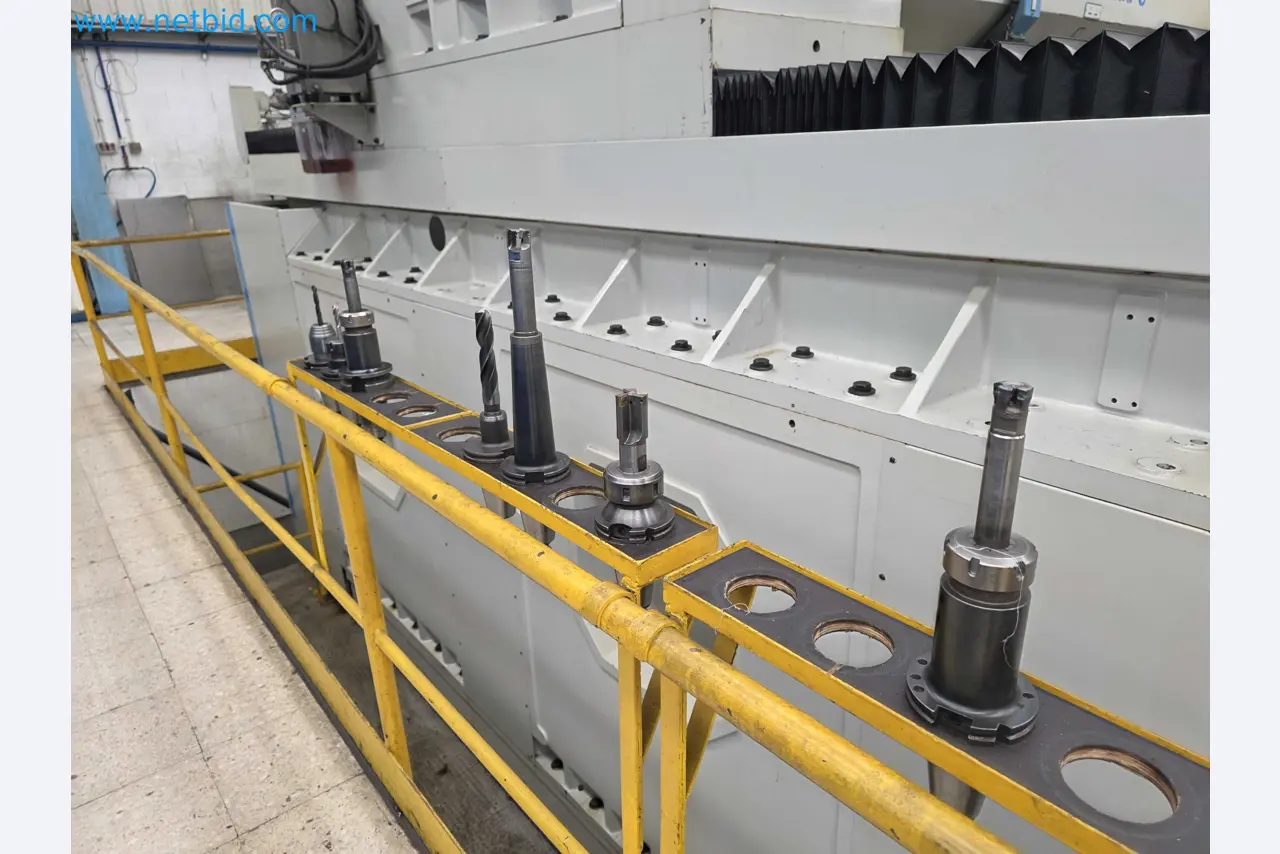

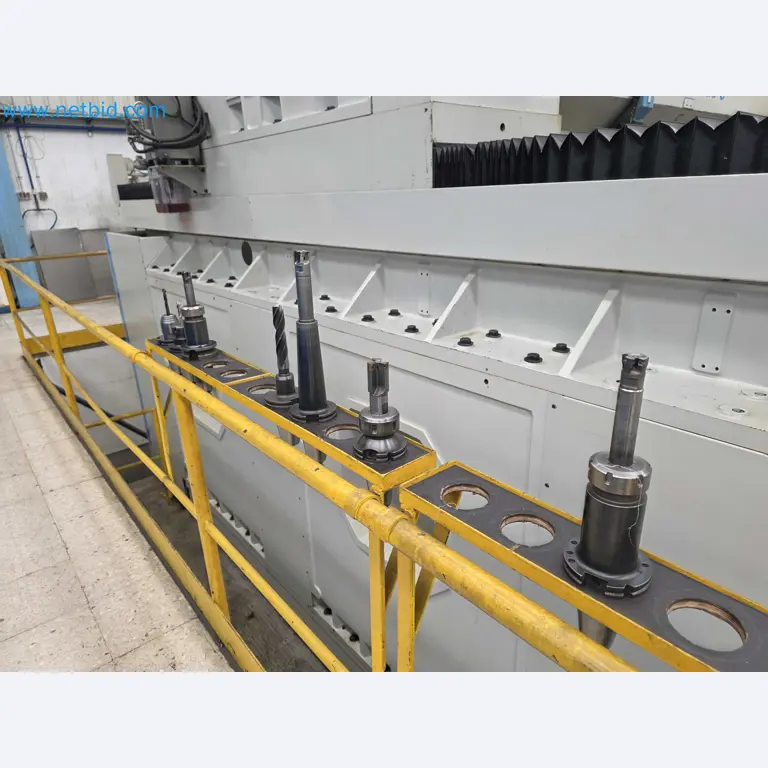

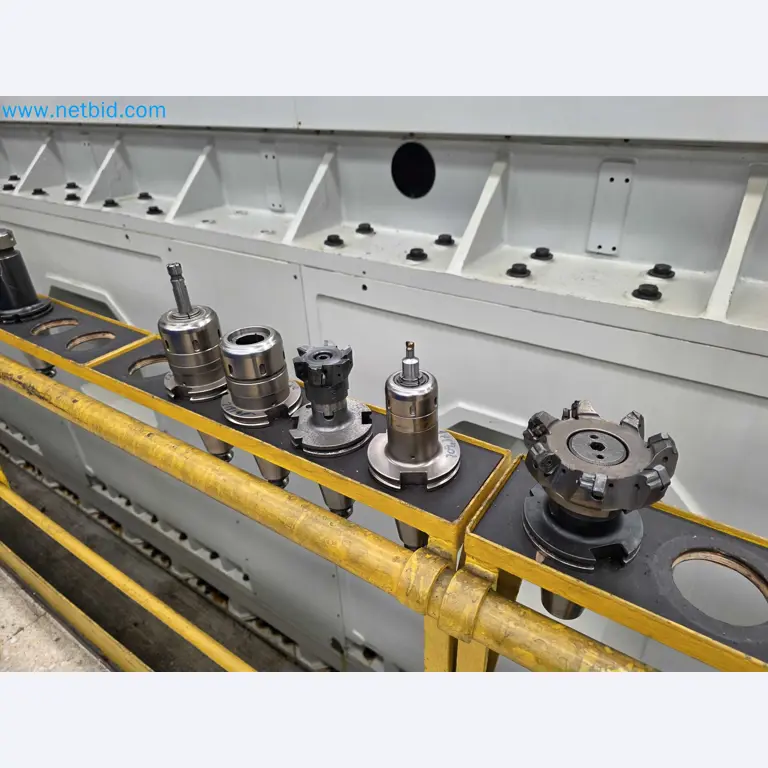

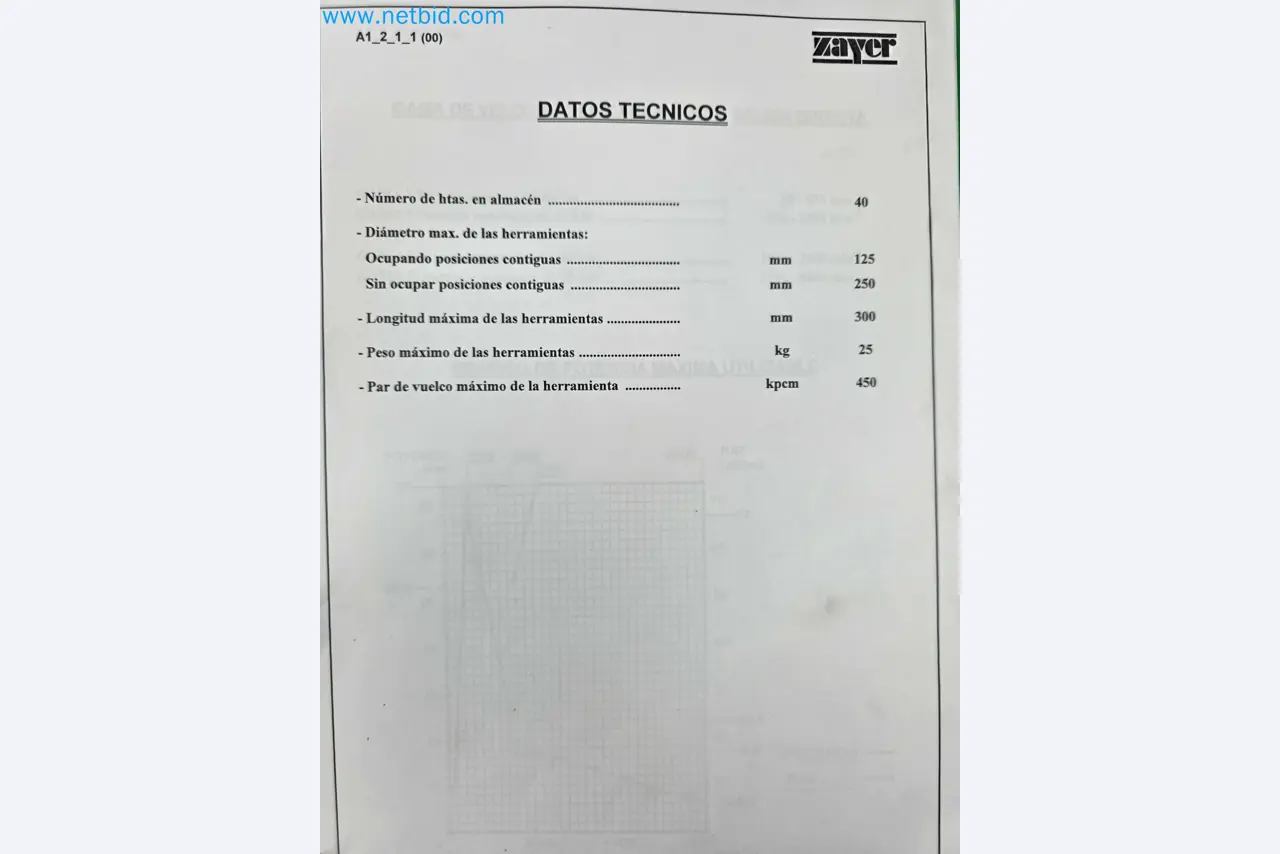

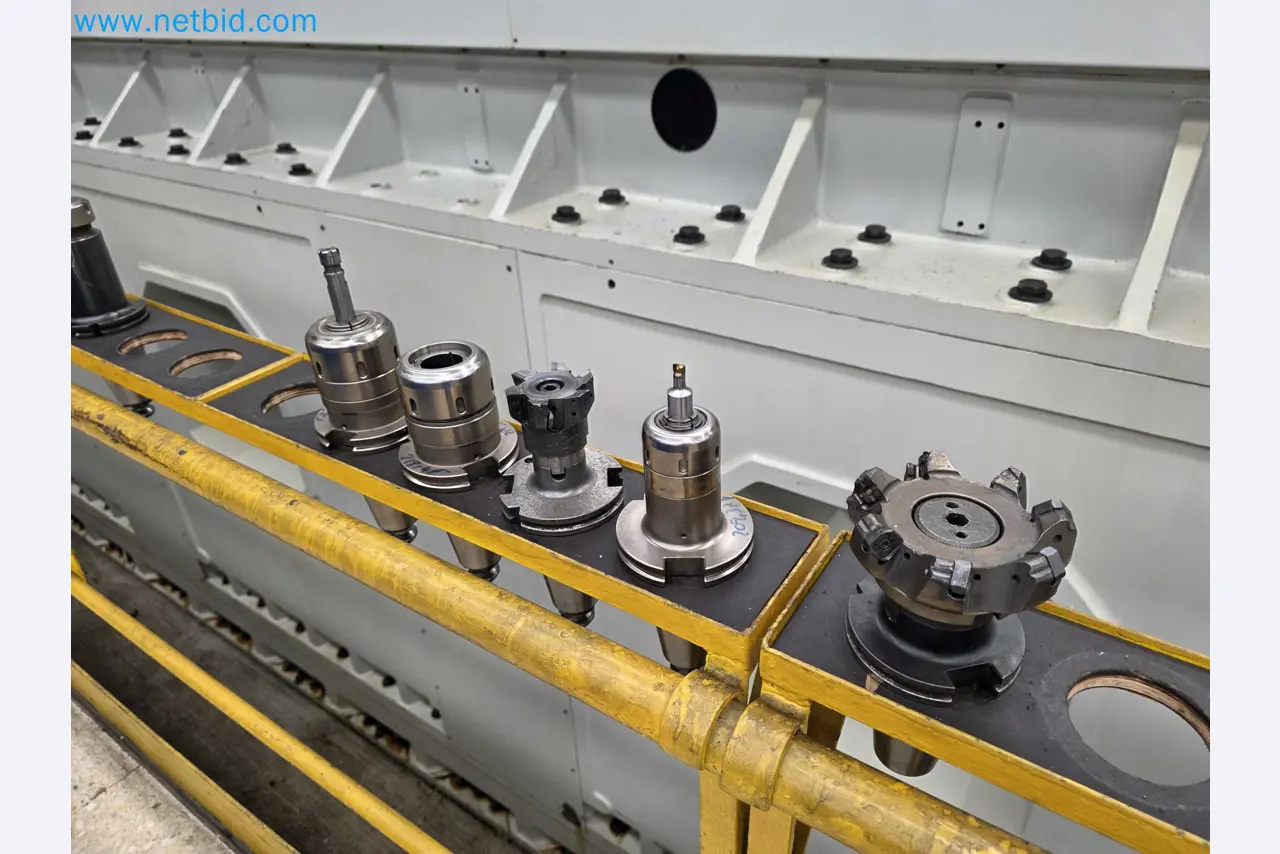

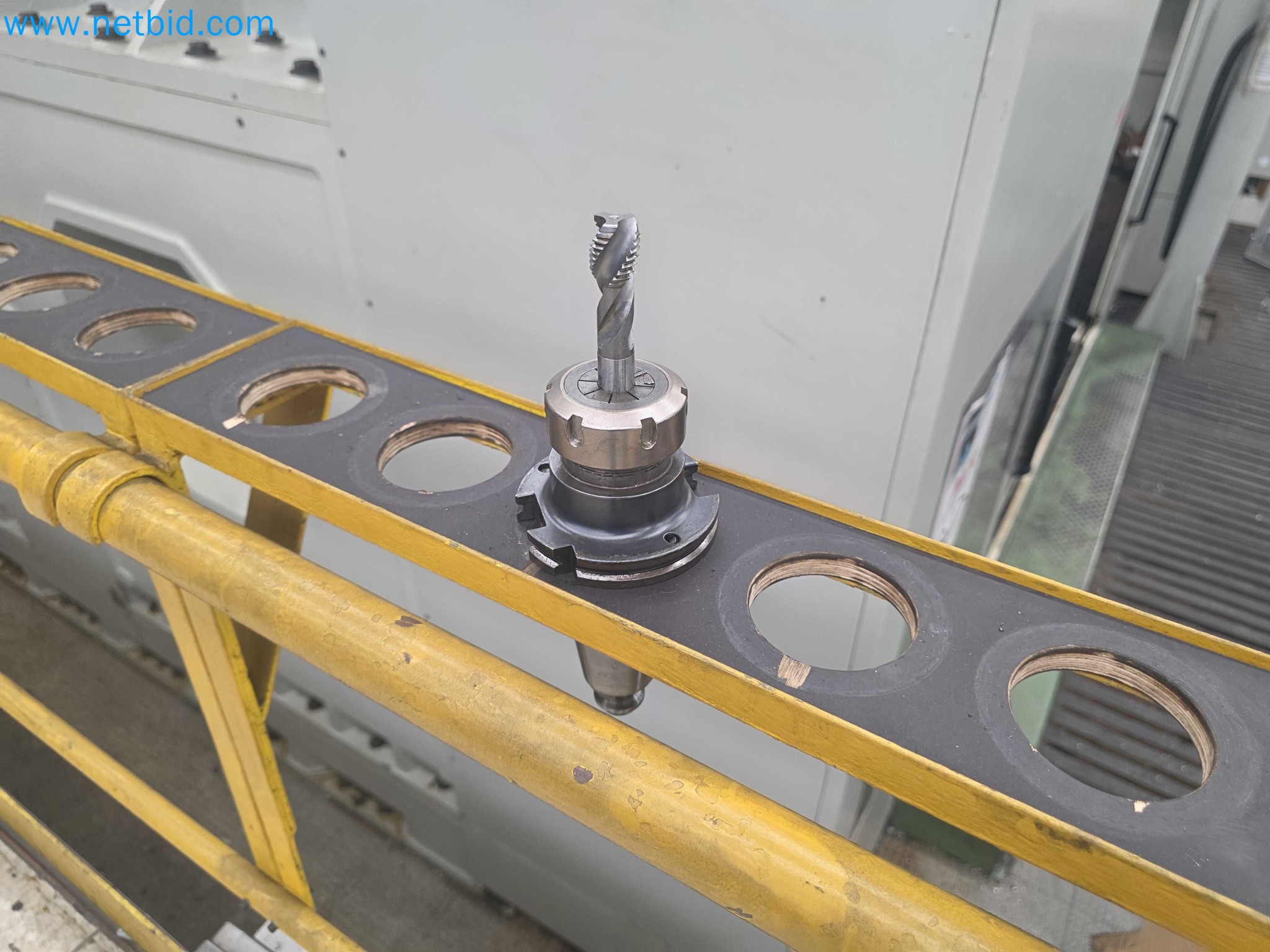

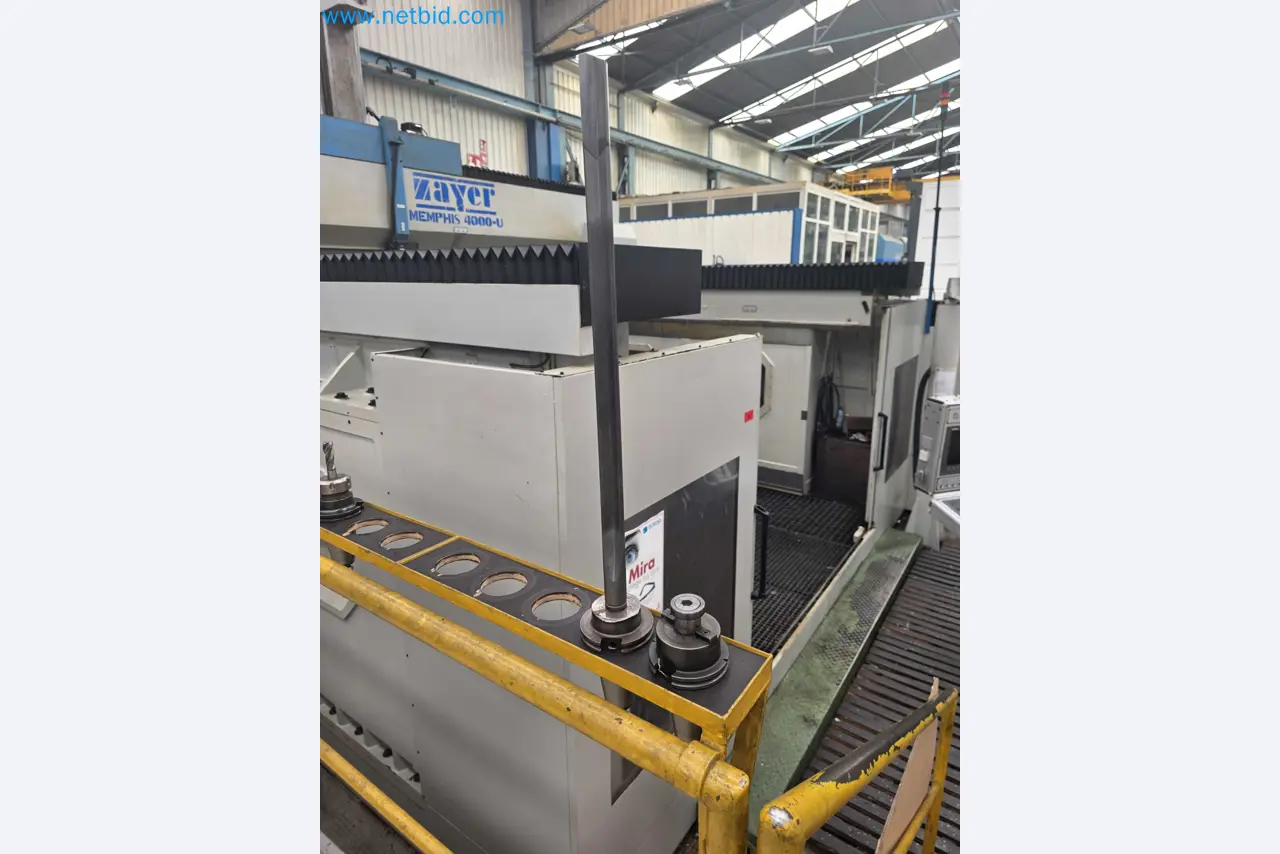

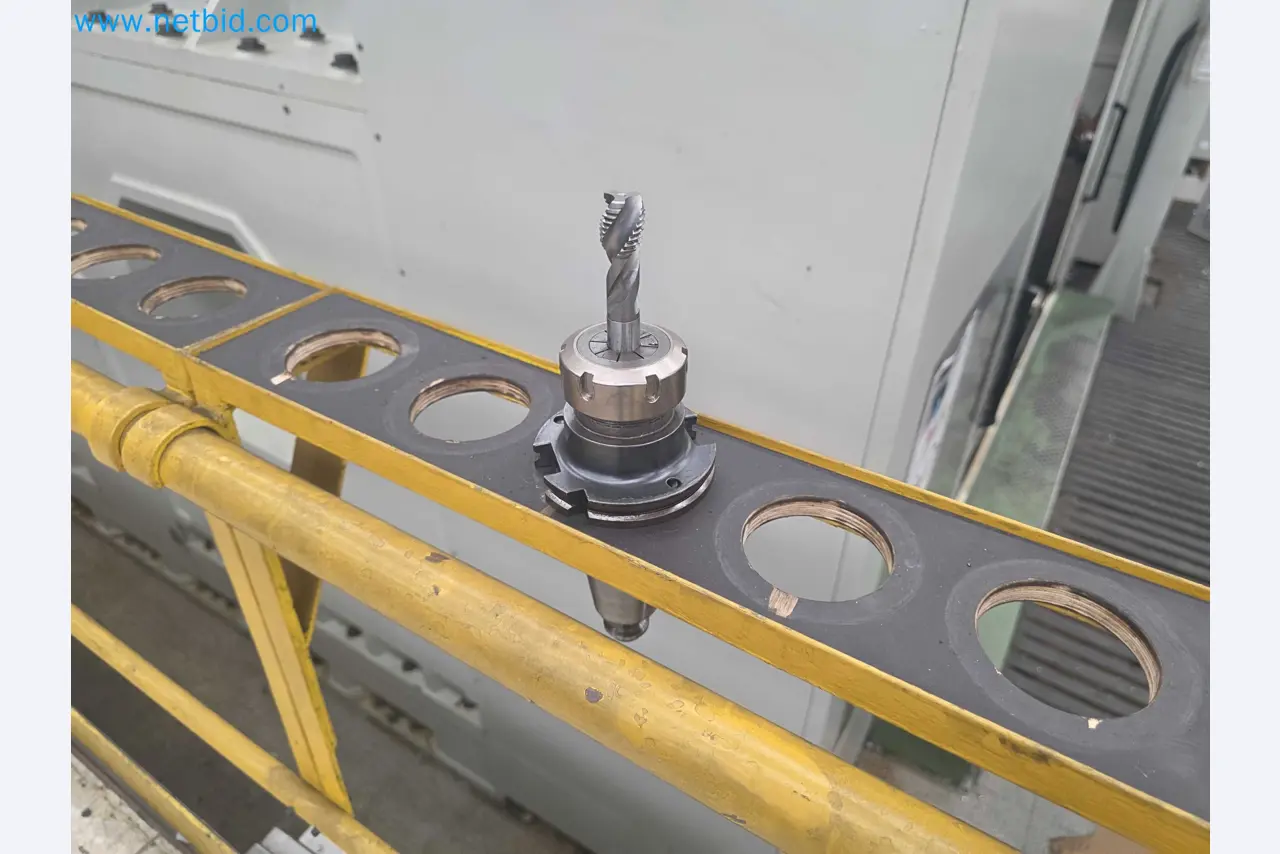

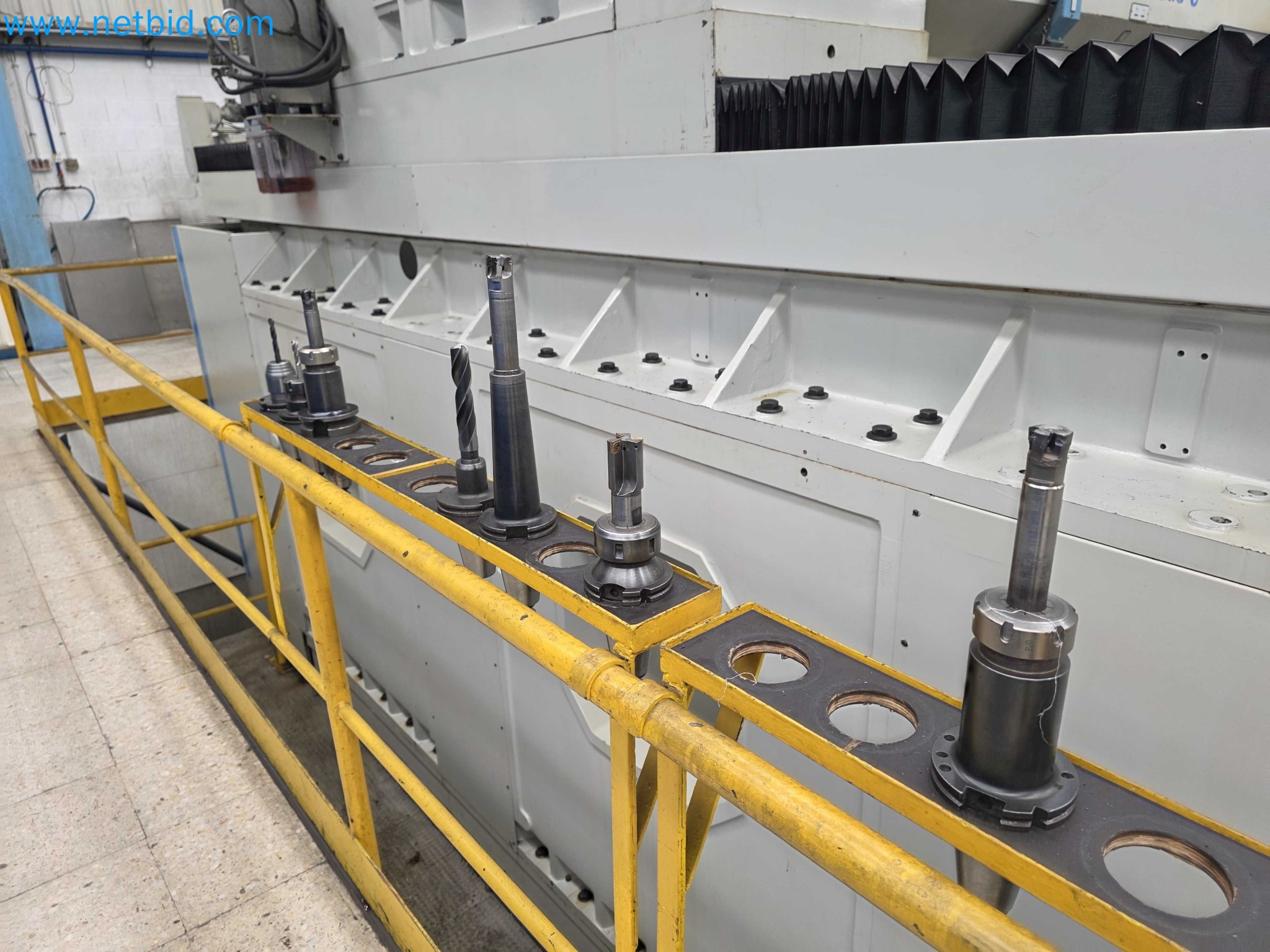

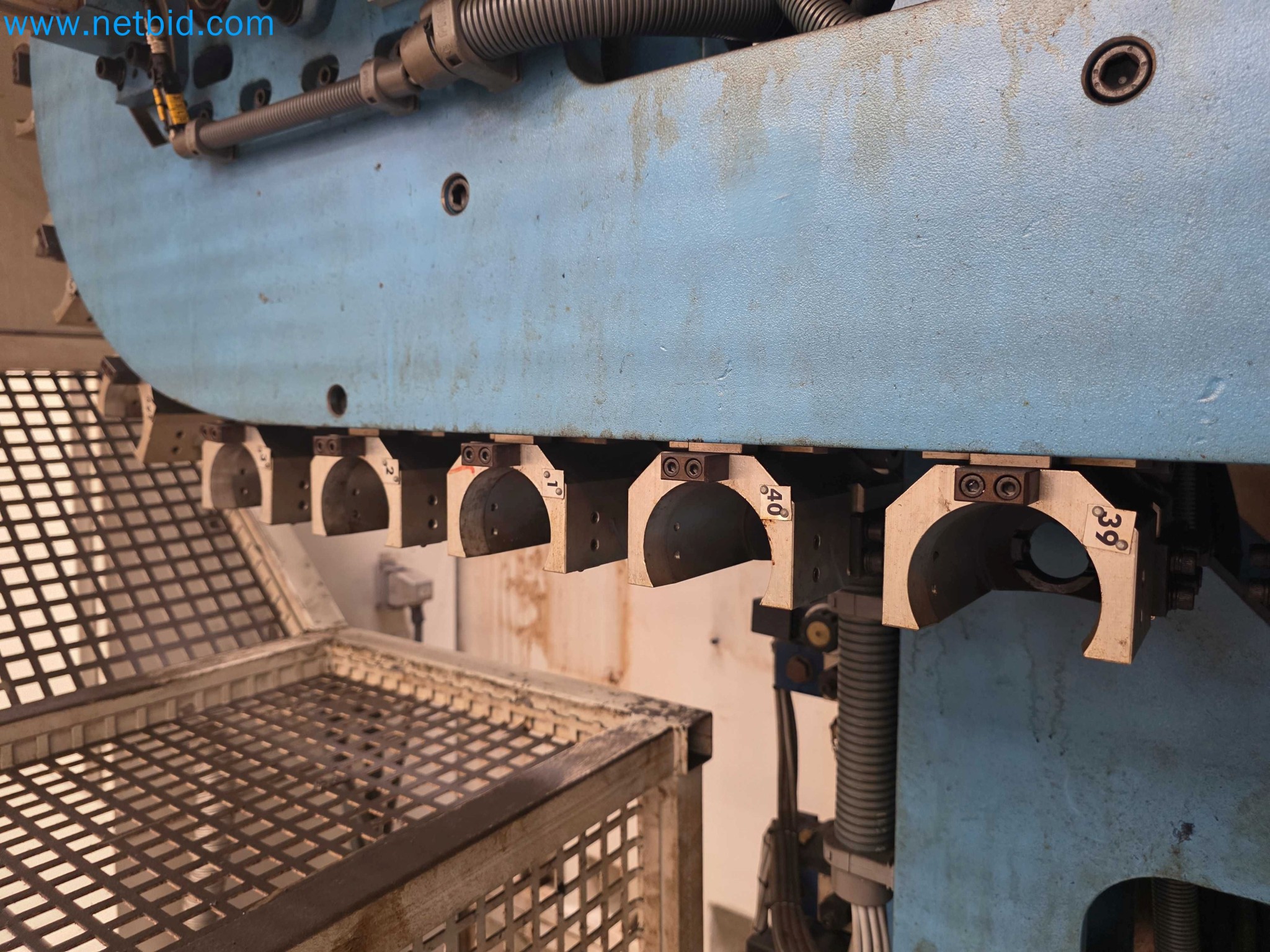

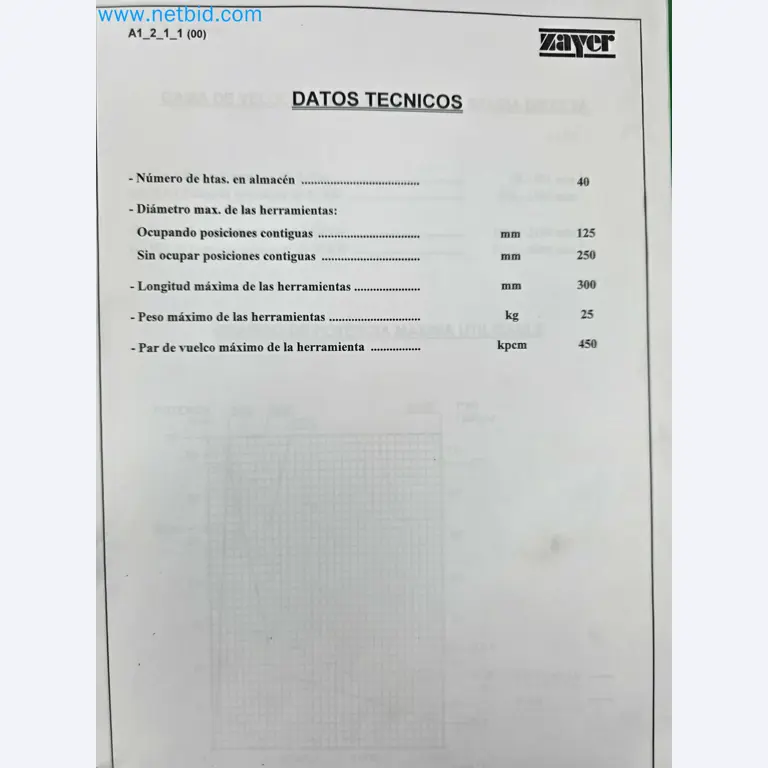

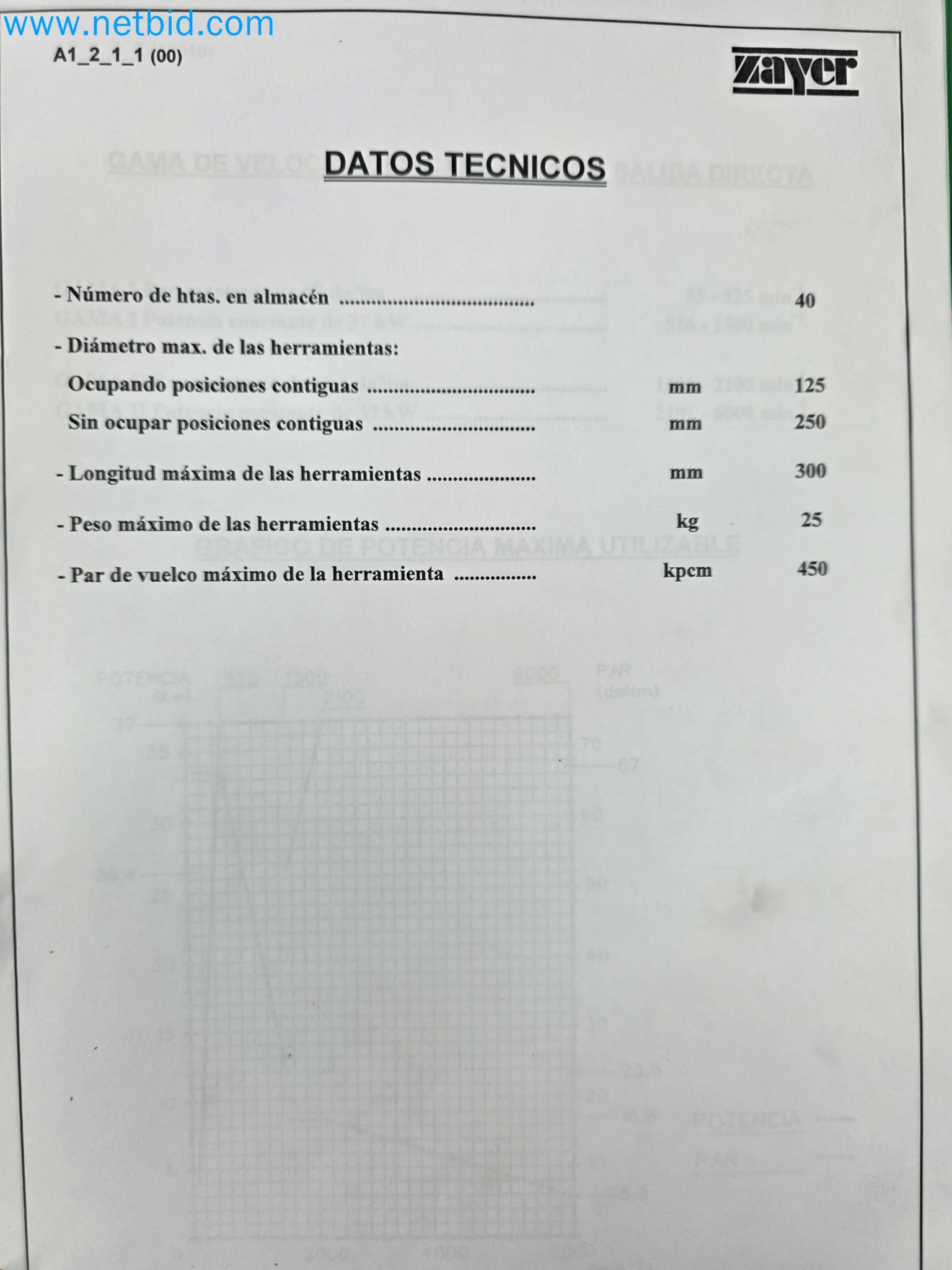

40-position tool magazine

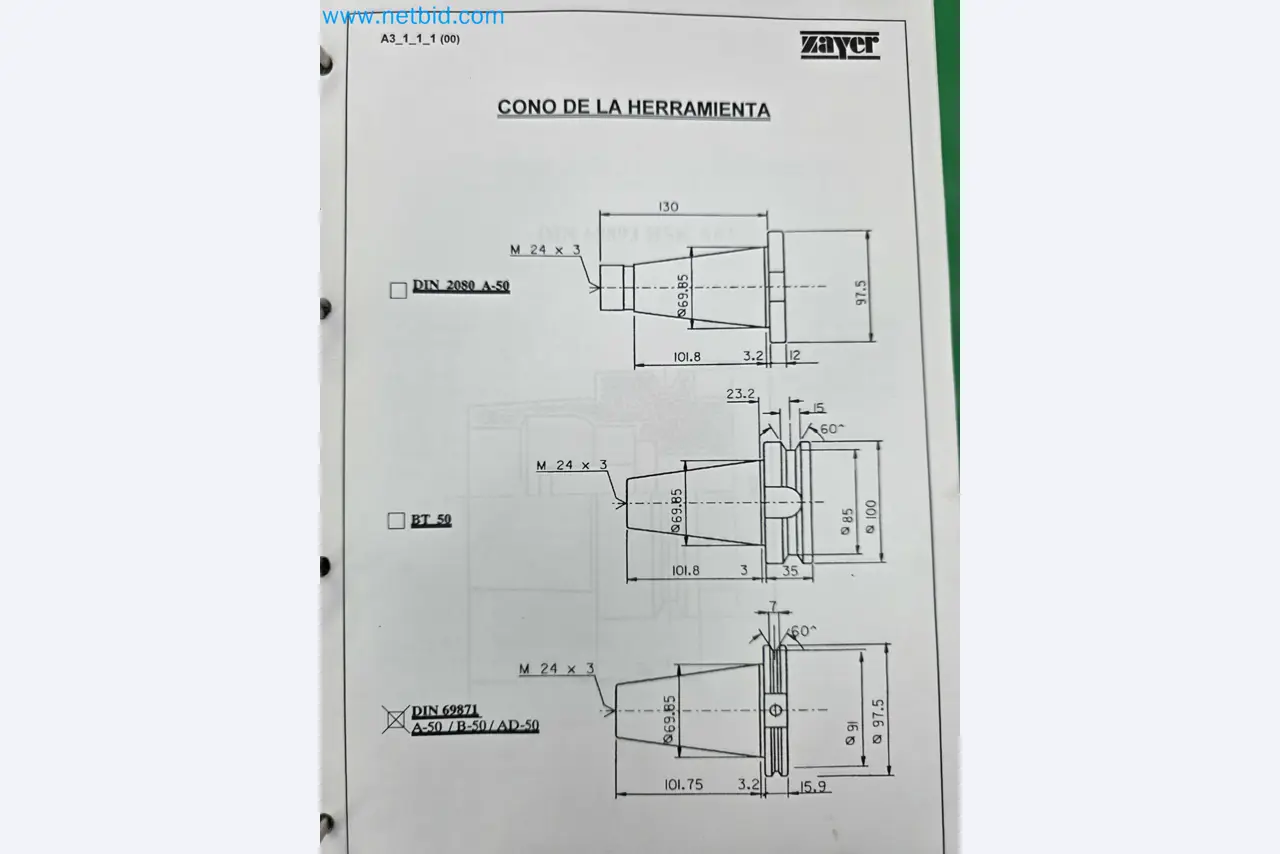

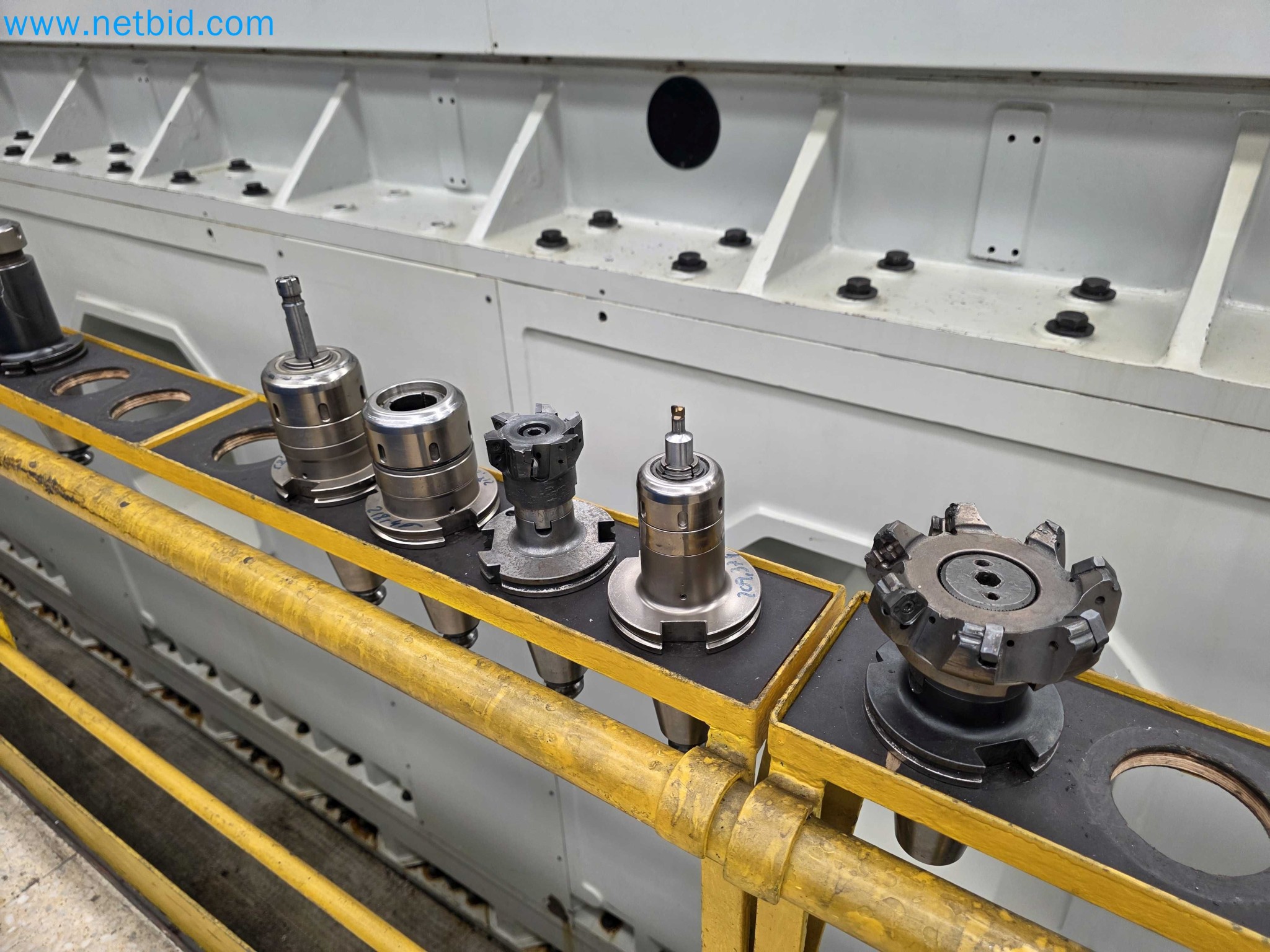

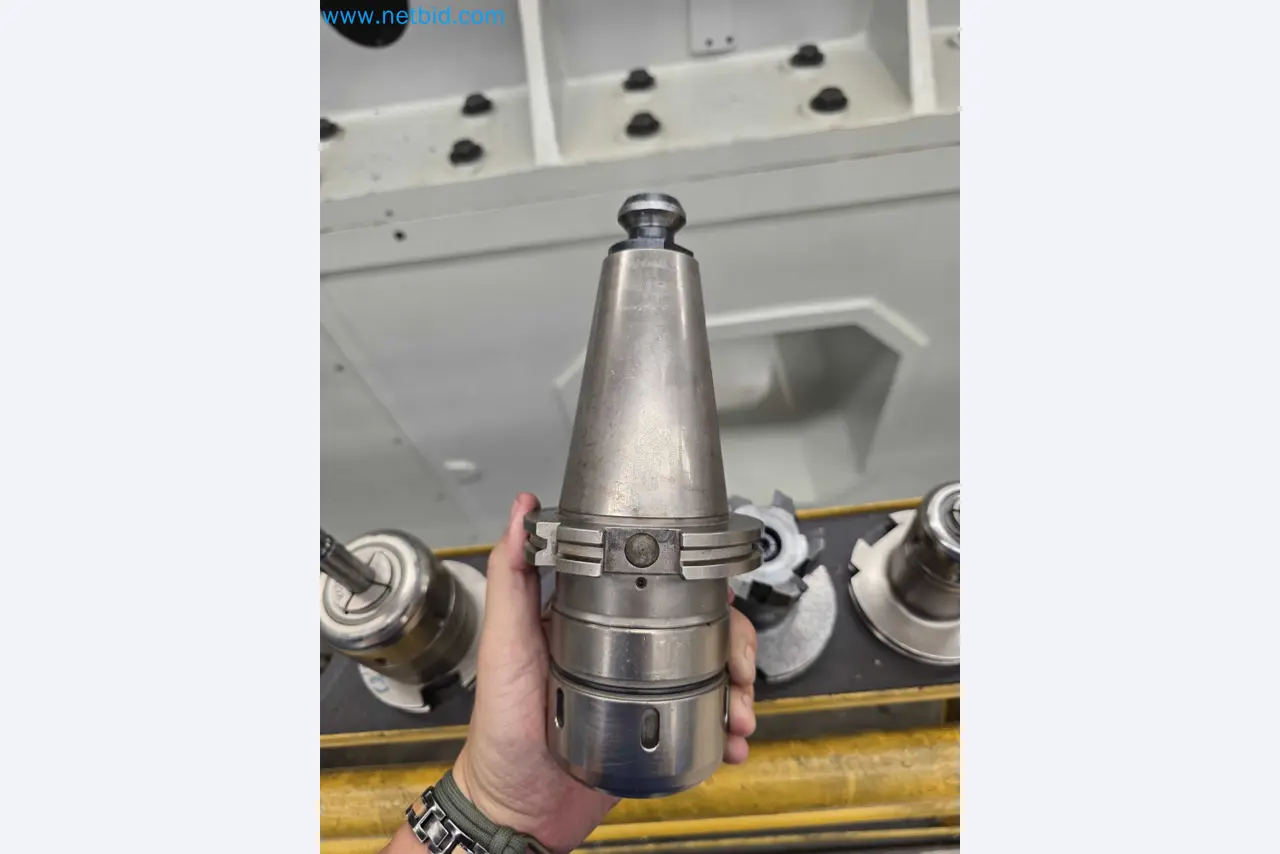

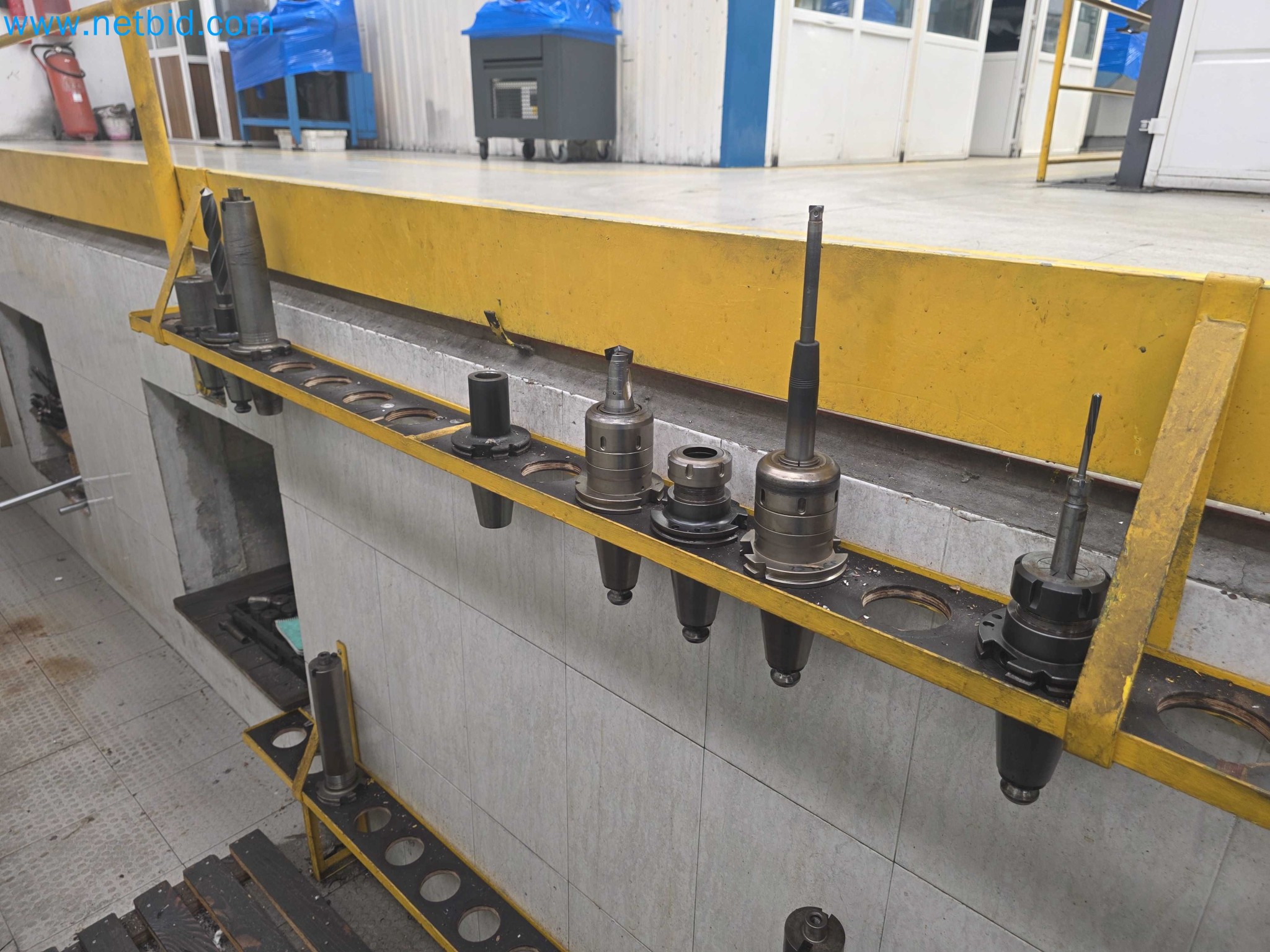

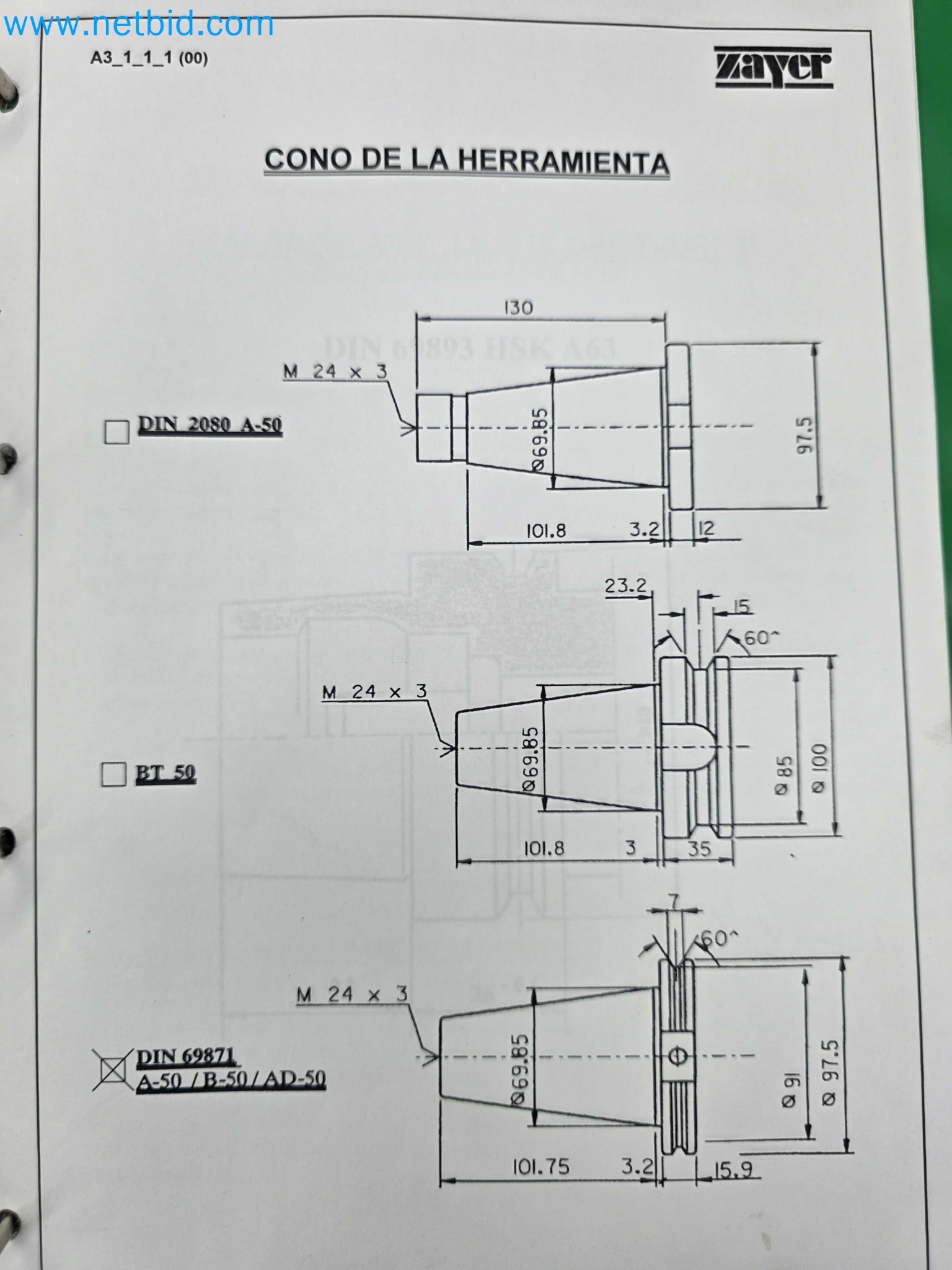

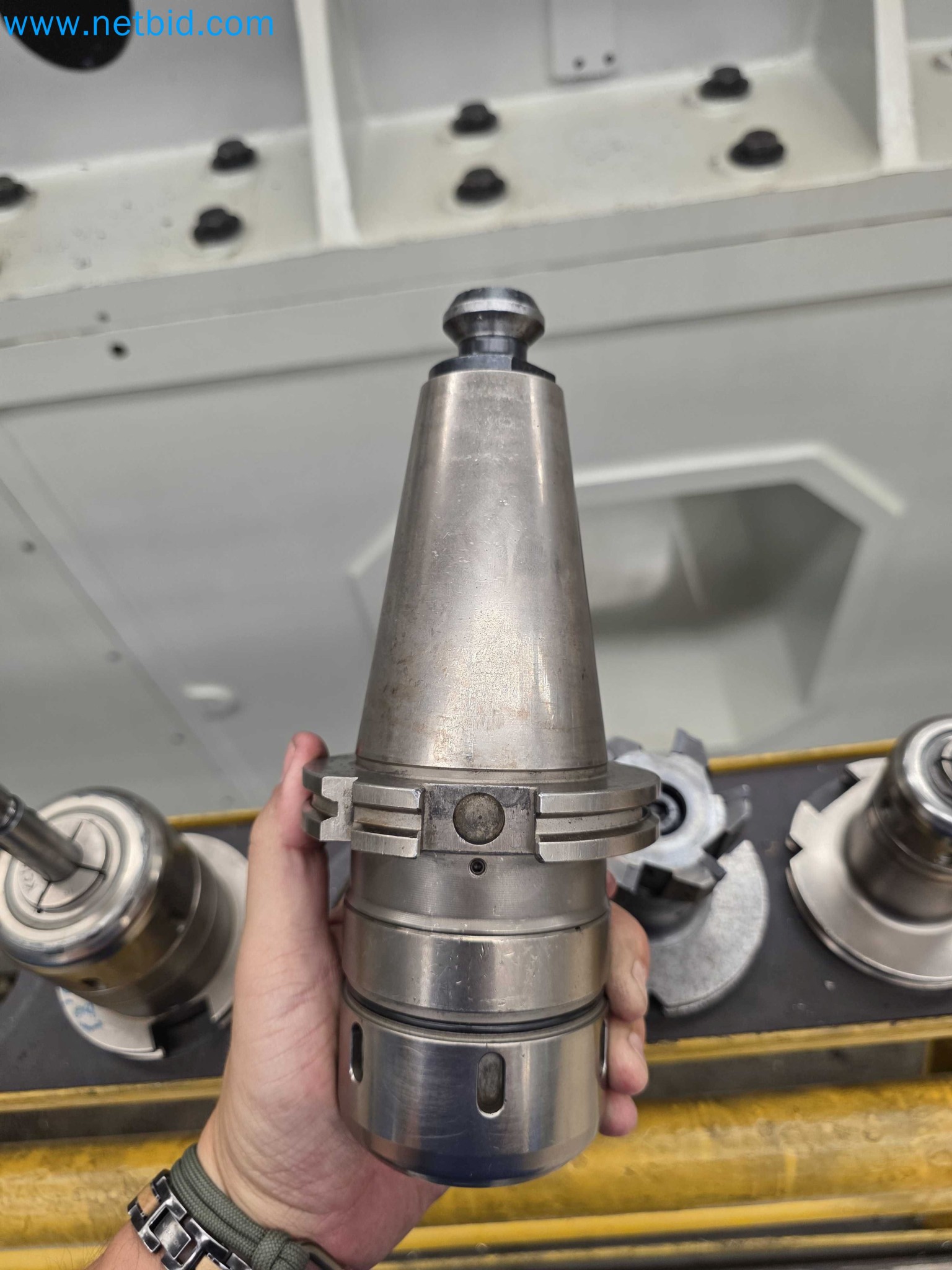

ISO-50 tool holders
Maximum table load: 15,000 kg (per m²)

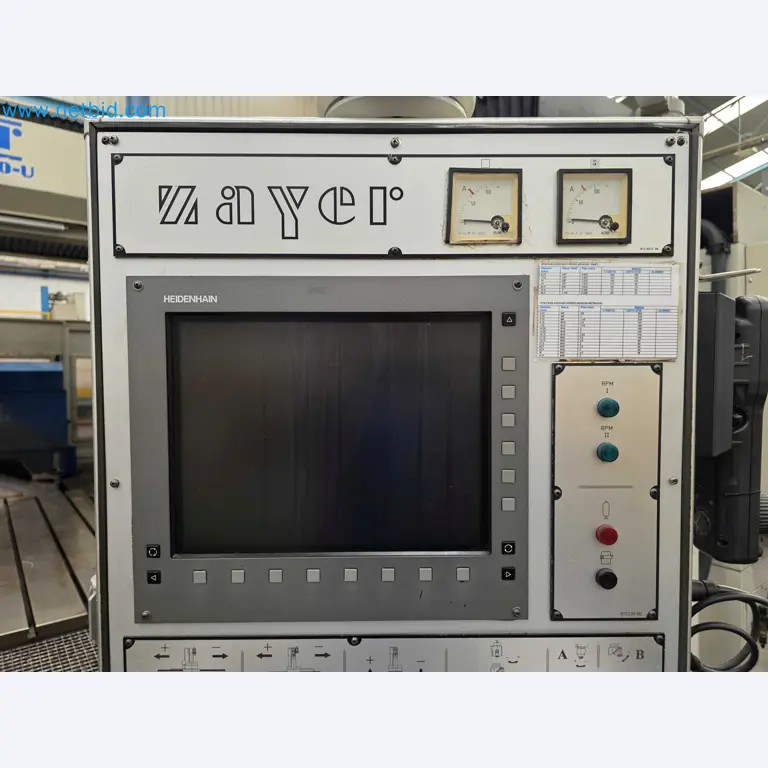

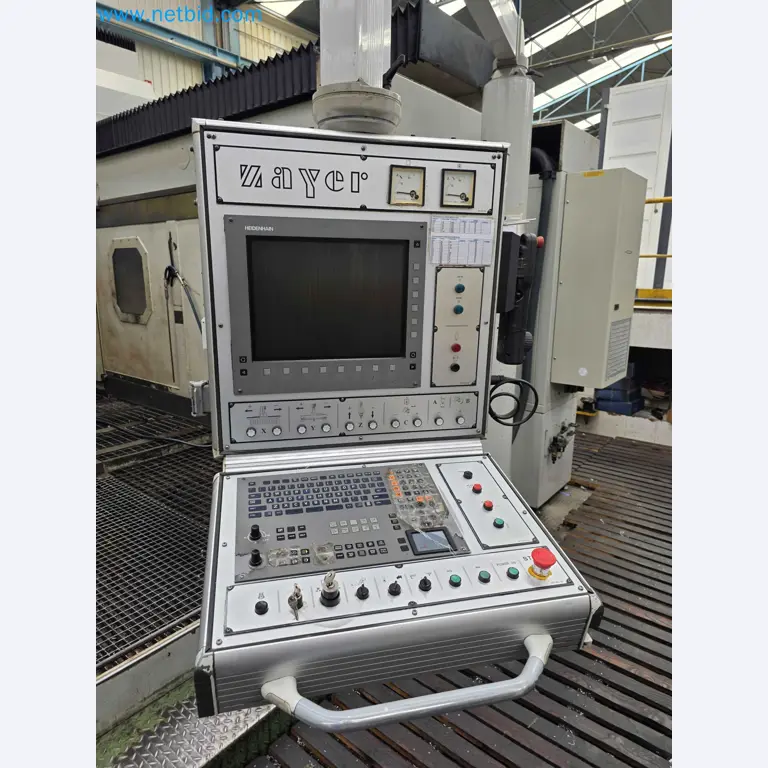

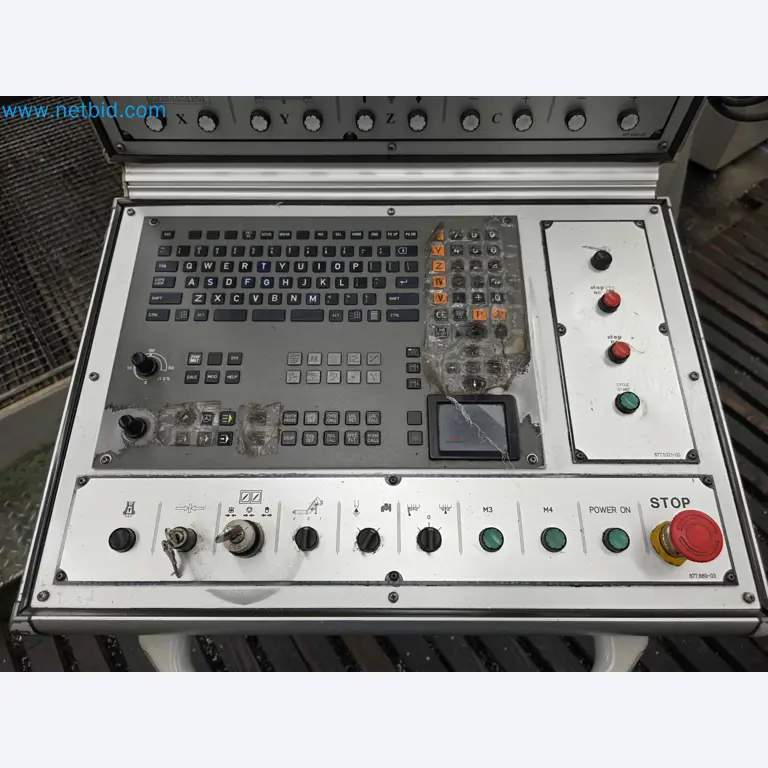

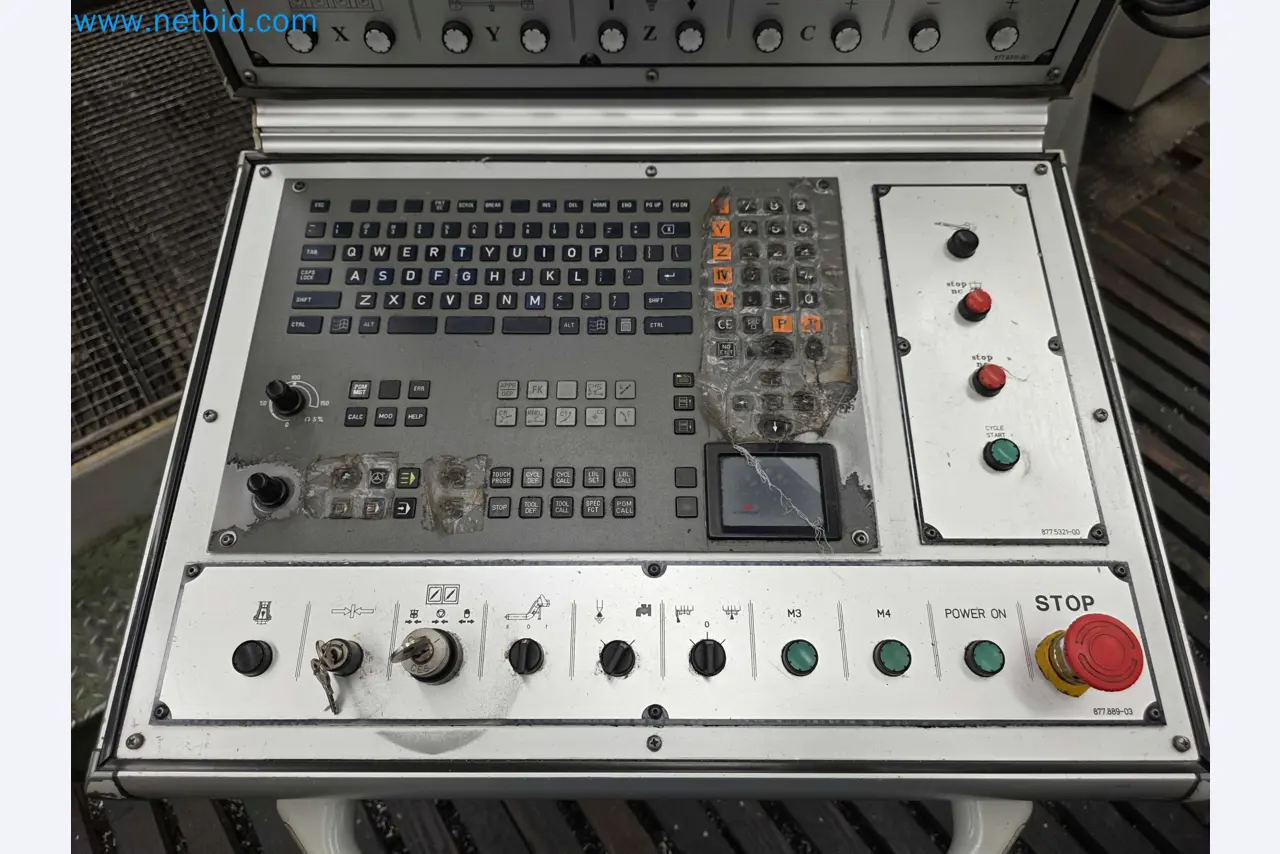

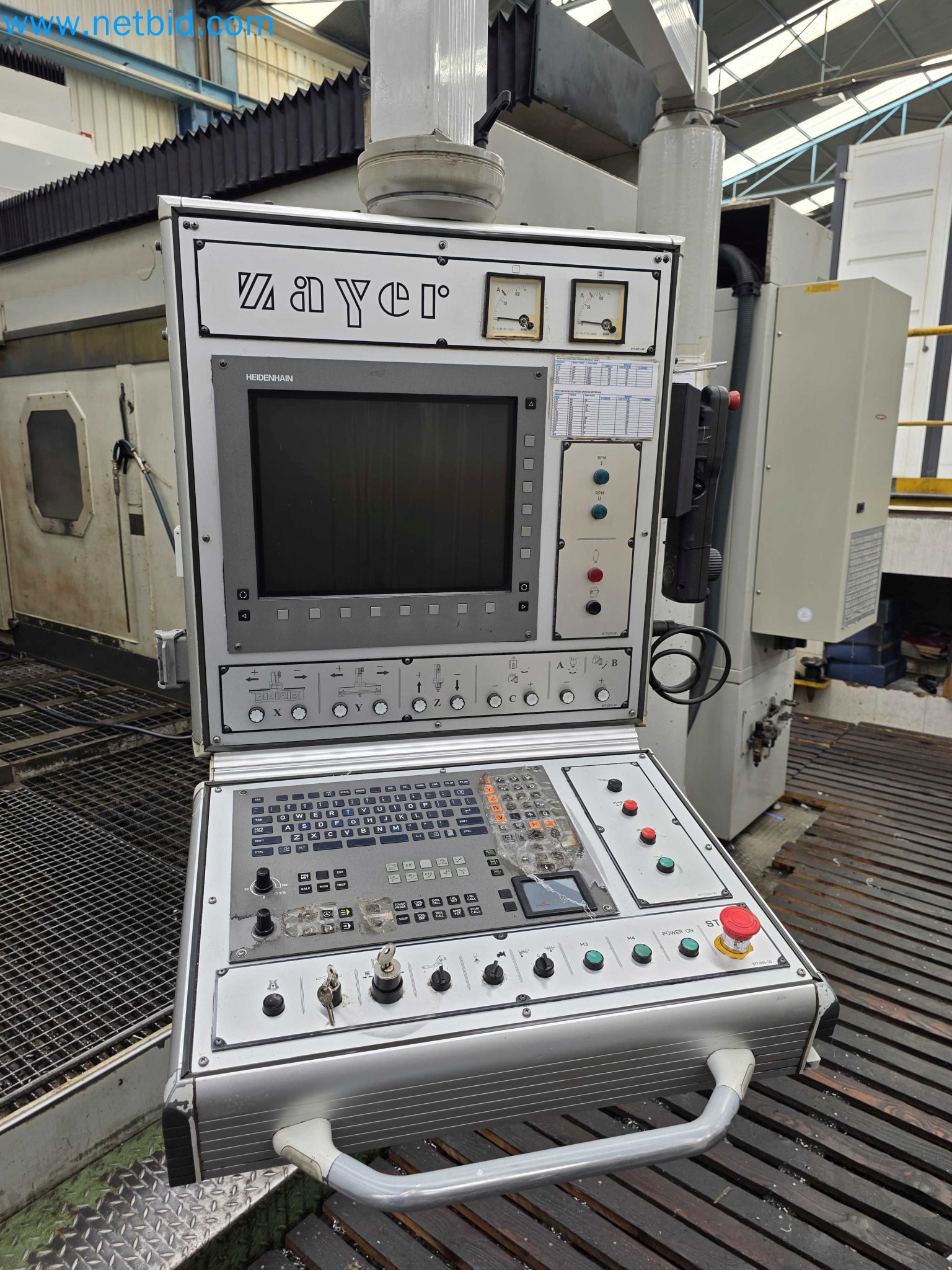

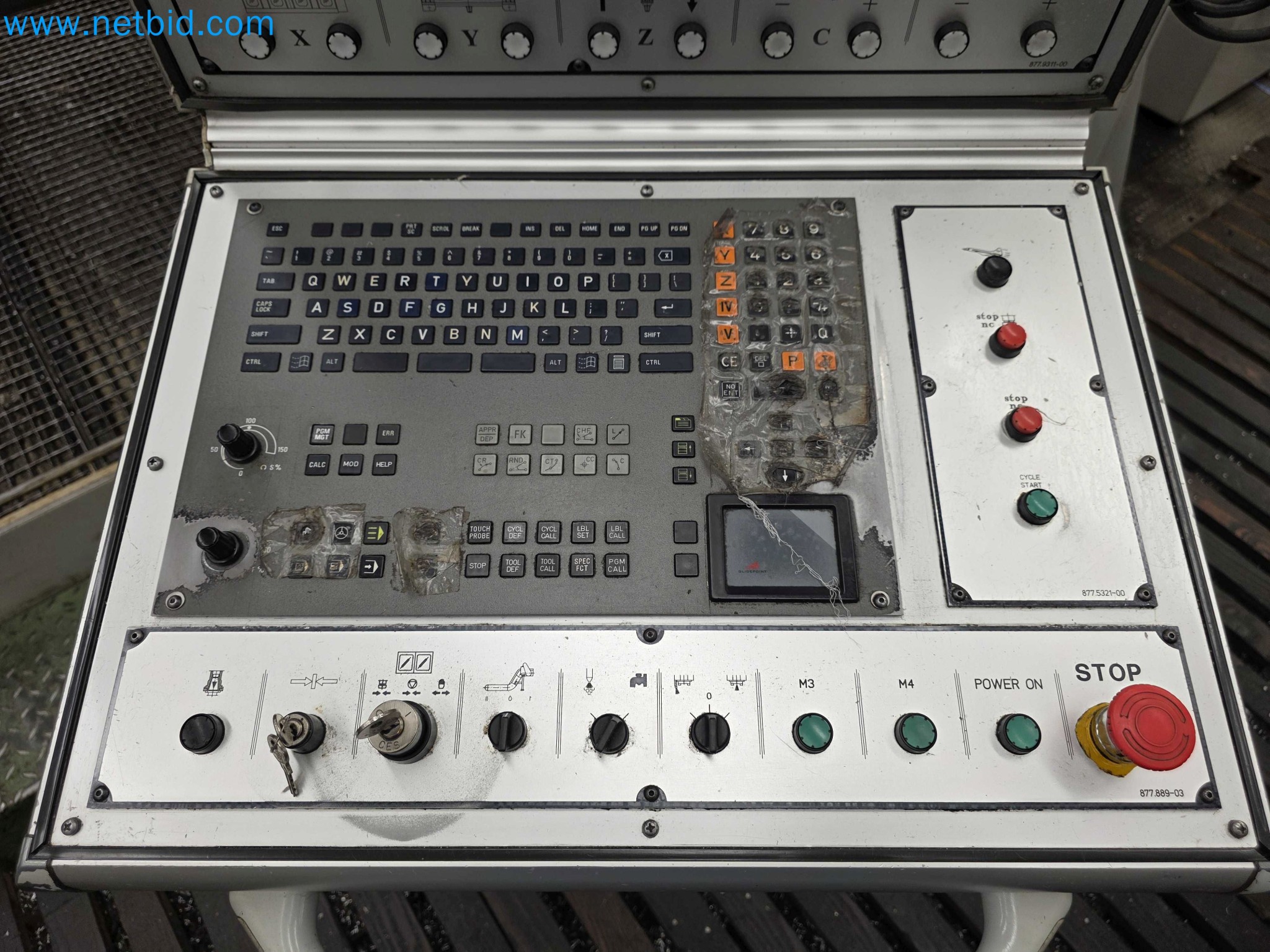

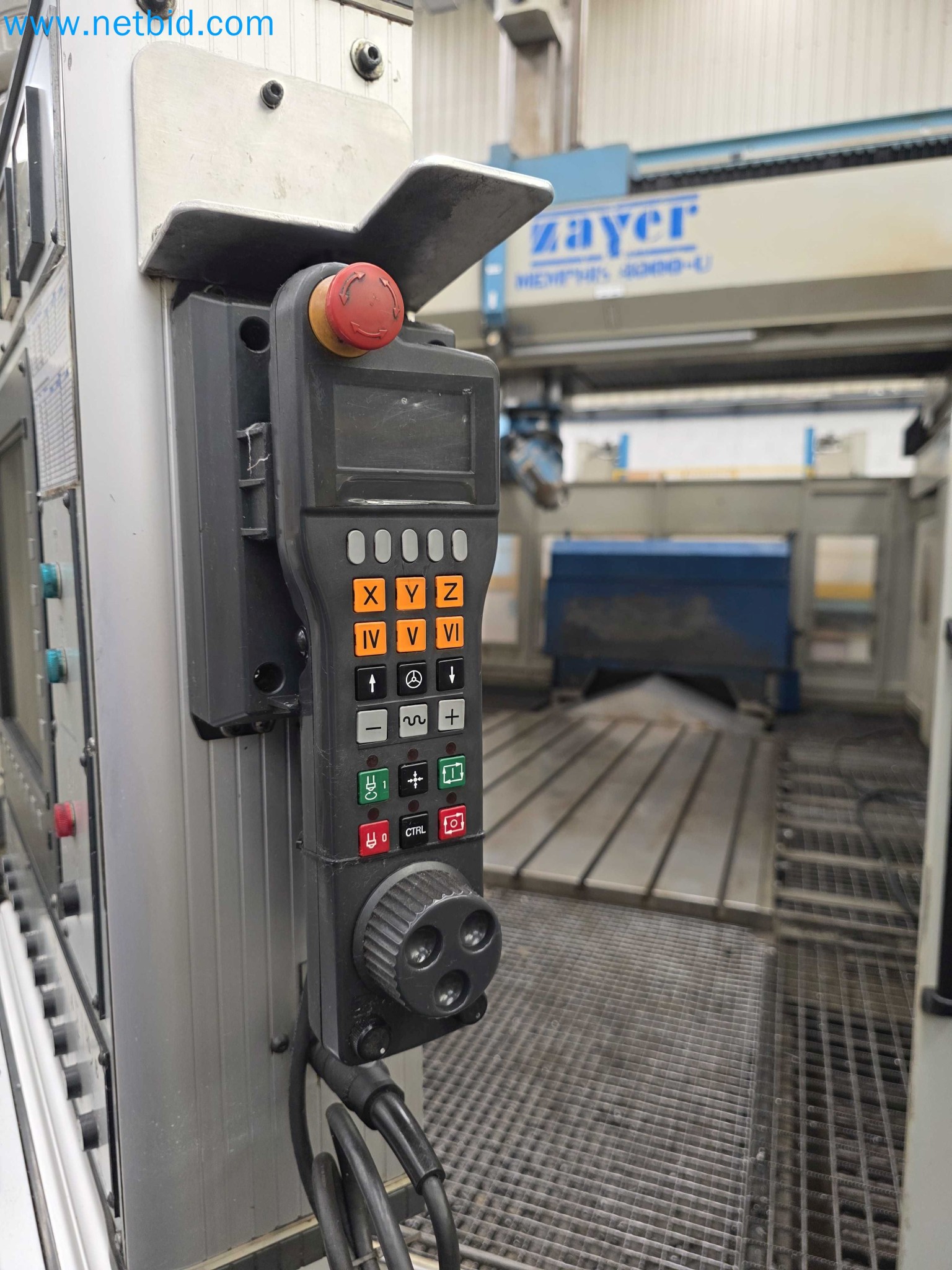

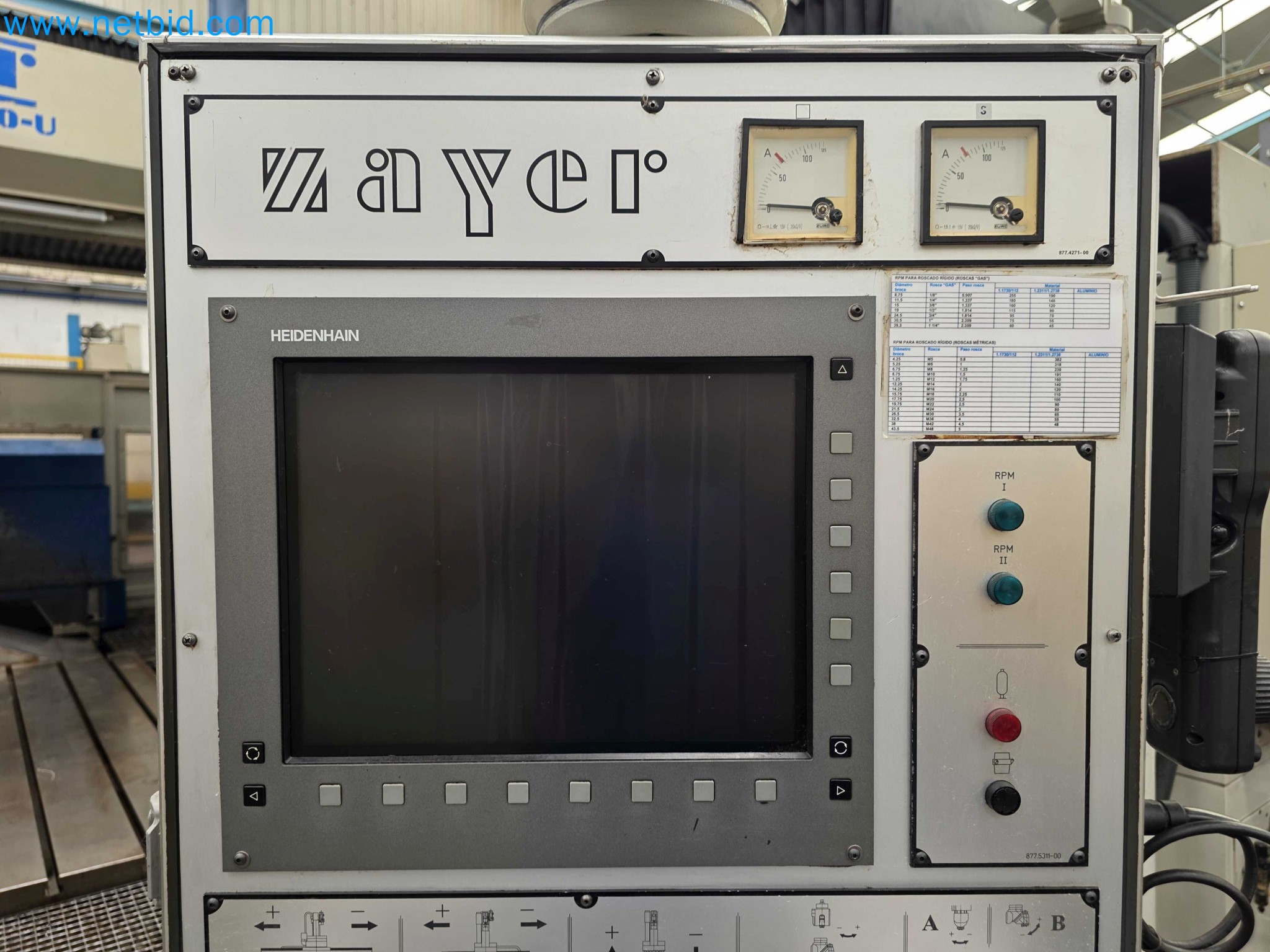

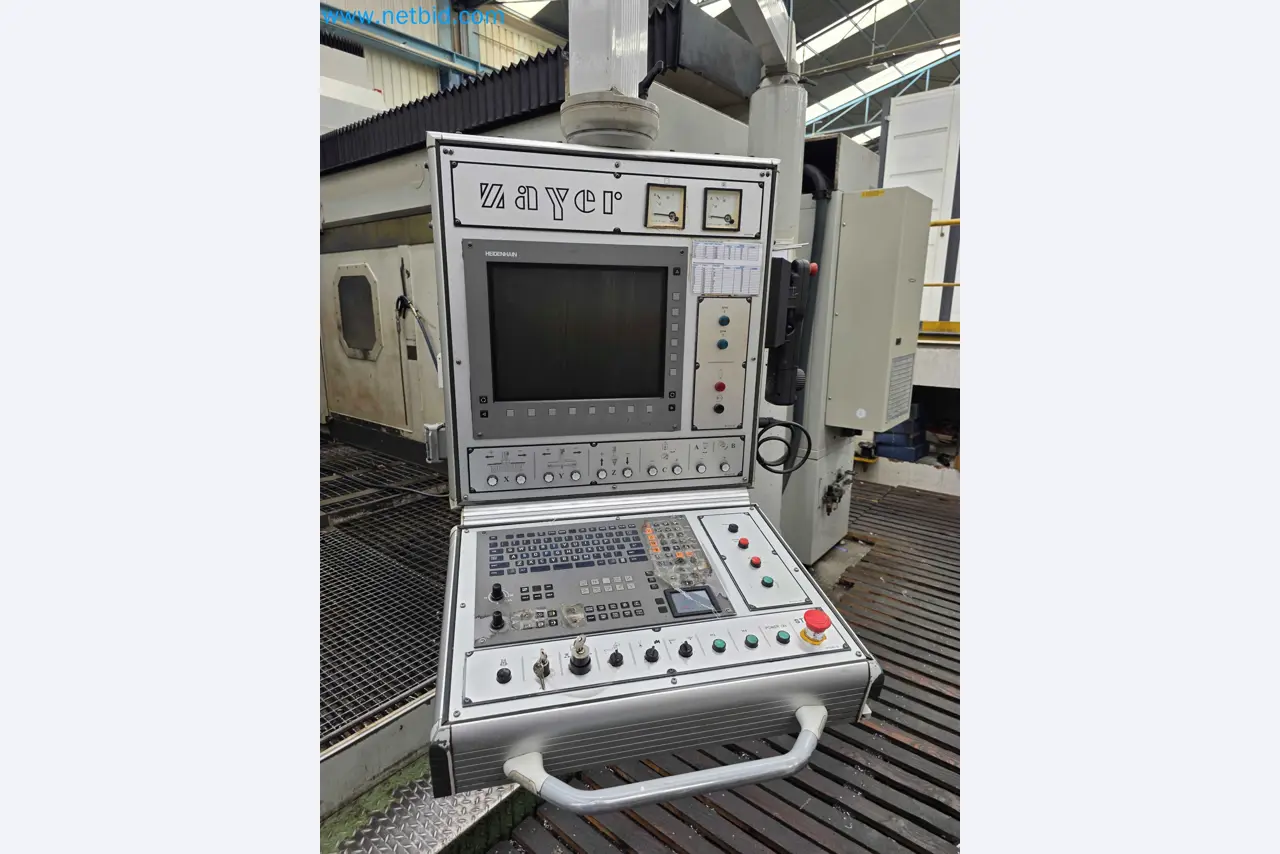

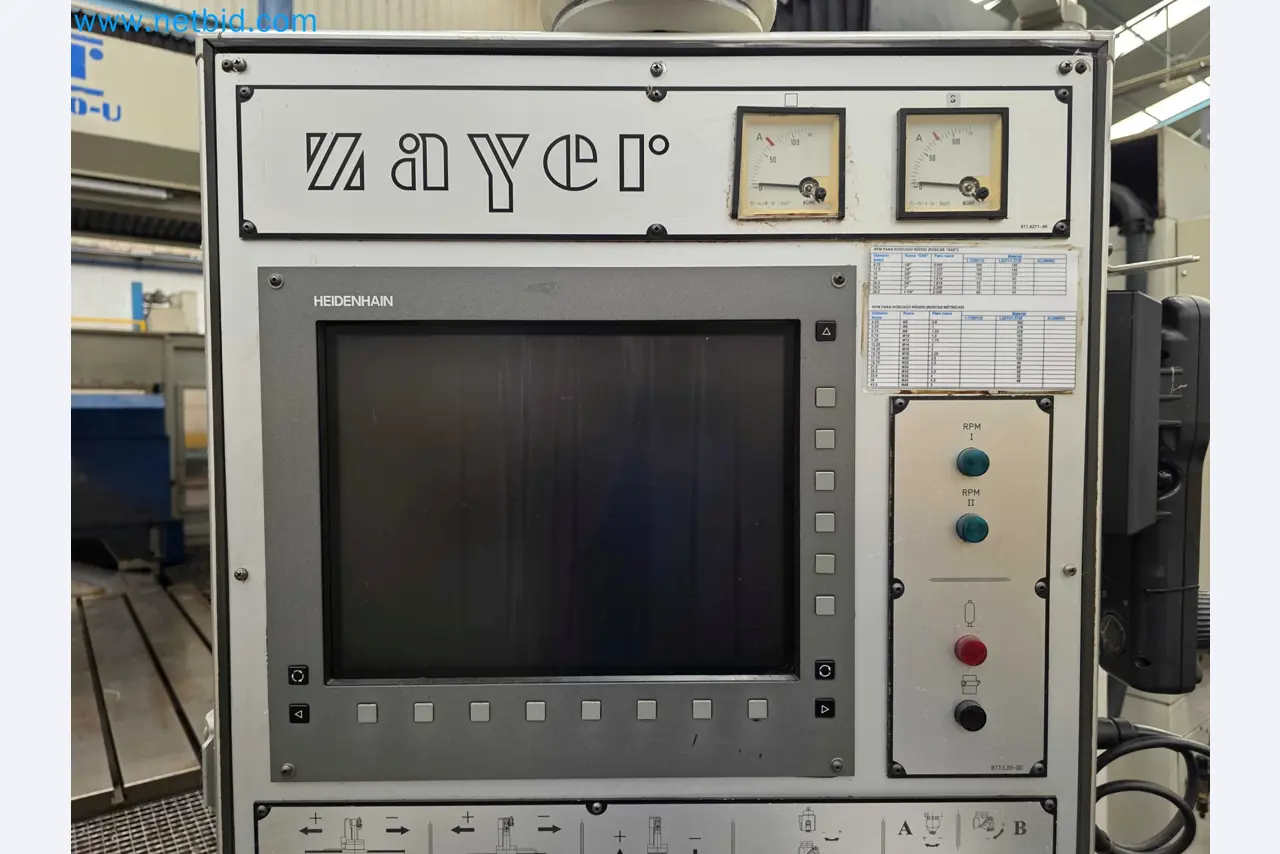

HEIDENHAIN iTNC-530 control
Approximate net weight: 55,000 kg
5-axis
Table dimensions: 3500 x 2000 mm
T-slot table with 8 slots, 28 mm wide
Travels:
· X-axis: 4000 mm
· Y-axis: 2900 mm
· Z-axis: 1250 mm
Distance between columns: 3850 mm
Maximum spindle speed: 6000 rpm
Spindle motor power: 37 kW
Working feed rates: 6–20,000 mm/min
Rapid traverse:
· X/Y axes: 40,000 mm/min
· Z-axis: 30,000 mm/min
Automatic 45° head with 360,000 positions, positioning in increments of 0.001°
Maximum distance from table surface to spindle nose: 1795 mm
40-position tool magazine
ISO-50 tool holders
Maximum table load: 15,000 kg (per m²)
HEIDENHAIN iTNC-530 control
Approximate net weight: 55,000 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
