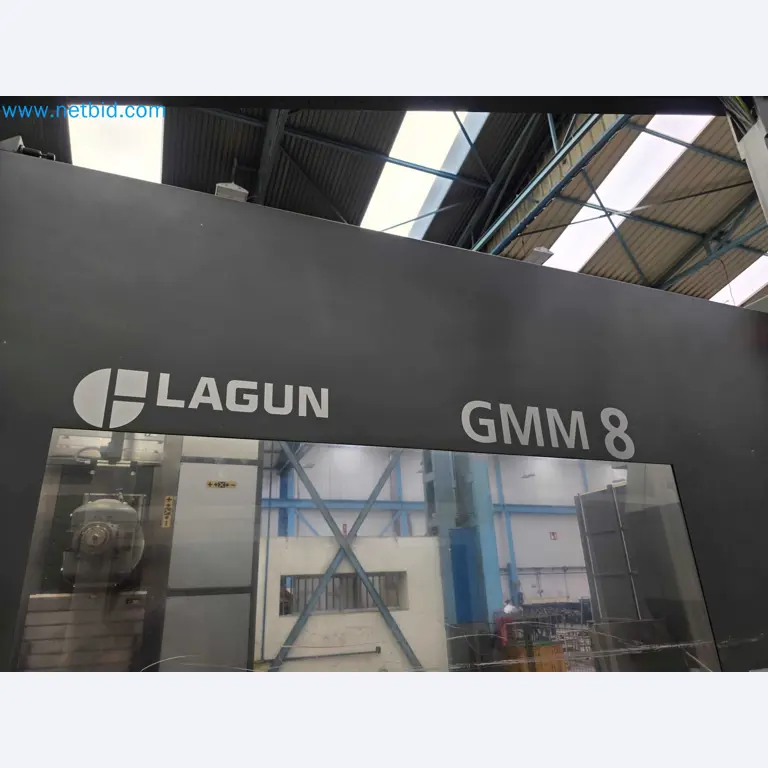

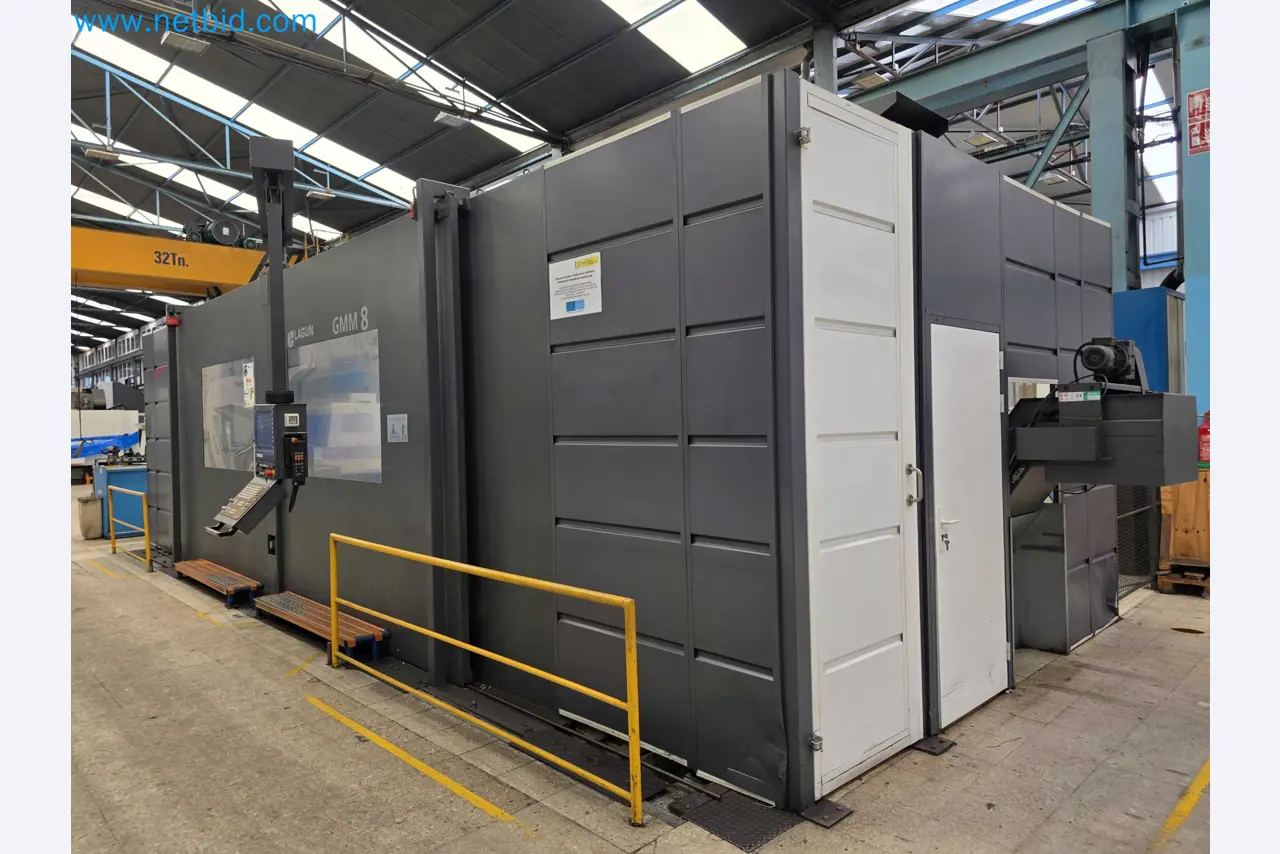

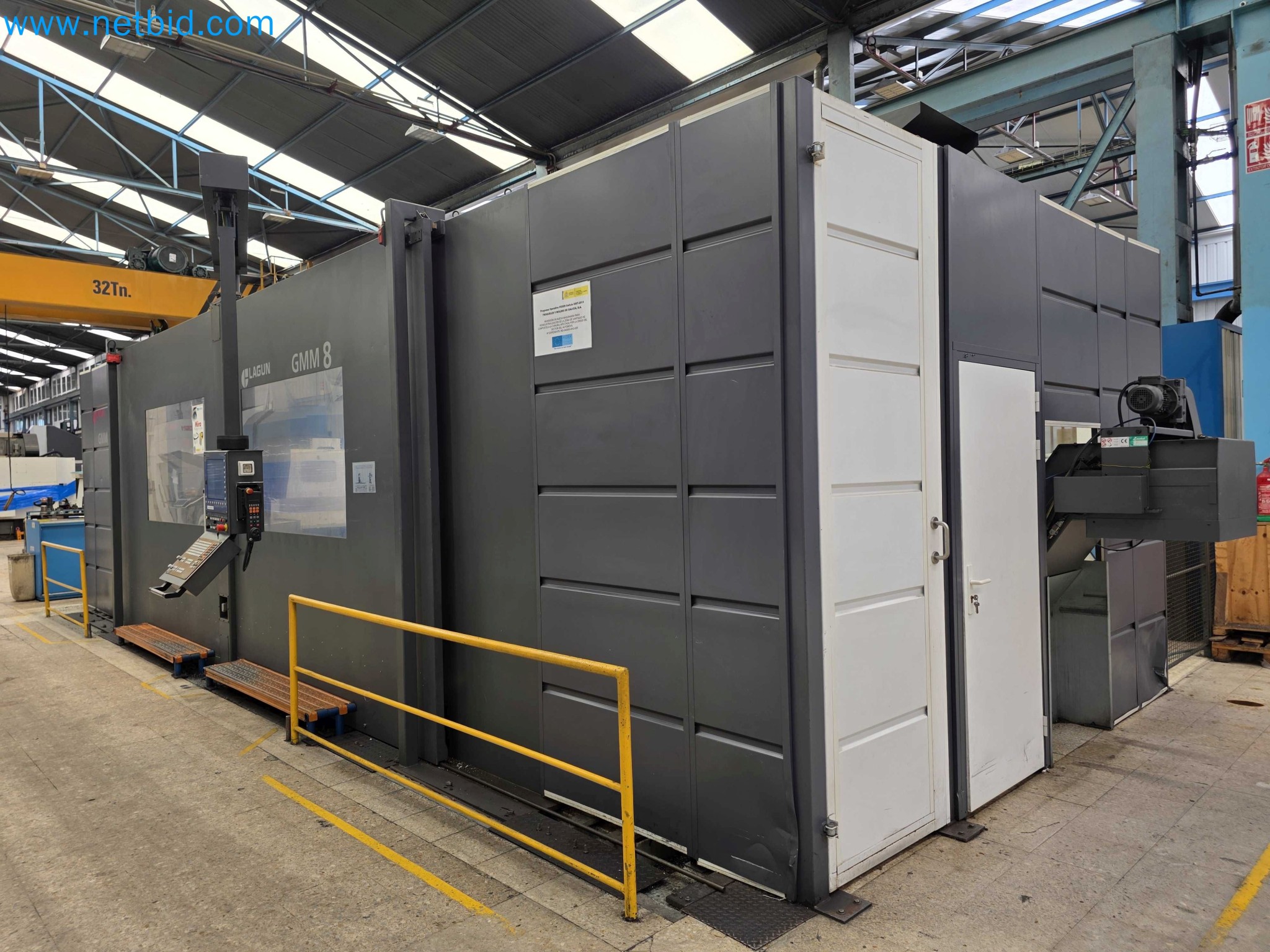

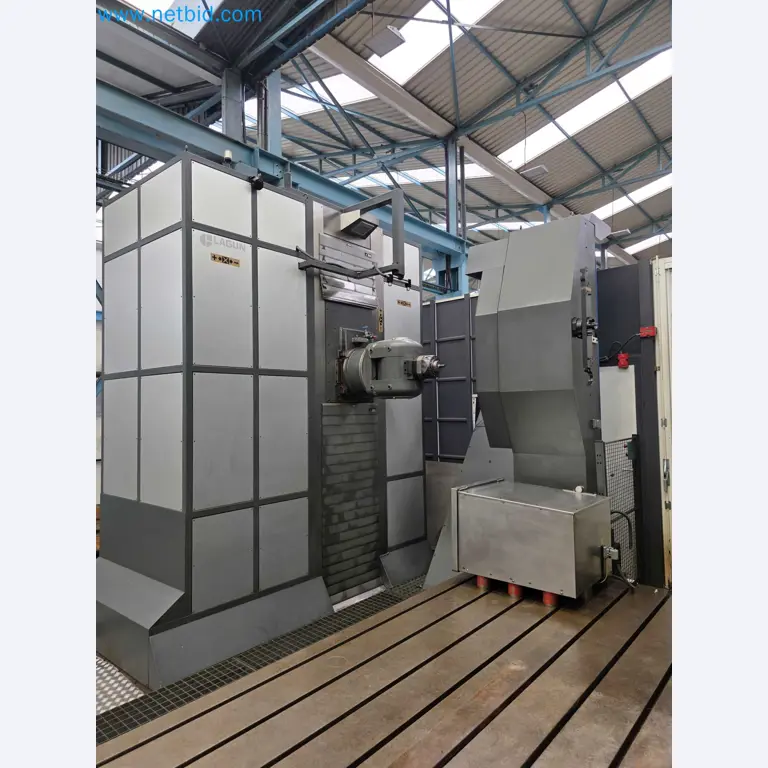

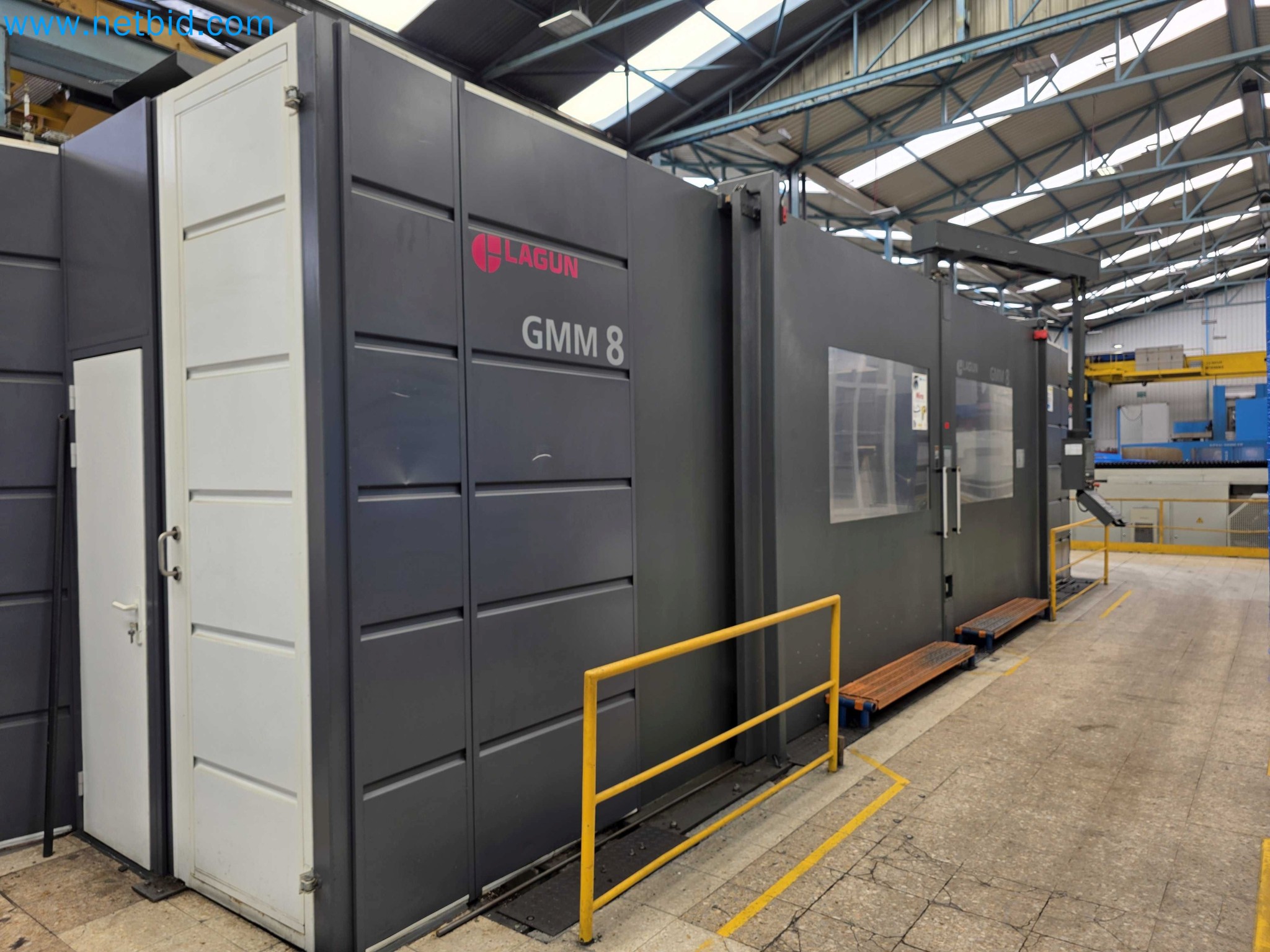

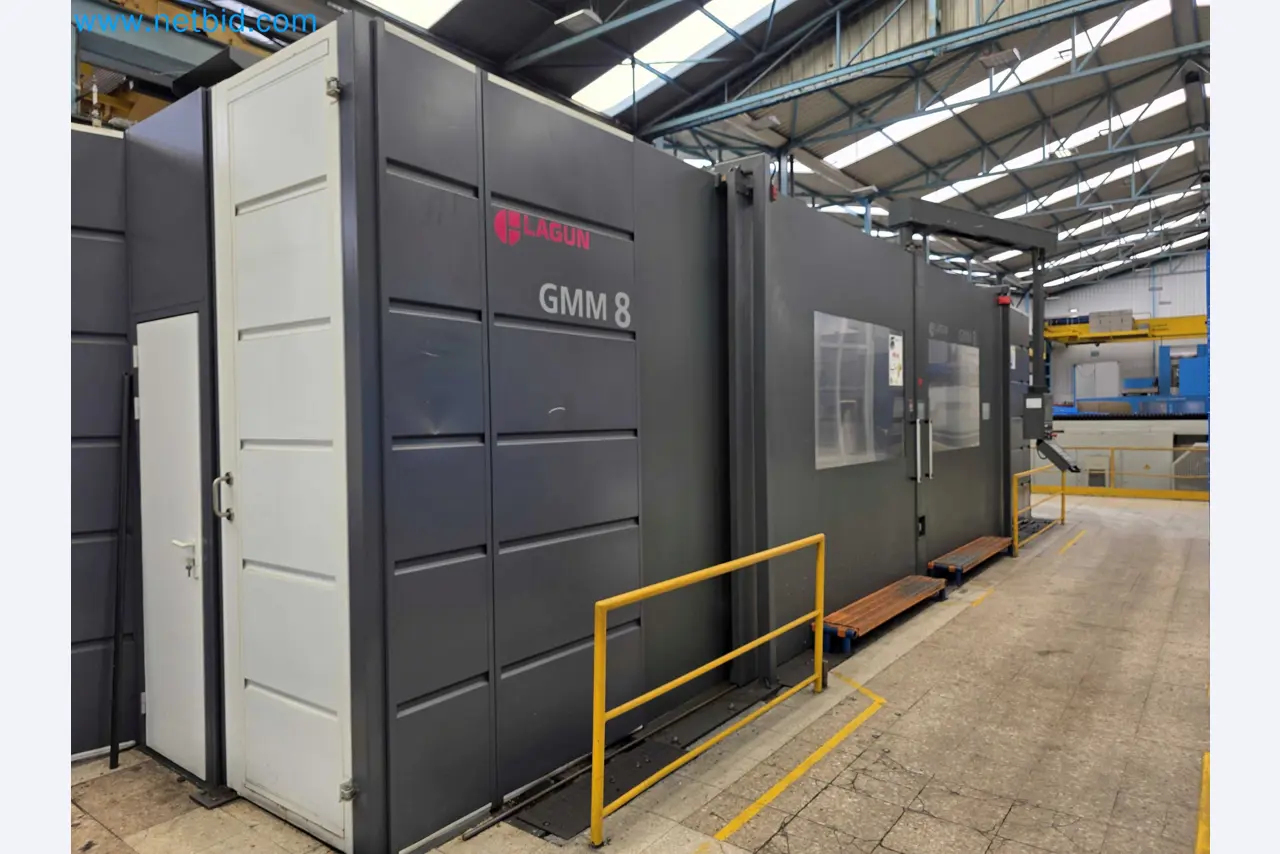

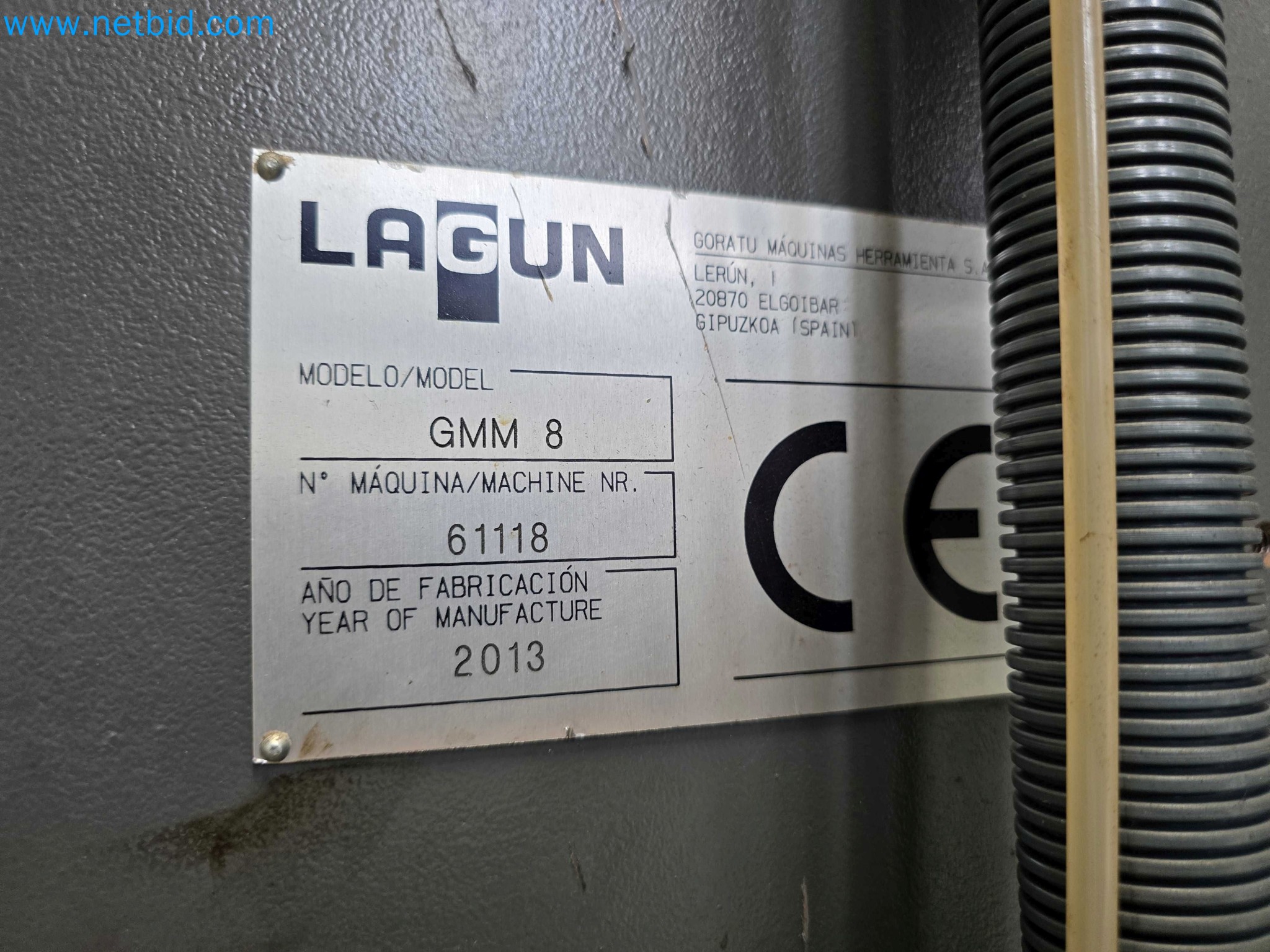

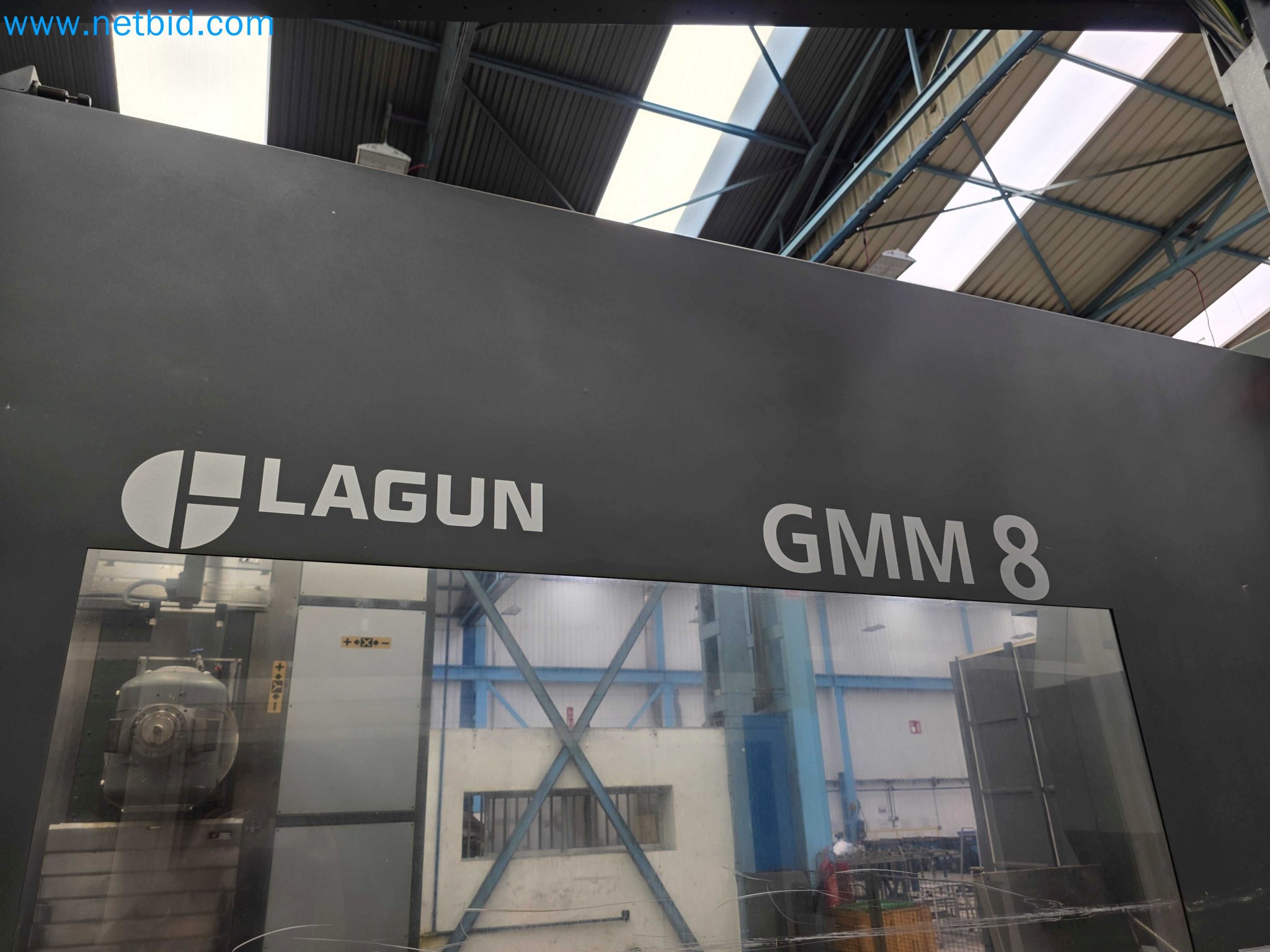

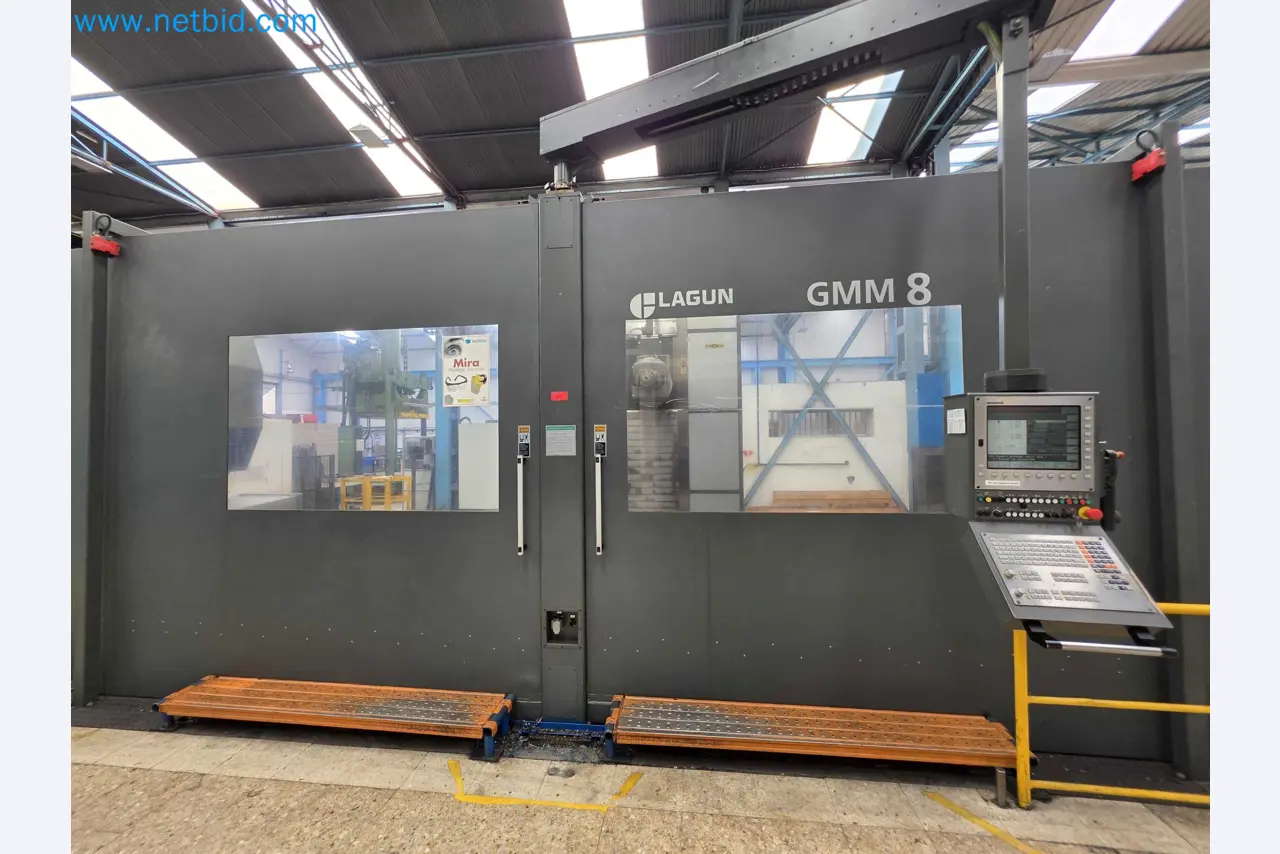

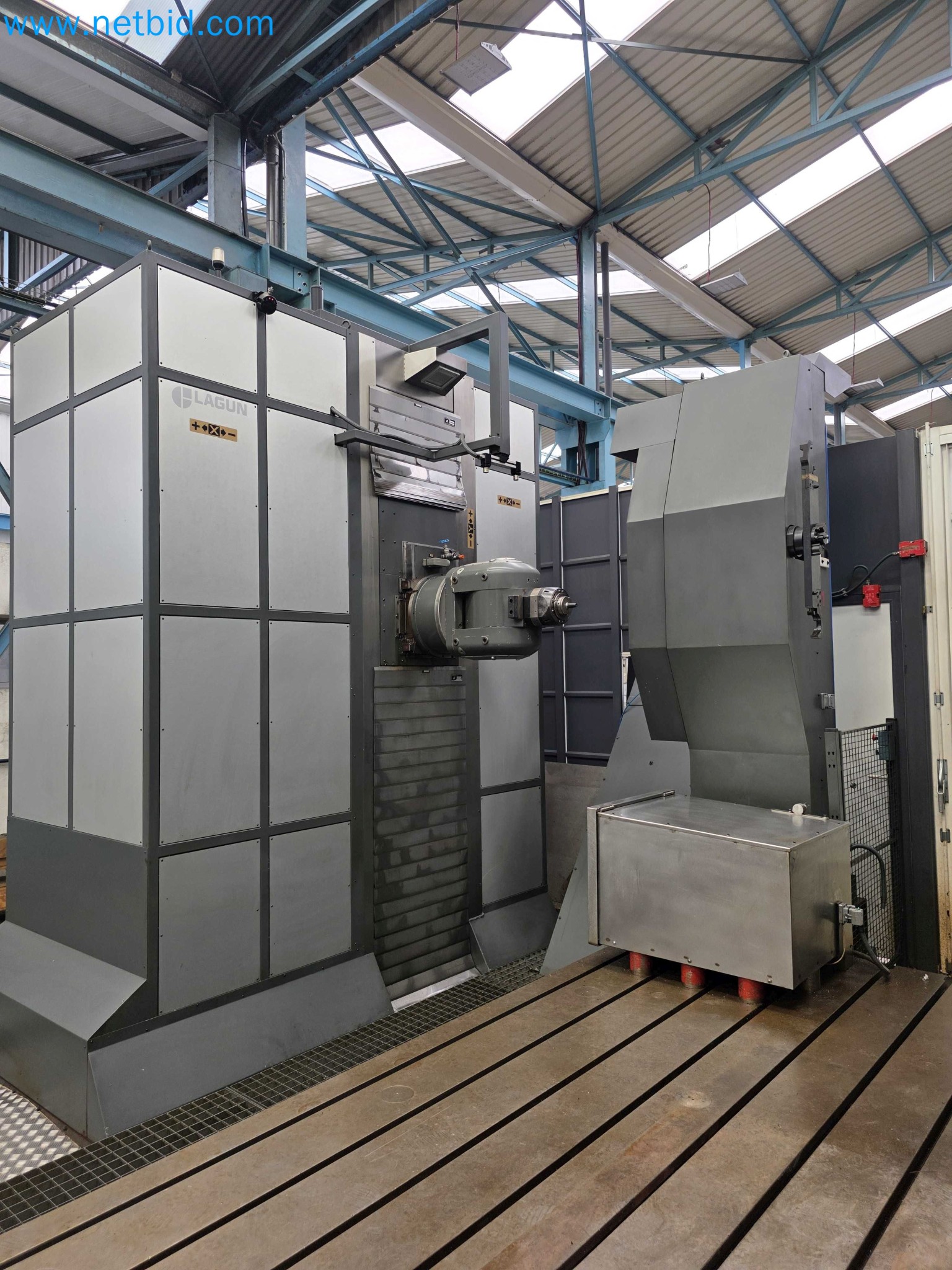

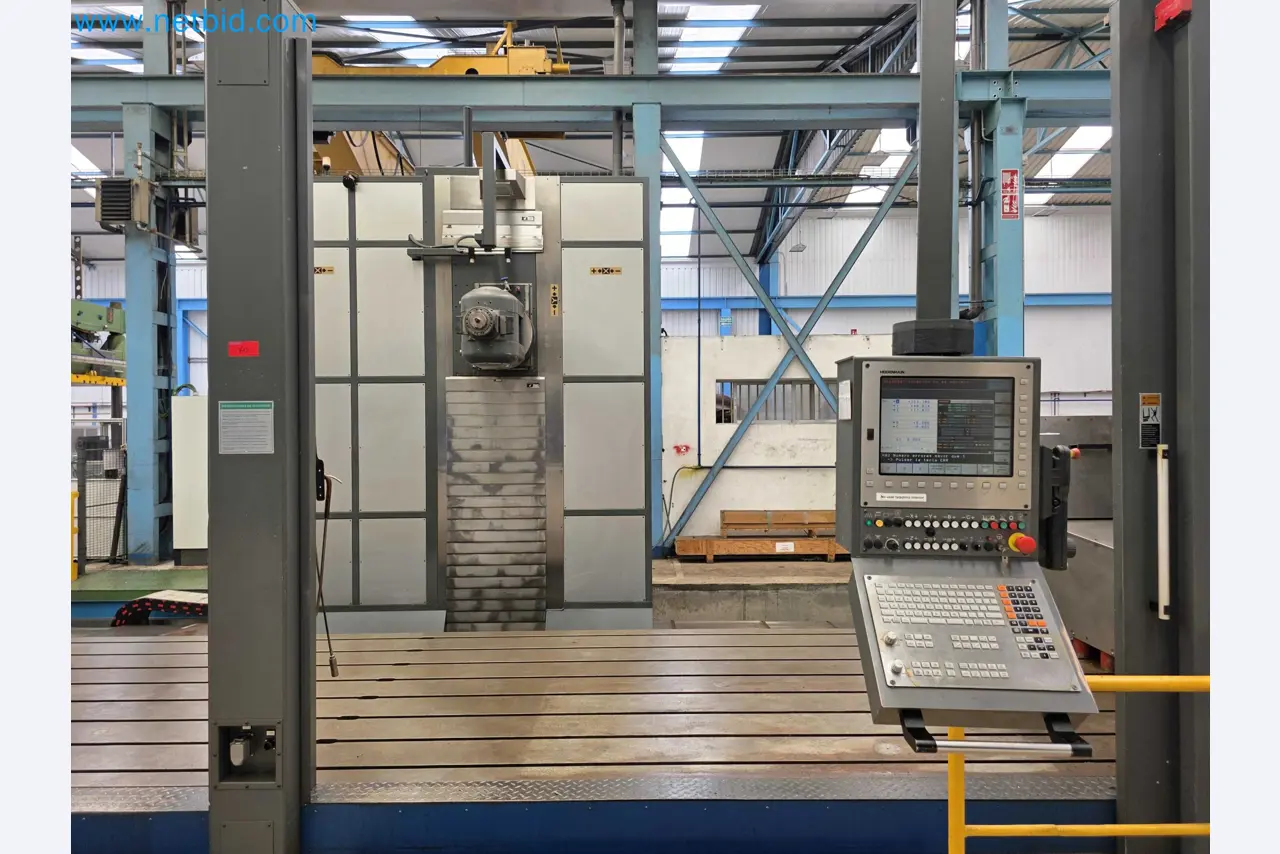

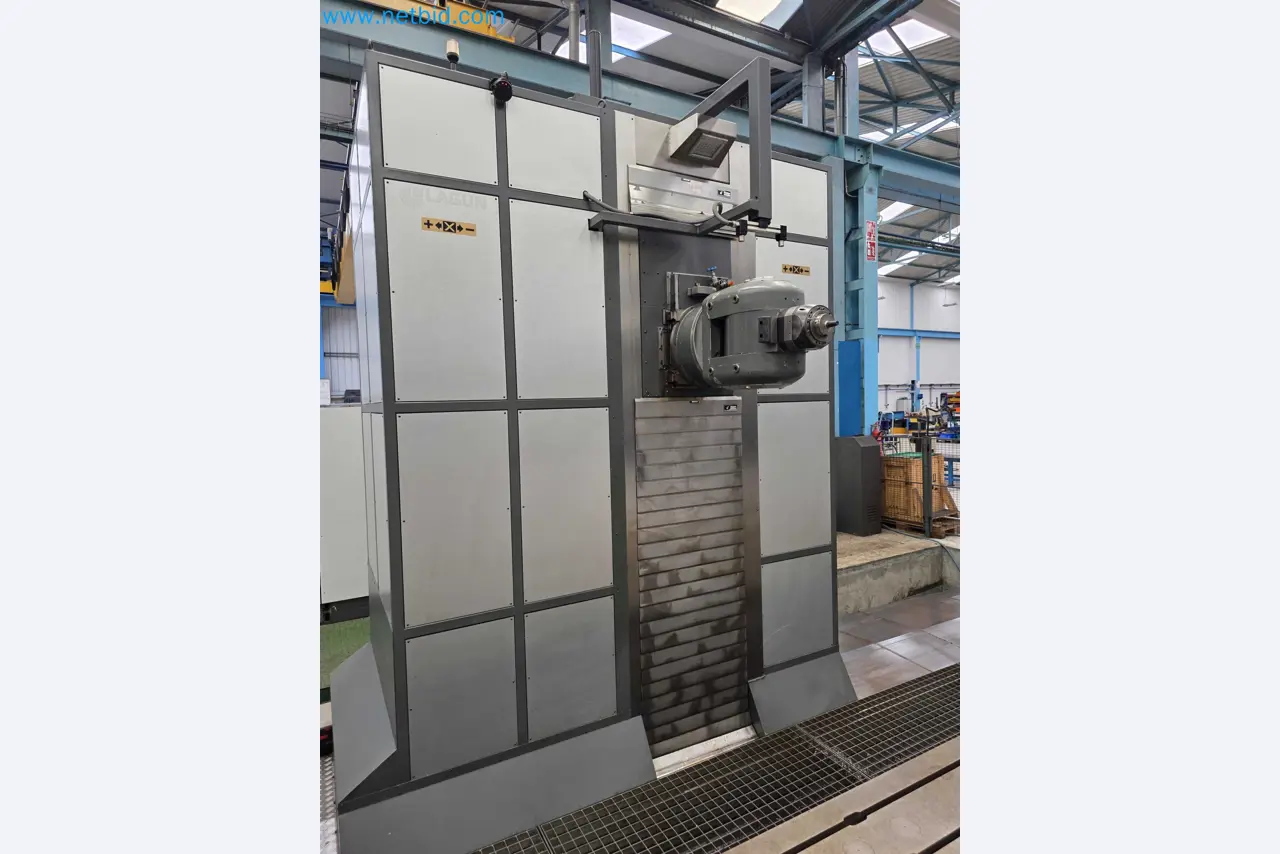

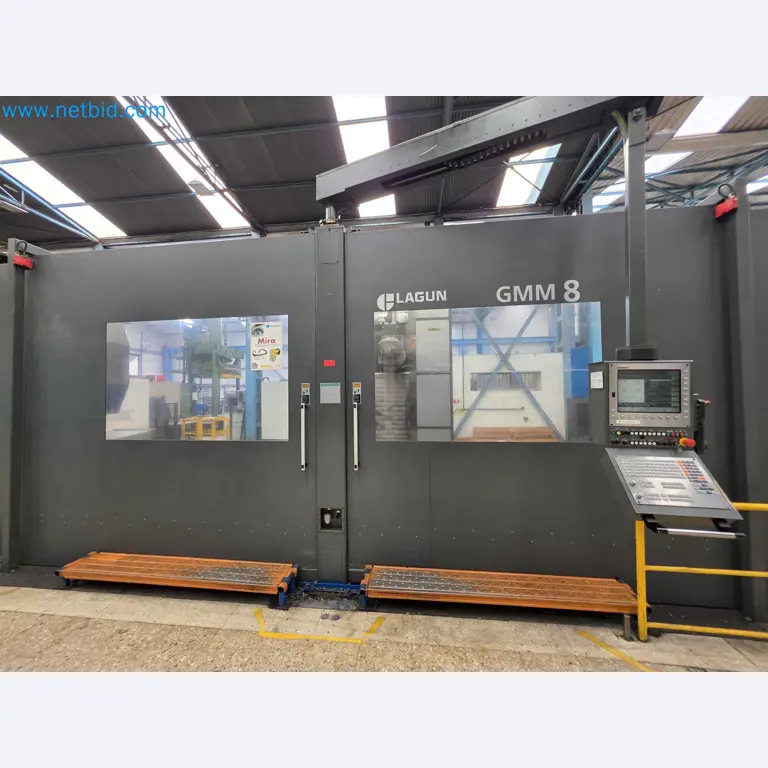

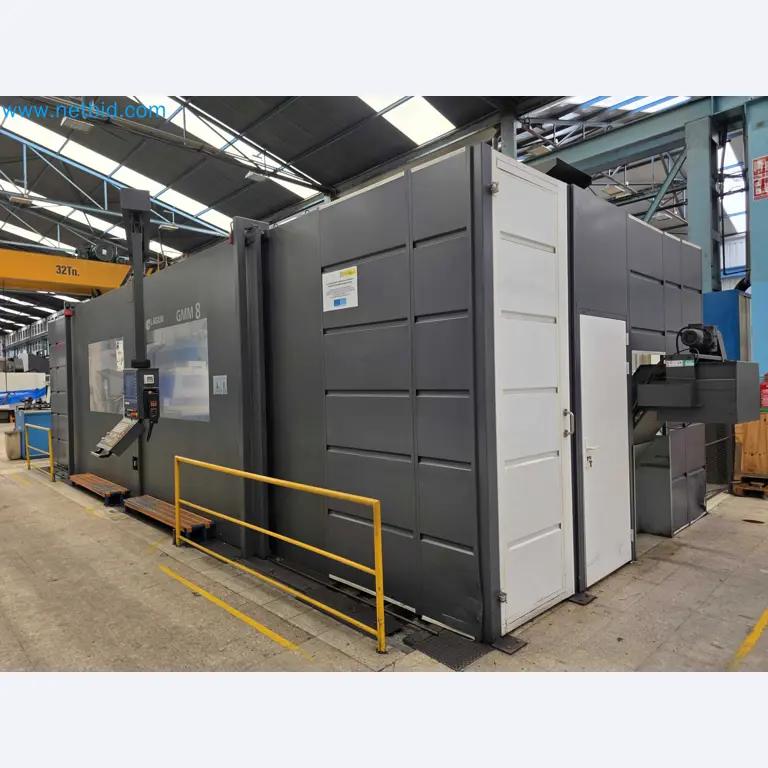

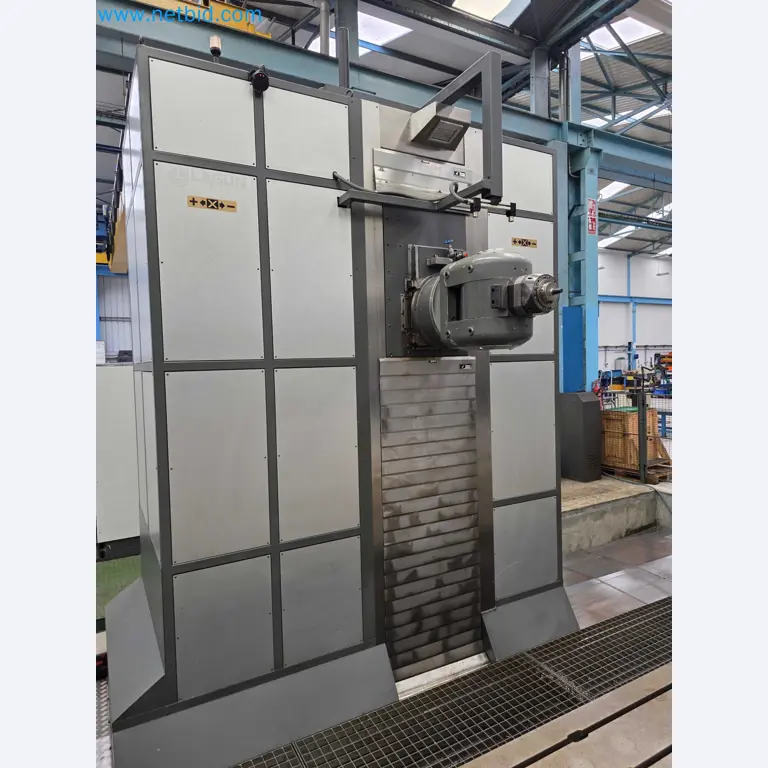

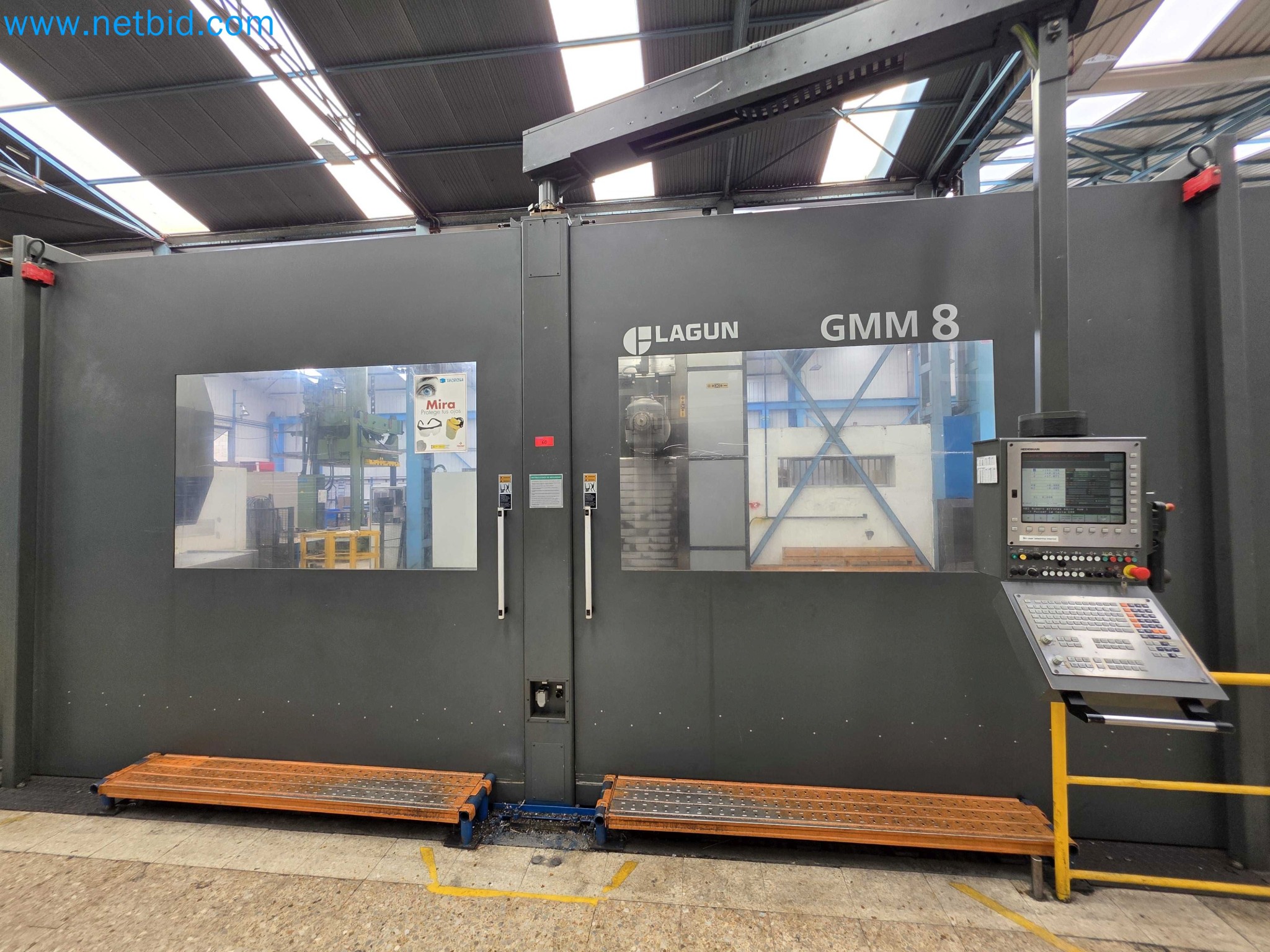

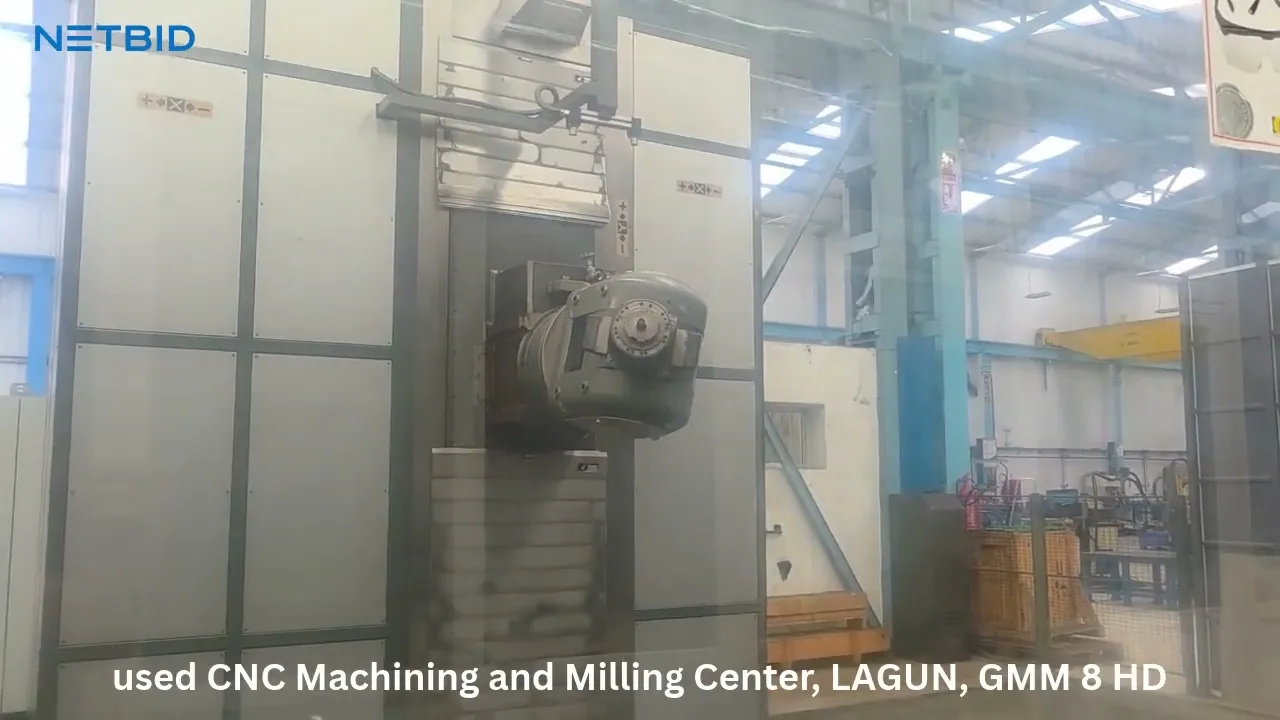

CNC Machining and Milling Center LAGUN GMM 8 HDAUCTION#A19590-60
Details
Product Type
LAGUN
Type
GMM 8 HD
Construction Year
2013
Description

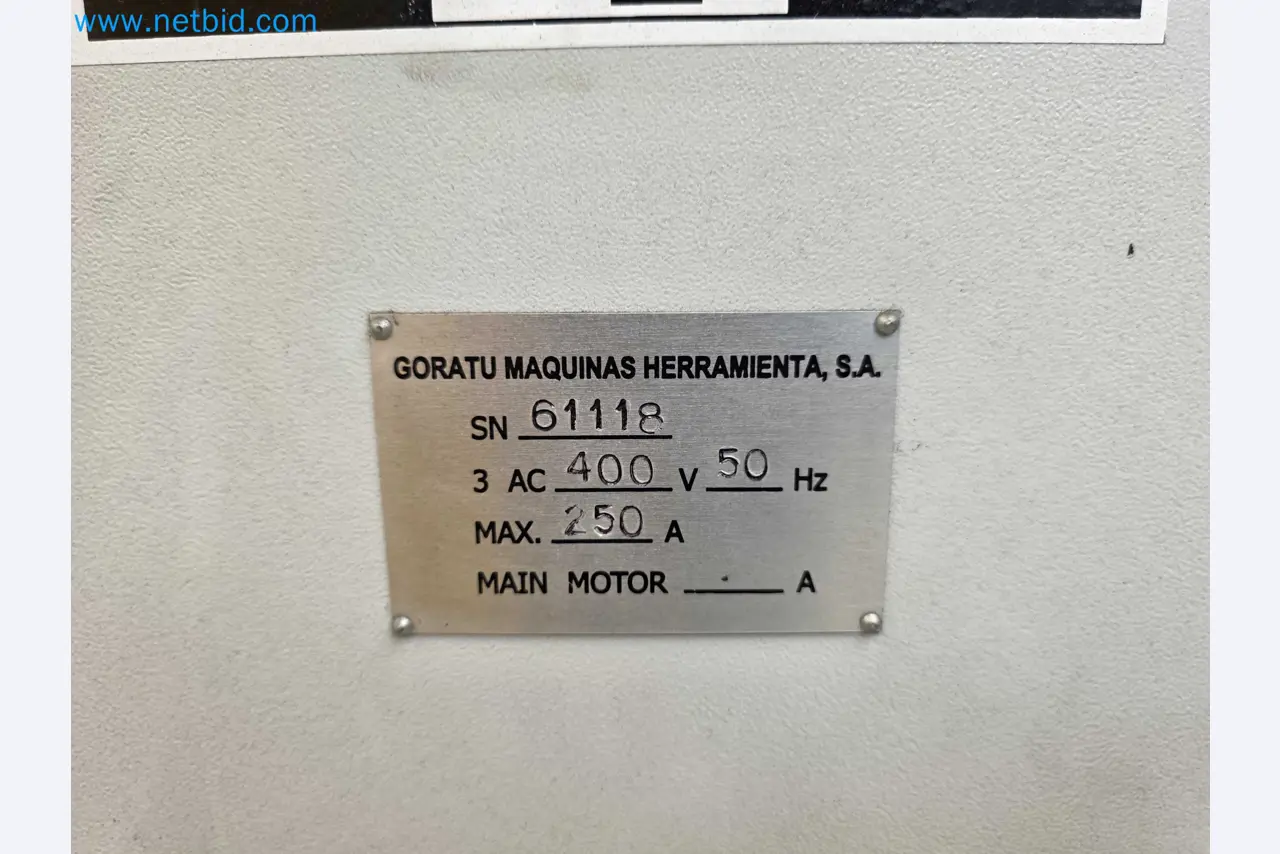

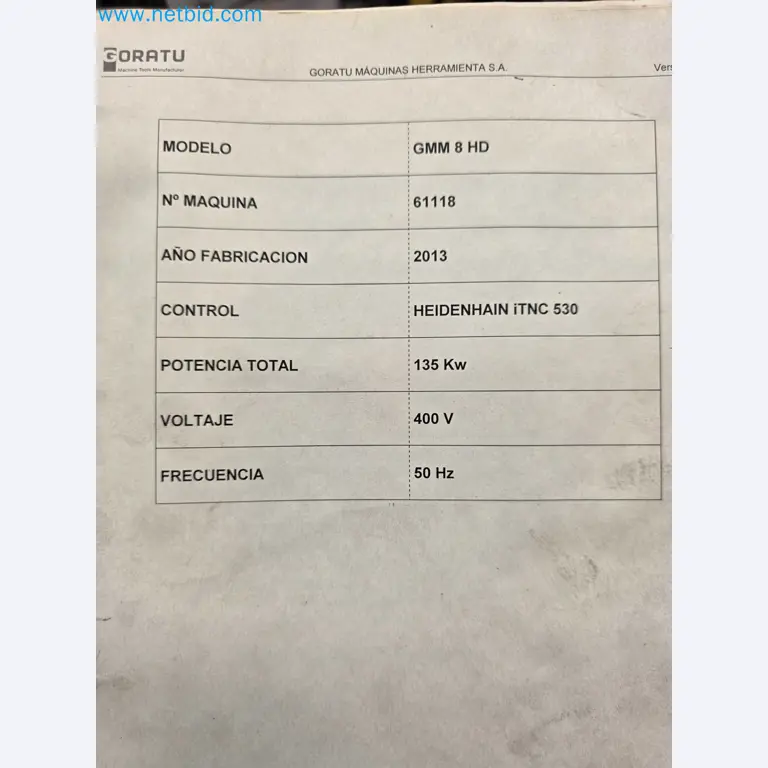

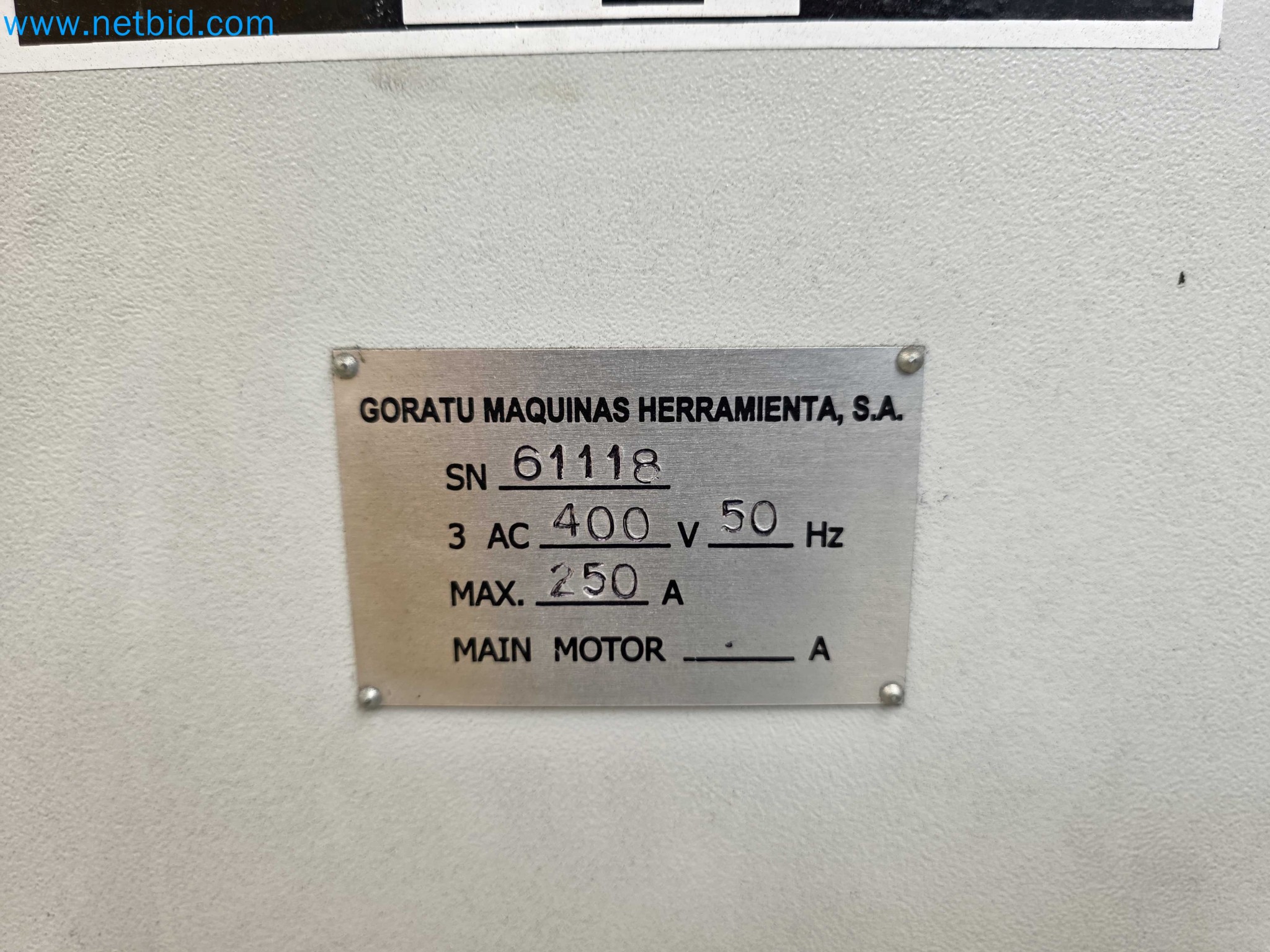

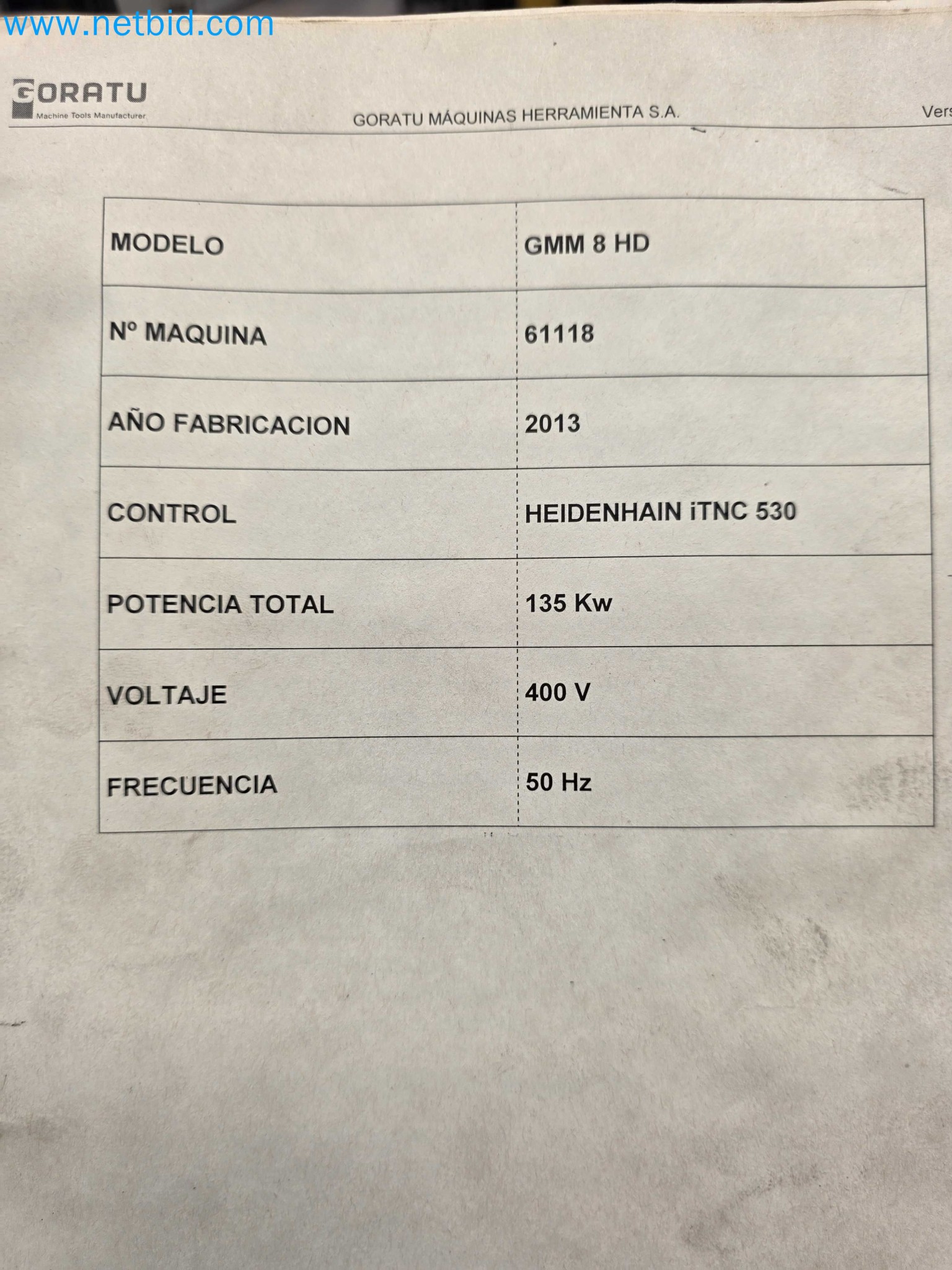

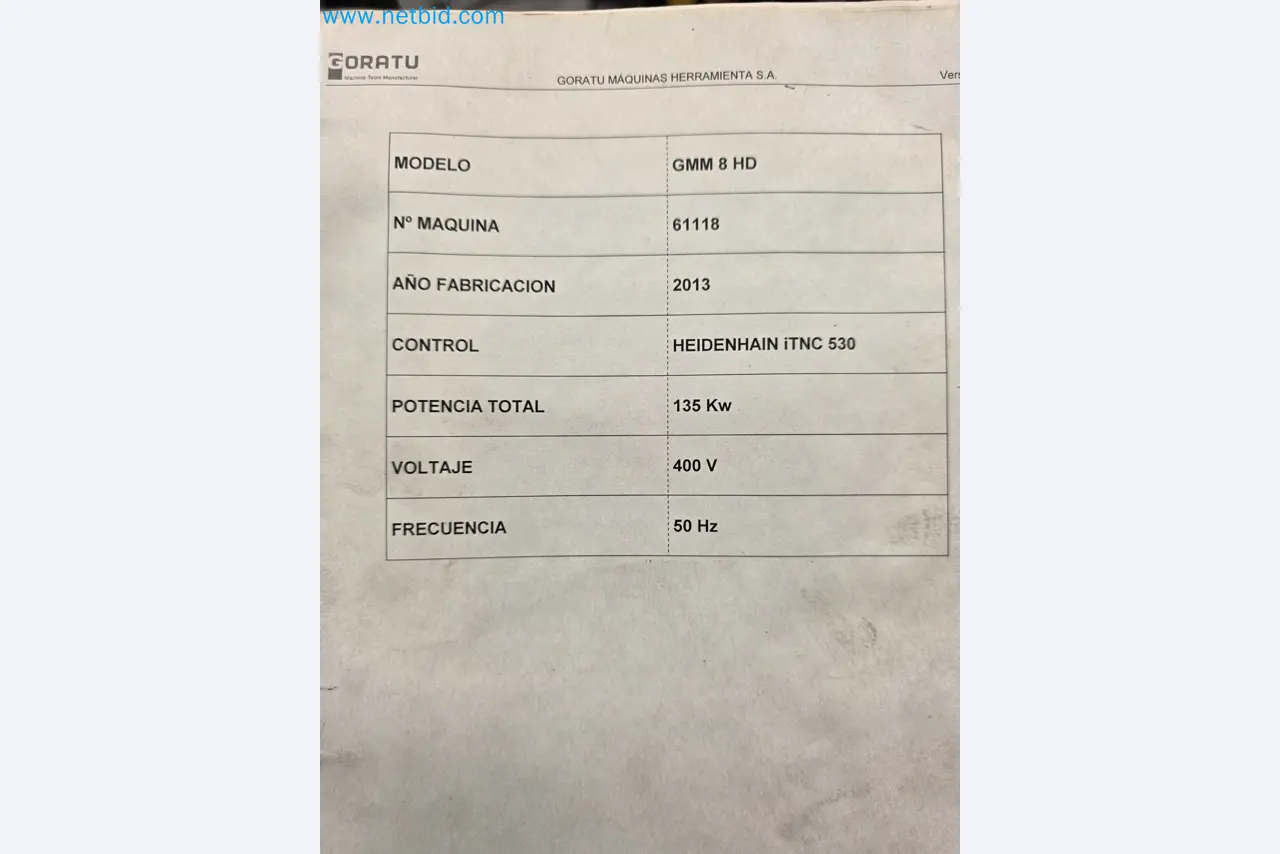

SN: 61118
5-axis

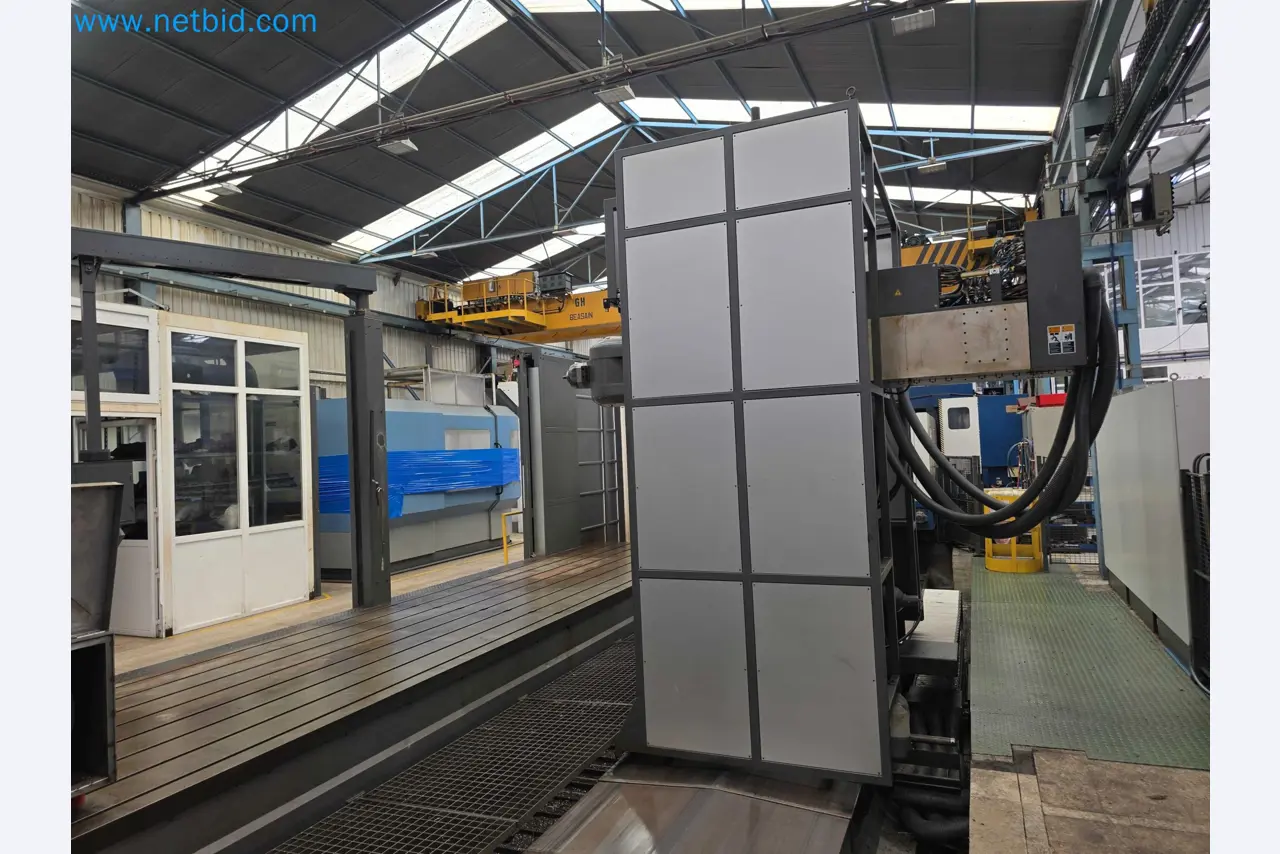

Working table dimensions: 9000 x 1200 mm

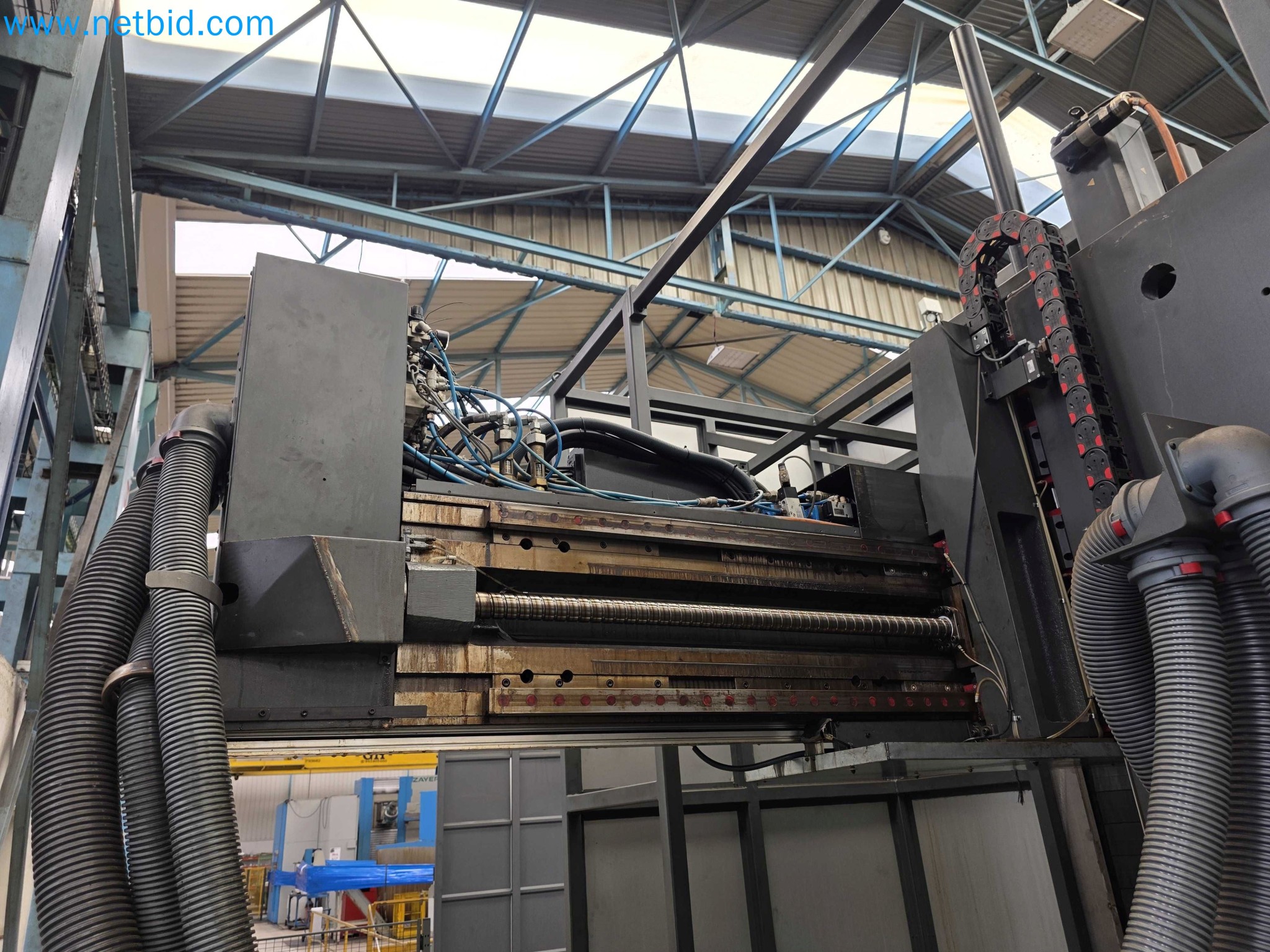

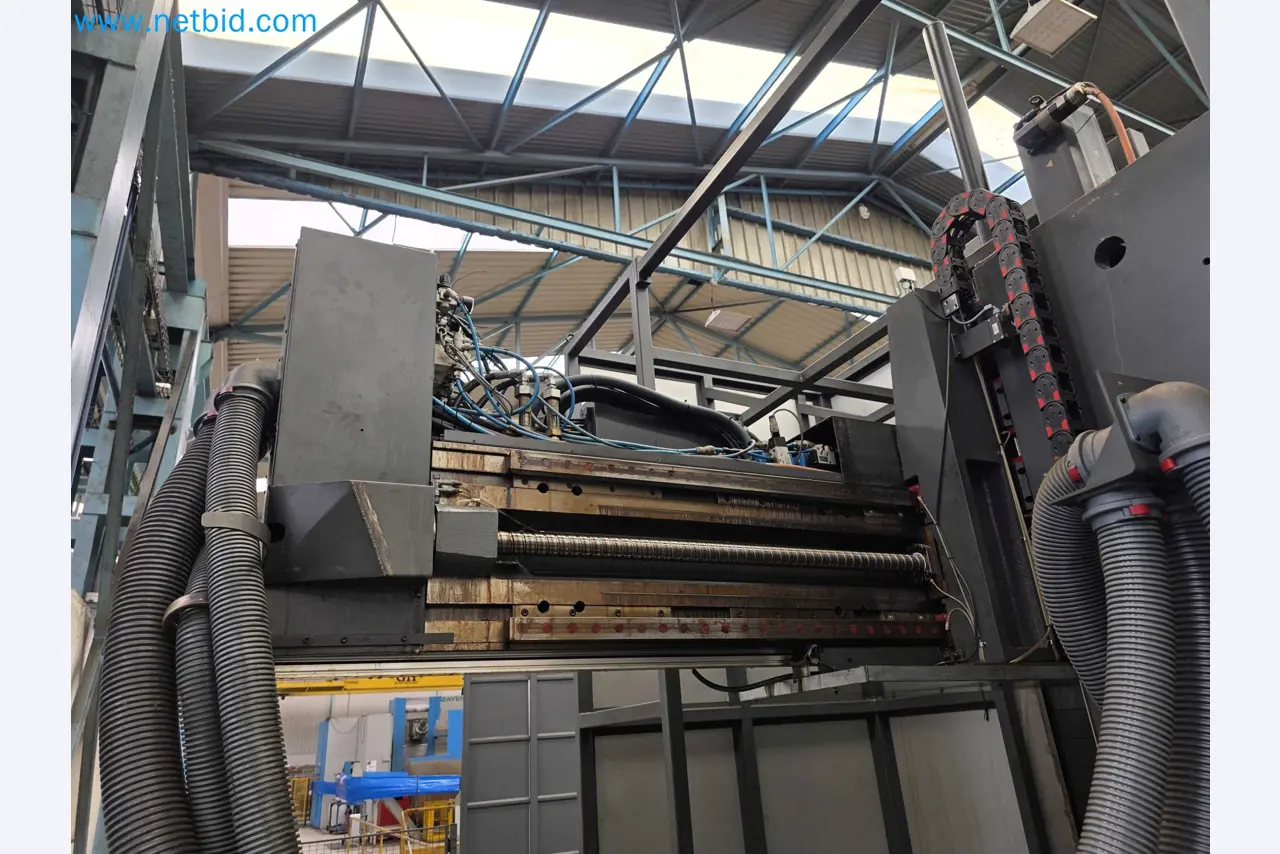

Travels:
· X-axis: 8000 mm
· Y-axis: 1200 mm
· Z-axis: 2000 mm
· B-axis: +/- 92°
· C-axis: +/- 180°
Rapid traverse rates:
· X-axis: 28,000 mm/min
· Y/Z axes: 20,000 mm/min

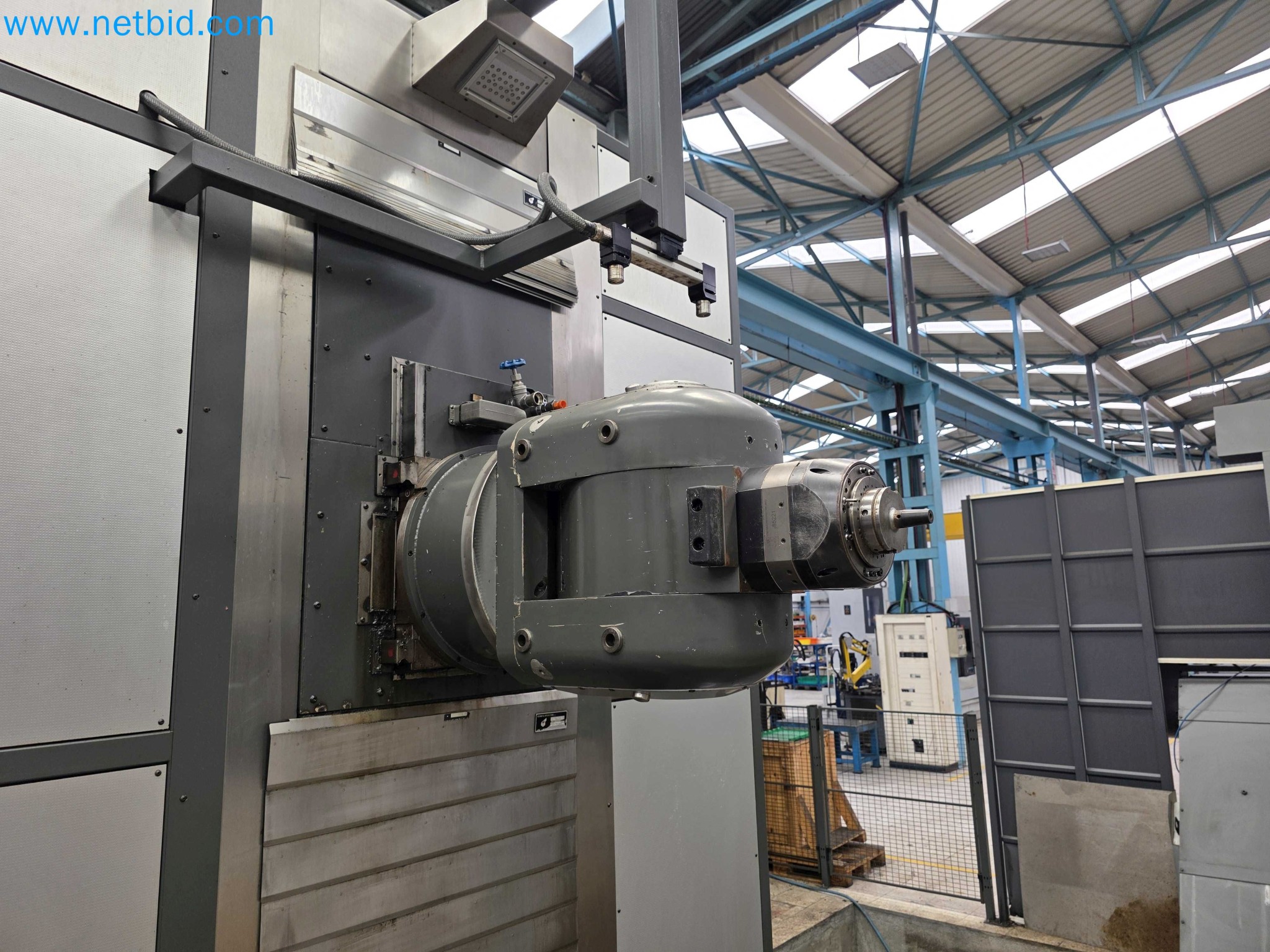

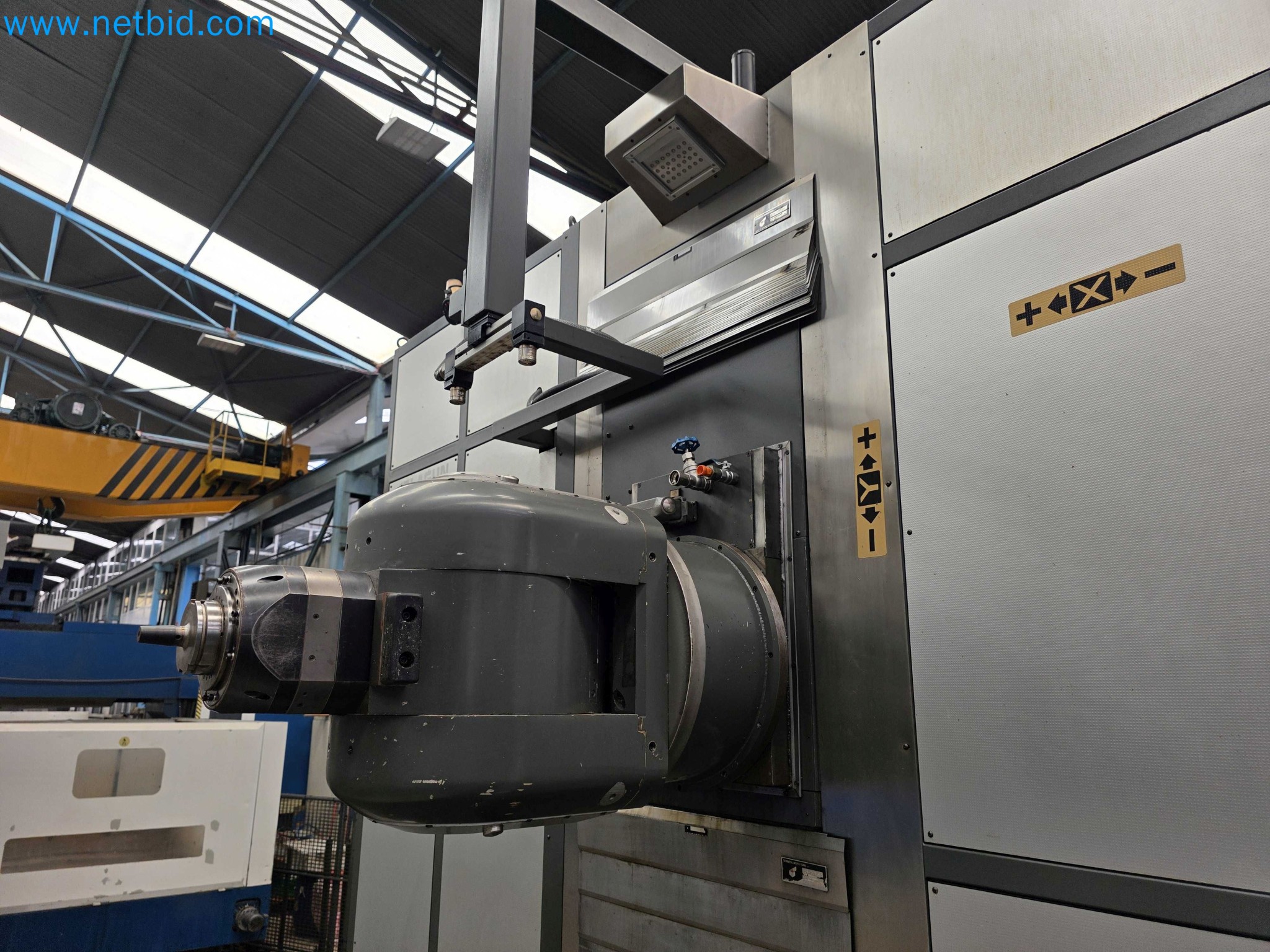

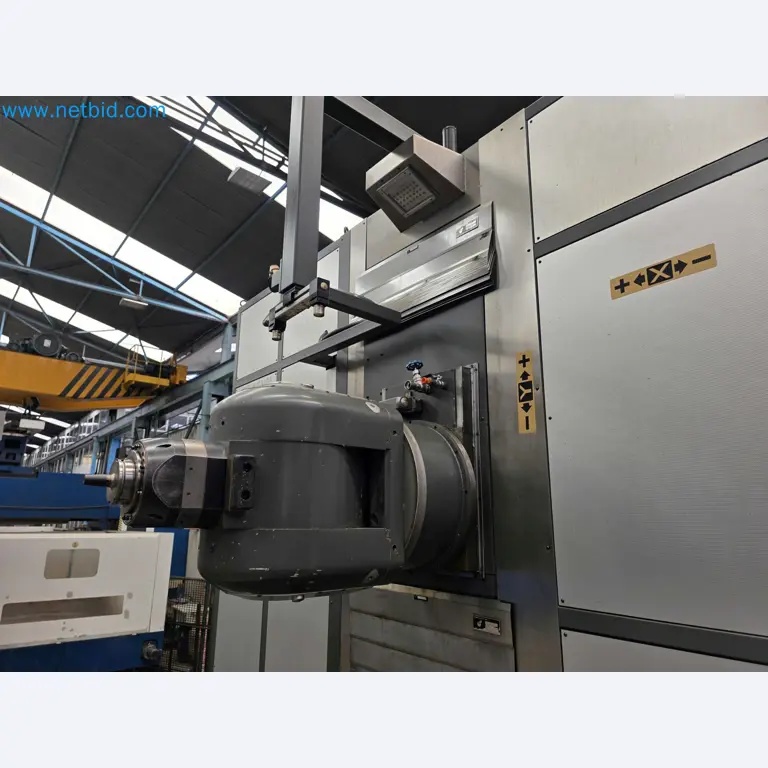

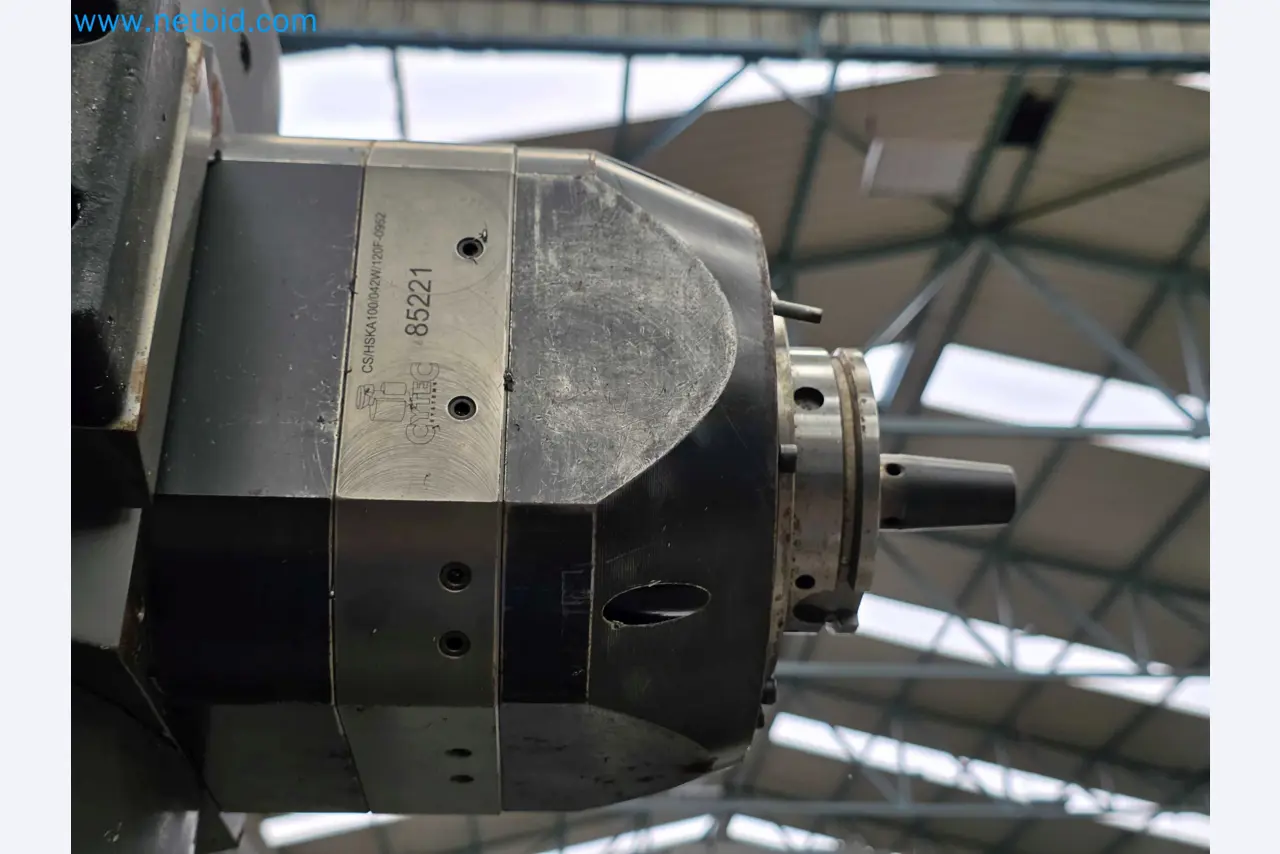

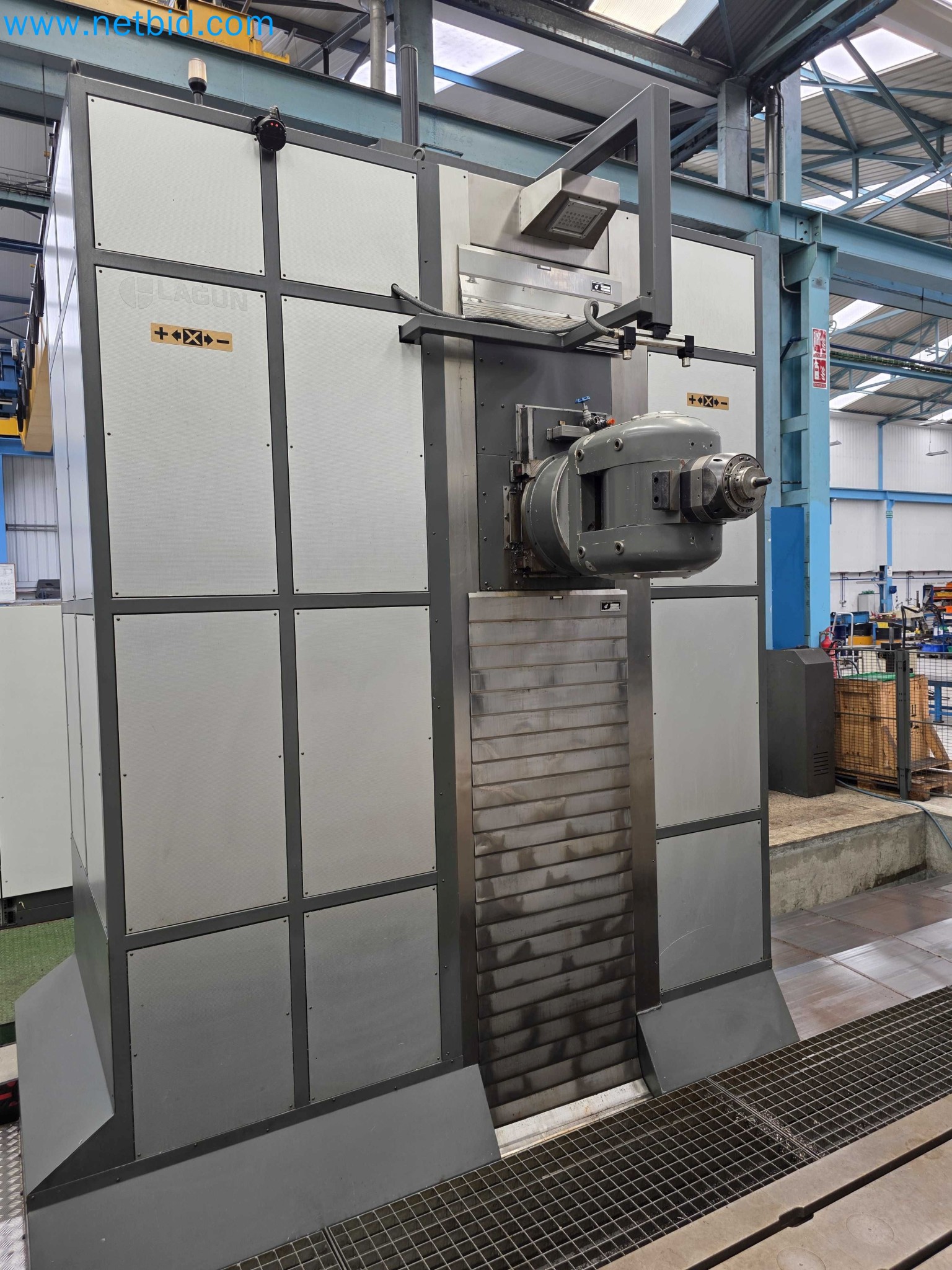

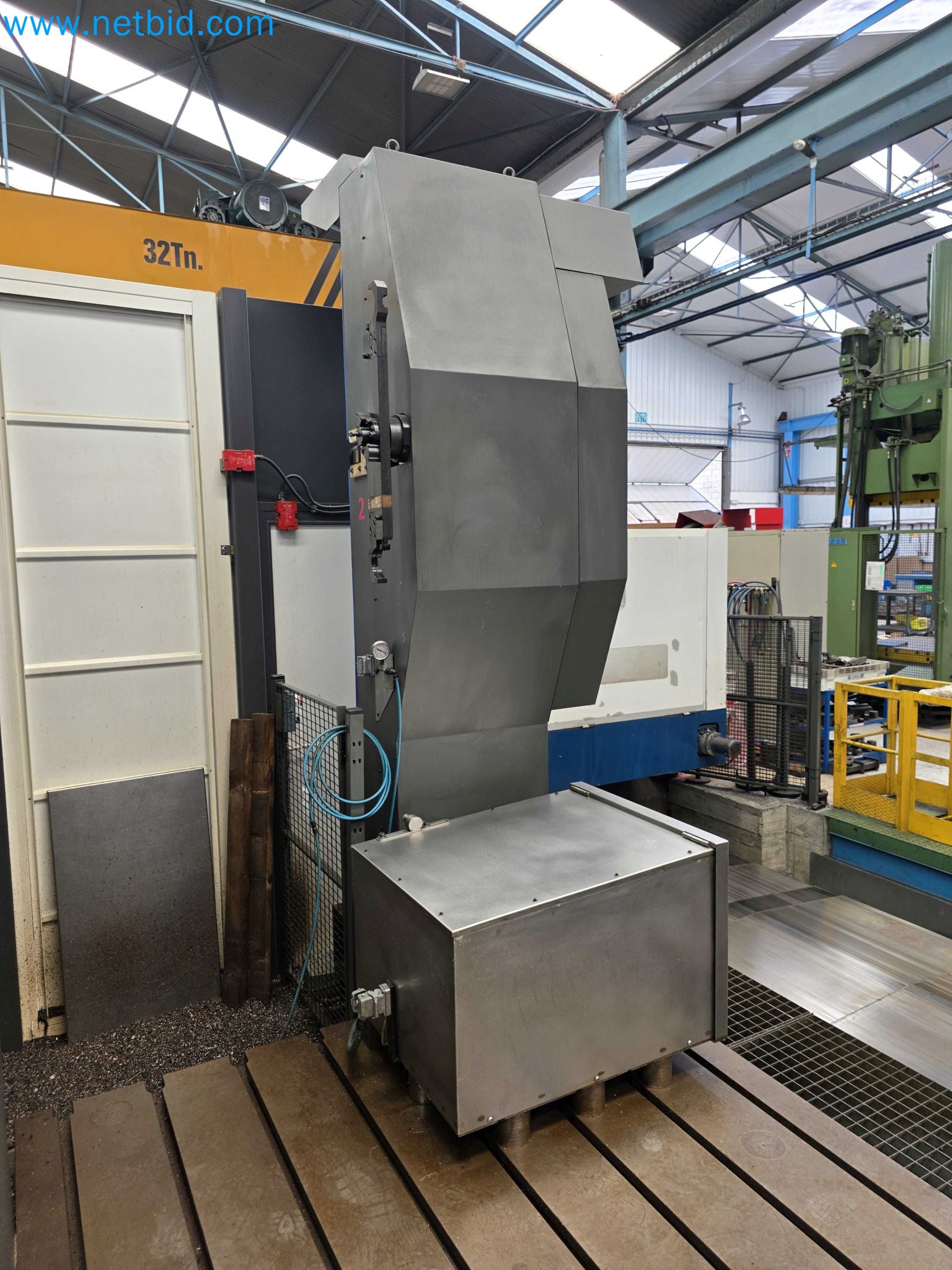

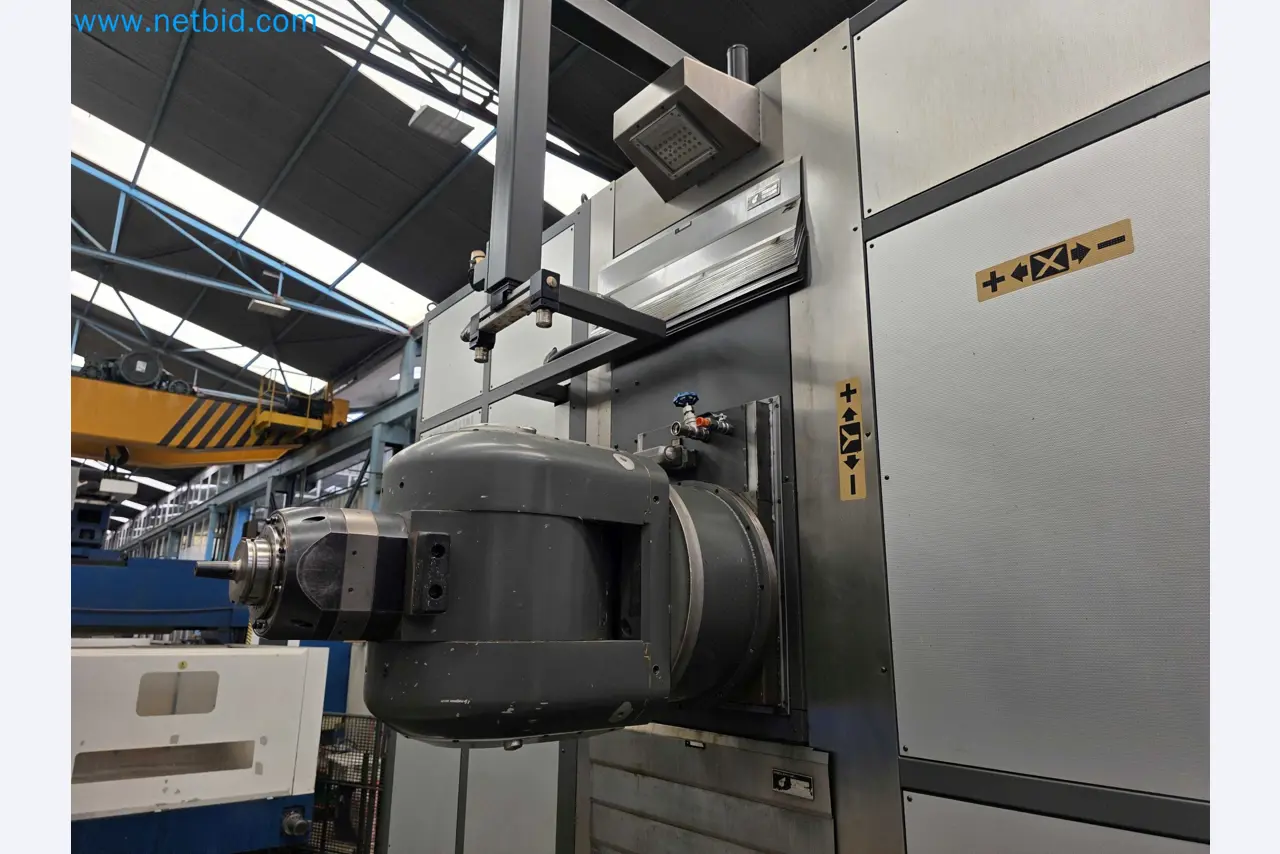

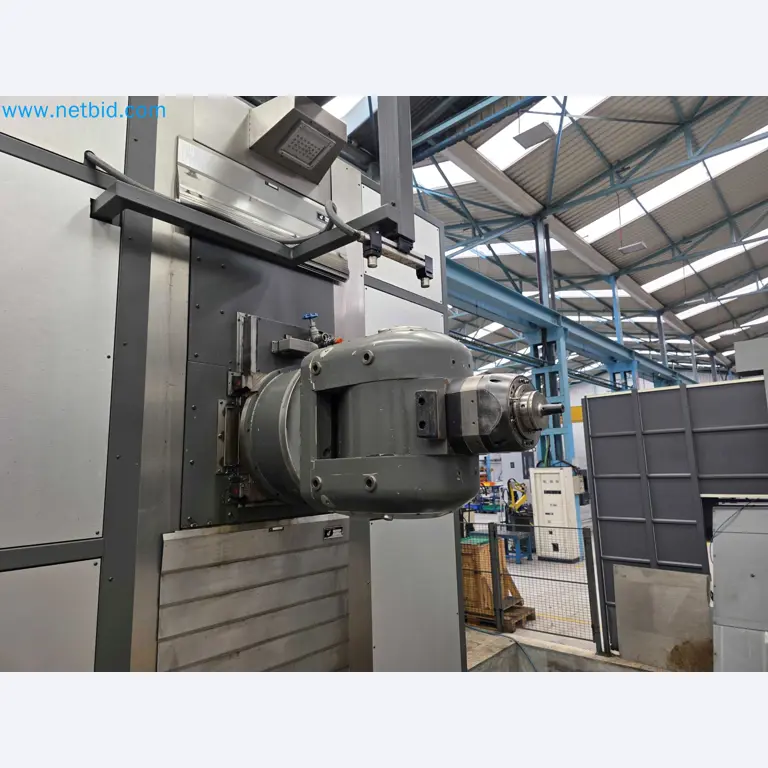

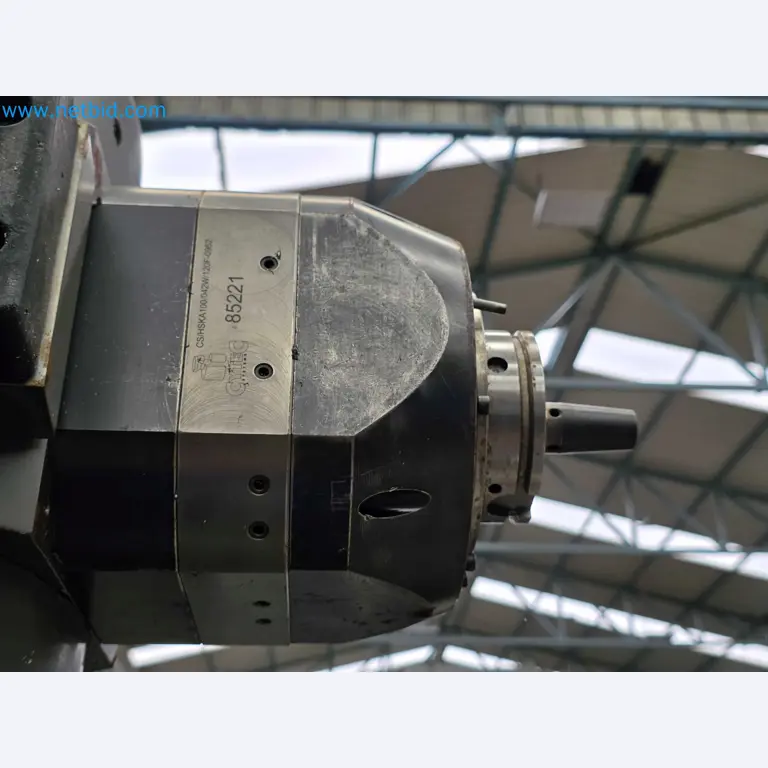

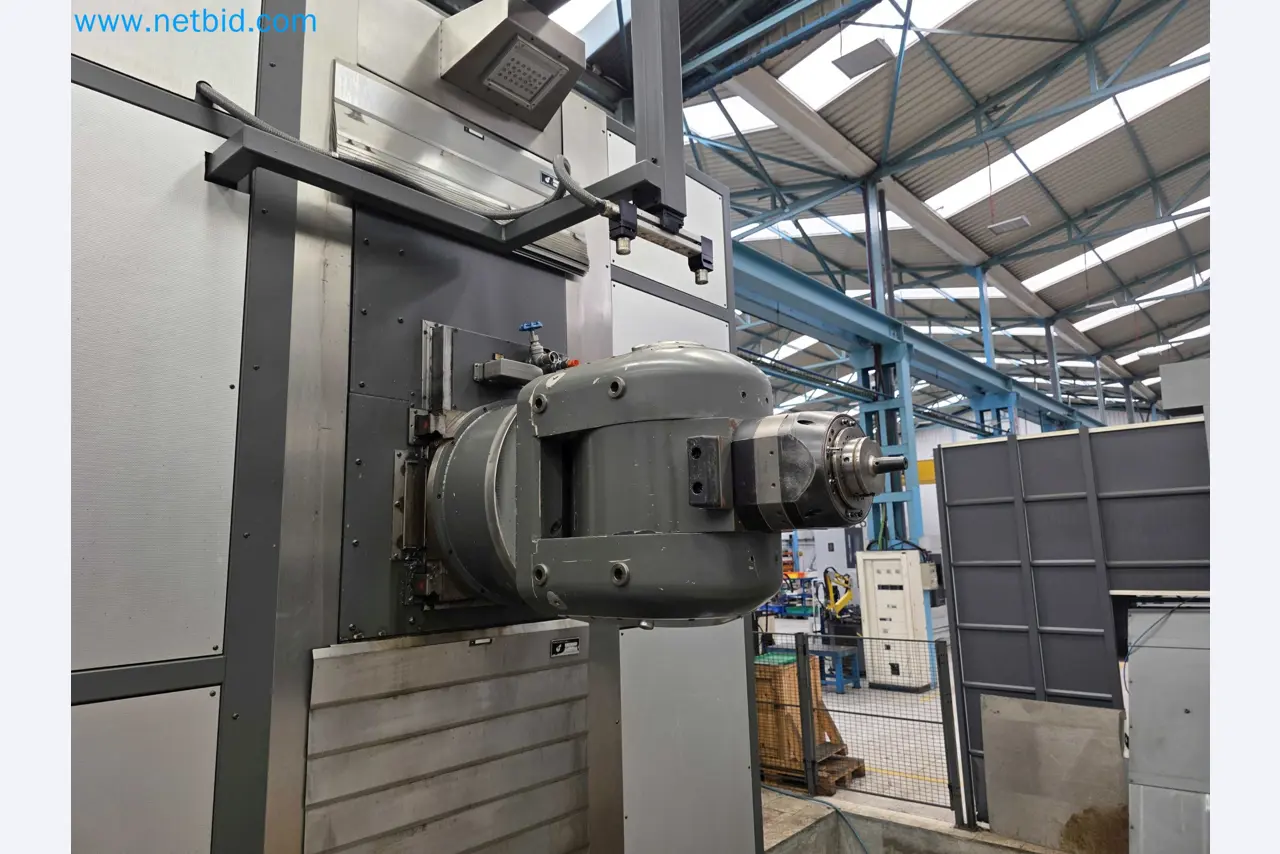

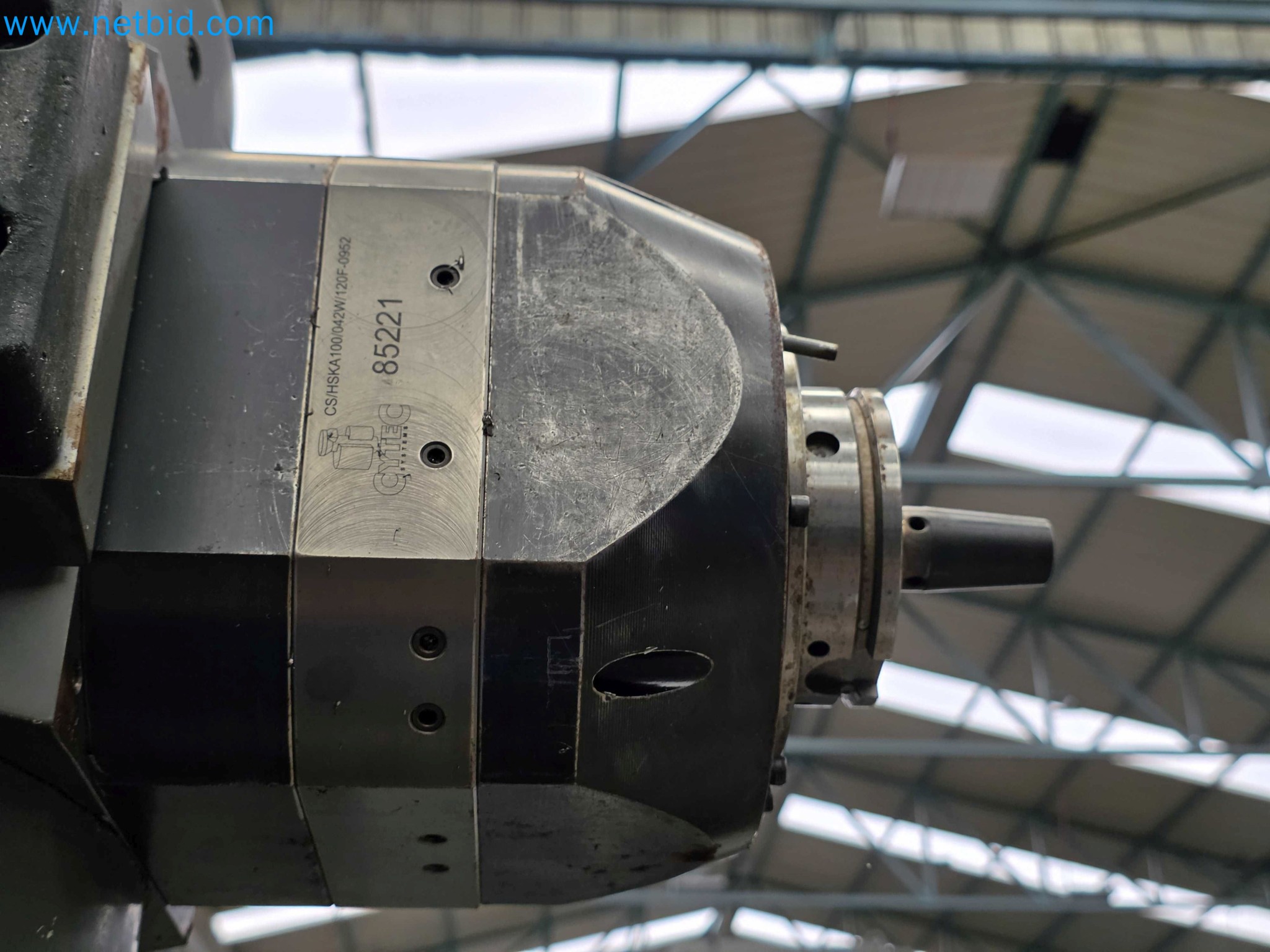

Equipped with 2 working heads: TWIST head and Direct head
Working speeds:
· TWIST head: 12,000 rpm
· Direct head: 15,000 rpm

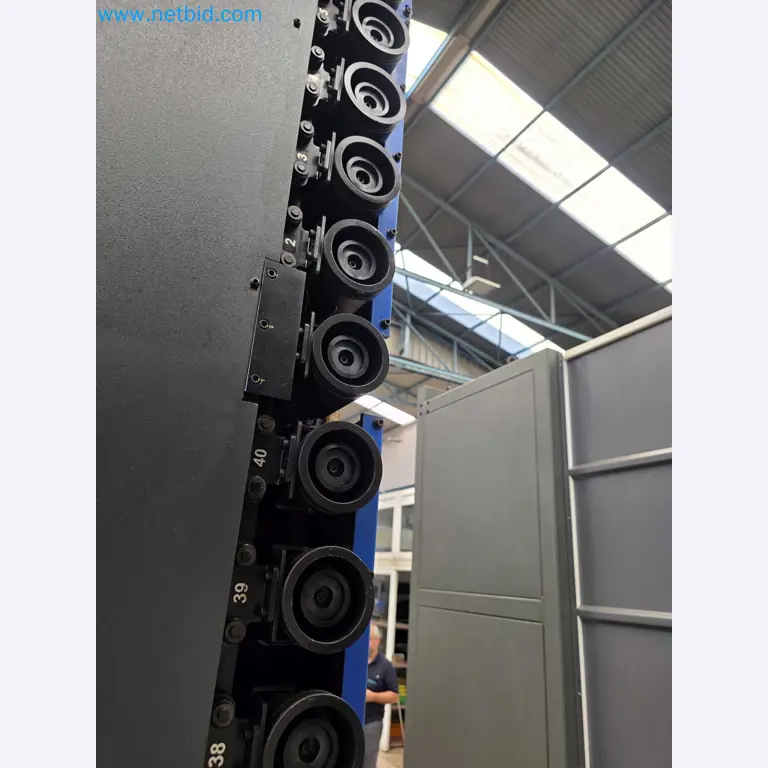

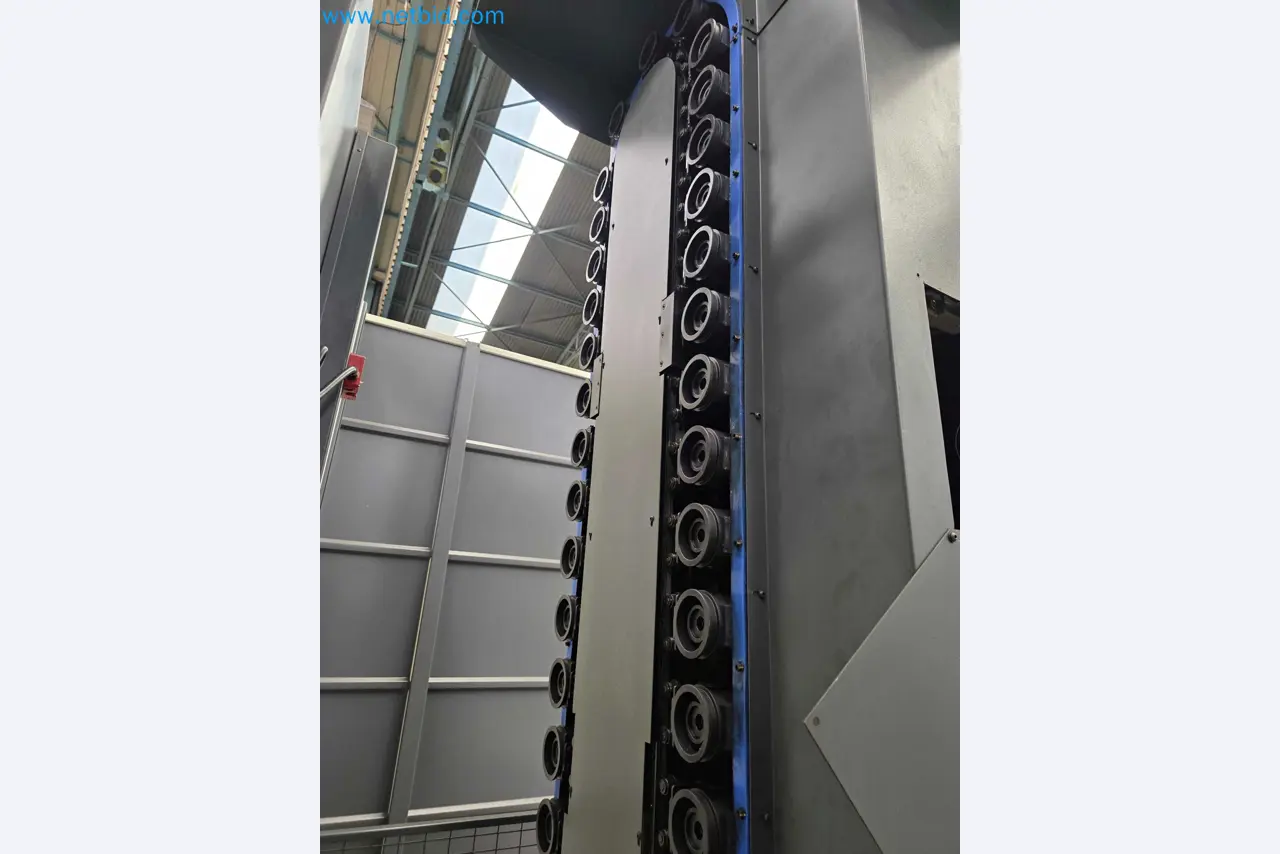

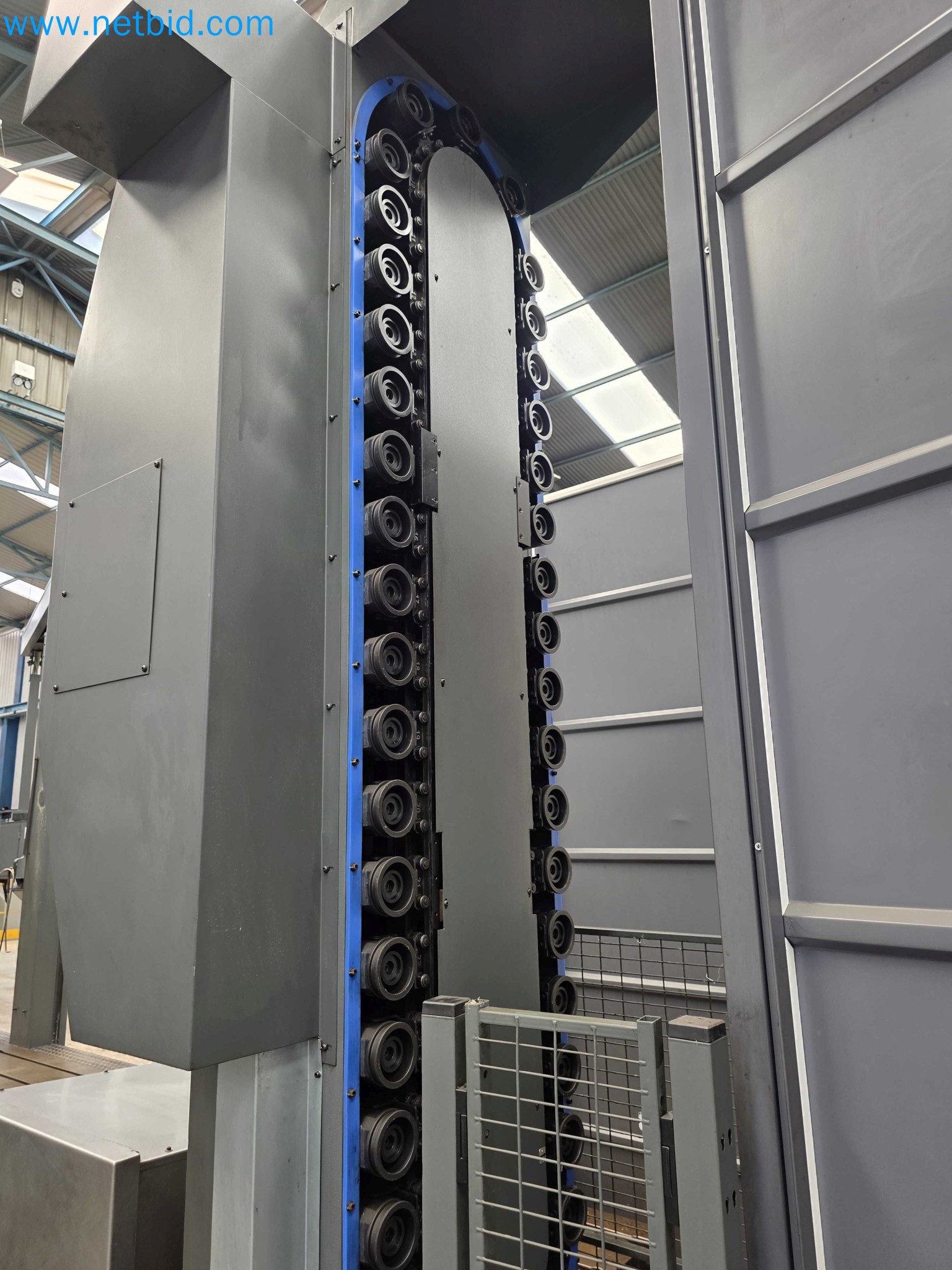

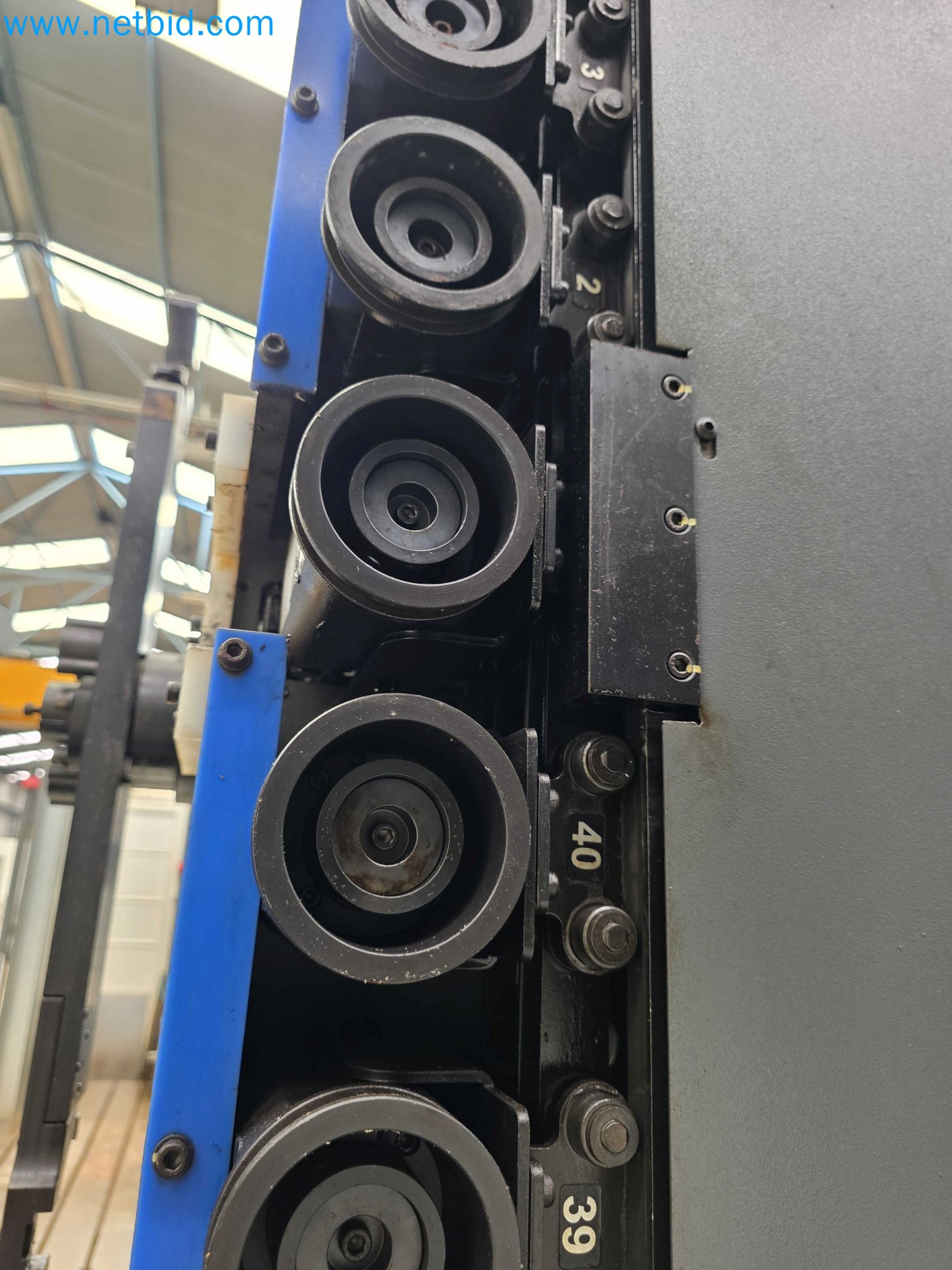

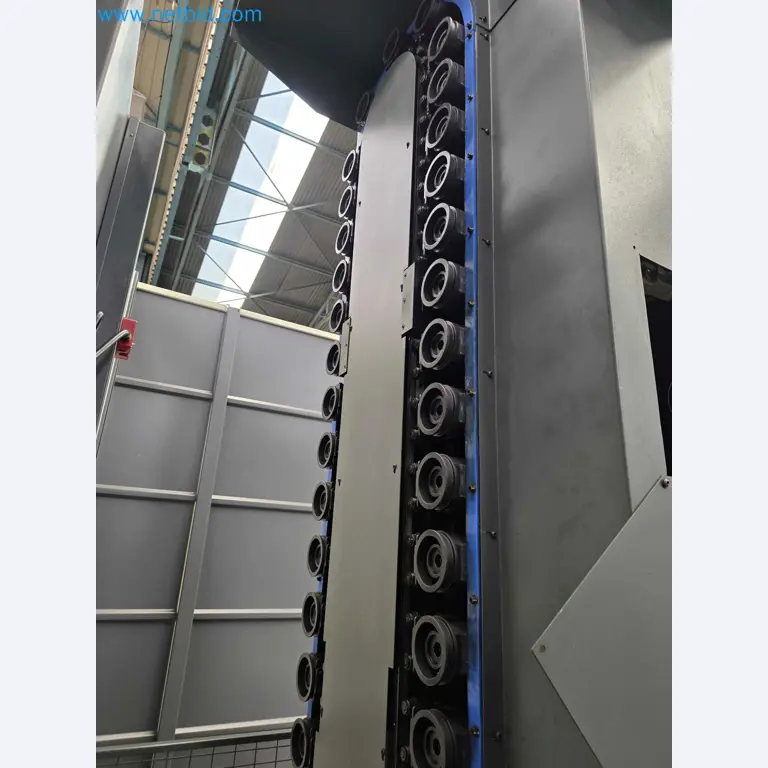

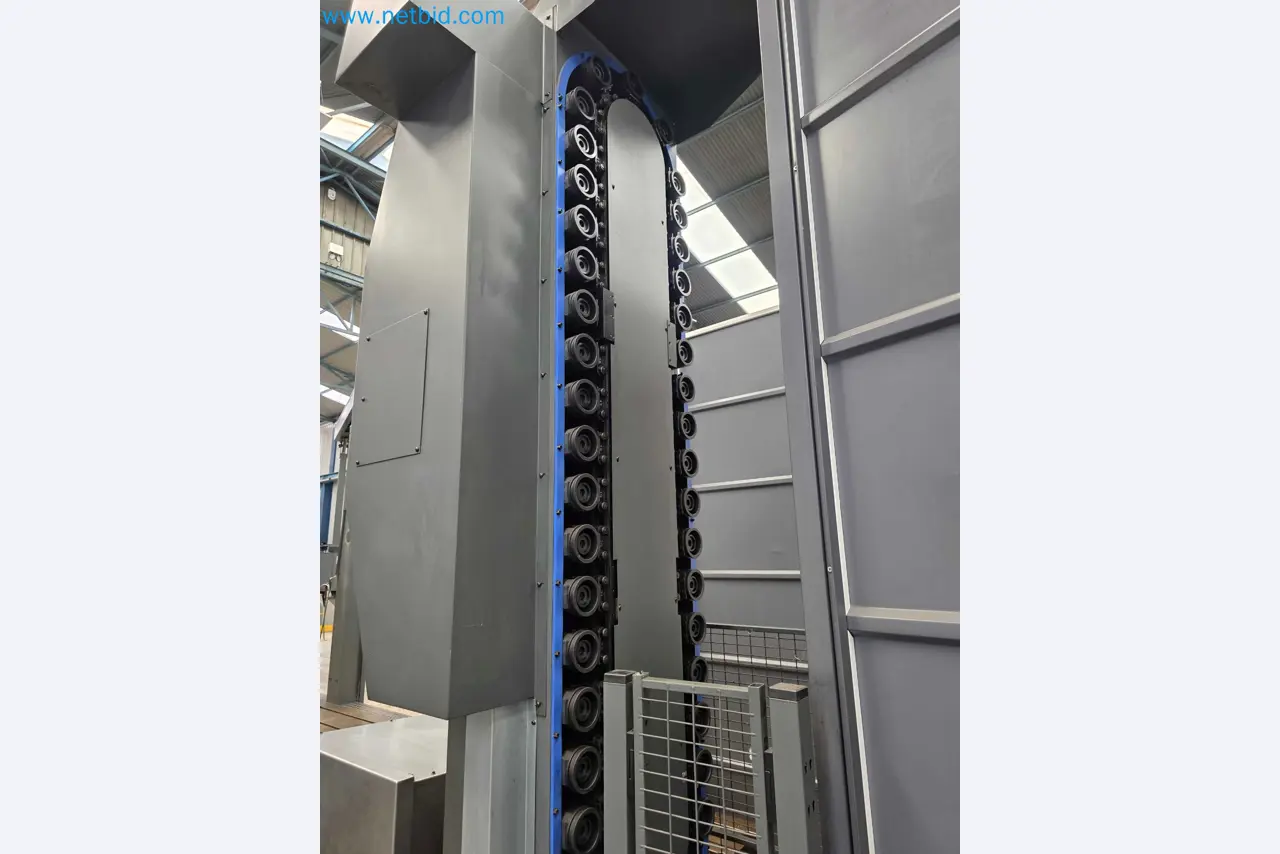

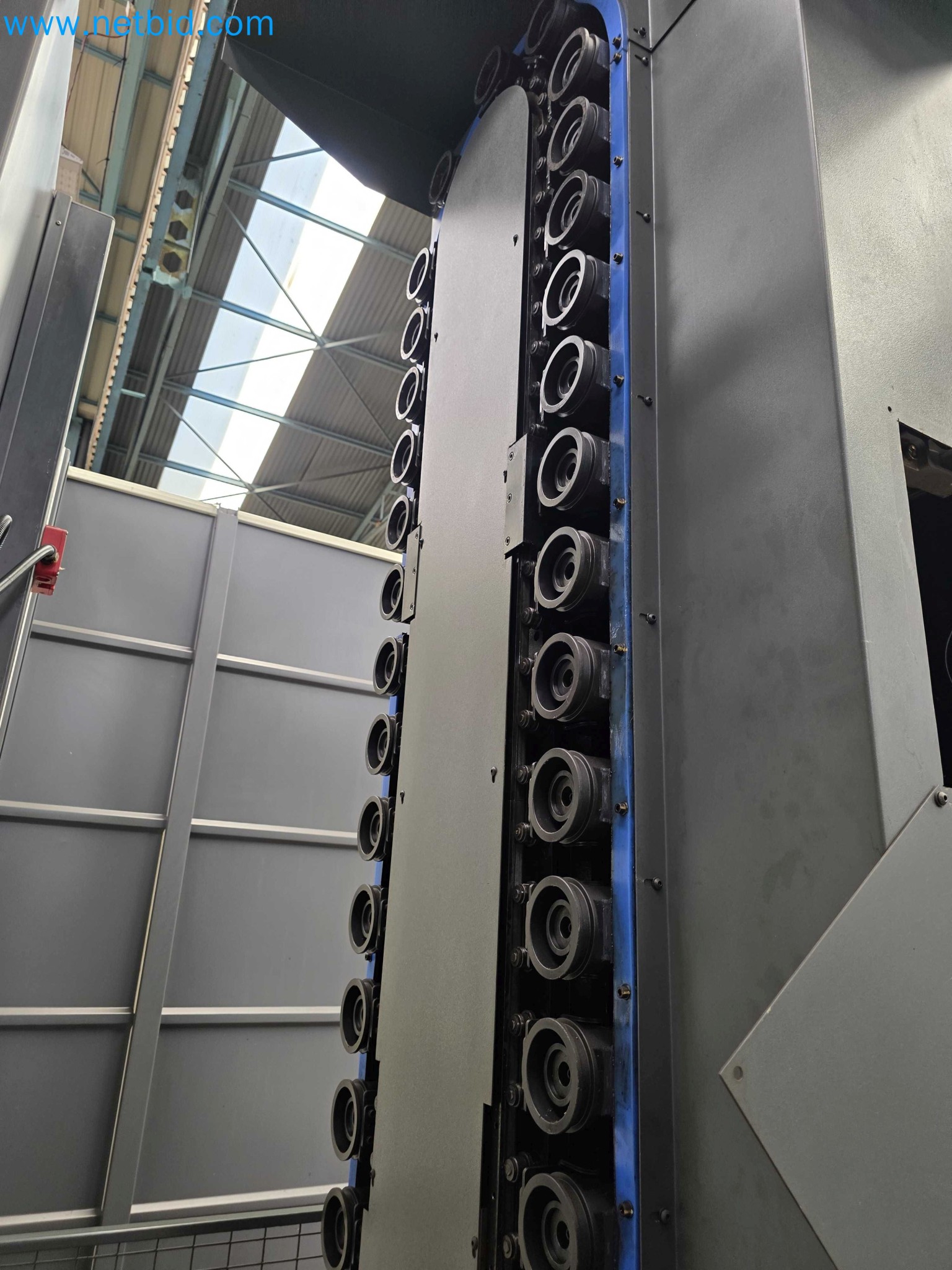

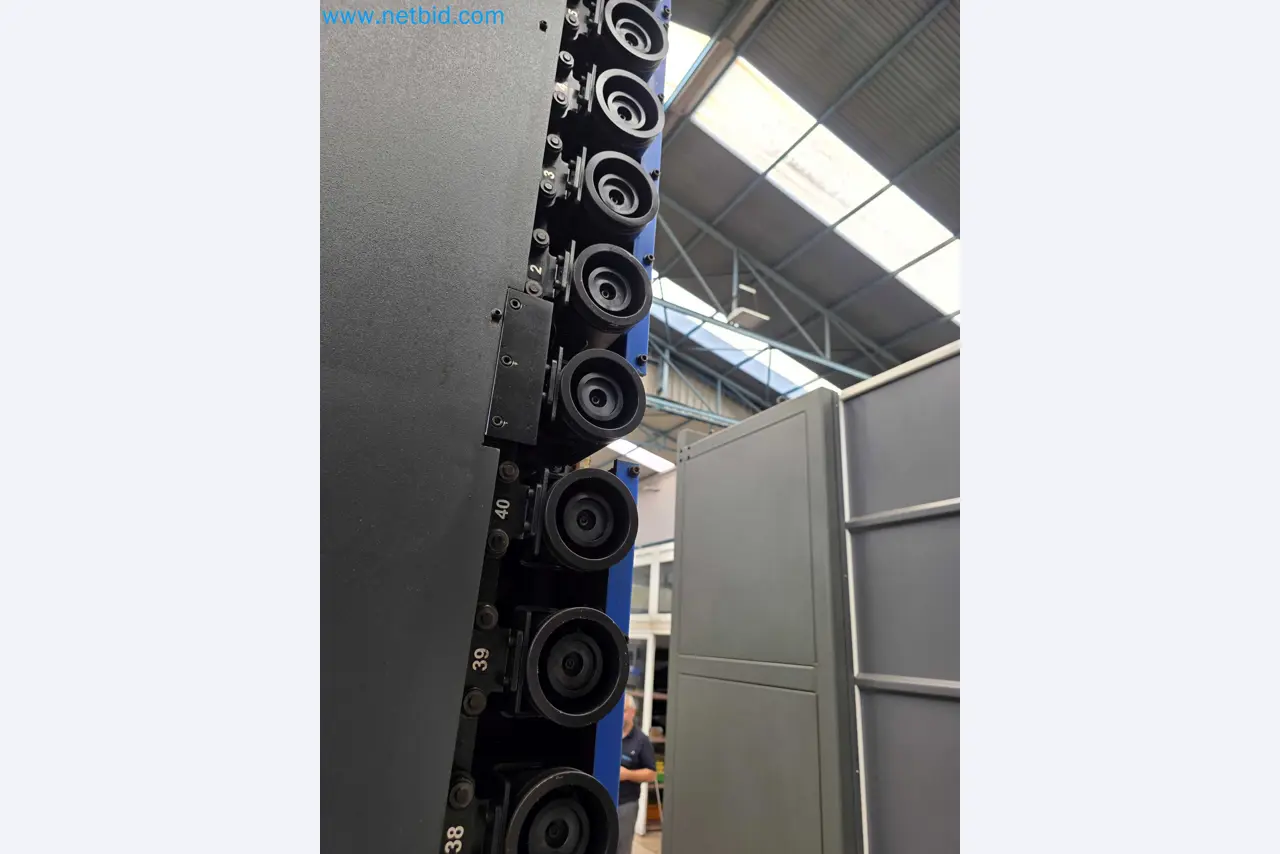

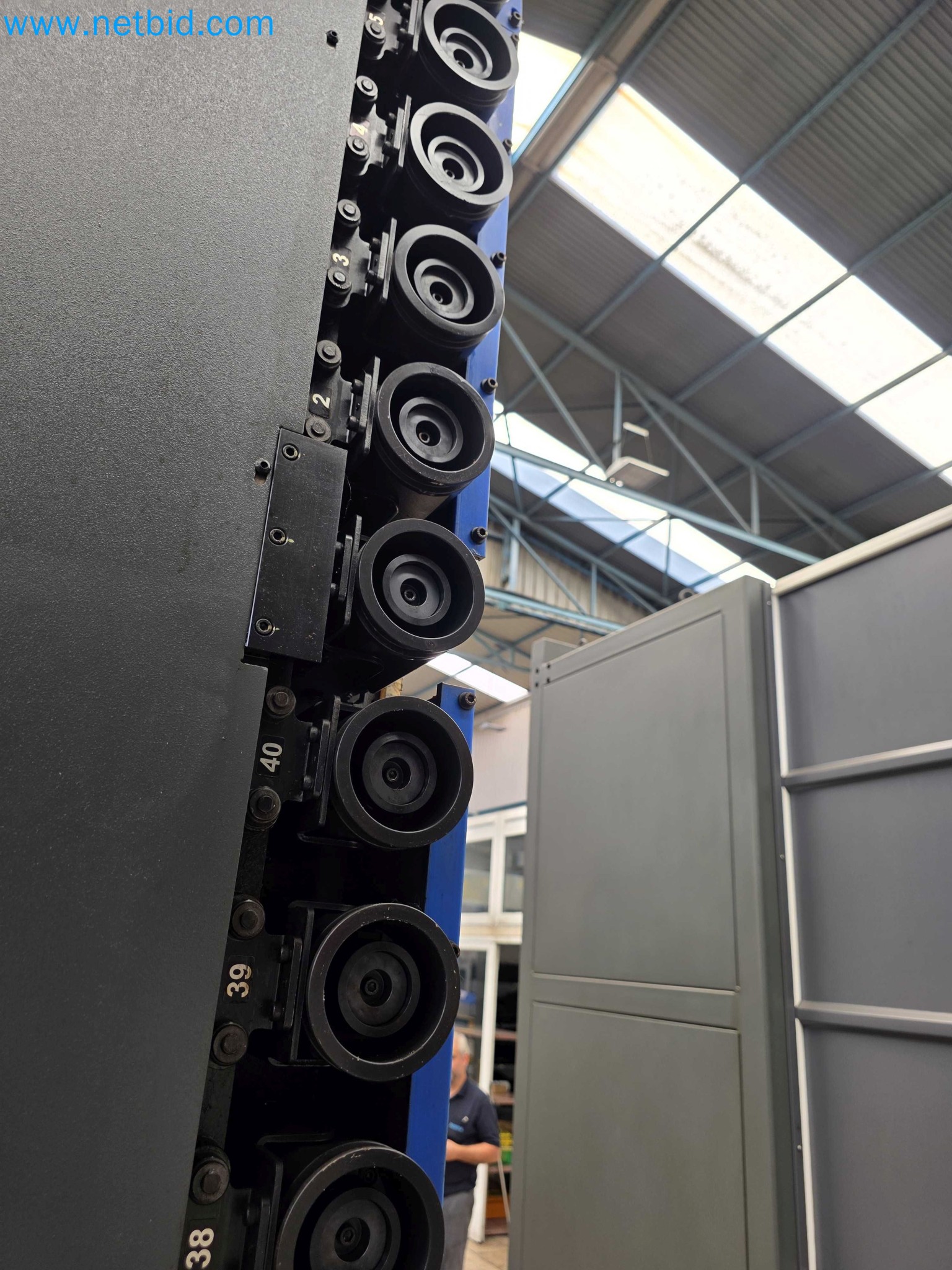

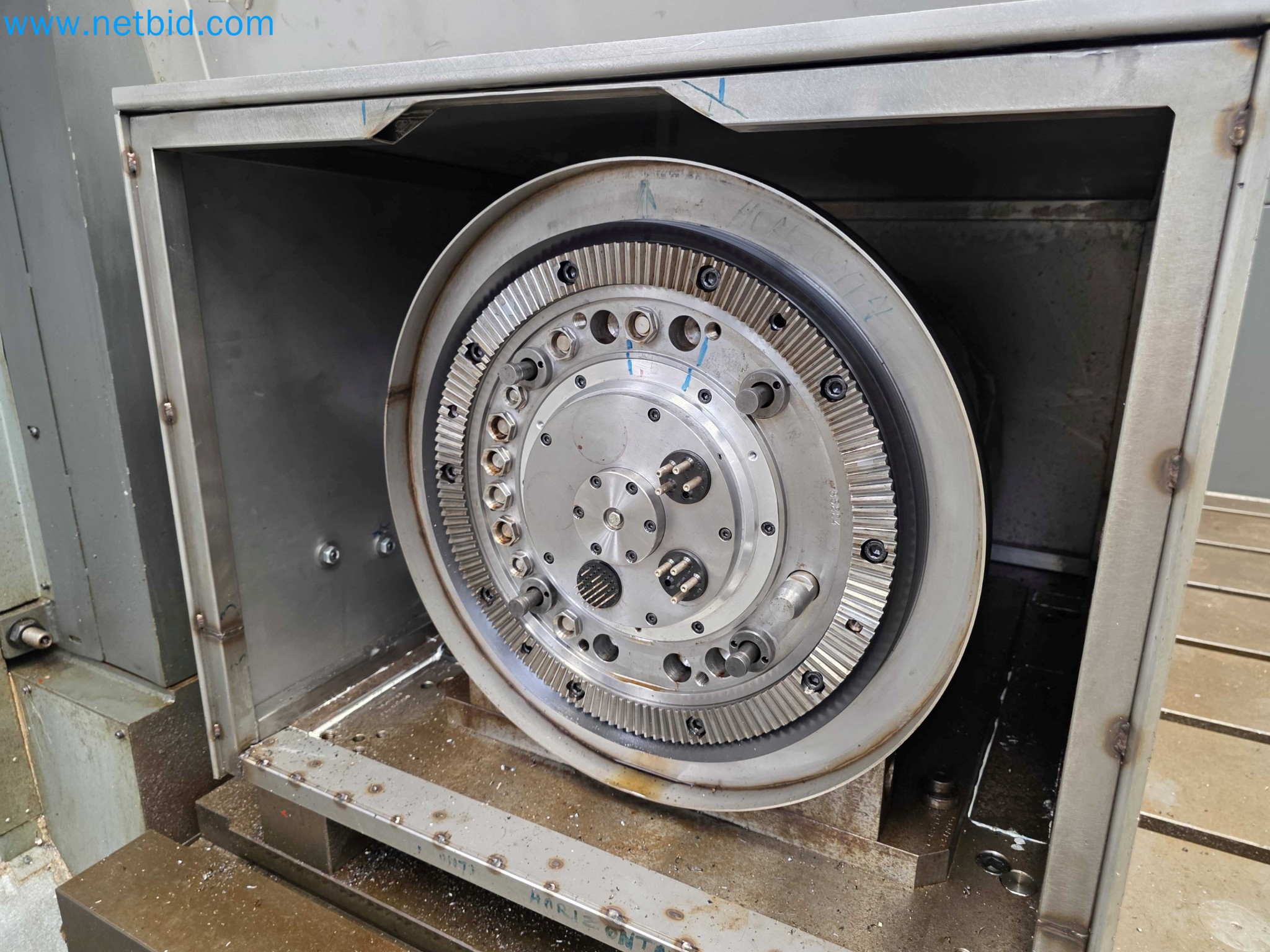

2 tool magazines with 40 positions each

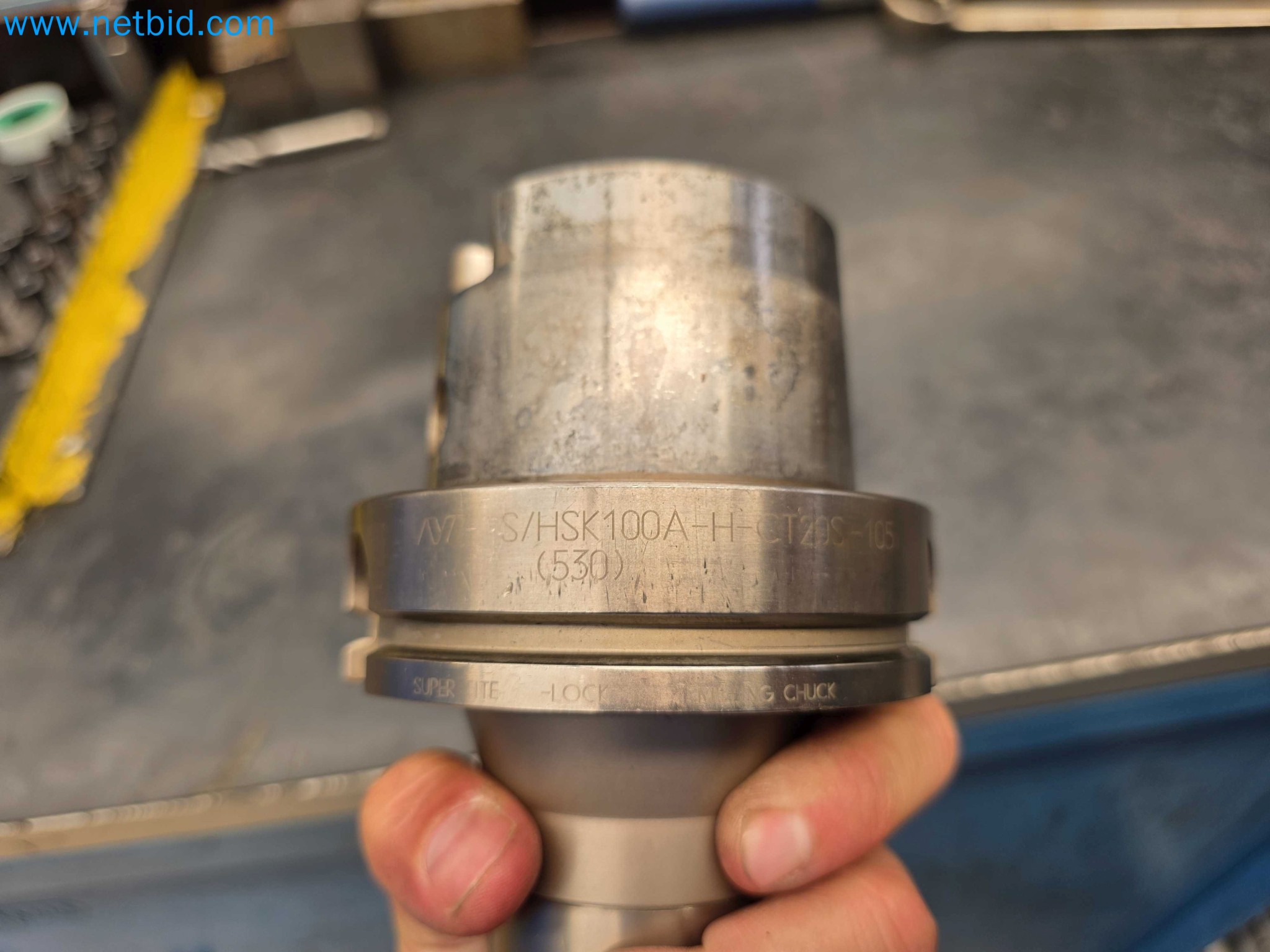

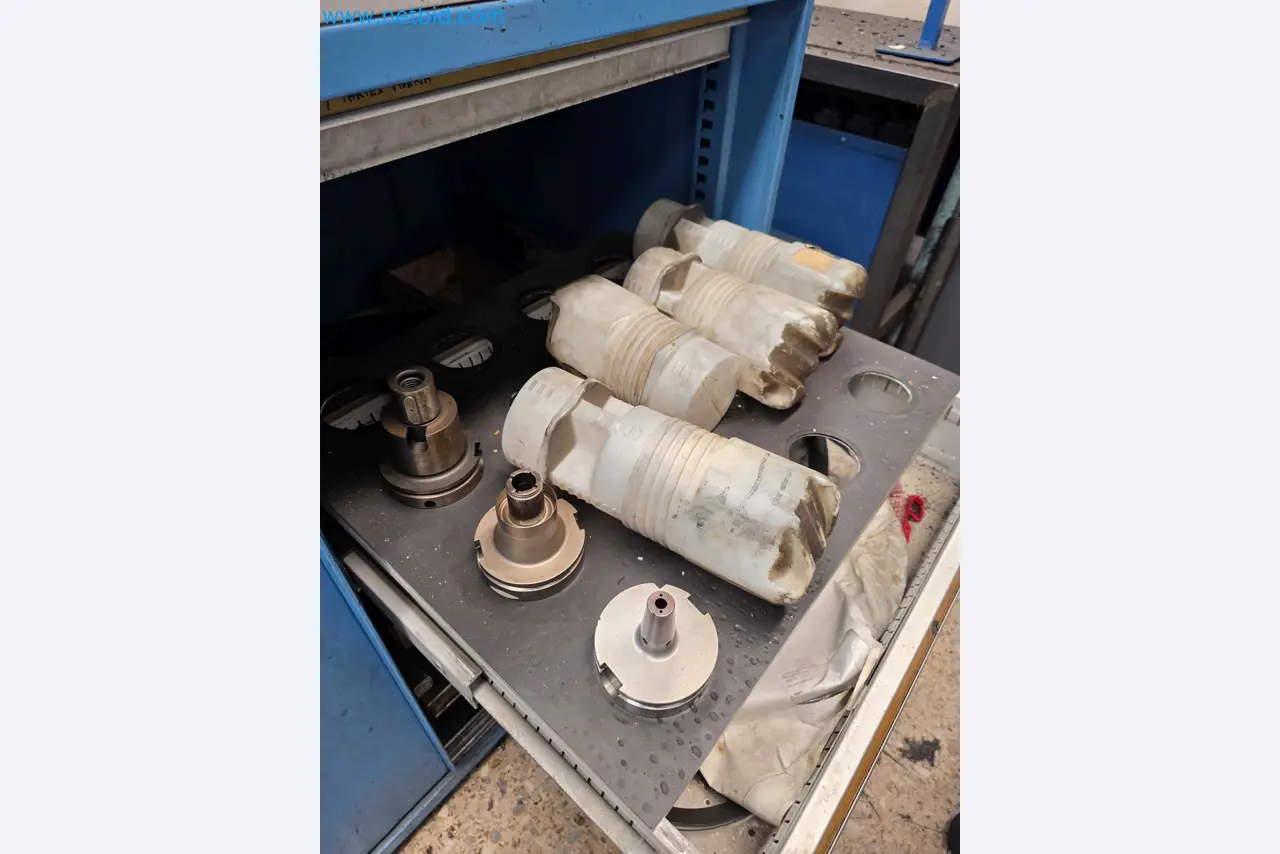

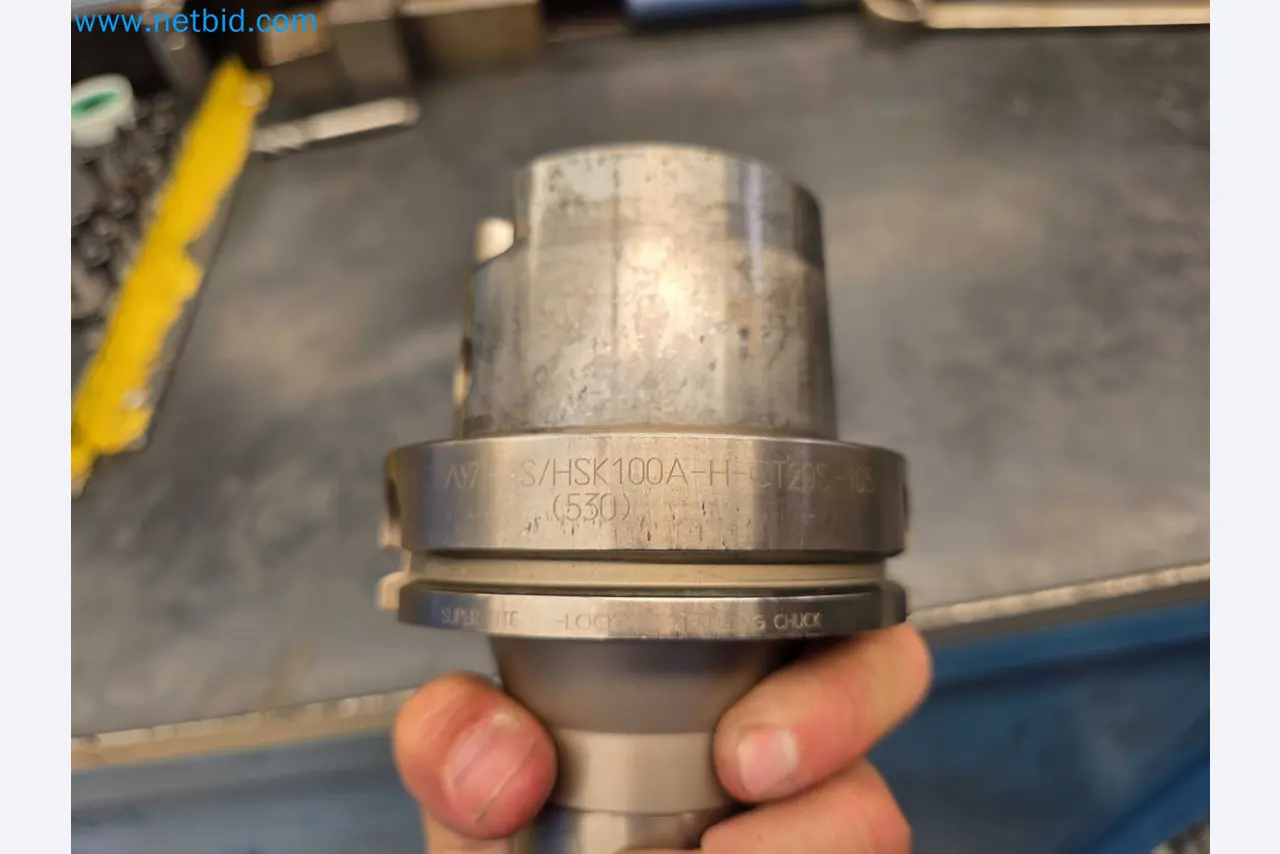

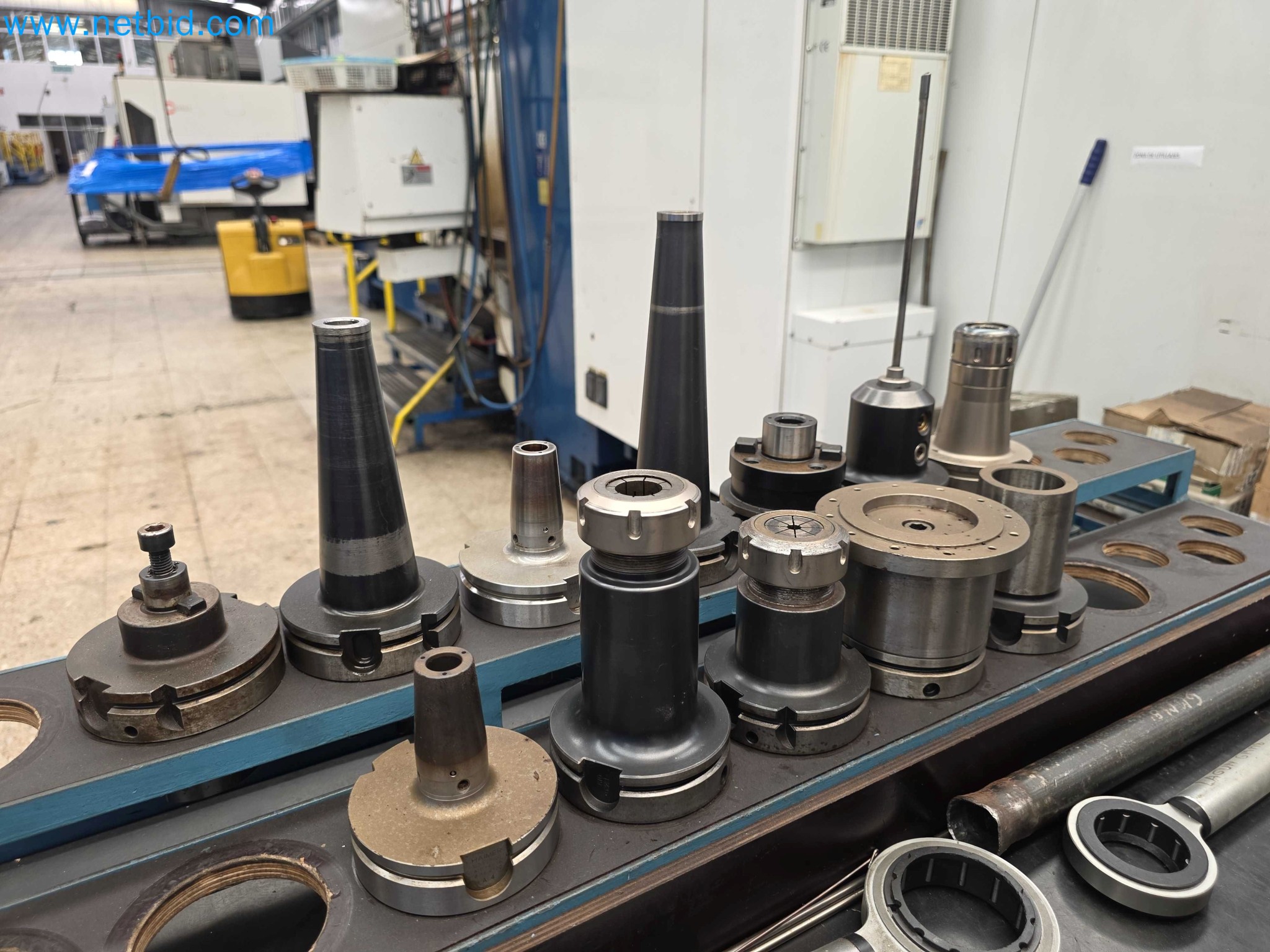

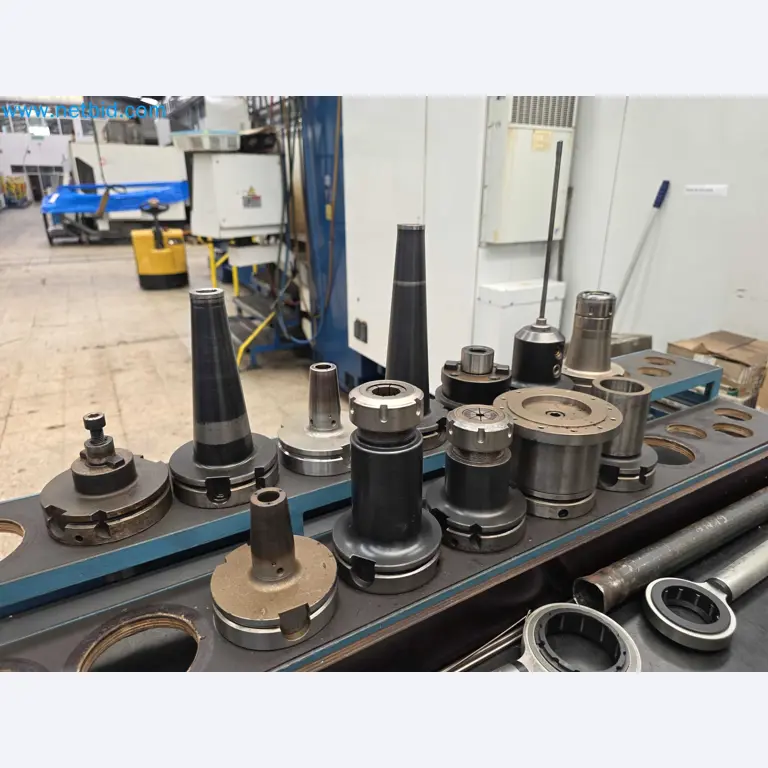

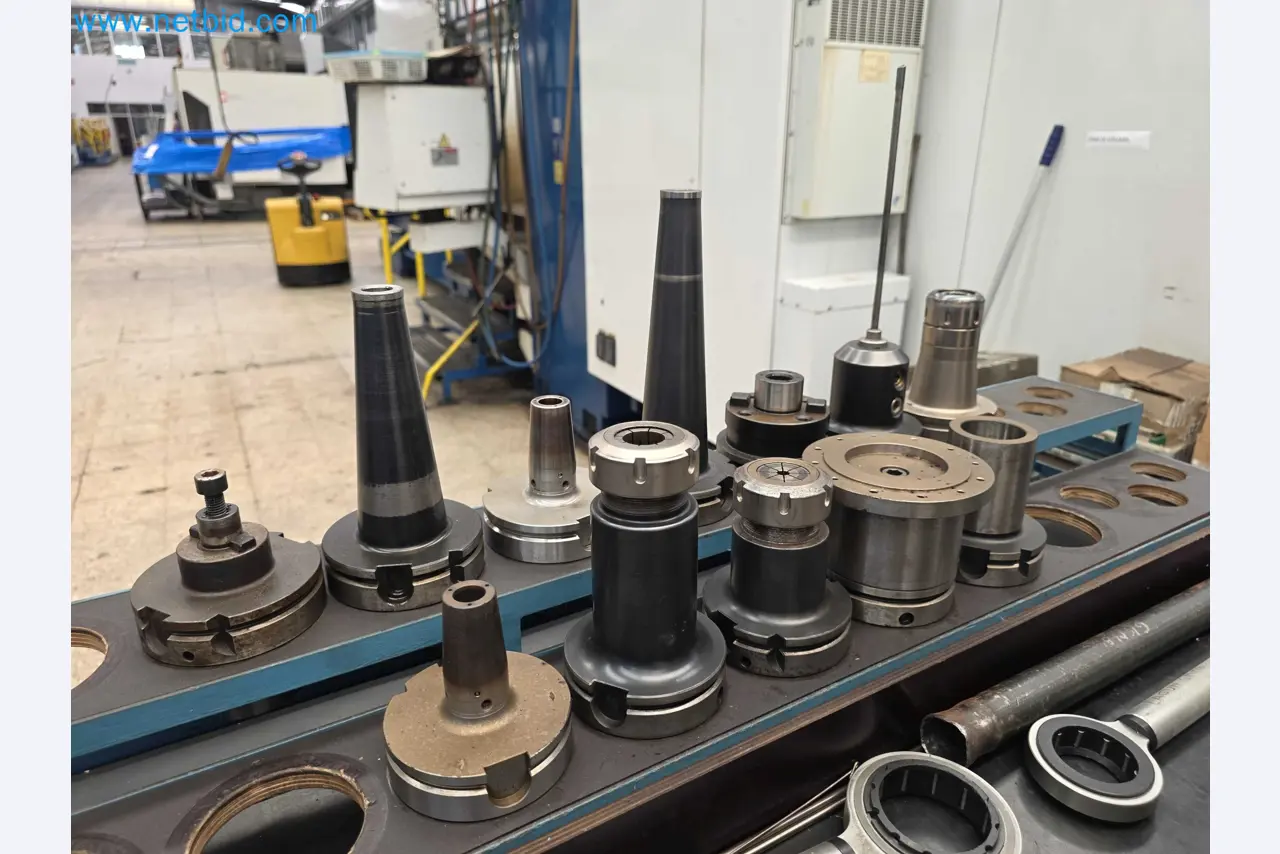

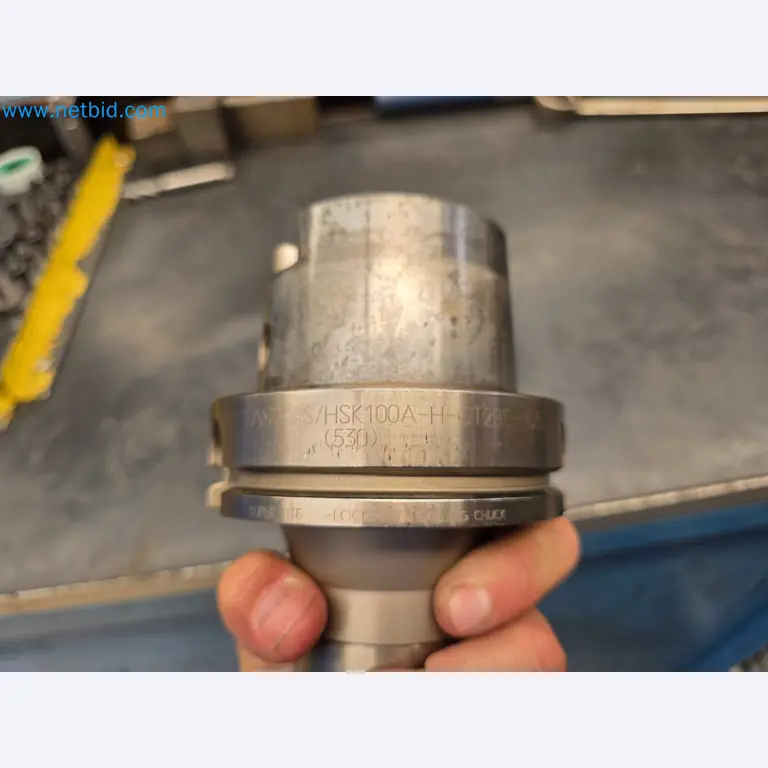

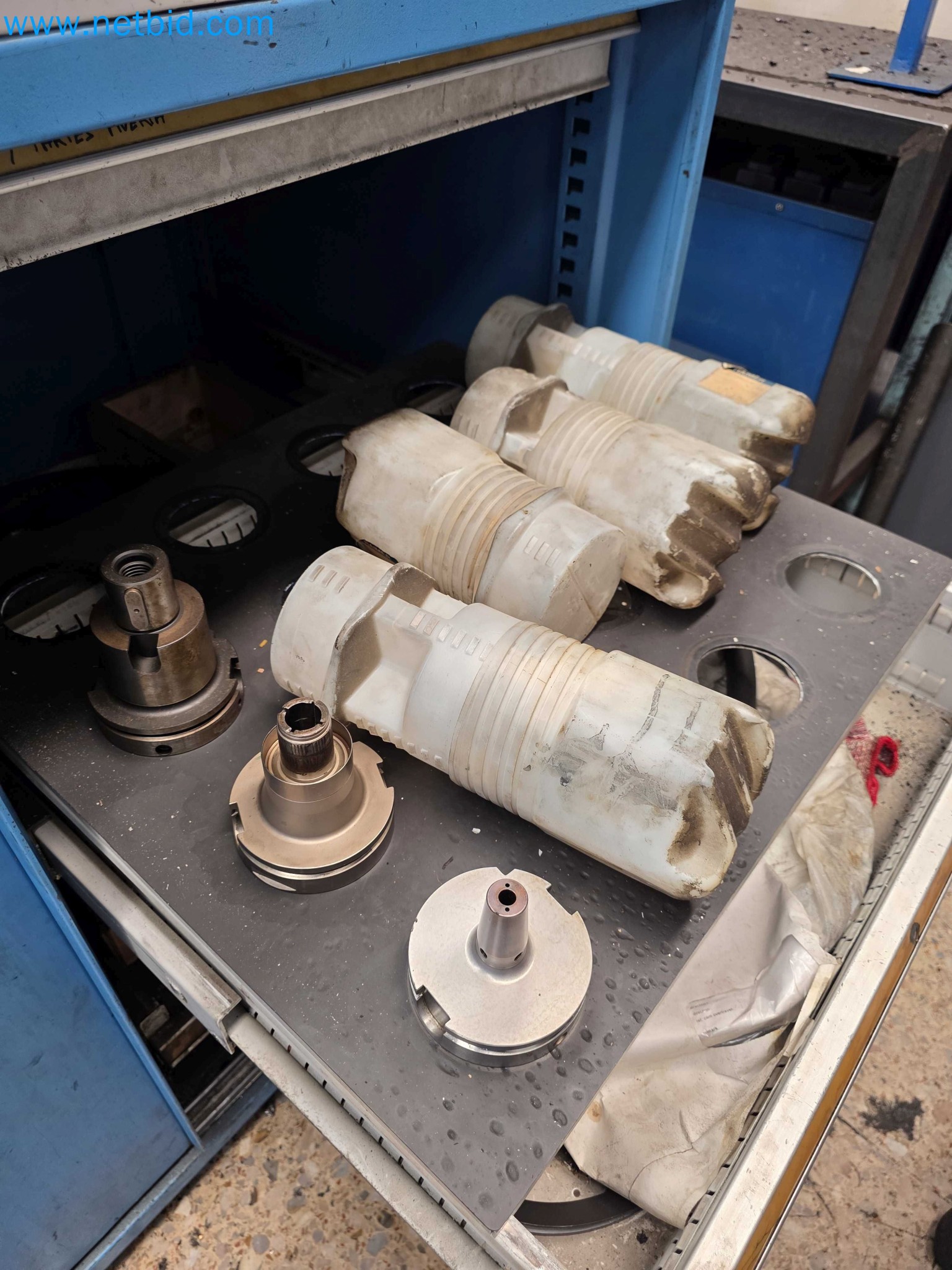

Tool holders: HSK 100

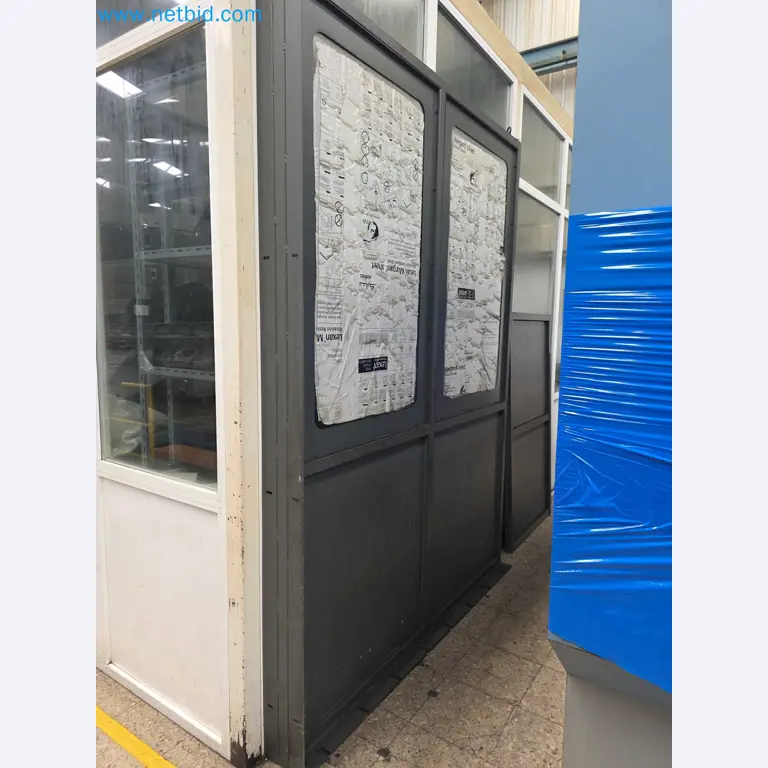

Includes separator to divide the working area into 2 zones of approx. 4000 x 1200 mm

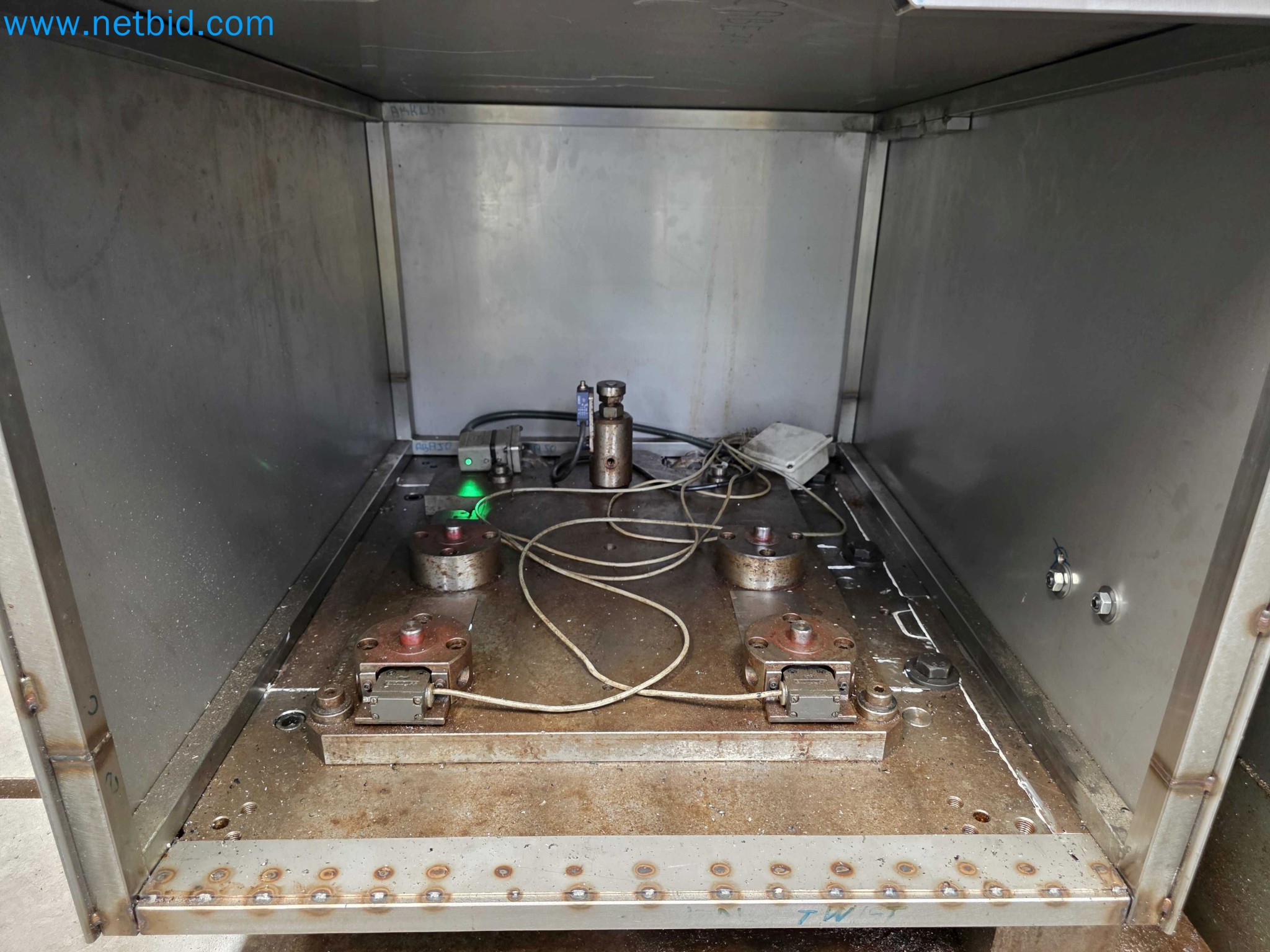

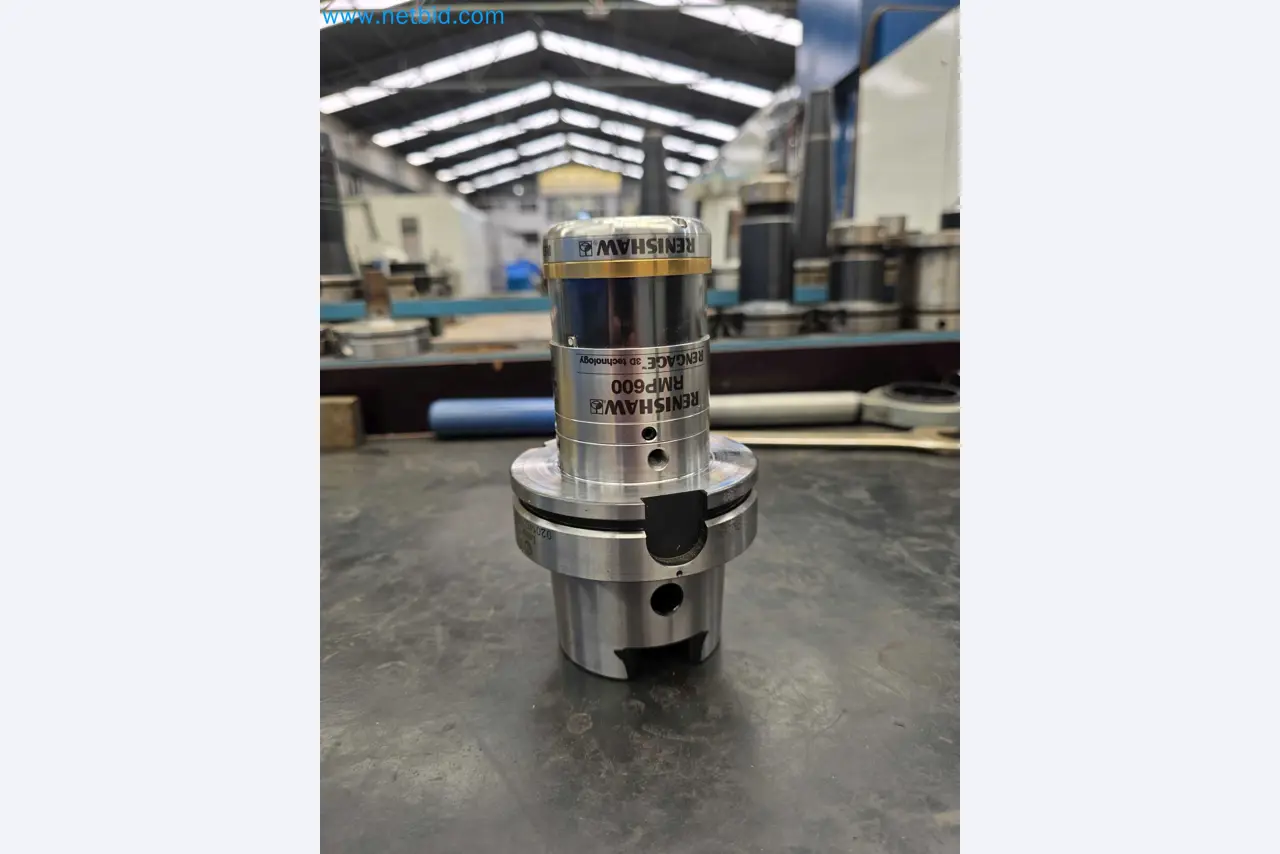

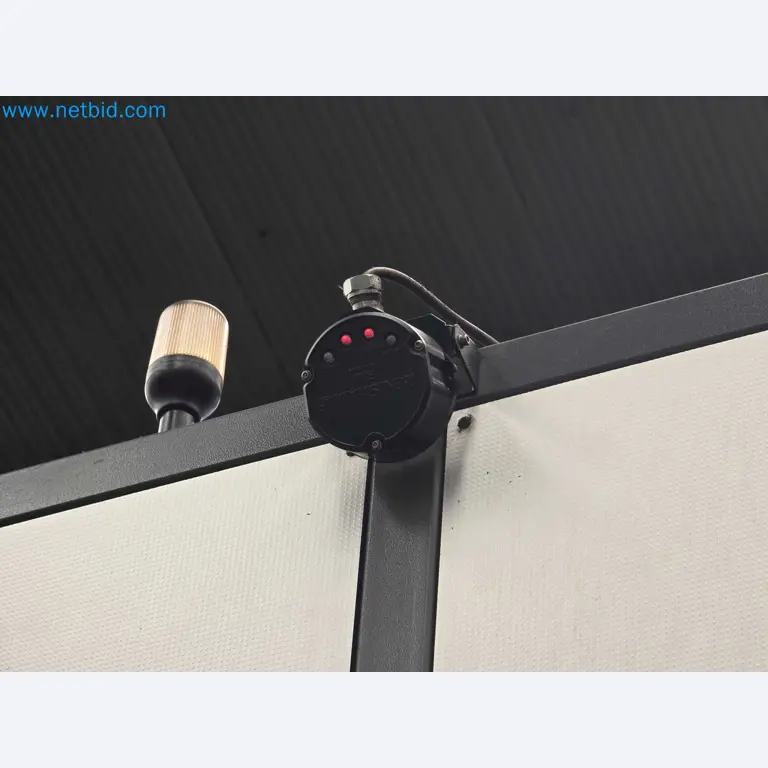

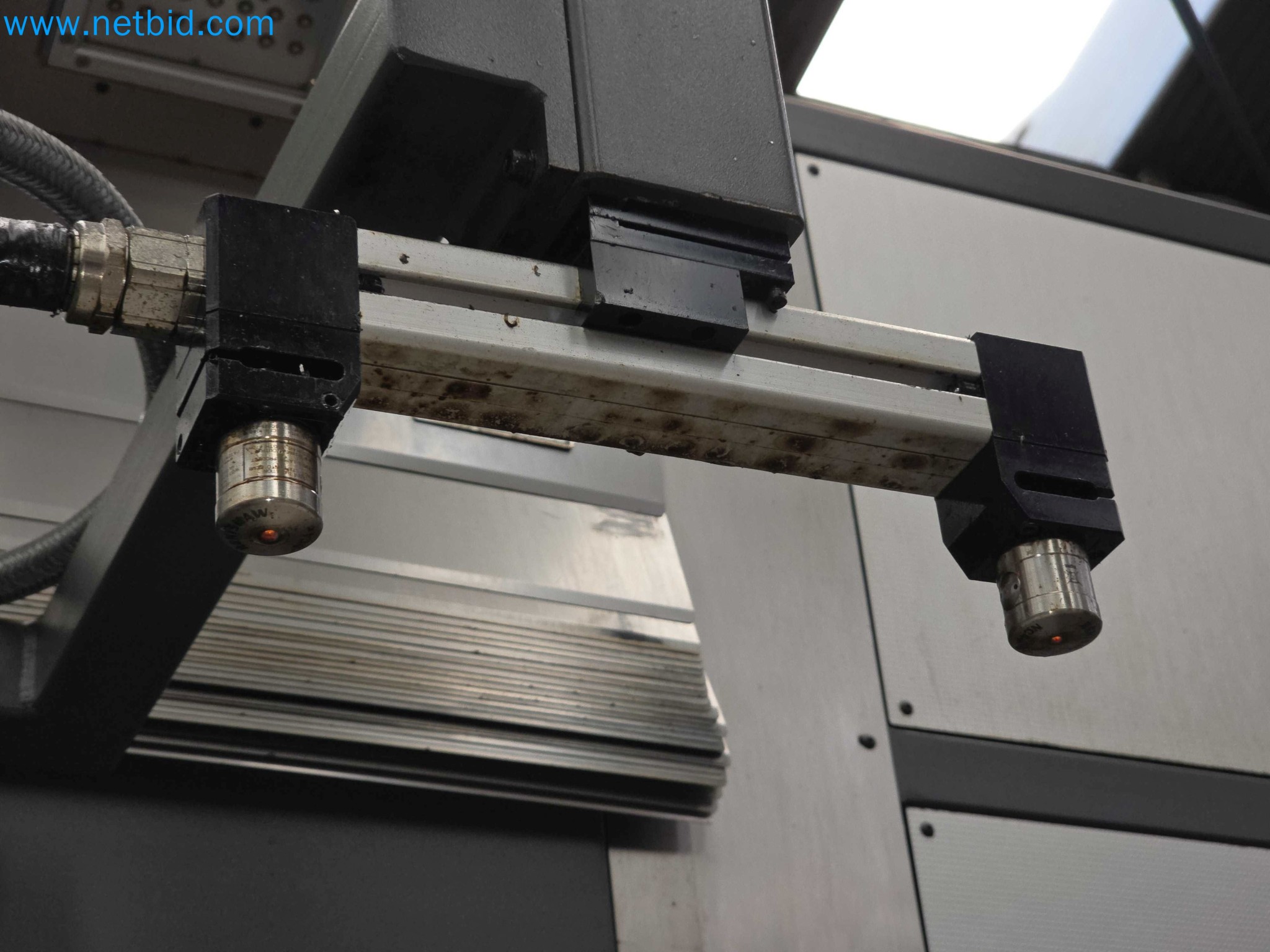

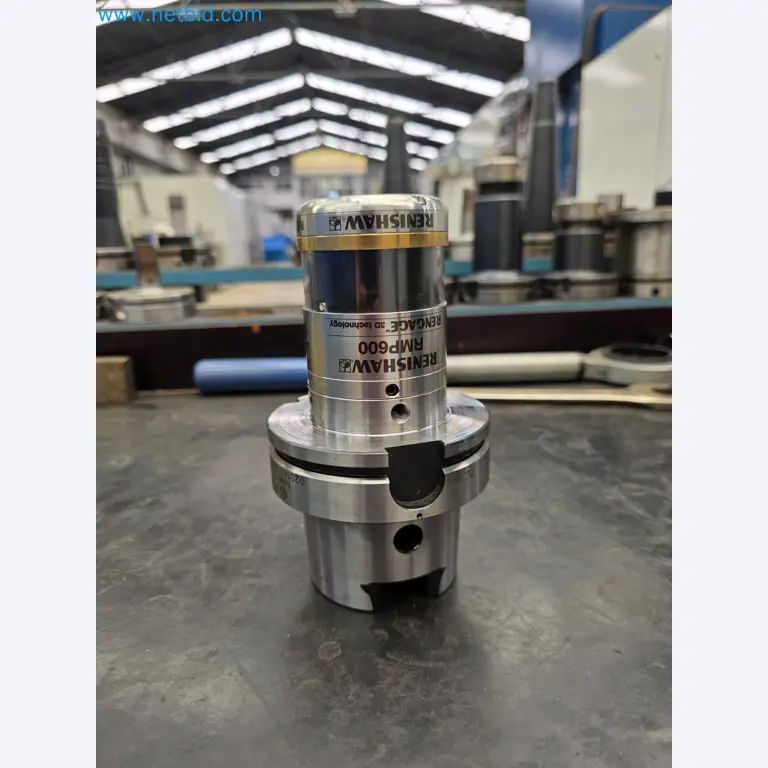

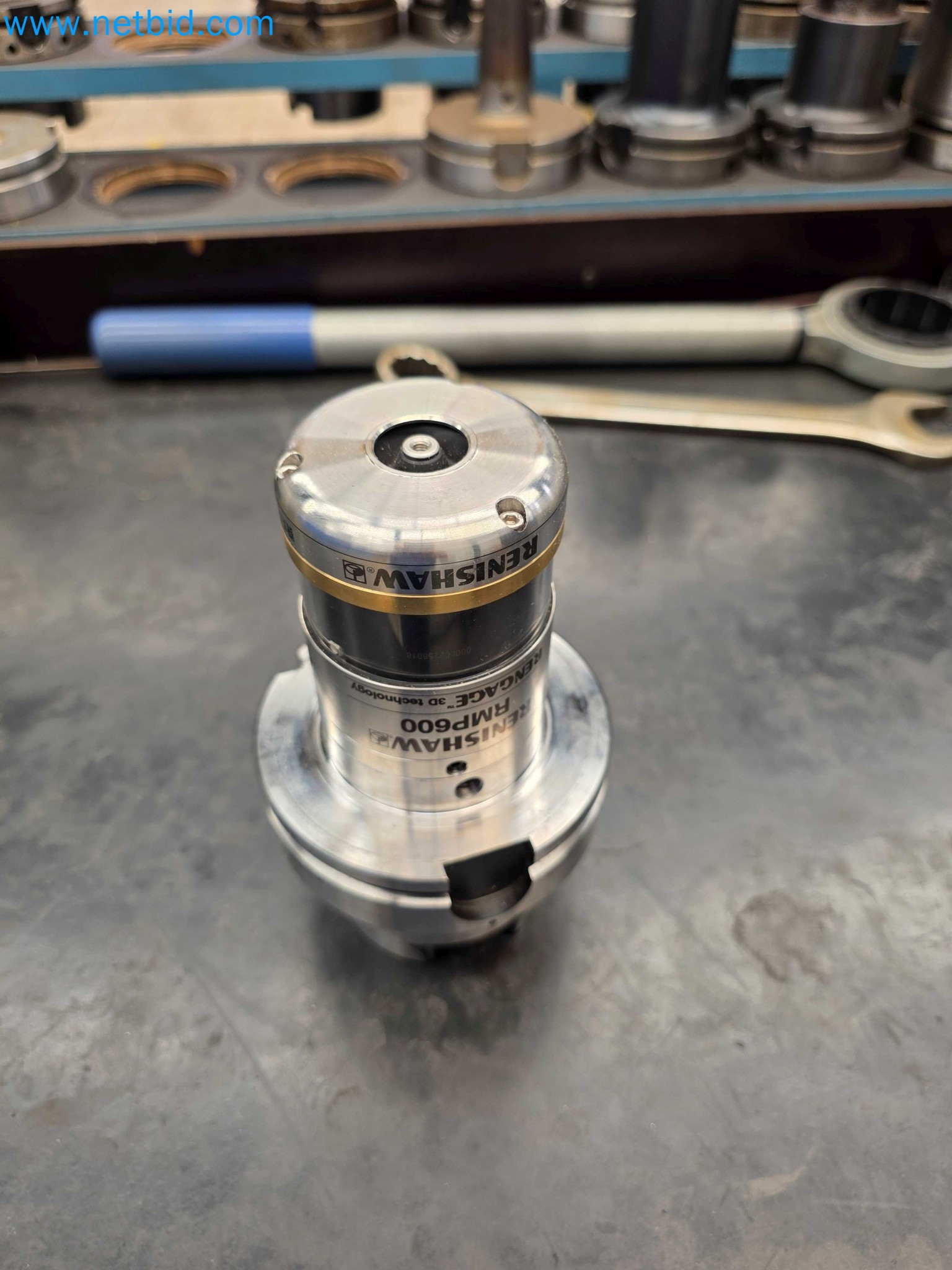

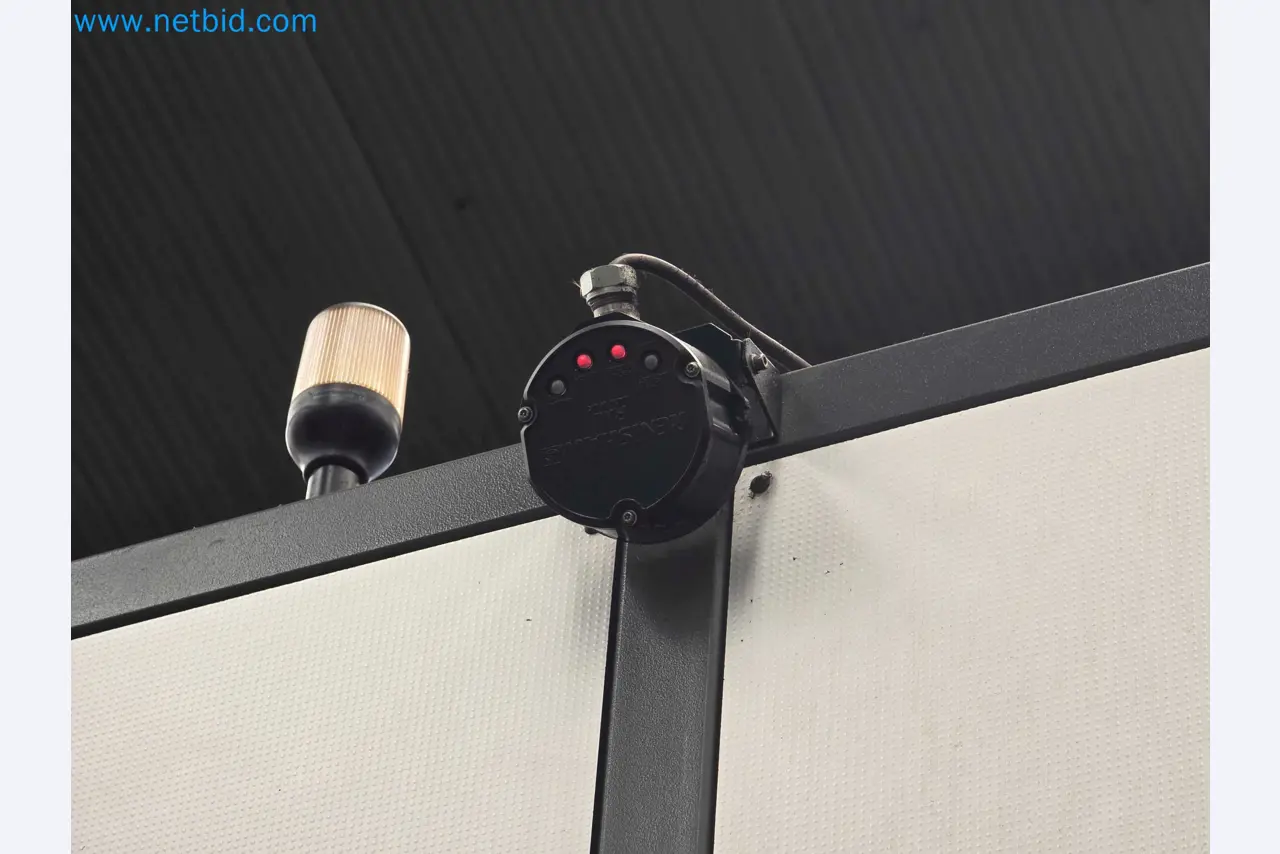

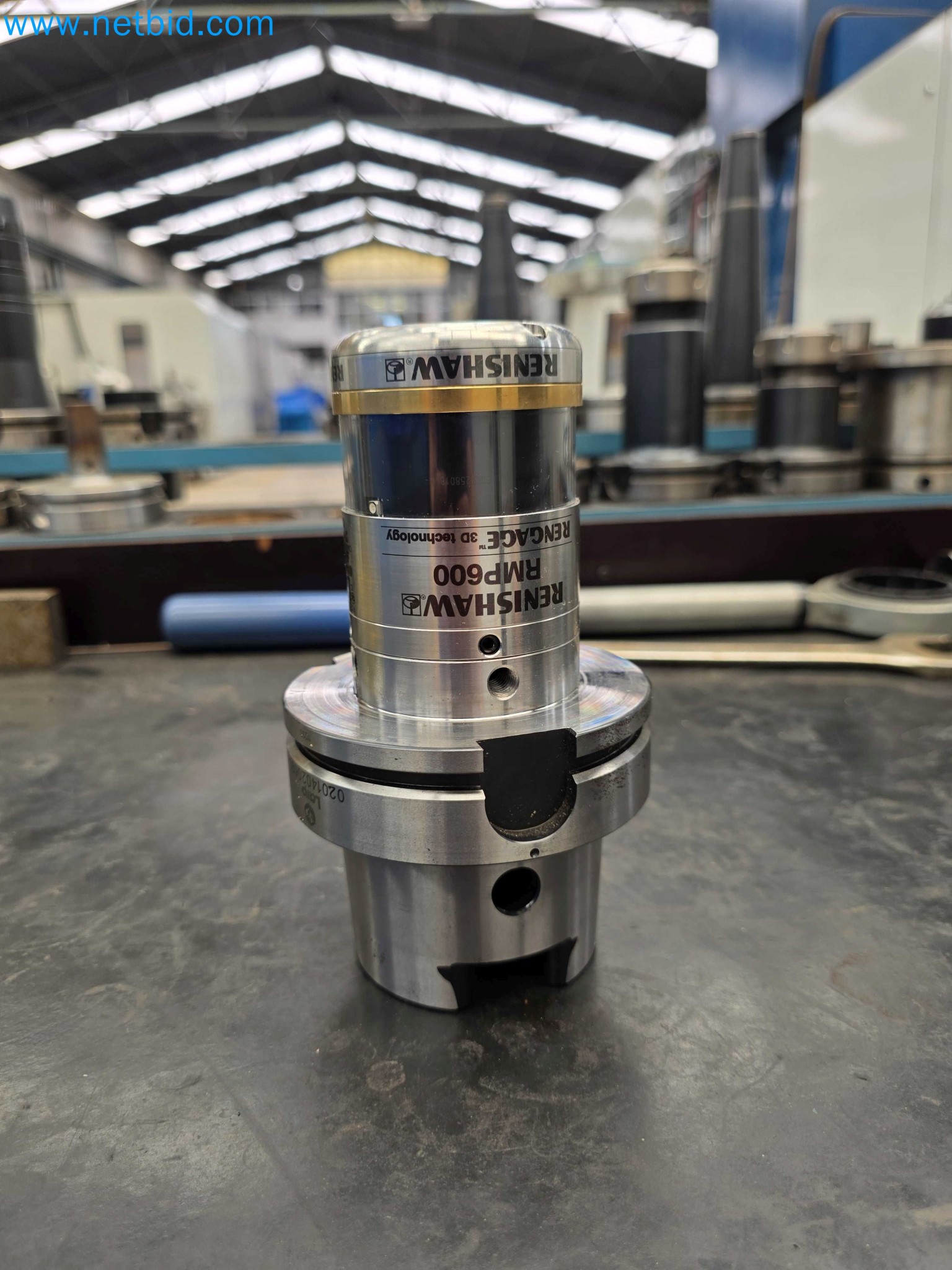

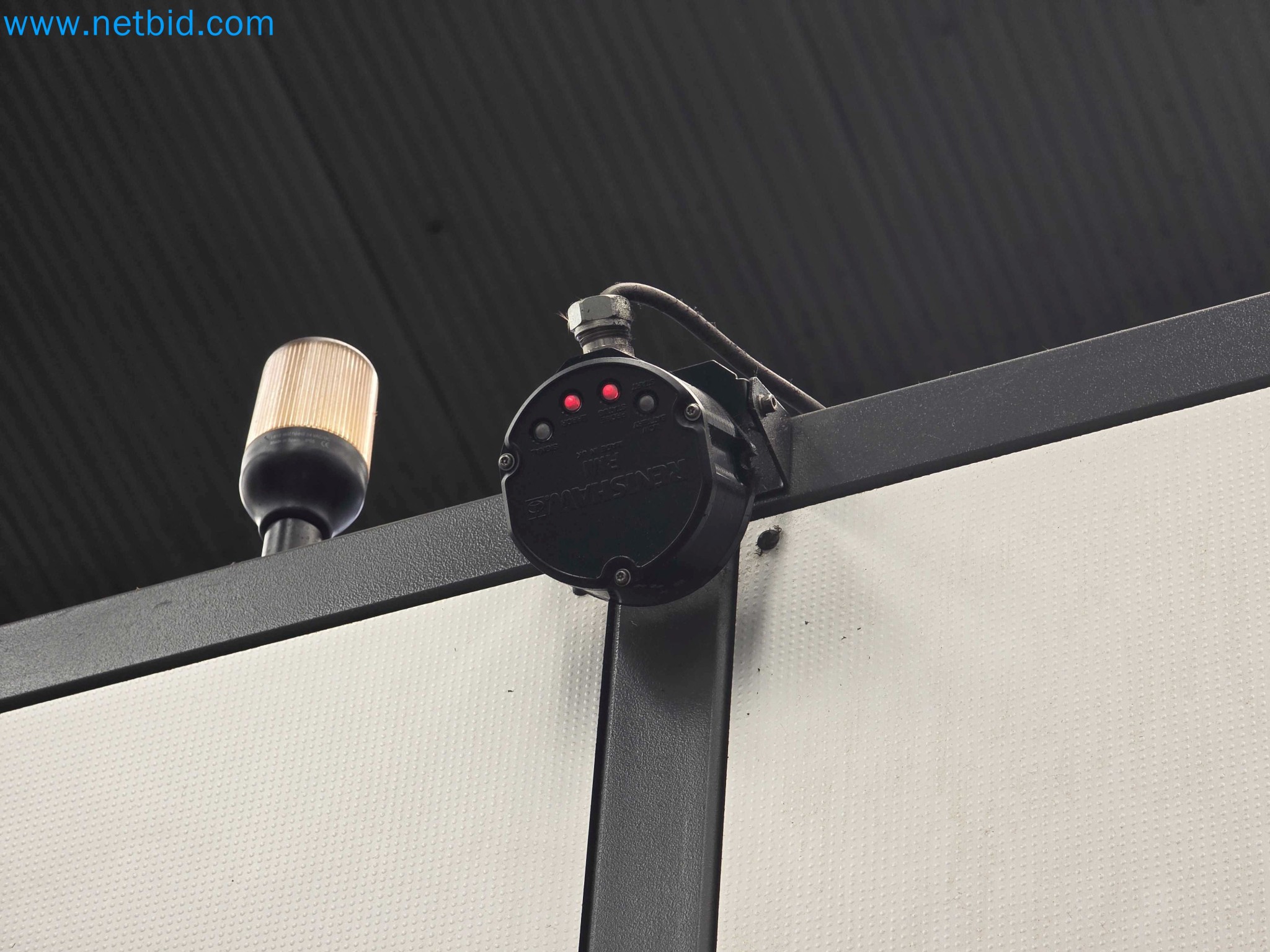

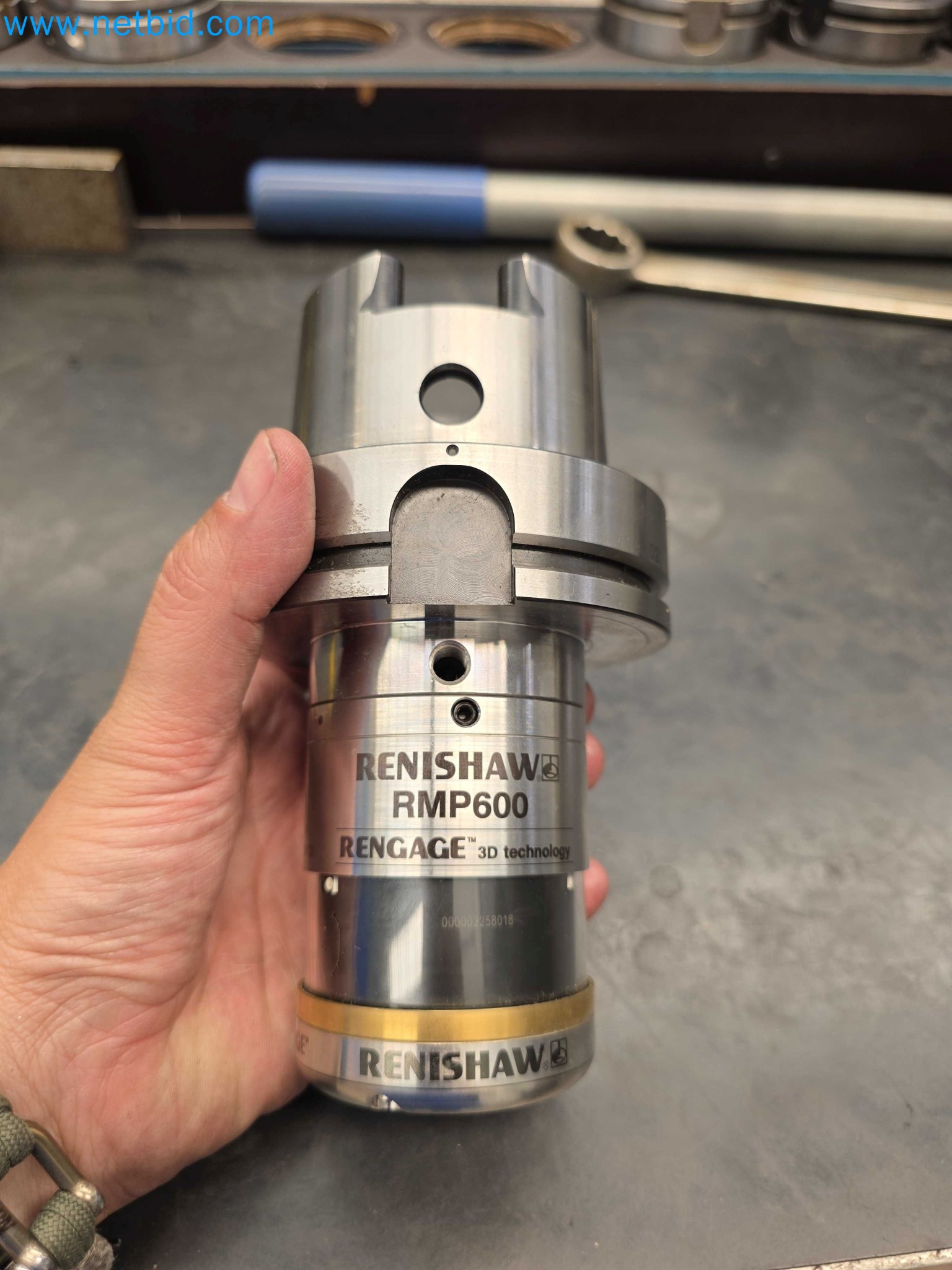

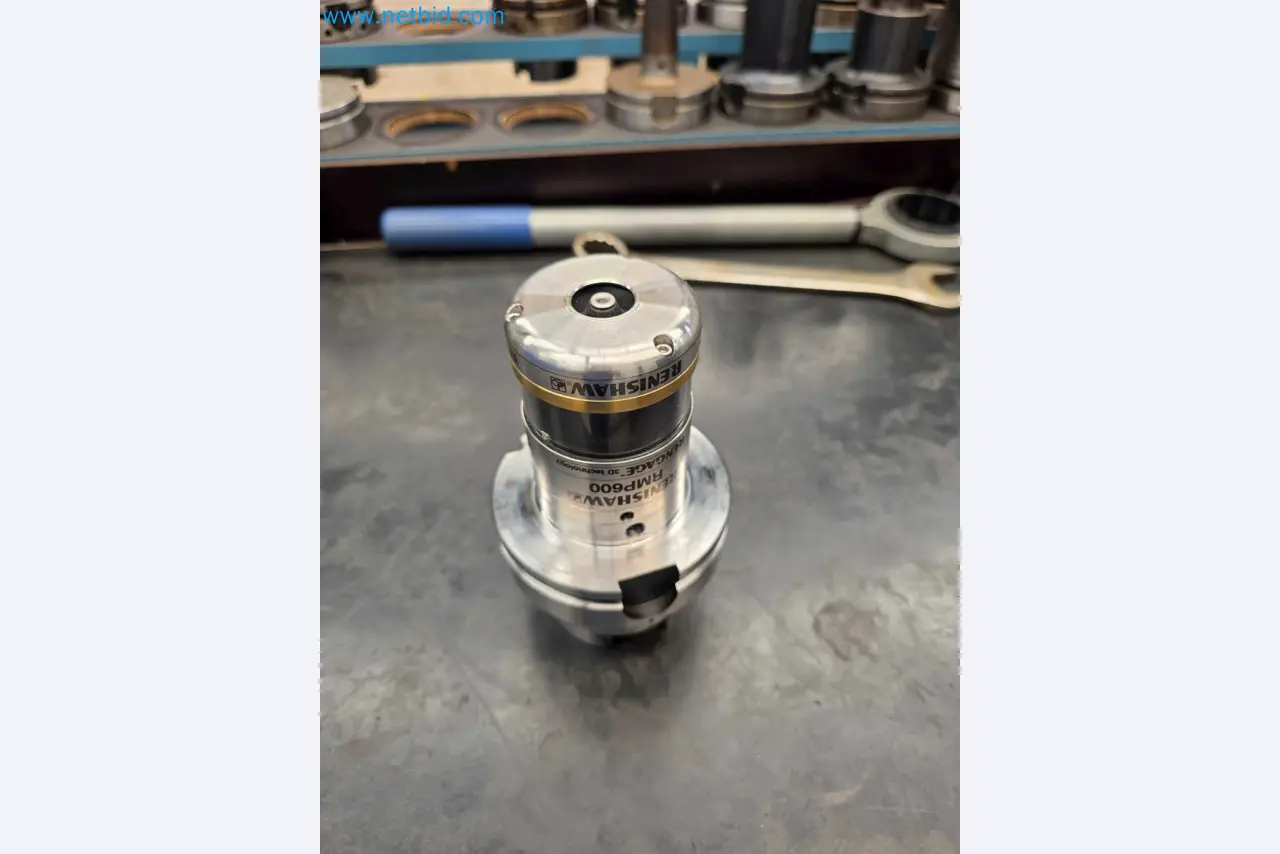

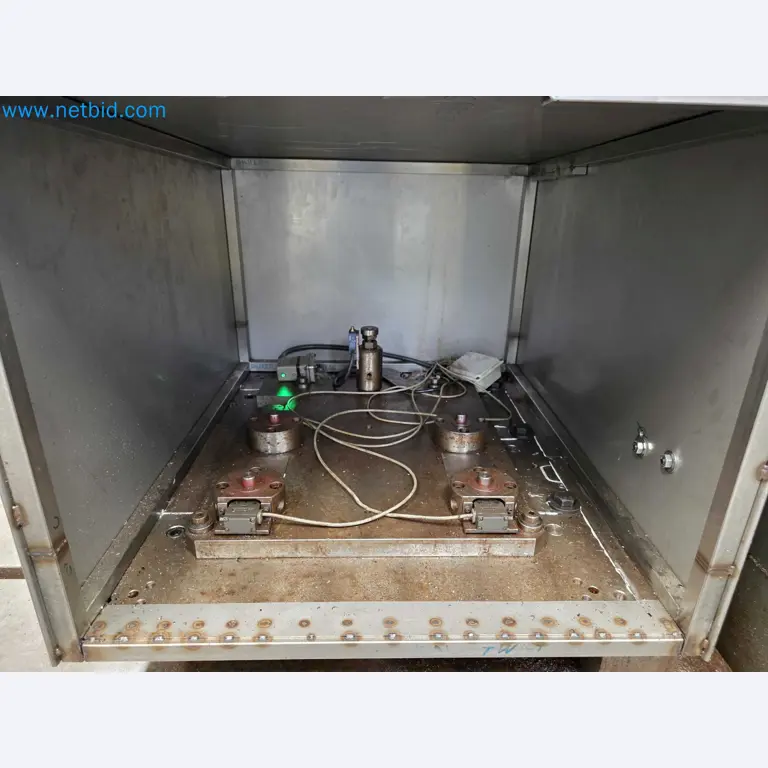

Includes RENISHAW probe and laser tool measurement system

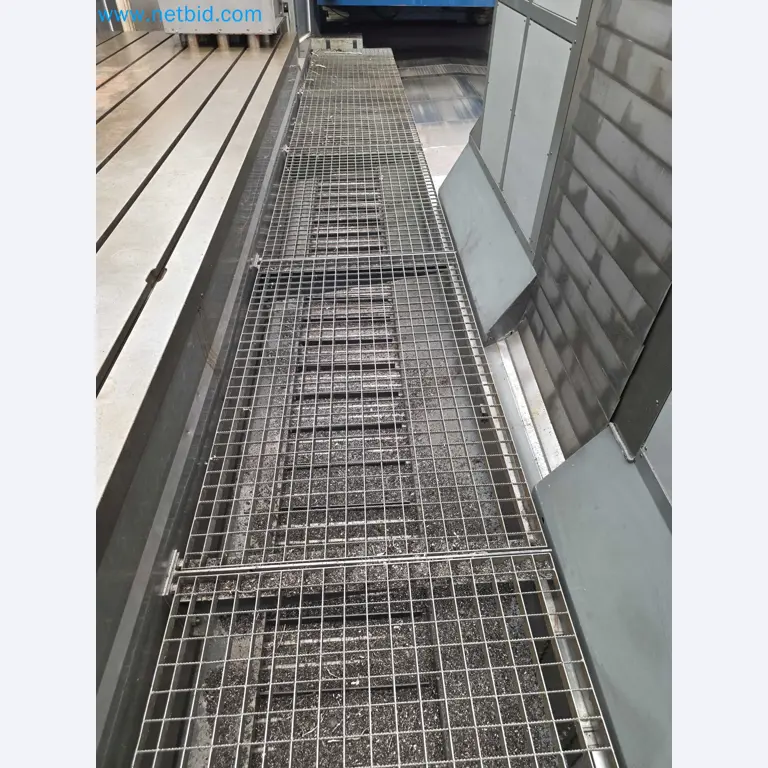

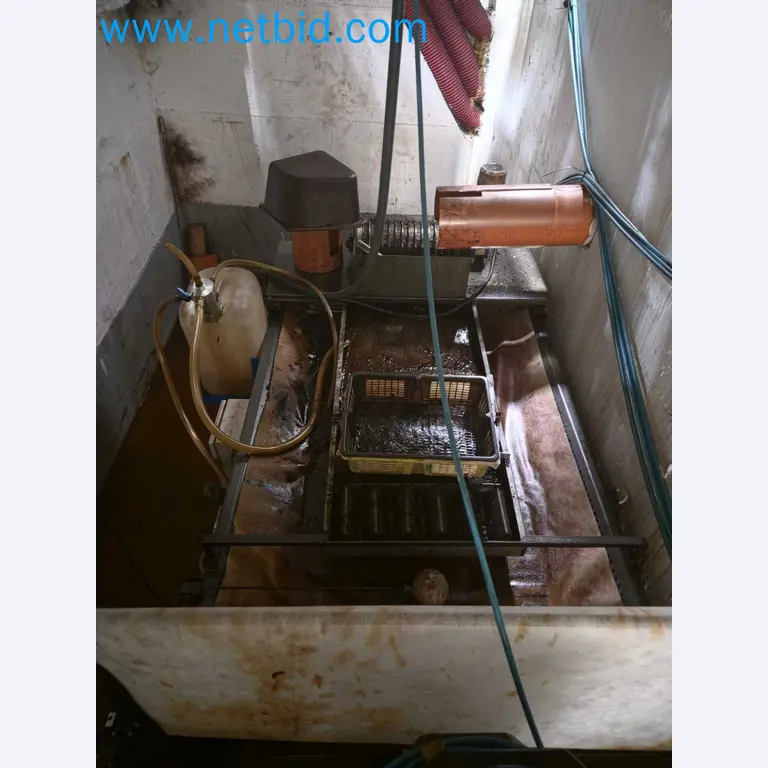

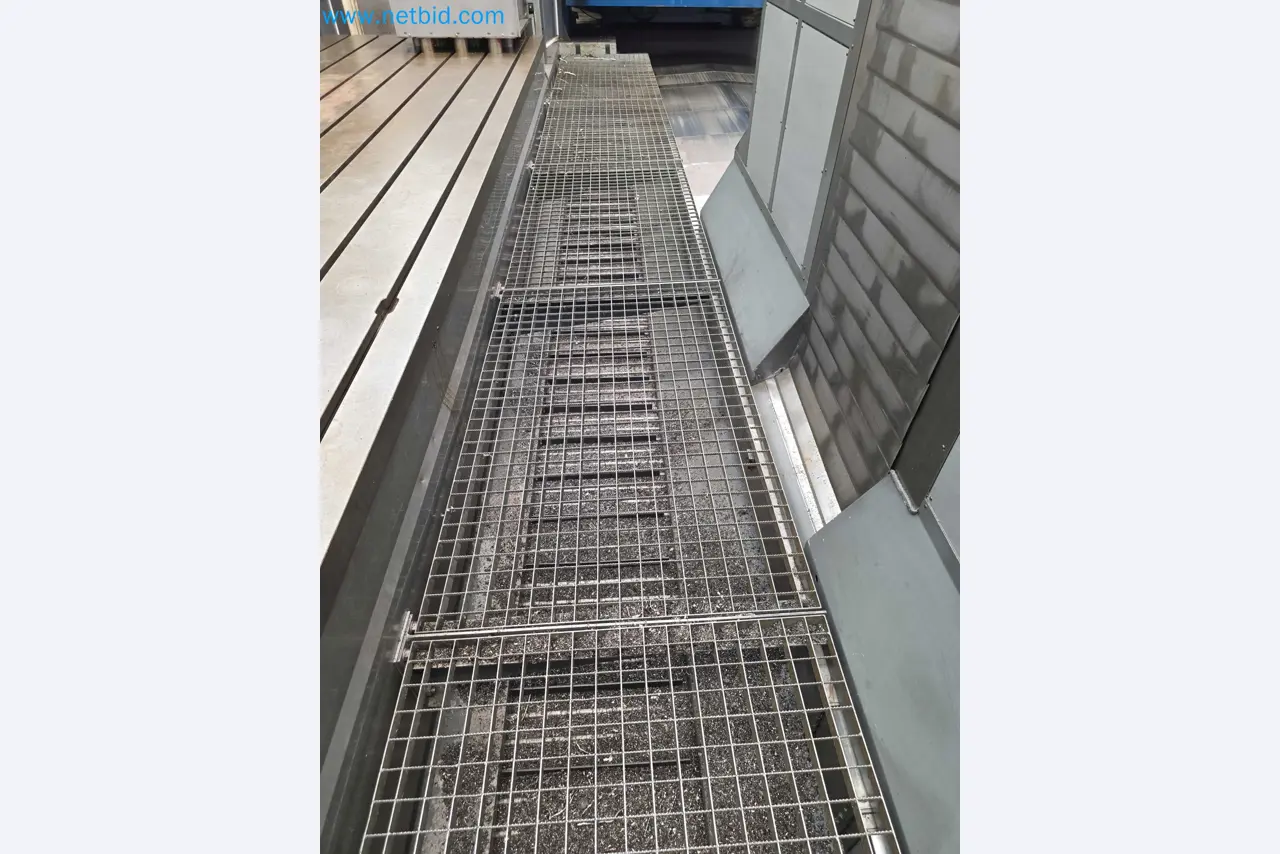

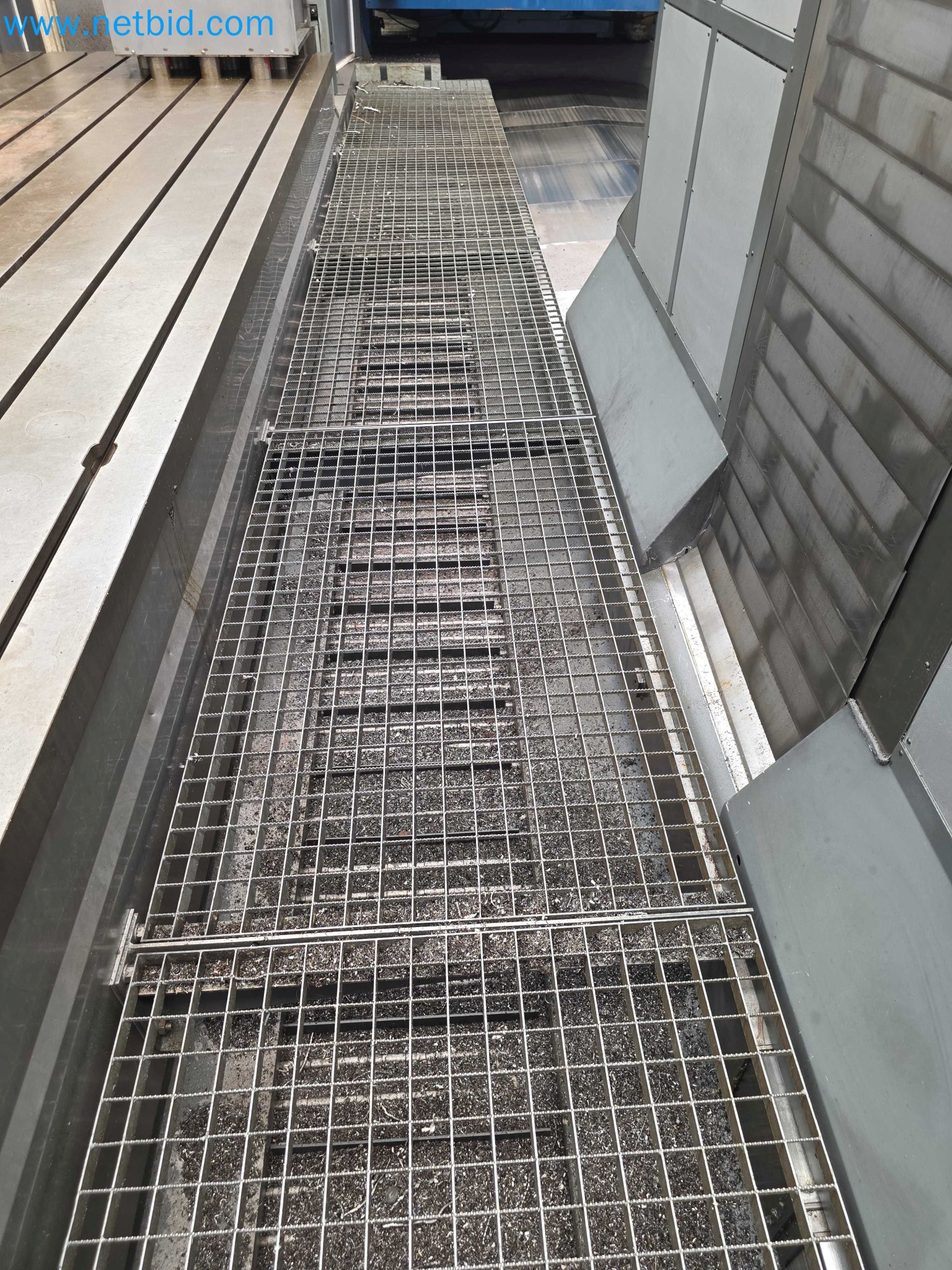

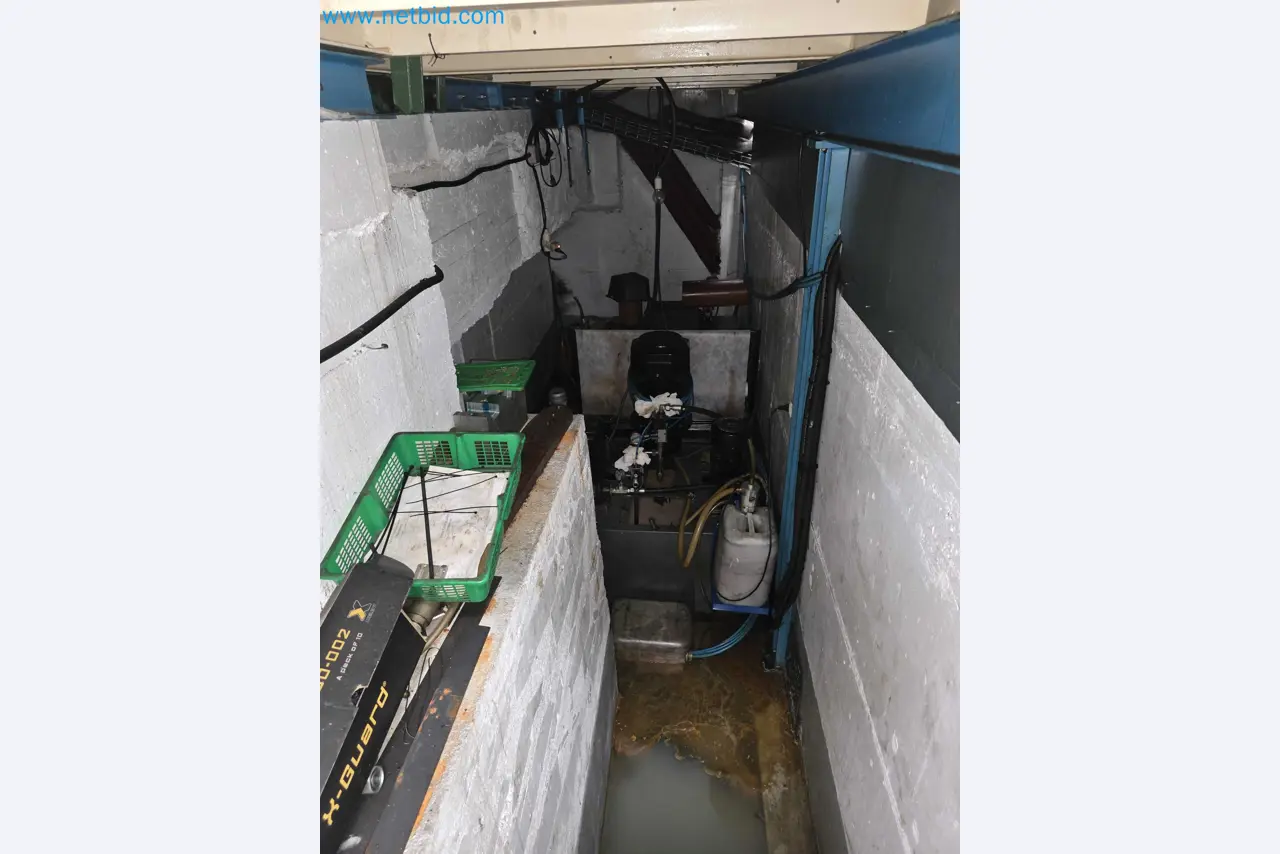

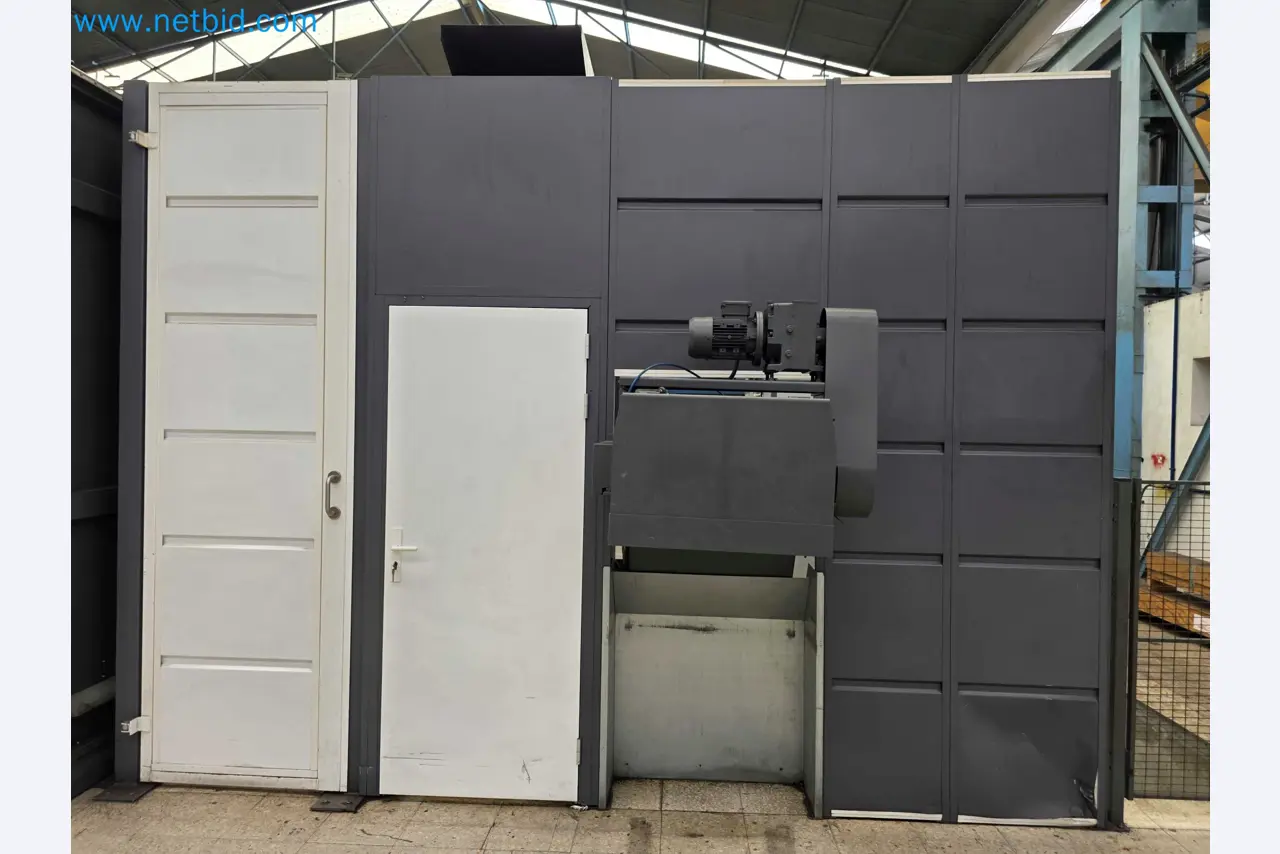

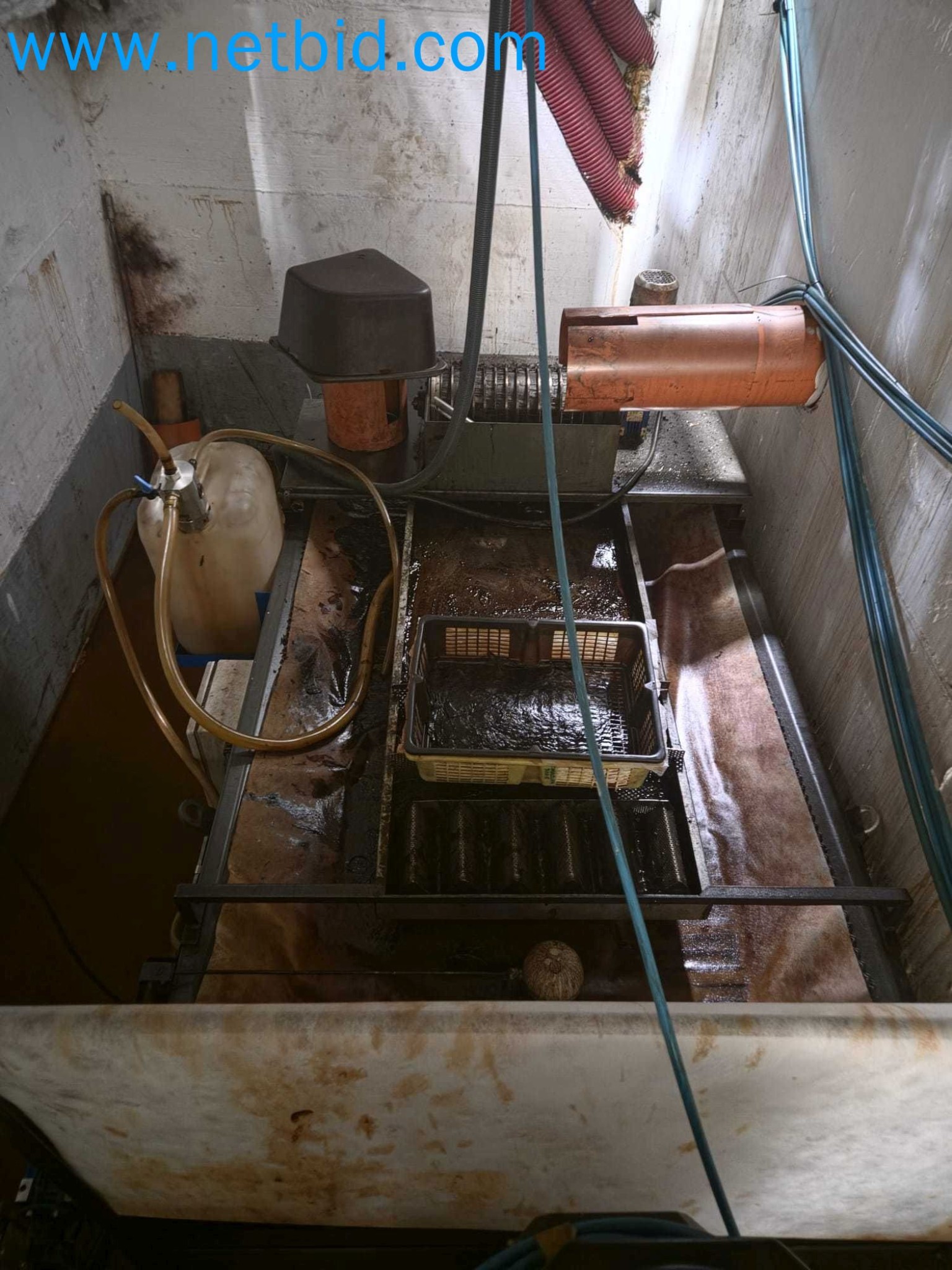

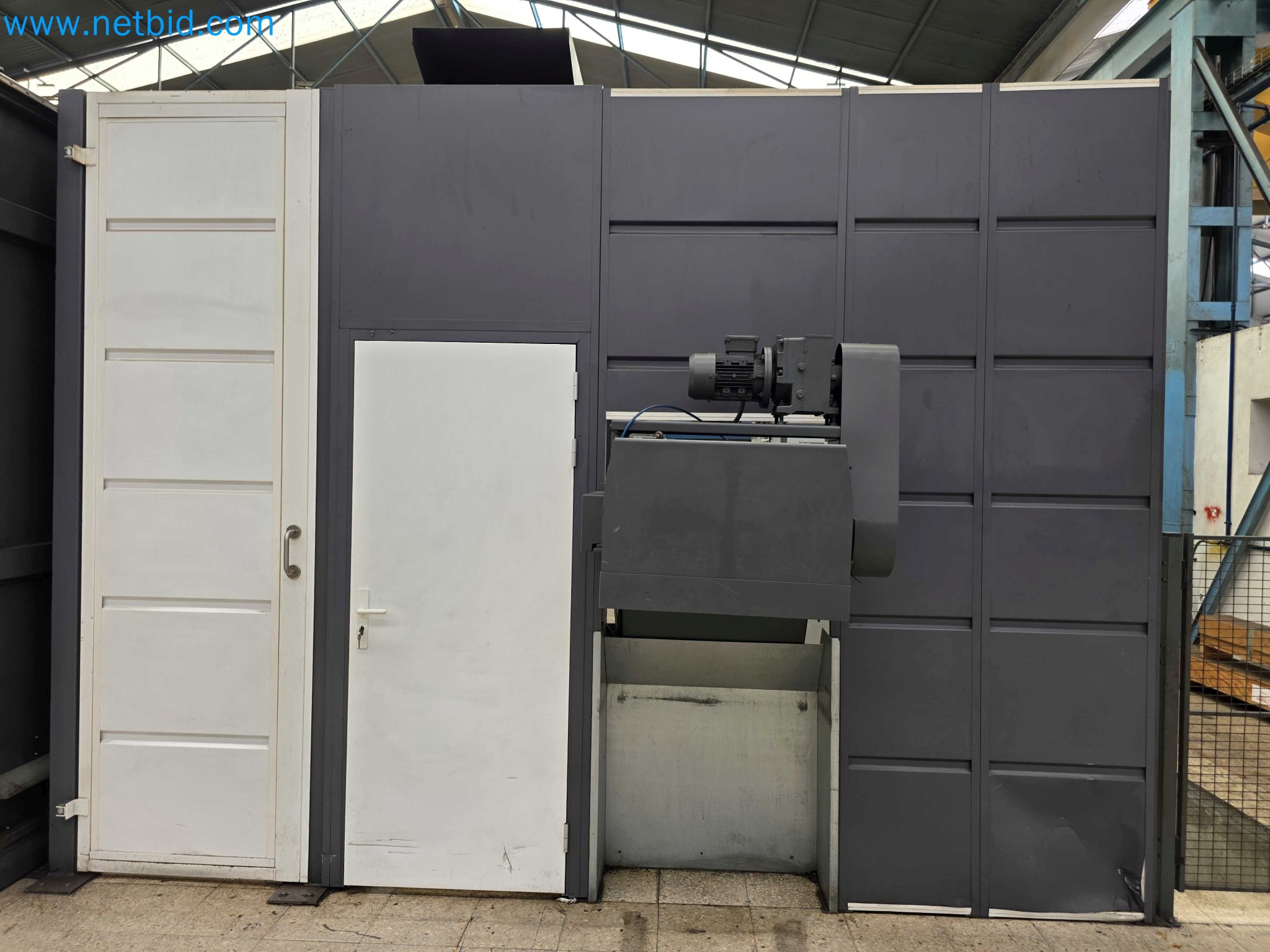

Equipped with chip conveyor

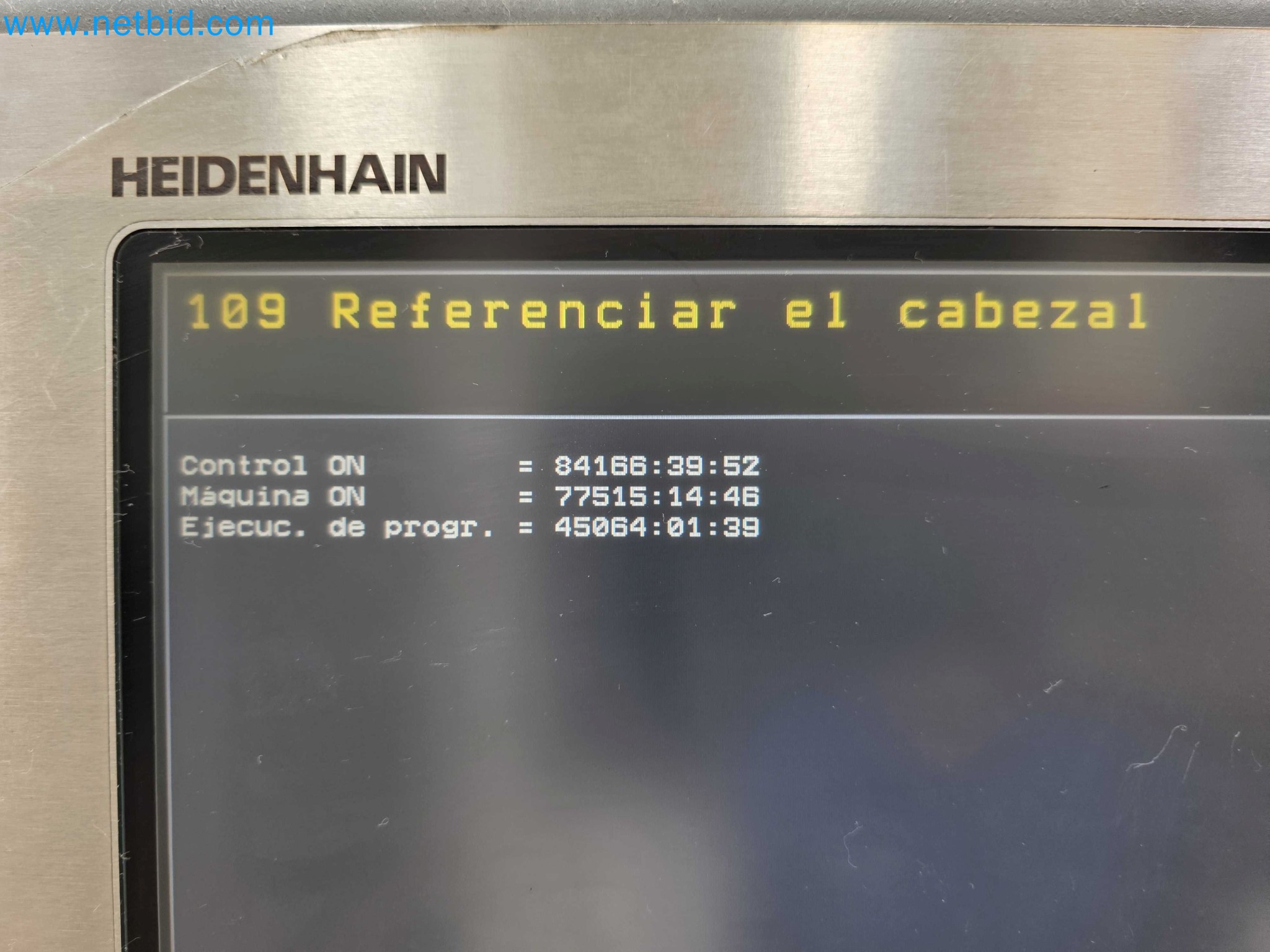

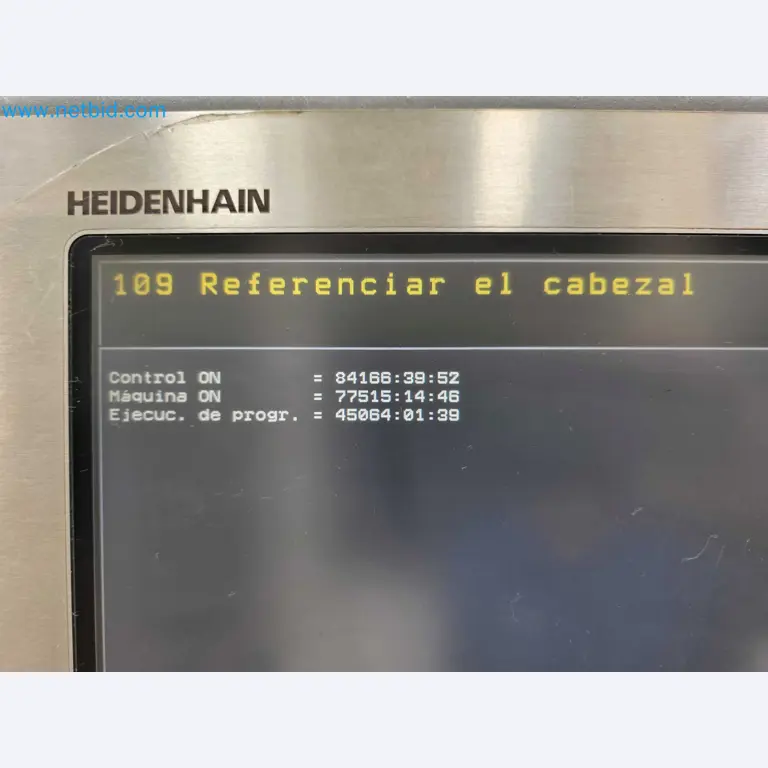

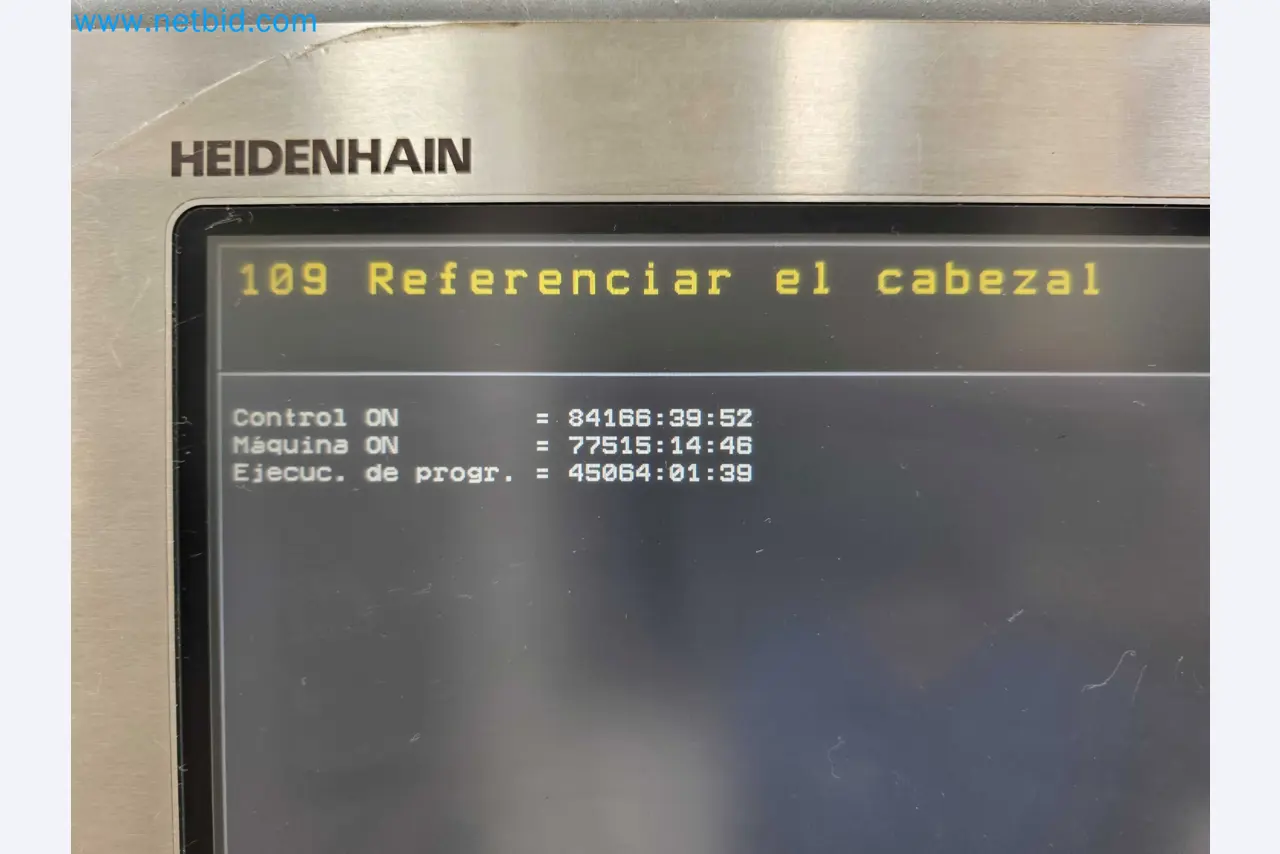

Machine operating hours according to counter: 77,515 h
Working hours according to counter: 45,064 h

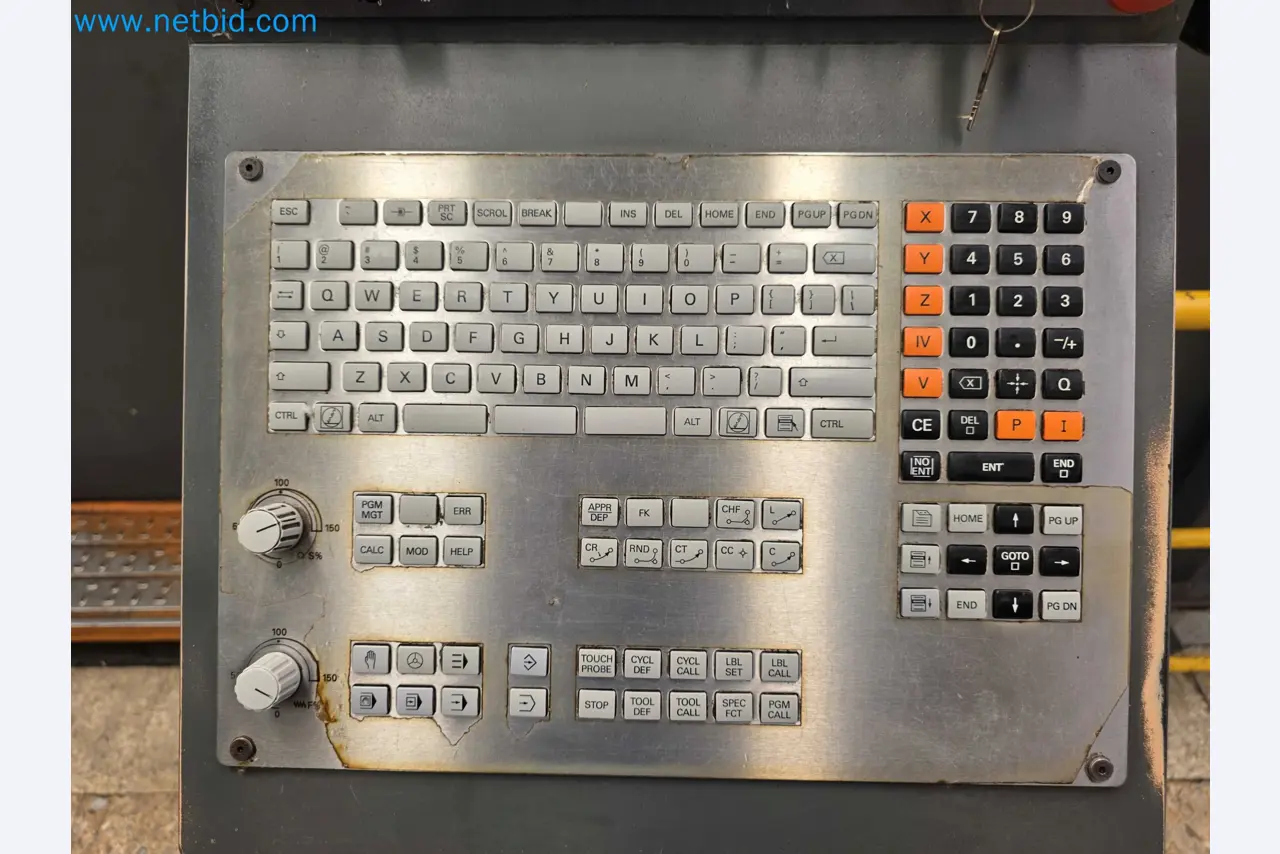

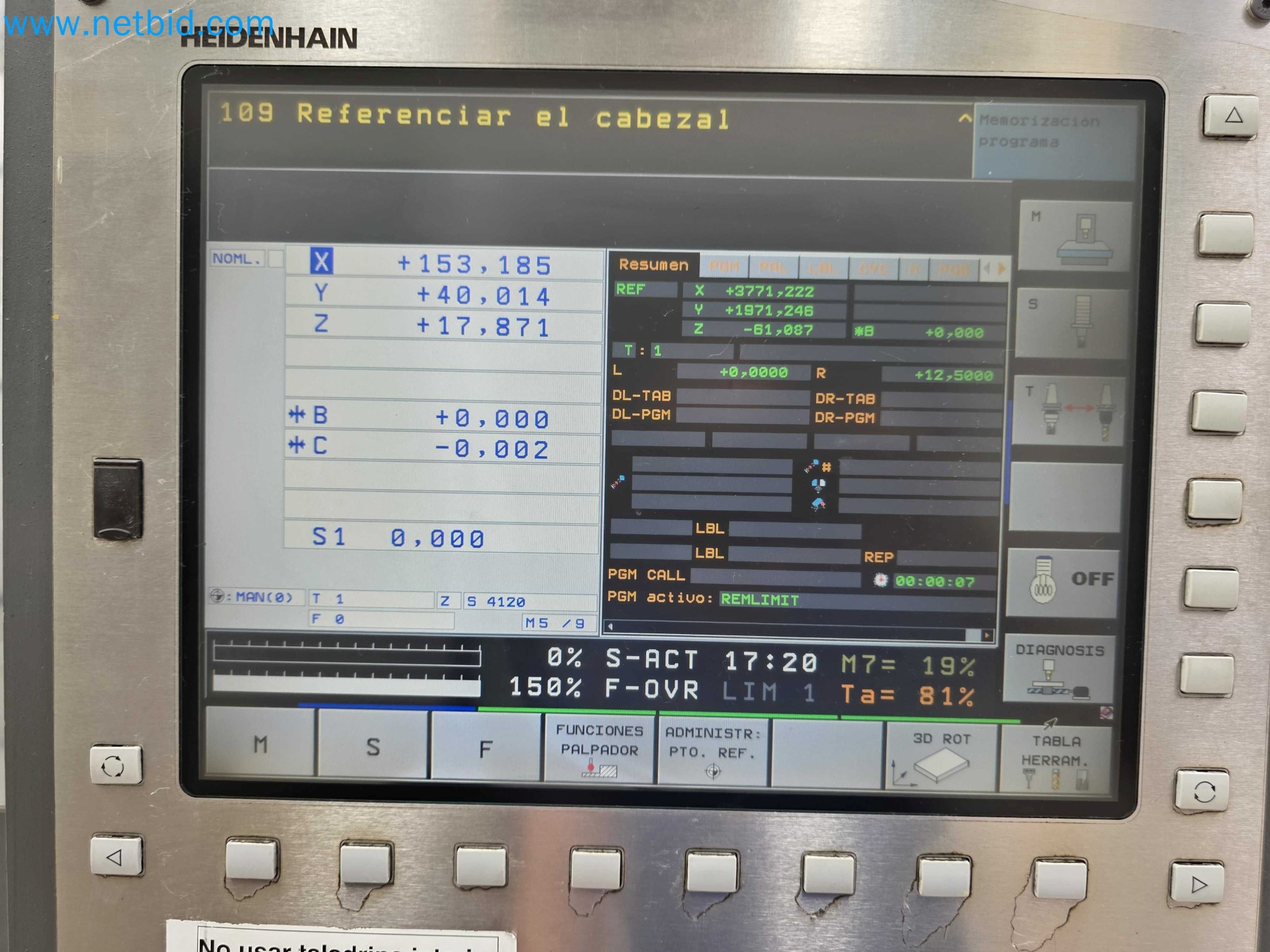

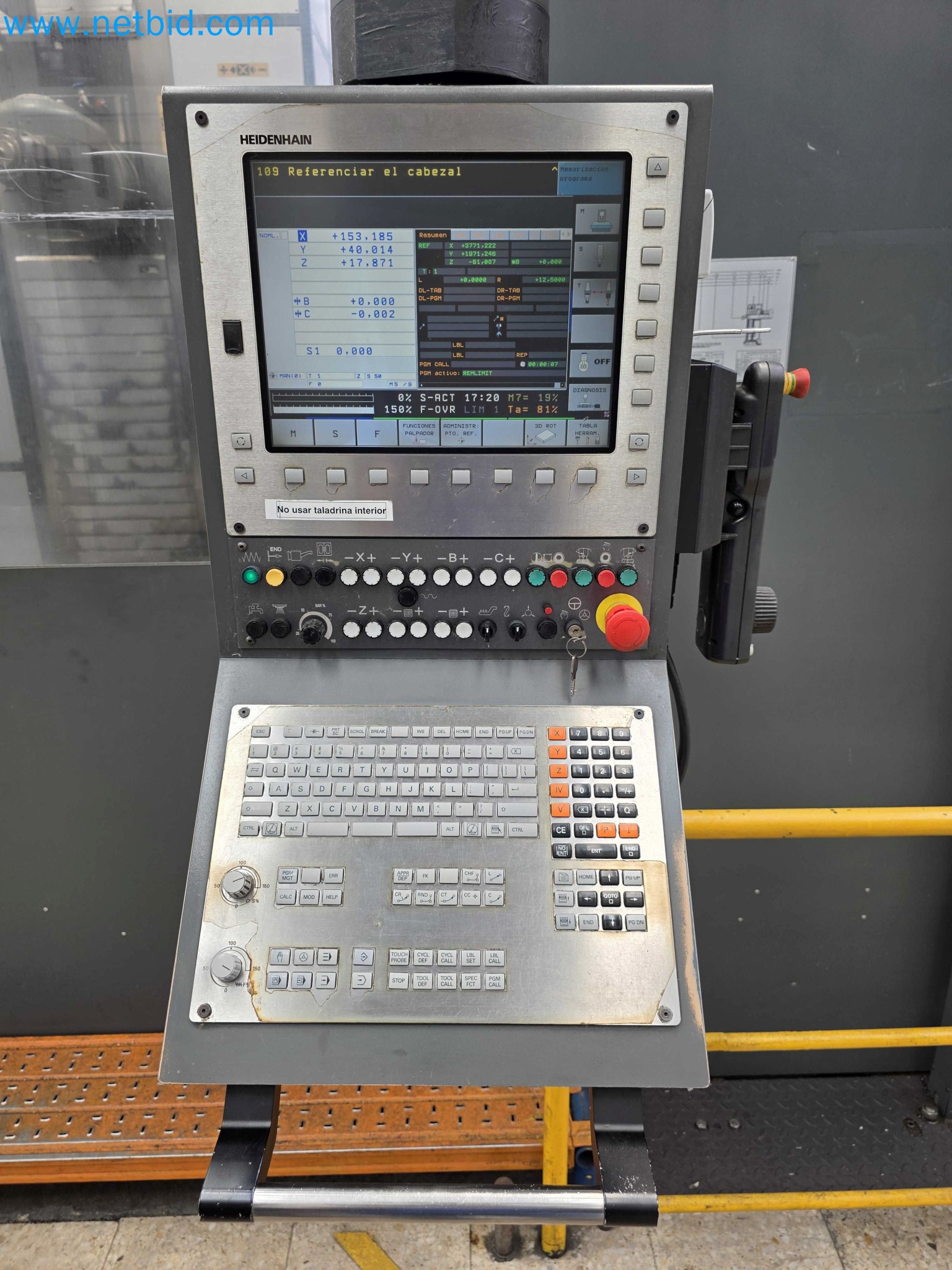

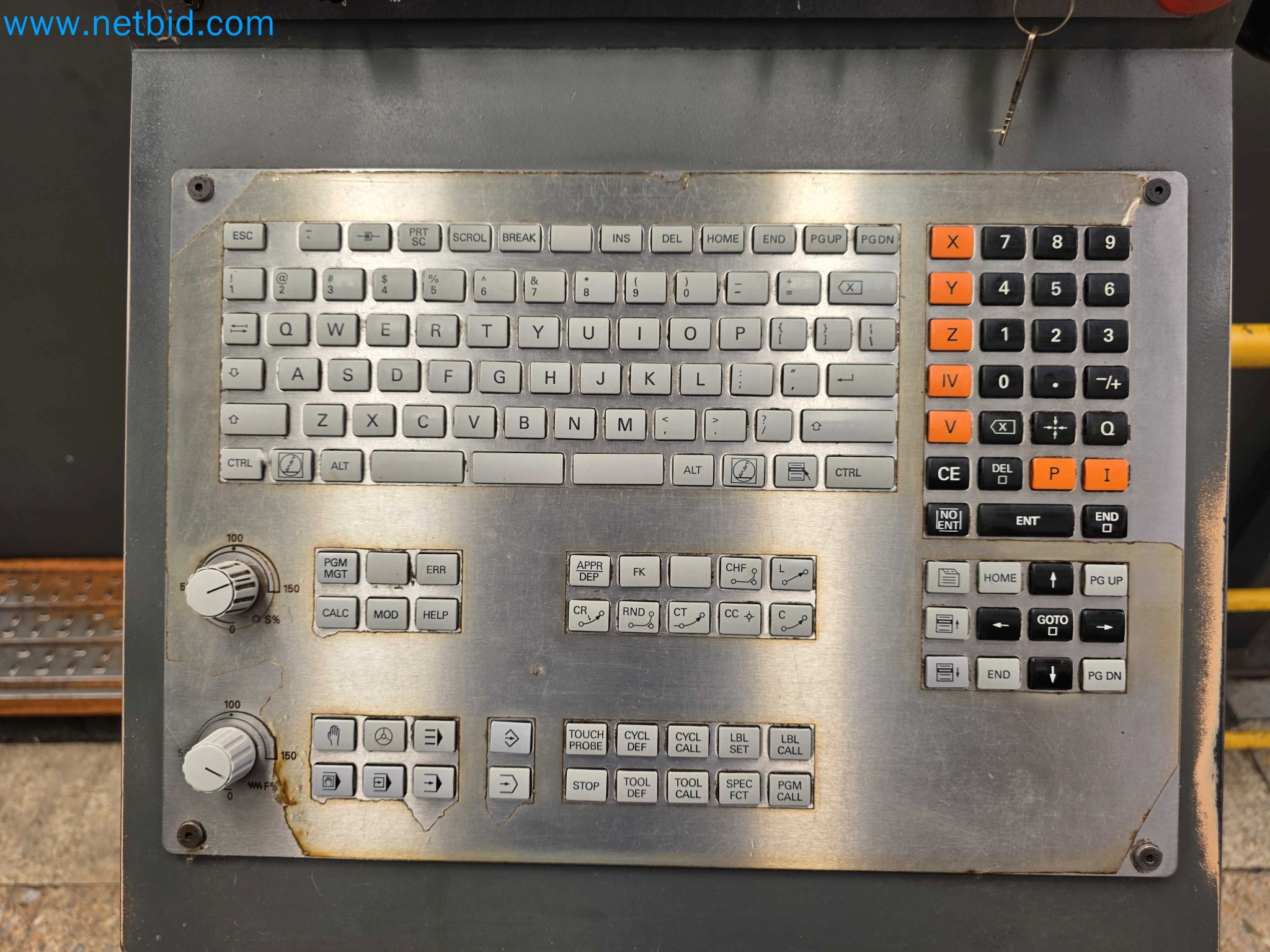

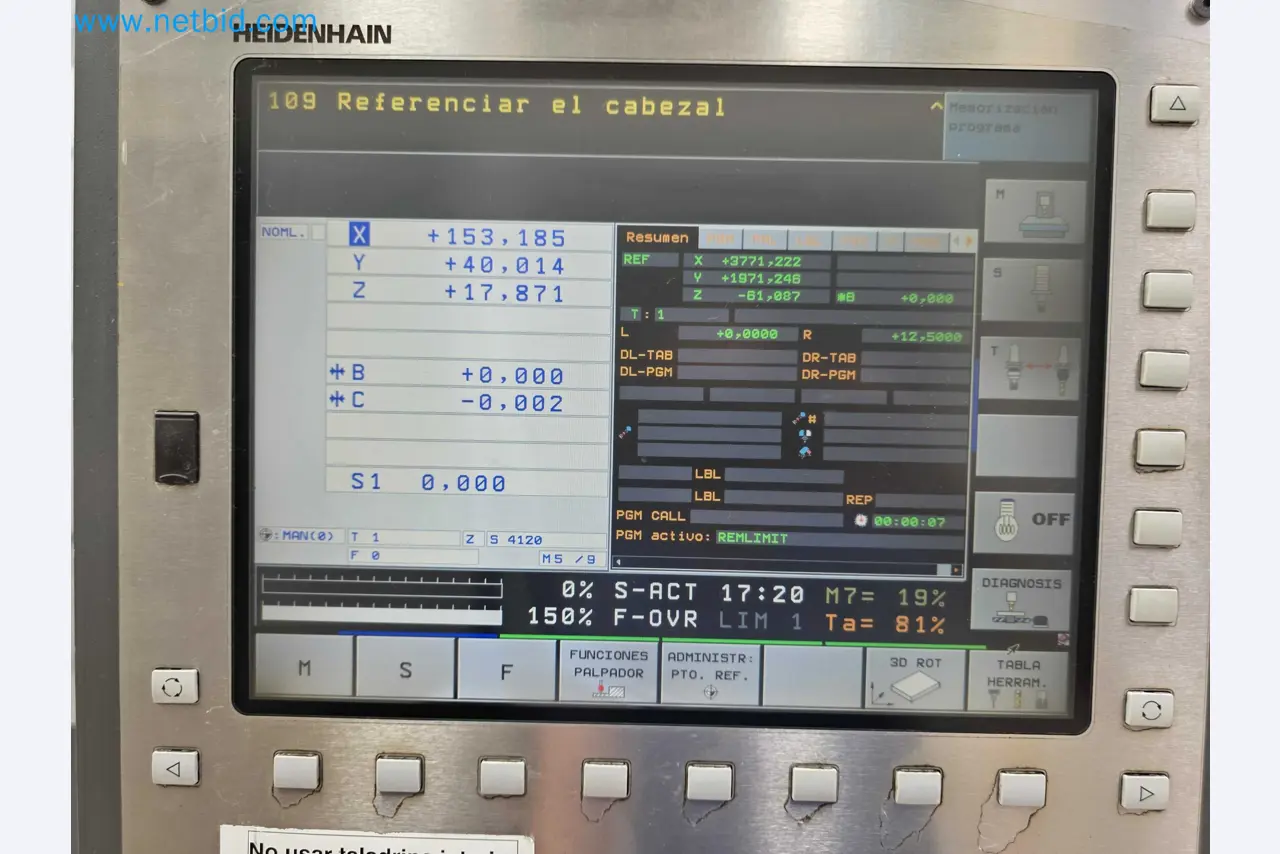

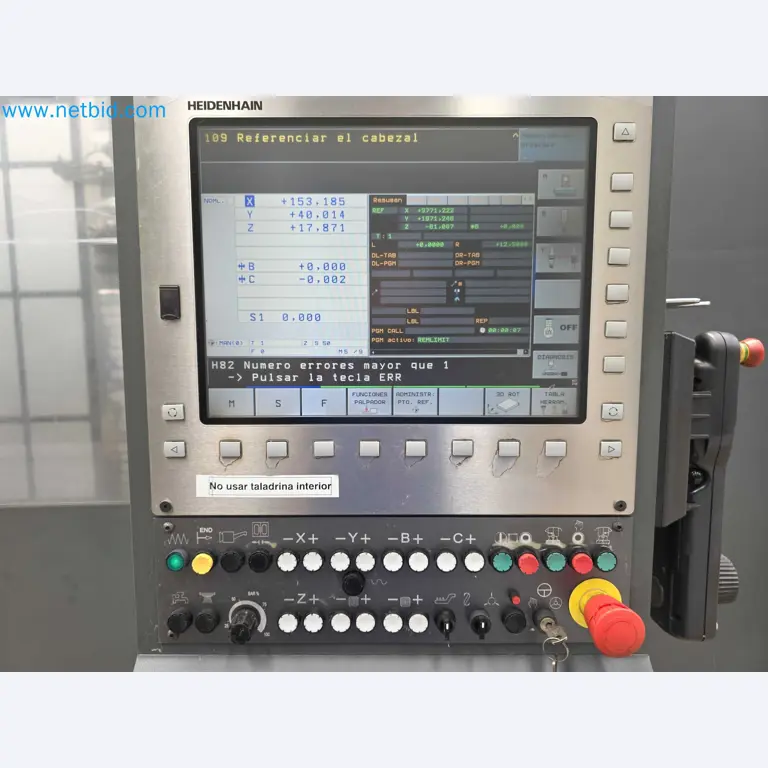

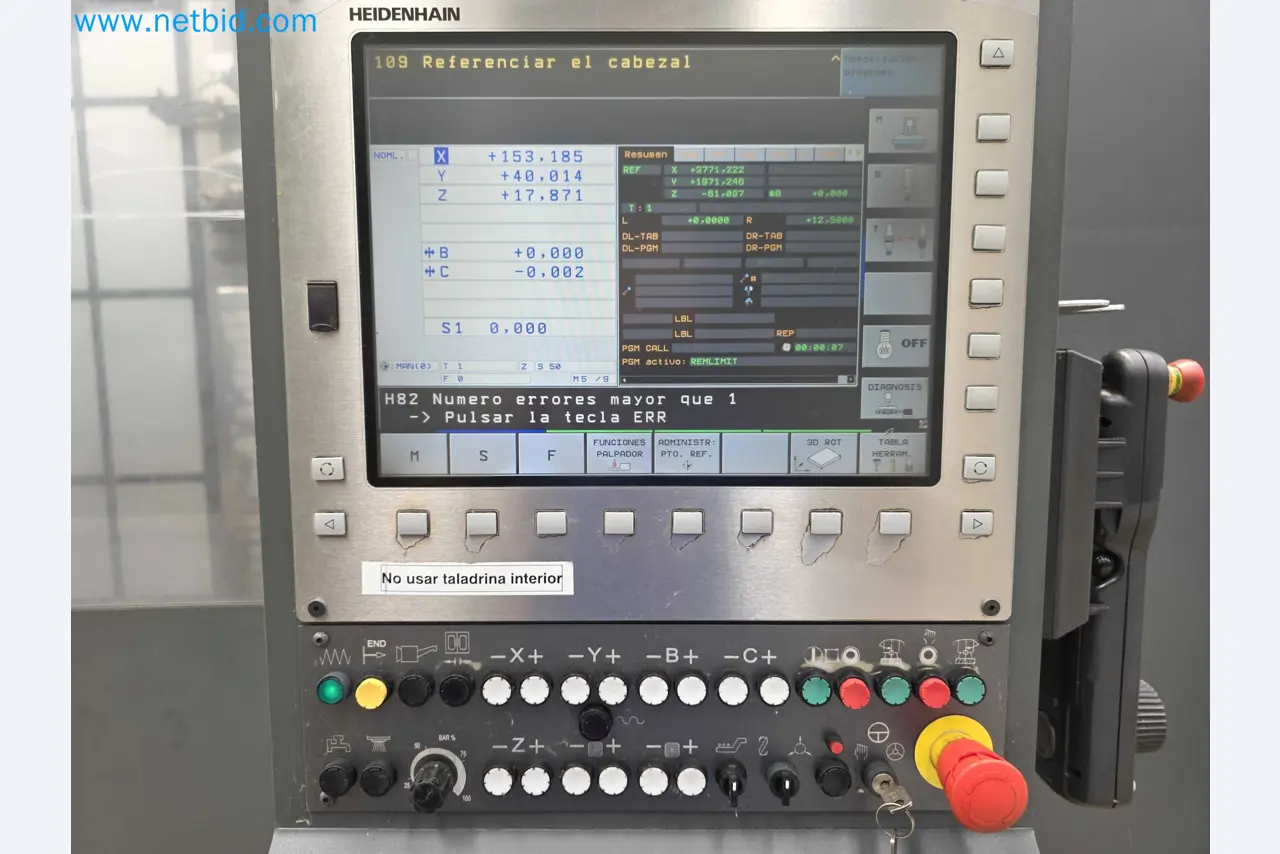

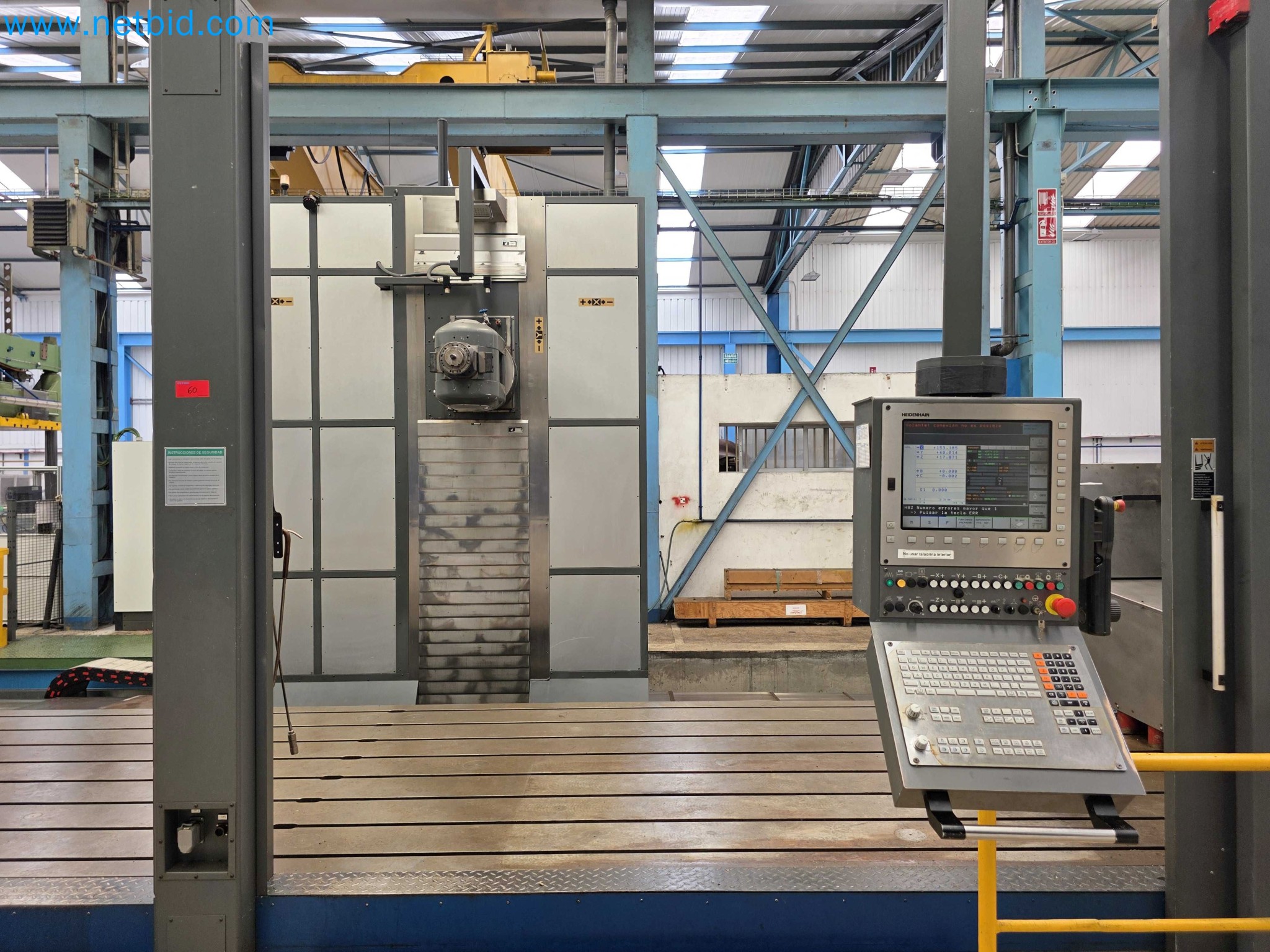

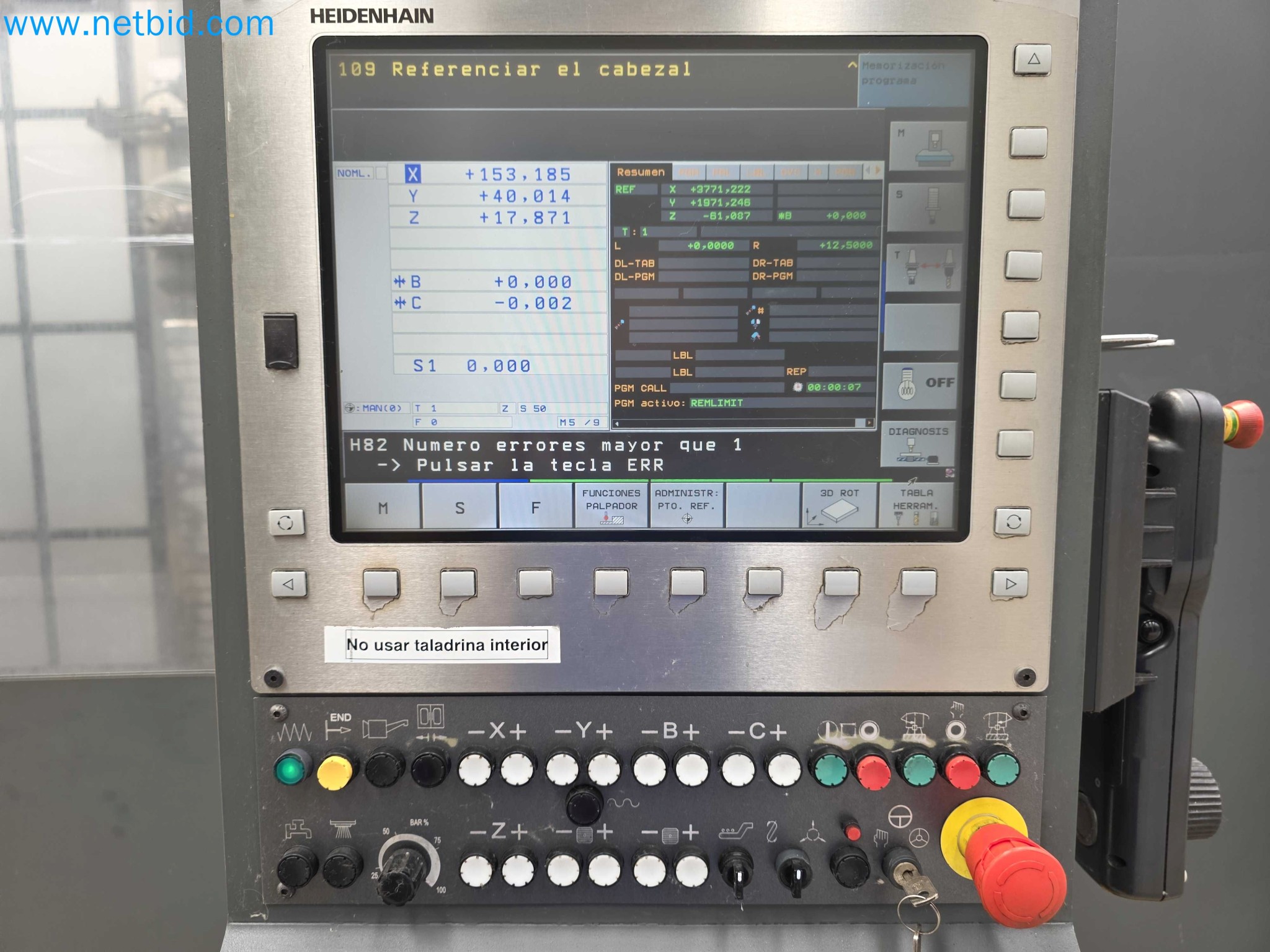

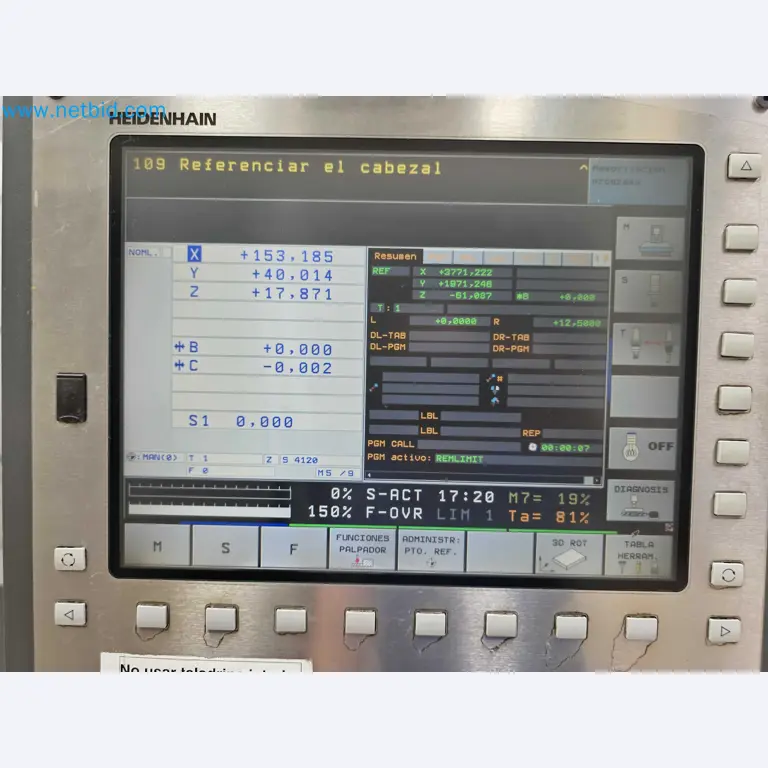

HEIDENHAIN iTNC 530 CNC control

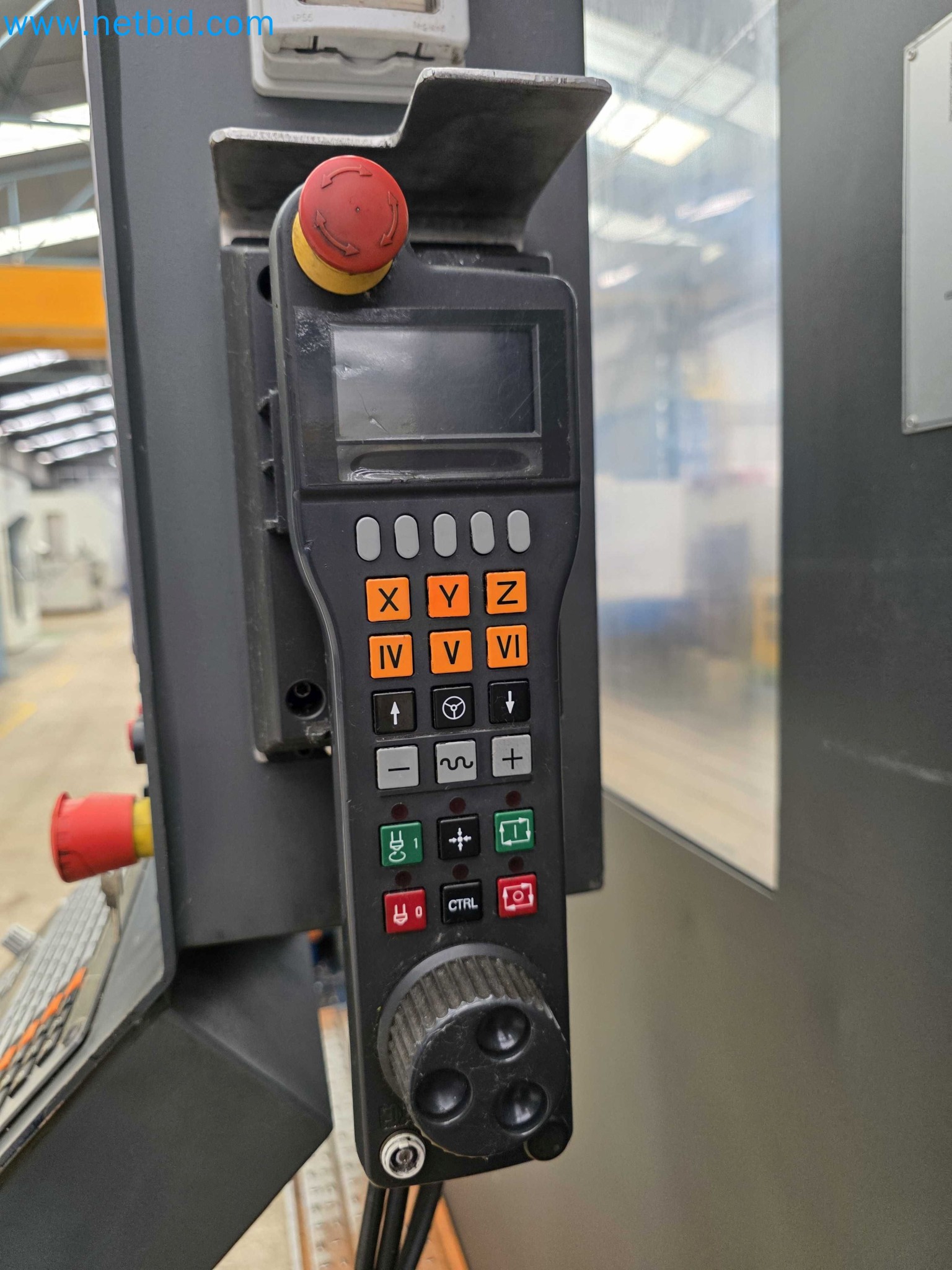

Pendant control station
Total power: 135 kW
CE compliant

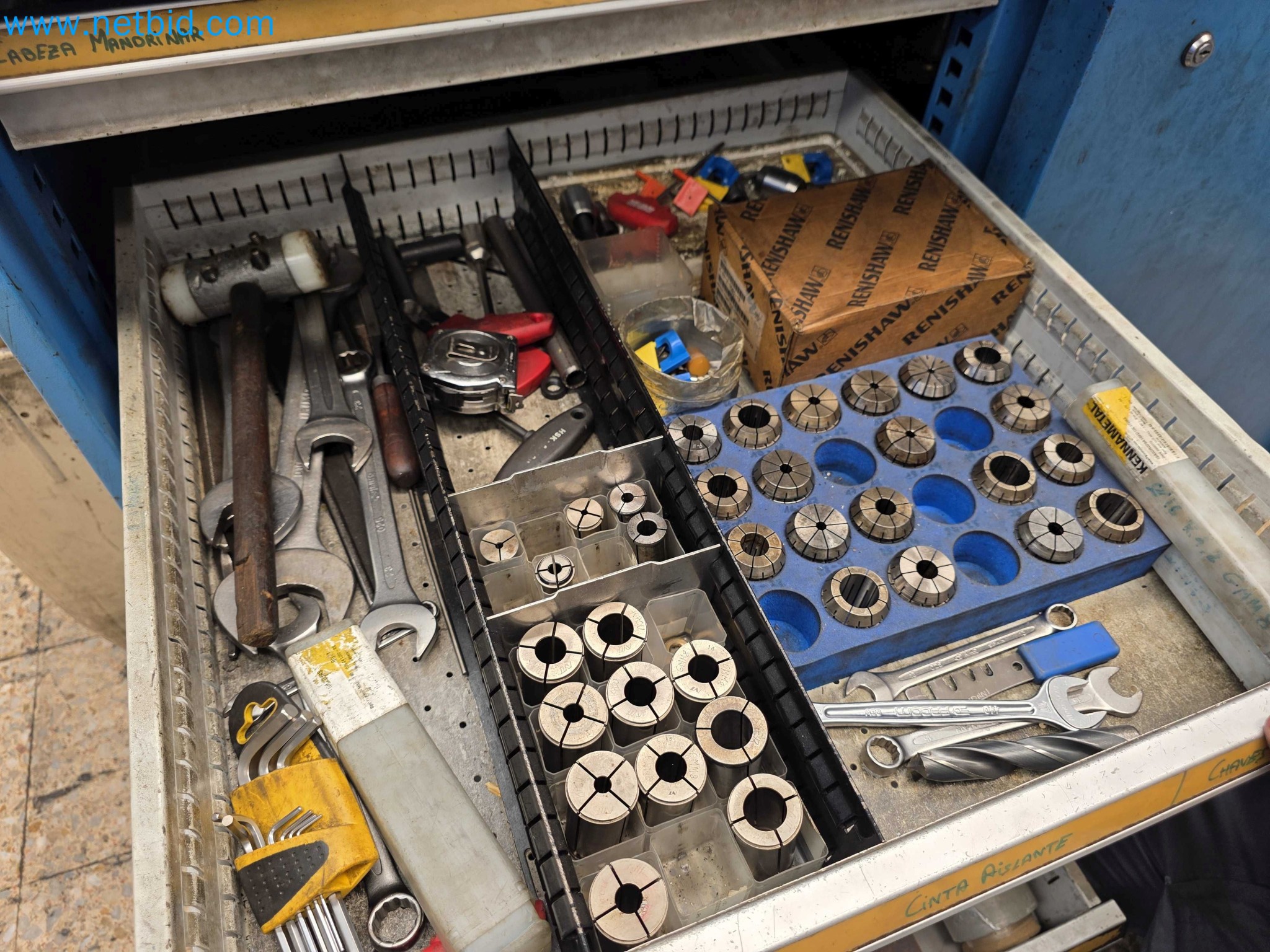

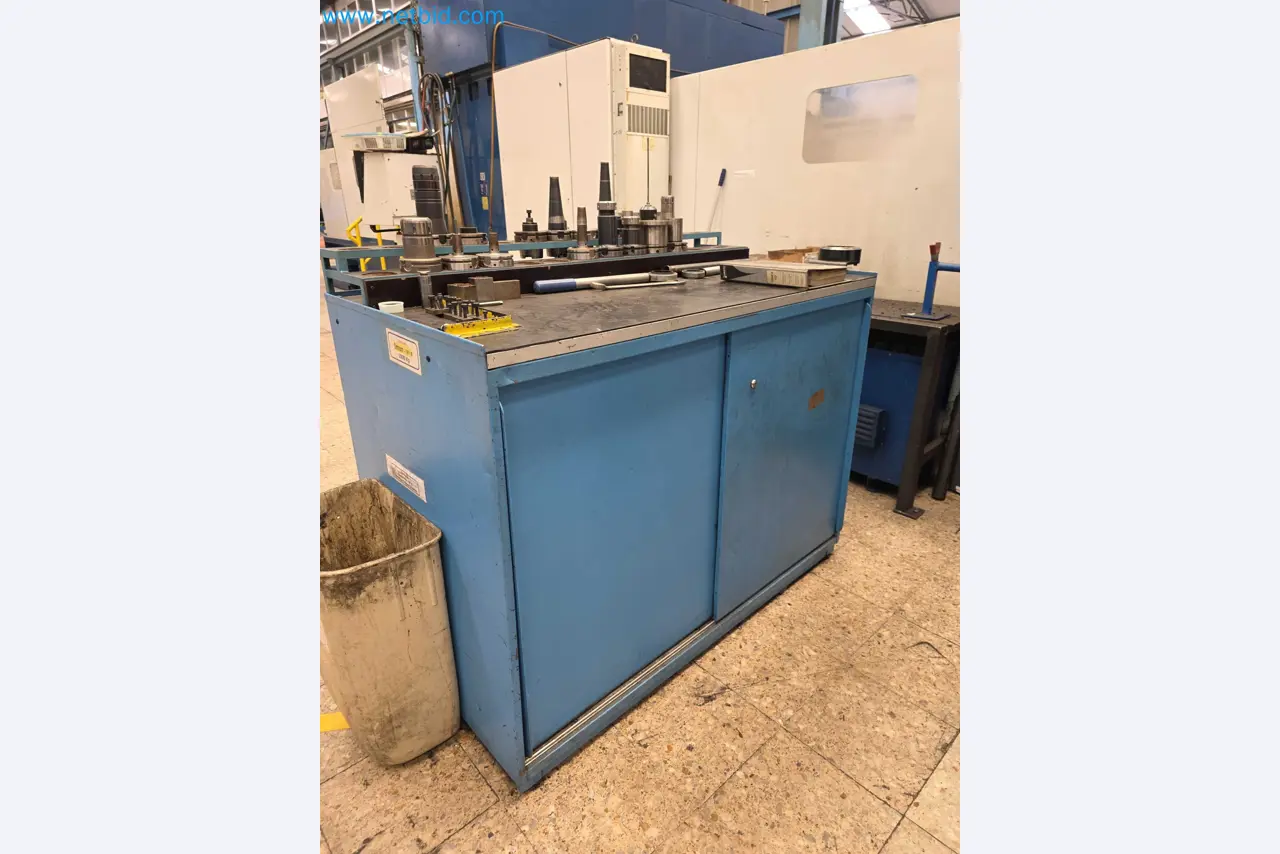

Workbench with tools included
Approximate weight: 26,500 kg
5-axis
Working table dimensions: 9000 x 1200 mm
Travels:
· X-axis: 8000 mm
· Y-axis: 1200 mm
· Z-axis: 2000 mm
· B-axis: +/- 92°
· C-axis: +/- 180°
Rapid traverse rates:
· X-axis: 28,000 mm/min
· Y/Z axes: 20,000 mm/min
Equipped with 2 working heads: TWIST head and Direct head
Working speeds:
· TWIST head: 12,000 rpm
· Direct head: 15,000 rpm
2 tool magazines with 40 positions each
Tool holders: HSK 100
Includes separator to divide the working area into 2 zones of approx. 4000 x 1200 mm
Includes RENISHAW probe and laser tool measurement system
Equipped with chip conveyor
Machine operating hours according to counter: 77,515 h
Working hours according to counter: 45,064 h
HEIDENHAIN iTNC 530 CNC control
Pendant control station
Total power: 135 kW
CE compliant
Workbench with tools included
Approximate weight: 26,500 kg
Location
- 15898 Santiago de Compostela
Dates
Inspection
October 14, 2026 – October 15, 2026
10:00 a.m. – 6:00 p.m.
In consultation with Mr. Fernández andfernandez@netbid.com.
Pickup
In consultation with Mr. Fernández andfernandez@netbid.com.
Auction Terms
Special conditions:
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
- The paid disassembly and loading for the items must be carried out exclusively by the chosen service provider. You will find the offered prices below in an attached PDF file (pick-up info).
- Personal protective equipment (safety shoes) must be brought along for viewing and collection!
- Several 32t overhead cranes are available on the site. Please contact our collague on the location site for more details, if needed.
- Collection should be carried out in accordance of our team's instructions, but should take place no later than end of 2026.
